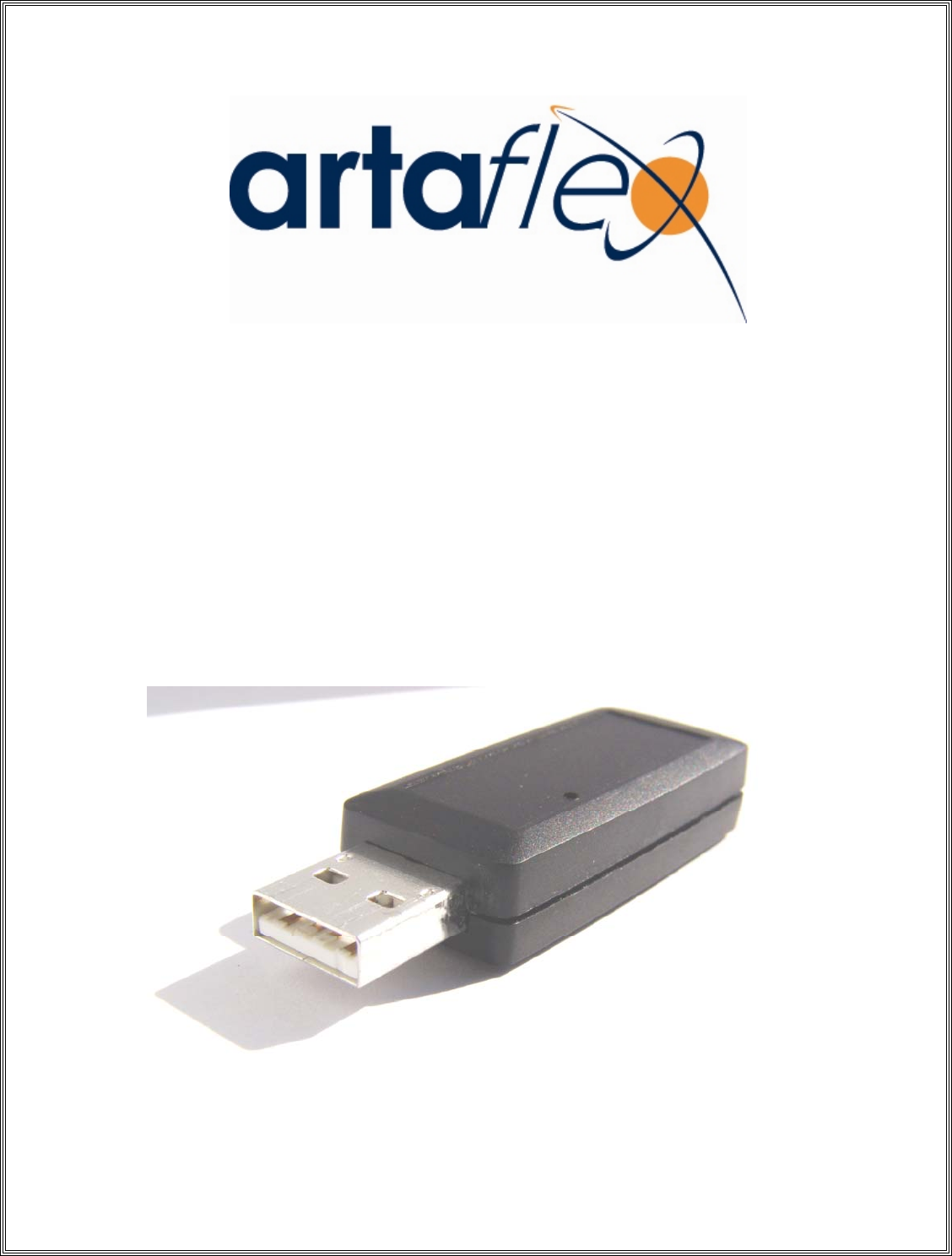

User Manual
AWP24U User Manual
DSAWP24U -DSSS USB Radio Dongle
UMAWP24U Rev 2v0
Revised Sep 6, 2007
User Manual
2.4GHz DSSS USB Radio Dongle AWP24U
Artaflex Inc. UMAWP24U Rev 2v1
215 Konrad Crescent Revised October 4, 2007
Markham, Ontario, Canada
L3R8T9 Page 2 of 4 http://www.artaflexmodules.com
905-479-0148

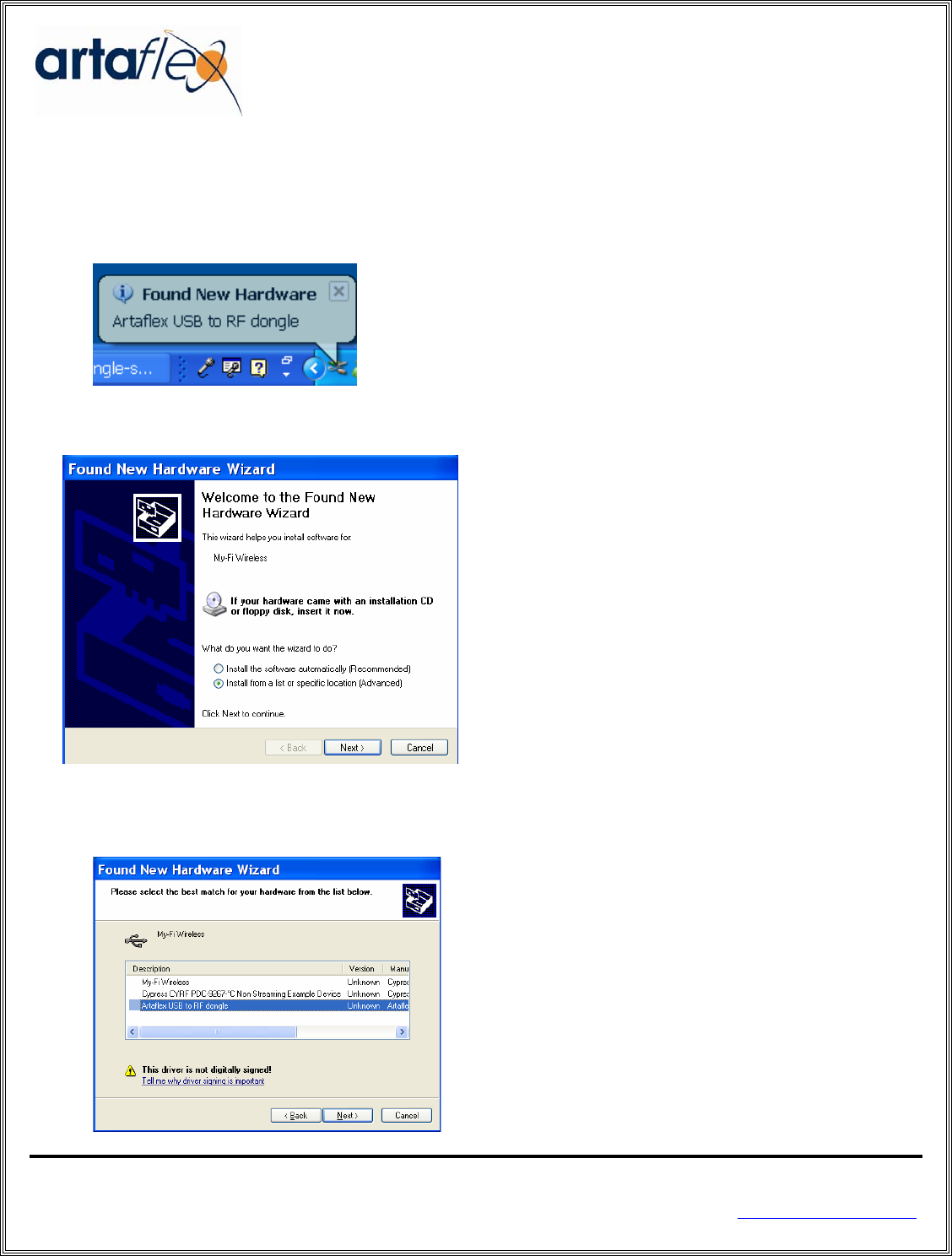

Wireless USB Radio Dongle Installation
1. Plug in the Artaflex USB dongle to any USB port, you will see the following message .
2. Once asked for the drivers please select “Install from a specific location” then Browse and select the
USB driver.
3. When asked for device selection please select “Artaflex USB to RF dongle” from the list
User Manual
2.4GHz DSSS USB Radio Dongle AWP24U
Artaflex Inc. UMAWP24U Rev 2v1
215 Konrad Crescent Revised October 4, 2007
Markham, Ontario, Canada
L3R8T9 Page 3 of 4 http://www.artaflexmodules.com
905-479-0148

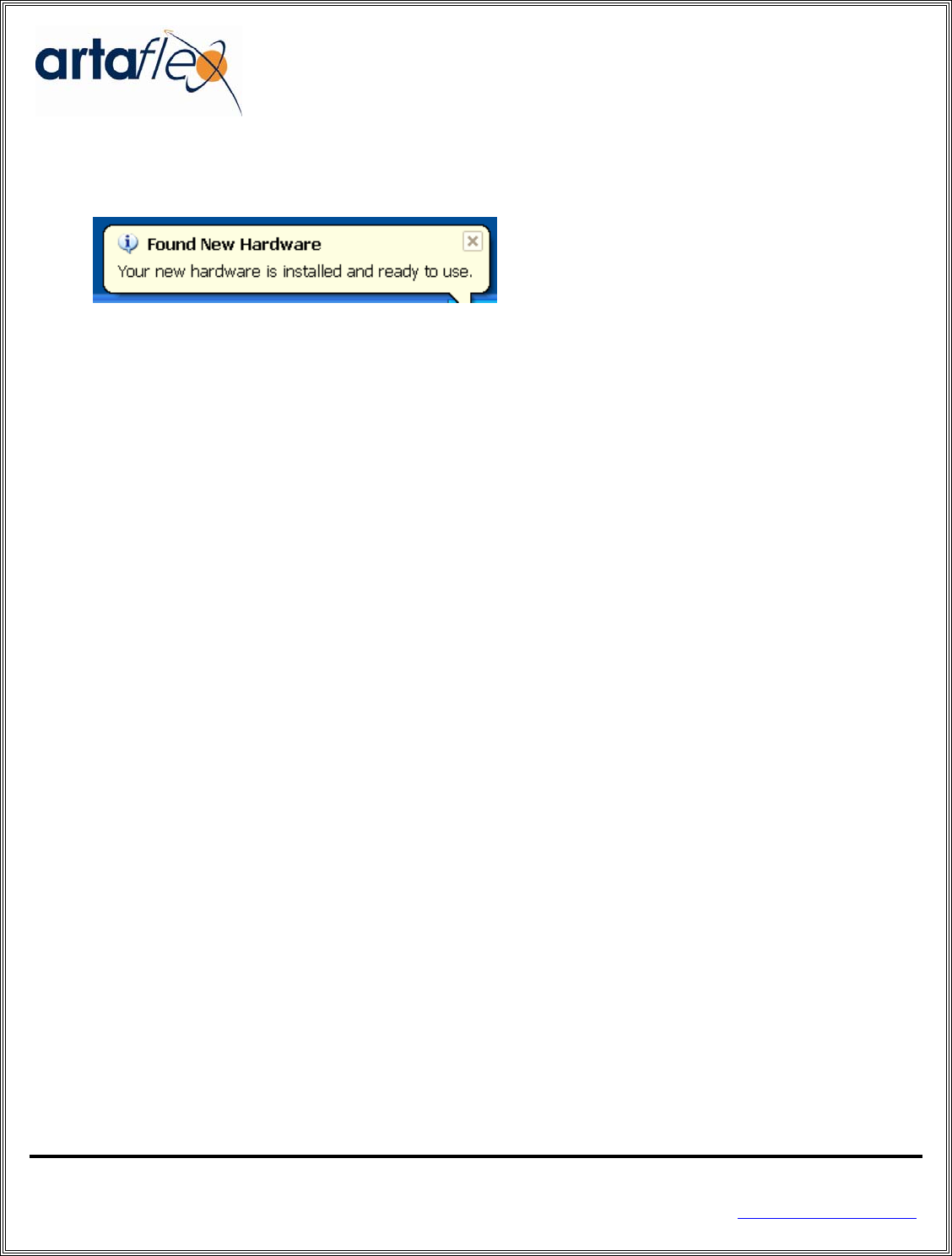

4. Once it is successfully installed, you will find the following message.
FCC Statement
One of the bottlenecks that many product developers encounter in incorporating any radio
communication device is facing the legal aspect of qualifying the products and going to market
without encountering legal problems. The Telecommunication Certification Body (TCB)
authorization process in the United States offers manufacturers more than one approval body. The
TCB authorization process certifies devices in accordance with FCC rules and policies. The
performance of the Artaflex AWP24U radio is measured according to the requirements of FCC
rules. The major applicable FCC regulations are described in Section 15.247 (a) to (d).
User Manual
2.4GHz DSSS USB Radio Dongle AWP24U
Artaflex Inc. UMAWP24U Rev 2v1
215 Konrad Crescent Revised October 4, 2007
Markham, Ontario, Canada
L3R8T9 Page 4 of 4 http://www.artaflexmodules.com
905-479-0148
This equipment has been tested and found to comply with the limits for a Class B digital device,
Pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Consult the dealer or an experienced radio/TV technician for help
Any changes or modification not expressly approved by the party responsible for compliance
could void the user's authority to operate the device. Where shielded interface cables have
been provided with the product or specified additional components or accessories elsewhere
defined to be used with the installation of the product, they must be used in order to ensure
compliance with FCC regulations.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
