WIRELESSMICROPHONEINSTRUCTIONMANUAL



INTRODUCTION

Thankyouforpurchasingthisunit.Beforetryingtouseit,besuretoreadthisinstruction

manualcarefully.Thenkeepthismanualinasafeplacesothatyoucanrefertoitwheneveryou

needtodoso.



WHAT’SINCLUDED

1) WirelessMicrophoneX1pc

2) ReceiverX1pc

3) InstructionManualX1pc



BATTERYPRECAUTIONS

WARNING

 Batteriesmustbeplacedunderadultsupervision.

 Useonlythesizeandtypeofbatteriesspecified.Theuseofalkalinebatteriesisrecommended.

 Donotuserechargeablebatteries.

 Placebatteriesbasedonthepolarityasindicatedinsidethebatterycompartment.Reversedbattery

maycausedamagetothedevice.

 DONOTmixdifferenttypesofbatteriesandDONOTmixnewandexhaustedbatteries.

 DONOTchargenon‐rechargeablebatteriesastheycanbeoverheatedandrupture.

 Whennotusingtheunitforaprolongedperiodoftime,pleaseremovethebatterytoavoidpossible

damagecausedbyaleakingbattery.

 DONOTshortcircuitthesupplyterminalsofthebattery.

 Exhaustedbatteriesmustberemovedfromtheproduct.

 DONOTthrowbatteriesintothefire.Theymayexplode.



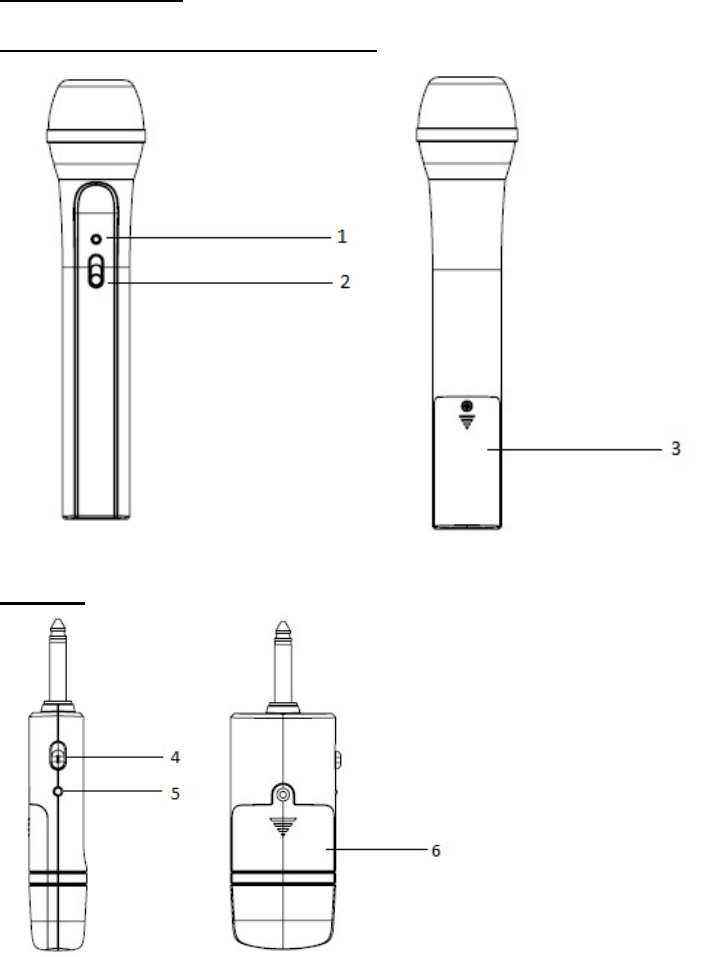

CONTROLLOCATION

MICROPHONE(HANDHELDTRANSMITTER)



FrontBack

RECEIVER



SideBack



1) IndicatorLight

2) ON/OFF/STANDBYSwitch

3) BatteryCompartment

4) ON/OFFSwitch

5) IndicatorLight

6) BatteryCompartment



MICROPHONESETTINGS

TheswitchontheWirelessMicrophonehasthreesettings:

1) ON–Theswitchisinthetopposition.Themicrophonewillfunction.Theredindicatorlightison.

Themicrophonewillusebatterypower.

2) STANDBY–Theswitchisinthemiddleposition.Themicrophonewillnotfunction.Thered

indicatorlightison.Themicrophonewillusebatterypower.

NOTE:Thepurposeofthissettingistomaintainaconnectionbetweenthemicrophoneandthe

receiverwhenmovingaroundtheareainwhichitisbeingused.

3) OFF–Theswitchisinthebottomposition.Themicrophonewillnotfunction.Theredindicator

lightisoff.Themicrophonewillnotusebatterypower.



ImportantNote:

WhenthemicrophoneswitchissettoOFF,noisemaybegeneratedfromthekaraokemachine.Please

makesuretoreduceboththeMASTERVOLUMEandMICVOLUMEtothelowlevelORswitchoffthe

receiverbeforeturningoffyourmicrophone.



OPERATION

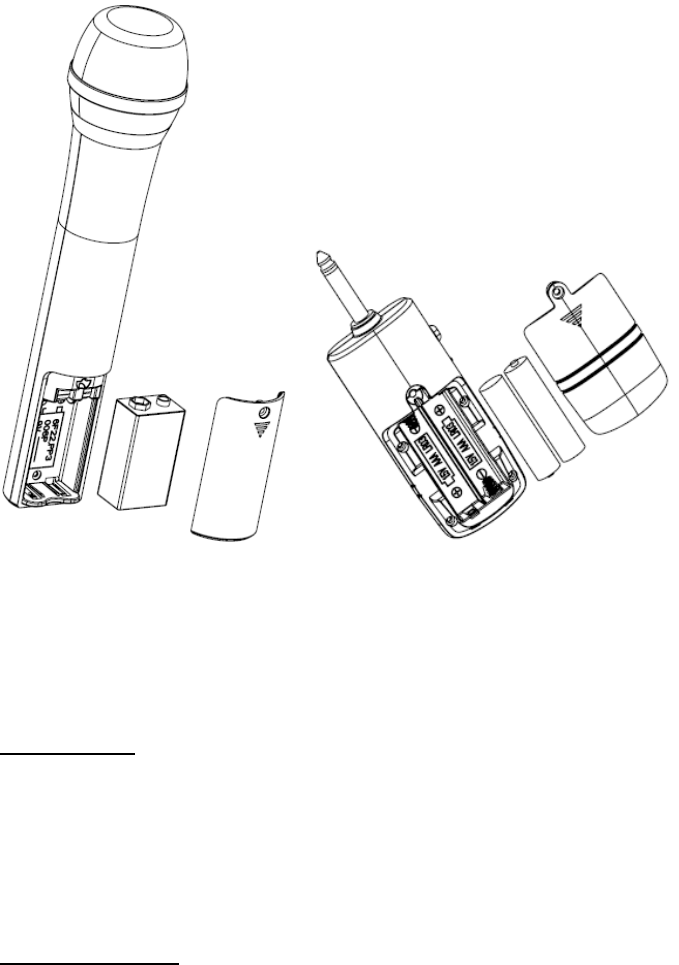

1) InsertoneactiveDC9‐Voltbatteryintothemicrophone(mustfollowthepolarityengraved

insidethebatterycompartment)byunscrewingthecoverofbatterycompartment.

2) Replacethebatterycompartmentcoverandtightenthescrew.

3) SettheswitchonthemicrophonetotheSTANDBYposition.

4) InserttwoactiveAAAbatteriesintothereceiver(mustfollowthepolarityengravedinsidethe

batterycompartment)byunscrewingthecoverofbatterycompartment.

5) Replacethebatterycompartmentcoverandtightenthescrew.

6) PlugthereceiverintotheMicrophoneInputJackofyourkaraokemachine.

7) SettheswitchonyourkaraokemachinetotheONposition.

8) AdjusttheMasterVolumeandMicVolumeControlsofyourkaraokemachinetoacomfortable

level.

9) SettheswitchonthereceivertotheONposition.

10) SettheswitchonthemicrophonetothetopONposition.YourWirelessMicrophoneisnow

readyforuse!



MicrophoneReceiver



Note:

Thereceiverisprovidedwithaflexiblewireantenna.Ifthereceptionisweak,extendtheantennato

improvereception.



MAINTENANCE

1) Toensurelongbatterylife,pleasemakesurethatboththeReceiverandtheMicrophoneareset

totheOFFpositionwhennotinuse.Tobeabsolutelycertain,weadviseyoutoremoveallthe

batteriesfromtheMicrophoneandReceiverwhentheyarenotinuse.

2) PleaseremovetheReceiverfromtheMicrophoneInputJackofyourkaraokemachinewhennot

inuse.ThiswillreducethepossibilityofdamagetotheReceiver.



TROUBLESHOOTING

1) PROBLEM:TheMicrophoneIndicatorLightisonbutthereisnosoundwhenIsing.

POINTSTOCHECK:

a) IstheMicrophoneSwitchsettoON?

b) IstheKaraokemachinecorrectlypluggedinandswitchedon?

c) AretheMicrophoneVolumeandMasterVolumecontrolsofyourkaraokemachinesettoa

highenoughlevel?

d) DoestheReceivercontaintwoAAAbatteries?Isitproperlyconnectedtoyourkaraoke

machineandisitturnedon?

2) PROBLEM:TheReceiverindicatorlightisonbutthereisnosoundwhenIsing.

POINTSTOCHECK:

a) IstheReceiverproperlyconnectedtothekaraokemachine?

b) IstheMicrophoneswitchsettoON?

c) DoestheMicrophonecontainone9‐Voltbattery?

d) IstheKaraokemachinecorrectlypluggedinandswitchedon?

e) AretheMicrophoneVolumeandMasterVolumecontrolsofthekaraokemachinesetto

highenoughlevel?

3) PROBLEM:ThekaraokemachineIamusingisswitchedonbutthereisnosoundwhenIsing.

POINTSTOCHECK:

a) IstheMicrophoneSwitchsettoON?

b) DoestheMicrophonecontainone9‐Voltbattery?

c) AretheMicrophoneVolumeandMasterVolumecontrolsofyourkaraokemachinesettoa

highenoughlevel?

d) DoestheReceivercontaintwoAAAbatteries?Isitproperlyconnectedtoyourkaraoke

machineandisitturnedon?



SPECIFICATIONS

TYPE‐54dB,600OHM

UNI‐DIRECTIONALDYNAMICMICROPHONE

POWERSOURCE9VBatteryx1pc(Microphone)

AAABatteryx2pcs(Receiver)

MICROPHONEDIMENSION23.8X5.0X5.0cm

9.4X2.0X2.0inches

RECEIVERDIMENSION12.5X4.2X2.2cm

4.9X1.7X0.9inches



WIRELESSMICROPHONEINFORMATION

Warning:Modifying,tamperingwith,oradjustingthisunit,orreplacinganytransmittercomponent

(crystal,semiconductor,etc.)mayresultinaviolationoftheFCCrules.



FCCNOTICE

ThiswirelessmicrophonesystemcomplieswithPart90ofFCCRules.Thereisonefrequencyavailablefor

thesystem.Youmustobtainalicenseforthefrequencyyouplantousebeforeoperatingyoursystem.

Visithttp://wireless.fcc.gov/uls/orcallyourlocalFCCofficetoapplyforyourlicense.Yourabilityto

obtainalicensewilldependonhowyouplantousethesystem.



ForRFexposure

“IMPORTANTNOTE:TocomplywiththeFCCRFexposurecompliancerequirements,nochangetothe

antennaorthedeviceispermitted.Anychangetotheantennaorthedevicecouldresultinthesystem

exceedingtheRFexposurerequirements.”



SAFETYINFORMATION

Yourwirelessmicrophonecontainsalowpowertransmitter.WhentheEUTispoweronanditsendsout

radiofrequency(RF)signals.InAugust1996,theFederalCommunicationsCommissions(FCC)adoptedRF

exposureguidelineswithsafetylevelsforwirelessdevices.



IMPORTANT

TomaintaincompliancewiththeFCC’sRFexposureguidelinesholdthetransmitterandantennaatleast

1inch(2.5centimeters)fromyourfaceandspeakinanormalvoice,withtheantennapointedupand

awayfromtheface.Ensurethattheantennaisatleast1inch(2.5centimeters)fromyourbodywhen

youusingyourwirelessmicrophone.

Useonlythesuppliedantenna.Unauthorizedantennas,modifications,orattachmentscoulddamagethe

transmitterandmayviolateFCCregulations.


