USERS MANUAL 2
www.philips.com/faqs/dect
3
Some of the following information may not apply to your
particular product; however, when using telephone equipment,
basic safety precautions should always be followed to reduce
the risk of fire, electric shock and injury to persons, including
the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners. Use a damp cloth
for cleaning.
4. Telephones should not be used while you are in a bathtub,
shower or pool. Immersion of the telephone or handset in
water could cause an electrical shock.
5. Slots and openings in the cabinet back or bottom are
provided for ventilation, to protect it from overheating. These
openings must not be blocked or covered. The openings should
never be blocked by placing the product on the bed, sofa, rug,
or other similar surface. This product should not be placed in a
built-in installation unless proper ventilation is provided.
6. This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supply to your home, consult your dealer or
local power company.
7. Do not allow anything to rest on the power cord. Do not
locate this product where the cord will be abused by persons
walking on it.
8. Do not overload wall outlets and extension cords as this can
result in the risk of fire or electric shock.
9. Never push objects of any kind into this product through
cabinet slots as they may touch dangerous voltage points or
short out parts that could result in a risk of fire or electric
shock. Never spill liquid of any kind on the product.
10. To reduce the risk of electric shock, do not disassemble
this product, but take it to a qualified service personnel when
service or repair work is required. Opening or removing covers
may expose you to dangerous voltages or other risks. Incorrect
reassembly can cause electric shock when the appliance is
subsequently used.
11. Do not expose the product to extreme temperatures such
as areas near a hot radiator or stove or in a hot car.
12. Do not place lighted candles, cigarettes, cigars, etc., on the
telephone.
13. Never touch uninsulated telephone wires or terminals
unless the telephone line has been disconnected at the network
interface.
14. Never install or modify telephone wiring during a lightning
storm.
15. Never install telephone jacks in wet locations unless the jack
is specifically designed for wet locations.
16. Use caution when installing or modifying telephone lines to
prevent electrical shock and/or fire.
17. Unplug this product from the wall outlet and refer servicing
to qualified service personnel under the following conditions:
A. When the power supply cord or plug is damaged or frayed.
B. If the product has been exposed to rain or water.
C. If the product does not operate normally by following the
operating instructions.
D. If the product’s cabinet has been damaged.
E. If the product exhibits a distinct change in performance.
18. Avoid using a telephone (other than a cordless type) during
an electrical storm. There may be a remote risk of electric
shock from lightning.
19. Do not use the telephone to report a gas leak in the vicinity
of the leak.
20. Do not place this product on an unstable cart, stand or
table.
The product may fall, causing serious damage to the product.
IF YOUR PRODUCT UTILIZES BATTERIES, THE
FOLLOWING ADDITIONAL PRECAUTIONS
SHOULD BE OBSERVED:
1. Use only the type and size of battery(ies) specified in the
user manual.
2. Do not dispose of the battery(ies) in fire. They may explode.
Check with local codes for possible special disposal instructions.
3. Do not open or mutilate the battery(ies). Released
electrolyte is corrosive and may cause damage to the eyes or
skin. It may be toxic if swallowed.
4. Exercise care in handling battery(ies) in order not to short
out the battery(ies) with conducting materials such as rings,
bracelets, and keys. The battery(ies) or conductor may overheat
and cause burns.
5. Do not attempt to recharge the battery(ies) provided with
or identified for use with this product that are not intended
to be charged. The battery(ies) may leak corrosive electrolyte
or explode.
6. Do not attempt to rejuvenate the battery(ies) provided with
or identified for use with this product by heating them. Sudden
release of the battery(ies) electrolyte may occur causing burns
or irritation to eyes or skin.
7. When replacing battery(ies), all batteries should be replaced
at the same time. Mixing fresh and discharged batteries could
increase internal cell pressure and rupture the discharged
battery(ies). (Applies to products employing more than one
separately replaceable primary battery.)
8. When inserting battery(ies) into this product, the proper
polarity or direction must be observed. Reverse insertion of
battery(ies) can cause charging, and that may result in leakage
or explosion.
9. Remove battery(ies) from this product if storing over 30 days
because the battery(ies) could leak and damage the product.
10. Discard “dead” battery(ies) as soon as possible since “dead’
batteries are more likely to leak in a product.
11. Do not store this product, or the battery(ies) provided with
or identified for use with this product, in high-temperature
areas.
Batteries that are stored in a freezer or refrigerator for the
purpose of extending shelf life should be protected from
condensation during storage and defrosting. Batteries should be
stabilized at room temperature prior to use after cold storage.
12. If your product uses rechargeable battery(ies), charge the
battery(ies) only in accordance with the instructions and
limitation specified in the User Manual.
SAVE THESE INSTRUCTIONS
ENVIRONMENT AND SAFETY
Important Safety Instructions
www.philips.com/faqs/dect
4
1 Environment and safety
Safety information: This telephone is not designed for making emergency telephone calls when the power fails. An
alternative should be made available for access to emergency calling.
Power requirements: The product requires an electrical supply of 120 volts, single phase alternating current,
excluding IT installations defined in standard UL 60950.
Battery requirements: The handset requires power source of two rechargeable NiMH batteries, size AAA 1.2V
650mAh (HR11/45).
WARNING! The electrical network is classified as dangerous according to criteria in the standard UL 60950. The
only way to power down this product is by unplugging the power supply from the electrical outlet. Ensure the electrical
outlet is located close to the apparatus and is always easily accessible.
Telephone connection: The voltage on the network is classified as TNV-3 (Telecommunication Network Voltages, as
defined in the standard UL 60950). Following a power cut, the call in progress is lost.
CAUTION: Users should ensure for their own protection that the electrical ground connections of the power utility,
telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be
particularly important in rural areas.
Environmental care: Please remember to observe the local regulations regarding the disposal of your packaging
materials, exhausted batteries and old phone and where possible promote their recycling.
Because the phone works by sending radio signals between the base unit and the handset, wearers of hearing aids may
experience interference in the form of a humming noise.
We advise that this phone should not be used near intensive care medical equipment, nor by persons with pacemakers.
Your phone can interfere with electrical equipment such as answering machines, TV and radio sets, clock radios and computers if
placed too close. It is recommended that you position the base unit at least one meter from such appliances.
CAUTION
Use only the mains adapter supplied with this telephone. Incorrect adapter polarity or voltage can
seriously damage the unit.
Base adapter Charger adapter
Input: 120 VAC 60 Hz Input: 120 VAC 60 Hz
Output: 9 VDC 300 mA Output: 9 VDC 150 mA
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. Never use non-
rechargeable batteries; use recommended type supplied with this telephone. NiMH batteries must be
disposed of in accordance with the applicable waste disposal regulations.
FCC CERTIFICATION NUMBER IS LOCATED ON THE CABINET BOTTOM
The term “IC:” before the certification number signifies that Industry Canada technical specifications
were met. This certification means that the equipment meets certain radio communications and
operational requirements.
environment and safety

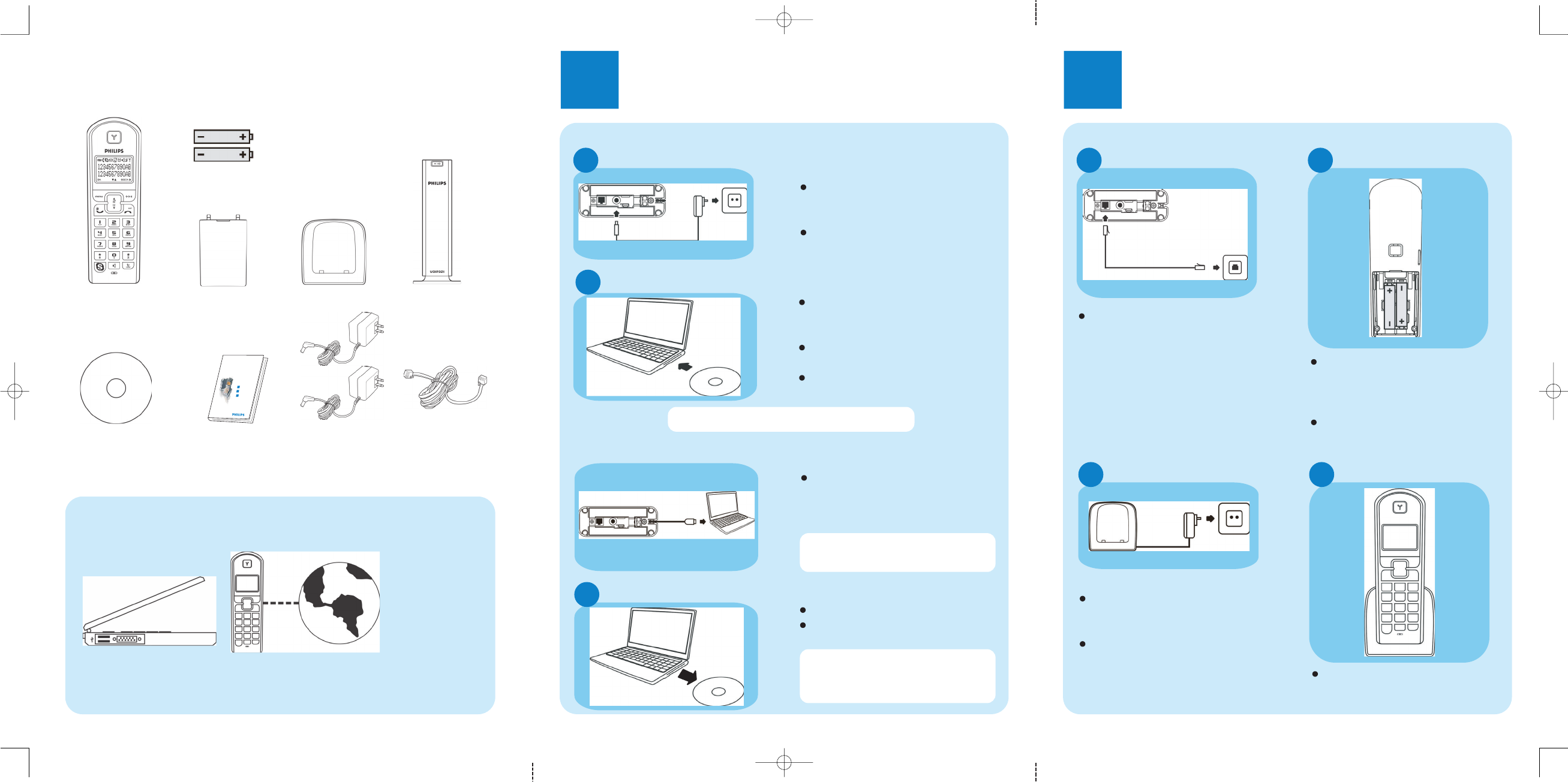

What’s in the box
What else will you need
Handset Charger
2 Power supply
units
Quick start guide
1
2
3
Connect
Install
Enjoy
Welcome
Quick start guide
Installation CDROM
Internet connec-
tion (broadband
recommended)
Skype installed on
your PC and a
Skype account
A desktop or a laptop
with free USB port
1Install
Install the software
Insert the installation CD into the
PC’s CD ROM (or DVDROM)
drive
The installation program will start
automatically
Follow instructions on the screen.
2Connect
Once the drivers and sofware installed !
Connect the line
A
Connect the telephone line cord
to the phone socket on the
bottom of the base unit and to
the plug (optional and country
dependent) then wall phone
socket.
1
7
5
9
2
5
8
2
1
1
1
3
Battery doorl
2 AAA battery
Base station
Line cord
Insert batteries
B
Place the 2 rechargeable NiMH
AAA batteries, observing their
polarities, into the battery
compartment on the handset.
Slide the battery door firmly into
place.
Connect the charger
C
Insert the plug of the power cord
into the socket on the bottom of
the charger.
Plug the power supply unit into
your power outlet.
Charge handset
D
Before first use, put the handset
on the charger and charge
batteries for 24 hours minimum.
A telephone line
In multipack sets you will find additional handsets, chargers with their power supply
and additional rechargeable batteries.
During the installation you will be asked to:
Connect USB plug
Connect the USB plug directly to
your PC’s USB slot.
Finish installation
C
Use the Skype version provided on
the installation CD for the handset
to work properly.
Click on Quit .
Remove the installation CD from
the PC’s CDROM.
Go on following instructions on
the screen.
Connect to main supply
Insert the plug of the power cord
into the socket on the bottom of
the base unit
Plug the power supply unit into
your power outlet.
A
B
Welcome
Quick start guide
1Install
2Connect
3Enjoy
Philips
Make and answer calls
A
●Press the line key and enter
the number to make a call.
OR
●Enter the number you want to
call and press the line key to
make a call.
●Press the line key to answer
a call.
3Enjoy
To end a call press or
place the phone on the charger.

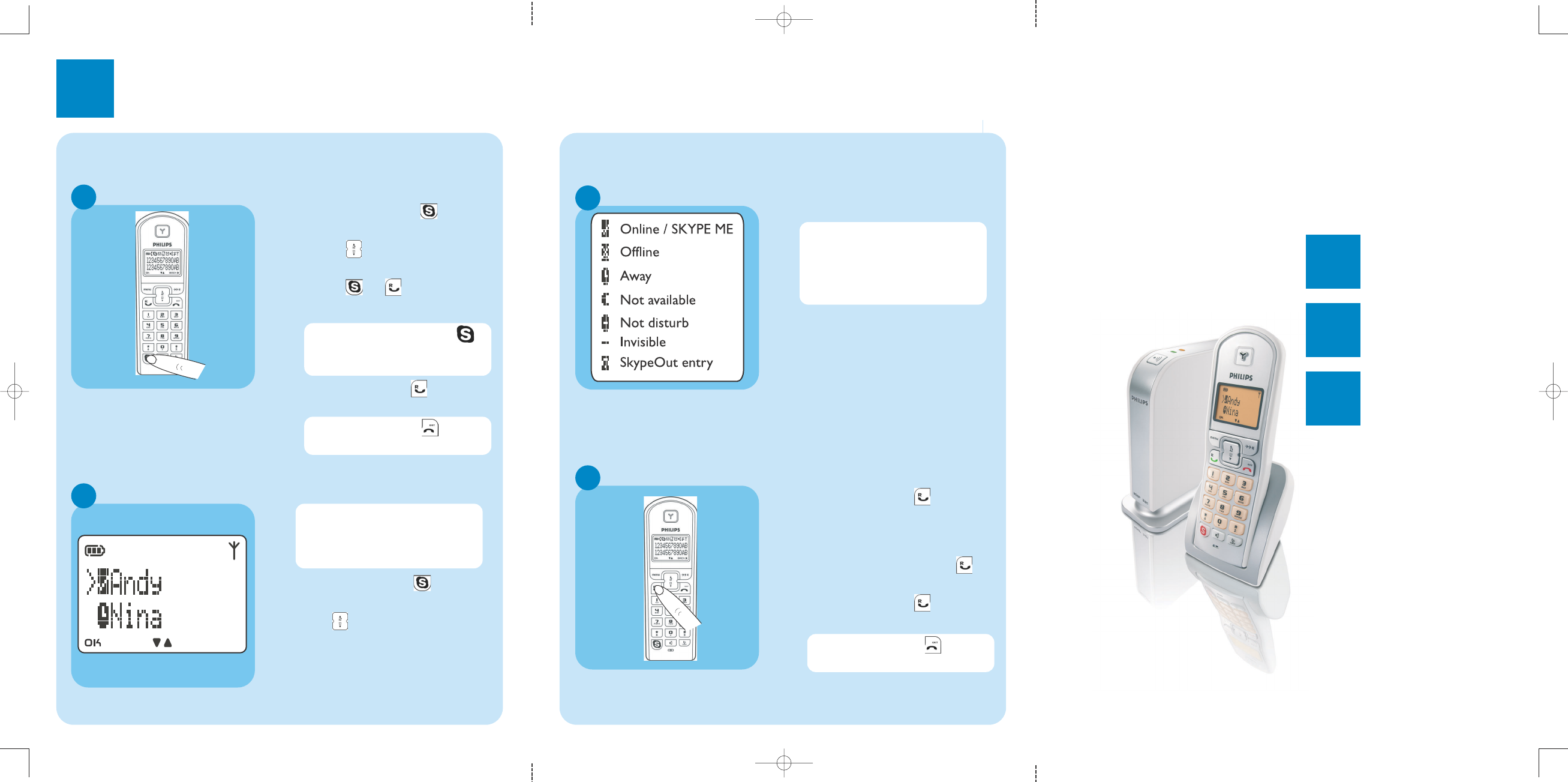

Landline calls
Make and answer calls
A
●Press the Skype key to access
your Skype Contacts list.
●Press to select the Skype
user
●Press or to call the
selected contact.
Use the contacts list
B
●Press the Skype key to access
your Skype Contacts list.
●Use to select the Skype
user.
●The symbol “>” placed before the
contact name indicates that this
entry is selected if you press OK.
Skype calls
CUser status display
On a Skype incoming call,
will flash on the display and Skype
ID will be displayed.
●Press the line key to answer
the call.
The contacts list shows the
Skype contacts list of the user
currently logged in to Skype on
the PC.
The icon of the left of each entry
shows the online status of that
entry.
Refer to the left table for the
description of each status.
To end a call press or
place the phone on the charger.
master QSG_VOIP321.qxp 12/01/2006 09:26 Page 2
www.philips.com/faqs/dect
34
Equipment Approval Information
Your telephone equipment is approved for connection to the Public Switched Telephone Network and is in compliance
with parts 15 and 68, FCC Rules and Regulations and the Technical Requirements for Telephone Terminal Equipment
published by ACTA.
Notification to the local telephone company
On the bottom of this equipment is a label indicating, among other information, the US number and Ringer Equivalence
Number (REN) for the equipment. You must, upon request, provide this information to your telephone company.
The REN is useful in determining the number of devices you may connect to your telephone line and still have all of
these devices ring when your telephone number is called. In most (but not all) areas, the sum of the RENs of all devices
connected to one line should not exceed 5. To be certain of the number of devices you may connect to your line as
determined by the REN, you should contact your local telephone company.
A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the
applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug
is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See
installation instructions for details.
Notes
• This equipment may not be used on coin service provided by the telephone company.
• Party lines are subject to state tariffs, and therefore, you may not be able to use your own telephone equipment if you
are on a party line. Check with your local telephone company.
• Notice must be given to the telephone company upon permanent disconnection of your telephone from your line.
• If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this
product does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult
your telephone company or a qualified installer.
Rights of the Phone Company
Should your equipment cause trouble on your line which may harm the telephone network, the telephone company
shall, where practicable, notify you that temporary discontinuance of service may be required. Where prior notice is
not practicable and the circumstances warrant such action, the telephone company may temporarily discontinue service
immediately. In case of such temporary discontinuance, the telephone company must:
(1) promptly notify you of such temporary discontinuance; (2) afford you the opportunity to correct the situation; and
(3) inform you of your right to bring a complaint to the Commission pursuant to procedures set forth in Subpart E of
Part 68, FCC Rules and Regulations.
The telephone company may make changes in its communications facilities, equipment, operations or procedures where
such action is required in the operation of its business and not inconsistent with FCC Rules and Regulations. If these
changes are expected to affect the use or performance of your telephone equipment, the telephone company must give
you adequate notice, in writing, to allow you to maintain uninterrupted service.
www.philips.com/faqs/dect
35
Interference Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference; and (2) This device must accept any interference received, including interfer-
ence that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference).
• Reorient or relocate and increase the separation between the telecommunications equipment and receiving antenna.
• Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving
antenna is connected.
If these measures do not eliminate the interference, please consult your dealer or an experienced radio/television tech-
nician for additional suggestions. Also, the Federal Communications Commission has prepared a helpful booklet, “How
To Identify and Resolve Radio/TV Interference Problems.” This booklet is available from the U.S. Government Printing
Office, Washington, D.C. 20402. Please specify stock number 004-000-00345-4 when ordering copies.
Noise
Electrical pulse noise is present at one time or another. This is most intense during electrical storms. Certain kinds
of electrical equipment, such as light dimmers, fluorescent bulbs, motors, fans, etc., also generate pulse noise. Because
radio frequencies are susceptible to this, you may on occasion hear pulse noise through the receiver. This is usually only
a minor annoyance and should not be interpreted as a defect of the unit.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equip-
ment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
For hand held operation, this phone has been tested and meets the FCC RF exposure guidelines. Use of other acces-
sories may not ensure compliance with FCC RF exposure guidelines.
Hearing Aid Compatibility (HAC)
This telephone system meets FCC and Industry Canada standards for Hearing Aid Compatibility.
www.philips.com/faqs/dect
36
Privacy
Privacy of communications may not be ensured when using this telephone.
Additional Information
I.C. Notice
Terminal Equipment
NOTICE: This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications.
This is confirmed by the registration number. The abbreviation, IC, before the registration number signifies that registra-
tion was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were
met. It does not imply that Industry Canada approved the equipment.
NOTICE: The Ringer Equivalence Number (REN) for this terminal equipment is marked on the equipment itself. The
REN assigned to each terminal equipment provides an indication of the maximum number of terminals allowed to be
connected to a telephone interface. The termination on an interface may consist of any combination of devices subject
only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed five.
Radio Equipment
The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Do not attempt to repair or modify this equipment
Repairs to certified equipment should be made by an authorized maintenance facility designated by the supplier. Any
repairs or alterations made by the user to the equipment may render the equipment void in product warranty and
compliance. This could also void the user’s authority to operate the equipment.
Service Centers
USA
Philips Consumer Electronics
P.O. Box 671539
Marietta, GA 30006-0026
Phone: 1-888-PHILIPS (744-5477)
Phone: 1-800-363-7278 (English)
Phone: 1-800-661-6162 (Francais)
CANADA
Philips - Consumer Service Division
4977 Levy Street
Ville St. Lurent,
Quebec H4R 2N9
Phone: 1-800-363-7278 (English)
Phone: 1-800-661-6162 (Francais)
