Ascalade Technologies FH24R16 2.4 GHz FHSS Conference Phone User Manual C004 OM R1 0 Olympia US
Ascalade Technologies, Inc. 2.4 GHz FHSS Conference Phone C004 OM R1 0 Olympia US
users manual
1
Owner’s Manual
(DRAFT)
OLYMPIA OL6010
2.4 GHz WDCT Conference Telephone
TABLE OF CONTENTS
IMPORTANT SAFETY INFORMATION
GETTING STARTED
Checklist of Parts

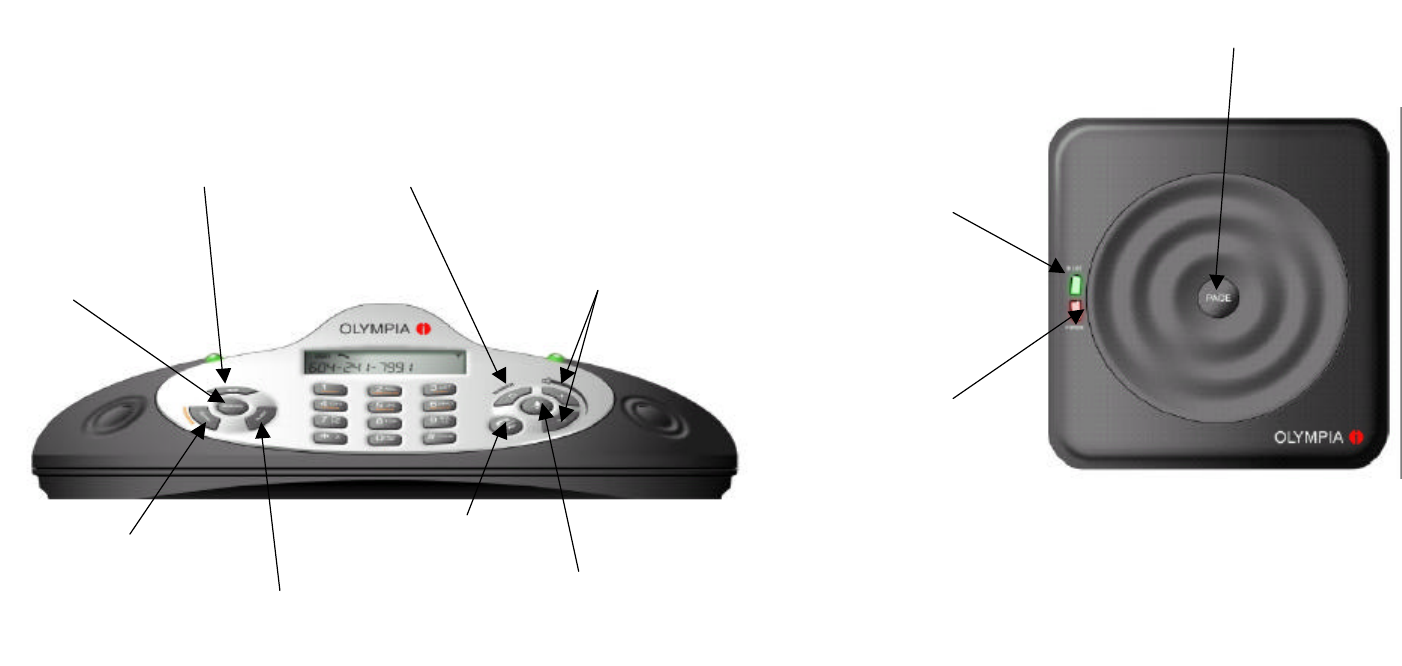

Your Conference Telephone
POD
Base
LCD Display on the POD
Phone Key
Basic Steps to Install
Charging the POD
To Ensure Better Performance
BASIC OPERATIONS
During Standby
Answering Calls

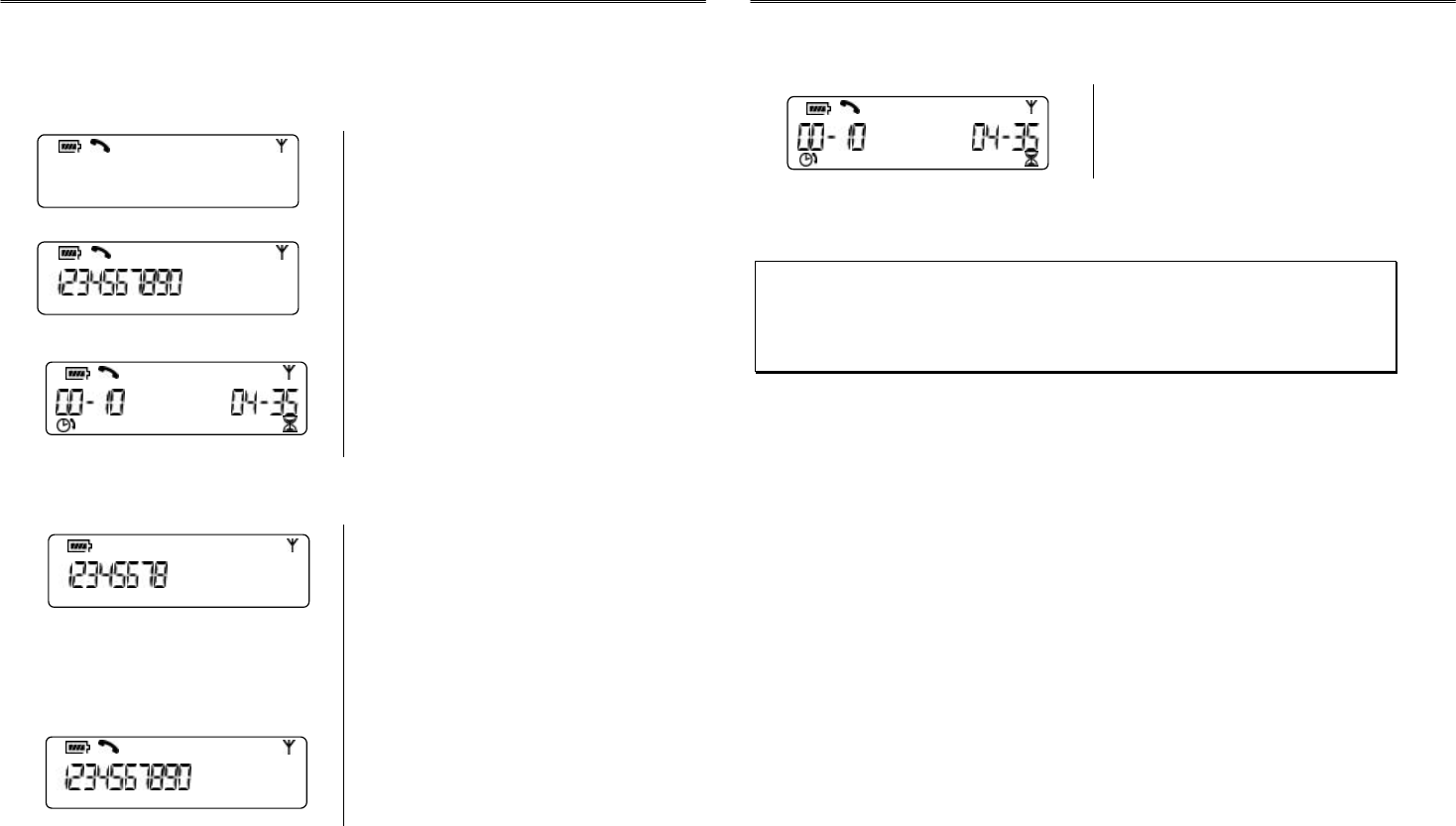

Making Calls
Traditional Dialing
Making Calls

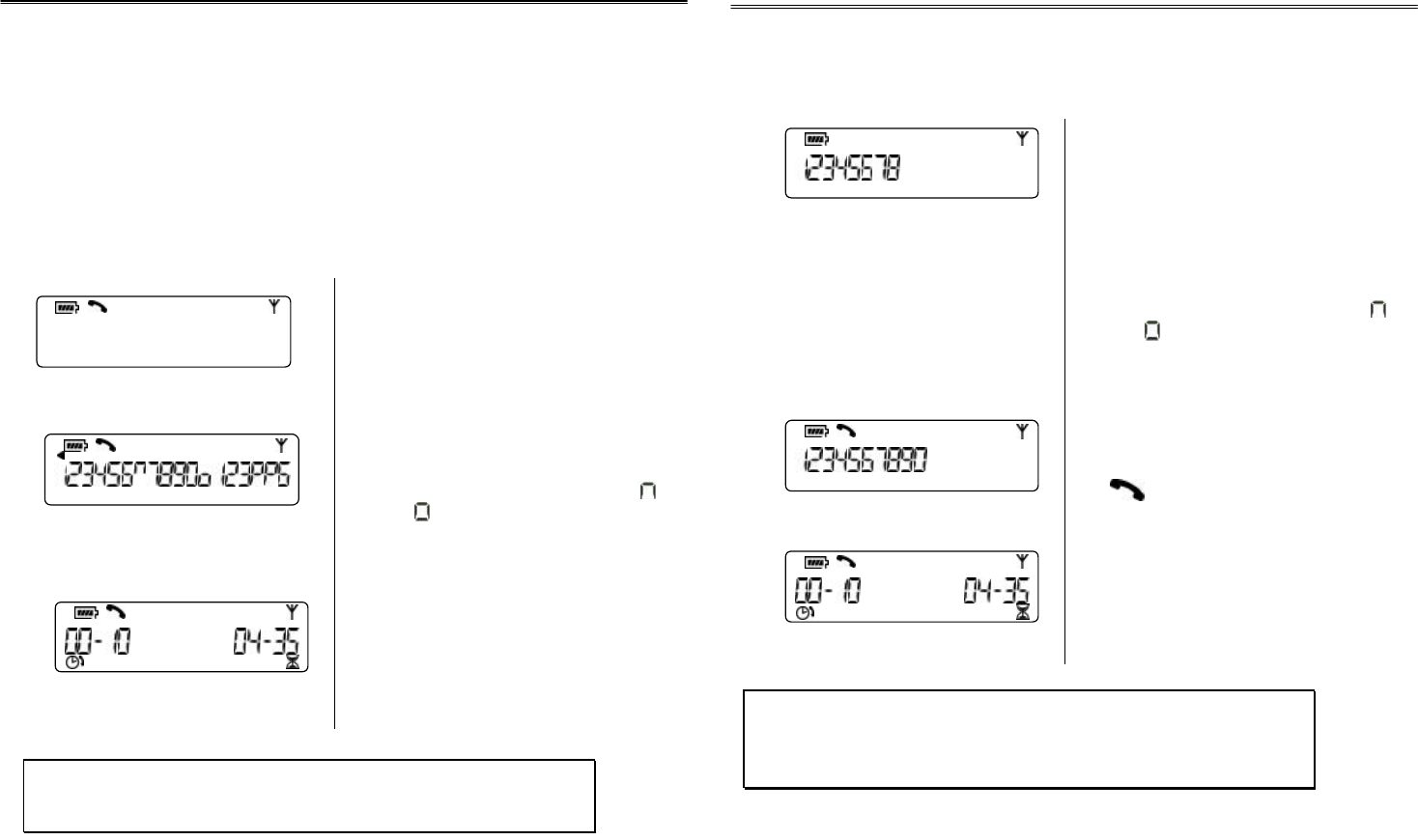

Predialing
Redialing
Use Traditional Dialing
Use Predialing

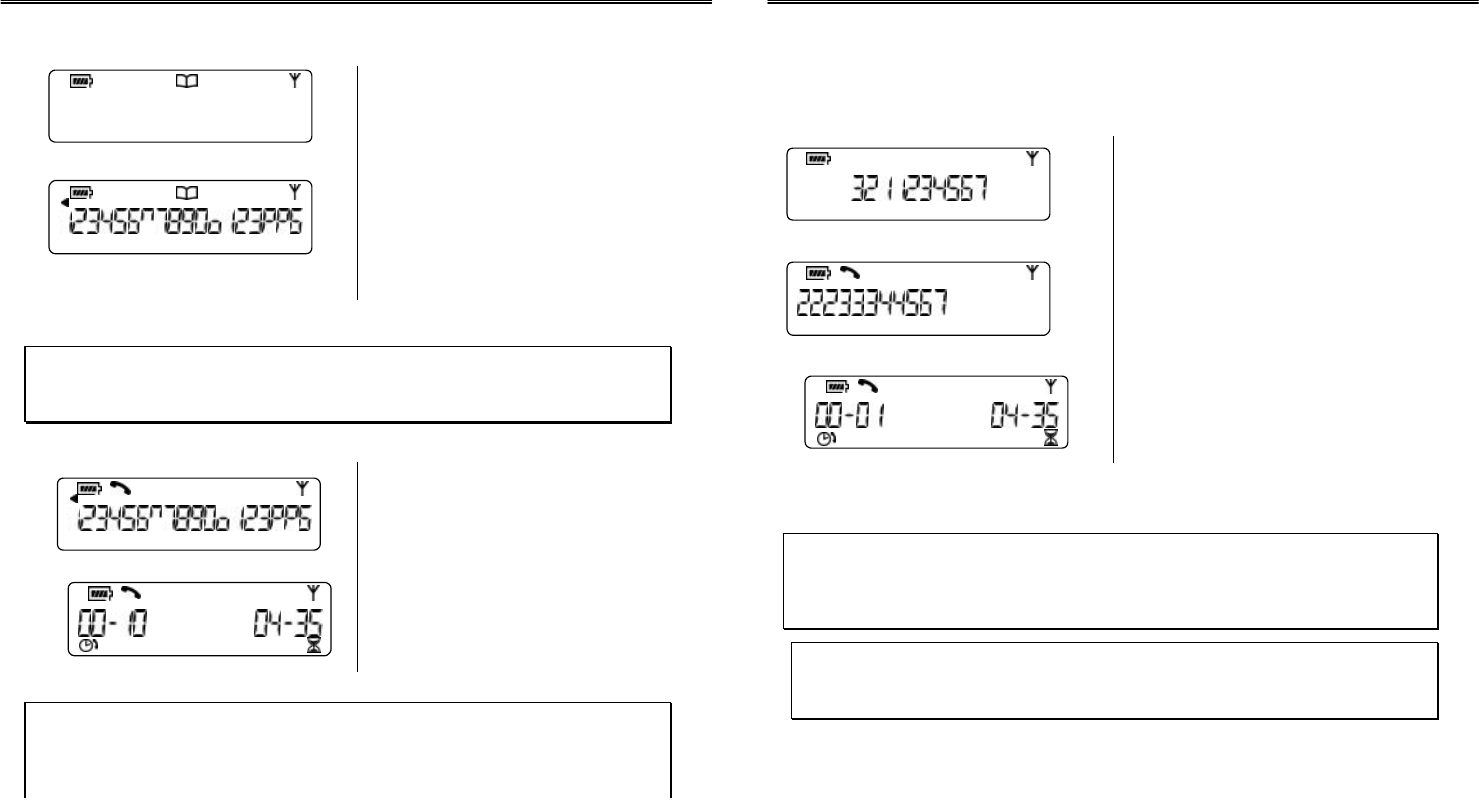

Phonebook Dialing
Use Traditional Dialing
Use Predialing
Services Dialing
Service Centre Quick Access

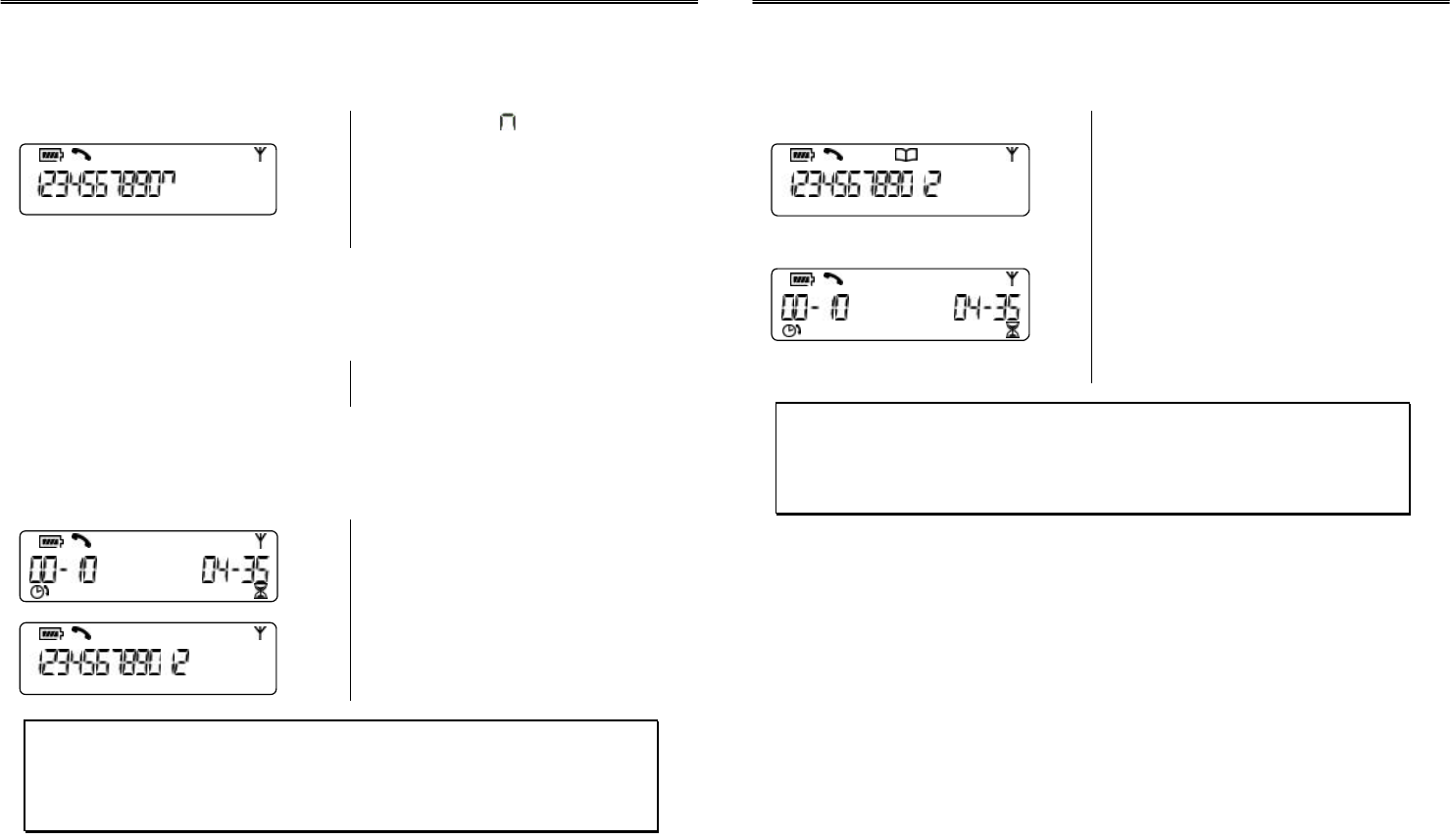

Things you can do during a call
Adjust Speaker Volume
Mute Call
Things you can do during a call
Change Dial Tone
Send Flash Signal
Dialing Extra Digits
Things you can do during a call
Dialing from Phonebook Record
Things you can do during a call
Displaying User Phone Number
Ringer Volume
Adjusting Ringer Volume
2
Ringer On/Off Shortcut
Add New Number in Phonebook
Programming
Start Programming
Programming
Ringer Melody
Programming
Dialing Mode
Flash Duration
Programming
User Phone Number
Programming
Network Services Number
Programming
Service Centre Number
Programming
Default Setting
Additional Features
Call Recording
Out of Range
Paging
Additional Features
Low Battery

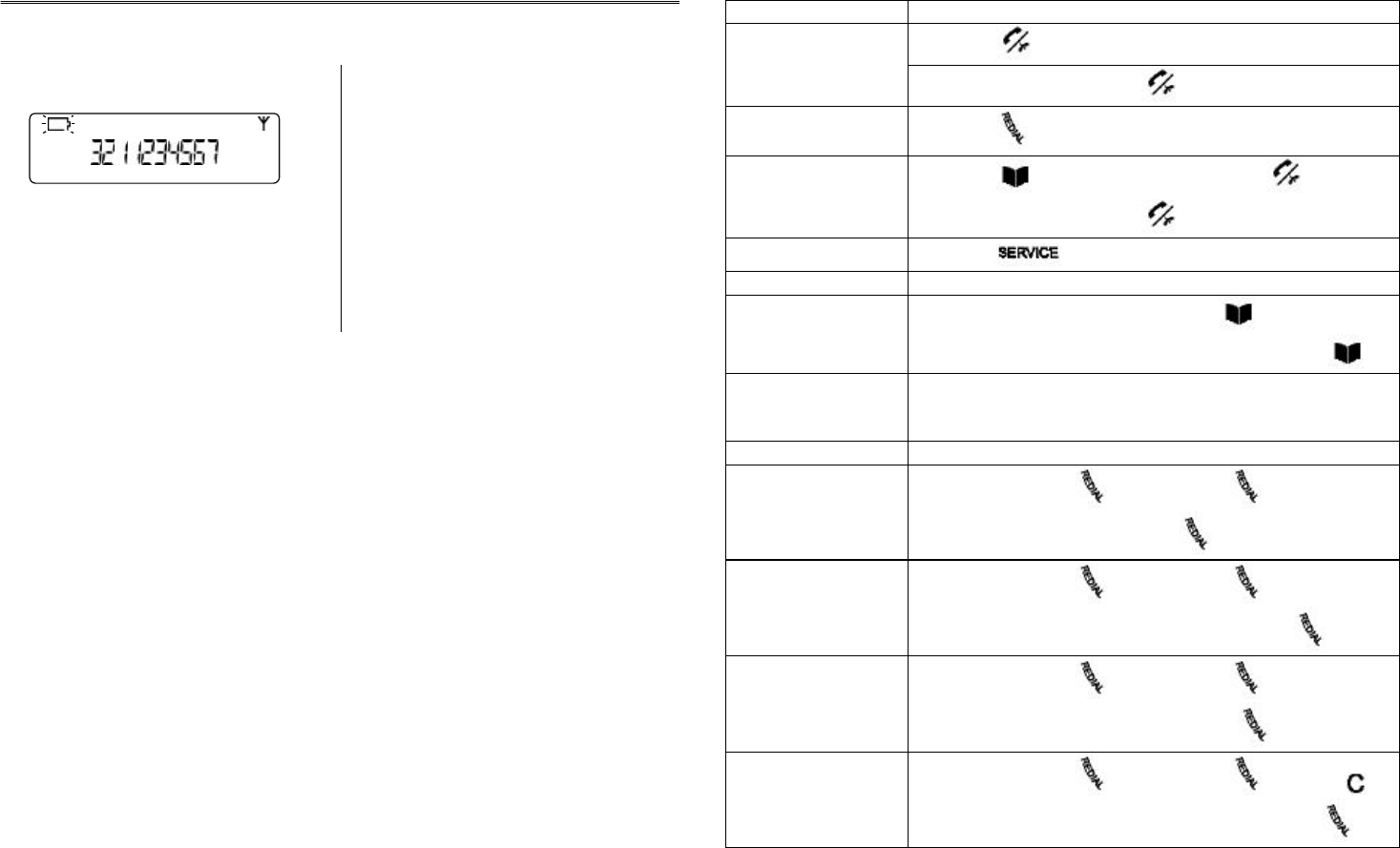

QUICK REFERENCE GUIDE
QUICK REFERENCE GUIDE
TROUBLE SHOOTING
TECHNICAL DATA
TECHNICAL INFORMATON
3
This telephone is not designed for making emergency telephone calls when
the power fails. Make alternative arrangements for access to emergency
services.
IMPORTANT SAFETY INFORMATION
BEFORE USING YOUR TELEPHONE EQUIPMENT, BASIC SAFETY
PRECAUTIONS SHOUD ALWAYS BE FOLLOWED TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK AND INJURY, INCLUDING THE
FOLLOWING.
• Read and understand all instructions.
• Follow all warnings and instructions marked on the product.
• Unplug this product from the wall outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
• Do not use this product near water, for example, near a bathtub,
washbowl, kitchen sink, or laundry tub, in a wet basement, or near a
swimming pool.
• Do not place this product on an unstable cart, stand, or table. The
product may fall, causing serious damage to the product.
• Slots and openings in the cabinet and the back or bottom are provided
for ventilation, to protect it from overheating, these openings must not
be blocked or covered. The openings should never be blocked by
placing the product on the bed, sofa, rug, or other similar surface.
• This product should never be placed near or over a radiator or heat
register. This product should not be placed in a built-in installation
unless proper ventilation is provided.
• This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power
supply to your office, consult your dealer or local power company.
• Do not allow anything to rest on the power cord. Do not locate this
product where the cord will be abused by persons walking on it.
• Do not overload wall outlets and extension cords as this can result in
the risk of fire or electric shock.
• Never push objects of any kind into this product through cabinet slots
as they may touch dangerous voltage points or short out parts that
could result in a risk of fire or electric shock. Never spill liquid of any
kind on the product.
• To reduce the risk of electric shock, do not disassemble this product.
Take the product to a qualified serviceman when it requires repair work
or service. Opening or removing covers may expose you to dangerous
voltages or other risks. Incorrect reassembly can cause electric shock
during subsequent use.
• Unplug this product form the wall outlet and battery source and refer
servicing to qualified service personnel under the following conditions:
a. When the power supply cord or plug is damaged or frayed.
b. If liquid has been spilled into the product.
c. If the product does not operate normally by following the operating
instructions.
d. If the product has been dropped or the cabinet has been damaged.
e. If the product exhibits a distinct change in performance.
• Avoid using a telephone during an electrical storm. There may be a
remote risk of electric shock from lightning.
• Do not use this product to report a gas leak in the vicinity of the leak.
4
To reduce the risk of fire or injury to persons, read and follow these
instructions:
TELEPHONE WIRING AND JACK INSTALLATION
• Use caution when installing or modifying telephone lines.
• Never install telephone wiring during an electrical storm.
• Never install telephone jacks in wet locations unless the jack is
specifically designed for wet locations.
• Never touch un-installed telephone wires or terminals unless the
telephone line is disconnected at the network interface.
SAFETY INSTRUCTIONS FOR POD BATTERY PACK
Danger of explosion if battery is incorrectly replaced. Use only an
Olympia Phone approved battery pack in the POD of your OL6010
Conference Telephone. To reduce the risk of fire or injury, always
do the following when replacing, discarding, or charging battery.
When handling the batteries, be careful not to short the battery
with conducting materials such as rings, bracelets, and keys. The
battery or conducting material may overheat and cause burns.
Use only the following type and size of battery pack:
FOR POD UNIT:
NiMH rechargeable battery 7.2 V 1800 mAh
• Do not dispose of the battery in a fire. The cell may explode. Check
with local codes for possible special disposal instructions.
• Do not open or mutilate the battery. Released electrolyte is
corrosive and may cause damage to the eyes or skin. It may be
toxic if swallowed.
• Exercise care in handling batteries in order not to short the battery
with conducting materials such as rings, bracelets and keys. The
battery or conductor may overheat and cause burns.
• Charge the batteries provided with or identified for use with this
product only in accordance with the instructions and limitations
specified in this manual.
• Observe proper polarity orientation between the battery(ies) and
battery charger.
• Do not mix old and new batteries in this product.
• Do not mix batteries of different sizes or from different manufacturers
in this product.
SAVE THESE INSTRUCTIONS
UNIT CONTAINS NICKEL-METAL HYDRIDE
BATTERY. BATTERY MUST BE RECYCLED
OR DISPOSED OF PROPERLY.
5
GETTING STARTED

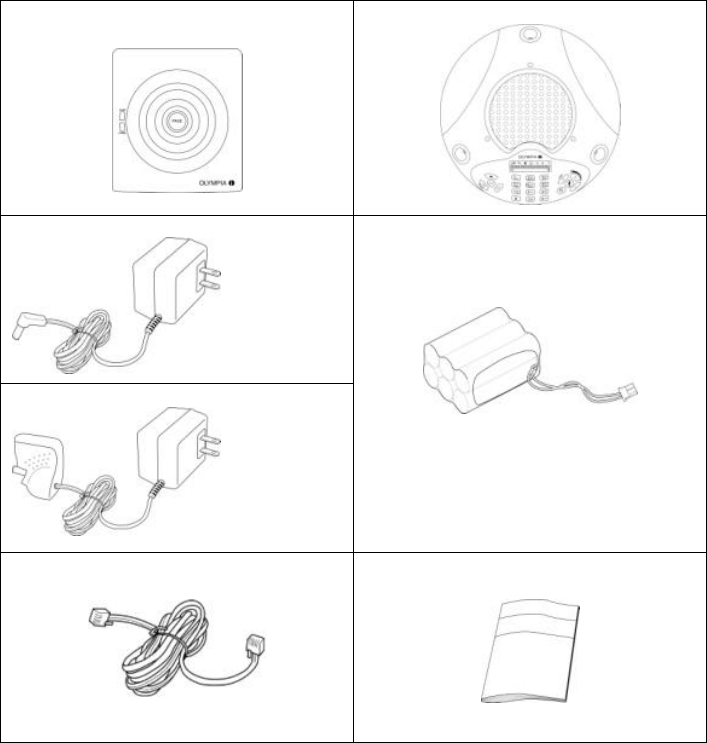

Checklist of Parts
This package should contain the following:
Base
POD
Base Adapter
AD04
Charging Adapter for POD
AD05
Battery
GP180AAH6YML
Telephone Line
User’s Guide
If any of these are missing, please contact help line 1-866-537-0384.
6
Your Conference Telephone
POD
Base
Redial / Program
Press to dial last number
dialed. Press and hold to
access programming
functions
Flash
Press to send flash signal
during a call
Clear / Number
During dialing/programming, press to clear previous digit; or
press and hold to delete the entire string of numbers.
Press once to exit programming/phonebook/redial review.
Press and hold to exit to Standby from programming mode.
Press to display your own phone number when the phone is
not in use.
Phone Book
Press for phonebook dialing
during a call. Press and hold to
program phonebook entries and
for phonebook dialing
Service
Press to access network service
directly
Up/Down
Press increase/decrease ringer volume.
Press to increase/decrease speaker
volume during a call.
Phone
Press to seize the line or to
hang up at the end of a call Mute
Press to mute and unmute
microphones during a call
Page
Press to page POD if you want to find the
misplaced POD.
In Use LED
Flashes during incoming call and
steadily lit when the phone is in use.
Power LED
Steadily lit when power is connected to
the base.
7

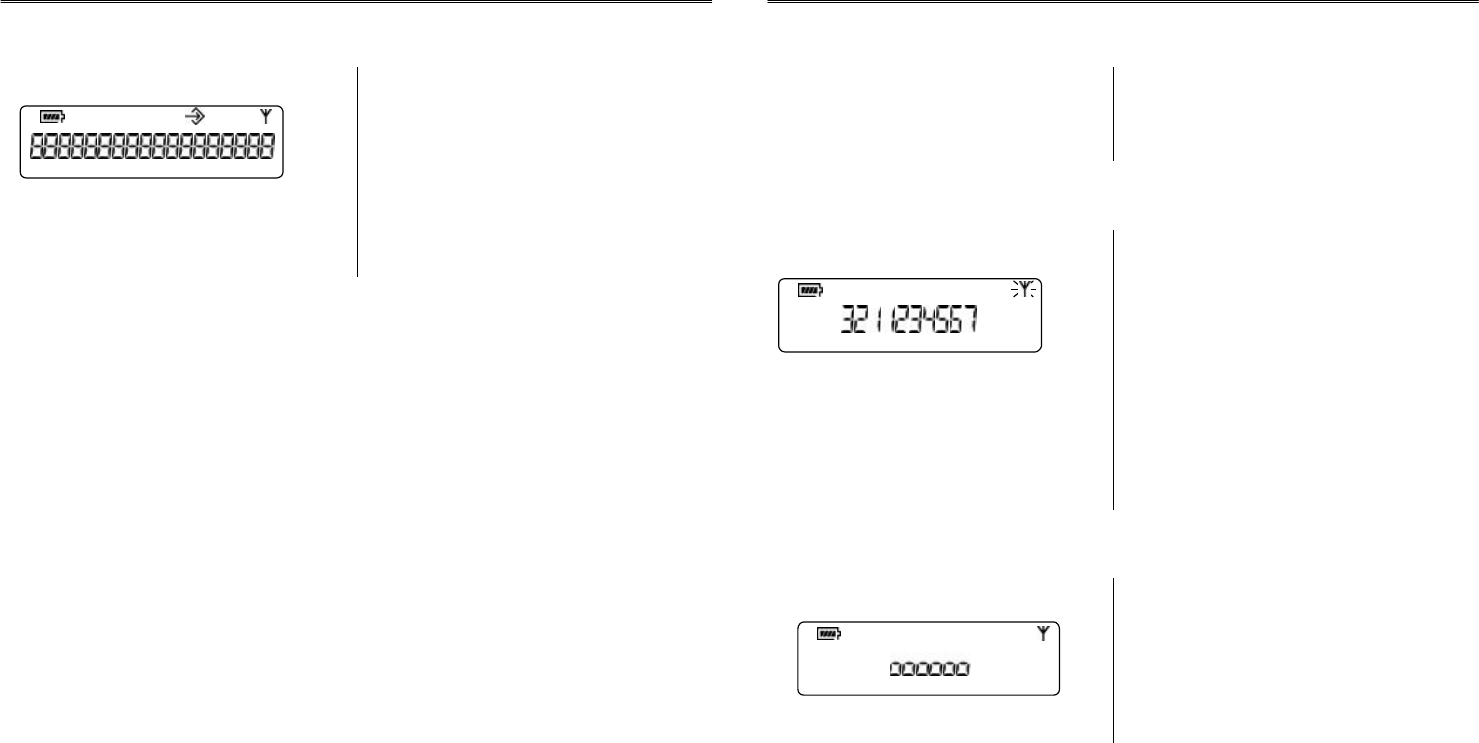

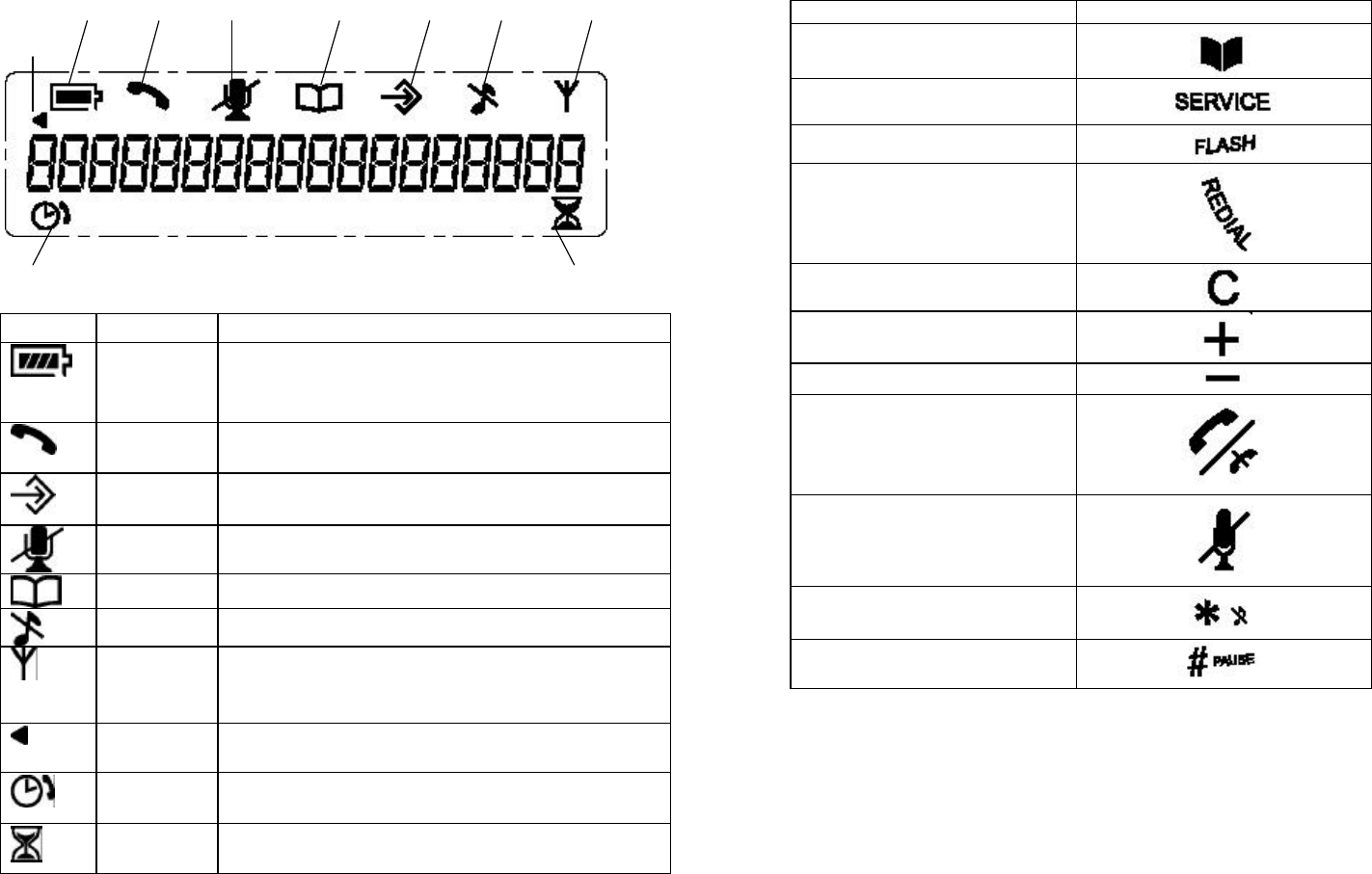

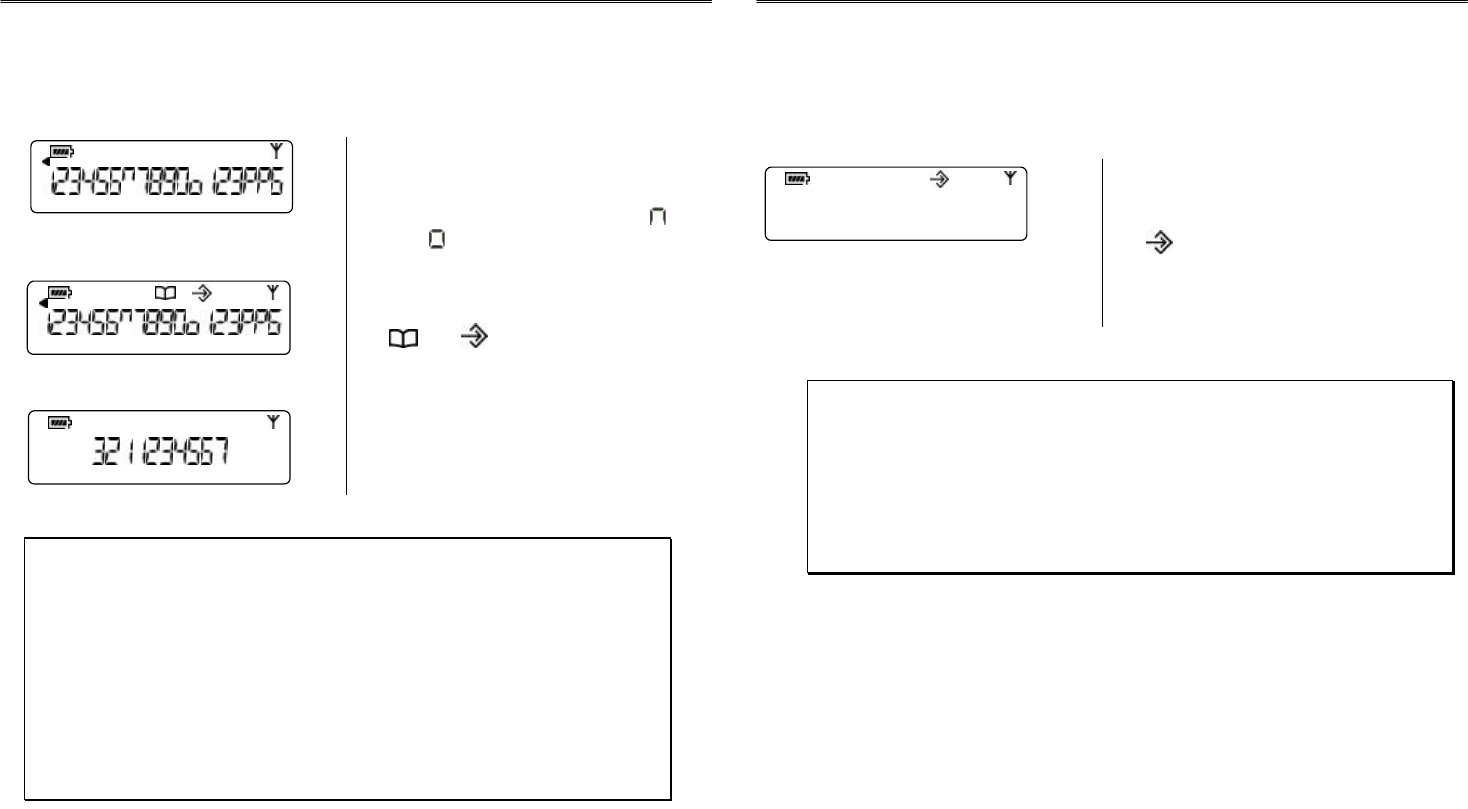

LCD Display on the POD
Icon Name Description
Battery • stays on to indicate battery level
• flashes when batteries require charging
• animates during charging
Phone • flashes according to the cadence during ringing
• turns on during Phone mode
Program • turns on during Programming mode
• turn on during Phonebook Programming mode
Mute • turns on for muted call during Phone mode
Phonebook • turns on when in Phonebook
Ringer Off • turns on when ringer is turned off
Signal • turns on when radio signal from base detected
• flashes when portable part is too far from the
base or when the base is not powered on.
Scroll • turns on when the number displayed contains
more than 18 digits
Clock • turns on whenever call elapse timer is
displayed
Hour glass • turns on whenever talk time remaining counter
is displayed
Phone Key
Key Function Key
Phone Book
Service
Flash
Redial / Program
Clear
Up
Down
Phone On/Off
Mute
Ringer On/Off
Dial Tone
Pause
Battery
Phone
Mute
Phonebook
Program
Ringer
Off
Signal
Clock
Hour glass
Scroll
8
Basic Steps to Install
1. Place the base and POD units on a flat and stable surface.
2. Connect the output plug of the base adapter to the socket on the
bottom of the base unit and the adapter to the mains wall outlet. The
power LED on the base should become steadily lit.
3. Connect one end of the telephone line to the socket on the bottom
of the base unit and the other end to the wall phone socket.
4. Plug the battery pack (6xAA size), observing their polarities, into the
connector in the battery compartment on the POD.
5. Slide the battery door firmly into place.
6. Connect the output plug of the POD adapter to the socket on the
back of the POD unit and the adapter to the mains wall outlet. The
battery must be charged for at least 12 hours before first use.
CAUTION
Use only the AC adapters supplied with this telephone. Incorrect adapter
polarity or voltage can seriously damage the unit.
For Base: For POD:
Input: 120 VAC 60 Hz Input: 120 VAC 60 Hz
Output: 7 VDC 400 mA Output: 12 VDC 500 mA
Polarity: Center positive Polarity: Center positive
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. Refer to the original type supplied with this telephone. NiMH
rechargeable batteries must be disposed of in accordance with applicable
waste disposal regulations.
Charging the POD
If the battery icon flashes or a warning beep is emitted from the POD, the
battery pack needs recharging. Connect the POD to the AC adapter plugged
to the mains wall outlet to start charging.
To Ensure Better Performance
1. Locate the conference telephone in a quiet environment.
2. Seat all participants the same distance from POD
3. Speak toward the POD microphones at normal conversation levels.
4. Do not move the POD during a call.
BASIC OPERATIONS

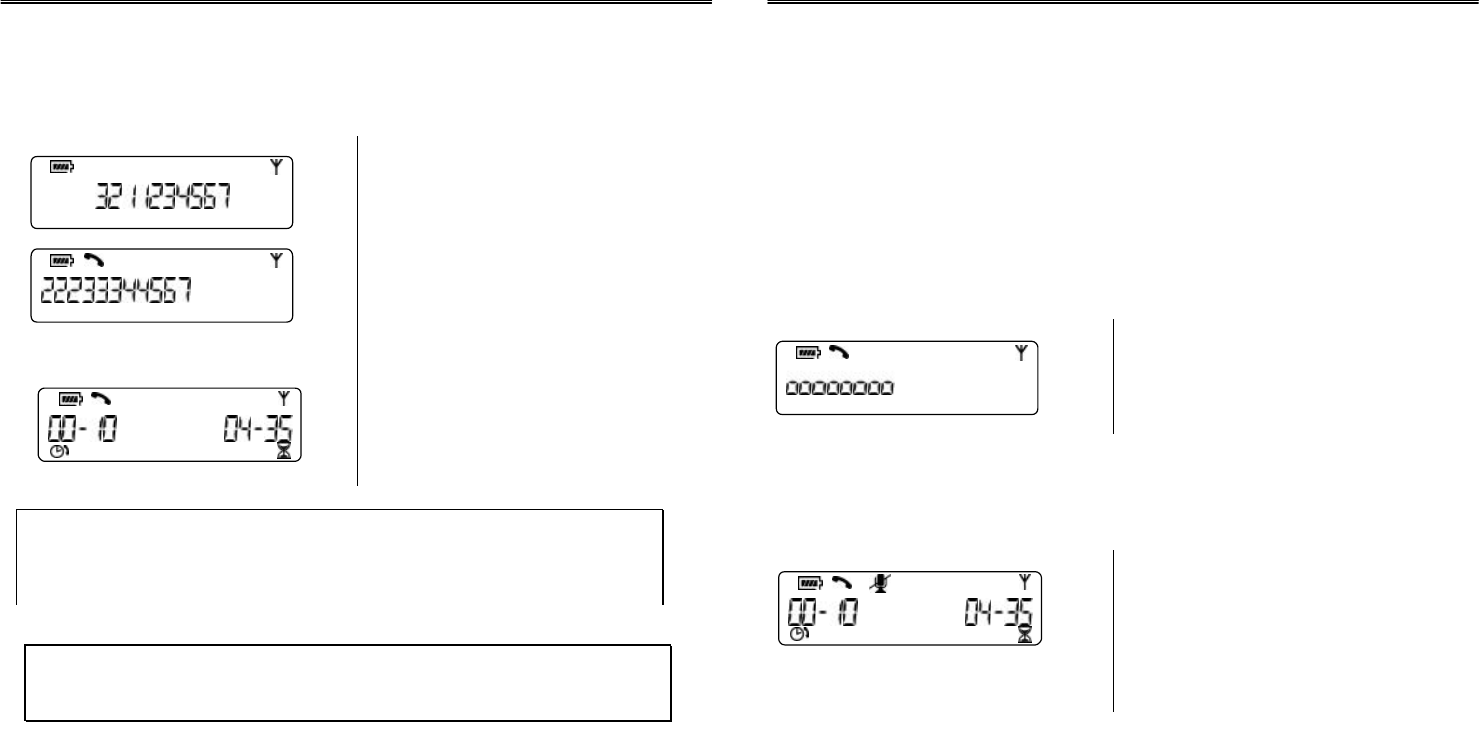

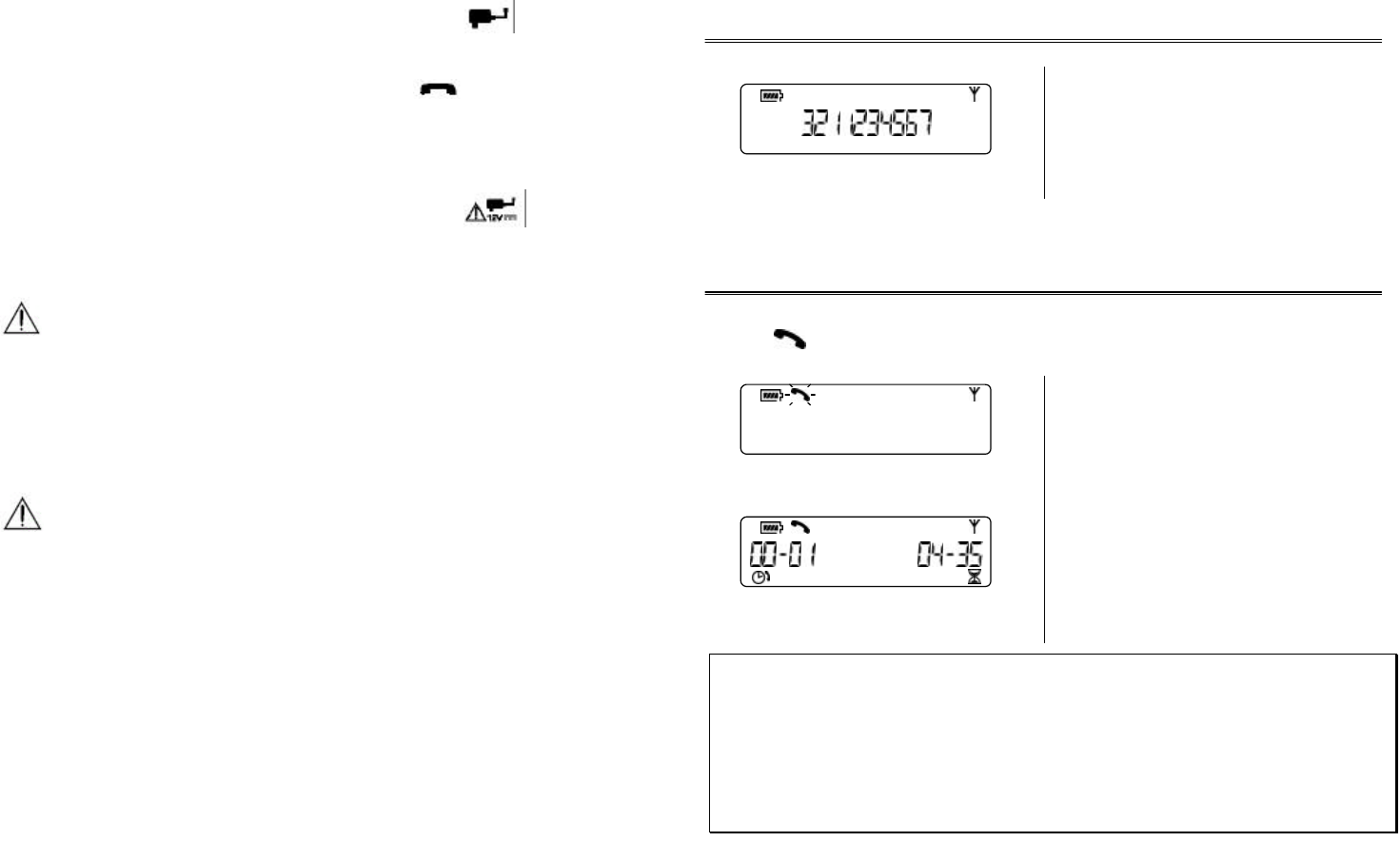

During Standby
• When the phone is not in use, the
POWER LED on the base is
turned on and the LCD on the
POD displays your phone number,
if programmed.
Answering Calls
When there is an incoming call, the GREEN LEDs on the base and the POD
blink. icon flashes on the display. The speaker on the POD rings the
selected melody.
• Press any key to answer.
• The call timer and clock icon are
displayed. The call timer starts
with MM:SS.
• The talk time remaining counter
and hour glass icon are also
displayed.
7
Note:
1. The call timer displays the time elapsed on the current active call.
2. The talk time remaining counter displays the estimated remaining in use
time at the current battery level before the batteries become empty. If for
any reason the talk time remaining counter displays 00-00 for a prolonged
period of time or is severely inaccurate, charge the POD for a full 12
hours and the counter should reset.
9
Making Calls
You can make a call by
• pressing PHONE key and then dialing phone number;
• dialing phone number and then pressing PHONE key;
• redialing the last number you dialed;
• dialing the number in phone book.
Traditional Dialing
The phone line is seized before the phone number is entered. The phone
number cannot be edited or verified before dialing.
• Press PHONE key.
(The Phone icon turns on and
your phone number turns off.)
• Dial the number. Digits are
displayed.
(Pressing * and # shall display “”
and “ ” respectively. A pause “P”
is displayed by pressing and
holding “#”.)
• Call timer and talk time remaining
counter icons are displayed a
while after the last key press.
• To end the call, press PHONE
key.
Making Calls
Predialing
The phone number is entered before the phone line is entered. The phone
number can be verified before you place the call.
• Enter the phone number. Digits
are displayed.
• Press CLEAR key to clear
previous digit during number
entry.
• Or, press and hold CLEAR key to
delete the entire string
(Pressing * and # shall display “”
and “ ” respectively. A pause “P”
is displayed by pressing and
holding “#”.)
• Press PHONE key to dial the
number .
• icon turns on.
• Call timer and talk time remaining
counter are on.
• To end the call, press PHONE
key.
Note: If more than 18 digits are dialed, only the last 18 digits
shall be displayed. The Scroll icon shall turn on.
You can enter up to 44 digits otherwise a reject tone will
abort the digit entry.
Note: If more than 18 digits are dialed, only the last 18 digits
shall be displayed. The Scroll icon shall turn on.
No limit on the number of digits being dialed out.
10
Redialing
Redialing allows you to call the last dialed number. You can redial a number
by traditional dialing or predialing.
Use Traditional Dialing
• Press PHONE key to seize the
line and wait for dial tone.
• Press REDIAL key
(The last number dialed shall be
displayed.)
• The last number dialed will be
dialed automatically.
• Call timer and talk time remaining
counter are displayed accordingly.
• Press PHONE key again to end
the call.
Use Predialing
• Press REDIAL key .
(The last number dialed is
displayed. The phone number
cannot be edited.)
If you do not want to redial the call,
• Press CLEAR key to clear the
display and return to Standby.
• Press PHONE key to seize the
line and the number is dialed out.
Redialing
• Call timer and talk time remaining
counter are displayed accordingly.
• Press PHONE key again to end
the call.
Note: If the last dialed number has more than 18 digits, only the
last 18 digits shall be displayed. The Scroll icon shall turn on.
It can hold up to 44 digits in the last dialed number.
11
Phonebook Dialing
Phonebook dialing allows you to call any phone numbers stored in
phonebook. Refer to the section of programming for how to store or edit the
phonebook numbers.
You can use traditional dialing or predialing to call phonebook numbers.
Use Traditional Dialing
• Press PHONE key to seize the
line and wait for dial tone.
• Press PHONEBOOK key.
• Press “0” – “9” to display the
selected phonebook record.
• The phone number cannot be
edited.
(After pressing the phonebook
record number, the selected
number will be dialed out
accordingly.)
• Call timer and talk time remaining
counter are displayed accordingly.
• Press PHONE key again to end
the call.
Phonebook Dialing
Note: If no phonebook record is selected after PHONEBOOK key has
been pressed,
i. Press CLEAR key to exit phonebook selection and to return to the call and
talk timers.
ii. Pressing “* “ , “#”, PHONEBOOK, and SERVICE keys will have no effect.
iii. Press MUTE key to mute the call.
iv. Press “UP” and “DOWN” keys to exit phonebook review and to adjust
speaker volume.
v. Press FLASH key to exit phonebook review and to send out flash signal.
vi. Press REDIAL key to exit phonebook review and to dial the last dialed
number if it is available.
vii.Exit from the phonebook selection after a while.
12
Phonebook Dialing
Use Predialing
• Press PHONEBOOK key.
• Press “0” – “9” to select the
desired phonebook record.
• The phone number cannot be
edited.
• Press PHONE key to seize the
line and the number will be dialed
out.
• Call timer and talk time remaining
counter are displayed accordingly.
• Press PHONE key again to end
the call.
Services Dialing
Services dialing allow you to call network service (eg. bridging services, long
distance conference services) by a single key press. Refer to the section of
programming for how to enter or edit the services phone number.
• Press SERVICE key in Standby to
seize the line.
• The programmed number will be
dialed.
(The number will not display on
LCD and the number can hold up
to 30 digits)
• Call timer and talk time remaining
counter are displayed accordingly.
• Press PHONE key again to end
the call.
Note: If the phonebook number has more than 18 digits, only the
last 18 digits shall be displayed. The Scroll icon shall turn on.
It can hold up to 44 digits in each phonebook number.
Note: If the network services number is not entered or modified and
contains no digit, you will hear a reject tone and no call will be
dialed.
Note: If the service number has more than 18 digits, only the
last 18 digits shall be displayed. The Scroll icon shall turn on.
Note: If you do not want to make the call, pressing CLEAR key to exit
phonebook selection and to return to Standby.
13
Service Centre Quick Access
The Service Centre quick access allows you to call the service center (eg.
helpline, support centre of network provider) by a single key press. Refer to
the section of programming for how to enter or edit the service centre phone
number.
• Press and hold “0” in Standby to
seize the line.
• The programmed number will be
dialed.
(The number will be displayed on
LCD and the number can hold up
to 30 digits.)
• Call timer and talk time remaining
counter are displayed accordingly.
• Press PHONE key again to end
the call.
Things you can do during a call
You can do the following during a call,
a. Adjust speaker volume;
b. Mute call;
c. Change dial tone;
d. Send flash signal;
e. Dial extra digits;
f. Dial from phonebook record;
g. Display user phone number.
Adjust Speaker Volume
16 different levels of speaker volume can be selected.
• Press UP/DOWN key to adjust the
speaker volume during the call.
Mute Call
All the calls can be muted or unmuted.
• Press MUTE key to mute or un-
mute the call.
(When the call is muted, mute
icon turns on and LEDs on POD
turn RED and flash).
Note: If the service center number is not entered or is modified and
contains no digit, you will hear a reject tone and no call will be
dialed.
Note: If the service centre number has more than 18 digits, only the
last 18 digits shall be displayed. The Scroll icon shall turn on.
14
Things you can do during a call
Change Dial Tone
Pulse dialing can be changed temporarily to tone dialing during a call. The
phone shall return to pulse dialing when the call is ended.
• Press * and “ ” will be displayed
after the previously dialed digits.
• Tone dialing is on.
(Digits entered afterwards shall be
dialed out by tone dialing.)
Send Flash Signal
A flash signal can be sent to the network during a call.
• Press FLASH key to send flash
signal.
Dialing Extra Digits
More digits can be dialed out during a call.
• Enter extra digits.
(The extra digits shall be
displayed to the end of the
previously dialed digits and be
dialed.)
Things you can do during a call
Dialing from Phonebook Record
You can dial any phonebook number when you are talking on the phone.
Phone book dialing can be used as many times as you like during a call.
• Press PHONEBOOK key.
(The phonebook icon turns on.)
• Press “0” – “9” to dial the
phonebook record
(The phone numbers shall be
displayed accordingly and dialed
out automatically.)
Note: If the total number of digits exceeds 18, only the
last 18 digits shall be displayed. The scroll icon shall turn on.
The digits shall scroll from right to left as long as digits are
entered.
Note: If no phonebook record has been selected after pressing
PHONEBOOK key, press CLEAR key to exit from the
phonebook selection or the phone shall automatically exit from
the phonebook selection after a while.
15
Things you can do during a call
Displaying User Phone Number
Your phone number (if it has been programmed) can be displayed during a
call.
• Press CLEAR key.
(The user phone number shall be
displayed if it has been
programmed; otherwise, a blank
screen shall be displayed.)
• The LCD screen shall return to
previous screen after a while; or
press CLEAR key to clear the
phone number and to return to call
timer .
Ringer Volume
The POD has six ringer volume levels for selection (including OFF). The
ringer volume can be adjusted or turned on/off when the phone is ringing or
during Standby.
Adjusting Ringer Volume
OR
• Press UP/DOWN keys to adjust
the ringer volume.
(The volume bars shall display
and change accordingly. The
current melody shall be played at
the new level. If the phone is in
Standby, the current melody shall
be played once at the new level.)
Ringer On/Off Shortcut
• Press and hold “*” key to turn the
ringer on or off.
(The Ringer off icon shall be on
and off respectively if the ringer is
set to on or off.)
Note:
1. If the ringer is turned back on, the Ringer off icon shall be off
and the volume shall be set to the previous level.
2. If the previous level is OFF, it shall return to volume level 1.
16
Add New Number in Phonebook
You can store up to 10 phone numbers in phonebook. Each phone number
can hold up to 44 digits. The original phone number, if any, shall be
overwritten when a new number is stored in the same phonebook location.
• Enter the new phone number
during Standby.
(Press * and “#” shall display “ ”
and “ ” respectively.)
• Press and hold PHONEBOOK
key.
• and icons are displayed.
• Press “0” - “9” to select the
phonebook location.
• Press PHONEBOOK again to
confirm and a confirmation tone
will be heard.
• The LCD shall return to Standby.
Programming
You can program the ringer melody, dialing mode, flash duration, user phone
number, network service number, and service center number. You can also
put all the settings back to the factory defaults.
Start Programming
• Press and hold PROGRAM key
during Standby.
( icon is on.)
• At any time, press and hold
CLEAR key to return to Standby.
Note:
1. If the phone number contains more than 18 digits, only the last 18
digits shall be displayed. The scroll icon shall turn on.
2. If the phone number reaches 44 digits, further attempts of digits
shall be rejected by a reject tone.
3. If no digit is entered after selecting the phonebook location, no
phonebook number can be added in that location.
4. Press CLEAR key at any time can stop the phonebook entry and
return to Standby.
Note:
1. In the programming selection, pressing and holding CLEAR key
shall abort all the changes and return to Standby.
2. Invalid entry during programming shall be ignored with a reject tone.
3. If there is an incoming call or paging from the base, the
programming will be aborted.
17
Programming
Ringer Melody

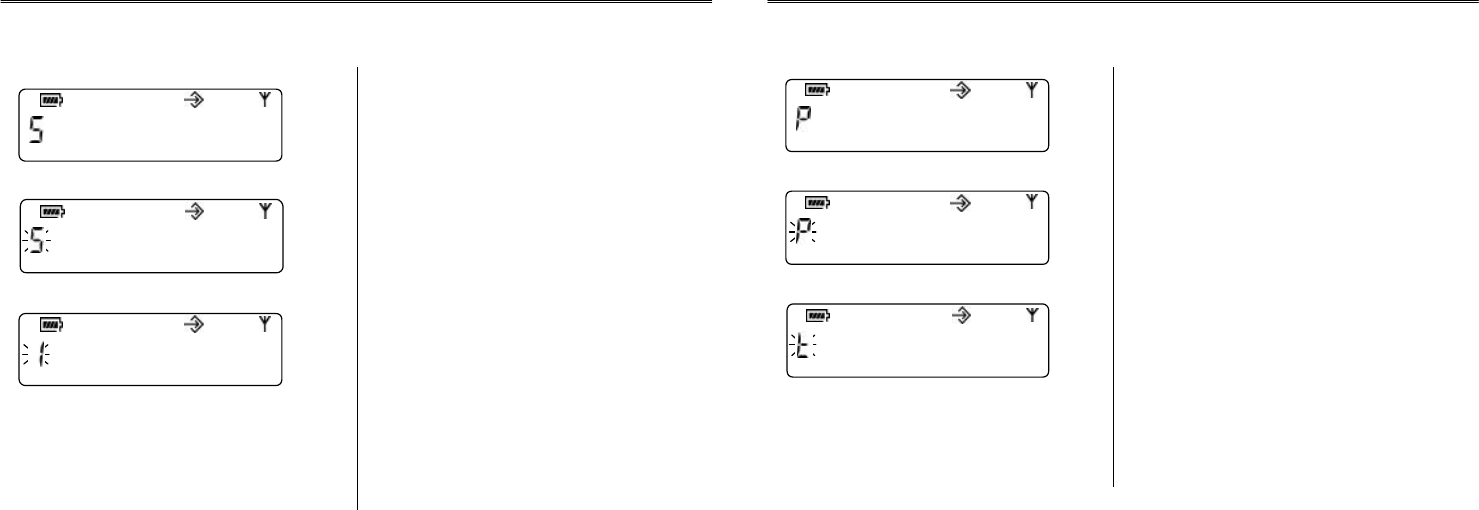

• Press “1” to select ringer melody
programming.
(The current melody number shall
be displayed.)
• Press PROGRAM key to select
melody programming.
(The current melody number
flashes.)
• Press “1” to “5” keys to select
melody 1 to melody 5
respectively.
(The selected melody shall be
played once.)
• Press PROGRAM key to confirm
the selection and press CLEAR
key to exit.
Programming
Dialing Mode
• Press “2” to select dialing mode
programming.
(The current dialing mode is
displayed e.g. “P” for pulse
dialing.)
• Press PROGRAM key to select
dialing mode programming.
(The current selection flashes.)
• Press “1” or “2” to select tone or
pulse dialing.
(The selection flashes e.g. “t” for
tone dialing.)
• Press PROGRAM key to confirm
selection and press CLEAR key to
exit.
18
Programming
Flash Duration

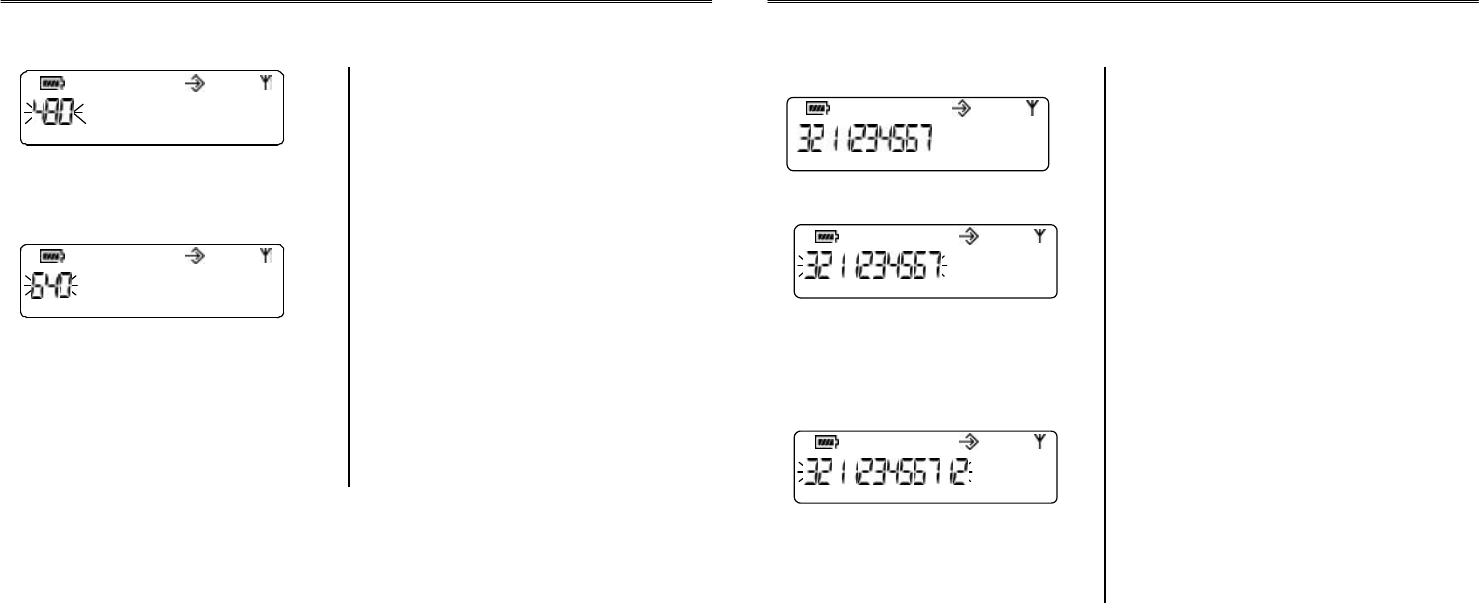

• Press “3” to select flash duration
programming.
(The current duration is displayed.)
• Press PROGRAM key to select
flash duration programming.
(The current selection flashes.)
• Press “1” to “4” to select duration
1 to duration 4 respectively.
(The flash durations are displayed
in milliseconds. The selection
flashes.)
• Press PROGRAM key to confirm
the selection and press CLEAR
key to exit.
Programming
User Phone Number
• Press “4” to select user phone
number programming.
(The current number is displayed if
it has been programmed;
otherwise a blank screen will be
displayed.)
• Press PROGRAM key to select
phone number programming.
(The current number flashes.)
• Press CLEAR key to erase the
digit of the user phone number one
by one. Press and hold CLEAR
key to erase the entire user phone
number.
• Enter new numbers.
• Press PROGRAM key to confirm
the editing and press CLEAR key
to exit.
19
Programming
Network Services Number

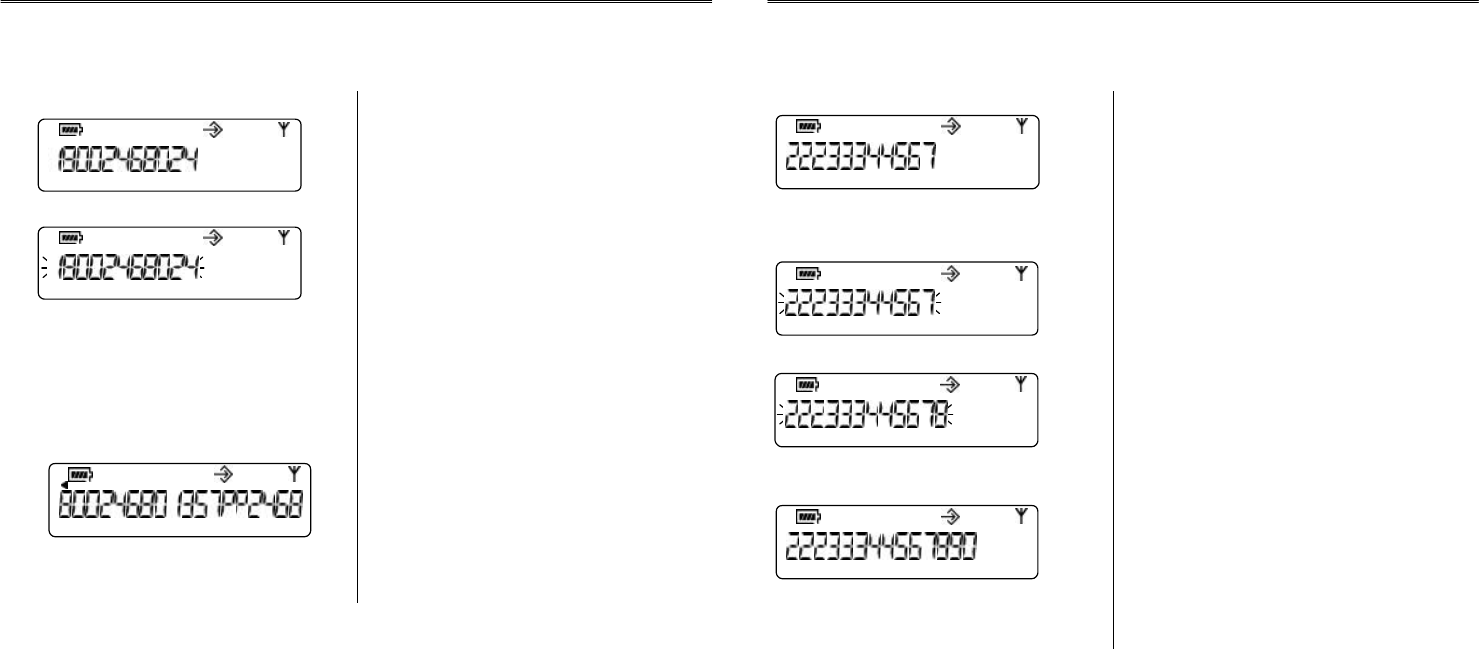

• Press “5” to select network
services number programming.
(The LCD displays the current
number if available; otherwise a
blank screen will be displayed.)
• Press PROGRAM key to select
service number programming.
(The current number flashes.)
• Press CLEAR key to erase the
digit of the user phone number
one by one. Press and hold
CLEAR key to erase the entire
user phone number.
• Enter new numbers.
• Press PROGRAM key to confirm
the editing and press CLEAR key
to exit.
Programming
Service Centre Number
• Press “6” to select service center
number programming.
(The LCD displays the current
number if it has been
programmed; otherwise, a blank
screen shall be displayed )
• Press PROGRAM key to select
service centre number
programming.
(The current number flashes.)
• Press CLEAR key to erase the
digit of the user phone number
one by one. Press and hold
CLEAR key to erase the entire
user phone number.
• Enter new numbers.
• Press PROGRAM key to confirm
the editing and press CLEAR key
to exit.
20
Programming
Default Setting
• Press and hold “9” to return the
phone to default setting.
(The display will show
“888888888888888888”.)
• Press PROGRAM key to confirm
the selection and press CLEAR
key to exit.
Additional Features
Call Recording
• External recording equipment can
be connected to the stereo jack on
the base unit for call recording.
Out of Range
• During phone mode, the POD
sounds an out-of-range tone
periodically and the signal icon
flashes when it is too far from the
base.
• User should move closer to the
base so the call will not be
terminated.
• When the POD is moved close
enough to the base, the out-of-
range tone will stop automatically.
Paging
• Press the PAGE button at the
base during Standby to locate the
POD.
• The POD will ring until any key is
pressed or stop after 30 seconds
if no keys are pressed.
21
Additional Features
Low Battery
• During standby, the battery icon
will become empty and starts
flashing when the battery is low.
• During phone mode, the POD
sounds a low battery tone
periodically and the empty battery
icon flashes when the battery is
low.
QUICK REFERENCE GUIDE
Action Description

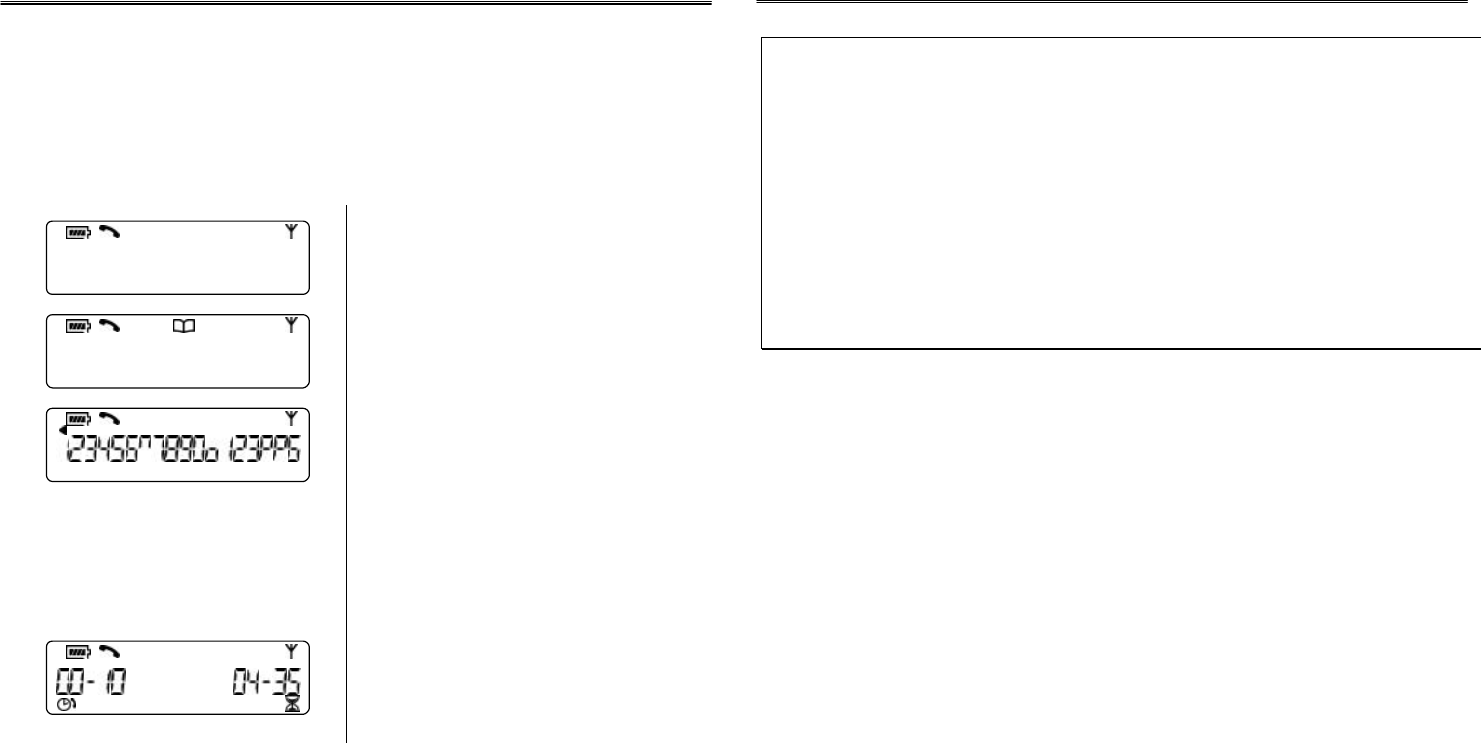

To make a call • Press → Dial tone → Enter number
• Enter number → Press key
Redialing
• Press → Last number dialed displayed
Phonebook Dialing • Press → Press “0” – “9” → Press →
Numbers Dial → Press to end call
Network Service • Press → the network service number dialed
Service Center • Press “0” → the service center number dialed
Storing a number
in phonebook • Enter number → Press and hold → Press “0” –
“9” to select the phonebook location → Press
Adjust speaker
volume (during a
call)
• Press “Up” and “Down” key to adjust the speaker
volume.
Mute Call • Press “Mute” key
Program Ringer
Melody • Press and hold → Press 1 → → Press 1 to
5 to select melody → Press
Program Dialing
Mode • Press and hold → Press 2 → → Press 1 or
2 to select tone or pulse dialing → Press
Program Flash
Duration • Press and hold → Press 3 → → Press 1 to
4 to select flash duration → Press
Program User
Phone Number • Press and hold → Press 4 → → Press
to erase digit or enter new number → Press
22
QUICK REFERENCE GUIDE
Program Network
Services Number • Press and hold → Press 5 → → Press
to erase digit or enter new number → Press
Program Service
Center Number • Press and hold → Press 6 → → Press
to erase digit or enter new number → Press
Set Default Setting
• Press and hold → Press and hold 9 → Press
DEFAULT VALUE
Items Factory Default
Speaker Volume on Portable Part Medium
Ringer Volume Volume 3
Ringer Melody Melody 1
Dialing Mode Tone
Flash Duration Duration 1
Redial Record Empty
Phonebook Records Empty
User Phone Number Record Empty
Network Service Number Record Factory Default
Service Center Number Record Factory Default
TROUBLE SHOOTING
1. Check that the microphone is ON during the call. The GREEN
microphone indicators should be lit.
2. Check that the telephone line is connected between the socket on the
bottom of the base unit and to the wall phone socket.
3. Check that the mains adapter is connected to the base and POD units.
4. Keep noise equipment (e.g. a fan or computer) away from the base and
POD units to avoid excessive noise.
5. Terminate the call and call the other party again to see whether another
line provides a better conversation.
6. Speak closer to the POD for a better reception.
If you need any help, please call help line 1-866-537-0384.
Or, contact service center: Wave Industries Ltd.
333 SE 2nd Avenue, Portland, OR 97214
USA
www.waveindltd.com
TECHNICAL DATA
Audio Bandwidth 200 to 3800 Hz
Speaker Volume 90 dBspl A weighted
Power Supply 120 VAC, 7 VDC 400 mA (for Base)
120 VAC, 12 VDC 500 mA (for POD)
Battery pack of 6xAA size 1800 mAh (POD only)
Certification UL, FCC
23
COMPLIANCE INFORMATON
FEDERAL COMMUNICATIONS COMMISSION REQUIREMENTS
The equipment complies with Part 68 of FCC Rules and Technical
Requirements for Telephone Terminal Equipment published by ACTA. The
marking on the base unit of this equipment contains, among other
information, the US Number and Ringer Equivalence Number (REN) for this
equipment. You must, upon request, provide this information to your
telephone company.
The REN is also useful in determining the quantity of devices that you may
connect to your telephone line and still allow these devices to ring when your
telephone number is called. In most areas, but not all, the sum of the RENs
for all devices connected to one line should not exceed five (5.0). To be
certain of the number of devices that you may connect to your line, you
should contact your local telephone company.
If your equipment should cause harm to the telephone network, the
telephone company may temporarily disconnect your service. If possible,
they will notify you in advance that temporary discontinuance of service may
be required. However, when advance written notice is not possible, the
telephone company may temporarily disconnect service without notice if such
action is necessary under the circumstances. The telephone company may
make changes in its communication facilities, equipment, operations, or
procedures where such action is reasonably required in the operation of its
business and is not inconsistent with the rules and regulations of the Federal
Communication Commission.
Notice
A plug and jack used to connect this equipment to the premises wiring and
telephone network must comply with the applicable FCC Part 68 rules and
requirements adopted by the ACTA. A compliant telephone cord and modular
plug is provided with this product. It is designed to be connected to a
compatible modular jack that is also compliant. See installation instructions
for details.
Notice
This equipment should not be used on coin telephone lines. Connection to
party line service is subjected to state tariffs. If trouble is experienced,
disconnect this equipment from the telephone line to determine if it is causing
the malfunction. If the equipment is determined to be malfunctioning, its use
should be disconnected until the problem has been corrected.
Caution
Users should ensure for their own protection that the electrical ground
connections of the power utility, telephone lines and internal metallic water
pipe system, if present, are connected together. This precaution may be
particularly important in rural areas.
Caution
Changes or modifications not expressly approved by the party responsible
for its compliance could void the user’s authority to operate the equipment.
Do not attempt to repair or modify this equipment.
Repairs to certified equipment should be made by an authorized
maintenance facility designated by the supplier. Any repairs or alternations
made by the user to the equipment, or equipment malfunctions, may give the
telecommunications company cause to request the user to disconnect the
equipment.
24
Interference
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not
cause interference, and (2) This device must accept any interference,
including interference that may cause undesired operation of the device.
This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
1. Re-orient or relocate the receiving antenna.
2. Increase the distance between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
4. Consult the dealer or an experience radio/TV technician for help.
Noise
Electrical pulse noise is present in most homes at one time or another. This
is most intense during electrical storms. Certain kinds of electrical equipment,
such as light dimmers, fluorescent bulbs, motors, fans, etc., also generate
pulse noise. Because radio frequencies are susceptible to this, you may on
occasion hear pulse noise through the speaker. This is usually only a minor
annoyance and should not be interpreted as a defect of the unit.
FCC RF RADIATION EXPOSURE STATEMENT:
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
