Ascion >
Manual

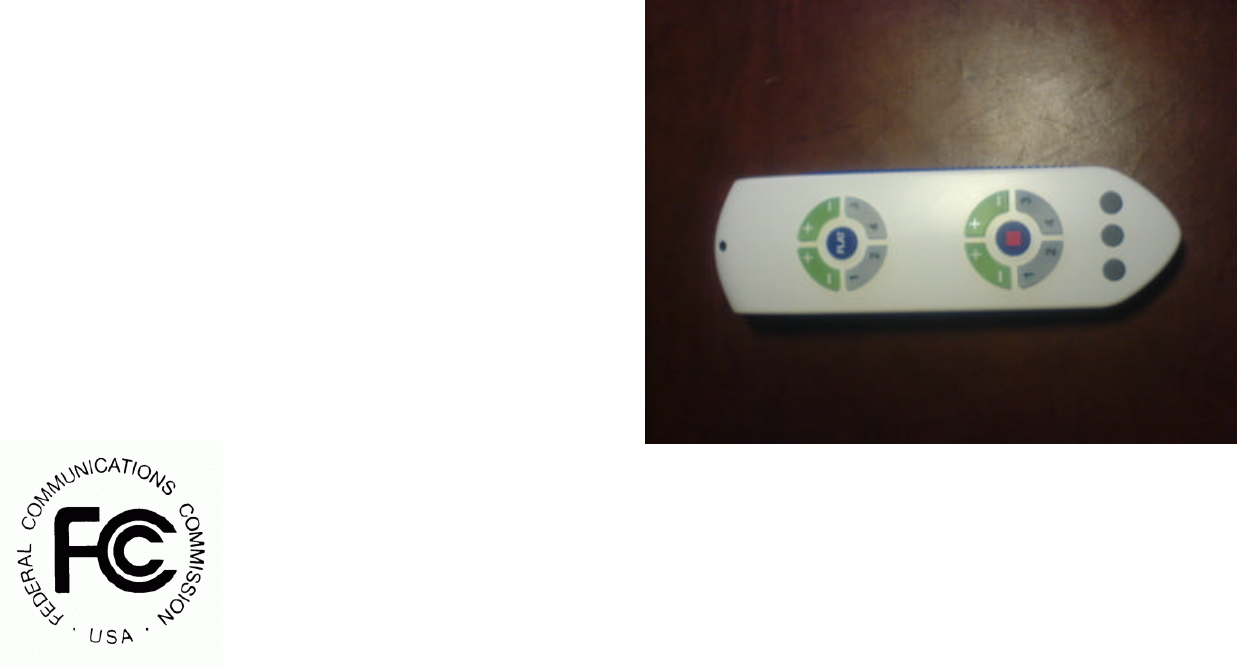

RC-WM-101 Controller
Model: RC-WM-101
FCC ID. :
THIS DEVICE COMPLIES WITH PART 15 OF THE
FCCRULES. OPERATIONS IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS: ( 1 ) THIS DEVICE
MAY NOT CAUSE HARMFUL INTERFERENCE AND
( 2 ) THIS DEVICE MUST ACCEPT ANY INTERFERENCE
RECEIVED, INCLUDING INTERFEERENCE THAT MAY
CAUSE UNDESRIED OPERATION
VFKRC-WM-101
Power supply:
Use 4 X AAA 1.5V Battery (6V)
Description:
The hand control will have an RF transmission, with a range of 9 feet (3
meters). The RF transmission will have a “key code” to give each remote a
unique transmission signal. It will have raised rubber buttons that will have the
ability to be backlit when pressed. The hand control will have an ergonomic
design and will use 4 AAA batteries. There will be approximately 21 buttons;
the circuit board should have
Functional Remote Description:
Head Lift motor Button “+”
• When pressed, it will initiate the Head lift motor to move the head of the
bed up.
• LED lights up when pressed.
• Backlight initiates and it lights up all button.
• When pressed during the “Flat” function it will interrupt the Flat cycle
and stop the bed motion.
Head Lift motor Button “-”
• When pressed, it will initiate the Head lift motor to move the head of the
bed down.
• LED lights up when pressed.
• Backlight initiates and it lights up all button.
• When pressed during the “Flat” function it will interrupt the Flat
cycle and stop the bed motion.
Foot Lift Motor Button “+”
• When pressed, it will initiate the Foot lift motor to move the foot of the bed
up.
• LED lights up when pressed.
• Backlight initiates and it lights up all buttons.
• When pressed during the “Flat” function it will interrupt the Flat cycle
and stop the bed motion.
Foot Lift Motor Button “-”
• When pressed, it will initiate the Foot lift motor to move the foot of the bed
up.
• LED lights up when pressed.
• Backlight initiates and it lights up all buttons.
• When pressed during the “Flat” function it will interrupt the Flat cycle
and stop the bed motion.
Flat Button “FLAT”
• When pressed, it will initiate the Head and Foot lift motors to return to the
fully lowered position from any lifted position.
• Must be held for 3 seconds to initiate.
• LED lights up when pressed and blinks while the bed is lowered.
• Backlight initiates and it lights up all buttons.
• When pressed during the “Flat” function it will interrupt the Flat cycle
and stop the bed motion.
1
2
Custom Memory Recall Button “CUSTOM #1”
• When pressed, it will recall the memory position #1 of the head and foot
lift motor positions from the memory.
• When held for 3 seconds it sets the custom position at the bed’s current
position to memory position #1.
• LED lights up when initiated.
• Backlight initiates and it lights up all buttons.
• Upper Backlight LEDs and RF LED indicator h 3 times when memory is
saved.
• When pressed during the “Flat” function it will interrupt the Flat
cycle and stop the bed motion
Custom Memory Recall Button “CUSTOM #2”
• When pressed, it will recall the memory position #2 of the head and foot
lift motor positions from the memory.
• When held for 3 seconds it sets the custom position at the bed’s current
position to memory position #2.
• LED lights up when initiated.
• Backlight initiates and it lights up all buttons.
• Upper Backlight LEDs and RF LED Flash 3 times when memory is
saved.
• When pressed during the “Flat” function it will interrupt the Flat
cycle and stop the bed motion.
Custom Memory Recall Button “CUSTOM #3”
• When pressed, it will recall the memory position #3 of the head and foot
lift motor positions from the memory.
• When held for 3 seconds it sets the custom position at the bed’s current
position to memory position #3.
• LED lights up when initiated.
• Backlight initiates and it lights up all buttons.
• Upper Backlight LEDs and RF LED Flash 3 times when memory is saved.
• When pressed during the “Flat” function it will interrupt the Flat cycle
and stop the bed motion
Custom Memory Recall Button “CUSTOM #4”
• When pressed, it will recall the memory position #4 of the head and foot
lift motor positions from the memory.
• When held for 3 seconds it sets the custom position at the bed’s current
position to memory position #4.
• LED lights up when initiated.
• Backlight initiates and it lights up all buttons.
• Upper Backlight LEDs and RF LED Flash 3 times when memory is
saved.
• When pressed during the “Flat” function it will interrupt the Flat
cycle and stop the bed motion
Wave Vibration Motor Stop Button “STOP”
• When pressed, it will stop the Head and Foot vibration motors.
• For all Wave types, the “Stop” button MUST be pressed before you
are allowed to choose another massage type/intensity.
• LED lights up when initiated.
• Backlight initiates and it lights up all buttons.
Foot Vibration Motor Button “+”
• When pressed, it will initiate the Foot vibration motor and when pressed
again it will increase the intensity.
• It should have a total of 10 intensities.
• It will start at the 50% intensity level of a standard vibration.
• MUST press vibration “STOP” before changing wave intensity/mode.
• LED lights up when initiated.
• Backlight initiates and it lights up all buttons.
3
4
Foot Vibration Motor Button “-”
• When pressed, it will initiate the Foot vibration motor and when pressed
again it will decrease the intensity.
• It will start at the 50% intensity level of a standard vibration.
• It should have a total of 10 intensities.
• MUST press vibration “STOP” before changing wave intensity/mode.
• LED lights up when initiated.
• Backlight initiates and it lights up all buttons.
Head Vibration Motor Button “+”
• When pressed, it will initiate the Head vibration motor and when pressed
again it will increase the intensity.
• It will start at the 50% intensity level of a standard vibration.
• It should have a total of 10 intensities.
• MUST press vibration “STOP” before changing wave intensity/mode.
• LED lights up when initiated.
• Backlight initiates and it lights up all buttons.
Head Vibration Motor Button “-“
• When pressed, it will initiate the Head vibration motor and when pressed
again it will decrease the intensity.
• It will start at the 50% intensity level of a standard vibration.
• It should have a total of 10 intensities.
• MUST press vibration “STOP”before changing wave intensity/mode.
• LED lights up when initiated.
• Backlight initiates and it lights up all buttons.
Wave Vibration Motor Button “Wave 1 ”
• When pressed once, it will initiate the Head and Foot vibration motors to
the “Wave #1” vibration mode.
• It will start at the 50% intensity level.
• Wave 1 represents the alternating vibration from head to foot in 1 second
intervals.
• Press and hold again for 3 seconds and it will shut off all vibration,
• MUST press vibration “STOP” before changing wave intensity/mode.
• LED lights up when initiated.
• Backlight initiates and it lights up all buttons.
Wave Vibration Motor Button “Wave 2 ”
• When pressed once, it will initiate the Head and Foot vibration motors to
the “Wave #2” vibration mode.
• It will start at the 50% intensity level.
• Wave 2 represents the alternating vibration from head to foot in 2 second
intervals.
• Press and hold again for 3 seconds and it will shut off all vibration,
• MUST press vibration “STOP” before changing wave intensity/mode.
• LED lights up when initiated.
• Backlight initiates and it lights up all buttons.
Wave Vibration Motor Button “Wave 3 ”
• When pressed once, it will initiate the Head and Foot vibration motors to
the “Wave #3” vibration mode.
• It will start at the 50% intensity level.
• Wave 3 represents the alternating vibration from head to foot in 3 second
intervals.
• Press and hold again for 3 seconds and it will shut off all vibration,
• MUST press vibration “STOP” before changing wave intensity/mode.
• LED lights up when initiated.
• Backlight initiates and it lights up all buttons.
6
Wave Vibration Motor Button “Wave 4 ”
• When pressed once, it will initiate the Head and Foot vibration motors to
the “Wave #4” vibration mode.
• It will start at the 50% intensity level.
• Wave 4 represents the alternating vibration from head to foot in 4 second
intervals.
• Press and hold again for 3 seconds and it will shut off all vibration,
• MUST press vibration “STOP” before changing wave intensity/mode.
• LED lights up when initiated.
• Backlight initiates and it lights up all buttons.
Notice : The changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
