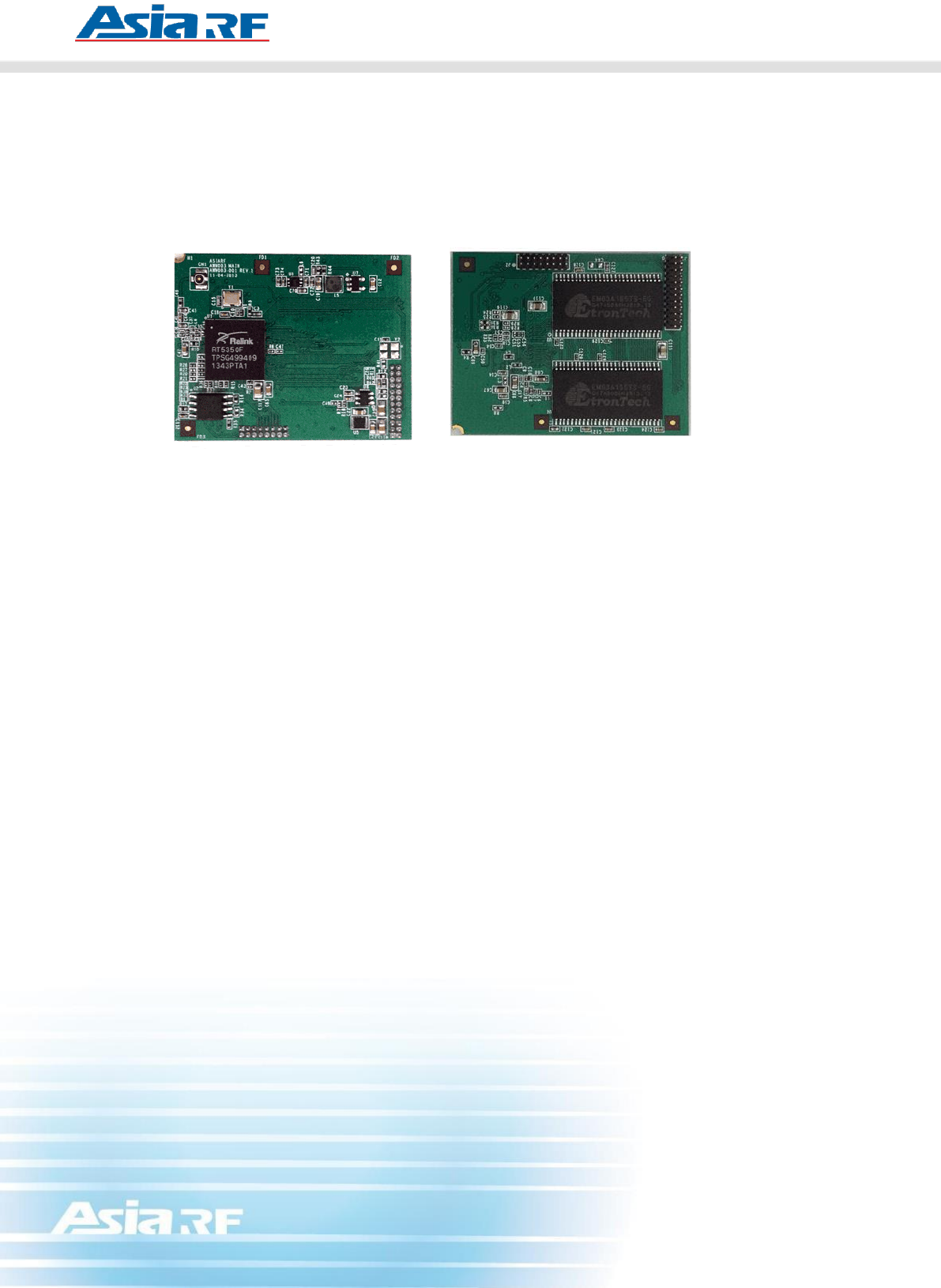

AWM003 WiFi AP Router Module FCC ID:TKZAWM003
RT5350 8MB Flash (Max is 16MB), 64MB SDRAM Professional IP Camera version
Pins Compatible with AWM002
V1
DESCRIPTION
AWM003 is a small-size 3.8 x 4.7 cm, 802.11n AP board that achieves a data rate
up to 150Mbps. Memory size is 8MB Flash, 64MB SDRAM. It is 3 times faster than
the legacy 11g model but is priced less, making it more cost-effective.
The temperature is less than 60 Celsius degree with full speed running.
This product supports AP/Client modes. It is ideal for multi-purpose installation to
share wireless connection.
By supporting 64/128-bits WEP, TKIP,WPA, WPA2,AES and WPS, helps to
protect your data and privacy during transmission.
This module could be mounted on system board like IPTV, STB, Media Player,
Femto, XDSL, Cable Modem, Industrial PC, Ethernet Switch, Printer Server,
Connected TV, Also WiFi IP camera, WiFi storage function embedded.
FEATURES
Ralink RT5350 chipset with Interface USB, GPIO, UART and GPIOs.
Support boot from Flash
Data Rate up to 150Mbps
Security: 64/128-bits WEP, TKIP,WPA, WPA2,AES,WPS
Multi-modes: AP/Client
1F, No.2, Lane 45,
Shuiyuan Street, Yonghe City
New Taipei County 234
Taiwan, R.O.C.
page: 2
www.asiarf.com
TEL: +886-2-29213598
FAX: +886-2-29214445
SPECIFICATION
Hardware Features:
Standard
IEEE 802.11 b/g/n standards compliant
Wireless LAN
1T1R Mode
Antenna
IPEX Connector *1
30-pin
Interface
USB*1 ( Host )
UART*1
GPIOs
VCC/GND
I2S
I2C
PCM
Frequency
Range
2.400 ~ 2.4835GHz ( subject to local regulations)
Number of
Selectable
Channels
802.11n 20MHz/40MHz ;
802.11b/g
USA, Canada (FCC):11 channels (2.412GHz~2.462GHz)
Europe (CE): 13 channels (2.412GHz~2.472GHz)
Japan (TELEC): 14 channels (2.412GHz~2.4835GHz)
Data Rate
802.11n: up to 150Mbps
802.11b: 1, 2, 5,5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
Coverage Area
Up to 6 times faster then existing 802.11 b/g products
Dimension
38x47 mm
Certifications
FCC/CE by request
1F, No.2, Lane 45,
Shuiyuan Street, Yonghe City
New Taipei County 234
Taiwan, R.O.C.
page: 3
www.asiarf.com
TEL: +886-2-29213598
FAX: +886-2-29214445
SOFTWARE FEATURE
➢ Network Features:
Video, Storage
DHCP Client/Relay/Server
Dynamic DNS
NTP Client
DNS Cache/Proxy
Firewall
1.
MAC/IP/Port Filter
2.
Virtual Server
3.
DMZ
4.
Content Filter
➢ WiFi:
One Transmit and One Receive paths(1T1R)
20MHZ/40MHZ bandwidth.
Support Multiple SSID
Clock rate up to 400MHzLegacy and High Throughput Modes.
Support WPS
High security with build-in: WEP 64/128, TKIP, WPA, WPA2
mixed,802.1xand 802.11i
802.1X Authentication with RADIUS Client
QoS-WMM.WMM-PS
1F, No.2, Lane 45,
Shuiyuan Street, Yonghe City
New Taipei County 234
Taiwan, R.O.C.
page: 4
www.asiarf.com
TEL: +886-2-29213598
FAX: +886-2-29214445
PIN DEFINITION
I
II
Description
Pin
Pin
Description
I2SCLK
2
1
PCMFS
I2SWS
4
3
PCMCLK
I2SSDO
6
5
PCMDRX
I2SSDI
8
7
PCMDTX
I2C_SCLK
10
9
I2C_SD
RX1+
12
11
TX1+
RX1-
14
13
TX1-
GND
16
15
GND

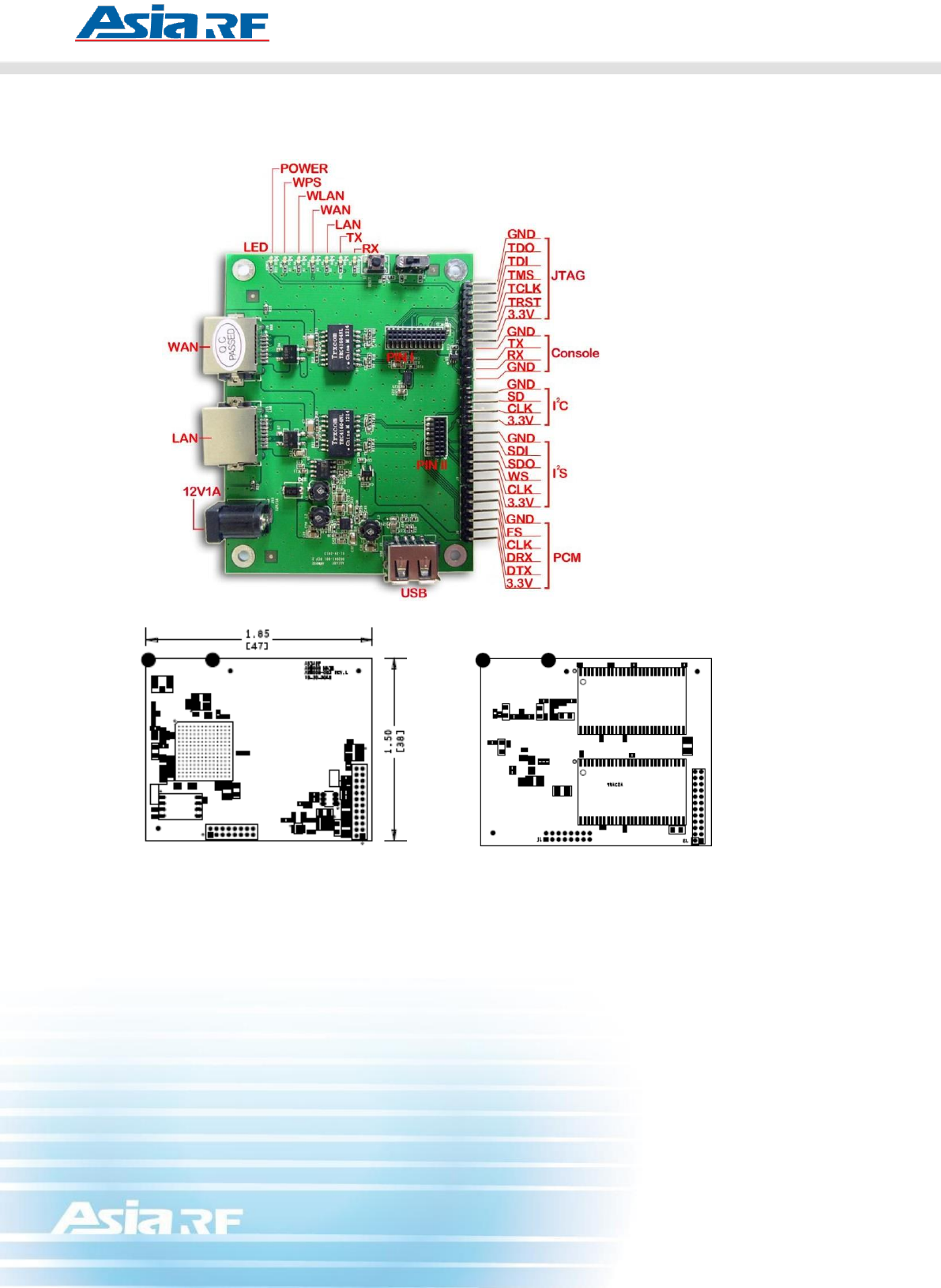

Size:
1.
Size: 38*47 mm
Double row 1.27mm pitch on the 35mm side
2.
Reserved: Available for use
3.
Reserved is ACTIVE LOW
4.
LEDs and WPS/Reset to Default are active LOW
Reset /Reset to default function is share AP/Client selection pin
Description
Pin
Pin
Description
+3.3V
2
1
+3.3V
UART_Rx
4
3
GND
UART_Tx
6
5
Reserved
GND
8
7
WPS/Reset to Default #
LED_WLAN#
10
9
GND
LED_WPS#
12
11
USB_D+
AP/Client selection
14
13
USB_D-
1.2V
16
15
1.2V
GPIO #19
18
17
TX0+
GPIO #18
20
19
TX0-
GPIO #17
22
21
RX0+
LINK0_LED
24
23
RX0-
1F, No.2, Lane 45,
Shuiyuan Street, Yonghe City
New Taipei County 234
Taiwan, R.O.C.
page: 6
www.asiarf.com
TEL: +886-2-29213598
FAX: +886-2-29214445
Pin Sharing Table:
PIN1
3.3V
1
2
3.3V
UART_RX
GPIO #16
RX
3
4
GND
UART_TX
GPIO #15
TX
5
6
LINK1_LED
LINK1_LED
GND
7
8
#0
RST_PBC
WLAN_LED
9
10
GND
WPS_LED
GPIO #21
JTAG_TRST_N
11
12
USB D+
AP/Client
GPIO #20
JTAG_TCLK
13
14
USB D-
1.2V
15
16
1.2V
GPIO #19
GPIO #19
JTAG_TMS
17
18
TX0+
GPIO #18
GPIO #18
JTAG_TDI
19
20
TX0-
GPIO #17
GPIO #17
JTAG_TDO
21
22
RX0+
LINK0_LED
23
24
RX0-
PIN2
RTS
I2S_CLK
GPIO #7
1
2
GPIO #11
PCM_FS
DTR
TXD
I2S_WS
GPIO #8
3
4
GPIO #12
PCM_CLK
DCD
CTS
I2S_SDO
GPIO #9
5
6
GPIO #13
PCM_DRX
DSR
RXD
I2S_SDI
GPIO #10
7
8
GPIO #14
PCM_DTX
RI
I2C_CLK
GPIO #2
9
10
GPIO #1
I2C_SD
RX1+
11
12
TX1+
RX1-
13
14
TX1-
GND
15
16
GND
Each column is one function, the same color is the same setting.
1F, No.2, Lane 45,
Shuiyuan Street, Yonghe City
New Taipei County 234
Taiwan, R.O.C.
page: 7
www.asiarf.com
TEL: +886-2-29213598
FAX: +886-2-29214445
FCC
Statement:
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/ TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
1F, No.2, Lane 45,
Shuiyuan Street, Yonghe City
New Taipei County 234
Taiwan, R.O.C.
page: 8
www.asiarf.com
TEL: +886-2-29213598
FAX: +886-2-29214445
RF exposure warning
This equipment must be installed and operated in accordance with provided instructions
and the antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter. End-users and installers must be
provide with antenna installation instructions and transmitter operating conditions for
satisfying RF exposure compliance.
End Product Labeling :
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20cm may be maintained between the antenna and users. The final end
product must be labeled in a visible area with the following: "Contains FCC ID:
TKZAWM003 ”.
Information for the OEMs and Integrators
The following statement must be included with all versions of this document supplied to
an OEM or integrator, but should not be distributed to the end user.
1) This device is intended for OEM integrators only.
2) Please see the full Grant of Equipment document for other restrictions.
Because this module doesn’t have a shield case so belong a limit module approval
(LMA) which specific host listed as below :
Model
Model Description
WCB001
WIFI CONTROL BOX
* Antenna Gain = 1.8dBi ( type : Dipole / Reverse SMA )
