R380 Series Reader
User Manual
Document History
Description
Aug 2017 Revision 1
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this equipment. (Example - use
only shielded interface cables when connecting to computer or peripheral devices).
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
2
Contents
Document History ...................................................................................................................................... 1
Federal Communication Commission Interference Statement .................................................................. 1
1.1
R380 Series NFC Reader Overview ................................................................................ 2
1.2
Reader Wiring and Color Code ........................................................................................ 3
1.3
DIP Switch Setting (See table 3,4 for detail) .................................................................... 3
1.4
Dimension ........................................................................................................................ 4
1.5
Installation And Mounting Instruction ............................................................................... 5
1.6
Operation Guide ............................................................................................................... 6
1.7
R380 LCD screen message ............................................................................................. 7
1.8
Package List – R380 Reader ......................................................................................... 12
1.9
Product Electrical Specification ...................................................................................... 13
1.1 R380 Series NFC Reader Overview
The R380 Series Reader is a weather proof, high heat ABS NFC card
reader. The R380 Series NFC reader can read a wide range of
contactless smart card covering single size UID card to double size
UID card. Card ID data can be output via industry standard Wiegand
or Asis Proprietary RS485.
3
1.2
Reader Wiring and Color Code
Terminal Point
Label
Description Recommended Cable
Color
Dev+ RS485+ Blue
Dev- RS485- Grey
+V +12VDC Red
GND DC Ground Black
D0 Wiegand Data 0 Green
D1 Wiegand Data 1 White
ERL Red LED Brown
OKL Green LED Orange
BUZ Buzzer Yellow
Hold Purple
Table 2 Wiring and Cable Color code
1.3 DIP Switch Setting (See table 3,4 for detail)
BIT 1 2 3 4 5 6 7 8
Function
(RS485) ADDRESS BIT MODE and Data Out BIT TEST BIT
bit 0 bit 1 bit 2 bit 3 Off-Wiegand
On- RS485
Off- 8 byte
On -4 byte
Off – CSN
On - CAN
Off – Run
On - Testing
Function
(Wiegand)
Card format Setting
Table 3 Dip Switch function explain
4
BIT
Reader Hex
address
1 2 3 4 5 ~ 8
Function
(RS485)
BIT
Address
1 80 Off Off Off Off Refer to
above
table
2 81 On Off Off Off
3 82 Off On Off Off
4 83 On On Off Off
5 84 Off Off On Off
6 85 On Off On Off
7 86 Off On On Off
8 87 On On On Off
Table 4 RS485 Readers Address Dip Switch Setting

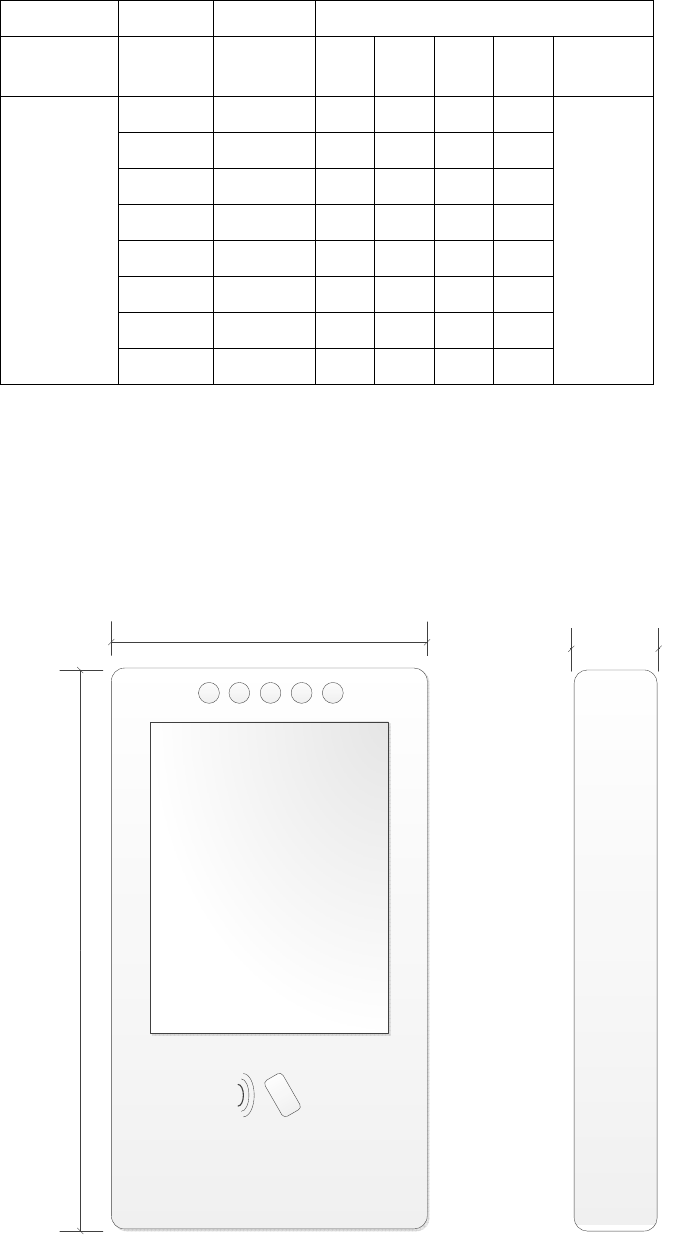

1.4 Dimension
WebENTRA
76.00mm.
135.00mm.
FRONT SIDE
21.00mm.
Reader Module Dimension
5

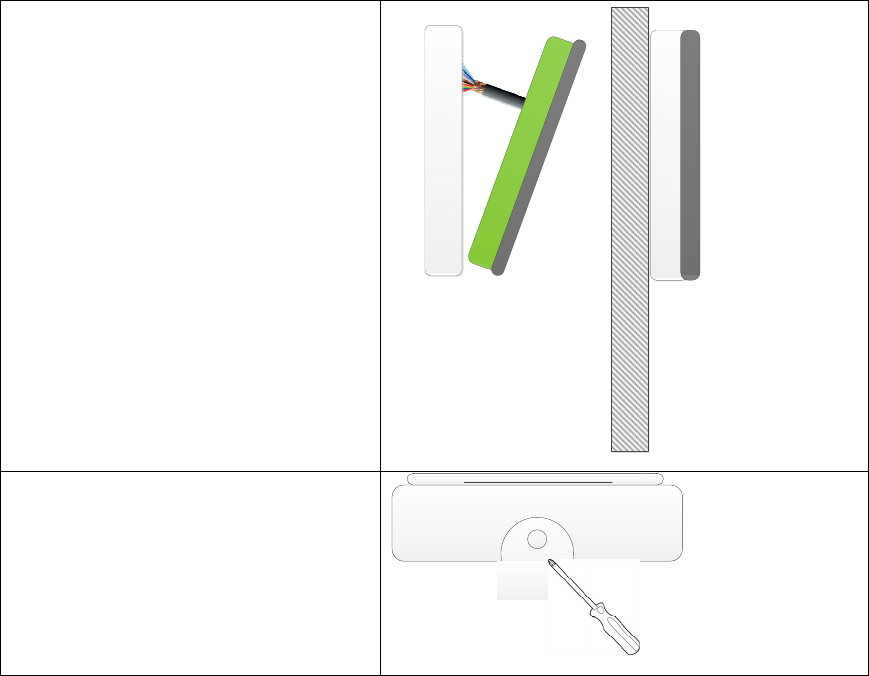

1.5 Installation And Mounting Instruction
Remove Bottom Screw
Ply open the front cover
using flat head screw driver
remove the front of the unit.
Remove the front of unit
Mark out reader base
(reader wire pigtail) and
(wall mounting hole) drill
hole on the wall for
mounting reader.
Half tighten wall mount
screw.
Terminate reader pigtail
cable to cable from
controller. Tighten wall
mount screw
6
Reinsert reader front to
base by set the bottom.
Align reader pigtail cable
accordingly. Push to front
top to snap into the base.
Tighten bottom screw
1.6 Operation Guide
Keeping the card in parallel to the R380 reader a maximum read range
can be obtained. The Reader will still be able to read Card when the
card is presented at an angle but this will result in the reducing of read
range.
Card and PIN operation
a) In Card & Pin mode LCD screen prompt to Enter Pin, enter PIN
follows by “#” key
b) Key in PIN + 1 for PIN DURESS (Example PIN is 1234, for duress
activation, key pin 1235) Note that the maximum PIN is up to 6 digit.
7

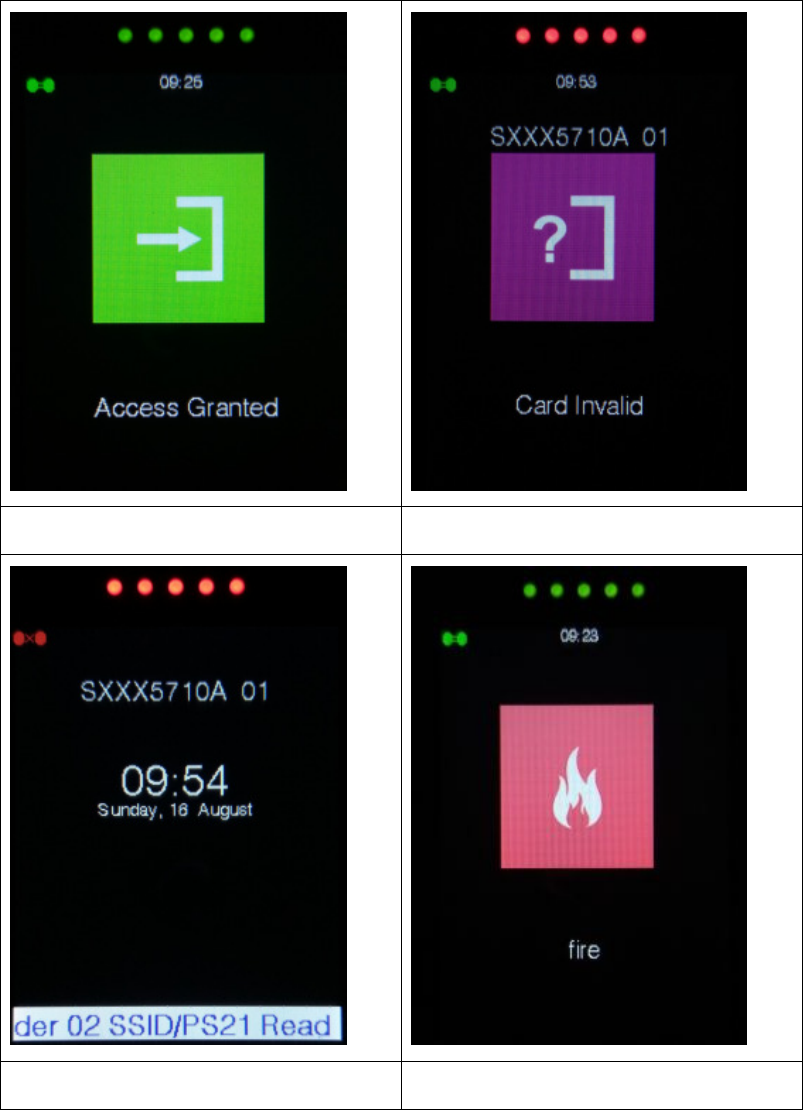

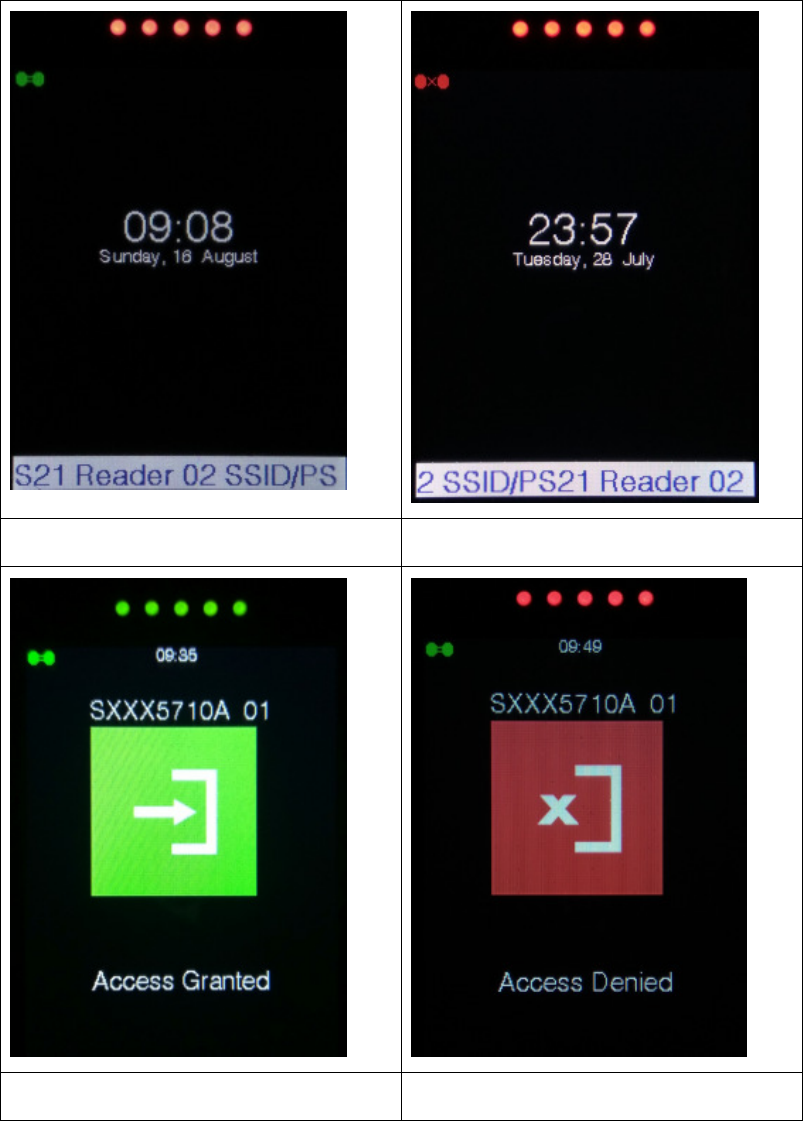

1.7 R380 LCD screen message
Reader Ready Screen Reader Comm Fail
Access Granted Card Flash Access Denied
8
Access Granted Card Invalid
Card Read Comm Fail Fire
9

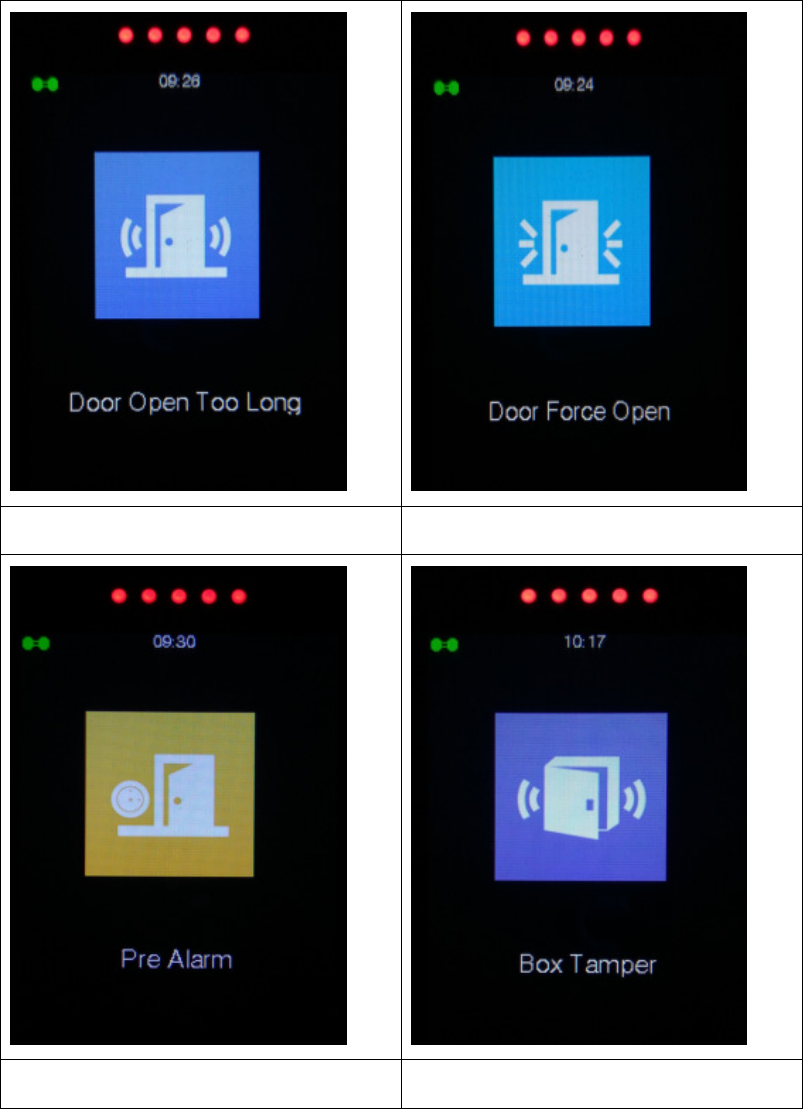

DOTL Door Force Open
Pre Alarm Box Tamper

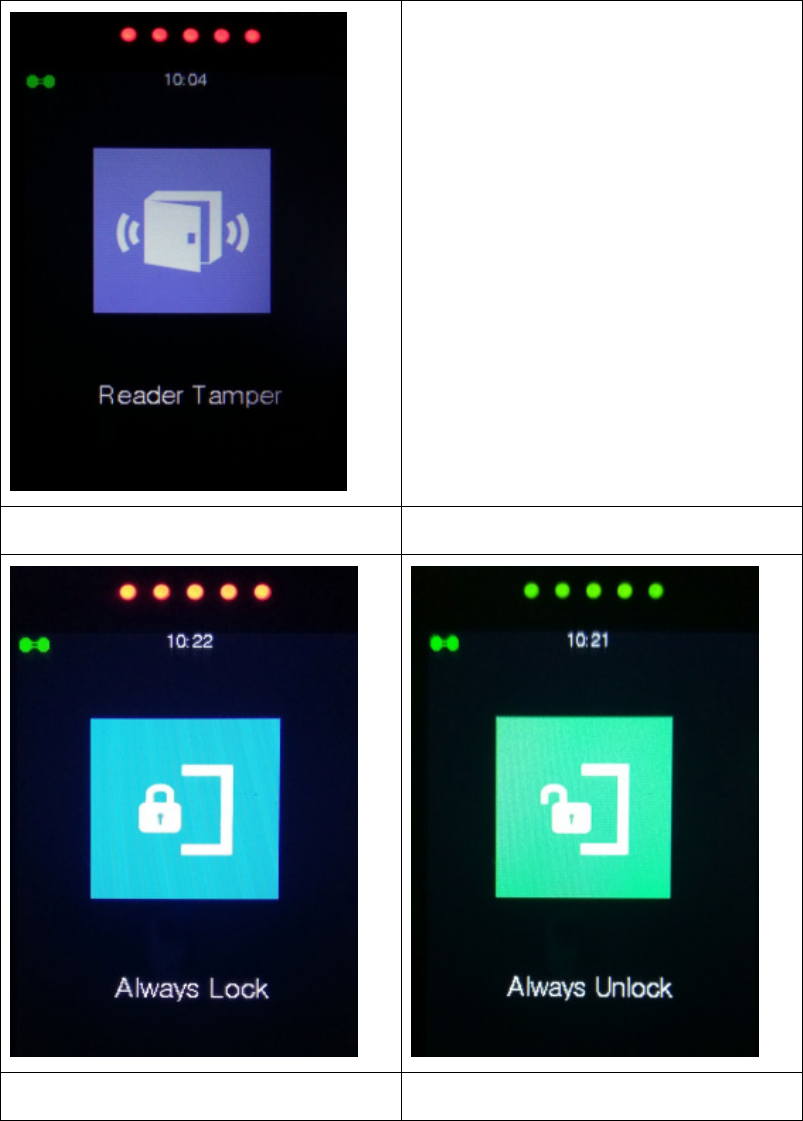

10
Reader Tamper
Always Lock Always Unlock

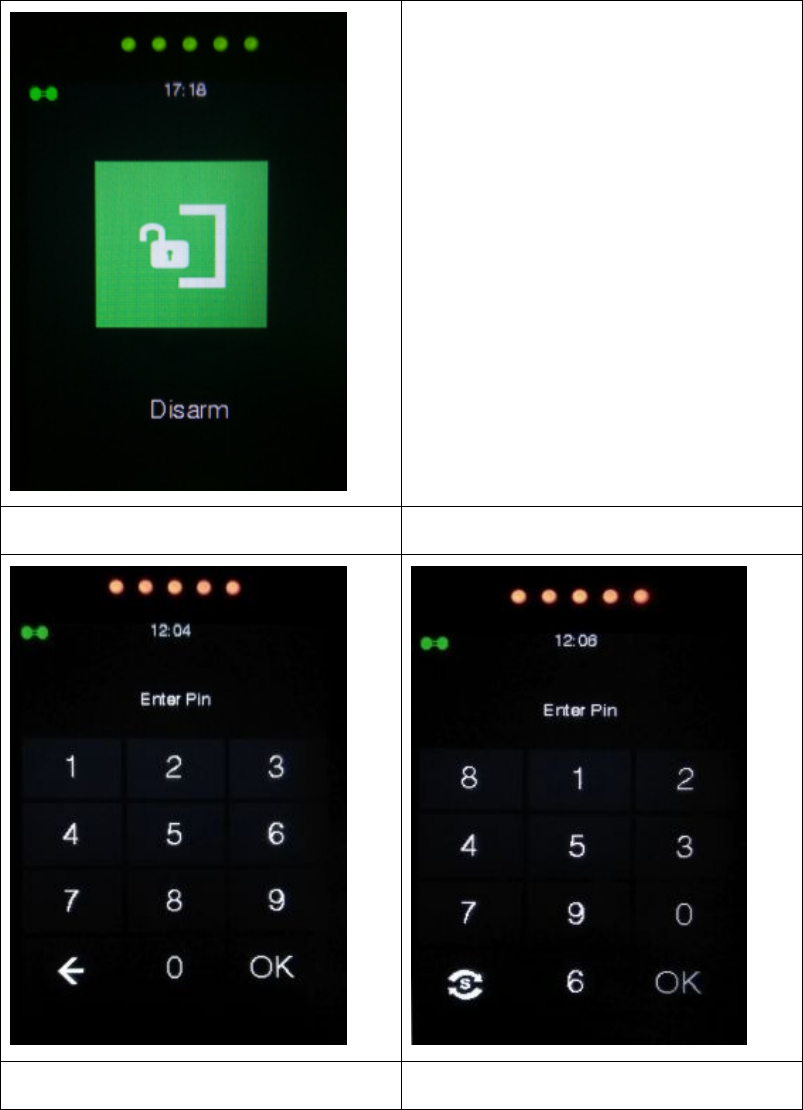

11
Disarm
Pin Mode Scrambled Keypad
12
1.8 Package List – R380 Reader
Item Description: Complete with snap on cover. 1 x Mounting cover
security screw [M3], 1 x security screw driver, and this document.
Radio Frequency Interference
Devices generate RF noise that may interfere with the reception of the
signal from the access card. This will result in the reduction of read range.
Examples of devices are radios, televisions, and cellular phones. The
read range is affected by the amount of interference (noise) in the area.
The reader should mount more than 1.5m away from the any devices that
emits RF that may interfere with the signal received from the access
control cards.
13
1.9 Product Electrical Specification
Power Supply (Recommend) Regulated linear power supply, +12VDC, 300mA
Operating Voltage Range +9VDC - + 24VDC
Operating Current at +12VDC
Maximum Cable Distance
85mA (average) –250mA (peak)
150meters (500feet)
(base on Belden 9538 24AWG 0.6mm, 8 core
cable
foilshield) (for wiegand interface)
(base on Belden 9534 24 AWG 0.6mm, 4 core
cable
foilshield) ( for RS485 interface )
Read Range
<=50mm (2”)
( Read Range is dependent on local installation
conditions )
Transmit Frequency 13.56MHz
LED
Tri Color – Red, Green, Amber
Buzzer
Multi-tone
Operating temperature Range
-20°C to 50°C
Colour
Black
Material
High Heat ABS
Weight
250 grams
Dimension
135mm (Height) X 76mm (Width) X 21mm (Thickness)
Wire Termination
9 conducting wire at length approx. 300mm
Reader Mode
Card Only, Card and PIN.
PIN Input
1 – 6 Digits
Keypad
3 x 4 Keys
Communication Interface
RS485 or Wiegand ( Selectable )
Wiegand interface Output bit
format
26, 32, 37, 40, 56, 80, 168(Asis) bits format and
8-digit 32, 37, 40 bits format
Support Card Type
Mifare ( ISO 14443-A, ISO 14443-B)
EZ-Link
Output CAN or CSN (Selectable)
Mounting
Reader back casing mount
