TCG220 User Manual HTML Version

User Manual rev.pdf

ResidentialVoIPCableModem

QuickStartGuide

Chapter1:Introduction

TCG220‐TdpisaFullBandCaptureFrontEndCableVoiceandWirelessGatewaywhichhasan

802.11b/g/naccesspointthatgivesyouwirelessconnectiontotheInternetwith2Giga

EthernetportswhichfurtherexpandtheLocalAreaNetwork(LAN)capabilities.

Ifyouhavesubscribedtophoneservicesfromyourcableoperatorthenyouwillbeableto

placenormalphonecallsusingyouranaloguephoneand/orfaxmachine.TCG220‐Tdpprovides

oneRJ‐11connectorforyourphoneorhomephonesystem.

TCG220‐TdpwillgiveyoubroadbandInternetaccess,telephoneconnectionandwireless

networkingallinoneunit.Besidesthat,thisresidentialcablegatewayoffersFirewallfor

additionalprotectionandsecurityandVPN(virtualprivatenetwork).



PackageContents

PackageContentsx1

TCG220‐TdpWiFiEMTAx1

EthernetCablex1

PowerAdaptorx1

QIGx1

Warrantycardx1



Chapter2:Overview

FrontPanel

ThefollowingillustrationshowsthefrontpaneloftheEMTA:



PowerIndicatesthePowerstatus.

DSIndicatesthestatusofDatareceptionbythecablemodemfromtheNetwork(DownstreamTraffic)

USIndicatesthestatusofDatatransmissionbythecablemodemtotheNetwork(UpstreamTraffic)

OnlineDisplaysthestatusofyourcableconnection.Thelightisoffwhennocableconnectionisdetected

andfullylitwhenthemodemhasestablishedaconnectionwiththenetworkanddatacanbe

transferred

EthernetIndicatesthestateofEthernetports

WIFIIndicatesthetrafficonthewirelessnetwork

WPSIndicatesthestatusoftheWPSfunctionality

TELIndicatesthestatusofthetelephonePhone



Therewillbe9LEDsonPKE1320SW‐D112(US‐Tdp‐RoHS)/TCG220‐TdP,butDSandUSarebi‐colorLED.Looking

atLEDfromtoptobottom:Power,DS(bi‐color),US(bi‐color),Online,Ethernet1,2,WiFi,WPS,TEL.

Power

DS

(green

color)

DS1

(blue

color)

US

(green

color)

US1

(blue

color)

Online Eth1 Eth2 WifiWPS TEL 

PowerUpONXXXXX X X X X X IndicatePowerOnorOFF

Firmware

failFlashXXXXXXXXXX

Ifduringthisprocess, theFWisn'tinthe

CPEorthereisaFWerrorandtheCPE

isn'tgoingtobeabletoboot,oneofthe

ledwillblinking.

Connect

LAN1ONXXXXXONXXXXWhenCPEdevice(PC)is connectto

LAN1

trafficONXXXXXFlash XXXXWhenthereistraffic,Eth1LEDwillflash.

Connect

LAN2ONXXXXXXONXXXWhenCPEdevice(PC)isconnectto

LAN2

trafficONXXXXXXFlash XXXWhenthereistraffic,Eth2LEDwillflash.

CMboot

cycleONFlashOFFFlashOFFFlashXXXXOFFFromPowerontosysteminitial

complete

DOCSIS

operation

ONFlashOFFOFFOFFOFF X X X X OFFDuringDSscanningandacquiringSYNC

ONONOFFOFFOFFOFF X X X X OFFCompletesynchronizationofprimaryDS

ONONONOFFOFFOFFXXXXOFFRegisterasDSbondingmode(2chor

more)

ONONONFlashOFFOFFXXXXOFFAfterprimaryDSlocked,processof

ranging

ONONONONOFFOFF X X X X OFFRangingcomplete

ONONONONONOFFXXXXOFFRegisterasUSbondingmode(2chor

more)

ONONONONONFlashXXXXOFF

AfterUSrangingcomplete,processof

communicationbetweenDOCSIS

provisionserver

ONONONONONON X X X X OFFCMonline(Operational)

MTA

operation

ONONXONXON X X X X FlashMTAprovision

ONONXONXON X X X X ONMTAonline(Operation)

Flash

upgradeONFlashXFlashXXXXXXXDuringSWupgrade

Factory

resetFlashFlashXFlashXFlashXXXXX

Whenperformingfactoryreset,the

deviceshallfeedbacktotheuserbya

2Hzblinkingforduringtheperformof

thefactoryreset

WiFi

enableX X X X X X X X ONX X WhenWiFiisenabled,theWiFiLEDwill

ON.

WiFi

disableX X X X X X X X OFFX X WhenWiFiisdisabled,theWiFiLEDwill

OFF.

WiFi

trafficX X X X X X X X Flash XX Whenthereistraffic,theWiFiLEDwill

Flash.

WPS

RunningX X X X X X X X X Flash X

Whenthereisalongpress(>5seconds),

theWPSprocesswillinitiateandthe

WPSLEDwillstarttoFlash.

WPSidleX X X X X X X X X OFF X 



RearPanelConnectorDescription



SlotDescription

12VDC 12VDC‐INPowerconnector

CABLEF‐Connector

RESETReset/RebootthisCablemodem

ETHERNET12Ethernet10/100/1000BaseTRJ‐45connector

TELTelephonyRJ‐11connector

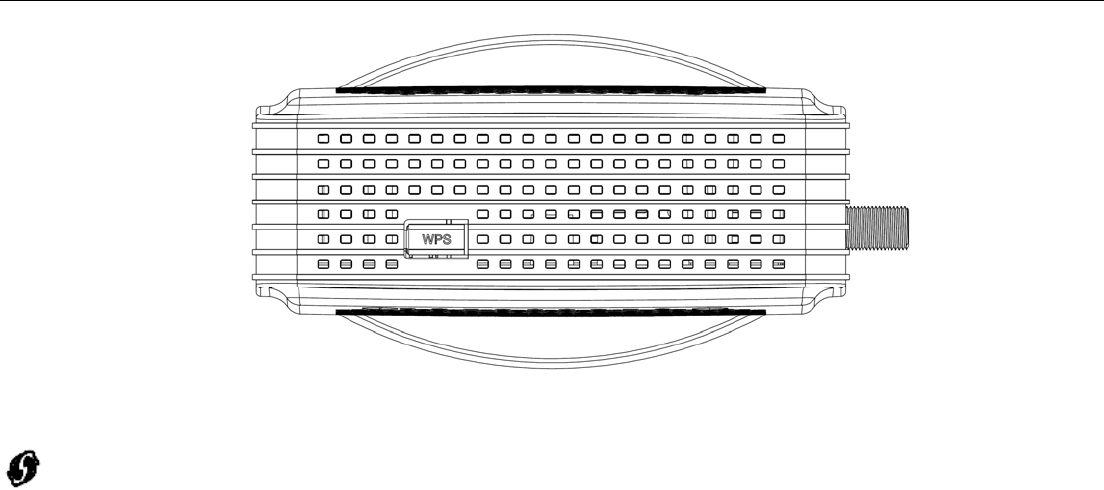

SidePanelforWPS



WPS–IndicatesthestatusoftheWPS(Wi‐FiProtectedSetupTM)functionality.

ThereisoneWPSbuttonontheTopSidePanelofTCG220‐Tdpandisdesignedtohavemultiplefunction.This

buttoncanbeusedto:

SecurelyandSimplyGetWiFiClientConnected:WPSbuttoncanbeusedtopairingWiFiclientwhichalso

supportsWPSfunction.Alongpress(pressmorethan5seconds)ontheWPSbuttonwillenable

TCG220‐TdpscanforanyavailableWPSdevice.



Note:YoumustensurethattheWiFiclientdevicesupportsWPSfunctioninordertousethisWPS

functiononTCG220‐TdP.



3.ConnectingtheResidentialVoIPcablemodemtoYourComputer

InstallationProcedureforEthernetInterface

Followthestepsbelowforproperinstallation:

1. ConnectoneendofthecoaxialcabletotheCABLEconnectiononthewall,andtheother

endtotheCABLEjackontheTCG220‐Tdp.

Note:Tospeeduptheregistrationprocessofcablemodem,thecoaxialcableshouldbe

connectedtothemodembeforethemodemturnedON

2. ConnecttheplugfromthepowersupplyintothePOWERjackontheTCG220‐Tdp,and

plugthepowersupplyintoanACoutlet.

Note:Useonlythepowersupplythataccompaniedthisunit.Usingotheradaptersmay

damagetheunit.

3. ConnectoneendoftheEthernetcabletotheEthernetportofyourcomputer,andthe

otherendtotheETHERNETportontheTCG220‐Tdp.

4. TheTCG220‐TdpwilllookforthepropercablemodemsignalintheCableTelevision

networkandprocesstheinitialregistration.Thevoicegatewayisreadyfordatatransfer

aftertheLED“CableLink”islitsolidgreen.

Note:TheREBOOTbuttonattherearpanelisformaintenancepurposesonly.Youdon’t

needtouseit.



Fig.Howtosetupyourconnection

CAUTIONforUL

NorthAmericanCableInstaller:

ThisreminderisprovidedtocallyourattentiontoArticle820.93oftheNationalElectricalCode(Section54

oftheCanadianElectricalCode,Part1)whichprovidesguidelinesforpropergroundingand,inparticular,

specifiesthatthecablegroundshallbeconnectedtothegroundingsystemofthebuildingasclosetothe

pointofcableentryaspractical.



ThissymbolonyoursetguaranteesthatyourproductcomplieswiththeEuropean

Directives1999/5/ECand2009/125/EConSafety,Telecom,Electromagnetic

CompatibilityandEnergyusingProducts.



FederalCommunicationCommissionInterference

Statement

ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)This

devicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,including

interferencethatmaycauseundesiredoperation.



ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuantto

Part15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmful

interferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequency

energyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferenceto

radiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticular

installation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbe

determinedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferenceby

oneofthefollowingmeasures:



‐ Reorientorrelocatethereceivingantenna.

‐ Increasetheseparationbetweentheequipmentandreceiver.

‐ Connecttheequipmentintoanoutletonacircuitdifferentfromthat

towhichthereceiverisconnected.

‐ Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



FCCCaution:Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliance

couldvoidtheuser'sauthoritytooperatethisequipment.



Thistransmittermustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaortransmitter.



RadiationExposureStatement:

ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment.This

equipmentshouldbeinstalledandoperatedwithminimumdistance20cmbetweentheradiator&yourbody.



Note:Thecountrycodeselectionisfornon‐USmodelonlyandisnotavailabletoallUSmodel.PerFCC

regulation,allWiFiproductmarketedinUSmustfixedtoUSoperationchannelsonly.


