TH147E-P & TH148ELE-P 400-147-016-C 2008-01-08 1/4

The TH147E-P and TH148ELE-P thermostats can be used to control:

• a forced air system - 2 or 3 wires

• a hot water system with or without pump - 2 wires

• a millivolt system - 2 wires

Note: The installation must be performed by an electrician.

2.1 Removing the Old Thermostat

IN ORDER TO AVOID ANY RISK OF ELECTRIC SHOCK, CUT

POWER TO THE HEATING SYSTEM.

nRemove the old thermostat to access the wires.

oIdentify and label each wire (with the corresponding letter on the

wire terminal) and remove them from the terminals.

pIf necessary, strip the end of each wire (maximum of 6 mm).

2.2 Installing the New Baseplate

Choose a location approximately 1.5 m above the floor and on

an inside wall. Avoid draughty areas (top of staircase, air outlet,

etc.), dead air spots (behind doors), direct sunlight or areas near

concealed pipes or chimneys.

nRemove the thermostat faceplate.

oLoosen the locking screw in order to separate the thermostat

from its baseplate (the screw cannot be completely removed).

pGently tilt the thermostat upwards.

qPass the wires through the opening of the baseplate and secure

the baseplate to the wall using the appropriate screws.

2.3 Terminal Designations

nIntroduction

1.

Features

TH147E-P

TH148ELE-P

Pump protection X X

Programmable cycle length X X

Battery replacement indicator X X

Backlit display X X

Programming:

- Preprogrammed schedule

- Temporary bypass

- Time display (12 h or 24 h)

X

X

X

X

X

X

X

X

Interchangeable faceplates X X

Unoccupied mode activated remotely X

Automatic daylight savings changeover X

Display

Adjustment

buttons

Backlight

button

Comfort

temperature

preset

Mode selection /

program exit

Program

button

Economy

temperature

preset

Temperature

Schedule

Time

Manual mode

Heating is On

: Comfort temperature indicator

: Economy temperature indicator

Day

Display

Appears when the

setpoint temperature

is displayed

Low battery indicator

Automatic mode

Unoccupied mode

oInstallation

2.

R Power

W Load

Un / Un Unoccupied mode input (TH148ELE-P only)

TH147E-P & TH148ELE-P

Installation and User Guide

Programmable Thermostats

400-147-016-C (TH147_148 P Europe) ENG.fm Page 1 Tuesday, January 8, 2008 2:47 PM

TH147E-P & TH148ELE-P 400-147-016-C 2008-01-08 2/4

2.4 Connecting the Heating System

2.5 Unoccupied Mode Input

(

TH148ELE-P only

)

TH148ELE-P has an input that can be used to lower the temperature

when the house is unoccupied. You can connect an Aube’s CT240

telephone controller (optional) or another remote control system.

When the thermostat receives a 12-VDC signal, it switches to the

unoccupied mode where the setpoint programmed for that mode is

used (see section 5). When the signal is removed, the thermostat

returns to the previous mode.

2.5.1 Connecting to CT240

Connect TH148ELE-P terminals UN and UN to

CT240 terminals A and C (no polarity to observe).

2.5.2 Connecting to a Home Automation System

Connect TH148ELE-P terminals UN and UN to a

12-VDC circuit as shown (no polarity to observe).

2.6 Installing the Batteries

:

nGently pull out the battery cover.

oInstall the batteries as shown. Observe the polarity.

pRe-install the battery cover. You will hear a clicking sound.

After the batteries are installed, the thermostat performs a series of

tests for approximately 5 seconds.

Afterwards, the thermostat displays the temperature. It is possible

that the displayed temperature is higher than the ambient tempera-

ture if you are holding the thermostat in your hands. Once installed

on the wall, the thermostat will display the ambient temperature. The

time and day settings flash to indicate that they must be set (see sec-

tion 4.1).

2.7 Completing the Installation

nOnce the baseplate and the batteries are installed, mount the

thermostat on the baseplate.

oSecure the thermostat using the locking screw and install the

faceplate.

pApply power back to the system.

3.1 Backlight

The display illuminates for 12 seconds when the backlight button or

any other button is pressed.

3.2 Displaying the Temperature

The actual (measured) temperature is normally displayed. To view

the setpoint temperature, press once on either of the buttons.

The setpoint, along with the icon, will be displayed for the next 5

seconds.

3.3 Setting the Temperature

Press one of the buttons until the desired temperature is dis-

played.

3.4 Comfort and Economy Temperatures

The thermostat has 2 preset temperature buttons:

• Comfort temperature

• Economy temperature

To set the thermostat at the Comfort or Economy temperature, press

the corresponding preset button. The corresponding symbol will be

displayed.

The following table shows the use and the factory setting of each

preset button.

To modify the Comfort or Economy temperature:

nSet the desired temperature using the buttons.

oPress and hold the appropriate preset button until the corre-

sponding symbol is displayed.

NOTE:

No polarity

to observe.

Load

pBasic Functions

3.

Button Intended use Default setting

Comfort (when the occupant is awake and at home) 21°C

Economy (when the occupant is absent or asleep) 17°C

400-147-016-C (TH147_148 P Europe) ENG.fm Page 2 Tuesday, January 8, 2008 2:47 PM

TH147E-P & TH148ELE-P 400-147-016-C 2008-01-08 3/4

3.5 Control Mode

3.5.1 Manual

Use this mode to set the temperature manually. To use this mode,

press Mode to display and set the desired temperature using the

buttons or the buttons.

3.5.2 Automatic

Use this mode to set the temperature according to the programmed

schedule (see section 4.3). To place in Automatic mode, press Mode

to display .

Temporary Bypass

If you modify the setpoint temperature when the thermostat is in

automatic mode, the new temperature will be used for the next 2

hours. Afterwards the thermostat will return to the automatic

mode and use its current temperature setting. The icon

flashes during the bypass.

3.5.3 Unoccupied (TH148ELE-P only)

To place the thermostat in Unoccupied mode, see section 2.5. When

the thermostat is in this mode, the unoccupied mode setpoint is used

and the icon is displayed.

Temporary Bypass

If you modify the setpoint temperature when the thermostat is in

unoccupied mode, the new temperature will be used for the next

2 hours. Afterwards, the thermostat will return to the unoccupied

mode setpoint. The icon flashes during the bypass.

3.6 Low-battery Indicator

An icon appears when the batteries need replacement.

This icon will flash for 60 days, then the thermostat will

cut power to the heating system. The icon disappears

once the batteries are replaced.

After replacing the batteries, re-adjust the clock and day (see

section 4.1). For TH148ELE-P model, re-adjust the date also

(see section 4.2). The rest of the settings are unaffected when the

batteries are removed.

4.1 Setting the Clock and Day

nPress Clk for 3 seconds. The hour display flashes.

oSet the hour using .

pPress Clk. The minute display flashes.

qSet the minutes using .

rPress Clk. The day display flashes.

sSet the day using .

tPress Exit to exit the programming mode.

4.2 Setting the Date (TH148ELE-P only)

This setting is necessary only if you use the automatic daylight sav-

ings changeover (see section 5).

nPress Clk for 3 seconds. The time setting is displayed.

oPress Clk for 3 seconds again. The year setting is

displayed.

pSet the year using and press Clk to display

the month setting.

qSet the month using and press Clk to display

the date setting.

rSet the day using .

sPress Exit to exit the programming mode.

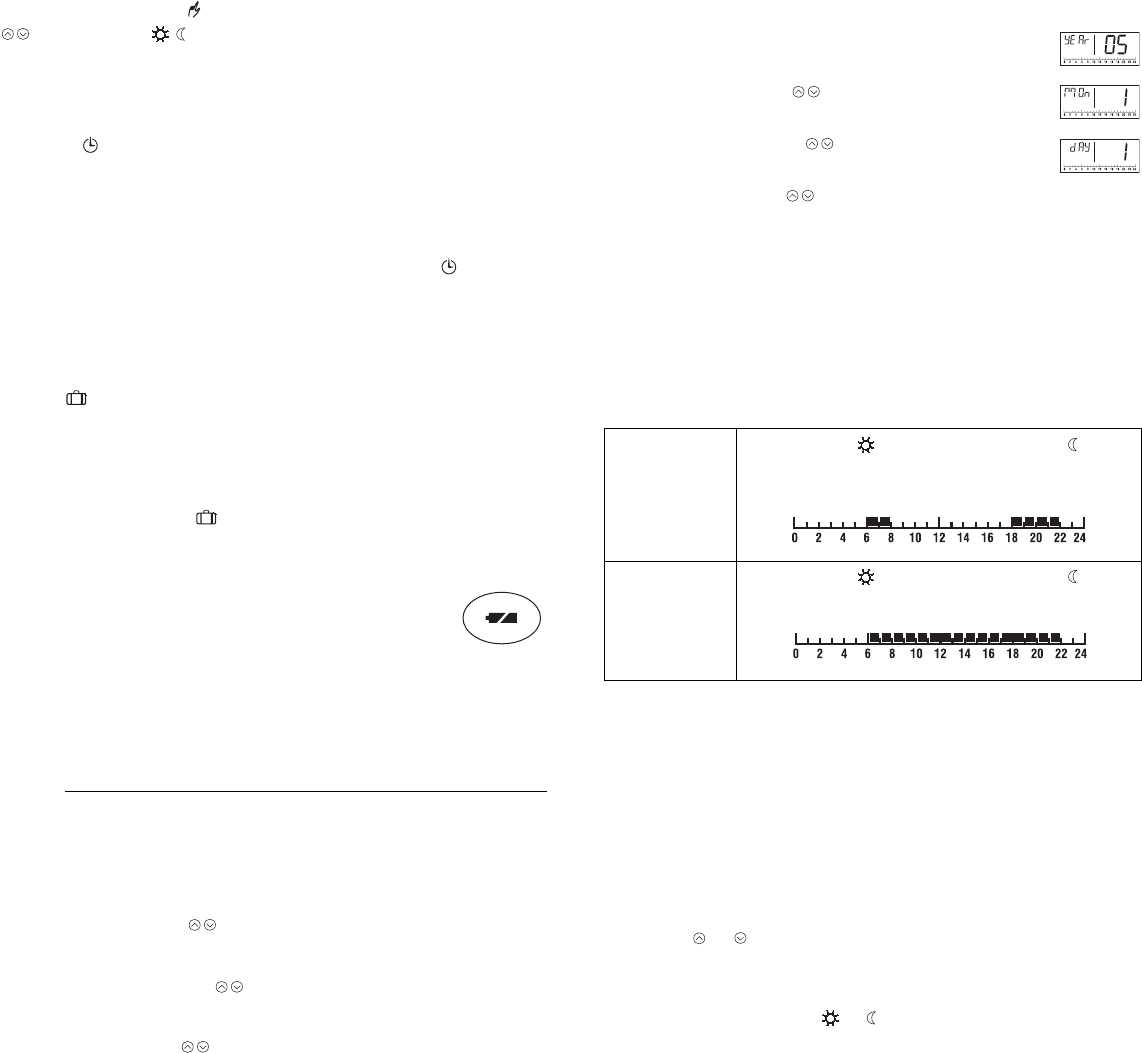

4.3 Schedule

When the thermostat is placed in automatic mode, it switches

between the Comfort temperature and the Economy temperature

according to the programmed schedule. You can set a different pro-

gram for each day of the week. The following schedule has been pro-

grammed in the thermostat as follows:

4.4 Modifying the Schedule

nIf not already done, set the Comfort and Economy temperatures

(see section 3.4).

oPress Pgm. The program for Monday will appear and the first

period (0:00 a.m. to 1:00 a.m.) is selected (flashes). Each period

is a one-hour interval.

Note: If you wish to use the same program every day, press

Pgm for 3 seconds to select all the days of the week.

pPress or to advance to the next or preceding period respec-

tively.

qSelect the Comfort or Economy temperature by pressing on the

corresponding button ( or ).

rRepeat steps 3 and 4 as required.

sTo modify the program for another day, press Pgm until the day

is selected and repeat steps 3 to 5.

tPress Exit to exit the programming mode.

qProgramming

4.

Monday to

Friday

Comfort : Economy :

6:00 to 8:00

18:00 to 22:00

8:00 to 18:00

22:00 to 6:00

Saturday and

Sunday

Comfort : Economy :

6:00 to 22:00 22:00 to 6:00

400-147-016-C (TH147_148 P Europe) ENG.fm Page 3 Tuesday, January 8, 2008 2:47 PM

TH147E-P & TH148ELE-P 400-147-016-C 2008-01-08 4/4

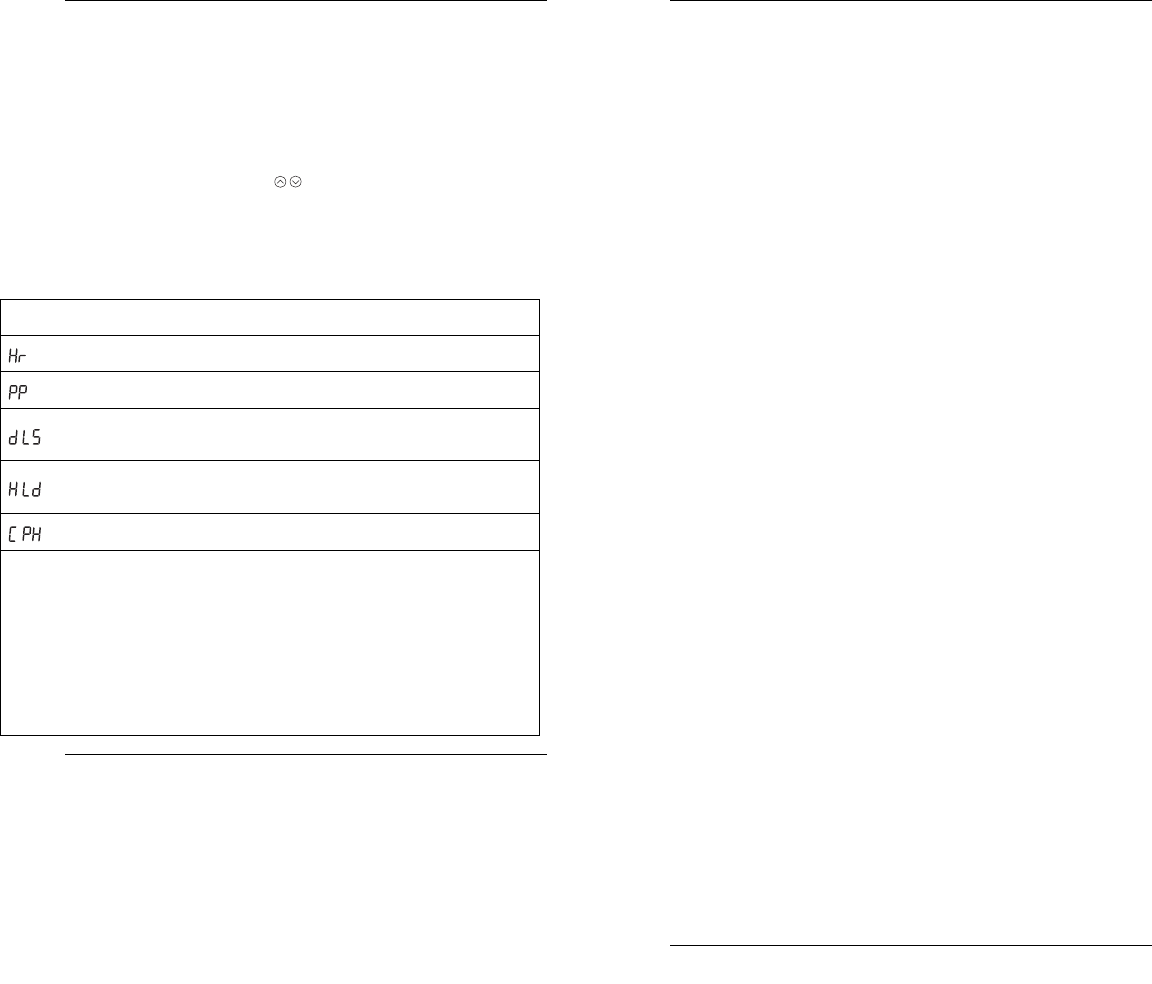

nPress the backlight button until the configuration menu appears

(3 seconds).

oTo go to the next parameter (menu item), press the backlight but-

ton (1 second).

pTo modify a parameter, press .

qRepeat steps 2 and 3 if necessary.

rTo end, press the backlight button until the configuration menu

disappears (3 seconds).

Power supply: 2 LR6 (1.5V) Alkaline batteries

Maximum load: 5 A (resistive), 0.95 A (inductive) @ 240 VAC

Power across UN terminals: 20 mA @ 12 VDC

Setpoint range: 5 to 28°C

Display range: -10 to 50°C

Display resolution: 0.5°C

Accuracy: ± 0.5°C

Cycle length: 10, 12, 15, 20 or 30 minutes (programmable)

Conformity: IEC60730-1

Storage temperature: -20 to 50°C

Dimensions: 127 mm x 75 mm x 28 mm

Aube warrants this product, excluding battery, to be free from defects

in the workmanship or materials, under normal use and service, for a

period of three (3) years from the date of purchase by the consumer.

If at any time during the warranty period the product is determined to

be defective or malfunctions, Aube shall repair or replace it (at Aube's

option).

If the product is defective,

(i) return it, with a bill of sale or other dated proof of purchase, to

the place from which you purchased it, or

(ii) call Aube Technical Support at 33 (0) 1 34 07 99 00. Technical

Support will make the determination whether the product should

be returned to the following address: 10 rue Ampère, 95500

Gonesse, France, or whether a replacement product can be sent

to you.

This warranty does not cover removal or reinstallation costs. This

warranty shall not apply if it is shown by Aube that the defect or mal-

function was caused by damage which occurred while the product

was in the possession of a consumer.

Aube's sole responsibility shall be to repair or replace the product

within the terms stated above. AUBE SHALL NOT BE LIABLE FOR

ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCI-

DENTAL OR CONSEQUENTIAL DAMAGES RESULTING,

DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WAR-

RANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF

THIS PRODUCT. Some regions do not allow the exclusion or limita-

tion of incidental or consequential damages, so this limitation may not

apply to you.

THIS WARRANTY IS THE ONLY EXPRESS WARRANTY AUBE

MAKES ON THIS PRODUCT. THE DURATION OF ANY IMPLIED

WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANT-

ABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS

HEREBY LIMITED TO THE THREE-YEAR DURATION OF THIS

WARRANTY. Some regions do not allow limitations on how long an

implied warranty lasts, so the above limitation may not apply to you.

This warranty gives you specific legal rights, and you may have other

rights which vary from region to region.

If you have any questions concerning this warranty, please write

Aube, 705 Montrichard, Saint-Jean-sur-Richelieu, Quebec J2X 5K8

Canada.

For any questions regarding the product installation or operation,

contact our technical support team at

Tel.: 33 (0) 1 34 07 99 00

Fax: 33 (0) 1 34 07 99 19

Email: advaube@comintes.com

For more information on our products, visit us at

www.aubetech.com

rConfiguration

5.

DISPLAY DESCRIPTION DEFAULT SELECTIONS

Time display 12 h 12 h or 24 h

Pump protection 1 Off On or Off

Automatic daylight savings

changeover 2 (TH148ELE-P only) Off On or Off

Unoccupied mode temperature

setting 3 (TH148ELE-P only) 10°C 5°C to 28°C

Number of cycles per hour 44 2, 3, 4, 5 or 6

1 When pump protection is On, the thermostat will activate the heating sys-

tem for 15 seconds if it has not been activated for the past 24 hours.

2 Daylight savings time starts on the last Sunday of March and normal time

starts on the last Sunday of October.

3 See section 2.5.

4 The corresponding cycle lengths are: 2=30 min., 3=20 min., 4=15 min.,

5=12 min., 6=10 min. Select the cycle according to the type of heating: gas

boiler <30kW: 10 minutes; oil boiler: 20 minutes

sTechnical Specifications

6.

;Warranty

7.

Technical Assistance

8.

400-147-016-C (TH147_148 P Europe) ENG.fm Page 4 Tuesday, January 8, 2008 2:47 PM
