Autec s r l TC02B03D Remote Control Transmitter TC02B03D User Manual LIMKNPA0 usa
Autec s.r.l. Remote Control Transmitter TC02B03D LIMKNPA0 usa
User Manual
Transmitter System
USER’S MANUAL
Modular Series
Follow the indications and warnings given by the machine producer regarding the machine
controlled by the radio remote control.
The information contained in this manual considers a representative configuration of the
radio remote control: please find radio remote control real configuration in the technical data
sheet (attached to the manual).
If this manual is lost or damaged, ask for a copy from AUTEC. Please specify the serial
number of the relative radio remote control.
Contact AUTEC if any of the instructions and/or warnings given in this manual are not clear.
The information contained in this manual is subject to modification without notice and is not
binding.
No parts of this manual may be reproduced by any means without the written permission of
AUTEC (including recording and photocopying).
LIMKPNA0
Page 1
THIS MANUAL REFERS EXCLUSIVELY TO THE TRANSMITTING UNIT: THE
INSTALLATION WARNINGS ARE GIVEN IN THE RECEIVING UNIT MANUAL.
BEFORE INSTALLING, STARTING AND USING THE RADIO REMOTE CONTROL, THIS
MANUAL MUST BE READ AND UNDERSTOOD CAREFULLY BY ALL PEOPLE WHO
INSTALL, USE AND CARRY OUT MAINTENANCE ON THE RADIO REMOTE CONTROL.
Index and Conventions
Introduction to Modular series
MK10, MK12 transmitting unit
Warnings for use
Warnings for maintenance
MK10, MK12 operation transmitting unit
Frequencies
Programming
MK10, MK12 transmitting unit diagnostic
1
2
5
8
9
12
14
15
16
1
2
3
4
5
6
7
8
9
1
abcd. . .
!
INDEX
INDEX AND CONVENTIONS
Page
CONVENTIONS
In this manual, all important information is indicated using the following symbols and
conventions:
: TECHNICAL DATA : IMPORTANT TEXTS
abcd. . . abcd. . .
: WARNINGS : INSTRUCTIONS
abcd. . .
Page 2
Each Modular series radio remote control complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
!
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
LIMKPNA0
Industrial radio remote controls of the Modular series
are used to command machines from a distance. Each
industrial radio remote control is made up of a portable
transmitting unit, from which the user can remotely
control the machine, and a receiving unit installed on
board the machine itself.
The transmitting unit uses radio frequencies to
transmit a coded message which contains a value
called address. Each receiving unit can only decode
the messages coming from a transmitting unit with the
same address.
This excludes the possibility of an interference
activating any system function. If the radio frequency
transmission is disturbed, incorrect or interrupted, the
receiving unit autonomously stops the whole system.
2

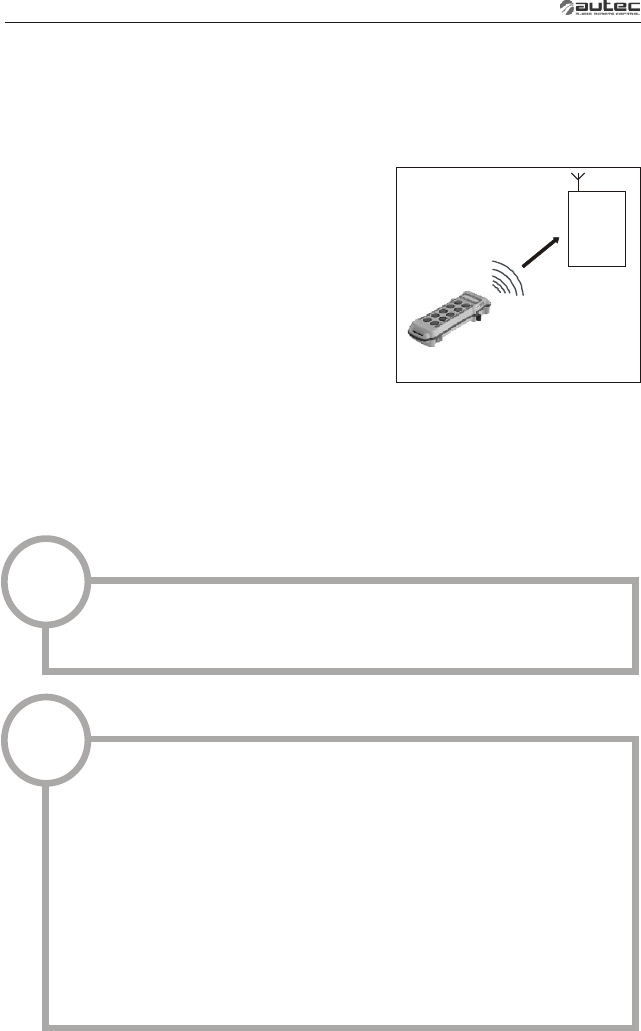

INTRODUCTION TO MODULAR SERIES
Receiving
unit
Transmitting
unit
Autec cannot be held responsible if the radio remote control is
installed on applications that are different from those permitted
PERMITTED USES
Material lifting machines (construction cranes, industrial bridge cranes,
machines for moving material in general, . . . )
FORBIDDEN USES
Machines installed in areas where equipment with explosion-proof
characteristics are being used.
Machines for moving, raising and transporting people.
:
.
!
Page 3
Alll machines must undergo a risk analysis; therefore it is necessary to evaluate, within
the limits of this analysis, if the machine can be radio remote controlled.
The machine producer and/or the person who decides upon radio remote control use
and installation is responsible for this analysis.
Autec cannot be held responsible if the risk analysis is not carried out correctly.
To guarantee correct radio remote control operation, all current regulations regarding
safety at work and accident prevention should be respected. All current user country
national laws regarding the use of both the machine and the radio remote control MUST
ALWAYS be respected.
Autec cannot be held responsible if the radio remote control is used in unlawful
working conditions.
System must be installed by a licensed technician and in accordance with all
relevant local, state/provincial and federal regulations, including but not limited to
NEC, OSHA, CE etc.
!
In any cases of emergencies, faults or damaged parts, ALWAYS stop
the “machine + radio remote control” system until the problem has
been solved.
Any damaged parts can ONLY be replaced by authorised
Autec personnel or service representative, and only using original Autec
spare parts.
LIMKPNA0
Page 4
The following minimum documentation is supplied with each radio remote
control:
- transmitting unit manual
- receiving unit manual
- battery charger manual
- a guarantee certificate
- the radio remote control technical data sheet.
Make sure that the following documents have been supplied: if they are not, request
them from Autec. Please specify the radio remote control serial number.
The conditions of the radio remote control guarantee are given in the “Certificate of
Guarantee”.
The technical data sheet shows the wiring system between the receiving unit and the
machine. It should be compiled and checked by the installer, who has the responsibility
of correct wiring. Once all necessary checks have taken place the installer must sign the
technical data sheet, which must be kept with the user's manual (always keep a copy of
this data sheet in case it is needed for administrative purposes).
The radio remote control identification and approval data is given on plates that are on
both the transmitting unit and the receiving unit.
The plates MUST NOT be removed from where they are placed or damaged
otherwise the warranty will be forfeited.
CERTIFICATE OF GUARANTEE
TECHNICAL DATA SHEET
IDENTIFICATION PLATES
INSTRUCTIONS FOR DOCUMENT MANAGEMENT
LIMKPNA0
902 - 928 MHz
32
³ 8
<10 exp-11
100 m
<100 ms
<100 ms
* 0,35 / 1 sec.
Frequency band
Programmable radio channel
Hamming distance
Probability of non-recognition of error
Typical working range
Time of reply to commands
Time of reply to STOP
Passive emergency time

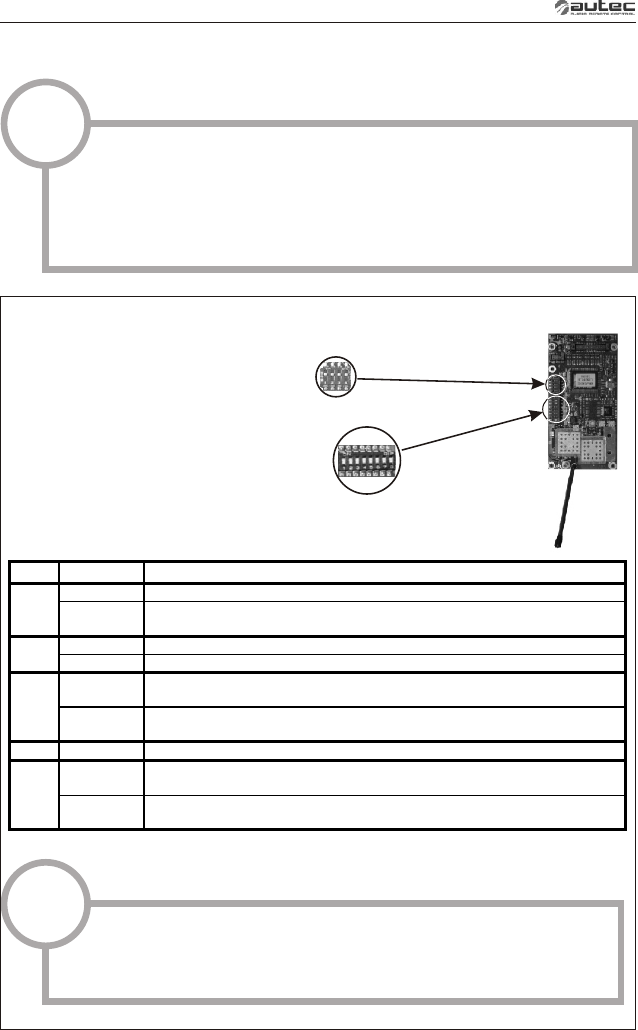

* refer to paragraph “Programming” in the receiving unit manual, DIP nr. 1 settings.
TECHNICAL DATA
!Following from the status of dip switch no.1 or possibly due to a failure
(of the dip switch itself), a delay up to max 1 second may occasionally
occur between command release and actual deactivation of outputs.
This is due to the characteristics of radio propagation (i.e.: EM
interferences, near out-of-range condition). Care must be taken to
ensure that this could never lead to.
3
These transmitting units can be used with one of the following receiving units:
- Type R102
- Type R202
MK10
A
B
C
E
G
F
D
H
C
C2 C3
C1
Page 5

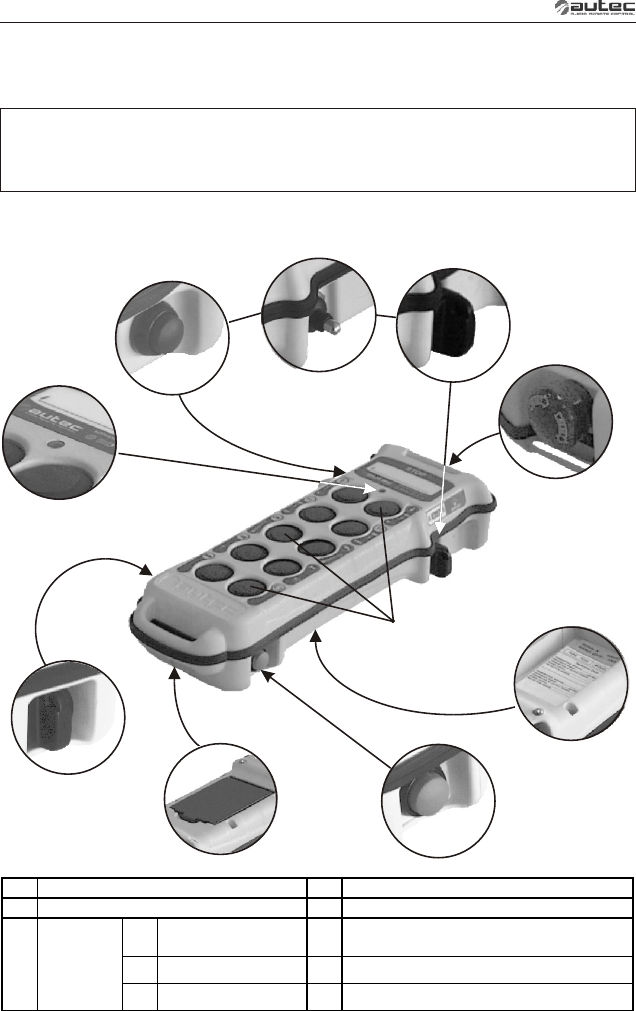

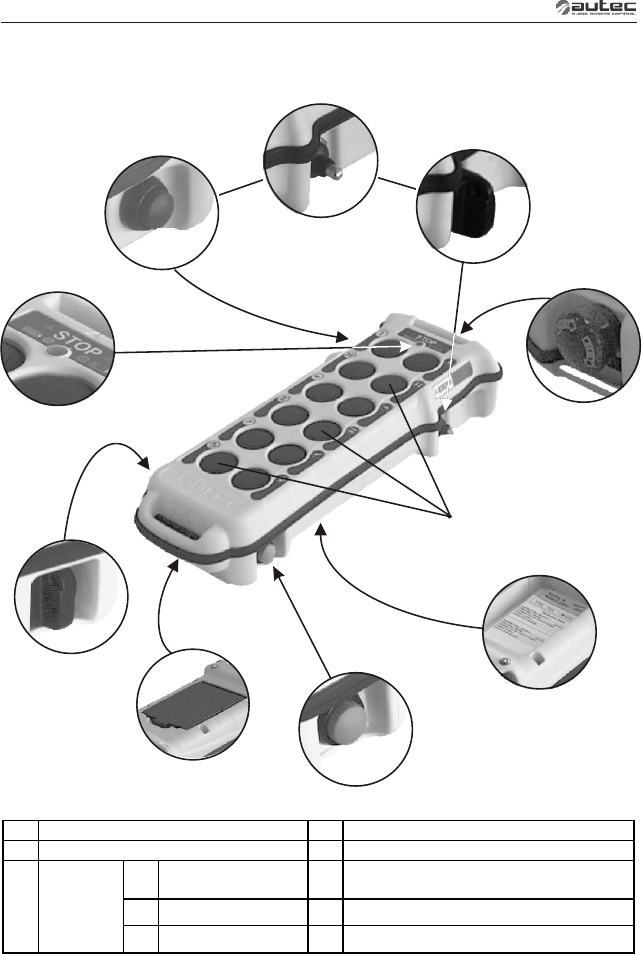

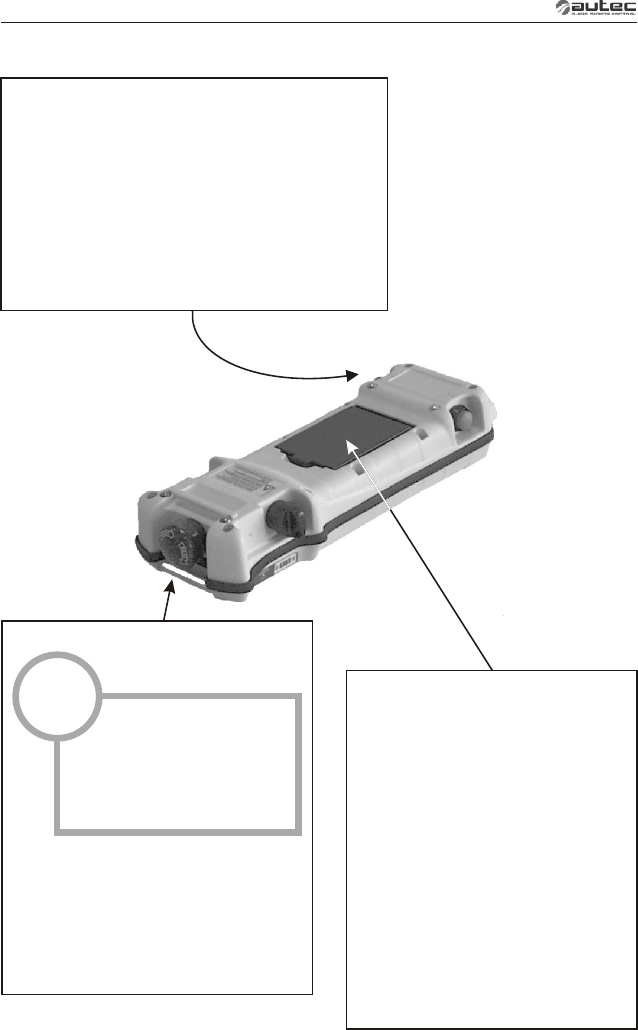

MK10, MK12 TRANSMITTING UNIT
A starting keyswitch D STOP pushbutton
B signalling LED E actuators pushbutton
C1 pushbutton F technical data plate, identification
plate (in the battery housing)
C2 toggle switch G START pushbutton
C
actuator
(if
present) C3 keyswitch selector H battery
LIMKPNA0
MK12
Page 6
A
F
B
D
C
E
G
H
C
C2
C3
C1
A starting keyswitch D STOP pushbutton
B signalling LED E actuators pushbutton
C1 pushbutton F technical data plate, identification
plate (in the battery housing)
C2 toggle switch G START pushbutton
C
actuator
(if
present) C3 keyswitch selector H battery
LIMKPNA0
* NiMH 7,2Vdc
internal
meets FCC Part 15 for license-free operation
PA6 (20% fg)
IP65
-4°F - +131°F
(85x260x56) mm
650 g
~ 15 hours
3,5 minutes
MK10, MK12 TRANSMITTING UNIT TECHNICAL DATA
Power supply (battery pack MBM06MH)
Antenna
Output power
Housing
Minimum protection grade
Working temperature
Dimensions
Weight
Autonomy with fully charged battery (at 68°F)
Warning of low battery charge
The Modular series radio remote controls are equipped with a redundant control that
protects the “radio remote control + machine” system, when it is in neutral (neutral
position), from involuntary movements caused by possible radio remote control
faults. This occurs only if the wiring indications indicated in the technical data sheet
have been respected as well as the indications for correct installation.
Page 7
* refer to battery technical data in the battery charger manual.
LIMKPNA0
Page 8
WARNINGS FOR USE
4
!
VISUALLY FOLLOW all movements of the machine and its load remaining
inside radio remote control typical working range.
in a way that permits him to see the
“machine + radio remote control” system, and above all the load, in the best
possible way.
Before using the radio remote control ALWAYS MAKE SURE that the STOP
push-button can be pressed and released: if it does not work, do not use the
radio remote control.
SWITCH OFF the transmitting unit when work is interrupted. Avoid leaving
the load suspended in the air (even when changing the battery).
ONLY SWITCH ON OR USE the transmitting unit when starting work:
improper use could be hazardous.
NEVER SWITCH ON OR USE the transmitting unit in closed spaces, with the
machine not in sight, or outside the typical working range.
PRESS immediately the STOP button in case of hazard.
PAY ATTENTION to the entire work area. Press the STOP button in case of
hazard.
PAY ATTENTION not to let elements such as cement, sand, lime, etc. deposit
on the transmitting unit because they can compromise transmitting unit use
and safety.
In case of malfunctions and/or damaged and/or faulty parts, PUT the radio
remote control out of use until the problem has been completely eliminated.
BE POSITIONED
NEVER LEAVE the transmitting unit unguarded when the starting keyswitch
is inserted.
THE OPERATOR
MUST ALWAYS
LIMKPNA0
FAILURE TO COMPLY WITH THE ABOVE WARNINGS MAY RESULT IN
SERIOUS INJURY OR DEATH TO PERSONNEL AND DAMAGE TO
EQUIPMENT.
Page 9
LIMKPNA0
5
SERVICE
!
ENSURE THAT THE BATTERY HAS BEEN REMOVED
FROM THE TRANSMITTING UNIT BEFORE
CARRYING OUT ANY MAINTENANCE WORK.
Any faults should be repaired by authorised Autec
personnel using original Autec spare parts only.
WARNINGS FOR MAINTENANCE
All control and maintenance interventions carried out on the radio remote control must be
verified and recorded by the person in charge of carrying out maintenance on the machine.
!
Before carrying out maintenance and/or diagnostics it is
recommended to replace the battery with a charged one and ensure the
efficiency of the START key.
Routine maintenance in accordance to the instructions given in this
manual is fundamental for the safe use of the radio remote control.
Read and strictly respect the warnings given in the battery charger
manual in order to lengthen the life of the battery itself.
After each maintenance intervention, always make sure that only the
expected manoeuvres are carried out when the relative commands are
sent by the transmitting unit.
Page 10
LIMKPNA0
ROUTINE MAINTENANCE
The following instructions allow to maintain the radio remote control in a perfect condition,
guaranteeing it to function safely and correctly for a long period.
Special applications may need more specific routine maintenance interventions to be carried
out at different periods.
These instructions do not in any case substitute the norms and laws that regulate work
safety, nor do they limit the responsibility of the purchaser and user of the radio remote
control.
All given instructions must be followed correctly each time the machine and the radio
remote control are started.
!
If irregularities are noted while carrying out routine maintenance, put
the "machine+radio remote control" system out of order, following the
indications given (see “Receiving unit diagnostic”)
Transmitting unit
It is recommended every day to:
1. remove dust or accumulations of other material from the transmitting unit. Never use
solvents or flammable/corrosive materials to clean, and do not use high pressure water
cleaners or steam cleaners.
2. store the transmitting unit in clean and dry areas.
3. make sure that the transmitting unit gaskets, joystick bellows, selectors caps and
pushbuttons are intact, soft and elastic
4. make sure that the battery seat and the battery contacts are always clean
5. make sure that the transmitting unit are structurally integral
6. make sure that the panel symbols can be easily recognised. If necessary, replace the
panel.
7. check identification plate readability and integrity
8. verify the efficiency of the STOP pushbutton before using the radio remote control.
Page 11
LIMKPNA0
AUTHORIZED SERVICE CENTER
When it is necessary to carry out special maintenance (radio remote control repair and
replacement of damaged or faulty parts), do not contact anyone other than our
Authorized Service Center. In order to make the intervention faster and more reliable,
please help us identify the radio remote control correctly and completely by giving:
- the serial number
- the purchase date (given on the guarantee)
- description of the problem found
- the address and telephone number of the place where the radio remote control is being
used
- the name of the person to be contacted
- the name of the company that supplied the radio remote control.
Before speaking with a service technician, it is advisable to make sure that the
given instructions have been followed correctly.
DISPOSAL
When scrapping, entrust the radio remote control to the separate scrap collecting
services in the country of use.
Please pay particular attention when recycling the batteries, applying local rules. Do not
throw them away with domestic trash.
SPECIAL MAINTENANCE
!
Any fault should be repaired by authorised Autec personnel (contact
Service), using original Autec spare parts only.
6
SIGNALS
To switch on the transmitting unit, insert
the starting key and turn it to "I".
To start the radio remote control functions,
press the “START” button for 1÷2
seconds.
After starting, the green signalling LED
always lights up.
MK10, MK12 OPERATION TRANSMITTING UNIT
POWER AND STARTING
COMMAND
ACTIVATION
Operate the actuators
and/or the selectors
relevant to whatever
movement or selection
command is to be
carried out.
Page 12
1
2
1
2
LIMKPNA0

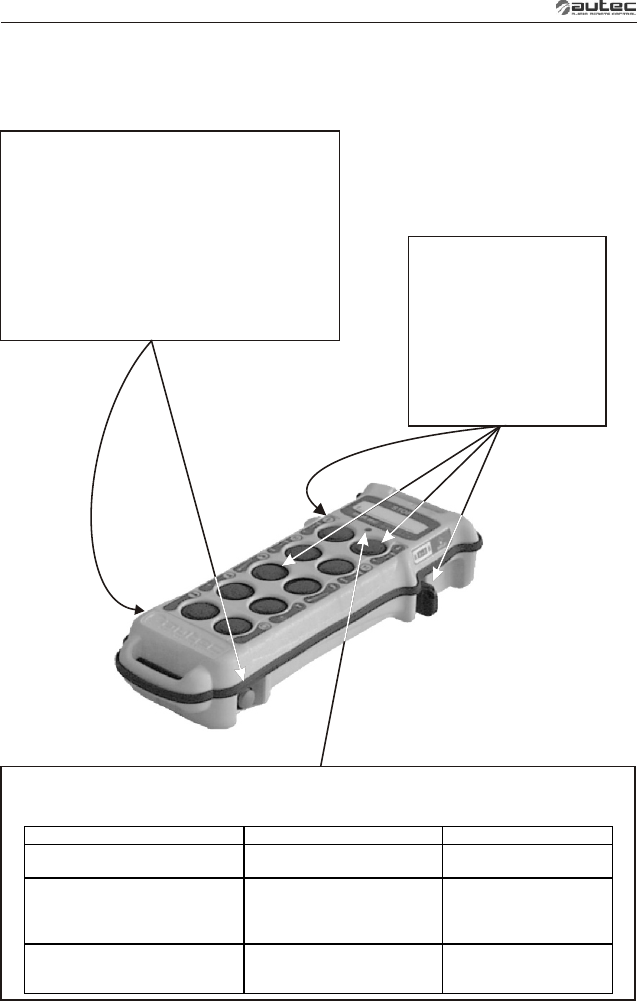

TYPE MEANING ACTION
blinking green LED OPERATION
NORMAL ///
blinking red LED, accompanied
by intermittent sounds from the
buzzer
LOW BATTERY
The transmitting unit
switches off 3,5 minutes after
the LED starts flashing
Switch off the
transmitting unit and
replace the battery
steady red LED at starting,
accompanied by the continuous
sound from the buzzer
ONE OR MORE (movement)
ACTUATORS and/or STOP
PUSHBUTTON INSERTED
Release actuator(s)
and/or the STOP
pushbutton
To recharge a flat battery, proceed as
follows:
1. Insert the battery into its proper
battery charger, which should be
positioned in an area having a
temperature of between +5°C and
+45°C. The battery now starts
charging, a state signalled by the
lighting up of the “CHARGE” pilot
light.
After a maximum of 3 hours the
"CHARGE" indicator switches off: the
battery is fully charged. Remove the
battery from the charger (if the battery
is not removed, charging continues in
maintenance mode).
2.
! The STOP button
should be used when it
is necessary to stop the
machine immediately in
order to check any
danger condition.
STOP
To stop the machine immediately, press
the STOP button.
To start working again, after having
made sure that the working conditions
are safe, turn the STOP button in the
direction indicated to deactivate it and
repeat the starting procedure.
Page 13
SWITCHING OFF
LIMKPNA0
The transmitting unit should be switched off
each time work is stopped by turning the
ignition key to "O" and extracting it (always put
the key in a safe place).
The unit may also switch off if the battery is not
sufficiently charged and/or when the radio remote
control is not used for more than 3,5 minutes (set
DIP nr. 1: refer to paragraph 8 "Programming").
BATTERY
With the transmitting unit started
(blinking green LED):
- press the START pushbutton
(a) and keep it pressed,
- press the STOP pushbutton (b),
- release the START pushbutton.

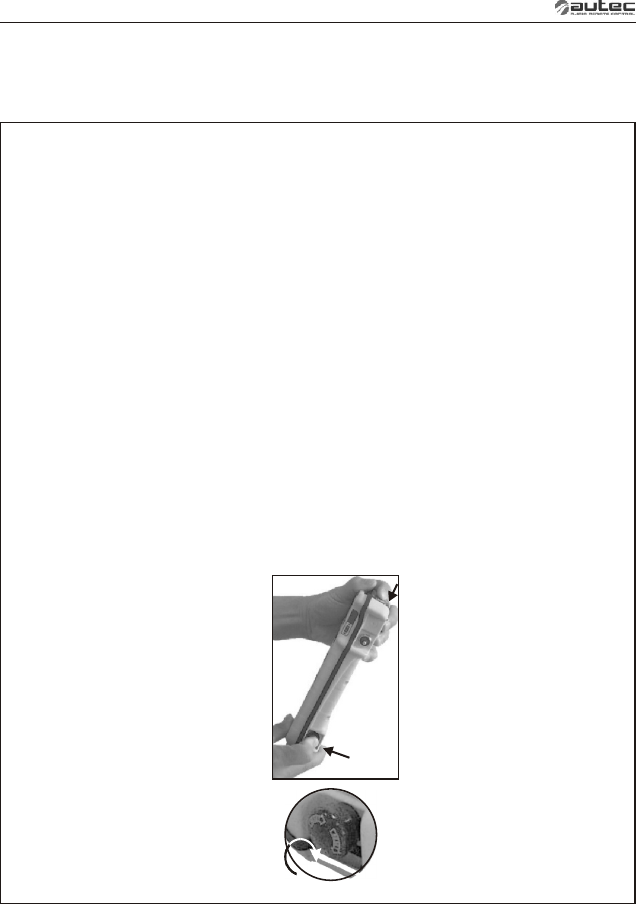

Unlock the STOP pushbutton by
turning it as shown in the photo
and repeat the starting
procedure.
1
2
N.B.: During the work
frequency changing
process, the receiving unit
loses radioelectric
connection with the
transmitting unit. After
starting, some seconds may
be necessary to reset
connection, therefore keep
the START button pressed
for about 8÷10 seconds.
The radio frequency of AUTEC radio remote controls is included in the group of
frequencies permitted by regulations that are current at the moment of radio
remote control entry onto the market.
Each radio remote control is programmed by the producer in the AUTOMATIC scan
mode (producer's standard programming) or MANUAL selection mode.
MANUAL SELECTION MODE
When operating in the MANUAL selection mode it is possible to work at a specific
frequency that must be set manually by programming the dip switches in the radio
modules (see “Settings” on page 13).
To set or modify this operation mode contact personnel that have been authorised
by Autec.
AUTOMATIC SCAN MODE
When operating in the AUTOMATIC scan mode it is possible to operate at a specific
frequency, which can be changed in case of interference or conflict with other radio
equipment using the “Changing the operating frequency” procedure.
This mode avoids internal interventions on the transmitting unit and the receiving unit.
FREQUENCIES
7
Working frequency change process
Page 14
LIMKPNA0
a
b
Page 15
LIMKPNA0
8
PROGRAMMING
The group of eight dip switches found
in the module is necessary for
programming some operations and
setting the operating frequency.
The programming set in the other
group of four dip switches must never
be modified.
DIP SWITCHES ON E16STXUS1 RADIO TRANSMITTING MODULE
Group of 8 dip switches
! These eight dip switches must be programmed in the same manner as
the group of 8 dip switches (excluding DIP 1) present in the radio
module of the receiving unit (see manual).
Group of 4
dip switches
Group of 8
dip switches
(*) With the MK12 transmitting unit the dip switch should be at ON.
DIP POS. DESCRIPTION
ON The transmitting unit never switches off automatically
1 (*) OFF The transmitting unit switched on without movement commands entered
switches off after approx. 3,5 minutes
ON Deactivated of low battery warning from horn on machi ne
2 OFF Activation of low battery warning from horn on machine
ON With DIP 8 OFF automatic scan mode of the frequencies in the
915 - 928 MHz
3
OFF With DIP 8 OFF automatic scan mode of the frequencies in the
902 - 915 MHz
3 - 7 ON/OFF With DIP 8 ON see “Appendix: Frequency Table”
ON Manual selection of frequencies with
DIP 3 - DIP 7 (see “Appendix: Frequency Table”)
8
OFF Automatic scan mode of frequencies in the band selected with DIP 3
(DIP 4 – DIP 7 not relevant)
! The dip switches must be programmed with the battery removed from
the transmitting unit and can be done only by authorised personnel.
The incorrect closure of the transmitting unit can compromise seal
between the casings and thereby the protection grade from dust and
water.
9
If the “machine+radio remote control” system does not start, check if the problem is caused
by the radio remote control or the machine. Before carrying out any verifications, check the
functioning of the machine with the cable control panel:
- if it does not switch on, the problem lies with the machine itself
- if it does switch on, the problem lies with the radio remote control. In this case, proceed as
follows:
When START is
activated, is the red
LED lit steadily
and does the buzzer
sound?
The battery is
discharged:
replace it with one
that is charged.
Does the LED
continue flashing
and the buzzer
sounding?
NO
Clean the contacts
in the battery seat.
Does the LED
continue flashing
and the buzzer
sounding?
Does the green LED
blink?
YES
NO
NO
Does the red LED
blink and does
the buzzer sound?
NO NO
NO
MK10, MK12 TRANSMITTING UNIT DIAGNOSTICS
YES
YESYESYES
YES
Page 16
Is the led on with
a steady light?
Is the STOP
button or one
of the movement
actuator inserted?
Release it/them
If the problem
persists
CALL
TECHNICAL
ASSISTANCE
Carry out
diagnostics
checks on the
receiving unit.
LIMKPNA0
3
34
48
85
566 7
7
OFF OFF OFF
902.150 915.350 ON
916.250
903.050
OFF
ON
OFF OFF
ON
OFF
OFF OFF
ON
ON
ON
917.050
917.850
918.675
919.525
903.850
906.325
905.525
904.650
ON
ON
OFF OFF
ON
OFF
ONON
OFF OFF
ON
DIP SWITCH DIP SWITCH
MHz MHz
ON
ON
ON
ON
OFF
ON
OFF
920.375
921.175
922.050
907.175
908.850
907.975
ON
ON
ON
OFFOFF
ON
ON
ON
909.650
910.450
912.125
912.925
911.250
913.775
914.525
923.650
922.850
926.925
927.725
926.175
925.325
924.450
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ONONON
ON
ON
ONON
ONON
OFF
ON
ON ON
ON
ONONON ON
ON
ON
ON
ON
ON
ON
ON
ON
ONON
ON
OFF
OFF
OFF
ON
OFF
OFF
OFF OFF OFF
ON
ON
OFF
OFF
OFF
OFFOFF
OFF
ON
OFF
OFF
ON
OFF
ON
OFF
OFF OFF
ON
OFF
OFF
ON
OFF
OFF
ON
OFF OFF OFF OFF
OFF
ON
OFF OFF
OFF
OFF OFF
OFF OFF
ON
OFF
ON
OFF OFF
ON
ON
OFF
ON
OFF
ON
OFFOFF
OFF
OFF
ON
OFF
OFF
ON
ONON
ON
ONON
ON
OFF
ON
ON
ONON ON
ON
ONON
OFF
OFF OFF
ON
ON
OFF
ON
ON
ON
OFF
OFF
ON
ON
OFF
ON
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
ONON
Appendix: FREQUENCY TABLE
E16STXUS1
Via Pomaroli, 65
36030 Caldogno (VI) ITALY
Tel : ++39 - 0444/901000 r.a.
Fax: ++39 - 0444/901011
email: info@autec.it
http://www.autec.it
