User Manual
i
Trademarks
Autel®, MaxiSys®, MaxiDAS®, MaxiScan®, MaxiTPMS®, MaxiRecorder®, and
MaxiCheck®are trademarks of Autel Intelligent Technology Corp., Ltd., registered in
China, the United States and other countries. All other marks are trademarks or
registered trademarks of their respective holders.
Copyright Information
No part of this manual may be reproduced, stored in a retrieval system or transmitted,
in any form or by any means, electronic, mechanical, photocopying, recording, or
otherwise, without the prior written permission of Autel.
Disclaimer of Warranties and Limitation of Liabilities
All information, specifications and illustrations in this manual are based on the latest
information available at the time of printing. Autel reserves the right to make changes at
any time without notice. While information of this manual has been carefully checked
for accuracy, no guarantee is given for the completeness and correctness of the
contents, including but not limited to the product specifications, functions, and
illustrations.
Autel will not be liable for any direct damages or for any special, incidental, or indirect
damages or for any economic consequential damages (including lost profits).
IMPORTANT: Before operating or maintaining this unit, please read this manual
carefully, paying extra attention to the safety warnings and precautions.
For Services and Support:
pro.autel.com
www.autel.com
1-855-288-3587/1-855-AUTELUS (North America)
0086-755-86147779 (China)
support@autel.com
For technical assistance in all other markets, please contact your local distributor.
ii
Safety Information
For your own safety and the safety of others, and to prevent damage to the device and
vehicles upon which it is used, it is important that the safety instructions herein
presented throughout this manual be read and understood by all persons operating or
coming into contact with the device.
There are various procedures, techniques, tools, and parts for servicing vehicles, as
well as in the skill of the person doing the work. Because of the vast number of test
applications and variations in the products that can be tested with this equipment, we
cannot possibly anticipate or provide advice or safety messages to cover every
circumstance. It is the automotive technician’s responsibility to be knowledgeable of the
system being tested. It is crucial to use proper service methods and test procedures. It
is essential to perform tests in an appropriate and acceptable manner that does not
endanger your safety, the safety of others in the work area, the device being used, or
the vehicle being tested.
Before using the device, always refer to and follow the safety messages and applicable
test procedures provided by the manufacturer of the vehicle or equipment being tested.
Use the device only as described in this manual. Read, understand, and follow all
safety messages and instructions in this manual.
Safety Messages
Safety messages are provided to help prevent personal injury and equipment damage.
All safety messages are introduced by a signal word indicating the hazard level.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury to the operator or to bystanders.
WARNING: Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury to the operator or to bystanders.
Safety Instructions
The safety messages herein cover situations Autel is aware of. Autel cannot know,
evaluate or advise you as to all of the possible hazards. You must be certain that any
condition or service procedure encountered does not jeopardize your personal safety.
DANGER: When an engine is operating, keep the service area WELL
VENTILATED or attach a building exhaust removal system to the engine exhaust
system. Engines produce carbon monoxide, an odorless, poisonous gas that
causes slower reaction time and can lead to serious personal injury or loss of
life.
iii
Do Not Turn the Volume Up Too Loud When Using Headphones
Listening at high volumes that over-stimulate the ear for long periods of time
may result in loss of hearing.
SAFETY WARNINGS:
Always perform automotive testing in a safe environment.
Wear safety eye protection that meets ANSI standards.
Keep clothing, hair, hands, tools, test equipment, etc. away from all moving
or hot engine parts.
Operate the vehicle in a well-ventilated work area, for exhaust gases are
poisonous.
Put the transmission in PARK (for automatic transmission) or NEUTRAL (for
manual transmission) and make sure the parking brake is engaged.
Put blocks in front of the drive wheels and never leave the vehicle
unattended while testing.
Be extra cautious when working around the ignition coil, distributor cap,
ignition wires and spark plugs. These components create hazardous
voltages when the engine is running.
Keep a fire extinguisher suitable for gasoline, chemical, and electrical fires
nearby.
Do not connect or disconnect any test equipment while the ignition is on or
the engine is running.
Keep the test equipment dry, clean, free from oil, water or grease. Use a mild
detergent on a clean cloth to clean the outside of the equipment as
necessary.
Do not drive the vehicle and operate the test equipment at the same time.
Any distraction may cause an accident.
Refer to the service manual for the vehicle being serviced and adhere to all
diagnostic procedures and precautions. Failure to do so may result in
personal injury or damage to the test equipment.
To avoid damaging the test equipment or generating false data, make sure
the vehicle battery is fully charged and the connection to the vehicle DLC
is clean and secure.
Do not place the test equipment on the distributor of the vehicle. Strong
electro-magnetic interference can damage the equipment.
iv
Contents
SAFETY INFORMATION.................................................................................................. II
CHAPTER 1 USING THIS MANUAL..................................................................................1
1.1 CONVENTIONS...........................................................................................................1
1.1.1 Bold Text......................................................................................................... 1
1.1.2 Terminology................................................................................................... 1
1.1.3 Notes and Important Messages.....................................................................1
1.1.4 Hyperlinks.......................................................................................................1
1.1.5 Procedures......................................................................................................2
CHAPTER 2 GENERAL INTRODUCTION...........................................................................3

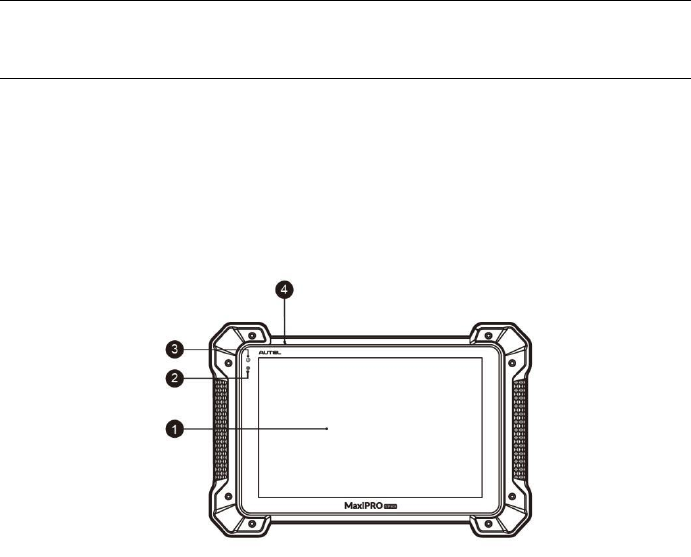

2.1 MAXIPRO DISPLAY TABLET..........................................................................................3
2.1.1 Functional Description................................................................................... 3
2.1.2 Power Sources................................................................................................ 5
2.1.3 Technical Specifications................................................................................. 6

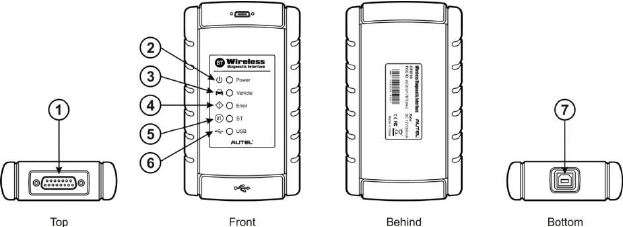

2.2 VCI – WIRELESS DIAGNOSTIC INTERFACE...................................................................... 8
2.2.1 Functional Description................................................................................... 8
2.2.2 Technical Specifications..................................................................................9
2.2.3 Power Sources................................................................................................ 9

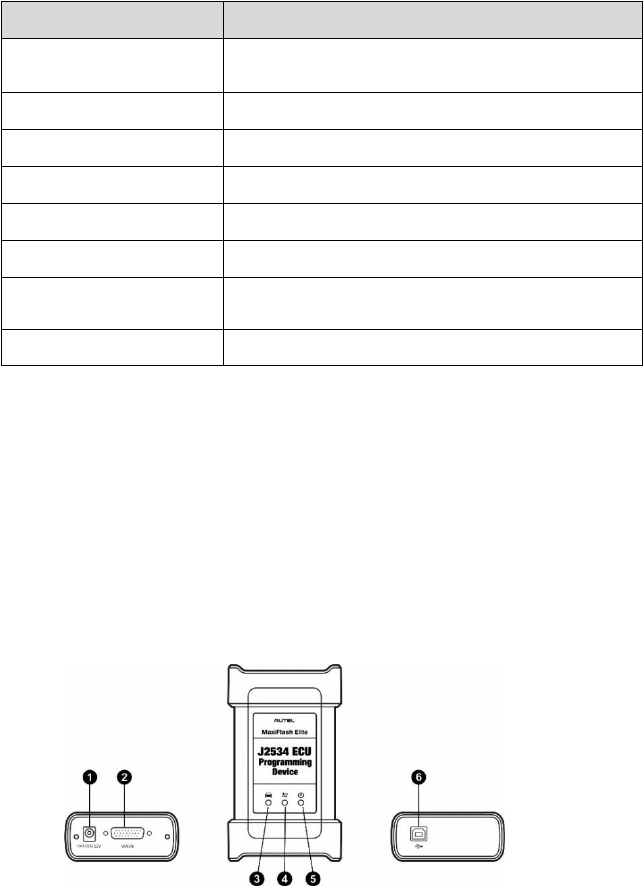

2.3 VCI – J2534 ECU PROGRAMMING DEVICE.................................................................. 9
2.3.1 Functional Description................................................................................... 9
2.3.2 Power Sources.............................................................................................. 11
2.3.3 Technical Specifications............................................................................... 11

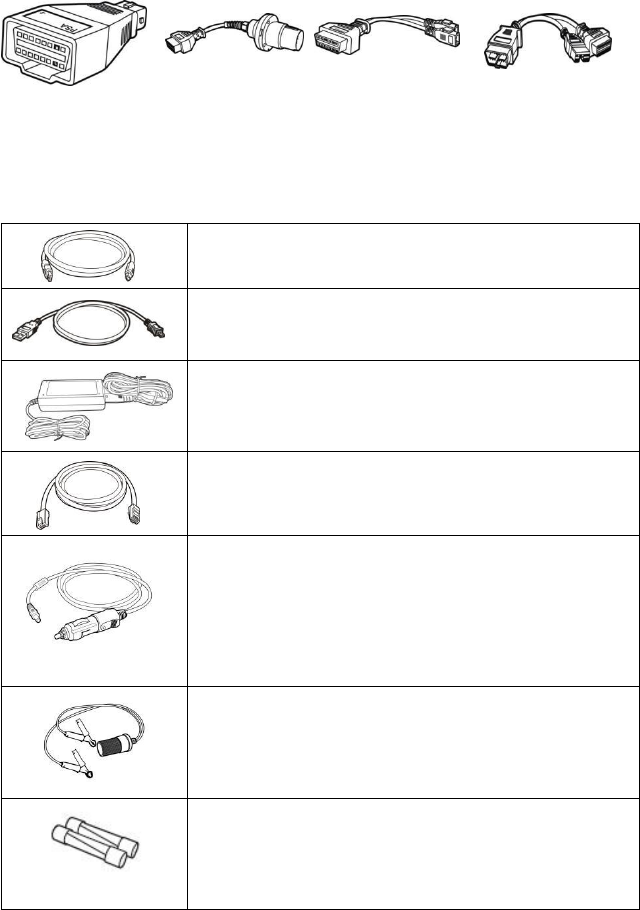

2.4 ACCESSORIES KIT..................................................................................................... 12

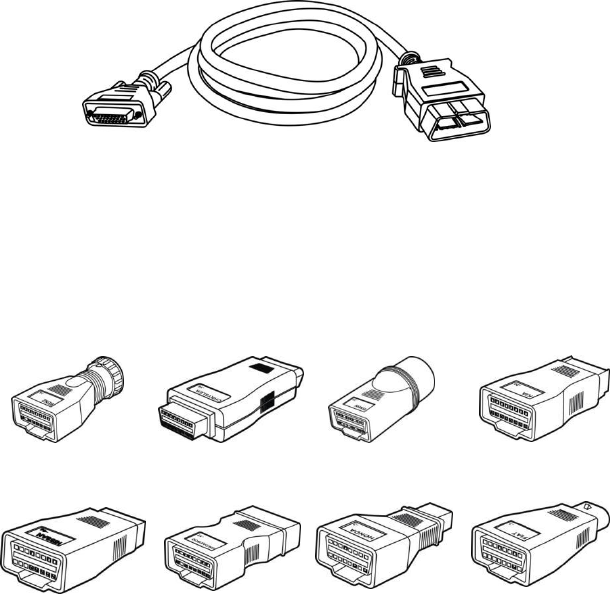

2.4.1 Main Cable................................................................................................... 12
2.4.2 OBD I Adapters............................................................................................. 12
2.4.3 Other Accessories......................................................................................... 13
CHAPTER 3 GETTING STARTED..................................................................................... 15

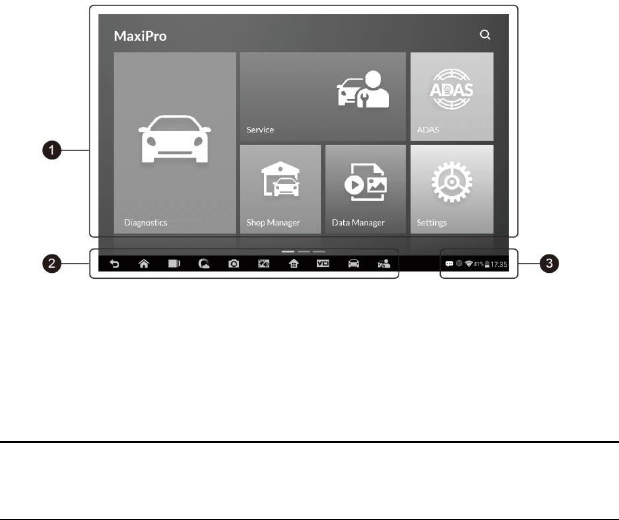

3.1 POWERING UP........................................................................................................ 15

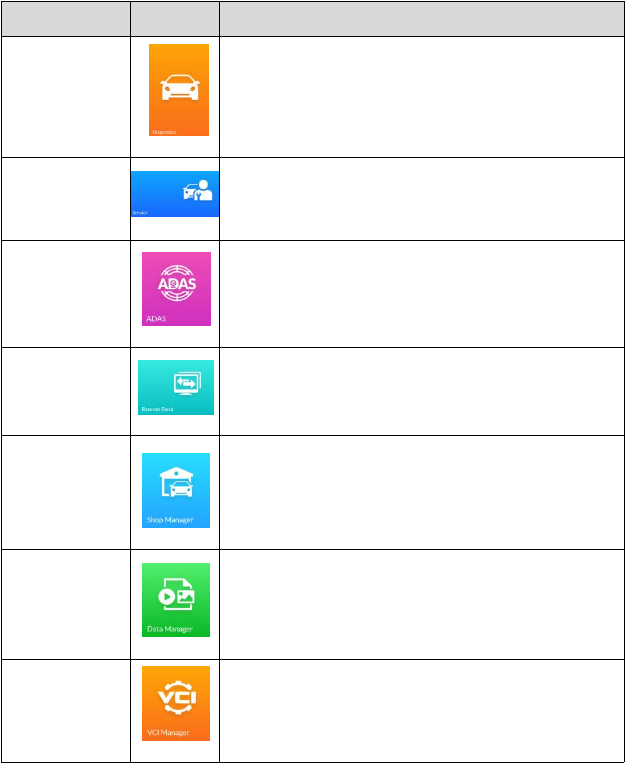

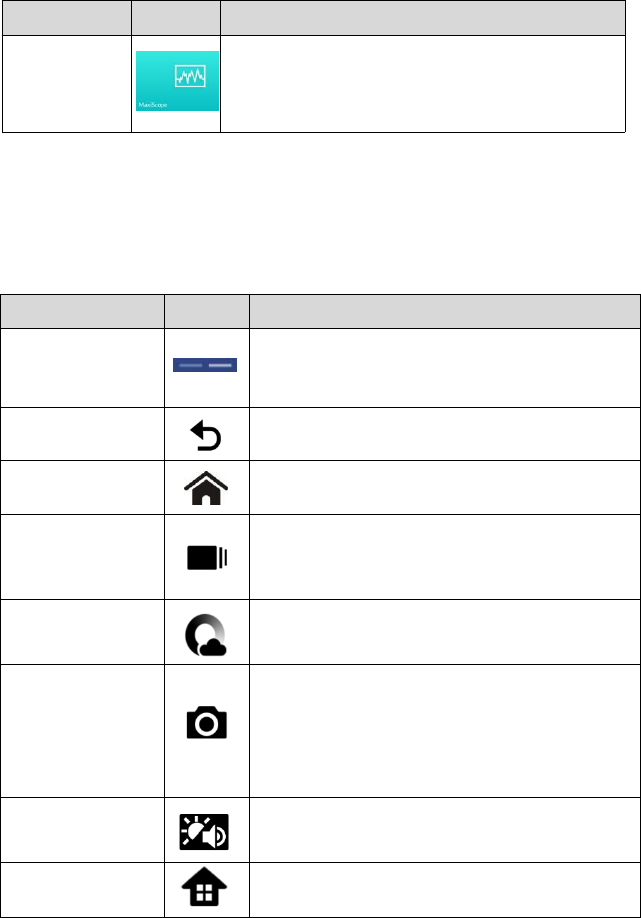

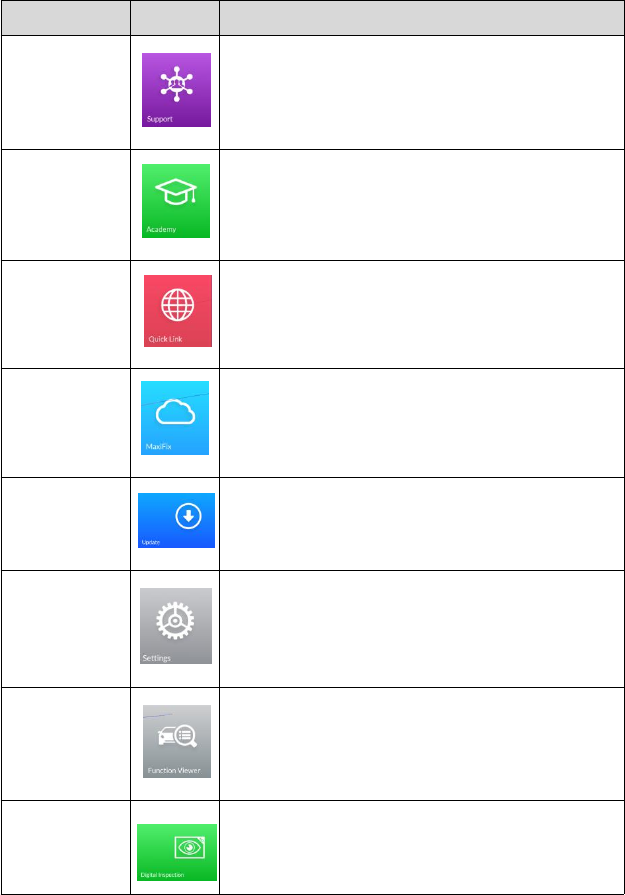

3.1.1 Application Buttons......................................................................................16
3.1.2 Locator and Navigation Buttons.................................................................. 18

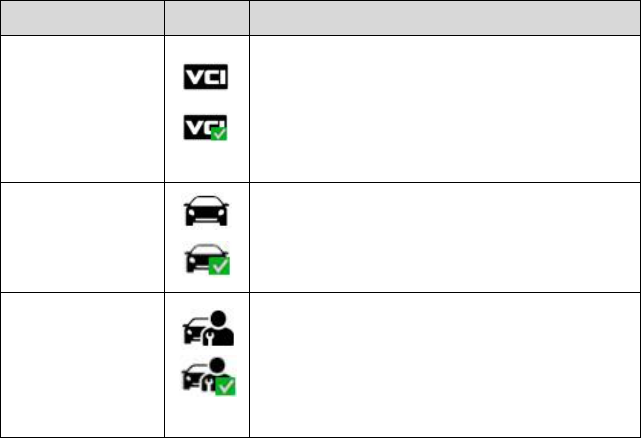

3.1.3 System Status Icons......................................................................................19
3.2 POWERING DOWN................................................................................................... 19
3.2.1 Reboot System..............................................................................................20
3.3 INSTALLING COMPUTER SOFTWARE............................................................................. 20
3.3.1 Printing Operation........................................................................................20
CHAPTER 4 DIAGNOSTICS OPERATIONS......................................................................22
v
4.1 ESTABLISHING VEHICLE COMMUNICATION.................................................................... 22
4.1.1 Vehicle Connection....................................................................................... 22
4.1.2 VCI Connection............................................................................................. 24
4.1.3 No Communication Message....................................................................... 26
4.2 GETTING STARTED.................................................................................................... 27

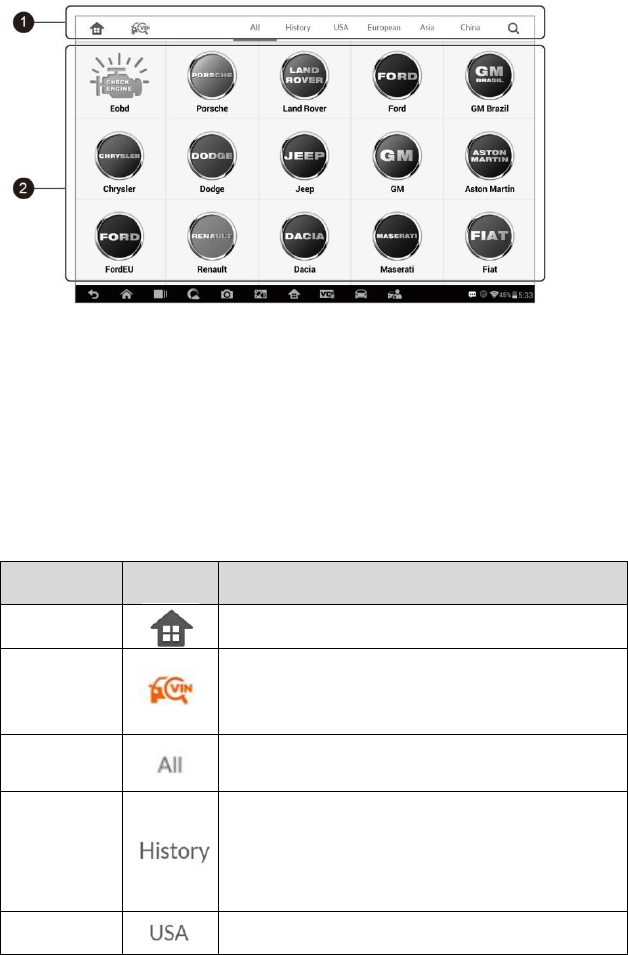

4.2.1 Vehicle Menu Layout.................................................................................... 27
4.3 VEHICLE IDENTIFICATION........................................................................................... 29
4.3.1 Auto VIN Scan...............................................................................................29

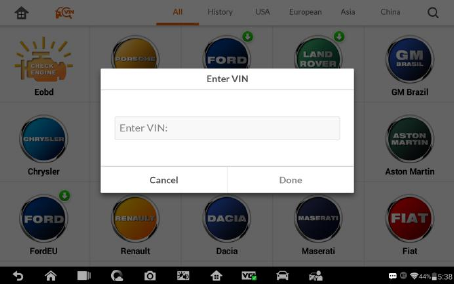

4.3.2 Manual VIN Input.........................................................................................31
4.3.3 Manual Vehicle Selection............................................................................. 31
4.3.4 Alternative Vehicle Identification................................................................. 32
4.4 NAVIGATION........................................................................................................... 32

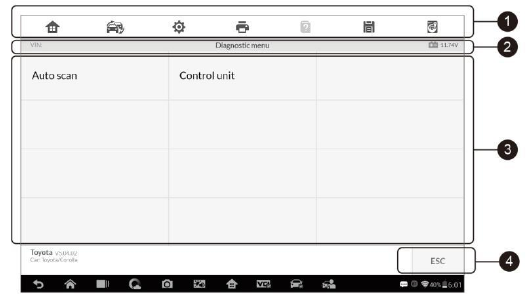

4.4.1 Diagnostics Screen Layout............................................................................32
4.4.2 Screen Messages.......................................................................................... 35
4.4.3 Making Selections........................................................................................ 36

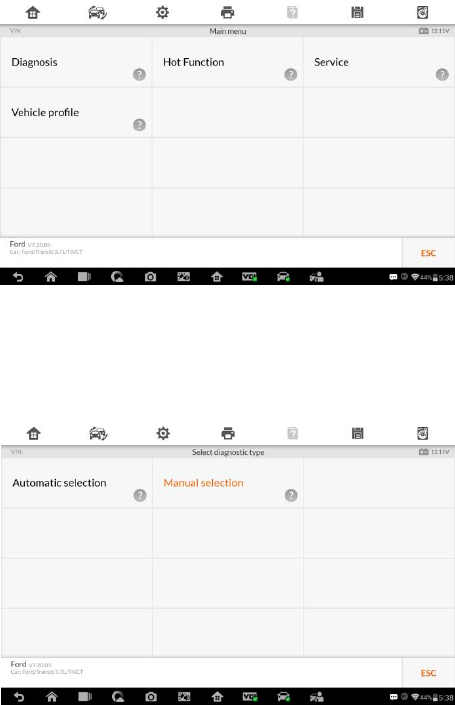

4.5 MAIN MENU.......................................................................................................... 36
4.6 DIAGNOSIS............................................................................................................. 37
4.6.1 ECU Information...........................................................................................40

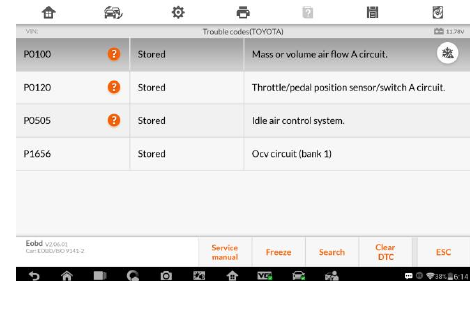

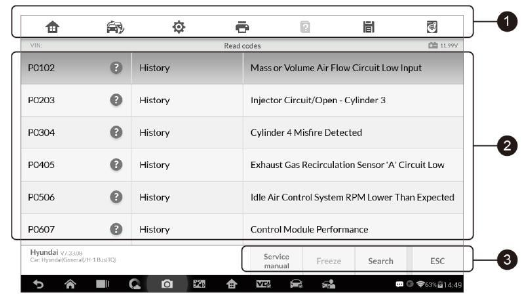

4.6.2 Read Codes................................................................................................... 41
4.6.3 Erase Codes.................................................................................................. 42

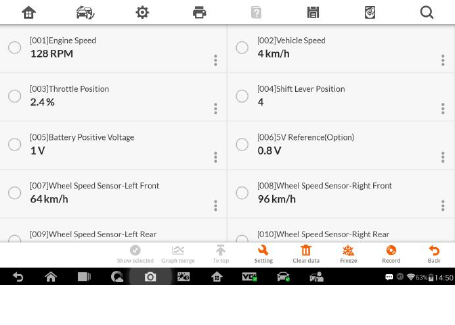

4.6.4 Live Data.......................................................................................................43

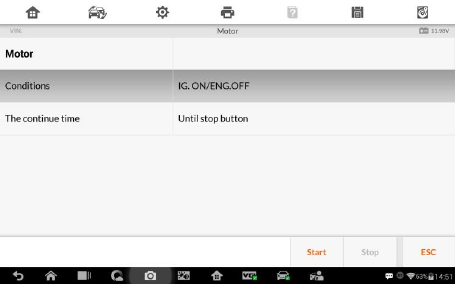

4.6.5 Active Test.................................................................................................... 49
4.6.6 Special Functions.......................................................................................... 50
4.7 SERVICE................................................................................................................. 51
4.7.1 Function Descriptions...................................................................................52

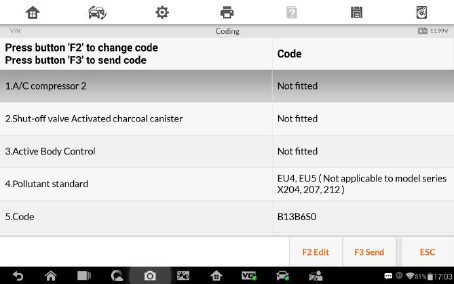

4.8 CODING................................................................................................................. 56

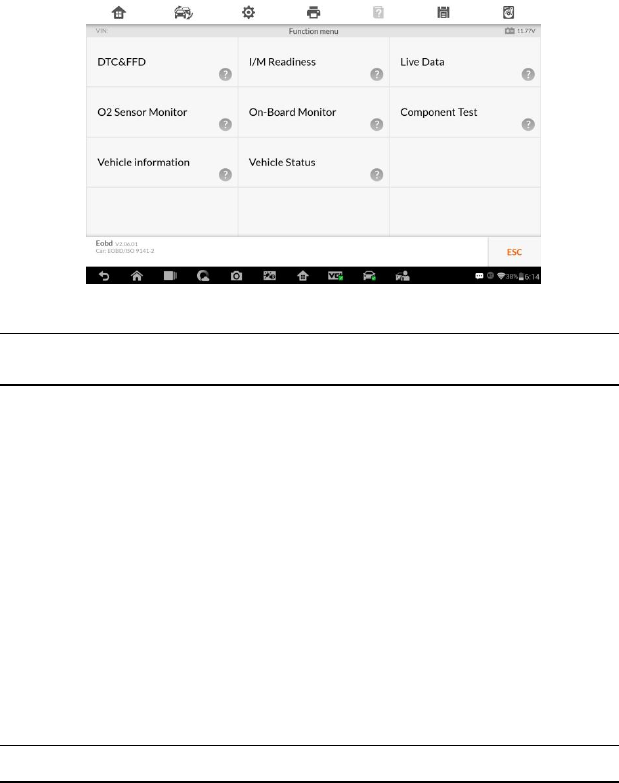

4.9 GENERIC OBD II OPERATIONS...................................................................................57
4.9.1 General Procedure........................................................................................58
4.9.2 Function Descriptions...................................................................................59
4.10 EXITING DIAGNOSTICS............................................................................................ 62

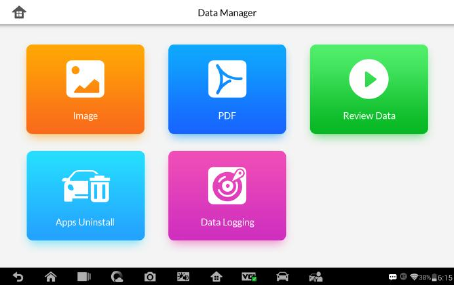

CHAPTER 5 DATA MANAGER OPERATIONS................................................................. 64
5.1 OPERATIONS........................................................................................................... 64

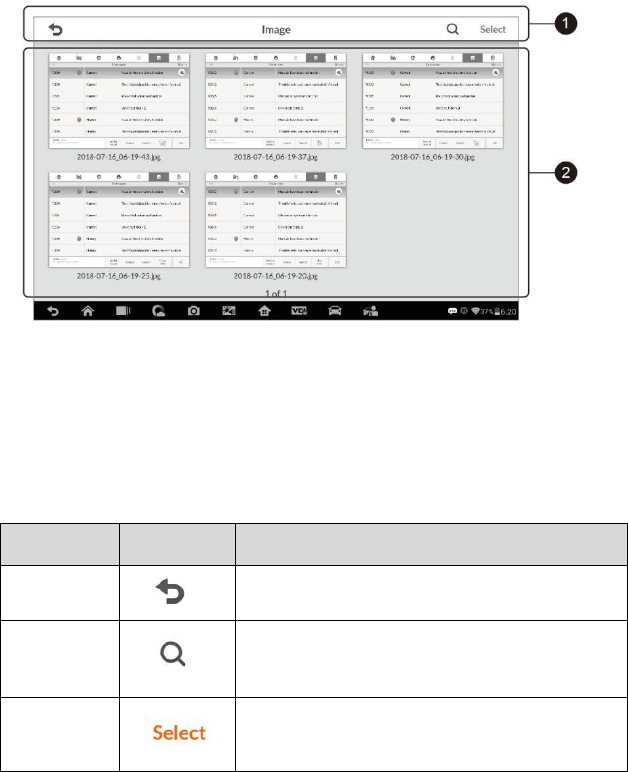

5.1.1 Image Files................................................................................................... 64
5.1.2 PDF Files....................................................................................................... 65

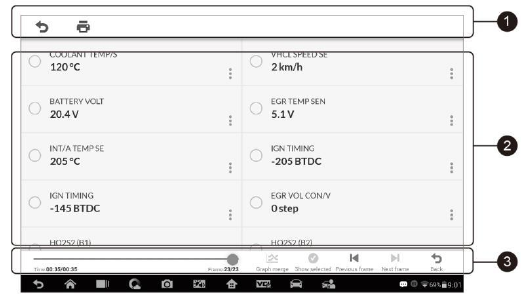

5.1.3 Review Data................................................................................................. 66
5.1.4 Apps Manager..............................................................................................66
5.1.5 Data Logging................................................................................................ 67

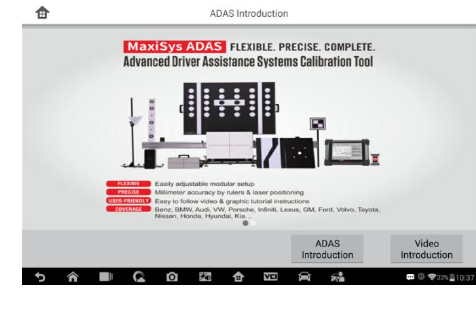

CHAPTER 6 ADAS..........................................................................................................68

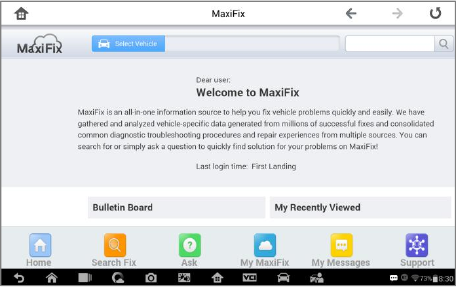

CHAPTER 7 MAXIFIX OPERATIONS.............................................................................. 69
vi
7.1 NAVIGATION........................................................................................................... 69
7.1.1 Terminology..................................................................................................71
7.2 OPERATIONS........................................................................................................... 72
7.2.1 Home............................................................................................................ 73
7.2.2 Search Fix Features...................................................................................... 73
7.2.3 Ask................................................................................................................73
7.2.4 My MaxiFix...................................................................................................74
7.2.5 My Messages............................................................................................... 76
7.2.6 Support.........................................................................................................77
CHAPTER 8 SETTINGS OPERATIONS.............................................................................78
8.1 OPERATIONS........................................................................................................... 78
8.1.1 Unit...............................................................................................................78
8.1.2 Language......................................................................................................78
8.1.3 Printing Setting.............................................................................................79
8.1.4 Auto update..................................................................................................79
8.1.5 Notification Center....................................................................................... 80
8.1.6 Car order...................................................................................................... 80
8.1.7 About............................................................................................................81
8.1.8 System Settings............................................................................................ 81
CHAPTER 9 SHOP MANAGER OPERATIONS.................................................................82

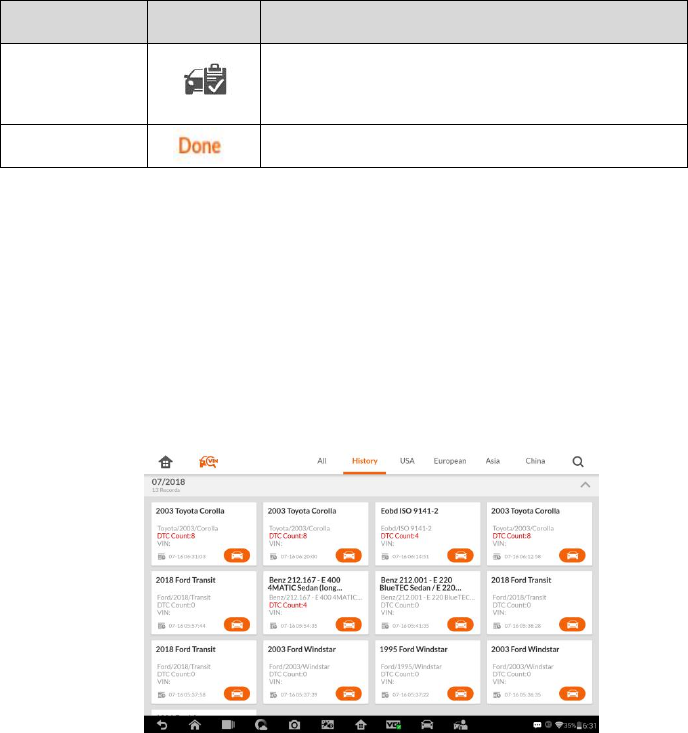

9.1 VEHICLE HISTORY..................................................................................................... 83
9.1.1 Historical Test Record................................................................................... 84

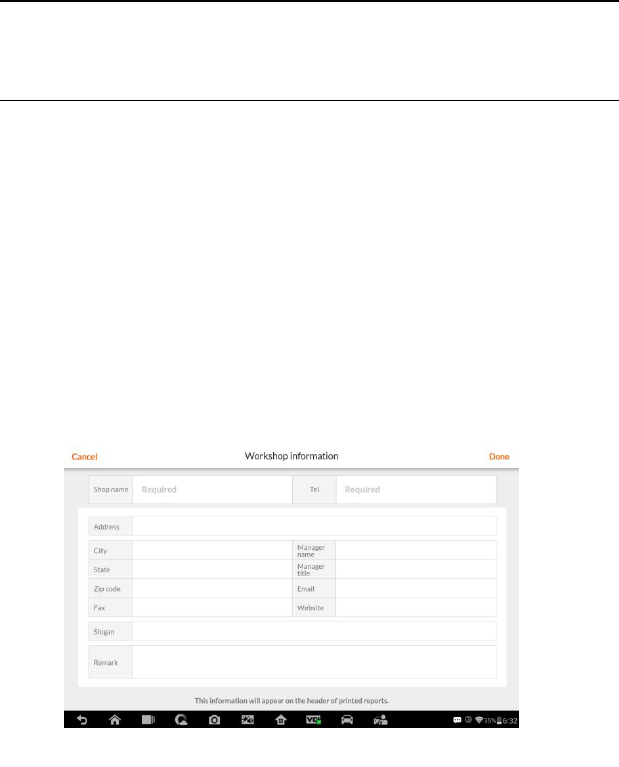

9.2 WORKSHOP INFORMATION........................................................................................85
9.3 CUSTOMER MANAGER..............................................................................................86
9.3.1 History Notes................................................................................................87
CHAPTER 10 UPDATE OPERATIONS............................................................................. 90
CHAPTER 11 VCI MANAGER OPERATIONS.................................................................. 92

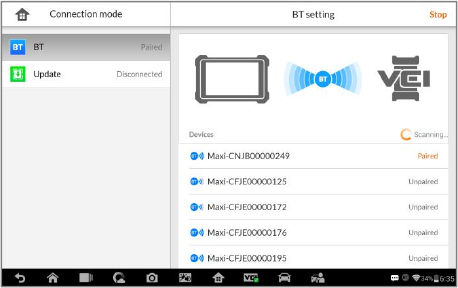

11.1 BT PAIRING.......................................................................................................... 93
11.2 UPDATE................................................................................................................94
CHAPTER 12 REMOTE DESK OPERATIONS................................................................... 95
12.1 OPERATIONS......................................................................................................... 95
CHAPTER 13 SUPPORT................................................................................................. 97

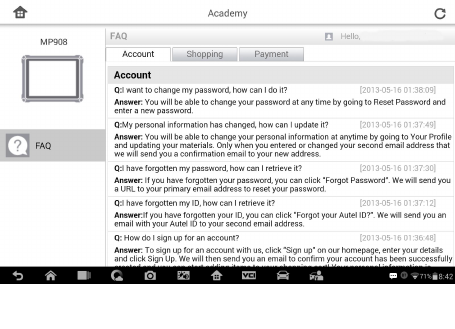

CHAPTER 14 ACADEMY................................................................................................ 98
CHAPTER 15 QUICK LINK OPERATIONS....................................................................... 99
vii
CHAPTER 16 MAXISCOPE OPERATIONS.................................................................... 100
16.1 SAFETY INFORMATION.......................................................................................... 100
16.2 GLOSSARY.......................................................................................................... 102
16.3 MAXISCOPE MODULE.......................................................................................... 104

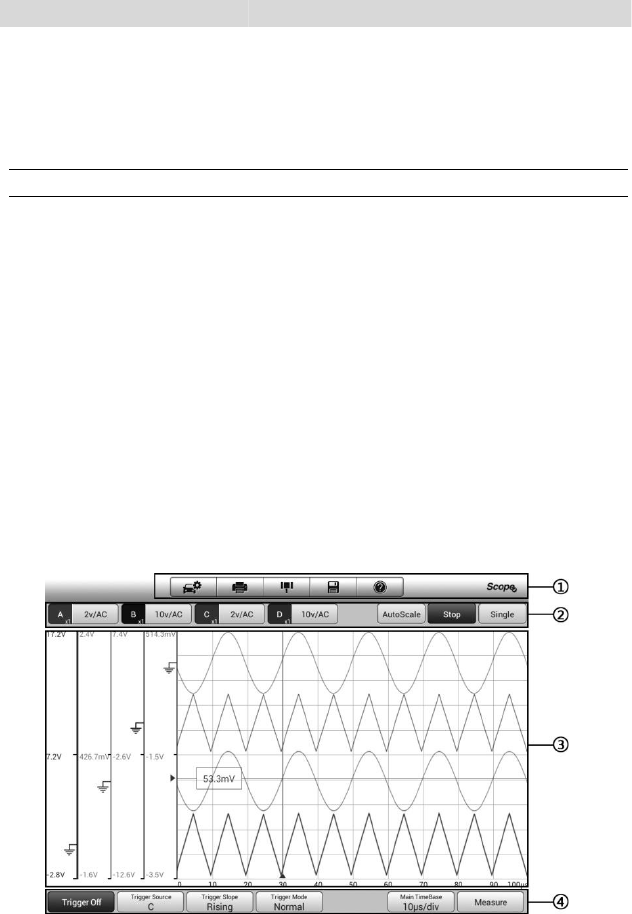

16.4 SCREEN LAYOUT AND OPERATIONS..........................................................................107

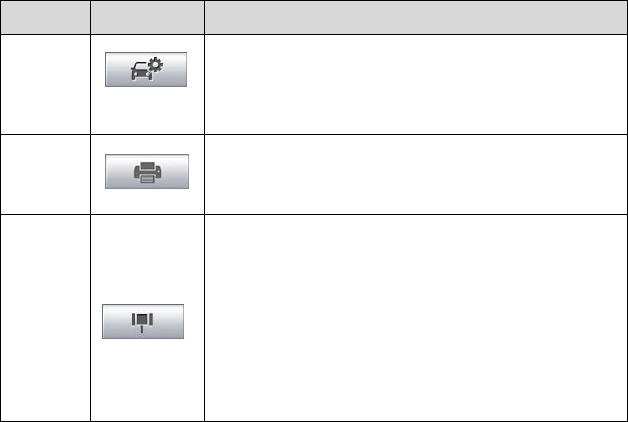

16.4.1 Top Toolbar...............................................................................................108
16.4.2 Functional Buttons................................................................................... 111
16.4.3 Measurement Grid................................................................................... 112

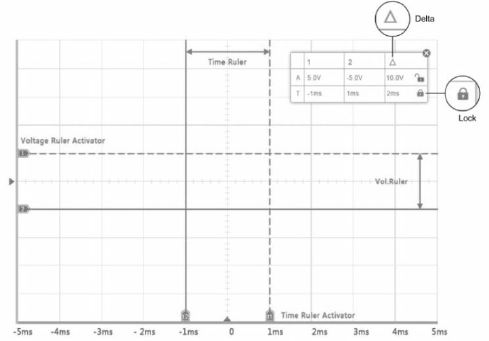

16.4.4 Measurement Rulers................................................................................113
16.4.5 Functional Buttons................................................................................... 114
16.5 TROUBLESHOOTING..............................................................................................115
16.6 MAXISCOPE FIRMWARE UPDATE............................................................................ 115
CHAPTER 17 FUNCTION VIEWER............................................................................... 117
CHAPTER 18 DIGITAL INSPECTION OPERATIONS...................................................... 119
18.1 ADDITIONAL ACCESSORIES.....................................................................................120
18.1.1 Technical Specifications............................................................................123
18.2 OPERATIONS.......................................................................................................123
CHAPTER 19 MAINTENANCE AND SERVICE............................................................... 126
19.1 MAINTENANCE INSTRUCTIONS................................................................................126
19.2 TROUBLESHOOTING CHECKLIST...............................................................................127
19.3 ABOUT BATTERY USAGE........................................................................................127
19.4 SERVICE PROCEDURES...........................................................................................128
CHAPTER 20 COMPLIANCE INFORMATION............................................................... 130
CHAPTER 21 WARRANTY........................................................................................... 132
1
Chapter 1 Using This Manual
This manual contains device usage instructions.
Some illustrations shown in this manual may contain modules and optional equipment
that are not included in your system. Contact your sales representative for availability of
other modules and optional tools or accessories.
1.1 Conventions
The following conventions are used.
1.1.1 Bold Text
Bold text is used to highlight selectable items such as buttons and menu
options.
Example:
Tap OK.
1.1.2 Terminology
The term “select” means highlighting a button or menu item and tapping it to
confirm the selection.
1.1.3 Notes and Important Messages
The following messages are used.
Notes
ANOTE provides helpful information such as additional explanations, tips,
and comments.
Important
IMPORTANT indicates a situation which, if not avoided, may result in damage
to the test equipment or vehicle.
1.1.4 Hyperlinks
Hyperlinks, or links, that take you to other related articles, procedures, and
illustrations are available in electronic documents. Blue colored text indicates
a selectable hyperlink.
2
1.1.5 Procedures
An arrow icon indicates a procedure.
Example:
To use the camera:
1Tap the Camera button. The camera screen opens.
2Focus the image to be captured in the view finder.
3Tap the blue circle. The view finder now shows the captured picture and
auto-saves the taken photo.
3
Chapter 2 General Introduction
The MaxiPro®MP908/MaxiPro®MP908P Diagnostic Platform is an evolutionary smart
solution for specialized automotive diagnosis. Utilizing the powerful A7 quad-core
1.30GHz processor, and a 10.1-inch capacitive touch screen, combined with the best
possible coverage of OE-level diagnostics, and based on the revolutionary
multitask-capable Android Operating system, the MaxiPro organizes information with
test instrumentation to help you diagnose symptoms, codes, and customer complaints
easily, quickly and efficiently.
There are two main components to the MaxiPro system:
MaxiPro Display Tablet – the central processor and monitor for the system
Vehicle Communication Interface (VCI) – the device for accessing vehicle data
NOTE: Autel provides two optional VCI devices for your choice. One is the J2534
Programming Device; the other is the Wireless Diagnostic Interface, both will be
introduced in this chapter.
This manual describes the construction and operation of these devices and how they
work together to deliver diagnostic solutions.
2.1 MaxiPro Display Tablet
2.1.1 Functional Description
Figure 2- 1 MaxiPro Tablet Front View
1. 10.1-inch Capacitive Touchscreen
4
2. Ambient Light Sensor – detects ambient brightness
3. LED –indicates battery level & charging or system status
4. Microphone
The power LED displays green, yellow or red depending on power level and
operating state.
A. Green
Illuminates green when the Display Tablet is charging and the battery
level is above 90%.
Illuminates green when the Display Tablet is powered on and the
battery level is above 15%.
B. Yellow
Illuminates yellow when the Display Tablet is charging and the
battery level is below 90%.
C. Red
Illuminates red when the Display Tablet is powered on and the
battery level is below 15%.

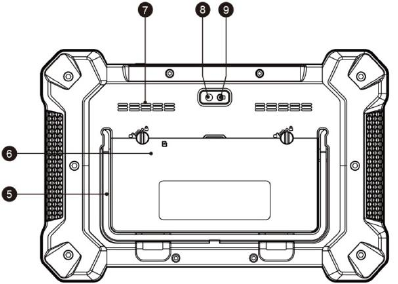

Figure 2- 2 MaxiPro Tablet Back View
5. Collapsible Stand –extends from the back to allow hands-free viewing
of the Display Tablet.
6. Built-in Battery
7. Loudspeaker
5
8. Camera
9. Camera Flash

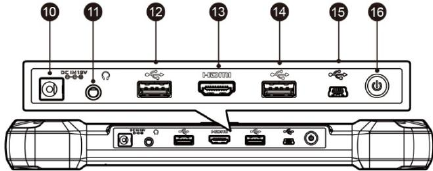

Figure 2- 3 MaxiPro Tablet Top View
10. DC Power Supply Input Port
11. Headphone Jack
12. USB Port
13. HDMI (high-definition multimedia interface) Port
14. USB Port
15. Mini USB Port
16. Lock/Power Button –turns the MaxiPro tool on and off with long press,
or locks the screen with short press
2.1.2 Power Sources
The MaxiPro Display Tablet can receive power from any of the following
sources:
Internal Battery Pack
External Power Supply
Internal Battery Pack
The display tablet can be powered with the internal rechargeable battery,
which if fully charged can provide sufficient power for about 7.5 hours of
continuous operation.
AC/DC Power Supply
The display tablet can be powered from a wall socket using the AC/DC power
adapter. The AC/DC power supply also charges the internal battery pack.
6
2.1.3 Technical Specifications
Table 2- 1 Specifications
Item
Description
Operating System
AndroidTM 4.4.2, KitKat
Processor
Samsung Exynos hexa-core Processor (1.3GHz
Quad-core ARM Cortex-A7 + 1.7GHz Dual-core
ARM Cortex-A15)
Memory
2GB RAM & 64GB On-board Memory
Display
10.1-inch LED screen with 1920x1200 resolution
Connectivity
Wi-Fi (802.11 a/b/g/n/ac)
USB: 2.0
BT v.2.1 + EDR
SD Card (Support up to 32GB)
HDMI
Camera (rear)
8.0 Megapixel, AF with Flashlight
Sensors
Gravity Accelerometer, Ambient Light Sensor
(ALS)
Audio Input/Output
Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jack
Power and Battery
15000 mAh 3.8 V lithium-polymer battery
Charging via 12 V AC/DC power supply with
the temperature between 0°C and 45°C
Input Voltage
12 V (9-24 V)
Power Consumption
6.5 W
Operating Temp.
0 to 50°C (32 to 122°F)
Storage Temp.
-20 to 60°C (-4 to 140°F)
Housing
Strong plastic housing with protective rubber boot
Dimensions (WxHxD)
312mm(12.28")x208mm(8.18")x36mm(1.41")
Weight
NW: 1.48kg (3.26 lb)
7
Item
Description
Protocols
ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line,
Flashing Code, SAE-J1850 VPW, SAE-J1850
PWM, CAN ISO 11898, Highspeed, Middlespeed,
Lowspeed and Singlewire CAN, GM UART, UART
Echo Byte Protocol, Honda Diag-H Protocol, TP
2.0, TP 1.6, SAE J1939, SAE J1708,
Fault-Tolerant CAN
8
2.2 VCI – Wireless Diagnostic Interface
2.2.1 Functional Description
Figure 2- 4 Wireless Diagnostic Interface – for MaxiPro
1. Vehicle Data Connector (DB15-Pin)
2. Power LED – illuminates solid green when powered on
3. Vehicle LED – flashes green when communicating with the vehicle’s
network
4. Error LED – illuminates solid red when serious hardware failure occurs;
also flashes red when performing software/firmware update
5. BT LED – illuminates solid green when connected with the MaxiPro
display tablet through BT communication
6. USB LED – illuminates solid green when the device is properly
connected and communicating with the MaxiPro display tablet via the
USB cable
7. USB Port
Communication
The Wireless Diagnostic Interface supports both BT and USB communication.
It can transmit vehicle data to the MaxiPro Display Tablet with or without a
physical connection. The working range of the transmitter through BT
communication is about 755 feet (about 230 m). A signal lost due to moving
out of range automatically restores itself when the display unit is brought
closer to the VCI unit.
9
2.2.2 Technical Specifications
Item
Description
Communications
BT V.2.1 + EDR
USB 2.0
Wireless Frequency
2.4 GHz
Input Voltage Range
12 VDC
Supply Current
200 mA @ 12 VDC
Operating Temperature
0°C to 50°C (ambient)
Storage Temperature
-20°C to 70°C (ambient)
Dimensions (L x W x H)
147.5 mm (5.80”) x 85.5 mm (3.37”) x 29.0 mm
(1.14”)
Weight
0.215 kg (0.473 lb.)
2.2.3 Power Sources
The Wireless Diagnostic Interface operates on 12-volt vehicle power, which it
receives through the vehicle data connection port. The unit powers on
whenever it is connected to an OBD II/EOBD compliant data link connector
(DLC).
2.3 VCI – J2534 ECU Programming Device
2.3.1 Functional Description
Figure 2- 5 J2534 ECU Programming Device – for MaxiPro MP908P
10
1. DC Power Supply Input Port
2. Vehicle Data Connector
3. Vehicle LED
Flashes green when communicating with the vehicle’s system
IMPORTANT: Do not disconnect the reprogramming device while this status
light is on! If the flash reprogramming procedure is interrupted while the
vehicle’s ECU is blank or only partially programmed, the module may be
unrecoverable.
4. Connection LED
Illuminates solid green when properly connected with the display
tablet via the USB cable
Illuminates solid blue when connected with the display tablet via
wireless (BT) connection
5. Power LED
Illuminates solid green when powered on
Flashes red when system failure occurs
Illuminates amber automatically at power up when the device is
performing self-test procedure
6. USB Port
J2534 Reprogramming Capability
The J2534 ECU Programming Device is a SAE J2534-1 & -2 compliant
PassThru reprogramming interface device. Using the updated OEM software,
it is capable of replacing the existing software/firmware in the Electronic
Control Units (ECU), programming new ECUs and fixing software-controlled
drivability issues and emission issues.
Communication
The J2534 ECU programming device supports BT and USB communications.
It can transmit vehicle data to the MaxiPro display tablet with or without a
physical connection. The working range of the transmitter through BT
communication is 210 feet (about 70 m). A signal lost due to moving out of
range automatically restores itself when the display tablet unit is brought
closer to the VCI unit.
11
2.3.2 Power Sources
The J2534 programming device can receive power from both of the following
sources:
Vehicle Power
AC/DC Power Supply
Vehicle Power
The J2534 programming device operates on 12-volt vehicle power, which it
receives through the vehicle data connection port. The device powers on
whenever it is connected to an OBD II/EOBD compliant data link connector
(DLC). For non OBD II/EOBD compliant vehicles, the device can be powered
from a cigarette lighter or other suitable power port on the test vehicle using
the auxiliary power cable.
AC/DC Power Supply
The J2534 programming device can be powered from a wall socket using the
AC/DC power adapter.
2.3.3 Technical Specifications
Item
Description
Communications
Wireless BT V2.1 + EDR
USB 2.0
Wireless Frequency
Wireless BT V2.1+EDR, 2.4GHz
Input Voltage Range
12 VDC to 24 VDC
Supply Current
170 mA @ 12 VDC
100 mA @ 24 VDC
Operating Temp.
0°C to +60°C (ambient)
Storage Temp.
-65°C to +100°C (ambient)
Dimensions (LxWxH)
149mm (5.87”) x 86mm (3.38”) x 35mm (1.28”)
Weight
0.29 kg (0.64 lb.)
NOTE: For additional information please refer to the accompanied user
manual for the J2534 ECU Programming Device.
12
2.4 Accessories Kit
2.4.1 Main Cable
The VCI device can be powered through the Main Cable when connected to
an OBD II/EOBD compliant vehicle. The Main Cable connects the VCI device
to the vehicle’s data link connector (DLC), through which the VCI device can
transmit vehicle data to the MaxiPro display tablet.
Figure 2- 5 Main Cable – 1.5 m in length
2.4.2 OBD I Adapters
The OBD I adapters are for Non-OBD II vehicles. The adapter used depends
on the type of vehicle being tested. The most common adapters are shown
below (Some adapters are optional, please contact your distributor for details).
Benz-14
Chrysler-16
BMW-20
Kia-20
Nissan-14
GM/Daewoo-12
Honda-3
Fiat-3
13
PSA-2
Benz-38
VW/Audi-2+2
Mitsubishi/Hyund
ai-12+16
2.4.3 Other Accessories
Standard 2.0 USB Cable
Connects the display tablet to the VCI unit.
Mini USB Cable
Connects the display tablet to the PC.
AC/DC External Power Adapter
Connects the display tablet to the external DC power
port for power supply.
Ethernet Serial Cable
Connects the display tablet to the VCI unit (for
MaxiPro Pro only).
Cigarette Lighter
Provides power to the display tablet or the J2534
programming device through connection to the
vehicle’s cigarette lighter receptacle, as some
non-OBD II vehicles cannot provide power via the
DLC connection.

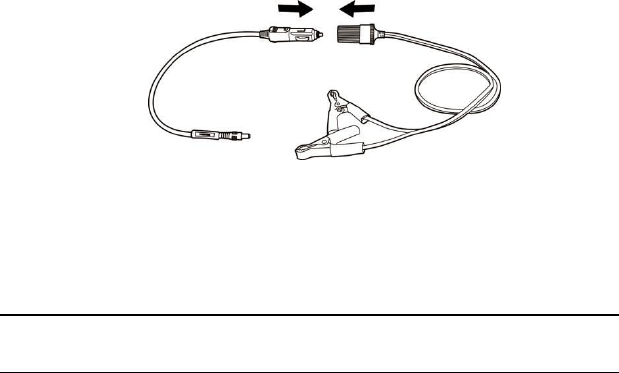

Clipper Cable
Provides power to the display tablet or the J2534
programming device, through connection to the
vehicle’s battery (for MaxiPro Pro only).
Light Fuse x2
A safety device for the cigarette lighter.
14
BMW Ethernet Cable (Optional)
Used for BMW F/G chassis programming and coding
15
Chapter 3 Getting Started
Make sure the MaxiPro Display Tablet has a charged battery or is connected to the DC
power supply (see 2.1.2 Power Sources on page 5).
3.1 Powering Up
Press the Lock/Power button on the top right side of the display tablet to
switch the unit on. The system boots up, and shows the lock screen. Press
and drag the inner ring to the edge of the circle to unlock the screen; the
MaxiPro Job Menu is shown.
Figure 3- 1 Sample MaxiPro Job Menu
1. Application Buttons
2. Locator and Navigation Buttons
3. Status Icons
NOTE: The screen is locked by default when you first turn on the display tablet.
It is recommended to lock the screen to protect information in the system and
reduce battery usage.
Almost all operations on the display tablet are controlled through the touch
screen. The touch screen navigation is menu driven, which allows you to
quickly locate the test procedure, or data that you need, through a series of
choices and questions. Detailed descriptions of the menu structures are found
in the chapters for the various applications.
16
3.1.1 Application Buttons
The Application buttons configure the MaxiPro for the type of operation or
activity to be performed. The table below gives brief descriptions of the
available applications.
Use the stylus pen or your finger tip to select an application from the Job
Menu.
Table 3- 1 Applications

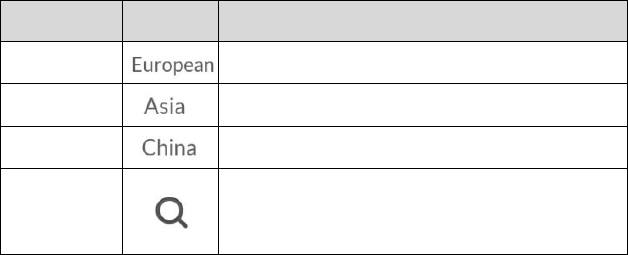

Name
Button
Description
Diagnostics
Configures the unit to operate as a diagnostic
tool. See Diagnostics Operations on page 22 for
details.
Service
Accesses special functions menu. See Service
on page 51 for details.
ADAS
Accesses ADAS introduction page. See ADAS
on page 69 for details.

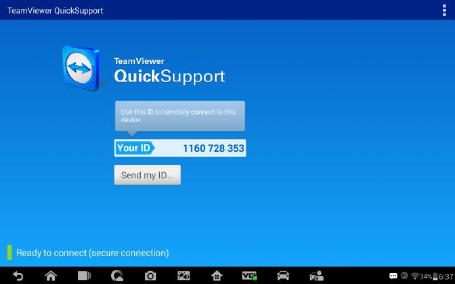

Remote
Desk
Configures your unit to receive remote support
using the TeamViewer application program. See
Remote Desk Operations on page 95 for details.
Shop
Manager
Allows you to edit and save workshop
information and customer data, as well as
reviewing test vehicle history records. See Shop
Manager Operations on page 82 for details.
Data
Manager
Opens the organization system for saved data
files. See Data Manager Operations on page 64
for details.
VCI
Manager
Establishes and manages BT or wired
connections to the VCI device. See VCI
Manager Operations on page 92 for details.
17
Name
Button
Description
Support
Launches the Support platform which
synchronizes Autel’s on-line service base
station with the MaxiPro tablet. See Support
Operations on page 97 for details.
Academy
The Academy application provides detailed FAQ
about your Autel ID. See Academy on page 99
for details.

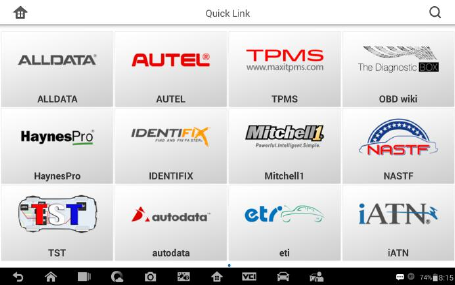

Quick Link
Provides associated website bookmarks to
allow quick access to product update, service,
support and other information. See Quick Link
Operations on page 100 for details.
MaxiFix
Launches the MaxiFix platform which provides
the most compatible and abundant repair
techniques and diagnostics database. See
MaxiFix Operations on page 69 for details.

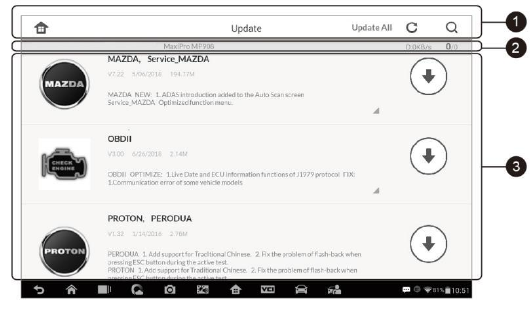

Update
Checks for the latest update available for the
MaxiPro system, and performs updating
procedures. See Update Operations on page 90
for details.
Settings
Allows you to set the MaxiPro system settings,
and to view the general information about the
Display Tablet. See Settings Operations on
page 78 for details.

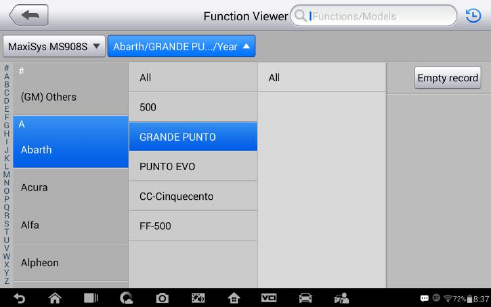

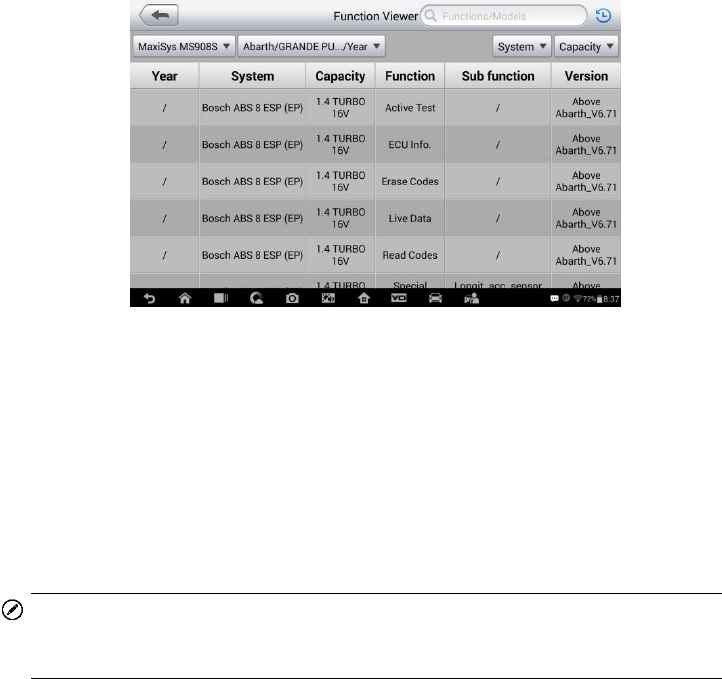

Function
Viewer
Provides a quick search for supported functions
and/or vehicles. See Function Viewer on page
118 for details.

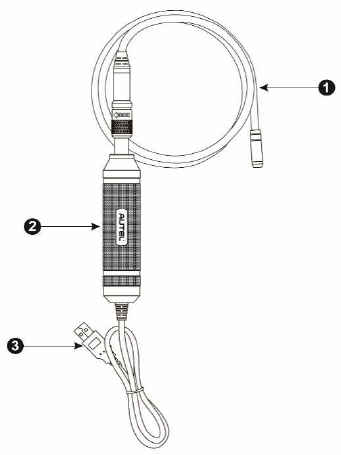

Digital
Inspection
Configures the unit to operate as a video scope
device by connecting to an Imager head cable
for close vehicle inspections. See Digital
Inspection Operations on page 120 for details.
18
Name
Button
Description

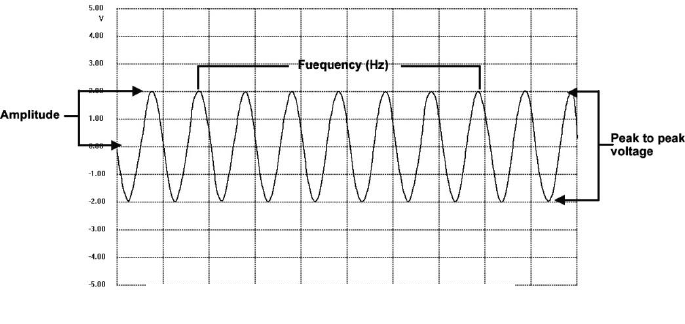

MaxiScope
Configures the unit to operate as an automotive
oscilloscope to perform electrical and electronic
circuit tests and monitor signal activities. See
MaxiScope Operations
on page 101 for details.
3.1.2 Locator and Navigation Buttons
Operations of the Navigation buttons at the bottom of the screen are described
in the table below:
Table 3- 2 Locator and Navigation Buttons
Name
Button
Description
Locator
Indicates the location of the screen. Swipe the
screen left or right to view the previous or next
screen.
Back
Returns to the previous screen.
Android Home
Returns to Android System’s Home screen.
Recent Apps
Displays a list of applications that are currently
working. To open an app, touch it. To remove
an app, swipe it to the right.
Chrome
Launches the Android built-in browser.
Camera
Opens the camera with short press; takes and
saves screenshot image with long press. The
saved files are auto-stored in the Data
Manager application for later reviews. See
Data Manager Operations on page 64 for
details.
Display & Sound
Allows you to adjust the brightness of the
screen and the volume of the audio output.
MaxiPro Home
Returns to MaxiPro Job Menu.
19
Name
Button
Description
VCI
Opens the VCI Manager application. The tick
icon at the bottom right corner indicates the
display tablet is communicating with the VCI
device.
MaxiPro
Shortcut
Returns to the MaxiPro operation interface
from other Android applications. After entering
the interface, the green tick icon displays.
Service
Shortcut
Returns to the Service screen. After entering
the screen, the green tick icon displays.
To use the camera:
1. Tap the Camera button. The camera screen opens.
2. Focus the image to be captured in the view finder.
3. Tap the inner blue circle. The view finder now shows the captured
picture and auto-saves the taken photo.
4. Tap the thumbnail image on the top right corner of the screen to
view the stored image.
5. Tap the Back or Home button to exit the camera application.
Refer to Android documentation for additional information.
3.1.3 System Status Icons
These are the standard status icons of the Android operating system. Your
MaxiPro display tablet is a fully functional Android Pad. Refer to Android
documentation for additional information.
3.2 Powering Down
All vehicle communications must be terminated before shutting down the
20
MaxiPro display tablet. A warning message displays if you attempt to shut
down while the VCI unit is communicating with the vehicle. Forcing a shut
down while communicating may lead to ECM problems on some vehicles. Exit
the Diagnostics application before powering down.
To power down the MaxiPro tablet:
1. Press and hold the Lock/Power Button.
2. Tap OK; the tablet will turn off in a few seconds.
3.2.1 Reboot System
In case of system crash, press and hold the Lock/Power button for 8 seconds
to reboot the system.
3.3 Installing Computer Software
The MaxiPro MP908/MaxiPro MP908P Diagnostic Platform allows you to
realize some of its functions on a computer to enhance capabilities and
improve user experience. To realize these functions on a computer, you need
to install certain software.
To install the MaxiPro Printer driver program
1. Double click on Autel Run.exe item.
2. Click the MaxiPro Printer icon in the MaxiPro PC Suite screen.
3. Select the installation language and the printer driver installation
wizard will load momentarily.
4. Follow the wizard instructions on the screen and Click Next to
continue.
5. Click on Install and the printer driver program will be installed onto
the computer.
6. Click on Finish to complete the whole installation procedure.
NOTE: The MaxiPro Printer runs automatically after the installation.
3.3.1 Printing Operation
This section describes how to receive file from the MaxiPro tablet and perform
21
printing through the computer:
To perform printing through the computer
1. Install the MaxiPro Printer driver to the computer.
2. Make sure the display tablet is connected to the computer network,
either via WiFi or LAN, before printing. See 8.1.3 Printing Setting on
page 79 for more information.
3. Run the MaxiPro Printer program on the computer to open up the
printer interface.
4. Click Test Print to make sure the printer is working successfully.
5. Tap the Print button on the toolbar displayed in various applications of
the MaxiPro system. A temporary file will be created and sent to the
computer for printing.
6. The MaxiPro Printer will print the received file automatically when the
Auto Print option is checked.
If you need to print the document later, click the Open PDF file and
select the document, and double click the Print on the MaxiPro
Printer interface to start the printing.
NOTE: Make sure the computer installed with the Printing Services program is
connected to a printer.
22
Chapter 4 Diagnostics Operations
By establishing a data link to the electronic control systems of the vehicle being
serviced through the VCI device, the Diagnostics application allows you to retrieve
diagnostic information, view live data parameters, and perform active tests. The
Diagnostics application can access the electronic control module (ECM) for various
vehicle control systems, such as engine, transmission, antilock brake system (ABS),
airbag system (SRS) and more.
4.1 Establishing Vehicle Communication
The Diagnostics operations require connecting the MaxiPro MP908/MaxiPro
MP908P Diagnostic Platform to the test vehicle through the VCI device using
the main cable, and test adapters (for non-OBD II vehicles). To establish
proper vehicle communication to the MaxiPro display tablet, you need to
perform the following steps:
1. Connect the VCI device to the vehicle’s DLC for both communication and
power source.
2. Connect the VCI device to the MaxiPro display tablet via BT pairing, or
USB connection.
3. When these are done, check the VCI navigation button at the bottom bar
on the screen, if the button displays a green tick icon at the lower right
corner, the MaxiPro MP908/MaxiPro MP908P diagnostic platform is
ready to start vehicle diagnosis.
4.1.1 Vehicle Connection
The method used to connect the VCI device to a vehicle’s DLC depends on
the vehicle’s configuration as follows:
A vehicle equipped with an On-board Diagnostics Two (OBD II) management
system supplies both communication and 12-volt power through a
standardized J-1962 DLC.
A vehicle not equipped with an OBD II management system supplies
communication through a DLC connection, and in some cases supplies
12-volt power through the cigarette lighter receptacle or a connection to
the vehicle battery.
23
OBD II Vehicle Connection
This type of connection only requires the main cable without any additional
adapter.
To connect to an OBD II vehicle
1. Connect the main cable’s female adapter to the Vehicle Data
Connector on the VCI device, and tighten the captive screws.
2. Connect the cable’s 16-pin male adapter to the vehicle’s DLC,
which is generally located under the vehicle dash.
NOTE: The vehicle’s DLC is not always located under the dash; refer to the
user manual of the test vehicle for additional connection information.
Non-OBD II Vehicle Connection
This type of connection requires both the main cable and a required OBD I
adapter for the specific vehicle being serviced.
There are three possible conditions for Non-OBD II vehicle connection:
DLC connection supplies both communication and power.
DLC connection supplies communication and power is to be supplied via the
cigarette lighter connection.
DLC connection supplies communication and power is to be supplied via
connection to the vehicle battery.
To connect to a Non-OBD II Vehicle
1. Connect the main cable’s female adapter to the Vehicle Data
Connector on the VCI device, and tighten the captive screws.
2. Locate the required OBD I adapter and connect its 16-pin jack to
the main cable’s male adapter.
3. Connect the attached OBD I adapter to the vehicle’s DLC.
NOTE: Some adapters may have more than one adapter or may have test
leads instead of an adapter. Whatever the case, make the proper connection
to the vehicle’s DLC as required.
To connect the cigarette lighter
1. Plug the DC power connector of the cigarette lighter into the DC
24
power supply input port on the device.
2. Connect the male connector of the cigarette lighter into the vehicle’s
cigarette lighter receptacle.
To connect the clipper cable –for MaxiPro MP908P only
1. Connect the tubular plug of the clipper cable to the male connector
of the cigarette lighter.
Figure 4- 1 Connection between Cigarette Lighter and Clipper Cable
2. Plug the DC power connector of the cigarette lighter into the DC
power supply input port of the J2534 programming device.
3. Connect the clipper cable to the vehicle’s battery.
NOTE: After the VCI device is successfully connected to the vehicle, the
Power LED on the device illuminates, and a brief beep sound will be heard.
4.1.2 VCI Connection
After the VCI device is properly connected to the vehicle, the Power LED on
the VCI device illuminates solid green light, and is ready to establish
communication with the MaxiPro display tablet.
The Wireless Diagnostic Interface, which comes with the MaxiPro tool kit,
supports 2 communication methods with the MaxiPro display tablet: BT and
USB.
The J2534 ECU Programming Device, which comes with the MaxiPro Pro tool
kit, supports 2 communication methods with the MaxiPro display tablet: BT,
and USB.
Pairing Up via BT
Among all methods, BT pairing is recommended as the first choice for the
25
communication between the MaxiPro display tablet and the VCI device. The
working range for BT communication is about 210 feet (70 m); this means you
can perform vehicle diagnosis freely around the workshop with greater
convenience.
If you use more than one VCI device to connect to the test vehicles when
customers are many, you can perform vehicle diagnosis on various vehicles
conveniently, by pairing the MaxiPro display tablet separately to each of the
VCI devices connected to the different test vehicles, via BT, without the need
to repeat the plugging and unplugging procedure, which is unavoidable
through traditional wired connection, thus saves you more time and provides
more efficiency.
To pair up the MaxiPro display tablet with the VCI device via BT
1. If not already done, power up the MaxiPro display tablet.
2. Select the VCI Manager application from the MaxiPro Job Menu.
3. When the VCI Manager application is opened, the device
automatically starts scanning for available VCI devices around for
BT pairing. The found devices are listed in the Setting section on
the right side of the screen.
NOTE: If no VCI device is found, this may indicate that the signal strength of
the transmitter is too weak to be detected. In this case try to get closer to the
device, or reposition the VCI device, and remove all possible objects that
causes signal interference. When these are done, tap the Scan button at the
top right corner to start searching again.
4. Depending on the VCI type you use, the device name may display
as Maxi suffixed with a serial number. Select the required device for
pairing.
5. When paring is successfully done, the connection status displayed
to the right of the device name is shown as Paired.
6. Wait for a few seconds, and the VCI button on the system
Navigation bar at the bottom of the screen shall display a green tick
icon, indicating the display tablet is connected to the VCI device,
and is ready to perform vehicle diagnosis.
Refer to 11.1 BT Pairing on page 93 for additional information.
USB Cable Connection
The USB cable connection is a simple and quick way to establish
26
communication between the MaxiPro display tablet and the VCI device. After
properly connecting the USB cable from the tablet to the VCI device, the VCI
navigation button at the bottom bar of the screen shows a green tick icon in a
few seconds, and the USB LED on the VCI device illuminates solid green light,
indicating the connection between the devices is successful.
The MaxiPro diagnostic platform is now ready to perform vehicle diagnosis.
NOTE: Since the USB connection provides the most stable and fastest
communication, it is highly recommended to apply this communication method
when operating ECU programming or coding. When all the two
communication methods are applied at the same time, the MaxiPro system
will use the USB communication as the default priority.
4.1.3 No Communication Message
A. If the MaxiPro Display Tablet is not connected to the VCI device, an
“Error” message displays. An “Error” message indicates the display
tablet is not communicating with the VCI device, and so cannot gain
access to the vehicle control module. In this case, you need to do the
following check-ups:
Check if the VCI device is powered on.
In case of wireless connection, check if the network is configured
correctly, or if the right device has been paired.
If during the diagnosis process, the communication is suddenly
interrupted due to the loss of signal, check if there is any object that
causes signal interruption.
Check if the VCI device is properly positioned. It is recommended to put
the VCI device with the front side up.
Try standing closer to the VCI device to obtain more stable signals, and
faster communication speed.
In case of wired connection, check the cable connection between the
display tablet and the VCI device.
Check if the green LED on the VCI device is illuminated for BT or USB.
27
Check if the Error LED on the VCI device is on, this may indicate there
is a communication error between the devices, in this case try
re-establishing the connection again; if this does not work, there
may be a hardware problem with the device, in this case contact for
technical support.
B. If the VCI device is unable to establish a communication link, a prompt
message displays with check instructions. The following conditions are
the possible causes for this massage to display:
The VCI device is unable to establish a communication link with the
vehicle.
You’ve selected a system for testing that the vehicle is not equipped
with.
There is a loose connection.
There is a blown vehicle fuse.
There is a wiring fault on the vehicle, or the data cable or adapter.
There is a circuit fault in the data cable or adapter.
Incorrect vehicle identification was entered.
4.2 Getting Started
Prior to first use of the Diagnostics application, the VCI device must be
synchronized with the MaxiPro Display Tablet to establish a communication
link. See VCI Manager Operations on page 92.
4.2.1 Vehicle Menu Layout
When the VCI device is properly connected to the vehicle, and paired to the
MaxiPro Display Tablet, the platform is ready to start vehicle diagnosis. Tap on
the Diagnostics application button on the MaxiPro Job Menu, the screen then
opens the Vehicle Menu.
28
Figure 4- 2 Sample Vehicle Menu Screen
1. Top Toolbar Buttons
2. Manufacturer Buttons
Top toolbar Buttons
The operations of the Toolbar buttons at the top of the screen are listed and
described in the table below:
Table 4- 1 Top Toolbar Buttons
Name
Button
Description
Home
Returns to the MaxiPro Job Menu.
VIN Scan
Touching this button opens a dropdown list; tap
Auto Detect for auto VIN detection; tap Manual
Input to enter VIN manually.
All
Displays all the vehicle makes in the vehicle
menu.

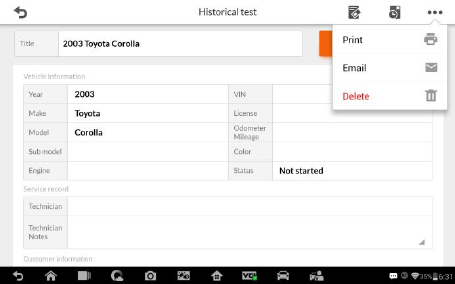

History
Displays the stored test vehicle history records.
This option provides you direct access to the
previously tested vehicle recorded during
previous test sessions. See 9.1 Vehicle History
on page 83.
USA
Displays the USA vehicle menu.
29
Name
Button
Description
Europe
Displays the European vehicle menu.
Asia
Displays the Asian vehicle menu.
China
Displays the Chinese vehicle menu.
Search
Touching this button opens the virtual keyboard,
allowing you to manually enter the specific
vehicle make required.
Manufacturer Buttons
The Manufacturer buttons display the various vehicle logos and the brand
names. Select the required manufacturer button after the VCI device is
properly connected to the test vehicle to start a diagnostic session.
The small envelop icon displays beside the vehicle brand name is tappable,
touching which displays an attached PDF file, showing relevant information,
such as vehicle coverage and function list etc for the corresponding vehicle
make.
4.3 Vehicle Identification
The MaxiPro diagnostic system supports four methods for Vehicle
Identification.
1. Auto VIN Scan
2. Manual VIN Input
3. Manual Vehicle Selection
4. OBD Direct Entry
4.3.1 Auto VIN Scan
The MaxiPro diagnostic system features the latest VIN-based Auto VIN Scan
function to identify CAN vehicles in just one touch, which allows the technician
to quickly detect vehicles, scan all the diagnosable ECUs on every vehicle and
run diagnostics on the selected system.
To perform Auto VIN Scan
30
1. Tap the Diagnostics application button from the MaxiPro Job Menu.
The Vehicle Menu displays (Figure 4- 2).
2. Tap the VIN Scan button on the top toolbar.
3. Select Auto Detect. The tester starts VIN scanning on the vehicle’s
ECU. Once the test vehicle is successfully identified, the system will
guide you to the Vehicle Diagnostics screen directly.
Figure 4- 3 Sample Vehicle Diagnostics Screen
In some cases when users have selected the vehicle brand instead of
performing Auto VIN Scan in the first place, the system still provides an option
for vehicle VIN scan.
Figure 4- 4 Sample Diagnostic Type Selection Screen
Select Automatic Selection and the system will proceed to acquire VIN
information automatically or allow users to input the VIN manually.
31
4.3.2 Manual VIN Input
For some vehicles that do not support the Auto VIN Scan function, the
MaxiPro diagnostic system allows you to enter the vehicle VIN manually, or
simply take a photo of the VIN sticker for quick vehicle identification.
To perform Manual VIN Input
1. Tap the Diagnostics application button from the MaxiPro Job Menu.
The Vehicle Menu displays (Figure 4- 2).
2. Tap the VIN Scan button on the top toolbar.
3. Select Manual Input.
4. Tap the input box and enter the correct VIN.
Figure 4- 5 Manual VIN Input
5. Tap Done. The vehicle will be identified in a few seconds, and once
the matching is successful, the system will guide you to the Vehicle
Diagnostics screen directly (Figure 4- 3).
6. Tap Cancel to exit Manual Input.
4.3.3 Manual Vehicle Selection
When the vehicle’s VIN is not automatically retrievable through the vehicle's
ECU, or the specific VIN is unknown, you can choose to select the vehicle
manually.
32
Step-by-step Vehicle Selection
This mode of vehicle selection is menu driven; you simply follow the screen
prompts and make a series of choices. Each selection you make advances
you to the next screen. A Back button at the lower right corner of the screen
returns you to the previous screen. Exact procedures may vary somewhat by
various vehicles being serviced.
4.3.4 Alternative Vehicle Identification
Occasionally, you may identify a test vehicle that the tester does not recognize;
the database does not support, or has some unique characteristics that
prevent it from communicating with the tester through the normal channels. In
these instances, you are provided with the OBD direct entry, through which
you can perform generic OBD II or EOBD tests. See 4.9 Generic OBD II
Operations on page 57 for additional information.
4.4 Navigation
This section describes how to navigate the Diagnostics interface and select
test options.

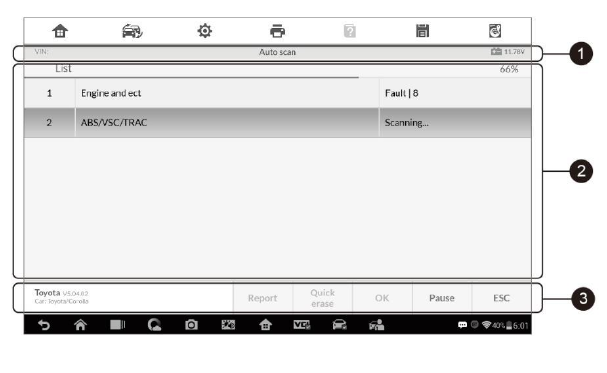

4.4.1 Diagnostics Screen Layout
The Diagnostics screens typically include four sections (Figure 4- 6).
Figure 4- 6 Sample Diagnostics Screen
1. Diagnostics Toolbar
33
2. Status Information Bar
3. Main Section
4. Functional Buttons
Diagnostics Toolbar
The Diagnostics Toolbar contains a number of buttons that allow you to print or
save the displayed data and make other controls. The table below provides a
brief description for the operations of the Diagnostics toolbar buttons:

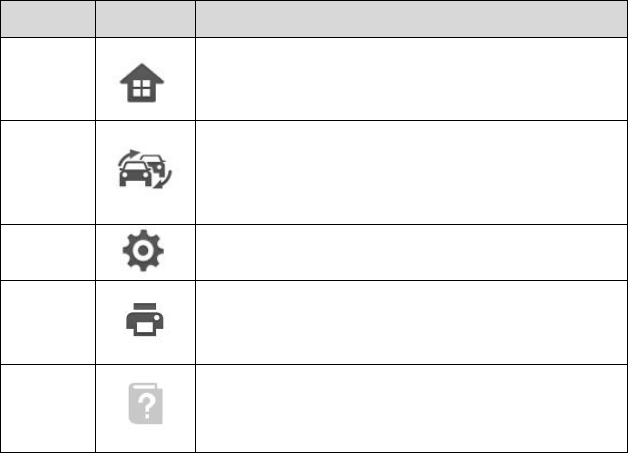

Table 4- 2 Diagnostics Toolbar Buttons
Name
Button
Description
Home
Returns to the MaxiPro Job Menu.
Vehicle
Swap
Touching this button allows you to exit the
diagnostic session of the currently identified test
vehicle, and returns you to the vehicle menu screen
to select another vehicle for testing.
Settings
Opens the setting screen. See Settings Operations
on page 78.
Print
Saves and prints a copy of the displayed data. See
Printing Operation for additional information on
page 20.
Help
Provides instructions or tips for operations of
various diagnostic functions.
34
Name
Button
Description
Save
Tapping this button opens a submenu, on which
there are 3 options available to save the displayed
data.
Tap Save This Page to take a screenshot
Tap Save All Data to save a PDF file (mostly
used to save data that cover more than 1
page)
Tap Start Saving to record a video clip (only
available for recording Live Data or special
graph data)
All saved data are stored in the Data Manager
application for later reviews. See Data Manager
Operations on page 64.
Data
Logging
Records the communication data and ECU
information of the test vehicle. The saved data can
be reported and sent to the technical center via the
internet.
You can go to the Support application to follow up
the processing progress, see Data Logging on 97
page for detailed information.
To print data in Diagnostics
1. Tap the Diagnostics application button from the MaxiPro Job Menu.
The Print button on the diagnostic toolbar is available throughout
the whole Diagnostics operations.
2. Tap Print and a drop-down menu appears.
a) Print This Page – prints a screenshot copy of the current
screen
b) Print All Page – prints a PDF copy of all displayed data
3. A temporary file will be created and sent to the computer for
printing.
4. When the file is transferred successfully, a confirmation message
displays.
NOTE: Make sure the display tablet is connected to the computer network,
either via WiFi or LAN, before printing. For more instructions on printing, see
35
Printing Operation on page 20 for details.
To submit Data Logging reports in Diagnostics
1. Tap the Diagnostics application button from the MaxiPro Job Menu.
The Data Logging button on the diagnostic toolbar is available
throughout the whole Diagnostics operations.
2. Tap the Data Logging button. The button displays blue during the
active recording process.
3. Tap the Data Logging button again to finish recording. A
submission form will display to let you fill in the report information.
4. Tap the Send button to submit the report form via the internet, a
confirmation message displays when sending is successful.
Status Information Bar
The Status Information Bar at the top of the Main Section displays the
following items:
1. Menu Title – indicates the menu subject of the Main Section
2. VCI Icon – indicates the communication status between the tablet and
the VCI device
3. Battery Icon – indicates the battery status of the VEHICLE
Main Section
The Main Section of the screen varies depending on the stage of operations.
The Main Section can show vehicle identification selections, the main menu,
test data, messages, instructions and other diagnostic information.
Functional Buttons
The displayed Functional Buttons at this section of the screen varies
depending on the stage of operations. They can be used to navigate, save or
clear the diagnostic data, exit scanning as well as make other functional
controls. The functions of these buttons will be introduced respectively in the
following sections of the corresponding test operations.
4.4.2 Screen Messages
Screen messages appear when additional input is needed before proceeding.
There are mainly three types of on-screen messages as to their purposes:
36
Confirmation, Warning, and Error.
Confirmation Messages
This type of messages usually displays as an “Information” screen, which
informs you when you are about to perform an action that cannot be reversed
or when an action has been initiated and your confirmation is needed to
continue.
When a user-response is not required to continue, the message displays
briefly before automatically disappearing.
Warning Messages
This type of messages informs you when completing the selected action may
result in an irreversible change or loss of data. The typical example for this is
the “Erase Codes” message.
Error Messages
Error messages inform you when a system or procedural error has occurred.
Examples of possible errors include a disconnected cable or communication
interruption due to certain reasons.
4.4.3 Making Selections
The Diagnostics application is a menu driven program that presents a series
of choices one at a time. As you select from a menu, the next menu in the
series displays. Each selection narrows the focus and leads to the desired test.
Use your fingertip or the stylus pen to make menu selections.
4.5 Main Menu
The Diagnostics application allows you to establish a data link to the electronic
control system of the test vehicle via the VCI device for vehicle diagnosis,
service or programming. You can operate functional tests, retrieve vehicle
diagnostic information such as trouble codes, event codes and live data, and
perform ECU reprogramming, for various vehicle control systems, such as
engine, transmission, ABS and more.
The Vehicle Diagnostics screen has three main options:
1. Diagnosis – a comprehensive section which includes all available
functions: reading, clearing, saving and printing diagnostic information,
as well as performing active tests and special functions
37
2. Service – a separate section designed to perform vehicle scheduled
service and maintenance, such as to reset the service lights and perform
calibration for various systems
3. Programming/Coding – a separate section designed for quick access
to ECU reprogramming operations
After a section is selected and the tablet establishes communication with the
vehicle via the VCI device, the corresponding function menu or selection
menu displays.
4.6 Diagnosis
There are two options available when accessing the Diagnosis section:
1. Auto Scan – starts auto scanning for all the available systems on the
vehicle
2. Control Units – displays a selection menu of all available control units of
the test vehicle
Auto Scan
The Auto Scan function performs a comprehensive scanning over all the
systems on the vehicle’s ECU in order to locate fault systems and retrieve
Figure4- 7 Sample Auto Scan Operation Screen
38
DTCs. The sample operation interface of Auto Scan displays as below:Figure
1. Navigation Bar
2. Main Section
3. Functional Buttons
Navigation Bar
1. List Tab – displays the scanned data in list format
2. Progress Bar – indicates the test progress
Main Section
A. List Tab
Column 1 – displays the system numbers
Column 2 – displays the scanned systems
Column 3 – displays the diagnostic marks indicating different conditions
of the test result:
-!-: Indicates that the scanned system may not support the code reading
function, or there is a communication error between the tester and the
control system.
-?-: Indicates that the vehicle control system has been detected, but the
tester cannot accurately locate it.
Fault | #: Indicates there is/are detected fault code(s) present; “#”
indicates the number of the detected faults.
Pass | No Fault: Indicates the system has passed the scanning
process and no fault has been detected.
Functional Buttons
The table below provides a brief description of the Functional Buttons’
operations in Auto Scan:
Table 4- 3 Functional Buttons in Auto Scan
Name
Description
ESC
Returns to the previous screen or exit Auto Scan.
39
Name
Description
Pause
Suspends scanning and changes to show the Continue
button.
OK
Confirms the test result, and continues to the system
diagnosis after selecting the required system by tapping
the item in the Main Section.
Quick Erase
Deletes codes. A warning message screen will display
to inform you of possible data loss when this function is
selected.
Report
Displays the diagnostic data in the report form.
Control Units
This option allows you to manually locate a required control system for testing
through a series of choices. You simply follow the menu driven procedure, and
make proper selection each time; the program will guide you to the diagnostic
function menu after a few choices you’ve made.

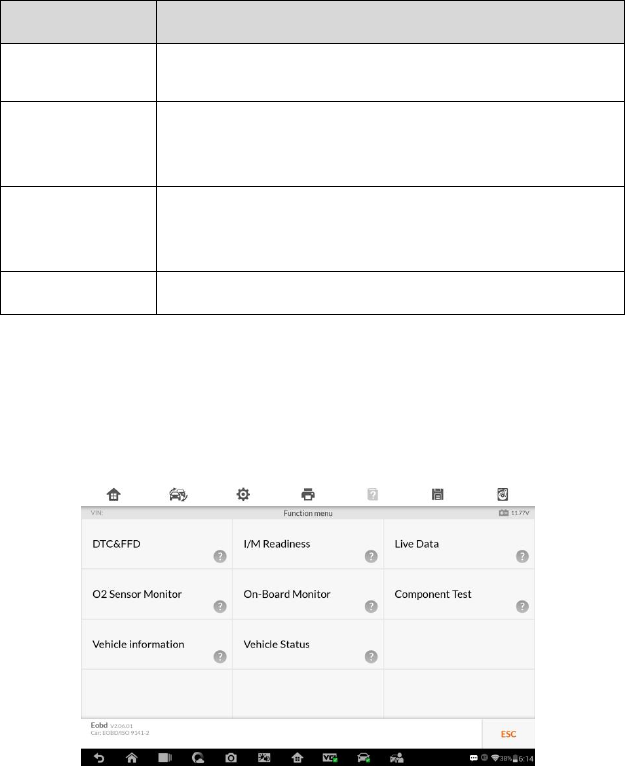

Figure 4- 8 Sample Function Menu Screen
The Function Menu options vary slightly for different vehicles. The function
menu may include:
ECU Information – provides the retrieved ECU information in detail.
Selecting opens an information screen.
Read Codes – displays detailed information of DTC records retrieved from
the vehicle control module.
40
Erase Codes – erases DTC records and other data from the ECM.
Live Data – retrieves and displays live data and parameters from the
vehicle’s ECU.
Active Test – provides specific subsystem and component tests. This
selection may appear as Actuators,Actuator Test, or Function Tests,
etc., and the tests options vary depending on the manufacturer and
model.
Special Functions – provides component adaptation or variant coding
functions for custom configurations, and also allows you to reprogram
adaptive values for certain components after making repairs. Depending
on the test vehicle, this selection may sometimes appear as Control
Unit Adaptations,Variant Coding,Configuration or something similar.
NOTE: With the diagnostic toolbar on top of the screen throughout the whole
diagnostic procedures, you are allowed to make various controls of the
diagnostic information at anytime, such as printing and saving the displayed
data, get help information, or perform data logging, etc.
To perform a diagnostic function
1. Establish communication with the test vehicle via the VCI device.
2. Identify the test vehicle by selecting from the menu options.
3. Select the Diagnosis section.
4. Locate the required system for testing by Auto Scan or through
menu driven selections in Control Units.
5. Select the desired test from the Function Menu.
4.6.1 ECU Information
This function retrieves and displays the specific information for the tested
control unit, including unit type, version numbers and other specifications. The
sample ECU Information screen displays as below:
41
Figure 4- 9 Sample ECU Information Screen
1. Diagnostics Toolbar Buttons – see Table 4- 2 Diagnostics Toolbar
Buttons on page 33 for detailed descriptions of the operations for each
button.
2. Main Section – the left column displays the item names; the right
column shows the specifications or descriptions.
3. Functional Button – in this case, only a Back (or sometimes an ESC)
button is available; tap it to exit after viewing.
4.6.2 Read Codes
This function retrieves and displays the DTCs from the vehicle’s control
system. The Read Codes screen varies for each vehicle being tested, on
some vehicles, freeze frame data can also be retrieved for viewing. The
sample Read Codes screen displays as below:
42
Figure 4- 10 Sample Read Codes Screen
1. Diagnostics Toolbar Buttons – see Table 4- 2 Diagnostics Toolbar
Buttons on page 33 for detailed descriptions of the operations for each
button.
2. Main Section
Code Column – displays the retrieved codes from the vehicle.
Status Column – indicates the status of the retrieved codes.
Description Column – detailed descriptions for the retrieved codes.
Snowflake Icon – only displays when freeze frame data is available for
viewing; Selecting displays a data screen, which looks very similar
to the Read Codes interface, therefore same operation method may
be applied.
3. Functional Button – in this case, only a Back (or sometimes an ESC)
button is available; tap it to return to the previous screen or exit the
function.
4.6.3 Erase Codes
After reading the retrieved codes from the vehicle and certain repairs have
been carried out, you can decide to erase the codes from the vehicle using
this function. Before performing this function, make sure the vehicle’s ignition
key is in the ON (RUN) position with the engine off.
43
To erase codes
1. Tap Erase Codes from the Function Menu.
2. A warning message displays to inform you of data loss when this
function is applied.
a) Tap Yes to continue. A confirming screen displays when the
operation is successfully done.
b) Tap No to exit.
3. Tap ESC on the confirming screen to exit Erase Codes.
4. Check the Read Codes function again to ensure the operation is
successful.
4.6.4 Live Data
When this function is selected, the screen displays the data list for the
selected module. The items available for any control module vary from one
vehicle to another. The parameters display in the order that they are
transmitted by the ECM, so expect variation between vehicles.
Gesture scrolling allows you to quickly move through the data list. Simply
touch the screen and drag your finger up or down to reposition the parameters
being displayed if the data covers more than one screen. The figure below
shows a typical Live Data screen:
1. Diagnostics Toolbar Buttons – taps the drop-down button at the top
Figure 4- 11 Sample Live Data Screen
44
center of the screen displays the toolbar buttons.
2. Main Section
Name Column – this column displays the parameter names.
a) Check Box – taps the check box at the left side of the
parameter name to make selection of an item. Tap the check
box again to deselect the item.
b) Drop-down Button – tapping the drop-down button at the
right side of the parameter name opens a submenu, which
provides various choices for data display mode.
Value Column – displays the values of the parameter items.
Range Column – displays the minimum and the maximum limit value.
Unit Column – displays the unit for the parameter values.
To change the Unit mode, tap the Setting button on the top toolbar
and select a required mode. See 8.1.1 Unit on page 78 for more
information.
3. Display Mode
There are 4 types of display modes available for data viewing, allowing
you to view various types of parameters in the most suitable way for
better data check-ups.
Tapping the drop-down button on the right side of the parameter name
opens a submenu. There are 4 buttons to configure the data display
mode, plus one Help button on the right, tappable when additional
information is available for your reference.
Each parameter item displays the selected mode independently.
Analog Gauge Mode – displays the parameters in form of an analog
meter graph
Text Mode – this is the default mode which displays the parameters in
texts and shows in list format.
NOTE: Reading of status parameters, such as a switch reading, which
are mostly in word form, like ON, OFF, ACTIVE, and ABORT, etc., can
only be displayed in Text Mode. Whereas reading of value parameters,
such as a sensor reading, can be displayed in text mode and other graph
modes.
45
Waveform Graph Mode – displays the parameters in waveform graphs
When displaying this mode, three control buttons will appear on the right
side of the parameter item, allowing you to manipulate the display status.
Text Button – resumes Text Display Mode
Scale Button – changes the scale values, which are displayed below
the waveform graph. There are 4 scales available: x1, x2, x4 and
x8.
Zoom-in Button – taps once to display the selected data graph in full
screen
Digital Gauge Mode – displays the parameters in form of a digital gauge
graph
Full Screen Display – this option is only available in the waveform graph
mode, and mostly used in Graph Merge status for data comparison.
There are three control buttons available on the top right side of the
screen under this mode.
Edit Button – tapping this button opens an edit window, on which you
can set the waveform color and the line thickness displayed for the
selected parameter item.
Scale Button – changes the scale values, which are displayed below
the waveform graph. There are 4 scales available: x1, x2, x4 and
x8.
Zoom-out Button – exits full screen display.
To edit the waveform color and line thickness in a data graph
1. Select 1 to 3 parameter items to display in Waveform Graph mode.
2. Tap the Zoom-in Button on the right to display the data graph in
full screen.
3. Tap the Edit Button, an edit window appears.
4. Select a parameter item on the left column.
5. Select a desired sample color from the second column.
6. Select a desired sample line thickness from the right column.
7. Repeat step 4-7 to edit the waveform for each parameter item.
8. Tap Done to save the setting and exit, or tap Cancel to exit without
46
saving.
4. Functional Buttons
The operations of all the available functional buttons on Live Data screen
are described below:
Back – returns you to the previous screen or exit the function.
Record – starts recording the retrieved live data; the recorded data is
then stored as a video clip in the Data Manager application for future
reviews. This function could be triggered automatically at preset
threshold value or manually as you choose, and the triggering mode and
record duration can be configured in the Setting mode of Live Data.
Freeze – displays the retrieved data in freeze mode.
Previous Frame – moves to the previous frame in the freeze data.
Next Frame – moves to the next frame in the freeze data.
Resume – this button appears when the Record or Freeze function is
applied. Tapping this button stops data recording, or exit freeze data
mode, and resumes normal data display mode.
Flag – this button appears when the Record function is applied. Tapping
this button sets flags for the recorded data at points wherever you
choose, when playing back the recorded video clip later in Data Manager,
the preset flag will enable a popup to allow input of text to take notes.
Clear Data – tapping which clears all previously retrieved parameter
values at a cutting point whenever you choose.
To Top – moves a selected data item to the top of the list.
Graph Merge – taps this button to merge selected data graphs (for
Waveform Graph Mode only). This function is very useful when making
comparison for different parameters.
NOTE: This mode supports Graph Merge for 2 to 3 parameter items only,
so select no less than 2 or more than 3 items each time when making
graph merge.
To cancel Graph Merge mode, tap the drop-down button on the
right side of the parameter name, and select a data display mode.
Show Selected/Show All – taps this option to exchange between the
two options; one displays the selected parameter items, the other
47
displays all the available items.
Setting – tapping this button opens a setting screen, which allows you to
set the trigger mode, recording duration, and various threshold values for
data recording, and make other controls.

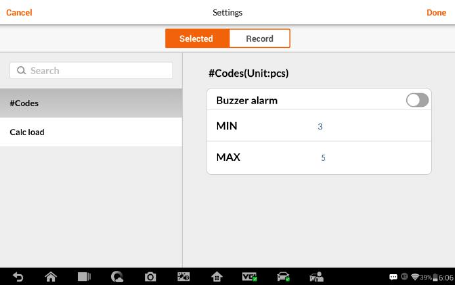

Figure 4- 12 Sample Setting Mode in Live Data
There are 4 navigation buttons on top of the Setting mode screen.
Range Button – displays the configuration screen on which you can
set the threshold values, an upper limit and a lower limit, for
triggering the buzzer alarm.This function is only applied to the
Waveform Graph display mode.
a) MIN – tapping which opens a virtual keyboard, allows you to
enter the required lower limit value
b) MAX – tapping which opens a virtual keyboard, allows you to
enter the required upper limit value
c) Buzzer Alarm – switches the alarm on and off. The alarm
function makes a beep sound as a reminder whenever the
data reading reaches the preset minimum or maximum point
To set threshold limits for the parameter values
1. Tap the Setting functional button at the bottom of the Live
Data screen.
2. Tap the Range navigation button.
3. Select a parameter item on the left column, or enter the item
48
name in the Search bar.
4. Tap on the right side of the MIN button, and enter the required
minimum value.
5. Tap on the right side of the MAX button, and enter the required
maximum value.
6. Tap the ON/OFF button on the right side of the Buzzer Alarm
button to turn it on or off.
7. Tap Done to save the setting and return to the Live Data
screen; or tap Cancel to exit without saving.
If the threshold limits are successfully set, two horizontal lines now
appear on each of the data graphs (when Waveform Graph Mode is
applied) to indicate the alarming point. The threshold lines are shown in
different colors than the waveform of the parameters for distinction.
Record Button – displays the configuration screen for Record Setting,
on which you can set the trigger type, duration and trigger point for
the data recording function.
a) Trigger Type – sets the trigger mode for data recording,
mainly of two kinds: Manual and Auto. There are four options
available:
1) Manual – allows you to manually start and stop data
recording
2) DTC – auto triggers data recording when any DTC is
detected
3) DTC Check Mode – auto triggers data recording when
certain pre-selected DTC types are detected
4) Parameter – auto triggers data recording when any
parameter value reaches the preset threshold
b) Duration – sets the recording time (for Auto trigger mode only)
c) Trigger Point – reserves a relative percentage of a record
length before the data recording start point for reference (for
Auto trigger mode only)
To perform setting for live data record
1. Tap the Setting functional button at the bottom of the Live
49
Data screen.
2. Tap the Record navigation button.
3. Tap the ○
>
button on the right of Trigger Type bar and select
the required trigger mode.
4. Tap the ○
>
button on the right of Duration bar and select a
length of time.
5. Tap the ○
>
button on the right of Trigger Point bar and
select a relative percentage of a record length to be reserved
before the data recording start point.
6. Tap Done to save the setting and return to the Live Data
screen; or tap Cancel to cancel without saving and exit
Setting.
Done Button – confirms and saves the setting, and returns you to the
Live Data screen.
Cancel Button – cancels the setting operation, and returns you to the
Live Data screen.
4.6.5 Active Test
The Active Test function is used to access vehicle-specific subsystem and
component tests. Available test vary by manufacturer, year, and model, and
only the available tests display in the menu.
During an active test, the tester outputs commands to the ECU in order to
drive the actuators. This test determines the integrity of the system or parts by
reading the engine ECU data, or by monitoring the operation of the actuators,
such as switching a solenoid, relay, or switch, between two operating states.
Selecting Active Test opens a menu of test options that varies by make and
model. Selecting a menu option activates the test. Follow all screen
instructions while performing tests. How and what information is presented on
the screen varies according to the type of test being performed. Some toggle
and variable control tests display Active Test Controls at the top of the screen
with data stream information below, or vice versa.
50
Figure 4- 13 Sample Active Test Screen
The functional buttons at the lower right corner of the Active Test screen
manipulate the test signals. The operational instructions are displayed on the
main section of the test screen. Simply follow the on-screen instructions and
make appropriate selections to complete the tests. Each time when an
operation is successfully executed, message such as “Command Finished”,
“Activation Successful”, or something similar displays.
Tap the ESC functional button to exit the test when finished.
4.6.6 Special Functions
These functions perform various component adaptations, allowing you to
recalibrate or configure certain components after making repairs or
replacement.
The main section of the Adaptation Operation screen displays a list of
operational and vehicle status information, which mainly consists of four parts:
1. The first part in the top line shows the description of the operation being
performed, and the execution status is displayed on the right, such as
Completed, or Activated, etc.
2. The second part shows the preconditions or requirements for executing
the operation being selected.
51
3. The third part displays the current conditions of the vehicle control
module being learned for comparison to the preconditions suggested by
the second part. If the current condition of the control module is out of the
suggested limit value, then it must be adjusted to meet the requirement.
4. The last part displays the instruction of how to use the functional button
at the lower right corner of the screen to manipulate the teach-in
operations.
Read the information carefully and check the vehicle condition accordingly,
when you are sure that the vehicle is ready to perform the adaptation, simply
follow the instruction provided to make appropriate selections. When the
operation is done, an execution status message such as Completed, Finished
or Successful, displays.
Tap the ESC button to exit the function.
4.7 Service
The Service section is specially designed to provide you with quick access to
the vehicle systems for various scheduled service and maintenance
performances. The typical service operation screen is a series of menu driven
executive commands. By following the on-screen instructions to select
appropriate execution options, enter correct values or data, and perform
necessary actions, the system will guide you through the complete
performance for various service operations.
The most commonly performed service functions include:
Oil Reset Service
EPB Service
BMS Service
SAS Service
DPF Service
TPMS Service
IMMO Service
After entering each special function, the displayed screen consists of two
applications: Diagnosis and Hot Functions. The Diagnosis is for you to
read/clear data since this is necessary after some special functions. Hot
Functions consists of sub functions of the selected special function.
52
4.7.1 Function Descriptions
This section describes the main functions for vehicle service:
Oil Reset Service
This function allows you to perform reset for the Engine Oil Life system, which
calculates an optimal oil life change interval depend on the vehicle driving
conditions and climate. The Oil Life Reminder must be reset every time the oil
is changed, so the system can calculate when the next oil change is required.
IMPORTANT
Always reset the engine oil life to 100% after every oil change.
NOTE
All required work must be carried out before the service indicators are reset.
Failure to do so may result in incorrect service values and cause DTCs to be
stored by the relevant control module.
Tire Pressure Monitor System (TPMS) Service
This function allows you to quickly look up the tire sensor IDs from the
vehicle’s ECU, as well as to perform TPMS programming and reset
procedures after tire sensors are replaced.
NOTE
During this application the wheel unit 8 digit identifications will need to be
entered using the screen displayed.
The sensor identifications can be accessed by reading directly from the wheel
unit or by using the identification reading tool.
On completion, a specific road test will be required followed by the tire
pressure monitor system application.
Electric Parking Brake (EPB) Service
This function has a multitude of usages to maintain the electronic braking
system safely and effectively. The applications include deactivating and
activating the brake control system, assisting with brake fluid control, opening
and closing brake pads, and setting brakes after disc or pad replacement, etc.
53
EPB Safety
It may be dangerous to perform Electronic Parking Brake (EPB) system
maintenance, so before you begin the service work, please keep these rules in
mind.
Ensure that you are fully familiar with the braking system and its operation
before commencing any work.
The EPB control system may be required to be deactivated before
carrying out any maintenance/diagnostic work on the brake system. This
can be done from the tool menu.
Only carry out maintenance work when the vehicle is stationary and on
level ground.
Ensure that the EPB control system is reactivated after the maintenance
work has been completed.
NOTE
Autel accepts no responsibility for any accident or injury arising from the
maintenance of the Electronic Parking Brake system.
ABS/SRS Services
This function allows you to perform various bi-directional tests to check the
operating conditions of both the Anti-lock Braking System and the
Supplemental Restraint System, such as Automated Bleeding, Pump Motor
Test, and checking Module information, etc.
Steering Angle Sensor (SAS) Service
This service function allow you to perform calibration for the Steering Angle
Sensor, which permanently stores the current steering wheel position as the
straight-ahead position in the steering angle sensor EEPROM. On successful
completion of the calibration, the steering angle sensor fault memory is
automatically cleared.
Calibration must always be carried out after the following operations:
Steering wheel replacement
Steering angle sensor replacement
Any maintenance that involves opening the connector hub from the
steering angle sensor to the column
Any maintenance or repair work on the steering linkage, steering gear or
54
other related mechanism
Wheel alignment or wheel track adjustment
Accident repairs where damage to the steering angle sensor or assembly,
or any part of the steering system may have occurred
NOTE
1. AUTEL accepts no responsibility for any accident or injury arising from
servicing the SAS system. When interpreting DTCs retrieved from the
vehicle, always follow the manufacturer’s recommendation for repair.
2. All software screens shown in this manual are examples, actual test
screens may vary for each vehicle being tested. Observe the menu titles
and on-screen instructions to make correct option selections.
3. Before starting the procedure, make sure the vehicle has ESC. Look for
the button on dash.
DPF Regeneration Service
The DPF function allows you to carry out numerous functions to the Diesel
Particulate Filter system without having to send your car to a main dealer. The
tool will manage DPF regeneration, DPF component replacement teach-in
and DPF teach-in after replacing the engine control unit.
ECM monitors driving style and selects a suitable time to employ regeneration.
Cars driven a lot at idling speed and low load will attempt to regenerate earlier
than cars driven more with high load and high speed. In order for regeneration
to take place, a prolonged high exhaust temperature must be obtained.
In the event of the car being driven in such a way that regeneration is not
possible, i.e. frequent short journeys, a diagnostic trouble code will eventually
be registered, DPF light and “Check Engine” indicator comes on. A service
regeneration can be requested in the workshop, using the diagnostic tool.
Before carrying out a forced DPF regeneration using the tool, check the
following items:
The fuel light is not on.
No DPF-relevant faults stored in system.
The vehicle has the correct spec engine oil.
The oil for diesel is not contaminated.
55
IMPORTANT
Before diagnosing a problem vehicle and attempting to perform an emergency
regeneration, it is important to obtain a full diagnostic log and read out relevant
measured value blocks.
NOTE
1. The DPF will not regenerate if the engine management light is on, or there
is a faulty EGR valve.
2. The ECU must be re-adapted when replacing the DPF and when topping
up the fuel additive Eolys.
3. If the vehicle needs to be driven in order to perform a DPF service,
ALWAYS have a second person help you. One person should drive the
vehicle while the other person observes the screen on the Tool. Trying to
drive and observe the Scan Tool at the same time is dangerous, and
could cause a serious traffic accident.
Immobilizer (IMMO) Service
An immobilizer is an anti-theft mechanism that prevents an automobile’s
engine from starting unless the correct ignition key or other device is present.
This device prevents thieves from starting the car by a method known as hot
wiring. Most new vehicles have an immobilizer as standard equipment. An
important advantage of this system is that it doesn’t require the car owner to
activate it; it operates automatically. An immobilizer is considered as providing
much more effective anti-theft protection than an audible alarm alone; many
auto insurance companies offer lower rates for vehicles that are equipped with
them.
As an anti-theft device, an immobilizer disables one of the systems needed to
start a car's engine, usually the fuel supply or the ignition. This is
accomplished by radio frequency identification between a transponder in the
ignition key and a device called a radio frequency reader in the steering
column. When the key is placed in the ignition, the transponder sends a signal
with a unique identification code to the reader, which relays it to a receiver in
the vehicle's computer control module. If the code is correct, the computer
allows the fuel supply and ignition systems to operate and start the car. If the
code is incorrect or absent, the computer disables the system, and the car will
be unable to start until the correct key is placed in the ignition.
The IMMO service enables you to disable the lost vehicle keys and program
the replacement key fob. It could be one replacement key fob or more,
56
depending on your needs.
To program the replacement key fob(s)
1. Tap IMMO KEYS after entering the Service function from the Job
Menu.
2. Tap Automatic Selection or Manual Selection to acquire vehicle VIN
information and tap Yes to confirm.
3. Tap Erase/Program all key fobs in the IMMO function list after it is
displayed, the list may vary for different vehicles being tested.
NOTE
1) To complete key fob programming, you need to acquire the Security Code,
which can be acquired through the Security Code Read function in hot
functions.
2) Before programming, please check and erase the fault codes
4.8 Coding
Since the introduction of OBD II and leading up to modern Hybrids and EVs,
computers and software in cars have been expanding at an exponential rate.
In-car software is becoming one of the leading needs for service, and updating
software may be the only way to fix some of these issues:
Drivability
Fuel Efficiency
Power Loss
Fault Codes
Durability of Mechanical Parts
The Coding function is used to re-flash the vehicle control modules, it allows
you to update the computer software on the vehicle to the latest version, as
well as to reprogram adaptive data for certain components after making
repairs or replacements.
Available coding operations vary by the test vehicle, and only the available
operations display in the menu.
Selecting the Coding function opens a menu of operation options that varies
by make and model. Follow all screen instructions while performing the coding
57
operations. How and what information is presented on the screen varies
according to the type of operation being performed.
Variant Coding
Figure 4- 15 Sample Variant Coding Screen
The main section of the Variant Coding screen displays a list of vehicle
components and the coding information which mainly consists of three parts:
1. The top line on the list displays the instruction of how to use the
functional button at the lower right corner of the screen to manipulate the
coding operations.
2. The second part under the top line of the list displays all available
systems for coding on the left side, and the coding data or value on the
right side.
3. The bottom line of the main section displays the functional buttons, which
allows you to manipulate the operation.
Check the vehicle condition and the coding information carefully, and use the
functional button to edit Codes for the corresponding components, tap Send
when you finish edit for all the items. When the operation is done, an
execution status message such as Completed, Finished or Successful, may
display.
Tap the ESC button to exit the function.
4.9 Generic OBD II Operations
A fast-access option for OBD II/EOBD vehicle diagnosis is available on the
58
Vehicle Menu screen (Figure 4- 2). This option presents a quick way to check
for DTCs, isolate the cause of an illuminated malfunction indicator lamp (MIL),
check monitor status prior to emissions certification testing, verify repairs, and
perform a number of other services that are emissions-related. The OBD
direct access option is also used for testing OBD II/EOBD compliant vehicles
that are not included in the Diagnostics database.
Functions of the diagnostics toolbar buttons at the top the screen are the
same as those available for specific vehicle diagnostics. See Table 4- 2
Diagnostics Toolbar Buttons on page 33 for details.
4.9.1 General Procedure
To access the OBD II/EOBD diagnostics functions
1. Tap the Diagnostics application button from the MaxiPro Job Menu.
The Vehicle Menu displays.
2. Tap the EOBD button. There are two options to establish
communication with the vehicle.
Auto Scan – when this option is selected the diagnostic tool
attempts to establish communication using each protocol in
order to determine which one the vehicle is broadcasting on.
Protocol – when this option is selected the screen opens a
submenu of various protocols. A communication protocol is a
standardized way of data communication between an ECM
and a diagnostic tool. Global OBD may use several different
communication protocols.
3. Select a specific protocol if the Protocol option is selected. Wait for
the OBD II Diagnostic Menu to appear.
59
Figure 4- 17 Sample OBD II Diagnostic Menu
NOTE: The
○
i
button displayed beside the function name is tappable,
tapping which opens a bubble with additional function information.
4. Select a function option to continue.
DTC & FFD
I/M Readiness
Live Data
O2 Sensor Monitor
On-Board Monitor
Component Test
Vehicle Information
Vehicle Status
NOTE: Some functions are supported only on certain vehicle makes.
4.9.2 Function Descriptions
This section describes the various functions of each diagnostic option:
60
DTC & FFD
When this function is selected, the screen displays a list of Stored Codes and
Pending Codes. When the Freeze Frame data of certain DTCs are available
for viewing, a snowflake button will display on the right side of the DTC item.
The Erase Codes function can be applied by tapping the functional button at
the lower bottom of the screen.
Stored Codes
Stored codes are the current emission related DTCs from the ECM of the
vehicle. OBD II/EOBD Codes have a priority according to their emission
severity, with higher priority codes overwriting lower priority codes. The
priority of the code determines the illumination of the MIL and the codes
erase procedure. Manufacturers rank codes differently, so expect to see
differences between makes.
Pending Codes
These are codes whose setting conditions were met during the last drive
cycle, but need to be met on two or more consecutive drive cycles before
the DTC actually sets. The intended use of this service is to assist the
service technician after a vehicle repair and after clearing diagnostic
information, by reporting test results after a single driving cycle.
a) If a test failed during the driving cycle, the DTC associated with that
test is reported. If the pending fault does not occur again within 40
to 80 warm-up cycles, the fault is automatically cleared from
memory.
Figure 4- 18 Sample DTC & FFD Screen
61
b) Test results reported by this service do not necessarily indicate a
faulty component or system. If test results indicate another failure
after additional driving, then a DTC is set to indicate a faulty
component or system, and the MIL is illuminated.
Freeze Frame
In most cases the stored frame is the last DTC that occurred. Certain
DTCs, those that have a greater impact on vehicle emission, have a
higher priority. In these cases, the highest priority DTC is the one for
which the freeze frame records are retained. Freeze frame data includes
a “snapshot” of critical parameter values at the time the DTC is set.
Erase Codes
This option is used to clear all emission related diagnostic data such as,
DTCs, freeze frame data and manufacturer specific enhanced data from
the vehicle’s ECM, and resets the I/M Readiness Monitor Status for all
vehicle monitors to Not Ready or Not Complete status.
A confirmation screen displays when the clear codes option is selected to
prevent accidental loss of data. Select Yes on the confirmation screen to
continue, or No to exit.
I/M Readiness
This function is used to check the readiness of the monitoring system. It is an
excellent function to use prior to having a vehicle inspected for compliance to
a state emissions program. Selecting I/M Readiness opens a submenu with
two choices:
Since DTCs Cleared – displays the status of monitors since the last time the
DTCs are erased.
This Driving Cycle – displays the status of monitors since the beginning of
the current drive cycle.
Live Data
This function displays the real time PID data from ECU. Displayed data
includes analog inputs and outputs, digital inputs and outputs, and system
status information broadcast on the vehicle data stream.
Live data can be displayed in various modes, see 4.6.4 Live Data on page 43
for detailed information.
62
O2 Sensor Monitor
This option allows retrieval and viewing of O2 sensor monitor test results for
the most recently performed tests from the vehicle’s on-board computer.
The O2 Sensor Monitor test function is not supported by vehicles which
communicate using a controller area network (CAN). For O2 Sensor Monitor
tests results of CAN-equipped vehicles, refer to On-Board Monitor.
On-Board Monitor
This option allows you to view the results of On-Board Monitor tests. The tests
are useful after servicing or after erasing a vehicle’s control module memory.
Component Test
This service enables bi-directional control of the ECM so that the diagnostic
tool is able to transmit control commands to operate the vehicle systems. This
function is useful in determining how well the ECM responds to a command.
Vehicle Information
The option displays the vehicle identification number (VIN), the calibration
identification, and the calibration verification number (CVN), and other
information of the test vehicle.
Vehicle Status
This item is used to check the current condition of the vehicle, including
communication protocols of OBD II modules, retrieved codes amount, status
of the Malfunction Indicator Light (MIL), and other additional information may
be displayed.
4.10 Exiting Diagnostics
The Diagnostics application remains open as long as there is an active
communication with the vehicle. You must exit the diagnostics operation
interface to stop all communications with the vehicle before closing the
Diagnostics application.
NOTE: Damage to the vehicle electronic control module (ECM) may occur if
communication is disrupted. Make sure the all connections, such as data
cable, USB cable, and wireless or wired network, are properly connected at all
times during testing. Exit all tests before disconnecting the test cable or
powering down the tool.
63
To exit the Diagnostics application
1. From an active diagnostic screen, tap the Back or ESC functional
button to exit a diagnostic session step-by-step; Or
2. Tap the Vehicle Swap button on the diagnostics toolbar to return to
the Vehicle Menu screen.
3. From the vehicle menu screen, tap the Home button on the top
toolbar; or tap the Back button on the navigation bar at the bottom
of the screen. Or
4. Tap the Home button on the diagnostics toolbar to exit the
application directly to the MaxiPro Job Menu.
Now, the Diagnostics application is no longer communicating with the vehicle
and it is safe to open other MaxiPro applications, or exit the MaxiPro
Diagnostic System and return to the Android System’s Home screen.
64
Chapter 5 Data Manager Operations
The Data Manager application is used to store, print, and review the saved files. Most
operations are controlled through the toolbar.
Selecting the Data Manager application opens the file system menu. Different file types
are sorted separately under different options, there are six types of information files to
be viewed or played back.
Figure 5- 1 Sample Data Manager Main Screen
5.1 Operations
Data Manager Operations are based on toolbar controls, details are explained
in the following sections.
5.1.1 Image Files
The Image section is a JPG database containing all captured screenshot
images.
65
Figure 5- 2 Sample Image Database Screen
1. Toolbar Buttons – Back to home screen or search for images . See
Table 5- 1 Toolbar Buttons in JPG Database on page 65 for detailed
information.
2. Main Section – displays the stored images.

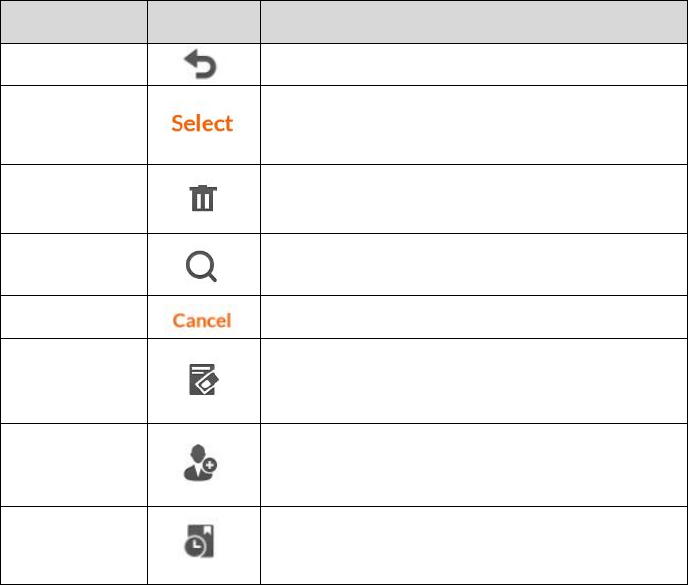

Table 5- 1 Toolbar Buttons in JPG Database
Name
Button
Description
Back
Returns to the previous screen.
Search
Quickly locates the image file by entering the
vehicle name, test path, file name or file info.
Select
Touching this button select the target image.
5.1.2 PDF Files
The PDF section stores and displays all PDF files of saved data. After entering
the PDF database, select a PDF file to view the stored information.
This section uses the standard Adobe Reader application for file viewing and
66
editing, please refer to the associated Adobe Reader manual for more detailed
instructions.
5.1.3 Review Data
The Review Data section allows you to playback the recorded data frames of
live data streams.
On the Review Data main screen, select a record file to playback.
Figure 5- 3 Sample Data Playback Screen
1. Drop-down Toolbar – taps the button at the top center of the screen to
open the Drop-down Toolbar
2. Main Section – displays the recorded data frames
3. Navigation Toolbar – allows you to manipulate data playback
Use the Navigation Toolbar buttons to playback the record data from frame to
frame. Tap Back to exit data playback.
5.1.4 Apps Manager
This section allows you to manage the firmware applications installed on the
MaxiPro Diagnostics System. Selecting this section opens a managing screen,
on which you can check all the available vehicle diagnostic applications.
Select the vehicle firmware you want to delete by tapping on the car brand
icon, the selected item will display a blue tick at the upper right corner. Tap the
67
Delete button on the top bar to delete the firmware from the system database.
5.1.5 Data Logging
The Data Logging section allows you to launch Support platform directly to
view all records of all sent or unsent (saved) data loggings on the diagnostic
system.
68
Chapter 6 ADAS
Advanced Driver Assistance Systems (ADAS) is an array of vehicle systems
that aid the driver either through passive alerts or by active control of the
vehicle to drive safer and with greater awareness and precision.
Cameras, sensors, ultrasound, radar and LIDAR are some of the systems
used to capture the driving environment data, including travelling or static
vehicles position, pedestrian location, road sign, driving lane and intersection
detection, road (curves) and driving conditions (poor visibility or evening
driving), use that information to instruct the vehicle to take its predetermined
action. Cameras, sensors and sensing systems are typically located in front
and rear bumpers, windshield, front grill and side and rear view mirrors.
Autel ADAS Calibration Tool provides comprehensive and precise ADAS
calibration.
1. Covers many vehicle makes, including Benz, BMW, Audi, VW, Porsche, Infiniti,
Lexus, GM, Ford, Volvo, Toyota, Nissan, Honda, Hyundai, and Kia.
2. Supports the calibration of multiple driver assistant systems, including Adaptive.
Cruise Control (ACC), Night Vision System (NVS), Lane Departure Warning
(LDW), Blind Spot Detection (BSD), Around View Monitoring (AVM), Rear
Collision Warning (RCW) and Heads-up Displays (HUD).
3. Supplies graphic illustrations and step-by-step instructions.
4. Provides demos to guide the technician through the calibration.
Figure 6-1 Sample ADAS Introduction Page
69
Chapter 7 MaxiFix Operations
The MaxiFix application launches the on-line troubleshooter database, which not only
provides you virtually all common diagnostic trouble code (DTC) database for most
vehicles, but also serves as a forum allowing you to network with other MaxiPro users,
and gives you access to a vast database of repair and diagnostic tips along with proven
filed fixes.
While the MaxiFix provides the abundant troubleshooter information available, the
database keeps growing with daily troubleshooting resources by recording the reported
solution cases, and the advisory reports of the MaxiPro users from all over the world.
Information in the MaxiFix database is organized into a series of diagnostic tips that are
designed to quickly lead you to the root cause of a particular problem on the test vehicle,
which will help you quickly find solutions for various diagnostic problems.
7.1 Navigation
You need to register the device to your online account before launching the
MaxiFix.
Figure 7- 1 Sample MaxiFix Home Page
The MaxiFix screen layout consists of 3 main areas:
1. The Header – the tool bar across the top of the screen which allows you
to select vehicles and perform searches.
70
2. The Main Screen – located at the center of the screen displaying
content based on the vehicle attributes and keywords specified. The tabs
on the main screen vary in accordance with the section selected on the
Navigation Menu, allowing you to switch between functions.
3. The Navigation Menu – the main menu at the bottom of the screen,
which provides you access to different sections of MaxiFix.
The Header
The Header at the top of the screen, features:
A Select Vehicle button to open the vehicle identification window, and vehicle
information bar, for example “2014>Hyundai> Accord Coupe > L4-2.4L
(K24W1)”.
A search field to find relevant information by entering keywords, codes, or
problems.
Select Vehicle Button
The “Select Vehicle” button on the Header allows you to specify the vehicle
which you want to reference on MaxiFix, by selecting each of the vehicle
attribute from a sequence of option lists. This feature helps to filter out the
searches that allow only the information that applies to the identified vehicle to
display.
NOTE: All attributes must be specified to make a complete vehicle selection
for the most efficient search results.
To select a vehicle
Follow the procedure below to select a vehicle:
1. If you haven’t already done so, click the “Select Vehicle” button on
the Header.
2. Select the year of the vehicle from the list.
3. Select the make of the vehicle from the list.
4. Select the model of the vehicle from the list.
5. Select the submodel of the vehicle from the list.
6. Select the engine of the vehicle from the list.
After completing the vehicle selection procedure, the identified vehicle is
71
shown on the Header.
7.1.1 Terminology
MaxiFix Tip
A MaxiFix Tip provides practical information of real fix of a specific vehicle
repair issue with detailed descriptions. It is combined with proven fix and
vehicle specific data, and filed into an all-in-one information source to provide
you with quick and easy repair solutions.
On MaxiFix community you can find Tips or share your own Tip to help other
community members solve vehicle issues.
To search for a MaxiFix Tip
1. Select A Vehicle:
a) Click the “Select Vehicle” button on the Header at the top of
the page.
b) Select the year of the vehicle from the list.
c) Select the make of the vehicle from the list.
d) Select the model of the vehicle from the list.
e) Select the submodel of the vehicle from the list.
f)Select the engine of the vehicle from the list.
After completing the vehicle selection procedure, the identified
vehicle is shown on the Header.
2. Enter A Search Term.
MaxiFix has an exclusive one-stop lookup that helps you find all of
MaxiFix resources by one click. Simply enter a search term into the
search bar on the Header to begin the search.
3. Proven Results!
The powerful MaxiFix database gives you proven results! The
typical MaxiFix Tips combine actual workshop fixes and data which
may include:
72
a) OBDII Fault Codes description and reference – helps in
diagnostic assessment by making clear the nature of an
automotive problem so that beginner and advanced
technicians can make effective repairs
b) Real Fix Tips – provides repair tips from actual shop
practices and are presented in an easy to understand
Complaint, Cause, Correction format.
If you still can’t find the information you want, you can ask the
MaxiFix community for help by clicking “Ask” on the Navigation
Menu at the bottom of the screen.
Adopted!
The “Adopted!” icon that displays at the top right side of a Tip page indicates
that the related Tip has been adopted by at least 1 technician in the community.
If a tip has helped you to solve a repair problem, you are encouraged to give
an Adopted! count to the tip. Each member is allowed to click the “Adopted!”
once for a tip, and each click will add 1 count to the total number of “Adopted!”.
The “Adopted!” count helps you easily identify which tips are really helpful for
repairing vehicle issues. You can also post a comment about how the tip has
helped you as reference to other members.
7.2 Operations
The Navigation Menu is at the bottom of the screen. Selecting the items on the
Navigation Menu allows you to switch between the main sections on MaxiFix.
These main sections include:
Home – shows all questions and allows you to specify questions about one
or multiple makes.
Search Fix – allows you to search for information from all available
resources on MaxiFix, including: Open Questions, Tips, and Real Fixes,
and displays search results.
Ask – allows you to ask a question in the community.
My MaxiFix – shows all your posts including Questions and Fixes in the
community, and allows you to view your personal profile, select your
vehicle preference, and share your tips.
My Messages – shows a list of message notifications which is relevant to
your activities in the Question section.
73
Support – opens the FAQ page, or a message box for contacting Customer
Service by email.
7.2.1 Home
Home is the first option on the Navigation Menu at the bottom of the screen.
Tapping it opens your MaxiFix home page. There is a list of questions posted
on the community, and you can scroll down the page to the bottom and view
more questions by tapping “View More”. Click on any question and you will be
linked to the detailed page in the Ask section.
You can configure your main screen to display questions only related to the
vehicle makes you are interested in, by clicking the “Filter” button on the main
page of Home, and select the desired vehicle makes. This filter can be
canceled anytime by clicking the “Remove All Filters” button, and the default
setting will be restored to display questions about all vehicle makes.
7.2.2 Search Fix Features
Search Fix, the second option on the Navigation Menu at the bottom of the
screen, presents search results for the specified vehicle. Search results are
listed in various categories:
All – includes all search results, including related Questions, Tips, and Real
Fixes to your search.
Questions – presents a list of open Question discussed in the community
that may be pertinent to your search.
Tips – presents a list of Tips that directly correlate to your search criteria.
Select a Tip from the list to open and review the complete Tip.
Real Fixes – presents a list of Tips that have been collected from actual
shop repair orders and are presented in an easy-to-understand
Complaint, Cause, Correction format.
7.2.3 Ask
Ask, the third option on the Navigation Menu at the bottom of the screen,
allows you to ask a question about a particular vehicle repair issue in the
community.
To ask a MaxiFix Question
1. If not already done, click Select Vehicle on the Header to specify
the vehicle you are asking about.
74
2. Click Ask on the Navigation Menu at the bottom of the screen to
open the Ask page.
3. On the Ask page find Ask for Help, fill in the following sections to
ask a question.
The Ask page has 4 sections:
Subject – this is where you enter a brief subject for the question.
My Question – asks a clear and concise question that you want
to ask the community. Be sure to be descriptive and concise
when asking your question.
Problem Description – describes how the vehicle is behaving.
Repair History – includes any previous diagnostic tests that you
performed, including the results of the tests. Also list any parts
that were replaced during previous diagnostic work.
Tap the “Cancel” button to cancel your question and return to the
Ask page.
Tap the “Submit” button to post your question to the community.
Tap the “Attach File” button to include images or reference files with
your question.
You are requested to select one Adopted Answer from all of the
responses and then close the question. For details, please refer to
My Messages section.
7.2.4 My MaxiFix
My MaxiFix, the fourth option on the Navigation Menu at the bottom of the
screen, opens your personal MaxiFix page. To access the features on My
MaxiFix page you can select from the tabs:
My Questions – opens a list with links to the opened questions that you
have posted to the community
My Cases – opens a list with links to the closed questions and tips that you
have contributed to the community.
Marked Posts – opens a list with links to Tips and discussions that you are
actively participating in.
My Profile – allows you to view your Autel account information including:
75
your Autel ID, personal information, MaxiFix score, phone number and
register time, and edit your portrait.
Vehicle Preference – used to set up a list of preferred vehicles. The
preferred list allows you to limit the choices that displayed on the “Select
Vehicle” list to specific years, and makes. Click “Set Year” or “Set Make”
to set your preferred models. The preferred makes will also be displayed
in the “Filter” options on the Home page.
Share a Tip – allows you to share your personal repair experience with the
community.
Click My MaxiFix on the Navigation Menu at the bottom of the screen, to
display all questions and tips that you have contributed to the community.
Create a Tip
A “Tip” is a concise and complete description of the fix for a particular vehicle
repair issue.
To create a new MaxiFix Tip
1. Select My MaxiFix from the Navigation Menu.
2. Select Select Vehicle from the Header and enter the identifying
attributes of the vehicle you are writing the Tip about.
3. On the My MaxiFix page find Share a Tip; click this link to open the
My Tips page.
4. Enter the Tip subject in the Subject field.
5. Compose your Tip in the Description field. Include as much
information as possible, while keeping the information concise and
to the point. A Tip should provide accurate information that is
reader-friendly.
Use the Cancel button at the right-side bottom of the page to cancel your tip
and return to the My MaxiFix page. Or,
Use the Submit button at the right-side bottom of the page to contribute your
tip to the community.
Use the Attach File button at the left-side bottom of the page to include
images or other supporting data with your question.
76
View Profile Information
You can view your personal profile by clicking on your account ID or “My
Profile” in My MaxiFix section or edit portrait where applicable, and visit other
community members’ profile by clicking their portrait. Information included in
your profile determines how you are presented to the community, and what
type of information will be sent to you from the community.
7.2.5 My Messages
My Messages, the fifth option on the Navigation Menu at the bottom of the
screen, shows a list of message notification which is relevant to your activities
in the Question section. A notification icon will appear on the top-right corner of
“My Messages” if there is any new or unread message in the Question section.
The number on the notification icon indicates the total number of the new and
unread messages. The displayed number will be reduced correspondingly
after viewing. The message notification will appear under the following two
conditions:
1. Your question or answer is replied by other MaxiFix community
members.
2. Your answer is marked as the “Adopted!” by the MaxiFix community
member who asked the question.
Tap My Messages, select and open the message you want to read from the
list. If your problem is solved according to the reply, you should select one
Adopted Answer and close the question. If your answer is marked as
“Adopted!”, the prompt “Adopted! + 4” will be displayed permanently.
Tap Clear to delete all message notifications.
Select “Adopted Answers”
Members are requested to select one Adopted Answer from all of the
responses on “My Messages” page before closing a question. The community
members who provided the Adopted Answer are rewarded with scores for their
contribution.
About Adopted Answer:
Only one answer can be selected as “Adopted Answer”.
Answers can only be rated by the MaxiFix member who asked the question.
77
Close a Question
When a repair question that you've posted to the community is resolved, you
are encouraged to write down the case as a way to share a good solution. This
will help the other MaxiFix members to find useful information for practical fix.
To close a question, you need to select the question’s response message from
the message list on “My Messages” page first, then tap “Adopted Answer” and
select “Close Question”. Tap the “Cancel” button to cancel your submission
and return to My Messages page. It is strongly recommended to share your
repair solutions before closing a question. Your question will be converted to a
MaxiFix Community Tip after closing.
Score Rewarding System
1. A score of 3 is awarded when you close a question.
2. A score of 2 is awarded if your closed question is marked as "Adopted!"
by no less than 20 community members.
3. A score of 4 is awarded if your answer is selected as the “Adopted
Answer”.
4. A score of 1 is awarded if your answer is selected as the "Adopted
Answer" for a closed question which is marked as "Adopted!" by no less
than 20 community members.
5. A score of 1 is awarded to each of the first three respondents.
7.2.6 Support
Support, the last option on the Navigation at the bottom of the screen, opens a
page that provides 2 ways to gain support from MaxiFix:
1. A message form to contact the administrator of MaxiFix.
2. A Frequently Asked Questions (FAQ) link that answers the most frequent
questions we hear from MaxiFix community members.
If you wish to contact the administrator of this site please use the contact form.
Select “Support” from the Navigation Menu to open the comment window. To
allow the administrator to respond to your question or issue, the following
information should be provided:
Your name
A contact email address
A contact phone number
78
Chapter 8 Settings Operations
Selecting Settings application opens a setup interface, on which you can adjust default
setting and view information about the MaxiPro system. There are eight options
available for the MaxiPro system settings:
Unit
Language
Printing Setting
Auto update
Notification Center
Car order
About
System Settings
8.1 Operations
This section describes the operation procedures for the settings.
8.1.1 Unit
It allows you to adjust the measurement unit for the diagnostic system.
To adjust the unit setting
1. Tap the Settings application on the MaxiPro Job Menu.
2. Tap the Unit option on the left column.
3. Select the required measurement unit, Metric or English. A tick icon
will display to the right of the selected unit.
4. Tap the Home button on the top left corner to return to the MaxiPro
Job Menu. Or select another setting option for the system setup.
8.1.2 Language
This option allows you to adjust the display language for the MaxiPro system.
To adjust the language setting
1. Tap the Settings application on the MaxiPro Job Menu.
79
2. Tap the Language option on the left column.
3. Select the required language. A tick icon will display to the right of
the selected language.
4. Tap the Home button on the top left corner to return to the MaxiPro
Job Menu. Or select another setting option for the system setup.
8.1.3 Printing Setting
This option allows you to print any data or information anywhere and anytime
either via PC network or WiFi. For more information about printing, see
Printing Operation on page 20.
To setup the printer connection
1. Tap the Settings application on the MaxiPro Job Menu.
2. Tap the Printing Setting option on the left column.
3. Tap the Print via Network item to activate the printing function,
which enables the device to send files to the printer through the PC
via WiFi or Ethernet connection.
4. Tap the Home button on the top left corner to return to the MaxiPro
Job Menu. Or select another setting option for the system setup.
8.1.4 Auto update
The Auto Update allows the tool to automatically update the MaxiPro system,
and the vehicle software. All you need to do is to switch ON by tapping the
button on the right side of each and set the desired automatic update time.
To set auto system or vehicle update
1. Tap the Settings application on the MaxiPro Job Menu.
2. Tap the Auto Update option on the left column. The three auto update items
list on the right.
3. Switch the ON the button on the right of item that you want to auto update.
4. Tap on the time to set time, you can use the + and –button or tap on the
numbers then the manual input screen will pop up. Tap Done to complete
the time setting.
NOTE
80
Internet connection is necessary for auto update, otherwise it would not work even if
you have already switch it on. Make sure the tool is connected to the Internet for the
time you have set.
.
8.1.5 Notification Center
This option allows you to turn the Notification Center function on or off. The
Notification Center function configures the MaxiPro tablet to receive regular
on-line messages from the server for system update notifications or other
service information via the Internet. It is highly recommended to keep this
function on all the time, so you won’t miss out any new update for MaxiPro or
event from Autel. Internet access is required for receiving on-line messages.
To enable the Notification Center function
1. Tap the Settings application on the MaxiPro Job Menu.
2. Tap the Notification Center option on the left column.
3. Tap the ON/OFF button to enable or disable the Notifications
function. If the function is enabled the button turns blue, or if
disabled the button turns gray.
4. Tap the Home button on the top left corner to return to the MaxiPro
Job Menu. Or select another setting option for the system setup.
When the Notification Center function is turned on, and new messages are
received by the MaxiPro device, a notification message displays on the
MaxiPro Job Menu. Press on the message bar and drag it down, and the
received messages are shown in the list, slide the list up or down to view all if
the message list covers more than one screen.
Tapping a specific message launches the corresponding application. For
example, if you tap on an Update notification message, the Update application
will be launched.
8.1.6 Car order
The Car order option allows you to set the vehicle orders in vehicle menu by
initials or by frequency of use.
To set the car order
81
1. Tap the Settings application on the MaxiPro Job Menu.
2. Tap the Car order option on the left column.
3. Tap to Choose Sorted by frequency of use or Sorted by
alphabetical order. A green tick icon will appear to the right of the
selected function.
4. Tap the Home button on the top left corner to return to the MaxiPro
Job Menu. Or select another setting option for the system setup.
8.1.7 About
The About option provides information of the MaxiPro diagnostic device
regarding the product name, version, hardware, and serial number, etc.
To check the MaxiPro product information in About
1. Tap the Settings application on the MaxiPro Job Menu.
2. Tap the About option on the left column. The product information
screen displays on the right.
3. Tap the Home button on the top left corner to return to the MaxiPro
Job Menu, or select another setting option for the system setup,
after viewing.
8.1.8 System Settings
This option provides you a direct access to the Android background system
setting interface, on which you can adjust various system settings for the
Android system platform, regarding wireless and networks settings, various
device settings such as sound and display, as well as system security settings,
and check the associated information about the Android system, etc. Refer to
Android documentation for additional information.
82
Chapter 9 Shop Manager Operations
The Shop Manager application helps you to manage the workshop information,
customer information records, and keep test vehicle history records, which can be a
great assist in dealing with daily workshop business and improves customer service.
There are three main functions available:
Vehicle History
Workshop Information
Customer Manager
The operations of these functions of the Shop Manager application are mainly
manipulated by the toolbar buttons, which are listed and described in the table below:
Table 9- 1 Top Toolbar Buttons in Shop Manager
Name
Button
Description
Back
Returns to the previous screen.
Enter Edit
Touching this button shows the editing toolbar to
print or delete the selected file.
Delete
Touching this button deletes the selected vehicle
record item from the list.
Search
Quickly locates the vehicle record by entering the
vehicle name or test path.
Cancel
Touching this button to cancel edit or file search.
Edit
Touching this button allows you to edit information
for the displayed file.
Add Account
Touching this button to create a new customer
account file.

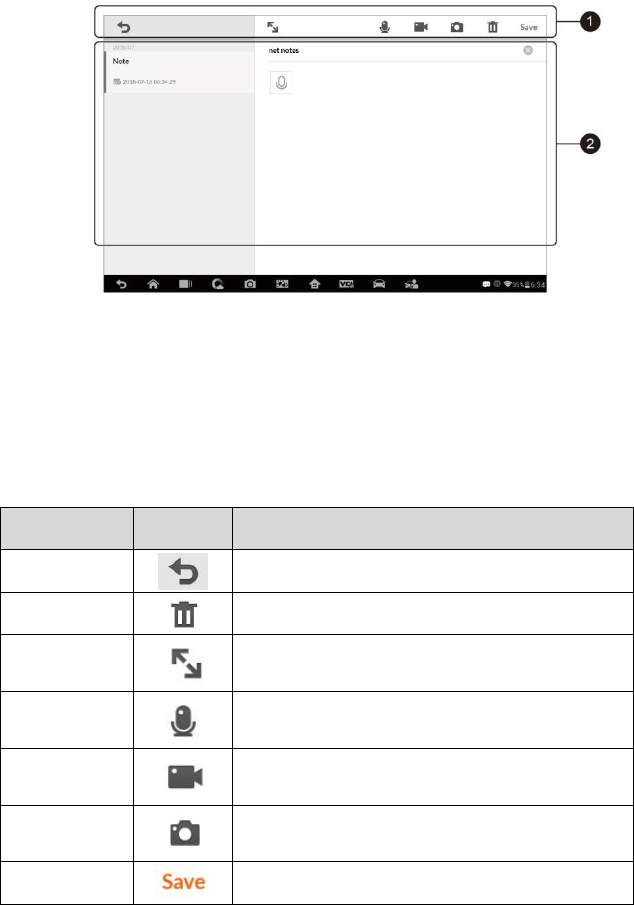

History Notes
Touching this button opens a note form, which
allows you to create audio record, attach picture or
video, or edit text notes, etc.
83
Name
Button
Description
Vehicle
History
Touching this button opens the Vehicle History
screen which displays the correlated test vehicle
records.
Done
Saves the file when complete editing.
9.1 Vehicle History
This function stores records of test vehicle history, including vehicle
information and the retrieved DTCs from previous diagnostic sessions, and
displays all information in an easy-to-check table list, on which you can view
summarized details and manually input other information about the test
vehicle and diagnostic loggings, etc. The Vehicle History also provides direct
access to the previously tested vehicle and allows you to restart a diagnostic
session without the need to do vehicle identification again.
Figure 9- 1 Sample Vehicle History Screen
1. Top Toolbar Buttons – navigates and makes various controls of the
application.
2. Main Section – displays all the vehicle history records information.
To activate a test session for the recorded vehicle
1. Tap the Shop Manager application on the MaxiPro Job Menu.
2. Select Vehicle History
84
3. Tap the Diagnostics button at the bottom of the thumbnail of a
vehicle record item. Or,
4. Select a vehicle record item by tapping the thumbnail.
5. A Historical Test record sheet displays, check the recorded
information of the recorded test vehicle, and tap the Diagnostics
button on the upper right corner.
6. The vehicle’s Diagnostics screen displays, now a new diagnostic
session is activated, see 4.6 Diagnosis on page 37 for detailed
instructions on vehicle diagnostic operations.
9.1.1 Historical Test Record
The Historical Test record sheet of the tested vehicle is a detailed data form,
which includes all general information of the vehicle such as vehicle year,
make and model, etc., and the diagnostic trouble codes retrieved from the
previous test sessions, as well as other service details which can be added
manually by the technician himself.
Figure 9- 2 Sample Historical Test Record Sheet
To edit the Historical Test record sheet
1. Tap the Shop Manager application on the MaxiPro Job Menu.
2. Select Vehicle History.
3. Select the specific vehicle history record thumbnail from the main
section. The Historical Test record sheet displays.
4. Tap the Edit button to start editing.
85
5. Tap on each item to input the corresponding information or add
attaching files or images.
NOTE: The vehicle VIN number, or license and the customer information
account are correlated by default. Adding one of the information will
automatically associate the other item in the record sheet, provided that the
later one exists.
6. Tap Add to Customer to correlate the Historical Test record sheet
to an existing customer account, or add a new associating account
to be correlated with the test vehicle record. See Customer
Manager on page 86 for more information.
7. Tap Done to save the updated record sheet, or tap Cancel to exit
without saving.
9.2 Workshop Information
The Workshop Information form allows you to edit, input and save the detailed
workshop information, such as shop name, address, phone number and other
remarks, which, when printing vehicle diagnostic reports and other associated
test file, will appear as the header of the printed documents.
To edit the Workshop Information sheet
1. Tap the Shop Manager application on the MaxiPro Job Menu.
2. Select Workshop Information.
Figure 9- 3 Sample Workshop Information Sheet
86
3. Tap the Edit button on the top toolbar.
4. Tap on each field to input the appropriate information.
5. Tap Done to save the updated workshop information sheet, or tap
Cancel to exit without saving.
9.3 Customer Manager
The Customer Manager function allows you to create and edit customer
accounts. It helps you to save and organize all customer information accounts
that are correlated with the associated test vehicle history records, which is a
great support for the arrangement of daily workshop business.
To create a customer account
1. Tap the Shop Manager application on the MaxiPro Job Menu.
2. Select Customer Manager.
3. Tap the Add Account button. An empty information form displays,
tap each field to input the appropriate information.
NOTE: The items that must be filled are indicated as required fields.
4. Tap the □
+
photo frame beside the Name chart to add a photo. A
sub menu displays, select Take Photo to take a new photo for the
account, or select Choose Photo to choose from the existing files.
5. Some customers may have more than one vehicle for service; you
can always add new vehicle information to the account to be
correlated. Tap Add New Vehicle Information, and then fill in the
vehicle information. Tap the
○
x
button to cancel adding.
6. Tap Done to save the account, or tap Cancel to exit without saving.
To edit a customer account
1. Tap the Shop Manager application on the MaxiPro Job Menu.
2. Select Customer Manager.
3. Select a customer account by tapping the corresponding name card.
A Customer Information sheet displays.
4. Tap the Edit button on the top toolbar to start editing.
5. Tap on the input field where needs to be altered or supplemented,
87
and enter updated information.
6. Tap Done to save the updated information, or tap Cancel to exit
without saving.
To delete a customer account
1. Tap the Shop Manager application on the MaxiPro Job Menu.
2. Select Customer Manager.
3. Select a customer account by tapping the corresponding name card.
A Customer Information sheet displays.
4. Tap the Edit button on the top toolbar to start editing.
5. Tap the Delete Customer Information button. A confirmation
message displays.
6. Tap OK to confirm the command, and the account is deleted. Tap
Cancel to cancel the request.
9.3.1 History Notes
The History Notes function allows you to add audio and video records, text
notes and photos, to keep multi-media work logs for the associated customer
account, which can be very helpful when dealing with repeat customers.
Keeping notes for each vehicle serviced for each customer will keep you
always on track and well organized in business.
To access History Notes
1. Tap the Shop Manager application on the MaxiPro Job Menu.
2. Select Customer Manager or Vehicle History.
3. Select a customer account by tapping the corresponding name card.
A Customer Information sheet displays (if Customer Manager is
selected). Or, select a vehicle history record item to open the
Historical Test record sheet (if Vehicle History is selected).
88
5. Tap the History Notes button on the top bar. Now the History Notes
screen displays.
Figure 9- 4 Sample History Notes Screen
1. Functional Buttons – navigates and make various controls of the
function
2. Main Section – displays the note list on the left column and the detail
information of the selected note on the right column
Table 9- 2 Function Buttons in History Notes
Name
Button
Description
Back
Returns to the previous screen.
Delete
Touching this button deletes the selected note.
Full screen
Touching this button to display the note in full
screen.
Audio
Record
Performs audio recording and creates audio
files.
Take a Video
Records a video and adds the file to History
Notes.
Take a Photo
Takes photos and adds the files to History
Notes.
Save
Saves notes.
89
To add a note in History Notes
1. Access History Notes.
2. Tap the Add Notes button. An edit window displays.
3. Tap on the Title bar to input a note title.
4. Tap on the blank space below to edit a text note or remark.
5. Select a function button on the top to add files in any form you
choose.
6. Tap Save to save the note; tap Discard or Cancel to exit without
saving.
90
Chapter 10 Update Operations
The internal programming of the MaxiPro Diagnostic System, known as the firmware,
can be updated using the Update application. Firmware updates increase the MaxiPro
applications’ capabilities, typically by adding new tests, new models, or enhanced
applications to the database.
The display device automatically searches for available updates for all of the MaxiPro
components when it is connected to the internet. Any updates that are found can be
downloaded and installed on the device. This section describes installing an update to
the MaxiPro Diagnostic System firmware. A notification message displays if an update
is available when the Notifications function is enabled in the Settings application (See
8.1.5 Notification Center on page 80 for details).
Figure 10- 1 Sample Update Screen
1. Navigation and Controls
Home Button – returns to the MaxiPro Job Menu.
Update All – updates all available updates.
Search Bar – searches specific update item by inputting the file name, for
example: a vehicle make.
Refresh Button – refreshes interface.
2. Status Bar
Left Side – displays the MaxiPro device model information and serial
number.
91
Right Side – displays an update progress bar indicating the completion
status.
3. Main Section
Left Column – displays vehicle logos and update firmware version
information.
Middle Column – displays a brief introduction about the new changes to the
firmware operation or capabilities. Tap ○
i
button to open an information
screen to view more details, and tap the dim area around to close the
window.
Right Column – according to the operation status of each firmware item, the
button displays differently.
a) Tap Update to update the selected item.
b) Tap Pause to suspend the updating procedure.
c) Tap Continue to go on updating the suspended update.
To update the firmware
1. Power up the MaxiPro Display Tablet, and ensure that it is connected to a
power source and with steady internet connection.
2. Tap the Update application button from the MaxiPro Job Menu; or tap the
update notification message when received one. The Update application
screen displays.
3. Check all available updates:
If you decide to update all the items, tap the Update All button.
If you only want to update some individual items, tap the Update button
on the right column of the specific item.
4. Tap the Pause button to suspend the updating process. When you tap
Continue to renew the update, the updating process will resume from the
break point.
5. When the updating process is completed, the firmware will be installed
automatically. The new version will replace the original version if there is one.
92
Chapter 11 VCI Manager Operations
This application allows you to pair up the MaxiPro Display Tablet with the VCI device,
either the J2534 Programming Device or the Wireless Diagnostic Interface, and to
check the communication status.
Figure 11- 1 Sample VCI Manager Screen
1. Connection Mode – there are two connection modes available for selection. The
connection state is displayed alongside.
BT Paring – when paired to a wireless device, the connection state displays
as Paired; otherwise it displays as Unpaired.
Update (for VCI software only) – updates VCI software via internet through
the MaxiPro tablet networking using USB connection.
Select a connection mode to manage and set up connection.
2. Settings – this section allows you to manage wireless pairing or set up network
connection.
BT Setting – searches and displays the type and a partial serial number for
all of the devices available for pairing. Tap a required device to start pairing.
The BT status icon displayed to the left of the device name indicates the
received signal strength.
Ethernet Setting – allows you to perform network configuration.
93
11.1 BT Pairing
The VCI device needs to be either connected to a vehicle or to an available
power source, so that it is powered up during the synchronization procedure.
Make sure the MaxiPro Display Tablet has a charged battery or is connected
to an AC/DC power supply.
To pair the VCI device with the Display Tablet
1. Power on the MaxiPro Display Tablet.
2. Connect the 26-pin end of the data cable to the J2534 ECU
Programming Device’s vehicle data connector (for MaxiPro Pro);
Or connect the 15-pin end of the data cable to the Wireless BT
Diagnostic Interface’s vehicle data connector (for MaxiPro)
3. Connect the 16-pin end of the data cable to the vehicle data link
connector (DLC).
4. Tap the VCI Manager application on the MaxiPro Job Menu of the
display tablet.
5. Select BT from the connection mode list.
6. Tap the Scan button at the top right corner. Now the device starts
searching for available pairing units.
7. Depending on the VCI type you use, the device name may display
as Maxi suffixed with a serial number. Select the required device for
pairing.
8. When paring is successfully done, the connection status displayed
to the right of the device name is shown as Paired.
9. Wait a few seconds, and the VCI button on the system Navigation
bar at the bottom of the screen shall display a green tick icon,
indicating the display tablet is connected to the VCI device.
10. Tap the paired device again to unpair it.
11. Tap the Back button on the top left to return to the MaxiPro Job
Menu.
NOTE: A VCI device can be paired to only one Display Tablet each time, and
once it’s been paired, the device will not be discoverable for any other unit.
94
11.2 Update
Before update the VCI software, please make sure the MaxiPro tablet network
connection is stable.
To update the VCI device software
1. Power on the MaxiPro display tablet.
2. Connect the VCI device to MaxiPro tablet via USB.
3. Tap the VCI Manager application on the MaxiPro Job Menu of the
display tablet.
4. Select Update from the connection mode list.
5. The current version and the latest version of the VCI software will
be displayed after a few seconds, click Update Now to update the
VCI software if available.
95
Chapter 12 Remote Desk Operations
The Remote Desk application launches the TeamViewer Quick Support program, which
is a simple, fast and secure remote control interface. You can use the application to
receive ad-hoc remote support from Autel’s support centre, colleagues, or friends, by
allowing them to control your MaxiPro tablet on their PC via the TeamViewer software.
12.1 Operations
If you think of a TeamViewer connection as a phone call, the TeamViewer ID
would be the phone number under which all TeamViewer Clients can be
reached separately. Computers and mobile devices that run TeamViewer are
identified by a globally unique ID. The first time the Remote Desk application is
started, this ID is generated automatically based on the hardware
characteristics and will not change later on.
Make sure the MaxiPro Display Tablet is connected to the Internet before
launching the Remote Desk application, so that the Display Tablet is
accessible to receive remote support from the third party.
Figure 12- 1 Sample Remote Desk Screen
To receive remote support from a partner
1. Power on the MaxiPro Display Tablet.
2. Tap the Remote Desk application on the MaxiPro Job Menu. The
TeamViewer interface displays and the device ID is generated and
shown.
96
3. Your partner must install the Remote Control software to his/her
computer by downloading the TeamViewer full version program
online (http://www.teamviewer.com), and then start the software on
his/her computer at the same time, in order to provide support and
take control of the display tablet remotely.
4. Provide your ID to the partner, and wait for him/her to send you a
remote control request.
5. A popup displays to ask for your confirmation to allow remote
control on your device.
6. Tap Allow to accept, or tap Deny to reject.
Refer to the associated TeamViewer documents for additional information.
97
Chapter 13 Support
The Data Logging section in Support application keeps records of all feedback
or no feedback (saved) data loggings on the diagnostic system. The support
personnel receive and process the submitted reports through the Support
platform, and send back problem solutions within 48 hours to the
corresponding Data Logging session, on which you are also allowed to have a
direct conversation with the support personnel.
To make a reply in a Data Logging session
a) Tap on the Feedback tag to view a list of submitted data loggings.
b) Select a specific item to view the latest update of the processing progress.
c) Tap on the input field at the bottom of the screen, and enter the texts. Or tap the
Audio button to record a voice message, or camera button to take a picture.
d) Tap Feedback to deliver your message to the technical center.
98
Chapter 14 Academy
The FAQ section in Academy application provides you comprehensive and
abundant references for all kinds of questions frequently asked and answered
about the use of Autel’s online member account, and shopping and payment
procedures.
Account – displays questions and answers about the use of Autel’s online user
account.
Shopping & Payment – displays questions and answers about online product
purchase and payment methods or procedures.
Figure 14-1 Sample Academy Screen
99
Chapter 15 Quick Link Operations
The Quick Link application provides you with convenient access to Autel’s official
website and many other well-known sites in automotive service, which offers you
abundant information and resources, such as technical help, knowledge base, forums,
training, and expertise consultations, etc.
Figure 15- 1 Sample Quick Link Screen
To open a quick link
1. Tap the Quick Link application on the MaxiPro Job Menu. The Quick Link
application screen displays.
2. Select a website thumbnail from the main section. The Chrome browser is
launched and the selected website is opened.
3. Now you can start exploring the website!
100
Chapter 16 MaxiScope Operations
The MaxiScope application configures the MaxiPro Diagnostic Device to operate as an
automotive oscilloscope when work in combination with the MaxiScope module. This
function provides all the features needed for performing electrical and electronic circuit
tests as well as monitoring signal activities on any modern vehicles, which shows you
what is really going on with a vehicle’s electrical system.
Please download the latest user manual for Autel MaxiScope device from
www.autel.com.
16.1 Safety Information
Follow these instructions to reduce the risk of injury from electric shock and prevent
equipment damage.
A. Maximum input ranges
Observe all terminal ratings and warnings marked on the product.
DANGER:
To prevent electric shock, operate within the safe input range for the scope,
refer to 16.1 Safety Information on page 101.
To prevent electric shock, take all necessary safety precautions when
working on equipment where voltages above the specified input range may
be present. Contact with voltages outside of the specified measuring range
presents a risk of electric shock.
To prevent injury or death, the oscilloscope must not be directly connected to
the mains (line power). To measure mains voltages, use a differential
isolating probe specifically rated for mains use.
WARNING:
Operation outside of the safe input range is likely to cause permanent
damage to the oscilloscope and other connected equipment.
B. Grounding
DANGER:
The scope’s ground connection through the USB cable is for measurement
purposes only. The oscilloscope does not have a protective safety ground.
Do not connect the ground input (chassis) to any electrical power source. To
101
prevent personal injury or death, use a voltmeter to check that there is no
significant AC or DC voltage between the oscilloscope ground and the point
to which you intend to connect it.
WARNING:
Applying a voltage to the ground input is likely to cause permanent damage
to the oscilloscope, the attached computer, and other equipment.
To prevent measurement errors caused by poor grounding, always use the
high-quality USB cable supplied with the oscilloscope.
C. External connections
DANGER:
To prevent injury or death, use only the power cord and adaptor supplied
with the product.
D. Environment
DANGER:
To prevent injury or death, do not use in wet or damp conditions, or around
explosive gas or vapor.
WARNING:
To prevent damage, always use and store your oscilloscope in appropriate
environments. For detailed information on temperature and humidity
specifications for both the storage and usage of the oscilloscope, see 16.1
Safety Information on page 101.
E. Product Maintenance
The product contains no user-serviceable parts. Repair, servicing and calibration
require specialized test equipment and must only be performed by Autel Tech
Support or an approved service provider.
DANGER:
To prevent injury or death, do not use the product if it appears to be
damaged in any way, and stop use immediately if you are concerned by any
abnormal operations.
WARNING:
Do not tamper with or disassemble the oscilloscope, connectors or
accessories. Internal damage will affect performance
102
Do not block any of the instrument’s air vents as overheating will cause
damage to the oscilloscope.
When cleaning the oscilloscope, use wet soft cloth with mild detergent in
water. Do not allow water to enter the oscilloscope casing, as this will cause
damage to the electronics inside.
16.2 Glossary
AC/DC Control
Each channel can be set to either AC coupling or DC coupling. With DC coupling, the
voltage displayed onscreen is equal to the true voltage of the signal with respect to
ground. With AC coupling, any DC component of the signal is filtered out, leaving only
the variations in the signal for the AC component.
Aliasing
When the signal frequency gets higher than half the scope’s maximum sampling rate
and exceeds the limit, a distorted waveform appears. This distortion is called aliasing.
Analog Bandwidth
All oscilloscopes have an upper limit to the range of frequencies at which they can
measure accurately. The analog bandwidth of an oscilloscope is defined as the
frequency at which a displayed sine wave has half the power of the input sine wave
(about 71% of the amplitude).
Block Mode
A sampling mode in which the computer prompts the oscilloscope to collect a block of
data into its internal memory before stopping the oscilloscope and transferring the
whole block into computer memory. This mode of operation is effective when the input
signal being sampled is high frequency.
Buffer Size/Cache Size
This term indicates the size of the oscilloscope’s buffer memory. The buffer memory is
used by the oscilloscope to temporarily store data. This helps to compensate for the
differences in data transfer rate from one device to another.
Sampling Rate
This term is used to define the number of samples per second captured by the
oscilloscope. The faster the sampling rate of the scope, the more frequently it measures
103
the signal voltage, and so the more detailed will be the trace that appears on the scope
screen.
Streaming Mode
This term indicates a sampling mode in which the oscilloscope samples data and
returns it to the computer in an unbroken stream. This mode of operation is effective
when the input signal being sampled is at low frequency.
Time Base
The time base controls the time interval across the scope display.
Voltage Range
The voltage range is the range between the maximum and minimum voltages that can
be accurately captured by the oscilloscope.
Sinusoidal Waveform
This term describes the waveform characteristics typically found in circuits with large
inductance and capacitance, and often referred to as an AC signal. The waveform
alternates either side of 0 volts or may rise and fall creating a regular sinusoidal shape:
Amplitude
This term indicates the maximum voltage generated from the zero volts line of the
oscilloscope.
Figure 16- 1 Sample Sinusoidal Waveform
104
Frequency
This term describes the number of signal occurrences per second. Frequency is
measured in Hz (hertz).
Square Waveform
This term describes the waveform characteristics normally generated by signals
switching between clearly defined voltage levels, such as a Hal effect sensor signal
may create by switching a voltage to ground. A typical digital square waveform is shown
below:
Peak to peak voltage
This term indicates the difference in voltage between the minimum and maximum
voltages occurring in the waveform.
16.3 MaxiScope Module
The MaxiScope Automotive Oscilloscope tool kit is optional and available for
purchase along with the MaxiPro package. There are 2 versions (basic and
advanced versions) available.
The MaxiScope tool kit comes standard with:
MaxiScope Module
USB Cable

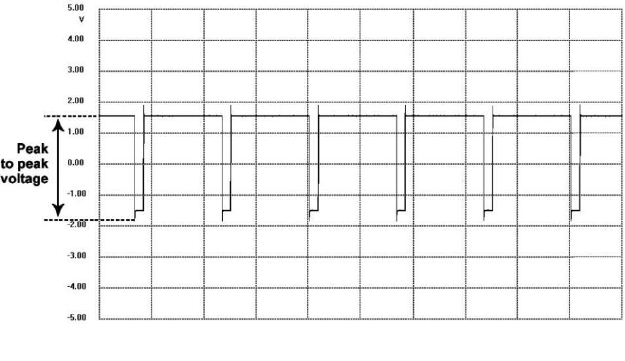

Figure 16- 2 Sample Square Waveform
105
Other probe accessories

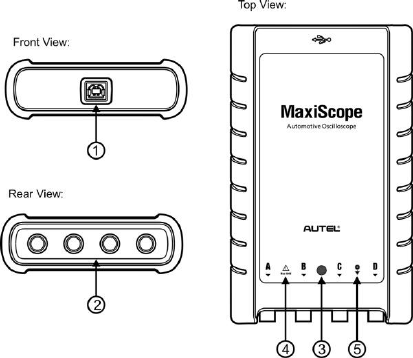

Figure 16- 3 Front, Rear, and Top View
1. USB Port Connector
2. Input Channel A/B/C/D
3. LED Indicator Light – lights up when powered on, blinks when
communicating, and shimmers when error occurs
4. Warning Triangle – indicates potential safety hazard that exists on the
indicated connections, and appropriate precautions should be taken.
Make sure you read through the Safety Information on page 101 before
using.
5. Equipotential Symbol – indicates the outer shells of the indicated BNC
connectors are all at the same potential. Therefore, necessary
precautions should be taken to avoid applying a potential through the
return connections of the indicated BNC terminals, as this may result in a
large current flow, causing damage to the product and the connected
equipment.
Power Source
The MaxiScope MP408 Scope Module is powered directly by the USB port of
the connected PC, no batteries or power leads are required, making it suitable
for use both for workshop-based and mobile automotive diagnostics.
Technical Specifications
106
Main Features
Description
Vertical resolution
12 bits
Channels
4
Bandwidth
20MHz
Accuracy
Voltage: 1%; Time: 50ppm
Sensitivity
10mV/div to 20V/div
Input Ranges (full scale)
±
50mV to
±
100V in 11 ranges
Input Impedance
1MΩ in parallel with 22pF
Input Type
Single-ended, BNC connector
Input Coupling
Software selectable AC/DC
Overload Protection
±
200V on single input
Maximum Sampling Rate
(Single Shot)
1 or 2 channels in use
3 or 4 channels in use
80MS/s*
20MS/s
Buffer Memory
32M samples shared among active channels
Waveform Buffer
Up to 1000 waveforms
Timebase Ranges
100ns/div to 1000s/div
Advanced Features
Math channels, Measurements
Triggers
Description
Source
Any input channel
Basic Triggers
Auto, Normal, Single, None
Advanced Triggers
Rising edge, Falling edge
Environmental
Description
Operating Temperature Range
Storage Temperature Range
Storage Humidity Range
0 to 50°C (15 to 40°C for quoted accuracy)
-20
to +60°C
5 to 95%RH, Non-condensing
Physical Characteristics
Description
Dimensions (Protection rubber
case include
d
)
190X115X38mm
Weight
<0.5 kg
107
General
Description
PC Interface
USB 2.0 – cable supplied
Power Requirements
Powered from USB port
Compliance
FCC (EMC), CE (EMC and LVD), RoHS
Warranty
1 year
NOTE*: Reduced to 20MS/s if channels A and B, or C and D, are enabled.
16.4 Screen Layout and Operations
The MaxiScope application works as a signal processing program that
displays the shape of electrical signals onscreen with a live graph showing
voltage against time. The grid on the screen shows divisions of voltage and
time to enable measurements to be made.
Units of voltage per division are shown down the side of the scope screen
while units of time per division are shown along the bottom. The graph is
referred to as a waveform and the scope repeatedly draws the trace across
the screen from left to right.
Before performing the MaxiScope application, the MaxiScope Module must be
connected to the display tablet. Apply appropriate probe accessories supplied
with the MaxiScope tool kit for use in various tests.
Figure 16- 4 Sample MaxiScope Application Screen Layout
1. Top Toolbar – used for configurations of various settings and operations
108
of the scope
2. Functional Buttons on the top – used for configurations of channel
activation, measurement scale and trigger settings
3. Measurement Grid – displays measurements of voltage against time
4. Functional Buttons at the bottom – used for configurations of trigger,
time base, and measurement parameter display settings.
16.4.1 Top Toolbar
The top toolbar contains various functional buttons with options for operations
and configurations of the MaxiScope, the operations of which are described in
the table below:
Table 16- 1 Toolbar Buttons
Name
Button
Description
Car
This option provides a library of waveforms.
Selecting one allows automatic set-up of the scope
to capture a waveform of the specified waveform
type. (Coming soon)
Print
Saves and prints a copy of the displayed data. See
Printing Operation for additional information on
page 20.
Tool
Tapping this button opens a settings window with
options to configure various measurement tools for
reference and assessment of data analysis：
Tap Select a Math Channel option to select a
match channel.
Tap Select a Probe option to select a
predefined probe.
Tap Cache Setting to set the cache.
109
Name
Button
Description
Save
Tapping this button opens a submenu, on which
displays 5 options allowing you to save, record
and plays back the waveform data.
Tap Save current page to take a screenshot
Tap Record data to save the current
waveform data.
Tap Save Ref to save a copy of an existing
signal waveform as reference.
Tap Review data allows selecting and
reviewing the previously stored waveform
recordings.
Tap Recall Ref to retrieve the saved
reference waveforms.
All saved images are stored in the Data Manager
application for later reviews. See Data Manager
Operations on page 64.
Help
Provides instructions or tips for operations of
various functions.
Scope
Icon
Indicates the scope connection status. Tapping the
icon allows to reset the USB connection when
communication with the Scope Module fails. See
16.5 Troubleshooting on page 116 for more
information.
Math Channel
A math channel is virtual channel generated by mathematical function of the
input channel. It can be displayed in a scope or XY view in the same way as
an input signal, and like an input signal it has its own measure axis, scaling
and color. The MaxiScope module has a set of buit-in math channels for the
most important functions, including “A+B” (the sum of channels A and B) and
“A-B” (the difference between channels A and B).
To use a math channel:
1. Tap the Tool button in the Top Menu.
2. Tap the Select a Math Channel option on the left column.
3. Tap the desired option on the right column to enable the math
110
channel in the channel list.
4. The Math Channel displays on the MaxiScope screen
Probe
A probe is any transducer, measuring device or other accessory that you
connect to an input channel of your MaxiScope module.
Reference Waveform
A Reference Waveform is a copy of an existing signal waveform saved as a
reference. It can be retrieved to display as a comparative reference to
examine a live signal. Up to 4 reference waveforms can be saved.

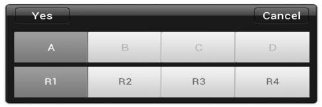

Figure 16- 5 Ref. Waveform Save Window
To create a Reference Waveform:
1. Tap the Save button in the Top Menu.
2. Select Save Ref. in the dropdown menu.
3. Select the channel to which the desired waveform belongs.
4. Name the reference waveform by selecting R1, R2, R3 or R4 in the
popup window.
5. Tap on the Yes to save, or No icon to cancel.
Recall Reference
The saved reference waveforms can be retrieved by clicking Recall Ref in the
dropdown menu of the Tool button.
To recall reference waveforms:
1. Tap Tool button on the Top Menu.
2. Select Recall Ref in the dropdown menu and a popup window will
display. Available reference waveform items are highlighted in blue.
3. Select the desired reference waveform by ticking the check box
alongside.
111
4. Tap Yes and the selected reference waveform will appear on the
scope screen.
Figure 16- 6 Recall Reference Waveform Window
16.4.2 Functional Buttons
This group of buttons is used for configurations of channel activation,
measurement scale and trigger settings, the operations of which are described
below:
Channel Control Buttons A/B/C/D – tapping each button allows you to
activate or deactivate the corresponding channel; long pressing the
button opens a window, which allows you to select and configure
appropriate probes for specific tests.
The Channel Control Buttons are displayed in different colors as follows:
A. Red
B. Green
C. Blue
D. Pink
AC/DC Coupling and Voltage Scale Buttons – tapping this button opens a
dropdown menu, on which you can select AC or DC measurements and
adjust voltage measurement scales.
The Auto voltage scale option enables the scope to adjust the voltage
scale automatically to capture the signal.
AutoScale – tapping this button enables automatic set-up of the voltage
scale and time base for the signals received.
Start/Stop – tapping this button turns on/off the scope.
Single – tapping this button activates the Single trigger mode when the
trigger is on. The Single trigger mode configures the trigger to occur once
when the scope captures the first signal waveform by the preset trigger
point.
112
16.4.3 Measurement Grid
The 2 control features – voltage per division and Time per division – enable
the users to adjust the scope settings to suit the particular test measurement.

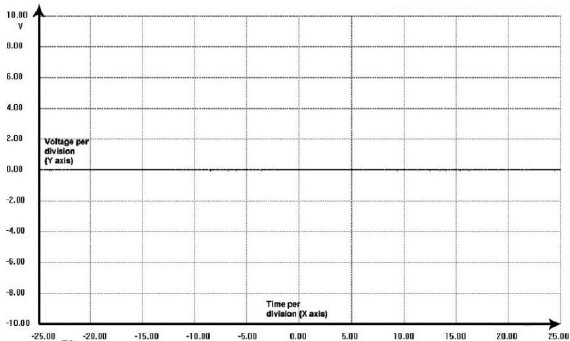

Figure 16- 7 Sample Measurement Grid
Voltage per division – shown down the left side of the screen, referred to as
the Y-axis
Time per division – shown along the bottom of the screen, referred to as
the X-axis
Multiple Scope Channels
The MaxiScope software features multiple channel display which enables
more than one waveform to be displayed at the same time. It is useful for
making comparisons among different signals. The voltage per division for
each channel is adjusted individually while the time base per division is the
same for all channels.
To adjust the voltage scale
1. Tap the specific Y-axis of the corresponding channel to adjust. The
selected Y-axis is highlighted with thicker dividing line.
2. Adjust the voltage scale of the selected channel with the typical
2-finger zoom gestures.
3. The 0 volts is hinted with a pointer reference line. Slide the pointer
up and down to move and view different areas of the scale.
113
4. Tap once on the screen area outside of the Y-axis to finish the
voltage scale adjustment.
To adjust the time base scale
1. Unselect the Y-axis if it’s activated.
2. Use your 2 fingers to adjust the time base with the typical zoom
gestures on the measurement grid area.
16.4.4 Measurement Rulers
The Measurement Rulers allow the voltage and time duration of a waveform to
be measured precisely. There are 2 kinds of measurement rulers: the vertical
Time Ruler and the horizontal Voltage Ruler.
Tap on the Ruler Activator on the bottom right corner of the measurement
grid and drag it across the screen to the desired position, a Time Ruler is
generated.
The Voltage Ruler can be generated in the similar way by clicking the Ruler
Activator on the top left corner and dragging it downwards.
When Measurement Rulers are generated, a Ruler Table showing time and
voltage values for the corresponding channels will be displayed. The Delta
icon refers to the absolute difference between the values of the 2 rulers, which
can be locked by tapping the Lock icon.
Figure 16- 8 Measurement Rulers Display
114
16.4.5 Functional Buttons
This group of buttons includes trigger setting buttons allowing you to set
trigger source and trigger mode, a Time base button for adjustment, and a
Measurement button with options for various measurement types.
Trigger On/Off – taps to turn on/off the trigger. The button displays as
Trigger Off when it is activated, and vice versa.
Once the trigger is activated, a voltage scale reference line and a time
base reference line will be displayed on the measurement grid, the cross
point of the 2 lines indicates the trigger point, allowing users to adjust its
position by moving each of the 2 lines.
Trigger Source – assigns the trigger to a specific channel
Trigger Slope – sets trigger to occur by rising or falling voltage edges
Trigger Mode – configures the trigger mode:
A. Normal Mode – configures the trigger to occur every time when the
captured signal waveform reaches the trigger point, so the scope
starts to draw the waveform when the signal reaches the trigger
point.
B. Auto Mode – configures the trigger to occur every time when the
scope captures the signal waveforms by the preset trigger point.
The scope continues to draw the waveforms even when the signal
is not in the trigger point range.
Main Time Base – allows users to select an appropriate time per division.
The time per division (10 divisions) is displayed along the bottom of the
screen. The time base adjustment affects all of the active scope
channels at once.
Measure – allows users to select various types of measurement parameters
to be displayed at the right side of the screen for reference.
A maximum of 5 items each time are allowed to be selected.
To set a specific trigger point
1. Tap the Trigger On button to activate the trigger.
2. Configures the specific trigger source, the trigger slope and the
trigger mode according to the test demand.
3. Tap and slide the voltage scale reference line up or down to the
115
desired voltage point. The voltage info is displayed in a small
reference box.
4. Tap and slide the time base reference line left or right to the desired
point.
5. Tap Start button on the top right side of the screen to activate the
scope.
16.5 Troubleshooting
If the MaxiScope is not communicating with the MaxiPro display tablet, you
need to do the followings:
Check if the MaxiScope is properly connected to the MaxiPro display tablet
through the supplied USB cable.
If the MaxiScope is already connected to the MaxiPro display tablet, but the
communication between the devices has failed, tap the Scope Icon on
the top right side of the screen to reset the USB connection.
IMPORTANT: All vehicle communications must be terminated before resetting
the USB connection to avoid damage to the devices and the vehicle. The
Internet connection may be aborted during USB reset.
If the communication between the MaxiScope and the MaxiPro display tablet
still fails after USB reset, restart the MaxiPro display tablet and reconnect
the MaxiScope.
16.6 MaxiScope Firmware Update
The operating software of the MaxiScope is continuously being developed,
and the update package can be downloaded freely from the MaxiScope
product webpage on Autel’s website: http://www.autel.com.
To update the MaxiScope firmware
1. Download the MaxiScope tool kit from our website
www.autel.com > Support & Updates > UPDATE CLIENT to the
computer. The installation wizard will load momentarily.
2. Click on Next on the welcome page.
3. Click the Browse button, and select a destination folder to install
the program, and click Next to continue. Or directly click Next to
continue without changing the default installation folder.
116
4. Click Install and the Setup.exe program will be installed onto the
computer.
5. After the installation is completed, connect the MaxiScope to the
computer via the USB cable provided by the tool kit.
6. Locate and double click the MaxiScope Update icon on desktop.
7. Click on Help > Check Update on the upper toolbar, an update
selection pop-up window displays.
8. You could select Online or Local to update. For Online update, it will
automatically scan whether the current version is the latest one,
then proceed to update or not. For Local update, you can download
the firmware file on our website www.autel.com, then proceed.
117
Chapter 17 Function Viewer
The Function Viewer allows you to search the functions supported by our tools and the
version information. There are two ways of searching, either by searching the tool and
the vehicle or searching the functions.
To search by the vehicle
1. Tap the Function Viewer application on the MaxiPro Job Menu. The Function
Viewer application screen displays.
2. Tap the tool name on the top left to drop down the tool list, tap the one you
want to search.
3. Tap the vehicle brand, model, and year you want to search.
Figure 17- 1 Sample Function Viewer Screen 1
4. All the functions support by the selected tool for the selected vehicle displays
within three columns, function, sub function, and version.
118
Figure 17- 2 Sample Function Viewer Screen 2
To search by the functions
1. Tap the Function Viewer application on the MaxiPro Job Menu. The Function
Viewer application screen displays.
2. Tap the tool name on the top left to drop down the tool list, tap the one you
want to search.
3. Type in the function you want to search to the top right search column. All the
vehicles with this function will be listed with 8 columns, the Brand, Model,
Year, System, Sub system, Function, Sub function, and Version.
NOTE
Fuzzy search is supported, type in part of the function you want to search can also find
you all the related.
119
Chapter 18 Digital Inspection Operations
The Digital Inspection application configures the MaxiPro Diagnostic Device to operate
as a digital video scope by simply connecting the tablet to a Digital Inspection Camera.
This function allows you to examine difficult-to-reach areas normally hidden from sight,
with the ability to record digital still images and videos, which offers you an economical
solution to inspect machinery, facilities, and infrastructure in a safe and quick way.
WARNINGS & IMPORTANTS:
Follow these instructions to reduce the risk of injury from electric shock,
entanglement and other causes and prevent tool damage.
Do not place the imager head and cable into anything or anywhere that may
contain a live electric charge or moving parts, which increases the risk of
electric shock or entanglement injuries.
Do not use the imager head cable to modify surroundings, clear pathways or
clogged areas.
When inspection is completed, carefully withdraw the imager head cable
from the inspection area.
The imager head cable were waterproof to a depth of 3m (10’), greater
depths may cause leakage into the imager head cable and cause electric
shock or damage the tool.
The working temperature of the imager head is between 32 °F (0 °C) and
113 °F (45 °C).
Check-Ups:
FOR AUTOMOBILES: Ensure the automobile is not running during
inspection. Metal and liquid under the hood may be hot. Don’t get oil or gas
on the imager head.
FOR PIPES: If you suspect a metal pipe could contain an electric charge,
have a qualified electrician to check the pipe before using.
FOR WALLS: For inspecting the inside walls, be sure to shut off the circuit
breaker to the whole house before using the tool.
WORK AREA: Ensure the work area has sufficient light.
120
18.1 Additional Accessories
The Digital Inspection Camera and its fittings are the additional accessories.
Both sizes (8.5 mm and 5.5 mm) of the imager head are optional and
available for purchase along with the standard MaxiPro tool kit.
Digital Inspection Camera
Figure 18- 1 Digital Inspection Camera
1. Removable Imager Head Cable – connects to the tool when performing
digital inspections for image and video viewing
2. Handgrip – ergonomically designed handle for comfortable grips and
agile operation
3. USB Cable – connects the Digital Inspection Camera to MaxiPro tablet
121
Imager Head Accessories

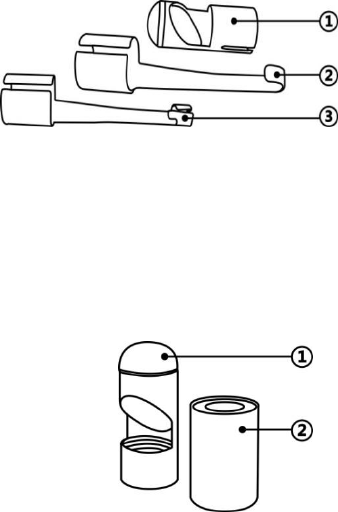

Figure 18- 2 8.5mm Imager Head Accessories
1. Magnet – picks up small metal objects, such as dropped rings or screws
2. Hook – unclogs obstacles and picks up wires in the pipes or confined
areas
3. Mirror – helps to look around corners and see the unreachable areas
Figure 18- 3 5.5mm Imager Head Accessories
1. Mirror – helps to look around corners and see the unreachable areas
2. Magnet – picks up small metal objects, such as dropped rings or screws
Accessory Assembly

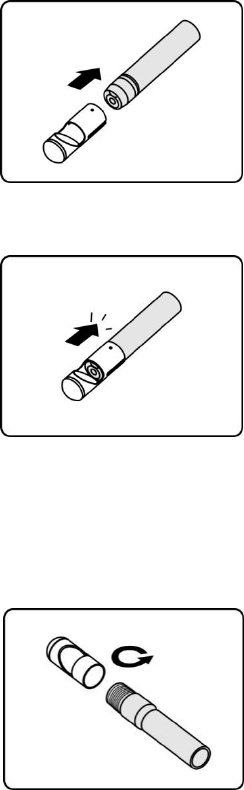

For 8.5mm Imager Head
The three accessories, including the Magnet, Hook, and Mirror (Figure 18- 2 ),
can be attached to the Imager Head with the same manner described below:
122
1. Hold the accessory and the imager head.

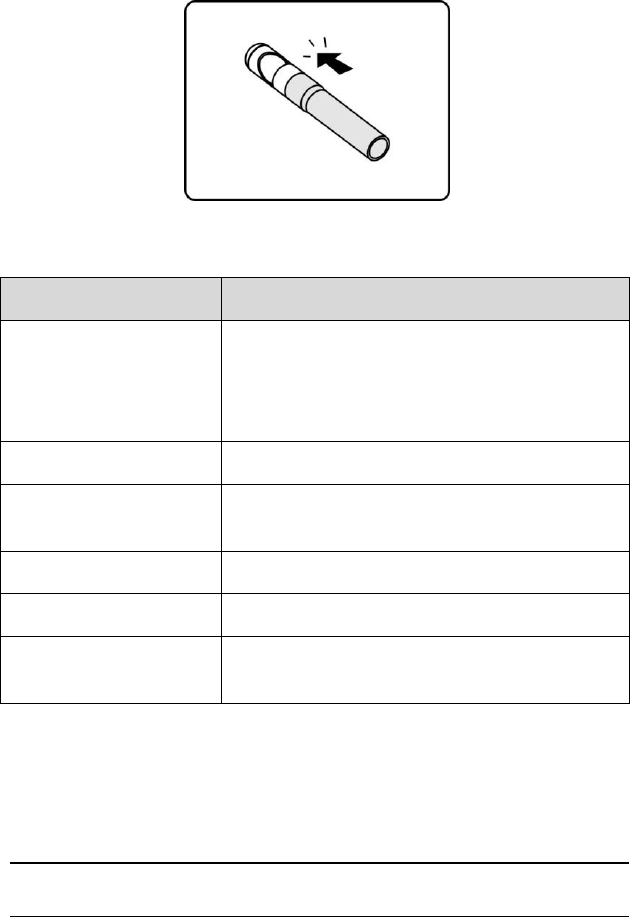

2. Slip the end of the accessory over the imager head and then fix the
accessory.
For 5.5mm Imager Head
The two accessories, including the Magnet and Mirror, can be attached to the
Imager Head with the same manner described below:
1. Hold the accessory and the imager head.
123
2. Screw the thread part of the accessory over the imager head to fix the
accessory.
18.1.1 Technical Specifications
Item
Description
Optimal Viewing
Distance
1" to 14" (2.54cm to 35.56cm) with 8.5mm
diameter imager head
3/8" to 12" (0.95cm to 30cm) with 5.5mm
diameter imager head
Image Capture
JPG images (640x480) AVI videos (320 x 240)
Operating Temperature
Main Unit: 0°C to 55°C (ambient)
Cable: -10°C to 70°C
Storage Temperature
-20°C to 75°C (ambient)
Waterproof
Imager head and cable to 1m
Weigh
0.3 kg with 8.5mm diameter imager head
0.2 kg with 5.5mm diameter imager head
18.2 Operations
Before performing the Digital Inspection application, the Imager Head Cable
must be connected to the MaxiPro display tablet through the USB port. Install
the correct imager head accessories for use in the appropriate application.
NOTE: When in operation, the imager head cable can be bent into a certain
shape. This may help you operate the cable into confined areas.
124
To take pictures using the Digital Inspection application
1. Connect the Imager Head Cable to the USB port on the top side of
the MaxiPro Display Tablet.
2. If not already done, power up the MaxiPro Display Tablet.
3. Tap the Digital Inspection application on the MaxiPro Job Menu.
The Digital Inspection application interface displays, showing a
camera operating screen. The default camera is now the Imager
head.
4. Select the camera icon at the lower right corner to take photos.
5. Focus the image to be captured in the view finder by adjusting and
properly locating the imager head cable.
6. Tap the blue ring on the operating screen. The view finder now
shows the captured picture and auto-saves the taken photo.
7. Tap the thumbnail image on the top right corner of the screen to
view the stored image, slide the screen left and right to view the
images one by one.
8. Tap on the selected image and the edit toolbar instantly displays.
9. Tap the appropriate button to share,delete, or edit the image.
10. Tap the Back or Home button on the Navigation bar at the bottom
of the screen to exit the Digital Inspection application.
To record a video using the Digital Inspection application
1. Connect the Imager Head Cable to the USB port on the top side of
the MaxiPro Display Tablet.
2. If not already done, power up the MaxiPro Display Tablet.
3. Tap the Digital Inspection application on the MaxiPro Job Menu.
The Digital Inspection application interface displays, showing a
camera operating screen. The default camera is now the Imager
head.
4. Select the video icon at the lower right corner to record a video.
5. Properly locate the imager head cable to focus the inspection scene
for recording.
6. Tap the red ring on the operating screen to start recording.
125
7. Tap the red circle again to stop recording. The recorded video is
automatically saved to the system Gallery.
8. Tap the thumbnail image on the top right corner to review the
recorded video.
9. Tap the Play button to play the video.
10. Tap on the selected video and the edit toolbar instantly displays.
11. Tap the appropriate button to share,delete, or edit the video.
12. Tap the Back or Home button on the Navigation bar at the bottom
of the screen to exit the Digital Inspection application.
To configure various settings for the work mode of the imager head
1. Tap
button at the bottom edge of the
circle.
2. Select each item to make appropriate adjustments.
For more tips and detailed information about the camera application, please
refer to associated Android documentations.
126
Chapter 19 Maintenance and Service
To ensure that the MaxiPro diagnostic tablet and the combined VCI unit perform at their
optimum level, we advise that the product maintenance instructions covered in this
section is read and followed.
19.1 Maintenance Instructions
The following shows how to maintain your devices, together with precautions
to take.
Use a soft cloth and alcohol or a mild window cleaner to clean the touch
screen of the tablet.
Do not use any abrasive cleansers, detergent, or automotive chemicals to
the tablet.
Maintain the devices in dry conditions and keep them within normal
operating temperatures.
Dry your hands before using the tablet. The touch screen of the tablet may
not work if the touch screen is moist, or if you tap the touch screen with
wet hands.
Do not store the devices in humid, dusty or dirty areas.
Check the housing, wiring, and connectors for dirt and damage before and
after each use.
At the end of each work day, wipe the device housing, wiring, and connectors
clean with a damp cloth.
Do not attempt to disassemble your tablet or the VCI unit.
Do not drop or cause severe impact to the devices.
Use only authorized battery chargers and accessories. Any malfunction or
damage caused by the use of unauthorized battery charger and
accessories will void the limited product warranty.
Ensure that the battery charger does not come in contact with conductive
objects.
Do not use the tablet beside microwave ovens, cordless phones and some
medical or scientific instruments to prevent signal interference.
127
19.2 Troubleshooting Checklist
A. When the display tablet does not work properly:
Make sure the tablet has been registered online.
Make sure the system software and diagnostic application software are
properly updated.
Make sure the tablet is connected to the Internet.
Check all cables, connections, and indicators to see if the signal is
being received.
B. When battery life is shorter than usual:
This may happen when you are in an area with low signal strength.
Turn off your device if is not in use.
C. When you cannot turn on the tablet:
Make sure the tablet is connected to a power source or the battery is
charged.
D. When you are unable to charge the tablet:
Your charger maybe out of order. Contact your nearest dealer.
You may be attempting to use the device in an overly hot/cold
temperature. Try changing the charging environment.
Your device may have not been connected to the charger properly.
Check the connector.
NOTE: If your problems persist, please contact Autel’s technical support
personnel or your local selling agent.
19.3 About Battery Usage
Your tablet is powered by a built-in Lithium-ion Polymer battery. This means
that, unlike other forms of battery technology, you can recharge your battery
while some charge remains without reducing your tablet’s autonomy due to
the “battery memory effect” inherent in those technologies.
DANGER: The built-in Lithium-ion Polymer battery is factory replaceable only;
incorrect replacement or tampering with the battery pack may cause an
explosion.
128
Do not use a damaged battery charger.
Do not disassemble or open crush, bend or deform, puncture or shred.
Do not modify or remanufacture, attempt to insert foreign objects into the
battery, expose to fire, explosion or other hazard.
Make sure to use the charger and USB cables only that come together in the
package. If you use the other charger and USB cables, you might incur
malfunction or failure of the device.
Only use the charging device that has been qualified with device per the
standard. Use of an unqualified battery or charger may present a risk of
fire, explosion, leakage, or other hazard.
Avoid dropping the tablet. If the tablet is dropped, especially on a hard
surface, and the user suspects damage, take it to a service center for
inspection.
The closer you are to your network’s base station, the longer your tablet
usage time because less battery power is consumed for the connection.
The battery recharging time varies depending on the remaining battery
capacity.
Battery life inevitably shortens over time.
Since over charging may shorten battery life, remove the tablet from its
charger once it is fully charged. Unplug the charger, once charging is
complete.
Leaving the tablet in hot or cold places, especially inside a car in summer or
winter, may reduce the capacity and life of the battery. Always keep the
battery within normal temperatures.
19.4 Service Procedures
This section introduces information for technical support, repair service, and
application for replacement or optional parts.
Technical Support
If you have any question or problem on the operation of the product, please:
129
Call 1-855-288-3587/1-855-AUTELUS (North America),
Or 0086-755-86147779 (China).
Contact the local distributer or agent.
Visit our website http://pro.autel.com or www.autel.com.
Repair Service
If it becomes necessary to return your device for repair, please download the
repair service form from www.autel.com, and fill in the form. The following
information must be included:
Contact name
Return address
Telephone number
Product name
Complete description of the problem
Proof-of-purchase for warranty repairs
Preferred method of payment for non-warranty repairs
NOTE: For non-warranty repairs, payment can be made with Visa, Master
Card, or with approved credit terms.
Send the device to your local agent, or to the below address:
6th-10th Floor, Building B1, Zhiyuan, Xueyuan Road, Xili, Nanshan, Shenzhen,
518055, China
Other Services
You can purchase the optional accessories directly from Autel’s authorized
tool suppliers, and/or your local distributor or agent.
Your purchase order should include the following information:
Contact information
Product or part name
Item description
Purchase quantity
130
Chapter 20 Compliance Information
FCC Compliance FCC ID: WQ8MAXIPROMP908
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
SAR:
The radiated output power of this device is below the FCC radio frequency exposure
limits. Nevertheless, the device should be used in such a manner that the potential for
human contact is minimized during normal operation.
The exposure standard for wireless devices employs a unit of measurement known as
the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/Kg. Tests
for SAR are conducted using standard operating positions accepted by the FCC with
the device transmitting at its highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified power level, the actual SAR
level of the device while operating can be well below the maximum value. This is
because the device is designed to operate at multiple power levels so as to use only the
power required to reach the network. To avoid the possibility of exceeding the FCC
radio frequency exposure limits, human proximity to antenna should be minimized.
131
132
Chapter 21 Warranty
12-Month Limited Warranty
Autel Intelligent Technology Corp., Ltd. (the Company) warrants to the original retail
purchaser of this MaxiPro Diagnostic Device, that should this product or any part
thereof during normal consumer usage and conditions, be proven defective in material
or workmanship that results in product failure within twelve (12) months period from the
date of delivery, such defect(s) will be repaired, or replaced (with new or rebuilt parts)
with Proof of Purchase, at the Company’s option, without charge for parts or labor
directly related to the defect(s).
The Company shall not be liable for any incidental or consequential damages arising
from the use, misuse, or mounting of the device. Some states do not allow limitation on
how long an implied warranty lasts, so the above limitations may not apply to you.
This warranty does not apply to:
a) Products subjected to abnormal use or conditions, accident, mishandling, neglect,
unauthorized alteration, misuse, improper installation or repair or improper
storage;
b) Products whose mechanical serial number or electronic serial number has been
removed, altered or defaced;
c) Damage from exposure to excessive temperatures or extreme environmental
conditions;
d) Damage resulting from connection to, or use of any accessory or other product
not approved or authorized by the Company;
e) Defects in appearance, cosmetic, decorative or structural items such as framing
and non operative parts.
f) Products damaged from external causes such as fire, dirt, sand, battery leakage,
blown fuse, theft or improper usage of any electrical source.
IMPORTANT: All contents of the product may be deleted during the process of repair.
You should create a back-up copy of any contents of your product before delivering the
product for warranty service.
User_Manual
i
Trademarks
Autel®, MaxiSys®, MaxiDAS®, MaxiScan®, MaxiTPMS®, MaxiRecorder®, and
MaxiCheck®are trademarks of Autel Intelligent Technology Corp., Ltd., registered in
China, the United States and other countries. All other marks are trademarks or
registered trademarks of their respective holders.
Copyright Information
No part of this manual may be reproduced, stored in a retrieval system or transmitted,
in any form or by any means, electronic, mechanical, photocopying, recording, or
otherwise, without the prior written permission of Autel.
Disclaimer of Warranties and Limitation of Liabilities
All information, specifications and illustrations in this manual are based on the latest
information available at the time of printing. Autel reserves the right to make changes at
any time without notice. While information of this manual has been carefully checked
for accuracy, no guarantee is given for the completeness and correctness of the
contents, including but not limited to the product specifications, functions, and
illustrations.
Autel will not be liable for any direct damages or for any special, incidental, or indirect
damages or for any economic consequential damages (including lost profits).
IMPORTANT: Before operating or maintaining this unit, please read this manual
carefully, paying extra attention to the safety warnings and precautions.
For Services and Support:
pro.autel.com
www.autel.com
1-855-288-3587/1-855-AUTELUS (North America)
0086-755-86147779 (China)
support@autel.com
For technical assistance in all other markets, please contact your local distributor.
ii
Safety Information
For your own safety and the safety of others, and to prevent damage to the device and
vehicles upon which it is used, it is important that the safety instructions herein
presented throughout this manual be read and understood by all persons operating or
coming into contact with the device.
There are various procedures, techniques, tools, and parts for servicing vehicles, as
well as in the skill of the person doing the work. Because of the vast number of test
applications and variations in the products that can be tested with this equipment, we
cannot possibly anticipate or provide advice or safety messages to cover every
circumstance. It is the automotive technician’s responsibility to be knowledgeable of the
system being tested. It is crucial to use proper service methods and test procedures. It
is essential to perform tests in an appropriate and acceptable manner that does not
endanger your safety, the safety of others in the work area, the device being used, or
the vehicle being tested.
Before using the device, always refer to and follow the safety messages and applicable
test procedures provided by the manufacturer of the vehicle or equipment being tested.
Use the device only as described in this manual. Read, understand, and follow all
safety messages and instructions in this manual.
Safety Messages
Safety messages are provided to help prevent personal injury and equipment damage.
All safety messages are introduced by a signal word indicating the hazard level.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury to the operator or to bystanders.
WARNING: Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury to the operator or to bystanders.
Safety Instructions
The safety messages herein cover situations Autel is aware of. Autel cannot know,
evaluate or advise you as to all of the possible hazards. You must be certain that any
condition or service procedure encountered does not jeopardize your personal safety.
DANGER: When an engine is operating, keep the service area WELL
VENTILATED or attach a building exhaust removal system to the engine exhaust
system. Engines produce carbon monoxide, an odorless, poisonous gas that
causes slower reaction time and can lead to serious personal injury or loss of
life.
iii
Do Not Turn the Volume Up Too Loud When Using Headphones
Listening at high volumes that over-stimulate the ear for long periods of time
may result in loss of hearing.
SAFETY WARNINGS:
Always perform automotive testing in a safe environment.
Wear safety eye protection that meets ANSI standards.
Keep clothing, hair, hands, tools, test equipment, etc. away from all moving
or hot engine parts.
Operate the vehicle in a well-ventilated work area, for exhaust gases are
poisonous.
Put the transmission in PARK (for automatic transmission) or NEUTRAL (for
manual transmission) and make sure the parking brake is engaged.
Put blocks in front of the drive wheels and never leave the vehicle
unattended while testing.
Be extra cautious when working around the ignition coil, distributor cap,
ignition wires and spark plugs. These components create hazardous
voltages when the engine is running.
Keep a fire extinguisher suitable for gasoline, chemical, and electrical fires
nearby.
Do not connect or disconnect any test equipment while the ignition is on or
the engine is running.
Keep the test equipment dry, clean, free from oil, water or grease. Use a mild
detergent on a clean cloth to clean the outside of the equipment as
necessary.
Do not drive the vehicle and operate the test equipment at the same time.
Any distraction may cause an accident.
Refer to the service manual for the vehicle being serviced and adhere to all
diagnostic procedures and precautions. Failure to do so may result in
personal injury or damage to the test equipment.
To avoid damaging the test equipment or generating false data, make sure
the vehicle battery is fully charged and the connection to the vehicle DLC
is clean and secure.
Do not place the test equipment on the distributor of the vehicle. Strong
electro-magnetic interference can damage the equipment.
iv
Contents
SAFETY INFORMATION.................................................................................................. II
CHAPTER 1 USING THIS MANUAL..................................................................................1
1.1 CONVENTIONS...........................................................................................................1
1.1.1 Bold Text......................................................................................................... 1
1.1.2 Terminology................................................................................................... 1
1.1.3 Notes and Important Messages.....................................................................1
1.1.4 Hyperlinks.......................................................................................................1
1.1.5 Procedures......................................................................................................2
CHAPTER 2 GENERAL INTRODUCTION...........................................................................3
2.1 MAXIPRO DISPLAY TABLET..........................................................................................3
2.1.1 Functional Description................................................................................... 3
2.1.2 Power Sources................................................................................................ 5
2.1.3 Technical Specifications................................................................................. 6
2.2 VCI – WIRELESS DIAGNOSTIC INTERFACE...................................................................... 8
2.2.1 Functional Description................................................................................... 8
2.2.2 Technical Specifications..................................................................................9
2.2.3 Power Sources................................................................................................ 9
2.3 VCI – J2534 ECU PROGRAMMING DEVICE.................................................................. 9
2.3.1 Functional Description................................................................................... 9
2.3.2 Power Sources.............................................................................................. 11
2.3.3 Technical Specifications............................................................................... 11
2.4 ACCESSORIES KIT..................................................................................................... 12
2.4.1 Main Cable................................................................................................... 12
2.4.2 OBD I Adapters............................................................................................. 12
2.4.3 Other Accessories......................................................................................... 13
CHAPTER 3 GETTING STARTED..................................................................................... 15
3.1 POWERING UP........................................................................................................ 15
3.1.1 Application Buttons......................................................................................16
3.1.2 Locator and Navigation Buttons.................................................................. 18
3.1.3 System Status Icons......................................................................................19
3.2 POWERING DOWN................................................................................................... 19
3.2.1 Reboot System..............................................................................................20
3.3 INSTALLING COMPUTER SOFTWARE............................................................................. 20
3.3.1 Printing Operation........................................................................................20
CHAPTER 4 DIAGNOSTICS OPERATIONS......................................................................22
v
4.1 ESTABLISHING VEHICLE COMMUNICATION.................................................................... 22
4.1.1 Vehicle Connection....................................................................................... 22
4.1.2 VCI Connection............................................................................................. 24
4.1.3 No Communication Message....................................................................... 26
4.2 GETTING STARTED.................................................................................................... 27
4.2.1 Vehicle Menu Layout.................................................................................... 27
4.3 VEHICLE IDENTIFICATION........................................................................................... 29
4.3.1 Auto VIN Scan...............................................................................................29
4.3.2 Manual VIN Input.........................................................................................31
4.3.3 Manual Vehicle Selection............................................................................. 31
4.3.4 Alternative Vehicle Identification................................................................. 32
4.4 NAVIGATION........................................................................................................... 32
4.4.1 Diagnostics Screen Layout............................................................................32
4.4.2 Screen Messages.......................................................................................... 35
4.4.3 Making Selections........................................................................................ 36
4.5 MAIN MENU.......................................................................................................... 36
4.6 DIAGNOSIS............................................................................................................. 37
4.6.1 ECU Information...........................................................................................40
4.6.2 Read Codes................................................................................................... 41
4.6.3 Erase Codes.................................................................................................. 42
4.6.4 Live Data.......................................................................................................43
4.6.5 Active Test.................................................................................................... 49
4.6.6 Special Functions.......................................................................................... 50
4.7 SERVICE................................................................................................................. 51
4.7.1 Function Descriptions...................................................................................52
4.8 CODING................................................................................................................. 56
4.9 GENERIC OBD II OPERATIONS...................................................................................57
4.9.1 General Procedure........................................................................................58
4.9.2 Function Descriptions...................................................................................59
4.10 EXITING DIAGNOSTICS............................................................................................ 62
CHAPTER 5 DATA MANAGER OPERATIONS................................................................. 64
5.1 OPERATIONS........................................................................................................... 64
5.1.1 Image Files................................................................................................... 64
5.1.2 PDF Files....................................................................................................... 65
5.1.3 Review Data................................................................................................. 66
5.1.4 Apps Manager..............................................................................................66
5.1.5 Data Logging................................................................................................ 67
CHAPTER 6 ADAS..........................................................................................................68
CHAPTER 7 MAXIFIX OPERATIONS.............................................................................. 69
vi
7.1 NAVIGATION........................................................................................................... 69
7.1.1 Terminology..................................................................................................71
7.2 OPERATIONS........................................................................................................... 72
7.2.1 Home............................................................................................................ 73
7.2.2 Search Fix Features...................................................................................... 73
7.2.3 Ask................................................................................................................73
7.2.4 My MaxiFix...................................................................................................74
7.2.5 My Messages............................................................................................... 76
7.2.6 Support.........................................................................................................77
CHAPTER 8 SETTINGS OPERATIONS.............................................................................78
8.1 OPERATIONS........................................................................................................... 78
8.1.1 Unit...............................................................................................................78
8.1.2 Language......................................................................................................78
8.1.3 Printing Setting.............................................................................................79
8.1.4 Auto update..................................................................................................79
8.1.5 Notification Center....................................................................................... 80
8.1.6 Car order...................................................................................................... 80
8.1.7 About............................................................................................................81
8.1.8 System Settings............................................................................................ 81
CHAPTER 9 SHOP MANAGER OPERATIONS.................................................................82
9.1 VEHICLE HISTORY..................................................................................................... 83
9.1.1 Historical Test Record................................................................................... 84
9.2 WORKSHOP INFORMATION........................................................................................85
9.3 CUSTOMER MANAGER..............................................................................................86
9.3.1 History Notes................................................................................................87
CHAPTER 10 UPDATE OPERATIONS............................................................................. 90
CHAPTER 11 VCI MANAGER OPERATIONS.................................................................. 92
11.1 BT PAIRING.......................................................................................................... 93
11.2 UPDATE................................................................................................................94
CHAPTER 12 REMOTE DESK OPERATIONS................................................................... 95
12.1 OPERATIONS......................................................................................................... 95
CHAPTER 13 SUPPORT................................................................................................. 97
CHAPTER 14 ACADEMY................................................................................................ 98
CHAPTER 15 QUICK LINK OPERATIONS....................................................................... 99
vii
CHAPTER 16 MAXISCOPE OPERATIONS.................................................................... 100
16.1 SAFETY INFORMATION.......................................................................................... 100
16.2 GLOSSARY.......................................................................................................... 102
16.3 MAXISCOPE MODULE.......................................................................................... 104
16.4 SCREEN LAYOUT AND OPERATIONS..........................................................................107
16.4.1 Top Toolbar...............................................................................................108
16.4.2 Functional Buttons................................................................................... 111
16.4.3 Measurement Grid................................................................................... 112
16.4.4 Measurement Rulers................................................................................113
16.4.5 Functional Buttons................................................................................... 114
16.5 TROUBLESHOOTING..............................................................................................115
16.6 MAXISCOPE FIRMWARE UPDATE............................................................................ 115
CHAPTER 17 FUNCTION VIEWER............................................................................... 117
CHAPTER 18 DIGITAL INSPECTION OPERATIONS...................................................... 119
18.1 ADDITIONAL ACCESSORIES.....................................................................................120
18.1.1 Technical Specifications............................................................................123
18.2 OPERATIONS.......................................................................................................123
CHAPTER 19 MAINTENANCE AND SERVICE............................................................... 126
19.1 MAINTENANCE INSTRUCTIONS................................................................................126
19.2 TROUBLESHOOTING CHECKLIST...............................................................................127
19.3 ABOUT BATTERY USAGE........................................................................................127
19.4 SERVICE PROCEDURES...........................................................................................128
CHAPTER 20 COMPLIANCE INFORMATION............................................................... 130
CHAPTER 21 WARRANTY........................................................................................... 132
1
Chapter 1 Using This Manual
This manual contains device usage instructions.
Some illustrations shown in this manual may contain modules and optional equipment
that are not included in your system. Contact your sales representative for availability of
other modules and optional tools or accessories.
1.1 Conventions
The following conventions are used.
1.1.1 Bold Text
Bold text is used to highlight selectable items such as buttons and menu
options.
Example:
Tap OK.
1.1.2 Terminology
The term “select” means highlighting a button or menu item and tapping it to
confirm the selection.
1.1.3 Notes and Important Messages
The following messages are used.
Notes
ANOTE provides helpful information such as additional explanations, tips,
and comments.
Important
IMPORTANT indicates a situation which, if not avoided, may result in damage
to the test equipment or vehicle.
1.1.4 Hyperlinks
Hyperlinks, or links, that take you to other related articles, procedures, and
illustrations are available in electronic documents. Blue colored text indicates
a selectable hyperlink.
2
1.1.5 Procedures
An arrow icon indicates a procedure.
Example:
To use the camera:
1Tap the Camera button. The camera screen opens.
2Focus the image to be captured in the view finder.
3Tap the blue circle. The view finder now shows the captured picture and
auto-saves the taken photo.
3
Chapter 2 General Introduction
The MaxiPro®MP908/MaxiPro®MP908P Diagnostic Platform is an evolutionary smart
solution for specialized automotive diagnosis. Utilizing the powerful A7 quad-core
1.30GHz processor, and a 10.1-inch capacitive touch screen, combined with the best
possible coverage of OE-level diagnostics, and based on the revolutionary
multitask-capable Android Operating system, the MaxiPro organizes information with
test instrumentation to help you diagnose symptoms, codes, and customer complaints
easily, quickly and efficiently.
There are two main components to the MaxiPro system:
MaxiPro Display Tablet – the central processor and monitor for the system
Vehicle Communication Interface (VCI) – the device for accessing vehicle data
NOTE: Autel provides two optional VCI devices for your choice. One is the J2534
Programming Device; the other is the Wireless Diagnostic Interface, both will be
introduced in this chapter.
This manual describes the construction and operation of these devices and how they
work together to deliver diagnostic solutions.
2.1 MaxiPro Display Tablet
2.1.1 Functional Description
Figure 2- 1 MaxiPro Tablet Front View
1. 10.1-inch Capacitive Touchscreen
4
2. Ambient Light Sensor – detects ambient brightness
3. LED –indicates battery level & charging or system status
4. Microphone
The power LED displays green, yellow or red depending on power level and
operating state.
A. Green
Illuminates green when the Display Tablet is charging and the battery
level is above 90%.
Illuminates green when the Display Tablet is powered on and the
battery level is above 15%.
B. Yellow
Illuminates yellow when the Display Tablet is charging and the
battery level is below 90%.
C. Red
Illuminates red when the Display Tablet is powered on and the
battery level is below 15%.
Figure 2- 2 MaxiPro Tablet Back View
5. Collapsible Stand –extends from the back to allow hands-free viewing
of the Display Tablet.
6. Built-in Battery
7. Loudspeaker
5
8. Camera
9. Camera Flash
Figure 2- 3 MaxiPro Tablet Top View
10. DC Power Supply Input Port
11. Headphone Jack
12. USB Port
13. HDMI (high-definition multimedia interface) Port
14. USB Port
15. Mini USB Port
16. Lock/Power Button –turns the MaxiPro tool on and off with long press,
or locks the screen with short press
2.1.2 Power Sources
The MaxiPro Display Tablet can receive power from any of the following
sources:
Internal Battery Pack
External Power Supply
Internal Battery Pack
The display tablet can be powered with the internal rechargeable battery,
which if fully charged can provide sufficient power for about 7.5 hours of
continuous operation.
AC/DC Power Supply
The display tablet can be powered from a wall socket using the AC/DC power
adapter. The AC/DC power supply also charges the internal battery pack.
6
2.1.3 Technical Specifications
Table 2- 1 Specifications
Item
Description
Operating System
AndroidTM 4.4.2, KitKat
Processor
Samsung Exynos hexa-core Processor (1.3GHz
Quad-core ARM Cortex-A7 + 1.7GHz Dual-core
ARM Cortex-A15)
Memory
2GB RAM & 64GB On-board Memory
Display
10.1-inch LED screen with 1920x1200 resolution
Connectivity
Wi-Fi (802.11 a/b/g/n/ac)
USB: 2.0
BT v.2.1 + EDR
SD Card (Support up to 32GB)
HDMI
Camera (rear)
8.0 Megapixel, AF with Flashlight
Sensors
Gravity Accelerometer, Ambient Light Sensor
(ALS)
Audio Input/Output
Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jack
Power and Battery
15000 mAh 3.8 V lithium-polymer battery
Charging via 12 V AC/DC power supply with
the temperature between 0°C and 45°C
Input Voltage
12 V (9-24 V)
Power Consumption
6.5 W
Operating Temp.
0 to 50°C (32 to 122°F)
Storage Temp.
-20 to 60°C (-4 to 140°F)
Housing
Strong plastic housing with protective rubber boot
Dimensions (WxHxD)
312mm(12.28")x208mm(8.18")x36mm(1.41")
Weight
NW: 1.48kg (3.26 lb)
7
Item
Description
Protocols
ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line,
Flashing Code, SAE-J1850 VPW, SAE-J1850
PWM, CAN ISO 11898, Highspeed, Middlespeed,
Lowspeed and Singlewire CAN, GM UART, UART
Echo Byte Protocol, Honda Diag-H Protocol, TP
2.0, TP 1.6, SAE J1939, SAE J1708,
Fault-Tolerant CAN
8
2.2 VCI – Wireless Diagnostic Interface
2.2.1 Functional Description
Figure 2- 4 Wireless Diagnostic Interface – for MaxiPro
1. Vehicle Data Connector (DB15-Pin)
2. Power LED – illuminates solid green when powered on
3. Vehicle LED – flashes green when communicating with the vehicle’s
network
4. Error LED – illuminates solid red when serious hardware failure occurs;
also flashes red when performing software/firmware update
5. BT LED – illuminates solid green when connected with the MaxiPro
display tablet through BT communication
6. USB LED – illuminates solid green when the device is properly
connected and communicating with the MaxiPro display tablet via the
USB cable
7. USB Port
Communication
The Wireless Diagnostic Interface supports both BT and USB communication.
It can transmit vehicle data to the MaxiPro Display Tablet with or without a
physical connection. The working range of the transmitter through BT
communication is about 755 feet (about 230 m). A signal lost due to moving
out of range automatically restores itself when the display unit is brought
closer to the VCI unit.
9
2.2.2 Technical Specifications
Item
Description
Communications
BT V.2.1 + EDR
USB 2.0
Wireless Frequency
2.4 GHz
Input Voltage Range
12 VDC
Supply Current
200 mA @ 12 VDC
Operating Temperature
0°C to 50°C (ambient)
Storage Temperature
-20°C to 70°C (ambient)
Dimensions (L x W x H)
147.5 mm (5.80”) x 85.5 mm (3.37”) x 29.0 mm
(1.14”)
Weight
0.215 kg (0.473 lb.)
2.2.3 Power Sources
The Wireless Diagnostic Interface operates on 12-volt vehicle power, which it
receives through the vehicle data connection port. The unit powers on
whenever it is connected to an OBD II/EOBD compliant data link connector
(DLC).
2.3 VCI – J2534 ECU Programming Device
2.3.1 Functional Description
Figure 2- 5 J2534 ECU Programming Device – for MaxiPro MP908P
10
1. DC Power Supply Input Port
2. Vehicle Data Connector
3. Vehicle LED
Flashes green when communicating with the vehicle’s system
IMPORTANT: Do not disconnect the reprogramming device while this status
light is on! If the flash reprogramming procedure is interrupted while the
vehicle’s ECU is blank or only partially programmed, the module may be
unrecoverable.
4. Connection LED
Illuminates solid green when properly connected with the display
tablet via the USB cable
Illuminates solid blue when connected with the display tablet via
wireless (BT) connection
5. Power LED
Illuminates solid green when powered on
Flashes red when system failure occurs
Illuminates amber automatically at power up when the device is
performing self-test procedure
6. USB Port
J2534 Reprogramming Capability
The J2534 ECU Programming Device is a SAE J2534-1 & -2 compliant
PassThru reprogramming interface device. Using the updated OEM software,
it is capable of replacing the existing software/firmware in the Electronic
Control Units (ECU), programming new ECUs and fixing software-controlled
drivability issues and emission issues.
Communication
The J2534 ECU programming device supports BT and USB communications.
It can transmit vehicle data to the MaxiPro display tablet with or without a
physical connection. The working range of the transmitter through BT
communication is 210 feet (about 70 m). A signal lost due to moving out of
range automatically restores itself when the display tablet unit is brought
closer to the VCI unit.
11
2.3.2 Power Sources
The J2534 programming device can receive power from both of the following
sources:
Vehicle Power
AC/DC Power Supply
Vehicle Power
The J2534 programming device operates on 12-volt vehicle power, which it
receives through the vehicle data connection port. The device powers on
whenever it is connected to an OBD II/EOBD compliant data link connector
(DLC). For non OBD II/EOBD compliant vehicles, the device can be powered
from a cigarette lighter or other suitable power port on the test vehicle using
the auxiliary power cable.
AC/DC Power Supply
The J2534 programming device can be powered from a wall socket using the
AC/DC power adapter.
2.3.3 Technical Specifications
Item
Description
Communications
Wireless BT V2.1 + EDR
USB 2.0
Wireless Frequency
Wireless BT V2.1+EDR, 2.4GHz
Input Voltage Range
12 VDC to 24 VDC
Supply Current
170 mA @ 12 VDC
100 mA @ 24 VDC
Operating Temp.
0°C to +60°C (ambient)
Storage Temp.
-65°C to +100°C (ambient)
Dimensions (LxWxH)
149mm (5.87”) x 86mm (3.38”) x 35mm (1.28”)
Weight
0.29 kg (0.64 lb.)
NOTE: For additional information please refer to the accompanied user
manual for the J2534 ECU Programming Device.
12
2.4 Accessories Kit
2.4.1 Main Cable
The VCI device can be powered through the Main Cable when connected to
an OBD II/EOBD compliant vehicle. The Main Cable connects the VCI device
to the vehicle’s data link connector (DLC), through which the VCI device can
transmit vehicle data to the MaxiPro display tablet.
Figure 2- 5 Main Cable – 1.5 m in length
2.4.2 OBD I Adapters
The OBD I adapters are for Non-OBD II vehicles. The adapter used depends
on the type of vehicle being tested. The most common adapters are shown
below (Some adapters are optional, please contact your distributor for details).
Benz-14
Chrysler-16
BMW-20
Kia-20
Nissan-14
GM/Daewoo-12
Honda-3
Fiat-3
13
PSA-2
Benz-38
VW/Audi-2+2
Mitsubishi/Hyund
ai-12+16
2.4.3 Other Accessories
Standard 2.0 USB Cable
Connects the display tablet to the VCI unit.
Mini USB Cable
Connects the display tablet to the PC.
AC/DC External Power Adapter
Connects the display tablet to the external DC power
port for power supply.
Ethernet Serial Cable
Connects the display tablet to the VCI unit (for
MaxiPro Pro only).
Cigarette Lighter
Provides power to the display tablet or the J2534
programming device through connection to the
vehicle’s cigarette lighter receptacle, as some
non-OBD II vehicles cannot provide power via the
DLC connection.
Clipper Cable
Provides power to the display tablet or the J2534
programming device, through connection to the
vehicle’s battery (for MaxiPro Pro only).
Light Fuse x2
A safety device for the cigarette lighter.
14
BMW Ethernet Cable (Optional)
Used for BMW F/G chassis programming and coding
15
Chapter 3 Getting Started
Make sure the MaxiPro Display Tablet has a charged battery or is connected to the DC
power supply (see 2.1.2 Power Sources on page 5).
3.1 Powering Up
Press the Lock/Power button on the top right side of the display tablet to
switch the unit on. The system boots up, and shows the lock screen. Press
and drag the inner ring to the edge of the circle to unlock the screen; the
MaxiPro Job Menu is shown.
Figure 3- 1 Sample MaxiPro Job Menu
1. Application Buttons
2. Locator and Navigation Buttons
3. Status Icons
NOTE: The screen is locked by default when you first turn on the display tablet.
It is recommended to lock the screen to protect information in the system and
reduce battery usage.
Almost all operations on the display tablet are controlled through the touch
screen. The touch screen navigation is menu driven, which allows you to
quickly locate the test procedure, or data that you need, through a series of
choices and questions. Detailed descriptions of the menu structures are found
in the chapters for the various applications.
16
3.1.1 Application Buttons
The Application buttons configure the MaxiPro for the type of operation or
activity to be performed. The table below gives brief descriptions of the
available applications.
Use the stylus pen or your finger tip to select an application from the Job
Menu.
Table 3- 1 Applications
Name
Button
Description
Diagnostics
Configures the unit to operate as a diagnostic
tool. See Diagnostics Operations on page 22 for
details.
Service
Accesses special functions menu. See Service
on page 51 for details.
ADAS
Accesses ADAS introduction page. See ADAS
on page 69 for details.
Remote
Desk
Configures your unit to receive remote support
using the TeamViewer application program. See
Remote Desk Operations on page 95 for details.
Shop
Manager
Allows you to edit and save workshop
information and customer data, as well as
reviewing test vehicle history records. See Shop
Manager Operations on page 82 for details.
Data
Manager
Opens the organization system for saved data
files. See Data Manager Operations on page 64
for details.
VCI
Manager
Establishes and manages BT or wired
connections to the VCI device. See VCI
Manager Operations on page 92 for details.
17
Name
Button
Description
Support
Launches the Support platform which
synchronizes Autel’s on-line service base
station with the MaxiPro tablet. See Support
Operations on page 97 for details.
Academy
The Academy application provides detailed FAQ
about your Autel ID. See Academy on page 99
for details.
Quick Link
Provides associated website bookmarks to
allow quick access to product update, service,
support and other information. See Quick Link
Operations on page 100 for details.
MaxiFix
Launches the MaxiFix platform which provides
the most compatible and abundant repair
techniques and diagnostics database. See
MaxiFix Operations on page 69 for details.
Update
Checks for the latest update available for the
MaxiPro system, and performs updating
procedures. See Update Operations on page 90
for details.
Settings
Allows you to set the MaxiPro system settings,
and to view the general information about the
Display Tablet. See Settings Operations on
page 78 for details.
Function
Viewer
Provides a quick search for supported functions
and/or vehicles. See Function Viewer on page
118 for details.
Digital
Inspection
Configures the unit to operate as a video scope
device by connecting to an Imager head cable
for close vehicle inspections. See Digital
Inspection Operations on page 120 for details.
18
Name
Button
Description
MaxiScope
Configures the unit to operate as an automotive
oscilloscope to perform electrical and electronic
circuit tests and monitor signal activities. See
MaxiScope Operations
on page 101 for details.
3.1.2 Locator and Navigation Buttons
Operations of the Navigation buttons at the bottom of the screen are described
in the table below:
Table 3- 2 Locator and Navigation Buttons
Name
Button
Description
Locator
Indicates the location of the screen. Swipe the
screen left or right to view the previous or next
screen.
Back
Returns to the previous screen.
Android Home
Returns to Android System’s Home screen.
Recent Apps
Displays a list of applications that are currently
working. To open an app, touch it. To remove
an app, swipe it to the right.
Chrome
Launches the Android built-in browser.
Camera
Opens the camera with short press; takes and
saves screenshot image with long press. The
saved files are auto-stored in the Data
Manager application for later reviews. See
Data Manager Operations on page 64 for
details.
Display & Sound
Allows you to adjust the brightness of the
screen and the volume of the audio output.
MaxiPro Home
Returns to MaxiPro Job Menu.
19
Name
Button
Description
VCI
Opens the VCI Manager application. The tick
icon at the bottom right corner indicates the
display tablet is communicating with the VCI
device.
MaxiPro
Shortcut
Returns to the MaxiPro operation interface
from other Android applications. After entering
the interface, the green tick icon displays.
Service
Shortcut
Returns to the Service screen. After entering
the screen, the green tick icon displays.
To use the camera:
1. Tap the Camera button. The camera screen opens.
2. Focus the image to be captured in the view finder.
3. Tap the inner blue circle. The view finder now shows the captured
picture and auto-saves the taken photo.
4. Tap the thumbnail image on the top right corner of the screen to
view the stored image.
5. Tap the Back or Home button to exit the camera application.
Refer to Android documentation for additional information.
3.1.3 System Status Icons
These are the standard status icons of the Android operating system. Your
MaxiPro display tablet is a fully functional Android Pad. Refer to Android
documentation for additional information.
3.2 Powering Down
All vehicle communications must be terminated before shutting down the
20
MaxiPro display tablet. A warning message displays if you attempt to shut
down while the VCI unit is communicating with the vehicle. Forcing a shut
down while communicating may lead to ECM problems on some vehicles. Exit
the Diagnostics application before powering down.
To power down the MaxiPro tablet:
1. Press and hold the Lock/Power Button.
2. Tap OK; the tablet will turn off in a few seconds.
3.2.1 Reboot System
In case of system crash, press and hold the Lock/Power button for 8 seconds
to reboot the system.
3.3 Installing Computer Software
The MaxiPro MP908/MaxiPro MP908P Diagnostic Platform allows you to
realize some of its functions on a computer to enhance capabilities and
improve user experience. To realize these functions on a computer, you need
to install certain software.
To install the MaxiPro Printer driver program
1. Double click on Autel Run.exe item.
2. Click the MaxiPro Printer icon in the MaxiPro PC Suite screen.
3. Select the installation language and the printer driver installation
wizard will load momentarily.
4. Follow the wizard instructions on the screen and Click Next to
continue.
5. Click on Install and the printer driver program will be installed onto
the computer.
6. Click on Finish to complete the whole installation procedure.
NOTE: The MaxiPro Printer runs automatically after the installation.
3.3.1 Printing Operation
This section describes how to receive file from the MaxiPro tablet and perform
21
printing through the computer:
To perform printing through the computer
1. Install the MaxiPro Printer driver to the computer.
2. Make sure the display tablet is connected to the computer network,
either via WiFi or LAN, before printing. See 8.1.3 Printing Setting on
page 79 for more information.
3. Run the MaxiPro Printer program on the computer to open up the
printer interface.
4. Click Test Print to make sure the printer is working successfully.
5. Tap the Print button on the toolbar displayed in various applications of
the MaxiPro system. A temporary file will be created and sent to the
computer for printing.
6. The MaxiPro Printer will print the received file automatically when the
Auto Print option is checked.
If you need to print the document later, click the Open PDF file and
select the document, and double click the Print on the MaxiPro
Printer interface to start the printing.
NOTE: Make sure the computer installed with the Printing Services program is
connected to a printer.
22
Chapter 4 Diagnostics Operations
By establishing a data link to the electronic control systems of the vehicle being
serviced through the VCI device, the Diagnostics application allows you to retrieve
diagnostic information, view live data parameters, and perform active tests. The
Diagnostics application can access the electronic control module (ECM) for various
vehicle control systems, such as engine, transmission, antilock brake system (ABS),
airbag system (SRS) and more.
4.1 Establishing Vehicle Communication
The Diagnostics operations require connecting the MaxiPro MP908/MaxiPro
MP908P Diagnostic Platform to the test vehicle through the VCI device using
the main cable, and test adapters (for non-OBD II vehicles). To establish
proper vehicle communication to the MaxiPro display tablet, you need to
perform the following steps:
1. Connect the VCI device to the vehicle’s DLC for both communication and
power source.
2. Connect the VCI device to the MaxiPro display tablet via BT pairing, or
USB connection.
3. When these are done, check the VCI navigation button at the bottom bar
on the screen, if the button displays a green tick icon at the lower right
corner, the MaxiPro MP908/MaxiPro MP908P diagnostic platform is
ready to start vehicle diagnosis.
4.1.1 Vehicle Connection
The method used to connect the VCI device to a vehicle’s DLC depends on
the vehicle’s configuration as follows:
A vehicle equipped with an On-board Diagnostics Two (OBD II) management
system supplies both communication and 12-volt power through a
standardized J-1962 DLC.
A vehicle not equipped with an OBD II management system supplies
communication through a DLC connection, and in some cases supplies
12-volt power through the cigarette lighter receptacle or a connection to
the vehicle battery.
23
OBD II Vehicle Connection
This type of connection only requires the main cable without any additional
adapter.
To connect to an OBD II vehicle
1. Connect the main cable’s female adapter to the Vehicle Data
Connector on the VCI device, and tighten the captive screws.
2. Connect the cable’s 16-pin male adapter to the vehicle’s DLC,
which is generally located under the vehicle dash.
NOTE: The vehicle’s DLC is not always located under the dash; refer to the
user manual of the test vehicle for additional connection information.
Non-OBD II Vehicle Connection
This type of connection requires both the main cable and a required OBD I
adapter for the specific vehicle being serviced.
There are three possible conditions for Non-OBD II vehicle connection:
DLC connection supplies both communication and power.
DLC connection supplies communication and power is to be supplied via the
cigarette lighter connection.
DLC connection supplies communication and power is to be supplied via
connection to the vehicle battery.
To connect to a Non-OBD II Vehicle
1. Connect the main cable’s female adapter to the Vehicle Data
Connector on the VCI device, and tighten the captive screws.
2. Locate the required OBD I adapter and connect its 16-pin jack to
the main cable’s male adapter.
3. Connect the attached OBD I adapter to the vehicle’s DLC.
NOTE: Some adapters may have more than one adapter or may have test
leads instead of an adapter. Whatever the case, make the proper connection
to the vehicle’s DLC as required.
To connect the cigarette lighter
1. Plug the DC power connector of the cigarette lighter into the DC
24
power supply input port on the device.
2. Connect the male connector of the cigarette lighter into the vehicle’s
cigarette lighter receptacle.
To connect the clipper cable –for MaxiPro MP908P only
1. Connect the tubular plug of the clipper cable to the male connector
of the cigarette lighter.
Figure 4- 1 Connection between Cigarette Lighter and Clipper Cable
2. Plug the DC power connector of the cigarette lighter into the DC
power supply input port of the J2534 programming device.
3. Connect the clipper cable to the vehicle’s battery.
NOTE: After the VCI device is successfully connected to the vehicle, the
Power LED on the device illuminates, and a brief beep sound will be heard.
4.1.2 VCI Connection
After the VCI device is properly connected to the vehicle, the Power LED on
the VCI device illuminates solid green light, and is ready to establish
communication with the MaxiPro display tablet.
The Wireless Diagnostic Interface, which comes with the MaxiPro tool kit,
supports 2 communication methods with the MaxiPro display tablet: BT and
USB.
The J2534 ECU Programming Device, which comes with the MaxiPro Pro tool
kit, supports 2 communication methods with the MaxiPro display tablet: BT,
and USB.
Pairing Up via BT
Among all methods, BT pairing is recommended as the first choice for the
25
communication between the MaxiPro display tablet and the VCI device. The
working range for BT communication is about 210 feet (70 m); this means you
can perform vehicle diagnosis freely around the workshop with greater
convenience.
If you use more than one VCI device to connect to the test vehicles when
customers are many, you can perform vehicle diagnosis on various vehicles
conveniently, by pairing the MaxiPro display tablet separately to each of the
VCI devices connected to the different test vehicles, via BT, without the need
to repeat the plugging and unplugging procedure, which is unavoidable
through traditional wired connection, thus saves you more time and provides
more efficiency.
To pair up the MaxiPro display tablet with the VCI device via BT
1. If not already done, power up the MaxiPro display tablet.
2. Select the VCI Manager application from the MaxiPro Job Menu.
3. When the VCI Manager application is opened, the device
automatically starts scanning for available VCI devices around for
BT pairing. The found devices are listed in the Setting section on
the right side of the screen.
NOTE: If no VCI device is found, this may indicate that the signal strength of
the transmitter is too weak to be detected. In this case try to get closer to the
device, or reposition the VCI device, and remove all possible objects that
causes signal interference. When these are done, tap the Scan button at the
top right corner to start searching again.
4. Depending on the VCI type you use, the device name may display
as Maxi suffixed with a serial number. Select the required device for
pairing.
5. When paring is successfully done, the connection status displayed
to the right of the device name is shown as Paired.
6. Wait for a few seconds, and the VCI button on the system
Navigation bar at the bottom of the screen shall display a green tick
icon, indicating the display tablet is connected to the VCI device,
and is ready to perform vehicle diagnosis.
Refer to 11.1 BT Pairing on page 93 for additional information.
USB Cable Connection
The USB cable connection is a simple and quick way to establish
26
communication between the MaxiPro display tablet and the VCI device. After
properly connecting the USB cable from the tablet to the VCI device, the VCI
navigation button at the bottom bar of the screen shows a green tick icon in a
few seconds, and the USB LED on the VCI device illuminates solid green light,
indicating the connection between the devices is successful.
The MaxiPro diagnostic platform is now ready to perform vehicle diagnosis.
NOTE: Since the USB connection provides the most stable and fastest
communication, it is highly recommended to apply this communication method
when operating ECU programming or coding. When all the two
communication methods are applied at the same time, the MaxiPro system
will use the USB communication as the default priority.
4.1.3 No Communication Message
A. If the MaxiPro Display Tablet is not connected to the VCI device, an
“Error” message displays. An “Error” message indicates the display
tablet is not communicating with the VCI device, and so cannot gain
access to the vehicle control module. In this case, you need to do the
following check-ups:
Check if the VCI device is powered on.
In case of wireless connection, check if the network is configured
correctly, or if the right device has been paired.
If during the diagnosis process, the communication is suddenly
interrupted due to the loss of signal, check if there is any object that
causes signal interruption.
Check if the VCI device is properly positioned. It is recommended to put
the VCI device with the front side up.
Try standing closer to the VCI device to obtain more stable signals, and
faster communication speed.
In case of wired connection, check the cable connection between the
display tablet and the VCI device.
Check if the green LED on the VCI device is illuminated for BT or USB.
27
Check if the Error LED on the VCI device is on, this may indicate there
is a communication error between the devices, in this case try
re-establishing the connection again; if this does not work, there
may be a hardware problem with the device, in this case contact for
technical support.
B. If the VCI device is unable to establish a communication link, a prompt
message displays with check instructions. The following conditions are
the possible causes for this massage to display:
The VCI device is unable to establish a communication link with the
vehicle.
You’ve selected a system for testing that the vehicle is not equipped
with.
There is a loose connection.
There is a blown vehicle fuse.
There is a wiring fault on the vehicle, or the data cable or adapter.
There is a circuit fault in the data cable or adapter.
Incorrect vehicle identification was entered.
4.2 Getting Started
Prior to first use of the Diagnostics application, the VCI device must be
synchronized with the MaxiPro Display Tablet to establish a communication
link. See VCI Manager Operations on page 92.
4.2.1 Vehicle Menu Layout
When the VCI device is properly connected to the vehicle, and paired to the
MaxiPro Display Tablet, the platform is ready to start vehicle diagnosis. Tap on
the Diagnostics application button on the MaxiPro Job Menu, the screen then
opens the Vehicle Menu.
28
Figure 4- 2 Sample Vehicle Menu Screen
1. Top Toolbar Buttons
2. Manufacturer Buttons
Top toolbar Buttons
The operations of the Toolbar buttons at the top of the screen are listed and
described in the table below:
Table 4- 1 Top Toolbar Buttons
Name
Button
Description
Home
Returns to the MaxiPro Job Menu.
VIN Scan
Touching this button opens a dropdown list; tap
Auto Detect for auto VIN detection; tap Manual
Input to enter VIN manually.
All
Displays all the vehicle makes in the vehicle
menu.
History
Displays the stored test vehicle history records.
This option provides you direct access to the
previously tested vehicle recorded during
previous test sessions. See 9.1 Vehicle History
on page 83.
USA
Displays the USA vehicle menu.
29
Name
Button
Description
Europe
Displays the European vehicle menu.
Asia
Displays the Asian vehicle menu.
China
Displays the Chinese vehicle menu.
Search
Touching this button opens the virtual keyboard,
allowing you to manually enter the specific
vehicle make required.
Manufacturer Buttons
The Manufacturer buttons display the various vehicle logos and the brand
names. Select the required manufacturer button after the VCI device is
properly connected to the test vehicle to start a diagnostic session.
The small envelop icon displays beside the vehicle brand name is tappable,
touching which displays an attached PDF file, showing relevant information,
such as vehicle coverage and function list etc for the corresponding vehicle
make.
4.3 Vehicle Identification
The MaxiPro diagnostic system supports four methods for Vehicle
Identification.
1. Auto VIN Scan
2. Manual VIN Input
3. Manual Vehicle Selection
4. OBD Direct Entry
4.3.1 Auto VIN Scan
The MaxiPro diagnostic system features the latest VIN-based Auto VIN Scan
function to identify CAN vehicles in just one touch, which allows the technician
to quickly detect vehicles, scan all the diagnosable ECUs on every vehicle and
run diagnostics on the selected system.
To perform Auto VIN Scan
30
1. Tap the Diagnostics application button from the MaxiPro Job Menu.
The Vehicle Menu displays (Figure 4- 2).
2. Tap the VIN Scan button on the top toolbar.
3. Select Auto Detect. The tester starts VIN scanning on the vehicle’s
ECU. Once the test vehicle is successfully identified, the system will
guide you to the Vehicle Diagnostics screen directly.
Figure 4- 3 Sample Vehicle Diagnostics Screen
In some cases when users have selected the vehicle brand instead of
performing Auto VIN Scan in the first place, the system still provides an option
for vehicle VIN scan.
Figure 4- 4 Sample Diagnostic Type Selection Screen
Select Automatic Selection and the system will proceed to acquire VIN
information automatically or allow users to input the VIN manually.
31
4.3.2 Manual VIN Input
For some vehicles that do not support the Auto VIN Scan function, the
MaxiPro diagnostic system allows you to enter the vehicle VIN manually, or
simply take a photo of the VIN sticker for quick vehicle identification.
To perform Manual VIN Input
1. Tap the Diagnostics application button from the MaxiPro Job Menu.
The Vehicle Menu displays (Figure 4- 2).
2. Tap the VIN Scan button on the top toolbar.
3. Select Manual Input.
4. Tap the input box and enter the correct VIN.
Figure 4- 5 Manual VIN Input
5. Tap Done. The vehicle will be identified in a few seconds, and once
the matching is successful, the system will guide you to the Vehicle
Diagnostics screen directly (Figure 4- 3).
6. Tap Cancel to exit Manual Input.
4.3.3 Manual Vehicle Selection
When the vehicle’s VIN is not automatically retrievable through the vehicle's
ECU, or the specific VIN is unknown, you can choose to select the vehicle
manually.
32
Step-by-step Vehicle Selection
This mode of vehicle selection is menu driven; you simply follow the screen
prompts and make a series of choices. Each selection you make advances
you to the next screen. A Back button at the lower right corner of the screen
returns you to the previous screen. Exact procedures may vary somewhat by
various vehicles being serviced.
4.3.4 Alternative Vehicle Identification
Occasionally, you may identify a test vehicle that the tester does not recognize;
the database does not support, or has some unique characteristics that
prevent it from communicating with the tester through the normal channels. In
these instances, you are provided with the OBD direct entry, through which
you can perform generic OBD II or EOBD tests. See 4.9 Generic OBD II
Operations on page 57 for additional information.
4.4 Navigation
This section describes how to navigate the Diagnostics interface and select
test options.
4.4.1 Diagnostics Screen Layout
The Diagnostics screens typically include four sections (Figure 4- 6).
Figure 4- 6 Sample Diagnostics Screen
1. Diagnostics Toolbar
33
2. Status Information Bar
3. Main Section
4. Functional Buttons
Diagnostics Toolbar
The Diagnostics Toolbar contains a number of buttons that allow you to print or
save the displayed data and make other controls. The table below provides a
brief description for the operations of the Diagnostics toolbar buttons:
Table 4- 2 Diagnostics Toolbar Buttons
Name
Button
Description
Home
Returns to the MaxiPro Job Menu.
Vehicle
Swap
Touching this button allows you to exit the
diagnostic session of the currently identified test
vehicle, and returns you to the vehicle menu screen
to select another vehicle for testing.
Settings
Opens the setting screen. See Settings Operations
on page 78.
Print
Saves and prints a copy of the displayed data. See
Printing Operation for additional information on
page 20.
Help
Provides instructions or tips for operations of
various diagnostic functions.
34
Name
Button
Description
Save
Tapping this button opens a submenu, on which
there are 3 options available to save the displayed
data.
Tap Save This Page to take a screenshot
Tap Save All Data to save a PDF file (mostly
used to save data that cover more than 1
page)
Tap Start Saving to record a video clip (only
available for recording Live Data or special
graph data)
All saved data are stored in the Data Manager
application for later reviews. See Data Manager
Operations on page 64.
Data
Logging
Records the communication data and ECU
information of the test vehicle. The saved data can
be reported and sent to the technical center via the
internet.
You can go to the Support application to follow up
the processing progress, see Data Logging on 97
page for detailed information.
To print data in Diagnostics
1. Tap the Diagnostics application button from the MaxiPro Job Menu.
The Print button on the diagnostic toolbar is available throughout
the whole Diagnostics operations.
2. Tap Print and a drop-down menu appears.
a) Print This Page – prints a screenshot copy of the current
screen
b) Print All Page – prints a PDF copy of all displayed data
3. A temporary file will be created and sent to the computer for
printing.
4. When the file is transferred successfully, a confirmation message
displays.
NOTE: Make sure the display tablet is connected to the computer network,
either via WiFi or LAN, before printing. For more instructions on printing, see
35
Printing Operation on page 20 for details.
To submit Data Logging reports in Diagnostics
1. Tap the Diagnostics application button from the MaxiPro Job Menu.
The Data Logging button on the diagnostic toolbar is available
throughout the whole Diagnostics operations.
2. Tap the Data Logging button. The button displays blue during the
active recording process.
3. Tap the Data Logging button again to finish recording. A
submission form will display to let you fill in the report information.
4. Tap the Send button to submit the report form via the internet, a
confirmation message displays when sending is successful.
Status Information Bar
The Status Information Bar at the top of the Main Section displays the
following items:
1. Menu Title – indicates the menu subject of the Main Section
2. VCI Icon – indicates the communication status between the tablet and
the VCI device
3. Battery Icon – indicates the battery status of the VEHICLE
Main Section
The Main Section of the screen varies depending on the stage of operations.
The Main Section can show vehicle identification selections, the main menu,
test data, messages, instructions and other diagnostic information.
Functional Buttons
The displayed Functional Buttons at this section of the screen varies
depending on the stage of operations. They can be used to navigate, save or
clear the diagnostic data, exit scanning as well as make other functional
controls. The functions of these buttons will be introduced respectively in the
following sections of the corresponding test operations.
4.4.2 Screen Messages
Screen messages appear when additional input is needed before proceeding.
There are mainly three types of on-screen messages as to their purposes:
36
Confirmation, Warning, and Error.
Confirmation Messages
This type of messages usually displays as an “Information” screen, which
informs you when you are about to perform an action that cannot be reversed
or when an action has been initiated and your confirmation is needed to
continue.
When a user-response is not required to continue, the message displays
briefly before automatically disappearing.
Warning Messages
This type of messages informs you when completing the selected action may
result in an irreversible change or loss of data. The typical example for this is
the “Erase Codes” message.
Error Messages
Error messages inform you when a system or procedural error has occurred.
Examples of possible errors include a disconnected cable or communication
interruption due to certain reasons.
4.4.3 Making Selections
The Diagnostics application is a menu driven program that presents a series
of choices one at a time. As you select from a menu, the next menu in the
series displays. Each selection narrows the focus and leads to the desired test.
Use your fingertip or the stylus pen to make menu selections.
4.5 Main Menu
The Diagnostics application allows you to establish a data link to the electronic
control system of the test vehicle via the VCI device for vehicle diagnosis,
service or programming. You can operate functional tests, retrieve vehicle
diagnostic information such as trouble codes, event codes and live data, and
perform ECU reprogramming, for various vehicle control systems, such as
engine, transmission, ABS and more.
The Vehicle Diagnostics screen has three main options:
1. Diagnosis – a comprehensive section which includes all available
functions: reading, clearing, saving and printing diagnostic information,
as well as performing active tests and special functions
37
2. Service – a separate section designed to perform vehicle scheduled
service and maintenance, such as to reset the service lights and perform
calibration for various systems
3. Programming/Coding – a separate section designed for quick access
to ECU reprogramming operations
After a section is selected and the tablet establishes communication with the
vehicle via the VCI device, the corresponding function menu or selection
menu displays.
4.6 Diagnosis
There are two options available when accessing the Diagnosis section:
1. Auto Scan – starts auto scanning for all the available systems on the
vehicle
2. Control Units – displays a selection menu of all available control units of
the test vehicle
Auto Scan
The Auto Scan function performs a comprehensive scanning over all the
systems on the vehicle’s ECU in order to locate fault systems and retrieve
Figure4- 7 Sample Auto Scan Operation Screen
38
DTCs. The sample operation interface of Auto Scan displays as below:Figure
1. Navigation Bar
2. Main Section
3. Functional Buttons
Navigation Bar
1. List Tab – displays the scanned data in list format
2. Progress Bar – indicates the test progress
Main Section
A. List Tab
Column 1 – displays the system numbers
Column 2 – displays the scanned systems
Column 3 – displays the diagnostic marks indicating different conditions
of the test result:
-!-: Indicates that the scanned system may not support the code reading
function, or there is a communication error between the tester and the
control system.
-?-: Indicates that the vehicle control system has been detected, but the
tester cannot accurately locate it.
Fault | #: Indicates there is/are detected fault code(s) present; “#”
indicates the number of the detected faults.
Pass | No Fault: Indicates the system has passed the scanning
process and no fault has been detected.
Functional Buttons
The table below provides a brief description of the Functional Buttons’
operations in Auto Scan:
Table 4- 3 Functional Buttons in Auto Scan
Name
Description
ESC
Returns to the previous screen or exit Auto Scan.
39
Name
Description
Pause
Suspends scanning and changes to show the Continue
button.
OK
Confirms the test result, and continues to the system
diagnosis after selecting the required system by tapping
the item in the Main Section.
Quick Erase
Deletes codes. A warning message screen will display
to inform you of possible data loss when this function is
selected.
Report
Displays the diagnostic data in the report form.
Control Units
This option allows you to manually locate a required control system for testing
through a series of choices. You simply follow the menu driven procedure, and
make proper selection each time; the program will guide you to the diagnostic
function menu after a few choices you’ve made.
Figure 4- 8 Sample Function Menu Screen
The Function Menu options vary slightly for different vehicles. The function
menu may include:
ECU Information – provides the retrieved ECU information in detail.
Selecting opens an information screen.
Read Codes – displays detailed information of DTC records retrieved from
the vehicle control module.
40
Erase Codes – erases DTC records and other data from the ECM.
Live Data – retrieves and displays live data and parameters from the
vehicle’s ECU.
Active Test – provides specific subsystem and component tests. This
selection may appear as Actuators,Actuator Test, or Function Tests,
etc., and the tests options vary depending on the manufacturer and
model.
Special Functions – provides component adaptation or variant coding
functions for custom configurations, and also allows you to reprogram
adaptive values for certain components after making repairs. Depending
on the test vehicle, this selection may sometimes appear as Control
Unit Adaptations,Variant Coding,Configuration or something similar.
NOTE: With the diagnostic toolbar on top of the screen throughout the whole
diagnostic procedures, you are allowed to make various controls of the
diagnostic information at anytime, such as printing and saving the displayed
data, get help information, or perform data logging, etc.
To perform a diagnostic function
1. Establish communication with the test vehicle via the VCI device.
2. Identify the test vehicle by selecting from the menu options.
3. Select the Diagnosis section.
4. Locate the required system for testing by Auto Scan or through
menu driven selections in Control Units.
5. Select the desired test from the Function Menu.
4.6.1 ECU Information
This function retrieves and displays the specific information for the tested
control unit, including unit type, version numbers and other specifications. The
sample ECU Information screen displays as below:
41
Figure 4- 9 Sample ECU Information Screen
1. Diagnostics Toolbar Buttons – see Table 4- 2 Diagnostics Toolbar
Buttons on page 33 for detailed descriptions of the operations for each
button.
2. Main Section – the left column displays the item names; the right
column shows the specifications or descriptions.
3. Functional Button – in this case, only a Back (or sometimes an ESC)
button is available; tap it to exit after viewing.
4.6.2 Read Codes
This function retrieves and displays the DTCs from the vehicle’s control
system. The Read Codes screen varies for each vehicle being tested, on
some vehicles, freeze frame data can also be retrieved for viewing. The
sample Read Codes screen displays as below:
42
Figure 4- 10 Sample Read Codes Screen
1. Diagnostics Toolbar Buttons – see Table 4- 2 Diagnostics Toolbar
Buttons on page 33 for detailed descriptions of the operations for each
button.
2. Main Section
Code Column – displays the retrieved codes from the vehicle.
Status Column – indicates the status of the retrieved codes.
Description Column – detailed descriptions for the retrieved codes.
Snowflake Icon – only displays when freeze frame data is available for
viewing; Selecting displays a data screen, which looks very similar
to the Read Codes interface, therefore same operation method may
be applied.
3. Functional Button – in this case, only a Back (or sometimes an ESC)
button is available; tap it to return to the previous screen or exit the
function.
4.6.3 Erase Codes
After reading the retrieved codes from the vehicle and certain repairs have
been carried out, you can decide to erase the codes from the vehicle using
this function. Before performing this function, make sure the vehicle’s ignition
key is in the ON (RUN) position with the engine off.
43
To erase codes
1. Tap Erase Codes from the Function Menu.
2. A warning message displays to inform you of data loss when this
function is applied.
a) Tap Yes to continue. A confirming screen displays when the
operation is successfully done.
b) Tap No to exit.
3. Tap ESC on the confirming screen to exit Erase Codes.
4. Check the Read Codes function again to ensure the operation is
successful.
4.6.4 Live Data
When this function is selected, the screen displays the data list for the
selected module. The items available for any control module vary from one
vehicle to another. The parameters display in the order that they are
transmitted by the ECM, so expect variation between vehicles.
Gesture scrolling allows you to quickly move through the data list. Simply
touch the screen and drag your finger up or down to reposition the parameters
being displayed if the data covers more than one screen. The figure below
shows a typical Live Data screen:
1. Diagnostics Toolbar Buttons – taps the drop-down button at the top
Figure 4- 11 Sample Live Data Screen
44
center of the screen displays the toolbar buttons.
2. Main Section
Name Column – this column displays the parameter names.
a) Check Box – taps the check box at the left side of the
parameter name to make selection of an item. Tap the check
box again to deselect the item.
b) Drop-down Button – tapping the drop-down button at the
right side of the parameter name opens a submenu, which
provides various choices for data display mode.
Value Column – displays the values of the parameter items.
Range Column – displays the minimum and the maximum limit value.
Unit Column – displays the unit for the parameter values.
To change the Unit mode, tap the Setting button on the top toolbar
and select a required mode. See 8.1.1 Unit on page 78 for more
information.
3. Display Mode
There are 4 types of display modes available for data viewing, allowing
you to view various types of parameters in the most suitable way for
better data check-ups.
Tapping the drop-down button on the right side of the parameter name
opens a submenu. There are 4 buttons to configure the data display
mode, plus one Help button on the right, tappable when additional
information is available for your reference.
Each parameter item displays the selected mode independently.
Analog Gauge Mode – displays the parameters in form of an analog
meter graph
Text Mode – this is the default mode which displays the parameters in
texts and shows in list format.
NOTE: Reading of status parameters, such as a switch reading, which
are mostly in word form, like ON, OFF, ACTIVE, and ABORT, etc., can
only be displayed in Text Mode. Whereas reading of value parameters,
such as a sensor reading, can be displayed in text mode and other graph
modes.
45
Waveform Graph Mode – displays the parameters in waveform graphs
When displaying this mode, three control buttons will appear on the right
side of the parameter item, allowing you to manipulate the display status.
Text Button – resumes Text Display Mode
Scale Button – changes the scale values, which are displayed below
the waveform graph. There are 4 scales available: x1, x2, x4 and
x8.
Zoom-in Button – taps once to display the selected data graph in full
screen
Digital Gauge Mode – displays the parameters in form of a digital gauge
graph
Full Screen Display – this option is only available in the waveform graph
mode, and mostly used in Graph Merge status for data comparison.
There are three control buttons available on the top right side of the
screen under this mode.
Edit Button – tapping this button opens an edit window, on which you
can set the waveform color and the line thickness displayed for the
selected parameter item.
Scale Button – changes the scale values, which are displayed below
the waveform graph. There are 4 scales available: x1, x2, x4 and
x8.
Zoom-out Button – exits full screen display.
To edit the waveform color and line thickness in a data graph
1. Select 1 to 3 parameter items to display in Waveform Graph mode.
2. Tap the Zoom-in Button on the right to display the data graph in
full screen.
3. Tap the Edit Button, an edit window appears.
4. Select a parameter item on the left column.
5. Select a desired sample color from the second column.
6. Select a desired sample line thickness from the right column.
7. Repeat step 4-7 to edit the waveform for each parameter item.
8. Tap Done to save the setting and exit, or tap Cancel to exit without
46
saving.
4. Functional Buttons
The operations of all the available functional buttons on Live Data screen
are described below:
Back – returns you to the previous screen or exit the function.
Record – starts recording the retrieved live data; the recorded data is
then stored as a video clip in the Data Manager application for future
reviews. This function could be triggered automatically at preset
threshold value or manually as you choose, and the triggering mode and
record duration can be configured in the Setting mode of Live Data.
Freeze – displays the retrieved data in freeze mode.
Previous Frame – moves to the previous frame in the freeze data.
Next Frame – moves to the next frame in the freeze data.
Resume – this button appears when the Record or Freeze function is
applied. Tapping this button stops data recording, or exit freeze data
mode, and resumes normal data display mode.
Flag – this button appears when the Record function is applied. Tapping
this button sets flags for the recorded data at points wherever you
choose, when playing back the recorded video clip later in Data Manager,
the preset flag will enable a popup to allow input of text to take notes.
Clear Data – tapping which clears all previously retrieved parameter
values at a cutting point whenever you choose.
To Top – moves a selected data item to the top of the list.
Graph Merge – taps this button to merge selected data graphs (for
Waveform Graph Mode only). This function is very useful when making
comparison for different parameters.
NOTE: This mode supports Graph Merge for 2 to 3 parameter items only,
so select no less than 2 or more than 3 items each time when making
graph merge.
To cancel Graph Merge mode, tap the drop-down button on the
right side of the parameter name, and select a data display mode.
Show Selected/Show All – taps this option to exchange between the
two options; one displays the selected parameter items, the other
47
displays all the available items.
Setting – tapping this button opens a setting screen, which allows you to
set the trigger mode, recording duration, and various threshold values for
data recording, and make other controls.
Figure 4- 12 Sample Setting Mode in Live Data
There are 4 navigation buttons on top of the Setting mode screen.
Range Button – displays the configuration screen on which you can
set the threshold values, an upper limit and a lower limit, for
triggering the buzzer alarm.This function is only applied to the
Waveform Graph display mode.
a) MIN – tapping which opens a virtual keyboard, allows you to
enter the required lower limit value
b) MAX – tapping which opens a virtual keyboard, allows you to
enter the required upper limit value
c) Buzzer Alarm – switches the alarm on and off. The alarm
function makes a beep sound as a reminder whenever the
data reading reaches the preset minimum or maximum point
To set threshold limits for the parameter values
1. Tap the Setting functional button at the bottom of the Live
Data screen.
2. Tap the Range navigation button.
3. Select a parameter item on the left column, or enter the item
48
name in the Search bar.
4. Tap on the right side of the MIN button, and enter the required
minimum value.
5. Tap on the right side of the MAX button, and enter the required
maximum value.
6. Tap the ON/OFF button on the right side of the Buzzer Alarm
button to turn it on or off.
7. Tap Done to save the setting and return to the Live Data
screen; or tap Cancel to exit without saving.
If the threshold limits are successfully set, two horizontal lines now
appear on each of the data graphs (when Waveform Graph Mode is
applied) to indicate the alarming point. The threshold lines are shown in
different colors than the waveform of the parameters for distinction.
Record Button – displays the configuration screen for Record Setting,
on which you can set the trigger type, duration and trigger point for
the data recording function.
a) Trigger Type – sets the trigger mode for data recording,
mainly of two kinds: Manual and Auto. There are four options
available:
1) Manual – allows you to manually start and stop data
recording
2) DTC – auto triggers data recording when any DTC is
detected
3) DTC Check Mode – auto triggers data recording when
certain pre-selected DTC types are detected
4) Parameter – auto triggers data recording when any
parameter value reaches the preset threshold
b) Duration – sets the recording time (for Auto trigger mode only)
c) Trigger Point – reserves a relative percentage of a record
length before the data recording start point for reference (for
Auto trigger mode only)
To perform setting for live data record
1. Tap the Setting functional button at the bottom of the Live
49
Data screen.
2. Tap the Record navigation button.
3. Tap the ○
>
button on the right of Trigger Type bar and select
the required trigger mode.
4. Tap the ○
>
button on the right of Duration bar and select a
length of time.
5. Tap the ○
>
button on the right of Trigger Point bar and
select a relative percentage of a record length to be reserved
before the data recording start point.
6. Tap Done to save the setting and return to the Live Data
screen; or tap Cancel to cancel without saving and exit
Setting.
Done Button – confirms and saves the setting, and returns you to the
Live Data screen.
Cancel Button – cancels the setting operation, and returns you to the
Live Data screen.
4.6.5 Active Test
The Active Test function is used to access vehicle-specific subsystem and
component tests. Available test vary by manufacturer, year, and model, and
only the available tests display in the menu.
During an active test, the tester outputs commands to the ECU in order to
drive the actuators. This test determines the integrity of the system or parts by
reading the engine ECU data, or by monitoring the operation of the actuators,
such as switching a solenoid, relay, or switch, between two operating states.
Selecting Active Test opens a menu of test options that varies by make and
model. Selecting a menu option activates the test. Follow all screen
instructions while performing tests. How and what information is presented on
the screen varies according to the type of test being performed. Some toggle
and variable control tests display Active Test Controls at the top of the screen
with data stream information below, or vice versa.
50
Figure 4- 13 Sample Active Test Screen
The functional buttons at the lower right corner of the Active Test screen
manipulate the test signals. The operational instructions are displayed on the
main section of the test screen. Simply follow the on-screen instructions and
make appropriate selections to complete the tests. Each time when an
operation is successfully executed, message such as “Command Finished”,
“Activation Successful”, or something similar displays.
Tap the ESC functional button to exit the test when finished.
4.6.6 Special Functions
These functions perform various component adaptations, allowing you to
recalibrate or configure certain components after making repairs or
replacement.
The main section of the Adaptation Operation screen displays a list of
operational and vehicle status information, which mainly consists of four parts:
1. The first part in the top line shows the description of the operation being
performed, and the execution status is displayed on the right, such as
Completed, or Activated, etc.
2. The second part shows the preconditions or requirements for executing
the operation being selected.
51
3. The third part displays the current conditions of the vehicle control
module being learned for comparison to the preconditions suggested by
the second part. If the current condition of the control module is out of the
suggested limit value, then it must be adjusted to meet the requirement.
4. The last part displays the instruction of how to use the functional button
at the lower right corner of the screen to manipulate the teach-in
operations.
Read the information carefully and check the vehicle condition accordingly,
when you are sure that the vehicle is ready to perform the adaptation, simply
follow the instruction provided to make appropriate selections. When the
operation is done, an execution status message such as Completed, Finished
or Successful, displays.
Tap the ESC button to exit the function.
4.7 Service
The Service section is specially designed to provide you with quick access to
the vehicle systems for various scheduled service and maintenance
performances. The typical service operation screen is a series of menu driven
executive commands. By following the on-screen instructions to select
appropriate execution options, enter correct values or data, and perform
necessary actions, the system will guide you through the complete
performance for various service operations.
The most commonly performed service functions include:
Oil Reset Service
EPB Service
BMS Service
SAS Service
DPF Service
TPMS Service
IMMO Service
After entering each special function, the displayed screen consists of two
applications: Diagnosis and Hot Functions. The Diagnosis is for you to
read/clear data since this is necessary after some special functions. Hot
Functions consists of sub functions of the selected special function.
52
4.7.1 Function Descriptions
This section describes the main functions for vehicle service:
Oil Reset Service
This function allows you to perform reset for the Engine Oil Life system, which
calculates an optimal oil life change interval depend on the vehicle driving
conditions and climate. The Oil Life Reminder must be reset every time the oil
is changed, so the system can calculate when the next oil change is required.
IMPORTANT
Always reset the engine oil life to 100% after every oil change.
NOTE
All required work must be carried out before the service indicators are reset.
Failure to do so may result in incorrect service values and cause DTCs to be
stored by the relevant control module.
Tire Pressure Monitor System (TPMS) Service
This function allows you to quickly look up the tire sensor IDs from the
vehicle’s ECU, as well as to perform TPMS programming and reset
procedures after tire sensors are replaced.
NOTE
During this application the wheel unit 8 digit identifications will need to be
entered using the screen displayed.
The sensor identifications can be accessed by reading directly from the wheel
unit or by using the identification reading tool.
On completion, a specific road test will be required followed by the tire
pressure monitor system application.
Electric Parking Brake (EPB) Service
This function has a multitude of usages to maintain the electronic braking
system safely and effectively. The applications include deactivating and
activating the brake control system, assisting with brake fluid control, opening
and closing brake pads, and setting brakes after disc or pad replacement, etc.
53
EPB Safety
It may be dangerous to perform Electronic Parking Brake (EPB) system
maintenance, so before you begin the service work, please keep these rules in
mind.
Ensure that you are fully familiar with the braking system and its operation
before commencing any work.
The EPB control system may be required to be deactivated before
carrying out any maintenance/diagnostic work on the brake system. This
can be done from the tool menu.
Only carry out maintenance work when the vehicle is stationary and on
level ground.
Ensure that the EPB control system is reactivated after the maintenance
work has been completed.
NOTE
Autel accepts no responsibility for any accident or injury arising from the
maintenance of the Electronic Parking Brake system.
ABS/SRS Services
This function allows you to perform various bi-directional tests to check the
operating conditions of both the Anti-lock Braking System and the
Supplemental Restraint System, such as Automated Bleeding, Pump Motor
Test, and checking Module information, etc.
Steering Angle Sensor (SAS) Service
This service function allow you to perform calibration for the Steering Angle
Sensor, which permanently stores the current steering wheel position as the
straight-ahead position in the steering angle sensor EEPROM. On successful
completion of the calibration, the steering angle sensor fault memory is
automatically cleared.
Calibration must always be carried out after the following operations:
Steering wheel replacement
Steering angle sensor replacement
Any maintenance that involves opening the connector hub from the
steering angle sensor to the column
Any maintenance or repair work on the steering linkage, steering gear or
54
other related mechanism
Wheel alignment or wheel track adjustment
Accident repairs where damage to the steering angle sensor or assembly,
or any part of the steering system may have occurred
NOTE
1. AUTEL accepts no responsibility for any accident or injury arising from
servicing the SAS system. When interpreting DTCs retrieved from the
vehicle, always follow the manufacturer’s recommendation for repair.
2. All software screens shown in this manual are examples, actual test
screens may vary for each vehicle being tested. Observe the menu titles
and on-screen instructions to make correct option selections.
3. Before starting the procedure, make sure the vehicle has ESC. Look for
the button on dash.
DPF Regeneration Service
The DPF function allows you to carry out numerous functions to the Diesel
Particulate Filter system without having to send your car to a main dealer. The
tool will manage DPF regeneration, DPF component replacement teach-in
and DPF teach-in after replacing the engine control unit.
ECM monitors driving style and selects a suitable time to employ regeneration.
Cars driven a lot at idling speed and low load will attempt to regenerate earlier
than cars driven more with high load and high speed. In order for regeneration
to take place, a prolonged high exhaust temperature must be obtained.
In the event of the car being driven in such a way that regeneration is not
possible, i.e. frequent short journeys, a diagnostic trouble code will eventually
be registered, DPF light and “Check Engine” indicator comes on. A service
regeneration can be requested in the workshop, using the diagnostic tool.
Before carrying out a forced DPF regeneration using the tool, check the
following items:
The fuel light is not on.
No DPF-relevant faults stored in system.
The vehicle has the correct spec engine oil.
The oil for diesel is not contaminated.
55
IMPORTANT
Before diagnosing a problem vehicle and attempting to perform an emergency
regeneration, it is important to obtain a full diagnostic log and read out relevant
measured value blocks.
NOTE
1. The DPF will not regenerate if the engine management light is on, or there
is a faulty EGR valve.
2. The ECU must be re-adapted when replacing the DPF and when topping
up the fuel additive Eolys.
3. If the vehicle needs to be driven in order to perform a DPF service,
ALWAYS have a second person help you. One person should drive the
vehicle while the other person observes the screen on the Tool. Trying to
drive and observe the Scan Tool at the same time is dangerous, and
could cause a serious traffic accident.
Immobilizer (IMMO) Service
An immobilizer is an anti-theft mechanism that prevents an automobile’s
engine from starting unless the correct ignition key or other device is present.
This device prevents thieves from starting the car by a method known as hot
wiring. Most new vehicles have an immobilizer as standard equipment. An
important advantage of this system is that it doesn’t require the car owner to
activate it; it operates automatically. An immobilizer is considered as providing
much more effective anti-theft protection than an audible alarm alone; many
auto insurance companies offer lower rates for vehicles that are equipped with
them.
As an anti-theft device, an immobilizer disables one of the systems needed to
start a car's engine, usually the fuel supply or the ignition. This is
accomplished by radio frequency identification between a transponder in the
ignition key and a device called a radio frequency reader in the steering
column. When the key is placed in the ignition, the transponder sends a signal
with a unique identification code to the reader, which relays it to a receiver in
the vehicle's computer control module. If the code is correct, the computer
allows the fuel supply and ignition systems to operate and start the car. If the
code is incorrect or absent, the computer disables the system, and the car will
be unable to start until the correct key is placed in the ignition.
The IMMO service enables you to disable the lost vehicle keys and program
the replacement key fob. It could be one replacement key fob or more,
56
depending on your needs.
To program the replacement key fob(s)
1. Tap IMMO KEYS after entering the Service function from the Job
Menu.
2. Tap Automatic Selection or Manual Selection to acquire vehicle VIN
information and tap Yes to confirm.
3. Tap Erase/Program all key fobs in the IMMO function list after it is
displayed, the list may vary for different vehicles being tested.
NOTE
1) To complete key fob programming, you need to acquire the Security Code,
which can be acquired through the Security Code Read function in hot
functions.
2) Before programming, please check and erase the fault codes
4.8 Coding
Since the introduction of OBD II and leading up to modern Hybrids and EVs,
computers and software in cars have been expanding at an exponential rate.
In-car software is becoming one of the leading needs for service, and updating
software may be the only way to fix some of these issues:
Drivability
Fuel Efficiency
Power Loss
Fault Codes
Durability of Mechanical Parts
The Coding function is used to re-flash the vehicle control modules, it allows
you to update the computer software on the vehicle to the latest version, as
well as to reprogram adaptive data for certain components after making
repairs or replacements.
Available coding operations vary by the test vehicle, and only the available
operations display in the menu.
Selecting the Coding function opens a menu of operation options that varies
by make and model. Follow all screen instructions while performing the coding
57
operations. How and what information is presented on the screen varies
according to the type of operation being performed.
Variant Coding
Figure 4- 15 Sample Variant Coding Screen
The main section of the Variant Coding screen displays a list of vehicle
components and the coding information which mainly consists of three parts:
1. The top line on the list displays the instruction of how to use the
functional button at the lower right corner of the screen to manipulate the
coding operations.
2. The second part under the top line of the list displays all available
systems for coding on the left side, and the coding data or value on the
right side.
3. The bottom line of the main section displays the functional buttons, which
allows you to manipulate the operation.
Check the vehicle condition and the coding information carefully, and use the
functional button to edit Codes for the corresponding components, tap Send
when you finish edit for all the items. When the operation is done, an
execution status message such as Completed, Finished or Successful, may
display.
Tap the ESC button to exit the function.
4.9 Generic OBD II Operations
A fast-access option for OBD II/EOBD vehicle diagnosis is available on the
58
Vehicle Menu screen (Figure 4- 2). This option presents a quick way to check
for DTCs, isolate the cause of an illuminated malfunction indicator lamp (MIL),
check monitor status prior to emissions certification testing, verify repairs, and
perform a number of other services that are emissions-related. The OBD
direct access option is also used for testing OBD II/EOBD compliant vehicles
that are not included in the Diagnostics database.
Functions of the diagnostics toolbar buttons at the top the screen are the
same as those available for specific vehicle diagnostics. See Table 4- 2
Diagnostics Toolbar Buttons on page 33 for details.
4.9.1 General Procedure
To access the OBD II/EOBD diagnostics functions
1. Tap the Diagnostics application button from the MaxiPro Job Menu.
The Vehicle Menu displays.
2. Tap the EOBD button. There are two options to establish
communication with the vehicle.
Auto Scan – when this option is selected the diagnostic tool
attempts to establish communication using each protocol in
order to determine which one the vehicle is broadcasting on.
Protocol – when this option is selected the screen opens a
submenu of various protocols. A communication protocol is a
standardized way of data communication between an ECM
and a diagnostic tool. Global OBD may use several different
communication protocols.
3. Select a specific protocol if the Protocol option is selected. Wait for
the OBD II Diagnostic Menu to appear.
59
Figure 4- 17 Sample OBD II Diagnostic Menu
NOTE: The
○
i
button displayed beside the function name is tappable,
tapping which opens a bubble with additional function information.
4. Select a function option to continue.
DTC & FFD
I/M Readiness
Live Data
O2 Sensor Monitor
On-Board Monitor
Component Test
Vehicle Information
Vehicle Status
NOTE: Some functions are supported only on certain vehicle makes.
4.9.2 Function Descriptions
This section describes the various functions of each diagnostic option:
60
DTC & FFD
When this function is selected, the screen displays a list of Stored Codes and
Pending Codes. When the Freeze Frame data of certain DTCs are available
for viewing, a snowflake button will display on the right side of the DTC item.
The Erase Codes function can be applied by tapping the functional button at
the lower bottom of the screen.
Stored Codes
Stored codes are the current emission related DTCs from the ECM of the
vehicle. OBD II/EOBD Codes have a priority according to their emission
severity, with higher priority codes overwriting lower priority codes. The
priority of the code determines the illumination of the MIL and the codes
erase procedure. Manufacturers rank codes differently, so expect to see
differences between makes.
Pending Codes
These are codes whose setting conditions were met during the last drive
cycle, but need to be met on two or more consecutive drive cycles before
the DTC actually sets. The intended use of this service is to assist the
service technician after a vehicle repair and after clearing diagnostic
information, by reporting test results after a single driving cycle.
a) If a test failed during the driving cycle, the DTC associated with that
test is reported. If the pending fault does not occur again within 40
to 80 warm-up cycles, the fault is automatically cleared from
memory.
Figure 4- 18 Sample DTC & FFD Screen
61
b) Test results reported by this service do not necessarily indicate a
faulty component or system. If test results indicate another failure
after additional driving, then a DTC is set to indicate a faulty
component or system, and the MIL is illuminated.
Freeze Frame
In most cases the stored frame is the last DTC that occurred. Certain
DTCs, those that have a greater impact on vehicle emission, have a
higher priority. In these cases, the highest priority DTC is the one for
which the freeze frame records are retained. Freeze frame data includes
a “snapshot” of critical parameter values at the time the DTC is set.
Erase Codes
This option is used to clear all emission related diagnostic data such as,
DTCs, freeze frame data and manufacturer specific enhanced data from
the vehicle’s ECM, and resets the I/M Readiness Monitor Status for all
vehicle monitors to Not Ready or Not Complete status.
A confirmation screen displays when the clear codes option is selected to
prevent accidental loss of data. Select Yes on the confirmation screen to
continue, or No to exit.
I/M Readiness
This function is used to check the readiness of the monitoring system. It is an
excellent function to use prior to having a vehicle inspected for compliance to
a state emissions program. Selecting I/M Readiness opens a submenu with
two choices:
Since DTCs Cleared – displays the status of monitors since the last time the
DTCs are erased.
This Driving Cycle – displays the status of monitors since the beginning of
the current drive cycle.
Live Data
This function displays the real time PID data from ECU. Displayed data
includes analog inputs and outputs, digital inputs and outputs, and system
status information broadcast on the vehicle data stream.
Live data can be displayed in various modes, see 4.6.4 Live Data on page 43
for detailed information.
62
O2 Sensor Monitor
This option allows retrieval and viewing of O2 sensor monitor test results for
the most recently performed tests from the vehicle’s on-board computer.
The O2 Sensor Monitor test function is not supported by vehicles which
communicate using a controller area network (CAN). For O2 Sensor Monitor
tests results of CAN-equipped vehicles, refer to On-Board Monitor.
On-Board Monitor
This option allows you to view the results of On-Board Monitor tests. The tests
are useful after servicing or after erasing a vehicle’s control module memory.
Component Test
This service enables bi-directional control of the ECM so that the diagnostic
tool is able to transmit control commands to operate the vehicle systems. This
function is useful in determining how well the ECM responds to a command.
Vehicle Information
The option displays the vehicle identification number (VIN), the calibration
identification, and the calibration verification number (CVN), and other
information of the test vehicle.
Vehicle Status
This item is used to check the current condition of the vehicle, including
communication protocols of OBD II modules, retrieved codes amount, status
of the Malfunction Indicator Light (MIL), and other additional information may
be displayed.
4.10 Exiting Diagnostics
The Diagnostics application remains open as long as there is an active
communication with the vehicle. You must exit the diagnostics operation
interface to stop all communications with the vehicle before closing the
Diagnostics application.
NOTE: Damage to the vehicle electronic control module (ECM) may occur if
communication is disrupted. Make sure the all connections, such as data
cable, USB cable, and wireless or wired network, are properly connected at all
times during testing. Exit all tests before disconnecting the test cable or
powering down the tool.
63
To exit the Diagnostics application
1. From an active diagnostic screen, tap the Back or ESC functional
button to exit a diagnostic session step-by-step; Or
2. Tap the Vehicle Swap button on the diagnostics toolbar to return to
the Vehicle Menu screen.
3. From the vehicle menu screen, tap the Home button on the top
toolbar; or tap the Back button on the navigation bar at the bottom
of the screen. Or
4. Tap the Home button on the diagnostics toolbar to exit the
application directly to the MaxiPro Job Menu.
Now, the Diagnostics application is no longer communicating with the vehicle
and it is safe to open other MaxiPro applications, or exit the MaxiPro
Diagnostic System and return to the Android System’s Home screen.
64
Chapter 5 Data Manager Operations
The Data Manager application is used to store, print, and review the saved files. Most
operations are controlled through the toolbar.
Selecting the Data Manager application opens the file system menu. Different file types
are sorted separately under different options, there are six types of information files to
be viewed or played back.
Figure 5- 1 Sample Data Manager Main Screen
5.1 Operations
Data Manager Operations are based on toolbar controls, details are explained
in the following sections.
5.1.1 Image Files
The Image section is a JPG database containing all captured screenshot
images.
65
Figure 5- 2 Sample Image Database Screen
1. Toolbar Buttons – Back to home screen or search for images . See
Table 5- 1 Toolbar Buttons in JPG Database on page 65 for detailed
information.
2. Main Section – displays the stored images.
Table 5- 1 Toolbar Buttons in JPG Database
Name
Button
Description
Back
Returns to the previous screen.
Search
Quickly locates the image file by entering the
vehicle name, test path, file name or file info.
Select
Touching this button select the target image.
5.1.2 PDF Files
The PDF section stores and displays all PDF files of saved data. After entering
the PDF database, select a PDF file to view the stored information.
This section uses the standard Adobe Reader application for file viewing and
66
editing, please refer to the associated Adobe Reader manual for more detailed
instructions.
5.1.3 Review Data
The Review Data section allows you to playback the recorded data frames of
live data streams.
On the Review Data main screen, select a record file to playback.
Figure 5- 3 Sample Data Playback Screen
1. Drop-down Toolbar – taps the button at the top center of the screen to
open the Drop-down Toolbar
2. Main Section – displays the recorded data frames
3. Navigation Toolbar – allows you to manipulate data playback
Use the Navigation Toolbar buttons to playback the record data from frame to
frame. Tap Back to exit data playback.
5.1.4 Apps Manager
This section allows you to manage the firmware applications installed on the
MaxiPro Diagnostics System. Selecting this section opens a managing screen,
on which you can check all the available vehicle diagnostic applications.
Select the vehicle firmware you want to delete by tapping on the car brand
icon, the selected item will display a blue tick at the upper right corner. Tap the
67
Delete button on the top bar to delete the firmware from the system database.
5.1.5 Data Logging
The Data Logging section allows you to launch Support platform directly to
view all records of all sent or unsent (saved) data loggings on the diagnostic
system.
68
Chapter 6 ADAS
Advanced Driver Assistance Systems (ADAS) is an array of vehicle systems
that aid the driver either through passive alerts or by active control of the
vehicle to drive safer and with greater awareness and precision.
Cameras, sensors, ultrasound, radar and LIDAR are some of the systems
used to capture the driving environment data, including travelling or static
vehicles position, pedestrian location, road sign, driving lane and intersection
detection, road (curves) and driving conditions (poor visibility or evening
driving), use that information to instruct the vehicle to take its predetermined
action. Cameras, sensors and sensing systems are typically located in front
and rear bumpers, windshield, front grill and side and rear view mirrors.
Autel ADAS Calibration Tool provides comprehensive and precise ADAS
calibration.
1. Covers many vehicle makes, including Benz, BMW, Audi, VW, Porsche, Infiniti,
Lexus, GM, Ford, Volvo, Toyota, Nissan, Honda, Hyundai, and Kia.
2. Supports the calibration of multiple driver assistant systems, including Adaptive.
Cruise Control (ACC), Night Vision System (NVS), Lane Departure Warning
(LDW), Blind Spot Detection (BSD), Around View Monitoring (AVM), Rear
Collision Warning (RCW) and Heads-up Displays (HUD).
3. Supplies graphic illustrations and step-by-step instructions.
4. Provides demos to guide the technician through the calibration.
Figure 6-1 Sample ADAS Introduction Page
69
Chapter 7 MaxiFix Operations
The MaxiFix application launches the on-line troubleshooter database, which not only
provides you virtually all common diagnostic trouble code (DTC) database for most
vehicles, but also serves as a forum allowing you to network with other MaxiPro users,
and gives you access to a vast database of repair and diagnostic tips along with proven
filed fixes.
While the MaxiFix provides the abundant troubleshooter information available, the
database keeps growing with daily troubleshooting resources by recording the reported
solution cases, and the advisory reports of the MaxiPro users from all over the world.
Information in the MaxiFix database is organized into a series of diagnostic tips that are
designed to quickly lead you to the root cause of a particular problem on the test vehicle,
which will help you quickly find solutions for various diagnostic problems.
7.1 Navigation
You need to register the device to your online account before launching the
MaxiFix.
Figure 7- 1 Sample MaxiFix Home Page
The MaxiFix screen layout consists of 3 main areas:
1. The Header – the tool bar across the top of the screen which allows you
to select vehicles and perform searches.
70
2. The Main Screen – located at the center of the screen displaying
content based on the vehicle attributes and keywords specified. The tabs
on the main screen vary in accordance with the section selected on the
Navigation Menu, allowing you to switch between functions.
3. The Navigation Menu – the main menu at the bottom of the screen,
which provides you access to different sections of MaxiFix.
The Header
The Header at the top of the screen, features:
A Select Vehicle button to open the vehicle identification window, and vehicle
information bar, for example “2014>Hyundai> Accord Coupe > L4-2.4L
(K24W1)”.
A search field to find relevant information by entering keywords, codes, or
problems.
Select Vehicle Button
The “Select Vehicle” button on the Header allows you to specify the vehicle
which you want to reference on MaxiFix, by selecting each of the vehicle
attribute from a sequence of option lists. This feature helps to filter out the
searches that allow only the information that applies to the identified vehicle to
display.
NOTE: All attributes must be specified to make a complete vehicle selection
for the most efficient search results.
To select a vehicle
Follow the procedure below to select a vehicle:
1. If you haven’t already done so, click the “Select Vehicle” button on
the Header.
2. Select the year of the vehicle from the list.
3. Select the make of the vehicle from the list.
4. Select the model of the vehicle from the list.
5. Select the submodel of the vehicle from the list.
6. Select the engine of the vehicle from the list.
After completing the vehicle selection procedure, the identified vehicle is
71
shown on the Header.
7.1.1 Terminology
MaxiFix Tip
A MaxiFix Tip provides practical information of real fix of a specific vehicle
repair issue with detailed descriptions. It is combined with proven fix and
vehicle specific data, and filed into an all-in-one information source to provide
you with quick and easy repair solutions.
On MaxiFix community you can find Tips or share your own Tip to help other
community members solve vehicle issues.
To search for a MaxiFix Tip
1. Select A Vehicle:
a) Click the “Select Vehicle” button on the Header at the top of
the page.
b) Select the year of the vehicle from the list.
c) Select the make of the vehicle from the list.
d) Select the model of the vehicle from the list.
e) Select the submodel of the vehicle from the list.
f)Select the engine of the vehicle from the list.
After completing the vehicle selection procedure, the identified
vehicle is shown on the Header.
2. Enter A Search Term.
MaxiFix has an exclusive one-stop lookup that helps you find all of
MaxiFix resources by one click. Simply enter a search term into the
search bar on the Header to begin the search.
3. Proven Results!
The powerful MaxiFix database gives you proven results! The
typical MaxiFix Tips combine actual workshop fixes and data which
may include:
72
a) OBDII Fault Codes description and reference – helps in
diagnostic assessment by making clear the nature of an
automotive problem so that beginner and advanced
technicians can make effective repairs
b) Real Fix Tips – provides repair tips from actual shop
practices and are presented in an easy to understand
Complaint, Cause, Correction format.
If you still can’t find the information you want, you can ask the
MaxiFix community for help by clicking “Ask” on the Navigation
Menu at the bottom of the screen.
Adopted!
The “Adopted!” icon that displays at the top right side of a Tip page indicates
that the related Tip has been adopted by at least 1 technician in the community.
If a tip has helped you to solve a repair problem, you are encouraged to give
an Adopted! count to the tip. Each member is allowed to click the “Adopted!”
once for a tip, and each click will add 1 count to the total number of “Adopted!”.
The “Adopted!” count helps you easily identify which tips are really helpful for
repairing vehicle issues. You can also post a comment about how the tip has
helped you as reference to other members.
7.2 Operations
The Navigation Menu is at the bottom of the screen. Selecting the items on the
Navigation Menu allows you to switch between the main sections on MaxiFix.
These main sections include:
Home – shows all questions and allows you to specify questions about one
or multiple makes.
Search Fix – allows you to search for information from all available
resources on MaxiFix, including: Open Questions, Tips, and Real Fixes,
and displays search results.
Ask – allows you to ask a question in the community.
My MaxiFix – shows all your posts including Questions and Fixes in the
community, and allows you to view your personal profile, select your
vehicle preference, and share your tips.
My Messages – shows a list of message notifications which is relevant to
your activities in the Question section.
73
Support – opens the FAQ page, or a message box for contacting Customer
Service by email.
7.2.1 Home
Home is the first option on the Navigation Menu at the bottom of the screen.
Tapping it opens your MaxiFix home page. There is a list of questions posted
on the community, and you can scroll down the page to the bottom and view
more questions by tapping “View More”. Click on any question and you will be
linked to the detailed page in the Ask section.
You can configure your main screen to display questions only related to the
vehicle makes you are interested in, by clicking the “Filter” button on the main
page of Home, and select the desired vehicle makes. This filter can be
canceled anytime by clicking the “Remove All Filters” button, and the default
setting will be restored to display questions about all vehicle makes.
7.2.2 Search Fix Features
Search Fix, the second option on the Navigation Menu at the bottom of the
screen, presents search results for the specified vehicle. Search results are
listed in various categories:
All – includes all search results, including related Questions, Tips, and Real
Fixes to your search.
Questions – presents a list of open Question discussed in the community
that may be pertinent to your search.
Tips – presents a list of Tips that directly correlate to your search criteria.
Select a Tip from the list to open and review the complete Tip.
Real Fixes – presents a list of Tips that have been collected from actual
shop repair orders and are presented in an easy-to-understand
Complaint, Cause, Correction format.
7.2.3 Ask
Ask, the third option on the Navigation Menu at the bottom of the screen,
allows you to ask a question about a particular vehicle repair issue in the
community.
To ask a MaxiFix Question
1. If not already done, click Select Vehicle on the Header to specify
the vehicle you are asking about.
74
2. Click Ask on the Navigation Menu at the bottom of the screen to
open the Ask page.
3. On the Ask page find Ask for Help, fill in the following sections to
ask a question.
The Ask page has 4 sections:
Subject – this is where you enter a brief subject for the question.
My Question – asks a clear and concise question that you want
to ask the community. Be sure to be descriptive and concise
when asking your question.
Problem Description – describes how the vehicle is behaving.
Repair History – includes any previous diagnostic tests that you
performed, including the results of the tests. Also list any parts
that were replaced during previous diagnostic work.
Tap the “Cancel” button to cancel your question and return to the
Ask page.
Tap the “Submit” button to post your question to the community.
Tap the “Attach File” button to include images or reference files with
your question.
You are requested to select one Adopted Answer from all of the
responses and then close the question. For details, please refer to
My Messages section.
7.2.4 My MaxiFix
My MaxiFix, the fourth option on the Navigation Menu at the bottom of the
screen, opens your personal MaxiFix page. To access the features on My
MaxiFix page you can select from the tabs:
My Questions – opens a list with links to the opened questions that you
have posted to the community
My Cases – opens a list with links to the closed questions and tips that you
have contributed to the community.
Marked Posts – opens a list with links to Tips and discussions that you are
actively participating in.
My Profile – allows you to view your Autel account information including:
75
your Autel ID, personal information, MaxiFix score, phone number and
register time, and edit your portrait.
Vehicle Preference – used to set up a list of preferred vehicles. The
preferred list allows you to limit the choices that displayed on the “Select
Vehicle” list to specific years, and makes. Click “Set Year” or “Set Make”
to set your preferred models. The preferred makes will also be displayed
in the “Filter” options on the Home page.
Share a Tip – allows you to share your personal repair experience with the
community.
Click My MaxiFix on the Navigation Menu at the bottom of the screen, to
display all questions and tips that you have contributed to the community.
Create a Tip
A “Tip” is a concise and complete description of the fix for a particular vehicle
repair issue.
To create a new MaxiFix Tip
1. Select My MaxiFix from the Navigation Menu.
2. Select Select Vehicle from the Header and enter the identifying
attributes of the vehicle you are writing the Tip about.
3. On the My MaxiFix page find Share a Tip; click this link to open the
My Tips page.
4. Enter the Tip subject in the Subject field.
5. Compose your Tip in the Description field. Include as much
information as possible, while keeping the information concise and
to the point. A Tip should provide accurate information that is
reader-friendly.
Use the Cancel button at the right-side bottom of the page to cancel your tip
and return to the My MaxiFix page. Or,
Use the Submit button at the right-side bottom of the page to contribute your
tip to the community.
Use the Attach File button at the left-side bottom of the page to include
images or other supporting data with your question.
76
View Profile Information
You can view your personal profile by clicking on your account ID or “My
Profile” in My MaxiFix section or edit portrait where applicable, and visit other
community members’ profile by clicking their portrait. Information included in
your profile determines how you are presented to the community, and what
type of information will be sent to you from the community.
7.2.5 My Messages
My Messages, the fifth option on the Navigation Menu at the bottom of the
screen, shows a list of message notification which is relevant to your activities
in the Question section. A notification icon will appear on the top-right corner of
“My Messages” if there is any new or unread message in the Question section.
The number on the notification icon indicates the total number of the new and
unread messages. The displayed number will be reduced correspondingly
after viewing. The message notification will appear under the following two
conditions:
1. Your question or answer is replied by other MaxiFix community
members.
2. Your answer is marked as the “Adopted!” by the MaxiFix community
member who asked the question.
Tap My Messages, select and open the message you want to read from the
list. If your problem is solved according to the reply, you should select one
Adopted Answer and close the question. If your answer is marked as
“Adopted!”, the prompt “Adopted! + 4” will be displayed permanently.
Tap Clear to delete all message notifications.
Select “Adopted Answers”
Members are requested to select one Adopted Answer from all of the
responses on “My Messages” page before closing a question. The community
members who provided the Adopted Answer are rewarded with scores for their
contribution.
About Adopted Answer:
Only one answer can be selected as “Adopted Answer”.
Answers can only be rated by the MaxiFix member who asked the question.
77
Close a Question
When a repair question that you've posted to the community is resolved, you
are encouraged to write down the case as a way to share a good solution. This
will help the other MaxiFix members to find useful information for practical fix.
To close a question, you need to select the question’s response message from
the message list on “My Messages” page first, then tap “Adopted Answer” and
select “Close Question”. Tap the “Cancel” button to cancel your submission
and return to My Messages page. It is strongly recommended to share your
repair solutions before closing a question. Your question will be converted to a
MaxiFix Community Tip after closing.
Score Rewarding System
1. A score of 3 is awarded when you close a question.
2. A score of 2 is awarded if your closed question is marked as "Adopted!"
by no less than 20 community members.
3. A score of 4 is awarded if your answer is selected as the “Adopted
Answer”.
4. A score of 1 is awarded if your answer is selected as the "Adopted
Answer" for a closed question which is marked as "Adopted!" by no less
than 20 community members.
5. A score of 1 is awarded to each of the first three respondents.
7.2.6 Support
Support, the last option on the Navigation at the bottom of the screen, opens a
page that provides 2 ways to gain support from MaxiFix:
1. A message form to contact the administrator of MaxiFix.
2. A Frequently Asked Questions (FAQ) link that answers the most frequent
questions we hear from MaxiFix community members.
If you wish to contact the administrator of this site please use the contact form.
Select “Support” from the Navigation Menu to open the comment window. To
allow the administrator to respond to your question or issue, the following
information should be provided:
Your name
A contact email address
A contact phone number
78
Chapter 8 Settings Operations
Selecting Settings application opens a setup interface, on which you can adjust default
setting and view information about the MaxiPro system. There are eight options
available for the MaxiPro system settings:
Unit
Language
Printing Setting
Auto update
Notification Center
Car order
About
System Settings
8.1 Operations
This section describes the operation procedures for the settings.
8.1.1 Unit
It allows you to adjust the measurement unit for the diagnostic system.
To adjust the unit setting
1. Tap the Settings application on the MaxiPro Job Menu.
2. Tap the Unit option on the left column.
3. Select the required measurement unit, Metric or English. A tick icon
will display to the right of the selected unit.
4. Tap the Home button on the top left corner to return to the MaxiPro
Job Menu. Or select another setting option for the system setup.
8.1.2 Language
This option allows you to adjust the display language for the MaxiPro system.
To adjust the language setting
1. Tap the Settings application on the MaxiPro Job Menu.
79
2. Tap the Language option on the left column.
3. Select the required language. A tick icon will display to the right of
the selected language.
4. Tap the Home button on the top left corner to return to the MaxiPro
Job Menu. Or select another setting option for the system setup.
8.1.3 Printing Setting
This option allows you to print any data or information anywhere and anytime
either via PC network or WiFi. For more information about printing, see
Printing Operation on page 20.
To setup the printer connection
1. Tap the Settings application on the MaxiPro Job Menu.
2. Tap the Printing Setting option on the left column.
3. Tap the Print via Network item to activate the printing function,
which enables the device to send files to the printer through the PC
via WiFi or Ethernet connection.
4. Tap the Home button on the top left corner to return to the MaxiPro
Job Menu. Or select another setting option for the system setup.
8.1.4 Auto update
The Auto Update allows the tool to automatically update the MaxiPro system,
and the vehicle software. All you need to do is to switch ON by tapping the
button on the right side of each and set the desired automatic update time.
To set auto system or vehicle update
1. Tap the Settings application on the MaxiPro Job Menu.
2. Tap the Auto Update option on the left column. The three auto update items
list on the right.
3. Switch the ON the button on the right of item that you want to auto update.
4. Tap on the time to set time, you can use the + and –button or tap on the
numbers then the manual input screen will pop up. Tap Done to complete
the time setting.
NOTE
80
Internet connection is necessary for auto update, otherwise it would not work even if
you have already switch it on. Make sure the tool is connected to the Internet for the
time you have set.
.
8.1.5 Notification Center
This option allows you to turn the Notification Center function on or off. The
Notification Center function configures the MaxiPro tablet to receive regular
on-line messages from the server for system update notifications or other
service information via the Internet. It is highly recommended to keep this
function on all the time, so you won’t miss out any new update for MaxiPro or
event from Autel. Internet access is required for receiving on-line messages.
To enable the Notification Center function
1. Tap the Settings application on the MaxiPro Job Menu.
2. Tap the Notification Center option on the left column.
3. Tap the ON/OFF button to enable or disable the Notifications
function. If the function is enabled the button turns blue, or if
disabled the button turns gray.
4. Tap the Home button on the top left corner to return to the MaxiPro
Job Menu. Or select another setting option for the system setup.
When the Notification Center function is turned on, and new messages are
received by the MaxiPro device, a notification message displays on the
MaxiPro Job Menu. Press on the message bar and drag it down, and the
received messages are shown in the list, slide the list up or down to view all if
the message list covers more than one screen.
Tapping a specific message launches the corresponding application. For
example, if you tap on an Update notification message, the Update application
will be launched.
8.1.6 Car order
The Car order option allows you to set the vehicle orders in vehicle menu by
initials or by frequency of use.
To set the car order
81
1. Tap the Settings application on the MaxiPro Job Menu.
2. Tap the Car order option on the left column.
3. Tap to Choose Sorted by frequency of use or Sorted by
alphabetical order. A green tick icon will appear to the right of the
selected function.
4. Tap the Home button on the top left corner to return to the MaxiPro
Job Menu. Or select another setting option for the system setup.
8.1.7 About
The About option provides information of the MaxiPro diagnostic device
regarding the product name, version, hardware, and serial number, etc.
To check the MaxiPro product information in About
1. Tap the Settings application on the MaxiPro Job Menu.
2. Tap the About option on the left column. The product information
screen displays on the right.
3. Tap the Home button on the top left corner to return to the MaxiPro
Job Menu, or select another setting option for the system setup,
after viewing.
8.1.8 System Settings
This option provides you a direct access to the Android background system
setting interface, on which you can adjust various system settings for the
Android system platform, regarding wireless and networks settings, various
device settings such as sound and display, as well as system security settings,
and check the associated information about the Android system, etc. Refer to
Android documentation for additional information.
82
Chapter 9 Shop Manager Operations
The Shop Manager application helps you to manage the workshop information,
customer information records, and keep test vehicle history records, which can be a
great assist in dealing with daily workshop business and improves customer service.
There are three main functions available:
Vehicle History
Workshop Information
Customer Manager
The operations of these functions of the Shop Manager application are mainly
manipulated by the toolbar buttons, which are listed and described in the table below:
Table 9- 1 Top Toolbar Buttons in Shop Manager
Name
Button
Description
Back
Returns to the previous screen.
Enter Edit
Touching this button shows the editing toolbar to
print or delete the selected file.
Delete
Touching this button deletes the selected vehicle
record item from the list.
Search
Quickly locates the vehicle record by entering the
vehicle name or test path.
Cancel
Touching this button to cancel edit or file search.
Edit
Touching this button allows you to edit information
for the displayed file.
Add Account
Touching this button to create a new customer
account file.
History Notes
Touching this button opens a note form, which
allows you to create audio record, attach picture or
video, or edit text notes, etc.
83
Name
Button
Description
Vehicle
History
Touching this button opens the Vehicle History
screen which displays the correlated test vehicle
records.
Done
Saves the file when complete editing.
9.1 Vehicle History
This function stores records of test vehicle history, including vehicle
information and the retrieved DTCs from previous diagnostic sessions, and
displays all information in an easy-to-check table list, on which you can view
summarized details and manually input other information about the test
vehicle and diagnostic loggings, etc. The Vehicle History also provides direct
access to the previously tested vehicle and allows you to restart a diagnostic
session without the need to do vehicle identification again.
Figure 9- 1 Sample Vehicle History Screen
1. Top Toolbar Buttons – navigates and makes various controls of the
application.
2. Main Section – displays all the vehicle history records information.
To activate a test session for the recorded vehicle
1. Tap the Shop Manager application on the MaxiPro Job Menu.
2. Select Vehicle History
84
3. Tap the Diagnostics button at the bottom of the thumbnail of a
vehicle record item. Or,
4. Select a vehicle record item by tapping the thumbnail.
5. A Historical Test record sheet displays, check the recorded
information of the recorded test vehicle, and tap the Diagnostics
button on the upper right corner.
6. The vehicle’s Diagnostics screen displays, now a new diagnostic
session is activated, see 4.6 Diagnosis on page 37 for detailed
instructions on vehicle diagnostic operations.
9.1.1 Historical Test Record
The Historical Test record sheet of the tested vehicle is a detailed data form,
which includes all general information of the vehicle such as vehicle year,
make and model, etc., and the diagnostic trouble codes retrieved from the
previous test sessions, as well as other service details which can be added
manually by the technician himself.
Figure 9- 2 Sample Historical Test Record Sheet
To edit the Historical Test record sheet
1. Tap the Shop Manager application on the MaxiPro Job Menu.
2. Select Vehicle History.
3. Select the specific vehicle history record thumbnail from the main
section. The Historical Test record sheet displays.
4. Tap the Edit button to start editing.
85
5. Tap on each item to input the corresponding information or add
attaching files or images.
NOTE: The vehicle VIN number, or license and the customer information
account are correlated by default. Adding one of the information will
automatically associate the other item in the record sheet, provided that the
later one exists.
6. Tap Add to Customer to correlate the Historical Test record sheet
to an existing customer account, or add a new associating account
to be correlated with the test vehicle record. See Customer
Manager on page 86 for more information.
7. Tap Done to save the updated record sheet, or tap Cancel to exit
without saving.
9.2 Workshop Information
The Workshop Information form allows you to edit, input and save the detailed
workshop information, such as shop name, address, phone number and other
remarks, which, when printing vehicle diagnostic reports and other associated
test file, will appear as the header of the printed documents.
To edit the Workshop Information sheet
1. Tap the Shop Manager application on the MaxiPro Job Menu.
2. Select Workshop Information.
Figure 9- 3 Sample Workshop Information Sheet
86
3. Tap the Edit button on the top toolbar.
4. Tap on each field to input the appropriate information.
5. Tap Done to save the updated workshop information sheet, or tap
Cancel to exit without saving.
9.3 Customer Manager
The Customer Manager function allows you to create and edit customer
accounts. It helps you to save and organize all customer information accounts
that are correlated with the associated test vehicle history records, which is a
great support for the arrangement of daily workshop business.
To create a customer account
1. Tap the Shop Manager application on the MaxiPro Job Menu.
2. Select Customer Manager.
3. Tap the Add Account button. An empty information form displays,
tap each field to input the appropriate information.
NOTE: The items that must be filled are indicated as required fields.
4. Tap the □
+
photo frame beside the Name chart to add a photo. A
sub menu displays, select Take Photo to take a new photo for the
account, or select Choose Photo to choose from the existing files.
5. Some customers may have more than one vehicle for service; you
can always add new vehicle information to the account to be
correlated. Tap Add New Vehicle Information, and then fill in the
vehicle information. Tap the
○
x
button to cancel adding.
6. Tap Done to save the account, or tap Cancel to exit without saving.
To edit a customer account
1. Tap the Shop Manager application on the MaxiPro Job Menu.
2. Select Customer Manager.
3. Select a customer account by tapping the corresponding name card.
A Customer Information sheet displays.
4. Tap the Edit button on the top toolbar to start editing.
5. Tap on the input field where needs to be altered or supplemented,
87
and enter updated information.
6. Tap Done to save the updated information, or tap Cancel to exit
without saving.
To delete a customer account
1. Tap the Shop Manager application on the MaxiPro Job Menu.
2. Select Customer Manager.
3. Select a customer account by tapping the corresponding name card.
A Customer Information sheet displays.
4. Tap the Edit button on the top toolbar to start editing.
5. Tap the Delete Customer Information button. A confirmation
message displays.
6. Tap OK to confirm the command, and the account is deleted. Tap
Cancel to cancel the request.
9.3.1 History Notes
The History Notes function allows you to add audio and video records, text
notes and photos, to keep multi-media work logs for the associated customer
account, which can be very helpful when dealing with repeat customers.
Keeping notes for each vehicle serviced for each customer will keep you
always on track and well organized in business.
To access History Notes
1. Tap the Shop Manager application on the MaxiPro Job Menu.
2. Select Customer Manager or Vehicle History.
3. Select a customer account by tapping the corresponding name card.
A Customer Information sheet displays (if Customer Manager is
selected). Or, select a vehicle history record item to open the
Historical Test record sheet (if Vehicle History is selected).
88
5. Tap the History Notes button on the top bar. Now the History Notes
screen displays.
Figure 9- 4 Sample History Notes Screen
1. Functional Buttons – navigates and make various controls of the
function
2. Main Section – displays the note list on the left column and the detail
information of the selected note on the right column
Table 9- 2 Function Buttons in History Notes
Name
Button
Description
Back
Returns to the previous screen.
Delete
Touching this button deletes the selected note.
Full screen
Touching this button to display the note in full
screen.
Audio
Record
Performs audio recording and creates audio
files.
Take a Video
Records a video and adds the file to History
Notes.
Take a Photo
Takes photos and adds the files to History
Notes.
Save
Saves notes.
89
To add a note in History Notes
1. Access History Notes.
2. Tap the Add Notes button. An edit window displays.
3. Tap on the Title bar to input a note title.
4. Tap on the blank space below to edit a text note or remark.
5. Select a function button on the top to add files in any form you
choose.
6. Tap Save to save the note; tap Discard or Cancel to exit without
saving.
90
Chapter 10 Update Operations
The internal programming of the MaxiPro Diagnostic System, known as the firmware,
can be updated using the Update application. Firmware updates increase the MaxiPro
applications’ capabilities, typically by adding new tests, new models, or enhanced
applications to the database.
The display device automatically searches for available updates for all of the MaxiPro
components when it is connected to the internet. Any updates that are found can be
downloaded and installed on the device. This section describes installing an update to
the MaxiPro Diagnostic System firmware. A notification message displays if an update
is available when the Notifications function is enabled in the Settings application (See
8.1.5 Notification Center on page 80 for details).
Figure 10- 1 Sample Update Screen
1. Navigation and Controls
Home Button – returns to the MaxiPro Job Menu.
Update All – updates all available updates.
Search Bar – searches specific update item by inputting the file name, for
example: a vehicle make.
Refresh Button – refreshes interface.
2. Status Bar
Left Side – displays the MaxiPro device model information and serial
number.
91
Right Side – displays an update progress bar indicating the completion
status.
3. Main Section
Left Column – displays vehicle logos and update firmware version
information.
Middle Column – displays a brief introduction about the new changes to the
firmware operation or capabilities. Tap ○
i
button to open an information
screen to view more details, and tap the dim area around to close the
window.
Right Column – according to the operation status of each firmware item, the
button displays differently.
a) Tap Update to update the selected item.
b) Tap Pause to suspend the updating procedure.
c) Tap Continue to go on updating the suspended update.
To update the firmware
1. Power up the MaxiPro Display Tablet, and ensure that it is connected to a
power source and with steady internet connection.
2. Tap the Update application button from the MaxiPro Job Menu; or tap the
update notification message when received one. The Update application
screen displays.
3. Check all available updates:
If you decide to update all the items, tap the Update All button.
If you only want to update some individual items, tap the Update button
on the right column of the specific item.
4. Tap the Pause button to suspend the updating process. When you tap
Continue to renew the update, the updating process will resume from the
break point.
5. When the updating process is completed, the firmware will be installed
automatically. The new version will replace the original version if there is one.
92
Chapter 11 VCI Manager Operations
This application allows you to pair up the MaxiPro Display Tablet with the VCI device,
either the J2534 Programming Device or the Wireless Diagnostic Interface, and to
check the communication status.
Figure 11- 1 Sample VCI Manager Screen
1. Connection Mode – there are two connection modes available for selection. The
connection state is displayed alongside.
BT Paring – when paired to a wireless device, the connection state displays
as Paired; otherwise it displays as Unpaired.
Update (for VCI software only) – updates VCI software via internet through
the MaxiPro tablet networking using USB connection.
Select a connection mode to manage and set up connection.
2. Settings – this section allows you to manage wireless pairing or set up network
connection.
BT Setting – searches and displays the type and a partial serial number for
all of the devices available for pairing. Tap a required device to start pairing.
The BT status icon displayed to the left of the device name indicates the
received signal strength.
Ethernet Setting – allows you to perform network configuration.
93
11.1 BT Pairing
The VCI device needs to be either connected to a vehicle or to an available
power source, so that it is powered up during the synchronization procedure.
Make sure the MaxiPro Display Tablet has a charged battery or is connected
to an AC/DC power supply.
To pair the VCI device with the Display Tablet
1. Power on the MaxiPro Display Tablet.
2. Connect the 26-pin end of the data cable to the J2534 ECU
Programming Device’s vehicle data connector (for MaxiPro Pro);
Or connect the 15-pin end of the data cable to the Wireless BT
Diagnostic Interface’s vehicle data connector (for MaxiPro)
3. Connect the 16-pin end of the data cable to the vehicle data link
connector (DLC).
4. Tap the VCI Manager application on the MaxiPro Job Menu of the
display tablet.
5. Select BT from the connection mode list.
6. Tap the Scan button at the top right corner. Now the device starts
searching for available pairing units.
7. Depending on the VCI type you use, the device name may display
as Maxi suffixed with a serial number. Select the required device for
pairing.
8. When paring is successfully done, the connection status displayed
to the right of the device name is shown as Paired.
9. Wait a few seconds, and the VCI button on the system Navigation
bar at the bottom of the screen shall display a green tick icon,
indicating the display tablet is connected to the VCI device.
10. Tap the paired device again to unpair it.
11. Tap the Back button on the top left to return to the MaxiPro Job
Menu.
NOTE: A VCI device can be paired to only one Display Tablet each time, and
once it’s been paired, the device will not be discoverable for any other unit.
94
11.2 Update
Before update the VCI software, please make sure the MaxiPro tablet network
connection is stable.
To update the VCI device software
1. Power on the MaxiPro display tablet.
2. Connect the VCI device to MaxiPro tablet via USB.
3. Tap the VCI Manager application on the MaxiPro Job Menu of the
display tablet.
4. Select Update from the connection mode list.
5. The current version and the latest version of the VCI software will
be displayed after a few seconds, click Update Now to update the
VCI software if available.
95
Chapter 12 Remote Desk Operations
The Remote Desk application launches the TeamViewer Quick Support program, which
is a simple, fast and secure remote control interface. You can use the application to
receive ad-hoc remote support from Autel’s support centre, colleagues, or friends, by
allowing them to control your MaxiPro tablet on their PC via the TeamViewer software.
12.1 Operations
If you think of a TeamViewer connection as a phone call, the TeamViewer ID
would be the phone number under which all TeamViewer Clients can be
reached separately. Computers and mobile devices that run TeamViewer are
identified by a globally unique ID. The first time the Remote Desk application is
started, this ID is generated automatically based on the hardware
characteristics and will not change later on.
Make sure the MaxiPro Display Tablet is connected to the Internet before
launching the Remote Desk application, so that the Display Tablet is
accessible to receive remote support from the third party.
Figure 12- 1 Sample Remote Desk Screen
To receive remote support from a partner
1. Power on the MaxiPro Display Tablet.
2. Tap the Remote Desk application on the MaxiPro Job Menu. The
TeamViewer interface displays and the device ID is generated and
shown.
96
3. Your partner must install the Remote Control software to his/her
computer by downloading the TeamViewer full version program
online (http://www.teamviewer.com), and then start the software on
his/her computer at the same time, in order to provide support and
take control of the display tablet remotely.
4. Provide your ID to the partner, and wait for him/her to send you a
remote control request.
5. A popup displays to ask for your confirmation to allow remote
control on your device.
6. Tap Allow to accept, or tap Deny to reject.
Refer to the associated TeamViewer documents for additional information.
97
Chapter 13 Support
The Data Logging section in Support application keeps records of all feedback
or no feedback (saved) data loggings on the diagnostic system. The support
personnel receive and process the submitted reports through the Support
platform, and send back problem solutions within 48 hours to the
corresponding Data Logging session, on which you are also allowed to have a
direct conversation with the support personnel.
To make a reply in a Data Logging session
a) Tap on the Feedback tag to view a list of submitted data loggings.
b) Select a specific item to view the latest update of the processing progress.
c) Tap on the input field at the bottom of the screen, and enter the texts. Or tap the
Audio button to record a voice message, or camera button to take a picture.
d) Tap Feedback to deliver your message to the technical center.
98
Chapter 14 Academy
The FAQ section in Academy application provides you comprehensive and
abundant references for all kinds of questions frequently asked and answered
about the use of Autel’s online member account, and shopping and payment
procedures.
Account – displays questions and answers about the use of Autel’s online user
account.
Shopping & Payment – displays questions and answers about online product
purchase and payment methods or procedures.
Figure 14-1 Sample Academy Screen
99
Chapter 15 Quick Link Operations
The Quick Link application provides you with convenient access to Autel’s official
website and many other well-known sites in automotive service, which offers you
abundant information and resources, such as technical help, knowledge base, forums,
training, and expertise consultations, etc.
Figure 15- 1 Sample Quick Link Screen
To open a quick link
1. Tap the Quick Link application on the MaxiPro Job Menu. The Quick Link
application screen displays.
2. Select a website thumbnail from the main section. The Chrome browser is
launched and the selected website is opened.
3. Now you can start exploring the website!
100
Chapter 16 MaxiScope Operations
The MaxiScope application configures the MaxiPro Diagnostic Device to operate as an
automotive oscilloscope when work in combination with the MaxiScope module. This
function provides all the features needed for performing electrical and electronic circuit
tests as well as monitoring signal activities on any modern vehicles, which shows you
what is really going on with a vehicle’s electrical system.
Please download the latest user manual for Autel MaxiScope device from
www.autel.com.
16.1 Safety Information
Follow these instructions to reduce the risk of injury from electric shock and prevent
equipment damage.
A. Maximum input ranges
Observe all terminal ratings and warnings marked on the product.
DANGER:
To prevent electric shock, operate within the safe input range for the scope,
refer to 16.1 Safety Information on page 101.
To prevent electric shock, take all necessary safety precautions when
working on equipment where voltages above the specified input range may
be present. Contact with voltages outside of the specified measuring range
presents a risk of electric shock.
To prevent injury or death, the oscilloscope must not be directly connected to
the mains (line power). To measure mains voltages, use a differential
isolating probe specifically rated for mains use.
WARNING:
Operation outside of the safe input range is likely to cause permanent
damage to the oscilloscope and other connected equipment.
B. Grounding
DANGER:
The scope’s ground connection through the USB cable is for measurement
purposes only. The oscilloscope does not have a protective safety ground.
Do not connect the ground input (chassis) to any electrical power source. To
101
prevent personal injury or death, use a voltmeter to check that there is no
significant AC or DC voltage between the oscilloscope ground and the point
to which you intend to connect it.
WARNING:
Applying a voltage to the ground input is likely to cause permanent damage
to the oscilloscope, the attached computer, and other equipment.
To prevent measurement errors caused by poor grounding, always use the
high-quality USB cable supplied with the oscilloscope.
C. External connections
DANGER:
To prevent injury or death, use only the power cord and adaptor supplied
with the product.
D. Environment
DANGER:
To prevent injury or death, do not use in wet or damp conditions, or around
explosive gas or vapor.
WARNING:
To prevent damage, always use and store your oscilloscope in appropriate
environments. For detailed information on temperature and humidity
specifications for both the storage and usage of the oscilloscope, see 16.1
Safety Information on page 101.
E. Product Maintenance
The product contains no user-serviceable parts. Repair, servicing and calibration
require specialized test equipment and must only be performed by Autel Tech
Support or an approved service provider.
DANGER:
To prevent injury or death, do not use the product if it appears to be
damaged in any way, and stop use immediately if you are concerned by any
abnormal operations.
WARNING:
Do not tamper with or disassemble the oscilloscope, connectors or
accessories. Internal damage will affect performance
102
Do not block any of the instrument’s air vents as overheating will cause
damage to the oscilloscope.
When cleaning the oscilloscope, use wet soft cloth with mild detergent in
water. Do not allow water to enter the oscilloscope casing, as this will cause
damage to the electronics inside.
16.2 Glossary
AC/DC Control
Each channel can be set to either AC coupling or DC coupling. With DC coupling, the
voltage displayed onscreen is equal to the true voltage of the signal with respect to
ground. With AC coupling, any DC component of the signal is filtered out, leaving only
the variations in the signal for the AC component.
Aliasing
When the signal frequency gets higher than half the scope’s maximum sampling rate
and exceeds the limit, a distorted waveform appears. This distortion is called aliasing.
Analog Bandwidth
All oscilloscopes have an upper limit to the range of frequencies at which they can
measure accurately. The analog bandwidth of an oscilloscope is defined as the
frequency at which a displayed sine wave has half the power of the input sine wave
(about 71% of the amplitude).
Block Mode
A sampling mode in which the computer prompts the oscilloscope to collect a block of
data into its internal memory before stopping the oscilloscope and transferring the
whole block into computer memory. This mode of operation is effective when the input
signal being sampled is high frequency.
Buffer Size/Cache Size
This term indicates the size of the oscilloscope’s buffer memory. The buffer memory is
used by the oscilloscope to temporarily store data. This helps to compensate for the
differences in data transfer rate from one device to another.
Sampling Rate
This term is used to define the number of samples per second captured by the
oscilloscope. The faster the sampling rate of the scope, the more frequently it measures
103
the signal voltage, and so the more detailed will be the trace that appears on the scope
screen.
Streaming Mode
This term indicates a sampling mode in which the oscilloscope samples data and
returns it to the computer in an unbroken stream. This mode of operation is effective
when the input signal being sampled is at low frequency.
Time Base
The time base controls the time interval across the scope display.
Voltage Range
The voltage range is the range between the maximum and minimum voltages that can
be accurately captured by the oscilloscope.
Sinusoidal Waveform
This term describes the waveform characteristics typically found in circuits with large
inductance and capacitance, and often referred to as an AC signal. The waveform
alternates either side of 0 volts or may rise and fall creating a regular sinusoidal shape:
Amplitude
This term indicates the maximum voltage generated from the zero volts line of the
oscilloscope.
Figure 16- 1 Sample Sinusoidal Waveform
104
Frequency
This term describes the number of signal occurrences per second. Frequency is
measured in Hz (hertz).
Square Waveform
This term describes the waveform characteristics normally generated by signals
switching between clearly defined voltage levels, such as a Hal effect sensor signal
may create by switching a voltage to ground. A typical digital square waveform is shown
below:
Peak to peak voltage
This term indicates the difference in voltage between the minimum and maximum
voltages occurring in the waveform.
16.3 MaxiScope Module
The MaxiScope Automotive Oscilloscope tool kit is optional and available for
purchase along with the MaxiPro package. There are 2 versions (basic and
advanced versions) available.
The MaxiScope tool kit comes standard with:
MaxiScope Module
USB Cable
Figure 16- 2 Sample Square Waveform
105
Other probe accessories
Figure 16- 3 Front, Rear, and Top View
1. USB Port Connector
2. Input Channel A/B/C/D
3. LED Indicator Light – lights up when powered on, blinks when
communicating, and shimmers when error occurs
4. Warning Triangle – indicates potential safety hazard that exists on the
indicated connections, and appropriate precautions should be taken.
Make sure you read through the Safety Information on page 101 before
using.
5. Equipotential Symbol – indicates the outer shells of the indicated BNC
connectors are all at the same potential. Therefore, necessary
precautions should be taken to avoid applying a potential through the
return connections of the indicated BNC terminals, as this may result in a
large current flow, causing damage to the product and the connected
equipment.
Power Source
The MaxiScope MP408 Scope Module is powered directly by the USB port of
the connected PC, no batteries or power leads are required, making it suitable
for use both for workshop-based and mobile automotive diagnostics.
Technical Specifications
106
Main Features
Description
Vertical resolution
12 bits
Channels
4
Bandwidth
20MHz
Accuracy
Voltage: 1%; Time: 50ppm
Sensitivity
10mV/div to 20V/div
Input Ranges (full scale)
±
50mV to
±
100V in 11 ranges
Input Impedance
1MΩ in parallel with 22pF
Input Type
Single-ended, BNC connector
Input Coupling
Software selectable AC/DC
Overload Protection
±
200V on single input
Maximum Sampling Rate
(Single Shot)
1 or 2 channels in use
3 or 4 channels in use
80MS/s*
20MS/s
Buffer Memory
32M samples shared among active channels
Waveform Buffer
Up to 1000 waveforms
Timebase Ranges
100ns/div to 1000s/div
Advanced Features
Math channels, Measurements
Triggers
Description
Source
Any input channel
Basic Triggers
Auto, Normal, Single, None
Advanced Triggers
Rising edge, Falling edge
Environmental
Description
Operating Temperature Range
Storage Temperature Range
Storage Humidity Range
0 to 50°C (15 to 40°C for quoted accuracy)
-20
to +60°C
5 to 95%RH, Non-condensing
Physical Characteristics
Description
Dimensions (Protection rubber
case include
d
)
190X115X38mm
Weight
<0.5 kg
107
General
Description
PC Interface
USB 2.0 – cable supplied
Power Requirements
Powered from USB port
Compliance
FCC (EMC), CE (EMC and LVD), RoHS
Warranty
1 year
NOTE*: Reduced to 20MS/s if channels A and B, or C and D, are enabled.
16.4 Screen Layout and Operations
The MaxiScope application works as a signal processing program that
displays the shape of electrical signals onscreen with a live graph showing
voltage against time. The grid on the screen shows divisions of voltage and
time to enable measurements to be made.
Units of voltage per division are shown down the side of the scope screen
while units of time per division are shown along the bottom. The graph is
referred to as a waveform and the scope repeatedly draws the trace across
the screen from left to right.
Before performing the MaxiScope application, the MaxiScope Module must be
connected to the display tablet. Apply appropriate probe accessories supplied
with the MaxiScope tool kit for use in various tests.
Figure 16- 4 Sample MaxiScope Application Screen Layout
1. Top Toolbar – used for configurations of various settings and operations
108
of the scope
2. Functional Buttons on the top – used for configurations of channel
activation, measurement scale and trigger settings
3. Measurement Grid – displays measurements of voltage against time
4. Functional Buttons at the bottom – used for configurations of trigger,
time base, and measurement parameter display settings.
16.4.1 Top Toolbar
The top toolbar contains various functional buttons with options for operations
and configurations of the MaxiScope, the operations of which are described in
the table below:
Table 16- 1 Toolbar Buttons
Name
Button
Description
Car
This option provides a library of waveforms.
Selecting one allows automatic set-up of the scope
to capture a waveform of the specified waveform
type. (Coming soon)
Print
Saves and prints a copy of the displayed data. See
Printing Operation for additional information on
page 20.
Tool
Tapping this button opens a settings window with
options to configure various measurement tools for
reference and assessment of data analysis：
Tap Select a Math Channel option to select a
match channel.
Tap Select a Probe option to select a
predefined probe.
Tap Cache Setting to set the cache.
109
Name
Button
Description
Save
Tapping this button opens a submenu, on which
displays 5 options allowing you to save, record
and plays back the waveform data.
Tap Save current page to take a screenshot
Tap Record data to save the current
waveform data.
Tap Save Ref to save a copy of an existing
signal waveform as reference.
Tap Review data allows selecting and
reviewing the previously stored waveform
recordings.
Tap Recall Ref to retrieve the saved
reference waveforms.
All saved images are stored in the Data Manager
application for later reviews. See Data Manager
Operations on page 64.
Help
Provides instructions or tips for operations of
various functions.
Scope
Icon
Indicates the scope connection status. Tapping the
icon allows to reset the USB connection when
communication with the Scope Module fails. See
16.5 Troubleshooting on page 116 for more
information.
Math Channel
A math channel is virtual channel generated by mathematical function of the
input channel. It can be displayed in a scope or XY view in the same way as
an input signal, and like an input signal it has its own measure axis, scaling
and color. The MaxiScope module has a set of buit-in math channels for the
most important functions, including “A+B” (the sum of channels A and B) and
“A-B” (the difference between channels A and B).
To use a math channel:
1. Tap the Tool button in the Top Menu.
2. Tap the Select a Math Channel option on the left column.
3. Tap the desired option on the right column to enable the math
110
channel in the channel list.
4. The Math Channel displays on the MaxiScope screen
Probe
A probe is any transducer, measuring device or other accessory that you
connect to an input channel of your MaxiScope module.
Reference Waveform
A Reference Waveform is a copy of an existing signal waveform saved as a
reference. It can be retrieved to display as a comparative reference to
examine a live signal. Up to 4 reference waveforms can be saved.
Figure 16- 5 Ref. Waveform Save Window
To create a Reference Waveform:
1. Tap the Save button in the Top Menu.
2. Select Save Ref. in the dropdown menu.
3. Select the channel to which the desired waveform belongs.
4. Name the reference waveform by selecting R1, R2, R3 or R4 in the
popup window.
5. Tap on the Yes to save, or No icon to cancel.
Recall Reference
The saved reference waveforms can be retrieved by clicking Recall Ref in the
dropdown menu of the Tool button.
To recall reference waveforms:
1. Tap Tool button on the Top Menu.
2. Select Recall Ref in the dropdown menu and a popup window will
display. Available reference waveform items are highlighted in blue.
3. Select the desired reference waveform by ticking the check box
alongside.
111
4. Tap Yes and the selected reference waveform will appear on the
scope screen.
Figure 16- 6 Recall Reference Waveform Window
16.4.2 Functional Buttons
This group of buttons is used for configurations of channel activation,
measurement scale and trigger settings, the operations of which are described
below:
Channel Control Buttons A/B/C/D – tapping each button allows you to
activate or deactivate the corresponding channel; long pressing the
button opens a window, which allows you to select and configure
appropriate probes for specific tests.
The Channel Control Buttons are displayed in different colors as follows:
A. Red
B. Green
C. Blue
D. Pink
AC/DC Coupling and Voltage Scale Buttons – tapping this button opens a
dropdown menu, on which you can select AC or DC measurements and
adjust voltage measurement scales.
The Auto voltage scale option enables the scope to adjust the voltage
scale automatically to capture the signal.
AutoScale – tapping this button enables automatic set-up of the voltage
scale and time base for the signals received.
Start/Stop – tapping this button turns on/off the scope.
Single – tapping this button activates the Single trigger mode when the
trigger is on. The Single trigger mode configures the trigger to occur once
when the scope captures the first signal waveform by the preset trigger
point.
112
16.4.3 Measurement Grid
The 2 control features – voltage per division and Time per division – enable
the users to adjust the scope settings to suit the particular test measurement.
Figure 16- 7 Sample Measurement Grid
Voltage per division – shown down the left side of the screen, referred to as
the Y-axis
Time per division – shown along the bottom of the screen, referred to as
the X-axis
Multiple Scope Channels
The MaxiScope software features multiple channel display which enables
more than one waveform to be displayed at the same time. It is useful for
making comparisons among different signals. The voltage per division for
each channel is adjusted individually while the time base per division is the
same for all channels.
To adjust the voltage scale
1. Tap the specific Y-axis of the corresponding channel to adjust. The
selected Y-axis is highlighted with thicker dividing line.
2. Adjust the voltage scale of the selected channel with the typical
2-finger zoom gestures.
3. The 0 volts is hinted with a pointer reference line. Slide the pointer
up and down to move and view different areas of the scale.
113
4. Tap once on the screen area outside of the Y-axis to finish the
voltage scale adjustment.
To adjust the time base scale
1. Unselect the Y-axis if it’s activated.
2. Use your 2 fingers to adjust the time base with the typical zoom
gestures on the measurement grid area.
16.4.4 Measurement Rulers
The Measurement Rulers allow the voltage and time duration of a waveform to
be measured precisely. There are 2 kinds of measurement rulers: the vertical
Time Ruler and the horizontal Voltage Ruler.
Tap on the Ruler Activator on the bottom right corner of the measurement
grid and drag it across the screen to the desired position, a Time Ruler is
generated.
The Voltage Ruler can be generated in the similar way by clicking the Ruler
Activator on the top left corner and dragging it downwards.
When Measurement Rulers are generated, a Ruler Table showing time and
voltage values for the corresponding channels will be displayed. The Delta
icon refers to the absolute difference between the values of the 2 rulers, which
can be locked by tapping the Lock icon.
Figure 16- 8 Measurement Rulers Display
114
16.4.5 Functional Buttons
This group of buttons includes trigger setting buttons allowing you to set
trigger source and trigger mode, a Time base button for adjustment, and a
Measurement button with options for various measurement types.
Trigger On/Off – taps to turn on/off the trigger. The button displays as
Trigger Off when it is activated, and vice versa.
Once the trigger is activated, a voltage scale reference line and a time
base reference line will be displayed on the measurement grid, the cross
point of the 2 lines indicates the trigger point, allowing users to adjust its
position by moving each of the 2 lines.
Trigger Source – assigns the trigger to a specific channel
Trigger Slope – sets trigger to occur by rising or falling voltage edges
Trigger Mode – configures the trigger mode:
A. Normal Mode – configures the trigger to occur every time when the
captured signal waveform reaches the trigger point, so the scope
starts to draw the waveform when the signal reaches the trigger
point.
B. Auto Mode – configures the trigger to occur every time when the
scope captures the signal waveforms by the preset trigger point.
The scope continues to draw the waveforms even when the signal
is not in the trigger point range.
Main Time Base – allows users to select an appropriate time per division.
The time per division (10 divisions) is displayed along the bottom of the
screen. The time base adjustment affects all of the active scope
channels at once.
Measure – allows users to select various types of measurement parameters
to be displayed at the right side of the screen for reference.
A maximum of 5 items each time are allowed to be selected.
To set a specific trigger point
1. Tap the Trigger On button to activate the trigger.
2. Configures the specific trigger source, the trigger slope and the
trigger mode according to the test demand.
3. Tap and slide the voltage scale reference line up or down to the
115
desired voltage point. The voltage info is displayed in a small
reference box.
4. Tap and slide the time base reference line left or right to the desired
point.
5. Tap Start button on the top right side of the screen to activate the
scope.
16.5 Troubleshooting
If the MaxiScope is not communicating with the MaxiPro display tablet, you
need to do the followings:
Check if the MaxiScope is properly connected to the MaxiPro display tablet
through the supplied USB cable.
If the MaxiScope is already connected to the MaxiPro display tablet, but the
communication between the devices has failed, tap the Scope Icon on
the top right side of the screen to reset the USB connection.
IMPORTANT: All vehicle communications must be terminated before resetting
the USB connection to avoid damage to the devices and the vehicle. The
Internet connection may be aborted during USB reset.
If the communication between the MaxiScope and the MaxiPro display tablet
still fails after USB reset, restart the MaxiPro display tablet and reconnect
the MaxiScope.
16.6 MaxiScope Firmware Update
The operating software of the MaxiScope is continuously being developed,
and the update package can be downloaded freely from the MaxiScope
product webpage on Autel’s website: http://www.autel.com.
To update the MaxiScope firmware
1. Download the MaxiScope tool kit from our website
www.autel.com > Support & Updates > UPDATE CLIENT to the
computer. The installation wizard will load momentarily.
2. Click on Next on the welcome page.
3. Click the Browse button, and select a destination folder to install
the program, and click Next to continue. Or directly click Next to
continue without changing the default installation folder.
116
4. Click Install and the Setup.exe program will be installed onto the
computer.
5. After the installation is completed, connect the MaxiScope to the
computer via the USB cable provided by the tool kit.
6. Locate and double click the MaxiScope Update icon on desktop.
7. Click on Help > Check Update on the upper toolbar, an update
selection pop-up window displays.
8. You could select Online or Local to update. For Online update, it will
automatically scan whether the current version is the latest one,
then proceed to update or not. For Local update, you can download
the firmware file on our website www.autel.com, then proceed.
117
Chapter 17 Function Viewer
The Function Viewer allows you to search the functions supported by our tools and the
version information. There are two ways of searching, either by searching the tool and
the vehicle or searching the functions.
To search by the vehicle
1. Tap the Function Viewer application on the MaxiPro Job Menu. The Function
Viewer application screen displays.
2. Tap the tool name on the top left to drop down the tool list, tap the one you
want to search.
3. Tap the vehicle brand, model, and year you want to search.
Figure 17- 1 Sample Function Viewer Screen 1
4. All the functions support by the selected tool for the selected vehicle displays
within three columns, function, sub function, and version.
118
Figure 17- 2 Sample Function Viewer Screen 2
To search by the functions
1. Tap the Function Viewer application on the MaxiPro Job Menu. The Function
Viewer application screen displays.
2. Tap the tool name on the top left to drop down the tool list, tap the one you
want to search.
3. Type in the function you want to search to the top right search column. All the
vehicles with this function will be listed with 8 columns, the Brand, Model,
Year, System, Sub system, Function, Sub function, and Version.
NOTE
Fuzzy search is supported, type in part of the function you want to search can also find
you all the related.
119
Chapter 18 Digital Inspection Operations
The Digital Inspection application configures the MaxiPro Diagnostic Device to operate
as a digital video scope by simply connecting the tablet to a Digital Inspection Camera.
This function allows you to examine difficult-to-reach areas normally hidden from sight,
with the ability to record digital still images and videos, which offers you an economical
solution to inspect machinery, facilities, and infrastructure in a safe and quick way.
WARNINGS & IMPORTANTS:
Follow these instructions to reduce the risk of injury from electric shock,
entanglement and other causes and prevent tool damage.
Do not place the imager head and cable into anything or anywhere that may
contain a live electric charge or moving parts, which increases the risk of
electric shock or entanglement injuries.
Do not use the imager head cable to modify surroundings, clear pathways or
clogged areas.
When inspection is completed, carefully withdraw the imager head cable
from the inspection area.
The imager head cable were waterproof to a depth of 3m (10’), greater
depths may cause leakage into the imager head cable and cause electric
shock or damage the tool.
The working temperature of the imager head is between 32 °F (0 °C) and
113 °F (45 °C).
Check-Ups:
FOR AUTOMOBILES: Ensure the automobile is not running during
inspection. Metal and liquid under the hood may be hot. Don’t get oil or gas
on the imager head.
FOR PIPES: If you suspect a metal pipe could contain an electric charge,
have a qualified electrician to check the pipe before using.
FOR WALLS: For inspecting the inside walls, be sure to shut off the circuit
breaker to the whole house before using the tool.
WORK AREA: Ensure the work area has sufficient light.
120
18.1 Additional Accessories
The Digital Inspection Camera and its fittings are the additional accessories.
Both sizes (8.5 mm and 5.5 mm) of the imager head are optional and
available for purchase along with the standard MaxiPro tool kit.
Digital Inspection Camera
Figure 18- 1 Digital Inspection Camera
1. Removable Imager Head Cable – connects to the tool when performing
digital inspections for image and video viewing
2. Handgrip – ergonomically designed handle for comfortable grips and
agile operation
3. USB Cable – connects the Digital Inspection Camera to MaxiPro tablet
121
Imager Head Accessories
Figure 18- 2 8.5mm Imager Head Accessories
1. Magnet – picks up small metal objects, such as dropped rings or screws
2. Hook – unclogs obstacles and picks up wires in the pipes or confined
areas
3. Mirror – helps to look around corners and see the unreachable areas
Figure 18- 3 5.5mm Imager Head Accessories
1. Mirror – helps to look around corners and see the unreachable areas
2. Magnet – picks up small metal objects, such as dropped rings or screws
Accessory Assembly
For 8.5mm Imager Head
The three accessories, including the Magnet, Hook, and Mirror (Figure 18- 2 ),
can be attached to the Imager Head with the same manner described below:
122
1. Hold the accessory and the imager head.
2. Slip the end of the accessory over the imager head and then fix the
accessory.
For 5.5mm Imager Head
The two accessories, including the Magnet and Mirror, can be attached to the
Imager Head with the same manner described below:
1. Hold the accessory and the imager head.
123
2. Screw the thread part of the accessory over the imager head to fix the
accessory.
18.1.1 Technical Specifications
Item
Description
Optimal Viewing
Distance
1" to 14" (2.54cm to 35.56cm) with 8.5mm
diameter imager head
3/8" to 12" (0.95cm to 30cm) with 5.5mm
diameter imager head
Image Capture
JPG images (640x480) AVI videos (320 x 240)
Operating Temperature
Main Unit: 0°C to 55°C (ambient)
Cable: -10°C to 70°C
Storage Temperature
-20°C to 75°C (ambient)
Waterproof
Imager head and cable to 1m
Weigh
0.3 kg with 8.5mm diameter imager head
0.2 kg with 5.5mm diameter imager head
18.2 Operations
Before performing the Digital Inspection application, the Imager Head Cable
must be connected to the MaxiPro display tablet through the USB port. Install
the correct imager head accessories for use in the appropriate application.
NOTE: When in operation, the imager head cable can be bent into a certain
shape. This may help you operate the cable into confined areas.
124
To take pictures using the Digital Inspection application
1. Connect the Imager Head Cable to the USB port on the top side of
the MaxiPro Display Tablet.
2. If not already done, power up the MaxiPro Display Tablet.
3. Tap the Digital Inspection application on the MaxiPro Job Menu.
The Digital Inspection application interface displays, showing a
camera operating screen. The default camera is now the Imager
head.
4. Select the camera icon at the lower right corner to take photos.
5. Focus the image to be captured in the view finder by adjusting and
properly locating the imager head cable.
6. Tap the blue ring on the operating screen. The view finder now
shows the captured picture and auto-saves the taken photo.
7. Tap the thumbnail image on the top right corner of the screen to
view the stored image, slide the screen left and right to view the
images one by one.
8. Tap on the selected image and the edit toolbar instantly displays.
9. Tap the appropriate button to share,delete, or edit the image.
10. Tap the Back or Home button on the Navigation bar at the bottom
of the screen to exit the Digital Inspection application.
To record a video using the Digital Inspection application
1. Connect the Imager Head Cable to the USB port on the top side of
the MaxiPro Display Tablet.
2. If not already done, power up the MaxiPro Display Tablet.
3. Tap the Digital Inspection application on the MaxiPro Job Menu.
The Digital Inspection application interface displays, showing a
camera operating screen. The default camera is now the Imager
head.
4. Select the video icon at the lower right corner to record a video.
5. Properly locate the imager head cable to focus the inspection scene
for recording.
6. Tap the red ring on the operating screen to start recording.
125
7. Tap the red circle again to stop recording. The recorded video is
automatically saved to the system Gallery.
8. Tap the thumbnail image on the top right corner to review the
recorded video.
9. Tap the Play button to play the video.
10. Tap on the selected video and the edit toolbar instantly displays.
11. Tap the appropriate button to share,delete, or edit the video.
12. Tap the Back or Home button on the Navigation bar at the bottom
of the screen to exit the Digital Inspection application.
To configure various settings for the work mode of the imager head
1. Tap
button at the bottom edge of the
circle.
2. Select each item to make appropriate adjustments.
For more tips and detailed information about the camera application, please
refer to associated Android documentations.
126
Chapter 19 Maintenance and Service
To ensure that the MaxiPro diagnostic tablet and the combined VCI unit perform at their
optimum level, we advise that the product maintenance instructions covered in this
section is read and followed.
19.1 Maintenance Instructions
The following shows how to maintain your devices, together with precautions
to take.
Use a soft cloth and alcohol or a mild window cleaner to clean the touch
screen of the tablet.
Do not use any abrasive cleansers, detergent, or automotive chemicals to
the tablet.
Maintain the devices in dry conditions and keep them within normal
operating temperatures.
Dry your hands before using the tablet. The touch screen of the tablet may
not work if the touch screen is moist, or if you tap the touch screen with
wet hands.
Do not store the devices in humid, dusty or dirty areas.
Check the housing, wiring, and connectors for dirt and damage before and
after each use.
At the end of each work day, wipe the device housing, wiring, and connectors
clean with a damp cloth.
Do not attempt to disassemble your tablet or the VCI unit.
Do not drop or cause severe impact to the devices.
Use only authorized battery chargers and accessories. Any malfunction or
damage caused by the use of unauthorized battery charger and
accessories will void the limited product warranty.
Ensure that the battery charger does not come in contact with conductive
objects.
Do not use the tablet beside microwave ovens, cordless phones and some
medical or scientific instruments to prevent signal interference.
127
19.2 Troubleshooting Checklist
A. When the display tablet does not work properly:
Make sure the tablet has been registered online.
Make sure the system software and diagnostic application software are
properly updated.
Make sure the tablet is connected to the Internet.
Check all cables, connections, and indicators to see if the signal is
being received.
B. When battery life is shorter than usual:
This may happen when you are in an area with low signal strength.
Turn off your device if is not in use.
C. When you cannot turn on the tablet:
Make sure the tablet is connected to a power source or the battery is
charged.
D. When you are unable to charge the tablet:
Your charger maybe out of order. Contact your nearest dealer.
You may be attempting to use the device in an overly hot/cold
temperature. Try changing the charging environment.
Your device may have not been connected to the charger properly.
Check the connector.
NOTE: If your problems persist, please contact Autel’s technical support
personnel or your local selling agent.
19.3 About Battery Usage
Your tablet is powered by a built-in Lithium-ion Polymer battery. This means
that, unlike other forms of battery technology, you can recharge your battery
while some charge remains without reducing your tablet’s autonomy due to
the “battery memory effect” inherent in those technologies.
DANGER: The built-in Lithium-ion Polymer battery is factory replaceable only;
incorrect replacement or tampering with the battery pack may cause an
explosion.
128
Do not use a damaged battery charger.
Do not disassemble or open crush, bend or deform, puncture or shred.
Do not modify or remanufacture, attempt to insert foreign objects into the
battery, expose to fire, explosion or other hazard.
Make sure to use the charger and USB cables only that come together in the
package. If you use the other charger and USB cables, you might incur
malfunction or failure of the device.
Only use the charging device that has been qualified with device per the
standard. Use of an unqualified battery or charger may present a risk of
fire, explosion, leakage, or other hazard.
Avoid dropping the tablet. If the tablet is dropped, especially on a hard
surface, and the user suspects damage, take it to a service center for
inspection.
The closer you are to your network’s base station, the longer your tablet
usage time because less battery power is consumed for the connection.
The battery recharging time varies depending on the remaining battery
capacity.
Battery life inevitably shortens over time.
Since over charging may shorten battery life, remove the tablet from its
charger once it is fully charged. Unplug the charger, once charging is
complete.
Leaving the tablet in hot or cold places, especially inside a car in summer or
winter, may reduce the capacity and life of the battery. Always keep the
battery within normal temperatures.
19.4 Service Procedures
This section introduces information for technical support, repair service, and
application for replacement or optional parts.
Technical Support
If you have any question or problem on the operation of the product, please:
129
Call 1-855-288-3587/1-855-AUTELUS (North America),
Or 0086-755-86147779 (China).
Contact the local distributer or agent.
Visit our website http://pro.autel.com or www.autel.com.
Repair Service
If it becomes necessary to return your device for repair, please download the
repair service form from www.autel.com, and fill in the form. The following
information must be included:
Contact name
Return address
Telephone number
Product name
Complete description of the problem
Proof-of-purchase for warranty repairs
Preferred method of payment for non-warranty repairs
NOTE: For non-warranty repairs, payment can be made with Visa, Master
Card, or with approved credit terms.
Send the device to your local agent, or to the below address:
6th-10th Floor, Building B1, Zhiyuan, Xueyuan Road, Xili, Nanshan, Shenzhen,
518055, China
Other Services
You can purchase the optional accessories directly from Autel’s authorized
tool suppliers, and/or your local distributor or agent.
Your purchase order should include the following information:
Contact information
Product or part name
Item description
Purchase quantity
130
Chapter 20 Compliance Information
FCC Compliance FCC ID: WQ8MAXIPROMP908
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
SAR:
The radiated output power of this device is below the FCC radio frequency exposure
limits. Nevertheless, the device should be used in such a manner that the potential for
human contact is minimized during normal operation.
The exposure standard for wireless devices employs a unit of measurement known as
the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/Kg. Tests
for SAR are conducted using standard operating positions accepted by the FCC with
the device transmitting at its highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified power level, the actual SAR
level of the device while operating can be well below the maximum value. This is
because the device is designed to operate at multiple power levels so as to use only the
power required to reach the network. To avoid the possibility of exceeding the FCC
radio frequency exposure limits, human proximity to antenna should be minimized.
131
132
Chapter 21 Warranty
12-Month Limited Warranty
Autel Intelligent Technology Corp., Ltd. (the Company) warrants to the original retail
purchaser of this MaxiPro Diagnostic Device, that should this product or any part
thereof during normal consumer usage and conditions, be proven defective in material
or workmanship that results in product failure within twelve (12) months period from the
date of delivery, such defect(s) will be repaired, or replaced (with new or rebuilt parts)
with Proof of Purchase, at the Company’s option, without charge for parts or labor
directly related to the defect(s).
The Company shall not be liable for any incidental or consequential damages arising
from the use, misuse, or mounting of the device. Some states do not allow limitation on
how long an implied warranty lasts, so the above limitations may not apply to you.
This warranty does not apply to:
a) Products subjected to abnormal use or conditions, accident, mishandling, neglect,
unauthorized alteration, misuse, improper installation or repair or improper
storage;
b) Products whose mechanical serial number or electronic serial number has been
removed, altered or defaced;
c) Damage from exposure to excessive temperatures or extreme environmental
conditions;
d) Damage resulting from connection to, or use of any accessory or other product
not approved or authorized by the Company;
e) Defects in appearance, cosmetic, decorative or structural items such as framing
and non operative parts.
f) Products damaged from external causes such as fire, dirt, sand, battery leakage,
blown fuse, theft or improper usage of any electrical source.
IMPORTANT: All contents of the product may be deleted during the process of repair.
You should create a back-up copy of any contents of your product before delivering the
product for warranty service.
