USERS MANUAL

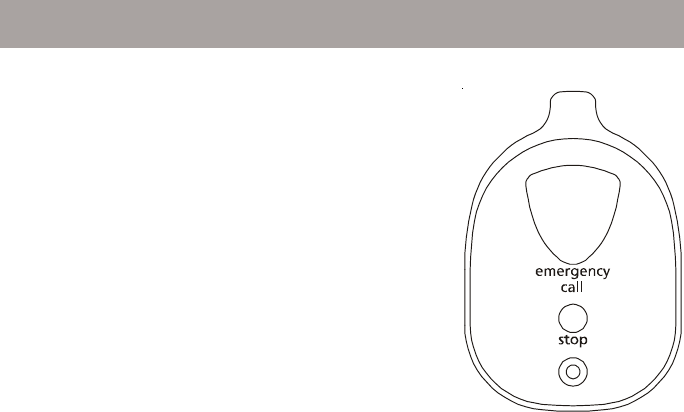

Installation
Initializing Panic Buttons
Press and hold the CALL button on the
Panic Button remote for 3-4 seconds
and then release it. This initializes the
remote and picks a random code that is
used when it is registered with the
Console.
Registering the Panic Button with the Console
Press either of the Menu up/down buttons (under the Console’s
lid to the bottom right of the display). This takes you to the first
level of the menu at step 1. This is the INSTALLATION level.
When you see INSTALL on the display, press OK.
Now simply press CALL on the Panic Button. The Console
acknowledges that it has been registered by beeping and
displaying RMOT 1 SET.
Repeat this for any other Panic Buttons you want to register.
The display increments to RMOT 2 SET, etc. as you install more
Panic Buttons.
Press Clear to back out of the menu. You are asked to confirm,
1. YES, 2 NO. Pressing 1 takes you back to the HOME
CONTROL screen. Press 2 to stay in the INSTALL menu.
Panic Button Battery Replacement
Panic Buttons are designed to operate for approximately one
year when fitted with the appropriate batteries. Since operating
conditions vary from installation to installation however, it is
recommended that all batteries are replaced every 6 months.
Providing the batteries have not already failed, they can be
replaced with fresh batteries without the need to reregister the
Panic Button. After removing the old batteries fresh batteries
must be fitted within 30 seconds to ensure that the security
code is retained.
Gently pry the 2 halves of the Panic Button’s case apart and
install two CR2016 lithium batteries in the compartment (+
facing up). Press the 2 halves of the cabinet back together.
Once the batteries have been replaced, confirm that the Panic
Button is still registered in the Console by pressing STOP. If the
Console does NOT chime, the code has been lost and you will
need to proceed as described below.
If the batteries have failed completely, the Panic Button’s code
will have been lost. It will need to be reinstalled following the
procedure the Console’s owner’s manual.
FCC Statement
This equipment generates and uses radio frequency energy,
and if not installed and used properly, that is, in strict accor-
dance with the manufacturers instructions, may cause interfer-
ence to radio and television reception. It has been type tested
and found to comply with the limits for remote control security
devices in accordance with the specifications in Sub-Parts B
and C of Part 15 of
FCC Rules
, which are designed to provide
reasonable protection against such interference in a residential
installation. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does
cause interference to radio or television reception, which can be
determined by unplugging the equipment, try to correct the
interference by one or more of the following measures.
• Reorient the antenna of the radio/TV experiencing the interfer-
ence.
• Relocate the Console with respect to the
radio/TV.
• Move the Console away from the radio/TV.
• Plug the Console into an outlet on a different electrical circuit
from the radio/TV experiencing the interference.
If necessary, consult your local RadioShack store for additional
suggestions.
The Plug ‘n Power Personal Assistance System provides
peace of mind at a price nobody can resist. When tripped
from the Panic Button the Console sounds its alarm, then
dials up to 6 phone numbers and plays up to 12 seconds
of voice message (in your voice) to a friend who can then
press a key on their telephone to activate the Console’s
microphone. This lets them listen in to your home to
determine the cause of the problem. They can then send
assistance if necessary.
A couple of typical messages below give an idea of how
the system could help you or a loved-one (you make up
your own messages).
RadioShack Corporation, Ft. Worth, TX 76102.
Panic Button
Cat. No. 49-1006
“This is Mr. Brown. I’ve fallen and I can’t get to the phone. Please press 0 to listen-in.”
“There’s a strange noise in my house and I’m afraid to go to the phone.
Please press 0 to listen-in.”
Features:
●●
●●
●Built-in alarm.
●●
●●
●Easy installation – just plug it in.
●●
●●
●Flashing house lights (optional).
●●
●●
●Remote control of house lights (optional).
●●
●●
●Wireless water resistant call pendant (wear it in the shower or bath tub).
●●
●●
●Built-in programmable voice dialer (automatically dials a friend or neighbor for
help).
●●
●●
●Calls a friend or neighbor (not a monitoring service) so there is no monthly
monitoring fee.
●●
●●
●Friend or neighbor can listen-in to your home to determine the nature of the
problem.
●●
●●
●You can add Lamp Modules to flash lamps and remotely control lamps
anywhere in the home.
●●
●●
●You can add Appliance Modules to remotely control TVs, stereos, coffee pots,
etc.
●●
●●
●You can add Wall Switch Modules to control or flash outside lights.
