Exhibit D Users Manual per 2 1033 b3
Initializing Motion Detectors
Remove the cover on the front of the Motion Detector and install
2 AAA alkaline batteries in the compartment. Replace the cover.
Press and hold the TEST button on the back of the Motion
Detector for a second and then release it. This initializes the
Motion Detector and picks a random code that is used when it is
registered with the Console.
ENTER PIN
12:00 am
****
12:00 am
1. INSTALL
Entering the PIN clears the top line and shows * for each number entered. The
default PIN is 0000, you’ll find out later how you can change this, but for now press
0000 on the keyboard under the Console’s flip up lid.
This takes you to the first level of the menu at step 1. This is the INSTALLATION
level. The display looks like this:
Press OK and the display looks like this:
Registering the Motion Detector with the Console.
Press either of the Console’s 2 Menu up/down buttons (to the right of the display).
The display then shows ENTER PIN (Personal Identification Number) in the top
line.
1. INSTALL
ZONE

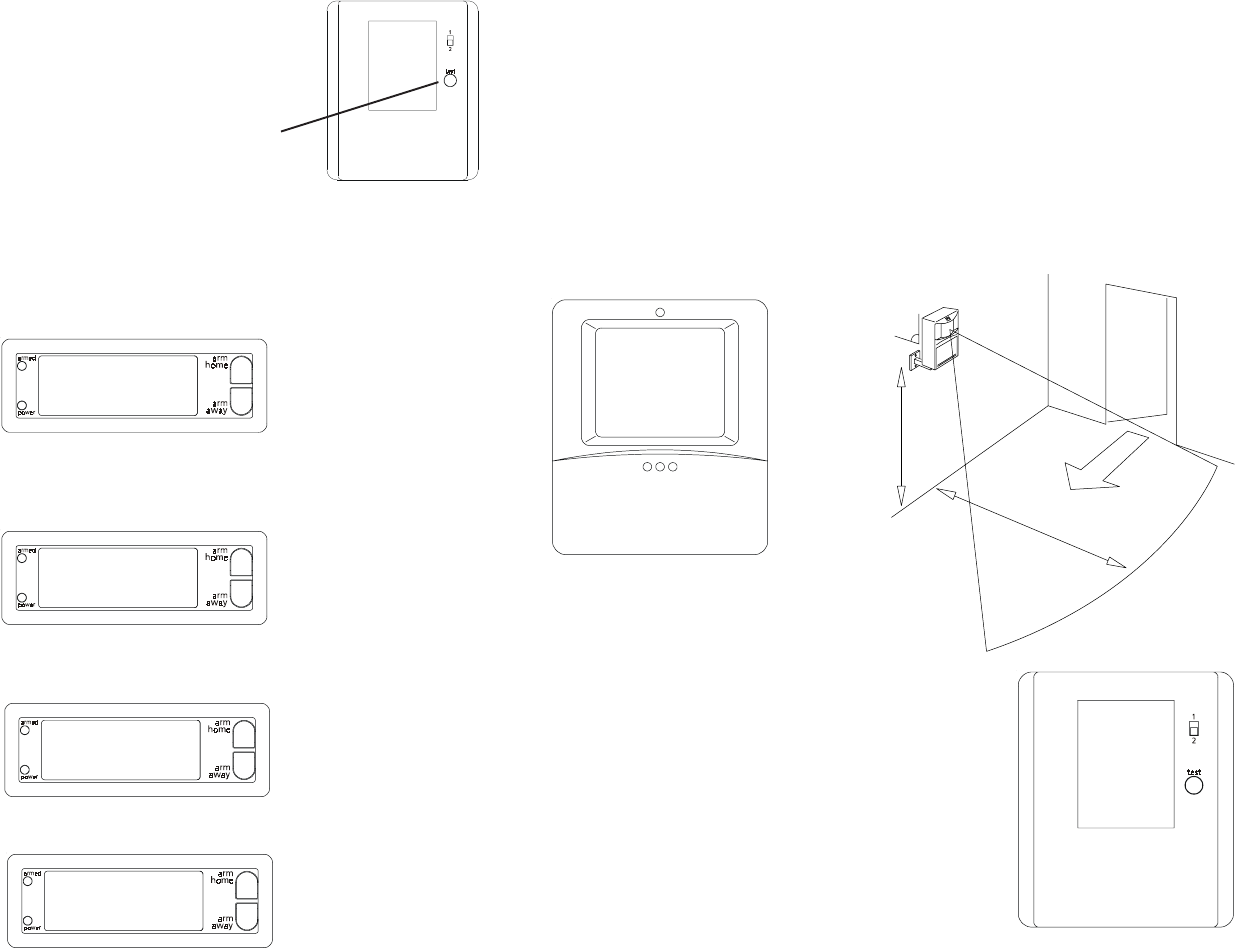

Installing the Motion Detector
• Attach the Motion Detector to a wall at a height of 5 to 6 ft. using the mounting
bracket and screws provided.
Note: The Motion Detector has a special lens that ‘looks’ downwards. It must
therefore be mounted to face outwards horizontally, i.e. do not ‘aim’ the sensor
downwards.
• Set the slide switch (on the back) to position 1 for instant triggering for maximum
sensitivity or position 2 to trigger only after two movements have been sensed.
MOTION DETECTOR
5-6ft
30-40ft
90˚
Testing the Motion Detector
• Set the slide switch on the Motion Detector to position
1.
• Press and hold the TEST button for about a second.
The LED flashes twice when you release it.
• Wait 20 seconds for the Motion Detector to settle.
• Walk in front of the Motion Detector. The indicator
LED lights each time it senses movement. Check the
coverage area and reposition the sensor as required.
• Press the TEST button to return to normal operating
mode.
Note: The Motion Detector will automatically return to
normal operating mode after about 2 minutes.
Battery Replacement
If any zone shows LOW BATT on the Console’s display, the Motion Detector for
that zone will need its batteries replacing. Also, if a zone has not reported in during
the last four hours, the display will show PROBLEM. This is most likely caused by
dead batteries.
As long as the batteries have not completely failed they may be replaced with fresh
batteries without the need to reinstall the Motion Detector. After removing the old
batteries fresh batteries must be fitted within 30 seconds to ensure that the security
code is retained.
To test the Motion Detector:
Once the batteries have been replaced, the Motion Detector should be tested as
follows:
• Make sure the system is NOT armed.
• Press the TEST button on the back of the Motion Detector. The Console chimes to
acknowledge and the zone # is displayed on the LCD.
FCC Statement
This equipment generates and uses radio frequency energy, and if not installed and
used properly, that is, in strict accordance with the manufacturers instructions, may
cause interference to radio and television reception. It has been type tested and found
to comply with the limits for remote control security devices in accordance with the
specifications in Sub-Parts B and C of Part 15 of FCC Rules, which are designed to
provide reasonable protection against such interference in a residential installation.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause interference to radio or television recep-
tion, which can be determined by unplugging the equipment, try to correct the
interference by one or more of the following measures.
• Reorient the antenna of the radio/TV experiencing the interference.
• Relocate the Console with respect to the
radio/TV.
• Move the Console away from the radio/TV.
• Plug the Console into an outlet on a different electrical circuit from the radio/TV
experiencing the interference.
If necessary, consult your local RadioShack store for additional suggestions.
Motion Detector Cat. No 49-1003
The plug ‘n power Supervised Security System Cat. No 49-1000 includes a Security
Console with an automatic dialer that calls neighbors or friends in the event of a
break in. A battery powered RF Door/Window Sensors and battery powered RF
Motion Detector to trigger the alarm, and an RF and Keychain Remote control for
arming and disarming the system. All sensors and remotes incorporate random
digital security coding.
The system may be configured with any combination of the following items:
• Up to 16* Keychain Security Remotes with arm/disarm and panic functions, and
buttons to control security lights in and around the home.
• Up to 32* magnetic switch operated wireless Door/Window Sensors.
• Up to 32* wireless PIR Motion Detectors.
• Additional plug ‘n power Home Automation modules such as plug-in lamp and
appliance modules and wired-in replacement wall switches can be added to the
system (one Lamp Module included).
This manual for the 49-1000 system describes the installation process for the
security elements of the system, and should be referred to as a supplement to this
instruction booklet.
*Note: Door/Window Sensors and Motion Detectors may be added in any
combination up to a total of 32.
RadioShack Corporation, Ft. Worth, TX 76102.
