Avalan Wireless Systems orporated AW900 Digital Spread Spectrum User Manual Avalon Wireless

Avalan Wireless Systems Incorporated Digital Spread Spectrum Avalon Wireless

Indoor Kit

INDOOR Version

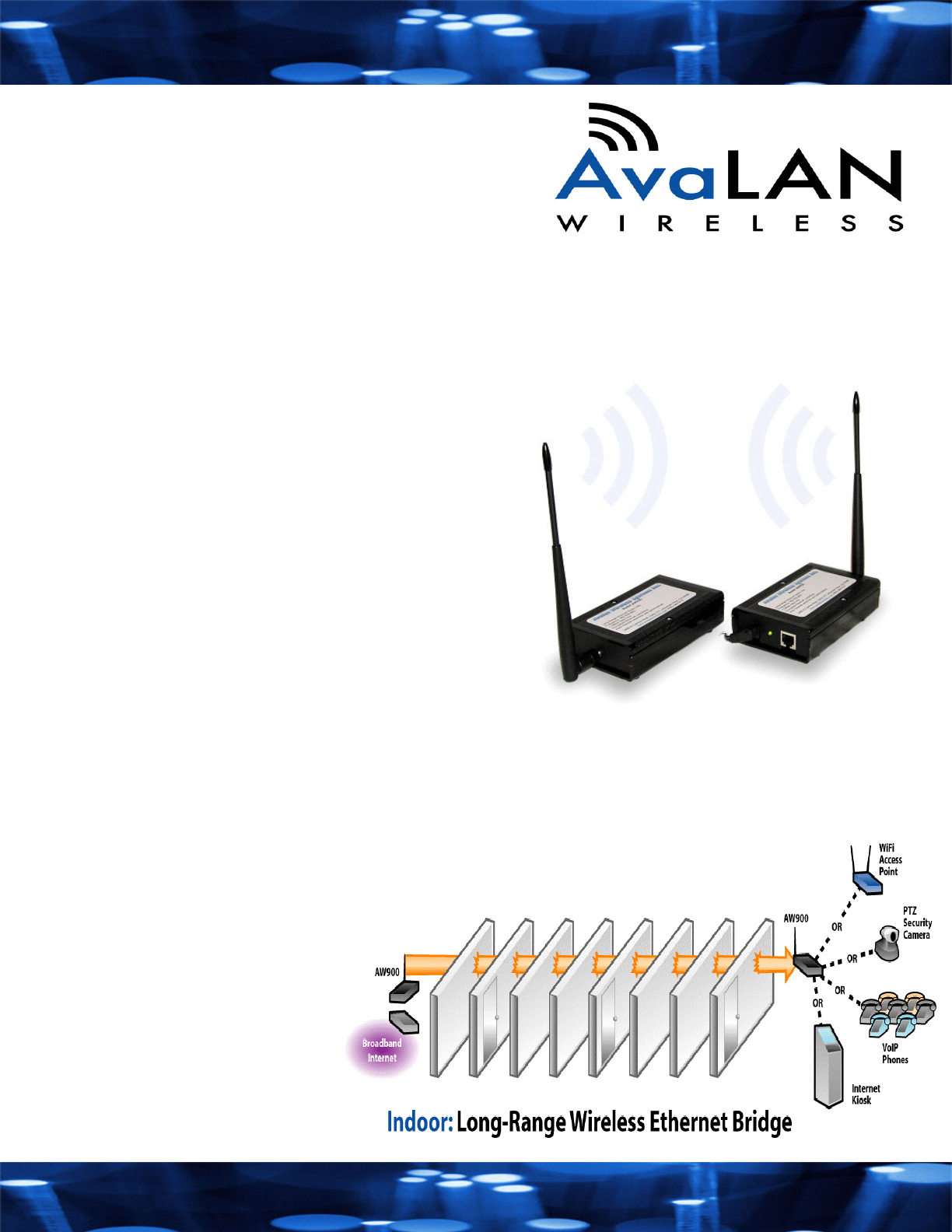

900MHz Long Range Wireless Ethernet Bridge
Enabling Broadband Internet Anywhere!
The AW900i replaces costly wiring with a Wireless Ethernet Bridge that can enable remote Wi-Fi APs, Ethernet
Pan/Tilt/Zoom Security cameras, VoIP phones or Internet Kiosks. AvaLAN’s product offers the ideal
combination of price, range, data rate, security,
interference avoidance, Quality-of-Service and Ease-of-
Use.
Features:
• Does not interfere with Wi-Fi networks.
• Highest Quality of Service (QoS) available –
Synchronous point to point protocol enables
extremely low data latency and jitter.
• 128bit encrypted payload protection provides
secure data delivery.
• Simple plug and play - pre-configured as matched
pairs with no user programming required.
• Operates in the 902-928MHz band and does not
require an FCC license to operate or install.
• VLAN extensions supported.
The best solution when:
• A Broadband Ethernet drop will cost too much or is impractical to install.
• Guaranteed DSL-rate throughput is required. (Kiosks/Wi-Fi APs/PTZ Cameras)
• Guaranteed latency for voice or video is required. (VoIP/PTZ Cameras)
• Wi-Fi is too slow due to saturation or 2.4Ghz interference. (Airport/Mall/PTZ Cameras)
• An indoor long-range broadband backhaul is required.
Range:
Antennas:
+2.5dBi included
+10dBi and +15dBi available.
Indoor Range:
Up to 10x the range of Wi-Fi
(with +15dBi directional antennae)*
Over 1000ft with 4 walls
(with +2.5dBi omni antennae)*
*range man
y
var
y
due to t
y
pe of walls

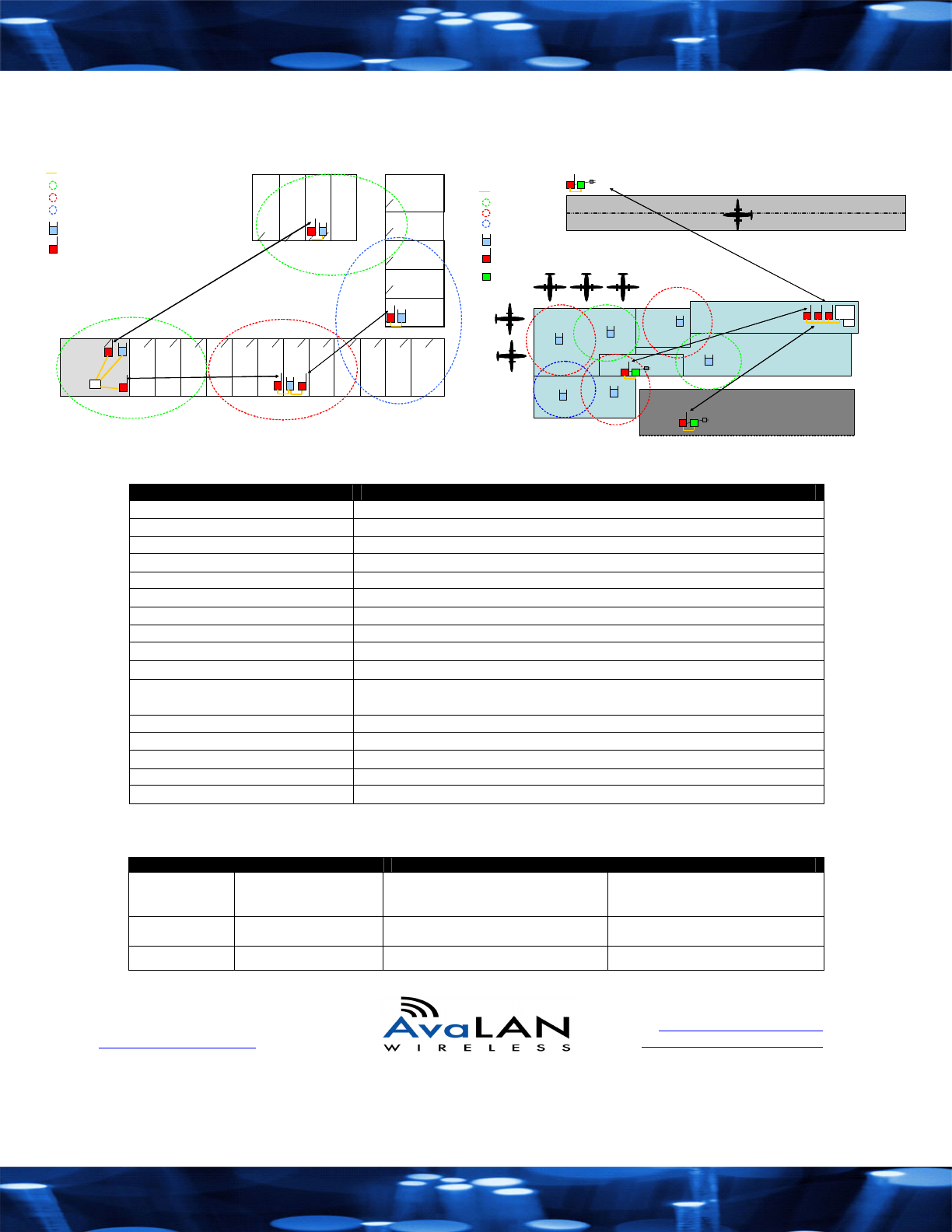

Application diagrams:
A small airport that wants to differentiate from the larger Metro airport by advertising that it has shorter security lines
and happy travelers. This will be provided by several web-controlled Pan, Tilt, Zoom cameras on the airport’s
marketing website.
Parking structure
CAT5 Ethernet cable
Wi-Fi Channel 1
Wi-Fi Channel 6
Wi-Fi Channel 11
APAP
Wi-Fi Access Point
Baggage Claim
Bar
Restaurant
APAP
APAP
APAP
APAP
APAP
APAP
Security Lines
AWAW
AvaLA N W ireless Ethernet Bridge
WC
PTZ Web Cam
AWAW WC
AWAW
Web
server
900Mhz @ 1.5Mbps
AWAW WC
AWAW AWAW
AWAW WC
DSL
Ticketi ng
PTZ WEB Camera -
AWAW
Front office
with 768Kb/s
T1 service
Hotel Layout using the AvaLAN Wireless Bridge
APAP
APAP
CAT5 Ethernet cable
Wi-Fi Channel 1
Wi-Fi Channel 6
Wi-Fi Channel 11
APAP
Wi-Fi Access Point
AWAW
AvaLAN Wireless Ethernet Bridge
AWAW
AWAW
DSLT1
Hotel Rooms
AWAW
APAP
AWAW
AP
AP
AW
AW
Technical Specifications: (typical)
Characteristic Specification - description
RF transmission rate: 1.5 Mb/s
Throughput: 935 Kb/s
Output power: +21dBm
Receive sensitivity: -101dBm at 10e-4 BER
Latency: < 1ms – assuming a dedicated wireless link to client device.
Jitter: ±0.5ms – depending upon packet size, interference and SNR.
Current consumption: 260mA at 4.5V (transmitting)
Radio channels: 12 Non-overlapping
Automatic frequency select: Yes – radio channel automatically selected and adaptively optimized
Manual frequency mode: Yes
Status LEDs: Power, RF Link, Ethernet Link, Traffic, RF RX, RF TX, 4/Channel and
6/Link Quality
MAC pass-through filter: Yes – can be disabled
Error correction technique: Sub-block error detection and retransmission
Adjacent-band rejection: >60dB - SAW receiver filter attenuates cellular and pager interference.
Temperature range -30°C to 60°C
Power over Ethernet: Compatible with common injector/splitters (Linksys WAPPOE)
Ordering information:
Part number Price* Description Contents
AW900i MSRP $699 Long Range Wireless Ethernet Bridge Complete wireless system –
2 radios, 2 2.5dBi antennas
2 power supplies
AW10 MSRP $119 10dBi antenna kit 2 10dBi Yagi antenna (20in long)
AW15 MSRP $199 15dBi antenna kit 2 15dBi Yagi antenna (39in long)
*Prices subject to change
2400 West El Camino Real # 317
Mountain View, CA 94040
www.avalanwireless.com
Tel (650) 444-5117
sales@avalanwireless.com
support@avalanwireless.com
©2004 Avalan Wireless Systems Incorporated. All rights reserved. Avalan Wireless and the Avalan Wireless logo are registered trademarks of Avalan Wireless Systems
Incorporated. All other trademarks are property of their respective owners. Avalan Wireless makes no representations or warranties with respect to the accuracy, utility, or
completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any time without notice. No license,
express or implied, by estoppel or otherwise, to any patents or other intellectual property rights is granted by this document. Particular uses or applications may invalidate
some of the specifications and/or product descriptions contained herein. The customer is urged to perform its own engineering review before deciding on a particular
application. Av an Wireless products are not designed for use in medical, life saving, or life sustaining applications. al
11/9/2004 V10
