Outdoor Kit

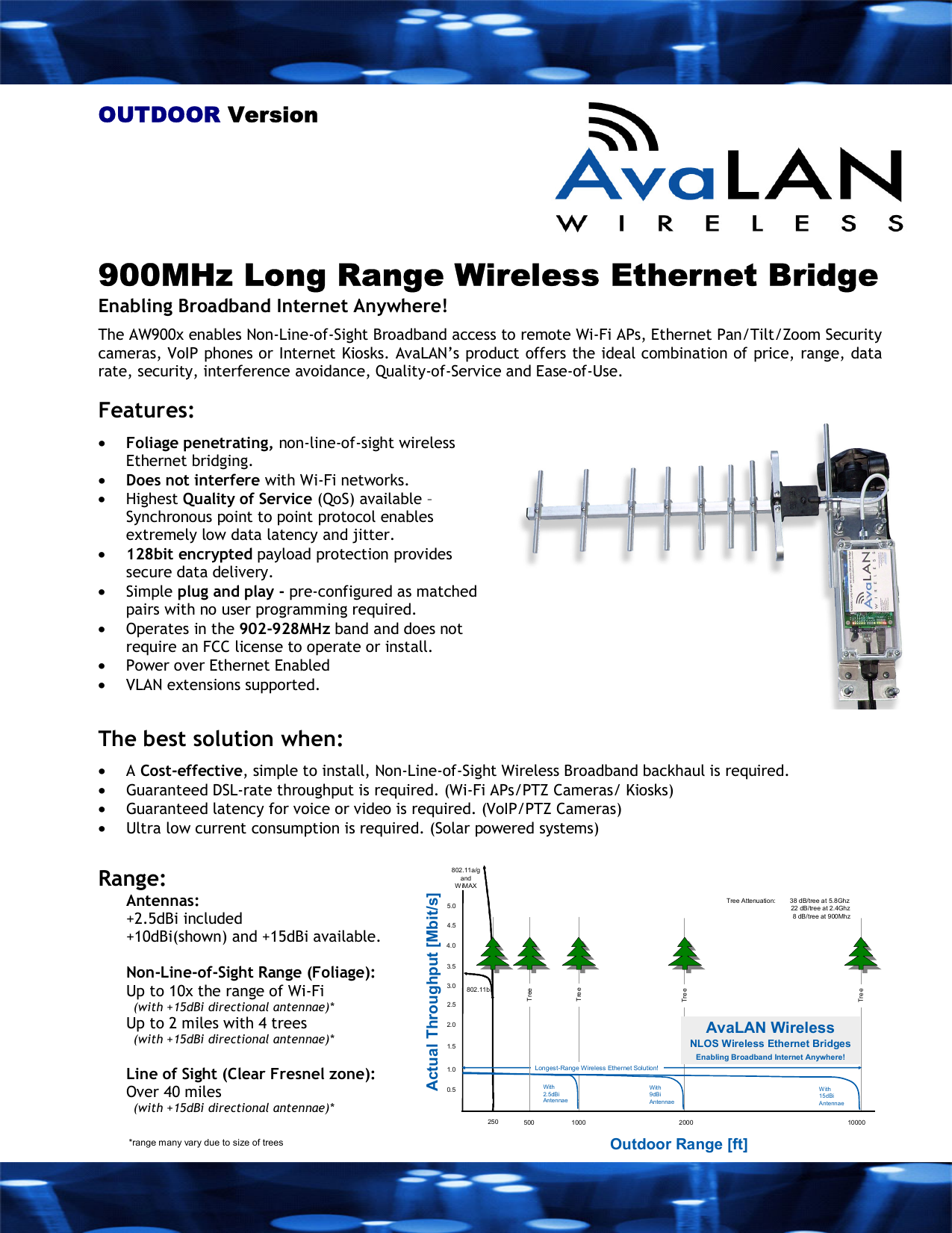

OUTDOOR Version
900MHz Long Range Wireless Ethernet Bridge
Enabling Broadband Internet Anywhere!
The AW900x enables Non-Line-of-Sight Broadband access to remote Wi-Fi APs, Ethernet Pan/Tilt/Zoom Security
cameras, VoIP phones or Internet Kiosks. AvaLAN’s product offers the ideal combination of price, range, data
rate, security, interference avoidance, Quality-of-Service and Ease-of-Use.
Features:
• Foliage penetrating, non-line-of-sight wireless
Ethernet bridging.
• Does not interfere with Wi-Fi networks.
• Highest Quality of Service (QoS) available –
Synchronous point to point protocol enables
extremely low data latency and jitter.
• 128bit encrypted payload protection provides
secure data delivery.
• Simple plug and play - pre-configured as matched
pairs with no user programming required.
• Operates in the 902-928MHz band and does not
require an FCC license to operate or install.
• Power over Ethernet Enabled
• VLAN extensions supported.
The best solution when:
• A Cost-effective, simple to install, Non-Line-of-Sight Wireless Broadband backhaul is required.
• Guaranteed DSL-rate throughput is required. (Wi-Fi APs/PTZ Cameras/ Kiosks)
• Guaranteed latency for voice or video is required. (VoIP/PTZ Cameras)
• Ultra low current consumption is required. (Solar powered systems)
Range:
Outdoor Range [ft]
Actual Throughput [Mbit/s]
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
250 1000 2000 10000
802.11b
802.11a/g
and
WiMAX
Tree
Tree
Tree
AvaLAN Wireless
NLOS Wireless Ethernet Bridges
Enabling Broadband Internet Anywhere!
With
2.5dBi
Antennae
With
9dBi
Antennae
Tree Attenuation: 38 dB/tree at 5.8Ghz
22 dB /tree at 2.4Ghz
8 dB/tree at 900Mhz
With
15dBi
Antennae
Longest-Range Wireless Ethernet Solution!
500
Tree

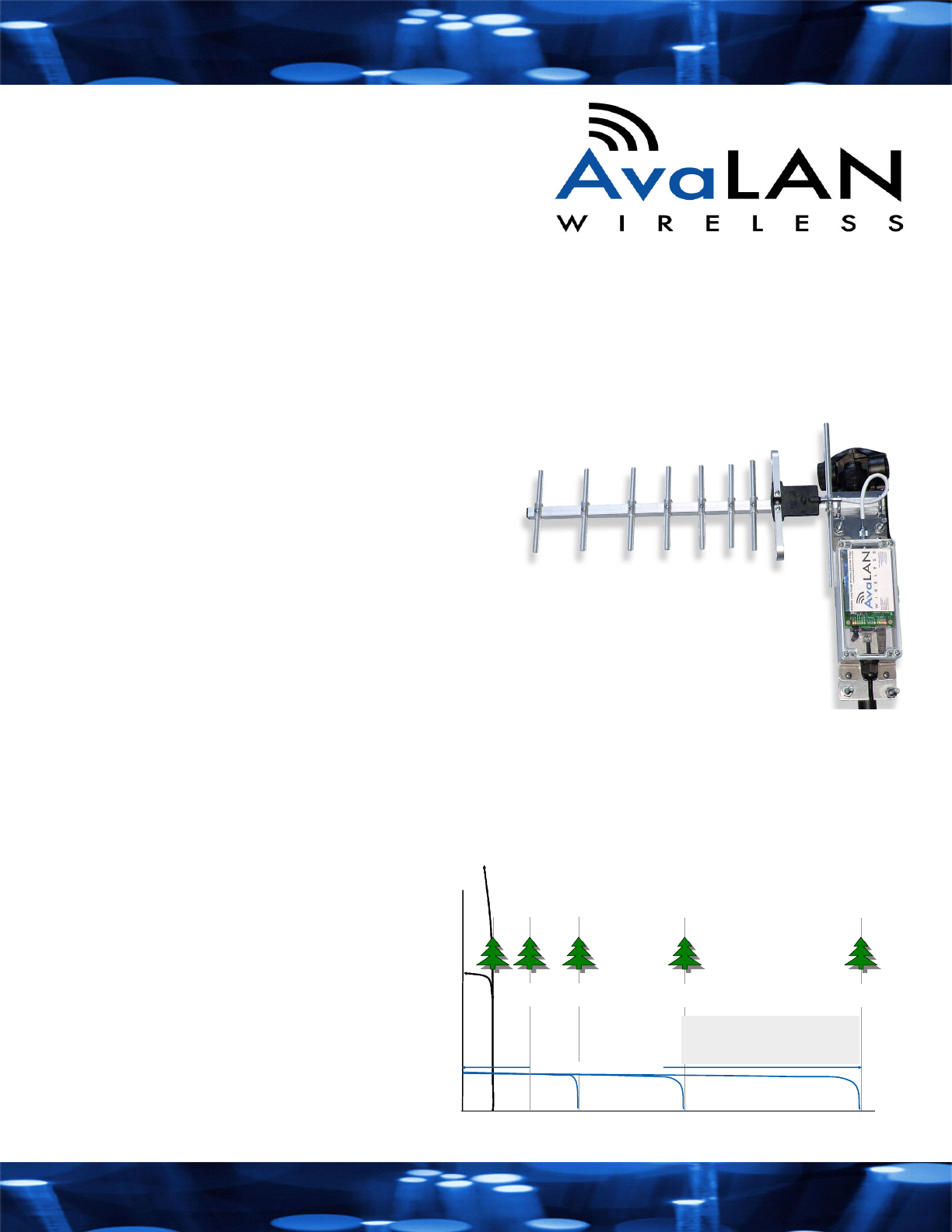

Antennas:
+2.5dBi included
+10dBi(shown) and +15dBi available.
Non-Line-of-Sight Range (Foliage):
Up to 10x the range of Wi-Fi
(with +15dBi directional antennae)*
Up to 2 miles with 4 trees
(with +15dBi directional antennae)*
Line of Sight (Clear Fresnel zone):
Over 40 miles
(with +15dBi directional antennae)*
*range many vary due to size of trees

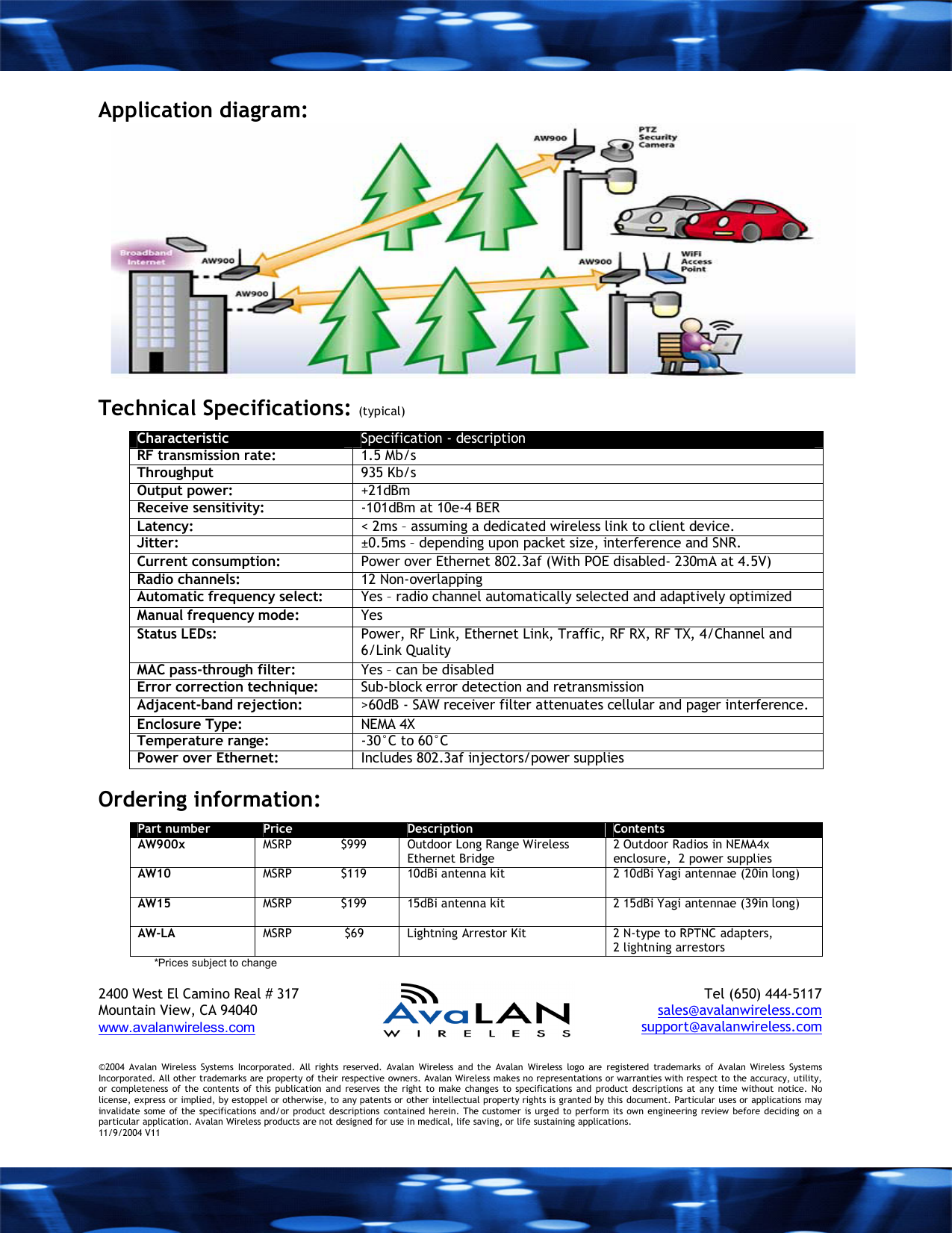

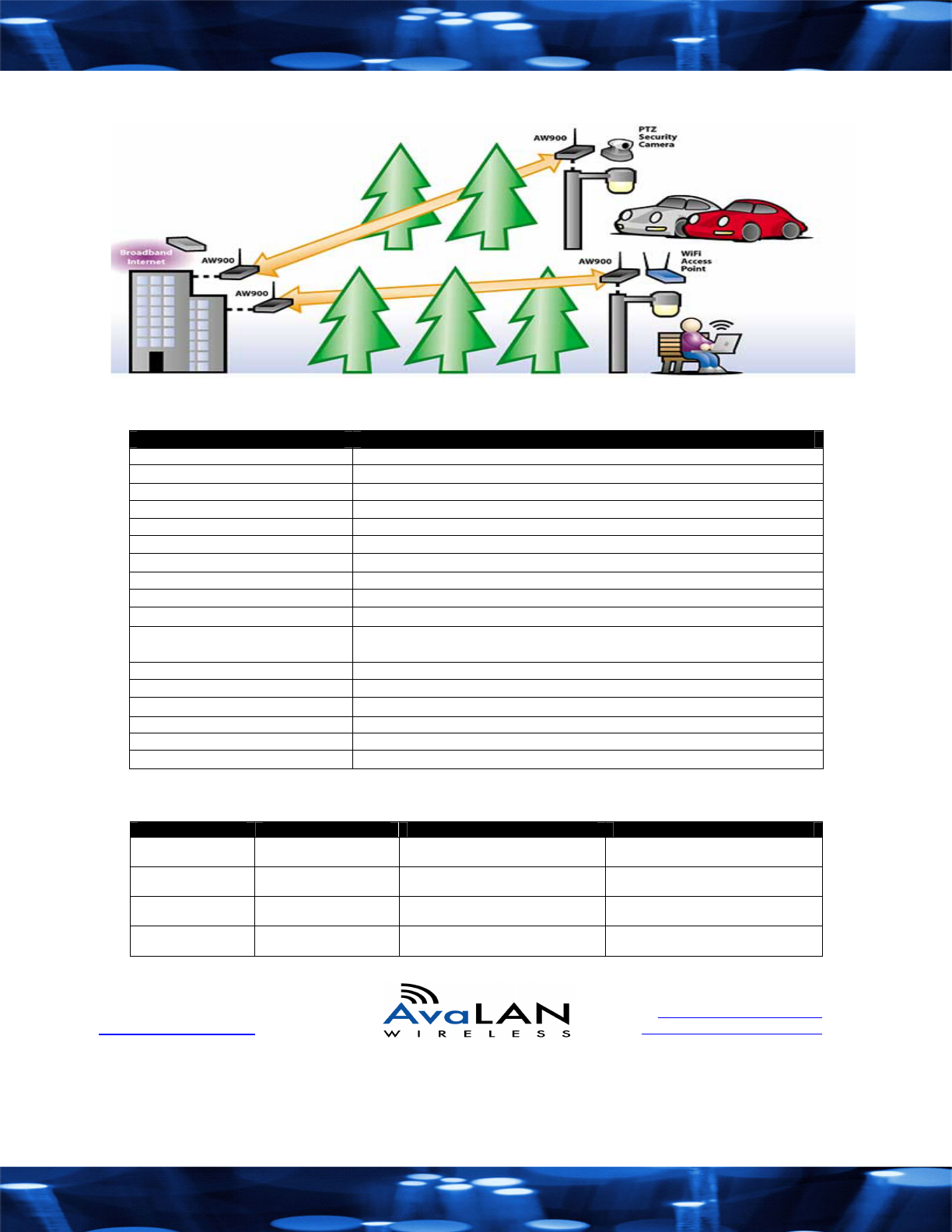

Application diagram:
Technical Specifications: (typical)
Characteristic Specification - description
RF transmission rate: 1.5 Mb/s
Throughput 935 Kb/s
Output power: +21dBm
Receive sensitivity: -101dBm at 10e-4 BER
Latency: < 2ms – assuming a dedicated wireless link to client device.
Jitter: ±0.5ms – depending upon packet size, interference and SNR.
Current consumption: Power over Ethernet 802.3af (With POE disabled- 230mA at 4.5V)
Radio channels: 12 Non-overlapping
Automatic frequency select: Yes – radio channel automatically selected and adaptively optimized
Manual frequency mode: Yes
Status LEDs: Power, RF Link, Ethernet Link, Traffic, RF RX, RF TX, 4/Channel and
6/Link Quality
MAC pass-through filter: Yes – can be disabled
Error correction technique: Sub-block error detection and retransmission
Adjacent-band rejection: >60dB - SAW receiver filter attenuates cellular and pager interference.
Enclosure Type: NEMA 4X
Temperature range: -30°C to 60°C
Power over Ethernet: Includes 802.3af injectors/power supplies
Ordering information:
Part number Price Description Contents
AW900x MSRP $999
Outdoor Long Range Wireless
Ethernet Bridge
2 Outdoor Radios in NEMA4x
enclosure, 2 power supplies
AW10 MSRP $119
10dBi antenna kit 2 10dBi Yagi antennae (20in long)
AW15 MSRP $199
15dBi antenna kit 2 15dBi Yagi antennae (39in long)
AW-LA MSRP $69 Lightning Arrestor Kit 2 N-type to RPTNC adapters,
2 lightning arrestors
*Prices subject to change
2400 West El Camino Real # 317
Mountain View, CA 94040
www.avalanwireless.com
Tel (650) 444-5117
sales@avalanwireless.com
support@avalanwireless.com
©2004 Avalan Wireless Systems Incorporated. All rights reserved. Avalan Wireless and the Avalan Wireless logo are registered trademarks of Avalan Wireless Systems
Incorporated. All other trademarks are property of their respective owners. Avalan Wireless makes no representations or warranties with respect to the accuracy, utility,
or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any time without notice. No
license, express or implied, by estoppel or otherwise, to any patents or other intellectual property rights is granted by this document. Particular uses or applications may
invalidate some of the specifications and/or product descriptions contained herein. The customer is urged to perform its own engineering review before deciding on a
particular application. Avalan Wireless products are not designed for use in medical, life saving, or life sustaining applications.
11/9/2004 V11
