Chelan B-Vent

(700 B-Vent)

Gas Stove

and

Fireplace Insert

¥ Freestanding Stove

¥ Masonry Fireplace Insert

¥ Factory Built (Z.C.) Fireplace

Insert

Listed

WARNING: Improper installation, adjustment, alteration, service or maintenance can cause

injury or property damage. Refer to this manual. For assistance or additional

information consult a qualified installer, service agency, or the gas supplier.

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or

any other appliance.

- I nst al l at i on m us t be per for m ed by a qual i f ie d i ns ta l le r, s er vic e a gency or the ga s s uppl i er

IF YOU SMELL GAS

¥ Do not try to light any appliance.

¥ Do not touch any electrical switch; do not use any phone in your building.

¥ Immediatel

y

call gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

¥ If you cannot reach your gas supplier, call the fire department.

- April, 1999 -

Installer: After installation give this manual

to the homeowner and explain

operation of this heater.

$10.00 93508078 10850 117th Place N.E. Kirkland, WA 98033

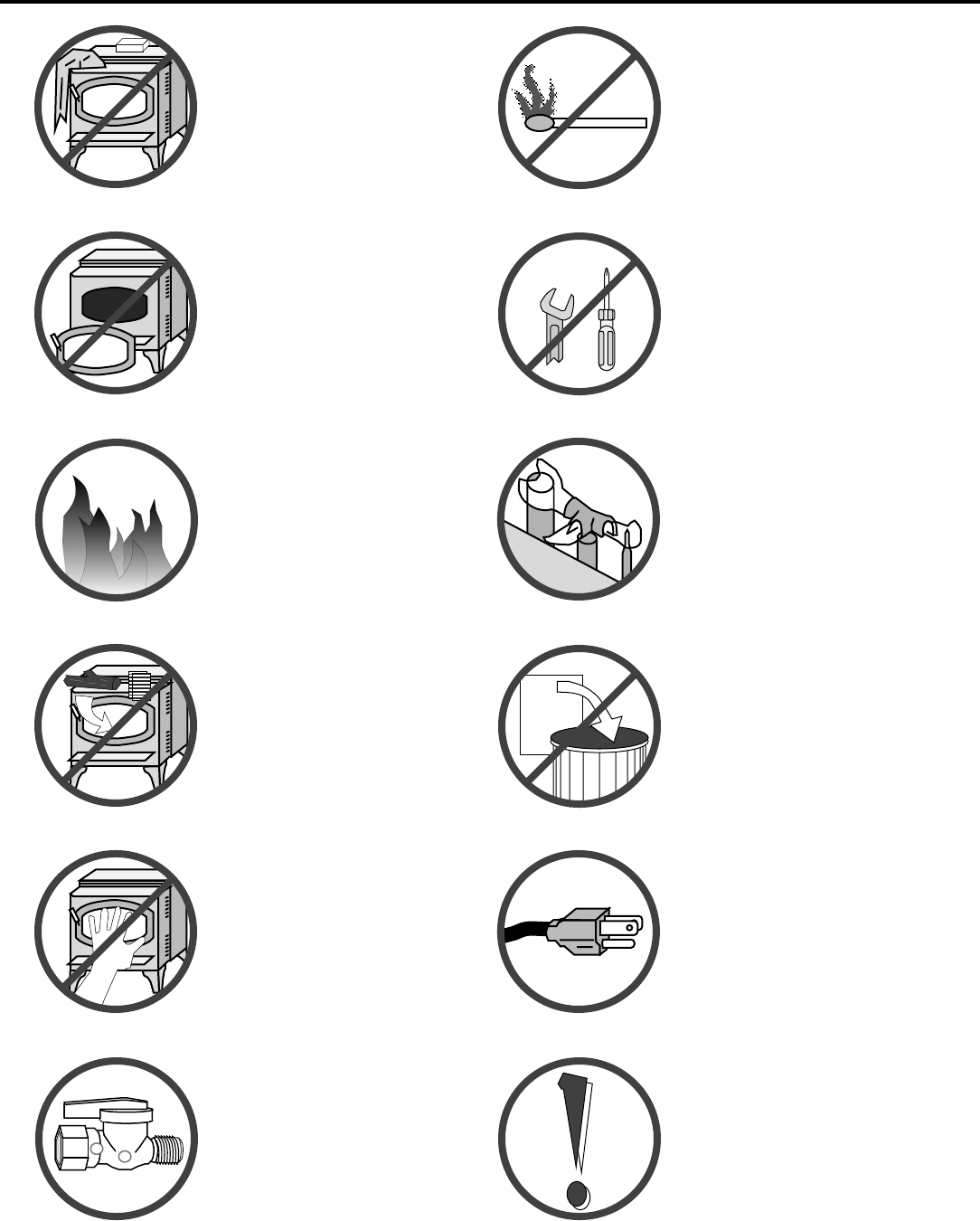

PAGE 2SAFETY PRECAUTIONS

¥

IF YOU SMELL GAS:

* Do not light any appliance

* Extinguish any open flame

* Do not touch any electrical switch or plug or unplug anything

* Open windows and vacate building

* Call gas supplier from neighbor's house, if not reached, call fire

department

¥ This unit must be installed by a qualified installer to prevent the possibility of

an explosion. Your dealer will know the requirements in your area and can

inform you of those people considered qualified. The room heater should be

inspected before use and at least annually by a qualified service person. More

frequent cleaning may be required due to excessive lint from carpeting,

bedding material, etc.

¥ The instructions in this manual must be strictly adhered to. Do not use

makeshift methods or compromise in the installation. Improper installation

will void the warranty and safety listing.

THIS CONTROL

HAS BEEN

CONVERTED TO

LP

THIS CONTROL

HAS BEEN

CONVERTED FOR

NATURAL GAS

¥ This heater is either approved for natural gas

(NG) or for propane (LP). Burning the incorrect

fuel will void the warranty and safety listing and

may cause an extreme safety hazard. Direct

questions about the type of fuel used to your

dealer. Check the label on top of the gas control

valve.

Ok

¥ Contact your local

building officials to

obtain a permit and

information on any

installation restrictions or

inspection requirements

in your area. Notify your

insurance company of this

heater as well.

¥ If the flame becomes

sooty, dark orange in

color, or extremely tall,

do not operate the heater.

Call your dealer and

arrange for proper

servicing.

¥ It is imperative that

control compartments,

screens, or circulating air

passageways of the heater

be kept clean and free of

obstructions. These areas

provide the air necessary

for safe operation. ?

¥ Do not operate the heater

if it is not operating

properly in any fashion or

if you are uncertain. Call

your dealer for a full

explanation of your heater

and what to expect.

Gas

¥ Do not store or use

gasoline or other

flammable liquids in the

vicinity of this heater.

¥ Keep all furniture or other

combustible items at least

36" away from the front

of the heater.

¥ Do not operate if any

portion of the heater was

submerged in water or if

any corrosion occurs.

SAFETY PRECAUTIONS (CONTINUED)PAGE 3

¥ Do not place clothing or

other flammable items on

or near the heater.

Because this heater can be

controlled by a thermostat

there is a possibility of the

heater turning on and

igniting any items placed

on or near it.

¥ Light the heater using the

built-in piezo igniter. Do

not use matches or any

other external device to

light your heater.

¥ Never remove, replace,

modify or substitute any

part of the heater unless

¥ The viewing glass should

be opened for service

only (see the maintenance

section of this manual).

¥ Any safety screen or

guard removed for

servicing must be

replaced prior to

operating the heater.

instructions are given in

this manual. All other

work must be done by a

trained technician. Don't

modify or replace

orifices.

¥ Allow the heater to cool

before carrying out any

maintenance or cleaning.

¥ Operate the heater

according to the

instructions included in

this manual.

¥ If the main burners do not

start correctly turn the gas

off at the gas control

valve and call your dealer

for service.

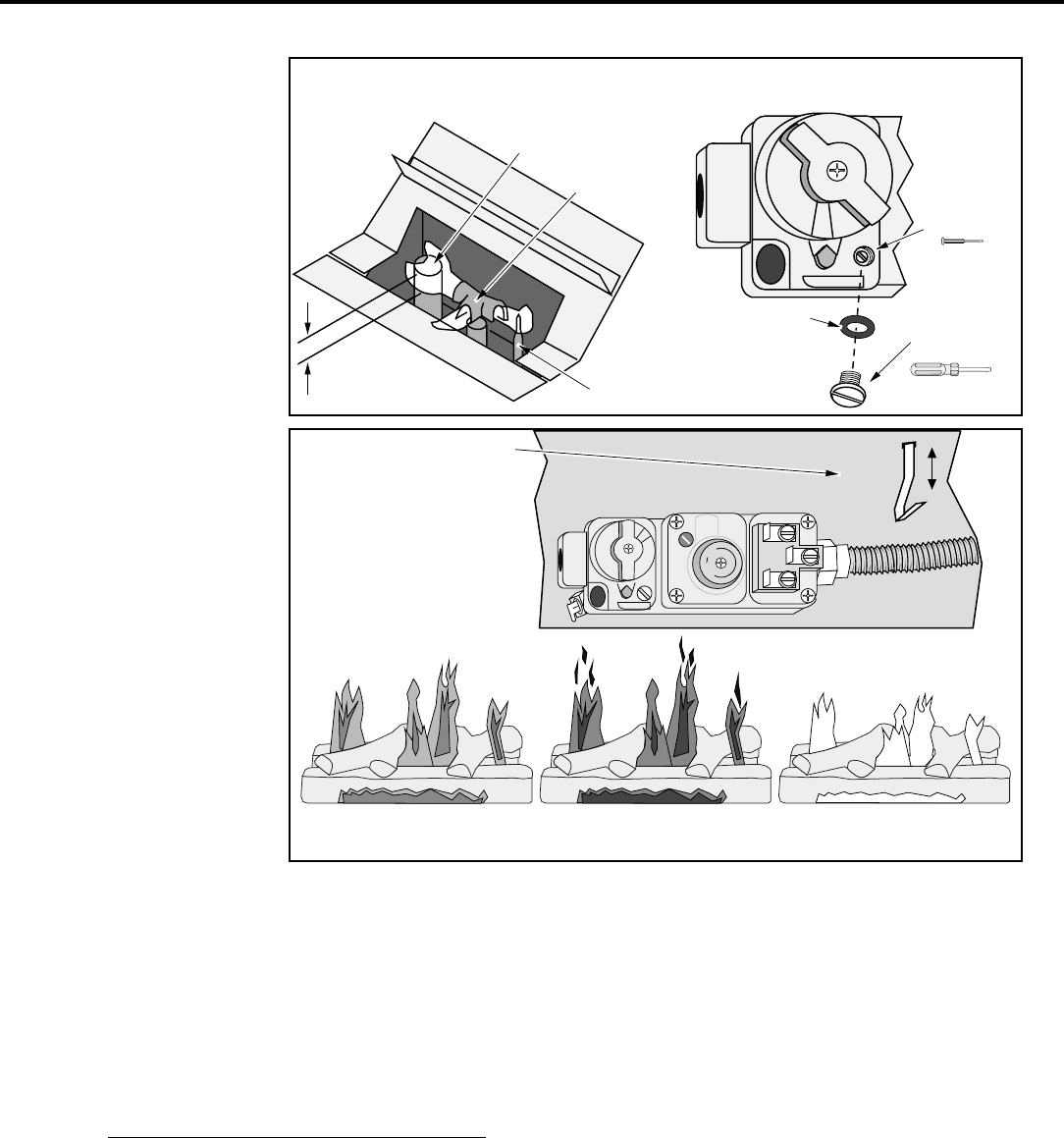

¥ The pilot flame must

contact the thermopile

and thermocouple (see the

illustration to the left). If

it does not, turn the gas

control valve to "OFF"

and call your dealer.

¥ This unit is not for use

with solid fuel

¥ Do not place anything

inside the firebox (except

the included fiber logs).

¥ If the fiber logs become

damaged, replace with

Travis Industries log set.

This

Manual

¥ Do not throw this manual

away. This manual has

important operating and

maintenance instructions

that you will need at a

later time. Always follow

the instructions in this

manual.

¥ Do not touch the hot

surfaces of the heater.

Educate all children of the

danger of a high-

temperature heater.

Young children should be

supervised when they are

in the same room as the

heater.

¥ Plug the heater into a

115V grounded electrical

outlet. Do not remove the

grounding plug.

¥ Don't route the electrical

cord in front of, over, or

under the heater

¥ Instruct everyone in the

house how to shut gas off

to the appliance and at the

gas main shutoff valve.

The gas main shutoff

valve is usually next to

the gas meter or propane

tank and requires a

wrench to shut off.

¥Travis Industries, Inc.

grants no warranty,

implied or stated, for the

installation or

maintenance of your

heater, and assumes no

responsibility of any

consequential

damage(s).

PAGE 4TABLE OF CONTENTS

General Information

Introduction & Important Information............1

Safety Precautions ..................................2

Features & Specifications..........................5

Stove Installation

Installation Preparation .............................6

Items Required for Installation....................6

Order of Installation .................................6

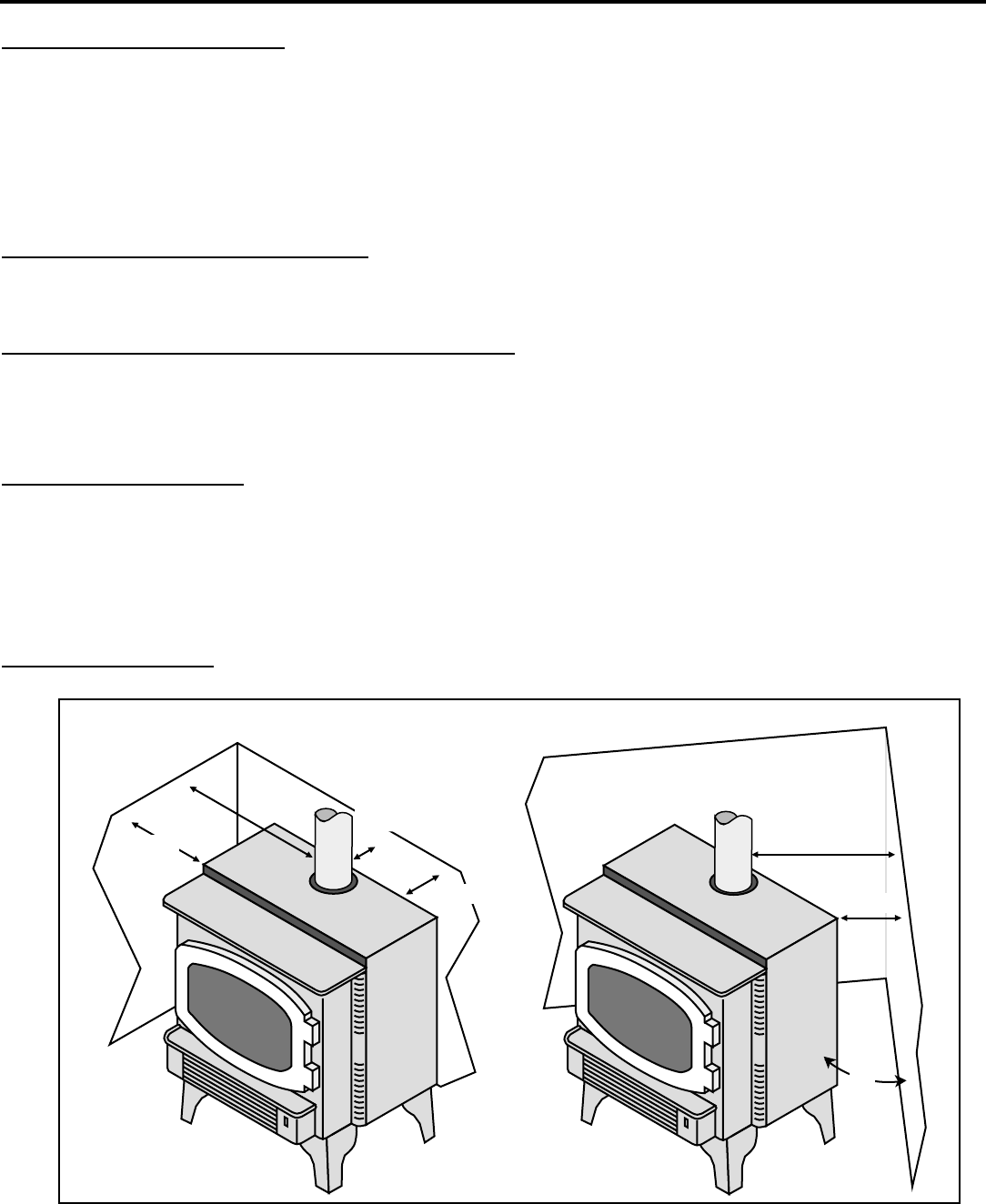

Stove Clearances ....................................6

Heater Placement Requirements ................7

Floor Protection ......................................7

Gas Line Installation ................................7

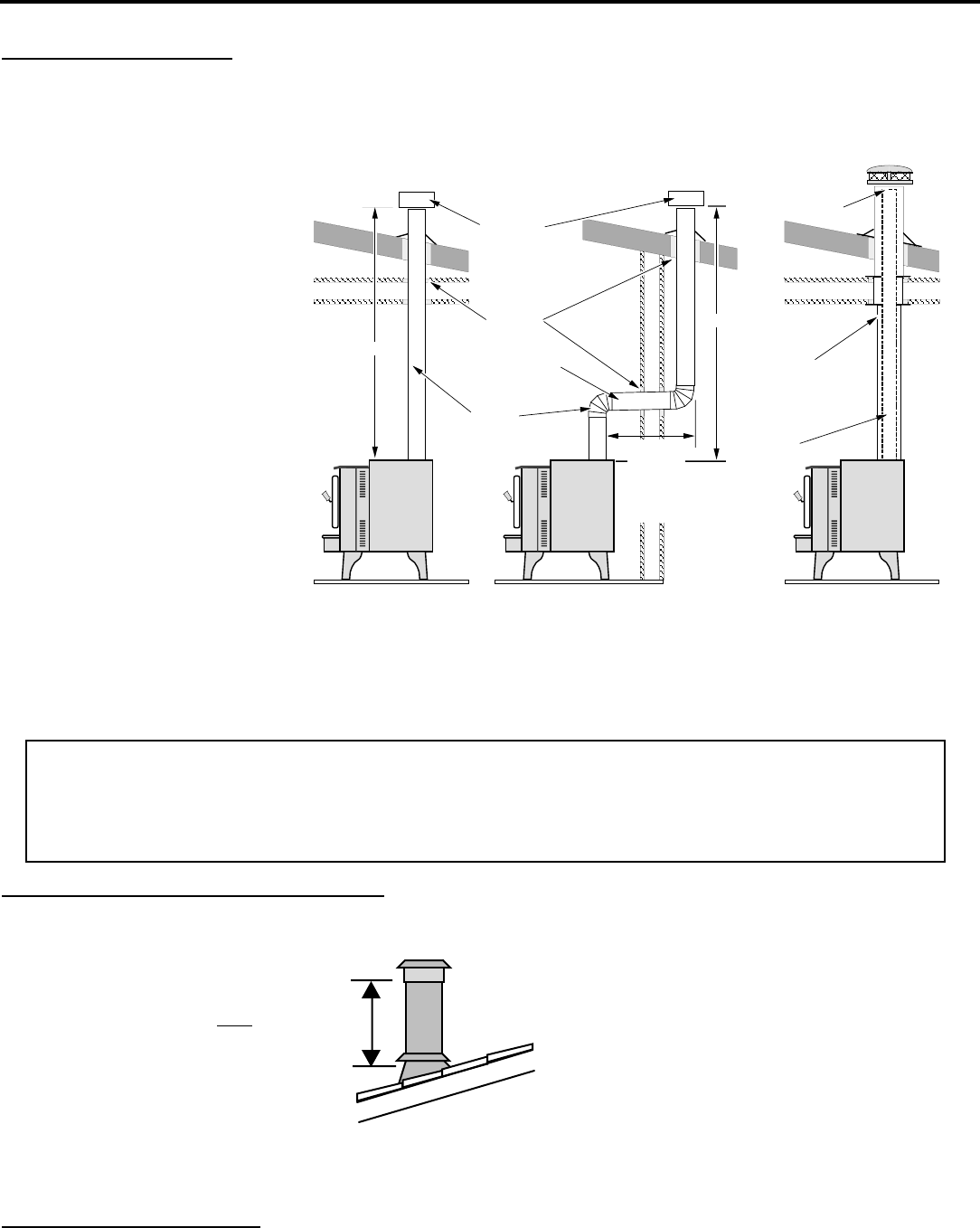

Vent Requirements ..................................8

Vent Termination Requirements .................8

Electrical Connection ...............................8

Insert Installation

Installation Preparation .............................9

Items Packed with the Heater ....................9

Order of Installation .................................9

Re-Routing the Power Cord to the Front.......9

Insert Placement .....................................11

Floor Protection ......................................11

Gas Line Install .......................................12

Vent Requirements ..................................13

Vent Termination Requirements .................13

Electrical Connection ...............................13

Finalizing the Installation

1 Remove the Door..................................14

2 Install the Logs and Coals.......................14

¥ Purge the Gas Line................................14

3 Replace the Door..................................15

4 Leak Test all Gas Line Joints...................15

5 Check the Pilot Flame............................15

6 Adjust the Air Shutter.............................15

7 Check the Draft ....................................15

8 Check the Flame Height .........................15

9 Explain Heater Operation to Owner ..........15

Operating Your Heater

Before You Begin ....................................16

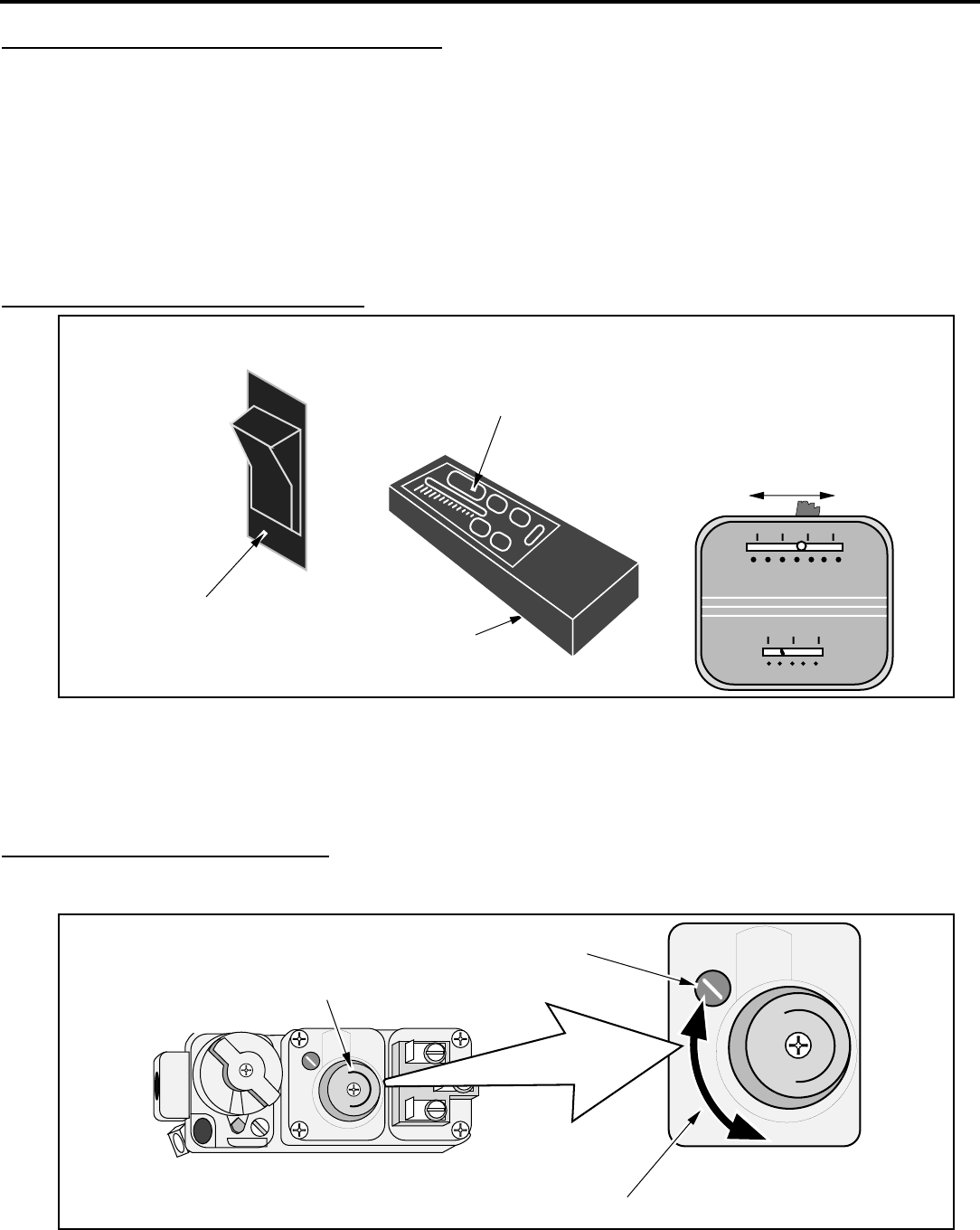

Location of Controls .................................16

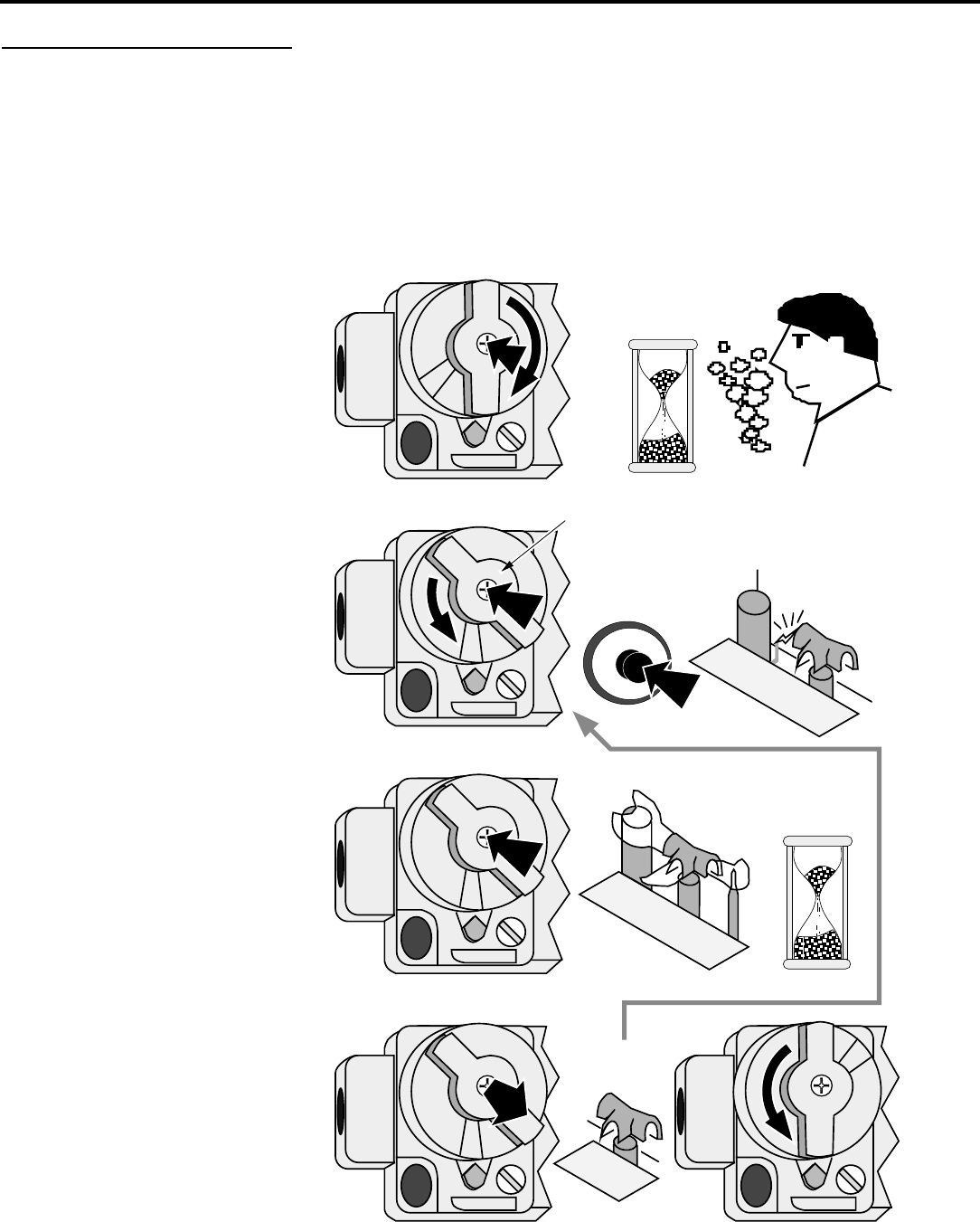

Starting The Pilot.....................................17

Starting the Heater for the First Time ...........18

Turning the Heater On and Off ...................18

Adjusting the Flame Height........................18

Adjusting the Blower Speed.......................19

Normal Operating Sounds .........................19

Maintaining Your Heater

Maintaining Your Stove's Appearance..........20

Yearly Service Procedure..........................20

Troubleshooting

Troubleshooting Table..............................21

How this Heater Works .............................22

What Turns the Main Burners

On and Off .......................................22

What Prevents Gas Buildup.................22

Why Nothing Should Be Placed

Against the Heater.............................23

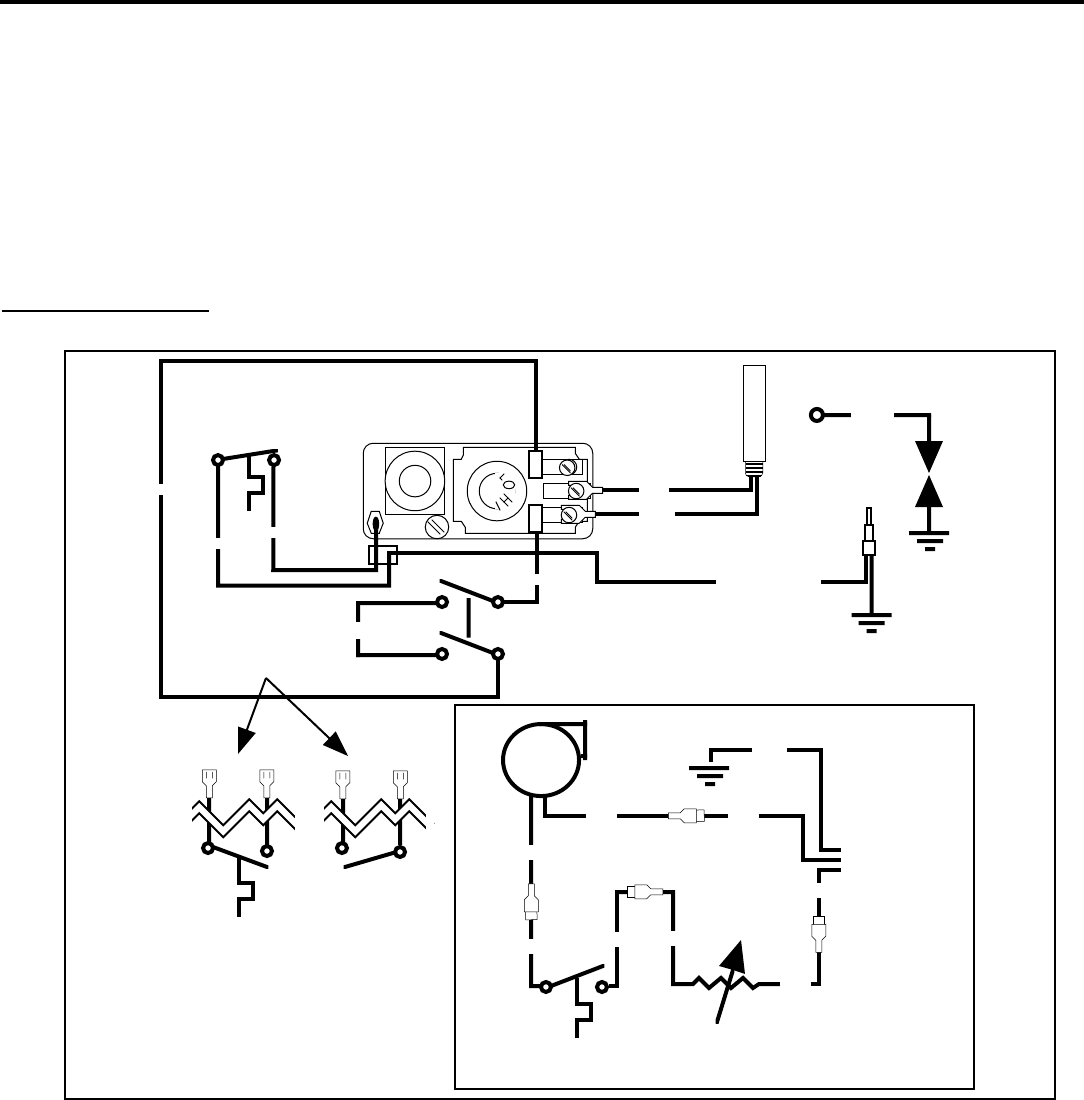

Wiring Diagram .................................23

Replacement Parts List.......................23

Warranty

Warranty................................................24

Listing Information

Safety Label ...........................................25

Optional Equipment

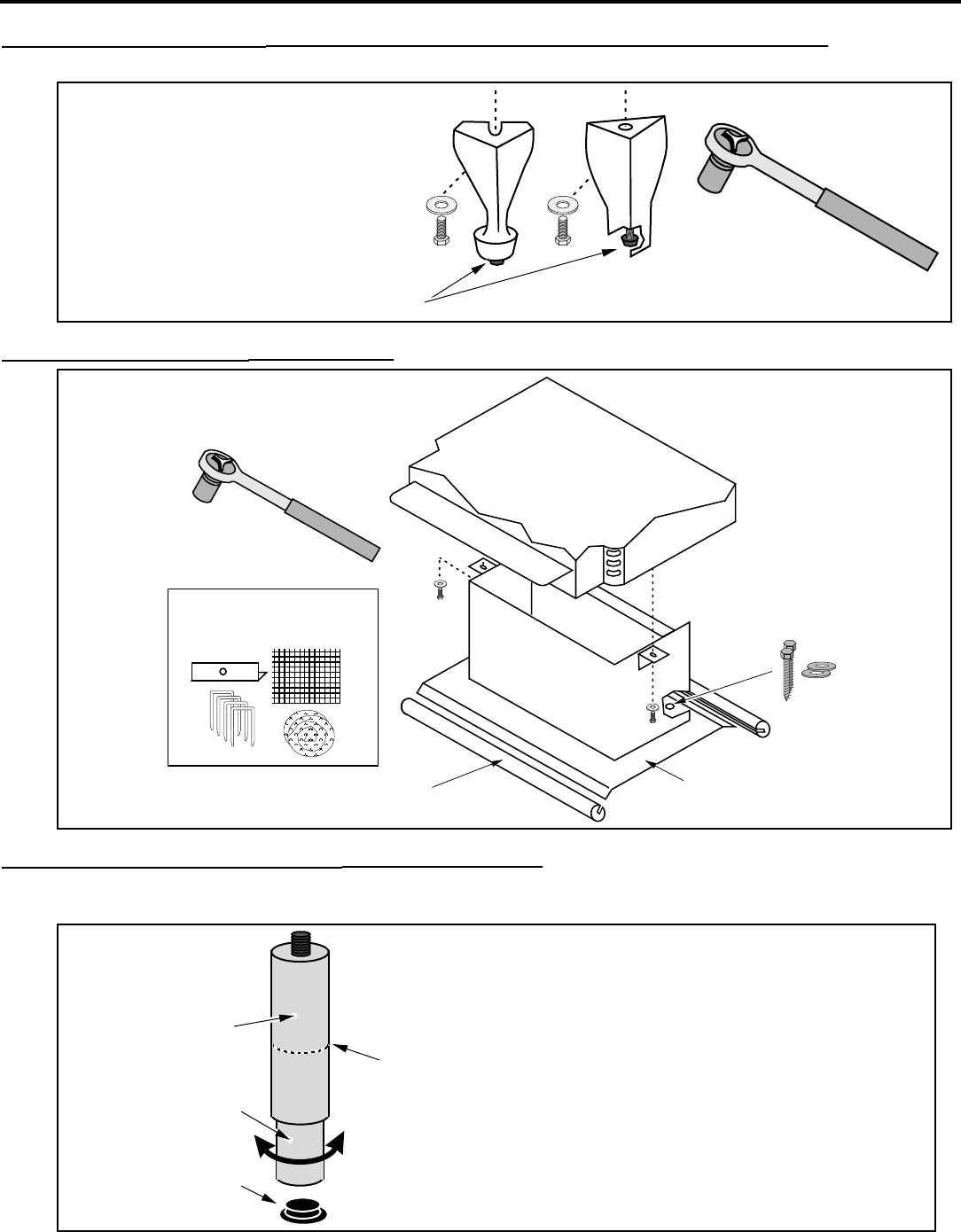

Stove Leg Installation ...............................26

Pedestal Installation.................................26

Telescoping Leg Installation ......................26

Surround Panel Installation........................27

Thermostat ............................................28

Remote Control Thermostat.......................29

Outside Air Kit ........................................29

Propane Conversion Kit ............................30

Index

Index ....................................................34

Symbols Used in this Manual

Requirement

¥1!?+

Hint

NoteWarningStep

FEATURES AND SPECIFICATIONS PAGE 5

Installation Options:

¥ Freestanding

¥ Masonry Fireplace Insert

¥ Zero-Clearance (Metal)

Fireplace Insert

Features:

¥ Works During Power Outages

(millivolt system)

¥ High Efficiency; Up to 80% for Natural Gas,

82% for LP (Steady State)

¥ Optional Thermostat or Remote Control

¥ Realistic "Wood Fire" Look

¥ Convenient Operating Controls

¥ Variable-Rate Heat Output

¥ Quiet Blower for Effective Heat Distribution

¥ Low Maintenance

Heating Specifications:

Approximate Heating Capacity (in square feet)* 600 - 1600

AFUE (Annual Fuel Utilization Efficiency) 68 %

Natural Gas LP (Propane)

High Burn Input Rate (In BTU's) 40,000 38,000

Low Burn Input Rate (In BTU's) 23,000 20,000

Efficiency** 80% 82%

* Heating capacity will vary with the home's floor plan and insulation, natural gas or Propane BTU rating, and outside temperature.

** Efficiency rating is a product of thermal efficiency rating determined under continuous operation independent of installed system.

To measure the net BTU's, multiply the BTU input by the efficiency percentage (80% for natural gas, 82% for LP).

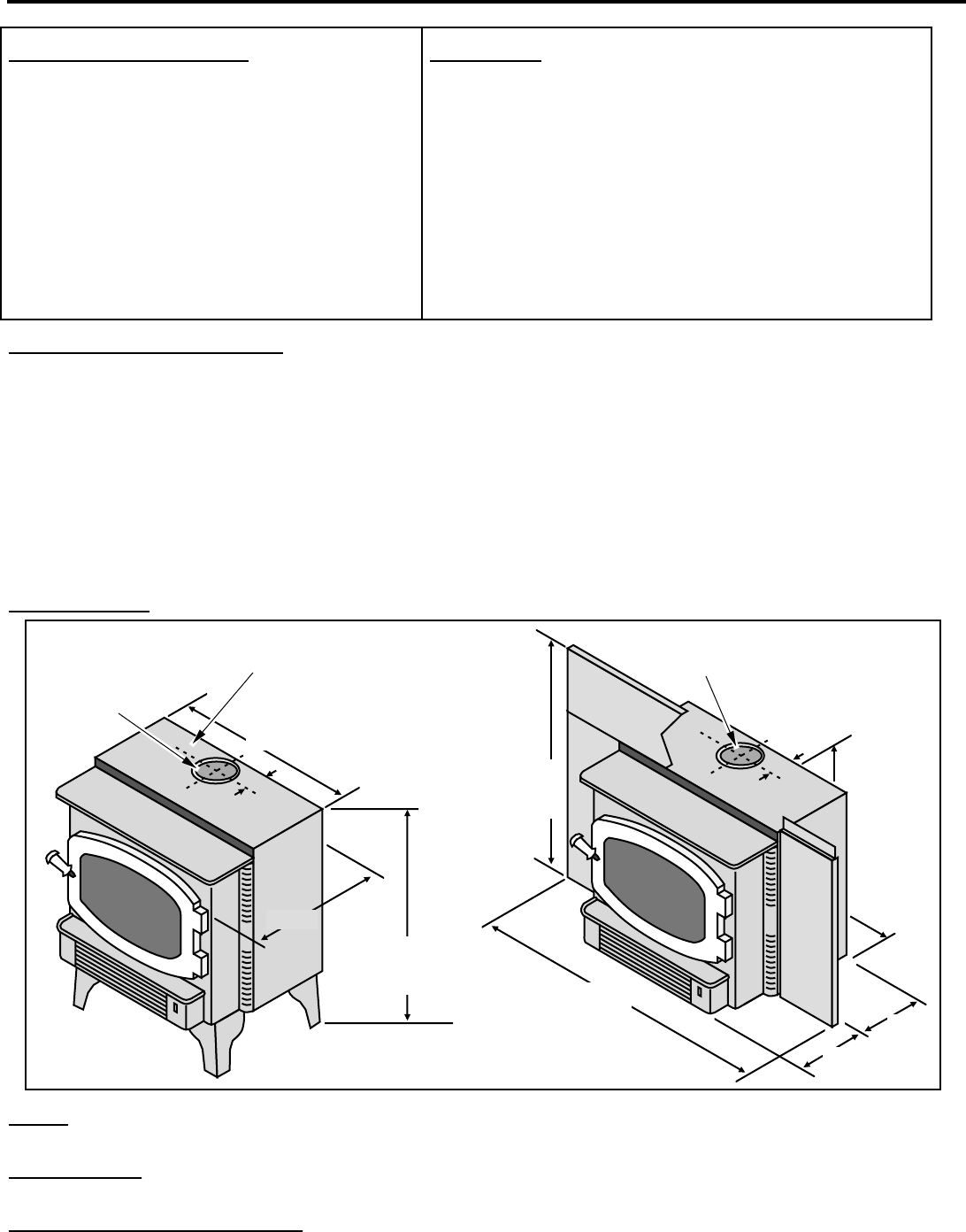

Dimensions

20-1/8"

8" Panels: 28"*

10" Panels: 30"*

12" Panels: 32"*

13"*

5-3/4"*

* Includes

i

23-3/4"

8" Panels: 40"*

10" Panels: 44"*

12" Panels: 48"*

18-5/8"

23-3/4"

Pedestal: 31-1/2"

Brass, Cast Legs: 28"

Black Legs: 26-5/8"

Weight: 175 Lbs.

Measure Clearances

from the Upper Top

The base of the

starter section

is 2" below the

upper top.

4-1/2" 4-1/2"

The base of the starter section

is 2" below the upper top.

Fuel:

The heater is designed either for natural gas or for propane (but not

for both). Check the sticker on the top of the gas control valve.

Emissions:

This unit has passed the ANSI emission standards for vented room

heaters as tested by OMNI Environmental Services, Inc.

Electrical Specifications:

115 Volts, 1.3 Amps, 60 Hz (150 watts on high)

PAGE 6STOVE INSTALLATION - For qualified installers only!

Installation Preparation

! This appliance must be installed in accordance with all local codes, if any; if not, follow ANSI

Z223.1 and the requirements listed in this manual. Failure to follow all of the requirements

may result in property damage, bodily injury, or even death.

! Notify your insurance company before hooking up this heater.

! The requirements listed below are divided into sections. All requirements must be met

simultaneously. The order of installation is not rigid Ð the qualified installer should follow the

procedure best suited for the installation.

Items Required for Installation

¥B-Vent System

¥Brass, Black, or Cast Legs or Pedestal

¥Gas Hookup Equipment

Items Packed with the

Chelan (700) B-Vent

¥Gas Inlet (3/8" Pipe)

¥Propane Conversion Kit

¥Owner's Manual

¥Log Set (2 Logs, 2 Twigs, Embers)

¥2 Leveling Bolts (3/8"-16 x 3" Carriage Bolts - not used for stove installations)

Order of Installation

1Attach the legs or pedestal (see page 26)

2If the heater is to use propane, install the propane conversion kit (see page 31)

3Position the heater, use floor protection if needed

4Attach any optional equipment.

5Connect the gas line. Connect the gas vent.

6Follow the instructions under "Finalizing the Installation" on pages 14 and 15.

Stove Clearances

10" Min.

4" Min.

45¡

Straight Installations Corner Installations

When installed with this clearance, the

vent is 13-1/2" from the wall.

4" Min.

When installed with

this clearance, the

vent is 6-1/4" from the

back wall, 19-1/2"

from the side wall.

STOVE INSTALLATION (CONT.) - For qualified installers only! PAGE 7

Heater Placement Requirements

¥Heater must be installed on a level surface capable of supporting the heater and vent

¥Due to the high temperature of the heater, it should be located out of traffic and away from furniture and draperies.

Heater must be placed so no combustibles are within, or can swing within 36" of the front of the heater (e.g. drapes,

doors)

?When placed in a location where the floor to ceiling height is under 7 feet , the installation is considered an alcove and

must meet the following requirements:

¥The alcove floor to ceiling height must be at least 58" tall

¥The alcove must not be more than 45" deep (before the ceiling returns to 7 feet)

¥The alcove must be at least 44" wide

¥The heater must not be placed so the vents below or above the door, along the sides of heater, or along the back of the

heater can become blocked.

Floor Protection

¥When the stove is installed directly on carpeting, vinyl or other combustible material other than wood flooring or a high

pressure laminate wood floor, the stove must be installed on a metal or wood protection panel extending the full width

and depth of the heater (Minimum 23-3/4" wide by 18-5/8" deep).

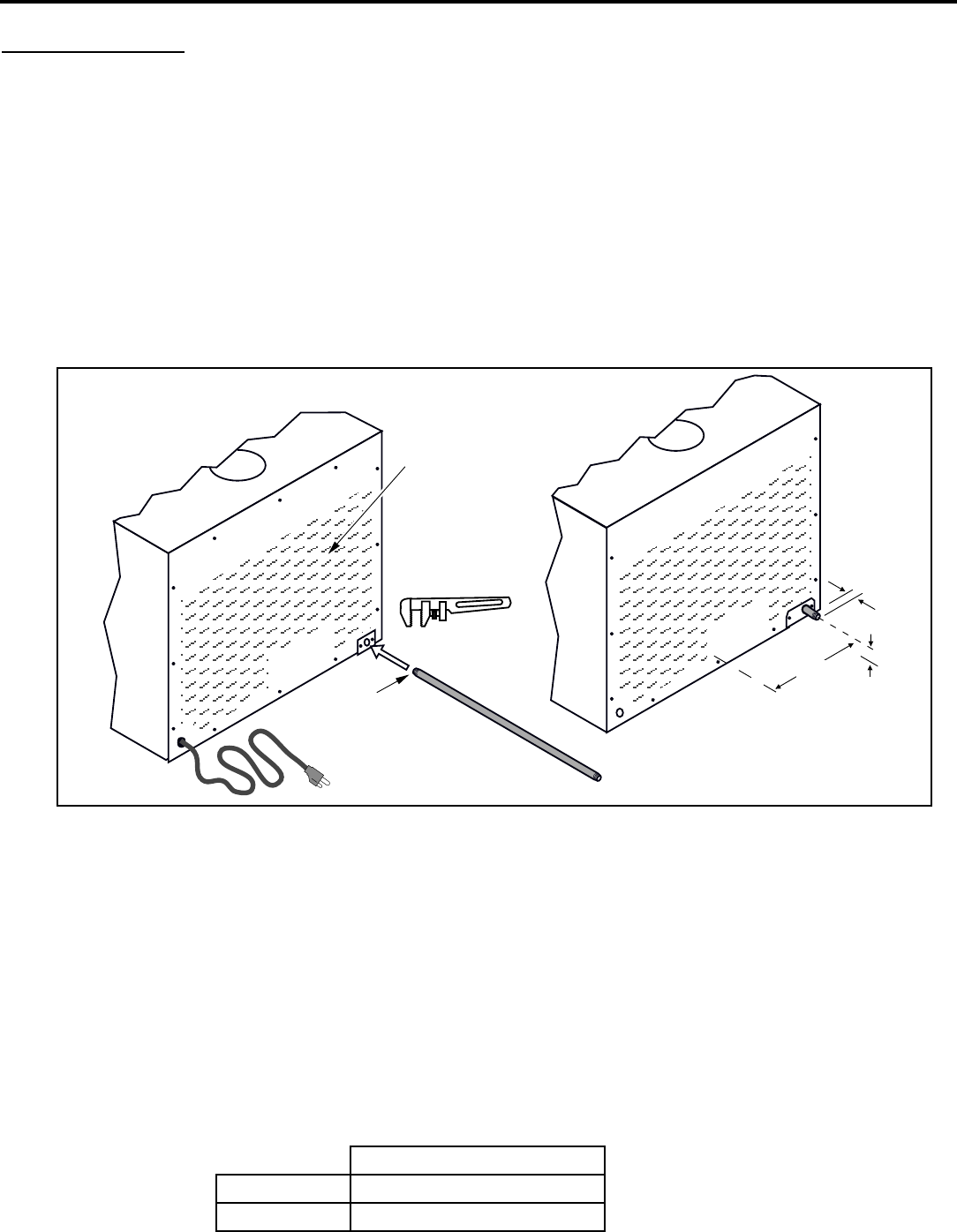

Gas Line Installation

!The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI Z223.1 and the requirements

listed below.

Rear

Panel

Gas Inlet

(3/8" diameter pipe)

NOTE:

Apply thread

sealant prior to

installing.

Use a pipe wrench

to tighten in place.

12-7/8" Pedestal

9-1/2" Brass/Cast Legs

8" Steel Legs

1-1/2"

7-1/2"

Center of

Stove

!The heater and gas control valve must be disconnected from the gas supply piping during any pressure testing of that

system at test pressures in excess of 1/2 psig. For pressures under 1/2 psig, isolate the gas supply piping by closing the

manual shutoff valve.

¥This heater is designed for natural gas but can be converted to propane. Check the sticker on the top of the gas control

valve to make sure the correct fuel is used.

¥Leak test all gas line joints and the gas control valve prior to and after starting the heater.

¥The gas inlet accepts a 3/8" F.P.T. fitting

¥The location of the gas inlet is shown below

¥A manual shutoff valve is required for installation (it must be located within 3' of the heater)

Gas Inlet Pressure

¥With the heater off, the inlet pressure must meet the requirements listed in the table below

?If the pressure is not sufficient, make sure the piping used is large enough and the total gas load for the residence does

not exceed the amount supplied.

?The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank) should supply gas

at the suggested input pressure listed below. Contact the local gas supplier if the regulator is at an improper pressure.

Standard Input Pressure

Natural Gas 7" W.C.

Propane 11" W.C.

PAGE 8STOVE INSTALLATION (CONT.) - For qualified installers only!

Vent Requirements

!Always maintain the required 1" clearance (air space) to combustible materials to prevent a fire

hazard. Do not fill air spaces with insulation.

!The gas appliance and vent system must be vented directly to the outside of the building, and never

be attached to a chimney serving a separate solid fuel or gas-burning appliance.

¥Minimum 5' vertical rise

from top of stove (see

the illustration below)

¥When the vent passes

through a wall, a wall

thimble is required.

When the vent passes

through a ceiling, a

support box or firestop is

required. When the vent

passes through the roof,

a roof flashing and storm

collar are required.

Follow the instructions

and requirements

provided with the vent

when installing.

¥The horizontal run may

not exceed 50% of the

vertical rise

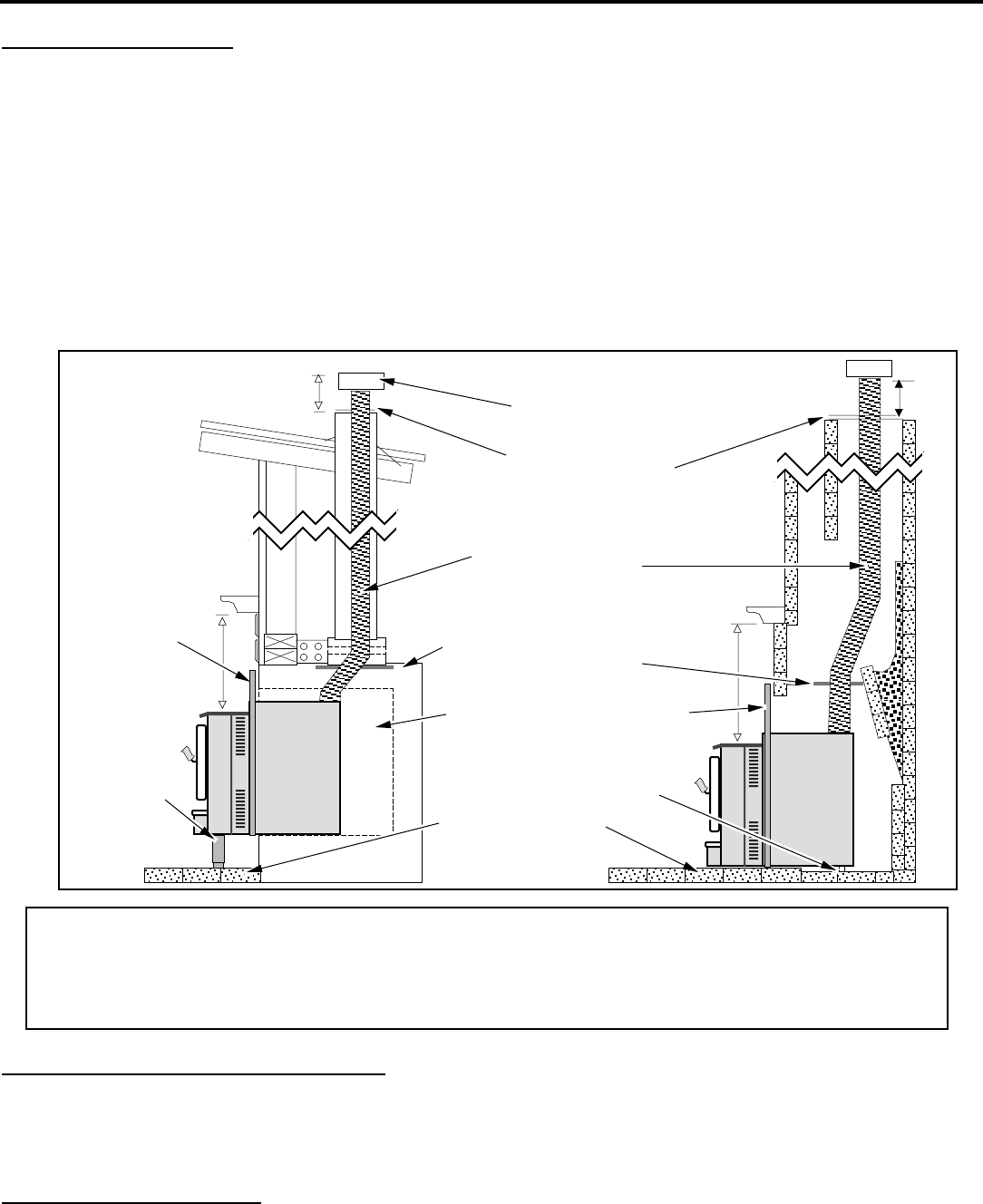

Type B Vent

Vent must

terminate a

minimum 1'

above the roof.

Listed Gas

Chimney Liner

Maintain 1"

minimum

clearance

Provide a 1/4" rise

for every 12" run.

Min. 5' Rise High

temperature

factory built

chimney and

connector

Chimney with LinerStandard Installation Exterior Vent

Min. 5' Rise

The total

horizontal

run must

not exceed

50% of the

vertical rise

Do not block gas

vent termination

¥Use 4" dia. B vent for entire system from one manufacturer (don't mix brands)

- or -

Use high temperature factory built or masonry chimney with listed gas chimney liner running the

entire length

¥Vent termination must be above the roof and not below any eaves or overhangs

Drafting

Performance

This appliance relies upon natural draft to operate. External forces, such as wind,

barometric pressure, topography, or factors of the home (negative pressure from

exhaust fans, chimneys, air infiltration, etc.), may adversely affect draft. Travis

Industries can not be responsible for external forces leading to less than optimal

performance.

Vent Termination Requirements

¥Vent termination must have an approved cap (to prevent water from entering)

¥Vent termination must not be located where it will become plugged by snow or other material

¥Vent termination must be

1' above the roof and

meet the requirements

outlined in ANSI

Z223.1, section 7.6.2.

12Ó Min.

Note: ANSI 223.1, section 7.6.2 outlines additional

requirements for gas vent terminations. If your

installation involves a roof with a slope greater

than 6/12 or if a wall or other vertical obstruction is

within 8' of the vent termination, the vent

termination will need to be taller. Refer to ANSI

223.1 for full details.

!When installed, the vent must provide suitable draft for the appliance. Other factors, such as exhaust

fans, may create negative pressure inside the home and cause down drafts. Additional vent height

may be required in these circumstances.

Electrical Connection

¥Plug the power cord into a grounded 110 Volt outlet (do not remove the grounding plug).

INSERT INSTALLATION - For qualified installers only! PAGE 9

Installation Preparation

! This appliance must be installed in accordance with all local codes, if any; if not, follow

ANSI Z223.1 and the requirements listed in this manual. Failure to follow all of the

requirements may result in property damage, bodily injury, or even death.

! Notify your insurance company before hooking up this heater.

! The requirements listed below are divided into sections. All requirements must be met

simultaneously. The order of installation is not rigid Ð the qualified installer should follow

the procedure best suited for the installation.

Items Packed with the Heater

¥Propane Conversion Kit

¥Owner's Manual

¥Log Set (2 Logs, 2 Twigs, Embers)

¥Gas Inlet (3/8" Pipe)

¥2 Leveling Bolts (3/8"-16 x 3" Carriage Bolts - used to level the heater in fireplaces with stepped-up hearths)

Order of Installation

1If the heater is to use propane, install the propane conversion kit (see page 31)

2Connect the gas inlet (see page 12)

3Re-route the power cord (if desired - see below)

4Position the heater (see "Heater Placement")

5Connect the gas line. Connect the gas vent.

6Follow the instructions under "Finalizing the Installation" on pages 14 and 15.

7Install the surround panel kit.

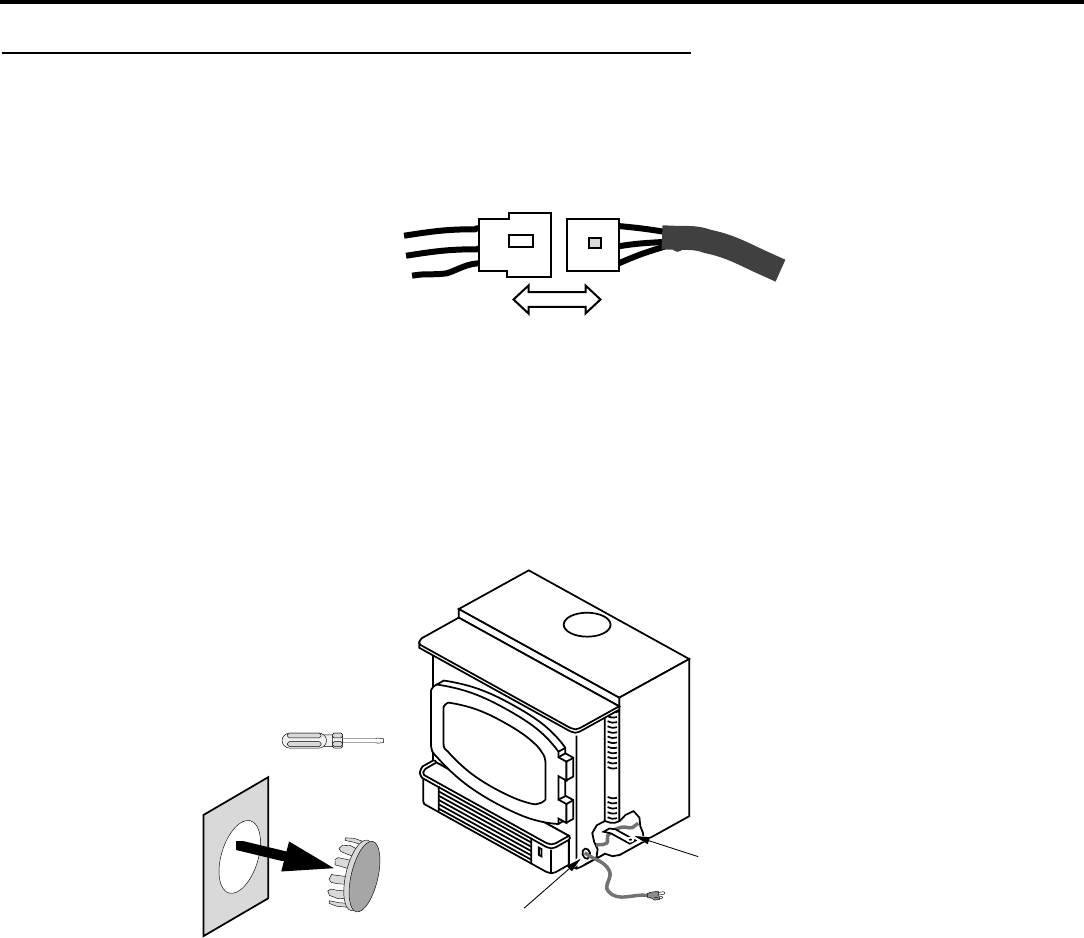

Re-Routing the Power Cord to the Front

The power cord may be re-routed to the front of the heater if desired (see the directions below).

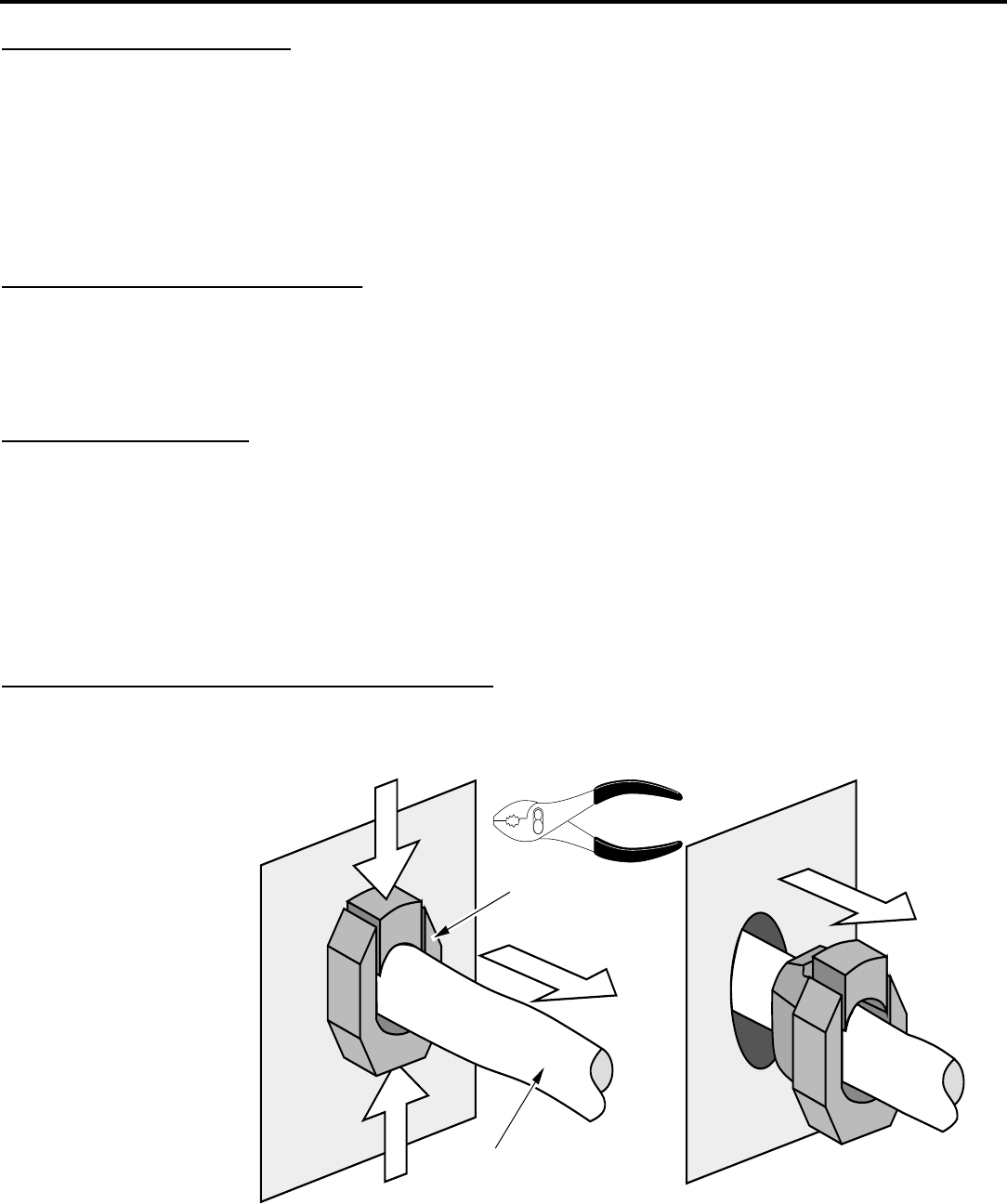

1Disconnect the strain relief at the rear of the heater.

Strain Relief

Power Cord

Compress the strain relief

from the top and bottom

with a pair of slip joint

pliers. Once compressed,

the strain relief can be

pulled out.

TO REMOVE THE STRAIN RELIEF

Compress the strain relief

from the top and bottom

and insert it into the hole

until it locks in place.

TO INSTALL THE

STRAIN RELIEF

PAGE 10 INSERT INSTALLATION (CONT.) - For qualified installers only!

Re-Routing the Power Cord to the Front (continued)

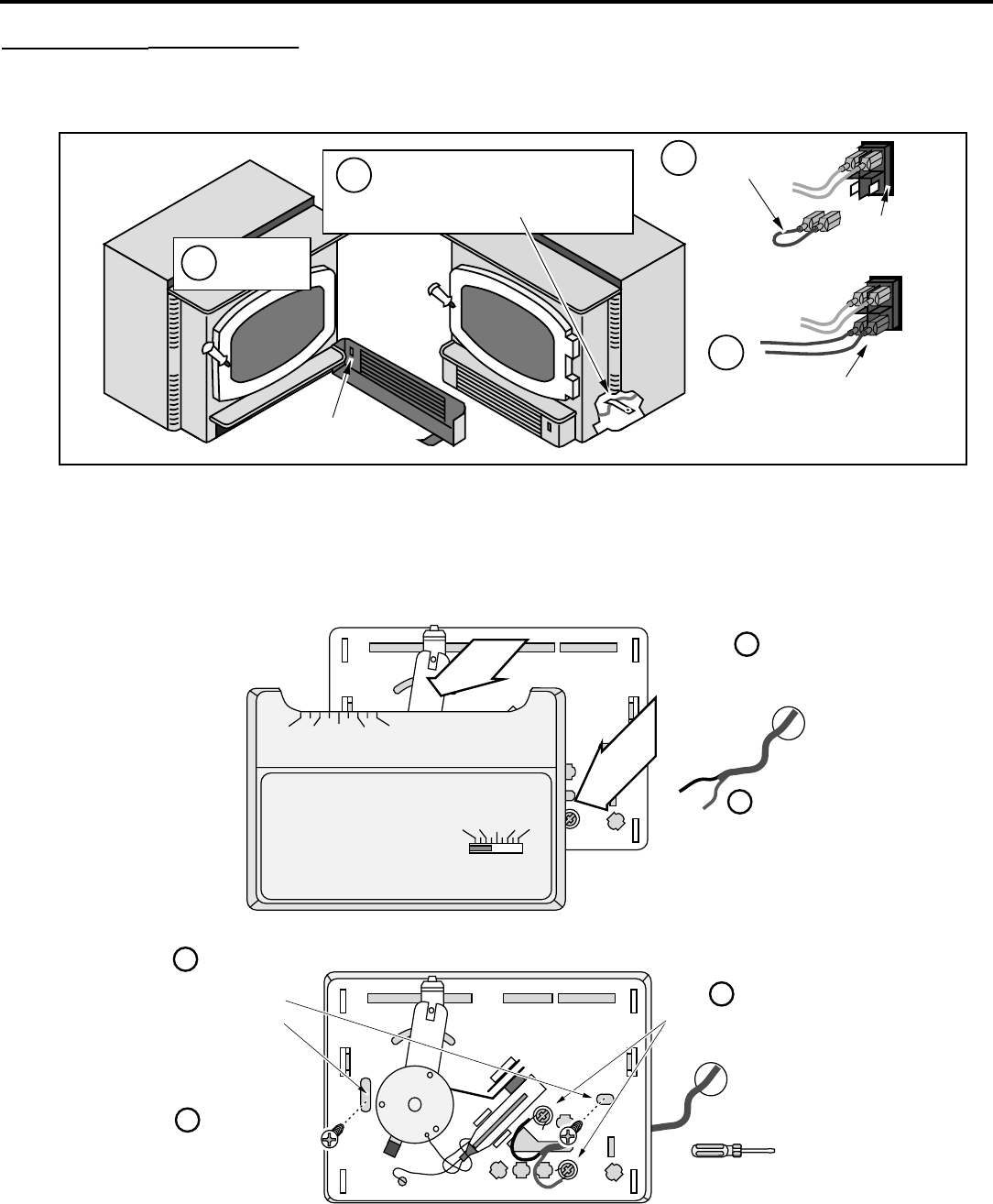

2Carefully pull on the power cord until the molex connector is exposed. Disconnect the molex

connector.

Molex Connectors

Power Cord

Wires Leading

from the Heater

3Pry out one of the button plugs on either side of the insert (see the illustration below).

4Open the control cover and locate the wires leading from the power cord molex connector (green,

white, and black wires). Pull these wires forward. Insert the molex connector on the power cord

through the hole exposed in step 2 and re-connect to the molex connector on the heater. Tuck any

excess wire underneath the clip on the baseplate to prevent any wires from contacting the burner

pan.

Button Plug

(found on both sides)

Remove the button

plug by prying it loose

with a screwdriver

The power cord must

be routed underneath

this clip to prevent it

from touching the

bottom of the burner

pan.

Standard

Screwdriver

5Secure the power cord to the heater with the strain relief (see the illustration under step 1).

INSERT INSTALLATION (CONT.) - For qualified installers only! PAGE 11

Insert Placement

The Insert Must be

Placed 13" into the

Fireplace.

Run the power cord to

either side of the insert

along the facing.

The insert must be in place with

the gas line and vent attached

prior to installing the panels.

Min. 29-3/4" WIde (includes 6" for gas

line installation)

Min. 22-1/8" Tall

(includes 2" for

vent installation)

See the section "Gas Line

Installation" for details on the

location of the gas inlet.

Use the leveling bolts for

fireplaces with recessed

floors (included with the

stove).

¥Insert must be placed so no combustibles are within, or

can swing within 36" of the front of the heater (e.g.

drapes, doors)

¥The insert may be placed inside a masonry fireplace or

listed zero-clearance (metal) fireplace

¥The insert must be installed in a level, undamaged

fireplace (damage must be repaired prior to

installation). Use the included leveling bolts to level

the insert in fireplaces with recessed floors.

¥The insert must maintain 10" clearance to sidewalls

(measure from the upper top)

¥Non-combustible facing (e.g. brick, tile) must extend 8"

minimum from the side and 8" to the top of the insert

(measure from the upper top)

¥Combustible mantles must be a minimum 17-1/2"

above the top of the insert (measure from the upper top)

Floor Protection

¥The heater must be installed on a non-combustible

hearth and may not extend over combustible flooring

Zero-Clearance (Metal)

Fireplace Requirements:

¥The damper ("A") and grate (with logset)

("B") must be removed (see the illustration

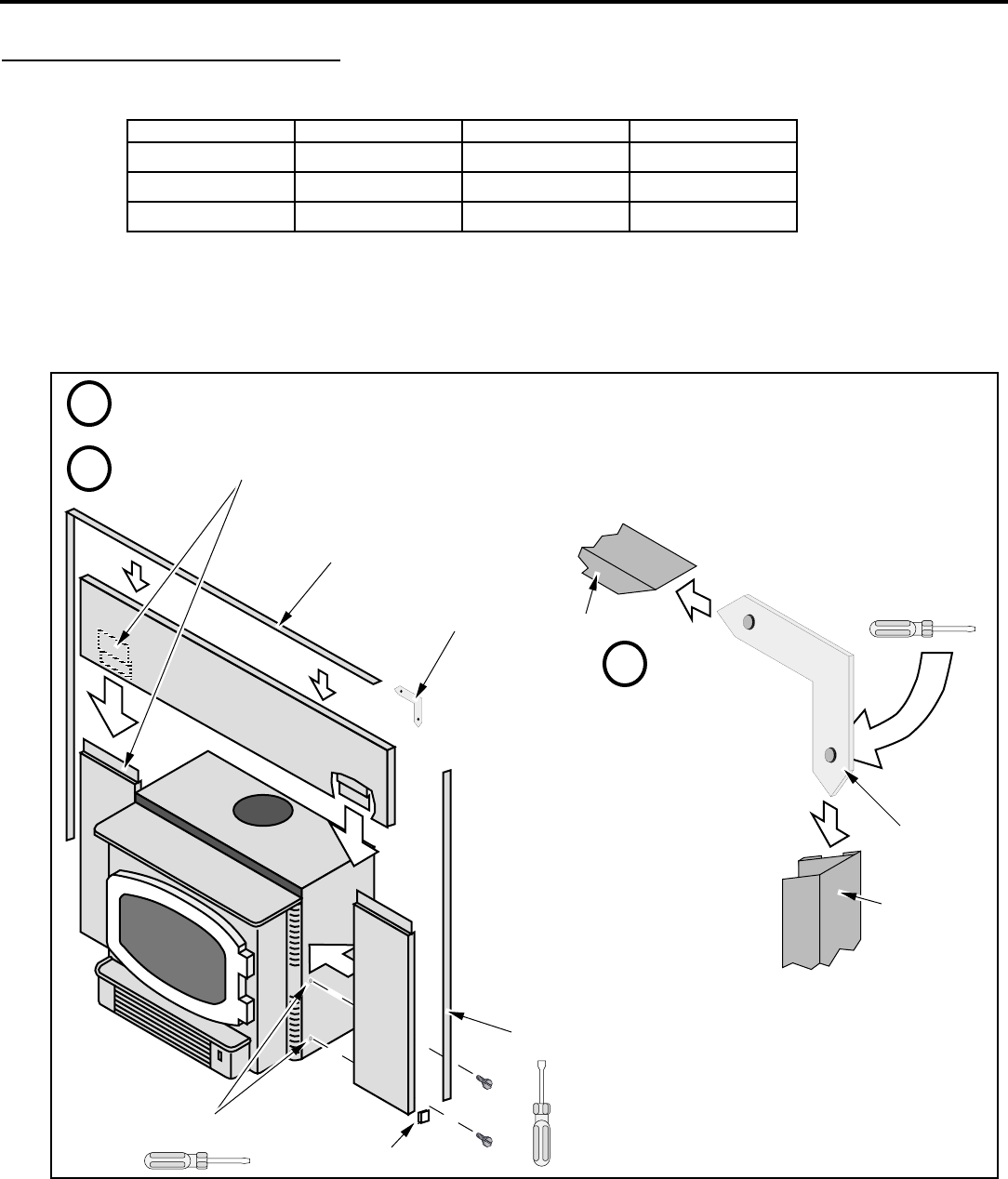

below)

¥The smoke shelf ("C"), internal baffles

("D"), screen ("E"), masonry lining or

refractory ("G" & "I"), and metal or glass

doors ("F") may be removed (if applicable)

¥The insulation ("H"), and any structured

rigid frame members (metal sides, floor,

door frame, face of the fireplace, etc.) may

not be removed or altered.

C

B

F

I

D

E

A

G

H

PAGE 12 INSERT INSTALLATION (CONT.) - For qualified installers only!

Gas Line Install

!The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI Z223.1

and the requirements listed below.

!The heater and gas control valve must be disconnected from the gas supply piping during any

pressure testing of that system at test pressures in excess of 1/2 psig. For pressures under 1/2 psig,

isolate the gas supply piping by closing the manual shutoff valve.

¥Leak test all gas line joints and the gas control valve prior to and after starting the heater.

Gas Line Connection

¥The gas inlet accepts a 3/8" F.P.T. fitting

¥The location of the gas inlet is shown below

¥A manual shutoff valve is required for installation (it must be located within 3' of the heater)

Rear

Panel

Gas Inlet

(3/8" diameter pipe)

NOTE:

Apply thread

sealant prior to

installing.

Use a pipe wrench

to tighten in place. 1-1/2"

7-1/2"

Center of

Stove

1-5/8"

Fuel

¥This heater is designed for natural gas but can be converted to propane (see page 31). Check the

sticker on the top of the gas control valve to make sure the correct fuel is used.

Gas Inlet Pressure

¥With the heater off, the inlet pressure must meet the requirements listed in the table below

?If the pressure is not sufficient, make sure the piping used is large enough and the total gas load for

the residence does not exceed the amount supplied.

?The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank)

should supply gas at the suggested input pressure listed below. Contact the local gas supplier if the

regulator is at an improper pressure.

Minimum Input Pressure

Natural Gas 5.5" W.C.

Propane 11" W.C.

INSERT INSTALLATION (CONT.) - For qualified installers only! PAGE 13

Vent Requirements

!Always maintain the required 1" clearance to combustible materials to prevent a fire hazard.

!The gas appliance and vent system must be vented directly to the outside of the building, and never

be attached to a chimney serving a separate solid fuel or gas-burning appliance.

¥The vent must reline the entire length of the chimney and have a minimum 5' vertical rise

¥Horizontal run may not exceed 50% of the vertical rise

¥Use 4" listed gas chimney liner or B vent from one manufacturer (don't mix brands)

?When using flexible gas vent, do not crimp or rupture the liner when bending it into chimney offsets

¥When installed, the vent must meet all of the vent manufacturer's requirements

?When installed, the vent must provide suitable draft for the appliance. Other factors, such as exhaust

fans, may create negative pressure inside the home and cause down drafts. Additional vent height

may be required in these circumstances.

4" Listed gas chimney

liner or B Vent

Hearth and/or hearth

pad must extend

underneath insert

Z.C. (Metal)

firebox

6"

Min.

A sealed cover plate

is recommended, but

not required.

Surround

Panel

(Do not seal)

17-1/2"

Min.

6"

Min.

Leveling bolts for step-up hearths

Zero

Clearance

Fireplace

Surround Panel

(Do not seal)

Approved Cap

Masonry

Fireplace

17-1/2"

Min.

We recommend sealing this

area to prevent heat loss.

Use the

telescoping

legs for

raised

fireplaces.

Drafting

Performance

This appliance relies upon natural draft to operate. External forces, such as wind,

barometric pressure, topography, or factors of the home (negative pressure from

exhaust fans, chimneys, air infiltration, etc.), may adversely affect draft. Travis

Industries can not be responsible for external forces leading to less than optimal

performance.

Vent Termination Requirements

¥Vent termination must have an approved cap (to prevent water from entering)

¥Vent termination must not be located where it will become plugged by snow or other material

¥Vent termination must extend a minimum of 6" above the top of the chimney

Electrical Connection

¥Plug the power cord into a grounded 110 Volt outlet (do not remove the grounding plug).

PAGE 14 FINALIZING THE INSTALLATION

! Turn the gas control valve to "OFF" prior to conducting any service.

1Remove

the door.

Unscrew and remove the door handle.

NOTE: When re-installing, make sure the handle points away from the glass when finished.

Swing the door until it is open 90¡ Lift the door up and away from the heater.

2Install the

logs,

twigs, and

embers.

Rear Log (largest)

Front Log

Burner Pan

The rear log has a

flat portion that

rests on this ledge.

The front log rests on

these platforms.

These clips keep the rear log

from tilting backwards.

Log Installation

Twig

Installation

Slide the front log all the way

back against the air deflector.

The rear log

protrudes over the

burner pan on both

sides.

The front edge of

the front log rests

on this ledge.

The rear log contacts

the air deflectors.

Align the holes

in the left twig

over the pegs

on the front and

back logs.

Ember

Installation

Place the embers on this ledge at the

front of the firebox . Do not place the

embers over the burner holes.

Align the holes

in the right twig

over the pegs

on the left twig

and back log.

!We recommend you purge the gas line at this time (with the glass removed). This allows gas to be

detected once it enters the firebox, ensuring gas does not build up.

FINALIZING THE INSTALLATION (CONT.) PAGE 15

3Replace the door (follow step # 1 in reverse order).

4Turn on gas to the

heater. Leak test all

gas joints prior to

starting the

appliance. Start the

pilot. Start the main

burner. Leak test all

gas joints again.

5Check the pilot flame

to make sure it looks

like the illustration to

the right. Adjust the

pilot flame if

necessary.

6Let the heater burn

for fifteen minutes.

Adjust the air shutter,

if necessary, to

achieve the correct

looking flame (see

the illustration to the

right).

¥The air shutter

adjusts the amount of

air that mixes with

the gas before it exits

the burner holes. It

is used to fine-tune

the flame for

differences in

altitude and vent

configuration.

The pilot flame should impinge the top 3/8Ó (10 mm)

of the thermopile. If it does not, you may need to

turn the pilot up.

3/8Ó (10 mm)

Thermopile

Pilot Hood

Thermocouple

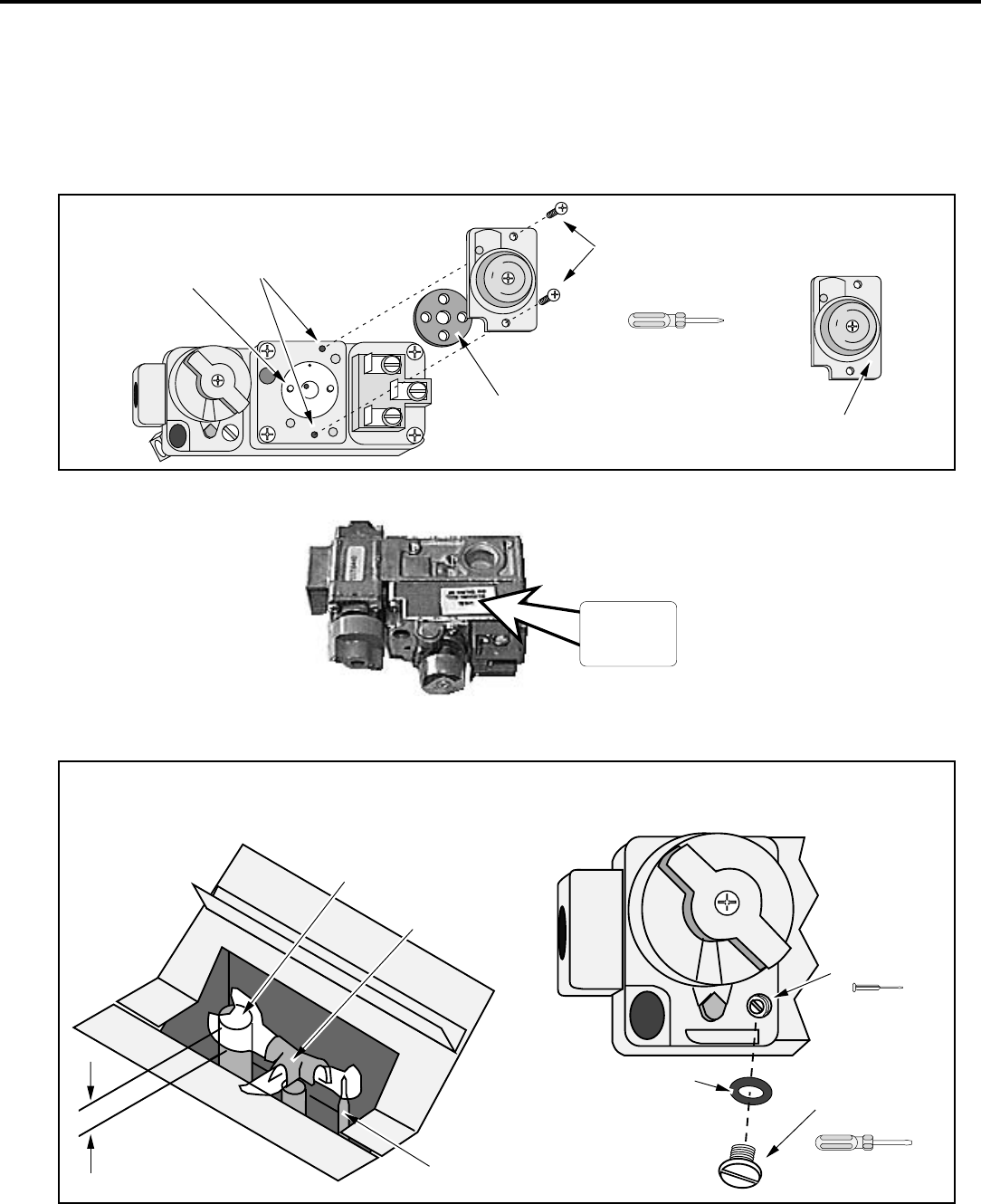

To adjust the pilot flame, remove the cover screw (and

gasket) and turn the needle valve. Clockwise lowers

the flame while counter-clockwise raises it.

PILOT ADJ

T

O

L

P

I

ON

OFF

Standard

Screwdriver

Micro (1/16Ó)

Standard

Screwdriver

The cover screw and

gasket must be

replaced to prevent gas

from leaking

Cover Screw

Cover Screw Gasket

Needle Valve

Gas Control Valve

PILOT ADJ

VENT

HI

LO

Correct

Flames should be blue at the

base, yellow-orange on the top.

If the flames are too tall or sooty on

the ends, push up on the lever.

If the flames are all blue and

short, pull down the lever.

Not Enough Air Too Much Air

Locate the air shutter adjustment

lever behind the gas control valve.

Move it up or down until the flame

looks correct. Pushing up gives the

flame more air (making it bluer).

Pulling it down cuts air down,

making it more orange.

NOTE: If the air control is all the

way up, yet the flames remain

sooty, shut off gas to the fireplace

and contact a qualified gas service

technician. NOTE: The logs must be installed correctly to

monitor the flame while adjusting the air shutter.

T

O

L

P

I

ON

OFF

!If the air shutter is in its fully open position, yet the flames remain sooty, shut off gas to the heater

and contact your dealer for a remedy.

7Ensure the heater establishes a draft. If the heater unexpectedly shuts off 5 to 25 minutes after

starting, the heater may not be drafting. The cause: negative pressure. Typically, re-starting the

heater five minutes after the shutoff will overcome the negative pressure and establish a draft.

However, if this does not work, you may wish to open a door or window near the heater. This will

allow in enough air in to overcome any negative pressure. Once drafting is initiated, the heater will

work properly without having to re-start the heater or allow in outside air. This is due to the heat

generated by the pilot.

Possible Causes of Negative Pressure:

¥ Exhaust fans (Jenn-Aire type fans in kitchens, bathroom fans)

¥ Vent termination located near a down draft or against prevailing winds

¥ Internal home pressure characteristics (multiple fireplaces, etc...)

8Turn the flame adjust knob to its highest position - the flames should be approximately 10" tall.

Check the flame on low position. The flames should burn off of each burner hole. If the heater does

not work correctly, contact your dealer for a remedy.

9Give this manual to the home owner and fully explain the operation of this heater.

PAGE 16 OPERATING YOUR HEATER

Before You Begin

! Read this entire manual before you use your new heater (especially the section "Safety

Precautions" on pages 2 & 3). Failure to follow the instructions may result in property

damage, bodily injury, or even death.

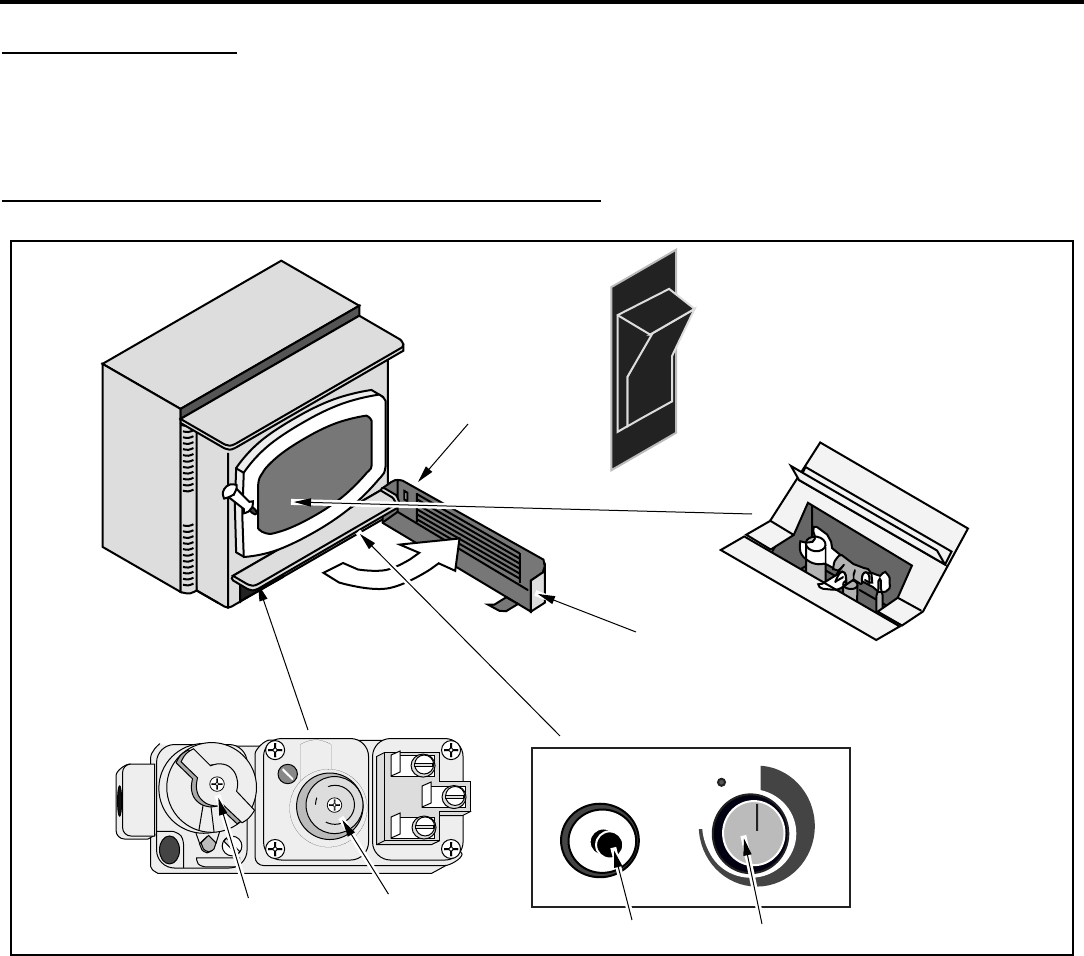

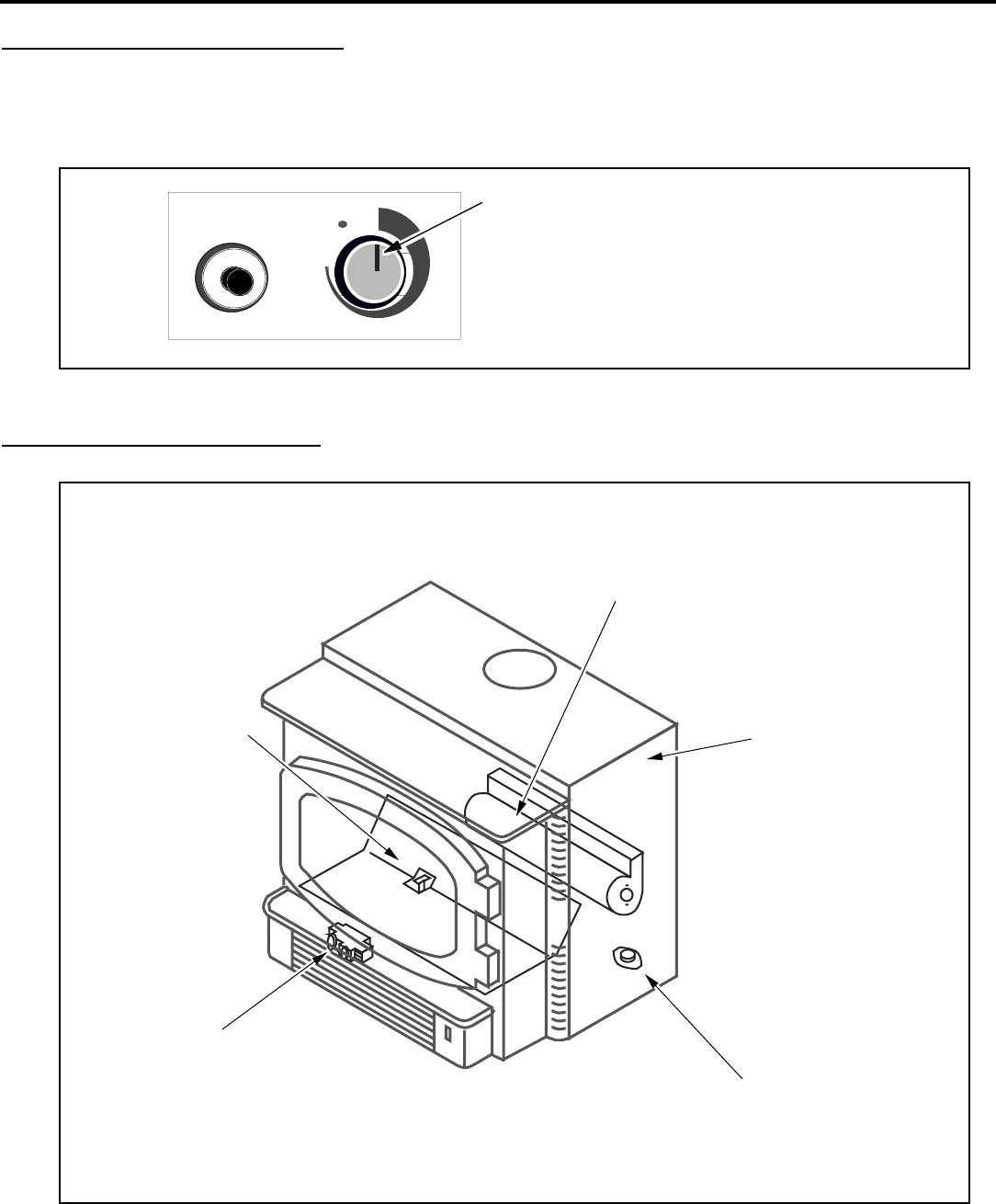

Location of Controls - See explanation below

Swing the control cover to the

right to access the gas control

valve, igniter, and blower control.

Gas

Control

Valve

PILOT ADJ

VENT

T

O

L

P

I

ON

OFF

HI

LO

Gas Control

Knob

Flame Adjust

Knob Blower Knob

BLOWER

LO

OFF HI

PILOT

IGNITER

Pilot Igniter

ON/OFF

Switch

The on/off switch

is located on the

right side of the

control cover.

The Pilot Flame can be

found below the back log

on the left side.

O

F

O

N

F

Blower Knob This knob controls the speed of the internal convection blower that pushes the

heated air into the room.

On/Off Switch This control is used to turn the heater on and off.

Pilot Igniter The pilot igniter is used only to start the pilot. When pressed, it sends an

electrical charge to the pilot assembly. This creates a blue spark directly next

to the pilot, igniting the pilot flame.

Gas Control Knob This knob is used to control gas to the heater and for starting the pilot. There

are three positions, ON, OFF, & PILOT. The pointer directly below the knob

indicates the position this knob is in.

Flame Adjust Knob This knob controls the flame height from low ("LO") to high ("HI"). The

pointer to the upper right of the knob points to the position this knob is in.

?If using a remote control or thermostat, the On/Off Switch must be left "ON". Turning the On/Off

Switch "OFF" will keep the heater off always.

OPERATING YOUR HEATER (CONTINUED)PAGE 17

Starting

The Pilot Flame

The pilot flame is required to ignite the main burners (it also plays a safety role). It should be

left on once lit. It will stay lit unless the gas control valve is turned to "OFF". However, the

pilot will go out if the gas is shut off or if the stove malfunctions. If the pilot turns off

frequently, call your dealer for information. To start the pilot follow the directions below:

NOTE: IF YOU'RE TRYING TO RE-LIGHT THE PILOT BECAUSE SERVICE WAS

PERFORMED ON THE UNIT (I.E. GAS LINE REMOVED THEN RE-INSTALLED OR

BECAUSE TANK RAN OUT OF GAS), FOLLOW THE INSTRUCTIONS FOR REMOVING

THE DOOR ON PAGE 14 THEN BLEED THE GAS LINE.

APush the gas control knob in

slightly and turn it to the

"OFF" position. The knob

will not turn from "ON" to

"OFF" unless the knob is

depressed slightly.

BWait five minutes to let any

gas that may have

accumulated inside the

firebox escape. If you smell

gas, follow the directions on

the cover "IF YOU SMELL

GAS".

CTurn the gas control knob to

the "PILOT" position and

press the knob in, this will

allow gas to flow to the pilot

light. Press the red button

on the pilot igniter

repeatedly until you see the

pilot light. KEEP THE GAS

CONTROL KNOB

DEPRESSED FOR 30

SECONDS ONCE IT IS

LIT. NOTE: IF THE

PILOT DOES NOT

LIGHT AFTER 15

SECONDS, RELEASE

THE KNOB AND CALL

YOUR DEALER FOR

SERVICE.

DRelease the gas control

knob. If the pilot goes out,

repeat step C. If the pilot

refuses to stay lit, call your

dealer for service.

ETurn the gas control knob

counter-clockwise to "ON".

The pilot is now lit and the

stove can be turned on and

off.

PILOT ADJ

PILOT ADJ

PILOT

IGNITER

T

O

L

P

I

ON

OFF

PILOT ADJ

T

O

L

P

I

ON

OFF

30 seconds

5 minutes

T

O

L

P

I

ON

OFF

PILOT ADJ

T

O

L

P

I

ON

OFF

?

AB

C

D

PILOT ADJ

E

T

O

L

P

I

ON

OFF

Do not press knob in for more than

15 seconds if pilot does not light.

Call Your Dealer For Service

PAGE 18 OPERATING YOUR HEATER (CONTINUED)

Starting the Heater for the First Time

¥ Painted Stoves require the paint to be cured. Start the heater and burn on low for 20 minutes. Turn

off and let cool. Repeat twice to fully cure the paint.

+ Fumes and smoke from the paint curing and oil burning off the steel may occur the first time you

start your heater. This is normal. We recommend you open windows to vent the room.

+ Condensation may appear on the glass each time you start the heater - this is normal.

+ Blue Flames will occur on the heater when it first comes on. After fifteen minutes the flames will

turn a more realistic yellow and orange color.

?Certain installations use a remote "wall switch" to turn the heater on and off. If this is the case, leave

the ON/OFF switch "ON".

Turning the Heater On and Off

O

FF

O

N

Use this switch to

turn the main burner

on and off manually.

After the pilot has been started...

See the instructions included

with the remote for details on

operation.

For systems with thermostats,

use this switch to control the

temperature (right is hotter, left

cooler). Some systems

require the on/off switch to be

on.

See the instructions

included with the

remote for changing

the battery.

!Do not place any combustible items on top of or directly in front of the heater, even temporarily.

The optional thermostat may start the heater causing a combustible item to ignite.

?If the heater turns on and off frequently while using the thermostat, you may want to adjust the flame

height down until it produces just enough heat needed.

Adjusting the Flame Height

+Your heater has an adjustable flame to tailor the look and heat output to your specific needs. It is

adjusted by turning the middle dial on the gas control valve.

Flame Height

Adjustment Knob

Index Mark

Turn clockwise to adjust the flame higher, counter-clockwise to lower.

PILOT ADJ

VENT

T

O

L

P

I

ON

OFF

HI

LO

VENT

HI

LO

OPERATING YOUR HEATER (CONTINUED)PAGE 19

Adjusting the Blower Speed

+The blower helps transfer the heat from the heater into the room. It will not turn on until the heater

is up to temperature (approximately 10 minutes after starting). See the illustration below for

instructions on adjusting the blower speed.

BLOWER

LO

OFF HI

PILOT

IGNITER

Blower Knob

Turn the knob all the way counter-clockwise to turn

the blower off. One click clockwise turns the

blower to high speed. Turning the knob clockwise

from the high position decreases the speed of the

blower.

Normal Operating Sounds

Gas Control Valve

As the gas control

valve is turned on

and off you will hear

a dull clicking

sound. This is the

valve opening up

and shutting down.

Blower Snap Disk

This part can

produce a clicking

sound as it turns the

blower on and off.

The appliance may

creak with change of

temperature.

Pilot Flame

The pilot flame,

which remains on,

makes a very slight

"whisper" sound.

Blower

This heater uses a blower to push

heated air into the room. You will hear

the sound of air movement that

increases as the speed is increased.

PAGE 20 MAINTAINING YOUR HEATER

Maintaining Your Stove's Appearance

!The optional brass door may be cleaned with a non-abrasive polish (such as Flitz¨). The brass trim

is anodized and should not be polished.

Yearly Service Procedure

!Failure to inspect and maintain the heater may lead to improper combustion and a potentially

dangerous situation. We recommend the following procedures be done by a qualified technician.

1Check the pilot flame. It should engulf approximately 3/8" of the top of the thermocouple (see

illustration below). If it does not, contact your dealer for service.

2Shut off gas to the heater by turning the gas control knob to "OFF" (see step A under "Starting the

Pilot" on page 17). Let the heater cool for 15 minutes. Remove the door (see step 1 on page 14).

3Remove the logs, twigs and coals (see page 14 - NOTE: the logs are fragile). If any log is cracked

or deteriorated, replace it when re-installing. Check the logs for sooting. A small amount of soot

along the bottom of the logs is normal. If excessive sooting is found, the heater will require

adjustment. Contact your dealer.

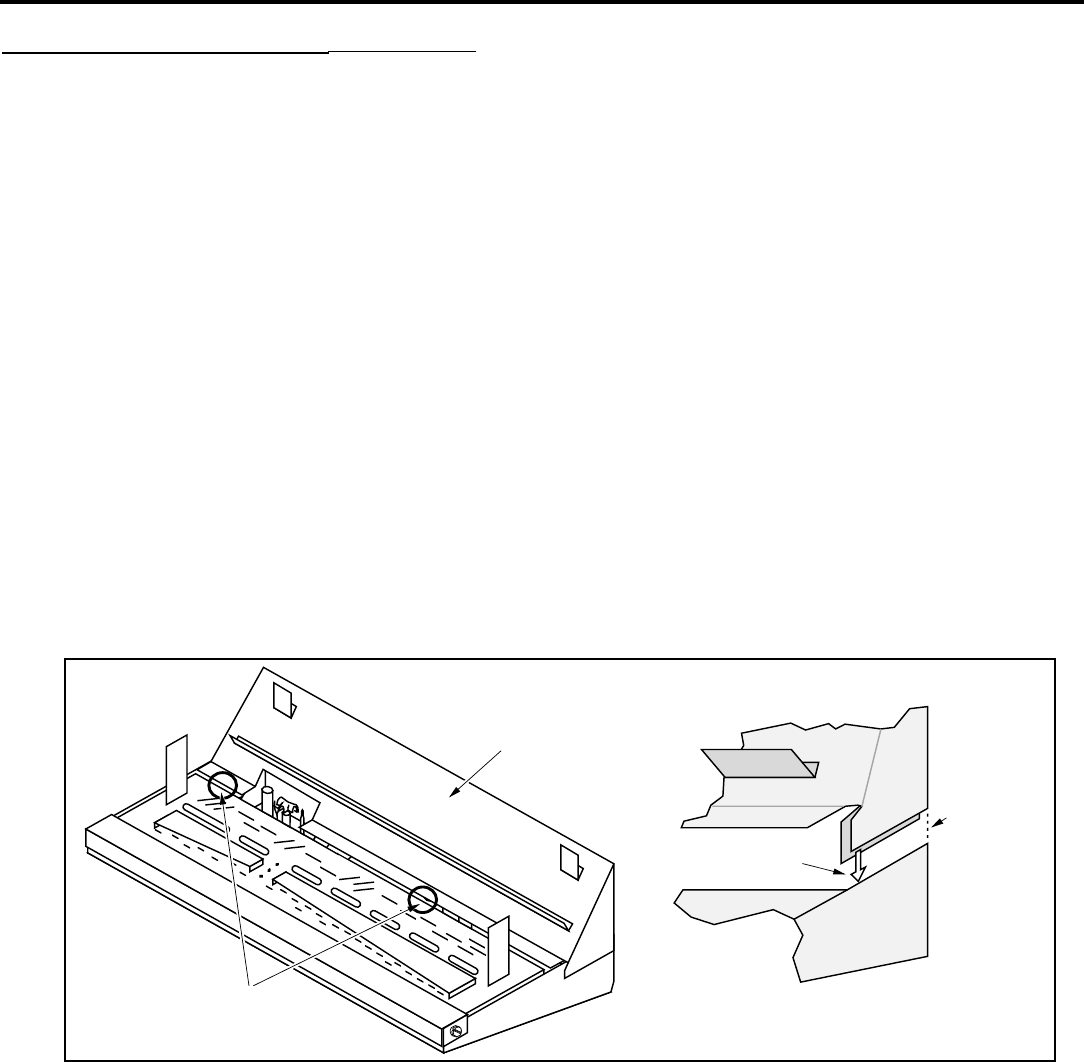

4Clean the burner pan (especially in the burner holes and slots) and inspect the following:

¥ Check for burner pan holes that are cracked, severely warped, or corroded.

¥ Make sure the burner pan assembly fits flat against the floor of the firebox.

¥ Check the firebox and area around the pilot to make sure there is no warping or damage.

If any problem is found, discontinue use and contact your dealer for service.

Check the burner

holes and slots.

Make sure the

burner pan seals

against the floor

of the firebox.

Check the walls and

ceiling of the firebox

for deterioration.

Burner Pan

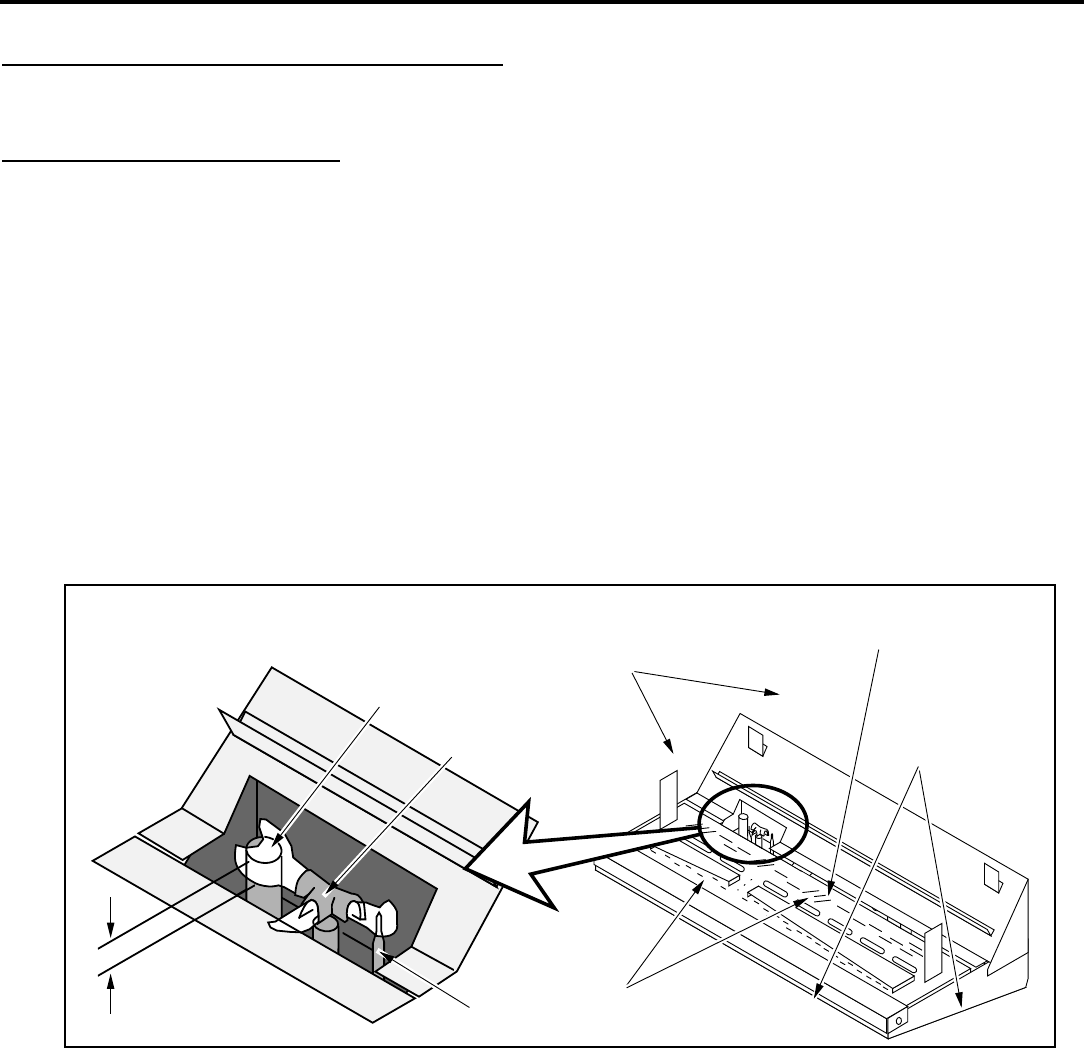

Before Disassembly: Check the pilot flame. It should

impinge the top 3/8Ó of the thermopile and engulf the

thermocouple.

3/8Ó

Thermopile

Pilot Hood

Thermocouple

5Replace the log set. Inspect the door gasket. If it is deteriorated, replace. It may be re-attached to

the door using high-temperature gasket cement. If the glass is damaged, replace it. Replace the

door. Make sure the gasket forms a seal.

6Inspect the area behind the control cover. Check the gas control valve and all of the gas lines. If any

damage is found, discontinue use and contact your dealer for service.

7Start the pilot and turn on the main burner. The flames should be orange/yellow and not touch the

top of the firebox. If the pilot or main burners do not burn correctly, contact your dealer for service.

Monitor the blower operation.

8Remove any debris or vegetation near the vent termination. Contact your dealer if any sooting or

deterioration is found near the vent termination.

TROUBLESHOOTING PAGE 21

Problem: Possible Cause: Don't Call for Service

Until You:

Pilot Will Not Light A gas shut off valve is turned off

The valve control knob isn't turned to "PILOT"

The valve control knob isn't pushed in

The igniter wasn't pressed repeatedly

Check all gas shut off valves

See "Starting the Pilot Light" Step C

See "Starting the Pilot Light" Step C

See "Starting the Pilot Light" Step C

Main Burners Will Not

Start

The pilot light has gone out

The ON/OFF switch is turned to "OFF"

The remote control is not working correctly

The thermostat is disconnected or set too low

Propane tank is empty (if applicable)

See "Starting the Pilot Light"

Turn the ON/OFF switch to "ON"

See the remote control instructions

See "Thermostat Operation"

Check the propane tank

Remote Control Does

Not Work

The pilot light has gone out

The ON/OFF switch is turned to "OFF"

The remote is too far away from the heater

The remote control receiver is turned "Off" or "On"

One of the two remote control batteries is dead

See "Starting the Pilot Light"

Turn the ON/OFF switch to "ON"

Use the remote closer to the heater

See the remote control instructions

See the remote control instructions

Thermostat Does Not

Work

The pilot light has gone out

The ON/OFF switch is turned to "OFF"

The thermostat is set too low

See "Starting the Pilot Light"

Turn the ON/OFF switch to "ON"

See "Thermostat Operation"

Blower Will Not

Distribute Heat

The heater is unplugged

The heater is not up to temperature

Plug the heater in.

See "Operating Your Heater"

Pilot Goes Out Once A

Month Or More

The gas supply has been shut off

The vent is experiencing a cold air blockage or a negative

pressure situation exists in the home

Keep the gas supply turned on

This is a necessary safety feature that

disables the heater if a down draft occurs.

If this problem is persistent the vent may

need to be improved or changes may need

to be done to remove the negative

pressure inside the home - see your dealer

for details

Flame (and Pilot) Goes

Out 10 to 25

Minutes After

Starting

The vent is experiencing a cold air blockage or a negative

pressure situation exists in the home

This is a necessary safety feature. First

try restarting the heater. If it works

correctly, a cold air blockage occurred and

the vent just needed to be heated

sufficiently. If this problem is persistent

the vent may need to be improved or

changes may need to be done to remove

the negative pressure inside the home -

see your dealer for details

Flames Are Too Blue The heater has just been started

Improper air shutter adjustment

Normal - see "Operating Your Heater"

Adjust Air Shutter - contact your dealer

Flames Are Orange

With Dirty Smoke

Something may be placed against the heater

Improper air shutter adjustment

See "How this Heater Works"

Adjust Air Shutter - contact your dealer

Flames Are Too Short

(Under 6")

The flame height may be turned too low

Something may be placed against the heater

Turn the flame height to "HI" -

See "Operating Your Heater"

See "How this Heater Works"

Thin Layer of Soot

Covers the Glass

The logs are placed incorrectly

Improper air shutter adjustment

See "Installing the Logs and Embers"

Adjust Air Shutter - contact your dealer

PAGE 22 TROUBLESHOOTING (CONTINUED)

How this Heater Works

!This heater was designed with safety as the primary concern. Many of the components inside this

heater are for safety purposes. Therefore, only certified gas service technicians should service this

heater.

What Turns the Main Burners On and Off

This heater uses a millivolt system to control its operation (a millivolt is a very small amount of

electricity). The thermopile and thermocouple generate electricity when heated by the pilot flame.

This electricity is used to operate the gas valve. Without enough electricity, the gas valve will not

turn on. That is why when starting the pilot the gas control knob has to be pressed in long enough

for the thermocouple to heat up and generate enough electricity. The thermopile provides power for

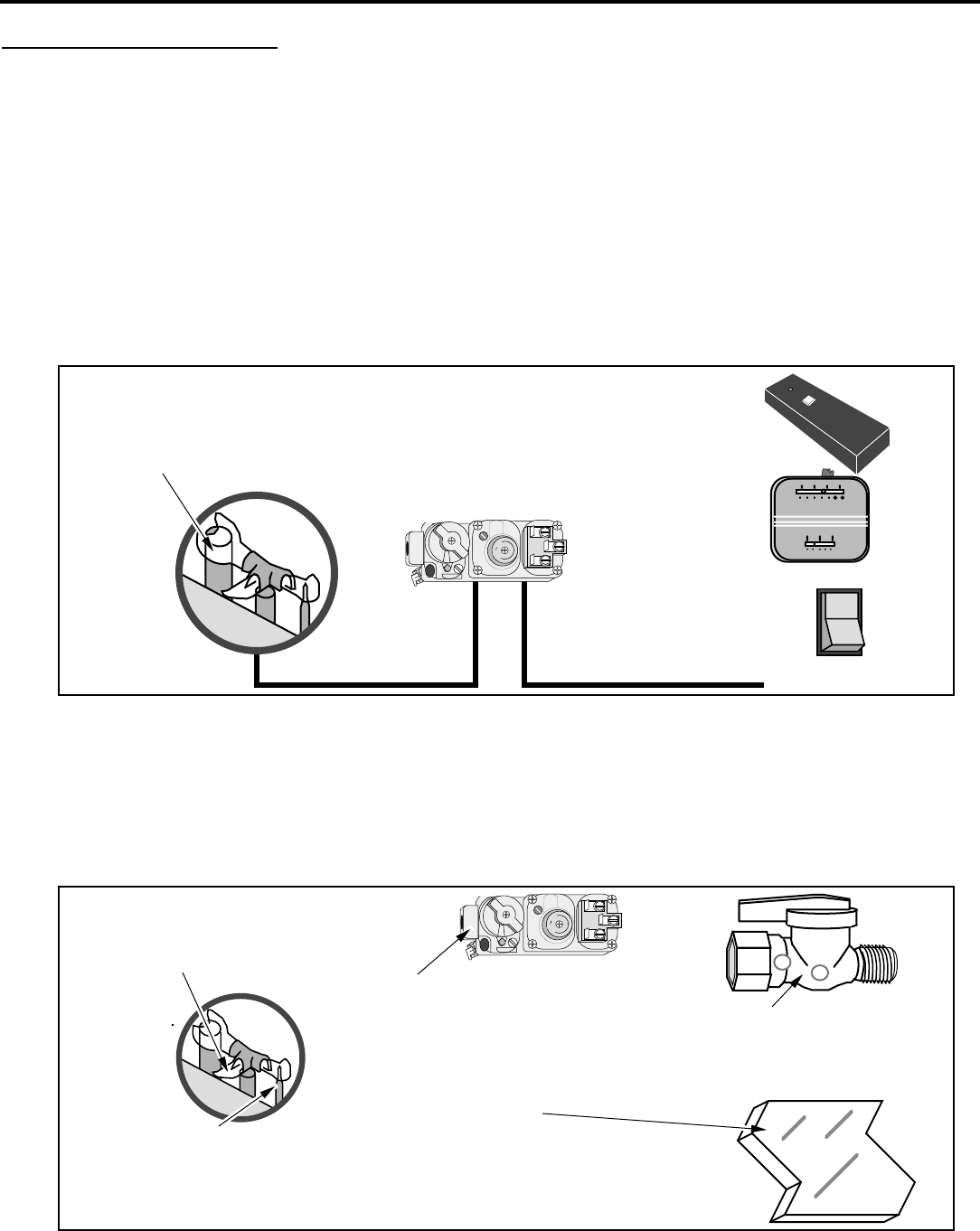

the ON/OFF switch, remote control, or thermostat (see the illustration below). Because the

thermopile generates the electricity needed to turn the heater on and off, this heater can be operated

when the power is out (although the blower will not run).

When heated, the thermopile

generates electricity (a very small

amount, measured in "Millivolts").

This electricity is

used to operate the

main burners. The main burners

are switched on and

off using the

electricity generated

by the thermopile.

The ON/OFF switch,

remote control, or

thermostat control

the circuit to the main

burner. ON

OFF

MAIN BURNER

PILOT ADJ

VENT

T

O

L

P

I

ON

OFF

HI

LO

What Prevents Gas Buildup

+This appliance utilizes a high-technology gas valve in conjunction with a pilot flame to ensure no

gas builds up inside the firebox.

+The thermocouple (next to the pilot) senses when the pilot flame is lit. If the pilot flame goes out,

this thermocouple no longer generates electricity, causing the gas valve to automatically shut off all

gas to the heater, preventing the pilot from spilling gas into the firebox.

Ceramic Glass

The glass in your heater is the most

durable glass available. It has been

tested to be extremely resistant to

breakage and temperature changes.

Gas Valve

This high-technology valve automatically

shuts off all gas if it does not receive a signal

from the thermocouple. If any component is

damged or sensing a malfunction, or if the

wiring is damaged, it will shut off all gas.

Pilot Flame

The pilot flame is a time-proven

component that eliminates the possibility

of gas buildup inside the firebox.

Thermocouple

The thermocouple generates a small

amount of electricity. If the pilot flame

goes out, the gas valve automatically

shuts off all gas.

External Shut Off Valve

This valve is placed on the gas line

to shut off gas to the appliance

during maintenance procedures.

PILOT ADJ

VENT

T

O

L

P

I

ON

OFF

HI

LO

TROUBLESHOOTING (CONTINUED)PAGE 23

Why Nothing Should Be Placed Against the Heater

Your heater has a grill on the sides and top that must not be blocked. The area around the

control cover allows air into the firebox. If it is blocked the combustion inside the firebox will

not burn normally. This will result in reduced efficiency and the exhaust gases will become

dirty. The convection air openings on the side and top are used to draw room air over the hottest

parts of the heater and distribute the warmed air into the room. If they are blocked, the heater

will not heat as well and may become too hot internally.

Wiring Diagram

Jumper Wire

(Manual

Operation)

Piezo Igniter

Orange

On/Off

Switch

Thermopile

Red

Brown

EPU

terminal

White

Red

Thermocouple

Green

Gas Control Valve

Spill Switch

Thermodisk

Optional

Remote

Control

Optional

Thermostat

Red

Red

Copper Co-Axial Wire

120 Volt

Grounded A.C.

Power Supply

Blower

Rheostat

Blower

Motor

Chassis

Ground

Black

Blower

Thermodisk

Green

White

White

Black

Black

Black

Black

110 V.

Blower

Circuit

White

PAGE 24 WARRANTY

To register your TRAVIS INDUSTRIES, INC. 7 Year Warranty, complete the enclosed warranty card and mail it within ten (10) days of the appliance

purchase date to: TRAVIS INDUSTRIES, INC., 10850 117th Place N.E., Kirkland, Washington 98033. TRAVIS INDUSTRIES, INC. warrants this gas

appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original

purchaser from the date of purchase as follows:

Years 1 & 2 - COVERAGE: PARTS & LABOR

Burner Assembly:

Burner, Burner Pan, Air Shutter Assembly, Main

Burner Orifice

Firebox Assembly:

Adjustable Air Restrictor, Pressure Relief

Mechanisms (direct vents only), Glass Attachment

Mechanism

Gas Control Assembly

Adjustable control valve, millivolt wiring and

connectors (located within the metal heater

structure), thermopile, thermocouple, pilot hood,

orifices, pilot gas line, piezo ignitor

Ceramic Glass

Glass (breakage from thermal shock)

Ceramic Logs

Log Set, Coals, Ember Strip (Steel Fiber)

Optional Brass Door

Solid Brass Door (see ÒConditions and ExclusionsÓ # 9)

Gold Plating

Gold or Nickel Door, Optional Grill (see ÒConditions and ExclusionsÓ # 9)

Electrical Assembly

:

Blower, wiring harness, snap discs, rheostat speed control

Accessories

Le

g

s, Pedestal, Panels, Cast Firebacks, Shell Assembl

y

Convection Heat Exchanger

Re-Installation Allowance

In cases where heater must be removed from home for

repairs, a partial cost of re-installation is covered (pre-

authorization required)

One-Way Freight Allowance

One-way freight allowance on pre-authorized repair

done at factory is covered.

Exclusions:Paint, Gasketing

Years 3 THROUGH 5 - COVERAGE: PARTS & LABOR

Burner Assembly:

Burner, Burner Pan, Air Shutter Assembly, Main Burner

Orifice

Optional Brass Door

Solid Brass Door (see ÒConditions and ExclusionsÓ # 9)

Firebox Assembly:

Adjustable Air Restrictor, Pressure Relief

Mechanisms (direct vents only), Glass Attachment

Mechanism

Convection Heat Exchanger

One-Way Freight Allowance

One-way freight allowance on pre-authorized repair done

at factory is covered.

Exclusions:Paint, Gasketing, Electrical Assembly, Gas Control Assembly, Ceramic Glass, Ceramic Logs, Gold & Nickel Plating, Accessories, Re-

Installation Allowance

Years 6 & 7 - COVERAGE: PARTS ONLY

Burner Assembly:

Burner, Burner Pan, Air Shutter Assembly,

Main Burner Orifice

Firebox Assembly:

Adjustable Air Restrictor, Pressure Relief Mechanisms

(direct vents only), Glass Attachment Mechanism

Optional Brass Door

Solid Brass Door (see ÒConditions and ExclusionsÓ #

9)

Exclusions:Paint, Gasketing, Electrical Assembly, Gas Control Assembly, Ceramic Glass, Ceramic Logs, Gold & Nickel Plating, Accessories,

Convection Heat Exchanger, Re-Installation Allowance, One-Way Freight Allowance, Labor

CONDITIONS & EXCLUSIONS

1. This new gas appliance must be installed by a qualified gas appliance technician. It must be installed, operated, and maintained at all times in accordance with the instructions in the

OwnerÕs Manual. Any alteration, willful abuse, accident, neglect, or misuse of the product shall nullify this warranty.

2. This warranty is nontransferable, and is made to the ORIGINAL purchaser, provided that the purchase was made through an authorized TRAVIS dealer.

3. Discoloration and some minor expansion, contraction, or movement of certain parts and resulting noise, is normal and not a defect and, therefore, not covered under warranty. The

installer must ensure the appliance is burning as per the rating tag at the time of installation. Over-firing (operation above the listed BTU rate) of this appliance can cause serious damage

and will nullify this warranty.

4. The warranty, as outlined within this document, does not apply to the chimney components or other Non-Travis accessories used in conjunction with the installation of this product. If in

doubt as to the extent of this warranty, contact your authorized TRAVIS retailer before installation.

5. Travis Industries will not be responsible for inadequate performance caused by environmental conditions such as nearby trees, buildings, roof tops, wind, hills or mountains or negative

pressure or other influences from mechanical systems such as furnaces, fans, clothes dryers, etc.

6. This Warranty is void if:

a. The unit has been operated in atmospheres contaminated by chlorine, fluorine or other damaging chemicals.

b. The unit is subject to submersion in water or prolonged periods of dampness or condensation.

c. Any damage to the unit, combustion chamber, heat exchanger or other components due to water, or weather damage which is the result of, but not limited to, improper

chimney/venting installation.

7. Exclusions to this 7 Year Warranty include: injury, loss of use, damage, failure to function due to accident, negligence, misuse, improper installation, alteration or adjustment of the

manufacturer's settings of components, lack of proper and regular maintenance, damage incurred while the appliance is in transit, alteration, or act of God.

8. This 7 Year warranty excludes damage caused by normal wear and tear, such as paint discoloration or chipping, worn or torn gasketing, corroded or cracked logs, embers, etc. Also

excluded is damage to the unit caused by abuse, improper installation, modification of the unit, drilling of the orifices, or the use of fuel other than that for which the unit is configured.

Units are shipped for natural gas and must be converted to propane using the included conversion kit. Confirm fuel configuration with your installer.

9. Damage to gold, nickel, or brass surfaces caused by fingerprints, scratches, melted items, or other external sources left on the surface is not covered in this warranty. Damage from the

use of cleaners other than denatured alcohol on gold or nickel is not covered in this warranty. Damage from the use of abrasive cleaners on brass is not covered in this warranty.

10. TRAVIS INDUSTRIES, INC. is free of liability for any damages caused by the appliance, as well as inconvenience expenses and materials. Incidental or consequential damages are not

covered by this warranty. In some states, the exclusion of incidental or consequential damage may not apply.

11. This warranty does not cover any loss or damage incurred by the use or removal of any component or apparatus to or from the gas appliance without the express written permission of

TRAVIS INDUSTRIES, INC. and bearing a TRAVIS INDUSTRIES, INC. label of approval.

12. Any statement or representation of TRAVIS products and their performance contained in TRAVIS advertising, packaging literature, or printed material is not part of this 7 year warranty.

13. This warranty is automatically voided if the applianceÕs serial number has been removed or altered in any way. If the appliance is used for commercial purposes, it is excluded from this

warranty.

14. No dealer, distributor, or similar person has the authority to represent or warrant TRAVIS products beyond the terms contained within this warranty. TRAVIS INDUSTRIES, INC. assumes

no liability for such warranties or representations.

15. Travis Industries will not cover the cost of the removal or re-installation of hearths, facing, mantels, venting or other components.

16. If for any reason any section of this warranty is declared invalid, the balance of the warranty remains in effect and all other clauses shall remain in effect.

17. THIS 7 YEAR WARRANTY IS THE ONLY WARRANTY SUPPLIED BY TRAVIS INDUSTRIES, INC., THE MANUFACTURER OF THE APPLIANCE. ALL OTHER WARRANTIES,

WHETHER EXPRESS OR IMPLIED, ARE HEREBY EXPRESSLY DISCLAIMED AND PURCHASERÕS RECOURSE IS EXPRESSLY LIMITED TO THE WARRANTIES SET FORTH

HEREIN.

IF WARRANTY SERVICE IS NEEDED:

1. If you discover a problem that you believe is covered by this warranty, you MUST REPORT it to your TRAVIS dealer WITHIN 30 DAYS, giving them proof of purchase, the purchase date,

and the model name and serial number.

2. Travis Industries has the option of either repairing or replacing the defective component.

3. If your dealer is unable to repair your applianceÕs defect, he may process a warranty claim through TRAVIS INDUSTRIES, INC., including the name of the dealership where you

purchased the appliance, a copy of your receipt showing the date of the applianceÕs purchase, and the serial number on your appliance. At that time, you may be asked to ship your

appliance, freight charges prepaid, to TRAVIS INDUSTRIES, INC. TRAVIS INDUSTRIES, INC., at its option, will repair or replace, free of charge, your TRAVIS appliance if it is found to

be defective in material or workmanship within the time frame stated within this 7 year warranty. TRAVIS INDUSTRIES, INC. will return your appliance, freight charges (years 1 to 5)

prepaid by TRAVIS INDUSTRIES, INC., to your regional distributor, or dealership.

4. Check with your dealer in advance for any costs to you, when arranging a warranty call. Dealers may require you to pay a service or trip charges for any warranty work. This charge can

vary from store to store.

LISTING INFORMATION PAGE 25

The safety label can be found on the rear panel. A copy is shown below.

Listed Gas-Fired Vented Room Heater

Tested to ANSI Z21.11.1-1991, ANSI Z21.11.1a-1993, CAN/CGA 2.1M88, CAN/CGA 2.17M91

By OMNI Environmental Services (Report #028-S-09-5, January 1996)

Must be installed in accordance with all local codes, if any; if not, follow ANSI Z223.1 in USA, CAN B149 in Canada, and the requirements listed

in the accompanying owner's manual.

Electrical connections and grounding must be installed in accordance with local codes, if any; if not, follow ANSI/NFPA 70 in USA or CSAC 2.21

in Canada.

Controls: Robertshaw Model 7000MVRB-5-LC

This room heater is equipped at the factory for use with natural gas, if conversion to propane (LP) fuel is desired, the optional

factory conversion kit #98900745 must be used.

Input and Orifice Specifications: L.P. N.G.

Maximum Input Rating (BTU/Hr) 38,000 40,000

Minimum Input Rating (BTU/Hr) 20,000 23,000

Front Burner Orifice (DMS) #49 #31

Pressure Specifications: L.P. N.G.

Manifold Pressure HI Setting (in W.C.) 10Ó 3.5Ó

Manifold Pressure LO Setting (in W.C.) 2.7Ó 1.0Ó

Minimum Inlet Pressure (in W.C.) 11Ó 5.5Ó

Minimum Clearance to Combustibles

Unit to Sidewall ....................................................10

Unit to Backwall .....................................................4

Unit to Cornerwall..................................................4

Side Facing to Unit ................................................8

Top Facing to Unit .................................................8

Alcove Minimum Width .......................................44

Alcove Minimum Height ......................................58

Alcove Maximum Depth ......................................45

Front of Unit .........................................................36

Mantle Height Above Unit ................................17.5

Hearth Extension Front .........................................0

Hearth Extension Sides.........................................0

Use only with ÒBÓ vent listed chimney

"

"

"

"

"

"

"

"

"

"

"

"

Blower Electrical Rating: 115 Volts, 1.5 Amps, 60 Hz. FAN TYPE VENTED CIRCULATOR

WARNING:

Operation of this heater when not connected to a properly installed and maintained venting system of tampering with the vent safety shutoff

system can result in carbon monoxide (CO) poisoning and possible death.

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the information in the

owner's manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or the gas

supplier.

Risk of electrical shock. Disconnect power before servicing unit.

This room heater needs fresh air for safe operation and must be installed with provisions for adequate combustion and ventilation air. See

ownerÕs installation and operating instructions.

10850 117th Pl. N.E. Kirkland, WA 98033

1997

1998

1999

Jan.

Feb.

Mar.

Apr.

May

Jun.

Jul.

Aug.

Sep.

Oct.

Nov.

Dec.

Manufacture

Date:

DO NOT REMOVE THIS LABEL MADE IN U.S.A.

Beaverton,

OR. USA

Tested &

Listed by

TM

700

B-VENT

PAGE 26 OPTIONAL EQUIPMENT

Stove Leg Installation

(Brass # 99200500, Cast Black # 99200800, Black Steel # 99200100)

Raise the stove 8" (use lumber or other sturdy device). Attach each leg following the instructions below.

Attach each leg to the stove by

inserting a bolt and washer through the

hole or slot in the leg and into the

threaded hole on the stove.

9/16" Socket Wrench

These rubber-tipped bolts are for leveling the stove.

Make sure they contact the floor. Do not adjust

with weight on the legs, the rubber tips may tear.

Pedestal Installation

(Part # 99200109)

The dowels insert onto the front and

back edge of the pedestal base.

Use a 9/16" wrench to attach the two

pedestal bolts to the bottom of the stove.

Pedestal

The lag bolts

and washers

may be inserted

through the

holes in the

base of the

pedestal to

anchor the

pedestal to the

floor (required

for mobile

homes).

The cover plates, screen,

insulation, and staples are used for

wood stoves - discard these items.

9/16" Socket Wrench

Stove

Telescoping Leg Installation

(Part number 99200120)

The telescoping legs are designed to support the front end of inserts on raised hearths. It is adjustable

from 4 5/8" to 7 1/2". It can be cut shorter by using a hacksaw (see the illustration below).

If the telescoping leg needs to be less than 4 5/8", unscrew the

lower leg and shorten each leg with a hack saw. The upper

segment has a threaded rod inside. Do not damage this rod

while shortening the upper segment.

NOTE: The total length removed will equal the amount cut off of

both segments combined.

End Cap

A Insert the end cap into the lower leg

B Thread the upper and lower leg together.

C Thread the bolt on the top leg into the front corners of the insert.

D Adjust the lower leg down until it contacts the hearth.

Upper Leg

Lower Leg

OPTIONAL EQUIPMENT (CONTINUED)PAGE 27

Surround Panel Installation

+The surround panels come in the sizes listed below

PANEL SIZE HEIGHT WIDTH PART #

8" 28" 40" 99300259

10" 30" 44" 99300260

12" 32" 48" 99300261

1The insert must be in place with the gas line and vent attached prior to installing the panels. The rear

edge of the insert must be 13" behind the facing of the fireplace for the panels to fit correctly.

2Run the power cord to either side of the insert several inches in front of the facing.

3Follow the instructions below for installing the panels and trim.

Remove the button plugs on the side of the insert (2 on each side). Pre-thread these holes by inserting

the screws (10-24 self-tapping) and tightening with a 5/16" nutdriver. Line up the holes on the side

panels over the holes exposed by removing the button plugs. Attach the side panels with the screws.

Install the top panel so the two joggle clips slide over the tab on top of the side panels..

Top

Panel

Top Trim

"L" Bracket

a

b

Double-Back Tape

Construct the panel trim.

Insert one leg of each "L"

bracket into the top and side

trim piece. Align the trim to

form a precise corner, then

tighten the two set screws

with a small standard

screwdriver. Slide the trim

over the panels. Attach a

piece of included double-back

tape to the bottom of each

side trim to keep it from flaring

at the bottom.

c

Tighten the set screws

from the back side with a

small standard screwdriver

"L" Bracket

Right Side

Trim

Top Trim

Right Side Trim

5/16" Nutdriver

Button Plugs

(pry out with a screwdriver)

Side

Panel

NOTE: Discard the insulation that comes with the surround panels (for wood stoves only).

The panels must not form an air-tight seal against the fireplace.

PAGE 28 OPTIONAL EQUIPMENT (CONTINUED)

Thermostat

(Part # 99300650)

!Do not connect 120 VAC to the gas control valve or wiring of this unit.

1Route the thermostat wire through the rear panel (run it through one of the ventilation holes) and

attach to the on/off switch (see the illustration below).

Remove the green

jumper wire.

Back of

on/off

switch

Attach the quick connects

from the wire to the two posts

on the on/off switch

(orientation does not matter).

c

d

Back of on/off

switch

Open the

access door.

a

Route the wire under the burner pan

forward, underneath this clip (this

prevents it from touching the bottom

of the burner pan.

b

2Pull through all the slack on the wire (you may wish to wrap the wire in electrical tape to prevent

damage to the wire). Determine a location for the thermostat that is within range of the 50' length of

thermostat wire. It should be centralized in the room and away from the heater. The wire may be

routed externally on the wall or behind the wall (preferred).

3Cut the thermostat wire so there is approximately 6" of slack (NOTE: Do not splice thermostat wires

togetherÐthis leads to too much electrical resistance). Follow the directions below to install the thermostat.

50 60 70 80 90

50 60 70 80 90

Robertshaw

Run the thermostat wires

through the wall (cut off excess

wire, leaving 6Ó of slack).

Pull the cover off the thermostat

Expose 1/2Ó of wire and

attach to these two posts.

Standard

Screwdriver

Attach the thermostat to

the wall through these

two holes.

a

b

c

d

Re-attach the cover

removed in step ÒaÓ.

e

OPTIONAL EQUIPMENT (CONTINUED)PAGE 29

Remote Thermostat

!Do not connect 110-120 VAC to the gas control valve or wiring system of this unit.

¥Follow the instructions included with the remote thermostat for installation.

IMPORTANT OPERATIONAL NOTE FOR REMOTE THERMOSTAT USE:

Included with the remote thermostat is a set of instructions that should be given to the homeowner.

Please be aware that the remote thermostat has a 1 to 2 minute lag time between the time the

thermostat is turned up and the heater turns on.

Outside Air Kit

¥See the instructions included with this kit for installation instructions.

PAGE 30 OPTIONAL EQUIPMENT (CONTINUED)

Propane Conversion Kit

(Part # 98900746)

The propane conversion kit should be installed prior to installing the heater (if not, shut off gas

and disconnect the heater from the gas line).

Items Needed For Assembly

¥ 1/4" Nutdriver ¥ 7/16" and 1/2" Open End Wrench ¥ Standard Screwdriver

¥ Phillips Screwdriver ¥ Micro (1/16") Standard Screwdriver

¥ Thread sealant ¥ Leak Testing Equipment

Packing List

¥ LP Orifice (#49 - stamped "49") ¥ LP Pilot Orifice (.016" dia. - stamped "16LP") ¥ Replacement Regulator

¥ Two Replacement Screws ¥ Regulator Gasket ¥ LP Label

Installation Instructions

1Remove the door (see page 14).

2Reach into the firebox and remove the rear log shelf (see the illustration below).

Make sure the two tabs

slide over the side of the

burner pan on both sides.

Rear

Log

Shelf

Position the

shelf so the

back edges

of the shelf

and burner

pan are flush.

The rear log shelf slides on and off the

burner pan assembly

Burner Pan

Assembly

Rear

Log

Shelf

NOTE: When installed, the log

shelf must maintain a parallel

3/8Ó gap to the burner pan.

OPTIONAL EQUIPMENT (CONTINUED)PAGE 31

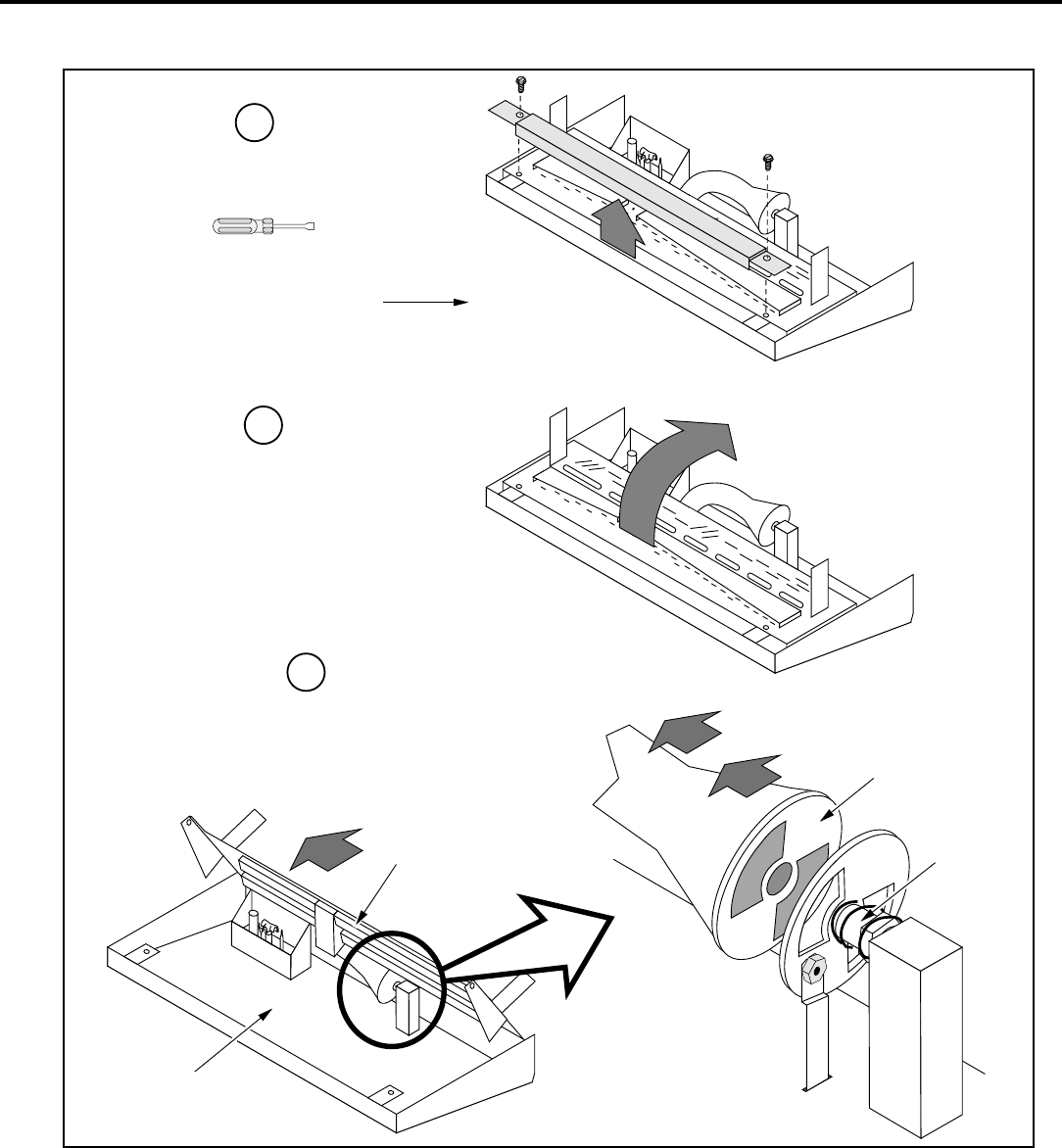

3Remove the burner pan from the burner pan box following the instructions below.

Slide the burner pan to the left until the fixed shutter

disengages from the orifice. Place the burner pan aside.

Burner Pan

Burner Pan Box

Fixed shutter

Orifice

c

Remove the two screws holding the

burner box front in place.

Remove the burner box front.

a

1/4" Nutdriver

Rotate the burner pan

upwards.

b

PAGE 32 OPTIONAL EQUIPMENT (CONTINUED)

4 Follow the directions below to remove the natural gas orifice. Apply thread sealant to the LP orifice

(#49 - it has "49" stamped on it) and tighten in place with a 1/2" open end wrench. Replace the

spring. Slide the adjustable shutter back in place.

31

49

Push the adjustable shutter to the

left, off the orifice (be careful not

to bend the shutter linkage).

1/2" Wrench

Slide the adjustable shutter

down, away from the orifice.

Remove the spring

Use a 1/2Ó open

end wrench to

unscrew the

orifice.

The new LP orifice has

Ò49Ó stamped on it.

The old NG orifice has

Ò31Ó stamped on it.

Apply thread

sealant to the

new orifice

prior to

installation.

Adjustable

Shutter

Orifice

Shutter

Linkage

abc

def

5Re-attach the burner pan and burner box front to the burner pan box following the instructions in

step 3 in reverse order.

6Remove the pilot orifice following the instructions below. Replace with the propane pilot orifice. The propane

conversion kit includes a .016Ó (labeled LP 16) or .011Ó (labeled LP 11) pilot orifice. The .016Ó orifice is

preferred because it allows for greater pilot adjustment.

Remove the pilot

hood assembly by

unscrewing the two

attachment screws.

Pilot Orifice

LP (Propane) Orifices

Pull the pilot orifice

retainer and pilot orifice

upwards to remove.

Pilot Orifice

Retainer

Phillips

Screwdriver

Pilot Hood

Assembly

11

P

L

Orifice Identification:

16

P

L

(preferred)

NG (Natural Gas) Orifices

18

N

21

N

(preferred)

OPTIONAL EQUIPMENT (CONTINUED)PAGE 33

7Replace the pilot assembly (follow the instructions in step 6 in reverse order). Make sure the pilot

assembly gasket is placed correctly.

8Replace the rear log shelf (see step 2). Install the logs and embers. Replace the door.

9Remove the regulator from the front of the gas control valve. Replace with the propane regulator,

using the new gasket and screws included with the regulator. NOTE: Leak test this area after the

heater is installed, gas is connected, and the main burner is lit.

These screws hold the

regulator in place.

NOTE: use the new

screws included with

the regulator.

Phillips

Screwdriver

PILOT ADJ

T

O

L

P

I

ON

OFF

VENT

HI

LO

VENT

HI

LO

Align the regulator

gasket so it is flat

and the two tabs fit

through the two

holes on the

gasket.

Regulator Gasket

NOTE: use the new gasket

included with the regulator.

LP (propane) regulators have a

11.0 2.8 stamped here.

NOTE: These holes strip

easily. Use a hand

screwdriver and tighten

each screw evenly.

10 Place the included propane label over the natural gas label on top of the gas control valve.

THIS CONTROL

HAS BEEN

CONVERTED TO

LP

11 Make the gas line connection, start the heater and thoroughly leak-test all gas connections

and the regulator. Check the pilot. Adjust if necessary.

The pilot flame should impinge the top 3/8Ó of the

thermopile. If it does not, you may need to turn

the pilot up.

3/8Ó

Thermopile

Pilot Hood

Thermocouple

To adjust the pilot flame, remove the cover screw (and

gasket) and turn the needle valve. Clockwise lowers

the flame while counter-clockwise raises it.

PILOT ADJ

T

O

L

P

I

ON

OFF

Standard

Screwdriver

Micro (1/16Ó)

Standard

Screwdriver

The cover screw and

gasket must be

replaced to prevent gas

from leaking

Cover Screw

Cover Screw Gasket

Needle Valve

PAGE 34 INDEX 151002

B Vent (insert) ....................................................13

B vent (stove) .....................................................8

Blower Speed .....................................................19

BTU Input ..........................................................5

Cap (vent termination - insert) ................................13

Cap (vent termination - stove) ................................8

Clearances (insert) ..............................................11

Clearances (stove) ..............................................6

Controls.............................................................16

Dimensions ........................................................5

Door (installation & removal)..................................14

Emissions ..........................................................5

Fan Speed .........................................................19

Firebox (inspection) .............................................20

Fireplace Sizing ..................................................11

Flame Height......................................................18

Floor Protection (insert) ........................................11

Floor Protection (stove) ........................................7

Fuel..................................................................5

Gas Inlet Location (insert) .....................................12

Gas Inlet Location (stove) .....................................7

Gas Leak......................................See Inst. on Cover

Gas Line Install (insert).........................................12

Gas Line Install (stove) .........................................7

Gas Pressure (insert) ...........................................12

Gas Pressure (stove) ...........................................7

Gas Smell.....................................See Inst. on Cover

Glass, Glass Gasket ............................................20

Heater Placement (insert) .....................................11

Heater Placement (stove)......................................7

Heating Specifications ..........................................5

How this Heater Works .........................................22

Leaking Gas..................................See Inst. on Cover

Listing Information ...............................................25

Logs and Ember Strip (installation, removal ..............14

Natural Gas Verses Propane Heater .......................2

On/Off Operation.................................................18

Operating Sounds ...............................................19

Operating the Heater............................................16

Paint Curing .......................................................18

Pedestal (installation) ...........................................26

Pilot (starting) .....................................................17

Propane Conversion Instructions ............................31

Propane Line Install (gas line install - insert) .............12

Propane Line Install (gas line install - stove)..............7

Propane Verses Natural Gas Heater .......................2

Purging Gas Line ................................................14

Remote Control (installation)..................................29

Remote Control (operation) ...................................18

Running Your Heater ...........................................18

Safety Label .......................................................25

Safety Precautions ..............................................2

Sounds (normal operating sounds)..........................19

Starting The Pilot.................................................17

Starting the Heater for the First Time .......................18

Stove Clearances ................................................6

Surround Panels (installation) ................................27

Table of Contents ................................................4

Thermostat (installation)........................................28

Thermostat (operation) .........................................18

Troubleshooting Table..........................................21

Turning the Heater On and Off ...............................18

Vent Requirements (insert)....................................13

Vent Requirements (stove) ....................................8

Vent termination (insert)........................................13

Vent termination (stove)........................................8

Warranty............................................................24

Weight ..............................................................5

What Prevents Gas Buildup...................................22

What Turns the Main Burners On and Off .................22

Why Nothing Should Be Placed Against the Heater ....22

Wiring Diagram ...................................................23
