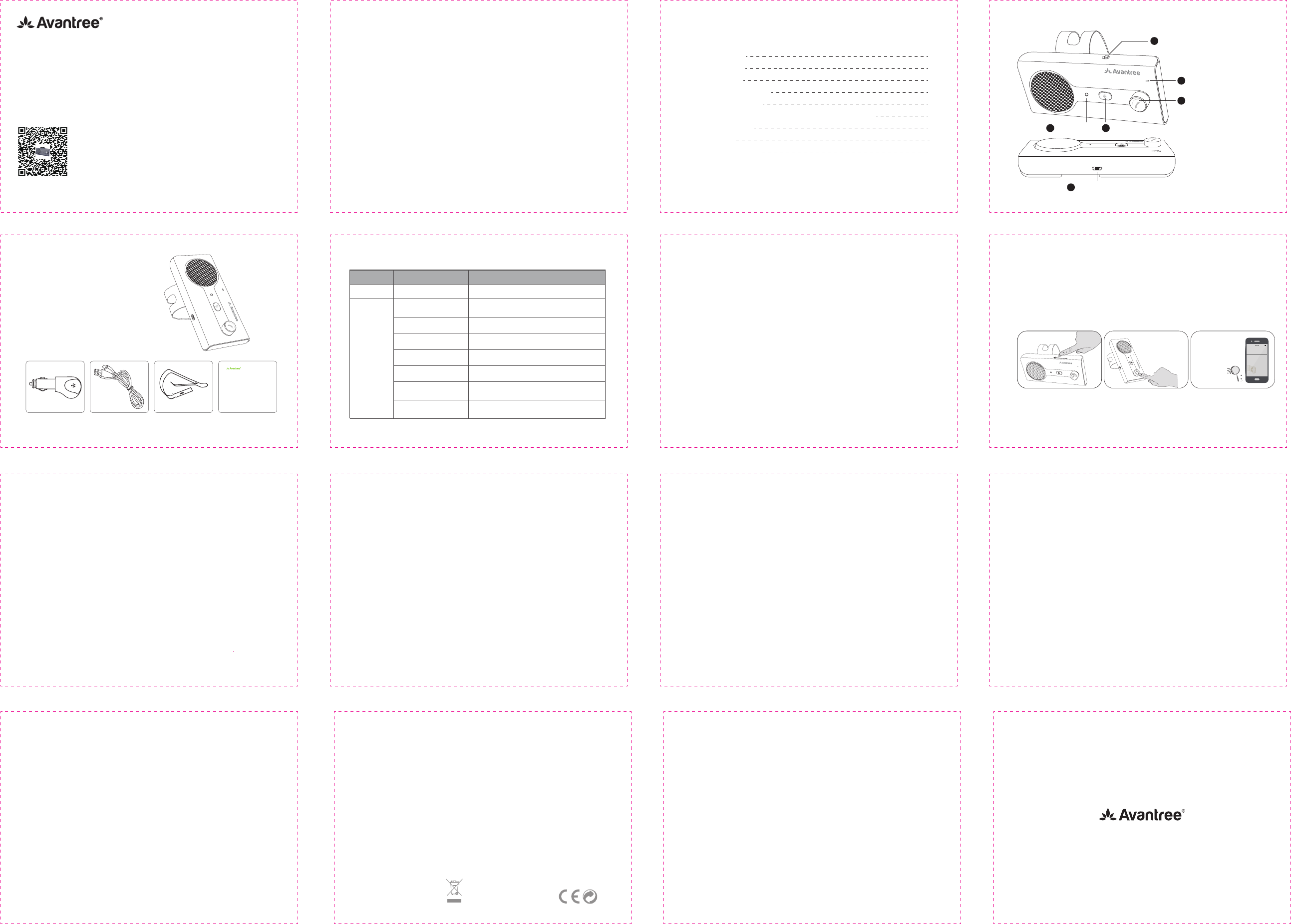

Avantree Technology BTCK-11 Wireless Hands Free Car Kit User Manual Z PKMN CK11 V1
Avantree Technology Co., Ltd. Wireless Hands Free Car Kit Z PKMN CK11 V1
15_BTCK-11 UserMan
材质：封面 封面封底128G双铜 + 单色印刷
内页臻品上质80g高白纸 2个小号骑马钉
大约16页， 尺寸W 105 x H 75mm
For a Beer Experience
User Manual
Wireless Hands Free Car Kit
CK11
- 12 -- 11 -
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
- 10 -
- 6 -
6. Multi-point: Pairing and connecting 2 phones
simultaneously
Step 1 Connect the first phone (instructions above).
Step 2 Press and hold the MFB for 3 seconds to enter pairing mode.
Step 3 Turn on Bluetooth on the second phone and connect with the CK11.
Step 4 Reboot the CK11 by turning it off then on again. Both phones will now
be connected to the CK11.
This device complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter
2. What’s in the box?
A. Avantree Bluetooth car kit
B. Car charger
C. USB charging cable
D. Sun-visor clip
E. Quick user guide / User Manual Pairing mode
Power Switch
Component
MFB
Power On/Off
Manually re-connect
Volume Up/down
Voice control (phone
feature)
Double click
Slide to ON/OFF
Press and hold for 3 second until the LED
flashes Blue and Red alternately
Press once
Answer/End a call Press once
Reject a call Press and hold for 1 second
Redial
OperationFunction
Press once while CK11 connected to
your phone
Rotate the MFB to adjust the volume
For a Beer Experience
Dispose of the packaging and
this product in accordance with
latest country provisions. Z-PKMN-CK11-V1
- 1 -
1. Product overview
Content
1. Product overview
2. What’s in the box
3. Basic operations
4. “Auto Power On” function
5. Pairing and connecting
6. Multi-point: Pairing and connecting 2 phones simultaneously
7. Clear pairing history
8. How to charge
9. Product specifications
1
9
8
8
7
5
3
2
4
1
5
2
6
34
- 8 -- 7 - - 9 -
7. Clear pairing history
You may need to reset the CK11 if it is not working as expected. When reset to
its factory default settings, all the paired device information will be erased.
Step 1 Set the CK11 to PAIRING MODE – press and hold the MFB for 3
second until the LED flashes BLUE and RED alternately.
Step 2 Double click the mute button – you will hear 2 beeps indicating a
successful reset. Then it will automatically enter pairing mode.
8. How to charge
When the battery runs low, the LED will flash every 6 seconds. Recharge the
CK11 by plugging it into the supplied car charger, USB charger or PC USB port.
It normally takes 3 hrs to fully charge the battery. The LED will turn red when
charging and turn off when charging is completed.
Charging requirements: DC5.0V/ 500mA-1A.
9. Product specifications
• BT Version: 4.2
• Supported Profiles: A2DP, AVRCP, HSP, HFP
• Operation Frequency Band: 2.4GHz~2.48GHz unlicensed ISM band
• Operation Range: Class 2, Up to 30ft.
• Working Time: 22 hrs
• Standby Time: 600hrs
• Charging Time: about 3 hrs
• Charger Voltage: DC5.0V, 500mA
• Battery: 650mA, BL-5B, rechargeable lithium-ion battery
Declaration of Conformity
This device complies with the essential requirements and other relevant
provisions of Radio Equipment Directive 2014/53/EU.
This device complies with part 15 of the FCC Rules. Operation is subject to the
condition that this device does not cause harmful interference (1) this device
may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
- 4 -- 3 -- 2 - - 5 -
5. Pairing and connecting
Step 1 Power on CK11 by setting the toggle switch to ON.
Step 2 Press and hold the MFB for 3 seconds to enter pairing mode (Note: On
first use the CK11 will automatically enter pairing mode).
Step 3 Turn on Bluetooth on your phone - search for new devices.
Step 4 Select “Avantree CK11”.
Note: Once paired and connected, the next time they will automatically
reconnect.
4. “Auto Power On/Off” function
When the power switch is set to “ON”, the “Auto Power On” function is activated.
The device will turn on automatically the next time you open your car door.
”Auto Power off” - when you leave your car and your phone disconnects from the
CK-11, it will automatically turn off after about 10 minutes.
The device can be turned off and the “Auto Power On/Off” function disabled by
sliding the power switch to “OFF”.
B.
A.
C. D. E.
3. Basic operations
www.avantree.com
For a Beer Experience
User Manual
Hands Free Bluetooth Car Kit
CK11
Power On/ Off
Multi-function Button (MFB)
MuteLED indicator
Microphone
Charging port
ON OFF
+
-
+
-
VOL
+
-
VOL
VOL
ON OFF
VOL
VOL
Power on Hold for 3s to enter
pairing mode
Avantree CK11
Bluetooth
Activate Bluetooth
on phone. Search
and select
"Avantree CK11"
Model No.: BTCK-11
www.avantree.com
PHONE /
VOLUME
MUTE
PHONE /
VOLUME
MUTE
PHONE /
VOLUME
MUTE
PHONE /
VOLUME
MUTE
PHONE /
VOLUME
MUTE
Scan me for FAQ
Avantree CK11
Any questions? Contact:
Support@avantree.com
Self-service Support:
•More FAQs on support.avantree.com
• 100+ Step by step video Guide – youtube.com/avantree/playlists
Telephone Support (Mon-Fri):
• USA / CANADA +1 800 232 2078 (EN, PST 9am-5pm)
• EU / Asia telephone No. refer to http: //www.avantree.com/contact-us
(Response Time: 1 working day)
FCC ID: 2AITF-BTCK-11
