NTP#: 411-1333-920
Draft 01.01 June 2000
BTR 28-07 GHz MMIC
Quick Reference Guide
Product Overview
The BTR 28-07 GHz MMIC (NTVG14CA) outdoor transceiver is a state-of-the-
art broadband microwave transceiver designed to operate at various frequency
bands downstream. It is a combined broadband transmitter and receiver deployed
in Nortel Networks Reunion point-to-multipoint system. It is compatible with
Reunion’s Release 1.2 and 1.3 equipment.

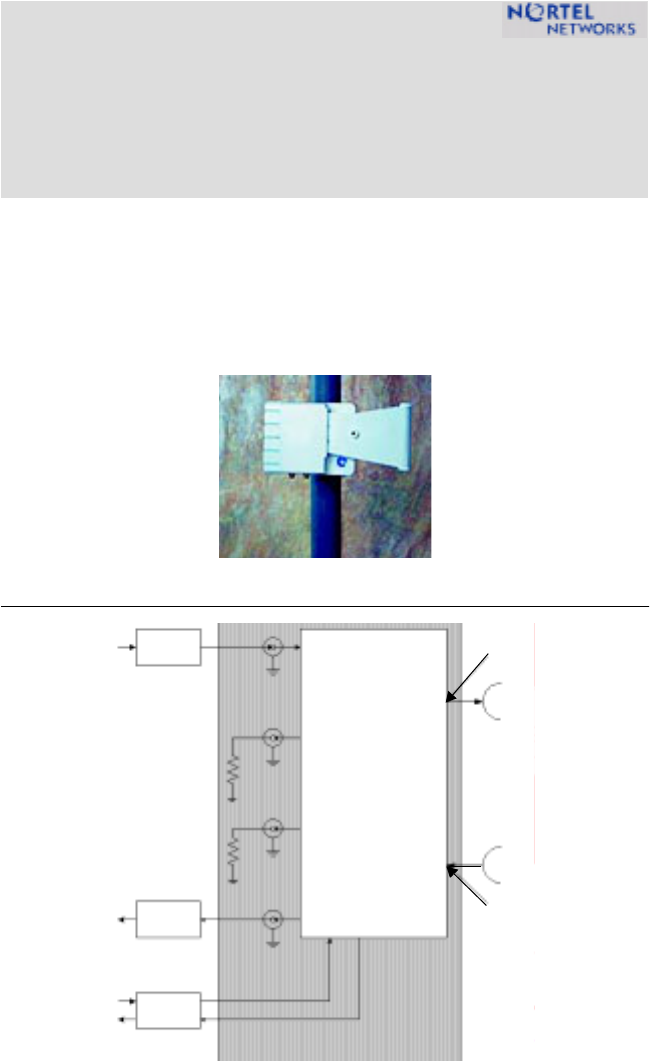

Figure 1: BTR 28-07M Block Diagram
Rx IF Output
Tx IF Input
Transceiver
Lightening
Radio
Protector
Lightening
Protector
Rx RF Input
(Test Point ‘B’)
(Test Point ‘A’)
Tx RF Output
Test Por t
Rx IF Output
Test Por t
Lightening
Protector
BTR 28-07M Transceiver
Tx IF/DC Input
![](/img.php?id=104122&img=bg2.png)
411-1333-920 Draft 01.01 June 2000
2
BTR 28-07 MMIC Specification
Table 1: BTR 28-07M Technical Specifications
TX IF Input RF Output
Frequency Range 28-07M 500-650 MHz 29.10-29.25 GHz
Output Level (P1 dB) ≥27 dBm, -40° to +55° C
Output Level (IP3) > +35 dBm
Input Impedance 50 Ohms
Input/Output Connector N-Type Female WR-28
Input/Output VSWR 1.925:1, maximum 2.32:1, max (or 8 dB)
Gain (not including antenna) 32±.6 dB, minimum
Gain Variation ±5.0 dB over all conditions
Gain Flatness ±1.9 dB, maximum
LO leakage -30 dBm
Frequency Stability <±4 ppm, (-40° to +55° C) and aging
Tx Noise Power -115 dBm/Hz, maximum
Tx IF Test Port Coupling -16± 1 dB
Antenna BTR
Frequency 27.5-31.3 GHz
Frequency Band 2731
Bore-sight Gain (Azimuth) 15.75±1.25 dBi, 90° Horn
18.90±1.25 dBi, 45°
23.8±1.3 dBi, 15°
Wave-guide Interface WR-28 size non-standard hole pattern
Size (Length x Height x Width) 10" x 9" x 2" (90°)
Polarity single pole (H/H & V/V polarization)
Sectorized Angle Available 15°, 45°, and 90°
![](/img.php?id=104122&img=bg3.png)
BTR 28-07 GHz MMIC Quick Reference Guide
3
RX RF Input IF Output
Frequency Range 28-07M 28.20-28.35 GHz 250-400 MHz
Input/Output Connector WR-28 non-standard hole
pattern N-Type Female
Input IP3 level -10 dBm, minimum
Output Impedance 50 Ohms
Input/Output VSWR 2.32:1, max (or 8.0 dB) 1.925:1 (10 dB)
Gain (not including antenna) 28.0 ± 0.6 dB
Gain Variation ±5.0 dB over all conditions
Gain Flatness ±1.9 dB over bandwidth
Gain Stability ±2.5 dB over temp.
Frequency Stability <±4 ppm, over all conditions
LO Leakage -35 dBm, maximum
Noise Figure ≤ 7.2 dB, maximum
Rx IF Test Port Coupling -14 ±1 dB
Power Requirements BTR
Input Voltage -48 VDC
Input Current <2 Amp
Input Power 50 Watts, maximum
Environmental BTR
Humidity 100% condensing
Altitude 10,000 feet
Operating Temperature -40° to +55°C
Storage Temperature Range -45° to +70°C
Mechanical BTR
Size (Length x Height x Width) 19.2" x 10.3" x 6.7" (49 x 26 x 17 cm)
Weight without brackets 35 lbs. (16KG)
![](/img.php?id=104122&img=bg4.png)
Information is subject to change without notice.
Nortel reserves the right to make changes in
design or components as progress in engineering
and manufacturing may warrant.
© 2000 Northern Telecom Ltd.
Converted Frequency Formula
Use the following formula to calculate the converted frequency:
TX: ƒRF OUT (GHz) = 28.60 (GHz) + ƒIF INPUT (MHz)
RX: ƒIF OUTPUT (MHz) = 28.60 (GHz) - ƒRF INPUT (GHz)
Note: The antenna has an option of a hydrophobic coating that can help to
reduce ice build-up effect.
Note: Vent holes are covered with a GoretexTM patch.
Note: The transceiver mounts to a vertical pole of 2.5” to 4.5” outside diame-
ter. It has a range of motion of 90° over and -60° under horizon. The bases of
the antenna mount can rotate ±180°.
Note: The module connector is N-Type female. The receive IF input/output
cables present a male N-Type connector. The Tx IF and the Rx IF test ports
are SMA-Type female. The Telemetry port: 6 pin female military-style con-
nector.
Technical Assistance Contact Information
In case additional technical assistance is required, or the transceiver unit is
damaged upon receipt, contact Nortel Networks.
Nortel Networks Broadband Wireless Access (BWA) provides 24-hour customer
service and technical support to ensure your service operation is trouble-free.
If you have questions or need technical support, contact Nortel Networks
Broadband Wireless Access at the following telephone numbers:
• In the USA and Canada, call 972-BWA-ETAS/972-292-3827
