BayRS Software Version 14.10
Part No. 308604-14.10 Rev 01
January 2000
4401 Great America Parkway
Santa Clara, CA 95054
Cable Guide
ii 308604-14.10 Rev 01
Copyright © 1999 Nortel Networks
All rights reserved. Printed in the USA. January 2000.
The information in this document is subject to change without notice. The statements, configurations, technical data,
and recommendations in this document are believed to be accurate and reliable, but are presented without express or
implied warranty. Users must take full responsibility for their applications of any products specified in this document.
The information in this document is proprietary to Nortel Networks NA Inc.
The software described in this document is furnished under a license agreement and may only be used in accordance
with the terms of that license. A summary of the Software License is included in this document.
Trademarks
NORTEL NETWORKS is a trademark of Nortel Networks.
AFN, AN, BCN, and BLN are registered trademarks and BayStream and Passport are trademarks of Nortel Networks.
Microsoft, MS, MS-DOS, Win32, Windows, and Windows NT are registered trademarks of Microsoft Corporation.
All other trademarks and registered trademarks are the property of their respective owners.
Restricted Rights Legend
Use, duplication, or disclosure by the United States Government is subject to restrictions as set forth in subparagraph
(c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013.
Notwithstanding any other license agreement that may pertain to, or accompany the delivery of, this computer
software, the rights of the United States Government regarding its use, reproduction, and disclosure are as set forth in
the Commercial Computer Software-Restricted Rights clause at FAR 52.227-19.
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, Nortel Networks NA Inc. reserves
the right to make changes to the products described in this document without notice.
Nortel Networks NA Inc. does not assume any liability that may occur due to the use or application of the product(s)
or circuit layout(s) described herein.
APortions of the code in this software product may be Copyright © 1988, Regents of the University of California. All
rights reserved. Redistribution and use in source and binary forms of such portions are permitted, provided that the
above copyright notice and this paragraph are duplicated in all such forms and that any documentation, advertising
materials, and other materials related to such distribution and use acknowledge that such portions of the software were
developed by the University of California, Berkeley. The name of the University may not be used to endorse or
promote products derived from such portions of the software without specific prior written permission.
SUCH PORTIONS OF THE SOFTWARE ARE PROVIDED “AS IS” AND WITHOUT ANY EXPRESS OR
IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
In addition, the program and information contained herein are licensed only pursuant to a license agreement that
contains restrictions on use and disclosure (that may incorporate by reference certain limitations and notices imposed
by third parties).
Nortel Networks NA Inc. Software License Agreement
NOTICE: Please carefully read this license agreement before copying or using the accompanying software or
installing the hardware unit with pre-enabled software (each of which is referred to as “Software” in this Agreement).
BY COPYING OR USING THE SOFTWARE, YOU ACCEPT ALL OF THE TERMS AND CONDITIONS OF
THIS LICENSE AGREEMENT. THE TERMS EXPRESSED IN THIS AGREEMENT ARE THE ONLY TERMS
UNDER WHICH NORTEL NETWORKS WILL PERMIT YOU TO USE THE SOFTWARE. If you do not accept
308604-14.10 Rev 01 iii
these terms and conditions, return the product, unused and in the original shipping container, within 30 days of
purchase to obtain a credit for the full purchase price.
1. License Grant. Nortel Networks NA Inc. (“Nortel Networks”) grants the end user of the Software (“Licensee”) a
personal, nonexclusive, nontransferable license: a) to use the Software either on a single computer or, if applicable, on
a single authorized device identified by host ID, for which it was originally acquired; b) to copy the Software solely
for backup purposes in support of authorized use of the Software; and c) to use and copy the associated user manual
solely in support of authorized use of the Software by Licensee. This license applies to the Software only and does not
extend to Nortel Networks Agent software or other Nortel Networks software products. Nortel Networks Agent
software or other Nortel Networks software products are licensed for use under the terms of the applicable Nortel
Networks NA Inc. Software License Agreement that accompanies such software and upon payment by the end user of
the applicable license fees for such software.
2. Restrictions on use; reservation of rights. The Software and user manuals are protected under copyright laws.
Nortel Networks and/or its licensors retain all title and ownership in both the Software and user manuals, including
any revisions made by Nortel Networks or its licensors. The copyright notice must be reproduced and included with
any copy of any portion of the Software or user manuals. Licensee may not modify, translate, decompile, disassemble,
use for any competitive analysis, reverse engineer, distribute, or create derivative works from the Software or user
manuals or any copy, in whole or in part. Except as expressly provided in this Agreement, Licensee may not copy or
transfer the Software or user manuals, in whole or in part. The Software and user manuals embody Nortel Networks’
and its licensors’ confidential and proprietary intellectual property. Licensee shall not sublicense, assign, or otherwise
disclose to any third party the Software, or any information about the operation, design, performance, or
implementation of the Software and user manuals that is confidential to Nortel Networks and its licensors; however,
Licensee may grant permission to its consultants, subcontractors, and agents to use the Software at Licensee’s facility,
provided they have agreed to use the Software only in accordance with the terms of this license.
3. Limited warranty. Nortel Networks warrants each item of Software, as delivered by Nortel Networks and properly
installed and operated on Nortel Networks hardware or other equipment it is originally licensed for, to function
substantially as described in its accompanying user manual during its warranty period, which begins on the date
Software is first shipped to Licensee. If any item of Software fails to so function during its warranty period, as the sole
remedy Nortel Networks will at its discretion provide a suitable fix, patch, or workaround for the problem that may be
included in a future Software release. Nortel Networks further warrants to Licensee that the media on which the
Software is provided will be free from defects in materials and workmanship under normal use for a period of 90 days
from the date Software is first shipped to Licensee. Nortel Networks will replace defective media at no charge if it is
returned to Nortel Networks during the warranty period along with proof of the date of shipment. This warranty does
not apply if the media has been damaged as a result of accident, misuse, or abuse. The Licensee assumes all
responsibility for selection of the Software to achieve Licensee’s intended results and for the installation, use, and
results obtained from the Software. Nortel Networks does not warrant a) that the functions contained in the software
will meet the Licensee’s requirements, b) that the Software will operate in the hardware or software combinations that
the Licensee may select, c) that the operation of the Software will be uninterrupted or error free, or d) that all defects
in the operation of the Software will be corrected. Nortel Networks is not obligated to remedy any Software defect that
cannot be reproduced with the latest Software release. These warranties do not apply to the Software if it has been (i)
altered, except by Nortel Networks or in accordance with its instructions; (ii) used in conjunction with another
vendor’s product, resulting in the defect; or (iii) damaged by improper environment, abuse, misuse, accident, or
negligence. THE FOREGOING WARRANTIES AND LIMITATIONS ARE EXCLUSIVE REMEDIES AND ARE
IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Licensee is responsible
for the security of its own data and information and for maintaining adequate procedures apart from the Software to
reconstruct lost or altered files, data, or programs.
4. Limitation of liability. IN NO EVENT WILL NORTEL NETWORKS OR ITS LICENSORS BE LIABLE FOR
ANY COST OF SUBSTITUTE PROCUREMENT; SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES; OR ANY DAMAGES RESULTING FROM INACCURATE OR LOST DATA OR LOSS OF USE OR
PROFITS ARISING OUT OF OR IN CONNECTION WITH THE PERFORMANCE OF THE SOFTWARE, EVEN
IF NORTEL NETWORKS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT
iv 308604-14.10 Rev 01
SHALL THE LIABILITY OF NORTEL NETWORKS RELATING TO THE SOFTWARE OR THIS AGREEMENT
EXCEED THE PRICE PAID TO NORTEL NETWORKS FOR THE SOFTWARE LICENSE.
5. Government Licensees. This provision applies to all Software and documentation acquired directly or indirectly by
or on behalf of the United States Government. The Software and documentation are commercial products, licensed on
the open market at market prices, and were developed entirely at private expense and without the use of any U.S.
Government funds. The license to the U.S. Government is granted only with restricted rights, and use, duplication, or
disclosure by the U.S. Government is subject to the restrictions set forth in subparagraph (c)(1) of the Commercial
Computer Software––Restricted Rights clause of FAR 52.227-19 and the limitations set out in this license for civilian
agencies, and subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause of DFARS
252.227-7013, for agencies of the Department of Defense or their successors, whichever is applicable.
6. Use of Software in the European Community. This provision applies to all Software acquired for use within the
European Community. If Licensee uses the Software within a country in the European Community, the Software
Directive enacted by the Council of European Communities Directive dated 14 May, 1991, will apply to the
examination of the Software to facilitate interoperability. Licensee agrees to notify Nortel Networks of any such
intended examination of the Software and may procure support and assistance from Nortel Networks.
7. Term and termination. This license is effective until terminated; however, all of the restrictions with respect to
Nortel Networks’ copyright in the Software and user manuals will cease being effective at the date of expiration of the
Nortel Networks copyright; those restrictions relating to use and disclosure of Nortel Networks’ confidential
information shall continue in effect. Licensee may terminate this license at any time. The license will automatically
terminate if Licensee fails to comply with any of the terms and conditions of the license. Upon termination for any
reason, Licensee will immediately destroy or return to Nortel Networks the Software, user manuals, and all copies.
Nortel Networks is not liable to Licensee for damages in any form solely by reason of the termination of this license.
8. Export and Re-export. Licensee agrees not to export, directly or indirectly, the Software or related technical data
or information without first obtaining any required export licenses or other governmental approvals. Without limiting
the foregoing, Licensee, on behalf of itself and its subsidiaries and affiliates, agrees that it will not, without first
obtaining all export licenses and approvals required by the U.S. Government: (i) export, re-export, transfer, or divert
any such Software or technical data, or any direct product thereof, to any country to which such exports or re-exports
are restricted or embargoed under United States export control laws and regulations, or to any national or resident of
such restricted or embargoed countries; or (ii) provide the Software or related technical data or information to any
military end user or for any military end use, including the design, development, or production of any chemical,
nuclear, or biological weapons.
9. General. If any provision of this Agreement is held to be invalid or unenforceable by a court of competent
jurisdiction, the remainder of the provisions of this Agreement shall remain in full force and effect. This Agreement
will be governed by the laws of the state of California.
Should you have any questions concerning this Agreement, contact Nortel Networks, 4401 Great America Parkway,
P.O. Box 58185, Santa Clara, California 95054-8185.
LICENSEE ACKNOWLEDGES THAT LICENSEE HAS READ THIS AGREEMENT, UNDERSTANDS IT, AND
AGREES TO BE BOUND BY ITS TERMS AND CONDITIONS. LICENSEE FURTHER AGREES THAT THIS
AGREEMENT IS THE ENTIRE AND EXCLUSIVE AGREEMENT BETWEEN NORTEL NETWORKS AND
LICENSEE, WHICH SUPERSEDES ALL PRIOR ORAL AND WRITTEN AGREEMENTS AND
COMMUNICATIONS BETWEEN THE PARTIES PERTAINING TO THE SUBJECT MATTER OF THIS
AGREEMENT. NO DIFFERENT OR ADDITIONAL TERMS WILL BE ENFORCEABLE AGAINST NORTEL
NETWORKS UNLESS NORTEL NETWORKS GIVES ITS EXPRESS WRITTEN CONSENT, INCLUDING AN
EXPRESS WAIVER OF THE TERMS OF THIS AGREEMENT.
308604-14.10 Rev 01 v
Contents
Preface
Text Conventions ............................................................................................................. xv
Acronyms .........................................................................................................................xvi
Hard-Copy Technical Manuals ........................................................................................xvii
How to Get Help .............................................................................................................xvii
Chapter 1
Cable Basics
Before You Begin ............................................................................................................1-2
How to Use This Guide ...................................................................................................1-2
Finding Cables by Category .....................................................................................1-3
Finding Cables by Order Number or Description .....................................................1-4
Cable Connector Basics .................................................................................................1-8
Connector Terminology ............................................................................................1-8
Connector Types ......................................................................................................1-9
Building Your Own Cables ............................................................................................1-11
Chapter 2
Console/Modem Cables
Console Interface to ASCII Terminal (Order No. 7525) ...................................................2-3
AFN/AN Console Interface to ASCII Terminal (Order No. 7526) ....................................2-4
AT Serial Console (Order No. 7527) ...............................................................................2-5
Console/Modem Interface to RS-232-C Modem (Order No. 7825) .................................2-6
Backbone Console Interface to RS-232-C Modem (Order No. 77850) ...........................2-7
Passport 2430 and Passport 5430 Fast Branch Router Console Interface to PC
(Order No. AA0011026) ..................................................................................................2-8
vi 308604-14.10 Rev 01
Chapter 3
LAN Cables
Ethernet Cable (Order No. 7115) ....................................................................................3-3
Token Ring MAU Cable (Order No. 7125) .......................................................................3-4
Token Ring MAU Cable with Ferrite Bead (Order No. 7126) ...........................................3-5
Token Ring to RJ-11 Cable (Order No. 7128) .................................................................3-6

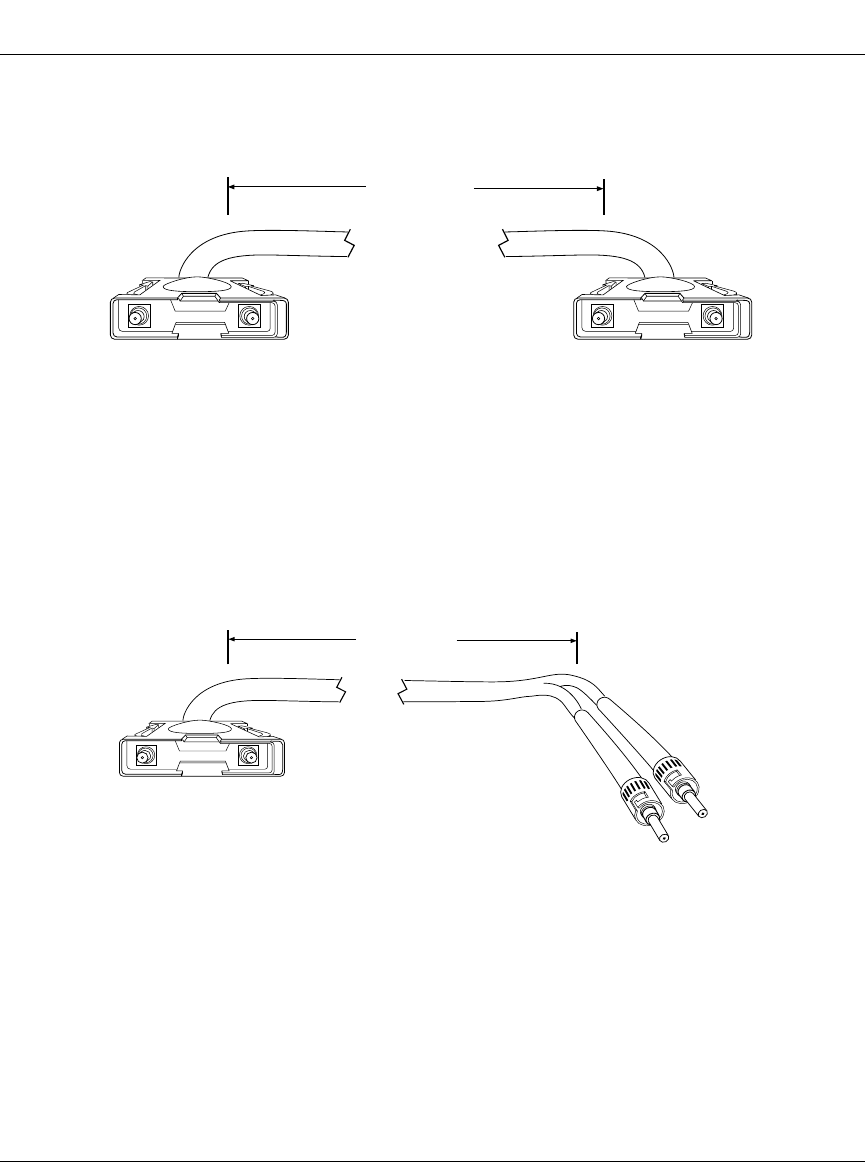

FDDI FSD to FSD (Order No. 7135) ...............................................................................3-7
FDDI FSD to Straight Tip (Order No. 7136) ....................................................................3-7

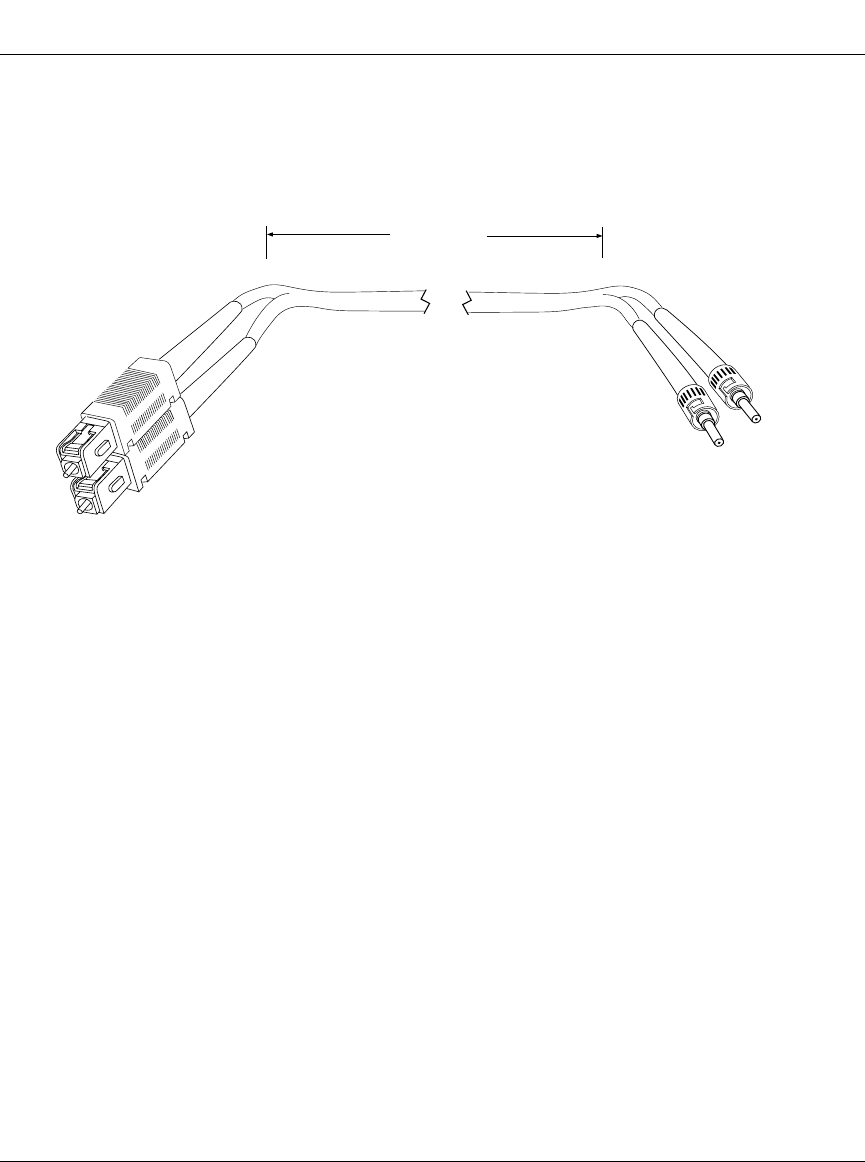

FDDI-Type SC Duplex to Straight Tip (Order No. 7164 for Single-Mode Cable) ............3-8

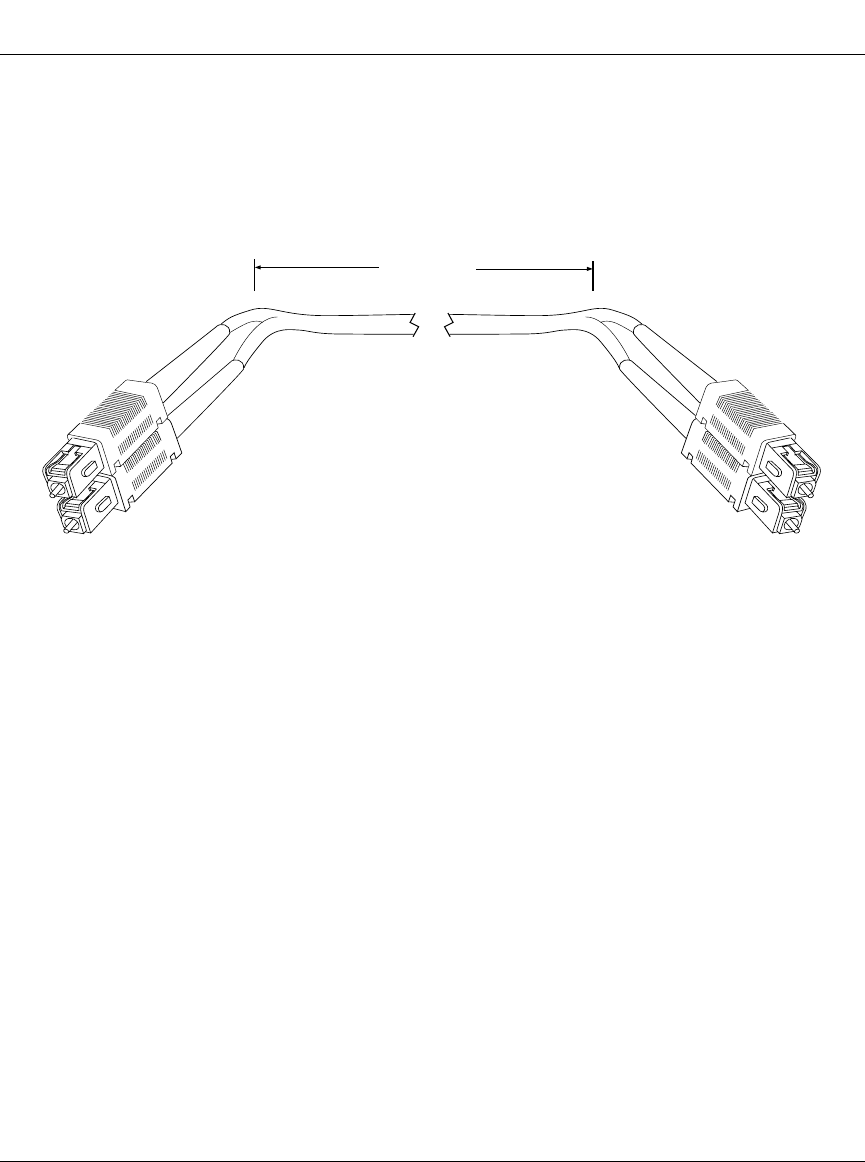

FDDI-Type SC Duplex to SC Duplex (Order No. 7163 for Multimode Cable)
(Order No. 7165 for Single-Mode Cable) ........................................................................3-9
ATM Cable, SC to Straight Tip MMF (Order No. 7169) .................................................3-10
Chapter 4
HSSI Cables
HSSI DCE to DTE (10 Ft: Order No. 7830; 50 Ft: Order No. 7831) ...............................4-3
HSSI Crossover (Order No. 7832) ..................................................................................4-5
Chapter 5
E1/T1 Cables

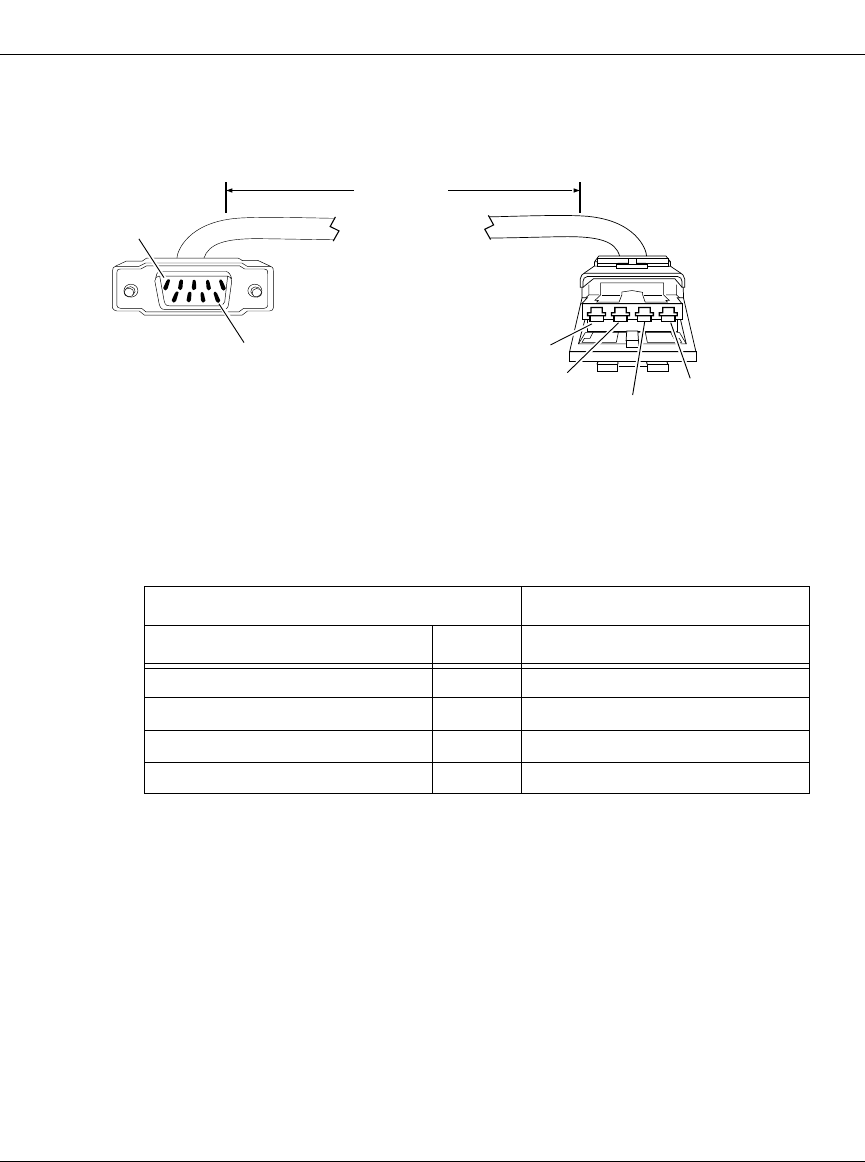

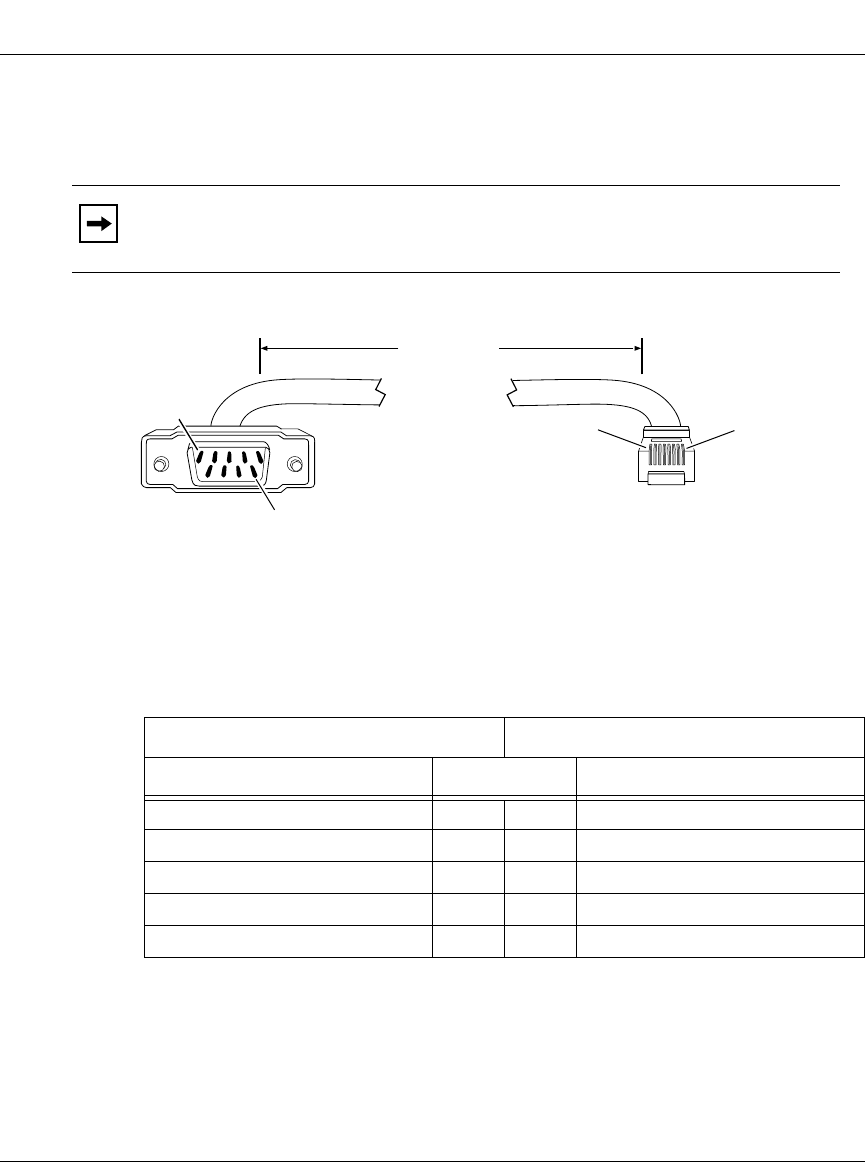

MCE1 DB9 to Mod Jack Cable (Order No. AA0018001) ................................................5-4
MCE1 DB9 to Unterminated Cable (Order No. AA0018002) ..........................................5-5
Quad MCT1 Clock Cable (Order No. AA0018006) .........................................................5-6
MCE1 RJ-45 to RJ-45 Cable (Order No. AA0018014) ...................................................5-7
MCE1 RJ-45 to Unterminated Cable (Order No. AA0018015) .......................................5-8
Quad MCT1 15-Pin to 15-Pin Crossover Cable (Order No. AA0018021) .......................5-9
Quad MCT1 15-Pin to 15-Pin Straight-Through Cable (Order No. AA0018022) ..........5-10
ATM E1 RJ-45 to RJ-45 Cable (Order No. AA0018040) ...............................................5-11
MCT1 Clock Cable (Order No. 7150) ............................................................................5-12
MCT1 15-Pin Loopback Connector (Order No. 7151) ..................................................5-13
MCT1 RJ-48 Loopback Connector (Order No. 7152) ...................................................5-14
MCT1 Crossover Cable (Order No. 7153) ....................................................................5-15
MCT1 Loopback Cable (Order No. 7154) .....................................................................5-16
MCT1 Loopback Cable (Order No. 7155) .....................................................................5-17
MCT1 Straight-Through Cable (Order No. 7156) ..........................................................5-18
MCT1 Straight-Through Cable (Order No. 7157) ..........................................................5-19
MCE1 Crossover Cable (Order No. 7160) ....................................................................5-20
308604-14.10 Rev 01 vii
MCE1 Straight-Through Cable (Order No. 7161) .........................................................5-21
MCE1 Coaxial Cable (Order No. 7162) ........................................................................5-22
MCE1 DB9 to DB15 Straight-Through Cable (Order No. 7167) ...................................5-23
MCE1 DB9 to DB15 Crossover Cable (Order No. 7168) ..............................................5-24
T1 to CSU DTE (Order No. 7401) .................................................................................5-25
T1 to Customer Premise Equipment (Order No. 7415) ................................................5-26
CSU Network Receptacle to RJ-45 (Order No. 7650) ..................................................5-27

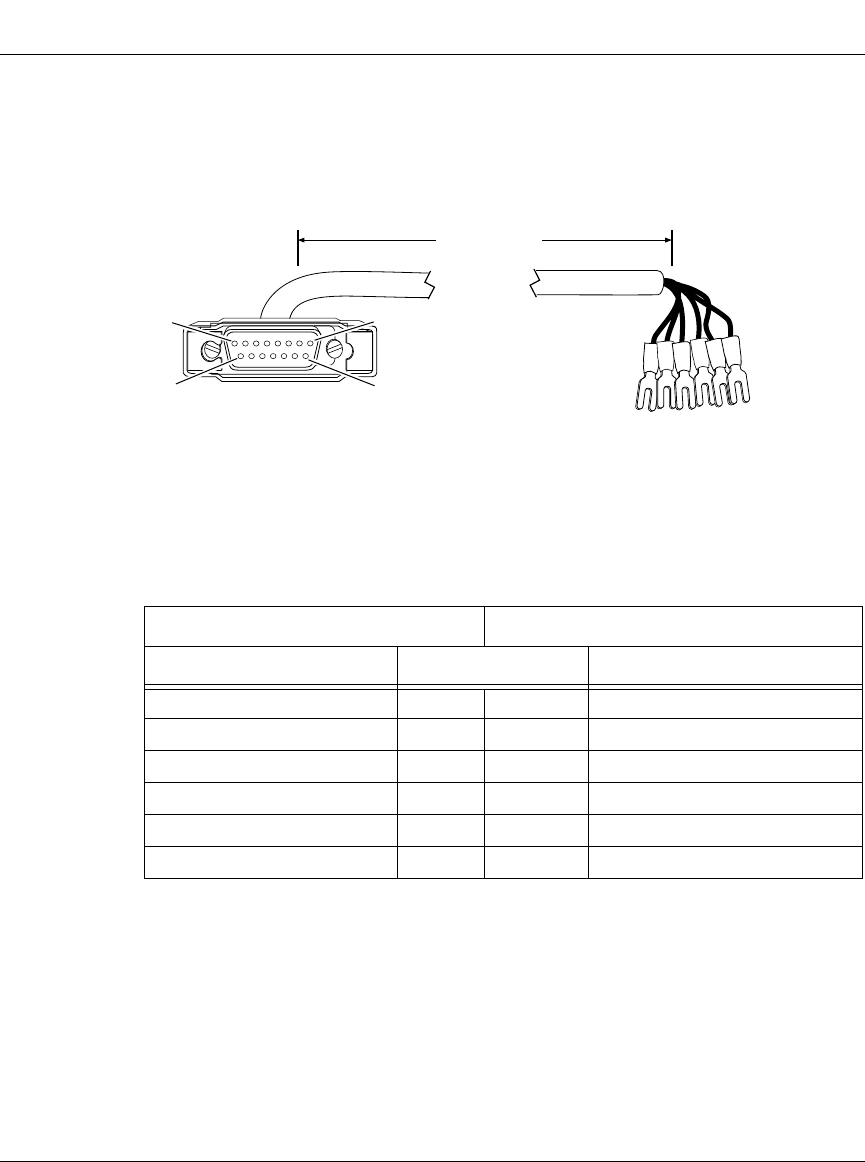

CSU Network Receptacle to Spade Terminals (Order No. 7750) .................................5-28
Chapter 6
Standard Synchronous Cables
15-Pin to F X.21 Synchronous Pass-Through (Order No. AA0018003) .........................6-4

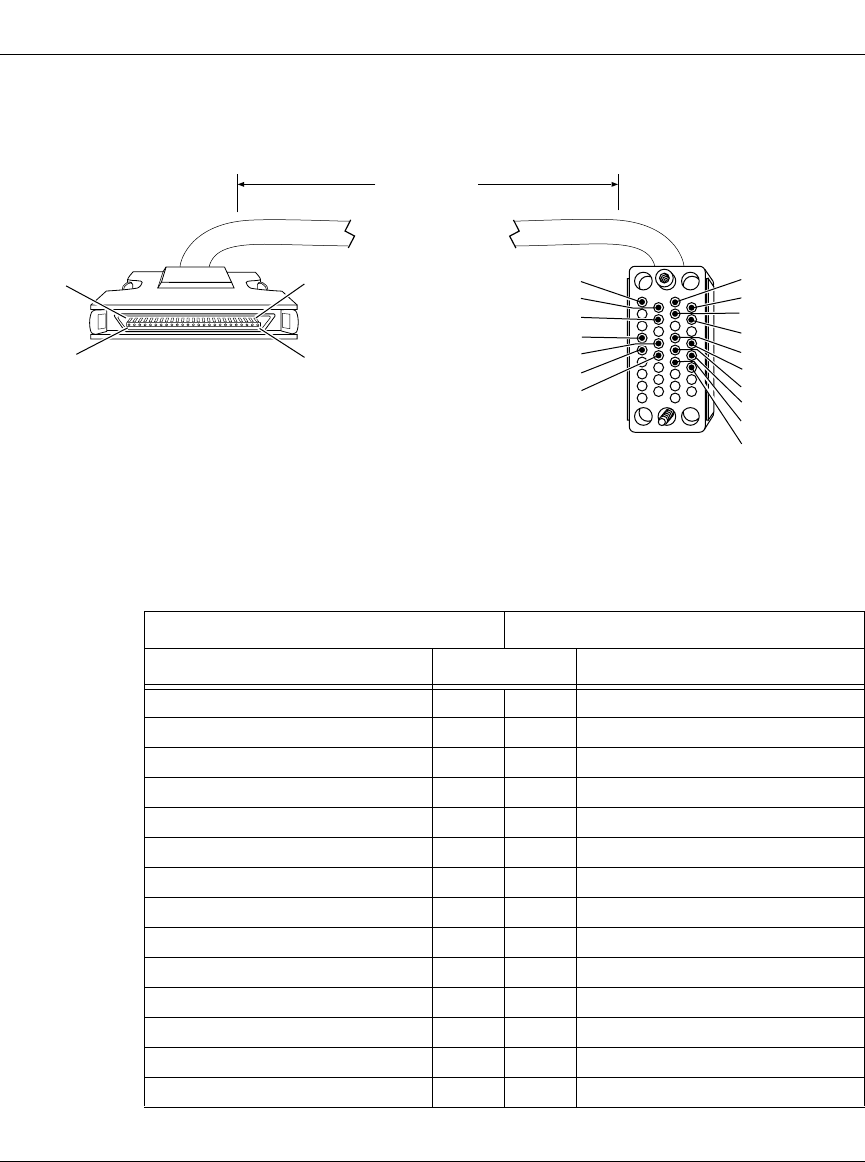

44-Pin F X.21 Synchronous Pass-Through (Order No. AA0018004) .............................6-6
50-Pin to F X.21 Synchronous Pass-Through (Order No. AA0018005) .........................6-8
15-Pin to RS-530 Straight-Through (Order No. AA0018011) .......................................6-10
44-Pin to RS-530 Straight-Through (Order No. AA0018012) .......................................6-12
50-Pin to RS-530 Straight-Through (Order No. AA0018013) .......................................6-14
50-Pin to V.28 Cable (Order No. AA0018023) ..............................................................6-16
15-Pin to V.35M (Order No. 7158) ................................................................................6-17
44-Pin to V.35M (Order No. 7159) ................................................................................6-18
15-Pin D-Sub to V.35: No DTR, for WAN (Order No. 7215) ..........................................6-20
15-Pin D-Sub to V.35 with DTR (Order No. 7216) ........................................................6-22
RS-232 Pass-Through: 15-Pin to RS-232 (Order No. 7218) ........................................6-23
V.35 Pass-Through: 15-Pin to V.35 (Order No. 7219) ...................................................6-24
44-Pin D-Sub to V.35: Leased Line or V.25bis (Order No. 7220) ..................................6-26
15-Pin D-Sub to X.21 (Order No. 7221) ........................................................................6-28
44-Pin D-Sub to X.21 (Order No. 7224) ........................................................................6-29
15-Pin D-Sub to RS-232 (Order No. 7255) ...................................................................6-30
15-Pin D-Sub to V.28 (Order No. 7256) ........................................................................6-31
15-Pin Crossover (Order No. 7260) ..............................................................................6-32
15-Pin D-Sub to RS-422 (Order No. 7315) ...................................................................6-34
44-Pin D-Sub to RS-422: Leased Line or V.25bis (Order No. 7318) .............................6-36
44-Pin D-Sub to RS-232: Leased Line or V.25bis (Order No. 7826) .............................6-38
RS-232 Pass-Through: 44-Pin to RS-232 (Order No. 7833) ........................................6-39
V.35 Pass-Through: 44-Pin to V.35 (Order No. 7834) ...................................................6-40
V.35 Crossover: 44-Pin to 44-Pin (Order No. 7835) ......................................................6-42
viii 308604-14.10 Rev 01
V.35 Crossover: 44-Pin to 15-Pin (Order No. 7836) ......................................................6-44
44-Pin D-Sub to V.28 (Order No. 7837) ........................................................................6-46
50-Pin to V.35 (Order No. 7932) ...................................................................................6-48
50-Pin to RS-232 (Order No. 7934) ..............................................................................6-50
50-Pin to X.21 (Order No. 7936) ...................................................................................6-51
50-Pin to RS-422 (Order No. 7937) ..............................................................................6-52
50-Pin to 50-Pin Crossover (Order No. 7938) ...............................................................6-54
50-Pin to 15-Pin Crossover (Order No. 7939) ...............................................................6-56
50-Pin to 44-Pin Crossover (Order No. 7940) ...............................................................6-58
15-Pin to F RS-232 Synchronous Pass-Through (Order No. 7941) .............................6-60
15-Pin to F V.35 Synchronous Pass-Through (Order No. 7942) ...................................6-61
44-Pin to F RS-232 Synchronous Pass-Through (Order No. 7943) .............................6-62
44-Pin to F V.35 Synchronous Pass-Through (Order No. 7944).................................. 6-63
50-Pin to F RS-232 Synchronous Pass-Through (Order No. 7945) .............................6-65
50-Pin to F V.35 Synchronous Pass-Through (Order No. 7946).................................. 6-66
Chapter 7
Dial-Up Services Cables
15-Pin D-Sub to RS-422: V.25bis (Order No. 7116) .......................................................7-3
15-Pin D-Sub to RS-422: Raise DTR (Order No. 7117) .................................................7-5
15-Pin D-Sub to RS-232: Raise DTR (Order No. 7118) .................................................7-7
15-Pin D-Sub to RS-232: V.25bis (Order No. 7119) .......................................................7-8
15-Pin D-Sub to V.35: V.25bis (Order No. 7120) .............................................................7-9
15-Pin D-Sub to V.35: Raise DTR (Order No. 7121) .....................................................7-10
44-Pin D-Sub to V.35: Raise DTR (Order No. 7137) .....................................................7-11
44-Pin D-Sub to RS-232: Raise DTR (Order No. 7138) ...............................................7-13
44-Pin D-Sub to RS-422: Raise DTR (Order No. 7139) ...............................................7-14
50-Pin to V.35: Raise DTR (Order No. 7933) ................................................................7-16
50-Pin to RS-232: Raise DTR (Order No. 7935) ..........................................................7-18
308604-14.10 Rev 01 ix
Chapter 8
Cable Adapters
44-Pin to 15-Pin RS-232 Cable Adapter (Order No. 7122) .............................................8-3
44-Pin to 15-Pin X.21 Cable Adapter (Order No. 7123) .................................................8-5
44-Pin to 15-Pin V.35 Cable Adapter (Order No. 7124) ..................................................8-7
44-Pin to 15-Pin RS-422 Cable Adapter (Order No. 7131) .............................................8-9
50-Pin to 44-Pin Cable Adapter (Order No. 7947) ........................................................8-11
50-Pin to 15-Pin V.35 Cable Adapter (Order No. 7948) ................................................8-14
50-Pin to 15-Pin RS-422 Cable Adapter (Order No. AA0018024) ................................8-16

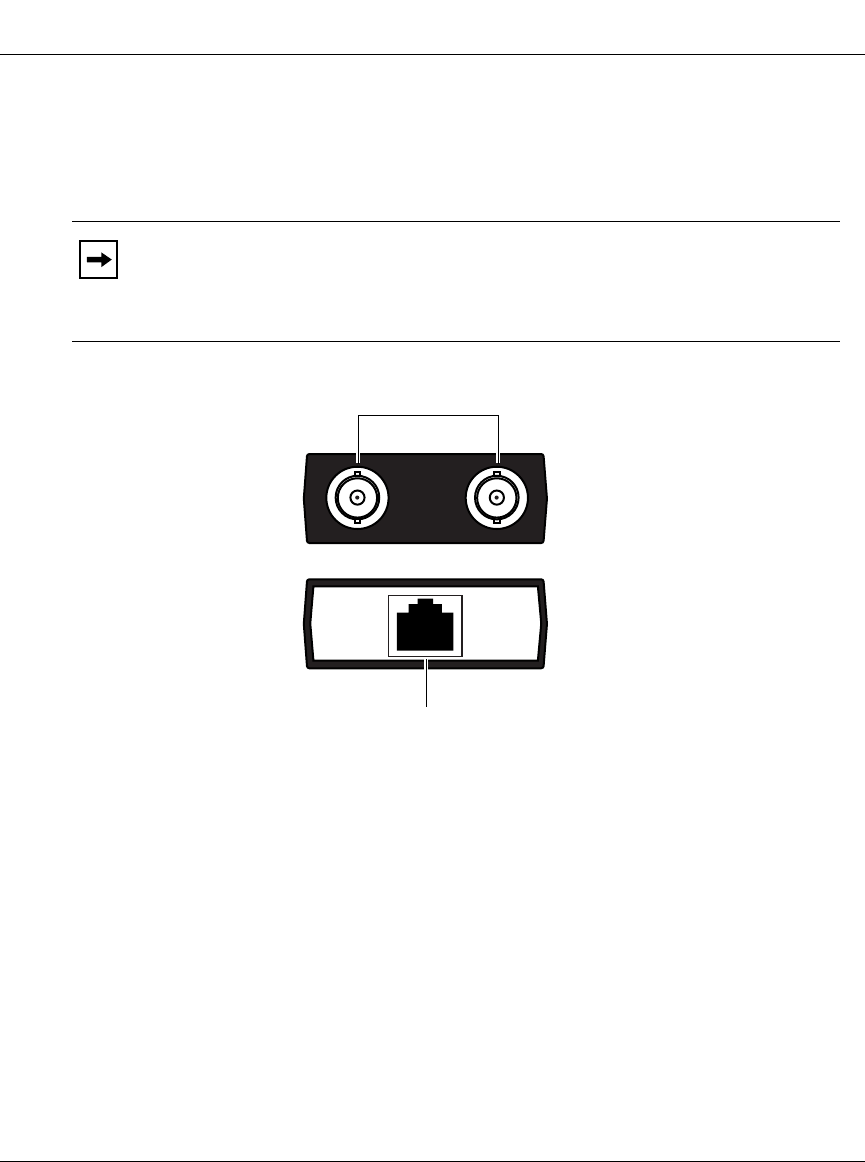

Model 460F-BN G.703 Coaxial to RJ-45 Adapter (Balun) (Order No. AA0018040) .....8-18
Passport 5430 External Modem Adapter (Order No. 309329-A) ..................................8-19
308604-14.10 Rev 01 xi
Figures
Figure 1-1. Connector Types ....................................................................................1-10
308604-14.10 Rev 01 xiii
Tables
Table 1-1. Cable Category Locations .......................................................................1-3
Table 1-2. Cables Listed by Order Number ...............................................................1-4
Table 1-3. Connector Terms ......................................................................................1-8
Table 2-1. Console/Modem Cables ...........................................................................2-1
Table 3-1. Local Area Network Cables .....................................................................3-1
Table 4-1. HSSI Cables ............................................................................................4-1
Table 5-1. E1/T1 Cables ...........................................................................................5-1
Table 6-1. Standard Synchronous Cables ................................................................6-1
Table 7-1. Dial-Up Services Cables ..........................................................................7-1
Table 8-1. Cable Adapters ........................................................................................8-1
308604-14.10 Rev 01 xv
Preface
This guide describes how to attach the correct cables to the Nortel Networks™
router you are installing. This guide provides the following information:
• Cable connector diagrams
• Pin/socket wiring configurations
Text Conventions
This guide uses the following text conventions:
bold text Indicates command names and options and text that
you need to enter.
Example: Use the dinfo command.
italic text Indicates file and directory names, new terms, book
titles, and variables in command syntax descriptions.
Where a variable is two or more words, the words are
connected by an underscore.
Example:
If the command syntax is:
show at <
valid_route
>
valid_route
is one variable and you substitute one value
for it.
screen text Indicates system output, for example, prompts and
system messages.
Example: Set Trap Monitor Filters
Cable Guide
xvi 308604-14.10 Rev 01
Acronyms
This guide uses the following acronyms:
ATM asynchronous transfer mode
AUI attachment unit interface
CCITT Consultative Committee on International Telegraph and
Telephone (now ITU-T)
CPE customer premise equipment
CSMA/CD carrier sense multiple access/collision detection
CSU channel service unit
DCE data communication equipment
DSU digital service unit
DTE data terminal equipment
DTR data terminal ready
EIA Electronic Industries Association
FC fiber channel
FDDI Fiber Distributed Data Interface
FSD fixed shroud duplex
HSSI High Speed Serial Interface
IEEE Institute of Electrical and Electronic Engineers
LAN local area network
MAU media access unit/multistation access unit
PMD physical medium dependent
RJ registered jack
SC subscriber connector
STP shielded twisted pair
WAN wide area network
Preface
308604-14.10 Rev 01 xvii
Hard-Copy Technical Manuals
You can print selected technical manuals and release notes free, directly from the
Internet. Go to support.baynetworks.com/library/tpubs/. Find the product for
which you need documentation. Then locate the specific category and model or
version for your hardware or software product. Using Adobe Acrobat Reader, you
can open the manuals and release notes, search for the sections you need, and print
them on most standard printers. You can download Acrobat Reader free from the
Adobe Systems Web site, www.adobe.com.
You can purchase selected documentation sets, CDs, and technical publications
through the collateral catalog. The catalog is located on the World Wide Web at
support.baynetworks.com/catalog.html and is divided into sections arranged
alphabetically:
• The “CD ROMs” section lists available CDs.
• The “Guides/Books” section lists books on technical topics.
• The “Technical Manuals” section lists available printed documentation sets.
How to Get Help
If you purchased a service contract for your Nortel Networks product from a
distributor or authorized reseller, contact the technical support staff for that
distributor or reseller for assistance.
If you purchased a Nortel Networks service program, contact one of the following
Nortel Networks Technical Solutions Centers:
Technical Solutions Center Telephone Number
Billerica, MA 800-2LANWAN (800-252-6926)
Santa Clara, CA 800-2LANWAN (800-252-6926)
Valbonne, France 33-4-92-96-69-68
Sydney, Australia 61-2-9927-8800
Tokyo, Japan 81-3-5740-1700
308604-14.10 Rev 01 1-1
Chapter 1
Cable Basics
This guide provides all the information you need to find a specific cable for your
Nortel Networks router hardware platform. This chapter explains:
• What you need to know
• How to use this guide
-- How to find cables by category
-- How to find cables by order number or description
• Some basics about cable connectors, including:
-- Connector terminology
-- Basic connector types
• How to build your own cables
If you want to build a cable to meet special requirements, this guide also provides
pinout information and references to the appropriate documents for industry
specification, standards, or recommendations. Recommended documents typically
contain technical information to help you determine your requirements for cable
installation path, cable type, maximum cable length, and so on.
Cable Guide
1-2 308604-14.10 Rev 01
Before You Begin
To ensure that you order, make, or use the appropriate cable for your router
hardware platform, first answer the following questions:
• What is the connection category, order number, or physical description of the
cable I want to find?
• What type of physical interface am I connecting to, and what type of cable
connector (plug or receptacle) do I need to make this connection?
• What type of device do I want to connect to the router hardware platform’s
physical interface? For example, do you want to connect a modem or a
console to the router hardware platform? Each function requires a different
cable, even though you connect to the same physical interface on the router
hardware platform.
• What version of software is my router hardware platform using? For example,
newer features such as dial-up services may require special cable pin
configurations to interoperate with earlier versions of Nortel Networks
software.
How to Use This Guide
You can find the Nortel Networks cable you want by:
• Cable connection category
• Cable order number or description
Note: Determining the connector type you need can significantly decrease the
time it takes to locate the appropriate cable. For example, if you want to
connect to a 44-position synchronous interface, look only for synchronous
cables with 44-pin plugs.
Cable Basics
308604-14.10 Rev 01 1-3
Finding Cables by Category
This guide organizes Nortel Networks cables into seven connection categories.
Table 1-1 shows the chapter that contains each category.
After determining the connection category and type of connector that you need, go
to the appropriate chapter. The table at the beginning of each chapter provides
additional information about each cable in that category.
Table 1-1. Cable Category Locations
Category Chapter
Console/modem 2
Local area network (LAN)
• Ethernet
• Token ring
• Fiber Distributed Data Interface (FDDI)
• Asynchronous transfer mode (ATM)
3
High Speed Serial Interface (HSSI) 4
Multichannel E1, T1, T1 framer, and channel service unit (CSU) 5
Standard synchronous
• Coaxial
• Crossover and loopback
• Straight-through
• Pass-through
6
Dial-up services 7
Cable adapters 8
Cable Guide
1-4 308604-14.10 Rev 01
Finding Cables by Order Number or Description
Table 1-2 lists the order number, a brief description, and the page number of each
cable in this guide.
Table 1-2. Cables Listed by Order Number
Order No. Physical Cable Description Page

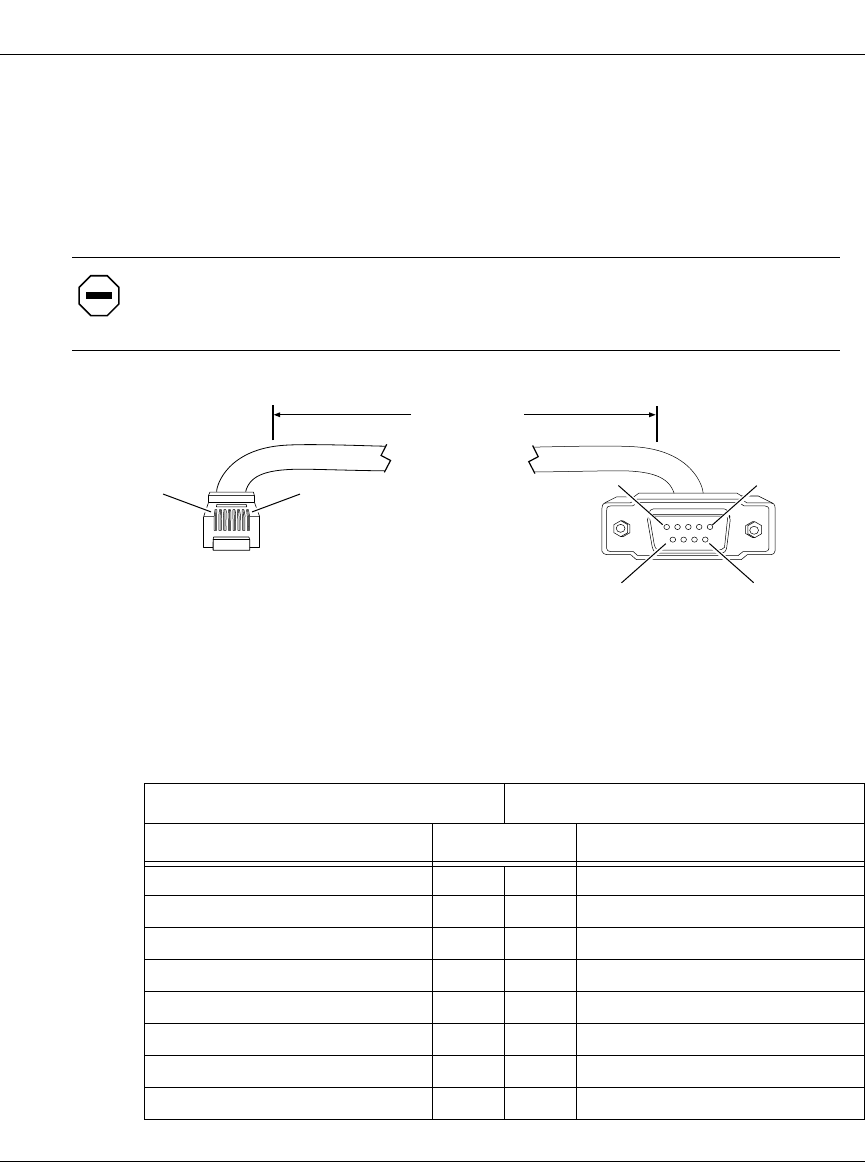

AA0011026 RJ-45 to 9-pin D-sub plug (for console interface to PC connection) 2-8
AA0018001 MCE1 DB9 to mod jack cable (9-pin to RJ-45) 5-4

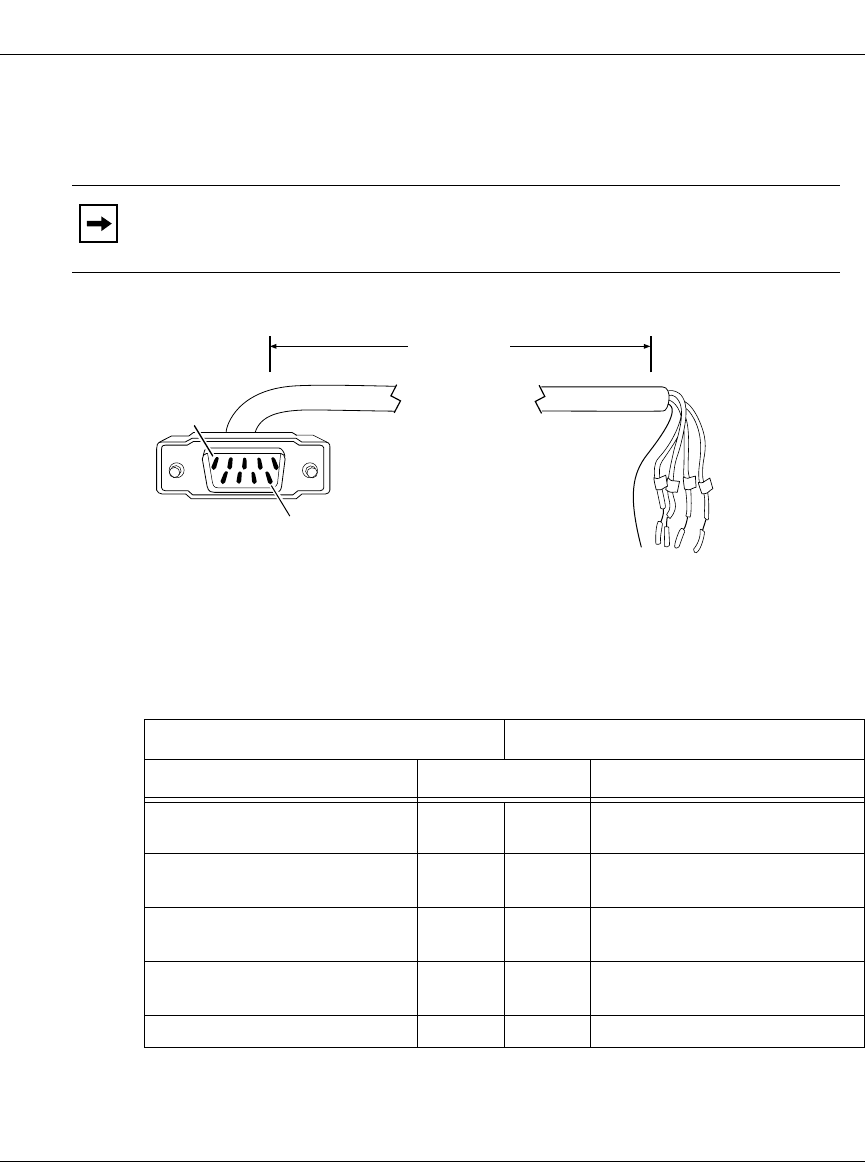

AA0018002 MCE1 DB9 to unterminated end cable (9-pin to unterminated end) 5-5
AA0018003 X.21 synchronous pass-through (15-pin plug to X.21 receptacle) 6-4
AA0018004 X.21 synchronous pass-through (44-pin plug to X.21 receptacle) 6-6
AA0018005 X.21 synchronous pass-through (50-pin plug to X.21 receptacle) 6-8
AA0018006 Quad MCT1 clock cable 5-6
AA0018011 RS-530 straight-through cable (15-pin to RS-530 plug) 6-10
AA0018012 RS-530 straight-through cable (44-pin to RS-530 plug) 6-12
AA0018013 RS-530 straight-through cable (50-pin to RS-530 plug) 6-14
AA0018014 MCE1 RJ-45 to RJ-45 5-7
AA0018015 MCE1 RJ-45 to unterminated end cable 5-8
AA0018021 Quad MCT1 crossover cable (15-pin D-sub plug to 15-pin D-sub plug) 5-9
AA0018022 Quad MCT1 straight-through cable (15-pin D-sub plug to 15-pin D-sub plug) 5-10
AA0018023 50-pin to V.28 cable 6-16
AA0018024 50-pin to 15-pin RS-422 cable adapter 8-16
AA0018040 ATM E1 RJ-45 to RJ-45 cable and Balun 5-11
8-18
7115 15-pin Ethernet/802.3 AUI plug to 15-position Ethernet/802.3 AUI receptacle 3-3
7116 15-pin D-sub plug to RS-422 plug (V.25bis for Series 7 software) 7-3
7117 15-pin D-sub plug to RS-422 plug (raise DTR for Series 7 software) 7-5
7118 15-pin D-sub plug to RS-232-C plug (raise DTR for Series 7 software) 7-7
7119 15-pin D-sub plug to RS-232-C plug (V.25bis for Series 7 software) 7-8
7120 15-pin D-sub plug to V.35 plug (V.25bis for Series 7 software) 7-9
7121 15-pin D-sub plug to V.35 plug (raise DTR for Series 7 software) 7-10
7122 44-pin to 15-pin RS-232-C cable adapter 8-3
(continued)
Cable Basics
308604-14.10 Rev 01 1-5
7123 44-pin to 15-pin X.21 cable adapter 8-5
7124 44-pin to 15-pin V.35 cable adapter 8-7
7125 9-pin D-sub plug to token ring/802.5 MAU data connector (no ferrite bead); STP
cable 3-4
7126 9-pin D-sub plug to token ring/802.5 MAU data connector (with ferrite bead); STP
cable 3-5
7128 9-pin D-sub plug to token ring/802.5 RJ-11 receptacle 3-6
7131 44-pin to 15-pin RS-422 cable adapter 8-9
7135 FDDI/X3T9.5 FSD to FSD; multimode fiber cable; dual attachment to FDDI ring
requires two cables 3-7
7136 FDDI FSD to bayonet (ST) connectors; multimode fiber cable; dual attachment to
FDDI ring requires two cables 3-7
7137 44-pin D-sub plug to V.35 plug (raise DTR for Series 7 software) 7-11
7138 44-pin D-sub plug to RS-232-C plug (raise DTR for Series 7 software) 7-13
7139 44-pin D-sub plug to RS-422 plug (raise DTR for Series 7 software) 7-14
7150 MCT1 clock cable (9-pin D-sub plug to 15-pin D-sub plug) 5-12

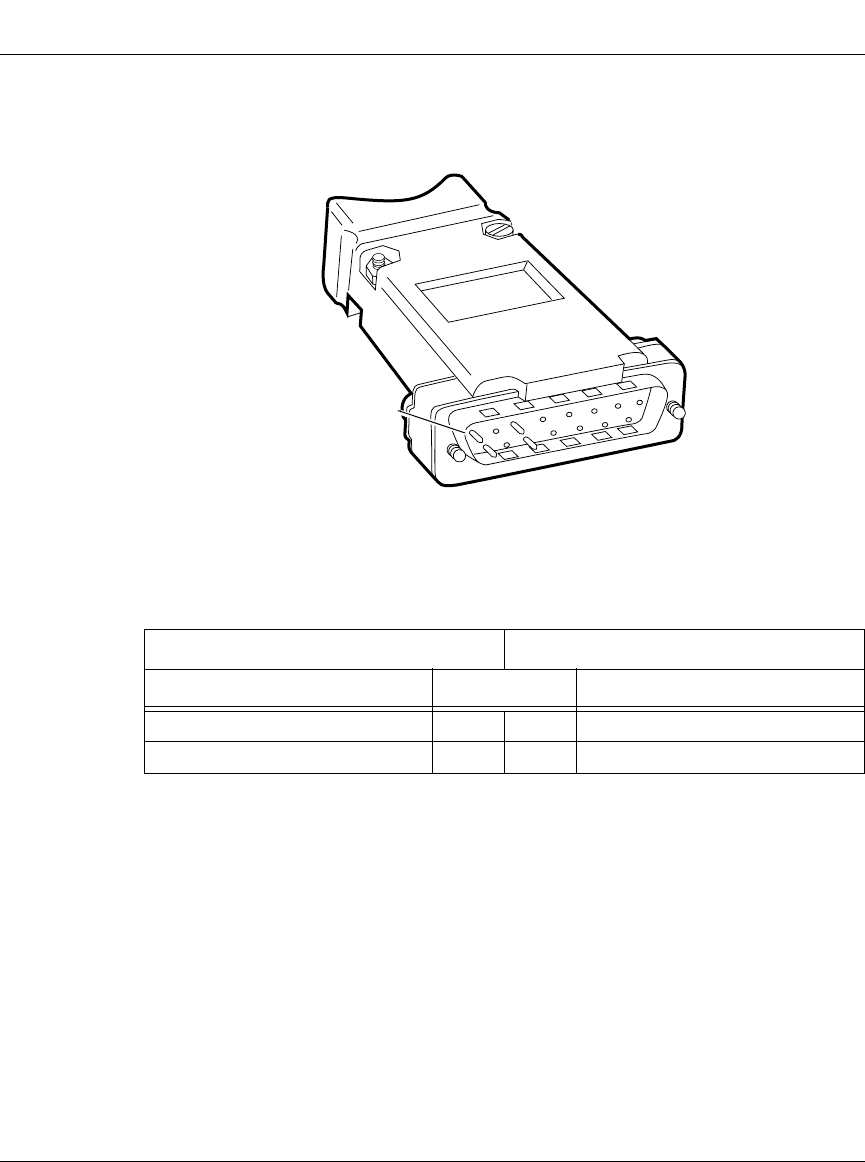

7151 MCT1 loopback plug (15-pin D-sub plug) 5-13
7152 MCT1 loopback plug (RJ-48) 5-14
7153 MCT1 crossover cable (15-pin D-sub plug to RJ-48) 5-15
7154 MCT1 loopback cable (RJ-48 to RJ-48) 5-16
7155 MCT1 loopback cable (15-pin D-sub plug to 15-pin D-sub plug) 5-17
7156 MCT1 straight-through cable (RJ-48 to RJ-48) 5-18
7157 MCT1 straight-through cable (15-pin D-sub plug to 15-pin D-sub plug) 5-19
7158 15-pin synchronous plug to V.35 plug 6-17
7159 44-pin D-sub plug to V.35 plug 6-18
7160 MCE1 crossover cable (9-pin) 5-20
7161 MCE1 straight-through cable (9-pin) 5-21
7162 MCE1 cable, 75-ohm coaxial 5-22
7163 FDDI SC duplex to SC duplex connectors; multimode fiber cable; dual attachment to
FDDI ring requires two cables 3-9
(continued)
Table 1-2. Cables Listed by Order Number
(continued)
Order No. Physical Cable Description Page
Cable Guide
1-6 308604-14.10 Rev 01
7164 FDDI SC duplex to bayonet (ST) connectors; single-mode fiber cable; dual
attachment to FDDI ring requires two cables 3-8
7165 FDDI SC duplex to SC duplex connectors; single-mode fiber cable; dual attachment
to FDDI ring requires two cables 3-9
7167 MCE1 DB9 to DB15 straight-through cable 5-23
7168 MCE1 DB9 to DB15 crossover cable 5-24
7169 ATM cable, SC to ST MMF 3-10
7215 15-pin D-sub plug to V.35 plug (no DTR; for WAN connection) 6-20
7216 15-pin D-sub plug to V.35 plug (with DTR) 6-22
7218 RS-232 synchronous pass-through (15-pin synchronous plug to RS-232 plug; for
DTE connection) 6-23
7219 V.35 synchronous pass-through (15-pin synchronous plug to V.35 plug; for DTE
connection) 6-24
7220 44-pin D-sub plug to V.35 plug (leased line or V.25bis; for WAN connection) 6-26
7221 15-pin D-sub plug to X.21 plug (for WAN connection) 6-28
7224 44-pin D-sub plug to X.21 plug (for WAN connection) 6-29
7255 15-pin D-sub plug to RS-232-C plug (for WAN connection) 6-30
7256 15-pin D-sub plug to V.28 plug (for WAN connection) 6-31
7260 15-pin to 15-pin synchronous crossover (for back-to-back node operation) 6-32
7315 15-pin D-sub plug to RS-422 plug (for WAN connection) 6-34
7318 44-pin D-sub plug to RS-422 plug (leased line or V.25bis; for WAN connection) 6-36
7401 15-pin T1 framer plug (labeled DSX-1 or DSX-2) to 15-pin DTE plug (for CSU
connection) 5-25
7415 15-pin T1 framer plug (labeled DSX-1 or DSX-2) to 15-pin customer premise
equipment (CPE) plug 5-26
7525 25-pin D-sub plug to RS-232-C receptacle (for console interface to ASCII terminal
connection) 2-3
7526 AFN/AN console cable; 9-pin D-sub plug to RS-232-C receptacle (for console
interface to ASCII terminal connection) 2-4
7527 9-pin D-sub plug to RS-232-C receptacle (for console/modem connection to a
console using a modem cable and a null-modem adapter) 2-5
7650 15-position CSU network receptacle to RJ-45 (for T-carrier line connection) 5-27
(continued)
Table 1-2. Cables Listed by Order Number
(continued)
Order No. Physical Cable Description Page
Cable Basics
308604-14.10 Rev 01 1-7
7750 15-position CSU network receptacle to spade terminals (for T-carrier line
connection) 5-28
7825 9-pin D-sub plug to RS-232-C modem plug (for console/modem interface to dial
modem connection) 2-6
7826 44-pin D-sub plug to RS-232 plug (leased line or V.25bis; for WAN connection) 6-38
7830 HSSI DCE plug to DTE plug (10 ft) 4-3
7831 HSSI DCE plug to DTE plug (50 ft) 4-3
7832 HSSI crossover cable; HSSI plug to HSSI plug 4-5
7833 RS-232 synchronous pass-through (44-pin plug to RS-232 plug) 6-39
7834 V.35 synchronous pass-through (44-pin plug to V.35 plug) 6-40
7835 V.35 crossover cable (44-pin plug to 44-pin plug) 6-42
7836 V.35 crossover cable (44-pin plug to 15-pin plug) 6-44
7837 44-pin to V.28 plug (for WAN connection) 6-46
7932 50-pin to V.35 plug 6-48
7933 50-pin to V.35 with raise DTR 7-16
7934 50-pin to RS-232 6-50
7935 50-pin to RS-232-C with raise DTR 7-18
7936 50-pin to X.21 6-51
7937 50-pin to RS-422 6-52
7938 50-pin to 50-pin crossover 6-54
7939 50-pin to 15-pin crossover 6-56
7940 50-pin to 44-pin crossover 6-58
7941 15-pin to female RS-232-C synchronous pass-through 6-60
7942 15-pin to female V.35 synchronous pass-through 6-61
7943 44-pin to female RS-232-C synchronous pass-through 6-62
7944 44-pin to female V.35 synchronous pass-through 6-63
7945 50-pin to female RS-232-C synchronous pass-through 6-65
7946 50-pin to female V.35 synchronous pass-through 6-66
7947 50-pin to 44-pin cable adapter 8-11
(continued)
Table 1-2. Cables Listed by Order Number
(continued)
Order No. Physical Cable Description Page
Cable Guide
1-8 308604-14.10 Rev 01
Cable Connector Basics
Before using this guide, you should be familiar with its terminology and the
connector types Nortel Networks provides.
Connector Terminology
This guide uses several terms to describe generically the various types of
connectors and their physical/electrical attributes. Table 1-3 lists these terms and
their definitions.
7948 50-pin to 15-pin V.35 cable adapter 8-14
77850 25-pin D-sub plug to RS-232-C modem plug (for BLN/BCN console/modem
interface to dial modem connection) 2-7
Table 1-3. Connector Terms
Term Description
Pins These are the short, rigid, lead wires protruding from a plug-type connector. The pins
of a plug connector penetrate and make electrical contact with counterpart sockets,
or holes, in a receptacle-type connector.
Sockets These are the holes in a receptacle-type connector. Each hole:
• Accepts one counterpart pin of a plug-type connector
• Completes an electrical connection to its counterpart pin
Plug This type of connector provides a number of pins and attaches to a receptacle-type
connector.
Receptacle This type of connector provides a number of sockets, or holes, that accept the pins of
a plug-type connector.
Physical
interface This is a plug- or receptacle-type connector located on the router hardware platform
or on a device such as an Ethernet transceiver. The physical interface accepts an
appropriate (counterpart) cable connector.
Termination This is the connector at one end of a cable; a termination can be either a plug- or
receptacle-type connector.
Table 1-2. Cables Listed by Order Number
(continued)
Order No. Physical Cable Description Page
Cable Basics
308604-14.10 Rev 01 1-9
Connector Types
Nortel Networks provides the following connector types:
• Attachment unit interface (AUI): A 15-pin D-type connector that connects
equipment to the Ethernet network through a transceiver
• CCITT series (V.28, V.35): CCITT-recommended V.10 (unbalanced) and V.11
(balanced) standard connectors
• Data terminal equipment (DTE) to data communication equipment (DCE)
interface (X.21): CCITT-recommended DTE to DCE synchronous/public
switched network connector
• Fiber channel (FC): Threaded, straight-tip, coaxial or fiber optic connectors
• Fixed shroud duplex (FSD): Jack-type, dual fiber optic connector for use in
FDDI networks
• Media access unit/multistation access unit (MAU): LAN wiring concentrator
used in token ring networks
• Recommended standard (RS-232-C, RS-449/RS-422): EIA standard
connectors for use with DTE and DCE devices
• Registered jack series (RJ-45; RJ-48): 8-position, FCC-registered data plugs
• Subscriber connector (SC) duplex: Jack-type, dual fiber optic connector for
use in FDDI networks
• Spade terminals: Flat, U-shaped connectors typically used for T-carrier line
connection
• Straight-tip (ST): Bayonet coaxial or fiber optic connectors
Figure 1-1 shows a sample of connectors in cable assemblies for Nortel Networks
router hardware platforms.
Note: Many types of fiber optic connectors include a dust cover. (Dust
obstructs or attenuates optical signals entering or leaving the cable through the
connector.) Be careful not to lose the dust cover when you attach a fiber optic
cable connector to its counterpart connector. Replace dust covers when you
detach a fiber optic cable from any local device.
Cable Guide
1-10 308604-14.10 Rev 01
Figure 1-1. Connector Types
Registered jack (RJ)
Recommended
series (RS)
connector
Attachment Unit
Interface (AUI)
connector
Token ring
data connector
CCITT
series V.35
connector
Spade
terminals
Type SC duplex
connector
Fixed shroud
duplex (FSD)
connector
Straight tip
bayonet connector (BNC)
CAB0001A
Cable Basics
308604-14.10 Rev 01 1-11
Building Your Own Cables
Cables that you build must comply with standard cable specifications and network
requirements. Cable length, cable type, cable and connector attenuation, and other
factors affect the overall performance and reliability of your network.
For example, using a cable length longer than that recommended in industry
standards or interface specifications, or using a cable type that is unsuitable,
considering the cable environment (temperature, electrical noise, radio-frequency
[RF] emissions, and other factors) may degrade network performance and
reliability.
For additional information about maximum cable length and other factors, consult
the appropriate EIA, IEEE, CCITT, or ISO specification, standard, or
recommendation. Some examples include:
• IEEE 802.3 10BASE-T Specification (10 Mb/s CSMA/CD over twisted pair)
• IEEE 802.5 Specification (token ring)
• X3T9.5 Single-Mode Fiber PMD Specification (FDDI)
• EIA RS-449/RS-422A Standard
• EIA RS-232-C Standard
• CCITT V.10/V.11/V.28/V.35 Recommendations
• CCITT X.21 Recommendation
See also the manufacturer’s specifications for any cables or connectors you want
to use. Specifications for attenuation per unit length of cable, and for connector
insertion loss, are useful in helping you to determine the maximum amount of
signal loss (and, therefore, the maximum distance) allowable between two directly
connected network devices.
The physical interface on each device (for example, the connector on an Ethernet
link module in a Nortel Networks router hardware platform) determines which
industry specification, standard, or recommendation you need to consult for
guidelines on how to customize your cables.
To assist you in determining which industry document you need to consult, the
description for each cable in this guide includes an “Industry Interface Type”
description.
308604-14.10 Rev 01 2-1
Chapter 2
Console/Modem Cables
This chapter identifies the console/modem cables that link Nortel Networks router
hardware platforms to DTE and DCE devices.
Table 2-1 summarizes the cables. Detailed cable illustrations and pinouts follow.
If you need to order additional cables, contact the Nortel Networks Technical
Solutions Center in your area. (See “How to Get Help” in the Preface.)
Table 2-1. Console/Modem Cables
Order No. Length Physical Cable
Description Connection Page
7525 25 ft
(7.63 m) 25-pin D-sub plug to
RS-232-C receptacle Console/modem interface to any ASCII
terminal (for all devices except AFN®, AN®,
Passport™ 2430, and Passport 5430 Fast
Branch Router)
2-3
7526 25 ft
(7.63 m) AFN/AN console cable;
9-pin D-sub plug to
RS-232-C receptacle
Console/modem interface to any ASCII
terminal (for AFN and AN only) 2-4
7527 10 ft
(3.05 m) AT serial console cable;
9-pin D-sub plug to
RS-232-C modem plug
Console/modem interface (kit contains a
modem cable and a null-modem adapter)
to a console
2-5
7825 25 ft
(7.63 m) 9-pin D-sub plug to
RS-232-C modem plug Console/modem interface to a dial modem
(for all devices except BLN®, BLN-2, and
BCN®)
2-6
77850 15 ft
(4.57 m) 25-pin D-sub plug to
RS-232-C modem plug Console/modem interface to a dial modem
(for BLN, BLN-2, and BCN only) 2-7
AA0011026 10 ft
(3.05 m) 9-pin D-sub plug to RJ-45 Console/modem interface to any PC (for
Passport 2430 and Passport 5430 only) 2-8
Cable Guide
2-2 308604-14.10 Rev 01
The following sections include:
• Cable illustrations with the Nortel Networks connector on the left and the
remote connector on the right
• Cable length information
If you want to build a cable, and you want to determine the maximum cable
length appropriate for that interconnection requirement, you should:
-- Identify in this chapter a cable that satisfies your interconnection
requirement (with the exception of total cable length).
-- Consult the networking industry specification, standard, or
recommendation designated in the “Industry Interface Type” entry for that
cable (located immediately following the cable pinout diagram).
• Pinouts for each connector and all associated signals
• Internal wire connections for each termination (when applicable)
For example, the console port to ASCII terminal cable (Order No. 7525) lists
internal wire connections such as “Pin 6 > 20” in the Remote Termination
column. This indicates that you must connect pin 6 to pin 20 inside the remote
termination.
• Grounding arrangements that isolate the chassis from the DC ground within
the cable (when applicable)
Console/Modem Cables
308604-14.10 Rev 01 2-3

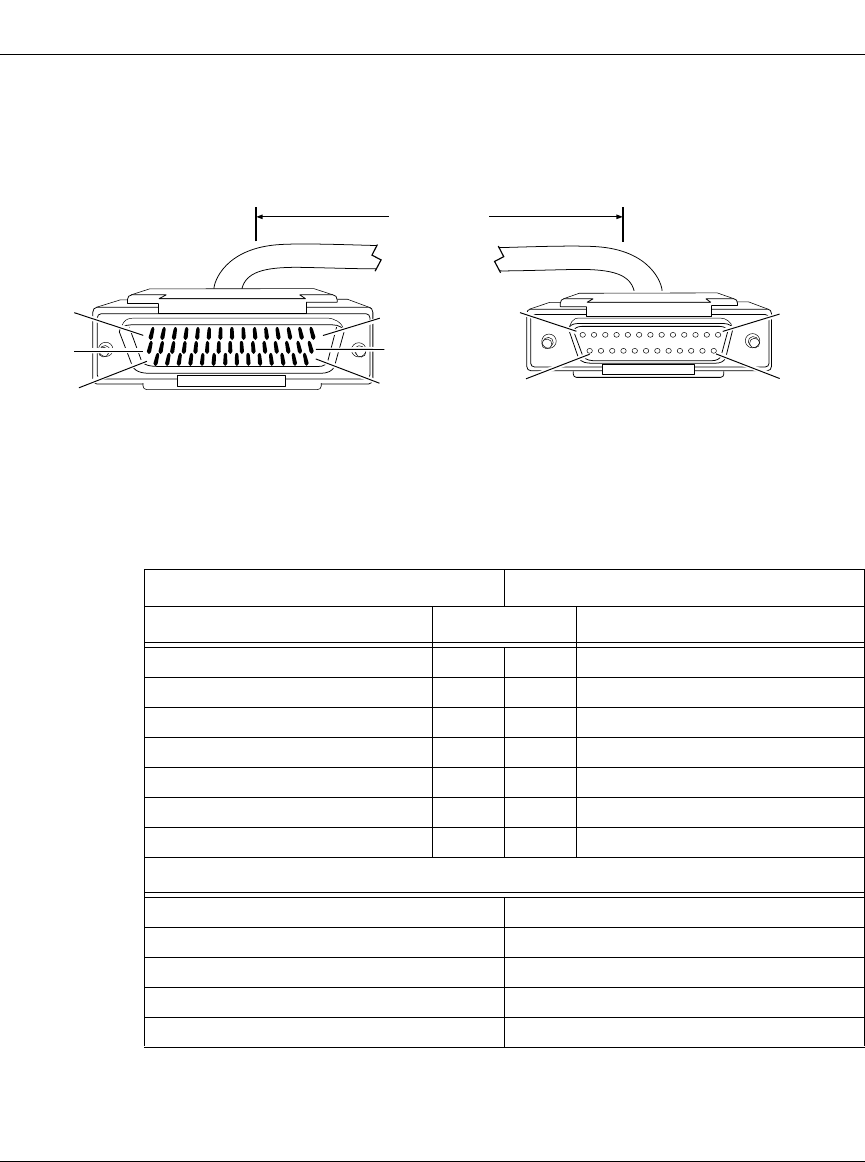

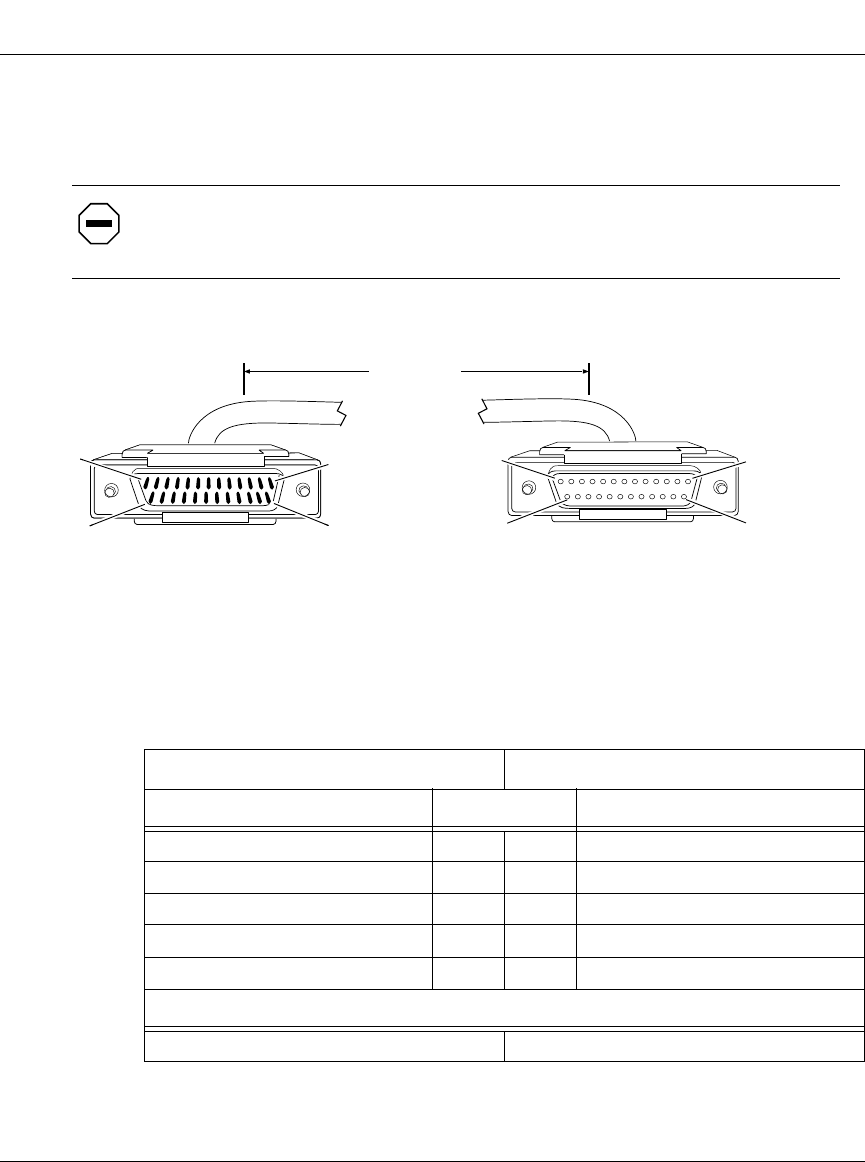

Console Interface to ASCII Terminal (Order No. 7525)
Industry Interface Type: RS-232-C
Caution: Do not use this cable to attach a modem to any Nortel Networks
router hardware platform. Use this cable only to attach an ASCII terminal to
any Nortel Networks router hardware platform except a model AN or AFN.
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Transmit Data 2 3 Receive Data
Receive Data 3 2 Transmit Data
Request to Send 4 5 Clear to Send
Clear to Send 5 4 Request to Send
Signal Ground 7 7 Signal Ground
Internal Wire Connections
Pin 6 > 20
25 ft
(7.63 m)
Pin 13
Pin 1
Pin 25
P
Pin 14
25-position D-sub plug with screw locks
(ground shield connected to backshell)
Pin 1
Pin 13
Pin 14
Pin 25
25-position D-sub receptacle with screw locks
(ground shield connected to backshell)
CAB0054A
Cable Guide
2-4 308604-14.10 Rev 01

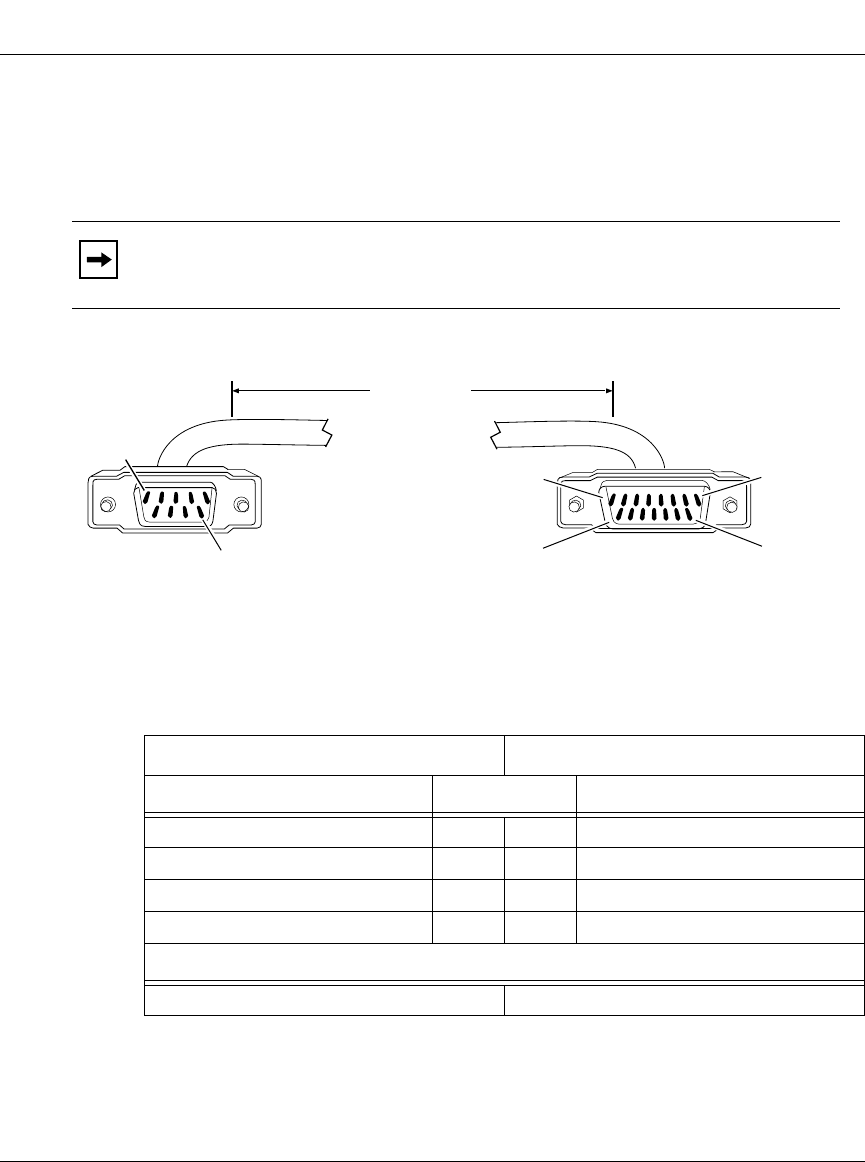

AFN/AN Console Interface to ASCII Terminal
(Order No. 7526)
Industry Interface Type: RS-232-C
Caution: Do not use this cable to attach a modem to any Nortel Networks
router hardware platform. Use this cable only to attach an ASCII terminal to a
Nortel Networks model AN or AFN platform.
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Transmit Data 2 3 Receive Data
Receive Data 3 2 Transmit Data
Request to Send 4 5 Clear to Send
Clear to Send 5 4 Request to Send
Signal Ground 7 7 Signal Ground
Internal Wire Connections
Pin 6 > 8 > 20
25 ft
(7.63 m)
Pin 1
Pin 13
Pin 14
Pin 25
25-position D-sub receptacle with screw locks
(ground shield connected to backshell)
Pin 1
Pin 9
9-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0055A
Console/Modem Cables
308604-14.10 Rev 01 2-5

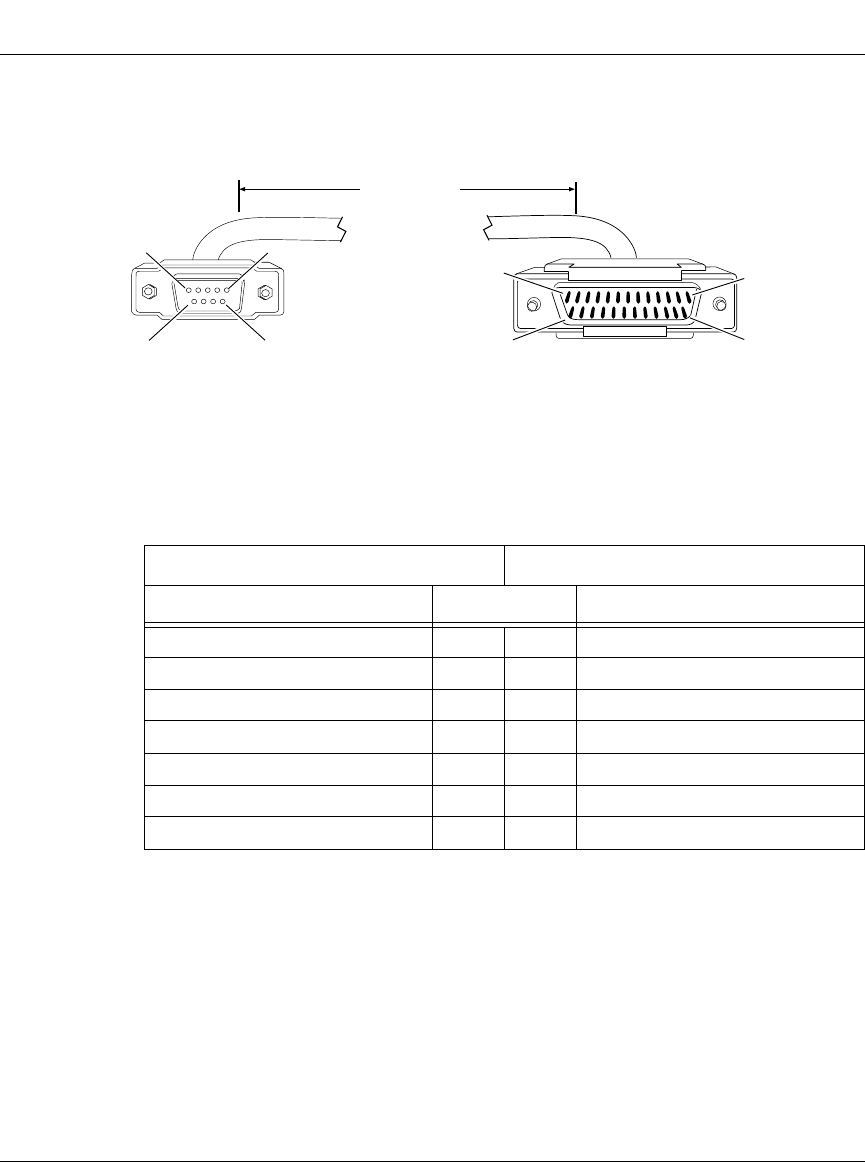

AT Serial Console (Order No. 7527)
Industry Interface Type: RS-232-C
Nortel Networks Termination Modem Termination
Signal Pin # to Pin # Signal
Data Carrier Detect 1 8 Data Carrier Detect
Transmit Data (TXD) 2 2 Transmit Data (TXD)
Receive Data (RXD) 3 3 Receive Data (RXD)
Data Set Ready 4 6 Data Set Ready
Data Terminal Ready 6 20 Data Terminal Ready
Clear to Send 7 5 Clear to Send
Request to Send 8 4 Request to Send
Pin 1Pin 5
Pin 6Pin 9
10 ft
(3.05 m)
9-position D-sub receptacle with screw locks
(ground shield connected to backshell)
CAB0056A
Pin 13
Pin 1
Pin 25
Pin 14
25-position D-sub plug with screw locks
(ground shield connected to backshell)
Cable Guide
2-6 308604-14.10 Rev 01
Console/Modem Interface to RS-232-C Modem
(Order No. 7825)
Industry Interface Type: RS-232-C
Caution: This is a modem cable. Do not use this cable to attach an ASCII
terminal to a Nortel Networks router hardware platform. Use this cable to
attach a modem to any Nortel Networks router hardware platform except a
model BLN®, BLN-2, or BCN®.
Nortel Networks Termination Modem Termination
Signal Pin # to Pin # Signal
Transmit Data 2 2 Transmit Data
Receive Data 3 3 Receive Data
Request to Send 4 4 Request to Send
Clear to Send 5 5 Clear to Send
Data Set Ready 6 6 Data Set Ready
Signal Ground 7 7 Signal Ground
Carrier Detect 8 8 Carrier Detect
Data Terminal Ready 9 20 Data Terminal Ready
25 ft
(7.63 m)
Pin 1
Pin 9
9-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0060A
Pin 13
Pin 1
Pin 25
Pin 14
25-position D-sub plug with screw locks
(ground shield connected to backshell)
Console/Modem Cables
308604-14.10 Rev 01 2-7

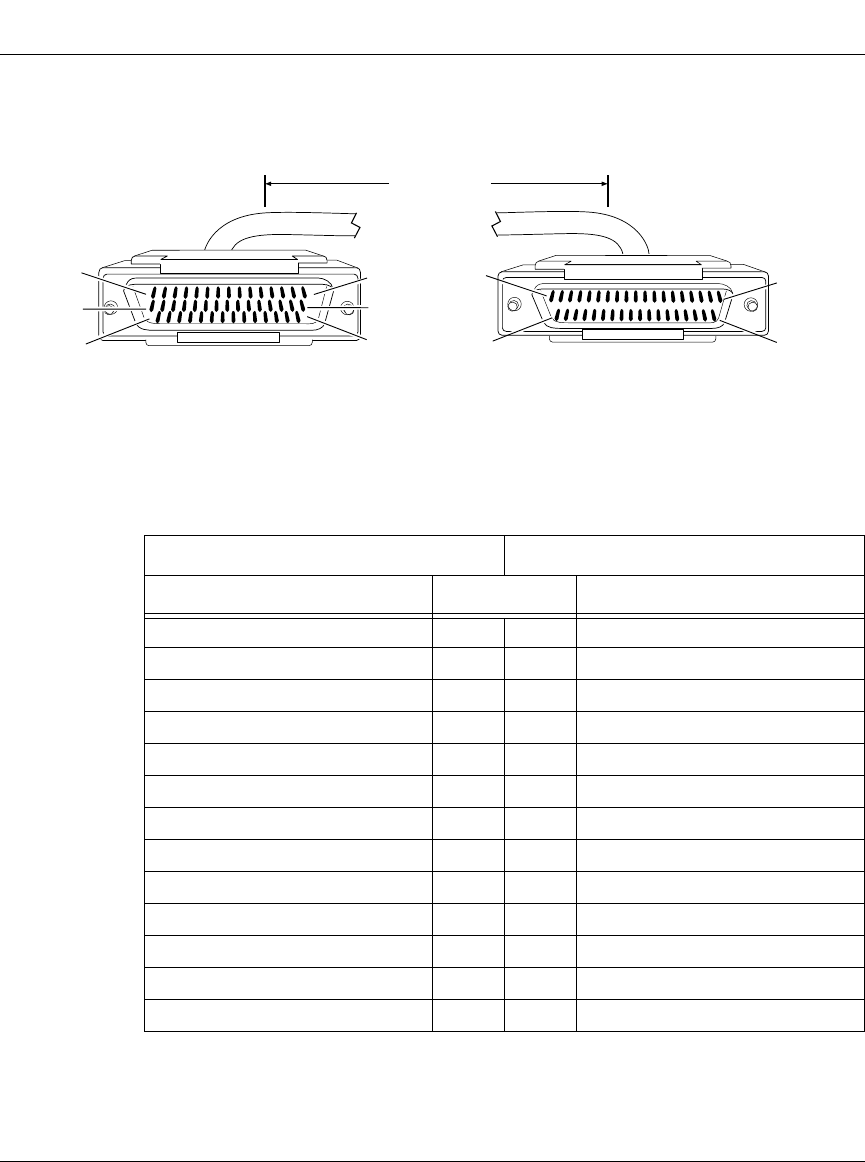

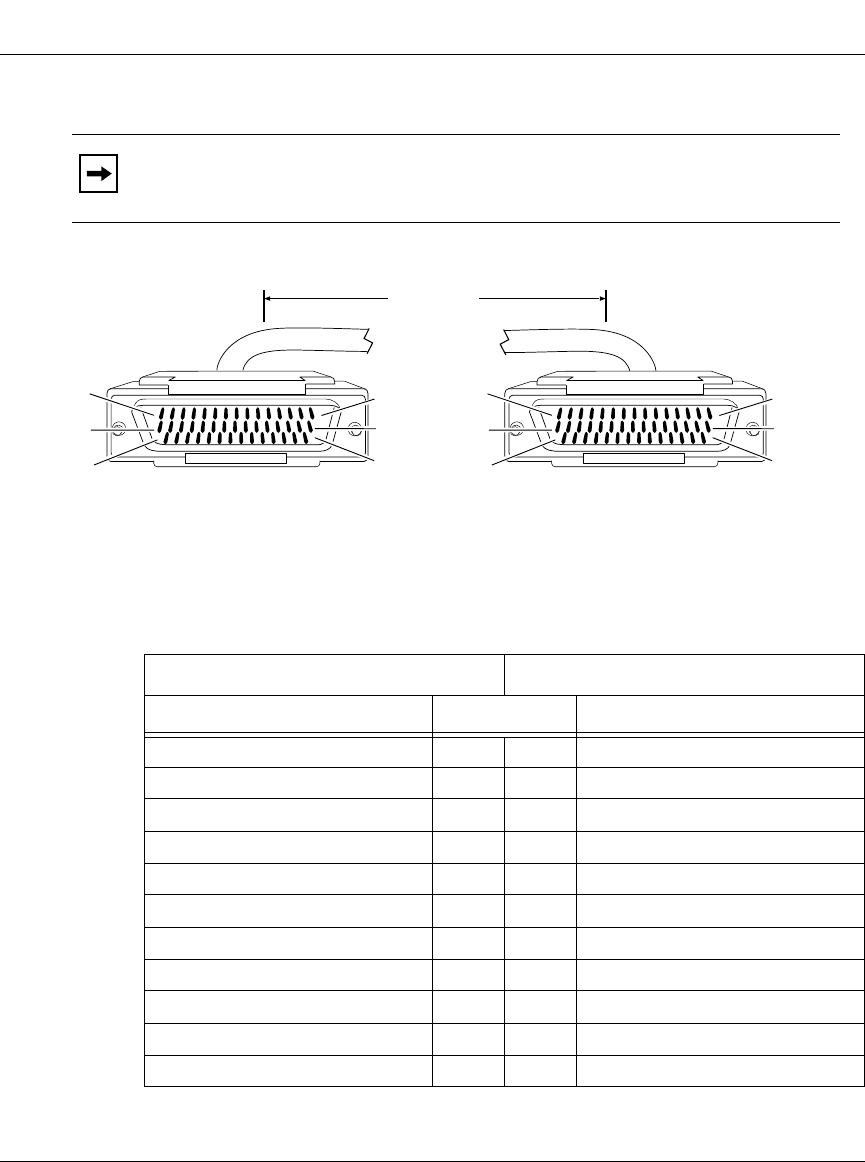

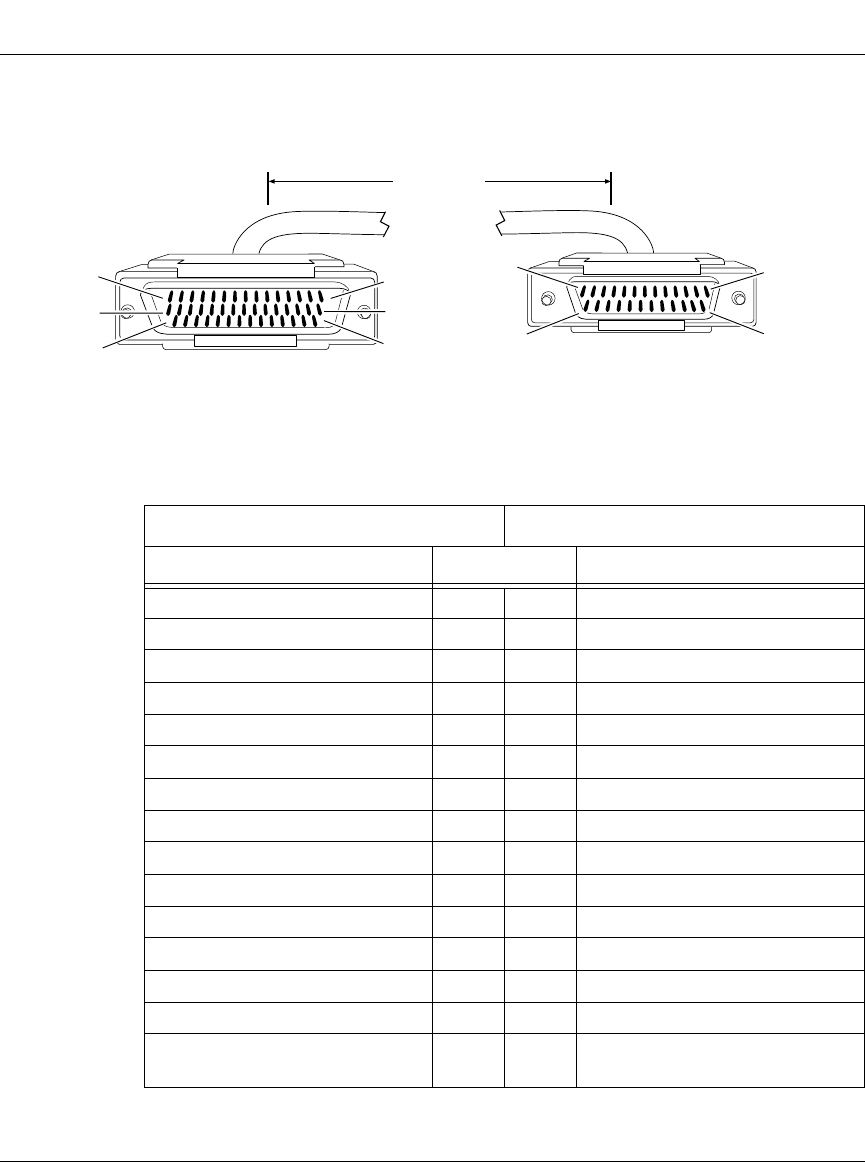

Backbone Console Interface to RS-232-C Modem
(Order No. 77850)
Industry Interface Type: RS-232-C
Caution: This is a modem cable. Do not use this cable to attach an ASCII
terminal to a Nortel Networks router hardware platform. Use this cable only to
attach a modem to a Nortel Networks model BLN, BLN-2, or BCN platform.
Nortel Networks Termination Modem Termination
Signal Pin # to Pin # Signal
Chassis Ground 1 1 Chassis Ground
Transmit Data 2 2 Transmit Data
Receive Data 3 3 Receive Data
Request to Send 4 4 Request to Send
Clear to Send 5 5 Clear to Send
Data Set Ready 6 6 Data Set Ready
Signal Ground 7 7 Signal Ground
Data Carrier Detect 8 8 Data Carrier Detect
Data Terminal Ready 20 20 Data Terminal Ready
15 ft
(4.57 m)
Pin 13
Pin 1
Pin 25
Pin 14
25-position D-sub plug with screw locks
(ground shield connected to backshell)
Pin 13
Pin 1
Pin 25
Pin 14
25-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0061A
Cable Guide
2-8 308604-14.10 Rev 01

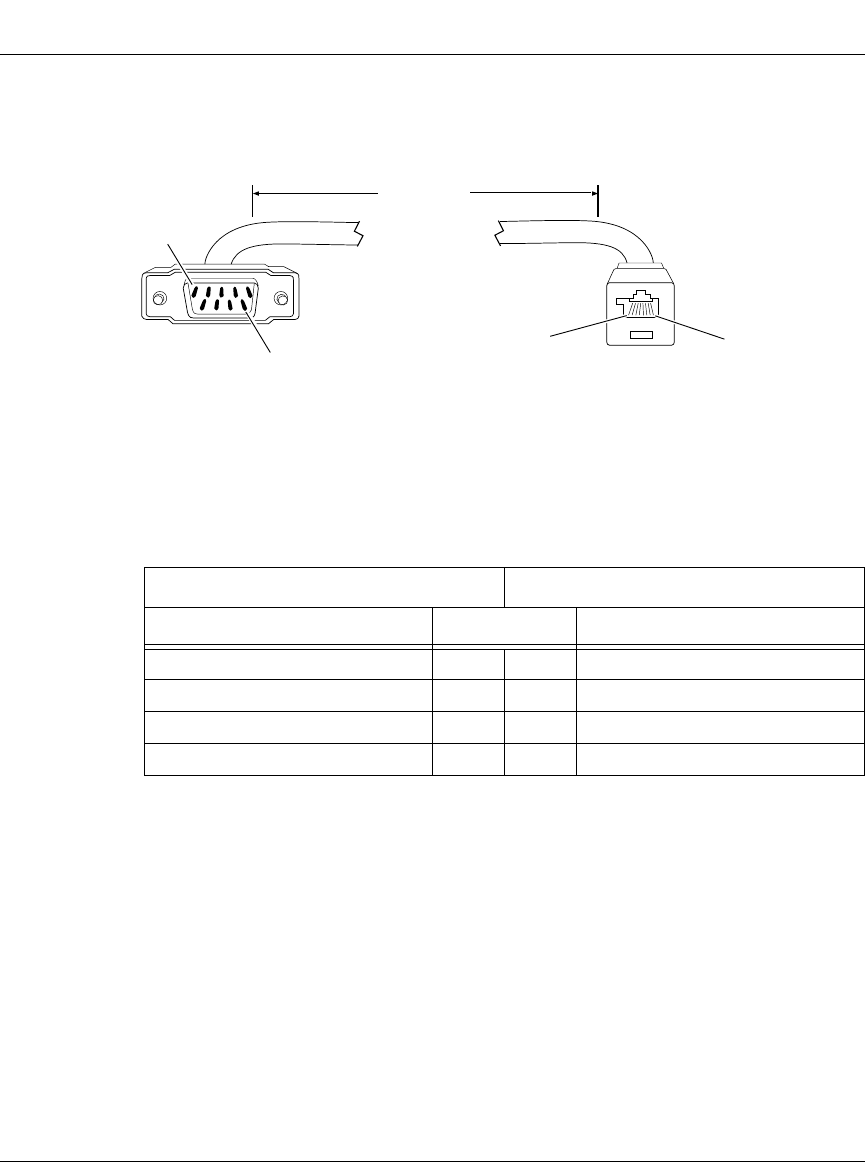

Passport 2430 and Passport 5430 Fast Branch Router
Console Interface to PC
(Order No. AA0011026)
Industry Interface Type: RS-232-D
Caution: Do not use this cable to attach a modem to any Nortel Networks
router hardware platform. Use this cable only to attach a PC to a Nortel
Networks model Passport 2430 or Passport 5430 Fast Branch Router platform.
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Clear to Send 1 8 Clear to Send
Data Set Ready 2 6 Data Set Ready
Receive Data 3 3 Send Data
Data Carrier Detect 4 1 Data Carrier Detect
Send Data 5 2 Receive Data
Signal Ground 6 5 Signal Ground
Data Terminal Ready 7 4 Data Terminal Ready
Request to Send 8 7 Request to Send
Pin 1Pin 5
Pin 6Pin 9
10 ft
(3.05 m)
9-position D-sub receptacle with screw locks
(ground shield connected to backshell)
CAB0110A
RJ-45 connector
Pin 8 Pin 1
308604-14.10 Rev 01 3-1
Chapter 3
LAN Cables
This chapter identifies the local area network (LAN) cables that link Nortel
Networks router hardware platforms to other LAN devices.
Table 3-1 summarizes the cables. Detailed cable illustrations and pinouts follow.
Table 3-1. Local Area Network Cables
Order No. Length Physical Cable Description Connection Page
7115 15 ft
(4.57 m) 15-pin AUI plug to
15-position AUI receptacle Nortel Networks Ethernet/802.3
XCVR interface to an Ethernet AUI
network connection
3-3
7125 15 ft
(4.57 m) 9-pin D-sub plug to token ring/
802.5 MAU data connector; STP
cable
Nortel Networks token ring/802.5
MAU interface to a token ring
network connection
3-4
7126 15 ft
(4.57 m) 9-pin D-sub plug to token ring/
802.5 MAU data connector with
ferrite bead; STP cable
Nortel Networks token ring/802.5
MAU interface to a token ring
network connection
3-5
7128 1 ft
(0.3 m) 9-pin D-sub plug to RJ-11
receptacle Nortel Networks token ring/802.5
MAU interface to a token ring
network connection
3-6
7135 32.81 ft
(10 m) FSD to FSD connectors; dual
attachment to FDDI ring requires
two cables
Nortel Networks PHY A or PHY B
interface to an FDDI FSD network
connection
3-7
7136 32.81 ft
(10 m) FSD to ST connectors; dual
attachment to FDDI ring requires
two cables
Nortel Networks PHY A or PHY B
interface to a bayonet-type FDDI
network connection
3-7
(continued)
Cable Guide
3-2 308604-14.10 Rev 01
If you need to order additional cables, contact the Nortel Networks Technical
Solutions Center in your area. (See “How to Get Help” in the Preface.) The
following sections include:
• Cable illustrations with the Nortel Networks connector on the left and the
remote connector on the right
• Cable length information
If you want to build a cable, and you want to determine the maximum cable
length appropriate for that interconnection requirement, you should:
-- Identify in this chapter a cable that satisfies your interconnection
requirement (with the exception of total cable length).
-- Consult the networking industry specification, standard, or
recommendation designated in the “Industry Interface Type” entry for that
cable (located immediately following the cable pinout diagram).
• Pinouts for each connector and all associated signals (except for the FDDI
cables, which have no wire connections)
• Grounding arrangements that isolate the chassis of an attached device from
the DC ground within the cable (when applicable)
7164 9 ft (2.7 m) FDDI SC duplex to bayonet (ST)
connectors; single-mode fiber
cable; dual attachment to FDDI
ring requires two cables
Nortel Networks PHY A or PHY B
interface to a type ST FDDI network
connection
3-8
7163 9 ft (2.7 m) FDDI SC duplex to SC duplex
connectors; multimode fiber
cable; dual attachment to FDDI
ring requires two cables
Nortel Networks PHY A or PHY B
interface to a type SC FDDI network
connection
3-9
7165 9 ft (2.7 m) FDDI SC duplex to SC duplex
connectors; single-mode fiber
cable; dual attachment to FDDI
ring requires two cables
Nortel Networks PHY A or PHY B
interface to a type SC FDDI network
connection
3-9
7169 9 ft (2.7 m) ATM SC duplex to bayonet (ST)
connectors; multimode fiber
cable; dual attachment to FDDI
ring requires two cables
Nortel Networks PHY A or PHY B
interface to a type ST FDDI network
connection
3-10
Table 3-1. Local Area Network Cables
(continued)
Order No. Length Physical Cable Description Connection Page
LAN Cables
308604-14.10 Rev 01 3-3

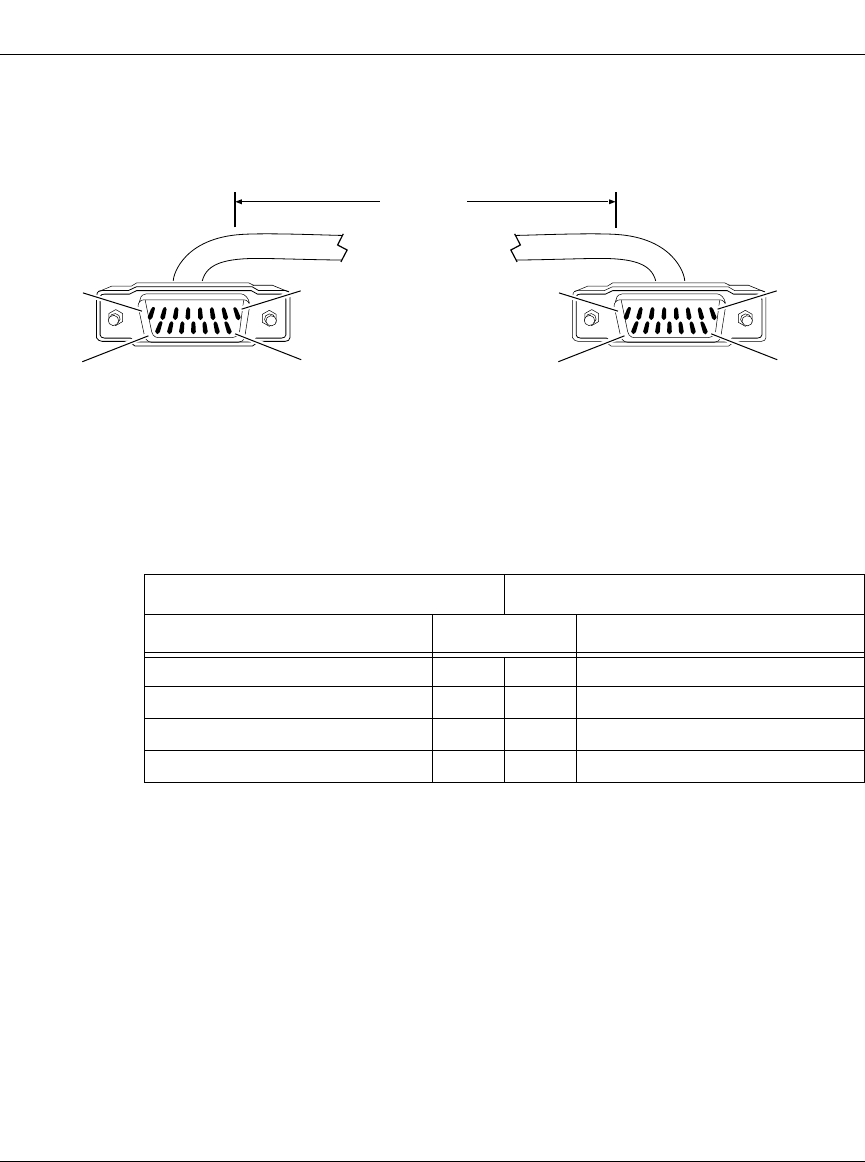

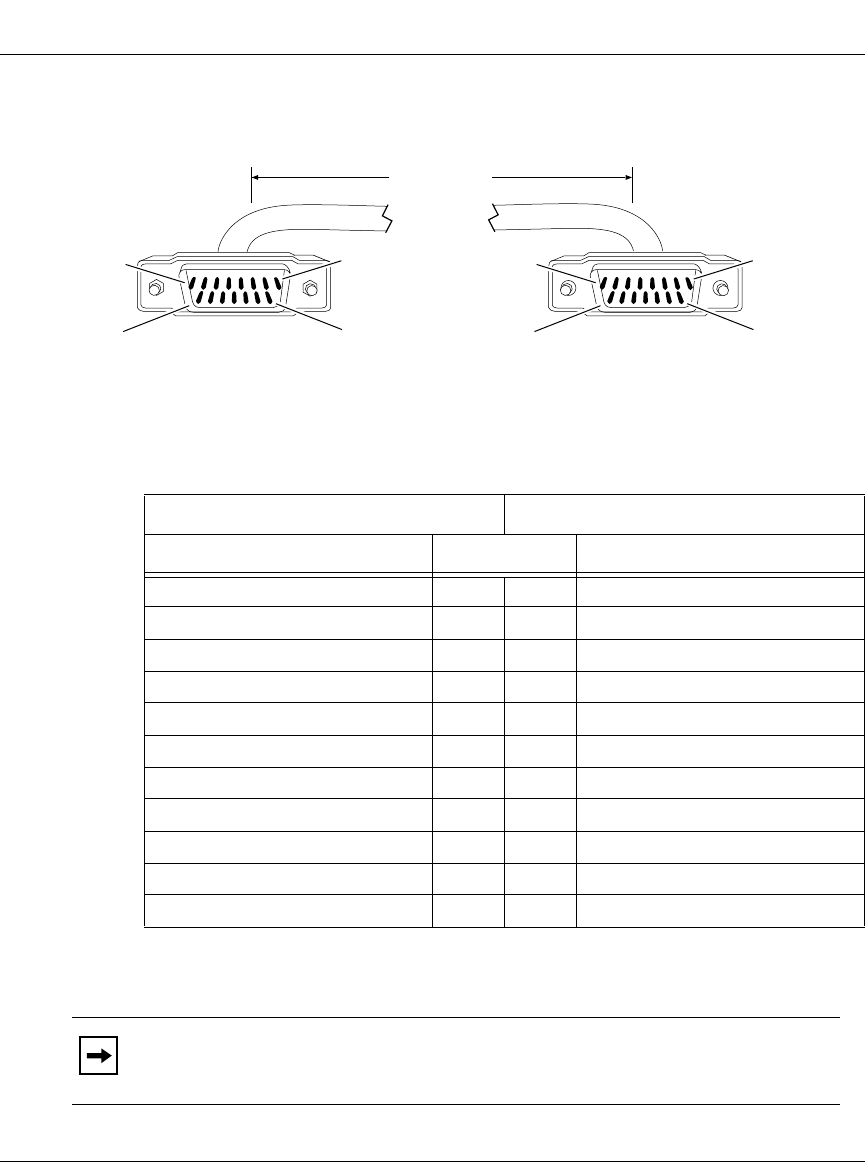

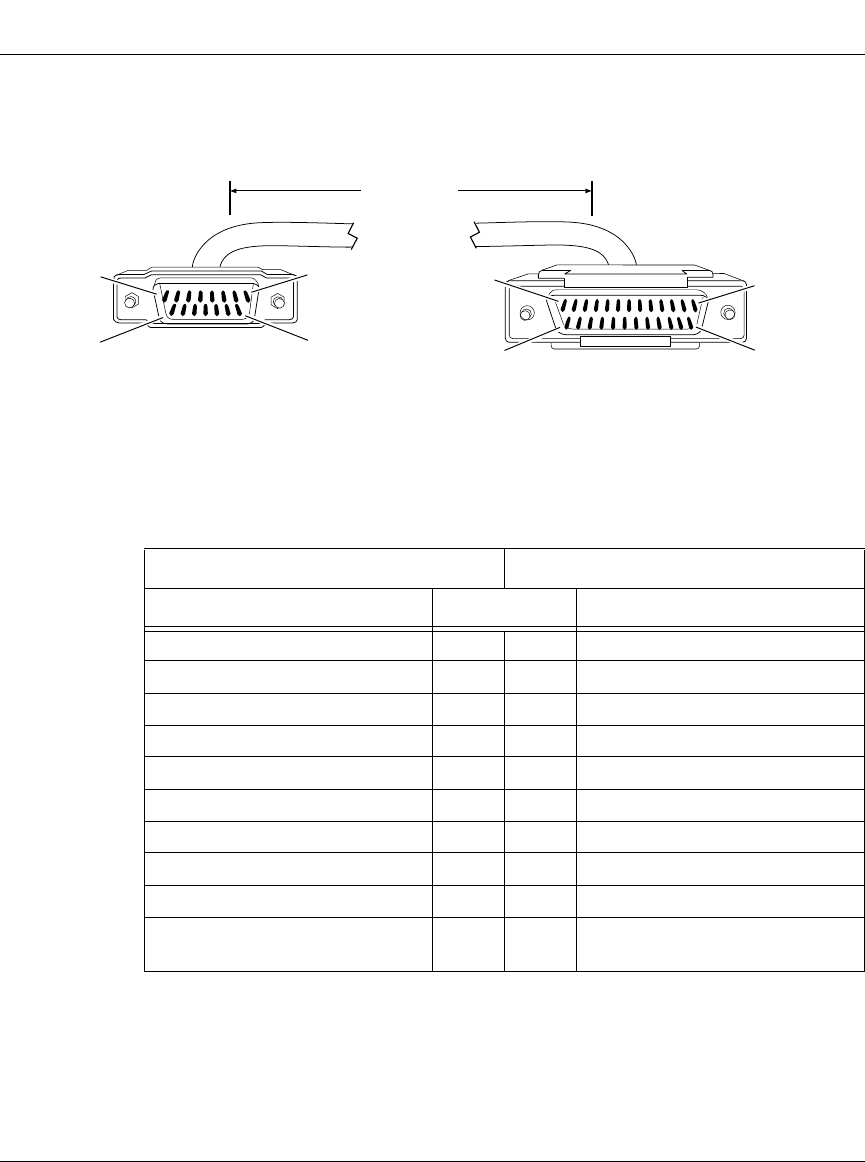

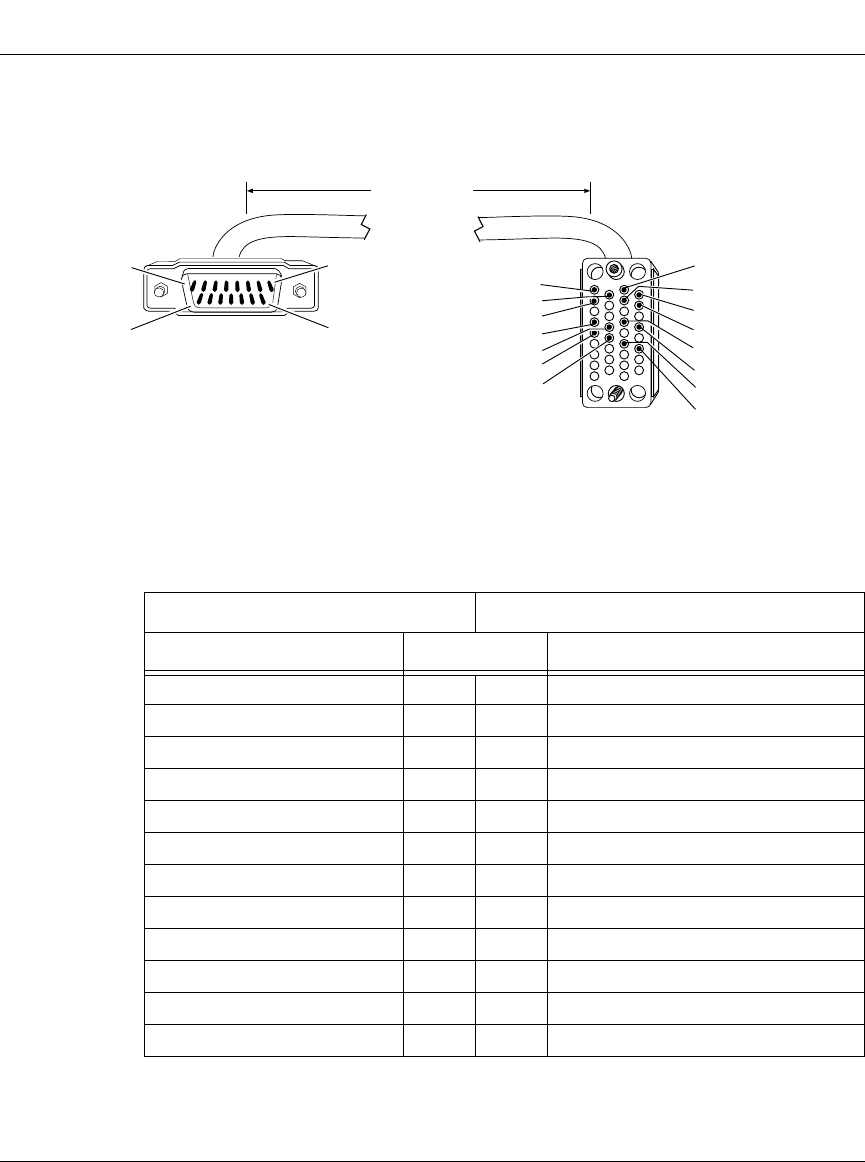

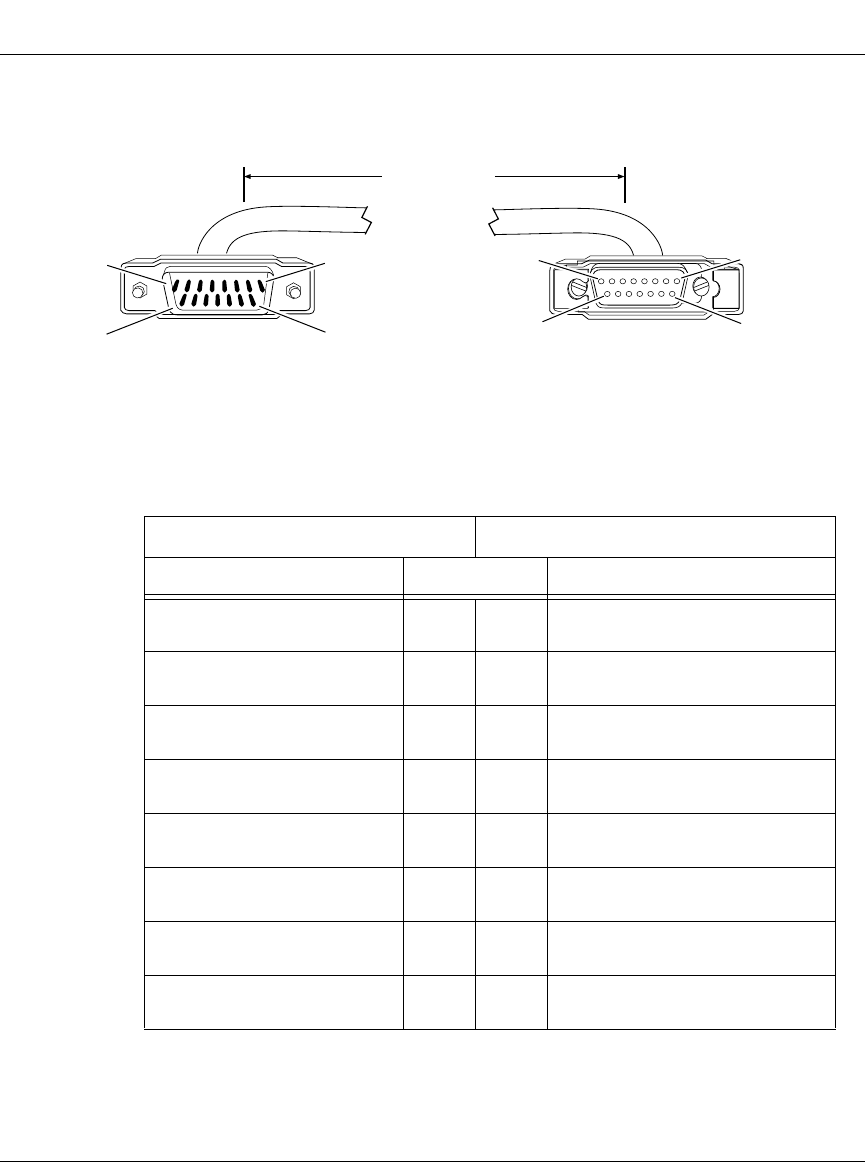

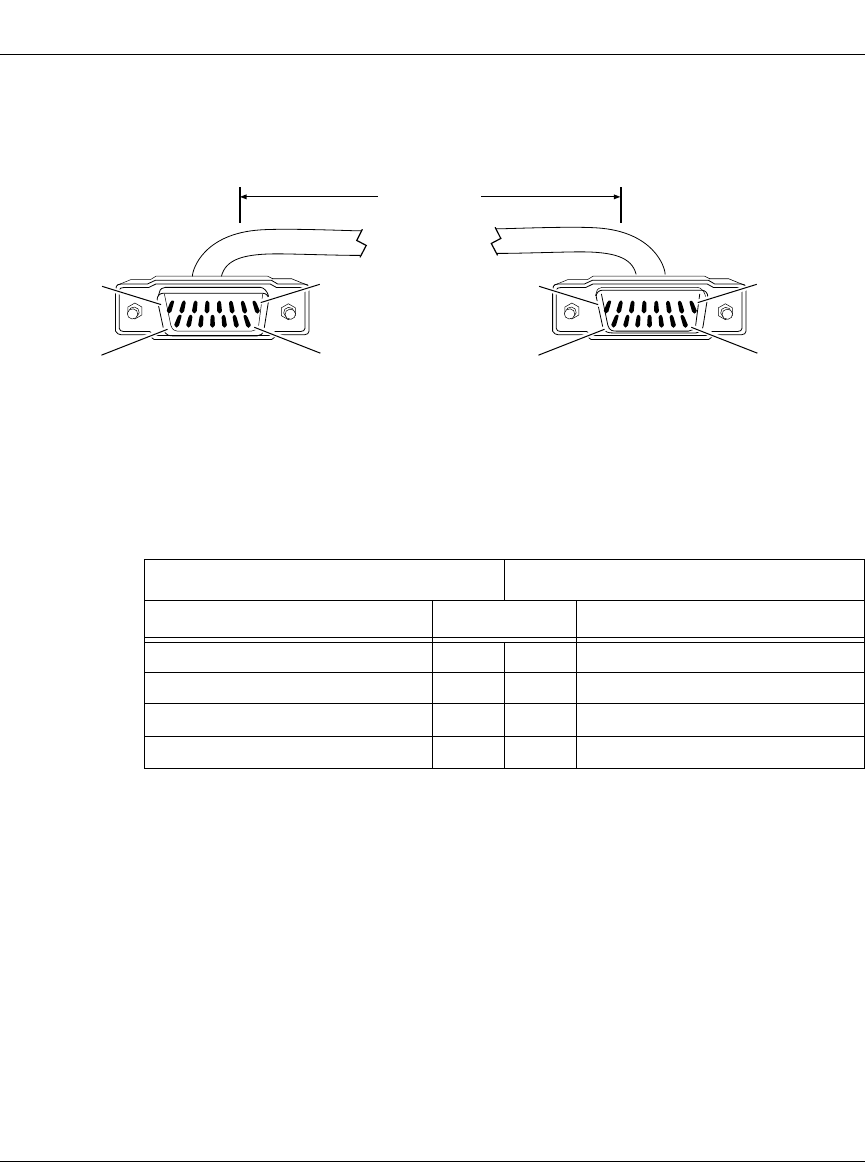

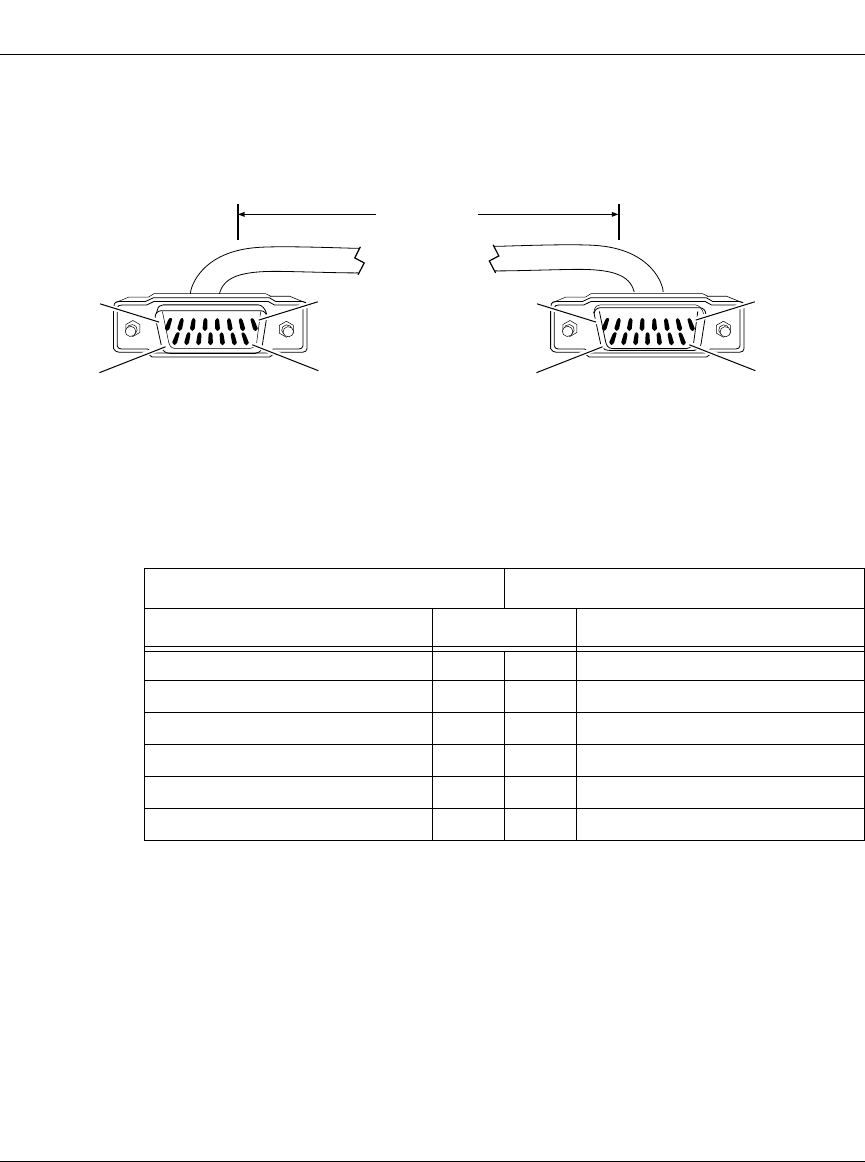

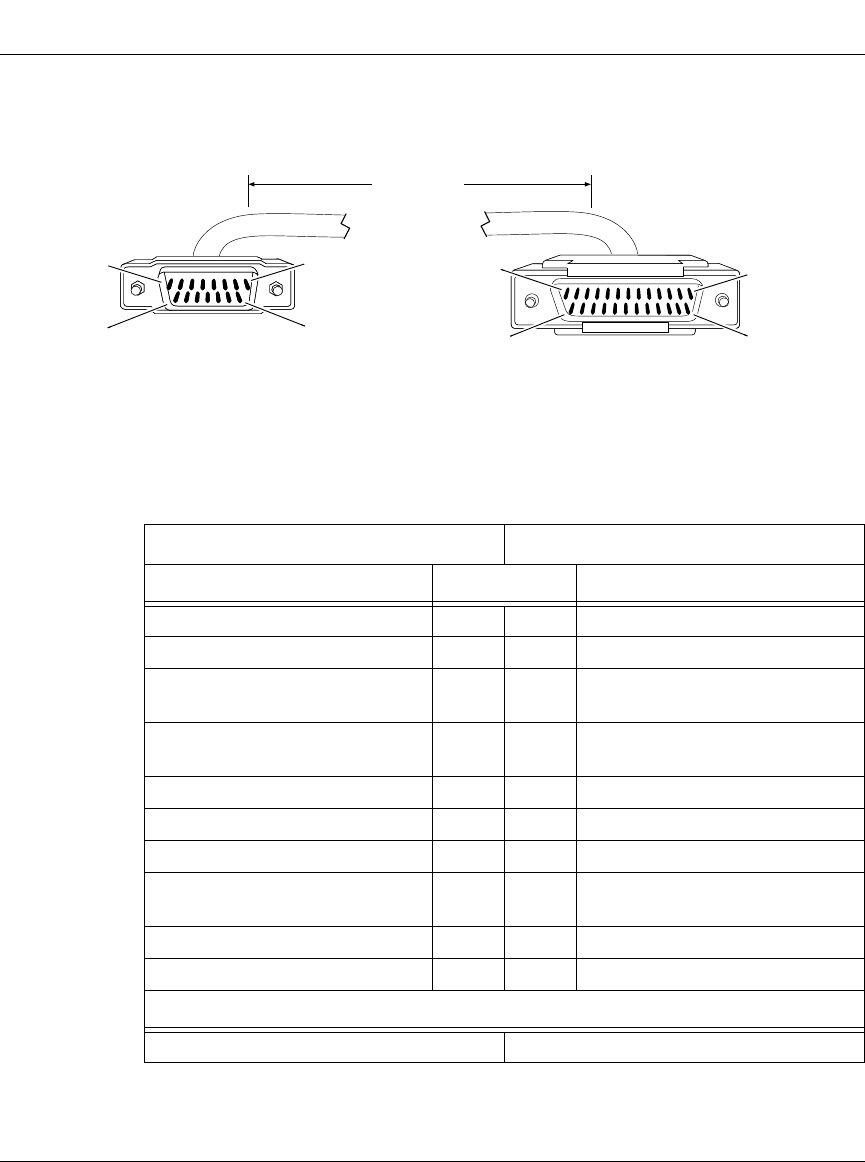

Ethernet Cable (Order No. 7115)
Industry Interface Type: Ethernet/802.3
Nortel Networks Termination Transceiver Termination
Signal Pin # to Pin # Signal
Collision + 2 2 Collision +
(802.3 Circuit CI-A)
Transmit + 33Transmit +
(802.3 Circuit DO-A)
Receive + 5 5 Receive +
(802.3 Circuit DI-A)
Voltage Common 6 6 Voltage Common
(802.3 Circuit VC)
Collision - 9 9 Collision -
(802.3 Circuit CI-B)
Transmit - 1010Transmit -
(802.3 Circuit DO-B)
Receive - 12 12 Receive -
(802.3 Circuit DI-B)
+12 V 1313+12 V
(802.3 Circuit VP)
Pin 8
Pin 1
Pin 15
Pin 9
Pin 1
Pin 8
Pin 9
Pin 15
15 ft
(4.57 m)
15-position D-sub receptacle with slide latch
connected to backshell
CAB0002A
15-position D-sub plug with locking posts
(ground shield connected to backshell)
Cable Guide
3-4 308604-14.10 Rev 01

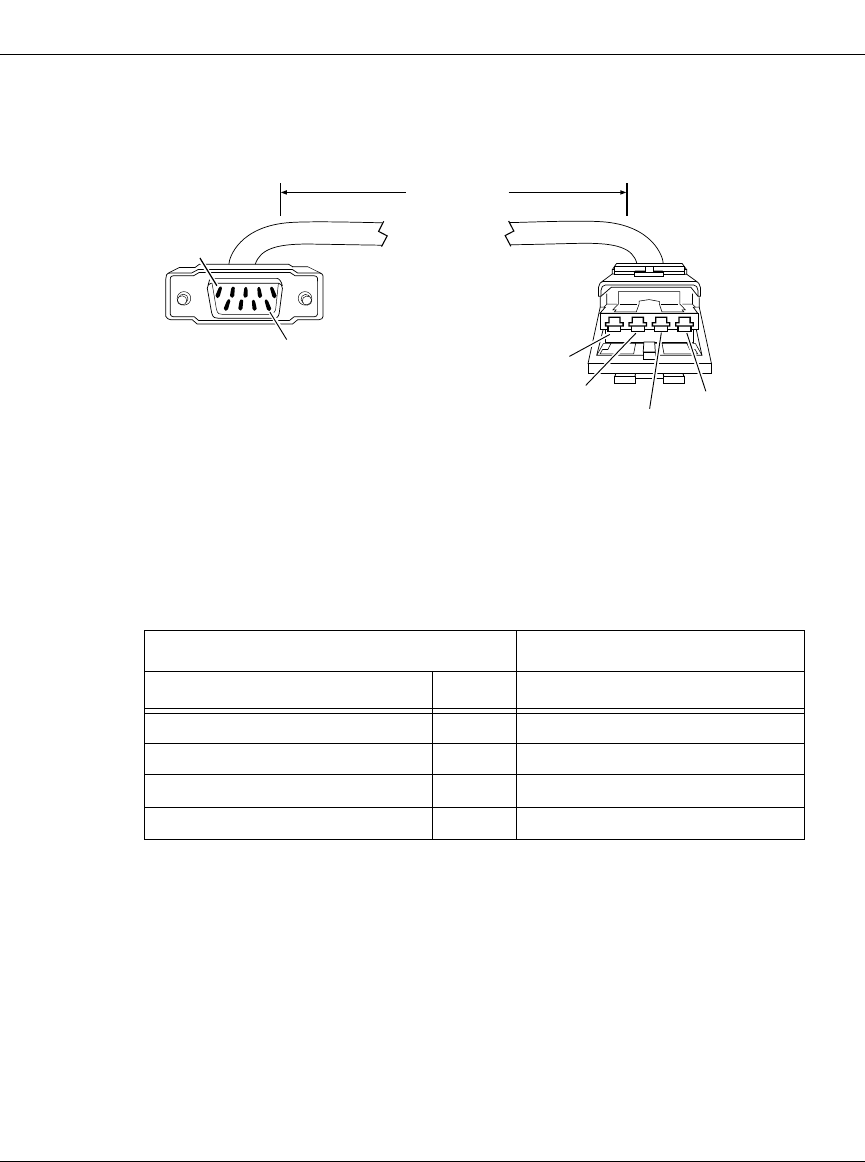

Token Ring MAU Cable (Order No. 7125)
Industry Interface Type: Token Ring/802.5
Nortel Networks Termination Token Ring MAU
Signal Pin # Contact (by Wire Color)
Receive A 1 Red
Transmit A 5 Black
Receive B 6 Green
Transmit B 9 Orange
15 ft
(4.57 m)
Data connector
Red
Green
Orange Black
Pin 1
Pin 9
9-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0012A
LAN Cables
308604-14.10 Rev 01 3-5
Token Ring MAU Cable with Ferrite Bead (Order No. 7126)
Industry Interface Type: Token Ring/802.5
Nortel Networks Termination Token Ring MAU
Signal Pin # Contact (by Wire Color)
Receive A 1 Red
Transmit A 5 Black
Receive B 6 Green
Transmit B 9 Orange
Pin 1
Pin 9
15 ft
(4.57 m)
Ferrite Bead
(Fair-ite Part#
0443167251
or equivalent)
9-position D-sub plug with screw locks
(ground shield connected to backshell)
Data connector
Red
Green
Orange Black
CAB0013A
Cable Guide
3-6 308604-14.10 Rev 01

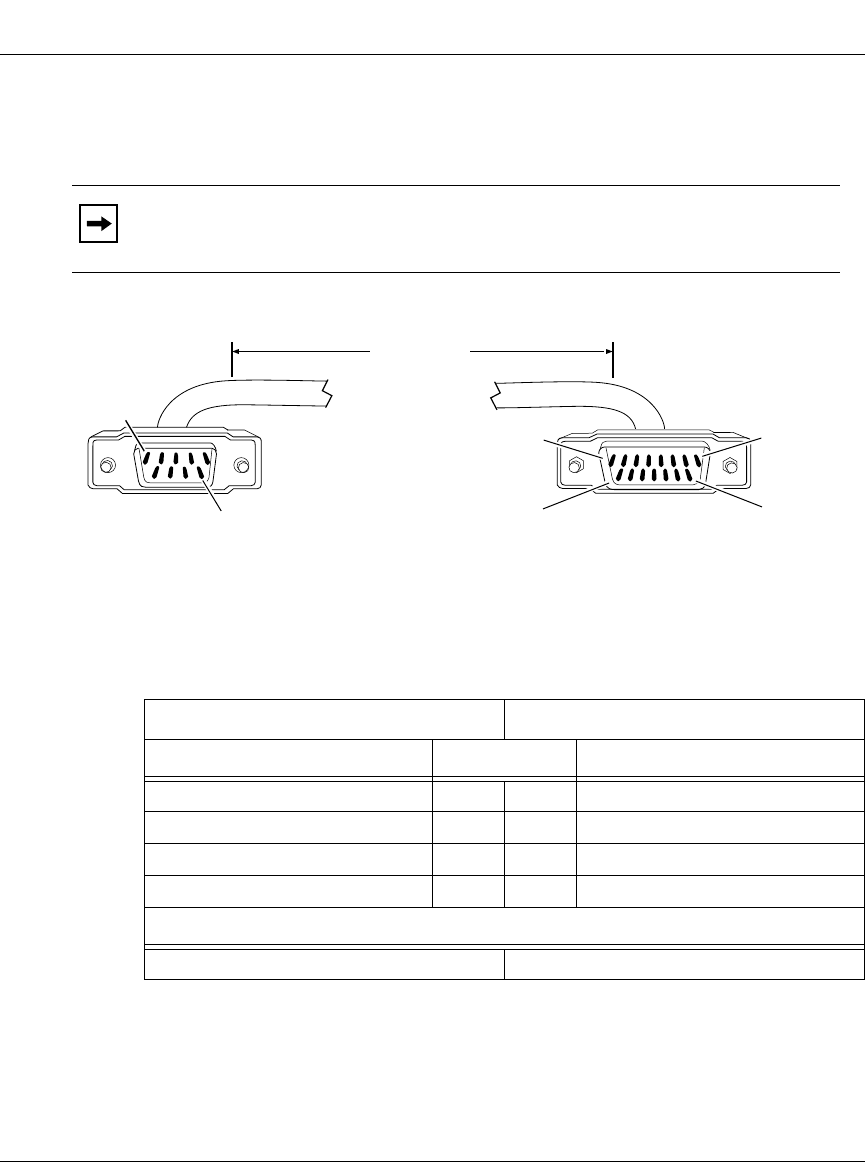

Token Ring to RJ-11 Cable (Order No. 7128)
Industry Interface Type: Token Ring/802.5
Nortel Networks Termination RJ-11 Receptacle
Signal Pin # to Pin # Signal
Receive A 1 4 Receive Data +
Transmit A 5 3 Transmit Data +
Receive B 6 5 Receive Data -
Transmit B 9 6 Transmit Data -
Pin 1
Pin 9
12 in.
(0.3 m)
RJ-11 compatible socket
Pin 1 Pin 8
9-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0014A
LAN Cables
308604-14.10 Rev 01 3-7
FDDI FSD to FSD (Order No. 7135)
Industry Interface Type: X3T9.5 PMD/FDDI
FDDI FSD to Straight Tip (Order No. 7136)
Industry Interface Type: X3T9.5 PMD/FDDI
32.81 ft
(10 m)
Fixed shroud duplex connector Fixed shroud duplex connector
CAB0016A
32.81 ft
(10 m)
2.5-mm bayonet connector (two places)
Fixed shroud duplex connector
CAB0017A
Cable Guide
3-8 308604-14.10 Rev 01

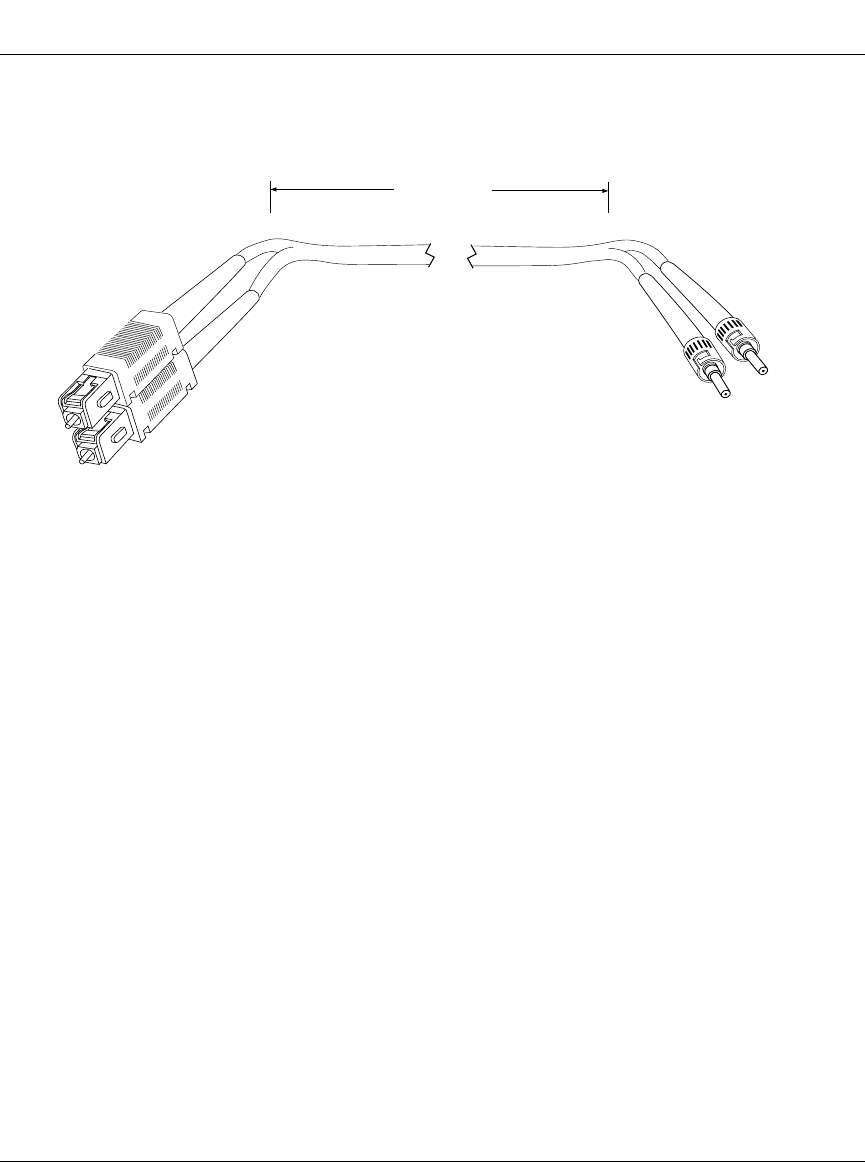

FDDI-Type SC Duplex to Straight Tip
(Order No. 7164 for Single-Mode Cable)
Industry Interface Type: X3T9.5 PMD/FDDI
9 ft
(2.7 m)
2.5-mm bayonet connector (two places)
CAB0036A
LAN Cables
308604-14.10 Rev 01 3-9
FDDI-Type SC Duplex to SC Duplex
(Order No. 7163 for Multimode Cable)
(Order No. 7165 for Single-Mode Cable)
Industry Interface Type: X3T9.5 PMD/FDDI
9 ft
(2.7 m)
CAB0035A
Cable Guide
3-10 308604-14.10 Rev 01
ATM Cable, SC to Straight Tip MMF (Order No. 7169)
Industry Interface Type: X3T9.5 PMD/FDDI
9 ft
(2.7 m)
2.5-mm bayonet connector (two places)
CAB0038A
308604-14.10 Rev 01 4-1
Chapter 4
HSSI Cables
This chapter identifies the High Speed Serial Interface (HSSI) cables that link
Nortel Networks router hardware platforms to LAN and WAN devices.
Table 4-1 summarizes the cables. Detailed cable illustrations and pinouts follow.
If you need to order additional cables, contact the Nortel Networks Technical
Solutions Center in your area. (See “How to Get Help” in the Preface.)
Table 4-1. HSSI Cables
Order No. Length Physical Cable Description Page
7830 10 ft (3.05 m) HSSI DCE plug to DTE plug 4-3
7831 50 ft (15.24 m) HSSI DCE plug to DTE plug 4-3
7832 20 ft (6.10 m) HSSI crossover; HSSI plug to HSSI plug
(This cable is intended for test environments only.) 4-5
Cable Guide
4-2 308604-14.10 Rev 01
The following sections include:
• Cable illustrations with the Nortel Networks connector on the left and the
remote connector on the right
• Cable length information
If you want to build your own cables, and you want to determine the
maximum cable length appropriate for each of your interconnection
requirements, you should:
-- Identify in this chapter a cable that satisfies your wiring requirement (with
the exception of total cable length).
-- Consult the HSSI specification for cable length data.
• Pinouts for each connector and all associated signals
• Grounding arrangements that isolate the chassis from the DC ground within
the cable
HSSI Cables
308604-14.10 Rev 01 4-3

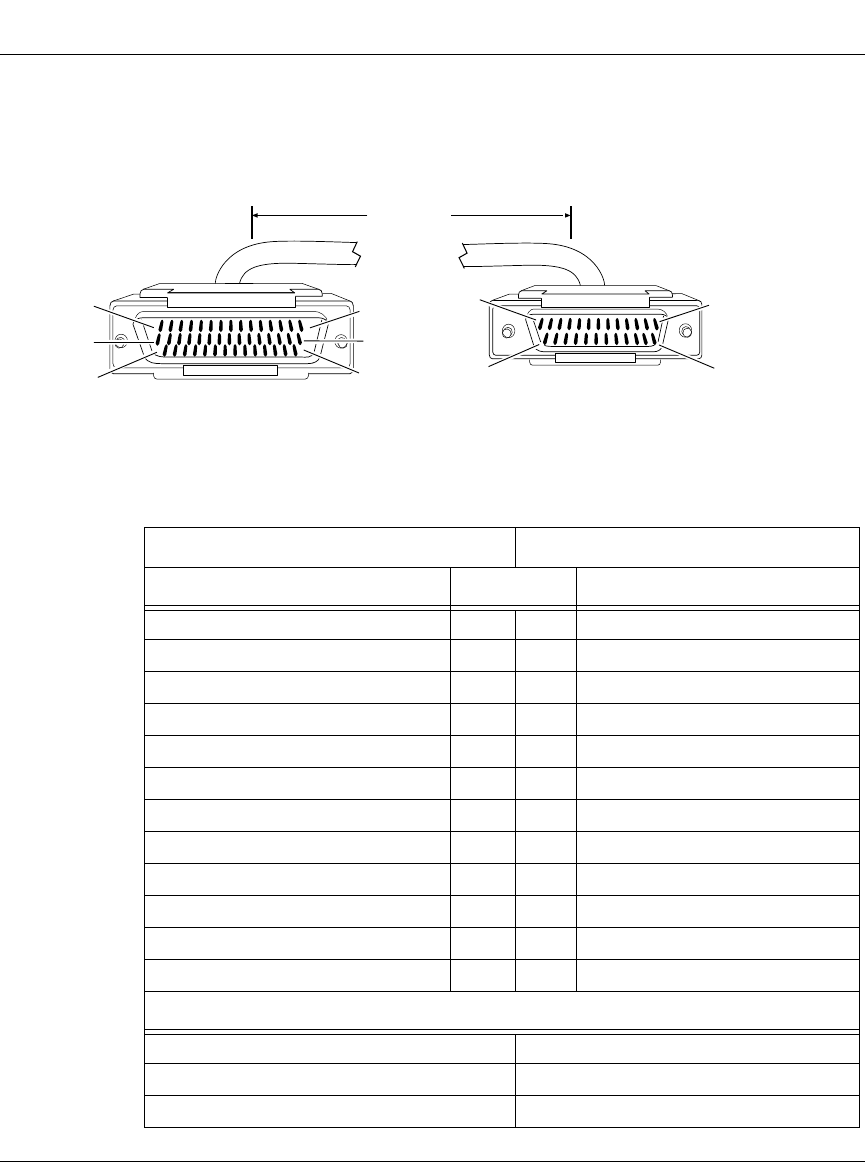

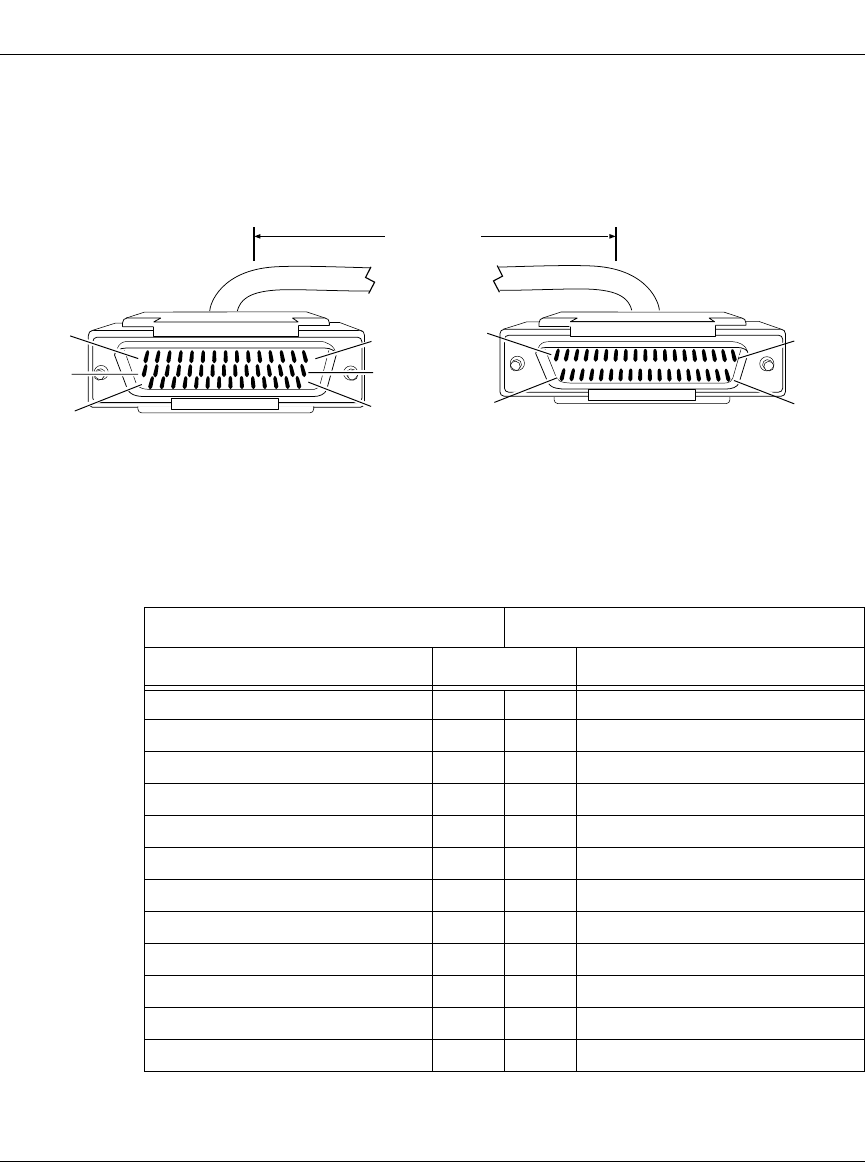

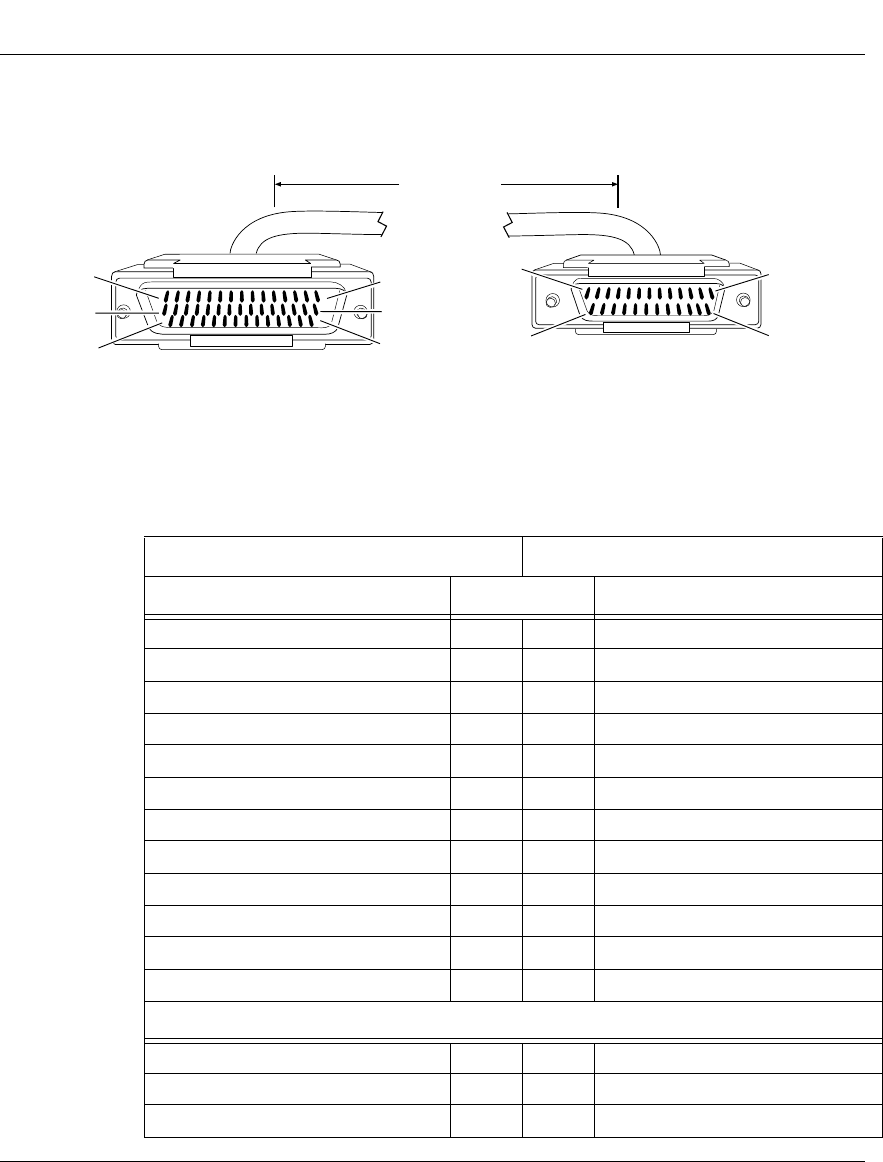

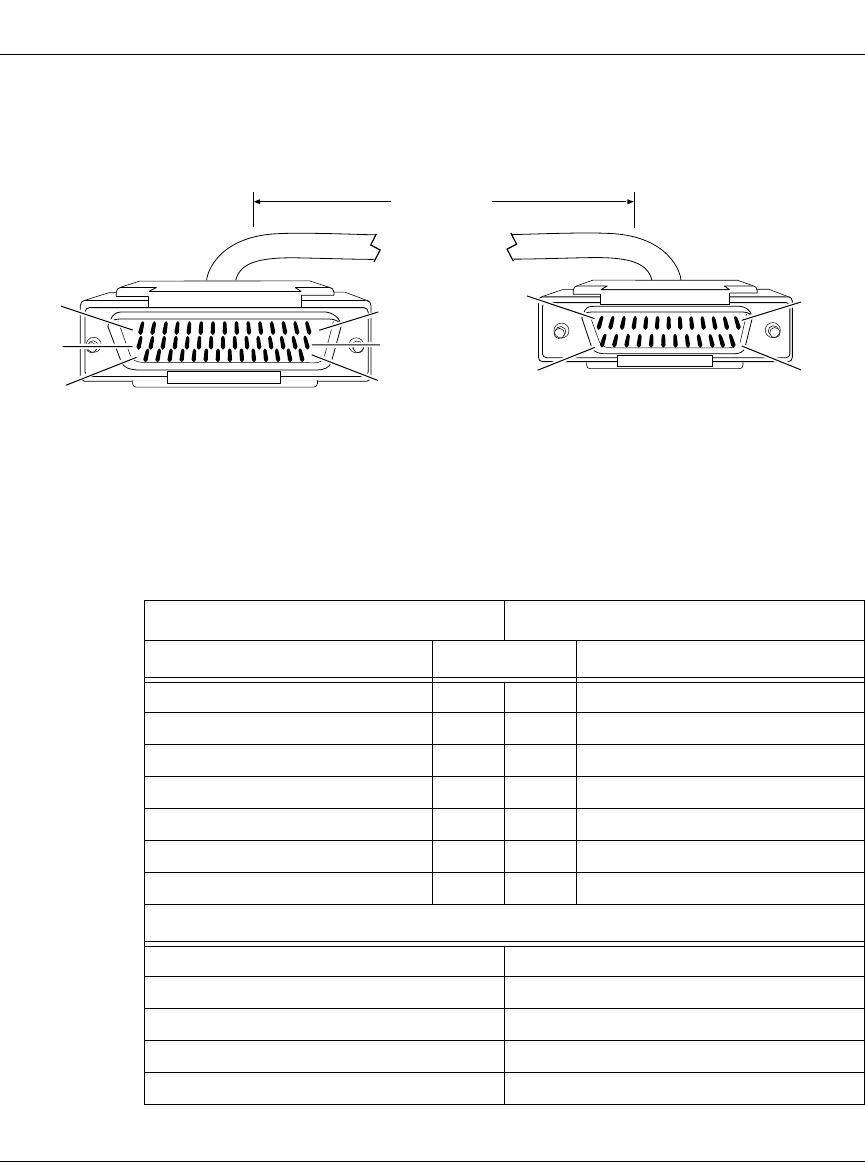

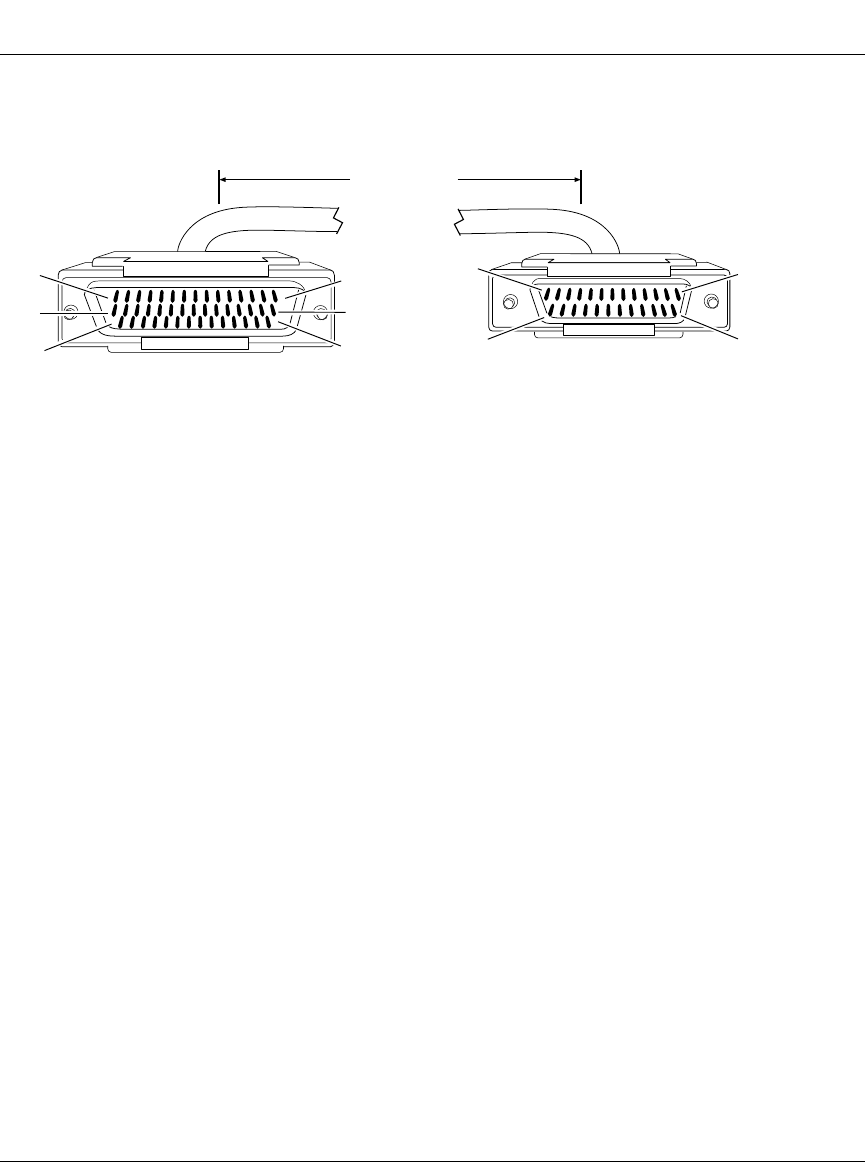

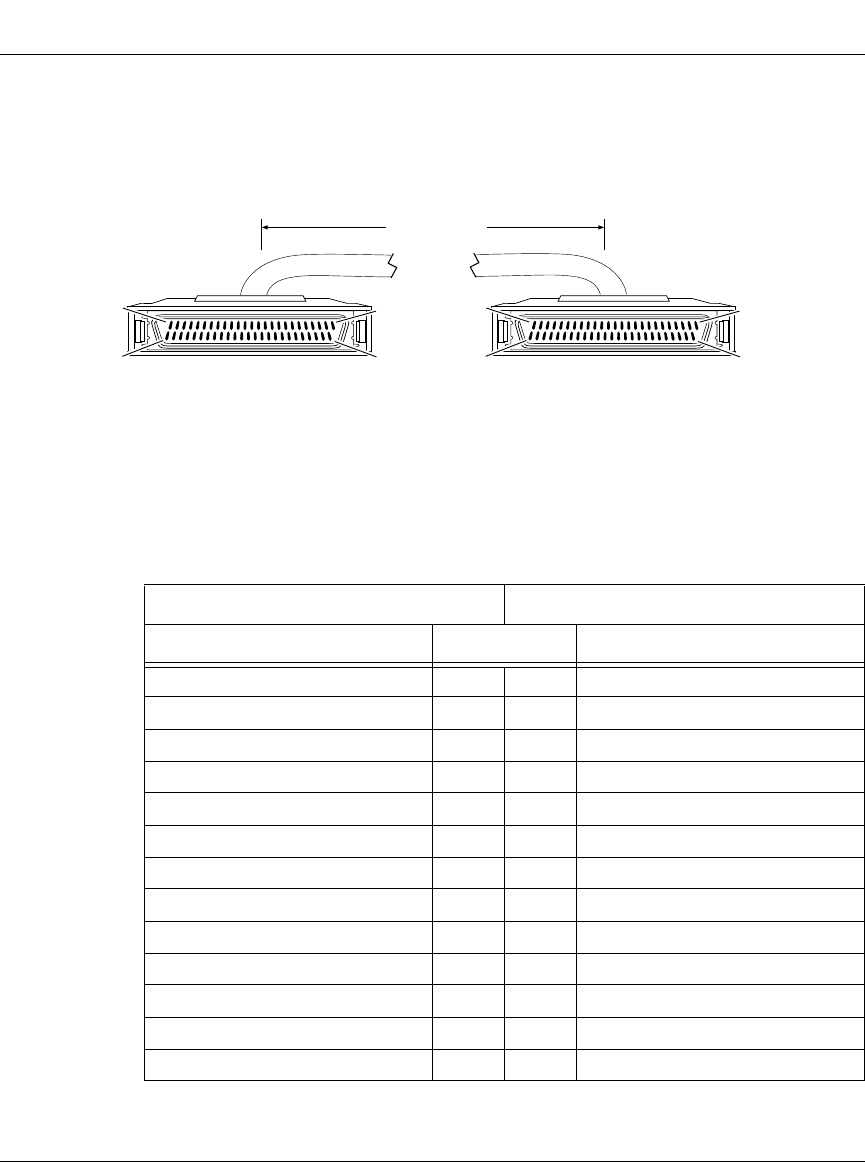

HSSI DCE to DTE
(10 Ft: Order No. 7830; 50 Ft: Order No. 7831)
Industry Interface Type: High-Speed Serial Interface (HSSI)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Signal Ground 1 1 Signal Ground
Signal Ground 26 26 Signal Ground
Receive Timing + 2 2 Receive Timing +
Receive Timing - 27 27 Receive Timing -
DCE Available + 3 3 DCE Available +
DCE Available - 28 28 DCE Available -
Received Data + 4 4 Received Data +
Received Data - 29 29 Received Data -
Send Timing + 6 6 Send Timing +
Send Timing - 31 31 Send Timing -
Signal Ground 7 7 Signal Ground
Signal Ground 32 32 Signal Ground
DTE Available + 8 8 DTE Available +
(continued)
10 or 50 ft
(3.05 or 15.24 m)
Pin 1
Pin 50
Pin 25
Pin 26
50-position high-density plug
(ground shield connected to internal shell)
Pin 1
Pin 50
Pin 25
Pin 26
50-position high-density plug
(ground shield connected to internal shell)
CAB0063A
Cable Guide
4-4 308604-14.10 Rev 01
DTE Available - 33 33 DTE Available -
Terminal Timing + 9 9 Terminal Timing +
Terminal Timing - 34 34 Terminal Timing -
Loopback CKT A + 10 10 Loopback CKT A +
Loopback CKT A - 35 35 Loopback CKT A -
Send Data + 11 11 Send Data +
Send Data - 36 36 Send Data -
Loopback CKT B + 12 12 Loopback CKT B +
Loopback CKT B - 37 37 Loopback CKT B -
Signal Ground 13 13 Signal Ground
Signal Ground 38 38 Signal Ground
Signal 14 14 Signal
Signal Ground 19 19 Signal Ground
Signal Ground 44 44 Signal Ground
Signal Ground 25 25 Signal Ground
Signal Ground 50 50 Signal Ground
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
HSSI Cables
308604-14.10 Rev 01 4-5

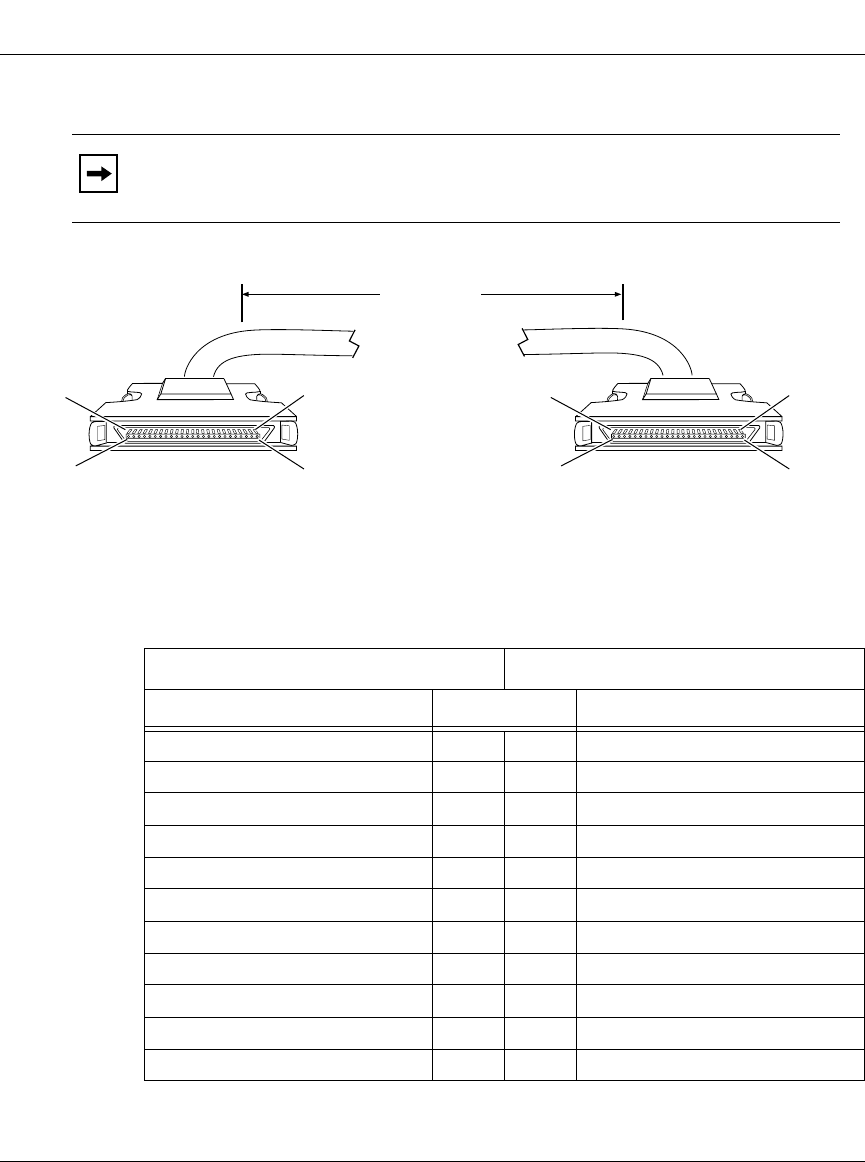

HSSI Crossover (Order No. 7832)
Industry Interface Type: High-Speed Serial Interface (HSSI)
This cable is intended solely for test environments; you cannot use it in production
applications.Within such test environments, this cable provides a proprietary,
nonstandard, back-to-back connection of Nortel Networks router hardware
platforms (through their HSSI ports) without intervening digital service unit
(DSU) equipment.
When using the Nortel Networks HSSI crossover cable, you must set the HSSI
interfaces to clock internally. The data rate under internal clocking conditions
must not exceed 25 megabits per second (Mb/s). (HSSI operation in a production
environment allows for a DSU configuration from 300 Kb/s to 52 Mb/s.)
For additional information about enabling internal clocking, refer to Using
Technician Interface Software (router software) or Administration Guide
(BayStream™ software).

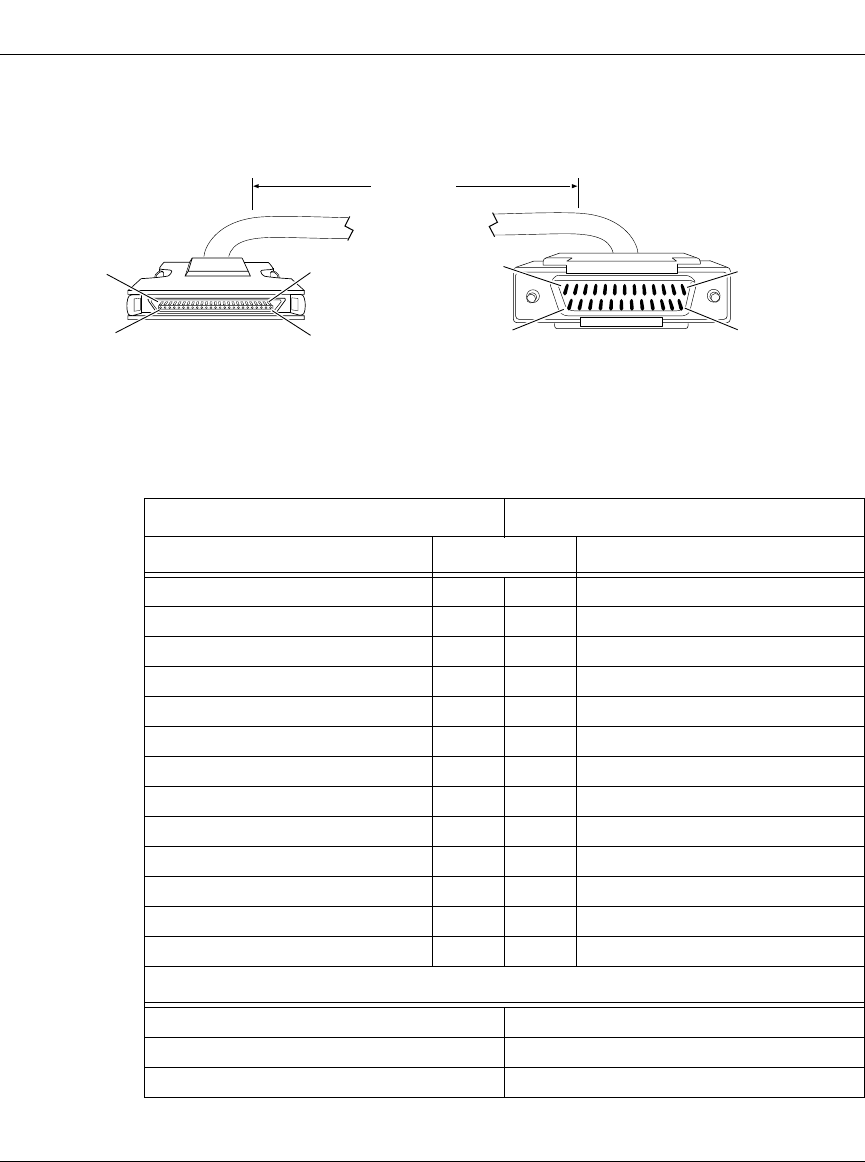

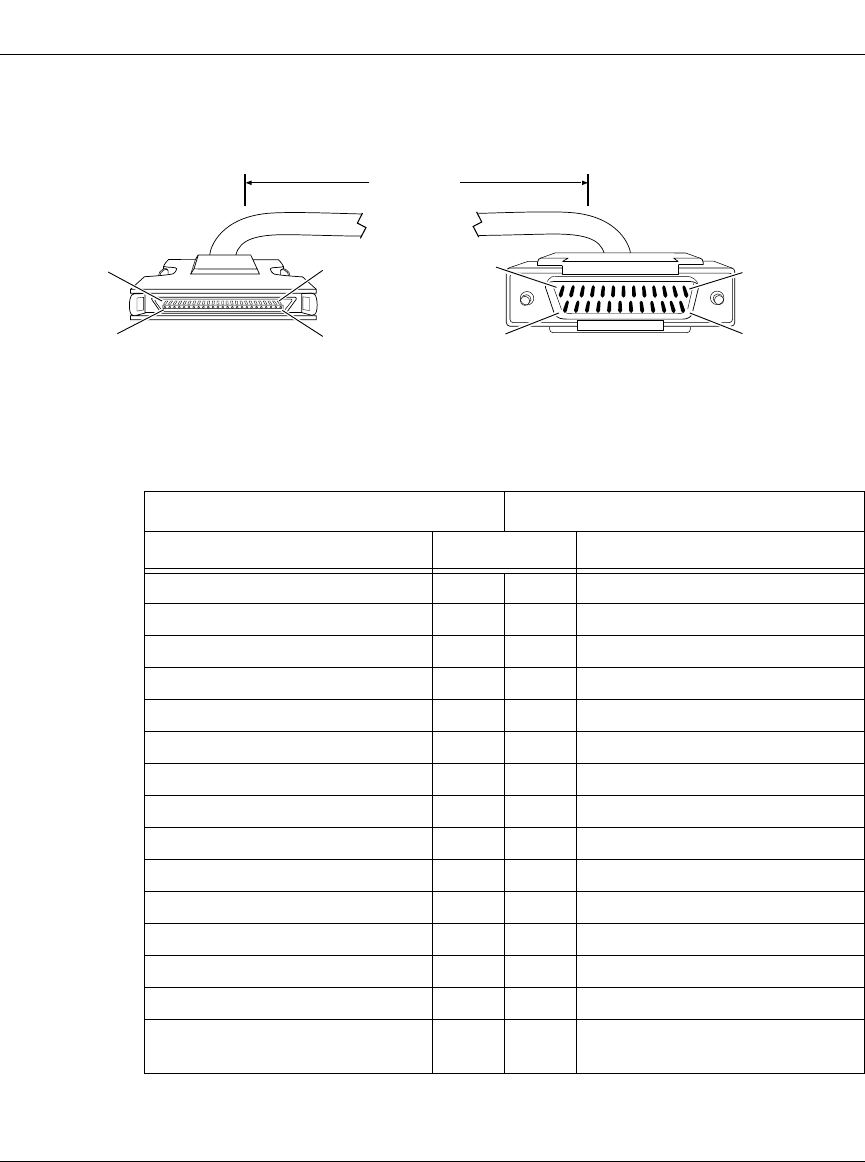

20 ft
(6.10 m)
Pin 1
Pin 50
Pin 25
Pin 26
50-position high-density plug
(ground shield connected to internal shell)
Pin 1
Pin 50
Pin 25
Pin 26
50-position high-density plug
(ground shield connected to internal shell)
CAB0064A
Cable Guide
4-6 308604-14.10 Rev 01
Nortel Networks Termination A Nortel Networks Termination B
Signal Pin # to Pin # Signal
Signal Ground 1 1 Signal Ground
Signal Ground 26 26 Signal Ground
Receive Timing + 2 9 Terminal Timing +
Receive Timing - 27 34 Terminal Timing -
DCE Available + 3 8 DTE Available +
DCE Available - 28 33 DTE Available -
Receive Data + 4 11 Send Data +
Receive Data - 29 36 Send Data -
Signal Ground 7 7 Signal Ground
Signal Ground 32 32 Signal Ground
DTE Available + 8 3 DCE Available +
DTE Available - 33 28 DCE Available -
Terminal Timing + 9 2 Receive Timing +
Terminal Timing - 34 27 Receive Timing -
Send Data + 11 4 Receive Data +
Send Data - 36 29 Receive Data -
Signal Ground 13 13 Signal Ground
Signal Ground 38 38 Signal Ground
Signal Ground 19 19 Signal Ground
Signal Ground 44 44 Signal Ground
Signal Ground 25 25 Signal Ground
Signal Ground 50 50 Signal Ground
E1/T1 Cables
308604-14.10 Rev 01 5-1
Chapter 5
E1/T1 Cables
This chapter identifies the cables that interconnect a T1 framer or MCT1 link
module with a channel service unit (CSU) or T1 digital signal cross-connect
switch (DSX-1 or DSX-2), an E1/T1 line, or an external T1 clock source.
Table 5-1 summarizes the cables. Detailed cable illustrations and pinout
specifications follow.
Table 5-1. E1/T1 Cables
Order No. Length Physical Cable Description Page
AA0018001 10 ft (3.05 m) MCE1 DB9 to mod jack cable; 9-pin to RJ-45 5-4
AA0018002 10 ft (3.05 m) MCE1 DB9 to unterminated end cable; 9-pin to unterminated
end 5-5
AA0018006 6 in (0.15 m) Quad MCT1 clock cable (15-pin D-sub plug and 9-position
D-sub receptacle to 15-pin D-sub receptacle) 5-6
AA0018014 10 ft (3.05 m) MCE1 RJ-45 to RJ-45 cable 5-7
AA0018015 10 ft (3.05 m) MCE1 RJ-45 to unterminated end cable 5-8
AA0018021 15 ft (4.57 m) Quad MCT1 crossover cable (15-pin D-sub plug to 15-pin
D-sub plug) 5-9
AA0018022 15 ft (4.57 m) Quad MCT1 straight-through cable (15-pin D-sub plug to
15-pin D-sub plug) 5-10
AA0018040 1 ft (.30 m) ATM E1 RJ-45 to RJ-45 cable (for use with the AA0018040
Balun, described in Chapter 8) 5-11
7150 15 ft (4.57 m) MCT1 clock cable; 9-pin D-sub plug to 15-pin D-sub plug 5-12
7151 N/A MCT1 loopback connector; 15-pin D-sub plug 5-13
7152 N/A MCT1 loopback connector, RJ-48 5-14
7153 15 ft (4.57 m) MCT1 crossover cable; 15-pin D-sub plug to RJ-48 5-15
(continued)
Cable Guide
5-2 308604-14.10 Rev 01
If you need to order additional cables, contact the Nortel Networks Technical
Solutions Center in your area. (See “How to Get Help” in the Preface.)
7154 15 ft (4.57 m) MCT1 loopback cable; RJ-48 to RJ-48 5-16
7155 15 ft (4.57 m) MCT1 loopback cable; 15-pin D-sub plug to 15-pin
D-sub plug 5-17
7156 15 ft (4.57 m) MCT1 straight-through cable; RJ-48 to RJ-48 5-18
7157 15 ft (4.57 m) MCT1 straight-through cable; 15-pin D-sub plug to 15-pin
D-sub plug 5-19
7160 10 ft (3.05 m) MCE1 DB9 to DB9 crossover cable 5-20
7161 10 ft (3.05 m) MCE1 DB9 to DB9 straight-through cable 5-21
7162 10 ft (3.05 m) MCE1 coaxial cable, 75-ohm coaxial 5-22
7167 10 ft (3.05 m) MCE1 DB9 to DB15 straight-through cable 5-23
7168 10 ft (3.05 m) MCE1 DB9 to DB15 crossover cable 5-24
7401 1 ft (0.3 m) 15-pin T1 framer plug (labeled DSX-1 or DSX-2) to 15-pin
DTE plug (for CSU connection) 5-25
7415 15 ft (4.57 m) 15-pin T1 framer plug (labeled DSX-1 or DSX-2) to 15-pin
external customer premise equipment (CPE) plug 5-26
7650 50 ft (15.24 m) 15-position CSU network receptacle to RJ-45 (for T-carrier line
connection) 5-27
7750 50 ft (15.24 m) 15-position CSU network receptacle to spade terminals (for
T-carrier line connection) 5-28
Table 5-1. E1/T1 Cables
(continued)
Order No. Length Physical Cable Description Page
E1/T1 Cables
308604-14.10 Rev 01 5-3
The following sections include:
• Cable illustrations with the Nortel Networks connector on the left and the
remote connector on the right
• Cable length information
If you want to build a cable, and you want to determine the maximum cable
length appropriate for each of your interconnection requirements, you should:
-- Identify in this chapter a cable that satisfies your wiring requirement (with
the exception of total cable length).
-- Consult the networking industry specification, standard, or
recommendation designated in the “Industry Interface Type” entry for that
cable (located immediately following the cable pinout diagram).
• Pinouts for each connector and all associated signals
• Grounding arrangements that isolate the chassis from the DC ground within
the cable
Cable Guide
5-4 308604-14.10 Rev 01
MCE1 DB9 to Mod Jack Cable (Order No. AA0018001)
Industry Interface Type: E1
Note: This cable assembly uses a 120-ohm wire.
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Receive Tip 1 1 Receive Tip
Receive Ring 6 2 Receive Ring
Transmit Tip 5 4 Transmit Tip
Transmit Ring 9 5 Transmit Ring
Ground 3 3 Ground
10 ft
(3.05 m)
Pin 1
Pin 9
9-position D-sub plug with screw locks
(ground shield connected to backshell)
RJ-45 connector
Pin 8 Pin 1
CAB0087A
E1/T1 Cables
308604-14.10 Rev 01 5-5
MCE1 DB9 to Unterminated Cable (Order No. AA0018002)
Industry Interface Type: E1
Note: This cable assembly uses a 120-ohm wire.
Nortel Networks Termination Remote Termination
Signal Pin # to Wire Color Signal
Receive Tip 1 White/
Blue Receive Tip
Receive Ring 6 Blue/
White Receive Ring
Transmit Tip 5 White/
Orange Transmit Tip
Transmit Ring 9 Orange/
White Transmit Ring
Ground 3 Bare Ground
Pin 1
Pin 9
9-position D-sub plug with screw locks
(ground shield connected to backshell)
10 ft
(3.05 m)
Unterminated cable
CAB0088A
Cable Guide
5-6 308604-14.10 Rev 01

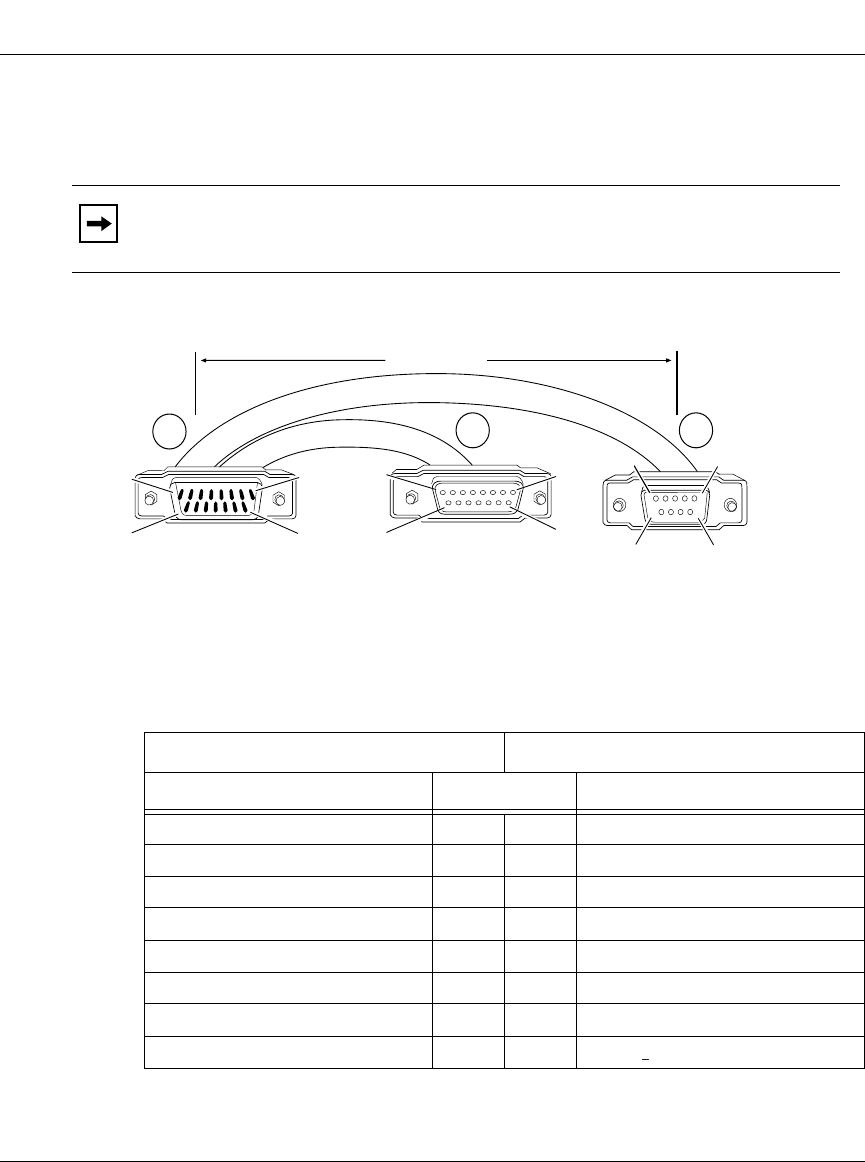

Quad MCT1 Clock Cable (Order No. AA0018006)
Industry Interface Type: T1/DS1 with External Clock (Input from an External T1 Timing Source)
Note: You can use this cable assembly with COM 1 ports only.
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Transmit Tip 1-1 2-1 Transmit Tip
Transmit Ring 1-9 2-9 Transmit Ring
Receive Tip 1-3 2-3 Receive Tip
Receive Ring 1-11 2-11 Receive Ring
EXT Tip 1-7 3-2 EXT Tip
EXT Ring 1-15 3-3 EXT Ring
Ground 1-2 1-4 Ground*
* You must configure onboard jumpers to complete this connection. Refer to the table called “QMCT1
Link Module Settings” in
Installing T1 Link Modules in BN Platforms
.
Ground 2-2 2-4 Ground*
Pin 8
Pin 1
Pin 15
Pin 9
Pin 8
Bay Networks termination
15-position D-sub plug
with locking posts
(ground shield connected
to backshell)
External T1 timing source
9-position D-sub
receptacle with screw locks
(ground shield connected
to backshell)
Pin 5 Pin 1
Pin 9 Pin 6
13
Pin 1
Pin 15 Pin 9
Remote termination
15-position D-sub
receptacle with screw locks
(ground shield connected
to backshell)
2
CAB0092A
6 in.
(0.15 m)
E1/T1 Cables
308604-14.10 Rev 01 5-7

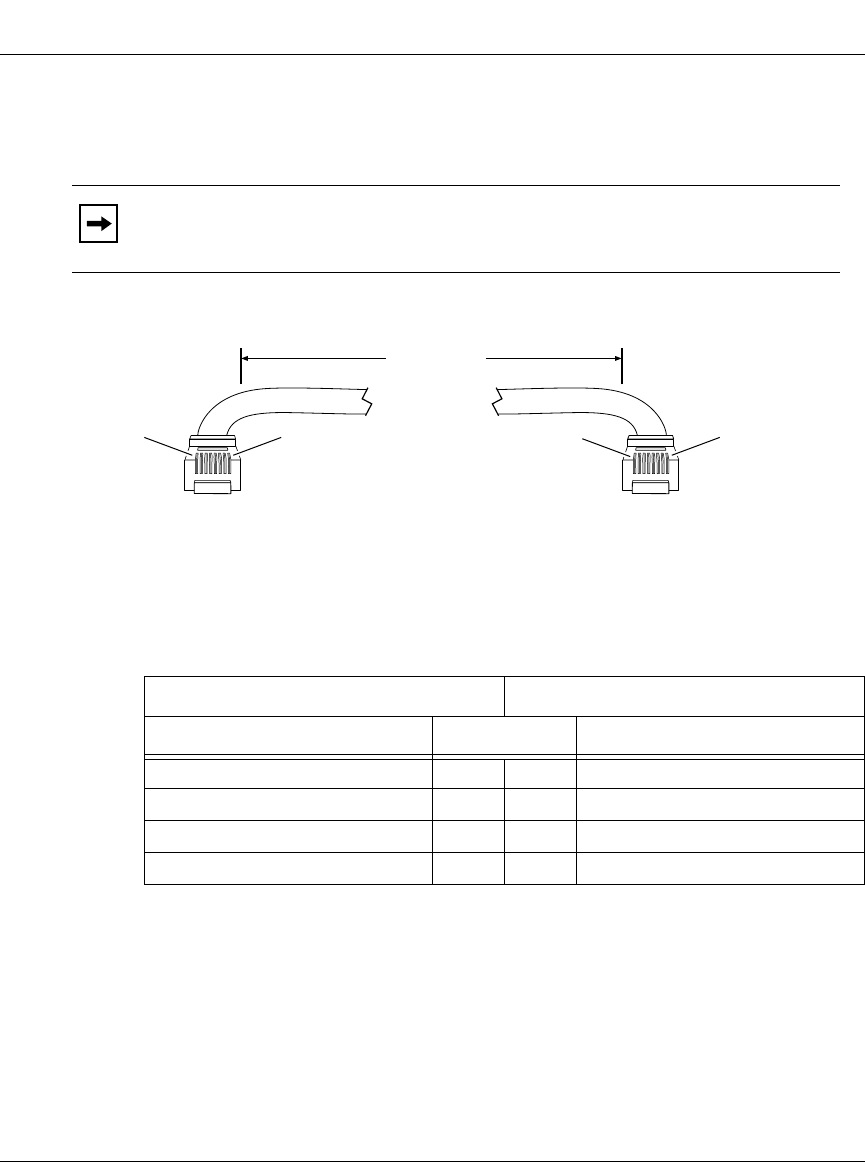

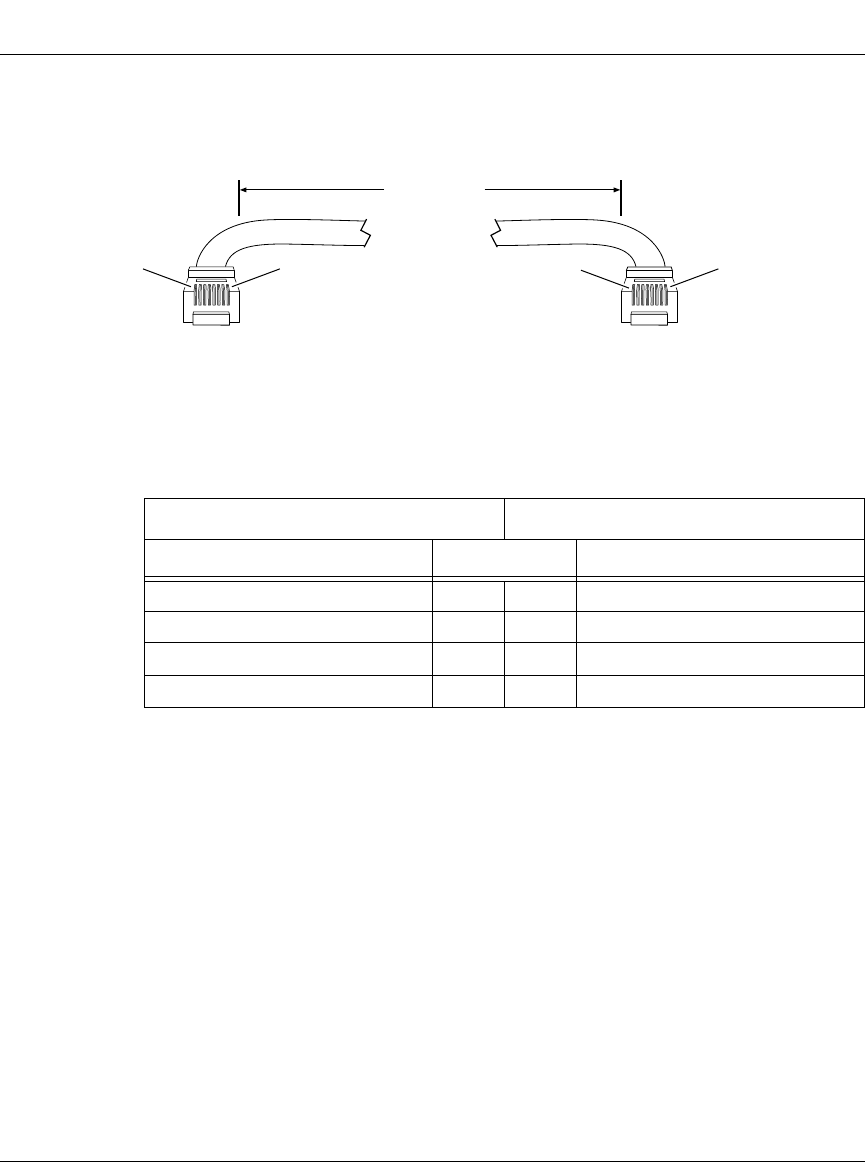

MCE1 RJ-45 to RJ-45 Cable (Order No. AA0018014)
Industry Interface Type: E1
Note: This cable assembly uses a 120-ohm wire.
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Receive Tip 1 1 Receive Tip
Receive Ring 2 2 Receive Ring
Transmit Tip 4 4 Transmit Tip
Transmit Ring 5 5 Transmit Ring
RJ-45 connector RJ-45 connector
Pin 8 Pin 1 Pin 1
Pin 8
10 ft
(3.05 m)
CAB0026C
Cable Guide
5-8 308604-14.10 Rev 01

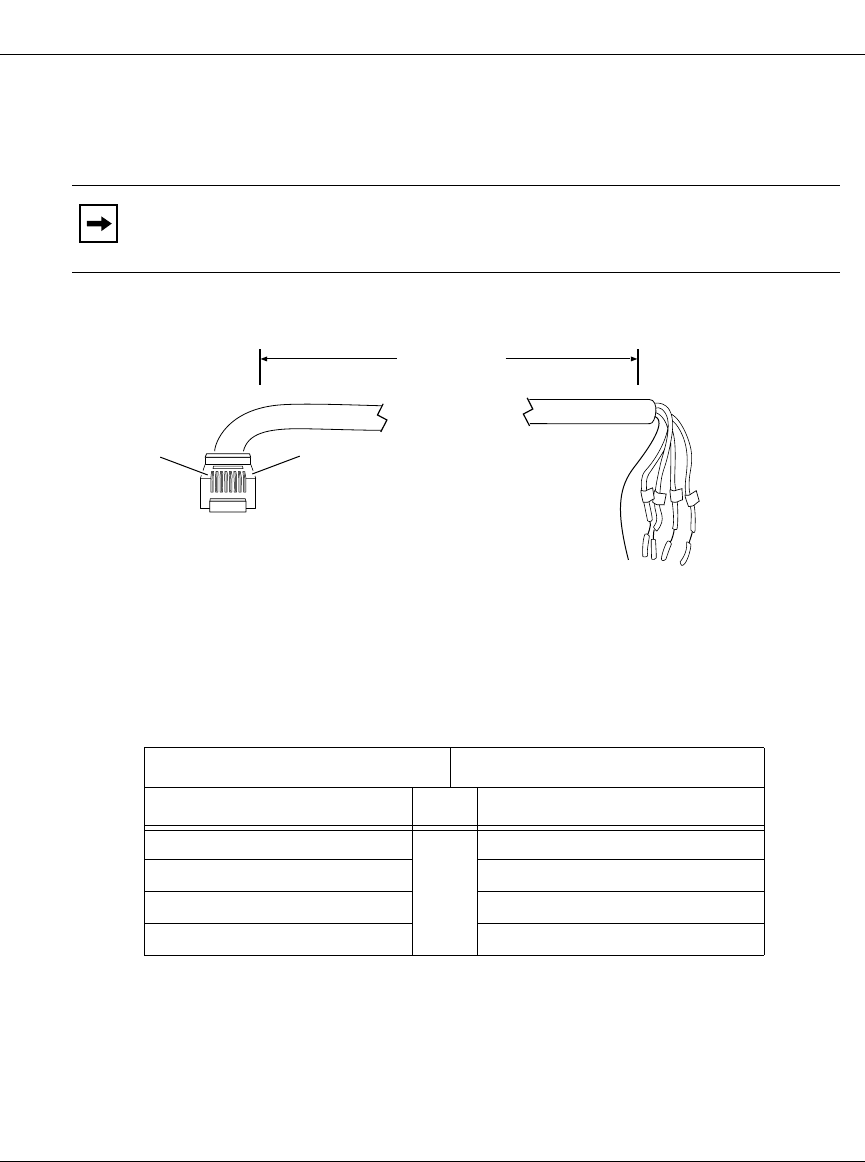

MCE1 RJ-45 to Unterminated Cable (Order No. AA0018015)
Industry Interface Type: E1
Note: This cable assembly uses a 120-ohm wire.
Nortel Networks Termination
Signal Pin # Signal
Receive Tip 1 Receive Tip
Receive Ring 2 Receive Ring
Trans mi t Tip 4 Trans mi t T ip
Transmit Ring 5 Transmit Ring
10 ft
(3.05 m)
Unterminated cable
RJ-45 connector
Pin 8 Pin 1
CAB0097A
E1/T1 Cables
308604-14.10 Rev 01 5-9

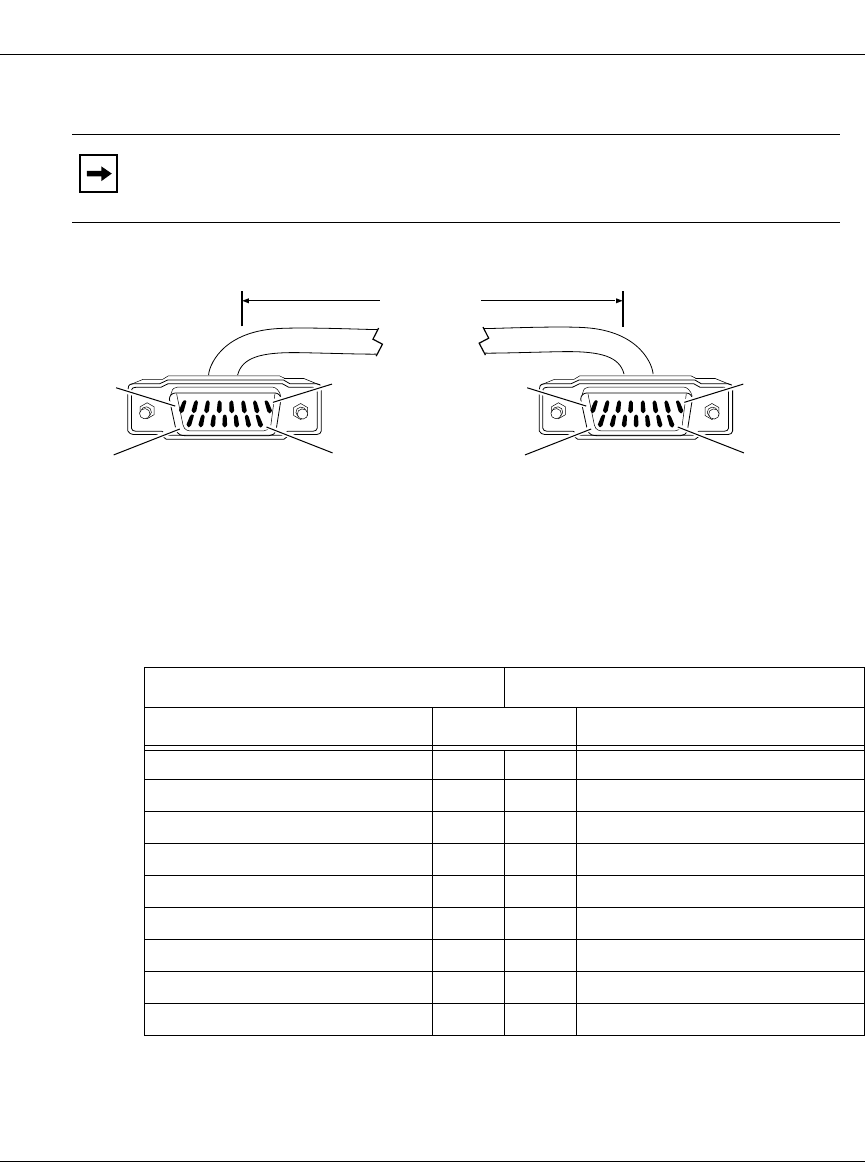

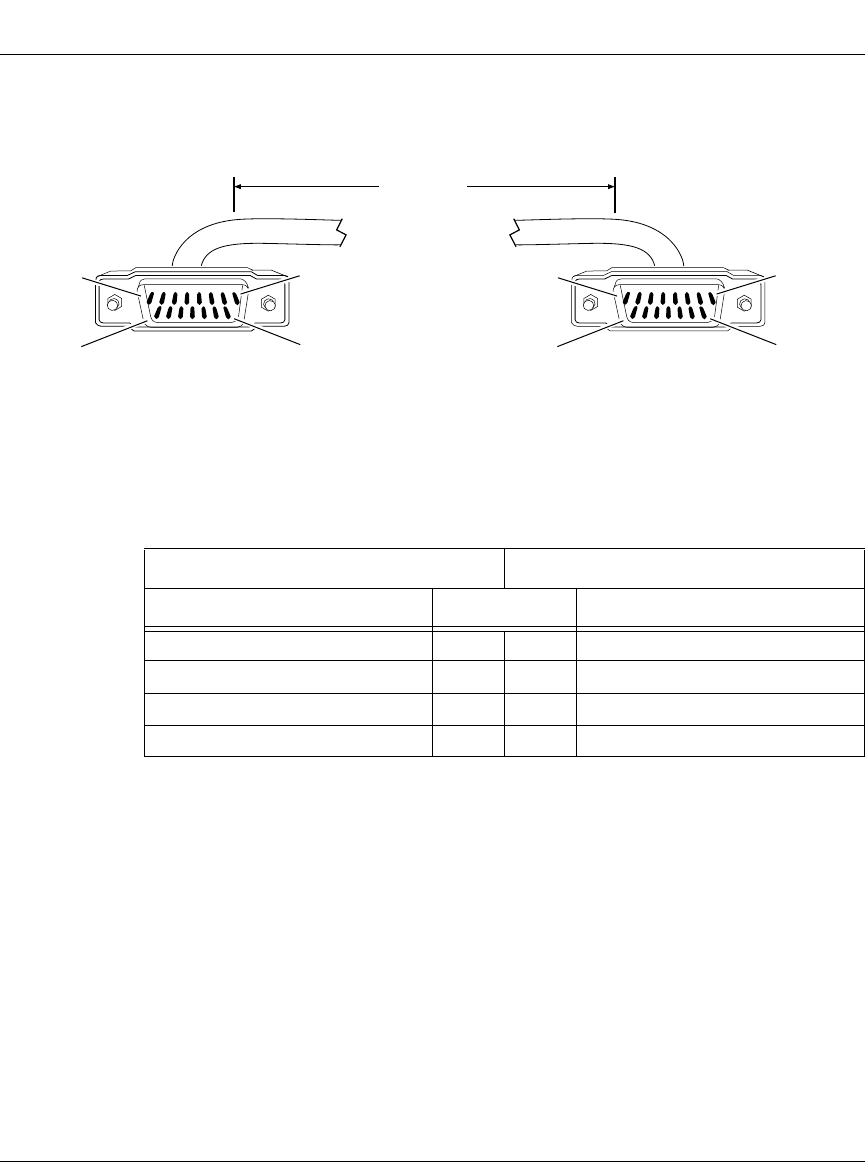

Quad MCT1 15-Pin to 15-Pin Crossover Cable
(Order No. AA0018021)
Industry Interface Type: T1/DS1
Nortel Networks Termination A Nortel Networks Termination B
Signal Pin # to Pin # Signal
Transmit Tip 1 3 Receive Tip
Transmit Ring 9 11 Receive Ring
Receive Tip 3 1 Transmit Tip
Receive Ring 11 9 Transmit Ring
Ground 2 4 Ground*
* You must configure onboard jumpers to complete this connection. Refer to the table called “QMCT1
Link Module Settings” in
Installing T1 Link Modules in BN Platforms
.
Ground 2 4 Ground*
Pin 8
Pin 1
Pin 15
Pin 9
Pin 8
Pin 1
Pin 15
Pin 9
15 ft
(4.57 m)
15-position D-sub plug with locking posts
(ground shield connected to backshell)
15-position D-sub plug with locking posts
(ground shield connected to backshell)
CAB0098A
Cable Guide
5-10 308604-14.10 Rev 01
Quad MCT1 15-Pin to 15-Pin Straight-Through Cable
(Order No. AA0018022)
Industry Interface Type: T1/DS1
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Transmit Tip 1 1 Transmit Tip
Transmit Ring 9 9 Transmit Ring
Receive Tip 3 3 Receive Tip
Receive Ring 11 11 Receive Ring
Ground 2 4 Ground*
* You must configure onboard jumpers to complete this connection. Refer to the table called “QMCT1
Link Module Settings” in
Installing T1 Link Modules in BN Platforms
.
Ground 2 4 Ground*
Pin 8
Pin 1
Pin 15
Pin 9
Pin 8
Pin 1
Pin 15
Pin 9
15 ft
(4.57 m)
15-position D-sub plug with locking posts
(ground shield connected to backshell)
15-position D-sub plug with locking posts
(ground shield connected to backshell)
CAB0099A
E1/T1 Cables
308604-14.10 Rev 01 5-11
ATM E1 RJ-45 to RJ-45 Cable (Order No. AA0018040)
Industry Interface Type: E1
Note: This cable assembly uses a 120-ohm wire, and is used with the
AA0018040 Balun described in Chapter 8.
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Receive Ring 1 4 Receive Ring
Receive Tip 2 5 Receive Tip
Transmit Ring 4 1 Transmit Ring
Transmit Tip 5 2 Transmit Tip
RJ-45 connector RJ-45 connector
Pin 8 Pin 1 Pin 1
Pin 8
12 in
(0.3 m)
CAB0111A
Cable Guide
5-12 308604-14.10 Rev 01
MCT1 Clock Cable (Order No. 7150)
Industry Interface Type: T1/DS1 External Clock (Input from an External T1 Timing Source)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Receive Tip 2 1 Transmit Tip
Receive Ring 3 9 Transmit Ring
15 ft
(4.57 m)
Pin 8
Pin 1
Pin 15
Pin 9
15-position D-sub plug with locking posts
(ground shield connected to backshell)
Pin 1
Pin 9
9-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0022A
E1/T1 Cables
308604-14.10 Rev 01 5-13
MCT1 15-Pin Loopback Connector (Order No. 7151)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Transmit Tip 1 3 Receive Tip
Transmit Ring 9 11 Receive Ring
15-position connec
t
CAB0023A
Pin 1
Cable Guide
5-14 308604-14.10 Rev 01

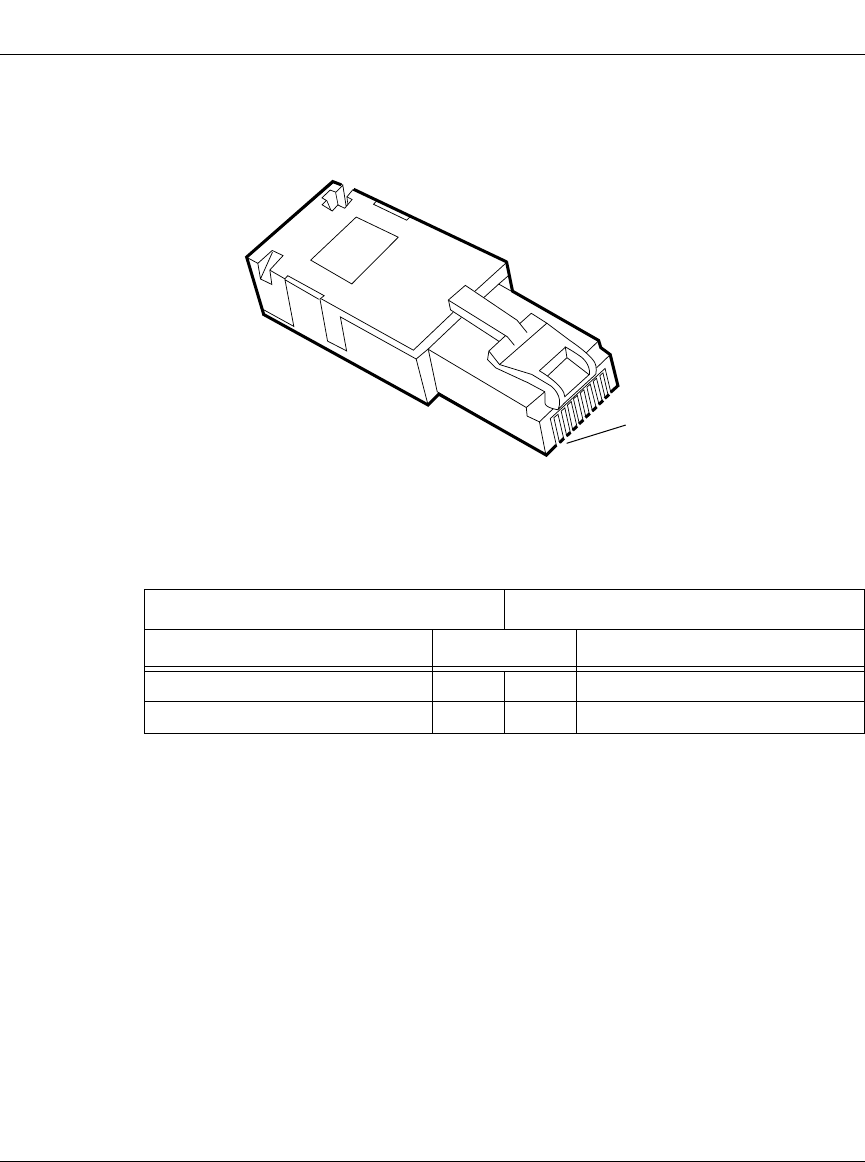

MCT1 RJ-48 Loopback Connector (Order No. 7152)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Receive Ring 1 4 Transmit Ring
Receive Tip 2 5 Transmit Tip
RJ-48
connector
CAB0024A
Pin 1
E1/T1 Cables
308604-14.10 Rev 01 5-15
MCT1 Crossover Cable (Order No. 7153)
Industry Interface Type: T1/DS1
Nortel Networks Termination A Nortel Networks Termination B
Signal Pin # to Pin # Signal
Transmit Tip 1 2 Receive Tip
Receive Tip 3 5 Transmit Tip
Transmit Ring 9 1 Receive Ring
Receive Ring 11 4 Transmit Ring
Pin 8
Pin 1
Pin 15
Pin 9
15 ft
(4.57 m)
RJ-48 connector
Pin 8 Pin 1
15-position D-sub plug with locking posts
(ground shield connected to backshell)
CAB0025A
Cable Guide
5-16 308604-14.10 Rev 01
MCT1 Loopback Cable (Order No. 7154)
Industry Interface Type: T1/DS1
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Receive Ring 1 4 Transmit Ring
Receive Tip 2 5 Transmit Tip
Transmit Ring 4 1 Receive Ring
Transmit Tip 5 2 Receive Tip
RJ-48 connector RJ-48 connector
Pin 8 Pin 1 Pin 1
Pin 8
15 ft
(4.57 m)
CAB0026A
E1/T1 Cables
308604-14.10 Rev 01 5-17
MCT1 Loopback Cable (Order No. 7155)
Industry Interface Type: T1/DS1
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Transmit Tip 1 3 Receive Tip
Receive Tip 3 1 Transmit Tip
Transmit Ring 9 11 Receive Ring
Receive Ring 11 9 Transmit Ring
15 ft
(4.57 m)
Pin 8
Pin 1
Pin 15
Pin 9
Pin 8
Pin 1
Pin 15
Pin 9
15-position D-sub plug with locking posts
(ground shield connected to backshell) 15-position D-sub plug with locking posts
(ground shield connected to backshell)
CAB0027A
Cable Guide
5-18 308604-14.10 Rev 01
MCT1 Straight-Through Cable (Order No. 7156)
Industry Interface Type: T1/DS1
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Receive Tip 1 1 Receive Tip
Receive Ring 2 2 Receive Ring
Transmit Tip 4 4 Transmit Tip
Transmit Ring 5 5 Transmit Ring
RJ-48 connector RJ-48 connector
Pin 8 Pin 1 Pin 1
Pin 8
15 ft
(4.57 m)
CAB0028A
E1/T1 Cables
308604-14.10 Rev 01 5-19
MCT1 Straight-Through Cable (Order No. 7157)
Industry Interface Type: T1/DS1
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Transmit Tip 1 1 Transmit Tip
Transmit Ring 9 9 Transmit Ring
Receive Tip 3 3 Receive Tip
Receive Ring 11 11 Receive Ring
15 ft
(4.57 m)
Pin 8
Pin 1
Pin 15
Pin 9
Pin 8
Pin 1
Pin 15
Pin 9
15-position D-sub plug with locking posts
(ground shield connected to backshell) 15-position D-sub plug with locking posts
(ground shield connected to backshell)
CAB0105A
Cable Guide
5-20 308604-14.10 Rev 01

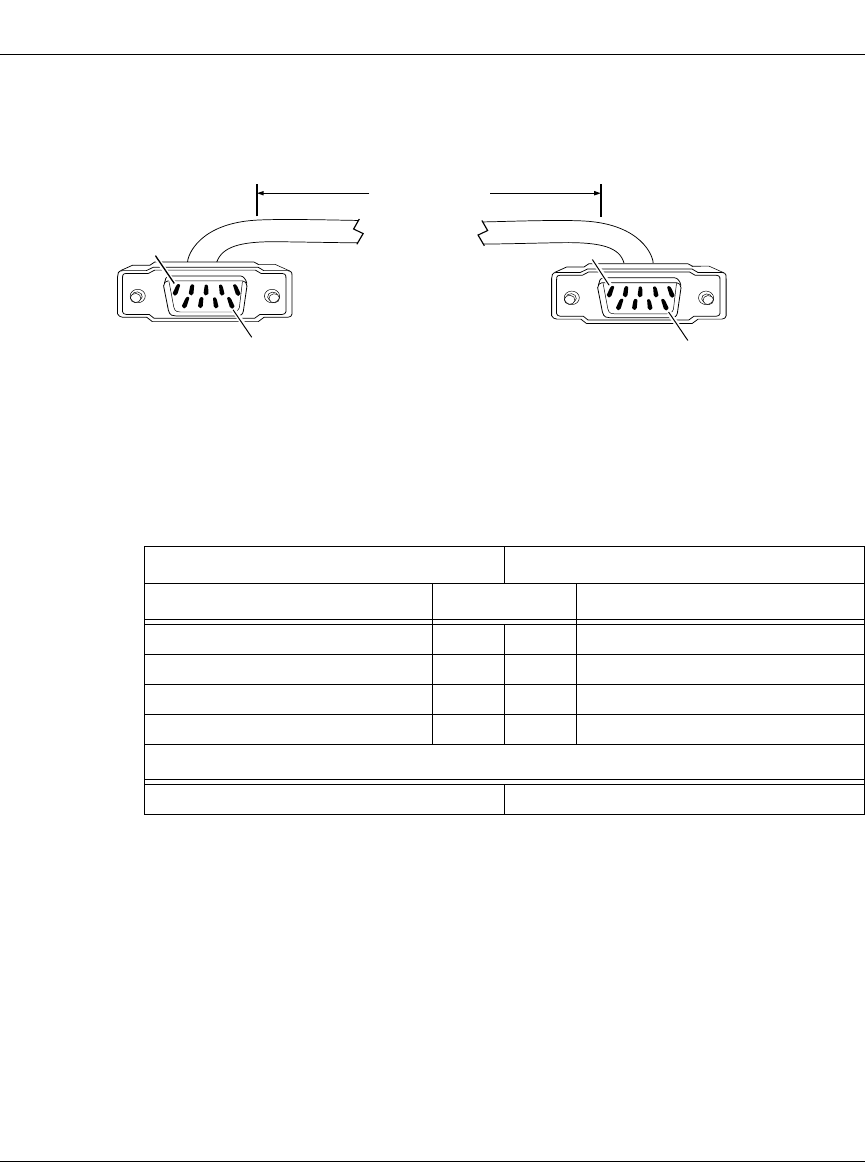

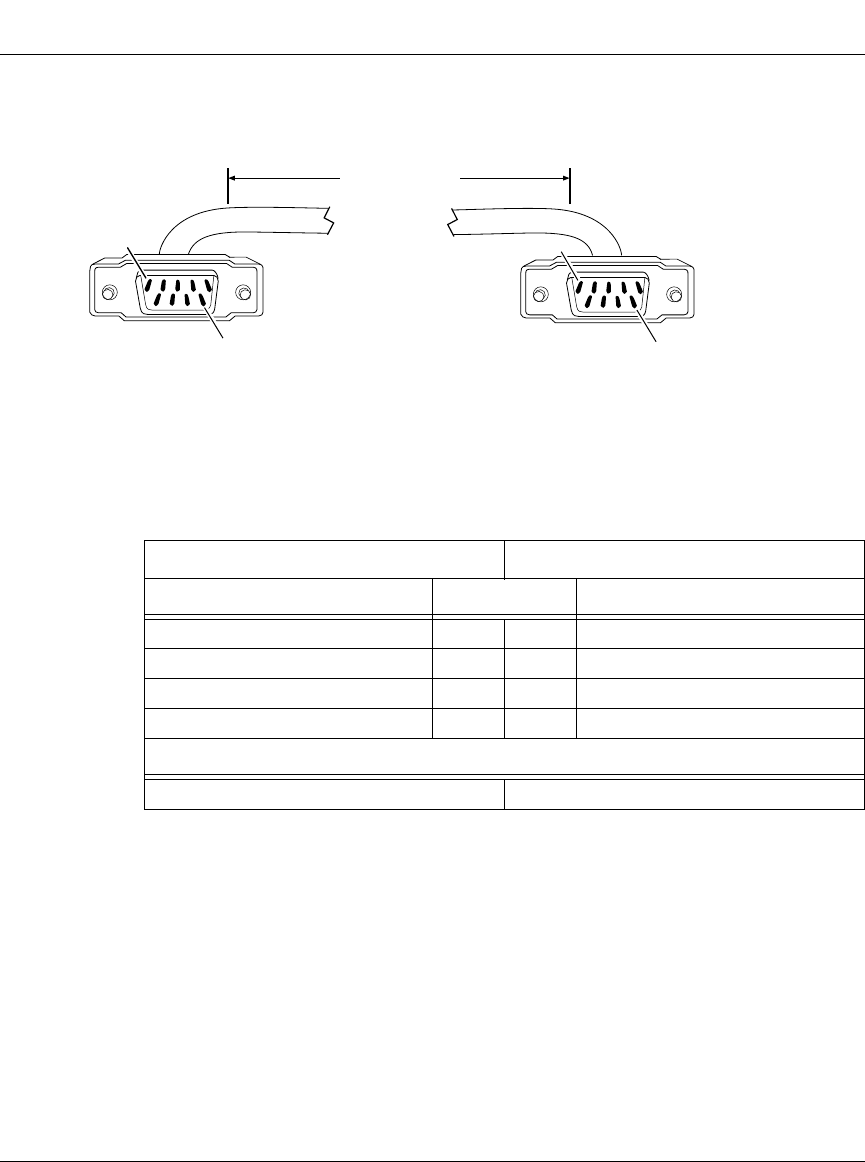

MCE1 Crossover Cable (Order No. 7160)
Industry Interface Type: E1/G.703
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Receive A (RXA) 1 5 Transmit A (TXA)
Receive B (RXB) 6 9 Transmit B (TXB)
Transmit A (TXA) 5 1 Receive A (RXA)
Transmit B (TXB) 9 6 Receive B (RXB)
Internal Wire Connections
Pin 3 (Shield) Pin 3 (Shield grounded to backshell)
10 ft
(3.05 m)
Pin 1
Pin 9
9-position D-sub plug with screw locks
(ground shield connected to backshell)
Pin 1
Pin 9
9-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0033A
E1/T1 Cables
308604-14.10 Rev 01 5-21
MCE1 Straight-Through Cable (Order No. 7161)
Industry Interface Type: E1/G.703
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Receive A (RXA) 1 1 Receive A (RXA)
Receive B (RXB) 6 6 Receive B (RXB)
Transmit A (TXA) 5 5 Transmit A (TXA)
Transmit B (TXB) 9 9 Transmit B (TXB)
Internal Wire Connections
Pin 3 (Shield) Pin 3 (Shield grounded to backshell)
10 ft
(3.05 m)
Pin 1
Pin 9
9-position D-sub plug with screw locks
(ground shield connected to backshell)
Pin 1
Pin 9
9-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0033A
Cable Guide
5-22 308604-14.10 Rev 01
MCE1 Coaxial Cable (Order No. 7162)
Industry Interface Type: E1/G.703
10 ft
(3.05 m)
Twist-lock
coaxial connector Twist-lock
coaxial connector
CAB0034A
E1/T1 Cables
308604-14.10 Rev 01 5-23

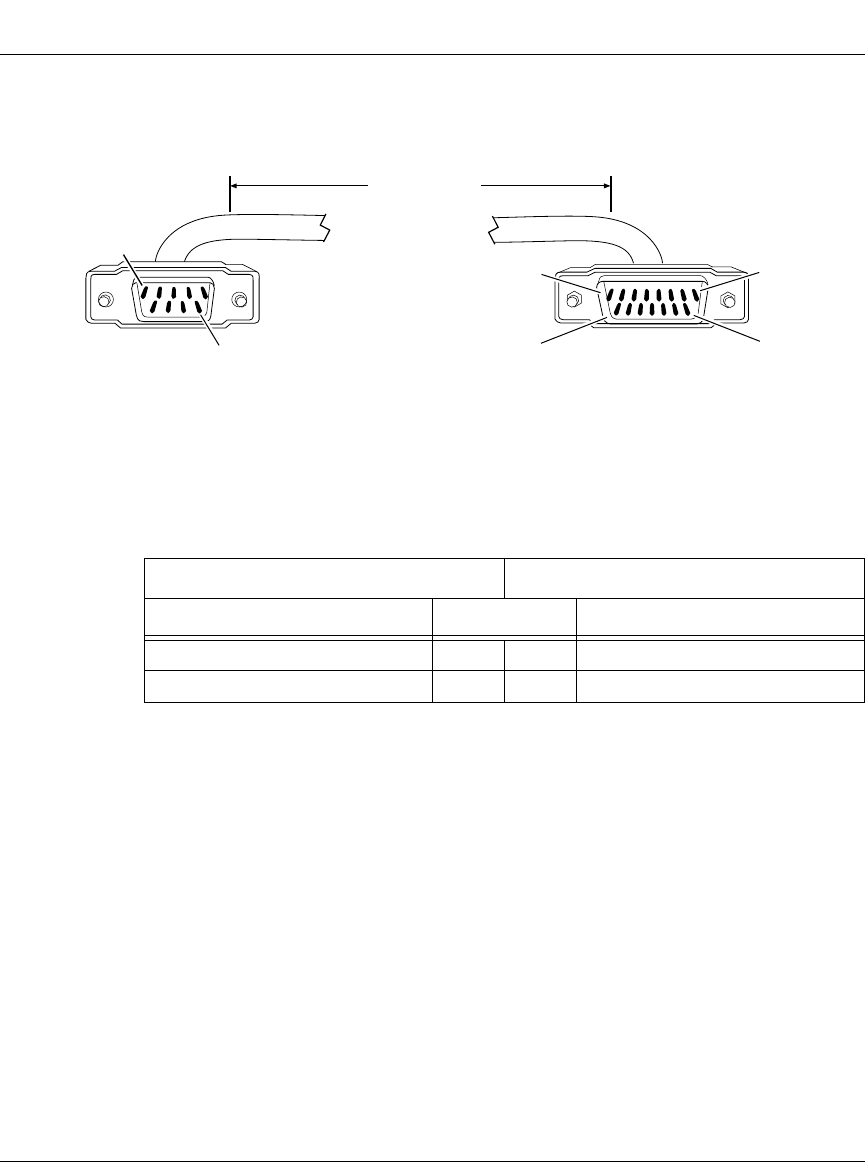

MCE1 DB9 to DB15 Straight-Through Cable
(Order No. 7167)
Industry Interface Type: E1/G.703
Note: This cable provides a direct connection to a 15-pin D-sub port.
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Receive A 1 3 Receive A
Receive B 6 11 Receive B
Transmit A 5 1 Transmit A
Transmit B 9 9 Transmit B
Internal Wire Connections
Pin 3 > Shield
10 ft
(3.05 m)
Pin 8
Pin 1
Pin 15
Pin 9
15-position D-sub plug with locking posts
(ground shield connected to backshell)
Pin 1
Pin 9
9-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0095B
Cable Guide
5-24 308604-14.10 Rev 01
MCE1 DB9 to DB15 Crossover Cable (Order No. 7168)
Industry Interface Type: E1/G.703
Note: This cable provides a crossover connection to a 15-pin D-sub port.
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Receive A 1 1 Transmit A
Receive B 6 9 Transmit B
Transmit A 5 3 Receive A
Transmit B 9 11 Receive B
Internal Wire Connections
Pin 3 > Shield
10 ft
(3.05 m)
Pin 8
Pin 1
Pin 15
Pin 9
15-position D-sub plug with locking posts
(ground shield connected to backshell)
Pin 1
Pin 9
9-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0096B
E1/T1 Cables
308604-14.10 Rev 01 5-25

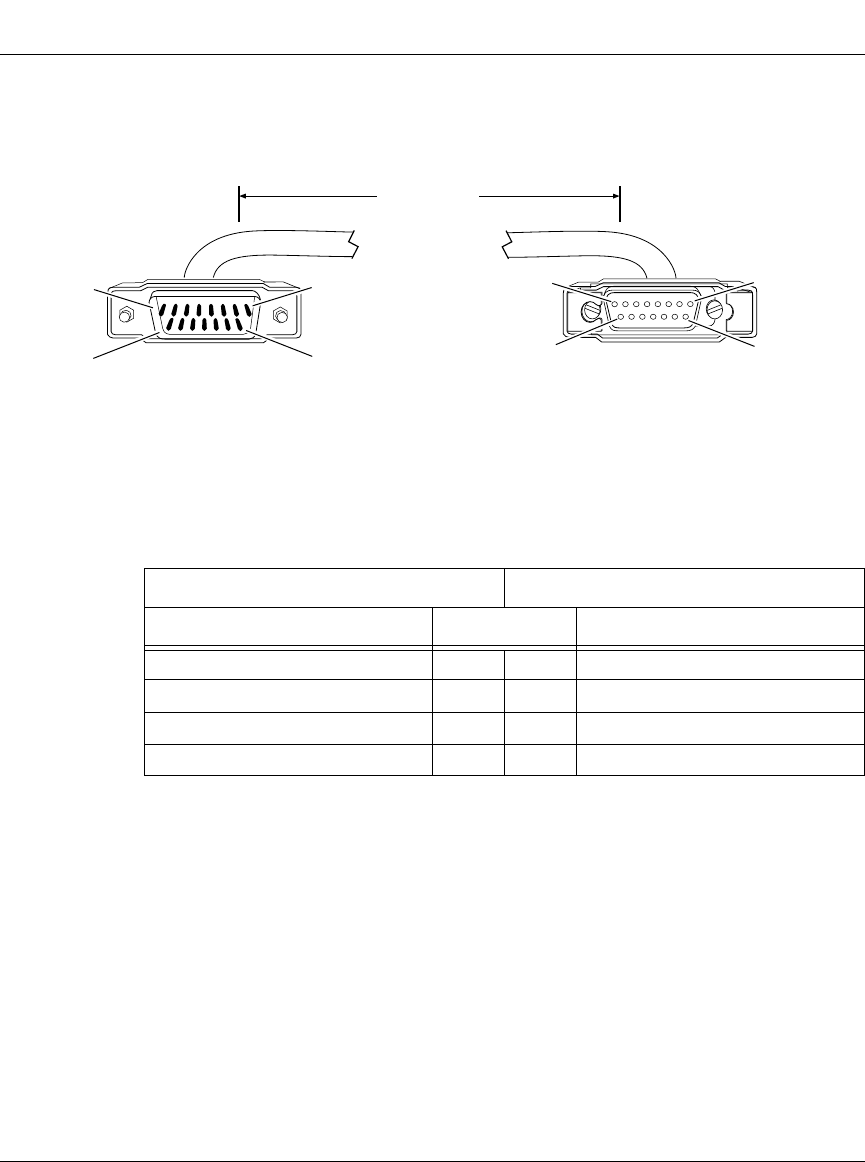

T1 to CSU DTE (Order No. 7401)
Industry Interface Type: T1/DS1
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Send + 1 1 Send +
Send - 9 9 Send -
Receive + 3 3 Receive +
Receive - 11 11 Receive -
Pin 1
Pin 8
Pin 9
Pin 15
Pin 8
Pin 1
Pin 15
Pin 9
12 in.
(0.3 m)
15-position D-sub plug with locking posts
(ground shield connected to backshell) 15-position D-sub receptacle with slide latch
connected to backshell
CAB0052A
Cable Guide
5-26 308604-14.10 Rev 01
T1 to Customer Premise Equipment (Order No. 7415)
Industry Interface Type: T1/DS1
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Send + 1 1 Send +
Send - 9 9 Send -
Receive + 3 3 Receive +
Receive - 11 11 Receive -
Pin 8
Pin 1
Pin 15
Pin 9
Pin 8
Pin 1
Pin 15
Pin 9
15 ft
(4.57 m)
15-position D-sub plug with locking posts
(ground shield connected to backshell)
15-position D-sub plug with locking posts
(ground shield connected to backshell)
CAB0053A
E1/T1 Cables
308604-14.10 Rev 01 5-27

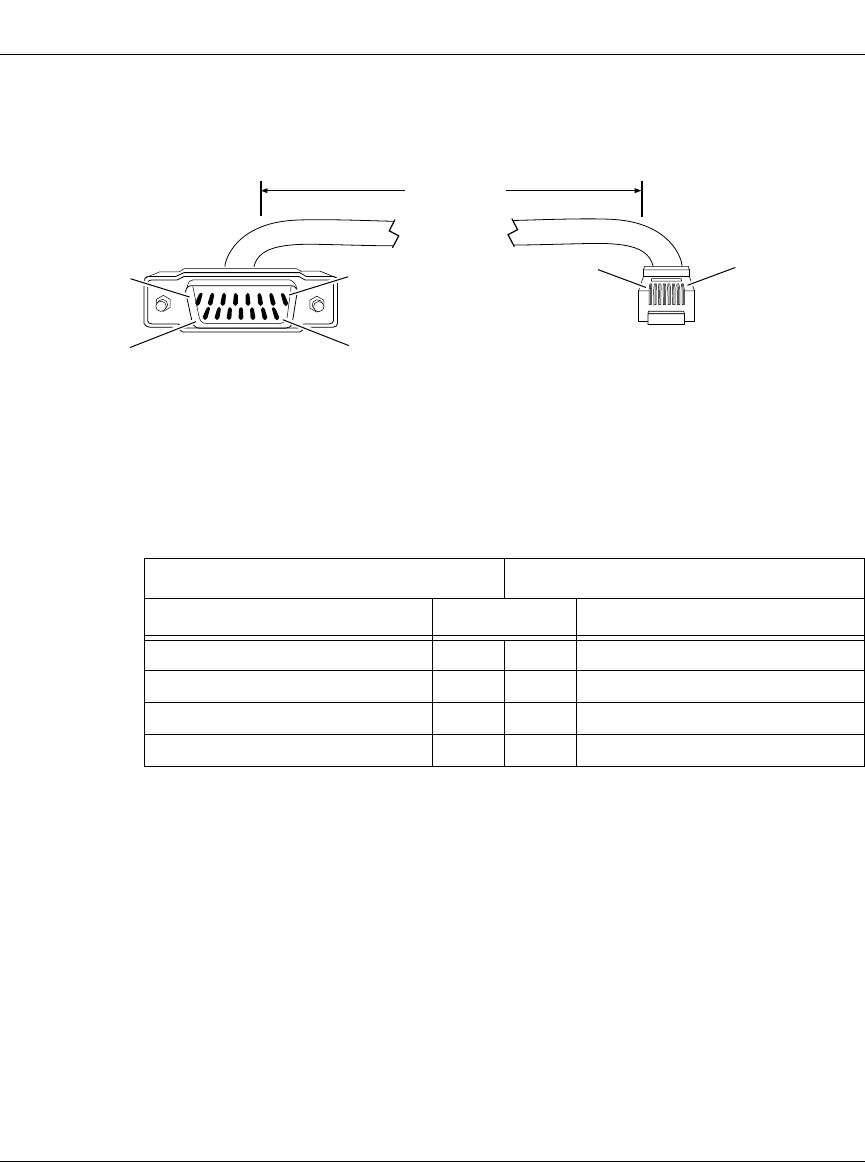

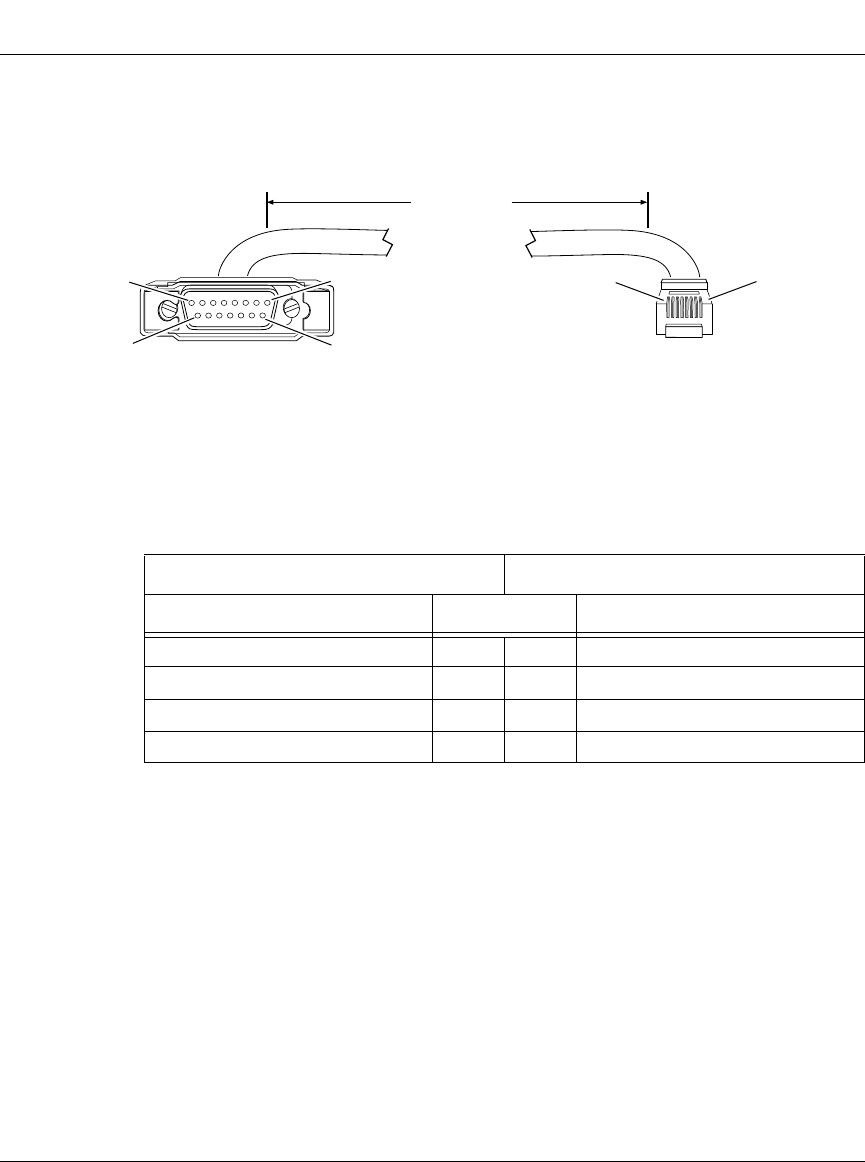

CSU Network Receptacle to RJ-45 (Order No. 7650)
Industry Interface Type: T1/DS1
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Send + 1 5 Send +
Send - 9 4 Send -
Receive + 3 2 Receive +
Receive - 11 1 Receive -
RJ-45 connector
Pin 8 Pin 1
Pin 1
Pin 8
Pin 9
Pin 15
50 ft
(15.24 m)
15-position D-sub receptacle with slide latch
connected to backshell
CAB0057A
Cable Guide
5-28 308604-14.10 Rev 01
CSU Network Receptacle to Spade Terminals
(Order No. 7750)
Industry Interface Type: T1/DS1
Nortel Networks Termination Remote Termination
Signal Pin # to Signal Wire Signal
Send + 1 wire XMIT +
Send - 9 wire XMIT -
Receive + 3 wire Receive +
Receive - 11 wire Receive -
Ground Chassis wire Shield
Ground Chassis wire Shield
Pin 1
Pin 8
Pin 9
Pin 15
Spade terminals
50 ft
(15.24 m)
15-position D-sub receptacle with slide latch
connected to backshell
CAB0058A
308604-14.10 Rev 01 6-1
Chapter 6
Standard Synchronous Cables
This chapter identifies the standard synchronous cables that link Nortel Networks
router software platforms to WAN devices.
Table 6-1 summarizes the cables. Detailed cable illustrations and pinout
specifications follow.
Table 6-1. Standard Synchronous Cables
Order No. Length Physical Cable Description Page
AA0018003 15 ft (4.57 m) X.21 synchronous pass-through (15-pin D-sub plug to X.21
receptacle) 6-4
AA0018004 15 ft (4.57 m) X.21 synchronous pass-through (44-pin D-sub plug to X.21
receptacle) 6-6
AA0018005 15 ft (4.57 m) X.21 synchronous pass-through (50-pin plug to X.21
receptacle) 6-8
AA0018011 15 ft (4.57 m) RS-530 straight-through cable (15-pin to RS-530 plug) 6-10
AA0018012 15 ft (4.57 m) RS-530 straight-through cable (44-pin to RS-530 plug) 6-12
AA0018013 15 ft (4.57 m) RS-530 straight-through cable (50-pin to RS-530 plug) 6-14
AA0018023 15 ft (4.57 m) 50-pin to V.28 cable 6-16

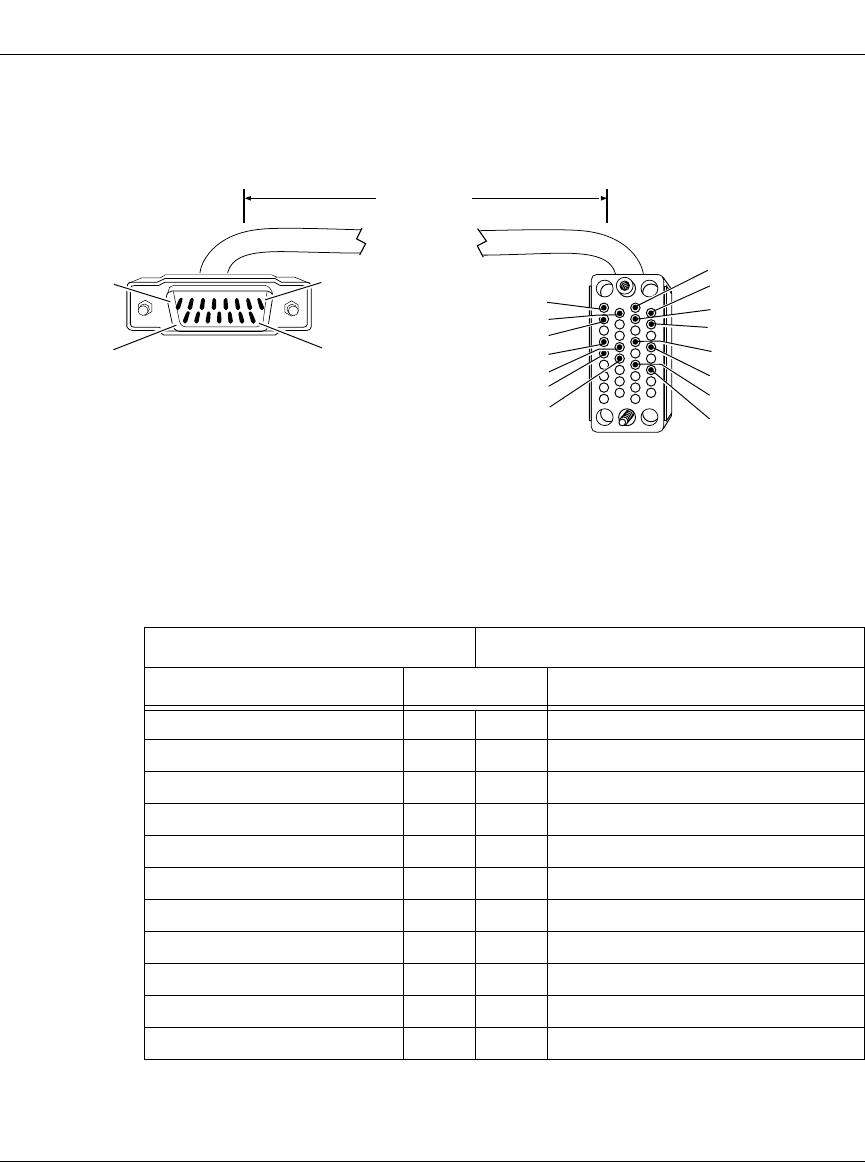

7158 10 ft (3.05 m) 15-pin to male V.35 plug 6-17

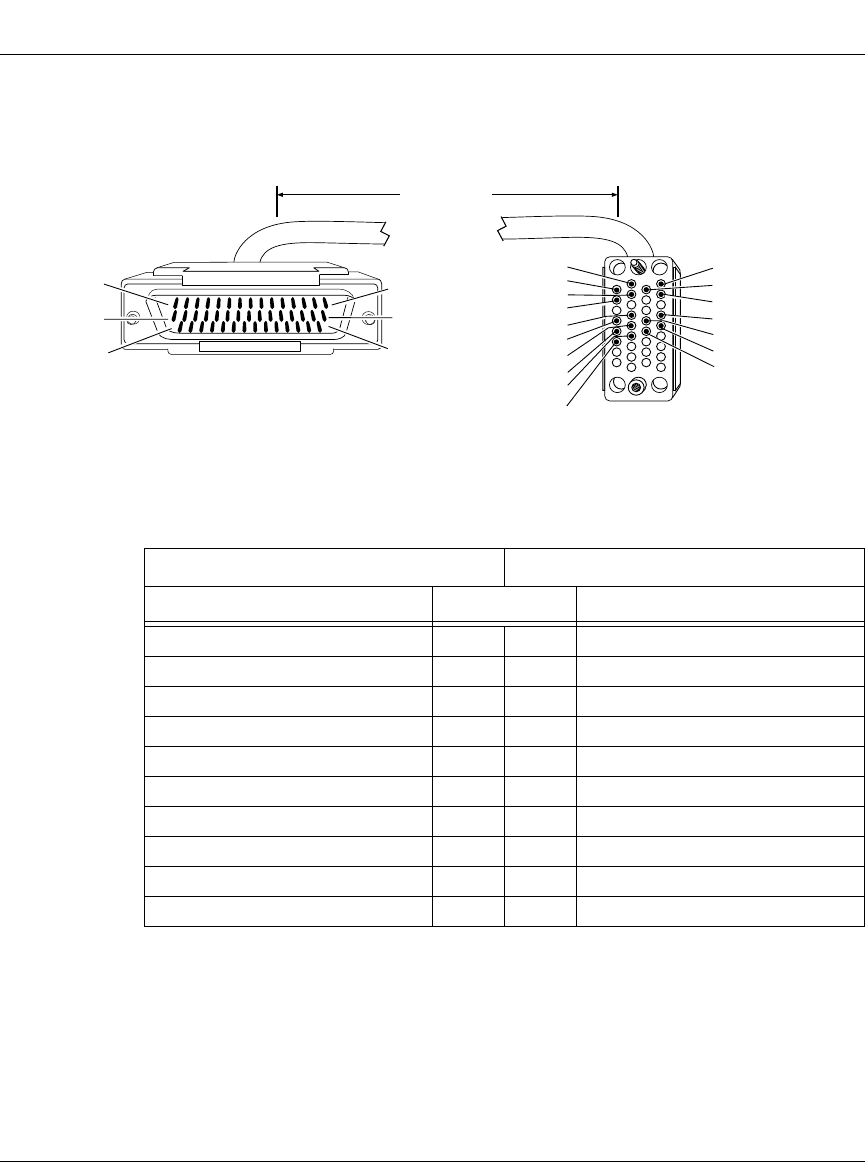

7159 10 ft (3.05 m) 44-pin to male V.35 plug 6-18
7215 15 ft (4.57 m) 15-pin D-sub plug to V.35 plug (no DTR; for WAN connection) 6-20
7216 15 ft (4.57 m) 15-pin D-sub plug to V.35 plug (with DTR) 6-22
7218 15 ft (4.57 m) RS-232 synchronous pass-through (15-pin D-sub plug to
RS-232 plug) 6-23
(continued)
Cable Guide
6-2 308604-14.10 Rev 01
7219 15 ft (4.57 m) V.35 synchronous pass-through (15-pin D-sub plug to V.35
plug) 6-24
7220 15 ft (4.57 m) 44-pin D-sub plug to V.35 plug (leased line or V.25bis; for WAN
connection) 6-26
7221 15 ft (4.57 m) 15-pin D-sub plug to X.21 plug (for WAN connection) 6-28
7224 15 ft (4.57 m) 44-pin D-sub plug to X.21 plug (for WAN connection) 6-29
7255 15 ft (4.57 m) 15-pin D-sub plug to RS-232 plug (for WAN connection) 6-30
7256 15 ft (4.57 m) 15-pin D-sub plug to V.28 plug (for WAN connection) 6-31
7260 15 ft (4.57 m) 15-pin to 15-pin synchronous crossover (for back-to-back
node operation) 6-32
7315 15 ft (4.57 m) 15-pin D-sub plug to RS-422 plug (for WAN connection) 6-34
7318 15 ft (4.57 m) 44-pin D-sub plug to RS-422 plug (leased line or V.25bis; for
WAN connection) 6-36
7826 15 ft (4.57 m) 44-pin D-sub plug to RS-232 plug (leased line or V.25bis; for
WAN connection) 6-38
7833 15 ft (4.57 m) RS-232 synchronous pass-through (44-pin D-sub plug to
RS-232 plug) 6-39
7834 15 ft (4.57 m) V.35 synchronous pass-through (44-pin D-sub plug to
V.35 plug) 6-40
7835 15 ft (4.57 m) Nortel Networks V.35 crossover (44-pin D-sub plug to
44-pin D-sub plug) 6-42
7836 15 ft (4.57 m) V.35 crossover (44-pin D-sub plug to 15-pin D-sub plug) 6-44
7837 15 ft (4.57 m) 44-pin D-sub plug to V.28 plug (for WAN connection) 6-46
7932 15 ft (4.57 m) 50-pin to V.35 plug 6-48
7934 15 ft (4.57 m) 50-pin to RS-232 6-50
7936 15 ft (4.57 m) 50-pin to X.21 6-51
7937 15 ft (4.57 m) 50-pin to RS-422 6-52
7938 15 ft (4.57 m) 50-pin to 50-pin crossover 6-54
7939 15 ft (4.57 m) 50-pin to 15-pin crossover 6-56
7940 15 ft (4.57 m) 50-pin to 44-pin crossover 6-58
7941 15 ft (4.57 m) 15-pin to female RS-232 synchronous pass-through 6-60
7942 15 ft (4.57 m) 15-pin to female V.35 synchronous pass-through 6-61
(continued)
Table 6-1. Standard Synchronous Cables
(continued)
Order No. Length Physical Cable Description Page
Standard Synchronous Cables
308604-14.10 Rev 01 6-3
If you need to order additional cables, contact the Nortel Networks Technical
Solutions Center in your area. (See “How to Get Help” in the preface.)
The following sections include:
• Cable illustrations with the Nortel Networks connector on the left and the
remote connector on the right
• Cable length information
If you want to build a cable, and you want to determine the maximum cable
length appropriate for each of your interconnection requirements, you should:
-- Identify in this chapter a cable that satisfies your wiring requirement (with
the exception of total cable length).
-- Consult the networking industry specification, standard, or
recommendation designated in the “Industry Interface Type” entry for that
cable (located immediately following the cable pinout diagram).
• Pinouts for each connector and all associated signals
• Wire jumper identification for each connector (when applicable)
For example, the Sync to V.35 cable (Order No. 7215) lists internal wire
connections (Pin 1 > 7) in the Nortel Networks Termination column. This
indicates that you must connect pin 1 to pin 7 inside the Nortel Networks
connector.
• Grounding arrangements that isolate the chassis from the DC ground within
the cable
7943 15 ft (4.57 m) 44-pin to female RS-232 synchronous pass-through 6-62
7944 15 ft (4.57 m) 44-pin to female V.35 synchronous pass-through 6-63
7945 15 ft (4.57 m) 50-pin to female RS-232 synchronous pass-through 6-65
7946 15 ft (4.57 m) 50-pin to female V.35 synchronous pass-through 6-66
Table 6-1. Standard Synchronous Cables
(continued)
Order No. Length Physical Cable Description Page
Cable Guide
6-4 308604-14.10 Rev 01

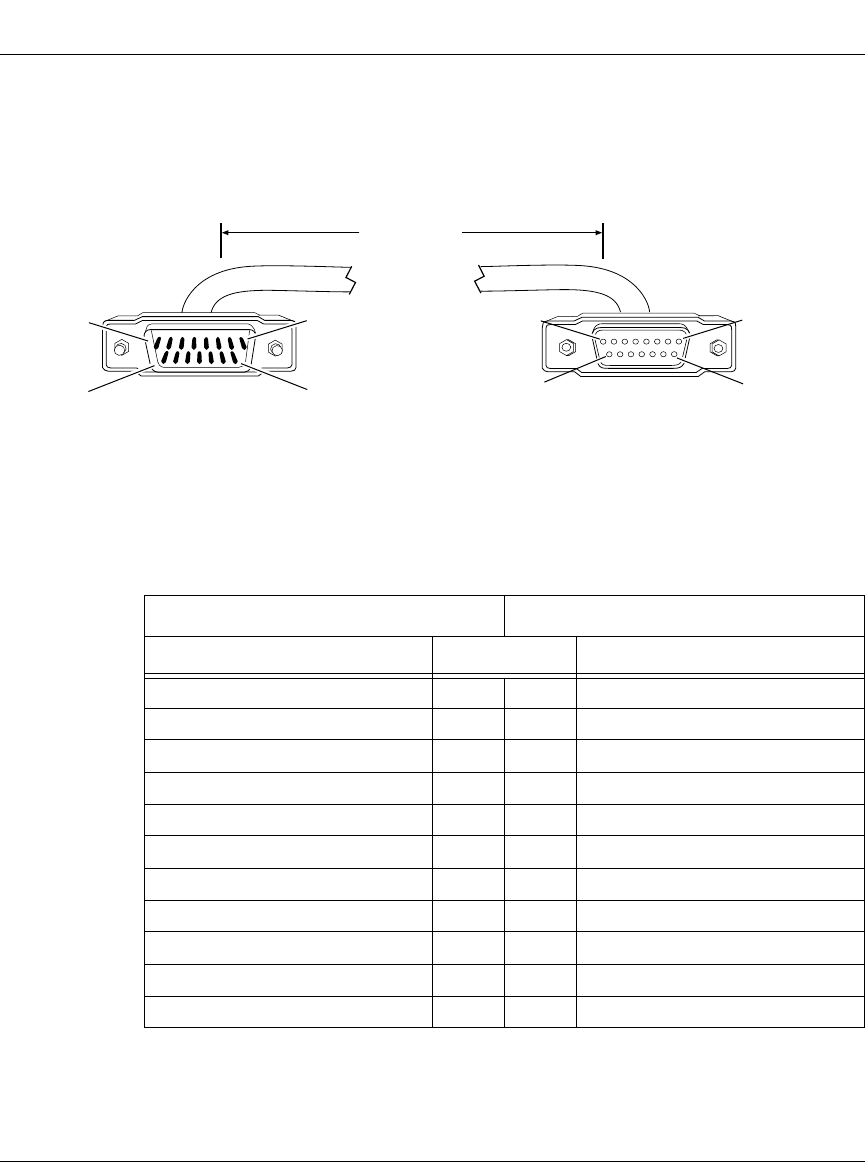

15-Pin to F X.21 Synchronous Pass-Through
(Order No. AA0018003)
Industry Interface Type: X.21
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Transmit Data + 2 4 Receive Data A
Transmit Data - 3 11 Receive Data B
Timing + 4 6 Timing A
Timing - 5 13 Timing B
Request to Send + 6 5 Indication A
Data Carrier Detect - 9 10 Control B
Data Carrier Detect + 10 3 Control A
Receive Data - 13 9 Transmitted Data B
Receive Data + 14 2 Transmitted Data A
Request to Send - 15 12 Indication B
Frame Ground 1 1 Frame Ground
(continued)
15 ft
(4.57 m)
Pin 8
Pin 1
Pin 15
Pin 9
15-position D-sub plug with locking posts
(ground shield connected to backshell)
Pin 1
Pin 8
Pin 9
Pin 15
15-position D-sub receptacle with M-3 screw posts
(ground shield connected to backshell)
CAB0089A
Standard Synchronous Cables
308604-14.10 Rev 01 6-5
Internal Wire Connections
Pin 6 > 7 (X A)
Pin 13 > 14 (X B)
Note: You must move Jumpers A-E to the X.21 (2-3) position to support this
interface.
Nortel Networks Termination Remote Termination
Cable Guide
6-6 308604-14.10 Rev 01

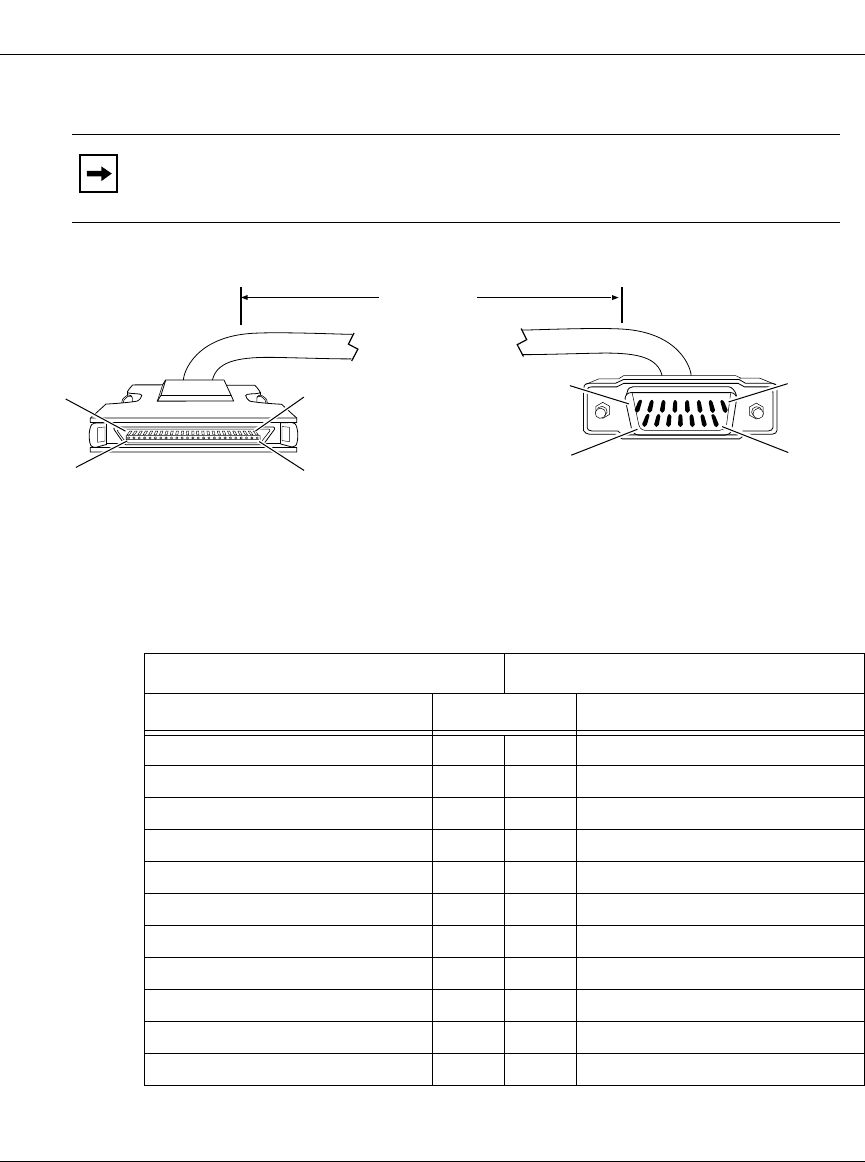

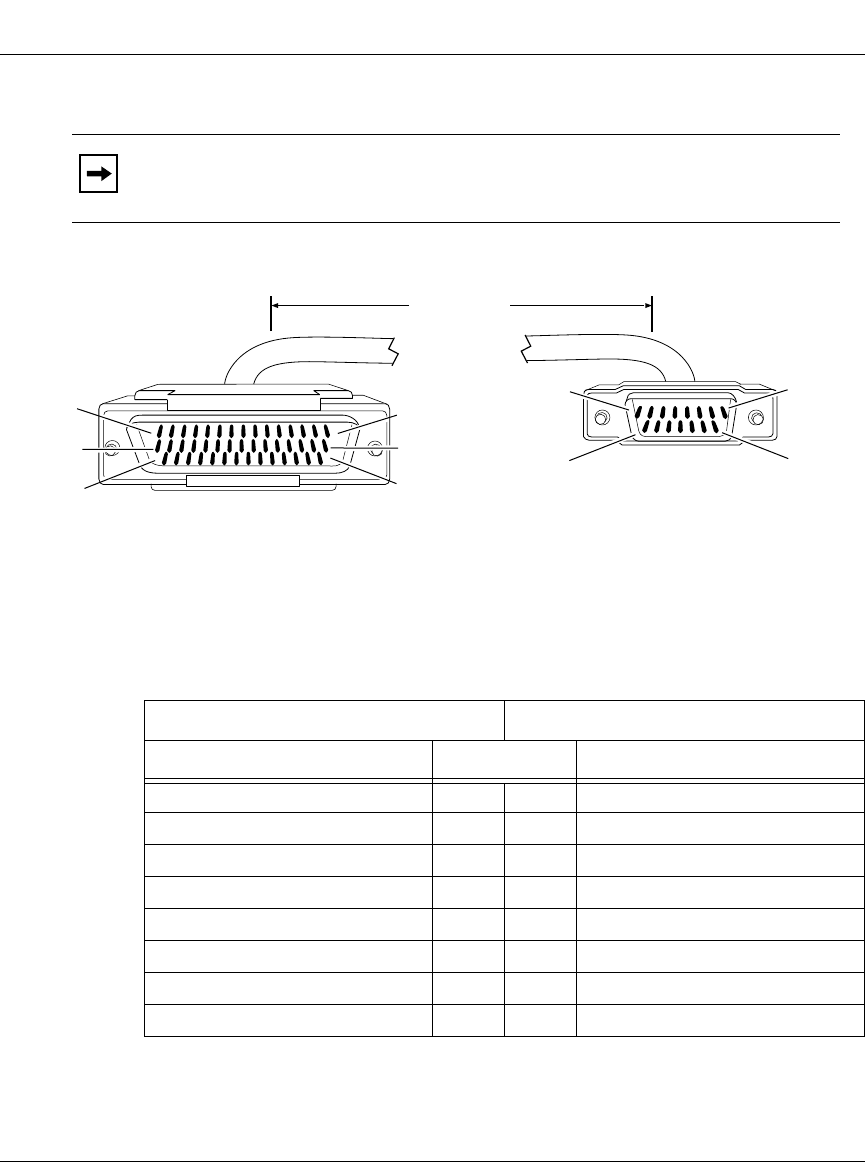

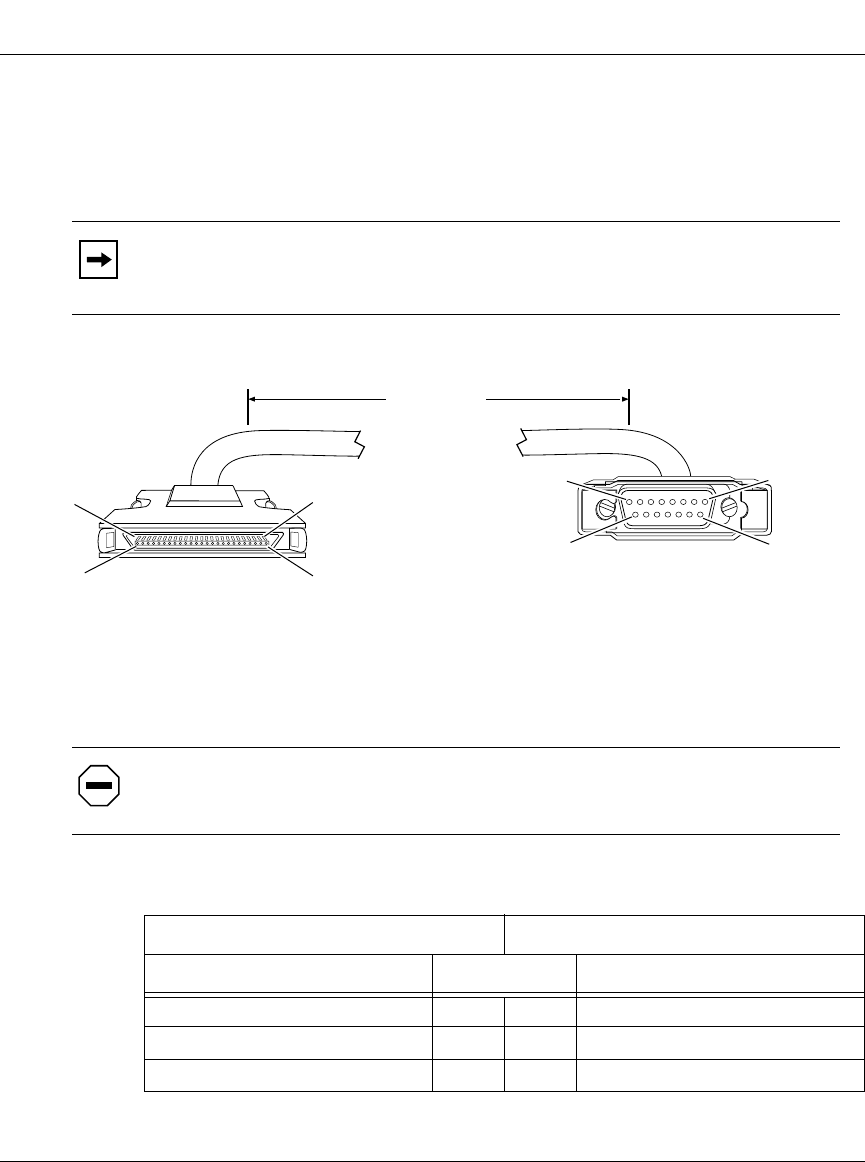

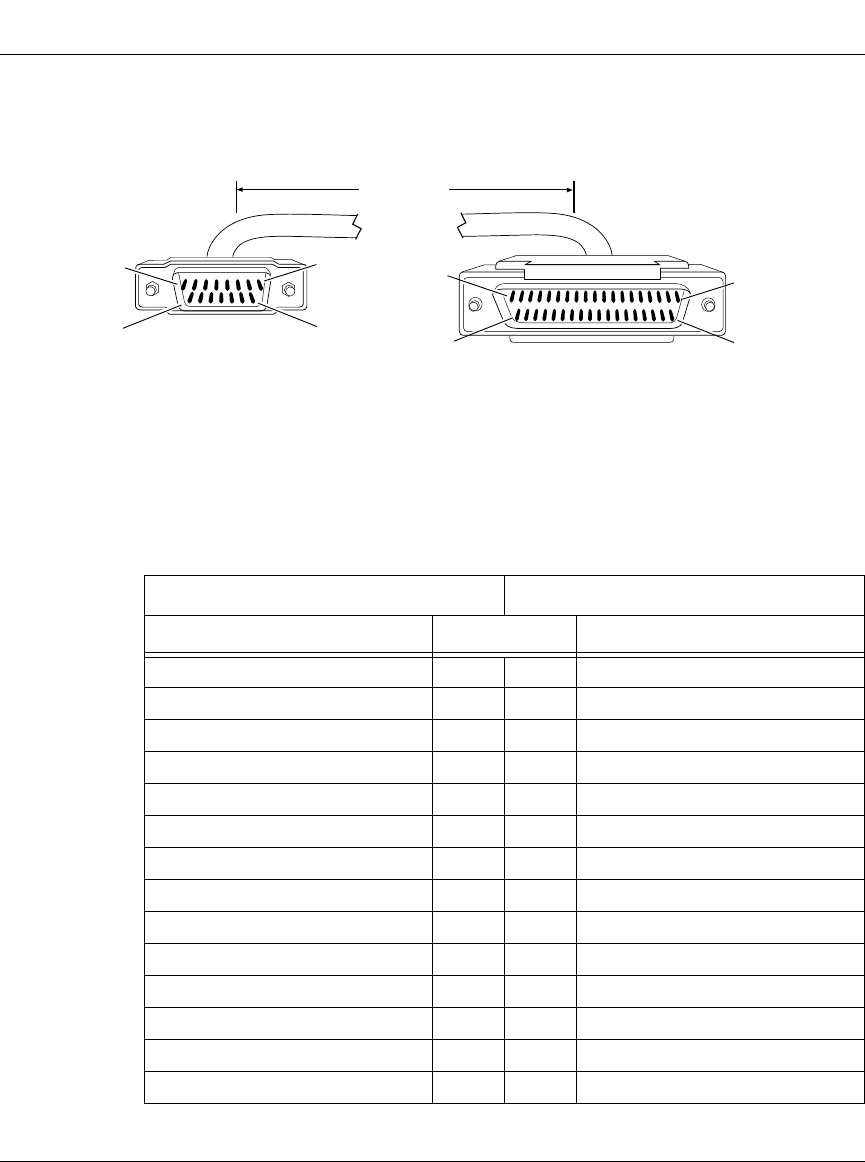

44-Pin F X.21 Synchronous Pass-Through
(Order No. AA0018004)
Industry Interface Type: X.21
Note: This cable provides you with a female termination as a DCE device.
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Send Data + 2 4 Receive Data A
Send Data - 16 11 Receive Data B
Receive Data + 3 2 Transmitted Data A
Receive Data - 17 9 Transmitted Data B
Request to Send + 4 5 Indication A
Request to Send - 18 12 Indication B
(continued)
15 ft
(4.57 m)
Pin 1
Pin 16
Pin 31
Pin 15
Pin 30
Pin 44
44-position D-sub plug with screw locks
(ground shield connected to backshell)
Pin 1
Pin 8
Pin 9
Pin 15
15-position D-sub receptacle with M-3 screw posts
(ground shield connected to backshell)
CAB0090A
Standard Synchronous Cables
308604-14.10 Rev 01 6-7
Data Carrier Detect + 9 3 Control A
Data Carrier Detect - 23 10 Control B
Transmitter Timing + 12 6 Timing A
Transmitter Timing - 26 13 Timing B
Frame Ground 1 1 Frame Ground
Signal Ground 7 8 Signal Ground
Internal Wire Connections
Pin 12 > 10 (ST+) Pin 6 > 7 (X A)
Pin 26 > 24 (ST-) Pin 13 > 14 (X B)
Pin 14 > 15
Pin 28 > 30
Pin 41 > 43
Nortel Networks Termination Remote Termination
Cable Guide
6-8 308604-14.10 Rev 01

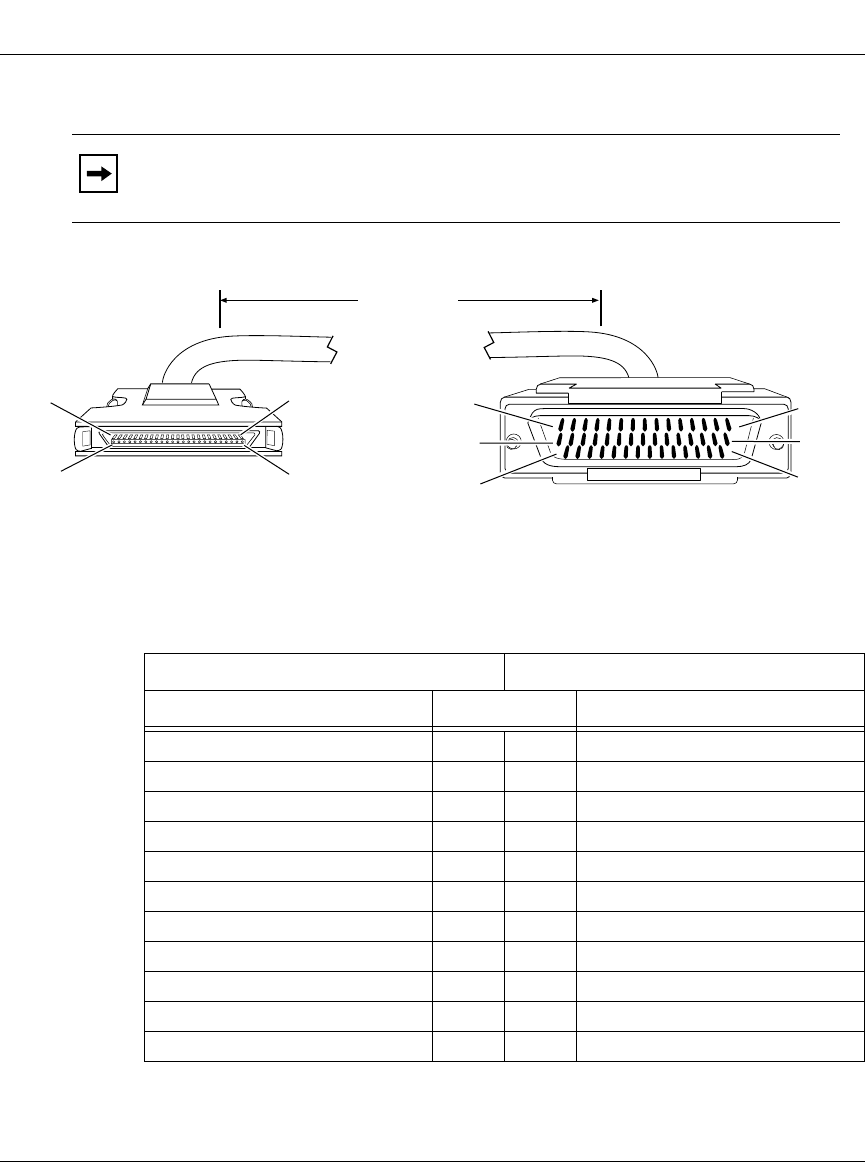

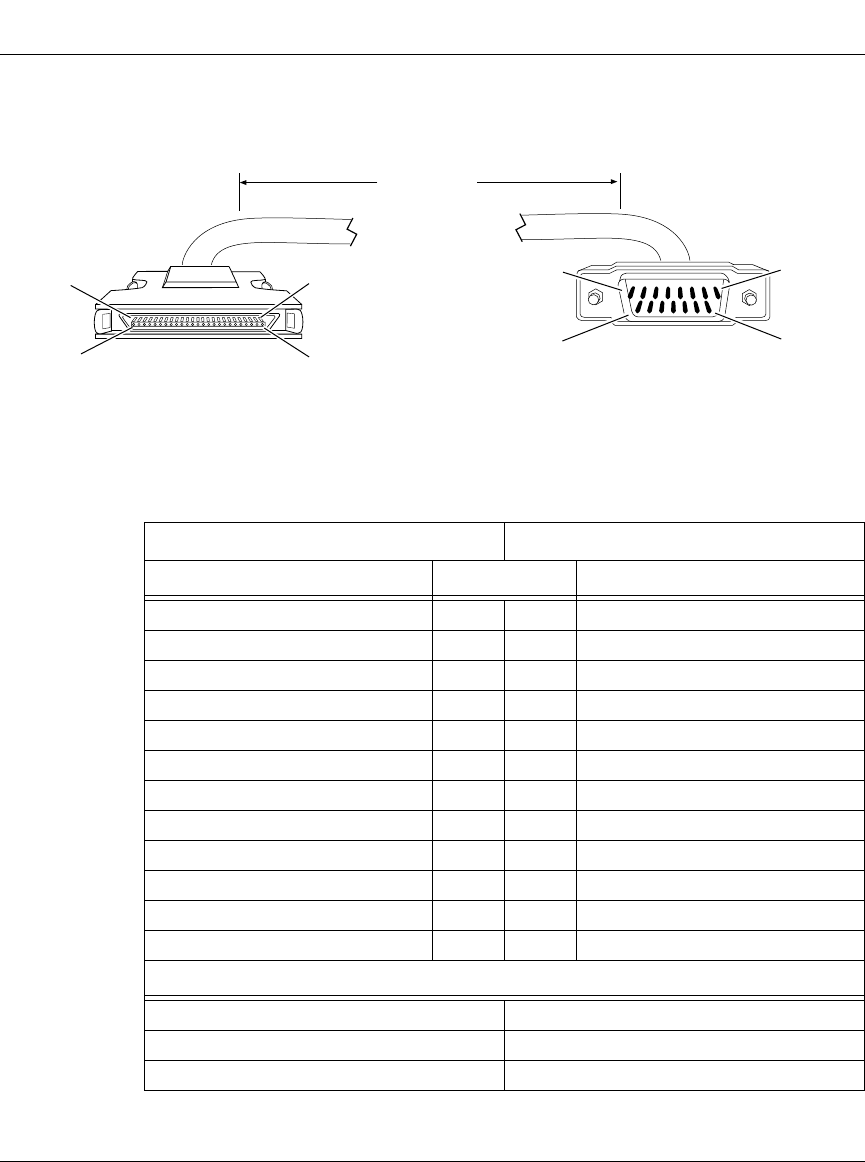

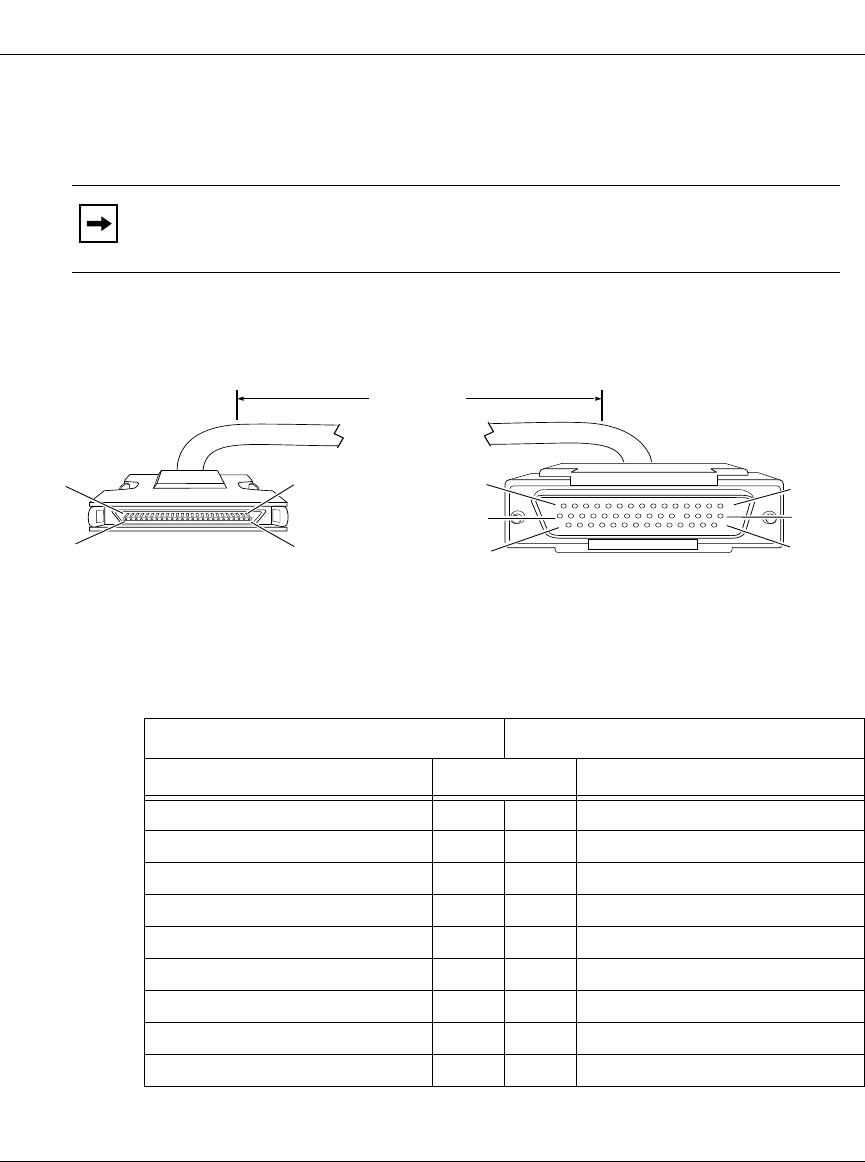

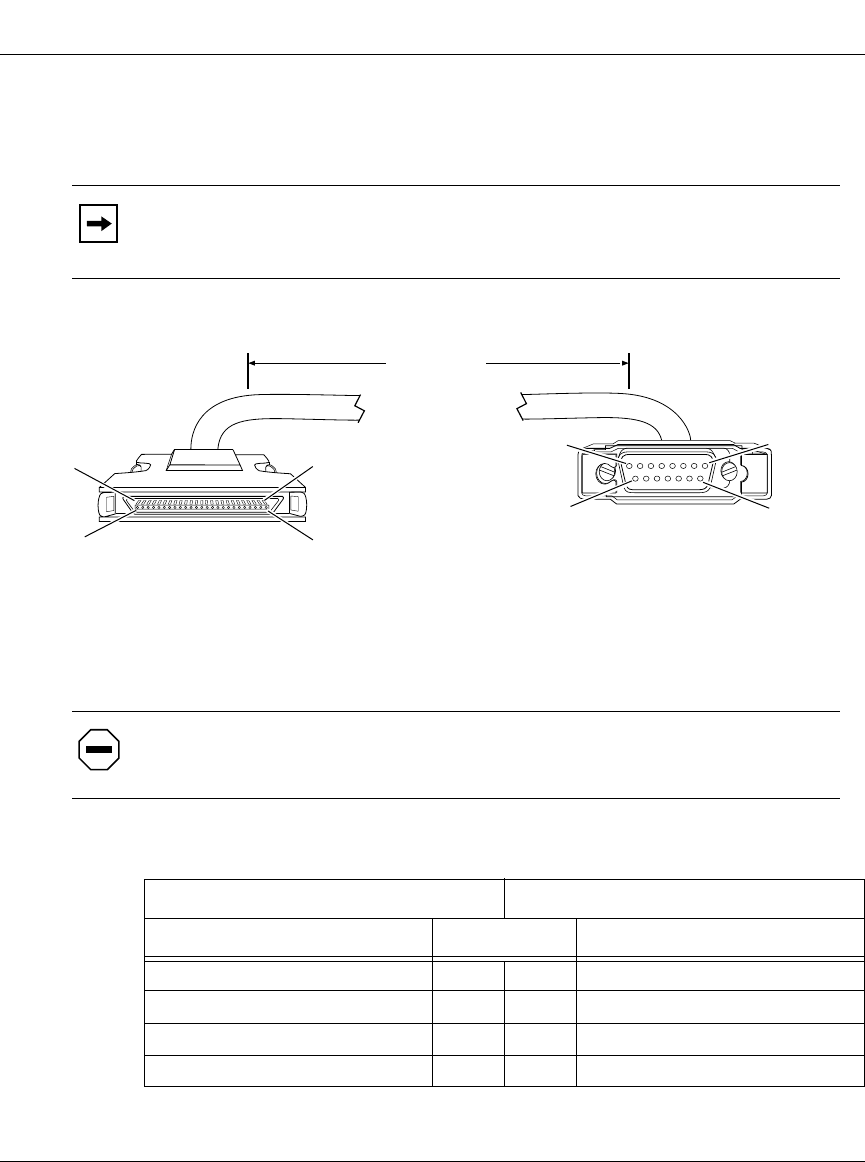

50-Pin to F X.21 Synchronous Pass-Through
(Order No. AA0018005)
Industry Interface Type: X.21
Note: This cable provides you with a female termination as a DCE device.
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Send Data + 2 4 Receive Data A
Send Data - 27 11 Receive Data B
Receive Data + 3 2 Transmitted Data A
Receive Data - 28 9 Transmitted Data B
Request to Send + 4 5 Indication A
Request to Send - 29 12 Indication B
Data Carrier Detect + 9 3 Control A
Data Carrier Detect - 34 10 Control B
(continued)
CAB0091A
15 ft
(4.57 m)
Pin 1 Pin 25
Pin 26 Pin 50
50-position 0.8-mm plug
(ground shield connected to internal shell)
Pin 1
Pin 8
Pin 9
Pin 15
15-position D-sub receptacle with M-3 screw posts
(ground shield connected to backshell)
Standard Synchronous Cables
308604-14.10 Rev 01 6-9
Transmitter Timing + 12 6 Timing A
Transmitter Timing - 37 13 Timing B
Frame Ground 1 1 Frame Ground
Signal Ground 7 8 Signal Ground
Internal Wire Connections
Pin 12 > 10 (ST+) Pin 6 > 7 (X A)
Pin 37 > 35 (ST-) Pin 13 > 14 (X B)
Pin 14 > 15
Pin 38 > 40
Pin 46 > 48
Nortel Networks Termination Remote Termination
Cable Guide
6-10 308604-14.10 Rev 01

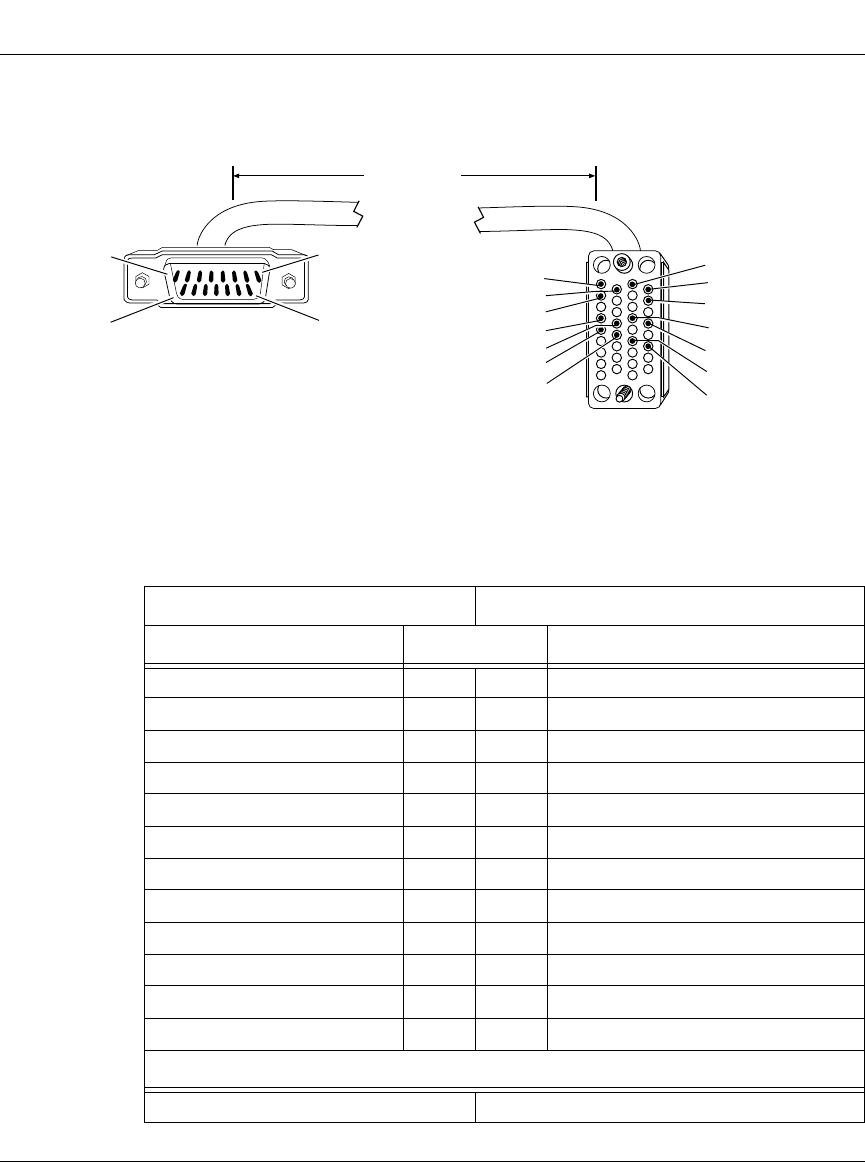

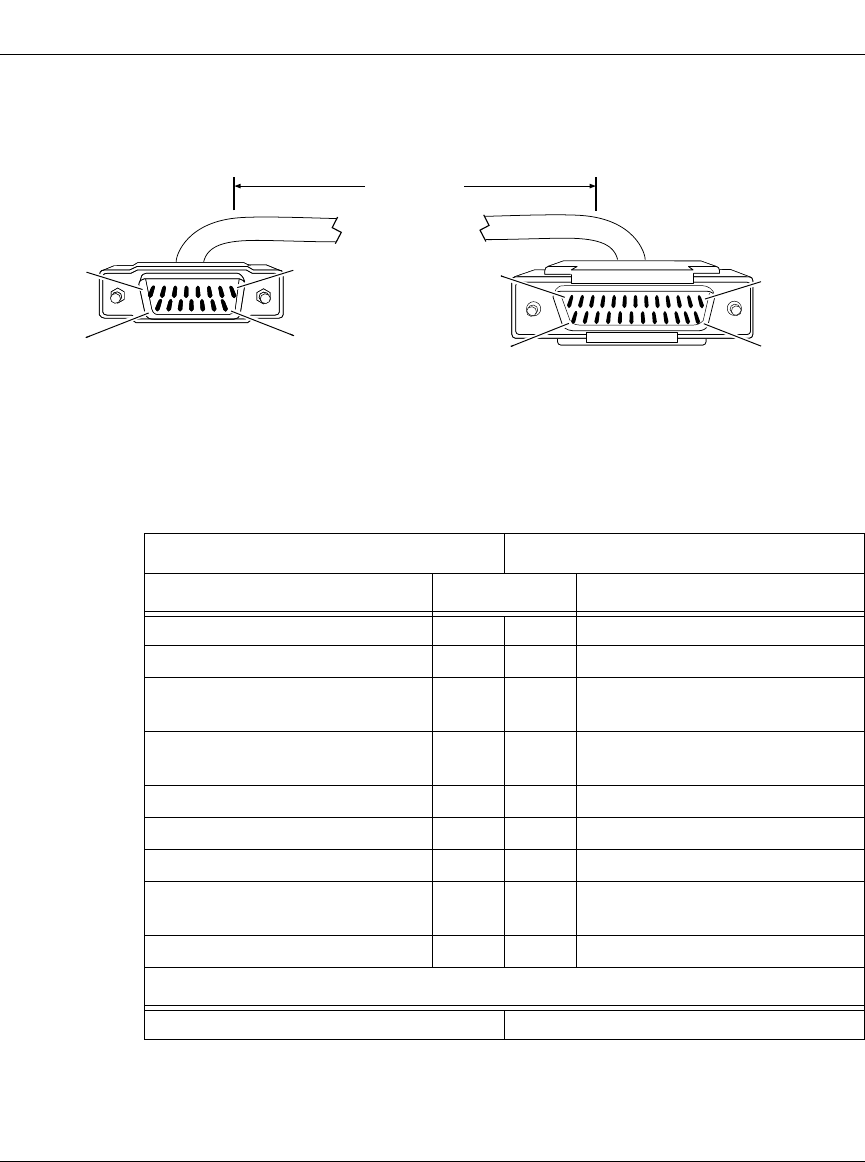

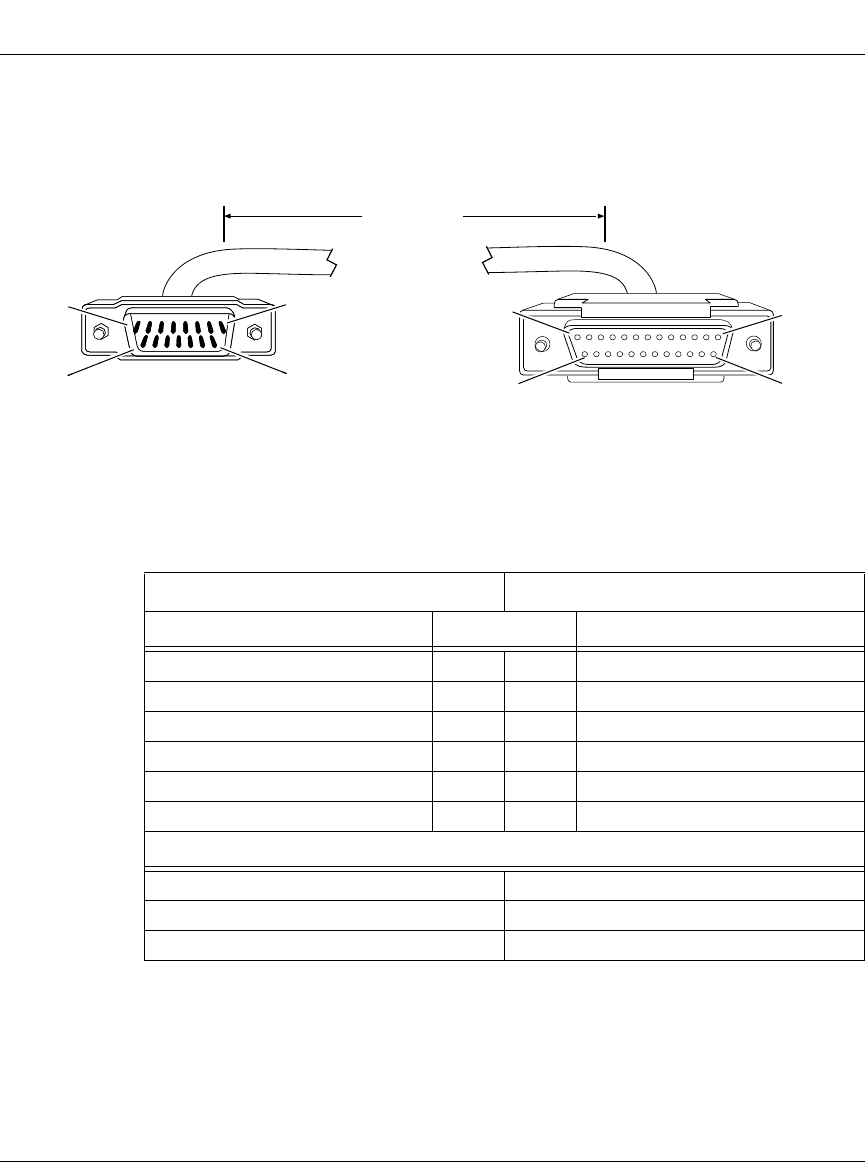

15-Pin to RS-530 Straight-Through (Order No. AA0018011)
Industry Interface Type: RS-530
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Send Data + 2 2 Transmitted Data A
Send Data - 3 14 Transmitted Data B
Receive Data + 14 3 Receive Data A
Receive Data - 13 16 Receive Data B
Request to Send + 6 4 Request to Send A
Request to Send - 15 19 Request to Send B
Clear to Send + 8 5 Clear to Send A
Clear to Send - 7 13 Clear to Send B
Data Carrier Detect + 10 8 Receive Line Signal Detect A
Data Carrier Detect - 9 10 Receive Line Signal Detect B
(continued)
15 ft
(4.57 m)
Pin 13
Pin 1
Pin 25
Pin 14
25-position D-sub plug with screw locks
(ground shield connected to backshell)
Pin 8
Pin 1
Pin 15
Pin 9
15-position D-sub plug with locking posts
(ground shield connected to backshell)
CAB0093A
Standard Synchronous Cables
308604-14.10 Rev 01 6-11
Send Timing + 4 15 Transmitter Signal Element Timing
(DCE) A
Send Timing - 5 12 Transmitter Signal Element Timing
(DCE) B
Receive Timing + 12 17 Receiver Signal Element Timing
(DCE) A
Receive Timing - 11 9 Receiver Signal Element Timing
(DCE) B
Signal Ground 1 7 Signal Ground
Note: You must move jumpers B and C to the X.21 (2-3) position to support
this interface.
Nortel Networks Termination Remote Termination
Cable Guide
6-12 308604-14.10 Rev 01

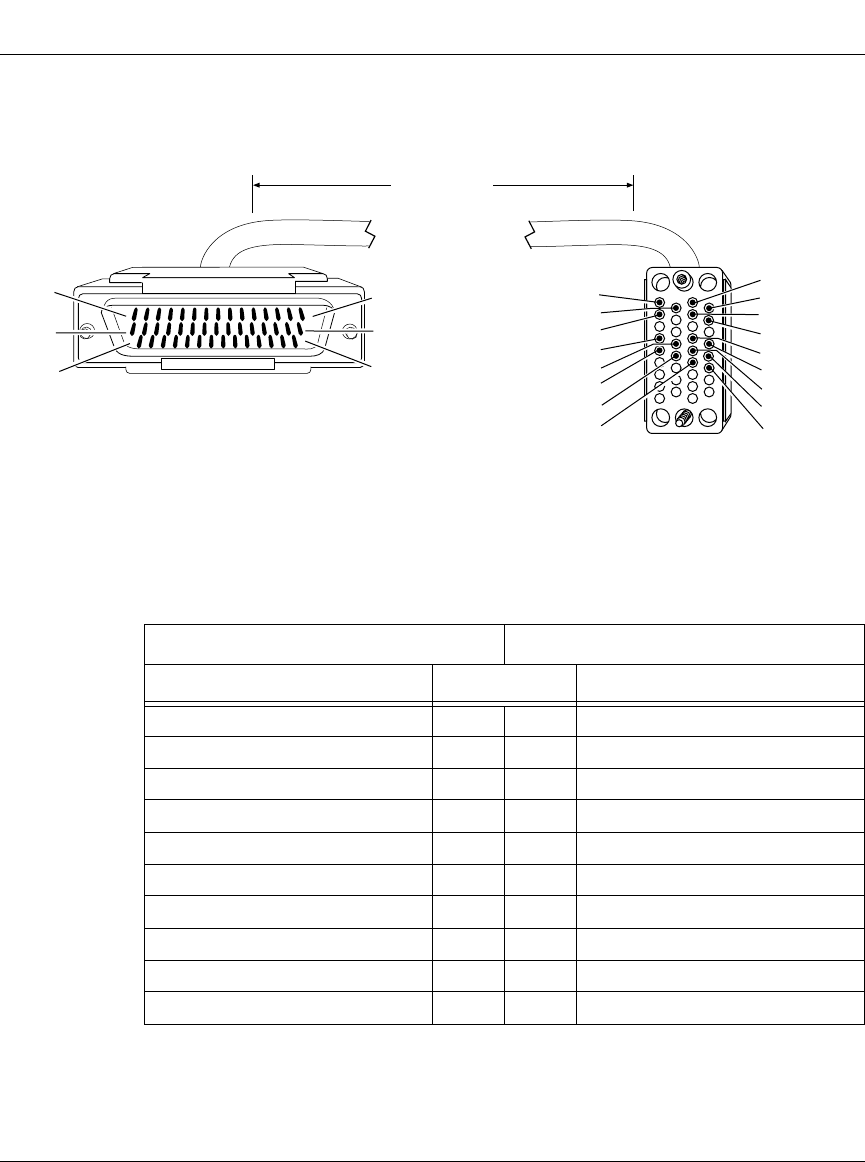

44-Pin to RS-530 Straight-Through (Order No. AA0018012)
Industry Interface Type: RS-530
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Send Data + 2 2 Transmitted Data A
Send Data - 16 14 Transmitted Data B
Receive Data + 3 3 Receive Data A
Receive Data - 17 16 Receive Data B
Request to Send + 4 4 Request to Send A
Request to Send - 18 19 Request to Send B
Clear to Send + 5 5 Clear to Send A
Clear to Send - 19 13 Clear to Send B
Data Set Ready + 6 6 DCE Ready A
Data Set Ready - 20 22 DCE Ready B
Data Terminal Ready + 8 20 DTE Ready A
Data Terminal Ready - 22 23 DTE Ready B
Data Carrier Detect + 9 8 Receive Line Signal Detect A
Data Carrier Detect - 23 10 Receive Line Signal Detect B
Send Timing + 10 15 Transmitter Signal Element Timing
(DCE) A
(continued)
15 ft
(4.57 m)
Pin 1
Pin 16
Pin 31
Pin 15
Pin 30
Pin 44
44-position D-sub plug with screw locks
(ground shield connected to backshell)
Pin 13
Pin 1
Pin 25
Pin 14
25-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0094A
Standard Synchronous Cables
308604-14.10 Rev 01 6-13
Send Timing - 24 12 Transmitter Signal Element Timing
(DCE) B
Signal Pin # to Pin # Signal
Receive Timing + 11 17 Receiver Signal Element Timing
(DCE) A
Receive Timing - 25 9 Receiver Signal Element Timing
(DCE) B
Transmitter Timing + 12 24 Transmitter Signal Element Timing
(DTE) A
Transmitter Timing - 26 11 Transmitter Signal Element Timing
(DTE) B
Signal Ground 7 7 Signal Ground
Internal Wire Connections
Pin 13 > 28
Pin 14 > 29
Pin 41 > 43
Nortel Networks Termination Remote Termination
Cable Guide
6-14 308604-14.10 Rev 01

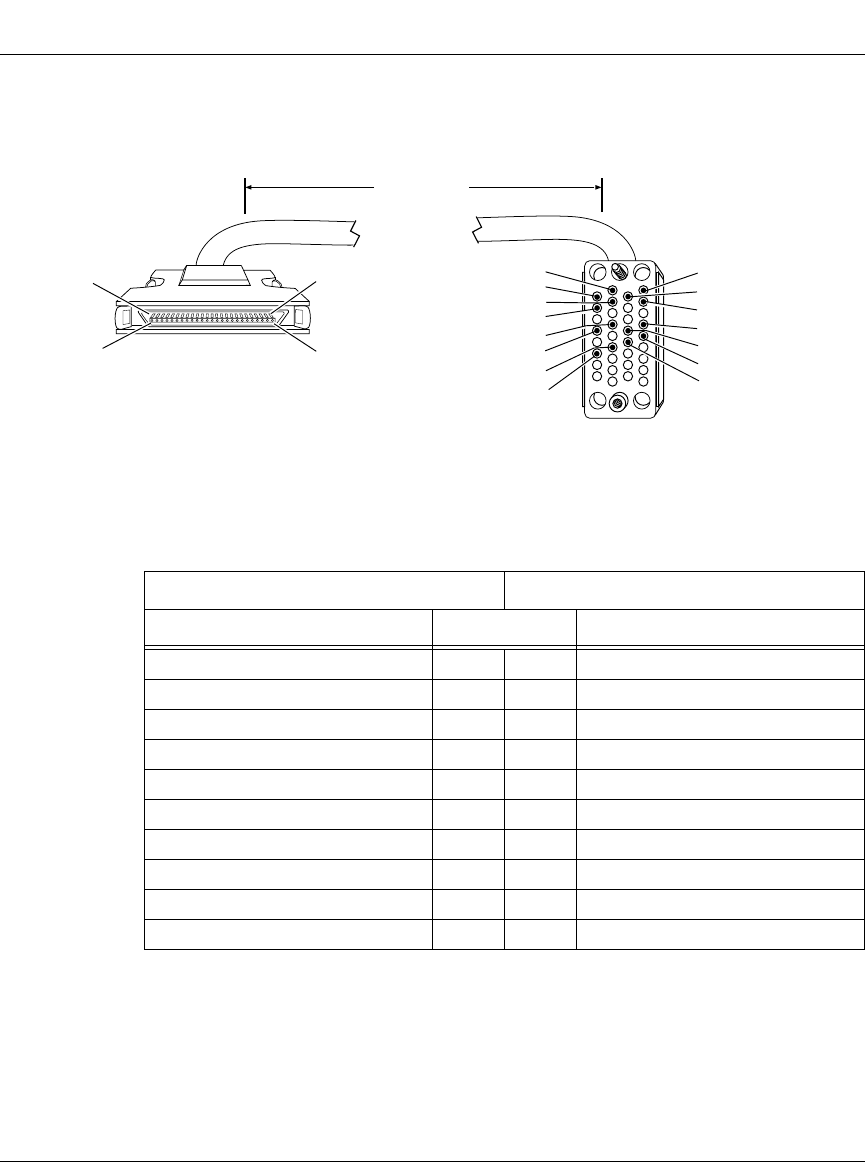

50-Pin to RS-530 Straight-Through (Order No. AA0018013)
Industry Interface Type: RS-530
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Send Data + 2 2 Transmitted Data A
Send Data - 27 14 Transmitted Data B
Receive Data + 3 3 Receive Data A
Receive Data - 28 16 Receive Data B
Request to Send + 4 4 Request to Send A
Request to Send - 29 19 Request to Send B
Clear to Send + 5 5 Clear to Send A
Clear to Send - 30 13 Clear to Send B
Data Set Ready + 6 6 DCE Ready A
Data Set Ready - 31 22 DCE Ready B
Data Terminal Ready + 8 20 DTE Ready A
Data Terminal Ready - 33 23 DTE Ready B
Data Carrier Detect + 9 8 Receive Line Signal Detect A
Data Carrier Detect - 34 10 Receive Line Signal Detect B
Send Timing + 10 15 Transmitter Signal Element Timing
(DCE) A
(continued)
15 ft
(4.57 m)
Pin 13
Pin 1
Pin 25
Pin 14
25-position D-sub plug with screw locks
(ground shield connected to backshell)
Pin 1 Pin 25
Pin 26 Pin 50
50-position 0.8-mm plug
(ground shield connected to internal shell)
CAB0095A
Standard Synchronous Cables
308604-14.10 Rev 01 6-15
Send Timing - 35 12 Transmitter Signal Element Timing
(DCE) B
Signal Pin # to Pin # Signal
Receive Timing + 11 17 Receiver Signal Element Timing
(DCE) A
Receive Timing - 36 9 Receiver Signal Element Timing
(DCE) B
Transmitter Timing + 12 24 Transmitter Signal Element Timing
(DTE) A
Transmitter Timing - 37 11 Transmitter Signal Element Timing
(DTE) B
Signal Ground 7 7 Signal Ground
Internal Wire Connections
Pin 13 > 38
Pin 14 > 39
Pin 46 > 48
Nortel Networks Termination Remote Termination
Cable Guide
6-16 308604-14.10 Rev 01

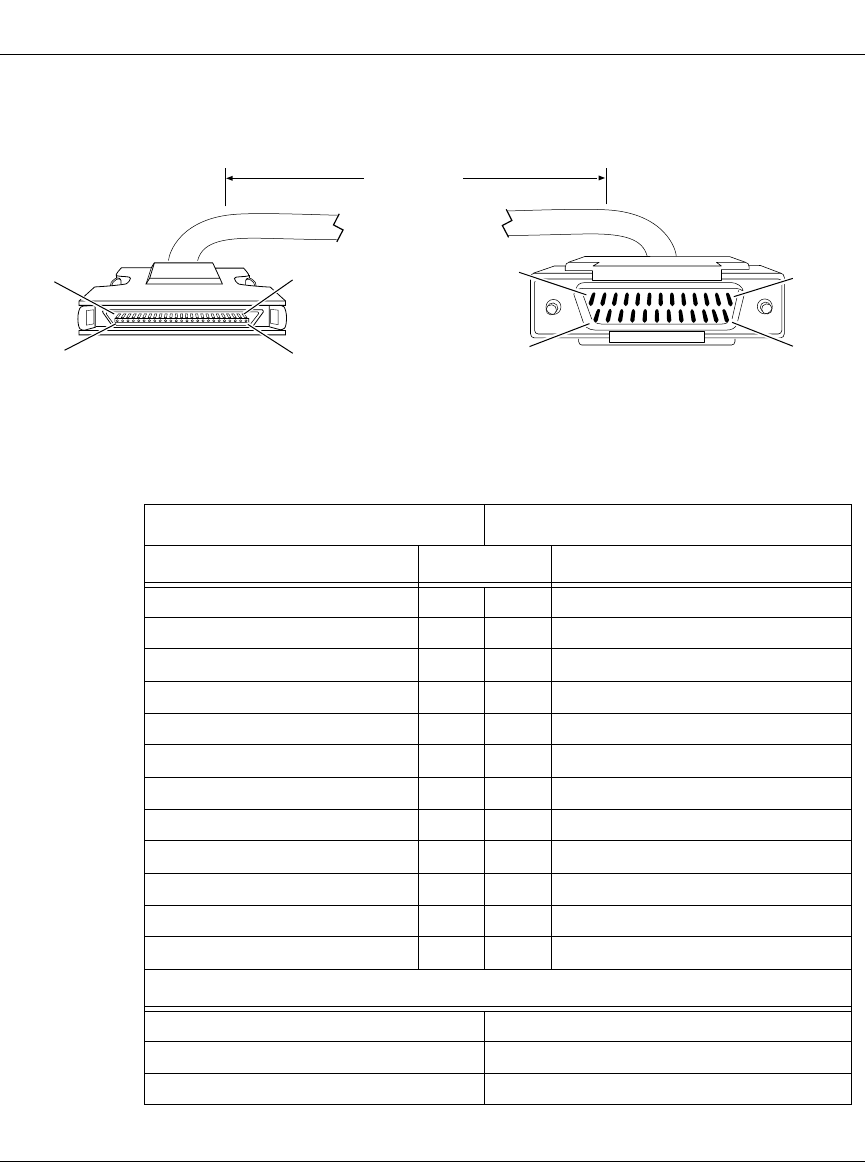

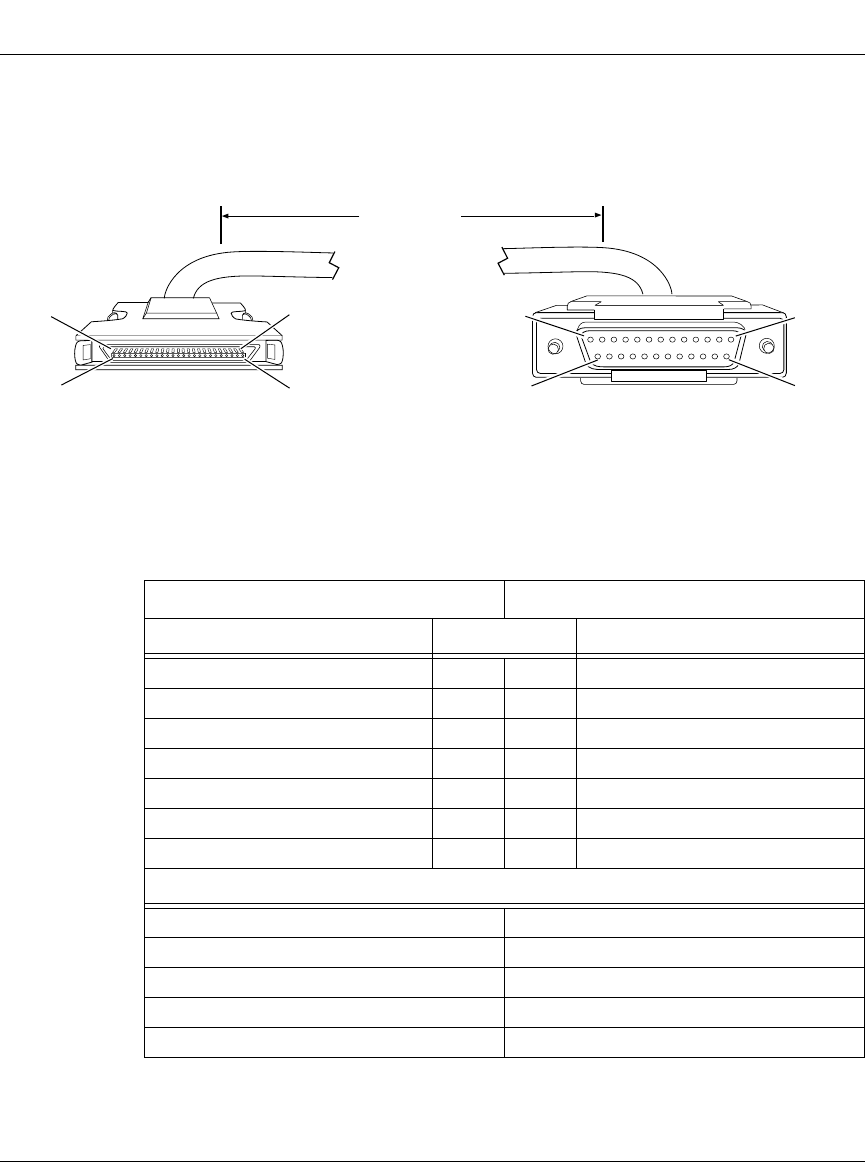

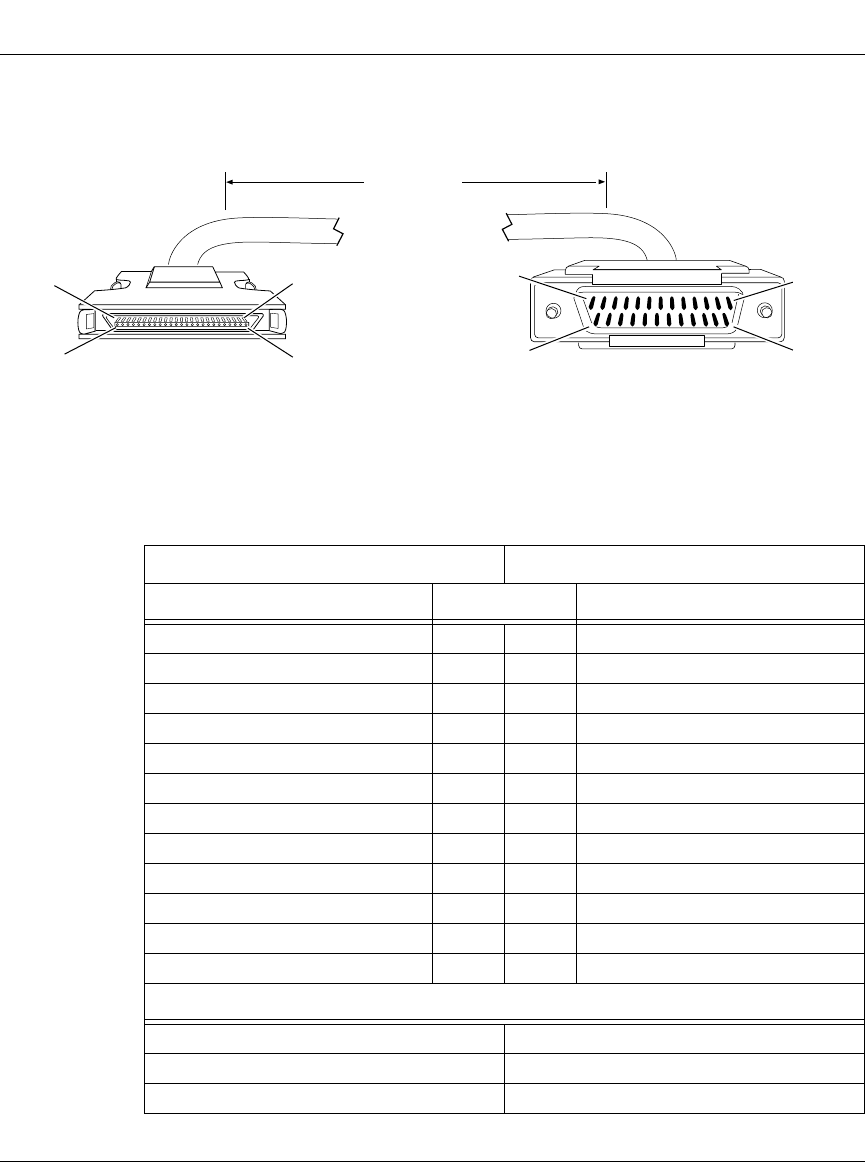

50-Pin to V.28 Cable (Order No. AA0018023)
Industry Interface Type: V.28 (V.10)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Frame Ground 1 1 Frame Ground
Send Data + 2 2 Send Data
Receive Data + 3 3 Receive Data
Request to Send + 4 4 Request to Send
Clear to Send + 5 5 Clear to Send
Data Set Ready + 6 6 Data Set Ready
Signal Ground 7 7 Signal Ground
Data Terminal Ready + 8 20 Data Terminal Ready
Data Carrier Detect + 9 8 Data Carrier Detect
Send Timing + 10 15 Send Timing
Receive Timing + 11 17 Receive Timing
Terminal Timing + 12 24 Terminal Timing
Internal Wire Connections
Pin 7 > 30 > 31
Pin 13 > 38
Pin 14 > 39
15 ft
(4.57 m)
Pin 13
Pin 1
Pin 25
Pin 14
25-position D-sub plug with M-3 jack screws
(ground shield connected to backshell)
Pin 1 Pin 25
Pin 26 Pin 50
50-position 0.8-mm plug
(ground shield connected to internal shell)
CAB0103A
Standard Synchronous Cables
308604-14.10 Rev 01 6-17

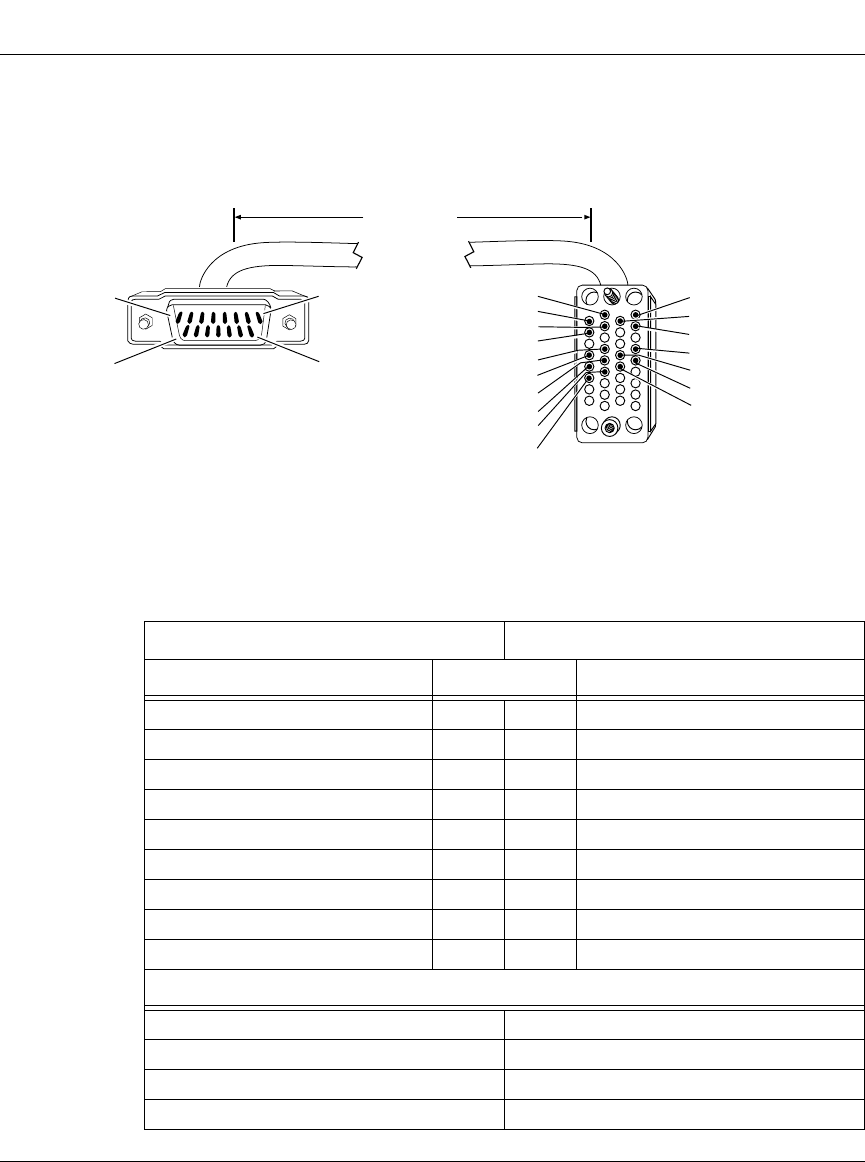

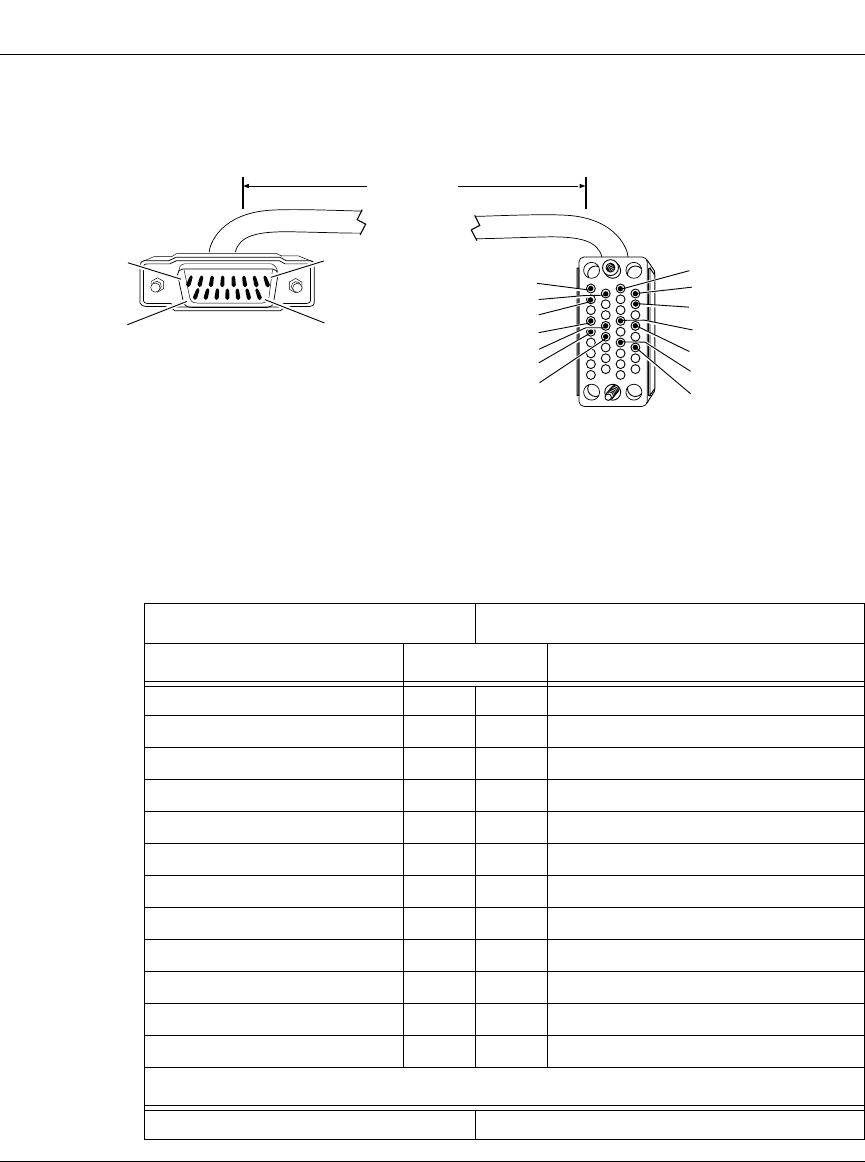

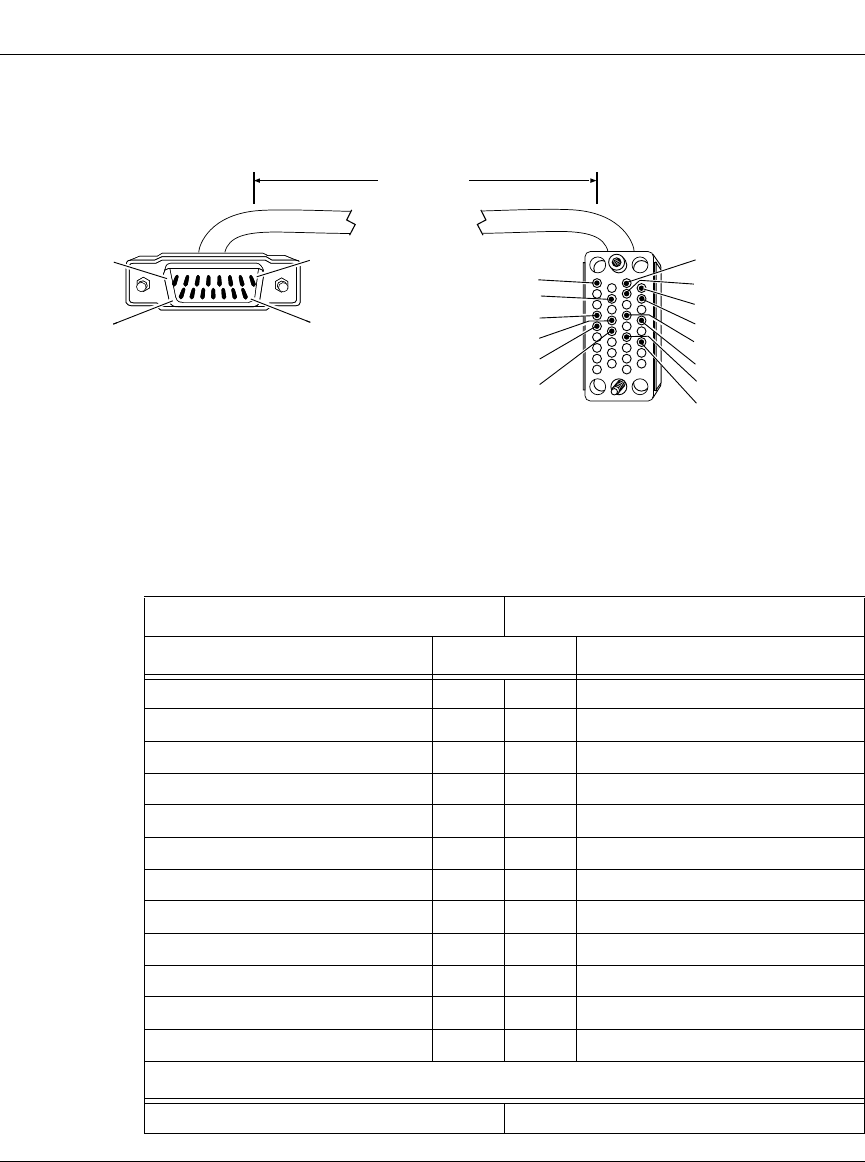

15-Pin to V.35M (Order No. 7158)
Industry Interface Type: V.35 (V.10 and V.11)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Signal Ground 1 B Signal Ground
Send Data + 2 P Send Data (Signal A)
Send Data - 3 S Send Data (Signal B)
Serial Clock Transmit + 4 Y Serial Clock Transmit (Signal A)
Serial Clock Transmit - 5 AA Serial Clock Transmit (Signal B)
Request to Send + 6 C Request to Send
Clear to Send + 8 D Clear to Send
Data Carrier Detect + 10 F Data Carrier Detect
Serial Clock Receive - 11 X Serial Clock Receive (Signal B)
Serial Clock Receive + 12 V Serial Clock Receive (Signal A)
Receive Data - 13 T Receive Data (Signal B)
Receive Data + 14 R Receive Data (Signal A)
Internal Wire Connections
Pin 1 > 7Pin C
> H
Pin 8
Pin 1
Pin 15
Pin 9
10 ft
(3.05 m)
A
C
H
P
S
Y
AA
B
D
F
R
T
V
X
15-position D-sub plug with locking posts
(ground shield connected to backshell)
34-position V.35 plug with screw jack retainers
(ground shield connected to backshell)
CAB0030A
Cable Guide
6-18 308604-14.10 Rev 01

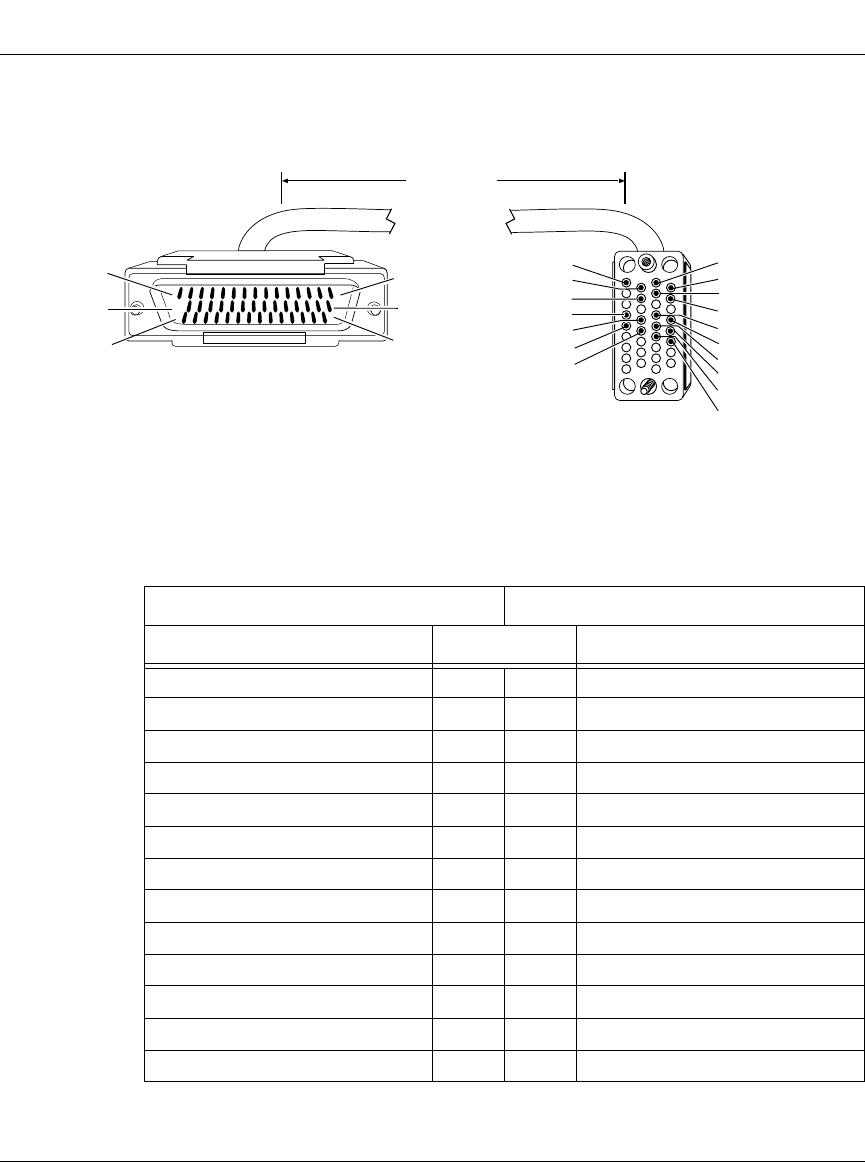

44-Pin to V.35M (Order No. 7159)
Industry Interface Type: V.35 (V.10 and V.11)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Frame Ground 1 A Frame Ground
Request to Send + 4 C Request to Send
Clear to Send + 5 D Clear to Send
Data Set Ready + 6 E Data Set Ready
Data Terminal Ready + 8 H Data Terminal Ready
Data Carrier Detect + 9 F Data Carrier Detect
VTT + 40 U Terminal Timing A
VTT - 39 W Terminal Timing B
Signal Ground 19 B Signal Ground
VST + 32 Y Send Timing A
VST - 31 AA Send Timing B
VRT + 34 V Receive Timing A
VRT - 33 X Receive Timing B
(continued)
10 ft
(3.05 m)
Pin 1
Pin 16
Pin 31
Pin 15
Pin 30
Pin 44
B
D
F
R
T
V
X
A
C
E
H
P
S
U
W
Y
AA
44-position D-sub plug with screw locks
(ground shield connected to backshell)
34-position V.35 plug with screw jack retainers
(ground shield connected to backshell)
CAB0031B
Standard Synchronous Cables
308604-14.10 Rev 01 6-19
VRD + 37 R Receive Data A
VRD - 35 T Receive Data B
VSD + 38 P Send Data A
VSD - 36 S Send Data B
Internal Wire Connections
Pin 7 > 19 > 20
Pin 41 > 42 > 43
Pin 13 > 28
Pin 14 > 29
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Cable Guide
6-20 308604-14.10 Rev 01
15-Pin D-Sub to V.35: No DTR, for WAN (Order No. 7215)
Industry Interface Type: V.35 (V.10 and V.11)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Signal Ground 1 B Signal Ground
Send Data + 2 P Send Data A
Send Data - 3 S Send Data B
Serial Clock Transmit + 4 Y Serial Clock Transmit A
Serial Clock Transmit - 5 AA Serial Clock Transmit B
Request to Send + 6 C Request to Send
Clear to Send + 8 D Clear to Send
Data Carrier Detect + 10 F Data Carrier Detect
Serial Clock Receive - 11 X Serial Clock Receive B
Serial Clock Receive + 12 V Serial Clock Receive A
Receive Data - 13 T Receive Data B
Receive Data + 14 R Receive Data A
(continued)
Pin 8
Pin 1
Pin 15
Pin 9
15 ft
(4.57 m)
B
D
F
R
T
V
X
A
E
C
H
P
S
Y
AA
15-position D-sub plug with locking posts
(ground shield connected to backshell)
34-position V.35 plug with screw jack retainers
(ground shield connected to backshell)
CAB0039A
Standard Synchronous Cables
308604-14.10 Rev 01 6-21
Data Set Ready + 15 E Data Set Ready
Internal Wire Connections
Pin 1 > 7
Nortel Networks Termination Remote Termination
Cable Guide
6-22 308604-14.10 Rev 01

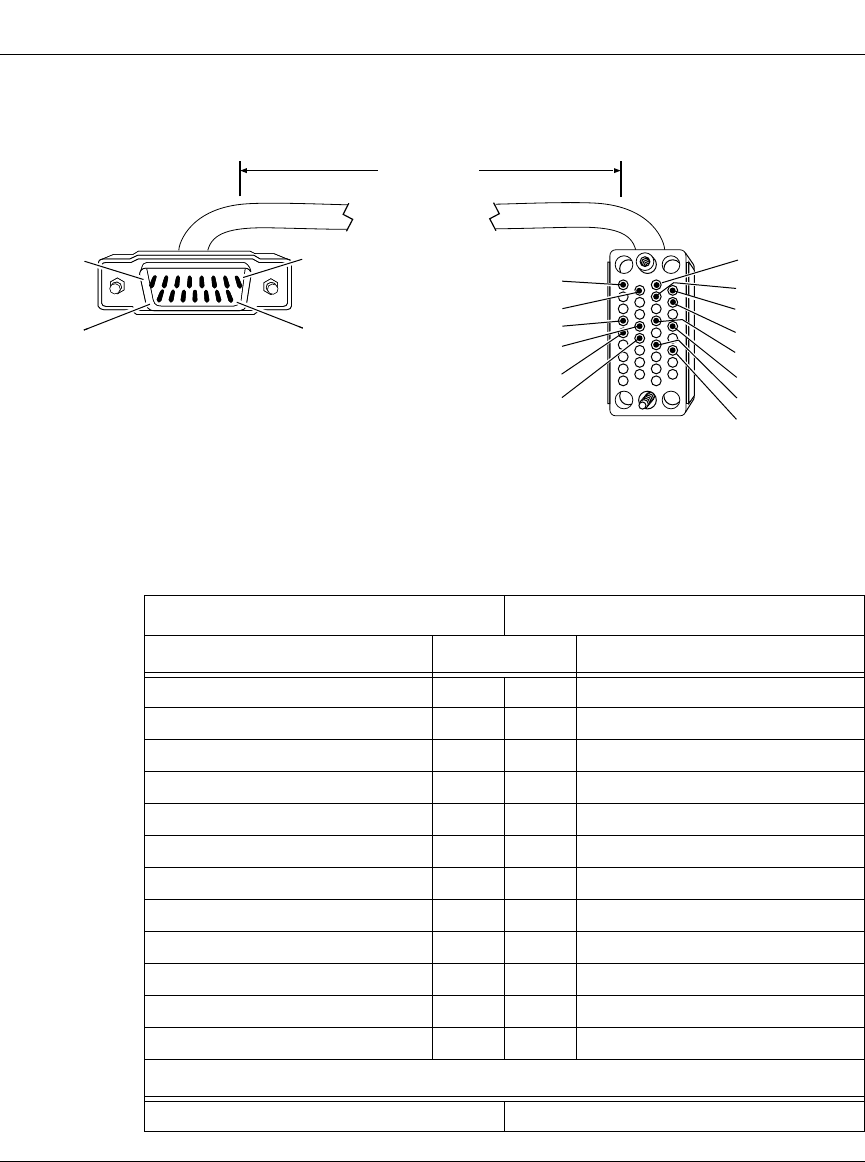

15-Pin D-Sub to V.35 with DTR (Order No. 7216)
Industry Interface Type: V.35 (V.10 and V.11)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Signal Ground 1 B Signal Ground
Send Data + 2 P Send Data A
Send Data - 3 S Send Data B
Serial Clock Transmit + 4 Y Serial Clock Transmit A
Serial Clock Transmit - 5 AA Serial Clock Transmit B
Request to Send + 6 C Request to Send
Clear to Send ++ 8 D Clear to Send
Data Carrier Detect + 10 F Data Carrier Detect
Serial Clock Receive - 11 X Serial Clock Receive B
Serial Clock Receive + 12 V Serial Clock Receive A
Receive Data - 13 T Receive Data B
Receive Data + 14 R Receive Data A
Internal Wire Connections
Pin 1 > 7Pin C
> H
Pin 8
Pin 1
Pin 15
Pin 9
15 ft
(4.57 m)
A
C
H
P
S
Y
AA
B
D
F
R
T
V
X
15-position D-sub plug with locking posts
(ground shield connected to backshell)
34-position V.35 plug with screw jack retainers
(ground shield connected to backshell)
CAB0040A
Standard Synchronous Cables
308604-14.10 Rev 01 6-23

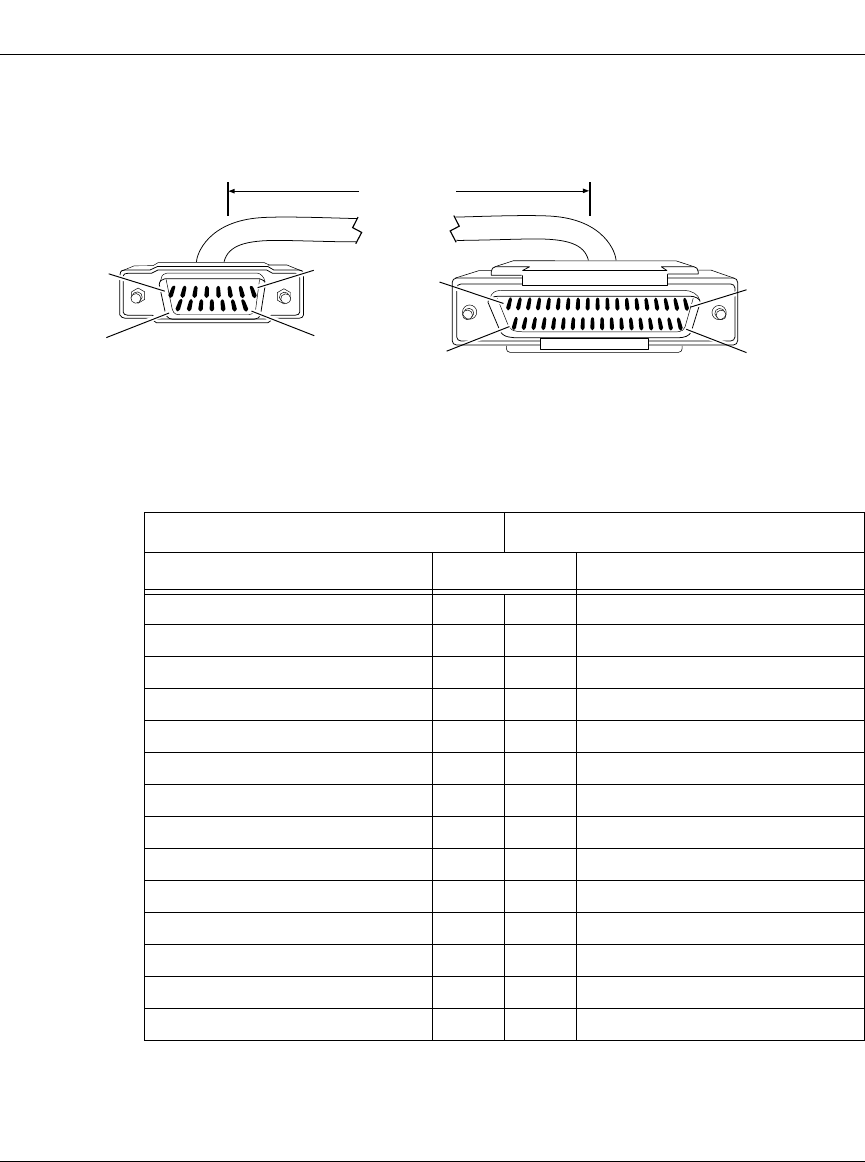

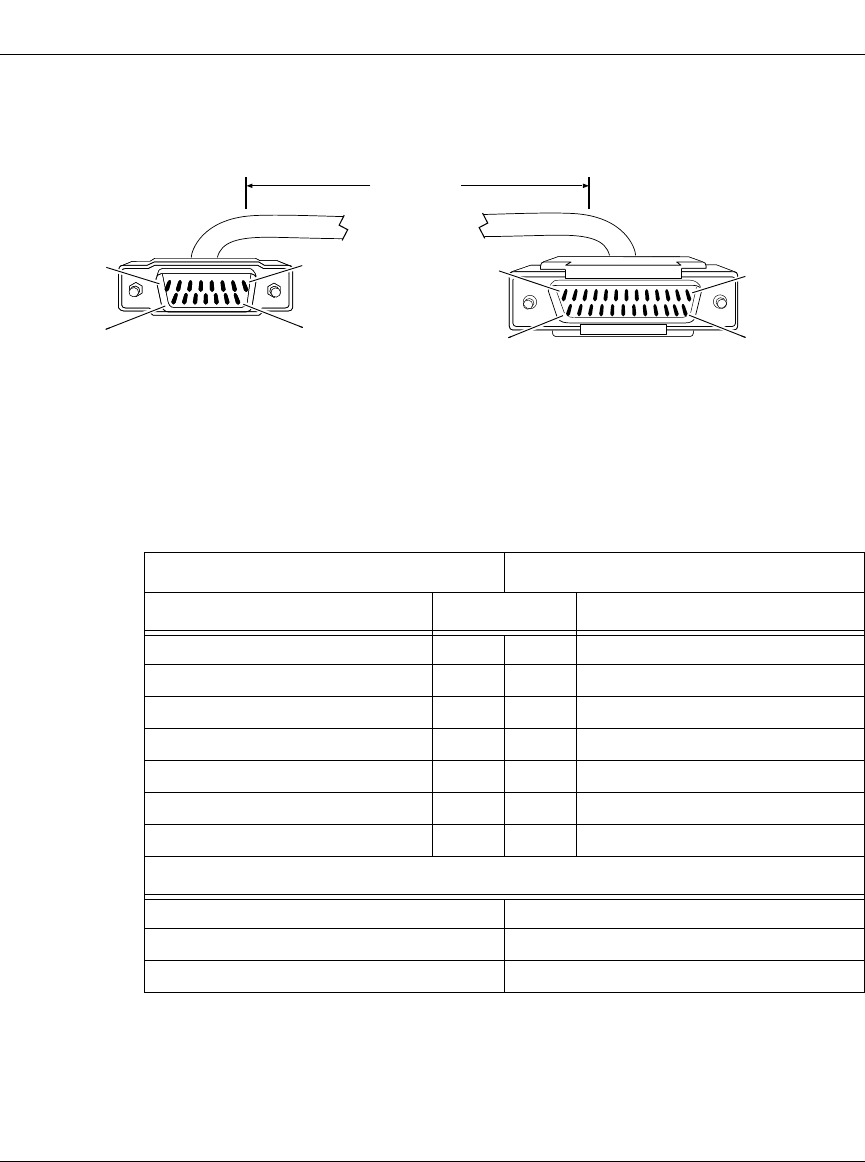

RS-232 Pass-Through: 15-Pin to RS-232 (Order No. 7218)
Industry Interface Type: RS-232-C
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Signal Ground 1 7 Signal Ground
Transmitted Data 2 3 Received Data
Transmit Clock 4 15 Transmit Clock
Data Set Ready 6 8 Data Carrier Detect
Data Carrier Detect 10 4 Clear to Send
Receive Clock 12 17 Receive Clock
Received Data 14 2 Transmitted Data
Internal Wire Connections
Pin 1 > 7Pin 4
> 5
Pin 6 > 8Pin 6
> 20
Pin 3 > 4 >12
Pin 8
Pin 1
Pin 15
Pin 9
Pin 13
Pin 1
Pin 25
Pin 14
15 ft
(4.57 m)
15-position D-sub plug with locking posts
(ground shield connected to backshell) 25-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0041A
Cable Guide
6-24 308604-14.10 Rev 01
V.35 Pass-Through: 15-Pin to V.35 (Order No. 7219)
Industry Interface Type: V.35 (V.10 and V.11)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Signal Ground 1 B Signal Ground
Transmit Data + 2 R Receive Data A
Transmit Data - 3 T Receive Data B
Serial Clock Transmit + 4 Y Serial Clock Transmit A
Serial Clock Transmit - 5 AA Serial Clock Transmit B
Request to Send 6 F Data Carrier Detect
Data Carrier Detect 10 D Clear to Send
Serial Clock Receive - 11 X Serial Clock Receive B
Serial Clock Receive + 12 V Serial Clock Receive A
Receive Data - 13 S Transmit Data B
Receive Data + 14 P Transmit Data A
(continued)
Pin 8
Pin 1
Pin 15
Pin 9
15 ft
(4.57 m)
A
C
E
H
P
S
Y
AA
B
D
F
R
T
V
X
15-position D-sub plug with locking posts
(ground shield connected to backshell)
34-position V.35 plug with screw jack retainers
(ground shield connected to backshell)
CAB0042A
Standard Synchronous Cables
308604-14.10 Rev 01 6-25
Internal Wire Connections
Pin 6 > 8Pin C
> D
Pin 4 > 12 Pin E > H
Pin 5 > 11
Pin 1 > 7
Nortel Networks Termination Remote Termination
Cable Guide
6-26 308604-14.10 Rev 01
44-Pin D-Sub to V.35: Leased Line or V.25bis (Order No. 7220)
Industry Interface Type: V.35 (V.10 and V.11)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
VSD + 38 P Send Data A
VSD - 36 S Send Data B
VRT + 34 V Receive Timing A
VRT - 33 X Receive Timing B
VST + 32 Y Send Timing A
VST - 31 AA Send Timing B
VRD + 37 R Receive Data A
VRD - 35 T Receive Data B
Data Set Ready + 6 E Data Set Ready
Data Terminal Ready + 8 H Data Terminal Ready
Request to Send + 4 C Request to Send
Clear to Send + 5 D Clear to Send
(continued)
15 ft
(4.57 m)
A
C
E
H
P
S
U
W
AA
B
D
F
R
T
V
X
Y
34-position V.35 plug with screw jack retainers
(ground shield connected to backshell)
CAB0106A
Pin 1
Pin 16
Pin 31
Pin 15
Pin 30
Pin 44
44-position D-sub plug with screw locks
(ground shield connected to backshell)
Standard Synchronous Cables
308604-14.10 Rev 01 6-27
VTT + 40 U Terminal Timing A
VTT - 39 W Terminal Timing B
Frame Ground 1 A Frame Ground
Data Carrier Detect + 9 F Data Carrier Detect
Signal Ground 19 B Signal Ground
Internal Wire Connections
Pin 7 > 19 > 20
Pin 41 > 42 > 43
Pin 13 > 28
Pin 14 > 29
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Cable Guide
6-28 308604-14.10 Rev 01

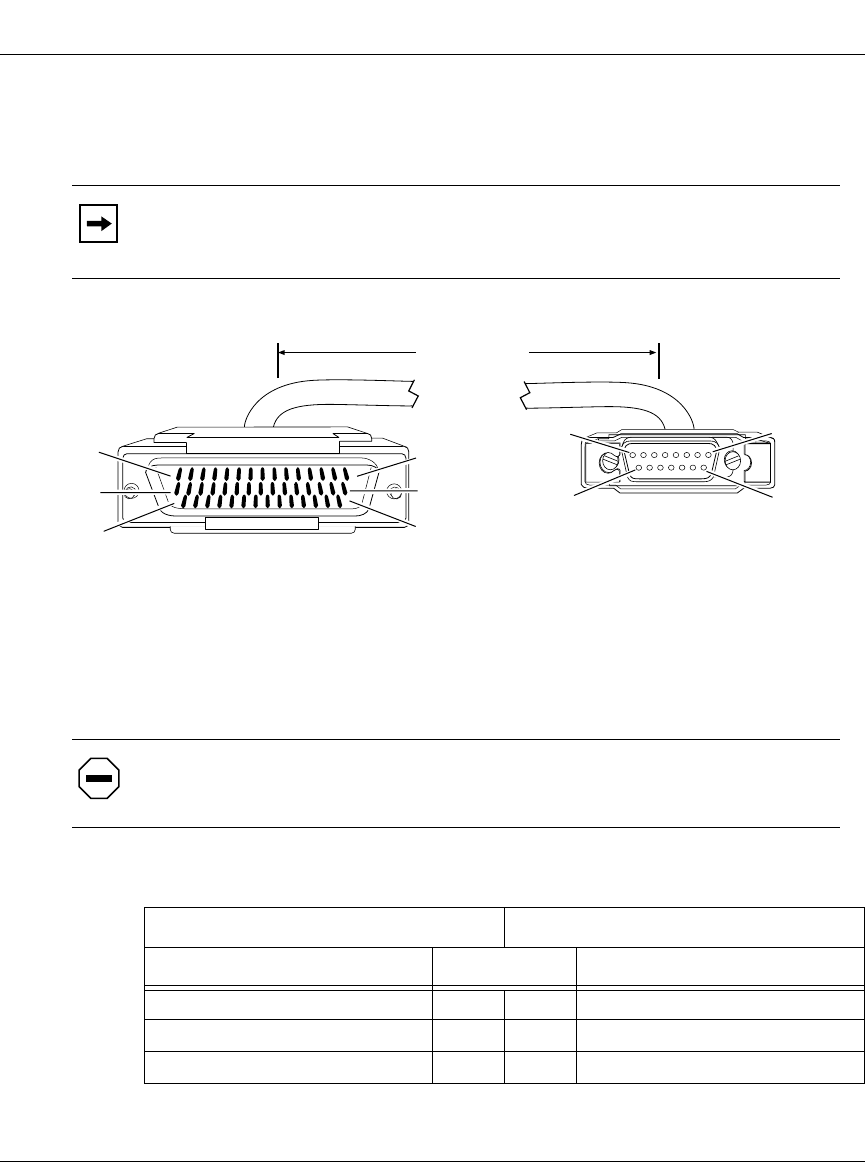

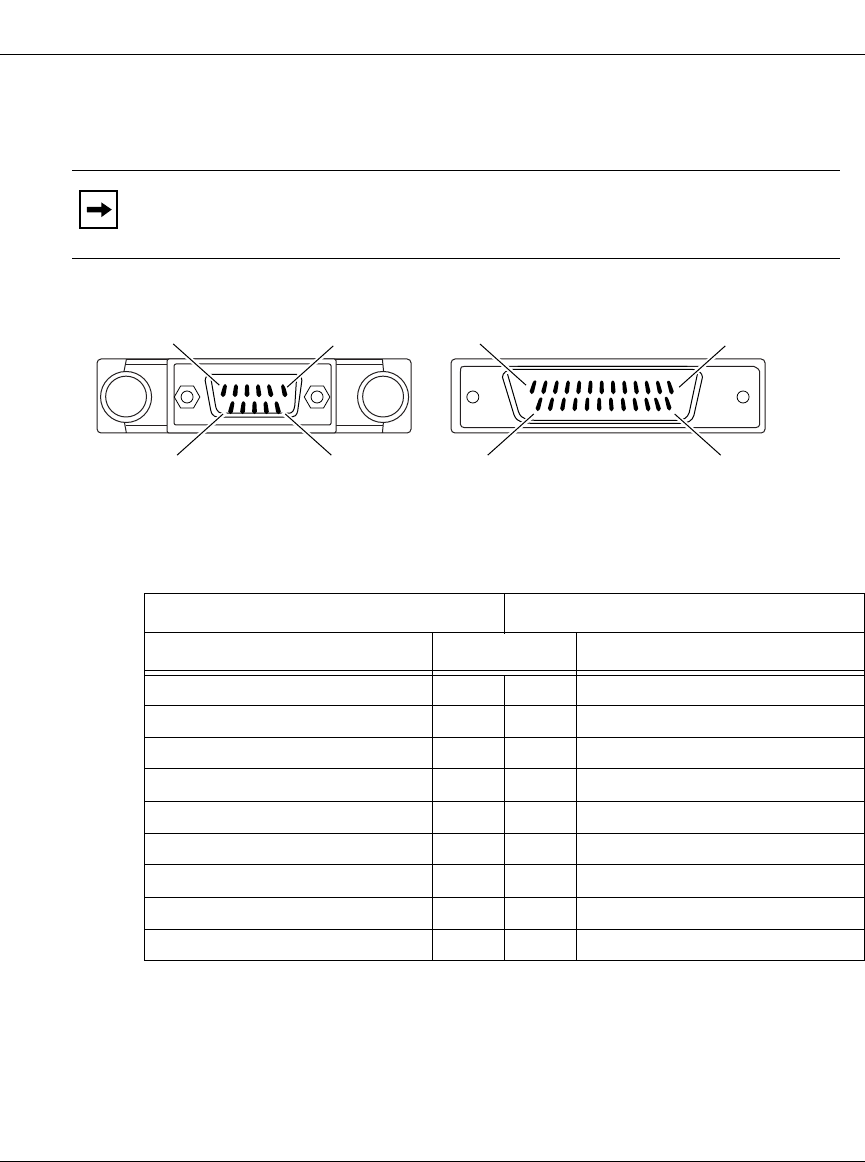

15-Pin D-Sub to X.21 (Order No. 7221)
Industry Interface Type: X.21 (V.11)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Ground 1 1 Ground
Send Data + 2 2 Transmitted Data A
Send Data - 3 9 Transmitted Data B
Request to Send + 6 3 Control A
Request to Send - 15 10 Control B
Receive Data + 14 4 Receive Data A
Receive Data - 13 11 Receive Data B
Data Carrier Detect + 10 5 Indication A
Data Carrier Detect - 9 12 Indication B
Send Timing + 4 6 Timing A
Send Timing - 5 13 Timing B
Note: You must move Jumpers A-E to the X.21 (2-3) position to support this
interface.
Pin 8
Pin 1
Pin 15
Pin 9
Pin 8
Pin 1
Pin 15
Pin 9
15 ft
(4.57 m)
15-position D-sub plug with locking posts
(ground shield connected to backshell) 15-position D-sub plug with M-3 jack screws
(ground shield connected to backshell)
CAB0044A
Standard Synchronous Cables
308604-14.10 Rev 01 6-29
44-Pin D-Sub to X.21 (Order No. 7224)
Industry Interface Type: X.21 (V.11)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Send Data + 2 2 Transmitted Data A
Send Data - 16 9 Transmitted Data B
Request to Send + 4 3 Control A
Request to Send - 18 10 Control B
Receive Data + 3 4 Receive Data A
Receive Data - 17 11 Receive Data B
Data Carrier Detect + 9 5 Indication A
Data Carrier Detect - 23 12 Indication B
Send Timing + 10 6 Timing A
Send Timing - 24 13 Timing B
Signal Ground 7 8 Signal Ground
Frame Ground 1 1 Frame Ground
Internal Wire Connections
Pin 14 > 15
Pin 28 > 30
Pin 41 > 43
Pin 1
Pin 16
Pin 31
Pin 15
Pin 30
Pin 44
15 ft
(4.57 m)
15-position D-sub plug with M-3 jack screws
(ground shield connected to backshell)
44-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0104A
Pin 8
Pin 15
Pin 9
Pin 1
Cable Guide
6-30 308604-14.10 Rev 01

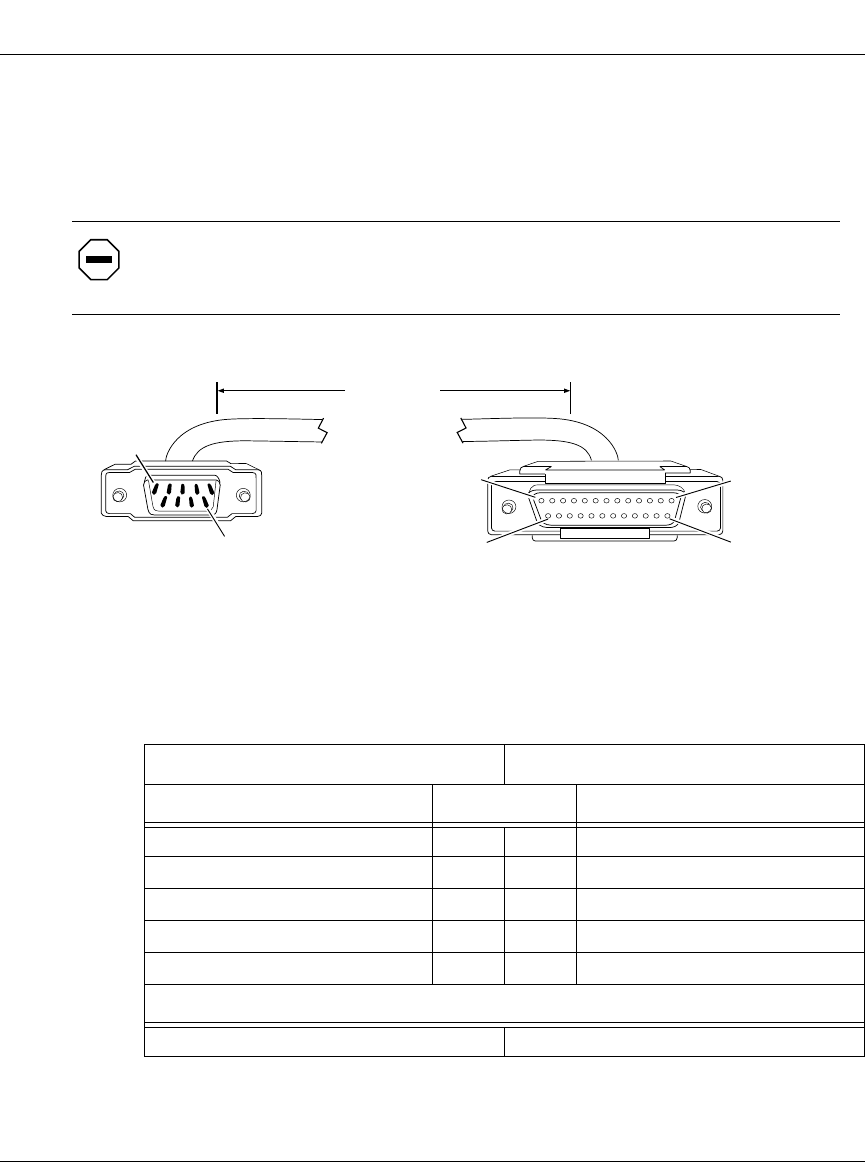

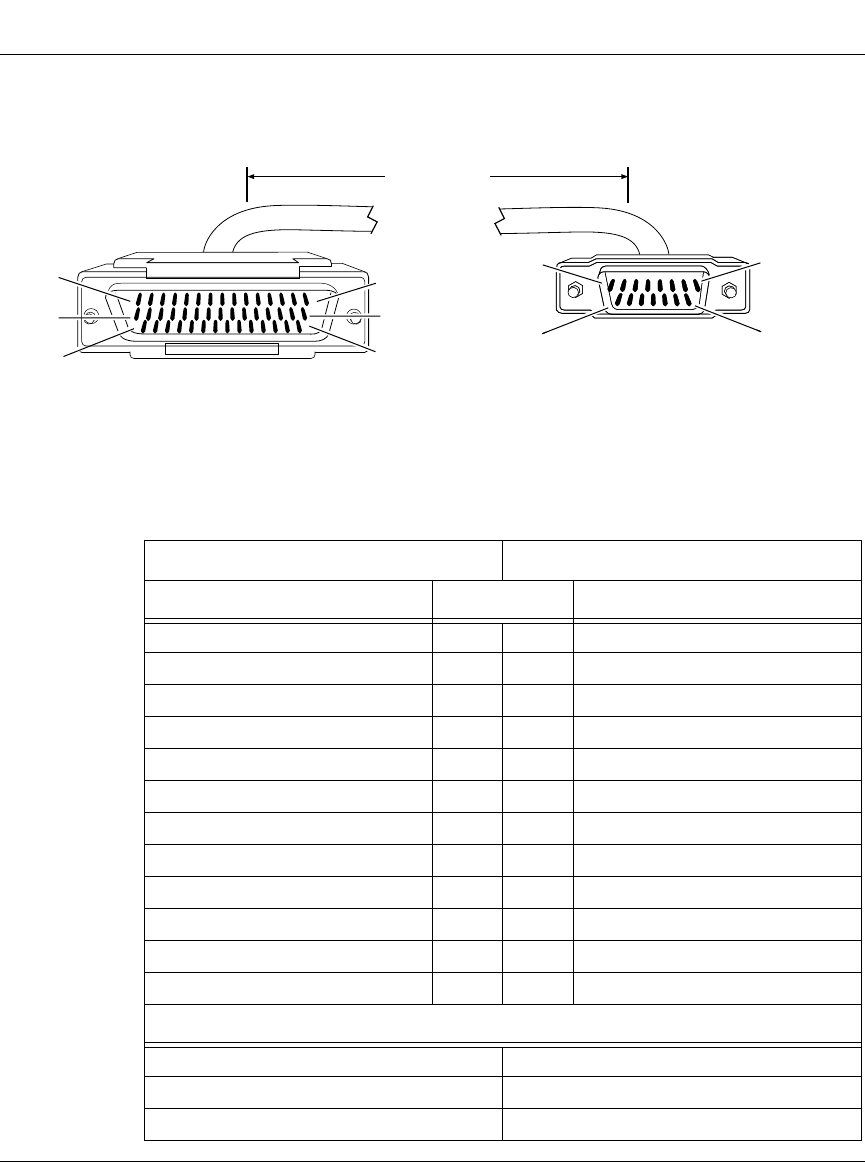

15-Pin D-Sub to RS-232 (Order No. 7255)
Industry Interface Type: RS-232-C
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Signal Ground 1 7 Signal Ground
Transmitted Data 2 2 Transmitted Data
Transmitter Signal Element Timing
(DTE Source) 3 24 Transmitter Signal Element Timing
(DTE Source)
Transmitter Signal Element
Timing (DCE Source) 4 15 Transmitter Signal Element
Timing (DCE Source)
Request to Send 6 4 Request to Send
Clear to Send 8 5 Clear to Send
Carrier Detect 10 8 Carrier Detect
Receiver Signal Element
Timing (DCE Source) 12 17 Receiver Signal Element
Timing (DCE Source)
Received Data 14 3 Received Data
Data Set Ready 15 6 Data Set Ready
Internal Wire Connections
Pin 1 > 7Pin 4
> 20
Pin 8
Pin 1
Pin 15
Pin 9
Pin 13
Pin 1
Pin 25
Pin 14
15 ft
(4.57 m)
25-position D-sub plug with screw locks
(ground shield connected to backshell)
15-position D-sub plug with locking posts
(ground shield connected to backshell)
CAB0045A
Standard Synchronous Cables
308604-14.10 Rev 01 6-31
15-Pin D-Sub to V.28 (Order No. 7256)
Industry Interface Type: V.28 (V.10)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Signal Ground 1 7 Signal Ground
Transmitted Data 2 2 Transmitted Data
Transmitter Timing
(DTE Source) 3 24 Transmitter Signal Element
Timing (DTE Source)
Transmitter Signal Element Timing
(DCE Source) 4 15 Transmitter Signal Element Timing
(DCE Source)
Request to Send 6 4 Request to Send
Clear to Send 8 5 Clear to Send
Carrier Detect 10 8 Carrier Detect
Receiver Signal Element
Timing (DCE Source) 12 17 Receiver Signal Element
Timing (DCE Source)
Received Data 14 3 Received Data
Data Set Ready 15 6 Data Set Ready
Internal Wire Connections
Pin 1 > 7Pin 4
> 20
Pin 8
Pin 1
Pin 15
Pin 9
Pin 13
Pin 1
Pin 25
Pin 14
15 ft
(4.57 m)
25-position D-sub plug with M-3 jack screws
(ground shield connected to backshell)
15-position D-sub plug with locking posts
(ground shield connected to backshell)
CAB0045B
Cable Guide
6-32 308604-14.10 Rev 01
15-Pin Crossover (Order No. 7260)
Industry Interface Type: V.35
Note: This crossover cable interconnects two Nortel Networks router software
platforms.
Nortel Networks Termination A Nortel Networks Termination B
Signal Pin # to Pin # Signal
Signal Ground 1 15 Return Common
Send Data + 2 14 Receive Data +
Send Data - 3 13 Receive Data -
Serial Clock Transmit + 4 12 Serial Clock Receive +
Serial Clock Transmit - 5 11 Serial Clock Receive -
Request to Send + 6 10 Data Carrier Detect +
Data Carrier Detect + 10 6 Request to Send +
Serial Clock Receive - 11 5 Serial Clock Transmit-
Serial Clock Receive + 12 4 Serial Clock Transmit +
(continued)
Pin 8
Pin 1
Pin 15
Pin 9
Pin 8
Pin 1
Pin 15
Pin 9
15 ft
(4.57 m)
15-position D-sub plug with locking posts
(ground shield connected to backshell) 15-position D-sub plug with locking posts
(ground shield connected to backshell)
CAB0049A
Standard Synchronous Cables
308604-14.10 Rev 01 6-33
Receive Data - 13 3 Send Data -
Receive Data + 14 2 Send Data +
Return Common 15 1 Signal Ground
Internal Wire Connections
Pin 6 > 8Pin 6
> 8
Pin 7 > 9 > 15 Pin 7 > 9 > 15
Nortel Networks Termination A Nortel Networks Termination B
Cable Guide
6-34 308604-14.10 Rev 01

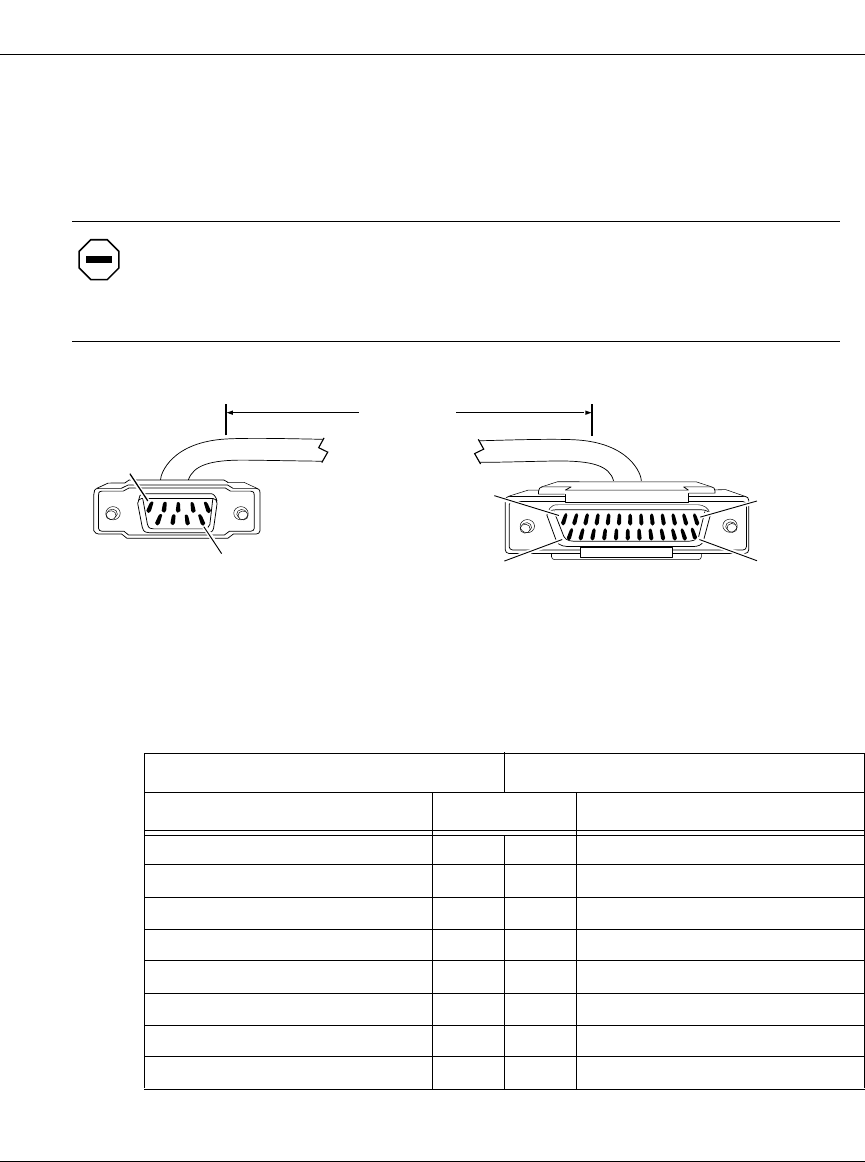

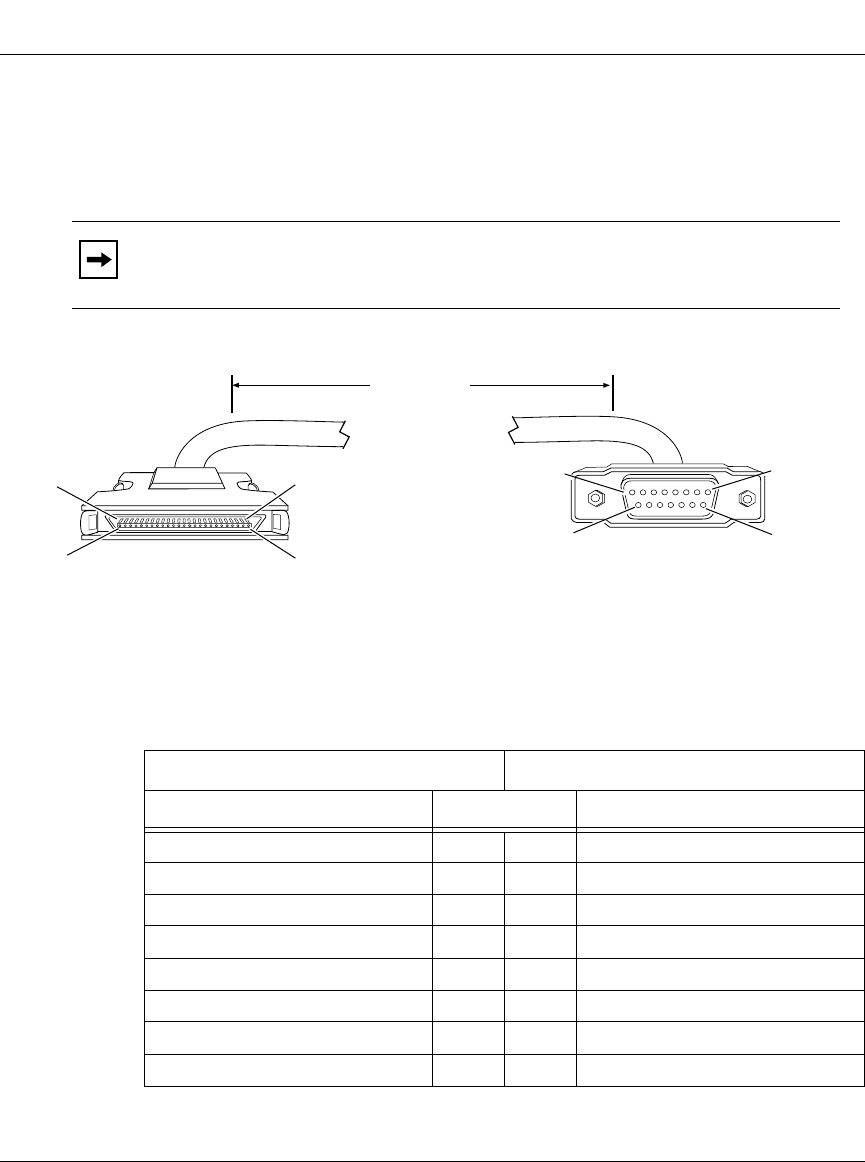

15-Pin D-Sub to RS-422 (Order No. 7315)
Industry Interface Type: RS-449/RS-422
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Signal Ground 1 25 Send Common
Send Data + 2 4 Send Data A
Send Data - 3 22 Send Data B
Serial Clock Transmit + 4 5 Send Timing A
Serial Clock Transmit - 5 23 Send Timing B
Request to Send 6 12 Terminal Ready A
Clear to Send - 7 27 Clear to Send B
Clear to Send + 8 9 Clear to Send A
Data Carrier Detect - 9 31 Data Carrier Detect B
Data Carrier Detect + 10 13 Data Carrier Detect A
Serial Clock Receive - 11 26 Receive Timing B
Serial Clock Receive + 12 8 Receive Timing A
Receive Data - 13 24 Receive Data B
Receive Data + 14 6 Receive Data A
(continued)
Pin 8
Pin 1
Pin 15
Pin 9
15 ft
(4.57 m)
Pin 1
Pin 37
Pin 20
Pin 19
15-position D-sub plug with locking posts
(ground shield connected to backshell) 37-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0050A
Standard Synchronous Cables
308604-14.10 Rev 01 6-35
Internal Wire Connections
Pin 7 > 12
Pin 25 > 30 > 37
Note: You must move jumpers B and C to the X.21 (2-3) position to support
this interface.
Nortel Networks Termination Remote Termination
Cable Guide
6-36 308604-14.10 Rev 01
44-Pin D-Sub to RS-422: Leased Line or V.25bis
(Order No. 7318)
Industry Interface Type: RS-449/RS-422
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Data Carrier Detect - 23 31 Receiver Ready B
Data Carrier Detect + 9 13 Receiver Ready A
Send Data + 2 4 Send Data A
Send Data - 16 22 Send Data B
Receive Timing + 11 8 Receive Timing A
Receive Timing - 25 26 Receive Timing B
Send Timing + 10 5 Send Timing A
Send Timing - 24 23 Send Timing B
Receive Data + 3 6 Receive Data A
Receive Data - 17 24 Receive Data B
Clear to Send - 19 27 Clear to Send B
Clear to Send + 5 9 Clear to Send A
(continued)
Pin 1
Pin 37
Pin 20
Pin 19
15 ft
(4.57 m)
Pin 1
Pin 16
Pin 31
Pin 15
Pin 30
Pin 44
37-position D-sub plug with screw locks
(ground shield connected to backshell)
44-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0051A
Standard Synchronous Cables
308604-14.10 Rev 01 6-37
Request to Send + 4 7 Request to Send A
Request to Send - 18 25 Request to Send B
Data Set Ready + 6 11 DM A
Data Set Ready - 20 29 DM B
Terminal Ready + 8 12 Terminal Ready A
Terminal Ready - 22 30 Terminal Ready B
Terminal Timing + 12 17 Terminal Timing A
Terminal Timing - 26 35 Terminal Timing B
Send Common 44 37 Send Common
Signal Ground 41 19 Signal Ground
Internal Wire Connections
Pin 41 > 43 Pin 20 > 37
Pin 13 > 28
Pin 14 > 29
Nortel Networks Termination Remote Termination
Cable Guide
6-38 308604-14.10 Rev 01
44-Pin D-Sub to RS-232: Leased Line or V.25bis
(Order No. 7826)
Industry Interface Type: RS-232-C
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Frame Ground 1 1 Frame Ground
Send Data + 2 2 Send Data
Receive Data + 3 3 Receive Data
Request to Send + 4 4 Request to Send
Clear to Send+ 5 5 Clear to Send
Data Set Ready + 6 6 Data Set Ready
Data Terminal Ready + 8 20 Data Terminal Ready
Data Carrier Detect + 9 8 Data Carrier Detect
Send Timing + 10 15 Send Timing
Receive Timing + 11 17 Receive Timing
Transmitter Signal Element Timing + 12 24 Transmitter Signal Element Timing
Signal Ground 7 7 Signal Ground
Internal Wire Connections
Pin 7 > 19 > 20
Pin 13 > 28
Pin 14 > 29
Pin 1
Pin 16
Pin 31
Pin 15
Pin 30
Pin 44
Pin 13
Pin 1
Pin 25
Pin 14
15 ft
(4.57 m)
25-position D-sub plug with screw locks
(ground shield connected to backshell)
44-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0069A
Standard Synchronous Cables
308604-14.10 Rev 01 6-39
RS-232 Pass-Through: 44-Pin to RS-232 (Order No. 7833)
Industry Interface Type: RS-232-C
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Receive Data + 3 2 Send Data
Send Data + 2 3 Receive Data
Data Carrier Detect + 9 5 Clear to Send
RTS + 4 8 Data Carrier Detect
Send Timing + 10 17 Receive Timing
Frame Ground 1 1 Frame Ground
Signal Ground 7 7 Signal Ground
Internal Wire Connections
Pin 4 > 5Pin 4 >
5
Pin 10 > 11 > 12 Pin 15 > 17
Pin 7 > 19 > 20 Pin 6 > 20
Pin 13 > 28
Pin 14 > 29
15 ft
(4.57 m)
Pin 13
Pin 1
Pin 25
Pin 14
Pin 1
Pin 16
Pin 31
Pin 15
Pin 30
Pin 44
44-position D-sub plug with screw locks
(ground shield connected to backshell) 25-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0065A
Cable Guide
6-40 308604-14.10 Rev 01

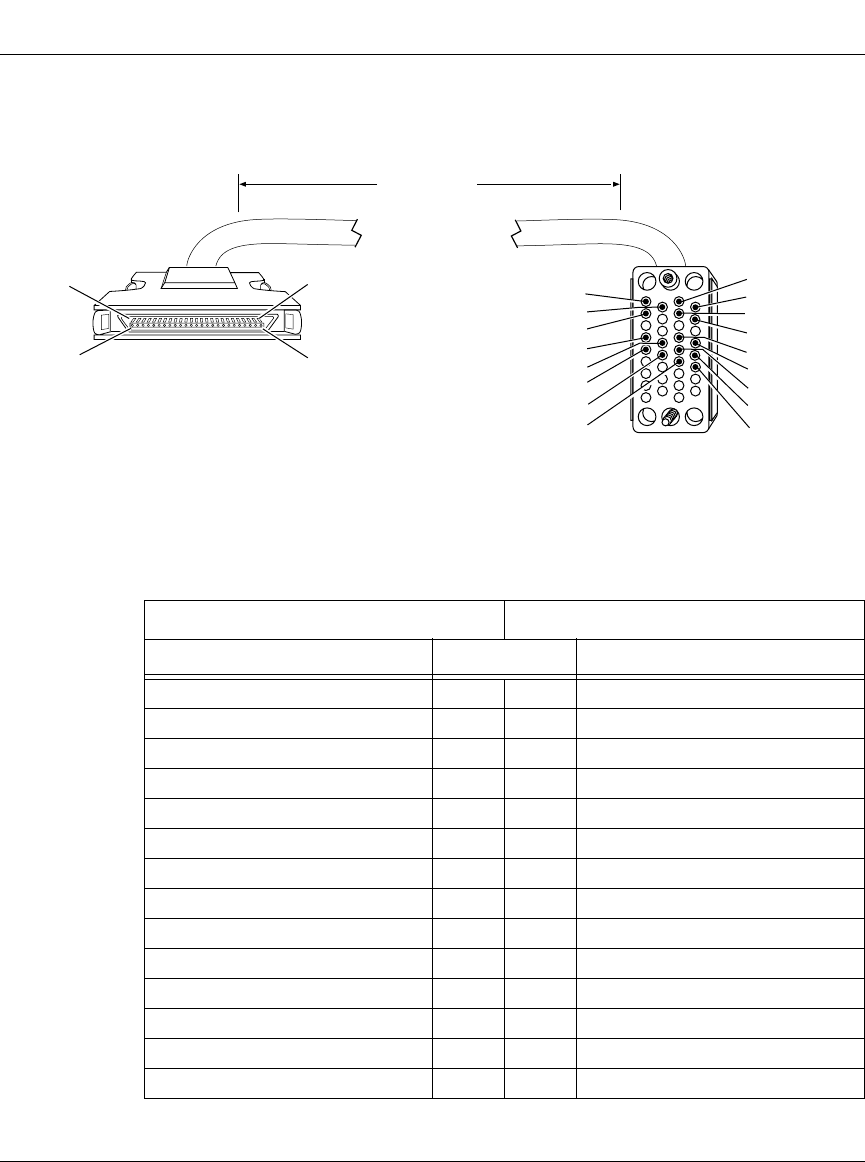

V.35 Pass-Through: 44-Pin to V.35 (Order No. 7834)
Industry Interface Type: V.35 (V.10 and V.11)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
VSD + 38 R Receive Data A
VSD - 36 T Receive Data B
VRD + 37 P Send Data A
VRD - 35 S Send Data B
Request to Send + 4 F Data Carrier Detect
Data Carrier Detect + 9 D Clear to Send
VTT + 40 V Receive Timing A
VTT - 39 X Receive Timing B
Frame Ground 1 A Frame Ground
Signal Ground 7 B Signal Ground
(continued)
15 ft
(4.57 m)
A
C
E
H
P
S
U
W
AA
B
D
F
R
T
V
X
Y
34-position V.35 plug with screw jack retainers
(ground shield connected to backshell)
CAB0106A
Pin 1
Pin 16
Pin 31
Pin 15
Pin 30
Pin 44
44-position D-sub plug with screw locks
(ground shield connected to backshell)
Standard Synchronous Cables
308604-14.10 Rev 01 6-41
Internal Wire Connections
Pin 4 > 5Pin C >
D
Pin 32 > 34 > 40 Pin V > Y
Pin 31 > 33 > 39 Pin X > AA
Pin 7 > 19 > 20 > 41 > 42 Pin E > H
Pin 13 > 28
Pin 14 > 29
Nortel Networks Termination Remote Termination
Cable Guide
6-42 308604-14.10 Rev 01

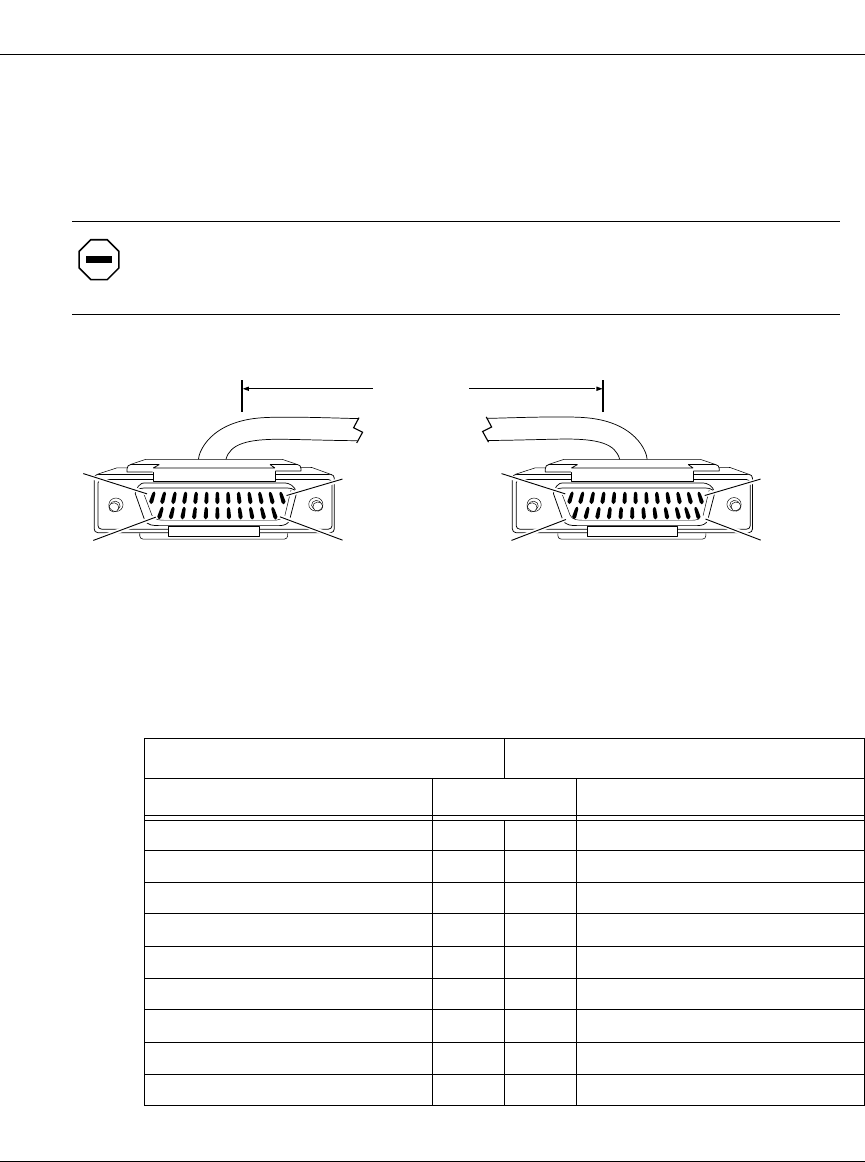

V.35 Crossover: 44-Pin to 44-Pin (Order No. 7835)
Industry Interface Type: V.35 (V.10 and V.11)
Note: This crossover cable interconnects two Nortel Networks router software
platforms.
Nortel Networks Termination A Nortel Networks Termination B
Signal Pin # to Pin # Signal
VSD + 3837VRD +
VSD - 3635VRD -
VRD + 37 38 VSD +
VRD - 35 36 VSD -
RTS + 4 9 DCD +
DCD + 9 4 RTS +
VRT + 34 40 VTT +
VTT + 4034VRT +
VRT - 33 39 VTT -
VTT - 3933VRT -
Signal Ground 7 7 Signal Ground
(continued)
15 ft
(4.57 m)
Pin 1
Pin 16
Pin 31
Pin 15
Pin 30
Pin 44
44-position D-sub plug with screw locks
(ground shield connected to backshell)
Pin 1
Pin 16
Pin 31
Pin 15
Pin 30
Pin 44
44-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0067A
Standard Synchronous Cables
308604-14.10 Rev 01 6-43
Internal Wire Connections
Pin 4 > 5 (CTS +) Pin 4 > 5 (CTS +)
Pin 32 (VST +) > 40 (VTT +) Pin 32 (VST +) > 40 (VTT +)
Pin 31 (VST -) > 39 (VTT -) Pin 31 (VST -) > 39 (VTT -)
Pin 7 > 19 > 20 > 23 Pin 7 > 19 > 20 > 23
Pin 13 > 28 Pin 13 > 28
Pin 14 > 29 Pin 14 > 29
Pin 41 > 42 > 43 Pin 41 > 42 > 43
Nortel Networks Termination A Nortel Networks Termination B
Cable Guide
6-44 308604-14.10 Rev 01
V.35 Crossover: 44-Pin to 15-Pin (Order No. 7836)
Industry Interface Type: V.35 (V.10 and V.11)
Note: This crossover cable interconnects two Nortel Networks router software
platforms.
Nortel Networks Termination A Nortel Networks Termination B
Signal Pin # to Pin # Signal
VSD + 38 14 Receive Data A
VSD - 36 13 Receive Data B
VRT + 34 4 SCT A
VRT - 33 5 SCT B
VTT + 4012SCR A
VTT - 3911SCR B
VRD + 37 2 Send Data A
VRD - 35 3 Send Data B
(continued)
Pin 1
Pin 16
Pin 31
Pin 15
Pin 30
Pin 44
15 ft
(4.57 m)
Pin 8
Pin 1
Pin 15
Pin 9
15-position D-sub plug with locking posts
(ground shield connected to backshell)
44-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0068A
Standard Synchronous Cables
308604-14.10 Rev 01 6-45
Request to Send + 4 10 Data Carrier Detect A
Data Carrier Detect + 9 8 Clear to Send A
Signal Ground 7 1 Signal Ground
Internal Wire Connections
Pin 32 > 40 Pin 6 > 8
Pin 31 > 39 Pin 1 > 7 > 9 > 15
Pin 4 > 5
Pin 7 > 19 > 20 > 23
Pin 13 > 28
Pin 14 > 29
Pin 41 > 42 > 43
Nortel Networks Termination A Nortel Networks Termination B
Cable Guide
6-46 308604-14.10 Rev 01
44-Pin D-Sub to V.28 (Order No. 7837)
Industry Interface Type: V.28 (V.10)
in 1
in 16
in 31
Pin 15
Pin 30
Pin 44
Pin 13
Pin 1
Pin 25
Pin 14
15 ft
(4.57 m)
25-position D-sub plug with M-3 jack screws
(ground shield connected to backshell)
44-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0069B
Standard Synchronous Cables
308604-14.10 Rev 01 6-47
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Frame Ground 1 1 Frame Ground
Send Data + 2 2 Send Data
Receive Data + 3 3 Receive Data
Request to Send + 4 4 Request to Send
Clear to Send + 5 5 Clear to Send
Data Set Ready + 6 6 Data Set Ready
Data Terminal Ready + 8 20 Data Terminal Ready
Data Carrier Detect + 9 8 Data Carrier Detect
Send Timing + 10 15 Send Timing
Receive Timing + 11 17 Receive Timing
Transmitter Signal Element
Timing + 12 24 Transmitter Signal Element Timing
Signal Ground 7 7 Signal Ground
Internal Wire Connections
Pin 7 > 19 > 20
Pin 13 > 28
Pin 14 > 29
Cable Guide
6-48 308604-14.10 Rev 01
50-Pin to V.35 (Order No. 7932)
Industry Interface Type: V.35 (V.10 and V.11)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
VSD + 44 P Send Data A
VSD - 19 S Send Data B
VRT + 42 V Receive Timing A
VRT - 17 X Receive Timing B
VST + 41 Y Send Timing A
VST - 16 AA Send Timing B
VRD + 43 R Receive Data A
VRD - 18 T Receive Data B
Data Set Ready + 6 E Data Set Ready
Data Terminal Ready + 8 H Data Terminal Ready
Request to Send + 4 C Request to Send
Clear to Send + 5 D Clear to Send
VTT + 45 U Terminal Timing A
VTT - 20 W Terminal Timing B
(continued)
15 ft
(4.57 m)
A
C
E
H
P
S
U
W
AA
B
D
F
R
T
V
X
Y
34-position V.35 plug with screw jack retainers
(ground shield connected to backshell)
Pin 1 Pin 25
Pin 26 Pin 50
50-position 0.8-mm plug
(ground shield connected to internal shell)
CAB0070A
Standard Synchronous Cables
308604-14.10 Rev 01 6-49
Frame Ground 1 A Frame Ground
Data Carrier Detect 9 F Data Carrier Detect
Signal Ground 30 B Signal Ground
Internal Wire Connections
Pin 7 > 30 > 31
Pin 46 > 47 > 48
Pin 13 > 38
Pin 14 > 39
Nortel Networks Termination Remote Termination
Cable Guide
6-50 308604-14.10 Rev 01
50-Pin to RS-232 (Order No. 7934)
Industry Interface Type: RS-232-C
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Frame Ground 1 1 Frame Ground
Send Data + 2 2 Send Data
Receive Data + 3 3 Receive Data
Request to Send + 4 4 Request to Send
Clear to Send + 5 5 Clear to Send
Data Set Ready + 6 6 Data Set Ready
Signal Ground 7 7 Signal Ground
Data Terminal Ready + 8 20 Data Terminal Ready
Data Carrier Detect + 9 8 Data Carrier Detect
Send Timing + 10 15 Send Timing
Receive Timing + 11 17 Receive Timing
Terminal Timing + 12 24 Terminal Timing
Signal Ground 7 7 Signal Ground
Internal Wire Connections
Pin 7 > 30 > 31
Pin 13 > 38
Pin 14 > 39
15 ft
(4.57 m)
Pin 13
Pin 1
Pin 25
Pin 14
25-position D-sub plug with screw locks
(ground shield connected to backshell)
Pin 1 Pin 25
Pin 26 Pin 50
50-position 0.8-mm plug
(ground shield connected to internal shell)
CAB0073A
Standard Synchronous Cables
308604-14.10 Rev 01 6-51
50-Pin to X.21 (Order No. 7936)
Industry Interface Type: X.21 (V.11)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Send Data + 2 2 Transmitted Data A
Send Data - 27 9 Transmitted Data B
Request to Send + 4 3 Control A
Request to Send - 29 10 Control B
Receive Data + 3 4 Receive Data A
Receive Data - 28 11 Receive Data B
Data Carrier Detect + 9 5 Indication A
Data Carrier Detect - 34 12 Indication B
Timing + 10 6 Timing A
Timing - 3513Timing B
Frame Ground 1 1 Frame Ground
Signal Ground 7 8 Signal Ground
Internal Wire Connections
Pin 46 > 48 (GRD)
Pin 38 > 40
Pin 14 > 15
15 ft
(4.57 m)
Pin 8
Pin 1
Pin 15
Pin 9
15-position D-sub plug with M-3 jack screws
(ground shield connected to backshell)
Pin 1 Pin 25
Pin 26 Pin 50
50-position 0.8-mm plug
(ground shield connected to internal shell)
CAB0074A
Cable Guide
6-52 308604-14.10 Rev 01
50-Pin to RS-422 (Order No. 7937)
Industry Interface Type: RS-449/RS-422
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Data Carrier Detect - 34 31 Receiver Ready B
Data Carrier Detect + 9 13 Receiver Ready A
Send Data + 2 4 Send Data A
Send Data - 27 22 Send Data B
Receive Timing + 11 8 Receive Timing A
Receive Timing - 36 26 Receive Timing B
Send Timing + 10 5 Send Timing A
Send Timing - 35 23 Send Timing B
Receive Data + 3 6 Receive Data A
Receive Data - 28 24 Receive Data B
Clear to Send - 30 27 Clear to Send B
Clear to Send + 5 9 Clear to Send A
Request to Send + 4 7 Request to Send A
Request to Send - 29 25 Request to Send B
Data Set Ready + 6 11 Data Mode A
Data Set Ready - 31 29 Data Mode B
(continued)
15 ft
(4.57 m)
Pin 1
Pin 37
Pin 20
Pin 19
37-position D-sub plug with screw locks
(ground shield connected to backshell)
Pin 1 Pin 25
Pin 26 Pin 50
50-position 0.8-mm plug
(ground shield connected to internal shell)
CAB0075A
Standard Synchronous Cables
308604-14.10 Rev 01 6-53
Terminal Ready + 8 12 Terminal Ready A
Terminal Ready - 33 30 Terminal Ready B
Terminal Timing + 12 17 Terminal Timing A
Terminal Timing - 37 35 Terminal Timing B
Send Common 49 37 Send Common
Signal Ground 48 19 Signal Ground
Internal Wire Connections
Pin 46 (UNBE) > 48 (SGRD) Pin 20 > 37
Pin 13 > 38
Pin 14 > 39
Nortel Networks Termination Remote Termination
Cable Guide
6-54 308604-14.10 Rev 01
50-Pin to 50-Pin Crossover (Order No. 7938)
Industry Interface Type: V.35 (V.10 and V.11)
Note: This crossover cable interconnects two Nortel Networks router software
platforms.
Nortel Networks Termination A Nortel Networks Termination B
Signal Pin # to Pin # Signal
VSD + 4443VRD +
VSD - 1918VRD -
VRD + 43 44 VSD +
VRD - 18 19 VSD -
Request to Send + 4 9 Data Carrier Detect +
Data Carrier Detect + 9 4 Request to Send +
VRT + 42 45 VTT +
VTT + 4542VRT +
VRT - 17 20 VTT -
VTT - 2017VRT -
Signal Ground 7 7 Signal Ground
(continued)
15 ft
(4.57 m)
Pin 1 Pin 25
Pin 26 Pin 50
50-position 0.8-mm plug
(ground shield connected to internal shell)
Pin 1 Pin 25
Pin 26 Pin 50
50-position 0.8-mm plug
(ground shield connected to internal shell)
CAB0076A
Standard Synchronous Cables
308604-14.10 Rev 01 6-55
Internal Wire Connections
Pin 4 > 5 (CTS +) Pin 4 > 5 (CTS +)
Pin 41 (VST +) > 45 (VTT +) Pin 41 (VST +) > 45 (VTT +)
Pin 16 (VST -) > 20 (VTT -) Pin 16 (VST -) > 20 (VTT -)
Pin 7 > 30 > 31 > 34 Pin 7 > 30 > 31 > 34
Pin 13 > 38 Pin 13 > 38
Pin 14 > 39 Pin 14 > 39
Pin 46 > 47 > 48 Pin 46 > 47 > 48
Nortel Networks Termination A Nortel Networks Termination B
Cable Guide
6-56 308604-14.10 Rev 01
50-Pin to 15-Pin Crossover (Order No. 7939)
Industry Interface Type: V.35 (V10 and V.11)
Note: This crossover cable interconnects two Nortel Networks router software
platforms.
Nortel Networks Termination A Nortel Networks Termination B
Signal Pin # to Pin # Signal
VSD + 44 14 Receive Data +
VSD - 19 13 Receive Data -
VRD + 43 2 Send Data +
VRD - 18 3 Send Data -
Request to Send + 4 10 Data Carrier Detect +
Data Carrier Detect + 9 6 Request to Send +
VRT + 42 4 SCT +
VTT + 4512SCR +
VRT - 17 5 SCT -
VTT - 2011SCR -
Signal Ground 7 1 Signal Ground
(continued)
15 ft
(4.57 m)
Pin 8
Pin 1
Pin 15
Pin 9
15-position D-sub plug with locking posts
(ground shield connected to backshell)
Pin 1 Pin 25
Pin 26 Pin 50
50-position 0.8-mm plug
(ground shield connected to internal shell)
CAB0077A
Standard Synchronous Cables
308604-14.10 Rev 01 6-57
Internal Wire Connections
Pin 4 > 5 (CTS +) Pin 6 > 8 (CTS +)
Pin 41 (VST +) > 45 (VTT +) Pin 1 > 7 > 9 >15
Pin 16 (VST -) > 20 (VTT -)
Pin 7 > 30 > 31 > 34
Pin 13 > 38
Pin 14 > 39
Pin 46 > 47 > 48
Nortel Networks Termination A Nortel Networks Termination B
Cable Guide
6-58 308604-14.10 Rev 01
50-Pin to 44-Pin Crossover (Order No. 7940)
Industry Interface Type: V.35 (V.10 and V.11)
Note: This crossover cable interconnects two Nortel Networks router software
platforms.
Nortel Networks Termination A Nortel Networks Termination B
Signal Pin # to Pin # Signal
VSD + 4437VRD +
VSD - 1935VRD -
VRD + 43 38 VSD +
VRD - 18 36 VSD -
Request to Send + 4 9 Data Carrier Detect +
Data Carrier Detect + 9 4 Request to Send +
VRT + 42 40 VTT +
VTT + 4534VRT +
VRT - 17 39 VTT -
VTT - 2033VRT -
Signal Ground 7 7 Signal Ground
(continued)
15 ft
(4.57 m)
Pin 1
Pin 16
Pin 31
Pin 15
Pin 30
Pin 44
44-position D-sub plug with screw locks
(ground shield connected to backshell)
Pin 1 Pin 25
Pin 26 Pin 50
50-position 0.8-mm plug
(ground shield connected to internal shell)
CAB0078A
Standard Synchronous Cables
308604-14.10 Rev 01 6-59
Internal Wire Connections
Pin 4 > 5 (CTS +) Pin 4 > 5 (CTS +)
Pin 41 (VST +) > 45 (VTT +) Pin 32 (VST +) > 40 (VTT +)
Pin 16 (VST -) > 20 (VTT -) Pin 31 (VST -) > 39 (VTT -)
Pin 7 > 30 > 31 > 34 Pin 7 > 19 > 20 > 23
Pin 13 > 38 Pin 13 > 28
Pin 14 > 39 Pin 14 > 29
Pin 46 > 47 > 48 Pin 41 > 42 > 43
Nortel Networks Termination A Nortel Networks Termination B
Cable Guide
6-60 308604-14.10 Rev 01
15-Pin to F RS-232 Synchronous Pass-Through
(Order No. 7941)
Industry Interface Type: RS-232-C
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Transmit Data 2 3 Receive Data
Receive Data 14 2 Transmit Data
Request to Send 6 8 Data Carrier Detect
Data Carrier Detect 10 4 Request to Send
Transmit Clock 4 15 Transmit Clock
Signal Ground 1 7 Signal Ground
Internal Wire Connections
Pin 6 > 8Pin 4 >
5
Pin 3 > 4 > 12 Pin 15 > 17
Pin 1 > 7Pin 6 >
20
Pin 8
Pin 1
Pin 15
Pin 9
15 ft
(4.57 m)
Pin 1
Pin 13
Pin 14
Pin 25
15-position D-sub plug with locking posts
(ground shield connected to backshell) 25-position D-sub receptacle with screw locks
(ground shield connected to backshell)
CAB0079A
Standard Synchronous Cables
308604-14.10 Rev 01 6-61
15-Pin to F V.35 Synchronous Pass-Through
(Order No. 7942)
Industry Interface Type: V.35 (V.10 and V.11)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Transmit Data + 2 R Receive Data A
Transmit Data - 3 T Receive Data B
Receive Data + 14 P Transmit Data A
Receive Data - 13 S Transmit Data B
Request to Send+ 6 F Data Carrier Detect
Data Carrier Detect + 10 D Clear to Send
SCT + 4 Y SCT A
SCT - 5 AA SCT B
Signal Ground 1 B Signal Ground
Internal Wire Connections
Pin 1 > 7Pin C >
D
Pin 6 > 8 Pin Y > V
Pin 4 > 12 Pin AA > X
Pin 5 > 11 Pin E > H
Pin 8
Pin 1
Pin 15
Pin 9
15 ft
(4.57 m)
A
C
E
H
P
S
U
W
Y
AA
B
D
F
R
T
V
X
15-position D-sub plug with locking posts
(ground shield connected to backshell)
34-position V.35 receptacle with screw jack retainers
(ground shield connected to backshell)
CAB0080A
Cable Guide
6-62 308604-14.10 Rev 01
44-Pin to F RS-232 Synchronous Pass-Through
(Order No. 7943)
Industry Interface Type: RS-232-C
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Send Data + 2 3 Receive Data
Receive Data + 3 2 Send Data
Request to Send + 4 8 Data Carrier Detect
Data Carrier Detect + 9 4 Request to Send
Send Timing + 10 15 Send Timing
Frame Ground 1 1 Frame Ground
Signal Ground 7 7 Signal Ground
Internal Wire Connections
Pin 4 > 5Pin 4 >
5
Pin 10 > 11 > 12 Pin 15 > 17
Pin 13 > 28 Pin 6 > 20
Pin 14 > 29
Pin 7 > 19 > 20
Pin 1
Pin 16
Pin 31
Pin 15
Pin 30
Pin 44
15 ft
(4.57 m)
44-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0081A
Pin 1
Pin 13
Pin 14
Pin 25
25-position D-sub receptacle with screw locks
(ground shield connected to backshell)
Standard Synchronous Cables
308604-14.10 Rev 01 6-63
44-Pin to F V.35 Synchronous Pass-Through
(Order No. 7944)
Industry Interface Type: V.35 (V.10 and V.11)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
VSD + 38 R Receive Data A
VSD - 36 T Receive Data B
VRD + 37 P Send Data A
VRD - 35 S Send Data B
Request to Send + 4 F Data Carrier Detect
Data Carrier Detect + 9 C Request to Send
VTT + 40 Y Send Timing A
VTT - 39 AA Send Timing B
Frame Ground 1 A Frame Ground
Signal Ground 7 B Signal Ground
(continued)
A
C
E
H
P
S
U
W
Y
AA
B
D
F
R
T
V
X
Pin 1
Pin 16
Pin 31
Pin 15
Pin 30
Pin 44
15 ft
(4.57 m)
34-position V.35 receptacle with screw jack retainers
(ground shield connected to backshell)
CAB0082A
44-position D-sub plug with screw locks
(ground shield connected to backshell)
Cable Guide
6-64 308604-14.10 Rev 01
Internal Wire Connections
Pin 4 > 5Pin C >
D
Pin 32 > 34 > 40 Pin V > Y
Pin 31 > 33 > 39 Pin X > AA
Pin 13 > 28 Pin E > H
Pin 14 > 29
Pin 7 > 19 > 20 > 41 > 42
Nortel Networks Termination Remote Termination
Standard Synchronous Cables
308604-14.10 Rev 01 6-65
50-Pin to F RS-232 Synchronous Pass-Through
(Order No. 7945)
Industry Interface Type: RS-232-C
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Send Data + 2 3 Receive Data
Receive Data + 3 2 Send Data
Request to Send + 4 8 Data Carrier Detect
Data Carrier Detect + 9 4 Request to Send
Send Timing + 10 15 Send Timing
Frame Ground 1 1 Frame Ground
Signal Ground 7 7 Signal Ground
Internal Wire Connections
Pin 4 > 5Pin 4 >
5
Pin 10 > 11 > 12 Pin 15 > 17
Pin 13 > 38 Pin 6 > 20
Pin 14 > 39
Pin 7 > 30 > 31
15 ft
(4.57 m)
Pin 1 Pin 25
Pin 26 Pin 50
Pin 1
Pin 13
Pin 14
Pin 25
25-position D-sub receptacle with screw locks
(ground shield connected to backshell)
50-position 0.8-mm plug
(ground shield connected to internal shell)
CAB0083A
Cable Guide
6-66 308604-14.10 Rev 01
50-Pin to F V.35 Synchronous Pass-Through
(Order No. 7946)
Industry Interface Type: V.35 (V.10 and V.11)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
VSD + 44 R Receive Data A
VSD - 19 T Receive Data B
VRD + 43 P Send Data A
VRD - 18 S Send Data B
Request to Send + 4 F Data Carrier Detect
Data Carrier Detect + 9 D Clear to Send
VTT + 45 Y Send Timing A
VTT - 20 AA Send Timing B
Frame Ground 1 A Frame Ground
Signal Ground 7 B Signal Ground
(continued)
15 ft
(4.57 m)
34-position V.35 receptacle with screw jack retainers
(ground shield connected to backshell)
Pin 1 Pin 25
Pin 26 Pin 50
50-position 0.8-mm plug
(ground shield connected to internal shell)
CAB0084A
A
C
E
H
P
S
Y
AA
B
D
F
R
T
V
X
Standard Synchronous Cables
308604-14.10 Rev 01 6-67
Internal Wire Connections
Pin 4 > 5Pin C >
D
Pin 41 > 42 > 45 Pin V > Y
Pin 16 > 17 > 20 Pin X > AA
Pin 13 > 38 Pin E > H
Pin 14 > 39
Pin 7 > 30 > 31 > 46 > 47
Nortel Networks Termination Remote Termination
308604-14.10 Rev 01 7-1
Chapter 7
Dial-Up Services Cables
This chapter identifies dial-up services cables necessary for linking Nortel
Networks router hardware platforms to WAN dial-on-demand and dial backup
devices.
Table 7-1 summarizes the cables. Detailed cable illustrations and pinout
specifications follow.
Note: Order Nos. 7220, 7318, 7826, 7932, 7937, and 7943 (which are
described in Chapter 6) support V.25bis.
Table 7-1. Dial-Up Services Cables
Order No. Length Physical Cable Description Raise
DTR V.25bis Page
7116 15 ft (4.57 m) 15-pin D-sub plug to RS-422 plug 97-3
7117 15 ft (4.57 m) 15-pin D-sub plug to RS-422 plug 97-5
7118 15 ft (4.57 m) 15-pin D-sub plug to RS-232 plug 97-7
7119 15 ft (4.57 m) 15-pin D-sub plug to RS-232 plug 97-8
7120 15 ft (4.57 m) 15-pin D-sub plug to V.35 plug 97-9
7121 15 ft (4.57 m) 15-pin D-sub plug to V.35 plug 97-10
7137 15 ft (4.57 m) 44-pin D-sub plug to V.35 plug 97-11
7138 15 ft (4.57 m) 44-pin D-sub plug to RS-232 plug 97-13
(continued)
Cable Guide
7-2 308604-14.10 Rev 01
If you need to order additional cables, contact the Nortel Networks Technical
Solutions Center in your area. (See “How to Get Help” in the Preface.)
The following sections include:
• Illustrations for each cable with the Nortel Networks connector on the left and
the remote connector on the right
• Cable length information
If you want to build a cable, and you want to determine the maximum cable
length appropriate for each of your interconnection requirements, you should:
-- Identify in this chapter a cable that satisfies your wiring requirement (with
the exception of total cable length).
-- Consult the networking industry specification, standard, or
recommendation designated in the “Industry Interface Type” entry for that
cable (located immediately following the cable pinout diagram).
• Pinouts for each connector and all associated signals
• Wire jumper identification for either connector (when applicable)
For example, the 15-pin D-sub to RS-422 cable (Order No. 7116) lists internal
wire connections (Pin 7 > 12; Pin 25 > 30) in the Remote Termination column.
This indicates that you must connect pin 7 to pin 12 and pin 25 to pin 30
inside the remote connector.
• Grounding arrangements that isolate the chassis from the DC ground within
the cable
7139 15 ft (4.57 m) 44-pin D-sub plug to RS-422 plug 97-14
7933 15 ft (4.57 m) 50-pin to V.35 with raise DTR 97-16
7935 15 ft (4.57 m) 50-pin to RS-232 with raise DTR 97-18
Table 7-1. Dial-Up Services Cables
(continued)
Order No. Length Physical Cable Description Raise
DTR V.25bis Page
Dial-Up Services Cables
308604-14.10 Rev 01 7-3
15-Pin D-Sub to RS-422: V.25bis (Order No. 7116)
Industry Interface Type: RS-449/RS-422
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Signal Ground 1 37 Send Ground
Send Data + 2 4 Send Data A
Send Data - 3 22 Send Data B
Serial Clock Transmit + 4 5 Send Timing A
Serial Clock Transmit - 5 23 Send Timing B
Request to Send + 6 7 Request to Send A
Clear to Send - 7 27 Clear to Send B
Clear to Send + 8 9 Clear to Send A
Data Carrier Detect - 9 29 Data Mode B
Data Carrier Detect + 10 11 Data Mode A
Serial Clock Receive - 11 26 Receive Timing B
Serial Clock Receive + 12 8 Receive Timing A
Receive Data - 13 24 Receive Data B
Receive Data + 14 6 Receive Data A
(continued)
Pin 8
Pin 1
Pin 15
Pin 9
15 ft
(4.57 m)
Pin 1
Pin 37
Pin 20
Pin 19
15-position D-sub plug with locking posts
(ground shield connected to backshell) 37-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0003A
Cable Guide
7-4 308604-14.10 Rev 01
Request to Send - 15 25 Request to Send B
Internal Wire Connections
Pin 7 > 12 (Terminal Ready A)
Pin 25 > 30 (Terminal Ready B)
Note: You must move jumpers B and C to the X.21 (2-3) position to support
this interface.
Nortel Networks Termination Remote Termination
Dial-Up Services Cables
308604-14.10 Rev 01 7-5
15-Pin D-Sub to RS-422: Raise DTR (Order No. 7117)
Industry Interface Type: RS-449/RS-422
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Signal Ground 1 37 Send Ground
Send Data + 2 4 Send Data A
Send Data - 3 22 Send Data B
Serial Clock Transmit + 4 5 Send Timing A
Serial Clock Transmit - 5 23 Send Timing B
Request to Send + 6 7 Request to Send A
Clear to Send - 7 29 Data Mode B
Clear to Send + 8 11 Data Mode A
Data Carrier Detect + 10 15 Incoming Call
Serial Clock Receive - 11 26 Receive Timing B
Serial Clock Receive + 12 8 Receive Timing A
Receive Data - 13 24 Receive Data B
Receive Data + 14 6 Receive Data A
Request to Send - 15 25 Request to Send B
(continued)
Pin 8
Pin 1
Pin 15
Pin 9
15 ft
(4.57 m)
Pin 1
Pin 37
Pin 20
Pin 19
15-position D-sub plug with locking posts
(ground shield connected to backshell)
37-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0004A
Cable Guide
7-6 308604-14.10 Rev 01
Internal Wire Connections
Pin 1 > 9Pin 7 >
12 (Terminal Ready A)
Pin 25 > 30 > 37
Note: You must move jumpers B and C to the X.21 (2-3) position to support
this interface.
Nortel Networks Termination Remote Termination
Dial-Up Services Cables
308604-14.10 Rev 01 7-7
15-Pin D-Sub to RS-232: Raise DTR (Order No. 7118)
Industry Interface Type: RS-232-C
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Signal Ground 1 7 Signal Ground
Transmitted Data 2 2 Transmitted Data
Transmitter Signal Element Timing
(DTE Source) 3 24 Transmitter Signal Element Timing
(DTE Source)
Transmitter Signal Element Timing
(DCE Source) 4 15 Transmitter Signal Element Timing
(DCE Source)
Request to Send 6 4 Request to Send
Clear to Send 8 6 Data Set Ready
Data Carrier Detect 10 22 Ring Indicator
Receiver Signal Element Timing
(DCE Source) 12 17 Receiver Signal Element Timing
(DCE Source)
Received Data 14 3 Received Data
Internal Wire Connections
Pin 1 > 7Pin 4 >
20 (Data Terminal Ready)
Pin 8
Pin 15
Pin 9
Pin 13
Pin 1
Pin 25
Pin 1 P
Pin 14
15 ft
(4.57 m)
15-position D-sub plug with locking posts
(ground shield connected to backshell) 25-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0005A
Cable Guide
7-8 308604-14.10 Rev 01
15-Pin D-Sub to RS-232: V.25bis (Order No. 7119)
Industry Interface Type: RS-232-C
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Signal Ground 1 7 Signal Ground
Transmitted Data 2 2 Transmitted Data
Transmitter Signal Element Timing
(DTE Source) 3 24 Transmitter Signal Element Timing
(DTE Source)
Transmitter Signal Element Timing
(DCE Source) 4 15 Transmitter Signal Element Timing
(DCE Source)
Request to Send 6 4 Request to Send
Clear to Send 8 5 Clear to Send
Data Carrier Detect 10 6 Data Set Ready
Receiver Signal Element Timing
(DCE Source) 12 17 Receiver Signal Element Timing
(DCE Source)
Received Data 14 3 Received Data
Internal Wire Connections
Pin 1 > 7Pin 4 >
20 (Data Terminal Ready)
Pin 8
Pin 15
Pin 9
Pin 13
Pin 1
Pin 25
Pin 1 P
Pin 14
15 ft
(4.57 m)
15-position D-sub plug with locking posts
(ground shield connected to backshell) 25-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0006A
Dial-Up Services Cables
308604-14.10 Rev 01 7-9
15-Pin D-Sub to V.35: V.25bis (Order No. 7120)
Industry Interface Type: V.35 (V.10 and V.11)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Signal Ground 1 B Signal Ground
Send Data + 2 P Send Data A
Send Data - 3 S Send Data B
Serial Clock Transmit + 4 Y Send Timing A
Serial Clock Transmit - 5 AA Send Timing B
Request to Send + 6 C Request to Send
Clear to Send + 8 D Clear to Send
Data Carrier Detect + 10 E Data Set Ready
Serial Clock Receive - 11 X Receive Timing B
Serial Clock Receive + 12 V Receive Timing A
Receive Data - 13 T Receive Data B
Receive Data + 14 R Receive Data A
Internal Wire Connections
Pin 1 > 7Pin C
> H (Data Terminal Ready)
Pin 8
Pin 15
Pin 9
Pin 1
15 ft
(4.57 m)
B
D
R
T
V
X
A
E
C
H
P
S
Y
AA
15-position D-sub plug with locking posts
(ground shield connected to backshell)
34-position V.35 plug with screw jack retainers
(ground shield connected to backshell)
CAB0007A
Cable Guide
7-10 308604-14.10 Rev 01
15-Pin D-Sub to V.35: Raise DTR (Order No. 7121)
Industry Interface Type: V.35 (V.10 and V.11)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Signal Ground 1 B Signal Ground
Send Data + 2 P Send Data A
Send Data - 3 S Send Data B
Serial Clock Transmit + 4 Y Send Timing A
Serial Clock Transmit - 5 AA Send Timing B
Request to Send + 6 C Request to Send
Clear to Send + 8 E Data Set Ready
Data Carrier Detect + 10 J Ring Indicator
Serial Clock Receive - 11 X Receive Timing B
Serial Clock Receive + 12 V Receive Timing A
Receive Data - 13 T Receive Data B
Receive Data + 14 R Receive Data A
Internal Wire Connections
Pin 1 > 7Pin C >
H (Data Terminal Ready)
Pin 8
Pin 1
Pin 15
Pin 9
15 ft
(4.57 m)
B
J
R
T
V
X
A
E
C
H
P
S
Y
AA
15-position D-sub plug with locking posts
(ground shield connected to backshell)
34-position V.35 plug with screw jack retainers
(ground shield connected to backshell)
CAB0008A
Dial-Up Services Cables
308604-14.10 Rev 01 7-11
44-Pin D-Sub to V.35: Raise DTR (Order No. 7137)
Industry Interface Type: V.35 (V.10 and V.11)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Frame Ground 1 A Frame Ground
Request to Send + 4 C Request to Send
Clear to Send + 5 D Clear to Send
Data Set Ready + 6 E Data Set Ready
Data Terminal Ready + 8 H Data Terminal Ready
Data Carrier Detect + 9 J Ring Indicator
VTT + 40 U Terminal Timing A
VTT - 39 W Terminal Timing B
Signal Ground 19 B Signal Ground
VST + 32 Y Send Timing A
VST - 31 AA Send Timing B
VRT + 34 V Receive Timing A
VRT - 33 X Receive Timing B
(continued)
Pin 1
Pin 16
Pin 31
Pin 15
Pin 30
Pin 44
15 ft
(4.57 m)
B
D
J
R
T
V
X
A
C
E
H
P
S
U
W
Y
AA
44-position D-sub plug with screw locks
(ground shield connected to backshell)
34-position V.35 plug with screw jack retainers
(ground shield connected to backshell)
CAB0018A
Cable Guide
7-12 308604-14.10 Rev 01
VRD + 37 R Receive Data A
VRD - 35 T Receive Data B
VSD + 38 P Send Data A
VSD - 36 S Send Data B
Internal Wire Connections
Pin 7 > 19 > 20
Pin 41 > 42 > 43
Pin 13 > 28
Pin 14 > 29
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Dial-Up Services Cables
308604-14.10 Rev 01 7-13
44-Pin D-Sub to RS-232: Raise DTR (Order No. 7138)
Industry Interface Type: RS-232-C
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Frame Ground 1 1 Frame Ground
Send Data + 2 2 Send Data
Receive Data + 3 3 Receive Data
Request to Send + 4 4 Request to Send
Clear to Send + 5 5 Clear to Send
Data Set Ready + 6 6 Data Set Ready
Signal Ground 7 7 Signal Ground
Data Terminal Ready + 8 20 Data Terminal Ready
Data Carrier Detect + 9 22 Ring Indicator
Send Timing + 10 15 Send Timing
Receive Timing + 11 17 Receive Timing
Transmitter Signal Element Timing + 12 24 Transmitter Signal Element Timing
Internal Wire Connections
Pin 7 > 19 > 20
Pin 13 > 28
Pin 14 > 29
15 ft
(4.57 m)
Pin 13
Pin 1
Pin 25
Pin 14
25-position D-sub plug with screw locks
(ground shield connected to backshell)
Pin 1
Pin 16
Pin 31
Pin 15
Pin 30
Pin 44
44-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0019A
Cable Guide
7-14 308604-14.10 Rev 01
44-Pin D-Sub to RS-422: Raise DTR (Order No. 7139)
Industry Interface Type: RS-449/RS-422
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Send Data + 2 4 Send Data A
Send Data - 16 22 Send Data B
Receive Data + 3 6 Receive Data A
Receive Data - 17 24 Receive Data B
Request to Send + 4 7 Request to Send A
Request to Send - 18 25 Request to Send B
Clear to Send + 5 9 Clear to Send A
Clear to Send - 19 27 Clear to Send B
Data Set Ready + 6 11 Data Mode A
Data Set Ready - 20 29 Data Mode B
Terminal Ready + 8 12 Data Terminal Ready A
Terminal Ready - 22 30 Data Terminal Ready B
Data Carrier Detect + 9 15 Ring Indicator
(continued)
Pin 1
Pin 37
Pin 20
Pin 19
15 ft
(4.57 m)
37-position D-sub plug with screw locks
(ground shield connected to backshell)
Pin 1
Pin 16
Pin 31
Pin 15
Pin 30
Pin 44
44-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0020A
Dial-Up Services Cables
308604-14.10 Rev 01 7-15
Send Timing + 10 5 Send Timing A
Send Timing - 24 23 Send Timing B
Receive Timing + 11 8 Receive Timing A
Receive Timing - 25 26 Receive Timing B
Terminal Timing + 12 17 Terminal Timing A
Terminal Timing - 26 35 Terminal Timing B
Send Common 44 37 Send Common
Signal Ground 41 19 Signal Ground
Internal Wire Connections
Pin 13 > 28
Pin 14 > 29
Pin 23 > 41 > 43
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Cable Guide
7-16 308604-14.10 Rev 01
50-Pin to V.35: Raise DTR (Order No. 7933)
Industry Interface Type: V.35 (V.10 and V.11)
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
VSD + 44 P Send Data A
VSD - 19 S Send Data B
VRT + 42 V Receive Timing A
VRT - 17 X Receive Timing B
VST + 41 Y Send Timing A
VST - 16 AA Send Timing B
VRD + 43 R Receive Data A
VRD - 18 T Receive Data B
Data Set Ready + 6 E Data Set Ready
Data Terminal Ready + 8 H Data Terminal Ready
Request to Send + 4 C Request to Send
Clear to Send + 5 D Clear to Send
VTT + 45 U Terminal Timing A
VTT - 20 W Terminal Timing B
(continued)
15 ft
(4.57 m)
A
C
E
H
P
S
U
W
Y
AA
B
D
J
R
T
V
X
34-position V.35 plug with screw jack retainers
(ground shield connected to backshell)
Pin 1 Pin 25
Pin 26 Pin 50
50-position 0.8-mm plug
(ground shield connected to internal shell)
CAB0071A
Dial-Up Services Cables
308604-14.10 Rev 01 7-17
Frame Ground 1 A Frame Ground
Data Carrier Detect + 9 J Ring Indicator
Signal Ground 30 B Signal Ground
Internal Wire Connections
Pin 7 > 30 > 31
Pin 46 > 47 > 48
Pin 13 > 38
Pin 14 > 39
Nortel Networks Termination Remote Termination
Cable Guide
7-18 308604-14.10 Rev 01
50-Pin to RS-232: Raise DTR (Order No. 7935)
Industry Interface Type: RS-232-C
Nortel Networks Termination Remote Termination
Signal Pin # to Pin # Signal
Frame Ground 1 1 Frame Ground
Send Data + 2 2 Send Data
Receive Data + 3 3 Receive Data
Request to Send + 4 4 Request to Send
Clear to Send + 5 5 Clear to Send
Data Set Ready + 6 6 Data Set Ready
Data Terminal Ready + 8 20 Data Terminal Ready
Data Carrier Detect + 9 22 Ring Indicator
Send Timing + 10 15 Send Timing
Receive Timing + 11 17 Receive Timing
Terminal Timing + 12 24 Terminal Timing
Signal Ground 7 7 Signal Ground
Internal Wire Connections
Pin 7 > 30 > 31
Pin 13 > 38
Pin 14 > 39
15 ft
(4.57 m)
Pin 13
Pin 1
Pin 25
Pin 14
25-position D-sub plug with screw locks
(ground shield connected to backshell)
Pin 1 Pin 25
Pin 26 Pin 50
50-position 0.8-mm plug
(ground shield connected to internal shell)
CAB0072A
308604-14.10 Rev 01 8-1
Chapter 8
Cable Adapters
This chapter identifies the cable adapters that enable existing cables to connect to
different ports. These cable assemblies automatically select the appropriate
interface type.
Table 8-1 summarizes the cable adapters. Detailed cable illustrations and pinouts
follow.
If you need to order additional cables, contact the Nortel Networks Technical
Solutions Center in your area. (See “How to Get Help” in the Preface.)
Table 8-1. Cable Adapters
Order No. Length Physical Cable Description Page
7122 12 in. (0.3 m) 44-pin to 15-pin RS-232 cable adapter 8-3
7123 12 in. (0.3 m) 44-pin to 15-pin X.21 cable adapter 8-5
7124 12 in. (0.3 m) 44-pin to 15-pin V.35 cable adapter 8-7
7131 12 in. (0.3 m) 44-pin to 15-pin RS-422 cable adapter 8-9
7947 12 in. (0.3 m) 50-pin to 44-pin cable adapter 8-11
7948 12 in. (0.3 m) 50-pin to 15-pin V.35 cable adapter 8-14
AA0018024 12 in. (0.3 m) 50-pin to 15-pin RS-422 cable adapter 8-16
AA0018040 Not applicable Model 460F-BN coaxial to RJ-45 adapter
(Balun), for use with the AA0018040 ATM
E1 RJ-45 to RJ-45 cable
8-18
309329-A Not applicable 9-pin to 25-pin external modem adapter for
Passport 5430 only 8-19
Cable Guide
8-2 308604-14.10 Rev 01
The following sections include:
• Cable illustrations with the Nortel Networks connector on the left and the
remote connector on the right
• Cable length information
If you want to build a cable, and you want to determine the maximum cable
length appropriate for that interconnection requirement, you should:
-- Identify in this chapter a cable that satisfies your interconnection
requirement (with the exception of total cable length).
-- Consult the networking industry specification, standard, or
recommendation designated in the “Industry Interface Type” entry for that
cable (located immediately following the cable pinout diagram).
• Pinouts for each connector and all associated signals
• Internal wire connections for each termination (when applicable)
For example, the 44-pin to 15-pin RS-232 cable adapter (Order No. 7122) lists
internal wire connections such as “Pin 13 > 28” in the Nortel Networks
Termination column. This indicates that you must connect pin 13 to pin 28
inside the Nortel Networks termination.
• Grounding arrangements that isolate the chassis from the DC ground within
the cable (when applicable)
Cable Adapters
308604-14.10 Rev 01 8-3
44-Pin to 15-Pin RS-232 Cable Adapter (Order No. 7122)
Industry Interface Type: RS-232-C
Note: This adapter enables you to connect an existing 15-pin RS-232 cable
(Order No. 7255 or 7256) to a 44-pin port. This cable assembly automatically
selects the RS-232 interface.
Caution: You cannot use this cable adapter to provide a clock (master) to an
attached service. This is a passive straight-through cable.
Nortel Networks Termination Termination to Existing Cable
Signal Pin # to Pin # Signal
Send Data + 2 2 Send Data
Receive Data + 3 14 Receive Data
Request to Send + 4 6 Request to Send
(continued)
12 in.
(0.3 m)
Pin 1
Pin 16
Pin 31
Pin 15
Pin 30
Pin 44
44-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0010A
Pin 1
Pin 8
Pin 9
Pin 15
15-position D-sub receptacle with slide latch
connected to backshell
Cable Guide
8-4 308604-14.10 Rev 01
Clear to Send + 5 8 Clear to Send
Data Set Ready + 6 15 Data Set Ready
Data Carrier Detect + 9 10 Data Carrier Detect
Send Timing + 10 4 Send Timing
Receive Timing + 11 12 Receive Timing
Transmitter Timing + 12 3 Transmitter Timing
Signal Ground 7 7 Signal Ground
Internal Wire Connections
Pin 7 > 19 > 20 > 23 Pin 1 > 7 > 9
Pin 13 > 28
Pin 14 > 29
Nortel Networks Termination Termination to Existing Cable
Cable Adapters
308604-14.10 Rev 01 8-5
44-Pin to 15-Pin X.21 Cable Adapter (Order No. 7123)
Industry Interface Type: X.21
Note: This adapter enables you to connect an existing 15-pin X.21 cable
(Order No. 7221) to a 44-pin port. This cable assembly automatically selects
the X.21 interface.
Caution: You cannot use this cable adapter to provide a clock (master) to an
attached service. This is a passive straight-through cable.
Nortel Networks Termination Termination to Existing Cable
Signal Pin # to Pin # Signal
Send Data + 2 2 Send Data +
Send Data - 16 3 Send Data -
Receive Data + 3 14 Receive Data +
(continued)
12 in.
(0.3 m)
Pin 1
Pin 16
Pin 31
Pin 15
Pin 30
Pin 44
44-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0010A
Pin 1
Pin 8
Pin 9
Pin 15
15-position D-sub receptacle with slide latch
connected to backshell
Cable Guide
8-6 308604-14.10 Rev 01
Receive Data - 17 13 Receive Data -
Data Carrier Detect + 9 10 Data Carrier Detect +
Data Carrier Detect - 23 9 Data Carrier Detect -
Request to Send + 4 6 Request to Send +
Request to Send - 18 15 Request to Send -
Send Timing + 10 4 Timing +
Send Timing - 24 5 Timing -
Signal Ground 7 1 Signal Ground
Internal Wire Connections
Pin 7 > 19 > 20 > 23 Pin 1 > 7 > 9
Pin 28 > 30 Pin 4 > 12
Pin 14 > 15 Pin 5 > 11
Pin 41 > 43
Nortel Networks Termination Termination to Existing Cable
Cable Adapters
308604-14.10 Rev 01 8-7
44-Pin to 15-Pin V.35 Cable Adapter (Order No. 7124)
Industry Interface Type: V.35
Note: This adapter enables you to connect an existing 15-pin V.35 cable
(Order No. 7215 or 7216) to a 44-pin port. This cable assembly automatically
selects the V.35 interface.
Caution: You cannot use this cable adapter to provide a clock (master) to an
attached service. This is a passive straight-through cable.
Nortel Networks Termination Termination to Existing Cable
Signal Pin # to Pin # Signal
VRD + 37 14 Receive Data +
VRD - 35 13 Receive Data -
VSD + 38 2 Send Data +
VSD - 36 3 Send Data -
(continued)
12 in.
(0.3 m)
Pin 1
Pin 16
Pin 31
Pin 15
Pin 30
Pin 44
44-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0010A
Pin 1
Pin 8
Pin 9
Pin 15
15-position D-sub receptacle with slide latch
connected to backshell
Cable Guide
8-8 308604-14.10 Rev 01
Data Carrier Detect + 9 10 Data Carrier Detect +
Request to Send + 4 6 Request to Send +
Clear to Send + 5 8 Clear to Send +
Data Set Ready + 6 15 Data Set Ready +
VRT + 34 12 Receive Timing +
VRT - 33 11 Receive Timing -
VST + 32 4 Send Timing +
VST - 31 5 Send Timing -
Signal Ground 19 1 Signal Ground
Internal Wire Connections
Pin 7 > 19 > 20 > 23 Pin 1 > 7 > 9
Pin 13 > 28
Pin 14 > 29
Pin 41 > 42 > 43
Nortel Networks Termination Termination to Existing Cable
Cable Adapters
308604-14.10 Rev 01 8-9
44-Pin to 15-Pin RS-422 Cable Adapter (Order No. 7131)
Industry Interface Type: RS-422
Note: This adapter enables you to connect an existing 15-pin RS-422 cable
(Order No. 7315 or AA0018011) to a 44-pin port. This cable assembly
automatically selects the RS-422 interface.
Caution: You cannot use this cable adapter to provide a clock (master) to an
attached service. This is a passive straight-through cable.
Nortel Networks Termination Termination to Existing Cable
Signal Pin # to Pin # Signal
Send Data + 2 2 Send Data +
Send Data - 16 3 Send Data -
Receive Data + 3 14 Receive Data +
Receive Data - 17 13 Receive Data -
(continued)
12 in.
(0.3 m)
Pin 1
Pin 16
Pin 31
Pin 15
Pin 30
Pin 44
44-position D-sub plug with screw locks
(ground shield connected to backshell)
CAB0010A
Pin 1
Pin 8
Pin 9
Pin 15
15-position D-sub receptacle with slide latch
connected to backshell
Cable Guide
8-10 308604-14.10 Rev 01
Data Carrier Detect + 9 10 Data Carrier Detect +
Data Carrier Detect - 23 9 Data Carrier Detect -
Request to Send + 4 6 Request to Send +
Request to Send - 18 15 Request to Send -
Clear to Send + 5 8 Clear to Send +
Clear to Send - 19 7 Clear to Send -
Send Timing + 10 4 Serial Clock Transmit +
Send Timing - 24 5 Serial Clock Transmit -
Receive Timing + 11 12 Serial Clock Receive +
Receive TIming - 25 11 Serial Clock Receive -
Signal Ground 7 1 Signal Ground
Internal Wire Connections
Pin 13 > 28
Pin 14 > 29
Pin 41 > 43
Nortel Networks Termination Termination to Existing Cable
Cable Adapters
308604-14.10 Rev 01 8-11
50-Pin to 44-Pin Cable Adapter (Order No. 7947)
Industry Interface Type: Cable-dependent
Note: This adapter allows you to connect an existing 44-pin cable to a 50-pin
port. The interface is automatically selected.
Nortel Networks 50-Pin Termination Nortel Networks 44-Pin Termination
Signal Pin # to Pin # Signal
Frame Ground 1 1 Frame Ground
Send Data + 2 2 Send Data +
Send Data - 27 16 Send Data -
Receive Data + 3 3 Receive Data +
Receive Data - 28 17 Receive Data -
Request to Send + 4 4 Request to Send +
Request to Send - 29 18 Request to Send -
Clear to Send + 5 5 Clear to Send +
Clear to Send - 30 19 Clear to Send -
(continued)
12 in.
(0.3 m)
Pin 1
Pin 16
Pin 31
Pin 15
Pin 30
Pin 44
44-position D-sub receptacle with screw locks
(ground shield connected to backshell)
Pin 1 Pin 25
Pin 26 Pin 50
50-position 0.8-mm plug
(ground shield connected to internal shell)
CAB0085A
Cable Guide
8-12 308604-14.10 Rev 01
Data Set Ready + 6 6 Data Set Ready +
Data Set Ready - 31 20 Data Set Ready -
Signal Ground 7 7 Signal Ground
Data Terminal Ready + 8 8 Data Terminal Ready +
Data Terminal Ready - 33 22 Data Terminal Ready -
Data Carrier Detect + 9 9 Data Carrier Detect +
Data Carrier Detect - 34 23 Data Carrier Detect -
Send Timing + 10 10 Send Timing +
Send Timing - 35 24 Send Timing -
Receive Timing+ 11 11 Receive Timing +
Receive Timing- 36 25 Receive Timing -
Transmitter Timing+ 12 12 Transmitter Timing +
Transmitter Timing- 37 26 Transmitter Timing -
RTIN# 13 13 RTIN#
RTINB# 38 28 RTINB#
Clear to Send# 14 14 Clear to Send#
CTSIN# 39 29 CTSIN#
RTS# 15 15 RTS#
ST# 4030ST#
V.35 Send Timing- 16 31 V.35 Send Timing-
Signal Pin # to Pin # Signal
V.35 Send Timing + 41 32 V.35 Send Timing +
V.35 Receive Timing - 17 33 V.35 Receive Timing -
V.35 Receive Timing + 42 34 V.35 Receive Timing +
V.35 Receive Data - 18 35 V.35 Receive Data -
V.35 Receive Data + 43 37 V.35 Receive Data +
V.35 Send Data - 19 36 V.35 Send Data -
V.35 Send Data + 44 38 V.35 Send Data +
V.35 Transmitter Timing - 20 39 V.35 Transmitter Timing -
V.35 Transmitter Timing + 45 40 V.35 Transmitter Timing +
(continued)
Nortel Networks 50-Pin Termination Nortel Networks 44-Pin Termination
Cable Adapters
308604-14.10 Rev 01 8-13
UNBE 46 41 UNBE
V35D 47 42 V35D
Ground 48 43 Ground
Send Common 49 44 Send Common
Nortel Networks 50-Pin Termination Nortel Networks 44-Pin Termination
Cable Guide
8-14 308604-14.10 Rev 01
50-Pin to 15-Pin V.35 Cable Adapter (Order No. 7948)
Industry Interface Type: V.35
Note: This adapter allows you to connect an existing 15-pin V.35 cable
(Order No. 7215 or 7216) to a 50-pin port. The V.35 interface is automatically
selected.
Caution: You cannot use this cable adapter to provide a clock (master) to an
attached service. This is a passive straight-through cable.
Nortel Networks Termination Termination to Existing Cable
Signal Pin # to Pin # Signal
V.35 Receive Data + 43 14 Receive Data +
V.35 Receive Data - 18 13 Receive Data -
V.35 Send Data + 44 2 Send Data +
V.35 Send Data - 19 3 Send Data -
(continued)
12 in.
(0.3 m)
CAB0110A
Pin 1
Pin 8
Pin 9
Pin 15
15-position D-sub receptacle with slide latch
connected to backshell
Pin 1 Pin 25
Pin 26 Pin 50
50-position 0.8-mm plug
(ground shield connected to internal shell)
Cable Adapters
308604-14.10 Rev 01 8-15
Data Carrier Detect + 9 10 Data Carrier Detect +
Request to Send + 4 6 Request to Send +
Clear to Send + 5 8 Clear to Send +
Data Set Ready + 6 15 Data Set Ready +
V.RT + 42 12 Receive Timing +
VRT - 17 11 Receive Timing -
VRT + 14 4 Send Timing +
VRT - 16 5 Send Timing -
Signal Ground 7 1 Signal Ground
Internal Wire Connections
Pin 7 > 30 > 31 > 34 Pin 1 > 7 > 9
Pin 13 > 38
Pin 14 > 39
Pin 46 > 47 > 48
Nortel Networks Termination Termination to Existing Cable
Cable Guide
8-16 308604-14.10 Rev 01
50-Pin to 15-Pin RS-422 Cable Adapter
(Order No. AA0018024)
Industry Interface Type: RS-422
Note: This adapter allows you to connect an existing 15-pin RS-422 cable
(Order No. 7315 or AA0018011) to a 50-pin port. The RS-422 interface is
automatically selected.
Caution: You cannot use this cable adapter to provide a clock (master) to an
attached service. This is a passive straight-through cable.
Nortel Networks Termination Termination to Existing Cable
Signal Pin # to Pin # Signal
Send Data + 2 2 Send Data +
Send Data - 27 3 Send Data -
Receive Data + 3 14 Receive Data +
(continued)
12 in.
(0.3 m)
CAB0110A
Pin 1
Pin 8
Pin 9
Pin 15
15-position D-sub receptacle with slide latch
connected to backshell
Pin 1 Pin 25
Pin 26 Pin 50
50-position 0.8-mm plug
(ground shield connected to internal shell)
Cable Adapters
308604-14.10 Rev 01 8-17
Receive Data - 28 13 Receive Data -
Request to Send + 4 6 Request to Send +
Request to Send - 29 15 Request to Send -
Clear to Send + 5 8 Clear to Send +
Clear to Send - 30 7 Clear to Send -
Data Carrier Detect + 9 10 Data Carrier Detect +
Data Carrier Detect - 34 9 Data Carrier Detect -
Send Timing + 10 4 Serial Clock Transmit +
Send Timing - 35 5 Serial Clock Transmit -
Receive Timing + 11 12 Serial Clock Receive +
Receive Timing - 36 11 Serial Clock Receive -
Signal Ground 7 1 Signal Ground
Internal Wire Connections
Pin 13 > 38
Pin 14 > 39
Pin 46 > 48
Nortel Networks Termination Termination to Existing Cable
Cable Guide
8-18 308604-14.10 Rev 01
Model 460F-BN G.703 Coaxial to RJ-45 Adapter (Balun)
(Order No. AA0018040)
Industry Interface Type: E1
Note: This adapter allows you to connect an ATM E1 interface on a
Passport 5430 (a 120-ohm, RJ-45 interface) to E1 service (dual 75-ohm,
coaxial cable). Use this adapter with the AA0018040 RJ-45 to RJ-45 cable
described in Chapter 5.
CAB0112A
Coaxial (75-ohm)
RJ-45
Cable Adapters
308604-14.10 Rev 01 8-19
Passport 5430 External Modem Adapter (Order
No. 309329-A)
Note: This adapter allows you to connect an existing AA0018029 PC console
cable to an RS-232 modem port.
Nortel Networks Termination Termination to Existing Cable
Signal Pin # to Pin # Signal
Data Carrier Detect 1 8 Data Carrier Detect
Receive Data 2 2 Send Data
Send Data 3 3 Receive Data
Data Terminal Ready 4 20 Data Terminal Ready
Signal Ground 5 7 Signal Ground
Data Set Ready 6 6 Data Set Ready
Request to Send 7 4 Request to Send
Clear to Send 8 5 Clear to Send
Ring Indication 9 22 Ring Indication
Pin 1 Pin 5
CAB0113A
Pin 6 Pin 9 Pin 14 Pin 25
Pin 1 Pin 13
308604-14.10 Rev 01 Index-1
Numbers
7115, Ethernet cable, 3-3
7116, 15-pin to RS-422 (V.25bis) cable, 7-3
7117, 15-pin to RS-422 (raise DTR) cable, 7-5
7118, 15-pin to RS-232 (raise DTR) cable, 7-7
7119, 15-pin to RS-232 (V.25bis) cable, 7-8
7120, 15-pin to V.35 (V.25bis) cable, 7-9
7121, 15-pin to V.35 (raise DTR) cable, 7-10
7122, 44-pin to 15-pin RS-232 cable adapter, 8-3
7123, 44-pin to 15-pin X.21 cable adapter, 8-5
7124, 44-pin to 15-pin V.35 cable adapter, 8-7
7125, Token Ring MAU cable, 3-4
7126, Token Ring MAU cable (with ferrite bead), 3-5
7128, Token Ring to RJ-11 cable, 3-6
7131, 44-pin to 15-pin RS-422 cable adapter, 8-9
7135, FDDI FSD to FSD cable, 3-7
7136, FDDI FSD to straight-tip cable, 3-7
7137, 44-pin to V.35 (raise DTR) cable, 7-11
7138, 44-pin to RS-232 (raise DTR) cable, 7-13
7139, 44-pin to RS-422 (raise DTR) cable, 7-14
7150, MCT1 clock cable, 5-11, 5-12
7151, MCT1 15-pin loopback connector, 5-13
7152, MCT1 RJ-48 loopback connector, 5-14
7153, MCT1 crossover cable, 5-15
7154, MCT1 RJ-48 loopback cable, 5-16
7155, MCT1 15-pin loopback cable, 5-17
7156, MCT1 RJ-48 straight-through cable, 5-18
7157, MCT1 15-pin straight-through cable, 5-19
7158, 15-pin to male V.35 cable, 6-17
7159, 44-pin to male V.35 cable, 6-18
7160, MCE1 crossover cable, 5-20
7161, MCE1 straight-through cable, 5-21
7162, MCE1 coaxial cable, 5-22
7163, FDDI SC duplex to SC duplex, MM fiber cable,
3-9
7164, FDDI SC duplex to straight-tip, SM fiber cable,
3-8
7165, FDDI SC duplex to SC duplex, SM fiber cable,
3-9
7167, MCE1 DB9 to DB15 straight-through cable,
5-23
7168, MCE1 DB9 to DB15 crossover cable, 5-24
7169, ATM cable, 3-10
7215, 15-pin to synchronous V.35 cable, 6-20
7216, 15-pin synchronous to V.35 with DTR cable,
6-22
7218, RS-232 synchronous pass-through cable, 6-23
7219, 15-pin synchronous to V.35 pass-through cable,
6-24
7220, 44-pin synchronous to V.35 cable, 6-26
7221, 15-pin synchronous to X.21 cable, 6-28
7224, 44-pin synchronous to X.21 cable, 6-29
7255, 15-pin synchronous to RS-232 cable, 6-30
7256, 15-pin synchronous to V.28 cable, 6-31
7260, 15-pin to 15-pin crossover cable, 6-32
7315, 15-pin synchronous to RS-422 cable, 6-34
7318, 44-pin synchronous to RS-422 cable, 6-36
7401, T1 to CSU DTE cable, 5-25
7415, T1 to Customer Premise Equipment cable, 5-26
7525, console cable, for all except AFN and AN, 2-3
7526, console cable, AFN/AN only, 2-4, 2-8
7527, AT serial console cable, 2-5
Index
Index-2 308604-14.10 Rev 01
7650, CSU network receptacle to RJ-45 cable, 5-27
7750, CSU network receptacle to spade terminals
cable, 5-28
77850, modem cable for BLN, BLN-2, or BCN
platforms only, 2-7
7825, modem cable for all except BLN, BLN-2, or
BCN platform, 2-6
7826, 44-pin synchronous to RS-232 cable, 6-38
7830, HSSI DCE to DTE, 10-ft cable, 4-3
7831, HSSI DCE to DTE, 50-ft cable, 4-3
7832, HSSI crossover cable, 4-5
7833, RS-232 synchronous pass-through cable, 6-39
7834, 44-pin to V.35 pass-through cable, 6-1
7835, V.35 44-pin to 44-pin crossover cable, 6-42
7836, V.35 44-pin to 15-pin crossover cable, 6-44
7837, 44-pin synchronous to V.28 cable, 6-46
7932, 50-pin to V.35 cable, 6-48
7933, 50-pin to V.35 (raise DTR) cable, 7-16
7934, 50-pin to RS-232 cable, 6-50
7935, 50-pin to RS-232 (raise DTR) cable, 7-18
7936, 50-pin to X.21 cable, 6-51
7937, 50-pin to RS-422 cable, 6-52
7938, 50-pin to 50-pin crossover cable, 6-54
7939, 50-pin to 15-pin crossover cable, 6-56
7940, 50-pin to 44-pin crossover cable, 6-58
7941, 15-pin to F RS-232 synchronous pass-through
cable, 6-60
7942, 15-pin to F V.35 synchronous pass-through
cable, 6-61
7943, 44-pin to F RS-232 synchronous pass-through
cable, 6-62
7944, 44-pin to F V.35 synchronous pass-through
cable, 6-63
7945, 50-pin to F RS-232 synchronous pass-through
cable, 6-65
7946, 50-pin to F V.35 synchronous pass-through
cable, 6-66
7947, 50-pin to 44-pin V.35 cable adapter, 8-11
7948, 50-pin to 15-pin V.35 cable adapter, 8-14
A
AA001126, Passport 2430 and Passport 5430 Fast
Branch Router console interface to PC, 2-8
AA0018001, MCE1 DB9 to mod jack cable, 5-4
AA0018002, MCE1 DB9 to unterminated cable, 5-5
AA0018003, 15-pin to F X.21 synchronous
pass-through cable, 6-4
AA0018004, 44-pin to F X.21 synchronous
pass-through cable, 6-6
AA0018005, 50-pin to X.21 synchronous pass-through
cable, 6-1
AA0018006, Quad MCT1 clock cable, 5-6
AA0018011, 15-pin to RS-530 straight-through cable,
6-10
AA0018012, 44-pin to RS-530 straight-through cable,
6-12
AA0018013, 50-pin to RS-530 straight-through cable,
6-14
AA0018014, MCE1 RJ-45 to RJ-45 cable, 5-7
AA0018015, MCE1 RJ-45 to unterminated cable, 5-8
AA0018021, Quad MCT1 crossover cable, 5-9
AA0018022, Quad MCT1 straight-through cable, 5-10
AA0018023, 50-pin to V.28 cable, 6-16
AA0018024, 50-pin to 15-pin RS-422 cable adapter,
8-16
AA0018040, ATM E1 RJ-45 to RJ-45 cable, 5-11
AA0018040, Model 460F-BN G.703 coaxial to RJ-45
adapter (balun), 8-18
acronyms, xvi
AFN/AN console interface to ASCII terminal cable,
2-4, 2-8
ATM cable, SC to straight-tip MMF, 3-10
Attachment Unit Interface (AUI), defined, 1-9
B
basics, connector, 1-8
BLN, BLN-2, or BCN to modem cable, 2-7
building cables, 1-11
308604-14.10 Rev 01 Index-3
C
cable adapters
Model 460F-BN G.703 coaxial to RJ-45 (balun),
8-18
RS-232 44-pin to 15-pin, 8-3
RS-422 44-pin to a 15-pin, 8-9
RS-422 50-pin to 15-pin, 8-16
V.35 44-pin to 15-pin, 8-7
V.35 50-pin to 15-pin, 8-14
V.35 50-pin to 44-pin, 8-11
X.21 44-pin to 15-pin, 8-5
cables
building your own, 1-11
finding by
category, 1-3
industry interface type, 1-11
order number, 1-4
type, 1-1
CCITT series connectors, defined, 1-9
channel service unit (CSU), 5-1
coaxial cables, MCE1, 5-22
connection categories, 1-3
connectors
examples (diagram), 1-10
MCT1 loopback
15-pin, 5-13
RJ-48, 5-14
terminology, 1-8
types, 1-9
console cables
AFN and AN only, 2-4, 2-8
all devices except AFN and AN, 2-3
AT serial connection, 2-5
listed, 2-1
Passport 2430 and Passport 5430 only, 2-8
conventions, text, xv
crossover cables
15-pin to 15-pin, 6-32
50-pin to 15-pin, 6-56
50-pin to 44-pin, 6-58
50-pin to 50-pin, 6-54
HSSI, 4-5
MCE1
9-pin to 15-pin, 5-24
9-pin to 9-pin, 5-20
MCT1
15-pin to 15-pin, multichannel, 5-9
15-pin to RJ-48, 5-15
V. 3 5
44-pin to 15-pin, 6-44
44-pin to 44-pin, 6-42
custom cables, 1-11
customer support, xvii
D
dialup services cables
15-pin to RS-232 (raise DTR), 7-7
15-pin to RS-232 (V.25bis), 7-8
15-pin to RS-422 (raise DTR), 7-5
15-pin to RS-422 (V.25bis), 7-3
15-pin to V.35 (raise DTR), 7-10
15-pin to V.35 (V.25bis), 7-9
44-pin to RS-232 (raise DTR), 7-13
44-pin to RS-422 (raise DTR), 7-14
44-pin to V.35 (raise DTR), 7-11
50-pin to RS-232 (raise DTR), 7-18
50-pin to V.35 (raise DTR), 7-16
listed, 7-1
DSX, 5-1
DTE to DCE connector, defined, 1-9
dust covers, fiber optic connector, 1-9
E
E1 cables, listed, 5-1
Ethernet cable, 3-3
F
FC connector, defined, 1-9
FDDI cables, 3-7 to 3-9
fiber optic connector, dust cover, 1-9
fixed shroud duplex (FSD) connector, defined, 1-9
Index-4 308604-14.10 Rev 01
H
how to use this guide, 1-2
HSSI cables
crossover, 4-5
DCE to DTE, 10 ft and 50 ft, 4-3
listed, 4-1
I
industry interface type
defined, 1-11
E1, 5-4, 5-5, 5-7, 5-8, 5-11
E1/G.703, 5-20 to 5-24
Ethernet/802.3, 3-3
High-Speed Serial Interface (HSSI), 4-3, 4-5
RS-232-C, 2-3, 2-4, 2-5, 2-6, 2-7, 2-8, 6-23, 6-30,
6-38, 6-39, 6-50, 6-60, 6-62, 6-65, 7-7, 7-8, 7-13,
7-18, 8-3
RS-422, 8-9, 8-14, 8-16, 8-18
RS-449/RS-422, 6-34, 6-36, 6-52, 7-3, 7-5, 7-14
RS-530, 6-10, 6-12, 6-14
T1/DS1, 5-9, 5-10, 5-15 to 5-19, 5-25 to 5-28
with external clock, 5-6, 5-12
token ring/802.5, 3-4 to 3-6
V.28 (V.10), 6-16, 6-31, 6-46
V.35, 6-32, 8-7, 8-11
V.35 (V.10 and V.11), 6-17 to 6-22, 6-24, 6-26, 6-40,
6-42, 6-44, 6-48, 6-54, 6-56, 6-58, 6-61, 6-63,
6-66, 7-9, 7-10, 7-11, 7-16
X.21, 6-4, 6-6, 6-8, 8-5
X.21 (V.11), 6-28, 6-29, 6-51
X3T9.5 PMD/FDDI, 3-7 to 3-10
industry standards, specifications, and
recommendations, 1-11
interface, defined, 1-8
L
local area network (LAN) cables
Ethernet, 3-3
FDDI, 3-7 to 3-9
listed, 3-1
token ring, 3-4 to 3-6
loopback cables, MCT1
15-pin, 5-17
RJ-48, 5-16
loopback connectors, MCT1
15-pin, 5-13
RJ-48, 5-14
M
MCE1 cables
coaxial, 5-22
crossover
9-pin to 9-pin, 5-20
DB9 to DB15, 5-24
DB9 to mod jack, 5-4
DB9 to unterminated, 5-5
RJ-45 to RJ-45, 5-7
RJ-45 to unterminated, 5-8
straight-through
9-pin to 9-pin, 5-21
DB9 to DB15, 5-23
MCT1 cables
15-pin to 15-pin and 9-pin (Y-cable), 5-6
clock, 5-11, 5-12
crossover
15-pin to 15-pin, 5-9
15-pin to RJ-48, 5-15
loopback
15-pin connectors, 5-17
RJ-48 connectors, 5-16
straight-through, 5-10
15-pin, 5-19
RJ-48, 5-18
MCT1 loopback connectors
15-pin, 5-13
RJ-48, 5-14
media access unit (MAU), defined, 1-9
modem cable
BLN, BLN-2, and BCN platforms only, 2-7
for all except BLN, BLN-2, and BCN platforms, 2-6
listed, 2-1
multistation access unit (MAU), defined, 1-9
308604-14.10 Rev 01 Index-5
P
pass-through cables
15-pin to female RS-232, 6-60
15-pin to female V.35, 6-61
15-pin to female X.21, 5-1
15-pin to RS-232, 6-23
15-pin to V.35, 6-24
15-pin to X.21, 6-4
44-pin to female RS-232, 6-62
44-pin to female V.35, 6-63
44-pin to RS-232, 6-39
44-pin to X.21, 6-6
50-pin to female RS-232, 6-65
50-pin to female V.35, 6-66
50-pin to X.21, 6-8
physical interface, 1-8
pins, defined, 1-8
plug, defined, 1-8
product support, xvii
publications
hard copy, xvii
R
receptacle, defined, 1-8
recommended series (RS), defined, 1-9
registered jack (RJ), defined, 1-9
RS-422 cables
15-pin to, 6-34
44-pin to, 6-36
50-pin to, 6-52
RS-530 cable
15-pin to, 6-10
44-pin to, 6-12
50-pin to, 6-14
S
SC duplex connector, defined, 1-9
sockets, defined, 1-8
software considerations, choice of cable, 1-2
spade terminals, defined, 1-9
special requirements, 1-1
specifications, cable, 1-11
standard synchronous cables
15-pin to RS-232, 6-30
15-pin to RS-422, 6-34
15-pin to V.28, 6-31
15-pin to V.35, 6-20
15-pin to V.35 with DTR, 6-22
15-pin to X.21, 6-28
44-pin to RS-232, 6-38
44-pin to RS-422, 6-36
44-pin to V.28, 6-46
44-pin to V.35, 6-26
44-pin to X.21, 6-29
50-pin to V.28, 6-16
listed, 6-1 to 6-3
V.35 44-pin to 15-pin crossover, 6-44
V.35 44-pin to 44-pin crossover, 6-42
standards, industry, 1-11
straight-tip connector, defined, 1-9
support, Nortel Networks, xvii
synchronous pass-through cables. See pass-through
cables
T
T1 cables
CSU DTE connection, 5-25
CSU network receptacle to RJ-45, 5-27
CSU network receptacle to spade terminals, 5-28
customer premises connection, 5-26
Framer, 5-25 to 5-27
listed, 5-1
multichannel clock, 5-11, 5-12
multichannel crossover, 5-15
multichannel loopback, 5-16, 5-17
multichannel straight-through, 5-18, 5-19
quad multichannel, 5-6
quad multichannel crossover, 5-9
quad multichannel straight-through, 5-10
technical publications, xvii
technical support, xvii
termination, defined, 1-8
terminology, 1-8
text conventions, xv
token ring cables, 3-4 to 3-6
Index-6 308604-14.10 Rev 01
V
V.28 cables
15-pin to, 6-31
44-pin synchronous to, 6-46
50-pin synchronous to, 6-16
V.28 interface, defined, 1-9
V.35 cables
15-pin synchronous with DTR, 6-22
15-pin to, 6-20, 6-24
15-pin to male, 6-17
44-pin to, 6-26
44-pin to male, 6-18
50-pin to, 6-48
V.35 interface, defined, 1-9
X
X.21 (V.11) cables
15-pin to, 6-28
44-pin to, 6-29
50-pin to, 6-51
X.21 cables
15-pin to, 6-4
44-pin to, 6-6
44-pin to 15-pin cable adapter, 8-5
50-pin to, 6-8
X.21 interface, defined, 1-9
X3T9.5 PMD/FDDI cables
FDDI FSD to FSD, 3-7
SC duplex to SC duplex, 3-9
SC duplex to straight-tip, 3-8
SC to straight-tip MMF, 3-10
