Part No. P0609326 1.1
May, 2006
Business Communications
Manager 3.6
Programming Operations
Guide
2
P0609326 1.1
Copyright © Nortel Networks 2003–2006
All rights reserved.
The information in this document is subject to change without notice. The statements, configurations, technical data, and
recommendations in this document are believed to be accurate and reliable, but are presented without express or implied
warranty. Users must take full responsibility for their applications of any products specified in this document. The
information in this document is proprietary to Nortel Networks NA Inc.
Trademarks
NORTEL NETWORKS is a trademark of Nortel Networks.
Microsoft, MS, MS-DOS, Windows, and Windows NT are registered trademarks of Microsoft Corporation.
Symbol, Spectrum24, and NetVision are registered trademarks of Symbol Technologies, Inc.
All other trademarks and registered trademarks are the property of their respective owners.
Software licensing 3
Business Communications Manager 3.6 Programming Operations Guide
Software licensing
The Apache Software License, Version 1.1
Copyright (c) 2000-2002 The Apache Software Foundation. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted
provided that the following conditions are met:
1Redistributions of source code must retain the above copyright notice, this list of conditions
and the following disclaimer.
2Redistributions in binary form must reproduce the above copyright notice, this list of
conditions and the following disclaimer in the documentation and/or other materials provided
with the distribution.
3The end-user documentation included with the redistribution, if any, must include the
following acknowledgment: “This product includes software developed by the Apache
Software Foundation (http://www.apache.org/).”
Alternately, this acknowledgment may appear in the software itself, if and wherever such
third-party acknowledgments normally appear.
4The names “Apache” and “Apache Software Foundation” must not be used to endorse or
promote products derived from this software without prior written permission. For written
permission, please contact apache@apache.org.
5Products derived from this software may not be called “Apache”, nor may “Apache” appear in
their name, without prior written permission of the Apache Software Foundation.
THIS SOFTWARE IS PROVIDED ``AS IS'' AND ANY EXPRESSED OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE APACHE SOFTWARE FOUNDATION OR ITS
CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY
OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
====================================================================
This software consists of voluntary contributions made by many individuals on behalf of the
Apache Software Foundation. For more information on the Apache Software Foundation, please
see <http://www.apache.org/>.
Portions of this software are based upon public domain software originally written at the National
Center for Supercomputing Applications, University of Illinois, Urbana-Champaign.
4Software licensing
P0609326 1.1
5
Business Communications Manager 3.6 Programming Operations Guide
Contents
Software licensing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
The Apache Software License, Version 1.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Before you begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Symbols used in this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Text conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
About the buttons on your telephones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Model 7100 and 7000 telephones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Portable handsets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
IP telephones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Acronyms used in this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Related publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
System documentation map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Installation documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Operations documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Call Management documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Unified Manager and hardware maintenance documentation . . . . . . . . . . . . . . . . 61
Multi-site Administration: Network Configuration Manager . . . . . . . . . . . . . . . . . . 61
How to get help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Chapter 1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
System configuration process maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Initial system configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Configuring telephony components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Optional keycoded features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Data and IP telephony configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Post-system setup features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Finding your way around . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Security and User Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Telephony programming quick access list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Configuration overviews and planning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Lines and network configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Telephony configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Special features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Reference material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Data programming sections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Business Communications Manager hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
BCM1000 (legacy equipment) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
BCM200/BCM400 base units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
What do media bay modules do? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
6Contents
P0609326 1.1
How does the system connect to the network? . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Additional Business Communications Manager applications . . . . . . . . . . . . . . . . . . . 76
Chapter 2
Getting started with Unified Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Understanding BCM SSL certificate properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Uploading a certificate and a private security key . . . . . . . . . . . . . . . . . . . . . . . . . 78
Troubleshooting: Restoring the default certificate . . . . . . . . . . . . . . . . . . . . . . 79
Suppressing the security alert message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Using the non-secure http:6800 port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Using the Unified Manager main page buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Locating Wizards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Navigating the wizards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Locating optional features from the main page . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Finding documentation from the main page . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Using BRU from the main page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Accessing maintenance information from the main page . . . . . . . . . . . . . . . . 82
Using the Unified Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Business Communications Manager system access . . . . . . . . . . . . . . . . . . . . . . 82
Unified Manager screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Understanding the dynamic menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Understanding the navigation tree headings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Understanding tabbed pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Using Unified Manager Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Viewing help for navigation tree headings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Viewing help for tabs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Logging off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Using the SSH client to access the text-based interface . . . . . . . . . . . . . . . . . . . . . . . 89
Installing PuTTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Using PuTTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Manually activating Telnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Chapter 3
Configuring system parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Accessing the Wizards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Wizard Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
What you need to know before you use the wizard . . . . . . . . . . . . . . . . . . . . . . . . 93
Using the Quick Start Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Entering information into the Quick Start Wizard . . . . . . . . . . . . . . . . . . . . . . . . . 97
Changing system identification parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Identifying your system and software version . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Changing the system name. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Viewing the system software version. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Changing the Business Communications Manager time and date . . . . . . . . . . . . 99
Contents 7
Business Communications Manager 3.6 Programming Operations Guide
Changing the system domain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Assigning a workgroup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Assigning a domain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Assigning a Windows 2000 domain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Changing the CallPilot region . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Delayed system restart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Chapter 4
Managing system and user security access levels . . . . . . . . . . . . . . . . . 105
Setting the interface timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Setting system security compatibility levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Managing access passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Viewing the User Manager tabs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Adding or modifying a user profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Deleting a user profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Setting up callback for a user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Adding or modifying a group profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Deleting a Group profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Adding a Domain User Group profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Deleting a Domain User Group profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Setting password lockout policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Setting password policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Chapter 5
Configuring resources — media bay modules . . . . . . . . . . . . . . . . . . . . . 123
Explaining the Media Bay Modules headings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Media bay module Bus numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Identifying the module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Module types and capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
GATM (Global Analog Trunk module) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Ports on Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Defining trunk module types and settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Configuring the trunk module to line type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Determining Clock Sources for DTMs or BRIs . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Timing within networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
T1 interface parameters (region-specific) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Interface levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Internal CSU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
E1 parameters (region-specific) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
PRI Call-by-Call service selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Provisioning lines (PRI, T1, DASS2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Provisioning a line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Provisioning BRI loops/lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Deprovisioning a line/loop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
8Contents
P0609326 1.1
PRI B-channel provisioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Trunk module ports programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
PRI version information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Viewing station module information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Determining station port state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Viewing port device information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Station module line deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Internally-driven channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Working with the modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Viewing Media Bay Module status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Disabling/enabling a DS30 bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Disabling/enabling a single module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Disabling or enabling a port channel setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Configuring DECT resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Chapter 6
Data and split-line configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Configuring the DDI Mux module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
DDI Mux features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Configuring DDI Mux connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Assigning the DDI mux modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Assigning lines for voice traffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Assigning lines to the data module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Changing the line type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Assigning the line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Removing a line assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Removing the line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Configuring the line for telephony . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Configuring the DDI Mux to work with the DTE . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Universal T1 WAN (UTWAN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
UTWAN connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Frame Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Point-to-Point-Protocol (PPP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Fragmentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
RTP Header compression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Data compression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Configuring the Business Communications Manager to use the UTWAN . . . . . 161
Assigning lines for voice traffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Assigning lines for data traffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Determining which lines are available to the UTWAN . . . . . . . . . . . . . . . . . 162
Changing the line type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Assigning lines to the Data Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Removing a line assigned for data traffic . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Contents 9
Business Communications Manager 3.6 Programming Operations Guide
Configuring the UTWAN Network Interface parameters . . . . . . . . . . . . . . . . . . . 164
Configuring the UTWAN Summary parameters . . . . . . . . . . . . . . . . . . . . . . . . . 164
Configuring the UTWAN to use a Frame Relay link . . . . . . . . . . . . . . . . . . . . . . 166
Configuring the Frame Relay parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Configuring the PVC Configuration parameters . . . . . . . . . . . . . . . . . . . . . . 167
Configuring the UTWAN to use a PPP link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Configuring the PPP Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Configuring the LCP Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Configuring the IPCP Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Configuring the PPP User List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Configuring additional IP addresses for the UTWAN . . . . . . . . . . . . . . . . . . . . . 176
Examples of uses of multiple IP addresses . . . . . . . . . . . . . . . . . . . . . . . . . 176
Restrictions when using multiple IP addresses . . . . . . . . . . . . . . . . . . . . . . 176
Adding an additional IP address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Modifying an additional IP address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Deleting an additional IP address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Viewing the UTWAN performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Viewing UTWAN resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Configuring a data module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Viewing the data module settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Programming the BayStack settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Fixed access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Adding line assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Deleting line assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Switched access (PRI & BRI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Line assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Adding line assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Deleting line assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Line pool access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Adding line pool access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Deleting line pool access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Chapter 7
Telephony Services overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Process map: Creating telephony services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Telephony Services headings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Typical DN record headings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Planning your telephony services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Three basic system telephony configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Square system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
PBX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
DID system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Telephony metrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
10 Contents
P0609326 1.1
Chapter 8
Telephony feature planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Creating numbering plans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Outgoing calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Incoming calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Name a telephone, a line or a Hunt group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Incoming and outgoing call display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Programming line access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Making lines available . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Incoming calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Outgoing calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Answering calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Distinctive ring patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Centralized and group answering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Pick up features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Make a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Emergency 911 Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Select how you dial your calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Receive a busy signal on an internal call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Create a conference call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Time-saving features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Handling calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Holding calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Parking or transferring calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Sharing calls by parking on SWCA buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Forwarding calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Prevent calls from ringing at your telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Communicating in the office . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Using handsfree and mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Track your incoming calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Use alternate or scheduled services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Special telephones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Auxiliary devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Call out to external systems using host system dialing . . . . . . . . . . . . . . . . . . . . . . . 222
Call in from outside the system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Controlling telephone programming access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Special features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Information matrices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Chapter 9
Configuring lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Understanding the process of line configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Understanding how the system identifies lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Contents 11
Business Communications Manager 3.6 Programming Operations Guide
Copying line programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Determining which lines you need to program . . . . . . . . . . . . . . . . . . . . . . . . . . 230
VoIP lines (require keycode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Target lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Physical lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
All lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Using the General record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Assigning Trunk/line data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Loop start analog/digital fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Ground start fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
DID fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
E&M fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Target lines and DASS2 fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
PRI fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
BRI fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
DPNSS fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
VoIP fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Lines field cross-reference chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Turn Privacy on or off for a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Received # . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Line pool tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Using loss packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Assigning Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Setting line restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Setting remote restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Setting line telco features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Line matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Chapter 10
Configuring BRI Loops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
BRI configuration process map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Using an NT-1 for BRI U2/BRI U4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Identifying BRI T-loops (T1 profiles) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Adding SPIDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Identifying the SPID B-channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Adding SPID network DNs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Identifying BRI T-loops (ETSI, QSIG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
Configuring D-packet service for T loops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Provisioning the loop variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Provisioning the Loop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Provisioning the lines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Programming BRI lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
Assigning the lines to telephones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Setting BRI for ISDN device connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
12 Contents
P0609326 1.1
Wiring internal connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Configuring S-loops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Assigning DNs to the S- loop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280
Configure the ISDN terminal records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
Loop matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
Chapter 11
Controlling access into the system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
Defining DN length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Changing the DN length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Using the Received # length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286
Changing the received # length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286
Assigning target lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
Assigning a target line to a telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Configuring the target line received number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
Notes about the Public and Private Received Numbers . . . . . . . . . . . . . . . . 290
Target lines matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Configuring for remote access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
Creating Direct Inward System Access (DISA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
Remote access line settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Remote access on loop start trunks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Remote access on T1 DID trunks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Remote access on PRI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293
Remote access on DPNSS lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293
Remote access on a private network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293
Defining remote access packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
Defining line pool access for remote packages . . . . . . . . . . . . . . . . . . . . . . . 294
Defining remote Page for remote packages . . . . . . . . . . . . . . . . . . . . . . . . . 295
Using COS passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296
Creating COS parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296
Notes about COS passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297
COS examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
External access tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
Remote access matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Chapter 12
Configuring outgoing calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
Configuring the public and private dialing plans . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302
Setting Dialing timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302
Using private network dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303
Setting up the dialing plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303
Outgoing private calls routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305
Setting up public network dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305
About the Public DN lengths table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305
Adding or modifying dialing plan Public DN lengths . . . . . . . . . . . . . . . . . . . 306
Contents 13
Business Communications Manager 3.6 Programming Operations Guide
Outgoing public calls routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
Dialing Plans matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
Determining line access dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308
Understanding access codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309
Programming access codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310
Call Park codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 312
Creating Direct Dial sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313
Direct dial matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
Tips about access codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
Using the MCDN access codes (tandem calls) . . . . . . . . . . . . . . . . . . . . . . . . . . 315
Setting up line pool access codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317
Using Carrier codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318
About Carrier access codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318
Identifying Carrier access codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318
Access code matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 319
Configuring call routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320
Routing configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 321
Defining routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
Call by Call service routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324
Programming the PRI routing table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325
Enbloc dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325
Using destination codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 326
Why use destination codes? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 327
Deciding on a code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 328
Grouping destination codes using a wild card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Configuring destination codes with wild cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
Create the destination code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
Set up the destination code schedules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 331
Enable/disable wild card digits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 331
Setting up a destination for local calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 332
Setting up a route through a dedicated trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . 333
Notes about the Absorbed length: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 333
Adding Carrier access codes to destination codes . . . . . . . . . . . . . . . . . . . . . . . 334
Programming for least-cost routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
Using multiple routes and overflow routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 336
Using dialing restrictions with routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338
Routing matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338
Configuring Call by Call services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339
Supporting protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339
Call by Call services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339
Switches supporting Call by Call limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340
Provisioning for Call by Call limits with PRI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340
Other required programming in the Unified Manager . . . . . . . . . . . . . . . . . . 341
14 Contents
P0609326 1.1
Setting CbC limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 341
PRI line pools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342
CbC matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342
Viewing CbC limit metrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 343
Defining restriction filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344
Adding a restriction filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345
Removing restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345
Notes about restriction filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345
Default filters (North America) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
Default filters (other) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
Adding overrides to restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
Restriction filter examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349
Restriction filters matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
Enhanced 911 (E911) configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 351
Chapter 13
Configuring DN records, an overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
Understanding the configuration process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
DN mapping for digital telephones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 355
Double Density and DNs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 355
DN chart for upgraded 2.5 systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356
DN chart for new 3.0 or newer systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 357
DN mapping for Companion, DECT and ISDN devices . . . . . . . . . . . . . . . . . . . 358
Defining the System DN headings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 358
The two sides of a DN record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 359
The System DN headings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 361
DN Registration headings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363
Moving between the Inactive and Active lists . . . . . . . . . . . . . . . . . . . . . . . . . . . 365
From Active list to the Inactive list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 365
From Inactive list to Active list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 365
Deregistering IP and wireless IP devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 366
Feature DNs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 366
Renumbering DNs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 366
Using a wizard to renumber telephone DNs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 367
Change telephone DNs using the Unified Manager . . . . . . . . . . . . . . . . . . . . . . 367
Chapter 14
Configuring DNs using the Wizards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 369
Editing DN Record Templates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 369
What you need to know to fill out a template . . . . . . . . . . . . . . . . . . . . . . . . . . . 371
Creating telephone records with the Add Users Wizard . . . . . . . . . . . . . . . . . . . . . . 375
What you need to know about the user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376
Notes about Add Users target lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 381
Contents 15
Business Communications Manager 3.6 Programming Operations Guide
Changing button programming in the wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . 382
Notes about programming telephone buttons . . . . . . . . . . . . . . . . . . . . . . . . 383
Using remote templates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 384
Saving wizard pages on your computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 385
Chapter 15
Configuring DNs for system devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 387
Copying settings to other DNs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 389
Identifying the telephone (General heading) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 391
Configuring line access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 393
Assigning line access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 394
Rules about assigning prime lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 395
Assigning intercom (I/C) buttons (keys). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 396
Private OLI notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 396
Determining line assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 397
Applying target lines (incoming calls only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 397
Assigning lines to telephones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 398
Notes about assigning lines to telephones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 399
Assigning line pool access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 402
About PRI line pools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 402
Using Answer DNs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 402
Assigning Answer DNs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403
Answer DN notes: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403
Defining device capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 405
Configuring the Capabilities features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 406
Line redirection notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408
Assigning Call Forward . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 409
DPNSS notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 410
Assigning a Hotline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 411
Determining analog settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 412
MWI tone/lamp matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 413
Setting intrusion controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 414
Defining user preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 415
Configuring user preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 416
Call log notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 417
Programming telephone buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 419
Configuring buttons from the DN record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 420
Notes about button programming: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 420
Replacing digital telephones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421
Button labeling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421
Default button assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 422
Rules of default button assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 422
T7316E Business Series Terminal button defaults . . . . . . . . . . . . . . . . . . . . 422
16 Contents
P0609326 1.1
T7316 Business Series Terminal button defaults . . . . . . . . . . . . . . . . . . . . . 424
Model 7208 button defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 425
Model 7100 telephone button defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 425
Model 7000 telephone button defaults* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 426
T7406 Business Series Terminal button defaults . . . . . . . . . . . . . . . . . . . . . 426
IP telephone button defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 427
Model 2004 IP telephone and 2050 Software Phone button defaults . . . . . . 427
Model 2002 IP telephone button defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . 428
2001 IP telephone button defaults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 428
NetVision telephones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 430
M7324(N) button defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 431
Configuring user speed dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 432
Entering user speed dials at the telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 433
Setting up CAP stations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 434
Configuring CAP/KIM assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 436
CAP/KIM notes: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 437
Monitoring telephones with the CAP or KIM module . . . . . . . . . . . . . . . . . . . . . . 437
Configuring a CAP or KIM module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 438
Programming CAP/KIM buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 438
Cold starting the KIM to erase programming . . . . . . . . . . . . . . . . . . . . . . . . . . . 440
Programming restrictions for DNs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 441
Defining telephone dialing restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 442
Setting restriction schedules for telephones . . . . . . . . . . . . . . . . . . . . . . . . . . . . 443
Defining line/set restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 444
Configuring telco features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 445
Voice Mail settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 446
Deleting a mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 446
Digital telephones DN record matrices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 447
Chapter 16
Configuring system settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 451
Network name display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 453
Receiving and sending calling party name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 454
Network name display interactions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 454
Enabling/disabling outgoing name display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 454
Programming Business name display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 455
Using alpha tagging for name display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 455
Programming Feature settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 457
Background and on-hold music sourcing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 460
Answer key levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 461
Phantom DNs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 461
Configuring system-wide call appearance groups . . . . . . . . . . . . . . . . . . . . . . . . . . . 462
Finding SWCA calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 462
Programming SWCA controls for your system . . . . . . . . . . . . . . . . . . . . . . . . . . 463
NetVision telephone interactions with SWCA keys . . . . . . . . . . . . . . . . . . . . . . . 466
Contents 17
Business Communications Manager 3.6 Programming Operations Guide
How SWCA works in a call group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 466
Transferring calls between SWCA groups . . . . . . . . . . . . . . . . . . . . . . . . . . 467
Parking and retrieving calls on SWCA keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . 467
Manually associating a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 467
Parking a call to a SWCA key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 468
Retrieving a parked call from a SWCA key . . . . . . . . . . . . . . . . . . . . . . . . . . 468
Call interactions with SWCA controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 469
Resetting call log space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 470
System features matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 471
Setting system timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 472
Timers matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 473
Define release reason levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 474
Configuring system speed dial numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 475
Assigning numbers to system speed dial codes . . . . . . . . . . . . . . . . . . . . . . . . . 476
System speed dial matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 477
Setting system telco features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 478
Defining Voice Message Center numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 478
Setting outgoing name and number blocking . . . . . . . . . . . . . . . . . . . . . . . . . . . 479
Configuring ONN blocking service codes . . . . . . . . . . . . . . . . . . . . . . . . . . . 480
Telco features matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 480
Chapter 17
Configuring schedules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 483
Turn services on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 484
Overriding services with a Control telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . 485
Direct-dial telephone ringing service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 485
Defining common schedule settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 485
Defining the service control password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 485
Changing schedule names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 486
Changing schedule times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 487
About start and stop times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 488
Defining service schedules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 489
Configuring ringing service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 490
Defining ring groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 490
Defining ringing service schedules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 491
Assigning ringing groups to lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 492
Configuring restriction service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 493
Notes about restriction service filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 494
Configuring routing service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 495
Services matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 496
Chapter 18
Configuring public networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 499
Simple networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 499
18 Contents
P0609326 1.1
Callers using Business Communications Manager . . . . . . . . . . . . . . . . . . . . . . . 500
Callers in the public network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500
Callers in the private network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500
Dialing plans for T1 lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 501
Dialing plan using public lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 501
Destination code numbering in a network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 502
Other programming that affects public networking . . . . . . . . . . . . . . . . . . . . . . . . . . 503
Chapter 19
Configuring private networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 505
Private network programming parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 505
Private networking protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 506
Keycode requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 506
Remote access to the network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 506
Lines used for networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 507
Other programming that affects private networking . . . . . . . . . . . . . . . . . . . . . . 507
Using routing to create networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 508
Using shared line pools to create a network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 512
PRI networking using Call-by-Call services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 515
Chapter 20
Configuring private networks with SL-1 MCDN. . . . . . . . . . . . . . . . . . . . . 519
System numbering plans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 520
Creating tandem private networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 520
Calls originating from the public network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 521
Calls originating in the private network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 524
Routing for tandem networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 526
Understanding MCDN network features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 528
Network Call Redirection Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 528
ISDN Call Connection Limitation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 530
Trunk Route Optimization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 531
Trunk Anti-tromboning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 532
Using SL-1 with MCDN to network with a Meridian system . . . . . . . . . . . . . . . . . . . 533
Meridian system requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 533
Software requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 534
MCDN networking checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 534
UDP-specific programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 535
CDP-specific programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 536
An example of a private network with Meridian 1 . . . . . . . . . . . . . . . . . . . . . . . . 537
VoIP networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 540
Configuring special IP trunking interoperability . . . . . . . . . . . . . . . . . . . . . . . 541
Contents 19
Business Communications Manager 3.6 Programming Operations Guide
Chapter 21
Configuring ETSI QSIG and DPNSS network services. . . . . . . . . . . . . . . 543
Networking with ETSI QSIG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 544
ETSI Euro network services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 545
DPNSS 1 services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 547
DPNSS 1 capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 547
DPNSS to Embark connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 548
DPNSS 1 features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 548
Three party service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 549
Making a conference call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 549
Using the diversion feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 549
Restrictions by telephone type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 550
Setting Diversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 550
Using the Redirection feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 551
Restrictions by telephone type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 551
Setting redirection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 551
Executive intrusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 551
Restrictions by telephone type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 552
Intrusion levels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 552
Programming IPL on a telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 552
Call offer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 553
Call Offer Displays. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 553
Restrictions by telephone type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 553
User actions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 554
Route optimization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 554
Setting Route Optimization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 554
Loop avoidance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 555
Programming loop avoidance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 555
Private networking with DPNSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 555
Guidelines for creating a private numbering plan with DPNSS . . . . . . . . . . . . . . 558
Customizing the DPNSS routing service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 558
Chapter 22
Configuring centralized voice mail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 559
Business Communications Manager as host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 560
Meridian system as host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 560
CallPilot compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 560
Meridian Mail compatibility issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 560
System set up for host Business Communications Manager . . . . . . . . . . . . . . . . . . 561
System set up for satellite systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 562
Configuring the system for centralized voice mail . . . . . . . . . . . . . . . . . . . . . . . . . . . 564
Meridian MCDN call features over PRI SL-1 lines . . . . . . . . . . . . . . . . . . . . . . . . . . . 565
Message Waiting Indication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 565
Camp-on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 567
20 Contents
P0609326 1.1
Break-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 568
Configuring MWI on DPNSS 1 networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 569
Assigning message centers to a line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 569
Programming MWI and MWC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 571
Selecting a message center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 571
Setting Message Waiting Indication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 572
Chapter 23
Configuring Hunt groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 573
How to use Hunt groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 574
Identifying a Hunt group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 575
Hunt group modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 577
Hunt group members . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 579
Adding a Hunt group member . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 579
Removing a Hunt group member . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 580
Removing all members from a Hunt group . . . . . . . . . . . . . . . . . . . . . . . . . . 580
Moving members . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 581
Programming Hunt group lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 582
Assigning a line to a hunt group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 583
Unassigning a line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 583
Unassigning all lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 583
Feature operation within Hunt groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 584
Hunt group matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 584
Monitoring Hunt groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 585
Setting up Silent Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 585
Using Silent Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 586
Using Hunt group metrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 587
Chapter 24
Configuring Hospitality Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 589
About the Hospitality feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 590
Hospitality telephone definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 590
Alarm Time (AL) feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 590
Power failures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 591
Setting up Hospitality services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 591
Identifying room telephones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 592
Identifying Call Permissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 593
Setting room restriction filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 593
Programming Alarm data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 594
Setting alarm parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 594
Configuring for expired alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 595
Hospitality matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 595
Using the Hospitality Services Admin telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . 596
Hospitality Services admin alarm feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 596
Contents 21
Business Communications Manager 3.6 Programming Operations Guide
Setting the state of a room at a telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 597
Setting room condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 597
Using the Hospitality services room telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 598
Setting the alarm on a room telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 598
Change or cancel an alarm time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 599
Turn off an alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 599
Setting the Room condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600
Chapter 25
Configuring the music source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 601
Selecting the music source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 602
Configuring BcmAmp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 603
Opening the BcmAmp Administration application . . . . . . . . . . . . . . . . . . . . . . . . 603
Loading music onto the Business Communications Manager . . . . . . . . . . . . . . 603
Restrictions on uploading files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 604
Deleting music from Business Communications Manager . . . . . . . . . . . . . . . . . 604
Adding music to the Play List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 605
Removing music from the Play List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 605
Using the BcmAmp Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 606
Configuring a Network Device to be the IP Music Source . . . . . . . . . . . . . . . . . . . . . 607
Chapter 26
Configuring the MSC resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 609
Types of MSC resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 609
Signaling channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610
Media channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610
DSP resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610
Voice bus paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610
Media gateways . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610
Rules for managing the MSC resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 611
Signaling channel rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 611
Media channel rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 611
Example of how to estimate peak media channel usage . . . . . . . . . . . . . . . 612
DSP resources rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 613
Voice bus path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 613
Media gateways . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 614
Determining the MSC resources you require . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 614
ISDN WAN (Dial-up/Nailed-up) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 614
DECT mobility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 615
Voice Mail and ACD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 615
IVR and IVR Fax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 616
IP telephones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 616
IP Trunks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 617
22 Contents
P0609326 1.1
Record of required MSC resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 619
Evaluation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 620
Example of a Business Communications Manager configuration . . . . . . . . . 621
Configuring the MSC resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 622
Viewing the MSC information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 622
Viewing the MS-PEC configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 623
Understanding the MSC Minimum and Maximum values . . . . . . . . . . . . . . . . . . 624
Minimum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 624
Maximum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 624
Viewing the MSC Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 625
Changing the MSC configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 625
Creating a custom MSC configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 626
DTMF Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 628
Changing the DS30 Split . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 629
Configuring Double Density . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 630
Chapter 27
Using a wizard to change data parameters . . . . . . . . . . . . . . . . . . . . . . . . 633
Viewing Business Communications Manager resources . . . . . . . . . . . . . . . . . . . . . . 633
Using the Network Update Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 634
What you need to know . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 635
Chapter 28
Configuring DHCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 637
DHCP configuration overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 637
Configuring the DHCP Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 638
Configuring a DHCP Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 639
LAN settings for DHCP Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 642
Configuring Address ranges for a Local Scope . . . . . . . . . . . . . . . . . . . . . . . . . . 644
Adding an address range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 644
Modifying an address range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 644
Deleting an address range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 645
Configuring Excluded addresses for a Local Scope . . . . . . . . . . . . . . . . . . . . . . 645
Adding an excluded address range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 645
Modifying excluded address ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 646
Deleting an excluded address range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 646
Configuring Reserved addresses for a Local Scope . . . . . . . . . . . . . . . . . . . . . . 647
Adding a reserved address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 647
Modifying a reserved address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 647
Deleting a reserved address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 648
Viewing the Lease Information for a Reserved address . . . . . . . . . . . . . . . . 648
Remote Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 650
Adding a Remote Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 650
Modifying Remote Scope settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 651
Contents 23
Business Communications Manager 3.6 Programming Operations Guide
Configuring Remote Scope Address ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . 651
Adding an address range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 651
Modifying address ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 652
Deleting an address range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 652
Configuring Remote Scope excluded addresses . . . . . . . . . . . . . . . . . . . . . . . . 653
Adding a excluded address range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 653
Modifying excluded address ranges: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 654
Deleting an excluded address range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 654
Configuring Remote Scope Reserved Addresses . . . . . . . . . . . . . . . . . . . . . . . . 655
Adding a reserved address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 655
Deleting a reserved address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 656
Remote Scope Lease Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 656
Deleting a Remote Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 657
Configuring a DHCP Relay Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 658
Deleting a server from the Server List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 658
LAN settings for DHCP Relay Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 659
Importing and Exporting DHCP data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 660
Exporting DHCP data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 660
Importing DHCP data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 661
Reconciling the DHCP data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 661
Chapter 29
Configuring the LAN resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 663
Viewing the LAN resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 663
Configuring LAN resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 664
Setting LAN global parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 664
Configuring a LAN interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 665
Configuring multiple IP addresses for the LAN interface . . . . . . . . . . . . . . . . . . . 667
Adding an additional IP address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 667
Modifying an Additional IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 668
Deleting an Additional IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 668
Viewing LAN performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 668
Chapter 30
Configuring the WAN resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 669
Permanent WAN connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 669
Frame Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 669
Point-to-Point-Protocol (PPP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 670
Multi-link Point-to-Point Protocol (MLPPP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 670
WAN data compression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 670
Viewing WAN resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 670
Setting global WAN parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 671
Configuring the PPP password list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 671
Modifying an existing item on the PPP Password List: . . . . . . . . . . . . . . . . . 672
24 Contents
P0609326 1.1
Deleting an item from the PPP Password List. . . . . . . . . . . . . . . . . . . . . . . . 672
Configuring the WAN interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 673
Configuring WAN summary parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 673
Setting WAN Line Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 675
Setting WAN Sync Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 676
Setting WAN Frame Relay Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 676
PVC Congestion Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 678
Adding PVC congestion control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 678
Modifying PVC congestion controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 679
Deleting a PVC congestion control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 679
WAN PPP Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 679
Configuring multiple IP addresses for a WAN interface . . . . . . . . . . . . . . . . . . . 681
Examples of uses of multiple IP addresses . . . . . . . . . . . . . . . . . . . . . . . . . 681
Restrictions when using multiple IP addresses . . . . . . . . . . . . . . . . . . . . . . 681
Adding an additional IP address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 681
Modifying an Additional IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 682
Deleting an Additional IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 682
Configuring the DLCI to IP Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 683
Adding DLCI to IP Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 683
Modifying DLCI to IP Mapping. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 684
Deleting DLCI to IP Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 684
WAN performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 684
Chapter 31
Configuring the Dial Up resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 685
Configuring the dial up global parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 685
V.90 modem (North America) dial up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 686
Enabling and disabling the V.90 modem interface . . . . . . . . . . . . . . . . . . . . . . . 686
Configuring the V.90 modem interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 687
ISDN dial up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 690
Creating an ISDN dial up interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 690
Configuring an ISDN interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 691
Configuring the ISDN channel characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . 693
Assigning an ISDN dial number and IP address . . . . . . . . . . . . . . . . . . . . . . 694
Modifying the characteristics of an existing ISDN channel . . . . . . . . . . . . . . 694
Deleting an ISDN channel from the ISDN Channel Characteristics list . . . . 694
Deleting an ISDN interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 695
Point to Point Protocol on Ethernet (PPPoE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 696
Settings required for PPPoE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 696
Installing PPPoE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 697
Creating a PPPoE dial up interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 698
Configuring a PPPoE interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 698
Connecting to the Internet Service Provider (ISP) . . . . . . . . . . . . . . . . . . . . . . . 700
Contents 25
Business Communications Manager 3.6 Programming Operations Guide
Deleting a PPPoE interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 701
Guidelines for using Remote Dial-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 701
Chapter 32
Configuring DNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 703
Using the Business Communications Manager DNS service . . . . . . . . . . . . . . . 704
Chapter 33
Configuring IP Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 705
Routing Information Protocol (RIP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 705
Open Shortest Path First (OSPF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 706
IP routing protocol precedence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 706
Configuring IP Routing global settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 707
Setting the RIP Global Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 707
Setting the OSPF Global Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 708
Configuring IP routing on an interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 709
Configuring RIP parameters on a network interface . . . . . . . . . . . . . . . . . . . . . . 709
Enabling the RIP Subnet summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 711
Disabling the RIP Subnet summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 712
Configuring OSPF Parameters on a network interface . . . . . . . . . . . . . . . . . . . . 712
OSPF NBMA Neighbors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 714
Adding OSPF NBMA Neighbors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 714
Modifying OSPF NBMA Neighbors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 714
Deleting OSPF NBMA Neighbors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 715
Static routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 715
Adding a static route to the routing table . . . . . . . . . . . . . . . . . . . . . . . . . . . 715
Modifying the static route configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 716
Deleting a static route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 716
Restarting the router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 717
Chapter 34
Configuring IPX Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 719
Enabling IPX Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 720
Configuring IPX Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 721
Configuring IPX routing on an interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 723
Configuring Packet Filters for IPX routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 723
Adding Packet Input filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 724
Modifying Packet Input filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 725
Deleting Packet Input filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 725
Adding Packet Output filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 725
Modifying Packet Output filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 726
Deleting Packet Output filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 727
RIP filters for IPX routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 727
Configuring RIP for IPX Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 727
Adding RIP Input Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 729
26 Contents
P0609326 1.1
Modifying RIP Input filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 729
Deleting RIP Input filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 730
Adding RIP Output filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 730
Modifying RIP Output filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 731
Deleting RIP Output filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 731
SAP filters for IPX routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 732
Configuring the SAP for IPX Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 732
Adding SAP Input Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 733
Modifying SAP Input Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 734
Deleting SAP Input Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 734
Adding SAP Output Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 735
Modifying SAP Output Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 735
Deleting SAP Output Filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 736
Static Routes for IPX Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 736
Adding Static Routes for IPX Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 736
Modifying Static Routes for IPX Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 737
Deleting Static Routes for IPX Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 737
Static Service for IPX Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 738
Adding a Static Service for IPX Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 738
Modifying a Static Service for IPX Routing . . . . . . . . . . . . . . . . . . . . . . . . . . 739
Deleting a Static Service for IPX Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . 739
Chapter 35
Configuring Web Cache. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 741
Guidelines for using Web caching/Proxy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 741
Chapter 36
Configuring QoS monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 743
How QoS monitoring works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 743
Setting the QoS monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 745
Viewing the QoS Monitor Mean Opinion Score . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 745
Configuring the logging options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 747
Viewing the Mean Opinion Score log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 747
Chapter 37
Configuring Net Link Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 749
Enabling or Disabling Net Link Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 750
Selecting a permanent WAN link as the primary WAN connection . . . . . . . . . . . . . . 750
Selecting a dial-up link as the primary WAN connection . . . . . . . . . . . . . . . . . . . . . . 752
Chapter 38
Configuring NAT (Network Address Translation) . . . . . . . . . . . . . . . . . . . 753
Static NAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 753
Dynamic NAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 753
NAT and IP Firewall filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 754
Contents 27
Business Communications Manager 3.6 Programming Operations Guide
Managing Business Communications Manager . . . . . . . . . . . . . . . . . . . . . . . . . 754
Enabling and disabling NAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 754
Configuring an Interface with NAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 755
Adding Default rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 755
Adding a Rule to an interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 756
Modifying a Rule to an Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 757
Deleting a Rule to an Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 758
Configuring the Rule order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 758
Examples of common NAT configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 758
Chapter 39
Configuring NTP Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 761
Configuring the NTP Client settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 762
Starting the NTP Client Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 763
Manually updating the Business Communications Manager time . . . . . . . . . . . . . . . 764
Chapter 40
Virtual Private Networks (VPN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 765
PPTP tunnel notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 765
IPSec tunnel modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 766
PPTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 766
Settings required for PPTP tunnels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 767
NAT (Network Address Translation) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 767
QoS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 767
IP Routing and IPX Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 767
Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 767
IP Addresses and DHCP Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 768
DNS Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 768
Changing the PPTP settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 768
Adding a PPTP client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 769
Deleting a PPTP client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 770
Adding a PPTP tunnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 770
Configuring a PPTP tunnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 771
Add a Destination Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 774
Modifying a Destination Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 775
Deleting a Destination Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 776
Deleting a PPTP tunnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 776
IPSec . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 777
Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 778
Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 779
Encryption method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 779
Authentication method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 779
IPSec capacity restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 780
28 Contents
P0609326 1.1
Settings required for IPSec tunnels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 780
NAT (Network Address Translation) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 780
Dialup ISDN connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 781
Compatibility with Contivity Extranet Switch and Shasta 5000 . . . . . . . . . . . 781
IPSec and PPTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 781
Multiple IP Address restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 781
Firewall rules for IPSec Branch Office and Remote User Tunnels . . . . . . . . 781
Changing the IPSec global settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 785
IPSec Branch Office configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 786
Adding a Branch Office IPSec Tunnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 786
Adding Local Accessible Networks to the Branch Office IPSec tunnel . . . . . 789
Adding Remote Accessible Networks to the Branch Office IPSec tunnel . . . 789
Sending all traffic from Local Accessible Networks through the IPSec tunnel 790
Modifying a Branch Office IPSec Tunnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 791
Modifying Local Accessible Networks to the Branch Office IPSec tunnel . . . 791
Modifying Remote Accessible Networks to the Branch Office IPSec tunnel . 791
Deleting a Branch Office IPSec tunnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 792
Deleting Local Accessible Networks to the Branch Office IPSec tunnel . . . . 792
Deleting Remote Accessible Networks to the Branch Office IPSec tunnel . . 792
Creating a tunnel between two Business Communications Managers . . . . . . . . 793
Configuring the first Business Communications Manager . . . . . . . . . . . . . . 793
Configuring the second Business Communications Manager . . . . . . . . . . . 793
Creating a tunnel between a Business Communications Manager
and a Contivity Extranet Switch v02_61 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 794
Configuring the Business Communications Manager . . . . . . . . . . . . . . . . . . 794
Configuring the Contivity Extranet Switch . . . . . . . . . . . . . . . . . . . . . . . . . . 794
Configuring the Business Communications Manager . . . . . . . . . . . . . . . . . . 795
Configuring the Contivity Extranet Switch . . . . . . . . . . . . . . . . . . . . . . . . . . 795
IPSec Remote User configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 796
IPSec Remote User Authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 796
Split Tunneling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 796
Adding a Remote User IPSec Tunnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 798
Assigning an IP Address to a Remote User Account . . . . . . . . . . . . . . . . . . 798
Adding a Remote IP Address Pool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 799
Modifying a Remote IP Address Pool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800
Deleting a Remote IP Address Pool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800
Adding Remote User Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 801
Configuring Remote User Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 803
Configuring the DNS/WINS setting for the Remote User Account . . . . . . . . 803
Adding a Split Tunnel Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 804
Modifying a Split Tunnel Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 804
Deleting a Split Tunnel Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 805
Deleting a Remote User Account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 805
Contents 29
Business Communications Manager 3.6 Programming Operations Guide
Creating Banner Text for a remote user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 805
Chapter 41
Policy-enabled networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 807
Policy configuration overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 807
Differentiated Services (DiffServ) overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 807
DiffServ IP Quality of Service (QoS) architecture . . . . . . . . . . . . . . . . . . . . . 808
DiffServ components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 809
IP service classes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 810
Packet classifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 811
COPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 812
Policy overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 812
Implementing Quality of Service (QoS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 813
Configuring the QoS Summary parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . 813
Configuring Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 814
Creating an interface group configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . 814
Modifying an interface group configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 815
Deleting an interface group configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . 815
Configuring Policy Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 816
Creating an IP filter configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 816
Modifying an IP filter configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 817
Deleting an IP filter configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 818
Creating an IP filter group entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 818
Modifying an IP filter group configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . 819
Deleting an IP filter group entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 819
Configuring Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 819
Creating an Action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 819
Modifying an Action entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 820
Deleting an Action entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 820
Configuring QoS policies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 821
Adding a policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 821
Modifying a policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 822
Deleting a policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 822
Implementing Common Open Policy Services (COPS) . . . . . . . . . . . . . . . . . . . . . . . 823
Viewing COPS statistics and capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 823
Configuring a COPS Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 826
Adding a COPS Client Server entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 826
Modifying a COPS Client Server entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 826
Modifying the COPS Client Server Retry Data . . . . . . . . . . . . . . . . . . . . . . . 827
Configuring the Policy Agent characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 828
Chapter 42
Configuring IP Firewall Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 831
Packet filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 831
30 Contents
P0609326 1.1
Basic (stateless) Packet Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 831
Stateful Packet Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 832
IP Firewall filters and NAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 832
Viewing and changing the status of Firewall Filters . . . . . . . . . . . . . . . . . . . . . . . . . . 832
Configuring IP Firewall Filters for an interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 833
Adding Default Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 834
Adding an Input Filter for a Firewall Filter Interface . . . . . . . . . . . . . . . . . . . . . . . 835
Modifying an Input Filter for a Firewall Filter Interface . . . . . . . . . . . . . . . . . . . . . 837
Deleting an Input Filter for a Firewall Filter Interface . . . . . . . . . . . . . . . . . . . . . . 837
Configuring the order of the Input Filters for an interface . . . . . . . . . . . . . . . . . . 838
Adding an Output Filter for a Firewall Filter Interface . . . . . . . . . . . . . . . . . . . . . 839
Modifying an Output Filter for a Firewall Filter Interface . . . . . . . . . . . . . . . . . . . 839
Deleting an Output Filter for a Firewall Filter Interface . . . . . . . . . . . . . . . . . . . . 839
Configuring the order of the Output Filters for an interface . . . . . . . . . . . . . . . . . 840
Accessing Unified Manager through the Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . 841
Firewall rules for Business Communications Manager with Dialup interfaces . . . . . . 843
Appendix A
Defining region-based defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 845
Region-based system settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 845
Core software and regions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 846
Languages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 846
Caller ID displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 847
Companding Law by region . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 847
Mobility services by region . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 848
Media bay module availability by region . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 849
FEM-trunk module combinations by region . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 850
PRI line protocol support, by region . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 851
Supported ISDN line services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 852
Defining time zones by country and language . . . . . . . . . . . . . . . . . . . . . . . . . . 853
System feature defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 853
Dialing plan defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 856
BRI and PRI line types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 857
CallPilot regions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 859
Appendix B
System Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 861
Business Communications Manager feature codes . . . . . . . . . . . . . . . . . . . . . . . . . 861
Button programming features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 865
Appendix C
ISDN overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 869
Welcome to ISDN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 869
Analog versus ISDN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 870
Contents 31
Business Communications Manager 3.6 Programming Operations Guide
Types of ISDN service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 870
ISDN Layers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 871
ISDN bearer capability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 871
Services and features for ISDN BRI and PRI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 872
PRI services and features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 872
BRI services and features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 872
Network name display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 873
Name and number blocking (ONN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 874
Call by Call Service Selection for PRI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 874
Emergency 911 dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 875
2-way DID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 875
Dialing plan and PRI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 875
ISDN hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 876
PRI hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 876
BRI hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 876
S Reference Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 877
T Reference Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 877
Clock Source for ISDN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 878
ISDN BRI NT1 equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 879
ISDN standards compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 879
Planning your ISDN network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 879
Ordering ISDN PRI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 880
Ordering ISDN PRI Service in Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 880
Ordering ISDN PRI Service in United States . . . . . . . . . . . . . . . . . . . . . . . . . . . 880
Ordering ISDN PRI Service Outside of Canada and the United States . . . . . . . 880
Ordering ISDN BRI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 880
Ordering ISDN BRI Service in Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 880
Ordering ISDN BRI Service in the United States . . . . . . . . . . . . . . . . . . . . . . . . 881
Ordering ISDN BRI Service Outside Canada or the United States . . . . . . . . . . . 881
Supported ISDN Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 881
ISDN Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 882
Program PRI Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 882
Programming ISDN BRI Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 883
Program PRI Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 884
Program ISDN BRI Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 884
Program Direct Inward System Access (DISA) on PRI Lines . . . . . . . . . . . . . . . 885
Method 1:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 885
Method 2: (North America only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 885
Program ISDN Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 886
Terminal equipment for BRI Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 886
Devices on an S loop (BRI cards only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 886
S or LT Loop DN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 886
D-packet Service (BRI only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 887
32 Contents
P0609326 1.1
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 889
A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 889
B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 892
C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 894
D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 899
E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 905
F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 906
G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 908
H . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 908
I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 911
J . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 914
K . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 914
L . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 915
M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 916
N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 919
O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 920
P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 921
Q . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 926
R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 926
S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 930
T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 935
U . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 938
V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 940
W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 941
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 943
33
Business Communications Manager 3.6 Programming Operations Guide
Figures
Figure 1 Process for initial system configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Figure 2 Process for configuring the telephony components . . . . . . . . . . . . . . . . . . . . . 68
Figure 3 Process for activating optional keycoded features . . . . . . . . . . . . . . . . . . . . . . . 69
Figure 4 Process for configuring the data and IP telephony components . . . . . . . . . . . . 70
Figure 5 Post-setup processes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Figure 6 Upgradeable BCM1000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Figure 7 BCM200 and BCM400 hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Figure 8 Main display of the Unified Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Figure 9 Tabbed page example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Figure 10 Accessing navigation tree heading help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Figure 11 Accessing navigation tree heading help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Figure 12 Quick Start Wizard application warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Figure 13 Maintenance Tools screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Figure 14 Job scheduling window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Figure 15 Security and user access headings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Figure 16 Unified Manager Timeout setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Figure 17 System security level settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Figure 18 User Profile screen to add or modify a user profile . . . . . . . . . . . . . . . . . . . . . 112
Figure 19 User Manager delete confirmation dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Figure 20 User profile for dial-up user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Figure 21 Default user groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Figure 22 User Group List add/modify screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Figure 23 User Manager delete confirmation dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Figure 24 Domain User Group Profile add/modify screen . . . . . . . . . . . . . . . . . . . . . . . . 119
Figure 25 Lockout Policy screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Figure 26 Password Policy tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Figure 27 Resources, Media Bay Modules menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Figure 28 Confirming the Programmed Bus Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Figure 29 Example of PRI module settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Figure 30 Finding state of port on Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Figure 31 Station media bay module Bus headings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Figure 32 Bus assigned to a station module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Figure 33 Finding state of port on Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Figure 34 Ports on Bus, B1 screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Figure 35 DECT media bay module description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Figure 36 DECT maintenance selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Figure 37 Network overview: DDI MUX connected to 2.5 hardware internal router . . . . . 152
Figure 38 Network overview: DDI MUX connected to BCM400 internal router . . . . . . . . 153
Figure 39 Overview of network using DDI Mux module with an external router . . . . . . . . 153
Figure 40 Tasks for installing the telephony components . . . . . . . . . . . . . . . . . . . . . . . . . 185
34 Figures
P0609326 1.1
Figure 41 Telephony Services menu options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Figure 42 Headings found under typical DN heading . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Figure 43 Square system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Figure 44 PBX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Figure 45 DID system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Figure 46 Incoming public and private call coding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Figure 47 Process map: Configuring the lines for your system . . . . . . . . . . . . . . . . . . . . 228
Figure 48 Lines menus and fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Figure 49 Using the Lines General screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Figure 50 Target line Private and Public received numbers . . . . . . . . . . . . . . . . . . . . . . . 259
Figure 51 Entering a line restriction filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Figure 52 Enter remote restriction filters for a line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Figure 53 Choosing a remote voice message center . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Figure 54 Loops headings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Figure 55 Process map: Configuring the loops for your BRI module . . . . . . . . . . . . . . . . 266
Figure 56 T-loop screen (T1 profiles) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Figure 57 Adding a SPID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Figure 58 Assign number of B-channels per SPID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Figure 59 Add Network DN to SPID X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Figure 60 Specifying a Network DN call type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Figure 61 T-loop screen (UK profile) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
Figure 62 Enable/disable D-packet service, and associate a loop . . . . . . . . . . . . . . . . . . 273
Figure 63 Add a D-packet service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Figure 64 Add a TEI to the D-packet service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Figure 65 Provisioning BRI loops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Figure 66 Provisioning BRI loop lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Figure 67 Configuring an auto-answer BRI line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
Figure 68 Assigning the BRI line to a DN record. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Figure 69 BRI RJ45 wiring array . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Figure 70 S-loop screen (North American profile) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Figure 71 Adding a DN to the Loop DN group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280
Figure 72 Adding a Loop DN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
Figure 73 Process map: Access headings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
Figure 74 DN length screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Figure 75 Received # length, (PBX template default) . . . . . . . . . . . . . . . . . . . . . . . . . . . 286
Figure 76 Assigning a target line to a set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Figure 77 Defining a Received number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
Figure 78 Setting remote page for a remote access package . . . . . . . . . . . . . . . . . . . . . 295
Figure 79 Assigning COS password and remote access parameters . . . . . . . . . . . . . . . 296
Figure 80 Unified manager telephony services headings . . . . . . . . . . . . . . . . . . . . . . . . 301
Figure 81 Configuring private network types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303
Figure 82 Adding a Public DN length prefix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306
Figures 35
Business Communications Manager 3.6 Programming Operations Guide
Figure 83 Defining the prefix DN length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306
Figure 84 Line management diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308
Figure 85 Defining access codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310
Figure 86 Direct dial menu and screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313
Figure 87 Local call tandemed through Business Communications Manager nodes . . . . 316
Figure 88 Defining line pool access codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317
Figure 89 Adding Carrier code prefix records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318
Figure 90 Configuring a carrier code prefix ID length . . . . . . . . . . . . . . . . . . . . . . . . . . . . 319
Figure 91 Call Routing headings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320
Figure 92 Add a route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
Figure 93 Define route parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
Figure 94 Using destination codes to access another system . . . . . . . . . . . . . . . . . . . . . 327
Figure 95 Adding a destination code with a wild card . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
Figure 96 Routing Service programming example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 332
Figure 97 Destination codes for call routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 332
Figure 98 Carrier code call numbering sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334
Figure 99 Multiple routing with destination schedules . . . . . . . . . . . . . . . . . . . . . . . . . . . 336
Figure 100 Configuring the Normal schedule for overflow . . . . . . . . . . . . . . . . . . . . . . . . . 337
Figure 101 Setting CbC limits parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 341
Figure 102 Metrics for all CbC options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 343
Figure 103 Restriction Filters headings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344
Figure 104 Adding restriction filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345
Figure 105 Adding overrides to restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
Figure 106 Line restriction example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349
Figure 107 Remote line restriction example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
Figure 108 Process map: Configuring DNs for system devices . . . . . . . . . . . . . . . . . . . . . 354
Figure 109 System DNs main headings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 359
Figure 110 Registration DNs, main headings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363
Figure 111 Target line assignments in the Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 381
Figure 112 Feature selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 382
Figure 113 Internal autodial selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 383
Figure 114 External autodial selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 383
Figure 115 Add Users first page, choosing remote template . . . . . . . . . . . . . . . . . . . . . . . 384
Figure 116 First and second-level System DNs headings and features . . . . . . . . . . . . . . . 388
Figure 117 Headings found under typical DNXXX heading . . . . . . . . . . . . . . . . . . . . . . . . 389
Figure 118 DN General screen for digital and IP telephones . . . . . . . . . . . . . . . . . . . . . . . 391
Figure 119 Line access fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 394
Figure 120 Assigning characteristics to each line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 397
Figure 121 T7316E display button assignment protocol . . . . . . . . . . . . . . . . . . . . . . . . . . 400
Figure 122 Adding an intercom button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400
Figure 123 Adding an Answer DN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 401
Figure 124 Answer condition for Answer DN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403
Figure 125 Features that define telephone feature capabilities . . . . . . . . . . . . . . . . . . . . . 405
36 Figures
P0609326 1.1
Figure 126 Configuring call forward . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 409
Figure 127 ATA settings for a DN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 412
Figure 128 User preference telephone settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 415
Figure 129 Button programming options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 419
Figure 130 T7316E lower button mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 423
Figure 131 T7316 telephone button assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 424
Figure 132 Model 7208 button mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 425
Figure 133 Model 7000 button mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 426
Figure 134 T7406 button defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 426
Figure 135 Models 2004/2050 default button programming . . . . . . . . . . . . . . . . . . . . . . . . 427
Figure 136 Model 2002 default button assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 428
Figure 137 Model 2001 default button formatting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 428
Figure 138 M7324N defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 431
Figure 139 Add a user speed dial code to a telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . 432
Figure 140 Entering call parameters for a user speed dial . . . . . . . . . . . . . . . . . . . . . . . . . 432
Figure 141 T7316E with KIM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 434
Figure 142 T7324 with CAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 435
Figure 143 CAP/KIM assignment, CAP/KIM 1 screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . 436
Figure 144 Programming a CAP/KIM button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 438
Figure 145 Telephone-based dialing restrictions, menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 441
Figure 146 General restrictions for telephones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 442
Figure 147 Defining set restrictions for the Night schedule . . . . . . . . . . . . . . . . . . . . . . . . 443
Figure 148 Defining Line/set restrictions for line 001, Night schedule . . . . . . . . . . . . . . . . 444
Figure 149 DN Telco Features fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 445
Figure 150 General Settings headings and fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 453
Figure 151 Feature settings screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 457
Figure 152 Checking for Park prefix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 463
Figure 153 Setting SWCA controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 464
Figure 154 SWCA indicators, incoming call from a line (auto SWCA association is on) . . 466
Figure 155 SWCA indicators, incoming call from an intercom (auto SWCA association for
intercom is on) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 467
Figure 156 Setting system timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 472
Figure 157 Undefined speed dial screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 476
Figure 158 Expanded speed dial screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 476
Figure 159 Voice message center programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 478
Figure 160 ONN blocking parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 480
Figure 161 Scheduled Services headings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 483
Figure 162 Entering the Service control password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 485
Figure 163 Entering schedule names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 486
Figure 164 Entering schedule time parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 487
Figure 165 Adding a telephone to a ring group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 490
Figure 166 Defining ring schedule parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 491
Figures 37
Business Communications Manager 3.6 Programming Operations Guide
Figure 167 Defining ring service schedule line settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 492
Figure 168 Defining restriction service setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 493
Figure 169 Defining routing service settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 495
Figure 170 Connection to a private network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 499
Figure 171 Routing service record: use pool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 501
Figure 172 Routing service record: Destination code . . . . . . . . . . . . . . . . . . . . . . . . . . . . 502
Figure 173 Dialing plan for T1 E and M routing network . . . . . . . . . . . . . . . . . . . . . . . . . . 508
Figure 174 Network example using shared line pools . . . . . . . . . . . . . . . . . . . . . . . . . . . . 513
Figure 175 PRI networking using Call-by Call Services . . . . . . . . . . . . . . . . . . . . . . . . . . . 515
Figure 176 Private tandem network of Business Communications Managers . . . . . . . . . . 520
Figure 177 Network call redirection path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 529
Figure 178 Call loop on system without ICCL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 530
Figure 179 Call paths with and without TRO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 531
Figure 180 Call paths with and without TAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 532
Figure 181 MCDN networking, with a common public network connection . . . . . . . . . . . . 537
Figure 182 IP trunking interoperability fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 541
Figure 183 ETSI QSIG networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 544
Figure 184 DPNSS networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 557
Figure 185 Message waiting indication message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 565
Figure 186 Camping a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 567
Figure 187 Breaking into a Business Communications Manager call path . . . . . . . . . . . . 568
Figure 188 Telco features Voice message center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 570
Figure 189 Target line Telco features voice message center . . . . . . . . . . . . . . . . . . . . . . . 571
Figure 190 Setting Target line voice mail settings for the telephone . . . . . . . . . . . . . . . . . 572
Figure 191 Hunt groups menus and fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 573
Figure 192 Hunt group XX screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 575
Figure 193 Broadcast call mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 577
Figure 194 Linear call mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 578
Figure 195 Rotary call mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 578
Figure 196 Hunt group XX screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 580
Figure 197 Moving hunt group members . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 581
Figure 198 Adding lines to hunt groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 583
Figure 199 Silent Monitoring system settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 585
Figure 200 Hunt Group Metrics screen for Hunt group 01 . . . . . . . . . . . . . . . . . . . . . . . . . 587
Figure 201 Hospitality commands and settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 589
Figure 202 Hospitality service times and passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 591
Figure 203 Hospitality room settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 592
Figure 204 Hospitality call permissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 593
Figure 205 Alarm data fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 594
Figure 206 Expired alarms fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 595
Figure 207 BcmAmp Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 606
Figure 208 Double Density Mode choices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 631
Figure 209 LAN, WAN and Dialup headings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 633
38 Figures
P0609326 1.1
Figure 210 Example Mean Opinion Score Log File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 748
Figure 211 Example of a Split Tunneling environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 797
Figure 212 DiffServ bandwidth brokers and nodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 809
Figure 213 S reference point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 877
Figure 214 T reference point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 878
39
Business Communications Manager 3.6 Programming Operations Guide
Tables
Table 1 Telephone buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Table 2 Menu bar items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Table 3 Navigation tree menu functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Table 4 Security settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Table 5 User Profile settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Table 6 User Group Profile settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Table 7 Domain User Group Profile settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Table 8 Lockout policy settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Table 9 Password policy settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Table 10 Bus XX record settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Table 11 Programmed Bus Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Table 12 Module record values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Table 13 TI parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Table 14 Services available for each PRI protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Table 15 Module record values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Table 16 Configuring DDI Mux connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Table 17 List of all the multiples of 56000 and 64000 bits/s . . . . . . . . . . . . . . . . . . . . . . 155
Table 18 DDI Mux Configuration settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Table 19 Bandwidth available per channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Table 20 Line numbers for the UTWAN based on the DS30 bus of the DTM . . . . . . . . . 162
Table 21 UTWAN Summary parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Table 22 UTWAN frame relay parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Table 23 WAN PVC Configuration parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Table 24 PPP Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Table 25 LCP Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Table 26 IPCP Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Table 27 PPP User parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Table 28 Additional WAN IP addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Table 29 Telephony Services subheadings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Table 30 DS30 number and offset line-loop default list . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Table 31 General record values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Table 32 Loop start analog and digital fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Table 33 Ground start fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Table 34 DID line fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Table 35 E&M line fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Table 36 Target lines and DASS2 line fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Table 37 PRI line fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Table 38 BRI line fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
Table 39 DPNSS line fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Table 40 VoIP line data fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
40 Tables
P0609326 1.1
Table 41 Combined line settings table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Table 42 Loss package settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Table 43 Default restriction filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Table 44 Default remote restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Table 45 Line attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Table 46 Loop settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Table 47 Loop settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
Table 48 Loop settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Table 49 Loop attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
Table 50 Private and Public received numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
Table 51 General record values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Table 52 Target line record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Table 53 COS password values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297
Table 54 External access tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
Table 55 Remote access matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Table 56 Private network values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304
Table 57 Dialing plan matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
Table 58 Default codes table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309
Table 59 Access codes values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310
Table 60 Direct dial values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313
Table 61 Direct dial sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
Table 62 Access/dialing codes: avoiding numbering conflicts . . . . . . . . . . . . . . . . . . . . 314
Table 63 Carrier access code values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 319
Table 64 Access code values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 319
Table 65 Route settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 323
Table 66 Call by Call routing table example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324
Table 67 PRI Service type/DN type values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325
Table 68 Destination codes: avoiding numbering conflicts . . . . . . . . . . . . . . . . . . . . . . . 326
Table 69 Establishing routes and dialout requirements . . . . . . . . . . . . . . . . . . . . . . . . . 329
Table 70 Destination codes not using a wild card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Table 71 Destination codes using the ANY character . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
Table 72 Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338
Table 73 Call by Call Services available on the system . . . . . . . . . . . . . . . . . . . . . . . . . 339
Table 74 Switches and service types chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340
Table 75 DN length values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342
Table 76 CbC matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342
Table 77 Default restriction filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
Table 78 Default filters for program headings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
Table 79 Restriction filters matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
Table 80 DN mapping for DECT, Companion and ISDN . . . . . . . . . . . . . . . . . . . . . . . . . 358
Table 81 Edit DN Record Template information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371
Table 82 Add Users wizard information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376
Tables 41
Business Communications Manager 3.6 Programming Operations Guide
Table 83 Copy values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 390
Table 84 General record values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 392
Table 85 Telephone line access fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 394
Table 86 Telephone line assignment fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 398
Table 87 Capabilities fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 406
Table 88 Call forward fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 410
Table 89 Embark validation error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 410
Table 90 Hotline values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 411
Table 91 ATA settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 412
Tabl e 92 413
Table 93 User preference choices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 416
Table 94 Button programming choices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 420
Table 95 User speed dial settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 433
Table 96 CAP/KIM feature button programming choices . . . . . . . . . . . . . . . . . . . . . . . . 439
Table 97 Telephone restriction fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 442
Table 98 Schedule filter defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 443
Table 99 Telco features settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 445
Table 100 DN voice mail settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 446
Table 101 DN equipment identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 447
Table 102 General and Line access settings for DNs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 447
Table 103 Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 448
Table 104 User preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 448
Table 105 Button programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 448
Table 107 Telephone (set) Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 449
Table 106 User speed dial settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 449
Table 108 Telephone restriction schedules and line/set restrictions . . . . . . . . . . . . . . . . . 450
Table 109 DN record, Telco features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450
Table 110 Call features/interface list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 453
Table 111 Set feature values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 458
Table 112 Answer keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 461
Table 113 SWCA controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 464
Table 114 Call log options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 470
Table 115 System features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 471
Table 116 Timer values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 472
Table 117 Timer fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 473
Table 118 Release reason values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 474
Table 119 Release reason values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 476
Table 120 System speed dial matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 477
Table 121 Voice message center settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 478
Table 122 ONN blocking settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 480
Table 123 Telco features matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 480
Table 124 Turning services on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 484
42 Tables
P0609326 1.1
Table 125 Default schedule times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 487
Table 126 Ringing group schedule values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 491
Table 127 Ringing group schedule line values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 492
Table 128 Restriction schedule values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 494
Table 129 Routing service schedule values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 495
Table 130 Ringing and Scheduling Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 496
Table 131 Restriction and Routing Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 496
Table 132 Common settings: Schedule Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 497
Table 133 Common settings: Schedule times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 497
Table 134 Destination code leading digits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 502
Table 135 E and M routing for a Business Communications Manager network . . . . . . . . 509
Table 136 Creating a coordinated dialing plan using line pools . . . . . . . . . . . . . . . . . . . . 514
Table 137 PRI call-by-call services routing information . . . . . . . . . . . . . . . . . . . . . . . . . . 516
Table 138 Call originating from the public network to a tandem network . . . . . . . . . . . . . 521
Table 139 Calls originating from the private network within a tandem network . . . . . . . . 524
Table 140 Node A destination code table, external termination . . . . . . . . . . . . . . . . . . . . 526
Table 141 Node A destination code table, internal termination . . . . . . . . . . . . . . . . . . . . . 527
Table 142 Node C destination code table, external termination . . . . . . . . . . . . . . . . . . . . 527
Table 143 Node C destination code table, internal termination . . . . . . . . . . . . . . . . . . . . 527
Table 144 MCDN network features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 528
Table 145 Module settings for MCDN network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 538
Table 146 MCDN dialing plan settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 538
Table 147 Network routing information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 539
Table 148 IP trunking interoperability fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 541
Table 149 Hardware programming for branch offices . . . . . . . . . . . . . . . . . . . . . . . . . . . . 545
Table 150 ETSI network values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 546
Table 151 Calling numbers required for DPNSS network example . . . . . . . . . . . . . . . . . 556
Table 152 Routing for DPNSS network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 557
Table 153 MCDN feature enhancements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 565
Table 154 Parts of the NSI string . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 571
Table 155 Hunt group settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 575
Table 156 Hunt group member settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 580
Table 157 Hunt group feature operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 584
Table 158 Hunt group matrix fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 584
Table 159 Silent monitor system settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 585
Table 160 Hospitality main settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 591
Table 161 Room settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 592
Table 162 Call permission settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 593
Table 163 Alarm data settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 594
Table 164 Alarm data settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 595
Table 165 Hospitality settings matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 595
Table 166 IP Music Summary parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 602
Tables 43
Business Communications Manager 3.6 Programming Operations Guide
Table 167 Networks Device parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 607
Table 168 Advanced Networks parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 607
Table 169 DSP resource requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 613
Table 170 Required MSC resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 619
Table 171 Evaluation of required Business Communications Manager configuration . . . 620
Table 172 Example of required configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 621
Table 173 Evaluation for the example of required configuration . . . . . . . . . . . . . . . . . . . . 621
Table 174 MSC information parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 622
Table 175 MS-PEC information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 623
Table 176 Advantages and Disadvantages of Minimum and Maximum values . . . . . . . . 624
Table 177 MSC configuration parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 625
Table 178 MSC custom configuration parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 626
Table 179 MSC component parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 627
Table 180 Business Communications Manager resources . . . . . . . . . . . . . . . . . . . . . . . . 633
Table 181 DHCP Server Summary attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 639
Table 182 DHCP Global Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 640
Table 183 DHCP Summary settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 641
Table 184 LAN Scope Specific Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 643
Table 185 Address Range attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 644
Table 186 Excluded Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 646
Table 187 Reserved Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 647
Table 188 Reserved Addresses Lease Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 648
Table 189 Remote Scope settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 650
Table 190 Remote Scope specific settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 651
Table 191 Remote Scope Address Range attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 652
Table 192 Remote Scope Excluded Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 653
Table 193 Remote Scope Reserved Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 655
Table 194 Lease Information for a Remote Scope Reserved Addresses . . . . . . . . . . . . . 656
Table 195 Relay Agent Interface parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 659
Table 196 LAN global parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 664
Table 197 Guidelines to configure LAN to LAN traffic smoothing . . . . . . . . . . . . . . . . . . . 664
Table 198 LAN Summary attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 665
Table 199 Additional LAN IP address parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 667
Table 200 PPP password parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 671
Table 201 WAN summary parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 673
Table 202 WAN line parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 675
Table 203 WAN sync parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 676
Table 204 WAN frame relay parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 677
Table 205 WAN PVC congestion control parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . 678
Table 206 WAN PPP parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 680
Table 207 Additional WAN IP addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 681
Table 208 DLCI to IP Mapping parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 683
44 Tables
P0609326 1.1
Table 209 RAS server TCP/IP parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 685
Table 210 V.90 modem summary parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 687
Table 211 Modem link parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 688
Table 212 V.90 modem access parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 689
Table 213 ISDN summary settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 691
Table 214 ISDN link parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 692
Table 215 ISDN access parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 692
Table 216 ISDN dial-out user parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 693
Table 217 ISDN channel characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 693
Table 218 Features that interact with PPPoE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 696
Table 219 PPPoE summary settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 698
Table 220 PPPoE link parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 699
Table 221 PPPoE access parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 699
Table 222 PPPoE dial-out user parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 700
Table 223 PPPoE channel characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 700
Table 224 DNS Summary attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 704
Table 225 IP Routing Summary attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 707
Table 226 IP RIP Global Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 707
Table 227 IP OSPF Global Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 708
Table 228 IP RIP Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 710
Table 229 IP OSPF Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 713
Table 230 IP OSPF NBMA Neighbor parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 714
Table 231 IP Static Route attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 715
Table 232 IPX Routing Summary settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 721
Table 233 IPX Global settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 721
Table 234 IPX RIP Global settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 721
Table 235 IPX SAP Global settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 722
Table 236 IPX Packet Filter Summary Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 723
Table 237 IPX Packet Input Filter parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 724
Table 238 IPX Packet Output Filter parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 726
Table 239 IPX RIP Summary settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 727
Table 240 IPX RIP Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 728
Table 241 IPX RIP Input Filter parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 729
Table 242 IPX RIP Output Filter parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 730
Table 243 IPX SAP Summary settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 732
Table 244 IPX SAP Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 732
Table 245 IPX SAP Input Filter parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 733
Table 246 IPX SAP Output Filter parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 735
Table 247 IPX Static Routing attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 736
Table 248 IPX Static Service attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 738
Table 249 Web Cache attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 742
Table 250 QoS Monitor Summary attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 745
Tables 45
Business Communications Manager 3.6 Programming Operations Guide
Table 251 Mean Opinion Score descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 746
Table 252 QoS Monitor Logging attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 747
Table 253 Net Link Manager attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 750
Table 254 Permanent WAN Connections settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 750
Table 255 NAT Summary attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 754
Table 256 NAT Rule Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 756
Table 257 NTP Client settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 762
Table 258 NTP Client Service settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 763
Table 259 PPTP Summary settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 768
Table 260 PPTP Client attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 770
Table 261 PPTP Tunnel attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 771
Table 262 PPTP Tunnel Summary attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 772
Table 263 PPTP Tunnel Link parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 772
Table 264 PPTP Tunnel Authentication parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 773
Table 265 PPTP Destination Networks attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 774
Table 266 Comparing Encryption and Authentication Methods . . . . . . . . . . . . . . . . . . . . 778
Table 267 Firewall rules for IKE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 782
Table 268 Firewall rules for ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 782
Table 269 Firewall rules for AH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 782
Table 270 Firewall rules for the QOTD server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 783
Table 271 Firewall filter for the Password server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 783
Table 272 Firewall filter for the ICMP that the Client sends to the tunnel endpoint . . . . . . 783
Table 273 Firewall filter for Private Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 783
Table 274 IPSec Global settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 786
Table 275 IPSec Branch Office Tunnel settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 787
Table 276 IPSec Local Accessible Network parameters . . . . . . . . . . . . . . . . . . . . . . . . . . 789
Table 277 IPSec Remote Accessible Network parameters . . . . . . . . . . . . . . . . . . . . . . . . 790
Table 278 Remote Accessible Networks used to route all traffic through
the IPSec tunnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 790
Table 279 IPSec Remote IP Address Pool settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800
Table 280 IPSec Remote User Account settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 801
Table 281 DNS/WINS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 803
Table 282 Split Tunnel Network settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 804
Table 283 Service classes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 810
Table 284 Default Queue mapping for Business Communications Manager . . . . . . . . . . 811
Table 285 QoS Summary parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 813
Table 286 QoS Advanced parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 814
Table 287 QoS Interface Group Table parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 815
Table 288 QoS IP Filter parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 816
Table 289 QoS IP Filter Group parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 818
Table 290 QoS Action parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 820
Table 291 QoS Policy parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 821
46 Tables
P0609326 1.1
Table 292 Status page items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 823
Table 293 COPS Client Server parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 826
Table 294 COPS Client Retry data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 827
Table 295 Policy Agent settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 828
Table 296 Policy Server settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 828
Table 297 Policy Class Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 829
Table 298 Policy Device Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 829
Table 299 IP Firewall Filters Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 832
Table 300 Firewall Input Filter Rule settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 835
Table 301 Input Rule Configuration for Unified Manager — RPC . . . . . . . . . . . . . . . . . . . 841
Table 302 Input Rule Configuration for Unified Manager — DCOM . . . . . . . . . . . . . . . . . 841
Table 303 Input Rule Configuration for Unified Manager — port 443 . . . . . . . . . . . . . . . . 841
Table 304 Input Rule Configuration for systems with dialup interfaces . . . . . . . . . . . . . . . 843
Table 305 Core software, defined by region and carrier profile . . . . . . . . . . . . . . . . . . . . 846
Table 306 Languages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 846
Table 307 South/Central America language breakout . . . . . . . . . . . . . . . . . . . . . . . . . . . 847
Table 308 Companding law . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 847
Table 309 Mobility services, by region . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 848
Table 310 Module availability, by profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 849
Table 311 Trunk availability, by region . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 850
Table 312 PRI line protocol supported, by region . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 851
Table 313 ISDN line services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 852
Table 314 ISDN services, by Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 852
Table 315 Time/date formats based on language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 853
Table 316 Region defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 853
Table 317 Default dialing restrictions, by profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 856
Table 318 BRI and PRI line types (DTM and BRI modules) . . . . . . . . . . . . . . . . . . . . . . . 857
Table 319 CallPilot region default languages by country . . . . . . . . . . . . . . . . . . . . . . . . . 859
Table 320 CallPilot feature default anomalies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 860
Table 321 Features sorted by feature name and by activation code . . . . . . . . . . . . . . . . . 861
Table 322 Button Programming Feature settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 865
47
Business Communications Manager 3.6 Programming Operations Guide
Preface
This guide explains how to program your Business Communications Manager system. For more
information about the Business Communications Manager document suite, refer to “Related
publications” on page 56.
This issue of the document reflects the added functionality built into the Business
Communications Manager 3.6 release. The hardware, and new and updated features described in
this and other documentation from this suite requires that your Business Communications
Manager system is running release 3.6.
This section includes the following general information:
•“Before you begin” on page 48
•“Symbols used in this guide” on page 48
•“Text conventions” on page 49
•“About the buttons on your telephones” on page 49
•“Acronyms used in this guide” on page 51
•“Related publications” on page 56
•“System documentation map” on page 57
•“How to get help” on page 62
Warning: Ensure that you make a complete backup of your data before attempting to
upgrade your system. Refer to the upgrade guide that comes with the upgrade package for
instructions about upgrading the Business Communications Manager software from one
version to another.
Note: The section “Software licensing” on page 3 contains software licensing
information.
Note: Hardware: BCM200 and BCM400 hardware is shipped with 3.0 or newer
software, only.
Note: Network: All the Business Communications Managers in your private network
should be running the same level of software to ensure that remote gateways and other
networking protocols are compatible. Meridian 1 systems connected to your network
using Voice Over IP (VoIP) trunks must be running the ITP software. Ask your Meridian
distributor for details.
After you perform an upgrade, always check that your gateways are still correctly
configured for local and remote connections.
48 Before you begin
P0609326 1.1
Before you begin
This guide is intended for these audiences:
• the installer who performs the initial configuration of the system
• the operator who manages the overall telephony operations of the system
• the system administrator who manages the data and network operations of the system
This guide assumes the following:
• There is an existing plan outlining the telephony and data requirements for your Business
Communications Manager system.
• The Business Communications Manager is installed and initialized, and all hardware appears
to be working. External lines and wiring for terminals and sets are connected to the appropriate
media bay modules on the Business Communications Manager. All required keycodes have
been entered.
• That all operators have a working knowledge of the Windows operating system and graphical
user interfaces.
• That operators managing the data portion of the system are familiar with network management
and applications.
Symbols used in this guide
This guide uses symbols to draw your attention to important information. The following symbols
appear in this guide:
Caution: Caution Symbol
Alerts you to conditions where you can damage the equipment.
Danger: Electrical Shock Hazard Symbol
Alerts you to conditions where you can get an electrical shock.
Warning: Warning Symbol
Alerts you to conditions where you can cause the system to fail or work improperly.
Note: Note Symbol
A Note alerts you to important information.
Tip: Tip Symbol
Alerts you to additional information that can help you perform a task.
Text conventions 49
Business Communications Manager 3.6 Programming Operations Guide
Text conventions
This guide uses the following text conventions:
About the buttons on your telephones
This guide uses text designators to indicate key pad feature buttons, such as Feature, Hold and
Release. The Business Series Terminals (BST) telephones and the IP telephones all use icons to
label these buttons. Table 1 shows the icons that appear for each function on the different types of
Nortel Networks digital telephones. Note that the T7316 and T7208 have a separate button for
mute functions. The IP telephones and the T7316E have separate buttons for both mute and
handsfree.
!
Security Note: This symbol indicates a point of system security where a default should
be changed, or where the administrator needs to make a decision about the level of
security required for the system.
angle brackets (< >) Indicates that you choose the text to enter based on the description
inside the brackets. Do not type the brackets when entering the
command.
Example: If the command syntax is: ping <ip_address>
you enter: ping 192.32.10.12
bold Courier text Indicates command names and options and text that you need to enter.
Example: Use the dinfo command.
Example: Enter show ip {alerts|routes}.
italic text Indicates book titles
plain Courier
text Indicates command syntax and system output, for example, prompts
and system messages.
Example: Set Trap Monitor Filters
FEATURE
HOLD
RELEASE
Indicates that you press the button with the coordinating icon on
whichever set you are using. (Refer to About the buttons on your
telephones.)
Table 1 Telephone buttons
Button Name
Business Series Terminal T-series: 7XXX
IP telephones: i20XX
Legacy Norstar M-series telephones
European Norion telephones
Feature1, Feature (i20XX) ,
Handsfree2
(i2004, i2002); (7316E)
7208/7316 use assigned memory button.
Mute3 (i20XX), (7208, 7316, 7316E)
50 About the buttons on your telephones
P0609326 1.1
You press the FEATURE key and then the feature code to use a feature.
For example: Press FEATURE 70 to transfer a call.
Model 7100 and 7000 telephones
The 7100 and 7000 telephones work differently from other telephones on your system because
they do not have line buttons. Where other telephones can require that you select a line or intercom
button to answer a call, with these telephones you just pick up the handset. Where other telephones
require you to select a line button to take a call on that line off hold, on these telephones, you press
HOLD.
You answer a second call by pressing HOLD. Your active call is put on hold and you connect to
the waiting call. You only can have two active calls at one time.
The 7100 and 7000 telephones do not have speakers, therefore, cannot use the handsfree feature.
Portable handsets
Companion, DECT, and the BST T7406 portable handsets all access system features in different
ways. Each of these handsets comes with a user guide that explains the specific feature access for
the handsets.
IP telephones
Nortel Networks IP telephones (i2001, i2002, i2004, i2050) have user cards that explain the
buttons on each device, including the Feature button, which is a softkey located under the
display on these telephones. The Telephone Feature User Guide can be used with these
telephones, as most Business Communications Manager features can be accessed from these
telephones. These telephones also have a display menu that provides quick access to listed
features.
The Symbol NetVision wireless IP handsets have a separate feature card which provides a quick
reference for accessing the system through the handset. The card also explains how to access the
Business Communications Manager features allowed by the system. Features can be accessed
either by entering the code on the dialpad or by using the menu on the handset display.
Hold4, , ,
Release5, (2001 has a Goodbye button ,
Call button (2001) N/A
1 This document uses FEATURE to indicate the action of pressing the feature button.
2 This document uses HANDSFREE to indicate the action of pressing the handsfree or handsfree/mute button for
handsfree functionality.
3 This document uses MUTE to indicate the action of pressing the mute or handsfree/mute button for mute functionality.
4 This document uses HOLD to indicate the action of pressing the hold button.
5 This document uses RELEASE to indicate the action of pressing the release button.
Table 1 Telephone buttons (Continued)
Acronyms used in this guide 51
Business Communications Manager 3.6 Programming Operations Guide
Information about configuring IP telephones and NetVision handsets is contained in the
IP Telephony Configuration Guide.
Acronyms used in this guide
This guide uses the following acronyms:
AAL Analog Access Lines
ACD Automated Call Distribution
AH Authentication Header
ANSI American National Standards Institute
API Application Program Interface
ARP Address Resolution Protocol
ASM Analog station module
ATA (or ATA2) Analog Terminal Adapter
AUI Attachment Unit Interface
AWG American Wire Gauge
BERT Bit Error Rate Test
BC committed burst
BE excess burst
BIOS Basic Input Output System
BKI Break-in
BLF Busy Lamp Field
BootP Bootstrap Protocol
BRI Basic Rate Interface
BRU Backup and Restore Utility
CAA Centralized Auto Attendant
CAC Equal Access Identifier Code (carrier code)
CAP Central Answering Position (T7316E+KIM or M7324+CAP modules)
CDP Coordinated Dialing Plan
CHAP Challenge-Handshake Authentication Protocol
CIC Carrier Identification Code
CIR Committed Information Rate
CLID Calling Line Identification
COPS Common Open Policy Service
52 Acronyms used in this guide
P0609326 1.1
COS Class of Service
CSMA/CD Carrier Sense Multiple Access/Collision Detection
CSU Channel Service Unit
CTE Connected Telecommunications Equipment
CVM Centralized Voice Mail
DAL Digital Access Lines
DASS2 Digital Access Signaling System Number 2
DCE Data Communications Equipment
DCOM Distributed Component Object Model
DECT Digital enhanced cordless telecommunications or Digital European
cordless telephone
DES Data Encryption Standard
DHCP Dynamic Host Configuration Protocol.
DID Direct Inward Dial
DiffServ Differentiated Services
DIMM Dual In-line Memory Module
DISA Direct Inward System Access
DLCI Data Link Connection Indentifier
DLCMI Data Link Control Management Interface
DN Directory Number
DNS Domain Name Service (DNS)
DPNSS Digital Private Network Signalling System
DRT Delayed Ring Transfer
DSCP Diff-Serv Code Point
DSP Digital Signal Processor
DSS Direct Station Set (also referred to as an auto dial key)
DTE Data Terminal Equipment
DTM Digital Trunk Module
DTMF Dual Tone Multifrequency.
EBN Egress Border Node
EDO Extended Data-Out
EF Expedited Forwarding
eKIM enhanced Key Indicator Module
EN Edge Node
ES End Station
Acronyms used in this guide 53
Business Communications Manager 3.6 Programming Operations Guide
ESP Encapsulated Security Payload
FDD Full Double Density
FQDN Fully Qualified Domain Name
FTP File Transfer Protocol
GATM Global Analog Trunk Module
HDLC High-level Data Link Control
HF Handsfree
HLC Home Location Code (UDP dialing)
HS Hospitality services
HTTP Hypertext Transfer Protocol
HTTPS Hypertext Transfer Protocol Secured
IBN Ingress Border Node
I/C Intercom feature button
ICCL ISDN Call Connection Limitation
ICMP Internet Control Message Protocol
IETF Internet Engineering Task Force.
IP Internet Protocol
IF Input Filter
IPCP IP Control Protocol
IPSec Internet Protocol Security
IPX Internetwork Packet Exchange
IRQ Interrupt Request
ISDN Integrated Services Digital Network
ISO International Organization for Standardization
ISP Internet Service Provider
ITU-T International Telecommunication Union-Telecommunication
Standardization Sector (formerly CCITT)
IVR Interactive Voice Response
KIM Key Indicator Module
LAN Local Area Network
LCD Liquid Crystal Display
LCP Link Control Protocol
LM LAN Manager
LQR Link Quality Rate
MAC Media Access Control
54 Acronyms used in this guide
P0609326 1.1
MAU Media Access Unit
MCDN Meridian Client Defined Network (PRI SL-1)
MD5 Message Digest algorithm
MLPPP Multi-Link Point-to-Point Protocol
MPPC Microsoft Point to Point Compression
MSC Media Services Card
MS-PEC Media Services Processor Expansion Card
MWI Message Waiting Indicator
NAT Network Address Translation
NBMA Non Broadcast Multi-Access
NCRI Network Call Redirection Information
NIC Network Interface Card
NTLM NT LAN Manager
NNTP Network News Transfer Protocol
OPX Off Premises Extension.
OSI Open Service Interconnection
OSPF Open Shortest Path First
PAP Password Authentication Procedure
PBX Private Branch Exchange.
PCI Peripheral Component Interconnect Slot
PDD Partial Double Density
PDN Public Data Network
PFS Perfect Forward Secrecy
PHB Per Hop Behavior
POF Packet Output Filter
POP3 Post Office Protocol
PPP Point-to-Point Protocol
PPPoE Point-to-Point Protocol over Ethernet
PPTP Point-to-Point Tunneling Protocol
PRI Primary Rate Interface
PSTN Public Switched Telephone Network
PVC Permanent Virtual Circuit
QoS Quality of Service
QOTD Quote of the day server
QSIG Q reference point signalling
Acronyms used in this guide 55
Business Communications Manager 3.6 Programming Operations Guide
RAS Remote access service
RIP Routing Information Protocol
RLR Receive Loudness Rating
RPC Remote Procedure Call
RTP Realtime Transport Protocol
SAP Service Advertising Protocol
SAPS Station Auxiliary Power Supply
SDRAM Synchronous Dynamic Random Access Memory
SHA Secure Hash Algorithm
SLA Service Level Agreement
SLR Send Loudness Rating
SMB Server Message Block
SMDS Switched Multimegabit Data Service
SMTP Simple Mail Transfer Protocol
SNMP Simple Network Management Protocol
SPID Service Profile Identifier
SR Static Route
SS Static Service
SSL Secure Sockets Layer
STP Shielded Twisted Pair
SUNNFS SUN Network File System
TAPI Telephony Application Program Interface
TCP/IP Transmission Control Protocol/Internet Protocol
TE Terminal Equipment
TEI Terminal Endpoint Identifier
TFTP Trivial File Transfer Protocol
TOS Type of Service.
TPE Twisted Pair Ethernet
TTL time-to-live
UNISTIM Unified Networks IP Stimulus
UDP User Datagram Protocol or Universal Dialing Plan
VLAN Virtual Local Area Network
Vo I P Vo i c e o v e r I P
VPN Virtual Private Networks
WAN Wide Area Network
56 Related publications
P0609326 1.1
Related publications
In addition to the Programming Operations Guide, the Business Communications Manager
documentation suite contains the following documents:
• Management User Guide
• Telephony Features Handbook
•Installation and Maintenance Guide (BCM1000 and BCM400/200)
•IP Telephony Configuration Guide
•CallPilot Manager Set Up and Operation Guide
•CallPilot Reference Guide
•CallPilot Quick Reference Guide
•CallPilot Programming Record
•CallPilot Message Networking Set Up and Operation Guide
•CallPilot Message Networking User Guide
•CallPilot Unified Messaging Installation and Maintenance Guide
•CallPilot Desktop (Unified) Messaging Quick Reference Guide
•Software Keycode Installation Guide
•Call Center Set Up and Operation Guide
•Call Center Agent Guide
•Call Center Supervisor Guide
•Call Center Reporting Set Up and Operation Guide
•LAN CTE Configuration Guide
•Personal Call Manager User Guide
•Call Detail Recording System Administrator Guide
•Analog Telephone User Guide
•CallPilot Fax Set Up and Operation Guide
•CallPilot Fax User Guide
• Interactive Voice Response Installation and Configuration Guide (IVR)
From the Business Communications Manager 3.6 Documentation CD, you can also access a
number of telephone and accessory quick reference cards.
If you operate a multi-site Business Communications Manager network, you can use the Network
Configuration Manager to provide centralized configuration and management operations. The
documentation for this tool can be found on the Network Configuration Manager CD, which
includes the software and the following documentation.
• Network Configuration Manager Installation Guide
• Network Configuration Manager Administration Guide
• Network Configuration Manager Client Software User Guide
• Network Configuration Manager Reference Guide
WFQ Weighted Fair Queuing
WINS Windows Internet Name Service
System documentation map 57
Business Communications Manager 3.6 Programming Operations Guide
System documentation map
The following pages provide a map of the Business Communications Manager documentation CD.
The map shows the overall task process of the system, and indicates which documentation deals
with each section. All the documents describes are included on the documentation CD that came
with your system.
•“Installation documentation” on page 58
•“Operations documentation” on page 59
•“Call Management documentation” on page 60
•“Unified Manager and hardware maintenance documentation” on page 61
•“Multi-site Administration: Network Configuration Manager” on page 61
58 System documentation map
P0609326 1.1
Installation documentation
Remove your Business
Communications Manager
components from the box
Business Communications Manager base
and expansion unit hardware installation Installation and
Maintenance Guide
DECT Installation and
Maintenance Guide
Companion
DECT Deployment Tool
and Provisioning Guide
Setting up media bay modules
Analog telephones
Portable handsets
(Region-specific)
Installing lines
DECT
Bix Block Wiring Guide
Digital telephony
IP Telephones
Data cards
Installation manuals
come with telephones
Analog
Telephone
User Guide
Nortel Networks
digital telephones
Nortel Networks
IP telephones
Voice Mail and
Call Management
Applications
Installation
manuals
come with
telephones
Three-port Switch Installation Guide
Documentation CD
Symbol NetVision
wireless IP telephone
T7406
T7406 Cordless Telephone
Installation Guide
IP Telephony Configuration Guide
NetVision Phone Administrator
Guide
System planning
and configuration
records
Programming Records (CD only)
Operations
Companion Installation
and Configuration Guide
System documentation map 59
Business Communications Manager 3.6 Programming Operations Guide
Operations documentation
Telephony Configuration
Programming Operations Guide
Quick Start Wizard
Setting up Lines,
Routes and
Access Codes
Controlling calls
Setting up
Telephone records
and features
Data Configurations
Voice Mail and Call Management Applications
Hardware
Installation
Operations
Using the telephones
and equipment
T7000 User Card
T7100 User Card
T7208 User Card
T7316 User Card
T7316E User Card
T7406 User Card
M7324 User Card
i2004 User Card
i2002 User Card
i2001 User Card
NetVision Feature Card
Telephony Features Handbook
Using Telephone Features, and
finding prompt descriptions.
IP Telephony
Configuration Guide
DECT Installation and
Maintenance Guide
CallPilot Quick Reference
card, NVM interface
CallPilot Quick Reference
card, CP interface
Central Answering Position
(CAP) User Card
Telephone Features User
Guide
SWCA User Card
Analog Telephone User Guide
Registering Telephones
Companion
DECT
IP Telephones
Telephony Networking
Land
VoIP
Companion Installation
and Configuration Guide
Using the telephones
and equipment
Software Keycode
Installation Guide
Documentation CD
Symbol NetVision
System Management and Maintenance
60 System documentation map
P0609326 1.1
Call Management documentation
Voice Mail and Call Management Applications
Call Detail Recording
System Administration Guide
Personal Call Manager User Guide
CDR
Hunt Groups
Hospitality Services
Programming
Operations Guide Hospitality
Features Card
Call Pilot Manager Set Up
and Operation Guide
CallPilot
Reference
Guide
CallPilot Message
Networking
CallPilot Fax
CallPilot Message Networking
Set Up and Operation Guide User Guide
CallPilot Fax Set Up and
Operations Guide
CallPilot Desktop
(Unified) Messaging
Call Center
CallPilot Unified Messaging
Installation and Maintenance
Call Center Set Up
and Operation Guide
Supervisor and
Agent Guides
Reporting Set Up and
Operation Guide
Multimedia Call Center Multimedia Call Center
Set Up and Operation Guide
Multimedia Call Center
Web Developer Guide
Programming
Record
Professional Call
Center
Personal Call Manager
LAN CTE
Keycoded Applications
Software Keycode
Installation Guide
User Guide
User Guide
LAN CTE Configuration Guide
System Management and Maintenance
Documentation CD
IVR Interactive Voice Response Installation and Configuration Guide
System documentation map 61
Business Communications Manager 3.6 Programming Operations Guide
Unified Manager and hardware maintenance documentation
Multi-site Administration: Network Configuration Manager
Maintenance and Troubleshooting
Security and User Administration
Backup and Restore Management User Guide
System Management and Maintenance
Documentation CD
Voice Mail and
Call Management
Hardware Installation
Operations
Programming Operations Guide
System configuration records Programming Records (CD only)
Installation Guide
Network Configuration Manager CD
Administration Guide
Client Software User Guide
Reference Guide
Software
62 How to get help
P0609326 1.1
How to get help
If you do not see an appropriate number in this list, go to www.Nortelnetworks.com/support.
USA and Canada
Authorized Distributors - ITAS Technical Support
Telephone: 1-800-4NORTEL (1-800-466-7835)
If you already have a PIN Code, you can enter Express Routing Code (ERC) 196#.
If you do not yet have a PIN Code, or for general questions and first line support, you can enter
ERC 338#.
Website: http://www.nortelnetworks.com/support
Presales Support (CSAN)
Telephone: 1-800-4NORTEL (1-800-466-7835)
Use Express Routing Code (ERC) 1063#
EMEA (Europe, Middle East, Africa)
Technical Support - CTAS
Telephone:
* European Freephone 00800 800 89009
European Alternative/
United Kingdom +44 (0)870-907-9009
Africa +27-11-808-4000
Israel 800-945-9779
* Note: Calls are not free from all countries in Europe, Middle East or Africa
Fax: 44-191-555-7980
email: emeahelp@nortelnetworks.com
CALA (Caribbean & Latin America)
Technical Support - CTAS
Telephone: 1-954-858-7777
email: csrmgmt@nortelnetworks.com
APAC (Asia Pacific)
Technical Support - CTAS
Telephone: +61-2-870-8800
Fax: +61 388664644
email: asia_support@nortelnetworks.com
In-country toll free numbers
Australia 1800NORTEL (1800-667-835)
China 010-6510-7770
How to get help 63
Business Communications Manager 3.6 Programming Operations Guide
India 011-5154-2210
Indonesia 0018-036-1004
Japan 0120-332-533
Malaysia 1800-805-380
New Zealand 0800-449-716
Philippines 1800-1611-0063
Singapore 800-616-2004
South Korea 0079-8611-2001
Taiwan 0800-810-500
Thailand 001-800-611-3007
Service Business Centre & Pre-Sales Help Desk +61-2-8870-5511
64 How to get help
P0609326 1.1
65
Business Communications Manager 3.6 Programming Operations Guide
Chapter 1
Introduction
The Business Communications Manager includes software and hardware components that provide
telephony, voice messaging, interactive voice response (IVR), data networking, and IP telephony.
The web-based navigation tool, Unified Manager, provides easy access to all operations and
maintenance programming on the Business Communications Manager system at a single site. For
more information about Unified Manager, see “Using the Unified Manager” on page 82.
This section includes the following topics:
•“System configuration process maps” on page 66
•“Finding your way around” on page 72
•“Business Communications Manager hardware” on page 74
•“What do media bay modules do?” on page 76
•“How does the system connect to the network?” on page 76
•“Additional Business Communications Manager applications” on page 76
With the introduction of BCM version 3.5 software, there was an increase in the awareness
of security in regards to access to the Unified Manager, both by administrative users and by
client applications. The icon shown to the left, when used within this document, denotes
points of security that you need to consider when setting up or using your system.
• This software includes a generic security certificate that provides an increased level of
encryption ability. You can replace this certificate with a site-specific certificate. Since
encryption levels have some dependencies to the version of Windows operating systems, the
defaults are set at a mid-range level to allow for clients using earlier versions that do not
support strict encryption requirements. You can reset these levels higher or lower.
• This version also provides more control over password policies, that allow you to determine
the complexity of the passwords you want to assign to the users who do programming in the
Unified Manager. You can also determine if you want the system to lockout users who have
entered an incorrect password after a specified of times.
• Finally, a more secure front end application to the text-based interface is being introduced. The
PuTTY application uses SSH to provide a secure connection to the text-based interface. The
application is downloaded to a user’s computer, rather than being resident on the Business
Communications Manager, like Telnet.
The Network Configuration Manager provides multi-site network management. This process is
described in a separate set of user guides.
Figure 2 on page 68, Figure 4 on page 70, Figure 5 on page 71, and Figure 3 on page 69 provide an
overview of the processes for operating the Business Communications Manager system.
!
66 System configuration process maps
P0609326 1.1
System configuration process maps
The following process maps show you the order in which your system is configured. Each section
provides quick reference information about the step, plus a link to the process section.
• Initial system configuration
•“Configuring telephony components” on page 68
•“Optional keycoded features” on page 69
•“Data and IP telephony configuration” on page 70
•“Post-system setup features” on page 71
Caution: Programming affects system operation.
Only a qualified system administrator should perform startup, installation and
maintenance programming. Many of the settings affect correct system operation.
System configuration process maps 67
Business Communications Manager 3.6 Programming Operations Guide
Initial system configuration
Figure 1 Process for initial system configuration
System
hardware is
installed
Run
startup
Wizard
Refer to the Installation and Maintenance Guides for hardware setup.
Set up your system for correct network connection and basic telephony and
CallPilot properties. Refer to “Using the Quick Start Wizard” on page 96.
Set and
install
modules
Refer to the Installation and Maintenance Guides for media bay module
settings and connections. To identify the media bay modules to the system
and set up their line values, refer to “Configuring resources — media bay
modules” on page 123.
Set up
security
levels
There are a number of points at which you can enhance the security of
access to your system:
You can install a site-specific security certificate (“Understanding BCM SSL
certificate properties” on page 77).
Set up
user
access
To maintain user access security, you can define different levels of
password security and user access. At a minimum, change the default
administration default passwords (ee_admin and supervisor). Refer to
“Managing system and user security access levels” on page 105.
You can determine the encryption level required between the system and
clients (“Setting system security compatibility levels” on page 107).
68 System configuration process maps
P0609326 1.1
Configuring telephony components
Figure 2 Process for configuring the telephony components
System
setup is
complete
Set up
lines/loops
Set up
telephones
Set up
special
features
Refer to the preceding flow chart.
When the trunk media bay modules are configured, the system assigns line
or loop numbers. You may need to change some of the line attributes. You
can also refer to the lines and loops to set up line pools and call routing.
Refer to “Configuring lines” on page 227.
When the station media bay modules are configured, the system assigns
extension numbers (DNs) for each telephone connection.
DNs define each set or piece of equipment connected to the system. Within
the System DN headings, you can define how individual sets will interact in
the system. Refer to “Configuring DNs for system devices” on page 387.
Cordless/wireless telephones (NetVision, BST T7406, DECT, Companion)
all have their own installation and configuration guides and feature cards.
After you set the basic telephony information, you can configure the special
features such as:
• Hunt groups (“Configuring Hunt groups” on page 573)
Confirm
system
settings
A number of settings affect all lines or telephones. Most of these settings
are default. Confirm that they suit your purposes.
Refer to “Configuring system settings” on page 451.
Set up
access
When your lines are configured, you can set up system access
configurations. Refer to “Configuring outgoing calls” on page 301 and
“Controlling access into the system” on page 283.
• Hospitality (“Configuring Hospitality Services” on page 589)
Set up
call
management
features
The Business Communications Manager has built-in call management
applications. Basic CallPilot features can be accessed from the CallPilot
button on the first page of the Unified Manager. CallPilot documentation
describes how to install and use the available features. CallPilot also has
enhanced features, which require a keycode to activate (refer to the CD
contents flowchart: “System documentation map” on page 57).
• IP music (“Configuring the music source” on page 601)
See also “Data and split-line configuration” on page 151
Remote voice mail: If your system is not the voice mail host, set up remote
access to the network voice mail system. Refer to “Configuring centralized
voice mail” on page 559
System configuration process maps 69
Business Communications Manager 3.6 Programming Operations Guide
Optional keycoded features
Figure 3 Process for activating optional keycoded features
System is
set up
Get an
Authorization
code
Get the
software
keycode
Enter
software
keycode
Program
the feature
The basic system has been installed and configured.
When you purchase an optional feature, you receive an Authorization
Code for the feature.
Access the Nortel Networks Keycode web site and use the Authorization
Code to get a software keycode for the feature. For information about
how to get the software keycode, refer to the Software Keycode
Installation Guide.
Use Unified Manager to enter the software keycode. For information
about how to enter the software keycode, refer to the Software
Keycode Installation Guide.
For information about how to program the new optional feature, refer
to the documentation for that feature.
Purchase
the optional
feature
Keycoded applications:
Call Center/Call Center Reporting
Companion (US UTAM code)
Fax Suite
LAN CTE (TSP) (required for Personal Call Manager)
Message Networking (VPIM/AMIS)
Multimedia Call Center
Networking DPNSS/MCDN (region-specific)
Professional Call Center (upgrade) and Professional Call Center Agents
Unified Messaging and Voice Mailbox Expansion
VoIP Gateway and IP telephony and IP trunks
Interactive Voice Response (IVR)
Also refer to “Using a wizard to change data parameters” on page 633.
70 System configuration process maps
P0609326 1.1
Data and IP telephony configuration
Figure 4 Process for configuring the data and IP telephony components
Set up
data
network
Set up
network
Policies
Set up
firewalls
You configure the data network options, so that Business Communications
Manager operates properly on your network. For information about how to
configure the data networking options, refer to:
“Configuring DHCP” on page 637
Policies allow you to control the data traffic on your network so more
bandwidth is available to delay sensitive data such as IP telephony. For
information about how to configure Policies, refer to “Policy-enabled
networking” on page 807.
To control access to your system, you can use firewalls to block or allow
specific ports and IP addresses. Refer to “Configuring IP Firewall Filters”
on page 831.
System
setup is
complete
Basic system configuration is complete. Refer to previous flowcharts.
“Configuring DNS” on page 703
“Configuring IP Routing” on page 705
“Configuring IPX Routing” on page 719
“Configuring QoS monitor” on page 743
“Configuring Web Cache” on page 741
“Configuring Net Link Manager” on page 749
“Configuring NAT (Network Address Translation)” on page 753
“Configuring NTP Client” on page 761
Set up
VPN
Tunnels
Virtual Private Networks (VPN) tunnels allow you to create secure
connections over the public data network. You can also use VPN to ensure
a secure connection to the Business Communications Manager. For more
information about VPN Tunnels, refer to “Virtual Private Networks (VPN)”
on page 765.
Set up IP
telephony
Set up any voice over IP (VoIP) trunks and/or IP telephones and Netvision
telephones. Refer to the IP Telephony Configuration Guide for details. The
DNs for these telephones are configured within the digital range of DNs.
System configuration process maps 71
Business Communications Manager 3.6 Programming Operations Guide
Post-system setup features
Figure 5 Post-setup processes
System is
set up
The basic system has been installed and configured.
Set up
alarm
manager
Determine how your Business Communications Manager system will
report alarms. Refer to the Management User Guide
Set up
BRU and
CDR
Set backup schedules and determine call detail reporting (CDR). Refer to
the Management User Guide and the CDR User Guide.
72 Finding your way around
P0609326 1.1
Finding your way around
The following sections provides you with quick links to the detailed configuration information:
•“Security and User Management” on page 72
•“Telephony programming quick access list” on page 72
•“Data programming sections” on page 73
Security and User Management
• Unified Manager access: “Getting started with Unified Manager” on page 77
• Security and user management: “Managing system and user security access levels” on page
105
Telephony programming quick access list
Configuration overviews and planning
• System configuration process overview: “System configuration process maps” on page 66
• Application overview: Getting started with Unified Manager on page 77
• Telephony Services overview: “Planning your telephony services” on page 188
• Quick reference section to telephony programming: “Telephony feature planning” on page
193
Lines and network configuration
• Configuring media bay modules: “Configuring resources — media bay modules” on page
123
• Configuring the PSTN lines: “Configuring lines” on page 227 and “Configuring BRI
Loops” on page 265
• Configuring outgoing call programming: “Configuring outgoing calls” on page 301
• Configuring incoming and internal access: “Controlling access into the system” on page
283
• Configuring the public network access: “Configuring public networks” on page 499
• Configuring private network access: “Configuring private networks” on page 505, and
“Configuring private networks with SL-1 MCDN” on page 519, or “Configuring ETSI
QSIG and DPNSS network services” on page 543.
• Centralized Voice Mail (host or remote system and telephony settings): “Configuring
centralized voice mail” on page 559
• ISDN general information: “ISDN overview” on page 869
Finding your way around 73
Business Communications Manager 3.6 Programming Operations Guide
Telephony configuration
• Using Wizards to configure telephones: “Configuring DNs using the Wizards” on page
369
• Using DN records to configure telephones: “Configuring DNs for system devices” on
page 387
• Setting telephony system features: “Configuring system settings” on page 451
• Define telephony schedules: “Configuring schedules” on page 483
• Telephony features list: System Features on page 861
Special features
• Hunt groups: “Configuring Hunt groups” on page 573
• Hospitality Services: “Configuring Hospitality Services” on page 589
Reference material
• System profile tables: “Defining region-based defaults” on page 845
• Features available for programming on the telephone memory buttons: “Button
programming features” on page 865
Data programming sections
•“Configuring the MSC resources” on page 609
•“Using a wizard to change data parameters” on page 633
•“Configuring DHCP” on page 637
•“Configuring the LAN resources” on page 663
•“Configuring the WAN resources” on page 669
•“Configuring the Dial Up resources” on page 685
•“Configuring DNS” on page 703
•“Configuring IP Routing” on page 705
•“Configuring IPX Routing” on page 719
•“Configuring QoS monitor” on page 743
•“Configuring Web Cache” on page 741
•“Configuring Net Link Manager” on page 749
•“Configuring NAT (Network Address Translation)” on page 753
•“Configuring NTP Client” on page 761
•“Virtual Private Networks (VPN)” on page 765 (tunnels)
•“Policy-enabled networking” on page 807
•“Configuring IP Firewall Filters” on page 831
74 Business Communications Manager hardware
P0609326 1.1
Business Communications Manager hardware
The main component of the Business Communications Manager system is the Business
Communications Manager base unit. The Business Communications Manager base unit controls
all tasks such as call processing, voice messaging, and data routing.
BCM1000 (legacy equipment)
If you have existing equipment, like the unit shown in the figure below (BCM1000), you can
update the operating system with new Business Communications Manager software.
Figure 6 Upgradeable BCM1000
For a detailed description about maintaining these units, refer to the Business Communications
Manager BCM1000 Installation and Maintenance Guide.
Note: Some of the components described in this section are not available in all areas. Ask your
Nortel Networks Business Communications Manager supplier for information about the
availability of components.
Media bay module (MBM) slots
Ethernet ports
Business Communications Manager hardware 75
Business Communications Manager 3.6 Programming Operations Guide
BCM200/BCM400 base units
In conjunction with the BCM version 3.0 system release, Nortel released two new base unit
models to provide added flexibility for system planning. These systems come preloaded with the
latest version of software. You cannot run versions previous to BCM 3.0 software on these units.
However, you can reuse modules from previous versions of the system, if you are replacing old
system hardware with the new BCM200 or BCM400 hardware (shown below). For a detailed
description of this hardware, and how it is installed and maintained, refer to the Business
Communications Manager BCM200/BCM400 Installation and Maintenance Guide.
Figure 7 BCM200 and BCM400 hardware
Primary Mirror Master
Buzzer Off
Media bay module (MBM) slots
Modem port Media services
card (MSC)
Ethernet ports WAN card
Media services
card (MSC)
Ethernet ports WAN card
Media bay module (MBM) slots
BCM400
BCM200
Modem port
76 Additional Business Communications Manager applications
P0609326 1.1
What do media bay modules do?
Media bay modules are key components of the system. They provide the link between the external
lines (trunks), the Business Communications Manager applications, and the internal extensions
(DNs), which connect to individual telephones.
The type of modules on your system depends on your set requirements and the type of lines
available from your service provider. You need to determine this information before you order the
system. For a detailed description of this hardware, and how it is installed and maintained, refer to
the Hardware Installation and Maintenance Guide.
How does the system connect to the network?
The Business Communications Manager is designed to connect to your business network on a
LAN and/or a WAN.
For data networking, the Business Communications Manager acts as a policy enabled router that
optimizes data traffic and ensures consistent bandwidth for IP telephony, VoIP trunks, and mission
critical data.
For telephony applications, the Business Communications Manager base unit acts as a switch and
feature controller for the external lines and the internal extensions attached to the sets.
The IP telephone uses both data and telephony features to provide an network-based telephone that
provides the call features of the telephony-based digital telephones.
Additional Business Communications Manager applications
The Business Communications Manager provides a number of software applications. Some
applications work immediately after you install the Business Communications Manager system
and access the Unified Manager. Refer to Chapter 2, “Getting started with Unified Manager,” on
page 77 for a description of the Unified Manager interface.
To use other applications, you enable the application by entering software keycodes.
Keycodes are based on your system identification and an encrypted code that you obtain when you
purchase the rights to an option. Refer to the Software Keycode Installation Guide for information
about how to acquire a keycode and how to enter it. Each of these optional features has separate
documentation which includes information keycodes and how to set up the application.
Refer to “Related publications” on page 56 for a list of the documentation for each of these
applications. Also refer to “System documentation map” on page 57 for an overview of how these
applications fit into the overall system.
77
Business Communications Manager 3.6 Programming Operations Guide
Chapter 2
Getting started with Unified Manager
This section provides you with information about the Unified Manager, the tool you access on the
Business Communications manager from your desktop and use to configure system information.
This section describes the Unified Manager interface functions.
This section includes information about:
•“Understanding BCM SSL certificate properties” on page 77
•“Using the Unified Manager main page buttons” on page 79
•“Using the Unified Manager” on page 82
•“Using Unified Manager Help” on page 87
•“Logging off” on page 88
•“Using the SSH client to access the text-based interface” on page 89
•“Manually activating Telnet” on page 90
Understanding BCM SSL certificate properties
When you first run the BCM version 3.6 software, you will note that the default Web access to the
Business Communications Manager now utilizes SSL encryption for system security (BCM 3.5
and newer software). This includes the appearance of a security alert when you initiate a
connection to the Unified Manager using SSL, which indicates site validation of the default
certificate.
This security alert does not appear if you:
• add a site-specific certificate (“Uploading a certificate and a private security key” on page 78)
• suppress the message on your client browser (“Suppressing the security alert message” on
page 79)
• use the non-SSL port (http:6800) (“Using the non-secure http:6800 port” on page 79)
Warning: If the installer did not change the access password to the Unified Manager,
you should do so at the earliest opportunity. Refer to “Managing access passwords” on
page 109 for procedures for changing passwords and adding new users.
!
Security note: Multiple users logging on to the Business Communications Manager
with the administrator account, from different client stations, can cause inconsistent or
wrong configuration. Therefore, it is advisable to limit the number and distribution of
administrator accounts.
Security note: The configuration section in the Unified Manager is not secured through
SSL encryption. To provide security for this section, establish a VPN client tunnel. Refer
to “IPSec Remote User configuration” on page 796.
78 Understanding BCM SSL certificate properties
P0609326 1.1
The self-signed certificate that is included in the BCM version 3.6 software enables SSL
encryption functionality, providing the necessary encryption keys. However, it does not address
site authentication. Site authentication requires system-specific information such as an IP address,
company name, and so on.
Note: Client applications do not need to install the certificate. The Business Communications
Manager sends the certificate when it accesses the client application.
Uploading a certificate and a private security key
Obtain a site certificate for your Business Communications Manager from a CA (Certificate
Authority) vendor. Certificate files must use the .PEM format. You will be provided with a
certificate and a private security key. These are what need to be installed on the Unified Manager.
1Log on to the Business Communications Manager main screen.
2Click on the Maintenance button.
3You will be prompted to enter a system user name and password.
4Click on OK.
The main Business Communications Manager Product Maintenance and Support page
appears.
5On the left menu, click on the Maintenance Tools link.
A web page showing a list of Maintenance Tools appears.
6Under Maintenance Tools, Security, click the Upload Certificate and Private Key link.
A web page displaying Certificate and Private Key fields appears.
7Use the Browse button beside each field to locate the certificate and private key files.
Both files must be uploaded at the same time.
8Click the Upload button.
Upload messages:
• If the upload is successful:
Certificate and Private Key Upload Was Successful!
You must restart the Apache Service or Restart the BCM before the
Settings will take Effect.
• If the upload is unsuccessful:
Certificate and Private Key Upload Was NOT Successful!
The Certificate and Private Key do not match.
Please upload a VALID Certificate and Private Key Combination!
9Click on the BCM link beside Your Location to exit the maintenance pages.
10 To replace the default certificate with the new certificate and private key:
!
Security note: Ensure that you maintain a copy of your certificate and private security
keys in a secure place, preferably offsite. This provides you with a backup if your system
ever requires data re-entry.
Using the Unified Manager main page buttons 79
Business Communications Manager 3.6 Programming Operations Guide
aExit the Unified Manager.
bLog back into the Unified Manager.
Troubleshooting: Restoring the default certificate
If something happens to your private security certificate file, you cannot access the Unified
Manager and you need to restore the default certificate. Contact your technical support team for
assistance.
Suppressing the security alert message
If you do not want to add a site-specific security certificate, but you want to suppress the security
alert message, you can use the Internet Explorer Security options to disable the warning.
1Open Internet Explorer.
2On the top menu bar, click Tools and select Internet Options.
3Select the Advanced tab.
Note: Location of the following prompt may vary, depending on the version of Internet
Explorer.
4Scroll to the item “Warn about invalid site certificates.”
5If the check box has a check mark, click on the box to remove it. This disables this option.
6Restart the browser.
Using the non-secure http:6800 port
If you choose not to use SSL on your system, you can disable the system prompt that forces secure
web access. Refer to “Setting system security compatibility levels” on page 107. On the Security
screen described in that section, choose Disabled for the Force Secure Web Access field.
Using the Unified Manager main page buttons
On the Business Communications Manager Unified Manager initial page, a number of buttons
provide access to various parts of the Unified Manager. The purpose of each button is discussed in
this section.
•“Locating Wizards” on page 80
•“Locating optional features from the main page” on page 81
!
Security note: Ensure that you change the password after you first log on to Business
Communications Manager. For information about how to change passwords, and how to
define user profiles, refer to “Managing system and user security access levels” on page
105.
80 Using the Unified Manager main page buttons
P0609326 1.1
Locating Wizards
The Wizards are self-contained task applications that you can use to speed up some configuration
tasks. The access icons for the Wizards are located on the Setup and Management Wizards page,
which is accessed through the Wizards button on the start page of the Unified Manager.
These are the wizards that are available from this page:
•Quick Start Wizard: initializes the system and sets up your basic system information. This
wizard is only run once, when your system is first set up. Refer to “Using the Quick Start
Wizard” on page 96.
•Add Users Wizard: allows you to change the telephony settings for a set of DNs or for a
single DN. You can define the settings in this Wizard, or you can use a pre-defined template,
from a local site or from a remote site, created with the Edit DN Record Template wizard.
Refer to “Creating telephone records with the Add Users Wizard” on page 375.
•Edit DN Record Template Wizard: allows you to select Telephony User Templates and
change and define the user settings for telephones. The Telephony Template is stored in a file
for use with the Add Users Wizard. Refer to “Editing DN Record Templates” on page 369.
•DN Renumber Wizard: renumbers a range of DNs. Refer to “Using a wizard to renumber
telephone DNs” on page 367.
•Network Update Wizard: allows you to update your system data network settings any time
after the Quick Start Wizard was run, which sets the initial network setup. Refer to “Using the
Network Update Wizard” on page 634.
•DECT Mobile Recording Wizard: allows you to enable/disable mobile recording for one of
the base station ports.
•DECT Configuration Wizard: allows you to easily configure a DECT module. It also turns
on one of the base station ports to allow mobile recording (handset registration).
Note: The DECT Wizards only appear on the Wizards page if there is a DECT module
installed and identified to the system. These wizards are discussed in the DECT Installation
and Maintenance Guide.
Navigating the wizards
These are some helpful hints about how the wizards work, and how to use them.
• To open the online help, from the Programming Wizards screen click the Programming
Wizards Help link.
• You can move back and forth between screens in the wizards by clicking the Back and Next
buttons.
• You can revise your choices and entries on any of the wizard pages until you click the Apply
button. Once you click the Apply button, the system proceeds to apply the selected
configurations. The user is presented with a confirmation box that provides the approximate
timing of the process. To check the status of the configuration, press the Refresh button. When
the process is complete, the title of the page has the word completed as part of the title.
Using the Unified Manager main page buttons 81
Business Communications Manager 3.6 Programming Operations Guide
Locating optional features from the main page
After you set up the system and it is operating, you can add the keycodes for any optional features
you want to include.
You access the optional applications, including those which require keycodes, through the Install
Clients button.
The program that manages CallPilot is accessed through the Call Pilot button.
For information about how to set up these optional features, refer to the documentation for each
application.
Note: Basic CallPilot functions are standard on the Business Communications Manager and you
define your region and basic settings when you run the Quick Start Wizard. Refer to “What you
need to know before you use the wizard” on page 93. If you are using this call pilot as the voice
mail host to other systems, you may need to set up areas of the Unified Manager, as well. Refer to
“Configuring centralized voice mail” on page 559.
Access optional
applications
Access CallPilot
application
82 Using the Unified Manager
P0609326 1.1
Finding documentation from the main page
Use the Documentation button to find the information you require to help you understand and
configure your system to your specifications. The entire Business Communications Manager
documentation suite, plus a number of training panels, are included on your Business
Communications Manager computer, as well as on the CD that accompanied your system.
The Programming Records are on the CD only.
Using BRU from the main page
The BRU (Backup and Restore Utility) button, allows you to ensure the integrity of your system
data by providing a way to back up your system data and configurations in the way that is most
useful for your purposes. Backed up data can be restored to the Business Communications
Manager should a system failure occur, such as a prolonged power outage. The Management User
Guide describes how to use this feature.
Accessing maintenance information from the main page
The Maintenance button accesses a number of maintenance tools that allow you to determine the
current status of the various aspects of your Business Communications Manager system. The
Management User Guide describes how to use these tools.
Using the Unified Manager
Most changes made with Unified Manager become part of current Business Communications
Manager programming when you select an item from the menu options. However, some changes
take effect after you exit the screen. If a programming error occurs, you must reenter the original
programming.
This section describes the various parts of the configuration main screen:
•Business Communications Manager system access
•Unified Manager screen display
•“Understanding the dynamic menu” on page 84
•“Understanding the navigation tree headings” on page 85
•“Understanding tabbed pages” on page 87
Business Communications Manager system access
You must control system access by providing one user id, the administrator, with read-write
privileges. Give all other users selected access privileges to control the possibility of concurrent
configuration of the Business Communications Manager system. For information about defining
user profiles and passwords, see “Managing system and user security access levels” on page 105.
Using the Unified Manager 83
Business Communications Manager 3.6 Programming Operations Guide
Unified Manager screen display
The Unified Manager screen display, shown in the figure below, consists of:
• a menu bar, where users access configuration commands
• a navigation frame that displays the navigation tree you use to navigate through Business
Communications Manager programming headings
• an information frame that displays the windows related to the headings you select in the
navigation frame
Figure 8 Main display of the Unified Manager
The menu bar contains configuration management options. When you select the different headings
in the navigation tree, these options are enabled. If an option appears dimmed, it is not available
for the heading you have selected.
The navigation tree contains headings that allow you to access specific areas of the Business
Communications Manager system. The key symbol ( ) beside each heading indicates that the
heading can be expanded to show sub-headings. To display sub-headings, double-click the item or
just click on the key itself. As you select various headings in the navigation tree, the heading
changes color and Unified Manager displays the appropriate information frame.
Note: If you receive the error message Telephony programming is currently not
available. Please try again later. when you click on one of the headings, this means
that the part of the system that handles MSC is doing a reset. Wait about one-and-a-half minutes
and try again.
Menu bar
Navigation
key
Buttons Headings
Navigation frame Tabbed pages Information frameNavigation tree
84 Using the Unified Manager
P0609326 1.1
The information frame can contain configuration windows or dialog boxes indicating the
appropriate action or showing system messages or warnings.
Understanding the dynamic menu
You access some of the Business Communications Manager functions using the top menu bar.
This menu bar is dynamic. Commands become active or inactive depending on the heading you
select from the navigation tree in the left frame. The following table defines the menu bar top-level
items.
Refer to the figure in “Unified Manager screen display” on page 83.
Table 2 Menu bar items
Menu item Description
Group View the system, resources, services, and management.
Edit Edit parameters.
Configuration Access configuration dialog boxes and screens.
Performance Access performance graphs and tables.
Fault Access fault management settings.
Report Generate a report.
Tools Use Business Communications Manager tools.
Logoff Log off, reboot or shutdown the Business Communications Manager base
unit.
View Refresh the information window to reflect configuration changes.
Help Access online help.
Using the Unified Manager 85
Business Communications Manager 3.6 Programming Operations Guide
Understanding the navigation tree headings
The Unified Manager navigation tree contains five main headings that allow you to access specific
areas of the Business Communications Manager system. These headings are described in the
following table.
Table 3 Navigation tree menu functions
Heading Programming
System Provides access to Licensing, Identification and Security subheadings. This
includes a form to enter keycodes, and a list of current supported services.
The Security heading provides screens that allow you to determine the level of
security within and entering the system. Refer to “Managing system and user
security access levels” on page 105.
When you select the System heading, you can view system information such as
your system name and a description about which resources and services are
available.
Selecting the System heading also enables the following menu options:
Configuration, Performance, Fault, Logoff, View and Help. These menu
options provide access for you to:
• enable/disable services
• access CPU and memory status
• access to the alarm banner, which displays totals of alarms
• access or refresh a system inventory list
• perform system reboot or shutdown operations
Also refer to the Management User Guide.
Resources Provides access for configuring data and telephony resources for Business
Communications Manager hardware setup. This information is included in
“Configuring resources — media bay modules” on page 123, “Data and split-line
configuration” on page 151, “Configuring the LAN resources” on page 663,
“Configuring the WAN resources” on page 669, “Configuring the Dial Up
resources” on page 685, and “Configuring the MSC resources” on page 609, as
well as in the DECT Installation and Maintenance Guide.
86 Using the Unified Manager
P0609326 1.1
Services Provides access for configuring telephony and data networking services and
various other related services. Telephony information is discussed from Chapter
7, “Telephony Services overview,” on page 183 to Chapter 31, “Configuring the
Dial Up resources,” on page 685 and in the IP Telephony Configuration Guide. /
Doorphone configuration is located in separate documentation. System data
configuration is discussed from Chapter 32, “Configuring DNS,” on page 703 to
Chapter 42, “Configuring IP Firewall Filters,” on page 831.
This section also supports the information found in the CallPilot documentation,
and the documents for CDR Recording, LAN CTE, IVR, Doorphone, Network
administration, universal power supply, UPS) document, and DECT Installation
and Configuration Guide.
The Management User Guide provides information about SNMP, Alarm
Service, and NetIQ.
To manually enable or disable the Telnet service, refer to “Manually activating
Telnet” on page 90.
Management Provides access to the User Manager, which you use to manage the users who
have access to the Unified Manage (“Managing system and user security
access levels” on page 105), and to the Alarm Manager, which is used to define
why types of alarms get reported by the system. The latter information is
discussed in the Management User Guide.
Diagnostics Provides access to items that allow you to generate and access statistics on
different system components. Business Communications Manager provides
statistics, metrics and event logs on resources and services to help you carry
out system maintenance activities. For more information about using
diagnostics tools, refer to the Management User Guide.
System metrics information is contained in the programming section to which
they apply. Refer to “Viewing CbC limit metrics” on page 343, “Using Hunt group
metrics” on page 587, and the IP Telephony Guide.
Split DS30 configuration and double density configuration are located under the
Configuration menu of the MSC heading. These system features are discussed
in the section that discusses MSC configuration. Refer to “Changing the DS30
Split” on page 629 and “Configuring Double Density” on page 630.
Table 3 Navigation tree menu functions (Continued)
Heading Programming
Using Unified Manager Help 87
Business Communications Manager 3.6 Programming Operations Guide
Understanding tabbed pages
Some headings display records that have more than one level. Each level is accessed by clicking
the appropriate tab at the top of the screen.
Figure 9 Tabbed page example
Using Unified Manager Help
As noted in “Understanding the dynamic menu” on page 84, the dynamic menu has a Help
heading. This heading allows you to access help topics relevant to active navigation tree headings
and screens. Each navigation tree heading and tab also has an alternate-click help link.
The help pages open in a new web-based window. Each help page also have navigation tools that
allow you to move back or forward to find other help topics.
Viewing help for navigation tree headings
1Highlight the heading for which you want to view help.
2Alternate-click anywhere in the left pane to get the csHelp button.
3Then click normally on the csHelp button to open the help web page.

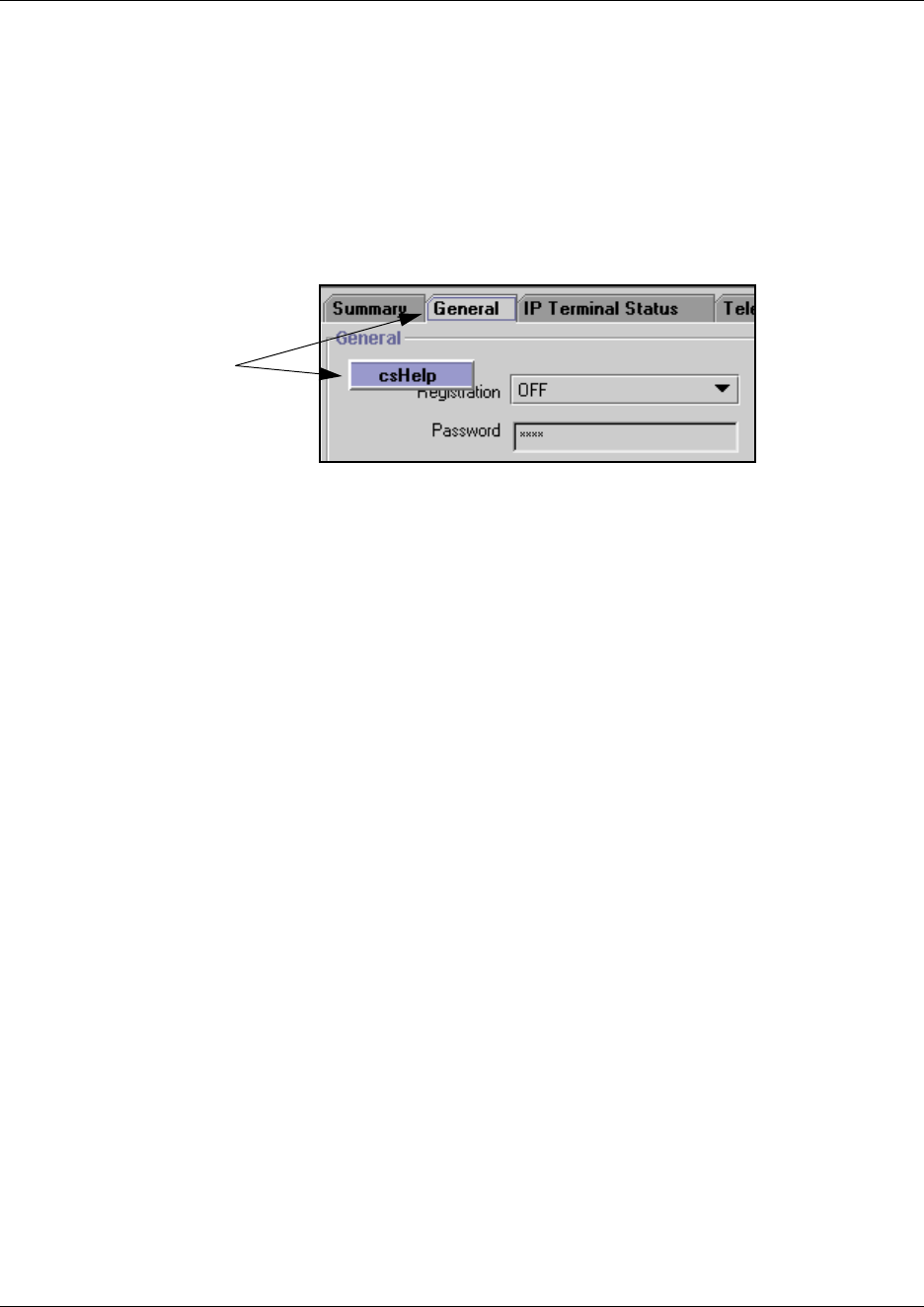

Figure 10 Accessing navigation tree heading help
Screen tabs
Select heading, then alternate-click
to get csHelp button.
88 Logging off
P0609326 1.1
Viewing help for tabs
1Click on the tab to make it the active screen.
2Alternate-click anywhere in the right pane to get the csHelp button.
Note: Some tabs may have other headings as well.
3Then click normally on the csHelp button to open the help web page.
Figure 11 Accessing navigation tree heading help
Logging off
When you have finished a session on the Unified Manager, you need to log off correctly to protect
the integrity of the information you entered.
1Choose BCM (<IP address>) at the top of the navigation tree.
The Logoff menu is enabled.
2Click Logoff, then select Logoff.
A message appears that asks you to confirm your request to log off.
3Click Yes to continue.
4A second message appears reminding you to close your browser window after the system has
logged out. Click Yes to continue.
A Logoff progress bar appears. When it the logoff is complete, the browser display will revert
to the Login screen.
5Click the Windows exit icon (top, right corner).
6Click the Windows exit icon on the browser window displaying the Business Communications
Manager main menu.
Note: Exit both Unified Manager browser windows, even if you want to re-log on to the
Configuration area. Once you have exited both windows, you can re-establish a connection
with the Business Communications Manager and log on as usual.
Failure to log out of both browser windows could result in a failed attempt to re-enter the
Unified Manager Configuration section.
Click the tab, then
alternate-click to get
csHelp button
Using the SSH client to access the text-based interface 89
Business Communications Manager 3.6 Programming Operations Guide
Using the SSH client to access the text-based interface
Some operations for the Business Communications Manager, such as initializing a new hard disk,
use a text-based interface. In previous versions, the Telnet application was used to access the
Business Communications Manager text menus. BCM version 3.6 software introduces the ability
to securely access the Business Communications Manager through a network connection using
SSH server software. SSH service software is from SSH Communications Security
(www.ssh.com). The SSH client application, called PuTTY, can be downloaded from a link under
the Install Clients button on the Business Communications Manager first page. Refer to Installing
PuTTY. Refer to “Using PuTTY” on page 89 for detailed information about using the client to
access the Unified Manager text-based menus.
Users require an administrator-level password to use either PuTTY or Telnet.
Installing PuTTY
The PuTTY application resides on your computer. It provides an access interface that allows you
to connect to the text interface used by the Business Communications Manager.
1On the Unified Manager front page, click the Install Clients button.
2On the resulting web page, go to the bottom of the left column.
3Under Administrative Tools, click SSH client.
4On the SSH Client page, click the button beside Download SSH Client, at the bottom of the
right pane.
The application downloads to your computer.
5On your computer desktop, double click Putty.exe.
6Follow the steps in the install Wizard to install the application.
Using PuTTY
1Click the shortcut PuTTY icon.
The PuTTY Configuration screen appears.
2Click on the radio box beside SSH.
3In the Host Name (or IP address) box enter the IP address or the Fully Qualified Domain
Name for the Business Communications Manager you want to connect with.
4Click Open.
!
Security note: You can still use Telnet for direct connections through a crossover
cable, since network security is not an issue in this case.
If you want to use Telnet over the network, you need to manually start the service.
Refer to “Manually activating Telnet” on page 90.
90 Manually activating Telnet
P0609326 1.1
5The first time you enter the application you may receive a security notice. Click OK.
The PuTTY text screen appears.
6At the login prompt, enter an administrator-level user name.
7Press <Enter>.
8At the next prompt, enter the corresponding password.
9Press <Enter>.
10 The Business Communications Manager Main Menu appears.
11 Refer to the specific tasks that require this menu for details about using this it.
Manually activating Telnet
If you choose to continue operating the text-based menus with Telnet, rather than using the PuTTY
client, you can manually activate the service from the Unified Manager.
Note: If you are using a cross-over cable to make a direct connection, Hyperterminal is still
enabled, regardless of the status of Telnet on the system.
1Click the key beside Services.
2Click on Telnet.
3On the Telnet screen, change Status to Enabled.
!
Security note: Using the Telnet interface poses a security risk since the Telnet protocol
is not encrypted.
91
Business Communications Manager 3.6 Programming Operations Guide
Chapter 3
Configuring system parameters
This section describes how to configure the basic programming information onto your new
Business Communications Manager system using the Quick Start Wizard. This wizard allows you
to choose the network and default telephony information that you want to use as the basic
parameters for your system. This includes choosing a system software and companding law
protocol.
Refer to the Installation and Maintenance Guides for information about installing Business
Communications Manager hardware.
This section also describes how to change some of the system settings after the Quick Start Wizard
has been run.
Information in this section includes:
•“Accessing the Wizards” on page 92
•“Wizard Warnings” on page 93
•“Changing system identification parameters” on page 98
•“Delayed system restart” on page 102
Wizard Warnings
Read the Warnings in this chapter before you attempt to use any of the wizards.
Warning: If you are installing this Business Communications Manager as a replacement
for an existing system, you must ensure that the system has been re-initialized and the
Region is correct.
This is especially important if you have a DECT system that requires the µ-law
companding law protocol. Refer to the DECT Installation and Maintenance Guide for
information about setting up a DECT system that requires the µ-law protocol.
Once the system is re-initialized using the Quick Start Wizard, you can restore system
programming from the latest backup file taken from your old Business Communications
Manager.
92 Accessing the Wizards
P0609326 1.1
Accessing the Wizards
You can access all the Business Communications Manager wizards through the Wizards button
that appears on the first page of the Unified Manager.
If the Quick Start Wizard button does not appear, it means the Wizard has already been run on this
system. You can allow the button to appear again by clicking the Enable Quick Start link.
However, if you run the Wizard again, you will wipe out all system settings and data.
Refer to “Locating Wizards” on page 80 for a description of the function of the other wizards
which are accessed through the icons on the Setup and Management Wizards page.
1Open up the Unified Manager.
Refer to “Getting started with Unified Manager” on page 77 if you need instructions.
2Click the Wizards button.
A login dialog box appears.
3In the Login field, type your login name.
The default login name is ee_admin.
Note: You must have administrator-level privileges to use the wizards.
4In the Password field, type your password.
The default password is PlsChgMe!.
5Click on the Login button.
The Wizards page appears with all the Wizards icons.
READ first: “Wizard Warnings”.
Then refer to these sections for details about “What you need to know before you use the
wizard” on page 93, “Using the Quick Start Wizard” on page 96, and “Entering information
into the Quick Start Wizard” on page 97.
Accessing the Wizards 93
Business Communications Manager 3.6 Programming Operations Guide
Wizard Warnings
Read the following Warnings before you attempt to use any of the Wizards.
What you need to know before you use the wizard
Use the following table to enter information that you want to enter into the wizard.
Warning: Users
Unified Manager allows multiple users to log on to the Business Communications
Manager system. If more than one user logs on to configure the same or related
subsystems, the most recent modification remains in effect and overwrites changes
previously made.
Maintain one user profile with system administrator privileges. If you have more than one
system administrator, you must plan configuration changes carefully. Refer to “Managing
system and user security access levels” on page 105.
Warning: Wizard timeouts
When the Wizard Instance Timeout message appears, it indicates that the wizard
was inactive for 30 minutes, the wizard has already been applied, or the Business
Communications Manager or the server-side wizard component was restarted.
Warning: Operations during Wizard application
Do not use Windows NT login sessions while you are using the wizards or while there are
wizards being applied.
Screen 1, General information
• What do you want to call your Business Communications Manager? (System Name)
• What region do you want to use for the Business Communications
Manager CallPilot system?
Refer to “CallPilot regions” on page 859 for a description of the
available choices. If you do not specify a region, the system defaults
to North America.
(CallPilot Region)
• What time zone is your system in? (Time Zone)
Screen 2, Data information
(which fields appear will depend on your current data hardware configuration)
• LAN settings
IP address LAN 1:
LAN 2:
Subnet mask LAN 1:
LAN 2:
94 Accessing the Wizards
P0609326 1.1
Primary Wins Address LAN 1:
LAN 2:
Secondary Wins Address LAN 1:
LAN 2:
• WAN settings
IP address WAN 1:
WAN 2:
Subnet mask WAN 1:
WAN 2:
Port (read-only) WAN 1: T1
WAN 2: V.35
Link Protocol WAN 1:
WAN 2:
• Default Next Hop Router
What is the IP address of the next router or link on the network?
(Next Hop on Primary Link)
• DNS
What is the domain name of the DNS server?
(IP Domain)
What are the IP addresses (primary and secondary) for the server?
Note: Use a space to separate the groups of numbers.
<xxx.xxx.xxx.xxx>
<xxx.xxx.xxx.xxx>
Screen 3, Telephony information
• What is the mobility protocol your system requires?
For more information, refer to “Mobility services by region” on page
848.
(Mobility protocol)
CT2+ Etiquette DECT
• What is the carrier profile that your system requires?
TIP: most North American systems use a T1 protocol, while most
European-base systems use E1
Refer to “Core software and regions” on page 846.
(Carrier protocol)
E1 T1
• What is the telephony Region where your system is located?
Refer to “Core software and regions” on page 846 if you do not know
your region.
(Region)
• Software Version (determined by choice of Region) read-only
• What system template do you want to use for your system? (Default template)
PBX DID
• How many digits will you be using for your system extensions
(DNs)?
Remember, if your system is part of an MCDN or tandem network,
this must be the same length as in all the other nodes if you are using a
Uniform dialing plan (UDP).
(Start DN Length)
Accessing the Wizards 95
Business Communications Manager 3.6 Programming Operations Guide
• What extension (DN) do you want to start at for your sets?
Note: the number of digits must agree with the Start DN Length.
Default: 221.
(Start DN)
Received # length
This setting determines how much of an incoming public telephone
number the system reads to identify a telephone in the system.
Notes:
• The fields default to the number entered in the Start DN length
field. When you manually change the value for one or both of
these fields, the system does not attempt to update the field.
• If the Template field is set to DID, these fields are read-only
(Public length)
• What is the received number length for calls from the Private
network?
(Private length)
• What is the received number length for the network?
The default is equal to the number of digits entered in the Start DN
length field.
(Public length (max))
Ignore the following questions if you do not have IP telephones on your system.
• Are you planning to deploy a large number of IP telephones?
The field beside 3/5 DS30 Split to increase IP telephony capacity
determines how many voice channels the Business Communications
Manager provides.
If you need more information to help you decide, click the help link.
You can also refer to Chapter 26, “Configuring the MSC resources,”
on page 609.
No = 2/6 split (default)
Yes = 3/5 split
• Do you want to be able to immediately start registering Nortel IP
terminals on the system?
(Registration)
On Off
• Do you want to change the default IP telephone access password?
This is the password that installers will need to enter before they can
configure an IP telephone in the field.
(Password)
• Do you want the system to automatically assign extension numbers
(DNs) to your IP telephones when you install them?
(Auto Assign DNs)
On Off
Screen 4, CallPilot Initialization (complete this section if you intend to use CallPilot on your system.
• Do you want to initialize CallPilot on your system? (Call Pilot System
Initialization) Yes No
• Do you want to create a new System Administrator password?
(Default: 0000)
(System Administrator
Password)
• If you create a new password, retype it in this field. (System Administrator
Password Confirmation)
96 Accessing the Wizards
P0609326 1.1
Using the Quick Start Wizard
Use the Quick Start Wizard to set the basic capabilities of your system, such as the name of your
system, the CallPilot profile, basic data setup, and the telephony region and template.
Do not use this wizard until you have read and complied with the warnings printed in
“Wizard Warnings” on page 93.
You can access a Quick Start Wizard from either a serial port connection or a LAN connection.
The appearance will be slightly different, but the information required is the same. If you have not
already connected your computer to the Business Communications Manager base unit, refer to the
Installation and Maintenance Guide for details. To use the Unified Manager wizard, refer to
“Entering information into the Quick Start Wizard” on page 97
To help you fill out the wizard, you can print out or copy the pages in “What you need to know
before you use the wizard” and collect all the information that you need before you run the wizard.
• Do you want to specify an Attendant DN length?
This DN must be the same length as the DN length you specified on
the Telephony page.
Attendant DN
• Which system are you going to use for your primary interface? (Primary UI Style)
NVM CallPilot
• In which language do you want your system prompts to appear?
The wizard will enter a choice, based on your selection of the
CallPilot Region on the General Page. You can change that default
choice here.
(Primary Language)
• Do you want to initialize Auto-attendant? (Auto-attendant Initialize?)
Yes No
• If you choose to initialize Auto-attendant, enter the line and ring
information.
First line in the range you want to assign to the Auto-attendant.
Last line in the range you want to assign to the Auto-attendant.
Number of rings before Auto-attendant answers.
from line:
to line:
number of rings:
Warning: Running the Quick Start Wizard
Run the Quick Start Wizard only to configure uninitialized systems. When you click the
Apply button, Business Communications Manager erases the telephony programming
and disables the telephony system temporarily. During application of the Wizard, the
Business Communications Manager base unit reboots several times.
!
Security note: Disable the Quick Start Wizard once it has run successfully. This can
be performed from the Programming Wizards page. On this page, click the Disable Quick
Start link. The Quick Start Wizard button icon disappears from the page.
Accessing the Wizards 97
Business Communications Manager 3.6 Programming Operations Guide
Entering information into the Quick Start Wizard
This section describes how to use the Quick Start Wizard to set up your system with information
that is unique to your system. Refer to “What you need to know before you use the wizard” on
page 93 for a list of the fields contained in this wizard:
1On the Wizards page, click the Quick Start icon.
The General page for the Quick Start wizard appears.
2Enter your system information on the General page, Network page, Telephony page and
CallPilot page.
Refer to the information you entered in the table under “What you need to know before you
use the wizard” on page 93.
Refer to “Navigating the wizards” on page 80 if you do not understand how to move from
page to page.
3When you reach the Summary page, review all the information you entered.
If required, go back and make changes, then return to the Summary page.
4On the Summary page, click the Apply button.
A warning dialog box appears, indicating the system changes that will occur if you continue.
Figure 12 Quick Start Wizard application warnings
5Press OK to continue, or Cancel to exit the Wizard.
If you press OK, a login dialog appears.
6Enter an administration-level user name and password in the login box.
7Click OK.
The wizard starts the initialization process and displays a progress screen. This screen does not
automatically update. Click the refresh this page link after 20 minutes to check that the Status
line indicates that the change is Complete.
98 Changing system identification parameters
P0609326 1.1
8Click the close this window link to exit the wizard.
Changing system identification parameters
There are some identification parameters you may choose to change after the Quick Start Wizard
has set up your system.
The following sections provide information about changing your system identification parameters
through the Unified Manager.
•“Identifying your system and software version” on page 98
•“Changing the Business Communications Manager time and date” on page 99
•“Changing the system domain” on page 100
•“Changing the CallPilot region” on page 101
Identifying your system and software version
The System heading has a tab that allows you to find or change the name assigned to your system
and to view the current version of BCM software that is running on your system.
This section provides information about:
•“Changing the system name” on page 98
•“Viewing the system software version” on page 99
Changing the system name
The system name identifies the Business Communications Manager system on the network.
To change the system name:
1On the navigation tree, click on System.
The Item screen appears.
2Click the System Name box.
3Enter the new system name.
4Press the Tab key to save your change.
After you change the System Name, restart the Business Communications Manager system. If you
change the System Name and do not restart the Business Communications Manager system,
Scheduled tasks will not run.
Warning: Running the Quick Start Wizard a second time will delete any changes you
entered to the default telephony settings, including any telephony data.
Changing system identification parameters 99
Business Communications Manager 3.6 Programming Operations Guide
Note: The System Name is the NetBIOS name of Business Communications Manager.
Viewing the system software version
The system software version determines which features are available to your system, and,
sometimes, how they work. Each version has a number of new features that only work with that
version and newer versions. If you are having a problem running a feature, this may be one area
where your service technician will ask you to look.
1Click on the System heading.
The Item screen appears.
The Description box displays a read-only statement about the version of BCM software that
the system is running.
Changing the Business Communications Manager time and date
To change the time, date and time zone for the Business Communications Manager system:
1Click the key beside System.
2Click the Identification heading.
The Identification screen appears.
3Click the Date box and enter the current date.
4Click the Time box and enter the current time at the site where the Business Communications
Manager system is located.
5Click the Time Zone box and then click the time zone at the site where the Business
Communications Manager system is located.
6Press the Tab key to save your changes.
100 Changing system identification parameters
P0609326 1.1
Changing the system domain
The system domain is the domain in which the Business Communications Manager system
resides. If you do not know the domain for the Business Communications Manager system, contact
your network administrator.
To change the system domain, add the Business Communications Manager system to a new
domain. This section describes:
• Assigning a workgroup
• Assigning a domain
• Assigning a Windows 2000 domain
Assigning a workgroup
1Click the key beside System.
2Click the Identification heading.
The Identification screen appears.
3Click the Change Domain Membership tab.
The Change Domain Membership screen appears.
4Click the Add To box and click Workgroup.
5Click the New Workgroup box and enter the name of the workgroup to which you want to
add the Business Communications Manager system.
6Press the Tab key to save your change.
7Restart the Business Communications Manager system.
Assigning a domain
1Click the key beside System.
2Click the Identification heading.
The Identification screen appears.
3Click the Change Domain Membership tab.
The Change Domain Membership screen appears.
4Click the Add To box and click Domain.
5Click the New System Domain box and enter the name of the domain to which you want to
add the Business Communications Manager system.
6Press the Tab key to save your change.
7Restart the Business Communications Manager system.
Changing system identification parameters 101
Business Communications Manager 3.6 Programming Operations Guide
Assigning a Windows 2000 domain
1Click the key beside System.
2Click the Identification heading.
The Identification screen appears.
3Click the Change Domain Membership tab.
The Change Domain Membership screen appears.
4Click the Add To box and click Win2000Domain.
5Click the Domain User ID box and enter the User ID that the system uses to access this
domain.
6Click the Password box and enter the password that the system uses to access this domain.
7Click the New Win 2000 Domain box and enter the name of the domain to which you want to
add the Business Communications Manager system.
8Press the Tab key to save your change.
9Restart the Business Communications Manager system.
Changing the CallPilot region
The CallPilot region defines some call-management-related system defaults. For information
about the CallPilot regions, refer to “BRI and PRI line types” on page 857.
To change the CallPilot region:
1Click the key beside System.
2Click the Identification heading.
The Identification screen appears.
3Click the CallPilot Region box.
4Click the region in which the Business Communications Manager system resides.
5Press the Tab key to save your change.
102 Delayed system restart
P0609326 1.1
Delayed system restart
There may be times when you perform a procedure that requires a system restart, but you want to
delay the restart for a low-activity time.
For instance, some keycodes require a cold start to become effective. You can add the keycode at
any time, then use this procedure to delay the system restart until early morning, when there is no
traffic on your system.
1On the first page of the Unified Manager, click the Maintenance button.
2You will be prompted to enter your system ID and password.
These are the same ID and password you use to sign into the Unified Manager.
3On the left menu, under Maintenance, click on Maintenance Tools.
The Maintenance Tools screen appears in the right frame.
Figure 13 Maintenance Tools screen
4Beside System Interaction, click Schedule a Restart.
The schedule screens appear in the right frame.
Delayed system restart 103
Business Communications Manager 3.6 Programming Operations Guide

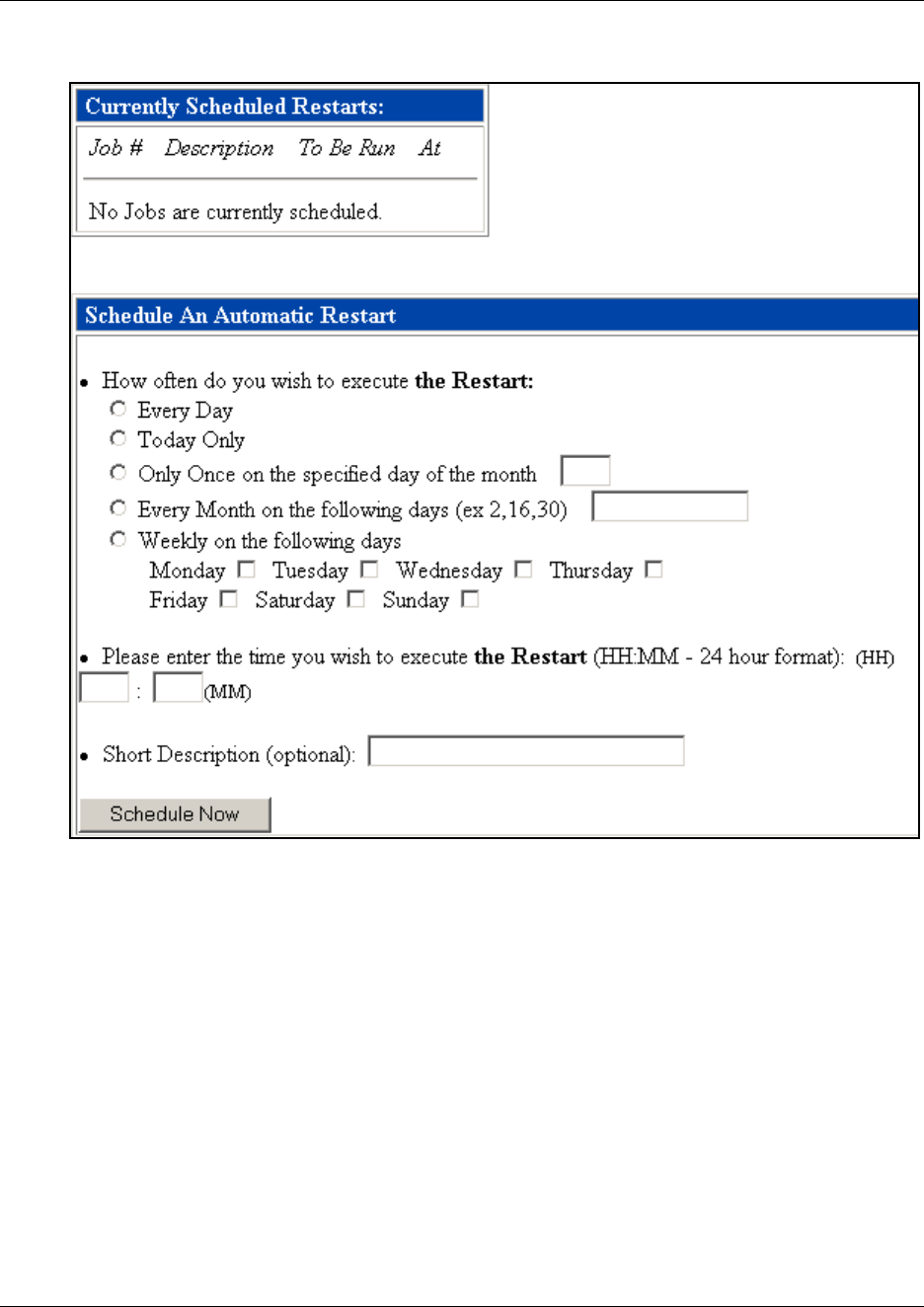

Figure 14 Job scheduling window
5Under the first bullet, choose how often you want to schedule a restart.
Example: If you are activating a keycode, click the Today Onl y radio button.
6Under the next bullet, enter the time you want the restart to occur.
Example: for a 3 a.m. restart, type in 03:00.
7Under the next bullet, type in a short note about why you want the restart to occur.
8Click the Schedule Now button to activate the schedule.
9Exit the Maintenance pages.
104 Delayed system restart
P0609326 1.1
105
Business Communications Manager 3.6 Programming Operations Guide
Chapter 4
Managing system and user security access levels
This section provides information about how you can set up and maintain the access security to
your system by users and client applications.
To define security parameters for the system and for users, you need to consider what level of
security you need to achieve to meet your network security standard. Note that the default security
settings are not set to their maximum secure settings and can be changed to suit your specific
requirements. If you change the default settings, ensure that you understand the interoperability
implications between your system and client applications, the computer you use to access the
system, and network impacts. For instance, some levels of security are not compatible with clients
running Windows© 95©, 98©, or ME©.
Unified Manager security considerations include:
• How long you want the Unified Manager to remain open if there is no input from the user.
Refer to “Setting the interface timeout” on page 106.
• If you want to use secure web access to Unified Manager through SSL (Secure Sockets Layer).
Note that SSL encryption does not secure the Configuration Menu. To secure communication
with the Configuration Menu, a VPN client connection is required. Refer to “Setting system
security compatibility levels” on page 107 and “Virtual Private Networks (VPN)” on page
765.
• How much access to the Unified Manager interface users are allowed. Access is based on user
privileges defined through user group membership.There are two default administrator
accounts, ee_admin and supervisor, which both also have default dial-in access privileges.
Refer to “Managing access passwords” on page 109. This section also contains information
about determining password and lockout policies.
!
Security note: This symbol will be used throughout this section to indicate areas of
possible security concern, primarily in regard to default settings that could pose a security
risk if they are not changed.
!
Security note: Minimum configuration should include changing all default system
passwords.
!
106 Setting the interface timeout
P0609326 1.1
The figure below displays the Unified Manager headings under which security and user
information is configured. The SSH client access application is installed on your desktop. The
Install Clients button on the first Unified Manager page provides a download path.
Figure 15 Security and user access headings
Setting the interface timeout
Set the amount of time the Unified Manager stays open if there is no input activity. When the
timeout period completes, the program automatically returns to the log-in window. This prevents
unauthorized users from accessing the system.
1On the navigation tree, click on the Management heading.
A screen with two tabs appears in the right frame.
2Click on Unified Manager Management tab.
Figure 16 Unified Manager Timeout setting
3In the Unified Manager Timeout field, enter the period of inactivity the program will allow
before it closes the application and returns to the log-in window.
Note: If you do not want the Unified Manager to time out, enter 0 in this field.
!
Security note: This is especially important if a password-protected screen saver is
not installed on the client PC.
System
Licensing
Identification
Security
System
Resources
Services
Management
User Manager
Setting system security compatibility levels 107
Business Communications Manager 3.6 Programming Operations Guide
Setting system security compatibility levels
Use the Security screen to set authentication, signing, encryption, and other security-related
settings. Some of these settings depend on the Windows operating system used by client
workstations.
1Click the keys beside BCM and System.
2Click on Security.
The Security screen appears in the right frame.
Figure 17 System security level settings
3The following table describes the fields. Set the fields to the values that best fit your system
requirements and that accommodate compatibility issues with interconnecting users or
services.
!
Security note: The default settings define a mid-level of security which
accommodates Windows 95/98/Me operating systems. If you would like to set a higher
level of security, ensure that all the computers that will be used for client access have
upgraded to at least Windows NT4, 2000 or XP.
Table 4 Security settings
Attribute Value Description
Authentication
Compatibility
LM&NTLM response -
refuse NTLMv2 session
security
LM & NTLM response
NTLM response only
NTLMv2 response only
NTLMv2 response only -
refuse LM
Default: LM & NTLM response
This setting determines the type of authentication protocol required by
your system during interactions with client applications.
The default, LM & NTLM response, maintains compatibility with all
Windows OS versions.
Any of the other settings enforce a more secure authentication protocol,
and will prevent access from computers running Windows 95/98/Me,
unless you install the directory services client on the client computer.
108 Setting system security compatibility levels
P0609326 1.1
4Click outside the window to set the changes.
Clear Page
File on
Shutdown
Disabled
Enabled
Default: Disabled
If Enabled, this setting prompts the system to clear the virtual memory
swap file on shutdown. When enabled, this option extends system
shutdown by about two minutes.
SMB Client
Signing
Allow
Disabled
Require
Default: Allow
Determine what level of signing you require from SMB clients.
Disabled: None required.
Allow: Tries to perform the digital signature whenever a compatible
client platform is detected. This setting also supports clients running
with Windows 95/98/Me.
Require: Always secures the connection with a digital signature.
However, this setting prevents access from clients running with
Windows 95/98/Me.
Applicable applications: BRU and Archlog
SMB Server
Signing
Allow
Disabled
Require
Default: Allow
Determine what level of signing you require from SMB client servers.
Disabled: None required.
Allow: Tries to perform the digital signature whenever a compatible
client platform is detected. This setting also supports clients running
with Windows 95/98/Me.
Require: Always secures the connection with a digital signature.
However, this setting prevents access from clients running with
Windows 95/98/Me unless you install the directory services client on
the client computer.
Applicable applications: BCM monitor.
Domain
Secure
Channel
Disabled
Allow Sign
Allow Sign & Encrypt
Require Sign or Encrypt
Default: Allow Sign & Encrypt
Define what level of channel security you require.
Disabled: No special security.
Allow Sign or Allow Sign & Encrypt: Tries to perform the digital signature
and/or encryption whenever a compatible client platform is detected.
This level needs to be aligned with your Domain controller setting.
Require Sign & Encrypt: Always secures the connection with a digital
signature and/or encryption. Clients running with
Windows 95/98/Me are not supported.
Applicable applications: CDR and TAPI.
Force Secure
Web Access
Enabled
Disabled
Default: Enabled
If enabled, SSL is used for all web access to the Business
Communications Manager. In that case, the https://<IP address> must
be used. As well, old bookmarks will be rerouted to that interface.
If disabled, the http URL references will not automatically redirect to the
SSL-based https interface. Both the unencrypted http://
<IPaddress>:6800 and the encrypted https://<IP address> interfaces
can be used.
Minimum web
encryption
Low
Medium
High
Set the encryption strength of the web interface.
Low: all low strength ciphers
Medium: all ciphers with 128 bit encryption
High: all ciphers with 3DES encryption.
Table 4 Security settings (Continued)
Attribute Value Description
Managing access passwords 109
Business Communications Manager 3.6 Programming Operations Guide
Managing access passwords
You can grant or restrict specific access within the Unified Manager by assigning new users into
user groups using the User Management screens.
This section includes information about the viewing and configuring the user profiles and groups:
•“Viewing the User Manager tabs” on page 110
•“Adding or modifying a user profile” on page 111
•“Setting up callback for a user” on page 115
•“Adding or modifying a group profile” on page 116
•“Adding a Domain User Group profile” on page 119
•“Setting password lockout policy” on page 120
•“Setting password policy” on page 122
The information in this section is found under the Management, User Manager heading.
!
Core system configuration, such as resources and network management should be
restricted to an administrator-level account.
Use the group profiles to define other levels of users with access to the headings that
are specific to their task.
This also helps to prevent overlap programming if more than one person is using the
interface at the same time.
Dial-in access: Restrict this user group to users who require this interface. If modem
access is not required, the modem interface can be disabled to provide further security.
Refer to “Enabling and disabling the V.90 modem interface” on page 686.
!
Callback security
If a user is connecting to the system using a V.90 modem, you can enhance your access
security by assigning that person a specific user account that prompts the system to
acknowledge the user, then hang up and dial back the user at a designated telephone
number, before allowing the person to have access to the system.
110 Managing access passwords
P0609326 1.1
Viewing the User Manager tabs
The various tabs under User Manager allow you to define user and group profiles and the
parameters that define security levels for user accounts. This heading is located under the
Management heading on the navigation tree.
•The User Profile tab appears showing the current user profile information.
Business Communications Manager comes with these default administrator user profiles:
—ee_admin (cannot be deleted): Default password: PlsChgMe!. Access privilege:
Read-Write, dial-up access
—supervisor: Default password: PlsChgMe!. Access privilege: Read-Write, dial-up
access
•ISDN note: When you enter an ISDN dial up user interface, the user name shows up on
this list. If you plan to use the secure callback properties for an ISDN user, you need to
specify a static IP address for that interface. Refer to “Configuring an ISDN interface” on
page 691.
•The User Group List tab shows all the user groups defined in your system.
The system comes with a set of default User Groups that have various access privileges.
!
Security note: Change the default passwords on the ee_admin and supervisor
account after you initialize your system. The ee_admin account cannot be deleted, but
the group membership can be modified for both accounts.
Remote support: In order for the Nortel Networks support organization to assist
you, dial-in access has been granted to both default administrator accounts. If dial-in
access is removed, then remote access by support organizations may be impacted. It is
recommended that the administrator accounts and dial-in access rights be restricted to
select personnel. Callback capability increases the dial-in security.
Managing access passwords 111
Business Communications Manager 3.6 Programming Operations Guide
•The Domain User Group Profile tab lists the domains for all the user group profiles.
•The Lockout Policy tab provides settings to determine the parameters for locking users
out of the Unified Manager if the lockout policy is enabled.
•The Password Policy tab allows you to define the complexity policies you want to use for
your system passwords.
Adding or modifying a user profile
To add or modify the profile for a single user, follow these steps:
1Click the key beside Management.
2Click on User Manager.
The User Profile screen appears showing the current user profile information.
3Access the User Profile dialog:
• If you are adding a new user: from the Configuration menu, select Add User.
• If you are editing an existing user: select the user name on the list, then from the
Configuration menu, select Modify User.
The User Profile dialog box appears.
112 Managing access passwords
P0609326 1.1
Figure 18 User Profile screen to add or modify a user profile
4Use the following table to determine what information you need to add or change:
Table 5 User Profile settings
Attribute Value Description
User Name <maximum of 20
characters>
Allows you to enter the user name. The User Name is case-sensitive and
cannot exceed 20 characters in length.
Edit note: You cannot modify a user name. You must delete the complete
User Profile row from the User Profile window and add a profile with the new
name.
ISDN note: When you enter an ISDN dial up user interface, the user name
shows up on this list. If you plan to use the secure callback properties for an
ISDN user, you need to specify a static IP address for that interface. Refer to
“Configuring an ISDN interface” on page 691.
Managing access passwords 113
Business Communications Manager 3.6 Programming Operations Guide
Password <maximum of 14
characters long>
Allows you to assign a password for the user. The password is case-sensitive
and can be a maximum of 14 characters long.
Note:
• Password length is determined by the Minimum Password Length setting
in the Password policy table.
• Passwords must contain elements from three of the four following
character sets. This requirement can change, if you change the default
password policy complexity setting (“Setting password policy” on page
122):
— upper case alphabet
— lower case alphabet
— westernized Arabic numerals
— nonalphanumeric characters ($, !, %, ^)
• A user who fails to enter the correct password can be locked out of the
system after a defined number of retries (account lockout threshold). For
information about setting the lockout threshold, refer to “Setting password
lockout policy” on page 120.
Confirmed
Password
Requires you to enter the same password again to validate the new or
modified password.
Member of AdminUserGroup
CDRUserGroup
DATAUserGroup
DialUpUserGroup
ReadOnlyUserGroup
VoiceUserGroup
Allows you to select the level of access associated with the user name.
The following levels of access are default settings:
AdminUserGroup: Can see and change any menu items (default).
CDRUser Group: Can see everything but cannot make changes. This user
is restricted to accessing the CDRs.
DATAUserGroup: Can only configure pre-defined data fields (default).
DialUpUserGroup: All menus are invisible, and no menus are configurable
(default). This group allows the user to access the system through a dial-up
connection.
ReadOnlyUserGroup: Can see everything but cannot make changes
(default).
VoiceUserGroup: Can only configure pre-defined voice fields (default).
Note: You cannot modify default user groups.
Dial-up note: If any of the users will be using a dial-up connection to access
the system, they must be assigned to the DialUpUserGroup.
For information about adding new groups, refer to “Adding or modifying a
group profile” on page 116.
Callback Disabled/Enabled If this user is going to use a dial-up connection to connect to the system and
the user requires callback, ensure that Callback is enabled. If the user is
configured as an ISDN interface, ensure that a static IP address has been
specified for the interface. Refer to “Configuring an ISDN interface” on page
691.
If this user is not using a dial-up connection or does not require callback, set
Callback to Disabled.
Note: The system supports one dial-up connection at a time.
Callback
Number
This is the number the system uses to call back to the user’s dial-up location.
Ensure that the appropriate routing codes are added to the dial string.
Table 5 User Profile settings (Continued)
Attribute Value Description
114 Managing access passwords
P0609326 1.1
5Click the SAVE button to save your settings.
The new user profile information is added to the list on the User Profile window.
Deleting a user profile
To delete a user profile:
1Select Management, User Manager.
The User Profile window appears showing a list of the current user profiles.
2Click the line for the user you want to delete.
3From the Configuration menu, select Delete User.
A confirmation dialog will ask you to confirm that you want to delete the user record.
Figure 19 User Manager delete confirmation dialog
4Click the YES button to delete the user profile.
Status Unlocked
Unlock
This field indicates the current state of the user’s password. If the password
becomes locked and the user does not want to wait the lock-out time, the
Administrator can choose Unlock on the user’s password record to release
the password.
!
Security note: An integral part of your system security is password management. This
includes changing default passwords after the system is installed.
Also, to further increase access security, minimize the number of user accounts,
especially the administrator accounts, and change them frequently.
!
Security note: You cannot delete the ee_admin user.
Table 5 User Profile settings (Continued)
Attribute Value Description
Managing access passwords 115
Business Communications Manager 3.6 Programming Operations Guide
Setting up callback for a user
If the user will be accessing the system through a dial-up connection, you need to add that group to
the user account. As well, in this case, callback will be enabled to ensure that the system security is
maintained.
1Select Management, User Manager.
The User Profile screen appears showing the current user profile information.
2Access the User Profile screen:
• If you are adding a new user: from the Configuration menu, select Add User.
• If you are editing an existing user: select the user name on the list, then from the
Configuration menu, select Modify User.
3Enter a User Name, if one does not already exist.
4Enter and confirm a password, if one has not already been specified.
5Click to highlight the DialUpUserGroup name. Then, hold the <Ctrl> key down and click on
any other groups to which you want to assign the user.
6Select Enabled from the Callback menu.
7Enter the number the system will dial to contact the client modem. Ensure you include the
correct routing codes.
8Click OK at the bottom of the screen to save the settings.
Figure 20 User profile for dial-up user
116 Managing access passwords
P0609326 1.1
Adding or modifying a group profile
The access privileges inherent in the various predefined group profiles control user access within
the Unified Manager interface. The administration group maps to administrator privileges on the
Business Communications Manager host system. The other group profiles map to
non-administration groups.
To add or modify the profile for a group, follow these steps:
1Select Management, User Manager.
The User Profile screen appears showing the current user profile information.
2Click the User Group List tab, to view the existing groups.
Figure 21 Default user groups
3Add or change a user group:
• If you are adding a new group: from the Configuration menu, select Add User Group.
• If you are editing an existing group: select the user group name on the list, then from the
Configuration menu, select Modify User Group.
Total access
CDR requests only
Data setup access only
Dial-up access (read-only)
Read only
Telephony configurations access
Managing access passwords 117
Business Communications Manager 3.6 Programming Operations Guide
The User Group List dialog box appears.
Figure 22 User Group List add/modify screen
4Use the following table to determine the user profile information that needs to be added or
changed:
5Click the SAVE button to save your settings.
The new user group information is added to the list on the User Group List window.
Table 6 User Group Profile settings
Attribute Description
UserGroupName This is the name of the user group. If you are modifying an existing record, you will not be able to
change this field.
Invisible menus This box allows you to choose which menus you want to keep hidden from the user group. The
Configurable Menus box shows these fields covered by a grey box.
Configurable
menus
For the headings not covered by grey boxes, select the ones for which you want the users to be
able to change settings. All headings that are left white will appear on the menu, but will be
read-only for this group.
118 Managing access passwords
P0609326 1.1
Deleting a Group profile
If you want to delete a group profile, follow these steps:
1Select Management, User Manager.
The User Profile screen appears showing the current user profile information.
2Click the User Group List tab, to view the existing groups.
3From the Configuration menu, select Delete User Group.
A confirmation dialog will ask you to confirm that you want to delete the record.
Figure 23 User Manager delete confirmation dialog
4Click the YES button to delete the user group profile.
Managing access passwords 119
Business Communications Manager 3.6 Programming Operations Guide
Adding a Domain User Group profile
The Domain User Group Profile screen displays a table of members of the Windows NT CDR
User group. This screen is used to add external domain users into a CDR User group. Members of
CDR user group have the sole ability to download CDR files from this Business Communications
Manager system. For details about Call Detail Report processes, refer to the CDR documentation.
You can only add valid users currently assigned to CDR user groups. Refer to “Adding or
modifying a user profile” on page 111. When you add local users, the user name is automatically
added to this list. If you are entering an external user, they must be members of a domain that
recognizes this Business Communications Manager, and you add their user name.
1Select Management, User Manager.
The User Profile screen appears showing the current user profile information.
2Click the Domain User Group Profile tab, to view the existing groups.
3From the Configuration menu, select Add Domain User.
The Domain User Group Profile dialog box appears.
Figure 24 Domain User Group Profile add/modify screen
4Use the following table to add the new Domain user Group profile name:
Table 7 Domain User Group Profile settings
Attribute Description
Domain\User Name Enter the user name.
Group CDR (only choice)
120 Managing access passwords
P0609326 1.1
5Click the SAVE button to save your settings.
The new user group information is added to the list on the Domain User Group Profile screen.
Deleting a Domain User Group profile
If you want to delete a Domain user Group, follow these steps:
1Select Management, User Manager.
The User Profile screen appears showing the current user profile information.
2Click the Domain User Group Profile tab, to view the existing groups.
3From the Configuration menu, select Delete Domain User.
A confirmation dialog will ask you to confirm that you want to delete the record.
4Click the YES button to delete the Domain User Group profile.
Setting password lockout policy
If you have Lockout Policy enabled, you can choose the parameters that will determine when a
user will be locked out of the system if an incorrect password is entered repeatedly.
1Select Management, User Manager.
The User Profile screen appears showing the current user profile information.
2Click the Lockout Policy tab.
The default is to have Lockout Policy enabled.
Figure 25 Lockout Policy screen
!
Security note: Lockout policy is enabled as the default setting. This policy is
particularly important to stop unauthorized logon attempts to your Business
Communications Manager system.
You can further tighten the access security to the system by setting the account lockout
threshold to a recommended value of 5.
Managing access passwords 121
Business Communications Manager 3.6 Programming Operations Guide
3Use the information provided in the following table to determine the lockout policy for your
system. The settings are effective as soon as they are entered.
Table 8 Lockout policy settings
Attribute Value Description
Lockout Policy Enabled
Disabled
The Enabled setting allows you to set the following three
parameters.
If you choose Disabled, no configurable parameters display.
Failed Logon Attempts
Before Lockout
<digits> Default: 50
Enter the number of times the user can attempt to enter a
password before the user is locked out.
Reset Failed Logon
Attempts Count after
(min)
<minutes> Default: 30
The amount of time before the lockout counter is reset.
Note: This does not necessarily mean the user was locked out.
Lockout Duration (min) <minutes> Default: 30
The amount of time that passes after the user is locked out and
before they are allowed to try to log in again, and the Reset count
is set back to zero.
122 Managing access passwords
P0609326 1.1
Setting password policy
You can define the system parameters for the passwords that you assign to users by determining
the length, age and history that the passwords must meet.
1Select Management, User Manager.
The User Profile screen appears showing the current user profile information.
2Click the Password Policy tab.
Figure 26 Password Policy tab
3Use the information provided in the following table to determine the lockout policy for your
system.
Table 9 Password policy settings
Attribute Value Description
Minimum Password Length 1 to 8 Default: 8
Determines the minimum number of characters that must be
entered for a new password. Passwords can be a maximum
of 14 characters long.
Password Complexity 0
2
3
Default: 3
Define the level of complexity for the system user
passwords.
0 (zero): none of the Password policies are required
2: at least two different types of characters are required
3: at least three different types of characters are required.
At highest complexity, passwords must contain elements from three of the four
following character sets:
• upper case alphabet (English)
• lower case alphabet (English
• westernized Arabic numerals
• non-alphanumeric characters ($, !, %, ^)
Network note: If you are using Network Configuration Manager, password policies will be applied, regardless
of the Unified Manager settings.
123
Business Communications Manager 3.6 Programming Operations Guide
Chapter 5
Configuring resources — media bay modules
This chapter describes the Unified Manager headings that define and control the settings for the
media bay modules installed on your system.
This section contains information about:
•“Explaining the Media Bay Modules headings” on page 124
•“Defining trunk module types and settings” on page 130
•“Viewing station module information” on page 143
•“Internally-driven channels” on page 146
•“Working with the modules” on page 146
•“Configuring DECT resources” on page 149
Media bay modules provide the Business Communications Manager with physical interfaces to
trunk (CO) lines and your system telephones, which are defined by directory number (DNs)
records. When media bay modules are first installed in your system you need to configure them
using the procedures described in this section. Media bay module DIP switch settings and
installation procedures are described in the BCM1000 Installation and Maintenance Guide and the
BCM200/400 Installation and Maintenance Guide.
The Installation and Maintenance Guide also describes the concept of the 2/6 and 3/5 split, which
determines how many channels are available for media bay modules. When to choose to change
the DS30 split is discussed in the MSC section of this guide, refer to Chapter 26, “Configuring the
MSC resources,” on page 609.
The Installation and Maintenance Guide also describes the concept of partial double density
(PDD) and full double density (FDD). If your system is set to PDD (the default), and you have
installed a media bay module that supports double density, the system can support 32 lines on
Task:
Check settings for the media bay modules installed in the system.
Trunk modules:
• Confirm that the DIP switch setting matches the intended DS30 bus placement.
• Verify module type and programmed bus type settings under intended DS30 bus are correct for
the type of module installed
• Configure the module parameters of individual modules installed on each DS30 bus
Station modules:
• Confirm that the DIP switch setting matches the intended DS30 bus placement.
• Verify module type and programmed bus type settings under intended Bus # are correct for the
type of module installed
Note: Data and split-telephony/data module configuration are described in the section “Data and
split-line configuration” on page 151.
124 Explaining the Media Bay Modules headings
P0609326 1.1
whatever buses from 02 to 05 have the module installed. If your system was changed to FDD, the
system supports double density on all six buses. Refer to Chapter 26, “Configuring the MSC
resources,” on page 609.
Explaining the Media Bay Modules headings
The Resources, Media Bay Modules heading allows you to view and change settings for each
media bay module installed in Business Communications Manager.
When you choose a region during your system startup, the Business Communications Manager
installs a default set of media bay module settings under Resources, Media Bay Modules.
However, these may not be the settings that you want for the modules you install. Therefore, when
you install a module, you must go to the appropriate Resources, Media Bay Modules, Bus ##
record and verify the settings for the module you installed.
This section includes information about:
•“Media bay module Bus numbers” on page 125
•“Identifying the module” on page 125
•“Module types and capacities” on page 128
•“Ports on Bus” on page 130
The following figure illustrates the headings found under Resources, Media Bay Modules
heading on the navigation tree. The exact items displayed below the Bus XX headings depends on
the type of module configured for that DS30 number.
Figure 27 Resources, Media Bay Modules menus
Resources
LAN
WAN
Media Services Card
Media Bay Modules
Bus 01
Bus 02
Ports on Bus
Port 0201 to Port 0216
Channels
B1
Addons
B2
Addons
Bus 03
Modules on Bus
Module 1
Provision Loops
Loop 301 to Loop 304
Lines on Loop
Module 2
Module 3
Ports on Bus
Media Bay Modules (continued)
Bus 04
Modules on Bus
Module 1
Call-by-call service selection
Foreign Exchange (FX)
Inwats (800)
T1 Parameters
Provision lines
Line 211 to Line 233
Module 2
Module 3
Ports on Bus
Port 0201
Channels
B1
Addons
Addon 01
Addon 02
Bus 05
Bus 06
Bus 07
Bus 08
Dial Up
DECT
Explaining the Media Bay Modules headings 125
Business Communications Manager 3.6 Programming Operations Guide
Note: Dimmed fields are read-only and cannot be changed.
Note: If you receive the error message Telephony programming is currently not
available. Please try again later. when you click on one of the headings, this means
that the part of the system that handles MSC is doing a reset. Wait about 1-1/2 minutes and try
again.
Media bay module Bus numbers
Under the headings for DS30 02 to 07 (or 02 to 06 if your system has a 3/5 DS30 split):
• Station or analog station modules (“Viewing station module information” on page 143) display
the Ports on Bus heading.
• Trunk modules (“Defining trunk module types and settings” on page 130) display from one to
four Module <#> headings. These modules correspond to the offset configured on the module.
A Ports on Bus heading also appears for some types of modules (DTM set to PRI, and the
BRI modules).
• If you have a WAN board installed in the base unit, DS30 08 does not appear. Bus 08 and Bus
01 are used for internal media channels. (“Internally-driven channels” on page 146). If you
system is set to a 3/5 split, DS30 07 is also used for media channels.
Identifying the module
Use these steps to define a Programmed Bus Type. This setting notifies the Unified Manager about
what type of module is installed on the DS30 bus.
1Click on the keys beside Resources, and Media Bay Modules.
2Click a Bus (Bus 02 to 07).
Tips: Bus number is determined by the DS30 number set on the DIP switches of the module
before it was installed.
The Bus screen appears.
3Ensure the entry in the Programmed Bus Type field agrees with the Actual Bus Type of
module that is installed for the DS30 bus, as shown in the following figure. Refer also to
“Module types and capacities” on page 128.
Tips: Some modules are region-based. If your system does not have the correct region
installed during setup, the modules will not work. Refer to “Media bay module availability
by region” on page 849.
126 Explaining the Media Bay Modules headings
P0609326 1.1
Figure 28 Confirming the Programmed Bus Type
Programming tips: If the Actual Bus Type reads None, choose the correct setting in the
Programmed Bus Type field. After the system initializes to the module, the Actual Bus Type
should change to the correct module type. You may also have to disable, then re-enable the
module to force the system to re-initialize (under the Configuration menu). Refer to “Viewing
Media Bay Module status” on page 147 for details about enabling and disabling modules.
Some modules take a few minutes to reinitialize.
If these actions do not cause the fields to display correctly, you may have a damaged module
or backplane. Try installing the module in a different media bay and retry the configuration.
Refer to the Installation and Maintenance Guide for your hardware for information about
removing and installing media bay modules.
4The other headings on the Bus screen describe the current status of the modules, as described
in the following table.
Table 10 Bus XX record settings
Heading Value Description
Station module
Number of sets <digit> This setting indicates the number of sets that are currently
attached to the module.
Number of busy sets <digit> This setting indicates the number of sets that are currently
using the module.
State Enabled
Disabled
This setting indicates the state of the module.
Use the Configuration menu item to change this setting.
These fields must agree.
Explaining the Media Bay Modules headings 127
Business Communications Manager 3.6 Programming Operations Guide
5Your next steps depend on which type of module you are configuring:
• If you are configuring a station or analog station module, ensure that the bus type is correct
and the Programmed Bus Type field displays the correct module type. The State field
displays Enabled, indicating that the module is active and ready to have telephones
connected. Refer to “Module types and capacities” on page 128.
• If you are configuring trunk modules, you must now ensure each module associated with the
DS30 bus is set up. This process is described in the next section, “Defining trunk module
types and settings” on page 130.
Trunk module, Analog Station Module or Data Module
Number of busy ports <digit> This setting indicates how many ports on the module are
currently being used.
State Enabled
Disabled
This setting indicates the current state of the module.
Use the Configuration menu item to change this setting.
Table 10 Bus XX record settings (Continued)
Heading Value Description
128 Explaining the Media Bay Modules headings
P0609326 1.1
Module types and capacities
Refer to the following table for a description of the Bus types settings.
Table 11 Programmed Bus Types
Programmed
Bus Type Hardware unit Capacity
Available line types (some
line types are
region-dependent)
Station module • Digital Station Media Bay
Module
(DSM 16/16+ or DSM 32/
32+)
Single density
• DSM16/16+ = 1 per bus/16
digital sets per module
• DSM 32/32+ = 2 buses/
32 digital sets per module
Double density
• DSM16+ = 2 per bus/
16 digital sets per module
• DSM 32+ = 1 per bus/
32 digital sets per module
N/A
• 4X16 Media Bay Module
(4X16)
(counts as one DSM 16)
• 4X16 = 1 offset (trunk) and
additional bus/
16 digital sets
• Norstar station module
(SM) connected to a FEM
• SM = 1 bus/16 digital sets
Analog station
module
• Analog Station Media Bay
Module (ASM 8)
Single density
• ASM8 = 2 per bus/8 analog
sets for each module
Double density
• ASM8 = 4 per bus/16 analog
sets for each module
N/A
• (Global) Analog Station
Media Bay Module
(ASM8+)
Single density
• 2 per bus/8 analog sets for
each module
Double density
• 4 per bus/8 analog sets for
each module
North America: Provides
CLID passthrough, Message
Waiting Indication and
Disconnect Supervision
UK: Provides Message
Waiting Indication
• Norstar analog station
module (ASM) connected
to a FEM
• FEM = 1 per bus/16 digital
sets
N/A
Trunk module • Digital Trunk Media Bay
Module (DTM)
• DTM = 1 per bus/16 lines
(max. three DTMs on a
system)
• DTMs can be set to module
types: Loop, E&M, DID, T1,
PRI (NI or ETSI are
region-specific)
• CLID Trunk Media Bay
Module (CTM4 or CTM8)
• Global Analog Trunk
Module (GATM4 or
GATM8) (released with
BCM version 3.5)
• CTM4/GATM4=1 per offset/
4 lines per module
• CTM8/GATM8= 2 per bus/
8 lines per module
• CTMs/GATMs can be set to
module types: Loop
Explaining the Media Bay Modules headings 129
Business Communications Manager 3.6 Programming Operations Guide
GATM (Global Analog Trunk module)
These trunk modules can be adjusted to have static trunk parameters (pre-BCM 3.5 software), or to
allow the system to download new parameters when they become available (BCM 3.5 and newer
software). If the trunk is set to the latter state, trunk parameters are downloaded every time the
module boots up, or when the parameters change while the module is working. You can also set
line and telephone impedance to either 600ohm or 900ohm for modules with downloadable
parameters. The impedance settings are located under Lines and Telephone Services,
respectively. Refer to the installation guides for details about the module.
Trunk module
(continued)
• 4X16 Media Bay Module
(4X16) (counts as one
CTM)
• 4X16=1 per offset (4 lines)
and additional bus (station)
• 4X16s can be set to module
types: Loop
• BRI Media Bay Module
(BRI)
• BRI=3 per bus, 4 loops (8
lines) per module
• BRI can be set to module
types BRI S/T, BRI U2, BRI
U4 (setting must match
physical module type). U2
and U4 are region-specific
Data/trunk
module*
• Digital Drop and Insert
(DDI) Mux module
• Universal T1=1 per two
buses, supports 24 lines
* Also refer to the section that
describes the UTWAN, which
provides the data connections
through a WAN card.
•T1
Specialized
modules
• DECT Media Bay Module
(DECT)
• DECT=1 per bus, 4 loops,
supports 36 handsets
• DECT (region-specific)*
*This module type only appears
when a DECT module is present
on the system. If the DIP
switches are set incorrectly, the
setting appears, but the module
displays as unequipped.
• Norstar trunk expansion
modules, with Analog
Trunk cards, connected to
a FEM
• FEM=1 per bus, can support
up to three analog trunk
cards (in one trunk
expansion unit)/4 lines each
• Norstar analog trunk cards:
Loop, E&M, DID
• Norstar trunk expansion
modules with BRI cards,
connected to a FEM
• FEM=1 per bus, can support
up to three BRI cards (in one
trunk expansion unit)/4 loops
each
• Norstar BRI cards: BRI S/T,
BRI U2, BRI U4 (setting must
match physical module type).
U2 and U4 are
region-specific
Data module Refer to the data section of this book (“Configuring a data module” on page 178) for
details about setting up a data module on DS30 08. This process includes any Norstar
Data Modules connected to a FEM.
Table 11 Programmed Bus Types (Continued)
Programmed
Bus Type Hardware unit Capacity
Available line types (some
line types are
region-dependent)
130 Defining trunk module types and settings
P0609326 1.1
Ports on Bus
Both types of modules have a Ports on bus heading. This heading shows the state of the port that
connects the module to the trunk line or system device.
• Trunk modules, each port maps to an incoming line. Trunk port status is either idle or active.
Refer to “Trunk module ports programming” on page 142.
• Station modules, each port maps to a connection to a system device (telephones, fax machines,
doorphone). For station modules, port status is either equipped (device connected) or
unequipped (no device connected). You can also determine what type of device is attached to
the port. Refer to “Viewing station module information” on page 143.
Bus 01 and 08 note: Bus 01 and 08 ports on bus are really virtual ports, since they connect to
services supported by the MSC. These ports are used for such devices and services as IP
telephones and Symbol NetVision handsets and voice mail traffic.
Defining trunk module types and settings
MSC bus numbers assigned to a trunk module display module numbers under the Bus heading that
correspond to the offset number set on the module DIP switches. For instance any trunk module
that has an offset of 0, will display under the heading Module 1, and so on to a maximum of four
modules (CTM4s/GATM4s).
The Module menu, which appears only under a Bus record that is configured for trunk modules,
allows you to configure line or loop provisioning for the module associated with a particular bus.
This record shows the number of lines or loops assigned to the module. It also provides the first
and last loop or line number. These settings are read-only.
The fields that appear on the module screen vary, depending on the module type you specify.
Trunk lines can also require configuration of settings such as the protocol type/version, frame
structure, clocking, and timers. These parameters depend on how the interface of the service
provider that the module connects to has been configured.
This section refers to these topics:
•“Configuring the trunk module to line type” on page 131
•“Determining Clock Sources for DTMs or BRIs” on page 135
•“T1 interface parameters (region-specific)” on page 136
•“E1 parameters (region-specific)” on page 138
•“PRI Call-by-Call service selection” on page 138
•“Provisioning lines (PRI, T1, DASS2)” on page 140
•“PRI B-channel provisioning” on page 142
•“Trunk module ports programming” on page 142
Defining trunk module types and settings 131
Business Communications Manager 3.6 Programming Operations Guide
Configuring the trunk module to line type
Follow these steps to define the modules to the system:
1Click on the keys beside Resources, Media Bay Modules, Bus <number>, and Modules on
Bus.
2Click on the Module <number> you want to program.
The Bus <number>-Module: <number> screen appears. The following figure shows an
example of the fields that display for a PRI module type.
Figure 29 Example of PRI module settings
3Click on the arrow beside the Module type field and choose the correct setting that defines the
type of lines for the module.
The module installed in the system and Module Type must match the defined type of loop or
trunk and associated services provided by the central office line that you intend to be
connected to the module.
Note: When you configure a media bay module for PRI, BRI, or DECT, the system may
download new software to the module. This takes a couple of minutes to complete. Allow the
download to finish before continuing to program the module.
4Press <TAB> on your keyboard to update the record.
Tips: To refresh the record, you may need to click on another navigation tree heading and then
re-enter the module record you were working on.
132 Defining trunk module types and settings
P0609326 1.1
5Check the settings to ensure they reflect the line requirements. Note that only some of the
fields appear for all module types.
Refer to the following table for a description of each field.
Table 12 Module record values
Attribute Value Module/line type
Module mode DS/CLID, Global,
Legacy Loop
• DS/CLID: displays for old North American LS/DS or CLID analog trunk modules, the old analog
MBM, or the GATM with North American DIP switch settings.
• Global: displays for the GATM MBM with no regional DIP switches set.
• Legacy: displays for all other (old) analog trunk modules
# of lines/
loops
<digits>
Loop E&M DID T1 PRI
BRI
S/T BRI U2 BRI U4
The total number of lines or loops provided by the loops or trunks on this module.
Low/line loop View only
Loop E&M DID T1 PRI
BRI
S/T BRI U2 BRI U4
The lowest line or loop number assigned by the system to the module based on the Bus
number, module type, and the module position on the Bus (offset on module DIP switch).
High/line loop View only
Loop E&M DID T1 PRI
BRI
S/T BRI U2 BRI U4
The highest line or loop number assigned by the system to the module based on the Bus
number, module type, and the module position on the Bus (offset on the module DIP
switch).
Disconnect
timer
60, 100, 260, 460,
or 600 milliseconds Loop T1
Specify the duration of an Open Switch Interval (OSI) before a call on a supervised external
line is considered disconnected. This setting must match the setting for the line at the
central office (CO).
You must enable disconnect supervision by changing the Trunk mode attribute. Under the
Telephony Services sub-heading, choose Lines and Line/trunk Data. See “Assigning Trunk/
line data” on page 236 for more information.
Note: Available to all supported countries for BCM 3.6 and newer software.
Answer timer 1, 2, 3, 4, or 5 sec. E&M PRI
Set the minimum duration of an answer signal before a call is considered to be answered.
Defining trunk module types and settings 133
Business Communications Manager 3.6 Programming Operations Guide
Protocol NI, DMS100,
DMS250,
AT&T4ESS, SL-1,
Euro, ETSI Q-Sig PRI
Choose the trunk protocol used by your service provider.
The supported protocols are:
PRI-T1: NI (NI-1 and NI-2), DMS100, DMS250, AT&T4ESS, SL-1
PRI-E1: ETSI QSIG, Euro, SL-1
Note: SL-1 and ETSI QSIG require an MCDN keycode to display.
BRI: Protocol can also be selected on BRI T-loops under the Services/Telephony/Loops
heading.
Note: Always check the line protocol with the central office.
Protocol type User, Network PRI
When you select SL-1 protocol, an additional setting, Protocol type, appears.
SL-1 protocol is a private networking protocol. This allows you to designate a Business
Communications Manager node as a Network (Master). The default setting is User (Slave).
In public network configurations, the CO is generally considered the Network side or
Master.
Applies to SL-1 protocol only.
NSF
Extension
None, WATS, ALL PRI
The Network Specific Facilities (NSF) information element is used to request a particular
service from the network. Settings are based on the type of switch to which the line
connects.
Suggested settings:
DMS100/250: NONE
Siemens ESWD, Lucent 5ESS: WATS
GTD5, DMS10: ALL
When you select NONE, the NSF extension bit is not set for any service.
When you select WATS, the NSF extension bit is set for unbanded OUTWATS calls.
When you select ALL, the NSF extension is always set for all CbC services.
Appears only for NI protocol.
B-channel
selection
sequence
Ascending
Sequential
Descending
Sequential PRI
Defines how B-channel resources are selected for call processing. For more information,
see “PRI B-channel provisioning” on page 142.
Table 12 Module record values (Continued)
Attribute Value Module/line type
134 Defining trunk module types and settings
P0609326 1.1
Programming Tips - DECT module: The Module Type for the DECT module is DECT.
Refer to “Configuring DECT resources” on page 149 for a description of the Resources
headings for DECT, and to the DECT Installation and Maintenance Guide for details about
setting up the DECT system.
6Press <TAB> to save the settings.
Clock Source Primary,
Secondary, Timing
Master T1 PRI
*BRI
S/T
*BRI
U2
*BRI
U4 DASS2
Designates whether the DTM/BRI acts as a primary or secondary timing slave or as a
Timing Master.
Note: A BRI module can be programmed with primary/secondary clock source, however, it
is recommended that a BRI module always be Timing Master if a DTM exists on the system
to be the Primary clock source.
*BRI clock source is set on the Services, Loops, Loop XXX screen. Refer to “Identifying BRI
T-loops (T1 profiles)” on page 267 or “Identifying BRI T-loops (ETSI, QSIG)” on page 271.
For more information, see “Determining Clock Sources for DTMs or BRIs” on page 135.
Send Name
Display
Y, N
PRI
*BRI
QSIG
When set to Y, the system sends a specified outgoing name display (OLI) from the calling
telephone.
Appears only for Protocols: SL-1, NI, DMS100, DMS250, or PRI QSIG.
*BRI QSIG Send Name Display is set on the Services, Loops, Loop XXX screen. Refer to
“Identifying BRI T-loops (ETSI, QSIG)” on page 271.
Remote
Capability
MWI
Y, N PRI
This setting allows you to indicate MWI compatibility on the specific loop(s) that you are
using to connect to the central voice mail system on a Meridian 1 which has the MWI
package installed, with the RCAP setting set to MWI.
Appears only for SL-1 protocol.
Max Transits Default: 31 PRI
Indicate the maximum number of times that a call will be transferred within the SL-1 network
before the call is dropped. Protocol must be set to SL-1 to display this field.
Host node M1, Embark, IDPX,
DSM DNPSS
DPNSS cards connected to Embark switches have a different way of handling call
diversion, therefore, when you provision a DTM for DPNSS, you must indicate what type of
switch the lines are connected to.
When you select the Embark switch, calls are diverted using the Call Forwarding feature
instead of call diversion.
Table 12 Module record values (Continued)
Attribute Value Module/line type
Defining trunk module types and settings 135
Business Communications Manager 3.6 Programming Operations Guide
7If your module is set to T1, PRI, or DASS2, refer to “PRI Call-by-Call service selection” on
page 138 to continue with the configuration.
8After you have completed your module configurations, refer to Chapter 9, “Configuring
lines,” on page 227 to set up the lines the trunk modules will use.
Determining Clock Sources for DTMs or BRIs
Clock Source allows you to designate the DTM or BRI on the system that obtains the timing
reference for synchronization from the network.
Systems with digital interfaces need to synchronize to the network in order to function.
Synchronization follows a hierarchical path. Each device (switch) obtains the network clock from
the device above it in the synchronization hierarchy. The device then passes the network clock to
the device below it in the synchronization hierarchy. The synchronization levels are referred to as
strata.
Business Communications Manager systems are stratum 4E equipment and are usually used as
termination points in a network.
For each DTM and BRI, choose one of the following settings: Primary, Secondary, or Timing
Master:
• Primary reference —The DTM/BRI obtains the timing reference from the network and the
system synchronizes to it. This is the default value for the first DTM in Business
Communications Manager. Note that there should only be one defined Primary clock source
on a System.
Private network: If this system is in a private network and is intended to provide the master
clock for that private network, the system must have one and only one Primary clock reference
on a DTM or BRI. If this system is intended to act as clock master in a private network, then
all clock sources should be set to Timing Master on this system.
• Secondary reference —The DTM/BRI acts as a standby reference. If there are excessive errors
on the Primary reference link, or the DTM/BRI designated as Primary reference fails, the
Secondary DTM/BRI obtains the timing reference from the network to be used for system
synchronization. This is the default value for the second DTM in a Business Communications
Manager.
Private network: If this system is in a private network and is intended to provide the Master
clock for that private network, then there should be no Secondary reference defined on any
DTM/BRI. Note that there should only be one defined Secondary clock source on a system.
• Timing Master —The DTM/BRI does not obtain timing from the network, but transmits the
internally-generated system timing, which is derived from the Primary/Secondary source, to
equipment connected to it.
Note that while in the absence of a DTM Primary clocking source a BRI module can be used
for the primary timing reference, it is always recommended that, when possible, DTM(s) be
used as primary (and secondary) clock sources and that any remaining DTMs/BRIs be set to
Timing Master.
136 Defining trunk module types and settings
P0609326 1.1
Timing within networks
In most T1/E1 network configurations, you need one DTM or BRI configured as Primary to act as
a primary reference and obtain clocking from the network.
The only application where you might not have a DTM/BRI designated as a primary reference is in
a private DTM/BRI network where your Business Communications Manager system is connected
to other equipment using T1/E1/BRI interface(s) that require a clock source and your system had
been designated as the source of clocking for that private network.
• If the other switches are to be clocked to your Business Communications Manager system, all
your DTMs/BRIs should be designated as Timing Master.
• If your Business Communications Manager system has two DTMs, you cannot assign both
DTMs as primary reference or both DTMs as secondary reference.
You can have one Primary reference and one Secondary reference per system.
• A T1, PRI(T1), PRI(E1), or BRI can act as the clock source.
T1 interface parameters (region-specific)
The T1 parameters heading appears for module types that have been configured as T1 or PRI. It
allows you to define a number of settings that are dependent on your T1 service provider settings.
1Click the keys beside Resources, Media Bay Modules, Bus <number>, Modules on Bus,
and Module <number>.
2Click on T1 Parameters.
3Configure the T1 parameters according to the information in the following table.
Warning: Changing the clock source may disconnect calls.
If you change the clock source for your system, you may cause your system DTM
interface(s) to reset, resulting in dropped calls. Choose a suitable time to change the clock
source and use the Page feature to inform users of possible service disruptions.
Table 13 TI parameters
Attribute Value Description
CO fail TIA-547A or
TR62411
Select the carrier failure standard used by your T1 or PRI service
provider. Consult your T1 or PRI service provider for the proper
setting.
Interface levels ISDN or PSTN Define a loss plan setting. For more information, see “Interface
levels” on page 137.
Framing ESF or SF Select the framing format used by your T1 or PRI service
provider: Extended Superframe (ESF) or Superframe (SF).
Contact your T1 or PRI service provider for the proper setting.
(SF or Superframe is sometimes known as D4.)
Defining trunk module types and settings 137
Business Communications Manager 3.6 Programming Operations Guide
Interface levels
The default Interface levels are the ISDN loss plan settings.
Check with your telecommunications service provider to determine if your Business
Communications Manager system is connected to a central office (CO) with digital network loss
treatment (ISDN I/F levels) or analog network loss treatment (PSTN I/F levels).
The ISDN setting requires digital access lines (DAL) that have digital network loss treatment. On
a DAL network, the PBX system administers the dB loss not than the CO. DALs may have ISDN
signaling or digital signaling (for example, T1). The loss plan follows the Draft TIA-464-C loss
plan, which uses a send loudness rating (SLR) of 8 dB. You must contact your service provider to
get DAL network loss treatment on a line with digital signaling.
The PSTN setting requires analog access lines (AAL) that have analog network loss treatment and
digital signaling. On an AAL(D) network, the CO administers the dB loss.
The loss plan follows the Draft TIA-464-C loss plan. The ISDN loss plan uses a send loudness
rating (SLR) of 8 dB and a receive loudness rating (RLR) of 2 dB. The PSTN loss plan uses an
SLR of 11 dB and an RLR of -3 dB. If you choose the wrong setting, the voice signal can be too
loud or too soft.
Internal CSU
Internal CSU allows you to turn the internal T1 channel service unit on or off. The channel service
unit gathers performance statistics for your T1 lines or PRI with public interface. Contact your
service provider for the correct settings.
Note: You must disable the DTM before you can change this setting. See “Disabling/enabling a
single module” on page 147 for details.
You can view the performance statistics for your T1 lines in Maintenance under the CSU stats
heading. Before you set the internal CSU to off, you must ensure there is an external CSU
connected to your T1 lines.
Internal CSU On or Off Turn the internal T1 channel service unit (CSU) on or off. For
more information, see “Internal CSU” on page 137.
CSU line build 0, 7.5, or 15 dB Set the gain level of the transmitted signal. This setting appears
only when the Internal CSU is set to On.
DSX1 build 000-100, 100-200,
200-300, 300-400,
400-500, 500-600,
or 600-700 feet
Set the distance between Business Communications Manager
and an external channel service unit. This setting only appears
when the Internal CSU is set to Off. Contact your service provider
for the proper settings.
Line coding B8ZS or AMI Define the encoding signals on a T1 line. Select the standard
used by your T1 service provider. Contact your T1 service
provider for the proper setting.
Table 13 TI parameters (Continued)
Attribute Value Description
138 Defining trunk module types and settings
P0609326 1.1
E1 parameters (region-specific)
The E1 Parameters command appears for modules that have been configured as PRI in an E1
region. There is only one setting in the E1 Parameters menu - the CRC4 setting. CRC4 checking is
enabled at the other end.
1Click on the keys beside Resources, Media Bay Modules, Bus <number>, Modules on Bus,
and Module <number>.
2Click on E1 Parameters.
3Configure the E1 CRC4 parameter as being On or Off to correspond to the CRC4 setting at the
far end of the E1 interface.
PRI Call-by-Call service selection
This section provides information about how to configure the PRI Call-by-call Service Selection,
which is region-specific to North America, for a DTM set to a PRI Module type.
By default, incoming calls on a PRI are routed based on the Called Party Number information
within the call request. The last number of digits of the called party number which matches the
Received Number Length setting, are used as Receive Digits to find a target line.
For example, assume an incoming called party number is 800-555-1234. The received digit
number length is 4, and the result is 1234. These last four digits are used to route the call.
In North American PRI, the Call-by-Call services allows alternate routing maps to be defined in
various ways, depending on the protocol defined for this PRI.
Use this process to define call-by-call services:
1Click on the keys beside Resources, Media Bay Modules, Bus <number>, Modules on Bus,
and Module <number>.
2Click on Call-by-call service selection.
The following table lists the applicable services for the protocol defined on the Module
<number> record.
Table 14 Services available for each PRI protocol
Protocol
Services Available
Foreign
Exchg Inwats (800) Intl-800
Switched
Digital (SDS)
Nine Hundred
(900)
NI SID or All By number or All N/A N/A N/A
DMS-100 SID or All SID, By number, or All N/A N/A N/A
DMS-250 SID or All SID, By number, or All N/A N/A SID, or By
number, or All
4ESS N/A By number or All By number
or All
By number or
All
By number or
All
Defining trunk module types and settings 139
Business Communications Manager 3.6 Programming Operations Guide
3Select the service you want to change.
A configuration screen appears in the right frame. The Translation mode default is None.
4The following table shows the possible settings for the services.
Table 15 Module record values
Attribute Value Description
Translation
Mode
None
All
By SID
By Number
Define how the system maps incoming digits for this service type to
the line number within the system.
In all cases, the received digits are used to find a target line or to
activate remote access.
Translation mode value
definitions:
None: No mapping is applied. The last digits of the Called Party
Number which match the Received Number Length setting are used
as received digits. Note that if there is no called party number (may
occur with some FX calls) the call will ring at the incoming trunk prime
set.
All: Allows you to define the received digits used for all calls with this
service type, regardless of the called party number or service
identifier (SID). For this option, all calls with this service type on this
PRI will ring the same target line.
Depending on the service type and the protocol, you may be able to
map the called party number (By number) and the service identifier
(SID).
By SID: Allows you to associate different received digits with different
calls of this service type based on the service identifier.
By Number: Allows you to associate different received digits with
different calls of this service type based on party number.
NOTE: Any calls that do not match any entry defined in the map table
will ring at the prime set.
Map Table Select Add on the
Map Table screen
to create a new map
entry
From digits
To digits
Enter the incoming line number to the internal line number, such as
the target line.
140 Defining trunk module types and settings
P0609326 1.1
Provisioning lines (PRI, T1, DASS2)
The Provision lines heading allows you to provision and deprovision lines associated with a T1
PRI, E1 (DASS2), or BRI ST/U interface.
Provisioning a line or loop makes it available for system use. A deprovisioned line/loop is not
available for use. If you are purchasing a partial PRI trunk, the lines that have not been assigned
must be set to Deprovisioned.
The line number listed in each Line <number> entry corresponds to the line numbers listed under
the Services, Telephony Services, Lines, Physical Lines, Enabled Physical Lines menu
heading.
Provisioning a line
Note that all PRI lines are provisioned by default.
1Click the keys beside Resources, and Media Bay Modules.
2Choose the a bus number (Bus 02 to 07) associated with the trunk module you want to
provision.
3Click the key beside the Modules on Bus heading.
The single DTM module on this bus appears.
4Choose the module.
Expand Provision lines.
All the available lines appear as Line <number> headings.
5Click the line you want to provision.
6From the Status box, click Provisioned.
Defining trunk module types and settings 141
Business Communications Manager 3.6 Programming Operations Guide
Provisioning BRI loops/lines
In order to provision lines on a BRI module you must first provision the loop on which the lines
exist.
1Click the keys beside Resources and Media Bay Modules.
2Click the key beside the bus number (Bus 02 to 07) associated with the trunk module you want
to provision.
3Click the key beside Modules on Bus.
4Choose the BRI module where you want to provision loops.
5Expand Provision Loops.
All the available loops appear as Loop <number> headings.
6Click the Loop <number> you want to provision.
7In the Status box, click Provisioned.
8After provisioning one or more loops on the module:
aRefresh the Loop <number> entry and you will see two Line <number> entries under
this loop.
bClick on the Line <number> you wish to provision.
cIn the Status box, click Provisioned
Deprovisioning a line/loop
When you are not using a line/loop, or when you want to cancel it, you can deprovision that line or
loop.
Follow these steps to deprovision a line/loop:
1Click the keys beside Resources and Media Bay Modules.
2Click the key beside the bus number (Bus 02 to 07) associated with the module you want to
provision.
3Click the key beside Modules on Bus.
A list of the modules assigned to the Bus appears.
4Choose the module you want to provision.
For example, click on Module 1.
5Click the key beside Provision lines or Provision Loops.
All the available lines/loops appear.
6Choose the line/loop you want to deprovision.
7 From the Status box, click Deprovisioned.
Use this procedure if your system configuration requires/receives fewer than the standard number
of channels delivered from the PRI line. This is called Fractional T1/PRI. Your service provider
might offer you Fractional T1/PRI service to address specific needs on your system.
142 Defining trunk module types and settings
P0609326 1.1
You should only have as many lines provisioned on a T1/PRI as you have B-channels being
delivered on the T1/PRI from your service provider. Having more lines provisioned and assigned
to users may occasionally result in the attempt to perform calls over a line failing because of a lack
of B-channel resources being available.
Provisioning notes:
• Deprovisioning all of the lines on a DTM does not disable the module.
• BRI loops/lines are deprovisioned by default in the N1 ISDN protocol regions, otherwise they
are provisioned by default.
PRI B-channel provisioning
When you purchase PRI from your service provider, you can request the number of B-channels
that are allocated for you to use. For example, you may want to use only 12 B-channels instead of
23 B-channels. If you do not have all of the PRI B channels, you should disable all the B-channels
that you do not need.
It is recommended that the number of lines that are deprovisioned on an DTM (configured as PRI)
be the same as the number of B-channels that are disabled. For example, If the DTM is on bus 07,
when B-channels 13-23 are disabled, you should deprovision lines 73 to 83.
1Choose Diagnostics, Trunk Modules.
2Choose a bus, and then choose a module.
3Choose B channels.
A list of the B channels on this module appears.
4Click a channel, for example, B 01
The display shows the status of the PRI channel.
5On the Configuration menu, click Enable or Disable to change the setting for the channel.
Trunk module ports programming
Click on the Port XXX (where XXX is a port number) heading, located under Ports on Bus, to
access information about the state of the module ports. Each port maps to an incoming line.
Figure 30 Finding state of port on Bus
Viewing station module information 143
Business Communications Manager 3.6 Programming Operations Guide
PRI version information
DTM modules that are set to PRI and BRI modules display additional PRI information under
Ports on bus, Port <number>, Channels, B1/B2, Addons. By clicking on the Addon 01 heading,
you can view information about the version of the downloadable firmware component being used
in this module. By clicking on the Addon 02 heading, you can view information about the version
of the downloadable protocol component being used on this module.
You can enable or disable any port. Refer to “Disabling or enabling a port channel setting” on page
148.
Viewing station module information
The following figure shows a typical example of the headings for a station media bay module.
Figure 31 Station media bay module Bus headings
When you click on a bus that has a station module installed, you will see a screen that indicates the
type of module, the number of ports that are busy on the module, and the operational state of the
module.
Figure 32 Bus assigned to a station module
Programming Note: If the Actual Bus Type reads None, choose the correct setting in the
Programmed Bus Type field. After the system initializes to the module, the Actual Bus Type
Bus 06
Ports on Bus
Port 0201
Channels
B1
Addons
B2
Addons
Bus 02
Ports on Bus
Port 0201
Channels
B1
Addons
Partial Double Density bus Double Density bus
144 Viewing station module information
P0609326 1.1
should change to the correct module type. You may also have to disable, then re-enable the module
to force the system to re-initialize (under the Configuration menu). Refer to “Viewing Media Bay
Module status” on page 147 for details about enabling and disabling modules.
Some modules take a few minutes to reinitialize.
If these actions do not cause the fields to display correctly, you may have a damaged module or
back plane. Try installing the module in a different media bay and retry the configuration. Refer to
the Installation and Maintenance Guide for your hardware for information about removing and
installing media bay modules.
Determining station port state
Click on the Port <number> heading, located under Ports on Bus, to access information about the
state of the device (media bay module).
Figure 33 Finding state of port on Bus
Viewing port device information
Under the Port heading, the Channels heading provides access to device information about the B1
(and B2 for Bus 06 and 07 on PDD systems) media channels. Clicking on the B1 heading displays
the information about the device assigned to that media channel, including the DN of the device,
the type of device (model), the version of the firmware on the device, and the state of the device, as
set on the Port XXXX screen.
Figure 34 Ports on Bus, B1 screen
Viewing station module information 145
Business Communications Manager 3.6 Programming Operations Guide
You can enable or disable any port. Refer to “Disabling or enabling a port channel setting” on page
148.
Station module line deployment
The MSC presents 32 physical ports for each bus number assigned to a station or analog station
module. The DIP switch settings on the module determine which ports support telephone
connections. The first 16 ports are based on the B1 channel; the second 16 ports are based on the
B2 channel. Therefore, if a single-density DSM 16 module is used, only the first 16 DNs are
available for system telephones. Any module that was installed on a BCM version 2.5 or earlier
system is single density, which means it would support some of the first 16 ports, depending on the
type of module.
On systems running BCM version 3.0 and newer software, if you install DSM 16+ or DSM32+
modules, you can set them to be either single density or double density. An ASM8+ installed on a
double density bus can populate all four offsets. If a DSM16+ or DSM32+ are set to double
density 32 ports are available, depending on the module and the dip switch settings. Example: A
DSM16+ set to double density accesses either the first 16 ports or the second 16 ports, depending
on the offset setting. A DSM32+ set to double density accesses the first 16 ports on the lower
connector and the second 16 ports on the upper connector.
Partial Double Density systems (PDD), which is the default system setting for BCM version 3.0
and newer software, retain a single-density identity for buses 06 and 07, to allow support for
Companion installations which support two handsets for each B1/B2 port. Each port in single
density configurations are assigned a B1 and a B2 channel. If you set your system to
fully-deployed double density (FDD), both bus 06 and 07 are configured as double density and are
no longer available for applications that require both B1 and B2 ports.
You can change your system density from PDD to FDD under the Configuration menu in the MSC
programming. (Services, Diagnostics, MSC)
Upgraded systems: BCM version 2.5 systems upgraded to BCM version 3.0 or newer systems
have a different DN deployment than newly-deployed BCM version 3.0 systems. In upgraded
systems, the first 16 DNs are assigned to DS30 02, the next 16 are assigned to DS30 03, and so on,
down to DS30 07. Then the first 16 DNs following this list is assigned to the second 16 lines (B2)
on DS30 02, and so on down the list again.
New BCM version 3.0 and newer systems: The DN deployment in these systems is sequential.
That is, the first 32 DN numbers are assigned to DS30 02, the second 32 DN numbers are assigned
to DS30 03, and so on.
DN numbering for each type of system is displayed in tables in “DN mapping for digital
telephones” on page 355
146 Internally-driven channels
P0609326 1.1
Internally-driven channels
You cannot change headings for buses that are used for internal processing. This section describes
how these buses fit into the system.
Bus 01 and Bus 08 provide access to telephony operations for internal processing, applications,
and IP sets on the Business Communications Manager system. These two buses are commonly
referred to as virtual buses since they have no external physical connections.
Bus 01 has 32 virtual ports. Bus 08 has 28 virtual ports. Each of these ports has one media channel
associated with it. These channels are labeled as B1 on the configuration menu. When IP
telephones are assigned to the system, they will appear on these ports. The ports are allocated
sequentially as telephones are added.
Bus 08 can also be used for a virtual data module (NA only) when a Business Communications
Manager data service such as WAN service is activated. Refer to “Configuring a data module” on
page 178 for further programming. Note that Bus 08 does not display when there is a WAN active
on the system.
By default, Bus 07 is used for a media bay module connection (2/6 channel split). However, if
your system was set to a 3/5 DS30 split, then Bus 07 becomes a virtual bus with 32 ports. The
headings under Bus 07 become invalid in this configuration. Refer to the “Configuring the MSC
resources” on page 609 for further details.
Working with the modules
When you need to find out information about a module, you can determine the status of any of the
settings under the media bay modules headings. To correct a problem, or change a module setting,
you may need to enable or disable a port, a module, or an entire bus. This section provides the
procedures got:
•“Viewing Media Bay Module status” on page 147
•“Disabling/enabling a DS30 bus” on page 147
•“Disabling/enabling a single module” on page 147
•“Disabling or enabling a port channel setting” on page 148
Working with the modules 147
Business Communications Manager 3.6 Programming Operations Guide
Viewing Media Bay Module status
Media Bay Modules selection allows you to view the status of all the modules as well as identify
any device or lines connected to the system. This allows you to isolate any malfunctioning part of
the system. In addition, you can use the Media Bay Module selection to disable and enable
modules and devices. For more information, refer to one of the following procedures.
Use this procedure to display module type, the number of sets connected to the module, the
number of busy sets and the module state:
1On the navigation tree, click the Resources key and click the Media Bay Modules key.
The window displays Bus 02 through to 08.
2Click heading of the bus you want to view. For example, Bus 02.
The Configuration menu is enabled and the status information of the module associated with
that bus appears.
Disabling/enabling a DS30 bus
The following procedure describes the process for enabling or disabling a bus. This means that if
there is more than one module assigned to the DS30 bus, all modules will be disabled.
1Click the keys beside Resources and Media Bay Modules.
Buses 01 to 07 are displayed.
2Click on the bus number of the module you wish to enable/disable (Bus 02 to 07).
3On the top menu, click Configuration, and then, click Enable or Disable.
The system prompts you to confirm your request.
4Click the OK button.
Programming reminder: If your system has a 3/5 DS30 split, BUS 07 will not have a module
assigned to it.
Disabling/enabling a single module
The following procedure describes the process for enabling or disabling a single module if there is
more than one module assigned to a DS30 bus.
1Click the keys beside Resources and Media Bay Modules.
Buses 01 to 07 are displayed.
2Click on the key beside the Bus number of the module you wish to disable (Bus 02 to 07).
3Click on the Module number of the media bay module you want to enable/disable.
4On the top menu, click Configuration, and then, click Enable or Disable.
The system prompts you to confirm your request.
148 Working with the modules
P0609326 1.1
5Click the OK button.
Programming reminder: If your system has a 3/5 DS30 split, bus 07 will not have a module
assigned to it.
Disabling or enabling a port channel setting
If you need to isolate a problem or block access from the module, you may need to turn off
individual port channels, rather than the entire module.
To turn off a channel:
1Click on the keys beside Resources, Media Bay Modules, and beside the Bus number where
the module is located.
2Click the key beside Ports on bus.
3Click the key beside the port that contains the channel you want to disable.
4Click the key beside Channels.
5Click on the B channel you want to disable (B1 or B2).
6On the top menu, click Configuration and select Disable or Enable.
If you are disabling the channel, you will be prompted by a dialog box to confirm your action.
The State field indicates the mode of operation for the port, as shown in the figure below. If
the port is enabled, this field is blank unless a device is physically connected.
Configuring DECT resources 149
Business Communications Manager 3.6 Programming Operations Guide
Configuring DECT resources
There are three areas on the Unified Manager that you need to program or look for DECT module
information:
• The DECT module is enabled on the system through the Resources, Media Bay Module,
Bus <number> record, as with all other modules. The difference is that you set the Module
Type to DECT.
•The Resources, DECT menu allows you to view the identification information for the DECT
media bay module installed in Business Communications Manager. Refer to the following
figure.
Figure 35 DECT media bay module description
•The Maintenance Selection tab opens a screen from which you select the DECT module. This
allows you to collect maintenance information that can be viewed through the maintenance
console under Services, DECT. Refer to the following figure.
Figure 36 DECT maintenance selection
The entries on this screen fill automatically when a DECT module is plugged into the Business
Communications Manager and the system is powered up. The DIP switch settings on the DECT
module define the bus and the slot (offset, always set to 0). The information on the module
provides the Version and Description information. The status information is obtained from the
Provision Lines heading found under Resources, Media Bay Modules, Bus <number>.
150 Configuring DECT resources
P0609326 1.1
The DECT module contains four internally-accessible BRI loops. These loops are also
automatically populated when the module is installed.
Note: The module BRI loops are defined within the module to act as a line pool. DNs are assigned
to the loops from within the DECT module interface. This also occurs if you configure your
system using the DECT wizards. Refer to the DECT Installation and Maintenance Guide for
details.
151
Business Communications Manager 3.6 Programming Operations Guide
Chapter 6
Data and split-line configuration
This section discusses configuration for modules and applications that require data or combination
data/telephony line configuration.
• DDI MUX modules require two DS30 bus positions. This module supports combinations of
data channels and T1 lines. A DTM (digital trunk module) contained within the module is
programmed using normal DTM line configuration. The data portion of the lines are
configured under the second DS30 bus as data lines. The DDI MUX supports using either the
internal router or an external router. Refer to “Configuring the DDI Mux module” on page 151.
• The UT-WAN application, performs a similar function as the DTM module, only without
using a physical data module. This feature uses an installed DTM for lines and the internal
router for data. Refer to “Universal T1 WAN (UTWAN)” on page 159
• Data modules used to configure channels on a WAN interface are always configured under
DS30 Bus 08. Refer to “Configuring a data module” on page 178.
Configuring the DDI Mux module
The Digital Drop and Insert (DDI) Mux media bay module enables a Business Communications
Manager system to share its connection to a Universal T1 network with a local area network
(LAN). A DDI Mux allows you to make more efficient use of your digital network resources and
reduces the amount of equipment needed to support your voice and data networks. This module is
currently available only for North American installations.
This section contains the following information:
•“Configuring DDI Mux connections” on page 154
•“Assigning the DDI mux modules” on page 154
•“Assigning lines for voice traffic” on page 155
•“Assigning lines to the data module” on page 155
•“Configuring the DDI Mux to work with the DTE” on page 157
DDI Mux features
The DDI Mux performs the following services:
• provides the functionality of a DTM media bay module (T1 digital lines only)
• splits the incoming T1 line so that some of the lines are used for voice traffic and some of the
lines are used for data traffic
• provides either the CSU (Channel Service Unit) or DSU (Data Service Unit) functionality to
support connections to data terminal equipment (DTE), such as a router or a bridge
• connects to network devices that support V.35 interfaces
152 Configuring the DDI Mux module
P0609326 1.1
• provides end-to-end transparent bit service
• supports loopbacks between the DDI Mux and the internal Business Communications
Manager components, and between the DDI Mux and digital terminal equipment
The following figures provide examples that use internal and external routers with the DDI Mux.
Figure 37 Network overview: DDI MUX connected to 2.5 hardware internal router
Note: The DTE cable that connects the Business Communications Manager to the router
is ordered separately from the module. If you do not have this cable, ask your customer
service representative about how to obtain one.
Service Provider/
PSTN
T1 mux service
DTE cable
Switch/Hub
Configuring the DDI Mux module 153
Business Communications Manager 3.6 Programming Operations Guide
Figure 38 Network overview: DDI MUX connected to BCM400 internal router
Figure 39 Overview of network using DDI Mux module with an external router
Service Provider/
PSTN
T1 mux service
DTE cable
Switch/Hub
Service Provider/
PSTN
T1 mux service
DTE cable
Router
Switch/Hub
154 Configuring the DDI Mux module
P0609326 1.1
Configuring DDI Mux connections
After you have installed the DDI Mux, configure the module settings in the Unified Manager.
To configure the DDI Mux, you need to:
• assign the DDI Mux modules under Resources, Media Bay Modules
• assign the lines for voice traffic under Services, Telephony Services, Lines
• assign lines to the Data Module portion of the module
• configure the DDI Mux to work with the DTE
Before you start, record the settings for the DDI Mux in the form provided in the Programming
Records. At the very least, you need the following configuration information:
Assigning the DDI mux modules
1Click the keys beside Resources and Media Bay Modules.
2Click the DS30 Bus heading that was assigned to the DDI Mux.
This Bus is the same as the DS30 bus you assigned to the DDI Mux using the DIP switches on
the module.
3Make sure the option in the Programmed Bus Type drop list is Trunk module.
4Click the heading of the next DS30 Bus.
This Bus is the DS30 bus automatically assigned to the Data Module portion of the DDI Mux.
5Click the Programmed Bus Type drop list, then click Data module.
Table 16 Configuring DDI Mux connections
Protocol V.35 ❑ Loopback state: Off ❑Manual DTE ❑
Manual DS30 ❑Automatic DTE ❑
Fixed Access
Line ____ Channel ____ Line ____ Channel ____
Line ____ Channel ____ Line ____ Channel ____
Line ____ Channel ____ Line ____ Channel ____
Line ____ Channel ____ Line ____ Channel ____
Line ____ Channel ____ Line ____ Channel ____
Line ____ Channel ____ Line ____ Channel ____
Line ____ Channel ____ Line ____ Channel ____
Line ____ Channel ____ Line ____ Channel ____
Line ____ Channel ____ Line ____ Channel ____
Line ____ Channel ____ Line ____ Channel ____
Line ____ Channel ____ Line ____ Channel ____
Line ____ Channel ____ Line ____ Channel ____
Configuring the DDI Mux module 155
Business Communications Manager 3.6 Programming Operations Guide
Assigning lines for voice traffic
A digital T1 line has up to 24 telephone lines available for use. On the DDI Mux, you can assign
some of these lines to telephony traffic and some to data traffic.
For the lines that you want to use for telephony traffic, configure the lines in the same manner as
you configure lines for a DTM. For information about how to configure digital lines on a DTM,
refer to “Provisioning lines (PRI, T1, DASS2)” on page 140.
Assigning lines to the data module
The number of lines you assign to the data module determines the bandwidth of your data
networking connection. The following table shows the allocated bandwidth for the DDI Mux
according to the number of lines assigned. The allocated bandwidth also depends on the line data
rate indicated by the B-channel data rate parameter.
To assign a line to the data module, you must change the line type to Fixed Data Channel and then
assign the line to the data module.
Changing the line type
1In the Unified Manager, click the keys beside Services and Telephony Services.
2Click the Lines key and then click the Physical lines key.
3Click the All physical lines key.
4Click the key of one of the line numbers assigned to the Data Module.
Table 17 List of all the multiples of 56000 and 64000 bits/s
Number of
lines
selected 56000 bits/s 64000 bits/s
Number of
lines selected 56000 bits/s 64000 bits/s
1 56000 64000 13 728000 832000
2 112000 128000 14 784000 896000
3 168000 192000 15 840000 960000
4 224000 256000 16 896000 1024000
5 280000 320000 17 952000 1088000
6 336000 384000 18 1008000 1152000
7 392000 448000 19 1064000 1216000
8 448000 512000 20 1120000 1280000
9 504000 576000 21 1176000 1344000
10 560000 640000 22 1232000 1408000
11 616000 704000 23 1288000 1472000
12 672000 768000 24 1344000 1536000
156 Configuring the DDI Mux module
P0609326 1.1
5Click the Trunk/line data heading.
6Click the Trunk type drop list and then click Fixed data channel.
7Repeat steps 5 to 7 for each line you want to assign to the Data Module.
Assigning the line
1Click the Resources key and then the Media Bay Modules key.
2Click the key beside the Bus number assigned to the Data Module.
In this release of Business Communications Manager, the Data Module is always Bus 08.
3Click the Data module key and click the Interfaces key.
4Click the key beside the Interface to which you want to add a line. For example, click the key
beside Interface 02.
5Click the Line assignment heading below you Interface to which you are adding lines.
6Click the Add button.
The Add Fixed line assignment dialog box appears.
7In the Line box, enter the line number of one of the lines assigned to the Data Module.
8Click the Save button.
9If you are adding all of the lines to a single Interface, repeat steps 6 to 8 for each line you want
to assign to the Data Module.
If you are adding the lines to multiple Interfaces, repeat steps 4 to 8 for each line you want to
assign to the Data Module.
Removing a line assignment
If you decide you want to remove a line assignment from the Data Module and use it as a
telephony line, use the procedure below:
Removing the line
1Click the Resources key and click the Media Bay Modules key.
2Click the key beside the Bus number assigned to the Data Module.
3Click the Data module key and click the Interfaces key.
4Click the key beside the Interface number from which you want to remove the line assignment.
Note: You can add all of the lines to the single Interface, or you can the lines to
multiple interfaces.
Note: You can assign up to 24 lines to the DDI Mux.
You can assign only Fixed lines.
Configuring the DDI Mux module 157
Business Communications Manager 3.6 Programming Operations Guide
5Click the Line assignment heading.
6Click on the line number you want to remove.
7Click the Delete button.
8On the confirmation dialog box, click the Yes button.
Configuring the line for telephony
1Click the keys beside Services and Telephony Services.
2Click the keys beside Lines, Physical lines and All physical lines.
3Click the key of the line number you want to assign to telephony use.
4Click the Trunk/line data heading.
5Click the Trunk type drop list and then click on the correct type of trunk.
Configuring the DDI Mux to work with the DTE
After you have assigned the lines to the data module, you need to configure the DDI Mux so it can
work with the DTE.
1Click the keys beside Resources and Media Bay Modules.
2Click the key of the Bus number for the Data Module portion of the DDI Mux.
3Click the Data Module key and then click on Configuration.
4Configure the setting to match the DTE you are connecting to the DDI Mux.
The following table describes the Data Module configuration settings.
Table 18 DDI Mux Configuration settings
Setting Value Description
Protocol V.35 The DDI Mux supports a V.35 interface standard through its data interface port.
You can select V.35.
B channel data
rate
64 K
56 K
Select the transmission rate per channel (Fixed data lines) assigned to the
module.
Transmit clock
source
Auto
DCE
DTE
The DDI Mux requires a timing signal to clock data transmitted by the DTE. This
signal can be supplied by the DTE or generated internally by the [Product Name
(short)]. If the signal is generated by the DTE, the clock must be locked to the
frequency of the DDI Mux clock.
•Auto: The DDI Mux checks if the clock provided by the DTE is valid. If the
clock is valid, the module uses DTE clocking. If the DTE clocking is not valid,
the module uses its own internal clock (DCE).
•DCE: The internal TxSync clock is used to clock data.
•DTE: The TXClk clock provided by the DTE is used by the DDI Mux to clock
data.
Note: Use the DTE option only for diagnostic purposes.
For all options, the DTE must synchronize to the module.
158 Configuring the DDI Mux module
P0609326 1.1
Transmit clock
inversion
Off
On
When the internal DCE signal is used to clock in data, signal delays caused by
cable length can cause clocking errors. To adjust for round trip delays between
the DDI Mux and DTE, invert the internal clock used by the module to clock in
data from the DTE.
To enable clock inversion, select the DTE clock or Auto clock.
Data inversion Off
On
When Data Inversion is on, the DDI Mux inverts the data before routing it to the
T1 connection and DTE. Inversion allows the module to use the properties of
protocols such as HDLC/SDLC (a transmission standard for data) to meet the
ones density requirement of the network. This feature must be available and
activated at the far end.
Table 18 DDI Mux Configuration settings (Continued)
Setting Value Description
Universal T1 WAN (UTWAN) 159
Business Communications Manager 3.6 Programming Operations Guide
Universal T1 WAN (UTWAN)
The UTWAN enables a Business Communications Manager system to use a Universal T1
connection to send and receive voice and data information. By sharing this connection you can
make more efficient use of your digital network resources and reduce the amount of equipment
needed to support your voice and data networks. The UTWAN is currently available only for
North American installations.
Net Link Manager provides continuous WAN connection status monitoring. For information about
Net Link Manager, see “Configuring Net Link Manager” on page 749.
UTWAN connection
The UTWAN connection supports frame relay or Point-to-Point protocol (PPP) at the link layer.
The link protocol you use depends on the existing network or on the service you buy from your
Internet service provider.
Frame Relay
In Frame Relay mode, the UTWAN interface allows up to 50 PVCs (permanent virtual circuits) to
be configured. You can assign the same IP for multiple PVCs, or a unique IP for each PVC. To
avoid IP routing confusion, it is important that each unique IP belongs to a unique subnet.
The available Data Link Control interface numbers are 0-1023. Of the 1024 PVCs, 16 are
reserved. The maximum number of PVCs allowed is 1008.
The range of the Data Link Control Interface (DLCI) numbers is between 0 and 1023. However,
within this range, only 16 through 991 are available for user connections. The other ports are
reserved as follows:
• 0 and 1023 are reserved for the Local Management Interface (LMI) handshake
• 992 through 1007 are reserved for Frame Relay management at layer 2
• 1 through 15 and 1008 through 1022 are reserved for future use
Point-to-Point-Protocol (PPP)
Point-to-Point Protocol (PPP) is a full-duplex transmission protocol for communication between
two computers using a serial interface. A typical PPP connection is a personal computer connected
by telephone line to a server. For example, your Internet service provider (ISP) provides you with
a PPP connection so that the ISP server can respond to your requests, pass them on to the Internet,
and return your requested Internet responses to you.
160 Universal T1 WAN (UTWAN)
P0609326 1.1
Fragmentation
Frame Relay fragmentation and PPP fragmentation are link-layer fragmentation schemes.
Over a slow link, the major advantage of using link-layer fragmentation over IP layer
fragmentation is that while it reduces the jitter effect for voice packets, it also reduces the
end-to-end delay for data packets that is introduced by IP layer fragmentation.
RTP Header compression
The RTP Header Compression feature allows you to compress the 40 byte IP/UDP/RTP header to
2 or 4 bytes. This reduces the header-to-payload ratio of a data transmission. This is particularly
true of data transmissions with smaller payloads, such as a IP telephony packets. By reducing the
header-to-payload ratio, you can increase your bandwidth utilization. With slower links, this
allows more data or simultaneous IP telephony conversations to be carried over the link at the
same time.
Data compression
Business Communications Manager provides a WAN Data Compression feature.
On the UTWAN connection, Business Communications Manager supports the following data
compression protocols:
• Frame Relay Forum standard FRF.9 data compression protocol with STAC compression
algorithm
• PPP Compression Control Protocol (RFC 1962) with STAC compression algorithm
Universal T1 WAN (UTWAN) 161
Business Communications Manager 3.6 Programming Operations Guide
Configuring the Business Communications Manager to use the
UTWAN
The UTWAN interface allows circuit-switched voice traffic and packet-switched data traffic
(including IP Telephony) to use the same physical link. This requires you to assign some of the T1
lines for voice traffic and some of the lines for data traffic. After you have assigned the lines, you
must configure UTWAN link layer parameters for data traffic.
•“Assigning lines for voice traffic” on page 161
•“Assigning lines for data traffic” on page 161
•“Configuring the UTWAN Network Interface parameters” on page 164
Assigning lines for voice traffic
A digital T1 line has up to 24 telephone lines available for use. When using the UTWAN feature,
you can assign some of these lines to telephony traffic and some to data traffic. For the lines that
you want to use for telephony traffic, configure the lines in the same manner as you configure
other telephony lines. For information about how to configure digital lines, refer to “Provisioning
lines (PRI, T1, DASS2)” on page 140.
Assigning lines for data traffic
The number of lines you assign for data traffic determines the bandwidth of your data networking
connection. The following table shows the available bandwidth for data traffic on the UTWAN
according to the number of lines assigned.
Note: Only one DTM can be used for UT1 connection.
Of the 24 available T1 lines, the maximum number of lines that can be assigned for data
traffic is 16.
Table 19 Bandwidth available per channel
Number of lines Bandwidth (bps) Number of lines Bandwidth (bps)
1 64000 9 576000
2 128000 10 640000
3 192000 11 704000
4 256000 12 768000
5 320000 13 832000
6 384000 14 896000
7 448000 15 960000
8 512000 16 1024000
Note: The maximum number of lines you can assign for data traffic is 16.
Both ends of the WAN link must be using the same number of lines for data traffic and
start with the same time slot.
162 Universal T1 WAN (UTWAN)
P0609326 1.1
To assign a line for data traffic, you must change the line type to Fixed Data Channel and then
assign the line to the data module.
Determining which lines are available to the UTWAN
The lines that are available to the UTWAN are determined by the DIP switch settings on the DTM
you are using for the UTWAN connection. Refer to the table below for a list of lines assigned per
DS30 bus.
Changing the line type
1In the Unified Manager, click the Services key and click the Telephony Services key.
2Click the Lines key and click the Physical lines key.
3Click the All physical lines key.
4Click the key of one of the line numbers you want to assign for data traffic.
5Click the Trunk/line data heading.
6Click the Trunk type drop list and click Fixed data channel.
7Repeat steps 4 to 6 for each line you want to assign for data traffic.
Assigning lines to the Data Module
1Click the Resources key and the Media Bay Modules key.
2Click the key beside the Bus number assigned to the Data Module.
In this release of Business Communications Manager, the Data Module is always Bus 08.
3Click the Data module key and click the Interfaces key.
4Click the key beside the Interface to which you want to add a line. For example, click the key
beside Interface 02.
5Click the Line assignment heading below you Interface to which you are adding lines.
Table 20 Line numbers for the UTWAN based on the DS30 bus of the DTM
DS30 bus Type of module Default Line numbers
02 Digital Trunk Module (DTM) 211-234
03 Digital Trunk Module (DTM) 181-204
04 Digital Trunk Module (DTM) 151-174
05 Digital Trunk Module (DTM) 121-144
06 Digital Trunk Module (DTM) 91-114
07 Digital Trunk Module (DTM) 61-84
Note: You can add all of the lines to the single Interface, or you can the lines to
multiple Interfaces.
Universal T1 WAN (UTWAN) 163
Business Communications Manager 3.6 Programming Operations Guide
6Click the Add button.
The Add Fixed line assignment dialog box appears.
7In the Line box, enter the line number of one of the lines assigned to the Data Module.
8Click the Save button.
9If you are adding all of the lines to a single Interface, repeat steps 6 to 8 for each line you want
to assign to the Data Module.
If you are adding the lines to multiple Interfaces, repeat steps 4 to 8 for each line you want to
assign to the Data Module.
Removing a line assigned for data traffic
If you decide you want to stop using a line for data traffic and use it as a telephony line, use the
procedures below:
Removing the line from the Data Module
1Click the Resources key and click the Media Bay Modules key.
2Click the key beside the Bus number assigned to the Data Module.
3Click the Data module key and click the Interfaces key.
4Click the key beside the Interface number from which you want to remove the line assignment.
5Click the Line assignment key.
6Click on the line number you want to remove.
7Click the Delete button.
8On the confirmation dialog box, click the Yes button.
Configuring the line for telephony traffic
1Click the Services key and click the Telephony Services key.
2Click the Lines key and click the Physical lines key.
3Click the All physical lines key.
4Click the key of the line number you want to assign to telephony use.
5Click the Trunk/line data heading.
6Click the Trunk type drop list and then click on the correct type of trunk.
7Configure the line in the same manner as you configure other telephony lines. For information
about how to configure digital lines, refer to “Provisioning lines (PRI, T1, DASS2)” on page
140.
164 Universal T1 WAN (UTWAN)
P0609326 1.1
Configuring the UTWAN Network Interface parameters
The first step to configuring the UTWAN Network Interface parameters is:
•“Configuring the UTWAN Summary parameters” on page 164
One of the UTWAN Summary parameters is the link protocol used on the T1 line. When you
select the appropriate link protocol, the screen changes to show the parameters required for that
link protocol.
The second step to configuring the UTWAN interface is to use one of the following procedures to
configure the link protocol specific parameters.
•“Configuring the UTWAN to use a Frame Relay link” on page 166
•“Configuring the UTWAN to use a PPP link” on page 170
If the UTWAN interface has multiple IP addresses, the third step is:
•“Configuring additional IP addresses for the UTWAN” on page 176
Using multiple IP addresses is a common scenario when there are more than one frame relay PVC
circuits. When you configure an IP address for each frame relay PVC, each IP address must be
valid in the sense that the IP address must have been configured as the primary IP for the
UTWAN, or as an additional IP for UTWAN.
Configuring the UTWAN Summary parameters
1On the navigation tree, click the Resources key and click the UTWAN key.
2Click the UTWAN1 heading.
The Summary screen appears.
3Configure the Summary settings according to the information in the following table.
Table 21 UTWAN Summary parameters
Attribute Description
IP Address Enter the IP address of the UTWAN interface. The UTWAN IP address must be in the proper
dotted format, for example 255.255.255.255.
You can obtain this information from your system administrator or your Internet service provider.
SubNet Mask Enter the subnet mask address of the UTWAN. The subnet mask must be in the proper dotted
format, for example 255.255.255.255.
You can obtain this information from your system administrator or your Internet service provider.
Physical Address Shows the physical address of the UTWAN interface.
Description Provides a description of the UTWAN connection.
Version Shows the version of the UTWAN interface.
MTU Size Enter the value for MTU Size.
Universal T1 WAN (UTWAN) 165
Business Communications Manager 3.6 Programming Operations Guide
4Press the TAB key to save your settings.
Status Shows the current resource status of the UTWAN interface. The possible states are:
Up: The UTWAN is operational.
Down: The UTWAN is not operational.
Link Protocol Lets you select a link protocol. The link protocol you choose depends on the existing network or
the service you buy from your Internet service provider.
The options for Link Protocol are:
FrameRelay_DCE: Select this option if you are connecting two Business Communications
Manager systems back to back and the other Business Communications Manager system is
configured as FrameRelay_DTE.
FrameRelay_DTE: Select this option if the other end of the WAN link is a Frame Relay router, a
Frame Relay switch or a Frame Relay server provided by your Internet service provider.
PPP: Select this option if the other end of the WAN link is configured to use PPP.
The default is PPP.
If you change the link protocol, the configuration screen changes to include fields corresponding
to the link protocol you choose. To ensure proper operation, always refresh the page by clicking
View and then Refresh.
Note: Unified Manager refreshes the UTWAN screen according to the chosen protocol.
Your choice of protocol depends on the existing network or the service you buy from your
Internet service provider. PPP is the default link protocol. If you change the link protocol
the following message appears: “Reminder! Previous setting requires rebooting the system
to take effect. Please reboot the system...” Click OK.
Caution: Reboot the system.
You must remember to reboot your system for the changes you made to the link protocol
to take effect. You can continue UTWAN configuration and reboot the system at a
convenient time.
Table 21 UTWAN Summary parameters (Continued)
Attribute Description
166 Universal T1 WAN (UTWAN)
P0609326 1.1
Configuring the UTWAN to use a Frame Relay link
Configuring the UTWAN to use a Frame Relay link consists of the following:
•“Configuring the UTWAN Summary parameters” on page 164
•“Configuring the Frame Relay parameters” on page 166
•“Configuring the PVC Configuration parameters” on page 167
Configuring the Frame Relay parameters
To set the UTWAN Frame Relay Parameters.
1On the navigation tree, click the Resources key and click the UTWAN key.
2Click the UTWAN1 heading.
The Summary screen appears.
3Click the Frame Relay Parameters tab.
The Frame Relay Parameters screen appears.
4Configure the Frame Relay Parameters by referring to the following table.
Table 22 UTWAN frame relay parameters
Attribute Description
LMI Type Select the type of local management protocol used on this link. The link management type
must be the same as the one used by the frame relay service provider. The available
options are Original LMI, ANSI T1.617 Annex D or ITU-T Q.933 Annex A.
The default setting is ANSI T1.617 Annex D.
Note: The most commonly used setting for this parameter is ANSI T1.617 Annex D.
Polling Interval Enter an interval, in seconds, between Status Enquiry messages.
Possible values are between 1 and 100 seconds.
The default setting is 6.
Missing Status Enquiry Enter the maximum number of consecutive failures permitted in the Status Enquiry before
dropping the link. It is also the number of successful consecutive Status Enquiry messages
that must be received before marking a link as operational.
If you have a backup WAN connection and Net Link Manager configured, the backup
connection is started and traffic is routed to the backup when this link is dropped. Also, the
backup WAN connection is dropped and traffic is routed to this link when the link is
operational. For information about Net Link Manager, refer to “Configuring Net Link
Manager” on page 749.
Possible values are between 1 and 100 messages.
The default setting is 3.
Expected Status Enquiry Enter the number of events sampled for making decisions about the Missing Status
Enquiry. This value must be set to a higher number than the value set in the Missing
Status Enquiry box.
Possible values are between 1 and 100 messages.
The default setting is 6.
LMI Polling Interval Enter an interval, in seconds, between LMI status inquiry messages. The polling interval
must be the same as the one used by the frame relay service provider’s switch.
Possible values are between 1 and 100 seconds.
The default setting is 10.
Universal T1 WAN (UTWAN) 167
Business Communications Manager 3.6 Programming Operations Guide
5Press the Tab key to save the settings.
Configuring the PVC Configuration parameters
You must configure the PVC Configuration parameters for each PVC.
Adding a PVC Configuration record
Follow these steps to add a PVC Configuration record:
1On the navigation tree, click the Resources key and click the UTWAN key.
2Click the UTWAN1 heading.
The Summary screen appears.
3Click the PVC Configuration tab.
The PVC Configuration screen appears.
4On the Configuration menu, click Add PVC Configuration.
Status Enquiry Msg Wait
Interval
Enter the Status Enquiry Message Wait interval in seconds.
Possible values are between 1 and 100 seconds.
The default setting is 15.
Fragmentation Status Select EtoE_Enabled to enable Frame Relay end-to-end fragmentation on this link.
Select Disabled to disabled Frame Relay Fragmentation on this link.
The setting you choose for Fragmentation Status must be the same as the setting on the
other end of the Frame Relay link.
The default setting is Disabled.
Note: If any PVC needs to do fragmentation, you must select EtoE_Enabled for this
parameter and then select the End to End Frag option for that PVC.
Low Water Mark This is one of the parameters that controls the link layer queuing behavior if link layer
fragmentation is enabled for this PVC.
The possible values are between 1 and 7.
The default value is 6.
Note: Nortel Networks highly recommends that you do not change the Low Water Mark
from the default value.
High Water Mark This is one of the parameters that controls the link layer queuing behavior if the link layer
fragmentation is enabled for this PVC.
The possible values are between 2 and 8.
The default value is 7.
Note: Nortel Networks highly recommends that you not change the High Water Mark from
the default value.
Note: The high water mark must be larger than the low water mark.
Table 22 UTWAN frame relay parameters (Continued)
Attribute Description
168 Universal T1 WAN (UTWAN)
P0609326 1.1
5Configure the WAN PVC Configuration parameters according to the information in the
following table.
Table 23 WAN PVC Configuration parameters
Column Description
Entry (CC#) Define each PVC Configuration entry on the interface. A PVC Configuration entry must use
the following format: CC#, where the prefix 'CC' is followed by a number. For example,
'CC2' is a valid PVC Configuration entry. Each entry must use a different number. You
must use consecutive numbers when entering PVC Configuration entries. If you do not use
consecutive numbers, the system adjusts them to be consecutive. If you add an existing
entry, the existing entry is modified with new values. When you modify an entry, the name
cannot be changed.
PVCName Enter a name for this PVC Configuration entry.
DLCI Enter the Data Link Connection Identifier (DLCI) number for this PVC.
Local IP Enter the IP address for the PVC.
You must enter the IP address in the dotted format, for example 255.255.255.255.
Subnet Mask Enter the Subnet Mask for the PVC.
You must enter the subnet mask in the dotted format, for example, 255.255.255.255.
CIR Enter the committed information rate in Kbps. The CIR is the rate the carrier guarantees
that the router transmits at over a predetermined time interval when congestion is not
present.
The possible values are 0 are 1024.
The default is 64.
Contact your service provider for the correct setting.
Business Communications Manager uses one-second intervals to measure this
parameter.
Excess Burst BE Combined with the committed burst rate, lets you set, in Kbps, the maximum number of
bits the router transmits over a predetermined time interval if there is no congestion. The
combined value of committed burst and excess burst must be less than or equal to the line
speed.
The possible values are 0 to 1024.
The default value is 64.
DC Retry Time Enter the Data Compression Retry Time is seconds.
The possible values are 1 to 15 seconds.
The default value is 3 seconds.
DC Retry Count Enter the Data Compression Retry Count.
The possible values are 1 to 128 retries.
The default value is 10 retries.
Compression Select RTP Header to enable RTP Header compression on this PVC.
Select Data to enable data compression on this PVC.
Select None to disable compression.
Broadcast Select Enabled to enable broadcast capability on this PVC. When broadcast is enabled,
broadcast messages are sent out over this PVC.
Select Disabled to disable broadcast capability on this PVC.
The default setting is Disabled.
Universal T1 WAN (UTWAN) 169
Business Communications Manager 3.6 Programming Operations Guide
6Click the Save button.
Modifying the PVC Configuration settings
Follow these steps to modify a PVC Configuration setting:
1On the navigation tree, click the Resources key and click the UTWAN Key.
2Click the UTWAN1 heading.
The Summary screen appears.
3Click the PVC Configuration tab.
The PVC Configuration screen appears.
4Click the entry you want to modify in the PVC Configuration table
5On the Configuration menu, click Modify PVC Configuration.
The PVC Configuration dialog box appears.
6Change the PVC Configuration parameters.
7Click the Save button.
Deleting a PVC Configuration record
Follow these steps to delete a PVC Configuration record.
1On the navigation tree, click the Resources key and click the UTWAN Key.
2Click the UTWAN1 heading.
The Summary screen appears.
3Click the PVC Configuration tab.
The PVC Configuration screen appears.
4Click the entry you want to delete in the PVC Configuration table.
5On the Configuration menu, click Delete PVC Configuration.
A message prompts you to confirm the deletion.
6Click the Yes button.
End to End Frag Select Enabled to enable End-to-End Fragmentation on this PVC.
Select Disabled to disable End-to-End Fragmentation on this PVC.
The default setting is Disabled.
Frag Size Enter the maximum frame size in bytes.
Any packets that have a frame size larger than this value will be fragmented.
The possible values are 200 to 800 bytes.
The default value is 200 bytes.
Table 23 WAN PVC Configuration parameters (Continued)
Column Description
170 Universal T1 WAN (UTWAN)
P0609326 1.1
Configuring the UTWAN to use a PPP link
Configuring the UTWAN to use a PPP link consists of the following:
•“Configuring the PPP Parameters” on page 170
•“Configuring the LCP Options” on page 171
•“Configuring the IPCP Options” on page 173
•“Configuring the PPP User List” on page 174
Configuring the PPP Parameters
1On the navigation tree, click the Resources key and click the UTWAN key.
2Click the UTWAN1 heading.
The Summary screen appears.
3Click the PPP Parameters tab.
The PPP Parameters screen appears.
4Configure the PPP Parameters settings according to the information in the following table.
Table 24 PPP Parameters
Attribute Description
Compression
Status
Select RTP Header to enable RTP Header compression on this PPP link.
Select Data to enable data compression on this PPP link.
Select None to disable compression.
Fragmentation
Status
Select Enabled to enable fragmentation on this link.
Select Disabled to disabled fragmentation on this link.
The setting you choose for Fragmentation Status must be the same as the setting on the other
end of the PPP link.
The default setting is Disabled.
Fragmentation
Trigger
Select FrameSize if you want Business Communications Manager to use the size of the packet
to decide if the packets need to be fragmented.
Select DelayTime if you want Business Communications Manager to use delay time to decide if
the packets need to be fragmented.
Frame Size This parameter is only available if you selected FrameSize for the Fragmentation Trigger
parameter.
Enter the maximum frame size in bytes. Any packets that have a frame size larger than the size
specified are fragmented.
Possible values are 160 to 800 bytes.
The default value is 256 bytes.
Delay Time This parameter is only available if you selected DelayTime for the Fragmentation Trigger
parameter.
Enter the maximum delay time, in milliseconds, for the packets. If the delay time exceeds this
value the packets are fragmented.
Possible values are 10 to 40 milliseconds.
The default value is 10.
Universal T1 WAN (UTWAN) 171
Business Communications Manager 3.6 Programming Operations Guide
5Press the TAB key to save your settings.
Configuring the LCP Options
1On the navigation tree, click the Resources key and click the UTWAN key.
2Click the UTWAN1 heading.
The Summary screen appears.
3Click the LCP Options tab.
The LCP Options screen appears.
4Configure the LCP Options according to the information in the following table.
Low Water Mark This is one of the parameters that controls the link layer queuing behavior for PPP when link layer
fragmentation is enabled.
Possible values are 1 to 7.
The default value is 6.
Note: Nortel Networks highly recommends that you do not change the Low Water Mark from the
default value.
High Water Mark This is one of the parameters that Controls the link layer queuing behavior for PPP when link
layer fragmentation is enabled.
Possible values are 2 to 8.
The default value is 7.
Note: Nortel Networks highly recommends that you do not change the High Water Mark from the
default value.
Note: The High Water Mark must be a larger than the Low Water Mark.
Table 25 LCP Options
Attribute Description
Receive packet
size
Enter the maximum size of the received packets.
Possible values are 64 to 1614 octets.
The default value is 1500 octets.
Authentication
Mode
Specify the Authentication mode used by this link.
Select CHAP if you are using CHAP authentication on this link.
Select PAP if you are using PAP authentication on this link.
Select None if no authentication is required on this link.
The default value is None.
MultilinkMRRU Enter the maximum number of octets that can be in the information field of the reassembled
packet.
Possible values are 64 to 1614 octets.
The default value is 1500 octets.
Table 24 PPP Parameters (Continued)
Attribute Description
172 Universal T1 WAN (UTWAN)
P0609326 1.1
5Press the TAB key to save your settings.
MultilinkSSN Select if you want to receive fragments with short, 12-bit sequence numbers
Select Enabled if you want to receive short sequence numbers.
Select Disabled if you do not want to receive short sequence numbers.
The default value is Disabled.
MultiLinkEDClass Enter the Multilink Class for the Endpoint Discriminator.
Possible values are 0 to 5.
The default value is 1.
MultiLinkEDValue Enter the Multilink identifier address for the Endpoint Discriminator.
LCP Timeout
Value
Enter the number of seconds waited before retransmitting Configure-Request and
Terminate-Request packets.
Possible values are 1 to 60 seconds.
The default value is 3 seconds.
LCP Max
Terminate
Request
Enter the maximum number of Terminate-Request packets sent.
Possible values are 1 to 5.
The default value is 2.
LCP Max
Configure
Request
Enter the maximum number of Configure-Request packets sent.
Possible values are 1 to 15.
The default value is 10.
LCP Max
Configure Nak
Enter the maximum number of Configure-NAK packets sent.
Possible values are 1 to 10.
The default value is 5.
LQ Reporting
Period
Enter the maximum time in 100th of seconds between the transmission of packets.
Possible values are 100 to 60000.
The default value is 1000.
Retry Timer
Timeout Value
Enter the number of seconds waited before retransmitting LCP Configure-Request packets.
Possible value are 30 to 180.
The default value is 60.
Table 25 LCP Options (Continued)
Attribute Description
Universal T1 WAN (UTWAN) 173
Business Communications Manager 3.6 Programming Operations Guide
Configuring the IPCP Options
1On the navigation tree, click the Resources key and click the UTWAN key.
2Click the UTWAN1 heading.
The Summary screen appears.
3Click the IPCP Options tab.
The IPCP Options screen appears.
4Configure the IPCP Options according to the information in the following table.
5Press the TAB key to save your settings.
Table 26 IPCP Options
Attribute Description
IPCP Timeout
Value
Enter the number of seconds waited before retransmitting Configure-Request and
Terminate-Request packets.
Possible values are 0 to 65000 seconds.
The default value is 3 seconds.
IPComp Protocol Enter the IPComp Protocol.
Possible values are 0 to 65000.
The default value is 0.
IPCP Max
Terminate
Request
Enter the maximum number of Terminate-Request packets sent.
Possible values are 0 to 65000.
The default value is 2.
IPCP Max
Configure
Request
Enter the maximum number of Configure-Request packets sent.
Possible values are 0 to 65000.
The default value is 10.
IPCP Max
Configure Nak
Enter the maximum number of Configure-NAK packets sent.
Possible values are 0 to 65000.
The default value is 5.
174 Universal T1 WAN (UTWAN)
P0609326 1.1
Configuring the PPP User List
You can restrict access to the network using the PPP User List. Business Communications
Manager uses the information on this list to verify and confirm the identity of the user. Only those
users whose names appear on the PPP User List can access the network. The PPP User List
configuration allows you to add, modify or delete an item on the list.
Adding an interface to the PPP User List
To add an item to the PPP Password List:
1On the navigation tree, click the Resources key and click the UTWAN heading.
The Resources screen appears.
2Click the UTWAN1 heading.
The Summary screen appears.
3Click the PPP User List tab.
The PPP User List screen appears.
4On the Configuration menu, click Add PPP User&Password.
The Interface List dialog box appears.
5Configure the PPP User List parameters according to the following table.
Table 27 PPP User parameters
Attribute Description
Entry (PP#) Enter the PPP User identifier.
The Entry number uniquely identifies an user on the PPP User List. The value for this setting
must follow certain conventions. You must type the prefix 'PP' followed by a unique number
identifying the PPP User. For example, 'PP2' is a valid name. If you specify an existing Entry
number, you receive an error message. If you use non-sequential numbers the system
automatically reassigns sequential numbers. The Entry number does not have any significance,
other than uniquely identifying a PPP User.
Interface Name Enter the name for the interface. This is the name that is used to identify this specific interface.
Host Name Enter a name for the remote host.
The host name can be up to 32 characters in length.
PPP User Name Enter the user name associated with the computer you want Business Communications
Manager to identify as a valid network user.
The User Name can be up to 32 characters in length.
You must overwrite the default user name User with the user name you want to add to the list.
PPP Password Enter the password you want to assign to the user defined in the PPP User Name box. The
password can contain a combination of lowercase and uppercase letters and numbers.
The Password can be up to 32 characters in length.
Universal T1 WAN (UTWAN) 175
Business Communications Manager 3.6 Programming Operations Guide
6Click the Save button.
To modify an existing item on the PPP User List:
1On the navigation tree, click the Resources key and click the UTWAN heading.
The Resources screen appears.
2Click the UTWAN1 heading.
The Summary screen appears.
3Click the PPP User List tab.
The PPP User List screen appears.
4Click the PPP User you want to modify.
5On the Configuration menu, click Modify PPP User&Password.
The PPP User List dialog box appears.
6Change the PPP User parameters.
7Click the Save button.
To delete an item from the PPP User List
1On the navigation tree, click the Resources key and click the WAN heading.
The Resources screen appears.
2Click the UTWAN1 heading.
The Summary screen appears.
3Click the PPP User List tab.
The PPP User List screen appears.
4Click the PPP User you want to delete.
5On the Configuration menu, click Delete PPP User&Password.
A confirmation dialog box appears.
6Click the Yes button.
PPP Remote User
Name
Enter the user name associated with the computer you want Business Communications
Manager to identify as a valid network user.
The Remote User Name can be up to 32 characters in length.
You must overwrite the default user name User with the user name you want to add to the list.
PPP Remote
Password
Enter the password you want to assign to the user defined in the PPP User Name box. The
password can contain a combination of lowercase and uppercase letters and numbers.
The Remote Password can be up to 32 characters in length.
Table 27 PPP User parameters (Continued)
Attribute Description
176 Universal T1 WAN (UTWAN)
P0609326 1.1
Configuring additional IP addresses for the UTWAN
You can assign multiple IP addresses to a single WAN interface that is configured to use frame
relay. Using this functionality, you can configure the Business Communications Manager as the
hub in a hub and spoke configuration. When Business Communications Manager is the hub or
central site, Business Communications Manager can provide at least two IP address classes on the
primary WAN interface. This allows the system to provide Direct Mode capability.
Examples of uses of multiple IP addresses
• You can use a single WAN physical link to connect to both an intranet and the internet using
separate addressing schemes.
• A network service provider can create a separate IP address for management functions over
the WAN interface.
In both of these examples, broadcast traffic destined for one IP address would not be transmitted
on the links associated with the other IP address.
Restrictions when using multiple IP addresses
• Nortel Networks does not recommend using more than two IP address classes.
• Multiple IP addresses supports RIP routing.
• IPSec does not support the use of these multiple IP addresses for Branch Office Local
Endpoint Addresses, Remote Endpoint Addresses or the Destination IP Address for IPSec
VPN Clients
Adding an additional IP address
1On the navigation tree, click the Resources key and click the UTWAN key.
2Click the UTWAN1 heading.
The Summary screen appears.
3Click the Additional IP Address tab.
The Additional IP Address screen appears.
4On the Configuration menu, click Add Additional IPAddress.
The Additional IP Address screen appears.
5Configure the Additional IP Address parameters with the information in the following table.
Universal T1 WAN (UTWAN) 177
Business Communications Manager 3.6 Programming Operations Guide
6Click the Save button.
Modifying an additional IP address
1On the navigation tree, click the Resources key and click the UTWAN key.
2Click the UTWAN1 heading.
The Summary screen appears.
3Click the Additional IP Address tab.
The Additional IP Address screen appears.
4Click the Additional IP Address you want to modify.
5On the Configuration menu, click Modify Additional IPAddress.
The Additional IP Address screen appears.
6Change the Additional IP Address parameters.
7Click the Save button.
Deleting an additional IP address
1On the navigation tree, click the Resources key and click the UTWAN key.
2Click the UTWAN1 heading.
The Summary screen appears.
3Click the Additional IP Address tab.
The Additional IP Address screen appears.
4Click the Additional IP Address you want to delete.
5On the Configuration menu, click Delete Additional IPAddress.
A confirmation dialog box appears.
6Click the Yes button.
Table 28 Additional WAN IP addresses
Attribute Description
Range (AA#) Enter the Additional IP Address identifier.
The Range number uniquely identifies an Additional IP Address. The value for this setting must
follow certain conventions. You must type the prefix 'AA' followed by a unique number
identifying the Additional IP Address. For example, 'AA2' is a valid name. If you specify an
existing Range number, you receive an error message. If you use non-sequential numbers the
system automatically reassigns sequential numbers. The Range number does not have any
significance, other than uniquely identifying an Additional IP Address.
IP Address Enter the Additional IP address of the WAN interface in the following format: 255.255.255.255.
Subnet Mask Enter the subnet mask of the WAN interface in the following format: 255.255.255.255.
If you do not know your subnet mask address, contact your system administrator or your
Internet service provider.
178 Configuring a data module
P0609326 1.1
Viewing the UTWAN performance
To access the UTWAN performance graphs and tables:
1On the navigation tree, click the Resources key and click the UTWAN key.
2Click the UTWAN1 heading.
The Summary screen appears.
3On the Performance menu, click UTWAN1 Graph.
The WAN Graph: Statistic Chart appears.
4On the Performance menu, click UTWAN1 Table.
The WAN Table: Statistic Table appears.
Viewing UTWAN resources
To view the UTWAN resource:
1On the navigation tree, click the Resources key and click the UTWAN heading.
The Resources screen appears.
Configuring a data module
DS30 bus 08 is reserved for configuring circuit switched B-channels as a WAN interface for the
Business Communications Manager. This allows the Integrated QoS Routing feature to create one
or more dial up ISDN connections via the PSTN network using PRI or BRI trunks. Business
Communications Manager automatically configures the Module type as a Data Module and sets
the Data module type to Baystack. Baystack is the only setting supported on Business
Communications Manager.
This section includes information about:
•“Viewing the data module settings”
•“Programming the BayStack settings”
Viewing the data module settings
Use the following procedure to view the current settings for the data module.
1On the navigation tree, click the Resources key and click the Media Bay Modules key.
2Click the Bus 08 heading.
The Bus 08 screen appears.
Programming the BayStack settings
When you select the BayStack data module, the following configuration settings appear:
Configuring a data module 179
Business Communications Manager 3.6 Programming Operations Guide
• Line pool access
• Line assignment
• Interfaces
This section provides information about:
•“Fixed access” on page 179
•“Switched access (PRI & BRI)” on page 180
•“Line assignment” on page 180
•“Line pool access” on page 181
Fixed access
Fixed access is supported for the Norstar Data Interface (NDI) only. To assign one or more Fixed
lines to the data module:
Adding line assignments
1On the navigation tree, click the Resources key and click the Media Bay Modules key.
2Click the Bus 08 key and click the Data Module key.
3Click the Interfaces key.
4Click the key of the interface to which you want to assign lines.
5Click the Line assignment heading.
6Click the Add button.
Or, right click the Line assignment heading and click Add.
The Add Line assignment screen appears.
7Enter the number of the Fixed line you need to assign to the interface.
8Click the Save button.
9Click the heading for the line you added.
10 Select Unassigned or Assigned.
11 Record each channel and line combination. Each channel used by the BayStack data module
maps to a line.
Deleting line assignments
1On the navigation tree, click the Resources key and click the Media Bay Modules key.
2Click the Bus 08 key and click the Data Module key.
3Click the Interfaces key.
4Click the key of the interface from which you want to delete lines.
5Click the Line assignment key and click the heading for the line you want to delete.
180 Configuring a data module
P0609326 1.1
6Click the Delete button.
Or, right click the heading for the line assignment you want to delete and click Delete.
A confirmation dialog box appears.
7Click the Yes button.
Switched access (PRI & BRI)
You can assign ISDN lines to the BayStack data module to provide:
• normal data network access for the data module
• dial-up backup and overflow bandwidth (additional channels or trunks) as needed
Line assignment
You can assign one or more lines to the BayStack data module for incoming data transmission.
Adding line assignments
1On the navigation tree, click the Resources key and click the Media Bay Modules key.
2Click the Bus 08 key and click the Data Module key.
3Click the Line assignment heading.
4Click the Add button.
Or, right click the Line assignment heading and click Add.
The Add Line assignment screen appears.
5In Line box, enter the number of the trunk or a target line you need to assign to the BayStack
data module.
6Click the Save button.
7Click the heading for the line you added.
8In the Dial-in number box, enter the Dial-In Number for the line (up to 24 digits). The
number must match the Dial-In Number entered for the line and channel in BayStack data
module programming.
9Assign additional lines to the BayStack data module as required.
Deleting line assignments
1On the navigation tree, click the Resources key and click the Media Bay Modules key.
2Click the Bus 08 key and click the Data Module key.
Note: The data module will answer data calls only. It will not answer voice calls.
Configuring a data module 181
Business Communications Manager 3.6 Programming Operations Guide
3Click the Line assignment key and click the heading for the line you want to delete.
4Click the Delete button.
Or, right click the heading for the line assignment you want to delete and click Delete.
A confirmation dialog box appears.
5Click the Yes button.
Line pool access
You can give the BayStack data module access to a line pool for outgoing data transmission.
Adding line pool access
1On the navigation tree, click the Resources key and click the Media Bay Modules key.
2Click the Bus 08 key and click the Data Module key.
3Click the Line pool access heading
4Click the Add button.
Or, right click the Line pool access heading and click Add.
The Add Line pool access screen appears.
5In Pool box, enter the letter of the line pool to provide access to the BayStack data module.
You must program line pool access when you select the switched access settings for the
BayStack data module. To use PRI line pools, program the BayStack data module to use a
destination code.
6Click the Save button.
Deleting line pool access
1On the navigation tree, click the Resources key and click the Media Bay Modules key.
2Click the Bus 08 key and click the Data Module key.
3Click the Line pool access key and click the heading for the line pool you want to delete.
4Click the Delete button.
Or, right click the heading for the line pool you want to delete and click Delete.
A confirmation dialog box appears.
5Click the Yes button.
182 Configuring a data module
P0609326 1.1
183
Business Communications Manager 3.6 Programming Operations Guide
Chapter 7
Telephony Services overview
The following sections provide a general overview of the Unified Manager Telephony Services
headings. This group of settings is located under the Services heading on the Unified Manager
main navigation tree. The records under this heading allow you to define how the lines and
telephones in your system operate.
This overview describes the following general process information:
•“Process map: Creating telephony services” on page 185
•“Telephony Services headings” on page 186
•“Planning your telephony services” on page 188
Caution: Programming affects system operation.
Only a qualified system administrator should perform startup, installation and
maintenance programming. Many of the settings affect correct system operation.
Planning: When you are ready to start planning your telephony system, the sections
called “Telephony feature planning” on page 193 provides a quick reference
guide to programming telephony features. Features are divided into sections
based on task, and each feature provides links to the part of the document
where detailed programming information resides.
Using Wizards: When you need to configure a number of telephones, the Edit DN Record
Template and Add Users Templates wizards provide many of the
programming details for telephone operations in easy-to-apply wizard
applications. Refer to “Configuring DNs using the Wizards” on page 369.
Connecting: What lines and what type of devices are available to the system is determined
by which media bay modules are active on your system. Refer to Chapter 5,
”Configuring resources — media bay modules” on page 123, and to the
installation charts from the Business Communications Manager Installation
and Maintenance Guide.
Configuring: The headings under Telephony Services allow you to program and manage
all the voice components associated with Business Communications
Manager. You can set up lines and trunks, define settings for individual
telephones, and customize your telephone network to suit your requirements.
IP telephony: IP telephones and voice over IP (VoIP) trunk configurations have additional
screens not located under Telephony Services. These screens are located
under Services, IP Telephony. Refer to the IP Telephony Configuration
Guide for details about configuring IP telephones, NetVision wireless IP
telephones, and voice over IP (VoIP) trunks.
Doorphone The Business Series Terminal doorphone provides an intercom system at
security doors. One or more internal telephones can receive notification from
the doorphone. Refer to the BST doorphone documentation for configuration
details for this piece of telephony hardware.
184
P0609326 1.1
Voice mail If you are using the voice mail application for this unit, you can set up mail
boxes for system telephones as well as for telephones from other systems on
the same private network. Voice mail configuration information is contained
in the CallPilot suite of documents.
IVR This application allows callers to receive assistance through an interactive
interface. Configuration information is contained in the IVR document.
IP music Music on hold can be configured either from an external source wired to the
Business Communications Manager equipment, or by using computer-based
music files (IP music). IP music configuration is explained in ........
Process map: Creating telephony services 185
Business Communications Manager 3.6 Programming Operations Guide
Process map: Creating telephony services
The figure below lists the tasks involved in creating telephony services on your system.
Figure 40 Tasks for installing the telephony components
System
hardware
installed
Identify
installed
modules
Confirm
system
settings
Set up
lines, loops,
routes
Set up
telephone
records
Configure
special
features
Refer to the Installation and Maintenance Guides for hardware setup
and wiring for peripheral equipment, including the computer you are
going to use for programming.
After media bay modules are installed, they need to be identified to the
system, so the system can assign lines or DNs. Refer to “Configuring
resources — media bay modules” on page 123.
A number of settings affect all lines or sets, including System Speed dial
and voice mail access numbers. Most of these settings are default.
However, confirm that they suit your purposes. Refer to “Configuring
system settings” on page 451.
When the media bay modules are installed, the system automatically
assigns line or loop numbers. You may need to change some of the line
settings. Refer to “Configuring lines” on page 227.
DNs define each telephone or piece of equipment connected to the
system. Within the System DNs headings, you can define how individual
telephones will interact in the system. Refer to “Configuring DNs for
system devices” on page 387. IP telephone configuration is contained in
the IP Telephony Configuration Guide.
After the basic telephony information is set, you can configure the
special features such as Schedules, Hunt groups, Hospitality services,
portable handsets, and voice mail. Portable handsets and voice mail
have separate documentation within the Business Communications
Manager documentation suite.
Set up
call
controls
Set up call controls for voice traffic into and out of the system:
“Configuring outgoing calls” on page 301.
“Controlling access into the system” on page 283.
and voice
networks
“Configuring public networks” on page 499.
“Configuring private networks” on page 505.
Voice over IP (VoIP) trunk configuration is contained in the IP Telephony
Configuration Guide.
186 Telephony Services headings
P0609326 1.1
Telephony Services headings
The following two figures show the Telephony Services headings in the Unified Manager.
Figure 41 Telephony Services menu options
Telephony Services
System DNs
Active Set DNs
DN XXX-XXX
General
Line Access
Line assignment
Line pool access
Answer DNs
Capabilities
Call forward
Hotline
Intrusion
User Preferences
Button Programming
User speed dials
Restrictions
Set restrictions
Schedules
Line/set restrictions
Telco Features
Active Companion DNs
Active Application DNs
Inactive DNs
Set DNs
Companion DNs
All Inactive DNs
All ISDN/DECT DNs
All System DNs
All System B2s
DN Registration
Active DNs reg’d
Inactive DNs reg’d
All DNs reg’d
DNs avail for reg’d
IP set DNs reg’d
Active
Inactive
Voice port DNs reg’d
Active
Inactive
IP wireless DNs reg’d
Active
Inactive
CTE media DNs reg’d
Active
Inactive
OAM DN reg’d
Lines
VoIP Lines
Enabled VoIP Lines
All VoIP Lines
Physical Lines
Enabled Physical Lines
All Physical Lines
Target Lines
All Lines
Line 001-492
General
Trunk/Line Data
Restrictions
Line Restrictions
Remote
Restrictions
Loops
Loop XXX
SPID
Restriction Filters
Filter 00-99
Restrictions
Restriction 01-XX
Overrides
Override XXX
Call Routing
Routes
Route XXX
Destination Codes
XXX
Schedules
Scheduled Services
Ringing Service
Ring Groups
Ring GroupXXXX
Sets
Restriction Service
Routing Service
Common Settings
Schedule names
Schedule Times
Monday - Sunday
Schedules
System speed dial
General Settings
Feature Settings
SWCA controls
Call Log Space
General Settings ....
Nortel IP Terminals
Feature labels
IP trunking
Timers
Direct dial
Set 1-5
CAP/KIM Assignment
CAP/KIM 1-12
Dialing Plan
Private Network
Public Network
Public DN lengths
Access Codes
Line Pool Codes
Carrier Codes
Remote Access Packages
Package 00-15
Line pool access
COS Passwords
COS 00-99
DN lengths
Received # length
CbC Limits
Pool XXX
Release Reasons
Network Services
ETSI
MCDN
Silent monitor
Hunt groups
Hunt group 01-30
Members
Line assignment
Companion
Registration
Portable DNs
Radio data
Re-evaluation
Radios
Cells
Hospitality
Set/room settings
Call permissions
Alarm Data
Telco Features
Voice message center
ONN Blocking
Telephony Services headings 187
Business Communications Manager 3.6 Programming Operations Guide
Typical DN record headings
Figure 42 Headings found under typical DN heading
The following table summarizes the Telephony Services subheadings. The headings are arranged
in the order in which they appear under the Telephony Services heading, not necessarily in the
order you would use them to program your system.
Table 29 Telephony Services subheadings
System DNs Allows you to assign settings to each telephone, including IP telephones.
“Configuring DNs for system devices” on page 387
Lines Allows you to assign settings to each trunk, including voice over IP (VoIP)
trunks. Target lines are also defined under this heading. Target lines direct calls
to specific sets or groups within the system. “Configuring lines” on page 227,
“Assigning target lines” on page 287.
Loops Allows you to configure settings for BRI loops. “Configuring BRI Loops” on
page 265
Restriction filters Allows you to apply restriction filters for external lines. “Defining restriction
filters” on page 344,
DN XXX-XXX
General
Name
Model/DN type
Device port
Control set
Call log passwords
Line Access
Prime line
Intercom keys
OLI number
Line Assignment
(Line 001)
Appearance type
Appearances
Caller ID set
Vmsg set
Line Pool Access
Pool A
Answer DNs
User Preferences
Model
Call log options
Dialing options
Language
Contrast
Distinct rings in use
Ring type
Button programming
External autodial
Blank
Feature/Value
Internal Autodial
User speed dial
Speed dial #
Restrictions
Set restrictions
Set lock
Allow last number
Allow saved number
Allow link
Schedules
Line/set restrictions
Telco features
First display
Auto called ID
Set log space
Available log space
Capabilities
DND on busy
Handsfree
HF answerback
Pickup group
Page zone
Paging
Direct dial
Priority call
Auto hold
Aux ringer
Allow redirect
Redirect ring
Keep DN alive
Receive short tones
SM supervisor
Auto hold for
incoming page
Call forward
Fwd no answer to
Fwd no answer delay
Fwd on busy to
Hotline
ATA settings
ATA answer timer
ATA use
Msg indicate
ATA dvc
Intrusion
188 Planning your telephony services
P0609326 1.1
Planning your telephony services
Nortel Networks strongly recommends that you use the planning tables from the Installation and
Maintenance Guide or the Programming Records spreadsheets to understand what lines and set
numbers (DNs) are available to you. Programming records, which are set up in Microsoft Excel*,
provide a reference for your system programming. These forms are located on the documentation
CD.
Coordinate this information with call planning to assess your system requirements (“Telephony
feature planning” on page 193).
Chart this information to determine how to set up your lines and telephones. “Three basic system
telephony configurations” on page 189 provides examples of three basic, single-office,
configurations on which you can base your planning.
DN lengths and the Start DN are identified during initialization of the system, when you run the
Quick Start Wizard. Ensure these settings are correct before you do any other programming. This
is especially important if your system is part of a network, where your DN length and numbering
plan must match that of the other systems in the network.
The Programming Records are divided into three sections:
• Start-up forms for system programming
• Data forms for the protocols you use to connect your Business Communications Manager to
your business network
• Telephony forms, which you fill out for your system telephony configuration.
Call Routing Allows you to define how calls are routed out of your system. “Configuring
call routing” on page 320
Scheduled Services Allows you to schedule services, such as night ringing, routing and restrictions.
“Configuring schedules” on page 483
System Speed Dial Allows you to create speed dial codes that can be accessed from any telephone
in the system. “Configuring system speed dial numbers” on page 475
General Settings Allows you to change system-wide settings. “Configuring system settings” on
page 451
Hunt groups Allows you to create and manage Hunt groups. “Configuring Hunt groups” on
page 573
Companion Allows you to assign settings for portable telephones.Companion
configuration is described in the Companion Configuration Guide.
Hospitality Allows you to assign Hospitality settings. “Configuring Hospitality Services”
on page 589
Telco Features Allows you to assign settings for external voice message services. “Setting
system telco features” on page 478
Table 29 Telephony Services subheadings (Continued)
Planning your telephony services 189
Business Communications Manager 3.6 Programming Operations Guide
Three basic system telephony configurations
This section provides a broad overview of the telephony setup for three of the most common office
telephone configurations.
Square system
This is a typical small-office setup, where all lines are available on any telephone. There may not
be a designated attendant.
Figure 43 Square system
Incoming calls
1Call comes in on a line.
2Call rings and flashes at the Reception telephone (flashes, but no ring, on other telephones).
3Receptionist answers and finds out who the call is for.
4Receptionist calls or pages the person and tells them what line to pick up.
5The person can pick up the call at any of the telephones.
Outgoing calls
1User selects a line button and dials the number.
CO line 1
CO line 2
CO line 3
CO line 4
Assigned all four lines/
appearance only
Assigned all four lines/
appearance only
Assigned all four lines/
appearance only Receptionist (optional)
Assigned all four lines/
appearance and ring
190 Planning your telephony services
P0609326 1.1
PBX system
This setup is for a larger offices which have fewer CO lines than there are telephones. In this case
the lines are pooled, and the line pool is assigned to all telephones. As well, there is a designated
attendant with a telephone that has all lines individually assigned.
Figure 44 PBX system
Incoming calls
1A call comes in on a line.
2The receptionist answers the call and finds out who the call is for.
3The receptionist transfers the call to a specific telephone (DN).
4The person can pick up the call at that telephone only.
Outgoing calls
1User selects the intercom button or dials a line pool access code, which selects a line in the line
pool.
2The user dials the outgoing CO number.
CO line 1
CO line 2
CO line 3
CO line 4
Lines are assigned to a line pool
Receptionist
Assigned all lines/
appearance and ring
All telephones
are assigned
access to the line
pool for
out-going calls
Planning your telephony services 191
Business Communications Manager 3.6 Programming Operations Guide
DID system
This setup allows you to assign a dedicated phone number to each telephone. The CO assigns a list
of available numbers for each DID (Direct Inward Dial) line. You can change your DN range to
match these numbers, or you can use target lines to match each number with a DN.
Figure 45 DID system
Incoming calls
1DID trunks are assigned to be auto-answer.
Note: PRI and BRI lines are automatically set to auto-answer.
2All telephones are assigned target lines.
3A caller dials a system code and a DN. In the example shown above, it might be 769-4006.
4The call comes into the trunk, which answers and forwards the call on the target line assigned
to that number.
5The telephone assigned to that target line rings.
You can assign unanswered or busy telephones to Call Forward to a prime set, if you have a
designated attendant, or to a voice mail system.
CO DID line i.e. 769
with range of call
numbers (i.e. 4005 to
4020)
Target line mapped to
DN (4005)
Target line mapped to
a DN (4006)
Target line mapped to
DN (4007) Target line mapped to
DN (4008)
192 Telephony metrics
P0609326 1.1
Telephony metrics
The system provides call metrics for Hunt groups (“Monitoring Hunt groups” on page 585), PRI
Call-by-Call services limits (“Viewing CbC limit metrics” on page 343), and IP telephony fallback
(IP Telephony Configuration Guide).
193
Business Communications Manager 3.6 Programming Operations Guide
Chapter 8
Telephony feature planning
This section provides a quick reference to telephony programming basics, which you need to
understand before you can decide what defaults you want to change, and how you want to
configure your telephones and routing.
• Understand how to plan system numbering strings and codes
“Creating numbering plans” on page 194. It is important that you understand how calls get
directed out of your system and accepted into the system. In a stand-alone system, only PSTN
routing may be required (“Configuring public networks” on page 499). For systems on a
private network, more complicated numbering plans and routing may be required
(“Configuring private networks” on page 505).
• Understand how the system features work to provide call function. This section provides an
overview of the various call features that are programmed through the Unified Manager. The
features are divided into task categories, or categories of similar features. Each feature
includes a link to the specific programming section.
Refer to your Telephony Features Handbook for information about using these features and to
view the display prompts and error prompts for the features.
—“Name a telephone, a line or a Hunt group” on page 200
—“Programming line access” on page 202
—“Answering calls” on page 205
—“Make a call” on page 209
—“Handling calls” on page 212
—“Communicating in the office” on page 216
—“Using handsfree and mute” on page 218
—“Track your incoming calls” on page 218
—“Use alternate or scheduled services” on page 220
—“Special telephones” on page 220
—“Auxiliary devices” on page 221
—“Call out to external systems using host system dialing” on page 222
—“Call in from outside the system” on page 224
—“Controlling telephone programming access” on page 224
—“Special features” on page 225
Not all features require programming; for example, if they are a default function of the system.
Refer to Appendix B, “System Features,” on page 861 for a comprehensive list of the features that
are available on a fully-configured system.
194 Creating numbering plans
P0609326 1.1
Creating numbering plans
Access to and from and within your system is based on dialing strings and how the system adds or
deletes from this sequence to route the call. A dialing string is the numbers that the caller
physically enters on a telephone or programs onto a memory key. This can also include numbers
the system adds to a dial string when a call goes through call routing. This process also includes
how the receiving system reads the sequence. All of which means that coordination is required at
both ends of the call to ensure that calls are routed correctly. This is especially important if calls
need to be routed through your system, or through a remote system, to reach another node on the
network. Refer to “Creating tandem private networks” on page 520.
The system performs some number programming checks on the initial digits of a dial string, such
as for access codes. However, dial strings can contain more than one imbedded code, therefore, it
is important that your dialing plan dials out the segments in the correct order. Refer to “Outgoing
calls” on page 197.
Basic numbering: The first numbering that you set is your DN length (Start DN length) and Start
DN and Public and Private Received # length. DN length and Start DN information is entered
when the Quick Start Wizard runs at system setup. These numbers can be changed after the system
has been set up, but only at the risk of compromising other numbering in the system. If your
system is part of a network, these numbers must be coordinated with the other nodes in the
network to ensure that the network dialing plans are consistent. Refer to “Incoming calls” on page
198.
For detailed information about the Quick Start Wizards, refer to the wizards help. For information
about private networking, refer to Chapter 19, “Configuring private networks,” on page 505.
Remote call-in: When you set up lines that do not offer DISA directly on the line, you can
determine if remote access prompts with DISA or allows auto answering. This determines the
Public/Private Auto DN and Public/Private DISA DN settings, which are set under Services,
Telephony Services, General settings, Access codes. These numbers will have the same first
number as you specified in the Start DN and be of the same length. Remote callers dial the system
public or private access number, and then dial either the Private/Public Auto DN or Private/Public
DISA DN, as determined by the line setup.
Variable Example settings
Start DN 2 (221)
DN length, Received # length
Private length
Public length (max)
3
10 (North America)
Variable Example or default settings
Private Auto DN 2XX
Public Auto DN 2XX
Private DISA DN 2XX
Public DISA DN 2XX
Creating numbering plans 195
Business Communications Manager 3.6 Programming Operations Guide
Incoming calls: If your system is networked with other systems, you will also need to determine a
private access code that tells your system when a call is to be dialed out over the private network
instead of over the public network. This access code is also entered under Services, Telephony
Services, General settings, Access codes. This code is included as part of any destination code or
dialing sequence that is to be routed over the private network.
MCDN special call types: If your system is networked to other types of systems, such as
Meridian 1, which sends calls through one or more Business Communications Manager systems to
the public network, you need to specify specific call-type codes. These codes append to the
incoming dial string, so that the call-type remains intact as it passes through the Business
Communications Manager call processing:
Calls coming in over private networks or PRI/BRI lines can either terminate at one telephone,
called the prime telephone, or target lines can be set up for each telephone or group of telephones
to which the calls are directed. As with other incoming calls, these calls can have a public or
private call type that matches to a public or private received number assigned to a target line.
Outgoing calls: Other network codes include the information about private and public dialing
codes that you enter under Services, Telephony Services, General settings, Dialing Plans
Variable Example or default settings
Private Access Code 6
Variable Example or default settings
Local Access Code 9 Coordinate these settings with Meridian
routing for these calls types and the Private
Access Code.
National Access Code 61
Special Access Code 911
Variable Example or default settings
Private received number <CDP: same as DN of telephone>
<UDP: LOC code + DN>
Public received number <North America: 10 digits XXX-XXX-XXXX, the trailing digits are the DN>
<DPNSS: maximum number of digits in local dialing pattern>
Variable Example or default settings
Private network ID Number that identifies the system as part of the private network
Location code UPD networks
Private DN length DPNSS systems only
Public DN lengths (prefixes) Public dialing table
196 Creating numbering plans
P0609326 1.1
Internal feature access: Meanwhile, you need to keep in mind that the leading digit of any of the
above dialing codes cannot conflict with the other system access codes that you want to use:
Line pool and destination access codes: Once these basic numbers have been picked, you can
decide what numbers to use for line pool access codes and/or destination codes. The system will
not allow these codes to start with any of the numbers currently assigned. If you are working with
an established system of dialing, you may want to ensure that the numbers that the users are
familiar with dialing are reserved for these codes.
For instance, if the users are familiar with dialing 9XXXXXXX to access numbers outside of their
own offices, you will want to reserve this number for the destination codes. If you are setting up a
new system, you could opt to use the location codes of the other systems as destination codes, or
you could define one number for local calls (but which are still outside the system) and one
number for long haul calls. For example: The users may dial 6<DN number> for calls within a
local system, but dial 8<area code><DN number> for calls in another city over the public network.
Analog telephones require a code to dial out of the system, since the intercom button only accesses
the internal system. The external access code may be the same as a line pool code, in which case,
the line pool code overrides this setting.
Variable Example or default settings
Park Prefix 1 (101-125)
Direct Dial Digit 0
Variable Example or default settings
Line pool codes (first character) 5
Destination codes (first character) 6<up to 11 more characters>
9<up to 11 more characters>
Variable Example or default settings
External code 9
Creating numbering plans 197
Business Communications Manager 3.6 Programming Operations Guide
Outgoing calls
Outgoing calls require line pool access codes or destination code (with defined routes) to leave the
system.
• Access codes provide direct, unscheduled access to an analog, digital (T1), of Voice over IP
(VoIP) line pool. Refer to “Programming access codes” on page 310.
• Destination codes also provide access to line pools, but they also allow more flexibility in
dialing, which allows for more complex routing options, such as scheduling, fallback routing
(VoIP trunks), call definition, and multiple routing (least-cost routing). Routing also allows
you to minimize the dialout for the user, especially to systems on the same private network.
Refer to “Configuring call routing” on page 320.
Outgoing calls can be either public or private, which is defined by the route. The public or private
designation determines which dialing plan is used to determine the validity of the call. Normally,
public calls are routed over PSTN trunks and private calls are routed over a private network.
However, MCDN trunks can also pass calls designated as public to allow remote nodes on the
network to call out of the PSTN of a local node. This is called tandem dialing. Refer to “Outgoing
private calls routing” on page 305, “Outgoing public calls routing” on page 307 and “Using the
MCDN access codes (tandem calls)” on page 315.
• If the outgoing call is designated as private, the system checks the beginning of the string for a
destination code that routes to a private network. It also checks that the dial string is the correct
length. The destination code routing determines what the final dial out string will be, adding or
removing digits, as required.
• If the outgoing call is designated as public, the system checks the beginning of the string for a
destination code that routes to a PSTN or an MCDN trunk. If the call routes to a public route,
the system checks the public dialing table to ensure that the dialout string has legitimate
leading digits and is the correct length. If the call routes to an MCDN trunk, the call is passed
as dialed, minus the private networking codes. The call will pass through the system until the
system with the matching destination code receives it, at which point it will be sent through the
local PSTN of that system.
198 Creating numbering plans
P0609326 1.1
Incoming calls
Incoming call handling also depends on the call type. The system also uses the Public and Private
DN # length settings to determine call handling. Refer also to “Defining DN length” on page 284.
The system processes a call in the following way:
1The system receives a call from the public or private network.
2The system identifies the call type:
Public calls:
• If the call is from the MCDN network and is a local, national, or special call type, the
system prepends the appropriate access code.
• If the call is from ETSI-QSIG, MCDN, NI, DMS100, DMS250) and tagged as
Private/Subscriber, the system prepends the Private access code, if the dialing plan is UDP.
• If the call is tagged as Unknown/Unknown or Private/Unknown (ETSI-QSIG, MCDN, N1,
DMS100, DMS250 trunks), no access code is added.
• For all other call types, the system truncates the trailing digits to the Public Received #
Length. (Go to step 5)
Private calls:
• If the call is tagged as Private/Subscriber or Private/UDP, the system prepends the Private
access code.
• If the call is tagged as Private/CDP, no access code is added.
3The system tries to match the first digit(s) of the dial string to a destination code. If the digit(s)
matches, the dial string is routed out of the system.
4If the system cannot match the first digit(s) to a destination code, it truncates the trailing digits
to the Public Received # length or Private Received # length, as appropriate to the call type.
5The system again tries to match the leading digit(s) to a destination code. If the digit(s) match,
the dial string is routed out of the system.
6If the system cannot match the first digit(s) to a destination code, the system tries to match the
dial string to a target line (Public or Private Received Number). If the dial string does not
match any target lines, the call is routed to the prime line.
Refer to the figure below for a graphic illustration of incoming call processing.
Creating numbering plans 199
Business Communications Manager 3.6 Programming Operations Guide
Figure 46 Incoming public and private call coding
Call
comes in
System checks call type
MCDN Local/
National/Special
Unknown/Unknown
or Private/Unknown
Default incoming
call handling
Private/Subscriber
or Private UDP Private/CDP
Prepend
appropriate
access code
Prepend private
access code
Truncate digits to Public Received # length/Private Received # length
Match Dest. code?
Match Public/Private
Rx digits?
Call routed
out of the
system as a
tandem call
Call
routed to
target line
Public Private
Match Dest. code?
No
No
No
Yes
Yes
Yes
Call
routed to
Prime set
200 Name a telephone, a line or a Hunt group
P0609326 1.1
Name a telephone, a line or a Hunt group
You can assign names to identify external lines, target lines, and your colleagues’ telephones.
During a call, the name (if programmed) appears on the telephone display instead of on the
external line number or internal telephone number of the caller.
Names can contain both letters and numbers, but cannot be longer than seven characters. You
cannot use the # and * symbols.
Note: You can give the same name to a telephone and a line in your system. Use initials,
abbreviations, or even nicknames to give each telephone a unique name to avoid confusion.
You can also determine if the calling line ID (CLID) is received by a telephone, or if the CLID
information from a system telephone gets sent out over the network. Refer to “Incoming and
outgoing call display” on page 201.
Programming:
• Name a line/target line: “Using the General record” on page 235
(Services, Telephony Services, Lines)
• Name a telephone: “Identifying the telephone (General heading)” on page 391
(Services, Telephony Services, System DNs)
• Name a hunt group: “Identifying a Hunt group” on page 575
(Services, Telephony Services, Hunt Groups)
• Determine what displays first: “Configuring telco features” on page 445 (First
display)
K9 Unit
Target line Trunks
Public or
Private
network
5553465
K9 Unit
Naming components in the system
K9help
Hunt group
Incoming and outgoing call display 201
Business Communications Manager 3.6 Programming Operations Guide
Incoming and outgoing call display
If you subscribe to Call Display services from your local telephone company, one line of
information about an external caller appears on the display after you answer a call. If you answer
before the Call Display information appears on your display, press FEATURE 811 to view the
line number or line name. When you transfer an external call to another telephone in your system,
the same information appears on the recipient telephone display.
Depending on the services you subscribe to, incoming Call Display information can contain up to
three parts:
• the name of the caller
• the number of the caller
• the name of the line in your system that the call is on
Call display information can also be sent out when a system telephone calls out of the system.
What displays at the called party’s telephone, depends on what the private or public lines allow.
Outgoing call display information can be allowed or blocked at the system level or single
telephone level.
For each telephone, you can determine which information appears on the display first.
Programming:
• Lines: Determine which telephones display incoming CLID for an analog line or that
provides CLID (ASM8+ module), or for a target line: “Determining line
assignments” on page 397. (Caller ID set)
• Lines: Determine which PRI or BRI modules will allow outgoing CLID:
“Configuring the trunk module to line type” on page 131. (Send name display)
• Loops: Determine which BRI modules will allow outgoing CLID (QSIG trunks,
only): “Identifying BRI T-loops (ETSI, QSIG)” on page 271. (Send name display)
• VoIP trunks: Determine which VoIP trunks will allow outgoing CLID (Services,
Telephony Services, General settings, IP trunking). (Send name display)
• Incoming call display, alpha tagging: Program a name to appear as call display when
a call comes in on an analog line that supports number-only CLID, or on target lines.
Refer to “Using alpha tagging for name display” on page 455.
• System: Determine whether name, line number, or system number appears first on
the telephone display: “Configuring telco features” on page 445.
• Outgoing call display, telephones: Determine what number is displayed to a
destination telephone when a call is made from a system telephone to a telephone on
the private or public network: “Configuring line access” on page 393. (Public and
Private OLI)
• Determine the system-wide name that displays for calls made to external numbers:
“Programming Business name display” on page 455. FEATURE 819 blocks call
display for an outgoing call.
202 Programming line access
P0609326 1.1
Programming line access
There are a number of ways you can configure your lines. You can assign each line to each
telephone, or a specific line to a specific telephone. You can also pool your lines so that a number
of telephones have access to several lines.
This section contains the information split into these sections:
•“Making lines available” on page 202
•“Incoming calls” on page 204
•“Outgoing calls” on page 204
Refer to “Three basic system telephony configurations” on page 189 for examples of line settings
for three common types of systems.
Making lines available
• You can determine whether a line will be assigned solely to one telephone, or if a group of
users will have access to the line.
• Even when you use line pools, it is possible that a line pool will be unavailable for outgoing
traffic. To alleviate this, you can determine overflow paths for any routes that you designate.
Refer to “Using multiple routes and overflow routing” on page 336 for more information
about overflow routing.
• Incoming lines can be assigned to telephones as individual lines or through target lines,
depending on the type of trunk supplied from the central office (CO). Incoming lines do not
need to have an appearance on the telephone. Target lines are for incoming calls only.
Two-way single lines, such as analog lines, allow the user to make an outgoing call by
K9 Unit
5552354 *Trunks
*Public or
Private
network
Sending and receiving call display
DogFood
5556897
DogFood
5556897
5553465
RCMP K9 Unit
5552354
Incoming Name, Number, Line display
Outgoing Name display
Business name
display: RCMP
Programming line access 203
Business Communications Manager 3.6 Programming Operations Guide
pressing the (idle) assigned line button or, if the line is part of a line pool, by entering a line
pool access code or destination code to access the line pool. These lines can also be redirected
on a per-trunk basis or from the telephone by using FEATURE 84.
• PRI lines are always configured into line pools. These lines require a destination code for
outgoing calls. Incoming calls use target line assignments.
• Voice over IP (VoIP) trunks use the data network to provide line service in and out of the
system. VoIP trunk configuration is described in the IP Telephony Configuration Guide. VoIP
trunks use target lines for incoming calls, and require line pool codes or destination codes for
outgoing calls.
• You can assign a line a maximum of 93 times.
Programming:
• Creating dialing plans: “Configuring the public and private dialing plans” on page
302
• Setting up the modules for the trunks: “Defining trunk module types and settings” on
page 130
• Creating restriction filters: “Defining restriction filters” on page 344.
• Creating line pools and redirecting lines: “Assigning Trunk/line data” on page 236.
• Creating line pool codes: “Setting up line pool access codes” on page 317.
• Creating routes and destination codes: “Configuring call routing” on page 320.
• Creating scheduling for routes, ringing groups and restrictions: “Configuring
schedules” on page 483.
• Assigning lines and line pools to telephones: “Assigning lines to telephones” on
page 398, “Assigning line pool access” on page 402.
204 Programming line access
P0609326 1.1
Incoming calls
For incoming calls, you can have a central reception point, or you can specify target lines to one or
more telephones to receive directed calling.
You can arrange your telephones in Hunt groups, ringing groups, or call groups that use
system-wide call appearance (SWCA) assignments to share calls.
You can also configure lines for use by system users who call in from outside the system. You can
give them direct access to the system with an Auto DN, or you can configure the line so they hear
a stuttered dial tone, at which point they need to enter a password (COS) to gain access (DISA
DN). Refer to “Call in from outside the system” on page 224.
Outgoing calls
For outgoing calls, you can assign one or more intercom keys to directly link to a line pool or
prime line, or allow line pool access codes, destination code, or internal system numbers to direct
the call. Telephones without intercom keys on the telephone, still have intercom keys assigned, but
to access calls, they must pick up the handset to connect. In this case, the intercom key is
Calls within the system: All telephones are virtually linked within the system. To call another
telephone inside the system, you can lift the handset and dial the local DN. In this case, the prime
line has to be set to intercom or none.
Calls going outside the system:
Programming:
• Assigning lines to telephones: “Determining line assignments” on page 397.
• Creating and assigning target lines (PRI and VoIP trunks): “Target lines and DASS2
fields” on page 247 (configuring target lines) and “Received #” on page 259
(received #, if busy); “Assigning target lines” on page 287; “Configuring line
access” on page 393 (appearances).
• Creating direct-dial telephones: “Creating Direct Dial sets” on page 313.
• Configuring Hunt groups: “Adding a Hunt group member” on page 579.
• Configuring and scheduling ringing groups: “Defining ring groups” on page 490.
• Creating a group using SWCA keys: “Configuring system-wide call appearance
groups” on page 462.
• Setting up users and remote access packages to support calling in from outside the
system into the system: “Configuring for remote access” on page 291
• Refer to the Call Center documentation for information about setting up call centers.
Answering calls 205
Business Communications Manager 3.6 Programming Operations Guide
• If you assign the prime line to a line pool, all the lines in that line pool must be assigned to the
telephone. When you pick up the handset, the telephone automatically grabs the first available
line from the assigned line pool. In this configuration, you must ensure that the outgoing
number is allowed by the line pool.
• If you assign the prime line to an intercom button, when you press the intercom button you get
system dial tone. Then, you enter a line pool access code or a destination code to direct the
outgoing call to the appropriate line pool, where it exits the system on any available line in that
pool.
Answering calls
Incoming calls do not have to both appear and ring at a telephone. They can be programmed to
only show an appearance on a line or intercom button. They can also be programmed to only ring.
How a call alerts at a telephone is determined when you assign lines to each telephone. “Assigning
lines to telephones” on page 398.
This section contains information about:
•“Distinctive ring patterns” on page 205
•“Centralized and group answering” on page 206
•“Pick up features” on page 207
Distinctive ring patterns
There are four Distinctive ring patterns (DRP) that can be assigned to lines, telephones, or Hunt
groups to differentiate incoming calls on telephones where Ring has been allowed:
Programming:
• Creating restriction filters: “Defining restriction filters” on page 344.
• Creating line pools and redirecting lines: “Assigning Trunk/line data” on page 236.
• Creating line pool codes: “Setting up line pool access codes” on page 317.
• Creating routes and destination codes: “Configuring call routing” on page 320.
• Assigning prime lines, intercom keys, and outgoing number display to each
telephone: “Assigning line access” on page 394.
• Assigning lines and line pools to telephones: “Determining line assignments” on
page 397, “Assigning line pool access” on page 402.
• Creating scheduling for routes, ringing groups and restrictions: “Configuring
schedules” on page 483.
DRP 4 Highest priority
DRP 3 2nd highest priority
206 Answering calls
P0609326 1.1
Call Ringing: When more than one call rings at a telephone, highest priority DRP rings first.
Hunt groups: If the Hunt Group DRP is higher than the DRP of line of the incoming call and the
telephone DRP, all telephones in the group will ring with the ring pattern assigned to the Hunt
Group.
Note: External calls have a higher priority than internal calls. You cannot press FEATURE *6 to
change the ring type on a telephone when the Distinctive Line Ring feature is in service. When the
call is finished, your telephone reverts to the ring you set.
Centralized and group answering
•Prime telephone: The prime telephone is usually the monitored telephone in a reception area
or at the desk of the designated attendant. Calls not answered at their normal destinations
transfer to the prime telephone. Business Communications Manager allows for a prime
telephone for each line, if needed.
•Central answering position (CAP station): A CAP can consist of a BST T7316E plus one to
four eKIMs (key indicator modules) or one to nine OKIMS, or a M7324(N) plus one or two
CAP(N)s (Central Answer Position modules). When the CAP is assigned under CAP/KIM
assignment in the Unified Manager it becomes an enhanced CAP (eCAP). The T7316E
modules become known as eKIMs.
An eCAP can monitor system telephone status, answer external calls on line buttons, and send
up to 30 messages to other system telephones. Additionally, the eKIMs can monitor Hunt
group appearances and support multiple appearances of a target line. You can configure a
maximum of 12 telephones as eCAPs on each Business Communications Manager. One eCAP
station can be designated as the prime telephone and direct-dial telephone for the system lines
DRP 2 3rd highest priority
DRP 1 (or None) (default) Lowest priority
Programming:
• Lines: “Assigning Trunk/line data” on page 236 (Services, Telephony Services,
Lines)
• Telephones: “Defining user preferences” on page 415 (Services, Telephony Services,
System DNs,)
• Hunt groups: “Identifying a Hunt group” on page 575 (Services, Telephone Services,
Hunt groups)
Programming:
• Lines: “Assigning Trunk/line data” on page 236
• Telephones: “Assigning line access” on page 394
Answering calls 207
Business Communications Manager 3.6 Programming Operations Guide
and telephones.
Telephones with KIMs or CAP modules that are not configured in system programming allow
only memory button programming on the modules. In this case, the KIM is known as an
OKIM (ordinary KIM).
•Hunt groups: This feature allows you to create groups of telephones that are assigned to a
single DN. This provides the capacity for call groups that are dedicated to specific products or
projects, and provides the flexibility of determining how the calls will be presented to the
group.
•Ringing groups: If you set up call scheduling on the system, you can define groups of
telephones into ring groups, which allows you to specify schedules where Trunk Answer can
be used within the ring group to answer incoming calls, even on telephones which do not have
that line specifically assigned. You can also define a second direct dial set for a ringing group.
•Other options: There are optional applications which allow you to set up service centers and
customized mailboxes. These are described in the CallPilot documentation suite.
Pick up features
There are a number of features you can use to pick up calls, including calls that do not come
directly to your line buttons:
•Call Queuing: This feature code (FEATURE 801) allows you to answer the next incoming
call. The feature selects the call with the highest priority, if there are a number of calls arriving
at the same time. Call Queuing answers incoming external calls before callback, camped, and
transferred calls. There is no programming for this feature.
•Directed Pickup: This feature allows a user to answer any telephone that is ringing in the
system.
Programming:
•“Identifying the telephone (General heading)” on page 391
•“Configuring CAP/KIM assignment” on page 436
•“Programming CAP/KIM buttons” on page 438
Programming: “Configuring Hunt groups” on page 573
Programming: “Configuring ringing service” on page 490
Programming: “Programming Feature settings” on page 457
208 Answering calls
P0609326 1.1
•Group Pickup: Your system can support nine pickup groups. If a telephone has been assigned
as a member of a pickup group, the user can pick up a call that is ringing at any telephone in
the pickup group (FEATURE 75).
•Trunk Answer: By pressing FEATURE 800 the user can answer a ringing call in any area in
the system from any telephone in the system. The line being answered does not have to appear
or ring at the telephone being used to answer the call. This feature is only active when a
ringing service schedule is running.
•Answer DNs: Telephone DNs can be assigned to indicator buttons on other telephones to
provide backup answering. The indicator buttons on your telephone that are assigned to
answer DNs are called answer keys. You can assign a maximum of eight answer DNs to a
telephone. You cannot assign Answer DNs to analog telephones or Model 7000 or 7100
telephones.
On the answer telephone, an indicator beside the answer key lights when a call comes in from
the original telephone. When the call is answered, the indicator disappears on the
non-answering telephone, freeing that line for another call. You can also determine which calls
alert at Answer DNs (Answer key access levels).
For systems running BCM 3.6 and newer software, the Answer DN can be used as an autodial
button to the assigned telephone.
On systems running BCM 3.5 and newer software, if call logging is set, then calls received
through Answer DN are logged at the receiving telephone that picks up the call.
• Listen to a call as a group: This feature (FEATURE 802) allows more than one person to
listen to a telephone, without the caller hearing everyone in the group (the handset is offhook).
Programming:
•“Configuring the Capabilities features” on page 406
•“Configuring ringing service” on page 490
Programming:
•“Configuring ringing service” on page 490
•“Turn services on and off” on page 484
Programming:
• Answer DNs: “Assigning Answer DNs” on page 403
• Answer Keys access levels: “Programming Feature settings” on page 457
Make a call 209
Business Communications Manager 3.6 Programming Operations Guide
Make a call
You can set up your system in several ways that will determine how users can make calls.
This section includes:
•“Emergency 911 Dialing” on page 210
•“Select how you dial your calls” on page 210
•“Receive a busy signal on an internal call” on page 210
•“Create a conference call” on page 211
•“Time-saving features” on page 211
Some of the ways you can set up the system and the telephones to make calls includes:
• You can assign every line to every telephone, in which case, the user presses a line button or
intercom button to dial out a call.
• You can assign lines to pools (Line pool A to O and PRI pool A to F) and assign the pools to
all telephones. To make a call over line pools, users use the line pool feature code (FEATURE
64) and then enter a line pool access code.
• You can assign line pools to routes and assign the routes with destination codes. To make calls
with destination codes, the user enters the destination code, and then dials out the required
digits to contact the destination telephone. The digits the users dial will depend on what the
destination code is, and what dial-out digits have been specified within the route record.
Note: All PRI line pools must be accessed through routes, using destination codes.
• If a prime line is specified for the telephone, the telephone will automatically dialout on this
line if an intercom button is pushed, or the handset is picked up.
•Auto dial: You can program an internal or remote dialout string onto a memory key. When the
user presses the key, the system automatically dials the digits stored on the button.
Programming: “Assigning line access” on page 394
Programming:
•“Assigning Trunk/line data” on page 236
•“Setting up line pool access codes” on page 317
Programming: “Configuring call routing” on page 320
Programming: “Assigning line access” on page 394
Programming: “Configuring buttons from the DN record” on page 420
210 Make a call
P0609326 1.1
Emergency 911 Dialing
Emergency 911 dialing is the capability to access a public emergency response system. State and
local requirements for support of Emergency 911 dialing service by Customer Premises
Equipment vary. Ask your local telecommunications service provider about compliance with
applicable laws and regulations.
Emergency 911 dialing may not apply to International systems.
IP telephones: If you allow this service on IP telephones that are installed or used off-site, you
must ensure that the 911 telephone number is not mapped to the system address in the emergency
response system.
Select how you dial your calls
The system digital telephones provide three methods for dialing calls:
•Standard dial: allows you to make a call by selecting a line and dialing the number. If you
have a prime line, it is selected automatically when you lift the handset or press the handsfree
button.
•Automatic dial: allows you to dial a number without selecting a line. Your prime line is
selected when you start dialing a number. Your Prime line must be free to make a call.
•Pre-dial: allows you to enter a telephone number, check it, then change it before making the
call. The call does not dial until you select a line or line pool, or pick up the handset. You can
pre-dial both external and internal numbers. You must, however, select the correct type of line
(external or internal) for the type of number you have entered.
Receive a busy signal on an internal call
When the internal number you dialed is busy, there are three possibilities:
•Priority Call: You can use this code to override a busy signal or Do Not Disturb.
•Ring Again: You can use this code to tell you when a telephone you want to call is no longer
busy or when a line pool becomes available. (FEATURE 2)
Programming: There is no system programming to allow/disallow this feature.
•Message: Use this code to leave a message on the display of the telephone you are trying to
call. (FEATURE 1)
Programming: There is no system programming to allow/disallow this feature.
Programming: “Defining user preferences” on page 415
Programming: “Defining device capabilities” on page 405. (FEATURE 69)
Make a call 211
Business Communications Manager 3.6 Programming Operations Guide
Create a conference call
You can establish calls to two people at the same time, and allow each caller to hear the other two
callers. You must have at least two intercom buttons assigned to your telephone to initiate a
conference call (FEATURE 3).
The person who establishes the conference call, has several options available to provide control
within a conference call.
• remove callers temporarily (put on Hold), or permanently
• split the conference into two separate calls
• leave the conference, and allow the other two callers to remain connected
The Telephony Features Handbook describes the feature codes and the dial pad actions that are
required for controlling conferences.
Time-saving features
There are a number of features that allow you to save time when dialing, including:
•Autodial: You can program memory buttons for one-touch dialing of internal or external
telephone numbers. When you program an external autodial, you must specify a path out of
the system.
•Last Number Redial: This feature (FEATURE 5) allows the user to redial the last external
number that was dialed from that telephone. This feature records a maximum of 24 digits.
•Speed dialing: Business Communications Manager provides two types of speed dialing:
— System Speed Dial programming allows you to assign two or three-digit speed dial codes
to the external numbers called most often. You can set the system to have 01 to 70 codes or
001 to 255 codes. To activate a speed dial, enter FEATURE 0 and the speed dial code.
The names you enter for speed dials are also used as CLI display for calls that come in on
lines that offer number-only CLID on telephones that are configured to receive CLID for
those lines. (Services, Telephony Services, System speed dial)
— User Speed Dial programming (FEATURE *4) allows users to program their own speed
dial numbers. (Services, Telephony Services, System DNs, Active Set DNs, DN XXXX,
User Preferences, User speed dials)
Speed dial numbers are subject to the same restriction filters as normally-dialed numbers.
However, your system administrator can program system speed dial numbers to bypass dialing
restrictions.
Programming: “Assigning intercom (I/C) buttons (keys)” on page 396
Programming: “Programming telephone buttons” on page 419
Programming: “Programming restrictions for DNs” on page 441 (allow or disallow feature)
212 Handling calls
P0609326 1.1
•Saved Number Redial: This feature allows you to save the number of the current external
call, provided that you dialed the call, so that you can call it again later. Each telephone can
save one number at a time. You can also copy a number from an autodial using this feature.
Handling calls
Once you answer a call, there are a number of ways of passing the call to someone else to deal with
or holding the call until it can be dealt with.
This section includes:
•“Holding calls” on page 212
•“Parking or transferring calls” on page 213
•“Sharing calls by parking on SWCA buttons” on page 213
•“Forwarding calls” on page 214
•“Prevent calls from ringing at your telephone” on page 215
Holding calls
•Use Hold: You can put a call on hold by pressing HOLD. If you have system-wide call
appearance (SWCA) keys defined, this might also park the call on a SWCA key and allow
others who have the same SWCA keys defined to pick up the call. Refer to the SWCA section
for more details.
•Hold automatically (Auto Hold): If a line or the telephone are programmed with full auto
hold, you can answer a second call without dropping the first call and without pressing
HOLD. Model 7100 and 7000 telephones, and NetVision, DECT and Companion wireless
handsets, which do not have line keys, also use the HOLD key to toggle between active calls.
FEATURE 73 activates this feature. FEATURE #73 cancels the feature.
•Hold a call exclusively: You can put a call on Exclusive Hold so that you can retrieve it only
at your telephone (FEATURE 79 or FEATURE HOLD).
Programming:
• System speed dials: “Configuring system speed dial numbers” on page 475.
• Alpha tagging: “Using alpha tagging for name display” on page 455.
• User speed dials: “Configuring user speed dialing” on page 432.
Programming: “Defining telephone dialing restrictions” on page 442
Programming: “Defining device capabilities” on page 405
Handling calls 213
Business Communications Manager 3.6 Programming Operations Guide
Parking or transferring calls
•Transfer calls (call forward): Allows you to direct a call to another telephone internally or
externally. To transfer a call to an external destination, you need to know the line pool or
destination code to route the call. (FEATURE 70). You can also set up a telephone to
automatically send calls to another telephone or to a voice mail box if the telephone is not
answered or if it rings busy.
•Camp-on: Use this feature to (FEATURE 82) transfer an external call to another telephone
when all the lines assigned to that telephone are busy. A message appears on their display and
they hear the camp-on tone if all lines remain busy, or the call gets transferred to a free line
when one becomes available. If your system is part of a private network that uses the Meridian
call attendant as part of a centralized voice mail system, the attendant can use camp-on to
camp a call on any telephone in any system on the network.
•Call Park (FEATURE 74): Use one of 25 possible codes to park a call on the system. These
codes include the Call Park prefix, which can be any digit from 1 to 9, and a two-digit call
number between 01 and 25. For example, if the Call Park prefix is 1, the first parked call is
assigned Call Park retrieval code 101. You must also set a delay period for when the call
returns to the telephone from which it was parked. You can also determine the order used to
assign the codes (Park mode).
•Callback: When you direct a call you have answered to another telephone, the system
monitors the call to make sure it is answered. If no one answers the call within a set length of
time, the system returns it to you.
Sharing calls by parking on SWCA buttons
System-wide call appearance (SWCA) keys (FEATURE *521 to FEATURE *536) allow you
to control call park and retrieval features on any type of line, across the local system. These
features expand the Business Communication Manager call park and call retrieve features by
providing visual indications of the status of any call parked on a SWCA button that has indicators.
The calls can also be controlled by directly entering the SWCA feature codes.
Programming: “Forwarding calls” on page 214
Programming:
•“Understanding access codes” on page 309
•“Setting system timers” on page 472
•“Programming Feature settings” on page 457
Programming: “Setting system timers” on page 472
214 Handling calls
P0609326 1.1
You can use SWCA programming to define logical groups of telephones. Each group can be
assigned a set of the SWCA codes, which allows them to pass calls within the group. Each
telephone in the group also displays the current status of the call, so users can determine which
calls are being dealt with.
Forwarding calls
•External call forward: This feature allows you to transfer a call to an external number. To
allow external destination programming ensure that Allow Redirect to Y (enabled). The other
programming is the same as for the following call forward features.
•Call Forward no answer: redirects calls to another telephone in your system or to the voice
mail system when there is no answer at your telephone. Line Redirection takes priority over
Call Forward no answer.
•Forward no answer delay: Determines the number of times that an incoming call rings at
your telephone before the system forwards the call. To estimate the delay time in seconds,
multiply the number of rings by six.
•Call Forward on busy: redirects calls to another telephone on your system or to a voice mail
system when you are busy on a call, or when you have Do Not Disturb activated at your
telephone. Telephones that have this active can still receive priority calls. If you are busy on a
target line call, another call to that target line redirects to the prime telephone for that line or to
the designated voice mail system. Line Redirection takes priority over this feature. Call
Forward programming does not affect calls redirected by Line Redirection.
•Call Forward and voice mail: If you want a voice mail system to pick up unanswered calls:
— use the internal number of your voice mail as the destination when you program Forward
no Answer and Forward on busy
— if your voice messaging system or service automatically retrieves calls, make the ring
delay greater than the delay used by your voice mail system
Programming: “Configuring system-wide call appearance groups” on page 462
Programming:
•“Configuring the Capabilities features” on page 406 (Allow redirect)
Programming:
•“Assigning Call Forward” on page 409
•“Configuring centralized voice mail” on page 559
Programming: “Assigning Call Forward” on page 409
Programming:
•“Assigning Call Forward” on page 409
•“Configuring centralized voice mail” on page 559
Prevent calls from ringing at your telephone 215
Business Communications Manager 3.6 Programming Operations Guide
— if the voice mail system is on a remote system, ensure that the correct routing codes are
added to the voice mail forwarding dial string.
— if calls are being forwarded to telephones or voice mail outside the system, ensure that
Allow redirect is set for the telephones.
•Line redirection: This feature (FEATURE 84) allows you redirect all calls coming in on a
specific line to a telephone outside the office. You can decide to redirect all, or just some, of
your external lines. You also specify whether the user will hear a ring each time a call is
redirected. In programming, you can allow/disallow this feature for each telephone. The
telephone must have this setting enabled to allow call forward outside the system, such as for
external voice mail.
You can also set up line redirection on a system level. This can be cancelled for the line(s)
from a telephone with line redirection allowed.
Prevent calls from ringing at your telephone
To maintain your privacy, you can use one of these features to block calls or ensure a private line:
•Do Not Disturb: Use this feature (FEATURE 85) to forward your calls to the prime
telephone when there is no other telephone on which the line appears. If there is another
telephone that shares the same line, the call can be answered by that person. The Delayed Ring
Transfer feature transfers all calls not answered, to the prime telephone after a defined time.
Do Not Disturb also prevents voice calls from alerting at your telephone. Voice calls appear as
normal intercom calls. Use FEATURE #85 to cancel DND.
•DND on Busy: When you are busy on a call and a second call comes in, your telephone alerts
you to the second call with a light ring. If you find this second call and ring is disruptive, you
can prevent a second call by assigning Do Not Disturb (DND) on Busy to your extension.
If you use DND, the line indicator for an external incoming call flashes, but your telephone
does not ring. Internal and private network callers hear a busy tone instead of ringing when
you are on the telephone. External callers are transferred to the prime set used in your system
or to your voice mail. Forward on Busy takes priority over DND on Busy.
Programming:
•“Configuring centralized voice mail” on page 559
•“Configuring the Capabilities features” on page 406 (Allow redirect)
Programming:
• Allow redirect: “Configuring the Capabilities features” on page 406
• System-level redirect: “Assigning Trunk/line data” on page 236
216 Communicating in the office
P0609326 1.1
If an external call uses a target line, the call is processed according to the programming of the
target line. If the target line is busy, the caller hears a busy tone or routes the call to the prime
set for the target line or to the voice mail system, even if there is DND on Busy programming.
•Turn Privacy on or off: When you have lines assigned to more than one telephone, anyone
with the line appearance can take a call, or join a call in progress. To provide exclusive access
for a user, you can program privacy on a line, in which case, only one person at a time can use
the line. If privacy is enabled, it can be turned off by the user (FEATURE 83).
Privacy control cannot be used for internal or conference calls.
When another telephone joins a call on a non-private line, the participants on the call hear a
tone, and a message appears on the display.
•Intrusion controls: If your system is part of a private network that uses the Meridian call
attendant on a centralized voice mail system, the attendant can use the break-in feature to
interrupt a call, regardless of any other settings on your line. The exception is if you have a
higher intrusion priority than the attendant. If this is the situation, the attendant would be
forced to camp the call at your telephone or redirect the call elsewhere in the system.
Communicating in the office
Your system allows you to communicate in ways other than making a phone call.
•Page (FEATURE 60 to FEATURE 63): The page feature can be allowed/disallowed for
individual telephones. You can also assign each telephone to specific page zones. Zone paging
allows a user to alert a select group of users without disturbing other users. However, external
pages will be broadcast wherever the external speakers are mounted.
You can also determine whether a tone sounds before the page begins and what the maximum
length of the page will be.
— Creating page zones: A zone (1-6) is any group of telephones grouped together for paging,
regardless of their location. The maximum number of telephones in a page zone is 50.
— Using Page with external equipment: When you make a page that uses external paging
equipment (external page or combined page), the Long Tones feature automatically
activates for the external paging system only. This allows you to control optional
equipment with the Long Tones feature.
Programming: “Configuring the Capabilities features” on page 406 (DND on busy)
Programming:
•“Assigning Trunk/line data” on page 236
•“Turn Privacy on or off for a call” on page 258
Programming:
•“Setting intrusion controls” on page 414
•“Break-in” on page 568
Communicating in the office 217
Business Communications Manager 3.6 Programming Operations Guide
•Messages: This feature allows you to leave a message on the display of another telephone in
your system or to analog telephones connected to an Analog Station Module (ASM/ASM8+).
The Messages feature indicates if you have any messages waiting.
The Messages feature uses a message waiting list to keep a record of your internal messages
and your (external) voice mail messages.
Note: To keep a record of external voice mail messages, you must have access to Business
Communications Manager Voice Messaging service with visual message waiting indication
and a Business Communications Manager digital telephone.
Programming: There is no system programming for this feature, other than the voice
messaging requirements which are discussed in the voice messaging documentation.
However, the message waiting indicator (MWI) feature on some telephones, may require
system programming.
User codes for messaging:
— Send message FEATURE 1 (Cancel using FEATURE #1)
— Reply message FEATURE 65
— Cancel Message Waiting (FEATURE #65)
— Log into mail box to leave message (FEATURE 980)
— Log into mail box to play message (FEATURE 981)
•Voice Call: Use this feature (FEATURE 66) to make an announcement to a specific person
through their telephone. This feature includes the ability to sound a tone or mute the tone
before the call is heard. You can set up your telephone to deny voice calls (FEATURE 88).
Note: Voice calls made to portable handsets, such as Companion, the BST T7406 cordless
handset, and NetVision telephones, will occur as a ringing call.
Programming: If you want to a use to be able to respond to a voice call without picking up
the handset, enable HF answerback (“Configuring the Capabilities features” on page 406).
Programming:
•“Configuring the Capabilities features” on page 406
•“Programming Feature settings” on page 457
•“Setting system timers” on page 472
Programming:
•“Determining analog settings” on page 412
•“Message Waiting Indication” on page 565 (MCDN programming)
•“Configuring MWI on DPNSS 1 networks” on page 569 (DPNSS 1 features)
218 Using handsfree and mute
P0609326 1.1
Using handsfree and mute
If the telephone you program has a speaker, you can configure a button that allows the user to
speak to the caller without lifting the handset, or to use a headset instead of the handset. If this
feature is assigned, the system automatically assigns:
• the bottom, right button on the telephone to be the handsfree/mute button on all M-series
telephones and on the T7208 Business Series Terminals (BST).
• handsfree-only to the bottom right button for IP telephones and T7316 telephones, which have
a separate mute button located under the dial pad.
• handsfree and mute to the buttons located under the dial pad for T7316E telephones.
• T7406 handsets must have handsfree active or the telephone will not work. NetVision
handsets, model 7000 and 7100 telephones and i2001 IP telephones do not use this feature.
•Handsfree speaker volume: The handsfree speaker volume returns to the telephone volume
default setting after a call is released.
Track your incoming calls
You can track your calls using these features:
•Call log: If your system has the appropriate equipment and you subscribe to the call
information feature supplied by your service provider, you can record information about calls
received on an external line. The line does not need to be assigned to the telephone that
receives the call for it to be logged (BCM version 3.5 and newer software, passive logging).
Nor does an assigned line need to be a ringing line to log a call. ISDN service packages that
come with calling line identification (CLID) can supply the same feature.
Call Log creates a record of incoming external calls. For each call, the log can contain:
— sequence number in the Call Log
— name and number of the caller
— indication if the call was long distance
— indication if the call was answered and by whom
— time and date of the call
— number of repeated calls from the same source
— name of the line on which the call came
Programming: “Configuring the Capabilities features” on page 406.
Note: Ensure that the Handsfree field is set to Auto for T7316E telephones.
Note: Portable telephones: Your portable telephone may not support this feature, or it
may only support some of the functions of the feature.
Track your incoming calls 219
Business Communications Manager 3.6 Programming Operations Guide
Call Log can help you to
— keep track of discarded calls or calls not answered
— track patterns for your callers (for example volume of calls and geographic area of calls)
— record caller information quickly and accurately
— build a personal telephone directory from log items
This feature allows users to:
— manually log a call (FEATURE 813)
— delete old log items (FEATURE 815)
— view the log (FEATURE 812) or about a current call (FEATURE 811)
— view charges for a call (FEATURE 818)
— view details about a specific item
— make a call using a call log entry
Information such as long distance indicator and the caller name and number may not show in
the log. The appearance depends on the Call Display services provided by your local telephone
company and the local telephone company of the caller.
Auto dumping: Ensure that you have autodumping (FEATURE 815) is enabled on any
telephones that have call logging active, otherwise, the logs fill up and subsequent calls do not
get logged.
•Malicious Caller ID (MCID): This feature records caller information at the central office for
the last external call on the active ETSI ISDN line. This feature must be available from your
service provider before you activate it in your system.
If this service is active on the line, you must press FEATURE 897 within 30 seconds after a
caller hangs up, and before you hang up.
Programming:
•“Identifying the telephone (General heading)” on page 391 (call log password)
•“Defining user preferences” on page 415 (call log options)
•“Call log notes” on page 417
Programming: “ETSI Euro network services” on page 545
220 Use alternate or scheduled services
P0609326 1.1
Use alternate or scheduled services
There are three types of services for Business Communications Manager to handle calls in a
different way on different days, and at different times of the day. These services for scheduling call
restrictions, ringing groups, and routing services are controlled through the control telephone. A
password is required to access the Restriction and Routing service schedules from the control
telephone.
You can also determine time tables and specific names for each schedule.
Programming:
• Set up system schedule information:
• Set up ring groups and ringing schedules
• Set up routing schedules:
• Set up restriction schedules:
Special telephones
•Hotline telephone: You can define a telephone that automatically dials an emergency or direct
number when the handset is picked up.
•Control telephone: This telephone allows you to control other telephones in the system by
turning service schedules off and on.
•Prime telephone: This telephone, which is defined for each line, receives unanswered calls
when call forward when the line cannot deposit the call at the intended telephone.
Programming:
•“Defining common schedule settings” on page 485
•“Defining service schedules” on page 489
•“Turn services on and off” on page 484
Programming: “Configuring ringing service” on page 490
Programming: “Configuring routing service” on page 495
Programming: “Configuring restriction service” on page 493
Programming: “Assigning a Hotline” on page 411
Programming: “Identifying the telephone (General heading)” on page 391
Programming: “Assigning Trunk/line data” on page 236
Special telephones 221
Business Communications Manager 3.6 Programming Operations Guide
•Direct dial telephone: This is the telephone that system users can dial with one digit (direct
dial access code). An example of this would be a receptionist telephone. This telephone is also
usually the control telephone for system scheduling. You can create up to five direct dial
telephones, however, they all respond to the same direct dial access code.
Auxiliary devices
A music source or an auxiliary ringer can be connected to the system hardware. In programming,
you need to define how these features will be accessed and used.
•Background music: If there is an external music source connected to your system or if you
have the IP music feature set up to use internet-based music distributors or download music
clips onto your system, you can listen to music through the speaker on the telephone
(FEATURE 86), or you can allow the music to be heard by callers who have been put on hold.
•Auxiliary ringer: This optional device can be connected through a RJXX connection to your
system. The auxiliary ringer is best suited to factory type locations that require loud ringing
bells or horns.
•Companion handset: This portable handset communications with the Business
Communications Manage through radio base stations connected to digital trunk modules
(DTM) installed in the system. Note: Telephony region restrictions.
Programming:
•“Programming access codes” on page 310
•“Creating Direct Dial sets” on page 313
•“Configuring the Capabilities features” on page 406
•“Defining ringing service schedules” on page 491 (extra dial telephone)
Programming:
•“Programming Feature settings” on page 457 (Background music and On hold)
•“Configuring the music source” on page 601 (IP music)
Programming:
•“Assigning Trunk/line data” on page 236 to turn the feature on/off for a line
•“Configuring the Capabilities features” on page 406 to turn the feature on for
specific telephones
•“Assigning ringing groups to lines” on page 492, for the ring group settings
Programming: Refer to the Companion Installation and Configuration Guide. The handsets
also come with a user guide that describes the handset features.
222 Call out to external systems using host system dialing
P0609326 1.1
•DECT handset: This portable handset communications through radio base stations connected
to a DECT media bay module installed in the system. The module also provides access for
configuration of the firmware that controls the handset function. Note: Telephony region
restrictions.
•Symbol NetVision handsets: These portable handsets connect to the internet through an IP
access point which is connected to the LAN or WAN to which the Business Communications
Manager is also connected. They can call out using physical or VoIP trunks. Target lines direct
incoming calls to the handsets.
•BST T7406 cordless handset: This handset communicates with the BCM through a station
module that supports three handsets. The station module connects to a digital trunk installed
on the system. The handset emulates the T7324, although it only has six memory buttons.
•BST Doorphone: This is a device that installs at security entrances. This device uses a DN
record in the system DNs range. The DN record for a doorphone will display M7324.
However, there are specific required settings for the doorphone. Also, the doorphone does not
use the user preferences or the Telco features settings. Installation and configuration
information is contained in the BST Doorphone Installation and Configuration Guide.
Call out to external systems using host system dialing
When you make external calls, or forward calls to external systems, such as private branch
exchanges (PBX system), you may need to insert one or more Host System dialing signals to
connect the call. These features are also known as end-to-end signaling. Signaling features either
send a special signal to the host system or allow you to program delays required by host systems in
external autodial or speed dial sequences.
•Link: If you connect the system to a private branch exchange (PBX), you can use a Link
signal to access special features. On some telephones, Link is called FLASH. You can include
the Link signal as part of a longer stored sequence on an external autodial button or in a speed
dial code. The Link symbol uses two of the 24 spaces in a dialing sequence. (FEATURE 71)
Programming: Refer to the DECT deployment documentation and the DECT Installation
and Configuration Guide on your documentation CD. Deployment documentation is also
available. The handsets also come with a user guide that describes the handset features.
Programming: Refer to the IP Telephony Configuration Guide. Handsets also come with
user guides that describe the handset features.
Programming: Same as for T7310/T7316 telephone. This telephone has six display keys.
Programming:
•“Assigning Trunk/line data” on page 236 (Link at CO)
•“Defining telephone dialing restrictions” on page 442 (Allow link)
•“Setting system timers” on page 472
Call out to external systems using host system dialing 223
Business Communications Manager 3.6 Programming Operations Guide
•Pause: This feature enters a 1.5-second delay in a dialing sequence on an external line. The
use of this feature is often required for signaling remote devices, such as answering machines,
or when reaching through to PBX features or host systems. You can program more than one
pause in an external autodial or speed dial sequence. (FEATURE 78)
The Pause symbol uses one of the 24 spaces in a dialing sequence.
For pulse dialing, pressing * inserts a 1.5-second pause into the dialing sequence.
Programming: There is no system programming for this feature.
•Long Tones: This feature (FEATURE 808), when invoked while a call is active, allows you
to control the length of a tone to signal devices such as fax or answering machines, which
require tones longer than the standard 120 milliseconds. You can use Long tones on any call
except a conference call. You can use internal lines of the system to activate a device
connected to an ATA2 or an ASM in another area of your office, or external lines to access
devices outside the system.
Programming: There is no system programming for this feature.
•Run/Stop: This feature (FEATURE *9) inserts a break point into a sequence of dialed
numbers or characters used for automatic dialing. This can be necessary when you are
connecting to a PBX or similar host system. For example: you can call a company with an
automated attendant that instructs you to dial the internal number you need. You can program
the company number, a Run/Stop, then the internal number on one external autodial button.
The Run/Stop symbol uses one of the 24 spaces in an autodial or speed dial sequence.
You can include up to three Run/Stop commands in a dialing string. The system ignores a
fourth Run/Stop, and any digits or commands that follow three Run/Stop commands in a
programmed dialing sequence.
To use:
aPress the autodial button one time to dial the company number.
bWhen you hear the automated attendant, press the autodial button again to dial the internal
number.
Programming: There is no system programming for this feature.
•Wait for Dial Tone: This feature (FEATURE 804) causes a sequence of numbers to pause
until dial tone is present on the line before continuing to dial. You can use this feature if you
must dial a remote system and then wait for dial tone from that system before dialing the
remainder of your number. The Wait for Dial Tone symbol uses two of the 24 spaces in an
autodial or speed dial sequence.
Programming: There is no system programming for this feature.
•Pulse or tone dialing: If your external lines use pulse dialing, you can switch temporarily to
tone dialing. Tone dialing allows you to communicate with devices such as answering
machines or automatic switchboards, to access the features that PBX systems can provide, or
to access another system remotely.
Press # while on an active line. After you hang up, your telephone returns to pulse dialing.
224 Call in from outside the system
P0609326 1.1
Call in from outside the system
Callers can access the system over the public telephone network when away from the office, or
you can call from another system, over a private network.
• You can determine which lines will be available for remote access, and define further
restrictions.
• You can control which lines and what features are available to these callers by specifying class
of service (COS) passwords and identifying restrictions for each password.
Controlling telephone programming access
You can control the amount of access users have to the programming features on their telephones
using the Set lock feature.
Programming:
•“Using the General record” on page 235 (use remote package)
•“Creating Direct Inward System Access (DISA)” on page 291
•“Remote access line settings” on page 292
•“Defining remote access packages” on page 294
•“Using COS passwords” on page 296
!
Security Note: It is important to maintain the security of your system by limiting access
to authorized users and limiting those users to the features they need.
Programming: “Defining telephone dialing restrictions” on page 442
Special features 225
Business Communications Manager 3.6 Programming Operations Guide
Special features
This section describes features on the system which serve a specific purpose that is optional to the
general function of the system.
•Hospitality services: This feature allows small to medium service facilities to provide
customer telephone service, as well as administration services through a telephone interface.
Programming: Besides the general line and telephone programming required for individual
group members, Chapter 24, ”Configuring Hospitality Services” on page 589 explains the
feature in detail.
•Hunt groups: This feature allows you to group your call center operators so you can target
specific types of calls to specific groups. As well, you can define how calls enter the group, so
you can control the work load based on your requirements for your operators.
Programming: Besides the general line and telephone programming required for individual
group members, Chapter 23, ”Configuring Hunt groups” on page 573 provides details about
setting up hunt groups and hunt group features.
•Silent Monitor: This feature allows specified two-line display telephones to be used to
monitor Hunt group and Call Center operators. You can specify whether the system sound a
tone before breaking into a call, or whether the break-in will be silent. Display prompts on the
supervisor telephone allows the supervisor to unmute or move from user to user.
•Call Center: The Business Communications Manager provides a suite of applications that
support call center activities through the CallPilot application. This information is explained in
detail in separate documentation, including: Call Center Set Up and Operation Guide, Call
Center Agent Guide, Call Center Supervisor Guide, and the Call Center Reporting Set Up and
Operation Guide
•CallPilot: The Business Communications Manager provides an on-board voice mail system,
however, external voice mail systems can also be used, including a centralized system off a
Meridian 1 if the Business Communications Manager is networked to the Meridian through
PRI SL-1lines or VoIP trunks with the MCDN protocol active. This information is explained
in detail in separate documentation, including: CallPilot Manager Set Up and Operation
Guide, CallPilot Reference Guide, CallPilot Quick Reference Guide, CallPilot Programming
Record, CallPilot Message Networking Set Up and Operation Guide, CallPilot Message
Networking User Guide, CallPilot Unified Messaging Installation and Maintenance Guide,
CallPilot Desktop (Unified) Messaging Quick Reference Guide, CallPilot Fax Set Up and
Operation Guide, CallPilot Fax User Guide.
•Call activity: The Call Detail Recording part of the Business Communications Manager
allows you to monitor call activity for specific calls or telephones. Configuration information
is detailed in Call Detail Recording System Administrator Guide.
Programming:
•“Defining device capabilities” on page 405 (SM supervisor)
•“Monitoring Hunt groups” on page 585 (General settings, Silent monitor)
226 Information matrices
P0609326 1.1
•IVR: The Interactive Voice Response feature allows your customers greater interaction with
your call centers. Configuration information is located in Interactive Voice Response
Installation and Configuration Guide (IVR)
Information matrices
Each section in this book provides a matrix containing the field information from that section. You
can use this information to create a spreadsheet record of your system configuration or for a quick
overview of the information that you require for each type of programming.
Programming Record forms set up in Microsoft Excel* are available on your documentation CD.
• “Line matrix” on page 263
• “Loop matrix” on page 281
• “Dialing Plans matrix” on page 307
• “CbC matrix” on page 342
• “Routing matrix” on page 338
• “Restriction filters matrix” on page 350
• “Direct dial matrix” on page 314
• “Target lines matrix” on page 290
• “Remote access matrix” on page 300
• “Digital telephones DN record matrices” on page 447
• “System features matrix” on page 471
• “Timers matrix” on page 473
• “System speed dial matrix” on page 477
• “Telco features matrix” on page 480
• “Services matrix” on page 496
• “Hunt group matrix” on page 584
• “Hospitality matrix” on page 595
227
Business Communications Manager 3.6 Programming Operations Guide
Chapter 9
Configuring lines
This section describes the information accessed under the Services, Telephony Services, Lines
headings.
This section contains:
•“Understanding the process of line configuration” on page 228
•“Understanding how the system identifies lines” on page 229
•“Using the General record” on page 235
•“Assigning Trunk/line data” on page 236
•“Assigning Restrictions” on page 261
•“Setting line telco features” on page 263
The screens accessed through these headings define the line numbers that correspond to the DIP
switch settings that were configured on the trunk media bay modules installed on your system.
Check your Programming Record to see which modules are installed, and what settings were
chosen. The screens also are used to assign Voice over IP (VoIP) trunks and target lines, however,
the process for defining these lines is described in other sections since they are not related directly
to external hardware.
Note: External lines are also referred to as trunks. External lines include the lines between the
public network (PSTN) and between the nodes in a private network. Non-physical connections,
such as voice over IP (VoIP) and target lines, are also referred to as trunks and lines, respectively,
even though they do not describe actual wired connections.
All physical trunks connect to the Business Communications Manager through a media bay
module of some sort. All non-physical trunks and lines use a LAN or WAN connection (VoIP
trunks) or internal call processing (target lines).
However, the connection, all lines are configured under the Lines or loops headings.
Other configuration options or equirements:
•BRI loops require configuration and provisioning before the BRI lines can be configured.
Refer to Chapter 10, “Configuring BRI Loops,” on page 265.
• The Business Communications Manager also offers facilities for splitting trunks to deliver
both data and telephony services. Refer to the chapter titled “Data and split-line configuration”
on page 151 for a description of how the Business Communications Manager uses data
modules and WAN programming in this context.
Task:
• Configure the lines connected to the system, or call channels configured as Voice over IP
(VoIP) trunks or target lines.
228 Understanding the process of line configuration
P0609326 1.1
Understanding the process of line configuration
Refer to the process map below, which leads you through the order for configuring the lines for
your system.
Figure 47 Process map: Configuring the lines for your system
Note the lines that are active.
Services, Telephone Services, Physical
LInes or VoIP lines, Active LInes
Select the line you want to configure. Refer to
“Determining which lines you need to program” on
page 230
Set up the gateway and IP requirements.
Refer to IP Telephony Configuration Guide.
Modules are
installed and
system is
running.
Configure the lines to suit your system,
including assigning them to line pools, where
applicable.
Trunk module lines
Keycodes
have been
entered
VoIP lines
Assign line pool codes or assign line pools to routes, and create destination codes for
the routes. Refer to Chapter 12, “Configuring outgoing calls,” on page 301.
Assign lines, line pools and target lines to DNs with the Add Users Wizard.
Line pools, routing, and target lines: Chapter 11, “Controlling access into the system,” on
page 283.
Set up optional line features such as name display and services. Refer to Chapter 16,
“Configuring system settings,” on page 451.
Set up target lines to direct incoming calls from unsupervised lines, such as DID, PRI and
VoIP lines, to specific telephones or groups. Refer to “Assigning target lines” on page 287.
•“Copying line programming” on page 230
•“Using the General record” on page 235
•“Assigning Trunk/line data” on page 236
•“Assigning Restrictions” on page 261
•“Setting line telco features” on page 263
Assign to DNs: Chapter 15, “Configuring DNs for system devices,” on page 387
Understanding how the system identifies lines 229
Business Communications Manager 3.6 Programming Operations Guide
Understanding how the system identifies lines
On a new system, lines and loops are numbered and assigned defaults based on the type of media
bay modules that have been connected to the system. The exception is the voice over IP (VoIP)
trunks, which require a keycode to activate.
The Unified Manager displays all active physical lines under:
Lines, Physical Lines, Enabled Lines.
These screens allow you to easily view which lines have been enabled through a media bay
module. (Refer to “Configuring resources — media bay modules” on page 123 for information
about configuring media bay module records.)
From this heading, you can access each line record and assign attributes, as you require.
This section describes:
•“Copying line programming” on page 230
•“Determining which lines you need to program” on page 230
The following figure shows a detailed view of the Lines navigation tree headings.
Figure 48 Lines menus and fields
Lines
VoIP Lines
Enabled VoIP Lines
All VoIP Lines
Physical lines
Enabled Lines
All Physical Lines
Target lines
All lines
Line 001-492
General
Name
Control set
Use remote package
Restrictions
Line Restrictions
Normal
Night
Evening
Lunch
VoIP
Sched 5
Sched 6
Remote Restrictions
Normal
Night
Evening
Lunch
VoIP
Sched 5
Sched 6
Telco features
Voice Message Center
Trunk/Line Data
Trunk type
Line type
Dial mode
Received number
If busy
Prime set
Distinct rings in use
Distinct ring
Auto privacy
Trunk mode
Answer mode
Answer with DISA
Link at CO
Use auxiliary ringer
Full autohold
Loss package
Impedance (ohms)
Signalling
ANI number
DNIS number
230 Understanding how the system identifies lines
P0609326 1.1
Copying line programming
The Copy command allows you to duplicate programming for a line and apply it to another line.
You cannot copy programming between lines on different types of media bay modules. The
Received number of a target line is a unique number and cannot be copied.
When you copy data from a physical trunk to a target line (or the other way around), only the data
in common is copied. For example, copying a target line to a T1 E&M trunk copies only the Line
data settings because there are no Trunk data settings for a target line.
Follow these steps to copy a line setting to a single line.
1Click on the keys beside Services, Telephony Services, Lines, Physical Lines,
Enabled Lines.
2Click the line number from which you want to copy settings.
3Choose the subheading for the information that you want to copy:
Trunk/Line data, Restrictions, or Telco features.
4From the Edit menu, click Copy.
5In the Copy to box, type the line number where you want to copy the settings.
6Click the OK button.
Determining which lines you need to program
Under Lines, note that line types are divided into three headings. The fourth heading contains all
line numbers.
VoIP lines (require keycode)
Voice over IP (VoIP) lines are signaling channels that simulate how CO lines work. However,
VoIP lines transmit data to the IP network over a LAN or WAN rather than over physical lines.
Once the VoIP trunks are set up, you can assign them to line pools, and program their behavior in
the same way you would PRI lines.
VoIP lines use line numbers 001 to 060. These line records appear under Services, Telephony
Services, Lines, VoIP Lines. To access VoIP lines, you need to enter software keycodes. Each
keycode supports a specific number of lines. If you are using both SIP and H.323 trunks, the H.323
trunks start numbering up from 001, and the SIP trunks start numbering down from 060. No entries
appear in the Enabled VoIP lines field until you complete the IP Trunks Settings field, which
displays when you click on IP Trunks under Services, IP Telephony.
VoIP trunks should be configured to use a single line pool, per trunk type. Do not mix other trunk
types on the same line pool. The VoIP line pools are assigned to routes, which, in turn, are
configured with destination codes that route calls to the designated remote gateways of other
Understanding how the system identifies lines 231
Business Communications Manager 3.6 Programming Operations Guide
Business Communications Manager systems or Meridian 1-IPT systems. Note: SIP trunks can
only be used between Business Communications Managers.
You can also create a fallback for the trunk. This is a situation where the system reroutes the call to
a PSTN line pool if the primary route is not available or the call quality is not suitable. If you do
not configure your network for fallback and the call quality is below threshold, the IP call fails.
Refer to the IP Telephony Configuration Guide for information about configuring VoIP trunks.
Target lines
Target lines are internal communications paths that directly connect auto-answer trunks to system
telephones. These lines are in-coming only.
Target lines allow you to make more efficient use of DID line resources.You can map a range of
target lines for each DID line. The incoming call is routed according to the mapped dialed digits,
rather than a one-to-one line assignment. Refer to “DID system” on page 191 for an example of a
system using DID trunks and target lines. Systems configured using the DID template,
automatically assign target lines to all assigned DNs.
You also require target lines when you use PRI or VoIP trunks.
Target lines use line numbers 241 to 492. These lines are found under Services, Telephony
Services, Lines, Target Lines. Record this information in your system Programming Records so
you have a clear view of where each line is assigned.Refer to “Assigning target lines” on page 287
for instructions about setting up target lines.
Other features:
• Each target line also can be assigned to more than one telephone.
• A telephone can have multiple appearances of a target line.
Physical lines
Physical lines are the central office (CO) trunks assigned to the trunk media bay modules. Which
lines are enabled is determined by the DIP switch settings on the installed trunk modules.
You can change the line types to suit your system. For instance, BRI and DTM modules can be
designated to a number of line types, depending on the type of line service provided through the
central office (CO). However, the line numbers are associated for specific tasks or to specific
DS30 bus numbers.
Refer to the table below for a list of lines assigned per bus (DS30 bus and offset), based on the
module type configured with that address. You can use this chart to note which lines should be
active for the modules you installed. You can also note which line pool you put the lines in, and
note the line pool access codes or routes and destination codes to which you assigned the line pools
(or use your programming records).
232 Understanding how the system identifies lines
P0609326 1.1
Follow these steps to use the table.
1For each bus number, circle the module you set to that number.
2Beside the module name, circle the group of line numbers appropriate for the offset you set on
the modules.
3In the Line pool column, indicate a line pool name if you want to associate lines into a pool.
This enables assigned telephones to grab any free line from the pool.
4On the far right column, list the access codes and routes associated with the lines.
Table 30 DS30 number and offset line-loop default list
DS30
bus Type of module
Line/Loop numbers (default)
Offset
0123
Line pool
A-O/PRI
Access codes
and routes
Default Start DN: 221
02 Trunk modules
DTM (T1) 211-234
DTM (NA-PRI) 211-233
DTM (E1 PRI) 211-240
DDI MUX DTM 211-234*
BRI 211-218 219-226 227-234
CTM4, GATM4 and 4X16 211-214 219-222 227-230 235-238
CTM8, GATM8 (upper/
lower)
211-214
219-222
219-222
227-230
227-230
235-238
N/A
ISDN loops
BRI ST/U2/U4 201-204 205-208 209-212
*Note which lines are for data and which are for telephony.
03 Trunk module
DTM (T1) 181-204
DTM (NA-PRI) 181-203
DTM (E1 PRI) 181-210
DDI MUX DTM 181-204*
BRI 181-188 189-196 197-204
CTM4, GATM4 and 4X16 181-184 189-192 197-200 205-208
CTM8, GATM8 (upper/
lower)
181-184
189-192
189-192
197-200
197-200
205-208
N/A
ISDN loops
BRI ST/U2/U4 301-304 305-308 309-312
*Note which lines are for data, and which are for telephony.
Understanding how the system identifies lines 233
Business Communications Manager 3.6 Programming Operations Guide
04 Trunk module
DTM (T1) 151-174
DTM (NA-PRI) 151-173
DTM (E1 PRI 151-180
DDI MUX DTM 151-174*
BRI 181-188 189-196 197-204
CTM4, GATM4 and 4X16 151-154 159-162 167-170 175-178
CTM8, GATM8 (upper/
lower)
151-154
159-162
159-162
167-170
167-170
175-178
N/A
ISDN loops
BRI ST/U2/U4 401-404 405-408 409-412
*Note which lines are for data and which are for telephony.
05 Trunk module
DTM (T1) 121-144
DTM (NA-PRI 121-143
DTM (E1 PRI) 121-150
DDI MUX DTM 121-144*
BRI 151-158 159-166 167-174
CTM4, GATM4 and 4X16 121-124 129-132 137-140 145-148
CTM8, GATM8 (upper/
lower)
121-124
129-132
129-132
137-140
137-140
145-148
N/A
ISDN loops
BRI ST/U2/U4 501-504 505-508 509-512
*Note which lines are for data, and which are for telephony.
06 Trunk module
DTM (T1) 91-114
DTM (NA-PRI) 91-113
DTM (E1 PRI) 91-120
DDI MUX DTM 91-114*
BRI 91-98 99-106 107-114
CTM4, GATM4 and 4X16 91-94 99-102 107-110 115-188
CTM8, GATM8 (upper/
lower)
91-94
99-102
99-102
107-110
107-110
115-188
N/A
ISDN loops
BRI ST/U2/U4 601-604
*Note which lines are for data and which are for telephony.
Table 30 DS30 number and offset line-loop default list (Continued)
DS30
bus Type of module
Line/Loop numbers (default)
Offset
0123
Line pool
A-O/PRI
Access codes
and routes
234 Understanding how the system identifies lines
P0609326 1.1
All lines
This heading contains all possible lines available to the system.
07 Trunk module
DTM (T1) 61-84
DTM (NA-PRI) 61-83
DTM (E1 PRI) 61-90
DDI MUX DTM 121-144*
BRI 61-68 69-79 77-84
CTM4, GATM4 and 4X16 61-64 69-72 77-80 85-88
CTM8, GATM8 (upper/
lower)
61-64
69-72
69-72
77-80
77-80
85-88
N/A
ISDN loops
IBRI ST/U2/U4 701-704 705-708 709-712
*Note which lines are for data, and which are for telephony.
Table 30 DS30 number and offset line-loop default list (Continued)
DS30
bus Type of module
Line/Loop numbers (default)
Offset
0123
Line pool
A-O/PRI
Access codes
and routes
Using the General record 235
Business Communications Manager 3.6 Programming Operations Guide
Using the General record
The Lines XXX General record allows you to assign a name, a control telephone, and a remote
package for a line.
1Choose the type of line with which you want to work.
2Under that heading, choose the line number record you want configure.
3Click General.
Figure 49 Using the Lines General screen
4Change the headings to fit your requirements.
The following table shows the possible settings for the General record.
Table 31 General record values
Attribute Value Description
Name <maximum of seven
alphanumeric characters>
Identify the line in a way that is meaningful to your system, such as
by the type of line and line pool or the DN it is attached to in the
case of target lines.
Control set DN <control telephone DN>
Default: 221 (default Start DN)
Enter a telephone DN for a telephone that you want to use to turn
service off or on for other telephones using this line.
The control telephone must have the line assigned, or must be
assigned to the line pool the line is in. Refer to “Assigning line pool
access” on page 402
Tips: External lines and telephones must be programmed to use one of the Scheduled Services:
Ringing, Restriction, and Routing Services.
For maximum flexibility, Nortel Networks recommends that you create two different control
telephones, one for the lines and one for the telephones.
You can turn on a service manually or automatically for all external lines from an assigned control
telephone. However, you cannot combine schedules. A service can only be active as normal
service or one of the six schedules at any one time. Several schedules can be active at one time,
but they must use different services.
Use remote
package
<two-digit remote package
number>
Package 00: Prohibits remote access to:
• line pools
• external page
This package cannot be changed.
Package 01-15 are programmable.
Refer to “Defining remote access packages” on page 294
*
Target lines are incoming, only.
They do not show this field.
*
236 Assigning Trunk/line data
P0609326 1.1
Assigning Trunk/line data
The Trunk/line data heading allows you to program settings for lines that affect how the Business
Communications Manager communicates with other switches. These settings also allow you to
determine how lines, including target lines, are used in Business Communications Manager.
1Under the line number you are configuring, click the Trunk/line data heading.
2The Trunk type field is read-only unless the trunk type is T1.
Note: You can change the trunk type setting only for lines connected to a T1 line. All other
lines are automatically configured, based on the type of media bay module present.
Trunk types:
•VoIP
• DTM: TI types (Loop, E&M, DID, Ground, or fixed data channel), PRI, DASS2, DPNSS.
The DDI MUX module contains a DTM.
• CTM (North America): Loop
• BRI: BRI S/T, BRI U2, U4
• Target lines
BRI note: BRI U2 and BRI U4 are only available through a FEM module connected to a
Norstar trunk module with a BRI U2 or BRI U4 card.
3Configure the line settings.
The fields that appear will depend on the type of line. Refer to the charts below for
descriptions of applicable fields:
•“Loop start analog/digital fields” on page 237
•“Ground start fields” on page 240
•“DID fields” on page 242
•“E&M fields” on page 244
•“Target lines and DASS2 fields” on page 247
•“PRI fields” on page 249
Tips: You can program a line pool access code under Telephony Services, General Settings,
Access Codes. Refer to “Setting up line pool access codes” on page 317.
Table 31 General record values (Continued)
Attribute Value Description
Assigning Trunk/line data 237
Business Communications Manager 3.6 Programming Operations Guide
•“BRI fields” on page 250
•“DPNSS fields” on page 252
•“VoIP fields” on page 253
•“Lines field cross-reference chart” on page 255
Loop start analog/digital fields
Table 32 Loop start analog and digital fields
Attribute Value Description
Line type Public
Private to:
Pool A to O
Define how the line is used in relation to other lines in the system.
• Public line: can be accessed by more than one telephone.
• Private line: can be assigned only to one telephone and the prime telephone for
that line. Enter the internal number of the telephone.
• Pool A - O: assigns the line to one of the line pools. If a line is assigned to a line
pool, but is not assigned to any telephone, that line is available only for outgoing
calls.
For more information and tips, refer to “Line pool tips” on page 259.
Dial mode Pulse
Tone
Specify whether the system uses dual tone multifrequency (DTMF) or pulse
signaling on the trunk.
Unsupervised line
Supervised line
238 Assigning Trunk/line data
P0609326 1.1
Prime set DN:
None
Assign a telephone to provide backup answering for calls on the line. For an Auto
Answer line, calls are redirected if the received number is invalid or the target line is
busy, and if the
If busy parameter is set To prime.
Each line can be assigned only one prime telephone.
Doorphone note: Ensure that this DN does not belong to a doorphone.
Distinct rings
in use
read-only This field shows the Distinct Ring Patterns that have already been assigned to at
least one line.
Distinct ring None
Pattern 2
Pattern 3
Pattern 4
Choose the distinctive ring pattern that you want to assign to the line. This allows
you to provide selective service to calls with differing answer priorities.
When more than one line with the distinct ring settings rings at a telephone, the line
with the highest priority will ring first.
• Pattern 4 has the highest ring priority
• Pattern 3 has second highest ring priority
• Pattern 2 has third highest ring priority
• None has the lowest ring priority.
By default, all telephones and lines are set to None
Warning:
If you assign a distinctive ring pattern to a line, and that distinctive ring pattern has
already been assigned to a telephone, all telephones with that ring pattern will be
reset to pattern 1.
If you assign a distinctive ring pattern to a telephone, and that distinctive ring
pattern has already been assigned to a line, all lines with that ring pattern will be
reset to None.
Auto privacy Y or N Define whether one Business Communications Manager user can select a line in
use at another telephone to join an existing call. Refer to “Turn Privacy on or off for
a call” on page 258 (FEATURE 83).
Trunk mode Unspr
Supervised
* Earth calling
*Loop guarded
*Loop
unguarded
^Reversal on
Idle (ROI)
Define whether disconnect supervision, also referred to as loop supervision,
releases an external line when an open switch interval (OSI) is detected during a
call on that line. You must set this to Supervised if a loop trunk has its Answer
mode set to Auto or if you enable Answer with DISA. Disconnect supervision is also
required to conference two external callers. The line must be equipped with
disconnect supervision from the central office for the Supervised option to work.
* These listing only appears for UK analog lines. Note that Earth calling is only
supported by a FEM connected to a Norstar analog trunk module. The GATM does
not support Earth calling, even though the setting appears for the lines on the
module.
^This listing appears only for the Australia profile.
Tips: The duration of an open switch interval (OSI) before Business
Communications Manager disconnects a call is programmed by the Disconnect
timer setting. Refer to “Configuring the trunk module to line type” on page 131.
Table 32 Loop start analog and digital fields (Continued)
Attribute Value Description
Assigning Trunk/line data 239
Business Communications Manager 3.6 Programming Operations Guide
Answer
mode
Manual
Auto
Define whether a trunk is manual or automatic answer.
Auto answer mode allows the trunk to be a shared resource by the system
telephones.
For auto answer trunks being used to allow remote call-in from system users, the
trunk can be configured to answer with a straight dial tone, if DISA has not been
enabled. It can also be configured to answer with a stuttered dial tone if DISA is
enabled and the caller is expected to enter a COS password. The COS password
defines which system features the caller is permitted to access.
Manual answer trunks are assigned to one or more telephones. The assigned
telephones exclusively own the line.
Note: You require Disconnect supervision on the line if loop start trunks are to
operate in auto-answer mode (Trunk mode).
Answer with
DISA
Y or N If Y, when a remote user calls into the system on an unsupervised line, the system
prompts a caller for a six-digit class of service (COS) password.
If N, when a remote user calls into the system on an unsupervised line, the call is
connected as dialed.
Link at CO Y or N Some exchanges respond to a Link signal (FEATURE 71) by providing an
alternative line for making outgoing calls.
Enabling Link at CO causes the system to apply the restrictions on outgoing calls to
the digits dialed after the Link signal. As well, the call on the alternative line is
subject to all restrictions.
Disabling Link at CO prevents a Link signal from resetting the Business
Communications Manager restrictions in cases where the host exchange does not
provide an alternative line.
You also need to ensure that telephones using the line have the feature allowed.
Refer to “Defining telephone dialing restrictions” on page 442.
Use auxiliary
ringer
Y or N Turn the auxiliary ringer on or off for all telephones using this line.
When programmed on a line, the auxiliary ringer will ring every time a call is
received.
Note: When programmed only on a telephone, no ring occurs for a transferred call.
An auxiliary ringer can also be programmed in Services to ring for a line placed into
a scheduled Ringing service. Refer to “Configuring ringing service” on page 490
Full autohold Y or N Enables or disables Full autohold.
When enabled, if a caller selects an idle line but does not dial any digits, that line is
automatically placed on hold if you then select another line.
The default setting should be changed only if Full autohold is required for a specific
application.
Loss
Packages
Short CO
Medium CO
Long CO
Short PBX
Long PBX
Select the appropriate loss/gain and impedance settings for each line.
For more information refer to “Using loss packages” on page 260.
Impedance 600 ohm
900 ohm
The GATM can be set to a specific impedance level. This is determined by local
line requirements.
Table 32 Loop start analog and digital fields (Continued)
Attribute Value Description
240 Assigning Trunk/line data
P0609326 1.1
Ground start fields
Redirect to <dial string> Enter a dial string (including routing code) to redirect the line to an external
telephone, such as a call attendant on another system.
If you want to stop redirection, you need to delete the dial string and allow the
record to update.
WARNING: Enable modules
If you disabled any trunk media bay modules prior to performing programming, enable them now to
ensure your system will function properly.
Table 33 Ground start fields
Attribute Value Description
Line type Public
Private to:
Pool A to O,
Define how the line is used in relation to other lines in the system.
• Public line: can be accessed by more than one telephone.
• Private line: can be assigned only to one telephone and the prime telephone for
that line. Enter the internal number of the telephone.
• Pool A - O: assigns the line to one of the line pools. If a line is assigned to a line
pool, but is not assigned to any telephone, that line is available only for outgoing
calls.
For more information and tips, refer to “Line pool tips” on page 259.
Dial mode Pulse
Tone
Specify whether the system uses dual tone multifrequency (DTMF) or pulse
signaling on the trunk.
Table 32 Loop start analog and digital fields (Continued)
Attribute Value Description
Manual answer line Auto answer line
Assigning Trunk/line data 241
Business Communications Manager 3.6 Programming Operations Guide
Prime set DN:
None
Assign a telephone to provide backup answering for calls on the line. For an Auto
Answer line, calls are redirected if the received number is invalid or the target line is
busy, and if the If busy parameter is set To prime.
Each line can be assigned only one prime telephone.
Distinct rings
in use
read-only This field shows the Distinct Ring Patterns that have already been assigned to at
least one line.
Distinct ring None
Pattern 2
Pattern 3
Pattern 4
Choose the distinctive ring pattern that you want to assign to the line. This allows
you to provide selective service to calls with differing answer priorities.
When more than one line with the distinct ring settings rings at a telephone, the line
with the highest priority will ring first.
• Pattern 4 has the highest ring priority
• Pattern 3 has second highest ring priority
• Pattern 2 has third highest ring priority
• None has the lowest ring priority.
By default, all telephones and lines are set to None
Warning:
If you assign a distinctive ring pattern to a line, and that distinctive ring pattern has
already been assigned to a telephone, all telephones with that ring pattern will be
reset to pattern 1.
If you assign a distinctive ring pattern to a telephone, and that distinctive ring
pattern has already been assigned to a line, all lines with that ring pattern will be
reset to None.
Auto privacy Y or N Define whether one Business Communications Manager user can select a line in
use at another telephone to join an existing call. Refer to “Turn Privacy on or off for
a call” on page 258. (FEATURE 83)
Answer
mode
Manual
Auto
Define whether a trunk is manual or automatic answer.
Auto answer mode allows the trunk to be a shared resource by the system
telephones.
For auto answer trunks being used to allow remote call-in from system users, the
trunk can be configured to answer with a straight dial tone, if DISA has not been
enabled. It can also be configured to answer with a stuttered dial tone if DISA is
enabled and the caller is expected to enter a COS password. The COS password
defines which system features the caller is permitted to access.
Manual answer trunks are assigned to one or more telephones. The assigned
telephones exclusively own the line.
Answer with
DISA
Y or N If Y, when a remote user calls into the system on an unsupervised line, the system
prompts a caller for a six-digit class of service (COS) password.
If N, when a remote user calls into the system on an unsupervised line, the call is
connected as dialed.
Use auxiliary
ringer
Y or N Turn the auxiliary ringer on or off for all telephones using this line.
When programmed on a line, the auxiliary ringer will ring every time a call is
received.
Note: When programmed only on a telephone, no ring occurs for a transferred call.
An auxiliary ringer can also be programmed in Services to ring for a line placed into
a scheduled Ringing service. Refer to “Configuring ringing service” on page 490
Table 33 Ground start fields (Continued)
Attribute Value Description
242 Assigning Trunk/line data
P0609326 1.1
DID fields
Redirect to <dial string> Enter a dial string (including routing code) to redirect the line to an external
telephone, such as a call attendant on another system.
If you want to stop redirection, you need to delete the dial string and allow the
record to update.
WARNING: Enable modules
If you disabled any trunk media bay modules prior to performing programming, enable them now to
ensure your system will function properly.
Table 34 DID line fields
Attribute Value Description
Table 33 Ground start fields (Continued)
Attribute Value Description
Assigning Trunk/line data 243
Business Communications Manager 3.6 Programming Operations Guide
Line type Public
Private to:
Pool A to O
Define how the line is used in relation to other lines in the system.
• Public line: can be accessed by more than one telephone.
• Private line: can be assigned only to one telephone and the prime telephone for
that line. Enter the internal number of the telephone.
• Pool A - O: assigns the line to one of the line pools. If a line is assigned to a line
pool, but is not assigned to any telephone, that line is available only for outgoing
calls.
For more information and tips, refer to “Line pool tips” on page 259.
Dial mode Pulse
Tone
Specify whether the system uses dual tone multifrequency (DTMF) or pulse
signaling on the trunk.
Tone does not appear if Signaling is set to Immediate
(T1 DID &T1 E&M trunk types only).
Prime set DN:
None
Assign a telephone to provide backup answering for calls on the line. For an Auto
Answer line, calls are redirected if the received number is invalid or the target line
is busy, and if the If busy parameter is set To prime.
Each line can be assigned only one prime telephone.
Distinct rings
in use
read-only This field shows the Distinct Ring Patterns that have already been assigned to at
least one line.
Distinct ring None
Pattern 2
Pattern 3
Pattern 4
Choose the distinctive ring pattern that you want to assign to the line. This allows
you to provide selective service to calls with differing answer priorities.
When more than one line with the distinct ring settings rings at a telephone, the line
with the highest priority will ring first.
• Pattern 4 has the highest ring priority
• Pattern 3 has second highest ring priority
• Pattern 2 has third highest ring priority
• None has the lowest ring priority.
By default, all telephones and lines are set to None
Warning:
If you assign a distinctive ring pattern to a line, and that distinctive ring pattern has
already been assigned to a telephone, all telephones with that ring pattern will be
reset to pattern 1.
If you assign a distinctive ring pattern to a telephone, and that distinctive ring
pattern has already been assigned to a line, all lines with that ring pattern will be
reset to None.
Auto privacy Y or N Define whether one Business Communications Manager user can select a line in
use at another telephone to join an existing call. Refer to “Turn Privacy on or off for
a call” on page 258. (FEATURE 83)
Use auxiliary
ringer
Y or N Turn the auxiliary ringer on or off for all telephones using this line.
When programmed on a line, the auxiliary ringer will ring every time a call is
received.
Note: When programmed only on a telephone, no ring occurs for a transferred call.
An auxiliary ringer can also be programmed in Services to ring for a line placed into
a scheduled Ringing service. Refer to “Configuring ringing service” on page 490
Signaling WinkStart
Immediate
DelayDial
Select the signal type for the line. The immediate setting does not appear for T1
E&M or T1 DID trunks connected to a DTM if the Dial mode is set to tone.
Make sure that this matches the signal type programmed for the trunk at the other
switch.
Table 34 DID line fields (Continued)
Attribute Value Description
244 Assigning Trunk/line data
P0609326 1.1
E&M fields
ANI Number Y or N Define whether the telephone number of the caller will be collected for this line.
For T1 E&M and T1 DID trunks connected to a DTM, this setting only appears if
Signaling is set to WinkStart.
The central office must deliver ANI/DNIS in DTMF mode. No additional equipment
is required.
Redirect to <dial string> Enter a dial string (including routing code) to redirect the line to an external
telephone, such as a call attendant on another system.
If you want to stop redirection, you need to delete the dial string and allow the
record to update.
WARNING: Enable modules
If you disabled any trunk media bay modules prior to performing programming, enable them now to
ensure your system will function properly.
Table 35 E&M line fields
Attribute Value Description
Table 34 DID line fields (Continued)
Attribute Value Description
E&M trunk T1 E&M
Assigning Trunk/line data 245
Business Communications Manager 3.6 Programming Operations Guide
Line type Public
Private to:
Pool A to O
Define how the line is used in relation to other lines in the system.
• Public line: can be accessed by more than one telephone.
• Private line: can be assigned only to one telephone and the prime telephone for
that line. Enter the internal number of the telephone.
• Pool A - O: assigns the line to one of the line pools. If a line is assigned to a line
pool, but is not assigned to any telephone, that line is available only for outgoing
calls.
For more information and tips, refer to “Line pool tips” on page 259.
Dial mode Pulse
Tone
Specify whether the system uses dual tone multifrequency (DTMF) or pulse
signaling on the trunk.
Tone does not appear if Signaling is set to Immediate
(T1 DID &T1 E&M trunk types only).
Prime set DN:
None
Assign a telephone to provide backup answering for calls on the line. For an Auto
Answer line, calls are redirected if the received number is invalid or the target line is
busy, and if the If busy parameter is set To prime.
Each line can be assigned only one prime telephone.
Distinct rings
in use
read-only This field shows the Distinct Ring Patterns that have already been assigned to at
least one line.
Table 35 E&M line fields (Continued)
Attribute Value Description
E&M trunk T1 E&M
246 Assigning Trunk/line data
P0609326 1.1
Distinct ring None
Pattern 2
Pattern 3
Pattern 4
Choose the distinctive ring pattern that you want to assign to the line. This allows
you to provide selective service to calls with differing answer priorities.
When more than one line with the distinct ring settings rings at a telephone, the line
with the highest priority will ring first.
• Pattern 4 has the highest ring priority
• Pattern 3 has second highest ring priority
• Pattern 2 has third highest ring priority
• None has the lowest ring priority.
By default, all telephones and lines are set to None
Warning:
If you assign a distinctive ring pattern to a line, and that distinctive ring pattern has
already been assigned to a telephone, all telephones with that ring pattern will be
reset to pattern 1.
If you assign a distinctive ring pattern to a telephone, and that distinctive ring
pattern has already been assigned to a line, all lines with that ring pattern will be
reset to None.
Auto privacy Y or N Define whether one Business Communications Manager user can select a line in
use at another telephone to join an existing call. Refer to “Turn Privacy on or off for
a call” on page 258. (FEATURE 83)
Answer
mode
Manual
Auto
Define whether a trunk is manual or automatic answer.
Auto answer mode allows the trunk to be a shared resource by the system
telephones.
For auto answer trunks being used to allow remote call-in from system users, the
trunk can be configured to answer with a straight dial tone, if DISA has not been
enabled. It can also be configured to answer with a stuttered dial tone if DISA is
enabled and the caller is expected to enter a COS password. The COS password
defines which system features the caller is permitted to access.
Manual answer trunks are assigned to one or more telephones. The assigned
telephones exclusively own the line.
Answer with
DISA
Y or N Define whether the system prompts a caller for a six-digit class of service (COS)
password (Y). This setting appears for T1 loop start and T1 E&M lines that have
auto-answer mode. Set this option to No for T1 E&M lines on a private network that
have auto-answer mode.
Use auxiliary
ringer
Y or N Turn the auxiliary ringer on or off for all telephones using this line.
When programmed on a line, the auxiliary ringer will ring every time a call is
received.
Note: When programmed only on a telephone, no ring occurs for a transferred call.
An auxiliary ringer can also be programmed in Services to ring for a line placed into
a scheduled Ringing service. Refer to “Configuring ringing service” on page 490
Signaling WinkStart
Immediate
DelayDial
Select the signal type for the line. The immediate setting does not appear for T1
E&M or T1 DID trunks connected to a DTM if the Dial mode is set to tone.
Make sure that this matches the signal type programmed for the trunk at the other
switch.
ANI Number Y or N Define whether the telephone number of the caller will be collected for this line.
For T1 E&M and T1 DID trunks connected to a DTM, this setting only appears if
Signaling is set to WinkStart.
The central office must deliver ANI/DNIS in DTMF mode. No additional equipment
is required.
Table 35 E&M line fields (Continued)
Attribute Value Description
Assigning Trunk/line data 247
Business Communications Manager 3.6 Programming Operations Guide
Target lines and DASS2 fields
DNIS
Number
Y or N Defines whether the digits dialed by an external caller on this line will be
collected.For T1 E&M trunks connected to a DTM, this setting only appears if
Signaling is set to WinkStart and Answer mode is set to Manual.
These digits are required for some third-party software applications.
*Gain Normal
High
Set the level of gain for the channel.
*E&M trunks only. T1 E&M trunks do not have this field.
Redirect to <dial string> Enter a dial string (including routing code) to redirect the line to an external
telephone, such as a call attendant on another system.
If you want to stop redirection, you need to delete the dial string and allow the
record to update.
WARNING: Enable modules
If you disabled any trunk media bay modules prior to performing programming, enable them now to
ensure your system will function properly.
Table 36 Target lines and DASS2 line fields
Attribute Value Description
Line type Public
Private to:
Define how the line is used in relation to other lines in the system.
• Public line: can be accessed by more than one telephone.
• Private line: can be assigned only to one telephone and the prime telephone for
that line. Enter the internal number of the telephone.
If busy To Prime
Busy Tone
Define whether a caller receives a busy tone or the call forwards to the prime
telephone when the target line is busy. Busy tone only works for PRI trunks.
Prime set DN:
None
Assign a telephone to provide backup answering for calls on the line. For an Auto
Answer line, calls are redirected if the received number is invalid or the target line is
busy, and if the If busy parameter is set To prime.
Each line can be assigned only one prime telephone.
Table 35 E&M line fields (Continued)
Attribute Value Description
248 Assigning Trunk/line data
P0609326 1.1
Distinct rings
in use
read-only This field shows the Distinct Ring Patterns that have already been assigned to at
least one line.
Distinct ring None
Pattern 2
Pattern 3
Pattern 4
Choose the distinctive ring pattern that you want to assign to the line. This allows
you to provide selective service to calls with differing answer priorities.
When more than one line with the distinct ring settings rings at a telephone, the line
with the highest priority will ring first.
• Pattern 4 has the highest ring priority
• Pattern 3 has second highest ring priority
• Pattern 2 has third highest ring priority
• None has the lowest ring priority.
By default, all telephones and lines are set to None
Warning:
If you assign a distinctive ring pattern to a line, and that distinctive ring pattern has
already been assigned to a telephone, all telephones with that ring pattern will be
reset to pattern 1.
If you assign a distinctive ring pattern to a telephone, and that distinctive ring
pattern has already been assigned to a line, all lines with that ring pattern will be
reset to None.
Use auxiliary
ringer
Y or N Turn the auxiliary ringer on or off for all telephones using this line.
When programmed on a line, the auxiliary ringer will ring every time a call is
received.
Note: When programmed only on a telephone, no ring occurs for a transferred call.
An auxiliary ringer can also be programmed in Services to ring for a line placed into
a scheduled Ringing service. Refer to “Configuring ringing service” on page 490
Received #
(Private
Number/
Public
Number)
<digits
associated with
a specific target
line>
Specify the digits to make a specific target line ring.
• A received number cannot be the same as, or be the start digits, of a line pool
access code, a destination code, the DISA DN or the Auto DN.
• If you are configuring auto-answer BRI trunks to map to target lines, the
received number should be the same as the Network DN supplied by your
service provider. The call will be directed to the prime telephone for the
incoming line if the Network DN is not used.
For further information, refer to “Received #” on page 259.
Redirect to <dial string> Enter a dial string (including routing code) to redirect the line to an external
telephone, such as a call attendant on another system.
If you want to stop redirection, you need to delete the dial string and allow the
record to update.
WARNING: Enable modules
If you disabled any trunk media bay modules prior to performing programming, enable them now to
ensure your system will function properly.
Assign target lines Refer to “Assigning target lines” on page 287.
Table 36 Target lines and DASS2 line fields (Continued)
Attribute Value Description
Assigning Trunk/line data 249
Business Communications Manager 3.6 Programming Operations Guide
PRI fields
Table 37 PRI line fields
Attribute Value Description
Line type PRI A to PRI-F Define how the line is used in relation to other lines in the system.
• PRI A to PRI F: you must use routes and destination codes to direct PRI lines.
Prime set DN:
None
Assign a telephone to provide backup answering for calls on the line. For an Auto
Answer line, calls are redirected if the received number is invalid or the target line is
busy, and if the If busy parameter is set To prime.
Each line can be assigned only one prime telephone.
Distinct rings
in use
read-only This field shows the Distinct Ring Patterns that have already been assigned to at
least one line.
Distinct ring None
Pattern 2
Pattern 3
Pattern 4
Choose the distinctive ring pattern that you want to assign to the line. This allows
you to provide selective service to calls with differing answer priorities.
When more than one line with the distinct ring settings rings at a telephone, the line
with the highest priority will ring first.
• Pattern 4 has the highest ring priority
• Pattern 3 has second highest ring priority
• Pattern 2 has third highest ring priority
• None has the lowest ring priority.
By default, all telephones and lines are set to None
WARNING:
If you assign a distinctive ring pattern to a line, and that distinctive ring pattern has
already been assigned to a telephone, all telephones with that ring pattern will be
reset to pattern 1.
If you assign a distinctive ring pattern to a telephone, and that distinctive ring
pattern has already been assigned to a line, all lines with that ring pattern will be
reset to None.
WARNING: Enable modules
If you disabled any trunk media bay modules prior to performing programming, enable them now to
ensure your system will function properly.
250 Assigning Trunk/line data
P0609326 1.1
BRI fields
Table 38 BRI line fields
Attribute Value Description
Line type Public
Private to:
PRI A to PRI-F
Define how the line is used in relation to other lines in the system.
• Public line: can be accessed by more than one telephone.
• Private line: can be assigned only to one telephone and the prime telephone for
that line. Enter the internal number of the telephone.
• PRI A to PRI F: assigns the line to one of the line pools. If a line is assigned to a
line pool, but is not assigned to any telephone, that line is available only for
outgoing calls.
For more information and tips, refer to “Line pool tips” on page 259.
Prime set DN:
None
Assign a telephone to provide backup answering for calls on the line. For an Auto
Answer line, calls are redirected if the received number is invalid or the target line is
busy, and if the If busy parameter is set To prime.
Each line can be assigned only one prime telephone.
Distinct rings
in use
read-only This field shows the Distinct Ring Patterns that have already been assigned to at
least one line.
Distinct ring None
Pattern 2
Pattern 3
Pattern 4
Choose the distinctive ring pattern that you want to assign to the line. This allows
you to provide selective service to calls with differing answer priorities.
When more than one line with the distinct ring settings rings at a telephone, the line
with the highest priority will ring first.
• Pattern 4 has the highest ring priority
• Pattern 3 has second highest ring priority
• Pattern 2 has third highest ring priority
• None has the lowest ring priority.
By default, all telephones and lines are set to None
Manual answer line Auto answer line
Assigning Trunk/line data 251
Business Communications Manager 3.6 Programming Operations Guide
Warning:
If you assign a distinctive ring pattern to a line, and that distinctive ring pattern has
already been assigned to a telephone, all telephones with that ring pattern will be
reset to pattern 1.
If you assign a distinctive ring pattern to a telephone, and that distinctive ring
pattern has already been assigned to a line, all lines with that ring pattern will be
reset to None.
Auto privacy Y or N Define whether one Business Communications Manager user can select a line in
use at another telephone to join an existing call. Refer to “Turn Privacy on or off for
a call” on page 258. (FEATURE 83)
Answer
mode
Manual
Auto
Define whether a trunk is manual or automatic answer.
Auto answer mode allows the trunk to be a shared resource by the system
telephones.
For auto answer trunks being used to allow remote call-in from system users, the
trunk can be configured to answer with a straight dial tone, if DISA has not been
enabled. It can also be configured to answer with a stuttered dial tone if DISA is
enabled and the caller is expected to enter a COS password. The COS password
defines which system features the caller is permitted to access.
Manual answer trunks are assigned to one or more telephones. The assigned
telephones exclusively own the line.
Answer with
DISA
Y or N Define whether the system prompts a caller for a six-digit class of service (COS)
password. This setting appears for T1 loop start and T1 E&M lines that have
auto-answer mode. Set this option to No for T1 E&M lines on a private network that
have auto-answer mode.
Use auxiliary
ringer
Y or N Turn the auxiliary ringer on or off for all telephones using this line.
When programmed on a line, the auxiliary ringer will ring every time a call is
received.
Note: When programmed only on a telephone, no ring occurs for a transferred call.
An auxiliary ringer can also be programmed in Services to ring for a line placed into
a scheduled Ringing service. Refer to “Configuring ringing service” on page 490
Full autohold Y or N Enables or disables Full autohold.
When enabled, if a caller selects an idle line but does not dial any digits, that line is
automatically placed on hold if you then select another line.
The default setting should be changed only if Full autohold is required for a specific
application.
WARNING: Enable modules
If you disabled any trunk media bay modules prior to performing programming, enable them now to
ensure your system will function properly.
Table 38 BRI line fields (Continued)
Attribute Value Description
252 Assigning Trunk/line data
P0609326 1.1
DPNSS fields
Table 39 DPNSS line fields
Attribute Value Description
Line type Public
Private to:
PRI A to PRI-F
Define how the line is used in relation to other lines in the system.
• Public line: can be accessed by more than one telephone.
• Private line: can be assigned only to one telephone and the prime telephone for
that line. Enter the internal number of the telephone.
• PRI A to PRI F: assigns the line to one of the line pools. PRI line pools must be
used in conjunction with routes and destination codes.
Prime set DN:
None
Assign a telephone to provide backup answering for calls on the line. For an Auto
Answer line, calls are redirected if the received number is invalid or the target line is
busy, and if the
If busy parameter is set To prime.
Each line can be assigned only one prime telephone.
Distinct rings
in use
read-only This field shows the Distinct Ring Patterns that have already been assigned to at
least one line.
Distinct ring None
Pattern 2
Pattern 3
Pattern 4
Choose the distinctive ring pattern that you want to assign to the line. This allows
you to provide selective service to calls with differing answer priorities.
When more than one line with the distinct ring settings rings at a telephone, the line
with the highest priority will ring first.
• Pattern 4 has the highest ring priority
• Pattern 3 has second highest ring priority
• Pattern 2 has third highest ring priority
• None has the lowest ring priority.
By default, all telephones and lines are set to None
Warning:
If you assign a distinctive ring pattern to a line, and that distinctive ring pattern has
already been assigned to a telephone, all telephones with that ring pattern will be
reset to pattern 1.
If you assign a distinctive ring pattern to a telephone, and that distinctive ring
pattern has already been assigned to a line, all lines with that ring pattern will be
reset to None.
Refer to “Defining user preferences” on page 415 for information about assigning a
distinctive ring pattern to a telephone.
You can also assign a distinctive ring pattern to a Hunt group. Refer to “Identifying a
Hunt group” on page 575.
Answer
mode
Manual
Auto
Define whether a trunk is manual or automatic answer.
Auto answer mode allows the trunk to be a shared resource by the system
telephones.
For auto answer trunks being used to allow remote call-in from system users, the
trunk can be configured to answer with a straight dial tone, if DISA has not been
enabled. It can also be configured to answer with a stuttered dial tone if DISA is
enabled and the caller is expected to enter a COS password. The COS password
defines which system features the caller is permitted to access.
Manual answer trunks are assigned to one or more telephones. The assigned
telephones exclusively own the line.
Assigning Trunk/line data 253
Business Communications Manager 3.6 Programming Operations Guide
VoIP fields
Use auxiliary
ringer
Y or N Turn the auxiliary ringer on or off for all telephones using this line.
When programmed on a line, the auxiliary ringer will ring every time a call is
received.
Note: When programmed only on a telephone, no ring occurs for a transferred call.
An auxiliary ringer can also be programmed in Services to ring for a line placed into
a scheduled Ringing service. Refer to “Configuring ringing service” on page 490
Full autohold Y or N Enables or disables Full autohold.
When enabled, if a caller selects an idle line but does not dial any digits, that line is
automatically placed on hold if you then select another line.
The default setting should be changed only if Full autohold is required for a specific
application.
WARNING: Enable modules
If you disabled any trunk media bay modules prior to performing programming, enable them now to
ensure your system will function properly.
Table 40 VoIP line data fields
Attribute Value Description
Line type Public
Private to:
Pool A to O
Define how the line is used in relation to other lines in the system.
• Public line: can be accessed by more than one telephone.
• Private line: can be assigned only to one telephone and the prime telephone for
that line. Enter the internal number of the telephone.
• Pool A - O/PRI A to PRI F: assigns the line to one of the
15 line pools. If a line is assigned to a line pool, but is not assigned to any
telephone, that line is available only for outgoing calls.
For more information and tips, refer to “Line pool tips” on page 259.
Table 39 DPNSS line fields
Attribute Value Description
254 Assigning Trunk/line data
P0609326 1.1
Prime set DN:
None
Assign a telephone to provide backup answering for calls on the line. For an Auto
Answer line, calls are redirected if the received number is invalid or the target line is
busy, and if the If busy parameter is set To prime.
Each line can be assigned only one prime telephone.
Distinct rings
in use
read-only This field shows the Distinct Ring Patterns that have already been assigned to at
least one line.
Distinct ring None
Pattern 2
Pattern 3
Pattern 4
Choose the distinctive ring pattern that you want to assign to the line. This allows
you to provide selective service to calls with differing answer priorities.
When more than one line with the distinct ring settings rings at a telephone, the line
with the highest priority will ring first.
• Pattern 4 has the highest ring priority
• Pattern 3 has second highest ring priority
• Pattern 2 has third highest ring priority
• None has the lowest ring priority.
By default, all telephones and lines are set to None
Warning:
If you assign a distinctive ring pattern to a line, and that distinctive ring pattern has
already been assigned to a telephone, all telephones with that ring pattern will be
reset to pattern 1.
If you assign a distinctive ring pattern to a telephone, and that distinctive ring
pattern has already been assigned to a line, all lines with that ring pattern will be
reset to None.
Auto privacy Y or N This setting has no effect on VoIP lines.
Use auxiliary
ringer
Y or N Turn the auxiliary ringer on or off for all telephones using this line.
When programmed on a line, the auxiliary ringer will ring every time a call is
received.
Note: When programmed only on a telephone, no ring occurs for a transferred call.
An auxiliary ringer can also be programmed in Services to ring for a line placed into
a scheduled Ringing service. Refer to “Configuring ringing service” on page 490
Full autohold Y or N Enables or disables Full autohold.
When enabled, if a caller selects an idle line but does not dial any digits, that line is
automatically placed on hold if you then select another line.
The default setting should be changed only if Full autohold is required for a specific
application.
WARNING: Enable modules
If you disabled any trunk media bay modules prior to performing programming, enable them now to
ensure your system will function properly.
Table 40 VoIP line data fields (Continued)
Attribute Value Description
Assigning Trunk/line data 255
Business Communications Manager 3.6 Programming Operations Guide
Lines field cross-reference chart
The following table provides a quick cross reference that shows common line fields, noted by
trunk type.
Table 41 Combined line settings table
Trunk types Attribute Value Description
All Line type Public
Private to:
Pool A to O,
PRI A to PRI-F
Define how the line is used in relation to other lines in the
system.
• Public line: can be accessed by more than one telephone.
• Private line: can be assigned only to one telephone and
the prime telephone for that line. Enter the internal
number of the telephone.
• Pool A - O (digital lines and VoIP trunks/PRI-A to PRI-F
(PRI and BRI lines): assigns the line to one of the line
pools. If a line is assigned to a line pool, but is not
assigned to any telephone, that line is available only for
outgoing calls.
PRI line pools must be used in conjunction with routes
and destination codes. target lines cannot be put into line
pools.
For more information and tips, refer to “Line pool tips” on
page 259.
Loop start analog
Loop start digital
Ground start digital
DID
E&M
Dial mode Pulse
Tone
Specify whether the system uses dual tone multifrequency
(DTMF) or pulse signaling on the trunk.
Tone does not appear if Signaling is set to Immediate
(T1 DID &T1 E&M trunk types only).
Target lines
DASS2
Received #
(Private
Number/
Public
Number)
<digits
associated with
a specific target
line>
Specify the digits to make a specific target line ring.
• A received number cannot be the same as, or be the start
digits, of a line pool access code, a destination code, the
DISA DN or the Auto DN.
• If you are configuring auto-answer BRI trunks to map to
target lines, the received number should be the same as
the Network DN supplied by your service provider. The
call will be directed to the prime telephone for the
incoming line if the Network DN is not used.
For further information, refer to “Received #” on page 259.
Target lines
DASS2
If busy To Prime
Busy Tone
Define whether a caller receives a busy tone or the call
forwards to the prime telephone when the target line is busy.
Busy tone only works for PRI trunks.
All Prime set DN:
None
Assign a telephone to provide backup answering for calls on
the line. For an Auto Answer line, calls are redirected if the
received number is invalid or the target line is busy, and if the
If busy parameter is set To prime.
Each line can be assigned only one prime telephone.
All Distinct rings
in use
read-only This field shows the Distinct Ring Patterns that have already
been assigned to at least one line.
256 Assigning Trunk/line data
P0609326 1.1
All Distinct ring None
Pattern 2
Pattern 3
Pattern 4
Choose the distinctive ring pattern that you want to assign to
the line. This allows you to provide selective service to calls
with differing answer priorities.
When more than one line with the distinct ring settings rings
at a telephone, the line with the highest priority will ring first.
• Pattern 4 has the highest ring priority
• Pattern 3 has second highest ring priority
• Pattern 2 has third highest ring priority
• None has the lowest ring priority.
By default, all telephones and lines are set to None
WARNING
If you assign a distinctive ring pattern to a line, and that distinctive ring pattern
has already been assigned to a telephone, all telephones with that ring pattern
will be reset to pattern 1.
If you assign a distinctive ring pattern to a telephone, and that distinctive ring
pattern has already been assigned to a line, all lines with that ring pattern will be
reset to None.
Refer to “Defining user preferences” on page 415 for information about
assigning a distinctive ring pattern to a telephone.
You can also assign a distinctive ring pattern to a Hunt group. Refer to
“Identifying a Hunt group” on page 575.
Loop start analog
Loop start digital
Ground start digital
DID
E&M
BRI
VoIP
Auto privacy Y or N Define whether one Business Communications Manager
user can select a line in use at another telephone to join an
existing call. Refer to “Turn Privacy on or off for a call” on
page 258 (FEATURE 83).
Note: This setting has no effect on VoIP lines.
Loop start analog
Loop start digital
Trunk mode Unspr
Supervised
*Earth calling
*Loop guarded
*Loop
unguarded
Define whether disconnect supervision, also referred to as
loop supervision, releases an external line when an open
switch interval (OSI) is detected during a call on that line.
You must set this to Supervised if a loop trunk has its Answer
mode set to Auto or if you enable Answer with DISA.
Disconnect supervision is also required to conference two
external callers. The line must be equipped with disconnect
supervision from the central office for the Supervised option
to work.
* These listing only appear for UK analog lines. Note that
Earth calling is only supported by a FEM connected to a
Norstar analog trunk module. The GATM does not support
Earth calling, even though the setting appears for the lines on
the module.
Tips: The duration of an open switch interval (OSI) before
Business Communications Manager disconnects a call is
programmed by the Disconnect timer setting. Refer to
“Configuring the trunk module to line type” on page 131.
Table 41 Combined line settings table (Continued)
Trunk types Attribute Value Description
Assigning Trunk/line data 257
Business Communications Manager 3.6 Programming Operations Guide
Loop start analog
Loop start digital
Ground start digital
E&M
BRI
DPNSS
Answer
mode
Manual
Auto
Define whether a trunk is manual or automatic answer.
Auto answer mode allows the trunk to be a shared resource
by the system telephones.
For auto answer trunks being used to allow remote call-in
from system users, the trunk can be configured to answer
with a straight dial tone, if DISA has not been enabled. It can
also be configured to answer with a stuttered dial tone if
DISA is enabled and the caller is expected to enter a COS
password. The COS password defines which system
features the caller is permitted to access.
Manual answer trunks are assigned to one or more
telephones. The assigned telephones exclusively own the
line.
Note: You require Disconnect supervision on the line if loop
start trunks are to operate in auto-answer mode.
Loop start analog
Loop start digital
Ground start digital
E&M
BRI
Answer with
DISA
Y or N Define whether the system prompts a caller for a six-digit
class of service (COS) password. This setting appears for T1
loop start and T1 E&M lines that have auto-answer mode.
Set this option to No for T1 E&M lines on a private network
that have auto-answer mode.
To program DISA on a PRI trunk you need to specify a DISA
DN, see “Creating Direct Inward System Access (DISA)” on
page 291 and “Programming access codes” on page 310.
Loop start analog Link at CO Y or N Some exchanges respond to a Link signal (FEATURE 71) by
providing an alternative line for making outgoing calls.
Enabling Link at CO causes the system to apply the
restrictions on outgoing calls to the digits dialed after the Link
signal. As well, the call on the alternative line is subject to all
restrictions.
Disabling Link at CO prevents a Link signal from resetting the
Business Communications Manager restrictions in cases
where the host exchange does not provide an alternative
line.
Loop start analog
Loop start digital
Ground start digital
DID
E&M
BRI
Target lines
VoIP
DASS2
DPNSS
Use auxiliary
ringer
Y or N Turn the auxiliary ringer on or off for all telephones using this
line.
When programmed on a line, the auxiliary ringer will ring
every time a call is received.
Note: When programmed only on a telephone, no ring
occurs for a transferred call.
An auxiliary ringer can also be programmed in Services to
ring for a line placed into a scheduled Ringing service. Refer
to “Configuring routing service” on page 495.
Loop start analog
Loop start digital
BRI
VoIP
DPNSS
Full autohold Y or N Enables or disables Full autohold.
When enabled, if a caller selects an idle line but does not dial
any digits, that line is automatically placed on hold if you then
select another line.
Full autohold is always in place for T1 E&M trunks because it
has no meaning for incoming-only T1 DID trunks.
The default setting should be changed only if Full autohold is
required for a specific application.
Table 41 Combined line settings table (Continued)
Trunk types Attribute Value Description
258 Assigning Trunk/line data
P0609326 1.1
Turn Privacy on or off for a call
You can configure lines in your system to have automatic privacy. With a line not programmed
with privacy, anyone with the line assigned to their telephone can join your call by pressing the
line button. With a line programmed with privacy, one person at a time can use the line.
Use Feature 83 to turn the privacy feature off and on.
Privacy control cannot be used for internal or conference calls.
When another telephone joins a call, the participants on the call hear a tone, and a message appears
on the telephone display. It is not possible to join a call without everyone hearing this tone.
Loop start analog Loss
Packages
Short CO
Medium CO
Long CO
Short PBX
Long PBX
Select the appropriate loss/gain and impedance settings for
each line.
For more information refer to “Using loss packages” on page
260.
DID
E&M
Signaling WinkStart
Immediate
DelayDial
Select the signal type for the line. The immediate setting
does not appear for T1 E&M or T1 DID trunks connected to a
DTM if the Dial mode is set to tone.
Make sure that this matches the signal type programmed for
the trunk at the other switch.
DID
E&M
ANI Number Y or N Define whether the telephone number of the caller will be
collected for this line.
For T1 E&M and T1 DID trunks connected to a DTM, this
setting only appears if Signaling is set to WinkStart.
The central office must deliver ANI/DNIS in DTMF mode. No
additional equipment is required.
E&M DNIS
Number
Y or N Defines whether the digits dialed by an external caller on this
line will be collected.For T1 E&M trunks connected to a DTM,
this setting only appears if Signaling is set to WinkStart and
Answer mode is set to Manual.
These digits are required for some third-party software
applications.
E&M *Gain Normal
High
Set the level of gain for the channel.
*E&M trunks only. T1 E&M trunks do not have this field.
Loop Start (GATM
only)
Impedance 600 ohm
900 ohm
The GATM can be set to a specific impedance level.
Loop start analog
Loop start digital
Ground start digital
DID
E&M
Target lines
DASS2
Redirect to <dial string> Enter a dial string (including routing code) to redirect the line
to an external telephone, such as a call attendant on another
system.
If you want to stop redirection, you need to delete the dial
string and allow the record to update.
WARNING: Enable modules
If you disabled any trunk media bay modules prior to performing programming, enable them
now to ensure your system will function properly.
Table 41 Combined line settings table (Continued)
Trunk types Attribute Value Description
Assigning Trunk/line data 259
Business Communications Manager 3.6 Programming Operations Guide
Note: The Auto privacy setting does not apply to target lines, PRI lines or VoIP trunking lines.
Received #
Target lines provide an additional record under Trunk/Line Data, and that is the Received
number. You can specify received numbers for both private (VoIP and MCDN) and public
network connections. This allows the system to identify the source of the call on a per-call basis.
1Click on Received Number.
The Line XXX Received Number screen appears.
Figure 50 Target line Private and Public received numbers
2Public number: The Network DN supplied by your service provider.
Private number: The DN number of the telephone or Hunt group.
3Go to the DN record for that telephone and ensure that the target line number is specified in
the Line Assignment section.
Line pool tips
Read these tips before you assign your line pools.
• Line pools must never contain a mixture of lines. All lines in a given line pool should go to the
same location.
• Avoid putting unsupervised loop start lines in a line pool. These lines can become unusable,
especially when a remote user uses the line pool to make an external call.
• Assign line pool access to telephones in Line access programming.
• Assign system-wide line pool access codes in General settings (not applicable to PRI pools).
Caution: Changing the received # length:
If you change the received number length for your system, the Public number entry for
the target lines will clear if the new received # length is less than the number entered in this
field.
If the new received # length has more digits than the number entered in this field, you need
to change the entry manually, if changes are required. Refer to “Changing the received #
length” on page 286.
260 Assigning Trunk/line data
P0609326 1.1
• A telephone can be administered to search automatically for an idle line from several lines that
appear on the telephone. Assign a line pool as the prime line (in Line access) and all the lines
in the line pool must appear on that telephone. When the user lifts the receiver or presses
Handsfree, any one of the lines, if idle, can be selected by Automatic Outgoing Line selection.
• Changes in the settings for trunk type on a system that is in use, can result in dropped calls.
• When assigning lines to line pools, consider your network configuration. You can create a
unified dialing plan by assigning lines to the same location to the same line pool on each of
your systems. For example, if system A and system B each have tie lines to system C, assign
the tie lines to pool D on each of the systems. You cannot assign target lines to a line pool, as
they are incoming-only.
Using loss packages
The Loss package settings allow you to select the appropriate loss/gain and impedance settings for
each line. The setting is based on the terminating switch type and the distance between Business
Communications Manager and the terminating switch.
When measuring the distance from Business Communications Manager to CO and from Business
Communications Manager to PBX systems, use 600 ohms as the termination resistance setting.
A loss of 4 dB corresponds to a cable length of approximately 2700 m (9000 ft).
Table 42 Loss package settings
Loss
Package
Receive
Loss
Transmit
Loss Impedance Distance to switch/cable loss/terminating switch
Short CO 0 dB 3 dB Short Short/<2 dB/Business Communications Manager to CO
Medium CO 0 dB 0 dB TIA/EIA 464 Medium/>2 dB and <6 dB/Business Communications
Manager to CO
Long CO -3 dB 0 dB TIA/EIA 464 Long/>6 dB/Business Communications Manager to CO
Short PBX 0 dB 0 dB Short Short/<2 dB/Business Communications Manager to PBX
Long PBX -3 dB 0 dB TIA/EIA 464 Long/>2 dB/Business Communications Manager to PBX
Assigning Restrictions 261
Business Communications Manager 3.6 Programming Operations Guide
Assigning Restrictions
Restrictions prevent you from making certain kinds of calls from specific lines on the telephone.
You can also restrict some features. This section describes how to apply restriction filters to lines.
You can assign a different restriction filter for normal service and for each of six schedules.
Refer to “Defining service schedules” on page 489 for more information about setting up
schedules. For PRI, line restriction changes apply to all 23 lines.
Note: The template has a set of default restrictions in Restriction 02, only. You must create your
own restriction files if you want to use other settings. For details about creating restriction files,
refer to “Defining restriction filters” on page 344.
Setting line restrictions
The Line Restrictions heading allows you to specify the filter applied to this line to restrict the
dial-out numbers. Follow these steps to create line restrictions:
1Choose Services, Telephony Services, Lines, Line nnn, Restrictions,
2Click on the key beside Line restrictions.
3Click the schedule heading that you want to configure.
For example, Night.
The Line restriction window for that schedule appears.
Figure 51 Entering a line restriction filter
4In the Use filter box, type in the number of the restriction filter you want to assign as the line
restriction for this schedule.
The default restriction filters are listed in the following table.
Table 43 Default restriction filters
Schedule Restriction filter Schedule Restriction filter
Normal 03
Schedule 1 (Night) 21 Schedule 4 00
Schedule 2 (Evening) 22 Schedule 5 00
Schedule 3 (Lunch) 23 Schedule 6 00
262 Assigning Restrictions
P0609326 1.1
Note: When a remote user places an external call on a line, any filters used with the line still apply.
However, if DND is active on the line, no set or set/line restrictions apply.
Setting remote restrictions
Specify the restriction filter for the line that remote callers use to call in to Business
Communications Manager.
1From the Lines headings, choose the line you want to set restrictions for.
2Click on the key beside Remote restrictions.
3Click the schedule heading that you want to configure. For example, Night.
The Remote restriction window for that schedule appears.
Figure 52 Enter remote restriction filters for a line
4In the Use filter box, type in the number of the restriction filter you want to assign as the
remote restriction for this schedule.
5Select the remote restrictions for each schedule. The default restrictions are shown in the
following table.
Note: The remote restriction restricts the numbers a user can dial on an incoming auto-answer line.
If a remote user then selects a line to place an external call, any filter used with the line still
applies.
Table 44 Default remote restrictions
Schedule Restriction filter Schedule Restriction filter
Normal 04
Schedule 1 (Night) 31 Schedule 4 00
Schedule 2 (Evening) 32 Schedule 5 00
Schedule 3 (Lunch) 33 Schedule 6 00
Setting line telco features 263
Business Communications Manager 3.6 Programming Operations Guide
Setting line telco features
If you subscribe to a voice message service outside your office, you can access it through your
Business Communications Manager system. You can specify what voice message center you use
for each external line that receives message waiting indication.
1Click on the keys beside Services, Telephony Services, Lines.
2Click on the Line record.
3Click the Telco features heading.
The Telco features window for the line appears.
Figure 53 Choosing a remote voice message center
4Select the Voice message center for the line, Center 1 - Center 5 or None.
Note: To program the external numbers for each Center, refer to “Configuring centralized
voice mail” on page 559. If you have an MCDN private network set up, where the voice
message center is on a voice message device attached to the Meridian, this feature would have
to be set in all systems to point to that system, except for the telephones directly attached to the
Meridian system.
Line matrix
To help you with your line planning, transfer the following information to a spreadsheet and fill
out the values for each line you provision.
Table 45 Line attributes
General
Name
Control set
Use remote package
Trunk/line Data
Trunk Type
Line Type Answer with DISA
Dial mode Link at CO
Received # Use auxiliary ringer
If busy Full autohold
264 Setting line telco features
P0609326 1.1
Prime set Loss package
Auto privacy Signaling
Trunk mode ANI Number
Answer mode DNIS Number
Received # Distinctive Ring
Line restrictions Remote restrictions
Normal 03 Normal 04
Schedule 1 (Night) 21 Schedule 1 (Night) 31
Schedule 2 (Evening) 22 Schedule 2 (Evening) 32
Schedule 3 (Lunch) 23 Schedule 3 (Lunch) 33
Schedule 4 00 Schedule 4 00
Schedule 5 00 Schedule 5 00
Schedule 6 00 Schedule 6 00
Telco features: Voice message center Center 1 to 5 or None
Table 45 Line attributes (Continued)
265
Business Communications Manager 3.6 Programming Operations Guide
Chapter 10
Configuring BRI Loops
The following sections describe the information accessed under the Services, Telephony
Services, Loops headings. The Loops headings allow you to program BRI S, T, U2, and U4 ISDN
loop settings.
This section includes information about:
•“BRI configuration process map” on page 266
•“Identifying BRI T-loops (T1 profiles)” on page 267
•“Identifying BRI T-loops (ETSI, QSIG)” on page 271
•“Configuring D-packet service for T loops” on page 273
•“Provisioning the loop variables” on page 274
•“Setting BRI for ISDN device connections” on page 278
•“Loop matrix” on page 281
The Loops screens define the loop numbers and loop attributes that correspond to the DIP switch
settings that were configured on the BRI trunk media bay modules installed on your system. Check
your Programming Record to see which modules are installed, and what settings were chosen.
Available BRI trunk loop attributes are determined by the country profile that is assigned to your
system. All profiles allow BRI programming, however, there is a difference between T1-based
profiles and for E1-based profiles. Refer to “Core software and regions” on page 846 for a list of
countries and profiles.
Once loops are provisioned, the system assigns two line numbers per loop. These lines are then
programmed as you would any other lines. Refer to “BRI fields” on page 250 for a description of
the headings that appear for lines defined for BRI loops. Lines programming is explained under
Chapter 9, “Configuring lines,” on page 227.
Note: DECT modules contain BRI lines, however, these lines are configured as part of the DECT
programming. Refer to the DECT Installation and Configuration Guide for details.
Task:
Configure the BRI loops connected to the system through BRI modules.
Note: DECT programming is contained in separate documentation.
266 BRI configuration process map
P0609326 1.1
The following figure shows a detailed view of the Loops headings.
Figure 54 Loops headings
BRI configuration process map
The following process map shows the steps for configuring loops for T-1 based BRI modules.
Figure 55 Process map: Configuring the loops for your BRI module
T-loops (North America):
Telephony Services
Loops
Loop 201-xxx
SPIDs
Network DNs
DN 01
D-packet service
TEIs
T-loops (ETSI, QSIG):
Telephony Services
Loops
Loop 201-xxx
D-packet service
TEIs
S-loops (all profiles):
Telephony Services
Loops
Loop 201-xxx
DNs on loop
Assigned DNs
DN XXX
Note the loops that are active. (Services, Telephony Services, Loops)
Configure loops to support ISDN trunks or ISDN terminals.
BRI module is installed and system is running.
Trunk (T) loops S loops
Provision the loops and lines.
“Provisioning the loop variables” on
page 274
Configure the line records. Put into line
pools. “BRI fields” on page 250
Assign lines and line pools to telephone
records. “Assigning the lines to
telephones” on page 277
Configure trunk loop variables.
“Identifying BRI T-loops (T1 profiles)”
on page 267
Configure terminal loop variables. “Setting
BRI for ISDN device connections” on page
278
Configure ISDN device records.
“Configure the ISDN terminal records” on
page 281
Test
“Identifying BRI T-loops (ETSI, QSIG)”
on page 271
Set up D-packet service, if required.
“Configuring D-packet service for T
loops” on page 273
Identifying BRI T-loops (T1 profiles) 267
Business Communications Manager 3.6 Programming Operations Guide
You can program a loop to support either trunking services to the ISDN network, or terminal
services to one or more ISDN devices. The following sections describe the programming for each
type of loop. For complete module installation instructions and safety precautions, see the
Installation and Maintenance Guide.
Using an NT-1 for BRI U2/BRI U4
The Business Communications Manager supports the BRI S/T protocol. If your ISDN service
provider provides U-type ISDN service or the BRI devices are U-type devices, you need to obtain
a network terminal (NT-1) device. This device is installed between the ISDN network feed and the
Business Communications Manager for trunking loops. It is installed between the Business
Communications Manager and the ISDN device or the ISDN bus connecting several ISDN devices
on a BRI terminal loop.
Identifying BRI T-loops (T1 profiles)
T1-based BRI loops have three parameters that identify loop characteristics.
1In the Unified Manager, click on the keys beside Services, Telephony Services, Loops.
2Click on the loop number you want to configure as an ISDN trunk connection.
Figure 56 T-loop screen (T1 profiles)
3Configure the loop settings according to the following table:
Table 46 Loop settings
Attribute Value Description
Type T
Clock Source Primary
Secondary
Master
Default: Master
This setting determines whether the system uses this module as the clock
source for the network.
268 Identifying BRI T-loops (T1 profiles)
P0609326 1.1
Adding SPIDs
System running with T1 country profiles (North American) support additional BRI services
offered by ISDN service providers and defined by network service profile identifiers (SPIDs). The
SPID allows you to enter a network connection that provides a path for voice or data services.
1Collect the information supplied by your service provider: SPIDs, Network DNs, TEIs.
For ISDN BRI service, your service provider supplies Service Profile Identifiers, network
DNs. You need to assign a SPID to a loop before you can assign Network DNs to that loop.
2Click on the keys beside Services, Telephony Services, Loops, Loop XXX, where Loop
XXX is the loop where you want to assign SPIDs.
3Click the SPIDs heading.
4Click the Add button.
The SPID dialog box appears.
Figure 57 Adding a SPID
5Type in the SPID number.
6Click Save.
SPID 1 appears as a sub-heading.
ONN blocking state Suppression bit,
Service code
Set the Outgoing Name and Number (ONN) Blocking.
When you activate ONN, a user can press FEATURE 819 to block the
outgoing name and number on a per call basis.
Suppression bit: the system flags the call to the Central Office (CO) so
that the name and number is not sent to the person you call.
Service code: VSC digits are dialed out before the called number to
activate ONN at the central office. These codes are supplied by your
service provider for the lines. Refer to “Configuring ONN blocking service
codes” on page 480. PRI lines have only one code, so do not require
specific configuration.
Programming note: Ensure that all telephones that have this feature
available are assigned valid OLI numbers. Refer to “Assigning line access”
on page 394.
Table 46 Loop settings (Continued)
Attribute Value Description
Identifying BRI T-loops (T1 profiles) 269
Business Communications Manager 3.6 Programming Operations Guide
Identifying the SPID B-channels
1Click on the keys beside Services, Telephony Services, Loops, Loop XXX, SPIDs.
2Click the SPID # heading for the SPID record for which you want to assign B-channels.
Figure 58 Assign number of B-channels per SPID
3Select 1 or 2 in the Number of B-channels box.
4Click outside the window to save the setting.
Adding SPID network DNs
1Under the SPID # heading, click the Network DNs heading.
2Click the Add button above the navigation tree.
Figure 59 Add Network DN to SPID X
3Type the ISDN DN number in the DN box for the device you want to use.
4Click the Save button. DN 01 appears as a sub-heading.
5Click the first DN #.
6In the Call type field, select Voice, Data or Both.
270 Identifying BRI T-loops (T1 profiles)
P0609326 1.1
Figure 60 Specifying a Network DN call type
7Repeat for all the DNs assigned to the Network DN.
Identifying BRI T-loops (ETSI, QSIG) 271
Business Communications Manager 3.6 Programming Operations Guide
Identifying BRI T-loops (ETSI, QSIG)
BRI loops for ETSI and ETSI-QSIG provide some flexibility in defining the T-loop
characteristics. Refer to “Core software and regions” on page 846 for a detailed list of countries
that use these profiles.
1Collect the information supplied by your service provider.
2In the Unified Manager, click on the keys beside Services, Telephony Services, Loops.
3Click on the loop number you want to configure as an ISDN trunk connection.
Figure 61 T-loop screen (UK profile)
4Configure the loop settings according to the following table:
Table 47 Loop settings
Attribute Value Description
Type T
Protocol Euro, QSIG Select the appropriate ISDN protocol.
The values displayed depend on both the market profile and software
keycodes.
Euro - ETSI ISDN standard
QSIG - also an ETSI standard. Only appears if the ETSI QSIG keycode is
loaded.
Clock Source Primary
Secondary
Master
Default: Master
This setting determines whether the system uses this module as the clock
source for the network.
Note: Most service providers will be the Master, so this field will be set to
Primary or Secondary.
Overlap receiving Y or N Supports target lines in markets which use Overlap receiving signaling on
the BRI trunks. Overlap receiving must be configured for each BRI loop.
272 Identifying BRI T-loops (ETSI, QSIG)
P0609326 1.1
Local number length 0-10 Set the local number length for loops to interfaces that receive overlap
rather than enbloc digits. This number is the total length of the called party
number received. This number is used to calculate the number of leading
digits that need to be removed by the system.
Note: This parameter appears only when Overlap receiving is set to Y.
Example:
Public received number = 4502303
Target line received numbers = 303
Local number length = 7
Public received number length = 3
Thus the first four digits are deleted by the system.
ONN blocking state Suppression bit,
Service code
Set the Outgoing Name and Number (ONN) Blocking. When the user
presses FEATURE 819, on a per-call basis, the system flags the call to the
Central Office (CO) so that the name and number is not sent to the person
being called.
Set this field to Suppression bit to use the Calling Line Information
Restriction (CLIR) service.
For ETSI ISDN lines that do not use the ETSI CLIR service, the Central
Office (CO) may use a Service code to provide blocking service. In that
case, this field must be set to Service code. The service provider code
must then be programmed into the ONN blocking section. Refer to
“Configuring ONN blocking service codes” on page 480.
Programming note: Ensure that all telephones that have this feature
available are assigned valid OLI numbers. Refer to “Assigning line access”
on page 394.
Send Name Display
(Type: QSIG trunks
only)
Y, N If you want the OLI of the calling telephone to display on the called
telephone, with this type of trunk, set this field to Y.
If this field is set to N, no outgoing call display is sent. Refer also to “Setting
BRI for ISDN device connections” on page 278.
Table 47 Loop settings (Continued)
Attribute Value Description
Configuring D-packet service for T loops 273
Business Communications Manager 3.6 Programming Operations Guide
Configuring D-packet service for T loops
This configuration occurs for all profiles.
A T-loop can be used in combination with an S-loop to provide D-packet service for a
point-of-sale terminal adapter (POSTA) or other D-packet device. To deliver D-packet service, a
network connection (T-loop) is programmed to work with a terminal connection (S-loop). The
loops must be on the same physical module. This service is disabled by default.
1Under the T-loop you want to configure, click on D-packet service.
2Beside D-packet enabled, choose N (disabled) or Y (enabled).
3If you enable D-packet service, beside Associated loop, enter the S-loop you want to
associate.
Figure 62 Enable/disable D-packet service, and associate a loop
4At the top of the navigation tree, click on the Add button.
5In the Add D-packet dialog, enter a service number.
Figure 63 Add a D-packet service
6Click on TEI.
7At the top of the navigation tree, click on the Add button.
8In the Add TEI dialog, enter the TEI number supplied by your service provider.
274 Provisioning the loop variables
P0609326 1.1
Figure 64 Add a TEI to the D-packet service
Provisioning the loop variables
When you assign a BRI loop as a trunk loop, you need to return to the media bay module settings
and provision the loop, and the lines assigned to the loop. Once the loop is provisioned, it displays
the two line numbers that are assigned to the loop, these also need to be provisioned.
Once the lines are provisioned, you can configure them in the same way as you would other lines.
Refer to “Programming BRI lines” on page 276.
Provisioning the Loop
1Click the keys beside Resources, Media Bay Modules, Bus 0X, Modules on bus, Module X,
Provision loops
where Bus 0X is the bus to which the BRI module is configured; Module X is the offset (1, 2,
or 3) to which the BRI module was set.
2Click on Loop XXX.
Loop XXX is the BRI loop that you specified as a trunk loop (T)
3Beside the Status field, select Provisioned from the drop down list.
4Click outside the Bus 0X-Module X-Loop XXX window to invoke the change of status.
Figure 65 Provisioning BRI loops
5Click the key beside Loop XXX twice to close and then reopen the heading.
Provisioning the loop variables 275
Business Communications Manager 3.6 Programming Operations Guide
Provisioning the lines
Once you provision the loop, two numbers are assigned to the loop. These also need to be
separately provisioned.
1Click the keys beside Resources, Media Bay Modules, Bus 0X, Modules on bus, Module X,
Provision loops, Loop XXX, Lines on Loop.
where Bus 0X is the bus to which the BRI module is configured; Module X is the offset (1, 2,
or 3) to which the BRI module was set, and Loop XXX is the BRI loop that you specified as a
trunk loop (T).
2Click on Line XXX.
3Beside the Status field, select Provisioned from the drop down list.
Figure 66 Provisioning BRI loop lines
4Click outside the Bus 0X-Module X-Loop XXX window to invoke the change of status.
5Repeat for second line, if there is one.
6Make a note of the line numbers.
276 Provisioning the loop variables
P0609326 1.1
Programming BRI lines
Once the loops and lines are provisioned (“Provisioning the Loop” on page 274 and “Provisioning
the lines” on page 275), you program the lines in the same manner as you do for non-BRI lines,
under the Services, Telephony Services, Lines heading. Refer to “BRI fields” on page 250.
Figure 67 Configuring an auto-answer BRI line
Programming note: BRI lines can be configured as manual answer or auto-answer lines. If the
lines are configured as auto-answer lines, you need to set up target lines with the received # set to
the network number supplied by the ISDN service provider, then assign the target line to the ISDN
devices and other system telephones that will receive calls over this line. Refer to “Assigning
target lines” on page 287.
BRI lines can also be assigned restrictions (“Assigning Restrictions” on page 261) and the Telco
features (“Setting line telco features” on page 263).
Provisioning the loop variables 277
Business Communications Manager 3.6 Programming Operations Guide
Assigning the lines to telephones
Once the line records are programmed, assign the BRI lines or target lines and BRI line pools to
the DN records for the telephones that will use the line(s) to receive/send calls. Refer to
“Determining line assignments” on page 397 and “Assigning line pool access” on page 402.
Figure 68 Assigning the BRI line to a DN record.
278 Setting BRI for ISDN device connections
P0609326 1.1
Setting BRI for ISDN device connections
BRI S-loops support devices that use an ISDN interface. You can assign a single device to a loop,
or multiple devices connected through an NT-1 interface (“Using an NT-1 for BRI U2/BRI U4” on
page 267).
• You can assign a maximum of eight devices to a loop.
• Any device can only be configured to one loop.
• S-loops do not supply any voltage for ISDN devices requiring power, such as video cameras.
Voltage for these devices must be supplied by an external source on the S-loop.
Wiring internal connections
The following diagram shows how to wire the BRI to connect to such S-Loop devices as video
phones, terminal adapters, and Grp 3 Fax machines.
Figure 69 BRI RJ45 wiring array
8 7 6 5 4 3 2 1
BRI connector
RJ45 sockets
Pin #/connection System side
1 not used
2 not used
3+RX
4 +TX
+TX
+RX
5- TX
6-RX
- RX
-TX
7 not used
8 not used
Setting BRI for ISDN device connections 279
Business Communications Manager 3.6 Programming Operations Guide
Configuring S-loops
1Click on the keys beside Services, Telephony Services, Loops.
2Click on the loop number you want to configure.
Figure 70 S-loop screen (North American profile)
3Configure the loop settings according to the following table:
S loops allow you to assign ISDN DN record numbers for the terminal equipment on the loop. As
well, one of the terminal records must be designated as the Loop DN, to act as the termination
point for incoming data calls that do not get answered by the target device.
Table 48 Loop settings
Attribute Value Description
Which fields appear depends on the loop type.
Type S
Sampling Adaptive, Fixed Select a sampling rate for the S-loop.
Fixed: two or more S-interface devices use the loop, and the length of the
loop is less than 200 m (650 ft.).
Adaptive: two or more S-interface devices use the loop, and the length of
the loop is greater than 200 m (650 ft.). If one device is using the loop, the
length of the loop can be a maximum of 1000 m (3230 ft)
ONN blocking state Suppression bit,
Service code
Set the Outgoing Name and Number (ONN) Blocking.
When you activate ONN, a user can press FEATURE 819 to block the
outgoing name and number on a per call basis. The system flags the call to
the Central Office (CO) so that the name and number is not sent to the
person you call.
280 Setting BRI for ISDN device connections
P0609326 1.1
Assigning DNs to the S- loop
You can have a maximum of 58 ISDN DNs on your system. However, there are only 28 default
DNs provided. The default ISDN DN range is 597 to 694. To add to the defaults, you need to use
DNs from the Companion range: 565 to 597 (change DN type to ISDN and DECT)
Companion: If you have either a Companion wireless system, which uses the
Companion DNs, or a DECT portable system, which uses the ISDN and DECT DNs, ensure you
do not overwrite any DNs assigned to the handsets for these systems.
To assign device DNs to the loop DN (maximum of eight devices per loop):
1Choose Services, Telephony Services, Loops.
2Click the key beside the loop number (for example, Loop 201) where you want to assign DNs,
and beside the DNs on loop heading.
3Click the Loop DN heading.
4At the top of the navigation tree, click on the Add button.
5In the Add DNs dialog, enter an ISDN DN.
Figure 71 Adding a DN to the Loop DN group
6Click Save to add the DN.
7Repeat steps 4 to 6 for all the DNs you want to add to the loop.
8Click the DNs on loop heading.
9In the Loop DN field, enter an ISDN DN that you assigned to the Assigned DNs group in the
previous procedure. This telephone acts in a similar way that a Prime telephone works.
Incoming calls that are not answered go to this device. Also, if the other devices on the loop do
not have specified DNs, calls coming into the Loop DN ring at all these devices.
• If you leave None in the field, unanswered calls will be dropped.
• If the field is left blank, none of the Assigned DNs will be able to make or receive data
calls.
Loop matrix 281
Business Communications Manager 3.6 Programming Operations Guide
Figure 72 Adding a Loop DN
10 Click outside the right frame to save the entry.
Configure the ISDN terminal records
You configure the ISDN terminal records in the same way that you do any other DN record. These
records are found under the Services, System DNs, All ISDN/DECT DNs heading. For
information about each heading within the DN record, refer to “Configuring DNs using the
Wizards” on page 369 and “Configuring DNs for system devices” on page 387.
Loop matrix
To help you with your loop planning, transfer the following information to a spreadsheet and fill
out the values for each BRI loop.
Table 49 Loop attributes
Type SPIDS
Protocol Network DNs
Overlap receiving Call type
Local number length D-packet service
ONN blocking state TEIs
Sampling (S loop only) DNs on loop
Note: The loop type dictates which fields appear. Assigned DNs
282 Loop matrix
P0609326 1.1
283
Business Communications Manager 3.6 Programming Operations Guide
Chapter 11
Controlling access into the system
This section describes the telephony configurations that are used to control system access within
the system and to control remote access into the system to access system features.
The following figure highlights the Unified Manager navigation tree headings that will be
discussed in this chapter.
Figure 73 Process map: Access headings
Task:
• Ensure that the DN length and Received # length are correct. “Defining DN length” on page
284 (Changing the DN length, Using the Received # length)
• Assign target lines for all telephones, if required. “Assigning target lines” on page 287
• Set up the system parameters for system users to call into the from a remote location. Note that
Remote Access Packages are required for private network trunks, as well. Creating Direct
Inward System Access (DISA), Defining remote access packages, Using COS passwords
Telephony Services
Lines
VoIP Lines
Physical Lines
Target Lines
Line 241-412
General
Trunk/Line Data
Received Number
Restrictions
Line Restrictions
Remote Restrictions
Telco features
All Lines
.....
General Settings
Feature Settings
Nortel IP Terminals
IP trunking
Timers
Direct dial
Set 1-5
CAP/KIM Assignments
Dialing Plan
Access Codes
Park Prefix
External code
Direct Dial Digit
Auto DN
DISA DN
Private Access Code
Local Access Code
National Access Code
Special Access Code
Line Pool Codes
Carrier Codes
Remote Access Packages
Package 00-15
COS passwords
COS 00-99
DN lengths
Received # length
CbC Limits
....
284 Defining DN length
P0609326 1.1
Defining DN length
The DN lengths setting allows you to change the number of digits for the Received number length
and the DN length, which are used by the system to determine if an incoming call is valid for the
system.
Each increase in length repeats the first digit in front of any existing DN. For example, if DN 234
was increased to a length of 4, the new DN would be 2234.
This section contains this information:
•“Changing the DN length” on page 285
•“Using the Received # length” on page 286
Warning: Do not change DN length immediately after a system startup.
You must wait for at least two minutes after a system startup before you change the DN
length. It is preferable that you change this setting at system startup using the Quick Start
Wizard. Refer to “What you need to know before you use the wizard” on page 93.
If you change the DN length after startup:
• Data devices using B2 channels drop calls when you change the DN length during
system operation.
• The change takes up to two minutes, depending on the size of the system. System
response can briefly slow down during this time.
Warning: Increasing the DN length affects other areas of the system:
If the DN length change creates a conflict with the Park prefix, external line access code,
direct-dial digit, or any line pool access code, the setting for the prefix or code changes to
None, and the corresponding feature is disabled.
Optional applications affected by DN length changes:
Voice mail, and Call Center applications are reset if you change the DN length after these
services are installed.
If you are using IVR, you will need to correct the scripting.
If you have a DECT system, you will need to rerun the DECT Wizard to ensure that the
DECT module firmware recognizes the change in DN numbers.
Defining DN length 285
Business Communications Manager 3.6 Programming Operations Guide
Changing the DN length
To change the DN length after startup, follow these steps:
1Click the keys beside Services, Telephony Services, General settings
2Click on DN lengths.
The DN lengths window appears in the right frame.
Figure 74 DN length screen
3In the DN length field, enter a new length (3, 4, 5, 6, 7) or use the drop down list to select a
new setting. The default DN length is 3.
4Press <TAB> to save the new DN length.
The prompt appears: If Business Communications Manager Voice Messaging is installed all
messages and mailboxes will be deleted.
5Click OK to save the new DN length.
Click Cancel to restore the original value.
Warning: If your system is running with a PBX telephony template, the Public and
Private received # length are hardcoded to 3 (digits) at startup. Increasing the DN length
after system startup does not change these digits, so you will need to manually change the
Public and Private receive # length. Refer to “Changing the received # length” on page
286.
Private OLIs are automatically assigned to the DN records if the DN length and the Private
received # length are the same. If this changes, the Private OLIs are cleared, or are not
assigned (PBX template). Refer to “Assigning line access” on page 394.
Network note: If your system is part of a private network, ensure that you confirm the
numbering plan for the network before changing this length. If you change the length,
ensure that you check all DN-related settings after the change.
286 Defining DN length
P0609326 1.1
Using the Received # length
If you change the DN length of your system, you may need to change the Received # length, which
is what the system uses, in conjunction with the dialing table coding, private and public
networking, and the access codes to determine a route for an incoming call over an auto-answer
trunk.
On systems running the DID telephony template, the Private and Public Received # length is set to
the same length as the DN length for the system. On systems running the PBX telephony template,
the Private and Public Received # length default to 3, unless the DN length is changed during the
Startup procedure.
These digits identify target lines (“Assigning target lines” on page 287), Auto DNs, and DISA
DNs (“Programming access codes” on page 310).
TIPS: The target line number (for example, line 241) and the Received number for the target line
(for example, Received number: 123 maps to line 241) must be different numbers. (“Target lines
and DASS2 fields” on page 247).
However, the received number can be shorter if network or central office constraints require this.
This number cannot be greater than the system DN length on a networked system using a
coordinated dialing plan (CDP) or a universal dialing plan (UDP). On a standalone system it is
possible that the received number length would be greater than the DN length.
Changing the received # length
1Click the keys beside Services, Telephony Services, General settings, and DN lengths.
2Click on Received # length.
3On the navigation tree, click on Received # length.
The Received # length screen appears in the right frame.

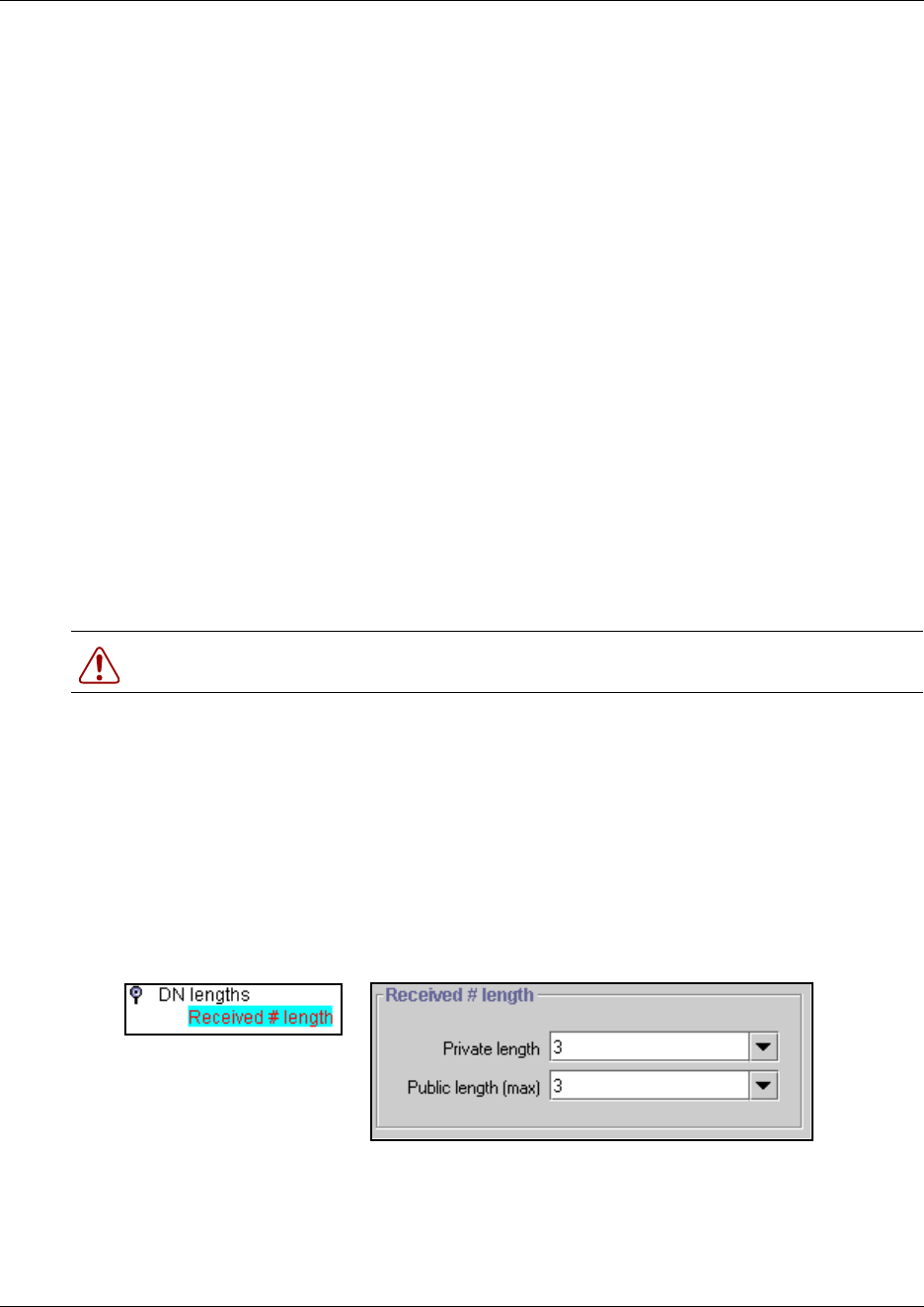

Figure 75 Received # length, (PBX template default)
Warning: Decreasing the received number length clears all programmed received digits.
Assigning target lines 287
Business Communications Manager 3.6 Programming Operations Guide
4The following table provides the possible values for each field.
5Check all equipment assigned to DNs.
6Check target line received numbers and OLI entries.
• If you change the received number length for your system, the Public number entry for
the target lines will clear if the new received # length is less than the number entered in
this field. Refer to “Configuring the target line received number” on page 289.
• If the new received # length has more digits than the number entered in the target lines
Public Number field, the entry remains, but does not update to the new DN length.
• A private OLI is automatically assigned to the DNs if the DN length and the Received #
length are the same. If either changes so that they are not the same, the private OLI field is
cleared or not assigned (PBX template). Refer to “Assigning line access” on page 394.
7Reapply whatever voice mail applications you had installed. If you have a DECT system,
rerun the DECT wizard to update the DECT module firmware.
Assigning target lines
Target lines are internal direct links the Business Communications Manager uses to allow external
callers to dial specific system telephones, or a group of system telephones. You assign the target
line to one or more telephone DNs (“Assigning a target line to a telephone”), and then configure
the target line to function as you require (“Configuring the target line received number” on page
289). You can also assign multiple appearances of a target line to one telephone. This allows more
than one call to simultaneously use the target line. Target lines are required by lines that support
multiple numbers over one trunk (DID trunks, T-1 DID trunks, PRI trunks, and voice over IP
(VoIP trunks).
Table 50 Private and Public received numbers
Attribute Value Description
Private length 1, 2, 3, 4, 5, 6, 7 The number of digits that the system uses to determine if a call tagged
as Private fits the system private DN numbering. Default: DID, same as
DN length; PBX: 3
Public length (max) 2, 3, 4, 5, 6, 7 The maximum number of digits (2, 3, 4, 5, 6, 7) that the system uses to
determine if a call tagged as public fits the system public DN numbering.
Default: DID, same as DN length; PBX: 3
Note: You can also assign target lines to telephone DNs using the Add Users Wizard.
Refer to “Creating telephone records with the Add Users Wizard” on page 375. The
wizard can Auto Assign target lines to all the selected DNs. As well, the prime set DNs
are also automatically updated to be the DN to which the target line is assigned.
If a target line in a sequence specified on the Wizard is already assigned to an existing DN,
the system will also assign the line to one of the DNs on the list. If this is not what you
want, you need to go into Unified Manager and change the target line number for one of
the DNs.
288 Assigning target lines
P0609326 1.1
Assigning a target line to a telephone
1Ensure you have auto-answer lines such as analog DID, T1 lines set to auto answer, PRI, or
VoIP trunking lines.
2Click the keys beside Services, Telephony Services, System DNs, Active Set DNs.
3Choose the DN of the set where you want the line to be directed.
4Choose Line assignment and click the Add button.
5Enter the number of the target line you want to assign to the set (241-492).
6Click on the line number. The DN/Line screen appears in the right frame.
Figure 76 Assigning a target line to a set
7Ensure the Appearance type is set to Appr&Ring.
The following table shows the possible settings for the line record.
Table 51 General record values
Attribute Value Description
Appearance type Appr&Ring
RingOnly
Appr
Always choose Appr&Ring for target lines.
Choose RingOnly if the telephone does not have any line buttons to support
target line appearances.
Appearances <digit> This is how many line appearances will appear on the telephone
Caller ID set Y or NSpecify whether the telephone can display caller ID information.
Vmsg set Y or NSelect whether an indicator shows on the telephone for voice message
waiting to an external voice message system.
The line must appear on receiving telephone.
Note: the Message Waiting Indicator (MWI) is currently supported exclusively
by Meridian Mail and CallPilot.
MCDN note: If your system is part of an MCDN network connected to a
Meridian 1 system, and you are using the voice mail system off the
Meridian 1, you need to set this field to Y.
Note: Contact your voice message service provider to find out if your voice
message service works with Business Communications Manager, or if you
have any problems with your service.
Assigning target lines 289
Business Communications Manager 3.6 Programming Operations Guide
8Repeat steps 3 to 7 for all the DNs you want to assign with target lines.
Configuring the target line received number
Configure the numbers that the system uses to identify the destination for the target line.
1Click the keys beside Services, Telephony Services, Lines, Target Lines.
2Click the Line XXX you want to set.
3Click the key beside Trunk/line data.
Note: For Trunk/line data programming, refer to “Target lines and DASS2 fields” on page
247.
4Click on Received number. Refer to “Notes about the Public and Private Received Numbers”
on page 290 for details.
Figure 77 Defining a Received number
5Press <Tab> to save the changes.
6Program the General, and Telco features as you would for any other line. Refer to “Target
lines and DASS2 fields” on page 247.
7Repeat steps 2 to 6 for all the target lines you want to configure.
Caution: Changing the received # length:
If you change the received number length for your system, the Public number entry for
the target lines will clear if the new received # length is less than the number entered in this
field.
If the new received # length has more digits than the number entered in this field, you need
to change the entry manually, if changes are required. Refer to “Changing the received #
length” on page 286.
290 Assigning target lines
P0609326 1.1
Notes about the Public and Private Received Numbers
If the received number is different than the regular DN number, enter the number in the Private
number and/or Public number field. For instance, in North America, you can enter the 10-digit
public number in the Public number field. If you leave these fields blank, the system will use the
DN of the telephone assigned with this line.
Upgrade note: If you upgraded your system from a version of Business Communications
Manager previous to BCM 3.6, the Private number field of assigned target lines will autofill with
the same value that is in the Public number field (usually the assigned DN). However, if the DN
length of the system was different from the Received number length, this field will be blank after
the upgrade. Systems running with a DPNSS keycode will also need to reenter the information in
this field after an upgrade to BCM 3.6 or newer software.
Programming note: The following trunks use one or both of these settings to route calls:
• DPNSS lines use the Private received number to route calls in the system.
• BRI ETSI-QSIG, PRI ETSI-QSIG, MCDN, DMS100, DMS250 and VoIP trunks route calls on
a per-call basis to either the public or private received digits. Note: VoIP trunking MCDN calls
do not support Auto DN/DISA DN functionality.
• BRI (ETSI-Euro, NI), PRI (ETSI-Euro, NI, 4ESS), T1 (LoopStart, E&M, DID, GroundStart),
Analog LEC (LoopStart, E&M, DID), and DASS2 trunks route calls using the Public received
number.
Other settings to note:
•“Programming access codes” on page 310 (Public/Private DISA DNs and Auto DNs)
•“Assigning line access” on page 394 (Public/Private OLI)
Target lines matrix
To help you with your target line planning, transfer the following information to a spreadsheet and
fill out the values for each target line you create.
Table 52 Target line record
Target line no. (3 digits)Entered in target DN record with appr and ring?
Telephone number (DN) Is DN length tied to Public Length (MAX)?
Control set Use Aux. ringer Y N
Line type Public
Private to:_____________
If busy PrimeSet BusyTone
Rec’d # None DN Distinct Ring None 2 3 4
Prime Set 221 None Voice Message Center
Configuring for remote access 291
Business Communications Manager 3.6 Programming Operations Guide
Configuring for remote access
If you want callers from a different node on the network or from the public network to be able to
access system features or the system network lines, you need to set up remote access packages and
COS passwords to control outside access.
Programming note: If your system is hosting a centralized voice mail system, all calls from
non-host systems to the voice mail on your system are considered remote calls and you need to set
up the lines and remote access packages to accommodate this. If your system is using centralized
voice mail on another system, users on your system need to be advised of the appropriate voice
mail access codes.
This section provides information about:
•“Creating Direct Inward System Access (DISA)” on page 291
•“Defining remote access packages” on page 294
•“Using COS passwords” on page 296
•“External access tones” on page 299
Creating Direct Inward System Access (DISA)
To control access from the public or private network, you can configure auto-answer trunks to
answer with DISA. Remote callers hear a stuttered dial tone and must then enter a COS password
that determines what they are allowed to do in the system.
• Auto-answer T1 loop start and T1 E&M trunks are configured to answer with DISA by
default.
• T1 DID trunks: You cannot configure T1 DID trunks to answer with DISA. If you want
incoming T1 DID calls to be answered with DISA, configure the system with a DISA DN.
Incoming T1 DID calls that map onto the DISA DN are then routed to a line that has DISA.
• You cannot program a DISA DN or Auto DN to VoIP trunks, because they act as auto-answer
lines for private networks. However, you still need to assign remote access packagess to the
VoIP trunks, to ensure that remote access restrictions are properly applied to incoming calls
trying to access the system or the system network.
This section also includes information about:
•“Remote access line settings”
•“Remote access on loop start trunks” on page 292
•“Remote access on T1 DID trunks” on page 292
•“Remote access on PRI” on page 293
•“Remote access on DPNSS lines” on page 293
•“Remote access on a private network” on page 293
292 Creating Direct Inward System Access (DISA)
P0609326 1.1
Remote access line settings
The remote access feature allows callers elsewhere on the private or the public network to access
your Business Communications Manager by dialing directly and not going through the attendant.
After the remote user is in the system, they can use some of the system resources. You must enable
remote access in programming before callers can use it.
Business Communications Manager supports remote system access on a number of trunk types
which may require the remote caller to enter a password for DISA.
The system resources, such as dialing capabilities, line pool access and feature access, that a
remote user may access depends on the COS password assigned to them. See “Using COS
passwords” on page 296.
Note: Callers remotely accessing the Business Communications Manager press * followed by the
feature code to use the system features. Even if you are calling from another Business
Communications Manager system, press * instead of the Feature key.
Remote access on loop start trunks
Loop start trunks provide remote access to Business Communications Manager from the public
network. They must be configured to be auto-answer to provide remote system access.
A loop start trunk must have disconnect supervision if it is to operate in the auto-answer mode.
T1 E&M trunks always operate in disconnect supervised mode.
When a caller dials into the system on a line that has auto-answer without no DISA, the system
answers with system dial tone and no COS password is required. In this case, the restriction filters
assigned to the line control system capabilities available to the caller.
When a caller dials in on a line that has auto-answer with DISA, the system answers with stuttered
dial tone. This is the prompt to enter a COS password that determines which system capabilities
are available to the caller.
Remote access on T1 DID trunks
Remote system access on T1 DID trunks is similar to that of T1 E&M trunks connected to a
private network. The main differences are:
• A remote caller is on the public network dialing standard local or long distance telephone
numbers.
• The digits received are delivered by the central office.
• DISA cannot be administered to a T1 DID trunk. You can program the dialed digits to match
those of a specific target line DN, the DISA DN or the Auto DN. If you program the dialed
digits to the DISA DN, only the incoming calls that match the programmed DN will receive a
DISA dial tone. Incoming calls with other digits will route to a target line.
Creating Direct Inward System Access (DISA) 293
Business Communications Manager 3.6 Programming Operations Guide
Remote access on PRI
Remote system access on PRI trunks is similar to that of T1 E&M trunks connected to a private
network. The main differences are:
• A remote caller is on the public network dialing standard local or long-distance telephone
numbers.
• The digits received are delivered by the central office.
• Answer with DISA cannot be administered to a PRI trunk. Instead, you can program the dialed
digits to match those of a specific target line DN, the DISA DN or the Auto DN.
Remote access on DPNSS lines
A remote caller can access a Business Communications Manager system dial tone, select a line
pool that contains exchange lines or DPNSS lines, then dial a number. The procedure is identical
to dialing an outside number from an extension in the local system. The main features are:
• Calls coming from another switch to the Business Communications Manager system are
routed in two ways, depending on the Answer mode that you program. If the Answer mode is
set to Manual, and the line is assigned to ring at an extension, the incoming call automatically
rings at the assigned extension. If Answer mode is set to Auto, Business Communications
Manager automatically answers the incoming call. Because most other DPNSS features are
extension-specific, Nortel Networks recommends that all DPNSS lines are configured as
auto-answer lines.
• The Page feature is available to both remote callers and callers within the system. A remote
caller must have DTMF capability to access the Page feature.
• The line redirection feature allows the originating party to redirect a call that is waiting a
connection or re-connection to an alternate destination after a time-out period. Failed calls can
be redirected. Priority calls cannot be redirected.
Remote access on a private network
Systems connected to the private network deliver the last dialed digits to the destination Business
Communications Manager system for interpretation. The destination Business Communications
Manager system matches the digits to a target line or interprets the digits as a remote feature
request. Business Communications Manager then routes the call to the specified target line or
activates the remote feature.
• By default, T1 E&M trunks are set to answer with DISA. For auto-answer T1 E&M trunks
connected to a private network, change the default so that the trunks are not answered with
DISA. If an auto-answer T1 E&M trunk is configured to answer with DISA, the system tries to
interpret any received digits as a COS password.
• The DISA DN and the Auto DN allow auto-answer private network and DID calls, in the same
way that calls on auto-answer loop start and auto-answer T1 E&M trunks can be answered,
with or without DISA. These DNs are described in “Understanding access codes” on page
309.
294 Defining remote access packages
P0609326 1.1
• Answer with DISA cannot be administered to a PRI trunk. Instead, you can program the dialed
digits to match those of a specific target line DN, the DISA DN or the Auto DN on the other
system.
• Answer with DISA cannot be administer to voice over IP (VoIP), since they do not connect
systems outside the private network. However, a user calling in remotely on another system on
the network can use the trunk to access the system or a user calling in on a PSTN line can use
the trunk to access the private network. To provide control for this type of access, ensure that
you specify remote access packages for the trunk.
Defining remote access packages
The Remote access packages setting allows you to control the remote use of line pools.
Create a remote access package by defining the system line pools remote users can access. You
then assign the package to individual lines, (refer to “Defining line pool access for remote
packages”), and to a particular Class of Service password (see “Using COS passwords” on page
296).
Defining line pool access for remote packages
Perform the following procedure for each package you defined in the previous section:
1Click on the key beside Line pool access.
2Click the Add button.
The Add Pool Access dialog box appears.
3In the Pool field, enter a line pool.
4Click Save.
5Repeat steps 1 to 4 for all packages you require line pool access codes for.
Defining remote access packages 295
Business Communications Manager 3.6 Programming Operations Guide
Defining remote Page for remote packages
To define Remote access packages, follow these steps:
1Click the keys beside Services, Telephony Services, General settings, and Remote access
packages.
2Click a Package number (00 to 15).
The Package window appears. Refer to Figure 78.
3Type in Y or N to enable/disable remote paging for each pool in the Remote access package.
4Repeat steps 3 and 4 until you have defined all the package values you require.
Figure 78 Setting remote page for a remote access package
296 Using COS passwords
P0609326 1.1
Using COS passwords
COS passwords permit controlled access to the system resources by both internal and remote
users.
• When an internal user enters a COS password at a telephone, the restriction filters associated
with the COS password apply instead of the normal restriction filters.
• Similarly, when a remote user enters a COS password on an incoming auto-answer line, the
restriction filters and remote package associated with their COS password apply instead of the
normal restriction filters and remote package.
This section includes information about:
•“Creating COS parameters” on page 296
•“Notes about COS passwords” on page 297
•“COS examples” on page 298
•“External access tones” on page 299
Creating COS parameters
Follow these steps to create COS groups and passwords:
1Click the keys beside Services, Telephony Services, General Settings, and COS Passwords.
2Click on a COS group (COS 00-99).
The COS window appears in the right frame.
Figure 79 Assigning COS password and remote access parameters
...
COS 99
Using COS passwords 297
Business Communications Manager 3.6 Programming Operations Guide
3Use the information in the following table to determine which values to set for each password.
Notes about COS passwords
The COS password can define the set of line pools that may be accessed and whether or not the
user has access to the paging feature.
The class of service (COS) that applies to an incoming remote access call is determined by:
• the filters that you apply to the incoming trunk
• the COS password that the caller used to gain access to Business Communications Manager.
• in cases where DISA is not automatically applied to incoming calls, the remote caller can
change the class of service by dialing the DISA DN and entering a COS password.
Remote users can access system lines, line pools, the Page feature, and remote administration (if
enabled through Software Keys). The exact facilities available to you through remote access vary
depending on how your installer set up your system.
Note: If the loop start line used for remote access is not supervised, auto-answer does not function
and the caller hears ringing instead of a stuttered tone or the system dial tone.
Table 53 COS password values
Attribute Values Description
Password <six digits> Enter a combination of numbers that the user needs to dial to get into
the system. Refer to “Notes about COS passwords” on page 297.
User filter None
Filter <plus a two-digit
user filter>
Assign a restriction filter to a Class of Service password.
The user filter associated with the Class of Service password
replaces any normally-applicable set restriction, line/set restriction,
and remote restriction.
The default setting (None), means that any normally- applicable
filters (set restriction, line/set restriction, or remote restriction) still
apply.
Line filter None
Filter <plus a two-digit line
filter>
Assign a specific line restriction to a Class of Service password. The
line filter associated with the Class of Service password replaces any
normally applicable line restriction. The default setting (None), means
that any normally applicable line filter still applies.
Remote package None
Package <plus a two-digit
remote package>
Refer to “Defining remote access packages” on page 294 for more
information.
298 Using COS passwords
P0609326 1.1
COS examples
Example: Using the COS feature to access a restricted line
A sales representative out of the office needs to make long distance calls to the European office.
Your system has a leased line to Europe with reduced transatlantic charges. You provide the sales
representative with a Class of Service password that gives access to the transatlantic line. The sales
representative can telephone into the system (DISA DN) from a hotel, enter the Class of Service
password, and then use a destination code to access the leased transatlantic line to make calls.
To bypass the restriction filters on a line or telephone:
1Press FEATURE 68.
2Enter the six-digit COS password that allows the required type of call.
3Enter the number to be dialed.
!
Security note:
COS password security and capacity
• Determine the COS passwords for a system randomly and change them on a
regular basis.
• Users should memorize their COS passwords and keep them private.
Typically, each user has a separate password. However, several users can
share a password or one user can have several passwords.
• Delete individual COS passwords or change group passwords when
employees leave the company.
• A system can have a maximum of 100 six-digit COS passwords (00 to 99).
You can copy the restriction filters and remote package from one COS
password to another. COS passwords must be unique.
To maintain the security of your system, the following practices are recommended:
• Warn a person to whom you give the remote access number to keep the
number confidential.
• Change COS passwords often.
• Warn a person to whom you give a COS password, to memorize the password
and not to write it down.
• Delete the COS password of a person who leaves your company.
!
Security note: Remote users can make long distance calls.
Remember that a remote user can make long distance calls that are charged to your
company. They can also access line pools and make page announcements in your office.
Using COS passwords 299
Business Communications Manager 3.6 Programming Operations Guide
Example: Remote access over the public network
Follow this procedure to access the system over a public network.
1Dial the system remote access number.
2When you hear a stuttered dial tone, enter your COS password.
3Wait for the system dial tone.
To use the system at a distance, you must use a telephone with tone dialing to call the system.
Remote access is possible only on lines that your installer programs to auto-answer calls.
To use features on a remote system, press * followed by the feature code. When you are calling
from within Business Communications Manager, press * instead of FEATURE.
In some conditions, you can experience lower volume levels when using the system from a
distance.
External access tones
You can hear some of the following tones when accessing Business Communications Manager
from a distance. The following table shows the different types of tone and what they mean.
Table 54 External access tones
Tone What it means
System dial tone You can use the system without entering a COS password.
Stuttered dial tone Enter your COS password.
Busy tone You have dialed a busy line pool access code. You hear system dial tone again
after 5 seconds.
Fast busy tone You have done one of the following:
• Entered an incorrect COS password. Your call disconnects after five seconds.
• Taken too long while entering a COS password. Your call disconnects after five
seconds.
• Tried to use a line pool or feature not permitted by your Class of Service. You
hear system dial tone again after five seconds.
• Dialed a number in the system which does not exist. Your call disconnects after
five seconds.
IP trunk lines do not produce tones when accessed from a remote location.
300 Remote access matrix
P0609326 1.1
Remote access matrix
To help you organize your external access, transfer the following information to a spreadsheet and
fill out the external access information you want to use.
Table 55 Remote access matrix
Pswd #
(00-99)
Assigned to
(owner of password)
Password User filter
(None, Filter#)
Line filter
(None, Filter#)
Remote pkg
(None, Filter#)
Remote access packages Package # Line pool access
A: 9 B: to O:_____ PRI-__
301
Business Communications Manager 3.6 Programming Operations Guide
Chapter 12
Configuring outgoing calls
This section describes how you can configure the lines and loops to allow system users to dial out
of the system over a public or private network.
The following figure shows the position of the headings in the Unified Manager for the
information covered in this chapter.
Figure 80 Unified manager telephony services headings
Refer also to “Information matrices” on page 226.
Task:
• Understand what dialing plan is being used for the public and private networks
(“Configuring the public and private dialing plans” on page 302)
• Set up call controls, when required, such as CbC limits
(“Configuring Call by Call services” on page 339)
• Set up access codes, routes, and destination codes
(“Programming access codes” on page 310, “Understanding access codes” on page 309,
“Configuring call routing” on page 320)
• Set up restriction filters, as required (“Defining restriction filters” on page 344)
Telephony Services
. . .
Restriction Filters
Filter 00-99
Restrictions
Restriction 01-XX
Overrides
Call Routing
Routes
Route XXX
Destination Codes
XXX
Schedules
Normal
Night
Evening
Lunch
Sched 4
Sched 5
Sched 6
General Settings
Feature Settings
Nortel IP Terminals
IP trunking
Timers
Direct dial
CAP/KIM Assignments
Dialing Plan
Dialing timeout
Private Network
Public Network
Public DN lengths
Prefix Default
Prefix <XX>
General Settings ...
Access Codes
Park Prefix
External code
Direct Dial Digit
Auto DN
DISA DN
Private access code
Local access code
National access code
Special access code
Line Pool Codes
Carrier Codes
Remote Access Packages
COS Passwords
DN lengths
CbC Limits
Release Reasons
Network Services
Silent Monitor
302 Configuring the public and private dialing plans
P0609326 1.1
Configuring the public and private dialing plans
The dial plan you choose determines the type of numbering required to access a public and private
network by defining the DN lengths for the codes that access the networks. You can define only
one private network per system.
This section provides information about:
•“Setting Dialing timeout” on page 302
•“Using private network dialing” on page 303
•“Setting up public network dialing” on page 305
Setting Dialing timeout
Dialing timeout specifies how long the Business Communications Manager waits between
user-dialed digits. This value allows Business Communications Manager to determine when the
user stops dialing.
The user can also use the # key to indicate that they are finished dialing. This is not usually
required except for international calls where the number of dialed digits varies.
A timeout value that is too small forces the caller to enter the digits very quickly. A timeout value
that is too large causes the system to wait for extra time after the last digit is entered before the call
is actually made.
To view or set the dialing time out, follow these steps:
1Click the keys beside Services, Telephony Services, General Settings.
2Click on Dialing plan. The Dialing plan window appears in the right frame.
3In the Dialing timeout box select a timeout value (in seconds): 3, 4, 5, 6, 8, 10, 15.
For more information about non-PRI routing tables and destination codes, refer to “Configuring
routing service” on page 495.
For more information about how dialing rules are used in networking situations, refer to Chapter
18, “Configuring public networks,” on page 499 and Chapter 19, “Configuring private networks,”
on page 505.
Configuring the public and private dialing plans 303
Business Communications Manager 3.6 Programming Operations Guide
Using private network dialing
If your Business Communications Manager is part of a private network, you have a choice of
dialing plans. However, all Business Communications Managers on a network must use the same
type of dialing plan and have the same Private DN lengths to ensure proper call direction. Plan out
these settings before you start programming for the network.
• UDP plans use a routing code and a location code plus the set DN (i.e. 6-403-XXXX) to
determine where a call gets routed. You specify a Private DN length to allow all required digits
to be dialed. Each node on the network has a unique location code.
• CDP plans use a unique steering code that gets dialed as part of the set DN
(i.e. 2XXXX for one node, 3XXXX for another node, and so on) to determine where the call
gets routed. Since each node on the network has a unique code, no other routing is required.
• The Meridian system administrator generates the Private Network IDs. These IDs are unique
to each node on a network. Both UDP and CDP must include this code in programming.
Setting up the dialing plan
To set up a private network dialing plan, follow these steps:
1Click the keys beside Services, Telephony Services, General Settings, and Dialing plan.
2Click on Private network.
Figure 81 Configuring private network types
3Use the following table to determine which values to set so callers can access a private
network.
304 Configuring the public and private dialing plans
P0609326 1.1
Table 56 Private network values
Attribute Values Description
Type None, CDP, UDP You can specify if your Private network uses a coordinated
dialing plan (CDP) or a universal dialing plan (UDP).
If you choose None, the private networking supplementary
services are not available.
Location code <unique three-digit number> This code identifies this particular system for calls within the
network for a UDP dialing plan. This number must be
unique.
Note: The system uses the Private Access Code length,
plus the Location code length, plus the DN length to
determine the DN length required to determine that a call is
a private network call.
*Private DN lengths
(DPNSS only)
3-14 The Private DN lengths parameter specifies the length of a
dial string that the system uses to determine that the call is
a private network call, when the route uses DN Type:
Private.
Private Network ID
(CDP/UDP networks)
1-127 This is the unique number that identifies the system to the
Meridian PRI-MCDN network. Both end points must match
on a PRI-MCDN network.
On a VoIP trunking-MCDN network, this ID must be the
same on all nodes.
This number is supplied by the private network
administrator.
Refer also to “Configuring special IP trunking
interoperability” on page 541.
* CDP and UDP private DN lengths are determined this way:
CDP: the system uses the telephone DN length
UDP: the system combines the private access code length + location code length + telephone DN length. When a call
comes in, the system recognizes the leading digits as a private call and removes (truncates) them, leaving the
telephone DN, which is recognized as the private DN length.
Configuring the public and private dialing plans 305
Business Communications Manager 3.6 Programming Operations Guide
Outgoing private calls routing
When you set up routing for private calls, the route is set to Private. Refer to “Configuring call
routing” on page 320.
How the system identifies the call depends on the type of trunk chosen for the route. Refer to the
table below.
Setting up public network dialing
The Public network settings allows you to enter DN lengths for the networks the callers are
allowed to dial, including special numbers such as 411 and 911.
The public DN lengths table is used for all PRI calls except for those routes that use service type
Private or service type Tie with DN Type specified as Private. This table allows the Business
Communications Manager to determine the length of a DN, based on the initial digits dialed.
A set of default Public DN lengths is included with the default template. In most cases it is not
necessary to change the default values.
About the Public DN lengths table
In the public DN lengths table:
• You can define up to 30 entries.
• Each entry consists of a DN prefix string (1 to 10 digits) and a length value (two digits, 1 - 25).
• Several entries are predefined in the North America profile. These defaults can handle most
regions in North America without the need for additional programming. If required, you can
remove or modify these entries.
• The table always contains one default entry. You cannot remove this entry. You can only
modify the length parameter associated with this entry. The default entry specifies the length
of any dialing string that does not match one of the other table entries.
Dialing plan setting NPI/TON Private called number length based on
MCDN trunks send private calls in this way:
None Private/Subscriber Private DN length (set on Private Network screen)
UDP Private/UDP private access code + home location code (LOC)
+ private received digits
CDP Private/CDP private received digit
DMS100/DMS250/ETSI-QSIG trunks send private calls in this way:
None Private/Subscriber Private DN length (set on Private Network screen)
UDP Private/Subscriber private access code + home location code (LOC)
+ private received digits
CDP Private/Subscriber private received digit
306 Configuring the public and private dialing plans
P0609326 1.1
Adding or modifying dialing plan Public DN lengths
To add or modify Public DN lengths, follow these steps:
1Click the keys beside Services, Telephony Services, General Settings, Dialing Plan and
Public network.
2Click on Public DN lengths.
3At the top of the column, click Add.
The Add Public DN Lengths dialog box appears.
Figure 82 Adding a Public DN length prefix
4In the DN prefix field, enter the prefix for the public network.
5Click Save to save the setting.
6Repeat steps 4 and 5 until you have added all the public DNs you need.
7Click on Cancel to exit the dialog box.
8On the menu, click the first Prefix number you added.
The Prefix window appears in the right frame.
Figure 83 Defining the prefix DN length
9Enter the DN length for that prefix.
This defines the number of digits the system will scan to find the prefix.
10 Press <TAB> to save.
11 Repeat for all DN length records you added or that you need to change.
Example dialout: 0 403 555 9965
Configuring the public and private dialing plans 307
Business Communications Manager 3.6 Programming Operations Guide
Outgoing public calls routing
Outgoing public calls from within the system typically have the routes set to Public. Refer to
“Configuring call routing” on page 320. The NPI/TON gets sent as Unknown/Unknown. The
public called number length is based on the Public DN lengths table in the Public networks dialing
plan.
MCDN trunks also allow public call types when tandeming calls from another system on the
private network. Some of these systems use specific call types that the Business Communications
Manager needs to recognize to pass on correctly. Also refer to “Using the MCDN access codes
(tandem calls)” on page 315.
Dialing Plans matrix
To help you understand how you are using networking on your system, transfer the following
information to a spreadsheet and fill out the information you chose.
Type of call NPI/TON BCM prepend access code BCM monitor display
Local E164/Local Local access code (9) E.164/Subscriber
National E164/National National access code (X1) E.164/National
Special calls
(international, 911, etc.)
Private/Special Special access code (9)
Table 57 Dialing plan matrix
Private network Type Private Network ID Location code Private DN length
None N/A N/A N/A
UDP N/A
CDP N/A
Public network Pub DN length DN prefix DN length
308 Determining line access dialing
P0609326 1.1
Determining line access dialing
The next two sections, “Understanding access codes” on page 309 and “Configuring call routing”
on page 320 describe what you do with the lines and loops you previously set up into line pools.
By using access codes or call routing, which uses destination codes, you can determine which lines
(routes) outgoing calls use. When you create a route, you can also specify restrictions that apply to
how or when the line will be used.
The following figure provides an overview of how access codes and routing is used within the
system to direct calls from a telephone in one system to a telephone in another system.
Figure 84 Line management diagram
PSTN
Long Distance
PSTN
Private Network
E&M, T1,
MCDN, PRI
tandem, VoIP
Extension 2246
Intercom
dialing (2280)
Normal
Access Code
Call (5-2280) LD call
(1-403-2280)
Normal routing call
(9-409-2290)
Other routing call
(91-409-2290)
Other Access Code call
(6-2290)
Line pools
Extension 2280
Access Codes Routing (destination) Codes Access Codes
Understanding access codes 309
Business Communications Manager 3.6 Programming Operations Guide
Understanding access codes
The system uses access codes to direct calls to the correct lines and destinations. If the codes
conflict, some of the features on the system do not work. Refer to “Creating numbering plans”
on page 194 for a general overview about using access codes within the system dialing plan.
The table of default settings shown in the following table can help you plan your access codes so
there are no conflicts.
Task:
Set up access codes for internal features:
•park prefix
• direct dial digit
Set up access codes that affect users dialing in from remote locations:
• Private Auto DN
• Public Auto DN
• Private DISA DN
• Public DISA DN
Set up access codes that affect calls coming in over the private network:
• Private access code
• Local access code
• National access code
• Special access code
Set up access codes that affect calls leaving the system:
• External code (ATA and analog devices)
• Line pool access codes
• Destination codes
• Carrier codes
Table 58 Default codes table
Digit Use System screen
0direct dial digit Access codes
1 park prefix Access codes
2XX first digit of DNs/DN lengths Set through Quick Start Wizard
9 line pool A access code
(Takes precedence over the External line access code if
there is a conflict.)
Access codes
310 Programming access codes
P0609326 1.1
Programming access codes
Your system requirements will determine which access codes you need to set up.
Follow these steps to set up codes found on the Access codes screen:
1Click on the keys beside Services, Telephony Services, General Settings
2Click on Access codes.
The Access codes window appears.

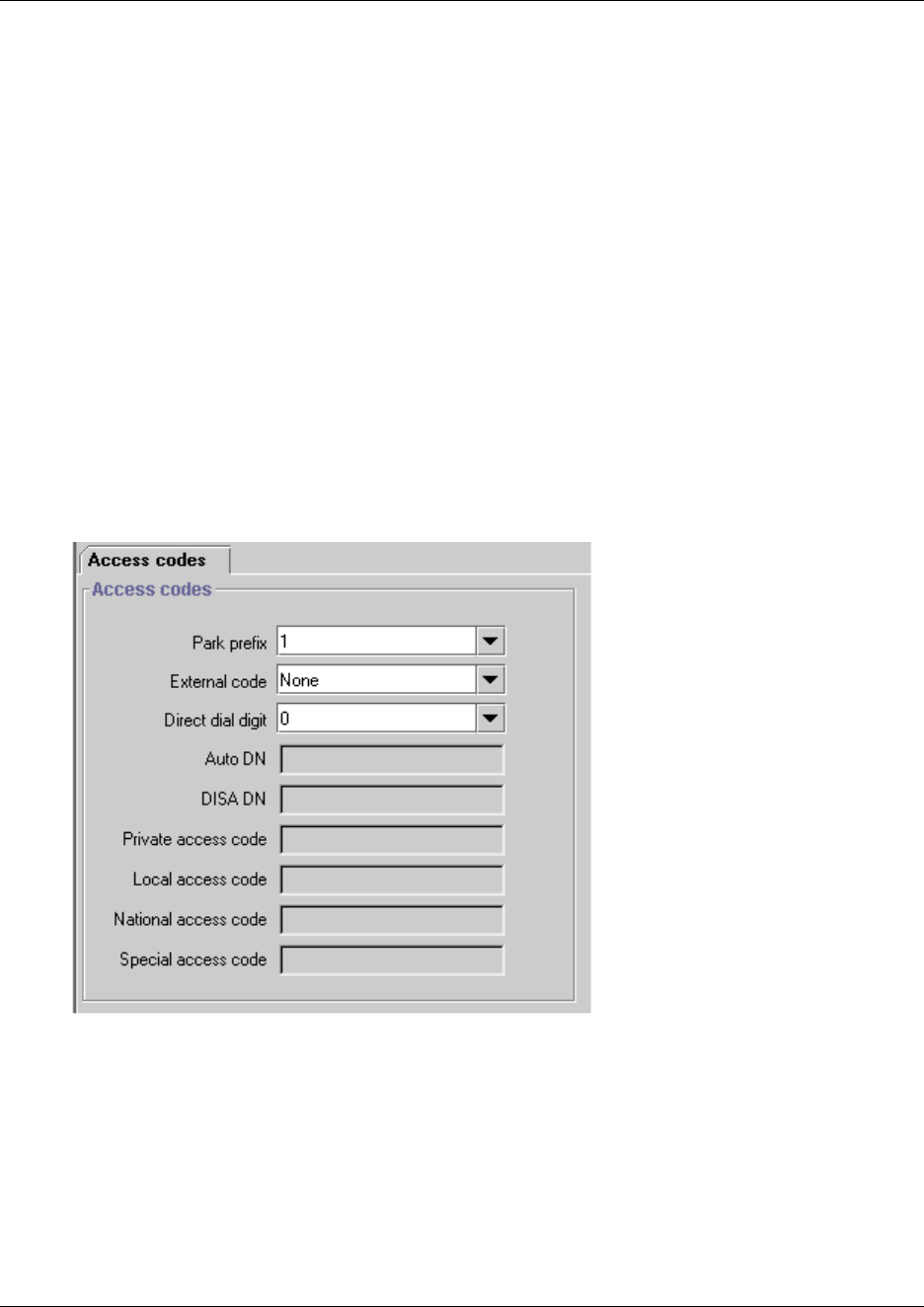

Figure 85 Defining access codes
3Use the following table to determine which values to set for access codes for your system.
Note: Read “Tips about access codes” on page 314 before you choose a value to ensure the
value does not conflict with related variables.
Table 59 Access codes values
Attribute Values Description
Internal features
* Park prefix None
<one-digit number>
The Park prefix is the first digit of the call park retrieval code that a
user enters to retrieve a parked call. If the Park prefix is set to None,
calls cannot be parked.
Refer to “Call Park codes” on page 312 before choosing a number.
SWCA note: If this field is set to None, you cannot program the
system-wide call appearance (SWCA) feature.
*
*
*
*These codes apply only to
tandem network calls
received from a node, such
as Meridian 1, which uses
special call markers, and
destined for the local PSTN.
Programming access codes 311
Business Communications Manager 3.6 Programming Operations Guide
* Direct dial digit None
<one-digit number>
The Direct dial digit setting allows you to specify a single
system-wide digit to call a direct dial telephone.
Remote dial-in (Also refer to “Configuring for remote access” on page 291)
* Private Auto DN <DN digits to be received
from a private
auto-answer trunk>
Private network calls answered without DISA require no password
to access the Business Communications Manager. The type of
service that applies to the call depends on the restrictions assigned
to the trunk.
* Public Auto DN <DN digits to be received
from the auto-answer
trunk>
Public network calls answered without DISA require no password to
access the Business Communications Manager. The type of
service that applies to the call depends on the restrictions assigned
to the trunk.
* Private DISA DN <DISA DN digits to be
received from the
auto-answer trunk>
For private network calls answered with DISA, the system presents
a stuttered dial tone to prompt a caller to enter a valid password.
The Class of Service (COS) that applies to the call is determined by
this COS password.
After a remote user accesses the Business Communications
Manager, they can change the existing COS password using the
DISA DN. This gives you greater flexibility when you create access
privileges. For example, you may want to have a shared DN for
remote access, but separate COS passwords with different dialing
out privileges for individuals.
* Public DISA DN <DISA DN digits to be
received from the
auto-answer trunk>
For public network calls answered with DISA, the system presents a
stuttered dial tone to prompt a caller to enter a valid password. The
Class of Service (COS) that applies to the call is determined by this
COS password.
After a remote user accesses the Business Communications
Manager, they can change the existing COS using the DISA DN.
This gives you greater flexibility when you create access privileges.
For example, you may want to have a shared DN for remote
access, but separate COS passwords with different dialing out
privileges for individuals.
Incoming and tandem calls (Refer also to “Defining routes” on page 322)
Private access
code
<systemcode>
MCDN: coordinate with
National access code
This code identifies this system to the private network.
It comes in as the first digit in a dial string defined as private and is
read based on the private DN length.
Example: if the dialed number is 7880, and the private DN length is
4, the system scans the four digits from the right, recognizing the 7
as the private access code for this system.
Private networking also provides access to tandem calling and toll bypass functionality to users
calling into the system.
For example, a PSTN user in Toronto could call a PSTN user in Ottawa and have the call routed
over the private network connection from the Toronto office to the Ottawa office and then out to
the PSTN from the Ottawa office. This bypasses any long distance toll charges.
BCM to BCM to PSTN: Calls are routed as private over the private network, and then flagged as
public to go out to the end node PSTN.
Meridian to BCM to PSTN: Special call codes from the Meridian (Local, National and Special
access codes) need to be recognized by the BCM and correctly passed to the local PSTN.
Table 59 Access codes values (Continued)
312 Programming access codes
P0609326 1.1
Call Park codes
When you park a call (FEATURE 74), the system assigns one of 25 codes for the retrieval of the
call. You can then press the Page display key to announce the code that appears on the display.
These three-digit codes include the Call Park prefix, which can be any digit from 1 to 9, and a
two-digit call number between 01 and 25. For example, if the Call Park prefix is 1, the first parked
call is assigned Call Park retrieval code 101.
Note: Other programmable settings may affect what numbers appear in the window during
programming. Although the numbers 0 to 9 are valid Park prefix settings, some may already be
assigned elsewhere by default or by programming changes.
If the DN length changes, and the changed DNs conflict with the Park prefix, the setting changes
to None.
* Local access
code
<code to access local
PSTN>
MCDN connections only.
This number is prepended to an incoming M1 local dial string and
designates the call as a Local call type (typically 9). Refer to “Using
the MCDN access codes (tandem calls)” on page 315. Refer also to
“Creating numbering plans” on page 194.
* National access
code
<private access code + 1> MCDN connections only.
This number is prepended to an incoming call marked as a long
distance call, and designates the call as a National type call (private
access code + 1). Refer to “Using the MCDN access codes (tandem
calls)” on page 315.
* Special access
code
<code to access local
PSTN>
MCDN connections only.
This number is prepended to an incoming international (011....) or
special-case dial string (911, 411) and designates the call as a
special type call (9011 ...., 9911, 9411). Refer to “Using the MCDN
access codes (tandem calls)” on page 315.
Outgoing calls
* External code None
<one-digit number>
The External code setting allows you to assign the external line
access code for T7100/T700 telephones and analog telephones
attached to ATA 2s to access external lines. When the caller picks
up the handset, the system tone sounds. The caller then enters this
number to access an external line. Note: This number is overridden
by line pool or destination codes starting with the same digit(s).
Refer to “Tips about access codes” on page 314 before choosing a
number.
Access numbering
XXXXX Numbering cannot conflict with these features
Park
prefix
External
code
Direct
dial
digit
Private
access
code
Public/
Private
Auto
DN
Public/
Private
DISA
DN
Line pool code/
destination code
Telephone
DN
Park prefix XXXX XXXX XXXX #XXXX #XXXX #XXXX #XXXX
# Cannot conflict with first digit.
Table 59 Access codes values (Continued)
Programming access codes 313
Business Communications Manager 3.6 Programming Operations Guide
The system assigns Call Park codes to calls in sequence, from the lowest to the highest, until all
the codes are used. A round-robin method means the use of different of codes ensures a call
reaches the right person, especially when more than one incoming call is parked.
The highest call number (the Call Park prefix followed by 25) is used by model 7000 and 7100
telephones, analog telephones, or devices connected to the system using an ATA2. Analog
telephones or devices cannot use the other Call Park codes.
Calls are retrieved by pressing the intercom button and dialing the retrieval code. On model 7000
and 7100 telephones, pick up the receiver, and then dial <parkcode>25.
You also need to program the delay timer that determines when external parked calls that are not
answered return to the originating telephone. Refer to “Setting system timers” on page 472.
You can disable Call Park by setting the Park Code to None.
Creating Direct Dial sets
The Direct dial setting allows you to dial a single system-wide digit to call a specific telephone,
called a direct dial telephone. The most common example of a direct dial set is a telephone for an
operator, a receptionist or an attendant. You can program a maximum of five direct dial sets on the
system, however, you can only specify one direct dial number for the system (“Programming
access codes” on page 310).
1Click the keys beside Services, Telephony Services, General Settings, and Direct dial.
2Click the Set you want to program (Set 1-Set 5).
The Set # window appears.

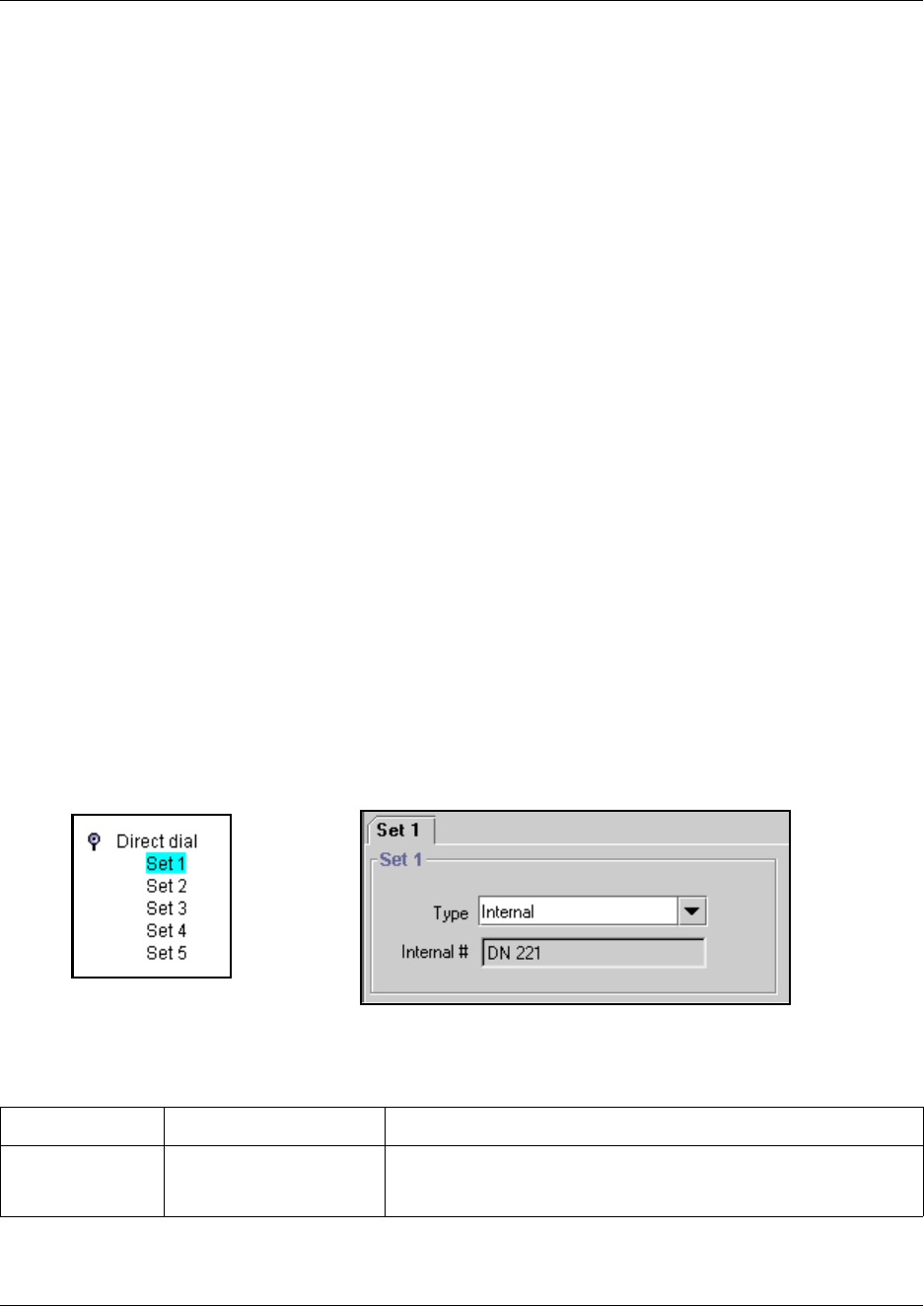

Figure 86 Direct dial menu and screen
3Use the following table to determine the settings you want to define direct dial sets.
Table 60 Direct dial values
Attribute Values Description
Type Internal
External
None
This is the type of number for the direct-dial set.
314 Programming access codes
P0609326 1.1
Direct dial matrix
To help you with your direct dial planning, transfer the following information to a spreadsheet and
fill out the values for each target line you create.)
Tips about access codes
Here are some helpful pointers to assist you in planning the access codes for your system.
Internal/External# DN
<external dial string>
The DN number of the telephone to be designated as the direct dial
set. (Internal sets).
The actual phone number of the direct dial set (External sets).
Facility Line
Pool (A-O)
Use prime line
Use routing table
The facility to be used to route the call to a direct dial set that you
define with an external number.
Note: If you choose Use prime line, ensure that prime line is not
assigned to the intercom buttons for your telephones. When prime
line is assigned as an intercom button, it chooses the first available
line pool assigned to the telephone to make a call. If this line pool
does not have the correct lines for routing the call, the direct dial
call will fail. Refer to “Assigning line access” on page 394.
!
Security note: The Business Communications Manager cannot verify that the number
you assign as an external direct dial set is valid. Check the number before assigning it as a
direct dial set by calling the direct dial you have assigned.
Table 61 Direct dial sets
Direct Dial Set
Set 1
Set 2
Set 3
Set 4
Set 5
None Internal # External #
Use Prime line
Use line
Pool code_____
Use routing table
Table 62 Access/dialing codes: avoiding numbering conflicts
Access numbering
XXXXX Numbering cannot conflict with these features
Park
prefix
External
code
Direct
dial
digit
Private
access
code
Public/
Private
Auto DN
Public/
Private
DISA DN
Line pool code/
des. code
Telephone
DN
Park prefix XXXX XXXX XXXX #XXXX #XXXX #XXXX #XXXX
External code XXXX XXXX XXXX #XXXX #XXXX *XXXX #XXXX
Direct dial digit #XXXX XXXX XXXX #XXXX #XXXX #XXXX #XXXX
Private Access code #XXXX XXXX XXXX
Pub//Priv/ Auto DN #XXXX #XXXX XXXX XXXX
Pub//Pri/ DISA DN #XXXX #XXXX XXXX XXXX
Line pool/dest. code #XXXX * XXXX XXXX XXXX XXXX
Table 60 Direct dial values (Continued)
Programming access codes 315
Business Communications Manager 3.6 Programming Operations Guide
•External line access code:
If the DN length is changed, and the changed DNs conflict with the external line access code,
the setting changes to None.
•Direct dial telephone: Another direct dial telephone, an extra dial telephone, can be assigned
for each schedule in Services programming.
If the DN length is changed, and the changed DNs conflict with the Direct dial digit, the
setting changes to None.
•Public/Private Auto DN: The length of the Auto DNs are the same as the Public or Private
Received Number Lengths specified under General Settings, DN lengths. The public/private
Auto DN is cleared if the corresponding Received Number Length is changed.
•Public/Private DISA DN: The length of the DISA DNs are the same as the Public or Private
Received number length specified under General Settings, DN lengths. The public/private
DISA DN is cleared if the corresponding Received number length is changed.
Using the MCDN access codes (tandem calls)
Three special codes exist specifically for programming over PRI and VoIP trunks that are using
the MCDN protocol, and which connect to a call server systems that use specific call codes for
special call types, such as the Meridian 1 (M1). The purpose of the codes is to allow easier
programming of the call server systems when calls are tandemed through a Business
Communications Manager to the local PSTN.
Calls tandeming to the public network through the private network need to retain their dialing
protocol throughout the private network. This means that a call from an M1 node tagged as a local
call gets received by the BCM node and is recognized as a call intended for the public network, but
also as a call that needs to maintain the local call tag until it gets to the BCM node that is directly
connected to the PSTN. This is accomplished by ensuring that the destination code, which starts
with this access code, passes the call on using the route designated with the correct call type. Refer
to “Defining routes” on page 322. The following figure charts this process.
Telephone DN #XXXX #XXXX #XXXX XXXX
* If the line pool code and the External code start with the same digit, the line pool code programming supersedes the
external code.
# Cannot conflict with first digit.
Table 62 Access/dialing codes: avoiding numbering conflicts
Access numbering
XXXXX Numbering cannot conflict with these features
Park
prefix
External
code
Direct
dial
digit
Private
access
code
Public/
Private
Auto DN
Public/
Private
DISA DN
Line pool code/
des. code
Telephone
DN
316 Programming access codes
P0609326 1.1
Figure 87 Local call tandemed through Business Communications Manager nodes
This is how the codes relate:
Calls coming in from the public network need to be translated to their private network destination
before routing/tandeming through the private network. In this case, the route used is defined with
the call type of Private.
Meridian 1 access codes Business Communications Manager access codes Sample code
Network/long distance code Private access code 6
National access code 61
Local code Local access code 9
Special access code 9
Local
PSTN
823-2222
Dialout: 9-823-2222
Dialout: <local call>-823-2222
Meridian user
The Meridian system recognizes the call as
a local public call.
Deletes the routing digits.
Tags call as Local call type
Sends out rest of dialout on private network
The Business Communications Manager
Adds Local code to front of called number:
9-823-2222
Dialout: 9-823-2222
The Business Communications Manager
receives the call. The system recognizes
9823 as the destination code for the local
PSTN route. Route drops the leading
digit and dials out over the PSTN trunk.
Dialout: [unknown] 823-2222
The system knows 9823 is the route to the next
system and routes the call through private network.
Setting up line pool access codes 317
Business Communications Manager 3.6 Programming Operations Guide
Setting up line pool access codes
Line pool access codes allow you to assign an access code for each of the line pools (A to O).
These codes specify the line pool for making an outgoing external call.
Follow these steps to set line pool access codes:
1Click on the keys beside Services, Telephony Services, General Settings, Access codes.
2Click the key beside Line pool codes.
Pool A-Pool O appears on the navigation tree.
3Click the Pool you want to program.
The Pool window appears.
Figure 88 Defining line pool access codes
4Type the Access code (up to four digits).
The default Access code is 9 for Line Pool A.
There is no default Access code for Line Pools B to O.
Note: You cannot assign PRI line pools with a line pool access code. You must define PRI line
pools under routing, and create destination codes for the routes.
Note: A line pool access code cannot conflict with:
Access
numbering
XXXXX Numbering cannot conflict with these features
Park
prefix
External
code
Direct dial
digit
Private access
code
Public/Private
Auto DN
Public/Private
DISA DN
Telephone
DN
Line pool/
destination code
#XXXX * XXXX XXXX XXXX XXXX
* If the line pool code and the External code start with the same digit, the line pool code programming supersedes the
external code.
# Cannot conflict with first digit.
318 Using Carrier codes
P0609326 1.1
VoIP lines and access codes: Although VoIP trunking lines are not physical lines, you can create
a line pool and line pool access codes to access this service. However, if you want to provide
fallback to a CO line, you must use routes and destination codes both for the VoIP lines and for the
physical line pool.
The VoIP keycode must be enabled before you can access any VoIP lines. The VoIP keycode on a
remote target Business Communications Manager must also be enabled for that system to receive
VoIP-based calls from your system.
For detailed information about VoIP lines, refer to the IP Telephony Configuration Guide.
Using Carrier codes
A multi-digit Carrier access code contains an Equal Access Identifier Code (CAC) followed by a
Carrier Identification Code (CIC). The CIC identifies the carrier that handles the call. The Carrier
Access Code table stores the CAC digit pattern that you define for your region.
In most cases it is not necessary to change the default values.
About Carrier access codes
Here are some general points about carrier access codes:
• You can define up to five carrier codes.
• Two entries will be pre-defined in North America, but you can remove these defaults.
• Each entry consists of an equal access identifier code prefix (one to six digits) and a carrier
identification code length (one digit, 1 to 9).
• Each entry is identified by the prefix digits themselves.
Identifying Carrier access codes
1Click the keys beside General settings and Access codes.
2Click Carrier codes.
3To add a new prefix, click the Add button located above the navigation tree.
Figure 89 Adding Carrier code prefix records
Using Carrier codes 319
Business Communications Manager 3.6 Programming Operations Guide
4Click on the Prefix number you created.
Figure 90 Configuring a carrier code prefix ID length
5Use the following table for information about the two fields on this screen.
Access code matrix
To help you with your Access code planning, transfer the following information to a spreadsheet
and fill out the access codes you want to use.
Table 63 Carrier access code values
Attribute Values Description
Code prefix <one to six digits>
(Read-only)
This value defines the prefix that will be used to access the carrier
code.
ID length 1, 2, 3, 4, 5, 6, 7, 8, or 9 This value defines the carrier ID length.
Table 64 Access code values
Line pool codes
A: 9 B: ______ C:_____ D:_____ E:_____ F:_____ G:_____
H:_____ I: _____ J: _____ K:_____ L:_____ M:_____ N:_____ O:_____
Park prefix 0123456789 None
Extrnl code 0123456789 None
Direct-dial digit 0123456789 None
Private Auto DN None Received #______________________________
Public Auto DN None Received #______________________________
Private DISA DN None Received #______________________________
Public DISA DN None Received #______________________________
Private Access Code 0123456789 None
Local Access Code 0123456789 None
National Access Code 0123456789 None
Special Access Code 0123456789 None
320 Configuring call routing
P0609326 1.1
Configuring call routing
Call routing allows you to define how calls are routed by your Business Communications Manager
system.
The following figure shows a detailed view of the Call Routing programming map.
Figure 91 Call Routing headings
Call routing decides what path an outgoing call takes using the digits that are dialed. It is
sometimes called Automatic Route Selection (ARS).
When you select an internal line and dial, the system checks the numbers you enter against the
routing tables. If the number you dial starts with a destination code, the system uses the line pool
and dials out digits specified by the route assigned to that destination code, and then dials the rest
of the number that you dialed.
Carrier Codes (five codes)
Code prefix ID length: 0 12 345 6 7 8 9 None
Task:
• Set up routes to external numbers using a specific line pool:
—“Defining routes” on page 322
—“Programming the PRI routing table” on page 325
• Enter destination codes to key access to a route: “Using destination codes” on page 326
• Assign schedules for special routing requirements:
—“Setting up a destination for local calling” on page 332
—“Adding Carrier access codes to destination codes” on page 334
—“Programming for least-cost routing” on page 335
—“Using multiple routes and overflow routing” on page 336
Table 64 Access code values (Continued)
Call Routing
Routes
Route 000
External #
Use pool
Destination Codes
xx
Schedules
Configuring call routing 321
Business Communications Manager 3.6 Programming Operations Guide
Routing service replaces a number of manual tasks, including:
• entering a line pool code
• dialing an access code for a long distance carrier
• deciding which line pool to use according to the time and day
You can set up routing to take advantage of any leased or discounted routes using information
supplied by the customer. The system cannot tell what lines are cheaper to use.
For Call by Call service selection (PRI only), the installer defines destination codes for various call
types over PRI lines (for example, Foreign Exchange, Tie Trunk, or OUTWATS). The user dials a
number using the intercom button without entering any special information. For more information
see “Provisioning for Call by Call limits with PRI” on page 340.
Using routing to create a coordinated dialing plan is explained in “Configuring the public and
private dialing plans” on page 302.
Routing configuration
The settings for a call routing include:
• a three-digit route number (000-999)
• external # digits (up to 24 digits)
• a line pool
• destination codes (max. of 500 available, up to 12 digits)
• DN type and/or Service Type
• public and private DN lengths
• a schedule (optional)
TIPS: To dial a telephone number that does not match a programmed destination codes, you must
choose a line and dial the number. For long distance dialing, you can program the area codes in the
North American numbering plan as destination codes.
Warning: Plan your routing service before you do any programming.
Routing affects every call placed in the system and must be carefully planned to avoid
conflicts and gaps in the programming. Use tables to design routes and destination codes,
then check for potential problems before you start programming. It also saves you time
when all the settings are written out in front of you.
322 Defining routes
P0609326 1.1
Defining routes
Use the Routes command to configure route records that are assigned to telephones.
1Click on the keys beside Services, Telephony Services, Call Routing.
2Click Routes.
3Click the Add button.
The Add Routes dialog box appears.
Figure 92 Add a route
4Enter a three-digit route number (001-999).
Note: Route 000 is a default route and cannot be changed or deleted.
5Click Save.
6Click the Route number in the navigation tree. The Route window appears.
Figure 93 Define route parameters
7Use the information in the following table to configure the route settings.
Defining routes 323
Business Communications Manager 3.6 Programming Operations Guide
Refer also to “Call by Call service routing” on page 324 and “Programming the PRI routing table”
on page 325.
Table 65 Route settings
Attribute Value Description
External # <a maximum of 24
digits>
Enter the external or dial-out number for the route you want the assigned
telephone to use. If all the required numbers are defined in the destination
code/dial string, this box can be left empty.
Optional entries:
F78: 1.5 second pause (counts as one digit in the dialing string)
F804: wait for dial tone (counts as two digits in the dialing string)
F71: Link
F808: Long tones
F*89: Programmed release
F*9: Run/Stop
Leave this entry blank if the route is directed to a VoIP line pool.
Use pool Pool A to Pool O or
PRI-A to PRI-F
Select a line pool for the route.
The PRI pools only display if you configure an DTM for PRI.
DN type or
Service type
Public
Private
Local (Subscriber)
National
Special (International)
Tie
Foreign exchange (FX)
Outwats
Switched Digital (SDS)
This setting tells the system what type of line protocol the route uses to
process the dial string.
The heading changes between DN type and Service type, depending on
the PRI line protocol. Refer to “Programming the PRI routing table” on
page 325.
MCDN private networks: Local, National and Special are special
designators used to route calls from Meridian 1 systems, through Business
Communications Manager systems, out to the public network. The codes
for these settings are defined in the Access codes table. Refer to “Using
the MCDN access codes (tandem calls)” on page 315.
When the Business Communications Manager receives outgoing calls
from the Meridian 1, it recognizes the call type and appends the
appropriate access code to the Meridian dial string.
This code then matches to a route that uses the same DN type, passing
the call along, either to another node (the route would have the same DN
type) or to the public network (the route would have a Public DN type),
depending on the routing information.
Outgoing call display: If you have the trunks set up to send called
number information (“Defining trunk module types and settings” on page
130 and “Identifying BRI T-loops (ETSI, QSIG)” on page 271), and the DN
type is set to anything, except Private, the system sends the Public OLI
number you specified under line programming. If the DN type is set to
Private, the system sends the Private OLI number. Refer to “Configuring
line access” on page 393.
324 Defining routes
P0609326 1.1
Call by Call service routing
The following table provides an example of a Routing Table containing Call by Call programming
(available in the North America market profile). Refer also to “Configuring Call by Call services”
on page 339.
Note: This type of routing only applies to those PRI trunks set with a protocol of NI, DMS100,
DMS250 or 4ESS. Refer to “Configuring the trunk module to line type” on page 131.
The service identifier (SID) depends on the selected service type (for example, with NI-2
protocol).
When you select or change a PRI protocol, the Service Type and Service ID fields automatically
clear for each entry in the routing table for that PRI.
Table 66 Call by Call routing table example
Route #
(000-999)
Dial Out
(24 digits) Use Pool Service Type
Service
Identifier
003 PRI-A Public
004 PRI-A FX xxxxx
005 PRI-A Tie xxxxx
006 PRI-B OUTWATS xxx
007 PRI-B Private
008 PRI-B Switched Digital
Note: The public DN lengths are used for all PRI calls except those whose routes use service type Private or service
type Tie with DN Type specified as Private.
Service Type Service Identifier description
Public None
FX Facility Number 1-5 digits
Tie Facility Number 1-5 digits
OUTWATSaOptional Band Number 1-3 digits
Private None
Switched Digital None
a. For NI-2, do not program the Carrier Access Code for banded OUTWAT calls. This call may be
rejected.
Defining routes 325
Business Communications Manager 3.6 Programming Operations Guide
Programming the PRI routing table
The dialing plan must be thoroughly planned out in advance before programming the information
into the Business Communications Manager system.
To program the routing table:
1Click on the keys beside Services, Telephony Services, Call Routing, Routes.
2Click on the route number record you want to use.
3Beside External #:, type a dialout number (up to 24 digits).
If you are creating a route for a VoIP trunk, leave this field blank.
4Under Use pool, select a PRI line pool.
The PRI pool(s) that are displayed depend on how you allocate PRI lines into pools in the
Trunk/Line Data section of line programming. It is possible to have only pool PRI-A, or only
pool PRI-B, or only pool PRI-C, etc., even if there are three DTMs configured as PRI in the
system.
5Choose a service type or DN type, refer to the table below:
•Service type: displays for PRI lines with protocol set to NI, DMS100, DMS250, 4ESS.
Service ID:None appears where the service requires an ID.
•DN type: displays for PRI lines with protocol set to SL-1 (MCDN, ETSI Euro).
The following table lists the service/DN type choices available for PRI lines:
Enbloc dialing
Enbloc dialing allows the system to determine where a call should be routed on a PRI line. By not
dialing out until all digits are entered, the system looks at the entire code and can tell whether the
call should be routed through public lines, to another system on a network through private lines, or
to the local system.
Public and Private DN lengths and destination codes are used by the system to determine routing.
Any prefixes that need to be added on the dialed number, can be included in these settings.
Table 67 PRI Service type/DN type values
PRI Protocol Type Values
MCDN DN Public, Private, Local, National, Special
ETSI Euro DN None, Overlap
ETSI QSIG N/A
NI Service Public, Tie, Foreign Exchange (FX), Outwats
DMS100 Service Public, Private, Tie, Foreign Exchange (FX), Outwats
DMS250 Service Public, Private, Tie, Foreign Exchange (FX), Outwats
4ESS Service Tie, Outwats, Switched Digital (SDS)
326 Using destination codes
P0609326 1.1
Using destination codes
Destination codes allow you to control how the system interprets and routes dial strings from
internal sources. Destination codes are similar to line pool codes except that by using routes
(which attach dial strings and DN type designators to line pools) and schedules you can control
what digits the user has to dial and how the system routes the call out of the system, including what
numbers from the dial string get added or deleted to the route dialout.
The numbers used for destination codes must not conflict with the following:
You can enter destination codes to a maximum of 12 digits.
This section includes the following information:
•“Why use destination codes?” on page 327
•“Deciding on a code” on page 328
•“Grouping destination codes using a wild card” on page 329
•“Configuring destination codes with wild cards” on page 330
•“Setting up a destination for local calling” on page 332
•“Setting up a route through a dedicated trunk” on page 333
•“Adding Carrier access codes to destination codes” on page 334
•“Programming for least-cost routing” on page 335
•“Using multiple routes and overflow routing” on page 336
•“Using dialing restrictions with routing” on page 338
Table 68 Destination codes: avoiding numbering conflicts
XXXX Numbering cannot conflict with these features
First digit must not conflict with: Entire code must not conflict with:
Park
prefix
External
code
Direct
dial
digit
Auto
DN
DISA
DN
Private
access
code
Line pool
codes
Telephone
DN
Other
destination
codes
Public
target line
recv’d
digits
Destination
code
XXXX *XXXX XXXX XXX XXX XXXX XXXX XXXX XXXX
Using destination codes 327
Business Communications Manager 3.6 Programming Operations Guide
Why use destination codes?
Routes determine path (line or pool) and any required access numbers.
Destination codes determine which route to take (i.e. an end node uses one destination code for all
other nodes in the system). If you choose to use the destination codes Normal schedule, the call
will always go out over the same route. If you choose to use the other destination codes schedules,
you can set up a more responsive plan, whereby calls can go out over more than one route, based
on scheduled times.
Destination codes provide you with the opportunity to create a dialing plan that allows users to
connect to other systems in a relatively seamless or consistent manner, regardless of the lines or
routes that are being used to get there. For example, connecting through VoIP lines requires
significantly different ways of dialing than dialing over T1 lines. However, you can configure
destination codes, such that the user dials the same number of digits regardless of the trunks over
which the calls are routed.
Figure 94 Using destination codes to access another system
User dials
9-1-601-555-2222
9-1-601-555-2222
91 is a destination
code – system uses
Route 001 and Line
Pool A
Routing tables
absorb 9
1-601-555-2222 Dialout programming tells the
system to add the access
code for long distance
(e.g. 10222)
10222-1-601-555-2222
External lines recognize the
long distance access code and
switch to the appropriate
carrier
1-601-555-2222
Call is directed in
the public system
328 Using destination codes
P0609326 1.1
Deciding on a code
When deciding on which digit(s) to use to start your destination code(s), you need to take into
consideration:
• that the digit or digits you want to start your destination codes with do not match any of the
access codes, including the line pool codes that already exist in your system.
You may find that you need to delete line pool codes and create a route and destination code
instead. This could occur if you want to set up fallback to a public line, for instance. If the
public line is accessed by a line pool code, you would have to change access to a route so you
could create a fallback schedule with the destination code used for the primary line (or lines, if
you have more than one outgoing line pool that requires fallback).
• how much of the common part of a dial string you want your users to have to dial, and how
much you can put in the dial string.
• if you want specific dial strings to use specific routes, map these out first.
For instance, if you want users to dial between Business Communications Managers over VoIP
lines, you would create destination codes specific to those systems which use the VoIP line
pool, using the digits with which the users are familiar. You can then create a unique
destination code for the call you want to route over the land line.
Example: If users are used to dialing 9-1-555-555-<DN number> to reach another system
(whose DN codes start with 6), you create a destination code of 915555556A, using the VoIP
line pools (users dial the destination code plus the DN of the telephone they want to reach on
the other system). The letter A at the end of the code represents any number from 0 to 9 which
is not used by any other destination code.
If you need to use land lines for a specific connection on the other system, you can create a
destination code specific to that destination number and attach it to the route set up with the
landline line pool (i.e. 915555556333, 6333 being the DN of the device on the other system.
When the user dials that specific number, the call will always go over the land line). Note that
by entering this code, users dialing with the code in the previous paragraph could never dial
any DN that started with 63XX.
• If you want to use VoIP lines as your main lines, but you want to program one or more land
lines as fallback lines, you need to configure the routing and routing schedules so that the user
dials the same number, regardless of which routes get used. You use the external # dialout
string and absorb digits fields under the schedules in Destination code programming for this
purpose.
• If a company wants to use VoIP lines between sites for interoffice calls, but not necessarily for
all the voice traffic, they can configure specific destination codes for the VoIP routes. In this
case, the destination code contains the same digits as a user would dial for a landline, thus,
making the shift transparent to the user and, at the same time, ensuring that the most
economical route is being used. Depending on how many exceptions there are, you can use the
wild card at the end of the string to save yourself from the necessity of entering a number of
destination codes with the same leading digits. Refer to “Grouping destination codes using a
wild card” on page 329.
• If you are setting up a new system where users do not have previously-established dialing
patterns, you can use simpler destination codes. For example: You can establish 9 as the
destination code for dialing outside the system, 5 for dialing any calls within networks on the
Grouping destination codes using a wild card 329
Business Communications Manager 3.6 Programming Operations Guide
local exchange, and 7 for dialing any calls within the network to destinations outside the local
exchange.
Therefore:
System A calling to the public network would dial 9XXXXXXX or 91XXXXXXX if the call
is long distance.
System A calling to System B, which is in the same city, would dial 5XXXX
System A calling to System C, which is in another exchange area, would dial 7XXXXXXX
Note: If the network is using CDP for the dialing plan, the destination codes could be the
leading digit of the DN code, since that needs to be unique for each system. However, this
would depend on which digits have already been taken by other coding in the system.
Grouping destination codes using a wild card
If you have a number of destinations that have the same route and digit absorb length, you can
group these codes under one destination code to maximize your destination code table. In this case,
the start digits will be the same, but the last character will be the wild card, and indicates any digit
between 0 and 9. However, if there is a conflict with other digits already programmed or used by
other destination codes, an error message appears.
For instance, you might use the same route (555) to a number of remote sites. Each site is accessed
with the same external # (dial out string), except for the last digit, which is unique to each site.
The exception to this is a site with a totally different access number and line pool requirement
(route 565). This example is shown in the following table.
If you do not use wild cards, you would need to create a separate Destination code for each unique
dialout, as shown in the following table.
Table 69 Establishing routes and dialout requirements
Route Dial Out (external #) Line Pool
555 0162 237 625<unique number from 0 to 9> Line Pool C
565 0173 133 2211 Line Pool A
Table 70 Destination codes not using a wild card
Destination codes Route Absorb Length Dial Out
0621 555 3 0162 237 6251
0622 555 30162 237 6252
0623 555 3 0162 237 6253
0624 555 30162 237 6254
0625 555 3 0162 237 6255
0626 555 30162 237 6256
0627 565 All 0173 133 2211
0628 555 30162 237 6258
330 Configuring destination codes with wild cards
P0609326 1.1
If you use the wild card character A (ANY), you can reduce the number of destination codes you
require to two, as shown in the following table.
Configuring destination codes with wild cards
Create the routes with dialout strings containing the common digits, then follow these steps to
create a destination code with a wild card character.
Create the destination code
1Click on the keys beside Services, Telephony Services, Call Routing.
2Click on Destination codes.
3Click on the Add button.
The Destination code dialog box appears.
4Enter a destination code, typing the letter A for the last digit of the code.
Figure 95 Adding a destination code with a wild card
5Click the Save button to save the destination code.
0629 555 3 0162 237 6259
Table 71 Destination codes using the ANY character
Destination codes Route AbsorbLength Dial Out
062A 555 3 0162 237 625X
where X is the last digit of the destination code
dialed out, from 1 to 9, but not 7
0627 565 All 0173 133 2211
Tips
The digit absorption setting (absorbed length) applies to a maximum of two schedules. To
minimize the effort involved in preparing destination codes, set the digit absorption to 0.
With set to 0, the actual digits dialed by a caller are preserved in the dial out sequence. The
need to program a dial out sequence as part of the route depends on the required dialout.
Table 70 Destination codes not using a wild card (Continued)
Destination codes Route Absorb Length Dial Out
Configuring destination codes with wild cards 331
Business Communications Manager 3.6 Programming Operations Guide
Set up the destination code schedules
1Click on the key beside Schedules.
2Click on the schedule name you want to
program. For example: Normal.
3Choose the Use route you want the
destination code to refer to during
operation of the schedule.
4In Absorb Length, choose a number to
define which part of the destination code
will be ignored by the system when it
dials out.
Programming note: All schedules
except Normal allow you to specify up to
three routes, to allow for fallback.
5Click outside the window to save the
changes.
Enable/disable wild card digits
1Click on the key beside Wild cards.
The valid numbers for the wild card for
this code are displayed.
2Click on the number you want to change.
3In the Wild card state field, choose
Assigned (can be used with this
destination code) or Available (can be
used as part of another destination code).
4Repeat steps 2 and 3 for all the numbers
you want to change.
332 Configuring destination codes with wild cards
P0609326 1.1
Setting up a destination for local calling
An office can have different suppliers for local and long distance telephone service. By
programming a destination code, any call that begins with 9, which is the most common dial out
digit, automatically uses lines dedicated to local service.
Note: 9 is the default setting for the line pool code for Pool A. If you want to use 9 as a destination
code, you must change the Pool A code. Refer to “Assigning line pool access” on page 402.
Follow these steps to build a route to allow local calls.
1Create a route that uses the line pool you assigned for the PSTN trunks. (“Defining routes” on
page 322).
2Create a destination code record and enter a destination code, such as 9, which is a common
local call code. (“Configuring destination codes with wild cards” on page 330)
For local calls only, there are no dial out numbers (compare with “Setting up a route through a
dedicated trunk” on page 333).
The destination code can use a different route, depending on what schedule is assigned. In the
current example, the route you define is used when someone dials 9 during Normal mode,
when the other Schedules are turned off.
3Set up the Normal schedule with the route number you defined in step 1.
Figure 96 Routing Service programming example
The following figure shows an example of a Destination codes programming record filled out
Figure 97 Destination codes for call routing
Routing Service (Services: Routing Service)
Route #
(000-999)
Dial out (if required)
(max. 24 digits or characters) Use Pool
001 none A B C D E F G H I J K L M N O
002 none A B C D E F G H I J K L M N O
Destination codes (Services; Routing service; Destination codes)
Service
Schedule
(max. 7 char) Normal Rte Route schedule
DestCode
(max. 7 digits)
Use route
(000-999
Absorb
Length
1st route
(000-999
Absorb
Length
2nd route
(000-999
Absorb
Length
3rd route
(000-999
Absorb
Length
9003All
10020
Configuring destination codes with wild cards 333
Business Communications Manager 3.6 Programming Operations Guide
An office can have leased lines or private network trunks that provide cheaper to long distance
calls by routing through the dedicated lines to remote systems, then using the local PSTN from that
system to make the call. The routing should take place automatically when the number of the
outgoing call begins with 1.
Setting up a route through a dedicated trunk
If your long distance is supplied by an alternate service or if you want to use different trunks at
different times of the day, you can configure a route to use a specific trunk.
1Create a route that uses the line pool containing the discounted lines for long distance calling.
(“Defining routes” on page 322).
2Create a destination code record and enter a valid destination code (maximum of 12 digits).
(“Configuring destination codes with wild cards” on page 330)
You must use a valid destination code, such as 91 (9, indicating PSTN; 1, indicating a long
distance). See “Using destination codes” on page 326. View existing destination codes before
entering a new code. The destination code can use a different route depending on the Schedule.
3Under the Normal schedule for the destination code, enter the route you specified in step 1.
Notes about the Absorbed length:
The digit absorption setting (Absorbed Length) applies to a maximum of two schedules.
Setting Absorbed Length to 0 minimizes the effort involved in preparing destination codes. When
the Absorbed Length is at 0, the actual digits dialed by a caller are preserved in the dialout
sequence. It is not necessary to program a dial out sequence as part of the route.
If rates change depending on the time of the day or week, a different route can be used for the same
destination code when a particular schedule is in use. See “Programming for least-cost routing” on
page 335.
334 Configuring destination codes with wild cards
P0609326 1.1
Adding Carrier access codes to destination codes
In many cases, long distance service uses the same lines as local service but is switched to a
specific carrier using an access number, which is sometimes referred to as an equal access code
(CAC). Route programming can include the access number so the users do not have to dial it every
time they make a long distance call. The following figure shows an example of how the system
interprets what the user dials into a valid outgoing call.
Figure 98 Carrier code call numbering sequence
Follow these steps to program a long distance carrier access code into a destination code.
1Create a route that uses a line pool containing local lines only.
2Program the route to use a line pool containing the lines used to access the long distance
carriers.
3Type the dialout digits, which are the same as the access digits. For example, if the access code
is 10222, the dialout digits are 10222.
4Create a destination code 91: 9 (for outside access) and 1 (for long distance). You must use a
valid destination code. Refer to “Using destination codes” on page 326.
5Set Absorbed Length to 1.
The digit 9 is only used internally and should be dropped. The 1 is needed to direct the call to
the public carrier network.
User dials
9-1-601-555-2222
9-1-601-555-2222
91 is a destination
code – system uses
Route 001 and Line
Routing tables
absorb 9
1-601-555-2222 Dialout programming tells
the system to add the
access code for long
distance (e.g. 10222)
10222-1-601-555-2222
External lines recognize the
long distance access code
and switch to the appropriate
carrier
1-601-555-2222
Call is directed in
the public system
Configuring destination codes with wild cards 335
Business Communications Manager 3.6 Programming Operations Guide
TIPS: The destination codes 9 and 91 used in the examples cannot be used together. If you need
the destination code 91 to direct long distance calls, you must create a separate set of codes that
use local calling routes. These codes would be, for example, 90, 92, 93, 94, 95, 96, 97, 98 and 99.
Refer to “Grouping destination codes using a wild card” on page 329 for information on
programming destination codes.
Programming for least-cost routing
It can be less expensive to use another long distance carrier at a different time of day. Continuing
with the example used in the previous flowchart, the lines that supply local service in normal mode
are also used for long distance service after 6 p.m. because that is when rates become competitive.
For the system to do this automatically, you must build another route.
Follow these steps to build a route for a secondary carrier:
1Beside Route: enter an available route number.
2Choose No number for the dialout.
3Choose the line pool that contains the local service carrier lines.
4Now you need to create a destination code and assign the route to the Night schedule.
In this case, the change in route uses the start and stop times for Night Schedule.
5Add 91 as a Destination code.
6Make sure Absorbed length is set at 1.
7Under Night schedule: enter the route you defined in step 1.
Calls that begin with the digits 91 travel out without using the access code when the Night
schedule becomes active or when you turn it on at a control telephone.
336 Configuring destination codes with wild cards
P0609326 1.1
Using multiple routes and overflow routing
If all the lines used by a route specified by a destination code are busy when a call is made, you can
program other routes that the system automatically flows the calls to, or you can allow the call to
overflow directly to the Normal route schedule (usually the most expensive route). However, this
only takes effect if an active schedule is applied to the line. Overflow routing is not available in
Normal mode.
You must create overflow routes for each destination code for which you want to allow overflow
routing.
To set up the multiple routing overflow feature, follow these steps:
1You assign the preferred routes in a Destination code schedule (Services, Telephony
Services, Call Routing, Destination code).
Figure 99 Multiple routing with destination schedules
aPick a schedule when you want these routes to be in effect.
bIn the First Route field enter the route number for the preferred route for the call.
cChoose the absorb length for the first route that is appropriate for the dialout numbers you
entered for the route.
dRepeat steps b and c for Second Route and Third Route fields.
eDefine the start/stop time as 0100 under the equivalent Routing Services schedule. This
setting means that the schedule is active 24 hours a day. Refer to “Configuring routing
service” on page 495.
Configuring destination codes with wild cards 337
Business Communications Manager 3.6 Programming Operations Guide
2Assign an overflow route, usually the most expensive route, to the same Destination Code, but
for the Normal schedule.
Figure 100 Configuring the Normal schedule for overflow
3Under Scheduled Services, Routing Service, <preferred route schedule>, choose auto for
Service Setting, and Y for Overflow.
4Use a control telephone to activate the feature on the telephones on which you want preferred
routing to be active.
Note: You must also ensure that the route correctly absorbs or passes dialed digits so that the
number dialed for each line is the same from the user perspective.
When a user dials, and the telephone cannot capture the preferred line (First Route), the system
tries each successive defined route (Second Route, then Third Route). If none of these routes have
available lines, the call reverts to the Normal mode. When the call switches from the preferred
routing mode (First Route, Second Route, Third Route), to Normal mode, the telephone display
flashes an “expensive route” warning.
Note: Overflow routing directs calls using alternate line pools. A call can be affected by different
line filters when it is handled by overflow routing.
VoIP trunking uses a similar process for setting up fallback from the VoIP trunk to a PSTN line.
Refer to the IP Telephony Configuration Guide for details.
338 Configuring destination codes with wild cards
P0609326 1.1
Using dialing restrictions with routing
You can further customize routing service by adding dialing filters to lines in line pools. Filters
restrict the use of the line to specific area codes.
To set up restriction filters, refer to “Defining restriction filters” on page 344.
TIPS: host system signaling codes can be part of the dial out.
You can also use routing as an alternate method for a direct-dial number. For example, create a
destination code 0 and program the number of the internal or external destination as the dialout.
Set the digit absorption to 1.
Routing matrix
To help you with your route planning, transfer the following information to a spreadsheet and fill
out the values for each route you create.
Table 72 Routing
Call Routing: Routes
Route # External # Use Pool DN type
Public Private
Destination code:
*You can specify three
alternate routes for
these services.
Normal
*Night
*Evening
*Lunch
*Sched 4-6
Use route
None
Route:
Route 001
Absorb length
All
1 2 3 4 etc. _____
Configuring Call by Call services 339
Business Communications Manager 3.6 Programming Operations Guide
Configuring Call by Call services
Call by Call service selection (CbC) allows you to access services or private facilities over a PRI
line without the need for dedicated facilities. The different services represent different types of
access to the network.
This section includes information about:
•“Call by Call services” on page 339
•“Switches supporting Call by Call limits” on page 340
•“Provisioning for Call by Call limits with PRI” on page 340
•“Setting CbC limits” on page 341
•“Viewing CbC limit metrics” on page 343
Supporting protocols
The following protocols support Call by Call limits:
• National ISDN 2 (NI-2)
• DMS-100 custom
• DMS-250 (MCI, Sprint, Generic)
• AT&T 4ESS custom
Call by Call services
Business Communications Manager supports the Call by Call Services listed in the following
table.
Table 73 Call by Call Services available on the system
Service Description
Public Public calls connect Business Communications Manager and a Central Office
(CO). Business Communications Manager supports both incoming and
outgoing calls over the public network. Dialed digits conform to the standard
North American dialing plan (E.164 standard).
Foreign Exchange (FX) Foreign exchange service connects a Business Communications Manager
site to a remote central office (CO). This provides the equivalent of local
service at the remote location.
Tie Tie lines are private incoming and outgoing lines that connect Private Branch
Exchanges (PBXs) such as another Business Communications Manager.
OUTWATS Outward Wide Area Telecommunications: This outgoing call service allows a
Business Communications Manager user to call telephones in a specific
geographical area referred to as a zone or band. Typically, a flat monthly fee is
charged for this service.
INWATS Inward Wide Area Telecommunications: This long distance service allows a
Business Communications Manager user to receive calls originating from
specified areas without charge to the caller. A toll-free number is assigned to
permit reverse billing.
340 Configuring Call by Call services
P0609326 1.1
Switches supporting Call by Call limits
The following table lists the service types and cross-references them with four common switches.
Provisioning for Call by Call limits with PRI
To program the system for Call by Call Limits with a PRI interface, you must:
International INWATS An international long distance service that allows a Business
Communications Manager user to receive international calls originating from
specified areas without charge to the caller. A toll-free number is assigned to
permit reverse billing.
Switched Digital This service provides premises-to-premises voice and data transport with call
management and monitoring features.
Nine Hundred This service is commonly referred to as fixed-charge dialing.
Private Private incoming and outgoing calls connect Business Communications
Manager to a virtual private network. Dialed digits can conform to the
standard North American dialing plan (E.164 standard) or the dialed digits can
use a private dialing plan.
Table 74 Switches and service types chart
Switches
Service types1NI-26
DMS-100
(custom)
DMS-250
(MCI, Sprint,
Generic) AT&T 4ESS
FX FX FX2N/A N/A
Tie3Tie Tie Tie SDN (software defined
network)
INWATS INWATS INWATS Eight Hundred Toll Free MEGACOM
International INWATS Same as INWATS Same as INWATS Same as INWATS International Toll Free
Service
OUTWATS IntraLATA OUTWATS
OUTWATS with bands
InterLATA OUTWATS
OUTWATS PRISM MEGACOM
Private DMS Private5VNET (virtual network) N/A
Switched Digital N/A N/A N/A ACCUNET4
Nine Hundred N/A N/A Nine Hundred MultiQuest
Public Public Public Public N/A
1. N/A indicates that the protocol does not support the service.
2. DMS-250 Sprint and UCS support incoming FX only (i.e. Network-to-Business Communications Manager).
DMS-250 MCI does not support FX.
3. NI-2 allows two Tie operating modes: senderized and cut-through. Business Communications Manager supports only
senderized mode.
4. Rates greater than 64 kbps are not supported.
5. Bell Canada VNET.
6. Not all service types may be supported by a switch type. For information, contact your service provider.
Table 73 Call by Call Services available on the system (Continued)
Service Description
Configuring Call by Call services 341
Business Communications Manager 3.6 Programming Operations Guide
• provision a DTM as PRI, if one is not already configured as part of the system
• select a protocol, on page 99
• program incoming call routing, on page 152
• program routes that use the PRI pools, see “Configuring call routing” on page 320.
Other required programming in the Unified Manager
Programming Call by Call on PRI requires these settings:
• under Line Access, assign the line pool
• under Services, in routing services, assign a pool for routing, and assign the service type and
service id, if required
• under General settings, specify the minimum and maximum values for the pools
Setting CbC limits
PRI pool limits for Call by Call services allows you to configure limits for service types without
interacting with the CO. This feature sets the minimum and maximum number of incoming and
outgoing calls per service type for the PRI pool.
The number of active calls are tracked. Whenever a call is setting up, a check determines if the call
is allowed. Calls are not allowed if they exceed the maximum value for that service type or if they
use lines needed to maintain the minimum value of other service types.
Follow these steps to program CbC Limits
1Click on the keys beside Services, Telephony Services, General settings, and CbC limits
2Click on the key beside a pool type (PRI-A to PRI-F).
3Select a service.
For example, Public. The services that display depend on the PRI protocol.
Figure 101 Setting CbC limits parameters
342 Configuring Call by Call services
P0609326 1.1
4The following table lists the possible values to enter into the pool fields.
PRI line pools
All lines in a PRI interface are in the same PRI line pool. This pool cannot contain any non-PRI
lines. There is one PRI pool available for each PRI interface. Depending on the order that the
modules are configured as PRI, Pool PRI-A represents lines 061 to 083, Pool PRI-B represents
lines 085 to 107, and Pool PRI-C represents lines 109 to 131, etc. to Pool PRI-F. If all PRIs are
connected to the same service provider and use the same protocol, lines 061 to 083, 085 to 107,
and 109 to 1311 etc. can be put in the same pool, PRI-A, PRI-B, PRI-C up to PRI-F.
CbC matrix
To help you organize your PRI call by call limits lines, transfer the following information to a
spreadsheet and fill out the information.
Table 75 DN length values
Attribute Values Description
Minimum incoming Default: 2 Note: The total of the minimum values for incoming or outgoing PRI
services cannot exceed the total number of lines in the PRI pool.
The maximum value for an incoming or outgoing PRI service cannot
exceed the total number of lines in the PRI pool.
Maximum incoming Default: 23
Minimum outgoing Default: 4
Maximum outgoing Default: 23
Table 76 CbC matrix
PRI
pool Type Incoming lines Outgoing lines
PRI-A
PRI-B
Public, Tie, Foreign Exchange
OUTWATS, INWATS
International INWATS, Private
Switched Digital, Nine hundred
Minimum incoming: _________
Maximum incoming: _______
Minimum outgoing: _________
Maximum outgoing: _________
Configuring Call by Call services 343
Business Communications Manager 3.6 Programming Operations Guide
Viewing CbC limit metrics
You can view statistical information about call-by-call limit settings for PRI when the protocol is
set to call-by-call routing.
1Choose Diagnostics, Service Metrics, Telephony Services, CbC limit metrics.
The display shows the pools that supports CbC routing.
2Choose a PRI pool.
The display shows the services in the pool. The Call-by-Call services that display are
determined by the PRI protocol of the line.
3Select a service. For example, Public.
The display shows the settings for the selected service.
Figure 102 Metrics for all CbC options
344 Defining restriction filters
P0609326 1.1
4To clear the settings for a selected service, click Clear metrics on the Configuration menu.
Defining restriction filters
Restriction filters allow you to restrict the numbers that can be dialed on any external line within
Business Communications Manager. Up to 100 restriction filters can be created for the system.
To restrict dialing within the system, you can apply restriction filters to:
• outgoing external lines (as line restrictions)
• telephones (as set restrictions)
• external lines on specific telephones (as line/set restrictions)
Restriction filters can also be specified in Restrictions service for times when the system is
operating according to a schedule. Dialed digits must pass both the line restrictions and the set
restrictions. The line per set (line/set) restriction overrides the line restriction and set restriction.
This section includes the following information:
•“Adding a restriction filter” on page 345
•“Notes about restriction filters” on page 345
•“Adding overrides to restrictions” on page 348
•“Restriction filter examples” on page 349
The following figure shows the Restriction Filters headings.
Figure 103 Restriction Filters headings
Restriction Filters
Filter 00-99
Restrictions
Restriction 01
Digits
Overrides
Override 001
Digits
Defining restriction filters 345
Business Communications Manager 3.6 Programming Operations Guide
Adding a restriction filter
Follow these steps to add new restriction filters:
1Click on the keys beside Services, Telephony Services.
2Click on Restrictions.
3Click the Add button located above the navigation tree.
The Add Restrictions dialog appears.
Figure 104 Adding restriction filters
4Enter the digits you want to restrict.
5Click Save.
The new restriction is added to the button of the restrictions list for that filter.
6If you want to add numbers that will override the restrictions, refer to “Adding overrides to
restrictions”.
Removing restrictions
To remove restrictions that no longer apply, click on the Restriction # you want to remove, then
click the Delete button at the top of the column.
Exercise caution when removing overrides.
If you remove a restriction, the overrides associated with the restriction are also removed. This
action also changes the identifying numbers of the subsequent restrictions that you have defined.
For example, if you remove Restriction 01, Restrictions 02 to 08 are renumbered as 01 to 07.
Notes about restriction filters
A restriction filter is a group of restrictions and overrides that specify the external numbers or
feature codes that cannot be dialed from a telephone or on a line. The restriction filters setting
allows you to assign restrictions in one step as a single package of dialing sequences that are not
permitted.
346 Defining restriction filters
P0609326 1.1
In addition to restricting telephone numbers, you can prevent people from entering dialing
sequences used by the central office (the public network) to deliver special services and features.
Some of these features provide the caller with dial tone after they have entered the special code
(which often uses # or *), therefore, users have an opportunity to bypass restrictions. To prevent
this from happening, you can create filters that block these special codes.
You create a filter by defining the dialing sequences that are denied. There are also variations of
each sequence that you want users to be able to dial, these are called overrides. Overrides are
defined within each restriction package for each filter.
Once you create the filters, you can assign the restrictions to a telephone (System DNs), to a line
(Lines), to a particular line on a telephone (System DNs), and to remote callers
(Lines, Remote access).
Note: Filter 00 cannot be changed. Filter 01 has a set of defaults. Filters 02 to 99 can be set to suit
your special requirements. See “Default filters (North America)” on page 347.
• Each programmable filter can have up to 48 restrictions.
• There is no limit on the number of overrides that can be allocated to a restriction. However,
there is a maximum total of 400 restrictions and overrides allocated to the 100 programmable
filters.
• The maximum length of a restriction is 15 digits.
• The maximum length of an override is 16 digits.
• Entering the letter A in a dialing sequence indicates a wild card, and represents any digit from
0 to 9.
• You can use * and # in a sequence of numbers in either a restriction or an override. These
characters are often used as part of feature codes for other systems or for features provided by
the central office (the public network).
• When restricting the dialing of a central office feature code, do not forget to create separate
restrictions for the codes used for DTMF and pulse lines (for example, *67 and 1167).
• Do not string together a central office feature code and a dialing sequence that you want to
restrict. Create a separate restriction for each.
• You can copy restrictions and overrides from one filter to another. You can use a restriction or
override in any number of filters. Each time you use a restriction or override, it counts as one
entry. For example, if restriction 411 exists in filters 01, 02 and 03, it uses up three entries of
the 400 entries available.
• Removing a restriction from a filter has no effect on the contents of other filters, even if the
restriction was copied to them.
• You cannot delete a filter. Removing the restrictions programmed on a filter makes it an
unrestricted filter but the filter itself is not removed.
Defining restriction filters 347
Business Communications Manager 3.6 Programming Operations Guide
Default filters (North America)
Filter 00 permits unrestricted dialing and cannot be changed.
Filter 01 is pre-programmed with 10 restrictions and some associated overrides. In Filter 01,
Restriction 02 and Override 001 allow long distance toll free calls.
The dialing string 911, which is the number for emergency assistance in North America, is
included as both a restriction and an override in Filter 01. This arrangement prevents anyone from
blocking calls for emergency assistance on lines or sets using the default filter.
Note: Default filters are loaded only when the system is cold started.
Filters 02, 03, and 04, although not preset with restrictions and overrides, are the default filters in
these programming headings:
Table 77 Default restriction filters
Filter Restrictions (denied) Overrides
00 Unrestricted dialing
01 01: 0
02: 1 001: 1800
002: 1877
003: 1888
03: 911 001: 911
04: 411
05: 976
06: 1976
07: 1AAA976
01 08: 1900
09: 1AAA900
10: 5551212
02 - 99 No restrictions or exceptions programmed
Table 78 Default filters for program headings
Filter Heading Sub-heading
02 System DNs Set restrictions
03 Lines Line restriction
04 Lines Remote restriction
348 Defining restriction filters
P0609326 1.1
Default filters (other)
Three profiles have global overrides which do not appear in Unified Manager restriction
programming and cannot be changed.
Australia: 000, 13144A
Brazil: 194A
UK: 999, 112
Adding overrides to restrictions
1Click on the keys beside Services, Telephony Services, Restrictions.
2Click on the restriction number where you want to add an override.
The Add Overrides dialog appears.
Figure 105 Adding overrides to restrictions
3In the Digits field, enter the number that you want to be able to override the restriction filter.
Note: Enter the letter A as a wild card character that represents any digit from 0 to 9 in a
sequence of numbers when denying numbers or creating overrides.
4Repeat steps 2 and 3 for all the overrides you want to add
5Click Save.
The new override is added to the bottom of the Overrides list.
To view an Override to a restriction: click on the Override XXX headings.
To delete an override: Select the override you want to delete, and then click on the Delete button at
the top of the column. If you want to delete all overrides for that restriction, click the Delete All
button.
Defining restriction filters 349
Business Communications Manager 3.6 Programming Operations Guide
Restriction filter examples
Line and set restrictions are shown in the following figures.
In the first figure, below, a caller using line 001 could only dial long-distance numbers to area
codes 212 and 718. A caller using line 003 could not dial any long-distance numbers. A caller
using line 005 could dial long-distance numbers to area codes 212, 718, and 415.
TIPS: To restrict dialing from outside the system (once a caller gains remote access), apply
restriction filters to incoming external lines (as remote restrictions).
Figure 106 Line restriction example
no long
distance
except
area codes
212, 718 no long
distance
no long
distance
no long
distance
except area
codes 212,
718, 415
no long
distance
except area
codes 212,
Line restriction
Set restriction
Line 1
Line 3
Line 3
Line 1
Line 5
Line 5
Line/Set
restriction
350 Defining restriction filters
P0609326 1.1
In the following figure, dialed digits must pass both the remote restriction and the line restriction.
A remote caller can override these filters by dialing the DISA DN and entering a COS password.
Figure 107 Remote line restriction example
Restriction filters matrix
Transfer the following information to a spreadsheet and fill out the restriction filter information
you want for your system.
Table 79 Restriction filters matrix
Filter # Restriction # Overrides
No long
distance
except area
codes 212,
718, 416
no long
distance
except area
codes 212,
718, 416
No long
distance
except area
codes
212, 718
Line
pool
access
code 81
Line 001
Line 003
Line restriction
Remote restriction
Remote
caller
COS password
User filter
Line filter
Remote
package
COS restrictions
Line pool
access
defined in
remote
package
Line 082
Enhanced 911 (E911) configuration 351
Business Communications Manager 3.6 Programming Operations Guide
Enhanced 911 (E911) configuration
Government rules vary about support for Enhanced 911 (E911) dialing service by Customer
Premises Equipment. Legislation may require that the Customer Premises Equipment give a more
precise location of the source of a 911 call than the billing address of the central office line.
Consult your service provider about the laws and regulations.
Use the following configuration rules when installing the Business Communications Manager
system to assure compliance with local regulations:
• When equipped with PRI trunks, Business Communications Manager can deliver the Calling
Line ID of a telephone dialing 911 through the Public Switched Telephone Network, if the
proper programming has been implemented and PRI trunk service has been installed by the
service provider. If you are using ISDN PRI, implement OLI programming and Business
Name programming to add the Set ID to the CLASS information.
• By default, Restriction Filter 02 is assigned to all sets on startup. There are no restrictions
applied in Restriction Filters 02-99. Restriction Filter 01 has restrictions, but 911 is an
exception for this filter. For information on how to change the Restrictions, refer to “Defining
restriction filters” on page 344.
• When using other trunk interfaces, you can assign separate line pools to groups of telephones
in different areas (for example, in different buildings, floors or sections).
• Be careful when using the Set Relocation feature. You may have to reprogram the line pool
access to send the right location on 911 calls.
• Configure the 911 destination code to dial out over a Normal Schedule in all applicable
Service Modes, as this is the default route should any other programmed routing attempts fail.
When using PRI interfaces, make sure all sets can use the PRI line pool that the Normal
Schedule route uses.
911 and IP telephones
DO NOT program IP telephones with a 911 code mapped to a line pool for the Business
Communications Manager, unless it is co-located with the system.
Task:
Set up emergency access number to comply with local regulations.
352 Enhanced 911 (E911) configuration
P0609326 1.1
353
Business Communications Manager 3.6 Programming Operations Guide
Chapter 13
Configuring DN records, an overview
This section provides an overview about the process for programming the records of the
telephones and equipment attached to the station modules on the Business Communications
Manager. Refer also to the process map on the next page (“Understanding the configuration
process” on page 354).
For a detailed description about what DNs are, and what the different categories of DNs in the
navigation menu mean, refer to Defining the System DN headings on page 358. System DNs also
contains a DN registration heading, which lists the DNs which are, or which can be, registered
to the system (“DN Registration headings” on page 363).
Task overview: To set up each telephone or device attached to your system:
• Determine which DNs will be assigned to the telephones and devices.
(“DN mapping for digital telephones” on page 355)
• Use the Wizards to configure telephones
(“Configuring DNs using the Wizards” on page 369)
OR
Configure each telephone record individually (“Configuring DNs for system devices” on page
387).
• Determine the call display and log options. (“Configuring telco features” on page 445)
• If you have optional voice mail active on your set, you will also see the active phone number
for each telephone. (“Voice Mail settings” on page 446).
• If your attendants have M7324 telephones with CAP modules or BST T7316E telephones with
KIM modules that are assigned as CAP stations, you need to assign these systems under
“Setting up CAP stations” on page 434.
The new BTS Doorphone, which uses the M7324 model name, has separate installation and
configuration guides.
IP telephones require the programming described in this section, but they also have specific IP
configuration parameters, which are described in the IP Telephony Configuration Guide.
354 Understanding the configuration process
P0609326 1.1
Understanding the configuration process
The following process map provides an over-all view of how to set up telephone configurations.
Figure 108 Process map: Configuring DNs for system devices
Note: References in this document to terminal, set, and telephone all refer to telephones that are
compatible with the Business Communications Manager system.
Lines, station modules
and base stations are
installed, as required.
Use the Add Users Wizard to
define the DN records. Refer to
Creating telephone records with
the Add Users Wizard on page 375
Do you
have a
DN template
defined?
Use Edit DN Record Template Wizard
if you are adding a number of devices
that have the same configurations.
Refer to Editing DN Record Templates
on page 369.
Are the
telephones
/devices
connected to
the system?
Test the devices
Tweak each DN record, including
setting up display and log options,
special button programming, and
restrictions, as required. Refer to
Configuring DNs for system
devices on page 387
Refer to the applicable
installation guide, and
install the devices.
No
Yes
Yes
No
You have determined
the DN ranges that
you are configuring.
DN number ranges depend on where station modules are
set, on the type of telephones, and on the vintage of your
system. IP telephones and NetVision wireless IP
handsets use DNs within the digital range. If they are set
to automatically choose a DN, the system chooses DNs
beyond the station module range.
Refer to “DN mapping for digital telephones” on page 355
and “DN mapping for Companion, DECT and ISDN
devices” on page 358.
DN mapping for digital telephones 355
Business Communications Manager 3.6 Programming Operations Guide
DN mapping for digital telephones
Use the following tables to determine which DNs can be assigned to your telephones if your
system administrator did not provide you with a list of available DNs or did not fill out the
Programming Record forms. You will need to determine which media bay modules are installed,
and to which DS30 bus number they are configured. Your system administrator can determine this
for you, or refer to Chapter 5, “Configuring resources — media bay modules,” on page 123.
As a rule, your station modules will be installed starting from DS30 02 and working down.
• Use the first table, below, if you had an existing 2.5 system that was upgraded with the 3.0 or
later software.
• Use the second table, below, if you are installing telephones on a brand new 3.0 or later system.
Note: The tables below are based on a three-digit DN numbering system. The first digit on your
system may be different, or you may have more than three digits, however, the sequencing will
be the same, unless some DNs have previously been renumbered.
Double Density and DNs
In BCM 3.0 and later software, the system can support double density modules. This means that
twice as many DNs can be assigned per DS30 bus when double density modules are installed on
the channel.
Upgraded systems: The DN number for upgraded systems goes from the Start DN (default is 221)
up to 316 from Bus 02 to 07, respectively. The second level of DNs, then start at Bus 02 (317) and
flow consecutively to Bus 07 (472). Refer to the DN chart in “DN chart for upgraded 2.5 systems”
on page 356.
New 3.0 or later systems: If you are installing a new 3.0 or later system, the DN numbers flow
consecutively. For example, Bus 02 has DN 221 to 253, and so on. Refer to the DN chart in
“DN chart for new 3.0 or newer systems” on page 357.
PDD and FDD: If the system is configured to be in Partial Double Density (PDD) (the default
setting for version 3.0 and later systems), Bus 06 and 07 only have 16 available DNs. The
exception to this is the DN count for the Companion sets, which can use both B-channels, and,
therefore, can support 64 handsets when Bus 06 and 07 are fully loaded using a DSM32 set to
single density. Refer to “DN mapping for Companion, DECT and ISDN devices” on page 358.
You system can bet set to Full Double Density (FDD), in which case Bus 06 and 07 have 32
available DNs, but neither can support Companion.
356 DN mapping for digital telephones
P0609326 1.1
DN chart for upgraded 2.5 systems
BCM 2.5 systems upgraded to 3.0 or newer software
Module
location
DS30
bus #4
Module
offset
Module type
(SD = single density; FDD = full double density; PDD = Partial double density)
Customized
DNs1
DSM16 or
DSM
16+PDD
DSM16+
FDD
DSM 32 or DSM32+
PDD
(First 16 DNs for
each DS30)
DSM 32+
FDD
(offset 0) ASM82
02
0
1
2
3
221-2361221-236 or
377-392
221- 252 221-236 and
377-392
221-228
229-236
377-384
385-392
03
0
1
2
3
237-252 237-252 or
393-408
237- 268 237-252 and
393-408
237-244
245-252
393-400
401-408
04
0
1
2
3
253-268 253-268 or
409-424
253- 284 253-268 and
409-424
253-260
261-268
409-416
417-424
05
0
1
2
3
269-284 269-284 or
425-440
269- 300 269-284 and
425-440
269-276
277-284
425-431
432-440
06
0
1
2
3
285-300 285-300 or
441-456
285- 316 285-300 and
441-456
285-292
293-300
441-448
449-456
(PDD offset
1 and 2, only.
441-456 appear
under B2s
heading)
073
0
1
2
3
301-316 301-316 or
457-472
301-316 and
457-472
301-308
309-316
457-464
465-472
(PDD offset
1 and 2, only.
457-472 appear
under B2s
heading)
1 DNs are based on the default, three-digit DN. If your system has another numbering system, make a note of your
DN ranges in the Custom DN column.
2 ASM 8 modules do not have special double density settings. However, on a PDD system, on DS30 06 and 07, only
offset 0 and 1 are available.
3 If you system is set to a 3/5 DS30 split, these DNs are not available to digital telephones.
5 Each Bus has 32 ports, numbers <bus#>XX (for example: 0201 is the first port on Bus #2). Ports are assigned
sequentially to each DN number. However, if you change the DN number of an assigned telephone, the port number
remains the same.
DN mapping for digital telephones 357
Business Communications Manager 3.6 Programming Operations Guide
DN chart for new 3.0 or newer systems
If your system is a brand new BCM 3.0 or newer system, the DN numbering is consecutive from
DS30 02 to 07.
New BCM 3.0 or newer systems
Module
location
DS30
bus #4Offset
Module type
(SD = single density; FDD = full double density; PDD = Partial double density)
Customized
DNs1
DSM16 or
DSM 16+
PDD
DSM16+
FDD
DSM 32 or DSM32+
PDD
(First 16 DNs for
each DS30)
(offset 0)
DSM 32+
FDD ASM82
02
0
1
2
3
221-2361221-236 or
237-252
221-236
and
253-268
221-252 221-228
229-236
237-244
245-252
03
0
1
2
3
253-268 253-268 or
269-284
253-268
and
285-300
253-284 253-260
261-268
269-275
276-284
04
0
1
2
3
285-300 285-300 or
301-316
285-300
and
317-332
285-316 285-292
293-300
301-308
309-316
05
0
1
2
3
317-332 317-332 or
333-348
317-332
and
349-364
317-348 317-324
325-332
333-340
341-348
06
0
1
2
3
349-364 349-364 or
365-380
349-364
and
381-396
349-380 349-356
357-364
365-372
373-380
(PDD offset
1 and 2, only.
365-380 appear
under B2s
heading)
073
0
1
2
3
381-396 381-396 or
397-412
381-412 381-388
389-396
397-404
405-412
(PDD offset
1 and 2, only.
397-412 appear
under B2s
heading)
1 DNs are based on the default, three-digit DN. If your system has another numbering system, make a note of your
DN ranges in the Custom DN column.
2 ASM 8 modules do not have special double density settings. However, on a PDD system, on DS30 06 and 07, only
offset 0 and 1 are available.
3 If you system is set to a 3/5 DS30 split, these DNs are not available to digital telephones.
4 Each Bus has 32 ports, numbers 0<bus#>XX (for example: 0201 is the first port on Bus #2). Ports are assigned
sequentially to each DN number. However, if you change the DN number, the port number remains the same.
358 Defining the System DN headings
P0609326 1.1
DN mapping for Companion, DECT and ISDN devices
Companion, DECT, and ISDN equipment have pre-set DNs that are automatically assigned on a
default system.
Defining the System DN headings
This section provides general information about what DN records and how the Unified Manager
categorizes active and inactive DN records.
This section includes information about:
•“The two sides of a DN record” on page 359
•“The System DN headings” on page 361
•“DN Registration headings” on page 363
•“Moving between the Inactive and Active lists” on page 365
•“Deregistering IP and wireless IP devices” on page 366
•“Feature DNs” on page 366
•“Renumbering DNs” on page 366
Table 80 DN mapping for DECT, Companion and ISDN
System version Equipment
Default DN
range
Media Bay
Module DS30
All Companion 565-596 DTM 6 and/or 7 (only on PDD systems)
updated from 2.0 DECT 501-532 DECT 6 or 7
updated from 2.5 DECT 597-624 DECT 6 or 7
all ISDN 597-624 DTM or BRI any
Defining the System DN headings 359
Business Communications Manager 3.6 Programming Operations Guide
The System DN heading provides access to the DN records of telephones that are active on the
system, records of all the DNs that are available, and a comprehensive list of all DN possibilities.
Use the list that is most convenient for what you want to do.
Figure 109 System DNs main headings
The two sides of a DN record
There are two sides to DNs that affect system telephones and equipment.
1On the system side, each telephone on the network is assigned a DN number, which identifies
it to the system. DNs for digital telephones, the M-series telephones and the Business Series
Terminal (BST) telephones map to each wire pair on a station media bay module.
ISDN, DECT, and Companion devices also require media bay modules to operate. However,
they have a specific set of DNs that are not mapped directly to the hardware. Refer to table
entry: Active Companion DNs on page 361 and table entry: All ISDN/DECT DNs on page 362.
IP telephones do not use media bay modules because their connections occur over the internet
and directly through the Media Services Card (MSC) within the Business Communications
Manager hardware. However, the system uses DN records from the digital range to identify
these terminals because their functionality closely mirrors the digital telephones.
As well, certain applications running on the Business Communications Manager are assigned
DNs, so that the system can access the application functionality. These would include direct
inward access (DISA) DNs, and DNs for CallPilot access. Refer to table entry: Active
application DNs on page 361.
When you initialize your system with the Quick Start Wizard, you will be asked to specify a
DN length and a Start DN.
System DNs
Active set DNs
DN XXX-XXX
General
Line Access
Capabilities
User Preferences
Restrictions
Telco Features
Active Companion DNs
DN XXX-XXX
Active application DNs
DN XXX-XXX
Inactive DNs
Set DNs
Companion DNs
All Inactive DNs
System DNs (continued)
All ISDN/DECT DNs
DN XXX-XXX
All System DNs
DN XXX-XXX
All System B2s
DN Registration
Active DNs reg’d
DN XXX-XXX
Inactive DNs reg’d
DN XXX-XXX
All DNs reg’d
DN XXX-XXX
DNs avail for reg’n
DN XXX-XXX
System DNs (continued)
IP set DNs reg’d
Active
Inactive
Voice Port DNs reg’d
Active
Inactive
IP Wireless DNs reg’d
Active
Inactive
CTE mediaDNs reg’d
Active
Inactive
OAM DN reg’d
DN XXX-XXX
360 Defining the System DN headings
P0609326 1.1
You can also renumber a group of DNs after you initialize your system. For example, if your
service provider has given you a specific list of DID numbers, you might choose to ensure the
DNs mirror those numbers, to make it easier to administer the telephones. The DN Renumber
Wizard allows you to accomplish this quickly. Refer to “Using a wizard to renumber
telephone DNs” on page 367. If you do this after you have programmed telephones to the
DNs, the programming attached to the original DN is transferred to the new DN and the new
DN record displays the new port number.
The exception to this is the DECT DNs. If you change DNs in the range you specified for your
DECT handsets, you must rerun the DECT Configuration Wizard to reset the DNs on the
DECT module.
To view your system settings: Click on Diagnostics, MSC, then select Configuration and
click on System Startup. This screen displays the telephony template that is active for your
system and the start DN that is assigned to the system.
2The second part of a DN is the content of the DN record. Each DN heading provides a number
of parameters that get assigned to the telephone that accesses that DN. Some of these
parameters can be copied to other telephones, while others, such as the name of the telephone,
and button programming, is unique to each DN record or to each type of telephone.
DN content can be updated at any time, such as if you upgrade the model of telephone. For
details about setting up or changing a DN record, refer to the sections “Defining the System
DN headings” on page 358 and “Configuring DNs for system devices” on page 387.
Warning: Changing DN settings after system startup:
Changes to the Start DN, DN length or Received # length can affect other applications.
Make changes to these settings only at system installation, before you do any other
programming.
Defining the System DN headings 361
Business Communications Manager 3.6 Programming Operations Guide
The System DN headings
These are the types of headings found under System DNs:
Active set DNs This list displays only the DNs for digital (M-series and BST T-series
telephones), IP telephones, BST T7406 and NetVision telephones that are
actually connected to the system and are activated. Use this list when you
want to change a configuration, or to remove a telephone.
Nortel IP telephone and Symbol NetVision configuration records are
located under Services, IP Telephony. Although you do not have to
assign DNs to configure IP telephony DN records, they will not appear
under this listing unless the telephone has been registered to the system.
Refer to the IP Telephony Configuration Guide for details about
configuring IP telephone telephones.
Active Companion
DNs
This list displays only the DNs for Companion sets that are registered on
the system. Use this list when you want to change a configuration, or
remove a telephone.
Note: This item only appears on the navigation tree for systems set to
regions that support the Companion Wireless system. Refer to “Mobility
services by region” on page 848.
Active application
DNs
This list segregates the list of DNs that are used for running applications,
such as Voice Mail, Interactive Voice Response (IVR), and Call Center.
These DNs are assigned within the applications that they apply to. You do
not need to do anything to any of these DNs, other than to note they are
not available for application to your telephones.
Note: Call DNs (CDN) and IP telephones get their DNs from a common
pool. If you set your IP telephony to auto assign DNs, check the DN
listings for new telephones to ensure that the DNs are not assigned to
CDNs.
Warning: Changing the settings on these DNs could cause
malfunctions in the applications to which they apply.
Inactive DNs The DNs listed in this section do not yet have telephones assigned to
them.
This list contains all possible DNs in the digital and Companion ranges.
However, you can only assign a digital, BST T7406 or Companion
telephone to a DN that is connected to an installed station module. IP
telephones and NetVision telephones can use any available DN in the
digital range. If IP telephones are set to auto-assign DNs, the system will
select DNs that are not likely to be required by installed station modules.
Warning: Changing the settings on these DNs could cause
malfunctions in the applications to which they apply.
362 Defining the System DN headings
P0609326 1.1
Set DNs This list displays the digital (M-series and BST T-series telephones),
BST T7406 cordless, IP telephone, and NetVision DNs that are not
assigned or are not active. Use this list to set up new telephones before
they are installed in the field.
Note: If IP telephones are set to auto-assign DNs, the system will select
DNs that are not likely to be required by installed station modules. You
cannot pre-configure the records since you cannot know which DNs the
system will assign to which IP telephone. Once the IP telephone is
configured, the DN record moves to the active list, and you can access it
from this list to perform the required configurations.
Companion DNs This list displays the Companion DNs that do not have registered
handsets. Use this list to define new handset records.
All Inactive DNs This list displays all digital, IP, and Companion DNs that are not assigned
or are not active.
Note: Companion DNs can also be used for DECT system that require
more than the default number of ISDN and DECT DNs. In this case, when
you define the Companion DN as ISDN/DECT, the record disappears off
this list and appears on the All ISDN/DECT DNs list.
All ISDN/DECT DNs This list displays all the DNs that default to ISDN or DECT applications,
plus any DNs from the Companion range that have been changed to
ISDN/DECT.
Note: ISDN/DECT DNs can also be used for Companion handsets that
require more than the default number of Companion DNs. In this case,
when you define the ISDN/DECT DN as Companion, the record
disappears off this list and appears on the Active Companion DNs list.
All System DNs This list displays all possible DNs, regardless of whether a station module
is configured to activate them or not. This list begins with the Start DN
that was defined when the system was initialized.
All System B2s This list displays DNs only if your system is set to PDD (partial double
density). If the system is set to FDD, these are the second-level (B2) DNs
that assign to DS30 bus 06 and 07. This is a read-only list and includes B2
DNs assigned to devices such as Companion handsets. B2 DNs are also
used in some call center applications.
Defining the System DN headings 363
Business Communications Manager 3.6 Programming Operations Guide
DN Registration headings
The DN records found under this heading indicate whether a device is registered to the system,
and, if it is, whether it is active.
Figure 110 Registration DNs, main headings
All registered devices display a Registration type field when the DN is selected. This field
indicates the type of device.
These are the types that display under the various headings:
The devices listed under this heading are registered with the system, but are not necessarily active.
This would explain why an application DN, for example, for voice mail, shows up under both the
Application DNs and the DN Registration/Active DNs reg’d headings. If the service were to
stop, however, the heading under Application DNs would disappear and under DN Registration,
the heading would appear under Inactive DNs reg’d.
Device type Registration type
i2004 i2004
i2002 i2002
i2050 i2050
i2001 i2001
IP wireless (NetVision) IP wireless
Voice Port Voice Port
Unified Manager Remote admin
Call Center not used
Voice CTE CTE media
All System B2s
.....
DN Registration
Active DNs reg’d
DN XXX-XXX
Inactive DNs reg’d
DN XXX-XXX
All DNs reg’d
DN XXX-XXX
DNs avail for reg’n
DN XXX-XXX
IP set DNs reg’d
Active
Inactive
DN Registration ...
Voice Port DNs reg’d
Active
Inactive
IP Wireless DNs reg’d
Active
Inactive
CTE mediaDNs reg’d
Active
Inactive
OAM DN reg’d
DN XXX-XXX
364 Defining the System DN headings
P0609326 1.1
Following is a brief description of the type of devices found under each heading.
Active DNs reg’d This is a list of registered DNs that are currently in contact with the
Business Communications Manager.
Inactive DNs reg’d This is a list of DNs that are registered but which are inactive. For
example, in the case of a NetVision handset, this might mean that
the user has the handset turned off.
All DNs reg’d This list has all the DNs that are currently registered with the
system.
DNs avail for reg’n This list identifies the DNs that are not yet registered to a device but
which could be assigned to a device. Keep in mind, this list may
include digital DNs that do not yet have a telephone attached. Check
your system DN record to ensure that you do not assign DNs that
you might want to assign to a wired telephone.
IP set DNs reg’d This list has both an active and inactive list. The active list indicates
the IP telephones (i-series) that are registered and active on the
system. The inactive list indicates the IP telephones that are
registered but which are not yet active on the system.
Voice Port DNs reg’d This list has both an active and inactive list. The active list indicates
the voice ports that are registered and active on the system. The
inactive list indicates the voice ports that are registered but which
are not yet active on the system. Refer to your voice mail
documentation for information about setting up voice port DNs.
IP wireless DNS reg’d This list has both an active and inactive list. The active list indicates
the NetVision telephones that are registered and active on the
system. The inactive list indicates the NetVision telephones that
have registered with the system but which are not active.
CTE media DNs reg’d If you have any applications that use LAN CTE, the DNs are listed
here. This list has both an active and inactive list. The active list
indicates the devices using CTE that are registered and active on the
system. The inactive list indicates the devices using CTE that are
registered with the system but which are not active. Refer to the
CTE documentation for information about assigning these DNs.
OAM DN reg’d This is the DN that is used for remote administration. Refer to the
remote administration guides for details about assigning this DN.
Defining the System DN headings 365
Business Communications Manager 3.6 Programming Operations Guide
Moving between the Inactive and Active lists
DNs move between active and inactive lists based on a number of factors which are described in
the two sections below.
From Active list to the Inactive list
A DN record heading will move from the Active list to the Inactive list in the following
circumstances:
• A digital or analog hard-wired telephone (M-series or T-series telephones) remains unplugged
from a port for more than two minutes.
• An IP telephone is disconnected from the system for more than 30 seconds and the Keep DN
alive setting for that telephone is set to No. If Keep DN alive is set to Yes for the telephone, that
DN remains active until the field is set to No, or the system administrator removes the DN.
• An active IP telephone or wireless IP telephone (NetVision) DN is deregistered through the
Unified Manager.
• A Companion handset is deregistered, or a DECT handset is unsubscribed.
• An application such as voice-mail, IVR, or the Unified Manager no longer requires DN(s) and
stops communicating on them.
• In the case of a registered DN, if the device or service is turned off.
From Inactive list to Active list
A DN will move from the Inactive list to the Active list in the following circumstances:
• A digital telephone (M-series or T-series) is plugged into the port assigned to the DN.
• An IP telephone (2001, 2002, 2004, 2050) registers to the system and gets assigned a requested
or automatically-selected DN. IP telephones also assign to one of the IP keycoded positions,
which is indicated in the Device port field.
• An IP cordless telephone (NetVision) registers to the system and gets assigned a
pre-programmed DN. The handsets also assign to one of the IP keycoded positions, which is
indicated in the Device port field.
• An application such as voice-mail, IVR, or the Unified Manager allocates and starts using
DN(s)
• A Companion or a DECT handset is registered to the system.
• In the case of a registered device, if the device or service is started or turned on.
366 Renumbering DNs
P0609326 1.1
Deregistering IP and wireless IP devices
If you select the DN for an IP telephone or a wireless IP handset (NetVision), which is listed under
Active DNs reg’d, Inactive DNs reg’d, All DNs reg’d, IP set DNs reg’d, or IP wireless DN’s
reg’d you can deregister that device using the Deregister heading under Configuration on the top
menu. In this case the record will return to the DNs available for reg’n list.
• If you run Deregister on an active device, you will be prompted to confirm that you understand
that the device will be terminated. If you click OK, the device is deregistered immediately.
• If you run Deregister on an inactive device, there will be no prompts, and the action will occur
immediately.
Refer to the IP Telephony Configuration Guide for detailed instructions about installing IP
telephones.
Feature DNs
The system also uses DNs to define remote access features and Hunt groups. These DNs do not
show up on the System DNs list.
•System Access DNs: For remote access to direct-dial lines, the system requires an Auto DN or
a DISA DN. These two settings are found under the Access codes heading. Refer to the remote
access information in “Understanding access codes” on page 309.
•Hunt Group DNs: Hunt Groups are identified by a unique DN for each defined Hunt group.
Refer to Chapter 23, “Configuring Hunt groups,” on page 573 for more information.
Renumbering DNs
Your system auto assigns DNs based on the hardware for digital telephones, or, in the case of IP
telephones, you choose to auto assign DNs when the telephones register to the system. If you need
to change the DN numbers for any reason, there are two ways to do this.
•“Using a wizard to renumber telephone DNs”
•“Change telephone DNs using the Unified Manager”
When you change a DN, the DN record retains the same port number, since the telephone is not
being physically moved. The original DN then assigns to the port vacated by the DN that you
assign as the new DN. If you filled out the DN/Port record in the Programming Records, remember
to change the entries.
Renumbering DNs 367
Business Communications Manager 3.6 Programming Operations Guide
Using a wizard to renumber telephone DNs
If you need to renumber any DNs, you can use the DN Renumber Wizard, which allows you to
renumber a range of DNs.
Follow these steps to use the DN Renumber Wizard to renumber DNs on your system:
1From the first page of the Unified Manager, click the Wizards button.
2Enter your system user ID and password, then click Login.
3Click the DN Renumber button.
4On the first screen, enter the range of DNs to change, and the DN with which to start
re-numbering.
5The Summary page displays the information you entered. Review and revise, if necessary.
6Click the Apply button.
Change telephone DNs using the Unified Manager
The General Settings heading also provides access to a screen where you can change the DN
setting.
1Click on the keys beside Services, Telephony Services.
2Click on General settings.
3On the top menu, click on Configuration and choose Change DN.
The Change DN screen appears.
4Click beside Old DN and enter the DN or group of DNs you want to change.
5Click beside New DN and enter the DN or group of DNs you want to change to.
6Click OK to start the change process.
Warning: DECT DNs
Do not change DECT DNs after the DECT Configuration wizard has run. Doing so will
make the DECT handsets inoperable until you reconfigure the DECT module with the
DECT Wizard and resubscribe the handsets.
Warning: DECT DNs
Do not change DECT DNs after the DECT Configuration wizard has run. Doing so will
make the DECT handsets inoperable until you reconfigure the DECT module with the
DECT Wizard and resubscribe the handsets.
368 Renumbering DNs
P0609326 1.1
369
Business Communications Manager 3.6 Programming Operations Guide
Chapter 14
Configuring DNs using the Wizards
Wizards are used to make telephone configuration faster and more convenient, especially for sites
where most of the telephones have the same programming. Each record still may require some
adjustments for individual users, but most of the tedious programming can be done using the
Wizards.
The wizards used for the task of configuring telephones are accessed through the Wizards button
on the first page of the Unified Manager. Refer to “Accessing the Wizards” on page 92.
This section describes these wizards and functions:
•“Editing DN Record Templates” on page 369
•“Creating telephone records with the Add Users Wizard” on page 375
•“Using remote templates” on page 384
•“Changing button programming in the wizard” on page 382
•“Saving wizard pages on your computer” on page 385
Even when you use a wizard, there may be unique settings that need to be added to DN records.
For details about each DN heading, refer to the information under “Configuring DNs for system
devices” on page 387.
For a general discussion about programming DNs, the DN headings under Telephony Services,
System DNs, and how to work with the DN records, refer to the information under “Configuring
DN records, an overview” on page 353
Editing DN Record Templates
The Edit DN Record Template Wizard allows you to edit templates to define the user settings that
can be used repeatedly to add terminals with the same characteristics. These templates are stored
in a file for use with the Add Users Wizard.
This template assumes you have already set up your lines and line pools, performed any DN
renumbering that may be required, configured your CallPilot Messaging, and added any required
CallPilot Mailbox keycodes that may be applicable. Check your Programming Records for these
settings. If this is not the case, refer to “Configuring lines” on page 227 for lines information and
“DN mapping for digital telephones” on page 355 for information about which DN records are
available for your system. Refer to “Renumbering DNs” on page 366 for details about how to
renumber a group of DNS. Refer to the CallPilot documentation for any CallPilot configuration
that you require.
370 Editing DN Record Templates
P0609326 1.1
Refer to “What you need to know to fill out a template” on page 371 for a description of the
information required by this Wizard. You can print out this list and insert the data you want to
enter. If you filled out the telephony programming forms in the Programming Records, use the
information in those forms to configure the templates. After you fill out the information, follow
these steps to run the wizard:
1From the first page of the Unified Manager, click the Wizards button.
2When prompted, enter your system user ID and password.
3Click the Login button.
4Click the Edit DN Record Template button.
5Enter the information on these pages. Use the form in What you need to know to fill out a
template on page 371 to ensure you have all the information.
• Page 1: Choose the template you want to edit
• Page 2: Enter the Name of template and the type of telephone
• Page 3: Indicate CallPilot Mailbox information
• Page 4: Define Line access
• Page 5: Determine Capabilities
• Page 6: Determine Call Forward and Hotline settings
• Page 7: Set up User Preferences and determine button configurations
6The last page, Page 8, provides a summary of the information you entered.
If you need to make changes, use the Back button to return to the pages where the information
was entered and make the corrections, then use the Next button to return to the Summary page.
7Click the Apply button.
8To use a template, refer to “Creating telephone records with the Add Users Wizard” on page
375.
Editing DN Record Templates 371
Business Communications Manager 3.6 Programming Operations Guide
What you need to know to fill out a template
Before you fill out a template, look at the following list and determine what entries you want to
include in the template. Photocopy the list and fill it out for each template you want to create.
Detailed explanations of the fields can be found elsewhere in this chapter.
Remember that some telephones do not allow some of these features or may have specific
configuration requirements. Refer to the relevant sections under “Configuring DNs for
system devices” on page 387.
Table 81 Edit DN Record Template information
Screen 1, Edit Template
• Do you want to edit an existing template? (Template <number> - <name>)
Screen 2, Template Name
• Find a name that provides a descriptive clue as to what the
template contains.
(Template Name)
• Do you want this template to be used for a specific model of
telephone?
Use the Multiple listing (default) if the template is meant to
apply to more than one type of telephone.
(Set model)
Screen 3, CallPilot Voice Messaging*
*These settings are only for those systems actually running the CallPilot application. Connection to
remote voice mail systems is set under Telco Features and Target lines. Refer also to “Configuring
centralized voice mail” on page 559.
• Do you want to add a new voicemail mailbox for the set? No, Yes
If yes . . .
• Do you want this telephone in the Auto Attendant
directory?
(In directory?): No, Yes
• How do you want the telephone to dial out to voicemail?
If Pool, you will be prompted to choose a Line pool.
If Line, you will be prompted to choose a line.
Pool, Line, Route, None
Screen 4, Line Assignment
Refer to “Configuring line access” on page 393.
• Do you want the Prime line for your telephones to be the
intercom button?
(Prime line)
None, Pool (A to O), I/C (intercom),
Line: <line number>
• How many intercom buttons do you want to assign to the
telephone.
(Intercom Keys)
0 to 8
• Which line pools do you want this telephone to have access
to for outgoing calls?
(Pool)
(enter line pool name) Add
• Which lines do you want this telephone to have access to? (Line)
(enter line number) Add
372 Editing DN Record Templates
P0609326 1.1
Screen 5, Capabilities
Refer to “Defining device capabilities” on page 405.
• Do you want a second call to ring if the telephone is busy? (DND on busy): No/Yes
• How do you want the handsfree feature to be activated? (Handsfree) None/Auto/Standard
• Do you want to be able to answer a voice call without lifting
the receiver or pressing the handsfree button on the
telephone?
(HF Answerback) No/Yes
• Do you want to include this telephone into a pickup group? (Pickup group) None or Group: 1-9
• Which Page zone do you want this telephone to be in? (Page zone) None or Zone: 1-6
• Do you want to allow the user of this telephone to access the
Paging feature?
(Paging) No/Yes
• Which telephone, if any, do you want the telephone to dial
when the direct dial number is entered on this telephone?
(Direct dial)
None or Set: 1, 2, 3, 4, 5
• Do you want the user to be able to use the Priority call
feature?
(Priority Call) No/Yes
• Do you want an active call to automatically be put on hold
when another call comes in and is picked up?
(Auto hold) No/Yes
• Do you want lines to this telephone to use an auxiliary
ringer?
(Aux ringer) No/Yes
• Do you want to allow the line to be redirected? (Allow redirect) No/Yes
• Do want redirected lines to ring at this telephone? (Redirect ring) No/Yes
• Are you programming an analog telephone or a telephone
attached through an ATA2 device?
(Receive short tones)
No/Yes
Screen 6, Call Forward
Refer to “Assigning Call Forward” on page 409.
• If the call is not answered, where do you want to forward it
to? (i.e. voicemail DN)
(Forward no answer to)
• How long do you want forward to delay on a call that is not
answered?
Note: This field appears after you enter a Forward no
answer to DN.
(Forward no answer delay)
2, 3, 4, 6, 10
• If the telephone is busy, where do you want to forward the
call? (i.e. voicemail DN)
(Forward on busy to)
• CallPilot Messaging DN (F985) <DN number> (read-only)
Table 81 Edit DN Record Template information (Continued)
Editing DN Record Templates 373
Business Communications Manager 3.6 Programming Operations Guide
• Do you want the telephone to have access to a Hotline
number?
Refer to “Assigning a Hotline” on page 411.
(Type) None, Internal/External
If internal . . .
What is the internal number for the hotline? (Internal #)
If external . . .
What route do you want the telephone to use to access the
external number?
(Facility)
Use prime line, Use routing table
Use <assigned line>
<assigned line pool>
What is the external number for the hotline? External #
Screen 7, User Preferences
Note: Not all of these preferences appear for all models of telephones.
Refer to “Defining user preferences” on page 415.
• What model of telephone are you going to assign using this
template?
Choose Multiple if you want to use the template for
different types of telephones, and you do not plan to
perform any button programming.
(Set Model)
• When do you want calls to be logged at the telephone?
WARNING: Do not choose Log all calls, as this will affect
system speed and function. This setting is used on
individual or small groups of telephones for testing
purposes.
If you allow any logging, ensure that the user activates
autobumping (F815) to prevent the log files from filling up
and locking.
(Call Log Options)
No autologging/No one answered
Unanswered by me/Log all calls
• How do you want the users to be able to dial? (Dialing Options) Automatic dial,
Standard dial, Pre-dial
• Choose the language in which you want the telephone to
display the prompts.
These choices depending on which region profile your
system is running. Refer to “Languages” on page 846 for a
list that cross-references regions and supported languages.
(Language)
• Choose the level of contrast for your telephone display.
Note: Does not work for portable handsets.
(Contrast) (1-9)
• Choose how you want your telephone to ring.
Note: This ring can be overridden by ring types assigned to
lines or hunt groups if the values for lines or hunt groups is
higher than the ring type, or if the ring type for a line was
chosen after you assigned the ring type to the telephone.
(Ring Type)
1, 2, 3, 4
Table 81 Edit DN Record Template information (Continued)
374 Editing DN Record Templates
P0609326 1.1
• Do you want to determine button settings for the
telephones?
Refer to “Programming telephone buttons” on page 419.
(Perform Button Programming)
No/Yes
If No,
— If Set model is set to Multiple, the button programming for the selected DNs does not
change.
— If Set model on both the Wizard and the system telephone records (DNs) you selected in the
Wizard are the same, there will be no change to existing button programming.
— If Set model on the Wizard and Set model in the DNs on the system are different, the Wizard
will overwrite the button programming for the telephone record with the default settings for
the model specified in the Wizard. The exception to this is if a telephone with a different
model identity is already plugged into the system, in which case the wizard will not change
the button settings for that telephone.
If Ye s ,
— The button display for the telephone appears. Lines
and intercom buttons will be indicated as read-only
and cannot be changed. Refer to “Changing button
programming in the wizard” on page 382 and
“Default button assignments” on page 422.
— When you apply this template, all current settings
for the specified DNs are overwritten by the wizard
entries.
— For External Autodial numbers and features that
use a dial-out, you will need to know which line,
line pool, route, or prime line the telephone will use
when the number is dialed.
(Button XX)
Blank
Internal Autodial
External Autodial
Feature
Table 81 Edit DN Record Template information (Continued)
Creating telephone records with the Add Users Wizard 375
Business Communications Manager 3.6 Programming Operations Guide
Creating telephone records with the Add Users Wizard
Use the Add Users Wizard to change the telephony settings for DN records. You can change a
single DN or a group of DNs that require the same settings.
All the DN feature information can be entered when you run this Wizard, or you can indicate a
pre-defined template that automatically sets up the DN features. Refer to “Editing DN Record
Templates” on page 369. If you filled out the telephony forms from the Programming Records,
you can use this information in the wizard if you did not create templates.
If you have a number of Business Communications Manager systems and you want to use the
same templates for all your systems, you can define Edit DN Record templates on one system, and
then use the remote template setting on the first page to access these templates from your remote
systems. Refer to “Using remote templates” on page 384.
To determine what you need to enter for the DNs, refer to “What you need to know about the user”
on page 376. Follow these steps to run the wizard:
1From the first page of the Unified Manager, click the Wizards button.
2When prompted, enter your system user ID and password.
3Click the Add Users button.
4Proceed through the Wizard and add or change the information, based on what you entered in
“What you need to know about the user” on page 376.
• Page 1: Choose DNs and a local or remote template, of no template.
• Page 2: Enter Name (maximum seven characters). Choose target line assignment.
— Target lines: either enter specific target line numbers for all the DNs, or use Auto
Assign to allow the system to automatically assign sequential target line numbers
• The following pages appear if you do not choose a template name on page 1.
— Page 3: Indicate CallPilot Mailbox information (host system only)
— Page 4: Line access
— Page 5: Determine Capabilities
— Page 6: Determine Call Forward and Hotline settings
— Page 7: Set up User Preferences and determine button configurations
5The last page provides a summary of the information you chose.
If you need to make changes, use the Back button to navigate to the page where you need to
make changes. Use the Next button to return to the Summary page when you have completed
all your revisions. If you used a template name, you will need to make any changes you
require for the telephone settings on the original template.
6Click the Apply button.
376 Creating telephone records with the Add Users Wizard
P0609326 1.1
7After you configure the DNs, review each DN record and determine if you need to change any
of the other settings. Refer to the detailed programming sections to identify each field under
each heading.
Note: Not all DN records have the same programming options. For example, ISDN sets do not
have a Button Programming option
What you need to know about the user
Before you fill out the Add Users Wizard, photocopy this list and fill out the information for each
telephone or group of telephones. If you filled out the telephony forms in the Programming
Records, use the information in these forms to answer the questions.
Table 82 Add Users wizard information
Screen 1, Add Users
Refer to “Identifying the telephone (General heading)” on page 391.
• What type of telephone records are you programming:
Note: Companion and ISDN/DECT DNs have more
limited functionality than Set DNs, therefore, not all the
following pages will appear for these settings.
(DN type)
Set DNs
ISDN and DECT DNs
Companion DNs
• What type of telephones are you configuring? (Set model)
• How many telephones do you want to configure?
Select:
—a single DN
— a range of DNs (hold down <SHIFT> key)
— several DNs scattered across the list
(hold down <CNTRL> key.
Warning: When configuring M7324 telephones, ensure
that you do not choose any DNs that are assigned to BTS
Doorphones, unless the template you choose is for
doorphone configuration.
(Choose one or more DNs)
• Do you want to use this wizard to define settings or use a
preconfigured template?
(Use settings)
Defined in this wizard
From a Local DN Record Template
From a Remote DN Record Template
If from Local DN Record Template . . .
• Which template do you want to choose? (Local DN Record Template)
Template <number> - <template name>
Creating telephone records with the Add Users Wizard 377
Business Communications Manager 3.6 Programming Operations Guide
If from Remote DN Record Template . . .
• What is the IP address for the remote server?
• What is the access Port for the remote server?
• What is the path to the file on the remote system
• Do you want to add this remote repository?
Refer to “Using remote templates” on page 384.
(Remote IP_Address)
(Remote Port (default: 8600)
(Remote Path (default:/)
(Refresh button)
Screen 2, Per-DN settings
Refer to “Assigning target lines” on page 287.
• Enter the Name for each DN you are configuring. (Template Name)
• If you want to create a target line, click the
Show Target Lines link and fill out the line information.
On the Per DN Settings screen for target lines, click Auto
Assign to assign the values you choose in the header
menus. Click Clear to exit from target lines.
Refer to “Notes about Add Users target lines” on page
381.
Target line fields:
Line
Public #
Appr type
Appearances
Note: The following fields do not need to be changed if you applied a template on Screen 1.
Screen 3, CallPilot Voice Messaging*
*These settings are only for those systems actually running the CallPilot application. Connection to
remote voice mail systems is set under Telco Features and Target lines. Refer also to “Configuring
centralized voice mail” on page 559.
• Do you want to subscribe a mailbox for the DNs you are
defining?
(Enable voicemail?) No/Yes
If yes . . .
• Do you want to put this telephone into the Auto
Attendant directory?
(In directory?) No/Yes
• How do you want the telephone to dial out to voicemail?
If Pool, you will be prompted to choose a Line pool.
If Line, you will be prompted to choose a line
Pool
Line
Route
None
Screen 4, Line Assignment
Refer to “Configuring line access” on page 393.
• Do you want the Prime line for your telephones to be the
intercom button?
(Prime line)
None, Pool (A to O), I/C (intercom)
Line: <line number>
• How many intercom buttons do you want to assign to the
telephone?
(Intercom Keys)
0 to 8
• Which line pools do you want assigned to this telephone? (Pool) (enter line pool name)Add
• Which lines do you want this telephone to access? (Line) (enter line number)Add
Table 82 Add Users wizard information (Continued)
378 Creating telephone records with the Add Users Wizard
P0609326 1.1
Screen 5, Capabilities
Refer to “Defining device capabilities” on page 405.
• Do you want a second call to ring if the telephone is
busy?
(DND on busy)
No/Yes
• How do you want the handsfree feature to be activated? (Handsfree) Auto/None/Standard
• Do you want to be able to answer a voice call without
lifting the receiver or pressing the handsfree button on
the telephone?
(HF Answerback) No/Yes
• Do you want to include this telephone into a pickup
group?
(Pickup group)
None or Group: 1- 9
• Which Page zone do you want this telephone to be in? (Page zone) None or Zone: 1-6
• Do you want to allow the user of this telephone to access
the Paging feature?
(Paging) No/Yes
• Which telephone, if any, do you want the telephone to
dial when the direct dial number is entered on this
telephone?
(Direct dial)
None or Set: 1-5
• Do you want the user to be able to use the Priority call
feature?
(Priority Call) No/Yes
• Do you want an active call to automatically be put on
hold when another call comes in and is picked up?
(Auto hold) No/Yes
• Do you want this telephone to have access to an auxiliary
ringer?
(Aux ringer) No/Yes
• Do you want to allow the line to be redirected? (Allow redirect) No/Yes
• Do want redirected lines to ring at this telephone? (Redirect ring) No/Yes
• Are you programming an analog telephone or a
telephone attached through an ATA2 device?
(Receive short tones)
No/Yes
Screen 6, Call Forward/Hotline
Refer to “Assigning Call Forward” on page 409 and “Assigning a Hotline” on page 411.
• If the call is not answered, where do you want to forward
it to? (i.e. voicemail DN)
(Forward no answer to)
• How long do you want forward to delay on a call that is
not answered? Note: This field appears after you enter a
DN into the Forward no answer field.
(Forward no answer delay)
2, 3, 4, 6, 10
• If the telephone is busy, where do you want to forward
the call? (i.e. voicemail DN)
(Forward on busy to)
• CallPilot Messaging DN (F985) <DN number> (read-only)
Table 82 Add Users wizard information (Continued)
Creating telephone records with the Add Users Wizard 379
Business Communications Manager 3.6 Programming Operations Guide
• Do you want the telephone to have access to a Hotline
number? Refer to “Assigning a Hotline” on page 411.
(Type)
None, Internal, External
If internal . . .
What is the internal number for the hotline? (Internal #)
If external . . .
What route do you want the telephone to use to access
the external number?
(Facility)
Use prime line, Use routing table
Use <assigned line>, <assigned line pool>
What is the external number for the hotline? External #
Screen 7, User Preferences
Note: Not all of these preferences appear for all models of telephones.
Refer to “Defining user preferences” on page 415.
• What model of telephone are you configuring?
Choose Multiple if you want to configure different types
of telephones, and you do not plan to perform any user
preference programming.
(Set Model)
• When do you want calls to be logged at the telephone?
WARNING: Do not choose Log all calls, as this will
affect system speed and function. Use Log all calls only
for testing single or small groups of telephones.
If you allow any logging, ensure that the user activates
autobumping (F815) to prevent the log files from filling
up and locking.
(Call Log Options)
No autologging, No one answered
Unanswered by me, Log all calls
• How do you want the users to be able to dial? (Dialing Options)
Automatic dial, Standard dial, Pre-dial
• Choose the language in which you want the telephone to
display the prompts.
These choices depending on which region profile your
system is running. Refer to “Languages” on page 846.
(Language)
• Choose the level of contrast for your telephone display. (Contrast) (1-9)
• Choose how you want your telephone to ring. (Ring Type) 1, 2, 3, 4
Table 82 Add Users wizard information (Continued)
380 Creating telephone records with the Add Users Wizard
P0609326 1.1
• Do you want to determine what the button settings will
be for the telephone?
(Perform Button Programming)
No/Yes
If No,
— If Set model is set to Multiple, the button programming for the DNs you selected will not
change.
— If Set model on both the Wizard and the system telephone records (DNs) you selected in the
Wizard are the same, there will be no change to existing button programming.
— If Set model on the Wizard and Set model on the system DN record are different, the Wizard
overwrites the button programming for the telephone record with the default settings for the
model specified in the Wizard. The exception to this is if a telephone with a different model
identity is already plugged into the system, in which case the wizard will not change the
button settings for that telephone.
If Ye s ,
— The button display for the telephone appears.
Lines and intercom buttons will be indicated as
read-only and cannot be changed. Refer to
“Changing button programming in the wizard”
on page 382 and “Default button assignments”
on page 422.
— When you apply this template, all current
settings for the specified DNs are overwritten by
the wizard entries.
— For External Autodial numbers and features that
use a dial-out, you will need to know which line,
line pool, route, or Prime line the telephone will
use when the number is dialed.
(Button XX)
Blank
Internal Autodial
External Autodial
Feature
Table 82 Add Users wizard information (Continued)
Creating telephone records with the Add Users Wizard 381
Business Communications Manager 3.6 Programming Operations Guide
Notes about Add Users target lines
If you choose to assign target lines to the DNs with the Add Users Wizard, there are a couple of
points you need to be aware of:
• If your system DN # length is not the same as your system maximum Public length, you cannot
auto assign public numbers when you set up these target lines. If these two parameters are not
equal, and you attempt to use Auto Assign when the use DN as Public #? field of the Wizard is
set to yes, the dialog box shown below appears. Click OK to exit the dialog.
Click OK to return to the main screen, and perform whichever process you require.
Note: The value shown in the first bullet will reflect what you need to change the Public
length setting to on your system. In the example, the system DN length is 5, so the system
prompts that user to change the Public length to 5.
• If you want to change your Public Length (max) value to match the DN length, you can do so
under Services, Telephony Services, General settings, DN length, Received # length. You
can then return to the Wizard and use Auto Assign.
• If you choose the Auto Assign, the wizard populates the Line field for each DN you have
specified. Target line numbers are specified in sequence, starting with the number that you chose
in the from field. The system also fills in the with Appr type and Appearances values
specified at the top of the table.
Figure 111 Target line assignments in the Wizard
Warning: Before you attempt to change this value, ensure that you are aware of the other
settings in your system that might be affected by the change.
382 Creating telephone records with the Add Users Wizard
P0609326 1.1
If use DN as Public # is set to Yes (the default), the wizard populates the Public # field for
each DN with that DN. If the field is set to No, the Public # field will be blank so you can
manually entered your preferred number.
Note: The Wizard does not know about any previously assigned target lines. If you choose a
range of target lines in which lines have already been assigned to other DNs, the Wizard will
still assign that line to a currently-selected DN. If this is not what you want, go into the DN
record of the DN you do not want assigned to the line and assign another target line. Also
check the target line record, to ensure that it still has the correct Received Number specified.
Changing button programming in the wizard
The button programming section of the wizard only appears if a specific type of telephone has
been specified in the wizard or template. The changes you make to this table will overwrite any
existing programming for these telephones connected to the ports associated with the DN records
that you are changing with this wizard.
Line buttons, Answer DN, buttons, intercom buttons, and Hunt group designators cannot be
reconfigured by the user at the telephone. They also appear as read-only fields in this table, since
they are assigned to the buttons in other places. Feature and auto dial can be reconfigured by the
user, if they have privileges to change memory buttons (“Defining telephone dialing restrictions”
on page 442).
1In the wizard, open the list beside the button you want to program.
2Choose the action that you want to program onto the button.
• If you choose Blank, any existing programming on that button will be erased and the
button will be empty. Use this setting for the buttons where you want to allow the user to
indicate speed dial codes or other user-specific options.
• If you choose Feature, you will be presented with a list of all the available features. Refer
to “Button programming features” on page 865 for descriptions of the available features.
Figure 112 Feature selection
Creating telephone records with the Add Users Wizard 383
Business Communications Manager 3.6 Programming Operations Guide
• If you choose Internal Autodial, you will be prompted to choose the DN of the telephone
that will be dialed.
Figure 113 Internal autodial selection
• If you choose External Autodial, you will be prompted to choose the route the dialout
will take. In the third field, enter the external dialed number.
Figure 114 External autodial selection
Notes about programming telephone buttons
When you choose a telephone model, then choose Perform button programming on the User
Preferences page, the button layout for that telephone appears.
Each button can be programmed to be empty (Blank), to dial an internal or external number, or to
activate a feature code. Note that the buttons that are configured for lines, intercom buttons, and
Handsfree are read-only
Refer to “Default button assignments” on page 422 for a description of the default settings for each
type of telephone.
384 Using remote templates
P0609326 1.1
Using remote templates
If you have a group of Business Communications Managers in various locations, and you want to
ensure consistency of telephone programming, you can configure DN Record Templates on one
system, and then access the templates from the other systems by using the Add Users Wizard.
The templates can be stored on the originating Business Communications Manager or you can
move the files to any HTTP web server. However, you can only edit the templates on the Business
Communications Manager where they were created.
1On the first page of the Add Users Wizard you will be prompted to choose the source for the
template you want to use to configure telephones.
Figure 115 Add Users first page, choosing remote template
2When you choose From Remote DN Record Template, a new set of fields display, and you
will be prompted to enter the following information:
Once the system connects to the remote site, and selects the template, press Next to move
forward in the Add Users Wizard.
• What is the IP address for the remote server?
• What is the access Port for the remote server?
• What is the path to the template file on the remote system?
• Do you want to add this remote repository?
(Remote IP_Address)
(Remote Port (default: 8600)
(Remote Path (default:/)
(Refresh button)
Saving wizard pages on your computer 385
Business Communications Manager 3.6 Programming Operations Guide
Saving wizard pages on your computer
If you want to save a copy of your button settings, or the summary page to your computer as part
of your Programming Record files, you can use the View Source heading under the right-click
menu.
1Right click on the page you want to save.
2Choose View Source.
A Notepad screen appears.
3On the Notepad screen, click File, then select Save As
4In the Save In box at the top of the Save As screen, select where you want to save the file.
5In the File Name box, type in a name for the page.
6Change the .txt extension to .htm.
7Click Save.
View the file through your browser.
386 Saving wizard pages on your computer
P0609326 1.1
387
Business Communications Manager 3.6 Programming Operations Guide
Chapter 15
Configuring DNs for system devices
This section describes, in detail, the DN record screens that are used for configuring the telephones
and equipment attached to the station modules on the Business Communications Manager
screen-by-screen.
Refer also to the process map (“Understanding the configuration process” on page 354).
The Programming Records contain a number of forms for telephone programming. If you fill those
forms out beforehand, you can easily create the templates and programming described in this
section.
Task: To set up each telephone or device attached to your system:
• Copy settings from existing records: “Copying settings to other DNs” on page 389
• Configure each telephone record individually):
— Define the unique name for the telephone.
(“Identifying the telephone (General heading)” on page 391).
— Assign lines or line pools to each telephone.
(“Configuring line access” on page 393)
— Determine the Capabilities and User Preferences for each telephone, if
applicable. (“Defining device capabilities” on page 405, “Defining user
preferences” on page 415, “Programming telephone buttons” on page 419,
“Configuring user speed dialing” on page 432)
— Determine the restrictions for each telephone. (“Programming restrictions for
DNs” on page 441)
• Determine the call display and log options. (“Configuring telco features” on page 445)
• If you have optional voice mail active on your set, you will also see the active phone number
for each telephone. (“Voice Mail settings” on page 446).
• If your attendants have M7324+eCAP telephones or BST T7316E+eKIM telephones, you need
to assign these systems under “Setting up CAP stations” on page 434.
388
P0609326 1.1
The Unified Manager navigation tree allows you to refine details about individual telephones. You
can also use these DN records instead of the Add Users Wizard (“Configuring DNs using the
Wizards” on page 369) to configure telephones. For general information about the DN headings
and how to decide which records you need to use, and how to alter the number, refer to the
information under “Configuring DN records, an overview” on page 353.
Note: This section discusses telephone DNs in terms of a default Start DN of 221, and a
DN length equal to 3. These values are defined during system startup.
However, you can specify a different DN length or change the DN number ranges, depending on
your system requirements. Note that changes to these settings, have a wide-ranging affect on your
system and should be done before you do any other system programming. Refer to “Renumbering
DNs” on page 366 and “Defining DN length” on page 284.
The figure below shows an overview of the top two levels of the System DNs headings. The DN
records shown under the second-level headings are similar in structure, as shown in the second
figure below, which shows a detailed view of the information under the DNs (DNxxx) headings.
For a detailed explanation of the second-level DN headings, refer to “Digital telephones DN
record matrices” on page 447.
Figure 116 First and second-level System DNs headings and features
System DNs
Active set DNs
DN XXX-XXX
General
Line Access
Capabilities
User Preferences
Restrictions
Telco Features
Active Companion DNs
Active application DNs
System DNs ...
Inactive DNs
Set DNs
Companion DNs
All Inactive DNs
All ISDN/DECT DNs
All System DNs
DN Registration
Active DNs reg’d
Inactive DNs reg’d
All DNs reg’d
DNs avail for reg’d
IP set DNs reg’d
System DNs ...
DN Registration ...
Voice port DNs reg’d
Active
Inactive
IP wireless DNs reg’d
Active
Inactive
CTE media DNs reg’d
Active
Inactive
OAM DN reg’d
Copying settings to other DNs 389
Business Communications Manager 3.6 Programming Operations Guide
Figure 117 Headings found under typical DNXXX heading
Copying settings to other DNs
The Copy command allows you to duplicate programming for a telephone and apply it to another
telephone, a range of telephones, or to all the telephones on the system. If information is copied to
a record with an assigned telephone, the copy information replaces the existing settings.
Note: Unique configurations, such as the Name, do not copy over.
Follow these steps to copy telephone configurations:
1Click on the keys beside Services, Telephony Services, System DNs, and Active Set DNs.
2Click the DN number for the record that has the settings you want to copy.
If you want to copy a specific part of the record, open the DN record and pick the heading you
want to copy, such as Line Access or Capabilities.
3On the Edit menu, click Copy.
The following screen appears, depending on which heading you selected:
DN XXX-XXX
General
Name
DN type
Device port
Control set
Call log passwords
Line Access
Prime line
Intercom keys
OLI number
Line Assignment
(Line 001)
Appearance type
Vmsg set
Line Pool Access
Pool A
Answer DNs
Capabilities
DND on busy
Handsfree
HF answerback
Pickup group
Page zone
Paging
Direct dial
Button programming
User speed dial
External #
Facility
Restrictions
Set restrictions
Set lock
Allow last number
Allow saved number
Allow link
Schedules
Line/set restrictions
Telco features
First display
Auto called ID
Set log space
Available log space
Priority call
Auto hold
Aux ringer
Allow redirect
Redirect ring
Keep DN alive
Receive short tones
SM Supervisor
Auto hold for incoming page
Call forward
Fwd no answer to
Fwd no answer delay
Fwd on busy to
Hotline
Type
ATA settings
Intrusion
User preferences
Model
Call log options
Dialing options
Language
Contrast
Distinctive Ring in Use
Ring type
390 Copying settings to other DNs
P0609326 1.1
4The following table describes the fields that appear in the various copy screens. Choose the
settings that will set up the system to copy the information you want to the DNs you specify.
5Click the OK button.
If you are copying to a number of records, this process could take some time to complete. Do
not attempt to go in and make any adjustments to individual DN records until the copy process
is finished.
Table 83 Copy values
Attribute Value Description
Data type System data
System+user data
Only available on DN copy screen.
Copy Type Single
Range
All
Single: copy to one DN record
Range: copy to a range of DN records
All: copy to all DN records
Copy to:
If Copy type is single
<DN> Enter the DN of the telephone to which you want to copy the
information. Note that if this telephone is a different model than
the copy DN, some of the information may not be copied.
Copy to:
If Copy type is Range or All
no value Click in the field. A new screen appears.
Only equipped sets Y, N If you only want to copy information to DN records that have
assigned telephones, choose Y.
If you want to copy the information to all DN records or DN
records specified in the range, choose N.
Start of range/End of Range <DN> If you specified a Copy type of Range, enter the first and last DNs
of the range of telephones to which you want the information
copied.
Identifying the telephone (General heading) 391
Business Communications Manager 3.6 Programming Operations Guide
Identifying the telephone (General heading)
The General heading allows you to assign the name, the DN type or model, a control telephone,
and a call log password for a telephone. This record also shows you which physical port the
telephone is accessing.

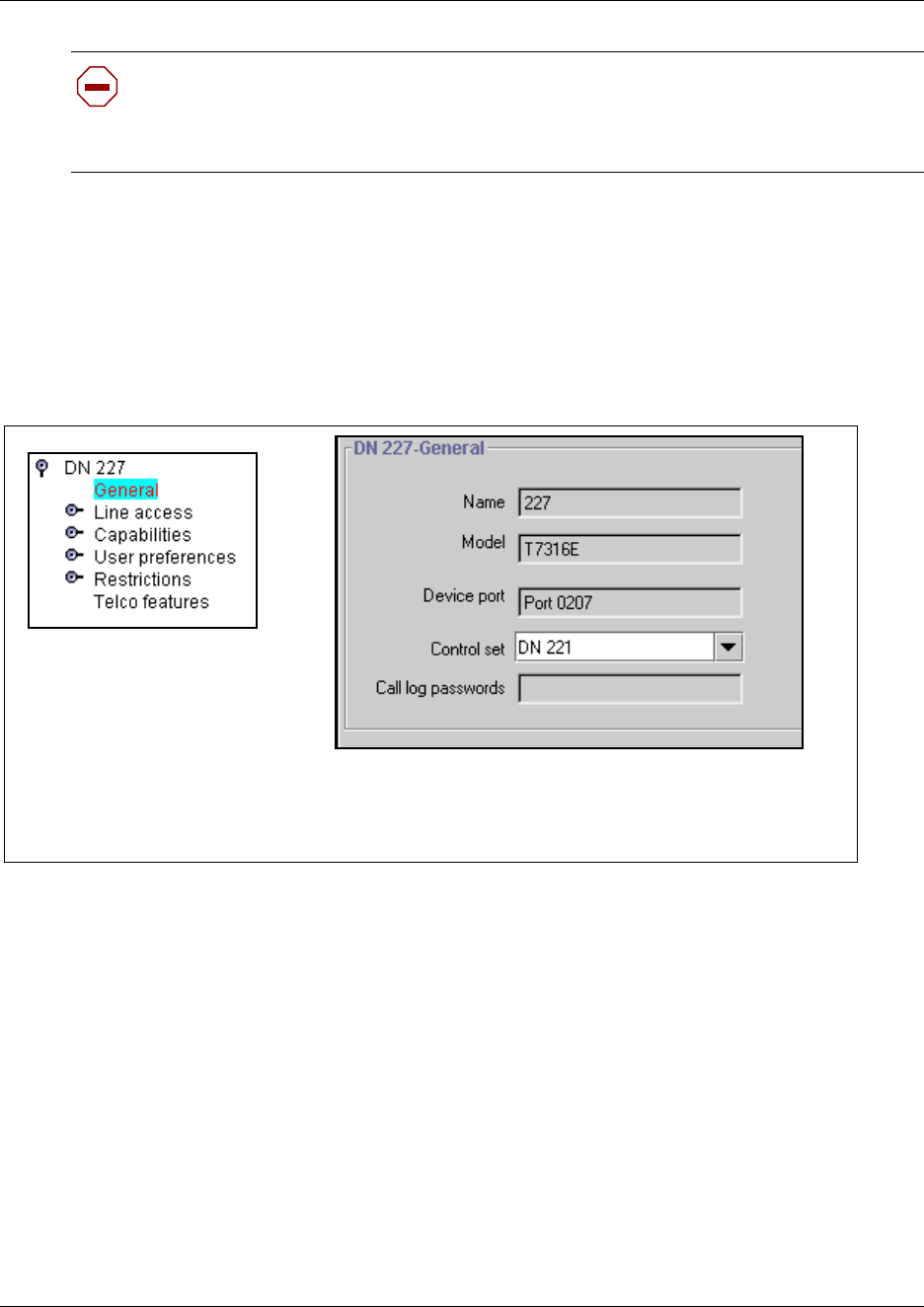

Figure 118 DN General screen for digital and IP telephones
Follow these steps to identify a new telephone, that has not yet been attached to the system:
1Click on the keys beside Services, Telephony Services, System DNs, and Inactive DNs.
2Click on the key beside the heading that indicates the type of telephone you are installing.
For example, click on the key beside Set DNs to program digital telephones or IP telephones.
3Click the telephone record (DN XXX).
4Click General.
Caution: Caller ID set (DNXXX, Line Access, Line Assignment, Line XXX).
You can only enable Caller ID Set (target lines and analog devices attached to an ASM8+)
on a maximum of 30 telephones. If you attempt to copy an enabled setting to more than 30
sets, you will receive an error message.
*
*ISDN, DECT, and Companion telephones
have a DN Type field instead of a Model field
and they do not have a Device Port field.
*
392 Identifying the telephone (General heading)
P0609326 1.1
5Use the information in the following table to choose the general settings for the telephone.
Table 84 General record values
Attribute Value Description
Name <up to seven alphanumeric
characters>
Use this field to provide a more specific description of the telephone,
such as the last name of the user or the location, or the actual
extension number if it is different than the DN number.
DN type ISDN and DECT
Companion
This heading only appears for DN records in the following ranges:
Companion: 565 to 596
ISDN and DECT: 597 to 624
Model M7000/T7000
M7100/T7100
M7208/T7208
M7310/T7316
M7324
i2004/i2050
i2002
IPWIs
i2001
T7316E
Other
This heading appears for telephones in the digital DN range, which
starts at the Start DN (default:221) up to DN 433. Choose the setting
that is appropriate for the telephone you want to configure.
This field will be read-only if the telephone is already attached or
registered to the system.
• M7000/T7000 (European only), these models are used in
specific non-North American markets
• M7100/T7100: Use for M7100, M7100N, T7100 telephones
• M7208/T7208: Use for M7208, M208N, and T7208 telephones
• M7310/T7316: Use for M7310, M7310N, T7316, and T7406
telephones
• M7324: Use for M7324, M7324N telephones and BST
Doorphones
• i2004/i2050: Use for i2004 IP telephones and the Nortel
Networks i2050 Software Phone
• i2002: Use for i2002 IP telephones
• IPWIs: Use for NetVision and NetVision Data telephones
• i2001: Use for i2001 IP telephones
• T7316E: Use for T7316E telephones and T7316E telephones
with KIMs
• Other: Analog telephones, model 7000 telephones
Device port <port number> This number indicates the port number that this DN corresponds to.
A group of port numbers relates to a specific station module installed
in your Business Communications Manager. Station modules
support 32 ports, which are assigned to the DNs related to each
module in sequence. Refer to “DN mapping for digital telephones”
on page 355 to see how the DN numbering corresponds to the type
of station module that is installed in the system, and to the
corresponding Bus numbers and ports for that bus. If you change
the DN for a telephone, the port number remains the same. If you
physically move a telephone with the relocation feature turned on,
the DN transfers to the new port, and the DN for that port transfers
to the vacated location.
This field is not available or not shown for Companion and ISDN and
DECT device records as these devices have a specific range of DNs
to which they are assigned.
IP telephone ports refer to virtual ports on the MSC. These ports
are not static. An IP telephone grabs the first available port when it
registers with the Business Communications Manager.
Configuring line access 393
Business Communications Manager 3.6 Programming Operations Guide
Configuring line access
Line access allows you to assign lines or line pools to individual telephones.
This section includes the following information:
•“Assigning line access” on page 394
•“Rules about assigning prime lines” on page 395
•“Assigning intercom (I/C) buttons (keys)” on page 396
You can copy line settings to other telephones using the Copy utility or by using the Edit DN
Record Template wizard. If you are assigning the same lines to a number of telephones, you can
set up a template with the Edit DN Record Template Wizard, and use the Add Users Wizard to
assign the settings to a range of telephones all at once. Refer to “Editing DN Record Templates”
on page 369 and “Creating telephone records with the Add Users Wizard” on page 375.
Control set DN: <any telephone DN>
None
DN:221<start DN>
The Control telephone attribute allows you to define a DN that will
act as a control telephone.
A control telephone is used to enable/disable Scheduled Services,
such as Restriction Services, for the telephones to which it is
assigned. For more information about services, see “Defining
service schedules” on page 489.
You can assign several control sets for your system but you can
only assign one control telephone per DN.
* If you changed the Start DN, this number reflects that change.
Doorphone note: Ensure this DN does not belong to a doorphone.
TIPS: Control telephone
• You must program external lines and telephones with a control telephone to use the Scheduled
Services: Ringing, Restriction, and Routing Services.
• Nortel Networks recommends that the control telephone you assign for all telephones (DNs) is
different from the control telephone you assign for the lines.
• You can turn on a service manually or automatically for all telephones controlled by a given
control telephone, but you cannot combine schedules. In other words, a service can only be
active as normal service or one of the six schedules at any one time. You can have several
schedules active, as long as they are using different services. The Telephony Features
Handbook explains how to use schedules.
Call Log
Password
<four-digit alphanumeric or
blank>
Read-only.
If the user has entered a password, a row of asterisks appear.
If a user forgets their password, you can reset it by erasing the
asterisks and leaving this field blank.
Table 84 General record values (Continued)
Attribute Value Description
394 Configuring line access
P0609326 1.1
Assigning line access
The prime line for a telephone is the line that is automatically selected when a call is made from
the telephone.
The default for all telephones is:
• Prime line: I/C (intercom)
• Intercom keys: 2

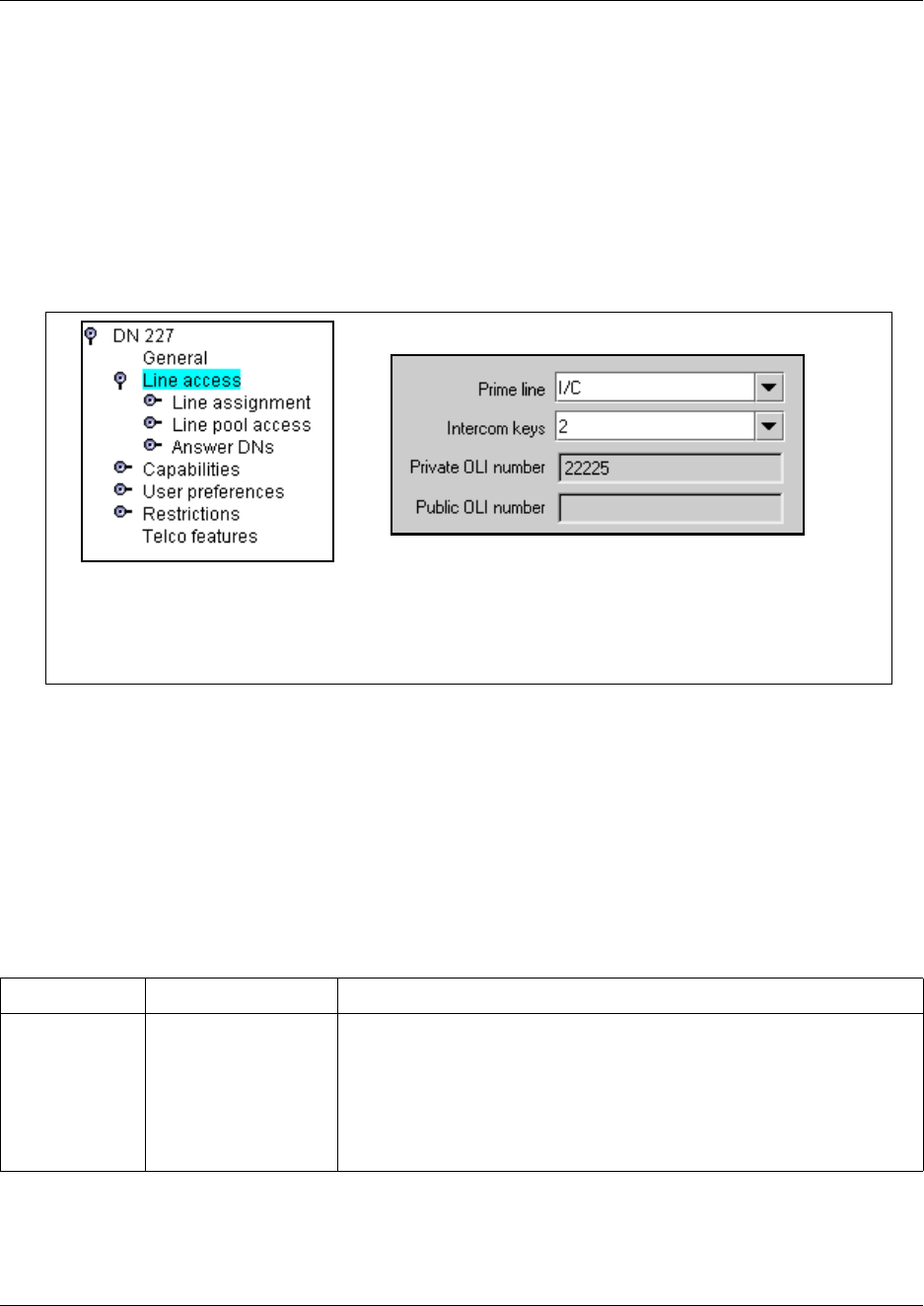

Figure 119 Line access fields
If you want to change the prime line or intercom key settings, following these steps:
1Choose the DN record you are assigning lines to.
2Click on the Line access heading.
3Use the table below to select the values for line access.
Table 85 Telephone line access fields
Attribute Values Description
Prime line None, Pool (A to O),
I/C (intercom),
Line: <line number>
Choose the first line that the telephone selects when a call is made.
PRI pools are not valid selections for a Prime line.
When you assign a line pool as a prime line, the system searches
automatically for an idle line in the pool.
Also refer to “Rules about assigning prime lines” on page 395
Doorphone: Before you install the doorphone hardware, ensure that this
line is set to None on the DN record you are assigning to the doorphone.
*
*
ISDN, DECT, Companion, NetVision, 7000 and 7100 telephones do not have intercom keys
BST Doorphone: Ensure this is set to None before you install the BST Doorphone hardware.
+
+
Configuring line access 395
Business Communications Manager 3.6 Programming Operations Guide
Rules about assigning prime lines
Read the following before you assign Prime lines to a telephone.
• You must assign an external line to the telephone in Line assignment before you can assign the
line as the prime line to the telephone. Refer to “Determining line assignments” on page 397.
• You must assign a line pool to the telephone in Line pool access before you can assign a line
pool as the prime line to the telephone. Refer to “Assigning line pool access” on page 402.
• A target line cannot be a prime line for a telephone because a target line is incoming-only.
Note: Do not assign a T1 DID line as the prime line for a telephone. If assigned, the system
treats it as if there is no prime line. The telephone displays the message Select a line when you
lift the receiver.
• PRI lines are set to Auto Answer. You cannot change a PRI line to Manual Answer.
• VoIP line pools could be used for prime lines, but the lack of dial tone can cause user confusion.
Intercom (I/C)
keys
0 to 8 Assign the number of intercom buttons to a telephone.
Intercom buttons provide a telephone with access to internal and external
lines, and line pools. Refer to “Assigning intercom (I/C) buttons (keys)” on
page 396.
Doorphone: Before you install the doorphone hardware, assign one
intercom key to the DN record you are assigning to the doorphone.
*Private OLI
number
Define the originating line identification number (OLI) which appears on
the telephone being called from this telephone over a private network.
Note: On systems running DID, this field is automatically populated with
the DN. Refer to “Private OLI notes” on page 396.
On PBX systems, this field is only automatically populated if the DN
length and the Received # length are the same.
If the DN length or the Received # length are changed so they are
different from each other, this field is cleared.
*Public OLI
number
<up to 10 digits> Define the originating line identification number (OLI) which appears on
the telephone being called from this telephone over the public network.
North America: 10-digit (National)
European: digits equal to the public received number length
Note: If line pools are not properly configured, an extension may use a
line with a network range that does not include the OLI of the telephone,
causing the network to present an incorrect CLID to the called party.
*If your system allows outgoing name and number blocking, the telephone must have a valid OLI.
Table 85 Telephone line access fields (Continued)
Attribute Values Description
396 Configuring line access
P0609326 1.1
Assigning intercom (I/C) buttons (keys)
The Intercom keys attribute assigns the number of intercom buttons that display on a telephone.
Intercom buttons provide access to a maximum of eight internal and/or external lines and line
pools. The user presses the intercom key to answer internal calls, or to select a line or line pool to
make a call. Lines configured for ring-only also appear on intercom buttons.
• If you assign a prime line to an intercom key, when you press the button or pick up the handset
you are immediately connected to a line and a line indicator appears beside the intercom button.
• When you assign each intercom button during programming, it automatically appears on the
telephone. The intercom buttons appear starting at the lower-right button, or one button above it
if the handsfree feature appears on the telephone. They overwrite any feature or line
programming that existed on that button. They do not overwrite answer DNs. Instead, the
answer DNs are pushed up one button.
• A telephone requires two intercom button to establish a conference call with two other Business
Communications Manager telephones.
• You require only one intercom button if the button is used to make and receive internal calls,
and to access line pools. Doorphones only require one intercom key.
• You require two intercom buttons for a telephone with several lines assigned to Ring only.
• Model 7000 and 7100 telephones and analog telephones are automatically assigned two
intercom buttons. This allows users to toggle between two active calls using the Hold button.
Private OLI notes
Upgrade note: If you upgraded your system from a version of Business Communications
Manager previous to BCM 3.6, the Private OLI field will autofill with the DN of the telephone.
However, if the DN length of the system was different from the Received number length, this field
will be blank after the upgrade.
Other settings to note:
•“Programming access codes” on page 310 (Public/Private DISA DNs and Auto DNs)
•“Defining DN length” on page 284
•“Notes about the Public and Private Received Numbers” on page 290
Determining line assignments 397
Business Communications Manager 3.6 Programming Operations Guide
Determining line assignments
The line assignment setting allows you to assign physical trunks and target lines to each telephone.
Target lines are incoming only. Other lines can be used to both make and answer calls if they are
configured to do so.
Doorphone note: Before installing doorphone hardware, ensure that you delete any lines, line
pools, or answer DNs assigned to the DN record you plan to use for the doorphone.
This section includes the following information:
•“Applying target lines (incoming calls only)” on page 397
•“Assigning lines to telephones” on page 398
•“Notes about assigning lines to telephones” on page 399

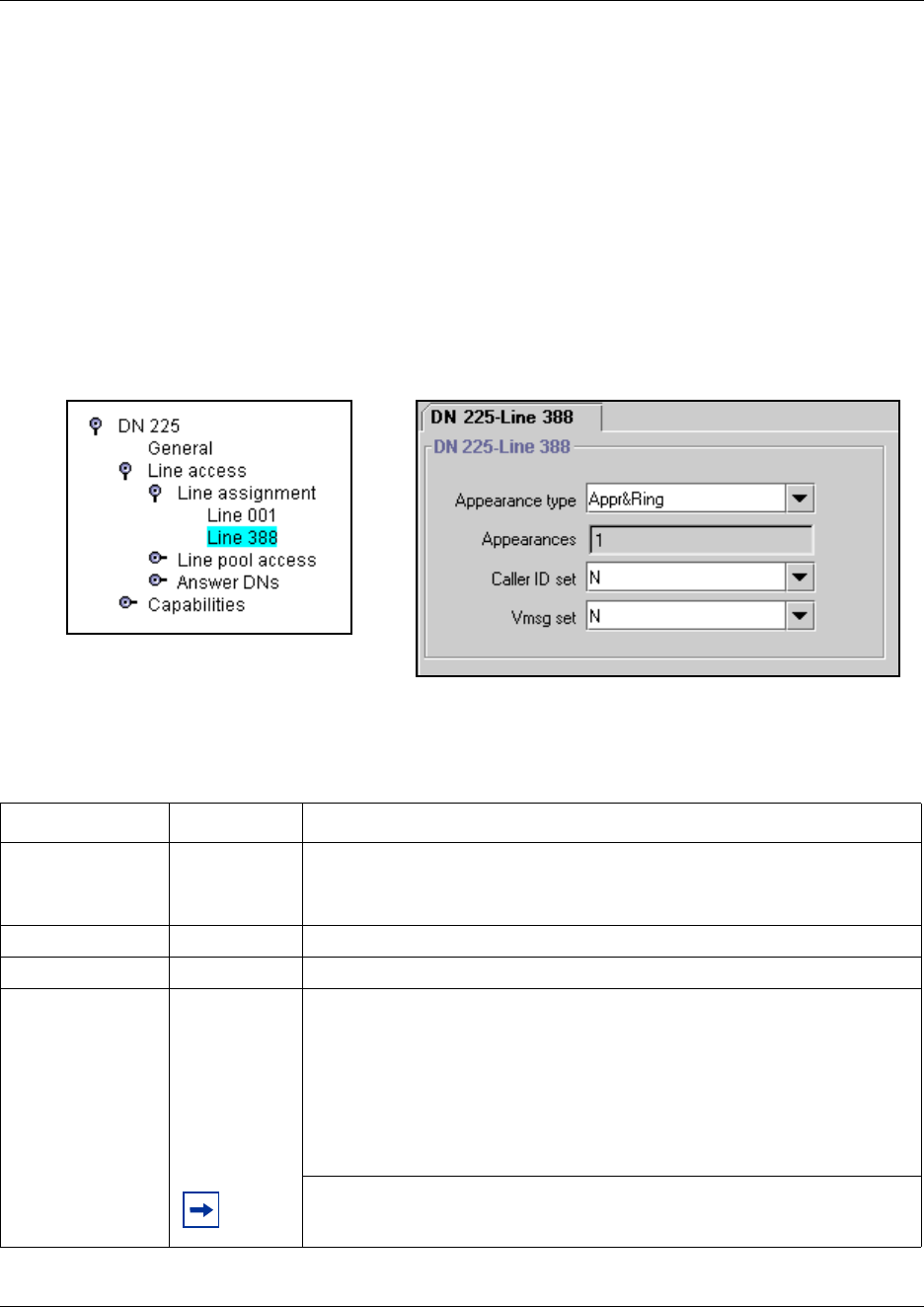

Figure 120 Assigning characteristics to each line
Applying target lines (incoming calls only)
You can assign and remove target lines (lines 241 to 492) in the same way that you assign other
lines, under Line access. You can also use the Add Users Wizard to define target lines. Refer to
“Creating telephone records with the Add Users Wizard” on page 375.
Refer also to “Notes about assigning lines to telephones” on page 399.
*
This field appears for target lines only.
This fields are only available for target lines and analog lines
that provide CLID (ASM8+).
*
+
+
398 Determining line assignments
P0609326 1.1
Assigning lines to telephones
Follow these steps to assign lines to telephones:
1If you are not already in the DN record, click the telephone DN to which you want to assign a
trunk or line.
2Choose Line access. Click on the Line assignment heading.
3Click the Add button.
4Type a line number in the Line box.
5Click the Save button.
6On the navigation tree, click the Line nnn you just created.
7Use the following table to define the line for the telephone.
Table 86 Telephone line assignment fields
Attribute Values Description
Appearance type Ring only, Appear &
Ring, Appear only
Select how a call on this line shows on the telephone.
If you choose Appear&Ring or Appear only, you can have as
many simultaneous DID calls as there are target line button
appearances.
If you choose Ring only, you can have as many simultaneous DID
calls as you have intercom buttons.
Note: The Business Communications Manager does not
support a mixture of Appear only and Ring only appearances
for the same line.
NetVision, Companion, DECT, 7000 or 7100 telephones default to
Ring Only.
Appearances
(for target lines, only)
<1-10> Select the number of appearances of a target line.
Note: The number of appearances that can actually be assigned to
a telephone, depends on how many buttons with indicators are
available. Target line appearances cannot overwrite other line
appearances, Answer DNs, Intercom buttons or and assigned
Handsfree button.
Caller ID set Y or N Choosing Y enables the telephone to display call information on the
telephone display, when it is available for a call. This setting also is
used in conjunction with other settings to create the alpha tagging
feature. Refer to “Using alpha tagging for name display” on page
455.
Choosing N disables the telephone from receiving call display
information. Choose this setting if the telephone does not have a
display, or if you do not want call information displayed to the user.
Disabling this function can reduce system resource requirements.
This prompt only appears for target lines, and any analog lines that
provide CLID through an ASM8+ (North America only).
Limitation: Only 30 telephones can have this field enabled for any
given line.
Determining line assignments 399
Business Communications Manager 3.6 Programming Operations Guide
Notes about assigning lines to telephones
Read these notes for more information about assigning lines to telephones.
• The Business Communications Manager Analog Terminal Adapter (ATA2), or a portable
telephone cannot process more than two simultaneous calls.
• Nortel Networks recommends a maximum of four line buttons per telephone. You can program
more than four line buttons on a telephone by programming less than four on other sets. For
example, you might program 20 line buttons on a receptionist telephone equipped as a CAP
station and only two lines on all other telephones.
• You can program a maximum of 93 telephones with a line appearance for a specific line,
including VoIP and target lines. Above this maximum, you can configure more than one
appearance per telephone of a target line.
• Do not assign auto-answer loop start trunks, auto-answer T1 E&M trunks and T1 DID trunks to
telephones. If assigned, use them to monitor incoming call usage, or make outgoing calls
(auto-answer loop start and T1 E&M trunks).
• You cannot assign a line that is configured to private to another telephone.
• Each line assigned to appear at a telephone must appear at a button with an indicator. The
maximum number of line buttons is eight for the model 7208 telephones, 10 for the model 7310
and 7316 telephones, 16 for the 7316E telephone, and 24 for the model 7324 telephone.
However, you need to also consider other button requirements such as intercom buttons and
Vmsg set N or Y Select whether an indicator shows on the telephone for voice
message waiting to an external voice message system.
The line must appear on receiving telephone.
Note: the Message Waiting Indicator (MWI) is currently supported
exclusively by Meridian Mail and CallPilot.
MCDN note: If your system is part of an MCDN network connected
to a Meridian 1 system, and you are using the voice mail system off
the Meridian 1, you need to set this field to Y.
Analog lines connected to legacy analog ASM station modules,
and analog telephones attached to an ATA device, do not provide
visible message waiting indication. Analog telephones connected to
a ASM8+ ((Global) Analog Station Module) support message
indicators, if the telephone is set up to receive them.
Note: Contact your voice message service provider to find out if your voice message
service works with Business Communications Manager, or if you have any problems
with your service.
Caution: PRI Lines
Users cannot access PRI lines directly through line appearances.
PRI lines must be part of a line pool.
If you change a digital trunk module (DTM) to PRI, the system automatically removes all
existing line appearances for that module.
Table 86 Telephone line assignment fields (Continued)
Attribute Values Description
400 Determining line assignments
P0609326 1.1
handsfree buttons. Line programming will not overwrite assigned intercom, Answer DN,
handsfree, or Hunt group buttons. Refer to Figure 121.
Intercom buttons, on the other hand, will overwrite anything. (Figure 122) Note: You need at
least two intercom buttons if you want to use the conference feature.
answer DNs will also overwrite line programming, but not Intercom buttons. Answer DNs
appear above intercom appearances on the telephone buttons. If an intercom button is added
after answer DNs are assigned, the intercom button pushes the answer DNs up. The top Answer
DN overwrites whatever is above it. (Figure 123)
Figure 121 T7316E display button assignment protocol
Figure 122 Adding an intercom button
Line
Line
Lines and hunt
group appearances
assign to first
available button
from top, left#
Intercom
Intercom
Answer DNs assign starting above the assigned
intercom buttons (maximum of 8). Answer DNs
overwrite line programming.
* Other types of telephones may have a Handsfree key
assigned to the lowest key. In that case, intercom buttons start
above that key.
Intercom buttons assign starting from the bottom,
right* (maximum of 8). Intercom buttons overwrite
line programming, and push up Answer DNs.
Answer DN
Answer DN
HG XX
Line
Line
#Different models of
telephones may start at
other buttons
Line
Line
Intercom
Intercom
If you add an intercom button, the
Answer DNs move up.
In this case, giving you one less line
button.
Answer DN
Answer DN
HG XX
Line
Line
Line
Line
Intercom
Intercom
Answer DN
Answer DN
HG XX
Line
Line
Line
Line
Line
Line
Line
Line
Line
Line
Line
Line
Line
Line
Line
Intercom
Determining line assignments 401
Business Communications Manager 3.6 Programming Operations Guide
Figure 123 Adding an Answer DN
• If you set a line to Ring only, incoming calls appear on an intercom button.
The model 7000, 7100, Companion, DECT, and NetVision telephones are exceptions. They
have no line buttons, therefore, you can assign any number of lines, but only two lines can be
answered at any one time. Assign the lines on these telephones to ring, otherwise, you cannot
detect incoming calls on the lines.
• An enhanced central answering position (eCAP), with one or more modules, provides extra line
button support if more than the number of lines are assigned than can assign to available buttons
with indicators. The remaining lines assign to buttons on the module. The eKIM also supports
hunt group designators, and multiple appearances of the same target line, which flow to the
module if there are no available buttons with indicators on the T7316E.
• By using FEATURE *81 at the telephone, lines can be moved to other buttons on the telephone,
except intercom, answer DN, or handsfree positions, or they can be moved to buttons on the
modules on an eCAP. On telephones, the feature or line assigned to the button where the line is
moved, moves to the original line button position. On eCAP modules, moved lines overwrite
feature programming.
Warning: ECAP programming issue on cold start reboot
If you do a Backup/Cold Start/Restore sequence on your Business Communications
Manager, button programming on an enhanced CAP (ECAP) module is lost and the lines
assigned to those buttons are assigned to the buttons on the telephone. They replace any
programming on the telephone buttons, except answer DNs, intercom buttons, handsfree
buttons, or Hunt group appearances. As well, even if there are no more buttons to assign
lines to, the system still has the lines assigned to the telephone and it will ring when a call
comes in on that line (if appear&ring is configured on the line).
To correct the issue, go into the DN records for the telephone and the CAP/KIM button
programming, and reenter the correct programming.
Line
Line
Intercom
Intercom
If you add an Answer DN, the system
overwrites the button above the last
assigned Answer DN. In this case,
giving you one less line button.
Answer DN
Answer DN
HG XX
Line
Line
Line
Line
Intercom
Intercom
Answer DN
Answer DN
HG XX
Line
Line
Line
Line
Line
Line
Line
Line
Line
Line
Line
Line
Line
Line
Line
Answer DN
402 Assigning line pool access
P0609326 1.1
Assigning line pool access
The Line pool access heading allows you to define the line pools that the telephone will be able to
access. These shared pools of lines allow many users to use fewer lines for connections where
dedicated lines are not practical or not desirable. If all lines in the pool are taken, the user receives
a busy signal.
Doorphone note: Before installing doorphone hardware, ensure that you delete any lines, line
pools, or answer DNs assigned to the DN record you plan to use for the doorphone.
To assign a line pool to a telephone:
1If you are not already in the DN record, click the telephone DN to which you want to assign a
line pool.
2Click Line access, then click Line pool access.
3Click the Add button.
4Enter a line pool identifier. <Digital and VoIP - Pool A to O> or <PRI-A to PRI-F>.
5Click the Save button.
The line pool identifier appears under the Line pool access heading.
About PRI line pools
PRI lines have special requirements when being used within line pools.
• Six exclusive line pools (PRI-A to PRI-F) are available for PRI lines.
• Only PRI or BRI ETSI QSIG lines can belong to a PRI pool.
• PRI lines cannot belong to Line Pools A through O.
• All lines on a single DTM (PRI) belong to the same pool. Lines from multiple DTMs (PRI) can
belong to the same pool if the lines are configured with the same protocol.
• You can assign PRI lines to pools with the Line type setting.
Using Answer DNs
You can program a telephone to provide automatic call alerting and call answering for other
telephones in the system. The DNs of the other telephones are referred to as answer DNs.
Every answer DN you assign to the telephone automatically designates an appearance on the
answer telephone beside a button with an indicator. On the answer telephone, an indicator appears
beside the answer button when a call comes in from the original telephone. If the call is answered
at the originating telephone, the indicator disappears. Label the buttons to identify the telephone
with a name or DN. More than one telephone can have an Answer button for the same DN.
Refer to “Answer DN notes:” on page 403.
Using Answer DNs 403
Business Communications Manager 3.6 Programming Operations Guide
Assigning Answer DNs
Use these steps to assign answer DNs to a telephone:
1If you are not already in the DN record, click the telephone DN to which you want to assign an
answer DN.
2Click the key beside Line access.
3Click on the Answer DNs heading.
4Click the Add button located above the navigation tree.
5In the Answer DN field, type in the DN for the telephone you want to be able to answer.
6Click the Save button.
7On the navigation tree, click on the Answer DN you just created.
Figure 124 Answer condition for Answer DN
8In the Answer type field, indicate who you want to be alerted to calls coming into the Answer
DN telephone.
• Appr & Ring: The call number or name will display and the telephone will ring
• Appr only: The call number or name will display.
Answer DN notes:
You can assign a maximum number of eight answer DNs to a telephone. You can also determine
what types of calls alert at the telephone where the answer DNs are assigned. Refer to “Answer
key levels” on page 461.
You cannot assign answer DNs to 7000 or 7100 telephones because they do not have memory
buttons.
Mobility sets: Companion, DECT, T7406 telephones: You can twin desk sets with the portable
sets by assigning one or more Companion, DECT, or T7406 or NetVision portable DNs to a desk
telephone Answer DN.
Warning: Call Center restrictions: If you assign answer DNs, ensure that the Answer
Key field (General settings, Feature settings) is set to Basic.
404 Using Answer DNs
P0609326 1.1
Companion, DECT, and NetVision portable handsets do not have answer buttons, but you can
assign a single Answer DN to each handset. If you want to share a portable telephone among users,
use the Call Forward feature to temporarily call forward a desk telephone DN to the handset.
Doorphone note: Before installing doorphone hardware, ensure that you delete any lines, line
pools, or answer DNs assigned to the DN record you plan to use for the doorphone.
Hunt group note: A linear Hunt group that has defined an overflow telephone does not support
having the overflow telephone assigned as an Answer DN to any hunt group member. If this
occurs, the Answer DN will not ring at the hunt group telephone when an overflow condition
occurs.
Autodial function: Answer DNs can also act as an internal autodial link to the assigned telephone.
The answer DN must be idle for this feature to work. That is, there must be no active indicator
showing beside the button.
The system still sees the key as an Answer DN, and any key press still interacts with other features
in that way. Therefore, even though you are making an internal call, any other autodial actions do
not occur. As well, none of the autodial visual prompts occur. That means that the button will still
only prompt if a call is alerting at the other telephone, based on the answer key level assigned to
the system. Refer to “Answer key levels” on page 461.
You can program both an Answer DN and an autodial key for the same DN on the same telephone.
Warning: DECT security notice: Ensure that your DECT handset is set to answer calls
manually. Otherwise, if a call is forwarded to the handset with appearance only, the
handset will answer the call with no indication to the user that the line is open.
Defining device capabilities 405
Business Communications Manager 3.6 Programming Operations Guide
Defining device capabilities
The Capabilities headings control how the system interacts with individual telephones, and how
the telephones receive calls. The Capability heading itself has a set of feature settings, which
determine how much functionality the telephone will have in terms of system features.
To configure capabilities settings, refer to “Configuring the Capabilities features” on page 406.
Under the Capabilities heading on the navigation tree, there are headings for setting Call
Forward, Hotline numbers, and Intrusion controls. If an analog station module is connected to
the system or a telephone is connected through an ATA2 module to a digital station module, the
ATA settings heading also appears.
Refer to these sections:
•“Assigning Call Forward” on page 409
•“Assigning a Hotline” on page 411
•“Determining analog settings” on page 412
•“Setting intrusion controls” on page 414
Figure 125 Features that define telephone feature capabilities
*
IP telephones have a Keep DN alive
field instead of this field.
*
ISDN/DECT and Companion
telephones only provide these
capabilities.
ISDN/DECT telephones also have an
OLI as called number field
++
+
+
+
+
^
^
^
^
^
^BST Doorphone-specific
pre-installation settings. See individual
heading configuration for details.
406 Defining device capabilities
P0609326 1.1
Configuring the Capabilities features
1If you are not already in the DN record, click the telephone DN to which you want to assign
set capabilities.
2Click the Capabilities heading.
3Use the information in the following table to configure the telephone capabilities.
Table 87 Capabilities fields
Attribute Values Description
DND on busy N or Y Defines whether an incoming call rings if you are already on another call.
BST doorphone note: Before you install the doorphone hardware, ensure this
is set to N in the DN record you want to use for the doorphone.
Handsfree Auto
Standard
None
None: The handsfree feature is not available to this telephone (7000, 7100,
i2001 and any portable handset that does not have an external speaker).
Standard: The handsfree feature is activated by pressing a button on the
telephone.
Auto: The handsfree feature is activated when the telephone receives a call.
BST Doorphone note: Before you install the doorphone hardware, ensure this
field is set to Auto in the DN record you want to use for the doorphone.
Note: Handsfree must be enabled on any telephone that allows headsets.
For T7316E telephones and DECT handsets, set Handsfree to Auto.
BST T7406: Handsfree must be enabled for this handset to work.
Speaker volume: Note that the speaker volume returns to the telephone
default setting for each new handsfree call.
HF answerback Y or N Defines whether you can automatically answer a voice call without lifting the
receiver or pressing the Handsfree button.
Note: The feature is not available to model 7000 and 7100 telephones and
wireless handsets.
Speaker volume: Note that the speaker volume on the telephone returns to
the default volume setting determined by the telephone for each new
handsfree call.
Pickup group None
1 to 9
Assigns this telephone to a pickup group.
This is a group where all telephones ring until one is answered.
Page zone Page Zone
(1 to 6)
None
Assigns this telephone to a page zone.
A zone is any group of telephones that you want to group together for paging
regardless of their location. You can assign one of six zones to each
telephone.
The maximum number of digital telephones in a page zone is 50.
The maximum number of digital and IP telephones in a page zone is 60.
Paging Y or N Defines whether you can make paging announcements from this telephone.
BST Doorphone note: Before you install the hardware, ensure this is set to Y
in the DN record you want to use for the doorphone.
Direct dial Set 1 to Set 5
None
Defines whether you can call the direct-dial telephone from this telephone
using the direct-dial digit.
BST Doorphone note: Before you install the doorphone hardware, ensure this
is set to None in the DN record you want to use for the doorphone.
Priority call N or Y Defines whether this telephone can interrupt calls or override Do Not Disturb
at another telephone.
Defining device capabilities 407
Business Communications Manager 3.6 Programming Operations Guide
Auto hold Y or N This setting determines if the system will automatically put an active call on
hold if you answer or initiate another call.
If you choose No, the system drops the active call, unless you press the
HOLD button first, if you answer a call or initiate another call.
Default is Yes.
The user can change the Auto Hold setting at their telephones by pressing
FEATURE 73.
SWCA note: Ensure this setting is set to Yes for any telephones with
configured System-wide call appearance (SWCA) keys. Refer to “Configuring
system-wide call appearance groups” on page 462.
Aux ringer N or Y Determine whether an auxiliary ringer (if installed) rings for incoming calls at
this telephone.
BST Doorphone note: Before you install the hardware, ensure this is set to N
in the DN record you want to use for the doorphone.
Allow redirect N or Y Define whether this telephone will allow assigned lines to be redirected.
This must be set to Yes to allow call forwarding outside the network (external
call forward), including calls to a centralized voice mail system over a private
network. Refer to “Line redirection notes” on page 408.
Redirect ring Y or N Define whether the telephone rings briefly when a call on one of its lines is
redirected by the Line Redirection feature (FEATURE 84).
Keep DN alive N or Y This feature is only relevant to the i-series IP telephones (i20XX).
Y (yes) allows the system to retain an IP telephone DN record even if the IP
set becomes disconnected. This occurs as long as the IP set has completed
the bootup process. This allows DN-specific features like Call Forward No
Answer and Call Forward on Busy to continue to function even if the
telephone is disconnected.
WARNING: If the system is reset, and the IP telephone is disconnected, the
feature remains inactive until the telephone is reconnected.
Note: A delay of about 40 seconds occurs between when the IP telephone is
disconnected and when Keep DN alive becomes active. During this period,
incoming calls get a busy signal or are rerouted to the prime set, depending
on system programming. The delay also occurs when the IP telephone is
reconnected to the system.
N (No) allows the DN record to become inactive if the IP telephone is
disconnected, which produces a Not in Service prompt if any of the
special features, such as Call Forward, are invoked.
Receive short tones N or Y Analog equipment that is connected to the system with an internal or external
analog terminal adapter (ATA2), responds only to tone dialing signals.
If you have analog equipment connected to an extension, set to Yes.
Otherwise, leave Receive short tones set to No.
SM Supervision N or Y On two-line display telephones only, you can choose whether the telephone
can be used to allow the Silent Monitor feature (*550). Select Y (yes) to allow
this feature on this telephone.
Refer to “Monitoring Hunt groups” on page 585 for information about setting
up the system settings for the Silent Monitor feature, including determining
how many telephones can be allowed to use this feature.
Table 87 Capabilities fields (Continued)
Attribute Values Description
408 Defining device capabilities
P0609326 1.1
Line redirection notes
This feature allows you to send your external calls to a telephone outside the office. You can
decide to redirect all, or just some, of your external lines.
You can redirect only lines that appear at line buttons on your telephone. Since T7100,
Companion, DECT, and NetVision telephones do not have line buttons, you cannot use this
feature on those telephones. Also, you cannot use the feature on any telephone connected to an
ATA2 or ASM (analog station modules).
You can answer the telephone if it rings while you are programming Line Redirection, however,
none of the call handling features are available until the feature times out. If you need to use a
feature to process the call, quit Line Redirection programming by pressing FEATURE. Do not
press RELEASE or you disconnect the call you are trying to redirect.
In some conditions, callers can experience lower volume levels when you redirect calls to an
external location.
Auto hold for incoming
page
N or Y N = if the telephone is active when a page comes in, the page will be put on
queue until the user hangs up
Y = if the telephone is active when a page comes in, the call is automatically
put on hold and the page proceeds.
Note: Business Series Terminals (BST) telephones:
•Condition: This setting is Y, active call on mute when the page comes in.
•Results after page: the call comes off hold, but is no longer muted.
OLI as Called Number ISDN/DECT only.
Warning: You redirect lines at a telephone, but after redirection programming, the lines
redirect for the entire system.
Warning: While you are programming Line Redirection, you do not receive any
indication of calls that do not actually ring at your telephone.
Warning: Be careful about redirection loops. For example, if you redirect your lines to
your branch office and your branch office redirects its lines to you, you can create a
redirection loop. If these calls are long distance, significant toll charges may result.
Table 87 Capabilities fields (Continued)
Attribute Values Description
Assigning Call Forward 409
Business Communications Manager 3.6 Programming Operations Guide
Assigning Call Forward
The Call Forward setting under Capabilities allows you to define how the system handles calls
when the call is unanswered or the line is busy.
You can enter internal numbers, external numbers, and routing codes to process these calls. For
instance, if your voice mail system is on a Meridian system, you would call forward unanswered
calls to that number. The number you enter must include access codes, if required for network
access.
BST Doorphone note: Before you install BST doorphone hardware, ensure that these fields are
blank in the DN record you are planning to use for the doorphone.
Use these steps to set up the Call Forward feature on a telephone.
1If you are not already in the DN record, click the key beside the telephone DN to which you
want to assign Call Forward properties.
2Click on the key beside Capabilities.
3Click on Call forward.
The Call forward screen appears.
Figure 126 Configuring call forward
When you enter a Fwd no answer
destination and press <Enter>, the
Fwd no answer delay field appears.
410 Assigning Call Forward
P0609326 1.1
4Use the information in the following table to configure the call forward settings.
Private network, call forwarding voice mail: If you want to call forward to a voice mail system
attached to an external system, you must treat the calls as call forward to external numbers. As
well, Allow redirect must be set to Y (Yes) under Capabilities.
DPNSS notes
(UK only)
DPNSS lines connected to an Embark switch perform call redirection using the Call Forward
feature to create a tandem link back to the switch.
Before you program Call Forwarding on lines on an Embark switch line, ensure that:
• The DTM is configured to DPNSS and the Host Node switch connection is set to Embark.
• Both real channels and virtual channels are provisioned.
• Destination code or line pool code are programmed for the DPNSS to Embark link.
•Allow redirect must be set to Y (Yes). This field is also located under Capabilities.
During telephone programming for Call Forward No Answer and Call Forward on Busy, when
you enter the Forward to: digits, the system does a validation check with the switch on the
number. If the validation does not succeed, the system displays one of the messages shown in the
following table.
Table 88 Call forward fields
Attribute Values Description
Fwd no answer to up to 24 digits Enter the number to which you want to redirect unanswered incoming calls.
Fwd no answer
delay
2, 3, 4, 6, 10 Define the number of rings before the system forwards an unanswered call.
This heading only appears after you enter a Call Forward No Answer number
and press Enter.
Fwd on busy to up to 24 digits Redirect incoming calls when this telephone is busy with another call.
Fwd all calls to up to 24 digits This setting is the same as using FEATURE 4 at a the telephone. When this
feature is active, all calls to this telephone are forwarded to the destination
entered in this field.
If you are forwarding calls to a remote location, ensure that you include the
required destination/access codes.
A user can press FEATURE #4 to cancel this feature.
Table 89 Embark validation error messages
Message Description
The number is invalid or the destination has
rejected.
The destination telephone had DND programmed, or it was in
an programming session.
There are no free virtual channels available
for validation.
You either did not set up enough channels or there were no
more available.
Destination may be out of service, no
response received.
The system could not connect to the remote system.
Assigning a Hotline 411
Business Communications Manager 3.6 Programming Operations Guide
Assigning a Hotline
The Hotline heading under Capabilities allows you to define a telephone number that
automatically dials when you lift the receiver or press the Handsfree button on a telephone.
ISDN terminals, DECT handsets, NetVision: This feature is not supported for this equipment.
BST doorphone: Before you install the BST doorphone hardware, ensure there is no hotline
assigned.
Use these steps to define an internal or external Hotline number.
1If you are not already in the DN record, click on the key beside the telephone DN to which you
want to assign a hotline.
2Click on the key beside Capabilities.
3Click on Hotline.
4Use the information in the following table to configure the hotline setting for a telephone.
Table 90 Hotline values
Attribute Values Description
None The telephone does not automatically dial any number.
Internal Internal #
Direct dial set
DN:
Define the internal telephone you want to access.
Direct dial set: Will automatically dial a telephone on the system defined as a
direct dial telephone
DN: the DN of the telephone that gets automatically dialed when the user picks
up the handset
External External #
Facility Value:
Use line nnn
Use prime line
Pool code
Use routing table
Enter the complete call number for the external telephone you want to access.
Enter the line you want the call to use. (This cannot be a target line.)
Use line nnn: Refer to line assignment for this telephone.
Use prime line: Refer to the General record for this telephone.
Pool code: Refer to the line pool assignment for this telephone.
Use routing table: Refer to the routing tables. The destination code for that
table must be part of the External #.
412 Determining analog settings
P0609326 1.1
Determining analog settings
The settings for analog devices under Capabilities allow you to define general settings for
equipment connected to an analog media bay module or through an Analog Terminal Adaptor
(ATA2), which connects an analog device to a digital media bay module (DSM). These settings
apply to analog DNs only and are available to telephone DNs in the digital telephone range only.
Details about how to use an analog telephone are included in the Analog Telephone User Guide.
Note: These settings only appear if an analog station module or an ATA device is actually
connected to the system.
Follow these steps to configure the ATA settings:
1If you are not already in the DN record, click the key beside the telephone DN to which you
want to assign ATA settings to.
2Click on the key beside Capabilities.
3Click on ATA settings.
The ATA settings screen appears for that DN.
Figure 127 ATA settings for a DN
4Use the information in the following table to configure ATA settings.
Table 91 ATA settings
Attribute Values Description
ATA answer
timer
3, 5, 7, 10 Select the length of delay between the last digit you dial and when the ATA 2 device
is ready to receive DTMF tone.
ATA tones N, Y N: No tones occur when a message is received (use for data equipment).
Y: Tones occur when a message is received (use for analog telephones).
ATA use On site
Off site
Select the location of the ATA 2.
Note: Only the ASM8+ supports off-site analog telephones.
Msg Indicate None
Tone
Lamp
Tone sends a Message Tone through the telephone receiver when you receive a
message.
Lamp turns on the Message Lamp when you receive a message. (Refer to “MWI
tone/lamp matrix” on page 413.)
Determining analog settings 413
Business Communications Manager 3.6 Programming Operations Guide
MWI tone/lamp matrix
The following table outlines the availability of MWI signals for analog telephones on Business
Communications Manager Systems.
ATA Dvc Modem
Telephon
Default: Modem
Devices connected to the system through an ATA can have connectivity issues over
BRI/PRI lines. To alleviate this, you can specify the type of device attached to the
analog line.
Modem supports 3.1 Khz audio, which requires a higher quality of service on the
ISDN trunks which modems and FAX machines require for reliable information
transfer. If the trunks cannot provide the higher level of service, the call will fail.
Telephon supports speech paths, which require less quality on the trunk; if used for
FAX and/or modem, information transfer would be unreliable.
Disconnect
Supervision
(ASM8+ only)
N
Y
Default: N
If you have a modem or fax machine that does not automatically disconnect when
the caller disconnects, you can set this field to Y and the system will disconnect the
line from the device once it receives the disconnect signal from the far end. This
feature is supported only by ASM8+ modules and only on the North American
profile.
Tips: If you have a modem or fax machine, keep the ATA answer timer delay short. If a
call to a fax machine or modem cannot connect, shorten the delay. If an individual dials
the number for a fax machine or modem, make the delay a little longer.
Table 92
ATA2 Norstar ASM via FEM Norstar ASM-MW via FEM ASM ASM8+
Systems running software versions previous to BCM 3.6
MWI tone No No NA only No NA only
MWI lamp No No NA only No NA only
Systems running BCM 3.6 or newer software
M W I t o n e Ye s Ye s Yes Ye s Yes
MWI lamp No No NA only No Yes
NA = North America
Table 91 ATA settings (Continued)
Attribute Values Description
414 Setting intrusion controls
P0609326 1.1
Setting intrusion controls
If the break-in feature is allowed on any private network MCDN lines (PRI SL-1) assigned to the
telephone, you need to define the level of intrusion for each telephone. This determines if the user
can use the feature, and to what degree. This heading is found under Capabilities.
Follow these steps to set Intrusion levels.
1If you are not already in the DN record, click on the key beside the telephone DN to which you
want to set an intrusion level.
2Click on the key beside Capabilities.
3Click Intrusion.
4In the Protect lvl field, choose an access level.
There are four levels of access:
• None feature is turned off, user cannot break in on any calls
• Low user can only break into calls on other telephones with low level protection
• Med(ium) user can break into calls on other telephones with low and medium-level
protection
• High user can break into calls on all other telephones with this feature
Defining user preferences 415
Business Communications Manager 3.6 Programming Operations Guide
Defining user preferences
The User preferences headings allow you to program the same settings that users can perform at
their telephones. These options are only available to digital/analog sets, IP telephones, and
BST T7406 telephones.
Notes about portable handsets:
• ISDN, DECT and Companion telephones do not have user preferences.
• Feature programming for the NetVision telephones occurs through a separate configuration
process, with the exception of 10 programmable buttons, which are specifically used for two
intercom positions, and eight SWCA key positions. Programming performed by users at their
own sets, takes precedence over these settings. User telephone programming and feature
programming for the NetVision telephones is described in the IP Telephony Configuration
Guide and the NetVision Phone Administrator Guide.
This section includes information about:
•“Configuring user preferences” on page 416
•“Programming telephone buttons” on page 419
•“Configuring user speed dialing” on page 432
•“Setting up CAP stations” on page 434
Figure 128 User preference telephone settings
*
This heading only appears if a T7316E+KIM
or M7324+CAP are connected to the
system.
*
Companion telephones only have this
User Preference option.
ISDN/DECT telephones have no
User Preferences.
+
+
416 Defining user preferences
P0609326 1.1
Configuring user preferences
Use these steps to program user preferences for a telephone.
1If you are not already in the DN record, click the key beside the telephone DN to which you
want to assign a user preferences.
2Click the User preferences heading.
3Use the information in the following table to configure user preferences.
Table 93 User preference choices
Setting Values Description
Model M7100/T7100
M7208/T7208
M7310/T7316
T7316E
M7324
i2004/i2050
i2002
IPWls
i2001
T7316E
If you have not yet attached a telephone, choose the model of the
telephone. This will create a number of defaults based on the
telephone capabilities.
This setting reflects whatever you set on the General page. Refer to
“Identifying the telephone (General heading)” on page 391.
This field will be read-only if the telephone is already attached or
registered to the system.
• T7310 also refers to the cordless T7406 telephones.
•IPWls (IP Wireless) refers to the NetVision telephone
• T7316E indicates both a stand-aloneT7316E telephone and a
T7316E telephone connected to one or more KIMs (Key
Indicator Modules).
• T7324 also refers to the BST Doorphone
Companion
ISDN/DECT
These telephones have their own set of DN records.
• Companion: refers to the Companion handsets
• ISDN/DECT refer to DECT handsets or any ISDN equipment
Other This heading is used for the following types of devices:
• analog telephones
• Intl set (European only), is used for other types of compatible
telephones used in specific non-North American markets, such
as the model 7000 telephones
Call log options Log all calls,
No autologging,
No one answered
Unanswered by me
Select how you want the telephone to handle logging calls.
Log all calls: All calls are noted in the call log.
No autologging: No calls are automatically logged.
No one answered: Unanswered calls are not logged.
Unanswered by me: Unanswered calls are not logged.
Refer to: “Call log notes” on page 417.
Refer to the Telephony Features Handbook for information about
using Call logging.
Dialing options Standard dial
Pre-dial
Automatic dial
Determine how the telephone handles dialed information.
Standard: Pick up the receiver and dial.
Pre-dial: Dial the numbers, then pick up the receiver to allow the
telephone to dial the number.
Automatic dial: Use for devices like fax machines where you want
the number to dial out without external cues.
Note: Not all devices show all three options.
Defining user preferences 417
Business Communications Manager 3.6 Programming Operations Guide
Call log notes
If your system has the appropriate equipment, and you subscribe to the call information feature
supplied by your service provider, you can record information about calls received from an
external line. ISDN service packages that come with calling line identification (CLID) can supply
the same feature.
Note: Your cordless and wireless telephones may not support this feature, or they may only
support some of the functions of the feature.
Call Log creates a record of incoming external calls to a telephone even if the telephone does not
have that line assigned. For each call, the log can contain:
• sequence number in the Call Log
• name and number of the caller
• indication if the call was long distance
• indication if the call was answered and by whom
• time and date of the call
• number of repeated calls from the same source
• name of the line on which the call came
Language Languages displayed
are based on
telephone capabilities
and system software
Choose the language for the telephone display prompts.
Contrast 1, 2, 3,4, 5.....9 Adjust the contrast of the display.
Distinct rings in use read only This read-only field indicates the distinct ring patterns are currently
in effect, if any, on any lines, telephones, or Hunt groups on the
system. Refer to the Warning below.
Ring type 1, 2, 3, 4 Select a distinctive ring pattern type for the telephone.
Default is 1.
Warning:
If you assign a distinctive ring pattern to a telephone, and that distinctive ring pattern has
already been assigned to a line, all lines with that ring pattern will be reset to None.
If you assign a distinctive ring pattern to a line, and that distinctive ring pattern has already
been assigned to a telephone, all telephones with that ring pattern will be reset to pattern 1.
Refer to “Assigning Trunk/line data” on page 236 for information about assigning a
distinctive ring pattern to a line.
You can also assign a distinctive ring pattern to a Hunt group. Refer to “Identifying a Hunt
group” on page 575.
Table 93 User preference choices (Continued)
Setting Values Description
418 Defining user preferences
P0609326 1.1
Call Log can help to
• keep track of discarded calls or calls not answered
• track patterns for your callers (for example volume of calls and geographic area of calls)
• record caller information quickly and accurately
• build a personal telephone directory from log items
Information such as long distance indicator and the caller name and number, may not show in the
log. The appearance depends on the Call Display services provided by your local telephone
company and the local telephone company at the caller end.
Call logging limitations:
• A total of 600 log spaces are shared by all telephones assigned with call log space. To ensure
that this list does not fill up and start rejecting logs, ensure that Autobumping is enabled
(FEATURE 815).
• If you answer the call, then forward it, the call will log only at the forwarding telephone.
• If call forward is set, the calls will be logged at both the forwarding telephone and the target
telephone, providing the target telephone answered the call.
• If the call is released by the telephone to which the call was forwarded, only the forwarding
telephone logs the call.
• Hunt group calls are only logged once a call is answered.
• If a call is redirected to the Prime telephone, and it is answered at the prime telephone, then the
call is logged at both the redirecting telephone and the prime telephone. If the call is answered
by the intended telephone, then the call is logged only at that telephone.
• If the telephone is experiences a warm-reset, all log entries are flushed.
• If line has been redirected, calls will not be logged.
Programming telephone buttons 419
Business Communications Manager 3.6 Programming Operations Guide
Programming telephone buttons
Button programming allows you to program the buttons on a telephone with internal and external
autodialers and with programmed feature keys. You also can use these screens to remove
programming from a button, making it blank. Assigned line, Hunt group designator, answer DNs
buttons, intercom buttons, and handsfree buttons cannot be changed through these screens. They
appear in read-only format under Button Programming. ISDN terminals, Companion, and DECT
portable systems do not have feature buttons that are programmable through this heading.
You can also program buttons using the Edit DN Record Templates Wizard or the Add User DN
Wizard. Refer to “Editing DN Record Templates” on page 369 and “Creating telephone records
with the Add Users Wizard” on page 375.
To view the default button mapping for each type of telephone, refer to “Default button
assignments” on page 422.
To view a list of the available feature selections, refer to “Button programming features” on page
865. Note that not all telephones support all the features in this list. The Telephony Features
Handbook describes how to use the features.

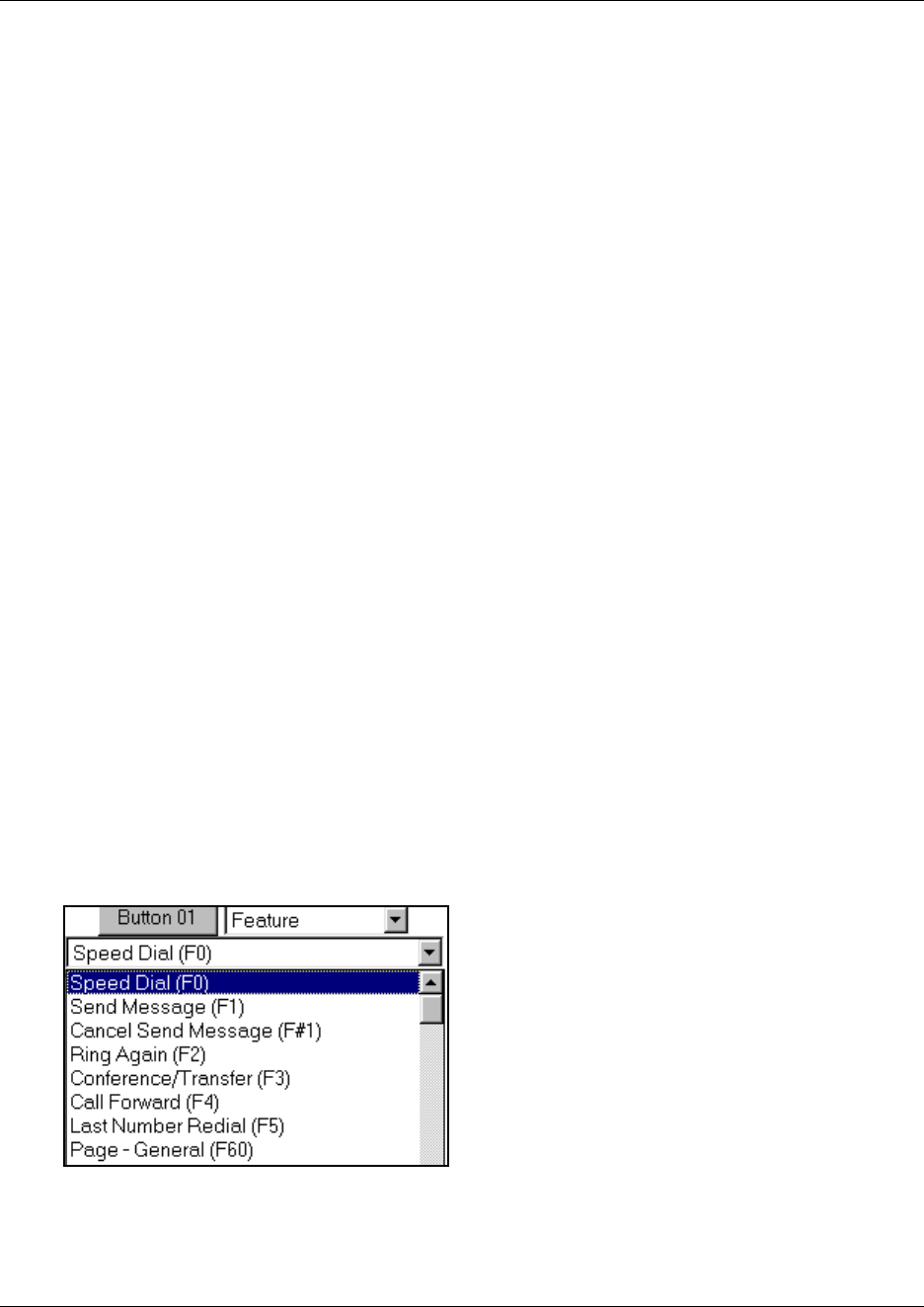

Figure 129 Button programming options
420 Programming telephone buttons
P0609326 1.1
Configuring buttons from the DN record
Follow these steps to program the buttons on a telephone.
1If you are not already in the DN record, click the key beside telephone DN where you want to
program button features.
2Click the key beside User preferences.
3Click the key beside Button programming. The list of available buttons appears.
4Click the button number that you want to program.
5Use the information in the following table to configure button preferences.
Notes about button programming:
• The number of available button positions, will depend on the model of telephone that you are
programming.
• New button programming will overwrite any memory button programming performed at the
telephone by the user. Conversely, any changes to memory button programming performed by
the user at the telephone, after button programming, will overwrite memory keys programmed
under Button programming or CAP/KIM button programming. The screens will reflect these
changes.
Table 94 Button programming choices
Setting Values Description
Type Blank
Feature
Internal autodial
External autodial
Choose the type of feature that you want to program on the
telephone buttons.
Blank means that nothing is programmed on the button.
Example: new KIM modules have all blank buttons when they
are first installed.
Value field:
Feature <feature name> Use the arrow to choose the feature you want to program on
the button.
Internal autodial <Internal DN> Enter the DN number for the internal telephone you want the
telephone to dial by pressing this button.
External autodial Use prime line
Pool
Use routing table
Use line
Choose the route the telephone will dial through.
Prime line: the prime line assigned to the telephone
Pool X: one of the pools assigned to the telephone
Routing table: enter the destination code with the external
phone number
Use line X: one of the lines assigned to the telephone
External #
External autodial <dialing codes plus dialout
string>
Enter the complete dial sequence for the external call. This
sequence will depend on what you chose for the route in the
Value field.
Button labeling 421
Business Communications Manager 3.6 Programming Operations Guide
• The T7316 telephone has disjointed button numbering, because it is patterned after the M7310
button programming, but has fewer available buttons. However, the Button programming
heading shows all the keys available for a model 7310 telephone. Refer to the default button
programming section and ensure that you program the correct button numbers. Refer to “T7316
Business Series Terminal button defaults” on page 424.
• IP telephones have three (i2001), nine (i2002) and 12 (i2004) programmable memory keys, as
well as a display feature list that can contain up to 10 items. Refer to the IP Telephony
Configuration Guide for information about setting up this list, and to the Telephony Feature
Handbook for an explanation about how to use the telephone buttons to access the list. Refer to
“IP telephone button defaults” on page 427 for a list of default settings, and the location of the
buttons for each telephone. The model 2001 IP telephone has an additional five non-visible
buttons that can be programmed with Answer DNs or SWCA controls.
• Although NetVision wireless IP telephones (model: IPWls) do not have any physical line or
memory buttons, the DN record for this telephone provides 10 programming spaces to
accommodate the SWCA feature and intercom assignments.
Replacing digital telephones
If you unplug a digital or IP telephone, the Business Communications Manager will retain the
programming for that DN on these conditions:
• Set relocation is enabled on the Feature settings screen. Refer to table entry: Set relocation on
page 459.
• The original telephone is replaced with the same model.
• The original telephone is plugged in somewhere else on the system before any other telephone is
plugged into the jack from which the telephone was removed.
• IP telephones: Keep DN alive is enabled on the DN record. Refer to table entry: Keep DN alive
on page 407.
If the KIM attached to a T7316E telephone becomes disconnected, the KIM loses any spillover
line programming from the T7316E, and all the buttons revert to either Blank or an Internal
autodial.
Button labeling
M-series telephones have paper labels that fit onto the keycaps, and printed keycaps.
T-series telephones have a paper strip of labels that can be customized and printed using the
Desktop Assistant or Desktop Assistant Pro application. These applications are located under the
Client Applications button on the first Unified Manager web page. Desktop Assistant Pro requires
a LAN CTE keycode before it can be used.
IP telephones also have soft display labels. These feature labels can be changed under Telephony
Services, General Settings, Nortel IP Terminals, Feature labels. The IP Telephony
Configuration Guide describes this process in detail.
422 Default button assignments
P0609326 1.1
Default button assignments
During startup, the installer chooses one of the available telephony template (PBX or DID). Each
profile has a default features set which assigns automatically to the programmable buttons on
telephones plugged into the system, unless you configure different settings in the DN record. The
default features are listed, by telephone model, in the following sections in this chapter.
•“T7316E Business Series Terminal button defaults” on page 422
•“T7316 Business Series Terminal button defaults” on page 424
•“T7406 Business Series Terminal button defaults” on page 426
•“Model 7208 button defaults” on page 425
•“Model 7100 telephone button defaults” on page 425
•“Model 7000 telephone button defaults*” on page 426
•“IP telephone button defaults” on page 427
•“NetVision telephones” on page 430
•“M7324(N) button defaults” on page 431
Rules of default button assignment
• Line and intercom buttons assigned by default templates can be changed in programming.
handsfree and answer DN buttons are not assigned by default. When these features are
programmed, however, they are automatically assigned to specific buttons.
• Telephones can have a maximum of eight intercom buttons. When Answer DNs are assigned,
they appear above the handsfree button, if there is one, at the bottom right-hand corner on the
telephone. The model 7000 and 7100 telephones, analog telephones, and portable telephones are
automatically assigned two intercom.
• Default line button assignment starts on or near the top of the left column and descends. Default
button programming does not necessarily provide default line assignments.
Note: Companion, and DECT handsets do not have buttons that are programmable from these
screens.
• Line assignments can be moved by the user to more convenient buttons. Refer to the Telephony
Features Handbook for details.
T7316E Business Series Terminal button defaults
The default button assignments for the T7316E Business Series Terminal (BST) depend on the
template applied. Refer to your Programming Records to identify the current button programming
for each telephone or group of telephones.
• This telephone has individual handsfree, mute and headset buttons, located under the dialpad.
Handsfree must be set to automatic for these buttons to work.
• The current incoming call on this telephone defaults to the voice path last used. For example, if
you answered the previous call using your headset, the next call will come in over your headset.
Default button assignments 423
Business Communications Manager 3.6 Programming Operations Guide
• Line numbering starts on button 09.
Important note: The T7316E BST telephone buttons are mapped differently than the T7316 BST
telephone. Therefore, if you replace a T7316 telephone with a T7316E telephone, the button
programming will revert to the default settings for the T7316E, losing any keys programmed by
the user at the telephone. Also, settings that are copied from one telephone to the other may be in a
different location on the new telephone. This is consistent with how the system behaves if you
switch any telephone model for a different model on the same connector.
Figure 130 T7316E lower button mapping
T7316E BST upper button defaults
Btn # Btn #
Contrast 01 05 Blank
Show time 02 06 (DID only) Sys Park
Blank 03 07 Send Message
Blank 04 08 Speed dial
T7316E BTS lower button defaults
Btn # PBX DID Btn # PBX/DID
09 Sys Park Target line 17 Call Timer
10 Saved No. 18 Ring Again
11 Call Fwd 19 DND
12 Pick-up 20 Transfer
13 Page 21 Last No.
14 Transfer 22 Voice call
15 Time/Date 23 Intercom
16 Receive Msg. 24 Intercom
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
424 Default button assignments
P0609326 1.1
T7316 Business Series Terminal button defaults
Button mapping for the T7316 BST telephone is unique. Although the button is patterned after the
M7310, the T7316 does not have a second level on its upper button group. Because of this, the
numbering for the T7316 is not consecutive. Refer to the diagrams below.
Internal autodial numbers are assigned to buttons 11, 13, 15, 17, 19, and 21 on the main button
group. Programmed external line buttons descend down the lower left buttons, starting with button
01. When more than five external lines are programmed, assignment continues on the lower right
buttons, starting at button 06.
Important note: The T7316E BST telephone buttons are mapped differently than the T7316 BST
telephone. Therefore, if you replace a T7316 telephone with a T7316E telephone, the button
programming will revert to the default settings for the T7316E, losing any keys programmed by
the user at the telephone. Also, settings that are copied from one telephone to the other may be in a
different location on the new telephone. This is consistent with how the system behaves if you
switch any telephone model for a different model on the same connector.
The following figure shows the default button number assignments on the T7316 telephone.
Figure 131 T7316 telephone button assignment
T7316 BST upper buttons (PBX and DID) default button settings
Btn # Btn #
Autodial to 227 23 31 Autodial to 231
Autodial to 228 25 33 Autodial to 232
Autodial to 229 27 24 Autodial to 239
Autodial to 230 29 26 Autodial to 240
T7316 lower button defaults
Btn # PBX DID Btn # PBX DID
11 Autodial 221 17 Autodial to 224
13 Autodial 222 19 Autodial to 225
15 Autodial 223 21 Autodial to 226
01 DND Target Line 06 Conference
02 Transfer 07 Last No. Redial
03 Call Forward 08 Intercom
04 Pick-Up 09 Intercom
05 Page-General 10 Handsfree
11
13
15
01
02
03
04
05
17
19
21
06
07
08
09
10
Default button assignments 425
Business Communications Manager 3.6 Programming Operations Guide
Model 7208 button defaults
The default button assignments for the model 7208 telephones depend on the template applied.
Figure 132 Model 7208 button mapping
Model 7100 telephone button defaults
Model 7100 telephones are basic-function telephones with a single-line display. For all templates
assigned to 7100 telephones, the one programmable button defaults to Last Number Redial.
This telephone cannot use features that require a speaker, such as Page.
Note: The default Page button activates the External Page option (FEATURE 62).
Model 7208 default button mapping
PBX Btn # DID
Pick-Up 01 Target line
Transfer 02 Transfer
Last No. Redial 03 Last No. Redial
Page-General 04 Page-General
Conference 05 Conference
Intercom 06 Intercom
Intercom 07 Intercom
Handsfree 08 Handsfree
01
02
03
04
05
06
07
08
426 Default button assignments
P0609326 1.1
Model 7000 telephone button defaults*
Figure 133 Model 7000 button mapping
This basic-function telephone has four programmable
memory keys (Figure 133) which default to the
features shown in the table below. This telephone has
no display and does not support features that require
a speaker or a display.
* Only available in limited markets.
T7406 Business Series Terminal button defaults
Figure 134 T7406 button defaults
The BST T7406 cordless handset is based on the T7316
telephone button numbering. However, the T7406 handset
only has six memory buttons. These buttons map to
specific T7316 button numbers: 01, 02, 03, 07, 08, 09.
Ensure that when you fill out the DN record, which shows
24 buttons for the T7316 telephone, that you only program
these buttons. The handset can access any system features
except for features that require a speaker, such as
handsfree.
7000 button defaults
PBX DID Btn #
Last Number Redial 1
Call Forward 2
Transfer 3
Conference/Transfer 4
T7406 lower button defaults
Btn # PBX DID Btn # PBX/DID
01 DND Target line 07 Last No. Redial
02 Transfer 08 Intercom
03 Call Forward 09 Intercom
1
2
3
4
01
02
03
07
08
09
Default button assignments 427
Business Communications Manager 3.6 Programming Operations Guide
IP telephone button defaults
The i20XX models have fewer programmable buttons than the T7316 or T7316E, but they have
access to a feature menu through the Services key (FEATURE *900) that greatly expands quick
access to call features. Additionally, IP telephones support the hot desking feature, which allows
the user to transfer telephone settings from one IP telephone to another to allow mobility without
needing to relocate the physical telephone.
Both the features menu configuration and hot desking password reset are described in the IP
Telephony Configuration Guide, which describes how to configure these telephones to the system.
The IP Telephony Configuration Guide also describes how to move the telephones without losing
voice mails, how to set the time zone, and how to change the feature labels that appear beside the
keys next to the telephone display. The Telephony Features Handbook has a section that describes
how to use Hot desking and the Services features list.
Model 2004 IP telephone and 2050 Software Phone button defaults
The 2004 telephone and the 2050 Software Phone have six memory buttons beside a display that
provides soft labels for the buttons. These telephones also have six other buttons that can be
programmed as memory buttons without display.
Figure 135 Models 2004/2050 default button
programming
i2004 default button assignment
Btn # PBX DID
01 Call Forward Line XXX
02 Conference/Transfer
03 Last # Redial
04 Page - General
05 Intercom
06 Intercom
07 Blank
08 Voicemail login
09 Express Messaging
10 Service menu
11 Blank
12 Blank
01
02
03
04
05
06
11 12
07 08 09 10
428 Default button assignments
P0609326 1.1
Model 2002 IP telephone button defaults
The model 2002 has four memory buttons beside a display that provides soft labels for the buttons.
This telephone also has five other programmable buttons with no display.
Figure 136 Model 2002 default
button assignment
2001 IP telephone button defaults
Figure 137 Model 2001 default button formatting
The model 2001 is a simple version of the IP
telephone. None of the programmable buttons have
indicator displays, so all incoming calls must be set
to ring only. The figure shows the positions of the
three programmable buttons and which button
number corresponds to each of the three buttons.
Although two intercom lines are assigned to the
telephone, there is no visible indicator of the lines,
but a light at the top of the telephone blinks. The user
presses the Hold key to toggle between two active
calls, or to put one call on hold to make a second
call.
Handsfree and mute are not available, since this
telephone does not have an external speaker. It also
does not support a headset. The only indicator on the
telephone is the message waiting indicator (MWI) lamp.
i2002 default button mapping
Btn # PBX DID
01 Call Forward Line XXX
02 Conference/Transfer
03 Intercom
04 Intercom
05 Blank
06 Voicemail login
07 Express Messaging
08 Service menu
09 Blank
01
02
03
04
06 07 05
08 09
Feature
Display menu
commands
Directional
Services
(programmable)
Mail box in
(programmable)
Goodbye (Release)
Hold
Ringing call
(programmable)
01
02
03
Default button assignments 429
Business Communications Manager 3.6 Programming Operations Guide
Model 2001 feature buttons:
• Four display buttons appear under the telephone display screen. The first button defaults to act as
the Feature button (green button). The other buttons provide access to menu commands that
appear on the display, as with the other types of telephones on the system.
• The IP telephone Features list is accessible through the button that defaults to Services
(FEATURE *900). This button can be programmed to another feature.
• One of the buttons defaults to the voice mail login (FEATURE 981). This program can be
programmed to another feature, such as the dial string for a remote voice mail system.
• The Hold and Goodbye (release) features are automatically programmed above the Ringing call
button, which is also programmable. The Ringing call button (FEATURE 807) provides call
send and receive access, allows users to toggle between two calls using the Hold key, and is
required if the Conference feature is allowed on the telephone.
• The telephone has an additional five hidden button assignments that can be programmed with
Answer DNs or SWCA assignments. All assignments on the virtual buttons are ring-only.
SWCA calls are accessed by using the feature code for each assigned button (“Parking and
retrieving calls on SWCA keys” on page 467.)
• There are only two directional buttons (Up and Down) on this telephone. These buttons allow
you to scroll through the Features list, which is access through the Services button or by
entering FEATURE *900.
2001 default button mapping Hidden button assignments:
Btn # PBX DID Btn # PBX DID
01 Ringing Call (F807) 04* Blank
02 IP Services List (F*900) 05* Blank
03 Voice message access (F981) 06* Blank
07* Blank
08* Blank
* These buttons only support Answer
DNs or SWCA controls.
430 Default button assignments
P0609326 1.1
NetVision telephones
The NetVision telephone uses a display menu or feature code entry to access features. However,
line assignments (intercom) and SWCA key assignments need to be entered into the button
programming page on the DN record for these handsets for the feature to be active, even though
the handsets do not have physical line or memory buttons.
Once the SWCA keys are assigned, the user enters the SWCA codes from the menu or enters the
codes on the handset dial pad to access the SWCA keys. Refer to the Telephony Features
Handbook for a detailed description of using SWCA keys.
NetVision default button configuration
Default Button # Default Button #
SWCA 521 01 SWCA 526 06
SWCA 522 02 SWCA 527 07
SWCA 523 03 SWCA 528 08
SWCA 524 04 Intercom 09
SWCA 525 05 Intercom 10
Default button assignments 431
Business Communications Manager 3.6 Programming Operations Guide
M7324(N) button defaults
Button mapping for the Nortel M7324(N) telephone is unique because this telephone has a
different layout and more buttons than the other telephone types. Lines assigned to this telephone
will first try to assign to button 01. If that button is not available, the line will assign to the next
available button, scanning down the left button row, and then down the right button row.
Note: If there are no buttons available, the lines will still assign to the telephone, but they will
have no appearance on the telephone, so ensure that these lines are configured to ring.
The table below shows the button assignment template for the M7324(N) telephone.
Note: The M7324N telephone has the 24 buttons lined up in three rows of eight buttons. Refer to
the second figure below. This telephone is available in market profiles that do not support the
M7324 telephone.
Figure 138 M7324N defaults
M7324(N) telephone default button assignment
Button # PBX DID
01 Blank Target line
02 Blank Blank
03-12 Blank
13 Call Forward
14 Speed Dial
15 Last Number Redial
16 Saved Number
17 Conference/Transfer
18 Transfer
19 DND
20 Pickup
21 Voice Call
22 Intercom
23 Intercom
24 Handsfree/Mute
01
02
03
04
05
06
11
07
08
09
10
12
13
14
15
16
17
18
23
19
20
21
22
24
11
09
10
12
13
14
15
16
17
18
23
19
20
21
22
24
01
02
03
04
05
06
07
08
432 Configuring user speed dialing
P0609326 1.1
Configuring user speed dialing
Speed dial numbers allow users to dial out a number with fewer button presses than dialing out the
entire dial string.
User speed dial codes can be assigned to telephones using the following procedure.
1Click the key beside the telephone DN if you are not already in the DN record for the
telephone to which you want to assign the user speed dial.
2Click the key beside User preferences.
3Click the User speed dial heading.
4Click the Add button, located above the navigation tree.
The Add User speed dials screen appears.
Figure 139 Add a user speed dial code to a telephone
5In the Speed dial # box, type a user speed dial code, from 71 to 94.
6Click Save.
7Click the key beside User speed dial.
8Click the Speed Dial # XX heading you just created.
A DN XXX Speed Dial # XX screen appears.
Figure 140 Entering call parameters for a user speed dial
9Use the information in the following table to set the speed dial number and route for the speed
dial code.
Configuring user speed dialing 433
Business Communications Manager 3.6 Programming Operations Guide
Entering user speed dials at the telephone
Users can add, change, or assign a memory button for user speed dials during button programming
or at the telephone.
Press FEATURE *4 to add or change speed dials.
Press FEATURE *3 to add a speed dial to a memory button.
Refer to the Telephony Features Handbook for information about telephone operations for speed
dials.
Table 95 User speed dial settings
Setting Values Description
External # <external phone number> Enter the number the telephone will automatically dial when the user
speed dial code is entered.
Remember to include the access codes for the route you choose.
Facility Use prime line
Use line
Pool
Use routing table
Select the route you want the dialed number to take out of your system.
Note: Any line numbers or line pool codes that you specify must be
assigned to the telephone where the code is entered.
If you choose prime line, a prime line must be assigned to the telephone
where the code is entered.
Refer to “Configuring line access” on page 393.
434 Setting up CAP stations
P0609326 1.1
Setting up CAP stations
A CAP (Central Access Point) station acts as a central answering and monitoring point for a group
or a business. You can configure quick dial numbers that allow the person at this station to monitor
and answer call traffic into the group.
If you program the CAP to be an enhanced CAP (eCAP), lines, hunt group appearances, and
multiple target line appearances can also be moved to the module. Note: Only T7316E/eKIM
configurations support Hunt group appearances and multiple target line appearances.
This section includes this information:
•“Configuring CAP/KIM assignment” on page 436
•“Configuring a CAP or KIM module” on page 438
•“Programming CAP/KIM buttons” on page 438
•“Cold starting the KIM to erase programming” on page 440
Only two styles of telephones can be configured as CAP stations, with the addition of extra
modules.
• The T7324(N) telephones connect to CAP(N) modules to provide auto dial or features. If this
configuration is programmed to be an eCAP, it can also support line appearances.
Note: International note: (N) refers to the version of the CAP module and M7324 telephone that
is available to operations who cannot use the standard M-series terminals.
• The T7316E BST telephones connect to KIM (Key Indicator Module) modules to provide
autodial buttons, system-wide call appearance (SWCA) buttons, and feature programming. If
this configuration is programmed as an eCAP, it can also support extra lines, Hunt Group
indicators and multiple target line appearances.
Figure 141 T7316E with KIM
T7316E with
one KIM
Setting up CAP stations 435
Business Communications Manager 3.6 Programming Operations Guide
Figure 142 T7324 with CAP
You can configure a total of 12 CAP stations on a Business Communications Manager using the
CAP/KIM assignment setting. Modules that have been configured like this will be referred to as
eCAPs and eKIMs.
Note: If you do not use CAP/KIM assignment to designate a T7324(N)/CAP(N) or
T7316E/KIM as a CAP station, there is no set limit to the number of these combinations that you
can have on your system, resources permitting. However, you cannot assign lines or Hunt group
indicators (T7316E/KIM) to the CAP or KIM modules unless the CAP stations have been assigned
under CAP/KIM assignment.
If the T7316E/KIM is not configured under CAP/KIM assignment, the KIM module is known as
an OKIM. This combination allows you to add additional direct dial keys or features to a T7316E.
You can add up to nine KIM modules to a T7316E if they remain as OKIMs.
Use CAP stations to:
• monitor the busy/not busy and Do not disturb status of system telephones
• answer external calls on up to 120 lines on a CAP and 112 lines on a KIM, and extend calls to
other Business Communications Manager telephones
• send up to 30 messages to other Business Communications Manager telephones
• provide extra memory buttons for the M7324(N) and T7316E telephones
M7324 with
one CAP
Not shown: M7324N with CAPN
436 Setting up CAP stations
P0609326 1.1
Configuring CAP/KIM assignment
Follow these steps to create CAP stations:
1Ensure that the telephone you want to use for a CAP station is configured and working.
2Ensure that the CAP/KIM module has been installed on the appropriate telephone.
Refer to the installation user card that came with the module, if in doubt.
3In the Unified Manager, click on the keys beside Services, Telephony Services, and General
Settings
4Click on the key beside CAP/KIM assignment.
5Click the CAP you want to program (CAP/KIM 1 to CAP/KIM 12).
The CAP # window appears.
Figure 143 CAP/KIM assignment, CAP/KIM 1 screen
6Type the DN for the M7324 or T7316E telephone that you want to designate as a CAP station.
7Click on the next CAP/KIM to add another CAP station, or click elsewhere on the navigation
tree to save the setting.
TIPS: If a CAP(N) module (or modules) is relocated with the M7324(N) telephone, the
settings are retained.
Setting up CAP stations 437
Business Communications Manager 3.6 Programming Operations Guide
CAP/KIM notes:
• A station auxiliary power supply (SAPS) is required for M7324 telephones that have one or
more CAP modules attached.
• A SAPs is not required for T7316E telephones attached to four or fewer KIMs. If the KIMs are
designated as eKIMS, you can only attach a maximum of four modules to a T7316E telephone.
If the KIMS are designated as OKIMs, you can attach up to nine modules to the T7316E. You
must add a SAPS if more than four KIMs are added to the T7316E. Note also that the line loop
to the CAP cannot be greater than 304.8 m (1000 feet).
• If a CAP/KIM module is relocated with the telephone, the settings are retained.
• If you replace an M7324+eCAP with a T7316E+eKIM, only the line assignments will be copied
to the new telephone, but not to the eKIM. The telephone programming will revert to the default
settings for other buttons. If you move an OKIM from one T7316E to another, the KIM will
retain memory button programming. However, if you move an eKIM from one T7316E to
another, programming will not follow.
Monitoring telephones with the CAP or KIM module
The indicators beside internal autodial buttons on your CAP module show the status of Norstar
telephones. KIM modules have a more graphic set of icons that indicate various call states. Refer
to the Telephony Features Handbook for details about KIM icons.
Warning: ECAP programming issue on cold start reboot
If you do a Backup/Cold Start/Restore sequence on your Business Communications
Manager, button programming on an ECAP module is lost and the lines assigned to those
buttons are assigned to the buttons on the M7324 telephone. They replace any existing
programming on the M7324. If there are no more buttons to assign lines to, the system still
assign the lines without appearances, and they will ring when a call comes in on that line.
To correct the issue, go into the DN records for the telephone and the CAP programming
records, and reenter the correct programming.
438 Setting up CAP stations
P0609326 1.1
Configuring a CAP or KIM module
If the telephone/module set is programmed as a CAP station, you can move lines onto the module
using FEATURE *81 on the telephone. Refer to the Telephony Features Handbook for detailed
information about moving lines. You can also reassign Hunt group designators to the KIM module
by using the same feature.
You can also force lines onto the CAP/KIM by entering more lines than the telephone buttons can
support. Extra lines automatically flow over to the module, but they flow sequentially, starting on
the top left at button 01. Also, they overwrite any existing programming on the KIM, except
existing line or hunt group (KIM) assignments.
Any of the buttons on your CAP/KIM module that do not have assigned lines can be programmed
to dial internal or external numbers automatically, or to access a feature. Refer to Programming
CAP/KIM buttons.
Programming CAP/KIM buttons
Designating features or autodial numbers to the eCAP/eKIM buttons can be performed using the
CAP/KIM button programming heading located under User Preferences.
You cannot assign lines, target lines, or Hunt group indicators using button programming. This
must be performed through adding lines to the telephone (Assigning lines to telephones), and, for
hunt groups, configuring the telephone as a Hunt group member (“Adding a Hunt group member”
on page 579). These lines are then either moved to the modules or overflow to the module if the
telephone buttons cannot accommodate the number of lines.
To program the buttons, follow this procedure:
1If you are not already in the DN record, click the key beside the telephone DN where you want
to program button features.
2Click the key beside User preferences.
3Click the key beside CAP/KIM button programming.
The following figure shows the programming field for button 01.
Figure 144 Programming a CAP/KIM button.
4Click the button number that you want to program.
Setting up CAP stations 439
Business Communications Manager 3.6 Programming Operations Guide
5Use the information in the following table to configure button preferences.
Programming note: You cannot assign Hunt group DNs as an autodial button on the KIM
modules.
Table 96 CAP/KIM feature button programming choices
Setting Values Description
Type Blank
Feature
Internal autodial
External autodial
Choose the type of feature that you want to program on the
telephone buttons.
Blank means that nothing is programmed on the button.
New KIM modules, for instance have all blank buttons when
they are newly-installed.
Value field:
Feature <feature name> Use the arrow to choose the feature you want to program on
the button.
Internal autodial <Internal DN> Enter the DN number for the internal telephone you want the
telephone to dial by pressing this button.
External autodial Use prime line
Pool
Use routing table
Use line
Choose the route the telephone will dial through.
Prime line: the prime line assigned to the telephone
Pool X: one of the pools assigned to the telephone
Routing table: enter the destination code with the external
phone number
Use line X: one of the lines assigned to the telephone
External #
External autodial <dialing codes plus dialout
string>
Enter the complete dial sequence for the external call. This
sequence will depend on what you chose for the route in the
Value field.
440 Setting up CAP stations
P0609326 1.1
Cold starting the KIM to erase programming
If your KIM fails, or if you want to erase programming on the KIM, there are two types of cold
start.
Note: If you are cold starting an eKIM that has line or Hunt group assignments, the cold start will
erase current programming, and insert the line appearances, starting with the top, left button. After
all the line appearances are assigned to lines, the system adds target line or Hunt Group
appearances. If any buttons are left, the system populates the buttons with autodialer assignments.
Use FEATURE *0 to view button assignments after a cold start.
For both types of cold starts:
1Unplug and replug the T7316E line cable.
The telephone will restart and all the icons will flash. When the telephone icons stop flashing,
the KIM module icons start flashing.
2At this point, do one of the following:
• KIM single-module cold start
If you just want to cold start an individual module, on that
module, simultaneously press the two top and two bottom
buttons on the lower button set, as shown in the diagram to the
left. The KIM displays a random pattern of icons as the KIM
resets.
•KIM multi-module cold start
If you want to cold start all the KIMs attached to your
telephone, simultaneously press the top two buttons on
the upper button set, and the bottom two buttons on the
lower button set, as shown in the diagram to the right.
Programming restrictions for DNs 441
Business Communications Manager 3.6 Programming Operations Guide
Programming restrictions for DNs
The Restrictions settings prevent callers from making certain kinds of calls from a specific
telephone or from lines that are available at the telephone. You can also restrict some features.
You can copy the restriction settings you program on one telephone to other telephones.
TIPS: Remote access: Users dialing in from an external source are given a COS password to gain
access to the system. When you define these passwords, you also define a specific set of
restrictions for each password. For example, you may have a group password that provides general
internal access only, however, you may have an individual password that is assigned to a top
executive that has fewer restrictions that allow internal and external calls through the system.
Refer to “Using COS passwords” on page 296.
This section includes information about:
•“Defining telephone dialing restrictions” on page 442
•“Setting restriction schedules for telephones” on page 443
•“Defining line/set restrictions” on page 444
Figure 145 Telephone-based dialing restrictions, menu
442 Programming restrictions for DNs
P0609326 1.1
Defining telephone dialing restrictions
Set restrictions allow you to assign a restriction filter to a telephone to prevent certain numbers
from being dialed from that telephone and prevent the use of some features.
Follow these steps to create or change set restrictions:
1If you are not already in the DN record, click the key beside the telephone DN for which you
want to assign set restrictions.
2Click the key beside Restrictions.
3Click on Set restrictions.
In the right frame a list of general restriction settings appears.
Figure 146 General restrictions for telephones
4Use the information in the table below to configure telephone restrictions.
Table 97 Telephone restriction fields
Setting Values Description
Set lock None
Partial
Full
Choose the option that sets the amount of programming and customizing the
user can do with this telephone.
None allows access to all features.
Partial prevents:
• programming autodial buttons
• programming user speed dial
numbers
• programming feature buttons
• moving line buttons
• changing the display language
• changing dialing modes (Automatic,
Pre-, and Standard Dial)
• using Voice Call Deny
• saving a number with Saved
Number Redial
Full restricts all the Partial settings,
plus:
• changing background music
• changing Privacy
• changing Do Not Disturb
• using Ring Again
• using Call Forward all calls
• using Send Message
• using Trunk Answer
• activating Services
Allow last number Y or N Allow or disallow access to the Last Number Redial feature.
Allow saved number Y or N Allow or disallow access to the Saved Number Redial feature.
Allow link Y or N Allow or disallow access to the Link feature, which is a host signaling option.
Programming restrictions for DNs 443
Business Communications Manager 3.6 Programming Operations Guide
ISDN terminals/cordless handsets notes:
• Set lock is not supported.
• Allowed last number redial is supported on some handsets. Refer to the user manual for your
telephone.
• Allowed saved number redial is not supported
• Allow link is supported on some sets. Refer to the user manual for your telephone.
Setting restriction schedules for telephones
You can assign a different restriction filter for normal service and for each of six other schedules.
See “Defining service schedules” on page 489 for more information about the schedules.
Follow these steps to configure Set Restriction schedules:
1If you are not already in the DN record, click the key beside the telephone DN for which you
want to assign set restrictions schedules.
2Click on the keys beside Restrictions, Set restrictions, Schedules.
3Click on the schedule you want to program. For example, Evening.
Figure 147 Defining set restrictions for the Night schedule
4In the Use filter box, type in the number of the restriction filter you want to assign to the
telephone.
Refer to the table below for a list of default settings.
For example, if you enter a set of restrictions for filter 11, the restrictions will automatically apply
for the Night schedule.
Table 98 Schedule filter defaults
Schedule
Restriction
filter (defaults) Schedule
Restriction
filter (defaults)
Normal 02 Schedule 4 00
Schedule 1 (Night) 11 Schedule 5 00
Schedule 2 (Evening) 12 Schedule 6 00
Schedule 3 (Lunch) 13
444 Programming restrictions for DNs
P0609326 1.1
Defining line/set restrictions
The Line/set restrictions settings allow you to assign a restriction filter to a specific line for
outgoing calls at a specific telephone. This type of filter replaces any line or set restriction filters
that can otherwise apply. Line/set restrictions restrict the numbers the user can dial on a line, but
only from that telephone. The same line on another telephone can have different restrictions.
You can apply a different line restriction for normal service and for each of the six schedules.
Follow these steps to configure Line/set restrictions settings:
1If you are not already in the DN record, click the key beside the telephone DN for which you
want to assign line/set restrictions.
2Click on the keys beside Restrictions, Line/set restrictions.
3Click the key beside the Line number you want to configure.
The list of schedules expands on the navigation tree.
4Click the schedule name that you want to configure.
For example, select Night. The Night schedule window appears.
Figure 148 Defining Line/set restrictions for line 001, Night schedule
5In the Use filter box, choose None or Filter:
If you choose Filter:, enter the number you want to assign as the Line/set restriction for this
schedule and press the Enter key. There are no default Line/set restrictions.
TIPS: You can apply a maximum of 255 line/set restrictions to lines at telephones.
If you assign a Line/set restriction to a line at a particular telephone, it overrides any line
restrictions or telephone restrictions that might otherwise apply.
If no Line/set restrictions are defined, the system checks the numbers dialed against the
telephone restrictions and the line restrictions, if either of these are defined.
The numbers dialed can be rejected by either restriction.
Configuring telco features 445
Business Communications Manager 3.6 Programming Operations Guide
Configuring telco features
The Telco features heading allows you to program how the Business Communications Manager
works with the public network or other outside features and services to supply Call Display.
Figure 149 DN Telco Features fields
You can copy the Telco features settings you program on one telephone to other telephones.
Follow these steps to configure Telco features settings:
1If you are not already in the DN record, click the key beside the telephone DN for which you
want to assign telco features.
2Click on Telco features.
3Use the information in the following table to configure Telco features.
Table 99 Telco features settings
Setting Values Description
First display Name
Number
Line
Determine what call display information appears first.
This feature depends on which services you subscribe to. Call
Display information may contain the name of the caller, the number
of the caller, the name of the line in your Business Communications
Manager system that the call is on, or all. For each telephone, you
can determine what information displays first.
Tips: The Call Information feature displays and toggles between the name and line number
for Call Display information.
Unknown number appears on the display if the information is not available from your
telephone company.
You may see Private number on the display if the caller blocks that information.
Alpha tagging: If you are using the alpha tagging feature, choose Name. Refer to “Using
alpha tagging for name display” on page 455.
Auto called ID Y or N Select whether you want to see the extension number and name of
the telephone you call on your display.
The Auto called ID set for target lines is the same telephone that
has an appearance on that target line.
Set log space <amount of space
remaining on the log>
This setting indicates the amount of space that the user has to store
call log items for the telephone. Default: 20.
446 Voice Mail settings
P0609326 1.1
DECT handsets note: DECT handsets display numbers for incoming calls from outside the local
network, and displays the telephone name for incoming calls from internal sets.
Voice Mail settings
Systems with voice mail have an additional screen that can be used to change the display and
outdial for the voice mailbox for each telephone.
Note: This screen is generated when you use the Add Users Wizard to configure DNs. The DN
must appear under the Active DNs heading before this screen appears.
1Click on the keys beside Services, Telephony Services, System DNs, Active set DNs.
2Click on the DN you want to set voice mail parameters for (DNXXX).
The Voice Mail screen appears in the right frame.
3Use the information in the following table to change the Voice Mail display features.
Deleting a mailbox
If you want to delete the mailbox for this DN: On the top menu, click Configuration and select
Delete.
Available log space
(read only)
<total amount of log
space that is
available>
This setting indicates the total amount of space available for call
logging on the system.
Table 100 DN voice mail settings
Setting Values Description
Last name <alphanumeric> Last name of the person who owns the mailbox
First name <alphanumeric> First name of the person who owns the mailbox.
Display in directory Yes or No Indicates whether this name will display in the company directory.
Outdial type None, Line, Pool,
Route
Indicates how the outdial occurs to reach the mailbox.
Hint: If your voice mail system is physically attached to another
system on the network, you need to indicate an external path (line,
pool, or route).
Table 99 Telco features settings (Continued)
Setting Values Description
Digital telephones DN record matrices 447
Business Communications Manager 3.6 Programming Operations Guide
Digital telephones DN record matrices
Transfer the following information to a spreadsheet and fill out the values for each telephone you
provision.
Table 101 DN equipment identification
Name or location DN type/Model BLF CAP ATA Port No.
Default DN
(max. 7 digits)
Companion
ISDN/DECT
Model (digital and IP sets only) M7324(N) M7310/T7316 (T7406) M7208(/T7208
M7100/T7100 i2004/i2050 i2002
T7316E IPWl (NetVision) CAP(N)
i2001 Other (ATA, 7000, BST doorphone)
Control set (default is start DN)
Call log passwords
Table 102 General and Line access settings for DNs
Line Access
Prime Line None
I/C
Line # __
Pool ____
Line pool access
___ (A-O) or PRI ___
Intercom Keys 0 1 2 3 4 5
6 7 8
Answer DNs Enter DNs of telephones to be
answered and
circle Answer type:
AR = Appear&Ring
A = Appear only
OLI# None
#
Appearances
(target lines)
#
Line assignment
List three- digit line
number and circle line
assignment.
AR = Appear&Ring
A = Appear only
R = Ring only
blank = Unassigned
001 A R
002 A R
_ _ _ A R
_ _ _ A R
_ _ _ A R
_ _ _ A R
_ _ _ A R
Caller ID set
(target lines/
analog CLID lines)
YN
Vmsg set Y N
448 Digital telephones DN record matrices
P0609326 1.1
Table 103 Capabilities
Telephone DN
Capabilities
DND on Busy Y N Priority call Y N
Handsfree Auto Std None Auto hold Y N
Aux. ringer Y N
HF answerback Y N Allow redirect Y N
Pickup grp 1234 56789 None Redirect ring Y N
Page zone 1 2 3 4 5 6 None Keep DN alive Y N
Paging Y N Receive short tones Y N
D-Dial Set1 Set __ None SM Supervisor Y N
Auto hold for incoming page Y N
Call Forward ATA settings
Fwd no answer None
to:
ATA answer timer 3 5 7 10
Fwd delay 2 3 4 6 10 ATA use On site Off site
Fwd on busy None
to:
Msg indicate None Tone Lamp
Hotline Intrusion
None Protect lvl None Low Med High
Internal Internal #
External Facility Prime Pool ____ Use Routing Table External #
Table 104 User preferences
DNs: (max. 7 digits)
Model Call log opt’ns Log all calls...
No autologging...
No one answered...
Unanswered by me...
Dialing opt’ns Standard dial/Pre-dial Display cntrst 1 2 3 4 5 6 7 8 9
Language Ring type 1 2 3 4
Table 105 Button programming
Model
Button number Blank External Autodial Internal Autodial Feature
External #:
Use Line:
Use Prime Line
Use Pool
Use Routing Table
DN
DN:
Digital telephones DN record matrices 449
Business Communications Manager 3.6 Programming Operations Guide
Table 106 User speed dial settings
Spd#
(71-94)
Speed dial number (max. 24 digits) Use prime line Pool code ____
Use line: ____ Use routing table
Table 107 Telephone (set) Restrictions
Restrn flt Restrn Default Overrides
(Number) (Value) (Number) (Value)
00 No restrictions
(cannot be changed)
01 01 0
02 1 001 1800
002 1877
003 1888
03 911 001 911
04 411
05 976
06 1976
07 1•••976
08 1900
09 1•••900
10 5551212
02-99 . . .
Restrn flt Restrn nn Override
(01-99) # (two digits) Restriction (max. 15 #) # (three digits) Overrides (max. 16 #)
Set lock None/ Partial /Full
Allow last number Y N
Allow saved number Y N
Allow link Y N
450 Digital telephones DN record matrices
P0609326 1.1
Table 108 Telephone restriction schedules and line/set restrictions
Sets: (max. 7 digits)
Names: (max. 7 char.)
Set restriction schedules Line/set restrictions
Filters
Normal 02
Night 11
Evening 12
Lunch 13
Sched 4 00
Sched 5 00
Sched 6 00
02,
11,
12,
13,
00,
00,
00,
Normal None
Night None
Evening None
Lunch None
Sched 4 None
Sched 5 None
Sched 6 None
Table 109 DN record, Telco features
Telephone DN Auto Called ID
names: Set log space
First display Name/ Number/ Line Available log space
451
Business Communications Manager 3.6 Programming Operations Guide
Chapter 16
Configuring system settings
Some settings affect all telephones in the system, which have the specific feature. This section
describes the call-related Telephony services settings found under General Settings, System
Speed dial and Telco features headings.
TASKS:
Define system-wide settings (General settings) that affect how all the telephones in the
system use certain features, or perform in specific ways. Note that some of the General
headings listed below are discussed in other sections of the Programming Operations Guide
because they apply to a more specific process.
Define system speed dial numbers. Also use these assignments to apply alpha tagging.
“Configuring system speed dial numbers” on page 475
Define a system external voice mail system. Also, define ONN codes for lines that require
them to allow the name and number blocking feature. “Setting system telco features” on page
478
General settings
Business name “Programming Business name display”, defines the screen where you
enter the banner name that displays as part of the outgoing Name,
Number and Line display.
Feature settings “Programming Feature settings” on page 457 deals with configuring:
• hold/call parked features:
—“Background music”
—“On hold” (what caller hears while on a call)
—“Park mode”
—“Held line reminder”
— also under Feature settings is the heading that allows you
configure SWCA keys “Configuring system-wide call
appearance groups” on page 462
• transferred calls
—“Delayed Ring Transfer” (how long telephone will ring
before transferring to prime set or voice mail)
—“Directed pickup”
• handset volume (“Receiver volume”)
• page feature (“Page tone”)
• alarm recording/display (“Alarm set”)
• relocating wired telephones (“Set relocation”)
• message waiting indicator for analog telephones (“Message reply
enhancement”)
• answer DN alert levels (“Ans key”)
452
P0609326 1.1
• feature activation while on an active call (“Force auto/spd dial
over ic/conf”)
• incoming caller ID
—“Clid Match Length”
—“Maximum CLI per Line”
• system speed dial list size (“Maximum System Speed Dials”)
• system call log space (“Resetting call log space” on page 470).
Nortel IP terminals IP Telephony Configuration Guide
IP trunking The fields on the screen are described under “Configuring special IP
trunking interoperability” on page 541.
“Message Waiting Indication” on page 565 and Chapter 22,
“Configuring centralized voice mail (Chapter 22, “Configuring
centralized voice mail)
Allow outgoing caller name over the VoIP trunks (“Enabling/disabling
outgoing name display” on page 454)
Private Network ID and Zone ID are required for specific
interoperability situations between the Business Communications
Manager and systems that use Bandwidth Management, such as
Succession 1000/M.
Timers “Setting system timers” on page 472
Direct Dial “Creating Direct Dial sets” on page 313 (Chapter 12, “Configuring
outgoing calls)
CAP/KIM
assignment
“Setting up CAP stations” on page 434 (Chapter 15, “Configuring
DNs for system devices)
Dialing plan “Configuring the public and private dialing plans” on page 302
(Chapter 12, “Configuring outgoing calls)
Access codes “Understanding access codes” on page 309 (Chapter 12, “Configuring
outgoing calls)
Remote access
packages
“Configuring for remote access” on page 291 (Chapter 11,
“Controlling access into the system)
COS passwords “Using COS passwords” on page 296 (Chapter 11, “Controlling access
into the system)
DN lengths “Changing the DN length” on page 285 (Chapter 11, “Controlling
access into the system)
CbC limits “Configuring Call by Call services” on page 339 (Chapter 12,
“Configuring outgoing calls)
Release reasons “Define release reason levels” on page 474
Network Services Network Services: “Configuring private networks with SL-1 MCDN”
on page 519 and “Configuring ETSI QSIG and DPNSS network
services” on page 543 (Chapter 20, “Configuring private networks
with SL-1 MCDN and Chapter 21, “Configuring ETSI QSIG and
DPNSS network services)
Network name display 453
Business Communications Manager 3.6 Programming Operations Guide
The following figure shows the headings discussed in this section in bold.
Figure 150 General Settings headings and fields
Network name display
Business Communications Manager displays the name of the calling party, when available, on
both Private or Public ISDN PRI interfaces. The displayed name can include the Receiving Calling
Name, Receiving Redirected Name, and/or Receiving Connected Name. Refer to “Receiving and
sending calling party name” on page 454.
If only a number is available for CLI on an incoming call, you can program a system speed dial in
such a way that a name displays when that number calls in. Refer to “Using alpha tagging for name
display” on page 455.
The outgoing name display consists of the Business name and the telephone name. Refer to
“Programming Business name display” on page 455.
The following table provides a list of the name/number display features and the list of ISDN
interfaces that support each feature.
Silent monitor “Setting up Silent Monitoring” on page 585 (Chapter 23, “Configuring
Hunt groups)
Table 110 Call features/interface list
Interface
Feature NI PRI
DMS
Custom PRI
SL-1
(MCDN) NI-BRI
ETSI Euro
(PRI/BRI) ETSI QSIG
Receiving Calling Name Supported Supported Supported Supported Supported
Receiving Redirected Name Supported Supported Supported
General settings (continued)
Release reasons
Network Services
Silent monitor
Access codes
Remote access packages
COS passwords
DN lengths
CbC limits
Release reasons
Network Services
Silent monitor
Hunt groups
Companion
Hospitality
Telco features
Voice message center numbers
ONN blocking
System speed dial
General settings
Business name
Feature settings
SWCA control
Call log space
Nortel IP terminals
IP trunking
Timers
Direct Dial
CAP/KIM assignment
Dialing plan
Access codes
Remote access packages
COS passwords
DN lengths
CbC limits
454 Network name display
P0609326 1.1
Note: Network Name Display is an optional feature that is available based on the interface you
subscribe to.
MCDN note: MCDN networks fully support name display features.
Receiving and sending calling party name
Network Name Display allows the name of an incoming PRI/BRI, analog with CLID, or VoIP
with MCDN call to appear on the Business Communications Manager telephone receiving the call.
Calling Party Name with status of Private can appear on the Called Party telephone as Private
name. If the incoming Calling Name is defined by the CO as a private name, then Private name
appears on the answering telephone. If the Calling Party Name is unavailable it can appear on the
Called Party telephone as Unknown name.
If the call is answered by a Hunt group, the hunt group name appears instead of the telephone
name in forming the connected name.
The Connected Name is a transient display that appears for approximately three seconds. The
Connected Name is sent only if the OLI is programmed (“Configuring line access” on page 393).
You can program both a public and private OLI. The system uses the one appropriate to the type of
call.
Network name display interactions
Calling and Connected Name information (if available) passes between trunks with Selective Line
Redirection (SLR). Only Calling Name information passes between trunks in cases where Direct
System Inward Access (DISA) results in tandeming of trunks.
Enabling/disabling outgoing name display
You can set up the trunks to disallow name display to be sent out on PRI, BRI, and VoIP trunks.
Use this for trunks where the connecting switch does not support outgoing line display. Default is
enabled (Y).
PRI lines: “Configuring the trunk module to line type” on page 131 (see the field “Send Name
Display” on page 134.) Can with set for PRI trunks with these protocols: SL-1, NI, DMS100,
DMS250, or PRI QSIG
Receiving Connected Name Supported Supported Supported
Sending Calling Party Name Supported Supported Supported Supported
Sending Connected Name Supported Supported Supported
Table 110 Call features/interface list
Interface
Feature NI PRI
DMS
Custom PRI
SL-1
(MCDN) NI-BRI
ETSI Euro
(PRI/BRI) ETSI QSIG
Network name display 455
Business Communications Manager 3.6 Programming Operations Guide
BRI loops: “Identifying BRI T-loops (ETSI, QSIG)” on page 271 (see the field “Send Name
Display (Type: QSIG trunks only)” on page 272). Can be set for T-loop and BRI-QSIG trunks.
VoIP trunks: The field for allowing outgoing name display for VoIP trunks, affecting all trunks,
is under Services, General settings, IP Trunking.
Programming Business name display
Nortel Networks recommends that you use a blank space for the last character of the Business
name to act as a separator between the Business name and telephone name.
Note, that if you leave this field blank, no name appears.
To program the Business Name:
1Click on the keys beside Services, Telephony services.
2Click on General settings.
3In the Business name box, type the Business name you want to appear on receiving
telephones (a maximum of eight characters).
4Other areas that you must programmed include:
•The OLI number. Refer to “Configuring line access” on page 393.
•Under Telco Features, the Auto Called ID must be set to Yes. Refer to “Configuring telco
features” on page 445.
Using alpha tagging for name display
You can configure your system to display a caller name for incoming lines that provide
number-only CLID, such as target lines and analog CLID lines.
Note: Lines that provide name and number CLID, such as PRI lines, use that name for display,
rather than the alpha tagging feature.
You use a combination of fields within the Unified Manager to set up this feature.
• To determine the name to display, you add a system speed dial for the number, entering a
display name. Refer to “Configuring system speed dial numbers” on page 475.
• You can increase the default number of system speed dials from 70 to 255 if you want to
provide an extensive CLID list. Refer to table entry: Maximum System Speed Dials on page
460.
• To determine how many digits of the dialed number and the system speed dial must match
before a name is displayed, you set the Clid match length setting. Refer to table entry: Clid
Match Length on page 460.
• In order for the telephone to display the name, it must have CLID name display (table entry:
Caller ID set on page 398) enabled for the assigned line, and First display must be set to
Name (table entry: First display on page 445).
456 Network name display
P0609326 1.1
Limitations:
• Due to system resource limitations, only 30 telephones can be assigned to provide alpha
tagging CLID per line. Refer to table entry: Maximum CLI per Line on page 460.
• If the incoming number only partially matches the CLID match length, no name displays.
• If the number matches more than one speed dial, which have different names, the telephone
displays the name of the first match.
• ISDN devices do not support the alpha tagging feature.
Programming Feature settings 457
Business Communications Manager 3.6 Programming Operations Guide
Programming Feature settings
The Feature settings heading allows you to program a number of features that apply to all
telephones connected to Business Communications Manager.
Follow these steps to define feature settings on a specific telephone:
1On the navigation tree, click on the keys beside Services, Telephony services, and
General settings.
2Click on Feature settings.
The Feature Settings screen appears in the right frame.
Figure 151 Feature settings screen
3Use the values in the following table to set the features you have on your system.
458 Programming Feature settings
P0609326 1.1
Table 111 Set feature values
Attribute Value Description
Background music Y or N Allows you to listen to music through your telephone speaker
after pressing FEATURE 86 on your telephone. A music
source must be connected to Business Communications
Manager or IP music must be configured.
Refer to “Background and on-hold music sourcing” on page
460.
On hold Tones
Music
Silence
Allows you to choose what a caller hears on an external line
when the line is put on hold.
Tones provides a periodic tone.
Music provides any signal from a source such as a radio
connected to Business Communications Manager or
streaming audio, using the IP Music feature. “Background and
on-hold music sourcing” on page 460
Silence provides no audio feedback.
Receiver volume Use sys volume
Use set volume
Allows you to specify if the volume level of a receiver or
headset returns to the system default level when a call ends or
is put on hold, or if it remains at the volume level set at the
individual telephone.
Park mode Lowest
Cycle
Allows you to determine how the system assigns a retrieval
code to parked calls.
Lowest, the system chooses the lowest code that is available
when the call is parked.
Cycle, the system will choose the codes in a sequence, from
lowest to highest, until all the codes have been used, then start
at the lowest code again.
Delayed Ring Transfer Off
After 1 ring
After 2 rings
After 3 rings
After 4 rings
After 6 rings
After 10 rings
Defines whether unanswered external calls are automatically
forwarded to a prime telephone after this timer expires.
You must assign a prime telephone for this feature to operate.
Refer to “Assigning Trunk/line data” on page 236.
Held line reminder Off
Immediate
After 30 seconds
After 60 seconds
After 90 seconds
After 120 seconds
After 150 seconds
After 180 seconds
Reminds you that an external call at your telephone is still on
Hold. You periodically hear two tones from your telephone until
you take the call off Hold.
Note: These tones can be heard by the caller.
Directed pickup Y or N Y (yes) allows anyone to answer any calls by specifying the
internal number (DN), where the call is ringing.
Directed pickup is useful when not all the telephones have the
same lines, but you want to allow co-workers to answer a call
on any external line.
Note: Do not confuse Directed pickup with the Group pickup
feature. Group pickup allows you to answer a call at any
telephone within a specific group without specifying the
internal number (DN) of the ringing telephone.
Page tone Y or N Y (yes) determines that a tone sounds before a page begins.
Programming Feature settings 459
Business Communications Manager 3.6 Programming Operations Guide
Alarm set None
DN: <number>
Allows you to assign a device on which alarm messages
appear when a problem has been detected in the system.
Alarms are recorded in the Windows NT event log.
Set relocation Y or N Activate Set relocation after you perform the telephone
installation and programming, for more flexibility in testing
equipment. This allows you to move any digital telephone to a
new location without losing the directory number, autodial
settings, personal speed dial codes, and any programming for
that telephone.
If you deactivate Set relocation while moving a telephone, the
internal number and programming data remain with the
physical port on Business Communications Manager. When
you connect the telephone somewhere else, it does not
receive the original programming. A telephone that is plugged
into the original jack would download the programming. If the
new telephone is a different model, it would download that part
of the programming that is the same for both models.
Message reply
enhancement
Y or N Y (yes) allows you to automatically deactivate the message
waiting indicator on analog telephones connected to an analog
station media bay module (ASM), if the reply call from the
analog telephone to the direct-dial telephone is answered. It
does not matter where the call is answered from by the user.
This feature also functions if the user invokes the Call pickup
feature to answer the reply call from the analog telephone. It
does not, however, work with the Retrieve parked call feature.
Tips Direct-dial telephones are the only telephones that can
send messages (using F1) to analog telephones connected to
an ASM. The direct-dial set must be the designated direct-dial
telephone for the analog telephone receiving a message.
Ans key Basic
Enhanced
Extended
The Answer key setting allows you to determine what types of
calls alert at a telephone that has answer DNs assigned.
Answer key changes do not apply to portables.
WARNING: Do not change the default setting (Basic) if you
have Call Center active on your system.
Refer to “Answer key levels” on page 461 for attributes of each
setting. Also refer to “Phantom DNs” on page 461.
Force auto/spd dial over ic/
conf
Y or N This feature allows you to determine if Auto and Speed dial
codes can be transmitted during an active call. This feature
works during either a one-to-one call, or during a conference
call.
If set to N: When the user presses a memory key for a speed
dial, the current call will automatically be put on Hold, and the
second call will be dialed.
If set to Y: When the user presses a programmed auto dial or
speed dial key, the system dials out the number while
maintaining the current call.
*Conference Tone Y or N This setting determines whether a conference tone is heard by
participants at the beginning of the conference.
*Not available in all region profiles.
Table 111 Set feature values (Continued)
Attribute Value Description
460 Programming Feature settings
P0609326 1.1
Background and on-hold music sourcing
If there is an music source connected to your system, you can listen to music through the speaker
on the telephone (FEATURE 86), and/or you can allow the music to be heard by callers with calls
on hold.
External source: The Business Communications Manager allows you to attach an external music
source to the hardware. Refer to the hardware installation guides for details about connecting the
source.
IP music: On systems running BCM version 3.5 or newer software, you can use the IP music
feature to configure a list of .wav or .au files to use as background music and music on hold. Refer
to Chapter 25, “Configuring the music source,” on page 601.
NetVision note: NetVision telephones do not allow this feature. Attempting to invoke the feature
will produce an error message on the display.
*Network Callback Timer <XX seconds> This timeout value determines when a transfer attempt will
stop and then attempt a retry of the transfer.
*Not available in all region profiles.
Clid Match Length None, <3-8> Set this number to the number of digits that you want an
incoming number and a system speed dial number to match
before displaying a name on the telephone receiving the call.
If you choose None, the feature is disabled.
Note: Number matching starts from the end of the dial string.
Refer to “Using alpha tagging for name display” on page 455.
Maximum CLI per Line 30 (read-only) This setting indicates the maximum number of telephones that
will display CLID simultaneously for an incoming call.
Maximum System Speed
Dials
70 or 255 Determine how many system speed dials you want to be able
to assign.
If you plan to use an extensive alpha tagging list, choose the
255 setting.
Refer to “Using alpha tagging for name display” on page 455
and “Configuring system speed dial numbers” on page 475.
Warning: According to U.S. copyright law, a license can be required from the American
Society of Composers, Authors and Publishers or a similar organization if radio or TV
broadcasts are transmitted through the Background Music feature of this
telecommunication system.
Nortel Networks hereby disclaims any liability occurring as a result of failure to obtain a
license.
Table 111 Set feature values (Continued)
Attribute Value Description
Programming Feature settings 461
Business Communications Manager 3.6 Programming Operations Guide
Answer key levels
The following table shows what functions are provided by each level of the answer key settings.
The Xs indicate the call types which will ring at answer DN telephones.
Overflow routing note: This feature is only supported on Answer DN telephones when systems
are set to Enhanced or Extended settings.
Hunt group overflow DN note: Ensure that a DN used for Hunt group overflow is not part of the
hunt group if it has answer DNs for the hunt group members. Answer key must also be set to
Extended.
Portable handset note: Answer Key settings do not affect NetVision, DECT, or Companion
handsets.
Phantom DNs
A Phantom DN is a DN record for a telephone that does not physically exist. You can assign lines
to the telephone that can be programmed to Appear and Ring. This allows you to assign an Answer
key from the non-existent telephone to an existing telephone. This might be used in the case where
a customer number has been changed, but the number still gets used. Rather than assign a
telephone to the line, you can create a phantom DN and assign an Answer key to an active
telephone.
Table 112 Answer keys
Answer keys Basic Enhanced* Extended*
Prime set call capture X
Overflow call routing calls X X
Call forwarded calls X
Ringing service calls X
Callbacks X
Blind transferred calls X X
Other answer key calls
Priority calls
Voice calls
All other calls X X X
*Call Center warning: If you assign Answer DNs to Call Center telephones, ensure that your system
Answer key is set to Basic.
462 Configuring system-wide call appearance groups
P0609326 1.1
Configuring system-wide call appearance groups
These sections describe the system wide call appearance (SWCA) feature in detail:
•“Programming SWCA controls for your system” on page 463
•“NetVision telephone interactions with SWCA keys” on page 466
•“How SWCA works in a call group” on page 466
•“Parking and retrieving calls on SWCA keys” on page 467
•“Call interactions with SWCA controls” on page 469
When you use the SWCA feature, your system gains extended flexibility in making and answering
calls between telephones within the system.
Note: Your telephone must have auto hold enabled if you want to use SWCA lines so that an
active call automatically gets placed on Hold if the user answers a second call. You must also
ensure that a Call Park code has been assigned (“Understanding access codes” on page 309), and
that a Park timeout has been specified (“Setting system timers” on page 472).
There are 16 SWCA codes that can be assigned to buttons when the telephone is being
programmed. Buttons are programmed under Services, Telephony services, System DNs,
DN<group DN>, User preferences, Button programming. They can also be assigned by the
user at the telephone, using the button programming feature code (FEATURE *3) and feature
codes FEATURE *521 to FEATURE *536. Usually these buttons are programmed onto buttons
that have a display icon.
You also can assign SWCA codes to a Key Interface Module (KIM) Refer to “Programming CAP/
KIM buttons” on page 438.
Telephones do not need to have SWCA buttons defined to retrieve or park SWCA calls. The
feature codes can be entered directly onto the handset to retrieve or park the calls.
Finding SWCA calls
These three feature codes allow you to navigate through the SWCA codes and current calls parked
on SWCA keys. These codes only work for telephones that have SWCA keys defined, and only
search across the range of codes that are assigned for that telephone.
FEATURE *520 searches for the next available SWCA code. If the system finds an available
code, the call is associated with the code and parked. If no code is available, the call remains active
on the current telephone, and unassigned to any SWCA button. If the call was already associated
with a SWCA code, the call is simply reparked on that code.
FEATURE *537 retrieves the oldest SWCA call. The call becomes active on the telephone that
invoked the code, and the indicator on all other telephones becomes solid.
FEATURE *538 retrieves the most recent SWCA call. The call becomes active on the
telephone that invoked the code, and the indicator on all other telephones becomes solid.
Configuring system-wide call appearance groups 463
Business Communications Manager 3.6 Programming Operations Guide
Programming SWCA controls for your system
This section describes the screen where SWCA controls are defined for the SWCA feature.
On this screen, you need to determine two things:
• You need to determine how calls will be assigned to SWCA keys, and whether you want
intercom (I/C) calls to be treated in the same way.
• As well, you need to determine if using the Hold button will interact with the SWCA features
and with intercom calls, and how.
Follow these steps to set the SWCA controls for your system:
1On the navigation tree, click on the keys beside Services, Telephony Services, General
Settings.
2Click on Access codes.
Figure 152 Checking for Park prefix
3Ensure that Park prefix has a number beside it. If this access code is set to None, SWCA keys
will not work.
4On the navigation tree, click on the keys beside Services, Telephony Services,
General Settings, and Feature settings.
5Click on SWCA Controls.
The SWCA Controls screen appears in the right frame.
464 Configuring system-wide call appearance groups
P0609326 1.1
Figure 153 Setting SWCA controls
6Use the values in the following table to set the SWCA controls.
Table 113 SWCA controls
Attribute/Value Description
Associate SWCA key to call
Manually - while parked
Manually - life of call
Automatically - life of call
Choose how a call will be parked on a SWCA key.
Manually - while parked: The user either presses a free SWCA key on the
telephone, or dials the feature code for a free key. Once the call is retrieved, it is
unassigned from the SWCA key.
Manually - life of call: The user either presses a free SWCA key on the telephone, or
dials the feature code for a free key. When the call is retrieved, it remains assigned
to the SWCA key. The key is freed only after the call is terminated.
Automatically - life of call: When a call is answered, it will automatically be assigned
to a free SWCA key, starting with the lowest available number. When the call is
retrieved, it remains assigned to the SWCA key. The key is freed when the call is
terminated.
Include I/C calls when auto associating
Y or N
Decide if you want intercom calls to automatically park on
SWCA keys.
If you choose Y (yes) ...
Associate SWCA key to call must be set to Automatically - Life of call for this
feature to work.
When the user makes a call using the intercom button, the call automatically
associates with a free SWCA key, and remains assigned for the duration of the
call.
If you choose N (no) ...
The user must manually assign an intercom call to a SWCA key.
The call will otherwise behave by the rules of the choice made for Associate
SWCA key to call.
Configuring system-wide call appearance groups 465
Business Communications Manager 3.6 Programming Operations Guide
SWCA notes:
Refer to “Programming telephone buttons” on page 419 for details about programming the
memory buttons in each DN record.
• A telephone must either have a line appearance of the call or a free intercom button to be able
to retrieve a parked SWCA call.
• The number of SWCAs that can be assigned will depend on available programmable buttons
on the telephone.
• Companion and DECT cordless telephones do not have programmable buttons and cannot
have programmed SWCAs.
Invoke SWCA parking by Hold
Y or N
Choose whether calls that are put on hold will automatically
assign to a SWCA key.
If you choose Y (yes) ...
When the user presses Hold, the system attempts to repark the call on the
current SWCA key assigned to the call, or on a free SWCA key programmed on
the telephone.
If no SWCA is currently associated with the call (Automatically - life of call is not
turned on), and there is no free SWCA key to assign to the call, the call remains
on Hold on the line it came in on. Note: In this case, the call is not available to
other telephones in the group until it can be assigned to a SWCA key or unless
they have the same line appearance as the held call.
If you choose N (no) ...
There is no interaction with SWCA keys. The call remains on Hold on the line it
came in on and is not available to other telephones in the SWCA group unless
the user manually assigns the call to a SWCA key or unless those telephones
have the same line appearance as the held call.
Include I/C calls when invoking by Hold
Y or N
Choose whether intercom calls put on Hold will automatically
assign to a SWCA key.
If you choose Y (yes) ...
Invoke SWCA parking by Hold must be set to Yes to activate this feature.
When the user makes an intercom call, and puts it on Hold, the call works the
same ways as described in Invoke SWCA parking by Hold, Yes.
If you choose N (no) ...
Intercom calls will be held on the local line, regardless of what you chose in
Invoke SWCA parking by Hold.
If the intercom call was assigned to a SWCA key automatically, you can press
the SWCA key to repark the call and make it available to other telephones in the
group.
If you manually assign the intercom call to a SWCA key, the call is automatically
parked, and it becomes available to the rest of the group.
Table 113 SWCA controls (Continued)
Attribute/Value Description
466 Configuring system-wide call appearance groups
P0609326 1.1
NetVision telephone interactions with SWCA keys
For NetVision handsets that do not have physical programmable buttons you can program the
three SWCA search codes onto the feature menu through the NetVision Phone Administrator
(NVPA). Refer to the NetVision Phone Administrator Guide for details.
SWCA park and retrieve codes must then be assigned under User Preferences, Button
Programming on the DN record for the handset to provide the search codes with a range of local
SWCA codes from which to park and retrieve calls. Users can also park and retrieve calls using
SWCA codes that are not assigned to the handset, by manually entering that code on the handset
using the FCT/Feature sequence. Refer to the NetVision Feature Card for details about using the
FCT menu Feature listing.
How SWCA works in a call group
The SWCA feature displays call appearances on any telephones in the system which have buttons
with displays assigned for the same SWCA answer keys.
If you want to assign sets of SWCA answer keys to specific call groups, the same buttons on each
telephone in a group should be programmed with the same SWCA feature code, to allow for
consistent service across the group.
When calls are parked on a SWCA key, the call can be answered by anyone in the group.
• A solid indicator means that someone has control of the call.
• A blinking indicator means the call is parked and can be answered by anyone in the group.
The following two figures show how the indicators change, depending on the state of the call.
Figure 154 SWCA indicators, incoming call from a line (auto SWCA association is on)
Call from line 1 is answered on
set 221 and automatically
associated to a SWCA.
Call is parked on the SWCA key.
line indicator disappears and the
SWCA indicator flashes on all
group sets.
Call is retrieved on set 222.
A solid indicator appears beside
Intercom and the SWCA indicator
becomes solid on all telephones.
SWCA1 SWCA4
SWCA5
SWCA6
Intercom
Intercom
SWCA2
SWCA3
Set 221
Line 1
Line 2
Line 3
Line 4
SWCA1 SWCA4
SWCA5
SWCA6
Intercom
Intercom
SWCA2
SWCA3
Set 222
Line 3
Line 4
SWCA1 SWCA4
SWCA5
SWCA6
Intercom
Intercom
SWCA2
SWCA3
Set 222
Configuring system-wide call appearance groups 467
Business Communications Manager 3.6 Programming Operations Guide
Figure 155 SWCA indicators, incoming call from an intercom (auto SWCA association for intercom is on)
Transferring calls between SWCA groups
Calls can still be transferred between groups. If a call received at one group seems more
appropriate for a different group, the user manually enters a SWCA code that applies to the other
group. Once the call successfully transfers, it is dropped from the SWCA key of the first group.
If the call needs to be handled by a telephone without SWCA key assignments, the call can be left
parked on the original associated SWCA key. The user who wants to take the call then dials the
SWCA feature code for the call. At this point, the call is dropped from the SWCA key on all
telephones. If the call needs to be assigned back to the group, the user manually enters a SWCA
code for the group to repark the call.
Parking and retrieving calls on SWCA keys
The system administrator determines whether calls automatically associate with free SWCA keys,
or whether the user must manually assign the call, either by pressing a SWCA key, by dialing a
SWCA code, or by pressing the Hold button (refer to “Hold” on page 469).
The system settings also determine if the call is associated with the SWCA key for the duration of
the call or only while the call is parked on the SWCA key.
Manually associating a call
On the M/T-series telephones and the IP i-series telephones, there are three ways of manually
associating a call to a SWCA key. Note that in all three cases, once the call is parked, the call must
be retrieved to make it active again.
1If the telephone has assigned SWCA keys, press one of the keys that has no indicator showing.
2Enter a SWCA dial code on the dialpad. If the telephone has a key programmed for that code,
a flashing indicator will appear beside the button.
3Enter FEATURE *520 and allow the system to automatically assign the call to one of the
defined SWCA keys on your telephone.
Call is answered and
automatically associated to a
SWCA.
Call is parked on the SWCA.
Intercom indicator disappears and
the SWCA indicator flashes.
Call is retrieved.
A solid indicator appears beside
Intercom and the SWCA indicator
becomes solid on all telephones.
Line 1
Line 2
SWCA1
SWCA4
SWCA5
SWCA6
Intercom
Intercom
SWCA2
SWCA3
Line 1
Line 2
SWCA1 SWCA4
SWCA5
SWCA6
Intercom
Intercom
SWCA2
SWCA3
Line 1
Line 2
SWCA1 SWCA4
SWCA5
SWCA6
Intercom
Intercom
SWCA2
SWCA3
468 Configuring system-wide call appearance groups
P0609326 1.1
Parking a call to a SWCA key
If a call is manually assigned to an SWCA key, the call automatically goes into park mode.
If a call is automatically assigned to an SWCA key when it is answered, you have three choices for
parking the call:
1Press the SWCA key the call is assigned to. A flashing indicator fill appear beside the button.
2Enter a SWCA dial code on the dialpad. If the telephone has a key programmed for that code,
a flashing indicator will appear beside the button.
3Enter FEATURE *520 and allow the system to automatically assign the call to one of the
defined SWCA keys on your telephone, although, not necessarily the same SWCA it was
originally assigned to.
Retrieving a parked call from a SWCA key
You can only retrieve a call if your telephone has an intercom (I/C) button that is free. Refer to
“How SWCA works in a call group” on page 466.
There are four ways to retrieve a parked SWCA call:
1Press a SWCA key beside any flashing indicator.
2Dial the SWCA code that you know has a call parked on it. (FEATURE *521 to
FEATURE *536)
3Dial FEATURE *537 to retrieve the oldest parked call on your telephone.
4Dial FEATURE *538 to retrieve the most recently-parked call on your telephone.
Note: If you retrieve a call, and then repark it. That call becomes the most recently-parked
call, regardless of where it stood on the original stack of calls.
Internal calls: You cannot retrieve a SWCA call at a telephone that originated the intercom
call.
Configuring system-wide call appearance groups 469
Business Communications Manager 3.6 Programming Operations Guide
Call interactions with SWCA controls
Some call features have impacts when activated from or to a call assigned to a SWCA key.
Transferring calls If you transfer the call to a telephone that does not have the same SWCA
keys assigned, the call will disappear from the SWCA key on your
telephone once the call is transferred. If the call needs to be reassigned to
your group, the person who answered the call would manually enter a
SWCA control code that is assigned to your group, to repark the call on a
SWCA key.
Conference calls A conference call cannot be parked on a SWCA key.
You cannot conference a call that is parked on a SWCA key. To conference
such a call, you need to retrieve the call, and then put it on hold, and then
create the conference.
If a conference call is created from two SWCA-associated calls, and then a
transfer occurs by the conference master releasing, the remaining call
between the two conference slaves will move to being associated to only
the currently associated SWCA keys (if any) on the slaves.
If a conference call is created from two SWCA-associated external calls,
and then a transfer occurs by the conference master releasing, the
remaining call between the lines/trunks will not be associated with any
SWCA keys.
Hold Only active calls can be assigned to SWCA keys. If you want to move a
call on hold to a SWCA key, you must un-hold the call, and then assign the
call to a SWCA key.
Your system administrator can set a SWCA system control to force a call to
attempt to assign to a SWCA key when you press hold for an active call. If
the call cannot be assigned to a SWCA key, such as the case where all keys
are already assigned, the call remains on hold at your telephone.
Auto hold If auto hold is enabled for the telephone, and you press a SWCA key with a
parked call while you are still on an active call, the active call will
automatically be put on hold at your telephone, assuming that an intercom
resource is available for the call.
If auto hold is not enabled for the telephone, and you press a SWCA key
with a parked call while you are still on an active call, the active call gets
dropped.
You can change this setting at the telephone using FEATURE 73 to enable
the feature or FEATURE #73 to disable the feature. Or your system
administrator can change the setting through the Unified Manager under
Capabilities for each telephone.
470 Resetting call log space
P0609326 1.1
Resetting call log space
The Call log space heading allows you to reallocate the Call log space equally to all telephones in
your system.
To reset call log space, follow these steps:
1Click the keys beside Services, Telephony services, General settings, Feature settings.
2Click on Call log space.
3On the menu at the top, click Configuration.
4Click Reset logs.
A dialog appears.
5The following table explains the type of content for the two fields in the dialog box.
6Click OK.
A dialog box appears, warning you that all existing logs will be cleared if you reset logs.
Warning: Use this heading only if you want to allocate an equal amount of log space
to all the telephones in your system.
Reallocating Call log space may destroy Call log data at telephones that lose space.
There are 600 Call log spaces available in the system. There are no spaces allocated by
default. Changing the space allocation using Log defaults defines the log space
available to all telephones in the system.
Table 114 Call log options
Attribute Value Description
Space per log <three digits> Type a three-digit number, for example, 020, to give each set 20
spaces
# of sets with logs Read-only Lists the number of sets that have logs.
If you click OK on this dialog, these logs will be deleted.
Resetting call log space 471
Business Communications Manager 3.6 Programming Operations Guide
7Click OK to reallocate the log space and clear all user logs.
Click Cancel if you do not want to clear user logs. In this case, the call log space will not be
reallocated.
System features matrix
To help you identify your system feature settings, transfer the following information to a
spreadsheet and fill out the values.
Table 115 System features
Background music Y or N Set relocation Y or N
On hold Tones
Music
Silence
Message reply
enhancement
Y or N
Answer key Basic
Enhanced
Extended
Receiver volume Use sys volume
Use set volume
Park mode Lowest or Cycle Force auto/spd dial over
ic/conf
Y or N
Delayed Ring Transfer 1 2 3 4 6 10 Conference Tone Y or N
Held line reminder Off
30 60 90 120 150 180
seconds
Network Callback timer
Clid Match Length 3-8, None
Directed pickup Y or N Maximum CLI per line 30 (read-only)
Page tone Y or N Maximum System
Speed dial
70 or 255
Alarm set None
DN:
DN <control set>
Call log space
Space per log # of sets with logs
SWCA controls
Associate SWCA key to call Manually - while parked
Manually - life of call
Automatically - life of call
Include I/C calls when auto associating Y or N
Invoke SWCA parking by Hold Y or N
Include I/C calls when invoking by Hold Y or N
472 Setting system timers
P0609326 1.1
Setting system timers
The settings under Timers allows you to define a number of timed features for your Business
Communications Manager system. These settings apply to all telephones connected to the
Business Communications Manager system.
1Click the keys beside Services, Telephony Services, and General Settings.
2Click on Timers.
The Timers window appears in the right frame.
Figure 156 Setting system timers
3The possible settings are described in the following table.
Table 116 Timer values
Attribute Values Description
Camp timeout 30, 45, 60, 90,120, 150
or 180 seconds
Assign the number of seconds before an unanswered camped call returns
to the telephone that camped the call.
Park timeout 30, 45, 60, 90, 120, 150,
180, 300 or 600 seconds
Assign the number of seconds before a parked call on an external line
returns to the telephone which parked the call. This interval is used for
SWCA lines as well.
Page timeout 15, 30, 60, 120, 180,
300, 600 2700 seconds
Define the period of time after which the paging feature automatically
disconnects.
Transfer
callback
timeout
Off
after 3 rings
after 4 rings
after 5 rings
after 6 rings
after 12 rings
Specify the number of rings before a callback occurs on a transferred call.
You can estimate the delay in seconds if you multiply the number of rings
by six.
Note: This setting can affect transferred calls from voice mail and should
be configured accordingly.
Setting system timers 473
Business Communications Manager 3.6 Programming Operations Guide
Timers matrix
To help you identify your system timing settings, transfer the following information to a
spreadsheet and fill out the values.
Host delay 200, 400, 600, 800,
1000, 1200, 1400, 1600,
1800 or 2000
milliseconds
Assign the delay between the moment an outgoing line is selected to
make an external call (for example, by lifting the receiver off the telephone)
and the moment that Business Communications Manager sends dialed
digits or codes on the line.This ensures that a dial tone is present before
the dialing sequence is sent. Minimizing this delay provides faster access
to the requested features.
Link time 100, 200, 300, 400, 500,
600, 700, 800, 900 or
1000 milliseconds
Specify the duration of a signal required to access a feature through a
remote system.
The Link time depends on the requirements of the host switching system.
For example, to program external dialing through a Centrex system
requires a Link time of 400 ms.
Link is another name for recall or flash.
Table 117 Timer fields
Camp timeout Transfer callback timeout
Park timeout Host delay
Page timeout Link time
Table 116 Timer values (Continued)
474 Define release reason levels
P0609326 1.1
Define release reason levels
The Release reasons heading allows you to determine the level of system reporting you require
for released ISDN calls. You can choose to have no text, a simple explanation, or a detailed
explanation.
To set Release reasons, follow these steps:
1Click on the keys beside Services, Telephony services, and General settings.
2Click on Release reasons.
The Release Reasons screen appears.
3The following table lists the possible values for Release reasons.
Table 118 Release reason values
Attribute Values Description
None Default value No text will accompany a dropped call notification.
Simple Cause code:
Off
On
Off: no text is provided.
On: the code only is provided.
Note: If you select Simple text, you must turn off the Cause code.
This is for diagnostics purposes, only.
Detailed No settings A detailed explanation of the cause code is provided.
Configuring system speed dial numbers 475
Business Communications Manager 3.6 Programming Operations Guide
Configuring system speed dial numbers
The System speed dial heading accesses screens that allow you to assign speed dial codes to
external numbers that can be dialed from any telephone on the system. Examples of system speed
dials might include telephone numbers of regional sales offices within your organization or key
customers that you call frequently.
The Programming Records document contains a table where you can note all the codes you enter
so that you can provide copies to your users.
You have two choices about how many system speed dials you want to make available to the
system.
• The default is 70 speed dial codes from 01 to 70. This is the number of codes available in all
legacy software.
• If you have the number of speed dial codes set to 255, the codes are 001 to 255.
If you want to use alpha tagging (“Using alpha tagging for name display” on page 455), you
may need to increase the number of codes to allow for more matching possibilities for
incoming calls. For information about setting this the maximum speed dials for your system to
255, refer to table entry: Maximum System Speed Dials on page 460.
Speed dial codes can be programmed onto memory keys by the installer during button
programming. Refer to “Programming telephone buttons” on page 419. Also, each user can assign
speed dial codes to memory buttons directly on the telephone. Refer to the Telephony Features
Handbook and the Feature User Card for instructions about using memory keys.
These speed dial codes are the same for all users. You can also configure a set of codes specific to
a telephone using User speed dial programming when you program the DN for each set. Refer to
“Configuring user speed dialing” on page 432.
TASK: Set up the system so users can dial frequently-called numbers using two or three digits.
(“Assigning numbers to system speed dial codes” on page 476)
476 Configuring system speed dial numbers
P0609326 1.1
Assigning numbers to system speed dial codes
Follow these steps to create a speed dial code for quick-access to an external number:
1Click on the keys beside Services, Telephony services, and System speed dial.
2Click a Speed dial number (Speed dial # XXX).
Figure 157 Undefined speed dial screen
3In the External # box, type the telephone number (up to 24 digits), and then press Enter.
If this is a new speed dial, more fields appear after you press Enter.
Figure 158 Expanded speed dial screen
4Use the following table for the possible speed dial parameters.
Table 119 Release reason values
Attribute Values Description
Facility Use prime line
Use line:
Pool code
Use routing table
Select the route you want the dialed number to take out of your
system.
Note: Any lines or pool codes that you specify must be assigned to
the telephone where the code is entered.
If you choose prime line, a prime line must be assigned to the
telephone where the code is entered.
Refer to “Assigning line access” on page 394.
....
Speed dial # 070 or 255
Configuring system speed dial numbers 477
Business Communications Manager 3.6 Programming Operations Guide
System speed dial matrix
To help you organize your system speed dial information, transfer the following information to a
spreadsheet.
Display Digits
Name
Y or N
If N is selected:
<alphanumeric>
Y = the speed dial number displays
N = the name defined for the speed dial displays
In the Name field, enter the name you want to display for alpha
tagging.
Bypass restrictions N or Y N = the dialed number will use the line and set restrictions
Y = the dialed number will bypass any line and set restrictions
Caution: Resource issue:
Entering a large number of system speed dials at one time can impact system performance.
Therefore, it would be best to perform this activity during low-user periods, where
possible.
Table 120 System speed dial matrix
Speed dial #: External # Facility Display digits Bypass restr’n
Use prime line Pool code:___
Use routing tabl:___ Use Line: ___ YNYN
Table 119 Release reason values (Continued)
478 Setting system telco features
P0609326 1.1
Setting system telco features
The Telco features commands found under the General heading allow you to define settings for
voice message center numbers and outgoing name and number blocking (ONN).
Defining Voice Message Center numbers
If you subscribe to a voice message service outside your office, you can access it through your
Business Communications Manager system. You can specify what voice message center you use
for each external line that receives message waiting indication. This setting specifies the external
telephone numbers that the Message feature dials to retrieve voice messages.
Note: If you have an MCDN network link set up with a Meridian 1 voice mail service, for
example, you need to ensure that the number of the voice mail system is entered here, complete
with external dialing requirements.
1Click on the keys beside Services, Telephony services, and Telco features.
2Click on the key beside Voice message center numbers.
3Click the Center number you want to program. For example, Center 1.
The Center 1 screen appears.
Figure 159 Voice message center programming
4The following table explains the settings for the Center # screen.
Task:
• Set up voice message access and control strings (“Defining Voice Message Center numbers” on
page 478)
• Set up the method for blocking outgoing set identification (“Setting outgoing name and number
blocking” on page 479)
Table 121 Voice message center settings
Field Values Description
External # <phone number> Enter the telephone access number of the remote voice message system.
Message wait
indicate string
<string> indicates that the message center has a message in the mailbox.
This is a default NSI string for message waiting.
Setting system telco features 479
Business Communications Manager 3.6 Programming Operations Guide
5Repeat for each center you want to identify.
TIPS:
• A telephone does not show that external voice messages are waiting unless you enable VMSG
set for the lines assigned to each telephone under Line Assignment. Refer to table entry:
Vmsg set on page 399.
• Analog telephones connected to an ASM8+ on systems running BCM 3.6 or newer software
can receive message waiting indicators if the analog line supports CLID. MWI indicator
settings for analog telephones or for analog telephones attached to ATA2s, are set under the
ATA heading. Refer to “Determining analog settings” on page 412.
• You can program up to five voice message center numbers, but many systems require only
one.
Setting outgoing name and number blocking
When you activate Outgoing name and number blocking (ONN), a user presses FEATURE 819 to
block the outgoing name and number on a per-call basis. The system flags the call to the Central
Office (CO) so that the name and number is not sent to the person you call.
ETSI note: ETSI lines may use the Calling Line Information Restriction (CLIR) supplementary
service to provide this feature.
ETSI PRI lines do not use a VSC. The line always uses Suppression bit to invoke the CLIR
supplementary service.
Business Communications Manager alerts the CO by two methods. The method used depends on
the type of trunk involved in placing the outgoing call.
• Analog trunks use a dialing digit sequence called a Vertical Service Code (VSC). The VSC
differs from region to region and must be programmed. Analog trunks with both tone and
pulse dialing trunks can have separate VSCs. Refer to “Configuring ONN blocking service
codes” on page 480.
• PRI trunks have only one VSC. No specific system programming is required. See ETSI note,
above.
• BRI trunks can be set to either:
— provide ONN using a suppression bit, which provides a notice from the system to the
central office to withhold CLI.
— provide ONN using a VCS, which is dialed out in front of the dialed digits (optional on
ETSI trunks). Refer to “Configuring ONN blocking service codes” on page 480.
BRI trunk ONN settings are located under the loops settings. Refer to “Identifying BRI
T-loops (T1 profiles)” on page 267 or “Identifying BRI T-loops (ETSI, QSIG)” on page 271.
Message wait
cancellation string
<string> indicates that the voice messages have been retrieved.
This is a default NSI string for message waiting.
Table 121 Voice message center settings (Continued)
Field Values Description
480 Setting system telco features
P0609326 1.1
Programming note: Ensure that users who have access to this feature have telephones with valid
OLI numbers. Refer to “Assigning line access” on page 394.
Configuring ONN blocking service codes
Follow these steps to configure an ONN setting:
1Click on the keys beside Services, Telephony services, and Telco features.
2Click on ONN blocking.
Figure 160 ONN blocking parameters
3The following table explains the possible choices for ONN blocking.
Note: When ONN is active, set and set/line restrictions are ignored. The CO call back feature is
also disabled until the feature is cancelled.
Telco features matrix
To help you organize your voice message center information, transfer the following information to
a spreadsheet.
Table 122 ONN blocking settings
Field Values Description
Tone F78(0 to 9, *, #) For analog trunks, enter a digit or character to determine what code
the user will enter to activate this service.
Pulse F78(0 to 9, *, #) For digital trunks, except BRI, enter a digit or character to determine
what code the user will enter to activate this service.
BRI F78(0 to 9, *, #) For BRI trunks, enter a digit or character to determine what code the
user will enter to activate this service.
Table 123 Telco features matrix
Voice Message Center numbers ONN Blocking (F78)
VMsg center 1-5 Tone <blank>F780123456789*#
External Number Pulse <blank>F780123456789*#
Setting system telco features 481
Business Communications Manager 3.6 Programming Operations Guide
Message Wait Indication String BRI <blank>F780123456789*#
Message Wait Cancellation String
Table 123 Telco features matrix
482 Setting system telco features
P0609326 1.1
483
Business Communications Manager 3.6 Programming Operations Guide
Chapter 17
Configuring schedules
This section describes the headings where you configure system-wide schedules. The information
discussed in this chapter is found under the Telephony Services heading Scheduled services.
The following figure shows the Scheduled Services navigation tree headings:
Figure 161 Scheduled Services headings
Task:
• Understand how to activate and deactivate schedules from a control telephone
(“Turn services on and off” on page 484)
• Set up the common headings and times for the schedules
(“Defining common schedule settings” on page 485)
• Configure Ringing, Restriction, and Routing schedules.
(“Defining service schedules” on page 489)
• Define Service control password (“Defining the service control password” on page 485)
Services (cont’d)
Restriction service
Night
Service setting
Evening
Lunch
VoIP
Sched 5
Sched 6
Routing service
Schedules
Night
Service setting
Overflow
Evening
Lunch
Sched 4
Sched 5
Sched 6
Scheduled Services
Ringing service
Ring Groups
Ring Group 001-100
Sets (Add)
DN xxx
Schedules
Night
Service setting
Trunk answer
Extra dial set
Line Settings
Line xxx
Ring group
Aux ringer
Evening
Lunch
Sched 4
Sched 5
Sched 6
Services (cont’d)
Common settings
Service control
password
Schedule names
Schedule 0-6
Name
Schedule times
Monday-Sunday
Schedules
Night
Start time
Stop time
Evening
Lunch
Sched 4
Sched 5
Sched 6
484 Turn services on and off
P0609326 1.1
Turn services on and off
You can manage schedules from a control telephone using the feature codes shown in the table
below. This section provides step-by-step instructions for turning services on and off on one-line
and two-line display telephones.
1Enter the appropriate feature code from a control telephone.
2For the Restriction service or Routing service, you will be prompted for a Password.
Enter the Service Control Password.
Contact your system administrator for the current password if the default password does not
work. (Default: 23646).
3Access the schedule list, and choose the schedule:
Two-line display:
When a service is active, the control telephone display shows Services ON.
aPress LIST. The display shows the first active service and the schedule in use.
bIf there are several active services, press NEXT to view all of the services.
cPress OK to select the setting, or press QUIT to exit the feature
One-line display:
aPress FEATURE 870. The display shows the first active service.
bPress # to move through the active schedule.
cPress RELEASE to exit. Services that turn on automatically have an asterisk (*)
appearing before the name on the display. You cannot manually activate or cancel
scheduled services. However, you can override a schedule service by manually activating
another schedule.
To turn a service off, enter the appropriate feature code from a control telephone.
Table 124 Turning services on and off
On: FEATURE 871
Off: FEATURE #871
Controls Ringing service schedules.
When used at the direct dial telephone, it activates the alternate direct
dial telephone (extra dial telephone).
On: FEATURE 872
Off: FEATURE #872
Controls Restriction service schedules. This feature requires a service
control password. Refer to “Defining the service control password” on
page 485.
On: FEATURE 873
Off: FEATURE #873
Controls Routing service schedules. This feature requires a service
control password. Refer to “Defining the service control password” on
page 485.
Caution: Assigning a service as Normal is not the same as cancelling a service using a
feature code. If you assign the service as Normal, the Normal schedule version of a service
overrides any automatic schedule and remains until you manually cancel it. When you
cancel service by feature code, you return to the automatic schedule.
Defining common schedule settings 485
Business Communications Manager 3.6 Programming Operations Guide
Overriding services with a Control telephone
The control telephone can override services turned on and off according to a schedule by entering
a Services feature code, and then by selecting a different schedule. This override remains until
canceled. If you select a schedule with an asterisk (*), the next automatic service schedule comes
into effect at the programmed time.
Direct-dial telephone ringing service
Direct-dial calls to a direct-dial telephone ring at the extra dial telephone when you enter the
Ringing service feature code (FEATURE 871) at that direct dial telephone. The installer assigns
the extra dial telephone. Note that only the extra dial telephone is activated, not the actual Ringing
service (unless that direct-dial telephone is a control telephone).
Defining common schedule settings
The Common settings heading allows you to define the common names and times for the services
schedules. You also define the service control password under this heading.
•“Defining the service control password” on page 485
•“Changing schedule names” on page 486
•“Changing schedule times” on page 487
Defining the service control password
Use these steps to locate and confirm or change the password users will need to access the services
feature from a control telephone to change Restriction or Routing service settings.
1Click the keys beside Services, Telephony services, Scheduled services.
2Click on Common settings.
Figure 162 Entering the Service control password
3In the Service control password field, the default is set at 23646. You can change this, as
required.
!
Security note: Change the default password once you have your system set up and have
tested the services features. Keep the password in a safe place.
486 Defining common schedule settings
P0609326 1.1
Changing schedule names
Schedules have been given default names. However, if you change the purpose of your schedules,
you can also change the name to reflect this.
Use these steps if you want to change the name of a schedule.
1Click on the Common settings key and on the Schedule names key.
A list of seven schedule records displays.
Note: Schedule 0 is named Normal and cannot be changed. Schedule 1 to 6 have default names
which can be changed to meet your requirements.
2Click on the schedule for which you want to change the name.
Note: Schedule 0 (Normal) cannot be changed.

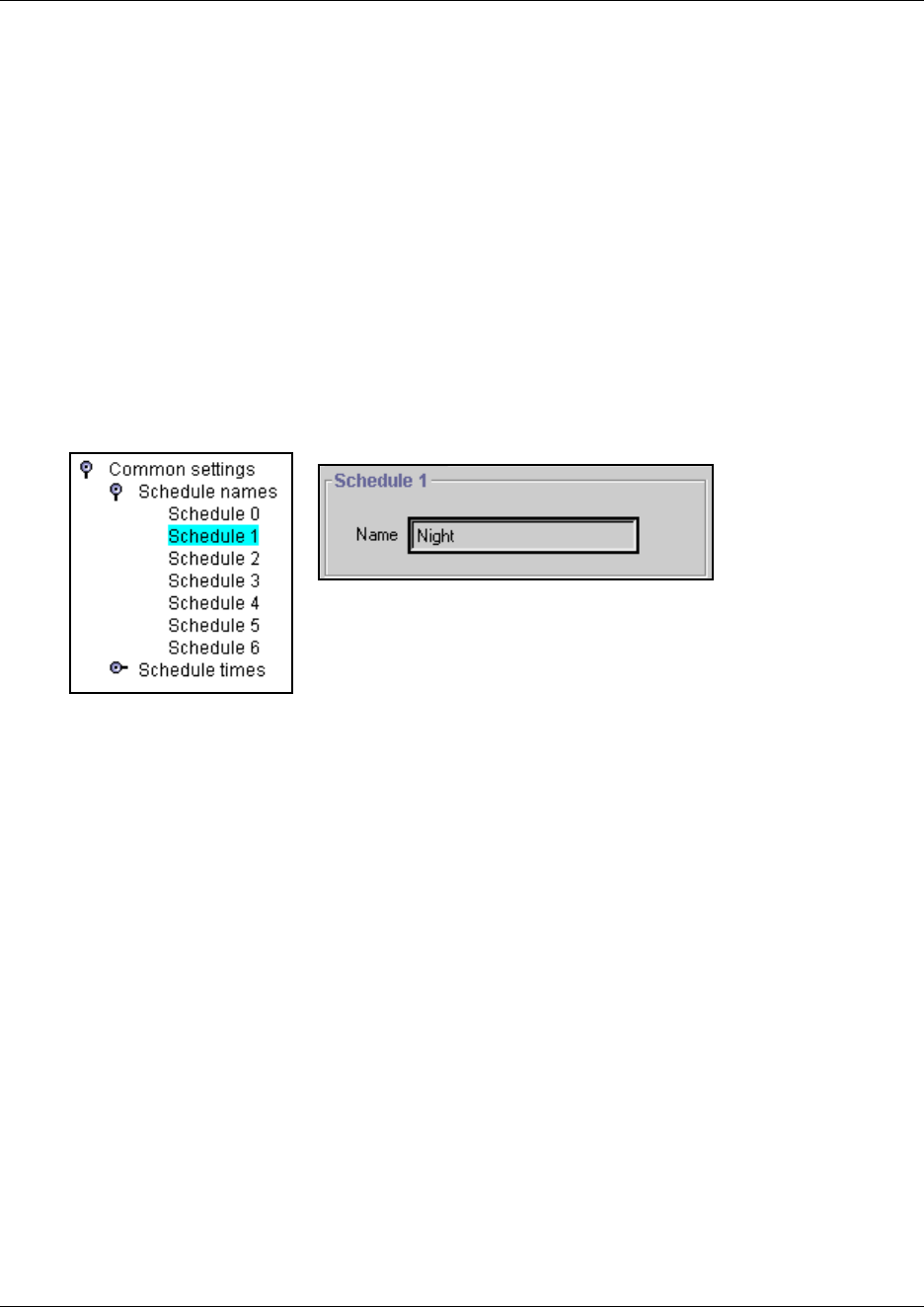

Figure 163 Entering schedule names
3Type in a new name for the schedule.
4Press <Tab> to save the change.
TIPS: Reserve a couple of schedules (i.e. 5, and 6) for alternate call routing.
An example: If you have specific lines for which you want to allow fallback to a specific route,
you must define a 24-hour schedule for the preferred lines destination code. To do this, you can
rename schedule 5, or 6 to PRIME, so that you know which schedule to use when you are
assigning the feature to telephones.
Defining common schedule settings 487
Business Communications Manager 3.6 Programming Operations Guide
Changing schedule times
Schedule start and stop times are set at times you are most likely to want each service to be active.
1Click the keys beside Services, Telephony services, and Scheduled services, and Schedule
times.
2Click the key beside the day you want to program (for example, Monday).
3Click the key beside Schedules.
The programming menu expands to display all the schedules.
4Click the schedule you want to program. The Day-Schedule window appears.
Figure 164 Entering schedule time parameters
5Type the start and stop times for each schedule on each day.
The following table provides a list of the default times for each schedule.
Table 125 Default schedule times
Schedule Start time Stop time Schedule Start time Stop time
Schedule 1: Night 23:00 07:00 Schedule 4: 00:00 00:00
Schedule 2: Evening 17:00 23:00 Schedule 5: 00:00 00:00
Schedule 3: Lunch 12:00 13:00 Schedule 6: 00:00 00:00
488 Defining common schedule settings
P0609326 1.1
About start and stop times
Here are some general rules about setting start and stop times:
• It is only necessary to program start and stop times for schedules that are activated
automatically.
• The time may be entered in either 12 or 24-hour format. If the display is in English, and the
hour entered is less than 13, the display prompts you to specify AM or PM.
• If you assign identical start and stop times for a schedule, for example, 04:00 start and 04:00
stop, the schedule is in effect all day. The only exception to this is a start and stop time of
00:00; in this case the schedule is off for the day.
• You may assign overlapping times. For example, if schedule 1 is assigned from 9:00 a.m. to
4:00 p.m. and schedule 2 is assigned from 1:00 p.m. to 5:00 p.m., then the start time of the
second schedule is treated as a stop time for the first schedule.
This is also true if two schedules have the same start time but different stop times. The stop
time of the shorter schedule is treated as the start time of the longer schedule.
• If one schedule starts and stops within the times of another schedule, the first service
temporarily ends when the second service starts. The first service then resumes when the
second service has ended.
• Some schedules start and stop at the same times each day: use COPY to copy the start and
stop times from one day to the next.
Warning: Start and stop times do not span days.
When you program a schedule to start in the evening and stop in the morning, it does not carry
over into the next day. For example, if you program Night service for Friday (22:00 to 6:00), the
system turns on Night service from midnight to 6 am on Friday, and then again from 10 p.m. to
midnight on Friday, as shown in the diagram below.
Friday schedule:
• Start time: 22:00
• Stop time: 06:00
Friday a.m. Friday p.m.
12123456789101112123456789101112
Defining service schedules 489
Business Communications Manager 3.6 Programming Operations Guide
Defining service schedules
The Scheduled services headings access records that allow you to define service by the time of
day and day of week for the following services:
•“Configuring ringing service” on page 490
•“Configuring restriction service” on page 493
•“Configuring routing service” on page 495
The headings found under “Defining common schedule settings” on page 485 allow you to
determine the schedule names and times for the scheduled services.
Note: To use scheduled services, you must define a control telephone for the telephone you want
to use to turn on schedules. Control sets are defined in the DN records under System DNs.
Each of the three services has six schedules that you can customize. The names and start/stop
times of schedules are the same for all services. For example, if a Monday schedule is set to run
the Night schedule from 18:00 to 24:00, it will run this schedule for all services that have Night
schedules set to Automatic, and which have been turned on at the control telephone.
For example, you may want to combine alternate call ringing with alternate dialing restrictions for
lunchtime, evenings, and weekends (Schedules 1, 2, and 3). Then you may want to run alternate
call routing using three separate schedules.
Once you have programmed the different services and schedules, you can turn each of the services
on separately. For example, the Night schedule might control both Ringing service and Restriction
service. But you can turn on just the Ringing service part of the Night schedule if you wish.
You can activate the services from the designated control telephone for each telephone and line in
your system. You can have one control telephone for the whole system, or different control
telephones for different telephones and lines.
If you want to have several services active at the same time, simply program them on for the same
schedule.
Note: To program services from a telephone, you require an access code. Refer to “Defining the
service control password” on page 485.
490 Configuring ringing service
P0609326 1.1
Configuring ringing service
At certain times or in certain situations, you may want additional telephones to ring for incoming
lines. The most common use of this feature is when a security desk telephone rings for incoming
lines after 5:00 p.m., a practice often called night service.
Each non-auto-answer and target line can be assigned a ringing group for each schedule. If no
schedule is set for ringing services, lines ring at any telephones that have the lines assigned.
Note: VoIP trunking lines and PRI lines are automatically set to auto-answer and, therefore,
require target lines. BRI lines that are set to auto-answer also ring at target lines. Therefore, by
specifying target lines in a ring group, all auto-answer lines can be forwarded to the telephone(s)
indicated.
You define ringing services with the following features:
•“Defining ring groups” on page 490
•“Defining ringing service schedules” on page 491
•“Assigning ringing groups to lines” on page 492
Defining ring groups
Ring groups allows you to define groups of extended ringing telephones. A group can be assigned
to any line for any of the schedules. You can define up to 100 ring groups with up to 30 telephones
for each ring group.
1Click the keys besides Services, Telephony services, Scheduled services, Ringing service,
and Ring groups.
A list of ring groups displays.
2Click the key beside the ring group you want to program. The subheading Sets appears.
3To add DNs, click on Sets, and then click the Add button, located at the top of the column.
4In the Add Sets window, type the DN of the set you want to assign to this ring group.
Figure 165 Adding a telephone to a ring group
... Ring group 100
Configuring ringing service 491
Business Communications Manager 3.6 Programming Operations Guide
TIPS: You can assign any telephone on the Business Communications Manager system to a
ring group. The assigned control telephone for each schedule is added to each ring group.
A telephone can belong to more than one ring group.
5Click Save to enter the DN.
Defining ringing service schedules
Use the following process to indicate how Ringing service should be activated for each of the
schedules:
1Click the keys beside Services, Telephony services, Scheduled services, Ringing service,
and Schedules.
2Click a schedule name (for example, Night). The window for that schedule appears.
Figure 166 Defining ring schedule parameters
3The following table shows the possible settings for each schedule day.
Table 126 Ringing group schedule values
Attribute Value Description
Service setting Off
Manual
Auto
Manual allows you to turn the service on and off at any time from a control
telephone. This setting overrides any automatically-running schedules.
Example: You may have a restriction service Night schedule that prevents
callers from making long distance calls. Since the Manual setting does not
recognize any timing schedules, you can turn this service on at any time and it
will be in effect immediately. To allow long distance calls, you would turn this
service off at the control telephone, or specify a different schedule that contains
a different set of restrictions.
Auto allows you to program a stop and start time for a service under the
Common Settings heading. These times are then automatically executed when
the service is active.
Example: If you want your evening calls to be routed through a different carrier,
you can create the timing for this on one of the spare schedules. You would then
find the same schedule under Routing Service and set it to automatic. When you
turn Routing Service on, and choose this schedule, the telephone will
automatically route all calls through the alternate carrier for the times specified.
Off prevents the service from being activated.
492 Configuring ringing service
P0609326 1.1
Assigning ringing groups to lines
Each line must be assigned a Ringing service for ring group and auxiliary ringer.
Note: If the lines are not set up yet, skip this step until you have defined all the lines.
1Within each ring schedule, click on the key beside Line settings to display the list of lines.
2Click on each line in turn, or a specific line you want to adjust.
Figure 167 Defining ring service schedule line settings
3The following table shows the possible settings for each schedule day.
Trunk answer Y or N Trunk answer allows you to answer, from any telephone, an external call that is
ringing at another telephone in your office if the Ringing Service is active on that
line at the time of the call. If the service is not active, you cannot answer the call.
This is useful if the other telephones are not assigned the same lines as the
telephone you are using to answer the call.
Note: You can change the Trunk Answer setting only if Ringing service is set to
Manual or Automatic.
Extra dial set None
DN <XX>
DN <control set>
The Extra dial set attribute allows you to assign an additional telephone to
receive calls for each schedule.
Note: The extra dial set is activated during a schedule by entering the Ringing
service feature code from the assigned direct-dial telephone. This does not
activate the Ringing service unless the direct-dial telephone is also a control set.
Refer also to “Creating Direct Dial sets” on page 313.
Doorphone note: Ensure that this DN does not belong to a doorphone.
Table 127 Ringing group schedule line values
Attribute Value Description
Ring group Ring group <XXX> Type in a ring group number (001-100) to choose a different ring group
assignment.
Only one ring group can be assigned to a line for each schedule. To combine
groups of ringing sets, you must create a new ring group which contains all
the sets you want to ring and assign it to the line.
Table 126 Ringing group schedule values (Continued)
Attribute Value Description
... Line 492
Configuring restriction service 493
Business Communications Manager 3.6 Programming Operations Guide
Configuring restriction service
Restriction service prevents a user from dialing some types of calls from a telephone or from lines
that are available at the telephone during the duration of the selected schedule. The installer
programs restrictions.
Use these commands to indicate how the alternate dialing restrictions become active for each
schedule.
1Ensure the correct scheduling has been set up for each telephone. (Services, Telephony
Services, System DNs, Active DNs, DN XXXX, Restrictions)
2Click the keys beside Services, Telephony Services, Scheduled services, and
Restriction service.
3Select the schedule you want to program, (for example, Night).
The schedule window appears.
Figure 168 Defining restriction service setting
4The following table shows the possible settings for each schedule day.
Aux ringer Y or N This variable indicates whether the auxiliary ringer (if installed) also rings
when Ringing service is on.
TIPS:
• The default ringing telephone is 221 (Start DN). This means that all lines
ring at telephone 221 when Ringing service is on.
• You can copy Ringing set and Auxiliary ringer programming from one line
to another.
• If you have an auxiliary ringer programmed to ring for calls on an external
line and you transfer a call on that line without announcing the transfer, the
auxiliary ringer will ring for the call transfer.
Table 127 Ringing group schedule line values (Continued)
Attribute Value Description
494 Configuring restriction service
P0609326 1.1
Programming note: This service requires the user to enter a service control password before it
can be accessed. Users obtain this password from their system coordinator. Refer to “Defining the
service control password” on page 485.
Notes about restriction service filters
These filters are assigned for both telephones and lines. If no restriction filter has been assigned for
a telephone or line for the schedule that you make active, then no restrictions will apply to that
telephone or line while the schedule is in effect.
Line filters apply to all telephones which have that line assigned.
However, a group of telephones can have different filters for the same schedule. Therefore, you
need to be aware of what services you are allowing or disallowing for all telephones assigned to
the control telephone you are using. If you are unsure, or want to change a filter for a telephone,
you must open a programming session on the Unified Manager and check the DN record for the
telephone. Refer to the Programming Operations Guide for details about setting up telephone
restrictions. For easier administration, you might consider making the filters the same for all
telephones connected to a control telephone, with the exception of the control telephone.
Table 128 Restriction schedule values
Attribute Value Description
Service setting Off
Auto
Manual
Off prevents the service from being activated.
Auto allows you to program a stop and start time for a service under the
Common Settings heading. These times are then automatically executed when
the service is active.
Example: If you want your evening calls to be routed through a different carrier,
you can create the timing for this on one of the spare schedules. You would then
find the same schedule under Routing Service and set it to automatic. When you
turn Routing Service on, and choose this schedule, the telephone will
automatically route all calls through the alternate carrier for the times specified.
Manual allows you to turn the service on and off at any time from a control
telephone. This setting overrides any automatically-running schedules.
Example: You may have a restriction service Night schedule that prevents
callers from making long distance calls. Since the Manual setting does not
recognize any timing schedules, you can turn this service on at any time and it
will be in effect immediately. To allow long distance calls, you would turn this
service off at the control telephone, or specify a different schedule that contains
a different set of restrictions.
Configuring routing service 495
Business Communications Manager 3.6 Programming Operations Guide
Configuring routing service
Routing service allows you to assign alternate routes to calls. You can take advantage of lower
costs available on selected routes for some days and at some times. You can also use this service to
set up overflow routing, to allow calls that come into line pools that have no available lines to be
answered through an alternate line pool. IP telephones use this service to route calls over a ground
line if the VoIP trunk signal is not strong enough to support a call.
Use these steps to activate routing tables for each of the schedules.
1Ensure the correct scheduling has been set up for each route. (Services, Telephony Services,
Call Routing, Destination Codes)
2Click the keys beside Services, Telephony services, Scheduled services, and
Routing service. Schedule names display.
3Select the schedule you want to program, for example, Night. The schedule window appears.
Figure 169 Defining routing service settings
4The following table shows the possible settings for each schedule day.
Table 129 Routing service schedule values
Attribute Value Description
Service setting Off
Auto
Manual
Manual allows you to turn the service on and off at any time from a control
telephone. This setting overrides any automatically-running schedules.
Example: You may have a restriction service Night schedule that prevents callers
from making long distance calls. Since the Manual setting does not recognize
any timing schedules, you can turn this service on at any time and it will be in
effect immediately. To allow long distance calls, you would turn this service off at
the control set, or specify a different schedule that contains a different set of
restrictions.
Auto allows you to program a stop and start time for a service under the
Common Settings heading. These times are then automatically executed when
the service is active.
Example: If you want your evening calls to be routed through a different carrier,
you can create the timing for this on one of the spare schedules. You would then
find the same schedule under Routing Service and set it to automatic. When you
turn Routing Service on, and choose this schedule, the telephone will
automatically route all calls through the alternate carrier for the times specified.
Off prevents the service from being activated.
496 Services matrix
P0609326 1.1
Programming note: This service requires the user to enter a service control password before it
can be accessed. Users obtain this password from their system coordinator. Refer to “Defining the
service control password” on page 485.
Services matrix
To help you with your services planning, transfer the following information to a spreadsheet and
fill out the values for each type of service.
Overflow routing Y or N If all the lines used by a route are busy when a call is made, you can program
Routing service to overflow to the route used for normal mode. If this happens,
the telephone sounds a warning tone and displays the message Expensive
route. The caller can then release the call to avoid the toll charges, or continue.
TIPS:
A schedule must be active for overflow routing to be in effect. Overflow routing is
not available in normal mode.
You must create an overflow route to be used with each destination code. In this
way, every route used with a scheduled mode that has overflow service must
have an alternate route in normal service.
Table 130 Ringing and Scheduling Services
Ringing Services Scheduling Services
Ring grp # Sets Schedule 1 2 3 4 5 6
Ctrl set: 221
Service setting Off Auto Manual
Trunk answer YN
ExtraDial 221
Line settings
Line # Ring group (name) Aux ringer
YN
Table 131 Restriction and Routing Services
Restriction Service Routing Service
Schedule 1 2 3 4 5 6 Schedule 1 2 3 4 5 6
Service setting Off Auto Manual Service setting Off Auto Manual
Overflow Y N
Table 129 Routing service schedule values (Continued)
Attribute Value Description
Services matrix 497
Business Communications Manager 3.6 Programming Operations Guide
Table 132 Common settings: Schedule Name
Common settings: Service control password
Schedule Name
Schedule 0 Normal Schedule 4 Sched 4
Schedule 1 Night Schedule 5 Sched 5
Schedule 2 Evening Schedule 6 Sched 6
Schedule 3 Lunch
Table 133 Common settings: Schedule times
Common settings: Service control password
Schedule Times
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
Sunday
Schedule:
0 (Normal)
1
2
3
4
5
6
Start time Stop time
498 Services matrix
P0609326 1.1
499
Business Communications Manager 3.6 Programming Operations Guide
Chapter 18
Configuring public networks
This section describes the ways of networking Business Communications Managers across a
public network. Different countries have different trunk types, therefore, these descriptions are
also region based. Refer to “Media bay module availability by region” on page 849 for more
information.
This section includes information about:
•“Simple networking” on page 499
•“Dialing plans for T1 lines” on page 501
•“Destination code numbering in a network” on page 502
•“Other programming that affects public networking” on page 503
These are the protocols that the Business Communications Manager supports for public
networking:
• PRI: ETSI Euro, NI, DMS100, DMS250, and 4ESS
• DASS2
• BRI: ETSI Euro, NI
•T1: Loop
TIPS: Most of the diagrams in this section use the BCM1000. The BCM400 and BCM200 can be
used in any of these situations, as well. Keep in mind that the BCM200 only supports two PECs,
and, therefore, has less processing capacity than the other two units. This affects both networking
and IP telephony functions.
Simple networking
In the simplest form of networking, the Business Communications Manager acts as a routing
station between a private network and the public network, as shown in the following figure.
Figure 170 Connection to a private network
In the above example, there are three types of callers:
Each type of caller has a specific method of accessing the other two systems.
Private Network Public Network
Business Communications Manager
T1 lines
Analog lines
PRI lines
E & M
PRI SL-1
500 Simple networking
P0609326 1.1
Callers using Business Communications Manager
These callers can:
• call directly to a specific telephone
• select an outgoing line to access a private network
• select an outgoing line to access features that are available on the private network
• select an outgoing central office line to access the public network
• use all of the Business Communications Manager features
Callers in the public network
These callers use the public lines to:
• call directly to one or more Business Communications Manager telephones
• call into Business Communications Manager and select an outgoing tie line to access a private
network
• call into Business Communications Manager and select an outgoing central office line to
access the public network
• call into Business Communications Manager and use remote features
Callers in the private network
These callers use private lines to:
• call directly to one or more Business Communications Manager telephones
• call into Business Communications Manager and select an outgoing tie line to access other
nodes in a private network
• call into Business Communications Manager and select an outgoing central office line to
access the public network
• call into Business Communications Manager and use remote features
Dialing plans for T1 lines 501
Business Communications Manager 3.6 Programming Operations Guide
Dialing plans for T1 lines
Business Communications Manager has a routing feature that allows you to set up a coordinated
dialing plan with other systems in the public network. The goal is to have a network-wide dialing
plan where all telephone numbers are unique and of a uniform length.
Typically, you use coordinated dialing plans with a network of systems with a three to seven digit
dialing access between them.
Any programming for routing must be carefully planned using tables. For more information about
routing and destination codes, see “Configuring call routing” on page 320.
This section deals with applying the programming in network situations.
•“Dialing plan using public lines”
•“Destination code numbering in a network” on page 502
Dialing plan using public lines
The following illustrations provide an example of how you can record dialing plan information in
a spreadsheet. The example shows dialing plan information for a Toronto system in a network of
three offices: Toronto, Halifax and Vancouver. Without routing, a Business Communications
Manager user in Toronto would have to select a line pool and dial 1-902-585-3027 to reach
extension 27 in Halifax (902). By creating a destination code of 30 and creating a route that uses
the proper line pool and dial out number, the user simply dials 3027. The same feature is available
for Vancouver (604).
In the column Dial out, P stands for pause, a host system signaling option. Press FEATURE 78 to
insert a 1.5-second pause in the dialing string.
Figure 171 Routing service record: use pool
Routing Services (Services: Routing Service)
Route # (000-999) Dialout (if required)
(max. 24 digits or characters)
Use Pool
100 1-2-902-585 A B C
101 1-2-902-585 A B C
102 1-2-604-645 A B C
103 1-2-604-645 A B C
Create unique
route number Specify dial out digits Route through Pool A
502 Dialing plans for T1 lines
P0609326 1.1
Figure 172 Routing service record: Destination code
Destination code numbering in a network
Because the system checks the initial digits of a call against the routing tables, each type of
internal or external call must begin with a unique pattern of digits. The following table gives a
sample plan for how initial digits are assigned in a network of systems with three-digit intercom
numbers.
In the table shown above, 4 is used as the initial digit for the coordinated dialing plan, but 5, or 6
can also be used for this purpose
TIPS: When programming a button to dial a Network number automatically (autodial), network
calls must be programmed as external autodial numbers, even though they resemble internal
extension numbers.
Routes generally define the path between the Business Communications Manager system and
another switch in the network, not other individual telephones on that switch.
Table 134 Destination code leading digits
Leading Digits Use
0 Network Direct Dial
221-253 Intercom calls
4 Coordinated Dialing Plan
5Unused
6 Unused
8Call Park Prefix
9 All PSTN Calls
Routing service (continued)
Dest code (Services: Routing Services: Dest Codes
Service Schedule Normal Schedule
DestCode
(max. 12 digits)
Use route
(001-999)
Absorb
Length
1sr route
(001-999)
Absorb
Length
2nd route
(001-999)
Absorb
Length
3rd route
(001-999)
Absorb
Length
30 100 0 000 All 000 All 000 All
31 101 0 000 All 000 All 000 All
32 102 0 000 All 000 All 000 All
33 103 0 000 All 000 All 000 All
Create unique code Specify which route to use
Add Destination code to
dialout out string
Other programming that affects public networking 503
Business Communications Manager 3.6 Programming Operations Guide
Other programming that affects public networking
Besides the line programming, these topics cover other areas that affect how calls are sent or
received over the public network.
•“Controlling access into the system” on page 283 (Public Received Number Length, Target
lines and remote access)
•“Configuring outgoing calls” on page 301 (dialing plans, access codes and routing, restriction
filters)
•“Assigning line access” on page 394 (Public OLI)
•“Network name display” on page 453
•“Setting outgoing name and number blocking” on page 479
504 Other programming that affects public networking
P0609326 1.1
505
Business Communications Manager 3.6 Programming Operations Guide
Chapter 19
Configuring private networks
This section describes the basic requirements for private networking Business Communications
Managers. As well, four simple private networks are described.
Private networking using the MCDN protocol is described in “Configuring private networks with
SL-1 MCDN” on page 519 and “Configuring ETSI QSIG and DPNSS network services” on page
543.
Different systems support different trunk types, depending on the market profile installed on the
system. The examples in this chapter are based on the trunks available for North American-based
profiles. Refer to “Media bay module availability by region” on page 849 for more information
about which trunks are support in which profile.
This section includes information about:
•“Private network programming parameters” on page 505
•“Using routing to create networking” on page 508
•“Using shared line pools to create a network” on page 512
•“PRI networking using Call-by-Call services” on page 515
TIPS: Most of the diagrams in this section use the BCM1000 base unit. The BCM400 and
BCM200 can be used in any of these situations, as well. Keep in mind that the BCM200 only
supports two PECs, and therefore, has less processing capacity than the other two units. This
affects both networking and IP telephony deployment.
Private network programming parameters
The following section provides an overview of the values in the system that affect private
networking, including:
•“Private networking protocols” on page 506
•“Keycode requirements” on page 506
•“Remote access to the network” on page 506
•“Lines used for networking” on page 507
•“Other programming that affects private networking” on page 507
506 Private network programming parameters
P0609326 1.1
Private networking protocols
These are the protocols that the Business Communications Manager supports for private
networking:
• PRI: ETSI QSIG, MCDN
• DPNSS
• BRI: ETSI QSIG
•T1: E&M
• VoIP trunks (Refer to the IP Telephony Configuration Guide for details)
Business Communications Manager systems can be networked together using Tie lines or E&M
connections. Larger networks, or networks that are geographically spread out, can be chained
together through faster PRI SL-1 connections or with voice over IP (VoIP) trunk lines. SL-1 lines
and VoIP trunks also offer the opportunity to use the MCDN protocol, which provides enhanced
trunking features and end-to-end user identification. If a Meridian 1 is part of the MCDN network,
the network can also provide centralized voice mail and auto attendant off the Meridian.
MCDN note: MCDN networking requires all nodes on the network to use a common Universal
Dialing plan (UDP) or a Coordinated Dialing Plan (CDP). Refer to “Configuring the public and
private dialing plans” on page 302 and “System numbering plans” on page 520.
Keycode requirements
Keycodes are required to activate the protocols that are used to create private networking,
including:
• PRI keycodes, if you are using PRI lines for your network
• IP trunks, if you want additional IP trunks
• an MCDN keycode, if you want to use the MCDN protocol between the systems
You must purchase and install these keycodes before you can create any of the networks described
in this chapter. Consult with your Nortel Networks distributor to ensure you order the correct
keycodes for the type of network you want to create.
Remote access to the network
Authorized users can access tie lines, central office lines, and Business Communications Manager
features from outside the system. Remote users accessing a private network configured over a
large geographical area, can potentially also place long-distance calls through the network and
avoid toll charges.
Note: You cannot program a Private DISA DN or Private Auto DN to a VoIP trunk, as they act as
auto-answer trunks from one private network to the next. However, you can configure VoIP line
pools with remote access packages so that callers can access telephones or the local PSTN on
remote nodes on a tandemed network that use VoIP trunks between systems.
Private network programming parameters 507
Business Communications Manager 3.6 Programming Operations Guide
Lines used for networking
External (trunk) lines provide the physical connection between Business Communications
Manager and other systems in a private or public network.
The Business Communications Manager numbers physical lines from 061 to 233/240. Default
numbering depends on the trunk module positioning within the Business Communications
Manager.
Refer to “Explaining the Media Bay Modules headings” on page 124.
VoIP trunks: Although a VoIP gateway does not require physical trunk lines, it is simpler to think
of them in the same way as actual trunk lines. Therefore, in the Business Communications
Manager, lines 001 to 060 are used for VoIP trunk functionality. Refer to the IP Telephony
Configuration Guide for details about configuring VoIP trunks.
Business Communications Manager networking configurations that use PRI lines, require specific
modules, depending on the type of lines chosen.
• DTMs configured for PRI are used for incoming and outgoing calls (two-way DID). Incoming
calls are routed directly to a Business Communications Manager telephone. Outgoing calls are
made using the intercom button and dialing destination codes.
• DTMs configured for T1 have digital lines that are configured as Groundstart, E&M, Loop, or
DID.
Target lines are virtual communication paths between trunks and telephones on the Business
Communications Manager system. They are incoming lines only, and cannot be selected for
outgoing calls or networking applications. With target lines, you can concentrate incoming calls on
fewer trunks. This type of concentration is an advantage of DID lines. Business Communications
Manager target lines allow you to direct each DID number to one or more telephones. VoIP trunks
also require target lines to direct incoming traffic. Target lines are numbered 241 to 492.
Telephones can be configured to have an appearance of any type of trunk and line or line pool
(including target lines, excluding PRI trunks which can only be configured into PRI line pools and
configured into routes with destination codes).
Other programming that affects private networking
Besides the line programming, these links connect to other programming that affect affects or is
affected by private networks.
•“Controlling access into the system” on page 283 (Received Number Length, Target lines and
remote access)
•“Configuring outgoing calls” on page 301 (dialing plans, access codes, routing, restrictions)
•“Assigning line access” on page 394 (Private OLI)
•“Network name display” on page 453
•“Setting outgoing name and number blocking” on page 479
508 Using routing to create networking
P0609326 1.1
Using routing to create networking
By properly planning and programming routing tables and destination codes, an installer can
create a numbering plan where T1 E&M lines between Business Communications Manager
systems are available to other systems in the network
The following figure shows a network of three Business Communications Manager systems. Two
remote systems connect to a central system.
Figure 173 Dialing plan for T1 E and M routing network
Each system must be running Business Communications Manager software. Each system must be
equipped with target lines and Business Communications Manager with a DTM with at least one
T1 E&M line or the appropriate Norstar trunk module configuration ported in through a Fiber
Expansion module (FEM). Programming information for this network is shown in the following
table.
New York
Network # 2221
Received # 2221
Internal # 2221
Toronto
Network # 6221
Received # 6221
Internal # 6221
Santa Clara
Network # 4221
Received # 4221
Internal # 4221
Pool H Pool N
Pool M Pool B
T1 E&M
T1 E&M
Using routing to create networking 509
Business Communications Manager 3.6 Programming Operations Guide
Table 135 E and M routing for a Business Communications Manager network
New York office:
Parameter Setting
Trunk/Line Data
Network line (external)
Line 061 T1 E&M
Answer Mode Auto
Line type Pool H
Target line (internal)
Line 241 Target line
Private Received # 2221
Line Access (set)
Set 2221 L241: Ring only
Line pool access Line pool H
Routing service
Route 001
Use Pool H
External # None
Routing Destinations Office #1 Office #2
Routing to Santa Clara Toronto
Destination Code 4 6
Normal route 001 001
Absorb None None
Dialed number: 4221 6221
510 Using routing to create networking
P0609326 1.1
Santa Clara office:
Parameter Setting
Network line (external to New York)
Line 091 T1 E&M
Answer Mode Auto
Line type Pool M
Network line (external to Santa Clara)
Line 092 T1 E&M
Answer Mode Auto
Line type Pool B
Target line (internal to Toronto telephone)
Line 251 Target line
Private Received # 4221
Line Access
DN 4221 L251: Ring only
Line pool access Line pool B
Line pool M
Routing Destinations Office #1 Office #2
Routing to New York Toronto
Route 001 002
Use Pool M Pool B
External # None None
Destination Code 2 6
Absorb None None
Normal route 001 002
Remote access
Rem access pkgs 01
Line pool access Pool M: ON
Rem access pkgs 02
Line pool access Pool B: ON
Line abilities 049
Remote pkg 01
Line abilities 050
Remote pkg 02
Table 135 E and M routing for a Business Communications Manager network (Continued)
Using routing to create networking 511
Business Communications Manager 3.6 Programming Operations Guide
If a user in New York wants to call Toronto within the network, they dial 6221. The local Business
Communications Manager checks the number against the routing tables and routes the call
according to the destination code 6, which places the call using Route 001.
The call appears on the auto answer line on the Business Communications Manager in Santa Clara
as 6-221. Because 6 is programmed as a destination code for Toronto on the Santa Clara system,
another call is placed using route 002 from Santa Clara to Toronto. At the Toronto system, the
digits 6-221 are interpreted as a target line Private received number. The call now alerts at
telephone 6221 in Toronto.
Note: Network calls that use routes are subject to any restriction filters in effect.
If the telephone used to make a network call has an appearance of a line used by the route, the call
will move from the intercom button to the Line button.
The telephone used to make a network call must have access to the line pool used by the route.
Network calls are external calls, even though they are dialed as if they were internal calls. Only the
features and capabilities available to external calls can be used.
When programming a button to dial a Network number automatically (autodial), network calls
must be treated as external numbers, even though they resemble internal telephone numbers.
Routes generally define the path between your Business Communications Manager switch and
another switch in your network, not other individual telephones on that switch.
Toronto office:
Parameter Setting
Trunk/Line Data (external)
Line 093 T1 E&M
Answer Mode Auto
Line type Pool N
Target line (internal)
Line 300 Target line
Private Received # 6221
Line Access
DN 6221 L300: Ring only
Line pool access Line pool N
Routing Destinations Office #1 Office #2
Routing to New York Santa Clara
Route 001
Use Pool N
External # None
Destination Code 4 2
Absorb None None
Normal route 001 001
Table 135 E and M routing for a Business Communications Manager network (Continued)
512 Using shared line pools to create a network
P0609326 1.1
Using shared line pools to create a network
Using shared line pools is a powerful and efficient way to create a coordinated dialing plan for a
small network. If the Business Communications Manager systems are close to each other
geographically, you can conserve resources by not duplicating long-distance access. For example,
system A, B, and C are all within the same area code. System A has a line pool to Santa Clara,
System B has a line pool to Montreal, and system C has a line pool to Miami. An Business
Communications Manager user in system A can reach Miami by calling system C and using their
line pool to Miami.
To simplify access between Business Communications Manager systems, all line pools that go to
the same destination should have the same line pool access code. For example, system A and
system B both have a line pool to Ottawa. You can configure both systems with the same line pool
access code for the Ottawa line pool.
A dialing plan similar to the one in the following figure allows you to create a company directory
that uses line pool access codes and unique DNs of a uniform length
In this example, the person on system A at telephone 234 can press an intercom button and dial
7434.
This means that telephone 234 has dialed the line pool access code of the trunk to system C, and
will receive the dial tone of system C. The digits 434 then map to the Private received number 434,
and ring telephone 434 with an appearance of the associated target line.
Using shared line pools to create a network 513
Business Communications Manager 3.6 Programming Operations Guide
Figure 174 Network example using shared line pools
Network # 5234
Received # 234
Internal # 234
Network # 6334
Received # 334
Internal # 334
Network # 8534
Received # 534
Internal # 534
Network # 7434
Received # 434
Internal # 434
System A
Pool A (6)
Pool B (7)
Pool C (8)
System D
Pool A (5)
Pool B (6)
Pool C (7)
System C
Pool A (6)
Pool B (5)
Pool C (8)
T1 E&M
T1 E&M
T1 E&M
T1 E&M
T1 E&M T1 E&M
System B
Pool A (5)
Pool B (8)
Pool C (7)
514 Using shared line pools to create a network
P0609326 1.1
The following table shows the system coding for each system to set up a line pool-based
coordinated dialing plan.
Table 136 Creating a coordinated dialing plan using line pools
Route from System A to: System B C D
Lines, Trunk/Line Data Assign lines that connect with
each system to a line pool
Pool A Pool B Pool C
General Setting,
Access Codes,
Line Pool Codes
Create an line pool access code
for the pool
6 7 8
Dialout: 6334 7434 8534
Route from System B to System A C D
Lines, Trunk/Line Data Assign lines that connect with
each system to a line pool
Pool A Pool C Pool B
General Setting,
Access Codes,
Line Pool Codes
Create an line pool access code
for the pool
5 7 8
Dialout: 5234 7434 8534
Route from System C to System A B D
Lines, Trunk/Line Data Assign lines that connect with
each system to a line pool
Pool B Pool A Pool C
General Setting,
Access Codes,
Line Pool Codes
Create an line pool access code
for the pool
5 6 8
Dialout 5234 6334 8534
Route from System D to System A B C
Lines, Trunk/Line Data Assign lines that connect with
each system to a line pool
Pool A Pool B Pool C
General Setting,
Access Codes,
Line Pool Codes
Create an line pool access code
for the pool
5 6 7
Dialout: 5234 6334 7434
PRI networking using Call-by-Call services 515
Business Communications Manager 3.6 Programming Operations Guide
PRI networking using Call-by-Call services
The example shown in the following figure highlights the use of PRI Call-by-Call services. It
shows two offices of a company, one in New York and one in Toronto. Each office is equipped
with a Business Communications Manager system and a PRI line. Each office has to handle
incoming and outgoing calls to the public network. In addition, employees at each office often
have to call colleagues in the other office.
Figure 175 PRI networking using Call-by Call Services
To reduce long distance costs, and to allow for a coordinated dialing plan between the offices,
private lines are used to handle interoffice traffic. Refer to “Configuring the public and private
dialing plans” on page 302.
If call-by-call services were not used, each Business Communications Manager system might have
to be equipped with the following trunks:
• 12 T1 DID lines needed to handle peak incoming call traffic.
• eight T1 E&M lines needed to handle inter-office calls.
• eight lines needed to handle outgoing public calls
The total required is thus 28 lines. If the Business Communications Manager systems were using
T1 trunks, then two T1 spans would be required at each office. Note that the total of 28 lines
represents the worst case value for line usage. In reality, the total number of lines in use at any one
time will generally be less than 28. For example, during periods of peak incoming call traffic, the
demand for outgoing lines will be low.
With PRI Call-by-call services, it is not necessary to configure a fixed allocation of trunks. Each of
the 23 lines on the PRI can be used for DID, private Tie, or outgoing public calls. This
consolidation means that it may be possible for each office to use a single PRI span, rather than
Network # 2221
Received # 2221
Internal # 2221
DID # 763-2221
Network # 6221
Received # 6221
Internal # 6221
DID # 562-6221
Toronto office New York office
Tie Connection
Public Network
PRI PRI
Business Communications Manager
Central
Office
Central
Office
516 PRI networking using Call-by-Call services
P0609326 1.1
two T1 spans. With PRI Call-by-call services, the only limitation is that there are no more than
23 calls in progress at any one time.
The dialing plan at each Business Communications Manager site is configured to determine the
call type based on the digits dialed by the user. If a user in Toronto wishes to dial a colleague in
New York, they dial the four-digit private DN (such as 6221). The dialing plan recognizes this as a
private network DN, and routes the call using Tie service with a private numbering plan.
Incoming Tie calls are routed to telephones based on the digits received by the network, which in
this case will be the four-digit private DN.
If a user in either location wishes to dial an external number, they dial 9, followed by the number
(such as 9-555-1212). The dialing plan recognizes this as a public DN, and routes the call using
Public service.
Incoming DID calls will be routed to telephones, based on the trailing portion of the digits
received by the network. For example, if a public network user dials an employee in the Toronto
office, the network will deliver digits 4167632221. The Business Communications Manager will
route the call using the last four digits, 2221.
Refer to the following table for a description of the settings required for this type of routing
service.
Table 137 PRI call-by-call services routing information
Parameter Home System Settings
Hardware
DTM PRI
Protocol NI-2
Trunk/Line Data
Line 245 Target line
Private/Public Received # 2221
Line Access
DN 2221 L245:Ring only
Line pool access Line pool PRI-A
Routing Services Private Network Public network
New York: Public network
Route 001 002
External # No number No number
Use Pool PRI-A Pool PRI-A
Service type Tie Public
ServiceID 1 N/A
DN type Private N/A
Destination Code 6 9
Normal route 001 002
Absorb 0ALL
PRI networking using Call-by-Call services 517
Business Communications Manager 3.6 Programming Operations Guide
New York office:
Parameter Home System Settings
Hardware
DTM PRI
Protocol NI-2
Trunk/Line Data
Line 245 Target line
Private/Public Received # 6221
Line Access
DN 6221 L245:Ring only
Line pool access Line pool PRI-A
Routing Services Private Network Public Network
Toronto Public Network
Route 001 002
External # No number No number
Use Pool PRI-A Pool PRI-A
ServiceType Tie Public
ServiceID 1 N/A
DN type Private N/A
Destination Code 2 9
Normal route 001 002
Absorb 0ALL
Table 137 PRI call-by-call services routing information (Continued)
518 PRI networking using Call-by-Call services
P0609326 1.1
519
Business Communications Manager 3.6 Programming Operations Guide
Chapter 20
Configuring private networks with SL-1 MCDN
This section describes how to network Business Communications Managers together in a private
network using PRI SL-1 lines with or without the MCDN protocol. When Business
Communications Managers are networked with other call services, such as Meridian 1, using the
MCDN protocol, the network can also support centralized voice mail.
This chapter discusses SL-1 and MCDN networking based on North American trunks (PRI SL-1).
ETSI-QSIG and DPNSS private networking is configured very similarly, although network
features may be supported slightly differently. Private networking and network features on these
trunks is described in “Configuring ETSI QSIG and DPNSS network services” on page 543.
The following section describe the different aspects of SL-1 and MCDN private networking.
•“System numbering plans” on page 520
•“Creating tandem private networks” on page 520
•“Understanding MCDN network features” on page 528
•“Using SL-1 with MCDN to network with a Meridian system” on page 533
•“MCDN networking checklist” on page 534
•“VoIP networking” on page 540
Refer to the previous chapter “Configuring private networks” on page 505 for general
requirements and directions for setting up non-PRI private networks.
TIPS: Most of the diagrams in this section use the BCM1000 base unit. The BCM400 and
BCM200 can be used in any of these situations, as well. Keep in mind that the BCM200 only
supports two PECs, and therefore, has less processing capacity than the other two units. This
affects both networking and IP telephony deployment.
The type of network you require depends on the equipment you are networking to, and how you
want to use the network.
• You can tie a set of Business Communications Manager systems together to create a tandem
network. This type of network provides the additional advantage of providing private line
access to local PSTNs for all the nodes on the network.
• You can tie one or more Business Communications Manager systems to a Meridian 1 system
and use the Meridian voice mail or auto attendant system for centralized call management, as
well as providing reduced toll calling across the private lines.
You require PRI and MCDN keycodes to create either of these networking configurations.
Note, however, that to use the MCDN features, your network must include a Meridian system as a
controlling system.
520 System numbering plans
P0609326 1.1
System numbering plans
Both these types of networks require similar setups for dialing plans and routing. Each node must
have a way to route external calls to the adjacent node or nodes. To do this, all nodes must have the
same Private DN lengths.
You use routing and a private dialing plan to control calls over the network. Refer to “Configuring
the public and private dialing plans” on page 302 for a description of the two types of dialing plans
available for private networking over SL-1 and SL-1 MCDN networks. Each example in this
section describes the routing configurations that are required to support calls over the network.
Depending on the type of dialing plan you choose, each node must also have a unique location or
steering code so the calls can be correctly routed through the nodes of the network. MCDN
networks also require a Private Network ID, which is supplied by the Meridian network
administrator to define how the Meridian system identifies each node.
Creating tandem private networks
You can tie a number of Business Communications Manager systems together with SL-1 lines.
This tandem network provides you with the benefits of end-to-end name display and toll-free
calling over the SL-1 private link. Each Business Communications Manager becomes a node in the
network. The following figure demonstrates a tandem configuration.
Figure 176 Private tandem network of Business Communications Managers
SL-1 line
SL-1 line
SL-1 line
SL-1 line
SL-1 line
Calgary Toronto
Local
PSTN
Local
PSTN
Node A
Node B
Node E
Node C
Node D
Node F
Public: 403-765-XXXX
Private ID: 395
Public: 403-762-XXXX
Private ID: 392
Public: 403-761-XXXX
Private ID: 391
Calgary network routes only area
codes 403 and 604
Public: 613-766-XXXX
Private ID: 396
Public: 613-764-XXXX
Private ID: 394
Public: 613-763-XXXX
Private ID: 393
Ottawa network routes all area
codes except 403 and 604
Creating tandem private networks 521
Business Communications Manager 3.6 Programming Operations Guide
In this type of network, you must ensure that each Business Communications Manager system,
known as a node of the network, is set up to route calls internally as well as to other nodes on the
system. This means, each node must have a route to the immediately-adjacent node, and the
correct codes to distribute the called numbers. Each node must have a unique identification
number, which is determined by the type of dialing plan chosen for the network.
As well, you can save costs by having a public network connection to only one or two nodes, and
routing external calls from other nodes out through the local PSTN, thus avoiding toll charges for
single calls.
This section includes the following:
•“Calls originating from the public network” on page 521
•“Calls originating in the private network” on page 524
•“Routing for tandem networks” on page 526
VoIP note: You can also use VoIP trunks between some or all of the nodes. The setup is the same,
except that you need to create gateway records for each end of the trunk, and routing tables to
accommodate the gateway codes. Refer to the IP Telephony Configuration Guide for information
about setting up VoIP trunks and gateway programming.
Calls originating from the public network
The following table describes who each node handles calls originated from the public network into
the system.
Table 138 Call originating from the public network to a tandem network
Received Destination Description
Node A Node A User in Calgary dials 761-xxxx number
Incoming interface: Public
DN type: Public
Node A receives the call and identifies it as terminating locally. Uses target line to route
call (Public received #).
Destination: Local (target line)
Node A Node B User in Calgary dials a 762-xxxx number
DN type: Public
Node A receives it and identifies it as being for node B. Uses private trunk to route it to B.
Incoming interface: Public
Destination: Remote Node
Outgoing interface: Private
Node B receives the call and identifies it as terminating locally. Uses target line to route
call (Private received #).
Incoming interface: Private
Destination: Local (target line)
522 Creating tandem private networks
P0609326 1.1
Node A Node E User in Calgary dials a 765-xxxx number.
DN type: Public
Node A receives it and identifies it as being for B. Uses private trunk to route call to B.
Incoming interface: Public
Destination: Remote node
Outgoing interface: Private
Node B receives it and identifies it as being for E. Uses private trunk to route call to E.
Incoming interface: Private
Destination: Remote node
Outgoing interface: Private
Node E receives the call and identifies it as terminating locally. Uses target line to route
call. (Private received #)
Incoming interface: Private
Destination: Local (target line)
Node A Node C User in Calgary dials a 761-xxxx number which is answered with DISA.
Incoming interface: Public
DN type: Public
Destination: Local (DISA DN)
User enters a COS password and a private DN for Node C
i.e. 6 + 393-xxxx
DN type: Private
Node A receives it and identifies it as being for C. Uses the private trunk to route the call
to C.
Incoming interface: (DISA user)
Destination: Remote node
Node C receives the call and identifies it as terminating locally. Uses target line to route
call. (Private received #)
Incoming interface: Private
Destination: Local (target line)
Table 138 Call originating from the public network to a tandem network (Continued)
Received Destination Description
Creating tandem private networks 523
Business Communications Manager 3.6 Programming Operations Guide
Node A Node D User in Calgary dials a 761-xxxx number which is answered with DISA.
Incoming interface: Public
DN type: Public
Destination: Local (DISA DN)
User enters a COS password and a private DN for Node D, i.e. 6 + 394-xxxx
DN type: Private
Node A receives it and identifies it as being for C. Uses the private trunk to route the call
to C.
Incoming interface: (DISA user)
Destination: Remote node
Node C receives it and identifies it as being the responsibility of D. Uses private trunk to
route call to D.
Incoming interface: Private
Destination: Remote node
Node D receives the call and identifies it as terminating locally. Uses target line to route
call. (Private received #)
Incoming interface: Private
Destination: Local (target line)
Node A Ottawa
PSTN
User in Calgary dials a 761-xxxx number which is answered with DISA. User enters a
COS password and an Ottawa public network number.
Incoming interface: Public
DN type: Public
Destination: Local (DISA DN)
Node A receives it and identifies it as being for C. Uses the private trunk to route the call
to C.
Incoming interface: Local (DISA user)
Destination: Remote PSTN
Node C receives the call and identifies it as a public number and routes it out over the
local PSTN.
Incoming interface: Private
Destination: Local PSTN
Table 138 Call originating from the public network to a tandem network (Continued)
Received Destination Description
524 Creating tandem private networks
P0609326 1.1
Calls originating in the private network
The following table describes who each node handles calls originated in the public network.
Table 139 Calls originating from the private network within a tandem network
Received Destination Description
Node B Node B DN is internal, therefore no trunk routing is required.
Incoming interface: Intercom
DN type: Local
Destination: Local
Node A Ottawa
PSTN
User in Node A dials the private network access code for Node C, followed by an
Ottawa public number.
Incoming interface: Intercom
DN type: public
Destination: Remote PSTN
Node C receives the call and identifies it as being for the public network. Node C routes
the call over the local public network.
Incoming interface: Private
DN type: Public
Destination: Local PSTN
Node B Calgary
PSTN
User on Node B dials a public DN.
Node B recognizes it as being the responsibility of Node A and uses private trunk to
route the call to A.
Incoming interface: Intercom
Destination: Remote node
Node A receives the call and identifies it as being for the public network. Node A routes
the call over the local public network.
Incoming interface: Private
Destination: Remote PSTN
Node B Node A User in Node B dials a private DN for a user on A.
DN type: Private
Node B recognizes it as being for Node A. Uses the private trunk to route the call the
call to A.
Incoming interface: Intercom
Destination: Remote node
Node B receives the call and identifies it as terminating locally. Uses target line to route
call. (Private received #)
Incoming interface: Private
Destination: Local (target line)
Creating tandem private networks 525
Business Communications Manager 3.6 Programming Operations Guide
Node B Node C User on Node B dials a private DN for a user on C.
DN type: Private
Node B recognizes it as being the responsibility of Node A and routes the call over the
private trunk to A.
Incoming interface: Intercom
Destination: Remote node
Node A receives it and identifies it as being for C. Uses IP trunk to route call to C.
Incoming interface: Private
Destination: Remote node
Node C receives the call and identifies it as terminating locally. Uses target line to route
call. (Private received #)
Incoming interface: Private
Destination: Local (target line)
Node B Node D User on B dials a private DN for node D.
DN type: Private
Node B identifies it as being for node A and uses private trunk to route the call to A.
Incoming interface: Intercom
Destination: Remote node
Node A receives it and identifies it as being for C. Uses IP trunk to route call to C.
Incoming interface: Private
Destination: Remote node
Node C receives it and identifies it as being for D. Uses the private trunk to route call to
D.
Incoming interface: Private
Destination: Remote node
Node D receives the call and identifies it as terminating locally. Uses target line to route
call. (Private received #)
Incoming interface: Private
Destination: Local (target line)
Table 139 Calls originating from the private network within a tandem network (Continued)
Received Destination Description
526 Creating tandem private networks
P0609326 1.1
Routing for tandem networks
In tandem networks each node needs to know how to route calls that do not terminate locally. To
do this, you set up routes for each connecting node by defining destination codes for each route.
If the node is also connected to the public network, the usual routing is required for that
connection.
The following tables show the routing tables for Node A and Node C for external and internal
terminating calls.
Note: The PRI lines are enbloc dialing lines, so all dialed digits are collected before being dialed
out.
Node B Node F User on B dials a private DN for node F.
DN type: Private
Node B identifies it as being for node A and uses private trunk to route the call to A.
Incoming interface: Intercom
Destination: Remote node
Node A receives it and identifies it as being for C. Uses IP trunk to route call to C.
Incoming interface: Intercom
Destination: Remote node
Node C receives it and identifies it as being for D. Uses the private trunk to route call to
D.
Incoming interface: Intercom
Destination: Remote node
Node D receives it and identifies it as being for F. Uses the private trunk to route call to
F.
Incoming interface: Intercom
Destination: Remote node
Node F receives the call and identifies it as terminating locally. Uses target line to route
call. (Private received #)
Incoming interface: Private
Destination: Local (target line)
Table 140 Node A destination code table, external termination
Route Absorb length Destination code (public DNs)
4 (PSTN) 1 91604
3 (Node B) 0 91403762 (Node B)
3 (Node B) 0 91403765 (Node E)
4 (PSTN) 1 9140376* (not internal network)
4 (PSTN) 1 914037* (not internal network)
4 (PSTN) 1 91403* (not internal network)
4 (PSTN) 1 9* (not internal network)
* This wild card represents a single digit.
Table 139 Calls originating from the private network within a tandem network (Continued)
Received Destination Description
Creating tandem private networks 527
Business Communications Manager 3.6 Programming Operations Guide
Table 141 Node A destination code table, internal termination
Route Absorb length Destination code (private DNs)
3 (Node B) 0 392 (Node B)
3 (Node B) 0 395 (Node E)
5 (Node C) 0393 (Node C)
5 (Node C) 0394 (Node D)
5 (Node C) 0396 (Node F)
Table 142 Node C destination code table, external termination
Route Absorb length Destination code (Public DNs)
3 (Node B) 0 91613764 (Node D)
3 (Node B) 0 91613766 (Node F)
4 (PSTN) 1 9161376* (not internal network)
4 (PSTN) 1 916137* (not internal network)
4 (PSTN) 1 91613* (not internal network)
4 (PSTN) 1 9161* (not internal network)
4 (PSTN) 1 916* (not internal network)
4 (PSTN) 1 91* (not internal network)
4 (PSTN) 1 9 (not internal network)
Table 143 Node C destination code table, internal termination
Route Absorb length Destination code (Private DNs)
3 (Node D) 0394 (Node D)
3 (Node D) 0396 (Node F)
5 (Node A) 0 391 (Node A)
5 (Node A) 0 392 (Node B)
5 (Node A) 0 395 (Node E)
528 Understanding MCDN network features
P0609326 1.1
Understanding MCDN network features
When you connect your Business Communications Manager systems through an SL-1 and use the
MCDN protocol, your network provides a number of network call features. You can use this
protocol to network other Business Communications Manager systems, such as the tandem
system, shown in the previous section, Norstar systems, or Meridian 1 systems.
Note: For information about networking voice over IP (VoIP) trunks using MCDN, refer to the IP
Telephony Configuration Guide.
The following table lists the MCDN features that are provided by all networks connected with
SL-1 lines, with MCDN active. The features affect call redirection and trunking functions.
Network Call Redirection Information
NCRI builds on the following Business Communications Manager features:
• External Call Forward
• Call Transfer
• Call Forward
NCRI adds the ability to redirect a call across an MCDN network using Call Forward (all calls, no
answer, busy) and Call Transfer features. The call destination also receives the necessary
redirection information. This feature allows the system to automatically redirect calls from within
a Business Communications Manager system to the mail system, such as Meridian Mail, which
resides outside the Business Communications Manager system on the Meridian 1.
The following figure shows an example of this situation, where user A calls user B on the same
Business Communications Manager. If user B is busy or not answering, the call automatically gets
transferred to a Meridian Mail number (user C) across an MCDN link between the Business
Communications Manager system and the Meridian 1 system where the mailboxes are set up.
Refer to “Assigning Call Forward” on page 409
Table 144 MCDN network features
Centralized messaging • “Network Call Redirection Information” on page 528 (NCRI)
Centralize trunking • “ISDN Call Connection Limitation” on page 530 (ICCL)
•“Trunk Route Optimization” on page 531 (TRO)
•“Trunk Anti-tromboning” on page 532 (TAT)
Understanding MCDN network features 529
Business Communications Manager 3.6 Programming Operations Guide
Figure 177 Network call redirection path
If you are using the centralized voice message system from a Meridian 1 system, you require the
following programming on the M1:
M1 programming in LD 17
• NASA set to Yes
• NCRD set to Yes
Verifying NASA is Active
• Overlay 22, LD 22
• REQ: PRT
• TYPE: ADAN DCH (slot number)
• NASA should be set to yes
If NASA is not on: Disable the D channel
• Overlay 96, LD 96
• REQ: CHG
• TYPE:DISDCH
Disable the loop
• Overlay 60, LD 60
• REQ: CHG
• TYPE: DISL (slot
number)
Program the D channel
• Overlay 17, LD 17
• REQ: CHG
• TYPE: ADAN
• ADAN: CHG DCH (slot
number)
• Keep pressing enter until
you get to NASA
• TYPE: yes
• TYPE: end
Verifying NCRD
• Overlay 20, LD 20
• REQ: PRT
• TYPE: TIE
• CUST: 0
• Route: Enter the route defined in LD 20
• Keep pressing enter until all values are
displayed. Check if NCRD is yes.
If NCRD is set to no
• Overlay 16, LD 16
• REQ: CHG
• TYPE: RDB
• CUST: 0
• ROUT: (route number) from LD 20
• Keep pressing enter until you get NCRD and type Yes
• Keep pressing enter until you get the REQ prompt
again
• TYPE: end
Business Communications Manager
Meridian 1
with Meridian Mail
SL-1 MCDN
Telephone A
Telephone B
Call forwarded to Meridian Mail
Original call
530 Understanding MCDN network features
P0609326 1.1
ISDN Call Connection Limitation
The ICCL feature piggybacks on the call initiation request and acts as a check at transit PBX
points to prevent misconfigured routes or calls with errors from blocking channels.
This feature adds a transit/tandem counter to a call setup message. This counter is compared at
each transit PBX with a value programmed into the transit PBX, in a range from 0 to 31. If the call
setup counter is higher than the PBX value, the call will be blocked at the PBX system and cleared
back to the network. This prevents calls from creating loops that tie up lines.
Business Communications Manager configurations:
•Under Network Services, MCDN, set NtwkICCL to Y(yes).
• Under the media bay module record for the trunk module, define Maximum transits.
The following figure demonstrates how a call might loop through a network if the system is not set
up with ICCL.
Figure 178 Call loop on system without ICCL
Business Communications Manager
Meridian 1
Telephone A
Business Communications Manager
Business Communications Manager
Meridian 1
Understanding MCDN network features 531
Business Communications Manager 3.6 Programming Operations Guide
Trunk Route Optimization
TRO finds the most direct route through the network to send a call between nodes. This function
occurs during the initial alerting phase of a call.
Business Communications Manager configurations:
•Under Network Services, MCDN, set TRO to Y(yes).
• Configure call routing for all optimal routes.
• Configure call forward (All Calls, No Answer, Busy) or Selective Line Redirection to use the
optimal routes.
This feature avoids the following situation: A call originating from a Business Communications
Manager system may be networked to a Meridian system, which, in turn, is networked to another
Meridian system, which is the destination for the call. If the call routes through the first Meridian
(M1) to reach the second Meridian (M2), two trunks are required for the call. An optimal choice is
a straight connection to M2. This finds these connections and overrides the less-efficient setup.
The following figure shows two call paths. The first route, through the Meridian, demonstrates
how a call might route if TRO is not active. The second route, that bypasses the Meridian,
demonstrates how TRO selects the optimum routing for a call.
Figure 179 Call paths with and without TRO
If you are using a Meridian 1 system as part of the network, you need the following programming
for each system:
M1 TRO set to yes for BCM route:
LD 16
TYPE: RDB
Cust: xx
Rout: 0-511
TRO: Yes
Business
Communications
Manager
Meridian 1
Telephone A
Telephone B
Telephone C
Forwarded call (no TRO)
Original call (no TRO)
Meridian 1
PRI SL-1
PRI SL-1
PRI SL-1
Call path with TRO
532 Understanding MCDN network features
P0609326 1.1
Trunk Anti-tromboning
TAT is a call-reroute feature that works to find better routes during a transfer of an active call. This
feature acts to prevent unnecessary tandeming and tromboning of trunks.
TIPS: This feature is not applicable for alerting calls.
Business Communications Manager configurations:
•Under Network Services, MCDN, set TAT to Y(yes).
The following figure shows how TAT reduces the line requirements. The solid line shows
Telephone A calling Telephone B and being transferred over an additional PRI line to Telephone
C. With TAT active, the same call is transferred to Telephone C over the same PRI line.
Figure 180 Call paths with and without TAT
Business
Communications
Manager
Telephone A Telephone BTelephone C
Forwarded call (using TAT)
Forwarded call (no TAT)
Business
Communications
Manager
Using SL-1 with MCDN to network with a Meridian system 533
Business Communications Manager 3.6 Programming Operations Guide
Using SL-1 with MCDN to network with a Meridian system
When you connect your Business Communications Manager systems through the SL-1 MCDN
protocol to a Meridian 1, the Meridian system manages several aspects of the network, including
voice mail, auto attendant services, and system timing.
Programming note: For information about networking voice over IP (VoIP) trunks, which also
can be set to use MCDN, refer to the IP Telephony Configuration Guide. For networks running
Business Communications Manager BCM 3.5 software or newer, the trunk protocol for
Meridian 1 IPT connection should be set to CSE.
This section includes the follow information about setting up an MCDN network:
•“Meridian system requirements”
•“MCDN networking checklist” on page 534
An example of an MCDN system and the Business Communications Manager programming to
support it, is given in “An example of a private network with Meridian 1” on page 537.
Meridian system requirements
When setting up networking with Meridian, the Meridian systems must provide the following:
• the correct software version to allow MCDN features (If your Meridian system administrator
cannot confirm this, call your technical support center (TSC) or 1-800-4NORTEL.)
The Meridian must provide the following:
— end-to-end signaling (option 10)
— message center (option 46) and an IVMS link (option 35)
— Meridian Mail link (option 77 and 85)
— basic Attendant Console Directory features (options 40, 45, and 83)
— ISDN PRI or ISDN Signaling link (option 145 and 146 or 145 and 147)
— advanced ISDN features (option 148)
— network message services (option 175)
• act as the timing master for the private network connections
• use descending mode for PRI B-channel selection
• recognize dial codes for all nodes in the network.
• provide routing tables that direct incoming calls to the correct nodes on the network, including
DID calls from the public network
• recognize the destination code (usually 9) that indicates a public network call, regardless of
where in the network the number was dialed from.
534 Using SL-1 with MCDN to network with a Meridian system
P0609326 1.1
Note: For MCDN over VoIP trunks, the Meridian uses the IPT trunk card (introduced in BCM
3.5). Both systems must have remote gateways pointed to correct system types and protocols.
Refer to the IP Telephony Configuration Guide for information about Remote Gateways for the
Business Communications Manager system.
Software requirements
These additional software packages may be required to activate all the options on the Meridian:
For a new M1 (option 81C, 61C or 51C) on X11 Rls 25, the following additional packages are
required to provide the software options listed above:
• SW0059B
• SW0052D
• SW0221C
• SW0051B
For a new M1 Option 11C or 11C Mini or X11 Rel. 25, order one of the following:
• Enterprise software package
• NAS/VNS software package
MCDN networking checklist
The following points provide a quick check for the system prerequisite settings for MCDN
networking.
Select the dialing plan to be used:
• UDP (Universal Dialing Plan)
— DNs on the same node are dialed directly.
— DNs on other nodes are called by first dialing an Access Code and an ESN.
— Each node has its own ESN.
• CDP (Coordinated Dialing Plan)
— DNs on all nodes are dialed directly.
Ensure the following common programming is configured:
• Business Communications Manager Programming
— Configure the system DN length to match the DN length used in the rest of the private
network (i.e. the M1).
— Program the private Route: Type=Private, Dial=None.
— Program the public Route: Type=Public, Dial=None.
— Enable the MCDN Supplementary Services; TRO=Yes, ICCL=Yes, TAT=Yes.
— Program telephones with a target line that specifies the system DN of the telephone in the
Private received number field.
Using SL-1 with MCDN to network with a Meridian system 535
Business Communications Manager 3.6 Programming Operations Guide
Note: If you have public DNs set up for your telephones that are different from the
system-assigned DN, each telephone would need two target lines to accommodate both
public and private networks.
• Meridian 1 Programming
— Program the system PNI and the PNIs for the routes.
— Program the Meridian Voice Mail mailboxes (if required).
— Enable the MCDN Supplementary Services; RCAP=[ND2,TRO,MWI], NASA=YES.
Set up the specific programming for the dialing plan the system requires:
UDP-specific programming
Business Communications Manager UDP programming
• Private Dialing Plan: Type=UDP, HomeLoc=<three-digit prefix>
• Private Access Code <unique code>
• Private DN length <total of Private Access Code + Location Code + DN length>
Example: if dialing string is 6 393 2222, then set private DN to 8
• Program the DestCodes for the
other nodes
AccessCode plus the ESN, absorb the AccessCode.
Example: For AccessCode=6; DestCode=6393[Absorb=1]
M1 UDP programming
• Private Access Code Overlay 86, LD 86
REQ: PRT
CUST: 0
FEAT: ESN
To change Private Access Code:
Overlay 86, LD 86
REQ: CHG
CUST: 0
FEAT: ESN, keep pressing until
you reach the AC1 prompt
At the AC1 prompt, make your
choice
• Check UDP programming Overlay 90, LD 90
REQ: PRT
CUST: 0
FEAT: NET
TYPE: LOC
LOC: press enter, all the programmed location codes are listed
HLOC is the home location of the M1
• Program UDP values to route Overlay 90, LD 90
REQ: CHG
CUST: 0
FEAT: NET
TYPE: AC1
LOC: (enter a number)
RLI: (enter the RLI corresponding to the route
536 Using SL-1 with MCDN to network with a Meridian system
P0609326 1.1
CDP-specific programming
Business Communications Manager CDP programming
• Private Dialing Plan: Private
Access Code <unique code>.
Type=CDP
• Private DN length <system DN length>
• PNI <number assigned from M1
(1-128)>
LD 16, RDB - PNI in M1
programming
LD 15 - Net - PNI in M1
programming set to PNI of switch
• Program the DestCodes for the
other nodes
use Steering code as part of dial string
M1 CDP programming
• Distant Steering Codes Overlay 87, LD 87
REQ: PRT
CUST: 0
FEAT: CDP
TYPE: DSC (Distant Steering Code)
DSC: press enter (lists all DSC programmed)
• Check RLI (Route Line Index) Overlay 86, LD 86
REQ: PRT
CUST: 0
FEAT: RLB
PLI: press enter (displays all the RLIs)
• Program new CDP value to
route
Overlay 87, LD 87
REQ: CHG
CUST: 0
FEAT: CDP
TYPE: DSP
DSC: enter number (enter common Business Communications
Manager system number, for example if DNs are 4XX, enter 4)
RLI: enter the RLI that corresponds to the route
Using SL-1 with MCDN to network with a Meridian system 537
Business Communications Manager 3.6 Programming Operations Guide
An example of a private network with Meridian 1
The following figure shows a private network composed of one central Meridian 1, and two sites
with Business Communications Manager systems all connected by SL-1, with MCDN activated on
all sites. This example uses a coordinated dialing plan (CDP). The DNs consist of four digits. The
first digit is a destination code which is specific to each system. The last three digits are unique to
each telephone within that system. Refer to Chapter 11, “Controlling access into the system,” on
page 283 for a description of the dialing plans available to private networks.
Figure 181 MCDN networking, with a common public network connection
This example could represent a large head office (the Meridian 1) connected to several smaller
branch offices (the two Business Communications Managers). In this network, only the head
office has trunks connected to the public network.
The branch offices access the public network via the PRI to the head office. This configuration
allows for cost savings by consolidating the public access trunks. Users at all three locations
access the public network by dialing 9, followed by the public number. For example, a user in the
West End branch might dial 9-555-1212 (for a local call) or 9-1-613-555-1212 (for a long distance
call). These public calls are routed to the Meridian 1 by the Business Communications Manager
routing table. Routing tables at the Meridian 1 will then select an appropriate public facility for the
call.
Network # 2221
Received # 2221
Internal # 2221
Network # 6221
Received # 6221
Internal # 6221
Business Communications
Manager
West-end branch
PNI= 1
Business Communications
Manager
East-end branch
PNI=2
Central
Office
Meridian M1
PRI (public protocol)
PRI (SL-1) PRI (SL-1)
DN: 4221
Voice Mail or
Auto Attendant
538 Using SL-1 with MCDN to network with a Meridian system
P0609326 1.1
Note that the Private Network Identifier (PNI) is programmed at each end of the links. The PNI
identifies the Business Communications Manager to the Meridian 1 system.
Routing is set up such that network calls are made by dialing a four-digit private network DN. For
example, if a user in the west end branch wishes to call a user in the east end branch within the
private network, they dial 6221. The figure above illustrates this example.
The implications on the configuration on each node to access the PSTN through one network node:
• Each node must have the Private Network Access Code set to the value 9.
• Each node must have destination code(s) that match the Private Network Access Code plus
digits corresponding to calls terminating in the local PSTN. For example, if the Private
Network Access Code is 9, the node in Ottawa would require a destination code of 91613.
Similarly, Toronto would require the following destination code: 91416.
Business Communications Manager module settings: The following table lists the module
settings that are required to set up the network described in the previous figure. Refer to
“Configuring resources — media bay modules” on page 123.
Business Communications Manager dialing plan settings: The following table lists the dialing
plan settings that are required to set up the network described in the figure in the previous section.
Also refer to “Configuring the public and private dialing plans” on page 302.
Table 145 Module settings for MCDN network
West End office:
Module programming DTM PRI
Protocol SL-1
BchanSeq Ascend
ClockSrc Primary
East End office:
Module programming DTM PRI
Protocol SL-1
BchanSeq Ascend
ClockSrc Primary
Table 146 MCDN dialing plan settings
West End office:
Dialing Plan programming Type UDP
Private Network ID 1
Location Code <unique three digits> (becomes part of
destination code)
Private DN Length 4
Public DN Length 7
Using SL-1 with MCDN to network with a Meridian system 539
Business Communications Manager 3.6 Programming Operations Guide
Business Communications Manager routing information: The following table lists the lines
and routing information required to set up the network shown in Figure 181 on page 537.
East End office:
Dialing Plan programming Type UDP
Private Network ID 2
Location Code <unique three digits> (becomes part of
destination code)
Private DN Length 4
Public DN Length 7
Table 147 Network routing information
West End office:
Trunk/Line Data Line 245 Target line
Private Received # 2221
Line Access DN 2221 L245:Ring only
Line pool access Line pool PRI-A
Routing Services Private Network Public Network
Head Office and East end
Route 001 002
External # No number No number
Use Pool PRI-A Pool PRI-A
DN type Private Public
Destination codes
for routes to:
Head office to M1 Head office to East End
Destination Code 4 (includes location code) 6 9
Normal route 001 001 002
Absorb 0 0 0
Table 146 MCDN dialing plan settings (Continued)
540 VoIP networking
P0609326 1.1
VoIP networking
When you choose voice over IP (VoIP) trunks to make network connections, the process is very
much the same as using land lines, except that you must also create a Remote Gateway record
which identifies the IP address for the target system. Note: If the IP system has a Gatekeeper, the
Remote Gateway record is not required. You need to supply the IP parameters of your system to
the Gatekeeper administrator instead.
You also need a VoIP keycode before you can activate VoIP trunks.
MCDN networking over VoIP, which is always between a Meridian 1 and one or more Business
Communications Managers, is set up and works the same way as it does over PRI lines. You still
require the MCDN and IP telephony software keys and compatible dialing plans on all networked
systems. Refer to “Understanding MCDN network features” on page 528.
The major difference between a PRI MCDN line and a VoIP MCDN connection is that the VoIP
trunk requires Local and Remote Gateway settings. Under Services, IP Telephony, H.323
Trunks, Remote Gateway, ensure that Gateway Protocol is set to CSE if you want MCDN
functionality for the VoIP connection to the Meridian system (BCM 3.5 and newer software). The
Gateway Type would be set to IPT (M1 IP Telephony), as it would for any non-MCDN VoIP
connection to a Meridian system. You can also use MCDN VoIP to other Business
Communications Managers. There is a Gateway Type for each version of Business
Communications Manager software that supports this function.
For details about setting up gateways and configuring VoIP trunks, refer to the
IP Telephony Configuration Guide.
East End office:
Trunk/Line Data Line 245 Target line
Private Received # 6221
Line Access DN 6221 L245:Ring only
Line pool access Line pool PRI-A
Routing Services Private Network Public Network
Head Office to West End
Route 001 002
Dial out # No number No number
Use Pool PRI-A Pool PRI-A
DN type Private Public
Head Office to M1 Head Office to West End Call terminates at M1
Destination Code 4 (contains location code) 2 9
Normal route 001 001 002
Absorb 0 0 0
Table 147 Network routing information (Continued)
VoIP networking 541
Business Communications Manager 3.6 Programming Operations Guide
Configuring special IP trunking interoperability
Under Services, Telephony Services, General settings, IP trunking, there are four fields that may
need to be filled out to specify specific parameters of the VoIP trunk between your system and a
system such as Meridian 1 or Succession 1000/M, which may have special network requirements,
such as Bandwidth Management or zone dialing.
1Click on IP trunking.
Figure 182 IP trunking interoperability fields
2Enter or confirm the required parameters supplied by the system administrator of the remote
system.
The following table describes the field properties for each item.
Table 148 IP trunking interoperability fields
Field Value Description
Send Name Display Y, N If the remote voice mail system resides on a Meridian 1
system, that system should have the MWI package to allow
message waiting indicators to occur on network telephones.
In this case, the IP trunking Remote Capability MWI field
should be set to Yes (the default), to indicate that the
Business Communications Manager is compatible with the
M1. If the M1 does not have the MWI package, you need to
set the IP trunking Remote Capability MWI field to No, to
indicate that there is no compatibility. Note: SIP trunks do not
support MWI.
Remote Capability MWI Y, N The public or private OLI (outgoing line identification) are
separately configurable for each telephone, under Line
Access. Therefore, when the VoIP trunks allow name display
on outgoing calls (Send Name Display), the system will send
the appropriate OLI, based on line type (Public or Private).
Default is Y.
542 VoIP networking
P0609326 1.1
3Click anywhere off the IP trunking dialog to save the changes.
Virtual Private Network ID <digits> Default:0
This is the VPN ID for a remote system, such as Succession
1000/M. In some applications, such as for the Survivable
Remote Gateway (SRG) acting as a Branch Office, this ID is
required to ensure that Bandwidth Management is handled
correctly for calls coming into the Succession 1000/M from
your system.
Zone ID <digits> Default:0
A remote system, such as Succession 1000/M, may
configure your system into a separate zone to accommodate
specific dialing requirements, such as for an SRG system
acting as a Branch Office to a Succession 1000/M system.
The system administrator of the Succession 1000/M system
provides the Zone ID. Enter that number here and include it
in any destination codes directed to or through that system
so that the remote system can correctly direct incoming calls.
Table 148 IP trunking interoperability fields (Continued)
Field Value Description
543
Business Communications Manager 3.6 Programming Operations Guide
Chapter 21
Configuring ETSI QSIG and DPNSS network services
This section describes the network services for ETSI QSIG and DPNSS private networks.
ETSI-QSIG and DPNSS private networking is configured in the same way as described in
“Configuring private networks with SL-1 MCDN” on page 519.
Refer to “Configuring private networks” on page 505 for general requirements and directions for
setting up private networks.
This section includes information about:
•“Networking with ETSI QSIG” on page 544
•“ETSI Euro network services” on page 545
•“DPNSS 1 services” on page 547
•“DPNSS 1 capabilities” on page 547
•“DPNSS 1 features” on page 548
•“Private networking with DPNSS” on page 555
544 Networking with ETSI QSIG
P0609326 1.1
Networking with ETSI QSIG
(International systems only)
ETSI QSIG is the European standard signaling protocol for multi-vendor peer-to-peer
communications between PBX systems and/or central offices.
Other information in this section: “ETSI Euro network services” on page 545
The following figure illustrates an ETSI QSIG network. Note that this is exactly the same setup as
that shown in the MCDN section for North America, in “An example of a private network with
Meridian 1” on page 537, which describes PRI SL-1 networking. The exception in the
configuration is for the hardware configuration because the trunk lines are different. The hardware
programming for ETSI QSIG is described below the following diagram. All other configurations
are the same as those shown in the MCDN section for North America, in “Configuring private
networks with SL-1 MCDN” on page 519.
Figure 183 ETSI QSIG networking
Network # 2221
Received # 2221
Internal # 2221
Network # 6221
Received # 6221
Internal # 6221
Business Communications Manager
West end branch
Business Communications
Manager East end branch
Central
Office
PRI/BRI ETSI QSIG PRI/BRI
ETSI QSIG
PRI (public
protocol)
PBX
DN 4221
ETSI Euro network services 545
Business Communications Manager 3.6 Programming Operations Guide
The following table lists the settings for some of the hardware parameters for ETSI QSIG
networking example shown above.
ETSI Euro network services
If your system has ETSI ISDN BRI/PRI lines, you can activate the malicious call identification
(MCID) and Network Diversion features. Advice of charge-end call (AOCE) is active if your
service provider has activated that service on the line.
When the features are activated, users can:
• display a call charge
• redirect calls over the ETSI ISDN BRI/PRI line to the outside network
• tag malicious calls
Advice of Charge-End of Call (AOCE) — AOCE is a supplementary service available from your
service provider on ETSI ISDN BRI/PRI links. This feature allows the Business Communications
Manager user to view the charges for an outgoing call once the call completes. This information is
also reported to the Call Detail Reporting Application. The information can be provided in
currency or charging units, depending on how the feature is set up by your service provider.
To invoke the feature, the user presses FEATURE 818.
To set up MCID and network diversion, you can access the Network Services heading on the
Unified Manager, as described in these steps:
1Click the keys beside Services, Telephony services, General settings, and
Network services.
2Click on ETSI.
3The following table lists the possible values for ETSI.
The Description column of the table describes the feature and how the user activates each
feature from their telephone.
Table 149 Hardware programming for branch offices
West End office: East End office:
Hardware
programming
DTM/BRIM PRI/BRI Hardware
programming
DTM/BRIM PRI/BRI
Protocol ETSI QSIG Protocol ETSI QSIG
BchanSeq Ascend
(PRI only)
BchanSeq Ascend
(PRI only)
ClockSrc Primary ClockSrc Primary
546 ETSI Euro network services
P0609326 1.1
Table 150 ETSI network values
Attribute Values Description
Netwrk Diversion Y or N Allows you to choose if you want to allow calls to be redirected to an outside
network.
MCID Y or N Malicious Call Identification
If you set this feature to Y, the called party can use FEATURE 897 to request
the network to record the identity of an incoming call. including:
• called party number
• calling party number
• local time and date of the activity
• calling party sub-address, if provided by the calling user
MCID note The feature code must be entered within 25 seconds of the caller hanging up
(a 25-second busy tone occurs). If the called party hangs up first, there is no
opportunity to use the feature.
Note: The call identification comes from your service provider, not the Business
Communications Manager. You must have the service activated by the CO
before the feature is active for the user, regardless of the setting in this field.
DPNSS 1 services 547
Business Communications Manager 3.6 Programming Operations Guide
DPNSS 1 services
The Digital Private Network Signaling System (DPNSS 1) is a networking protocol enhancement
that extends the private networking capabilities of existing Business Communications Manager
systems. It is designed to offer greater centralized functionality for operators, giving them access
to Business Communications Manager features over multiple combined networks.
Note: The DPNSS feature is dependent on which region loaded on your system at startup and that
a software keycode was entered to enable the feature.
Other information in this section includes:
•“DPNSS 1 capabilities” on page 547
•“DPNSS 1 features” on page 548
•“Private networking with DPNSS” on page 555
DPNSS 1 allows a Business Communications Manager local node, acting as a terminating node, to
communicate with other PBXs over the network. For example, corporate offices separated
geographically can be linked over DPNSS 1 to other Business Communications Manager nodes,
bypassing the restrictions of the PSTNs to which they may be connected. This allows connected
Business Communications Manager nodes to function like a private network, with all features of
Business Communications Manager accessible.
TIPS: Business Communications Manager DPNSS 1 works as a terminating node only.
Business Communications Manager to Business Communications Manager DPNSS is not
supported.
DPNSS 1 features can be used on any Business Communications Manager telephone. On most
Business Communications Manager telephone, you must use specific keys and/or enter a number
code to access the features.
DPNSS 1 capabilities
A single Business Communications Manager node, acting as a terminating node on the network,
supports the following capabilities over DPNSS 1 lines:
• Direct Dial Inward (DDI) for incoming calls.
• Originating Line Identification (OLI) for incoming and outgoing calls:
— For incoming calls, the Calling Line Identification (CLI/CLID) information is displayed to
the user on telephones with line display This must be configured in programming.
— For outgoing calls, the directory number of the originating party is sent out as OLI.
• Terminal Line Identification (TLI) for incoming and outgoing calls. Referred to as Called Line
Identification.
• Selective Line Redirect (SLR) and External Call Forward (ECF) implemented on calls
between DPNSS 1, and BRI/PRI, DASS2, and Analog lines.
548 DPNSS 1 features
P0609326 1.1
• These remote access features are supported on DPNSS: DDI, line pool access code,
destination Codes and remote page feature codes.
Software Keys are required to enable DPNSS 1.
DPNSS to Embark connections
DPNSS lines connected to an Embark switch perform call redirection/diversion using the Call
Forward feature to create a tandem link back to the switch. Since this is different from other
switches, you must select the type of switch DPNSS will be connecting to when you do module
programming. Refer to “Defining trunk module types and settings” on page 130.
Before you program Call Forwarding ensure that:
• Both real channels and virtual channels are provisioned.
• Destination or line pool codes are programmed for the DPNSS to Embark link.
Also, during programming for Call Forward No Answer and Call Forward on Busy, when you
enter the Forward to: digits, the system does a validation check with the switch on the number.
(Telephony features, System DNs, Active/Inactive DNs, DN XXXX, Capabilities)
DPNSS 1 features
The following features are available and can be programmed over DPNSS lines:
•“Three party service” on page 549
• Diversion (“Using the diversion feature” on page 549)
• Redirection (“Using the Redirection feature” on page 551)
•“Executive intrusion” on page 551
•“Call offer” on page 553
•“Route optimization” on page 554
•“Loop avoidance” on page 555
• Message Waiting Indication (“Configuring MWI on DPNSS 1 networks” on page 569 in the
chapter “Configuring centralized voice mail” on page 559
The following parameters can be configured for DPNNS 1 lines:
• Line type
•Prime set
• CLID set
• Auto privacy
• Answer mode
• Auxiliary ringer
• Full autohold
DPNSS 1 features 549
Business Communications Manager 3.6 Programming Operations Guide
Some features are transparent to the user, but must be programmed to be activated. Others are
available for end-user programming at the telephone. Details about these features are given below.
Three party service
Three Party Service is a DPNSS 1 feature for Business Communications Manager that is similar to
the Business Communications Manager Conference feature.
The Three Party Service allows a user, usually an operator, to establish a three-party conference by
calling two other parties from one telephone. Once the connection is made, the controlling party
can hang up, leaving the other two connected. The controlling party can even put one party on
hold, and talk to the other party.
Note: Business Communications Manager does not support Hold over the DPNSS link itself. This
means that the conferenced party on the distance end of the network cannot place a Three Party
Service call on Hold.
This feature is basically designed to allow operators to assist in the connection of calls from one
main location.
Making a conference call
To initiate or disconnect from a conference call on a Business Communications Manager system
over DPNSS 1, use the procedure described in the Business Communications Manager Feature
Programming Telephone Guide.
Note: Three Party Service is supported on model 7000 telephones, but in a receive-only fashion.
These telephone types cannot initiate Three Party Service. For more information about these
telephone types, see the Business Communications Manager T7000 User Card.
Using the diversion feature
Diversion is a DPNSS 1 feature for Business Communications Manager that allows users to
forward their calls to a third party on the DPNSS 1 network. This feature is similar to call forward
on Business Communications Manager, but takes advantage of the broader capabilities of DPNSS.
There are five variations of Diversion: Call Diversion Immediate, Call Diversion On Busy, Call
Diversion On No Reply, Bypass Call Diversion, and Follow-me Diversion. These variations are
described below:
• Diversion Immediate diverts all calls to an alternate telephone. This function is programmed
by the user at their telephone.
• Diversion On Busy diverts all calls to an alternate telephone when a telephone is busy. This
feature is programmed in the Unified Manager.
550 DPNSS 1 features
P0609326 1.1
• Diversion On No Reply diverts calls that go unanswered after a specified amount of time. This
feature is programmed in the Unified Manager.
• Bypass Call Diversion overrides all call forward features active on a telephone over a DPNSS
line. An incoming call to the telephone will not be forwarded; instead, the telephone will
continue to ring as if call forward were not active. This feature is used to force a call to be
answered at that location. Bypass Call Diversion is a receive-only feature on Business
Communications Manager, and cannot be used from a Business Communications Manager
telephone.
• Follow-me Diversion is also a receive-only feature. It allows the call forwarded destination to
remotely change the Business Communications Manager call forwarding programming (Call
Forward All Calls (CFAC) feature) to a different telephone.
TIPS: Business Communications Manager CFAC must be active and the destination
set/PBX system must support the feature.
For example, user A forwards all calls to telephone B, a temporary office. Later, user A moves
on to location C. The user does not have to be at telephone A to forward calls to location C.
Using telephone B and Follow-me Diversion, the user can forward calls from A to location C.
Follow-me diversion can be cancelled from the forwarded location.
• Diversion on Busy and Diversion on No Reply cannot be cancelled from the forwarded
telephone. These are programmable only by an installer and not by the user.
• If multiple telephones are programmed to take a call, the first telephone to respond will act.
All other telephones responding are ignored. Therefore, if the first telephone to respond has
Diversion enabled, this feature will be invoked.
Restrictions by telephone type
• all variations supported on Business Communications Manager digital and IP telephones
• ATA2/ASM8+—all variations supported on an ATA
• ISDN—all variations supported on ISDN telephones, except Diversion on Busy and CFWD
Busy
• Portables—all variations supported on portable telephones
Setting Diversion
You set Diversion for DPNSS in the same way as call forward, see “Assigning Call Forward” on
page 409. You will need to enter the end DN when prompted. You may also need to include the
DPNSS 1 routing number.
DPNSS 1 features 551
Business Communications Manager 3.6 Programming Operations Guide
Using the Redirection feature
Redirection is a DPNSS 1 feature similar to Business Communications Manager Transfer
Callback. Redirection lets a call awaiting connection, or re-connection, be redirected by the
originating party to an alternate destination after a time-out period. Failed calls can also be
redirected. Priority calls are not redirected.
Note: The address to redirect depends on the history of the call. Calls that have been transferred
are redirected to the party that transferred them. In all other cases, the address to redirect is the one
registered at the PBX system originating the redirection.
Note: Business Communications Manager does not support the redirection of Business
Communications Manager originated calls, even over DPNSS 1.
The Diversion on No Reply feature takes precedence over Redirection.
Restrictions by telephone type
• For telephones without displays, the # key acts as MORE and the * key acts as VIEW
• ATA2/ASM8+—not supported
• ISDN—all variations supported on ISDN telephones
• Portables—all variations supported on portable telephones
Setting redirection
The timer used for the network Callback Feature is also used for redirection.
Executive intrusion
Executive Intrusion (EI) is a DPNSS 1 feature that allows an operator, or other calling party, to
intrude on a line when it is busy. An example of the use of this feature is to make an important
announcement when the recipient is on another call.
EI is similar in functionality to Business Communications Manager Priority Call, but it is a
receive-only feature on Business Communications Manager telephones. EI cannot be initiated
from a Business Communications Manager telephone. The person using this feature must be on
another PBX system on the DPNSS 1 network.
When EI is used to intrude on a call in progress, a three-way connection is established between the
originating party and the two parties on the call. The result is very much like a conference call.
When one of the three parties clears the line, the other two remain connected, and EI is terminated.
552 DPNSS 1 features
P0609326 1.1
Restrictions by telephone type
• ATA2/ASM8+—supported
• ISDN—not supported
• Portables—not supported
The telephone receiving the intrusion displays Intrusion Call. A warning indication tone
will sound after intrusion has taken place, and the standard conference call tone will sound every
20 seconds.
Intrusion levels
Whether or not a telephone will accept or reject an Executive Intrusion request depends on the
level of intrusion protection programmed. Each telephone (DN) has an Intrusion Capability Level
(ICL) and four Intrusion Protection Levels (IPL).
When the ICL of the intruding telephone is higher than the IPLs of both telephones on the active
call, EI will occur. It is best to set the IPLs of most the Business Communications Manager
telephone to the default of None, or Low or Medium.
Intrusion levels are described as follows:
• ICL: determines the ability of the attendant to intrude. As long as the ICL is higher than the
IPL of the wanted party, EI is allowed. Since EI is a receive-only feature, the ICL cannot be set
on Business Communications Manager.
• IPL: determines the ability of the attendant to refuse intrusion. If the IPL is lower than the ICL
of the originating party, EI is allowed. For general purposes setting the IPL to None, Low or
Medium is recommended, unless intrusion is not wanted.
Programming IPL on a telephone
1Click on the keys beside Services, Telephony Services, System DNs, Active Set DNs,
DN ##, and Capabilities.
2Choose Intrusion.
3Click a Protection level: None, Low, Med, or High.
If the level of intrusion protection is set to High no intrusions will be allowed. The default is
None.
DPNSS 1 features 553
Business Communications Manager 3.6 Programming Operations Guide
Call offer
Call Offer over DPNSS 1 allows a calling party to indicate to the wanted party that there is an
incoming call available, even though there is no answer button available to present the call on the
telephone. The intended recipient can ignore, accept, or decline the offered call. Call Offer is
useful in increasing the call-coverage capability of a Business Communications Manager system,
and helps to lift the network processing load. It is a receive-only capability on Business
Communications Manager: incoming calls would be initiated at another PBX system on the
DPNSS 1 network.
An example of Call Offer in use is an operator or attendant who has a number of calls coming in at
once. The operator can call offer one call and move to the next without waiting for the first call to
be answered.
Call Offer Displays
When a Call Offer is made by the originating exchange, the target telephone displays a message,
and a tone is heard. When an offered call arrives on telephones with line display, the user sees
XX...X wtng if the calling party ID is available and CLID is enabled. If CLID is not available
or CLID is disabled, Line XXX waiting appears (the line name associated with the call). If
there are more than 11 digits in the incoming number, only the last 10 will display.
If Call Queuing is programmed for the system, the display shows Release Line XXX.
This is the line name of the highest-priority queued call if it is an offered call.
Restrictions by telephone type
• model 7000 telephone — associated LED or LCD flashes, and a tone is heard
• ATA2/ASM8+—Call Offer is supported as a Camp On feature, and a tone is heard
• ISDN—not supported
• Portables—not supported
Note the following general conditions and restrictions:
• DND on busy must be programmed as N (DN ##/Capabilities) for a telephone to accept
Call Offer.
• If CF on busy is programmed for the telephone, Call Offer is not accepted.
• The target line for the telephone must be set to: If busy: busy tone, which is the default.
Refer to “Assigning Trunk/line data” on page 236.
• Call Offer does not work if sent over Manual answer lines. It is recommended that the lines be
left at the default: Auto.
554 DPNSS 1 features
P0609326 1.1
User actions
The party receiving a Call Offer has three choices:
• Ignore it. After a programmed time interval, the Offer request is removed.
• Reject it. If the user activates Do Not Disturb on Busy (DND) when the Call Offer request is
made, the request is removed from the telephone. The calling party is informed of the
rejection.
A call cannot be offered to a telephone with DND active. The line indicator for external
incoming calls still flashes.
• Accept it. The Offer is accepted by releasing the active call.
Note: Forward on Busy takes priority over DND on Busy. Call Offer cannot be accepted by
putting an active call on hold.
Route optimization
Route Optimization is a DPNSS 1 feature for Business Communications Manager that allows calls
to follow the optimum route between two end PBXs. This allows efficient use of network
resources.
Route Optimization is initiated by the system and is transparent to the user. However, the user may
see a call switch from an appearance on the telephone to another appearance key or from an
intercom button to the appearance key or vice versa. This occurs when Business Communications
Manager receives a Route Optimization request and initiates a new call to follow the optimal
route.
If a telephone is active on a private line call, the Route Optimization call being established may go
on a public line. This will cause a loss of privacy on that line.
Data calls are rejected by Route Optimization in order to ensure the data transmission is not
affected.
Certain situations result in Route Optimization not taking place. For example, calls that are using
Hold, Parking or Camp features do not undergo Route Optimization, and if a Route Optimization
call undergoes Diversion, the Route Optimization is dropped.
Setting Route Optimization
There is no system programming required for the feature when Business Communications
Manager is working as a terminating PBX system. However, Business Communications Manager
must have a private access code programmed that maps to a valid destination code or line pool
code on DPNSS lines. Further, Allow redirect must be set to Y. For more information, see
“Defining device capabilities” on page 405.
Private networking with DPNSS 555
Business Communications Manager 3.6 Programming Operations Guide
Loop avoidance
Errors in the configuration of a network may make it possible for a call to be misrouted, and arrive
at a PBX system through which it has already passed. This would continue, causing a loop which
would eventually use up all of the available channels. The Loop Avoidance service permits
counting of DPNSS 1 transit PBXs and rejecting a call when the count exceeds a predetermined
limit.
Programming loop avoidance
To set Loop avoidance during hardware configuration:
1Click the keys beside Resources, Media Bay Modules, Bus 02 - 07, Modules on Bus.
2Select Module 1.
3Choose Module type DPNSS.
4Type a value (0-25) in the Maximum transits box.
The default value is 25.
Private networking with DPNSS
(International only)
DPNSS supports the Universal Dialing Plan (UDP), an international standard for sending and
receiving private numbers over networks. The UDP requires that a dialing number includes the
following:
• a Private Access Code, programmed into the system as part of the destination code table to
prevent conflicts with the internal numbering system. (Access Codes)
• a Home Location Code (HLC) assigned to each PBX system, and configured as part of the
destination code (a maximum of seven digits). For each HLC, a routing code must be
programmed in the system. (Dialing plan, UDP, Location code)
• a Directory Number (DNs) assigned to each extension as a line appearance. The DN appears
as the last string segment in a dialed number. In the number 244-1111, 1111 is the DN.
A typical Private Number, using a private access code and dialed from another site on the network,
appears below.
In this networking example, a private network is formed when several systems are connected
through a Meridian M1 and a terminating Business Communications Manager system. Each site
has its own HLC and a range of DNs. The figure below illustrates this example.
Private Access Code + Home Location Code + Directory Number = Calling Party Number
6+ 848 + 2222 = 6-848-2222
556 Private networking with DPNSS
P0609326 1.1
Calls are dialed and identified to the system as follows:
• To reach a telephone inside the Private Network, at the Business Communications Manager
site, the user dials the DN of choice.
• To reach a telephone inside the Private Network, from another site, the user dials HLC + DN.
• To reach a telephone outside the Private Network, the user dials an Access Code + HLC + DN
Each node has its own destination (dest) codes which includes the appropriate access and HLC
codes to route the call appropriately.
The table below shows examples of the construction of numbers used when dialing within the
example network. Note that 6 is the Private Access code.
Table 151 Calling numbers required for DPNSS network example
Calling Site LOC/HLC
Calling Party
Number Called Site Dialing String
Called Party
Number
Site A 244 244 1111 Site B 6 668 2222 668 2222
Site B 668 668 2222 Site D 6 848 2222 848 2222
Site D 848 2222 Site D 2229 2229
Site C 496 496 3333 Public DN 9 563 3245 563 3245
Private networking with DPNSS 557
Business Communications Manager 3.6 Programming Operations Guide
Figure 184 DPNSS networking
The table below shows examples of the routing required to set up the network shown in the figure
above. Note that 6 is the Private Access code.
Table 152 Routing for DPNSS network
Private Network: (for each branch Business Communications Manager)
Routing service to Private network Public network
Route 001 002
Dial out # No number No number
Use Pool N Pool N
DN type none
(private access code 6 is
programmed)
public
Destination Code 6 9
Normal route 001 002
Absorb 1 1
Business Communications
Manager Site D
DN # 2229
Extension 2222
LOC # 848
Business Communications
Manager Site C
DN # 3333
LOC #496
Business Communications
Manager Site B
DN # 2222
LOC #668
Terminating
Business Communications
Manager Site A
DN # 111
LOC # 244
Meridian M1
LOC # 563
Private
Network
DPNSS DPNSS
DPNSS DPNSS
558 Private networking with DPNSS
P0609326 1.1
Guidelines for creating a private numbering plan with DPNSS
Use the following guidelines when creating a private numbering plan with DPNSS.
• When creating HLCs for the nodes in your system, avoid numbering conflicts between
network nodes and internal DNs, Hunt group DNs.
• Program a Private Access Code into your destination routing tables to avoid conflicts with
your internal HLC and dest code numbering plan. For example, if a dialout HLC is 848, but
this number already exists in the Business Communications Manager system for an extension,
the routing tables should add a Private Access Code to the dest code. If the code is
programmed as 6, the dest code becomes 6848. 6848 uses a route to dial out 848 using the
DPNSS line pool, allowing the call to be placed.
Note that a Private Access Code is required only for specific DPNSS features such as
Diversion, Route Optimization, and Redirection.
Customizing the DPNSS routing service
You can customize the routing service using the following restrictions:
• Direct Inward Access (DIA) lines allow incoming calls on private circuits to be directed to
telephones without going through the normal call reception. Each DIA line is assigned to one
or more extensions and is given a distinct Private Received number. When someone on
another system on the network dials the Private Received number on a DPNSS line, the
Business Communications Manager system checks all received digits, compares the digits to
an internal table and routes the call to the appropriate DIA line. All extensions programmed to
have access to that DIA line will then alert for the incoming call.
• Dialing restrictions can be added to lines in line pools. Filters can restrict the use of the line to
specific area codes.
• You can use host system signaling codes as part of the dial out for a route. Routing can also be
used as an alternate method for a direct-dial digit. For example, create a destination code 0 and
program the number of the internal or external destination as the dial out. Digit absorption
should be set to 1. Because overflow routing directs calls using alternate line pools, a call may
be affected by different line restrictions when it is handled by overflow routing.
559
Business Communications Manager 3.6 Programming Operations Guide
Chapter 22
Configuring centralized voice mail
This section describes how to set up the Business Communications Manager to support centralized
voice mail or call attendant over a private network.
The Business Communications Manager supports voice mail configuration either from the local
source or by accessing a remote voice mail system located on another Business Communications
Manager or attached to a Meridian 1 system. The system can be configured to more than one voice
mail system. However, each telephone can only be configured to one system.
BCM 3.6 and newer software: The Business Communications Manager can also support
centralized voice mail on a DMS100/SL100 switch through a PRI-DMS100 connection. The
system also supports centralized voice mail on the switch through an indirect connection through
an M1, where the DMS100/SL100 is connected by PRI-DMS100 to the M1 and the M1 is
connected to a Business Communications Manager through a PRI-MCDN connection. The
DMS100/SL100 can use either the Public number or Private number of a Business
Communications Manager telephone to designate the mailbox number on the voice mail system.
To configure centralized voice mail, the system must be using a CDP dialing plan and be running
on a private network created using either PRI SL-1 or VoIP trunking set up with MCDN. Private
network configuration and features are discussed in “Configuring private networks with SL-1
MCDN” on page 519 (North American profile) and “Configuring ETSI QSIG and DPNSS
network services” on page 543 (ETSI profiles) and in the IP Telephony Configuration Guide
(VoIP trunks).
Note: For centralized voice mail from a DMS100/SL100 system, configure the Business
Communications Manager dialing plan as either CDP or UDP.
This section includes this information:
•“System set up for host Business Communications Manager” on page 561
•“System set up for satellite systems” on page 562
•“Configuring the system for centralized voice mail” on page 564
•“Meridian MCDN call features over PRI SL-1 lines” on page 565
•“Configuring MWI on DPNSS 1 networks” on page 569
560 Business Communications Manager as host
P0609326 1.1
Business Communications Manager as host
A Business Communications Manager that acts as a central voice mail location must be running at
least BCM version 3.5 or newer software. Other systems on the network can be running older
software, as long as that software supports MCDN. In the case of another Business
Communications Manager system, this would require BCM version 2.5 or newer software. You
can add up to 1000 mailboxes on Business Communications Manager voice mail, providing you
have entered adequate keycodes.
CallPilot constraints:
• To allow use of the auto attendant feature, you must ensure that the Allow Network Transfers
check box is selected in the CallPilot Manager.
• To allow use of voice mail, you must ensure that the Enabled Redirected DN check box is
selected in the CallPilot Manager.
For details about setting up the CallPilot parameters and features, refer to the CallPilot Manager
Set Up and Operation Guide and the other CallPilot supporting documentation.
Meridian system as host
If you are using a voice mail system connected to a Meridian 1 as a host system, ensure that the
systems are set up to be compatible with each other:
CallPilot compatibility
If you are planning to use M-1 based CallPilot software for the voice mail system, there are no
compatibility issues.
Meridian Mail compatibility issues
If you are using Meridian Mail as the host system, ensure that the Meridian has the following:
• Meridian Mail rel. 7 (MM7) or above
• the appropriate number of PRI cards and D-channel handlers to support the PRI links to all the
Business Communications Managers using the system.
Special requirements:
• Over a PRI SL-1 line: Meridian 1 must be on Release 19 or greater.
• Over VoIP: Meridian one must be installed with an IPT card version 3.0 or newer
• Meridian 1 requires the network ID of the Business Communications Manager, which is
defined under Dialing Plan, Private Network in the Unified Manager. This is a number
between 1 and 27, and is defined by the Meridian system administrator.
System set up for host Business Communications Manager 561
Business Communications Manager 3.6 Programming Operations Guide
Refer also to “System set up for satellite systems” for specific call features available from a
Meridian 1-based voice mail system.
System set up for host Business Communications Manager
The Business Communications Manager that hosts the voice mail needs to ensure that incoming
calls are directed to the voice mail service.
Process assumptions:
• Private network has been set up, with MCDN, between any nodes that need to access voice
mail on this system.
• That all systems are using the CDP dialing plan, and you set up the correct routing to these
systems.
• CallPilot or auto attendant is setup and is running for the local system.
• You obtain a list of DNs from the remote systems that require mailboxes.
Follow these steps to configure the host system:
1Obtain the Voice Mail DN by pressing FEATURE 985 on a system telephone.
2If this setting matches the DN scheme for your system dialing plan, go to step 3.
If this setting does not match the DN scheme for your system dialing plan:
aIn the Unified Manager, click on the keys beside Services, Telephony Services.
bClick on General Settings.
cOn the top menu, click on Configuration, and select Change DNs.
dIn the Old DN field, enter the number you obtained in step 1.
eIn the New DN field, enter the voice mail DN that fits your system dialing scheme.
fClick OK.
3Click on the keys beside Lines, Target lines, Line XXX (the target line you want to assign to
the Voice Mail DN), and Trunk/Line data.
4Click on Received number.
5Enter the voice mail DN.
CallPilot programming:
6Set up CallPilot for voice mail or auto attendant answering:
•Voice mail: In CallPilot Manager click on Configuration and System Properties.
Ensure that the Enable Redirected DN box is enabled.
•Auto-Attendant: Under the Auto-Attendant heading, click the line record you specified
in step 4 and set the Auto-Attendant to answer after 0 (zero) rings.
7To activate these settings, reboot the system when it is convenient for your users.
562 System set up for satellite systems
P0609326 1.1
VoIP networking note: If you are using H.323 VoIP trunks for central voice mail, you need to set
the following:
• Ensure that the local gateway protocol is set to SL-1 or CSE (BCM 3.0 or newer software),
based on the version of the satellite systems.
• Ensure that the remote gateways are programmed to route using CDP.
• Ensure that the remote gateway protocols are set to SL-1 or CSE (BCM 3.0 or newer
software), based on the version of the satellite system.
• Do not use SIP trunks for centralized voice mail.
System set up for satellite systems
Business Communications Managers that are remote to the voice mail system need to ensure that
outgoing calls are correctly directed to the voice mail service on the host Business
Communications Manager.
Process assumptions:
• Private network has been set up, with MCDN, between the satellite and host system.
• The correct routing to the host system is set up and working.
• You supplied a list of DNs to the host system administrator that require mailboxes.
Follow this process to set up a satellite Business Communications Manager for voice mail:
1In the Unified Manager, click on the keys beside Services, Telephony Services,
Telco Features, Voice message center numbers.
2Click on the voice center number that you want to assign to the remote voice mail system.
3In the External # field, enter the voice mail DN assigned by the host system.
Configuring the Target lines:
4If the telephone does not already have a target line assigned:
aClick on the keys beside Lines, Target Lines.
bSelect a the first target line assigned to the telephones you want to access the remote voice
mail.
cClick on Telco Features.
dBeside the Voice message center field, use the drop list and choose the same center
number that you chose in step 2.
5On the top menu, click on Edit and select Copy.
6In the Copy dialog box, enter the next target line you want to change.
7Click OK.
8Repeat steps 9 and 10 for all the target lines you want to change.
System set up for satellite systems 563
Business Communications Manager 3.6 Programming Operations Guide
Configuring the telephone records:
9Click on the keys beside System DNs, Active set DNs, DN YYY (the telephone you
associated with the voice mail target line), Line access, Line assignment.
10 Click on Line XXX (the target line you programmed for the telephone.
11 Set the Vmsg set field to Y (yes).
MWI note: If you require answer DNs to provide messaging waiting indicators (MWI), the
telephone with the DN must be assigned with a target line, and Vmsg set must be set to Y on
the telephone record.
Configuring Call forward to go to voice mail:
12 In the same DN, click on Capabilities.
13 Set the Allow redirect field to Y (yes).
14 Under Capabilities, click on Call Forward.
15 Enter the Voice Mail DN in both the Fwd no answer to and the Fwd on busy fields.
16 Repeat steps 12 to 18 for each of the DNs you want to assign to the remote voice mail.
17 Test the system.
VoIP networking note: If you are using H.323 VoIP trunks for central voice mail, you need to set
the following:
• Ensure that the local gateway protocol is set to CSE, based on the version of the satellite
systems.
• Ensure that the remote gateways are programmed to route using CDP.
• Ensure that the remote gateway protocols are set to CSE, based on the version of the satellite
system.
• Do not use SIP trunks for centralized voice mail.
564 Configuring the system for centralized voice mail
P0609326 1.1
Configuring the system for centralized voice mail
MCDN is supported over a PRI (SL-1) line or VoIP trunks between your Business
Communications Manager and other systems, such as a Meridian 1, Norstar, or other Business
Communications Managers. This section describes the specific programming for remote voice
mail over PRI lines.
Apart from line configuration, MCDN over VoIP has the same system configuration.
To set up a PRI connection on the Business Communications Manager, you need to:
1Ensure that the remote voice mail system is set up to accommodate your system on the
network.
2Ensure that your dialing plan coordinates with what the other nodes on the network are using.
Services, Telephony services, General settings, Dialing plans, Private network, UDP or
CDP.
3Enter the network system identifier the Meridian system administrator supplied (between 1
and 27), if you are networked with a Meridian 1 somewhere in the network. Services,
Telephony services, General settings, Dialing plans, Private network, UDP or CDP
4Install a DTM module to connect to the appropriate PRI SL-1 trunk, or enter the keycode for
the required number of VoIP trunks.
5Configure the lines you plan to use, assigning them to the same line pool. Refer to
“Configuring lines” on page 227 (PRI lines) and the IP Telephony Configuration Guide (VoIP
trunks).
6Enter the MCDN keycode.
7Choose the MCDN network features that you want to use.
Services, Telephony services, General settings, Network Services, MCDN
8Set up routing to target the PRI or VoIP line pool you set up.
9Set up your numbering plan to recognize the network system identifiers of the other nodes on
the system, so your system can pass them along, as required.
10 Assign the pool to any telephones you want to allow to use this line.
11 Program target lines and assign to telephones.
12 Set up the voice mail DN for the system that is being used as the host voice mail system for
your network.
13 Test the link.
14 Refer to the CallPilot documentation to set up the mail boxes or auto attendant features and
other voice mail parameters.
Meridian MCDN call features over PRI SL-1 lines 565
Business Communications Manager 3.6 Programming Operations Guide
Meridian MCDN call features over PRI SL-1 lines
Besides the general MCDN features described in Understanding MCDN network features on page
528, an MCDN connection with a Meridian 1 voice mail system, also provides some special call
features, which are listed in the following table:
Message Waiting Indication
MWI allows the voice mail host system (Meridian 1) telephone that is designated to receive
messages to notify a target telephone on the Business Communications Manager of a call waiting
using the MIK and MCK message indicators on the Meridian telephones. This feature works for
both Nortel and third-party voice mail systems. Messages are received at a centralized location, to
a pre-determined telephone, where they are processed and forwarded to the target telephone.
MWI allows the user to reply or call back to the message center. The procedure for retrieving
messages is described in the Telephone Features Handbook.
The following figure demonstrates how the Meridian responds when a call is forwarded to a
Meridian Mail mailbox.
Figure 185 Message waiting indication message
Table 153 MCDN feature enhancements
Centralized messaging • “Message Waiting Indication” on page 565 (MWI)
Centralized Attendant • “Camp-on” on page 567
•“Break-in” on page 568
Business Communications Manager Meridian 1 with Meridian Mail
SL-1 MCDN
Telephone A
Telephone B
Call forwarded to Meridian Mail
Original call
Message for You
MWI message signal (over target line)
566 Meridian MCDN call features over PRI SL-1 lines
P0609326 1.1
Programming notes
Business Communications Manager programming M1 programming
To select Remote Capability for MWI on a per-loop basis for PRI:
Resources, Media Bay Modules, Bus XX, Modules on bus,
Module X:
Remote Capability MWI = Y (if M1 has MWI package, with RCAP
set to MWI)
1. Disable the PBX D-channel
associated with IPT (LD96).
2. Add MWI to the RCAP of the
D-channel (LD 17 RCAP MWI)
3. Ensure the RLS ID is a minimum
of 25 (RLS ID 25).
4. Re-enabled the PBX D-channel.
Note: Package 219 is required on
the Meridian PBX to allow RCAP
MWI.
Note: If IP routing is being used, you
must complete this procedure on all
the D-channels in the private
network.
Turning on the service for IP trunks:
Services, General Settings, IP Trunking:
Remote Capability MWI = Y (if M1 has MWI package, with RCAP
set to MWI)
Telco features, VMsg Ctr Tel Numbers:
• Voice Message Center 1 set to DES code plus M1 voice mail
DN
Lines (target line), Telco features:
• choose Voice message Center 1
System DNs, Active set DNs, Line access, Line assignment:
• assign target line to each set
• in target line, VMsg set to Y
Meridian MCDN call features over PRI SL-1 lines 567
Business Communications Manager 3.6 Programming Operations Guide
Camp-on
A call received by the Meridian attendant can be assigned to a telephone anywhere in the MCDN
network, when the following situations are valid:
• the target telephone rings busy when the attendant calls
• no free keys on target telephone
• DND regular feature is inactive
• DND on busy feature is inactive
The target user sees that there is a call camped on the telephone. The called user can then clear a
busy lines and take the call, or the user can choose to reject the call, using F814, or the user can
indicate Do Not Disturb, using F85.
The following figure demonstrates the call path for a Meridian attendant to camp a call on a
telephone in the Business Communications Manager system.
Figure 186 Camping a call
Business
Communications
Manager
Meridian 1
Telephone A
(rings busy)
Attendant
Call forwarded
and camped on
Telephone A
Line XXX Waiting
Incoming call
for Telephone A
568 Meridian MCDN call features over PRI SL-1 lines
P0609326 1.1
Break-in
The Meridian attendant can use the break-in feature to interrupt an on-going call from a telephone
in the Business Communications Manager system.
The following figure demonstrates the call path for a Meridian attendant to break into a call
between telephones in the Business Communications Manager system.
Figure 187 Breaking into a Business Communications Manager call path
Break-in can occur when these situations are valid:
• Target Business Communications Manager telephone is busy but still has a free intercom or
line key.
• There is no camped call on the target telephone.
• DND on busy is turned on.
• prime set is also busy, with no free key, and with DND turned on.
• Attendant capability is high (2), and higher than either the target telephone or the caller the
target telephone owner is busy with.
Only post-dial break-in is supported by MCDN:
1Attendant dials destination number.
2If a busy tone is heard, the attendant presses the BKI button.
Attendant is given access to the conversation.
You can set a level of priority that will determine if a telephone will allow an attendant to break in.
This is referred to as setting the Intrusion level. Use the following rules to configure the break-in
feature.
• Set the Intrusion level for each telephone (under Capabilities). Refer to “Setting intrusion
controls” on page 414.
Business
Communications
Manager
Meridian 1
Telephone A
(rings busy)
Attendant
Incoming call
for Telephone A
Telephone B
Break-in path
Configuring MWI on DPNSS 1 networks 569
Business Communications Manager 3.6 Programming Operations Guide
How the intrusion hierarchy works:
— Break-in is allowed if Attendant telephone is High and caller telephone is Medium.
— Break-in is not allowed if Attendant telephone is Medium and caller telephone is high.
Configuring MWI on DPNSS 1 networks
Message Waiting Indication (MWI) is a DPNSS 1 feature for Business Communications Manager
Call Services. Messages are received at a centralized location, to a pre-determined telephone,
where they are processed and forwarded to the target telephone. This centralization relieves the
network processing load, making the system more efficient. MWI provides users with the ability to
scroll through, erase and reply to messages.
When there are messages to retrieve, Message for you appears on the telephone display.
After all the messages are retrieved by the user, a Message Waiting Cancellation (MWC) is sent
from the message center, and the user telephone no longer displays an MWI message.
MWI allows the user to reply or call back to the message center.
This feature is only supported on Business Communications Manager target lines.
Restrictions by telephone type:
• M7000—associated LED flashes
• ATA2—not supported.
• ASM8+ — supported
• ISDN— not supported.
• Portables—not supported.
The following sections describe how to set Message Waiting Indication:
• Assign message center to a line (“Assigning message centers to a line” on page 569).
• Select message center for use. (“Selecting a message center” on page 571)
• Assign the line to a telephone to Appear and/or Ring. (“Setting Message Waiting Indication”
on page 572)
Assigning message centers to a line
You need to assign any one of five, or None, of the message centers to the line. There can be as
many as five message centers in a network; that is, five telephones on the Business
Communications Manager system can act as mailboxes in the message centers offered by five
different PBX systems on the network. These PBXs may also be from different manufacturers.
Thus, for each message center there may be different:
• numbers to be dialed to reach the mailbox from the telephone
• MWI strings received, indicating that the center has a message in the mailbox
• MWC strings received, indicating that the voice mails have been retrieved
570 Configuring MWI on DPNSS 1 networks
P0609326 1.1
To assign a message center:
1Click the keys beside Services, Telco Features.
Figure 188 Telco features Voice message center
2Click Voice message center numbers.
3Choose a Voice message center: 1 to 5.
The existing telephone (DN) for Message Waiting appears if available, as Tel#:XXXX.
4Type the new target number, starting with an access code, if required, or None. For example:
65142222.
The display shows MWI:AN*1#. This is a string sent by the PBX holding the message center.
5Program the number that the user will dial on the IC key to retrieve a message from the
messaging center.
6Program the Non-Specified Information (NSI) string for the MWI that is expected from the
particular message center.
The display shows MWC:AN*0#. See the next procedure: “Programming MWI and MWC”.
7Program the NSI string for the MWC that is expected from the message center.
Note: The line must be programmed to Appear and/or Ring at the telephone.
When assigning message centers, you can program all three parameters for each. Remember that
the following procedure is not to select a message center, but to program any or all of the five
available message centers. This is similar to the Direct Dial functionality.
Note: The MWI and MWC strings used in this procedure are default NSI strings for Message
Waiting.
*58B*AN*1# – Message Waiting Indication
*58B*AN*0# – Message Waiting Cancellation
This provides the information required to program the strings as:
AN*1# for MWI, and
AN*0# for MWC
Private network strings will differ with different message centers. These should only be changed
on the advice of your customer service representative.
Configuring MWI on DPNSS 1 networks 571
Business Communications Manager 3.6 Programming Operations Guide
Programming MWI and MWC
MWI and MWC information is received from the network in the form of NSI strings. The NSI
strings in DPNSS are dependent on the supplier of the PBX. Therefore, the strings vary depending
on the originating PBX system.
Each string has the following default structure: *58XYYYYY.*
The following table describes each part of the NSI string:
Only the YYYYY.. # portion of the string must be programmed for MWI and MWC. The
procedure is similar to Set Name/Line Name.
The following criteria must be met when programming NSI strings for MWI/MWC:
• No spaces are allowed, including spaces at the end of the string.
•A # must be present at the end.
•A # or a * cannot be present in the first character.
Selecting a message center
With a message center programmed on a selected line, you must set the message center for use:
1Click the keys beside Services, Telephony services, Lines, Target lines.
2Click a target line number (Line 241 to 492).
3Click the key beside Telco features, then click on Voice message center numbers.
4Choose a Voice Message center: 1 to 5.
Figure 189 Target line Telco features voice message center
Table 154 Parts of the NSI string
String Component Description
*58 Identifies that it is an NSI string.
X Any letter from A to Z, or nothing.
YYYYY.. Manufacturer specific string, which can contain any sequence of alphanumeric
digits or *.
# Marks the end of the identifier.
572 Configuring MWI on DPNSS 1 networks
P0609326 1.1
Setting Message Waiting Indication
Follow these steps to set the MWI:
1Ensure that you have programmed a telephone to access target lines for receiving messages.
For information on access to target lines, refer to “Assigning message centers to a line” on
page 569.
2Click on the keys beside Services, Telephony Services, System DNs, and Active Set DNs.
3Click a DN (DN 221-528).
4Click on the key beside Line access and Line assignment.
5Select the target line you specified in Selecting a message center.
Figure 190 Setting Target line voice mail settings for the telephone
6Click Y to enable Vmsg set.
When Vmsg is enabled for a target line on a telephone, the telephone logs Message Waiting
Indication/Cancellation received for the corresponding target lines to the user.
573
Business Communications Manager 3.6 Programming Operations Guide
Chapter 23
Configuring Hunt groups
This section explains how to create hunt groups using the Hunt Group headings in the Unified
Manager.
Hunt groups are designed to provide a service where incoming calls appear on a targeted group of
telephones called a Hunt group (“How to use Hunt groups” on page 574). When you designate a
Hunt group, you define the group as a unique DN. This DN receives and distributes calls to the
telephones assigned to the group. The telephones receiving the call provide a line indication that a
call has come in. How the calls are distributed can also be defined.
There can be a maximum of 30 Hunt groups assigned on a Business Communications Manager.
The following figure shows a detailed view of the Hunt groups headings on the navigation tree.
Figure 191 Hunt groups menus and fields
Tasks:
• Identify the Hunt group (“Identifying a Hunt group” on page 575)
• Determine Hunt group members (“Adding a Hunt group member” on page 579)
• Determine the lines for the group (“Programming Hunt group lines” on page 582
• Determine how the calls will be handled and distributed
(“Feature operation within Hunt groups” on page 584)
• Monitor active Hunt group calls (“Monitoring Hunt groups” on page 585)
• Monitor Hunt group activity (“Using Hunt group metrics” on page 587)
Hunt groups
Hunt Group 01-30
DN
Mode
If busy
Queue time-out
Overflow
Name
Members
Member xxx
DN
Appearance type
Line Assignment
Line xxx
574 How to use Hunt groups
P0609326 1.1
How to use Hunt groups
You can use hunt groups to route calls to a support service such as a Help Line for a software
company. For example, specialists handling Product A can be in one group, and specialists
handling Product B can be in another group. Incoming calls hunt for the next available set in the
group. If no set is available, the system places the call in a queue or the call gets routed to an
overflow set.
Some typical uses of Hunt groups are:
• a sales department answering questions on product prices or availability
• a support department answering questions concerning the operation of a product
• an emergency department answering calls for help
Each Hunt Group has its own unique system DN that can be called from any set on the same
system. When the Hunt group DN is called, the incoming call is treated in the same fashion as calls
received from outside lines.
A Hunt group can receive a call in one of two ways:
• from one of the lines assigned to the Hunt group
• from an internal system call to the Hunt group DN
Hunt group tips:
Some of the things you need to note about Hunt group programming:
• calls on queue provide Ringback only (no on-hold music or tones)
•ensure the General Settings, Timers, Transfer Callback Timer is set correctly for Hunt
group configuration. Refer to “Setting system timers” on page 472.
• Do not program videophones as members of a Hunt group. Hunt groups allow one B channel
connection at a time and videophones use two B-channels.
• Hunt group DNs cannot be assigned as an auto dial on a Key Indicator Module (KIM),
attached to a T7316E telephone.
Identifying a Hunt group 575
Business Communications Manager 3.6 Programming Operations Guide
Identifying a Hunt group
When you first set up a Hunt group, you need to identify how a call will be handled among the
group.
1Click the keys beside Services, Telephony Services, and Hunt groups.
2Click on a Hunt group (Hunt group 1-30).
The Hung group ## screen appears in the right frame.
Figure 192 Hunt group XX screen
3The following table describes the settings that define how a hunt group handles calls:
Table 155 Hunt group settings
Field Values Description
DN Read-only (625-654) Hunt group DNs begin at 625. This value cannot be altered.
Mode Broadcast
Linear
Rotary
Default: Broadcast
Choose how you want the line to present to the group.
Broadcast—simultaneously rings at each non-busy telephone in
the hunt group. All telephones receiving the call also display the
calling line identification from the line, if the telephone or line has
been configured to offer that service. Any of the alerted
telephones can access the call.
Only one call can be presented to a hunt group at a time. Other
calls are queued until the first call is answered. Then the next call
rings on the remaining non-busy telephones. This feature allows
the call load to be continuously spread across the entire member
group.
576 Identifying a Hunt group
P0609326 1.1
Mode (continued) Refer to “Hunt group modes”
on page 577
Linear—rings the first telephone in the hunt group list. If that
telephone is busy, the system continues down the hunt group
priority list until a non-busy telephone takes the call. In this case,
all incoming calls are processed simultaneously and delivered
based on the priority list.
With this feature, you can program your top salesperson to be the
first member of the Hunt group to receive incoming calls.
Rotary—the call starts at the member telephone that appears on
the list after the telephone that answered the last call. If that
telephone is busy, the system proceeds down the priority list until
a non-busy telephone is reached. As many incoming calls can be
processed as there are available telephones to accept the call,
each call being presented in the described round-robin fashion.
Hunt Delay 1-10 (seconds) If Mode is either Linear or Rotary, Hunt Delay specifies how much
time to delay offering a Queued call to a member telephone once
that telephone becomes available.
This is to provide a break period for the users between calls.
The default is four seconds.
If busy Busy tone
Queue
Overflow
Default: busy tone
Choose how you want the system to respond if all lines appear as
busy.
Busy tone: If all lines are busy, the user receives a busy tone.
Queue: If all lines are busy, the user is put on hold for the next
available agent.
Overflow - If all members of the Hunt Group are busy on a call
from that Hunt Group, then route this call to the Hunt Group
overflow DN. Overflow is only available if the overflow DN is
different than the hunt group DN. Refer to the Overflow field,
below.
Queue time-out 15, 30, 45, 60, 120, 180
(seconds)
Default: 60
Choose the time in seconds for a call to remain in the Hunt
Group.
This value defines the maximum time a call remains queued, and
the maximum time to offer a call before sending it to overflow if it
is not answered.
If the queue times out before the call connects to a member
telephone, the call is terminated.
If the call has been offered to a member telephone, but is not
answered when the queue times out, the call is rerouted to the
overflow DN.
Overflow <any system DN> (including
a Hunt Group DN)
Default: hunt group DN
This setting determines where unanswered calls are routed after
the Queue timeout occurs.
If a call gets overflowed back to the same Hunt Group, the call
goes to the bottom of the queue and is treated as a new call.
Answer DNs: A linear hunt group that has defined an overflow
telephone does not support having the overflow telephone
assigned as an Answer DN to any hunt group member. If this
occurs, the Answer DN will not ring at the hunt group telephone
when an overflow condition occurs. Answer DNs are set up under
the Line Access heading for each DN. Refer to “Assigning
Answer DNs” on page 403. Answer key must be set to Extended
for overflow to work correctly. Refer to “Answer key levels” on
page 461.
Table 155 Hunt group settings (Continued)
Field Values Description
Identifying a Hunt group 577
Business Communications Manager 3.6 Programming Operations Guide
Hunt group modes
The following three figures graphically demonstrate each of the three modes described in the
following table that are available to Hunt groups.
Figure 193 Broadcast call mode
Name <an alpha-numeric string
naming the Hunt Group>
Provides a unique name for the Hunt Group. The default is HGxx,
where xx is the Hunt Group number 01-30.
Aux ringer Y or N Defines whether an auxiliary ringer (if installed) rings for incoming
calls to a hunt group (Y).
If set to N, the control of the auxiliary ringer falls back to control
defined on a per telephone or per line basis.
Distinct rings in
use
read only This field indicates the distinct ring patterns are currently in effect,
if any, on any lines, telephones, or hunt groups on the system.
Distinct ring None
Pattern 2, 3 or 4
Select a ring pattern for the hunt group.
Default is None.
Warning:
If you assign a distinctive ring pattern for a Hunt Group, all calls offered to telephones in the
group will use the assigned ring pattern. If no pattern is assigned, or if the ring pattern is lower in
status than the ring pattern of the line or the telephone setting, the call will use the ring pattern
with the highest status setting.
Refer to the sections which describe configuring Lines and DNs for information about assigning
distinctive ring patterns to lines and telephones.
Table 155 Hunt group settings (Continued)
Field Values Description
Incoming
call
Call A
Call B
(All telephones ring or show an appearance of all calls)
578 Identifying a Hunt group
P0609326 1.1
Figure 194 Linear call mode
Figure 195 Rotary call mode
Incoming
call Call A
answered
Call A
Call B
(This telephone was busy when Call A came
in, but was free when call B came in)
Call B answered
Incoming
call
Answered call
before Call A
Answers call A
Answers call B
Call A
Call B
Hunt group members 579
Business Communications Manager 3.6 Programming Operations Guide
Hunt group members
After you determine the hunt group, you then assign members to the group.
This section includes information about:
•“Adding a Hunt group member” on page 579
•“Moving members” on page 581
The following limitations apply to adding member DNs to a Hunt Group:
• Any system telephone or portable can be a member of a Hunt group.
• A telephone can be in more than one Hunt group. If a telephone is assigned to multiple groups,
the telephone is considered a member in each Hunt group, which increases the total number of
members in the system.
• There can be only one appearance of the same Hunt group on a telephone.
• Hunt group DNs cannot be members of other Hunt groups.
There are no default members to hunt groups. When a Hunt Group menu entry is first opened,
there will be no entries under the Members node.
Adding a Hunt group member
Follow these steps to add a hunt group member:
1Click on the keys beside Services, Telephony Services, and Hunt groups.
2Click the key beside a Hunt group (Hunt group 1-30).
3Click on Members.
4At the top of the navigation tree, click the Add button.
5Type a set number in the DN number box.
TIPS: If you are assigning DECT DNs, ensure that you only assign a maximum of four DECT
handsets that are registered with the same base station. DECT base stations can only handle a
maximum of four calls at one time.
6Click the Save button.
7On the navigation tree, click the member number you created or that you want to change.
The Hunt Group ## - Member ### screen appears.
580 Hunt group members
P0609326 1.1
Figure 196 Hunt group XX screen
8Choose the Appearance type to define how the call appears on the set.
Removing a Hunt group member
Follow these steps to remove a Hunt group member:
1Click on the keys beside Services, Telephony Services, and Hunt groups.
2Click the key beside the Hunt group (Hunt group 1-30).
3Click on Members.
4Click the member (for example, Member 001) to be removed.
5Go to the top of the navigation tree and click the Delete button.
Removing all members from a Hunt group
Follow these steps to clear out the Hunt group members list:
1Click on the keys beside Services, Telephony Services, and Hunt groups.
2Click the key beside the Hunt group (Hunt group 1-30) from which you want to remove the
members.
3Click Members.
4Go to the top of the navigation tree and click the Delete All button.
Table 156 Hunt group member settings
Field Values Description
DN (read-only) The DN of the telephone designated as this member of the hunt group.
Appearance type Appr&Ring
Ring only
Appr only
Appr&Ring (default): The call number appears on the display and the
handset rings.
Ring only: The incoming call rings at the set, but no number is displayed.
Appr only: The incoming call displays on the set, but the set does not ring.
Hunt group members 581
Business Communications Manager 3.6 Programming Operations Guide
Moving members
Member order within a Hunt group is important. The member order determines how a call routes
through a Hunt group when the group is set to either linear or rotary mode.
To move a member within a Hunt group:
1Click on the keys beside Services, Telephony Services, and Hunt groups.
2Click a Hunt group (Hunt group 1-30).
3Click on the key beside Members.
4Click a member from the member list.
For example DN 225, which is currently in Member 004 position.
5On the Configuration menu, click Move.
Figure 197 Moving hunt group members
6Type the new member number (001, 002, etc.) in the Move to box.
7Click the OK button.
The system automatically reorders the list.
DN 225 is currently assigned to Member 004
You want to move it to Member 001
582 Programming Hunt group lines
P0609326 1.1
Programming Hunt group lines
Multiple lines can be assigned to Hunt groups. However, a line can only exist in one Hunt group.
When you assign lines to Hunt groups, you must ensure that there is no interruptions to the call
before the Hunt group DN handles the call. One of the settings that you need to check, is the
designated prime set. This must be set to None. This prevents calls coming on that line from
transferring to a prime set before the Hunt group can handle the call.
For more information about programming line settings, refer to “Assigning Trunk/line data” on
page 236.
Programming note: Lines assigned to line buttons on individual telephones take precedence over
the lines assigned to Hunt group buttons. Therefore, we recommend that you do not assign lines to
individual telephone DN records for telephones that are part of a Hunt group.
DN 225 moved to Member 001
Programming Hunt group lines 583
Business Communications Manager 3.6 Programming Operations Guide
Assigning a line to a hunt group
Assign the lines that you want calls to come in on:
1Click on the keys beside Services, Telephony Services, and Hunt groups.
2Click the key beside the Hunt group (Hunt group 1-30).
3Click Line Assignment.
4At the top of the navigation tree, click the Add button.
Figure 198 Adding lines to hunt groups
5Type a line number (for example 061) in the Line number box.
6Click the Save button.
The new line number displays under Line assignment.
Unassigning a line
Remove lines that you no longer want to alert at the hunt group:
1Click on the keys beside Services, Telephony Services, and Hunt groups.
2Click the key beside the Hunt group (Hunt group 1-30).
3Click Line Assignment.
4Click the line number (for example, Line 061) to be deleted.
5At the top of the navigation tree, click the Delete button.
Unassigning all lines
Remove all currently-assigned hunt group lines.
1Click on the keys beside Services, Telephony Services, and Hunt groups.
2Click the key beside the Hunt group (Hunt group 1-30).
3Click Line Assignment.
4At the top of the navigation tree, click the Delete All button.
584 Feature operation within Hunt groups
P0609326 1.1
Feature operation within Hunt groups
The operation of some features varies if the Business Communications Manager telephone is part
of a Hunt group. The following table shows the affected features.
Hunt group matrix
To help you organize your hunt group information, transfer the information in the following table
to a spreadsheet and fill it out as you add Hunt groups.
Table 157 Hunt group feature operation
Feature Description
Call Forward All Calls The system ignores Call Forward All Calls feature and the Hunt group call
rings at the telephone.
Call Forward No Answer The system ignores Call Forward No Answer and the Hunt group call
continues to ring until the hunt time expires.
Call Forward on Busy The system ignores Call Forward on Busy and the Hunt group call continues
to ring until the hunt time expires.
Do not Disturb on Busy If this feature is active, the set will not receive notification of incoming Hunt
group calls.
Group Pickup If a set is part of a Hunt group and a call pickup group, then an incoming Hunt
group call can be picked up from any set that is in the call pickup group.
Transfer via Hold The system supports transfer for Hunt group sets. However, you cannot
Transfer via Hold. Once you answer a call on a Hunt group set, its appearance
disappears from all other sets in the Hunt group. This means that other calls
can come in on the same line.
Priority Call You cannot make Priority calls to Hunt group DNs.
Ring Again You cannot use Ring Again when calling a Hunt group DN.
Line Redirection The Allow redirect attribute should be set to N for lines assigned to Hunt
groups. For more information, see “Defining device capabilities” on page 405.
Page Zones You cannot include Hunt group DNs in a Page zone.
Voice Call Hunt groups cannot accept voice calls. Answer buttons have no appearances
for voice calls, and the set does not ring.
Table 158 Hunt group matrix fields
Hunt Group #
Hunt group
name:
Hunt Group DN Mode
Broadcast
Linear
Rotary
If busy:
Busy Tone
Queue
Queue timeout
(in seconds)
15 30 45 60 120
180
Overflow DN
Member # DN, Appr only, Appr&Ring, Ring only
Line assignment
Monitoring Hunt groups 585
Business Communications Manager 3.6 Programming Operations Guide
Monitoring Hunt groups
The Business Communications Manager system offers two ways to monitor hunt group activity.
You can use Silent Monitor (“Setting up Silent Monitoring” on page 585) to actively monitor
current calls or you can use the Hunt Metrics tables (“Using Hunt group metrics” on page 587) to
get an overview of how each hunt group is performing.
Setting up Silent Monitoring
To set up Silent Monitoring for your system:
1Click on the keys beside Services, Telephony Services, and General Settings.
2Click on Silent Monitor.
The Silent Monitor screen appears in the right frame.
Figure 199 Silent Monitoring system settings
3The following table describes the settings that define how the silent monitor feature will work
on your system:
Table 159 Silent monitor system settings
Field Values Description
Monitoring mode Silent
Non silent
Choose Silent if you want supervisors to be able to break into
a hunt group conversation without giving an indicator of their
presence.
Choose Non silent if you want the hunt group member and
the caller to hear a conference tone when a supervisor
breaks into a hunt group conversation.
Note: Initial monitoring is muted at the supervisor set. If the
supervisor wants to speak within the conversation, a display
key on the two-line display becomes available, once the
connection is established.
The default changes based on country profile.
SM sets 1 to 30 Indicate the number of two-line telephones in your system
that you will allow to be used as supervisory telephones.
(Default: 5)
SM passwd XXXXXX A six-digit set that must be entered after the supervisor
presses FEATURE *550. To maintain system security,
change this password frequently. (Default: 745368 (SILENT))
586 Monitoring Hunt groups
P0609326 1.1
Using Silent Monitor
You can set up a number of two-line telephones on your system to use as supervisory telephones to
monitor active hunt group calls from external numbers.
Only telephones that have been designated as monitoring devices have access to the
FEATURE *550 code, which activates the monitoring session. Once the session is established, a
number of display key prompts allows the supervisor to silently monitor the call, or break into the
call to provide support or instruction. Refer to “Defining device capabilities” on page 405 for
information about designating two-line display telephones as supervisor telephones.
Refer to the Telephony Features Handbook for a detailed description of the monitoring process
and the display prompts.
Monitoring with IP telephones: On calls over an VoIP trunk, where both the Hunt group call and
the monitoring call are from IP telephones (full IP domain calls), the agent will hear a click when
supervisor starts and ends monitor session.
!
Security Note: Change the password regularly.
Monitoring Hunt groups 587
Business Communications Manager 3.6 Programming Operations Guide
Using Hunt group metrics
The Hunt Group Metrics tables are located under Diagnostics, Service Metrics in the Unified
Manager. Each Hunt group has a separate listing of group data that gives you a quick overview of
activity and potential trouble spots.
To access these screens:
1Click on the keys beside Diagnostics, Service Metrics, and Hunt Group Metrics.
2Click on the Hunt group you want to observe.
As shown in the figure below, the Hunt group XX screen appears, where XX is the hunt group
number.

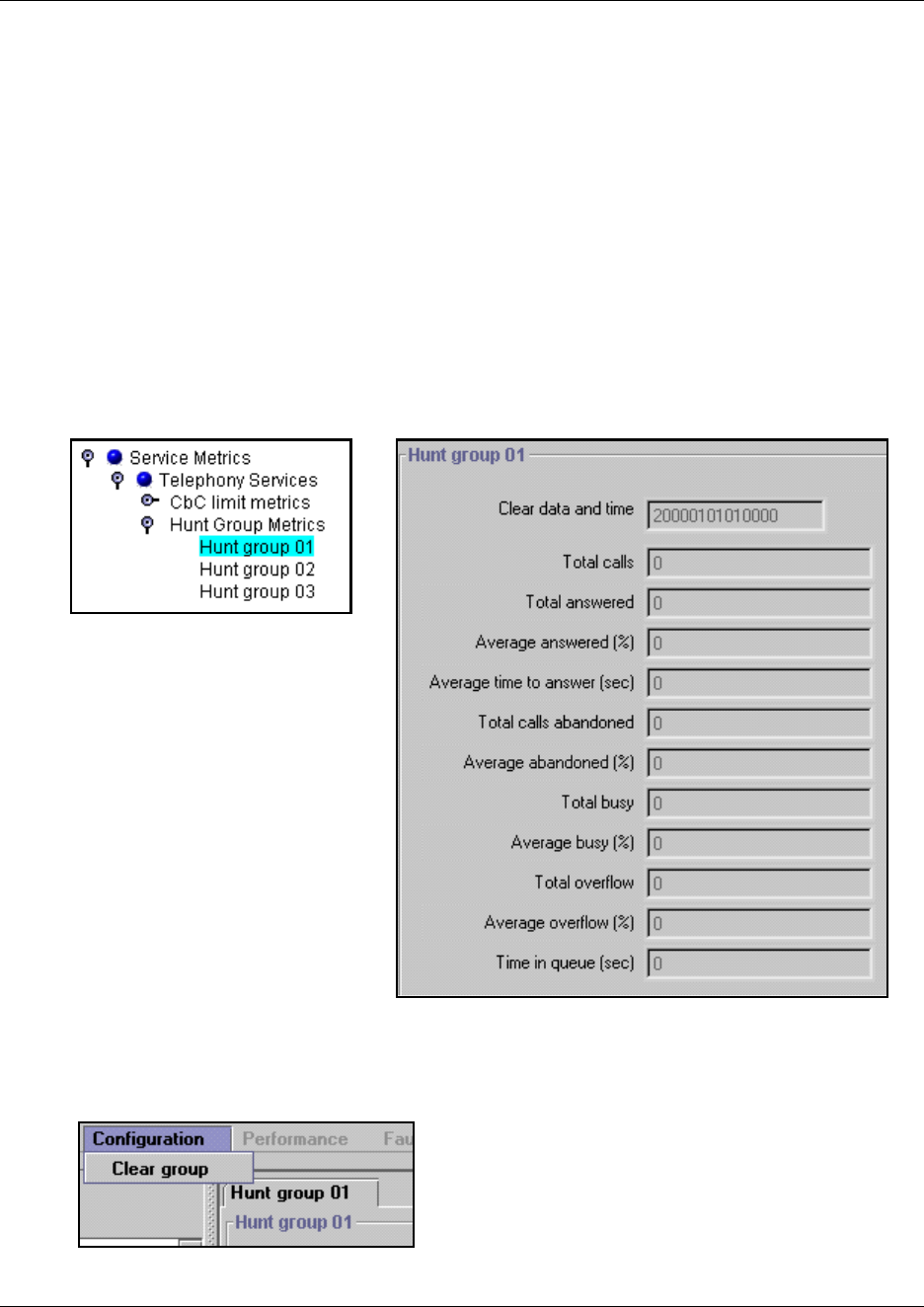

Figure 200 Hunt Group Metrics screen for Hunt group 01
All the fields are read-only, however you can reset the statistics by clicking on Clear Group
which is found under the Configuration menu item.
588 Monitoring Hunt groups
P0609326 1.1
589
Business Communications Manager 3.6 Programming Operations Guide
Chapter 24
Configuring Hospitality Services
This section describes the Hospitality headings. These records allow facilities such as hotels,
motels, and hospitals to control telephone access to external lines, to provide alarm clock services
on internal telephones, and to monitor room serviced status.
Using the features: “Using the Hospitality Services Admin telephone” on page 596 and “Using the
Hospitality services room telephone” on page 598 provide instructions for using the hospitality
features on Administrative and room telephones.
The following figure shows the Hospitality headings on the navigation tree.
Figure 201 Hospitality commands and settings
Tasks:
• Understand how the system operates (“About the Hospitality feature” on page 590)
• Determine hospitality service change times and passwords. (“Setting up Hospitality services”
on page 591)
• Determine room numbers for telephones and whether the user requires a password to access
administrative-level services. (“Identifying room telephones” on page 592)
• Determine call permissions for each of the four room occupancy levels. (“Identifying Call
Permissions” on page 593)
• Determine how the system will deal with alarms. (“Programming Alarm data” on page 594)
Hospitality
Service change time
Desk password
Room condition password
Set/Room settings
Active sets
DN nnn
Room number
Requires desk password
All sets
Call permissions
Vacant filter
Basic filter
Mid filter
Full filter
Alarm Data
Attempts
Retry interval
Alarm duration
Time format
Expired alarms
Notify set
Use tone
590 About the Hospitality feature
P0609326 1.1
About the Hospitality feature
In a temporary room occupancy setting, such as hotels or hospitals, guests gain improved services
through immediate access to basic functions like:
• wake-up services or reminders via alarms on the room telephones
• accurate tracking of the room service requirements, such as cleaning schedules and occupancy
As well, telephones in specific areas have specific functions (“Hospitality telephone definitions”
on page 590) and have access to specific alarm features (“Alarm Time (AL) feature” on page 590).
Hospitality telephone definitions
The system classifies telephones as one of three types of telephones:
Common set: This type of telephone can be found in a lobby, office, or common area. It is not
associated with a room and does not have access to all of the hospitality features. These telephones
are Business Communications Manager telephones or analog telephones connected to an analog
terminal adapter (ATA2), or an analog station module (ASM).
Room set: This type of telephone is assigned to a room. You can assign up to five telephones to
the same room (they all share the same room number). These telephones can be any Business
Communications Manager telephone or an analog telephone connected to an ATA2 or an ASM.
Hospitality Services (HS) admin set: This type of telephone is any two-line display Business
Communications Manager telephone. You can program a hospitality services telephone to require
a Administrative desk password before the system grants access to hospitality administrative-level
service control.
Alarm Time (AL) feature
The Alarm time feature provides an alarm clock capability. You can program both room
telephones and common telephones to sound an audible alert at a time you request.
• You can program one Alarm time within a 24-hour period on a room or common telephone.
• You must program the alarm daily to have the alarm sound every day.
• When the alarm sounds, all telephones in a given room alert.
• When you cancel the alarm on any telephone, the alarm is cancelled on all the telephones
associated with that room.
• A new Alarm time entered on a room or common telephone overwrites any previously-set
alarm.
• You can determine a re-ring timer (snooze alarm) which determines when the alarm will ring
again if the user paused the alarm by pressing the HOLD key (digital telephones) or by lifting
the receiver (analog telephones).
• At all times, the Business Communications Manager system allows up to a maximum of 25
telephones that can alert at the same time.
Setting up Hospitality services 591
Business Communications Manager 3.6 Programming Operations Guide
Power failures
If the Business Communications Manager system experiences a power failure, the failure can
result in lost Alarm times. When the Business Communications Manager system resumes running,
and the system time resets, the missed Alarm times alert.
Setting up Hospitality services
The Hospitality heading allows you to enter the time when occupied rooms change state from
Service done to Service required. The Service change time is a primary part of the Room condition
(RC) feature.
As well, you will enter desk and room passwords for the system.
1Click the keys beside Services and Telephony Services.
2Click on Hospitality.
The Hospitality screen appears in the right frame.
Figure 202 Hospitality service times and passwords
3The following table explains the possible settings for the hospitality record.
!
Security Note: Change the desk and room condition passwords regularly.
Table 160 Hospitality main settings
Field Values Description
Services change time <24 hour digital time> Identify when the occupied rooms will change from service done to
service required.
Format: HHMM, i.e. 1400 = 2 p.m. where HH = 0 to 23; MM = 0 to 59
Desk password <up to six digits> Enter the password that will be required to access all the Hospitality
administrative features. Default password: 4677 (HOSP)
Security: We strongly recommend that you change the default
password, and frequently change the desk password to prevent
unauthorized entry.
Room condition
password.
<up to six digits> Set the password that will allow access to the Room condition
feature (FEATURE 876).
Default password: None
592 Identifying room telephones
P0609326 1.1
Identifying room telephones
The Set/room settings allow you to assign one or more telephones to a room. This menu also
enables access control to hospitality administrative features.
1Under the Hospitality heading, click on the key beside Set/room settings.
2Click on the key beside Active sets if you are configuring a telephone that has already been set
up. Click on All sets if you need to locate a DN for a new telephone.
3Click a DN number.
The room and password assignment fields appear in the right frame.
Figure 203 Hospitality room settings
4The following table describes the two fields on the DN ### screen.
Table 161 Room settings
Field Values Description
Room number <any digit from 1 to 32767> Enter the room that contains the telephone with this DN.
Requires desk password Y, N If set to yes, the telephone requires a password to access
administrative-level hospitality features (features 877-879).
If set to no, the telephone does not require any passwords
to access the features.
Desk passwords are created using the main Hospitality
command.
Identifying Call Permissions 593
Business Communications Manager 3.6 Programming Operations Guide
Identifying Call Permissions
The Call Permissions heading allows you to define dialing filters for room telephones based on
the room occupancy status.
The dialing filters are standard Business Communications Manager Restriction filters (Filters
00-99). For more information, refer to “Defining restriction filters” on page 344.
Setting room restriction filters
Follow these steps to create room restriction filters.
1Click the keys beside Services, Telephony Services, Hospitality.
2Click the Call permissions heading.
The Call permissions screen appears in the right frame.
Figure 204 Hospitality call permissions
3The following table describes the fields on the Call permissions screen. Each field can accept a
two-digit code.
Table 162 Call permission settings
Field Values Description
Vacant filter <two-digit code> Enter a code that indicates which calls are allowed when a room is empty.
(i.e. 911)
Basic filter <two-digit code> Enter a code that indicates which calls are allowed for a basic room phone.
(i.e. 911, and internal calls only)
Mid filter <two-digit code> Enter a code that indicates which calls are allowed for a phone with mid
service. (i.e. 911, internal calls, and 1-800 numbers only)
Full filter <two-digit code> Enter a code that indicates which calls are allowed for a phone with full
service. (i.e. no restrictions)
594 Programming Alarm data
P0609326 1.1
Programming Alarm data
The Alarm data heading allows you to program how the system provides alarms to the room
telephones.
It also allows you to define how to be notified when an alarm expires (“Configuring for expired
alarms” on page 595).
Setting alarm parameters
1Click the keys beside Services, Telephony Services, and Hospitality.
2Click the Alarm data heading.
The Alarm data screen appears in the right frame.
Figure 205 Alarm data fields
3The following table describes the fields on the Alarm data screen
.
Table 163 Alarm data settings
Field Values Description
Attempts 1, 2, 3, 4, 5 Select the number of times the Alarm time feature attempts to
alert the occupant before cancelling.
Retry interval (in minutes)
2, 3, 4, 5, 6, 7, 8, 9
Select the interval between each attempt to send the alarm.
Alarm duration (in seconds)
10, 15, 20, 25, 30, 35,
40, 45, 50
Select the period that a telephone alerts for each alarm attempt.
Hospitality matrix 595
Business Communications Manager 3.6 Programming Operations Guide
Configuring for expired alarms
The Expired alarms setting allows you to program the system to notify a specific telephone
whenever a Hospitality alarm expires. This occurs when the maximum number of alarm attempts
has occurred and the alarm is cancelled without the user responding. You can also choose to allow
a caller to hear a tone when an alarm expires.
Follow these steps to set expired alarms.
1Click the keys beside Services, Telephony Services, Hospitality, and Alarm data.
2Click Expired alarms.
The Expired alarms fields appears in the right field.
Figure 206 Expired alarms fields
3The following table describes the fields on the Alarm data screen.
Hospitality matrix
To help you organize your Hospitality information, transfer the following information to a
spreadsheet and fill it out as you determine the hospitality features.
Table 164 Alarm data settings
Field Values Description
Notify set None/DN: <telephone DN> Enter a telephone DN if you want to notify a specific telephone
when an alarm expires.
Use tone Y, N Choose whether you want the user to hear a tone when the
alarm expires.
Table 165 Hospitality settings matrix
Hospitality Service change time Desk password Room condition password
Set/Room Settings Room Number Requires desk password N Y
Call Permissions Vacant filter: ___ Basic filter: ___ Mid filter: ___ Full filter: ___
Alarm data Attempts (1-5) Retry interval (2-9) Alarm duration
(10-50 seconds)
Time format
12 hour/24 hour
Expired alarms Notify set:, None, DN: Use tones: N Y
596 Using the Hospitality Services Admin telephone
P0609326 1.1
Using the Hospitality Services Admin telephone
The front desk personnel can control alarms and from a two-line display administration telephone.
The following procedures are available to the users on the Hospitality User Card.
The following sections describe these processes:
•“Hospitality Services admin alarm feature” on page 596
•“Setting the state of a room at a telephone” on page 597
•“Setting room condition” on page 597
Hospitality Services admin alarm feature
Only a Hospitality Services (HS) admin telephone can use the Hospitality Services admin alarm
feature. The Hospitality Services admin alarm feature is room-oriented. It does not control the
alarms on common telephones.
The Hospitality Services admin feature can:
• determine the current or last alarm time set for a room
• overwrite previous Alarm time programming for a room in the system
— assign an Alarm time for any room
— change an Alarm time for any room
— cancel an Alarm pending for any room
To program the Alarm time for a room with the Hospitality Services admin alarm feature:
1Press FEATURE 877 on a two-line display telephone.
2If configured, the display shows Password:.
3Enter the Desk admin password.
The display shows Al of rm#:.
4Enter the room number and press OK.
5Press VIEW.
The display shows Alrm: 07:00am OFF:.
6If the alarm time is correct, press the ON/OFF display button to activate the alarm.
7Enter a four-digit alarm time.
• If the 24-hour format is used (hour: 00 to 23 and minutes: 00 to 59), no confirmation is
required. The display shows Alarm hh:mm ON.
• If the 12-hour format is used, the display shows the four-digit time plus AM or PM?. Press
the AM or PM display button. The display shows Alarm hh:mm am ON or Alarm hh:mm
pm ON.
8Press the RELEASE button to exit programming.
Using the Hospitality Services Admin telephone 597
Business Communications Manager 3.6 Programming Operations Guide
Setting the state of a room at a telephone
To access the Room Occupancy feature and assign the state of a room set:
1Press FEATURE 879 on a two-line display telephone.
If configured, the display shows Password:.
2Enter the Desk admin password.
The display shows Oc of rm#:.
3Enter the room number and press OK.
The display shows rrrrr:Vacant.
4Press CHANGE and select the required status for the room set: Vacant, Basic, Mid or Full.
Note: Programming a room to Vacant state cancels any outstanding alarms.
5To program other rooms, press FIND or NEXT and return to step 4.
6When no more rooms require programming, press the RELEASE button to exit programming.
Setting room condition
The Room condition (RC) feature allows users to exchange information about the serviced state of
a room. Users are front desk attendants and cleaning or maintenance personnel of an
establishment. The system maintains a database of the state of each room. This database is
accessed from either the room telephone or a Hospitality Services admin telephone.
The front desk attendant can:
• assign any room state to Service done (Srvc done)
• assign any room state to Needs service (Needs srvc)
• query the state of any room
The system automatically assigns the status of a room to Needs srvc, when a room occupancy
status changes from occupied to vacant or on a daily basis at a time assigned in the initial
configuration
To update or query the room condition using a HS admin telephone:
1Press FEATURE 878 on a two-line display telephone.
If configured, the display shows Password:.
2Enter the desk admin password.
The display shows Cd of rm#:.
3Enter the room number and press OK.
The display shows rrrrr:Vacant.
4Press the CHANGE display button and select the required status for the room set:
• If the room is occupied, select Srvc done or Needs srvc.
• If the room is vacant, select Vacant or Needs srvc. The default setting is Vacant.
5To update or query other room telephones, press FIND or NEXT and return to step 4.
6When there are no more updates or queries, press the RELEASE button to exit programming.
598 Using the Hospitality services room telephone
P0609326 1.1
Using the Hospitality services room telephone
The room telephones can be used by cleaning staff and guests to set alarms and room states. This
section describes these codes and the process for using them.
•“Setting the alarm on a room telephone” on page 598
•“Setting the Room condition” on page 600
Setting the alarm on a room telephone
Guests can set alarms, turn them off and cancel them from their room telephones. The following
section describes this process for both digital telephones and analog telephones, or telephones
attached to the system using an ATA device.
This section also describes how to:
•“Change or cancel an alarm time” on page 599
•“Turn off an alarm” on page 599
To set the Alarm time feature on a telephone:
1Press FEATURE 875.
The display shows Alrm: 07:00am OFF.
2If the alarm time is correct press ON.
The display shows Alrm:07:00am ON.
3Press DONE to exit.
To change the alarm time on a telephone:
1Press FEATURE 875.
The display shows Alrm: 07:00am OFF.
2To enter a new alarm time press CHG.
The display shows Enter time:.
3Enter a new four-digit alarm time.
4Press ON.
5Press DONE to exit.
When using the 24-hour clock format (hour: 00 to 23 and minutes: 00 to 59), no confirmation
is required. The display shows Alarm ON hh:mm.
When using the 12-hour format, the display shows hh:mm AM or PM?. Press the AM or PM
display button. The display shows Alarm ON hh:mm.
Using the Hospitality services room telephone 599
Business Communications Manager 3.6 Programming Operations Guide
To program the Alarm time feature on an analog telephone:
1Press FEATURE 875.
A tone sounds.
2Enter a four-digit alarm time.
When using the 24-hour clock format (hour: 00 to 23 and minutes: 00 to 59), a tone sounds.
When using the 12-hour format, press * to select am, or # to select pm. A tone sounds.
At the assigned times, the telephone in the room rings to wake up or remind the occupant of
the next event or meeting.
Change or cancel an alarm time
When you enter a new Alarm time it overwrites any times previously assigned.
You can also cancel the alarm time feature. If you cancel the Alarm time for any set, it cancels the
Alarm time for all the sets in the same room.
• Press FEATURE #875 to cancel the Alarm time on a telephone with a display.
The display shows Alarm OFF.
• Press LINK *875 to cancel the Alarm time on an analog or T7000 telephone.
Turn off an alarm
To release a ringing alarm:
• On a telephone with a display, press any button except the HOLD button.
• On an analog telephone, lift the handset and then hang up.
Note: If the user presses the HOLD button when the set rings, it temporarily deactivates the
Alarm. After a number of minutes, the set will ring again.
If the user is on a call when the alarm rings, press any button except RELEASE to cancel the
alarm and maintain the active call.
600 Using the Hospitality services room telephone
P0609326 1.1
Setting the Room condition
The Room condition (RC) feature allows users to exchange information about the serviced state of
a room.
Cleaning or maintenance personnel access the system database from a room telephone to:
• assign the associated room state to Service done (Srvc done)
• assign the associated room state to Needs service (Needs srvc)
• query the state of the associated room on a set with a display
To update the room condition using a room telephone:
1Press FEATURE 876 on a two-line display telephone or press LINK *876 on an analog
telephone.
2At the prompt, enter the status of the room.
• To set to Service Done, press 1 on the dialpad.
• To set to Needs Service, press 2 on the dialpad. You may also be required to enter a room
condition password.
The display shows Set to srv done or Set to needs srv.
601
Business Communications Manager 3.6 Programming Operations Guide
Chapter 25
Configuring the music source
The Music on Hold and Background Music features provide music to users. For these features to
function properly, a music source must be connected to the Business Communications Manager.
There are three ways you can connect the music source to the Business Communications Manager:
• You can connect an external music source to the Media Services Card (MSC) on the Business
Communications Manager.
• You can use the IP Music feature to connect to BcmAmp.
BcmAmp is an audio player application resident on the Business Communications Manager
that provides a streaming audio signal to the Business Communications Manager system.
• You can use the IP Music feature to connect to an external music source on the data network.
This external music source must be connected to your network and be accessible to the
Business Communications Manager. The external music source must also produce a streaming
audio signal that is compatible with the Business Communications Manager.
If you are using an external music source connected to the Business Communications Manager,
refer to the Business Communications Manager Installation and Maintenance Guide for
information about how to connect the external music source. If you are using an external IP music
source connected on the data network, refer to the documentation that came with the music source
for information about how to connect the music source to the data network.
For information about how to turn on Music on Hold and Background Music, refer to
“Programming Feature settings” on page 457.
602 Selecting the music source
P0609326 1.1
Selecting the music source
After you have connected the music source, you must select the music source you want to use.
1On the navigation tree, click the Services key and click the IP Music heading.
The Summary screen appears.
2Configure the IP Music Summary parameters according to the following.
3Press the Tab key to save your changes.
Table 166 IP Music Summary parameters
Setting Definition
Description Provides a description of the IP Music Service.
Version Shows the version number of the IP Music Service.
Music Source Allows you to select the music source you want to use.
Select Audio Jack if you are using an external music source that is connected to the MSC card
on the Business Communications Manager.
Select BcmAmp if you are using the IP Music feature to connect to the music source available on
the Business Communications Manager. If you select BcmAmp, you must then configure the
BcmAmp application before you can use it. For information about how to configure BcmAmp,
refer to “Configuring BcmAmp” on page 603.
Select Network Device if you are using the IP Music feature to connect to a music source on the
data network. If you select Network Device, you must configure the Network Device before you
can use it. For information about how to configure the Network Device, refer to “Configuring a
Network Device to be the IP Music Source” on page 607.
Note: If you choose Audio Jack as the Music Source, there is no more configuration
required for the Music Source.
Configuring BcmAmp 603
Business Communications Manager 3.6 Programming Operations Guide
Configuring BcmAmp
BcmAmp is an audio player that resides on the Business Communications Manager. If you choose
to use BcmAmp, you must configure the play list, which is the music available to BcmAmp.
Configuring the play list involves:
•“Opening the BcmAmp Administration application” on page 603
•“Loading music onto the Business Communications Manager” on page 603
•“Deleting music from Business Communications Manager” on page 604
•“Loading music onto the Business Communications Manager” on page 603
•“Removing music from the Play List” on page 605
•“Using the BcmAmp Player” on page 606
Opening the BcmAmp Administration application
To open the BcmAmp Administration application:
1On the navigation tree, click the Services key and click the IP Music heading.
The Summary screen appears.
2On the Tools menu, click BcmAmp Ctl.
A log on screen appears.
3In the User Name box, enter the user name you use to log on to Unified Manager.
4In the Password box, enter the password you use to log on to Unified Manager.
5Click the OK button.
The BcmAmp Administration screen appears.
Loading music onto the Business Communications Manager
Before you can add music to the play list, you must the load the music track onto the Business
Communications Manager.
1Start the BcmAmp Administration application.
2Click the File Manager heading.
A list of audio files already on the Business Communications Manager appears, along with a
form for uploading new files.
3Click the Browse button.
4Navigate to the folder that contains the sound file you want to load.
5Click on the sound file and then click Open.
The sound file must be a .wav or .au file format.
The path for the sound file appears in the Upload box.
604 Configuring BcmAmp
P0609326 1.1
6If you want to assign a name to this sound file, enter the name in the As box.
This name appears on the File List to help identify the sound file.
7Click the Go link.
The file is added to the File List.
8Repeat steps 3 to 7 for each sound file you want to add to Business Communications Manager.
Restrictions on uploading files
The audio files loaded onto Business Communications Manager are loaded into the same disk
space that is used for CallPilot messages. Therefore, every minute of audio file loaded onto the
Business Communications Manager reduces the amount of message storage space available to
CallPilot by one minute. In order to ensure the proper operation of both BcmAmp and CallPilot,
the following restrictions are applied to uploading audio files.
• The maximum size of any single sound file you load onto Business Communications Manager
is 5 MB.
• The maximum amount of disk space allowed for BcmAmp audio files is 1 GB.
• If there is less than 1 GB of free disk space on Business Communications Manager, BcmAmp
Administration application will no longer allow you to upload audio files. This ensures there is
disk space left available for CallPilot.
Deleting music from Business Communications Manager
If you no longer want to use a sound file, you can delete the file from Business Communications
Manager.
1Start the BcmAmp Administration application.
2Click the File Manager heading.
A list of audio files already on the Business Communications Manager appears.
3Click the Remove link beside the sound file you want to delete.
A confirmation dialog box appears.
4Click the OK button.
The file is permanently removed from the Business Communications Manager.
5Repeat steps 3 and 4 for each file you want to remove.
Note: To minimize the time required to upload audio files, record the audio files as a
single channel (mono) using 8-bit samples at a rate of 8 kHz.
Configuring BcmAmp 605
Business Communications Manager 3.6 Programming Operations Guide
Adding music to the Play List
The play list is an ordered list of songs that are heard by users of the Background Music and Music
On Hold features. To add a sound file to the Play List:
1Start the BcmAmp Administration application.
2Click the Play List link.
The current play list appears.
3Click the Add drop list and click the sound file you want to add.
The sound files that appear on the Add list are the sound files loaded on the Business
Communications Manager.
4Click the To drop list and click on the location on the list where you want to add the sound file
(for example, Bottom of List).
5Click on the Go icon.
6Repeat steps 3 to 5 for each sound file you want to add to the Play List.
Removing music from the Play List
To remove a sound file from the Play List:
1Start the BcmAmp Administration application.
2Click the Play List link.
The current play list appears.
3Click the Remove link beside the sound file you want to remove from the Play List.
Note: Clicking the Remove link only removes the sound file from that location in the
Play List. If the same sound file appears in another location on the Play List, the other
entry is not removed.
Removing a sound file from the Play List does not delete the file from the Business
Communications Manager. For information about how to delete a sound file from the
Business Communications Manager, refer to “Deleting music from Business
Communications Manager” on page 604.
606 Configuring BcmAmp
P0609326 1.1
Using the BcmAmp Player
The BcmAmp Player is a web based interface that allows you to select, play, stop, or pause sound
files that appear on the Play List. To access the BcmAmp Player:
1Start the BcmAmp Administration application.
2Click the BcmAmp Player link.
The BcmAmp Player interface appears.

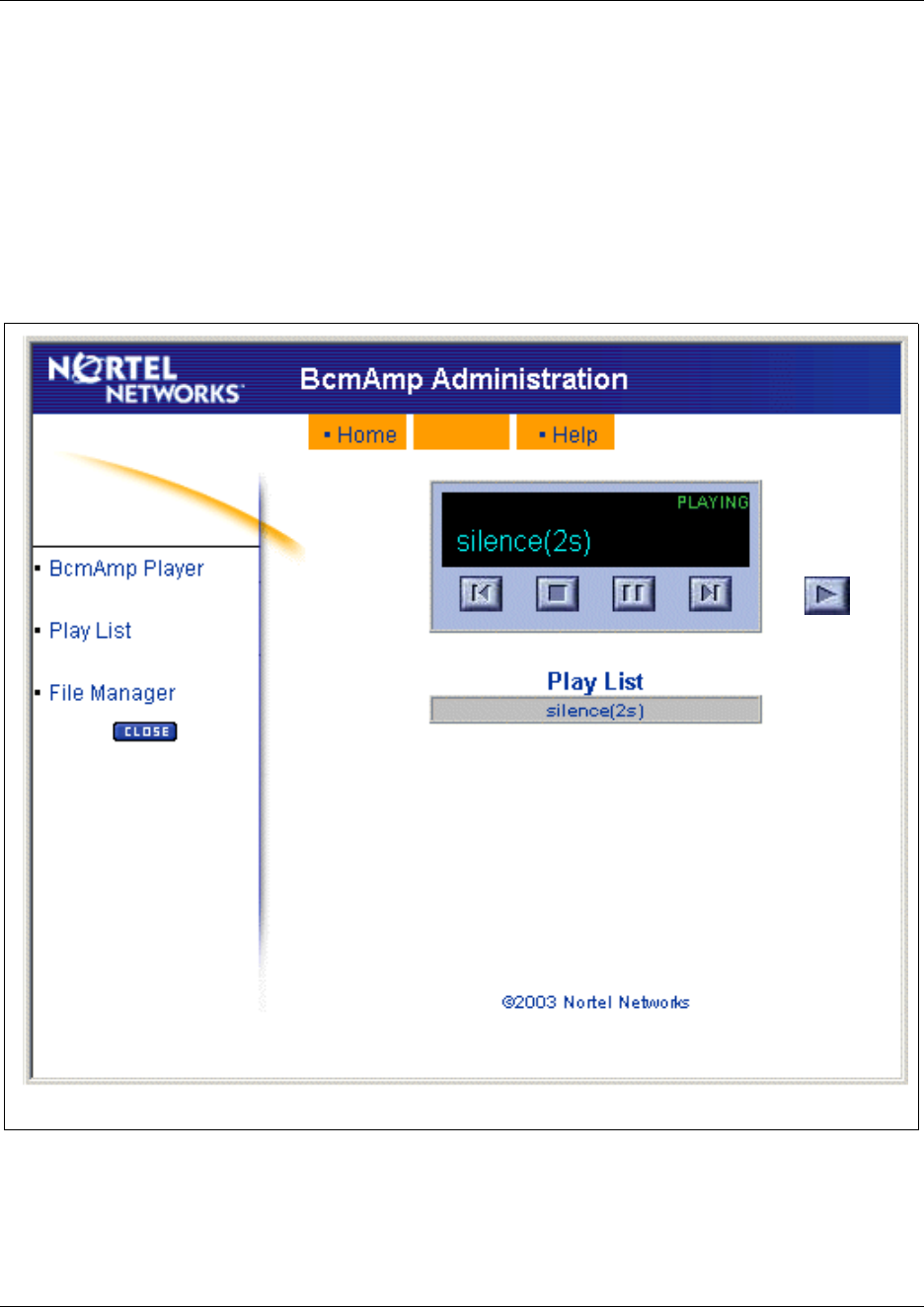

Figure 207 BcmAmp Player
To select and play a sound file:
• click the Next button
• click the Previous button
• click the sound file you want
NextStop PausePrevious Play
Note: When a song is stopped, the Stop button changes to the Play button.
Configuring a Network Device to be the IP Music Source 607
Business Communications Manager 3.6 Programming Operations Guide
To play a sound file, click the Play button.
To stop a sound file, click the Stop button.
To pause a sound file, click the Pause button.
Configuring a Network Device to be the IP Music Source
To configure a Network Device to be the IP Music source:
1On the navigation tree, click the Services key and click the IP Music heading.
The Summary screen appears.
2Click the Network Device tab.
The Network Device screen appears.
3Configure the Network Device parameters according to the following.
4Press the Tab key to save your changes.
5Press the Advanced Network tab.
The Advanced Network screen appears.
6Configure the Advanced Network parameters according to the following.
Table 167 Networks Device parameters
Setting Definition
IP Address Enter the IP address of the music source.
You must enter this value in the proper dotted format.
RTP Port Enter the number of the source port used for the music source. This is the port the Business
Communications Manager uses to receive music from the music source.
The default value is 2216.
Stream Type Enter the codec that is used for the incoming music source audio stream. The codec you enter
here must match the codec used by the IP Music source.
The possible values are G.711 U-Law, G.711 A-Law, G.729 or G.723.
The default value is G.711 U-Law.
Frames per
Packets
Number of audio frames per RTP packet. The number of frames you enter must match the
number of frames per packet sent from the IP Music source.
The possible values are 1, 2 or 3.
The default value is 3.
Table 168 Advanced Networks parameters
Setting Definition
RTP Port Enter the number of the destination port used for the music source. This is the port Business
Communications Manager uses to send music to the users.
The default value is 2218.
608 Configuring a Network Device to be the IP Music Source
P0609326 1.1
7Press the Tab key to save your changes.
Note: If you make any changes on the Network Device or Advanced Network screens,
you must disable and then re-enable the IP Music service for the change to be recognized
by Business Communications Manager. To disable and re-enable the IP Music source, go
to the IP Music Summary screen and change the Music Source to Audio Jack and then
change it back to Network Device.
609
Business Communications Manager 3.6 Programming Operations Guide
Chapter 26
Configuring the MSC resources
This section describes how to set up the resources controlled by the Media Services Card (MSC),
which is the control center for voice and data traffic in the Business Communications Manager.
This section includes:
•“Types of MSC resources” on page 609
•“Rules for managing the MSC resources” on page 611
•“Determining the MSC resources you require” on page 614
•“Configuring the MSC resources” on page 622
•“DTMF Configuration” on page 628
•“Changing the DS30 Split” on page 629
•“Configuring Double Density” on page 630
Types of MSC resources
Media Services Card (MSC) resources are required for the following features:
• system functions
• voicemail, call center, and IVR (Interactive Voice Response)
• Fax mail
• IP telephony trunks
• IP clients
• Dial-on-Demand (DoD) WAN and Backup ISDN WAN connections
When you configure the MSC resources, you are configuring how Business Communications
Manager shares the MSC resources between these features.
There are several resources that you must check when you are configuring the MSC resources:
• Signaling channels
• Media channels
• DSP resources
• Voice bus paths
• Media gateways
Warning: Only system administrators should have access to these Unified Manager
records. Changing settings can affect other parts of the system. You need to understand the
consequences of changes before you make them. Some changes are NOT reversible.
610 Types of MSC resources
P0609326 1.1
Signaling channels
Signaling channels are the communication channels used to send control signals to and from the
MSC. You must have one signaling channel for each device you have connected and feature port
you have enabled.
The number of signaling channels you have determines how many devices you can have connected
and feature ports you can have enabled on your system. Signaling channels are also known as D
channels.
Media channels
Media channels are the communication channels used to send voice and data information between
the devices and feature ports. Media channels are required only when a device or feature is sending
or receiving voice or data information. For this reason, the devices and feature ports can share
media channels.
The number of media channels you have determines how many devices and feature ports can
exchange voice and data information at the same time. Media channels are also known as B
channels.
DSP resources
Digital Signal Processors (DSP) provide the voice processing functions on Business
Communications Manager. Voice processing is required to convert voice information to and from
digital format for voicemail, call center and IVR. Voice processing is also required to handle
encoding and decoding of IP telephony calls. The DSPs are located on the MS-PEC cards installed
in your MSC.
The number of DSP resources you have determines the number of voicemail ports, call center
ports, Fax mail ports, IVR ports, IVR Fax ports, WAN connections and IP telephony calls that can
be active at the same time.
Voice bus paths
The voice bus paths are the communication channels between the DSPs on the MS-PECs and the
master DSP on the MSC. One voice bus path is required for each voice processing task that is
operating on the DSPs.
There are 62 voice bus paths available on Business Communications Manager.
Media gateways
Media gateways are logical connections that are a combination of DSP resources, media channels
and voice bus paths that provide protocol translation between IP telephones and trunks and analog
and digital telephony devices.
For information about settings that affect IP telephony, refer to the IP Telephony Configuration
Guide, provisioning section.
Rules for managing the MSC resources 611
Business Communications Manager 3.6 Programming Operations Guide
Rules for managing the MSC resources
The following rules are provided to assist you in configuring your MSC resources.
•“Signaling channel rules” on page 611
•“Media channel rules” on page 611
•“DSP resources rules” on page 613
•“Voice bus path” on page 613
•“Media gateways” on page 614
Signaling channel rules
Signaling channels are the MSC resource that determines how many IP telephones you can
connect to your system. If you have a system that does not use IP telephones, the number of
signaling channels does not affect your configuration.
• The total number signaling channels available to the MSC depends on the DS30 split you have
configured. For information about how to view and change the DS30 split, refer to “Changing
the DS30 Split” on page 629.
If you have a 2/6 DS30 split, the total number of signaling channels is 64.
If you have a 3/5 DS30 split, the total number of signaling channels is 96.
• Management functions use six signaling channels.
• Dial-on-Demand ISDN WAN uses 27 signaling channels.
All 27 signaling channels are used, regardless of the number of WAN channels configured.
• Voicemail requires one signaling channel for each voicemail port enabled. You can enable up
to 32 voicemail ports.
Both voicemail and call center use Voicemail ports.
• IP Telephony clients require one signaling channel for each IP telephone connected to the
system.
• IP Telephony trunks require one signaling channel.
Only one signaling channel is required regardless of the number of IP Telephony trunks
enabled.
• IVR requires 1 signaling channel for each IVR port enable.
• Up to 24 ports enabled. Maximum of 32 ports between IVR and voicemail.
Media channel rules
The media channels are used to transport voice and data signals between devices.
• Management functions use five media channels. These five channels are reserved for
management functions and are always in use.
• Dial-on-Demand ISDN WAN uses 27 media channels.
All 27 media channels are used, regardless of the number of WAN channels configured. The
maximum number of WAN channels is 16.
612 Rules for managing the MSC resources
P0609326 1.1
• Voicemail and call center use one media channel for each active session.
• DECT mobility requires one media channel.
Note: If your system also has Dial-on-Demand WAN, DECT uses one of the 27 WAN media
channels, so an additional channel is not required.
• A call between an IP telephone and a digital or analog telephone or a PSTN line uses a media
channel for the duration of the call.
• A call from a digital or analog telephone that uses an IP trunk uses a media channel for the
duration of the call.
• A call between two IP telephones on the same Business Communications Manager uses a
media channel during call setup. After the call is established, the media channel is released.
• A call on an IP telephone using an IP trunk uses a media channel during call setup. After the
call is established, the media channel is released.
• IVR needs 1 media channel for each active session.
Since most of the devices do not use media channels all of the time, your system can have more
devices than there are media channels. However, to ensure you have sufficient system resources,
make sure the number of media channels you have exceeds your estimate of peak media channel
usage. The section below provides an example of how to estimate your peak media channel usage.
Example of how to estimate peak media channel usage
The example below is for a fictional company named CompanyABC. The numbers used are
strictly for this example. Actual numbers will vary depending on the company. When you are
estimating your peak media channel usage, make sure you use numbers that reflect your business.
• CompanyABC has a Business Communications Manager system with 96 telephones. Of these
telephones, 48 are digital telephones and 48 are IP telephones.
The percentage of IP telephones is 50% (48/96). This percentage is used to estimate how many
calls will be made between IP telephones and digital telephones.
• In CompanyABC, the users are typically on the telephone 15 minutes out of each hour, or 25%
of the time. During peak hours, the users are on the telephone 30 minutes, or 50% of the time.
Therefore, the peak usage of IP telephones is 24 (50% X 48 IP telephones).
• In CompanyABC, half of the calls are made to external destinations and half of the calls are
made within the Business Communications Manager system. CompanyABC does not have IP
trunks, so the calls from the IP telephones to external destinations must use PSTN lines.
The peak number of IP telephone calls that use PSTN lines is 12.
(50% of calls external X 24 IP telephones during peak usage).
• For internal calls, there is a 50% chance the call is made to a digital telephone.
The peak number of IP telephone calls to digital telephones is 6.
(50% of calls internal X 24 IP telephones peak usage X 50% number of digital telephones)
• The peak media channel usage for IP telephony is 18.
(12 media channels for external calls and 6 for calls made to digital telephones.)
Rules for managing the MSC resources 613
Business Communications Manager 3.6 Programming Operations Guide
DSP resources rules
The number of DSP resources you have depends of the number of type of MS-PEC you have
installed. For information about how to determine the MS-PECs you have, refer to “Viewing the
MS-PEC configuration” on page 623.
For the purposes of calculating DSP resources, we can estimate the relative power of each
configuration as follows:
• 4 MS-PEC I 24 units
• 2 MS-PEC III 64 units
• 4 MS-PEC III 128 units
The number of DSP resources you need depends on the features and type of codec you are using.
• Dial-on-Demand WAN uses 1 unit for each 64Kbit/s channel
• Voicemail, IVR, and call center use 1 unit for each active session
• Fax uses 6 units for each active fax channel
• IP telephone or IP trunk using G.711 codec uses 1 unit
• IP telephone or IP trunk using G.729 codec uses 3 units
• IP telephone or IP trunk using G.723 codec uses 4 units
Voice bus path
There are 62 voice bus paths available on Business Communications Manager.
• Voicemail and IVR use one voice bus path for each active session.
• Dial-on-Demand WAN uses one voice bus path for each 64Kbit/s channel that is active.
• IP telephones and IP trunks require one voice bus path when ever a media channel is required.
Note: Some of the DSP resource units listed above are rounded to the nearest whole
number. This is done to ease the calculation of the DSP resources you require. To
calculate more accurate DSP requirements, use the DSP resource units in shown in the
following table.
Table 169 DSP resource requirements
Feature or codec Resource units on a MS-PEC I Resource units on a MS-PEC III
G.729 3 2.75
G.723 44.2
Fax 5 6
T.38 IP Fax 5 6
IVR Fax 6 6
614 Determining the MSC resources you require
P0609326 1.1
Media gateways
One media gateway is required for each call:
• from an IP telephone to an analog or digital telephone
• from an IP telephone using a PSTN line
• from an analog or digital telephone using an IP trunk
Determining the MSC resources you require
The following 20 questions are designed to help determine how many MSC resources you require.
Based on the answers to these questions you can calculate the number of signaling channels, media
channels, voice bus paths and DSP resource units you need. Use the table in “Evaluation” on page
620 to determine the configurations.
ISDN WAN (Dial-up/Nailed-up)
As you answer the following questions, record your answers in the table in “Record of required
MSC resources” on page 619.
1What is the maximum required WAN bandwidth?
The range is 0 to 1 Mbit/s (16 x 64 kbit/s) in 64 kbit/s increments.
If the answer is more than zero:
• add 27 to the signaling channel count
• add 27 to the media channel count
2What is the required WAN bandwidth during peak periods?
The range is 0 to the maximum bandwidth you entered in question 1.
For each 64 kbit/s of bandwidth:
• add 1 to the voice bus time slot count
• add 1 to the DSP resource unit count
Note: In the following questions, “peak periods” refers to the periods of time when there
is the highest overall activity. It is necessary to consider the resource requirements for
“peak periods” to determine if available voice bus paths and DSP resources meet your
resource requirements at all times.
Determining the MSC resources you require 615
Business Communications Manager 3.6 Programming Operations Guide
DECT mobility
3How many DECT media bay modules are installed?
The range is 0 to 1 media bay modules.
For each DECT media bay module:
• add 1 to the media channel count
Voice Mail and ACD
4What is the maximum number of Voicemail ports required? Voicemail ports are used for
voicemail and call center.
The range is 0 to 32 ports.
For each voicemail port:
• add 1 to the signaling channel count
• add 1 to the media channel count
5What is the number of Voicemail ports required during peak periods?
The range is 0 to the maximum number of ports selected in question 4.
For each voicemail port
• add 1 to the voice bus path count
• add 1 to the DSP resource unit count
6How many fax tasks will be used during peak periods?
The range is 0 to 2.
For each fax task:
• add 6 to the DSP resource unit count
Note: If your system also has Dial-on-Demand WAN, DECT uses one of the 27
WAN media channels, so an additional channel is not required.
Note: The maximum number of voice ports shared between voice mail and IVR is 32.
The maximum number of fax ports shared between voice mail, IVR and T.38 IP fax
is 8.
Note: The fax DSP resource unit count is rounded to ease calculations. For a more
accurate DSP resource unit count, refer to the table in “DSP resources rules” on page
613.
616 Determining the MSC resources you require
P0609326 1.1
IVR and IVR Fax
7What is the maximum number of IVR ports required? IVR ports are used for interactive voice
response applications.
The range is 0 to 24 ports.
For each voicemail port:
• add 1 to the signaling channel count
• add 1 to the media channel count
8What is the number of IVR ports required during peak periods?
The range is 0 to the maximum number of ports selected in question 7.
For each voicemail port
• add 1 to the voice bus path count
• add 1 to the DSP resource unit count
9How many fax tasks will be used during peak periods?
The range is 0 to 8.
For each fax task:
• add 6 to the DSP resource unit count
IP telephones
10 What is the maximum number of IP telephones required?
The range is 0 to 90 IP telephones.
For each IP telephone:
• add 1 to the signaling channel count
11 How many IP telephones will be calling an analog or digital telephone or using a PSTN trunk
during peak periods?
The range is 0 to the maximum number of IP telephones selected in question 10.
For each IP telephone:
• add 1 to the media channel count
• add 1 to the voice bus path count
Note: The maximum number of voice ports shared between voice mail and IVR is 32.
The maximum number of fax ports shared between voice mail, IVR and T.38 IP Fax
is 8.
Note: The fax DSP resource unit count is rounded to ease calculations. For a more
accurate DSP resource unit count, refer to the table in “DSP resources rules” on page
613.
Determining the MSC resources you require 617
Business Communications Manager 3.6 Programming Operations Guide
12 How many IP telephones specified in question 10 will be using the G.711 codec?
The range is 0 to the maximum number of IP telephones selected in question 11.
For each IP telephone:
• add 1 to the DSP resource unit count
13 How many IP telephones specified in question 10 will be using the G.729 codec?
The range is 0 to the maximum number of IP telephones selected in question 11.
For each IP telephone:
• add 3 to the DSP resource unit count
14 How many IP telephones specified in question 10 will be using the G.723 codec?
The range is 0 to the maximum number of IP telephones selected in question 11.
For each IP telephone:
• add 4 to the DSP resource unit count
IP Trunks
15 What is the maximum number of IP trunks required?
The range is 0 to 60 IP trunks.
If there is more than zero IP trunks:
• add 1 to the signaling channel count
16 How many analog or digital telephones (not IP telephones) will use IP trunks during peak
periods?
The range is 0 to the maximum number of IP trunks selected in question 15.
For each IP trunk:
• add 1 to the voice bus path count
• add 1 to the media channel count
17 How many IP trunks specified in question 15 will be using the G.711 codec?
The range is 0 to the maximum number of IP trunks selected in question 16.
For each IP trunk:
• add 1 to the DSP resource unit count
Note: The G.729 DSP resource unit count is rounded to ease calculations. For a more
accurate DSP resource unit count, refer to the table in “DSP resources rules” on page
613.
Note: The G.723 DSP resource unit count is rounded to ease calculations. For a more
accurate DSP resource unit count, refer to the table in “DSP resources rules” on page
613.
618 Determining the MSC resources you require
P0609326 1.1
18 How many IP trunks specified in question 15 will be using the G.729 codec?
The range is 0 to the maximum number of IP trunks selected in question 16.
For each IP trunk:
• add 3 to the DSP resource unit count
19 How many IP trunks specified in question 15 will be using the G.723 codec?
The range is 0 to the maximum number of IP trunks selected in question 16.
For each IP trunk:
• add 4 to the DSP resource unit count
20 How many T.38 fax tasks will be used during peak periods?
The range is 0 to 8.
For each fax task:
• add 6 to the DSP resource unit count
Note: The G.729 DSP resource unit count is rounded to ease calculations. For a more
accurate DSP resource unit count, refer to the table in “DSP resources rules” on page
613.
Note: The G.723 DSP resource unit count is rounded to ease calculations. For a more
accurate DSP resource unit count, refer to the table in “DSP resources rules” on page
613.
Note: The maximum number of fax ports shared between voice mail, IVR and T.38
IP Fax is 8.
Note: The fax DSP resource unit count is rounded to ease calculations. For a more
accurate DSP resource unit count, refer to the table in “DSP resources rules” on page
613.
Note: If the source or destination of the T.38 IP Fax can be fax mail or IVR, the fax
message requires two fax tasks (12 units). One fax task handles the IP Fax portion of
the transmission and the other task handles the IVR or fax mail portion of the
transmission.
Note: To use T.38 Fax, you must have 2 or 4 MS-PEC III installed in your MSC card.
For information about how to determine the MS-PECs you have, refer to “Viewing the
MS-PEC configuration” on page 623.
Determining the MSC resources you require 619
Business Communications Manager 3.6 Programming Operations Guide
Record of required MSC resources
Use the following table to record the MSC resources you require for your Business
Communications Manager system. To determine the resources that you require, answer the
questions in “Determining the MSC resources you require” on page 614.
Table 170 Required MSC resources
Question Answer Signaling
channels
Media
channels
Voice bus
paths
DSP resource
units
1. WAN --- ---
2. Peak WAN --- ---
3. DECT --- --- ---
4. VM/ACD --- ---
5. IVR
6. Peak VM/ACD --- ---
7. Peak FAX --- --- ---
8. Peak IVR
9. IVR FAX
10. IP Sets --- --- ---
11. Peak IP Sets --- ---
12. IP Sets G711 --- --- ---
13. IP Sets G729 --- --- ---
14. IP Sets G723 --- --- ---
15. IP Trunks --- --- ---
16. Peak IP Trunks --- ---
17. IP Trunks G.711 --- --- ---
18. IP Trunks G.729 --- --- ---
19. IP Trunks G.723 --- --- ---
20. IP Trunks T.38 Fax --- --- ---
Totals
620 Determining the MSC resources you require
P0609326 1.1
Evaluation
After you have answered the questions and calculated the four totals, use the following rules to
determine the required Business Communications Manager configuration.
Table 171 Evaluation of required Business Communications Manager configuration
Resource Number required Required configuration
Signaling channel count
58 or less 2/6 DS30 split
59 to 90 3/5 DS30 split
91 or more exceeds Business Communications Manager capacity
Media channel count
58 or less 2/6 DS30 split
59 to 90 3/5 DS30 split
91 or more exceeds Business Communications Manager capacity
Voice bus path count 62 or less within Business Communications Manager capacity
63 or more exceeds Business Communications Manager capacity
DSP resource units
1 to 24 4 MS PEC I
1 to 64 2 MS PEC III
65 to 128 4 MS PEC III
129 or more exceeds Business Communications Manager capacity
Note: If your system requires more MSC resources than is available on your MS-PEC
configuration, you can upgrade your MS-PECs. For information about how to upgrade
your MS-PECs, refer to the Business Communications Manager Installation and
Maintenance Guide.
Determining the MSC resources you require 621
Business Communications Manager 3.6 Programming Operations Guide
Example of a Business Communications Manager configuration
The following two tables provide examples of required configurations.
Table 172 Example of required configuration
Question Answer Signaling
channels
Media
channels
Voice bus
paths
DSP resource
units
1. WAN 512 kbit/s (8) 27 27 --- ---
2. Peak WAN 512 kbit/s (8) --- --- 8 8
3. DECT 1 --- 0 --- ---
4. VM/ACD 8 8 8 --- ---
5. IVR
6. Peak VM/ACD 6 --- --- 6 6
7. Peak IVR
8. Peak FAX 1 --- --- --- 6
9. IVR FAX
10. IP Sets 24 24 --- --- ---
11. Peak IP Sets 12 --- 12 12 ---
12. IP Sets G711 6 --- --- --- 6
13. IP Sets G729 4 --- --- --- 12
14. IP Sets G723 2 --- --- --- 8
15. IP Trunks 32 1 --- --- ---
16. Peak IP Trunks 20 --- 20 20 ---
17. IP Trunks G.711 12 --- --- --- 12
18. IP Trunks G.729 6 --- --- --- 18
19. IP Trunks G.723 2 --- --- --- 8
20. IP Trunks T.38 Fax --- --- ---
Totals --- 60 67 46 84
Table 173 Evaluation for the example of required configuration
Resource Number required Recommended configuration
Signaling channel count 60 3/5 DS30 split
Media channel count 67 3/5 DS30 split
Voice bus path count 46 within Business Communications Manager capacity
DSP resource units 84 4 MS-PEC III
622 Configuring the MSC resources
P0609326 1.1
Configuring the MSC resources
After you have determined what MSC resource you need, you can start configuring your MSC
resources.
This includes:
•“Viewing the MSC information” on page 622
•“Viewing the MS-PEC configuration” on page 623
•“Understanding the MSC Minimum and Maximum values” on page 624
Viewing the MSC information
You can view information about the Media Services Card (MSC) that is installed in your Business
Communications Manager.
To view the MSC information:
1On the navigation tree, click the Resources key and click the Media Services Card heading.
The Media Services Card screen appears.
2Click the MSC Information tab.
The MSC Information screen appears. The information on this page is described in the
following table.
Table 174 MSC information parameters
Attribute Description
Description Shows a description of the MSC
Version Shows the hardware version of the MSC installed.
ID Shows the serial number of the Media Services Card.
Configuring the MSC resources 623
Business Communications Manager 3.6 Programming Operations Guide
Viewing the MS-PEC configuration
There are three MS-PEC configurations available for Business Communications Manager:
• four MS-PEC I cards - This configuration provides the fewest number of DSP resources.
• two MS-PEC III cards - This configuration provides more MSC resources than the MS-PEC I
configuration.
• four MS-PEC III cards - This configuration provides the maximum number of MSC resources.
To view the MS-PEC information:
1On the navigation tree, click the Resources key and click the Media Services Card heading.
The Media Services Card screen appears.
2Click the MS-PEC Information tab.
The MS-PEC Information screen appears. The information in the following table appears for
each MS-PEC installed in the Media Services Card.
Table 175 MS-PEC information
Attribute Description
Location Shows the slot on the Media Services Card where the MS-PEC is installed. The Media Services
Card screen shows where these slots are on the Media Services Card.
Type Shows the type of MS-PEC installed. You can have an MS-PEC I or an MS-PEC III.
Empty appears in the Type box, when there is no MS-PEC installed in the slot.
Note: An MS-PEC III has more DSP resources than an MS-PEC I.
Hardware ID Shows the hardware ID of the MS-PEC.
DSP 1 Shows the status of the first DSP. The DSP status can be:
•Enabled: Indicates normal operation.
•User-Disabled: Indicates that the DSP has been disabled. A DSP is disabled under support
conditions only and requires the assistance of a Nortel Networks service representative.
• No Firmware: Indicates the wrong type of MS-PEC is installed or a data file was deleted from
Business Communications Manager. Contact your Nortel Networks service representative.
•Out of Service: Indicates there is a hardware failure on the MS-PEC. Replace the MS-PEC
with a Business Communications Manager compatible MS-PEC.
•Unsupported: Indicates that the MS-PEC installed is for a different Nortel Networks product
and is not compatible with Business Communications Manager. Replace the MS-PEC with a
Business Communications Manager compatible MS-PEC.
•Unknown: Indicates that Business Communications Manager does not recognize the type of
MS-PEC installed. Replace the MS-PEC with a Business Communications Manager
compatible MS-PEC.
DSP 2 Shows the status of the second DSP. The DSP status can be Enabled, User-Disabled, No
Firmware, Out of Service, Unsupported, Unknown or not available (N/A).
Note: An MS-PEC I does not have a second DSP so its DSP 2 status is N/A.
624 Configuring the MSC resources
P0609326 1.1
Understanding the MSC Minimum and Maximum values
The MSC Configuration allows you to determine how the resources are assigned on your Business
Communications Manager.
In some Business Communications Manager systems, the total number of features and devices that
require resources exceeds the number of resources that are available. To address this issue,
Business Communications Manager allows you to share the resources. By changing minimum and
maximum values for each component you can fine tune this sharing.
Minimum
The minimum value is the number of resources that are always assigned to a component. You use
this number to ensure a base level of service for a specific component. For example, to ensure that
at least four people can be using voicemail at all times, you would enter four as a minimum value
for the Voice Port component.
The resources that are not assigned using the minimum values are shared by the components. If a
component needs additional resources, it can use some of the shared resources to provide service
during the busy period. This method of sharing resources allows your Business Communications
Manager system to adapt to the changing demands for services.
Maximum
The maximum value is the maximum number of resources that can be used by a component. You
use this number to ensure a single component does not consume all of the shared resources.
The MSC Configuration you choose greatly affects the performance of your Business
Communications Manager system. Make sure you consider the needs of your users, including peak
usage times, when selecting the Minimum and Maximum values. The following table describes the
advantages and disadvantages of changing these values.
Table 176 Advantages and Disadvantages of Minimum and Maximum values
Value Advantage Disadvantage
Increasing
Minimum Value
Increases the guaranteed level of service for a
component. The DSP resources you assign as a
Minimum are always available to the users of
this component.
Decreases the flexibility of DSP resource
sharing. DSP resources that are assigned to the
Minimum value are not shared with other
components. If you set the Minimum level too
high, other components may not be available
due to a lack of available DSP resources.
Decreasing
Minimum Value
More DSP resources are available to share with
other components. When there is a large pool of
shared DSP resources, Business
Communications Manager more readily adapts
to changing component use.
Lower guaranteed level of service for this
component. If the Minimum value is too low, it is
possible that some users will not be able to
access this component when other components
are in heavy use.
Increasing
Maximum Value
Allows this component to use more of the
shared DSP resources during times of peak use.
This allows more people to use this component
at the same time.
During times of peak use, this component may
consume all of the shared resources. This may
cause other components to be unavailable to
users.
Decreasing
Maximum Value
Prevents this component from using so many of
the shared DSP resources, that other
components are unavailable.
Limits the number of people that can use this
component even if sufficient DSP resources are
available.
Configuring the MSC resources 625
Business Communications Manager 3.6 Programming Operations Guide
Viewing the MSC Configuration
To view the MSC Configuration:
1On the navigation tree, click the Resources key and click the Media Services Card key.
2Click the MSC Configuration heading.
The Configurations screen appears.
3Click the Current tab.
The Current screen appears. This screen show the MSC configuration currently being used on
your system.
Changing the MSC configuration
To change the MSC configuration:
1On the navigation tree, click the Resources key and click the Media Services Card key.
2Click the MSC Configuration heading.
The Configurations screen appears.
3Set the Configurations parameters according to the following table.
4Press the Tab key to save your changes.
Table 177 MSC configuration parameters
Attribute Description
Active
Configuration
Select the MSC configuration you want to use.
Select Default to use the MSC configuration that was programmed at the factory.
Select Custom1, Custom2 or Custom3 to use one of the customized MSC configurations you
created. For information about how to create a custom MSC configuration, refer to “Creating a
custom MSC configuration” on page 626.
Update or Reboot
Required
Shows if a system reboot is required before the selected configuration is applied.
Custom 1 Name Enter the name for the first custom MSC configuration.
Note: You do not have to change the Custom Name to use a Custom Configuration.
Custom 2 Name Enter the name for the second custom MSC configuration.
Custom 3 Name Enter the name for the third custom MSC configuration.
Note: You must reboot the Business Communications Manager for changes to the MSC
configuration to take affect.
626 Configuring the MSC resources
P0609326 1.1
Creating a custom MSC configuration
You can create up to three custom MSC configurations. You must create a custom MSC
configuration before you can apply the configuration to the MSC.
To create a custom MSC configuration:
1On the navigation tree, click the Resources key and click the Media Services Card key.
2Click the MSC Configuration heading.
The Configurations screen appears.
3Click the Custom1 tab to change the first custom configuration.
The Custom1 screen appears.
4Click the component you want to change (for example, IP Clients). The following table
describes each component.
Note: If you want to change the second custom configuration, click the Custom2 tab.
If you want to change the third custom configuration, click the Custom3 tab.
Table 178 MSC custom configuration parameters
Component Description
IP Clients IP Clients are IP telephones such as i2004 telephones and i2050 Software Phones.
DSP resources are required only when the IP telephone is in use (for example, to make a call,
receive a call, listen to voicemail).
For information about how to configure IP clients, refer to the Business Communications Manager
IP Telephony Configuration Guide.
Note: The codec (G.711, G.723 or G.729) you are using for the IP Client affects how many IP
clients you can use on your system.
IP Trunks IP Trunks are communication channels that Business Communications Manager uses to send
and receive IP telephony calls using the Public Data Network. You can use IP trunks to connect
your Business Communications Manager system to:
• another Business Communications Manager system
• a Meridian 1 IPT system
• a third-party H.323 end point or gateway
For information about how to configure IP trunks, refer to the Business Communications Manager
IP Telephony Configuration Guide.
Note: The codec (G.711, G.723 or G.729) you are using for the IP Trunk affects how many IP
Trunks you can use on your system.
Media Gateways Media Gateways provide the connection between IP telephony devices (IP trunks, i2004
telephones, i2050 telephones, and H.323 terminals) and normal telephony devices (PSTN lines;
Business Series Terminals (BST) telephones: T7316E, T7316, T7208s, T7100; analog
telephones etc.).
Configuring the MSC resources 627
Business Communications Manager 3.6 Programming Operations Guide
5On the Configuration menu, click Modify Custom 1.
Or, right click the component you want to change and click Modify Custom 1.
The Custom1 screen appears.
6Configure the Component parameters according to the following table.
Voice Mail and
ACD Ports
Voice Mail and Call Center Ports are communication channels that connect users to the CallPilot
Voicemail and Call Center Software.
DSP resources are required only when a user connects to voicemail or call center. This includes
callers hearing greetings, callers leaving messages, and users accessing their mailboxes.
The minimum value for Voice Mail and Call Center Ports must be 2 or higher, unless you want to
disable CallPilot VoiceMail and Call Center Software.
The maximum value for Voice Mail and Call Center Ports must be 2 or higher, unless you want to
disable CallPilot VoiceMail and Call Center Software.
To disable CallPilot VoiceMail and Call Center Software, change the minimum and maximum
values for Voice Mail and Call Center Ports to zero.
Fax Fax ports are communication channels that connect a fax machine to the Business
Communications Manager.
Fax mail ports are communication channels that connect a fax machine to a fax mailbox or a user
to a Fax-on-Demand mailbox.
IVR fax ports are communication channels that connect a fax machine to IVR functions.
T.38 IP Fax ports are communication channels that connect to a fax machine that is using an IP
trunk.
WAN WAN channels are dialup ISDN WAN connections.
IVR Ports IVR ports are communication channels that connect users to the IVR Software.
DSP resources are required only when a user connects to IVR. This includes callers hearing
greetings, callers leaving messages, and users accessing their mailboxes.
The minimum value for IVR Ports must be 2 or higher, unless you want to disable IVR.
The maximum value for IVR Ports must be 2 or higher, unless you want to disable IVR.
To disable IVR, change the minimum and maximum values for IVR Ports to zero.
CTE Ports CTE ports are communication channels that connect CTE applications to the Business
Communications Manager. An example of a CTE application is Business Communications
Manager Personal Call Manager.
Note: If you are configuring Custom configuration 2, click Modify Custom 2.
If you are configuring custom configuration 3, click Modify Custom 3.
Table 179 MSC component parameters
Attribute Description
Component Shows the name of the component you are modifying.
Minimum Enter the number of DSP resources you want to reserve for the sole use of this component.
The number you choose must be high enough to ensure proper service but low enough that it
leaves DSP resources for other components.
Note: If you set this value to zero, it is possible that this component may become inoperable if
other components consume all of the DSP resources.
Table 178 MSC custom configuration parameters (Continued)
Component Description
628 DTMF Configuration
P0609326 1.1
7Click the Save button.
8Repeat steps 6 and 7 for each component you want to change.
After you complete the changes to the custom configuration, you must change the active
configuration to apply these changes to the MSC. For information on how to change the active
configuration, refer to “Changing the MSC configuration” on page 625.
DTMF Configuration
The DTMF configuration sets the length of the DTMF tones generated by Business
Communications Manager.
The system DTMF length may need to be adjusted because of detection errors. For example, some
cellular phone tones are closer to the short DTMF millisecond range. If a company is having
trouble with cellular phone connections, it may be necessary to change the DTMF length to 30
milliseconds.
To set the DTMF length:
1On the navigation tree, click the Resources key and click the Media Services Card key.
2Click the DTMF Configuration heading.
The DTMF Configuration screen appears.
3In the DTMF length box, enter a value between 30 and 60.
This value is the length of the tone in milliseconds.
4Press the Tab key to save your settings.
Maximum Enter the maximum number of resources this component can use.
Enter MAX to allow this component to use as many of the available DSP resources as is allowed
by the License Limit or the Hardware Limit.
License Limit Shows the maximum number of resources that are allowed for this component based on the
software licenses purchased for this system.
You can increase the License limit of a component by entering keycodes. For information about
how to obtain a keycode, contact your Nortel Networks sales representative.
Hardware Limit Shows the maximum number of resources that are allowed for this component based on the
hardware installed in this system.
Table 179 MSC component parameters (Continued)
Attribute Description
Changing the DS30 Split 629
Business Communications Manager 3.6 Programming Operations Guide
Changing the DS30 Split
A DS30 bus is a group of 32 signaling channel and 32 media channels. The DS30 split determines
how these channels are assigned on Business Communications Manager.
You have a choice of a 2/6 or a 3/5 split. If you choose a 2/6 split, two DS30 buses are assigned to
the MSC and six are assigned to the Media Bay Modules. If you choose a 3/5 split, three DS30
buses are assigned to the MSC and five are assigned to the Media Bay Modules.
The split you choose is determined by the number of signaling channels you require for
applications such as voice mail, IVR, IP trunks, IP telephones and dialup ISDN WAN connections.
If you need 58 signaling channels or less for these applications, use a 2/6 DS30 split. If you need
59 signaling channels or more, use a 3/5 DS30 split.
The DS30 split is set up in the Quick Start Wizard when the system is first configured. If your
signaling channel requirements change, for example you want to increase the number of IP
telephones, you can change from a 2/6 setting to a 3/5 setting without losing data. All new records
added after the update will reflect the new default settings. To determine what the channel
requirements are, refer to “Determining the MSC resources you require” on page 614.
Warning: Ensure that the system is idle before you do this procedure. The system needs
to be restarted after the setting has been changed.
Note: Ensure you have a current backup before you do this procedure.
Note: You must ensure that your system has adequate DSP resources to support an
increase in voice processing traffic. To determine if you have enough DSP resources, refer
to “Determining the MSC resources you require” on page 614. If you need to add
MS-PEC IIIs, refer to the Business Communications Manager BCM200/400 Installation
and Maintenance Guide for installation instructions. Refer to the Business
Communications Manager sales catalogue for part numbers and ordering instructions.
Warning: If you choose to change the DS30 split of your system after you have
configured your system, you could risk losing data for both the core system and optional
applications.
Make sure you understand the implications of the changes before you go forward with this
procedure.
630 Configuring Double Density
P0609326 1.1
To change the DS30 split setting:
1On the navigation tree, click the Diagnostics key.
2Click on MSC.
3On the top menu, click Configuration, and select DS30 split from the list.
A dialog box appears. The DS30 Split field displays the current setting for your system.
4If you want to change the setting, choose the other option from the list.
5Click OK to accept a change or click Cancel to leave the option in the original state.
You will be prompted to restart the Business Communications Manager server.
Configuring Double Density
The BCM 3.0 and newer software configures the MSC so that it supports 32 ports for digital
telephones on DS30 buses 02 to 05. The default system retains DS30 buses 06 and 07 as single
density to allow the deployment of existing Companion system. This system is called a partial
double density (PDD) system.
If you do not have a Companion system, and you want to take advantage of the double density
ability on all DS30 buses, you can set your system to the full double density (FDD) setting after
your system has been set up.
Updating your system to Full Double Density (FDD)
1Click on the key beside BCM and Diagnostics.
2Click on MSC.
3On the top menu, click Configuration and select Double Density Mode.
Note: Changing the DS30 split from 2/6 to 3/5 will preserve the existing telephony data.
Any new device records will have default data.
Any change in DS30 split requires a restart of the Business Communications Manager for
the change to be applied.
!
Security note: You cannot regress from a Full Double Density (FDD) system to a
Partial Double Density (PDD) system. Ensure that MSC configuration is only available to
high-level supervisory personnel (“Managing system and user security access levels” on
page 105).
Configuring Double Density 631
Business Communications Manager 3.6 Programming Operations Guide
4On the screen, click the arrow beside the Double Density Mode field and select Full Double
Density.

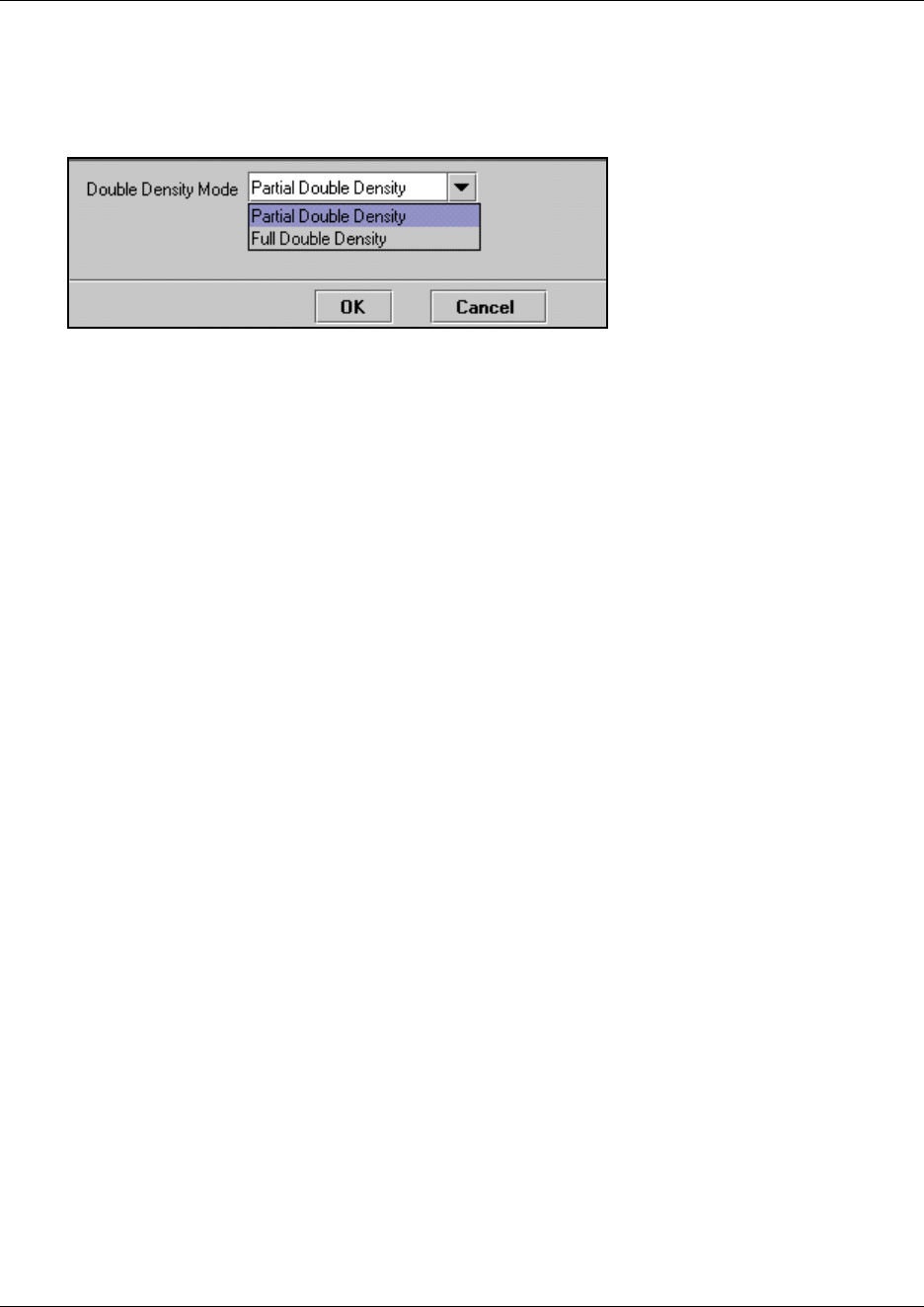

Figure 208 Double Density Mode choices
5Click OK to update your system to Full Double Density.
632 Configuring Double Density
P0609326 1.1
633
Business Communications Manager 3.6 Programming Operations Guide
Chapter 27
Using a wizard to change data parameters
This section provides information about viewing and changing Business Communications
Manager LAN, WAN, and dialup networking resources settings.
•“Viewing Business Communications Manager resources” on page 633
•“Using the Network Update Wizard” on page 634
The following figure shows the programming map for Business Communications Manager
networking resources.
Figure 209 LAN, WAN and Dialup headings
Viewing Business Communications Manager resources
Unified Manager allows you to view and configure Business Communications Manager
networking resources including LAN, WAN, and dial up resources such as ISDN or V.90 modem
(North America). To view the networking resources your Business Communications Manager
system supports:
1On the navigation tree, click the Resources heading.
The available Business Communications Manager resources appear in a table format. These
attributes are described in the table below.
Note: The resources listed on this table may not correspond exactly to the resources
available on your Business Communications Manager system.
Table 180 Business Communications Manager resources
Attribute Description
Name Provides a list of available resources.
Status Shows the operating status of each resource.
Version Shows the software version of each resource.
Description Provides a description of the interface card for each resource.
Resources
LAN
LAN1
LAN2
WAN
WAN1
WAN2
Media Services Card
Media Bay Modules
Dial Up
V.90 (North America)
ISDN
PPPoE
Universal T1 WAN (UTWAN)
UTWAN1
634 Using the Network Update Wizard
P0609326 1.1
Using the Network Update Wizard
When your system is first installed, the data resources are set up when the Quick Start Wizard is
run. Refer to “Using the Quick Start Wizard” on page 96.
If you need to change any of your system name, LAN, WAN, or dialup settings after your system
has been configured, you can use the Network Update Wizard.
Note: Remember to update your Programming Records when you make any type of changes to
your system.
To update a LAN, WAN or DNS setting:
1On the first page of the Unified Manager, click the Wizards button.
2When prompted, enter your system Login name and Password, then click the Login button.
3Click the Network Update icon.
The first page of the Network Update wizard appears. The information on this page reflects the
actual hardware installed in your system.
4Fill out the fields for the data information that you want to change.
Refer to “What you need to know” on page 635.
5Click Next.
The second page of this wizard is a summary page.
6Check that the settings are correct.
7Print out the page or save a copy on your computer to add to your programming records
8Click Apply.
The system updates the settings.
Using the Network Update Wizard 635
Business Communications Manager 3.6 Programming Operations Guide
What you need to know
Use the following chart to gather the information you need to make the data resource changes that
you require. Not all of these fields will appear if your system does not support the specified
hardware. Enter only the information that is changing.
Screen 1, Network settings
• What is the new name that you want to give your system? System Name:
LAN 1
• What is the new IP address for the first LAN card? IP Address
• What is the new Subnet Mask for the first LAN card? Subnet Mask
• What is the WINS server address? WINS Server
LAN 2
• What is the new IP address for the second LAN card? IP Address
• What is the new Subnet Mask for the second LAN card? Subnet Mask
• What is the WINS server address? WINS Server
WAN 1
• What is the new IP address for the WAN card? IP Address
• What is the new Subnet Mask for the WAN card? Subnet Mask
• Port (read-only) Port: T1
• What is the new Link Protocol for the WAN card? Link Protocol
WAN 2
• What is the new IP address for the WAN card? IP Address
• What is the new SubNet Mask for the WAN card? Subnet Mask
• Port (read-only) Port: V.35
• What is the new Link Protocol for the WAN card? Link Protocol
Default Next Hop Router
• What is the new IP address for the next router or link on the network? (Next Hop on Primary Link)
DNS
• What is the domain name of the DNS server? IP Domain
• What is the IP address for the primary server? Primary Server
• What is the IP address for the secondary server?
Note: If you do not enter a primary server, the system will use the
secondary server entry as the primary entry.
Secondary Server
636 Using the Network Update Wizard
P0609326 1.1
637
Business Communications Manager 3.6 Programming Operations Guide
Chapter 28
Configuring DHCP
Business Communications Manager provides DHCP (Dynamic Host Configuration Protocol)
service to branch office clients. DHCP allows a network administrator to supervise and distribute
IP addresses from a central location. This service dynamically assigns IP addresses to branch
office computers or IP telephones, so you do not need to manually assign an IP address. It also
automatically assigns a new IP address if a device connects to a different place in the network.
This section includes information about:
•“Configuring the DHCP Mode” on page 638
•“Configuring a DHCP Server” on page 639
•“LAN settings for DHCP Server” on page 642
•“Remote Scope” on page 650
•“Configuring a DHCP Relay Agent” on page 658
•“LAN settings for DHCP Relay Agent” on page 659
•“Importing and Exporting DHCP data” on page 660
DHCP configuration overview
To configure Business Communications Manager as your DHCP server, you must create a scope
of IP addresses for each LAN interface and then allocate a block of IP addresses to that scope. If
you already have a DHCP server then you need to set up Business Communications Manager as a
relay agent to that server.
You must define one DHCP scope for each LAN interface. For DHCP service, there are global
attributes that affect all scopes and there are attributes that are specific for each scope.
Caution: Check with your network administrator before enabling DHCP. Enabling
DHCP on a network that already has a DHCP server can cause problems on the network.
Tip
Because Business Communications Manager retrieves default DHCP parameters from the
LAN interface parameters, you must configure a LAN interface before you configure the
DHCP server for that interface. For information on configuring a LAN interface, see
“Configuring the LAN resources” on page 663.
Tip
Use the Business Communications Manager DHCP default configuration unless your
network does not allow it.
638 Configuring the DHCP Mode
P0609326 1.1
If you must modify the DHCP default configuration on Business Communications Manager, make
sure configuration settings are consistent throughout the network and take the following into
consideration:
• If a change in the DHCP configuration resulted in a change in the IP addresses of a scope,
perform one of the following actions to ensure good system operation:
— Execute ipconfig/release and ipconfig/renew on each of the workstations. For Windows 95
and Windows 98, use the winipcfg.
— For clients that do not support ipconfig and winipcfg (for example, IP telephones), a reboot
is necessary to renew their IP addresses.
• If you made a change in the DNS server configuration or DNS name field, repeat the actions
stated in the previous step to ensure proper connectivity with the network.
• Always schedule a down time when making changes to the Business Communications
Manager DHCP server configuration to minimize impact on your network users.
Configuring the DHCP Mode
You can configure Business Communications Manager as your DHCP Server or as a DHCP Relay
Agent by setting the DHCP Mode.
• Choose DHCP server mode if you want Business Communications Manager to supply the IP
addresses to the devices on your network.
• Choose DHCP Relay Agent if you have a central DHCP Server on your corporate network and
you want Business Communications Manager to pass the DHCP traffic to and from the devices
on the LAN.
To set the DHCP Mode:
1On the navigation tree, click the Services key and click the DHCP heading.
The Summary screen appears.
2Click the DHCP Mode tab.
The DHCP Mode screen appears.
3Click the DHCP box and click DHCPRelayAgent or DHCPserver.
The default is DHCPserver.
4Press the Tab key to save the settings.
Configuring a DHCP Server 639
Business Communications Manager 3.6 Programming Operations Guide
Configuring a DHCP Server
If you chose DHCPServer as the DHCP mode, configure the DHCP Server settings in the Global
Options and Summary screen.
1On the navigation tree, click the Services key and click the DHCP heading.
The Summary screen appears.
2Configure the DHCP Server Summary attributes according to the following.
3Click the Global Options tab.
The Global Options screen appears.
Table 181 DHCP Server Summary attributes
Setting Definition
Description Displays a description of the DHCP service.
This is a read-only field.
Version Displays the version number of the DHCP service.
This is a read-only field.
Status Allows you to view and change the status of the DHCP Server.
To enable DHCP Server, select Enabled.
To disable DHCP Server, select Disabled.
When the DHCP Server is running, the status is Up.
When the DHCP Server is not running, the status is Disabled.
640 Configuring a DHCP Server
P0609326 1.1
4Configure the Global Options attributes according to the following.
Table 182 DHCP Global Options
Setting Definition
IP Domain Name This setting defaults to the value entered in the Domain box of the DNS Summary page (see
“Configuring DNS” on page 703) because all the DHCP clients of Business Communications
Manager are in the same DNS domain as the Business Communications Manager base unit.
Business Communications Manager runs only a DNS cache and does not introduce another DNS
zone.
The domain name is passed to the client when Business Communications Manager responds to
a client’s DHCP requests.
Use caution if you change this.
WINS Node Type Allows you to specify a client’s WINS node type.
Business Communications Manager automatically sets this value to 8 (indicating H-Node) on all
DHCP clients of Business Communications Manager. This setting configures the DHCP client
PCs to use p-node name resolution before resorting to b-node name resolution. This is efficient
when a WINS server is configured for the network. Business Communications Manager also
includes a WINS server.
Other options available are:
1: indicates a b-node that uses a broadcast mechanism for NetBIOS name resolution.
2: indicates a p-node that uses a point-to-point mechanism involving a WINS Server for NetBIOS
name resolution.
4: indicates a m-node that first uses a broadcast and then a point-to-point mechanism for
NetBIOS name resolution.
Use caution if you change this.
NORTEL IP
Terminal
Information
Contains vendor specific information for IP telephones.
The default value is: Nortel-i2004-A,10.10.10.1:7000,1,1;10.10.10.1:7000,1,1. where:
• Nortel-i2004-A — is the identification name for the IP telephone
• 10.10.10.1 — is the IP address for the primary Terminal Proxy Server (TPS). This is normally
the Published IP address of the Business Communications Manager.
• 7000 — is the UDP port number for the TPS (S1)
• 1 — is the Initial Action Code for the IP telephone
• 1 —is the retry count for attempts to connect to the TPS (S1)
• Nortel-i2004-A — is the identification name for the IP telephone
• 10.10.10.1 — is the IP address for the backup TPS (S2)
• 7000 — is the UDP port number for the TPS (S2)
• 1 — is the Initial Action Code for the IP telephone
• 1 — is the retry count for attempts to connect to the TPS (S2)
Note: The S1 and S2 information must be separated by a semi colon (;). The string must be
terminated with a period (.).
Configuring a DHCP Server 641
Business Communications Manager 3.6 Programming Operations Guide
5Press the Tab key to save the settings.
6Click the Summary tab.
The Summary screen appears.
7Configure the Summary settings according to the following.
8Press the Tab key to save the settings.
NORTEL IP
Terminal VLAN Id
Allows you to specify the Virtual LAN (VLAN) ID numbers that are given to the IP telephones.
If you want DHCP to automatically assign VLAN IDs to the IP telephones, enter the VLAN IDs in
the following format:
VLAN-A:id1,id2,...,idn.
where:
• VLAN-A: — is an identifier that tells the IP telephone that this message is a VLAN discovery
message.
• id1,id2,...idn — are the VLAN ID numbers that DHCP can assign to the IP telephones.
You can have up to 10 VLAN ID numbers listed. The VLAN ID numbers must be a number
from 0 to 4095.
For example, if you wanted to use VLAN IDs 1100, 1200, 1300 and 1400, you would enter the
following string in this box: VLAN-A:1100,1200,1300,1400.
If you do not want DHCP to automatically assign VLAN IDs to the IP telephones, enter
VLAN-A:none. in this text box.
Note1: The NORTEL IP Terminal VLAN Id string must be terminated with a period (.).
Note2: If you do not know the VLAN ID, contact your network administrator.
Note3: For information about how to setup a VLAN, refer to the user documentation that came
with your VLAN compatible switch.
Note: When you change the published IP address of Business Communications
Manager, you must reboot the IP telephones.
Note: Event logging is always on for DHCP server. The event information is
recorded in the system admin log.
Table 183 DHCP Summary settings
Setting Definition
Description Shows the a description of the DHCP service operating on Business Communications Manager.
Version Shows the version number of the DHCP service.
Status Allows you to enable or disable the DHCP server. When you disable the DHCP server, you need
to assign static IP addresses to the clients or configure DHCP as a Relay Agent to use another
DHCP server on the network.
The default is Disabled.
Table 182 DHCP Global Options (Continued)
Setting Definition
642 LAN settings for DHCP Server
P0609326 1.1
LAN settings for DHCP Server
This section describes configuring the DHCP server, as well as:
•“Configuring Address ranges for a Local Scope” on page 644
•“Configuring Excluded addresses for a Local Scope” on page 645
•“Configuring Reserved addresses for a Local Scope” on page 647
If you configured the DHCP mode for DHCPServer, then configure the LAN scope attributes as
follows. If the DHCP mode is DHCPRelayAgent refer to “LAN settings for DHCP Relay Agent”
on page 659.
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Local Scope key and click the LAN1 heading.
The LAN Scope Specific Options screen appears.
Note: If your Business Communications Manager system has multiple LAN interfaces,
you can see multiple DHCP scopes under DHCP. They are named LAN1 and LAN2. This
section describes configuring DHCP for LAN1. Follow the same instructions to configure
the parameters for LAN2.
LAN settings for DHCP Server 643
Business Communications Manager 3.6 Programming Operations Guide
3Configure the scope-specific settings according to the following table.
4Press the TAB key to save the settings.
Table 184 LAN Scope Specific Options
Attribute Description
Name Allows you to specify the name of the LAN scope.
Description Allows you to specify a description for the LAN scope.
DNS Server Allows you to specify the IP addresses of the primary DNS server and the secondary DNS
server in a valid dot format. When you specify a secondary DNS server, separate the two IP
addresses by a space.
Business Communications Manager automatically assigns the value for this parameter. If the
IP address or subnet mask for the corresponding LAN interface changes, this value is
overwritten. Use caution when changing this value.
WINS Server Allows you to specify the IP address of the WINS server.
Business Communications Manager automatically assigns the value for this parameter. If the
IP address or subnet mask for the corresponding LAN interface changes, this value is
overwritten. Use caution when changing this value.
Default Gateway Allows you to specify the IP address of the default next-hop router.
Business Communications Manager automatically assigns the value for this parameter. If the
IP address or subnet mask for the corresponding LAN interface changes, this value is
overwritten. Use caution when changing this value.
Lease Time Allows you to specify the time, in seconds, for an address assignment until the client’s lease
expires.
The default is 259200 seconds (72 hours).
Scope Status Allows you to enable or disable the scope.
The default is enabled.
Note: If the IP address or subnet mask for a LAN interface changes, the system creates or
modifies the corresponding DHCP scope for the interface. This operation also involves
setting default values for some parameters. By default, Business Communications
Manager sets the IP address of the corresponding LAN interface to the DNS Server,
WINS Server, Default Gateway options of the scope. It also sets the lease time to three
days and creates a range of addresses for the scope. If the IP address of the LAN interface
is in the lower half of the subnet, the address range set for the scope includes all the
addresses above the LAN interface address. If the IP address of the LAN interface is in the
upper half of the subnet, the address range set for the scope includes all the addresses
below the LAN interface address. By default, the scope is enabled.
Note: When DNS is disabled in Business Communications Manager, the DNS Server box
must be set to the IP address of a remote DNS server.
644 LAN settings for DHCP Server
P0609326 1.1
Configuring Address ranges for a Local Scope
Address ranges allow you to specify the valid IP addresses for the DHCP clients.
Adding an address range
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Local Scope key and click the LAN1 heading.
The LAN Scope Specific Options screen appears.
3Click the Address Range tab.
The Address Range screen appears.
4On the Configuration menu, click Add Address Range.
The Address Range dialog box appears.
5Configure the Address Range attributes according to the following table.
6Click the Save button to save the address range.
Modifying an address range
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Local Scope key and click the LAN1 heading.
The LAN Scope Specific Options screen appears.
3Click the Address Range tab.
The Address Range screen appears.
4Click an address in the Address Range table.
Note: You must add at least one Address range to use DHCP server.
Table 185 Address Range attributes
Attribute Description
Range (R#) Allows you to specify the Range identifier.
The range box uniquely identifies an Address range in the scope. The value for this setting
must follow certain conventions. It must always start with the prefix 'R' followed by a unique
number identifying the range in the table. For example, 'R2' is a valid name. Specify
nonrecurring values for the unique number. If you specify an existing range name, it modifies
the existing range. If you use nonsequential numbers, the system automatically reassigns
sequential numbers. When you modify a range, you cannot change the range name. The
range name does not have any significance other than identifying an entry.
Start Address Allows you to specify a the first IP address in the Address Range.
Enter the IP address in the dotted format.
End Address Allows you to specify a the last IP address in the Address Range.
Make sure the start address and end address are in the same subnet.
Enter the IP address in the dotted format.
LAN settings for DHCP Server 645
Business Communications Manager 3.6 Programming Operations Guide
5On the Configuration menu, click Modify Address Range.
The Address Range dialog box appears.
6Modify the Address Range settings.
7Click the Save button.
Deleting an address range
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Local Scope key and click the LAN1 heading.
The LAN Scope Specific Options screen appears.
3Click the Address Range tab.
The Address Range screen appears.
4Click an address range in the Address Range table.
5On the Configuration menu, click Delete Address Range.
A dialog box appears asking you to confirm the deletion.
6Click the Yes button.
Configuring Excluded addresses for a Local Scope
Excluded addresses allow you to specify the IP addresses that are not available to DHCP clients.
The excluded addresses are also used to ensure that Static IP addresses are not re-assigned by
DHCP.
Adding an excluded address range
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Local Scope key and click the LAN1 heading.
The LAN Scope Specific Options screen appears.
3Click the Excluded Address tab.
The Excluded Address screen appears.
4On the Configuration menu, click Add Excluded Address Range.
The Excluded Address dialog box appears.
Note: When you delete or modify an IP Address range it removes any excluded addresses
that are in the original address range value.
646 LAN settings for DHCP Server
P0609326 1.1
5Configure the Excluded Address attributes according to the following table.
6Click the Save button.
Modifying excluded address ranges
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Local Scope key and click the LAN1 heading.
The LAN Scope Specific Options screen appears.
3Click the Excluded Address tab.
The Excluded Address screen appears.
4Click an excluded address range in the Excluded Address Range table.
5On the Configuration menu, click Modify Excluded Address Range.
The Excluded Address dialog box appears.
6Modify the Excluded Address settings.
7Click the Save button.
Deleting an excluded address range
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Local Scope key and click the LAN1 heading.
The LAN Scope Specific Options screen appears.
3Click the Excluded Address tab.
The Excluded Address screen appears.
Table 186 Excluded Addresses
Attribute Description
Range (E#) Allows you to specify the Range identifier.
The range setting uniquely identifies an excluded range in the scope. The value for this setting
must follow certain conventions. You must type the prefix 'E' followed by a unique number
identifying the range in the table. For example, 'E2' is a valid name. Specify nonrecurring
values for the unique number. If you specify an existing excluded range name, the system
modifies the existing range. If you use non-sequential numbers the system automatically
reassigns sequential numbers. When you modify an excluded range, you cannot change the
range name. The excluded range identifier does not have any significance, other than uniquely
identifying an entry.
Start Address Allows you to specify a the first IP address in the Excluded Address Range.
Enter the IP address in the dotted format.
End Address Allows you to specify a the last IP address in the Excluded Address Range.
Enter the IP address in the dotted format.
Note: Make sure the start address and end address are in the same subnet. The excluded
address range must be completely contained in an IP address range specified for the
subnet.
LAN settings for DHCP Server 647
Business Communications Manager 3.6 Programming Operations Guide
4Click an excluded address range in the Excluded Address Range table.
5On the Configuration menu, click Delete Excluded Address Range.
A message prompts you to confirm the deletion.
6Click the Yes button.
Configuring Reserved addresses for a Local Scope
Reserved addresses allow you to assign IP addresses to specific DHCP clients.
You can use Reserved Addresses to assign IP addresses to devices that require a static IP address.
Adding a reserved address
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Local Scope key and click the LAN1 heading.
The LAN Scope Specific Options screen appears.
3Click the Reserved Address tab.
The Reserved Address screen appears.
4On the Configuration menu, click Add Reserve Address.
The Reserved Address dialog box appears.
5Configure the Reserved Address settings according to the following table.
6Click the Save button.
Modifying a reserved address
1On the navigation tree, click the Services key and click the DHCP key.
Table 187 Reserved Addresses
Setting Definition
Range (V#) Allows you to specify the Range identifier.
The range setting uniquely identifies a reserved range in the scope. The value for this setting
must follow certain conventions. You must type the prefix 'V' followed by a unique number
identifying the range in the table. For example, 'V2' is a valid name. Specify nonrecurring values
for the unique number. If you specify an existing reserved range name, the system modifies the
existing range. If you use non-sequential numbers the system automatically reassigns sequential
numbers. When you modify a reserved range, you cannot change the range name. The reserved
range name does not have any significance, other than uniquely identifying an entry.
IP Address Allows you to specify the IP Address that is reserved for this DHCP client.
Enter the IP address in the dotted format.
MAC Address Allows you to specify the MAC address for the DHCP client this IP address is assigned to.
The permitted value is 6 bytes in hexadecimal format.
Client Name Allows you to specify the name of the DHCP client.
Client Description Allows you to specify the description that will help to identify the DHCP client this IP address is
assigned to.
648 LAN settings for DHCP Server
P0609326 1.1
2Click the Local Scope key and click the LAN1 heading.
The LAN Scope Specific Options screen appears.
3Click the Reserved Address tab.
The Reserved Address screen appears.
4Click a reserved address in the Reserved Address table.
5On the Configuration menu, click Modify Reserved Address.
The Reserved Address screen appears.
6Modify the Reserved Address settings.
7Click the Save button.
Deleting a reserved address
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Local Scope key and click the LAN1 heading.
The LAN Scope Specific Options screen appears.
3Click the Reserved Address tab.
The Reserved Address screen appears.
4Click a reserved address in the Reserved Address table.
5On the Configuration menu, click Delete Reserved Address.
A message prompts you to confirm the deletion.
6Click the Yes button.
Viewing the Lease Information for a Reserved address
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Local Scope key and click the LAN1 heading.
The LAN Scope Specific Options screen appears.
3Click the Lease Info tab.
The Lease Info screen appears.
4On the Configuration menu, click Add Reserve Address.
The Reserved Address dialog box appears.
5The following table describes the Lease Information that you can view.
Table 188 Reserved Addresses Lease Information
Setting Definition
Range (L#) Shows the Range identifier for this Reserved address.
IP Address Shows the IP Address that is reserved for this DHCP client.
MAC Address Shows the MAC address for the DHCP client this IP address is assigned to.
Client Name Shows the name of the DHCP client.
LAN settings for DHCP Server 649
Business Communications Manager 3.6 Programming Operations Guide
Client Description Shows the description that will help to identify the DHCP client this IP address is assigned to.
Lease Expiration
Date
Shows the date when this IP address is no longer reserved for the DHCP client.
Lease Expiration
Time
Shows the time when this IP address is no longer reserved for the DHCP client.
Table 188 Reserved Addresses Lease Information (Continued)
Setting Definition
650 Remote Scope
P0609326 1.1
Remote Scope
A remote scope is a remote network (not LAN1 or LAN2) that uses the DHCP Server to get IP
addresses through a DHCP relay agent.
This section describes:
•“Adding a Remote Scope” on page 650
•“Modifying Remote Scope settings” on page 651
•“Configuring Remote Scope Address ranges” on page 651
•“Configuring Remote Scope excluded addresses” on page 653
•“Configuring Remote Scope Reserved Addresses” on page 655
•“Remote Scope Lease Information” on page 656
•“Deleting a Remote Scope” on page 657
Adding a Remote Scope
To add a Remote Scope:
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Remote Scope heading and click the Add button.
Or, right click the Remote Scope heading and click Add.
3Configure the remote scope settings according to the following table.
4Click the Save button.
Table 189 Remote Scope settings
Attribute Description
Subnet name Allows you to specify the name of the remote scope.
Subnet Comment Allows you to specify a description of the remote scope.
IP Address Allows you to specify the IP address of the remote scope.
Enter the IP address in the dotted format.
Subnet Mask Allows you to specify the subnet mask for the remote scope.
Enter the subnet mask in the dotted format.
Remote Scope 651
Business Communications Manager 3.6 Programming Operations Guide
Modifying Remote Scope settings
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Remote Scope key.
3Click the remote scope you want to modify.
The Scope Specific Options screen appears.
4Configure the remote scope-specific settings according to the following table.
5Press the TAB key to save the settings.
Configuring Remote Scope Address ranges
Address ranges allow you to specify the valid IP addresses for these DHCP clients.
Adding an address range
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Remote Scope key.
3Click the remote scope you want to modify.
The Scope Specific Options screen appears.
4Click the Address Range tab.
The Address Range screen appears.
5On the Configuration menu, click Add Address Range.
The Address Range dialog box appears.
Table 190 Remote Scope specific settings
Attribute Description
Name Allows you to specify the name of the remote scope.
Description Allows you to specify a description for the remote scope.
DNS Server Allows you to specify the IP addresses of the primary DNS server and the secondary DNS
server in a valid dot format. When you specify a secondary DNS server, separate the two IP
addresses by a space.
WINS Server Allows you to specify the IP address of the WINS server.
Default Gateway Allows you to specify the IP address of the default next-hop router.
Lease Time Allows you to specify the time, in seconds, for an address assignment until the client’s lease
expires.
Scope Status Allows you to enable or disable the scope.
652 Remote Scope
P0609326 1.1
6Configure the Address Range attributes according to the following table.
7Click the Save button.
Modifying address ranges
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Remote Scope key.
3Click the remote scope you want to modify.
The Scope Specific Options screen appears.
4Click the Address Range tab.
The Address Range screen appears.
5Click an address in the Address Range table.
6On the Configuration menu, click Modify Address Range.
The Address Range dialog box appears.
7Modify the Address Range settings.
8Click the Save button.
Deleting an address range
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Remote Scope key.
3Click the remote scope you want to modify.
The Scope Specific Options screen appears.
4Click the Address Range tab.
The Address Range screen appears.
5Click an address range in the Address Range table.
Table 191 Remote Scope Address Range attributes
Attribute Description
Range (R#) Allows you to specify the Range identifier.
The range box uniquely identifies an Address range in the scope. The value for this setting
must follow certain conventions. It must always start with the prefix 'R' followed by a unique
number identifying the range in the table. For example, 'R2' is a valid name. Specify
nonrecurring values for the unique number. If you specify an existing range name, it modifies
the existing range. If you use nonsequential numbers, the system automatically reassigns
sequential numbers. When you modify a range, you cannot change the range name. The
range name does not have any significance other than identifying an entry.
Start Address Allows you to specify a the first IP address in the Address Range.
Enter the IP address in the dotted format.
End Address Allows you to specify a the last IP address in the Address Range.
Make sure the start address and end address are in the same subnet.
Enter the IP address in the dotted format.
Remote Scope 653
Business Communications Manager 3.6 Programming Operations Guide
6On the Configuration menu, click Delete Address Range.
A dialog box appears asking you to confirm the deletion.
7Click the Yes button.
Configuring Remote Scope excluded addresses
Excluded addresses allow you to specify the IP addresses that are not available to DHCP clients.
The excluded addresses are also used to ensure that Static IP addresses are not re-assigned by
DHCP.
Adding a excluded address range
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Remote Scope key.
3Click the remote scope you want to modify.
The Scope Specific Options screen appears.
4Click the Excluded Address tab.
The Excluded Address screen appears.
5On the Configuration menu, click Add Excluded Address Range.
The Excluded Address dialog box appears.
6Configure the Excluded Address attributes according to the following table.
Note: When you delete or modify an IP Address range it removes any excluded addresses
that are in the original address range value.
Table 192 Remote Scope Excluded Addresses
Attribute Description
Range (E#) Allows you to specify the Range identifier.
The range setting uniquely identifies an excluded range value in the scope. The value for this
setting must follow certain conventions. You must type the prefix 'E' followed by a unique
number identifying the range in the table. For example, 'E2' is a valid name. Specify
nonrecurring values for the unique number. If you specify an existing excluded range name,
the system modifies the existing range. If you use non-sequential numbers the system
automatically reassigns sequential numbers. When you modify an excluded range, you cannot
change the range name. The excluded range name does not have any significance, other than
uniquely identifying an entry.
Start Address Allows you to specify a the first IP address in the Excluded Address Range.
Enter the IP address in the dotted format.
End Address Allows you to specify a the last IP address in the Excluded Address Range.
Enter the IP address in the dotted format.
Note: Make sure the start address and end address are in the same subnet. The excluded
address range must be completely contained in an IP address range specified for the
subnet.
654 Remote Scope
P0609326 1.1
7Click the Save button.
Modifying excluded address ranges:
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Remote Scope key.
3Click the remote scope you want to modify.
The Scope Specific Options screen appears.
4Click the Excluded Address tab.
The Excluded Address screen appears.
5Click an excluded address range in the Excluded Address Range table.
6On the Configuration menu, click Modify Excluded Address Range.
The Excluded Address dialog box appears.
7Modify the Excluded Address settings.
8Click the Save button.
Deleting an excluded address range
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Remote Scope key.
3Click the remote scope you want to modify.
The Scope Specific Options screen appears.
4Click the Excluded Address tab.
The Excluded Address screen appears.
5Click an excluded address range in the Excluded Address Range table.
6On the Configuration menu, click Delete Excluded Address Range.
A message prompts you to confirm the deletion.
7Click the Yes button.
Remote Scope 655
Business Communications Manager 3.6 Programming Operations Guide
Configuring Remote Scope Reserved Addresses
Reserved addresses allow you to assign IP addresses to specific DHCP clients.
Adding a reserved address
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Remote Scope key.
3Click the remote scope you want to modify.
The Scope Specific Options screen appears.
4Click the Reserved Address tab.
The Reserved Address screen appears.
5On the Configuration menu, click Add Reserve Address.
The Reserved Address dialog box appears.
6Configure the Reserved Address settings according to the following table.
7Click the Save button.
Table 193 Remote Scope Reserved Addresses
Setting Definition
Range (V#) Allows you to specify the Range identifier.
The range setting uniquely identifies a reserved range in the scope. The value for this setting
must follow certain conventions. You must type the prefix 'V' followed by a unique number
identifying the range in the table. For example, 'V2' is a valid name. Specify nonrecurring values
for the unique number. If you specify an existing reserved range name, the system modifies the
existing range. If you use non-sequential numbers the system automatically reassigns sequential
numbers. When you modify a reserved range, you cannot change the range name. The reserved
range name does not have any significance, other than uniquely identifying an entry.
IP Address Allows you to specify the IP Address that is reserved for this DHCP client.
Enter the IP address in the dotted format.
Mac Address Allows you to specify the MAC address for the DHCP client this IP address is assigned to.
The permitted value is 6 bytes in hexadecimal format.
Client Name Allows you to specify the name of the DHCP client.
Client Description Allows you to specify the description that will help to identify the DHCP client this IP address is
assigned to.
Lease Expiration
Date
Shows the date when this IP address is no longer reserved for the DHCP client.
Lease Expiration
Time
Shows the time when this IP address is no longer reserved for the DHCP client.
656 Remote Scope
P0609326 1.1
Deleting a reserved address
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Remote Scope key.
3Click the remote scope you want to modify.
The Scope Specific Options screen appears.
4Click the Reserved Address tab.
The Reserved Address screen appears.
5Click a reserved address in the Reserved Address table.
6On the Configuration menu, click Delete Reserved Address.
A message prompts you to confirm the deletion.
7Click the Yes button.
Remote Scope Lease Information
To view the Lease information for a reserved address:
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Remote Scope key.
3Click the remote scope you want to modify.
The Scope Specific Options screen appears.
4Click the Lease Info tab.
The Lease Info screen appears.
5The following table describes the Lease Information you can view for the Reserved Address.
Table 194 Lease Information for a Remote Scope Reserved Addresses
Setting Definition
Range (L#) Shows the Range identifier for the Lease Information.
IP Address Shows the IP Address that is reserved for this DHCP client.
Mac Address Shows the MAC address for the DHCP client this IP address is assigned to.
The permitted value is 6 bytes in hexadecimal format.
Client Name Shows the name of the DHCP client.
Client Description Shows the description that will help to identify the DHCP client to which this IP address is
assigned.
Lease Expiration Date Shows the date when this IP address is no longer reserved for the DHCP client.
Lease Expiration Time Shows the time when this IP address is no longer reserved for the DHCP client.
Remote Scope 657
Business Communications Manager 3.6 Programming Operations Guide
Deleting a Remote Scope
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Remote Scope key.
3Click the remote scope you want to delete.
The Remote Scope Specific Options screen appears.
4Click the Delete button.
Or, right click the remote scope you want to delete and click Delete.
A message prompts you to confirm the deletion.
5Click the Yes button.
658 Configuring a DHCP Relay Agent
P0609326 1.1
Configuring a DHCP Relay Agent
If you chose DHCPRelayAgent as the mode, configure the DHCP Relay Agent settings in the
Global Options and Server List screens with the following process.
1On the navigation tree, click the Services key and click the DHCP heading.
The DHCP Mode screen appears.
2Click the Global Options tab.
The Global Options screen appears.
3Click the Log Level box and choose which information is recorded in the system admin log.
Errors Only - records error messages only
Warnings Also - records error message and warning messages
Maximum - records error message, warning messages and event messages
Disabled - disables recording of DHCP messages
The default is Errors Only.
4Click the Server List tab.
The Server List screen appears.
5On the Configuration menu, click Add server.
The Server List dialog box appears.
6Type in the IP address of the DHCP server.
7Click the Save button.
Deleting a server from the Server List
1On the navigation tree, click the Services key and click the DHCP heading.
The DHCP Mode screen appears.
2Click the Server List tab.
The Server List screen appears.
3Click a server in the Server List.
4On the Configuration menu, click Delete server.
A dialog box appears asking you to confirm the deletion.
5Click the Yes button.
Note: You can specify a number of servers. The routing component searches the list for
the server on the same subnet as the interface and forwards the DHCP packet.
LAN settings for DHCP Relay Agent 659
Business Communications Manager 3.6 Programming Operations Guide
LAN settings for DHCP Relay Agent
If you configured the DHCP mode as DHCPRelayAgent (refer to “Configuring the DHCP Mode”
on page 638), then configure the LAN scope attributes as follows. If the mode is DHCPServer
refer to “LAN settings for DHCP Server” on page 642.
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Local Scope key and click the LAN1 heading.
The Relay Agent Interface Parameters screen appears.
3Configure the Relay Agent Interface parameters according to the following table.
4Press the Tab key to save the settings.
Note: If your Business Communications Manager system has multiple LAN interfaces,
you can see multiple DHCP scopes under DHCP. They are named LAN1 and LAN2. This
section describes configuring the DHCP scope for LAN1. Follow the same instructions to
configure any of the parameters under the scope for LAN2.
Table 195 Relay Agent Interface parameters
Attribute Description
Relay DHCP
packets
Allows you to enable or disable the relay of DHCP packets on this interface.
The default is disabled.
Hop-count
threshold.
Allows you to specify the maximum number of hops. After this number of hops, DHCP
requests are discarded.
The values are 0 to 16. The default value is 4.
Seconds-since-boot
threshold
Allows you to specify the minimum number of seconds since the last boot of Business
Communications Manager, before Business Communications Manager forwards DHCP
requests.
The values are 1 to 3600. The default value is 4.
660 Importing and Exporting DHCP data
P0609326 1.1
Importing and Exporting DHCP data
You can export the DHCP data for an interface to a file on the Business Communications Manager
system. This saves an image of the current DHCP programming for that interface.
When the IP address of LAN1 or LAN2 changes, the DHCP programming for that interface is lost.
To save the DHCP programming, export the DHCP data before you change the IP address of the
interface. Then, after you change the IP address, import the DHCP programming for the interface.
Exporting DHCP data
When you export the DHCP data, the following information is saved to the file:
• Address Range
• Excluded Address Range
• Reserved Address Range
• Scope options
The DHCP data is stored on the Business Communications Manager in the directory
D:\Data Files\Nortel Networks\Unified Manger. The file is named ScopeName.dat where
ScopeName is the name of the DHCP scope.
To export the DHCP data:
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Local Scope key to export data for a local scope.
Click the Remote Scope key to export data for a remote scope.
3Click the scope from which you want to export data.
4On the Tools menu, click Export.
A confirmation dialog box appears.
5Click the Yes button.
Note: If you have exported the DHCP data for a scope with this name before, the data
from this export will overwrite the previous export.
Importing and Exporting DHCP data 661
Business Communications Manager 3.6 Programming Operations Guide
Importing DHCP data
When you import the DHCP data, the DHCP programming from a previous export replaces the
current DHCP programming for the scope.
To import the DHCP data:
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Local Scope key to import data for a local scope.
Click the Remote Scope key to import data for a remote scope.
3Click the scope for which you want to import data.
4On the Tools menu, click Import.
A confirmation dialog box appears.
5Click the Yes button.
Reconciling the DHCP data
To reconcile the DHCP data:
1On the navigation tree, click the Services key and click the DHCP key.
2Click the Local Scope key to reconcile data for a local scope.
Click the Remote Scope key to reconcile data for a remote scope.
3Click the scope for which you want to reconcile the DHCP data.
4On the Tools menu, click Reconcile.
A confirmation dialog box appears.
5Click the Yes button.
662 Importing and Exporting DHCP data
P0609326 1.1
663
Business Communications Manager 3.6 Programming Operations Guide
Chapter 29
Configuring the LAN resources
Business Communications Manager is equipped with an Ethernet/802.3 network interface card
which supports the IEEE 802.3 Ethernet frame format. The Ethernet connection uses Carrier Sense
Multiple Access with Collision Detection (CSMA/CD) to manage the access to the physical
media.
This chapter includes information about:
•“Viewing the LAN resources” on page 663
•“Configuring LAN resources” on page 664
The Business Communications Manager Ethernet interface card supports the following features:
• 100 BASE T with RJ-45 connector
• 10 / 100 Auto Sense
• full duplex
• fast LAN-to-LAN routing (when using more than one LAN card)
• LAN traffic smoothing
• multiple IP addresses
Viewing the LAN resources
Unified Manager shows all available LAN resources. If your Business Communications Manager
base unit is equipped with two LAN interface cards, Unified Manager displays all available LAN
resources and names each one (LAN1, LAN2).
To view the available LAN resources:
1On the navigation tree, click the Resources key and click the LAN heading.
The LAN Parameters screen appears.
2Click the Resources tab.
The Resources screen appears.
664 Configuring LAN resources
P0609326 1.1
Configuring LAN resources
The following section describes how to set up the LAN card on your Business Communications
Manager.
The information in this section includes:
•“Setting LAN global parameters” on page 664
•“Configuring a LAN interface” on page 665
•“Configuring multiple IP addresses for the LAN interface” on page 667
•“Viewing LAN performance” on page 668
Setting LAN global parameters
To set the LAN global parameters:
1On the navigation tree, click the Resources key and click the LAN heading.
The Lan Parameters screen appears.
2Set your global LAN parameters according to the information in the following table.
Table 196 LAN global parameters
Attribute Description
Fast Routing
(Between LANs)
Allows you to enable or disable fast routing to improve LAN-to-LAN routing performance. This
feature is for a Business Communications Manager system equipped with two LAN cards. At
the same link speed, a smaller packet size means more packets to forward. Use a lower traffic
threshold. Permitted values: Enabled or Disabled
Default: Disabled
Note: Do not use Fast Routing on systems that use NAT, IP Firewall Filters, IPSec tunnels, or
Quality of Service (QoS). Fast Routing bypasses these features and will cause the packets to
be routed incorrectly.
Decrement TTL When Fast Routing is enabled, Decrement TTL lets you decrement the time-to-live (TTL) value
in the IP header of packets as they travel from LAN to LAN. Decrement TTL lets you increase
processing time for each fast-routed IP packet, which reduces CPU cycles. This feature is used
when other routers or special applications on the network connect to the LAN interfaces.
Permitted Values: Enabled or Disabled
Default: Disabled
Traffic Smoothing
(In Mbps)
Lets you set the rate, in Mbps, at which the LAN driver receives packets from the LAN interface.
The main purpose of this feature is to limit the number of host CPU cycles spent on
LAN-to-WAN packet forwarding. Normally, LAN drivers operate at link speed, which implies that
the driver forwards packets as fast as possible until there is no packet in the receiving buffer.
Permitted values: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, Disabled
Default: 10
Table 197 Guidelines to configure LAN to LAN traffic smoothing
64 bytes 128 bytes 256 bytes 512 bytes 1024 bytes 1500 bytes
Fast Routing enabled Not needed Not needed Not needed Not needed Not needed Not needed
Fast Routing disabled
or LAN-to-WAN routing
20 mbps 30 mbps 50 mbps 50 mbps Not needed Not needed
Configuring LAN resources 665
Business Communications Manager 3.6 Programming Operations Guide
Configuring a LAN interface
1On the navigation tree, click the Resources key and click the LAN key.
The available LAN interfaces appear.
2Click the LAN interface you want to configure (for example, LAN1).
The LAN Summary screen appears.
3Configure the LAN attributes according to the information provided in the following table.
Note:
The settings in the table above ensure data routing uses a maximum of 60 to 70 percent
CPU cycles.
If the LAN to WAN link speed is 10 mbps, selecting higher traffic smoothing parameters
has no impact on packet forwarding, which the system still performs at a link speed of
10 mbps.
Table 198 LAN Summary attributes
Attribute Description
IP Address Enter the IP address of the LAN interface in the following format: 255.255.255.255.
If you do not know your LAN interface IP address, contact your network administrator or your
Internet service provider.
SubNet Mask Enter the subnet mask of the LAN interface in the following format: 255.255.255.255.
If you do not know your subnet mask address, contact your network administrator or your
Internet service provider.
Physical Address Shows the physical address (MAC address) of the LAN interface.
This is a read only attribute.
Description Provides a description of the network interface card supporting the LAN connection.
This is a read only attribute.
Version Shows the version of the LAN interface card.
This is a read only attribute.
Speed Shows the speed of the connection to the LAN interface.
This is a read only attribute.
Duplex Type Shows whether the LAN interface is operating in Full Duplex mode or Half Duplex mode.
This is a read only attribute.
666 Configuring LAN resources
P0609326 1.1
Connection Type Select a type of connection to the LAN interface.
The following values are supported and are interpreted as follows:
Auto Sense: The LAN interface uses the auto negotiation protocol to choose the maximum
possible speed of the connection. Depending on the connected device, the LAN can choose
100 MB or 10MB and full-duplex or half-duplex.
10 MB Half: The speed is set to 10 Mbit/s and the mode is set to half-duplex.
10 MB Full: The speed is set to 10 Mbit/s and the mode is set to full-duplex.
100 MB Half: The speed is set to 100 Mbit/s and the mode is set to
half-duplex.
100 MB Full: The speed is set to 100 Mbit/s and the mode is set to
full-duplex.
Default value: Auto Sense
Important: If you have an i2004 IP telephone on your network, you must set the Connection
Type to Auto Sense.
Note: You may want to limit the incoming traffic to 10 Mbit/s if you notice that the bursty traffic
from the connected LAN is degrading the quality of voice calls carried through VoIP over the
WAN. Though the LAN traffic gets lower priority in Business Communications Manager, high
incoming LAN traffic to the Business Communications Manager base unit can result in service
interruptions in the system These interruptions may degrade the quality of voice calls carried as
VoIP.
Status Shows the current status of the LAN connection. The possible states are:
Up: The LAN card is operational.
Down: The LAN card is not operational.
This is a read only attribute.
Admin Status Allows you to view and change the Admin Status for this interface.
The Admin Status settings determines if the IP address for this interface is included in the
routing table. The possible states for Admin Status are:
Up: The routing table contains entries for this LAN interface.
Down: The routing table does not contain entries for this LAN interface.
The default Admin Status is Up.
The routing table entries for unused network interfaces can cause routing issues. For this
reason, Nortel Networks recommends you disable the Admin Status on any LAN interface that
is not connected to the network.
To remove the routing table entries for this LAN interface, select Disable.
If you decide to use a LAN interface that has had the Admin Status disabled, you must enable
the Admin Status to add entries for this LAN interface to the routing table.
To add routing table entries for this LAN interface, select Enable.
Primary Wins
Address
Enter the IP address of the Primary WINS server in the following format: 255.255.255.255.
Secondary Wins
Address
Enter the IP address of the Secondary WINS server in the following format: 255.255.255.255.
Note: Consult your network administrator for the appropriate configuration information
before changing the settings.
When you change these parameters, you must reboot the Business Communications
Manager system.
Table 198 LAN Summary attributes (Continued)
Attribute Description
Configuring LAN resources 667
Business Communications Manager 3.6 Programming Operations Guide
Configuring multiple IP addresses for the LAN interface
Adding an additional IP address
1On the navigation tree, click the Resources key and click the LAN key.
2Click the heading of the LAN resource you want to modify (for example, LAN1).
The LAN Summary screen appears.
3Click the Additional IP Address tab.
The Additional IP Address screen appears.
4On the Configuration menu, click Add Additional IPAddress.
The Additional IP Address screen appears.
5Configure the Additional IP Address parameters according to the information in the table
below.
6Click the Save button.
Note: Setting the LAN connection speed to 100 Mbit/s does not reduce performance.
However, the CPU is more efficient if you limit your incoming traffic to 10 Mbit/s.
To increase your CPU performance, set the connected external LAN hub or switch to
10 Mbit/s or to Auto Sense.
Note: If you enable LAN Traffic Smoothing, the connection type defaults to Auto Sense.
Therefore, you do not need to set the connection speed on the external LAN hub or switch.
Table 199 Additional LAN IP address parameters
Attribute Description
Range (A#) Enter the Additional IP Address identifier.
The Range number uniquely identifies an Additional IP Address. The value for this setting must
follow certain conventions. You must type the prefix 'A' followed by a unique number identifying
the Additional IP Address. For example, 'A2' is a valid name. If you specify an existing Range
number, you receive an error message. If you use non-sequential numbers the system
automatically reassigns sequential numbers. The Range number does not have any
significance, other than uniquely identifying an Additional IP Address.
IP Address Enter the Additional IP address of the LAN interface in the following format: 255.255.255.255.
SubNet Mask Enter the subnet mask of the LAN interface in the following format: 255.255.255.255.
If you do not know your subnet mask address, contact your system administrator or your
Internet service provider.
668 Configuring LAN resources
P0609326 1.1
Modifying an Additional IP Address
1On the navigation tree, click the Resources key and click the LAN key.
2Click the heading of the LAN resource you want to modify (for example, LAN1).
The LAN Summary screen appears.
3Click the Additional IP Address tab.
The Additional IP Address screen appears.
4Click the Additional IP Address you want to modify.
5On the Configuration menu, click Modify Additional IPAddress.
The Additional IP Address screen appears.
6Change the Additional IP Address parameters.
7Click the Save button.
Deleting an Additional IP Address
1On the navigation tree, click the Resources key and click the LAN key.
2Click the heading of the LAN resource you want to modify (for example, LAN1).
The LAN Summary screen appears.
3Click the Additional IP Address tab.
The Additional IP Address screen appears.
4Click the Additional IP Address you want to delete.
5On the Configuration menu, click Delete Additional IPAddress.
A confirmation dialog box appears.
6Click the Yes button.
Viewing LAN performance
The follow procedure describes how to view your LAN status.
1On the navigation tree, click the Resources key and click the LAN key.
2Click the heading of the LAN resource you want to view (for example, LAN1).
The LAN Summary screen appears.
3On the Performance menu, click LAN Graph.
The LAN Graph: Statistic Chart screen appears.
4On the Performance menu, click LAN Table.
The LAN Table: Statistic Table screen is appears.
669
Business Communications Manager 3.6 Programming Operations Guide
Chapter 30
Configuring the WAN resources
A WAN (wide area network) is a geographically dispersed data communication network. The term
WAN distinguishes a broader data communication structure from a local area network (LAN).
This section includes information about:
•“Permanent WAN connection” on page 669
•“Viewing WAN resources” on page 670
•“Setting global WAN parameters” on page 671
•“Configuring the WAN interfaces” on page 673
A WAN can be privately owned or rented, but is usually part of public (shared user) networks.
Business Communications Manager can be equipped with a WAN interface card with two serial
synchronous ports (Europe), or a WAN interface card with one T1 port (with integrated CSU) and
one serial synchronous port (North America). Both ports on the WAN interface card (WAN1 and
WAN2) can be active at the same time. The serial synchronous port supports the following:
• North America: V.35
• Europe: V.35 (Upper Sync Port) and X.21 (Lower Sync Port)
• maximum line speed: 8 Mbit/sec.
Business Communications Manager provides primary and backup WAN links through dial-up
connections using a V.90 modem (North America) or ISDN BRI/PRI. For information on V.90
modem or ISDN connections, see “Configuring the Dial Up resources” on page 685. Net Link
Manager provides continuous WAN connection status monitoring. For information about Net Link
Manager, see “Configuring Net Link Manager” on page 749.
Permanent WAN connection
The permanent WAN connection is normally a dedicated network adapter. The permanent link
supports frame relay or Point-to-Point protocol (PPP) at the link layer. The link protocol you use
depends on the existing network or on the service you buy from your Internet service provider.
The two ports provided by the WAN interface card can be independently configured to run frame
relay or PPP.
Frame Relay
Business Communications Manager supports frame relay in group mode and direct mode. In group
mode, for each physical port (serial sync or T1 port), there is one IP address for all PVCs
(permanent virtual circuits).
670 Viewing WAN resources
P0609326 1.1
The available Data Link Control interface numbers are 0-1023. Of the 1023 PVCs, 16 are
reserved. The maximum number of PVCs allowed is 1008.
Point-to-Point-Protocol (PPP)
Point-to-Point Protocol (PPP) is a full-duplex transmission protocol for communication between
two computers using a serial interface. A typical PPP connection is a personal computer connected
by telephone line to a server. For example, your Internet service provider (ISP) provides you with
a PPP connection so that the ISP server can respond to your requests, pass them on to the Internet,
and return your requested Internet responses to you.
Multi-link Point-to-Point Protocol (MLPPP)
MLPPP is used to connect multiple B-channels together when using PRI or BRI ISDN as the
WAN interface. This allows Business Communications Manager to connect B-channels
independently of each other so that the ISDN connection can be used for both voice and data.
WAN data compression
Business Communications Manager provides a WAN Data Compression feature. You can use data
compression on a permanent WAN connection and on a backup WAN connection. WAN Data
Compression is enabled by default. You can enable or disable WAN Data Compression from the
“Setting WAN Frame Relay Parameters” screen or from the “WAN PPP Parameters” screen,
depending on your system configuration.
On a permanent WAN connection, Business Communications Manager supports the following
data compression protocols:
• Frame Relay Forum standard FRF.9 data compression protocol with STAC compression
algorithm
• PPP Compression Control Protocol (RFC 1962) with STAC compression algorithm
On dial-up WAN connections, Business Communications Manager supports the following data
compression protocol:
• Microsoft Point-to-Point Compression (MPPC), RFC 2118
Viewing WAN resources
To view available WAN resources:
1On the navigation tree, click the Resources key and click the WAN heading.
The Resources screen appears.
The Resources screen shows the Name, Status, Version and a Description of the all of the WAN
interfaces on the Business Communications Manager.
Setting global WAN parameters 671
Business Communications Manager 3.6 Programming Operations Guide
Setting global WAN parameters
If PPP is the link protocol for a WAN interface (WAN1 or WAN2), you can restrict access to the
network using the PPP Password List. Business Communications Manager uses the information on
this list to verify and confirm the identity of the user. Only those users whose names appear on the
PPP Password List can access the network. The PPP Password List configuration allows you to
add, modify or delete an item on the list.
Configuring the PPP password list
To add an item to the PPP Password List:
1On the navigation tree, click the Resources key and click the WAN heading.
The Resources screen appears.
2Click the PPP Password List tab.
The PPP Password List screen appears.
3On the Configuration menu, click Add PPP User&Password.
The PPP Password List dialog box appears.
4Configure the PPP password parameters according to the following table.
5Click the Save button.
Note: If you disconnect the WAN cable from the WAN card, the Status does not update
immediately. It can take more than two minutes before the Status updates to show the new
Status of the WAN card.
Table 200 PPP password parameters
Attribute Description
(P#) Enter the PPP Password identifier.
The PPP Password number uniquely identifies an PPP User and Password. The value for this
setting must follow certain conventions. You must type the prefix 'P' followed by a unique
number identifying the PPP User and Password. For example, 'P2' is a valid name. If you
specify an existing PPP Password number, you receive an error message. If you use
non-sequential numbers the system automatically reassigns sequential numbers. The PPP
Password number does not have any significance, other than uniquely identifying a PPP User
and Password.
PPP User Name Enter the user name associated with the computer you want Business Communications
Manager to identify as a valid network user.
You must overwrite the default user name User with the user name you want to add to the list.
PPP Password Enter the password you want to assign to the user defined in the PPP User Name box. The
password can contain a combination of lowercase letters, uppercase letters, numbers and
non-alphanumeric characters ($, !, %, ^).
Note: The password you choose must conform to the password policy used for your Business
Communications Manager system. For more information about the password policy, refer to
“Setting password policy” on page 122.
672 Setting global WAN parameters
P0609326 1.1
Modifying an existing item on the PPP Password List:
1On the navigation tree, click the Resources key and click the WAN heading.
The Resources screen appears.
2Click the PPP Password List tab.
The PPP Password List screen appears.
3Click the PPP Password you want to modify.
4On the Configuration menu, click Modify PPP User&Password.
The PPP Password List dialog box appears.
5Change the PPP password parameters.
6Click the Save button.
Deleting an item from the PPP Password List
1On the navigation tree, click the Resources key and click the WAN heading.
The Resources screen appears.
2Click the PPP Password List tab.
The PPP Password List screen appears.
3Click the PPP Password you want to delete.
4On the Configuration menu, click Delete PPP User&Password.
A confirmation dialog box appears.
5Click the Yes button.
Configuring the WAN interfaces 673
Business Communications Manager 3.6 Programming Operations Guide
Configuring the WAN interfaces
The following sections describe how to configure the WAN interfaces on the Business
Communications Manager system.
This section includes:
•“Configuring WAN summary parameters” on page 673
•“Setting WAN Line Parameters” on page 675
•“Setting WAN Sync Parameters” on page 676
•“Setting WAN Frame Relay Parameters” on page 676
•“PVC Congestion Control” on page 678
•“WAN PPP Parameters” on page 679
•“Configuring multiple IP addresses for a WAN interface” on page 681
•“Configuring the DLCI to IP Mapping” on page 683
•“WAN performance” on page 684
Configuring WAN summary parameters
1On the navigation tree, click the Resources key and click the WAN Key.
2Click the WAN1 or WAN2 heading.
The WAN Summary screen appears.
3Configure the WAN Summary settings according to the information in the following table.
Table 201 WAN summary parameters
Attribute Description
IP Address Enter the IP address of the WAN interface. The WAN IP address must be in the following format:
255.255.255.255.
You can obtain this information from your system administrator or your Internet service provider.
SubNet Mask Enter the subnet mask address of the WAN. The subnet mask IP address must be in the
following format: 255.255.255.255.
You can obtain this information from your system administrator or your Internet service provider.
Physical Address Shows the physical address of the WAN interface.
Description Provides a description of the network interface card that supports the WAN connection.
Port Shows the port type of the WAN interface.
Version Shows the version of the WAN interface.
Maximum Link
Speed
Shows the operational speed of the WAN interface.
Status Shows the current resource status of the WAN interface. The possible states are:
Up: The WAN card is operational.
Down: The WAN card is not operational.
674 Configuring the WAN interfaces
P0609326 1.1
4Press the TAB key to save your settings.
Link Protocol Lets you select a WAN link protocol. The options are Frame Relay or PPP protocol.
The default is Frame Relay.
If you change the link protocol, the configuration screen changes to include fields corresponding
to the link protocol you choose. To ensure proper operation, always refresh the page by clicking
View and then Refresh.
The link protocol you choose depends on the existing network or the service you buy from your
Internet services provider.
Admin Status Allows you to view and change the Admin Status for this interface.
The Admin Status settings determines if the IP address for this interface is included in the routing
table. The possible states for Admin Status are:
Up: The routing table contains entries for this WAN interface.
Down: The routing table does not contain entries for this WAN interface.
The default Admin Status is Up.
The routing table entries for unused network interfaces can cause routing issues. For this reason,
Nortel Networks recommends you disable the Admin Status on any WAN interface that is not
connected to the network.
To remove the routing table entries for this WAN interface, select Disable.
If you decide to use a WAN interface that has had the Admin Status disabled, you must enable
the Admin Status to add entries for this WAN interface to the routing table.
To add routing table entries for this WAN interface, select Enable.
Frame Size Lets you specify the maximum frame size for the layer-2 packet carried on this port. The default is
1500.
Note: The Frame Size you enter must be consistent with the maximum frame size that you use
use on your network.
Note: Unified Manager refreshes the link protocol screen according to the chosen
protocol. Your choice of protocol depends on the existing network or the service you buy
from your Internet service provider. Frame relay is the default link protocol. If you change
the link protocol the following message appears “Reminder! Previous setting requires
rebooting the system to take effect. Please reboot the system...” Click OK.
Caution: Reboot the system
You must remember to reboot your system for the changes you made to the link protocol
to take effect. You can continue Resources configuration and reboot the system at a
convenient time.
Table 201 WAN summary parameters (Continued)
Attribute Description
Configuring the WAN interfaces 675
Business Communications Manager 3.6 Programming Operations Guide
Setting WAN Line Parameters
The WAN Line Parameters screen is displayed when configuring a T1 port (North America only).
Business Communications Manager supports T1 and fractional T1. Refer to the Port box on the
WAN Summary Parameters screen to see which type of port your are configuring.
1On the navigation tree, click the Resources key and click the WAN Key.
2Click the WAN1 heading.
The WAN Summary screen appears.
3Click the WAN Line Parameters tab.
The WAN Line Parameters screen appears.
4Configure the WAN Line Parameters according to the information in the following table.
Note: The WAN Line Parameters screen is only available on the WAN1 interface.
Table 202 WAN line parameters
Attribute Description
Channel Rate Lets you set the data transmission rate for each of the DS0 channels in the T1 line.
Possible values are 64K or 56K.
The default value is 64K.
Clock Source Lets you set an internal or external T1 clock source.
Possible values are External or Internal.
The default value is External.
Frame Type Lets you set the type of framing the T1 line supports.
Possible values are ESF or SF(D4).
The default value is ESF.
Use the setting your T1 service provider recommends.
Line Coding Lets you set the type of encoding used in the T1 line. Use the setting your T1 service
provider recommends.
Possible values are B8ZS or AMI.
Line Polarity Lets you set Normal or Inverted line polarity in the T1 line. Select Inverted only if Line
Coding is set to AMI.
Pulse Density Lets you control whether the DSU/CSU maintains the minimum level of 1s on the line for
AMI encoding.
Possible values are Enabled or Disabled.
Default value is Disabled.
Channel List Lets you create a list of T1 channels used when using fractional T1. You can list each
channel number or provide a range of numbers separated by a comma or hyphen. The
channel list can contain a mix of ranges and individual channel numbers. For example, a
valid channel list format is 3,5,6,10-15,18,20-23. To use all the available T1 channels, type
All. Your T1 service provider can give you this information.
Default value is All.
676 Configuring the WAN interfaces
P0609326 1.1
5Press the Tab key to save the settings.
Setting WAN Sync Parameters
The WAN Sync Parameters screen is only available on the WAN2 interface.
1On the navigation tree, click the Resources key and click the WAN Key.
2Click the WAN2 heading.
The WAN Summary screen appears.
3Click the WAN Sync Parameters tab.
The WAN Sync Parameters screen appears.
4Configure the WAN Sync Parameters according to the information in the following table.
5Press the Tab key to save the settings.
Setting WAN Frame Relay Parameters
If you chose frame relay as your link protocol, set the WAN Frame Relay Parameters.
1On the navigation tree, click the Resources key and click the WAN Key.
2Click the WAN1 or WAN2 heading.
The WAN Summary screen appears.
3Click the WAN Frame Relay Parameters tab.
The WAN Frame Relay Parameters screen appears.
Note: Always use the same frame type and line coding method as your service provider.
Table 203 WAN sync parameters
Attribute Description
Clock Mode Lets you choose the clock mode.
The possible values DTE, DCE or Symmetrical.
DTE Configuration This setting is only available if you choose DTE as the Clock Mode. This setting lets you
select the DTE Configuration.
The possible values are Simple/spoke or Hub.
The default value is Simple/spoke.
Clock Rate This setting is only available if you choose Symmetrical as the Clock Mode. This setting
lets you select the clock rate used.
The default value is 1000000.
Configuring the WAN interfaces 677
Business Communications Manager 3.6 Programming Operations Guide
4Configure the WAN Frame Relay Parameters by referring to the following table.
5Press the Tab key to save the settings.
Table 204 WAN frame relay parameters
Attribute Description
LMI Type Select the type of local management protocol used on this link. The link management type
must be the same as the one used by the frame relay service provider. The available
options are Original LMI, ANSI T1.617 Annex D or ITU-T Q.933 Annex A.
The default setting is Original LMI.
Note: The most commonly used setting for this parameter is ANSI T1.617 Annex D.
Polling Interval Enter an interval, in seconds, between LMI status inquiry messages. The polling interval
must be the same as the one used by the frame relay service provider’s switch.
Possible values are between 5 and 30 seconds.
The default setting is 10.
Full Enquiry Interval Enter the maximum number of LMI Status Enquiry messages sent before sending a Full
Status Enquiry request. This value must match the corresponding value set in the frame
relay service provider’s switch.
Possible values are between 1 and 255 (in seconds).
The default setting is 6.
Error Threshold Enter the maximum number of consecutive failures permitted in LMI Status Enquiry before
dropping the link. It is also the number of successful consecutive LMI Status Enquiry
messages that must be received before marking a link as operational.
If you have a backup WAN connection and Net Link Manager configured, the backup
connection is started and traffic is routed to the backup when this link is dropped. Also, the
backup WAN connection is dropped and traffic is routed to this link when the link is
operational. For information about Net Link Manager, refer to “Configuring Net Link
Manager” on page 749.
Possible values are between 0 and 65000.
The default value is 3.
Monitored Events Enter the number of events sampled for making decisions about the error threshold. This
value must be set to a higher number than the value set in the Error Threshold box.
Possible values are a number between 0 and 65000.
The default value is 4.
DS Code Enter the Differentiated Services code (DSCode) recognized by the frame relay driver for
traffic prioritization. This value is a mask value. When an IP packet is sent, the frame relay
driver checks if the packet's DSCode field (in the IP header) has any of the bits defined in
the DS Code and sets the Discard Eligible (DE) bits to No.
Available PVCs Shows the PVCs (Permanent Virtual Circuits) available for this WAN interface.
Compression Enabled
PVCs
Enter a list of PVCs on which data compression is enabled. The value can be a
comma-separated list of DLCI (Data Link Connection Identifier) numbers. You can define a
range of DLCIs by inserting a hyphen between the lower and the upper boundaries. A list
can contain individual DLCI numbers and DLCI ranges. If data compression is enabled,
compression and decompression operations are performed on the data going to and
coming from the PVCs on this list.
Access Rate Enter the maximum access rate on the interface running frame relay in kbps. The frame
relay congestion control engine uses this value to limit or shape traffic. The Access Rate
value is determined using the T1 channels available for data communication on the port
attached to this interface and their data rates.
678 Configuring the WAN interfaces
P0609326 1.1
PVC Congestion Control
If frame relay is your link protocol, you must configure PVC Congestion Control. If PPP is your
link protocol, there are no PVC Congestion Control settings to configure.
Adding PVC congestion control
Follow these steps to add a PVC congestion control:
1On the navigation tree, click the Resources key and click the WAN Key.
2Click the WAN1 or WAN2 heading.
The WAN Summary screen appears.
3Click the PVC Congestion Control tab.
The PVC Congestion Control screen appears.
4On the Configuration menu, click Add PVC Congestion Control.
5Configure the WAN PVC Congestion Control parameters according to the information in the
following table.
6Click the Save button.
Table 205 WAN PVC congestion control parameters
Column Description
Entry (CC#) Define each congestion control entry on the interface. A congestion control entry must use
the following format: CC#, where the prefix 'CC' is followed by a number. For example,
'CC2' is a valid congestion control entry. Each entry must use a different number. You
must use consecutive numbers when entering congestion control entries. If you do not use
consecutive numbers, the system adjusts them to be consecutive. If you add an existing
entry, the existing entry is modified with new values. When you modify an entry, the name
cannot be changed.
DLCI Enter the data link connection identifier (DLCI) number of the PVC on which to perform
congestion control. A DLCI must be configured for congestion control to be performed.
Business Communications Manager uses one-second intervals to measure this
parameter.
CIR Enter the committed information rate in kbits. The CIR is the rate the carrier guarantees
that the router transmits at over a predetermined time interval when congestion is not
present.
Contact your service provider for the correct setting.
Business Communications Manager uses one-second intervals to measure this
parameter.
Committed Burst BC Lets you define the number of bits, in kbits, the router transmits over a specified time
interval if congestion is present. As a rule this value is set for 1/4 the value of the CIR.
Business Communications Manager uses one-second intervals to measure this
parameter.
Excess Burst BE Combined with the committed burst rate, lets you set, in kbits, the maximum number of bits
the router transmits over a predetermined time interval if there is no congestion. The
combined value of committed burst and excess burst must be less than or equal to the line
speed.
Configuring the WAN interfaces 679
Business Communications Manager 3.6 Programming Operations Guide
Modifying PVC congestion controls
Follow these steps to modify a PVC congestion control setting:
1On the navigation tree, click the Resources key and click the WAN Key.
2Click the WAN1 or WAN2 heading.
The WAN Summary screen appears.
3Click the PVC Congestion Control tab.
The PVC Congestion Control screen appears.
4Click the entry you want to modify in the PVC Congestion Control table
5On the Configuration menu, click Modify PVC Congestion Control.
The PVC Congestion Control dialog box appears.
6Change the PVC congestion control parameters.
7Click the Save button.
Deleting a PVC congestion control
Follow these steps to delete a PVC congestion control setting.
1On the navigation tree, click the Resources key and click the WAN Key.
2Click the WAN1 or WAN2 heading.
The WAN Summary screen appears.
3Click the PVC Congestion Control tab.
The PVC Congestion Control screen appears.
4Click the entry you want to delete in the PVC Congestion Control table.
5On the Configuration menu, click Delete PVC Congestion Control.
A message prompts you to confirm the deletion.
6Click the Yes button.
WAN PPP Parameters
If you chose PPP as your link protocol, set the WAN PPP Parameters screen.
1On the navigation tree, click the Resources key and click the WAN Key.
2Click the WAN1 or WAN2 heading.
The WAN Summary screen appears.
3Click the WAN PPP Parameters tab.
The WAN PPP Parameters screen appears.
680 Configuring the WAN interfaces
P0609326 1.1
4Configure the WAN PPP Parameters according to the information in the following table.
5Press the Tab key to save your settings.
Table 206 WAN PPP parameters
Attribute Description
LCP Keep Alive Interval Enter the interval, in seconds, to send a keep alive signal when there is no regular traffic
on the PPP link. The default value is 10.
LQR Interval Enter the interval, in 1/100 second, to perform link quality monitoring.
Authentication Mode Specify the Authentication mode a remote user can use. You can select PAP or CHAP,
CHAP only, or None.
Select CHAP only to restrict the remote user to using CHAP authentication.
Select PAP or CHAP to allow the remote user to use PAP or CHAP authentication.
Select None to allow the remote user to access the system without using authentication.
Note: If you select CHAP only or PAP or CHAP, you must select UserName-Password
for the Outgoing Authentication box.
Outgoing Authentication Select the type of authentication information that is sent to the far end of the PPP
connection. You can select ComputerName-Password or UserName-Password.
Selecting ComputerName-Password will send the name of the Business
Communications Manager and the password you enter below.
Selecting UserName-Password will send the user name and password you enter below.
Note: If you select ComputerName-Password, you must select None for the
Authentication Mode.
User Name Enter the user name that is used for authentication by the far end of the PPP connection.
Password Enter the password that is used for authentication by the far end of the PPP connection.
Note: The password you choose must conform to the password policy used for your
Business Communications Manager system. For more information about the password
policy, refer to “Setting password policy” on page 122.
Compression Lets you enable or disable data compression over this PPP link. The possible values are:
Enabled, Disabled
The default is Disabled.
Configuring the WAN interfaces 681
Business Communications Manager 3.6 Programming Operations Guide
Configuring multiple IP addresses for a WAN interface
You can assign multiple IP addresses to a single WAN interface that is configured to use frame
relay. Using this functionality, you can configure the Business Communications Manager as the
hub in a hub and spoke configuration. When Business Communications Manager is the hub or
central site, Business Communications Manager can provide at least two IP address classes on the
primary WAN interface. This allows the system to provide Direct Mode capability.
Examples of uses of multiple IP addresses
• You can use a single WAN physical link to connect to both an intranet and the internet using
separate addressing schemes.
• A network service provider can create a separate IP address for management functions over
the WAN interface.
In both of these examples, broadcast traffic destined for one IP address would not be transmitted
on the links associated with the other IP address.
Restrictions when using multiple IP addresses
• Nortel Networks does not recommend using more than two IP address classes.
• Multiple IP addresses supports RIP routing.
• IPSec does not support the use of these multiple IP addresses for Branch Office Local
Endpoint Addresses, Remote Endpoint Addresses or the Destination IP Address for IPSec
VPN Clients
Adding an additional IP address
1On the navigation tree, click the Resources key and click the WAN key.
2Click the WAN1 or WAN2 heading.
The WAN Summary screen appears.
3Click the Additional IP Address tab.
The Additional IP Address screen appears.
4On the Configuration menu, click Add Additional IPAddress.
The Additional IP Address screen appears.
5Configure the Additional IP Address parameters with the information in the following table.
Table 207 Additional WAN IP addresses
Attribute Description
Range (A#) Enter the Additional IP Address identifier.
The Range number uniquely identifies an Additional IP Address. The value for this setting must
follow certain conventions. You must type the prefix 'A' followed by a unique number identifying
the Additional IP Address. For example, 'A2' is a valid name. If you specify an existing Range
number, you receive an error message. If you use non-sequential numbers the system
automatically reassigns sequential numbers. The Range number does not have any
significance, other than uniquely identifying an Additional IP Address.
682 Configuring the WAN interfaces
P0609326 1.1
6Click the Save button.
Modifying an Additional IP Address
1On the navigation tree, click the Resources key and click the WAN key.
2Click the WAN1 or WAN2 heading.
The WAN Summary screen appears.
3Click the Additional IP Address tab.
The Additional IP Address screen appears.
4Click the Additional IP Address you want to modify.
5On the Configuration menu, click Modify Additional IPAddress.
The Additional IP Address screen appears.
6Change the Additional IP Address parameters.
7Click the Save button.
Deleting an Additional IP Address
1On the navigation tree, click the Resources key and click the WAN key.
2Click the WAN1 or WAN2 heading.
The WAN Summary screen appears.
3Click the Additional IP Address tab.
The Additional IP Address screen appears.
4Click the Additional IP Address you want to delete.
5On the Configuration menu, click Delete Additional IPAddress.
A confirmation dialog box appears.
6Click the Yes button.
IP Address Enter the Additional IP address of the WAN interface in the following format: 255.255.255.255.
SubNet Mask Enter the subnet mask of the WAN interface in the following format: 255.255.255.255.
If you do not know your subnet mask address, contact your system administrator or your
Internet service provider.
Table 207 Additional WAN IP addresses (Continued)
Attribute Description
Configuring the WAN interfaces 683
Business Communications Manager 3.6 Programming Operations Guide
Configuring the DLCI to IP Mapping
When connected to a Frame Relay network, Business Communications Manager uses Frame
Relay INARP (Inverse Address Resolution Protocol) messaging to request the next hop protocol
address for a given DLCI. If the other end of the connection does not support INARP messaging,
there can be a communication failure because the mapping of which DLCI to use to reach a
particular IP address is not known.
The DLCI to IP Mapping feature solves this problem by providing static address mapping of the
DLCI to remote IP address.
Adding DLCI to IP Mapping
You can add up to 32 DLCI to IP Mapping entries.
To add a DLCI to IP Mapping entry:
1On the navigation tree, click the Resources key and click the WAN key.
2Click the WAN1 or WAN2 heading.
The WAN Summary screen appears.
3Click the DLCI to IP Mapping tab.
The DLCI to IP Mapping screen appears.
4On the Configuration menu, click Add DLCI to IP Mapping.
The DLCI to IP Mapping dialog box appears.
5Configure the DLCI to IP Mapping parameters using the information in the following table.
6Click the Save button.
Note: DLCI to IP Mapping feature is available only on the WAN1 and WAN2 interfaces.
This feature is not available on the UTWAN interface.
Table 208 DLCI to IP Mapping parameters
Attribute Description
Index (I#) This parameter identifies the DLCI to IP Mapping entry.
This is a read only parameter.
Local IP Enter the IP address used for the local end of this connection. The IP address you enter must
be one of the IP address assigned to this WAN interface.
You must enter the IP address in standard decimal format (for example 10.10.10.1).
DLCI Enter the Data Link Connection Identifier (DLCI) number for this interface.
You can enter a value from 0 to 1024.
Remote IP Enter the IP address used for remote end of this connection.
You must enter the IP address in standard decimal format (for example 10.10.10.1).
684 Configuring the WAN interfaces
P0609326 1.1
Modifying DLCI to IP Mapping
1On the navigation tree, click the Resources key and click the WAN key.
2Click the WAN1 or WAN2 heading.
The WAN Summary screen appears.
3Click the DLCI to IP Mapping tab.
The DLCI to IP Mapping screen appears.
4Click the DLCI to IP Mapping entry you want to modify.
5On the Configuration menu, click Modify DLCI to IP Mapping.
The DLCI to IP Mapping dialog box appears.
6Change the DLCI to IP Mapping parameters.
7Click the Save button.
Deleting DLCI to IP Mapping
1On the navigation tree, click the Resources key and click the WAN key.
2Click the WAN1 or WAN2 heading.
The WAN Summary screen appears.
3Click the DLCI to IP Mapping tab.
The DLCI to IP Mapping screen appears.
4Click the DLCI to IP Mapping you want to delete.
5On the Configuration menu, click Delete DLCI to IP Mapping.
A confirmation dialog box appears.
6Click the Yes button.
WAN performance
To access the WAN Primary Link performance graphs and tables for a particular WAN interface:
1On the navigation tree, click the Resources key and click the WAN key.
2Click the WAN1 or WAN2 heading.
The WAN Summary screen appears.
3On the Performance menu, click WAN Graph.
The WAN Graph: Statistic Chart appears.
4On the Performance menu, click WAN Table.
The WAN Table: Statistic Table appears.
685
Business Communications Manager 3.6 Programming Operations Guide
Chapter 31
Configuring the Dial Up resources
Business Communications Manager allows you to create and use dial up connections for Remote
Access Service (RAS) or dial-on-demand network access. RAS allows you to access Business
Communications Managers remotely by making an IP connection using PPPoE, an ISDN BRI/PRI
line, PPTP or the V.90 modem (North America only). After you connect to the Business
Communications Manager system, you can access all IP-based system management operations.
Business Communications Manager also supports dial-on-demand for primary and backup WAN
connections. Primary and backup WAN connections can use an ISDN BRI/PRI line or a V.90
modem (North America).
This section includes information about:
•“Configuring the dial up global parameters”
•“V.90 modem (North America) dial up”
•“ISDN dial up”
•“Point to Point Protocol on Ethernet (PPPoE)”
•“Guidelines for using Remote Dial-in”
Configuring the dial up global parameters
1On the navigation tree, click the Resources key and click the Dial Up heading.
The RAS Server TCP/IP Configuration screen appears.
2Configure the RAS Server TCP/IP settings according to the information in the following table.
3Press the TAB key to save your settings.
Table 209 RAS server TCP/IP parameters
Attribute Description
Allow Network Access Select whether to allow dial up access to the entire network (Yes) or to restrict access to
Business Communications Manager only (No).
When using dial up for dial-on-demand WAN connection (as a primary or back up WAN
connection), set Allow Network Access to Yes.
When using dial up for remote system management purposes only, set Allow Network
Access to No.
Static IP Address Pool Enter the IP address Business Communications Manager assigns when a remote site dials
into the Business Communications Manager system.
The default value is 10.10.14.0
Address Mask Enter the IP address mask corresponding to the IP address range. The IP addresses from
the static address pool then reserved for assignment to remote sites.
The default value is 255.255.255.224.
686 V.90 modem (North America) dial up
P0609326 1.1
V.90 modem (North America) dial up
Business Communications Manager is equipped with an internal V.90 modem that connects to
your phone line with a RJ-11 connector. The V.90 modem has the following features:
• V.90 56 kbps ITU standard
• V.34 33.6 kbps ITU standard
• V.42/MNP 2-4 error control
• V.42 bis/MNP 5 data compression
• compatible with ITU and Bell Standards from 56 kbps down to 1200 bps
The V.90 modem WAN connection always uses PPP as the link layer protocol. For correct
operation, the link must be connected to a remote access server (RAS).
Business Communications Manager supports the following authentication features:
• Password Authentication Protocol (PAP)
• Challenge Authentication Protocol (CHAP)
The information in this section includes:
•“Enabling and disabling the V.90 modem interface”
•“Configuring the V.90 modem interface”
Enabling and disabling the V.90 modem interface
If you want to the use the V.90 modem as a backup WAN connection or as interface to send
SNMP traps to the SNMP Manager, you must enable the V.90 modem interface.
If you are not using the V.90 modem interface for WAN backup or SNMP traps, Nortel Networks
recommends that you disable the modem to help prevent unauthorized access to the Business
Communications Manager.
To enable the V.90 modem interface:
1On the navigation tree, click the Resources key and click the Dial Up key.
2Click the V.90 heading.
3Click the Modem Status drop list and click Enabled.
4Press the TAB key to save the settings.
Note: The modem is capable of receiving at a maximum speed of 56 kbps and
transmitting at a maximum speed of 31.2 kbps. Because of FCC regulations, receiving
speed is limited to 53 kbps. Current line noise can impact the speed of the modem.
V.90 modem (North America) dial up 687
Business Communications Manager 3.6 Programming Operations Guide
To disable the V.90 modem interface:
1On the navigation tree, click the Resources key and click the Dial Up key.
2Click the V.90 heading.
3Click the Modem Status drop list and click Disabled.
4Press the TAB key to save the settings.
Configuring the V.90 modem interface
The V.90 modem is used for WAN backup connection.
To configure the V.90 modem interface:
1On the navigation tree, click the Resources key and click the Dial Up key.
2Click the V.90 key to see available modem interfaces.
3Click the ModemBackup heading if you want to configure the interface used for the backup
WAN connection.
Click the ModemTrapDialOut heading if you want to configure the interface used for
sending SNMP trap messages to the SNMP Manager.
The V.90 Summary screen appears.
4Configure the V.90 Summary parameters according to the information in the following table.
Tips
Remember to set Dial Up global parameters before creating modem dial up interfaces. For
information about setting Dial Up global parameters, see “Configuring the dial up global
parameters” on page 685.
The same modem may be shared between the remote dial-in for system administration and
the backup WAN link. The WAN backup function is not available if a break in the WAN
permanent connection occurs while a system administrator is connected to Business
Communications Manager using the V.90 modem.
Table 210 V.90 modem summary parameters
Attribute Description
Interface Shows the name of the modem interface selected.
IP Address Enter the IP address of the modem interface when it connects. Users can set a fixed IP address
for the dial-up interface. If a fixed address is specified, Business Communications Manager uses
the address on the receiving end.
Users can select RemoteAssigned to indicate that Business Communications Manager must
obtain an IP address from the remote end and use it. The address obtained depends on the RAS
server to which Business Communications Manager connects.
The default value is RemoteAssigned.
Description Shows a description of the interface.
Version Shows the version of the modem subsystem.
688 V.90 modem (North America) dial up
P0609326 1.1
5Press the Tab key to save the settings.
6Click the V.90 Link Parameters tab.
The V.90 Link Parameters screen appears.
7Configure the Modem Link Parameters according to the information in the following table.
Status View the modem interface resource status and enable or disable the modem interface.
The possible states are:
Connect: The modem is enabled and the dial-up link is currently active.
Disconnect: The modem interface is enabled and the dial-up link is currently disconnected.
Enabled: The modem interface is enabled for use.
Disabled: The modem interface is disabled.
Table 211 Modem link parameters
Attribute Description
Telephone Number Lets you type a telephone number to use to connect using the modem interface. If
needed, include area codes and all necessary digits to dial an external number.
Alternate Telephone
Number
Lets you type an alternate number to use to connect using the modem interface.
Include area codes and all necessary digits to dial an external number.
Connect Rate Lets you specify the initial speed (in bits per second) for the modem to connect. Set to
the maximum permissible value for best results. Permitted values: 57600, 38400,
19200, 9600, 4800.
Note: This is the initial rate; the actual rate is always negotiated.
Dial Retries Lets you set the number of attempts the system must make when trying to connect
before considering the connection non operational.
The default value is 3.
Dial Interval Lets you set the interval, in seconds, between successive connection attempts.
The default value is 60.
Number Of Rings Lets you specify the number of rings the Business Communications Manager waits
before determining that the far end of the connection is not answering.
The default value is 1.
Speaker Mode Lets you enable or disable the speaker during initial link establishment.
IP Header Compression Lets you enable or disable IP header compression. To function, the receiving end must
also use this feature.
Software Compression Lets you enable or disable data compression in the software, instead of the modem.
For dial-up connections, Unified Manager uses Microsoft Point-to-Point Compression
algorithm (MPPC).
Hardware Compression Lets you enable or disable data compression in the hardware instead of the software.
Table 210 V.90 modem summary parameters (Continued)
Attribute Description
V.90 modem (North America) dial up 689
Business Communications Manager 3.6 Programming Operations Guide
8Press the TAB key to save the settings.
9Click the V.90 Access Parameters tab.
The V.90 Access Parameters screen appears.
10 Configure the V.90 Modem Access Parameters according to the information in the following
table.
11 Press the TAB key to save the settings.
PPP LCP Extensions Lets you enable or disable the following PPP Link Control extensions: Time-Remaining
and Identification.
The default value is Enabled.
Disconnect Time Enter the interval, in seconds, during which the modem interface disconnects when
there is no traffic.
Select 0 if you want the Business Communications Manager to close the connection
when the far end hangs up.
Select PersistentConnection if this connection is intended to always be connected.
Note: If you have more than one Trap Community Entry configured with this dial up
interface, using a very small number for the Disconnect Time will put you at risk of a
racing condition. To reduce the racing condition, enter a larger value for the Disconnect
Time.
Table 212 V.90 modem access parameters
Attribute Description
Authentication Lets you select the authentication type for the link. The options are AllowClearText or
EncryptedOnly.
AllowClearText: The CHAP is used first and if the receiving end of the link declines, PAP
is used to authenticate the link.
EncryptedOnly: Only encrypted authentication such as CHAP is used on this interface
during PPP authentication process.
Two Way Authentication Lets you enable or disable link authentication in both directions.
The default value is Disabled.
User Name Lets you define a user name that the link uses to authenticate itself when dialing out to
another router.
User Password Lets you define a password that the link uses to authenticate itself when dialing out to
another router.
Note: The password you choose must conform to the password policy used for your
Business Communications Manager system. For more information about the password
policy, refer to “Setting password policy” on page 122.
Table 211 Modem link parameters (Continued)
Attribute Description
690 ISDN dial up
P0609326 1.1
ISDN dial up
Business Communications Manager supports ISDN dial up for dial-on-demand WAN access. You
have the choice to use ISDN BRI/PRI as a persistent or dial-on-demand WAN connection or as a
backup for your permanent WAN connection.
The information in this section includes:
•“Creating an ISDN dial up interface”
•“Configuring an ISDN interface”
•“Configuring the ISDN channel characteristics”
•“Deleting an ISDN interface”
Creating an ISDN dial up interface
1On the navigation tree, click the Resources key, and click the Dial Up key.
2Click the ISDN heading.
3Click the Add button.
Or, right click the ISDN heading and click Add.
The Add ISDN dialog box appears.
4In the (Dial In) Name box, type the name of the interface you are creating.
This is the name a dial in user must enter to access this interface.
5In the Password box, type a password.
This is the password a dial in user must enter to access this interface.
Tips
To use an ISDN dial-up connection, you must first configure your system for ISDN. For
more information, refer to Appendix C, “ISDN overview,” on page 869. If your system is
already configured to support ISDN, make sure you configure a Data Module for ISDN
dial up connection. For more information, see “Configuring a data module” on page 178.
After you have created an ISDN dial up interface, you must use “Configuring Net Link
Manager” on page 749 to select which type of network connection the system must use for
primary and backup connection.
Caution:
If you are creating an ISDN interface to use as a backup for a permanent WAN connection,
the (Dial In) Name must contain the string “backup”. For example, “ISDNbackup” is a
valid name if you want to use an ISDN connection as a WAN backup connection.
Note: The password you choose must conform to the password policy used for your
Business Communications Manager system. For more information about the password
policy, refer to “Setting password policy” on page 122.
ISDN dial up 691
Business Communications Manager 3.6 Programming Operations Guide
6In the Confirm Password box, type the password again.
7In the Channel list, select the channel the connection must use.
8Click Save to save your settings.
The newly created ISDN interface appears under ISDN.
Configuring an ISDN interface
To configure an ISDN interface:
1On the navigation tree, click the Resources key and click the Dial Up key.
2Click the ISDN key and click on the interface you want to configure.
The ISDN Summary screen appears.
3Configure the ISDN Summary settings according to the information in the following table.
4Press the TAB key to save the settings.
5Click the ISDN Link Parameters tab.
The ISDN Link Parameters screen appears.
Table 213 ISDN summary settings
Attribute Description
Interface Shows the name of the ISDN interface selected.
IPAddress Enter the IP address of the ISDN interface when it connects. You can set a fixed IP address for
the dial-up interface or you can select RemoteAssigned to indicate that Business
Communications Manager must obtain an IP address from the remote end. The address obtained
depends on the RAS server to which Business Communications Manager connects.
The default value is RemoteAssigned.
Callback note: If you want to use secure callback with this interface, enter an IP address. For
information about setting up callback, refer to “Managing access passwords” on page 109.
Description Enter a description of the interface.
Version Show the version number of the interface.
Status Lets you view and set the ISDN interface resource status. Possible values are:
Connect: The ISDN interface is currently connected. Also used to force the interface to initiate a
connection.
Disconnect: The ISDN interface is not currently connected.
Enabled: The ISDN interface is enabled for use.
Disabled: The ISDN interface is disabled.
Tip
You cannot select an ISDN interface that is set to “RemoteAssigned” as the Local
Gateway IP for the VoIP Gateway.
692 ISDN dial up
P0609326 1.1
6Configure the ISDN Link Parameters according to the information in the following table.
7Press the TAB key to save the settings.
8Click the ISDN Access Parameters tab.
The ISDN Access Parameters screen appears.
9Configure the ISDN Access Parameters according to the information in the following table.
Table 214 ISDN link parameters
Attribute Description
Dial Retries Enter the number of times the systems attempts to connect before considering the connection
non operational.
The default value is 3.
Dial Interval Enter the interval, in seconds, between connection attempts.
The default value is 60.
IP Header
Compression
Enable or disable IP header compression. The feature must be enable at both ends of the
connection.
The default value is Enabled.
Software
Compression
Enable or disable software compression. When enabled, all dial-up connections use Microsoft
Point-to-Point Compression (MPPC).
The default value is Disabled.
PPP LCP
Extensions
Enable or disable the following PPP Link Control extensions: Time-Remaining and Identification.
The default value is Enabled.
Disconnect Time Enter the interval, in seconds, during which the ISDN interface disconnects when there is no
traffic.
If you select PersistentConnection, the ISDN interface will not disconnect.
Note: If you have more than one Trap Community Entry configured with this dial up interface,
using a very small number for the Disconnect Time will put you at risk of a racing condition. To
reduce the racing condition, enter a larger value for the Disconnect Time.
DNS Address 1 Enter the IP address of the Primary DNS server that this interface will use.
Select NoNameServerAddressesUsed if you do not want this interface to use a DNS server.
Note: If you select NoNameServerAddressesUsed, this setting is automatically set in DNS
Address 2 box.
DNS Address 2 Enter the IP address of the Secondary DNS server that this interface will use.
Select NoNameServerAddressesUsed if you do not want this interface to use a DNS server.
Protocol Select the protocol that this ISDN interface uses. You can choose TCP/IP, IPX or Both.
Table 215 ISDN access parameters
Attribute Description
Authentication Select the authentication type for the link. The options are AllowClearText or EncryptedOnly.
AllowClearText: When selected, the CHAP is used first and if the receiving end of the link
declines, PAP is used to authenticate the link.
EncryptedOnly: When selected, only encrypted authentication such as CHAP is used on this
interface during PPP authentication process.
Two Way
Authentication
Enable or disable link authentication in both directions.
The default value is Disabled.
ISDN dial up 693
Business Communications Manager 3.6 Programming Operations Guide
10 Press the TAB key to save the settings.
11 Click the ISDN Dial-Out User tab.
The ISDN Dial-out User screen appears.
12 On the Configuration menu, click Modify ISDN Dial-out User.
13 Configure the ISDN Dial-out User parameters using the information in the following table.
14 Click the Save button.
15 Click the ISDN Channel Characteristics tab.
The ISDN Channel Characteristics screen appears.
Configuring the ISDN channel characteristics
To add an ISDN channel to the ISDN Channel Characteristics list
1On the Configuration menu, click Add ISDN Channel.
The ISDN Channel Characteristics screen appears.
2Configure the ISDN Channel Characteristic according to the information in the following
table.
Table 216 ISDN dial-out user parameters
Attribute Description
User Name Enter the user name that the link must use to authenticate itself when dialing out to another
router.
Password Enter the password that the link must use to authenticate itself when dialing out to another router.
Note: The password you choose must conform to the password policy used for your Business
Communications Manager system. For more information about the password policy, refer to
“Setting password policy” on page 122.
Table 217 ISDN channel characteristics
Attribute Description
Row (R#) Identifies the number of the item in the ISDN channel list.
Port Select one of the ISDN ports. There are 16 ISDN ports available, named ISDN1 to ISDN16.
Phone1 Enter the primary phone number to use to make an ISDN connection.
If needed, include area codes and all necessary digits to dial an external number. The phone
number must contain only numerical digits only (no alphabetical or other characters are
allowed).
Phone2 Enter an alternate phone number to use to make the ISDN connection.
Include all required area codes and all necessary digits to dial an external number. The phone
number must contain numerical digits only (no alphabetical or other characters are allowed).
If Phone1 dialing fails, and you have specified a number for Phone2, Business
Communications Manager will attempt to dial Phone2.
Exception note: If you have two phone numbers for two different data centers with two distinct
IP subnets, you cannot use a local assigned IP address. Instead, use the remote assigned IP
option with the correct NetLink Manager setup to route the calls properly.
694 ISDN dial up
P0609326 1.1
3Click the Save button.
Assigning an ISDN dial number and IP address
With an ISDN demand-dial interface, you can bundle more than one ISDN channel to increase the
throughput. This is referred to as multi-link support.
With each ISDN channel configuration, you can choose to configure a primary dial number
(Phone1), and a backup dial number (Phone2). However, you are not allowed to assign different IP
addresses for the different phone numbers you are dialing. The main reason behind this restriction
is, with multi-link, even if you can reach your destination via different phone numbers, once your
ISDN pipe is established, there is only one source and one destination from the IP-layer.
If you assign Phone1 to reach Site A and Phone2 to reach Site B, and Site A and Site B belong to
different subnets, the pre-assigned IP address scheme will not work. In this scenario, you must use
the Remote Assigned IP address option, and let NetLink Manager take care of the default route for
you. For information about setting the IP Address to the RemoteAssigned, refer to “Configuring an
ISDN interface” on page 691. For information about configuring Net Link Manager, refer to
“Configuring Net Link Manager” on page 749.
Modifying the characteristics of an existing ISDN channel
1Click the ISDN Channel Characteristic you want to modify.
2On the Configuration menu, click Modify ISDN Channel.
The ISDN Channel Characteristics screen appears.
3Make the necessary changes.
4Click the Save button to save your settings.
Deleting an ISDN channel from the ISDN Channel Characteristics list
1Click the ISDN Channel Characteristic you want to delete.
2On the Configuration menu, select Delete ISDN Channel.
A confirmation dialog box appears.
3Click the Yes button.
Line Type Select either a 64K Digital or 56K Digital line.
Business Communications Manager ISDN supports two types of Unrestricted Digital
Information (UDI) bit streams: UDI, and UDI-56. With UDI, data is transmitted at 64kbps (64K
Digital). With UDI-56, a 1 bit is inserted in the eighth bit position of each B-channel time slot
while the other 7 bits form the 56kbps channel (56K Digital).
Negotiate Line
Type
Choose whether or not the system will select a line with a slower speed if it is unable to connect
at the previously set speed.
You can choose Yes or No. The default value is Yes
Table 217 ISDN channel characteristics (Continued)
Attribute Description
ISDN dial up 695
Business Communications Manager 3.6 Programming Operations Guide
Deleting an ISDN interface
1On the navigation tree, click the Resources key and click the Dial Up key.
2Click the ISDN key.
3Click the heading of the ISDN interface you want to delete.
4Click the Delete button. Or, right click the ISDN interface heading and click Delete.
A confirmation dialog box appears.
5Click Yes.
696 Point to Point Protocol on Ethernet (PPPoE)
P0609326 1.1
Point to Point Protocol on Ethernet (PPPoE)
The information in this section includes:
•“Settings required for PPPoE”
•“Installing PPPoE”
•“Creating a PPPoE dial up interface”
•“Configuring a PPPoE interface”
•“Connecting to the Internet Service Provider (ISP)”
•“Deleting a PPPoE interface”
PPPoE is the protocol Business Communications Manager uses when connecting to a data network
using a broadband modem. Digital Subscriber Line (DSL) modems and cable modems are
examples of broadband modems.
When the Business Communications Manager uses a PPPoE connection, the Internet Service
Provider (ISP) can control access, billing and other types of service on a per-user, rather than a
per-site basis.
Settings required for PPPoE
The data packets that pass through the PPPoE connection interact with other routing features in
Business Communications Manager. As a result, there are several settings you must make in other
features so those features can use the PPPoE connection.
Note: To use PPPoE, you must have a Business Communications Manager system that
has two LAN cards.
Table 218 Features that interact with PPPoE
Feature Description of interaction
LAN interfaces When you install PPPoE, the LAN1 interface is dedicated to PPPoE. You must not use the LAN1
interface for any other purpose.
IPSec Tunnels To use IPSec tunnels over the PPPoE interface, Business Communications Manager requires a
single known IP address be assigned to the PPPoE interface. If your Internet Service Provider
uses DHCP to assign the IP addresses, the DHCP server must assign the same IP address to the
PPPoE interface every time Business Communications Manager connects.
Internet Clients Clients who want to use the Business Communications Manager PPPoE interface to access the
internet must set their MTU size to a value less than or equal to 1480 bytes, but not less than 1400
bytes.
Software
Keycode
You must purchase and install the PPPoE Software keycode before you can install PPPoE. For
information about purchasing the PPPoE Software Keycode, contact your Nortel Networks
representative. For information about how to install the PPPoE Software Keycode, refer to the
Software Keycode Installation Guide that comes with your Software Keycode.
Point to Point Protocol on Ethernet (PPPoE) 697
Business Communications Manager 3.6 Programming Operations Guide
Installing PPPoE
You must install PPPoE before you can add or configure a PPPoE interface.
To install PPPoE:
1Launch your web browser.
2In the URL address field, type the Business Communications Manager IP address.
For example: HTTPS://10.10.10.1
The Business Communications Manager Unified Manager initial page appears.
3Click the Maintenance button.
The Network Password screen appears.
4In the User Name box, type the system administrator user name.
5In the Password box, type the system administrator password.
6Click the OK button.
The Product Maintenance & Support screen appears.
7Click the Install Optional Components link.
The Install Optional Components screen appears.
8Click the PPPoE link.
The PPPoE install wizard starts.
9Follow the prompts on the screen to install PPPoE.
The PPPoE install wizard consists of three steps. Business Communications Manager reboots
after each step.
It takes 10 to 15 minutes to install PPPoE.
Note: To install PPPoE, the computer you are using to access the PPPoE Install Wizard
must be connected to the LAN1 interface of Business Communications Manager.
Note: You must include HTTPS:// with the address to access Unified Manager when
you are using Internet Explorer as your browser.
698 Point to Point Protocol on Ethernet (PPPoE)
P0609326 1.1
Creating a PPPoE dial up interface
1On the navigation tree, click the Resources key, and click the Dial Up key.
2Click the PPPoE heading.
3Click the Add button.
Or, right click the PPPoE heading and click Add.
The Add PPPoE dialog box appears.
4In the Name box, type the name of the interface you are creating.
5Click Save to save your settings.
The newly created PPPoE interface appears under PPPoE.
Configuring a PPPoE interface
To configure a PPPoE interface:
1On the navigation tree, click the Resources key and click the Dial Up key.
2Click the PPPoE key and click on the interface you want to configure.
The PPPoE Summary screen appears.
3Configure the PPPoE Summary settings according to the information in the following table.
4Press the TAB key to save the settings.
5Click the PPPoE Link Parameters tab.
The PPPoE Link Parameters screen appears.
Note: The Password box and the Confirm Password box are optional fields. You do
not need to enter information in these boxes to add a PPPoE interface.
The Interface box is a read only field that shows the interface that connects to the
broadband modem.
Table 219 PPPoE summary settings
Attribute Description
Interface Shows the name of the PPPoE interface selected.
IPAddress Shows how Business Communications Manager obtains an IP address.
RemoteAssigned indicates that Business Communications Manager obtains an IP address from
the remote end.
Description Enter a description of the interface.
Version Shows the version number of the interface.
Status Lets you view and set the PPPoE interface status. Possible values are:
Connect: The PPPoE interface is connected to the ISP
Disconnect: The PPPoE interface is not connected to the ISP.
Note: Do not set the PPPoE interface status to Connect until after you have configured the
PPPoE interface.
Point to Point Protocol on Ethernet (PPPoE) 699
Business Communications Manager 3.6 Programming Operations Guide
6Configure the PPPoE Link Parameters according to the information in the following table.
7Press the TAB key to save the settings.
8Click the PPPoE Access Parameters tab.
The PPPoE Access Parameters screen appears.
9Configure the PPPoE Access Parameters according to information in the following table.
Table 220 PPPoE link parameters
Attribute Description
Dial Retries Enter the number of times the system attempts to connect before considering the connection non
operational.
The default value is 3.
Dial Interval Enter the interval, in seconds, between connection attempts.
The default value is 60.
IP Header
Compression
Enable or disable IP header compression. The feature must be enable at both ends of the
connection.
The default value is Enabled.
Software
Compression
Enable or disable software compression. When enabled, all dial-up connections use Microsoft
Point-to-Point Compression (MPPC).
The default value is Enabled.
PPP LCP
Extensions
Enable or disable the following PPP Link Control extensions: Time-Remaining and Identification.
The default value is Enabled.
Disconnect Time Shows the interval, in seconds, after which the PPPoE interface disconnects when there is no
traffic.
The Disconnect Time is set to PersistentConnection which means the PPPoE interface will not
disconnect.
DNS Address 1 Enter the IP address of the Primary DNS server that this interface will use.
Select NoNameServerAddressesUsed if you do not want this interface to use a DNS server.
Note: If you select NoNameServerAddressesUsed, this setting is automatically set in DNS
Address 2 box.
DNS Address 2 Enter the IP address of the Secondary DNS server that this interface will use.
Select NoNameServerAddressesUsed if you do not want this interface to use a DNS server.
Protocol Select the protocol that this PPPoE interface uses. You can choose TCP/IP.
Table 221 PPPoE access parameters
Attribute Description
Authentication Select the authentication type for the link. The options are AllowClearText or EncryptedOnly.
AllowClearText: When selected, the CHAP is used first and if the receiving end of the link
declines, PAP is used to authenticate the link.
EncryptedOnly: When selected, only encrypted authentication such as CHAP is used on this
interface during PPP authentication process.
Two Way
Authentication
Enable or disable link authentication in both directions.
The default value is Disabled.
700 Point to Point Protocol on Ethernet (PPPoE)
P0609326 1.1
10 Press the TAB key to save the settings.
11 Click the PPPoE Dial-Out User tab.
The PPPoE Dial-out User screen appears.
12 Click the PPPoE Dial-out User you want to modify.
13 On the Configuration menu, click Modify PPPoE Dial-out User.
14 Configure the PPPoE Dial-out User parameters according to the information in the following
table.
15 Click the Save button.
16 Click the PPPoE Channel Characteristics tab.
The PPPoE Channel Characteristics screen appears.
17 Configure the PPPoE Channel Characteristic according to the information in the following
table.
After you configure PPPoE, make sure that your broadband modem is powered up and connected
to the LAN1 interface.
Connecting to the Internet Service Provider (ISP)
After you have configured the PPPoE interface you need to connect the PPPoE interface to the ISP.
To connect to the ISP:
1On the navigation tree, click the Resources key and click the Dial Up key.
2Click the PPPoE key and click on the interface you want to connect to the ISP.
The PPPoE Summary screen appears.
3Click the Status box and then click Connect.
Table 222 PPPoE dial-out user parameters
Attribute Description
User Name Enter the user name that the link must use to authenticate itself when dialing out to the ISP.
Password Enter the password that the link must use to authenticate itself when dialing out to the ISP.
Note: The password you choose must conform to the password policy used for your Business
Communications Manager system. For more information about the password policy, refer to
“Setting password policy” on page 122.
Table 223 PPPoE channel characteristics
Attribute Description
Row (R#) Identifies the number of the item in the PPPoE channel list.
Port Shows the channel selected for this PPPoE interface. The channel shown here is the channel you
selected when you created the PPPoE interface.
Guidelines for using Remote Dial-in 701
Business Communications Manager 3.6 Programming Operations Guide
Deleting a PPPoE interface
To delete a PPPoE interface:
1On the navigation tree, click the Resources key and click the Dial Up key.
2Click the PPPoE key.
3Click the heading of the PPPoE interface you want to delete.
4Click the Delete button.
Or, right click the PPPoE interface heading and click Delete.
A confirmation dialog box appears.
5Click Yes.
Guidelines for using Remote Dial-in
Consider the following guidelines when using remote dial-in:
• The remote dial-in for administration and the backup WAN link share the same modem. If a
remote administration user is connected while the primary link breaks, the automatic backup
function does not occur.
• While using the back-up interface, Business Communications Manager always calls. Business
Communications Manager does not answer an incoming call from a router on the V.90
interface.
• If you are using the remote dial-in for maintenance, Nortel Networks recommends that you use
the Preinstall Client Access Home Page to access Business Communications Manager.
702 Guidelines for using Remote Dial-in
P0609326 1.1
703
Business Communications Manager 3.6 Programming Operations Guide
Chapter 32
Configuring DNS
Business Communications Manager functions as both a gateway to the Internet and as a DNS
proxy.
When Business Communications Manager receives DNS requests from clients, it first checks its
local cache for name entries and records. If found locally, Business Communications Manager
immediately responds to clients. Otherwise, Business Communications Manager creates a new
DNS request to the remote Primary or Secondary DNS servers on behalf of the client. If the remote
DNS server responds with the requested records, they are forwarded to clients and cached in
Business Communications Manager. By caching the DNS requests, the DNS proxy service on
Business Communications Manager reduces the number of external DNS requests and thus
reduces the amount of WAN traffic.
The DNS proxy service also provides additional security. When DNS requests are sent to the
Primary or Secondary DNS servers, the Business Communications Manager internal IP address is
used for the request. By using the Business Communications Manager IP address, the IP addresses
of the internal users can remain hidden.
Note: If your PC is a DHCP client under Business Communications Manager, you do not
have to let your workstations know that Business Communications Manager is your
Internet gateway.
Note: If you use the Quick Install Wizard, DNS proxy is enabled by the wizard.
704
P0609326 1.1
Using the Business Communications Manager DNS service
Consider the following guidelines when using DNS:
• If you enable the Business Communications Manager DNS service, ensure that you configure
each workstation on the network to use Business Communications Manager as DNS server.
• When you disable Business Communications Manager DNS service, set the DNS Server field
in DHCP configuration to the remote DNS server IP address. If DHCP service is also disabled
in Business Communications Manager, you must configure each workstation on your network
to use the remote DNS server.
To configure DNS services settings
1On the navigation tree, click the Services key and click the DNS heading.
The DNS Summary screen appears.
2Configure the DNS Summary attributes according to the following table.
3Press the Tab key to save the settings.
Table 224 DNS Summary attributes
Attribute Description
Description Allows you to view the description of the DNS server.
Version Allows you to view the version of the DNS service.
Status Allows you to enable or disable the DNS cache proxy in Business Communications Manager.
IP Domain Allows you to specify the domain name that Business Communications Manager and its DHCP
clients uses. When you modify the Domain, the setting automatically copies to Domain Name
global options under DHCP service.
Primary (and
Secondary)
Server
Allows you to specify the IP addresses of the primary DNS server and the secondary DNS server
in a valid dot format. When you specify a secondary DNS server, separate the two IP addresses
by a space.
The DNS cache uses the servers in the order that you specify, so make sure the IP address of the
secondary DNS server appears second.
Forward Timeout Allows you to specify the time-out, in seconds, to resolve queries using the DNS servers that you
specify in DNS server.
Note: The DNS proxy carries security features because it keeps all of the internal IP
addresses from external web servers. For information on other security features, see
“Configuring NAT (Network Address Translation)” on page 753 and “Configuring IP
Firewall Filters” on page 831.
705
Business Communications Manager 3.6 Programming Operations Guide
Chapter 33
Configuring IP Routing
The IP Routing service setting allows you to select, add or delete routing protocol on specific
interfaces, choose routing protocol options, and add or delete static routes.
Business Communications Manager supports the following IP routing protocols:
•“Routing Information Protocol (RIP)”
•“Open Shortest Path First (OSPF)”
This section also includes information about:
•“Configuring IP Routing global settings” on page 707
•“Configuring IP routing on an interface” on page 709
•“Restarting the router” on page 717
Routing Information Protocol (RIP)
Business Communications Manager supports RIP, a widely-used protocol for managing routing
information in a self-contained network, such as a corporate intranet. RIP measures the shortest
path between two points on a network in terms of the number of hops between those points.
Business Communications Manager router sends RIP routing information updates that list all the
other hosts it knows about, to its nearest neighbor host every 30 seconds. The neighbor host sends
the information to its next neighbor, until all the hosts in the network know the routing paths, a
state known as network convergence. RIP uses a hop count to determine network distance. Each
router in the network uses the routing table information to determine the next host for the packet,
until it reaches the destination.
Business Communications Manager supports on demand routing table update and periodic routing
table update. On demand routing table update is available only on demand-dial interfaces. Periodic
update operates efficiently on persistent links
Business Communications Manager supports IP Subnet Aggregation, or Subnet Summary, in RIP
v2. This feature is turned on by default.
When Subnet Aggregation is on and there are two or more subnets with common leading digits in
their subnet addresses, RIP v2 will summarize these subnets and advertise a single aggregated
entry to its neighboring routers.
For information on how to select RIP as your routing protocol, see “Configuring RIP parameters
on a network interface” on page 709.
Note: If you change the IP address or subnet mask of any interface (LAN or WAN), you
must reboot Business Communications Manager before you configure IP routing.
706
P0609326 1.1
Open Shortest Path First (OSPF)
Open Shortest Path First protocol bases its path descriptions on “link states” that take into account
additional network information. OSPF also lets the user assign cost metrics to a given host router
so that some paths are given preference. OSPF supports a variable network subnet mask so that a
network can be subdivided into areas. For information on how to select OSPF as your routing
protocol, see “Configuring OSPF Parameters on a network interface” on page 712.
The implementation of OSPF on Business Communications Manager is designed to operate as an
edge router in an OSPF intranet, or as a backup router in a small network. Do not configure
Business Communications Manager for multiple OSPF areas.
IP routing protocol precedence
The followings table shows the Business Communications Manager IP routing protocols and the
precedence order when conflicting or redundant routes occur.
Note: Business Communications Manager is an edge router and will not act as a router
spanning RIP and OSPF routing networks (RIP or OSPF redistribution).
Warning: Because OSPF is a “link-state” based routing protocol, you must not use
OSPF on dial-on-demand interfaces. Frequent link status (between “up” and “down”) may
cause the protocol to become unstable.
Precedence IP Routing Protocols
1. Static Routing
2. OSPF RIP v1 and v2
Configuring IP Routing global settings 707
Business Communications Manager 3.6 Programming Operations Guide
Configuring IP Routing global settings
This section describes how to configure global settings for the IP Routing.
It also includes information about:
•“Setting the RIP Global Settings” on page 707
•“Setting the OSPF Global Settings” on page 708
To configure global settings for IP Routing:
1On the navigation tree, click the Services key and click the IP Routing heading.
The IP routing Summary screen appears.
2Configure the Routing Summary attributes according to the following table.
Setting the RIP Global Settings
If your network uses RIP, configure the RIP Global Settings as described below. If your network
uses OSPF, refer to “Setting the OSPF Global Settings” on page 708.
1Click the RIP Global Settings tab.
The RIP Global Settings screen appears.
2Configure the RIP Global Settings according to the following table.
Table 225 IP Routing Summary attributes
Attribute Description
Description Shows a description of the router.
Version Shows the version of the router.
Status Shows you the status of the router. The possible values are:
Up: the IP router is currently functioning.
Enabled: allows you to enable the router.
Disabled: allows you to disable the router.
Table 226 IP RIP Global Settings
Attribute Description
RIP Log Level Allows you to enable the recording of events in the Event Viewer. The following options are
available:
Maximum, logs all information in the Event Viewer.
Warnings Also, logs errors and warnings in the Event Viewer.
Errors Only, logs errors in the Event Viewer.
Disabled, disables event logs.
The default value is Errors Only.
Triggered Update
Interval
Allows you to specify the minimum interval, in seconds, at which a router must send a routing
table update if the metric for a given route changes. If the router detects a change in the routing
information, the router sends an update message at the specified interval.
Possible values are 1 to 50000.
The default value is 5.
708 Configuring IP Routing global settings
P0609326 1.1
3Press the TAB key to save your settings.
Setting the OSPF Global Settings
If OSPF is the routing protocol of your choice, configure the OSPF Global Settings as described
below.
1Click the OSPF Global Settings tab.
The OSPF Global Settings screen appears.
2Configure the OSPF Global Settings according to the following table.
3Press the TAB key to save your settings.
Table 227 IP OSPF Global Settings
Attribute Description
OSPF Log Level Allows you to enable the recording of events in the Event Viewer. The following options are
available:
Maximum, logs all information in the Event Viewer.
Warnings Also, logs errors and warnings in the Event Viewer.
Errors Only, logs errors in the Event Viewer.
Disabled, disables event logs.
The default value is Errors Only.
Router ID Allows you to specify the IP address that uniquely identifies the Business Communications
Manager router on your network.
Router Area ID Allows you to specify the area where your Business Communications Manager router is located
on your network.
The default value is 0.0.0.0.
Authentication
Type
Allows you to enable or disable password authentication.
Values are None, Password.
The default value is None.
For information on how to set the authentication password, see “Configuring OSPF Parameters
on a network interface” on page 712.
Configuring IP routing on an interface 709
Business Communications Manager 3.6 Programming Operations Guide
Configuring IP routing on an interface
After you configured the IP Routing global settings, you must configure each available network
interface to use the routing protocol of your choice or static routes.
This section provides instructions on how to configure interfaces for IP routing and how to create
static routes. The available interfaces appear under the IP Routing heading. Follow the same
instructions to configure all interfaces. For information on how to create static routes, see “Static
routes” on page 715.
This section includes information about:
•“Configuring RIP parameters on a network interface” on page 709
•“Enabling the RIP Subnet summary” on page 711
•“Disabling the RIP Subnet summary” on page 712
•“Configuring OSPF Parameters on a network interface” on page 712
•“OSPF NBMA Neighbors” on page 714
•“Static routes” on page 715
Configuring RIP parameters on a network interface
Follow these steps to configure RIP parameters on a network interface:
1On the navigation tree, click the Services key and click the IP Routing key.
The available interfaces for IP routing are listed under the IP Routing heading.
2Click the interface you want to configure.
The Summary window appears. The Routing Protocol box shows the current routing
protocol.
3In the Routing Protocol list, click RIP.
4Press the Tab key.
The RIP Parameters tab appears.
5Click the RIP Parameters tab.
The RIP Parameters window appears.
Note: You must use the same routing protocol on all interfaces. For example, you can not
configure your LAN1 interface to use RIP and your WAN1 interface to use OSPF.
Tips
If you are changing the routing protocol from OSPF to RIP, you must first set the Routing
Protocol under each available interface to None before you can select RIP.
Note: The RIP Parameters window does not appear unless you choose RIP as your
routing protocol.
710 Configuring IP routing on an interface
P0609326 1.1
6Configure the RIP Parameters according to the following table.
Table 228 IP RIP Parameters
Attribute Description
Metric Allows you to assign a cumulative value (in terms of hop count or associated cost [if applicable])
to routes passing through this interface. The routing manager adds the metric value of all routes
learned through this interface to the metric value of this interface to make routing decisions. The
possible values are 1 to 16.
Because RIP protocol can handle up to 15 hop counts before reaching destination, a value of 16
corresponds to “counting to infinity”.
The default value is 1.
Routing Table
Update Mode
Allows you to specify the routing table update mode. The possible values are:
On Demand: The router sends its table when another established router requests it.
Periodic: The router sends its table to other established router at regular intervals.
On dialup interfaces, you must set the Update Mode to Periodic to receive updates.
The default value is Periodic.
Route
Announcement
Type
Allows you to set the type of routing table update announcements the Business Communications
Manager router sends to other routers.
The possible values are:
Disabled: disables sending RIP routing update. If you choose Disabled, you must configure the
other routers in the subnet to use static routes to access the Business Communications Manager
base unit.
RIP 1: sends only announcements of RIP v1 type in broadcast mode.
RIP 1 Compatible: sends RIP v1 and RIP v2 packets in broadcast mode. Use this for a network
environment that uses RIP v1 and RIP v2.
RIP 2: sends RIP v2 packets in multicast mode only. Use this type of announcement only if all
other routers connected to the Business Communications Manager base unit support RIP v2.
The default value is RIP 1.
Route Accept
Type
Allows you to set the type of routing table update announcements the Business Communications
Manager router accepts from other routers.
The possible values are:
Disabled: disables sending RIP routing table update announcements. If you choose Disabled,
you must create static routes in the Business Communications Manager base unit to access
other networks connected to this interface. This method is preferable if you want to keep the
routing table small in the Business Communications Manager base unit.
RIP 1: accepts only announcements of RIP 1 type.
RIP 1 Compatible: accepts announcements of RIP 1 and RIP 2 types.
RIP 2: accepts announcements of RIP 2 type only.
The default value is RIP 1.
Route Expiration
Interval
Allows you to define the period of time within which a route in the routing table must be updated
to remain a valid route. The possible values are 15 to 259200 seconds.
The default value is 180 seconds.
Route Removal
Interval
Allows you to define the period of time (in seconds) an invalid route remains in the routing table
before the routing manager removes it from the routing table. The possible values are 15 to
259200 seconds.
The default value is 120 seconds
Route
Announcement
Interval
Allows you to set the time interval (in seconds) between routing table updates when the Routing
Table Update Mode is set to Periodic. The possible values are 5 to 86400 seconds.
The default value is 30 seconds.
Configuring IP routing on an interface 711
Business Communications Manager 3.6 Programming Operations Guide
7Press Tab to save your settings.
Enabling the RIP Subnet summary
1On the navigation tree, click the Services key and click the IP Routing key.
The available interfaces for IP routing are listed under the IP Routing heading.
2Click the interface you want to configure.
The Summary window appears.
3Click the Configuration menu and then click Enable Rip SubnetSumm.
The message “Please wait..setting data” appears in the message bar at the bottom of the
Unified Manager Window. After the Rip Subnet Summary is successfully enabled, the
message “Ready” appears in the message bar.
Route Tag Allows you to create a special tag which identifies routes announced over the interface. The route
tag helps identify route packets when debugging routing problems using a network sniffer.
Poisoned
Reverse
Allows you to enable or disable options designed to avoid routing problems such as loops or
metric values exceeding the maximum of 15 hop counts.
The following options are available:
Actual: A routing table update process where a routing table update going out repeats the
information sent by the originator. The system tries to solve this state known as a loop involving
two routers by sending more routing updates.
Split (split horizon): A routing table update process designed to avoid sending the same routing
information back to the originator.
Poisoned: A routing table update process designed to advertise unreachable routes as having
metric value of 16 regardless of incoming routing update information.
The default value is Split.
Triggered
Updates
Allows you enable immediate route update announcements whenever a metric or other
information changes in the routing table entries.
When Triggered Updates is set to Enabled, the system gathers new routing information for the
period of time defined in the Triggered Update Interval from the RIP Summary window (see
“Configuring IP Routing global settings” on page 707). Triggered updates results in more
frequent, smaller RIP routing table updates.
The possible values are Enabled and Disabled.
The default value is Disabled.
Announce Default
Route
Allows you to enable or disable the announcement of default routes in incoming route
announcements. Use caution when you enable this feature, because improper configuration
causes a loss of network connectivity. The possible values are Enabled and Disabled.
The default value is Disabled.
Accept Default
Route
Allows you to enable or disable the acceptance of incoming default routes announcement.
Sets default routes as static routes. If you run Net Link Manager to automatically backup the
primary WAN link using a dial-up link, Net Link Manager manages the default routes and the
default routes that you add are non-operational as soon as a primary link breaks or comes up
again.
The possible values are Enabled and Disabled.
The default value is Disabled.
Table 228 IP RIP Parameters (Continued)
Attribute Description
712 Configuring IP routing on an interface
P0609326 1.1
Disabling the RIP Subnet summary
1On the navigation tree, click the Services key and click the IP Routing key.
The available interfaces for IP routing are listed under the IP Routing heading.
2Click the interface you want to configure.
The Summary window appears.
3Click the Configuration menu and then click Disable Rip SubnetSumm.
The message “Please wait..setting data” appears in the message bar at the bottom of the
Unified Manager Window. After the Rip Subnet Summary is successfully disabled, the
message “Ready” appears in the message bar.
Configuring OSPF Parameters on a network interface
1On the navigation tree, click the Services key and click the IP Routing key.
The available interfaces for IP routing are listed under the IP Routing heading.
2Click the interface you want to configure.
The Summary window appears. The Routing Protocol box shows the current routing
protocol.
3In the Routing Protocol list, click OSPF.
4Click the OSPF Parameters tab.
The OSPF Parameters screen appears.
Warning: Because OSPF is a “link-state” based routing protocol, you must not use OSPF
on dial-on-demand interfaces. Frequent link status changes (between “up” and “down”)
may cause the OSPF protocol to become unstable.
Tips
If you are changing the routing protocol from RIP to OSPF, you must first set the Routing
Protocol under each available interface to None before you can select OSPF.
Note: The OSPF Parameters tab does not appear unless you choose OSPF as your routing
protocol.
Configuring IP routing on an interface 713
Business Communications Manager 3.6 Programming Operations Guide
5Configure the OSPF parameters according to the following table.
6Press the Tab key to save your settings.
Table 229 IP OSPF Parameters
Attribute Description
Metric This field allows you to assign the link cost for this interface that advertised in the router’s link
state advertisement for this interface.
The Metric is an indication of the cost of the route. If multiple routes exist on a network ID, the
Metric is used to decide which route is taken. The route with the lowest Metric is the preferred
route. If you enter a high number for the Metric, this interface will not be used as much as an
interface with a lower Metric.
The possible values are 1 to 32767.
The default value is 1.
Interface Type Allows you to select the type of interface that describes your network configuration. The possible
values are:
Broadcast: A broadcast network supports multiple routers and addresses a single physical
message to all routers.
P2P: A point-to-point network joins a single pair of OSPF routers.
NBMA: A Non-Broadcast-Multi-Access (NBMA) network supports multiple routers and cannot
address a single physical message to all routers.
The default value is Broadcast.
Router Priority Allows you to assign a priority to the Business Communications Manager router. The possible
values are 0 to 255. A value of 0 indicates that the Business Communications Manager system
cannot become the designated router.
The default value is 1.
Transit Delay Allows you to set (in seconds) the estimated round-trip transit delay in the network connected to
the interface. The values are 1 to 3600 seconds.
The default value is 1.
Retransmit
Interval
Allows you to set the number of seconds the router waits before retransmitting after a time-out
occurs. The values are 1 to 3600 seconds.
The default value is 1.
Hello Interval Allows you to define how frequently the router must send “hello packets” on an interface. The
values are 1 to 32767 seconds.
The default value is 10.
Dead Interval Allows you to set the maximum number of seconds the router waits to receive the next hello
before considering the adjacent router as non operational. The values are 1 to 32767 seconds.
The default value is 40.
Poll Interval Allows you to define the period of time the router must keep sending hello packets to an adjacent
router that is considered non operational. The values are 1 to 32767 seconds.
The default value is 120.
MTU Allows you to specify the Maximum Transmission Unit for this interface. The values are 1 to
10000.
The default value is 1500.
Password Allows you to define an authentication password, if you selected Password as the authentication
type in the Authentication Type box on the OSPF Global Parameters window.
There is no default value provided because the Authentication Type is set to None by default.
Note: The password you choose must conform to the password policy used for your Business
Communications Manager system. For more information about the password policy, refer to
“Setting password policy” on page 122.
714 Configuring IP routing on an interface
P0609326 1.1
OSPF NBMA Neighbors
Frame Relay on Business Communications Manager is a Non Broadcast Multiple Access (NBMA)
network. NBMA is a network that can connect two or more routers, but has no hardware broadcast
capability. For OSPF function properly on a NBMA network, you must configure OSPF to unicast
to the IP addresses of the routers on the network. The OSPF NBMA Neighbors screen allows you
to enter IP addresses of the NBMA Neighbors.
1On the navigation tree, click the Services key and click the IP Routing key.
2Click the WAN interface you want configure.
3Click the OSPF NBMA Neighbors tab.
The OSPF NBMA Neighbors screen appears.
Adding OSPF NBMA Neighbors
1On the Configuration menu, click Add OSPF Neighbor.
The OSPF NBMA Neighbors screen appears.
2Configure the OSPF NBMA Neighbor parameters according to the following table.
3Click the OK button.
Modifying OSPF NBMA Neighbors
1Click the OSPF NBMA Neighbor you want to modify.
2On the Configuration menu, click Modify OSPF Neighbor.
The OSPF NBMA Neighbors screen appears.
3Change the OSPF NBMA Neighbor parameters.
4Click the OK button.
Note: The OSPF NBMA Neighbors is available only for WAN interfaces.
Table 230 IP OSPF NBMA Neighbor parameters
Attribute Description
OSPF Neighbor
(ON#)
Allows you to specify the OSPF Neighbor identifier.
Neighbor Address Allows you to specify the IP address of the neighboring router.
Neighbor Priority Allows you to specify the priority of the neighboring router. The possible values are 1 to 255.
The default value is 1.
Configuring IP routing on an interface 715
Business Communications Manager 3.6 Programming Operations Guide
Deleting OSPF NBMA Neighbors
1Click the OSPF NBMA Neighbor you want to delete.
2On the Configuration menu, click Delete OSPF Neighbor.
A confirmation dialog box appears.
3Click the Yes button.
Static routes
You can add static routes to the Business Communications Manager routing table. Static routes
added to the routing table take precedence over dynamic routes.
Adding a static route to the routing table
1On the navigation tree, click the Services key and click the IP Routing key.
2Click the interface you want configure.
3Click the Static Route tab.
The Static Route screen appears.
4On the Configuration menu, click Add Static Route.
The Static Route dialog box appears.
5Configure the static route attributes according to the following table.
6Click the Save button.
Note: The default route is managed by Net Link Manager. For information about Net
Link Manager, refer to “Configuring Net Link Manager” on page 749.
Table 231 IP Static Route attributes
Attribute Description
Static Route
(SR#)
Assign a number to the static route. For example, the valid static route number for the first static
route is SR1. The function of the static route number is to uniquely identify an route.
If you add more than one static route, use sequential numbers. If you use the number of an
existing static route, the system modifies the existing static route. If you use non-sequential,
numbers the system automatically reassigns sequential numbers.
When you modify a static route, you cannot change the Static Route number.
Destination
address
Enter the IP address of the destination network or host.
Destination mask Enter the subnet mask corresponding to the destination address.
Next Hop Router Enter the IP address of next hop router.
Metric Value Enter the metric value associated with the interface. The system adds the metric to the hop count
of the routes received through the interface.
716 Configuring IP routing on an interface
P0609326 1.1
Modifying the static route configuration
1Click a static route you want to modify in the Static Route table.
2On the Configuration menu, click Modify Static Route.
The Static Route dialog box appears.
3Modify the static route attributes.
4Click the Save button.
Deleting a static route
1Click the static route you want to delete in the Static Route table.
2On the Configuration menu, click Delete Static Route.
A confirmation message appears.
3Click the Yes button.
Restarting the router 717
Business Communications Manager 3.6 Programming Operations Guide
Restarting the router
When you make OSPF changes to the router, you need to restart the Routing and Remote Access
Service for the changes to take place.
1On the navigation tree, click the Services key.
2Click the IP routing heading.
3On the Tools menu, click Restart Router.
The process takes about a minute.
When the restart is complete, you will see an information dialog box indicating that the restart
was successful.
4Click the OK button, on the dialog box.
Warning: This procedure will affect any service that requires access across the LAN or
WAN, including IP telephone service.
Note: If the restart fails, you will receive this message:
Generic Error (Failed to restart router. Please reboot the system
for changes to be effective)
If you do not need the changes immediately, schedule a cold start of the Business
Communications Manager for a low-activity period. The Scheduler is located under the
Maintenance button on the first page of the Unified Manager web page.
Otherwise, shut down and then restart the Business Communications Manager. This will
disrupt all telephony service.
718 Restarting the router
P0609326 1.1
719
Business Communications Manager 3.6 Programming Operations Guide
Chapter 34
Configuring IPX Routing
Business Communications Manager supports RIP and SAP (Service Advertising Protocol) for IPX
routing in a NetWare environment. Static routes and static services are also supported.
Business Communications Manager supports IPX basic packet filtering feature.
This section provides instructions about how to configure IPX routing for specific interfaces. All
available interfaces appear under the IPX Routing heading. The same configuration procedures
apply to all interfaces.
The information in this section includes:
•“Enabling IPX Routing” on page 720
•“Configuring IPX Routing” on page 721
•“Configuring IPX routing on an interface” on page 723
Note: The IPX router manager in your Business Communications Manager system
operates separately from the IP routing manager. As a result, RIP configuration under the
IP Routing heading has no effect on IPX routing. You must configure IPX RIP parameters
under the IPX Routing heading.
Tips
After you create and add a filter for IPX routing on an interface, you must select the Input
Filter Action and Output filter Action from the RIP Summary parameters.
Warning: The filter action that indicates either to deny or allow packets that match filter
definition applies to all filters. You cannot set a filter action for a specific filter. When you
have decided which action the routing manager must perform on packets matching a filter
definition, the routing manager performs this action every time it finds a match between
packets and filters.
720 Enabling IPX Routing
P0609326 1.1
Enabling IPX Routing
IPX Routing does not appear on Unified Manager until you enable it.
To enable IPX Routing:
1Launch your web browser.
2In the URL address field, type the Business Communications Manager IP address.
For example: HTTPS://10.10.10.1.
The Business Communications Manager Unified Manager initial page appears.
3Click the Maintenance button.
The Network Password screen appears.
4In the User Name box, type the system administrator user name.
5In the Password box, type the system administrator password.
6Click the OK button.
The Product Maintenance & Support screen appears.
7Click the Install Optional Components link.
The Install Optional Components screen appears.
8Click the Install link beside the IPX Routing heading.
The IPX Routing install wizard starts.
9Follow the prompts on the screen to enable IPX Routing.
The IPX Routing install wizard consists of three steps. Business Communications Manager
reboots after each step.
It takes 10 to 15 minutes to enable IPX Routing.
Note: You must include HTTPS:// with the address to access Unified Manager when
you are using Internet Explorer as your browser.
Configuring IPX Routing 721
Business Communications Manager 3.6 Programming Operations Guide
Configuring IPX Routing
1On the navigation tree, click the Services key and click the IPX Routing heading.
The IPX Routing Summary screen appears.
2Configure the IPX Routing Summary settings according to the following table.
3Click the IPX Global Settings tab.
The IPX Global Settings screen appears.
4Configure the IPX Global Settings according to the following table.
5Click the RIP Global Settings tab.
The RIP Global Settings screen appears.
6Configure the RIP Global Settings according to the following table.
7Click the SAP Global Settings tab.
The SAP Global Settings screen appears.
Table 232 IPX Routing Summary settings
Attribute Description
Description Displays the name of the router.
Version Displays the version number of the router.
Status Displays the current status of the service.
Internal Network
Number
Allows you to specify the internal network number. The internal network number uniquely
identifies the computer on the intranet.
Table 233 IPX Global settings
Attribute Description
IPX Log level Allows you to enable the recording of events in the Event Viewer. The following options are
available:
Maximum, logs all information in the Event Viewer.
Warnings Also, logs errors and warnings in the Event Viewer.
Errors Only, logs errors in the Event Viewer.
Disabled, disables event logs.
The default value is Errors Only.
Table 234 IPX RIP Global settings
Attribute Description
RIP Log level Allows you to enable the recording of events in the Event Viewer. The following options are
available:
Maximum, logs all information in the Event Viewer.
Warnings Also, logs errors and warnings in the Event Viewer.
Errors Only, logs errors in the Event Viewer.
Disabled, disables event logs.
The default value is Errors Only.
722 Configuring IPX Routing
P0609326 1.1
8Configure the SAP Global Settings according to the following table.
9Press the Tab key to save the settings.
Table 235 IPX SAP Global settings
Attribute Description
SAP Log Level Allows you to enable the recording of events in the Event Viewer. The following options are
available:
Maximum, logs all information in the Event Viewer.
Warnings Also, logs errors and warnings in the Event Viewer.
Errors Only, logs errors in the Event Viewer.
Disabled, disables event logs.
The default value is Errors Only.
Configuring IPX routing on an interface 723
Business Communications Manager 3.6 Programming Operations Guide
Configuring IPX routing on an interface
After you configured the IPX Routing global settings, you must configure each available network
interface.
This section includes information about:
•“Configuring Packet Filters for IPX routing” on page 723
•“RIP filters for IPX routing” on page 727
•“SAP filters for IPX routing” on page 732
•“Static Routes for IPX Routing” on page 736
•“Static Service for IPX Routing” on page 738
Configuring Packet Filters for IPX routing
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface you want to configure for IPX routing.
The Interface Summary screen appears.
3Configure the IPX routing packet filter summary settings according to the following table.
Note: The maximum number of IPX filters you can add is 128.
Table 236 IPX Packet Filter Summary Settings
Attribute Description
Interface Name Displays the name of the interface you are currently configuring for IPX routing.
Input Filter Action Allows you to specify the action the packet filter must perform on inbound traffic.
The values possible values are:
Deny all inbound traffic matching the criterion defined for filters.
Permit all inbound traffic matching the criterion defined for filters.
The default value is Deny.
Note: You must create a filter before you can assign an action. To create a filter, refer to “Adding
Packet Input filters” on page 724.
Output Filter
Action
Allows you to specify the action the packet filter must perform on outbound traffic.
The values possible values are:
Deny all outbound traffic matching the criterion defined for filters.
Permit all outbound traffic matching the criterion defined for filters.
The default value is Deny.
Note: You must create a filter before you can choose Permit. To create a filter, refer to “Adding
Packet Output filters” on page 725.
Network Number Allows you to specify the network number (also called external network number) for routing
purposes.
Frame Type Allows you to specify the frame type.
The possible values are:
Ethernet II, Ethernet 802.2, Ethernet 802.3, Ethernet SNAP, Default.
724 Configuring IPX routing on an interface
P0609326 1.1
4Press the Tab key to save the settings.
Adding Packet Input filters
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface you want to configure.
The Interface Summary screen appears.
3Click the Packet Input Filters tab.
The Packet Input Filters screen appears.
4On the Configuration menu, click Add Packet Input Filter.
The Packet Input Filters screen appears.
5Configure the Packet Input Filter parameters according to the following table.
6Click the Save button.
Table 237 IPX Packet Input Filter parameters
Attribute Description
Packet Input Filter
(PIF#)
Allows you to assign a number to the Packet Input Filter. For example, the valid packet input filter
number for the first input filter is PIF1. The function of the Packet Input Filter number is to
uniquely identify a packet input filter.
If you add more than one Packet Input Filter, use sequential numbers. If you use the number of
an existing Packet Input Filter, the system modifies the existing Packet Input Filter. If you use
non-sequential, numbers the system automatically reassigns sequential numbers.
When you modify a Packet Input Filter, you cannot change the Packet Input Filter number.
Source Network
Number
Allows you to enter the network number that identifies the source IPX network. A valid entry is
any 4-byte hexadecimal number.
Source Network
Mask
Allows you to enter the network mask to be applied to the source address. This parameter
defines the range of network numbers that you want to filter.
Source Node Shows the node part of the service address. The permitted value uses 6 bytes in hexadecimal
format. The default value is None.
Source Socket Shows the socket part of the service address. The permitted value uses 2 bytes in hexadecimal
format. The default value is None.
Destination
Network Number
Allows you to enter the network number that identifies the destination IPX network. A valid entry
is any 4-byte hexadecimal number.
Destination
Network Mask
Allows you to enter the network mask to be applied to the destination address. This parameter
defines the range of network numbers that you want to filter.
Destination Node Shows the node part of the service address. The permitted value uses 6 bytes in hexadecimal
format. The default value is None.
Destination
Socket
Shows the socket part of the service address. The permitted value uses 2 bytes in hexadecimal
format. The default value is None.
Packet Type Allows you to specify the Packet Type. The permitted value uses 2 bytes in hexadecimal format.
The default value is None.
Configuring IPX routing on an interface 725
Business Communications Manager 3.6 Programming Operations Guide
Modifying Packet Input filters
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface you want to modify.
The Interface Summary screen appears.
3Click the Packet Input Filters tab.
The Packet Input Filters screen appears.
4Click the Packet Input Filter you want to modify.
5On the Configuration menu, click Modify Packet Input Filter.
The Packet Input Filters screen appears.
6Modify the Packet Input Filter attributes.
7Click the Save button.
Deleting Packet Input filters
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface you want to modify.
The Interface Summary screen appears.
3Click the Packet Input Filters tab.
The Packet Input Filters screen appears.
4Click the Packet Input Filter you want to delete.
5On the Configuration menu, click Delete Packet Input Filter.
A confirmation message appears.
6Click the Yes button.
Adding Packet Output filters
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface you want to modify.
The Interface Summary screen appears.
3Click the Packet Output Filters tab.
The Packet Output Filters screen appears.
4On the Configuration menu, click Add Packet Output Filter.
The Packet Output Filters screen appears.
726 Configuring IPX routing on an interface
P0609326 1.1
5Configure the Packet Output Filter parameters according to the following table.
6Click the Save button.
Modifying Packet Output filters
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface you want to modify.
The Interface Summary screen appears.
3Click the Packet Output Filters tab.
The Packet Output Filters screen appears.
4Click the Packet Output Filter you want to modify.
5On the Configuration menu, click Modify Packet Output Filter.
The Packet Output Filters screen appears.
6Modify the Packet Output Filter attributes.
7Click the Save button.
Table 238 IPX Packet Output Filter parameters
Attribute Description
Packet Output
Filter (POF#)
Allows you to assign a number to the Packet Output Filter. For example, the valid Packet Output
Filter number for the first output filter is POF1. The function of the Packet Output Filter number is
to uniquely identify a Packet Output Filter.
If you add more than one Packet Output Filter, use sequential numbers. If you use the number of
an existing Packet Output Filter, the system modifies the existing Packet Output Filter. If you use
non-sequential, numbers the system automatically reassigns sequential numbers.
When you modify a Packet Output Filter, you cannot change the Packet Output Filter number.
Source Network
Number
Allows you to enter the network number that identifies the source IPX network. A valid entry is
any 4-byte hexadecimal number.
Source Network
Mask
Allows you to enter the network mask to be applied to the source address. This parameter
defines the range of network numbers that you want to filter.
Source Node Shows the node part of the service address. The permitted value uses 6 bytes in hexadecimal
format. The default value is None.
Source Socket Shows the socket part of the service address. The permitted value uses 2 bytes in hexadecimal
format. The default value is None.
Destination
Network Number
Allows you to enter the network number that identifies the destination IPX network. A valid entry
is any 4-byte hexadecimal number.
Destination
Network Mask
Allows you to enter the network mask to be applied to the destination address. This parameter
defines the range of network numbers that you want to filter.
Destination Node Shows the node part of the service address. The permitted value uses 6 bytes in hexadecimal
format. The default value is None.
Destination
Socket
Shows the socket part of the service address. The permitted value uses 2 bytes in hexadecimal
format. The default value is None.
Packet Type Allows you to enter the network number that identifies the destination IPX network. A valid entry
is any 4-byte hexadecimal number.
Configuring IPX routing on an interface 727
Business Communications Manager 3.6 Programming Operations Guide
Deleting Packet Output filters
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface you want to modify.
The Interface Summary screen appears.
3Click the Packet Output Filters tab.
The Packet Output Filters screen appears.
4Click the Packet Output Filter you want to delete.
5On the Configuration menu, click Delete Packet Output Filter.
A confirmation message appears.
6Click the Yes button.
RIP filters for IPX routing
RIP is the routing protocol that routes IPX data packets in an internetwork environment. You can
configure IPX packet filters for inbound or outbound traffic on interface handling IPX packets.
Configuring RIP for IPX Routing
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface you want to modify.
The Interface Summary screen appears.
3Click the RIP Summary tab.
The RIP Summary screen appears.
4Configure the RIP Summary settings according to the following table.
Note: The maximum number of IPX filters you can add is 128.
Table 239 IPX RIP Summary settings
Attribute Description
Input Filter Action Allows you to specify the action the packet filter must perform on inbound traffic.
The values possible values are:
Deny all inbound traffic matching the criterion defined for filters.
Permit all inbound traffic matching the criterion defined for filters.
The default value is Deny.
Note: You must create a filter before you can assign an action. To create a filter, refer to “Adding
RIP Input Filters” on page 729.
728 Configuring IPX routing on an interface
P0609326 1.1
5Press the Tab key to save the settings.
6Click the RIP Parameters tab.
The RIP Parameters screen appears.
7Configure the RIP Parameters settings according to the following table.
8Press the Tab key to save the settings.
Output Filter
Action
Allows you to specify the action the packet filter must perform on outbound traffic.
The values possible values are:
Deny all outbound traffic matching the criterion defined for filters.
Permit all outbound traffic matching the criterion defined for filters.
The default value is Deny.
Note: You must create a filter before you can assign an action. To create a filter, refer to “Adding
RIP Output filters” on page 730.
Table 240 IPX RIP Parameters
Attribute Description
RIP State Allows you to enable or disable RIP for this interface.
The values are Enabled or Disabled.
The default value is Enabled
Advertise Routes Allows you enable or disable the advertisement of routes on the interface you are configuring.
The default value is Enabled.
Accept Route
Advertisements
Allows you to enable or disable the acceptance of route advertisement from remote routers on
this interface.
The default value is Enabled.
Update Mode Allows you to select an update mode for the routing table. The routing table update modes
available are:
Standard update mode sends out a routing table for a router at regular intervals that you specify
in the Update Interval box. New routes are added to the routing table as dynamic routes and are
deleted from the routing tables when the router restarts.
Autostatic update mode sends a routing table on the current interface when other routers
connected to this interface request it. New routes to this interface, using RIP, are stored as static
routes in the routing table for this interface and remain until you delete them.
No Update mode never updates the routing tables on the current interface.
The default value is Standard.
Update Interval Allows you to set the interval, in seconds, when the routing manager updates the route tables.
When you set the Update Mode to Standard, the routing manager periodically updates the route
tables at the interval you specify in the Update Interval box.
The possible values are 5 to 86400 seconds (24 hours).
The default value is 60 seconds.
Aging Interval
Multiplier
A multiplier used to determine when a route expires and is removed from the route table. For
example, if the update interval is set to 60 seconds and you enter a value of 3 in the Aging
Interval Multiplier, a route remains in the route table for a maximum of 180 seconds (3 X 60) from
the last update.
The default value is 3.
Table 239 IPX RIP Summary settings (Continued)
Attribute Description
Configuring IPX routing on an interface 729
Business Communications Manager 3.6 Programming Operations Guide
Adding RIP Input Filters
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface you want to modify.
The Interface Summary screen appears.
3Click the RIP Input Filters tab.
The RIP Input Filters screen appears.
4On the Configuration menu, click Add RIP Input Filter.
The RIP Input Filters screen appears.
5Configure the RIP Input Filter parameters according to the following table.
6Click the Save button.
Modifying RIP Input filters
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface you want to modify.
The Interface Summary screen appears.
3Click the RIP Input Filters tab.
The RIP Input Filters screen appears.
4Click the RIP Input Filter you want to modify.
5On the Configuration menu, click Modify RIP Input Filter.
The RIP Input Filters screen appears.
6Modify the RIP Input Filter attributes.
7Click the Save button.
Table 241 IPX RIP Input Filter parameters
Attribute Description
Input Filter (IF#) Allows you to assign a number to the RIP Input Filter. For example, the valid RIP input filter
number for the first input filter is IF1. The function of the RIP Input Filter number is to uniquely
identify a RIP input filter.
If you add more than one RIP Input Filter, use sequential numbers. If you use the number of an
existing RIP Input Filter, the system modifies the existing RIP Input Filter. If you use
non-sequential, numbers the system automatically reassigns sequential numbers.
When you modify a RIP Input Filter, you cannot change the RIP Input Filter number.
Network Number Allows you to enter the network number that identifies the IPX network. A valid entry is any 4-byte
hexadecimal number.
Network Mask Allows you to enter the network mask to be applied to the source address. This parameter
defines the range of network numbers that you want to filter.
730 Configuring IPX routing on an interface
P0609326 1.1
Deleting RIP Input filters
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface you want to modify.
The Interface Summary screen appears.
3Click the RIP Input Filters tab.
The RIP Input Filters screen appears.
4Click the RIP Input Filter you want to delete.
5On the Configuration menu, click Delete RIP Input Filter.
A confirmation message appears.
6Click the Yes button.
Adding RIP Output filters
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface you want to modify.
The Interface Summary screen appears.
3Click the RIP Output Filters tab.
The RIP Output Filters screen appears.
4On the Configuration menu, click Add RIP Output Filter.
The RIP Output Filters screen appears.
5Configure the RIP Output Filter parameters according to the following table.
6Click the Save button.
Table 242 IPX RIP Output Filter parameters
Attribute Description
Output Filter
(OF#)
Allows you to assign a number to the RIP Output Filter. For example, the valid RIP Output Filter
number for the first output filter is OF1. The function of the RIP Output Filter number is to uniquely
identify a RIP Output Filter.
If you add more than one RIP Output Filter, use sequential numbers. If you use the number of an
existing RIP Output Filter, the system modifies the existing RIP Output Filter. If you use
non-sequential, numbers the system automatically reassigns sequential numbers.
When you modify a RIP Output Filter, you cannot change the RIP Output Filter number.
Network Number Allows you to enter the network number that identifies the IPX network. A valid entry is any 4-byte
hexadecimal number.
Network Mask Allows you to enter the network mask to be applied to the source address. This parameter
defines the range of network numbers that you want to filter.
Configuring IPX routing on an interface 731
Business Communications Manager 3.6 Programming Operations Guide
Modifying RIP Output filters
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface you want to modify.
The Interface Summary screen appears.
3Click the RIP Output Filters tab.
The RIP Output Filters screen appears.
4Click the RIP Output Filter you want to modify.
5On the Configuration menu, click Modify RIP Output Filter.
The RIP Output Filters screen appears.
6Modify the RIP Output Filter attributes.
7Click the Save button.
Deleting RIP Output filters
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface you want to modify.
The Interface Summary screen appears.
3Click the RIP Output Filters tab.
The RIP Output Filters screen appears.
4Click the RIP Output Filter you want to delete.
5On the Configuration menu, click Delete RIP Output Filter.
A confirmation message appears.
6Click the Yes button.
732 Configuring IPX routing on an interface
P0609326 1.1
SAP filters for IPX routing
On a Novell network, the Service Advertising Protocol (SAP) provides network control
information about available services on a Novell network. You can define and add SAP filters for
IPX routing.
Configuring the SAP for IPX Routing
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface you want to modify.
The Interface Summary screen appears.
3Click the SAP Summary tab.
The SAP Summary screen appears.
4Configure the SAP Summary settings according to the following table.
5Press the Tab key to save the settings.
6Click the SAP Parameters tab.
The SAP Parameters screen appears.
7Configure the SAP Parameters according to the following table.
Note: The maximum number of IPX filters you can add is 128.
Table 243 IPX SAP Summary settings
Attribute Description
Input Filter Action Allows you to specify the action the filter must perform on inbound traffic.
The values possible values are:
Deny all inbound traffic matching the criterion defined for SAP filters.
Permit all inbound traffic matching the criterion defined for SAP filters.
The default value is Deny.
Note: You must create a filter before you can assign an action. To create a filter, refer to “Adding
SAP Input Filters” on page 733.
Output Filter
Action
Allows you to specify the action the filter must perform on outbound traffic.
The possible values are:
Deny all outbound traffic matching the criterion defined for SAP filters.
Permit all outbound traffic matching the criterion defined for SAP filters.
The default value is Deny.
Note: You must create a filter before you can assign an action. To create a filter, refer to “Adding
SAP Output Filters” on page 735.
Table 244 IPX SAP Parameters
Attribute Description
SAP State Allows you to enable or disable SAP for this interface.
The possible values are Enabled or Disabled.
The default value is Enabled.
Configuring IPX routing on an interface 733
Business Communications Manager 3.6 Programming Operations Guide
Adding SAP Input Filters
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface you want to modify.
The Interface Summary screen appears.
3Click the SAP Input Filters tab.
The SAP Input Filters screen appears.
4On the Configuration menu, click Add SAP Input Filter.
The SAP Input Filters screen appears.
5Configure the SAP Input Filter parameters according to the following table.
Advertise
Services
Allows you to enable or disable the advertisement of SAP services on the interface to remote
routers.
The possible values are Enabled or Disabled.
The default value is Enabled.
Accept Service
Advertisements
Allows you to enable or disable the acceptance of advertisement of SAP services from remote
routers.
The possible values are Enabled or Disabled. The default value is Enabled.
Update Mode Allows you to select an update mode for SAP on the interface. The available options are:
Standard update mode sends periodic updates at an interval you define in the Update Interval
box.
Autostatic update mode sends a routing table update when other routers connected to this
interface request it. New routes to this interface, using SAP, are stored as static routes in the
routing table for this interface and remain until you delete them.
No Update mode never updates the routing tables on the current interface.
The default value is Standard.
Update Interval Allows you to set the interval, in seconds at which SAP announcements are updated. If you set
the Update Mode to Standard, the SAP announcements are updated at the interval you specify
in the Update Interval box. The possible values 5 to 86400 seconds. The default value is 60
seconds.
Aging Interval
Multiplier
A multiplier used to determine when a SAP announcements coming to this interface expires. For
example, if the update interval is set to 60 seconds and you enter a value of 3 in the Aging
Interval Multiplier, a SAP announcement remains valid for a maximum of 180 seconds (3 X 60)
from the last announcement. The possible values are 3 to 100.
The default value is 3.
Table 245 IPX SAP Input Filter parameters
Attribute Description
Input Filter
(SapIF#)
Allows you to assign a number to the SAP Input Filter. For example, the valid SAP input filter
number for the first input filter is SapIF1. The function of the SAP Input Filter number is to
uniquely identify a SAP input filter.
If you add more than one SAP Input Filter, use sequential numbers. If you use the number of an
existing SAP Input Filter, the system modifies the existing SAP Input Filter. If you use
non-sequential, numbers the system automatically reassigns sequential numbers.
When you modify a SAP Input Filter, you cannot change the SAP Input Filter number.
Table 244 IPX SAP Parameters (Continued)
Attribute Description
734 Configuring IPX routing on an interface
P0609326 1.1
6Click the Save button.
Modifying SAP Input Filters
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface you want to modify.
The Interface Summary screen appears.
3Click the SAP Input Filters tab.
The SAP Input Filters screen appears.
4Click the SAP Input Filter you want to modify.
5On the Configuration menu, click Modify SAP Input Filter.
The SAP Input Filters screen appears.
6Modify the SAP Input Filter attributes.
7Click the Save button.
Deleting SAP Input Filters
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface you want to modify.
The Interface Summary screen appears.
3Click the SAP Input Filters tab.
The SAP Input Filters screen appears.
4Click the SAP Input Filter you want to delete.
5On the Configuration menu, click Delete SAP Input Filter.
A confirmation message appears.
6Click the Yes button.
Service Type Allows you to specify the SAP service type. Use a 2 byte hexadecimal number. You can use the
value 0xFFFF to match services of any type.
Service Name Allows you to enter the service name. You can use a wildcard service name such as "*" to
indicate all service names.
Table 245 IPX SAP Input Filter parameters (Continued)
Attribute Description
Configuring IPX routing on an interface 735
Business Communications Manager 3.6 Programming Operations Guide
Adding SAP Output Filters
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface you want to modify.
The Interface Summary screen appears.
3Click the SAP Output Filters tab.
The SAP Output Filters screen appears.
4On the Configuration menu, click Add SAP Output Filter.
5Configure the SAP Output Filter parameters according to the following table.
6Click the Save button.
Modifying SAP Output Filters
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface you want to modify.
The Interface Summary screen appears.
3Click the SAP Output Filters tab.
The SAP Output Filters screen appears.
4Click the SAP Output Filter you want to modify.
5On the Configuration menu, click Modify SAP Output Filter.
6Modify the SAP Output filter attributes.
7Click the Save button.
Table 246 IPX SAP Output Filter parameters
Attribute Description
Output Filter
(SapOF#)
Allows you to assign a number to the SAP Output Filter. For example, the valid SAP output filter
number for the first output filter is SapOF1. The function of the SAP Output Filter number is to
uniquely identify a SAP Output filter.
If you add more than one SAP Output Filter, use sequential numbers. If you use the number of an
existing SAP Output Filter, the system modifies the existing SAP Output Filter. If you use
non-sequential, numbers the system automatically reassigns sequential numbers.
When you modify a SAP Output Filter, you cannot change the SAP Output Filter number.
Service Type Allows you to specify the SAP service type. Use a 2 byte hexadecimal number. You can use the
value 0xFFFF to match services of any type.
Service Name Allows you to enter the service name. You can use a wildcard service name such as "*" to
indicate all service names.
736 Configuring IPX routing on an interface
P0609326 1.1
Deleting SAP Output Filters
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface you want to modify.
The Interface Summary screen appears.
3Click the SAP Output Filters tab.
The SAP Output Filters screen appears.
4Click the SAP Output Filter you want to delete.
5On the Configuration menu, click Delete SAP Output Filter.
A confirmation message appears.
6Click the Yes button.
Static Routes for IPX Routing
You can add static routes to the IPX routing table. The IPX static routes take precedence over the
routes added by routing protocol such as RIP.
Adding Static Routes for IPX Routing
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface that you want to configure.
3Click the Static Routes tab.
The Static Routes screen appears.
4On the Configuration menu, choose Add Static Route.
The Static Routes dialog box appears.
5Configure the static routing attributes according to the following table.
Note: The maximum number of IPX routes you can add is 128.
Table 247 IPX Static Routing attributes
Attribute Description
Static Route
(SR#)
Allows you to assign a number to the Static Route. For example, the valid Static Route number
for the first static route is SR1. The function of the Static Route number is to uniquely identify a
Static Route.
If you add more than one Static Route, use sequential numbers. If you use the number of an
existing Static Route, the system modifies the existing Static Route. If you use non-sequential,
numbers the system automatically reassigns sequential numbers.
When you modify a Static Route, you cannot change the Static Route number.
Net Number IPX Network Number identifies the destination network for the routing table entry. The permitted
value is 4 bytes in hexadecimal format. The default value is None.
Next Hop Mac
Address
Shows the MAC address of the next hop router to reach the network defined in the NetNumber
box. The permitted value is 6 bytes in hexadecimal format. The default value is None.
Configuring IPX routing on an interface 737
Business Communications Manager 3.6 Programming Operations Guide
6Click the Save button.
Modifying Static Routes for IPX Routing
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface that you want to configure.
3Click the Static Routes tab.
The Static Routes screen appears.
4Click the Static Route you want to modify.
5On the Configuration menu, choose Modify Static Route.
The Static Routes dialog box appears.
6Modify the static routing table attributes.
7Click the Save button.
Deleting Static Routes for IPX Routing
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface that you want to configure.
3Click the Static Routes tab.
The Static Routes screen appears.
4Click the Static Route you want to delete.
5On the Configuration menu, choose Delete Static Route.
A confirmation message appears.
6Click the Yes button.
Ticks Time required (in 1/60 seconds) to reach the destination network. The values are 1 to 32,767.
The default value is None.
Hops Shows the number of hops that must be crossed in order to reach the destination network. The
permitted values are 0 to 15. The default value is 0.
Table 247 IPX Static Routing attributes (Continued)
Attribute Description
738 Configuring IPX routing on an interface
P0609326 1.1
Static Service for IPX Routing
The following section describes how to manage the static service for IPX routing.
Adding a Static Service for IPX Routing
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface that you want to configure.
3Click the Static Services tab.
The Static Service screen appears.
4On the Configuration menu, choose Add Static Service.
The Static Routes dialog box appears.
5Configure the static service attributes according to the following table.
6Click the Save button to save your settings.
Table 248 IPX Static Service attributes
Attribute Description
Static Service
(SS#)
Allows you to assign a number to the Static Service. For example, the valid Static Service
number for the first Static Service is SS1. The function of the Static Service number is to uniquely
identify a Static Service.
If you add more than one Static Service, use sequential numbers. If you use the number of an
existing Static Service, the system modifies the existing Static Service. If you use non-sequential,
numbers the system automatically reassigns sequential numbers.
When you modify a Static Service, you cannot change the Static Service number.
Type Allows you to specify the SAP service type. Use a 2 byte hexadecimal number. You can use the
value 0xFFFF to match services of any type.
Name Shows the static service name. The permitted values can use up to 48 bytes. A wildcard
character (*) can also be selected to indicate all service names.
Network Shows the network part of the service address. The permitted value uses 4 bytes in hexadecimal
format. The default value is None.
Node Shows the node part of the service address. The permitted value uses 6 bytes in hexadecimal
format. The default value is None.
Socket Shows the socket part of the service address. The permitted value uses 2 bytes in hexadecimal
format. The default value is None.
Hops Shows the number of hops to reach the destination network. The permitted values are 0 to 15.
The default value is 0.
Configuring IPX routing on an interface 739
Business Communications Manager 3.6 Programming Operations Guide
Modifying a Static Service for IPX Routing
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface that you want to configure.
3Click the Static Services tab.
The Static Service screen appears.
4Click the Static Service you want to modify.
5On the Configuration menu, choose Modify Static Service.
The Static Routes dialog box appears.
6Modify the static service attributes.
7Click the Save button to save your settings.
Deleting a Static Service for IPX Routing
1On the navigation tree, click the Services key and click the IPX Routing key.
2Click the interface that you want to configure.
3Click the Static Services tab.
The Static Service screen appears.
4Click the Static Service you want to delete.
5On the Configuration menu, choose Delete Static Service.
A confirmation message appears.
6Click the Yes button.
740 Configuring IPX routing on an interface
P0609326 1.1
741
Business Communications Manager 3.6 Programming Operations Guide
Chapter 35
Configuring Web Cache
When you use Business Communications Manager as a web proxy, Business Communications
Manager can store, or cache, information downloaded from the Internet. A proxy is a server that
acts on behalf of another. Web caching allows LAN workstations to share common information
downloaded from the Internet.
With Business Communications Manager configured as a web proxy with web caching:
• LAN workstations have shorter download times.
• The system stores previously downloaded information for future use by all workstations on the
LAN.
• Business Communications Manager retrieves information from the Internet only if it is not
already cached or if the cached file is out of date compared to the information on the Internet.
To use the Web Cache on the Business Communications Manager, you must configure the client
computer to use an Internet Proxy at port 6800, where the internet proxy is the Business
Communications Manager.
The web proxy also provides security features similar to the DNS proxy. It hides all of the internal
browsers’ IP addresses from external web servers. External web servers see only the Business
Communications Manager IP address.
Guidelines for using Web caching/Proxy
The Business Communications Manager web proxy uses a web server for running in HTTP-Proxy
mode.
Consider the following guidelines when using web caching/proxy:
• You cannot use the web server installed on Business Communications Manager as a general
purpose HTTP server. It is only used by the Business Communications Manager web-based
management client and Web Cache services.
• If you want to run web sites on your network, you must have a separate HTTP server running
on a system other than the Business Communications Manager system. There are two options
available for the IP address you publish for your website. You can publish a separate IP
address for the HTTP server or you can publish the same IP address as your Business
Communications Manager.
To publish a separate IP address for the HTTP server, publish the IP address of the computer
on which you are running the HTTP server.
To publish the same IP address used for Business Communications Manager, set up a NAT
rule to change the public address of the HTTP server to the IP address of Business
Communications Manager.
• Some secure web sites are not accessible through the Business Communications Manager Web
Cache service. If you are having problems accessing a secure web site, turn off the Web Cache
service and try again.
742
P0609326 1.1
• Web Cache is enabled by default.
To configure the Web Cache settings:
1On the navigation tree, click the Services key and click the Web Cache heading.
The Web Cache Summary screen appears.
2Configure the Web Cache attributes according to the following table.
3Press the Tab key to save the settings.
Table 249 Web Cache attributes
Attribute Description
Description Shows the description of the Web Cache server.
Version Shows the version of the Web Cache server.
Status Shows the status of the Web Cache server.
This setting is read-only. The Web Cache server always runs to provide support for Unified
Manager.
Server Address Allows you to specify which IP address to use for interacting with HTTP clients. Since Business
Communications Manager typically has more than one IP interface and associated IP Address,
users can choose this value. The default for this value is the IP address of the first LAN
interface. This value changes when the IP address of the first LAN interface changes. Exercise
caution if modifying this value.
Cache Mode Allows you to enable or disable the cache mode.
The default value is Enabled.
Cache Size Allows you to specify the maximum size (1 - 100,000), in KB, of the cache.
The default value is 20480 KB.
Garbage Collection
Interval
Allows you to specify the interval, in hours, between garbage collection operations on the
cache.
The values are 1 to 24.
The default value is 4 hours.
Cache Maximum
Life
Allows you to specify the maximum life, in hours, on the proxy server for cached HTTP pages.
Values are 1 to 24.
The default value is 24 hours.
Maximum Server
Threads
Allows you to specify the number of threads ready to serve HTTP requests in the proxy server.
Values are 1 to 255.
The default value is 16 threads.
743
Business Communications Manager 3.6 Programming Operations Guide
Chapter 36
Configuring QoS monitor
The IP telephony Quality-of-Service (QoS) Monitor periodically monitors the delay and
packet-loss of IP networks between two peer gateways. The Business Communications Manager
QoS Monitor uses the same method as the Meridian 1 IPT. These monitoring packets are delivered
at UDP port 5000.
This section explains how to set the monitor and how to view the mean opinion score:
•“Setting the QoS monitor” on page 745
•“Viewing the QoS Monitor Mean Opinion Score” on page 745
How QoS monitoring works
There are 25 monitoring packets traveling in each direction every 15 seconds. Each monitoring
package has 88 bytes in the IP layer. These monitoring packets are equally spaced out in the
15-second interval. During this 15-second interval, the packets are sent from transmitting Business
Communications Manager system to the receiving system and then returned to the transmitting
Business Communications Manager system. This results in an overhead in the IP layer of 293
bytes/second in one direction [(2x25x88)/15 = 293 bytes/second].
QoS Monitor works on a gateway between two Business Communications Manager systems or
between a Business Communications Manager system and a Meridian 1 IPT system. QoS Monitor
must be enabled on both ends of the connection.
For information about how to configure remote gateways, refer to the Business Communications
Manager IP Telephony Configuration Guide.
The main objective of the QoS Monitor is to allow new IP telephony calls to fall back to the PSTN
if the IP network is detected as “bad”.
Note: The remote gateways are identified by their Published IP Addresses. If a remote
gateway is accessed through an interface with Network Address Translation (NAT)
configured, the Published IP Address must be the same as one of the Public IP Addresses.
For information about NAT, refer to “Configuring NAT (Network Address Translation)”
on page 753.
744
P0609326 1.1
Note: The QoS Monitor on Business Communications Manager running 3.5 or newer
software is not compatible with the QoS Monitor on earlier versions of Business
Communications Manager.
If you have earlier versions of Business Communications Manager (version 2.0 to 3.0.1)
on your network, you must use the QoS Monitor patch to upgrade QoS Monitor on those
systems. If you do not upgrade QoS Monitor on these earlier Business Communications
Manager systems, IP telephony calls to those systems will not operate correctly.
To obtain the QoS Monitor patch, contact your Nortel Networks support personal.
Setting the QoS monitor 745
Business Communications Manager 3.6 Programming Operations Guide
Setting the QoS monitor
1On the navigation tree, click the Services key and click the QoS Monitor heading.
The QoS Monitor Summary screen appears.
2Configure the QoS Monitor Summary attributes according to the following table.
3Press the Tab key to save the settings.
Viewing the QoS Monitor Mean Opinion Score
To view the QoS Monitor Mean Opinion Score:
1On the navigation tree, click the Services key and click the Qos Monitor key.
2Click the Mean Opinion Score heading.
If you configure or create remote gateways, the mean opinion scores of the connections to
these remote gateways are displayed in the screen. The mean opinion scores are a measure of
the quality of the voice link, while using an IP trunk, for each codec type. Each configured
gateway appears on a separate row.
Each row consists of the fields for the name of the remote gateway, its IP address, the status of
the QoS monitoring for the connection, and the mean opinion scores for each allowed voice
codec type and for each direction.
If the QoS Monitor setting for the remote gateway entry is Disabled, the MOS values for the
remote gateway appear as N/A. If the QoS Monitor service is disabled or down for any reason,
all MOS values appear as N/A. Also, if no MOS reports are received from a remote gateway,
the MOS values in the Received (Recv) direction appear as N/A.
The MOS values are updated inside the QoS Monitor service every 15 seconds. These updates
are a running average of the last five sampled values, which span approximately 75 seconds.
The MOS values that appear are updated automatically. To display the current MOS values,
on the View menu, click Refresh.
Table 250 QoS Monitor Summary attributes
Attribute Description
Description Shows the description of the service.
Status Allows you to enable or disable the service.
Version Shows the version of the service.
746 Viewing the QoS Monitor Mean Opinion Score
P0609326 1.1
Table 251 Mean Opinion Score descriptions
Attribute Description
Name Displays the name of the Remote Gateway.
Destination IP Displays the IP address of the Remote Gateway.
QoS Monitor Displays the status of QoS Monitor for this Remote Gateway.
If Enabled is displayed, QoS Monitor is currently collecting QoS information for this
Remote Gateway.
If Disabled is displayed, QoS Monitor is not collecting QoS information.
QoS Indicator Displays a text description of the current MOS value. The MOS values can be
Poor, Fair, Good or Excellent.
G.711-aLaw Trans Displays the current MOS value calculated when using a G.711 aLaw codec to
transmit VoIP packets to this Remote Gateway.
The MOS can be a value from 0.00 to 5.00, where 0.00 is the worst score (Poor)
and 5.00 is best score (Excellent).
G.711-aLaw Recv Displays the current MOS value calculated when using a G.711 aLaw codec to
receive VoIP packets from this Remote Gateway.
The MOS can be a value from 0.00 to 5.00, where 0.00 is the worst score (Poor)
and 5.00 is best score (Excellent).
G.711-uLaw Trans Displays the current MOS value calculated when using a G.711 uLaw codec to
transmit VoIP packets to this Remote Gateway.
The MOS can be a value from 0.00 to 5.00, where 0.00 is the worst score (Poor)
and 5.00 is best score (Excellent).
G.711-uLaw Recv Displays the current MOS value calculated when using a G.711 uLaw codec to
receive VoIP packets from this Remote Gateway.
The MOS can be a value from 0.00 to 5.00, where 0.00 is the worst score (Poor)
and 5.00 is best score (Excellent).
G.723-5.3kbit/s Trans Displays the current MOS value calculated when using a G.723 5.3 kbit/s codec to
transmit VoIP packets to this Remote Gateway.
The MOS can be a value from 0.00 to 5.00, where 0.00 is the worst score (Poor)
and 5.00 is best score (Excellent).
G.723-5.3kbit/s Recv Displays the current MOS value calculated when using a G.723 5.3 kbit/s codec to
receive VoIP packets from this Remote Gateway.
The MOS can be a value from 0.00 to 5.00, where 0.00 is the worst score (Poor)
and 5.00 is best score (Excellent).
G.723-6.3kbit/s Trans Displays the current MOS value calculated when using a G.723 6.3 kbit/s codec to
transmit VoIP packets to this Remote Gateway.
The MOS can be a value from 0.00 to 5.00, where 0.00 is the worst score (Poor)
and 5.00 is best score (Excellent).
G.723-6.3kbit/s Recv Displays the current MOS value calculated when using a G.723 6.3 kbit/s codec to
receive VoIP packets from this Remote Gateway.
The MOS can be a value from 0.00 to 5.00, where 0.00 is the worst score (Poor)
and 5.00 is best score (Excellent).
Viewing the QoS Monitor Mean Opinion Score 747
Business Communications Manager 3.6 Programming Operations Guide
Configuring the logging options
1On the navigation tree, click the Services key and click the Qos Monitor key.
2Click the Mean Opinion Score heading and click the Logging tab.
The Logging screen appears.
3Configure the Logging attributes according to the following table.
4Press the Tab key to save the settings.
Viewing the Mean Opinion Score log
1On the navigation tree, click the Services key and click the Qos Monitor key.
2Click the Mean Opinion Score heading and click the Logging tab.
The Logging screen appears.
3On the Tools menu, click Display Log.
The Mean Opinion Score Log File screen appears.
4Close the browser window when you are finished viewing the log file.
G.729 Trans Displays the current MOS value calculated when using a G.729 codec to transmit
VoIP packets to this Remote Gateway.
The MOS can be a value from 0.00 to 5.00, where 0.00 is the worst score (Poor)
and 5.00 is best score (Excellent).
G.729 Recv Displays the current MOS value calculated when using a G.729 codec to receive
VoIP packets from this Remote Gateway.
The MOS can be a value from 0.00 to 5.00, where 0.00 is the worst score (Poor)
and 5.00 is best score (Excellent).
Table 252 QoS Monitor Logging attributes
Attribute Description
Status Allows you to enable or disable the logging of the Mean Opinion Scores.
The default value is Disabled.
Max. Log File
Size
Allows you to enter the maximum size the Log File can be.
Enter a value of 1 to 10240 kbytes.
The default value is 10240 kbytes.
Logging
Frequency
Allows you to enter the time that Business Communications Manager waits between
logging the Mean Opinion scores.
Enter a value of 1 to 1440 minutes.
The default value is 5 minutes.
Table 251 Mean Opinion Score descriptions
Attribute Description
748 Viewing the QoS Monitor Mean Opinion Score
P0609326 1.1
Figure 210 Example Mean Opinion Score Log File
Mon Sep 08 08:55:44 2003, EastBranch, 10.10.10.2, Enabled, Poor, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00
Mon Sep 08 08:55:44 2003, WestBranch, 10.10.10.5, Enabled, Poor, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00
Mon Sep 08 08:55:44 2003, MainBranch, 10.10.10.15, Enabled, Poor, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00
Mon Sep 08 09:00:54 2003, EastBranch, 10.10.10.2, Enabled, Poor, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00
Mon Sep 08 09:00:54 2003, WestBranch, 10.10.10.5, Enabled, Poor, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00
Mon Sep 08 09:00:55 2003, MainBranch, 10.10.10.15, Enabled, Poor, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00
Mon Sep 08 09:06:04 2003, EastBranch, 10.10.10.2, Enabled, Poor, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00
Mon Sep 08 09:06:04 2003, WestBranch, 10.10.10.5, Enabled, Poor, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00
Mon Sep 08 09:06:05 2003, MainBranch, 10.10.10.15, Enabled, Poor, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00
Mon Sep 08 09:11:14 2003, EastBranch, 10.10.10.2, Enabled, Poor, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00
Mon Sep 08 09:11:14 2003, WestBranch, 10.10.10.5, Enabled, Poor, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00
Mon Sep 08 09:11:15 2003, MainBranch, 10.10.10.15, Enabled, Poor, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00
Mon Sep 08 09:16:24 2003, EastBranch, 10.10.10.2, Enabled, Poor, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00
Mon Sep 08 09:16:25 2003, WestBranch, 10.10.10.5, Enabled, Poor, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00
Mon Sep 08 09:16:25 2003, MainBranch, 10.10.10.15, Enabled, Poor, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00, 0.00
Name
Date and Time
Destination IP
QoS Monitor
QoS Indicator
G.711-aLaw Trans
G.711-aLaw Recv
G.711-uLaw Trans
G.711-uLaw Recv
G.723-5.3kbit/s Trans
G.723-5.3kbit/s Recv
G.723-6.3kbit/s Trans
G.723-6.3kbit/s Recv
G.729 Trans
G.729 Recv
749
Business Communications Manager 3.6 Programming Operations Guide
Chapter 37
Configuring Net Link Manager
Net Link Manager is a Business Communications Manager service that provides constant primary
link status monitoring. Net Link Manager is also where you select your WAN primary and backup
interfaces.
This section contains information about enabling/disabling Net Link Manager, as well as how to
select WAN links:
•“Enabling or Disabling Net Link Manager” on page 750
•“Selecting a permanent WAN link as the primary WAN connection” on page 750
•“Selecting a dial-up link as the primary WAN connection” on page 752
When Net Link Manager detects a primary WAN link failure, Net Link Manager automatically
establishes a backup WAN connection, if one is configured. Net Link Manager monitors the WAN
primary link by performing multiple tests. When a predetermined number of tests fails, Net Link
Manager establishes the backup connection.
The backup connection uses a V.90 modem (North America) or one or more ISDN B-channels.
When the backup WAN connection is active, Net Link Manager continues to monitor the status of
the primary WAN link connection. When the primary WAN link connection is determined to be
available again, Net Link Manager re-establishes the primary WAN link and disconnects/disables
the backup connection.
Warning: If dial-up connection is used as the primary WAN connection, no backup link
is available.
Note: Net Link Manager manages the default route in Business Communications
Manager. If the primary link fails, Net Link Manager removes the default route from the
Primary link and adds it to the backup link. This happens during the switch over from
primary to backup link. The default route returns to the primary link after the connection
to the primary WAN link is re-established.
750 Selecting a permanent WAN link as the primary WAN connection
P0609326 1.1
Enabling or Disabling Net Link Manager
1On the navigation tree, click the Services key and click the Net Link Mgr heading.
The Net Link Manager Summary screen appears.
2Configure the Net Link Manager attributes according to the following table.
3Press the Tab key to save the settings.
Selecting a permanent WAN link as the primary WAN
connection
1On the navigation tree, click the Services key and click the Net Link Mgr heading.
The Net Link Manager Summary screen appears.
2Click the Primary WAN Connection tab.
The Primary WAN Connection screen appears
3Click the Mode box and click Permanent.
4Press the Tab key to save your choice.
5Click the Permanent WAN Connection Setting tab
The Permanent WAN Connection Setting screen appears.
6Configure the Permanent WAN Connections Setting attributes according to the following
table.
Table 253 Net Link Manager attributes
Attribute Description
Description Shows a description of Net Link Manager.
Version Shows the version number of the subsystem.
Status Shows the status of Net Link Manager. This box also provides commands to enable or disable
Net Link Manager.
Possible values: Up, Disabled, Enabled
The default value is: Up
Table 254 Permanent WAN Connections settings
Attribute Description
Next Hop on
Primary Link
Allows you to enter the IP address (in dot format) of the next hop router.
This address is used by Net Link Manager to add a default route in Business Communications
Manager. If this address ever becomes unreachable, Net Link Manager dials the backup link and
changes the default route.
This is usually the remote router of the primary WAN link.
Up Poll Interval Allows you to set the polling interval on the Primary WAN Link, in seconds.
The up poll interval is the interval between successive pings when the next hop on the primary
link is available.
Selecting a permanent WAN link as the primary WAN connection 751
Business Communications Manager 3.6 Programming Operations Guide
7Press the Tab key to save the settings.
Down Poll
Interval
Allows you to set the polling interval on the Primary WAN Link, in seconds, when the primary
WAN link is down, and the backup (dial-up) WAN link is operational.
A short interval provides faster recovery.
Switch Over
Delay
Allows you to define the interval, in seconds, that Net Link Manager waits before switching back
to the primary WAN link when it becomes available. This delay is to let the router at the other end
of the primary link recognize that the primary link has come up and allows for necessary routing
table updates. The default value is 30 seconds.
Backup Dial-up
Interface
Allows you to select which dial up interface to use for WAN backup.
You must configure a backup interface before you can select it. When you are configuring the
backup interface, make sure you include “backup” in the interface name. Only interfaces that
contain the word backup in their name appear on this list. For information about how to create an
ISDN backup interface, refer to “Creating an ISDN dial up interface” on page 690.
Fast Backup
Switch Over
Allows you enable or disable the Fast Backup Switch Over feature.
When Fast Backup Switch Over is enabled, Business Communications Manager uses the Link
Status of the WAN interface to reduce the amount of time it takes to switch over to the Backup
WAN Link, when the Primary WAN Link is down.
When Fast Backup Switch Over is Disabled, Business Communications Manager retries
contacting the next hop router if there is no response from the previous attempt. If there is no
response after several retries, Business Communications Manager switches over to the Backup
WAN Link.
When Fast Backup Switch Over is Enabled, Business Communications Manager checks the Link
Status of the WAN interface when there is no response from the next hop router. If the Link
Status is Down, Business Communications Manager immediately switches over to the Backup
WAN link. If the link status is Up, Business Communications Manager attempts to contact the
next hop router again. If there is no response after several retries, Business Communications
Manager switches over to the Backup WAN Link.
Note: If Business Communications Manager receives a response from the next hop router on any
attempt, it does not switch over to the Backup WAN Link.
The default setting is Disabled.
Note: The Fast Backup Switch Over feature does not affect how Business Communications
Manager switches from the Backup WAN Link to the Primary WAN Link.
Table 254 Permanent WAN Connections settings (Continued)
Attribute Description
752 Selecting a dial-up link as the primary WAN connection
P0609326 1.1
Selecting a dial-up link as the primary WAN connection
The dial-up WAN connection supports PPP only. Business Communications Manager supports
ISDN dial-up PPPoE dial-up WAN connections.
Setting a dial-up connection as the primary WAN connection means that the Business
Communications Manager default route is to the dial-up connection. If the dial-up WAN
connection is configured as dial-on-demand, any traffic across the dial-up WAN connection
causes the link to be established. Also, if there is no traffic crossing the connection, the link shuts
down automatically after a time out.
1On the navigation tree, click the Services key and click the Net Link Manager heading.
The Net Link Manager Summary screen appears.
2Click the Primary WAN Connection tab.
The Primary WAN Connection screen appears
3Click the Mode box and click Dialup.
4Press the Tab key to save your choice.
5Click the Primary WAN Connection Setting tab.
The Primary WAN Connection Setting screen appears.
6From the Primary Dial-up Interface box, click the dial-up interface you want to use.
7Press the Tab key to save the settings.
Note: When you configure your primary WAN connection to use a dial-up WAN
connection, no backup WAN connection is available.
Tips
Before you can select an ISDN or PPPoE dial-up interface to connect to the network, you
must first create the dial-up interface under Resources, Dial up. For information on
creating an ISDN dial-up interface, see “ISDN dial up” on page 690. For information on
creating a PPPoE dial-up interface, see “Point to Point Protocol on Ethernet (PPPoE)” on
page 696.
753
Business Communications Manager 3.6 Programming Operations Guide
Chapter 38
Configuring NAT (Network Address Translation)
Business Communications Manager provides security and firewall features to protect your private
data resources from outsiders.
This section includes information about the different types of NAT, as well as:
•“Enabling and disabling NAT” on page 754
•“Configuring an Interface with NAT” on page 755
The Network Address Translation feature is a network security feature. NAT translates the IP
addresses used within your private network to different IP addresses known to Internet users
outside your private network. NAT helps ensure network security because each outgoing or
incoming request must go through a translation process that also provides the opportunity to
qualify or authenticate the request or match it to a previous request. NAT also translates port
numbers.
NAT is defined by creating a set of rules and then defining the order in which these rules are
evaluated.
Business Communications Manager supports both static and dynamic NAT for a number of packet
types and protocols:
Static NAT
Static NAT is the one-to-one mapping of an IP address on your private network to an IP address
from outside your network. Inbound rules must have external IP addresses mapped to specific
internal IP addresses.
Dynamic NAT
Dynamic NAT is the mapping between a private network and the outside network, of one address
to a pool of addresses, a pool of addresses to one address or a pool of addresses to another. The
mappings are made in a translation table and remain there until the table is cleared or until an entry
times out.
NAT Support for: Type
Packets (static and
dynamic)
TCP, UDP, IP
Protocols H.323, FTP, HTTP, POP3, Telnet, SMTP, DNS, TFTP, GOPHER, FINGER, NNTP, RPC,
SUNNFS and SNMP
Note: When using an inbound translation, be sure that all private addresses belong to the
existing systems.
754 Enabling and disabling NAT
P0609326 1.1
NAT and IP Firewall filters
When you use NAT and IP Firewall filters, there are two interactions you need to be aware of.
• On inbound traffic, the NAT rules are applied before the IP Firewall Filter rules.
• On outbound traffic, the IP Firewall Filter rules are applied before the NAT rules.
Managing Business Communications Manager
You cannot manage a Business Communications Manager system through another Business
Communications Manager system when it is on the Private side of a NAT enabled interface.
Enabling and disabling NAT
1On the navigation tree, click the Services key and click the NAT heading.
The NAT Summary screen appears.
2Configure the NAT Summary attributes according to the following table.
3Press Tab to save the setting.
Table 255 NAT Summary attributes
Attribute Description
Description Shows a description of NAT.
Version Shows the version number of the subsystem.
Status Allows you to enable or disable NAT.
Possible values: Disabled, Enabled
The default value is: Disabled
Note: Do not enabled NAT on systems that use Fast Routing between LANs. If you
enable NAT and Fast Routing, the packets will not be routed correctly. For information
about Fast Routing, refer to “Setting LAN global parameters” on page 664.
Configuring an Interface with NAT 755
Business Communications Manager 3.6 Programming Operations Guide
Configuring an Interface with NAT
This section describes how to configure an interface with NAT. It also includes information about:
•“Adding Default rules” on page 755
•“Adding a Rule to an interface” on page 756
•“Modifying a Rule to an Interface” on page 757
•“Deleting a Rule to an Interface” on page 758
•“Configuring the Rule order” on page 758
•“Examples of common NAT configurations” on page 758
Adding Default rules
1On the navigation tree, click the Services key and click the NAT key.
2Click the interface you want to configure. For example: LAN1.
The Rule Order screen appears.
3Click the Default Rules box and click Disabled, Enabled - include IP phones, or
Enabled - do not include IP phones.
If you choose Enabled - include IP phones, the NAT default rules apply to all data traffic
including IP telephony traffic.
There are three default rules set. The first rule is for outbound TCP/UDP traffic. The second
rule is for outbound IP traffic. The third rule is for inbound TCP/UDP traffic on port 7000. The
IP address for the Public address is the IP address of the interface you configure. The system
automatically fills in the rule order. If you choose to add additional rules, the default rules still
remain.
If you choose Enabled - do not include IP phones, the NAT default rules do not apply to IP
telephony traffic, but does apply to all other traffic.
If you choose this option, there are two default rules set. One is for outbound TCP/UDP traffic.
The other is for outbound IP traffic. The IP address for the Public address is the IP address of
the interface you configure. The system automatically fills in the rule order. If you choose to
add additional rules, the default rules still remain.
If you choose Disabled, the Default Rules are removed.
The default is Disabled.
Note: Rules can be configured in several ways, using default rules, setting up
individual rules or a combination of the two.
Note: The default rules are only for traffic initiated in the outbound direction. You
must add rules for inbound traffic or packets will pass in without translation.
756 Configuring an Interface with NAT
P0609326 1.1
4Press the Tab key to save the settings.
Adding a Rule to an interface
The maximum number of Rules you can add is 32.
1Click the Rule Setting tab.
The Rule Setting screen appears.
2On the Configuration menu, click Add Rule.
The Rule Setting dialog box appears.
3Configure the Rule settings according to the following table.
Note: Before you can specify the Rule Order you must first add the Rules.
Table 256 NAT Rule Settings
Attribute Description
Rule Name (R#) Allows you to assign a number to the Rule.
The Rule Name uniquely identifies a Rule. The value for this setting must follow certain
conventions. It must always start with the prefix 'R' followed by a unique number identifying the
rule. For example, 'R2' is a valid name. Specify nonrecurring values for the unique number. If you
specify an existing rule name, it modifies the existing rule. If you use nonsequential numbers, the
system automatically reassigns sequential numbers. When you modify a rule, you cannot change
the rule name. The rule name does not have any significance other than identifying an entry.
Direction Allows you to choose the direction of the rule: In or Out.
Protocol Allows you to choose the protocol for this interface; IP, TCP, UDP, or TCP/UDP.
Private IP Type Allows you to specify if the IP type is Fixed or Dynamic.
Use Dynamic when the IP is assigned by an outside source. For example, your Internet Service
Provider (ISP) assigns your IP address. If you specify Dynamic, Private IP and Private Mask do
not need to be entered.
The default is Fixed.
Note: Dynamic does not match all IP addresses. If you want to match all IP addresses, enter an
IP address of 0.0.0.0 and a mask of 0.0.0.0.
Private IP Allows you to specify the Private IP address. If the Private IP type is fixed, the Rule is invalid
without this IP address.
Private Range
Mask
Allows you to specify the mask to use with the Private IP.
If you want the Rule to apply to a single Private IP address (the Private IP entered), enter
255.255.255.255.
If you want the Rule to apply to all Private IP addresses, enter 0.0.0.0.
Private Port
Range (#-#)
Allows you to specify a single entry, a range of entries (1-65535) or one of the following: ALL,
FTP, Telnet, SMTP, SNMP, SNMP-TRAP, DNS, TFTP, Gopher, Finger, H.323, HTTP, POP3,
NNTP, RPC, SUNNFS, and UNISTIM.
Configuring an Interface with NAT 757
Business Communications Manager 3.6 Programming Operations Guide
4Click the Save button.
Modifying a Rule to an Interface
1Click the Rule Setting tab.
The Rule Setting screen appears.
2Click the rule you want to modify.
3On the Configuration menu, click Modify Rule.
The Rule Setting dialog box appears.
4Modify the Rule settings.
5Click the Save button.
Public IP Type Allows you to specify if the IP type is Fixed or Dynamic.
Use Dynamic when the IP is assigned by an outside source. For example, your Internet Service
Provider (ISP) assigns your IP address. If you specify Dynamic, Public IP and Public Mask do not
need to be entered.
The default is Fixed.
Note: Dynamic does not match all IP addresses. If you want to match all IP addresses, enter an
IP address of 0.0.0.0 and a mask of 0.0.0.0.
Public IP Allows you to specify the Public IP address. This address should be on the outside network.
Public Range
Mask
Allows you to specify the mask to use with the Public IP.
If you want the Rule to apply to a single Public IP address (the Public IP entered), enter
255.255.255.255.
If you want the Rule to apply to all Public IP addresses, enter 0.0.0.0.
Public Port
Range (#-#)
Allows you to specify a single entry, a range of entries (1-65535) or one of the following; ALL,
FTP, Telnet, SMTP, SNMP, SNMP-TRAP, DNS, TFTP, Gopher, Finger, H.323, HTTP, POP3,
NNTP, RPC, SUNNFS, and UNISTIM.
Note: If you do not configure the public and private masks correctly, mappings to
non-existent systems can occur. You must specify addresses that exist. For example, if
you configure an outbound rule, the Public IP address and Public Mask are the translated
addresses. These addresses must be assigned or packets will be sent to a non-existent
destination. For inbound rules, the translated address is the Private Address and Mask.
If you want the rule to apply to one IP address only, you must enter a Mask of
255.255.255.255. If you enter any other Mask, the rule will apply to more than one IP
address.
Table 256 NAT Rule Settings (Continued)
Attribute Description
758 Configuring an Interface with NAT
P0609326 1.1
Deleting a Rule to an Interface
1Click the Rule Setting tab.
The Rule Setting screen appears.
2Click the rule you want to delete.
3On the Configuration menu, click Delete Rule.
A message appears that asks you to confirm the deletion.
4Click the Yes button.
Configuring the Rule order
1When you finish adding rules, click the Rule Order tab.
The Rule Order screen appears.
2In the Rule Order box, configure the order of the rules.
3Press Tab to update the screen.
Examples of common NAT configurations
A Business Communications Manager has two LANs and a WAN. The WAN connects to the
outside and has one public IP address. The LANs are part of a private network. The system maps
all outgoing traffic. HTTP traffic is mapped to 10.10.10.4. LAN1 subnet is 10.10.10.0, LAN2 is
10.10.11.0. The WAN address is 48.123.35.41.
The rules would be as follows:
Note: Configure the rule order from most specific to most general. For example, a TCP
rule for one port should come before a general rule for all TCP traffic. IP rules should
come last.
Rule: R4
Direction: In
Private IP Type: Fixed
Protocol: TCP
Private IP Address: 10.10.10.4
Private IP Mask: 255.255.255.255
Private Port Range: HTTP
Public IP type: Fixed
Public IP Address: 48.123.35.41
Public IP mask: 255.255.255.255
Public Port Range: 8080
Configuring an Interface with NAT 759
Business Communications Manager 3.6 Programming Operations Guide
Default Rules: Enabled Including IP Phones
Rule Order: R1,R2,R3,R4
A Business Communications Manager has two LANs and a WAN. The WAN connects to an
Internet Service Provider that assigns the IP address. The LANs are part of a private network. The
system maps all outgoing traffic. HTTP traffic is mapped to 10.10.10.4. LAN1 subnet is
10.10.10.0, LAN2 is 10.10.11.0.
The rules would be as follows:
Default Rules: Enabled Including IP Phones
Rule Order: R1,R2,R3,R4
Note: This setting for Default Rules adds three rules. Additional rules start at R4.
Note: Spaces are not allowed between rule numbers.
Rule: R4
Direction: In
Private IP Type: Fixed
Protocol: TCP
Private IP Address: 10.10.10.4
Private IP Mask: 255.255.255.255
Private Port Range: HTTP
Public IP type: Dynamic
Public IP Address: <leave blank>
Public IP mask: <leave blank>
Public Port Range: 8080
760 Configuring an Interface with NAT
P0609326 1.1
761
Business Communications Manager 3.6 Programming Operations Guide
Chapter 39
Configuring NTP Client
Network Time Protocol (NTP) is an IP protocol that allows you to synchronize the time on your
network devices. The NTP Client allows you to synchronize the time on your Business
Communications Manager system with the NTP Server on your network. This ensures that your
Business Communications Manager is using the same time as the other Business Communications
Manager systems and servers on your network.
There are two clocks operating on the Business Communications Manager system.
• Business Communications Manager system clock: The system clock is used for scheduled
tasks and the time stamp on events and alarms. The NTP client synchronizes the system clock
with the NTP server time.
• Business Communications Manager telephony clock: The telephony clock provides the time
that appears on the Business Communications Manager telephones. The telephony clock gets
its time updates from the system clock. Due to delays in the system, there may be a difference
between the system time and the time that appears on the telephones.
The information in this section includes:
•“Configuring the NTP Client settings” on page 762
•“Starting the NTP Client Service” on page 763
•“Manually updating the Business Communications Manager time” on page 764
762 Configuring the NTP Client settings
P0609326 1.1
Configuring the NTP Client settings
Configure the NTP client settings:
1On the navigation tree, click the Services key and click the NTP Client Settings heading.
The NTP Client Settings screen appears.
2Configure the NTP Client settings according to the following table.
3Press the Tab key to save your settings.
Table 257 NTP Client settings
Attribute Description
NTP Server
Address
Enter the IP address of the NTP Server to which you are synchronizing the Business
Communications Manager time.
Maximum Time
Adjustment
Enter the maximum amount of time, in seconds, that the Business Communications Manager
system clock can be out of sync with the NTP Server time. Any time difference greater than this
value causes the Business Communications Manager time to require manual update.
For example, if the Maximum Time Adjustment is set to 60 seconds, but the time difference is 65
seconds, the Business Communications Manager system clock is not updated.
Note: The next time change update is determined by the Set Time Every option.
The default value for this option is 0. A value of 0 means there is no Maximum Time Adjustment,
so the Business Communications Manager system clock is changed regardless of what the time
discrepancy is between the Business Communications Manager and the NTP Server.
Exit After Setting
Time Once
Select whether the NTP Client exits after a time adjustment.
Choose Enabled if you want the NTP Client Service to stop after a time adjustment is made.
When you choose Enabled, the time is set only once.
Choose Disabled if you want the NTP Client Service to continue running after a time adjustment
is made.
Set Time Every Enter the number of seconds between time updates.
The default is 86400 seconds (24 hours).
Tip: An event is entered into the Event Log each time Business Communications Manager
accesses the NTP server to check for a time update. If you enter a short time period in this field,
the Event Log will quickly fill with VoiceTimeSynch events.
Minimum Time
Adjustment
Enter the time difference that must exist between the Business Communications Manager and
the NTP Server before a time adjustment is made.
If the time difference is less then the number of seconds entered, the time on the Business
Communications Manager is not changed.
NTPClient
Service Start
Type
Select whether the NTP Client Service starts automatically.
Choose Automatic if you want the NTP Client Service to start now and to start automatically
whenever Business Communications Manager is started up or rebooted.
Choose Manual if you want to start the NTP Client Service manually. For information on how to
start the NTP Client Service, refer to “Starting the NTP Client Service” on page 763.
Starting the NTP Client Service 763
Business Communications Manager 3.6 Programming Operations Guide
Starting the NTP Client Service
If you set the NTPClient Service Start Type option to Automatic, the NTP Client service starts
automatically and will automatically start whenever Business Communications Manager is started
up or rebooted.
If you set the NTPClient Service Start Type option to Manual, you must start the NTP Client
Service the first time you configure the NTP Client settings. You must also start the NTP Client
Service whenever Business Communications Manager is started up or rebooted.
To start the NTP Client Service:
1On the navigation tree, click the Diagnostics key and the Service Manager heading.
The Service List screen appears.
2Scroll down the list of until the VoiceTimeSynch service appears.
3Click the VoiceTimeSynch service.
4On the Configuration menu, click Modify Services.
The Services List dialog box appears.
5Configure the settings according to the following table.
6Click the Save button.
Table 258 NTP Client Service settings
Attribute Description
Startup Select whether the NTP Client Service starts automatically.
Choose Automatic if you want the NTP Client Service to start automatically when Business
Communications Manager is started up or rebooted.
Choose Manual if you want to start the NTP Client Service manually.
Choose Disabled to disable the NTP Client Service.
Status Allows you to view and change the status of the NTP Client Service.
Choose Start to start the NTP Client Service. When the service successfully starts, the status
changes to Running.
Choose Stop to stop the NTP Client Service. When the service successfully stops, the status
changes to Stopped.
764 Manually updating the Business Communications Manager time
P0609326 1.1
Manually updating the Business Communications Manager
time
You can force the NTP Client to update the Business Communications Manager time by manually
updating the time.
To manually update the time:
1On the navigation tree, click the Services key and click the NTP Client Settings heading.
The NTP Client Settings screen appears.
2On the Tools menu, click Update Time.
A confirmation dialog box appears.
3Click the Yes button to update the time.
Note: Do not manually update the Business Communications Manager time until you
have configured the NTP Client.
765
Business Communications Manager 3.6 Programming Operations Guide
Chapter 40
Virtual Private Networks (VPN)
Business Communications Manager uses the Internet and tunneling protocols to create secure
extranets. These secure extranets require a protocol for safe transport from the Business
Communications Manager to another device through the Public Data Network (PDN). Business
Communications Manager uses the PPTP (“PPTP” on page 766) and IPSec (“IPSec” on page 777)
tunneling protocols. Both of these protocols have encryption, but IPSec has a slightly more secure
hashing algorithm for negotiating keys.
Extranets can connect:
• mobile users to a fixed private network at their office over the PDN
• private networks in the two branch offices of the same corporation over PDN
• two divisions of the same corporation over the corporate intranet
When connecting two branch offices, the use of a VPN over the public data network is very
efficient if the connection is required only intermittently or a dedicated point-to-point link is
considered too expensive. Also, with the advent of business-to-business solutions, VPNs can be
deployed to provide secure connections between corporations.
PPTP tunnel notes
PPTP tunnels are used when a mobile user wishes to connect securely to a Business
Communications Manager or when using the IPX network protocol. PPTP client software is
required to use a PPTP tunnel. This client software is available for all personal computer operating
systems from Microsoft. This client is included in Windows 98.
PPTP tunnels are created from a client to a server or from a server to a server. To form an extranet
using PPTP, a mobile, remote user does the following:
• Establishes a connection with the public data network’s point-of-presence (POP), typically
through an Internet service provider (ISP) using dial up links.
• After the Internet connection is up, the remote user launches a second connection which is a
VPN tunnel to Business Communications Manager. The Business Communications Manager
public IP address is used to establish the tunnel.
• On the Business Communications Manager, the user id of the incoming user is enabled for
dial-in access.
766 PPTP
P0609326 1.1
IPSec tunnel modes
In the IPSec Specification, there are two tunnel modes defined: tunnel mode and transport mode.
Business Communications Manager supports only tunnel mode. Tunnel mode describes a method
of packetizing TCP/IP traffic to create a virtual tunnel.
Tunnels are created between servers, which are also known as gateways. This is called a Branch
Office Connection. The end nodes connect to each other through gateways. These gateways set up
the tunnel over the PDN on behalf of the end nodes. The establishment of the tunnel, and the PDN
in between, is transparent to the end nodes which behave as if they are interacting through a router.
Typically, the edge devices connecting the branches of a corporation to the ISP use VPN in this
mode.
Business Communications Manager is compatible with the Contivity Extranet Switch and the
Shasta 5000.
The following sections describe configuring the tunnel portion of Business Communications
Manager using PPTP or IPSec.
PPTP
PPTP is a tunneling protocol supported by Nortel Networks, Microsoft, and other vendors. The
PPTP client is available for Windows 95 (www.microsoft.com) and is built-in to Windows 98 and
later. Third-party vendors have developed PPTP clients for Windows 3.1 and the Macintosh
operating system.
The PPTP client and PPTP server software are components on Business Communications
Manager.
This section includes information about:
•“Settings required for PPTP tunnels” on page 767
•“Changing the PPTP settings” on page 768
•“Adding a PPTP client” on page 769
•“Deleting a PPTP client” on page 770
•“Adding a PPTP tunnel” on page 770
•“Configuring a PPTP tunnel” on page 771
•“Deleting a PPTP tunnel” on page 776
•“Encryption” on page 778
Note: PPTP uses Remote Access Service (RAS) to establish connections. For this reason,
you must do some Dial Up resources configuration when you configure for some of the
PPTP configuration parameters.
PPTP 767
Business Communications Manager 3.6 Programming Operations Guide
PPTP offers the following features:
• Support for multiple authentication schemes: MS-CHAP, CHAP, or PAP.
• Support for IP address translation via encapsulation.
• Support for IPX tunneling.
• Support for RC4 encryption.
• Support for compression of data packets.
Settings required for PPTP tunnels
The data packets that pass through PPTP tunnels interact with other routing features in Business
Communications Manager. As a result, there are several settings you must make in other features
for PPTP tunnels to operate.
NAT (Network Address Translation)
You cannot set NAT rules on traffic that goes through the PPTP tunnel. You can set NAT rules for
the end points of the PPTP tunnel.
For information about how to change the NAT settings, refer to “Configuring NAT (Network
Address Translation)” on page 753.
QoS
You cannot set QoS rules on traffic that goes through the PPTP tunnel. You can set QoS rules for
the end points of the PPTP tunnel.
IP Routing and IPX Routing
Do not create a static route to the far end of the tunnel. If you do, packets will not be sent through
the tunnel. PPTP sets up the necessary routes when the tunnel is enabled.
Filters
You must set the following parameters in IP Firewall filter programming.
• Allow PPTP protocol under the Protocol field for traffic to and from Business
Communications Manager.
• Allow traffic to and from Business Communications Manager on the PPTP port (1723/tcp).
You cannot set IP Firewall filter rules on traffic that goes through the PPTP tunnel. You can set IP
Firewall filter rules for the end points of the PPTP tunnel.
For information about how to change Filters, refer to “Configuring IP Firewall Filters” on page
831.
768 PPTP
P0609326 1.1
IP Addresses and DHCP Server
Ensure that the IP addresses for the LAN interfaces, WAN interfaces, dial up links, and PPTP
tunnels are unique across all sites. This simplifies configuration, eliminates conflicts due to NAT,
and prevents the addresses assigned by the DHCP server from conflicting with the IP addresses of
subnets in remote sites.
For information about how to change the DHCP Server settings, refer to the DHCP section.
DNS Server
We recommend the following configuration if you are using a DNS Server:
• Choose one of the offices to act as the primary office. The server in primary office must have a
dedicated link to the Internet.
• Make the server in the primary office the primary domain server. Ensure the DNS Server in the
primary office contains all of the entries for allow the branch offices.
• Configure the DNS Servers in the branch offices to run in cache mode only. Allow a larger
time out value on the branch DNS servers to accommodate for on-demand setup of PPTP
tunnels to the primary office.
• Configure the branch DNS servers to forward DNS Server requests to the Internet Service
Provider first and then to the DNS Server in the primary office.
For information about how to configure the DNS proxy service on Business Communications
Manager, refer to the “Configuring DNS” on page 703.
Changing the PPTP settings
The settings of the PPTP Summary screen apply to all of the PPTP tunnels created.
To change the PPTP settings:
1On the navigation tree, click the Services key and click the VPN key.
2Click the PPTP heading.
The PPTP Summary screen appears.
3Configure the PPTP Summary settings according to the following table.
Table 259 PPTP Summary settings
Attribute Description
Description Displays the name of the PPTP service.
This is a read only attribute.
Version Displays the version number of the PPTP service.
This is a read only attribute.
PPTP 769
Business Communications Manager 3.6 Programming Operations Guide
4Click the Tab key to save the settings.
Adding a PPTP client
A PPTP Client is a remote Business Communications Manager or other similar PPTP capable
device that you allow to connect to this Business Communications Manager to establish a PPTP
tunnel.
The maximum number of PPTP clients is 32.
To add a PPTP client:
1On the navigation tree, click the Services key and click the VPN key.
2Click the PPTP heading.
The PPTP Summary screen appears.
Keep Alive Interval Allows you to specify the amount of time Business Communications Manager waits without
any data traffic on the tunnel before it sends an Echo Request message.
When the far end of the tunnel receives an Echo Request, the system at the far end must send
an Echo Response message. If the far end of the tunnel sends an Echo Response message,
Business Communications Manager keeps the tunnel open. If the far end of the tunnel does
not send an Echo Response message, the tunnel is closed.
You can enter a value from 1 to 65000 seconds.
The default value is 60 seconds.
Echo Timeout Allows you to specify the amount of time Business Communications Manager waits for an
Echo Response message. If the Echo Response message is not received before this time
limit, Business Communications Manager tears down the PPTP tunnel.
You can enter a value from 1 to 65000 seconds.
The default value is 60 seconds.
Max TCP
Retransmissions
Allows you to specify the maximum number of times TCP retransmits the data packets. Data
packets are retransmitted when the far end of a TCP connection does not acknowledge the
receipt of a data packet.
Business Communications Manager uses a TCP connection to establish a PPTP tunnel. The
tunnel establishment packets may get lost while being transported over busy internet, effecting
the private network connectivity between sites. Therefore, it is recommended to tune this
parameter according to the performance of the internet carrying the PPTP tunnel traffic.
You can enter a value from 1 to 65000 packets.
The default value is 9 packets.
Note: If you change this value, you must reboot Business Communications Manager.
Client IP
Authentication
Allows to enable or disable Client Authentication.
When Client Authentication is enabled, only clients entered on the Client List screen can open
a PPTP tunnel. When Client Authentication is disabled, any client with valid credentials can
open a PPTP tunnel.
Note that valid credentials are required for clients on the Client List as well.
You can choose Enabled or Disabled.
The default value is Disabled.
Note: If you change this value, you must reboot Business Communications Manager.
Table 259 PPTP Summary settings (Continued)
Attribute Description
770 PPTP
P0609326 1.1
3Click the Clients IP List tab.
The Clients IP List screen appears.
4On the Configuration menu, click Add to Client IP List.
The Client IP dialog box appears.
5Configure the PPTP Client attributes according to the following table.
6Click the Save button.
Deleting a PPTP client
To delete a PPTP client:
1On the navigation tree, click the Services key and click the VPN key.
2Click the PPTP heading. The PPTP Summary screen appears.
3Click the Clients IP List tab. The Clients IP List screen appears.
4Click the PPTP client you want to delete.
5On the Configuration menu, click Delete From Client IP List.
A message prompts you to confirm the deletion.
6Click the Yes button to confirm the deletion.
Adding a PPTP tunnel
You can create a PPTP tunnel from a Business Communications Manager system to another
Business Communications Manager system or from a Business Communications Manager system
to a Contivity Extranet Switch.
The maximum number of PPTP tunnels running at one time is 10.
Table 260 PPTP Client attributes
Attribute Description
Client Displays the Client identifier.
This is a read only attribute.
Client IP Address Enter the IP address of the system you are allowing to use a PPTP tunnel to connect to
Business Communications Manager.
Enter the IP address in the dotted format.
Note: When you create a PPTP tunnel, a user profile is created for the tunnel. This user
profile is the profile a person uses when they connect to Business Communications
Manager using this tunnel. The user name for the profile created is the same as the
interface name for the PPTP tunnel.
PPTP 771
Business Communications Manager 3.6 Programming Operations Guide
To add a PPTP tunnel:
1On the navigation tree, click the Services key and click the VPN key.
2Click the PPTP heading.
The PPTP Summary screen appears.
3Click the Add menu.
Or, right click the PPTP heading and click Add.
The Add PPTP dialog box appears.
4Configure the PPTP Tunnel attributes according to the following table.
5Click the Save button to add the tunnel.
Configuring a PPTP tunnel
After you have added the PPTP tunnel you need to configure the PPTP settings. To configure a
PPTP tunnel:
1On the navigation tree, click the Services key and click the VPN key.
2Click the PPTP key.
3Click the PPTP tunnel you want to configure.
The Tunnel Summary screen appears.
4Configure the Tunnel Summary attributes according to the following table.
Table 261 PPTP Tunnel attributes
Attribute Description
Tunnel Name Allows you to specify the name that is used to identify this tunnel.
This name is the User ID for the remote end of the tunnel. For information about the User ID,
refer to “User ID” on page 774.
Incoming Password Allows you to specify the password used by the other end of the tunnel to connect to this PPTP
tunnel on this Business Communications Manager.
Note: The password you choose must conform to the password policy used for your Business
Communications Manager system. For more information about the password policy, refer to
“Setting password policy” on page 122.
Confirm Incoming
Password
Allows you to re-enter the incoming password to confirm that you have entered the password
correctly.
Port Name Allows you to specify the VPN port that this PPTP tunnel will use.
Several PPTP tunnels can be assigned a single VPN port, however only one PPTP tunnel can
use the port at a time. To avoid port contention, choose a VPN port that is not frequently used
by other PPTP tunnels.
772 PPTP
P0609326 1.1
5Click the Tunnel Link Parameters tab.
The Tunnel Link Parameters screen appears.
6Configure the Tunnel Link Parameters according to the following table.
Table 262 PPTP Tunnel Summary attributes
Attribute Description
Interface Displays the name used to identify this tunnel.
IP Address You can select RemoteAssigned to specify that the IP address for this PPTP tunnel is
assigned by the remote device automatically.
During tunnel establishment, this end of the tunnel requests an IP address. The PPTP server
component on the remote end of the tunnel provides one either from its local pool or from a
DHCP server running in that site. If you want Business Communications Manager to provide
an IP address from its local pool, you must configure the Static IP Address Pool parameter in
Dial Up resources. For information about configuring this parameter, refer to “Configuring the
dial up global parameters” on page 685.
You can also use a static IP address, but this requires coordinating this address on both ends
of the the tunnel. Nortel Networks recommends that you use the RemoteAssigned option
whenever possible.
Description Allows you to enter a brief description of the PPTP tunnel.
Interface Status Displays the current status of the interface used by the PPTP tunnel. The status can be
Disabled or Enabled.
You can change the status of the interface by selecting Disable or Enable.
Connection Status Displays the current connection status of the PPTP tunnel. The status can be Connected or
Disconnected.
You can change the status of the PPTP tunnel by selecting Connect or Disconnect.
When the Interface Status is Enabled, the PPTP tunnel is normally in the Connect state or in
the Disconnect state. You can change it to Connect state to connect the tunnel manually and
to Disconnect state to disconnect the tunnel manually - irrespective of the Tunnel Link
attributes.
Note: You cannot Disable the tunnel when the status is UP. To Disable the tunnel, you must:
1. Stop all traffic through the tunnel.
2. Change the Connection Status to Disconnect.
3. Change the Interface Status to Disabled.
Table 263 PPTP Tunnel Link parameters
Attribute Description
Remote PPTP
Server - Primary
Allows you to specify the IP address of the primary PPTP server to which this tunnel connects.
Enter the IP address in the dotted format.
A DNS name of the PPTP server can be specified for this attribute. However, it takes longer to
establish a PPTP tunnel since a DNS resolution must happen first. In branch configurations,
the actual DNS server may reside in another location which could cause the DNS resolution to
take even more time. Therefore, it is recommended that IP addresses in dotted decimal format
be specified for Primary PPTP Server and the Secondary PPTP Server, if it exists.
Remote PPTP
Server - Secondary
Allows you to specify the IP address of the PPTP server to which this tunnel connects when
the primary server is not available.
Enter the IP address in the dotted format.
PPTP 773
Business Communications Manager 3.6 Programming Operations Guide
7Click the Tunnel Authentication Parameters tab.
The Tunnel Authentication Parameters screen appears.
8Configure the Tunnel Authentication Parameters according to the following table.
Connect retries Allows you to specify the maximum number of times this tunnel attempts to connect to the
primary PPTP server. If a connection is not made after the specified number of retries, this
tunnel attempts to connect to the secondary PPTP server.
If a connection to the secondary PPTP server is not made after the specified number of retries,
the tunnel connection fails.
Enter a value from 0 to 10.
If you enter a value of 0, Business Communications Manager does not try to connect again.
Retry interval Allows you to specify the number of seconds Business Communications Manager waits
between connect retries.
Enter a value from 1 to 3600000 seconds.
Connection type Allows you to specify when the tunnel is established and when it is torn down.
A Persistent tunnel is brought up as soon as the Business Communications Manager starts.
The tunnel remains connected until Business Communications Manager shuts down or an
administrator manually disconnects the tunnel by changing the status to Down.
An On Demand connection is established only when the connectivity provided by it is needed.
Administrators specify the destination networks reachable through a tunnel in the Destination
Networks tab. When a packet bound for any of those destinations reaches this Business
Communications Manager, Business Communications Manager brings up this tunnel. An On
Demand tunnel is torn down when an administrator manually changes its status to Down or
after the Idle Timeout period as expires.
Idle timeout Allows you to specify how long Business Communications Manager waits when there is no
traffic on the tunnel before the PPTP tunnel is torn down.
Idle timeout only applies to tunnels that have a Connection type of on-demand. Persistent
PPTP tunnels are not automatically torn down.
Enter a value from 0 to 32000 seconds.
A value of 0 disables automatic tear down of the tunnel
Data Compression Allows you to specify if the data sent in this tunnel is compressed.
Select Enabled or Disabled.
Table 264 PPTP Tunnel Authentication parameters
Attribute Description
Authentication type Allows you to specify the type of authentication is used for this tunnel.
You can select: AllowClearText (PAP authentication), EncryptedOnly (CHAP authentication) or
Microsoft Encrypted Only (MS-CHAP). It is recommended that you use MS-CHAP if you are
using Data Encryption.
Two Way
Authentication
Allows you to enable or disable two way authentication for this tunnel.
If you disable two way authentication, the client sends authentication parameters to the server
and server verifies the parameters.
If you enable two way authentication, the server verifies the client and the client verifies the
server.
Data encryption Allows you to specify the encryption method used for tunneled data.
You can choose no encryption (Disabled) or 40-bit encryption (Enabled).
Table 263 PPTP Tunnel Link parameters (Continued)
Attribute Description
774 PPTP
P0609326 1.1
9Click the Destination Networks tab.
The Destination Networks screen appears.
From the Destination Networks screen you can add, modify and delete Destination Networks.
Add a Destination Network
The maximum number of Destination Networks is 128.
1On the Configuration menu, click Add Destination Network.
The Destination Networks screen appears.
2Configure the Destination Networks attributes according to the following table.
User ID Allows you to specify the User ID that this end of the tunnel sends to the far end of the tunnel
for authentication during tunnel establishment.
If you are using another Business Communications Manager on the far side of the tunnel, this
User ID needs to match the tunnel name or interface name specified on the far side of the
tunnel. If you are not using another Business Communications Manager on the far side, then
this User ID must satisfy the authentication and other criteria for that device.
Password Allows you to specify the password used to authenticate with the far side of the tunnel. If PAP
is being used, this value is treated as simple password. If CHAP or MS-CHAP is used, this
value is used as the CHAP secret and the actual password is not passed over the link. Not
sending the actual password provides extra security.
This value must match the Incoming Password value specified for the tunnel on the far end.
Note: The password you choose must conform to the password policy used for your Business
Communications Manager system. For more information about the password policy, refer to
“Setting password policy” on page 122.
Table 265 PPTP Destination Networks attributes
Attribute Description
Entry (N#) Displays the Destination Network identifier.
This is a read only attribute.
Destination Network Allows you to enter the IP address of the network or hosts that can be reached through this
PPTP tunnel. These IP addresses correspond to the private LAN addresses in the remote
sites connected by this tunnel.
When this Business Communications Manager receives a data packet from the networks
behind it with destination address in these destination networks, Business Communications
Manager routes those packets through this tunnel. If this tunnel is not active, it is automatically
brought up.
Note that Destination Networks are not necessary for persistent connections.
Enter the IP Address of the destination network in the remote site in dotted notation.
Table 264 PPTP Tunnel Authentication parameters (Continued)
Attribute Description
PPTP 775
Business Communications Manager 3.6 Programming Operations Guide
3Click the Save button.
Modifying a Destination Network
1Click the Destination Network to modify.
2On the Configuration menu, click Modify Destination Network.
The Destination Networks screen appears.
3Change the Destination Networks attributes.
4Click the Save button.
Subnet Mask Allows you to specify the subnet mask for the destination network.
You require Subnet Mask only if you have entered a value in the Destination Network box.
Always use a valid subnet address and mask pair. If you are using a mask that contains more
than 1 host address, then always specify the subnet number that corresponds to that subnet
and not any other address. For example, if you are using a mask of 24 bits, (255.255.255.0)
then use a subnet number of 192.168.100.0 and not something like 192.168.100.11 (where
the last number should have been 0).
Enter the subnet mask in the dotted format.
Preference Level Allows you to specify the preference level for this tunnel.
When there are multiple tunnels assigned to a destination network, the preference level
determines which tunnel is used to connect to the destination network. Business
Communications Manager attempts to use the tunnel with the lowest preference number first.
If the connection fails, Business Communications Manager retries the connection as many
time as is specified in the Connect retries box on the Tunnel Link Parameters screen. After the
specified number of retries fails, Business Communications Manager attempts to use the
tunnel with the next lowest preference level. Business Communications Manager continues to
attempt to establish a tunnel until a connection succeeds or all of the tunnels to the destination
network have failed.
For example, a site may have two connections to the internet to take advantage of varied
capacities and costs. You can maintain a PPTP server at each of these connection points.
When you are specifying PPTP tunnels to reach private networks in this site, you may want to
use the connection that is most cost-effective first and use the other connection only if the
most cost effective connection is not in service. To do this, you create two tunnels to reach the
site. You specify the corresponding PPTP server addresses for each tunnel, but enter the
same destination addresses (unless you want to distinguish between the normal and stand-by
operation). However, for the most desired connection to the site, you specify higher
precedence level for the tunnel by putting a lower value for Preferred Level than for the other
tunnel.
When a packet is received by Business Communications Manager with the destination
address of this site, Business Communications Manager tries to bring up the most desired
tunnel. If the connection succeeds, tunnel is established. If Business Communications
Manager cannot connect to this tunnel after the specified number of retries, it attempts to bring
up the 'less desired' tunnel using its parameters.
This feature is useful for providing redundant links to sites that have multiple connections to
the internet.
Note that this parameter is only used with On Demand tunnels.
Table 265 PPTP Destination Networks attributes (Continued)
Attribute Description
776 PPTP
P0609326 1.1
Deleting a Destination Network
1Click the Destination Network to delete.
2On the Configuration menu, click Delete Destination Network.
A message prompts you to confirm the deletion.
3Click the Yes button to confirm the deletion.
Deleting a PPTP tunnel
To delete a PPTP tunnel:
1On the navigation tree, click the Services key and click the VPN key.
2Click the PPTP key.
3Click the PPTP tunnel you want to delete.
The Tunnel Summary Parameters screen appears.
4Click the Delete menu.
Or, right click the PPTP heading and click Delete.
A message prompts you to confirm the deletion.
5Click the Yes button to confirm the deletion.
Note: Before you delete a PPTP tunnel, delete any destination networks assigned to the
tunnel.
Note: When you delete a PPTP tunnel, the user profile for the tunnel is not deleted. Since
the user profile has dial-in permission, a person at the remote end can still access the
Business Communications Manager system using this user profile. To prevent dial-in
access from the remote site, you must also delete the user profile that has the same user
name as the interface name for the PPTP tunnel. For information about how to delete a
user profile, “Deleting a user profile” on page 114.
IPSec 777
Business Communications Manager 3.6 Programming Operations Guide
IPSec
The IPsec tunneling protocol is supported by Nortel Networks and other third-party vendors. IPsec
is an emerging standard that offers a strong level of encryption (DES and Triple DES), integrity
protection (MD5 and SHA), and the IETF-recommended Internet Security Association & Key
Management Protocol (ISAKMP) and Oakley Key Determination Protocols.
This section includes information about:
•“Encryption” on page 778
•“Settings required for IPSec tunnels” on page 780
•“Changing the IPSec global settings” on page 785
•“IPSec Branch Office configuration” on page 786
•“Creating a tunnel between two Business Communications Managers” on page 793
•“Creating a tunnel between a Business Communications Manager and a Contivity Extranet
Switch v02_61” on page 794
•“IPSec Remote User configuration” on page 796
•“Adding a Remote User IPSec Tunnel” on page 798
IPsec offers the following features
• Branch Office support that allows you to configure an IPSec tunnel connection between two
private networks.
• Client support via the Contivity VPN client. The Business Communications Manager supports
VPN client support from a remote computer with version 4.60 of the Contivity VPN Client
installed. No special ISP services are required.
• Support for IP address translation via encapsulation, packet-by-packet authentication.
• Strong encryption and token codes.
778 IPSec
P0609326 1.1
Encryption
All of the following encryption methods ensure that the packets have come from the original
source at the secure end of the tunnel. Note that some of the encryption types will not appear on
some non-US models that are restricted by US Domestic export laws.
The following table shows a comparison of the security provided by the available encryption and
authentication methods.
The encryption level you choose is made of three components:
• the protocol
• the encryption method
• the authentication method
Table 266 Comparing Encryption and Authentication Methods
Method
(strongest to weakest)
Encryption of IP
Packet Payload
Authentication of
IP Packet Payload
Authentication of
Entire IP Packet
ESP Triple DES SHA1 Yes Yes No
ESP Triple DES MD5 Yes Yes No
ESP 56-bit DES SHA1 Yes Yes No
ESP 56-bit DES MD5 Yes Yes No
ESP 40-bit DES SHA1 Yes Yes No
ESP 40-bit DES MD5 Yes Yes No
AH HMAC SHA1 No No Yes
AH HMAC MD5 No No Yes
Note: Using higher-level encryption, such as Triple DES, requires more system resources
and increases packet latency. You need to consider this when designing your overall
network.
Note: If two devices have different encryption settings, the two devices will negotiate
downward until they agree on a compatible encryption capability. For example, if Switch
A attempts to negotiate Triple DES encryption with Switch B that is using 56-bit DES,
then the Switch B will reject Triple DES encryption in favor of the 56-bit DES.
Each of the systems must have at least one encryption setting in common. If they do not, a
tunnel will not be negotiated. In the example above, both systems must have 56-bit DES
enabled.
IPSec 779
Business Communications Manager 3.6 Programming Operations Guide
Protocol
The protocol can be ESP or AH.
•ESP
Encapsulating Security Payload (ESP) provides data integrity, source authentication and
confidentiality for IP datagrams by encrypting the payload data to be protected. ESP uses the
Data Encryption Standard (DES) and Triple DES algorithms.
•AH
Authentication Header (AH) provides data integrity and source authentication. The AH
method does not encrypt data.
Encryption method
The encryption method can be Triple DES, 56-bit DES or 40-bit DES. Triple DES is the strongest
encryption and 40-bit DES is the weakest encryption.
•Triple DES
Triple DES is an encryption block cipher algorithm that uses a 168-bit key. It uses the DES
encryption algorithm three times. The first 56 bits of the key is used to encrypt the data, then
the second 56 bits is used to decrypt the data. Finally, the data is encrypted once again with the
third 56 bits. These three steps triple the complexity of the algorithm.
• 56-bit DES
56-bit DES is an encryption block cipher algorithm that uses a 56-bit key (with 8 bits of parity)
over a 64-bit block. The 56 bits of the key are transformed and combined with a 64-bit
message through a complex process of 16 steps.
• 40-bit DES
40-bit DES is an encryption block cipher algorithm that uses a 40-bit key (with 8 bits of parity)
over a 64-bit block. The 40 bits of the key are transformed and combined with a 64-bit
message through a complex process of 16 steps. Both 40- and 56-bit DES require the same
processing demands, so you should use 56-bit DES unless local encryption laws prohibit doing
so.
Authentication method
The authentication method can be SHA1 or MD5.
• SHA1
Secure Hash Algorithm (SHA1) produces a 160-bit hash. It is regarded by cryptographers as
being more resistant to attacks than MD5. SHA1 does not encrypt data.
•MD5
Message Digest 5 (MD5) Algorithm produces a 128-bit hash. It is used to confirm the
authenticity of a packet. MD5 does not encrypt data. Also, MD5 provides integrity that detects
packet modifications.
Note: The use of a NAT device in the IPSec tunnel path can sometimes cause the AH
method to report a security violation. This occurs because the NAT device changes the IP
Address of an AH authenticated packet causing the authentication of this packet to fail.
780 IPSec
P0609326 1.1
Both SHA1 and MD5 use Hashed Message Authentication Code (HMAC) to improve
authentication. HMAC is a technique that uses a secret key and a message digest function to create
a secret message authentication code.
IPSec capacity restrictions
The Business Communications Manager performs all IPSec processing using software. To prevent
overloading the Business Communications Manager processor with IPSec traffic processing, the
network traffic that requires IPSec processing should not exceed 6Mbps. This is based on using
3DES encryption with SHA authentication.
The maximum number of concurrent tunnels the Business Communications Manager supports is
16. However, this number could be less depending on the configuration. The following are the
factors to consider when determining maximum IPSec capacity:
• Tunnel negotiation
Since tunnel negotiation requires a significant amount of processing time, the number of
tunnels that are negotiated at one time should be limited. The tunnels are re-negotiated based
on either the Rekey Timeout or the Rekey Data Count. If a number of tunnels will be running
concurrently, you should stagger these values.
• Interface throughput
The maximum throughput of the interfaces of the IPSec endpoints must also be considered. It
is much easier to overload the Business Communications Manager if IPSec is being used over
a fast LAN interface rather than a slower WAN interface. This is due to the faster speed of the
data packets transferred over the LAN interface.
Settings required for IPSec tunnels
The data packets that pass through IPSec tunnels interact with other routing features in Business
Communications Manager. As a result, there are several settings you must make in other features
for IPSec tunnels to operate.
NAT (Network Address Translation)
Business Communications Manager does not support NAT on the Local Endpoint of an IPSec
Tunnel.
Packets can be sent through an IPSec tunnel with or without NAT applied. To send packets
through the tunnel with NAT applied, configure the Local Accessible Networks to include only a
network for the endpoint itself. For example, if the Local Endpoint is 10.10.13.2, then the Local
Accessible Network would be 10.10.13.2 with a mask of 255.255.255.255. To send packets
through the tunnel without NAT applied, configure the Local Accessible Networks with the local
Private IP network(s) and the Remote Accessible Networks with the networks on the other side of
the Remote Endpoint. Using the above example, we know that the other interfaces on the local
Business Communications Manager have IP addresses of 10.10.10.1 and 10.10.11.1. The remote
Business Communications Manager has a subnet of 12.12.12.1. Therefore, the Local Accessible
IPSec 781
Business Communications Manager 3.6 Programming Operations Guide
Networks would have two networks configured as 10.10.10.0 with a mask 255.255.255.0 and
10.10.11.0 with a mask 255.255.255.0 and the Remote Accessible Networks would be 12.12.12.0
with a mask of 255.255.255.0. All packets that do not match these rules will be NATed and sent
out the interface and not through the tunnel. This is a useful configuration if access to both the
Internet and the other side of an IPSec tunnel is desired.
Dialup ISDN connections
When you are creating an IPSec tunnel over a Dialup ISDN connection, the endpoint must have a
fixed IP address.
Compatibility with Contivity Extranet Switch and Shasta 5000
When connecting to a Contivity Extranet Switch, you must disable Vendor ID and Compression
under Base Class on the Contivity Extranet Switch.
Business Communications Manager does not support the IPSec RIP implementation used by the
Contivity Extranet Switch. Use Static Routes when connecting to the Contivity Extranet Switch.
When connecting to a Shasta 5000, you must set the PFS to No on the Tunnel configuration of
Business Communications Manager.
IPSec and PPTP
The Remote Accessible Networks of an IPSec tunnel cannot be the same as a Destination Network
on a PPTP tunnel. The Remote Endpoint of an IPSec tunnel’s Remote Endpoint cannot be the
same as a Destination Endpoint on a PPTP tunnel.
Multiple IP Address restrictions
Although the Business Communications Manager supports the configuration of additional IP
addresses on its network interfaces, IPSec does not currently support the use of these additional IP
addresses for Branch Office Local Endpoint Addresses, Remote Endpoint Addresses or the
Destination IP Address for IPSec VPN Clients.
For more information about Multiple IP addresses, refer to “Configuring multiple IP addresses for
the LAN interface” on page 667.
Firewall rules for IPSec Branch Office and Remote User Tunnels
In order to allow IPSec packets through the firewall interface which blocks all incoming packets, a
number of rules must be configured. In addition to allowing the IPSec packets through, you must
also remember to create rules to allow the packets that come through the tunnel.
In the Branch office case, up to three rules must be created. One is for the key exchange protocol
(IKE), the other two are for the type of protocol used (ESP and/or AH). Table 267, Table 268 and
Table 269 show the rules required (these are all inbound rules).
782 IPSec
P0609326 1.1
You can create these rules automatically when creating or modifying Branch Office and Remote
Tunnels by selecting Yes for the Create Firewall Rules for this tunnel on the Parameters page
for a particular tunnel. The three firewall rules required by the Branch Office tunnels are then
created. You can view these rules on the Input Filters' Rule Setting screen for the interface used. If
the Branch Office tunnel is enabled and IPSec is enabled globally, then the three rules created are
added to the front of the Rule Order that appears on the Input Filters' Rule Order screen for the
interface used. If the Branch Office tunnel is later disabled, then the rules are removed from the
Rule Order, but still exist on the Input Filters' Rule Setting screen. If the user selects No for the
Create Firewall Rules for this tunnel option, then the three firewall rules created for the Branch
Office tunnel are deleted.
You can also create firewall rules for Remote User tunnels. The rule creation process is the same
as for Branch Office tunnels except that the user must select which interface they want to create
firewall rules for. The six rules in Table 267 to Table 272 are created for Remote User tunnels if
you select Yes for the Create Firewall Rules for Interface option.
Table 267 Firewall rules for IKE
Protocol UDP
Source IP Remote Endpoint address for Branch Office; Client PC IP address for Remote User
Source Mask 255.255.255.255
Source Port 500
Destination IP Local Endpoint address
Destination Mask 255.255.255.255
Destination Port 500
Table 268 Firewall rules for ESP
Protocol IPSEC_ESP
Source IP Remote Endpoint address for Branch Office; Client PC IP address for Remote User
Source Mask 255.255.255.255
Destination IP Local Endpoint address
Destination Mask 255.255.255.255
Table 269 Firewall rules for AH
Protocol IPSEC_AH
Source IP Remote Endpoint address for Branch Office; Client PC IP address for Remote User
Source Mask 255.255.255.255
Destination IP Local Endpoint address
Destination Mask 255.255.255.255
IPSec 783
Business Communications Manager 3.6 Programming Operations Guide
In addition to the above rules, Remote User tunnels need extra rules. These are extra rules are for
the QOTD (Quote of the Day) server, Password server and ICMP that the IPSec client issues.
Table 270, Table 271 and Table 272 show the rules required.
Table 270 Firewall rules for the QOTD server
Protocol TCP
Source IP IP address of the client tunnel (this may be the IP address pool range or the fixed IP
address assigned to the tunnel)
Source Mask 255.255.255.255
Destination IP The IP address of the Private network that the client IP address comes from (for
example, if the Client tunnel IP address is 10.10.10.20 and the Private interface IP
address is 10.10.10.1, then the destination IP is 10.10.10.1)
Destination Mask 255.255.255.255
Destination Port 17
Table 271 Firewall filter for the Password server
Protocol TCP
Source IP IP address of the client tunnel (this may be the IP address pool range or the fixed IP
address assigned to the tunnel)
Source Mask 255.255.255.255
Destination IP The IP address of the Private network that the client IP address comes from (for
example, if the Client tunnel IP address is 10.10.10.20 and the Private interface IP
address is 10.10.10.1, then the destination IP is 10.10.10.1)
Destination Mask 255.255.255.255
Destination Port 586
Table 272 Firewall filter for the ICMP that the Client sends to the tunnel endpoint
Protocol ICMP
Source IP Client PC IP address
Source mask 255.255.255.255
Destination IP Remote Endpoint address
Destination mask 255.255.255.255
Table 273 Firewall filter for Private Network
Protocol IP
Source IP Private Network IP address
Source Mask Private Network Subnet mask
Source Port All
Destination IP Private Network IP address
Destination Mask Private Network Subnet mask
Destination Port All
784 IPSec
P0609326 1.1
Example
Business Communications Manager 1 has been configured with a WAN1 address of 10.200.40.12
and a LAN 1 address of 10.10.10.1. Your computer at home has the address of 207.44.126.81. You
have setup the Business Communications Manager to use the address range 10.10.10.100 -
10.10.10.200 with a mask of 255.255.255.0 for the IPSec Address Pool. You only allow ESP as
the IPSec protocol. You will need the following rules:
IR1
Protocol UDP
Source IP 207.44.126.81
Source Mask 255.255.255.255
Source Port 500
Destination IP 10.200.40.12
Destination Mask 255.255.255.255
Destination Port 500
IR2
Protocol IPSEC_ESP
Source IP 207.44.126.81
Source Mask 255.255.255.255
Destination IP 10.200.40.12
Destination Mask 255.255.255.255
IR3
Protocol TCP
Source IP 10.10.10.0
Source Mask 255.255.255.0
Destination IP 10.10.10.1
Destination Mask 255.255.255.255
Destination Port 17
IR4
Protocol TCP
Source IP 10.10.10.0
Source Mask 255.255.255.0
Destination IP 10.10.10.1
Destination Mask 255.255.255.255
Destination Port 586
IPSec 785
Business Communications Manager 3.6 Programming Operations Guide
For information about how to add or change Filters, refer to “Configuring IP Firewall Filters” on
page 831.
Changing the IPSec global settings
The IPSec global settings apply to all of the IPSec tunnels.
To change the IPSec global settings:
1On the navigation tree, click the Services key and click the VPN key.
2Click the IPSec heading.
The Global Settings screen appears.
IR5
Protocol ICMP
Source IP 207.44.126.81
Source mask 255.255.255.255
Destination IP 10.200.40.12
Destination mask 255.255.255.255
IR6
Protocol IP
Source IP 10.10.10.0
Source Mask 255.255.255.0
Source Port All
Destination IP 10.10.10.0
Destination Mask 255.255.255.0
Destination Port All
786 IPSec
P0609326 1.1
3Configure the IPSec global settings according to the following table.
4Click the Tab key to save the settings.
IPSec Branch Office configuration
The branch office feature allows you to configure an IPsec tunnel connection between two private
networks. Typically, one private network is behind a locally configured switch while the other is
behind a remote switch. A branch office configuration allows you to configure the accessible
subnetworks behind each switch. The configuration also contains the information that is necessary
to set up the connection, such as the switch IP addresses, encryption types and authentication
methods.
You can do the following with Branch Office IPSec tunnels:
•“Adding a Branch Office IPSec Tunnel” on page 786
•“Modifying a Branch Office IPSec Tunnel” on page 791
•“Deleting a Branch Office IPSec tunnel” on page 792
Adding a Branch Office IPSec Tunnel
A Branch Office IPSec Tunnel connects two offices together. The IPSec Tunnel connects the local
Business Communications Manager system to another Business Communications Manager
system, a Contivity Extranet Switch or a Shasta 5000 switch.
1On the navigation tree, click the Services key and click the VPN key.
2Click the IPSec key and click the Branch Office Accounts heading.
The Branch Office Summary screen appears.
Table 274 IPSec Global settings
Attribute Description
Description Displays the name of the IPSec service.
This is a read only attribute.
Version Displays the version number of the IPSec service.
This is a read only attribute.
Encryption Allows you to select the encryption levels that you allow your IPSec tunnels to use.
The encryption level used for the IPSec tunnel is negotiated when the tunnel is opened. The
encryption levels you select are the encryption levels that you allow Business Communications
Manager to use for IPSec tunnels.
This is a global setting that applies to all of the IPSec tunnels on Business Communications
Manager. When you add an IPSec tunnel, you can further restrict the encryption levels for
each tunnel. For more information, refer to “Adding a Branch Office IPSec Tunnel” on page
786.
For a description of the encryption levels, refer to “Encryption” on page 778.
Status Allows you to enable or disable the use of IPSec tunnels.
You can choose Enabled or Disabled.
The default value is Disabled.
IPSec 787
Business Communications Manager 3.6 Programming Operations Guide
3Click the Add button.
Or, right click the Branch Office Accounts heading and click Add.
The Add Branch Office Accounts dialog box appears.
4Configure the Branch Office Tunnel Settings according to the following table.
Table 275 IPSec Branch Office Tunnel settings
Attribute Description
Tunnel Number Allows you to specify the Tunnel identifier.
The Tunnel Number uniquely identifies a IPSec tunnel. The value for this setting must follow
certain conventions. You must type the prefix 'T' followed by a unique number identifying the
IPSec Tunnel. For example, 'T2' is a valid name. If you specify an existing Tunnel number, you
receive an error message. The Tunnel identifier does not have any significance, other than
uniquely identifying an entry.
The maximum number of tunnels you can add is 20.
IPSec Status Allows you to view the current status of this IPSec Tunnel.
Choose Enabled or Disabled to change the status of this IPSec Tunnel.
The default setting is Disabled.
PFS Enabled Allows you to enable Perfect Forward Secrecy (PFS).
With PFS, keys are not derived from previous keys. This ensures that one key being
compromised cannot result in the compromise of subsequent keys.
If you create a tunnel to a Contivity Extranet Switch, you must set PFS Enabled to Yes.
You can choose Yes or No.
The default setting is Yes.
Note: Set PFS to No for connections to the Shasta 5000.
Idle Timeout Allows you to specify the amount of time the tunnel can remain idle before the tunnel is closed.
You cannot set the Idle Timeout setting to less than three minutes, except to disable the
timeout by entering 00:00:00.
Enter a value from 00:03:00 to 23:59:59. The default setting is 00:15:00.
A setting of 00:00:00 disables the Idle Timeout setting.
Highest Encryption Allows you to select the highest encryption level allowed on this IPSec tunnel.
When the encryption level is negotiated for this tunnel, Business Communications Manager
will not use any encryption level higher than the encryption level specified in this field.
For a description of the encryption levels, refer to “Encryption” on page 778.
Key Type Select the format for the Preshared Key. The Key Type must be the same on both ends of the
IPSec tunnel. The format can be text or hexadecimal.
Note: If you change the Key Type, the Preshared Key is deleted.
Preshared Key Allows you to specify the text or hexadecimal string used to authenticate the data sent on this
tunnel.
The maximum length of the Preshared Key is 32 characters.
This key must be used at both ends of the IPSec Tunnel.
For best security, use a secure method to share this key.
Confirm Preshared
Key
Allows you to re-enter the Preshared Key to confirm that you entered the key correctly.
788 IPSec
P0609326 1.1
5Click the Save button.
Rekey Timeout Allows you to specify the amount of time you can use a key before the tunnel is re-negotiated.
You should limit the lifetime of a single key used to encrypt data or else you will compromise
the effectiveness of a single session key. Use the Rekey Timeout setting to control how often
new session keys are exchanged between servers. You cannot set the Rekey Timeout setting
to less than three minutes, except to disable the timeout by entering 00:00:00.
Enter a value from 00:03:00 to 23:59:59. The default setting is 08:00:00.
A setting of 00:00:00 disables the Rekey Timeout setting.
Rekey Data Count Allows you to specify the amount of data you can transmit on the tunnel before the tunnel is
re-negotiated.
Enter a value from 0 to 1000000 Kbytes.
A setting of 0 disables the Rekey Data Count.
Note: If you set the Rekey Data Count too low, the tunnel is re-negotiated too often and will
consume extra system resources.
Local Endpoint Allows you to specify the IP address of the interface on Business Communications Manager
that is the entrance or exit of the IPSec tunnel.
Enter the IP address in the dotted format.
Remote Endpoint Allows you to specify the IP address of the remote IPSec gateway that is the entrance or exit of
the IPSec tunnel.
Enter the IP address in the dotted format.
Note: Different tunnels cannot have the same Remote Endpoint. This includes PPTP tunnels.
Send All Traffic
Through IPSec
Tunnel
Select Yes if you want all data traffic to be sent through this IPSec tunnel.
Select No if you do not want all traffic to use this IPSec tunnel.
When you select Yes to enable this option, any existing accessible networks for this Branch
Office account are saved. If you choose No later, then these saved accessible networks are
restored.
When a Branch Office account has this option enabled, then all other Branch Office and
Remote User tunnels are disabled since all traffic will go through this tunnel. In addition, no
other Branch Office or Remote User tunnels can be created while this option is enabled.
The default setting is No.
Create Firewall
Rules for this Tunnel
Select Yes if you want the Business Communications Manager to create Firewall rules that
allow traffic for this tunnel to pass through the Firewall.
Select No if you do not want Business Communications Manager to create Firewall rules for
this tunnel.
If you are using the Business Communications Manager Firewall, Nortel Networks
recommends that you select Yes for this option.
The default setting is No.
Keep-Alive Enabled Allows for quicker detection of lost connectivity.
You can select Yes or No.
The default setting is No.
Note: Leave this setting at the default value of No for IPSec tunnel connections to systems
other than Business Communications Manager or Contivity.
Table 275 IPSec Branch Office Tunnel settings (Continued)
Attribute Description
IPSec 789
Business Communications Manager 3.6 Programming Operations Guide
Adding Local Accessible Networks to the Branch Office IPSec tunnel
The maximum number of Local Accessible Networks you can add is 16.
1On the navigation tree, click the Services key and click the VPN key.
2Click the IPSec key and click the Branch Office Accounts key.
3Click the tunnel you want to modify.
The Tunnel Parameters screen appears.
4Click the Local Accessible Networks tab.
The Local Accessible Networks screen appears.
5On the Configuration menu, click Add Local Accessible Network.
6Configure the Local Accessible Network parameters according to the following table.
7Click the Save button.
Adding Remote Accessible Networks to the Branch Office IPSec tunnel
The maximum number of Remote Accessible Networks you can add is 16.
1On the navigation tree, click the Services key and click the VPN key.
2Click the IPSec key and click the Branch Office Accounts key.
3Click the tunnel you want to modify.
The Tunnel Parameters screen appears.
4Click the Remote Accessible Networks tab.
The Remote Accessible Networks screen appears.
5On the Configuration menu, click Add Remote Accessible Network.
Table 276 IPSec Local Accessible Network parameters
Attribute Description
Network Number
(L#)
Allows you to specify the Network identifier.
The Network Number uniquely identifies a Local Accessible Network. The value for this setting
must follow certain conventions. You must type the prefix 'L' followed by a unique number
identifying the Local Accessible Network. For example, 'L2' is a valid name. If you specify an
existing Network number, you receive an error message. If you use non-sequential numbers
the system automatically reassigns sequential numbers. The Network identifier does not have
any significance, other than uniquely identifying an entry.
The maximum number Local Accessible Networks you can add is 16.
IP Address Allows you to specify the IP addresses of interfaces on Business Communications Manager
that can connect to this tunnel.
Enter the IP address in the dotted format.
IP Address Mask Allows you to specify the subnet mask of interfaces on Business Communications Manager
that can connect to this tunnel.
Enter the Subnet Mask in the dotted format.
790 IPSec
P0609326 1.1
6Configure the Remote Accessible Network parameters according to the following table.
7Click the Save button.
Sending all traffic from Local Accessible Networks through the IPSec tunnel
If you want to send all traffic from the Local Accessible Networks through the IPSec tunnel, add
the eight Remote Accessible Networks in the table below to the tunnel.
You can also generate these local and remote accessible networks by choosing Yes for the Send
All Traffic through this tunnel option when creating or modifying a Branch Office account.
Table 277 IPSec Remote Accessible Network parameters
Attribute Description
Network Number
(R#)
Allows you to specify the Network identifier.
The Network Number uniquely identifies a Remote Accessible Network. The value for this
setting must follow certain conventions. You must type the prefix 'R' followed by a unique
number identifying the Remote Accessible Network. For example, 'R2' is a valid name. If you
specify an existing Network number, you receive an error message. If you use non-sequential
numbers the system automatically reassigns sequential numbers. The Network identifier does
not have any significance, other than uniquely identifying an entry.
The maximum number of Remote Accessible Networks you can add is 16.
IP Address Allows you to specify the IP addresses of IPSec gateways that you can connect to using this
tunnel.
Enter the IP address in the dotted format.
IP Address Mask Allows you to specify the subnet mask of IPSec gateways that you can connect to using this
tunnel.
Enter the Subnet Mask in the dotted format.
Note: Different tunnels cannot have the same Remote Accessible Networks.
Table 278 Remote Accessible Networks used to route all traffic through the IPSec tunnel
Network Number IP Address IP Mask
R1 1.0.0.0 255.0.0.0
R2 2.0.0.0 254.0.0.0
R3 4.0.0.0 252.0.0.0
R4 8.0.0.0 248.0.0.0
R5 16.0.0.0 240.0.0.0
R6 32.0.0.0 224.0.0.0
R7 64.0.0.0 192.0.0.0
R8 128.0.0.0 128.0.0.0
IPSec 791
Business Communications Manager 3.6 Programming Operations Guide
Modifying a Branch Office IPSec Tunnel
1On the navigation tree, click the Services key and click the VPN key.
2Click the IPSec key and click the Branch Office Accounts key.
3Click the tunnel you want to modify.
The Tunnel Parameters screen appears.
4Change the required IPSec Tunnel settings.
For information about the settings refer to “Adding a Branch Office IPSec Tunnel” on page
786.
5Click the Tab key to save your changes.
Modifying Local Accessible Networks to the Branch Office IPSec tunnel
1On the navigation tree, click the Services key and click the VPN key.
2Click the IPSec key and click the Branch Office Accounts key.
3Click the tunnel you want to modify.
The Tunnel Parameters screen appears.
4Click the Local Accessible Networks tab.
The Local Accessible Networks screen appears.
5Click the Local Accessible Network you want to modify.
6On the Configuration menu, click Modify Local Accessible Network.
7Modify the Local Accessible Network parameters.
8Click the Save button.
Modifying Remote Accessible Networks to the Branch Office IPSec tunnel
1On the navigation tree, click the Services key and click the VPN key.
2Click the IPSec key and click the Branch Office Accounts key.
3Click the tunnel you want to modify.
The Tunnel Parameters screen appears.
4Click the Remote Accessible Networks tab.
The Remote Accessible Networks screen appears.
5Click the Remote Accessible Network you want to modify.
6On the Configuration menu, click Modify Remote Accessible Network.
7Modify the Remote Accessible Network parameters.
8Click the Save button.
792 IPSec
P0609326 1.1
Deleting a Branch Office IPSec tunnel
1On the navigation tree, click the Services key and click the VPN key.
2Click the IPSec key and click the Branch Office Accounts key.
3Click the tunnel you want to delete.
4Click the Delete button.
Or, right click the tunnel you want to delete and click Delete.
A message prompts you to confirm the deletion.
5Click the Yes button.
Deleting Local Accessible Networks to the Branch Office IPSec tunnel
1On the navigation tree, click the Services key and click the VPN key.
2Click the IPSec key and click the Branch Office Accounts key.
3Click the tunnel you want to modify.
The Tunnel Parameters screen appears.
4Click the Local Accessible Networks tab.
The Local Accessible Networks screen appears.
5Click the Local Accessible Network you want to delete.
6On the Configuration menu, click Delete Local Accessible Network.
A message prompts you to confirm the deletion.
7Click the Yes button.
Deleting Remote Accessible Networks to the Branch Office IPSec tunnel
1On the navigation tree, click the Services key and click the VPN key.
2Click the IPSec key and click the Branch Office Accounts key.
3Click the tunnel you want to modify.
The Tunnel Parameters screen appears.
4Click the Remote Accessible Networks tab.
The Remote Accessible Networks screen appears.
5Click the Remote Accessible Network you want to delete.
6On the Configuration menu, click Delete Remote Accessible Network.
A message prompts you to confirm the deletion.
7Click the Yes button.
IPSec 793
Business Communications Manager 3.6 Programming Operations Guide
Creating a tunnel between two Business Communications
Managers
The following is an example of a how to connect two Business Communications Manager systems
together using an IPSec tunnel.
In this example, the IPSec tunnel connects a Business Communications Manager with a LAN 2 IP
address of 10.10.11.1 and another Business Communications Manager with a LAN 2 IP address of
10.10.11.2. LAN 1 on the first Business Communications Manager is on the subnet 12.12.12.0.
The LAN 1 of the second Business Communications Manager is on subnet 14.14.14.0.
Configuring the first Business Communications Manager
1Set the Local Endpoint to 10.10.11.1.
2Set the Remote Endpoint to 10.10.11.2.
3Set the Preshared Key to 123.
4Set the Key Type to Text.
5Set the Local Accessible Networks to 12.12.12.0 with mask 255.255.255.0.
6Set the Remote Accessible Networks to 14.14.14.0 with mask 255.255.255.0.
Configuring the second Business Communications Manager
1Set the Local Endpoint to 10.10.11.2.
2Set the Remote Endpoint to 10.10.11.1.
3Set the Preshared Key to 123.
4Set the Key Type to Text.
5Set the Local Accessible Networks to 14.14.14.0 with mask 255.255.255.0.
6Set the Remote Accessible Networks to 12.12.12.0 with mask 255.255.255.0.
On the Global settings for both Business Communications Manager systems, set the Status to
Enabled.
794 IPSec
P0609326 1.1
Creating a tunnel between a Business Communications Manager
and a Contivity Extranet Switch v02_61
The following are an examples of a how to connect a Business Communications Manager to a
Contivity Extranet Switch using an IPSec tunnel.
In this example, the IPSec tunnel connects a Business Communications Manager with a LAN 2 IP
address of 47.81.20.50 and a Contivity Extranet Switch with a Public IP address of 47.82.30.60.
LAN 1 on the Business Communications Manager is on the subnet 10.10.11.0. The Contivity
Extranet Private LAN is on the subnet 14.14.14.0.
Configuring the Business Communications Manager
1Set the Local Endpoint to 47.81.20.50.
2Set the Remote Endpoint to 47.82.30.60.
3Set the Preshared Key to 123.
4Set the Key Type to Text.
5Set the Local Accessible Networks to 10.10.11.0 with mask 255.255.255.0.
6Set the Remote Accessible Networks to 14.14.14.0 with mask 255.255.255.0.
Configuring the Contivity Extranet Switch
1Go to Profiles->Network and create a Network with the IP address 14.14.14.0 with mask
255.255.255.0. You will use this for the Local Accessible Networks for your Branch Office
Connection.
2Under Profiles->Branch Office, create a Group based on the Base class.
3In the IPSec section of this new Group, change the Vendor ID to Disabled and change
Compression to Disabled. Business Communications Manager does not support Vendor ID or
Compression.
4In the Connectivity section of this new group, change the Nailed Up setting to Disabled.
Business Communications Manager does not support the Nailed Up functionality.
5Select Define Branch Office Connection.
6Set the routing type to be Static.
7Set the Local Endpoint to 47.82.30.60 and the Remote Endpoint to 47.82.20.50.
8Under Local Accessible Networks, select the Network that was created earlier.
9Set the Remote Accessible Networks to 10.10.11.0 with mask 255.255.255.0.
10 For the Preshared Key, select the Text button and set the key to '123'. This must match the
BCM key.
11 Mark the box for Enable Branch Office Connection.
IPSec 795
Business Communications Manager 3.6 Programming Operations Guide
The following example describes how to configure a Business Communications Manager with a
Contivity Extranet Switch when NAT is required on the Business Communications Manager and
external access is required on the same interface as the tunnel (split tunneling).
Configuring the Business Communications Manager
Using the same systems from the previous example, we will now enable NAT and turn on Default
Rules on the Business Communications Manager. The gateway for the LAN 2 interface is
47.82.30.1. For information about how to change NAT parameters, refer to refer to “Configuring
NAT (Network Address Translation)” on page 753.
1Set the Local Endpoint to 47.81.20.50.
2Set the Remote Endpoint to 47.82.30.60.
3Set the Preshared Key to 123.
4Set the Key Type to Text.
5Set the Local Accessible Networks to 47.81.20.50 with mask 255.255.255.255 and 10.10.11.0
with mask 255.255.255.0.
6Set the Remote Accessible Networks to 14.14.14.0 with mask 255.255.255.0.
7Under Net Link Manager, set the next hop to 47.82.30.1.
Configuring the Contivity Extranet Switch
The gateway for the Public LAN interface is 47.81.20.1.
1Go to Profiles->Network and create a Network with the IP address 14.14.14.0 with mask
255.255.255.0. You will use this for the Local Accessible Networks for your Branch Office
Connection.
2Under Profiles->Branch Office, create a Group based on the Base class.
3Under this new Group, change the Vendor ID to Disabled and change Compression to
Disabled. Business Communications Manager does not support Vendor ID or Compression.
4Select Define Branch Office Connection.
5Set the routing type to be Static.
6Set the Local Endpoint to 47.82.30.60 and the Remote Endpoint to 47.81.20.50.
7Under Local Accessible Networks, select the Network that was created earlier.
8Set the Remote Accessible Networks to 10.10.11.0 with mask 255.255.255.0 and 47.81.20.50
with mask 255.255.255.255.
9For the Preshared Key, select the Text button and set the key to '123'. This must match the
Business Communications Manager key.
10 Mark the box for Enable Branch Office Connection.
11 Set the Public Default Route to 47.81.20.1.
796 IPSec
P0609326 1.1
IPSec Remote User configuration
The IPSec Remote User feature allows remote users to dial in to an Internet Service Provider (ISP)
anywhere in the world and connect to the corporate network in a secure way. All the remote user
requires is an IPSec VPN client installed on their computer. This removes the need for the
traditional corporate remote access environments where banks of modems were employed to
handle incoming service requests.
The IPSec VPN client you require for Business Communications Manager is version 4.60 of the
Contivity VPN IPsec remote access user client software. To obtain a copy of this client software,
contact your authorized Business Communications Manager distributor. The Contivity VPN IPsec
remote access user client software is a Windows application available for the latest releases of
Windows 95, Windows 98, Windows NT Workstation, Windows NT Server, Windows 2000 and
Windows XP. This client software comes with complete online Help.
IPSec Remote User Authentication
Business Communications Manager only supports User Name and Password authentication from
the VPN Client. The authentication method used is local NT Authentication. No other form of
Authentication is supported. Business Communications Manager does not support Contivity
Group ID authentication.
Split Tunneling
All client traffic is tunneled through the Business Communications Manager by default. Split
Tunneling allows you to configure specific network routes that are downloaded to the client. Only
these network routes are then tunneled. Any other traffic goes to the local computer interface. Split
tunneling allows you to print locally, for example, even while you are tunneled into the Business
Communications Manager.
IPSec 797
Business Communications Manager 3.6 Programming Operations Guide
Figure 211 Example of a Split Tunneling environment
In the example in the figure above, PC1 and PC2 are on a home IP network (20.20.20.0/
255.255.255.0). PC1 is also connected to the Internet with an ISP granted IP address of 200.x.x.x.
PC1 runs an IPSec VPN Client and connects to the Business Communications Manager. Business
Communications Manager assigns this VPN Client connection an IP address of 10.2.3.30.
If Split tunneling is disabled, PC1 will NOT be able to access PC2 as ALL traffic will be sent
down the IPSec tunnel.
However, if the Remote User Account has Split Tunneling enabled with split tunnel network IP
addresses of 10.2.3.0/255.255.255.0, PC1 can establish an IPSec tunnel. When the client
establishes an IPSec tunnel, this network address is loaded into the client application. PC1 can then
access any system on the 10.2.3.0 network as well as accessing PC2 on IP network 20.20.20.0,
while the VPN IPSec Client is still connected.
Internet
ISP Internet Address: 200.x.x.x
VPN Client IP Address: 10.2.3.30/24
300.x.x.x
Business Communications
Manager
10.2.3.1/24
PC1
IPSec Tunnel
20.20.20.5
10.2.3.2/24
20.20.20.7
PC2
798 IPSec
P0609326 1.1
Split Tunneling security considerations
Business Communications Manager takes precautions against violators potentially hacking
tunneled information when the Business Communications Manager is operating in Split Tunnel
mode.
The primary precaution is to drop packets that do not have the IP address that is assigned to the
tunnel connection as its source address. For example, if you have a PPP dial-up connection to the
Internet with an IP address of 192.168.21.3, and you set up an IPSec client connection to a
Business Communications Manager and you are assigned an IPSec client IP address of
192.192.192.192, then any packets that attempt to pass through the IPSec client tunnel connection
with a source IP address of 192.168.21.3 (or any address other than 192.192.192.192) will be
dropped.
To completely eliminate security risks, you should not use the Split Tunneling feature.
Adding a Remote User IPSec Tunnel
A Remote User IPSec Tunnel connects a remote computer to the Business Communications
Manager system.
Assigning an IP Address to a Remote User Account
The Remote User account requires that an IP address is assigned to the Remote User when they log
into the Business Communications Manager. This IP address must be in the private IP network
that the Remote User is able to access.
The Business Communications Manager supports two methods of assigning an IP Address to the
Remote User Account. You can use a static IP address or a dynamic IP address from an IP Address
Pool.
Static IP Address
To assign a static IP address to the Remote User account, you must configure the following two
options when you configure the Remote User Account settings:
• Static IP Address
• Static Subnet Mask
Note: The remote computer must have version 4.60 of the Contivity VPN Client
installed.
Note: If the computer running the VPN client is not on the same subnet as the Destination
address (i.e. there is at least one router between the computer and the Business
Communications Manager), then the default Next Hop Router on the Business
Communications Manager must also be through this interface. For instructions on setting
up a default Next Hop Router, refer to “Configuring Net Link Manager” on page 749.
IPSec 799
Business Communications Manager 3.6 Programming Operations Guide
Dynamic IP address from an IP Address Pool
To assign a dynamic IP address, you must configure a Remote IP Address Pool and assign the
Remote IP Address Pool to the Remote User Account. For information about how to configure a
Remote IP Address Pool, refer to “Adding a Remote IP Address Pool” on page 799. To assign the
Remote IP Address Pool to the Remote User Account, you must configure the IP Address Pool
Name option when you configure the Remote User Account settings.
Adding a Remote User IPSec Tunnel involves the following:
•“Adding a Remote IP Address Pool” on page 799
•“Adding Remote User Accounts” on page 801
•“Configuring Remote User Accounts” on page 803
Adding a Remote IP Address Pool
Remote access users who are using tunneling protocols require two IP addresses to form packets.
The addresses are normally referred to as outer and inner addresses. The outer address, or public
address, is visible when packets are traveling through the public data networks (PDNs). This
address is negotiated between the client and the ISP to which it is connected. Business
Communications Manager does not have control of this address.
The inner IP address is the one that eventually appears on the private network when the outer
layers of the packet are removed. Therefore, this address must lie within the private network
address space. Business Communications Manager provides the remote user with the inner IP
address during tunnel setup. This address can come from a defined static IP address for this user
account or from an internal address pool.
When assigning IP addresses for remote users, make sure that no conflicts can occur with IP
addresses already assigned on the private network.
1On the navigation tree, click the Services key and click the VPN key.
2Click the IPSec key and click the Remote User Accounts heading.
The Remote IP Address Pool List screen appears.
3On the Configuration menu, click Add IP Address Pool.
The Remote IP Address Pool List screen appears.
Note: You must configure either the IP Address Pool Name option or the Static IP
Address and Static Subnet Mask options.
Note: When assigning IP addresses for Remote users, make sure that no conflicts can
occur with IP Addresses already assigned on the private network. If the private network
contains a DHCP server, the range assigned in the IP Address Pool or the Static IP
Address must be excluded from the DHCP IP address range.
800 IPSec
P0609326 1.1
4Configure the Remote IP Address Pool List settings according to the following table.
5Click the Save button.
Modifying a Remote IP Address Pool
1On the navigation tree, click the Services key and click the VPN key.
2Click the IPSec key and click the Remote User Accounts heading.
The Remote IP Address Pool List screen appears.
3Click the Remote Address Pool List you want to modify.
4On the Configuration menu, click Modify IP Address Pool.
Or, right click the Remote Address Pool List you want to modify and click Modify IP
Address Pool.
The Remote IP Address Pool List screen appears.
5Modify the Remote IP Address Pool List parameters.
For information about the settings, refer to the table above.
6Click the Save button.
Deleting a Remote IP Address Pool
1On the navigation tree, click the Services key and click the VPN key.
2Click the IPSec key and click the Remote User Accounts heading.
The Remote IP Address Pool List screen appears.
3Click the Remote Address Pool List you want to delete.
4On the Configuration menu, click Delete IP Address Pool.
Or, right click the Remote Address Pool List you want to modify and click Delete IP Address
Pool. A message prompts you to confirm the deletion.
5Click the Yes button.
Table 279 IPSec Remote IP Address Pool settings
Attribute Description
Pool Number Allows you to specify the Remote IP Address Pool List identifier.
The Pool Number uniquely identifies a Remote IP Address Pool List. The value for this setting
must follow certain conventions. You must type the prefix 'P' followed by a unique number
identifying the Remote IP Address Pool List. For example, 'P2' is a valid name. If you specify
an existing Pool number, you receive an error message. The Remote IP Address Pool List
identifier does not have any significance, other than uniquely identifying an entry.
Start Address Allows you to specify the first IP address in the Remote IP Address Pool List.
Enter the IP address in the dotted format.
End Address Allows you to specify the last IP address in the Remote IP Address Pool List.
Enter the IP address in the dotted format.
Subnet Mask Allows you to specify the subnet mask for the Remote IP Address Pool List.
Enter the Subnet Mask in the dotted format.
IPSec 801
Business Communications Manager 3.6 Programming Operations Guide
Adding Remote User Accounts
1On the navigation tree, click the Services key and click the VPN key.
2Click the IPSec key and click the Remote User Accounts heading.
3Click the Remote User Summary tab.
The Remote User Summary screen appears.
4Click the Add button.
Or, right click the Remote User Accounts heading and click Add.
The Add Remote User Accounts dialog box appears.
5Configure the Remote User Accounts settings according to the following table.
Table 280 IPSec Remote User Account settings
Attribute Description
User Number Allows you to specify the Remote User identifier.
The User Number uniquely identifies a Remote User. The value for this setting must follow
certain conventions. You must type the prefix 'U' followed by a unique number identifying the
Remote User. For example, 'U2' is a valid name. If you specify an existing Remote User
number, you receive an error message. The User Number identifier does not have any
significance, other than uniquely identifying an entry.
User Name Allows you to specify the user name that the remote computer uses to access the IPSec
tunnel.
Password Allows you to specify the password that the remote computer uses to access the IPSec tunnel.
Note: The password you choose must conform to the password policy used for your Business
Communications Manager system. For more information about the password policy, refer to
“Setting password policy” on page 122.
Confirm Password Allows you to re-enter the password to confirm that the password was entered correctly.
IP Address Pool
Name
Allows you to select the Remote IP Address Pool List you want to use for this Remote User
Account.
This allows you to assign a Dynamic IP Address (from the IP Address Pool) to the Remote
User when they connect.
Note1: If you select a Remote IP Address Pool List you do not have to specify the Static IP
Address or the Static subnet mask.
Note2: You must add a Remote IP Address Pool List before you can select it from the drop list.
Static IP Address Allows you to specify the IP address that is used by the remote computer, if the remote
computer is using a static IP address.
Note: You do not need to enter a Static IP address if the Account is using a dynamic IP
Address Pool.
Static Subnet Mask Allows you to specify the Subnet Mask that is used by the remote computer, if the remote
computer is using a static IP address.
Note: You do not need to enter a Static Subnet Mask if the remote computer is using dynamic
IP addressing.
IPSec Status Allows you to view the current status of this IPSec Tunnel.
You can also use this field to enable or disable this IPSec tunnel.
You can choose Enabled or Disabled.
The default setting is Disabled.
802 IPSec
P0609326 1.1
6Click the Save button.
PFS Enabled Allows you to enable Perfect Forward Secrecy (PFS).
With PFS, keys are not derived from previous keys. This ensures that one key being
compromised cannot result in the compromise of subsequent keys.
You can choose Yes or No.
The default setting is Yes.
Create Firewall
Rules for Interface
Allows you to choose which interface to generate Firewall Filter rules for. These rules are
necessary to allow packets for this Remote User tunnel through the firewall.
The default value is None which means that no rules are generated.
Idle Timeout Allows you to specify the amount of time the tunnel can remain idle before the tunnel is closed.
You cannot set the Idle Timeout setting to less than three minutes, except to disable the
timeout by entering 00:00:00.
Enter a value from 00:03:00 to 23:59:59. The default setting is 00:15:00.
A setting of 00:00:00 disables the Idle Timeout setting.
Highest Encryption Allows you to select the highest encryption level allowed on this IPSec tunnel.
When the encryption level is negotiated for this tunnel, Business Communications Manager
will not use any encryption level higher than the encryption level specified in this field.
For a description of the encryption levels, refer to “Encryption” on page 778.
Rekey Timeout Allows you to specify the amount of time you can use a key before the tunnel is re-negotiated.
You should limit the lifetime of a single key used to encrypt data or else you will compromise
the effectiveness of a single session key. Use the Rekey Timeout setting to control how often
new session keys are exchanged between servers. You cannot set the Rekey Timeout setting
to less than three minutes, except to disable the timeout by entering 00:00:00.
Enter a value from 00:03:00 to 23:59:59. The default setting is 08:00:00.
A setting of 00:00:00 disables the Rekey Timeout setting.
Rekey Data Count Allows you to specify the amount of data you can transmit on the tunnel before the tunnel is
re-negotiated.
Enter a value from 0 to 1000000 Kbytes.
A setting of 0 disables the Rekey Data Count.
Note: If you set the Rekey Data Count too low, the tunnel is re-negotiated too often and will
consume extra system resources.
Split Tunneling
Enabled
Allows you to select if the remote computer is allowed to use Split Tunneling.
You can choose Yes or No.
The default setting is No.
Note: The Split Tunneling Enabled drop list is not available when you are adding a Remote
User account. This drop list appears when you are configuring a Remote User Account.
Domain Name Allows you to specify the Domain Name of the Domain the remote computer reside in.
Keep-Alive Enabled Allows for quicker detection of lost connectivity.
You can select Yes or No.
The default setting is No.
Note: Leave this setting at the default value of No for IPSec tunnel connections to systems
other than Business Communications Manager or Contivity.
Table 280 IPSec Remote User Account settings (Continued)
Attribute Description
IPSec 803
Business Communications Manager 3.6 Programming Operations Guide
Configuring Remote User Accounts
1On the navigation tree, click the Services key and click the VPN key.
2Click the IPSec key and click the Remote User Accounts key.
3Click the Remote User Account you want to modify.
The Remote User Settings screen appears.
4Change the required Remote User Account settings.
For information about the settings refer to “Adding Remote User Accounts” on page 801.
5Click the Tab key to save your changes.
Configuring the DNS/WINS setting for the Remote User Account
1On the navigation tree, click the Services key and click the VPN key.
2Click the IPSec key and click the Remote User Accounts key.
3Click the Remote User Account you want to modify.
The Remote User Settings screen appears.
4Click the DNS/WINS Settings tab.
The DNS/WINS Settings screen appears.
5Configure the DNS/WINS Settings according to the following table.
6Press the TAB button to save your changes.
Table 281 DNS/WINS Settings
Attribute Description
Primary DNS Allows you to specify the IP address of the Primary DNS server that the remote computer
uses.
Enter the IP address in the dotted format.
Secondary DNS Allows you to specify the IP address of the Secondary DNS server the remote computer uses.
The remote computer uses the Secondary DNS server if the Primary DNS server is not
available or does not have an entry for the domain name specified.
Enter the IP address in the dotted format.
Primary WINS Allows you to specify the IP address of the Primary WINS server that the remote computer
uses.
Enter the IP address in the dotted format.
Secondary WINS Allows you to specify the IP address of the Secondary WINS server that the remote computer
uses.
Enter the IP address in the dotted format.
804 IPSec
P0609326 1.1
Adding a Split Tunnel Network
1On the navigation tree, click the Services key and click the VPN key.
2Click the IPSec key and click the Remote User Accounts key.
3Click the Remote User Account you want to modify.
The Remote User Settings screen appears.
4Click the Split Tunnel Networks tab.
The Split Tunnel Networks screen appears.
5On the Configuration menu, click Add Split Tunnel Network.
The Split Tunnel Network screen appears.
6Configure the Split Tunnel Network settings according to the following table.
7Click the Save button.
Modifying a Split Tunnel Network
1On the navigation tree, click the Services key and click the VPN key.
2Click the IPSec key and click the Remote User Accounts key.
3Click the Remote User Account you want to modify.
The Remote User Settings screen appears.
4Click the Split Tunnel Networks tab.
The Split Tunnel Networks screen appears.
5Click the Split Tunnel Network you want to modify.
6On the Configuration menu, click Modify Split Tunnel Network.
The Split Tunnel Network screen appears.
7Change the required Split Tunnel Network settings.
For information about the settings refer to the table above.
8Click the Save button.
Table 282 Split Tunnel Network settings
Attribute Description
Network Number Allows you to specify the Split Tunnel Network identifier.
The Network Number uniquely identifies a Split Tunnel Network. The value for this setting
must follow certain conventions. You must type the prefix 'S' followed by a unique number
identifying the Split Tunnel Network. For example, 'S2' is a valid name. If you specify an
existing Network number, you receive an error message. The Split Tunnel Network identifier
does not have any significance, other than uniquely identifying an entry.
IP Address Allows you to configure the specific IP network addresses that are routed through the IPSec
Tunnel. All other IP traffic is routed in the normal fashion.
Enter the IP address in the dotted format.
IP Address Mask Allows you to specify the subnet mask for the other network.
Enter the Subnet Mask in the dotted format.
IPSec 805
Business Communications Manager 3.6 Programming Operations Guide
Deleting a Split Tunnel Network
1On the navigation tree, click the Services key and click the VPN key.
2Click the IPSec key and click the Remote User Accounts key.
3Click the Remote User Account you want to modify.
The Remote User Settings screen appears.
4Click the Split Tunnel Networks tab.
The Split Tunnel Networks screen appears.
5Click the Split Tunnel Network you want to delete.
6On the Configuration menu, click Delete Split Tunnel Network.
A confirmation message appears.
7Click the Yes button.
Deleting a Remote User Account
1On the navigation tree, click the Services key and click the VPN key.
2Click the IPSec key and click the Remote User Accounts key.
3Click the Remote User Account you want to delete.
4Click the Delete button.
Or, right click the Remote User Account you want to delete and click Delete.
A message prompts you to confirm the deletion.
5Click the Yes button.
Creating Banner Text for a remote user
Banner Text is the text that appears when a remote user logs into the Business Communications
Manager using the Contivity IPSec VPN Client. You can use this text to display important
information (such as security information) to the remote user.
To add Banner Text:
1On the navigation tree, click the Services key and click the VPN key.
2Click the IPSec key and click the Remote User Accounts heading.
3Click the Banner Text tab.
4In the Banner Text box, enter the text that you want to appear when an Contivity IPSec VPN
Client connects to the Business Communications Manager.
You can enter a maximum 1000 ASCII characters. To start a new line, enter \n.
5Click the Tab key to save the settings.
To preview how the Banner Text will appear, on the View menu, click View Banner Text
Output. A new browser window appears showing the Banner Text.
806 IPSec
P0609326 1.1
807
Business Communications Manager 3.6 Programming Operations Guide
Chapter 41
Policy-enabled networking
This section discusses the Policy services you can configure to enhance your data network.
Included is the following information:
•“Policy configuration overview” on page 807
•“Implementing Quality of Service (QoS)” on page 813
•“Implementing Common Open Policy Services (COPS)” on page 823
•“Configuring the Policy Agent characteristics” on page 828
Policy configuration overview
Business Communications Manager enables system administrators to implement classes of service
and assign priority levels to different types of traffic. Using Unified Manager, you can configure
policies that monitor the characteristics of traffic (for example, its source, destination, and
protocol) and perform a controlling action on the traffic when certain user-defined characteristics
are matched.
This section includes information about:
•“Differentiated Services (DiffServ) overview” on page 807
•“COPS” on page 812
•“Policy overview” on page 812
Differentiated Services (DiffServ) overview
This section provides information about working with DiffServe, including:
•“DiffServ IP Quality of Service (QoS) architecture” on page 808
•“DiffServ components” on page 809
•“IP service classes” on page 810
•“Packet classifiers” on page 811
Differentiated services (DiffServ) is a Quality of Service (QoS) network architecture that offers
varied levels of service for different types of data traffic. DiffServ allows you to designate a
specific level of performance on a packet-by-packet basis instead of using the “best-effort” model
for your data delivery. You can give preferential treatment (prioritization) to applications that
require high performance and reliable service, such as voice and video over IP.
Business Communications Manager includes the capability to enhance your network traffic
management. For each packet, there is an octet in the packet header, the DiffServ (DS) field, that
you can designate for specific service. For IP packets, six bits of the DiffServ field is the DiffServ
Code Point (DSCP). The DSCP value defines how the packet is to be treated as it travels through
the network. You can set traffic criteria to match the DS field, and policy actions to change the
DiffServ field to conform to various other mappings.
808 Policy configuration overview
P0609326 1.1
Business Communications Manager uses DiffServ to manage network traffic and resources. The
information that is required to support DiffServ and multi-field classification is transferred using
the Common Open Policy Services (COPS) protocol. COPS is a query and response protocol that
exchanges policy information messages using the Transmission Control Protocol (TCP). All
configuration can be performed using SNMP and Unified Manager.
DiffServ IP Quality of Service (QoS) architecture
DiffServ uses a simple mechanism that relies on a special encoding of the first 6 bits of the
DiffServ byte in the IP header. This byte is the IPv4 Type of Service (ToS) byte; for IPv6, is the
Traffic Class byte. The first 6 bits of this byte are called the DiffServ Code Point (DSCP).
In the packet forwarding path, differentiated services are processed by mapping the packet DSCP
to a particular forwarding treatment, or per hop behavior (PHB), at each network node along its
path. The code points may be chosen from a set of 32 standard values, a set of 16 recommended
values to be used in the future, or a set of 16 values reserved for experimentation and local use. Of
the 32 standard values, there are 8 Class Selector code points that are used primarily (but not
exclusively) for backward compatibility with existing definitions of the ToS byte.
Business Communications Manager is a DiffServ node that can support DiffServ functions and
behavior. DiffServ architecture defines a DiffServ-capable domain as a contiguous set of
DiffServ-compliant nodes that operate with a common set of service provisioning policies and
PHB definitions. The DiffServ domain is an autonomous system or network such as an internet
service provider (ISP) network or campus LAN.
DiffServ assumes the existence of a service level agreement (SLA) between DiffServ domains that
share a border. The SLA defines the profile for the aggregate traffic flowing from one network to
the other based on policy criteria. In a given traffic direction, the traffic is expected to be shaped at
the egress point of the upstream network and policed at the ingress point of the downstream
network.
End-to-end QoS is enabled, typically through bilateral agreements (an agreement between two
DiffServ domains), between all the domains from the sender to the receiver. These agreements aid
in consistent PHB and QoS performance across all domains.
Typically, there are three types of edge devices in a DiffServ domain:
• Edge node (EN) — the switch or router connected directly to the desktop end station (ES)
(Business Communications Manager is an edge node in the DiffServ domain)
Ingress border node (IBN) — the ingress router at the boundary between two DiffServ
domains
• Egress border node (EBN) — the egress router at the boundary between two DiffServ domains
The following figure shows the bandwidth broker and various DiffServ nodes in two DiffServ
domains.
Policy configuration overview 809
Business Communications Manager 3.6 Programming Operations Guide
Figure 212 DiffServ bandwidth brokers and nodes
DiffServ components
The DiffServ architecture is comprised of the following components:
• Traffic conditioners — These components include classifiers, DiffServ-byte markers, shapers,
policiers and profilers. Marking is performed at network boundaries, including the edges of
the network (first hop router or switch or source host) and administrative boundaries between
networks or autonomous systems. Traffic conditions should exist at DiffServ ingress and
egress nodes. Business Communications Manager is an edge switch that supports packet
classification based on header information in layer 3 and layer 4 of the Open System
Interconnection (OSI) layering model. Business Communications Manager can mark and
re-mark IP traffic based on the policies you define.
• Packet schedulers and queue managers — PHBs are expected to be implemented by
employing a range of queue service and/or queue management disciplines on a network node
output interface queue (for example, weighted fair queueing or drop preference queue
management). DiffServ does not require a particular discipline for queue management or
servicing to realize a particular service. All DiffServ nodes should support the packet
scheduling and queue management algorithms that are necessary to implement the required
PHB.
Business Communications Manager supports a queue service discipline that allows packets to
be serviced in an absolute priority fashion or using a weighted fair queueing scheduler. This
service discipline ensures that packets in the highest-priority queue are serviced quickly
without starving lower-priority queues.
• Bandwidth brokers (not supported in Business Communications Manager) — Bandwidth
brokering is responsible for bandwidth allocation, QoS policy management, and flow
admission control in a given DiffServ domain. Business Communications Manager does not
support bandwidth brokering or traffic admission control.
9927EA
DiffServ domain
BB
ES
Interior
Node
EN EBN
BB
ES
Interior
Node ENIBN
End-to-End QoS
Boundary
Link
810 Policy configuration overview
P0609326 1.1
IP service classes
Business Communications Manager supports the following services classes:
• Critical and Network classes have the highest priority over all other traffic.
• Premium class is an end-to-end service functioning similarly to a virtual leased line. Traffic in
this service class is guaranteed an agreed upon peak bandwidth. Traffic requiring this service
should be shaped at the network boundary in order to undergo a negligible delay and delay
variance. This service class is suitable for real time applications like video and voice over IP.
The recommended PHB for this service is the Expedited Forwarding (EF) PHB.
• Platinum, Gold, Silver, and Bronze classes use the Assured Forwarding PHB. These classes
are used for real time, delay tolerant traffic and non real time, mission critical traffic.
• Best Effort (standard) class is the standard Internet packet service with an additional, optional
use of traffic profiling that is used at the network boundary to request a better effort treatment
for packets that are in-profile (packets that do not break the service agreements between the
user and the service provider).
The following table describes the service classes and the required treatment. The following table
shows how the service classes are mapped to the Business Communications Manager queues.
Table 283 Service classes
Traffic category Service class Application type Required treatment
Critical Network Control Critical Critical network control traffic Highest priority over all other traffic.
Guaranteed minimum bandwidth.
Standard Network
Control
Network Standard network control traffic Priority over user traffic. Guaranteed
minimum bandwidth
Real time, delay
intolerant, fixed
bandwidth
Premium Person to person
communications requiring
interaction (such as VoIP).
Absolute bounded priority over user
traffic. No packet loss for in-profile
traffic. Virtual leased line with lowest
amount of latency. Provisioned for
peak rate.
Real time, delay tolerant,
low variable bandwidth
Platinum Person to person
communications requiring
interaction with additional minimal
delay (such as low cost VoIP).
Higher-priority scheduling providing
guaranteed minimum provisioned
bandwidth. Competes for additional
bandwidth.
Real time, delay tolerant,
high variable bandwidth
Gold Single human communication
with no interaction (such as Web
site streaming video).
High-priority scheduling providing
guaranteed minimum provisioned
bandwidth. Competes for additional
bandwidth.
Non-real time, mission
critical, interactive
Silver Transaction processing (such as
Telnet, Web browsing).
Medium priority scheduling providing
guaranteed minimum provisioned
bandwidth. Competes for additional
bandwidth.
Non-real time, mission
critical, non-interactive
Bronze For example, E-mail, FTP, SNMP. Lower-priority scheduling providing
guaranteed minimum provisioned
bandwidth. Competes for additional
bandwidth.
Non-real time,
non-mission critical
Standard Bulk transfer (such as large FTP
transfers, after-hours tape
backup).
Best effort delivery. Uses remaining
available bandwidth.
Policy configuration overview 811
Business Communications Manager 3.6 Programming Operations Guide
These Required treatments (or service class behaviors) for these Service classes are implemented
using nine queues and a scheduler for these queues. Queue 1 has the highest priority, referred to as
Strict Priority. Queues 2 to 9 are scheduled according to a Weighted Fair Queuing (WFQ) scheme.
The following table summarizes the mappings between service classes, queues and DSCP codes.
Packet classifiers
Filters are organized in groups. A filter group is an ordered list of filters. Each group of filters is
associated with actions that are executed when the packet matches the first filter in the group. The
filter group and the associated actions constitute a policy. A classifier is an ordered list of policies.
Filters can be added or deleted from an existing group.
The order of a filter group in a classifier is called the group precedence. The lower the order of a
group in a classifier the higher the precedence. The order in which filters in a given classifier are
evaluated depends on the precedence of the filter group in which the filter resides and, on the order
of the filter in the group. Filters in the higher-precedence groups are evaluated before filters in the
lower-precedence groups.
A classifier is associated with a role combination. Packets received from any port that has the same
role combination are classified with the same classifier. The Policy Table in Unified Manager
defines the policies of the classifier associated with a given role combination.
IP filters
IP filters are used to classify IP traffic based on the following criteria:
• Layer 3 information, including IP source and subnet addresses, IP destination and subnet
addresses, DSCP, and IP protocols such as TCP/UDP
• Layer 4 information, including TCP/UDP port numbers
Business Communications Manager can use 31 IP filters.
Table 284 Default Queue mapping for Business Communications Manager
NNSC Default DSCP
Business
Communications
Manager Queue
Business
Communications
Manager Scheduler
Premium 40, 46 1 Strict Priority
Network 48, 56 2Weighted Fair Queuing
Platinum 34, 36, 38 3 Weighted Fair Queuing
Gold 26, 28, 30 4Weighted Fair Queuing
Silver 18, 20, 22 5 Weighted Fair Queuing
Bronze 10, 12, 14 6Weighted Fair Queuing
Standard 0 7 Weighted Fair Queuing
Standby 2 8 Weighted Fair Queuing
N/A N/A 9 (unused) Weighted Fair Queuing
812 Policy configuration overview
P0609326 1.1
COPS
When used with the Optivity Policy Services® (OPS) Version 1.2 or later, a comprehensive
network management application combining IP address management with policy-based network
traffic control, Business Communications Manager effectively manages network traffic and
resources. Information is transferred using the Common Open Policy Services (COPS) protocol, a
query and response protocol that exchanges policy information messages using the Transmission
Control Protocol (TCP). Specifically, COPS for Provisioning (COPS-PR) is used to download
information. COPS is used to communicate with edge devices on the network.
OPS provides a centralized management point for DiffServ policies. The policy server distributes
policies to edge devices and border routers. These edge devices police traffic flows by marking
packets and applying forwarding behaviors to the packets at the network node.
For further information about Optivity products, contact your Nortel Networks sales
representative.
Policy overview
Use Unified Manager to configure policies and filters to control the behavior of network traffic. A
policy is a network traffic controlling mechanism that monitors the characteristics of the traffic
(for example, its source, destination, and protocol) and performs a controlling action on the traffic
when certain user-defined characteristics are matched. A policy action is the effect a policy has on
network traffic that matches the traffic profile of the policy. You can assign only one action to a
policy. You set up filters to establish packet-specific criteria that determine how a packet is to be
processed. You can use filters to remark packets by updating the DSCP code points, to change
priorities, or to drop packets.
LAN ports on Business Communications Manager are configured according to the policy
determining traffic priorities. As packets enter the switch, they are marked according to their
priority.
After the packets are marked, they are moved to the proper egress queue based on their marking.
When a packet is to be transmitted, the switch looks at the Premium queue first. Then Business
Communications Manager examines the other queues and sends packets based on the weighted
percentage for the queues. The entire process is repeated. This approach ensures that the Premium
packets are serviced quickly and that the other data types (other queues) are not starved and
serviced in a round-robin fashion.
A packet is processed as follows:
1The packet enters Business Communications Manager.
2Filters are applied.
3Filter actions are taken and the packet can be modified (DSCP).
4The packet is assigned a QoS class. A QoS class is designated using the DSCP values.
5The packet is placed in the appropriate egress queue according to its priority marking as
described above.
6The queues are serviced in a round-robin fashion (strict priority or weighted fair queueing).
Implementing Quality of Service (QoS) 813
Business Communications Manager 3.6 Programming Operations Guide
Implementing Quality of Service (QoS)
The QoS application delivers a set of tools that, when optimally configured, combat escalating
bandwidth costs and optimize application performance in your network.
QoS tools allow you to prioritize your critical applications and sensitive traffic. You can tailor
appropriate services to support this traffic over the wide area, thus maintaining the necessary
performance levels on an end-to-end basis.
To implement QoS, you need to configure the following:
• QoS Summary parameters (“Configuring the QoS Summary parameters” on page 813)
• QoS Devices (“Configuring Devices” on page 814)
•QoS Rules (“Configuring Policy Rules” on page 816)
• QoS Actions (“Configuring Actions” on page 819)
• QoS Policies (“Configuring QoS policies” on page 821)
Configuring the QoS Summary parameters
The QoS Summary parameters are global settings that affect all of the QoS Policies on your
system.
To configure the QoS Summary parameters:
1On the navigation tree, click the Services key and click the Policy Management key.
2Click the QoS heading.
The QoS Summary screen appears.
3Configure the Summary parameters according to the following table.
Table 285 QoS Summary parameters
Setting Definition
Description Shows a description of the QoS service.
Version Shows the version of the QoS service.
Status Allows you to enable or disable QoS.
Premium
Bandwidth (%)
Enter the percentage of bandwidth to reserve for Premium traffic.
You can enter a value from 0% to 90%.
Note: If you set the Premium Bandwidth too high, you can starve out other traffic.
Video Class Select the traffic category that is used for H.323 Video traffic.
You can assign video traffic as Premium or Best Effort.
Note: Choose Best Effort if you want to prevent IP Video traffic from competing with IP Telephony
traffic.
Premium DS
Code
Enter the DiffServ Code used for Premium traffic on your network.
The default value is 0xB8.
Number of Phone
Ports
Enter the number of phone ports that are available for QoS.
After you change this field, you must reboot the Business Communications Manager system
before the change will take affect.
814 Implementing Quality of Service (QoS)
P0609326 1.1
4Click the Advanced tab.
The Advanced screen appears.
5Click the network adapter you want to modify.
6On the Configuration menu, click Modify Adapter Water Mark.
The Advanced property sheet appears.
7Configure the Advanced parameters according to the following table.
8Click the Save button.
9Repeat steps 5 to 8 for each network adapter you want to modify.
Configuring Devices
The Devices heading provides access to the Interface Group Table screen, the Interface Queue
Table screen, and the DSCP Assignment Table screen. You can configure the Interface Group
Table screen. The other two screens provide read-only information.
You view existing interface group configurations, or create or modify an interface group if you
want a port (or ports) associated with a role combination for the purpose of assigning the same
QoS policy to all interfaces in the group.
Creating an interface group configuration
To create an interface group configuration:
1On the navigation tree, click the Services key and click the Policy Management key.
2Click the QoS key and click the Devices heading.
The Interface Group Table screen appears.
3On the Configuration menu, click Add Interface Group Entry.
The Interface Group Table property sheet appears.
4Configure the Interface Group Table parameters according to the following table.
Table 286 QoS Advanced parameters
Setting Definition
Adapter Name Shows the name of the network adapter you are modifying.
High Water Mark Enter the High Water Mark for this network adapter.
For LAN adapters, you can enter a value from 1 to 37.
For WAN and Dialup adapters, you can enter a value from 1 to 5.
Low Water Mark Enter the Low Water Mark for this network adapter.
For LAN adapters, you can enter a value from 1 to 37.
For WAN and Dialup adapters, you can enter a value from 1 to 5.
Note: The value for the Low Water Mark must be lower than the value for the High Water Mark.
Implementing Quality of Service (QoS) 815
Business Communications Manager 3.6 Programming Operations Guide
5Click the Save button.
The new interface group configuration entry appears in the Interface Group Table.
Modifying an interface group configuration
To modify an Interface group configuration:
1On the navigation tree, click the Services key and click the Policy Management key.
2Click the QOS key and click the Devices heading.
3Click the Interface Group Entry you want to change.
4On the Configuration menu, click Modify Interface Group Entry.
The Interface Group Table dialog box opens.
5Change the Role Combination.
6Click the Save button.
Deleting an interface group configuration
To delete an Interface group configuration:
1On the navigation tree, click the Services key and click the Policy Management key.
2Click the QoS key and click the Devices heading.
3Click the Interface Group Entry you want to delete.
4On the Configuration menu, click Delete Interface Group Entry.
A dialog box opens prompting you to confirm your request.
5Click the Yes button.
Table 287 QoS Interface Group Table parameters
Attribute Description
Group Name Enter the name for the interface group.
Queue Set Id This is a read only attribute.
Role Combination Select the interfaces that you want to include in this interface group.
Capabilities This is a read only attribute.
816 Implementing Quality of Service (QoS)
P0609326 1.1
Configuring Policy Rules
Policy Rules are IP filters that are defined as part of a QoS Policy.
You can create an IP filter, which enables Business Communications Manager to classify traffic.
In turn, you can create an access control list from a series of defined filters to create an IP filter
group. The filter group then determines access to and denial of network services.
Creating an IP filter configuration
The maximum number of IP filter entries you can add to a QoS Policy is 31.
To create an IP filter configuration:
1On the navigation tree, click the Services key and click the Policy Management key.
2Click the QoS key and click the Rules heading.
The IP Filter Table screen appears.
3On the Configuration menu, click Add IP Filter Entry.
The IP Filter Table dialog box opens.
4Configure the IP Filter parameters according to the following table.
Table 288 QoS IP Filter parameters
Attribute Description
Name Enter the name of the IP Filter.
Destination
Address
Enter a destination IP address in a valid dot format. This address is used to match the destination
IP address in the packet’s IP header.
If you want to ignore the Destination Address setting for this filter, leave this box blank. If you
specify an address in this box, you must also specify a subnet mask in the Destination Mask box.
Destination
Address Mask
Enter a mask for the destination IP address in a valid dot format. This address is the destination
subnet mask. A subnet mask includes or excludes certain values. Subnetworks (or subnets)
extend the IP addressing scheme, allowing you to further divide a network into multiple segments.
If you specify a Destination Address, you must also specify a Destination Address Mask. Make
sure that the mask and address match with each other. For example, a bitwise AND of the mask
and address is equal to the address.
If you want to specify a range of addresses, use a subnet mask other than 255.255.255.255. For
example, an address/mask combination of 10.10.10.32/255.255.255.252 represents addresses
10.10.10.32-10.10.10.35.
Source Address Enter the source IP address in a valid dot format. This is the IP address to match against the
packet’s source IP address.
If you want to ignore the Source Address setting for this filter, leave this box blank. If you specify an
address in this box, you should also specify a subnet mask in the Source Mask box.
Source Address
Mask
Enter the source mask of the IP address in a valid dot format. This address is the source subnet
mask. A subnet mask includes or excludes certain values. Subnetworks (or subnets) extend the IP
addressing scheme, allowing you to further divide a network into multiple segments.
If you specify a Source Address, you must also specify a Source Address Mask. Make sure that
the mask and address match with each other. For example, a bitwise AND of the mask and
address is equal to the address.
If you want to specify a range of addresses, use a subnet mask other than 255.255.255.255. For
example, an address/mask combination of 10.10.10.32/255.255.255.252 represents addresses
10.10.10.32-10.10.10.35.
Implementing Quality of Service (QoS) 817
Business Communications Manager 3.6 Programming Operations Guide
5Click the Save button.
Modifying an IP filter configuration
To modify an IP filter configuration:
1On the navigation tree, click the Services key and click the Policy Management key.
2Click the QoS key and click the Rules heading.
3Click the entry you want to modify.
4On the Configuration menu, click Modify IP Filter Entry.
The IP Filter Table dialog box opens.
5Make the changes to the information about the entry.
6Click the Save button.
DSCP Enter the DSCP value to match the inbound DSCP. You can enter any decimal value from 0 to 63.
If you choose the default (-1), the DSCP value in the packet will be ignored.
Protocol Select a protocol to match the filter.
To select the protocol, choose the protocol from the list or type the numeric value of protocol in the
box. You can select TCP, UDP, ICMP, IGMP, RSVP, IP Sec(AH), IPSec(ESP), PPTP/GRE, CBT,
EGP, PUP, CHAOS, XNS-IDP, ISO-TP4, IDPR, IPv6, MOBILE, ISO-IP, VINES, MTP, PNNI, PIM,
IPX-in-IP, VRRP, L2TP, FC, or None
The default is None.
Destination L4
Port
Enter or select a destination port to match the filter.
Enter a destination port only if you choose a TCP or a UDP protocol. If you do not want to include
the source port in your filter, choose IGNORE.
To include a destination port, choose the port from the list services or type the numeric port
number of the service.
You can choose IGNORE, FTP, TELNET, SMTP, SNMP, DNS, POP, NNTP, or HTTP.
You can enter a range of ports by specifying the two limits of the range by a hyphen character, for
example, 156-159. You can select all of the ports by entering 0-65536.
The default is IGNORE.
Source L4 Port Enter or select a source port to match the filter.
Enter a source port only if you choose a TCP or a UDP protocol. If you do not want to include the
source port in your filter, choose IGNORE.
To include a source port, choose the port from the list services or type the numeric port number of
the service.
You can choose IGNORE, FTP, TELNET, SMTP, SNMP, DNS, POP, NNTP, or HTTP.
You can enter a range of ports by specifying the two limits of the range by a hyphen character, for
example, 156-159. You can select all of the ports by entering 0-65536.
The default is IGNORE.
Permit Select whether packets that match the filter are permitted to pass.
Table 288 QoS IP Filter parameters (Continued)
Attribute Description
818 Implementing Quality of Service (QoS)
P0609326 1.1
Deleting an IP filter configuration
To delete an IP filter configuration:
1On the navigation tree, click the Services key and click the Policy Management key.
2Click the QoS key and click the Rules heading.
3Click the entry you want to delete.
4On the Configuration menu, click Delete IP Filter Entry.
A confirmation dialog box opens.
5Click the Yes button to delete the IP Filter Table entry.
Creating an IP filter group entry
IP filter groups allow you to assign IP filters to a Policy. An IP filter group can consist of one to
several IP filters.
When you create an IP filter group, you choose the IP filters to add and you specify the order in
which the IP filters are applied.
The maximum number of IP Filter Group entries you can add to a QoS Policy is 31.
To create an IP filter group table entry:
1On the navigation tree, click the Services key and click the Policy Management key.
2Click the QoS key and click the Rules heading.
3Click the IP Filter Group Table tab.
4On the Configuration menu, click Add IP Filter Group Entry.
The IP Filter Group Table dialog box opens.
5Configure the IP Filter Group parameters according to the following table.
6Click the Save button.
Note: You cannot delete a filter if it is referenced in a filter group.
Table 289 QoS IP Filter Group parameters
Attribute Description
Filter Group Name Enter the name of the filter group.
Filter Order Enter the name of the filter to add to the filter group. If you are adding more than one filter,
separate the filter names by a comma.
The filters are used in the order you specify.
Implementing Quality of Service (QoS) 819
Business Communications Manager 3.6 Programming Operations Guide
Modifying an IP filter group configuration
To modify an IP filter group configuration:
1On the navigation tree, click the Services key and click the Policy Management key.
2Click the QoS key and click the Rules heading.
3Click the IP Filter Group Table tab.
4Click the IP Filter Group you want to modify.
5On the Configuration menu, click Modify IP Filter Group Entry.
The IP Filter Group Table dialog box opens.
6Add or delete filters as a member of the Filter Group. You can also change the order in which
the filters are applied.
7Click the Save button.
Deleting an IP filter group entry
To delete an IP filter group entry:
1On the navigation tree, click the Services key and click the Policy Management key.
2Click the QoS key and click the Rules heading.
3Click the IP Filter Group Table tab.
4Click the IP Filter Group you want to delete.
5On the Configuration menu, click Delete IP Filter Group Entry.
A confirmation dialog box opens.
6Click the Yes button to delete the IP Filter Group Table entry.
Configuring Actions
You configure actions by creating, changing or deleting Actions entries in the Actions screen.
When you assign actions to filters, you specify the type of behavior you want a policy to apply to a
flow of IP packets. Actions applied to filters establish packet-specific criteria that determine how a
packet is to be processed. You specify the actions associated with specific IP filter groups. When
filters match incoming packets, the actions are performed on those packets. Filters can be
configured to change the DSCP or to drop packets.
Creating an Action
To create an Action:
1On the navigation tree, click the Services key and click the Policy Management key.
2Click the QoS key and click the Actions heading.
The Actions screen appears.
820 Implementing Quality of Service (QoS)
P0609326 1.1
3On the Configuration menu, click Add Entry.
The Actions dialog box opens.
4Configure the Action parameters according to the following table.
Refer to the table “Default Queue mapping for Business Communications Manager” on page
811 for the mapping of DSCP codes, queues and service classes.
5Click the Save button.
Modifying an Action entry
To modify an Action entry:
1On the navigation tree, click the Services key and click the Policy Management key.
2Click the QoS key and click the Actions heading.
3Click the entry you want to modify.
4On the Configuration menu, click Modify Entry.
The Actions dialog box opens.
5Modify the Action parameters.
6Click the Save button.
Deleting an Action entry
To delete an Action:
1On the navigation tree, click the Services key and the Policy Management key.
2Click the QoS key and click the Actions heading.
3Click the Action Entry you want to delete.
4On the Configuration menu, click Delete Entry.
A dialog box opens prompting you to confirm your request.
5Click the Yes button.
Table 290 QoS Action parameters
Attribute Description
Action Name Enter the name of this Action.
Packet Drop Select whether this Action drops the packet (True) or keeps the packet (False).
Note: If you choose True to drop the packet, you do not need to choose a value for
Update DSCP.
Update DSCP Enter the new DSCP that this Actions assigns to the packet.
You can enter a value from -1 to 63.
Enter a value of -1 if you do not want this Action to change the DSCP of the packet.
Implementing Quality of Service (QoS) 821
Business Communications Manager 3.6 Programming Operations Guide
Configuring QoS policies
A Policy is an association between Devices (interface groups), Rules (IP filter groups), and
Actions. When you create a Policy, you define which Devices are affected, which Rules are
checked, and what Actions are taken on the specified interface.
Policies are applied according to the precedence order that you assign in the Policies screen.
Adding a policy
To add a policy:
1On the navigation tree, click the Services key and click the Policy Management key.
2Click the QoS key and click the Policies heading.
3Click the Add button.
Or, right click the Policies heading and click Add.
The Add Policies screen appears.
4Configure the Policy parameters according to the following table.
5Click the Save button.
Table 291 QoS Policy parameters
Attribute Description
Name Enter the name of the Policy.
Filter Select the filter group that is associated with this policy.
You must add a filter group, using the Rules heading, before you can choose it from this box.
Filter Type Shows the type of filter group that is associated with this policy.
This is a read only attribute.
Interface Group Select the Interface group that is associated with this policy.
You must add an interface group, using the Devices heading, before you can choose it from
this box.
Interface Direction Shows the direction of packet flow at the interface to which this policy applies.
This is a read only attribute.
Order Enter the number used to determine the order of precedence for this policy.
Nortel Networks recommends that you consider an order numbering strategy (for the values in
the Order field) as you configure policies. The policies in the Policy Table are arranged in
ascending order according to value in the Order column. By establishing a policy ordering
scheme in multiples of, for example, 10 (Order 10, Order 20, Order 30, Order 40, and so on),
you are able to insert policies in the appropriate filter precedence location and still retain the
precedence of the remaining policies.
Action Select the action that is performed with policy.
You must add an action, using the Actions heading, before you can choose it from this box.
822 Implementing Quality of Service (QoS)
P0609326 1.1
Modifying a policy
To modify a policy:
1On the navigation tree, click the Services key and click the Policy Management key.
2Click the QoS key and click the Policies key.
3Click the heading of the policy you want to modify.
4Click the policy you want to modify.
5On the Configuration menu, click Modify Entry.
The Policy screen appears.
6Change the Policy attributes.
7Click the Save button.
Deleting a policy
To delete a policy:
1On the navigation tree, click the Services key and click the Policy Management key.
2Click the QoS key and click the Policies key.
3Click the heading of the policy you want to delete.
4Click the Delete button.
Or, right click the heading of the policy you want to delete and click Delete.
A confirmation dialog box appears.
5Click the Yes button.
Implementing Common Open Policy Services (COPS) 823
Business Communications Manager 3.6 Programming Operations Guide
Implementing Common Open Policy Services (COPS)
COPS in your networks allows Business Communications Manager to:
• Gather all relevant Policy information from a policy server (COPS).
• Make a decision based on your (as network administrator) set policies and network resources,
• Communicate that decision in the form of proper service to the appropriate group or client
(bandwidth, ACLs, QoS).
A solid COPS strategy is closely tied to Internet Protocol (IP) address management and network
management. For information about COPS, refer to “COPS” on page 812.
The COPS client options available to you in Unified Manager are:
• Viewing COPS statistics and capabilities (“Viewing COPS statistics and capabilities” on page
823)
• Creating COPS client configurations (“Configuring a COPS Client” on page 826)
Viewing COPS statistics and capabilities
You can view a list of the capabilities of the COPS client and view the COPS objects provided by
all of COPS server connections.
To view COPS capabilities and statistics:
1On the navigation tree, click the Services key and click the Policy Management key.
2Click the COPS Client key and the Status and Statistics heading.
The COPS Client Capability screen appears.
The COPS Capabilities box displays a list of the COPS protocols supported by Business
Communications Manager. The current supported protocol is copsClientVersion1.
3Click the COPS Client Status and Statistics tab.
The COPS Client Status and Statistics screen appears. All of the information provided on this
screen is read only. The following table describes the items on this screen.
Note: Configure the role combinations before you configuring dynamic policy
management (COPS).
Table 292 Status page items
Item Descriptions
Address Type The type of address in copsClientServerAddress.
Address The IPv4, IPv6, or DNS address of a COPS server.
824 Implementing Common Open Policy Services (COPS)
P0609326 1.1
Client Type The protocol client type for this entry.
Note: Multiple client types can be served by a single COPS server.
Note: The value 0 (zero) indicates that this entry contains information about the underlying
connection.
TCP Port The TCP port number on the COPS server to which the client is connected.
Type The indicator of the source of the COPS server information.
Note: COPS servers can be configured by network management into
copsClientServerConfigTable and appear in this entry with type copsServerStatic(1).
Alternatively, the type, or entry, can be a notification from another COPS server by way of the
COPS PDP-Redirect mechanism and appear as copsServerRedirect(2).
Authorization Type The indicator of the current security mode in use between the client and the COPS server.
Last Connection
Attempt
The timestamp of the last time the client attempted to connect to this COPS server.
State The operational state of the connection and COPS protocol with respect to this COPS server.
Server Keep Alive
Time
The value of the Keepalive timeout, in centiseconds, currently in use by the client, as specified
by the COPS server in the Client-Accept operation.
Note: A value of 0 (zero) indicates no keepalive activity is expected.
Server Accounting
Time
The value of the COPS protocol Accounting timeout, in centiseconds, currently in use by the
client, as specified by the COPS server in the Client-Accept operation.
Note: A value of 0 (zero) indicates that the client should not send any unsolicited accounting
reports.
In Packets The total number of COPS packets that the client has received from this COPS server marked
for the selected client type.
Note: This is a cumulative value and is not zeroed on new connections.
Out Packets The total number of COPS packets that the client has sent to this COPS server marked for the
selected client type.
Note: This is a cumulative value and is not zeroed on new connections.
In Errors The total number of COPS packets that the client has received from this COPS server marked
for the selected client type that contained errors in syntax.
Note: This is a cumulative value and is not zeroed on new connections.
Last Errors The code contained in the last COPS protocol Error Object received by the client from this
COPS server marked for the selected client type.
Note: This value is not zeroed on COPS Client-Open operations.
TCP Connection
Attempts
The number of times that the COPS client attempted to open a TCP connection to the COPS
server.
Note: This value is valid only for client type 0.
Note: This is a cumulative value and is not zeroed on new connections.
TCP Connection
Failures
The number of times that the COPS client failed to open a TCP connection to the COPS
server.
Note: This value is valid only for client type 0.
Note: This is a cumulative value and is not zeroed on new connections.
Open Attempts The number of times that the COPS client attempted to perform a COPS Client-Open to a
COPS server for the selected client type.
Note: This is a cumulative value and is not zeroed on new connections.
Table 292 Status page items (Continued)
Item Descriptions
Implementing Common Open Policy Services (COPS) 825
Business Communications Manager 3.6 Programming Operations Guide
Open Failures The number of times that the COPS client failed to perform a COPS Client-Open to a COPS
server for the selected client type.
Note: This is a cumulative value and is not zeroed on new connections.
Unsupported Client
Type
The total number of COPS packets that this client has received from COPS servers that
referred to client types that are unsupported by the client.
Note: This is a cumulative value and is not zeroed on new connections.
Unsupported
Version
The total number of COPS packets that this client has received from COPS servers marked for
the selected client type that had a COPS protocol version number that is unsupported by the
client.
Note: This is a cumulative value and is not zeroed on new connections.
Length Mismatch The total number of COPS packets that the client received from COPS servers marked for the
selected client type that had a COPS protocol message length that did not match the actual
received packet.
Note: This is a cumulative value and is not zeroed on new connections.
Unknown Opcode The total number of COPS packets that the client received from COPS servers marked for the
selected client type having a COPS protocol Op Code not recognized by the client.
Note: This is a cumulative value and is not zeroed on new connections.
Unknown Cnum The total number of COPS packets that the client received from COPS servers marked for the
selected client type containing a COPS protocol object C-Num not recognized by the client.
Note: This is a cumulative value and is not zeroed on new connections.
Bad Ctype The total number of COPS packets that the client received from COPS servers marked for the
selected client type containing a COPS protocol object C-Type not defined for the C-Nums
known by the client.
Note: This is a cumulative value and is not zeroed on new connections.
Bad Sends The total number of COPS packets that the client attempted to send to COPS servers marked
for the selected client type that resulted in a transmit error.
Note: This is a cumulative value and is not zeroed on new connections.
Wrong Objects The total number of COPS packets that the client received from COPS servers marked for the
selected client type not containing a permitted set of COPS protocol objects.
Note: This is a cumulative value and is not zeroed on new connections.
Wrong OpCode The total number of COPS packets that the client received from COPS servers marked for the
selected client type having a COPS protocol Op Code that should not have been sent to a
COPS client, for example, Open-Requests.
Note: This is a cumulative value and is not zeroed on new connections.
Timeout Clients The total number of times that the client has been shut down for the selected client type by
COPS servers that detected a COPS protocol Keepalive timeout.
Note: This is a cumulative value and is not zeroed on new connections.
Auth Failures The total number of times that the client received a COPS packet marked for the selected
client type that could not be authenticated using the authentication mechanism used by the
client.
Note: This is a cumulative value and is not zeroed on new connections.
Auth Missing The total number of times that the client received a COPS packet marked for this client type
not containing authentication information.
Table 292 Status page items (Continued)
Item Descriptions
826 Implementing Common Open Policy Services (COPS)
P0609326 1.1
Configuring a COPS Client
To configure a COPS client, you enter the information the COPS Client needs to connect to a
COPS Server.
Adding a COPS Client Server entry
1On the navigation tree, click the Services key and click the Policy Management key.
2Click the COPS Client key and the Configuration heading.
The COPS Client Server screen appears.
3On the Configuration menu, click Add Cops Client Config Entry.
The COPS Client Server screen appears.
4Configure the COPS Client Server parameters according to the following table.
5Click the Save button.
Modifying a COPS Client Server entry
The TCP Port and Priority are the only parameters you can modify on a COPS Client Server entry.
1On the navigation tree, click the Services key and click the Policy Management key.
2Click the COPS Client key and the Configuration heading.
The COPS Client Server screen appears.
3Click the COPS Client Server entry you want to modify.
4On the Configuration menu, click Modify Cops Client Config Entry.
The COPS Client Server screen appears.
5Change the TCP Port or Priority of the COPS Client server.
6Click the Save button.
Table 293 COPS Client Server parameters
Attribute Description
Address Type Shows the type of address used for this COPS Client server.
Address Enter the IP address of the COPS Client server in a valid dot format.
Client Type Displays the COPS Client type the server is capable of serving.
Authorization Type Displays the Authorization type used for the server.
TCP Port Enter the TCP Port used to communicate with the COPS server.
You can enter a value from 1 to 65535.
Priority The Priority determines the order in which the COPS Client attempts to connect to the COPS
Server. The COPS Client attempts to connect to the COPS Server with the highest number
first.
You can enter a value from 0 to 65535.
Note: If you enter the same Priority for two COPS Servers, the COPS client will randomly
select which COPS server to try first.
Implementing Common Open Policy Services (COPS) 827
Business Communications Manager 3.6 Programming Operations Guide
Modifying the COPS Client Server Retry Data
If Business Communications Manager cannot connect to the COPS Client Server on its first
attempt, Business Communications Manager will wait and then try to connect again. On the COPS
Client Server Retry Data screen, you can enter the number of times that Business Communications
Manager attempts to connect again and time it waits between attempts.
1On the navigation tree, click the Services key and click the Policy Management key.
2Click the COPS Client key and the Configuration heading.
The COPS Client Server screen appears.
3Click the COPS Client Server Retry Data tab.
The COPS Client Server Retry Data screen appears.
4Configure the COPS Client Server Retry Data according to the following table.
5Press the Tab key to save your changes.
Table 294 COPS Client Retry data
Attribute Description
Server Retry Count Enter the number of times that Business Communications Manager attempts to connect to the
COPS Server if the original connection attempt fails.
You can enter a value from 0 to 9999 attempts.
Server Retry Interval Enter the amount of time that Business Communications Manager waits before attempting to
connect to the COPS Client Server again.
You can enter a value of 0 to 65535 centiseconds.
Note: 100 centiseconds equals one second.
828 Configuring the Policy Agent characteristics
P0609326 1.1
Configuring the Policy Agent characteristics
You can configure the Policy Agent operational parameters. To configure a Policy Agent.
1On the navigation tree, click the Services key and click the Policy Management key.
2Click the Policy Agent tab.
The Policy Agent screen appears.
3Configure the Policy Agent settings according to the following table.
4Press the Tab key to save your settings.
5Click the Policy Server tab.
The Policy Server screen appears.
6Configure the Policy Server settings according to the following table.
7Press the Tab key to save your settings.
8Click the Policy Class Support Table tab.
The Policy Class Support Table screen appears.
Table 295 Policy Agent settings
Attribute Description
Dynamic
Management
Allows you to enable or disable the Policy Server Control.
The default value is Disabled.
Note: If you enable Dynamic Management, local policy control is disabled.
Policy Agent State Shows the current status of the policy Agent.
The possible states are: Running, Initializing or Disabled.
Policy Agent
Retry Timer
Enter the time, in seconds, between the receipt of a connections termination/rejection indication
and the start of a new connection request.
You can enter -1 or a value between 1 and 86400.
Note: If you enter a value of -1, a connection retry is not attempted after a failed attempt.
Table 296 Policy Server settings
Attribute Description
Name Shows the name of the Policy Server.
ID Shows the ID of the Policy Server.
Longevity Allows you to specify when the policy received from the Policy Server expires.
The possible values are:
Never Expire,
Expire Immediately,
Expire on Timeout
The default value is: Expire Immediately.
Time to Live If you chose Expire on Timeout in the Longevity box, enter the timeout in this box.
You can enter a value between 0 and 65535 seconds.
Configuring the Policy Agent characteristics 829
Business Communications Manager 3.6 Programming Operations Guide
9This screen displays read only information. This information is described in the following
table.
10 Click the Policy Device Identification tab.
The Policy Device Identification screen appears.
11 This screen displays read only information. This information is described in the following
table.
12 Press the Tab key to save your settings.
Table 297 Policy Class Support
Attribute Description
Policy Name Shows the name of the policy.
Current Instances Shows the current class entries.
Maximum
Installed
Instances
Shows the maximum number of allowed class entries.
Table 298 Policy Device Identification
Attribute Description
Description Shows a description of the Business Communications Manager system.
Maximum
Message Size
Shows the maximum target message size supported by Business Communications Manager.
The maximum COPS message size is 2048.
830 Configuring the Policy Agent characteristics
P0609326 1.1
831
Business Communications Manager 3.6 Programming Operations Guide
Chapter 42
Configuring IP Firewall Filters
The Business Communications Manager IP Firewall Filters feature is one of the security features
Business Communications Manager offers to protect your network against intruders. The security
and firewall features are also used for controlling what outside resources your users will be able to
access.
The following features are part of the Business Communications Manager firewall:
• Basic (stateless) Packet Filter (“Basic (stateless) Packet Filter” on page 831)
• Stateful Packet Filters (“Stateful Packet Filters” on page 832)
This section also contains information about:
•“Viewing and changing the status of Firewall Filters” on page 832
•“Configuring IP Firewall Filters for an interface” on page 833
•“Accessing Unified Manager through the Firewall” on page 841
Packet filtering
A packet filter is a firewall facility that inspects incoming and outgoing packets and uses this
information to determine which network packets to allow through the firewall. The traffic may or
may not be tracked by keeping the state of the connection.
Basic (stateless) Packet Filter
Business Communications Manager supports basic (or stateless) packet filtering for IP protocols.
Stateless packet filtering examines each packet and determines whether or not to pass it through
based on the rules entered. No state is maintained for packets evaluated using stateless rules.
Basic Packet Filters are configured by setting the Stateful box on the interface screen to No.
Caution: When blocking incoming packets, make sure you do not block your access to
Unified Manager on the system.
Note: For information on using filters for IPX routing, see “Configuring IPX Routing” on
page 719.
832 Viewing and changing the status of Firewall Filters
P0609326 1.1
Stateful Packet Filters
Business Communications Manager supports stateful packet filtering for IP protocols. Stateful
packet filters monitor active sessions and record session information such as IP addresses and port
numbers. They maintain state information for each flow (TCP, UDP or ICMP). Stateful filters use
the state information to determine if a packet is responding to an earlier request that has been
validated by the rule set. If the packet is in response to a previous request, the packet is treated in
the same manner. It will either be blocked or allowed though.
Stateful packet filters protect your network against Internet attacks such as source spoofing, where
an attacker pretends to be a trusted user by using an IP address that is within the accepted range of
IP addresses of your internal network. Business Communications Manager stateful packet filtering
validates that addresses coming from outside the network are valid outside addresses. Stateful
packet filters also protect your network from a denial-of-service attack, where an attacker tries to
block valid users from accessing a resource or a server.
Stateful filtering supports TCP, UDP, IP, and ICMP. Stateful filtering supports the following
applications: H.323, FTP, HTTP, POP3, Telnet, SMTP, DNS, DHCP, TFTP, GOPHER, FINGER,
NNTP, NetBios, POP2, RPC, SNMP and SUNNFS.
IP Firewall filters and NAT
When you use NAT and IP Firewall filters, there are two interactions you need to be aware of.
• On inbound traffic, the NAT rules are applied before the IP Firewall Filter rules.
• On outbound traffic, the IP Firewall Filter rules are applied before the NAT rules.
Viewing and changing the status of Firewall Filters
1On the navigation tree, click the Services key and click the Policy Management key.
2Click the IP Firewall Filters heading.
The Firewall Filters Summary screen appears. The Summary screen attributes are:
3Press the Tab key to save your settings.
Table 299 IP Firewall Filters Summary
Attribute Description
Description Shows a description of Firewall Filters.
Version Shows the version number of the subsystem.
Status Shows the status of Firewall Filters. This box also provides commands to enable or disable
Firewall Filters.
Possible values: Disabled, Enabled
When the status is Enabled, the state of all of the traffic is monitored. Rules can then be set for
each of the interfaces, as necessary.
The default value is: Disabled.
Configuring IP Firewall Filters for an interface 833
Business Communications Manager 3.6 Programming Operations Guide
Configuring IP Firewall Filters for an interface
This section describes configuring IP Firewall Filters for a single interface. Follow the same
instructions to configure the parameters for each of the other interfaces.
This section also includes information about:
•“Adding Default Rules” on page 834
•“Adding an Input Filter for a Firewall Filter Interface” on page 835
•“Modifying an Input Filter for a Firewall Filter Interface” on page 837
•“Deleting an Input Filter for a Firewall Filter Interface” on page 837
•“Configuring the order of the Input Filters for an interface” on page 838
•“Adding an Output Filter for a Firewall Filter Interface” on page 839
•“Modifying an Output Filter for a Firewall Filter Interface” on page 839
•“Deleting an Output Filter for a Firewall Filter Interface” on page 839
•“Configuring the order of the Output Filters for an interface” on page 840
The following procedures describe how to configure a single interface (LAN1 for example).
1On the navigation tree, click the Services key and click the Policy Management key.
2Click the IP Firewall Filters key and click the heading of the interface you want to configure.
The Logging Settings screen appears.
3Click the Logging box and click Disabled or Enabled.
4Click the Logging Level box and click one of the following options:
- Level 1 logs blocked packets
- Level 2 logs passed packets
- Level 3 logs both
5Press the Tab key to save your settings.
6Click the Log Viewing Options tab.
The Log Viewing Options screen appears.
7Enter the Start Date and End Date (mm/dd/yyyy).
This is necessary only if you wish to view existing logging data.
Note: You can configure rules several ways; using default rules, setting up individual
rules, or a combination of the two.
834 Configuring IP Firewall Filters for an interface
P0609326 1.1
Adding Default Rules
1Click the Default Rule Status tab.
The Default Rule Status screen appears.
2Click the Status box and click one of the following options:
•Enabled - Pass Outgoing and Block Incoming Except IP Phones
Allows IP telephony registration traffic through, but blocks all other traffic on this
interface.
•Enabled - Pass Outgoing and Block Incoming Including IP Phones
Blocks all traffic on this interface, including IP telephony traffic.
•Disabled - Pass All
The IP Firewall does not check the traffic on this interface. Therefore, all traffic on this
interface, both incoming and outgoing, is passed through.
The default is Disabled.
Caution: If you turn on the Default Rules, you cannot access Unified Manager on this
interface.
Note: You must still specify an H.323 rule to allow IP call voice traffic. This
setting only allows the IP telephone to contact the system to register.
Also, Registration must be turned on in the Services, IP Telephony, Nortel IP
Telephone, General page, before the telephone can access the system to register.
Note: Setting an Incoming Rule that blocks all incoming packets and disabling the
Default Rules is not the same as enabling the Default Rules.
When block all incoming packets and disable the Default Rules, packets that originate
from inside the Firewall are not treated as Stateful. When a response packet is
returned, it will not match the Incoming Rule and will be blocked.
When you enable the Default Rules, packets that originate from inside the Firewall are
treated as Stateful. When a response packet is returned, it will match the existing state
and will be passed.
Configuring IP Firewall Filters for an interface 835
Business Communications Manager 3.6 Programming Operations Guide
Adding an Input Filter for a Firewall Filter Interface
Before you can specify a Rule Order, you must add Filter Rules.
The maximum number of Input Filter Rules you can add is 32.
1Click the Input Filters’ Rule Settings tab.
The Input Filters’ Rule Settings screen appears.
2On the Configuration menu, click Add Input Filter Rule.
3Configure the Input Filter Rule settings according to the following table.
Table 300 Firewall Input Filter Rule settings
Attribute Description
Rule Name (IR#
or OR#)
Allows you to assign a number to the Rule.
Stateful Allows you to specify if the states of connections that match this rule will be monitored. This
permits the creation of one-way rules. For example, you can permit inside traffic to return but
block traffic originating from the outside.
For more information refer to “Stateful Packet Filters” on page 832.
The values are Yes and No. The default is Yes.
Disposition Allows you to specify if a packet that matches this rule passes through or is blocked.
The values are Block or Pass. The default is Block.
Protocol Allows you to specify the protocol type of the packet to be filtered.
The values are; IP, TCP, UDP, TCP/UDP, ICMP, OSPF, PPTP, IPSEC_AH AND IPSEC_ESP.
The default is IP.
Source IP Type Allows you to specify if the Source IP is Fixed or Dynamic.
Use Dynamic when the IP is assigned by an outside source. For example, your Internet Service
Provider (ISP) assigns your IP address. If you specify Dynamic, Source IP and Source IP Mask
do not need to be entered.
The default is Fixed.
Note: Dynamic does not match all IP addresses. If you want to match all IP addresses, enter an
IP address of 0.0.0.0 and a mask of 0.0.0.0.
Source IP Allows you to specify the source address of the packet to be filtered.
Source Range
Mask
Allows you to specify the source address mask of the packet to be filtered.
If you enter 255.255.255.255, then the Source IP is a single address.
If you enter 0.0.0.0, then the Source IP is all possible addresses.
Source Port
Range (#-#)
Allows you to specify a single entry, a range of entries (1-65535) or one of the following: ALL,
FTP, Telnet, SMTP, SNMP, DNS, DHCP, TFTP, Gopher, Finger, HTTP, H.323, POP, NNTP,
NetBios, RPC, SUNNFS and DCOM.
Non-standard
FTP Port
Select Yes if the Source Port Range contains non-standard FTP ports.
Select No if the Source Port Range does not contain non-standard FTP ports.
If your FTP server behind the Business Communications Manager listens on a non-standard
port, you must select Yes for this option. This is because FTP uses two ports - command(21) and
data(20). When a port other than 21 is used for FTP, the IP Firewall needs to be able to deal with
the alternate data port as well.
The default is No.
836 Configuring IP Firewall Filters for an interface
P0609326 1.1
Destination IP
Type
Allows you to specify if the Destination IP Type is Fixed or Dynamic.
Use Dynamic when the IP is assigned by an outside source. For example, your Internet Service
Provider (ISP) assigns your IP address. If you specify Dynamic, Destination IP and Destination
IP Mask do not need to be entered.
The default is Fixed.
Note: Dynamic does not match all IP addresses. If you want to match all IP addresses, enter an
IP address of 0.0.0.0 and a mask of 0.0.0.0.
Destination IP Allows you to specify the Destination IP address.
Destination
Range Mask
Allows you to specify the destination address mask of the packet to be filtered.
If you enter 255.255.255.255, then the Destination IP is a single address.
If you enter 0.0.0.0 then the Destination IP is all possible addresses.
Destination Port
Range (#-#)
Allows you to specify a single entry, a range of entries (1-65535) or one of the following: ALL,
FTP, Telnet, SMTP, SNMP, DNS, DHCP, TFTP, Gopher, Finger, HTTP, POP, NNTP, NetBios,
RPC, SUNNFS and DCOM.
Non-standard
FTP Port
Select Yes if the Destination Port Range contains non-standard FTP ports.
Select No if the Destination Port Range does not contain non-standard FTP ports.
If your FTP server behind the Business Communications Manager listens on a non-standard
port, you must select Yes for this option. This is because FTP uses two ports - command(21) and
data(20). When a port other than 21 is used for FTP, the IP Firewall needs to be able to deal with
the alternate data port as well.
The default is No.
Source Routing Allows you to specify how the Source Routing is checked.
Present: Rule matches Only if the packet has the source routing option set.
Absent: Rule matches Only if the packets does not have the source routing option set.
Ignore: The source routing option in the packet is not checked and therefore all packets will
match.
The default is Ignore.
IP Options Allows you to specify how the IP Options are checked.
Present: Rule matches Only if the packet has the IP options set.
Absent: Rule matches Only if the packets does not have the IP options set.
Ignore: The IP Options in the packet are not checked and therefore all packets will match.
The default is Ignore.
Quick Allows you to specify the order of rule match. Yes means that the first rule match is used. No
means the last rule match is used.
The default is Yes.
Table 300 Firewall Input Filter Rule settings (Continued)
Attribute Description
Configuring IP Firewall Filters for an interface 837
Business Communications Manager 3.6 Programming Operations Guide
4Click the Save button.
Modifying an Input Filter for a Firewall Filter Interface
1Click the Input Filters’ Rule Settings tab.
The Input Filters’ Rule Settings screen appears.
2Click the Input Filter you want to modify.
3On the Configuration menu, click Modify Input Filter Rule.
4Modify the Input Filter Rule attributes.
5Click the Save button.
Deleting an Input Filter for a Firewall Filter Interface
1Click the Input Filters’ Rule Settings tab.
The Input Filters’ Rule Settings screen appears.
2Click the Input Filter you want to delete.
3On the Configuration menu, click Delete Input Filter Rule.
A message appears that asks you to confirm the deletion.
4Click the Yes button.
Note: When you set filters, make sure you allow the flow of packets going to the RPC
port (port 135 TCP or UDP), DCOM ports, and the Unified Manager port (port 443 TCP)
for correct Unified Manager operation. For more information about allowing Unified
Manager access, refer to “Accessing Unified Manager through the Firewall” on page 841.
To allow access for SSH, you must set the filters to allow the flow of packets to the SSH
port (port 22).
To allow access for Telnet, you must set the filters to allow the flow of packets to the
Telnet port (port 23). If you block the Telnet port, you can still access Telnet using a direct
connection. To make a direct connection, you must be on site and you must connect the
LAN port on the Business Communications Manager to the NIC port on your computer
using an Ethernet crossover cable.
838 Configuring IP Firewall Filters for an interface
P0609326 1.1
Configuring the order of the Input Filters for an interface
After you enter all of the Input filters, you need to set the order in which the filters are used.
The order of the Input Filter Rules is very important. The more specific rules, such as rules for
specific port numbers and addresses, should be placed first. TCP and UDP rules are typically more
specific and should be first. Rules for just the IP protocol should be placed last, because they
typically ignore port numbers and only match on IP addresses.
The following two examples show how the order of the rules affects what traffic can pass through
the IP Firewall.
Example 1: Rule 1 is configured to Pass TCP protocol 25 from any IP address to 10.10.10.20.
Rule 2 is configured to Block any TCP protocol from any IP address to any IP address. If Rule 2 is
placed before Rule 1, then Rule 1 will never be reached because all TCP protocol 25 packets
destined for IP address 10.10.10.20 will be blocked by Rule 2 first.
Example 2: Rule 1 is configured to Pass TCP protocol 6800 from IP address 192.168.10.20 to IP
address 10.10.10.20. Rule 2 is configured to Block all IP protocols from any IP address to any IP
address. If Rule 2 is placed before Rule 1, all TCP packets will match Rule 2 first and will be
blocked.
To configure the order of the input filters:
1Click the Input Rules’ Filter Order tab.
The Input Rules’ Filter Settings screen appears.
2Type in the Input Filter Rule Order for the interface you are configuring.
3Press the Tab key to save your settings.
Configuring IP Firewall Filters for an interface 839
Business Communications Manager 3.6 Programming Operations Guide
Adding an Output Filter for a Firewall Filter Interface
Before you can specify a Rule Order, you must add Filters.
The maximum number of Output Filter Rules you can add is 32.
1Click the Output Filter Rules’ Setting tab.
The Output Filter Rules’ Settings screen appears.
2On the Configuration menu, click Add Output Filter Rule.
3Configure the Output Filter Rule settings. These setting are described in the table in “Adding
an Input Filter for a Firewall Filter Interface” on page 835.
4Click the Save button.
Modifying an Output Filter for a Firewall Filter Interface
1Click the Output Filter Rules’ Setting tab.
The Output Filter Rules’ Settings screen appears.
2Click the Output Filter you want to modify.
3On the Configuration menu, click Modify Output Filter Rule.
4Modify the Output Filter attributes.
5Click the Save button.
Deleting an Output Filter for a Firewall Filter Interface
1Click the Output Filter Rules’ Setting tab.
The Output Filter Rules’ Settings screen appears.
2Click the Output Filter you want to delete.
3On the Configuration menu, click Delete Output Filter Rule.
A message appears that asks you to confirm the deletion.
4Click the Yes button.
840 Configuring IP Firewall Filters for an interface
P0609326 1.1
Configuring the order of the Output Filters for an interface
After you enter all of the Output filters, you need to set the order in which the filters are used.
The order of the Output Filter Rules is very important. The more specific rules, such as rules for
specific port numbers and addresses, should be placed first. TCP and UDP rules are typically more
specific and should be first. Rules for just the IP protocol should be placed last, because they
typically ignore port numbers and only match on IP addresses.
The following two examples show how the order of the rules affects what traffic can pass through
the IP Firewall.
Example 1: Rule 1 is configured to Pass TCP protocol 25 from any IP address to 10.10.10.20.
Rule 2 is configured to Block any TCP protocol from any IP address to any IP address. If Rule 2 is
placed before Rule 1, then Rule 1 will never be reached because all TCP protocol 25 packets
destined for IP address 10.10.10.20 will be blocked by Rule 2 first.
Example 2: Rule 1 is configured to Pass TCP protocol 6800 from IP address 192.168.10.20 to IP
address 10.10.10.20. Rule 2 is configured to Block all IP protocols from any IP address to any IP
address. If Rule 2 is placed before Rule 1, all TCP packets will match Rule 2 first and will be
blocked.
To configure the order of the output filters:
1Click the Output Filter Rules’ Order tab.
The Output Filter Rules’ Configuration screen appears.
2Type in the Output Filters’ Rule Order for the interface you are configuring.
3Press the Tab key to save your settings.
Accessing Unified Manager through the Firewall 841
Business Communications Manager 3.6 Programming Operations Guide
Accessing Unified Manager through the Firewall
• Do not set any blocking input rules on the interface that you use to connect to Business
Communications Manager using Unified Manager. This includes enabling the default rules.
• Set three Input Rules for Unified Manager traffic, one for RPC, one for DCOM and one for
port 443. Configure these three rules as follows:
Table 301 Input Rule Configuration for Unified Manager — RPC
Type of filter Input Filter
Protocol TCP
Source IP Type Fixed
Source IP IP address of the system that will access Business Communications Manager
Source Range Mask 255.255.255.255 (or as appropriate)
Source Port Range ALL
Destination IP Type Fixed (or Dynamic if the IP address is remotely assigned)
Destination IP IP address for this interface (or blank if IP Type is Dynamic)
Destination Range Mask Appropriate mask (or blank if IP Type is Dynamic)
Destination Port Range RPC (Port 135)
Table 302 Input Rule Configuration for Unified Manager — DCOM
Type of filter Input Filter
Protocol TCP
Source IP Type Fixed
Source IP IP address of the system that will access Business Communications Manager
Source Range Mask 255.255.255.255 (or as appropriate)
Source Port Range ALL
Destination IP Type Fixed (or Dynamic if the IP address is remotely assigned)
Destination IP IP address for this interface (or blank if IP Type is Dynamic)
Destination Range Mask Appropriate mask (or blank if IP Type is Dynamic)
Destination Port Range DCOM (Ports 54050 – 54100)
Table 303 Input Rule Configuration for Unified Manager — port 443
Type of filter Input Filter
Protocol TCP/UDP
Source IP Type Fixed
Source IP IP address of the system that will access Business Communications Manager
Source Range Mask 255.255.255.255 (or as appropriate)
Source Port Range ALL
Destination IP Type Fixed (or Dynamic if the IP address is remotely assigned)
Destination IP IP address for this interface (or blank if IP Type is Dynamic)
842 Accessing Unified Manager through the Firewall
P0609326 1.1
Destination Range Mask Appropriate mask (or blank if IP Type is Dynamic)
Destination Port Range 443
Note: The order of these three rules does not matter, as long as these rules come before
more general rules.
Table 303 Input Rule Configuration for Unified Manager — port 443 (Continued)
Firewall rules for Business Communications Manager with Dialup interfaces 843
Business Communications Manager 3.6 Programming Operations Guide
Firewall rules for Business Communications Manager with
Dialup interfaces
For systems with dialup interfaces (ISDN, V.90), we recommend that you add Firewall filters to
all interfaces except the dialup interface that blocks NetBIOS traffic. This prevents any NetBIOS
packets from getting into the Business Communications Manager and bringing up the dialup
interface link.
For example, if a Business Communications Manager is configured with two LANs and one ISDN
dialout interface, then these Firewall rules should be placed on both of the LANs.
Table 304 Input Rule Configuration for systems with dialup interfaces
IR1
Direction: In
Stateful: Yes
Disposition: Block
Protocol: TCP/UDP
Source IP: 0.0.0.0
Source Mask: 0.0.0.0
Source Port: NETBIOS
Destination IP: 0.0.0.0
Destination Mask: 0.0.0.0
Destination Port: NETBIOS
IR2
Direction: In
Stateful: Yes
Disposition: Block
Protocol: TCP/UDP
Source IP: 0.0.0.0
Source Mask: 0.0.0.0
Source Port: NETBIOS
Destination IP: 0.0.0.0
Destination Mask: 0.0.0.0
Destination Port: DNS
844 Firewall rules for Business Communications Manager with Dialup interfaces
P0609326 1.1
845
Business Communications Manager 3.6 Programming Operations Guide
Appendix A
Defining region-based defaults
This section describes some of the differences in the system defaults. These defaults are
set based on the region or telephony or CallPilot template that you select in the Quick Start
wizard when the system is first configured. Each region is designed using a set of system
defaults that provide specific functionality for the geographical area in which the system is
deployed.
This section includes information about:
•“Region-based system settings”
•“BRI and PRI line types” on page 857
•“CallPilot regions” on page 859
Region-based system settings
The tables in this section provide information about different settings that affected by the
region assigned to the system.
•“Core software and regions” on page 846
•“Languages” on page 846
•“Caller ID displays” on page 847
•“Companding Law by region” on page 847
•“Mobility services by region” on page 848
•“Media bay module availability by region” on page 849
•“FEM-trunk module combinations by region” on page 850
•“PRI line protocol support, by region” on page 851
•“Supported ISDN line services” on page 852
•“Defining time zones by country and language” on page 853
•“System feature defaults” on page 853
•“Dialing plan defaults” on page 856
846 Region-based system settings
P0609326 1.1
Core software and regions
Each Region setting requires a specific core software to perform correctly.
The following table shows the core software available.
Languages
The following table lists the languages available for each region and a specific order in
which the languages are set as default.
Table 305 Core software, defined by region and carrier profile
Core Software
(Carrier s/w ID) T1 CT2 Plus T1 Etiquette E1 Euro E1 Global E1 CALA
Region Caribbean
Hong Kong
North American
Taiwan
Caribbean
Hong Kong
North American
Taiwan
Denmark
France
Germany
Holland
Italy
Norway
Spain
Sweden
Switzerland
United Kingdom
Australia
Brazil
CALA
Global
PRC
Australia
Brazil
CALA
Global
PRC
South American and Central American countries are assigned to regions in the following way:
• Caribbean includes Antigua, Bahamas, Barbados, Bermuda, Cayman Islands, Dominican Republic,
Jamaica, USVI, Puerto Rico, and Trinidad
• CALA refers to all other Caribbean and Latin American countries with European-based standards.
Table 306 Languages
Region Language
CALA
Caribbean
Hong Kong
North American
PRC
Taiwan
NA English, NA French, NA Spanish
Australia
United Kingdom UK English
Brazil Portuguese, NA English
Denmark Danish, Norwegian, Swedish, NA English
France Euro French, NA English
Germany German, NA English
Global NA English, NA French, NA Spanish, Turkish
Holland Dutch, Euro French, NA English
Italy Italian, NA English
Norway Norwegian, Swedish, Danish, NA English
Spain Euro Spanish, NA English, Portuguese
Sweden Swedish, Norwegian, Danish, NA English
Switzerland German, Euro French, Italian, NA English
Region-based system settings 847
Business Communications Manager 3.6 Programming Operations Guide
The following table shows a breakdown of the language support for South American and
Central American countries.
Caller ID displays
The North American region supports the following format: 5554775 (613)
All other regions display the numbers in a continuous string of a maximum of 14
characters: 6135554775
Companding Law by region
The following table shows the companding law used for each region.
DECT systems: You must ensure that DECT systems that require mu-law have the
correct region setup before you install the DECT system. Refer to the DECT Installation
and Maintenance Guide for details.
Table 307 South/Central America language breakout
Language Spanish English French Portuguese
Country Dominican
Republic
Jamaica
Puerto Rico
Argentina
Bolivia
Chile
Columbia
Costa Rica
Guatemala
Mexico
Nicaragua
Peru
Panama
Uruguay
Venezuela
El Salvador
Honduras
Ecuador
Paraguay
St. Thomas
USVI
Aruba
Bahamas
Bermuda
Curacao
Trinidad
Anguilla
Antigua
Barbados
Dominica
Grenada
Guyana
Montserrat
St. Kitts
St. Lucia
St. Maarten
Suriname
Turks & Caicos
St. Vincent
St. Thomas
Cayman Islands
Belize
Haiti Brazil
Table 308 Companding law
Companding Law
mu-law A-law
Caribbean
Hong Kong
North American
Taiwan
Australia
Brazil
CALA
Denmark
France
Germany
Global
Holland
Italy
Norway
PRC
Spain
Sweden
Switzerland
United Kingdom
848 Region-based system settings
P0609326 1.1
Mobility services by region
The following table shows the Mobility services that are supported by the Business
Communications Manager, and the regions that can use each type.
Table 309 Mobility services, by region
Profile Available Mobility Service
Caribbean
Hong Kong
North American
PRC
Companion (CT2-Plus, Etiquette)
CALA
Brazil
Companion (CT2-Plus)
Taiwan Companion (CT2-Plus, Etiquette)
DECT
Australia
Denmark
France
Germany
Global
Holland
Italy
Norway
Spain
Sweden
Switzerland
United Kingdom
DECT
Region-based system settings 849
Business Communications Manager 3.6 Programming Operations Guide
Media bay module availability by region
Some of the media bay modules are customized for a specific type of line and are not
available to all regions. The following table lists a cross-reference between regions and the
type of modules that can be used within the related area.
Table 310 Module availability, by profile
Region DSM ASM+ ASM CTM 4X16 GATM BRI DTM DECT
Australia 99999
Brazil 9 9 9 9
Caribbean 99999
CALA 9 9 9 9 9
Denmark 9999
France 9 9 9 9
Germany 9999
Global 9 9 9 9 9 9
Holland 9999
Hong Kong 9 9 9 9 9 9
Italy 9999
North American 9 9 9 9 9 9 9 9
Norway 9999
PRC 9 9 9 9 9
Spain 9999
Sweden 9 9 9 9
Switzerland 9999
Taiwan 9 9 9 9 9 9 9
United Kingdom 99 9 9 99
850 Region-based system settings
P0609326 1.1
FEM-trunk module combinations by region
Trunk Modules may be connected to the Business Communications Manager system using
the Fiber Expansion Module (FEM). The following table provides a cross-reference
between regions and the Trunk Modules you can connect to the FEM.
Table 311 Trunk availability, by region
Region BRI S/T 2/4 BRI U2/4 Analog DID Analog E&M
Analog
CLID
Country- specific
analog trunk card
Australia 99
Brazil 9
CALA 99 9 99
Caribbean 9 9 9 9 9
Denmark 9
France 9 9
Germany 99
Global 9 9 9
Holland 99
Hong Kong 9 9 9 9
Italy 9
North American 9 9 9 9 9
Norway 9
PRC 9 9 9
Spain 9
Sweden 9
Switzerland 9
Taiwan 9 9 9 9
United Kingdom 99
Region-based system settings 851
Business Communications Manager 3.6 Programming Operations Guide
PRI line protocol support, by region
Table 312 PRI line protocol supported, by region
Region BRI T side BRI S side PRI T1
Australia ISDN ETSI 300 403 ISDN ETSI 300 102 DASS2
DPNSS
MCDN
ISDN ETSI 300 403,
ETSI QSIG 300 239,
Brazil
CALA
ISDN ETSI 300 403,
ETSI QSIG 300 239
ISDN ETSI 300 102 ETSI QSIG 300 239,
ISDN ETSI 300 403,
MCDN
Caribbean
North American
NI-2 NI-2 NI-2
4ESS
DMS100
DMS250
MCDN
Loop
E&M
DID
Ground
Fixed trunk types
Hong Kong
Taiwan
ITU-T ITU-T ITU-T Loop
E&M
DID
Ground
Fixed trunk types
Denmark
France
Germany
Global
Holland
Norway
PRC
Spain
Sweden
Switzerland
ETSI QSIG 300 239,
ISDN ETSI 300 403
ISDN ETSI 300 102 DASS2
DPNSS
MCDN
ETSI QSIG 300 239
ISDN ETSI 300 403
Italy ISDN ETSI 300 102
ETSI QSIG 300 239
ISDN ETSI 300 102 DASS2
DPNSS
MCDN
ETSI QSIG 300 239
ISDN ETSI 300 102
United Kingdom ETSI QSIG 300 239,
ISDN ETSI 300 403
ISDN ETSI 300 102 DASS2
DPNSS
MCDN
ETSI QSIG 300 239
ISDN ETSI 300 403
852 Region-based system settings
P0609326 1.1
Supported ISDN line services
The following table shows the ISDN private network services that are supported by the
Business Communications Manager.
The following table shows the network-based ISDN supplementary services and the
features available for each.
Table 313 ISDN line services
MCDN over PRI (SL-1) DPNSS DASS2 ETSI QSIG
Basic Call Basic Call Basic Call Basic Call
DDI DDI DDI DDI
Name display Diversion Originating line identity (OLI) Name display
Number display Redirection Terminating Line Identity (TLI) Number display
Centralized voice mail Centralized voice mail Call Charge Indication (CCI)
Camp-on Call Offer Call Charge Rate Indication (CCRD)
ISDN Call Connection Limit Loop avoidance
Network Call Transfer Executive Intrusion
Break-in Three Party
Trunk Route Optimization (TRO) Route Optimization
Trunk Anti-Tromboning
Table 314 ISDN services, by Protocol
Protocol Available ISDN services
NI
(Caribbean. North America)
Basic Call
DID
Name display
Number display
ONN blocking
ETSI Euro
(Australia. CALA, Denmark, France,
Germany, Global, Holland, Hong
Kong, Italy, Norway, PRC, Spain,
Sweden, Switzerland, Taiwan, United
Kingdom)
Basic Call
DDI
subaddressing (on S-loop)
ETSI Call Diversion (partial rerouting)
AOC-E (specific changes for Holland and Italy)
MCID
CLIP
COLP
CLIR
Region-based system settings 853
Business Communications Manager 3.6 Programming Operations Guide
Defining time zones by country and language
Time zones are based on the actual time zone where the Business Communications
Manager base unit is located. The Time Zone dropdown list on the initialization screen,
allows you to be very specific in choosing a compatible time zone. If your exact location is
not on the list, choose the one with the time zone closest to you. Note that some time zones
are individualized because they do not switch from Standard Time to Daylight Saving
Time. For example, this is the case for Saskatchewan.
The format of the time and date changes are based on the prime language of the region.
The following table provides a list of formats based on language or country.
System feature defaults
The following table compares the system defaults for the North American, Global and UK
regions. In addition, the following functionality applies:
• Regions for Denmark, Holland and Sweden are the same as the Global region except for the
default to local languages and local tones and cadences.
• The Region for the Caribbean is the same as the North American region except that it supports
the M7000 telephone.
• The Region for CALA is the same as the Caribbean region, except NI ISDN is replaced by
ETSI ISDN (u-law).
• The Region for Europe is the same as the United Kingdom region except there are no default
dialing restrictions, and ATA2 parameters are set to European values.
Table 315 Time/date formats based on language
Language/Country Time/Date format Language/Country Time/Date format
Danish 2001-01-01 13:57 NA English Jan 1 1:57 pm
Dutch 1 Jan 01 13:57 NA French 2001-01-01 13:57
EuroFrench 1 jan 13:57 NA Spanish Ene 1 1:57 pm
EuroSpanish
Brazil
1 Ene 13:57 Norwegian 1 Jan 13:57
Swedish 2001-01-01 13:57
German 1 Jan 13:57 Turkish 1 Ock 13:57
Italian 1 Gen 13:57 UK English 1 Jan 1:57 pm
Table 316 Region defaults
Functionality Attribute North American Global United Kingdom
Direct Dial Access code 000
DTMF parameters Tone duration 120 msec 120 msec 120 msec
Pause time 1.5 1.5 3.5
Interdigit time 80 msec 80 msec 100 msec
Conference tone disabled disabled enabled
854 Region-based system settings
P0609326 1.1
Call Back Kill time 180 sec 180 sec 360 sec
PCM Companding Law mu-law a-law EBI a-law EBI
Race Integration disabled disabled disabled
OLI digits fixed 10 digits fixed 10 digits variable length a
maximum of 8
Dial Tone Detection enabled enabled enabled
Hunt Groups Show in second disabled disabled disabled
Default delay 4 ring cycles 4 ring cycles 4 ring cycles
Queue timeout 60 sec 60 sec 60 sec
If busy busy tone busy tone busy tone
Mode broadcast broadcast sequential
Target line if busy
setting
prime prime busy tone
M7000 set disabled enabled enabled
Fax switch enabled enabled enabled
Service Schedule time Night start 23:00
end 07:00
start 23:00
end 07:00
start 23:00
end 07:00
Evening start 17:00
end 23:00
start 17:00
end 23:00
start 17:00
end 23:00
Lunch start 12:00
end 13:00
start 12:00
end 13:00
start 12:00
end 13:00
Service 4 start 00:00
end 00:00
start 00:00
end 00:00
start 00:00
end 00:00
Service 5 start 00:00
end 00:00
start 00:00
end 00:00
start 00:00
end 00:00
Service 6 start 00:00
end 00:00
start 00:00
end 00:00
start 00:00
end 00:00
Call Forward Delay Show in second disabled disabled disabled
Default 4 ring cycles 4 ring cycles 2 ring cycles
Options • 2 ring cycles
• 3 ring cycles
• 4 ring cycles
• 6 ring cycles
• 10 ring cycles
• 2 ring cycles
• 3 ring cycles
• 4 ring cycles
• 6 ring cycles
• 10 ring cycles
• 2 ring cycles
• 3 ring cycles
• 4 ring cycles
• 6 ring cycles
• 10 ring cycles
DRT Delay Show in second disabled disabled disabled
Default 4 ring cycles 4 ring cycles 4 ring cycles
Options • 1 ring cycles
• 2 ring cycles
• 3 ring cycles
• 4 ring cycles
• 6 ring cycles
• 10 ring cycles
• 1 ring cycles
• 2 ring cycles
• 3 ring cycles
• 4 ring cycles
• 6 ring cycles
• 10 ring cycles
• 1 ring cycles
• 2 ring cycles
• 3 ring cycles
• 4 ring cycles
• 6 ring cycles
Table 316 Region defaults (Continued)
Functionality Attribute North American Global United Kingdom
Region-based system settings 855
Business Communications Manager 3.6 Programming Operations Guide
Handsfree none none none
Pickup Group none none none
Remind Delay 60 secs 60 secs 60 secs
Allow SLR disabled disabled disabled
Transfer Callback Show in second disabled disabled disabled
Default 4 ring cycles 4 ring cycles 4 ring cycles
Options • 3 ring cycles
• 4 ring cycles
• 5 ring cycles
• 6 ring cycles
• 12 ring cycles
• 3 ring cycles
• 4 ring cycles
• 5 ring cycles
• 6 ring cycles
• 12 ring cycles
• 3 ring cycles
• 4 ring cycles
• 5 ring cycles
• 6 ring cycles
• 12 ring cycles
Dialling Plan market dependent
(defined in
application but
controlled by
market profile ID)
market dependent
(defined in
application but
controlled by market
profile ID)
market dependent
(defined in application but
controlled by market
profile ID)
ONN Blocking VSC for analog
tone
n/a n/a 141
VSC for analog
pulse
n/a n/a 141
VSC for BRI n/a n/a 141
VSC for PRI n/a n/a 141
State for BRI/PRI n/a n/a send feature code
Default CO lines 224
UTAM enabled disabled disabled
Portable credits 0 defined in the
application (max)
n/a
Release reason Release text none none detail
Release code disabled disabled disabled
Display duration 3 sec 3 sec 3 sec
Overlap Receiving disabled enabled disabled
Local Number length for
ISDN overlap receiving
888
Tandem alerting disabled disabled disabled
TON/NPI national/E.164 national/E.164 unknown/unknown
National number length 10 10 0
national number
prepend
n/a n/a 0
Provide tone on PRI enabled n/a disabled
Table 316 Region defaults (Continued)
Functionality Attribute North American Global United Kingdom
856 Region-based system settings
P0609326 1.1
Dialing plan defaults
Some profiles have default restriction dialing filters. The table below lists the filters for
these profiles.
Table 317 Default dialing restrictions, by profile
Profile Restriction
filter #
Restriction/
override
Restriction/
override
Restriction/
override
Restriction/
override
Restriction/
override
Restriction/
override
UK 10/0600 1010
5010 100
6 *
North
America
1 0 1/1800,
1877, 1888
911/911 9411 976 1976
1***976 1900 1***900 5551212
Hong Kong 100*** 170 172 173 1747 1760
1761 1766 1770 1771 1772 1775
1778 1783 1788 900
Australia 10/013 1/13, 1800
500 1/13, 11,
1800
6 *
BRI and PRI line types 857
Business Communications Manager 3.6 Programming Operations Guide
BRI and PRI line types
The following table provides a description of the types of lines that BRI and PRI trunks
can provide. These are set under Resources, Media Bay Modules, Bus XX, Module X on
the Unified Manager.
Note that some of these line types are only available when specific regions are chosen.
Table 318 BRI and PRI line types (DTM and BRI modules)
Digital trunk types Description
T1 digital line that carries data on 24 channels at 1.544 Mbps (North American); 30 channels
at 2,048 Mbps (Europe)
Loop, E&M, DID and ground start trunks are also versions of T1 lines.
You can program auto-answer T1 loop start, T1 E&M trunks, T1 DID, T1 ground start
trunks, PRI and IP trunks to map to target lines to provide for attendant bypass (calling
directly to a department or individual) and line concentration (one trunk can map onto
several target lines).
DID This is a type of T1 trunk line that allows an outside caller to dial directly into a line on the
Business Communications Manager.
Loop This is a type of T1 line. This type of line is used on systems where the service provider
supports disconnect supervision for the digital loop start trunks.
These trunks provide remote access to the Business Communications Manager from the
public network. This trunk must have disconnect supervision to allow the trunk to be set to
auto-answer, which provides the remote access portal.
Ground T1-groundstart trunk
These lines offer the same features as loop start trunks, but are used when the local
service provider does not support disconnect supervision for digital loop start trunks.
Ground start trunks work with T1 only. By configuring lines as ground start, the system will
be able to recognize when a call is released at the far end.
E&M T1 and E&M. This type of trunk line is used to create simple network connections to other
phone systems.
This trunk always operates in a disconnected supervised mode.
PRI ISDN interface with 23 B channels and 1 D channel at 1.544 MBps (in Europe: 30 B
channels and 2 D channels at 2.048 Mbps)
This is the module that controls system timing.
These lines give you incoming and outgoing access to an ISDN network and are
auto-answer trunks, by default.
These lines provide a fast, accurate and reliable means of sending and receiving data,
images, text and voice information. using PRI lines allows for faster transmission speeds
and the addition of a variety of powerful business applications, including remote LAN
access, video conferencing, file transfer and internet access.
BRI ISDN loop that provides both T, S and U2 and U4 (region-specific) reference point loops.
These loops can support both network (T and S loops) and terminal equipment (S loop)
connections.
This type of line provides incoming and outgoing access to an ISDN network. ETSI ISDN
BRI is the European Telecommunications Standards Institute specification for BRI ISDN
service. BRI provides two bearer B-channels operating at 64 kbits/s and a data D-channel
which operates at 16 kbits/s. The D-channel is used primarily to carry call information. Like
loop start trunks, BRI lines can be configured as manual-answer or auto-answer.
DASS2 (British) Trunk provides multi-line IDA interconnection to the British Telecom network.
858 BRI and PRI line types
P0609326 1.1
DPNSS (international term: Q.Sig or Q.931) a digital private network signaling system which allows
phone systems from different manufacturers to be tied together over E1 lines, offering
significant enhancements to Business Communications Manager networking capabilities.
DPNSS makes it easier to support centralized network functionality within private networks,
for operators and attendants dealing with large numbers of calls. Its routing capabilities
provide more of the larger-network capabilities without the expense of installing a new
system, re-configuring all the nodes and worrying about a lot of downtime. Most
functionality over DPNSS lines is transparent once the DPNSS is programmed into the
system.
DPNSS allows a local node, acting as a terminating node, to communicate with other PBXs
over the network using E1 lines. For example, corporate offices separated geographically
can be linked over DPNSS lines to other Business Communications Manager systems,
bypassing the restrictions of the PSTNs to which they may be connected. This allows
connected Business Communications Manager systems to function like a private network.
Analog trunk types
Public Provides potential access for any set on the system.
Private Provides potential access for a specific set.
Table 318 BRI and PRI line types (DTM and BRI modules) (Continued)
Digital trunk types Description
CallPilot regions 859
Business Communications Manager 3.6 Programming Operations Guide
CallPilot regions
The CallPilot portion of the Business Communications Manager application also has a
region setting that defines some call-management-related system defaults.
The CallPilot region is specified at system initialization and start up when you run the
Quick Start Wizard. You can also change this setting under System, Identification.
The following table lists the default prime language for the countries (regions) where the
voice mail application is supported.
The following list are the default settings that are the same for all CallPilot regions:
• Application name string VM
• Group list lead digit 9
• Country log header Access version: %s VM version:
• SC maximum lines 10_20 334
• TA Admin Name Voice Mail
• AMIS enabled
• Bilingualism enabled
• digital network access enabled
• Fax feature available enabled
• AMIS address start key #
• Operator Revert key 0
• Touch Tone Gateway disabled
• Maximum CLID entry 16
• Maximum network length 16
Table 319 CallPilot region default languages by country
Country Default voice mail
language Country Default voice mail
language
North America NA English Germany German
UK UK English Global NA English
Australia NA English Italy Italian
Denmark Danish Norway Norwegian
Holland Dutch Spain Spanish
Sweden Swedish Switzerland German
France Euro French Hong Kong NA English
CALA LA Spanish PRC Mandarin (Taiwan)
Caribbean NA English Taiwan Mandarin (Taiwan)
Europe UK English Brazil Portuguese
860 CallPilot regions
P0609326 1.1
The following table lists the feature default settings that differ among the CallPilot
regions.
Table 320 CallPilot feature default anomalies
Regions
Mail box
login
Alternate QZ
mapping
Max local
number length
National Number
Length Maximum CLID display
** 88 False True 7 811 8 9 10 11 78916
Australia 9 9 9 9 9
CALA 9999 9
Caribbean 9 9 9 9 9
Denmark 99 9 99
Europe 9 9 9 9 9
France 999 99
Germany 9 9 9 9 9
Global 999 9 9
Holland 9 9 9 9 9
Hong Kong 99 9 9 9
Italy 9 9 9 9 9
North America 99 9 99
Norway 9 9 9 9 9
PRC 99 9 9 9
Spain 9 9 9 9 9
Sweden 99 9 99
Switzerland 9 9 9 9 9
Taiwan 99 9 9 9
UK 9 9 9 9 9
861
Business Communications Manager 3.6 Programming Operations Guide
Appendix B
System Features
This section contains two lists:
•“Business Communications Manager feature codes” on page 861 which contains a complete
list of the feature codes that can be accessed from digital and IP telephones.
•“Button programming features” on page 865 contains a list of the features that are
programmable under the DN record Button Programming heading.
Business Communications Manager feature codes
This appendix provides a quick reference for Business Communications Manager features
available by pressing the FEATURE button on M-series telephones, Business Series Terminals
(BST T-series), and IP telephones. The following provides feature names sorted in alphabetical
order and numerically, by feature code.
The portable handsets, such as Companion, DECT, and NetVision telephones, do not support all
call features, or they may have alternate ways of using the feature codes. Refer to the Telephony
Features Handbook for lists of supported features for these handsets, and to the user
documentation for the specific product to find out how to use the codes on each type of telephone.
Table 321 Features sorted by feature name and by activation code
Sorted by feature name Sorted by activation code
Feature name
FEATURE
<code>
FEATURE
<code> Description
Alarm time (room set) 875 0Speed Dial - Activate
Alarm time - Cancel #875 *0 Button inquiry
Alarm time (HS admin set) 877 1Messages - Send
Autodial - External *1 #1 Messages - Cancel Send
Autodial - Internal *2 *1 Autodial - External
Auto Hold 73 2 Ring Again
Auto Hold - Cancel #73 #2 Ring Again - Cancel
Background Music 86 *2Autodial - Internal
Background Music - Cancel #86 3Conference Call
Button inquiry *0 *3 Memory buttons - Program
Call Center agent login/log out 904 4Call Forward
Call Center agent make busy/ready 908 #4 Call Forward - Cancel
Call Center queue status 909 *4 Speed Dial - Add, change
Call Charge Indication 818 5 Last Number Redial
Call Duration Timer 77 *501 Language - Primary1
Call Forward 4 *502 Language - Alternate1
862 Business Communications Manager feature codes
P0609326 1.1
Call Forward - Cancel #4 *503 Language - Alternate 21
Call Forward to Voice Mail 984 *504 Language - Alternate 31
Call Information 811 *510 Time zone readjust (IP telephones)
Call Log - Delete items (Auto bumping) 815 *503 Language - Alternate 21
Call Log - Manual 813 *520 Find available SWCA
Call Log - View information 812 *521 to
*536
System Wide Call Appearance
(SWCA)
Call Log options *84
Call Log password *85 *537 Find oldest SWCA
Call Park 74 *538 Find newest SWCA
Call Queuing 801 *550 Silent Monitor
Camp-on 82 *6 Ring Type
Call Log password *85 60 Page
Class of Service 68 61 Page - Internal (telephone speakers)
Conference Call 3 62 Page - External (external speakers)
Contrast adjustment *7 63 Page - Combined (internal & external)
Dialing Mode *82 64 Line Pool
Call Log options *84 65 Messages - View
Directed Pickup 76 66 Voice Call
Display Voice Mail DN, skillset or IVR DN 985 67 Saved Number Redial
Do not Disturb 85 68 Class of Service
Do not Disturb - Cancel #85 69 Priority Call
Exclusive Hold 79 *7 Contrast adjustment
Express Messaging 980 70 Transfer
Group Listening 802 #70 Transfer - Cancel
Group Listening - Cancel #802 71 Link
Group Pickup 75 73 Auto Hold
IP Services list *900 #73 Auto Hold - Cancel
IP Hot desking *999 74 Call Park
Language - Primary1*501 75 Group Pickup
Language - Alternate1*502 76 Directed Pickup
Language - Alternate 21*503 77 Call Duration Timer
Language - Alternate 31*504 78 Pause
Last Number Redial 5 79 Exclusive Hold
Line buttons - Move *81 *80 Ring Volume
Line Pool 64 *81 Line buttons - Move
Line Redirection 84 82 Camp-on
Table 321 Features sorted by feature name and by activation code (Continued)
Sorted by feature name Sorted by activation code
Feature name
FEATURE
<code>
FEATURE
<code> Description
Business Communications Manager feature codes 863
Business Communications Manager 3.6 Programming Operations Guide
Line Redirection - Cancel #84 83 Privacy (on/off)
Link 71 84 Line Redirection
Long tones 808 #84 Line Redirection - Cancel
Malicious call identification (MCID) 897 *84 Call Log options
Memory buttons - Program *3 85 Do not Disturb
Messages - Send 1 #85 Do not Disturb - Cancel
Messages - Cancel Send #1 *85 Call Log password
Messages - View 65 86 Background Music
Name and number blocking 819 #86 Background Music - Cancel
Name and number blocking - Cancel #819 88 Voice Call Deny
Page 60 #88 Cancel Voice Call Deny
Page - Combined (internal & external) 63 800 Trunk Answer
Page - External (external speakers) 62 801 Call Queuing
Page - Internal (telephone speakers) 61 802 Group Listening
Pause 78 #802 Group Listening - Cancel
Priority Call 69 803 Time
Privacy (on/off) 83 804 Wait for dial tone
Record call 989 805 Test telephone display
Ring Again 2 806 Static Time
Ring Again - Cancel #2 #806 Static Time - Cancel
Ring Type *6 807 Ringing (Signal) Call
Ring Volume *80 808 Long tones
Ringing (Signal) Call 807 #809 Name and number blocking - Cancel
Room condition (Room set) 876 811 Call Information
Room condition (HS admin set) 878 812 Call Log - View information
Room occupancy 879 813 Call Log - Manual
Run/Stop *9 815 Call Log - Delete items (autobumping)
Saved Number Redial 67 818 Call Charge Indication
Silent Monitoring *550 819 Name and number blocking
Speed Dial - Add, change *4 870 Viewing active services
Speed Dial - Activate 0 #871 Turning Ringing service off
Static Time 806 871 Turning Ringing service on
Static Time - Cancel #806 #872 Turning Restriction service off
System Wide Call Appearance (SWCA) *521 to
*536
872 Turning Restriction service on
873 Turning Routing service on2
Table 321 Features sorted by feature name and by activation code (Continued)
Sorted by feature name Sorted by activation code
Feature name
FEATURE
<code>
FEATURE
<code> Description
864 Business Communications Manager feature codes
P0609326 1.1
Find available SWCA *520 #873 Turning Routing service off
Find oldest SWCA *537 875 Alarm time
Find newest SWCA *538 #875 Alarm time - Cancel
Test telephone display 805 876 Room condition (Room set)
Time 803 877 Alarm time (HS admin)
Time zone adjust (IP telephones) *510 878 Room condition (HS admin)
Transfer 70 879 Room occupancy
Transfer - Cancel #70 897 Malicious call identification (MCID)
Transfer to mailbox 986 *9 Run/Stop
Trunk Answer 800 *900 IP Services list
Turning Restriction service off #872 904 Call Center agent login/log out
Turning Restriction service on 872 908 Call Center agent make busy/ready
Turning Ringing service off #871 909 Call Center queue status
Turning Ringing service on 871 980 Express Messaging
Turning Routing service off #873 981 Voice Mail login
Turning Routing service on2873 982 Voice Mail Operator settings
View active services 870 984 Call Forward to Voice Mail
Voice Call 66 985 Display Voice Mail DN, skillset, or IVR
DN
Voice Call Deny 88
Voice Call Deny - Cancel #88 986 Transfer to mailbox
Voice Mail direct 988 987 Voice Mail Interrupt
Voice Mail Interrupt 987 988 Voice mail direct
Voice Mail login 981 989 Record call
Voice Mail Operator settings 982 *999 IP Hot desking
Wait for dial tone 804
Notes
1 For the Companion C3050 Etiquette, C3060 Portable, and C3050 CT2Plus portable telephones, enter ** followed
by the numeric code to activate this feature.
2Contact your System Administrator for the service control password.
Table 321 Features sorted by feature name and by activation code (Continued)
Sorted by feature name Sorted by activation code
Feature name
FEATURE
<code>
FEATURE
<code> Description
Button programming features 865
Business Communications Manager 3.6 Programming Operations Guide
Button programming features
This section describes the features available for Button Programming. (Services, Telephony
Services, System DNs, Available DNs, DN<number>, User Preferences,
Button Programming, Button ##). Refer to the Telephony Feature Handbook for information
about using these features.
Note that some of these features need other system settings in order to work.
• Some of the buttons are controlled by features located under Services, Telephony Services,
System DNs, Available DNs, DNxx, Capabilities). Paging is an example of a feature that
requires other settings.
• Some features also require that the service be available on the line from your telephone service
provider. The types of lines provided are also determined by what region is chosen for your
system. MCID (malicious call identification) is an example of this type of feature.
Table 322 Button Programming Feature settings
Set command
(FEATURE
<code>)
Feature Description
None Button is configured for button programming, but nothing has been
entered.
0 Speed dial This button activates the speed dial feature. The telephone prompts the
user for a speed dial code.
1Send Message Send a message to another set within the network
#1 Cancel Send Message Cancel a message you sent to another set within the network
2Ring again Sets Ring again feature.
3 Conference/Transfer Initiates call between three parties.
4Call Forward Allows the user to enter a number to call forward current telephone.
5 Last number redial Causes set to redial the last number it received.
60 Page - General Allows the user to page all sets.
61 Page - Zone Allows the user to page a specific zone which is identified within the
Button programming.
62 Page - Speaker Allows the user to page through the speaker on a specific telephone.
63 Page - Speaker and zone Allows the user to page through the speaker on telephones in a specific
zone, which is identified within Button programming.
64 Line Pool Allows the user to access a line pool. Either specific pools assigned to
the telephone, or other general pools. The pool this button accesses is
specified during Button Programming for this feature.
65 Reply message Allows the user to access messages and send a reply to the message
sender.
#65 Cancel Message Waiting Allows the user to cancel the message waiting indicator.
66 Voice call Allows the user to make an announcement or begin a call through the
speaker of another telephone.
67 Saved Number Redial Allows the user to redial a number that they saved while on the call.
866 Button programming features
P0609326 1.1
68 Restriction override Allows the user to override any restrictions for the call they are trying to
dial.
69 Priority Call Allows the user to access a telephone that is currently busy.
70 Transfer Allows the user to transfer an existing call to another telephone.
71 Link Activates the Link command, which allows the user to access special
features on a remote PBX system.
72 Timed Release (NOT ACTIVE)
74 Call Park Allows the user to park a call on another telephone in the system.
*520 Find available SWCA key System will search for a free SWCA key among the SWCA keys that are
assigned to the current telephone.
*521 to *536 System Wide Call
Appearance (1 to 16)
Non-intercom calls are associated with an available SWCA key when the
call is answered or originated, or put on Hold.
Features that interact with this feature: Hold, telephone keys, outgoing
and incoming calls.
*537 Find oldest SWCA call System will search among the SWCA keys assigned to the telephone,
and unpark the call that has been parked the longest.
*538 Find newest SWCA call System will search among the SWCA keys assigned to the telephone,
and unpark the call that has been most recently parked.
*550 Silent Monitor Monitor hunt group calls. (Telephone must be assigned with SM
supervisor)
75 Group Pickup Allows the user to answer a call made to another set within the Pickup
group.
76 Directed Pickup Allows the user to answer any telephone that rings within the system.
77 Call Timer Allows the user to see how long a call lasted.
78 Pause Allows the user to insert a pause during a dialing sequence.
79 Exclusive Hold Allows the user to put a call on hold at the current telephone. All
appearances of the call on other telephones indicate the line is busy.
800 Trunk Answer Allows the user to answer a ringing call placed in a service mode.
801 Call Queuing Allows the user to answer calls in order when several calls occur at once.
Calls are presented in this order: incoming calls, timed-out forwarded
calls, then camped calls
802 Group Listening This feature opens the microphone on the set to allow a group of people
to hear a call through the telephone speaker, but the user must talk to
the caller through the handset.
803 Time Displays the current time.
804 Wait for Dialtone Places a pause in a dialing string that holds the following digits until a
dialtone is perceived on the line.
807 Ringing (Signal) Call Enter FEATURE 807 and an extension to directly ring another telephone
inside the system. This is the same process as pressing an intercom
button and dialing an extension.
808 Long tones Allows the user to specify the type of tones dialed out.
Table 322 Button Programming Feature settings (Continued)
Set command
(FEATURE
<code>)
Feature Description
Button programming features 867
Business Communications Manager 3.6 Programming Operations Guide
811 Call Information Allows the user to view information about a current call.
812 Call Log - View
Information
Allows the user to view call log information.
813 Call Log - Manual Allows the user to manually active call logging.
815 Call Logs autobumping Allows the user to manually remove the oldest log item.
818 Call Charge Indication Allows the user to view the charges for a call. (available on DASS2 and
ETSI Euro trunks only)
819 ONN blocking Allows the user to block the call information from the telephone for an
outgoing call.
82 Camp-on Allows the user to transfer and park an external call to another telephone
in the system.
83 Privacy Control Allows the user to make a shared line private, or release a shared line
from private control.
84 Line Redirection Allows the user to redirect a line within the system.
85 Do Not Disturb Allows the user to block incoming calls from ringing on the telephone.
86 Background music Allows the user to play music provided by a background music source
through the speaker on the telephone.
870 Service Mode Status Allows the user to view the current service mode being used.
871 Ringing Service Allows the user to change the ringing service schedule.
872 Restriction Service Allows the user to change the restriction service schedule.
873 Routing Service Allows the user to change the routing service schedule.
88 Voice Call Deny Allows the user to turn off the voice call feature at their set.
897 MCID (Malicious Call Identification)
Allows the user to query the system for information about a call within 25
seconds after the user hangs up, but before the caller hangs up.
*501 Language Choice Access a menu to choose what language you want a telephone to use
for display prompts.
7Contrast Digital telephones: Set the level of contrast for the telephone display
904 ACD agent login/log out Allows the user to log in or out of ACD (Attendant Console Directory).
908 ACD agent make busy/
ready
Allows the user to indicate ready or busy status on ACD.
909 ACD queue status Allows the user to view the status of queued calls on ACD.
980 Express Messaging Allows the user to log directly into voice mail to leave a message.
981 Voice Mail Login Opens your mailbox to play your messages and to access mailbox
options.
982 Voice Mail Operator
settings
Allows the user to set the parameters for the voice mail operator.
984 Call forward to voice mail Forwards incoming calls to your mailbox.
(Available for the Norstar Voice Mail interface only.)
Table 322 Button Programming Feature settings (Continued)
Set command
(FEATURE
<code>)
Feature Description
868 Button programming features
P0609326 1.1
985 Display voice mail DN Displays the voice mail, skill set, or IVR extension number.
986 Transfer to mailbox Transfers calls to a mailbox on the CallPilot system.
987 Voice mail interrupt Intercepts a caller who is listening to your mailbox greeting or leaving a
message.
988 Voice mail direct
989 Record call
*900 IP Services List IP telephones only.
Allows the user to access a feature menu. This is the same menu that is
accessed by pressing the Services key.
*999 IP Hot Desking IP telephones only.
Allows the user to access the hot desking feature. This feature allows
calls to be diverted from one IP telephone to another.
Table 322 Button Programming Feature settings (Continued)
Set command
(FEATURE
<code>)
Feature Description
869
Business Communications Manager 3.6 Programming Operations Guide
Appendix C
ISDN overview
This section provides some general information about using ISDN lines on your Business
Communications Manager system. Detailed information about ISDN is widely available through
the internet. Your service provider can also provide you with specific information to help you
understand what suits your requirements.
Information in this section includes:
•“Welcome to ISDN” on page 869
•“Services and features for ISDN BRI and PRI” on page 872
•“ISDN hardware” on page 876
•“ISDN standards compatibility” on page 879
•“Planning your ISDN network” on page 879
•“Supported ISDN Protocols” on page 881
•“ISDN Programming” on page 882
Welcome to ISDN
Integrated Services Digital Network (ISDN) technology provides a fast, accurate and reliable
means of sending and receiving voice, data, images, text, and other information through the
telecom network.
ISDN uses existing analog telephone wires and divides it into separate digital channels which
increases bandwidth.
ISDN uses a single transport to carry multiple information types. What once required separate
networks for voice, data, images, or video conferencing is now combined onto one common
high-speed transport.
Nortel Networks endeavours to test all variations of ISDN PRI on Business Communications
Manager; however, due to the number of variations, this is not always possible.
This section includes information about:
•“Types of ISDN service” on page 870
•“ISDN Layers” on page 871
•“ISDN bearer capability” on page 871
870 Welcome to ISDN
P0609326 1.1
Analog versus ISDN
ISDN offers significantly higher bandwidth and speed than analog transmission because of its
end-to-end digital connectivity on all transmission circuits. Being digital allows ISDN lines to
provide better quality signaling than analog POTS lines, and ISDN out-of band data channel
signaling offers faster call set up and tear down.
While an analog line carries only a single transmission at a time, an ISDN line can carry one or
more voice, data, fax, and video transmissions simultaneously.
An analog modem operating at 14.4 K takes about 4.5 minutes to transfer a 1MB data file and a
28.8K modem takes about half that time. Using one channel of an ISDN line, the transfer time is
reduced to only 1 minute and if two ISDN channels are used, transfer time is just 30 seconds.
When transmitting data, the connect time for an average ISDN call is about three seconds per call,
compared to about 21 seconds for the average analog modem call.
Types of ISDN service
Two types of ISDN services (lines) are available: Basic Rate Interface (BRI) and Primary Rate
Interface (PRI). Each line is made up of separate channels known as B and D channels which
transmit information simultaneously.
• BRI is known as 2B+D because it consists of two B-channels and one D-channel.
• PRI is known as 23B+D(in North America) or as 30B+D (in Europe). In North America,
23B+D consists of 23 B-channels and one D-channel (T1 carrier). In Europe, 30B+D consists
of 30 B-channels and one D-channel (E1 carrier).
B channels: B channels are the bearer channel and are used to carry voice or data information and
have speeds of 64 kbps. Since each ISDN link (BRI or PRI) has more than one B-channel, a user
can perform more than one transmission at the same time, using a single ISDN link.
D channels: The standard signaling protocol is transmitted over a dedicated data channel called
the D-channel. The D-channel carries call setup and feature activation information to the
destination and has speeds of 16 kbps (BRI) and 64 kbps PRI. Data information consists of control
and signal information and for BRI only, packet-switched data such as credit card verification.
Welcome to ISDN 871
Business Communications Manager 3.6 Programming Operations Guide
ISDN Layers
ISDN layers refer to the standards established to guide the manufacturers of ISDN equipment and
are based on the OSI (Open Systems Interconnection) model. The layers include both physical
connections, such as wiring, and logical connections, which are programmed in computer
software.
When equipment is designed to the ISDN standard for one of the layers, it works with equipment
for the layers above and below it. There are three layers at work in ISDN for Business
Communications Manager. To support ISDN service, all three layers must be working properly.
• Layer 1: A physical connection that supports fundamental signaling passed between the ISDN
network (your service provider) and the Business Communications Manager system. When
the LED on a BRI S/T Media Bay Module configured as BRI is lit, your layer 1 is functioning.
• Layer 2: A logical connection between the central office or the far end and the Business
Communications Manager system. Business Communications Manager has one or two of
these connections for each BRI link, and one for each PRI link. Without Layer 2, call
processing is not possible and there is no dial tone.
• Layer 3: Also a logical connection between the ISDN network (your service provider) and the
Business Communications Manager system. For BRI lines, layer 3 is where call processing
and service profile identifier (SPID) information is exchanged. This controls which central
office services are available to the connection. For example, a network connection can be
programmed to carry data calls.
Note: Throughout this chapter, references are made to Service profile identifiers (SPIDs).
SPIDs are a part of the BRI National ISDN standard. SPIDs are not used in the ETSI BRI
standard or on PRI.
The system of layers is important when you are installing, maintaining, and troubleshooting an
ISDN system. For information about troubleshooting ISDN, see the System Management User
Guide.
ISDN bearer capability
Bearer capability describes the transmission standard used by the BRI or PRI line so that it can
work within a larger ISDN hardware and software network.
The bearer capability for BRI and PRI is voice/speech, 3.1 kHz audio, and data (unrestricted 64
kbps, restricted 64 kbps, or 56 kbps).
872 Services and features for ISDN BRI and PRI
P0609326 1.1
Services and features for ISDN BRI and PRI
As part of an ISDN digital network, your system supports enhanced capabilities and features,
including:
• faster call set up and tear down
• high quality voice transmission
• dial-up Internet and local area network (LAN) access
• video transmission
•network name display
• name and number blocking (PRI, BRI and analog)
• access to public protocols
This section discusses features and services in the following sections:
•“Network name display” on page 873
•“Name and number blocking (ONN)” on page 874
•“Call by Call Service Selection for PRI” on page 874
•“Emergency 911 dialing” on page 875
•“2-way DID” on page 875
•“Dialing plan and PRI” on page 875
PRI services and features
These are the services and features provided over PRI lines:
• Call-by-call service selection (NI protocol)
• Emergency 911 dialing, internal extension number transmission
• access to Meridian 1 private networking (SL-1 protocol)
BRI services and features
These are the services and features provided over BRI lines:
• data transmission at speeds up to 128 kbps per loop (depending on the bandwidth supported by
your service provider)
• shared digital lines for voice and data ISDN terminal equipment
Business Communications Manager Basic Rate Interface (BRI) also support D-channel packet
service between a network and terminal connection. This allows you to add applications such as
point-of-sale terminals without additional network connections.
Any analog or digital network connections can be shared by all Business Communications
Manager telephones, peripherals and applications, and ISDN terminal equipment (TE).
Services and features for ISDN BRI and PRI 873
Business Communications Manager 3.6 Programming Operations Guide
Business Communications Manager supports the following ISDN services and features offered by
ISDN service providers:
• D-channel packet service (BRI only) to support devices such as transaction terminals.
Transaction terminals are used to swipe credit or debit cards and transmit the information to a
financial institution in data packets.
• Calling number identification (appears on both Business Communications Manager sets and
ISDN terminal equipment with the capability to show the information)
• Multi-Line hunt or DN hunting which switches a call to another ISDN line if the line usually
used by the Network DN is busy. (BRI only)
• Subaddressing of terminal equipment (TE) on the same BRI loop. However, terminal
equipment which supports sub-addressing is not commonly available in North America. (BRI
only)
Transmission of B-channel packet data using nailed up trunks is not supported by Business
Communications Manager.
Contact your ISDN service provider for more information about these services and features. For
more information about ordering ISDN service in North America, see “Ordering ISDN PRI” on
page 880 and “Ordering ISDN BRI” on page 880.
The terminal equipment (TE) connected to the Business Communications Manager system can use
some feature codes supported by the ISDN service provider.
Network name display
This feature allows ISDN to deliver the Name information of the users to those who are involved
in a call that is on a public or private network. For information about programming this feature, see
“Network name display” on page 453.
Your Business Communications Manager system displays the name of an incoming call when it is
available from the service provider. If the Calling Party Name has the status of private it may be
displayed as Private name if that is how the service provider has indicated that it should be
displayed. If the Calling Party Name is unavailable it may be displayed as Unknown name.
Your system might display the name of the called party on an outgoing call, if it is provided by
your service provider. Your system sends the Business Name concatenated with the set name on
an outgoing call but only after the Business Name has been programmed.
The available features include:
• Receiving Connected Name
• Receiving Calling Name
• Receiving Redirected Name
• Sending Connected Name
• Sending Calling Party Name
874 Services and features for ISDN BRI and PRI
P0609326 1.1
For more information, see “Network name display” on page 453. Consult your customer service
representative to determine which of these features is compatible with your service provider.
Name and number blocking (ONN)
(North America only)
When activated FEATURE 819 allows you to block the outgoing name and/or number on a
per-call basis. Name and number blocking can be used with a Business Communications Manager
set. For information about programming this feature, see “Setting outgoing name and number
blocking” on page 479.
Consult your customer service representative to determine whether or not this feature is
compatible with your provider.
ETSI note: Refer to “Supported ISDN line services” on page 852 for information about protocols
supported by E1 lines.
Call by Call Service Selection for PRI
(North America only)
PRI lines can be dynamically allocated to different service types with the Call by Call feature. PRI
lines do not have to be pre-allocated to a given service type. Outgoing calls are routed through a
dedicated PRI Pool and the calls can be routed based on various schedules.
The service types that may be available, depending on your service provider are described below.
• Public: Public service calls connect your Business Communications Manager set with a
Central Office (CO). DID and DOD calls are supported.
• Private: Private service calls connect your Business Communications Manager set with a
Virtual Private Network. DID and DOD calls are supported. A private dialing plan may be
used.
• Tie: Tie services are private incoming and outgoing services that connect Private Branch
Exchanges (PBX) such as Business Communications Manager.
• FX (Foreign Exchange): FX service calls logically connect your Business Communications
Manager telephone to a remote CO. It provides the equivalent of local service at the distant
exchange.
• Outwats: Outwats is for outgoing calls. This allows you to originate calls to telephones in a
specific geographical area called a zone or band. Typically a flat monthly fee is charged for
this service.
• Inwats: Inwats is a type of long distance service which allows you to receive calls originating
within specified areas without a charge to the caller. A toll-free number is assigned to allow for
reversed billing.
Consult your customer service representative to determine whether or not this feature is
compatible with your provider.
Services and features for ISDN BRI and PRI 875
Business Communications Manager 3.6 Programming Operations Guide
Emergency 911 dialing
(North America only)
The ISDN PRI feature is capable of transmitting the telephone number and internal extension
number of a calling station dialing 911 to the Public Switched Telephone Network (PSTN). State
and local requirements for support of Emergency 911 dialing service by Customer Premises
Equipment vary. Consult your local telecommunications service provider regarding compliance
with applicable laws and regulations. For most installations the following configuration rules
should be followed, unless local regulations require a modification.
• All PSTN connections must be over PRI.
• In order for all sets to be reached from a Public Safety Answering Position (PSAP), the system
must be configured for DID access to all sets. In order to reduce confusion, the dial digits for
each set should be configured to correspond to the set extension number.
• The OLI digits for each set should be identical to the DID dialed digits for the set.
• The routing table should route 911 to a PRI line pool.
• If attendant notification is required, the routing table must be set up for all 911 calls to use a
dedicated line which has an appearance on the attendant console.
• The actual digit string 911 is not hard-coded into the system. More than one emergency
number can be supported.
If transmission of internal extension numbers is not required or desired, then it is recommended
that the person in charge of the system maintain a site map or location directory that allows
emergency personnel to rapidly locate a Business Communications Manager set given its DID
number. This list should be kept up to date and readily available.
IP telephony note: Ensure that you do not apply a 911 route to an IP telephone that is off the
premises where the PSAP is connected to the system.
2-way DID
With PRI the same lines can be used for receiving direct inward dialing (DID) and for making
direct outward dialing (DOD) calls.
The dialing plan configured by your customer service representative determines how calls are
routed. Consult your customer service representative to determine whether or not this feature is
compatible with your service provider.
Dialing plan and PRI
The Dialing Plan supports PRI connectivity to public and private networks. The dialing plan is a
collection of features responsible for processing and routing incoming and outgoing calls. All PRI
calls must go through a dialing plan.
Notes about the dialing plan:
• allows incoming calls to be routed to sets based on service type and digits received
• provides the ability to map user-dialed digits to a service type on a Call by Call basis
876 ISDN hardware
P0609326 1.1
• allows long distance carrier selection through user-dialed Carrier Access Codes
Consult your customer service representative to determine how your dialing plan is configured.
ISDN hardware
To support connections to an ISDN network and ISDN terminal equipment, your Business
Communications Manager must be equipped with a BRI S/T Media Bay Module (BRIM) or a
Digital Trunk Media Bay Module (DTM) card configured for PRI.
This section describes the hardware:
•“PRI hardware”
•“BRI hardware” on page 876
PRI hardware
The Digital Trunk Media Bay Module (DTM) is configured for PRI. In most PRI network
configurations, you need one DTM configured as PRI to act as the primary clock reference. The
only time when you may not have a DTM designated as the PRI primary clock reference is in a
network where your Business Communications Manager system is connected back-to-back with
another switch using a PRI link. If the other switch is loop-timed to your Business
Communications Manager system, your DTM (PRI) can be designated as a timing master.
If your Business Communications Manager has more than one DTM configured as PRI, you must
assign the first DTM as the primary reference, the second DTM as the secondary reference, and the
third DTM as the timing master.
If the system has a BRI module, it should be set as the timing master when a DTM in the same
network is defined as the primary reference.
BRI hardware
The loops on the BRI module can be programmed to support either network or terminal
connections. This allows you to customize your arrangement of lines, voice terminals, data
terminals and other ISDN equipment. This section describes some basic hardware configurations
for network and terminal connections for each loop type.
A BRI module provides four loops. Each loop can be individually programmed as:
• an S reference point connection (S loop) to ISDN terminal equipment (TE), or
• a T or S reference point connection (T loop or S loop) to an ISDN network using an external
NT1
ISDN hardware 877
Business Communications Manager 3.6 Programming Operations Guide
S Reference Point
The S reference point connection provides either a point-to-point or point-to-multipoint digital
connection between Business Communications Manager and ISDN terminal equipment (TE) that
uses an S interface. Refer to the figure below.
S loops support up to seven ISDN DNs, which identify TE to the Business Communications
Manager system.
Figure 213 S reference point
T Reference Points
The T reference point connections provide a point-to-point digital connection between the ISDN
network and Business Communications Manager. Refer to the figure below.
A T loop provides lines that can be shared by all Business Communications Manager telephones,
peripherals and applications, and ISDN TE.
Inspect FORWARD Callers
Inspect FORWARD Callers
MXP
MXP
Inspect FORWARD Callers
Inspect FORWARD Callers
MXP
MXP
Inspect FORWARD Callers
Inspect FORWARD Callers
MXP
MXP
point-to-point
ISDN TE
ISDN TE
ISDN TE
(with terminating resistors)
ISDN TE
(with terminating resistors)
Business Communications Manager
s
s
878 ISDN hardware
P0609326 1.1
Figure 214 T reference point
A T loop can be used in combination with an S loop to provide D-packet service for a point-of-sale
terminal adapter (POSTA) or other D-packet device. D-packet service is a 16 kbps data
transmission service that uses the D-channel of an ISDN line. The T and S loops must be on the
same physical module.
Clock Source for ISDN
Systems with ISDN interfaces need to synchronize clocking with the ISDN network and any ISDN
terminal equipment connected to the network. Systems synchronize clocking to the first
functionally available network connection. If there are excessive errors on the reference network
connection, the next available network connection is used for clock synchronization. The clock
synchronization process generates alarm codes and event messages. Clock synchronization is
supported by the DTM, BRI module, and FEM.
The Business Communications Manager derives timing from the network using T reference points
(loops). Terminal equipment on S reference points (loops) derive timing from the Business
Communications Manager system.
When you configure the network connections to the Business Communications Manager, you
should take into account the system preferences for selecting loops for synchronization:
• lower numbered loops have preference over higher numbered loops
• the loop preference order is: 201, 202, 203, 204 etc.
• the system skips S and analog loops on Mod2 Card 1, when selecting a network connection for
synchronization
Systems with only S loops act as timing masters for the attached terminal equipment (TE), and are
not synchronized to the network. ISDN TE without access to a network connection (BRI lines) has
limited or no functionality.
If your system has both a BRI S/T configured as BRI, and a DTM configured as PRI, it is
recommended that you use PRI as the primary clock source. See “PRI hardware” on page 876.
network
connection
T
ISDN
Business Communications Manager
ISDN standards compatibility 879
Business Communications Manager 3.6 Programming Operations Guide
ISDN BRI NT1 equipment
The NT1 (network termination type 1) connects an S interface (four-wire) to a U interface
(two-wire). In most cases, it connects loops from a BRI module to the network connection, which
uses the U interface.
The NT1 converts and reformats data so it can be transmitted to and from the S or T connection. In
addition, it manages the maintenance messages travelling between the network and the NT1, and
between the NT1 and the Business Communications Manager system.
The NT1 from Nortel Networks is packaged two ways:
• a stand alone package which contains one NT1 card (NTBX80XX) and a power supply
(NTBX81XX)
• a modular package which contains up to 12 NT1 cards (NTBX83XX) and a power supply
(NTBX86AA)
ISDN standards compatibility
In North America, Business Communications Manager ISDN equipment supports National ISDN
standards for basic call and calling line identification services. Business Communications
Manager BRI is compliant with National ISDN-1 and PRI is compliant with National ISDN-2.
Business Communications Manager does not support EKTS (Electronic Key Telephone System)
or CACH (Call Appearance Call Handling).
In Europe, Business Communications Manager supports ETSI Euro and ETSI QSIG standards,
and PRI SL-1 protocol.
Planning your ISDN network
Consult the Installation and Maintenance Guide to determine a configuration of ISDN trunks and
terminal equipment (TE) for the Business Communications Manager system, then order the
appropriate ISDN capability package from your ISDN service provider.
For ISDN BRI service, your service provider supplies service profile identifiers (SPIDs), network
directory numbers (Network DNs), terminal endpoint identifiers (TEIs), and other information as
required to program your Business Communications Manager, TE and other ISDN equipment.
Business Communications Manager does not support any package with EKTS or CACH. EKTS is
a package of features provided by the service provider and may include features such as Call
Forwarding, Link, Three-Way Calling, and Calling Party Identification.
880 Ordering ISDN PRI
P0609326 1.1
Ordering ISDN PRI
This section provides information about how to order ISDN PRI service for your Business
Communications Manager.
Ordering ISDN PRI Service in Canada
In Canada, order Megalink™ service, the trade name for standard PRI service and set the Business
Communications Manager equipment to the supported protocol that is identified by your service
provider, either DMS-100 or NI-2.
Ordering ISDN PRI Service in United States
In the United States order PRI service from your service provider. Set the Business
Communications Manager equipment to the PRI protocol indicated by your service provider.
Ordering ISDN PRI Service Outside of Canada and the United States
Outside of Canada and the United States order Euro ISDN PRI and/or BRI service from your
service provider. Set the Business Communications Manager equipment to the Euro ISDN
protocol.
Ordering ISDN BRI
This section provides information about how to order ISDN BRI service for your Business
Communications Manager.
Ordering ISDN BRI Service in Canada
In Canada, order Microlink™ service, the trade name for standard BRI service. You can order
either regular Microlink™ service, which includes the CLID feature, or Centrex Microlink™,
which includes access to additional ISDN network features, including Call Forwarding).
When ordering Microlink™ service, it must be ordered with EKTS turned off. If you will be using
a point-of-sale terminal adapter (POSTA), ask for D-packet service to be enabled.
Supported ISDN Protocols 881
Business Communications Manager 3.6 Programming Operations Guide
Ordering ISDN BRI Service in the United States
In the U.S., regardless of the CO (Central Office) type, order National ISDN BRI-NI-1 with EKTS
(Electronic Key Telephone System) turned off. Use the following packages as a guideline for
ordering your National ISDN BRI-NI-1. However, we recommend using packages M or P with the
Business Communications Manager system. Contact your service provider for more information
about the capability packages it offers. Bellcore/National ISDN Users Forum (NIUF ISDN
packages supported by Business Communications Manager (for ordering in U.S.).
If you want to transmit both voice and data, and support D-channel packet service, order package
P. However, Business Communications Manager does not support the flexible calling for voice
and additional call offering features that are included in package P.
Multi-Line Hunt may be ordered with your package. When a telephone number (the Network DN)
in the group of numbers assigned by your service providers is busy, the Multi-Line Hunt feature
connects the call to another telephone number in the group. Business Communications Manager
supports the feature only on point-to-point, network connections (T loop). Check with your service
provider for more information about Multi-Line Hunt.
Any of the ISDN packages will allow you to use sub-addressing, but your ISDN TE must be
equipped to use sub-addressing for the feature to work.
Ordering ISDN BRI Service Outside Canada or the United States
Outside of Canada or the United States order Euro ISDN PRI and/or BRI service from your service
provider. Set the Business Communications Manager equipment to the Euro ISDN protocol.
Supported ISDN Protocols
The switch used by your service provider must be running the appropriate protocol software and
the correct version of that software to support ISDN PRI and BRI. Each protocol is different and
supports different services. Contact your service provider to make sure that your ISDN connection
has the protocol you require.
For more information on the supported protocols and services, refer to “Provisioning for Call by
Call limits with PRI” on page 340.
Capability Feature set Optional features
Point-of-
sale Voi ce Data
MAlternate
voice/circuit-switched data
on both B-channels
-- CLID -- X X
PAlternate
voice/circuit-switched data
on both B-channels
D-channel packet
flexible calling for voice (not
supported by Business
Communications Manager)
Basic D-Channel Packet
additional call offering (not
supported by Business
Communications Manager)
calling line identification
X X X
882 ISDN Programming
P0609326 1.1
ISDN Programming
Most of the programming for PRI and BRI lines, and ISDN terminals is performed under the
Resources, Media Bay Modules heading in the Unified Manager. This section gives you an
overview of programming for PRI and BRI lines, ISDN terminals and devices, and D-packet
services.
•“Program PRI Resources” on page 882
•“Programming ISDN BRI Resources” on page 883
•“Program PRI Lines” on page 884
•“Program ISDN BRI Lines” on page 884
•“Program Direct Inward System Access (DISA) on PRI Lines” on page 885
•“Program ISDN Equipment” on page 886
Program PRI Resources
Some steps may not be necessary depending on the service you are using. For more detailed
programming information, see “Configuring resources — media bay modules” on page 123 and
“Configuring lines” on page 227. For complete module installation instructions and safety
precautions, see the Business Communications Manager Installation and Maintenance Guides.
1Collect the information supplied by your service provider to support your ISDN package.
2Install the DTM. (For information, refer to the Installation and Maintenance Guides.)
3Configure the DTM for PRI. For information on how to configure a module, see “Explaining
the Media Bay Modules headings” on page 124.
4Configure the lines on the modules. For more information, see “Understanding how the
system identifies lines” on page 229.
PRI or BRI programming activity Programming heading
View or change the Digital Trunk Module (DTM)
Configure DTM for PRI
Resources, Media Bay Modules, Bus 0#
Provision or pre-provision lines Resources, Media Bay Modules, Bus 0#, Modules on
Bus, Module 1, Provision lines
Enable or disable BRIM-S/T and DTM Resources, Media Bay Modules, Bus 0#, Modules on
Bus Module 1
View status of line, loop or port Resources, Media Bay Modules, Bus #, Ports on Bus
ISDN Programming 883
Business Communications Manager 3.6 Programming Operations Guide
Programming ISDN BRI Resources
Some steps may not be necessary depending on the service you are providing. For more detailed
programming information, see “Configuring resources — media bay modules” on page 123 and
“Configuring lines” on page 227. For complete module installation instructions and safety
precautions, see the Business Communications Manager Installation and Maintenance Guide.
1Collect the information supplied by your service provider to support your ISDN package. This
includes network service profile identifiers (SPIDs) and Network DNs. If you are supporting a
point-of-sale terminal adapter, you also need one or more static terminal endpoint identifiers
(TEIs).
2Install the BRIM S/T module in the Business Communications Manager system. (For
information, refer to the Installation and Maintenance Guides).
3Select the module type (BRI-ST). For information on selecting a module type, see “Explaining
the Media Bay Modules headings” on page 124.
4Select the type (T or S) for each loop. For information on how to select a loop type, see
“Identifying BRI T-loops (T1 profiles)” on page 267, “Identifying BRI T-loops (ETSI,
QSIG)” on page 271, and “Setting BRI for ISDN device connections” on page 278.
5Configure the loop type settings:
aIf the module uses a T loop, enter the following configuration information (for North
America only) as supplied by your service provider:
— the SPID assigned to the loop
— the number of B-channels associated with each SPID
— the Network DNs used with the network SPID
— the call type of the Network DN.
Repeat the programming for the second network SPID, if any.
If the T loop is used for D-packet service: turn on the service, assign the appropriate S-loop
mapping and assign the static TEIs (provided by the telco to support a point-of-sale terminal
adapter or other D-packet service device) to the loop.
bIf the loop type is S, select the sampling used on the loop. Assign ISDN DNs to the loop
and designate one of the assigned ISDN DNs to be the DN for the loop (Loop DN).
Note: You can have a maximum of 58 ISDN DNs on your system. However, there are
only 28 default DNs provided. The default ISDN DN range is 597 to 694. To add to the
defaults, you need to use DNs from the Companion DN range: 565 to 597 (change DN
type to ISDN and DECT)
Companion/DECT: If you have either a Companion wireless system, which uses the
Companion range, or a DECT portable system, which uses the ISDN and DECT range, ensure
you do not overwrite any DNs assigned to the handsets for these systems.
6Provision the loops and lines. For more information, see “Provisioning lines (PRI, T1,
DASS2)” on page 140.
884 ISDN Programming
P0609326 1.1
7If you are configuring auto-answer BRI trunks to map to target lines, program the received
number for the target line (see “Assigning target lines” on page 287) to be the same as the
Network DN supplied by your service provider (Loops, Loop XXX, SPIDs, SPID 1, Network
DN).
Program the ISDN terminals and devices with the appropriate ISDN DNs and terminal SPIDs
by following the instructions that come with the devices. For more information see “Program
ISDN Equipment” on page 886. If you are setting up a D-packet service, program the
point-of-sale terminal adapter or other D-packet service device with the appropriate TEI from
your service provider, terminal SPID, and DN by following the instructions that come with the
device.
Program PRI Lines
When the hardware configuration is complete, your PRI lines are ready to be programmed. For
information on programming your PRI lines, see “Provisioning for Call by Call limits with PRI”
on page 340.
Program ISDN BRI Lines
When the hardware configuration is complete, your BRI lines are ready to be programmed in the
same way as analog lines. You can, for example, place them in pools and assign them to Business
Communications Manager telephones and ISDN terminal equipment. However, there are some
differences in the way BRI lines work that will influence how you configure them to handle
incoming and outgoing calls.
For BRI lines, in most cases, your service provider supplies two SPIDs – one for each B channel.
Each SPID and one or more Network DNs are associated with a single line. Calls to a Network DN
come in on a specific line, and pressing a line button selects the same line every time.
If your service provider supplies you with a single SPID for both B channels, incoming and
outgoing calls are handled according to the loop. The two lines provided by the BRI loop are
“pooled” for both incoming and outgoing calls.
For example, if Loop 201 is programmed with a single SPID, which supports lines 061 and 062,
incoming calls made to a Network DN associated with the SPID appear on either line 061 or line
062. If you press the line button for line 061, either line 061 or line 062 is selected. For loops
which use a single SPID, assign both lines on a loop to a set to guarantee that all calls appear at the
set.
ISDN Programming 885
Business Communications Manager 3.6 Programming Operations Guide
Program Direct Inward System Access (DISA) on PRI Lines
(North America)
When a DTM is configured for PRI, all lines on that module are set to Auto Answer without
DISA. DISA, however, can be accessed by one of two methods.
Method 1:
Define the DISA DN to match the trailing digits of the Called Party Number (CDN).
With Public, Private, and Tie service types, the CDN is simply truncated to the Target Line
Receive Digit Length and is parsed to match the Target Line Receive Digits. DISA can be
accessed by having the DISA DN match the trailing digits of the CDN. For example, with a
Receive Digit Length = 4, and DISA DN = 1234, a call made to Public DN 763-1234 will be
handled as follows:
• the ISDN setup message will contain a CDN of 763-1234
• the CDN will be truncated to the 4 digits, 1234
• 1234 matches the DISA DN
• the call will be answered with DISA
Method 2: (North America only)
Use incoming Call by Call (CbC) Service routing to map the call type to the DISA DN. Refer
to “Configuring call routing” on page 320 for more information.
With FX, INWATS, 900, and SDS service types, either a Service Id (SID) or a CDN is mapped
to Target Line Receive Digits. This is programmed under “Configuring Call by Call services”
on page 339. DISA may be accessed by having the SID or CDN map to the DISA DN. This
example has a Receive Digit Length = 4, DISA DN = 1234, and CbC Routing with (Service
Type = FX, Map from SID = 2, Map to digits = 1234).
A call presented to the Business Communications Manager system with service type FX and
SID 2 will be handled as follows:
• The ISDN setup message will specify FX with SID = 2
• The FX SID = 2 will be mapped to DISA DN digits 1234
The call will be answered with DISA.
886 ISDN Programming
P0609326 1.1
Program ISDN Equipment
PRI modules support various applications that are enabled by PRI.
Terminal equipment for BRI Cards
ISDN devices and terminals connected to the Business Communications Manager system must be
configured under Services, Telephony Services, Loops. You choose directory numbers for ISDN
equipment from a predetermined range of DNs (597 to 694). Any of the ISDN DNs can be
assigned to an S loop, but each can only be assigned to one loop and a single device. If you require
more than the default 32 devices, you can use the Companion range of DNs (565 to 596). If you
need these extra DNs, change the DN type from Companion to ISDN and DECT.
Devices on an S loop (BRI cards only)
Terminal equipment using an S loop must be assigned an ISDN directory number (ISDN DN).
This allows the TE to be assigned lines and to communicate with other devices connected to the
Business Communications Manager system. Each DN can be assigned to only one TE and one
loop.
You assign ISDN DNs to S loops from the Telephony Services subheading, under Loops, DNs on
Loop, Assign DNs. Each S loop can be programmed with eight ISDN DNs, but you cannot exceed
a total of 58 ISDN DNs for the Business Communications Manager system.
S or LT Loop DN
Once you have assigned ISDN DNs to a loop, designate one of the DNs as a Loop DN. The Loop
DN acts as a main ISDN DN and completes the configuration of the loop.
The ISDN terminal equipment (TE) on the loop is also programmed with its ISDN DN. See the
instructions that come with the ISDN device for information about how to program it to recognize
its assigned DN. Most devices will require both a terminal service profile identifier (terminal
SPID) and a DN, and some will require two terminal SPIDs and two ISDN DNs. The SPID used
with the device should not be confused with a SPID used for network connections using a T loop.
To create a terminal SPID for a device, add at least two zeros to the end of the ISDN DN. Add
more zeros to the beginning or end of the ISDN DN until you have the length of SPID required by
the TE. For example, if an ISDN telephone requires a six-digit SPID and has a DN of 667, its SPID
is 066700. If the same TE requires a minimum of ten digits, the SPID is 0000066700.
Most ISDN terminals require a five-digit SPID. An ISDN PC card usually requires a ten-digit
SPID. Follow the directions that come with the ISDN device to program it with a SPID and ISDN
DN.
ISDN Programming 887
Business Communications Manager 3.6 Programming Operations Guide
D-packet Service (BRI only)
The D-packet service supplied by the Business Communications Manager system supports a
point-of-sale terminal adapter (POSTA). Connecting a POSTA allows transaction terminals
(devices where you swipe credit or debit cards) to transmit information using the D channel of the
BRI line, while the B channels of the BRI line remain available for voice and data calls. A special
adapter links transaction equipment, such as cash registers, credit card verification rigs, and
point-of-sale terminals, to the X.25 network, which is a data communications network designed to
transmit information in the form of small data packets.
To support the D-packet service, your ISDN network and financial institution must be equipped
with a D-packet handler. To convert the protocol used by the transaction equipment to the X.25
protocol, your ISDN network must also be equipped with an integrated X.25 PAD which works
with the following versions of X.25: Datapac 32011, CCITT, T3POS, ITT and API. The ISDN
service package you order must include D-packet service (for example, Package P in the United
States; Microlink™ with D-channel in Canada).
Your service provider supplies a Terminal Endpoint Identifier (TEI) and DN to support D-packet
service. The TEI is a number between 00 and 63 (in Canada, the default range is 21-63). Your
service provider may also supply you with a DN to program your D-packet device. The DN for
D-packet service becomes part of the dialing string used by the D-packet to call the packet handler.
888 ISDN Programming
P0609326 1.1
889
Business Communications Manager 3.6 Programming Operations Guide
Glossary
The following sections provide brief explanations of the terms used in this documentation.
ABCDEFGHIKLMNOPQRSTUVW
A
absorb length
This setting determines how many of the digits in a destination code the system does not
dial. You assign the Absorb Length under Destination codes. (Services, Telephony
Services, Call Routing). Refer to “Grouping destination codes using a wild card” on page
329.
access codes
A digit or group of digits that provide direction to the system as to how to route a call or
access a feature, such as call park. The Access Codes heading also provides access to the
line pool codes and carrier codes. (Services, Telephony Services, General Settings,
Access Codes). Destination codes are a form of access codes for routing services
(Services, Telephony Services, Call Routing). Refer to “Determining line access dialing”
on page 308.
Address Resolution Protocol (ARP)
ARP is a protocol for mapping an IP address to a physical machine address that is
recognized in the local network. The physical machine address is also known as a Media
Access Control or MAC address. A table, usually called the ARP cache, is used to
maintain a correlation between each MAC address and its corresponding IP address.
ARP provides the protocol rules for making this correlation and providing address
conversion in both directions.
As an example, this protocol is used when the Business Communications Manager maps
an IP address to an IP telephone.
alarm code
A number that appears on an alarm telephone display when the system detects a fault.
ANSI
American National Standards Institute. This is the ISDN protocol define by the institute
for telecommunications standards within North America. See also ETSI.
answer DNs
This telephone button allows you to monitor activity that occurs on another telephone in
the system by indicating incoming calls to the other telephone. For instance, an attendant
with a telephone with answer buttons can see which telephones on the system are ringing,
and can answer the incoming call, if necessary.
890 A
P0609326 1.1
One telephone can have up to eight Answer DNs. When you assign an Answer DN to a
telephone, the system connects that DN to a button with an indicator on that telephone.
There are three answer key levels, which determine which calls appear on the answer
button. This is a system setting. Some features, such as overflow routing, require specific
levels before they can occur.
In BCM 3.5 and newer software, an Answer DN for a internal telephone can also act as a
autodial button to that telephone. The Answer DN telephone must be idle for this type of
call.
Application Program Interface (API)
An API is an interface used by an application to make requests of the operating system or
another application. Unlike the graphical user interface or command interface, which are
direct user interfaces, the API is an interface to an operating system or a program.
asynchronous
A method of transmission where the time intervals between characters are not required to
be equal. Signals are sourced from independent clocks with different frequencies and
phase relationships. Start and stop bits may be added to coordinate character transfer.
ATA2
The Analog Terminal Adapter (ATA2) connects analog telecommunication devices, such
as fax machines, answering machines, and single line telephones, to a digital media bay
module on the Business Communications Manager system. Refer to “Determining analog
settings” on page 412.
autobumping
A feature that determines how the system handles new Call Log items when your Call Log
is full. When Autobumping is on, the system deletes the oldest entry when there is a new
log entry. If Autobumping is off, your system does not log calls when your log is full. This
feature is set by the user at the telephone.
auto dial
A memory button that provides one-touch dialing of external or internal numbers or
accesses features. Internal autodial buttons with indicators, display a solid indicator when
that telephone is busy. In BCM 3.5 and newer software, Answer DNs can act as auto dial
buttons for internal telephones.
Auto DN
This is a system directory number that is assigned to auto-answer trunks that are used to
allow remote users to call into the system. On these trunks, the callers do not enter a
password, but directly access the system. From a security perspective, ensure that these
trunks have adequate restrictions (Remote Access Packages) to prevent unauthorized
system usage. See also DISA DN.
A891
Business Communications Manager 3.6 Programming Operations Guide
auto hold
A feature that automatically places an active call on hold when you select another line to
answer or make a call. This feature can also be activated by the user with FEATURE 73,
if the feature has not been allowed on the telephone record (Capabilities). See also full
autohold (on idle line).
auto log options
A feature that allows you to select the type of calls stored in your Call Log. You can log
calls not answered, calls not answered at this telephone but answered in the system, all
calls answered and not answered at this telephone, or no calls. This option is set under
User Preferences. (Services, Telephony Services, System DNs)
Automatic Daylight Savings Time
A feature that switches the system to standard or daylight savings time at programmed
times. This feature is set when you run the Quick Install Wizard and specify a time zone
setting. An IP telephone that is in a different time zone than the system to which it is
registered, must be configured manually to the local time, and then manually changed
when Daylight Savings Time occurs.
automatic dialing
A feature that allows a device, such as a fax machine, to send a dialing sequence without
receiving external ques.This feature is activated under User Preferences. (Services,
Telephony Services, System DNs)
automatic handsfree (HF answerback)
This feature automatically puts the telephone in handsfree mode when you make or
answer a call. This feature is assigned under Capabilities. (Services, Telephony Services,
System DNs). Note: Not all models of telephones can use this feature.
automatic privacy
See Privacy.
auxiliary ringer
An external telephone ringer or bell which rings when a line or a telephone rings. You can
program an auxiliary ringer to ring when the system is in a selected schedule. Enable the
auxiliary ringer under Capabilities. (Services, Telephony Services, System DNs). Note:
Not all models of telephones can access an external ringer.
892 B
P0609326 1.1
B
B-channel
This is an ISDN line bearer channel which is used for voice or data transmission.
background music
A feature that plays music through the speaker of a telephone. This feature can use either
an external music source attached to the MSC on the Business Communications Manager
or the IP music feature, if appropriate music files are available. The feature is enabled
under Feature settings. (Services, Telephony Services, General Settings)
backup
This is a process, enabled through the BRU button on the front page of the Unified
Manager. This application allows you to copy all or specific data files from your Business
Communications Manager system to a file that can be transferred to a secure place in case
of system problems that would require the Business Communications Manager to be
re-initialized. This same application allows to your recover the information from a backup
to your Business Communications Manager.
base station
This device is part of the wireless/portable handset systems that can be used with the
Business Communications Manager. It contains radio equipment that receives and sends
signals to a cordless handset used within a specific radius of the base station. The base
station connects to a media bay module installed in your Business Communications
Manager System.
Basic Input Output System (BIOS)
A program contained in Read Only Memory (ROM) that acts as the interface between
software programs and the computer hardware.
baud rate
A unit of measurement of data transmission speed through a media channel, such as a
modem. Baud rate is approximately equivalent to Bits Per Second (BPS).
BCM400/BCM200
The BCM400 base unit was developed to replace the BCM1000 base unit. The BCM400
can support four media bay modules as well as the remote cabinet. It can be ordered as a
standard system, or with redundant power supply, fans, and a mirrored (RAID) disk
system. The BCM200 supports two media bay modules, and is a stand-alone unit. These
hardware platforms were introduced in conjunction with Business Communications
Manager release 3.0. Only the BCM1000 supports earlier versions of the Business
Communications Software.
bearer channel
See B-channel.
B893
Business Communications Manager 3.6 Programming Operations Guide
bit
An abbreviation for Binary Digit. A bit is the smallest unit of information identified by the
computer. A bit has one of two values, 0 or 1, to indicate off or on.
bit error rate test
A test that checks the transmission of data across the voice and data channels between the
system and any telephone.
BLF
The Busy Lamp Field (BLF) is the display field beside the buttons on the telephones that
display an arrow indicator when the button is in use.
BPS (Bits Per Second)
The speed of data transmission between two computers.
break-in
If you attempt to forward a call to another telephone, and that telephone is busy, you can
use this feature to attempt to interrupt the call. Intrusion levels are assigned to each
telephone, which means this feature will not work if the telephone receiving the
transferred call was assigned a higher intrusion level. Also, the user at the other end has
the option of refusing the call by entering the Do Not Disturb feature code.
BRI
The Basic Rate Interface (BRI) ISDN interface uses two B-channels and a D-channel
(2B+D). ETSI BRI is the European Telecommunications Standards Institute specification
for BRI ISDN service. BRI is supplied to the Business Communications Manager through
a BRI media bay module. For details about BRI service, refer to “ISDN overview” on
page 869.
BST
Business Series Terminals (BST) are a group of telephones created to replace the M-series
telephones. The T7000 is equivalent to the M7000; the T7100 is equivalent to the
M7100(N); the T7208 is equivalent to the M7208(N); the T7316 is roughly equivalent to
the M7310(N), but without the second level of memory buttons, and it has a separate Mute
key. There is no equivalent to the M7324(N), however, the T7316E has the capacity to
connect to Key Indicator Modules (KIMs), which can replace the M7324(N) with attached
Central Answering Position (CAP) modules. Refer to “Setting up CAP stations” on page
434). The T7316E can also function alone and differs from the T7316 by providing both a
separate Mute and separate Handsfree button below the dial pad. The default numbering is
also different on systems running BCM 3.5 and newer software. On systems running
software previous to BCM 3.5, the T7316E acts identically to the T7316 and displays call
icons instead of arrows beside buttons with indicators. Refer to “T7316E Business Series
Terminal button defaults” on page 422.
894 C
P0609326 1.1
Upgrade note: The T7316 and T7316E are viewed as completely different sets by the
system. Therefore, when systems are upgraded from software previous to BCM 3.5,
T7316E telephones will drop the T7316 programming and acquire the T7316E default
programming.
BST doorphone
This piece of hardware acts as an alerter and intercom at an outside entrance to your office.
The device uses the paging feature to provide an alerter chime or voice connections to
internal telephones. The doorphone is based on the M7324 firmware.
bus
A collection of communication lines that carry electronic signals between components in
the system. Besides internal communications, the Business Communications Manager
MSC uses buses to support media bay modules and IP telephony components.
byte
The amount of space required to store a single character. One byte is equal to eight bits.
C
callback
Modem security: If this feature is enabled, a user dialing into the Unified Manager can be
confirmed by having the Business Communications Manager terminate the dial-in and
then dial back to the number provided for the user. This ensures that the user is dialing
from a known source.
Call return: If you park, camp, or transfer a call to another telephone and no one answers
the call, the call rings again at your telephone. Set the timing for this in Timers, Transfer
callback timeout. (Services, Telephony Services, General Settings). See also call queuing.
Call-by-Call services
This is a PRI (North American) line feature that provides a system of remapping specific
incoming lines for specific destinations. These services include INWATs (800), foreign
exchange (FX), international 800, switched digital (SDS), and nine hundred (900). The
type of service is based on the type of central office switch from which the line originates.
call duration timer
A feature that allows you to check how long you were on your last call or how long you
have been on your present call. (FEATURE 77)
• no active call: set displays the duration of the last active call
• active call: set displays elapsed time of call (not dynamic)
C895
Business Communications Manager 3.6 Programming Operations Guide
call forward
A feature that forwards all the calls arriving at your telephone to another telephone in your
system, or, if you are using ISDN lines to forward the call, to external systems. To have
calls forwarded outside the system on other types of lines, use the line redirection feature.
Call forward is configured under Capabilities. (Services, Telephony Services, System
DNs)
• Call Forward No Answer: forwards all calls if the original target telephone is not
answered. The system transfers the calls after a specific number of rings.
• Call Forward On Busy: forwards all calls if the target telephone rings busy.
• Call Forward All Calls: This setting is only used when the system has been converted
to a Survivable Remote Gateway (SRG) and is acting as a Branch Office to a central
IP server.
• Call Forward Override: The system allows you to call a telephone that has calls
forwarded to your telephone.
Analog telephone note: To call forward to telephones outside your system, you must
enter LINK 2 after you dial the external number.
call information
This feature allows you to display information about incoming calls. For external calls,
you can display the name of the caller, telephone number, and line name. For an internal
call, you can display the name of the caller and the internal number of their telephone. You
can receive information about ringing, answered, or held calls. (FEATURE 813)
call log
If call log is active on a telephone, the use can view a record of incoming calls.
(FEATURE 812)
The log can contain the following information for every call:
• sequence number in the call log
• name and number of caller
• long distance indication
• call answered indication
• time and date of the call
• number of repeated calls from the same source
• name of the line that the call came in on.
See autobumping and auto log options for more information.
call park
This feature allows you to place a call on hold so that another user can retrieve it from
another telephone in the system. The user retrieves the call by selecting an internal line
and entering a retrieval code.
The retrieval code appears on the display of your telephone when you park the call. You
can park up to 25 calls on the system at one time. (FEATURE 74)
896 C
P0609326 1.1
You can also specify a prefix to the retrieval under Access codes. (Services, Telephony
Services, General Settings) You also need to specify a timeout for parked calls (Services,
Telephony Services, General settings, Timers)
call park callback
This feature returns an unanswered parked call to the telephone where it originated after a
set number of rings.
call park prefix
The first digit of the retrieval code of a parked call.
This digit cannot conflict with:
• the first digit of any existing extension number
• line pool access codes
• the direct-dial digit
• the external line access or destination code
The default Call Park prefix digit is 1. To disable Call Park, set the Call Park prefix to
None. Assign the Call Park prefix under Access codes. (Services, Telephony Services,
General Settings)
call pickup directed
This feature allows you to answer a call ringing at any telephone by entering the internal
number of that telephone. (FEATURE 76 <DN>)
call pickup group
See Pickup Group.
call queuing
If you have several calls waiting at your telephone, you can activate the Call Queuing
feature to answer the calls in order of priority.
The order of priority is: incoming calls, callback calls (calls that were parked or forward
but were not answered before the timers ran out), and camped calls. (FEATURE 801)
Camp-on
A feature that allows you to reroute a call and park it on a telephone when all the lines on
that telephone are busy. To answer a camped call, use call queuing or select a line if the
camped call appears on your telephone. Queued calls get priority over camped calls.
MCDN: On a private network using the MCDN protocol, the central attendant can camp
calls on any telephone in the network.
camp timeout
The length of a delay before a camped call returns to the telephone that camped the call.
Set the length of delay under Timers. (Services, Telephony Services, General Settings)
C897
Business Communications Manager 3.6 Programming Operations Guide
CAP
A central answering position (CAP) consists of a T7316E BST connected to one or more
key indicators modules (KIM), or an M7324 telephone connected to one or two central
answering position (CAP) modules.
Without system configuration, the modules support extra memory buttons
(CAP module, 48; KIM, 24). The system can support as many of these CAPs as the
telephony resources support T7316E telephone or M7324 telephone.
If the telephone is configured in system programming under CAP/KIM assignment this
enhanced CAP (eCAP) supports line appearances; the eKIM also supports multiple
appearances of a target line and hunt group designators. The system supports a maximum
of 12 eCAPs.
Programming note: The KIM does not support hunt group DNs as auto dial buttons.
Individual hunt group members, however, can be assigned to auto dial buttons.
carrier access codes
Telephony service provides have unique codes that can be used in front of a dialing string
to direct a call through a specific carrier. When you use destination codes, add these codes
to the destination code or to the dial-out string for the route.
CDP
The Coordinated Dialing Plan (CDP) is used on networked sites each site is viewed as an
independent node in that each site has a range of extension numbers (i.e. 2221-2267), with
a unique (to the private network) prefix number. Example: Site one = prefix 10, therefore
you would dial numbers from 102221 to 1022267 to reach that network. Site two = prefix
20, therefore, you would dial numbers from 202221 to 2022267 to reach that network. See
also, Universal Dialing Plan. Set the specifications for CDP under Dialing plan, Private
network. (Services, Telephony Services, General Settings)
central answering position
See CAP.
centralized auto attendant
You can use the Business Communications Manager auto attendant and voice mail
applications on one Business Communications Manager system within a private MCDN
network to support all the systems connected on the private network. The Business
Communications Manager can also be set up to access voice mail and auto attendant
systems attached to other systems, such as a Meridian 1 (M1) connected to Octet voice
mail or CallPilot voice mail systems, a DSM100/SL100 switch, or a Succession 1000/
1000M.
898 C
P0609326 1.1
centralized voice mail
You can use the Business Communications Manager auto attendant and voice mail
applications on one Business Communications Manager system within a private MCDN
network to support all the systems connected on the private network. The Business
Communications Manager can also be set up to access voice mail systems attached to
other systems, such as a Meridian 1. If the M1 is supporting the voice mail system, and the
private network is MCDN, the Business Communications Manager systems on the
network can also support the attendant call features from the M1. The Business
Communications Manager also supports centralized voice mail connected to a DSM100/
SL100, or a Succession 1000/1000M.
CHAP
Challenge-Handshake Authentication Protocol (CHAP) is a method of establishing
security on PPP links where the peers must share a plain text identifier. The caller sends a
challenge message to its receiving peer and the receiver responds with a value it calculates
based on the identifier. The first peer then matches the response with its own calculation.
If the values match, the link is established.
CHAP is a more secure procedure for connecting to a system than the Password
Authentication Procedure (PAP).
cipher
Cryptographic algorithms used as part of security authentication between the system and
servers and clients. A cipher suite contains a number of these algorithms:
• DES: Data Encryption Standard
• DSA: Digital Signature Algorithm
• KEA: Key Exchange Algorithm
• MD5: Message Digest algorithm
• RC2 and RC4: Rivest encryption ciphers
• RSA: A public-key algorithm for both encryption and authentication
• RSA key exchange: A key-exchange algorithm for SSL-based
• SHA-1: Secure Hash Algorithm
• SKIPJACK: a classified symmetric-key algorithm
• Triple-DES: DES applied three times
(Information obtained from Netscape Navigator Corporation; http://developer.netscape.com/docs/manuals/
security/sslin/index.html)
client
A client is a computer system or process that requests a service of another computer
system or process. For example, a workstation requesting the contents of a file from a file
server is a client of the file server.
D899
Business Communications Manager 3.6 Programming Operations Guide
clock sources
This is a feature of DTM and BRI modules that allows you to determine where these
modules receive their synchronization timing for the network.
coldstart
A coldstart occurs when you lose all system programming. You can lose system
programming after a major event such as an extended power failure. If this occurs, you
will need to restore the data to your system from your backup files.
conference
A feature that allows you to establish a three-person call at your telephone. (FEATURE 3)
or the programmed conference/transfer button on the telephone)
configuration
See programming.
control telephone
The control telephone allows you to access the services menus and add or change when
the services run. Manually-activated services take precdence over automatic services. The
control telephone for each DN is configured under the General tab on the DN record.
Coordinated Dialing Plan (CDP)
Refer to CDP.
COS password
The Class of Service password (COS) defines the set of features and lines available to the
user for a call into the Business Communications Manager system. The COS password
determines which restriction filters and remote access packages are active when the caller
uses a specific password. Callers accessing the system from outside the system can change
the Class of Service for a call by entering a six-digit Class of Service password. However,
internal users cannot change their access to features with a COS password, only their
restriction filters. Assign this feature under COS Passwords. (Services, Telephony
Services, General Settings) See also, DISA DN and Auto DN.
CSU
A Channel Service Unit (CSU) device on the digit trunk interface (DTI) that is the
termination point of the T1 lines from the T1 service provider. The CSU collects statistics
on the quality of the T1 signal. The CSU ensures network compliance with FCC rules and
protects the network from harmful signals or voltages.
D
D-channel
A data channel transmission channel which is packet-switched is referred to as a
D-channel. It is used for call setup, signaling and data transmission.
900 D
P0609326 1.1
DASS2
Digital Access Signaling System Number 2 (DASS2) is a UK proprietary standard for
signaling on ISDN connections between customer premises and the public network.
DASS2 is used between the customer equipment and ISDN local exchange and is suitable
for multiple access.
Data link connection identifier
See DLCI.
DDI Mux
The Digital Drop and Insert Mux media bay module is a specialized two-level module
allows you to choose which channels on a T1 line you want to dedicate to data
transmissions and which channels you want to dedicate to telephony operations. Both
lines are programmed under Services, Telephony Services, Lines.
DECT
The Digital Enhanced Cordless Telecommunications (DECT) cordless protocol provides
localized mobility services to the Business Communication Manager through a DECT
media bay module connected to DECT base stations. This service is region-specific. Refer
to the DECT Installation and Configuration Guide for details.
default
Default settings are the settings automatically programmed into the programming when
you first install the system. You change the settings from their defaults using the Unified
Manager. Defaults are determined by which region and which telephony template you
choose when you first install your system. (Quick Start Wizard)
Delayed ring transfer
See DRT.
destination code
A destination code is an assigned number with up to 12-digits that the user dials before the
outgoing call string. The system reads and translates the code into routing and dial-out
information. This code must not conflict with any other access code on the system. Assign
destination codes in Destination Codes. (Services, Telephony Services, Call Routing)
DHCP
The Dynamic Host Configuration Protocol (DHCP) is a protocol that allows network
administrators to centrally manage and automate the assignment of IP addresses in an
network. When an organization sets up its computer users with a connection to the
internet, internet protocols (TCP/IP) demands that an IP address must be assigned to each
machine as well as to any device connected to the network.
D901
Business Communications Manager 3.6 Programming Operations Guide
Without DHCP, the IP address must be entered manually at each computer and, if
computers move to another location in another part of the network, a new IP address must
be entered. DHCP allows the network administrator to supervise and distribute IP
addresses from a central point. It also automatically sends a new IP address when a
computer is plugged into a different place in the network.
dial-up connection
A dial-up connection is a temporary connection between computers that is established
over an analog or digital telephone line.
dialing plan
This is the overall numbering plan for your system that determines what numbers need to
be dialed to reach specific destinations, and what numbers need to be received to be
directed into the system, or through the system, in the case where the Business
Communications Manager is acting as a node on a tandem network. This plan consists of a
number of components, including the Public DN, the DN length, the received number and
the received number length, line pool and destination codes, network codes, access codes,
as well as the DNs for each telephones and piece of system equipment.
dialing restriction
See restriction filters.
DID
A Direct Inward Dial office setup provides each telephone with a dedicated number. The
incoming DID line has a range of numbers, and these are mapped to each telephone in the
system using target lines. Lines are set to auto answer so that you can forward unanswered
calls to a receptionist or to a voice mail system.
DiffServ
Differentiated Services (DiffServ) is a method of implementing QoS service for IP
networks. DiffServ is intended to improve network performance. Instead of applying
faster, more advanced technology, networks are managed by appropriate network policies.
With DiffServ there is a cost associated with higher quality services, and a risk with lower
quality services.
Digital Private Network Signaling System
See DPNSS.
direct-dial
This feature allows you to dial an assigned telephone in your system, or external to your
system, with a single digit. You can assign as many as five direct dial telephones in a
system. These telephones are configured under the Direct Dial heading (Services,
Telephony Services, General Settings).
Each telephone in the system has one direct-dial telephone. Each telephone can be
assigned a direct-dial set under Capabilities. (Services, Telephony Services, System DNs).
If Ringing service schedules are active on the system, an additional direct dial telephone
can be identified, for example, a night security desk.
902 D
P0609326 1.1
direct-dial digit
This is a single, system-wide digit for calling the assigned direct-dial telephone of any
telephone. This digit is defined under Access codes. (Services, Telephony Services,
General settings)
directed pickup
See call pickup directed.
directory number
See DNs.
DISA
Directed Inward System Access (DISA) is a feature that is assigned to lines to allow the
system to answer calls from users from outside the system, who want to access the system
and use system features. When this feature is active, the external user hears a stuttered dial
tone and must enter a valid class of service (COS) password to proceed.
DISA DN
This is a system directory number that is assigned to auto-answer trunks that require a
remote users to enter a COS password to gain access to the system. See also COS
password and Auto DN.
disconnect supervision
This line setting enables the system to detect if an external caller hangs up. After an
external caller hangs up, the system disconnects the line. Disconnect supervision is
defined under the module settings for the lines. (Resources, Media Bay Modules). You can
also assign disconnect supervision to devices connected to an ASM8+ media bay module
(BCM 3.6 and newer software) to provide disconnect supervision on a per-device basis.
disk drive
A mass storage device that searches, reads and writes data on a disk.
display
A one or two line screen on a Business Communications Manager telephone that shows
commands and options for that telephone.
display buttons
The three buttons that appear below the display on a Business Communications Manager
telephone.
display options
The options available to a user. These options appear on the telephone display. Select the
options on the display using the display buttons. Enter information from the dialpad.
D903
Business Communications Manager 3.6 Programming Operations Guide
distinctive ring
In system programming, this feature allows you to define a distinct ring for different types
of calls, to provide a priority system for incoming calls. You can determine distinctive ring
patterns for lines, telephones and hunt groups. A hierarchy of ring patterns determines
which distinctive ring source predominates.
As a feature, the user can choose a specific ring type for incoming calls (FEATURE *6).
DLCI
The Data Link Connection Identifier (DLCI) is used to identify a permanent virtual circuit
(PVC) in frame relay networks.
DND
The Do Not Disturb (DND) feature stops calls from ringing at your telephone. Only
Priority Calls will override this feature and ring at your telephone. A line button flashes
when you receive a call, but the call does not ring. (FEATURE 86) You can set the
telephone to send this signal automatically through a setting in Capabilities. (Services,
Telephony Services, System DNs)
DNs
A unique number that the Business Communications Manager system assigns to every
telephone or data terminal. You use the DN to identify a device for the Business
Communications Manager configurations that require telephone-specific features. The
system also assigns DNs to other applications such as Call Center and Hunt groups.
Companion and ISDN and DECT equipment have separate sets of DNs that are exclusive
that that type of device.
Directory numbers are the digit string that the system uses to identify telephones and
system devices and applications. The DN record provides access to configuring telephone
functionality, including defining the features the user can access, the features the
telephone supports, and the lines that can be used by the telephone to send and receive
calls. See also, DN.
DNS
The domain name system or domain name server (DNS) is the system in the Internet that
maps names of objects, most usually host names, into IP numbers or other resource record
values. The name space of the Internet is divided into domains, and the responsibility for
managing names within each domain is delegated, typically to systems within each
domain.
DNS proxy
A Domain Name Service (DNS) proxy translates alphabetic domain names into
computer-readable IP addresses. For example, the domain name www.nortelnetworks.com
for the Nortel Networks web site can translate to the IP address 192.177.5.18. After a
domain name is translated into an IP address, the workstations on your network can
communicate with the web site. Depending on the configuration of your system, you can
let your workstations know that Business Communications Manager is the DNS proxy.
904 D
P0609326 1.1
domain name
The domain name is used to organize Internet names into manageable groups, such as
nortelnetworks.com, where nortelnetworks is the domain name.
Domain Name Server (DNS)
See DNS.
Do Not Disturb
See DND.
double density
Double density for station modules is a function of Business Communications Manager
3.0 and later software. This functionality uses the B2 portions of the line to provide an
additional 16 possible telephone connections on each MSC bus. Only station modules that
support this feature provide this access, including the ASM8, DSM16+ and the DSM32+
media bay modules. The Business Communications Manager has two double density
system settings. Partial Double Density (PDD) is the default system setup. This
configuration leaves Bus 06 and 07 with B1/B2 capability to support the Companion
system. Full Double Density (FDD) provides 32 lines on all six module buses.
D-packet
A BRI T loop can be used in combination with a BRI S loop to provide D-packet service
for a point-of-sale terminal adapter (POSTA) or other D-packet device. D-packet service is
a 16 kbps data transmission service that uses the D-channel of an ISDN line. The T and S
loops must be on the same physical module.
DPNSS
Digital Private Network Signaling System (DPNSS) is a networking protocol that
provides access to Business Communications Manager features over multiple combined
networks. Corporate offices, separated geographically, can be linked over DPNSS to other
Business Communications Manager systems, bypassing the restrictions of the PSTNs to
which they may be connected. This allows connected Business Communications Manager
systems to function like a private network. DPNSS is available in International systems
only.
driver (device)
A program that allows a hardware peripheral, such as a network interface card, to
communicate with the Business Communications Manager base unit.
DRT
Delayed Ring Transfer to Prime (DRT) allows the system to transfer an unanswered call
on an external line to the prime telephone related to that line if the targeted telephone is
not answered within the configured number of rings. Configure this setting under Feature
settings, Delayed Ringer Transfer. (Services, Telephony Services, General Settings)
E905
Business Communications Manager 3.6 Programming Operations Guide
DTMF
Dual tone multifrequency (DTMF) provides two distinct telephone signaling tones used
for dialing.
Dynamic Host Configuration Protocol
See DHCP.
dynamic IP address
Dynamic IP addresses are assigned to computers by an IP address server, as the computer
needs it. Usually there is a particular range or scope of IP addresses that your network
uses. With dynamic IP addressing, a computer can have a different IP address every time it
connects to the network. Other devices must know the IP address of the computer so they
can communicate with it. The IP address server manages the assignment of IP addresses to
the client workstations. See also static IP address.
E
EDO
Extended Data-Out (EDO) is a type of Dynamic Random Access Memory (RAM) where
storing data to and reading data from the memory is faster.
eKIM
An enhanced Key Indicator Module (eKIM) is a KIM attached to a T7316E BST that has
been configured under CAP/KIM assignment. When programmed as an eKIM, the module
supports line appearances, multiple appearances of a target line, and hunt group
appearances. Neither an eKIM or an OKIM support Hunt Group DNs as autodial keys.
Emergency 911 dialing
The ability to access a public emergency response system by dialing 911. State and local
requirements for support of Emergency 911 Dialing service by Customer Premises
Equipment vary. Ask your local telecommunications service provider about compliance
with applicable laws and regulations. Note, there are special restrictions about setting up
this service on IP telephones that are connected to the Business Communications
Manager.
emergency telephone
A single-line telephone, also referred to as a 500/2500 telephone, that becomes active
when there is no power to the Business Communications Manager base unit.
enbloc dialing
A system feature where the system does not dial out a number until all the call numbers
have been entered. This allows the system to determine where the call needs to be routed
outside the system.
906 F
P0609326 1.1
ethernet
A Local Area Network (LAN) protocol that is the original Carrier Sense Multiple Access/
Collision Detect (CSMA/CD) LAN that allows computers, and Business Communications
Manager base units to listen for pauses before they communicate. Ethernet LANs use
coaxial cable or twisted pair wiring to connect network equipment.
ETSI
European Telecommunications Standards Institute. ETSI defines the protocol defined by
the institute that provides telecommunications standards in Europe. See also ANSI and
QSIG.
event message
The system stores event messages in the system log and displays these messages during a
maintenance session. They record many different events and activities in the system.
exceptions
See overrides.
Extended Data-Out
See EDO.
external code
The number you dial to access a line outside of your Business Communications Manager
system. For instance, the external code to access the public network is set to a default of 9.
These codes are defined under Access codes (Services, Telephony Services, General
Settings) and Destination codes (Services, Telephony Services, Call Routing). You also
use an external code to support the T7100 telephone and single-line telephones connected
to an Analog Terminal Adapter (ATA2).
external paging
Use this feature to make voice announcements over an externally-installed loudspeaker
connected to the Business Communications Manager base unit through the MSC.
F
FAX
FAX works with Business Communications Manager Voice Messaging and IVR
(Interactive Voice Response). FAX allows a caller to send a fax document to a voice
mailbox. BCM 3.5 and newer software supports fax over IP trunks using the T.38
protocol. IP trunks and IP fax are described in the IP Telephony Configuration Guide.
F907
Business Communications Manager 3.6 Programming Operations Guide
Feature button
This is a code that is entered at a telephone to activate a feature. Each code is entered after
you press the FEATURE button on a system telephone. The keycap icon for FEATURE
varies, depending on telephone model. If you have a feature loaded into a memory button,
when you press the memory button, the feature is initiated and you follow the display
messages. On remote telephones and telephones that do not have a Feature button, such as
analog telephones, the * button is used. On analog telephones, this is referred to as a LINK
button.
filtering
Filtering is the process of examining a data packet on the network to determine the
destination of the data and whether the packet should be passed along on the local LAN,
copied to another LAN, or dropped.
FQDN
A Fully Qualified Domain Name (FQDN) consists of a combination of host name and
domain name. For example, mycomputer.nortelnetworks.com is a Fully Qualified Domain
Name.
frame
A frame is a unit of data transmission in a local area network.
frame relay
A frame relay is a high-speed, packet switching WAN protocol designed to provide
efficient, high-speed frame or packet transmission with minimum delay. Frame relay uses
minimal error detection and relies on higher level protocols for error control.
FTP
The file transfer protocol (FTP) allows a user on one host to access and transfer files to
and from another host over a network. On the Internet, FTP refers to a tool for accessing
linked files.
full autohold (on idle line)
When this feature is on, Full Autohold automatically puts the current line on hold when
you select another line. Enable Full Autohold under Line XXX, Trunk Line Data.
(Services, Telephony Services, Lines)
You can also define auto hold for each telephone. See auto hold.
full double density (FDD)
See double density.
Fully Qualified Domain Name
See FQDN.
908 G
P0609326 1.1
G
gateway
A system that links two different types of networks and enables them to communicate with
each other. Business Communications Manager is the gateway that links your network to
the intranet or internet. Depending on your configuration, you can let your workstations
know that Business Communications Manager is the internet gateway. When you
configure voice over IP (VoIP) trunking, you need to configure the parameters for the local
system (local gateway) and remote system (remote gateway) so the system can correctly
receive and send information over the trunk. If the network has a Gatekeeper application,
this application determines where data packets go, and it is not necessary to configure the
remote gateway in this case. However, you do need to send the local system parameters to
the Gatekeeper administrator.
ground start trunk
Ground start trunks provide the same features as loop start trunks. Use this type of trunk
when the local service provider does not support disconnect supervision for the digital
loop start trunks. By configuring lines as ground start, the system can identify when a
caller hangs up the telephone at the far end. Ground start trunks are available only on a
Digital Trunk Interface module (DTM).
group listening
This feature allows you to have other people in your office hear a caller through your
telephone speaker. The caller hears you when you speak into the receiver and cannot hear
other people in the office. (FEATURE 802)
You can cancel Group Listen for the current call. Group Listen cancels automatically
when you hang up the Group Listen call.
H
H.323
H.323 is the standard for using IP to send voice and video within intranets and on the
public Internet.
handsfree
A feature you can use to make calls through your telephone without lifting the telephone
receiver. Activate Handsfree under Capabilities (Services, Telephony Services, System
DNs). When you activate handsfree, Business Communications Manager assigns a
handsfree/mute button on the lower right button of the telephone (M-series telephones).
The T7208 and T7316 have separate mute buttons, so only handsfree is assigned to the
lower right button. The T7316E has both a separate mute button and a separate handsfree
button located under the dialpad. 7000s, 7100s, the i2001, and portable handsets do not
have this feature as they do not have the necessary speakers and microphones. IP i2002,
i2004 telephones do allow handsfree. They, too, have a separate handsfree button (beside
the handset) and mute button (under the volume bar).
H909
Business Communications Manager 3.6 Programming Operations Guide
Handsfree volume note: The telephone volume level returns to the default volume level
set on the telephone after each handsfree call. This is not configurable in system
programming.
handsfree (HF) answerback
This feature automatically turns on the microphone at a telephone that receives a Voice
Call so that the person receiving the call can respond without lifting the receiver. Activate
HF Answerback under Capabilities (Services, Telephony Services, System DNs).
hard disk
A data storage device that uses rigid magnetic disks permanently installed inside the
computer CPU or a portable unit.
HDLC
High-level Data Link Control (HDLC) is a group of protocols or rules for transmitting
data between network points or nodes. Data is organized into a unit, called a frame, and
sent across a network to a destination that verifies its successful arrival. The HDLC
protocol also manages the flow or pacing at which data is sent. HDLC is one of the most
commonly-used protocols in Layer 2 of the industry communication reference model,
Open Systems Interconnection (OSI).
held line reminder
A telephone rings and displays the message On hold: LINENAM when you place an
external call on hold for programmed period of time. Set the Held Line Reminder under
Feature settings. (Services, Telephony Services, General Settings).
High-level Data Link Control
See HDLC.
HLC
The Home Location Code (HLC), also known as a Location code (LOC) is used as part of
a UDP dialing plan to identify each node on a private network.
Hold button
Use this button to interrupt calls so that you can perform another task without
disconnecting the caller.
Home Location Code
See HLC and location code.
hookswitch Flash
See Link.
910 H
P0609326 1.1
hospitality services
These features allow a hostelry to use room and desk telephones to communicate
housekeeping and alarm information between each room and the front desk (admin
telephone), including setting call restrictions at different levels for each room. The
telephones also have all configured system call capabilities.
host name
In networking, this is the name of a computer that provides services, such as database
access, to other computers or Business Communications Manager base units in the
domain. Computers with a host name also have a unique IP address. Because the Business
Communications Manager base unit has a unique IP address, the Business
Communications Manager base unit qualifies as a host.
host system signaling
Also referred to as end-to-end signaling. Telephones can access a remote system or dial a
number on an different carrier by using host feature activation codes, such as Link, Pause
and Run/Stop.
hot desking
This is an IP telephone feature that allows a user to forward complete IP functionality
from one IP telephone to another one, even at a remote location until the feature is
deactivated. The feature is activated at the receiving telephone, but can be deactivated
with either IP telephone. Refer to the Telephony Feature Handbook for a description of the
feature and how to use it. The IP Telephony Configuration Guide describes how to set up
the feature. Note: Headset functionality is not forwarded by hot desking. Once the hot
desking is enabled, you need to press the Headset button on the target telephone to
re-enable the headset mode.
Hotline
This feature automatically calls a pre-assigned number when you lift the telephone
receiver or press the handsfree button. A Hotline number can be an internal or external
number. Assign Hotline under Capabilities, Hotline. (Services, Telephony Services,
System DNs)
HTTP proxy
See web proxy.
Hunt group
Hunt groups are groups of telephones that have been configured to answer all calls to a
Hunt DN. Call appearance on each telephone depends on programming. This feature
allows you to direct specific lines to specific groups of people, such as a sales group, or
technical group for a specific product.
I911
Business Communications Manager 3.6 Programming Operations Guide
I
ICCL
This MCDN networking feature piggybacks on the call initiation request and acts as a
check at transit PBX points to prevent misconfigured routes or calls with errors from
blocking channels.
ICMP
ICMP is a message control and error-reporting protocol between a host server and a
gateway to the Internet. ICMP uses IP datagrams, however, the messages are processed by
the TCP/IP software and are not directly apparent to the application user.
IETF
The Internet Engineering Task Force (IETF) is the committee that defines standard
Internet operating protocols such as TCP/IP. The IETF is supervised by the Internet
Society's Internet Architecture Board (IAB).
in-band
In-band is a method of device access that utilizes a network interface component within
the device.
Install Client button
This button, located on the Unified Manager front page, provides access to Business
Communications Manager supplementary management programs, such as the Java class
files. Some of the applications located under this button require keycodes before they can
be used.
Integrated Services Digital Network
See ISDN.
Interactive Voice Response
See IVR.
intercom button
A button that provides access to telephones within a Business Communications Manager
system. These buttons can also provides access to external lines by adding an access or
destination code to the dialed number. You can assign a telephone a maximum of eight
intercom buttons, although not all buttons will display, depending on the style of
telephone. Configure intercom (I/C) buttons under DN XXX, Line Access. (Services,
Telephony Services, System DNs)
intercom keys
See intercom button.
912 I
P0609326 1.1
internal channel
These are the media processing channels that support voice and data processing from
sources other than the media bay modules. This support includes traffic from the LAN and
WAN networks VoIP trunks, dial-up modem, voice mail applications and IVR. On the
Unified Manager, these are DS30 bus 01 and 08 on a default system. If you change your
system to a DS30 3/5 split, DS30 bus 07 also changes to internal channels and no longer
supports a media bay module.
internal line
A line on your telephone dedicated to making calls to destinations inside your Business
Communications Manager, also called Target lines. An internal line can connect you with
an external caller if you use it to access a line or line pool. You can direct internal lines to
specific telephones or groups of telephones using target lines.
internal number
A number, referred to in Unified Manager as a Directory Number (DN), which identifies a
telephone or device assigned to the Business Communications Manager. See also DN.
internal user
A person using a telephone connected to the Business Communications Manager
telephone.
Internet
A global TCP/IP network linking millions of computers for communications purposes.
Internet Engineering Task Force
See IETF.
Internet-standard Network Management Framework
Device configuration and monitoring via SNMP.
Interrupt Request
See IRQ.
IP
The Internet Protocol (IP) is the protocol that supports data being sent from one computer
to another on the Internet. Each computer on the Internet has at least one address that
uniquely identifies it from all other computers on the Internet. When you send or receive
data, the message gets divided into units called packets. Each of these packets contains the
Internet address of the sender and the receiver.
IP is a connectionless protocol, which means that there is no established connection
between the end points that are communicating. Each packet that travels through the
Internet is treated as an independent unit of data without any relation to any other unit of
data. In the Open Systems Interconnection (OSI) communication model, IP is in layer 3,
the Networking Layer.
I913
Business Communications Manager 3.6 Programming Operations Guide
IP address
The Internet Protocol address is a unique identifier that allows communication over the
Internet to be directed to the appropriate destination. Every computer on the Internet must
have a unique IP address. IP addresses are allocated by an Internet service provider (ISP)
in the following format: nnn.nnn.nnn.nnn, where nnn is a numeric value from 0 to 255. IP
addressing might be referred to as being a static IP address or a dynamic IP address.
IP music
With this feature you can provide background music to the system from the IP network
instead of installing music source hardware.
IP telephones
Business Communications Manager IP telephones and the Symbol NetVision wireless IP
telephone, can make calls out of the system over land lines as well as VoIP trunks. The
telephones are IP telephones because they connect to the Business Communications
Manager through an IP connection, rather than a hard-wired connection. Once they
connect to the system, the Business Communications Manager converts the information as
required for the trunk on which the call is going out.
IPX
IPX (Internetwork Packet Exchange) is a networking protocol from Novell that
interconnects networks that use Novell NetWare clients and servers. IPX is a datagram or
packet protocol. IPX works at the network layer of communication protocols and is
connectionless (that is, it does not require a sustained connection during an exchange of
packets as, for example, a regular voice phone call does).
IRQ
IRQ is a signal that is sent by a hardware device to the microprocessor, requesting its
immediate attention. For example, every communications port has an interrupt request line
for telling the microprocessor when data is received or transmitted.
IRQ conflict
An IRQ conflict occurs when two hardware devices have the same IRQ. When an IRQ
conflict occurs, the user must configure the IRQ settings to solve the conflict.
ISDN
A digital telephone service that allows for a combination voice and data connection over a
single, high-speed connection. ISDN service can operate over the same copper
twisted-pair telephone line as analog telephone service. The Business Communications
Manager uses two versions of ISDN, BRI and PRI.
ISDN call connection limitation
See ICCL.
914 J
P0609326 1.1
IVR
Interactive Voice Response is an automated telephony application that prompts callers
with a combination of recorded menus and prompts, and real-time data from databases.
Users enter digits from their touch tone key pad that directs the IVR application to access
databases and play information back to the caller
J
Java class files
These files are loaded onto your computer when you open the Unified Manager. You
require the JVM or Sun JRE application on your computer to run them.
Java Runtime Environment
See JRE.
Java Virtual Machine
See JVM.
JRE
Sun Java JRE is the Java protocol produced by Sun Microsystems. Use this application for
Browsers that do not support or do not come with JVM. Supported on BCM 3.5 and newer
software.
JVM
This Windows application runs as part of the Browser on your computer. It is a required
application for running the Unified Manager.
K
Kbyte
The abbreviation for kilobyte. A kilobyte is equal to 1024 bytes.
keycode
This code is used to enable application options on the Business Communications Manager.
These codes are entered by the installer or system administrator. Keycodes are a
combination of access codes that are encrypted to open a single application on a specific
Business Communications Manager. Refer to the Software Keycode Installation Guide for
details.
L915
Business Communications Manager 3.6 Programming Operations Guide
KIM
The Key Indicator Module (KIM) is an add-on module for the BST T7316E telephone.
Depending on how the T7316E is configured in system programming, the module
supports only memory button programming (OKIM), or it can support memory button
programming, line appearances (including multiples of the same target line), and hunt
group appearances (eKIM). The KIM is supported only on BCM 3.5 and newer software.
The T7316E/KIM combination is called a Central Answer Position (CAP) and replaces
the M7324/CAP module hardware.
L
LAN
A Local Area Network is a group of computers or Business Communications Manager
base units connected so they can communicate and work together.
LAN Manager
See LM
Last Number Redial
This feature allows you to redial the last external number you dialed. (FEATURE 5)
Least cost routing
See routing service.
line
The complete path of a voice or data connection between one telephone, or other device,
and another. Note that this line does not need to be a physical line. The Business
Communications Manager considers voice over IP (VoIP) trunks and target lines to be the
same as physical lines, in terms of programming.
line number
A number that identifies an external line connected to the Business Communications
Manager. The total number of lines depends on the number and type of trunk media bay
modules installed. Voice over IP (VoIP) trunks and target lines are also defined as line
numbers, although they do not connect to the system through physical lines.
line pool
A group of lines used for making external calls. Line pools provide an efficient way of
giving a group of users access to a group external lines using one line button. This also
provides cost saving because you can assign a greater number of telephones to fewer lines,
depending on your system traffic rates. Assign a line to be part of a line pool under Trunk,
Line data. (Services, Telephony Services, Lines, Physical lines or VoIP lines).
Note that PRI lines have a separate line pool collection (PRI A to PRI 0). PRI line pools
cannot be directly accessed. They must be put configured into routes, which are then
assigned a destination code.
916 M
P0609326 1.1
line redirection
This feature allows you to redirect all calls from an incoming line, usually to a destination
outside the system. After you redirect a line, you cannot answer the line within the system.
(FEATURE 84)
You enable the service and set up redirect ring under Capabilities. (Services, Telephony
Services, System DNs)
This feature differs from Call Forward in that Call Forward redirects calls coming in on all
lines to another destination, such as voice mail, while Line Redirection redirects only the
specific line.
Link
If you connect the Business Communications Manager system to a Private Branch
Exchange (PBX), you can use a Link signal to access special features. You can include the
Link signal as part of a longer stored sequence on an external auto dial button or in a
Speed Dial code. The Link symbol uses two of the 24 spaces in a dialing sequence.
LM
The LAN Manager is a challenge/response authentication protocol.
Local Area Network
See LAN.
location code
A location code (LOC) is used as part of a UDP dialing plan to identify each node on a
private network. It is also referred to as a Home Location Code (HML).
Long Tones
This feature allows you to control the length of a tone so that you can signal devices such
as fax or answering machines. These devices require tones longer than the standard 120
milliseconds. (FEATURE 808)
M
MAC address
The Media Access Control is a physical address that is the portion of the data-link layer in
802.x networks.It controls addressing information of the packet and enables data to be sent
and received across a local area network. IP telephones, for instance, have a MAC address
that allows the Business Communications Manager to keep track of individual telephones
even if dynamic IP addresses are used.
mailbox
A storage place for voice messages on Business Communications Manager Voice
Messaging.
M917
Business Communications Manager 3.6 Programming Operations Guide
Maintenance button
This button, located on the front page of the Unified Manager, provides access to a
number of troubleshooting and diagnostic tools for your system. It also includes the tools
for controlling the DECT modem. Documentation, or your service technician will direct
you when you need to use these tools.
MCDN
Although defined as a Meridian Customer-Defined Network, this network protocol
provides Meridian system attendant features (break-in and camp-on) to Business
Communications Manager systems that are network to the Meridian over PRI SL-1 lines,
providing the MCDN keycode has been entered at the Business Communication Manager.
There are setup requirements from both ends of this network link to properly enable the
features. The MCDN protocol also provides network trunking features such as Trunk
Anti-Tromboning (TAT) and Trunk Route Optimization (TRO). Business
Communications Managers can also be networked without a Meridian system, but in this
case, the Meridian attendant features are not supported. VoIP trunks can also provide
MCDN networking features if the MCDN keycode is applied to the system.
Media Access Control
See MAC address.
media channel
Media channels are the communication channels used to send voice and data information
between the devices and feature ports. Media channels are also known as B channels. The
Business Communications Manager uses the MSC to manage these channels on the
system.
Media Services card
See MSC.
Meridian 1 ISDN Primary Rate Interface
A protocol used between members of the Nortel Networks Meridian family of Private
Telecommunication Network Exchanges. The signaling information is carried via time
slot 16 of a 2.048 Mbit/s digital transmission system.
Meridian IPT
This Meridian software is required if you want to establish VoIP trunks between your
Business Communications Manager and a Meridian system.
MHz
The abbreviation for megahertz, which is a unit of measure indicating frequency in
millions of cycles per second.
918 M
P0609326 1.1
microprocessor
An electronic component that is the center of all activity inside the Business
Communications Manager base unit. The microprocessor controls the operation of the
computer and is responsible for executing program commands. A microprocessor is also
referred to as the Central Processing Unit (CPU).
modem
A communications device that allows computers to exchange data over telephone lines. A
modem uses electronic processes called modulation and demodulation. The modem
changes (modulates) the data into tones to send to another modem and converts
(demodulates) tones when receiving from another modem.
move line
This feature allows you to move external lines assigned to your telephone to different
buttons on your telephone.
MSC
The Media Services Card (MSC) is an internal card that controls the call processing for the
Business Communications Manager system. This card carries the identity of the system. If
the card is replaced, all keycodes need to be regenerated using the new card identification
number. Refer to “Configuring the MSC resources” on page 609.
Multilink PPP
Multilink PPP is an extension to the PPP protocol that enables you to group a set of links
into a bundle for more bandwidth. The links in the bundle can operate at different speeds.
Typical links can be ISDN B-channels, dial-up connections, and leased-lines.
music source
You can connect a radio or other source of music to the system to provide music for the
Music on Hold and Background Music features. A music source is customer-supplied. The
source is connected through a jack on the MSC on the Business Communications
Manager. You can also set up the IP music feature, which uses sound files from the
internet or downloaded to the Unified Manager.
MWI
If the the network line supports message waiting indicators, an external message activates
an indicator on the telephone or provides a tone indicating a message is waiting. If the
telephone has line indicators, and the message comes in over an assigned line, an indicator
appears beside the line, and a call waiting message appears on the telephone display. For
telephones without displays, a tone can be configured, or, if the telephone has one, a MWI
lamp may light.
N919
Business Communications Manager 3.6 Programming Operations Guide
N
NI
National ISDN is an ISDN protocol that is used by profiles outside of North America. See
also ANSI.
navigation key
This is the small icon beside many of the headers in the Unified Manager navigation tree.
Clicking on the icon reveals any subheadings beneath the main heading.
navigation tree
This is the menu of Unified Manager topics that appears in the left frame of the Unified
Manager screens accessed through the Configure button.
NCRI
Network Call Redirection Information (NCRI) redirects calls across an MCDN network
using Call Forward (all calls, no answer, busy) and Call Transfer features. The call
destination also receives the necessary redirection information. This feature allows the
system to automatically redirect calls from within a Business Communications Manager
system to the mail system, such as Meridian Mail, which resides outside the Business
Communications Manager system on the Meridian 1.
NetBIOS
The Network Basic Input/Output System (NetBIOS) is an interface and upper-level
protocol developed by IBM for use with a proprietary adapter for its PC network product.
NetBIOS provides a standard interface to the lower networking layers. The protocol
provides higher-level programs with access to the network. Windows NT systems use
NetBIOS.
NetVision
The NetVision handsets are wireless IP telephones produced by Symbol that are supported
by the Business Communications Manager IP telephony structure.
network
Two or more computers linked electronically to share programs and exchange data. This
process requires both hardware devices and software to coordinate the connection and data
exchange.
Network Call Redirection Information
See NCRI.
network device
A network device is a hardware device used as a communications component within a
network.
920 O
P0609326 1.1
network DN
A number supplied by the ISDN network service provider for ISDN terminal equipment.
Refer to “Adding SPID network DNs” on page 269.
Network Interface Card
See NIC.
NIC
A Network Interface Card (NIC) is a computer circuit board or card that is installed in a
computer so that it can be connected to a network. Personal computers and workstations
on local area networks (LANs) typically contain a network interface card specifically
designed for the LAN transmission technology, such as Ethernet or Token Ring. Network
interface cards provide a dedicated, full-time connection to a network.
NT LAN Manager
A challenge/response authentication protocol.
O
On Hold
A setting that controls what external callers hear: music, tones, or silence, when you place
the call on hold. Configure this setting under Feature settings. (Services, Telephony
Services, General settings)
Open Shortest Path First
See OSPF.
OSPF
Open Shortest Path First (OSPF) is a routing protocol used within larger autonomous and
complex networks in preference to the Routing Information Protocol (RIP) which suits a
small network. Like RIP, OSPF is designated by the Internet Engineering Task Force as
one of several Interior Gateway Protocols.
out-of-band
Out-of-band is a method of device access which circumvents the network interface
components within the device.
overflow
For digital and IP telephones, turn this setting on to allow the system to choose a fallback
path for an outgoing call.
The feature is turned on under Routing Service, <schedule>. (Services, Telephony
Services, Scheduled Services). You also need to set up routes and schedules that provide
the correct routing for the normal and fallback lines.
P921
Business Communications Manager 3.6 Programming Operations Guide
overrides
One component of a restriction filter. Overrides are numbers you can dial when they are
not allowed by a more general restriction. Enter these numbers under Overrides for each
restriction within specific filters. (Services, Telephony Services, Restrictions filters,
Filter XX, Restrictions)
P
packet
A packet is the unit of data that is routed between an origin and a destination on the
Internet or any other packet-switched network. When any file, such as an e-mail message,
HTML file, GIF file, URL request, and so forth, is sent from one place to another on the
Internet, the Transmission Control Protocol (TCP) layer of TCP/IP divides the file into
pieces of an efficient size for routing. Each of these packets is separately numbered and
includes the Internet address of the destination. The individual packets for a given file may
travel different routes through the Internet. When the packets have all arrived, they are
reassembled into the original file.
A packet switching scheme is an efficient way to handle transmissions on a connectionless
network such as the Internet. An alternative scheme, circuit switching, is used for
networks allocated for voice connections. In circuit switching, lines in the network are
shared among many users as with packet switching, but each connection requires the
dedication of a particular path for the duration of the connection.
Packet and datagram are similar in meaning. A protocol similar to TCP, the User
Datagram Protocol (UDP) uses the term datagram.
Page
Use this feature to make announcements over the Business Communications Manager
system. You can make page announcements over the telephone speakers and/or external
speakers. The 7000, 7100, i2001, and portable handsets cannot receive pages.
• Page tone is defined under Feature settings. (Services, Telephony Services, General
Settings)
• Page Time out is defined under Timers (Services, Telephony Services, General
Settings). This setting controls how long a Page Announcement can last.
• Page zone defines An area in the office that receives internal page announcements that
other areas of the office do not hear. This feature is defined for each telephone under
Capabilities. (Services, Telephony Services, System DNs)
• Auto hold for incoming page: When enabled, this feature puts current calls on hold for
the duration of the page announcement. Note: If a call was muted before it was put on
hold, it will not necessarily remain muted when it is released after the page
announcement.
922 P
P0609326 1.1
PAP
Password Authentication Protocol (PAP) is a procedure used by PPP servers to validate a
connection request. PAP works as follows:
1After the link is established, the requestor sends a password and an ID to the
server.
2The server either validates the request and sends back an acknowledgement,
terminates the connection, or offers the requestor another chance.
Passwords are sent without security and the originator can make repeated attempts to gain
access. For these reasons, a server that supports CHAP will offer to use that protocol
before using PAP.
Park prefix
See call park prefix.
Park timeout
The time before an unanswered parked call returns to the telephone that parked it. Set this
feature in Timers. (Services, Telephony Services, General settings)
partial double density (PDD)
See double density.
Password Authentication Protocol
See PAP.
PBX system
A PBX is a small telephone system connected to a central office (CO), but which is owned
and operated privately. An example of a PBX system is the Meridian 1 system. The PBX
can connect directly to telephones or pass lines on to another private telephone system,
such as a Business Communications Manager.
This is a telephone configuration used by larger offices which have more telephones than
incoming lines. The incoming lines are assigned to a pool, and each telephone is given
access to the pool. On the receptionist telephone, the lines are assigned individually to
indicator buttons.
PCI
Peripheral Component Interconnect (PCI) slots are hardware sockets on a circuit board.
For instance, the Business Communications Manager has four PCI slots on the MSC
board. Each slot contains one PEC III card, which handles call processing for the system.
Peripheral Component Interconnect Slot
See PCI.
Permanent virtual circuit
See PVC.
P923
Business Communications Manager 3.6 Programming Operations Guide
Personal speed dial
These are two-digit codes between 71 and 94 that are assigned to specific telephones to
dial external numbers with just one button press. Configure speed dials under User
Preferences, User speed dials, Speed dial #XX. (Services, Telephony Services, System
DNs)
Phantom DNs
A Phantom DN is a DN record for a telephone that does not physically exist. You can
assign lines to the telephone that can be programmed to Appear and Ring. This allows you
to assign an Answer key from the non-existent telephone to an existing telephone. This
might be used in the case where a customer number has been changed, but the number still
gets used. Rather than assign a telephone to the line, you can create a phantom DN and
assign an Answer key to an active telephone.
pickup group
You can place a telephone into one of nine call pickup groups. You can pick up a call
ringing at a telephone within a pickup group from any telephone within the same pickup
group. Assign a telephone to a pickup group under Capabilities. (Services, Telephony
Services, System DNs)
pin-1
An indicator on the first pin on an electronic component. You use this indicator to help you
correctly align the component when attaching or installing it.
Point-to-point protocol
See PPP.
pool
See line pool.
port
A connector on the Business Communications Manager base unit that allows data
exchange with external devices, such as external page or music equipment or a serial cable
connection to a computer.
power cable
A cable that connects the Business Communications Manager base unit to a power source.
PPP
Point-to-point protocol (PPP) is a protocol for communication between two computers
using a serial interface, typically a personal computer connected to a server by a telephone
line. For example, your Internet server provider may provide you with a PPP connection
so that the provider's server can respond to your requests, pass them on to the Internet, and
forward your requested Internet responses back to you.
924 P
P0609326 1.1
PPP is a full-duplex protocol that can be used on various physical media, including twisted
pair, fiber optic lines or satellite transmission. It uses a variation of High Speed Data Link
Control (HDLC) for packet encapsulation.
PPP can process synchronous as well as asynchronous communication. PPP can share a
line with other users and it has error detection.
pre-dial
A feature that allows you to enter a number and check it on your telephone display before
you lift the handset or select a line. The Business Communications Manager system dials
the number when you lift the receiver or select a line.
PRI
Primary Interface (PRI) ISDN lines use 23 B-channels (North America) and a D-channel
(23B+D). E1 PRI provides 30 B-channels and a D-channel (30B+D).
prime line
The line the system selects for your telephone when you lift the receiver, press the
handsfree button or use an external dialing feature. Assign a Prime Line to a telephone
under Line access. The default is the intercom button (I/C). (Services, Telephony Services,
System DNs)
prime set
A telephone designated as a Prime set provides backup answering for incoming calls on
external lines. The prime telephone for a line will ring for any unanswered calls on that
line. Assign a prime telephone to a line under Line XXX, Trunk Line data. (Services,
Telephony Services, Lines).
priority call
If you get a busy signal when you call a person in your office, you can interrupt that
person for an urgent call. Enable this feature for a telephone under Capabilities. Set the
intrusion level, which defines who can interrupt calls and whom you can interrupt under
Capabilities, Intrusion. (Services, Telephony Services, System DNs). (FEATURE 69)
Privacy
This feature determines if a system user can select a line in use at another telephone and
join an established call. Auto Privacy can be enabled under Line XX, Trunk Line data.
Users can turn this feature on and off during separate calls. (FEATURE 83)
private access code
A one-digit number that identifies the systems on a private network that is using the a
Universal Dialing Plan (UDP). This number is assigned in front of the Home Local Code
(HLC) that is unique to each node. Dial string: (<priv.access.code>+<HLC>+<DN>)
Private branch exchange
See PBX system.
P925
Business Communications Manager 3.6 Programming Operations Guide
private line
See Private to.
private network
A telephone network including PBXes, such as Meridian 1, and/or Business
Communications Managers connected through dedicated land trunks (E&M, T1/E1, PRI
Sl-1, PRI CbC, BRI) or voice over IP (VoIP) trunks.
Private to
This feature allows you to select the telephone that exclusively uses a line. The line cannot
appear on another telephone, except the prime telephone for that line. You cannot place
private lines into line pools. Private lines are assigned under Line XXX, Trunk Line data,
Line Type. (Services, Telephony Services, Lines)
programming
Setting the way the Business Communications Manager system works. Programming
includes system-wide settings and separate telephone and line settings.
protocol
A set of rules and procedures for exchanging data between computers or Business
Communications Manager base units on a network or through the Internet.
proxy
A proxy is a server that acts on behalf of another.
PSTN
The Public Switched Network (PSTN) provides central office lines that connect the
system to the public network. Configure lines under Telephony Services, Lines.
Note: Private network lines are PSTN lines that have been designated by the central office
as exclusive lines that directly connect two private telephony systems. In a private
network, toll charges are not charged on a per-call basis, but are figured into the cost of the
line services.
public network
The central office telephone network that provides trunks and lines to individual telephone
users and private systems.
pulse/tone dialing
An external line setting for pulse or tone dialing. Pulse is the traditional method of dialing
used by rotary-dial or push-button single-line telephones. Tone dialing allows telephones
to communicate with other devices such as answering machines. You require tone dialing
to access the features that PBX systems can provide or to use another system remotely.
PVC
The Permanent Virtual Circuit (PVC) is an end-to-end virtual connection in frame relay
networks.
926 Q
P0609326 1.1
Q
QoS
On the Internet and in other networks, Quality of Service (QoS) refers to guaranteed
throughput level. QoS allows a server to measure, improve and, to some level, guarantee
the transmission rates, error rates, and other data transmission characteristics. QoS is
critical for the continuous and real-time transmission of video and multimedia information
which use high bandwidth.
QSIG
Q reference point signaling. QSIG is an ETSI (International) standard signaling for
multi-vendor peer-to-peer communications between PBXs and/or central offices.
Quality of Service
See QoS.
R
RAM (Random Access Memory)
Computer memory that stores data temporarily. RAM stores the data used by the
microprocessor as it executes instructions. The contents of RAM are erased when you
restart or turn off the Business Communications Manager base unit.
RAS
The Remote Access Server (RAS) is the ability to get access to a computer or a network
from a remote distance. In corporations, people at branch offices, telecommuters, and
people who are travelling may need access to the corporate network. Home users get
access to the Internet through remote access to an Internet service provider (ISP).
A remote access server is the computer and associated software that is set up to handle
users seeking access to the network remotely. Sometimes called a communication server, a
remote access server usually includes or is associated with a firewall server to ensure
security and a router that can forward the remote access request to another part of the
corporate network.
recall
See Link.
receiver
In this document, this term can refer to the handset of a telephone.
R927
Business Communications Manager 3.6 Programming Operations Guide
regression code
This feature restores the previous system security number so that previously applied
UTAM Activation Codes and Portable Credit Codes can be re-entered to restore full
system operation for Companion components. Also required in cases of system recovery.
You cannot use this code again.
relaying
Relaying is the process of moving data along a path determined by a routing process. The
data is relayed between a source and a destination.
remind delay
A feature, referred to as held line reminder, causes a telephone to beep and display the
message On hold: LINENAM when a call has been on hold for a programmable period
of time. Turn the feature on and set the timing under Feature settings. (Services,
Telephony Services, General settings)
remote access
The ability to dial into a Business Communications Manager system from outside the
system and use selected features. The Class of Service determines which lines, features,
and dialing capabilities are available.
In private networking, this term refers to one system accessing another system over a
private trunk, for instance, for centralized voice mail. In this case, even though the number
is dialed over a private trunk, and the dialing plan may be set up so that the user dials the
same number of digits as for an internal call, routing is set up to dial out of the current
system and into or through the connected system.
remote access dial restriction
See restriction filters.
remote access packages
A restriction filter that is applied to an incoming line to control which digits are dialed
during an incoming remote access call. Remote access packages are defined under Remote
Access packages (Services, Telephony Services, General Settings), and assigned under
COS Passwords (Services, Telephony Services, General Settings)
remote access service
See RAS.
remote device
A remote device is any network device that is accessible only by means of communication
over a digital or analog (dial-up) network.
remote monitoring
A feature that allows an off-site technician with a computer to call in and troubleshoot
your system through the built-in modem.
928 R
P0609326 1.1
remote paging
This feature allows remote users to use the system paging feature. Access to this feature is
governed by the Class of Service for the call.
remote user
Someone who calls into a Business Communications Manager system from a telephone
outside that system and uses system features or lines. See Remote Access.
restriction filters
Restriction filters are configured to prevent some telephone numbers or feature codes from
being dialed. Restriction filters can be applied to lines, sets, specific lines on a set, and to
Class of Service passwords. Under restriction filters, you can enter override numbers that
you want to circumvent the general restrictions. Configure filters under Restriction filters.
(Services, Telephony Services)
restrictions
Restrictions are numbers you cannot dial when that dialing filter is in effect. You can use
FEATURE 68 to override restrictions for a line to make a call.
restriction service
You can assign alternative dialing filters to lines, telephones, lines on a particular
telephone, and alternative remote filters to lines at specified times of the day and on
specified days. Set up restriction schedules under Restriction service. (Services,
Telephony Services, Scheduled Services)
ring again
The ring again feature instructs the system to tell you when a currently busy telephony
hangs up or when an unanswered telephone is being used. (FEATURE 2)
ring group
Ring groups allow you to program a specific group of telephones to ring during a
scheduled time, for specific lines. You can program a maximum of 20 ring groups.
Configure ring groups under Ringing service. (Services, Telephony Services, Scheduled
Services)
ringing service
A Services section that allows you to make additional telephones ring at specified times of
the day and on specified days. Refer to ring group.
ring type
A feature that allows you to select one of four distinctive rings for your telephone. See
also distinctive ring. This feature is set under User Preferences, but can be changed at a
telephone. (Services, Telephony Services, System DNs)
R929
Business Communications Manager 3.6 Programming Operations Guide
ring volume
A feature that allows you to set the volume at which your telephone rings. This is a
telephone feature and has no system setting.
RIP
Routing Information Protocol (RIP) enables routers in the same autonomous system to
exchange routing information by means of periodic updates. RIP is a widely-used protocol
for managing routing information within a self-contained network such as a corporate
local area network (LAN) or an interconnected group of such LANs.
Using RIP, a gateway host (with a router) sends its entire routing table (which lists all the
other hosts is has on record) to its closest neighbor host every 30 seconds. The neighbor
host passes the information to its next neighbor and so on until all hosts within the network
have the same routing path information, a state known as network convergence. RIP uses a
hop count as a way to determine network distance. Each host with a router in the network
uses the routing table information to determine the next host to route a packet to for a
specified destination.
RIP is considered an effective solution for small homogeneous networks. For larger, more
complicated networks, RIP's transmission of the entire routing table every 30 seconds may
put a heavy amount of extra traffic in the network.
The major alternative to RIP is the Open Shortest Path First Protocol (OSPF).
Release button
Ends a call in the same way that hanging up the receiver does.
ROM (Read Only Memory)
Memory that stores data permanently. ROM contains instructions that the Business
Communications Manager base unit needs to operate. The instructions stored in ROM
cannot be changed and are used by the Business Communications Manager base unit each
time it is turned on or restarted.
router
A router is a device that forwards traffic between networks, based on network layer
information and routing tables. A router decides which path network traffic follows using
routing protocols to gain information about the network and algorithms to choose the best
route based on a routing matrix.
routing
The path a message takes from its origin to its destination on a network or the Internet.
Configure telephony routing under Call Routing. (Services, Telephony Services).
Configure intranet/internet routing under the Data headings).
Routing Information Protocol
See RIP.
930 S
P0609326 1.1
routing service
Routing services defines schedules that allow you to change the route of a call without
changing the destination code. This provides a way of shifting from one service provider
to another at different times of the day if the rates are better. The system determines the
routing; the user continues to dial the same number. Use Routing services to configure
these schedules. (Services, Telephony Services, Scheduled Services)
Run/Stop
A feature that creates a break point in a programmed external dialing sequence. When you
press a programmed key, the system dials the number up to the run/stop. When you press
the programmed key again, the system dials the digits following the run/stop.
S
SAPS
A Station Auxiliary Power Supply (SAPS) provides power to a telephone that is more than
300 m (975 ft.) and less than 1200 m (3900 ft.) from the Business Communications
Manager, or to a CAP configuration. M7324/CAP module CAP configurations require a
SAPS for all modules. T7316E/KIM CAP configurations only require a SAPS if more
than four KIMs are connected to the T7316E.
saved number redial
A feature that allows you to save the number of the external call you are on, providing you
dialed the call, so that you can call it again later.
schedules
Any of six sets of services you can apply to your system. Schedules allow you to control
ringing, routing and restrictions services based on day of the week and time of day. You
also need schedules if the system VoIP trunks are set to allow fallback to PSTN lines. See
“Configuring schedules” on page 483 and the IP Telephony Configuration Guide.
Secure Sockets Layer
See SSL.
selective line redirection
See line redirection.
serial port
A port that sends and receives data one bit at a time. You can use this port to connect the
Business Communications Manager base unit to a printer, external modem or mouse. The
serial port connector has nine pins and is identified by software with the letters COM and
a single digit, such as COM1.
Server Message Block
See SMB.
S931
Business Communications Manager 3.6 Programming Operations Guide
service control password
This is the password that you enter when you want to start or change routing and
restriction service settings.
Service modes
See services.
Service Profile Identifiers
See SPIDs.
services
You can define service schedules for ringing services, restriction services and routing
services. This allows you to control call access a different times of the day and for
different days of the week.
set
This book often uses this term in reference to telephones or telephony devices.
Set lock
This feature allows you to limit the number of features that are available at a telephone.
Full set lock allows very few changes or features, Partial set lock allows more changes and
features, and No set lock allows any change or any feature. Assign the Set lock under
DNXX, Restrictions, Set Restrictions. (Services, Telephony Services, System DNs)
set relocation
This feature maintains the personal and system programming on digital telephones that get
moved to a different jack on the same system, providing no other telephone is plugged into
the original jack first. This feature is set under Feature Settings. (Services, Telephony
Services, General Settings)
signaling channel
Signaling channels are the communication channels used to send control signals to and
from the MSC. Signaling channels are also known as D-channels.
silent monitoring
This is the term used to define the monitoring feature that allows supervisors to monitor
Hunt group or Call Center calls. This guide describes the Hunt group monitor features
(“Monitoring Hunt groups” on page 585). Call Center monitoring is described in the Call
Center documentation.
Simple Network Management Protocol
See SNMP.
932 S
P0609326 1.1
SL-1
This is a type of PRI line that can be used to create a private network between two
systems. It also supports the MCDN protocol. VoIP programming note: Prior to BCM
3.5, the SL-1 protocol was used as the gateway protocol for VoIP trunking. For BCM 3.5
and newer software, the CSE protocol is recommended for most VoIP trunking, unless
otherwise specified by the network administrator. VoIP trunking information is contained
in the IP Telephony Configuration Guide.
SMB
The Server Message Block (SMB) is a message format used by Windows to share files,
directories and devices.
SNMP
Simple Network Management (SNMP) is the protocol governing network management
and the monitoring of network devices and their functions.
SPIDs
Service Profile Identifiers (SPIDs) are a number that identifies a specific ISDN line. When
you obtain ISDN service, your telephone company assigns a SPID to your line. Part of the
initialization procedure is to configure your ISDN terminal adapter to use this SPID.
Most telephone companies in North America use the Generic SPID Format, which is a
14-digit number. The first 10 digits identify the telephone number, called the Directory
Number (DN). The remaining four digits identify a particular ISDN device, in the case
where multiple devices share the same Directory Number.
Each ISDN BRI line has two telephone numbers. Each of these telephone numbers has a
SPID. Refer to “Adding SPIDs” on page 268.
square system
This is a basic office system where all telephones have all the lines assigned to individual
indicator buttons. If the system has a receptionist, the receptionist answers the call, then
calls or pages the person.
SSL
Secure Sockets Layer (SSL) is a security protocol that the Business Communications
Manager uses to provide secure access to the system, including the Unified Manager. The
access application recommended by Nortel is PuTTY SSH (by SSH inc.). This application
replaces the Telnet access used on BCM 3.0 and previous versions of the Business
Communications Manager. SSH is accessed through the Install Clients button on the first
page of the Unified Manager. Refer to the Management User Guide for instructions about
installing it and using it to access the system.
S933
Business Communications Manager 3.6 Programming Operations Guide
Start DN
This is the first directory number (DN) in the DN range on the system. This number is
specified during system setup (Quick Start Wizard). Changing this number causes the
system to perform a cold boot and all telephony programming would be lost. This number
is assigned by default to DS30 02 first port. The Start DN defaults for a number of
settings, such as Prime line, Control telephone, and Auxiliary ringer (ringing groups).
startup programming
When a Business Communications Manager system is first installed and powered up, you
must perform Startup programming before you program other features. Startup initializes
the system programming to defaults. Use the Quick Start Wizard to perform this process.
static IP address
A static IP address, or fixed IP address, is an IP address that is permanently assigned to a
device on a network. The device retains the same IP address every time it connects to the
network and is known to other devices on the network by that IP address.
station auxiliary power supply
See SAPS.
station media bay module
A computer module which provides access to telephone lines within the Business
Communications Manager system. The 16-port digital station media bay module
(DSM 16+) connects a maximum of 16 digital telephone telephones to the system. The
32-port digital station media bay module (DSM32+) connects a maximum of 32 digital
telephone sets to the system. The Analog Station Media Bay Module (ASM8/ASM8+)
connects a maximum of eight analog telephony devices to the system. The Unified
Manager displays these lines as DN numbers. On systems running BCM 3.0 and newer
software, DS30 bus 02 to 05 default to double density, which means that each of these
DS30 buses can support up to 32 telephones. Legacy station modules can only support the
first 16 DNs on each bus. The DSM16+ (two per bus), the DSM32+ (one per bus) can
support the full 32 DNs. As well, the ASM8/ASM8+ can be configured on all four offsets,
instead of just two. DS30 bus 06 and 07 default to single density, allowing them to support
legacy Companion equipment. However, the system can be configured to Full Double
Density (FDD), which means that these two bus blocks would also support 32 DNs, but
would not longer support Companion.
station set test
A series of diagnostic tests for these components of a telephone: display, buttons, handset,
speaker, and power.
subnet mask
A value used to route packets on TCP/IP networks. When the IP layer has to deliver a
packet through an interface, it uses the destination address contained in the packet,
together with the subnet mask of the interface to select an interface, and the next hop in
that subnet.
934 S
P0609326 1.1
Symbol
See NetVision.
synchronous
A synchronous signal is sourced from the same timing reference. A synchronous signal
causes the interval between successive bits, characters, or events to remain constant or
locked in to a specific clock frequency.
Synchronous Dynamic Random Access Memory (SDRAM)
Computer memory that stores data temporarily. SDRAM stores the data used by the
microprocessor as it executes instructions. The contents of RAM are erased when you
restart or turn off the Business Communications Manager base unit.
system data
An option in the Set Copy function which refers to the programmable system settings that
apply to all telephones and lines.
system speed dial code
This two or three-digit code (01 to 70 or 001 to 255) allows you to program speed dial
codes for the entire system. Configure system speed dial codes under System speed dial.
(Services, Telephony Services). These codes can be assigned to memory keys.
Alpha-tagging: You can also use your speed dial list to provide name display for
number-only analog CLID lines and target lines. When you configure an external number
into a system speed dial, including a name, the system will display the name defined in the
system speed dial list if an incoming call number matches a specified number of digits on
the speed dial list. To take advantage of this feature, each telephone assigned with these
lines must have CLID display allowed for the specific line in the DN record of that
telephone.
system startup
See startup programming.
SWCA
The System-wide Call Appearance (SWCA) feature allows incoming calls to be parked on
indicator buttons. Groups of telephones with the same programmed buttons can answer
any call that gets parked on the SWCA buttons. When the call is parked on the button (the
button is blinking), anyone in the group can answer the call. When the call has been
answered, the indicator becomes solid. If the call is reparked, the call can be picked up by
any other user in the group.
T935
Business Communications Manager 3.6 Programming Operations Guide
T
T1
Digital carrier system or line that carries data at 1.544 Mb/s. These lines can be used to
connect systems on a private network. See also universal T1 Wide Area Network
(UTWAN).
T700 telephone
This telephone has four programmable buttons, but no display, and is not available in all
markets.
T7100 telephone
This telephone has a single line display and one programmable button without an
indicator.
T7208 telephone
This telephone has a single-line display and eight programmable buttons with indicators.
T7316 telephone
The telephone has a two-line display with three display buttons, 16 programmable buttons
with indicators, and eight programmable buttons without indicators. This telephone has a
separate Mute button. It also has a headset button that allows the user to switch from
handset to headset without unplugging the headset.
T7316E telephone
This telephone is based on the T7316 except that the T7316E has separate Mute and
Handsfree keys under the dialpad and can support Key Indicator Modules (KIMs) to
provide extra memory, line and hunt group appearance support (eKIM). The default button
programming for this telephone is also different from the T7316. However, on systems
running software earlier than BCM 3.5, this telephone acts like a T7316.
tandem calling
On a private network, a node can pass a call to one or more nodes on the private network,
and then out to the PSTN of the appropriate remote node. This allows a business to reduce
long-distance call charges by having the number appear as if it came from the local
system. Each system must ensure that the appropriate remote access package is assigned
to the lines used for the private network, as the system sees calls from outside the system,
even if they come over private lines, as remote-access calls, and treats them accordingly.
tandem network
The private networking chapter describes how a tandem network is configured. A tandem
network is a group of systems that are linked, each to one or two other systems. For
instance if you have systems A, B, C, D, E and F, A is connected to B, B is connected to A
and C, C is connected to B and D, and so on. In this case, for a call to move from A to F,
which are not connected, the call routes through all the systems between the two.
936 T
P0609326 1.1
TAPI
The Telephony Application Program Interface (TAPI) is a standard program interface that
lets you and your computer communicate over telephones or video phones to people or
phone-connected resources elsewhere in the world.
target line
These are internal system lines used only to answer incoming calls. These lines route calls
to specific telephones. A target line routes a call according to digits it receives from an
incoming trunk. Program target lines under Target lines (Services, Telephony Services,
Lines). Assign target lines to telephones under DN XXX, Line access, Line assignment.
(Services, Telephony Services, System DNs). The DID telephony profile automatically
assigns target lines to all telephone DNs. This profile is picked when your system is first
set up, when you program the Quick Start Wizard. You can configure target lines on more
than one telephone, or multiple times on one telephone. As soon as one call is answered,
the line becomes clear and can be picked up by a second telephone or a second line.
TAT
The Trunk Anti-tromboning (TAT) MCDN call-reroute feature works to find better routes
during a transfer of an active call. This feature acts to prevent unnecessary tandeming and
tromboning of trunks.
TCP/IP
Transmission Control Protocol/Internet Protocol (TCP/IP) is a language controlling
communication between computers on the Internet.
TCP checks packets of information for errors, sends requests for re-transmission in the
event of errors and returns multiple packets of a message into the original sequence when
the message reaches its destination.
IP controls how packets are sent out over networks and has a packet addressing method
that lets any computer on the Internet forward a packet to another computer that is a step
or more nearer to the packet target.
TEI
A Terminal Endpoint Identifier (TEI) is a digit used to identify devices using an ISDN
connection for D-channel packet service.
Telephony Application Program Interface
See TAPI.
Telnet
Telnet is a service that provides terminal-emulation capabilities for logging into the
Business Communications Manager unit from a remote location. See also, SSL.
Terminal Endpoint Identifiers
See TEI.
T937
Business Communications Manager 3.6 Programming Operations Guide
token-ring
A token-ring is a network topology and data signaling scheme where a special data packet
(called a token) is passed from one station to another along an electrical ring. A
transmitting station takes possession of the token, transmits the data, then frees the token
after the data has made a complete circuit of the electrical ring.
tone dial telephone
A push button telephone that emits DTMF tones.
TOS
The type of service field is located in the IP packet header and is used in DiffServ
processing.
transfer
A feature that allows you to redirect a call to another telephone in your Business
Communications Manager system, over a network or outside your system. (FEATURE 3)
transfer callback
If a transferred call is not answered after a specific number of rings, the call returns to the
telephone that made the transfer. Transfer Callback does not apply to calls transferred
externally. The number of rings is assigned under Timers, Transfer callback timeout.
(Services, Telephony Services, General Settings)
Transmission Control Protocol/Internet Protocol
See TCP/IP
TRO
The trunk route optimization MCDN feature allows the call to find the most direct route
through the private network to send a call between nodes. This function occurs during the
initial alerting phase of a call.
tromboning
Tromboning refers to the way a transferred call uses lines on a network. If TAT is not
present (no MCDN protocol is applied), a call made from a telephone on another system,
and then transferred from the telephone to a third telephone on the first system can
consume two network lines. By using TAT, the transferred call becomes an internal call
once it is transferred, freeing up the network lines.
trunk
The physical connection between the Business Communications Manager system and the
outside world using the public telephone system or another network system.
938 U
P0609326 1.1
trunk answer
Use this feature to answer a call on any line that has an active Ringing service Service
Mode, when that line does not appear on your telephone. Enable Trunk Answer under
Ringing Service, Schedules, <schedule name>. (Services, Telephony Services, Scheduled
Services)
trunk anti-tromboning
See TAT.
trunk media bay modules
A computer module which provides access to telecommunications trunks.
• The digital trunk media bay module (DTM) provides the connection between a
standard digital PSTN T1 or PRI line and the Business Communications Manager
system.
• The Caller ID trunk media bay module (CTM)/Global analog trunk module (GATM)
provides the ability to access four (CTM/GATM4) or eight (CTM8/GATM8) analog
Caller ID PSTN lines. The 4X16 module combines a CTM and a DSM to support four
lines and 16 telephone connections on one module.
The GATM, connects to the lines through an amphenol connector rather than an RJ
connector like the CTM. The GATM also supports downloadable firmware (BCM 3.5
and newer software), depending on how the country DIP switches are set. Currently
the GATM is only supported in North America, Australia, United Kingdom and
Taiwan markets.
• The Basic Rate Interface media bay module (BRI) provides access to a maximum of
eight BRI ISDN telephone lines, two per loop. Each loop on the BRI can be
configured for either ISDN trunks or ISDN station devices.
trunk route optimization
See TRO.
Type of Service
See TOS.
U
UDP
Telephony dialing plan: Networked systems that connects using a Universal Dialing Plan
(UDP) have system identification numbers and a location code that are unique to each
system. Also, the Private DN length is the same on all systems. The system identification
numbers and location codes are entered as a unique destination code that gets dialed out
with whatever extension is being dialed. See also CDP.
U939
Business Communications Manager 3.6 Programming Operations Guide
Data protocol: User Datagram Protocol (UDP) is a protocol that offers a limited amount
of service when messages are exchanged between computers in a network that uses IP.
UDP is an alternative to the Transmission Control Protocol (TCP) and, together with IP, is
sometimes referred to as UDP/IP.
Like the Transmission Control Protocol, UDP uses IP to actually transfer a data unit
(called a datagram) from one computer to another. Unlike TCP, however, UDP does not
provide the service of dividing a message into packets (datagrams) and reassembling it at
the other end. Specifically, UDP doesn't provide sequencing of the packets that the data
arrives in. This means that the application program that uses UDP must be able to make
sure that the entire message has arrived and is in the right order.
Network applications that want to save processing time because they have very small data
units to exchange (and therefore very little message reassembling to do) may prefer UDP
to TCP. The Trivial File Transfer Protocol (TFTP) uses UDP instead of TCP.
Universal Dialing Plan
See UDP.
universal power supply
See UPS.
universal T1 Wide Area Network
See UTWAN.
unsupervised line
A line for which disconnect supervision is disabled. If an external caller hangs up, the
system does not detect the disconnection and does not hang up its line. See disconnect
supervision.
UPS
The Universal Power Supply is a third-party piece of hardware that attaches through the
Business Communications Manager serial port to provide power backup in case of a
power failure.
user data
User Data is an option in the Set Copy feature. User Data refers to the personal settings
which are unique to a telephone, and which are not programmed for the system. You
program User Data for each telephone.
These settings, for example, include Personal Speed Dial and the assignment of
programmable memory buttons.
User Datagram Protocol
See UDP.
user filter
See restriction filters.
940 V
P0609326 1.1
user preferences
These are settings that define a specific telephone and how the buttons on that telephone
are programmed.
User Speed Dial
Two-digit codes (71-94) you program to dial external telephone numbers. You program
User Speed Dial numbers for each telephone, and these numbers are available only at the
telephone on which they are programmed.
UTWAN
The Universal T1 Wide Area Network (UTWAN) feature allows a Business
Communications Manager system to use a Universal T1 digital line. A Universal T1 line
is a digital line that allows some of the 24 lines to be used for standard telephony traffic
and some of the lines to be used as a WAN connection. When you use a the UTWAN
feature, a single DTM and a Universal T1 line can provide both your WAN connections
and your telephone lines.
V
V. 9 0
A data transmission standard used by the modem installed in the Business
Communications Manager base unit. This standard allows data to be transmitted to the
modem at 56 kbit/s and transmitted from the modem at 33 kbit/s.
voice call
Use this feature to make an announcement or begin a conversation through the speaker of
another telephone in the system. The telephone you call does not ring. Instead, the person
you call hears a beep and then your voice. Their telephone will beep periodically to
remind the person that their microphone is open. (FEATURE 66) Some telephones cannot
receive voice calls (7000, 7100, i2001, and portable handsets that do not have speakers).
For these telephones, set all calls to ring on the telephone, so the user can be alerted that a
voice call is occurring.
voice call deny
Use this feature to prevent your telephone from receiving voice call.
voice message center
A maximum of five external voice message centers can be programmed onto a Business
Communications Manager. However, each telephone can only access one system. If the
Business Communciations Manager is hosting voice messaging for other systems, remote
call-in must be set up to accommodate external callers, even over a private MCDN
network. Refer also to centralized voice mail and centralized auto attendant.
W941
Business Communications Manager 3.6 Programming Operations Guide
VoIP trunking
Voice over IP (VoIP) is the capability to deliver voice traffic using the IP network. VoIP is
a set of facilities for managing the delivery of voice information using the IP. In general,
this means sending voice information in digital form in discrete packets rather than in the
traditional circuit-committed protocols of the public switched telephone network (PSTN).
A major advantage of VoIP and Internet telephony is that it avoids the tolls charged by
ordinary telephone service.
In addition to IP, VoIP also uses the real-time protocol (RTP) to help ensure that packets
get delivered in a timely way.
The Business Communications Manager provides VoIP trunks that access a gateway on
the system. The gateway receives packetized voice transmissions from users within the
company and then routes them to a specific destination in another part of its intranet (local
area or wide area network). VoIP trunks can be used by both digital and IP telephones.
These trunks can also supply the MCDN trunking features such as TAT, TRO and ICCL.
IP telephone and trunk programming is dealt with in the IP Telephony Configuration
Guide.
W
wait for dial tone
A feature that causes a sequence of numbers to pause until dial tone is present on the line
before continuing to dial. The Wait for dial tone symbol uses two of the 24 spaces in a
dialing sequence.
WAN
The Wide Area Network is a collection of computers or Business Communications
Manager base units connected or networked to each other over long distances, normally
using common carrier facilities.
web cache
A web cache is a server or collection of servers that store copies of Internet content. The
web cache server can be either located on the LAN where the clients it serves are also
located, or it can be embedded within the enterprise WAN or at the client’s Internet
Service Provider (ISP).
web proxy
A web proxy, or HTTP proxy, is a server that acts on behalf of the requester of pages from
an HTTP server and the Internet. You must bypass this server to correctly use the Business
Communications Manager.
WFQ
Weighted Fair Queuing (WFQ) is a queuing method that allows low volume traffic such as
Telnet to be given priority and interactive traffic receives higher priority than batch
transfers. Also, high bandwidth usage traffic such as batch file transfer traffic gets equal
priority with other high bandwidth use traffic.
942 W
P0609326 1.1
Wide Area Network
See WAN.
wild card
In the Unified Manager dialing rules, the character A is used to represent any digit from 0
to 9 instead of an asterisk (*). For instance, you may define a destination code of 062A to
represent a range of destination codes that all use the same route and absorb length, with
different dial-out digits.
wizards
Wizards are applications that provide a quick way of performing a task. The Unified
Manager has wizards for system setup, configuring telephones and telephone numbering,
changing the network settings, and for configuring the DECT system.
Business Communications Manager 3.6 Programming Operations Guide
943
Index
Symbols
# of lines/loops 132
*89, programmed release 323
*9, Run/Stop code 323
Numbers
2-way DID, PRI 875
4ESS
available services 138
call by call services support 340
PRI protocol 325
500/2500 telephone, emergency 905
71, link code 323
78, 1.5-second pause 323
804, wait for dial tone code 323
808, long tones 323
911
dialing 905
emergency dialing 210
enhanced configuration 351
A
absorb length 889
absorb length, destination code programming 330
absorbed length 333
accept default route, RIP parameters 711
accept route advertisements
IPX RIP parameters 728
accept route advertisements, IPX RIP parameters 728
accept service advertisements, IPX SAP parameters
733
access
allow or block Unified Manager access 117
controlling, answer keys 224
default password 110
remote, public network 299
system management 109
access codes
call park 895
call park prefix 896
carrier 897
default table 309
destination codes 900
direct-dial digit 902
external 906
glossary 889
line pool 317
line pool network 514
local access code 312
matrix 319
national access code 312
numbering plan overview 194
private 924
private access code 311
programming 311
special (international) access code 312
access parameters
ISDN 692
PPPoE 699
access rate, WAN frame relay 677
accessing the on-line help 87
ACD
agent busy/ready (908) 867
agent log in/log out (904) 867
queue status (909) 867
acronyms 51
action
configuring 819
policy parameters 821
activation code, features 861
active application DNs 361
active Companion DNs 361
active configuration, MSC 625
active DNs
voice mail 446
active DNs reg’d 364
active services, view (870) 864
active set DNs
analogue, digital and IP telephones 361
moving to inactive DNs 365
Actual Bus Type 125
actual, RIP parameters 711
adapter name, QoS advanced 814
adaptive, sampling 279
add lines to a telephone 397
Add Users Wizard
running the wizard 375
target lines, manual entry 287
add users wizard 80
944 Index
P0609326 1.1
adding a destination code 330
adding routes 322
addons
station module devices 144
trunk PRI versions 143
address
COPS client 826
COPS status 823
address mask, RAS server parameters 685
address ranges, DHCP clients 644
address type
COPS client 826
COPS status 823
admin alarm
assigning 596
time 596
admin telephone
hospitality services 910
AdminUserGroup 110
advertise routes, IPX RIP parameters 728
advertise services, IPX SAP parameters 732
advice of charge - end of call (AOCE), ETSI QSIG
networking 545
agent busy/ready (908) 861, 867
agent login/log out, ACD (904) 867
agent login-log out (904) 861
aging interval multiplier
IPX RIP parameters 728
IPX SAP parameters 733
AH
encryption protocol 779
firewall rules 782
NAT restriction 779
alarm
data, hospitality 594
duration, hospitality 594
messages 459
telephone, identify 459
time, hospitality 590
alarm code 889
Alarm time
admin 596
at telephone (875) 861
cancel (#875) 861
cancelling 599
changing or cancelling 599
Hospitality Services admin set (877) 861
programming 598
turning off 599
alarms
pending room alarms 596
alerter
BST doorphone 894
all DNs reg’d 364
all inactive DNs 361
all system DNs 362
allow last number redial 442
allow link 442
allow network access, RAS server parameters 685
allow redirect
allow/disallow 407
Edit DN Record Template Wizard 372, 378
Embark switch, call forward 410
allow saved number redial 442
Allow sign and encrypt 108
AllowClear Text 692
alpha tagging 455
caller ID set 398
Clid Match length 460
Maximum CLI per line 460
Maximum system speed dials 460
system speed dial code 934
alternate call ringing, services 489
alternate language
first (*502) 862
second (*503) 862
third (*504) 862
alternate services, overview 220
alternate telephone number, WAN modem link
parameters 688
analog lines
voice message indicator 399
analog lines, public networking 499
analog telephone
call forward 895
analog telephones
external code 906
hospitality 590
line redirection 408
message reply enhancement 459
receiving short tones 407
analog trunks
module mode 132
ANI number, programming 244, 246, 258
announce default route, RIP parameters 711
ANSI, American National Standards Institute 889
Index 945
Business Communications Manager 3.6 Programming Operations Guide
answer backup, Prime set for lines 238, 241, 243, 245,
247, 249, 250, 252, 254, 255
answer delay, Add Users wizard 378
answer delay, Edit DN Record Template Wizard 372
Answer DNs
acting as auto dial 890
answer DNs
answer key settings 459
answer type 403
appearances 402
auto dial feature 404
Call Center warning 459
Directed Pickup 207
glossary 889
overview 208
portable telephones 403
programming 402
answer key
autodial feature 404
answer keys
Answer DNs 208
basic, enhanced, extended 459, 461
Call Center warning 459
Answer mode 239, 241, 246, 251, 252, 257
Answer timer 132
answer type
answer DNs 403
Answer with DISA, trunk mode 238, 256
answering calls
Answer other telephones 208
Call Display services 201
Call Pickup 207
Conference Calls 211
distinctive ring patterns 205
handsfree/mute 218
overview 205
Privacy 258
Trunk Answer 208
ANY character 330
API, Application Program Interface 890
appear and ring, telephone line assignment 398
appear only, telephone line assignment 398
appearance type
line assignments 398
target lines 288
appearances
target lines 288
appearances, line assignments 398
appearances, telephone line assignment 398
application setting options
Common Open Policy Services (COPS) 823
QoS network access 816
QoS policies (hardware filters) 821
QoS, interface groups 814
Archlog
SMB security level 108
ARP messaging 683
ARP, Address Resolution Protocol 889
ASM
Call Park prefix 313
line redirection 408
long tones 223
message indicator 412
ASM8 933
ASM8+
disconnect supervision 902
assign lines, Hunt groups 583
assured forwarding PHB 810
asynchronous, glossary 890
ATA
answer timer 412
long tones 223
ATA Dvc
ATA 413
ATA use (site) 412
ATA2
ATA answer timer 412
ATA use (site) 412
Call Park prefix 313
external code 312, 906
glossary 890
hospitality 590
line redirection 408
message indicator 412
attempts, alarm 594
attendant DN length, Quick Start Wizard 96
attribute
action parameters 820
policy 821
auth failures, COPS status 825
auth missing, COPS status 825
authentication
IPSec 779
IPSec remote user 796
ISDN access parameters 692
NAT 753
outgoing, PPP parameters 680
PPP parameters mode 680
946 Index
P0609326 1.1
PPPoE access parameters 699
V.90 modem access parameters 689
Authentication Compatibility 107
Authentication Header, see AH 779
authentication type
OSPF global settings 708
PPTP authentication 773
authorization type
COPS client 826
COPS status 824
auto answer
DID lines 901
DISA 902
auto answer trunks, accessing 890
auto attendant
centralized voice mail 897
interactive, IVR 914
auto attendant, adding telephone 371
Auto called ID 445
auto dial
description 890
Auto DN
overview 194
auto DN
definition 890
auto dumping
call log 219
auto hold
full 907
per telephone 891
Auto Hold (73) 861
auto hold for incoming page 408
auto hold, allow/disallow 407
auto log 895
options 891
auto privacy, lines 238, 241, 243, 246, 251, 256
Auto Sense 666, 667
auto sense 665
auto-answer trunk
DISA 291
private auto DN 311
public auto DN 311
remote restrictions 262
T1 291
auto-attendant
Quick Start Wizard 96
autobumping 895
autobumping, call log (815) 862, 867
autobumping, defintion 890
auto-dial
Force auto/spd dial over ic/conf 459
autodial
answer DNs 404
button programming 420
CAP/KIM button programming 439
external (*1) 861
internal (*2) 861
networks 502
overview 211
auto-hold, SWCA keys 469
automatic
Call Log 417
Hold 212
NTP client 763
automatic dial 210
automatic dial, dialing options 416
automatic dialing 891
automatic for life of call, SWCA keys 464
automatic route selection (also see call routing) 320
auxiliary equipment
Companion 221
DECT 222
NetVision handsets 222
T7406 222
auxiliary power supply
CAP/KIM 437
auxiliary ringer 891
Add Users wizard 378
Directed Pickup 207
Edit DN Record Template Wizard 372
hunt groups 577
overview 221
programming 251, 493
telephone programming 407
auxiliary services
background music 221
ringer 221
available PVCs, WAN frame relay 677
B
B channels 870
data rate, DDI Mux 157
Hunt groups 574
selection sequence 133
sequence, ETSI QSIG networking 545
B2 DNs 362
Index 947
Business Communications Manager 3.6 Programming Operations Guide
background music
at telephone (86) 861
cancel (#86) 861
description 892
on Hold 458
on telephone (86) 867
overview 221
programming 458
backup
coldstart 899
telephony data 892
WAN 690
WAN V.90 modem 687
backup answering
prime set for lines 238, 241, 243, 245, 247, 249,
250, 252, 254, 255
backup dial-up interface, permanent WAN 751
bad ctype, COPS status 825
bad sends, COPS status 825
bandwidth
DDI Mux 155
management, WFQ 941
WAN resource calculator 614
bandwidth broker 808
Banner text 805
base station
description 892
basic filter 593
basic packet filters, see also stateless 831
basic rate interface, see also BRI 893
baud rate 892
BayStack
data module 178
module programming 178
B-channel
description 892
B-channels
enable/disable 142
SPIDS 269
BCM monitor
SMB security level 108
bearer channel 892
best effort (standard) class 810
BIOS, Basic Input Output System 892
bit error rate test 893
bit, Binary Digit 893
BLF, busy lamp field 893
block calls
DND on busy 215
Do Not Disturb, overview 215
privacy 216
voice call deny 940
blocking call, at telephone (819) 867
blocking calls
intrusion controls 216
branch office accounts 786
Branch Office Local Endpoint addresses, IPSec
restriction 176, 681
break-in
description 893
break-in, MCDN 568
BRI
# of lines and loops 132
(see also ISDN) 876
Answer with DISA 239, 241, 246, 251, 257
auto privacy 238, 241, 243, 246, 251, 256
clock source 134, 135, 878
clock sources 899
configuring loops 265
data module switched access 180
DECT loops 150
description 893
determining clock source 135
D-packet 904
D-packet S loops 273
D-packet T loops 273
full autohold 239, 251, 253, 257
High line loop 132
ISDN 913
line types 857
Low line loop 132
mapping to target lines 248, 255, 884
module function 876
network DN 269
ONN blocking 480
overlap receiving 271
prime lines 395
programming 267
provisioning lines 141
services and features 872
SPIDs, North American profile 932
T-loop programming 267, 271
trunk types 236
use auxiliary ringer 257
BRI media bay module
PRI version settings 143
BRI U2 236
BRI U4 236
broadcast mode 575, 577
948 Index
P0609326 1.1
bronze class 810
browser
java files 914
browsers
logging off 88
BRU
accessing 81
see also backup 892
SMB security level 108
BST
T7000 935
T7100 935
T7208 935
T7316 935
T7316E 935
BST doorphone
description 894
overview 222
BST, Business Series Terminals 893
bus
description 894
ports on bus 130
bus 01 and bus 08 146
bus 1 and bus 8 125
bus type
none 143
bus types, media bay modules 128
Business Communications Manager
accessing system management wizards 92
changing CallPilot region 101
changing name 98
changing system date 99
changing system domain 100
changing system time 99
creating IPSec tunnel 793, 794
dial-up support 685
frame relay 714
hardware overview 74
identifying software version 98
IP Routing global protocols 707
logging off 88
logon security levels 108
main page buttons 79
manually updating time 764
MCDN private networking 519
navigation tree 85
network overview 76
networking, MCDN with M1 519
numbering plans overview 194
optional feature buttons 81
private networking 505
security levels 107
static routes 715
system ID paramaters 98
system networking 500
text-based application 89
time zone 99
Unified Manager, operating 82
WAN connections, permanent
frame relay 159, 669
PPP 159, 670
business name 455
busy
call forward, Add Users wizard 378
call forward, Edit DN Record Template Wizard 372
hunt group options 576
priority call code (69) 866
tone, fast 299
busy signal
overview 210
busy tone
hunt groups 576
line settings 247, 255
button defaults 422
M7324 telephone 431
T7000 426
T7100 telephone 425
T7208 telephone 425
T7316 telephone 424
T7316E Business Series Terminal 422
T7406 telephone 426
button indicator, BLF 893
button inquiry
*0 861
button programming
Add Users wizard 380
answer keys 459, 461
changing, Add Users wizard 382
Edit DN Record Template wizard 374
features list 865
features, Add Users wizard 382
internal autodial 420
internal autodial, CAP/KIM 439
SWCA 462
system speed dials 475
buttons
activate memory programming (*3) 863
answer key 208
main page 79
memory 211
move line buttons (*81) 862
telephone icons 49
Index 949
Business Communications Manager 3.6 Programming Operations Guide
bypass call diversion 550
C
cache maximum life, web cache 742
cache mode, web cache 742
cache size, web cache 742
call
parking a SWCA call 468
retrieving parked SWCA call 468
call buttons, SWCA 464
call by call services
DN lengths defaults 342
foreign exchange (FX) 339
International INWATS 339
INWATS 339
Map table 139
networking 515
Nine hundred (900) 340
OUTWATS 339
PRI limits 341
private 340
public calls 339
routing table 324
service selection 138, 340
supporting protocols 339
supporting switches 340
switched digital 340
Tie lines 339
Translation mode 139
Call Center
active DNs 361
agent busy/ready (908) 861
agent login-log out (904) 861
Answer DN warning 459
DN length change 284
DSP resources 613
MSC custom 627
queue request (909) 861
resource calculator 615
silent monitor 931
voice ports 615
call center, overview 225
call charge (818) 861, 867
call display
call log note 418
programming 445
services 201
call diversion
bypass 550
DPNSS 1 549
follow-me 550
immediate 549
on busy 549
on no reply 550
call duration
Feature 77 894
call duration (77) 866
Call Forward
activate (4) 865
activate at telephone (4) 861
Add Users wizard 378
all calls, hunt groups 584
answer delay, Add Users wizard 378
answer delay, Edit DN Record Template Wizard
372
cancel at telephone (#4) 861
DPNSS Embark switch 548
Edit DN Record Template Wizard 372
Forward no answer 214
line redirection precedence 214
no answer, hunt groups 584
private network, allow redirect 410
programming 214, 409
to voice mail 214
to voice mail (984) 861, 867
call forward
analog telephone 895
description 895
DPNSS Embark switch 410
external, overview 214
line redirection overview 215
maximum transits 134
NCRI, MCDN redirection 919
call forward no answer
overview 214
Call forward on busy
overview 214
call handling
overview 212
Call information
accessing (811) 862
call information
displaying information 201
FEATURE 813 895
Call information, current call (811) 867
Call Log
autobumping (815) 867
automatic 417
delete items at telephone (815) 862
manual (813) 862
manually activate (813) 867
950 Index
P0609326 1.1
MCID (897) 863
options 416
options (*84) 862
password 393
password (*85) 862
space 445
space, reallocating 470
telephone 417
using 417
view (812) 867
view information (812) 862
call log
auto dumping 219
contents 218
Feature 812 895
feature codes 219
overview 218
Call Offer, DPNSS 553
Call Park
analog telephones 313
initiating (74) 312
parking a call (74) 862
parking from a telephone (74) 866
prefix 312
call park
callback 896
camp-on 896
description 895
overview (74) 213
prefix 896
retrieval code 895
SWCA buttons 934
Call permission 593
Call Pickup
Directed Pickup 207
Group Pickup 208
call pickup
directed (Feature 76) 896
Call Queuing
at telephone (801) 866
call queuing
Feature 801 896
Call Queuing (801) 207, 862
call routing
also see Automatic Route Selection (ARS) 320
destination codes 900
overflow routing 496
tandem networks 526
call timer, see call duration (77) 866
Call Transfer 213
call type
network DN (ISDN) 269
callback 109, 115
modem access security 894
no answer 213
park timeout 922
timer, network 460
transfer timer 472
user profile 113
callback number
user profile 113
call-by-call
PRI service 894
call-by-call services
PRI 874
caller ID
business name display 455
by region 847
MCID at telephone (897) 867
network name display 455
Caller ID set 288
alpha tagging 398
Calling Line Information Restriction, see CLIR 272
calling outside 204
calling party name display 454
CallPilot
Add Users wizard 377
add voice mailbox 371
adding telephone to auto attendant 371
changing region 101
DN length changes 284
languages by region 859
messaging DN, Add Users wizard 378
messaging DN, Edit DN Record Template Wizard
372
programming overview 225
Quick Start Wizard 93, 95
region, Quick Start Wizard 93
transfer to mail box (986) 868
callpilot
accessing 81
CallPilot region 101
calls
assign SWCA key to calls 464
finding parked SWCA calls 462
monitoring with CAP 437
SWCA overview 213
calls originating in 524
calls within the system 204
calls, logging 895
Index 951
Business Communications Manager 3.6 Programming Operations Guide
Camp timeout delay 472
camp-on
intrusion controls 414
MCDN 567
overview (82) 213
park on busy 896
timeout 896
using at a telephone (82) 862
using at telephone (82) 867
cancel
message waiting (#65) 865
send message (#1) 865
CAP
auxiliary power supply 437
button settings 439
cold and warm starting KIMs 440
configuring as eCAP 436
configuring buttons 438
configuring the module 438
description 897
eCAP coldstart warning 437
group answering overview 206
KIM 915
line assignment 401
monitoring calls 437
moving a set 437
programming 434
SAPS 930
stations per system 435
T7316E 935
T7316E/KIM and M7324/CAP 434
using 206
CAP station 434
CAP/KIM assignment 897, 905
CAP/KIM button programming
internal autodial 439
capabilities
Add Users wizard 378
auto hold for incoming page 408
Edit DN Record Template Wizard 372
OLI as called number 408
programming 405
SM supervision 407
capabilities, QoS interface 815
carrier
access codes 897
carrier access codes
code prefix 319
ID length 319
carrier access codes programming
long distance access 334
carrier codes
configuring 318
numbering plan overview 194
Carrier identification Code (CIC), see carrier codes
318
carrier profile, Quick Start Wizard 94
Caution symbol 48
CbC limits
metrics, menu 86
CbC matrix 342
CbC routing 324, 516
CbC, (also see call by call services) 516
CDP
description 897
private network ID 304
CDP, dialing plan 304
CDR
modem dial-in callback number 113
overview 225
security 108
CDRUserGroup 110
central administrator direct dial 311
Central America, supported languages 847
central answering position (see CAP or KIM) 438
central answering position (see CAP) 206, 434
central office
PSTN 925
centralized group answering, overview 206
centralized voice mail
auto attendant 897
remote access 927
voice mail 898
certificate
private security key 78
uploading a security certificate 78
Challenge-Handshake Authentication Protocol, see also
CHAP 898
change DNs 367
channel
MSC media 610
MSC signaling 610
MSC voice or communication 610
channel characteristics
ISDN 693
PPPoE 700
channel list, WAN line parameters 675
channel rate, WAN line parameters 675
952 Index
P0609326 1.1
Channel Service Unit (see CSU) 137
Channel Service Unit, see also CSU 899
channel, disable-enable a module port 148
CHAP
modem authentication 686
PPP parameters 680
PPP security 898
charge, call information (818) 867
cipher
authentication algorithms 898
ciphers
web encryption levels 108
CIR, PVC Configuration 168
CIR, PVC congestion control 678
Class of Service (see COS) 311
Class of Service password, see also COS 899
Clear page file on shutdown 108
CLID
alpha tagging 455
alpha tagging with system speed dials 934
call information 895
caller ID set 398
Clid Match length 460
Maximum CLI per line 460
maximum system speed dials 460
network name display 455
OLI and line pools 395
outgoing name and number blocking 479
overview 201
Clid match 455
Clid Match Length 460
CLID name display 455
client 898
COPS, configuration 826
PPTP client 770
client description
lease information 649, 656
reserved addresses 647, 655
client IP address, PPTP client 770
client IP authentication, PPTP summary 769
client name
lease information 648, 656
reserved addresses 647, 655
client type
COPS client 826
COPS status 823
CLIR 272, 479
clock mode, WAN sync parameters 676
clock rate, WAN sync 676
clock source
about 135
BRI 267, 271
DTM and BRI 135
ETSI QSIG networking 545
ISDN 878
master 135
primary reference 135
programming 134
secondary reference 135
WAN line parameters 675
clock sources 899
CO fail 136
code prefix, carrier access codes 319
codecs
DSP resources 613
resource calculator 617
coldstart
data loss 899
start DN change 933
coldstarting
KIM 440
committed burst BO, PVC congestion control 678
Common Open Policy Services, see COPS and OPS
812
common set, hospitality 590
common settings 485
communicating in the office
paging overview 216
sending messages, overview 217
communicating with other switches 236
communication channels, MSC resources 610
companding laws, by region 847
Companion
active DNs 361
answer DN 403
B2 DN list 362
DN list 362
double density considerations 630
feature code, entering 864
line redirection 408
overview 221
regression codes 927
supporting regions 848
Companion DNs, inactive DNs 361
component, MSC 627
compress enabled, IPSec remote user 802
compression enabled PVCs, WAN frame relay 677
Index 953
Business Communications Manager 3.6 Programming Operations Guide
compression, WAN summary 680
computername-password, PPP parameters 680
conference
DPNSS 1 feature 549
Feature 3 899
initiate (3) 862, 865
overview 211
SWCA keys 469
tone, allow/disallow 459
configurable menus, user group 117
Configuration 84
configuration
overview process maps 66
configuring a CAP station 434
configuring management settings
user manager, overview 109
configuring resource settings
LAN 663
WAN backup links
access parameters 689
overview 686
parameters 688
WAN primary links
frame relay parameters 676
line parameters 675
overview 669
performance graphs and tables 684
PPP parameters 679
sync parameters 676
configuring service settings
DHCP LAN 659
DHCP Remote Scope 651
DHCP, LAN 642, 650
DHCP, overview 637
DNS, overview 703
NetLink manager, overview 749
QoS mean opinion score 745
QoS monitor, overview 743
routing, overview 705
Web cache, overview 741
confirm incoming password
PPTP tunnel 771
confirm password
IPSec remote user 801
user profile 113
confirm preshared key, IPSec branch 787
connect rate, WAN modem link parameters 688
connect retries, PPTP tunnel link 772
connecting to system, remote dial-in 701
connection type
LAN interface 665
PPTP tunnel link 773
Contivity
creating IPSec tunnel 794
IPSec compatibility 781
VPN client 798
contrast
adjust (7) 862
programming 417
control set
see also control telephone 235
see also, control telephone 393
control telephone 484
changing services 484
overriding services 485
overview 220
schedule displays 484
service control password 485
services 899
conventions and symbols 48
coordinated dialing plan
see CDP and dialing plan 304
T1 lines 501
coordinated dialing plan, see also CDP 897
COPS
client configuration 826
client server retry data 827
implementing 823
overview 812
viewing capabilities and statistics 823
copy
line programming 230
telephone settings 389
copyright 2
cordless
DECT 900
core software, regions 846
COS
auto DN 311
calls answered with DISA 311
password (68) 862
password, with DISA 291
passwords 296
programming 297
restriction filters note 441
COS password 899
answer with DISA 902
CPU cycles 665
critical network control, service classes 810
954 Index
P0609326 1.1
csHelp 87
CSMA/CD
ethernet 906
CSU
digital trunks 899
CSU (Channel Service Unit) 151
line build 137
CT2+ 94
CTE media DNs reg’d 364
current call information (811) 867
current instances, policy class 829
current time (803) 866
Custom 1 name, MSC 625
cycle park codes, park mode 458
D
D channels 870
Danger symbol 48
DASS2
Clock Source 134
if busy 247, 255
ISDN, UK 900
line settings 247
provisioning lines 140
received # 248, 255
redirect to 248, 258
use auxiliary ringer 257
data
choosing WAN link protocol 165, 674
DDI Mux bus type 154
DDI Mux module 151, 900
encryption methods 778
exporting DHCP 660
fixed channel, DDI Mux 155
importing DHCP 661
network wizard 634
Policy (DiffServ) 807
reconciling DHCP 661
data channel 899
data compression
PPTP tunnel link 773
WAN 160, 670
data encryption, PPTP authentication 773
Data Link Connection Identifier, see also DLCI 903
data link control interface numbers 159, 670
data module
assigning lines 180
backup 690
BayStack programming 178
configuration 178
fixed access 179
line assignment 179
line pool access 181
switched access (PRI/BRI) 180
viewing settings 178
data networking
IPSec 777
policy 812
data security
CHAP 898
data transmission 904
DataUserGroup 110
date
Business Communications Manager 99
daylight savings time 891
D-channel
data 899
D-packet 904
signaling channel 931
DCOM ports, firewall restrictions 837
DDI Mux
allocated bandwidth table 155
assigning lines 155
bus type 154
configuration 151
configuring DTE 157
description 900
Fixed data channel 155
parameters 157
programming record 154
dead interval, OSPF parameters 713
decreasing maximum value, MSC 624
decreasing minimum value, MSC 624
decrement TTL, LAN setting 664
DECT
answer DN 403
auto answer issue 404
call display 446
configuring DECT module 149
DECT Configuration Wizard 360
description 900
DN length change 284
DNs, changing 367
DNs, renumbering wizard 367
feature non-support 406
hunt groups 579
line redirection 408
module type 134
Index 955
Business Communications Manager 3.6 Programming Operations Guide
OLI as called number 408
overview 222
Quick Start Wizard 94
reconfiguration note, system replacement 91
resource calculator 615
set lock 443
supporting regions 848
wizards 80
DECT DNs 362
default
button assignment 422
button assignments 422
change passwords 110
DN lengths 285
Hunt group DN 575
M7324 431
next hop router, IPSec 798
restriction filters 347
service control password 485
set restrictions 443
T7100 buttons 425
T7208 425
T7316 buttons 424
T7406 buttons 426
default buttons
Add Users wizard 383
i2002 428
i2004 427
default gateway
LAN DHCP scope 643
remote scope 651
default route, Net Link Manager 749
default rules
IP firewall filters 834
NAT 755
default settings 900
defaults
buttons, T7316E Business Series Terminal 422
delay
Camp timeout 472
dial, signaling programming 243, 246, 258
host delay timer 473
link timer 473
Park timeout 472
ring transfer 458
Transfer callback 472
Delayed Ring Transfer to Prime, see also DRT 904
delayed system restart 102
deleting
action entry 820
address range 645
data module line assignments 179
data module line pools 181
DLCI to IP mapping entry 684
excluded address range 646, 654
extra WAN address 177, 682
input firewall filter 837
IP filter group 819
IP filters 818
IPX packet input filters 725
IPX packet output filters 727
IPX RIP input filters 730
IPX RIP output filter 731
IPX SAP input filters 734
IPX SAP output filters 736
IPX static routes 737
IPX static service 739
ISDN channel characteristics 694
ISDN interface 695
LAN IP addresses 668
NAT rule 758
OSPF NBMA neighbors 715
output filter, IP firewall 839
policy 822
PPPoE interface 701
PPTP client 770
PVC Configuration 169
PVC congestion control 679
remote IP pool 800
remote scope 657
remote scope address range 652
remote user account 805
reserved address 656
reserved addresses 648
server 658
split tunnel network 805
static route 716
user name 112
user profile 114
deny
IPX packet filter 723
IPX RIP summary 727
voice call (88) 867
deprovisioning a line 141
deregistering
IP telephones 366
DES, encryption protocol 778
DES,Data Encryption Standard 898
description
DHCP summary 641
DNS summary 704
IP firewall summary 832
IP routing summary 707
956 Index
P0609326 1.1
IPSec global 786
IPX routing 721
ISDN summary 691
LAN DHCP scope 643
LAN interface 665
NAT summary 754
Net Link Manager 750
network resources 633
policy device 829
PPPoE 698
PPTP summary 768
PPTP tunnel summary 772
QoS monitor summary 745
QoS summary 813
remote scope 651
UTWAN summary 164
V.90 summary parameters 687
WAN summary 673
web cache 742
desk password 591
Desktop Assistant 421
destination address
IP filters 816
IP static routes 715
destination address mask, IP filters 816
destination code
description 900
wild card 942
destination codes
absorb length 330
absorbed length 333
adding 330
ANY character 330
call by call services network 517
code constraints 326
constraints 335
dedicated long distance trunks 333
dialing plan 901
dialout to network 502
E and M networking 510
least cost routing 335
local calls 332
long distance access code routing 334
MCDN network 539
numbering overview 196
numbering plan overview 194
overflow routing 337
schedules 331
wild card character 329
wild cards 330, 331
destination IP
AH firewall 782
DCOM rules 841
ESP firewall 782
ICMP 783
IKE firewall 782
IP firewall 836
Password server 783
port 6800 rules 841
QOTD server 783
RPC rules 841
Destination IP Address (VPN client), IPSec restrictions
176, 681
destination IP type
DCOM rules 841
IP firewall 836
port 6800 rules 841
RPC rules 841
destination L4 port, IP filters 817
destination mask
AH firewall 782
ESP firewall 782
ICMP 783
IKE firewall 782
IP static routes 715
Password server 783
QOTD server 783
destination mode 726
destination network mask
IPX packet filter 724
IPX packet filters 726
destination network number
IPX packet filter 724
IPX packet filters 726
destination node, IPX packet filter 724
destination path, QOTD server 783
destination port
IKE firewall 782
Password server 783
destination port range
6800 841
DCOM rules 841
IP firewall 836
RPC rules 841
destination range mask
DCOM rules 841
IP firewall 836
port 6800 841
RPC rules 841
destination socket
IPX packet filter 724
IPX packet filters 726
Index 957
Business Communications Manager 3.6 Programming Operations Guide
detailed, release reasons 474
DHCP
address ranges 644
configuring as DHCP server 639
configuring mode 638
deleting a server 658
description 900
event logging 641
excluded addresses 645
exporting data 660
importing data 661
LAN 642, 650, 659
PPTP 768
reconciling data 661
relay agent 638
relay agent configuration 658
Remote Scope 651
remote scope excluded addresses 653
remote scope lease 656
remote scope reserved addresses 655
reserved addresses 647
reviewing lease information 648
ScopeName.dat 660
server issues 637
service settings overview 637
summary 641
DHCP server
confirming mode 638
remote scope 650
Diagnostics 86
diagnostics
double density 630
hunt group metrics 587
dial
direct-dial telephones 313
insert Link (71) 863
insert pause (78) 863
mode, lines 237, 240, 243, 245, 255
mode, signaling 243, 246, 258
dial interval
ISDN link parameters 692
PPPoE link parameters 699
WAN modem link parameters 688
dial mode
automatic dialing 891
dial out, line pool network 514
dial retries
ISDN link parameters 692
PPPoE link parameters 699
WAN modem link parameters 688
dial string
carrier codes 897
dial tone
stuttered 299
system 299
wait (804) 864
wait for (F804) 323
dialback 109, 115
dialiing
pre-dial 924
dial-in
setting up callback 115
dial-in access 110
dialing
automatic dial 210
enbloc 905
insert pause (78) 866
link code (F71) 323
Link signal 222
Long Tones 223
long tones (F808) 323
mode (*82) 862
options 416
pause (F78) 323
Pause signal 223
programmed release code (F*89) 323
run/stop 223
run/stop code (*9) 323
standard dial 210
tone or pulse 223
wait for dial tone (F804) 323
dialing plan
CDP 897
CDP steering code 303
coordinated dialing using line pools 514
coordinated, T1 501
description 901
destination codes 502
dialing time out 302
DN prefix 306
line access diagram 308
location code, UDP 304
matrix 307
MCDN network 538
MCDN network checklist 534
outgoing private calls 305
outgoing public calls 307
PRI 875
PRI routing table 325
private DN length 304
private network ID 304
private types 303
profile defaults 856
958 Index
P0609326 1.1
public DN lengths 305
public lines 501
public network 305
restriction filters 344
shared line pools 512
type 304
using T1 E and M lines 508
wilde card 942
dialing restrictions
line/set restriction 444
maximum length 346
overrides 346
remote callers 262
remote restrictions 349
routing 338
telephone 441
wild card character 348
dialing timeout 302
dialling
pre-dial 210
dialout
local calls 332
dialout digits, destination codes 502
dialtone, wait for (804) 866
dial-up
Business Communications Manager support 685
global parameters 685
modem conection 901
PPPoE interface 698
primary WAN connection 752
RAS server TCP/IP parameters 685
DialUpUserGroup 110
DID
# of lines and loops 132
ANI number 244, 246, 258
auto privacy 238, 241, 243, 246, 251, 256
dial mode 237, 240, 243, 245, 255
High line loop 132
Low line loop 132
one-to-one dialing 901
redirect to 244, 258
remote access 292
signaling programming 243, 246, 258
square system 932
system diagram 191
target lines 936
use auxiliary ringer 257
DID #, call by call service network 515
Differentiated Services, see also DiffServ 901
differentiated services, see DiffServ 807
DiffServ
bandwidth broker 808
configuring actions 819
COPS 812
edge devices 808
IP filters 811
IP service classes 810
overview 807
packet classifiers 811
packet schedulers 809
QoS architecture 808
QoS implementation 901
QoS overview 813
QoS summary parameters 813
queue managers 809
traffic conditioners 809
Diffserv
TOS 937
DiffServ Code Point (DSCP) 808
Digital
redirect to 258
digital
Answer with DISA 239, 241, 246, 251, 257
auto privacy 238, 241, 243, 246, 251, 256
dial mode 237, 240, 243, 245, 255
use auxiliary ringer 239, 241, 243, 246, 248, 251,
253, 254, 257
Digital Access Signaling System Number 2, see also
DASS2 900
Digital Drop and Insert Mux, see also DDI Mux 900
Digital Private Network Signaling System, see also
DPNSS 904
Digital Private Network Signaling System, see DPNSS
1 547
digital signature
SMB client signing 108
SMB server signing 108
Digital Signature Algorithm 898
digital telephones
resource calculator, IP trunks 617
Digital Trunk Interface (see DTI and DTM) 507
direct dial
prime line 314
direct dial digit
facility 314
Internal/External # (DN) 314
numbering overview 196
programming 311
type 313
using routing 338
Index 959
Business Communications Manager 3.6 Programming Operations Guide
direct dial telephone
overview 221
direct dial telephones 313
direct inward dial
DID trunks 901
Direct Inward System Access, see DISA 291, 311
direct-dial
digit 902
telephone 901
direct-dial digit
allow/disallow 406
direct-dial telephone
Add Users wizard 378
Edit DN Record Template Wizard 372
sending messages 459
Directed Inward System Access, see also DISA 902
Directed Pickup
answering from any telephone (76) 866
feature settings 458
pick up code (76) 207, 862
direction, NAT rule settings 756
directory number 903
directory numbers
coordinated dialing plan 501
length 285
DISA
COS password 902
DID, trunk 292
DISA DN constraints 315
DN 902
lines in a network 558
PRI lines 885
PRI trunks 293
private DISA DN programming 311
Public DISA DN programming 311
remote access 291, 902
T1 DID trunks DISA DN 291
T1 E&M trunks 293
DISA DN
overview 194
disable
a bus 147
media bay module port 148
Net Link Manager 750
disabled
IPX routing 721
NAT 755
NTP client 763
relay agent log 658
RIP global settings 707
disabling
module 147
discarded calls, call log 417
disconnect supervision
disabled 939
disconnect timer 132
lines, ASM8+ 902
loop start trunks 292
disconnect time
ISDN link parameters 692
PPPoE link parameters 699
disk drive 902
display
voice mail DN (985) 868
display buttons 902
display network name 873
Display Voice Mail DN (985) 862
disposition, IP firewall 835
distinct ring
hunt groups 577
in use, hunt groups 577
in use, lines 238, 241, 243, 245, 248, 249, 250, 252,
254, 255
in use, telephone programming 417
distinctive ring patter (DRP) (see distinct ring) 252
distinctive ring pattern (DRP) (see distinct ring) 238,
241, 243, 246, 248, 249, 250, 254, 256
distinctive ring, incoming calls 903
distinctive rings 205
distribution modes, Hunt groups 575
diversion
bypass call 550
DPNSS 1 549
follow-me 550
immediate 549
on busy 549
on no reply 550
DLCI
frame relay 903
DLCI (Data Link Connection Identifier) 677
PVC Configuration 168
PVC congestion control 678
DLCI to IP Mapping 683
DMS
private outgoing calls 305
DMS-100
available services 138
call by call services support 340
960 Index
P0609326 1.1
DMS100
PRI protocol 325
DMS-250
available services 138
call by call services support 340
DMS250
PRI protocol 325
DN
changing the length 285
telephone configurations 903
DN # length, target lines note 381
DN hunting (see multi-line hunt) 873
DN length
call by call service defaults 342
changing 284
client application requirements 284
numbering plan overview 194
overview 194
programming 285
Quick Start Wizard 94
system startup 284
voice mail/call center 284
DN lengths
overview 188
DN renumber wizard access 80
DN type
call by call services network 517
MCDN network 539
route programming 323
DND
block ringing calls 903
Feature 86 903
priority calls 903
DND on busy
Add Users wizard 378
Edit DN Record Template Wizard 372
hunt groups 584
initiating (85) 867
programming 406
DNIS number 247, 258
DNS
guidelines 704
IP address 635
IP mapping 903
IPSec settings 803
proxy 903
remote server IP address 643
service settings, overview 703
DNs
active DNs reg’d 364
Add Users Wizard 376
all DNs reg’d 364
all system DNs 362
assigning line pool access 402
assigning, software versions 145
B2 list 362
button programming 419
call forward programming 409
changing 367
changing Received # length 360
changing Start DN 360
Companion 362
CTE media DNs reg’d 364
DECT 367
DECT DNs, wizard 360
DECT feature non-support 406
dialing restrictions 441
disable-enable module port 148
display voice mail DN (985) 868
DN mapping for double density 355
DN registration headings 363
DNs avail for reg’n 364
Edit DN Record Templates wizard 369
feature DNs 366
headings 187
Hunt DN 573
Hunt groups 574, 575
inactive DNs reg’d 364
increasing length 284
IP set DNs reg’d 364
IP wireless DNs reg’d 364
ISDN feature support 406
ISDN network DNs 920
ISDN/DECT 362
line access 393
maximum ISDN 280, 883
moving between lists 365
OAM DN reg’d 364
phantom 461, 923
prefix, public networking 306
public DN length, change 381
Remote DN Record Template 384
renaming 360
renumbering wizard 367
start DN 933
UI headings 359
user preferences, model 416
voice mail, Active 446
Voice port DNs reg’d 364
DNS address
ISDN link parameters 692
PPPoE link parameters 699
DNs avail for reg’n 364
Index 961
Business Communications Manager 3.6 Programming Operations Guide
DNS server
LAN DHCP scope 643
PPTP configurations 768
remote scope 651
DNS, Network Wizard 635
DNS, Quick Start Wizard 94
Do Not Disturb
activate (85) 862
cancel (#85) 862
initiating (85) 867
on Busy 215
overview 215
Do Not Disturb, see also DND 903
documentation
accessing 81
CD map 57
finding your way around 72
related documentation 56
Domain Name Server, see also DNS 903
Domain Name System, see also DNS 903
domain name, IPSec remote user 802
Domain secure channel 108
domain user group
adding a profile 119
profile 111
domain user name
domain user group 119
domain, changing 100
doorphone
BST 894
overview, BST 222
double density 904
DN mapping 355
station module 933
double density, see also full double density (FDD) and
partial double density (PDD) 630
down poll interval, permanent WAN 750
D-packet
BRI 904
D-packet, S-loops 273
D-packet, T-loops 273
DPNSS
call offer 553
data networking 904
diversion feature 549
Embark switch 548
full autohold 239, 251, 253, 257
home location code 555
Host node 134
intrusion programming 552
line programming 252
message waiting indication 569
networking 547
private access code 555
protocol 506
remote access 293
remote paging 293
three-party service 549
use auxiliary ringer 257
DPNSS 1
call diversion 549
features 547, 548
PBX link 547
terminating node 547
three party service 549
DPNSS lines, Embark switch 410
DRP, see distinctive ring pattern 205
DRT
unanswered call transfer 904
DS/CLID, module mode 132
DS30
BCM version, DN assignment 145
DS30 bus
(full) double density 904
DS30 bus 8, data module 178
DS30 split 86
DSP resources 629
internally-drive channels 146
MSC 629
Quick Start Wizard 95
DSA 898
DSCP codes, service classes 811
DSCP Mapping Modification page 820
DSCP Mapping Table page 820
DSCP, IP filters 817
DSM
Host node 134
DSM16+ 933
double density 904
DSM32+ 933
double density 904
DSP
Digital Signal Processors, MSC resources 610
DSP 1 and 2 623
MSC resources 609
MSC rules 613
DSP resources
count 620
962 Index
P0609326 1.1
DS30 split 629
DSU (Data Service Unit) 151
DSX1 build 137
DTE
configuration, WAN sync 676
Data Terminal Equipment module 151
DDI Mux configuration 157
DTI trunk (also see DTM) 507
DTM
clock source 135, 878
clock sources 899
DDI Mux module 151
determine clock source 135
ground start trunks 908
ISDN hardware 876
DTMF 905
configuration 628
dial mode 237, 240, 243, 245, 255
setting ANI/DNIS 244, 246, 258
duplicate system DNs 389
Dynamic Host Configuration Protocol, see also DHCP
900
Dynamic Host Configuration Protocol, see DHCP 637
dynamic IP address 905
dynamic management, Policy agent 828
dynamic NAT 753
E
E and M
# of lines and loops 132
ANI number 244, 246
Answer timer 132
answer with DISA 239, 241, 246, 251
auto privacy 238, 241, 243, 246, 251
dial mode 237, 240, 243, 245
DNIS number 247
High line loop 132
line pool network 513
Low line loop 132
networking 499
signaling programming 243, 246
E&M
ANI number 258
answer with DISA 257
auto privacy 256
dial mode 255
DNIS number 258
full autohold 257
gain 247, 258
redirect to 247, 258
remote access issue 293
signaling programming 258
use auxiliary ringer 257
E1
CALA 846
Euro 846
Global 846
parameters, programming 138
Quick Start Wizard 94
E911, configuration 351
eCAP
eKIM 905
ECAP restore issue 401
echo timeout, PPTP summary 769
edge devices, DiffServ 808
edge note (EN) 808
edge router 706
Edit 84
edit DN record template wizard 80
Edit DN Record Templates Wizard 369
Edit DN Record Templates wizard
what you need to know 371
EDO
RAM 905
egress border node (EBN) 808
eKIM
enhanced key indictor module 905
see also KIM 915
elapsed time
call duration timer 894
Embark switch
call forward 410
DPNSS lines 410
DPNSS network 548
Host node 134
validation errors 410
emergency
911 dialing, PRI 875
dialiing 905
telephone 905
emergency, 911
capability 210
enhanced configuration 351
enable
a bus 147
IPX routing 720
media bay module port 148
Net Link Manager 750
Index 963
Business Communications Manager 3.6 Programming Operations Guide
enabled do not include IP phones, NAT 755
enabled include IP phones, NAT 755
enabling
module 147
Enbloc dialing 325
enbloc dialing
call routing 905
Encapsulating Security Payload, see ESP 779
EncryptedOnly 692
encryption
DES 778
IPSec 777
IPSec branch 787
IPSec branch office 786
IPSec global 786
IPSec levels 777
methods 778
minimum web encryption 108
security levels 107
VPN protocols 765
end address
address range 644
excluded addresses 646, 653
IPSec IP pool 800
remote scope 652
endpoint
IPSec dialup 781
IPSec PPTP restrictions 781
local NAT/IPSec restriction 780
end-to-end signaling/host system signaling 910
entry, PVC Configuration 168
entry, PVC congestion control 678
Equal Access Identifier Code (CAC), see carrier codes
318
error messages
Telephony programming is currently not available
83, 125
error threshold, WAN frame relay 677
errors only
IPX routing 721
relay agent log 658
RIP global settings 707
ESF (Extended Superframe) framing format 136
ESP
encryption protocol 779
firewall rules 782
Ethernet
LAN, supported features 663
WAN connections, permanent
frame relay 159, 669
PPP 159, 670
ethernet
CSMA/CD 906
Etiquette 94
ETSI
BRI interface 893
CLIR 272
MCID feature 219
name and number blocking 479
protocol 906
QSIG 926
ETSI Euro
PRI protocol 325
ETSI QSIG
advice of charge- end of call (AOCE) 545
hardware settings 545
malicious call identification (MCID) 546
network diversion 546
network services 545
networking 544
private networking 506
ETSI-QSIG
PRI protocol 325
private outgoing calls 305
European Telecommunications Standards Institute, see
also ETSI 906
evening schedule 487
event log
DHCP server 641
event message 906
exception (see dialing restriction) 346
excess burst BE, PVC congestion control 678
excluded addresses
DHCP clients 645
remote scope 653
removing IP ranges 653
subnet restriction 646, 653
Exclusive Hold (79) 212, 862, 866
exit after setting time once, NTP client 762
expired alarms, hospitality 595
express messaging into voice mail (980) 867
Expressing messaging (980) 862
Extended Data-Out, see also EDO 905
extended superframe 136
external
hotline 411
964 Index
P0609326 1.1
to target line 215
external #
autodial 420, 439
direct dial digit 313
E and M networking 510
route programming 323
user speed dial 433
voice message center 478
external access code 906
external autodial
Add Users wizard 383
external call forward, overview 214
external call forward, private network voice mail 410
External code
numbering overview 196
external code, access codes 312
external lines, access code conflicts 315
external paging 906
equipment 216
external routing feature codes 323
external voice mail
access programming 263
message center 478
extra dial telephone 485, 492
extra lines, CAP module 401
F
facility
direct dial programming 314
hotline programming 411
system speed dial 476
user speed dial 433
Failed logon attempts before lockout 121
fast busy tone 299
FastRouting
LAN setting 664
restrictions 664
Fault 84
fault, menu 85
FAX
supported protocols 906
fax
ATA answer timer 412
automatic dialing 891
DSP resources 613
MSC custom 627
fax mail
resource calculator 615
FEATURE
*550 585
877 596
879 597
activate speed dial 0 211
Admin alarm feature, on, 877 596
Alarm time, cancel #875 599
Alarm time, cancel, analog Link*875 599
Alarm time, Hospitality 875 598
auto dumping 815 219
Background music 86 221
Call Information 811 201
call log feature codes 219
Call park 74 312
call park 74 213
Call queuing 801 207
Camp-on 82 213
camp-on 82 213
change user speed dial *4 211
Class of Service (COS) 68 298
Do Not Disturb (85) 215
Do Not Disturb on Busy (85) 215
Exclusive Hold (79) 212
Group Listening 802 208
Last number redial 5 211
line pool 64 209
Long tones 808 223
MCID 897 219
moving lines on a CAP station (*81) 438
ONN, 819 874
paging (60 - 63) 216
pause 78 223
privacy (83) 216
Ring type *6 206
Ringing service 871 484
Room condition
analog Link *876 600
room telephone 876 600
Room condition, admin set 878 597
Room occupancy 879 597
Run/Stop (*9) 223
sorted by name and activation code 861
start conference 3 211
SWCA keys *521- *536, *520, *537, *538 462
Trunk Answer (800) 208
Voice call
deny 88 217
initiate 66 217
Wait for dial tone (804) 223
feature
Add Users wizard, button programming 382
button programming 420, 865
Call Display 201
Index 965
Business Communications Manager 3.6 Programming Operations Guide
Call Pickup 207
Call Transfer 213
CAP/KIM button programming 439
Companion feature activation 864
Conference Calls 211
Hold, also see SWCA and Park 212
hunt groups 584
Line Redirection 408
Restriction service 493
Routing service 495
telephone icons 49
FEATURE *0, viewing KIM buttons 440
Feature button 907
feature codes
remote users (*) 292
FEM
clock source 878
File Transfer Protocol, see also FTP 907
filter group name, IP filters 818
filter order, IP filters 818
filter type, policy 821
filters 735
(see also restriction service) 443
firewall packet filters 831
input filter order 838
IP firewall 831
IP firewall input 835
IP firewall, interface configuration 833
IPX RIP input filters 729
IPX RIP output 730
IPX routing 719
IPX SAP filters 732
IPX SAP input filters 733
NAT firewall 754
output filter order 840
output filter, IP firewall 839
packet classifiers, DiffServ 811
packet, IPX routing 723
policy 821
PPTP 767
room restriction call permission 593
stateful protocols 832
finding available SWCA keys 462
finding parked SWCA calls 462
finding your way around the documentation 72
firewall
filters 831
IPSec remote restrictions 781
NAT features 753
restriction 664
Firewall filter
Private Network 783
First display 455
first display 445
fixed access, BayStack data module 179
fixed data channel, DDI Mux 155
fixed, sampling 279
follow-me diversion 550
Force auto/spd dial over ic/conf 459
Force secure web access 108
foreign exchange
(FX), call by call services 339
service, protocols 138
foreign exchange (FX) 874, 894
forward calls
call forward description 895
Forward no answer delay
overview 214
Forward on busy
DND on Busy 215
forward timeout, DNS summary 704
forwarding calls
Call Forward No Answer 214
Do Not Disturb on Busy 215
Forward no answer delay, overview 214
Line Redirection 408
FQDN
IP host/domain names 907
frame relay 159, 669, 714
PVC connecton 925
frame relay forum (data compression) (FRF .9) 160,
670
frame relay parameters
UTWAN 166
frame relay parameters, WAN 676
frame relay, WAN protocol 907
frame size, WAN summary 674, 680
frame type
IPX packet filter 723
WAN line parameters 675
framing format 136
FTP, transfer files 907
full auto hold 907
full autohold 239, 251, 253, 254, 257
full enquiry interval, WAN frame relay 677
full filter 593
966 Index
P0609326 1.1
full set lock 442
full-duplex
PPP 923
Fully Qualified Domain Name, see also FQDN 907
Fwd no answer delay 410
Fwd no answer to 410
Fwd on busy to 410
G
gain, E&M line programming 247, 258
garbage collection interval, web cache 742
gatekeeper
gateway 908
gateway
ICMP 911
IP network 908
gateway protocol, VoIP networking 540
gateway type, VoIP networking 540
gateways
DNS 703
ISDN restrictions 691
MSC media 610, 614
QoS monitor 743
GATM
impedance 258
module mode 132
overview 129
General
alpha tagging 455
General settings
answer key levels 461
answer keys 459
associate SWCA key to call 464
background music 458
Call log space 470
Clid Match Length 460
conference tone 459
delayed ring transfer 458
directed pickup allow 458
Feature settings 457
Force auto/spd dial over ic/conf 459
Held reminder 458
Hold 458
identify alarm telephone 459
include I/C calls when auto associating 464
include I/C calls when invoking by Hold 465
line pool network 514
Maximum CLI per line 460
maximum system speed dials 460
network callback timer 460
page tone, allow 458
receiver volume 458
set relocation 459
silent monitoring 585
SWCA Controls 462
Global 846
Global Analog Trunk Module, see also GATM 129
global options, DHCP 639
global parameters
dial-up 685
LAN resources 664
WAN 671
gold class 810
Ground start
redirect to 258
ground start
answer with DISA 239, 241, 246, 251, 257
auto privacy 238, 241, 243, 246, 251, 256
dial mode 237, 240, 243, 245, 255
disconnect supervision for digital loops 908
redirect to 242
use auxiliary ringer 239, 241, 243, 246, 248, 251,
253, 254, 257
ground start trunks
line settings 240
Group 84
group
adding user group 116
domain user group 119
group answering, overview 206
Group listening
activate (802) 862
at telephone (802) 866
cancel (#802) 862
group listening
Feature 802 908
group name, QoS interface 815
Group Pickup
activating (75) 208, 862
answering from a telephone (75) 866
hunt groups 584
group profile, adding 116
groups
SWCA buttons 934
H
H.323
IP standard 908
Index 967
Business Communications Manager 3.6 Programming Operations Guide
handling calls
overview 212
handling many calls
Call Queuing 207
Hold 212
handsfree
Add Users wizard 378
answerback 909
automatic 891
Edit DN Record Template Wizard 372
group listen 908
programming 406
speaker feature 908
voice call 940
handsfree answerback
Add Users wizard 378
Edit DN Record Template Wizard 372
programming 406
handsfree/mute
overview 218
hardware
BCM200/400 892
overview 74
station media bay module 933
hardware compression, WAN modem link parameters
688
hardware ID 623
hardware limit, MSC component 628
Hashed Message Authentication Code, see HMAC 779
HDLC
data transmission protocols 909
held line reminder 909
held line reminder, remind delay 927
Held reminder 458
Hello interval
OSPF parameters 713
Help 84
help
application help access 87
help topics 87
help, menu 85
HF answerback 909
handsfree 891
High line/loop 132
high water mark, QoS advanced 814
highest encryption
IPSec branch 787
IPSec remote user 802
High-level Data Link Control, see also HDLC 909
HLC
UDP dialing plan 909
HMAC, authentication code 779
Hold
auto hold code (73) 861
auto hold control 407
automatic 212
exclusive 212
exclusive hold (79) 862
exclusive hold at telephone (79) 866
handling calls 212
held reminder settings 458
invoke SWCA parking by hold 465
SWCA keys 469
tones, music, or silence 458
hold
button description 909
call park 895
held line reminder 909
on hold settings 920
home location code, DPNSS 555
Home Location Code, see also HLC 909
hop-count threshold, relay agent 659
hops
IPX static routing 737
IPX static service 738
hospitality
(alarm) attempts 594
admin set 590
alarm duration 594
alarm times 590
configuring 591
desk password 591
expired alarms 595
notify set 595
power failure 591
programming overview 225
requires desk password 592
restriction filters 593
retry interval 594
room condition 597, 600
room condition password 591
room number 592
services change time 591
state of room 597
types of telephones 590
use tone 595
Hospitality Services
admin alarm 596
hospitality services
968 Index
P0609326 1.1
description 910
host CPU cycles, traffic smoothing 664
Host delay, timer 473
host feature codes 910
host name 910
Host node, DPNSS 134
host server
ICMP 911
host signaling link 442
host system signaling
Link 222
long tones 223
pause 223
pulse or tone dialing 223
run/stop 223
wait for dial tone 223
host system signaling/end-to-end signaling 910
hot desking
IP telephones 910
hot desking (999) 862
hotline 910
Add Users wizard 379
Edit DN Record Template Wizard 373
facility 411
numbers 411
overview 220
HTTP proxy
web proxy 941
hunt delay 576
Hunt group
DECT note 579
metrics 587
hunt group
metrics, menu 86
monitoring with IP telephones 586
hunt group DNs, feature DNs 366
Hunt groups
assigning lines 583
auxiliary ringer 577
B channel 574
Broadcast mode 575
distinct rings 577
distinct rings in user 577
distinctive ring patterns 205
distribution modes 575
DN, default value 575
feature operation 584
hunt delay timer 576
Hunt DN 573
if busy 576
Linear mode 576
maximum 573
members 579
monitoring mode 585
moving members 581
name 577
queue time-out 576
Rotary mode 576
silent monitor 585
SM password 585
SM sets 585
system DN 574
typical application 574
videophones 574
hunt groups
configuration link 207
description 910
group answering overview 206
programming overview 225
silent monitor 931
SM supervision 407
I
i2002
default button programming 428
deregistering 366
i2004
default button programming 427
deregistering 366
i2050
default button programming 427
deregistering 366
ICMP
firewall filter settings 783
message control and error reporting 911
ID length, carrier access codes 319
ID, policy server 828
ID, system parameters 98
identifying modules to the system 125
idle line, search for 260
idle timeout
IPSec branch 787
IPSec remote user 802
PPTP tunnel link 773
IDPX, Host node 134
IETF
IP operating standards 911
if busy 247, 255
Index 969
Business Communications Manager 3.6 Programming Operations Guide
IKE, firewall rules 782
impedance, line programming 239
impedance, lines 260
impedance, programming 258
in errors, COPS status 824
in packets, COPS status 824
inactive DNs
about 361
all 361
moving to active DNs 365
inactive DNs reg’d 364
INARP messaging 683
incoming calls, tracking 218
incoming password, PPTP tunnel 771
increasing DN length 284
increasing maximum value, MSC 624
increasing minimum value, MSC 624
Index
add DLCI to IP Mapping 683
indicators
SWCA call 467
indicators, SWCA call 466
information
caller, call logs 417
current call (811) 867
information frame 83
ingress border node (IBN) 808
initializing
Quick Start Wizard 97
input filter
IPX 724
IPX RIP filter 729
IPX SAP filters 733
input filter action
IPX packet filter 723
IPX RIP summary 727
IPX routing 719
IPX SAP summary 732
Install Clients 89
SSH 932
install clients 81
Integrated Services Digital Network (see ISDN) 871
interactive auto attendant, IVR 914
Interactive Voice Response, see also IVR 914
intercom
assign lines 394
calls within the system 204
Include I/C calls when auto associating, SWCA 464
Include I/C calls when invoking by Hold, SWCA
465
prime line and direct dial telephones 314
intercom button
description 911
intercom keys
lines overview 203, 205
interface
ISDN summary 691
PPPoE 698
PPTP tunnel summary 772
V.90 summary parameters 687
interface direction, policy parameters 821
interface group
policy parameters 821
QoS 814
interface levels 136, 137
interface name, IPX packet filter 723
interface parameters, T1 136
interface timeout 106
interface timeout, setting 106
interface type, OSPF parameters 713
internal
autodial button programming 420
autodial CAP/KIM button programming 439
CSU 137
direct dial digit 313
DS30 channels, bus 01 and bus 08 146
hotline 411
numbers length 285
numbers, coordinated dialing plan 501
target line calls 287
internal autodial
button programming 420
CAP/KIM button programming 439
internal channel 912
internal line 912
intercom button 911
internal network number, IPX routing 721
internal number, see also DNs 912
internal user 912
Internal/External #, direct dial programming 314
international (special) access code 312
international 800 894
International INWATS, call by call services 339
internet
DNS gateway 703
970 Index
P0609326 1.1
PPPoE access restrictions 696
service classes 810
web cache guidelines 741
web cache settings 741
Internet Engineering Task Force, see also IETF 911
internet proxy, Web cache 741
Internet Security Association and Key Management
Protocol (ISAKMP), IPSec 777
Internet-standard Network Management Framework
912
Internetwork Packet Exchange, see also IPX 913
interoperability
MWI on VoIP trunks 541
interrupt
break-in 893
priority call 924
interrupt request, see also IRQ 913
interrupt voice mail (987) 868
Intl-800 protocols 138
intrusion
DPNSS networking 552
programming 414
Intrusion Capability Level, see ICL 552
Intrusion Protection Levels, see IPL 552
intrustion controls
overview 216
invisible menus, user group profile 117
INWATS
(800), protocols 138
call by call services 339
INWATs 894
Inwats
PRI 874
IP address
ARP mapping 889
description 913
DHCP 900
DHCP changes 638
DHCP update 643
DNS 635
DNS mapping 903
DNS proxy 903
dynamic 905
fixed, IPSec 781
IPSec local network 789
IPSec remote network 790
IPSec restrictions 781
IPSec split tunnel 804
ISDN summary 691
LAN address 667
LAN card 635
LAN interface 665
lease information 656
multiple LAN addresses 667
multiple, WAN 176, 681
PPPoE 698
PPTP 768
PPTP tunnel summary 772
Quick Start Wizard 93
release information 648
remote DNS server 643
remote IPSec pool 799
remote scope 650
reserved addresses 647, 655
static 933
UTWAN summary 164
V.90 summary parameters 687
WAN address 177, 682
WAN card 635
WAN summary 673
IP address mask
IPSec local network 789
IPSec remote network 790
IP address pool name, IPSec remote user 801
IP clients
MSC 626
IP domain name, DHCP global options 640
IP domain, DNS summary 704
IP fax 906
IP filters 811
actions 819
deleting 818
input filter order 838
parameters 816
QoS configure 816
IP firewall
accessing Unified Manager 841
filter rules 834
filters 831
input filter order 838
input filters 835
interface filters 833
NAT 754
NAT rules restrictions 832
output filter 839
output filter order 840
packet filtering 831
summary 832
IP header compression
ISDN link parameters 692
Index 971
Business Communications Manager 3.6 Programming Operations Guide
PPPoE link parameters 699
WAN modem link parameters 688
IP Hot desking (999) 862
IP music 913
background 892
background music overview 221
IP network
ethernet 906
H.323 standard 908
HDLC 909
host name 910
OSPF routing protocol 920
PAP authentication 922
PPP 923
QoS 926
RAS 926
RIP 929
SNMP 932
static IP address 933
TCP/IP 936
VoIP trunking 941
WAN 941
web cache 941
web proxy 941
IP network WFQ 941
IP networking
frame relay 907
gateway 908
IP options, IP firewall 836
IP packet
TOS 937
IP routing
global information protocol 707
IPX routing summary 721
network interface 709
OSPF 706
OSPF global settings 708
OSPF network parameters 712
overview 705
PPTP 767
precedence 706
QoS mean opinion score 745
restarting the router 717
RIP global settings 707
RIP interface parameters 709
RIP IPX routing 719
RIP, managing information 705
static routes 715
IP service classes 810
IP Services list (900) 862
IP set DNs reg’d 364
IP telephones
911 351
connecting 913
default password 95
DHCP information 640
DS30 split 629
DSP resources 613
emergency dialing 905
hot desking 910
hunt group note 586
keep DN alive 407
Quick Start Wizard 95
resource calculator 616
VLAN port 641
voice bus path 613
IP trunk protocol, Meridian 917
IP trunking
MWI remote capability 566
outgoing name display 541
IP trunks
MSC 626
resource calculator 617
IP wireless
deregistering 366
IP wireless DNs reg’d 364
IPSec
adding remote user 798, 801
branch office 786
deleting branch settings 792
dialup ISDN 781
DNS and WINS settings 803
encryption protocols, ESP or AH 779
global settings 785
local accessible network 789
modes 766
modifying branch settings 791
multiple IP address restrictions 781
NAT restriction 779, 780
overview 777
PPPoE requirements 696
PPTP restrictions 781
remote accessible networks 789
remote firewall restrictions 781
remote IP pool 799
remote protocol firewall rules 782
remote user 796
remote user tunnel rules 783
restriction 664
restrictions 176, 681
sending all traffic 790
settings 780
split tunnel network 804
972 Index
P0609326 1.1
split tunnel security 798
split tunneling 796
switch compatibility 781
IPSec status
IPSec branch 787
IPSec remote user 801
IPSec VPN protocol 765
IPT
VoIP trunks 917
IPX
networking protocol 913
packet input filters 724
PPTP protocol 765
IPX log level, IPX routing, global 721
IPX packet filters 726
IPX routing
enabling 720
input filter action 719
network interface 723
output filter action 719
packet filters 723
packet output filters 726
PPTP 767
RIP filters 727
RIP input filters 729
RIP IP routing 719
RIP output filters 730
RIP parameters 728
SAP and RIP 719
SAP filters 732
SAP input filters 733
SAP output filters 735
static routes 736
static service 738
summary 721
IPX SAP output 735
IRQ
interrupt request 913
ISDN
911 dialing 875
Access Parameters 692
ANSI, glossary 889
B and D channels 870
B-channel 892
bearer capability 871
BRI card 876, 878
BRI D-packet 904
BRI interface 893
call-by-call services for PRI 874
capabilities 869
capability packages 879, 881
Channel Characteristics 693
clock source 878
clocking 878
compared to analog 870
DASS2 900
data transmission speed 872
deleting an interface 695
description 913
dial number 694
dialing plan 875
dial-out user parameters 693
dial-up interface, WAN backup 690
dial-up user 110
dial-up via PSTN 178
dial-up, backup 690
digital access lines (DAL) settings 137
DISA on PRI 885
D-packet S-loops 273
D-packet T-loops 273
ETSI 906
hardware 876
installation programming 882
interface configuration 691
IP address assignment 694
IPSec dialup connection 781
layers 871
line services, by region 852
link parameters 692
loss plan setting 136, 137
maximum DNs 280, 883
modem link, setting up callback 115
multi-link support 694
network DN 920
network name display 873
network synchronization 878
NI 919
OLI as called number 408
ordering 880
ordering service 881
planning service order 871
PRI 2-way DID 875
PRI call-by-call services 894
programming sequence 267, 882, 883
released reasons 474
S interface 877
S reference point 877
services and features 872, 873
setlock 443
SPID 886
SPIDs 932
standards 879
summary settings 691
supported protocols 881
T reference point 877
Index 973
Business Communications Manager 3.6 Programming Operations Guide
terminal equipment configuration 877
terminal feature support 406
type of services, BRI
ISDN 870
VoIP Gateway 691
ISDN call connection limitation (ICCL), MCDN 530,
911
ISDN DNs 362
ISDN terminal adapter 932
ISP, connecting PPPoE interface 700
ITG, VoIP networking 534
IVR
description 914
DSP resources 613
fax 906
MSC custom ports 627
resource calculator 616
voice bus path 613
IVR, overview 226
J
Java
class files 914
JRE
java class files 914
JVM
Windows java class files 914
K
KEA 898
keep alive interval, PPTP summary 768
keep DN alive 407
key
private security key 78
Key Exchange Algorithm 898
key exchange protocol, see IKE 781
key indicator module (see CAP and KIM) 434
key type, IPSec branch 787
keycode
description 914
keycodes
MCDN networking 506
PPPoE 696
KIM
auxiliary power supply 437
button settings 439
CAP description 897
CAP station 434
cold and warm starting 440
configuring as eKIM 436
configuring buttons 438
configuring the module 438
FEATURE *0, view buttons 440
group answering overview 206
key indicator module
T7316E
KIM 915
moving a set 437
SAPS 930
stations per system 435
T7316E 935
L
labels, telephones 421
lamp, message indicator 412
LAN
configuring resources 664
description 915
DHCP restrictions 637
DHCP scopes 642
DHCP server settings 642, 650
DHCP settings 659
ethernet 906
interface configuration 665
IP address 635
IP routing 709
multiple IP addresses 667
NIC 920
PPPoE 696
resource settings 663
restarting router 717
restrictions 664
subnet mask 635
supported features 663
supported resources 663
viewing performance 668
viewing resources 663
Web cache 741
WINS server address 635
LAN drivers 664
LAN Manager, see also LM 916
LAN, Quick Start Wizard 93
language
alternate, first (*502) 862
alternate, second (*503) 862
alternate, third (*504) 862
by region 846
primary (*501) 862
974 Index
P0609326 1.1
programming 417
Quick Start Wizard 96
South and Central America 847
last active call
duration timer 894
last connection attempt, COPS status 824
last errors, COPS status 824
Last Number Redial
activating (5) 862, 865
overview 211
last number redial 915
LCP keep alive interval, PPP parameters 680
lease expiration date
lease information 649, 656
reserved addresses 655
lease expiration time
lease information 649, 656
reserved addresses 655
lease information
remote scope 656
reviewing 648
lease time
LAN DHCP scope 643
remote scope 651
least cost routing 335
see also routing service 915
length mismatch, COPS status 825
license limit, MSC component 628
licensing 85
liines
description 915
limiting
access to Business Communications Manager 224
line
BRI and PRI line types 857
changing the name 200
deprovisioning 141
distinctive ring patterns 205
first display 445
protocol by region 851
Redirection 408
line access
call by call services network 516
call diagram 308
DN programming 393
E and M networking 509
MCDN network 539
line assignment
Add Uses wizard 377
Edit DN Record Template Wizard 371
prime lines 395
line buttons, moving (*81) 862
line coding
T1 parameters 137
WAN line parameters 675
Line filter, COS programming 297
line parameters, WAN 675
line polarity, WAN line parameters 675
Line pool
activate (64) 862
and OLI 395
line pool
access code constraints 317
access code from telephone (64) 865
access code programming 317
access codes, networking 512
access codes, VoIP fallback 318
access, assigning 402
access, prime lines 395
data module access 181
description 915
external autodial 420, 439
line pool network 514
network sharing 512
PRI line pools 402
remote access packages 294
setting line type 237, 240, 243, 245, 247, 249, 250,
252, 253, 255
system speed dial 476
user speed dial 433
line pool codes
lines overview 203, 205
line pools
lines overview 203, 205
numbering overview 196
numbering plan overview 194
line programming
ANI number 244, 246, 258
answer mode 239, 241, 246, 251, 252, 257
Answer with DISA 239, 241, 246, 251, 257
auto privacy 238, 241, 243, 246, 251, 256
control set 235
dial mode 237, 240, 243, 245, 255
Distinct ring in use 238, 241, 243, 245, 248, 249,
250, 252, 254, 255
DNIS number 247, 258
full autohold 239, 251, 253, 254, 257
gain 247, 258
If busy 247, 255
impedance 239, 258
Index 975
Business Communications Manager 3.6 Programming Operations Guide
line type 237, 240, 243, 245, 247, 249, 250, 252,
253, 255
Link at CO 239, 257
Loss packages 239, 258
loss packages 260
name 235
Prime set 238, 241, 243, 245, 247, 249, 250, 252,
254, 255
private line 237, 240, 243, 245, 247, 250, 252, 253,
255
public line 237, 240, 243, 245, 247, 250, 252, 253,
255
received # 248, 255
redirect to 240, 242, 244, 247, 248, 258
remote restrictions 262
restriction filters 261
restrictions 261
signaling 243, 246, 258
telco features 263
trunk mode 238, 256
trunk/line data 236
Use auxiliary ringer 239, 241, 243, 246, 248, 251,
253, 254, 257
use remote package 235
line protocol, by region 851
Line redirection
activate (84) 862
Call Forward on busy 214
cancel (#84) 862
hunt groups 584
initiating (84) 867
line redirection
description 916
forwarding calls 215
programming 408
line restrictions for trunks 261
line services, ISDN support, by region 852
line type 237, 240, 243, 245, 247, 249, 250, 252, 253,
255, 694
line/set restrictions
programming 444
remote access, COS 297
linear mode 576, 578
lines
assigning to Hunt groups 583
auto answer, DISA 902
Caller ID set
telephones 398
copying 230
data module 179
data module switched access 180
D-channel 899
disconnect supervision 902
DN line assignment 397
DN mapping for double density 355
exclusive use 925
ground start trunks 908
holding first active call 891
identifying 229
move 918
numbering 507
PRI line note 399
prime line 924
prime telephone 924
programming overview 202
redirection 916
square system 932
supervised 939
target line appearances 398
using phantom DNs 461, 923
Link 910
host system command 916
overview 222
link
at CO, loop start analog lines 239, 257
code (F71) 323
initiating code at telephone (71) 866
insert into dial sequence (71) 863
protocol, Network Wizard 635
protocol, Quick Start Wizard 94
signal 239, 257
timer 473
link parameters, WAN 688
link protocol 164, 673
link status monitor, Net Link Manager 749
link-state routing, OSPF 706
listening group, at telephone (802) 866
LM
challenge/response authentication protocol over a
LAN 916
LM settings 107
LMI type, WAN frame relay 166, 677
LOC
HLC 909
UDP 938
UDP dialing 916
local
E164 outgoing calls 307
local access code 312
MCDN 312
numbering overview 195
976 Index
P0609326 1.1
Local Area Network, see also LAN 915
local calling routing 332
local calls
destination codes 332
local endpoint
IPSec branch 788
local gateway 908
local number length, loop programming 272
local scope
DHCP 642
importing data 661
reconciling imports 661
locating wizards 80
location 623
Location code
numbering overview 195
location code
UDP dialing plan 916
Location Code, see also LOC 909
location code, UDP dialing plan 304
lockout
user 111
Lockout duration 121
lockout policy 120
failed logon attempts before lockout 121
lockout duration 121
reset failed logon attempts count after (min) 121
log
all calls 416
space reallocating 470
view call log (812) 867
log level
IP firewall filter 833
log level, relay agent 658
logging
QoS monitor 747
logging calls
log options 891
logging frequency, QoS monitor summary 747
logging off of Business Communications Manager 88
login to voice mail (981) 867
Logit (see Call Log) 417
Logoff 84
logoff, menu 85
logon
security levels 108
logs
system event messages 906
long distance
dedicated trunks 333
long distance call
routes 333
using COS password 298
Long Tones
host system command 916
Long tones
dialing code (F808) 323
entering in dialing sequence (808) 863
specifying at telephone (808) 866
long tones
external paging 216
longevity, policy server 828
Loop
# of lines and loops 132
avoiding redirection loops 408
Disconnect timer 132
High line loop 132
Low line loop 132
Loop avoidance, programming 555
Loop matrix 281
loop programming
clock source 267, 271
local number length 272
network DNS 269
ONN blocking (ETSI lines) 272
ONN blocking state 268, 279
overlap receiving 271
process map 265
protocol 271
sampling 279
SPIDs 268
UI headings 266
Loop Start
impedance (GATM only) 258
Loop start
redirect to 258
loop start analog
answer with DISA 239, 241, 246, 251, 257
auto privacy 238, 241, 243, 246, 251, 256
dial mode 237, 240, 243, 245, 255
full autohold 239, 251, 253, 257
impedance 239
link
at CO 239, 257
loss packages 239, 258
redirect to 240
trunk mode 238, 256
Index 977
Business Communications Manager 3.6 Programming Operations Guide
use auxiliary ringer 239, 241, 243, 246, 248, 251,
253, 254, 257
loop start digital
answer with DISA 239, 241, 246, 251, 257
auto privacy 238, 241, 243, 246, 251, 256
dial mode 237, 240, 243, 245, 255
full autohold 239, 251, 253, 257
trunk mode 238, 256
use auxiliary ringer 239, 241, 243, 246, 248, 251,
253, 254, 257
loop start trunk
disconnect supervision, remote access 292
prime line 395
remote access from public network 292
loops
MWI PRI MCDN loops 134
loss packages, line programming 239, 258
loss plan setting, ISDN or PSTN 136
loss/gain settings 260
loudspeaker
external page 906
low water mark, QoS advanced 814
Low/line loop 132
LQR interval, PPP parameters 680
lunch schedule 487
M
M1
PRI loops for MWI 134
M1, Host node 134
M7000
button defaults
T7000
button defaults 426
M7100
button defaults 425
default buttons 383
M7208
button defaults 425
M7324(N)
button defaults 431
CAP programming 434
MAC address 889
lease information 656
release information 648
reserved addresses 647, 655
see also physical address 665
MAC address, data-link layer 916
mailbox
deleting 446
mailbox, add through wizard 371
maintaining security 298
maintenance
enabling the module 147
event message 906
web tools 78
making calls, overview 209
malicious call identification
ETSI network 546
initiating (897) 867
Management 86
management
add user profile 111
manual
activate call log (813) 867
for life of call, SWCA keys 464
NTP client 763
SWCA keys 464
Map table 139
Master clock source 267, 271
matrices
programming spreadsheet 226
Max TCP retransmissions, PPTP summary 769
max. log file size, QoS monitor summary 747
maximum
IPX routing 721
relay agent log 658
RIP global settings 707
Maximum CLI per line 460
maximum CLI per line 455
maximum installed instance, policy class 829
maximum length, dialing restrictions 346
maximum link speed, WAN summary 164, 673
maximum message size, policy device 829
maximum server threads, web cache 742
Maximum system speed dials 460
maximum time adjustment, NTP client 762
maximum transits, transits
maximum 134
maximum, MSC component 627
MCDN
break-in 568
camp-on feature 567
CDP programming specifics 535
creating SL-1 or VoIP networks 564
978 Index
P0609326 1.1
description 917
dialing plan settings 538
DN types, routing 323
intrusion controls 414
ISDN call connection limitation (ICCL) 530, 911
local access code 312
media bay module settings 538
Meridian system requirements 533
message waiting indication (MWI) 565
national access code 312
network 528, 533
network call redirection information (NCRI) 528
network camp-on 896
network checklist 534
network example 537
network features 565
outgoing call display 323
PRI M1 loops 134
PRI protocol 325
private access code 311
private network ID 304
private networking 519
private outgoing calls 305
protocol 506
routing information 539
setting external voice mail pointer 263
SL-1 networking 519
special (international) access code 312
special route codes 323
tandem calls 315
TRO 937
trunk anti-tromboning 936
trunk anti-tromboning (TAT) 532
trunk route optimization (TRO) 531
UDP programming specifics 535
VoIP Meridian protocol 534
VoIP networking 540
Zone ID 542
MCID
overview 219
MCID (897) 863, 867
MD5 898
MD5, encryption authentication 779
mean opinion score, QoS monitor 745
Media Access Control, see also MAC address 916
media bay module
overview 74
station 933
media bay modules
Actual Bus type 125
Addon 143
availability by regions 849
bus 1 and bus 8 125
clock source 135
clock source support 878
configuring DECT module 149
DDI Mux 151
disable a bus 147
disable-enable a port 148
disabling a module 147
enable a bus 147
ETSI QSIG network 545
identifying 125
MCDN network settings 538
module type 131
ports on bus 125
Programmed Bus Type 125
programmed Bus types available 128
provisioning BRI lines 141
provisioning T1 and PRI lines 140
station module configuration 143
task list 123
trunk module PRI version settings 143
trunk modules 938
media channel
MSC 917
media channels
count 620
MSC resources 609, 610
MSC rules 611
media gateways
MSC 614
MSC fields 626
MSC resources 610
Media Services Card, see also MSC 918
media services card, see MCS 609
member of, user profile 113
members
hunt groups 579
moving, Hunt group 581
memory button
activate programming (*3) 863
autodial 211
program defaults 422
menu
help topics 87
lines 229
telephony services 186
menu bar 83, 84
Meridian
external call forward 410
MCDN network 528, 533
MCDN system requirements 533
Index 979
Business Communications Manager 3.6 Programming Operations Guide
private network IDs 303
SL-1 networking 519
Meridian 1
MCDN special calls 315
Meridian Mail
NCRI redirect 919
message
overview 210
reply message (65) 865
selecting center 571
Message Digest 5, see MD5 779
Message Digest algorithm 898
message DN, CallPilot, Add Users wizard 378
message DN, CallPilot, Edit DN Record Template
Wizard 372
message indicator
analog 412
ATA 412
message reply enhancement
allow/disallow 459
analog telephones 459
message wait cancellation string 478
message waiting
cancel #65 865
indicate string 478
indicators 918
Message Waiting Cancellation (MWC) 569
message waiting indication
DPNSS 569
MCDN 565
MWI 569
setting 572
message waiting indicator
message overview 217
messages
cancel code (#1) 865
cancel send (#1) 863
direct-dial telephones (F1) 459
express messaging into voice mail (980) 867
message reply enhancement 459
network features 565
overview 217
send (1) 863
send message code (1) 865
view (65) 863
voice message center, remote 940
messaging, express (980) 862
metric
OSPF parameters 713
RIP parameters 710
metric value, IP static routes 715
metrics 86
hunt group 587
links 192
Microsoft Point-to-Point Compression (MPPC) 670,
688
mid filter 593
minimum interval, router, RIP 707
Minimum password length 122
minimum time adjustment, NTP client 762
Minimum web encryption 108
minimum, MSC component 627
mobiles, by region 848
model
Add Users wizard 379
Edit DN Record Template wizard 373
user preferences 416
modem
ATA Dvc 413
authentication protocols 686
callback number 113
dial-up connection 901
V.90 940
V.90 features 686
modem link parameters, WAN 688
modes, Hunt groups 577
module
networking 507
showing inventory 147
module mode
module record 132
module type
DECT 134
media bay modules 131
modules
disabled/enabling a module 147
ports on bus 130
station 143
station ports 144
trunk ports programming 142
viewing status 147
monitored events, WAN frame relay 677
monitoring
Answer DNs 208
calls with CAP 437
hunt groups 585
silent monitor 931
transferred calls 213
980 Index
P0609326 1.1
monitoring mode
silent monitor 585
monitoring other telephones, answer DNS 402
move line 918
moving
Hunt group members 581
IP telephones, keep DN alive 407
line buttons (*81) 862
telephones 931
telephones (see automatic telephone relocation) 459
MSC
communication Voice 610
component window 627
configuring resources 622
custom configuration 626
DECT resources 615
description 918
double density 630
DS30 split 629
DSP resources 610
DTMF configuration 628
estimating peak media channel usage 612
example configuration 621
external page 906
media channels 610
media gateways 610, 614
media services card, resources 609
minimum and maximum values 624
music source 918
PEC
cards, DSP resources 613
required resources 619
resources evaluation 620
rules for managing 611
signaling channel 931
signaling channels 610
system identification 918
viewing configuration information 622
viewing PEC configuration 623
voice bus path 613
MTU
OSPF parameters 713
PPPoE internet 696
multi-line hunt 873, 881
multi-link point-to-point protocol (MLPPP) 670
Multilink PPP 918
multi-link support, ISDN 694
multiple IP addresses
LAN interface 667
restrictions 176, 681
WAN interface 176, 681
music
background 892
cancel (#86) 861
playing (86) 867
source 918
turn on (86) 861
music on hold 458
MWI
description 918
M1 remote capability 134, 566
voice message set on telephone 399
VoIP trunk interoperability 541
MWI M1 134
N
N1
call-by-call services 874
name
blocking, ONN 874
changing system name 98
changing, telephony 200
DNs, Add Users Wizard 377
first display 445
hunt groups 577
IP filters 816
IPX static service 738
LAN DHCP scope 643
lines 235
network display 873
network resources 633
policy 821
policy server 828
remote scope 651
name and number blocking
cancel (#819) 863
initiating (819) 863
name display
calling party 453
network 453
selective line redirection 454
name display, alpha tagging 455
name display, outgoing 541
name, blocking outgoing, service codes 480
naming services 485
NAT
adding default rules 755
common configurations 758
dynamic 753
enable/disable 754
IP firewall filters 754, 832
Index 981
Business Communications Manager 3.6 Programming Operations Guide
IPSec restriction 779, 780
overview 753
packet types and protocols 753
PPTP 767
remote gateway address 743
restriction 664
rule order 758
static 753
national
E164 outgoing calls 307
national access code 312
MCDN 312
numbering overview 195
National ISDN standards 879
navigation frame 83
navigation key 83, 919
navigation tree 83, 87, 919
telephony headings 187
navigation tree, Unified Manager 85
NBMA neighbors 714
NCRI
MCDN redirect 919
negotiate line type, ISDN channel characteristics 694
neighbor address
OSPF NBMA 714
neighbor priority
OSPF NBMA 714
Net Link Manager
enable or disable 750
ISDN default route 694
net number
IPX static routing 736
NetBIOS 919
NetBIOS name resolution 640
NetLink manager
overview 749
netnumber
IPX static routing 736
NetVision
assigning SWCA features 466
deregistering 366
line redirection 408
overview 222
NetVision handset
default buttons 430
network
autodial access 502
configuration samples 499
DDI Mux overviews 152
dialout digits 502
IPX static service 738
overview 76
private systems to Business Communications
Manager 500
public network to Business Communications
Manager 500
shared line pools 512
T1 E and M 508
WINS server address 635
network #
call by call service network 515
ETSI QSIG 544
line pool network 513
MCDN 537
networking 508
network access, configuring IP filters 816
Network Address Translation, see NAT 753
network call redirection information (NCRI), MCDN
528
Network Call Redirection Information, see also NCRI
919
network callback timer 460
network diversion, ETSI network 546
network DN
call type 269
ISDN terminal equipment 920
loop programming 269
Network Interface Card, see also NIC 920
network mask, IPX RIP filter 729, 730
network name display 873
calling party name 454
General heading 453
selective line redirection (SLR) 454
network number
IPSec local 789
IPSec remote network 790
IPSec split tunnel 804
IPX packet filter 723
IPX RIP filter 729, 730
network policies, DiffServ 901
Network Time Protocol, see NTP 761
network traffic, policy 812
network update wizard access 80
network wizard 634
networking
advice of charge - end of call (AOCE) feature 545
centralized auto attendant 897
982 Index
P0609326 1.1
centralized voice mail 898
choosing link protocol 165, 674
clock sources 899
coordinated dialing using line pools 514
DASS2 900
destination code 510
dialing plan 901
DiffServ 807
DPNSS 1 547
DPNSS 1 features 547
DPNSS 1 three party service 549
DPNSS connected to Embark 548
E and M line access 509
E and M remote access 510
E and M routing destinations 509
E and M routing service 509
E and M target line 509
ETSI QSIG 544
ETSI QSIG services 545
ETSI QSIG, hardware 545
external # 510
integrating into a private network. 505
IP routing 709
IPX packet filters 723
IPX routing on the network 723
keycodes 506
line pool access codes 512
malicious call identification (MCID) 546
MCDN check list 534
MCDN dialing plan settings 538
MCDN features 565
MCDN network example 537
MCDN private networking 519
MCDN routing 539
MCDN Zone ID for SRG 542
MCDN, break-in 568
MCDN, camp-on feature 567
MCDN, ISDN call connection limitation (ICCL)
530, 911
MCDN, message waiting indication (MWI) 565
MCDN, network call redirection (NCRI) 528
MCDN, TAT 936
MCDN, trunk anti-tromboning (TAT) 532
MCDN, trunk route optimization 937
MCDN, trunk route optimization (TRO) 531
media bay module settings 538
Meridian MCDN system requirements 533
network # 508
network #, shared line pools 513
network diversion 546
node 521
OSPF interface parameters 712
Policy overview 807
PRI call by call services 515
programming MCDN 564
protocols 506
protocols, public 499
received # 508
received #, shared line pools 513
restriction filters 511
RIP parameters 709
system callers 500
tandem network 521
tandem network originating calls 524
tandem network routing 526
trunk/line data 509
trunk/line data, line pool network 514
UDP and CDP programming 535
using shared line pools 512
using T1 E and M lines 508
viewing resources 633
Virtual Private Network ID 542
VoIP and Meridian ITG 534
VoIP gateway settings 540
VoIP networking 540
networks
call-by-call service 515
DPNSS 1 547
E and M line pool network 513
ETSI QSIG 545
MCDN 528, 533
tandem 520
timing 136
next hop MAC address
IPX static routing 736
next hop on primary link, permanent WAN 750
next hop router
IP static routes 715
Network Wizard 635
Quick Start Wizard 94
NI
call by call services support 340
ISDN protocol for North America 919
loop programming protocol 271
PRI protocol 325
SPID programming 268
NI-2, available services 138
NIC
network card 920
night control phone (see control telephone) 485
night schedule 487
Nine hundred (900)
call by call services 340
protocols 138
nine hundred (900) 894
Index 983
Business Communications Manager 3.6 Programming Operations Guide
no answer
autologging 416
busy tone, call forward, Add Users wizard 378
busy tone, call forward, Edit DN Record Template
Wizard 372
call forward, Add Users wizard 378
call forward, Edit DN Record Template Wizard 372
no autologging 416
node
IPX static service 738
tandem network 521
terminating, DPNSS 1 547
Non Broadcast Multiple Access, see NBMA and OSPF
714
non-real time
mission critical, non-interactive, service classes 810
non-mission critical, service classes 810
non-real time, mission critical
interactive, service classes 810
Nortel IP terminal information, DHCP global options
640
Nortel IP terminal VLAN id, DHCP Global options
641
North America
NI, ISDN protocol 919
notify set 595
NSF Extension 133
NSI string, MWC 570
NT LAN Manager 920
NT1 (network termination type 1) 879
NTLM settings 107
NTP client
configuration 762
manually updating time 764
service start type 762
starting service 763
time synchronization 761
NTP server address, NTP client 762
number
first display 445
Number of busy sets 126
number of phone ports, QoS summary 813
Number of sets 126
number redial, last 915
number, blocking outgoing, service codes 480
numbering plan
dialing plan 901
numbering plans, overview 194
NVM 96
O
Oakley Key Determination Protocols 777
OAM DN reg’d 364
OKIM
see also KIM 915
OLI
changing DN length 285
changing received # length 287
OLI as called number (ISDN/DECT) 408
OLI number, private 395
OLI number, public 395
OLI, VoIP name display 541
on hold
audio on hold 920
On hold (see hold) 458
one button dialing (see Autodial) 211
ONN
cancel (#819) 863
initiating (819) 863
ONN blocking
BRI trunk code 480
CO callback feature disabled 480
ETSI 272
initiate at telephone (819) 867
pulse 480
service codes 480
state 268, 279
tone 480
trunk/line restrictions 480
ONN, (819) 874
open attempts, COPS status 824
open failures, COPS status 824
Open Shortest Path First see OSPF 706
Open Shortest Path First, see also OSPF 920
open switch interval (OSI) 238, 256
operator, voice mail (981) 867
OPS
implementing COPS 823
overview 812
Optivity Policy Services, see OPS and COPS 812
order, policy parameters 821
Originating Line Identification (OLI) and line pools
395
OSPF
global settings 708
984 Index
P0609326 1.1
NBMA neighbors 714
network interface parameters 712
overview 706
restarting the router 717
restrictions 706, 712
routing protocol 920
routing protocol list 712
OSPF log level, global settings 708
OSPF neighbor, OSPF NBMA 714
out packets, COPS status 824
outgoing
name and number blocking 479
private network calls 305
public network calls 307
outgoing authentication, PPP parameters 680
outgoing call display
MCDN 323
Outgoing name and number blocking, see ONN 479
outgoing name and number blocking, see ONN 480
out-of-band 920
output filter
IP firewall 839
IPX RIP filter 730
IPX SAP filters 735
order 840
output filter action
IPX packet filter 723
IPX RIP summary 728
IPX routing 719
IPX SAP summary 732
Outwats
PRI 874
OUTWATS, call by call services 339
overflow routing 336
call routing 496
routing service 496
VoIP fallback routing 337
overflow, hunt groups 576
overlap receiving 271
overrides
dialing restrictions 346
profile defaults 856
restrictions at telephone (68) 866
overview
network 76
P
packet classifiers 811
packet drop, action parameters 820
packet filtering features
protocol 835
source address 835
source mask 835
packet filters
IP firewall 831
IPX output filters 726
IPX routing 723
stateful 832
stateless 831
packet input filter, IPX packet filters 724
packet output filter, IPX packet filters 726
packet schedulers 809
packet type
IPX packet filter 724
IPX packet filters 726
NAT supported 753
page
Add Users Wizard 378
auto hold for incoming page 408
combined (63) 863
description of page features 921
Edit DN Record Template Wizard 372
equipment 216
external 906
external (62) 863
external equipment 216
general (60) 865
initiate (60) 863
internal (61) 863
overview 216
programming 406
remote 293, 928
speaker (62) 865
speaker and zone (63) 865
timeout timer 472
page tone 458
page zone
Add Users wizard 378
assigning 406
Edit DN Record Template Wizard 372
hunt groups 584
initiate (61) 865
paging
remote access 295
PAP
authentication protocol 922
modem authentication 686
PPP parameters 680
park
Index 985
Business Communications Manager 3.6 Programming Operations Guide
timeout 922
park mode, retrieval code setting 458
park prefix
numbering overview 196
SWCA 310
park prefix, access codes 310
Park timeout delay 472
parked call
park mode setting 458
retrieving 310
partial, set lock 442
password
callback number 113
CallPilot, Quick Start Wizard 95
calls answered with DISA 311
change 79, 110
complexity 122
COS 296
COS programming 297
default 110
desk 591
ee_admin 110
failed logon attempts before lockout 121
IPSec remote user 801
ISDN dial-out user parameters 693
lockout duration 121
lockout policy 120
minimum length 122
OSPF parameters 713
policy 122
PPP 174, 671
PPP parameters 680
PPPoE dial-out user parameters 700
Quick Start Wizard, IP telephones 95
remote network note 122
reset failed logon attempts count after (min) 121
room condition 591
service control 485
service control password 931
supervisor 110
system policies 111
Unified Manager policies 113
user profile 113
using DISA 291
Password Authentication Protocol, see also PAP 922
Password server, firewall rules 783
passwords
class of service 899
Pause 910
in a sequence of numbers (see Wait for Dial Tone)
223
insert into dialing sequence (78) 223, 863, 866
insert into dialing sequence (F78) 323
pause
wait for dial tone 941
PBX
DPNSS 1 networking 547
private system 922
system diagram 190
PCI
MSC card 922
PCI IIIs 922
peak media channel, estimate 612
PEC
viewing MSC configuration 623
PEC cards 613
per hop behavior (PHB) 808
Performance 84
performance graphs and tables, UTWAN 178
performance graphs and tables, WAN 684
performance, LAN 668
performance, menu 85
Peripheral Component Interconnect, see also PCI 922
Permanent Virtual Circuit, see also PVC 925
permit
IP filters 817
IPX packet filter 723
IPX RIP summary 727
personal speed dialing 211
PFS enabled
IPSec branch 787
IPSec remote user 802
phantom DNs 461, 923
phone, ISDN channel characteristics 693
physical address
LAN interface 665
UTWAN summary 164
WAN summary 673
physical link
multiple WAN IP addresses 176, 681
pickup
call directed 896
pickup directed, allow 458
pickup group 923
Add Users wizard 378
assigning 406
Edit DN Record Template Wizard 372
group pickup (76) 208
986 Index
P0609326 1.1
planning telephony services 188
platinum class 810
playing music through telephone (86) 867
Point-to-Point protocol, see also PPP 923
Point-to-Point Protocol, see PPP 159, 670
poisoned reverse, RIP parameters 711
poisoned, RIP parameters 711
Policy
adding 821
agent characteristics 828
class support 828
deleting IP filters 818
device identification 829
overview 807
server settings 828
policy agent retry timer 828
policy agent state 828
policy name, policy class 829
policy-enabled networking
actions 812
configuration overview 807
DiffServ Code Point (DSCP) 807
filters 812
policy 812
poll interval
OSPF parameters 713
polling interval
OSPF parameters 713
WAN frame relay 166, 677
pool number, IPSec IP pool 800
port
disable-enable 148
ISDN channel characteristics 693
PPPoE channel characteristics 700
WAN card 669
WAN summary 673
port name, PPTP tunnel 771
portable handsets
base station 892
DECT 900
set lock 443
portable services, supporting regions 848
ports
on bus, media bay modules 125
station module 144
trunk programming 142
ports on bus 130
power
failure, hospitality 591
PPP
dial-up WAN connection 752
multi-line PPP 670
password 174, 671
passwords 174, 671
serial communications protocol 923
user name 174, 671
WAN 669
WAN link protocol 671
WAN parameters 679
PPP Compression Control Protocol (RFC 1962) 160,
670
PPP LCP extensions
ISDN link parameters 692
PPPoE link parameters 699
WAN modem link parameters 689
PPP password identifier 174, 671
PPP User, UTWAN parameters 170
PPPoE
Access Parameters 699
Channel Characteristics 700
deleting an interface 701
dial-out user parameters 700
dial-up interface 698
DSL 696
installing 697
IPSec tunnels 696
keycode 696
link parameters 699
summary settings 698
WAN settings 696
PPTP
adding tunnel 770
configuring 766
configuring a tunnel 771
features 767
IPSec restrictions 781
routing feature interaction 767
secure connection 765
summary settings 768
tunnel authentication 773
tunnel link 772
VPN protocol 765
pre-dial 416, 924
predial 210
premium bandwidth 813
premium class 810
premium DS code, QoS summary 813
preshared key, IPSec branch 787
Index 987
Business Communications Manager 3.6 Programming Operations Guide
PRI 134
# of lines and loops 132
911 configuration 351
911 dialing 875
available services, per protocol 138
B-channel enable/disable 142
B-channel selection sequence 133
BRI and DTM PRI firmware versions 143
call by call services 339
call-by-call service selection 138
call-by-call services 894
Call-by-call services networking 515
clock source 134
data module switched access 180
description 924
dialing plan routing table 325
DISA 885
enbloc dialing 325
ETSI QSIG hardware settings 545
hardware 876
High line loop 132
ISDN 870, 913
limits, call-by-call programming 341
line pools 342, 402
line types 857
Low line loop 132
MCDN network dialing 304
MWI remote capability, MCDN 566
NSF extension 133
private networking 506, 519
Protocol 133
Protocol type 133
provisioning lines 140
public networking 499
remote access 293
remote access, Auto DN or DISA DN 294
services and features 872
SL-1 networking 528, 533
SL-1 trunks 932
target line busy tone 247, 255
trunk modules 938
primary
connection, WAN link 750
dial-up interface 752
interface, CallPilot, Quick Start Wizard 96
language (*501) 862
primary and secondary server, DNS summary 704
Primary clock source 267, 271
primary DNS, IPSec DNS and WINS 803
primary WINS address, LAN interface 666
Primary WINS, IPSec DNS and WINS 803
prime line 924
assigning rules 395
direct dial telephone 314
external autodial 420, 439
hotline 411
system speed dial 476
telephone programming 394
user speed dial 433
prime lines
lines overview 203, 205
prime set 924
prime telephone
delayed ring transfer 458
DRT 904
lines 238, 241, 243, 245, 247, 249, 250, 252, 254,
255
overview 206, 220
priority
COPS client 826
priority call 924
(69) 863, 866
Add Users wizard 378
allow/disallow 406
Edit DN Record Template Wizard 372
hunt groups 584
overview 210
priority calls
DND 903
Privacy
(83) 863, 867
changing status 258
privacy
Feature 83 924
overview 216
private
branch exchange, (see also host system dialing
signals) 222
private access code 311, 924
numbering overview 195
Private Access Code, DPNSS 555
private auto DN 311
DN received number lengths 315
Private Branch Exchange, see also PBX 922
private dialing plan
UDP 938
private DISA DN
received number lengths 315
Private DN length
numbering overview 195
private DN length, UDP dialing plan 304
988 Index
P0609326 1.1
private DN, route programming 323
private IP type, NAT rule settings 756
private IP, NAT rule settings 756
Private length
Quick Start Wizard 95
received # 287
private line 237, 240, 243, 245, 247, 250, 252, 253, 255
Private name 454
Private Network
firewall filter settings 783
private network
advice of charge - end of call (AOCE) feature 545
allow redirect, call forward 410
callers 500
calls originating in tandem network 524
description 925
dialing plan type 304
DPNSS 1 features 547
DPNSS 1 three party service 549
ETSI QSIG 544
ETSI QSIG services 545
forwarding to voice mail 410
integrating into 505
MCDN 519
MCDN break-in 568
MCDN camp-on feature 567
MCDN dialing plan 538
MCDN ISDN call connection limitation (ICCL)
530, 911
MCDN message waiting indication (MWI) 565
MCDN network call redirection information (NCRI)
528
MCDN routing information 539
MCDN TRO 937
MCDN trunk anti-tromboning (TAT) 532
MCDN trunk route optimization (TRO) 531
MCDN trunk TAT 936
Meridian MCDN requirements 533
private DN length 304
private network ID 304
remote access 293, 506, 927
system access DNs 366
T1 935
tandem calling 935
tandem network 935
UDP location code 304
using shared line pools 512
Private network ID
numbering overview 195
private network ID, dialing plan 304
Private Network IDs 303
private network, MCDN Zone ID 542
private network, virtual ID 542
private networking
DPNSS 904
MCDN private access code 311
MCDN special calls 315
MCDN special route codes 323
outgoing calls 305
SL-1 932
Private number, target lines 289
private port range, NAT rule settings 756
private range mask, NAT rule settings 756
private security key 78
private services call 874
private to
exclusive lines 925
private, call by call services 340
private/public, lines overview 203, 205
process map
access headings 283
configuring lines 228
configuring loops 265
configuring telephone records 354
system configuration 66
telephone programming 354
telephony services 185
processor expansion cards, see PEC cards 613
profile
add user 111
adding group 116
adding user domain 119
delete user 114
domain user group 111
program buttons, default assignment 422
program telephone services 183
Programmed Bus Type 125
programmed release code (F*89) 323
programming
General Settings 451
ISDN 882, 883
ISDN BRI 267
lines 229
on lines
ISDN (BRI) lines 884
ISDN (PRI) lines 884
restriction service 493
services 451, 483, 487
set lock 931
System DNs 353, 387
Index 989
Business Communications Manager 3.6 Programming Operations Guide
programming records 188
DDI Mux 154
matrix links 226
programming system features
Restriction service 493
Routing service 495
System Speed Dial 211
programming telephones
Call Pickup 207
User Speed Dial 211
Protect level, intrusion controls 414
protocol
AH firewall 782
DCOM rules 841
DDI Mux 157
ESP firewall 782
ICMP 783
IKE firewall 782
IP filters 817
IP firewall 835
IP routing precedence 706
ISDN link parameters 692
ISDN supported 881
loop programming 271
NAT 753
NAT rule settings 756
Password server 783
port 6800 rules 841
PPPoE link parameters 699
PPTP 766
PRI lines 133
QOTD server 783
routing information 707
RPC rules 841
VPN 765
provisioning
PRI B-channels 142
provisioning lines 140
provisioning T1 lines 140
proxy
DNS 903
proxy, DNS server 703
PSTN
analog access lines (AAL) settings 137
description 925
loss plan setting 136
trunk modules 938
public auto DN 311
DN received number lengths 315
public data network, see PDN 765
public DISA DN
received number lengths 315
public DN length
changing 381
setting 305
Public DN lengths
numbering overview 195
Public DN, route programming 323
public IP type, NAT rule settings 756
public IP, NAT rule settings 757
Public length
Quick Start Wizard 95
public length
received # 287
public line 237, 240, 243, 245, 247, 250, 252, 253, 255
public network
callers 500
configurations 499
dialing plan 501
dialing plan programming 305
DN prefix 306
public DN lengths 305
to tandem network 521
public networking
outgoing calls 307
public port range. NAT rule settings 757
public range mask. NAT rule settings 757
public service calls 874
Public Switched Network, see also PSTN 925
Public, call by call services 339
publications
Business Communications Manager documentation
56
CD maps 57
published IP address. remote gateway 743
pulse density, WAN line parameters 675
pulse dialing, overview 223
pulse, ONN blocking 480
PuTTY
installing 89
see SSL 932
PVC
Configuration 167
congestion control 678
IP network 925
WAN frame relay 677
PVC, permanent virtual circuit 903
990 Index
P0609326 1.1
Q
Q reference point signaling, see also QSIG, private
network
QSIG 926
QoS
architecture for DiffServ 808
defined filters, installing 821
description 926
DiffServ 901
DiffServ overview 807
interface groups
deleting 815
interface groups, configuring 814
IP filter groups
about 816
configuring 818
modifying 819
IP filters, configuring 816
overview 813
policies, configuring 821
PPTP 767
restriction 664
role combinations
deleting 815
summary parameters, DiffServ 813
QoS monitor
mean opinion score 745
overview 743
summary 813
QOTD, IPSec firewall rules 783
QSIG
description 926
loop programming protocol 271
private networking 506
Quality-of-Service (QoS) monitor, see QoS monitor
743
queue
hunt groups 576
time-out 576
queue managers 809
queue request (909) 861
queue set ID, QoS interface 815
queue status, ACD (909) 867
queuing calls 896
queuing calls, initiating (801) 866
Quick Start Wizard
disabling 92
security 96
start DN 933
using 97
quick start wizard 80
using 96
warning 96
Quick Start Wizards
what you need to know 93
quick, IP firewall 836
Quote of the Day server, see QOTD 783
R
radio
base station 892
range
add WAN IP address 177, 681
address range 644
excluded addresses 646, 653
LAN IP address 667
lease information 648, 656
remote scope address 652
reserved addresses 647, 655
RAS
remote access 926
RAS server TCP/IP parameters 685
RC2 898
RC4 898
ReadOnlyUserGroup 110
real time
delay intolerant, fixed bandwidth, service classes
810
delay tolerant, high variable bandwidth, service
classes 810
delay tolerant, low variable bandwidth, service
classes 810
reallocating log space 470
Received #
overview 194
received # 259
call by call service network 515
ETSI QSIG 544
line configuration 248, 255
line pool network 513
MCDN 537
networking 508
target lines 289
received # length
changing 360
programming 287
Quick Start Wizard 95
received number lengths
auto DNs 315
Index 991
Business Communications Manager 3.6 Programming Operations Guide
DISA DNs 315
received numbers
changing received # length 287
receiver volume 458
receiving calls
SWCA overview 213
redial
last number 915
last number (5) 865
saved number (67) 863, 865
redial, saved number 930
redirect
line, initiating redirection (84) 867
redirect line
Edit DN Record Template Wizard 372, 378
redirect ring
allow/disallow 407
Edit DN Record Template Wizard 372, 378
redirect to, line programming 240, 242, 244, 247, 248,
258
redirected calls, Line Redirection and Call Forward
214
redirection loops, avoiding 408
region
changing CallPilot region 101
regions
Business Communications Manager and CallPilot
93
caller ID 847
CallPilot 859
companding law 847
core software 846
ISDN line services support 852
languages 846
line protocol 851
mobility services 848
modules 849
Quick Start Wizard 94
system defaults 853
voice mail feature defaults 860
registration
DN registration headings 363
registration type, DN registration 363
regression code 927
regulatory information 2
rekey data count
IPSec branch 788
IPSec remote user 802
rekey timeout
IPSec branch 788
IPSec remote user 802
related documentation 56, 57
relay agent
DHCP 638, 641
DHCP configuration 658
LAN settings 659
relay DHCP packets 659
release reasons
detailed 474
simple 474
relocating
CAP module 437
KIM 437
relocating telephones 459
remind delay, held line reminder 927
reminder, held line 458
remote
system access 292
remote access
answer with DISA 902
COS password 899
COS passwords 296
description 927
DPNSS 293
E and M networking 510
feature access 907
from public network 292
IP trunks, no tone 299
loop start trunks 292
numbering overview 194
overview 224
package, COS programming 297
packages, line pool access 294
page 295
PRI 294
PRI trunk 293
private auto DN 311
private DISA DN 311
private network 293, 506
programming 297
public auto DN 311
public DISA DN 311
RAS 926
T1 DID trunk 292
T1 E and M trunks 292
tandem calling 935
using DISA 291
VoIP trunks 294
Remote Access Server, see also RAS 926
remote capability, MWI 134, 566
992 Index
P0609326 1.1
remote dial-in, guidelines 701
Remote Endpoint Addresses, IPSec restriction 176,
681
remote endpoint, IPSec branch 788
remote gateway 908
published IP address 743
VoIP networking 540
remote monitoring
glossary 927
remote network
password policies 122
Remote Paging 293
remote PPTP server, PPTP tunnel link 772
remote restrictions
dialing restrictions 349
lines 262
remote access, COS 297
VoIP trunks 294
remote scope
DHCP 651
DHCP server 650
excluded addresses 653
importing data 661
lease information 656
reconciling imports 661
reserved addresses 655
remote templates, using 384
remote user
adding to IPSec 798, 801
IPSec 796
IPSec DNS and WINS settings 803
security 224
tunnel rules 783
remote user account
adding banner text 805
RemoteAssigned
ISDN restriction 691
ISDN summary 691
PPPoE 698
removing restrictions 345
reply message (65) 865
Report 84
require sign and encrypt 108
required treatments, service class behaviors 811
requires desk password 592
reserved addresses
DHCP clients 647
remote scope 655
reviewing lease information 648
Reset failed logon attempts count after (min) 121
Resources 85
resources
calculation evaluation 620
configuring MSC resources 622
custom MSC configuration 626
DS30 split 629
example MSC configuration 621
LAN global parameters 664
media channel rules 611
media services card DSP rules 613
MSC 609
MSC evaluation 620
MSC required 619
signaling channel rules 611
supported LAN resources 663
viewing LAN resources 663
viewing MSC information 622
viewing network resources 633
viewing PEC configuration 623
viewing UTWAN resources 178
viewing WAN resources 670
WAN backup link settings 688
restart, delayed 102
restarting IP router 717
restore
telephony data 892
restricting access to Business Communications Manager
224
restriction filter
profile defaults 856
restriction filters 261
COS 441
default filters 347
description 928
lines 346
networking 511
programming 344, 345
remote access 346
removing 346
services 344
telephones 346
restriction schedules
service control password 931
restriction schedules, telephones 443
restriction service
description 928
restriction service, changing at telephone (872) 867
Restriction services
filters 493
Index 993
Business Communications Manager 3.6 Programming Operations Guide
turning off (#872) 864
turning on (872) 864
restriction services
line/set restrictions 444
programming 441
service setting 494
restrictions
line filter, COS 297
lines 261
overriding at telephone (68) 866
removing 345
service control password 485
service programming 493
telephone record 441
using dialing restrictions for routing 338
retransmit interval, OSPF parameters 713
retrieval code
call park 895
retrieval code, park mode 458
retrieving
Call Park 312
voice messages 478
retry interval
hospitality alarms 594
PPTP tunnel link 772
ring again
activate (2) 863, 865
cancel (#2) 863
Feature 2 928
hunt groups 584
overview 210
ring groups
description 928
extra dial set 492
services 490
trunk answer 490
ring only, telephone line assignment 398
ring redirect, Edit DN Record Template Wizard 372,
378
ring transfer, delayed 458
Ring Type
changing (*6) 863
DRP 206
user preferences 417
ring type, see also distinctive ring 928
ring volume 929
Ring Volume (*80) 863
ring, distinctive ring patterns 205
ringer
auxiliary 891
ringing
call (807) 863
Directed Pickup 207
signal call at telephone (807) 866
Trunk Answer 208
ringing service
description 928
trunk answer 938
ringing services
auxiliary ringer 493
changing at telephone (871) 867
programming 490
ring group 492
ring groups 490
schedules 491
service setting 491
trunk answer 492
turning off (#871) 864
turning on (871) 864
RIP
global settings 707
IP routing information 705
IP routing/IPX routing restrictions 719
IPSec restrictions 781
IPX filters 727
IPX input filters 729
IPX output filters 730
IPX parameters 728
IPX RIP log level 721
network interface parameters 709
router information exchange 929
subnet summary 711
RIP log level
IPX RIP 721
RIP global settings 707
RIP state, IPX RIP parameters 728
Rivest encryption ciphers 898
Rls button, release button 929
role combination, QoS interface 815
room alarm 596
Room condition
HS admin set (878) 863
HS admin telephone 597
options 597, 600
password 591
room set (876) 863
room telephone 600
room number 592
Room occupancy
994 Index
P0609326 1.1
HS admin set (879) 863
state of room 597
room restriction filters 593
room set
hospitality 590
identifying 592
rotary mode 576, 578
route accept type, RIP parameters 710
route announcement interval, RIP parameters 710
route announcement type, RIP parameters 710
route expiration interval, RIP parameters 710
route programming
DN type 323
external # 323
private DN 323
public DN 323
Use pool 323
route removal interval, RIP parameters 710
route tag, RIP parameters 711
router
DDI Mux module 151
minimum interval 707
Network Wizard 635
Quick Start Wizard 94
router area ID, OSPF global settings 708
router ID, OSPF global settings 708
router priority, OSPF parameters 713
routing 334
call by call services network 516
CBC routing table 324
CbC services routing 516
dedicated trunks for long distance 333
defining multiple routes 336
defining routes 322
destination codes 502
destination wild card character 329
destinations, E and M networking 509
direct dial number 338
enbloc dialing 905
internal, target lines 936
IP global protocol 707
IP settings 705
IPX static routes 736
IPX static service 738
least cost routing 335
local calling 332
long distance access code 334
long distance calling 333
MCDN network 539
MCDN private network 539
numbering plan overview 194
OSPF 706
overflow programming 336
PRI routing table 325
public network dialing 501
QoS mean opinion score 745
restarting the IP router 717
schedules, service control password 485
service setting 495
service, E and M networking 509
service, MCDN network 539
services 496
tandem networks 526
using dialing restrictions 338
Routing Information Protocol, see also RIP 929
Routing Information Protocol, see RIP 705
routing protocol, OSPF 712
routing service
description 930
Routing services
about 495
turning off (#873) 864
turning on (873) 864
routing services
service control password 931
turning on (873) 867
routing table
external autodial 420, 439
hotline 411
system speed dial 476
user speed dial 433
routing table update mode, RIP parameters 710
RPC port, firewall restrictions 837
RSA 898
RTP
VoIP trunking 941
rule name
IP firewall 835
NAT rule setting 756
rules
NAT 755
NAT rule order 758
Run/Stop 910
Run/Stop code (*9) 863
Run/Stop code (F*9) 323
run/stop, Host link feature 930
Run/Stop, overview 223
Index 995
Business Communications Manager 3.6 Programming Operations Guide
S
S interface 877
S loop, sampling programming 279
S or T reference point 877
S reference point 877
SAP
IP routing 719
IPX filters 732
IPX global setting 722
IPX input filters 733
IPX output filters 735
SAP log level, IPX SAP 722
SAP state, IPX SAP parameters 732
SAPS
CAPs and KIMs 437
description 930
saved number redial 930
overview 212
Saved Number Redial (67) 863, 865
scheduled services, overview 220
scheduled tasks, clock 761
schedules
control telephone 220, 899
destination codes 331
direct-dial telephone 901
fallback 331
restriction services 493
ringing service 491
ringing services 490
routing service, overflow 496
service control password 485
setting manual or auto 494
setting times 485
system times 487
trunk answer 938
scheduling
service control password 931
scope status
LAN DHCP scope 643
remote scope 651
ScopeNam.dat, DHCP 660
screen
Unified Manager, main 83
Secondary clock source 267, 271
secondary DNS, IPSec DNS and WINS 803
secondary WINS, IPSec DNS and WINS 803
seconds-since-boot, relay agent 659
Secure Has Algorithm, see SHA1 779
Secure Hash Algorithm 898
Secure Sockets Layer, see also SSL 932
security
add user profile 111
authentication compatibility 107
backup and restore data 892
callback settings 113
change password 114
ciphers 898
clear page file on shutdown 108
compatibility levels 107
dialing restriction 344
disable quick start wizard 96
domain secure channel 108
domain user group 119
failed logon attempts before lockout 121
force secure web access 108
IPSec 777
lockout duration 121
lockout policy 120
minimum password length 122
minimum web encryption 108
modem callback 894
NAT features 753
navigation tree subheadings 85
NTLM authentication 90
operating system support 107
password complexity 122
password policy 122
private security key 78
recommendations, remote access 298
remote access note 224
remote access on VoIP trunks 294
reset failed logon attempts count after (min) 121
SMB client signing 108
SMB server signing 108
split tunnels 798
SSH client 89
system 224
system password 79
system timeout 106
Unified Manager considerations 105
uploading a certificate 78
user groups 117
user/system parameters 105
Selective LIne Redirection, see SLR 454
send message code (1) 865
send name display, VoIP trunking 541
serial port
UPS 939
server accounting time, COPS status 824
server address, web cache 742
996 Index
P0609326 1.1
server keep alive timer, COPS status 824
Server Message Block, see also SMB 932
server retry count, COPS client 827
server retry interval, COPS client 827
servers, PPTP tunnels 765
Service Advertising Protocol see SAP 719
service class behaviors 811
service classes, IP 810
service code
North American ONN blocking 479
service code, ONN blocking 268, 279
service control password 931
service control password, schedule control 485
service level agreement (SLA) 808
service mode status (870) 867
Service Modes (see Services) 220
service name, IPX SAP filters 733, 735
Service Profile Identifiers, refer also to SPIDs 932
service provider
choosing frame type 676
connecting PPPoE ISP interface 700
service schedules
control telephone 220
service selection 138
service setting
restriction service 494
ringing service 491
routing service 495
service type
call by call network 516
IPX SAP filters 733, 735
Services 86
services
activating Telnet 90
alternate call ringing 489
change time 591
changing restrictions at telephone (872) 867
changing ringing at telephone (871) 867
changing routing at telephone (873) 867
control telephone 899
extra dial set 492
line/set restrictions 444
overriding 484
programming auxiliary ringer 493
programming ring groups 492
programming, common settings 485
programming, service setting 491
restriction filters 344
restriction services 493
Restriction services (872, on/#872, off) 493, 864
ringing 490
Ringing services (871, on/#871, off) 864
routing 516
Routing services (873, on/#873, off) 495, 864
Schedule 1, night 487
schedule 2, evening 487
schedule 3, lunch 487
schedule 4 487
schedule times 487
service mode status at telephone (870) 867
starting NTP client 763
telephony services 187
Trunk Answer 208
trunk answer, ringing services 492
turning off and on using feature codes 484
view active services (870) 864
services list, IP telephones (900) 862
set DNs, inactive DNs 361
set lock 931
dialing restrictions 442
overview 224
portable handsets 443
set log space 445
set relocation 459, 931
set restrictions
defaults 443
remote access, COS 297
set time every, NTP client 762
sets, see also telephones and terminals 354
setting up
logging off of Business Communications Manager
88
setting, QoS summary 813
SF (Superframe), framing format 136
SHA-1 898
SHA1, encryption authentication 779
share files
SMB 932
Shasta 5000, IPSec compatibility 781
short tones 407
signal
call (807), see also Ringing call 863
Link 222
Long Tones 223
Pause 223
run/stop 223
signal call, ringing at telephone (807) 866
Index 997
Business Communications Manager 3.6 Programming Operations Guide
signaling
dial mode 237, 240, 243, 245, 255
line programming 243, 246, 258
signaling channel 931
count 620
DS30 split 629
MSC resources 610
MSC rules 611
signaling channels
MSC resources 609
silent monitor
description 931
FEATURE *550 585
monitoring mode 585
programming overview 225
SM password 585
SM sets 585
SM supervision 407
silent monitor programming 585
silver class 810
Simple Network Management, see also SNMP 932
simple networking, public 499
simple, release reasons 474
single-line display
7100 935
7208 935
SKIPJACK 898
SL-1
ETSI QSIG networking 544
MCDN example 537
MCDN network 528, 533
MCDN supported 932
private networking 506
tandem network 520
S-loops
D-packet 273
SLR, calling and connected name display 454
SM password
silent monitor 585
SM sets
silent monitor 585
SM supervision 407
SMB
Windows share 932
SMB client signing 108
SMB server signing 108
SNMP
monitoring networks 932
snooze alarm, hospitality 590
socket, IPX static service 738
software
version, Quick Start Wizard 94
software compression
ISDN link parameters 692
PPPoE link parameters 699
WAN modem link parameters 688
software version 98
source address mask, IP filters 816
source address, IP filters 816
source IP
AH firewall 782
DCOM rules 841
ESP firewall 782
ICMP 783
IKE firewall 782
IP firewall 835
Password server 783
port 6800 rules 841
QOTD server 783
RPC rules 841
source IP type
DCOM rules 841
IP firewall 835
port 6800 rules 841
RPC rules 841
source L4 port, IP filters 817
source mask
AH firewall 782
ICMP 783
IKE firewall 782
Password server 783
QOTD server 783
source network mask
IPX packet filter 724
IPX packet filters 726
source network number
IPX packet filter 724
IPX packet filters 726
source node
IPX packet filter 724
IPX packet filters 726
source port range
DCOM rules 841
IP firewall 835
port 6800 rules 841
RPC rules 841
source port, IKE firewall 782
source range mask
998 Index
P0609326 1.1
DCOM rules 841
IP firewall 835
port 6800 rules 841
RPC rules 841
source routing, IP firewall 836
source socket
IPX packet filter 724
IPX packet filters 726
South America, supported languages 847
speaker mode, WAN modem link parameters 688
special
outgoing calls 307
special (international) access code 312
special access code
numbering overview 195
special features
call activity (CDR) 225
call center 225
CallPilot 225
hospitality 225
hunt groups 225
IVR 226
silent monitor 225
special telephones
control telephone 220
direct dial telephone 221
hotline 220
prime telephone 220
speed dial
activate (0) 863
activate feature (0) 865
add/change (*4) 863
Clid Match length 460
Force auto-spd dial over ic/conf 459
maximum codes 460
system codes 475
user 940
user programming 432
speed dials
system 934
speed, LAN interface 665
SPID programming 268
SPIDs
B-channels 269
BRI, North America 932
split tunneling enabled, IPSec remote user 802
split tunnels
add network 804
security 798
split, RIP parameters 711
square system 189, 932
SRG
MCDN Zone ID 542
Virtual Private Network ID 542
SSH
installing 89
SSL
security protocol 932
standard dial 210, 416
standard network control, service classes 810
start address
address range 644
excluded addresses 646, 653
IPSec IP pool 800
remote scope 652
start and stop times 487
Start DN
overview 188, 194
start DN
description 933
Quick Start Wizard 94
start, NTP client 763
startup
NTP client 763
State (of media bay modules) 126
state, COPS status 824
stateful packet filters, IP firewall 832
stateful, IP firewall 835
stateless packet filters 831
static IP address 933
static IP address pool, RAS server parameters 685
static IP address, IPSec remote user 801
static NAT 753
static route
IP routing 715
IP static routes 715
IPX routing 719, 736
IPX static routing 736
static service
IPX routing 719, 738
IPX static service 738
static subnet mask, IPSec remote user 801
static time (806) 863
Station Auxiliary Power Supply, see also SAPS 930
station module 933
station module ports 144
Index 999
Business Communications Manager 3.6 Programming Operations Guide
station modules
device status 144
headings 145
Number of busy sets 126
Number of sets 126
State 126
station modules, configuration 143
status
DHCP summary 641
DNS summary 704
IP firewall summary 832
IP routing summary 707
IPSec global 786
IPX routing 721
ISDN summary 691
LAN interface 666
modules 147
NAT summary 754
Net Link Manager 750
network resources 633
NTP client 763
PPPoE 698
PPTP tunnel summary 772
QoS monitor summary 745, 747
QoS summary 813
service mode on telephone (870) 867
user profile 113
V.90 summary parameters 687
WAN summary 164, 673
web cache 742
steering code, CDP dialing plans 303
stop NTP client 763
stuttered dial tone 299
subnet comment, remote scope 650
subnet mask 933
add WAN IP address 177, 682
IPSec IP pool 800
IPSec split tunnel 804
LAN address 667
LAN interface 665
LAN/WAN cards 635
OSPF 706
Quick Start Wizard 93
remote scope 650
UTWAN summary 164
WAN summary 673
subnet name, remote scope 650
subnet summary, RIP 711
Succession
MCDN Zone ID 542
Virtual Private Network ID 542
summary settings, PPPoE 698
summary, UTWAN parameters 164, 171, 173
summary, WAN parameters 673
Sun JRE
java class files 914
superframe 136
supervised line 939
supervised trunk mode 238, 256
supervisor
dial-in access 110
suppression bit 268, 272, 279, 479
SWCA
associate SWCA key to call 464
auto hold control 407
auto-hold 469
autohold 212
automatically parking calls 462
button codes (*520 to *535) 866
call indicators 466, 467
conference calls 469
finding parked calls 462
Include I/C calls when auto associating 464
Include I/C calls when invoking by Hold 465
invoke SWCA parking by hold 465
memory codes (*520 to *535) 863
NetVision functionality 466
NetVision handsets 430
overview 213
park prefix 310
parking a call 468
retrieving parked call 468
sharing calls 934
system controls 463
transferring calls 469
switch over delay, permanent WAN 751
switched digital
(SDS) protocols 138
call by call services 340
switched digital (SDS) 894
switches
call by call services support 340
setting trunk/line data 236
symbols, documentation 48
sync parameters, WAN 676
synchronization hierarchy, clock source 135
synchronize clock source 878
synchronous 934
PPP 923
System 85, 107
1000 Index
P0609326 1.1
system
access DNs 366
defaults, by region 853
delayed restart 102
dial tone 299
line redirection 408
sample network configurations 499
speed dialing 211
template, Quick Start Wizard 94
system access
remote 292
system clock 761
system configuration
process maps 66
system configuration menu 85
System DNs
active application DNs 361
active Companion DNs 361
active set DNs 361
copying settings 389
inactive DNs 361
ISDN/DECT DNs 362
UI headings 359
system DNs
active DNs reg’d 364
all DNs reg’d 364
all system DNs 362
CTE media DNs reg’d 364
DN registration 363
DNs avail for reg’n 364
inactive DNs reg’d 364
IP set DNs reg’d 364
IP wireless DNs reg’d 364
OAM DN reg’d 364
Voice port DNs reg’d 364
system domain 100
system ID parameters, changing 98
system identification 85
system identity
MSC card 918
system initialization
Quick Start Wizard 97
system metrics 86
System Name 98
system programming
user speed dials 432
system security parameters 105
system speed dial
alpha tagging 455
codes (01-70) 475
system speed dial code
description 934
system startup
DN length 284
system-wide call appearance, refer to SWCA 462, 466
System-wide Call Appearance, see also SWCA 934
system-wide dialing, direct-dial telephones 313
T
T reference point 877
T.38 fax
UDP protocol 938
T.38 IP fax protocol 906
T1
# of lines and loops 132
Answer timer 132
call by call service networking 515
clock source 134
coordinated dialing plan 501
CSU 899
DDI Mux module 900
DDI Mux, Universal T1 151
description 935
DID trunk, remote access 292
DID trunks, DISA DN 291
DID, prime line 395
Disconnect timer 132
E and M network diagram 508
E and M private networking 506
full autohold, E&M 257
ground start line settings 240
High line loop 132
interface parameters 136
Low line loop 132
provisioning lines 140
public networking 499
Quick Start Wizard 94
Signaling tone setting 237, 240, 243, 245, 255
trunk modules 938
trunk types 236
UTWAN 940
T1 Etiquette 846
T1 parameters
CO fail 136
CSU line build 137
DSX1 build 137
Framing 136
Interface levels 136
Internal CSU 137
internal CSU 137
Line coding 137
Index 1001
Business Communications Manager 3.6 Programming Operations Guide
T1CT2 Plus 846
T7000 935
T7100 935
button defaults 425
default buttons 383
external code 312
Line Redirection 408
T7208 935
button defaults 425
T7316 935
T7316, button defaults 424
T7316E 935
adding a KIM 434
CAP description 897
CAP station 434
configuring a CAP station 436
eKIM 905
handsfree 218
T7316E Business Series Terminal
button defaults 422
T7324
CAP station 434
configuring a CAP station 436
T7406
answer DN 403
button defaults 426
overview 222
tab
help access 88
tabbed pages 83, 87
tandem calling
remote access on private network 935
tandem calls
MCDN special labels 315
tandem network
private nodes 935
tandem networking
call routing 526
from public network 521
SL-1 lines 520
TAPI
IP interface 936
security 108
target line
description 936
external call, DND 215
Target lines
redirect to 258
target lines
Add Users Wizard 287, 377
Add Users wizard 381
appearance type 288
appearances 288, 398
auto assign 381
BRI auto-answer trunk mapping 248, 255
changing DN length, affecting received number 285
changing received length 287
changing the name 200
description 507
DID 901
DN # length note 381
E and M networking 509
if busy 247, 255
line settings 247
lines overvieew 203, 205
mapping BRI 884
Private number 289
programming 287
received # 248, 255
received number 289
received# 259
redirect to 248
setting trunk type 236
use auxiliary ringer 257
TCP connection attempt, COPS status 824
TCP connection failure, COPS status 824
TCP port
COPS client 826
COPS status 824
TCP/IP
description 936
TE (see ISDN terminal equipment) 877
telco features
programming lines 263
telephones 445
voice message center 478
Telephon, ATA Dvc setting 413
telephone
changing the name 200
control 484
distinctive ring patterns 205
extra dial 484, 485
log calls automatically 417
prime telephone 206
test display (805) 864
telephone dialing restrictions 442
telephone groups
hunt group 910
telephone number, WAN modem link parameters 688
telephone programming
1002 Index
P0609326 1.1
Add Users Wizard 375
adding to the Auto Attendant 371
alarm telephone 459
allow last number (redial) 442
allow link feature 442
allow redirect 407
allow saved number (redial) 442
allow/disallow direct-dial 406
answer DNs 402
Associate SWCA key to call 464
ATA answer timer 412
ATA Dvc 413
ATA, use (site) 412
Auto called ID 445
auto hold 407
auxiliary ringer 407
button features list 865
button programming 419
call forward on busy 410
call forward, delay timer 410
call forward, no answer 410
call log options 416
call log password 393
caller ID set 288
camp timeout timer 472
CAP assignment 434
Capabilities 405
change DNs 367
contrast 417
control sets 393
dialing options 416
dialing restrictions 442
direct dial 311
distinct ring in use 417
DN length 285
DND on busy 406
Edit DN Record Templates Wizard 369
external autodial button 420, 439
feature 420, 439
first display 445
handsfree 406
handsfree answerback 406
hotline 411
Include I/C calls when auto associating 464
Include I/C calls when invoking by Hold 465
increasing DN length 284
intercom keys 394
internal autodial 420, 439
intrusion controls 414
Invoke SWCA parking by Hold 465
keep DN alive 407
language 417
line access 393
line assignment 397
line pool access 402
line/set restrictions 444
link timer 473
message indicator 412
page timeout timer 472
page zone 406
paging 406
park timeout 472
phantom DNs 461, 923
pickup group 406
prime line 394
priority call, allow/disallow 406
Private OLI number 395
process map 354
Public OLI number 395
receive short tones 407
received # length 287
redirect ring 407
relocating 459
restriction scheduling 443
restrictions 441
ring type 417
services common settings 485
set lock 442
Set log space 445
system speed dial 475
system Telco Features 478
telco features 445
telephone restrictions 443
transfer callback timeout timer 472
user preferences 415
user programming access 442
user speed dial number (71-94) 432
user speed dialing 432
voice message center 478
voice message set 288
voice message waiting indication 288
telephone restrictions, scheduling 443
telephones
7000 935
7100 935
7208 935
button icons 49
caller ID for target and analog CLID lines 398
direct-dial 901
display buttons 902
finding device status 144
handsfree 908
model, Edit DN Record Template wizard 373
models, Add Users wizard 379
PRI line note 399
prime line 924
prime set 924
Index 1003
Business Communications Manager 3.6 Programming Operations Guide
SAPS 930
set relocation 931
T7316 935
T7316E 935
voice call 940
voice message set 399
telephony
DDI Mux, mixed data 900
Telephony Application Program Interface, see TAPI
936
telephony clock 761
telephony metrics 192
Telephony programming is currently not available 83,
125
telephony region, Quick Start Wizard 94
telephony services
DID system 191
heading descriptions 187
menu 186
PBX, system diagram 190
planning 188
process map 185
programming 183
square system 189
telephony systems
square 932
Telnet
activating 90
replacement 89
secure alternative, see SSL 932
security 90
see also SSL 936
text-based interface 936
template
preconfigured 376
remote 377
template, button assignments 422
templates
using remote templates 384
terminating node, DPNSS 1 547
termination point 899
three party service, DPNSS 1 549
ticks, IPX static routing 737
Tie lines
call by call services 339
DN type 323
Tie services 874
time
Business Communications Manager 99
current (803) 864
daylight savings time 891
display current time (803) 866
manually updating 764
schedules 485
static (806) 863
time savers
autodial 211
Speed Dial 211
time stamp, clock 761
time synchronization
NTP client 761
time to live
policy server 828
time updates
telephony clock 761
Time Zone 93
Time Zone, Business Communications Manager 99
time zones, by country 853
timeout
camp 896
camp timeout timers 472
interface 106
page timeout timer 472
park 922
park timeout timer 472
transfer callback timer 472
timeout clients
COPS status 825
timeout, interface 106
timers
call park callback 896
camp timeout 472, 896
forward no answer delay 214
held line reminder 909
Host delay 473
hunt delay 576
hunt group queue time-out 576
link 473
network callback 460
page timeout 472
Park timeout 922
park timeout 472
transfer callback timeout 472
T-loops
D-packet 273
toll-free, tandem networks 520
tone
IP trunks, remote access 299
long, at telephone (808) 866
1004 Index
P0609326 1.1
message indicator 412
ONN blocking 480
remote access tones 299
tone dialing, overview 223
tones
long tones 916
remind delay 927
Tools 84
top menu
options 85
TOS
Diffserv 937
tracking
MCID 219
tracking incoming calls, Call Log 218
trademarks 2
traffic conditioners, DiffServ 809
traffic smoothing, LAN setting 664
traffic, classifying 816
transfer
(also see Call Transfer) 213
activate (70) 864
call forward on busy, overview 214
call forward overview 214
call forward programming 409
call park overvieew 213
Callback 213
callback timeout 472
calls 213
Camp-on 213
cancel (#70) 864
delayed ring transfer (DRT) 904
initiate (3) 865
initiating at telephone (70) 866
priority call (69) 866
ring delay 458
SWCA calls 469
SWCA overview 213
to voice mailbox (986) 864
via hold, hunt groups 584
voice mail to mail box (986) 868
transit delay, OSPF parameters 713
Translation mode 139
Transmission Control Protocol/Internet Protocol, see
also TCP/IP 936
Transmit clock source, DDI Mux 157
transport mode, IPSec 766
triggered update interval, RIP global settings 707
triggered updates, RIP parameters 711
Triple DES 898
troubleshooting
ECAP restore issue 401
KIM, cold and warm starting 440
media bay modules, Programmed and actual bus type
125
Telephony programming is currently not available
83, 125
trunk
DTM 507
mode 238, 256
numbering 507
types 236, 507
trunk answer
activating (800) 208, 864
at telephone (800) 866
description 938
Directed Pickup 207
ring groups 490
ringing services 492
trunk antitromboning (TAT), MCDN 532
trunk antitromboning see TAT, MCDN 936
trunk module,analog 129
trunk modules
descriptions 938
line type 131
Number of busy sets 126
PRI version settings 143
resources 130
State 126
trunk ports programming 142
trunk route optimization (TRO), MCDN 531
trunk route optimization, see TRO and MCDN 937
trunk/line data
call by call services network 516
E and M networking 509
line pool network 514
lines 236
MCDN network 539
trunks
line restrictions 261
received # 259
remote restrictions 262
SL-1 932
tunnel mode, IPSec 766
tunnel name, PPTP tunnel 771
tunnel number, IPSec branch 787
tunneling
adding PPTP 770
configuring PPTP 771
Index 1005
Business Communications Manager 3.6 Programming Operations Guide
encryption methods 778
IPSec 777
IPSec branch office 786
IPSec DNS and WINS 803
IPSec remote restrictions 781
IPSec remote user 801
IPSec, all traffic 790
PPTP 766
PPTP and IPSec 765
remote IP pool 799
remote user tunnel rules 783
split 796
two way authentication
ISDN access parameters 692
PPPoE access parameters 699
PPTP authentication 773
V.90 modem access parameters 689
two-line display
T7316 935
T7316E 935
type
COPS status 824
direct dial 313
IPX static service 738
MS-PEC information 623
type of service, see TOS 937
U
UDP
dialing plan 304
dialing plan location code 304
HLC/LOC 909
LOC 916
private access code
CDP
private access code 924
private dialing plan 938
private DN lengths 304
private network ID 304
T.38 fax protocol 938
unanswered by me, autologging 416
unanswered calls
prime telephone 220
unassigning lines, Hunt groups 583
Unified Manager
access management 109
accessing system management wizards 92
allow or blocking user access 117
DN headings 187
dynamic menu 84
firewall filter restriction 837
help access 87
interface timeout 106
IP firewall input rules 841
logging off 88
main page 79
navigation tree 85
optional features access 81
overview 82
password policies 113, 122
screen display 83
security considerations 105
system timeout 106
tabbed pages 87
timeout setting 106
user lockout policies 120
Wizards buttons 80
universal dialing plan, see UDP 938
universal dialing plan, see UDP and dialing plan 304
Universal Power Supply, see UPS 939
Universal T1 Wide Area Network, see UTWAN 940
unknown cnum, COPS status 825
Unknown name 454
unknown opcode, COPS status 825
Unrestricted Digital Information (UDI) 694
unsupervised trunk mode 238, 256
unsupported client type, COPS status 825
unsupported version, COPS status 825
up poll interval, permanent WAN 750
update DSCP, action parameters 820
update interval
IPX RIP parameters 728
update interval, IPX SAP parameters 733
update mode
IPX RIP parameters 728
IPX SAP parameters 733
update or reboot required, MSC 625
UPS
system power 939
Use pool, routing 323
use remote package 235
use tone 595
user
domain user group 119
failed logon attempts before lockout 121
ISDN dial-up 110
lockout duration 121
management overview 109
minimum password length 122
1006 Index
P0609326 1.1
password complexity 122
password policy 122
reset failed logon attempts count after (min) 121
user access, set lock 442
user filter
COS password 297
restrictions 297
user group list 117
user groups 110
user ID (name password)
V.90 modem access parameters 689
user name
IPSec remote user 801
ISDN user parameters 693
modifying 112
PPP parameters 680
PPPoE dial-out user parameters 700
user profile 112
user number, IPSec remote user 801
User preferences
configuring CAP/KIM buttons 438
user preferences
Add Users wizard 379
button features list 865
Edit DN Record Template wizard 373
programming 415
user profile
add 111
adding domain 119
adding group profile 116
allowing or blocking access 117
callback 113
callback number 113
delete 114
domain user group 111
interface timeout 106
lockout policy 111
password policy 111
status 113
User Profile warning 93
user speed dial
description 940
user speed dials, programming 432
Usergroupname 117
UserName-Password, PPP parameters 680
users
internal 912
lockout policy 120
modem callback 894
setting up callback 115
user groups 117
using your system remotely 299
UTAM Activateion Codes
regression code 927
UTWAN
frame relay parameters 166
overview 159
PPP User parameters 170
split data/telephony 940
summary parameters 164, 171, 173
viewing resources 178
V
V.35 interface, DDI Mux module 151
V.90
modem 940
setting up callback 115
V.90 modem
features 686
link parameters 688
Net Link Manager 749
summary parameters 687
vacant filter 593
version
DHCP summary 641
DNS summary 704
IP firewall summary 832
IP routing summary 707
IPSec global 786
IPX routing 721
ISDN summary 691
LAN interface 665
NAT summary 754
Net Link Manager 750
network resources 633
PPPoE 698
PPTP summary 768
QoS monitor summary 745
QoS summary 813
V.90 summary parameters 687
WAN summary 164, 673
web cache 742
Vertical Service Code (VSC) 479
video class, QoS summary 813
video phone
TAPI 936
videophone, Hunt group 574
View 84
view call log (812) 867
Index 1007
Business Communications Manager 3.6 Programming Operations Guide
view, menu 85
viewing
active services (870) 864
Viking, T7406 telephone defaults 426
Virtual Private Network ID 542
virtual private networks, see VPN 765
VLAN, port number 641
voice bus paths
MSC resources 609
voice call
activate (66) 864
deny 217, 940
deny (88) 864
deny at telephone (88) 867
deny, cancel (#88) 864
handsfree 940
hunt groups 584
initiating call (66) 865
overview 217
voice channels
DS30 split 95, 629
setting double density 630
voice mail
Active DNs 446
active DNs 361
add subscriber mailbox 371
auto attendant 897
Call Forward 214
call forward to (984) 867
centralized voice mail 898
display DN (985) 862, 868
DN length change 284
DSP resources 613
feature defaults, by region 860
interrupt (987) 864, 868
intrustion controls 216
login (981) 864, 867
MSC custom 627
operator settings (982) 864
resource calculator 615
set up operator (981) 867
transfer to mailbox (986) 868
voice bus path 613
voice ports 615
VoIP trunk MWI interoperability 541
voice message
external center programming 478
programming telephones 288, 399
waiting indication 288
voice message center
external # 478
message wait cancellation string 478
message wait indicate string 478
programming 263
system 940
voice messaging
Add Users wizard 377
fax 906
voice path
bus count 620
MSC resources 613
Voice port DNs reg’d 364
voice ports
maximum 615
maximum, enabled and assigned 615
VoiceUserGroup 110
VoIP
auto privacy 238, 241, 243, 246, 251, 256
connection type 665
External # 323
fallback destination codes 318
fallback routing 337
full autohold 239, 251, 253, 257
gateway protocol 540
gateway type 540
line pool access codes 318
networking 540
networking with Meridian ITG 534
private networking 506
QoS monitor settings 743
remote gateway 540
setting trunk type 236
use auxiliary ringer 257
VoIP gateway, ISDN restriction 691
VoIP trunking
gateway protocol 932
IP trunks 941
VoIP trunks
MCDN private outgoing calls 305
Meridian IPT 917
overview 203
remote access issues 294
volume
handset volume 458
volume of calls, call log 417
VPN
add split tunnel 804
supported protocols 765
VSC 479
defining codes 480
1008 Index
P0609326 1.1
W
wait for dial tone
host signal feature 941
overview 223
Wait for dial tone (804) 323, 864, 866
WAN
bus 8 125
Business Communications Manager support 669
configuring interfaces 673
connection 669
data compression 160, 670
data link control interface numbers 159, 670
dial-up as primary 752
dial-up backup 690
DSP resources 613
frame relay parameters 676
frame relay protocol 907
global parameters 671
IP address 635
IP network 941
IP routing 709
ISDN access parameters 692
ISDN channel characteristics 693
ISDN dial-out user parameters 693
ISDN dial-up interface backup 690
ISDN link parameters 692
MSC custom 627
multiple IP addresses 176, 681
Net Link Manager 749
OSPF NBMA neighbors 714
overview 669
passwords 174, 671
PPP link protocol 671
PPP parameters 679
PPPoE access parameters 699
PPPoE channel characteristics 700
PPPoE dial-out user parameters 700
primary connection 750
PVC Configuration 167
PVC congestion control 678
Quick Start Wizard 93
resource calculator 614
resource settings, line parameters 675
restarting router 717
subnet mask 635
summary parameters 673
Sync parameters 676
V.90 dial-up 687
V.90 link parameters 688
viewing resources 670
voice bus path 613
Web cache 741
WAN connections, permanent
frame relay 159, 669
PPP 159, 670
WAN resource settings
backup links
access parameters 689
overview 686
primary links
frame relay parameters 676
overview 669
performance graphs and tables 684
PPP parameters 679
sync parameters 676
WAN summary 164, 673
Warning symbol 48
warnings also
IPX routing 721
RIP global settings 707
warnings also, relay agent log 658
web cache
IP network 941
overview 741
proxy, guidelines 741
web proxy 741
HTTP proxy 941
weighted fair queuing (WFQ) 811
weighted fair queuing, see WFQ 941
WFQ
priority controller 941
what you need to know
Add Users wizard 376
Edit DN Record Template wizard 371
quick start wizard 93
wide area network, see WAN 669
wild card
dialing rules 942
wild card character
Destination codes ANY character 330
dialing restrictions 348
wild card state 331
wild cards
defining 331
window
information frame 83
Windows NT login sessions warning 93
WinkStart 243, 246, 258
Wins address
Quick Start Wizard 93
Index 1009
Business Communications Manager 3.6 Programming Operations Guide
WINS node type, DHCP global options 640
WINS server
address 635
LAN DHCP scope 643
remote scope 651
WINS, IPSec settings 803
wireless
base station 892
wireless telephones
NetVision SWCA configuration 430
wizard
saving pages 385
Wizard Instance Timeout Message 93
wizards
accessing 92
Add Users Wizard 375
description 942
disabling Quick Start Wizard 92
Edit DN Records Template Wizard 369
locating 80
navigating 80
network wizard 634
Quick Start Wizard, using 96
renumbering DNs 367
warnings 93
wrong objects, COPS status 825
wrong opcode, COPS status 825
Z
zone ID
MCDN 542
zones
paging 216
1010 Index
