Aviat Networks IRU600V3 Eclipse IRU600V3 User Manual Eclipse

Aviat Networks (S) Pte. Ltd Eclipse IRU600V3 Eclipse

User Manual

ECLIPSE
Rev.003
INSTALLATION MANUAL
260-668066-001
TM
5.8 GHZ UNLICENSED BAND
Eclipse IRU 600
Installation Manual
5.8 GHz Unlicensed Band
Manual Rev. 003
October 2012
ECLIPSE INSTALLATION MANUAL
260-668066-001 OCTOBER 2012 II
Copyright & Terms of Use
October 2012
This manual is specific to Eclipse with IRU 600 for all-indoor operation on the FCC
and Industry Canada 5.8 GHz unlicensed band.
Copyright © 2012 by Aviat Networks, Inc.
All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a
retrieval system, or translated into any language or computer language, in any form
or by any means, electronic, magnetic, optical, chemical, manual or otherwise, with-
out the prior written permission of Aviat Networks Inc.
To request permission, contact techpubs@aviatnet.com.
Warranty
Aviat Networks makes no representation or warranties with respect to the contents
hereof and specifically disclaims any implied warranties or merchantability or fitness
for any particular purpose.
Further, Aviat Networks reserves the right to revise this publication and to make
changes from time to time in the content hereof without obligation of Aviat Networks
to notify any person of such revision or changes.
Safety Recommendations
The following safety recommendations must be considered to avoid injuries to persons
and/or damage to the equipment:
1. Installation and Service Personnel: Installation and service must be carried out by
authorized personnel who have the technical training and experience necessary to be
aware of any hazardous operations during installation and service, and of measures to
avoid any danger to themselves, to any other personnel, and to the equipment.
2. Access to the Equipment: Access to the equipment in use must be restricted to serv-
ice personnel only.
3. Safety Norms: Recommended safety norms are detailed in the Health and Safety
sections of this manual.
lLocal safety regulations must be used if mandatory. Safety instructions in this
document should be used in addition to the local safety regulations.
lIn the case of conflict between safety instructions stated in this manual and
those indicated in local regulations, mandatory local norms will prevail.
lShould local regulations not be mandatory, then the safety norms in Volume 1
will prevail.
ECLIPSE INSTALLATION MANUAL
III AVIAT NETWORKS
4. Service Personnel Skill: Service personnel must have received adequate technical
training on telecommunications and in particular on the equipment this manual
refers to.
Trademarks
All trademarks are the property of their respective owners.
Open Source Software
The software included in this product contains copyrighted software that is licensed
under the GPL. A copy of that license and the complete corresponding source code is
included on the CD that is shipped with the product. You may also obtain the com-
plete corresponding source code from us for a period of three years after our last ship-
ment of this product, by contacting us at softwarecompliance@aviatnet.com.
CAUTION:Making adjustments and/or modifications to this equipment
that are not in accordance with the provisions of this instruction man-
ual or other supplementary documentation may result in personal
injury or damage to the equipment, and may void the equipment war-
ranty.
ECLIPSE INSTALLATION MANUAL
260-668066-001 OCTOBER 2012 IV
Aviat Networks Support
Service and Technical Support:
For customer service and technical support, contact one of the regional Technical Help
Desks listed below.
Americas Technical Help
Desk
EMEA Technical Help Desk Asia Pacific Technical Help
Desk
Aviat Networks
5200 Great America Parkway
Santa Clara CA 95054
U.S.A.
Aviat Networks
4 Bell Drive
Hamilton International
Technology Park
Blantyre, Glasgow, Scotland
G72 0FB
United Kingdom
Aviat Networks
Bldg 10, Units A&B
Philexcel Industrial Park
M. Roxas Hi-way
Clark Freeport Zone
Philippines 2023
Toll Free (Canada/USA): 800
227 8332
Phone: 210 561 7400
Fax: 210 561 7399
Phone:
Hamilton: +44 (0) 1698 717 230
Paris: +33 (0) 1 77 31 00 33
Fax: +44 (0) 1698 717 204
Phone: +63 45 599 5192
Fax: +63 45 599 5196
TAC.AM@aviatnet.com TAC.EMEA@aviatnet.com TAC.APAC@aviatnet.com
Or you can contact your local Aviat Networks office. Contact information is available
on our website at: http://www.aviatnetworks.com/services/customer-sup-
port/technical-assistance/
Sales and Sales Support:
For sales information, contact one of the Aviat Networks headquarters, or find your
regional sales office at: http://www.aviatnetworks.com/contact-us/sales/
Corporate Headquarters
California, USA
International Headquarters
Singapore
Aviat Networks, Inc.
5200 Great America Parkway Santa
Clara CA 95054
U.S.A.
Phone: 408 567 7000
Fax: 408 567
Aviat Networks (S) Pte. Ltd.
17, Changi Business Park Central 1
Honeywell Building, #04-01
Singapore 486073
Phone: +65 6496 0900
Fax: + 65 6496 0999
Sales Inquiries:
+1-321-674-4252
ECLIPSE INSTALLATION MANUAL
V AVIAT NETWORKS
Eclipse Product Compliance Notes
Eclipse has been tested for and meets EMC Directive 2004/108/EC. The equipment
was tested using screened cable; if any other type of cable is used, it may violate
compliance.
Eclipse is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures. This
equipment is intended to be used exclusively in telecommunications centers.
FCC Notices
1. IRU600, 5.8GHz, must be professionally installed and maintained.
2. This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential environment is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
3. IRU600, 5.8GHz, is compliant with FCC CFR47, Part 15.247.
4. To ensure compliance with the FCC RF exposure requirements, a minimum
distance of 18 meters must be maintained between the antenna and any
persons whilst the unit is operational. This calculation is based on the
maximum conducted power and maximum antenna gain.
5. IRU600, 5.8GHz, has been certified for use with a parabolic antenna with a
maximum gain of 45.9dBi or a flat panel antenna with a maximum gain of
28dBi.
6. The filters and software provided with this product allow for transmission
only in the frequency range 5725 – 5850MHz to ensure compliance with Part
15.247.
7. According to the conducted power limit in FCC CFR 47, Part 15.247, the
power for this device has been limited to 1W (30dBm) at the antenna port.
8. FCC CFR47, Part 15.247 excludes the use of point-to-multipoint systems,
omnidirectional applications and multiple co-located intentional radiators.
This system is only for fixed, point-to-point operation.
Industry Canada Notices
1. IRU600, 5.8GHz, must be professionally installed and maintained.
2. IRU600, 5.8GHz, is compliant with Industry Canada RSS-210.
ECLIPSE INSTALLATION MANUAL
260-668066-001 OCTOBER 2012 VI
3. To ensure compliance with the Industry Canada RF exposure requirements in
RSS-102, a minimum distance of 18 meters must be maintained between the
antenna and any persons whilst the unit is operational. This calculation is
based on the maximum conducted power and maximum antenna gain.
4. IRU600, 5.8GHz, has been certified for use with a parabolic antenna with a
maximum gain of 45.9dBi or a flat panel antenna with a maximum gain of
28dBi.
5. The filters and software provided with this product allow for transmission
only in the frequency range 5725 – 5850MHz to ensure compliance with the
Canadian band edges.
6. According to the conducted power limit in RSS-210 Annex 8, the power for
this device has been limited to 1W (30dBm) at the antenna port.
Avis d’Industrie Canada
1. L’IRU600, 5.8 GHz, doit être mis en oeuvre et maintenu par des
professionnels.
2. L’IRU600, 5.8 GHz, est conforme à la spécification RSS-210 d’Industrie
Canada.
3. Pour assurer la conformité aux exigences d’exposition de la spécification RSS-
102 d’Industrie Canada, une distance minimum de 18 mètres entre l’antenne
et toute personne doit être assurée quand l’équipement est en fonctionnement.
Ce calcul est basé sur la puissance émise maximum et le gain maximum de
l’antenne.
4. L’IRU600, 5.8 GHz, a été homologué avec utilisation d’une antenne
parabolique de gain maximum 45.9dBi ou d’une antenne plane de gain
maximum 28dBi.
5. Les filtres et le logiciel fournis avec ce produit permettent la transmission
dans la bande de fréquences 5 725 – 5 850 MHz seulement, pour assurer la
conformité avec les limites de bande canadiennes.
6. En conformité avec la limite de puissance émise de la spécification RSS-210
Annexe 8, la puissance de cet équipement a été limitée à 1 W (30 dBm) à
l’accès de l’antenne.
International Use of 5.8 GHz
Eclipse IRU 600, 5.8 GHz, does not employ DFS, and as such the equipment cannot
be deployed within Europe or any country where DFS is a regulatory requirement for
protection of radars.
NEBS Compliance
The Eclipse terminal comprising the INU and associated IRU 600(s) complies with
the relevant NEBS requirements under GR-1089-CORE and GR-63-CORE.

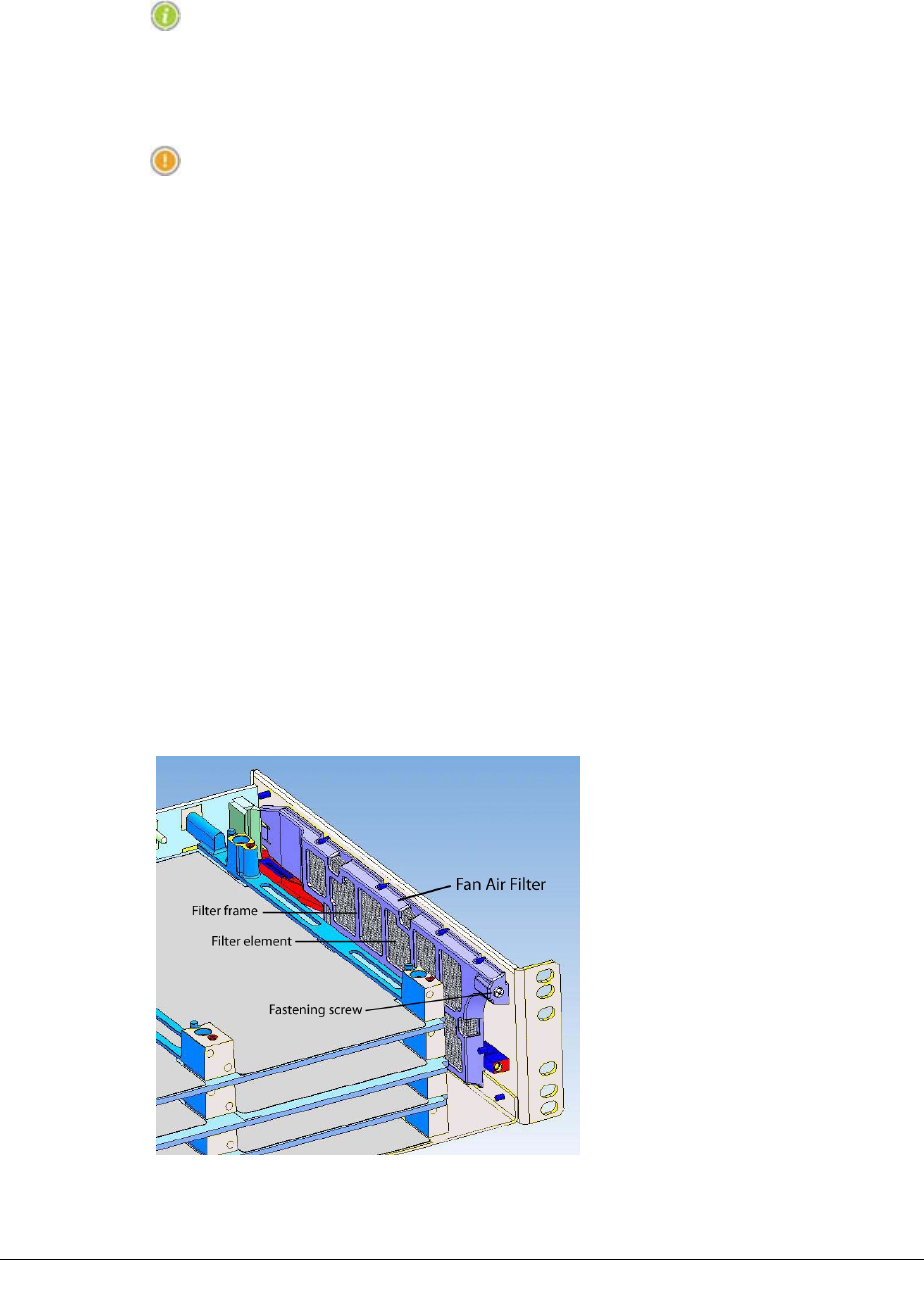

Such compliance requires installation of the Fan Air Filter option in the INUs, and
adherence to the health and safety and equipment installation practices described
herein.
ECLIPSE INSTALLATION MANUAL
VII AVIAT NETWORKS
WEEE Directive
In accordance with the WEEE Directive (2002/96/EC), Eclipse is marked with the fol-
lowing symbol:
This symbol indicates that this equipment should be collected separately for the pur-
poses of recovery and/or recycling.
For information about collection and recycling of Aviat Networks equipment please
contact your local Aviat Networks sales office. If you purchased your product via a dis-
tributor please contact the distributor for information regarding collection and recov-
ery/recycling.
More information on the WEEE Directive is available at our website:
http://www.aviatnetworks.com/products/compliance/weee/.
(WEEE is the acronym for Waste Electrical and Electronic Equipment)
RoHS Directive
The RoHS (Restriction of Hazardous Substances) Directive (2002/95/EC) was imple-
mented on 1 July, 2006. Eclipse meets the requirements of this directive, as at the
implementation date.
Date of Manufacture
Eclipse date of manufacture information is controlled by serial number. Please contact
the Aviat Networks helpdesk for information regarding serial number format and date
of manufacture.
ECLIPSE INSTALLATION MANUAL
260-668066-001 OCTOBER 2012 VIII
Contents
Copyright & Terms of Use ii
Aviat Networks Support iv
Eclipse Product Compliance Notes v
NEBS Compliance vi
WEEE Directive vii
RoHS Directive vii
Date of Manufacture vii
Contents viii
VOLUME I: INTRODUCTION AND SAFETY 1
About the Documentation 3
Documentation Conventions and Terminology 3
Chapter 1. Health and Safety 5
General Health and Safety 6
Operator Health and Safety 7
General Hazards 8
RF Exposure 11
Routine Inspection and Maintenance 12
Routine Inspections 12
Trend Analysis 12
Fault Analysis 13
Training 13
Spares 13
VOLUME II: SYSTEM OVERVIEW 15
Chapter 1. System Overview 17
Eclipse Node 19
INU 19
INUe 19

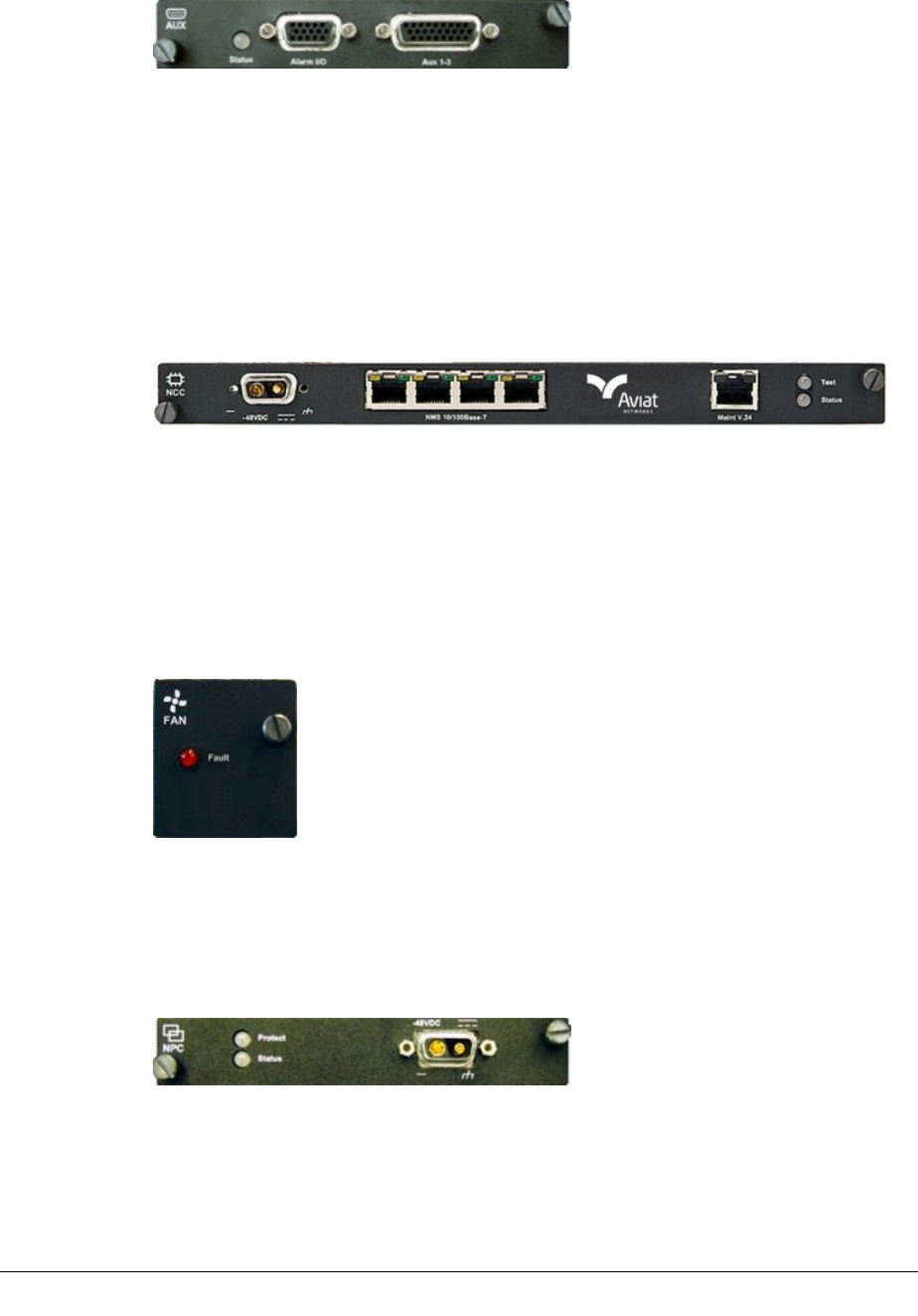

Plug-in Cards 20
Plug-in Cards Overview 21
Data Packet Plane 27
Adaptive Coding and Modulation (ACM) 27
Adaptive Modulation (AM) 27
Coding 28
Platforms 29
Platform Layout 29

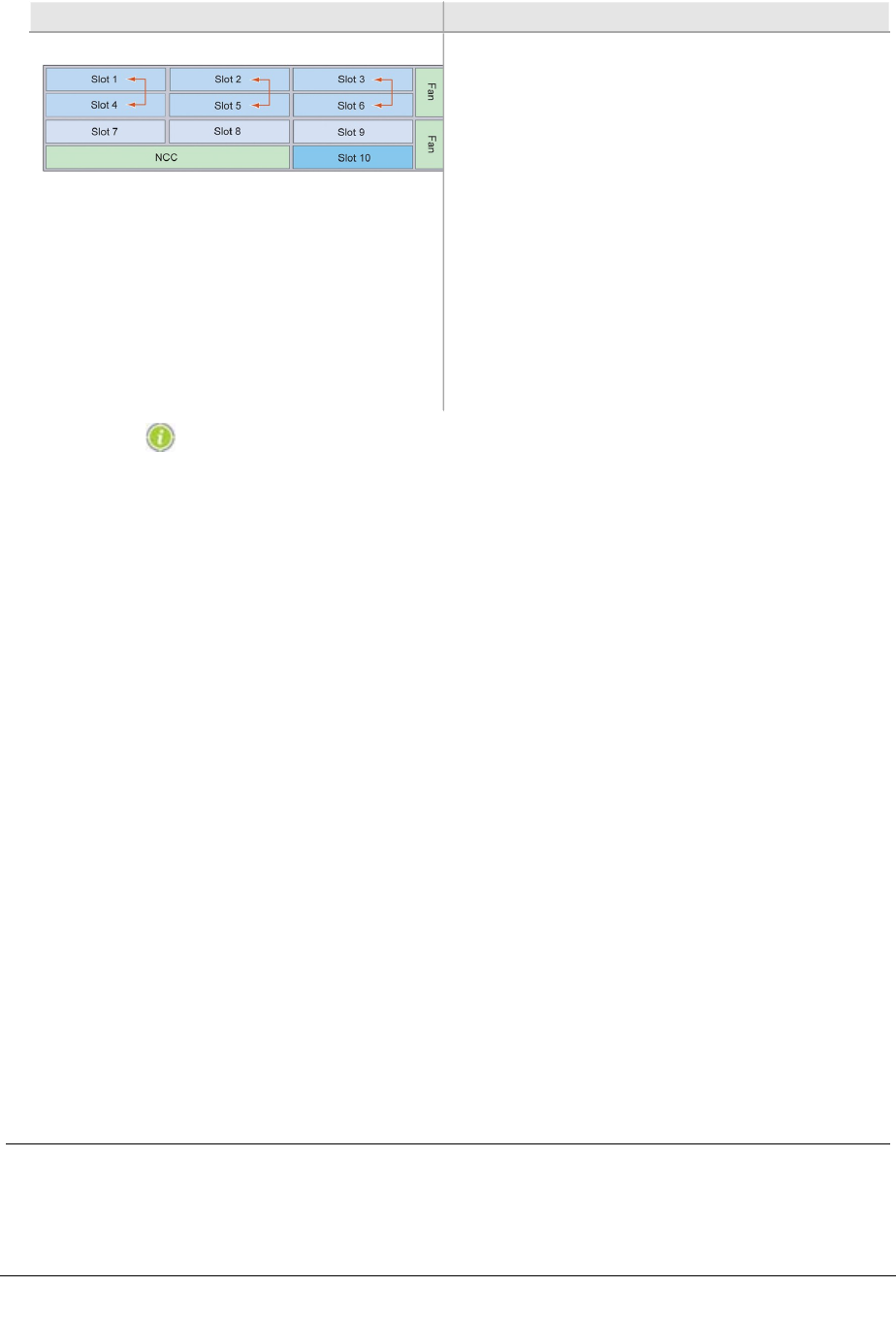

Slot Assignments 29
ECLIPSE INSTALLATION MANUAL
IX AVIAT NETWORKS
Eclipse IRU 600 31
IRU 600 Variants 31
5.8 GHz Unlicensed Band 33
Protection Options 35
Link/Path Protection 35
Interface Protection 35
Network/Data Protection 36
Platform Protection 36
Licensing 38
Capacity Licensing 38
Node Feature Licensing 38
Node Feature Overview 38
Configuration and Management 41
Antennas 42
Power Supply 43
VOLUME III: INSTALLATION 45
Chapter 1. Introduction to Eclipse Installation 47
Installation Overview 47
Installation Tools and Materials 48
Unpacking 48
Chapter 2. IRU 600 Installation 49
IRU 600 Installation Procedure 50
Grounding 52
Safety Requirements for Equipment Grounding 53
Waveguide Grounding 53
NEBS Compliance 53

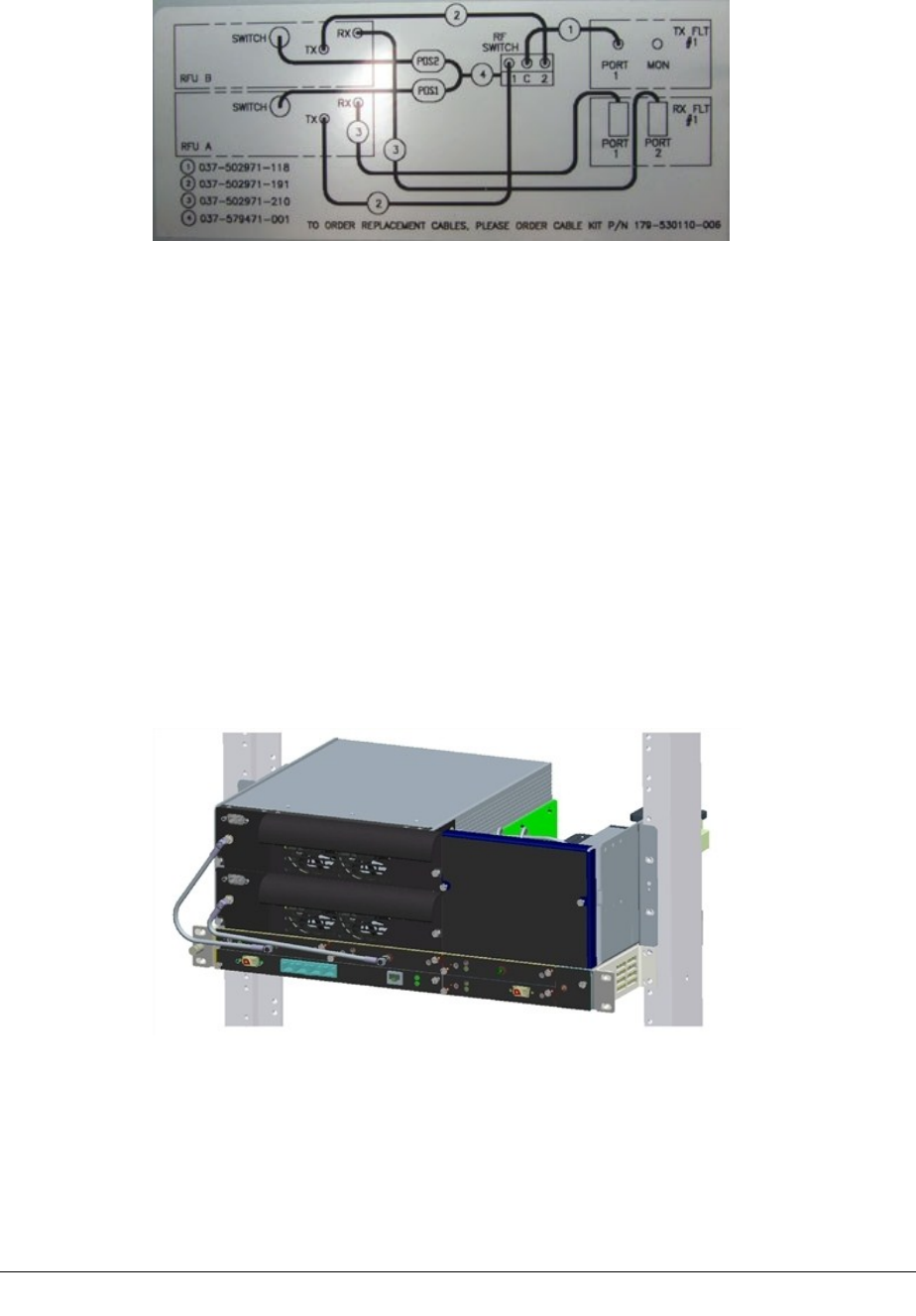

Waveguide Connection 54
Power Supply 54
Insertion Loss Labels 55
Expansion Port Use 56
FAN Module 56
Next Step 57
57
Chapter 3. INU and INUe Installation 59

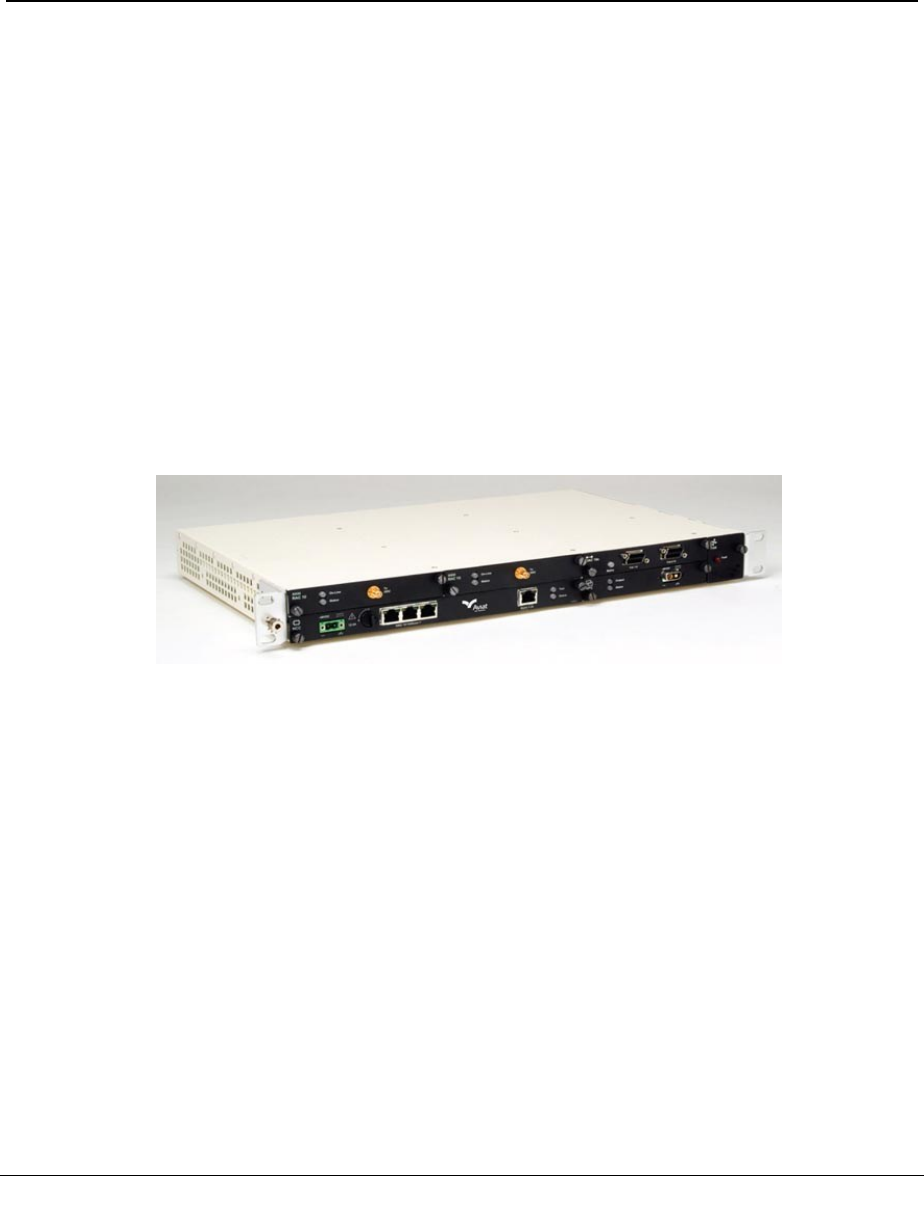

INU/INUe Overview 60
Front Panel Layout 60
Power Supply 61
Power Consumption and INU Load Maximums 61

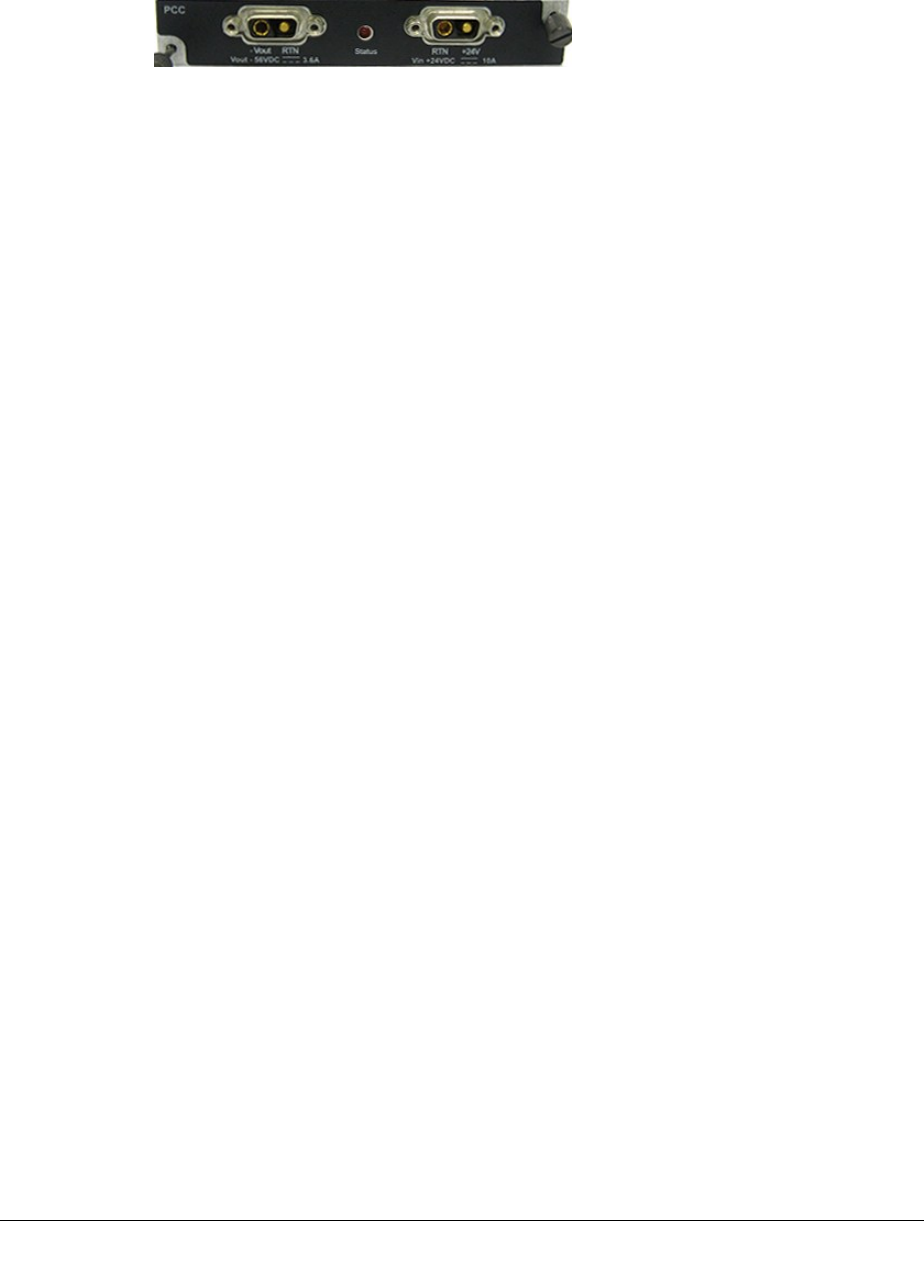

PCC +24 Vdc Operation 65

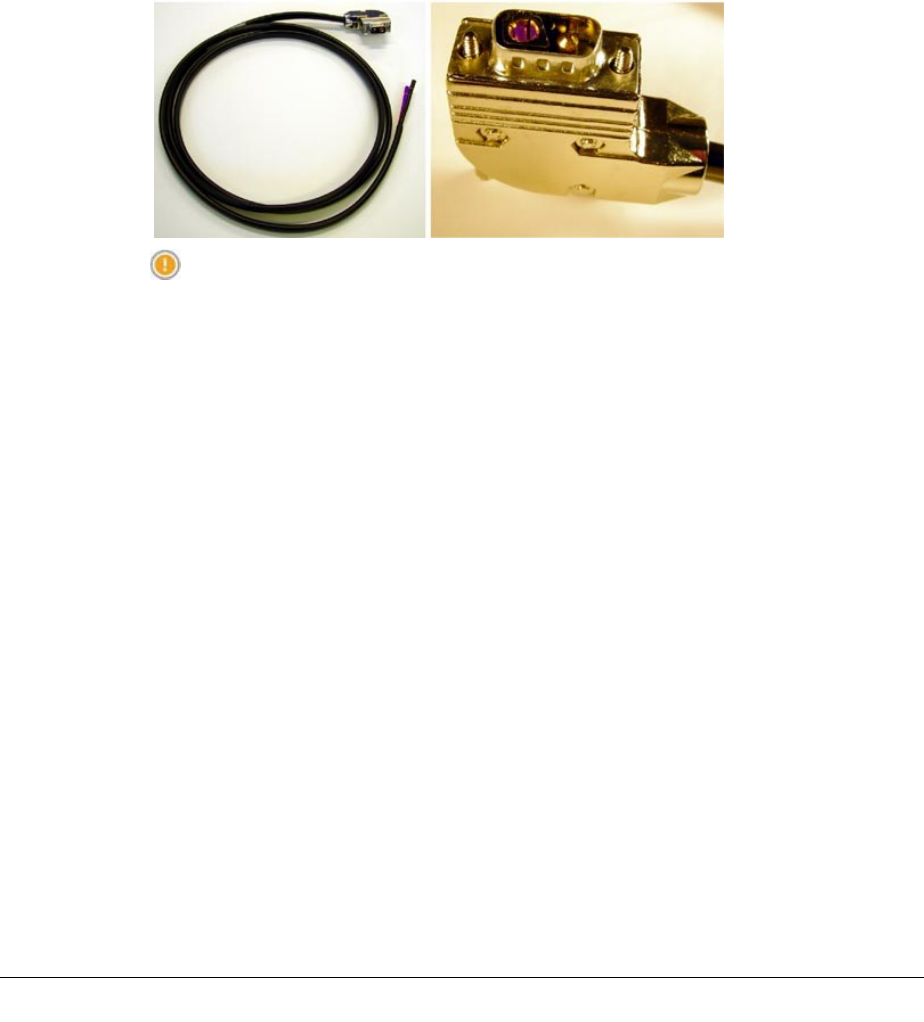

Power Cables 66
Fuses 66
FAN Air Filter Option 66
Fan Air Filter Installation 67
Power Line Filter Option 68
ECLIPSE INSTALLATION MANUAL
260-668066-001 OCTOBER 2012 X
Installation Requirements 69
Installation Procedure 71
Plug-in Installation 74
INU/INUe Cable Assemblies 77

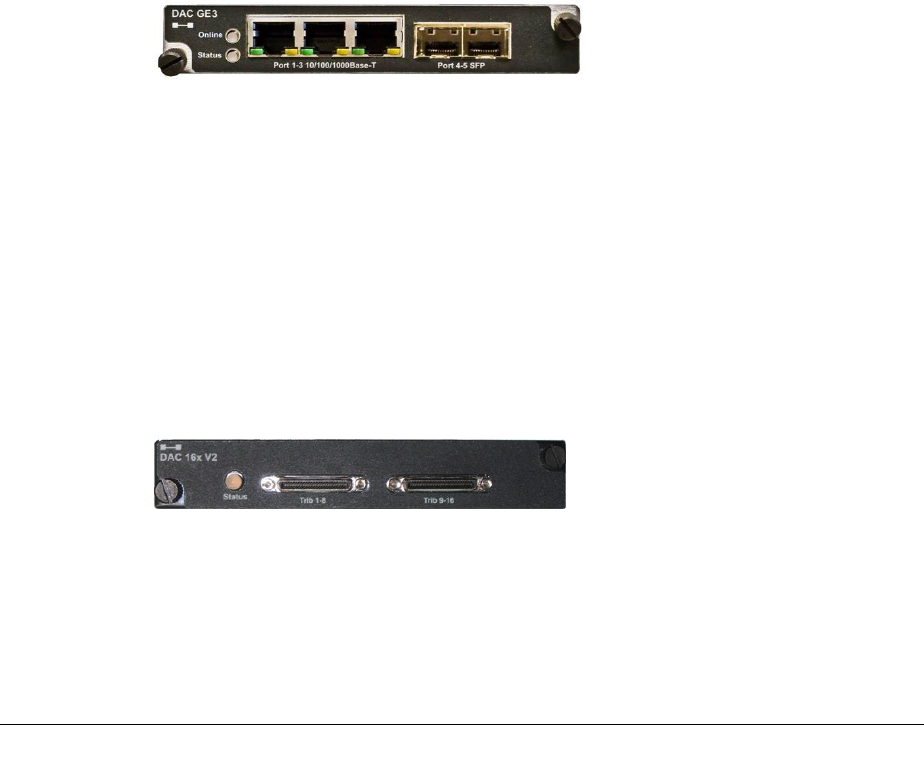

DAC Trib Connectors and Cables 77

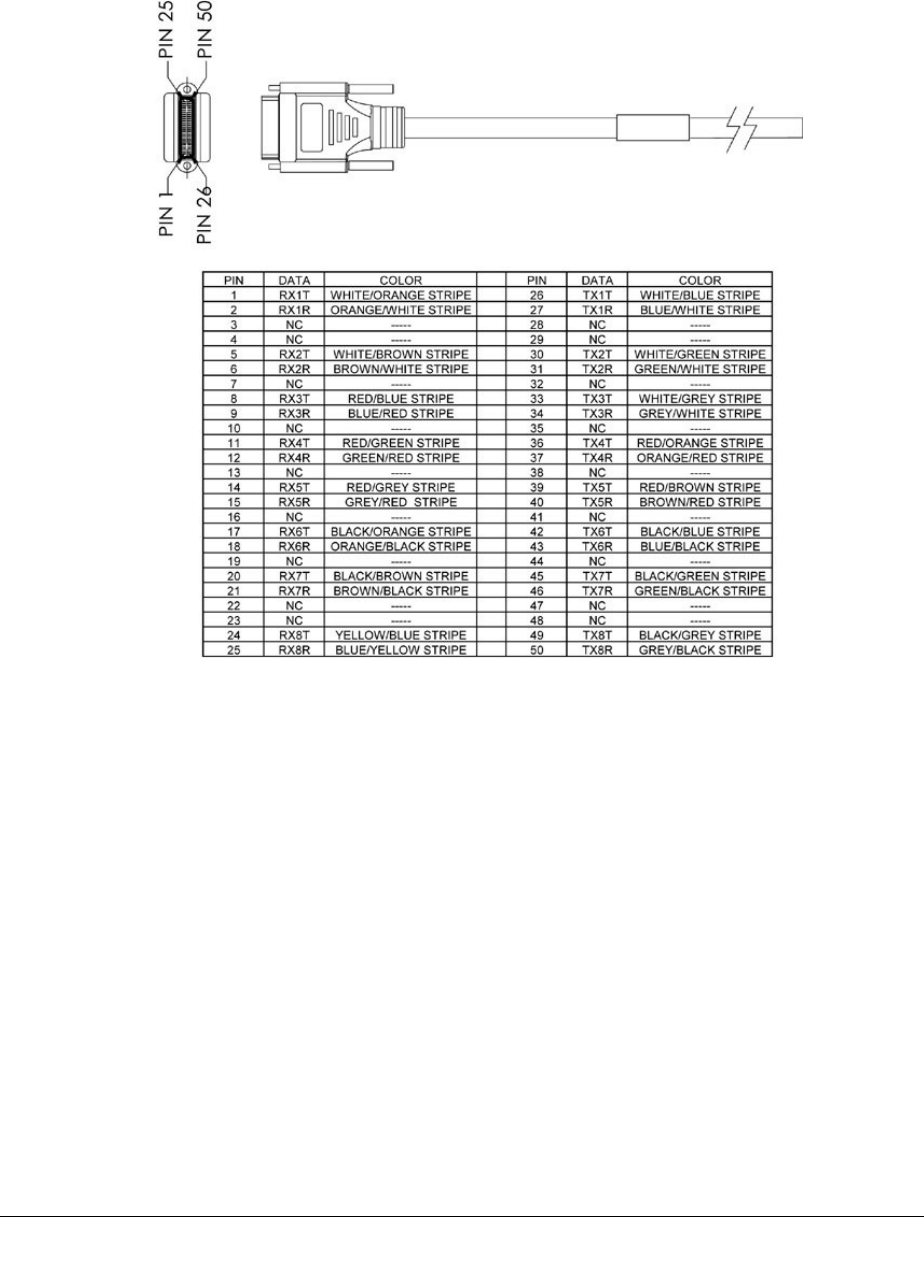

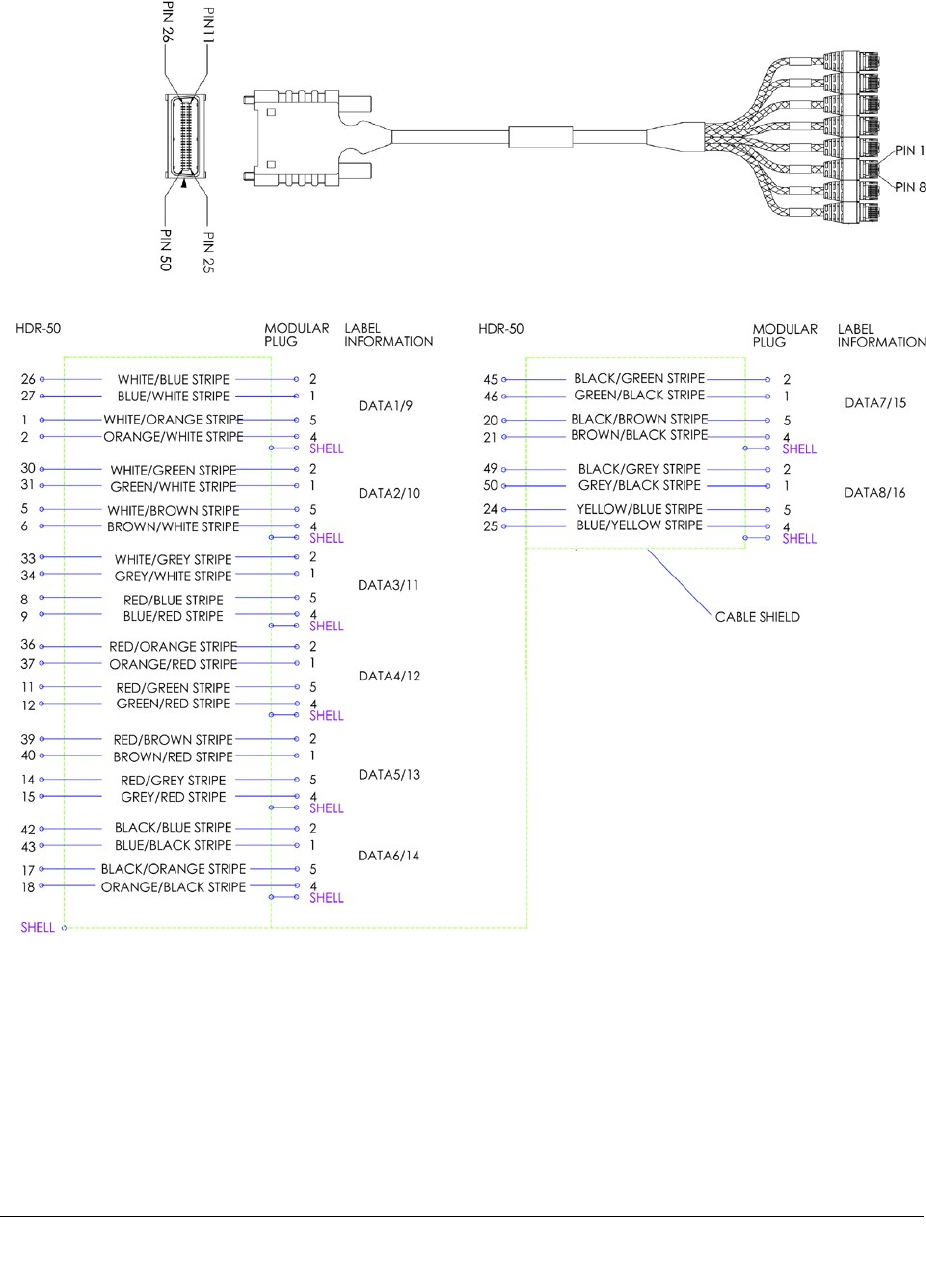

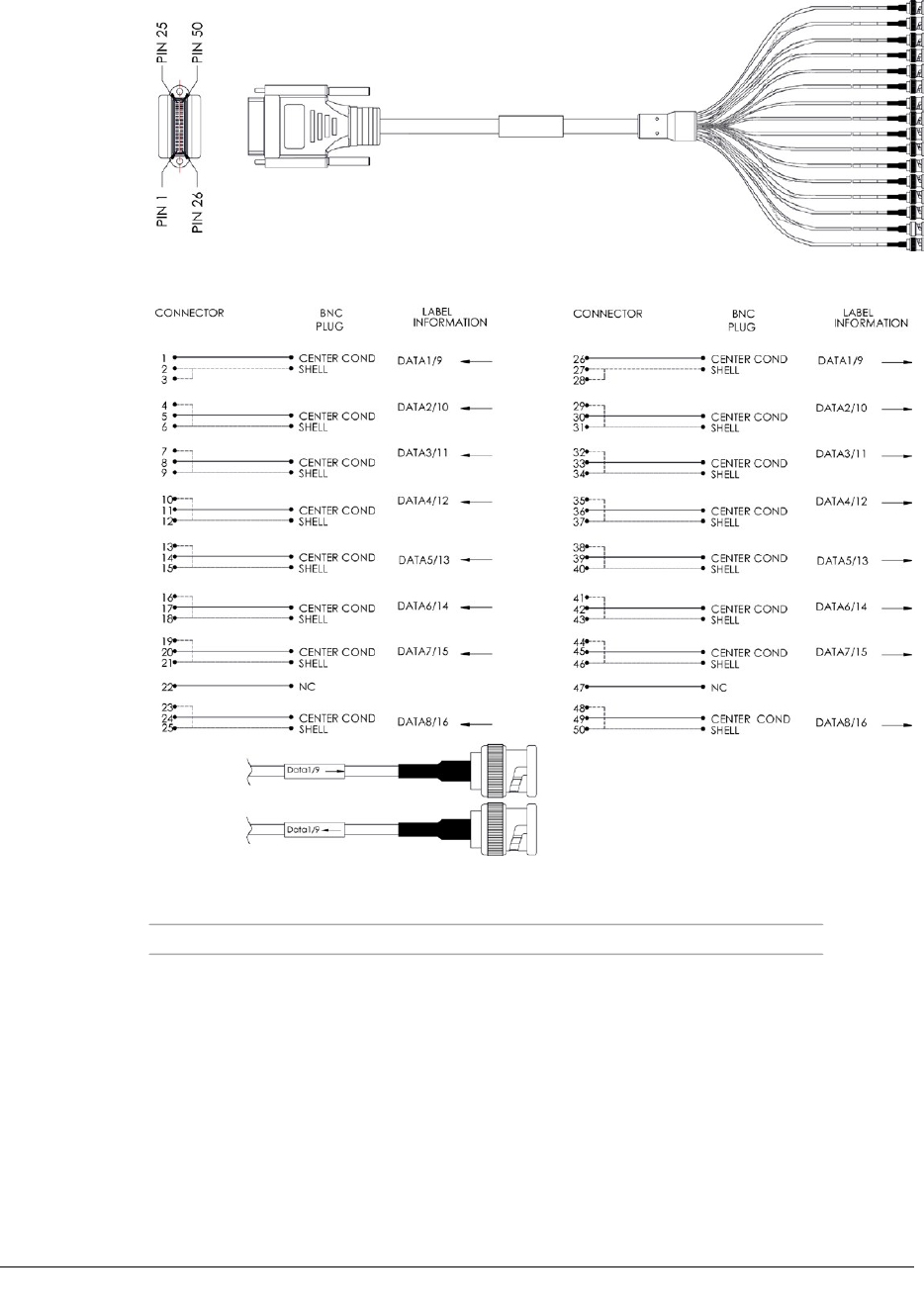

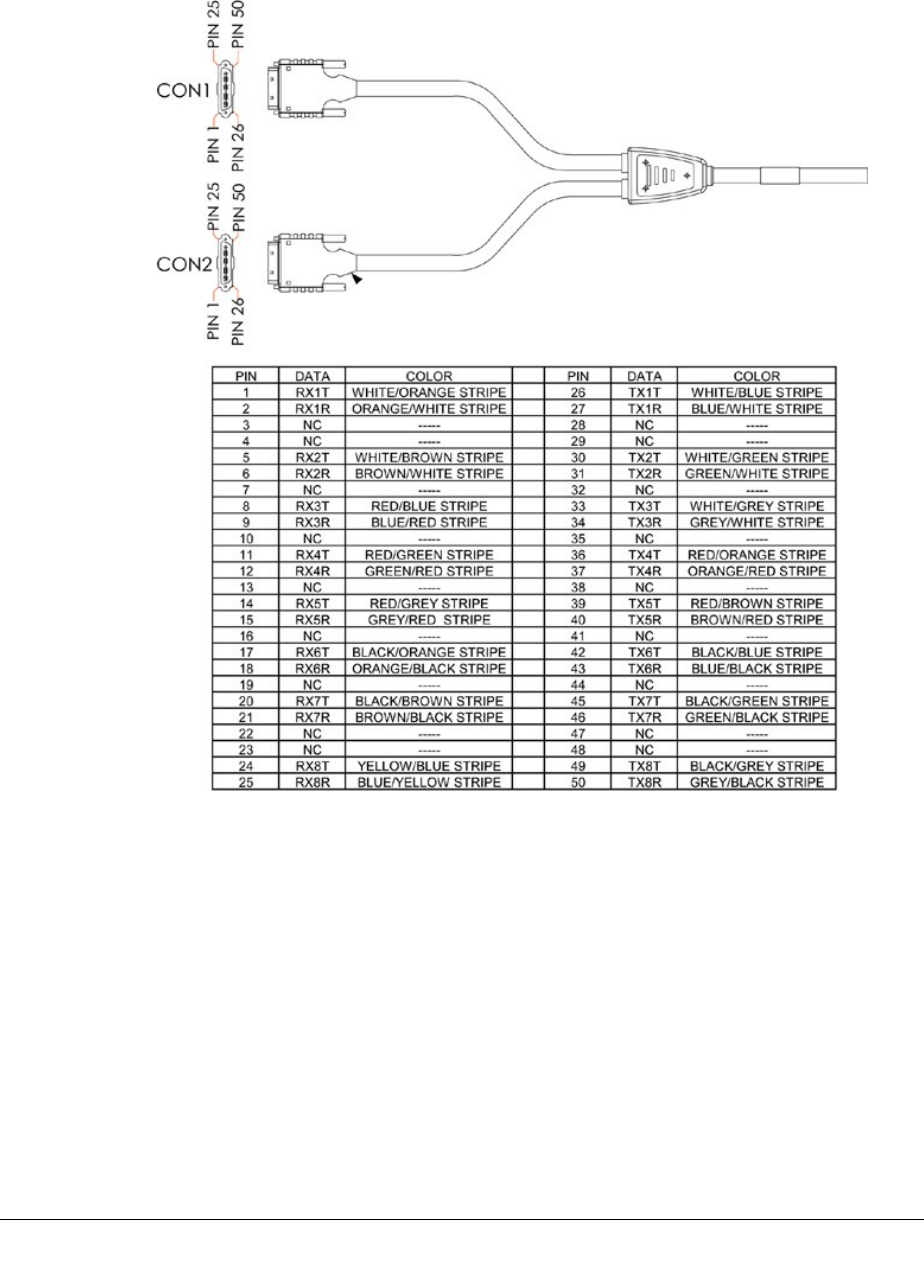

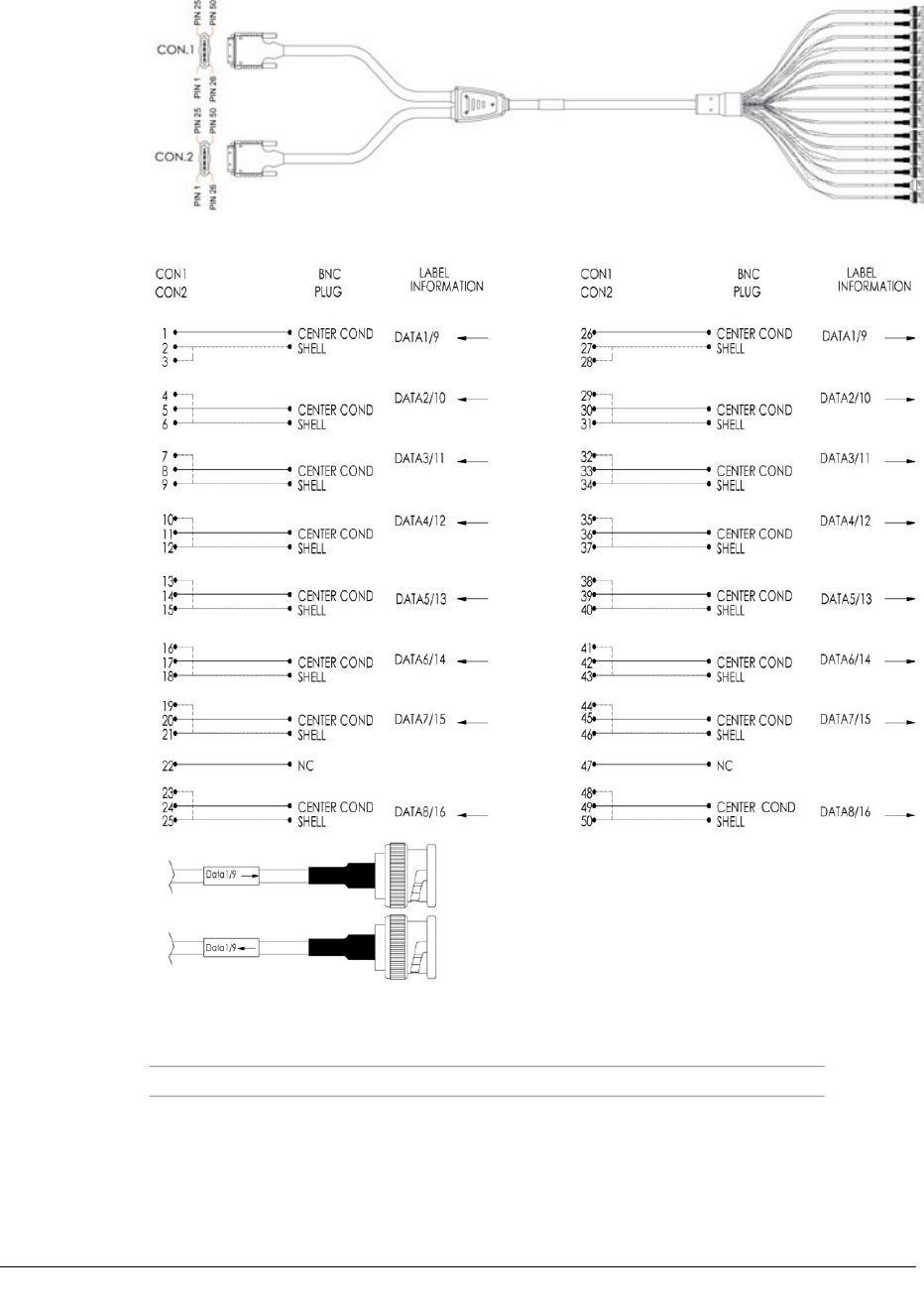

DAC 16xV2 Cable and Connector Data 77
DAC 4x Cable and Connector Data 83
DAC GE3 Ethernet RJ-45 Cables 85

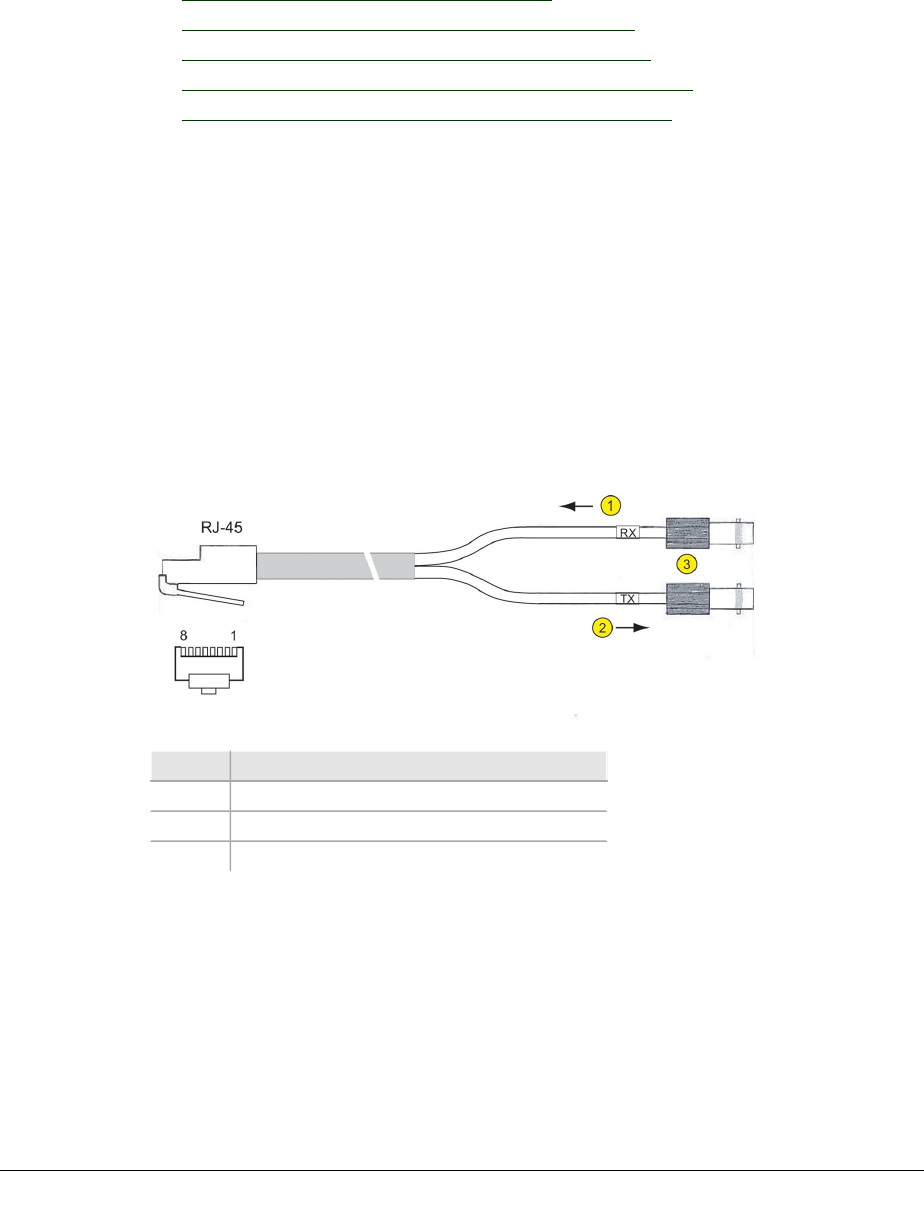

DAC Optical Cable and Connector Data 86
DAC 155eM Cables 88
NMS Connectors and Cables 88

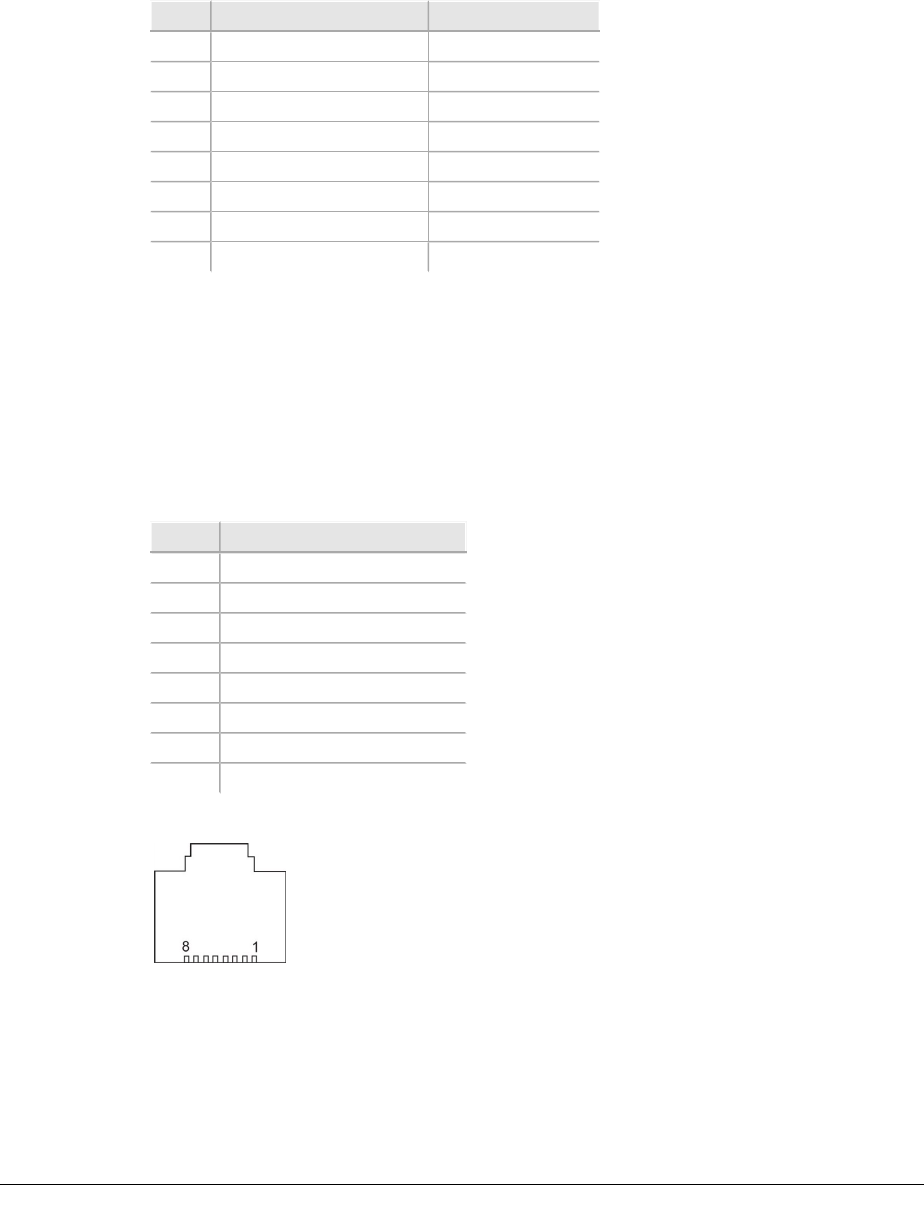

NMS 10/100Base-T Connector 88
Maintenance V.24 Connector 89

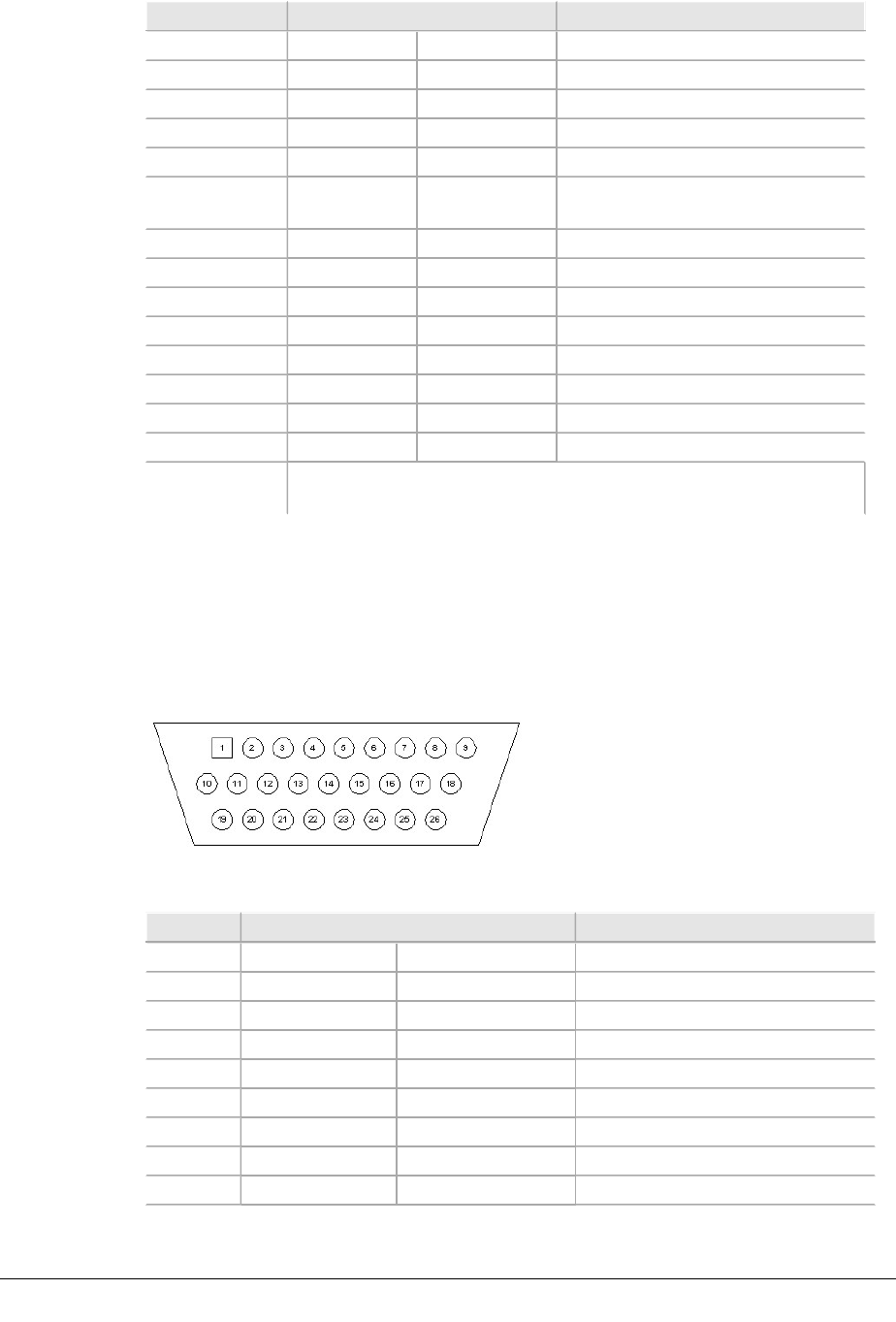

Auxiliary and Alarm Connectors and Cables 89
AUX Data Cable: Async, HD26 to Wirewrap, 2m 90
AUX Data Cable: Sync, HD26 to Wirewrap, 2m 91

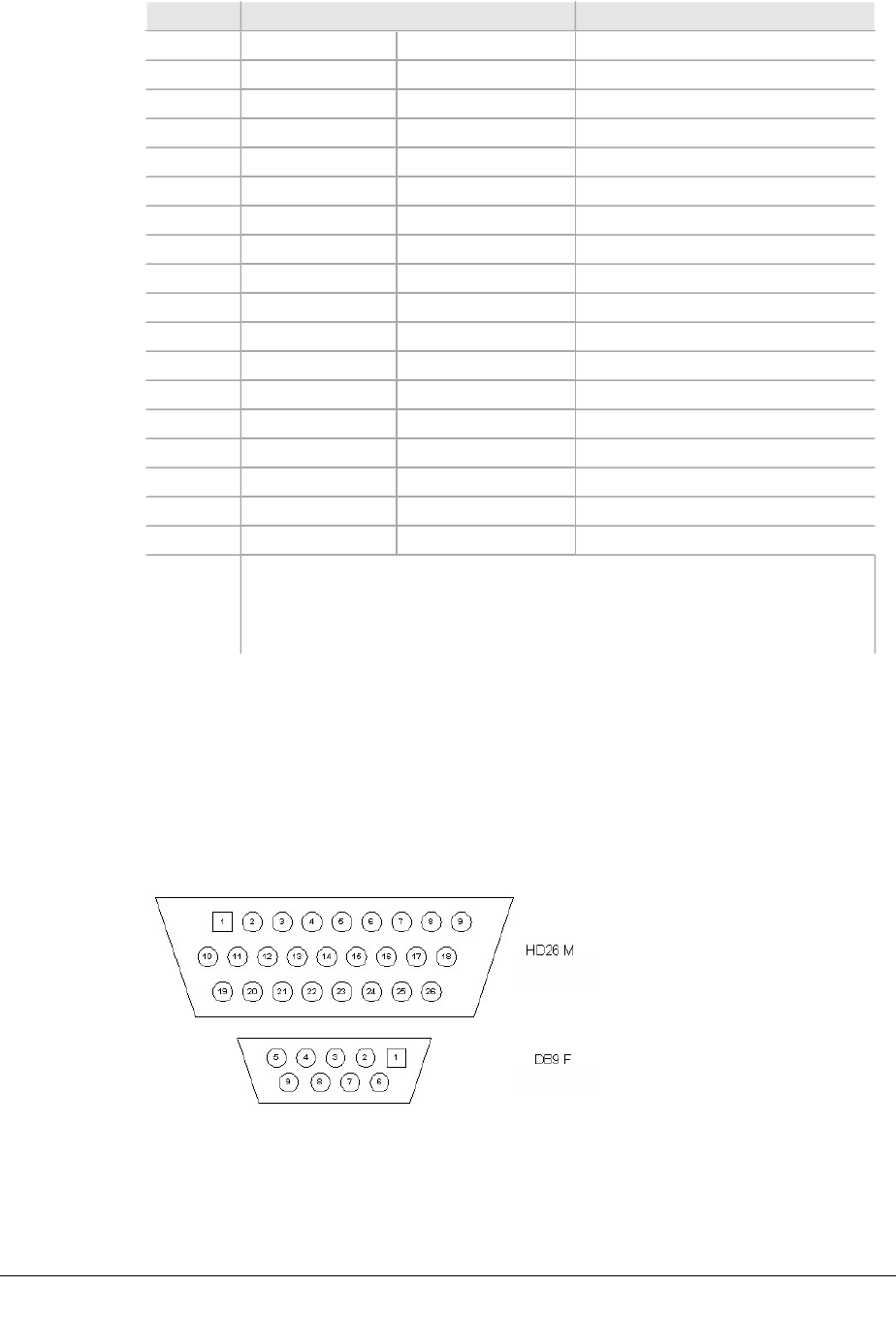

AUX Data Cable: Async, HD26 to 3 X DB9, 1m 92

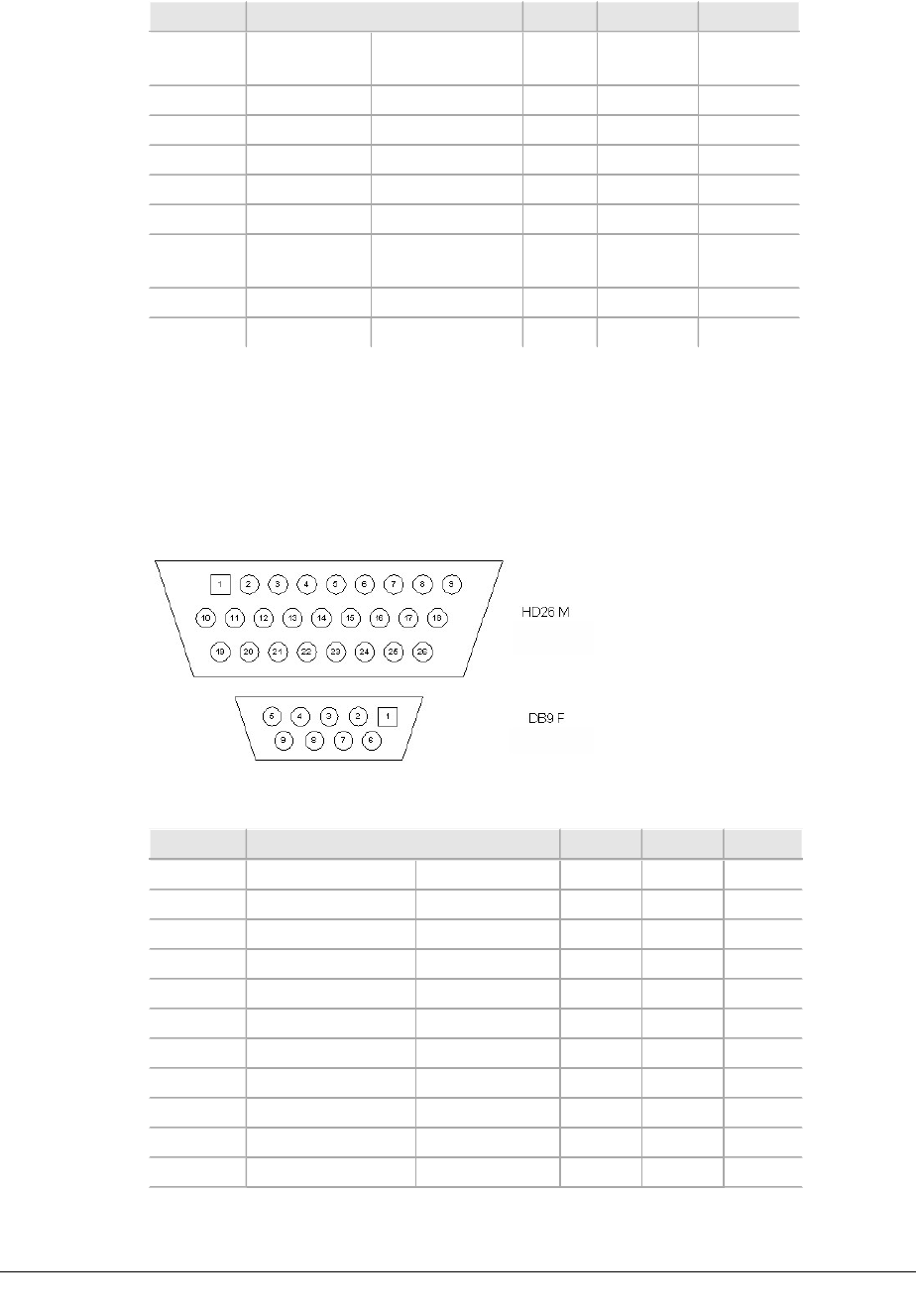

AUX Data Cable: Sync, HD26 to 3 X DB9, 1m 93
AUX Data Cable: Async, AUX HD26 to AUX HD26, 1m 94
AUX Data Cable: Sync, AUX HD26 to AUX HD26, 1m 95

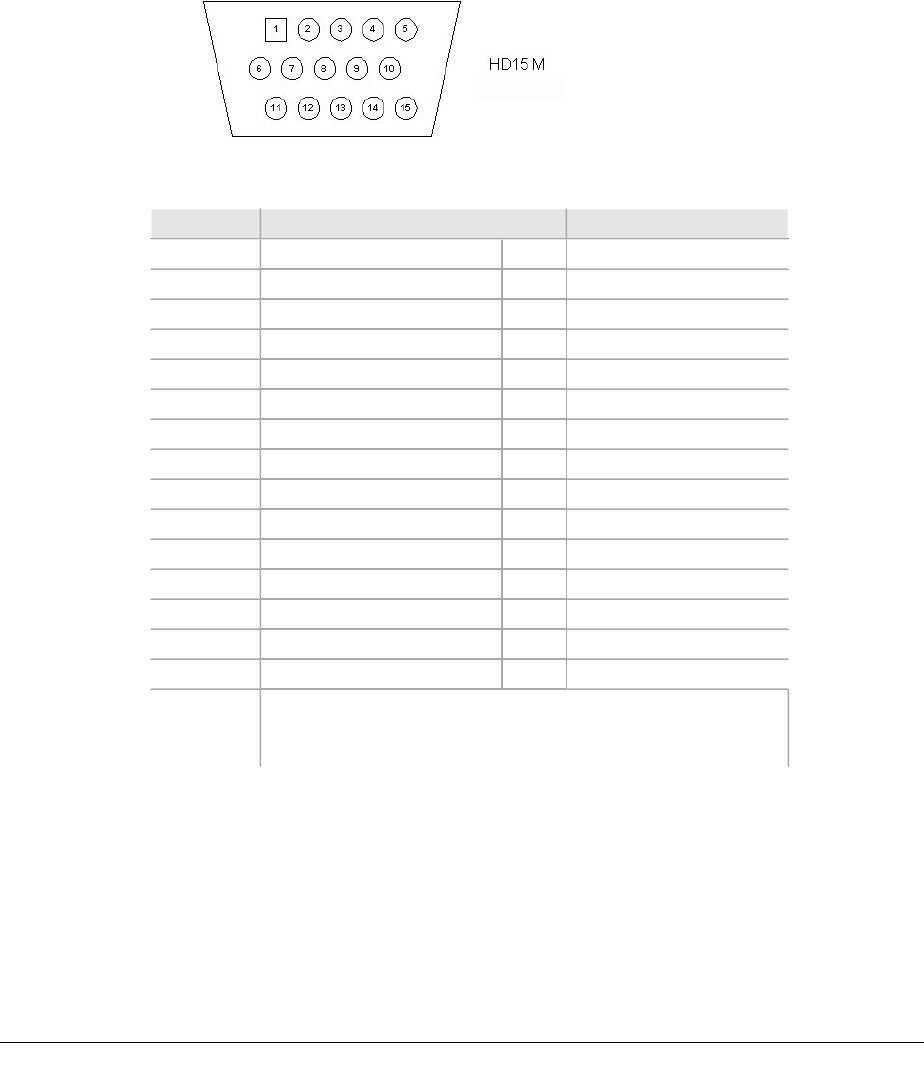

AUX Alarm I/O Cable: HD15 to Wirewrap, 2m or 5m 96
ECLIPSE INSTALLATION MANUAL
Volume I: Introduction and Safety
260-668066-001 OCTOBER 2012 1
VOLUME I, CHAPTER 0, INTRODUCTION AND SAFETY
2 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
About the Documentation
This Installation documentation provides information on installing an Eclipse Micro-
wave Radio system comprising the INU/INUe and IRU 600.
Intended Audience
This information is for use by trained technicians or engineers. It does not provide
information or instruction on basic technical procedures. Aviat Networks rec-
ommends you read the relevant sections of this manual thoroughly before beginning
any installation or operational procedures.
Organization
This manual is divided int othe following sections:
lHealth and Safety Requirements
lSystem Overview
lInstallation
Additional Resources
The resources identified below contain additional information.
lEclipse User Manual.
lAviat Networks Microwave Radio System Best Practices Guide. Use to assist
in installing, commissioning, and troubleshooting Eclipse and other
microwave radio products.
Contact Aviat Networks or your supplier for availability.
Documentation Conventions and Terminology
Caution, Warning and Note Cues
The following cues are used to characterize particular types of associated supporting
information.
CAUTION: A caution item identifies important information pertaining
to actions that may cause damage to equipment, loss of data, or cor-
ruption of files.
WARNING: A warni ng item i denti fies a serious physical
danger or major possi ble problem.
260-668066-001 OCTOBER 2012 3
VOLUME I, CHAPTER 0, INTRODUCTION AND SAFETY
Anote item identifies additional inf ormati on about a pro-
cedur e or function.
4 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Chapter 1. Health and Safety
This section includes the following health and safety information:
lGeneral Health and Safety on page 6
lOperator Health and Safety on page 7
lGeneral Hazards on page 8
lRF Exposure on page 11
lRoutine Inspection and Maintenance on page 12
All personnel must comply with the relevant health and safety practices when work-
ing on or around Eclipse radio equipment.
The Eclipse system has been designed to meet relevant US and European health and
safety standards as outlined in IEC Publication 60950-1.
Eclipse is a Class A product. It is intended to be used exclusively in tel-
ecommunications centers.
Local safety regulations must be used if mandatory. Safety instructions in this Vol-
ume should be used in addition to the local safety regulations. In the case of conflict
between safety instructions stated herein and those indicated in local regulations,
mandatory local norms will prevail. Should local regulations not be mandatory, then
safety norms herein will prevail.
260-668066-001 OCTOBER 2012 5
VOLUME I, CHAPTER 1, HEALTH AND SAFETY
General Health and Safety
This table describes general health and safety information about the Eclipse radio.
Topic Information
Flammability The equipment is designed and constructed to minimize the risk of smoke
and fumes during a fire.
Hazardous
Materials
No hazardous materials are used in the construction of the equipment.
Hazardous
Voltage
The Eclipse system meets global product safety requirements for safety
extra-low voltage (SELV) rated equipment where the input voltage must be
48V nominal, 60V maximum.
Safety Signs External warning signs or other indicators on the equipment are not
required.
Surface
Temperatures
The external equipment surfaces do become warm during operation due to
heat dissipation. However, the temperatures reached are not considered
hazardous.
6 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Operator Health and Safety
The following table describes the precautions that relate to installing or working on
the Eclipse radio.
Topic Information
Equipment
Protrusions
The equipment has been designed to be free of unnecessary protrusions or
sharp surfaces that may catch or otherwise cause injury during handling.
However, always take care when working on or around the equipment.
Laser and Fiber
Optic Cable Hazards
Eclipse fiber optic transmitters are IEC60825-1 / 21CFR1040-1 Class I
compliant and present no danger to personnel in normal use. However:
Do not look into active unterminated optical ports or fibers. If visual
inspection is required ensure the equipment is turned off or, if a fiber cable,
disconnect the far end.
Follow the manufacturer's instructions when using an optical test set.
Incorrect calibration or control settings could result in hazardous levels of
radiation.
Protect/cover unconnected optical fiber connectors with dust caps.
Place all optical fiber cuttings in a suitable container for safe disposal. Bare
fibers and fiber scraps can easily penetrate the skin and eyes.
Lifting Equipment Be careful when hoisting or lifting the antenna during installation or
maintenance. Antennas with their mounting hardware can weigh in excess
of 100kg (220 lb) and require specialized lifting equipment and an operator
trained and certified in its use.
Protection from RF
Exposure: Eclipse
The Eclipse radio does not generate RF fields intense enough to cause RF
burns. However, when installing, servicing or inspecting an antenna always
comply with the Protection from RF Exposure guidelines under General
Hazards on page 8.
Safety Warnings When a practice or procedure poses implied or potential harm to the user or
to the radio equipment, a warning is included in this manual.
260-668066-001 OCTOBER 2012 7
VOLUME I, CHAPTER 1, HEALTH AND SAFETY
General Hazards
The following table describes the general hazards that must be addressed when plan-
ning and installing an Eclipse system.
For more information on health and safety when using Aviat Networks products,
refer to the Best Practices Guide.
Topic Information
Airflow Requirements Rack installations must be made so the airflow required for safe and
correct operation of Eclipse is not compromised. For the fan-cooled
Eclipse INUs and IDUs, unobstructed air passage must be maintained
to each side of the chassis, which requires a minimum of 50 mm (2
inches) of side spacing to any rack panels, cable bundles or similar.
Where a Fan Air Filter is installed in an INU it must not be allowed to
become clogged with dust. Replace when necessary. Inspection must
be at not more than 12 monthly intervals when installed in
telecommunications equipment room controlled-air environments.
Otherwise, inspection is required at more frequent intervals.
EMC Eclipse has been tested for and meets EMC Directive 89/336/EEC.
The equipment was tested using screened cable; if any other type of
cable is used, it may violate compliance.
Eclipse is a Class A product. In a domestic environment this product
may cause radio interference in which case the user may be required
to take adequate measures. This equipment is intended to be used
exclusively in telecommunications centers.
ESD ESD (electrostatic discharge) can damage electronic components.
Even if components remain functional, ESD can cause latent damage
that results in premature failure. Always wear proper ESD grounding
straps when changing or handling the plug-in cards and avoid hand
contact with the PCB back-plane and top-plane. Connect your ESD
grounding strap to the combined ESD and ground connector on the
INU rack ear. Spare plug-in cards or cards to be returned for service
must be enclosed in an anti-static bag. When removing a card from
the anti-static bag for installation in an INU, or placing a card in a bag,
do so at the INU and only when connected to the INU via your ESD
grounding strap.
Circuit Overloading When connecting an Eclipse terminal determine the effect this will
have on the power supply circuit protection devices, and supply
wiring. Check Eclipse power consumption specifications and the
supply capability of the power supply system. This check of capacity
must extend to the dc power supply and not just to an intermediate
connection point.
8 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Topic Information
Eclipse Indoor Unit and
DC Supply Grounding
The ground for Eclipse indoor unit(s) must be connected directly to
the dc supply system ground conductor, or to a bonding jumper from
a grounding terminal bar, or bus to which the dc supply system
grounding is connected.
Intrabuilding interfaces
and cabling for NEBS
compliance
Intrabuilding connections to/from Eclipse ports must only be
connected via intrabuilding or unexposed wiring or cabling.
Intrabuilding ports MUST NOT be metallically connected to interfaces
that connect to the OSP or its wiring. These interfaces are designed
for use as intrabuilding interfaces only (Type 2 or Type 4 ports as
described in GR-1089-CORE, Issue 4) and require isolation from the
exposed OSP cabling. The addition of Primary Protectors is not
sufficient protection in order to connect these interfaces metallically
to OSP wiring.
Shielded and grounded cables must be used for intrabuilding cabling
to/from Eclipse ports. Cables must be grounded at both ends.
Protection from RF
Exposure
When installing, servicing or inspecting an antenna always comply
with the following:
- Do not stand in front of or look into an antenna without first
ensuring the associated transmitter or transmitters are switched
off.
- At a multi-antenna site ask the site owner or operator for details
of other radio services active at the site and for their require-
ments/recommendations for protection against potentially harm-
ful exposure to RF radiation.
- When it is not possible to switch transmitters off at a multi-
antenna site and there is potential for exposure to harmful levels
of RF radiation, wear a protective suit.
- Do not look into the waveguide port of an RFU or into an unter-
minated waveguide when the radio is active.
- See RF Exposure on page 11.
Fiber Optic Cables Handle optical fibers with care. Keep them in a safe and secure
location during installation.
Do not attempt to bend them beyond their minimum bend radius.
Protect/cover unconnected optical fiber connectors with dust caps.
Ground Connections Reliable grounding of the Eclipse system must be maintained. Refer
to instructions in the manual for equipment grounding.
There must be no switching or disconnecting devices fitted in ground
conductors.
Mains Power Supply
Routing
Eclipse dc power, IF, tributary, auxiliary and NMS cables are not to be
routed with any AC mains power lines. They are also to be kept away
from any power lines which cross them.
260-668066-001 OCTOBER 2012 9
VOLUME I, CHAPTER 1, HEALTH AND SAFETY
Topic Information
Maximum Ambient
Temperature
The maximum ambient temperature (Tmra) for Eclipse indoor units
is +55° C (131° F). Special conditions apply to the INUs - for more
information see Power Consumption within Power Supply on page
61. To ensure correct operation and to maximize long term
component reliability, ambient temperatures must not be exceeded.
Operational specification compliance is not guaranteed for higher
ambients.
Mechanical Loading When installing an indoor unit in a rack, ensure the rack is securely
anchored. Ensure that the additional loading of an Eclipse indoor unit
or units will not cause any reduction in the mechanical stability of the
rack.
Power Supply
Connection
The Eclipse INUs and IDUs have the +ve pin on their dc power supply
connector connected to chassis ground. It must be used with a
-48Vdc power supply which has a +ve ground; the power supply
ground conductor is the +ve supply to the radio. For NEBS
compliance the battery return connection is to be treated as a
common DC return (DC-C), as defined in GR-1089-CORE.
There must be no switching or disconnecting devices in this ground
conductor between the dc power supply and the point of connection
to an Eclipse system.
On those high power IRU 600s that support an integral wide-mouth
+/-21 to +/-60 Vdc input, both pins on its power supply connector
are isolated from chassis ground. For NEBS compliance the battery
return connection is to be treated as an isolated DC return (DC-I), as
defined in GR-1089-CORE.
The power supply for an Eclipse system must be located in the same
premises as the Eclipse system.
Power Supply
Disconnect
An appropriate power supply disconnect device should be provided as
part of the building installation.
Rack Mount Temperature
Considerations
If the Eclipse indoor unit is installed in a closed or multi-unit rack
assembly, the operating ambient temperature of the rack
environment may be greater than room ambient. The maximum
ambient temperature applies to the immediate operating
environment of the Eclipse indoor unit, which, if installed in a rack, is
the ambient within the rack.
Restricted Access The Eclipse system must be installed in restricted access sites. The
indoor unit and associated power supply must be installed in
restricted areas, such as dedicated equipment rooms, closets,
cabinets, or the like. Access to a tower and antenna location must be
restricted
NOTE: For USA:
In restricted access areas install the Eclipse system in accordance
with articles 110-26 and 110-27 of the 2002 National Electrical
Code ANSI/NFPA 70, or to any subsequent update to this code for
the relevant articles.
10 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
RF Exposure
To ensure compliance with the FCC RF exposure requirements, a minimum distance
of 20 meters must be maintained between the antenna and any persons whilst the
unit is operational. This calculation is based on the maximum conducted power and
maximum antenna gain.
lEclipse with IRU600, 5.8 GHz, has been tested and certified for use with a
parabolic antenna with a maximum gain of 45.9 dBi or a flat panel antenna
with a maximum gain of 28 dBi. Higher gain antennas must not be used.
lThe transmit output power on the IRU 600 has been limited to a maximum of
29 dBm at the antenna port to ensure compliance with the 1W power limit in
FCC CFR 47, Part 15.247.
260-668066-001 OCTOBER 2012 11
VOLUME I, CHAPTER 1, HEALTH AND SAFETY
Routine Inspection and Maintenance
This section overviews required and recommended inspection and maintenance prac-
tices to ensure health and safety of installed equipment is maintained to highest lev-
els. For more information, refer to the Aviat Networks publication: Best Practices.
Routine Inspections
All sites must be inspected annually, or more frequently if subject to abnormal oper-
ating conditions such as particularly exposed sites, or sites subject to salt-spray or
heavy snow/ice loading over winter months.
The inspection should cover the physical installation including the antenna, wave-
guide, waveguide pressurization installation, equipment grounding, tower and build-
ing grounds, weatherproofing, and general site integrity.
Where a Fan Air Filter is installed in an INU (for NEBS compliance) it must be
inspected annually, or more frequently if the INU is installed in an environment that
is not controlled for dust exclusion.
Selected ground wires should be resistance checked and then compared with pre-
vious checks to ensure there has been no significant change.
The operational performance of the radio and associated equipment should be
checked against their as-built figures using the Portal or ProVision alarm and per-
formance indicators.
Trend Analysis
Use available current and historical Eclipse alarm and performance data to deter-
mine any trend that may lead to a failure - if allowed to continue.
Check for the following trends:
lReducing receive signal levels
lGradually increasing bit errors or an increasing errored seconds count
lChanges in transmit power
lIncreased frequency of rain fade or other fade conditions
lIncreasing occurrence of other weather related changes in performance
lIncreasing occurrence of a particular hardware failure
Time spent in conducting such analysis is time well spent. Catching a problem
before it brings down the network is good network management.
12 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Fault Analysis
All faults, once cleared, should be the subject of a fault report. The data presented in
these reports should be analyzed from time to time to check for any common
threads, which may point to a particular weakness in the design, installation, or
maintenance of the network or to a specific component.
The time taken to restore service and the parts used should also be analyzed to see if
improvements are possible in the maintenance procedures, maintenance training
and spares holdings.
Training
Properly trained and experienced planning and installation personnel are essential
for establishing and maintaining high integrity in a new network. Similarly, properly
trained network management and service personnel are essential for the continued
good health of a network.
The training needs for personnel should be reviewed from time-to-time to ensure
they maintain expertise in their area of work, and on the installed base.
Spares
Spares holdings should be reviewed on a regular basis to ensure the correct quantity
and type are held, and held at the most appropriate locations.
Analysis of spares usage will show any trend for excessive use of spares, which may
point to a weakness in the deployment or manufacture of the item.
Spares holdings should also be checked from time to time and if necessary brought
up to the current hardware and/or software revision level.
260-668066-001 OCTOBER 2012 13
ECLIPSE INSTALLATION MANUAL
Volume II: System Overview
260-668066-001 OCTOBER 2012 15
VOLUME II, CHAPTER 1, SYSTEM DESCRIPTION
16 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Chapter 1. System Overview
This section overviews features and capabilities of the Eclipse node (INU/INUe) with
companion IRU 600 RF unit for use on the 5.8 GHz unlicensed band.
5.8 GHz operation is compliant with FCC CFR47 Part 15.247, and Industry Canada
RSS-210.
lIt has been tested and certified for use with a parabolic antenna with a
maximum gain of 45.9 dBi or a flat panel antenna with a maximum gain of
28 dBi.
lThe filters used in the IRU 600 RF unit allow for transmission only in the
frequency range 5725 - 5850MHz to ensure compliance with FCC CFR47 Part
15.247.
Operation is all-indoor, using rack-mounted indoor units, the INU or INUe, and one
or more IRU 600 RF units.
lEclipse supports multiple radio links from a common indoor unit with
throughput capacities to 189 Mbit/s Ethernet, 100xDS1, 3xDS3, or 1xOC3.
lThe IRU 600 RF unit is 1+1 optimized with two RFUs and an ACU. The RFUs
can be operated as independent links, or as a protected link.
lPath, equipment, and data protection options support comprehensive link,
network and data redundancy.
lPlug-in cards on the INU or INUe provide a wide choice of user interfaces and
radio link operation.
lThe node-based concept eliminates most ancillary equipment and external
cabling, and offers smooth upgrade paths for next generation networks.
Figure1.INUe with High Power 3RU IRU 600(v1)
MEF Certified. Eclipse meets MEF 9 and MEF 14 requirements for carrier-class
Ethernet inter-operability and performance.
lMEF 9 specifies the User Network Interface (UNI)
lMEF 14 specifies Quality of Service (QoS)
260-668066-001 OCTOBER 2012 17
VOLUME II, CHAPTER 1, SYSTEM OVERVIEW
Aviat Networks is ISO90001:2008 and TL9000 Certified. Full certification
means all departments and business units within Aviat Networks have been strictly
assessed for compliance to both standards. It testifies that Aviat Networks is a cer-
tified supplier of products, services and solutions to the highest ISO and Tel-
ecommunication standards available.
See:
lEclipse Node on page 19
lEclipse IRU 600 on page 31
lProtection Options on page 35
lLicensing on page 38
lConfiguration and Management on page 41
lAntennas on page 42
lPower Supply on page 43
For more comprehensive information on Eclipse fea-
tures, specifications, and operati on refer to the
Eclipse Product Descri ption and Ecli pse Datasheets.
18 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Eclipse Node
Eclipse node is available as the 1RU INU, or 2RU INUe.
Mandatory plug-ins are the NCC (Node Control Card) and FAN (Fan card). Optional
plug-ins include RAC (Radio Access Card), DAC (Digital Access Card), AUX (Aux-
iliary), NPC (Node Protection Card), and PCC (Power Converter Card).
It is designed to operate from a -48 Vdc power supply (+ve earth). For locations
where the power supply is +24 Vdc, a plug-in PCC option provides a voltage con-
version function.
INU
The INU requires one NCC and one FAN, and has provision for four option plug-ins.
It supports a maximum of three RFUs for three non-protected links, or one pro-
tected/diversity link and one non-protected link.
Figure 1-1. INU
INUe
The INUe (INU extended) requires one NCC and one 2RU FAN, and has provision for
ten option cards. It supports a maximum of six RFUs for six non-protected links, or
up to three protected/diversity links.
260-668066-001 OCTOBER 2012 19
VOLUME II, CHAPTER 1, SYSTEM OVERVIEW

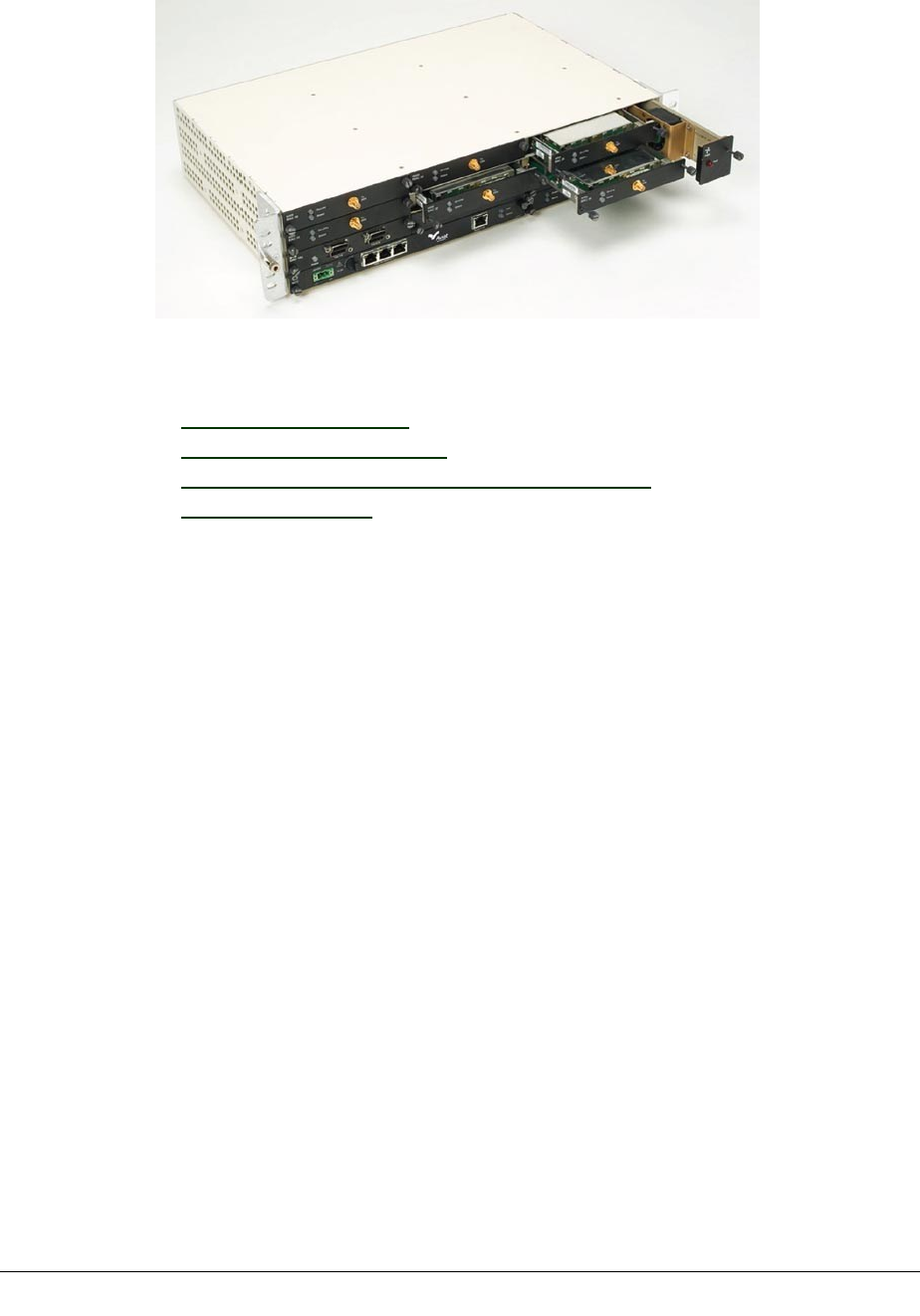

Figure 1-2. INUe
See:
lPlug-in Cards on page 20
lData Packet Plane on page 27
lAdaptive Coding and Modulation (ACM) on page 27
lPlatforms on page 29
Plug-in Cards
Plug-in cards for the INU or INUe enable quick and easy customization on Eclipse
configurations. All cards are hot-pluggable.
RACs support the radio modem function. In the transmit direction they take the dig-
ital traffic from the backplane or data packet plane and convert it to an IF signal for
connection to an RFU (IRU 600). The reverse occurs in the receive direction.
lOne RAC/IRU 600 combination is used for a 1+0 link.
lTwo RACs with one 1+1 IRU 600 are used for 1+1 hot-standby or diversity
links.
lRACs control TX switching and RX voting on protected / diversity links.
lXPIC (cross polarization interference cancellation) RACs support CCDP (co-
channel dual polarization) operation.
DACs support the user interface.
lDifferent DACs support Ethernet, DS1, DS3, and OC3 connections.
lMultiplexer DACs support transport of OC3 or DS3 with NxDS1 rates.
lEthernet DACs support a L2 switch function. DAC GE3 supports advanced
options for Synchronous Ethernet, ring/mesh protection, QoS, buffer
management, link aggregation, VLAN tagging, and OAM.
lMost DACs can be protected using a stacked (paired) configuration.
lDS1, DS3, and OC3 DACs support Ethernet-over-TDM options to enable
Ethernet transport over legacy TDM radio or leased-line links.
20 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
AUX (Auxiliary card) supports async or sync service-channel connections, and
alarm I/O options for connection to external devices.
NCC (Node Controller Card) provides Node management and DC-DC converter func-
tions. NCC is a mandatory card.
lIt manages Node operation and event collection and management.
lIt incorporates a router function for local and remote network management
interconnection.
lNode configuration and licensing data is held in flash-memory.
lPower supply: -48 Vdc (SELV -40.5 to -60 Vdc).
FAN (Fan card) provides forced-air cooling. FAN is a mandatory card.
NPC (Node Protection Card) provides 1+1 protection functions for the NCC power
supply and backplane management.
PCC (Power Conversion Card) supports operation from a +24 Vdc power supply.
Plug-in Cards Overview
For detail ed i nfor mati on on the plug-i ns refer to the
Eclipse Pl atf orm Product Description.
RAC 60E
RAC 60E supports DPP (Data Packet Plane) operation, ACM (Adaptive Coding and
Modulation), and airlink recovered timing (ART) for high accuracy radio transport of
a SyncE clock.
There are four dynamically switched modulation rates; QPSK, 16 QAM, 64 QAM,
256 QAM. Coding options additionally apply on each of these modulations, one for
maximum throughput, one for maximum gain, to provide an effective total of eight
modulation states.
lMaximum throughput delivers maximum data throughput - at the expense of
some system gain.
lMaximum gain delivers best system gain - at the expense of some throughput.
lUp to four of the eight modulation states offered with ACM can be selected for
use.
lModulation switching (state change) is errorless for priority traffic.
A DPP port enables direct routing of Ethernet traffic to a DAC GE3.
Individual ACM modulations can be set as fixed rates. These are complemented by
fixed-only rates for TDM capacities (DS1, DS3, OC3).
ANSI channel bandwidths range from 3.5 to 80 MHz.
Air-link capacities for Ethernet, or for Ethernet+TDM, extend to 366 Mbit/s.
TDM options extend to 127xDS1, 4xDS3, 2xOC3.
Payload encryption is a licensed option.
260-668066-001 OCTOBER 2012 21
VOLUME II, CHAPTER 1, SYSTEM OVERVIEW
ART operation is designed to meet G.8262 synchronization mask requirements for
SyncE clock transport.
A RAC 60E can link to a RAC 6XE in non-CCDP mode.

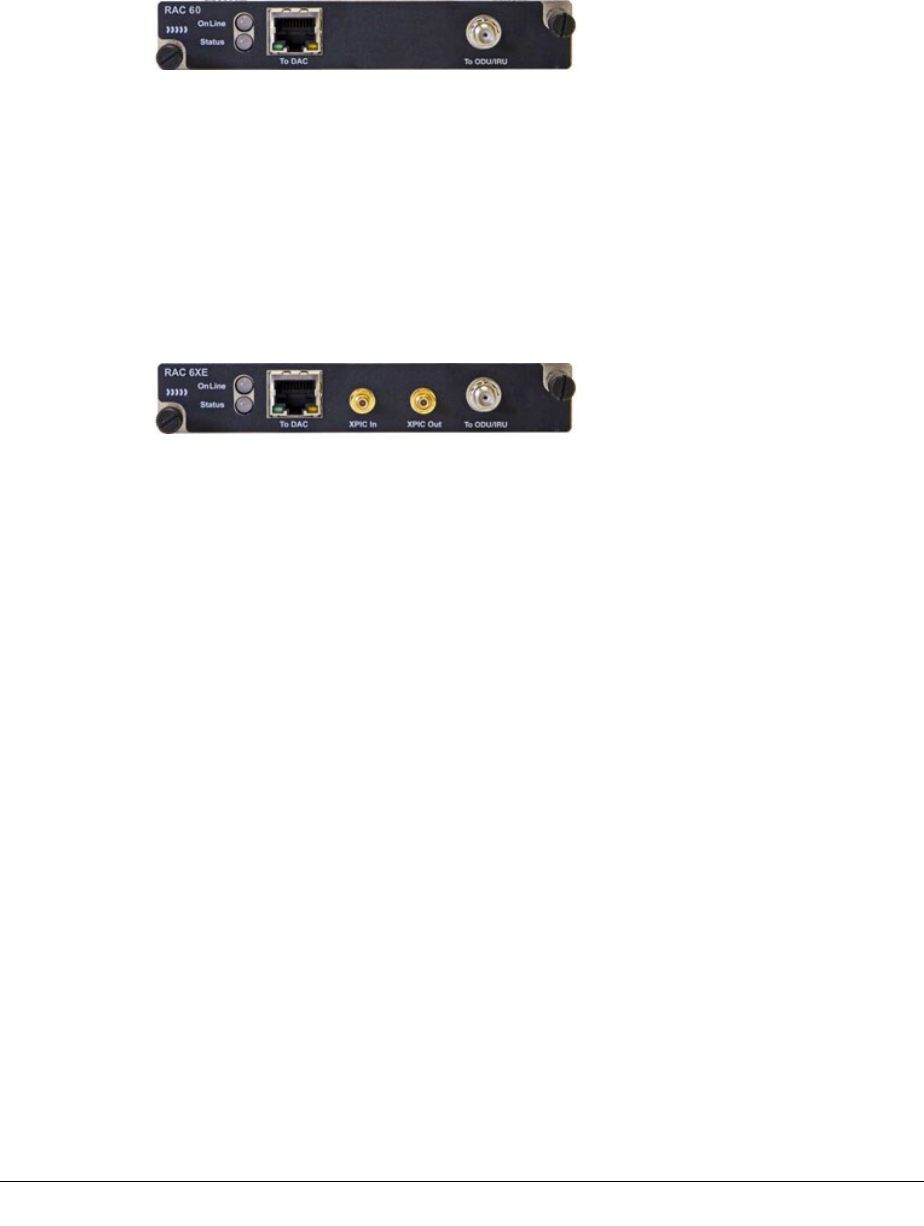

Figure 1-3. RAC 60E
RAC 6XE
RAC 6XE adds CCDP operation to 60E capabilities. RAC 6XE additionally supports
ART.
Two RAC 6XE cards are operated as a CCDP pair, either in the same INU, or in sep-
arate co-located INUs to provide double the capacity over one channel, using both
the horizontal and vertical polarizations. An XPIC function between the RACs
ensures cross-polarization interference is eliminated.
Figure 1-4. RAC 6XE
DAC GE3
DAC GE3 capabilities include Synchronous Ethernet, link aggregation, policing,
ring/mesh protection and Ethernet service OAM.
lThree RJ-45 10/100/1000Base-T ports
lTwo multi-purpose SFP ports with plug-ins for:
oOptical LC, 1000Base-LX, 1310 nm single-mode
oOptical LC, 1000Base-SX, 850 nm multi-mode
oElectrical RJ-45 10/100/1000Base-T
lSix transport channel (TC) ports
lComprehensive QoS traffic prioritization and scheduling options:
o802.1p mapping
oDiffServ mapping (IPv4, IPv6)
oMPLS Exp bits mapping
oStrict priority scheduling
oDeficit Weighted-Round-Robin (DWRR) scheduling
oHybrid strict + DWRR scheduling
oEight transmission queues
lTraffic policing using TrTCM (two rate, three color metering) with remarking
options
lL2 LAG (IEEE 802.1AX), static and LACP
lL1LA (Layer 1 link aggregation)
22 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
lAdvanced options for VLAN tagging, including Q (802.1Q), QinQ (802.1ad),
Filtering, Translation
lSynchronous Ethernet with Stratum 3 hold-over performance on timing
subsystem
lRSTP (IEEE 802.1w)
lERP (ITU-T 8032v2)
lEthernet service OAM (IEEE 802.1ag/IYU-T Y.1731: ETH-CC, ETH-LB, ETH-
LT)
lData packet plane (DPP) and/or backplane traffic interconnection to RACs
lAdvanced traffic shaping for fixed and adaptive modulation links
lSuperior burst management with 1500 Kbytes shared memory across active
ports
lStorm control
lJumbo frames to 10 Kbytes bi-directional
lFlow control (IEEE 802.3x)
l1+1 port and card protection
lInter-frame gap (IFG) and preamble stripping and re-insertion
lRMON stats per port, channel, and queue
lCompatibility with legacy Eclipse Ethernet cards and IDUs
Figure 1-5. DAC GE3
For DPP traffic a DAC GE3 is operated with a RAC 60E or RAC 6XE.
DAC 16xV2
DAC 16xV2 supports 16xDS1 tributaries on compact HDR connectors.
Features additional to those provided by DAC 16x include:
lTributary protection
lEthernet over DS1 tribs
lIndividual line code selection for AMI or B8ZS on DS1 tribs
Figure 1-6. DAC 16xV2
DAC 4X
DAC 4x supports 4xDS1 tributaries on individual RJ-45 connectors.
260-668066-001 OCTOBER 2012 23
VOLUME II, CHAPTER 1, SYSTEM OVERVIEW

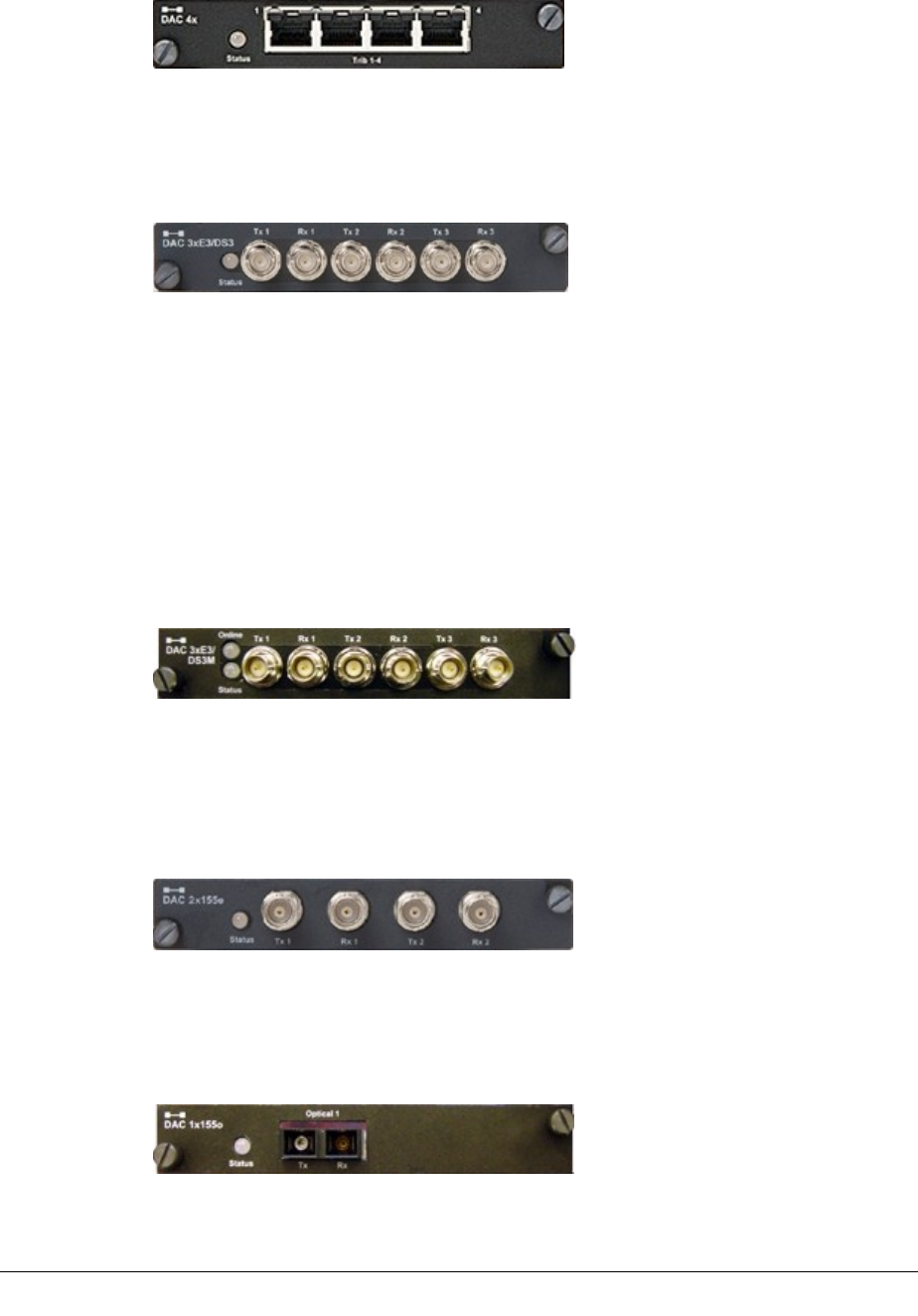

Figure 1-7. DAC 4X
DAC 3xDS3
DAC 3xDS3 supports 3xDS3 tributaries on paired mini-BNC connectors.
Figure 1-8. DAC 3xE3/DS3
DAC 3xDS3M
DAC 3xDS3M supports operational modes of:
lNormal DS3 tributary operation (as for DAC 3xDS3)
lM13 multiplexer mode. One or two DS3 interfaces are multiplexed to an NxDS1
backplane.
lDS3 Ethernet mode to enable up to 43 Mbit/s Ethernet over legacy TDM radio
or leased-line links (links must support transparent DS3).
Tribs are supported on paired mini-BNC connectors.
Figure 1-9. DAC 3xE3/DS3M
DAC 2x155e
DAC 2x155e supports two OC3 electrical (STS3) tributaries on paired BNC con-
nectors.
Figure 1-10. DAC 2x155e
DAC 1x155o
DAC 1x155o supports one OC3 single-mode optical tributary on SC connectors.
Figure 1-11. DAC 1x155o
24 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
DAC 2x155o
DAC 2x155o supports two OC3 single-mode optical tributaries on SC connectors.
Figure 1-12. DAC 2x155o
DAC 155oM
DAC 155oM multiplexes an OC3 optical tributary to an NxDS1 backplane. The user
interface is provided on an SFP optical transceiver. Different SFPs support 1310nm
single-mode, or 850nm multi-mode.
It functions as a terminal multiplexer; it terminates or originates the OC3 frame. It
does not support interconnection of ADMs as there is no provision to transport OC3
overheads for ADM to ADM synchronization.
In virtual tributary mode it transports up to 130 Mbit/s Ethernet over an OC3 link.
Options are provided for external/recovered, or internal clock sourcing.
Figure 1-13. DAC 155oM
DAC 155eM
DAC 155eM multiplexes an OC3 electrical tributary to an NxDS1 backplane. The user
interface is provided on an SFP electrical transceiver.
It functions as a terminal multiplexer; it terminates or originates the OC3 frame. It
does not support interconnection of ADMs as there is no provision to transport OC3
overheads for ADM to ADM synchronization.
In virtual tributary mode it transports up to 130 Mbit/s Ethernet over an OC3 link.
Options are provided for external/recovered, or internal clock sourcing.
Figure 1-14. DAC 155oM
AUX
AUX provides synchronous and/or asynchronous auxiliary data channels, NMS port-
ing, and alarm input and output functions. Data options are sync at 64 kbps or
async to 19.2 kbps.
260-668066-001 OCTOBER 2012 25
VOLUME II, CHAPTER 1, SYSTEM OVERVIEW
Figure 1-15.
NCC
The NCC is a mandatory plug-in for an INU/INUe. It performs key node man-
agement and control functions, and provides various dc rails from the -48 Vdc
input. It also incorporates a plug-in flash card, which holds Node configuration and
license data.

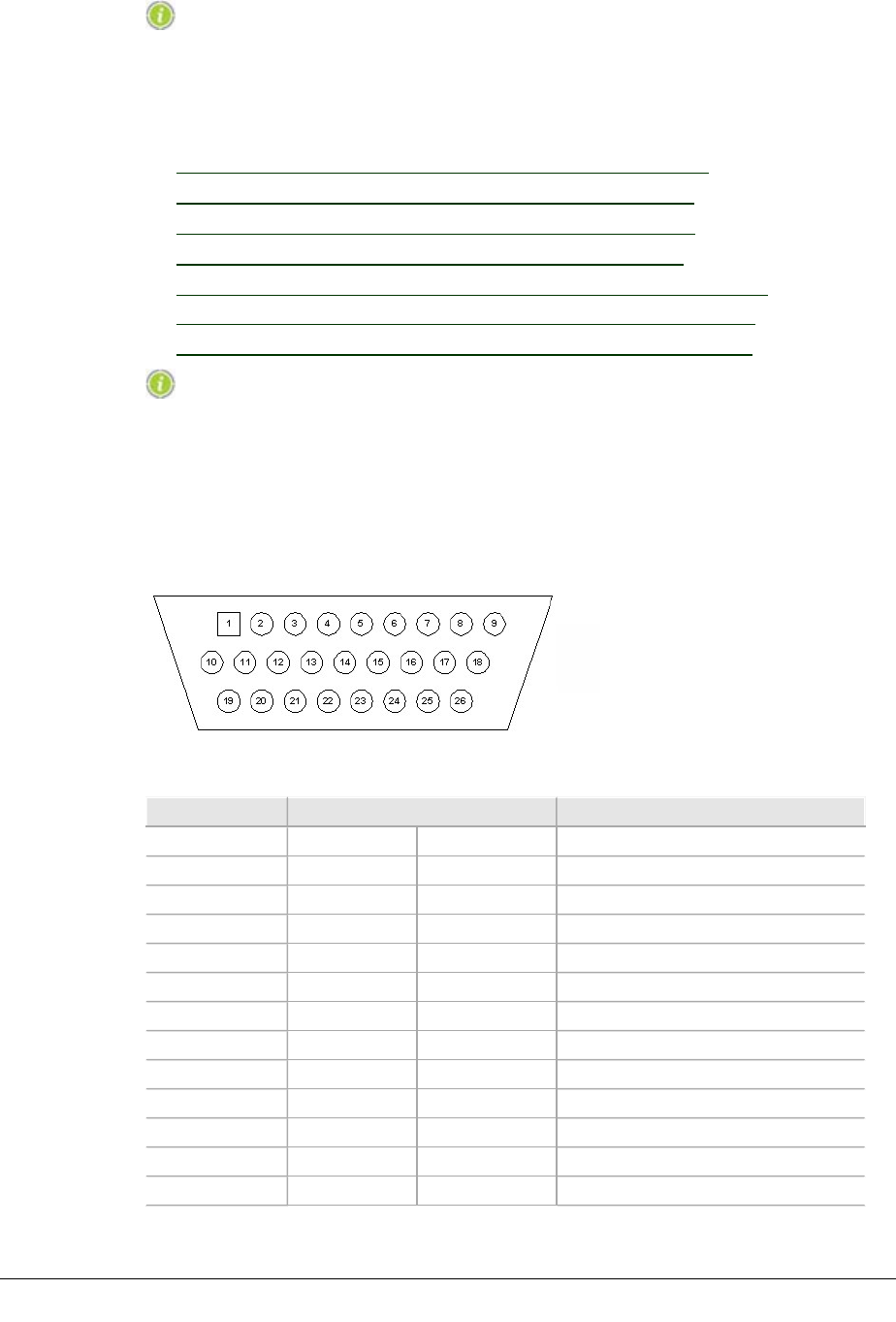

Power input limits are -40.5 to -60 Vdc. The power connector is a D-Sub M/F 2W2.
The +ve dc return pin is connected to chassis ground.
Figure 1-16. NCC
FAN
The FAN is a mandatory plug-in. There are two variants, 2RU and 1RU. Each is
fitted with two long-life axial fans plus monitoring and control circuits.
One 1RU FAN is fitted in an INU.
One 2RU FAN or two 1RU FANs are fitted in the INUe. The 2RU FAN is standard.
Figure 1-17. FAN (1RU)
NPC
NPC provides redundancy for the NCC backplane bus management and power
supply functions.
Figure 1-18. NPC
PCC
The PCC provides a voltage conversion function for use at locations where the power
supply is +24 Vdc. It converts +24 (19 to 36) Vdc to -56 Vdc for connection to the
26 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
INU -48Vdc input. -56 Vdc represents the typical float voltage for a battery-backed -
48 Vdc supply.
Figure 1-19. PCC
Data Packet Plane
The high-performance data packet plane (DPP) operates independently of the back-
plane.
The DPP is enabled via direct cable connection between the front panel packet data
port on a RAC 60E, RAC 6XE, and a front-panel port on a DAC GE3. Customer traf-
fic connected to the DACs is bridged to the RACs, and then to the RF transceiver; the
IRU 600.
Where required, customer data can also be sourced via the circuit-switched back-
plane, meaning both the DPP and backplane can be used to source/send traffic. This
has special relevance where native mixed-mode IP + TDM traffic is to be sent over an
Eclipse wireless link; GigE IP traffic via the DPP, and TDM traffic via the backplane.
Adaptive Coding and Modulation (ACM)
Advanced ACM options are provided using RAC 60E or RAC 6XE plug-ins.
lAdaptive modulation maximizes use of available channel bandwidth.
lCoding provides options for maximum throughput or maximum system gain
on each modulation rate.
Adaptive Modulation (AM)
AM uses one of four automatically and dynamically switched modulations - QPSK,
16 QAM, 64 QAM, or 256 QAM. For a given RF channel bandwidth a two-fold
improvement in data throughput is provided for a change from QPSK to 16 QAM, a
three-fold improvement to 64 QAM, and a four-fold improvement to 256 QAM.
In many instances the link parameters that supported the original system gain can
be retained. For example, the antenna sizes and Tx power used for an original QPSK
link on a 7 MHz channel are unchanged when operated on 256 QAM using adaptive
modulation. The adaptive modulation engine ensures that the highest throughput is
always provided based on link quality.
Modulation switching is hitless/errorless. During a change to a lower modulation,
remaining higher priority traffic is not affected. Similarly, existing traffic is unaf-
fected during a change to a higher modulation.
260-668066-001 OCTOBER 2012 27
VOLUME II, CHAPTER 1, SYSTEM OVERVIEW
Note that while adaptive modulation can also be used on PDH links and combined
PDH and Ethernet links, unlike Ethernet there is no QoS synergy on PDH con-
nections.
Ethernet connections enjoy real synergy through the QoS awareness on the DAC GE3
GigE switch, and the service provisioning provided by any MPLS or PBB-TE network
overlay. All high priority traffic, such as voice and video, continues to get through
when path conditions are poor. Outside these conditions 'best effort' lower priority
traffic, such as email and file transfers enjoy data bandwidths that can be up to four
times the guaranteed bandwidth.
DS1 connections by comparison are dropped in user-specified order when link capac-
ity is reduced, and restored when capacity is increased.
Coding
Modulation code options provide two sets of modulation states, one for maximum
throughput, the other for maximum gain. These apply on each of the modulation
rates (QPSK, 16 QAM, 64 QAM, 256 QAM) to provide a total of eight modulation
states.
Maximum throughput delivers maximum data throughput - at the expense of some
system gain.
Maximum gain delivers best system gain - at the expense of some throughput.
Up to four of the eight modulation states offered with ACM can be selected for use.
For example:
lWith four modulation rates, each can be set for maximum throughput or
maximum gain.
lWith three modulation rates, such as 16 QAM, 64 QAM, 256 QAM, one rate
(any) can be set for maximum gain and additionally for maximum
throughput, to provide four step AM operation.
lWith two modulation rates, such as 16 QAM (or 64 QAM) with 256 QAM,
each can be set for maximum gain and additionally for maximum throughput,
to provide four step AM operation.
This feature provides a practical trade-off between capacity and system gain to fine-
tune link performance. It provides best balance on AM operation.
The four modulation rates support near-linear 2x, 3x, 4x capacity steps.
The coding options allow capacity/gain variations on these rates to always support
up to four steps, even when just two of the possible four modulation rates are in use,
or are permitted.
Even where just one modulation rate is required/permitted, the coding option sup-
ports two-step AM operation, one for maximum throughput, one for maximum gain.
28 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Platforms
Eclipse supports flexible customization of traffic type, traffic capacity, and traffic pro-
tection for up to three links using the INU, and to six links using the INUe.
Platform Layout
Platform
INU Supports 3 non-protected links or 1 pro-
tected/diversity and 1 non-protected link.
1RU.
INUe Supports up to 6 non-protected links for:
1 protected/diversity and 4 non-protected links,
or
2 protected/diversity and 2 non-protected links,
or
3 protected/diversity links.
2RU.
IRU 600 IRU 600:
- QPSK to 256 QAM, 5.8 GHz ISM band (USA and
Canada).
- Requires RAC 60E/6XE. Fixed or adaptive mod-
ulation rates.
- 1+1 optimized.
- High power and standard power RFU options.
- 2RU for IRU 600v3; 3RU for IRU 600v1 and
v2.
Slot Assignments
Slots
INU - Slots 1, 2, 3, 4 are universal: any RAC, DAC, or
AUX plug-in
- Slot 4 is NPC or universal: NPC or any RAC, DAC,
AUX
- NCC and FAN slots are dedicated
- For protected operation the RAC/RAC, RAC/DAC
155oM, or DAC/DAC pairings can be installed in
any of the universal slots
260-668066-001 OCTOBER 2012 29
VOLUME II, CHAPTER 1, SYSTEM OVERVIEW
Slots
INUe - Slots 1, 2, 3, 4, 5, 6 are universal: any RAC,
DAC, or AUX plug-in
- Slots 7, 8, 9 are restricted: any DAC, or AUX,
except DAC 155oM/eM and AUX where NMS
access is required1
- Slot 10 is restricted: NPC option only
- NCC and FAN slots are dedicated - the INUe is
supplied standard with a single 2RU FAN,
though accepts two 1RU FANs
- RAC/RAC, or RAC/DAC 155oM/eM protected pair-
ings must be installed in the positions indicated
by the arrows
- For protected DACs, the protection partners can
be installed in slots 1 to 9, except for the DAC
155oM/eM where NMS access is needed, in
which case install only in slots 1 to 6
Data is transported natively over an Eclipse wireless link,
whether Ethernet or TDM.
1Internal (backplane bus) NMS access is only provided on slots 1 to 6. Do not install DAC
155oM, DAC 155eM, or AUX in slots 7 to 9 if an NMS connection is required in their con-
figuration.
30 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Eclipse IRU 600
The IRU 600 is a rack-mounted transceiver unit for co-location with an INU/INUe as
an all-indoor installation.
lIRU 600 is 1+1 optimized. It comprises one or two RFUs (radio frequency
units), and a filter-based ACU (antenna coupler unit).
oThe ACU design supports paired and unpaired Tx/Rx frequency splits and
incorporates an optional expansion port to allow other radio links onto its
waveguide feed for co-path operation.
oProtected/diversity options include:
n1+1 hot-standby, single antenna.
n1+0 hot-standby-ready.
nSpace diversity (dual antennas) with common or split Tx.
nFrequency diversity (single antenna) or frequency diversity with space
diversity (dual antennas).
o1+0 repeater (back-to-back) single chassis operation is supported.
lIRU 600 is supported from a RAC 60E/6XE.
lNEBS compliant EMI filtering is standard (currently IRU 600(v1) and IRU
600v2). NEBS compliance for IRU 600v3 is planned.
lLabels on the ACU show filter and circulator losses and the total loss (filters,
circulators, switch and cables combined).
lWhen multiple IRU 600 links are combined onto a single waveguide feed for
ACCP operation, required minimum Tx to Tx and Rx to Rx spacings, and
minimum Tx to Rx separations must be strictly maintained. For information
on ACCP operation and limitations contact Aviat Networks or your supplier.
IRU 600 Variants
There are three variants, IRU 600 [IRU 600(v1)], IRU 600v2, and IRU 600v3. IRU
600v2 and IRU 600v3 incorporate a transmit coaxial RF switch in place of the Tx
coupler used with IRU 600(v1) for 1+1 hot standby and space diversity applications.
IRU 600v2 and IRU 600v3 also add a transmit monitoring port.
Tx Coaxial Switch: IRU 600v2 and IRU 600v3
Primary benefits of the Tx coaxial switch are reduced power loss and faster Tx pro-
tection switch times.
lIt avoids the losses associated with a Tx coupler/combiner.
oWith the Tx coaxial switch (relay) there is no A-side versus B-side
consideration required as the loss is not more than 0.5 dB on both.
260-668066-001 OCTOBER 2012 31
VOLUME II, CHAPTER 1, SYSTEM OVERVIEW
lAverage recovery times of 50 ms compared to times approaching 200 ms for
the Tx-mute/unmute operation of the coupler-based IRU 600(v1) solution.
oTimes apply to full MHSB operation (standby Tx on), and muted standby
Tx mode (standby Tx on Tx mute). The standby Tx is terminated into a
dummy load via the Tx switch.
MHSB mode increases power consumption as both transmitters are fully active -
both online and offline Tx status is captured in real time. Where lower power con-
sumption is the priority, an option is provided to mute the offline Tx. For power con-
sumption data See Power Supply on page 61.
lWith MHSB operation both A-side and B-side transmit are fully monitored.
lWith a Tx mute configured on the offline Tx, its Tx status cannot be
monitored. A solution to guard against this leading to a possible unreported
standby Tx failure situation is provided through periodic activation of the
standby Tx for health monitoring purposes - it is turned on, checked, and
turned off again. The period between turn-on instances is user-selectable.

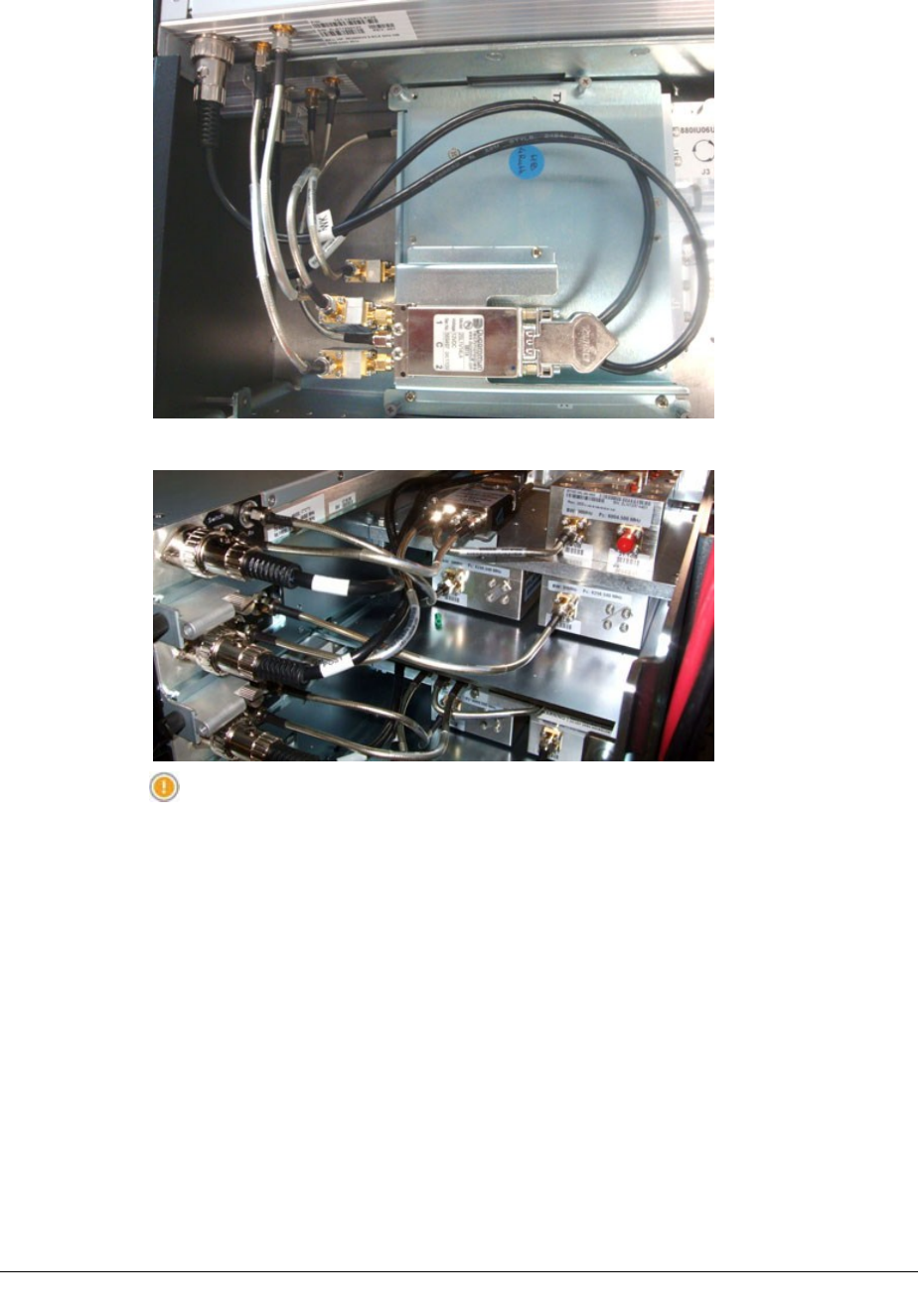

RFU Variants
IRU 600v2 and IRU 600v3 RFUs (RFUv2 and RFUv3) incorporate a Tx switch con-
trol port (DIN5 connector) for cable connection to the Tx coaxial switch.
lSwitch-port cables (two) are included with the Tx switch on MHSB and
MHSB/SD ACUs.
lOn the RFUv2 and RFUv3, RSSI access is provided on the front panel as meter
test-probe points. On RFUv1 RSSI access is provided on the ACU-side of the
IRU 600 Compatibility
IRU 600(v1) and IRU 600v2 share a common 3RU chassis. Dimensions and mount-
ing points for V1 and V2 RFUs and ACUs are identical.
IRU 600v3 is housed in a compact 2RU chassis. While the ACU is unique to the V3,
the V3 RFUs can be used in V1 and V2 chassis.
The following use guidelines apply:
lV1 and V2 RFUs are compatible sparing partners EXCEPT for HSB
configurations where the ACU incorporates a coaxial relay Tx switch (IRU
600v2/v3 ACUs). RFU V1 cannot control the Tx coaxial switch. This means
that:
oV1, V2 RFUs are interchangeable in non-protected systems using V1, V2
ACUs. Applies to single-ended 1+0, and to 1+0 repeater systems.
oIn protected HSB or HSB-ready systems with a V1 ACU, a V2 RFU can
spare for a V1.
oIn protected HSB or HSB-ready systems with a V2 ACU, the V1 RFU
cannot spare for a V2 RFU.
lV3 RFUs can be installed in IRU 600(v1) or IRU 600v2 chassis using a
conversion kit, which increases RFU unit height to match the mounting points
provided for V1 and V2 RFUs.
32 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
oThe V3 RFU (with conversion kit installed) can be used in non-protected
and HSB V1 and V2 chassis.
oV1 or V2 RFUs cannot be installed in a V3 chassis.
lV1 and V2 ACUs are interchangeable. The V3 ACU is not.
oA V1 ACU can be installed in a V2 chassis, and vice-versa.
oV1 and V2 ACUs cannot be installed in a V3 chassis. Similarly a V3 ACU
cannot be installed in a V1 or V2 chassis.
lAll IRUs are fully over-air compatible with like-for-like configurations. For
example, a 1+0 IRU 600(v1) may be linked to a 1+0 IRU 600v2 or IRU 600v3.
Similarly, 1+1 HSB IRU 600(v1) may be linked to a 1+1 HSB IRU 600v2 or
IRU 600v3.
Tx Monitoring Port
IRU 600v2 and IRU 600v3 Tx filters incorporate a Tx monitoring port (SMA con-
nector) to provide a 30 dB attenuated (nominal) sample for test and measurement
purposes. A label on the ACU shows the measured ex-factory insertion loss of the
port.
5.8 GHz Unlicensed Band
Eclipse INUs with IRU 600 are compliant with FCC CFR47, Part 15.247, and Indus-
try Canada RSS-210 Annex 8, on ISM frequency band 5725 to 5850 MHz. Inter-
national use is not supported; the system does not employ DFS and as such cannot
be deployed within Europe or any country where DFS is a regulatory requirement for
protection of radars.
Features and Capabilities:
lACU filters are tuned 30 MHz wide.
oFilters are spot tuned (pre-tuned) on 5740.5/5805.5 MHz or 5769.5/5834.5
MHz.
oWith 30 MHz filters just two Tx/Rx pairs can be used to provide full
coverage of the band.
lBandwidths 5, 10, 20, or 30 MHz.
lTx and Rx can be paired on different sub-bands (Tx on one 30 MHz sub-band,
RX on the other).
lAdaptive or fixed modulation options.
lSupports Ethernet and/or NxDS1 payloads, with air-link capacities to 189
Mbit/s (30 MHz Ch BW).
lExtensive protection and diversity options.
lOutput power is limited to 29 dBm at the waveguide port to ensure
compliance with the FCC 1 Watt rule.
lFor Tx power and system gain figures, see the Eclipse Node Datasheet.
260-668066-001 OCTOBER 2012 33
VOLUME II, CHAPTER 1, SYSTEM OVERVIEW
Operational Limitations and Restrictions
Unlicensed band operation means sharing the air-space with other operators of unli-
censed band links. Interference is possible.
lIRU 600 5.8 GHz operation is 'narrow-band'; it competes/shares spectrum
with other narrow-band links and with spread-spectrum links.
lPerformance could deteriorate over time with the introduction of other links in
the same geographical area.
lAntennas must be approved (FCC or Industry Canada) for 5.8 GHz unlicensed
band.
oEclipse 5.8 GHz is certified for use with a parabolic antenna with a
maximum gain of 45.9 dBi or a flat panel antenna with a maximum gain
of 28 dBi.
Common RFU for 5.8 GHz Unlicensed and L6 Licensed
The RFU for 5.8 GHz unlicensed is common with L6 licensed for easy transition and
sparing (from unlicensed to licensed and vice-versa). Links can be rapidly deployed
using 5.8 GHz unlicensed, and subsequently transitioned to L6 on license approval.
lThe 5.8 GHz unlicensed band is designed to support easy and fast
deployment. With a suitable antenna, installation can be 'immediate'.
lThe common 5.8 GHz / L6 RFU design means subsequent conversion to L6
licensed operation only requires replacement of the ACU.
5.8 GHz operation suppor ts fast turn-up for new link requi r e-
ments. On receipt of a license, operation can be converted to
L6 licensed band by replacing the ACU.
34 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Protection Options
Eclipse supports link, interface, network, and platform protection options:
Link/Path Protection
Hot-standby, space diversity, frequency diversity, or dual protection options are
available. RACs and their companion IRU 600 are protectable.
Rx voting is hitless/errorless; Tx switching is not hitless. The maximum restoration
time for a Tx switch is 200 ms.
A remote Tx switch is forced in the event of a silent Tx failure.
Interface Protection
DS1, DS3 and OC3 interfaces can be hot-standby protected using paired (stacked)
DACs.
The protectable DACs are DAC 16x V2, DAC 3xDS3, DAC 3xDS3M, DAC 2x155o,
DAC 2x155e, DAC 155oM.
When a switch occurs, all Tx and/or Rx tributaries are switched to the protection
partner.
Two protection configurations are supported, tributary protection, and always-on:
Tributary Protection
lY cables connect the paired DACs to customer equipment.
lIn the Rx direction (from the customer) both DACs receive data, but only the
online
Rx DAC sends this data to the TDM bus.
lIn the Tx direction, the online Tx DAC sends data to customer equipment, the
other mutes its Tx line interface.
Tributary Always-On
lSeparate cables connect each DAC to customer equipment.
lIn the Rx direction (from the customer) both DACs receive data, but only the
online Rx DAC sends this data to the TDM bus.
lIn the transmit direction both DACs send data to customer equipment, and
the customer equipment switches between these two always-on tributaries.
Protection switching is not hitless. The maximum restoration time for a Tx or Rx trib
switch is 200 ms. Typical restoration times are between 80 ms and 120 ms.
260-668066-001 OCTOBER 2012 35
VOLUME II, CHAPTER 1, SYSTEM OVERVIEW
Network/Data Protection
lEthernet ring network protection is supported on DAC GE3 using ERP (ITU-T
8032v2 Ethernet Ring Protection) or RSTP (IEEE 802.1w).
lEthernet data redundancy is supported on L1 and L2 link-aggregated links
(DAC GE3).
lPDH ring protection is supported by an DS1 loopswitch capability, or a ring-
wrap Super PDH (SPDH) option.
Ethernet Ring and Mesh Networks
ERP uses standard Ethernet bridging and OAM protocols and OAM automatic pro-
tection switching (APS) messaging to provide a fast-acting protection mechanism for
ring networks.
RSTP uses a development of the spanning tree protocol (STP) to prevent network
loops and provide path redundancy.
Ethernet Link Aggregation (N+0 Protection)
Traffic redundancy is supported on co-path Ethernet links using L1 or L2 link aggre-
gation. If one link fails its traffic is recovered on the remaining link or links. While
the reduced bandwidth may result in some traffic loss for low-priority traffic, appro-
priate QoS settings should ensure security for all higher priority traffic.
PDH Ring Protection
Eclipse supports two DS1 ring protection mechanisms, loop-switch and SPDH.
lThe loop-switch function configures a bi-directional redundant ring with a
hitless switching capability. Rings can be configured using RACs, and
PDH/SDH mux DACs.
lSPDH uses a ring-wrap mechanism formed on east/west facing RAC/RAC or
RAC/DAC 155oM combinations. Switching is not hitless.
Platform Protection
Platform management functions provided by the NCC are protected using the NPC
option to protect essential Backplane Bus and power supply functions.
Bus Protection
lProtects all circuit/tributary traffic. Alarm I/O is not protected.
lSwitching is not hitless for an NCC bus clock failure; restoration is within 200
ms, during which time all traffic on the NTU is affected.
lWhen the bus clock has switched to NPC control, it will not automatically
revert to NCC control on restoration of the NCC. Return to NCC control
requires either withdrawal/failure of the NPC, or use of diagnostic commands.
36 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Power Supply Protection
lProtection is hitless for an NCC power supply failure. If the NCC converter or
one of its supply rails fails, the NPC will take over without interruption. And
vice versa.
lWith an NPC installed, the NCC can be withdrawn and replaced without
further impacting traffic.
lFor 24 Vdc operation two PCCs are required for platform protection, one each
for the NCC and NPC.
260-668066-001 OCTOBER 2012 37
VOLUME II, CHAPTER 1, SYSTEM OVERVIEW
Licensing
Eclipse is subject to capacity and feature licensing.
Capacity Licensing
Capacity licensing is INU and INUe based (node-based). A single license applies
across all installed RACs installed in an INU/INUe.
lLicensed capacity ranges from 50 Mbps with license EZE-08001, to 2 Gbps
with license EZE-08010
lCapacity license is auto-allocated or user-allocated between installed RACs.
lUpgrade licenses are available to increase existing capacity supported on a
node.
Node Feature Licensing
Feature licenses provide access to extended Eclipse functionality.
lA feature license is a node-based license - it applies across all relevant cards
installed in the node.
lWhen a feature is required on a new node it is ordered together with the
capacity license for the node.
lFeature licenses can be separately ordered as upgrades on existing nodes.
Node Feature Overview
Feature Licenses:
EZF-01: Layer 1 Link Aggregation (DAC GE3)
L1 link aggregation (L1LA) splits traffic between links on a byte-segment basis.
It supports higher burst capacities compared to L2 link aggregation - throughput
can burst to the aggregated total capacity, unlike L2 link aggregation.
L1LA (like L2 link aggregation) supports redundancy - data from a failed link is
directed onto the remaining link, or links.
L1LA on DAC GE3 is modulation-aware; load re-balancing occurs on modulation
change under adaptive modulation.
EZF-02: Adaptive Modulation (RAC 60E/6XE)
Modulation is automatically and dynamically switched between modulation selec-
tions.
38 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
EZF-03: Secure Management (NMS)
Secure Management applies to Eclipse NMS access over the network, and to local
access via the Portal craft tool.
lProvides secure management access to Eclipse over an unsecured network.
lProtects Eclipse configurations from accidental or intentional modification by
unauthorized personnel.
lKeeps track of all events for accountability.
lBased on FIPS 140-2 validated algorithms.
EZF-04: Payload Encryption (RAC 60E/6XE)
Payload Encryption encrypts payload and management data on the wireless link to
prevent eavesdropping.
lChecks integrity of each data frame in the wireless link to ensure that received
data has been sent by the intended transmitter.
lProvides the same level of security as Wi-Fi and WiMAX.
lFIPS-197 compliant.
lCan be enabled/disabled independently for each wireless link.
lMeets US federal and commercial requirements.
EZF-05: Ethernet over TDM (DS3, DS1)
Enables mapping of Ethernet data to DS3, DS1 PDH interfaces using the DAC
3xDS3M or DAC 16xV2. Applies where a customer wishes to transport Ethernet data
over existing DS3 or NxDS1 radio or leased-line circuits.
lEthernet data from the Eclipse backplane is mapped into a DS3 frame as DS1
(1.544 Mbps) multiples to a maximum 28xDS1, to support a maximum data
rate (available bandwidth for Ethernet) of 43 (43.232) Mbps per DS3. The DS3
connection must support unframed/transparent DS3.
lEthernet data is mapped into NxDS1 frames at 1.544 Mbps per DS1 to a
maximum 16xDS1 on the DAC 16xV2, to support a maximum data rate
(available bandwidth for Ethernet) of 24 (24.7) Mbps.
EZF-06: RADIUS Client
Enables connection validation to a RADIUS server for centralized account man-
agement.
EZF-09: Synchronous Ethernet
Enables Synchronous Ethernet operation on DAC GE3 cards.
EZF-10: Ethernet OAM/ERP
Enables access to DAC GE3 Ethernet OAM and ERP capabilities.
EZF-61 to EZF-66: IRU 600v3 High Tx Power
Unlocks an additional 3dB of transmit power over standard power. Applies on all
modulations. It also increases the manual and ATPC transmit power control range
by 3dB.
260-668066-001 OCTOBER 2012 39
VOLUME II, CHAPTER 1, SYSTEM OVERVIEW
lEZF-61 EZG-61 IRU 600 High power option 1 x RFU
lEZF-62 EZG-62 IRU 600 Nodal High power option 2 x RFU
lEZF-63 EZG-63 IRU 600 Nodal High power option 3 x RFU
lEZF-64 EZG-64 IRU 600 Nodal High power option 4 x RFU
lEZF-65 EZG-65 IRU 600 Nodal High power option 5 x RFU
lEZF-66 EZG-66 IRU 600 Nodal High power option 6 x RFU
40 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Configuration and Management
Eclipse is a software-driven product; there are no manual controls. Configuration
and management is achieved via Portal and ProVision.
Portal is a PC based configuration and diagnostics tool for Eclipse.
ProVision is the Eclipse network element manager. ProVision also supports other
Aviat Networks products, including legacy products.
Portal is supported in the Eclipse system software, such that once installed on a
PC, it automatically downloads support from the radio as needed to ensure Portal
always matches the version of system software supplied, or subsequently down-
loaded in any radio upgrade.
Portal has the look and feel of a Windows environment with screen-based views and
prompts for all configuration and diagnostic attributes.
A Portal PC connects to an INU/INUe using Ethernet or V.24 options.
For more information refer to the Eclipse Configuration Guide.
ProVision is the network element manager for all Aviat Networks radios (current
and legacy). ProVision also supports partner products, including multiplexors,
switches, routers, and power systems.
ProVision is installed on a Windows or Solaris server, typically at a network oper-
ating center, and communicates with network elements using standard LAN/WAN
IP addressing and routing; each radio has its own unique IP address.
For more information, refer to the Aviat Networks ProVision User Guide.
Secure Access from Portal and ProVision is enabled through the Secure Management
and RADIUS Client strong security options.
260-668066-001 OCTOBER 2012 41
VOLUME II, CHAPTER 1, SYSTEM OVERVIEW
Antennas
Antennas for the 5.8 GHz unlicensed band must be FCC approved.
lParabolic antennas must have a maximum gain not exceeding 45.9 dBi.
lFlat panel antennas must have a maximum gain not exceeding 28 dBi.
For information on antenna types and availability, contact Aviat Networks or your
supplier.
Antenna mounts are designed for use on industry-standard 115 mm OD (4.5 inch)
pipe-mounts.
For information on installing and aligning antennas, refer to the data supplied with
the antennas.
42 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Power Supply
Eclipse is designed to operate from a -48Vdc power supply (+ve earth) but will oper-
ate to specification over a voltage range of -40.5 to -60Vdc.
A plug-in PCC option provides a voltage conversion function for locations where the
power supply is +24 Vdc. It converts +24 (19 to 36) Vdc to -56 Vdc for connection to
the INU -48Vdc input. -56 Vdc represents the typical float voltage for a battery-
backed -48 Vdc supply.
One PCC supports a maximum three IRU 600 RFUs, plus any combination of RACs
and DACs.
The dc power supply must be UL or IEC compliant for SELV (Safety Extra Low Volt-
age) output (60Vdc maximum limited).
260-668066-001 OCTOBER 2012 43
ECLIPSE INSTALLATION MANUAL
Volume III: Installation
260-668066-001 OCTOBER 2012 45
VOLUME III, CHAPTER 1, INSTALLATION
46 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Chapter 1. Introduction to
Eclipse Installation
This section provides a list of recommended installation tools and materials, and a
procedure for unpacking and checking the equipment.
Eclipse has been tested for and meets EMC Di r ective
89/336/EEC. The equipment was tested using screened cable;
if any other type of cable is used, it may violate compl iance.
CAUTION: Eclipse is a Class A product. In a domestic environment it
may cause radio interference: be prepared to resolve this. Eclipse
equipment is intended to be used exclusively in telecommunications
centers.
WARNING: You must comply wi th the relevant health
and safety practices when wor king on or ar ound
Eclipse radi o equi pment. Refer to Health and Safety on
page 5
Installation Overview
The following list provides a basic guide, in order, of an Eclipse hardware instal-
lation process.
Hardware installation typically proceeds as follows:
1. Pre-Installation
lUnpack equipment - see Unpacking on page 48
lVerify system configuration
lCheck basic components
lCheck kits and accessories
2. Installation
lAntenna - refer to the antenna manufacturer's installation instructions
lWaveguide and waveguide pressurization equipment - refer to manufacturer's
installation instructions
lIRU 600 - see IRU 600 Installation on page 49
lINU chassis - see INU and INUe Installation on page 59
lINU plug-in cards - see Plug-in Installation on page 74
lTraffic and NMS cables - as required
260-668066-001 OCTOBER 2012 47
VOLUME III, CHAPTER 1, INTRODUCTION TO ECLIPSE INSTALLATION
For more i nformation on installation practice refer to the
Aviat Networks' publication ' Best Practices Guide'.
Installation Tools and Materials
Ensure you have the following tools and material before going to site. These are
items to be sourced/supplied by the installer.
The items are indicative for standard installations. For non-standard installations
additional materials and tools may be required.
Table 1-1. Required Tools and Material
Equipment Tool/Material Description
Antenna As required by the
manufacturer/supplier
Refer to the manufacturer’s data supplied with each antenna
for required and recommended installation tools and
equipment. (Aviat Networks offers antennas from several
suppliers).
Waveguide
and Pres-
surization
Eqpt
As required by the
manufacturer/supplier
Refer to the manufacturer’s data supplied for required and rec-
ommended installation tools and equipment. (Aviat Networks
offers products from several suppliers).
Eclipse Radios Basic electrician’s toolkit The kit must include a crimp lugs, a crimp tool for attaching the
lugs to stranded copper cable, a multimeter.
Torque wrench Capable of 66 N-m or 50 ft-lb, with a selection of sockets for
antenna mount fastening
Hot-air gun For use on the heat-shrink tubing.
Protective grease and
zinc-rich paint
For weather-protecting grounding attachment points on towers
and grounding bars.
4mm2(#12) green PVC
insulated strand copper
wire and grounding lugs
For grounding the indoor unit to the rack/frame
16 mm2(#6) green PVC
insulated strand copper
wire and grounding lugs
For grounding the rack to the station ground.
16mm is also required for chassis grounding for NEBS
compliance.
Unpacking
To unpack Eclipse equipment:
lOpen the shipping boxes, carefully remove the equipment and place it on a
clean, flat working surface.
lEnsure all the basic components and accessories for your system have been
included in the shipment by comparing the packaging, component part
numbers and product descriptions against the packing list, and cross-checking
against the installation datapack for the system to be installed.
lIf there has been shipping damage or there are discrepancies between the
equipment expected and the equipment received, contact an Aviat Networks
Help Desk or your supplier.
48 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Chapter 2. IRU 600 Installation
Before commi ssi oni ng an IRU 600 and companion INU,
its antenna, wavegui de, and waveguide pressurization
equi pment must be i nstalled accordi ng to man-
ufacturer’s instr ucti ons.
For an overview of IRU 600 features and function, see Eclipse IRU 600 on page 31.
For information on installing an INU, see INU and INUe Installation on page 59.
For guidance on installing antennas, waveguide and pressurization equipment, see
the Best Practices Guide from Aviat Networks.
IRU 600 (v1), IRU 600v2 and IRU 600v3 RFU Sparing Compatibility
For information on sparing compatibility see IRU 600 Compatibility on page 32.
260-668066-001 OCTOBER 2012 49
VOLUME III, CHAPTER 2, IRU 600 INSTALLATION
IRU 600 Installation Procedure
This procedure applies to IRU 600(v1), IRU 600v2, and IRU 600v3. Unless other-
wise stated, reference to IRU 600 refers to all IRU 600 variants.
1. Fit the rack mounting brackets onto the chassis.
oBrackets can be mounted in either a forward mount or a flush mount
position.
oBrackets can be mounted such that the grounding stud is to the left or
right side.
2. Install the chassis. If installing multiple chassis:
oFor IRU 600(v1) and IRU 600v2 install with a 3RU space between the
chassis to permit installation of an expansion or extension kit. This space
can be used to install an INU/INUE.
oFor IRU 600v3 no chassis spacing is required, but a 1RU space should be
retained above the top and below the bottom of the chassis stack to ease
hand access to RFU - ACU cable installation.
3. Locate and secure RFU(s) and ACU in the IRU 600 chassis.
oFor IRU 600v3 the chassis-mounted post fitted to secure the right side of
the RFU / left side of the ACU front cover is removable.
oThis is to assist connection/dis-connection of the RFU SMA connectors,
and the DIN5 connector on 1+1 configurations.
CAUTION:When re-fitting the IRU 600v3 removable post do not over-
tighten. Thumb-tighten only to avoid thread-striping.

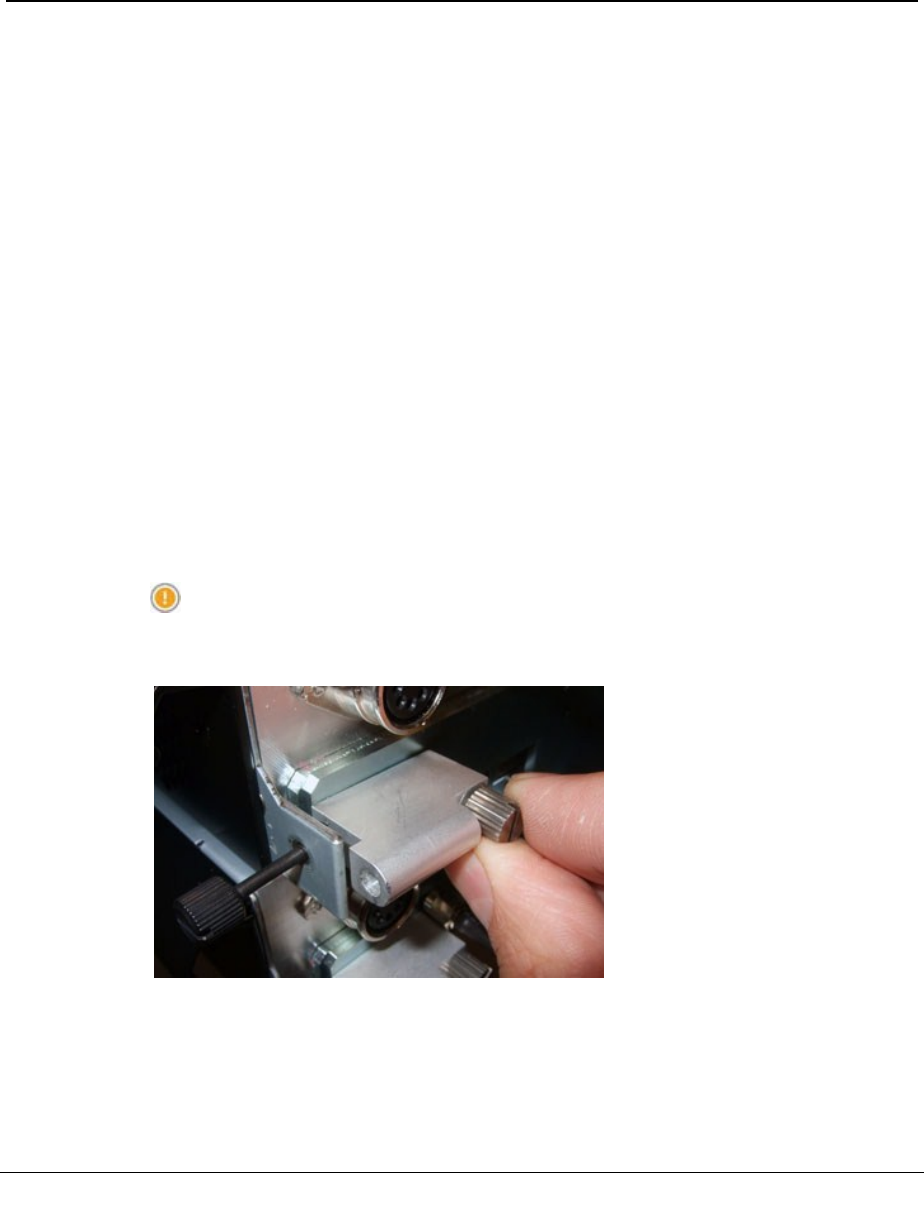

Figure 2-1. IRU 600v3 Removable Post
4. Connect the RFU(s) to the ACU using the supplied RF cables. Refer to the cabling
diagram on the rear side of the ACU front panel. The lower RFU is A-side, the top B-
side. A-side is the default online RFU in a 1+1 protected pairing.
50 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Figure 2-2. Example Cabling Diagram on Rear of ACU Front Panel
5. For the IRU 600v2 and IRU 600v3 with Tx coaxial switch, fit the RFU-to-
switch cable assembly.
oThe fixing post in front of the RFU connectors can be removed to aid
connector access. See step 3 above.
oEnsure cables connect to the correct RFU. Refer to the cabling diagram on
the rear side of the ACU front cover.
oEnsure DIN5 RFU cable connectors are correctly inserted and locked using
the connector locking ring - turn the ring clockwise until clicked into its
locked position.
oEnsure the switch connector is held secure using its screw fasteners.
oThe Tx switch cable must remain securely connected at all times. Incorrect
communication between the RFU and Tx switch may result in mismatched
A-side and B-side operation and loss of standby.
6. Connect the RFU(s) to the INU/INUe RAC 60E or RAC 6XE card(s) using
the supplied IF cable(s). The minimum bend radius of the IF cable is 25mm.
Figure 2-3. IRU 600 and INU
260-668066-001 OCTOBER 2012 51
VOLUME III, CHAPTER 2, IRU 600 INSTALLATION
Figure 2-4. IRU 600v2 Tx Switch and RFUv2 Connections
Figure 2-5. IRU 600v3 Tx Switch and RFUv3 Connections
CAUTION:Ambient temperatures must not exceed 550C (1310F). If
installed in a rack cabinet, it is the ambient within the cabinet.
Grounding
The chassis grounding stud accommodates ground cables up to 16 mm2(AWG 6).
The stud also provides jack plug connection for a wrist strap.
1. Ground the IRU 600 from the grounding stud to the rack/frame ground bar
using 4 mm2(AWG 12) green PVC insulated stranded copper wire with a
suitably sized crimp lug at the ground bar end (supplied by the installer).
For NEBS grounding compliance, see below.
2. If the equipment rack/frame requires grounding, use 16 mm2(AWG 6) wire
from its ground bar to the station ground.
52 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Safety Requirements for Equipment Grounding
lDo not assume that an existing rack or mounting frame is correctly grounded.
Always check the integrity of the ground connections, which must include a
check through to the master ground for the station, which should be located at
the point of cable entry to the equipment building. Ground wires must provide
a direct, low impedance path to the master ground bar.
lDo not connect other equipment to the same grounding cable as the INU. Each
item of equipment in a rack must be separately grounded to the rack ground
bar.
lThe INU / IRU 600 must be located in the same immediate area (adjacent
racks/cabinets) as all other equipment with a (ground) connection to a
common DC supply source.
lAll intra-building signal cabling must be shielded and both ends of each shield
must be grounded.
lThere must be no switching or disconnecting devices in the grounded circuit
conductor between the DC source and the point of connection of the grounding
electrode conductor.
Waveguide Grounding
Grounding the waveguide is an essential part of the overall lightning protection
scheme at the site. The number of waveguide grounds required is dependant on the
antenna height at its centerline. At a height of 45m, the minimum number of wave-
guide grounds required is three:
lOne located at the top of the vertical waveguide run, about 1 meter below the
bend before the waveguide goes horizontal toward the antenna,
lOne located at the bottom of the vertical cable run, about a meter above the
bend before the waveguide goes horizontal toward the equipment room entry
point,
lOne located at the equipment room entry way point.
The top and bottom ground is typically connected to a tower ground bar, or to the
tower steel using a ground clamp. The entryway ground should be attached to the
ground bus bar, generally located directly below the waveguide entryway point.
If the height of the antenna centerline is greater than 45m, then additional grounds
are required every 25m, or part of, above the 45m level. The topmost one should be
located about 1 meter below the bend before the waveguide goes horizontal toward
the antenna.
NEBS Compliance
lUse a 16 mm2 (AWG 6) green PVC insulated stranded copper ground wire
(not 4 mm2) together with a star washer under the grounding screw at the
260-668066-001 OCTOBER 2012 53
VOLUME III, CHAPTER 2, IRU 600 INSTALLATION
ground-bar end. Torque the grounding post screw to 1.2-1.5 Nm (10-13 in-lbs).
lAll bare conductors must be coated with an appropriate antioxidant
compound before crimp connectors are fitted.
lAll unplated connectors, braided strap, and bus bars must be brought to a
bright finish and then coated with an antioxidant before they are connected.
This does not apply to tinned, solder-plated, or silver-plated connectors and
other plated connection surfaces – but all must be clean and free of
contaminants.
lAll raceway fittings must be tightened to provide a permanent low-impedance
path.
Waveguide Connection
Connect ACU antenna port(s) to waveguide(s) using flexible waveguide.
For information on required waveguide flange, and recommended waveguide type,
refer to the following table.
Remove and discard any protective flange/port covers before installation.
Table 2-1. IRU 600 ACU Flange Data
Freq, GHz Flange Type Holes Screw
Length
Wave-
guide
5.8/6 CPR 137 G 8 x #10-32 tapped holes 1/2" WR 137
The screw length assumes a flex twist mating flange thickness of 1/4”.
Power Supply
CAUTION:The DC power connector (D-Sub M/F 2W2) on high power
V1 and V2 RFUs can be shorted inadvertently if applied at an angle.
Always insert with correct alignment.
The DC power supply must be SELV compliant (maximum lim-
ited 60 Vdc).
For IRU 600 power consumption figures refer to Power Consumption and INU Load
Maximums on page 61.
For +24 Vdc operation one PCC supports a maximum three V1 or V2 RFUs, or a max-
imum two V3 RFUs.
IRU 600(v1) and IRU 600v2
For 5.8 GHz operation the high-power RFU is required. High power RFUs are pow-
ered over the IF cable from its INU/INUe, and additionally via a separate DC input
on the RFU front panel.
lThe power connector (D-Sub M/F 2W2) and cable is identical to that used for
the INU.
54 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
lThe high power RFU provides a wide-mouth connection for +/- 21 to 60 Vdc.
Both +ve and -ve pins are isolated from ground.
lThe integral DC/DC converter provides polarity protection, under/over voltage
shutdown, over-current limit, and thermal shutdown.
lFor operation from +24 Vdc supplies, the associated INU/INUe must be fitted
with a PCC to convert +24 Vdc to -48 Vdc.
Run the supplied power cable through to the power pick up point, which should be
protected by a circuit breaker or fuse in the rack. The circuit breaker or fuse should
have maximum capacity of 8 A.
lFor a -48 Vdc supply, connect the blue wire to -48 Vdc (live), and the black
wire to ground/+ve.
lFor a +24 Vdc supply, connect the blue wire to +24 Vdc (live), and the black
wire to ground/-ve.
lFor NEBS compliance the battery return connection is to be treated as an
isolated DC return (DC-I), as defined in GR-1089-CORE.
NEBS compliant EMI filtering is included.
There are no serviceable fuses.
IRU 600v3
The v3 RFU supports both standard and high Tx power operation, with DC power
supplied over the IF cable from its INU/INUe.
lThe RFU is SW configured for standard or high power. High power operation
requires a feature license.
lFor 5.8 GHz operation standard power is used. Standard power supports the
29 dBm maximum-limited output power at the antenna port.
lThe INU/INUe requires a -48Vdc power input.
lFor +24 Vdc operation a PCC (Power Converter Card) converts +24 Vdc to -48
Vdc for connection to the NCC. Two PCCs are required if an NPC is also
installed.
Insertion Loss Labels
Labels on the ACU provide factory-measured insertion loss data. These list the loss
for each filter and circulator, and the total loss through the ACU (filters, circulators,
cables, plus any protection components, such as Tx switch and couplers). Total (com-
bined) loss figures are used by the craft tool (Portal) to enable computation of Tx
power and RSL figures at the ACU antenna waveguide port(s) based on the RFU
measured values of Tx power and RSL.
For IRU 600v2 and IRU 600v3 an additional label shows the insertion loss of the Tx
monitoring port. The value must be taken into account when measuring output
power with a power meter.
260-668066-001 OCTOBER 2012 55
VOLUME III, CHAPTER 2, IRU 600 INSTALLATION
Expansion Port Use
The expansion port allows system expansion through the addition of co-located IRU
600 radios, or external radio equipment.
When multiple carriers are deployed on a common branching network (same
antenna), the selection and installation of branching network components must be
such that threshold degradation caused by intermodulation products is avoided.
While the IRU 600 ACUs are specified to avoid placing undue constraints on
frequency planning for multiple carrier systems, the following conditional require-
ments are intended to provide a guidelines for such systems, which may require
extra diligence in the selection and installation of branching components.
lThe intermodulation frequency products that result from combining two or
more transmitter frequencies on a common antenna feeder should be 48MHz
or more above or below each of the receiver frequencies present on the same
antenna feeder.
lSystems employing carrier frequencies with potential intermodulation
products within 48MHz of any of the receiver frequencies present on the same
antenna branching network (feeder) must be designed and installed to
mitigate the effects of the potential intermodulation products.
FAN Module
The fan units in an RFU are removable for service/replacement. Fan module replace-
ment is non traffic affecting.
lFor IRU 600(v1) and IRU 600v2 a fan cover is removed to expose the two
fans. Removal and replacement is per-fan.
lFor the IRU 600v3 the four fans are located on a removable/replaceable front-
cover fan tray.
oTo remove, unscrew the fan tray fasteners, ease outwards and carefully dis-
connect the rear cable connector. Fan replacement is per-tray.
lFan operation is monitored. Each fan has a matching alarm.
lFor IRU 600(v1) and IRU 600v2 both fans are operated at a fixed speed.
lFor IRU 600v3 the fans are currently operated at a fixed speed. Temperature-
dependent speed will be introduced in a subsequent SW release.
If one fan needs to be replaced, replace all fans.
56 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Figure 2-6. IRU 600v3 Fan Removal
Next Step
lINU/INUe installation. Refer to INU and INUe Installation on page 59.
260-668066-001 OCTOBER 2012 57
ECLIPSE INSTALLATION MANUAL
Chapter 3. INU and INUe
Installation
The INU and the INUe are the indoor units for the Eclipse Node.
This chapter includes:
lINU/INUe Overview on page 60
lInstallation Requirements on page 69
lInstallation Procedure on page 71
lPlug-in Installation on page 74
lINU/INUe Cable Assemblies on page 77
CAUTION:Do not turn power off within 10 minutes of initial
INU/INUe turn-on, or initial turn-on after a new compact flash card is
installed.
CAUTION:There must be a minimum of 50 mm (2”) of side spacing
from the INU/INUe to any rack panels, cable bundles or similar, and
50 mm (2”) of space to the front and back of the RF section to ensure
proper ventilation.
260-668066-001 OCTOBER 2012 59
VOLUME III, CHAPTER 3, INU AND INUE INSTALLATION
INU/INUe Overview
The INU/INUe is a rack-mounted unit that pairs with one or more RFUs. An
INU/INUe comprises a chassis and plug-ins.
Dedicated slots are provided for the NCC and FAN plug-ins, and either four slots
(INU) or ten slots (INUe) for optional RAC, DAC, AUX and NPC plug-ins.
Refer to:
lFront Panel Layout on page 60
lPower Supply on page 61
lFAN Air Filter Option on page 66
lPower Line Filter Option on page 68
Front Panel Layout
An INU front panel is shown. For information on the plug-in cards see Plug-in Cards
on page 20 .
Figure 3-1. Typical INU Front Panel Layout
No Item/Label Description
1Rack Ear and
grounding stud
Rack attachment bracket for the IDC. One ear has a combined
ESD and IDC grounding stud. The ears can be fitted either side,
which provide flush-with-rack-front mounting.
2RAC RAC fitted in slot 1
3NCC Mandatory Node Control Card (dedicated slot)
4Blank Panel Blanking panel fitted to slot 2
5RAC RAC fitted in slot 4
6DAC 16x 16xDS1 DAC fitted in slot 3
7FAN Mandatory fan plug-in (dedicated slot)
60 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Power Supply
The dc power supply must be UL or IEC compliant f or SELV
(Safety Extra Low Voltage) output (60Vdc maximum l i mi ted).
INUs require a -48Vdc power supply (+ve earth), but will operate to specification
over a voltage range of -40.5 to -60Vdc.
The return (+ve) pin on the NCC and NPC power supply connectors is clamped to
chassis ground via polarity-protecting power FETs.
lNCC and NPC power inputs are reverse polarity protected (the input fuse will
not blow if polarity is reversed).
For NEBS compliance the battery return connection is to be treated as a common DC
return (DC-C), as defined in GR-1089-CORE.
Where operation from a +24 Vdc PSU is required, the plug-in PCC option provides
voltage conversion from + 24 (19 to 36) Vdc to -56 Vdc for connection to the NCC -
48Vdc input. -56 Vdc represents the typical float voltage for a battery-backed -48
Vdc supply.
Power Consumption and INU Load Maximums
Total power consumed is dependent on the number and type of plug-in cards, and
the number and type of IRU 600s supported.
Unless otherwi se stated reference to IRU 600 refers to all I RU
600 variants; IRU 600(v1), IRU 600v2, and IRU 600v3.
INU loading maximums, the number and type of RACs and DACs that can be
installed in an INU, are determined by the load capacity and temperature limits of
the DC converter in the NCC, which supplies various DC rails to the plug-in cards.
lIRU 600s and FANs are not powered via the NCC converter, meaning the IRU
600 type does not impact INU link loading. Their DC supply is taken from the
-48 Vdc power supply input connector.
However, if a PCC is installed for +24 Vdc operation, the INU cards and associated
IRU 600s are supplied from the PCC, meaning PCC power limits are determined by
the INU cards and by the number and type of IRU 600s supported.
lA PCC should always be installed to receive maximum FAN cooling. This
means it should be installed in the immediate FAN-side slots in an INU/INUe.
Power Consumption
The table below lists nominal power consumption figures for Eclipse cards. Use these
together with the IRU600 consumption figures in the following tables to determine
total nodal power consumption.
260-668066-001 OCTOBER 2012 61
VOLUME III, CHAPTER 3, INU AND INUE INSTALLATION
Power consumption figures are for a -48 Vdc supply voltage at normal room
ambients.
Table 3-1. Typical Plug-in Power Consumptions
Item Consumption
RAC 60E 12W
RAC 6XE 17W
DAC 16xV2, 4x, 3xE3/DS3,
3xE3/DS3M
2.5W
DAC 155o, 2x155o, 2x155e,
155oM, 155eM
4W
DAC GE3 13W
NCC 11W
NPC 8W
AUX 1W
FAN 1RU 2W
FAN 2RU 2W
The tables below list nominal figures for an IRU 600.
IRU 600(v1) and IRU 600v2
lFor a standard power IRU 600(v1) and IRU 600v2 RFUs, power is provided
via its RAC - RFU cable.
lFor a high power RFU, power is supplied via its RAC cable and additionally
by a front-mounted DC connector.
Table 3-2. Typical IRU 600 and IRU 600v2 Power Consumption
Configuration Power
Sourced
from INU
Power Sourced
from External
DC Connector
Total DC
Power
1+0 Standard Power (1xRFU), IRU 600, IRU 600v2 52W N/A 52W
1+0 High Power (1xRFU), IRU 600, IRU 600v2 52W 38W 90W
1+1 HSB or SD, Standard Power (2xRFU), IRU 600 82W N/A 82W
1+1 HSB or SD, High Power (2xRFU), IRU 600 82W 42W 124W
2+0 or 1+1 FD, Standard Power (2xRFU), IRU 600, IRU 600v2 104W N/A 104W
2+0 or 1+1 FD, High Power (2xRFU), IRU 600v2 104W 76W 180W
1+1 MHSB or SD, Std Power (2xRFU), IRU 600v2 104W N/A 104W
1+1 MHSB or SD, High Power (2xRFU), IRU 600v2 104W 76W 180W
1+1 MHSB or SD, Power save Mode (Offline Tx Mute), Std
Power (2xRFU), IRU 600v2
82W N/A 82W
1+1 MHSB or SD, Power Save Mode (Offline Tx Mute), High
Power (2xRFU), IRU 600v2
82W 42W 124W
IRU 600v3
Typical and maximum power consumption figures are listed for standard and high
power operation on the 5.8/L6 GHz bands for QSPK operation at maximum Tx
power settings.
lA common RFU is used for standard and high power modes. High power is
enabled through feature license. See Licensing on page 38.
62 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
lFor both standard power and high power operation DC power to the RFU(s) is
provided from its INU/INUe via the RAC - RFU cable.
Table 3-3. Nominal IRU 600v3 Power Consumption for QPSK at Max Tx Power
Configuration
5.8/L6
GHz Typ-
ical
5.8/L6 GHz
Maximum
1+0 Standard Power (1xRFU) 58W 63W
1+0 High Power (1xRFU) 63W 68W
2+0 or 1+1 FD, Standard Power (2xRFU) 116W 126W
2+0 or 1+1 FD, High Power (2xRFU) 126W 136W
1+1 MHSB or SD, Std Power (2xRFU) 116W 128W
1+1 MHSB or SD, High Power (2xRFU) 126W 138W
1+1 MHSB or SD, Power save Mode (Offline Tx Mute), Std Power
(2xRFU)
106W 115W
1+1 MHSB or SD, Power save Mode (Offline Tx Mute), High Power
(2xRFU)
111W 118W
NOTE:
lPower consumption is reduced (slightly) on higher modulations (higher
modulations have reduced Tx power output maximums).
lPower consumption is reduced as Tx power is reduced (either when enabling
ATPC or when manually configuring Tx power to a value below the maximum
capability).
oHigh power and standard power operation realizes power consumption
savings of approximately 5W when operated 3dB below maximum power,
and approximately 15 W when operated 10dB below.
Node Card Maximums
From SW release 5.04 improvements in the cooling fan operating logic allow higher
card loadings coupled with maximum ambients to 55oC (131oF), or 45oC (113oF).
lFrom software release 5.04 fan logic improvements allow higher INUe loading
when an NPC is installed.
lAn NPC must be fitted in an INUe where specified below. The NPC provides
power supply load sharing with the NCC, allowing the overall loading to be
increased. Should the NPC fail, airflow from the 2RU FAN is increased to
compensate.
lExtended FAN failure/impairment detection is included. For example, an
alarm will be raised on a reduction in fan speed (RPM), such as can occur as a
result of bearing wear/friction.
When planning the number and type of cards to be installed in an INUe or INU, the
following rules must be observed. Individual card consumptions are detailed under
Power Consumption.
CAUTION:The loading rules below must be observed by the installer -
there is no built-in mechanism to report or limit an incorrect dimen-
sioning of power supply consumption.
260-668066-001 OCTOBER 2012 63
VOLUME III, CHAPTER 3, INU AND INUE INSTALLATION
INUe Loading Rules for Operation up to 55ºC (131ºF)
The following loading rules must be followed when dimensioning the total power con-
sumption of an INUe that is required to operate in ambient temperatures up to 55ºC
(131ºF):
lIf the total power consumption of all cards installed exceeds 85 watts, an NPC
must be fitted, a 2RU FAN card must be fitted, and 5.04 or later SW loaded.
lWith this configuration confirmed (NPC + 2RU FAN + 5.04 SW or later) the
maximum INUe loading enabled is 125 watts. The one exception/condition is
that the combined installed total of DAC GE3 cards must not exceed four.
lIf an earlier version of SW is loaded, the maximum INUe loading allowed is 85
watts. This rule applies even if an NPC and 2RU FAN is fitted.
CAUTION:55ºC (131ºF) operation does not apply to the PCC. Oper-
ational ambient temperatures with a PCC installed must not exceed
450C (1130F).
INUe Loading Rules for Operation at 45ºC (113ºF)
The following loading rules must be followed when dimensioning the total power con-
sumption of an INUe that is operating in ambient temperatures that do not exceed
45ºC (113ºF):
lIf the total power consumption of all cards installed exceeds 85 watts, an NPC
must be fitted, a 2RU FAN card must be fitted, and 5.04 or later SW loaded.
lWith this configuration confirmed (NPC + 2RU FAN + 5.04 SW or later) the
maximum INUe loading enabled is 150 watts. The exceptions/conditions to
this rule are:
oINUe loading is limited to 140 watts if the installed total of DAC GE3 cards
exceeds two.
oThe combined installed total of DAC GE3 cards must not exceed four.
lIf an earlier version of SW is loaded, the maximum INUe loading allowed is
105 watts. This rule applies even if an NPC and 2RU FAN is fitted.
Table 3-4. Example Compliant INUe Configurations (5.04 SW or later)
Configuration Total Card
Consumption
Ambient
Max Temp
Max Power
Con-
sumption
NCC, NPC, 6xRAC 60E, 2xDAC GE3, AUX 120W +55 ºC 125W
NCC, NPC, 6xRAC 6XE, 2xDAC GE3, AUX 150W +45 ºC 150W
NCC, NPC, 6xRAC 60E, 2xDAC GE3, DAC 155oM 124W +55 ºC 125W
NCC, NPC, 4xRAC 6XE, 2xDAC GE3, 2xDAC 16x, AUX 121W +55 ºC 125W
INU (1RU) Loading Rules
The INU (1RU) chassis should not be loaded above the follow limits:
l65 watts total for operation up to 45ºC
l50 watts total for operation up to 55ºC
No improvements are introduced for the INU with 5.04 SW due to its use of smaller,
lower volume cooling fans.
64 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Elevated ambient temperatures shoul d be avoided. The
ambient temperature is the ai r temperature in the immediate
operati ng environment of the chassis, which if installed i n a
rack, is the ambient applying to its location within the rack.
CAUTION:The ambient temperature maximums must not be
exceeded. Over-temperature operation is a primary factor affecting
long term component reliability.
PCC +24 Vdc Operation
The PCC is for use with standard +24 Vdc (-ve grounded) battery-backed power
supply systems.
lOne PCC supports a maximum three IRU 600v1 or v2 RFUs, plus any
combination of RACs and DACs.
lOne PCC supports a maximum two IRU 600v3 RFUs, plus any combination of
RACs and DACs.
lThe PCC +ve and -ve input terminals are isolated from chassis (ground). The -
ve input is grounded by the -ve grounded power supply connection.
lThe PCC 20A fuse is fitted in the +ve input. It is a PCB mount type and is not
field replaceable.
lReverse polarity protection is provided. The PCC will automatically recover
from a reverse polarity connection - the fuse will not blow. Over temperature
thermal protection is included.
lThe PCC load maximum is 200 Watts. Use the power consumption data in the
preceding section to determine the maximum number of cards and RFUs that
an be supported.
lAmbient temperatures must not exceed 450C (113F). The PCC should always
be installed next to the FAN card to get best air flow cooling.
lThe PCC conversion efficiency is nominally 10%. To determine the power
consumed by the PCC, use a figure of 10% of the power consumed by the
INU/INUe cards and RFUs.
lWhen installed in an INUe the INUe must be fitted with the 2RU FAN module
as it provides almost double the air flow of the 1RU FAN modules.
lThe PCC must be connected to the NCC before applying power to the PCC to
avoid a current-inrush trip (overload) on the PCC.
lThe PCC can be plugged into any INU/INUe option slot. It is not connected to
the backplane and its function is not monitored within Portal.
lWhere an NPC is fitted, two PCCs are required for +24 Vdc operation, one for
the NCC, the other for the NPC. This means an INUe must be used for NCC +
NPC operation.
lIf the PCC front-panel LED is not lit, it indicates the existence of abnormal
conditions such as output under-voltage, output over-voltage, loss of input
power, output over-current, or open input fuse.
260-668066-001 OCTOBER 2012 65
VOLUME III, CHAPTER 3, INU AND INUE INSTALLATION
Power Cables
The INU power cable is supplied in the IDC Installation Kit. It is supplied with a D-
sub M/F 2W2 connector fitted at one end and wire at the other. The cable is nom-
inally 5m (16ft), and the wires are 4mm2 (AWG12).
The cable is used for -48 Vdc connections to an NCC or NPC, or for +24 Vdc con-
nections to a PCC.
The blue wire must be connected to live (-48 Vdc or +24 Vdc); the black wire to
ground (+48 Vdc or -24 Vdc).
Figure 3-2. Power Cable and Connector
CAUTION:DC power connector can be shorted inadvertently if applied
at an angle. Always insert with correct alignment.
The PCC is supplied with a power cable to connect to an NCC or NPC.
Similarly, the optional NEBS power line filter unit is supplied with a power cable to
connect to an NCC, NPC, or PCC.
This cable is fitted with a D-sub M/F 2W2 connector at each end. Note that a stand-
ard power cable is not included for the reason the cable supplied with an NCC (or
NPC) is not used when powered from a PCC, or via a power line filter, so the cable is
re-used as the power input cable for the PCC or filter unit.
Fuses
The NCC and NPC are fitted with a fast-acting 25A fuse fitted on the PCB behind the
power cable connector.
The PCC is fitted with a fast-acting PCB-mounted 20A fuse.
NCC, NPC and PCC fuses are not field-replaceable.
FAN Air Filter Option
A fan air filter option is available for installation with the FAN module in an INU,
and with the 2RU FAN module in an INUe. Where Eclipse is required to be NEBS
66 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
(Network Equipment-Building System) compliant, the fan air filter must be
installed.
The f an ai r filter must be inspected regularly and repl aced
when dust laden. I n normal telecommunicati ons equipment-
room environments inspecti on must be at not mor e than 12
monthly intervals. In other environments where ai r quality i s
not controlled, more frequent i nspection is required.
CAUTION:A heavily dust-laden filter will severely restrict fan air flow
and may lead to over-heating.
Excessive heat is the number one cause of premature equipment
aging and failure.
To maximize long term component reliability, the fan air filter must
not be allowed to become clogged, and ambient temperature limits
must not be exceeded.
Fan Air Filter Installation
For the INUe a fan air filter kit is supplied, comprising a filter frame, filter element,
and fastening screw. For the INU the filter it is a single-piece element.
The filter is installed in the INU/INUe to the right side of the FAN module, as illus-
trated below for an INUe.
Remove the FAN module and slide the air filter into the chassis so that it locates to
the right side of the FAN module backplane connector, and up against the chassis
side. FAN module removal and replacement does not affect traffic.
Installation instructions are included with the fan filter kit.
Figure 3-3. Location of Fan Air Filter in INUe
260-668066-001 OCTOBER 2012 67
VOLUME III, CHAPTER 3, INU AND INUE INSTALLATION
Power Line Filter Option
An external DC power line filter option is available and must be installed with an
INU/INUe for NEBS compliance. It ensures Eclipse meets EMI requirements spec-
ified within Telcordia GR-1089-CORE, Issue 4, June 2006.
It is IRU tall and 140mm wide (5.5”), and is supplied as a kitset comprising the
filter unit, bracket for left or right side rack mounting, and a short 2W2 to 2W2 cable
for connecting the filter unit to the NCC or NPC -48 Vdc inputs.
Where an NPC is fitted, two filter units are required, one for the NCC, the other for
the NPC.
The standard power cable supplied with an INU or NPC is re-used as the power
input cable for the filter unit.
Figure 3-4. Power Line Filter with Bracket
68 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Installation Requirements
This table lists typical INU Installation requirements.
Function/Requirement Details
Restricted access The INU/INUe and its associated dc power supply must be installed in
a restricted access area such as a secure equipment room, closet, or
cabinet.
For NEBS compliance, this equates to installation of the INU/INUe
in a secure, restricted access central office (CO) or customer premises
(CP) location.
Required Rack Space The INU requires 44.5mm (1RU) of vertical rack space and 300mm
rack depth. The INUe requires 89mm (2RU) vertical rack space.
Ventilation The INU/INUe requires unobstructed air passage to each side for
ventilation purposes. There must be a minimum of 50mm (2”) of
side spacing to any rack panels, cable bundles or similar. No space
above or below is required for ventilation purposes.
Fan Air Filter The fan air filter must be installed where the INU/INUe is required to
be NEBS compliant. The filter must be inspected regularly and
replaced when dust laden. Inspection must be at not more than 12
monthly intervals in controlled air environments, or more frequently
otherwise.
Power Line Filter The power line filter must be installed where the INU/INUe is required
to be NEBS compliant.
Maximum Ambient
Temperature
The INU/INUe is specified for a maximum ambient temperature
(Tmra) of +55°Celsius (131° Fahrenheit). Conditions apply - see
Power Supply on page 61. The maximum ambient temperature
(Tmra) applies to the immediate operating environment of the INU,
which if installed in a rack, is the ambient applying to its location
within the rack.
Physical stability Ensure that adding an INU/INUe to a rack does not adversely impact
the physical stability of the rack.
Power supply -48 Vdc The INU (NCC and NPC) has the +ve pin on its dc power supply
connector connected to the chassis.
It must be used with a -48Vdc power supply which has a +ve
ground; the power supply ground conductor is the +ve supply to the
INU.
There must be no switching or disconnecting devices in the ground
conductor between the dc power supply and the point of connection
to an INU/INUe.
For NEBS compliance the battery return connection is to be treated
as a common DC return (DC-C), as defined in GR-1089-CORE.
260-668066-001 OCTOBER 2012 69
VOLUME III, CHAPTER 3, INU AND INUE INSTALLATION
Function/Requirement Details
Power Supply +24 Vdc A PCC is required to provide a +24 Vdc to -48 VDC conversion. The dc
power supply supplying the PCC must be -ve grounded.
There must be no switching or disconnecting devices in the ground
conductor between the dc power supply and the point of connection
to a PCC.
Power Supply Location The INU/INUe must be installed in the same premises as its dc power
supply and be located in the same immediate area (such as adjacent
racks or cabinets) as any other equipment that is connected to the
same dc power supply.
Power Supply
Compliance and Loading
The dc power supply must be UL or IEC compliant for a SELV output
(60Vdc maximum).
Check to ensure that connection of an Eclipse system to an existing
dc supply does not overload the supply, circuit protection devices and
wiring.
Where a new dc power supply is to be installed for an Eclipse Node,
the power supply should be rated to supply:
- 12.5A for the INU
- 25A for the INUe
- 15A for the PCC
Cable routing Eclipse tributary, auxiliary and NMS cables are not to be routed with
any AC mains power lines. They are also to be kept away from any
power lines which cross them.
Grounding The INU must be grounded to the station or master ground, which
must be the same ground as used for the dc power supply. Normally
this is achieved by grounding the INU to the ground bar in its
equipment rack or frame. This bar is most often located to one side of
the rack or at rack top or bottom. In turn, the ground bar is grounded
to the station ground.
Intrabuilding interfaces
and cabling
(NEBS Compliance)
Intrabuilding connections to/from Eclipse ports must only be
connected via intrabuilding or unexposed wiring or cabling.
Intrabuilding ports MUST NOT be metallically connected to interfaces
that connect to the OSP or its wiring. These interfaces are designed
for use as intrabuilding interfaces only (Type 2 or Type 4 ports as
described in GR-1089-CORE, Issue 4) and require isolation from the
exposed OSP cabling. The addition of Primary Protectors is not
sufficient protection in order to connect these interfaces metallically
to OSP wiring.
Shielded and grounded cables must be used for intrabuilding cabling
to/from Eclipse ports. Cables must be grounded at both ends.
70 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Installation Procedure
1. Fit the rack mounting brackets to the chassis with the grounding stud to left
or right side for the most direct ground wire path to the rack ground bar.
2. Locate the INU/INUe in the equipment rack and secure it using four No.12
Phillips dome-head screws from the IDC installation kit.
3. Ground the INU/INUe from the grounding stud to the rack/frame ground
bar using a length of 4mm2 (AWG12) green PVC insulated stranded copper
wire with a suitably sized ground lug at the ground bar end (supplied by the
installer). The grounding stud accommodates ground cables up to 16 mm2
(AWG 6). The stud also provides jack plug connection for a wrist strap.
4. If the equipment rack/frame requires grounding, use 16mm2 (AWG6) wire
from its ground bar to the station ground.
Grounding Safety:
oDo not assume that an existing rack or mounting frame is correctly
grounded. Always check the integrity of the ground connections, which
must include a check through to the master ground for the station, which
should be located at the point of cable entry to the equipment building.
Ground wires must provide a direct, low impedance path to the master
ground bar.
oDo not connect other equipment to the same grounding cable as the INU.
Each item of equipment in a rack must be separately grounded to the rack
ground bar.
oThe INU must be located in the same immediate area (adjacent
racks/cabinets) as all other equipment with a (ground) connection to a
common DC supply source.
For NEBS compliance:
oInstall the fan air filter option. Options are available for the 1RU INU and
2RU INUe. See FAN Air Filter Option on page 66.
oInstall the NEBS power line filter unit. Install immediately below or above
the INU. Separate filter units are required for the NCC and, where fitted,
the NPC. Use the supplied 2w2 to 2w2 cable to connect the output of the
filter unit to the input of the NCC or NPC.
oTo ground the INU use 16 mm2 (AWG 6) green PVC insulated stranded
copper wire together with a star washer under the grounding screw at the
ground-bar end. Torque the INU grounding post screw to 1.2-1.5 Nm (10-13
in-lbs).
oAll bare conductors must be coated with an appropriate antioxidant
compound before crimp connectors are fitted.
oAll unplated connectors, braided strap, and bus bars must be brought to a
bright finish and then coated with an antioxidant before they are
260-668066-001 OCTOBER 2012 71
VOLUME III, CHAPTER 3, INU AND INUE INSTALLATION
connected. This does not apply to tinned, solder-plated, or silver-plated
connectors and other plated connection surfaces – but all must be clean
and free of contaminants.
oAll raceway fittings must be tightened to provide a permanent low-
impedance path.
5. Install the plug-ins in their assigned slot positions, and check that their
front panels are flush-fitted (not protruding) and held secure by their
fasteners. Ensure unused slots are covered by blanking panels.
oIf a FAN air filter is required, fit it prior to inserting the FAN.
oInstall the CompactFlash (CF) card in the NCC; insert in the socket on
the right side of the PCB.
oThe CF card holds configuration, software load, and license data.
oEach CF card is identified by a unique serial number; which is the license
number for the Eclipse terminal.
6. For an IRU 600 installation fit the supplied jumper cable between the RAC
and its companion IRU 600 RFU.
7. Fit NMS cables, DAC tributary cables, and where required, AUX cables. For
data on the cable sets, refer to INU/INUe Cable Assemblies on page 77.
The following steps describe the procedure for installing the power cable, and pre-
paring for power-on. Do not connect the power until all steps have been completed.
8. Run the supplied power cable through to the power pick up point, which
will normally be at a circuit breaker panel in the rack. A circuit breaker (or
fuse) should have a capacity of 12A for the INU and a 25A for the INUe,
however these ratings can be adjusted in line with the number of cards
installed, and hence power consumption. For power consumption data, see
Power Supply on page 61.
9. For a -48 Vdc supply, connect the blue wire to -48Vdc (live), and the black
wire to ground/+ve. (Power input on the NCC and NPC is polarity
protected).
10. For a +24 Vdc supply, connect the blue wire to +24Vdc (live), and the black
wire to ground/-ve. (Power input on the PCC is polarity protected).
11. Measure the voltage on the dc power connector.
oFor -48 Vdc operation the voltage should be -48Vdc, +/-2Vdc for a non
battery floated supply, and nominally -56 Vdc for a battery floated supply.
(Limits are -40.5 to - 60 Vdc).
oFor +24 Vdc operation the voltage should be 24 +/- 2Vdc for a non battery
floated supply, and nominally 30 Vdc for a battery floated supply.
(Operating limits are 20 to 36 Vdc).
72 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
CAUTION: This product meets the global product safety requirements
for SELV (safety extra low voltage) rated equipment and the input
voltage must be guaranteed to remain within the SELV limits (60V
maximum) in the event of a single internal fault.
Always check the integrity of the dc power supply to an INU/INUe
right to its source. Never assume that the supply provided to the pick-
up point in a rack is correct.
Eclipse dc power, IF, tributary, auxiliary and NMS cables are not to be
routed with any AC mains power lines. They are also to be kept away
from any AC power lines which cross them.
12. Carry out a complete check of the installation. If all is correct, and the IRU
600 installation has likewise been completed and checked, the INU and IRU
600 are ready for power-on.
oIf a PCC is installed, ensure the PCC to NCC/NPC cable is correctly fitted
before power-on.
CAUTION: Once powered up the RFU(s) will be transmitting with the
pre-configured or ex-factory frequency and power settings unless the
start-up transmit mute option has been invoked. (All RFUs shipped
ex-factory have the transmit-mute set as the default unless other-
wise specified).If frequency and power settings are not correct, inter-
ference can be caused to other links in the same geographical area.
13. Turn power on. For -48 Vdc connect the power cable to the NCC, and to the
NPC where fitted. For +24 Vdc operation, connect to the PCC input.
oWhere a power line filter is installed (for -48 Vdc), connect to the filter
input.
CAUTION: Do not turn off an INU/INUe within 10 minutes of initial
turn-on, or initial turn-on after a new compact flash card is installed.
CAUTION: 2W2 DC power connectors can be shorted inadvertently if
applied at an angle. Always insert with correct alignment.
CAUTION: Ambient temperatures must not exceed 550C (1310F). If
installed in a rack cabinet, it is the ambient within the cabinet.
Next Step: The Eclipse INU with IRU 600 is ready for configuration and antenna
alignment.
260-668066-001 OCTOBER 2012 73
VOLUME III, CHAPTER 3, INU AND INUE INSTALLATION
Plug-in Installation
Installing or changing out a plug-in is a straightforward process.
lThe table below lists plug-in requirements at installation or subsequent
upgrade.
lUnless specified by the customer, plug-ins will not be installed in an
INU/INUe at shipment. Instead, each is individually packed within the
shipping box.
For a description of the plug-ins, see Plug-in Cards on page 20.
For information on user-interface connector and cable data, refer to INU/INUe Cable
Assemblies on page 77.
Table 3-5. Plug-in Requirements
Function/Requirement Priority Details
Slot Assignment
All slots filled All slots must be filled with either a plug-in or a blanking
panel. Failure to do so will compromise EMC integrity and
distribution of FAN cooling air.
Universal slots
1-4 on an INU
1-6 on an INUe
RAC, DAC, and AUX plug-ins can be fitted in any universal
slot.
Restricted slots
7-9 on an INUe
DAC, and AUX plug-ins can be fitted in any restricted slot.
The exceptions are the DAC 155oM, DAC 155eM, and AUX,
which must only be installed in slots 1 to 6 when they are to
be configured to carry/access Eclipse NMS, otherwise they
can be installed in slots 7 to 9.
Dedicated slots The NCC, FAN, and NPC plug-ins have dedicated slots.
Protected RACs INUe Protected RACs (or ring-protected RAC with DAC 155oM)
must only be installed in ‘above and below’ slots as indicated
by the red arrows.
AUX Multiple AUX plug-ins can be installed per INU/INUe.
NPC Only one NPC is required to provide the NCC protection
option. An NPC must be installed in slot 4 of an INU, or slot
10 of an INUe. If an NPC is not installed in an INU, slot 4 is
available as a universal slot.
Installing / Changing Plug-ins
ESD grounding strap Always connect yourself to the INU/INUe with an ESD
grounding strap before changing or removing a plug-in.
Failure to do so can cause ESD damage to the plug-ins. Avoid
hand contact with the PCB top and bottom.
74 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Function/Requirement Priority Details
Finger-grip fasteners Plug-ins must be withdrawn and inserted using their finger-
grip fasteners/pulls. Never withdraw or insert using attached
cables, as damage to the plug-in connector and its PCB
attachment can occur. If not complied with, the Aviat
Networks warranty may be voided.
Hot-swappable Plug-ins are hot-swappable.
- Removal of an in-service payload plug-in will interrupt its
traffic.
- Removal of the NCC will affect all traffic - unless pro-
tected by an NPC.
- Removal / replacement of the FAN does not affect traffic.
Engaging backplane
connector
When installing a plug-in, ensure its backplane connector is
correctly engaged before applying sufficient pressure to
bring the plug-in panel flush with the front panel.
Revision time lag When swapping or installing plug-ins, up to 60 seconds can
be required for the INU/INUe to show its revised status via
the front panel LEDs, or via Portal.
EMC integrity Plug-ins and blanking panels are held in place by captive
finger-screws. Ensure the finger-screws are fastened as
failure to do so may compromise EMC integrity and fan
cooling.
RACs
Connecting and
disconnecting the
RFUcable at the RAC
Never disconnect or reconnect an RFU cable to a RAC
without first turning the power off to the INU or withdrawing
the RAC from the backplane.
NOTE: The RFU cable provides the power feed to the RFU.
Arcing during connection and disconnection at the RAC on
a live RAC can cause damage to connector contact sur-
faces. Power spikes caused by live connection and dis-
connection may also cause errors on other traffic passing
through the INU/INUe. The only exception to live dis-
connection and connection should be for checks of pro-
tected operation at link commissioning.
Removing RAC from a
powered INU
When removing a RAC from a powered INU, always the
disengage the RAC from the backplane before disconnecting
its RFU cable. Similarly before inserting an RAC, always
reconnect the RFU cable before engaging the backplane.
RAC combinations for
INUe
An INUe can be fitted with a maximum of six RACs for one of
the following combinations:
- Six non-protected links
- One protected/diversity link plus four non-protected links
- Two protected/diversity links plus four non-protected
links
- Three protected/diversity links
Before installing more than four RACs refer to the Power
Consumption and INU Load Maximums in Power Supply on
page 61.)
260-668066-001 OCTOBER 2012 75
VOLUME III, CHAPTER 3, INU AND INUE INSTALLATION
Function/Requirement Priority Details
DACs
DAC combinations DACs can be fitted singly or in combination to provide a mix
of interface types and capacities provided they have a
common backplane configuration. The backplane can be set
for:
- 1.5 Mbit/s / DS1
- 3 Mbit/s / DS3
- 155 Mbit/s / OC3
Mux version DACs allow a mix of interfaces from a common
DS1 backplane configuration.
Increasing node capacity To achieve a greater node capacity, two or more INUs can be
interconnected via a DAC option.
Interface Protection
(electrical DACs)
Line (interface) protection is supported for paired DS1, DS3
and OC3 electrical DACs.
Interface Protection
(optical DACs)
Line (interface) / card protection is supported for paired OC3
optical DACs.
Interface Protection, Eth-
ernet DAC GE3
Interface / card protection is supported for paired DAC GE3
cards.
General
Antistatic bags Enclose spare plug-ins, or plug-ins to be returned for service,
in an antistatic bag. When handling a plug-in to or from an
antistatic bag, do so at the INU/INUe and only when you are
connected to the INU/INUe via an ESD ground strap.
Spare blank panels Keep any removed blanking panels for future use.
76 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
INU/INUe Cable Assemblies
CAUTION:Eclipse tributary, auxiliary and NMS cables are not to be
routed with any AC mains power lines. They are also to be kept away
from any power lines which cross them.
For safety reasons tributary, auxiliary and NMS cables should not be
connected to outside plant.
Use approved surge suppression equipment when connecting to un-
protected external inputs and outputs.
Refer to:
lDAC Trib Connectors and Cables on page 77
lNMS Connectors and Cables on page 88
lAuxiliary and Alarm Connectors and Cables on page 89
DAC Trib Connectors and Cables
This section provides cable and connection data for:
lDAC 16xV2 Cable and Connector Data on page 77
lDAC 4x Cable and Connector Data on page 83
lDAC GE3 Ethernet RJ-45 Cables on page 85
lDAC Optical Cable and Connector Data on page 86
lDAC 155eM Cables on page 88
DAC 16xV2 Cable and Connector Data
Refer to:
lDAC 16xV2 HDR-E50 To 24 AWG Free End Cable Assembly on page 77
lDAC 16xV2 HDR-E50 To BNC Cable Assembly on page 78
lDAC 16xV2 HDR-E50 To RJ-45 Cable Assembly on page 79
lDAC 16xV2 HDR-E50 To Free End Y-Cable Assembly on page 80
lDAC 16xV2 HDR-E50 To BNC Y-Cable Assembly on page 81
DAC 16xV2 HDR-E50 To 24 AWG Free End Cable Assembly
The assemblies provide balanced 120 ohm connections on cable lengths of 3m, 10m,
15m or 32m. The wire is intended for use with wire-wrap or insulation displacement
termination blocks.
260-668066-001 OCTOBER 2012 77
VOLUME III, CHAPTER 3, INU AND INUE INSTALLATION
Each cable supports up to 8 tribs. Two cables are required per DAC if more than
8xE1/DS1 tribs are to be connected.
Figure 3-5. DAC 16xV2 Free End Trib Cable
RX indicates data into the DAC 16xV2 (DAC Rx).
TX indicates data out from the DAC 16xV2 (DAC Tx).
DAC 16xV2 HDR-E50 To BNC Cable Assembly
The HDR to BNC 75 ohm cable is available in lengths of 2.3m or 5.3m.
Each cable supports up to 8 tribs. Two cables are required per DAC if more than
8xE1/DS1 tribs are to be connected.
78 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Figure 3-6. DAC 16xV2 BNC Trib Cable Assembly
Figure 3-7. DAC 16xV2 BNC Trib Cable Connections
Arrow towards BNC indicates data out (DAC Tx).
Arrow away from BNC indicates data in (DAC Rx).
The 1/9 in the label indicates that it is for trib 1 if the cable assembly is used
with the trib 1-8 connector, or trib 9 if used with the trib 9-16 connector.
This also applies for 2/10, 3/11, etc. up to 8/16.
DAC 16xV2 HDR-E50 To RJ-45 Cable Assembly
The HDR to RJ-45 cable is available in lengths of 2m or 5m. Impedance is nom-
inally 120 ohms.
This cable (straight cable) is intended for connection to RJ-45 patch panels, which
have a built-in crossover function.
260-668066-001 OCTOBER 2012 79
VOLUME III, CHAPTER 3, INU AND INUE INSTALLATION
Each cable supports up to 8 tribs. Two cables are required per DAC if more than
8xE1/DS1 tribs are to be connected.
Figure 3-8. DAC 16xV2 RJ-45 Trib Cable
Figure 3-9. DAC 16xV2 RJ-45 Trib Cable Connections
DAC 16xV2 HDR-E50 To Free End Y-Cable Assembly
This cable is for use with DAC 16xV2 1+1 protected operation. It is available in
lengths of 3.5m, 15.5m or 5m. Impedance is nominally 120 ohms.
The 24 AWG wire is intended for use with wire-wrap or insulation displacement ter-
mination blocks.
80 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Each cable supports up to 8 tribs. Two cables are required per DAC if more than
8xE1/DS1 tribs are to be connected.
Figure 3-10. DAC 16xV2 Free End Y-Cable
RX indicates data into the DAC 16xV2 (DAC Rx).
TX indicates data out from the DAC 16xV2 (DAC Tx).
DAC 16xV2 HDR-E50 To BNC Y-Cable Assembly
This cable is for use with DAC 16xV2 1+1 protected operation. It is available in
lengths of 3.5m, 15.5m or 5m. Impedance is nominally 75 ohms. Each cable sup-
ports up to 8 tribs. Two cables are required per DAC if more than 8xE1/DS1 tribs are
to be connected.
260-668066-001 OCTOBER 2012 81
VOLUME III, CHAPTER 3, INU AND INUE INSTALLATION
Figure 3-11. DAC 16xV2 Trib BNC Y-Cable
Figure 3-12. DAC 16xV2 Trib BNC Y-Cable Connections
Arrow towards BNC indicates data out (DAC Tx).
Arrow away from BNC indicates data in (DAC Rx).
The 1/9 in the label indicates that it is for trib 1 if the cable assembly is used
with the trib 1-8 connector, or trib 9 if used with the trib 9-16 connector.
This also applies for 2/10, 3/11, etc. up to 8/16.
82 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
DAC 4x Cable and Connector Data
Refer to:
lDAC 4x BNC Cable Assembly on page 83
lDAC 4x RJ-45 to RJ-45 Straight Cable on page 83
lDAC 4x RJ-45 to RJ-45 Crossover Cable on page 84
lDAC 4x RJ-45 to Wire Wrap Cable Assembly on page 84
lDAC 4x RJ-45 Connector Pin Assignments on page 85
DAC 4x BNC Cable Assembly
The assembly is provided as a kit of three cables. Each kit provides:
lOne RJ-45 to 2 x BNC female, 0.5m long.
lTwo BNC to BNC male extension cables, 2m or 5m long.
lOne kit is labeled as a 2.5m cable kit, the other as 5.5m.
Each supports one trib. Four are required if all four ports of the DAC 4x are to be con-
nected.
At the RJ-45 plug RX connects to pins 1 and 2, and TX connects to pins 4 & 5. The
pin-numbered RJ-45 plug is pictured with its cable exiting to the rear.
Figure 3-13. DAC 4x RJ-45 to BNC Cable
Item Description
1RX indicates Data In to the DAC.
2TX indicates Data Out from the DAC.
375 ohm BNC female connectors.
DAC 4x RJ-45 to RJ-45 Straight Cable
Connectors at both ends of the cable are wired pin-for-pin as shown in the figure
below. It provides a balanced 120 ohm connection.
Each cable supports one trib. Four cables are required if all four ports of the DAC 4x
are to be connected.
Straight cable assemblies are used when connecting to RJ-45 patch panels, which
have a built-in crossover function.
260-668066-001 OCTOBER 2012 83
VOLUME III, CHAPTER 3, INU AND INUE INSTALLATION
For Connection Function, receive specifies data in to the DAC; transmit is data out
from the DAC.
Table 3-6. DAC 4x RJ-45 to RJ-45 Straight Cable Connections
RJ-45 Pin-to-Pin Connections Connection Function
1 1 Receive Ring
2 2 Receive Tip
3 3 Optional Ground
4 4 Transmit Ring
5 5 Transmit Tip
6 6 Optional Ground
7 7 Ground
8 8 Ground
DAC 4x RJ-45 to RJ-45 Crossover Cable
Connectors are wired such that Receive Ring and Tip at one end connect to Transmit
Ring and Tip respectively, at the other. Pins 3, 6, 7, 8 remain the same. It provides a
balanced 120 ohm connection.
Each cable supports one trib. Four cables are required if all four ports of the DAC 4x
are to be connected.
Crossover cable assemblies are used to interconnect one DAC RJ-45 port to another.
For Connection Function, receive specifies data in to the DAC; transmit is data out
from the DAC.
Table 3-7. DAC 4x RJ-45 to RJ-45 Crossover Cable Assembly
Connection
Function
Pin-to-pin
Connections
Connection
Function
Receive Ring 14Transmit Ring
Receive Tip 25Transmit Tip
Optional Ground 33Optional Ground
Transmit Ring 41Receive Ring
Transmit Tip 52Receive Tip
Optional Ground 66Optional Ground
Ground 77Ground
Ground 88Ground
DAC 4x RJ-45 to Wire Wrap Cable Assembly
The assemblies are available with cable lengths of 2m, 5m or 7.5m. It provides a
balanced 120 ohm connection.
The wire is designed for use with wire wrap or insulation displacement termination
blocks.
84 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Each cable supports one trib. Four cables are required if all four ports of the DAC 4x
are to be connected.
Receive specifies data in to the DAC; Transmit is data out from the DAC.
Table 3-8. DAC 4x Wire Wrap Cable Data
Pin Function Wire Color
1Receive Ring White / Orange
2Receive Tip Orange / White
3Optional Ground White / Green
4Transmit Ring Blue / White
5Transmit Tip White / Blue
6Optional ground Green / White
7Ground White / Brown
9Ground Brown / White
DAC 4x RJ-45 Connector Pin Assignments
This table shows the pin assignments for each front panel RJ-45 trib connector. Refer
to the figure below for connector pin numbering.
Receive refers to an input and specifies from the user.
Transmit refers to an output and specifies towards the user.
Table 3-9. DAC 4x RJ-45 Trib Connector Pin Assignments
Pin Function
1Receive Ring
2Receive Tip
3* Optional Ground
4Transmit Ring
5Transmit Tip
6* Optional Ground
7Ground
8Ground
Figure 3-14. RJ-45 Front Panel Connector (face view)
DAC GE3 Ethernet RJ-45 Cables
The table below list the RJ-45 Ethernet cable options for DAC GE3. One cable
required per port.
260-668066-001 OCTOBER 2012 85
VOLUME III, CHAPTER 3, INU AND INUE INSTALLATION
Table 3-10. RJ-45 Ethernet Cable Options
Description Part Number
Ethernet Cable, RJ45 to RJ45, 2 m 037-579124-001
Ethernet Cable, RJ45 to RJ45, 5 m 037-579125-001
Ethernet Cable, RJ45 to RJ45, 15 m 037-579126-001
The cables are industry-standard straight (Mdi) Ethernet RJ-45 to RJ-45.
DAC Optical Cable and Connector Data
The following table lists the cable and attenuator options for DAC 155oM, DAC
1x/2x155o, and for the optical SFPs available for DAC GE3.
Table 3-11. Optical Cables and Attenuators
Description Con-
nectors
Mode Application Part number
SIMPLEX 0.5 M SM LC
TO LC
LC Single 1310 nM DAC GE3, DAC 155oM 037-579272-001
SIMPLEX 3M SM LC TO
LC
LC Single 1310 nM DAC GE3, DAC 155oM 037-579131-001
SIMPLEX 5M SM LC TO
LC
LC Single 1310 nM DAC GE3, DAC 155oM 037-579132-001
SIMPLEX 10M SM LC
TO LC
LC Single 1310 nM DAC GE3, DAC 155oM 037-579133-001
SIMPLEX 3M SM LC TO
FC
LC, FC Single 1310 nM DAC GE3, DAC 155oM 037-579134-001
SIMPLEX 5M SM LC TO
SC
LC, SC Single 1310 nM DAC GE3, DAC 155oM 037-579138-001
SPLITTER 2M LC-LC TO
SC
LC, SC Single 1310 nM DAC GE3, DAC 155oM 037-579142-001
SPLITTER 2M LC-LC TO
LC
LC Single 1310 nM DAC GE3, DAC 155oM 037-579143-001
ATTENUATOR 3M, LC,
10DB
LC Single 1310 nM DAC GE3, DAC 155oM 037-579155-001
ATTENUATOR 5M, LC,
10DB
LC Single 1310 nM DAC GE3, DAC 155oM 037-579156-001
SIMPLEX 2M SM LC TO
SC
LC, SC Single 1310 nM DAC GE3, DAC 155oM 037-579179-001
SIMPLEX 5M, SM SC-FC SC, FC Single 1310 nM DAC 1/2x155o 037-579191-001
SIMPLEX 3M, SM SC-SC SC Single 1310 nM DAC 1/2x155o 037-579194-001
SIMPLEX 5M, SM SC-SC SC Single 1310 nM DAC 1/2x155o 037-579194-005
SPLITTER 2M SC-SC TO
SC
SC Single 1310 nM DAC 1/2x155o 037-579198-001
SPLITTER 4M SC-SC TO
LC
SC, LC Single 1310 nM DAC 1/2x155o 037-579200-001
SPLITTER 4M SC-SC TO
ST
SC, ST Single 1310 nM DAC 1/2x155o 037-579201-001
86 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
ATTENUATOR 3M, SC,
10DB
SC Single 1310 nM DAC 1/2x155o 037-579209-001
ATTENUATOR 5M, SC,
10DB
SC Single 1310 nM DAC 1/2x155o 037-579210-001
SIMPLEX 3M MM LC TO
LC
LC Multi 850 nM DAC 155oM 037-579431-001
SIMPLEX 10M MM LC
TO LC
LC Multi 850 nM DAC 155oM 037-579432-001
SIMPLEX 5M MM LC TO
SC
LC, SC Multi 850 nM DAC 155oM 037-579434-001
SIMPLEX 3M MM LC TO
FC
LC, FC Multi 850 nM DAC 155oM 037-579440-001
SPLITTER 2M MM SC
TO LC/LC
LC, SC Multi 850 nM DAC 155oM 037-579390-001
Single-mode (1310 nm) cables are available for LC to LC connections.
Single-mode and multi-mode (850 nm) cables are available for LC to SC connections.
Y-cable assemblies for protected DAC 155oM operation are available for single-mode
LC to LC, and for single-mode or multi-mode LC to SC connections.
LC to LC Connections - non-protected operation
Two cables required per connection.
Single-mode, part no. 037-579131-001: Simplex, single-mode, LC TO LC 3M (9 ft)
Single-mode, part no. 037-579132-001: Simplex, single-mode, LC TO LC 5M (16 ft)
LC to LC Connections - protected operation
lTwo Y-cable assemblies required per connection.
lSingle-mode, part no. 037-579143-001: Y-cable, single-mode, LC to LC, 2m (6
ft) splitter/combiner
lSingle-mode, part no. 037-579147-001: Y-cable, single-mode, LC to LC, 4m
(13ft) splitter/combiner
LC to SC Connections - non-protected operation
lTwo cables required per connection.
lSingle-mode cable part no. 037-579137-001: Simplex, single-mode, LC to SC
3m (9 ft)
lMulti-mode cable part no. 037-579180-001: Simplex, multi-mode, LC to SC
2m (6 ft)
LC to SC Connections - protected operation
lTwo Y-cable assemblies required per connection.
lSingle-mode, part no. 037-579142-001: Y-cable, single-mode, LC to SC, 2m (6
ft) splitter/combiner
260-668066-001 OCTOBER 2012 87
VOLUME III, CHAPTER 3, INU AND INUE INSTALLATION
lMulti-mode, part no. 037-579390-001: Y-cable, multi-mode, LC to SC, 2m (6
ft) splitter/combiner
Other cable options are available for LC connection to FC or
ST. Contact Aviat Networks or your supplier for details.
DAC 155eM Cables
The following cables are for use with the DAC 155eM (electrical SFP):
Part number Description
037-579462-003 CABLE, M1.0/2.3 TO M1.6/5.6, 75 OHM STRANDED 3m
037-579462-005 CABLE, M1.0/2.3 TO M1.6/5.6, 75 OHM STRANDED 5m
037-579462-010 CABLE, M1.0/2.3 TO M1.6/5.6, 75 OHM STRANDED 10m
037-579472-002 CABLE, M1.0/2.3 TO M1.0/2.3, 75 OHM STRANDED, 2M
037-579466-001 CABLE, M1.0/2.3 TO M1.0/2.3, 75 OHM STRANDED, 150mm
NMS Connectors and Cables
Data is included for:
lNMS 10/100Base-T Connector on page 88
lMaintenance V.24 Connector on page 89
NMS 10/100Base-T Connector
The NMS connector provides Ethernet access for Portal or ProVision. Pin assign-
ments represent industry-standard LAN cable assembly for a 10/100Base-T, RJ-45
connector. Different length ‘straight’ Ethernet cables are included as optional acces-
sories.
The Eclipse INU/INUe has a four-port 10/100Base-T NMS assembly. The Ethernet
port auto-resolves for straight and crossover cables (Mdi or MdiX). Either cable type
can be used.
The port connectivity and activity LED indications are not consistent across all
Eclipse products. The orange LED indicates connectivity (on for a valid connection)
and the green LED flashes to indicate traffic activity.
Table 3-12. RJ-45 Ethernet NMS Connector Pin Assignments
Pin Function
1Ethernet transmit data +
2Ethernet transmit data -
3Ethernet receive data +
4Not used
88 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL

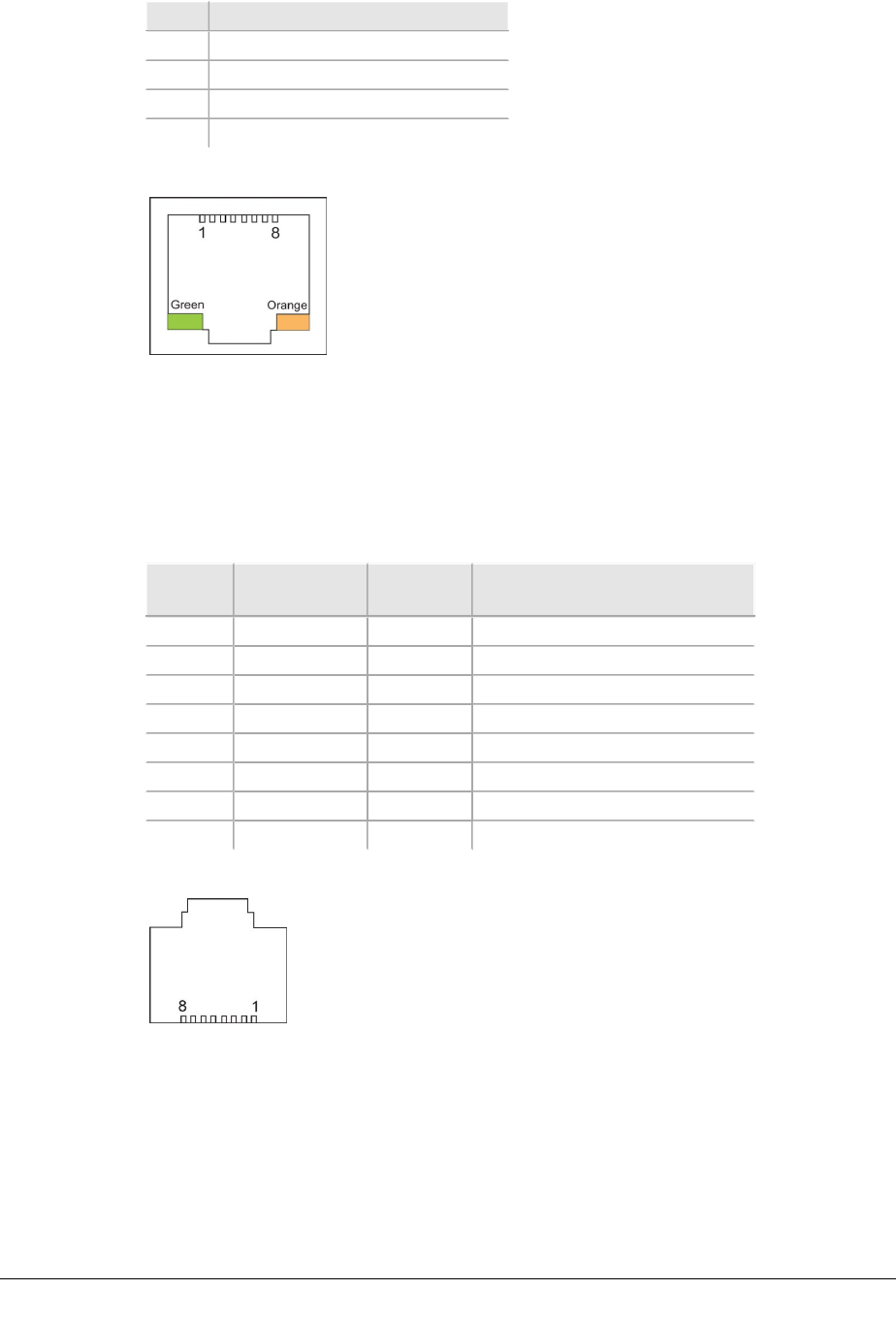

Pin Function
5Not used
6Ethernet receive data -
7Not used
8Not used
Figure 3-15. RJ-45 Ethernet NMS Connector(s)
Maintenance V.24 Connector
The V.24 connector provides serial data access for Portal. One industry-standard RJ-
45 to DB-9 V.24 Maintenance Cable is included with every INU.
Table 3-13. RJ-45 V.24 Connector Pin Assignment
Pin Signal
Name
Direction Function
1 DSR/RI In Data Set Ready/Ring Indicator
2 CD In Carrier Detect
3 DTR Out Data Terminal Ready
4 GND System Ground
5 RXD In Receive Data
6 TXD Out Transmit Data
7 CTS In Clear to Send
8 RTS Out Request to Send
Figure 3-16. RJ-45 V.24 Portal Connector (face view)
Auxiliary and Alarm Connectors and Cables
Data is included for AUX Plug-in auxiliary interfaces and cable-sets.
260-668066-001 OCTOBER 2012 89
VOLUME III, CHAPTER 3, INU AND INUE INSTALLATION
Alarm and Auxiliary cables should not terminate to equi pment
outside the shelter or building. Use approved surge sup-
pr ession equipment when connecting to un-protected external
inputs and outputs.
Refer to:
lAUX Data Cable: Async, HD26 to Wirewrap, 2m on page 90
lAUX Data Cable: Sync, HD26 to Wirewrap, 2m on page 91
lAUX Data Cable: Async, HD26 to 3 X DB9, 1m on page 92
lAUX Data Cable: Sync, HD26 to 3 X DB9, 1m on page 93
lAUX Data Cable: Async, AUX HD26 to AUX HD26, 1m on page 94
lAUX Data Cable: Sync, AUX HD26 to AUX HD26, 1m on page 95
lAUX Alarm I/O Cable: HD15 to Wirewrap, 2m or 5m on page 96
In this section, all connector front views are cabl e-connector
views.
AUX Data Cable: Async, HD26 to Wirewrap, 2m
Part No: 037-579114-00
Figure 3-17. AUX HD26, 2M, Async, Front View
Table 3-14. Pin Descriptions and Color Code for Part # 037-579114-00
Pin No. Function Wire Color Code
TIA/E1A-562 DCE Direction
1Output Green/Black
2Output Black/Green
3Aux RXD1 Output Black/Orange
4Output Brown/Black
5Aux TXD1 Input Orange/Black
6Input Black/Brown
7I/O Brown/White
8I/O White/Brown
9GND Black/Blue
10 Output White/Gray
11 Output Gray/White
12 Aux RXD2 Output Red/Gray
90 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Pin No. Function Wire Color Code
13 Output Black/Gray
14 Aux TXD2 Input Gray/Red
15 Input Gray/Black
16 I/O Green/White
17 I/O White/Green
18 GND
(Shared)
Drain
19 Output Brown/Red
20 Output Red/Brown
21 Aux RD Output Blue/Yellow
22 Output Yellow/Blue
23 Aux TXD3 Input Red/Blue
24 Input Blue/Red
25 I/O Blue/White
26 I/O White/Blue
Wire Colors
Not Used:
Blue/Black, Green/Red, Red/Green, Red/Orange, Orange/Red,
White/Orange, Orange/White
AUX Data Cable: Sync, HD26 to Wirewrap, 2m
Part No: 037-579115-00
Figure 3-18. AUX HD26, 2M, Sync, Wirewrap, Front View
Table 3-15. Pin Descriptions and Color Code for Part # 037-579115-00
Pin No. Function Wire Color Code
TIA/E1A-422 DCE Direction
11AuxRXC+ Output Green/Black
21AuxRXC- Output Black/Green
31RXD- Output Black/Orange
41RXD+ Output Orange/Black
51TXD+ Input Brown/Black
61TXD- Input Black/Brown
71AuxTXC+ I/O Brown/White
81AuxTXC- I/O White/Brown
260-668066-001 OCTOBER 2012 91
VOLUME III, CHAPTER 3, INU AND INUE INSTALLATION
Pin No. Function Wire Color Code
9GND Black/Blue
10 2AuxRXC+ Output White/Gray
11 2AuxRXC- Output Gray/White
12 2RXD- Output Red/Gray
13 2RXD+ Output Gray/Red
14 2TXD+ Input Black/Gray
15 2TXD- Input Gray/Black
16 2AuxTXC+ I/O Green/White
17 2AuxTXC- I/O White/Green
18 GND (Shared) Drain
19 3AuxRXC+ Output Brown/Red
20 3AuxRXC- Output Red/Brown
21 3RXD- Output Blue/Yellow
22 3RXD+ Output Yellow/Blue
23 3TXD+ Input Red/Blue
24 3TXD- Input Blue/Red
25 3AuxTXC+ I/O Blue/White
26 3AuxTXC- I/O White/Blue
Wire
Colors
Not
Used:
Blue/Black, Red/Green, Green/Red, Red/Orange, Orange/Red,
White/Orange, Orange/White
AUX Data Cable: Async, HD26 to 3 X DB9, 1m
Part No: 037-579116-00
Figure 3-19. AUX HD26 and 3 X DB9, 1M, Async: Front Views
92 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
Table 3-16. Pin Descriptions and Color Code for Part # 037-579116-00
AUX Function AUX 1 AUX 2 AUX 3
Pin No. TIA/E1A-
562
DCE Direction Pin No. Pin No. Pin No.
3AuxRXD1 Output 2
5AuxTXD1 Input 3
9GND 5
12 AuxRXD2 Output 2
14 AuxTXD2 Input 3
18 GND
(Shared)
5 5
21 AuxRXD3 Output 2
23 AuxTXD3 Input 3
AUX Data Cable: Sync, HD26 to 3 X DB9, 1m
Part No: 037-579117-001
Figure 3-20. AUX HD26 to 3 X DB9, 1m, Sync, Front Views
Table 3-17. Pin Descriptions for 037-579117-001
AUX Function AUX 1 AUX 2 AUX 3
Pin No. TIA/E1A-422 DCE Direction Pin No. Pin No. Pin No.
11AuxRXC+ Output 1
21AuxRXC- Output 6
31RXD- Output 2
41RXD+ Output 7
51TXD+ Input 3
61TXD- Input 8
71AuxTXC+ I/O 4
81AUXTXC- I/O 9
9GND 5
10 2AuxRXC+ Output 1
260-668066-001 OCTOBER 2012 93
VOLUME III, CHAPTER 3, INU AND INUE INSTALLATION
AUX Function AUX 1 AUX 2 AUX 3
11 2AuxRXC- Output 6
12 2RXD- Output 2
13 2RXD+ Output 7
14 2TXD+ Input 3
15 2TXD- Input 8
16 2AuxTXC+ I/O 4
17 2AUXTXC- I/O 9
18 GND (Shared) 5 5
19 3AuxRXC+ Output 1
20 3AuxRXC- Output 6
21 3RXD- Output 2
22 3RXD+ Output 7
23 3TXD+ Input 3
24 3TXD- Input 8
25 3AuxTXC+ I/O 4
26 3AUXTXC- I/O 9
AUX Data Cable: Async, AUX HD26 to AUX HD26, 1m
Part No: 037-579120-001
Figure 3-21. AUX TO AUX, HD26, 1M, ASYNC, Front View
Table 3-18. Pin Descriptions for 037-579120-001
AUX Function AUX
3AuxRXD1 AuxTXD1 5
5AuxTXD1 AuxRXD1 3
9Ground Ground 9
12 AuxRXD2 AuxTXD2 14
14 AuxTXD2 AuxRXD2 12
18 Ground Ground 18
21 AuxRXD3 AuxTXD3 23
23 AuxTXD3 AuxRXD3 21
94 AVIAT NETWORKS
ECLIPSE INSTALLATION MANUAL
AUX Data Cable: Sync, AUX HD26 to AUX HD26, 1m
Part No: 037-579121-001
Figure 3-22. AUX TO AUX, HD26, 1m, Sync, Front View
Table 3-19. Pin Descriptions for 037-579121-001
AUX Function AUX 1
11AuxRXC+ 1AuxTXC+ 7
21AuxRXC- 1AuxTXC- 8
31RXD- 1TXD- 6
41RXD+ 1TXD+ 5
51TXD+ 1RXD+ 4
61TXD- 1RXD- 3
71AuxTXC+ 1AuxRXC+ 1
81AUXTXC- 1AUXRXC- 2
9GND GND 9
10 2AuxRXC+ 2AuxTXC+ 16
11 2AuxRXC- 2AuxTXC- 17
12 2RXD- 2TXD- 15
13 2RXD+ 2TXD+ 14
14 2TXD+ 2RXD+ 13
15 2TXD- 2RXD- 12
16 2AuxTXC+ 2AuxRXC+ 10
17 2AUXTXC- 2AUXRXC- 11
18 GND GND 18
19 3AuxRXC+ 3AuxTXC+ 25
20 3AuxRXC- 3AuxRTXC- 26
21 3RXD- 3TXD- 24
22 3RXD+ 3TXD+ 23
23 3TXD+ 3RXD+ 22
24 3TXD- 3RXD- 21
25 3AuxTXC+ 3AuxRXC+ 19
26 3AuxTXC- 3AuxRXC- 20
260-668066-001 OCTOBER 2012 95
VOLUME III, CHAPTER 3, INU AND INUE INSTALLATION
AUX Alarm I/O Cable: HD15 to Wirewrap, 2m or 5m
Part No: 037-579112-001, 2m
Part No: 037-579113-001, 5m
Figure 3-23. ALARM I/O, HD15, 2M, WIREWRAP, Front View
Table 3-20. Pin Descriptions for 037-579112-001 and 037-579113-001
Pin No. Function Wire Color Code
1TTL Input 1 I Brown/White
2Relay 1 NC I/O White/Brown
3Relay 1 NO I/O White/gray
4Relay 2 Pole/TTL Input 5 I/O gray/White
5Relay 3 NC I/O Red/Blue
6Relay 3 NO I/O Blue/Red
7Relay 4 Pole/TTL Input 3 I/O Orange/Red
8Ground Drain
9TTL Input 2 I Red/Orange
10 Relay 1 Pole/TTL Input 6 I/O Red/Green
11 Relay 2 NC I/O Green/Red
12 Relay 2 NO I/O Orange/White
13 Relay 3 Pole/TTL Input 4 I/O White/Orange
14 Relay 4 NC I/O White/Green
15 Relay 4 NO I/O Green/White
Wire
Colors
Not Used:
White/Blue, Blue/White
The output relay is a 4 pole, double throw; it has four independent switch contact
sets, where the pole (common) connection on each set switches between NO (nor-
mally open) and NC (normally closed) contacts. Note that the relays may be con-
figured to be energized or de-energized on receipt of an alarm event.
lActive Condition De-energized requires an alarm event to release the relay.
lActive Condition Energized requires an alarm event to energize the relay.
96 AVIAT NETWORKS
260-668066-001
WWW.AVIATNETWORKS.COM

Navigation menu
