Axesstel AX54 CDMA 1x Alert System (Main Unit) User Manual AX54 Series Rev4
Axesstel Inc CDMA 1x Alert System (Main Unit) AX54 Series Rev4
Axesstel >
User Manual
0
1
Important Notice
Due to the nature of wireless communications, transmission and reception of data can
never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally
lost. Although significant delays or losses of data are rare when wireless devices are
used in a normal manner with a well-constructed network, the device should not be
used in situations where failure to transmit or receive data could result in damage of any
kind to the user or any other party, including but not limited to personal injury, death or
loss of property and this item is used under conditions greater than the body 20cm away.
Axesstel accepts no responsibility for damages of any kind resulting from delays or
errors in data transmitted or received using the Axesstel device or for failure of the
Axesstel device to transmit or receive such data.
2
Safety Precautions
• Only use the supplied power adaptor, and do not use the power adaptor in
temperatures over 40oC, and only use in a dry location
• Only use 9V batteries in the main unit and the motion sensors, as there is a risk
of explosion if an incorrect battery type is used
• Please dispose of any used 9V batteries at a proper facility
• Do not operate the device:
o In areas where blasting is in progress
o Where explosive atmospheres may be present
o Near medical equipment
o Near life support equipment or any equipment that may be susceptible
to any form of radio interference. In such areas, the device MUST BE
POWERED OFF. The Axesstel router can transmit signals that could
interfere with this equipment.
3
Limitation of Liability
The information in this manual is subject to change without notice and does not
represent a commitment on the part of Axesstel.
AXESSTEL SPECIFICALLY DISCLAIMS LIABILITY FOR ANY AND ALL DIRECT,
INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR
EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS
OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE
USE OR INABILITY TO USE ANY AXESSTEL PRODUCT, EVEN IF AXESSTEL HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE
FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY.
Notwithstanding the foregoing, in no event shall Axesstel aggregate liability arising
under or in connection with the Axesstel product, regardless of the number of events,
occurrences, or claims giving rise to liability.
4
Table of Contents
1 .... Introduction ............................................................................................. 6
2 .... Product Overview .................................................................................... 6
3 .... Using your AX54 ..................................................................................... 9
3.1 Package Contents ............................................................................ 9
3.2 Knowing your Main Unit .................................................................... 9
3.3 LEDs ................................................................................................ 9
4 .... Using your AX54 ..................................................................................... 11
4.1 Battery Installation / UIM Card Installation into Main Unit ................... 111
4.2 Battery Installation into Motion Sensor .............................................. 122
4.3 Connecting the Power Adaptor ......................................................... 13
4.4 Placement of Main Unit / Motion Sensor............................................ 14
4.4.1 Main Unit .................................................................................... 14
4.4.2 Motion Sensor ............................................................................ 14
4.5 UIM Card .......................................................................................... 14
4.6 Changing the Default Password ........................................................ 16
4.7 Adding / Removing Motion Sensors .................................................. 17
5
4.8 Adding / Removing SMS Numbers .................................................... 18
4.9 Adding / Removing Call Numbers ..................................................... 20
4.10 Arming / Disarming the AX54 ............................................................ 21
4.10.1 Arming the AX54 ...................................................................... 22
4.10.2 Disarming the AX54 .................................................................. 24
4.11 Entry / Exit Delay .............................................................................. 25
4.11.1 Entry Delay............................................................................... 25
4.11.2 Exit Delay ................................................................................. 26
4.12 Panic Button ..................................................................................... 26
4.13 Factory Reset ................................................................................... 27
5 .... Operating Specifications ......................................................................... 28
5.1 Main Unit .......................................................................................... 28
5.2 Motion Sensor (AI100) ...................................................................... 32
6
1 Introduction
This user manual will help you place, configure and use your AX54 Alert System.
2 Product Overview
The AX54 is an easy to install, use and maintain alert system, which can provide peace
of mind and security without the need for an expensive security contract.
Some features described in this manual may not be supported by your service provider
or may not be available with your network account. For details of the services and
accounts available, contact your service provider.
7
SMS / Call Alerts if the Motion Sensor is Triggered
Notify up to 8 friends and neighbors via call or SMS when motion is detected to increase
chances of a close-by responder. You can program up to 3 SMS numbers and 5 call
numbers.
Emergency Backup Battery
An AC adaptor with a 9V backup battery provides continued functionality in the event of
a power outage.
Remote Control Convenience
The arming and disarming of the AX54 Alert System can be triggered by keypad input
or by sending an SMS from one of your registered numbers.
Affordable, Easy to Setup, Configure, and Use
A basic UIM Card and prepaid / postpaid subscription provides increased peace of mind.
To setup the device, you will simply need to insert the UIM Card, and ensure network
coverage. You are then ready to start using your AX54 Alert system.
8
Easy to use Main Unit
9 LED indicators represent the product status. The unit is also very easy to program
and to modify the list of SMS / Call contacts.
9
3 Using your AX54
3.1 Package Contents
• 1x Main Unit
• 2x Motion Sensors with brackets
• 1x Power Adaptor
3.2 Knowing your Main Unit
Your AX54 is designed to be wall mounted, or it can simply be placed on a shelf. All the
LEDs are easily visible while the power cord will connect at the back.
3.3 LEDs
The AX54 has 9 LEDs to determine status of the device. The functionality of the LEDs
can be found in the table below.
10
LED Green Flashing Green Red Off
Power Device is Turned
On - - Device is Off
Battery Battery power is
Full / Medium - Battery
Power is Low
No Battery is
installed
Signal
Registered to the
network and signal
level is good
Signal is poor - No network signal
Setting
/ Register
In process of
setting Alarm In register status
- Not in Setting /
Registering Mode
Arming /
Disarming - - Alarm is Armed Alarm is
Disarmed
Zone 1 Armed - Alarm Detected Disarmed
Zone 2 Armed - Alarm Detected Disarmed
Zone 3 Armed - Alarm Detected Disarmed
Zone 4 Armed - Alarm Detected Disarmed
11
4 Using your AX54

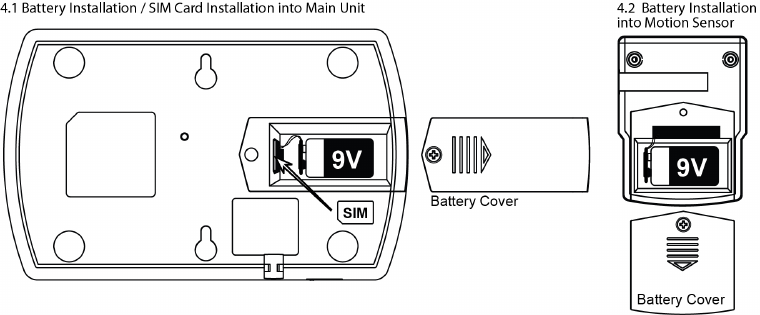

4.1 Battery Installation / UIM Card Installation into Main Unit
Your AX54 main unit may need a UIM Card so that it can communicate with the
wireless network. It also supports battery backup. Please follow the instructions below
to install the UIM Card and the 9V battery.
Note: It is advisable to install your UIM Card before you install the 9v battery.
12
4.2 Battery Installation into Motion Sensor
To install the battery into the Motion Sensor please follow the instructions below.
13

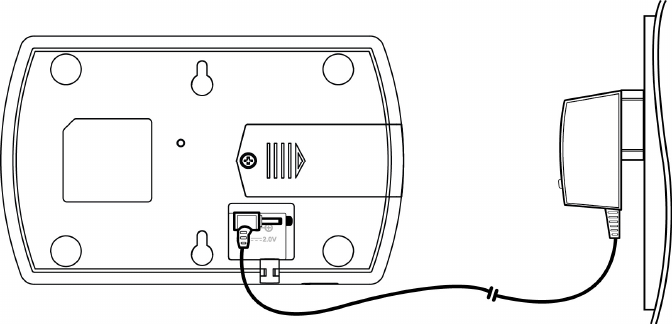

4.3 Connecting the Power Adaptor
To connect the power adaptor, please follow the instructions below.
14
4.4 Placement of Main Unit / Motion Sensor
4.4.1 Main Unit
The keypad should be placed near the entry / exit point of the house.
4.4.2 Motion Sensor
Place on shelves or walls to detect motion within 50 meters, great for rooms with lots of
windows.
4.5 UIM Card
PLEASE NOTE: THIS SECTION ONLY APPLIES TO DEVICES REQUIRING UIM
CardS FOR OPERATION
Unlocking your UIM Card
The UIM Card for your device may have a PIN code enabled as default. When you
insert the UIM Card and power on the unit, if the battery LED flashes green and red, this
indicates that your UIM Card is locked with a PIN code. To unlock the card please enter
the command below
*#→password→07->PIN Code→Func Key
15
Activate/ Deactivate the PIN Code
To toggle between activating and deactivating the PIN Code, please enter the following
on your keypad
*#→password→07->PIN Code→Func Key
Changing your PIN Code
You may want to change your UIM Card PIN code to something more memorable to do
this you can enter the command below
*#→password→08->Existing PIN Code*→New PIN Code→ Func Key
PUK Code
If you enter an incorrect PIN code 3 times, then you will need to enter your PUK code in
order to unlock your device. The battery keypad will flash slowly between green and red.
To enter your PUK code please enter the command below
*#→password→09->PUK Code*→New PIN Code→ Func Key
16
4.6 Changing the Default Password
Now that the battery is installed and the power adaptor connected you are ready to use
some of the more advanced features of the AX54.
To change the default password please follow the instructions below.
Using your keypad please enter the following
*#→password→00->new password*→new password→Func Key
NOTE: IT IS ADVISABLE TO CHANGE YOUR PASSWORD AS SOON AS YOU
CONNECT THE UNIT
*Default password is 1234. So if you wanted to change your password to 4897, then
you would enter the following:
*#1234004897*4897 <Func>
17
4.7 Adding / Removing Motion Sensors
To add motion sensors to the AX54 please follow the instructions below. Up to 64
Motion sensors can be added across 4 zones.
*#→password→71→Func Key Trigger the sensor that you want to put in zone1
*#→password→72→Func Key Trigger the sensor that you want to put in zone2
*#→password→73→Func Key Trigger the sensor that you want to put in zone3
*#→password→74→Func Key Trigger the sensor that you want to put in zone4
Please note that you need to trigger the desired sensor within 30 seconds so that it
registers correctly within the desired zone.
To add additional sensors in your desired zone please repeat the instructions above.
You can have up to 16 sensors per zone.
To remove the motion sensors please follow the instructions below.
*#→password→81→Func Key zone1
18
*#→password→82→Func Key zone2
*#→password→83→Func Key zone3
*#→password→84→Func Key zone4
Please note that removing sensors will remove all the sensors in the specific zone.
4.8 Adding / Removing SMS Numbers
When your alarm is triggered in any zone, you can choose to send an SMS to up to 3
numbers. To add the SMS numbers into your AX54 please follow the instructions below.
*#→password→11→SMS Num.1*→SMS Num.1→Func Key
*#→password→12→SMS Num.2*→SMS Num.2→Func Key
*#→password→13→SMS Num.3*→SMS Num.3→Func Key
Example:
Adding the first SMS number- *#→password→11→1234567890*→1234567890→Func
Key
19
Please note that you have to enter the desired number twice. The number that you
entered will need to match. If the numbers do not match then the unit will beep 3 times.
If the numbers match then you will hear 2 beeps.
To remove the SMS numbers please enter the details below.
*#→password→20→Func Key Delete all SMS telephone numbers
*#→password→21→Func Key Delete number 1
*#→password→22→Func Key Delete number 2
*#→password→23→Func Key Delete number 3
20
4.9 Adding / Removing Call Numbers
When your alarm is triggered as well as sending SMS, the AX54 will also dial 5
numbers of your choice. It is important to note that as the AX54 has no microphone or
speaker no conversation will be permissible.
To add numbers please follow the instructions below.
*#→password→31→Tel Num.1*→Tel Num.1→Func Key
*#→password→32→Tel Num.2*→Tel Num.2→Func Key
*#→password→33→Tel Num.3*→Tel Num.3→Func Key
*#→password→34→Tel Num.4*→Tel Num.4→Func Key
*#→password→35→Tel Num.5*→Tel Num.5→Func Key
Example:
Adding the first telephone number-
*#→password→31→1234567890*→1234567890→Func Key
21
Please note that you have to enter the desired number twice. The number that you
entered will need to match. If the numbers do not match then the unit will beep 3 times.
If the numbers match then you will hear 2 beeps.
To remove the phone numbers please follow the instructions below.
*#→password→40→Func Key Delete all telephone numbers
*#→password→41→Func Key Delete number 1
*#→password→42→Func Key Delete number 2
*#→password→43→Func Key Delete number 3
*#→password→44→Func Key Delete number 4
*#→password→45→Func Key Delete number 5
4.10 Arming / Disarming the AX54
Now that the AX54 is installed, the motion sensors have been added, and the SMS /
Call numbers have been input you can now start using your AX54 as an alert system.
There are three arming modes within the AX54, Siren Mode, Silent Mode and Stay
Mode. In all modes SMS / Calls will automatically be sent.
22
4.10.1 Arming the AX54
Siren Mode
In Siren mode, when the motion sensors are triggered, it will emit a high pitched
continuous beep, until the unit is disarmed. To activate Siren mode enter the following:
*#→password→01->Arming Key
Silent Mode
In Silent mode, when the alarm is triggered the high pitched continuous beep will not
sound making the intruder unaware that the alarm has been triggered, although SMS /
Calls will be sent. To activate Silent mode enter the following:
*#->password->02->Arming Key
23
Stay Mode
Occasionally you may want to alarm only a certain part of your house, and this can be
achieved by using Stay mode. Please note that Zone 4 will only be triggered when
using stay mode.
In Stay mode, you can activate your alarm so that any motion in zones one, two or three
will not trigger the alarm, but if there is any movement in zone four then the alarm will be
triggered. In Stay mode you can choose whether the device emits a beep or stays
silent when the alarm is triggered. To activate Stay mode enter the following:
*#→password→01->Stay Key Stay Beep Mode
*#->password->02->Stay Key Stay Silent Mode
Remote Arming
You can also arm the AX54 remotely via SMS. To do this the mobile number that you
use will need to be programmed as one of the three SMS numbers. To arm the AX54
by SMS you will simply need to send a text message saying ‘Arm Alarm’ to the number
that corresponds to the UIM that is placed in the AX54.
24
4.10.2 Disarming the AX54
When disarming the AX54, you can disarm in multiple ways, and these are described
below.
Normal Disarming
To disarm the AX54 in a normal manner enter the following:
*#->password->05->Arming Key Normal disarming
Duress Disarming
If you are forced to disarm the unit under duress, then SMS / Calls will still be made to
the numbers that are stored in your device. Disarm under duress by entering the
following:
*#→password→03->Arming Key Duress disarming
25
Remote Disarming
You can also disarm the AX54 remotely via SMS. To do this the mobile number that
you use to disarm the AX54 will need to be programmed as one of the three SMS
numbers. To disarm the AX54 by SMS you will simply need to send a text message
saying ‘Disarm Alarm’ to the number that corresponds to the SIM that is placed in the
AX54.
4.11 Entry / Exit Delay
You can modify the entry / exit delay to suit your needs.
4.11.1 Entry Delay
No Entry Delay *#→password→50→Func Key
15 Seconds - *#→password→51→Func Key
30 Seconds - *#→password→52→Func Key
45 Seconds - *#→password→53→Func Key
26
4.11.2 Exit Delay
No Exit Delay *#→password→60→Func Key
30 Seconds - *#→password→61→Func Key
60 Seconds - *#→password→62→Func Key
90 Seconds - *#→password→63→Func Key
120 Seconds - *#→password→64→Func Key
4.12 Panic Button
Your AX54 features a panic button, that when pressed will immediately activate the
siren, as well as alerting your friends and neighbors via SMS and Calls.
To activate the panic button simply press the ‘PANIC’ button which is located on your
main unit.
Please note: Once the panic button has been activated it can only be stopped by
removing the power adaptor and removing the battery (if installed).
27
4.13 Factory Reset
If your unit malfunctions or develops any form of software fault then it may be necessary
to perform a factory reset. To perform a factory reset please enter the following:
*#→password→90→Func Key
28
5 Operating Specifications
For ASK 433MHz,the Main Unit is only for RX function without TX function, and
Motion Sensor (AI100) is only for TX function without RX function
5.1 Main Unit
Item Description
Main CPU M0516LBN
Module QSC6055
Cellular 800
Band Frequency TX: 824MHz ~ 849MHz
RX: 869MHz ~ 894MHz
29
Carrier spacing Channel Spacing 30KHz
Channel Band width : 1.23MHz
Maximum output power 300mW (24.7dBm)
RSSI Sensitivity and Dynamic Range :
-104dBm ~ -25dBm < FER = 0.5%
PCS 1900
Band Frequency TX: 1850MHz ~ 1910MHz
RX: 1930MHz ~ 1990MHz
Carrier spacing Channel Spacing : 50KHz
Channel Band width : 1.23MHz
Maximum output power 300mW (24.7dBm)
30
RSSI Sensitivity and Dynamic Range :
-104dBm ~ -25dBm < FER = 0.5%
Form Factor Molex connector 80PIN
Dimension 36.2*30*3.2mm
Antenna ASK433M Spring antenna
CDMA CDMA Dual
LED
9
31
Key 16
SMS number 3 sets phone number
CALL number 5 sets phone number
Zone number 4 zones
Power adapter 5V/2A
Battery 9V
ASK 433Mhz
Band Frequency 433.82Mhz-434.02Mhz
Carrier spacing 0.2MHz
RSSI < -110dBm
Working Temperature -10~+50
o
C
Storage Temperature -20~+70
o
C
Humidity 5% to 95%
32
5.2 Motion Sensor (AI100)
AP BS0001
Detection mode Passive infrared signal
Key Molex connector 80PIN
Antenna ASK433M Spring antenna
Detection range 6-8m
LED Red & Green
Key Not support
Tamper switch Support
Battery 9V
ASK 433Mhz
Band Frequency 433.82Mhz-434.02Mhz
33
Carrier spacing 0.2MHz
Maximum output
power 4dB
RSSI < -110dBm
Working Temperature -10~+50
o
C
Storage Temperature -20~+70
o
C
Humidity 5% to 95%
34
AXESSTEL ALERT PRODUCTS
CONSUMER WARRANTY AND LIMITATION OF LIABILITY
THE AXESSTEL ALERT PRODUCT THAT YOU HAVE PURCHASED, WHEN PROPERLY INSTALLED, CAN BE
USED TO DETECT MOTION IN A SPECIFIED AREA AND PROVIDE AN ALERT TO TELEPHONES OR PERSONAL
DIGITAL ASSISTANTS THAT YOU SPECIFY. THE PRODUCT IS DESIGNED SOLELY TO PROVIDE AN ALERT. IT
DOES NOT PROVIDE SECURITY, OR PREVENT INTRUSION, THEFT OR CRIME.
THE PRODUCT IS NOT A SECURITY SERVICE, ALERTS ARE SENT ONLY TO THE DEVICES YOU SPECIFY.
THEY ARE NOT MONITORED BY AXESSTEL, THE TELEPHONE COMPANY, LAW ENFORCEMENT OR OTHER
AGENCIES. ALERTS ARE SENT OVER THE PUBLIC WIRELESS TELEPHONE NETWORK. INTERRUPTION OF
TELEPHONE SERVICE WILL PREVENT TRANSMISSION OF ALERTS.
LIMITED WARRANTY. FOR PERIOD OF [APPLICABLE WARRANTY PERIOD], AXESSTEL WARRANTS THAT
THE ALERT PRODUCT SHALL (I) BE FREE FROM DEFECTS IN DESIGN, MATERIALS OR WORKMANSHIP, (II)
CONFORM TO ITS PRODUCT SPECIFICATIONS AND (III) BE COMPLIANT WITH ITS WIRELESS
COMMUNICATION STANDARD (CDMA 1X, EVDO, GSM, GPRS AND EDGE, AS APPLICABLE). FOR ANY
35
PRODUCTS THAT FAIL TO MEET THE FOREGOING WARRANTY, AXESSTEL, SHALL REPAIR OR REPLACE
SUCH PRODUCTS, IN ITS DISCRETION, SO THAT ANY DEFECTIVE PRODUCT OR ANY REPLACEMENT
PRODUCT SHALL CONFORM TO THE WARRANTY.
IF AXESSTEL CANNOT CURE ANY DEFECT ON COMMERCIALLY REASONABLE TERMS, AXESSTEL SHALL
REFUND THE VALUE OF THE NON-CONFORMING PRODUCT WITHIN FORTY- FIVE (45) DAYS. EXCEPT FOR
THE FOREGOING WARRANTY, AXESSTEL MAKES NO WARRANTIES, EXPRESS OR IMPLIED, WITH RESPECT
TO THE ALERT PRODUCT, AND SPECIFICALLY DISCLAIMS ANY WARRANTIES INCLUDING BUT NOT LIMITED
TO ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR AGAINST
INFRINGEMENT, OR ANY EXPRESS OR IMPLIED WARRANTY ARISING OUT OF TRADE USAGE OR OUT OF A
COURSE OF DEALING OR COURSE OF PERFORMANCE
AXESSTEL DOES NOT REPRESENT OR WARRANT THAT THE PRODUCT WILL OPERATE ERROR FREE, OR
THAT THE PRODUCT WILL NOT BE DISABLED, COMPRISED OR CIRCUMVENTED (BY DISABLING TELEPHONE
SERVICE OR IN SOME OTHER WAY). AXESSTEL DOES NOT WARRANT THAT THE PRODUCT WILL DETECT
OR PREVENT ALL INTRUSION, LOSS OF PROPERTY OR PERSONAL INJURY OR BURGLARY, HOLD-UP, FIRE,
OR MEDICAL PROBLEM; OR THAT THE PRODUCT WILL IN ALL CASES PROVIDE THE PROTECTION FOR
WHICH IT IS INTENDED.
36
LIMITATION OF LIABILITY. AXESSTEL NOT BE LIABLE TO YOU UNDER ANY CIRCUMSTANCE FOR
INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, ARISING OUT OF THE USE OR INABILITY TO USE,
ANY OF THE ALERT PRODUCTS OR COMPONENTS. AXESSTEL WILL NOT BE RESPONSIBLE FOR ANY LOSS
OF PROPERTY, DAMAGE TO PROPERTY, PERSONAL INJURY, DEATH OR OTHER INCIDENTAL DAMAGES,
HOWEVER CAUSED, ARISING OUT OF THE USE OR INABILITY TO USE, ANY OF THE ALERT PRODUCTS OR
COMPONENTS. ANY LIABILITY OF AXESSTEL TO YOU, AND YOUR SOLE AND EXCLUSIVE REMEDY, FOR ANY
CLAIM ARISING OUT OF THE USE OR PURCHASE OF THE PRODUCT (WHETHER IN CONTRACT, TORT, OR
OTHERWISE) WILL NOT EXCEED THE PURCHASE PRICE PAID FOR THE PRODUCT WHICH IS THE SUBJECT
OF SUCH CLAIM OR CAUSE OF ACTION.
NOT INSURANCE. AXESSTEL IS NOT AN INSURER AND IS NOT RESPONSIBLE FOR ACTS OR OMISSIONS OF
OTHERS OR FOR EVENTS BEYOND ITS CONTROL. THE PURCHASE PRICE FOR THE PRODUCT HAS NO
RELATIONSHIP TO THE VALUE, IN WHOLE OR IN ANY PART, ANY LOSS, DAMAGE, INJURY OR DEATH WHICH
MIGHT RESULT TO YOU OR YOUR PROPERTY FROM ANY HAZARD OR EVENT OR CONSEQUENCE WHICH
THE PRODUCT IS INTENDED TO DETECT. YOU HAVE THE SOLE RESPONSIBILITY TO OBTAIN WHATEVER
INSURANCE YOU WANT TO HAVE IN ORDER TO COVER RISK, LOSSES, DAMAGES, INJURIES, DEATH AND
OTHER EFFECTS OF BURGLARY, FIRE, PHYSICAL DANGERS OR MEDICAL PROBLEMS AFFECTING, YOU,
YOUR FAMILY OR ANY OTHER PERSONS WHO MAY BE IN OR NEAR YOUR LOCATION. YOU WILL LOOK
SOLELY TO THE PROCEEDS OF SUCH INSURANCE FOR ANY LOSS, LIABILITY, DAMAGE OR CLAIM.
37
USE AT OWN RISK. YOU ACCEPT THE ENTIRE RISK OF THE USE OF THE PRODUCT. YOU HEREBY AGREE
TO RELEASE, DEFEND, INDEMNIFY AND HOLD AXESSTEL HARMLESS FROM AND AGAINST CLAIM OR
LIABILITY FOR ANY RISK, LOSS, PROPERTY DAMAGE, PERSONAL INJURY, DEATH AND OTHER EFFECTS
MENTIONED ABOVE AT YOUR SOLE COST AND EXPENSE INCLUDING ATTORNEY’S FEES.
FCC STATEMENT:
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. ITS OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY
CAUSE UNDESIRED OPERATION.
NOTE: THIS PRODUCT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS B
DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE
REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE IN A RESIDENTIAL INSTALLATION. THIS
PRODUCT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED
38
AND USED IN ACCORDANCE WITH THE INSTRUCTIONS, MAY CAUSE HARMFUL INTERFERENCE TO RADIO
COMMUNICATIONS. HOWEVER, THERE IS NO GUARANTEE THAT INTERFERENCE WILL NOT OCCUR IN A
PARTICULAR INSTALLATION. IF THIS PRODUCT DOES CAUSE HARMFUL INTERFERENCE TO RADIO OR
TELEVISION RECEPTION, WHICH CAN BE DETERMINED BY TURNING THE EQUIPMENT OFF AND ON, THE
USER IS ENCOURAGED TO TRY TO CORRECT THE INTERFERENCE BY ONE OR MORE OF THE FOLLOWING
MEASURES:
—REORIENT OR RELOCATE THE RECEIVING ANTENNA.
—INCREASE THE SEPARATION BETWEEN THE EQUIPMENT AND RECEIVER.
—CONNECT THE EQUIPMENT INTO AN OUTLET ON A CIRCUIT DIFFERENT FROM THAT TO WHICH THE
RECEIVER IS CONNECTED.
—CONSULT THE DEALER OR AN EXPERIENCED RADIO/TV TECHNICIAN FOR HELP.
CAUTION:
39
CHANGES OR MODIFICATIONS TO THIS UNIT NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE
FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
NOTICE:
THIS EQUIPMENT SHOULD BE INSTALLED AND OPERATED WITH A MINIMUM DISTANCE 20CM BETWEEN THE
RADIATOR AND YOUR BODY.
