Users Manual
1
2
INTRODUCTION
The Axesstel MV100 Series Wireless Broadband USB Modems leverage CDMA2000
1xEV-DO Rev A networks to allow mobile professionals to maintain productivity with
secure, high speed access to email, the Internet, data intensive files and multi-media
streaming. Voice calling and SMS messaging enable users to stay connected to
colleagues, customers and family.
A universal USB port allows for quick and easy connectivity to a desktop or laptop PC
providing broadband data access from the home, office or while working remotely.
Backward compatibility ensures coverage in CDMA2000 1xEV-DO Rev 0 and CDMA2000
1X coverage areas, while internal receive diversity antennas maximize coverage range
and data throughput. The slim and compact MV100 Series Wireless Broadband USB
Modems provide busy professionals with the versatility to stay productive and connected
virtually anywhere, anytime from the home, office or while traveling.
FEATURES
1. PC-Based Connection Manager Software with PIM Functionality
and MS Outlook Phonebook Sync
2. Two Line Color LCD with Status Indicators
3. Receive Diversity for Maximum Range and Throughput
4. Voice and Text Messaging through CDMA2000 1X
5. RUIM Support Optional
6. Internal Li-Ion Battery for additional Transmission Power
7. Phone Book
8. Short Message Service
3
SAFETY PRECAUTIONS
1. Avoid placing the phone in a dusty location, or near a source of gas or fire.
2. Don't Shake, hit or drop the modem.
3. To clean the outside of the modem, use only a soft, dry cloth. The chemicals
in alcohol, benzene or acetone can damage the surface of the modem.
4. Do not twist or pull the Mini-B USB Cable.
5. Do not disassemble the modem.
6. Do NOT use the power adaptor if:
- The power cord is damaged.
- The phone has been dropped or damaged in any way.
7. Frequency and length of use can affect the life of the self-charging battery.
Contact your customer service if the battery is not operating properly.
8. Use only the designated self-charging battery. Dispose of exhausted batteries
properly. Never discard a battery in or near fire or flame.
9. Do not place the modem near water, for example, near a bathtub, sink, wet
basement, or swimming pool.
NOTE 1: The input and output voltages are indicated on the adapter.
(Input: AC 100~240V, 50~60 Hz, Output: DC 5V, 2A)
4
CHECKING THE PARTS
Once you have unpacked your phone, make sure that you have all the parts shown
below. If any piece is missing or broken, please call your customer service.
1. Main Unit
2. Li-Ion Battery 4. Power Adaptor
3. USB Data Cable 5. User Manual
5
SETTING UP YOUR MODEM
Installing the modem
This modem operates by receiving DC power from the AXESSTEL power adaptor
that connects to an electrical outlet. The modem is equipped with a rechargeable
battery as a back up in case of an AC power failure.

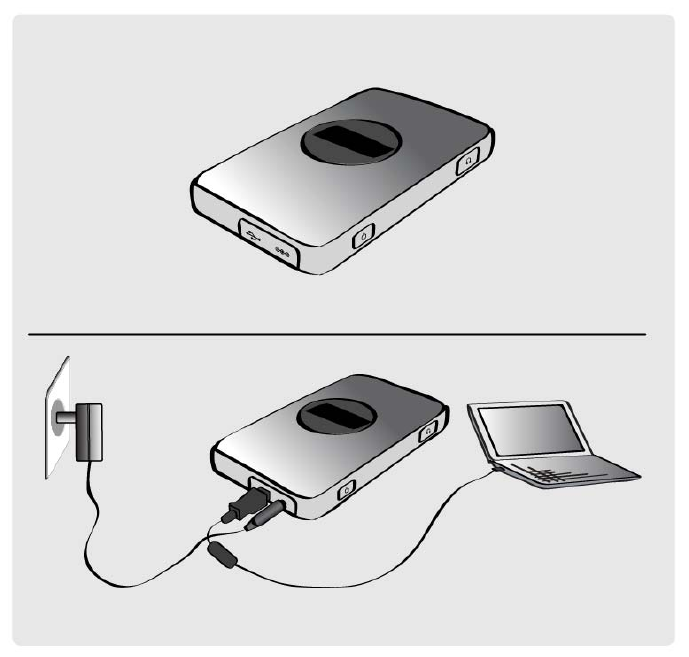

Modem installation
1. Plug the smaller end of the adaptor into the modem as shown
and plug the other end into your laptop’s or PC’s USB port
6
SETTING UP YOUR MODEM
Installing the USB Driver and AxessManager
The entire process will take approximately 20 minutes to complete.

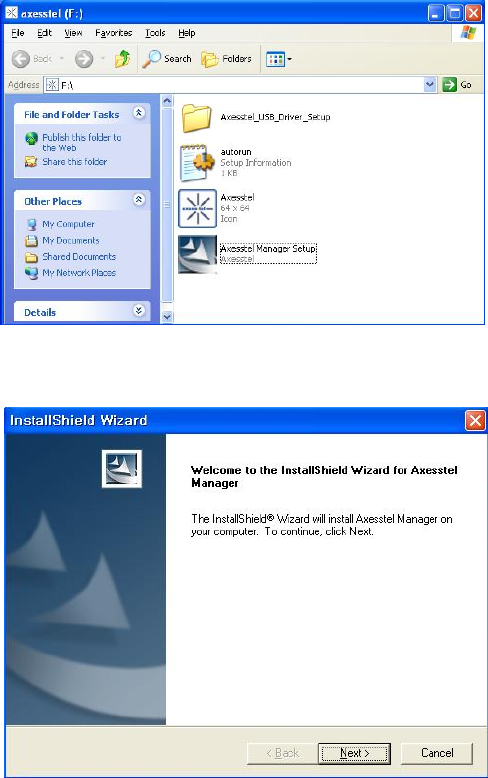

Step 1
Once MV100 connect with your laptop, This window will appear.
Click “Axesstel Manager Setup.exe” to install AxessManager.
Step 2
Click Next to continue.
7

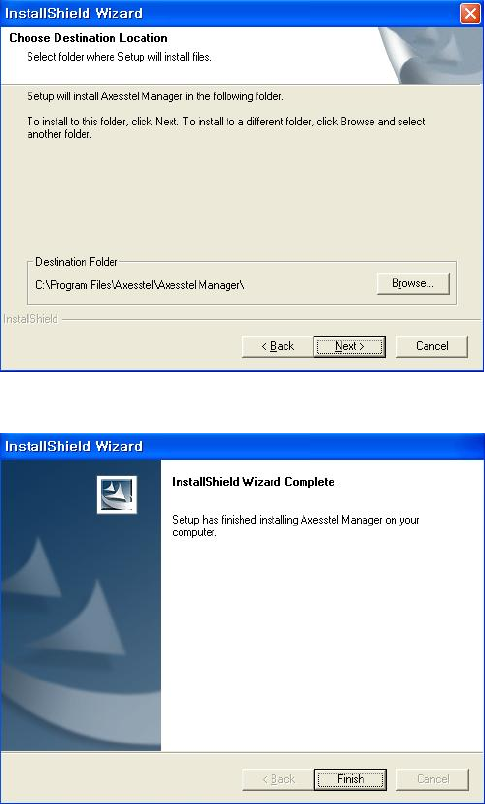

Step 3
Click “Next” to continue.
Step 4
Click Finish to complete installation of AxessManager.
8

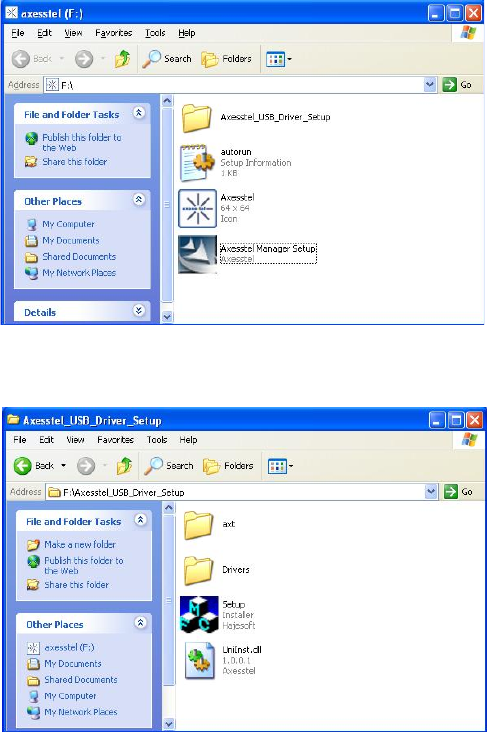

Step 5
Click Axesstel_USB_Driver_Setup folder
Step 6
Click Setup.ext to install USB Driver.
9

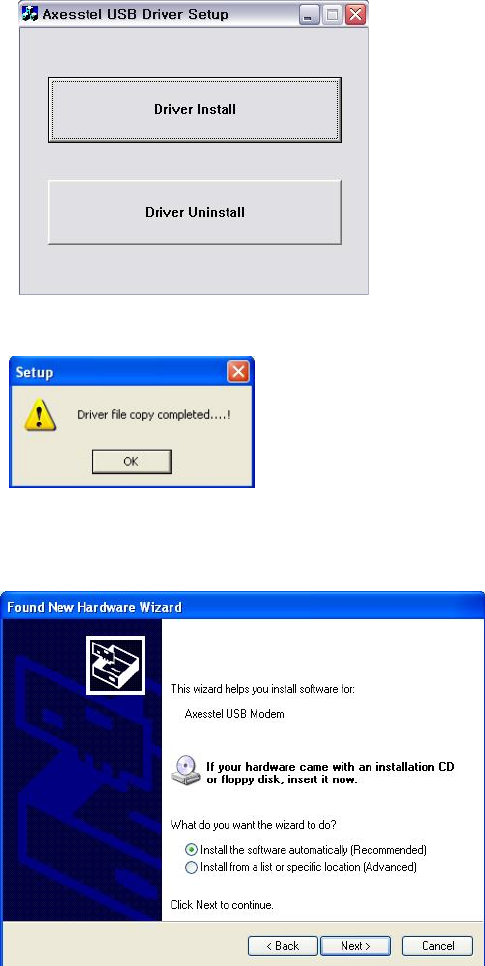

Step 7
Click Driver Install
Step 8
After finishing driver file copy, Modem will be change to Modem mode from CD ROM
Mode.
Step 9
Axesstel USB Mode will be detected on your PC.
Select Next to install USB Driver.
10

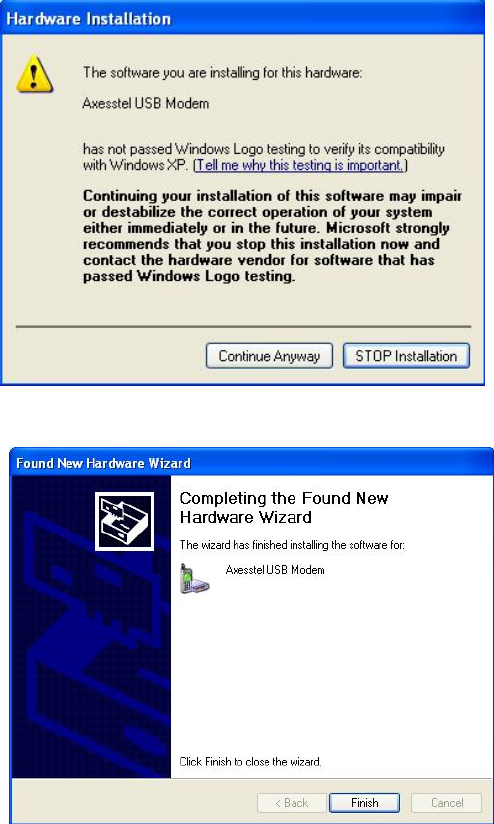

Step 10
Select Continue Anyway.
Step 11
Select Finish to complete the process.
11

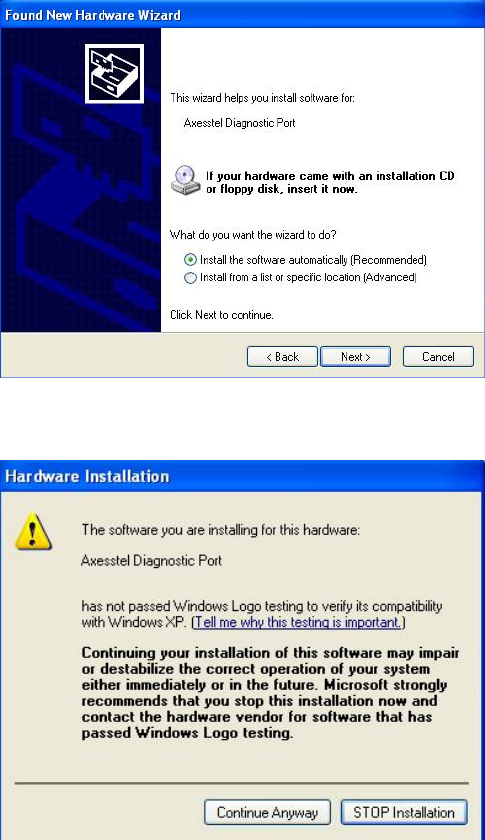

Step 12
Axesstel Diagnostic Port will be detected on your PC.
Select Next to install USB Driver.
Step 13
Select Continue Anyway.
12

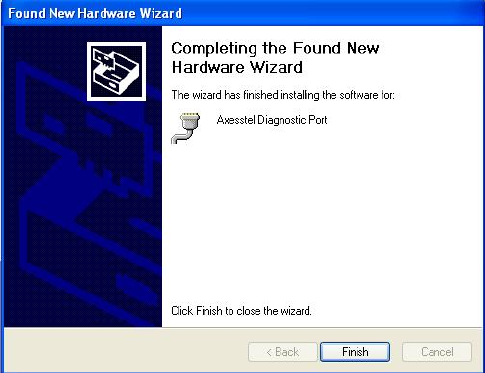

Step 14
Select Finish to complete the process.
you can start to run AxessManager
13
SETTING UP YOUR Modem

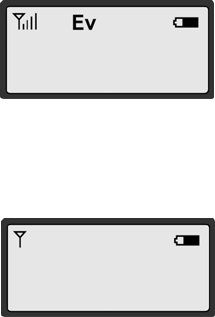

Service Status Check
Display in the Service Area
When the power cord is connected properly,
all segments of the LCD window will turn on briefly.
The number of bars of signal strength indicator
(antenna icon) indicates the strength of service signal
of the area. The display will show the greeting with date
and time.
You can change the greeting. (See page 32)
Display in area with no service
When there is no service signal detected in your area,
no antenna bar appears. Contact your service provider
for the coverage area information.
Also check if the antenna is connected
AXESSTEL
Fri, Feb 3 3:23pm
AXESSTEL
14

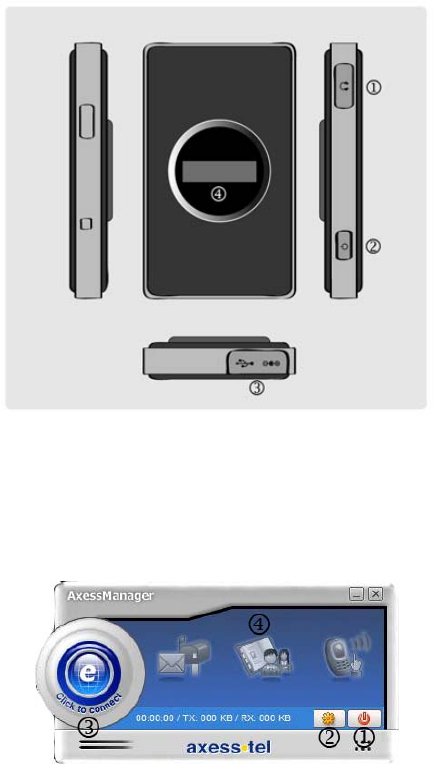

GETTING TO KNOW YOUR MODEM and AxessManager
1. Ear-mic: Insert Ear-mic to make a voice call.
2. Power button: Press to turn on / off the modem and hang up the call
3. Accessory Connector Part : Insert battery charger and Mini-B USB Cable
4. Main Display Window : Shows Status of the Modem.
<AxessManager>
1. Change Mode Button : Change to Manager mode from Data Connection Mode
2. Option Button : Change options of Modem and etc.
3. Connection Button : Connect via your operator’s network
4. Manager : PIMS, SMS and CALL Manager
15
DISPLAY ICONS
Icons display on the screen to indicate what features you are using, e.g. signal
strength, battery status and etc...
Indicate the strength of the signal. More bars indicates
stronger signal.
Indicates the level of battery power. The more bars, the
more power. When the battery is low, the icon blinks,
and an alert tone sounds.
Indicates that you are using CDMA 200 1X Network.
Indicates that you are using 1x EV-DO Network.
Indicates that a voice or data call is in progress
Indicates that you have text message message.
Indicates that you have voice mail message.
AXESSTEL
Fri, Feb 9 5:24P
16
To Start the AxessManager
17
1. Getting Started
When PC and modem is connected via the cable, AxessManager allows you to browse
internet, modify modem configurations. In addition, you can perform management tasks
for phone numbers such as adding, modifying and deleting them, and you can write
messages in your PC and send them to your modem.
AxessManager provides the following 5 menus :
Internet Connection : Internet Connection allows you to connect to internet
through local network provider.
PIMS Manager : You can manage phonebook in your PC.
Outlook contacts data can be imported/exported
SMS Manager : You can download the Inbox, Outbox, and Draft Box messages
in your phone to your PC and edit them, or upload newly created
messages to your modem and send them to others
CALL Manager : You can make/receive a phone call. Call history can be managed
Options : You can manage modem settings
1.1. System Requirements
.
The system requirements for using this software are summarized below:
(1) Recommended Specifications
CPU : Pentium III 550Mhz or higher, IBM PC-Compatible
RAM : 256MB or more
VGA : Video card with1024 I 768 resolution and 65536 or more colors
HDD : 200MB or more hard disk space
Others: CD-ROM Drive or DVD Drive
OS : Microsoft W `indows 2000 or higher
.
(2 )Minimum Specifications
CPU : Pentium II 300Mhz or higher, IBM PC-Compatible
RAM : 128MB or more
VGA : Video card with1024 I 768 resolution and 65536 or more colors
HDD : 100MB or more hard disk space
Others: CD-ROM Drive or DVD Drive
OS : Microsoft Windows 2000 or higher
18
1.2. Basic User Interface
.
1. Connect/Disconnect Button : Used to Connect/Disconnect PC and Phone.
2. Manager Menu : Manager Menu allows you to move to each Manager by one-click
conveniently. The icon of each Manager is displayed, and when you
click each Manager icon, the Sub Menu is displayed in the tree
structure.

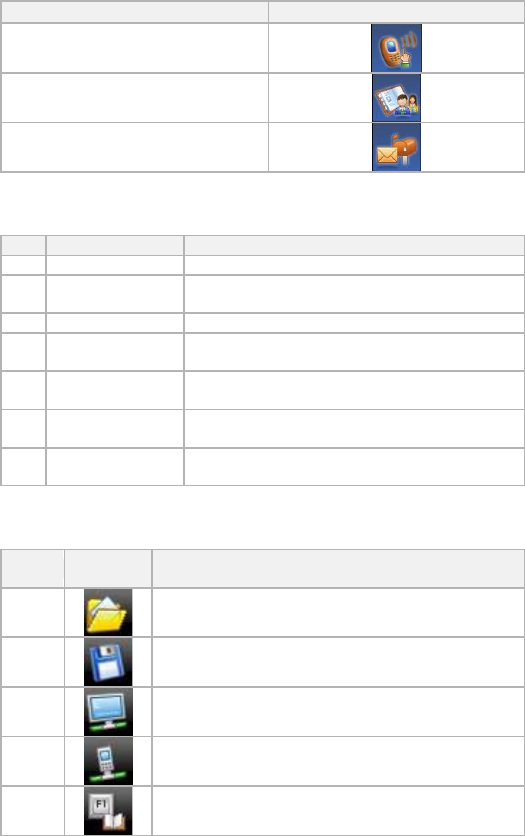

Name Image Button
Call Manager
PIMS Manager
SMS Manager
3. Menu Bar : The basic menu of AxessManager is provided.
The Menu Bar provides the following main and sub menus:
Name Sub Menu Function
File Open Open a file in the PC for each Manager.
File Save Save a file in the PC in the format supported by
each Manager.
File Exit Exit the AxessManager program.
Tool To PC Send data from Phone to PC when PC and
Phone are connected.
Tool To Phone Send data from PC to Phone when PC and
Phone are connected.
Help About
AxessManager The AxessManager program information is
displayed.
Help Help The User's Guide for AxessManager is
displayed.
4. Toolbar : The frequently used menu items of the Menu Bar are provided as icons.
Toolbar provides the following functions :
Name Image
Button Function
Open
Opens a file in the PC for each Manager.
Save
Saves a file in the PC in the format supported by
each Manager.
To PC
Send data from Phone to PC when PC and Phone
are connected.
To
Phone
Send data saved in PC to Phone when PC and
Phone are connected.
Help
The User's Guide for AxessManager is displayed.
19
1.3. Connecting/Disconnecting Your Modem to/From the PC
.
Connecting
First, connect your PC with the modem using the cable supplied with the modem.
Insert the cable firmly to the modem until it clicks into place.
Click the icon on your desktop to run the AxessManager Program.
Click the Connect/Disconnect button . When the connection is successful, you can use
the AxessManager program.
All icons will be enabled
.
Disconnecting
1) Click the Connect/Disconnect button after finishing your job.
The connection is discontinued and the active Connect/Disconnect button is changed to
the disabled status. All icons will be disabled
2) To exit the program after finishing the job, click the button at top right of the program
window.
3) Disconnect the cable from PC and modem.
20
2. Internet Connect
Internet Connection System allows the PC to connect to the internet through network
provider with Axesstel Modem.
1. Internet Connection Connect / Disconnect
1.1. Connect
Once the initial setup is complete, you can use your modem.
To make a communication connection using the modem, click the ‘E’ button on the main
screen.
1.2. Disconnect
To disconnect from the communication connection, just click the ‘E’ button on the main
screen.
2. Internet Connection Setup
Click the Options button on the main screen of the program to open the following dialog,
where you can specify values for many items needed to set up your modem.
A short, functional description for each button on the Setup dialog is provided below.
Button Description
New Allows you to add a new 'Connect Item'.
Delete Allows you to delete an existing 'Connect Item.'
Properties Allows you to modify existing 'Connect Item' settings.
Modem Allows you to view and select from a list of modems currently available for connection.
2.1. Add Connect Item
A description for each item is provided below.
(1) Country: Select a country for the connection via modem.
(2) Network Provider: Select a network provider for the country.
(3) APN: Specify the APN value for the network provider.
(4) Connect Name: Enter the name to be displayed on the 'Connect Item' list.
(5) Phone: Specify the phone number to which modem will connect. The default is *99#.
(6) User Name: If required, enter the user ID for the network provider.
(7) Password: Enter the password for the user name. Select the 'Remember password'
checkbox if you want to save the password.
(8) Send QoS Setting: If you send the QoS value specified on the Advanced Settings
window during the connection, select the 'Send QoS Setting' checkbox.
2.2. Delete Connect Item
Select the 'Connect Item' you want to delete from the 'Connect Item' list in the Setup
dialog, and click Delete. The selected 'Connect Item' will be deleted.
2.3. Modify Connect Item
Select the 'Connect Item' you want to modify from the 'Connect Item' list in the Setup
dialog, and click Properties. The following dialog appears, allowing you to modify the
settings. See ‘Add Connect Item' for detailed descriptions about the settings.
2.4. View Modem List
Click Modem in the Setup dialog to open the following Windows default modem settings
dialog, where you can change the modem.
21
3. SMS Manager
SMS Manager is composed of Inbox for keeping received messages, Outbox for saving
messages that have been sent out, Draft Box for saving messages that have not yet
sent out, and Saved Box for keeping important messages in the Inbox. You can directly
send out messages from your PC to your phone, or download it from phone to PC for
more convenient management
3.1. Inbox Manager
To use Inbox Manager , click the Inbox icon
With Inbox Manager, you can reply to, forward, or delete selected messages.
1. Inbox List View
(1) By default, Inbox List View shows all Inbox messages saved in the phone.
(2) The details of the Inbox message selected from Inbox List View is displayed in the
Preview window at bottom.
(3) You can delete the messages displayed in Inbox List View. (You cannot add.)
2. Preview Window & Reply/Forward(Send)
(1) The details of the Inbox message selected from Inbox List View is displayed in the
Preview window at bottom.
(2) When you click the Reply button in the Preview window, a new window pops up for
you to edit the message and send it to the sender.
(3) When you click the Forward button in the Preview window, a new window pops up
for you to edit the message and send it to the another person.
(4) You can send a message to multiple persons.
(5) Type in the phone number and click the search button to add to the recipients' list.
(6) You can type in the number directly, or click the ok button to open the following
window
(7) You can search for existing phone numbers from the contact list.
3. Delete Inbox Data
Select the data to delete and press the Delete key on the keyboard.
To delete multiple data simultaneously, select them with your mouse while pressing
down the Shift or Ctrl key and then press the Delete key. The selected Inbox data is
deleted at once from the phone.
The deleted Inbox data cannot be restored.
4. To PC
The Inbox List View is updated with the Inbox messages currently saved in the phone.
5. To Saved Box
Select the data to protect, and press the Save button. The data will be saved in the
Saved box.
22
3.2. Saved box Manager
To use Saved Box Manager, click the Saved Box icon.
With Saved Box Manager, you can reply to, forward, or delete selected messages.
1. Saved Box List View
(1) By default, Saved Box List View shows all Saved Box messages saved in the
modem.
(2) The details of the Saved Box message selected from Saved Box List View is
displayed
in the Preview window at bottom.
(3) You can delete the messages displayed in Saved Box List View. (You cannot add.)
2. Preview Window & Reply/Forward(Send)
(1) The details of the Saved Box message selected from Saved Box List View is
displayed in the Preview window at bottom.
(2) When you click the Reply button in the Preview window, a new window pops up for
you to edit the message and send it to the sender.
(3) When you click the Forward button in the Preview window, a new window pops up
for you to edit the message and send it to the another person.
(4) You can send a message to multiple persons.
(5) Type in the phone number and click the search button to add to the recipients' list.
(6) You can type in the number directly, or click the ok button to open the following
window
(7) You can search for existing phone numbers from the contact list.
3. Delete Saved Box Data
Select the data to delete and press the Delete key on the keyboard. To delete multiple
data simultaneously, select them with your mouse while pressing down the Shift or Ctrl
key and then press the Delete key.
The selected Saved Box data is deleted at once from the modem.
The deleted Saved Box data cannot be restored.
4. To PC
The Saved Box List View is updated with the Saved Box messages currently saved in
the modem.
23
3.3. Outbox Manager
To use Outbox Manager, click the Outbox icon With Outbox Manager, you can forward,
modify, or delete selected messages in Outbox.
1. Outbox List View
(1) By default, Outbox List View shows all Outbox messages saved in the modem.
(2) The details of the Outbox message selected from Outbox List View is displayed in
the Preview window at bottom.
(3) You can delete the data displayed in Outbox List View
2. Preview Window & Forward(Send)
(1) The details of the Outbox message selected from Outbox List View is displayed in
the Preview window at bottom.
(2) To write a new message, click the Send button in the Preview window. A new
window pops up in which you can write a new message and send it to others.
(3) When you click the Forward button in the Preview window, a new window pops up for
you to edit the message and send it to the another person.
(4) You can send a message to multiple persons.
(5) Type in the phone number and click the search button to add to the recipients' list.
(6) You can type in the number directly, or click the ok button to open the following
window
(7) You can search for existing phone numbers from the contact list.
3. Delete Outbox Data
Select the data to delete and press the Delete key on the keyboard. To delete multiple
data simultaneously, select them with your mouse while pressing down the Shift or Ctrl
key and then press the Delete key. The selected Outbox data is deleted at once from
the modem
The deleted Outbox data cannot be restored
4. To PC
The Outbox List View is updated with the Outbox messages currently saved in the
modem.
24
3.4. Draft Box Manager
To use Draft Box Manager, click the Draft Box icon .
With Draft Box Manager, you can forward, or delete selected messages in Draft Box.
1. Draft Box List View
(1) By default, Draft Box List View shows all Draft Box messages saved in the modem.
(2) The details of the Draft Box message selected from Draft Box List View is displayed
in the Preview window at bottom.
(3) You can delete the data displayed in Draft Box List View .
2. Preview Window & Forward(Send)
(1) The details of the Draft Box message selected from Draft Box List View is displayed
in the Preview window at bottom.
(2) To write a new message, click the New button in the Preview window, or double click
an empty field in the Draft Box List. A new window pops up in which you can write a
new message and send it to others.
(3) When you click the Forward button in the Preview window, a new window pops up for
you to edit the message and send it to the another person.
(4) You can send a message to multiple persons.
(5) Type in the phone number and click the search button to add to the recipients' list.
(6) You can type in the number directly, or click ok button to open the following window
(7) You can search for existing phone numbers from the contact list.
3. Delete Draft Box Data
Select the data to delete and press the Delete key on the keyboard.
To delete multiple data simultaneously, select them with your mouse while pressing
down the Shift or Ctrl key and then press the Delete key.
The selected Draft Box data is deleted at once from the modem.
The deleted Draft Box data cannot be restored.
4. To PC
The Draft Box List View is updated with the Draft Box messages currently saved in the
modem.
3.5. Send
To send a new message, press Send button the Preview window.
A new window will pop up. There are 4 buttons in the Send window.
1. Send
Send the message directly to the recipients through the modem.
2. Send & Save
Send the message directly to the recipients through the modem. The message is also
saved in the Outbox in the modem
3. Save
25
Does not send the message. Message is saved in the Draftbox for later use.
4. Search
Search for phone number from the Phonebook.
4. PIMS Manager
By using PIMS Manager, you can upload contact data to your modem, or download it
from modem to PC for more convenient management.
3-1 Contacts Manager
By using the contacts, user can enter/change/erase the name, group, telephone
numbers(mobile, home, office), Fax, E-Mail, Address.
Also, user can check the number of SIM's and memories that can be registered, and
here the number of possible registrations varies depending on the kinds of the
connected modem.
Therefore, the entries in the contracts can be selectively registered to the SIM and
Memories.
1. Upload(Modem -> PC)
After confirmation of successful connection with the modem,
select the ToolÆ ModemÆPC menu from the File menu on the top( Or, click the icon ).
2. Download(PC -> Modem)
After confirmation of successful connection with the modem,
select the ToolÆ PCÆModem menu from the File menu on the top (Or, click the icon ).
3. Adding Contacts
For addition of contacts, use the following rules.
(Data field length may vary in different modem models)
No Items Rule
1 Name Number of name depends on SIM card/Modem specifications
2 Phone No
For phone numbers, up to 20 digits can be entered Including codes such as
‘#’, ‘-‘, ‘*’ in case of saving to SIM.
For phone numbers, up to 40 digits can be entered Including codes such as
‘#’, ‘-‘, ‘*’ in case of saving to Mem.
Particularly, you can insert phone number, home, business, fax number in
the case of Mem.
3 Group When you select Mem, only can use.
4 Email When you select Mem, only can use.(able to insert 50 digit)
5 Address When you select Mem, only can use.(able to insert 50 digit)
Enter at least one digit in the Name and Phone Number.
For Phone Numbers, up to 20 digits can be entered including codes such as, '#', '-', '*'.
For Names.
When you add data in SIM, the name have a restricted length by SIM and you can only
add mobile number.
26
Select the SIM/Mem.
Select Group, E-mail, and input a desired text in Address (maximum 50 characters.)
You can selectively enter the items listed above except Name and Phone Number.
(at least one phone number should be input).
Press the Add button after entering necessary information to complete the addition.
To continue adding, repeat the above procedure.
4. Changing Contacts Data
(1) Select the name to be changed from the data list control screen.
(2) After changing and entering items of your choice, press the Edit button to complete
the changes.
5. Deleting Contacts
Select the name to be deleted from the Contacts Data List Control screen.
Also, multiple names can be selected and deleted at the same time just like the
Windows. (Shift + Click for selection of block, Ctrl + Click for accumulating one at a
time). Click the Delete button to delete the data on the chosen phone number.
6. Finding Phone Number
Enter the name you want to find, and then click the Search button.
When it is necessary to find the items continuously, press F3 key.
7. Arranging Contacts
(1) To arrange the Contacts, click the item on the Phone Number list.
(2) This will make the Contacts arranged with respect to the chosen item.
8. Making a Call
(1) To make an outgoing call, highlight the item on the Phone Number list, and click the
Phone Call button.
(2) This will open the Phone Call Window.
3.2. CSV Conversion
This program not only reads and stores data files but also provides functions that
convert the address book data to CSV files or read the existing CSV files and store them
as current program data files.
In other words, the address book data of Outlook can be loaded in this program and,
conversely, the data of this program can be stored in the address book of Outlook in
CSV format.
1. Reading CSV Files
(1) Perform the following steps to read CSV files:
- Select Tool > Read CSV on the menu.
(2) A dialogue box is displayed as follows.
- When the above dialogue box is displayed, click 'Find File' button to select a CSV file
stored in your PC.
(3)Then, a list of data read is displayed on Data List Window that shows the phonebook
on PIMS Manager.
27
2. Writing CSV Files
(1) To store existing data as CSV files, perform the following steps.
- Select Tool> Write CSV on the menu.
(2) A dialogue box is displayed as shown below.
- When the above dialogue box is displayed, click 'Find File' button to specify the
directory to store files in your PC and enter the name of the file to store.
- And under SCV Type, choose whether the CSV files to store are for Outlook.
- When you have chosen the directory and the CSV file names to store and the
desired CSV type, click OK to implement CSV Write.
(3)You can open the CSV files stored as above not only with AxessManager but also
with Outlook and view their contents.
3.3. vCard Conversion
This program also provides functions that convert the address book data to vCard files or
read the existing vCard files and store them as current program data files. In other words,
the address book data of AxessManager can be shared with any other programs that
support vCard format.
1. Reading vCard Files
(1) Perform the following steps to read vCard files:
- Select Tool > Import vObject on the menu.
(2) A dialogue box is displayed as follows.
- When the above dialogue box is displayed, click 'Find File' button to select a vCard file
(*.vcf) stored in your PC.
(3) Then, a list of data read is displayed on Data List Window that shows the phonebook
on PIMS Manager.
2. Writing vCard Files
(1) To store existing data as vCard files, perform the following steps.
- Select Tool> Export vObject on the menu.
(2) A dialogue box is displayed as shown below.
- When the above dialogue box is displayed, click 'Find File' button to specify the
directory to store files in your PC and enter the name of the file to store.
- When you have chosen the directory and the vCard file names to store, click OK to
implement vCard Export.
(3) You can open the vCard files stored as above not only with AxessManager, but also
with Outlook or other programs that support vCard 2.1 format.
3.4. Outlook Conversion
This program also provides functions to directly import/export address book data to/from
the Outlook. Simply select Import/Export Outlook from the Tool menu, and follow the on-
screen instructions.
Please note that only address book data from Outlook 2000 and above versions may be
imported/exported. Outlook Express is not supported.
28
5. Phone Call
Phone Call window may be opened from the main window, or from the PIMS manager.
1. Making a Call
(1) Press number keypads
(2) Type in numbers directly on the LCD box.
(3) When typing/pressing numbers, press CLR button to erase last number entered, or
END button to clear all numbers
(4) Press the Send button to make a call to the number displayed on the LCD box.
(5) Press END button to hang up the call.
2. Receiving a Call
(1) When a call comes in, Phone Call window will pop up with CallerID displayed in the
LCD box.
(2) Press any key button, except the END key, to receive the incoming call.
(3) Press END button to hang up the call.
3. Call History
(1) Press LIST button to open Call History Window.
(2) Select Incoming/Outgoing/Missed tabs to view each lists.
(3) Double clicking on the list will send phone number to the LCD box.
(4) Select an item from the list and press Delete button to delete the item.
(5) Select a tab, and press Delete All button to delete all items on that list.
(6) Press Reset button to delete all items on all the lists.
4. SMS
(1) Press SMS button to send a message to the number on the LCD box.
(2) SMS Window will be opened, and Send SMS Window will be opened
(if there is a number on the LCD box).
(3) Refer to SMS section to send a message.
5. PIMS
(1) Press PIMS button to look up a number in the address book.
(2) PIMS Window will be opened.
(3) Refer to PIMS section to manage phonebook data.
29
30
Miscellaneous
Specification
31
SPECIFICATIONS
Frequency Range
MV110 Rx: 462 ~ 468 MHz
Tx: 452 ~ 458 MHz
MV140
Rx: 869 ~ 894 MHz
Tx: 824 ~ 849 MHz
Rx: 1930 ~ 1989 MHz
Tx: 1850 ~ 1909 MHz
Channel Bandwidth CDMA 1.25 MHz
Stability of frequency 0.4 ppm
External appearance (mm) 97 x 57 x 19.5 mm
Weight 150 g (with battery)
Sending output maximum 0.23W E.R.P
Temperature of operation
Relative humidity -20 ~ +50 degrees Celsius
5% ~ 90%
Adapter Input: AC 100~240V 50~60Hz
Output: DC 5V/2A
Battery 760mAh, Li-ion
32
SAR INFORMATION
THIS MODEL PHONE MEETS THE GOVERNMENT’S
REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It is designed and
manufactured not to exceed the emission limits for exposure to radiofrequency
(RF) energy set by the Federal Communications Commission of the U.S.
Government. These limits are part of comprehensive guidelines and establish
permitted levels of RF energy for the general population. The guidelines are
based on standards that were developed by independent scientific organizations
through periodic and thorough evaluation of scientific studies. The standards
include a substantial safety margin designed to assure the safety of all persons,
regardless of age and health. The exposure standard for wireless mobile phones
employs a unit of measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6 W/kg. *
Tests for SAR are conducted with the phone transmitting at its highest certified
power level in all tested frequency bands. Although the SAR is determined at the
highest certified power level, the actual SAR level of the phone while operating
can be well below the maximum value. This is because the phone is designed to
operate at multiple power levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base station antenna, the
lower the power output. Before a phone model is available for sale to the public, it
must be tested and certified to the FCC that it does not exceed the limit
established by the government adopted requirement for safe exposure. The tests
are performed in positions and locations (e.g., at the ear and worn on the body)
as required by the FCC for each model. The highest SAR value for this model
phone when tested for use at the when worn on the body , as described in this
user guide, is 0.997 W/Kg . (Body-worn measurements differ among phone
models, depending upon available accessories and FCC requirements). While
there may be differences between the SAR levels of various phones and at
various positions, they all meet the government requirement for safe exposure.
The FCC has granted an Equipment Authorization for this model phone with all
reported SAR levels evaluated as in compliance with the FCC RF exposure
guidelines. SAR information on this model phone is on file with the FCC and can
33
be found under the Display Grant section of http://www.fcc.gov/ oet/fccid after
searching on FCC ID: PH7MV140.
Additional information on Specific Absorption Rates (SAR) can be found on the
Cellular Telecommunications Industry Asso-ciation (CTIA) web-site at
http://www.wow-com.com. * In the United States and Canada, the SAR limit for
mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram
of tissue. The standard incorporates a sub-stantial margin of safety to give
additional protection for the public and to account for any variations in
measurements.
SAFETY INFORMATION FOR RF EXPOSURE
Body worm operation
This device was tested for typical body-worn operations with the back of the
phone kept 25 mm. from the body. To maintain compliance with FCC RF
exposure requirements, use only belt-clips, holsters or similar accessories that
maintain a 25 mm. separation distance between the user’s body and the back of
the phone, including the antenna. The use of belt-clips, holsters and similar
accessories should not contain metallic components in its assembly. The use of
accessories that do not satisfy these requirements may not comply with FCC RF
exposure requirements, and should be avoided.
34
Safety Information
1 . SAFETY INFORMATION FOR FIXED WIRELESS TERMINALS
.POTE NTIALLY EXPLOSIVE ATMOSPHERES
Turn your phone OFF when in any area with a potentially explosive atmosphere
and obey all signs and instructions. Sparks in such areas could cauls e an
explosion or fire resulting in bodily injury or even death.
INTERFERENCE TO MEDICAL DIVICES
Certain electronic equipment may be shielded against RF signal from you
wireless phone. (pacemakers, Hearing Aids, and so on) Turn your phone OFF in
health c are facilities when any regulations posted in these areas instruct you to
do so. RF signals may affect improperly installed or inadequately shielded
electronic system in motor vehicles.
.EXPOSURE TO RF ENERGY
Use only the supplied or an approved replacement antenna. Do not touch the
antenna unnecessarily when the phone is in use. Do not move the antenna close
to, or couching any exposed part of the body when making a call.
FCC Compliance Information
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received.
Including interference that may cause undesired operation.
35
U.S.A.
U.S.FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
INFORMATION TO THE USER
NOTE : This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful Interference in a
residential installation This equipment generates, uses, and can radiate radio
frequency energy and, if Not installed and used in accordance with the
instructions, may cause harmful Interference to radio communications. However,
there is no guarantee that interference will not occur in a particular Installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
*- Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
*- Connect the equipment into an outlet of a circuit different from that to which the
receiver is connected.
*- Consult the dealer or an experienced radio/TV technician for assistance.
Changes or modification not expressly approved by the party responsible for
Compliance could void the user’s authority to operate the equipment. Connecting
of peripherals requires the use of grounded shielded signal cables.
