Axxcelera Broadband Wireless, Inc. AB-Access EXTENDER User Installation manual part 1
Contents
User Installation manual part 1
Internal DRAFT Copy
Document Number: ABA-U-NII-PIM-3 (part1 – chapters 1 to 6)
May 2001
AB-ACCESS
SYSTEM
U-NII PRODUCT INSTALLATION MANUAL
for Subscriber Units, Base Stations, Access Points
and AB-Access Extender Units
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 i
Preface
AB-Access™ System technology enables high-speed, broadband Internet access for fast data
transmission, full streaming video, real-time video conferencing, and web surfing. Adaptive
Broadband’s wireless point-to-multipoint and point-to-point solutions (AB-Access Extender) for
fixed networks enables our customers to easily leap-over existing infrastructure, making the
initial investment significantly lower than that required for wired alternatives.
Adaptive Broadband’s, patent pending, Packet-on-Demand technology delivers up to 10 times
the effective Internet data throughput of existing network configurations. Our technology
provides a last-mile solution, when deployed between networks and business/residential Internet
users. AB-Access System’s low-cost, wireless infrastructure means that a complete network can
be installed in days or weeks, instead of the typical months or years. Since AB-Access
architecture is highly scalable, our customers’ wireless network can grow as quickly as their
business grows or as bandwidth needs evolve.
This manual explains how to install the U-NII AB-NetAccess software and perform network
management tasks using GUI-based applications (the AB-NetAccess client software). This
software can run on any IP client on your network and is controlled by the main Element
Management System (EMS) application, the AB-NetAccess server software, which resides on a
single server on your IP network.
The main tasks covered in this manual are configuring and managing network elements, such as
Base Stations, Subscriber Units, Access Points, AB-Access Extender Units, Anchor Switches,
and Control Servers. Definitions of all the terms and abbreviations used in this manual can be
found in the Glossary at the end of this manual.
Proprietary Notice
The information contained within this manual was originated by and is the property of Adaptive
Broadband Corporation. Adaptive Broadband Corporation reserves all patent proprietary design,
manufacturing, reproduction use, and sales rights thereto, and to any articles disclosed therein,
except to the extent rights are expressly granted to others. The foregoing does not apply to
vendor proprietary parts. To allow for the introduction of design improvements, specifications
are subject to change without notice.
Intended Audience
This guide is aimed at qualified AB-Access System installers. Installers should have experience
in radio equipment installations and aspects of hardware and software networks. Installers for
AB-Access Extender should be professionally qualified to install radio equipment.
AB-ACCESS SYSTEM PREFACE
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 ii
Related Documentation
For more information, refer to one or more of the following documents:
• AB-Access U-NII Configuration & User’s Guide – Covers AB-Access components,
architectures, configuration, and troubleshooting
• AB-Access U-NII System Functional Specification – Lists the specifications of the various
components of an AB-Access network
• AB-Access U-NII Product Installation Manual – Explains how to install AB-Access
Subscriber Units and Base Stations
• AB-Access Command Line Interface (CLI) Manual – Describes configuration, operational,
and diagnostic capabilities for Subscriber Units and Base Stations.
• AB-Access Software Release Notes – Describes updates and changes to the latest software
and known product issues.
Customer Documentation Questions/Comments
Adaptive Broadband’s Technical Publications Department is constantly reviewing its AB-
Access System(s) documentation to make the information as clear, accurate, and user-friendly as
possible. We would like to receive any comments or questions you have about this manual.
Please send an e-mail to: techpubs@adaptivebroadband.com with your views on anything in this
manual that you think needs to be clarified or structured differently. Additionally, please let us
know if you found this manual useful and its information easy to understand.
Notice
While every reasonable effort has been made to ensure the accuracy of this manual, product
improvements may result in minor differences between the manual and the product shipped to
you. If you have any questions or need an exact specification for a product, please contact
Adaptive Broadband’s Customer Service Team at our toll free number: TBD.
In addition, documentation updates can often be found on our Web site at:
www.adaptivebroadband.com.
Adaptive Broadband Corp.
TBD: New Tech Pubs Address, Phone and FAX information to be inserted
USA
Tel: TBD
FAX: TBD
Copyright 2001 Adaptive Broadband Corp.
AB-ACCESS SYSTEM ADAPTIVE BROADBAND
PRODUCT WARRANTY
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 iii
Product Manufactured by ADAP:
a. Products manufactured by ADAP are warranted against defects in material and
workmanship for a period of one (1) year from date of delivery as evidenced by ADAP's
packing slip or other transportation receipt.
b. ADAP's sole responsibility under this warranty will be to either repair or replace, at its
option, any component which fails during the applicable warranty period because of a defect
in material or workmanship, provided Buyer has promptly reported same to ADAP in
writing. All replaced products and parts will become ADAP's property.
c. ADAP will honor the warranty at the repair facility designated by ADAP. It is Buyer's
responsibility to return, at its expense, the allegedly defective product to ADAP. Buyer
must obtain a Return Material Authorization (RMA) number and shipping instructions from
ADAP prior to returning any product under warranty. Transportation charges for the return
of the product to Buyer will be paid by ADAP within the United States. For all other
locations, the warranty excludes all costs of shipping, customs clearance and other related
charges. If ADAP determines that the product is not defective within the terms of this
warranty, Buyer will pay ADAP all costs of handling, transportation and repairs at the then
prevailing repair rates.
d. All the above warranties are contingent upon proper use of the product. These warranties
will not apply (i) if adjustment, repair, or product or parts replacement is required because of
accident, unusual physical, electrical or electromagnetic stress, neglect, misuse, failure of
electric power, environmental controls, transportation, failure to maintained properly or
otherwise in accordance with ADAP specifications, or abuses other than ordinary use; (ii) if
the product has been modified by Buyer or has been repaired or altered outside ADAP's
repair facility, unless ADAP specifically authorizes such repairs or alterations in each
instance; or (iii) where ADAP serial numbers, warranty data or quality assurance decals
have been removed or altered.
e. No person, including any system provider, agent or representative of ADAP is authorized to
assume for ADAP any other liability on its behalf except as set forth herein. If any payment
is due ADAP for services performed hereunder, it will be subject to the same payment terms
as the original purchase.
Products Manufactured By Others:
For products not manufactured by ADAP, the original manufacturer's or licensor’s warranty will
be assigned to Buyer to the extent permitted by the manufacturer or licensor and is in lieu of any
other warranty, expressed or implied. For warranty information on a specific product, a written
request should be made to ADAP.
All Products:
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 iv
THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN
LIEU OF ALL OTHER EXPRESS OR IMPLIED WARRANTIES, OBLIGATIONS, AND
LIABILITIES ON THE PART OF ADAP. EXCEPT FOR THE EXPRESS WARRANTIES
STATED HEREIN, ADAP DISCLAIMS ALL WARRANTIES ON PRODUCTS
FURNISHED HEREUNDER, INCLUDING, WITHOUT LIMITATION, ALL IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. ADAP WILL HAVE NO RESPONSIBILITY FOR ANY PARTICULAR
APPLICATION MADE OF ANY EQUIPMENT. Any description of equipment, whether in
writing or made orally by ADAP or its agents, specification sheets, models, bulletins, drawings,
or similar materials used in connection with Buyer’s order are for the sole purpose of identifying
the equipment and will not be construed as an express warranty. Any suggestions by ADAP or
its agents regarding use, application or suitability of the equipment will not be construed as an
express warranty. No warranties may be implied from any course of dealing or usage of trade.
Buyer agrees that the exclusion of all warranties, other than those expressly provided herein, is
reasonable.
Additional Terms:
All transactions between ADAP and Buyer and all matters related to them are and will be
governed solely by ADAP’s Standard Terms and Conditions of Sale as may be in effect from
time to time, unless otherwise expressly agreed to by ADAP in advance and in writing.
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 v
PRODUCT RETURN PROCEDURE
It is a requirement of Adaptive Broadband Corporation that any product returned for repair or
replacement must first be authorized by Adaptive Broadband and assigned a Return Material
Authorization (RMA) number. The repair site will not repair or replace any defective unit
without an RMA number.
To receive authorization to return a defective product and obtain an RMA number, call Adaptive
Broadband’s Technical Support at our toll free number: TBD.
AB-ACCESS SYSTEM PRODUCT RETURN PROCEDURE
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 vi
PLEASE READ THESE SAFETY PRECAUTIONS!
RF Energy Health Hazard
The radio equipment described in this guide uses radio frequency transmitters. Although the
power level is low, the concentrated energy from a directional antenna may pose a health hazard.
Do not allow people to come in close proximity to the front of the antenna while the
transmitter is operating.

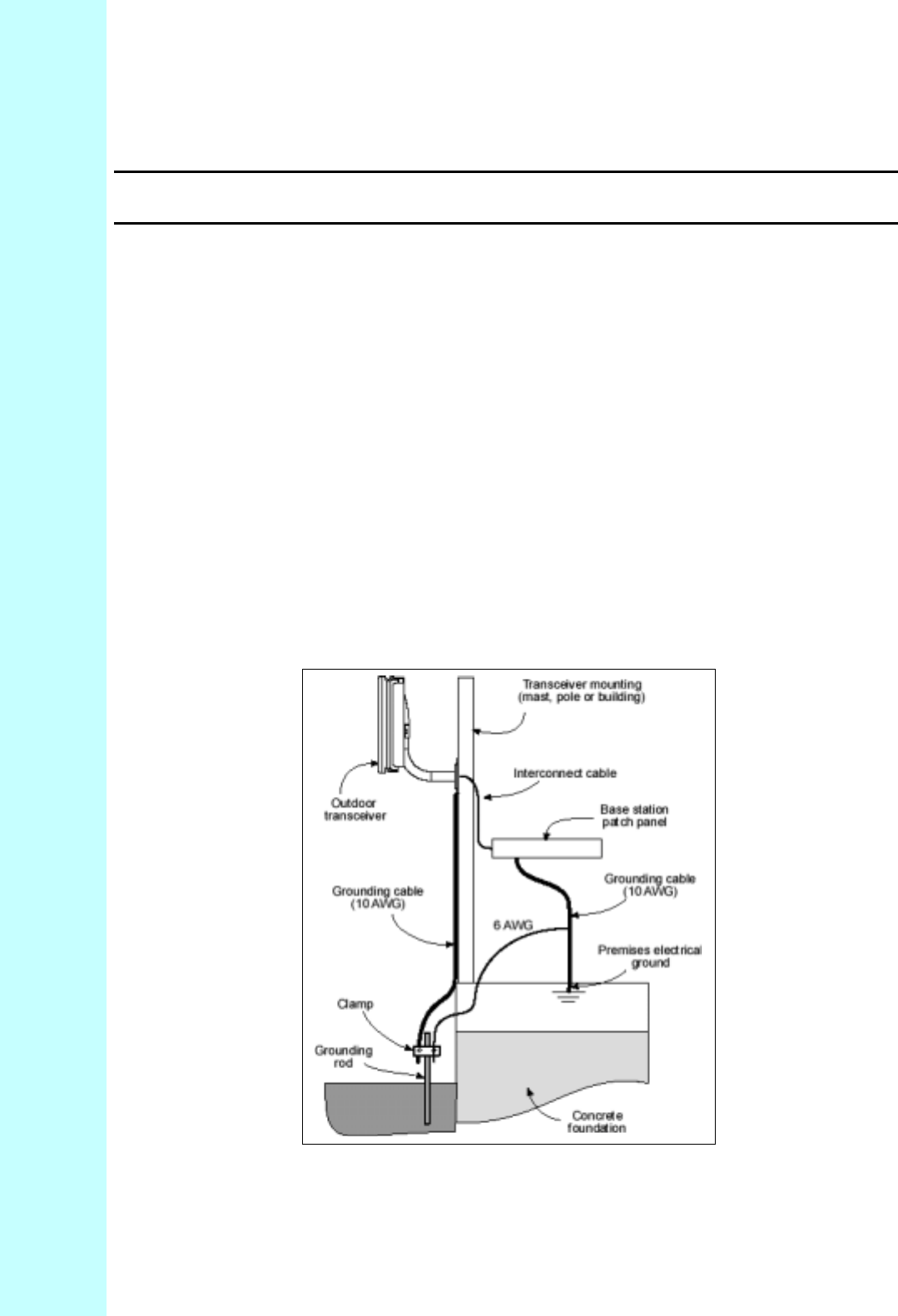

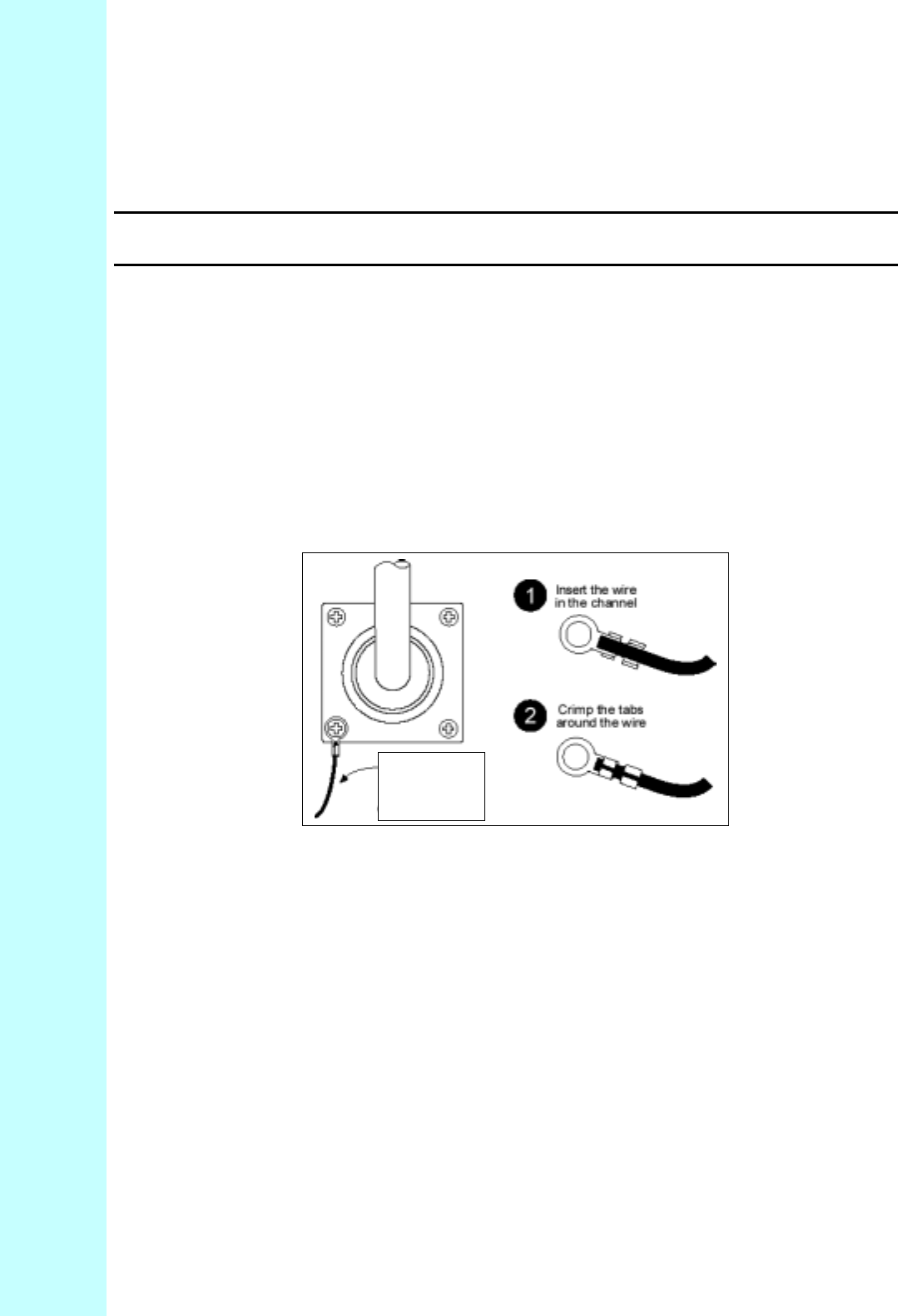

Protection from Lightning
Article 810 of the US National Electric Department of Energy Handbook 1996 specifies that
radio and television lead-in cables must have adequate surge protection at or near the point of
entry to the building. The code specifies that any shielded cable from an external antenna must
have the shield directly connected to a 10 AWG wire that connects to the building ground
electrode.
FCC Notice, USA
The AB-Access Subscriber Unit complies with Part 15 of the FCC rules. Operation is subject to
the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received including interference
that may cause undesired operation.
This device is specifically designed to be used under Part 15, Subpart E of the FCC Rules
and Regulations. Any unauthorized modification or changes to this device without the
express approval of Adaptive Broadband Corporation may void the user’s authority to
operate this device. Furthermore, this device is intended to be used only when installed in
accordance with the instructions outlined in this manual. Failure to comply with these
instructions may also void the user’s authority to operate this device and/or the
manufacturer’s warranty
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 vii
Conditions specific to AB-Access Extender:
AB-Access Extender complies with Part 15 of the FCC rules. The device is specifically designed
to be used under Part 15, Sub-part E of the FCC rules and regulations. Operation is subject to
following conditions:
• The device to utilize a fixed mount antenna, for use on a permanent outdoor structure.
• The device to be installed by qualified installation/deployment personnel, and a minimum of
1.5 meters of separation must exist between the device and persons, when the device is
operating.
• The device installers and operators should be aware of the transmitter operating conditions,
specified in the AB-Extender installation manual and other associated user documentation, as
well as the antenna co-location requirements of Part 1.1307 (b) (3), of FCC rules, pertaining
to RF exposure.
• The device may not cause harmful interference.
• The device must accept interference received, including interference that may cause
undesired operation.
The device is intended to be used only when installed in accordance with instructions outlined in
this manual. Failure to comply with these instructions may void the user's authority to operate
this device and/or the manufacturer's warranty. Furthermore, any unauthorized modification or
changes to this device without the express approval of Adaptive Broadband Corporation may
also void the user's authority to operate this device.
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 viii
1 AB-Access Product Overview........................................................................................1-1
1.1 AB-Access System.......................................................................................................1-1
1.2 AB-Access Network.....................................................................................................1-1
1.3 System Components.....................................................................................................1-1
1.3.1 AB-Access System Architecture..........................................................................1-2
1.3.2 Base Station Function...........................................................................................1-3
1.3.3 Subscriber Unit Function......................................................................................1-3
1.3.4 EMS Function.......................................................................................................1-4
1.3.5 System Configuration Selection...........................................................................1-4
2 Getting Started ...............................................................................................................2-1
2.1 Skills Required .............................................................................................................2-1
2.2 Information Needed From Your Service Provider.......................................................2-1
2.3 Required Tools and Equipment....................................................................................2-2
2.4 Unpacking the Equipment............................................................................................2-2
2.5 Performing A Site Survey ............................................................................................2-4
2.5.1 What You Need...................................................................................................2-4
2.5.2 Access Point Locations ........................................................................................2-4
2.5.3 Selecting An Access Point ...................................................................................2-6
2.5.4 AB-Access Extender Locations ...........................................................................2-7
3 Base Station Installation................................................................................................3-1
3.1 System Overview..........................................................................................................3-1
3.2 Access Points................................................................................................................3-2
3.3 AB-Access Extender Units...........................................................................................3-2
3.4 Anchor Switch..............................................................................................................3-2
3.5 Control Server ..............................................................................................................3-3
3.6 Access Panel.................................................................................................................3-4
3.7 A Note On Cabling.......................................................................................................3-5
3.8 Software Consideration................................................................................................3-5
4 Server and Switch Installation......................................................................................4-1
4.1 Before You Start...........................................................................................................4-1
4.1.1 Information Required ...........................................................................................4-1
4.1.2 Extra Equipment Required...................................................................................4-1
4.1.3 Optional Equipment .............................................................................................4-1
4.2 Unpacking The Equipment...........................................................................................4-1
4.2.1 Anchor Switch......................................................................................................4-2
4.2.2 Control Server ......................................................................................................4-2
4.3 Installing The Equipment .............................................................................................4-2
4.3.1 Position The Equipment .......................................................................................4-2
4.3.2 Making Up Connecting Cables ............................................................................4-2
4.3.3 Connecting The Equipment..................................................................................4-3
4.4 Base Station Access Panel Installation.........................................................................4-4
4.4.1 Access Panel Installation Steps............................................................................4-5
AB-ACCESS SYSTEM Table of Contents
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 ix
4.4.2 Powering On The Equipment...............................................................................4-6
5 Access Point Installation................................................................................................5-1
5.1 Before You Start...........................................................................................................5-1
5.2 Information Required ...................................................................................................5-1
5.2.1 Equipment Required.............................................................................................5-2
5.3 Access Points................................................................................................................5-2
5.4 Indoor Patch Panel .......................................................................................................5-3
5.5 Installing The Equipment .............................................................................................5-3
5.5.1 Overview ..............................................................................................................5-4
5.5.2 Installing The Mounting Poles .............................................................................5-4
5.5.3 Installing On An Antenna Mast ...........................................................................5-4
5.5.4 Installing On Brick Or Masonry...........................................................................5-5
5.5.5 Installing On A Wall With Wood Siding.............................................................5-5
5.6 Mounting The Outdoor Access Points .........................................................................5-6
5.6.1 Installing the Access Panel...................................................................................5-7
5.6.2 Installing The Interconnect Cables.......................................................................5-7
5.6.3 Grounding The System.......................................................................................5-12
6 AB-Access Extender Installation ..................................................................................6-1
6.1 Before You Start...........................................................................................................6-1
6.2 Information Required ...................................................................................................6-1
6.2.1 Equipment Required.............................................................................................6-1
6.3 AB-Access Extender....................................................................................................6-2
6.4 Indoor Patch Panel .......................................................................................................6-3
6.5 Installing The Equipment .............................................................................................6-3
6.5.1 Overview ..............................................................................................................6-3
6.5.2 Installing The Mounting Poles .............................................................................6-3
6.5.3 Installing On An Antenna Mast ...........................................................................6-4
6.5.4 Installing On Brick Or Masonry...........................................................................6-4
6.5.5 Installing On A Wall With Wood Siding.............................................................6-5
6.6 Mounting The Outdoor AB-Access Extender..............................................................6-5
6.6.1 Installing the Access Panel...................................................................................6-7
6.6.2 Installing The Interconnect Cables.......................................................................6-7
6.6.3 Grounding The System.......................................................................................6-12
7 Subscriber Unit Installation ............................................... Error! Bookmark not defined.
7.1 Installation Overview .................................................... Error! Bookmark not defined.
7.2 Installing Mounting Pole .............................................. Error! Bookmark not defined.
7.2.1 Installing on a Brick or Masonry Wall.................. Error! Bookmark not defined.
7.2.2 Installing on a Wall with Wood Siding................. Error! Bookmark not defined.
7.2.3 Installing on an Antenna Mast .............................. Error! Bookmark not defined.
7.3 Installing the Outdoor Subscriber Unit ......................... Error! Bookmark not defined.
7.4 Preparing The Indoor Junction Box .............................. Error! Bookmark not defined.
7.5 Installing the Interconnect Cable .................................. Error! Bookmark not defined.
7.5.1 Routing the Interconnect Cable............................. Error! Bookmark not defined.
7.5.2 Preparing the Interconnect Cable.......................... Error! Bookmark not defined.
7.5.3 Connecting to the Outdoor Subscriber Unit TransceiverError! Bookmark not
defined.
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 x
7.5.4 Connecting to the Indoor Junction Box................. Error! Bookmark not defined.
7.6 Grounding The System.................................................. Error! Bookmark not defined.
7.6.1 Installing A Grounding Rod.................................. Error! Bookmark not defined.
7.6.2 Grounding the Outdoor Subscriber Unit ............... Error! Bookmark not defined.
7.6.3 Grounding the Indoor Junction Box...................... Error! Bookmark not defined.
7.6.4 Assembling and Mounting the Junction Box ........ Error! Bookmark not defined.
8 Indoor Junction Box............................................................ Error! Bookmark not defined.
8.1 ATM Cross-Over Cable ................................................ Error! Bookmark not defined.
8.2 FVC DB-9 To RJ-45 Converter .................................... Error! Bookmark not defined.
9 Testing the System............................................................... Error! Bookmark not defined.
9.1 Introduction................................................................... Error! Bookmark not defined.
9.2 Equipment Required...................................................... Error! Bookmark not defined.
9.3 Testing........................................................................... Error! Bookmark not defined.
9.3.1 Connecting Test PC............................................... Error! Bookmark not defined.
9.4 Configure The IP Address............................................. Error! Bookmark not defined.
9.5 Using the RSSI Interface for RF Alignment ................. Error! Bookmark not defined.
9.6 Display The Security Page ............................................ Error! Bookmark not defined.
9.7 Optimize The Antenna Alignment ................................ Error! Bookmark not defined.
10 Specifications ................................................................... Error! Bookmark not defined.
10.1 Subscriber Unit Antenna............................................... Error! Bookmark not defined.
10.2 Access Point Antenna ................................................... Error! Bookmark not defined.
10.3 AB-Access Extender Antenna....................................... Error! Bookmark not defined.
Figure 10-3 Typical EX Antenna Pattern.................................. Error! Bookmark not defined.
TBD: Update all section and figure numbers from here on forwardError! Bookmark not
defined.
10.4 Modem Specifications...................................................... Error! Bookmark not defined.
10.5 Environmental Specifications........................................... Error! Bookmark not defined.
10.5.1 Temperature/Humidity Operation.............................. Error! Bookmark not defined.
10.5.2 Grounding................................................................... Error! Bookmark not defined.
10.5.3 Electrical Specifications............................................. Error! Bookmark not defined.
10.5.4 Power Consumption................................................... Error! Bookmark not defined.
10.5.5 Distance Limitations................................................... Error! Bookmark not defined.
10.5.6 Physical Specifications............................................... Error! Bookmark not defined.
10.6 Cable Specifications.......................................................... Error! Bookmark not defined.
10.6.1 Outdoor Cable Specifications..................................... Error! Bookmark not defined.
10.7 RJ-45 Plug Specifications.................................................. Error! Bookmark not defined.
11 Glossary & Acronyms..................................................... Error! Bookmark not defined.
11.1 Acronyms/Abbreviations............................................... Error! Bookmark not defined.
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 xi

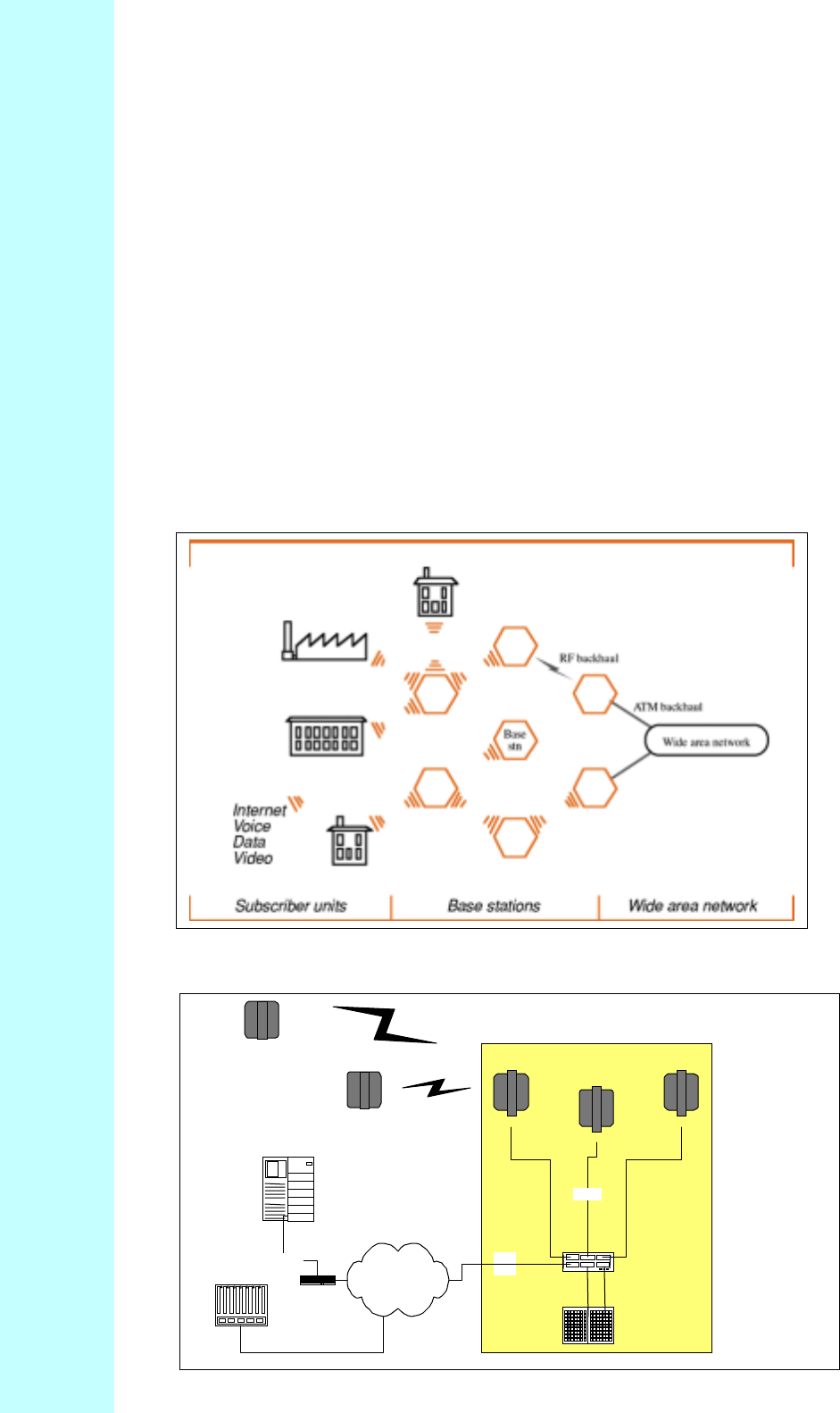

Figure 1-1 AB-Access Typical Deployment................................................................................1-2
Figure 1-2 AB-Access Typical Network Architecture................................................................1-3
Figure 2-1 Outdoor Subscriber Unit Components .......................................................................2-3

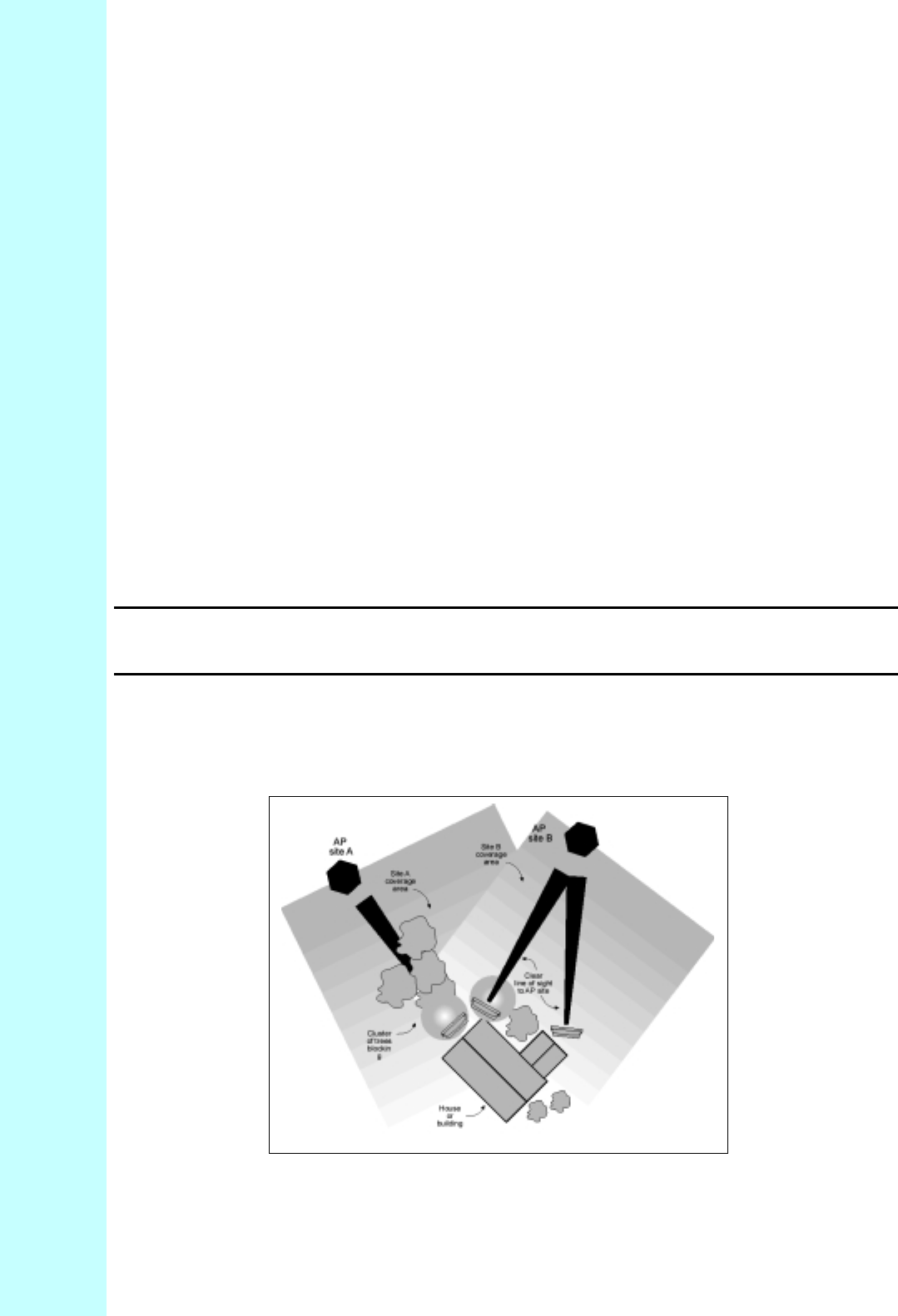

Figure 2-2 Access Point Locations.............................................................................................2-5

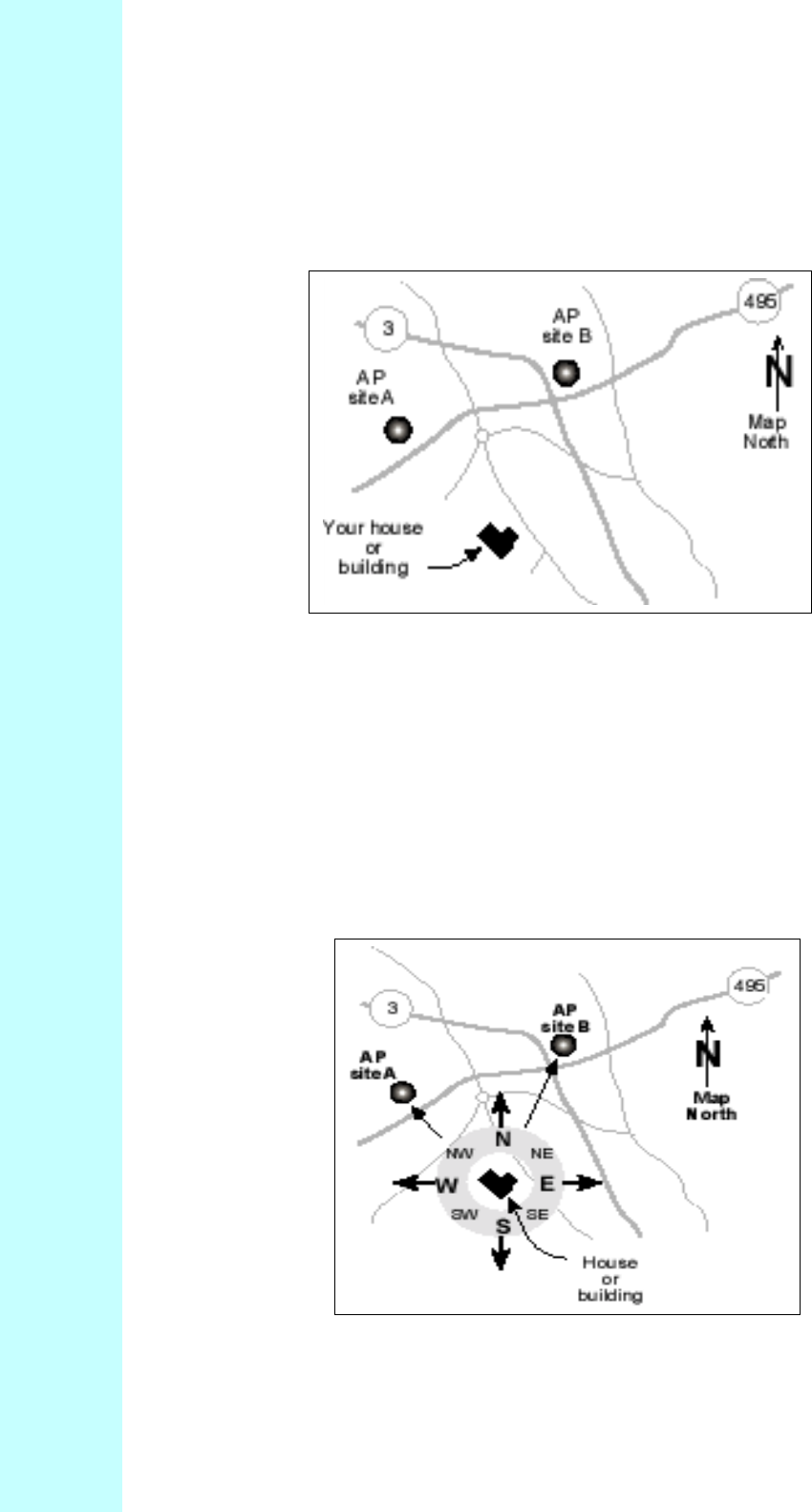

Figure 2-3 Aligning the Compass and Map ...............................................................................2-6
Figure 2-4 Selecting an Access Point.........................................................................................2-7

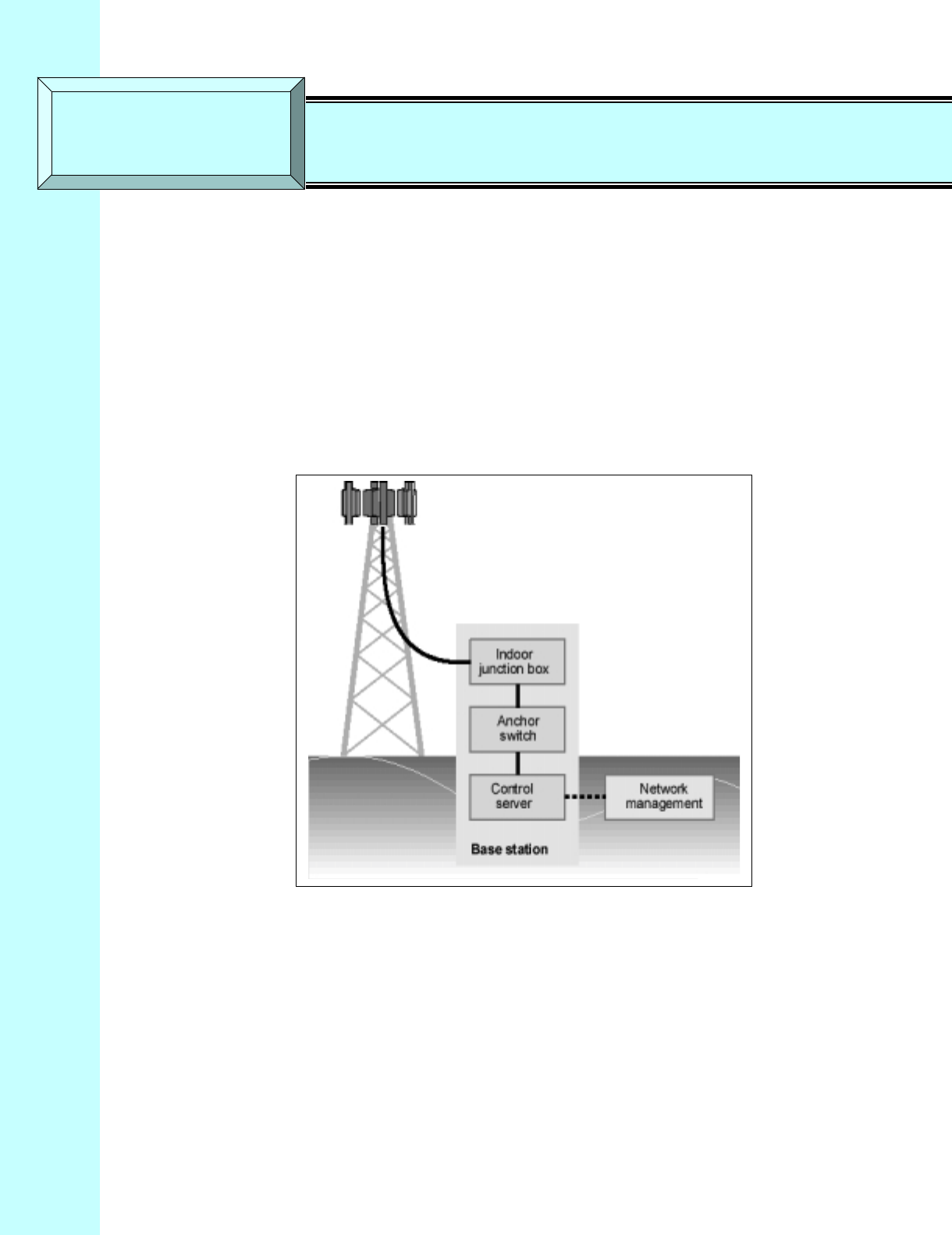

Figure 3-1 Base Station Overview ...............................................................................................3-1

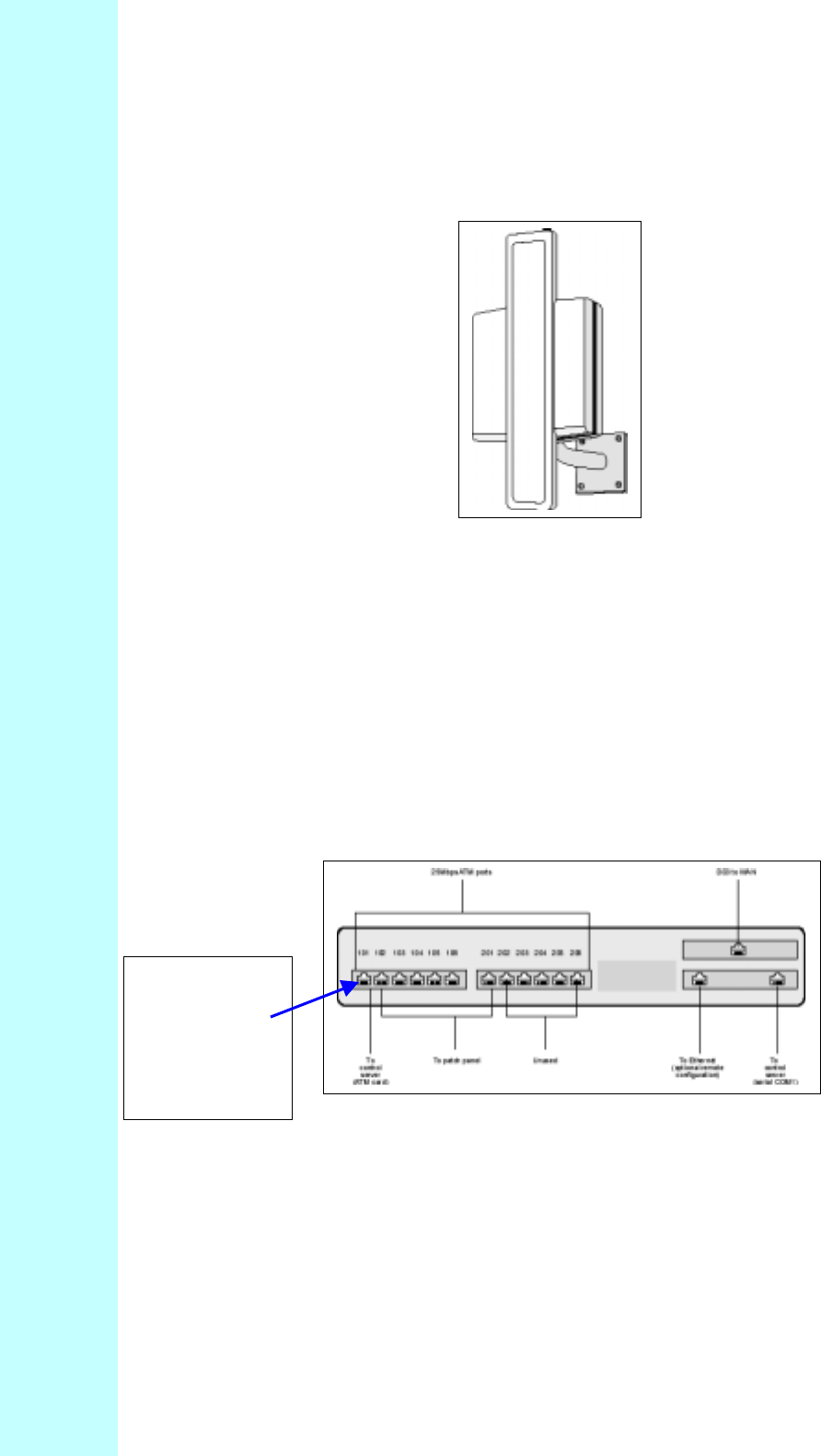

Figure 3-2 Outdoor Access Point and Mounting Pole ................................................................3-2
Figure 3-3 Anchor Switch Front Panel .......................................................................................3-2

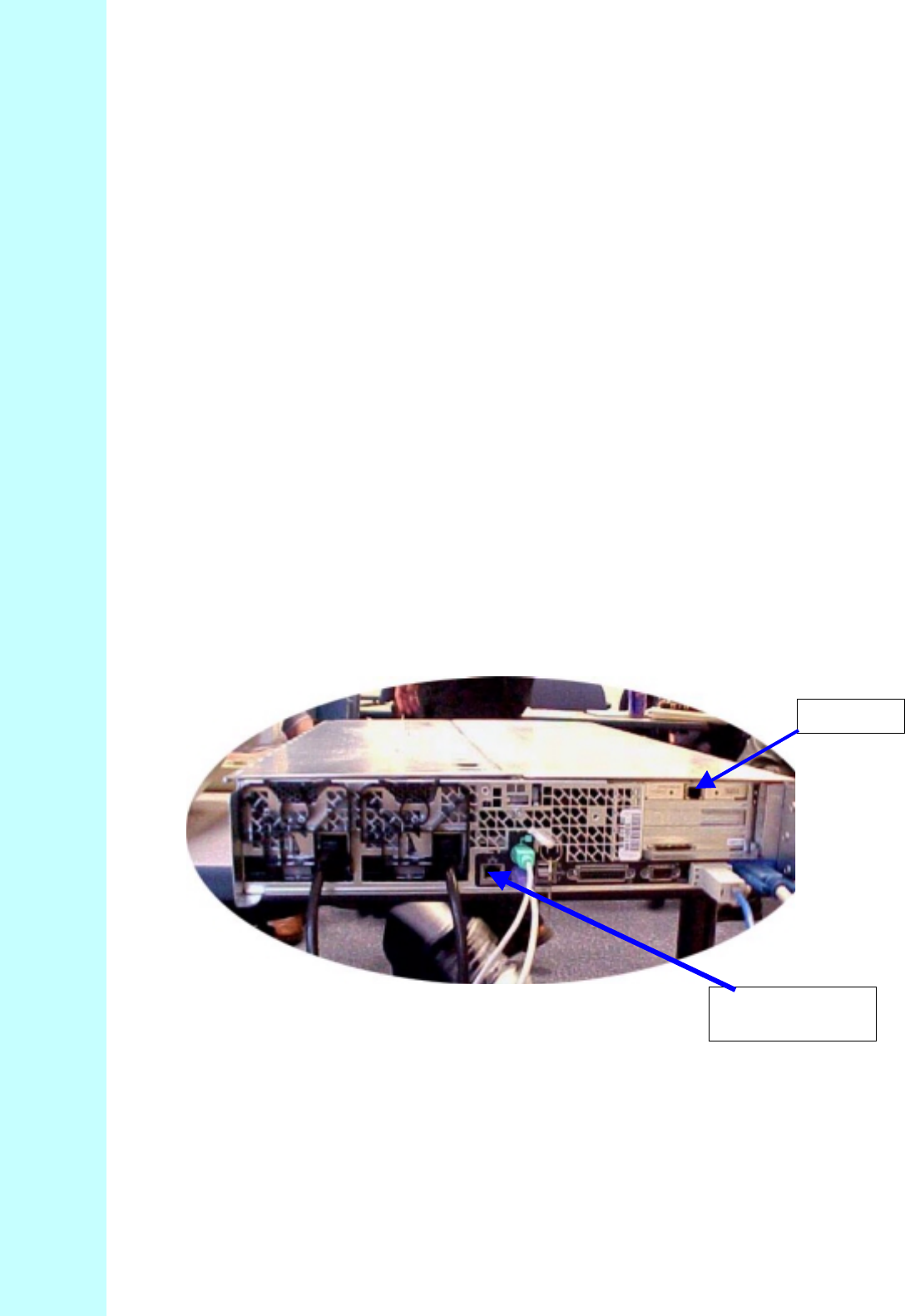

Figure 3-4 Dell 2450 Control Server Rear Panel........................................................................3-3

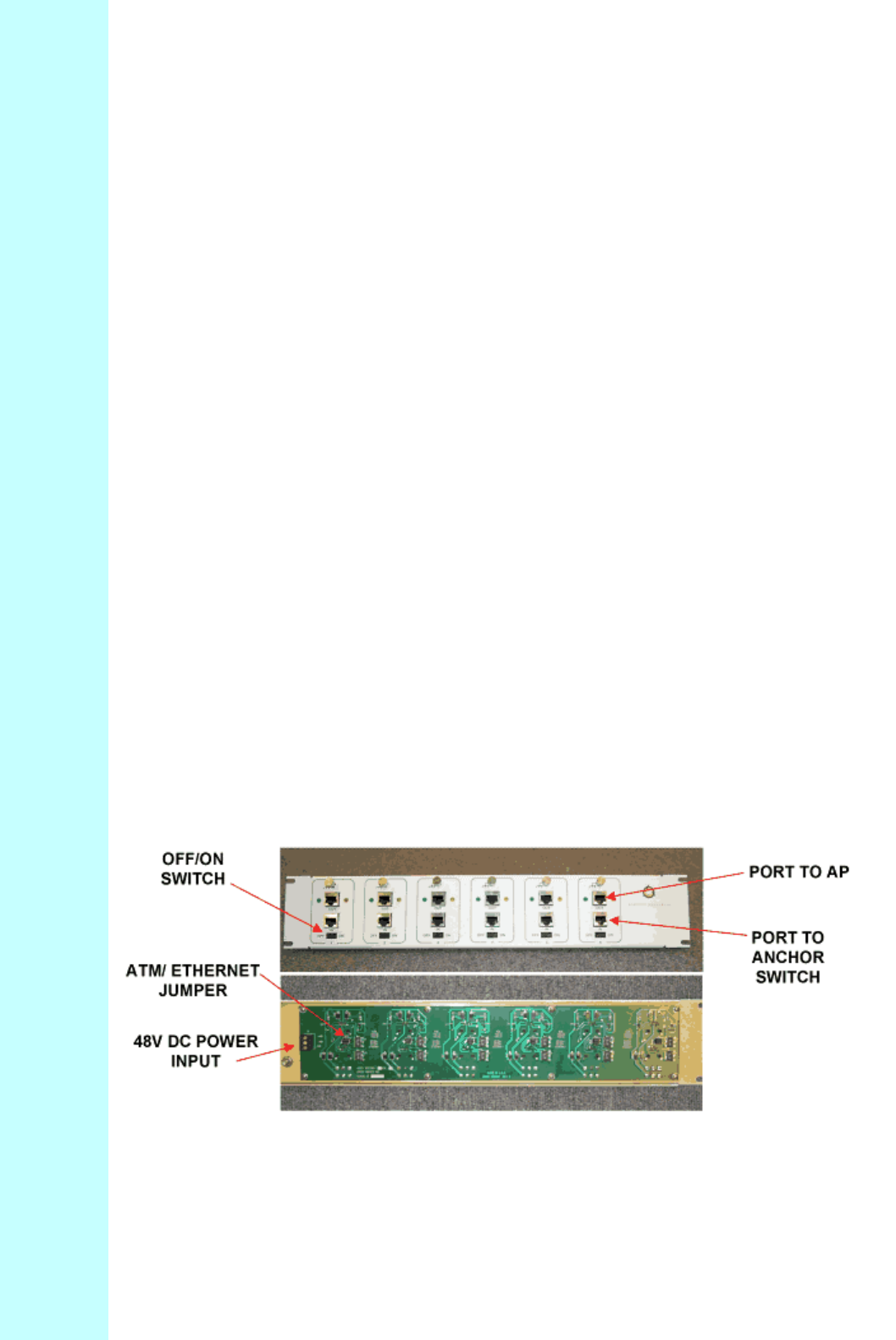

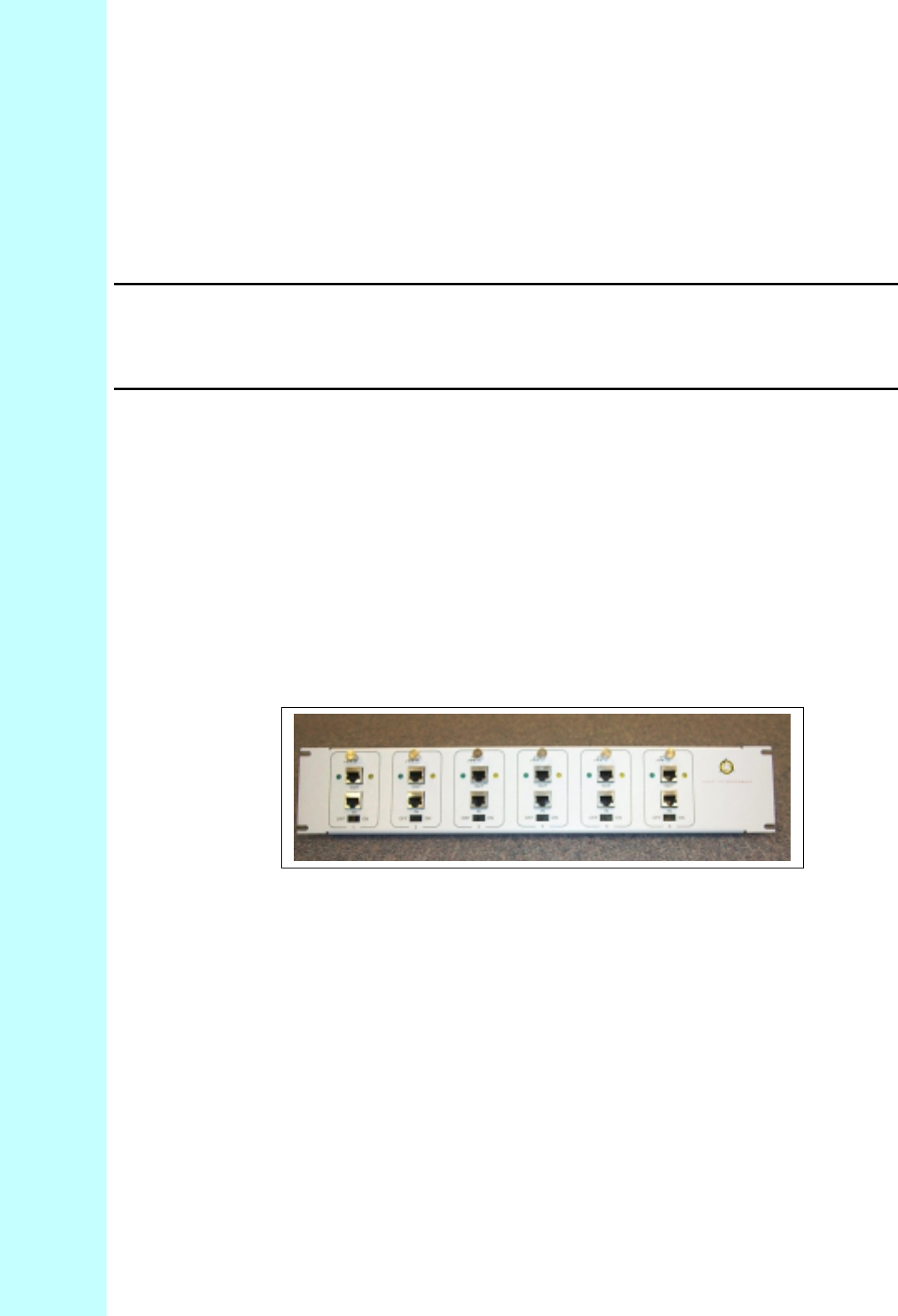

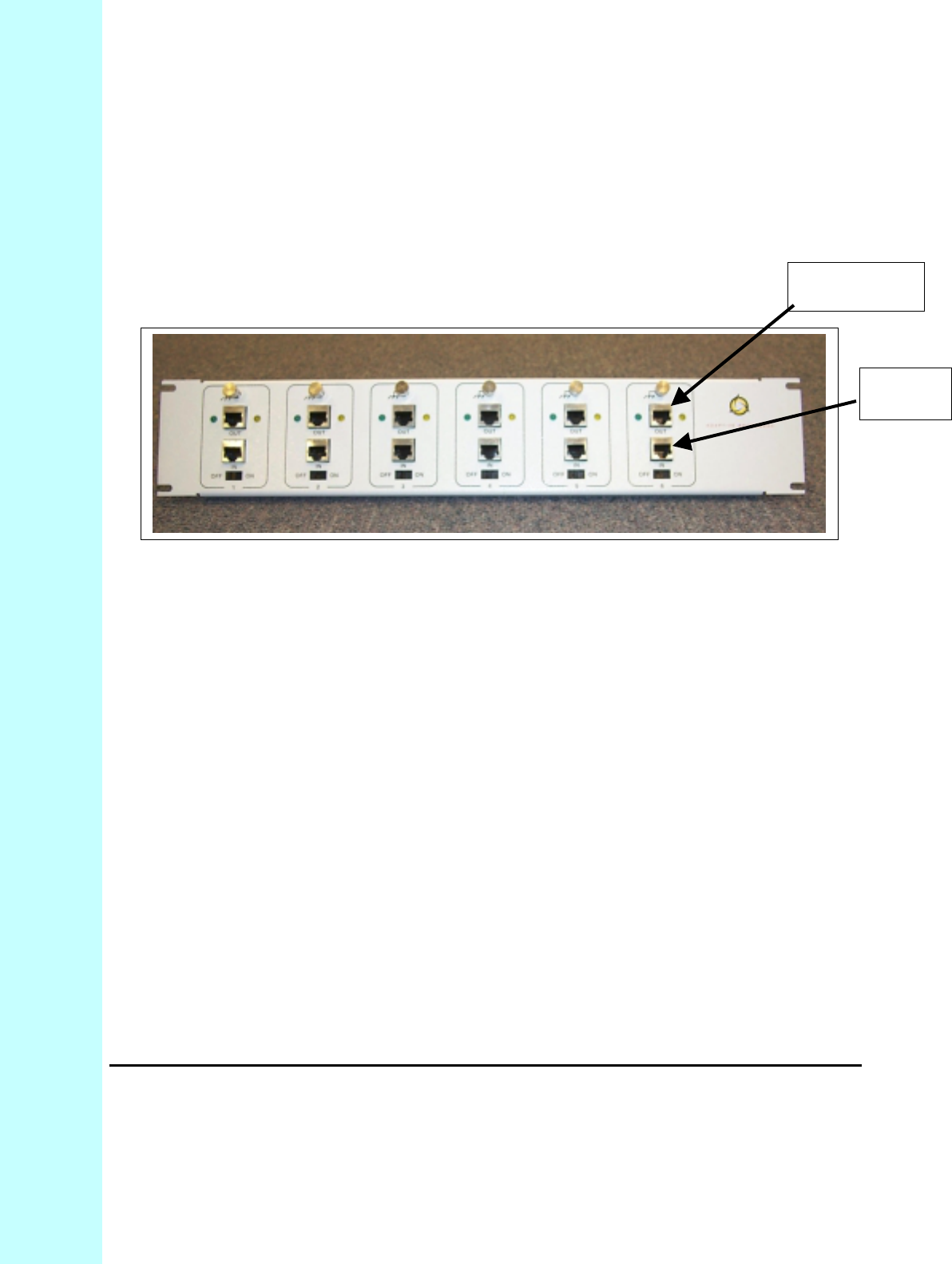

Figure 3-5 Access Panel..............................................................................................................3-4
Figure 4-1 ATM Cross-Over Cable.............................................................................................4-3
Figure 5-1 Diagram of Six Access Points for 360 degree Coverage...........................................5-1
Figure 5-2 Outdoor Access Point Components...........................................................................5-3
Figure 5-3 Access Panel used as Patch Panel .............................................................................5-3

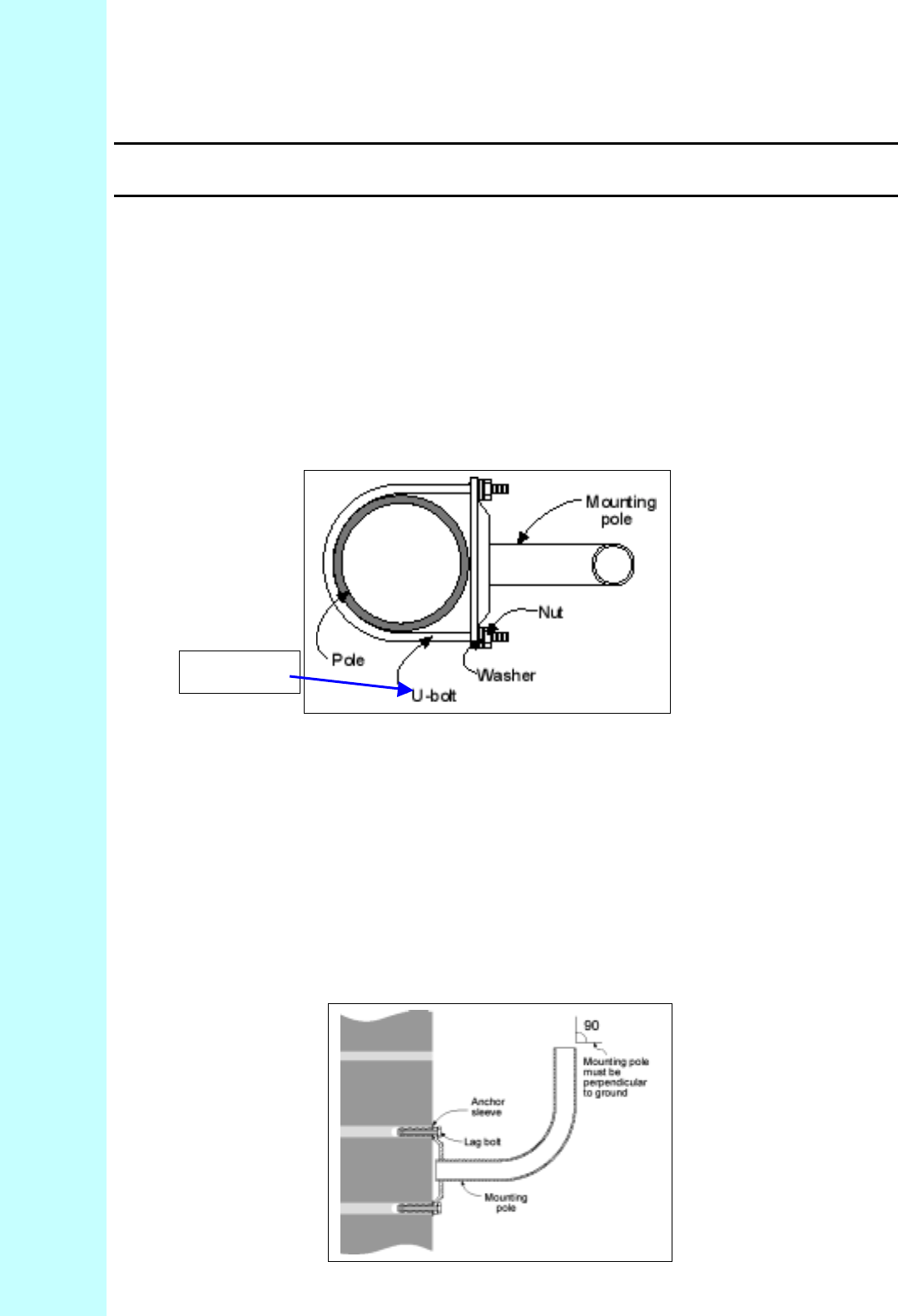

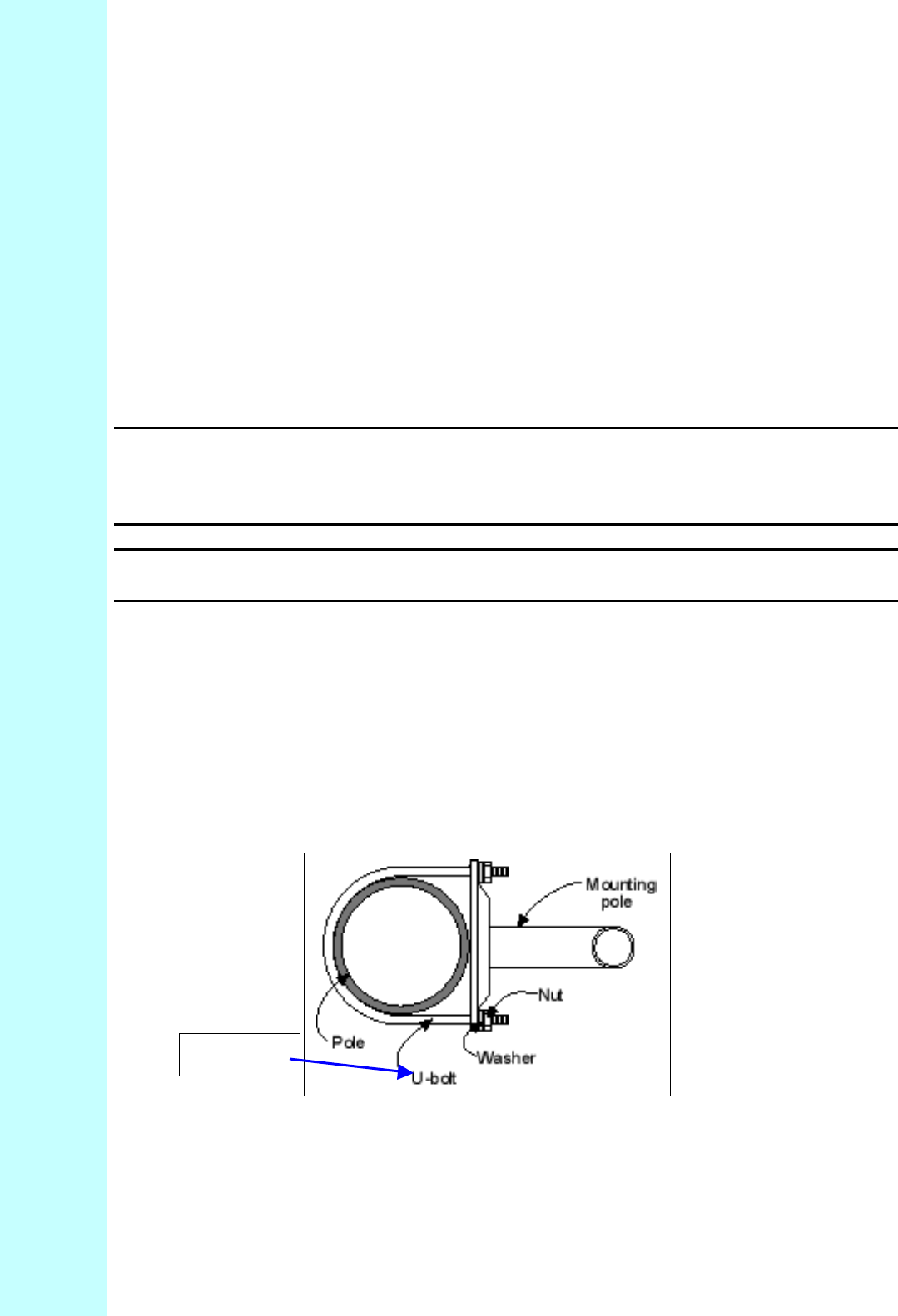

Figure 5-4 Mounting Pole Installed on Pole or Antenna Mast ...................................................5-4

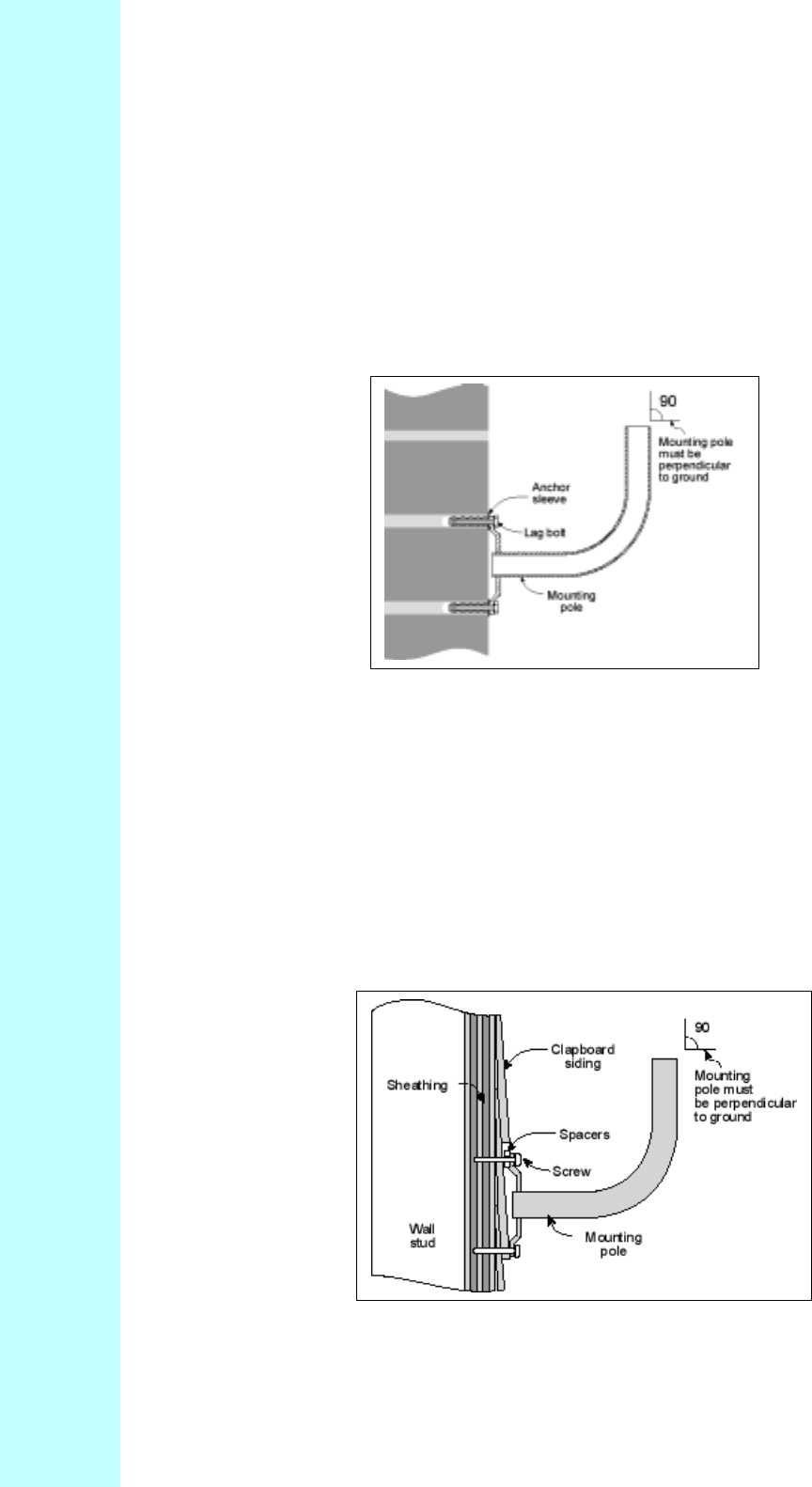

Figure 5-5 Mounting Pole Installation ........................................................................................5-5

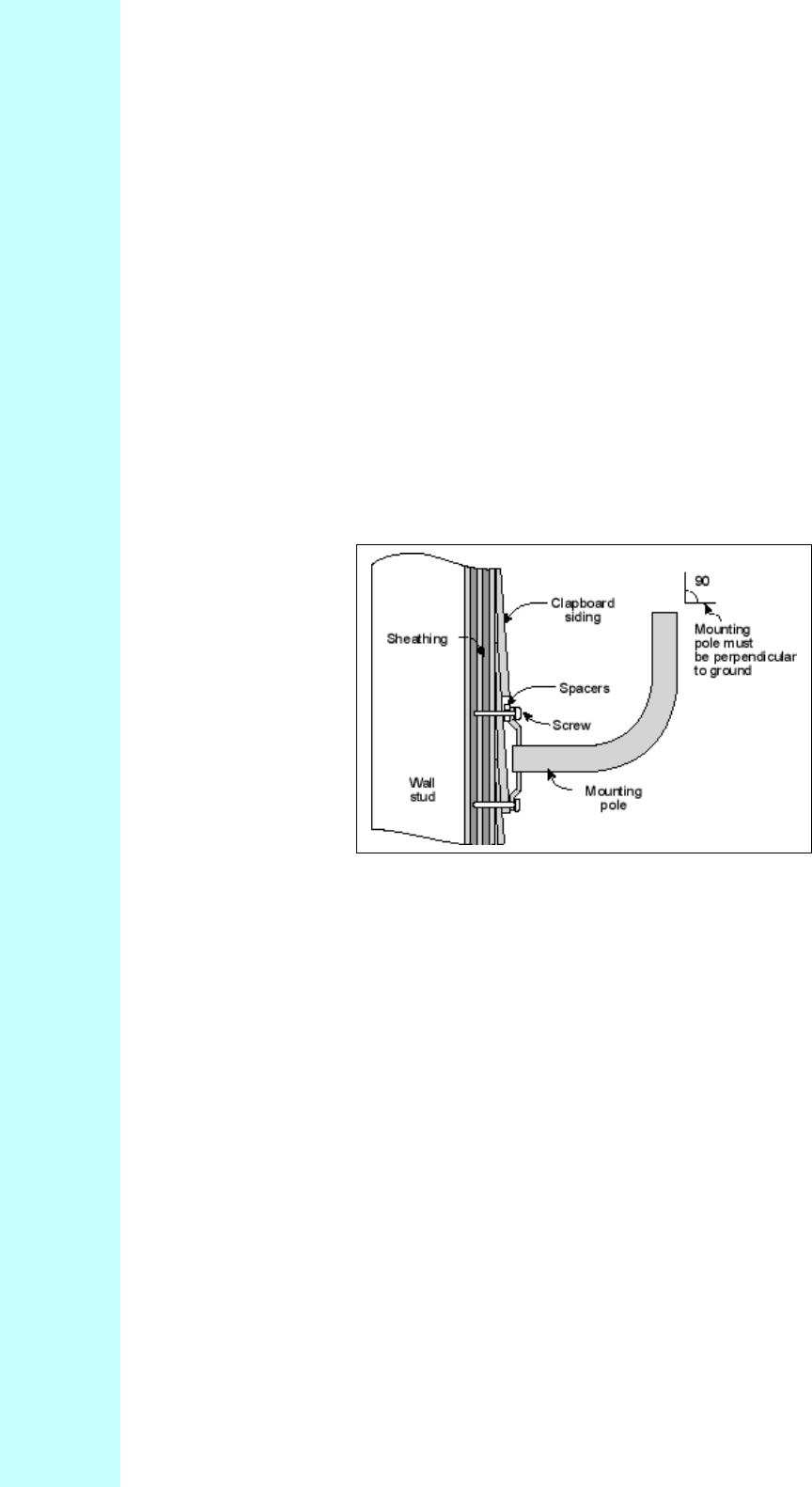

Figure 5-6 Mounting Pole on Clapboard Siding.........................................................................5-5

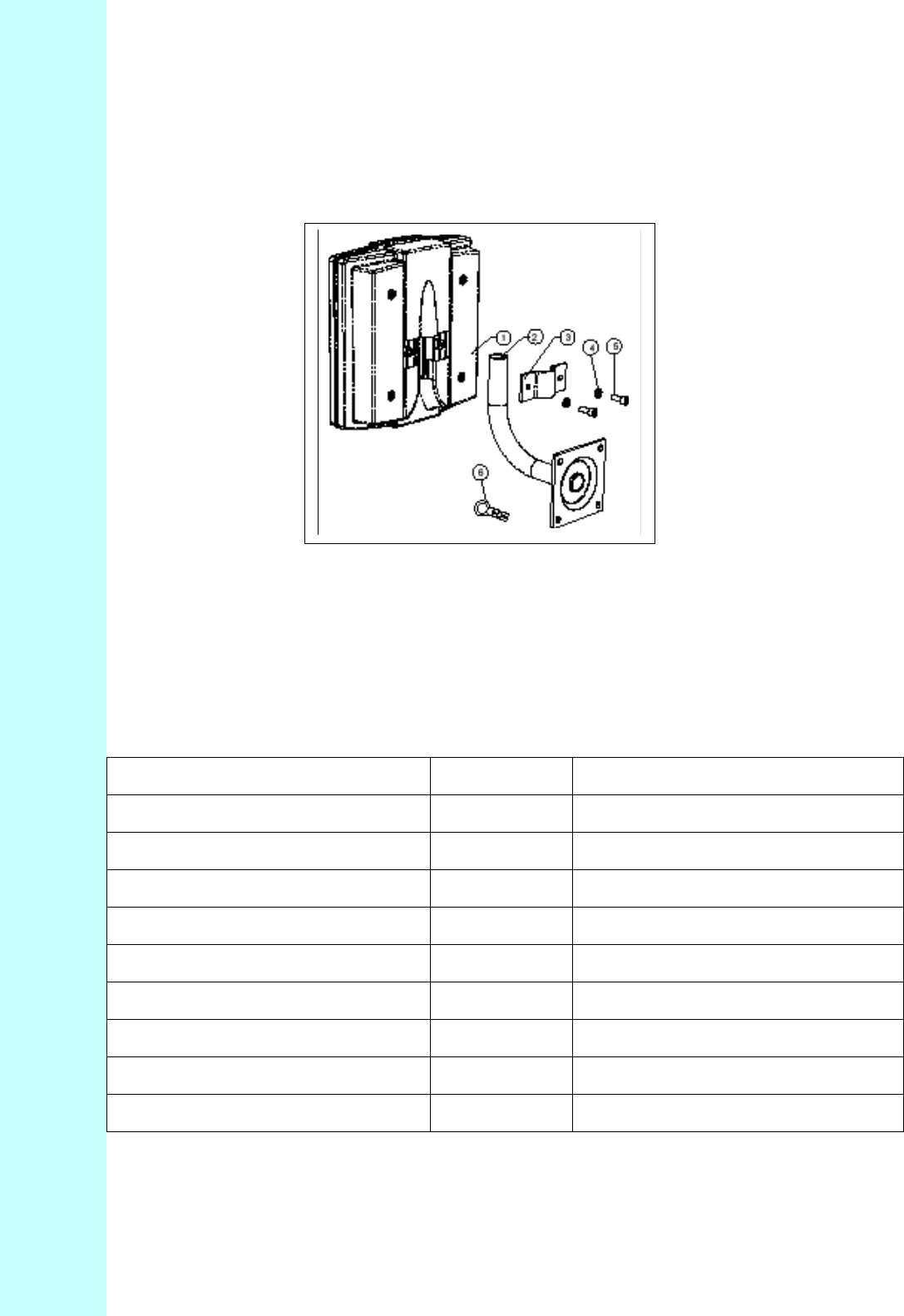

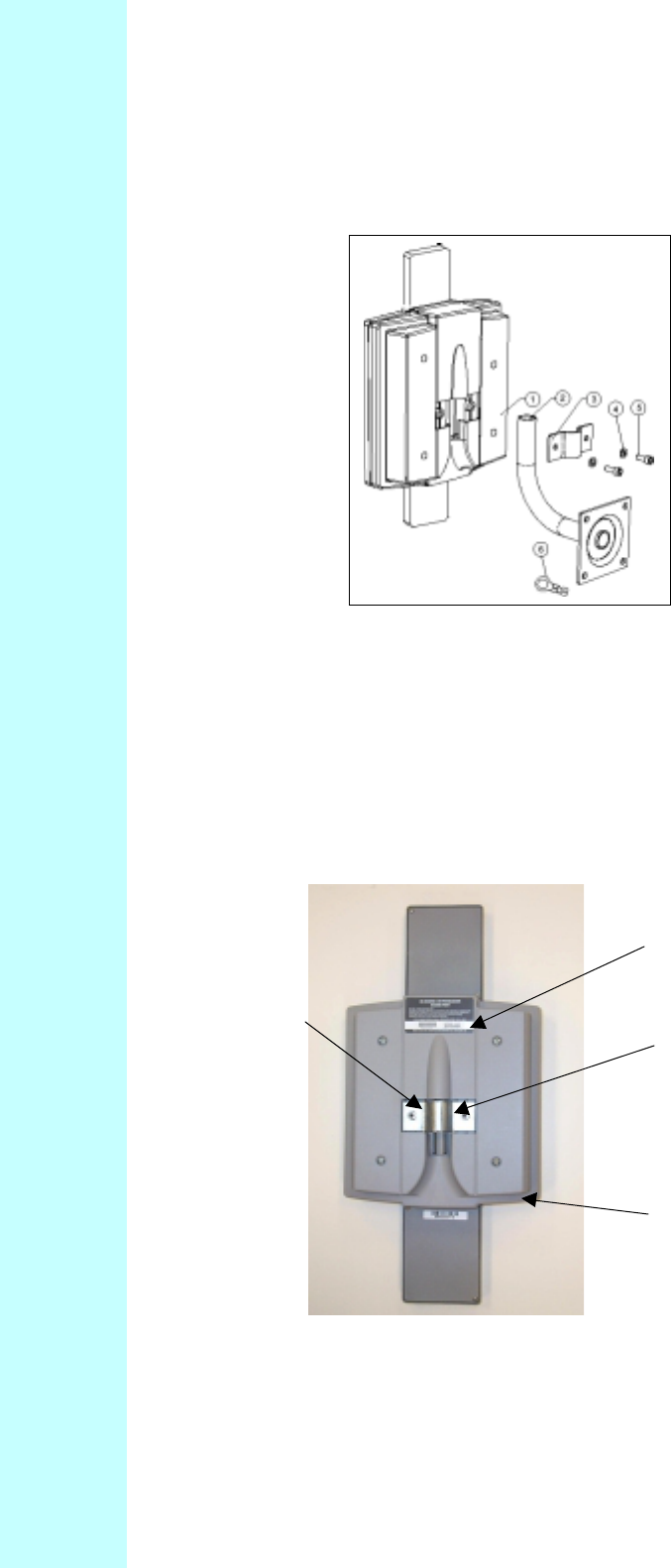

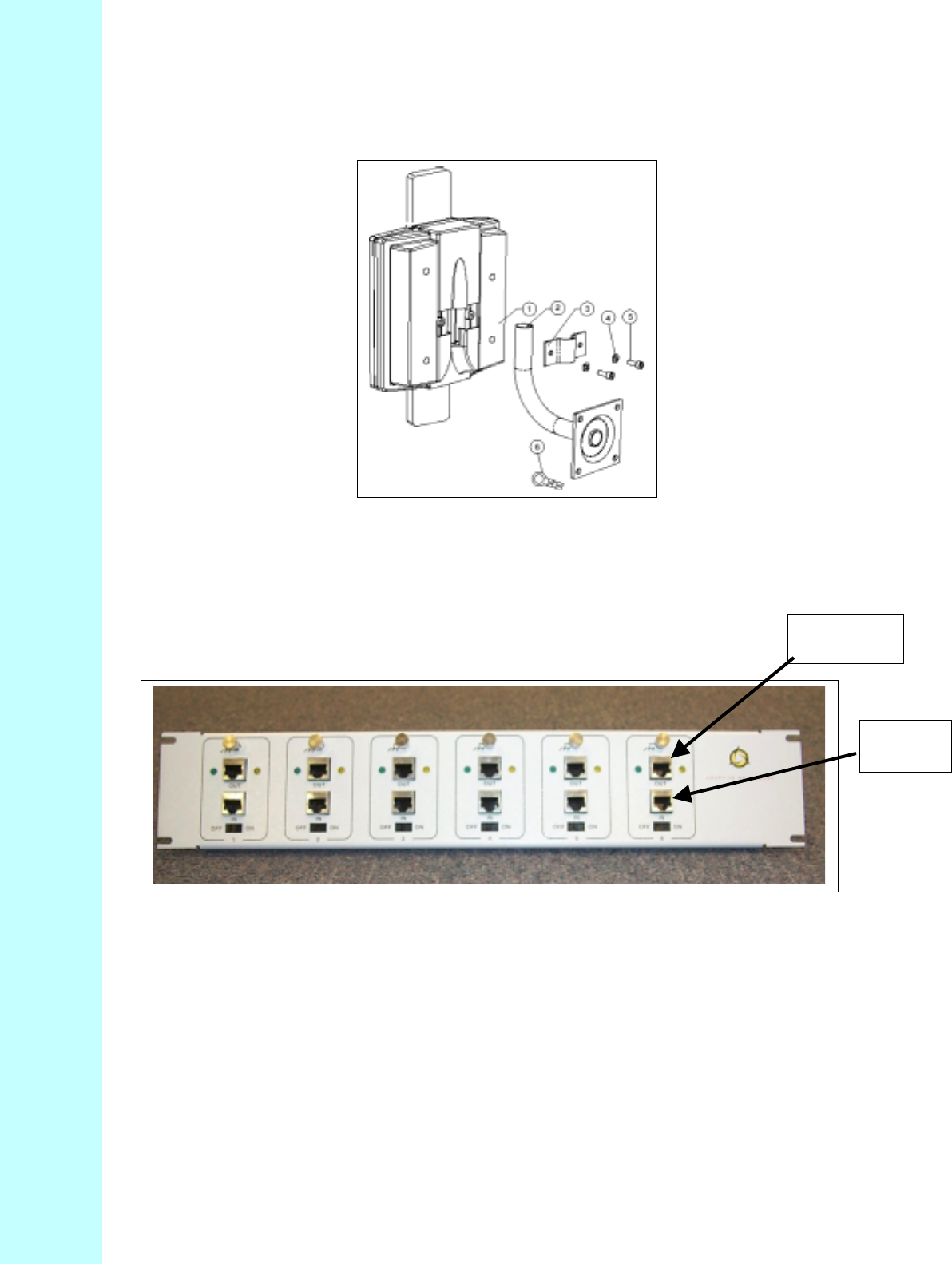

Figure 5-7 Mounting Parts for an Outdoor Access Point............................................................5-6
Figure 5-8 Access Point Rear View............................................................................................5-6

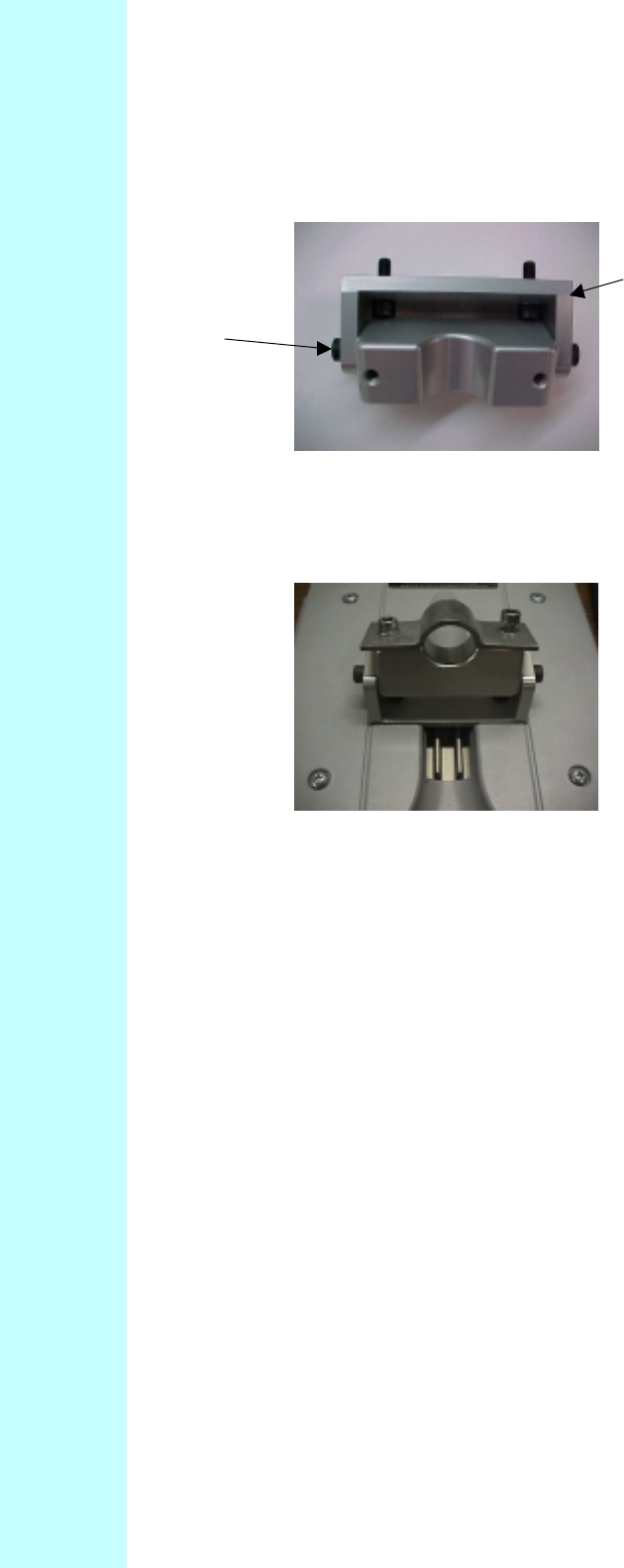

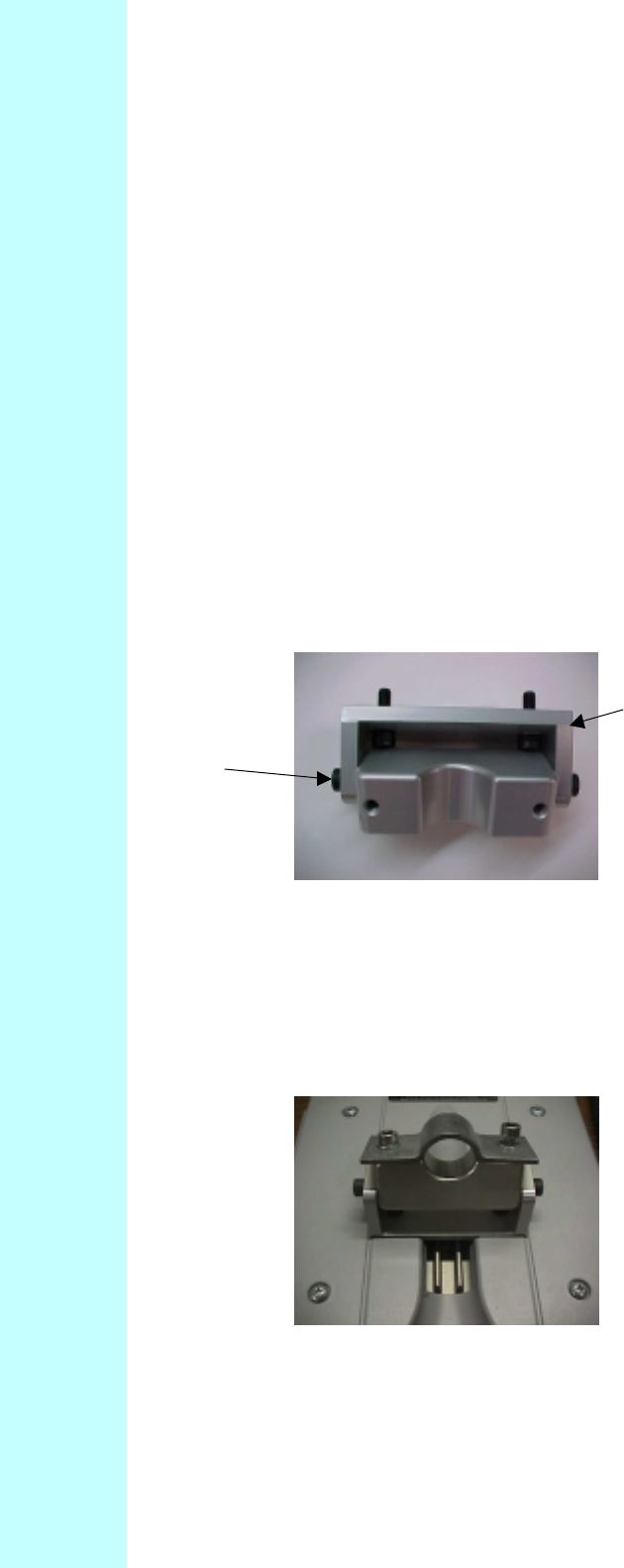

Figure 5-9 Tilt Bracket................................................................................................................5-7
Figure 5-10 Access Point with Mounted Tilt Bracket ................................................................5-7

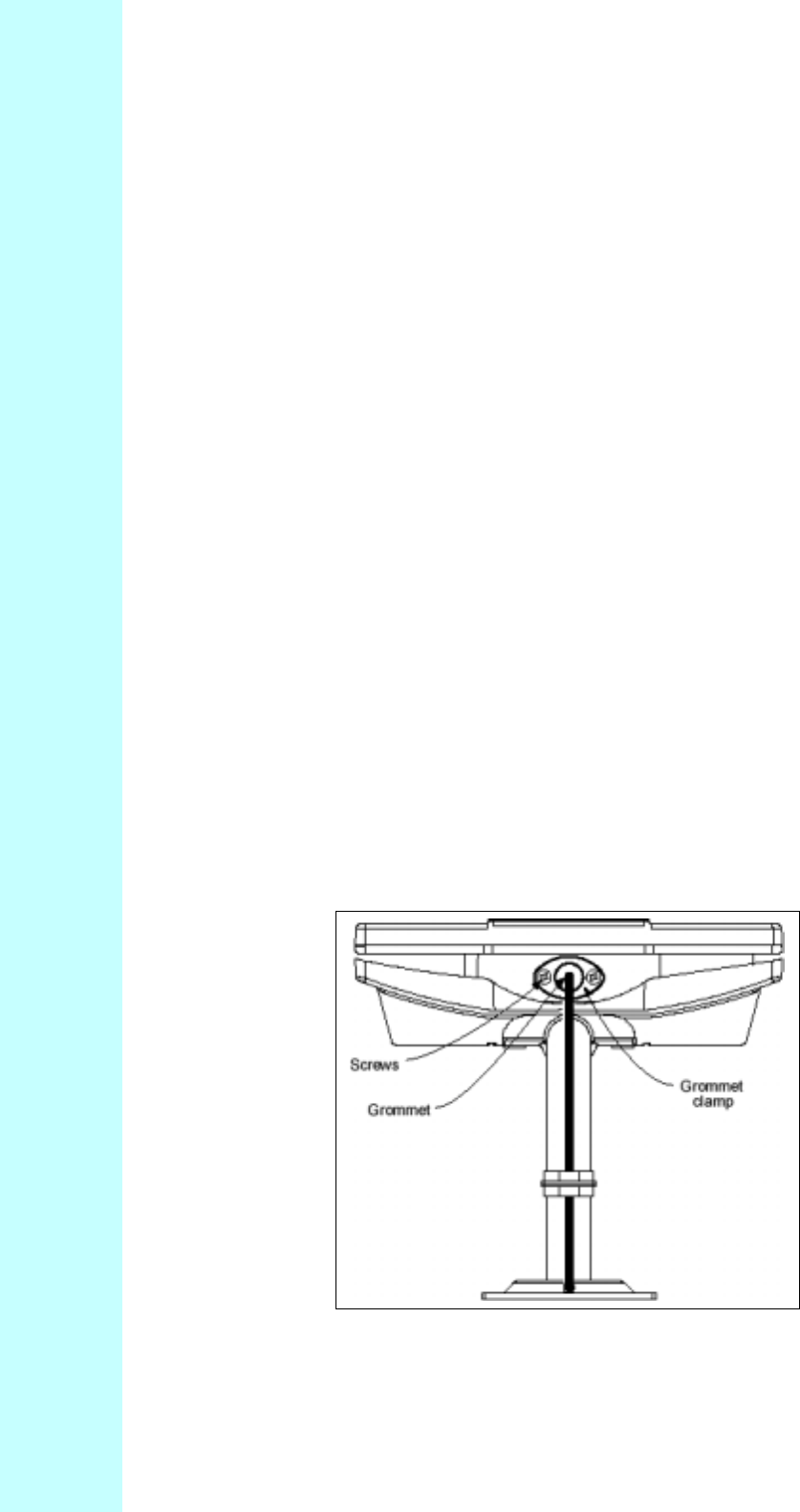

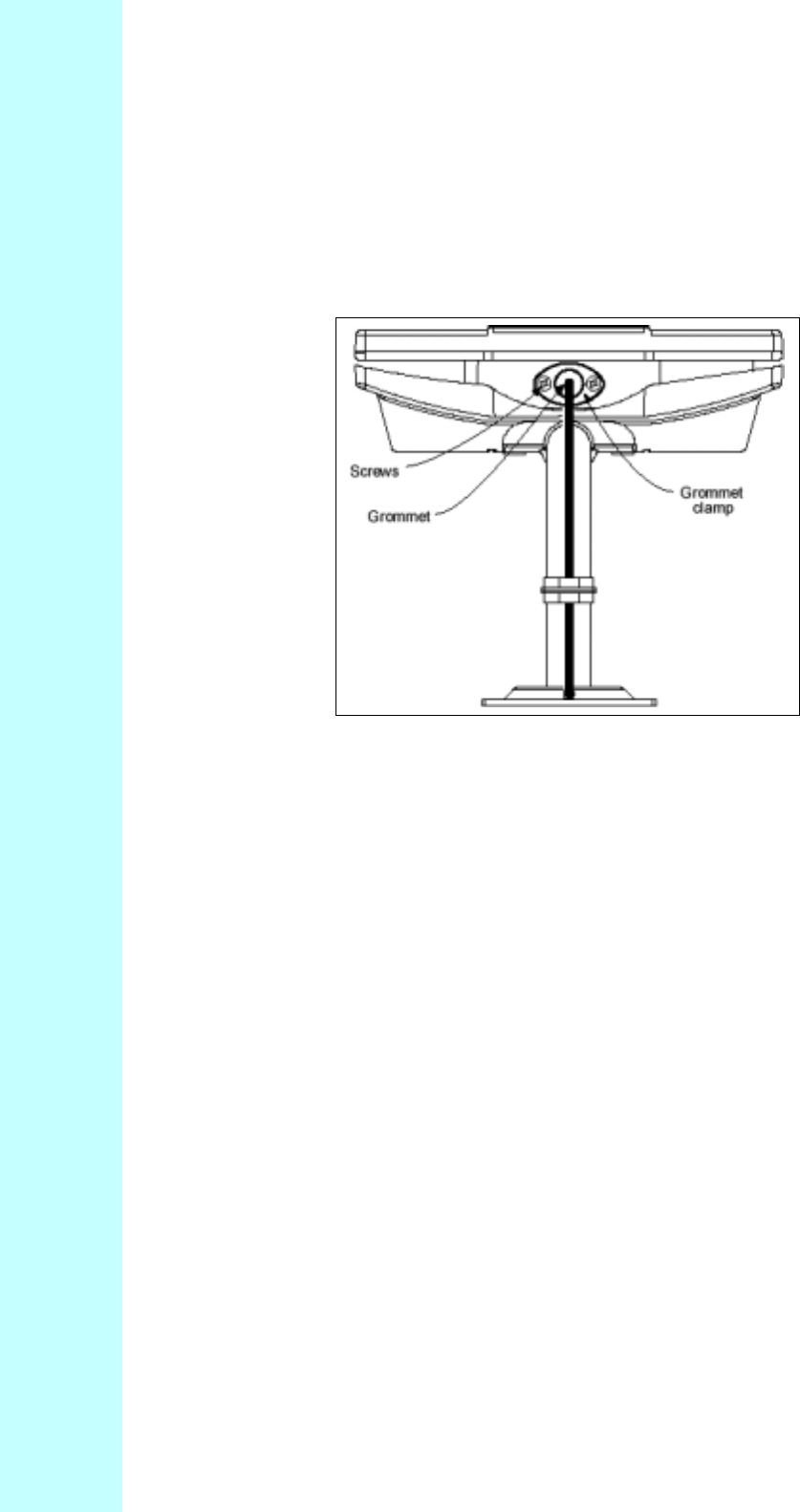

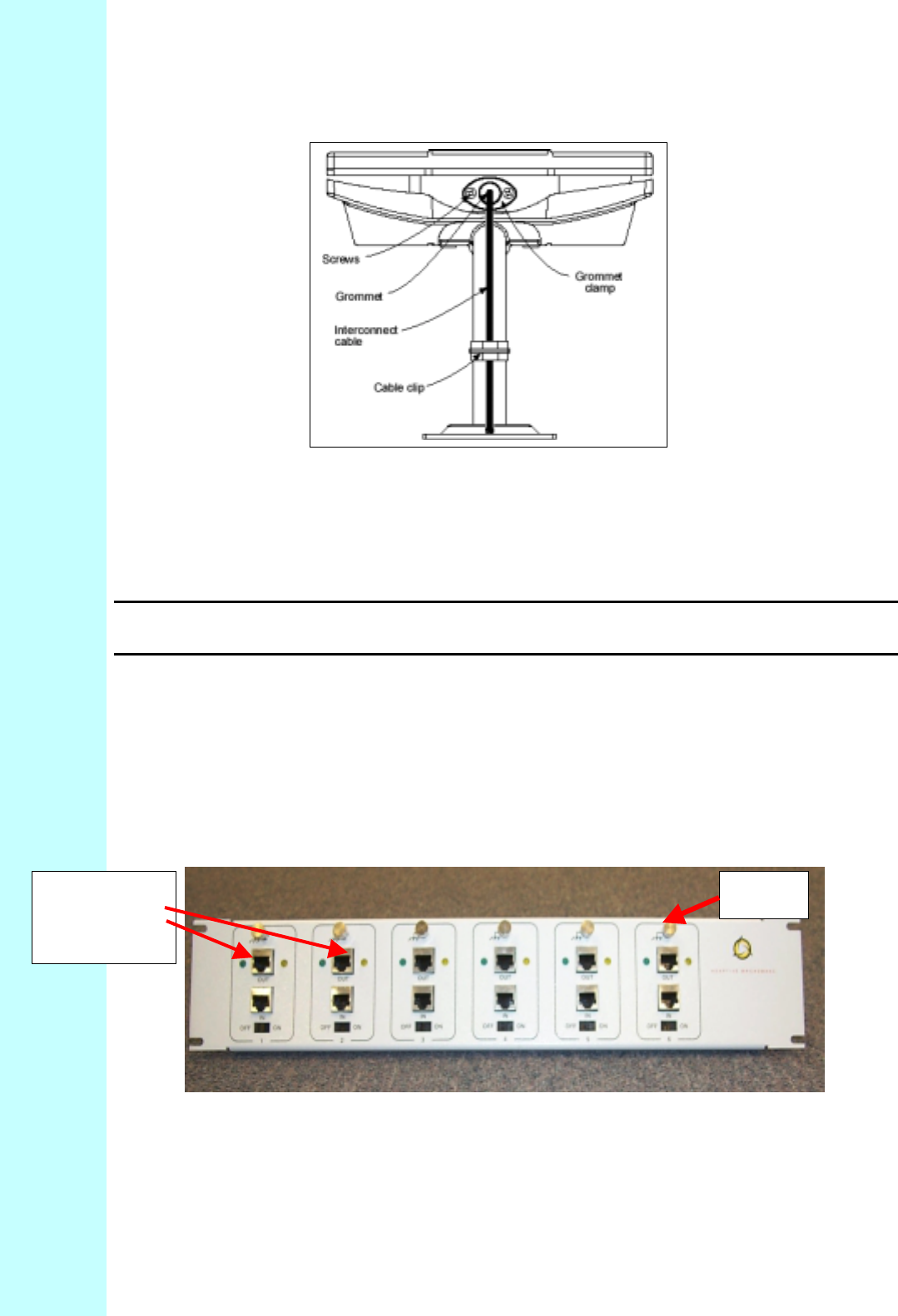

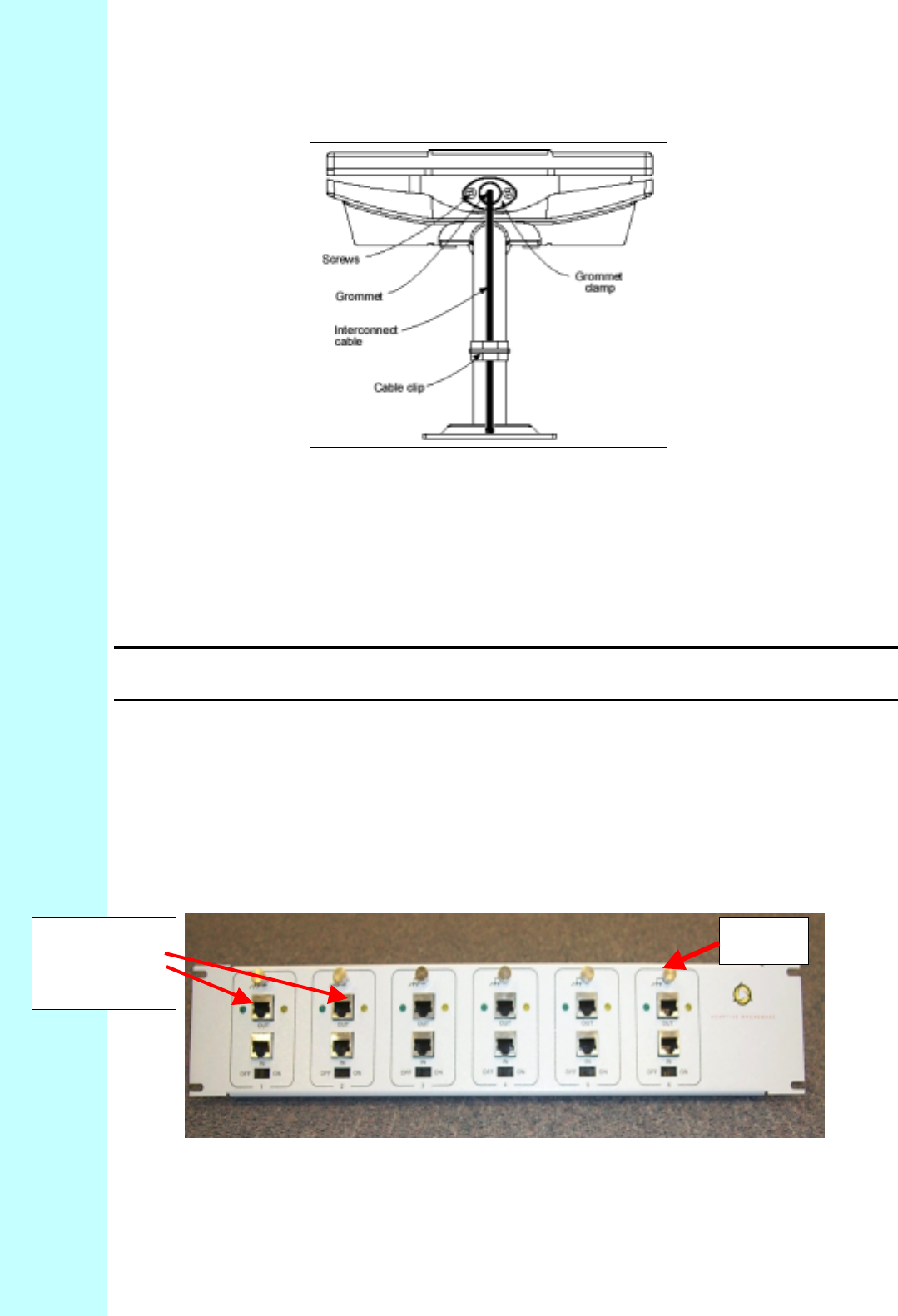

Figure 5-11 Grommet Location - Underside of Access Point.....................................................5-8

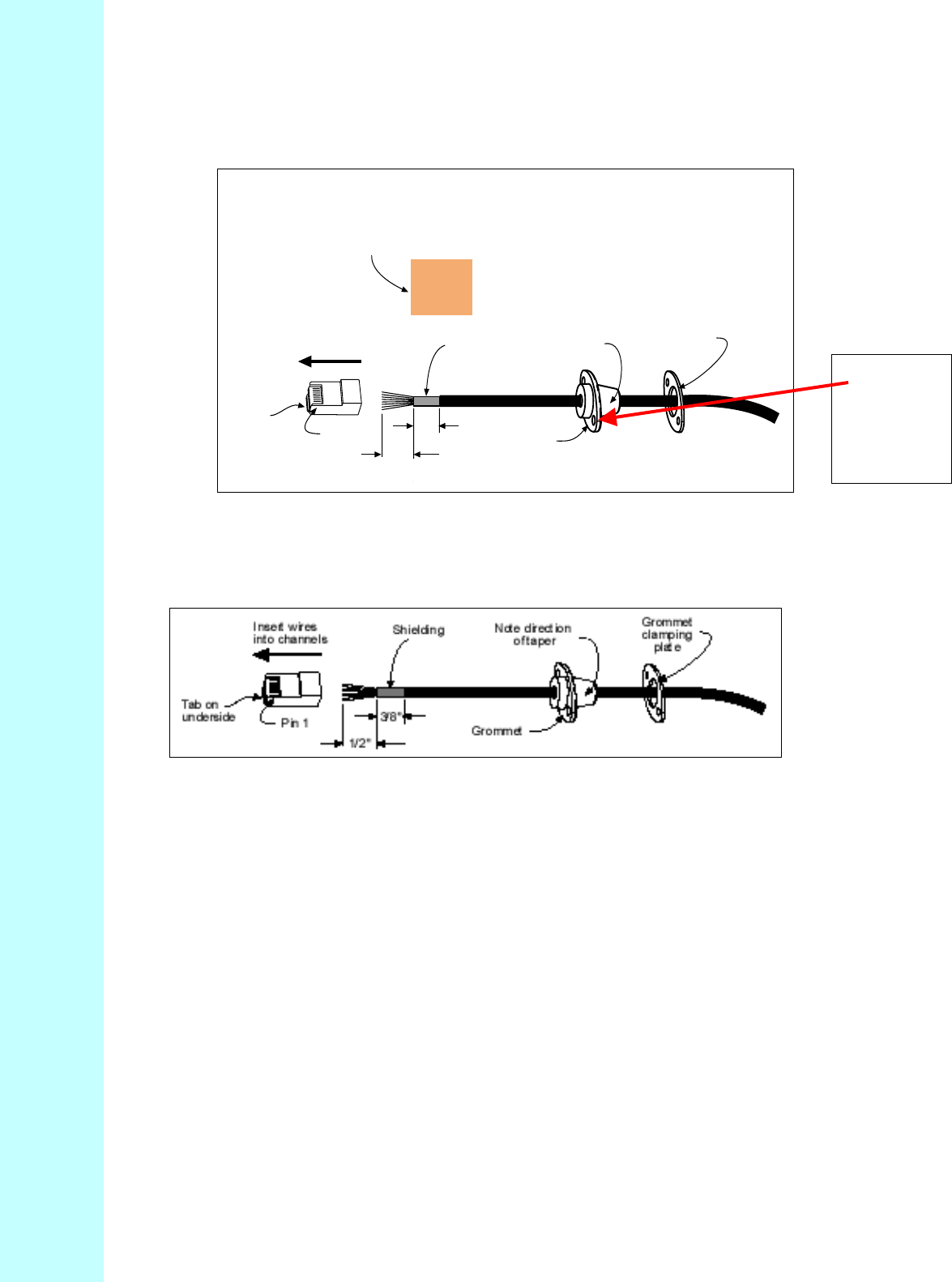

Figure 5-12 Outdoor Transceiver End of the Interconnect Cable with Cable Preparation.........5-9
Figure 5-13 Outdoor Transceiver End of the Interconnect Cable with Shielding.......................5-9
Figure 5-14 Interconnect Cable Installation to Outdoor Access Point - Bottom View.............5-11
Figure 5-15 Access Panel showing Connections to Access Point............................................5-11
Figure 5-16 Ground Connections to Access Point Transceiver ................................................5-12
Figure 5-17 Mounting Pole with Ground Lug...........................................................................5-13
Figure 6-1 Outdoor AB-Access Extender Components..............................................................6-3
Figure 6-2 Access Panel used as Patch Panel .............................................................................6-3
Figure 6-3 Mounting Pole Installed on Pole or Antenna Mast ...................................................6-4
Figure 6-4 Mounting Pole Installation ........................................................................................6-5
Figure 6-5 Mounting Pole on Clapboard Siding.........................................................................6-5
Figure 6-6 Mounting Parts for an Outdoor AB-Access Extender...............................................6-6
Figure 6-7 AB-Access Extender Rear View ...............................................................................6-6
Figure 6-8 Tilt Bracket................................................................................................................6-6
Figure 6-9 AB-Access Extender with Mounted Tilt Bracket......................................................6-6
Figure 6-10 Grommet Location - Underside of AB-Access Extender........................................6-7
Figure 6-11 Outdoor Transceiver End of the Interconnect Cable with Cable Preparation.........6-9
Figure 6-12 Outdoor Transceiver End of the Interconnect Cable with Shielding.......................6-9
AB-ACCESS SYSTEM LIST OF FIGURES
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 xii
Figure 6-13 Interconnect Cable Installation to Outdoor AB-Access Extender - Bottom View6-11
Figure 6-14 Access Panel showing Connections to AP/EX.....................................................6-11
Figure 6-15 Ground Connections to AB-Access Extender Transceiver...................................6-12
Figure 6-16 Mounting Pole with Ground Lug...........................................................................6-13
Figure 7-1 AB-Access Subscriber Unit Installation Overview.... Error! Bookmark not defined.
Figure 7-2 Mounting Pole Drill Locations.................................. Error! Bookmark not defined.
Figure 7-3 Mounting Pole Installation Using Expansion Sleeves and Lag BoltsError!
Bookmark not defined.
Figure 7-4 Mounting Pole on Clapboard Siding......................... Error! Bookmark not defined.
Figure 7-5 Mounting Pole Installed on Pole or Antenna Mast .... Error! Bookmark not defined.
Figure 7-6 Outdoor Subscriber Unit Mounted on Wall................ Error! Bookmark not defined.
Figure 7-7 Junction Box Wall Mount (Face Plate and PCB Removed)Error! Bookmark not
defined.
Figure 7-8 Interconnect Cable Routing Solutions........................ Error! Bookmark not defined.
Figure 7-9 Grommet Location -- Underside of Subscriber Unit.. Error! Bookmark not defined.
Figure 7-10 Outdoor Subscriber Unit of the Interconnect Cable with Cable PreparationError!
Bookmark not defined.
Figure 7-11 Outdoor Subscriber Unit End of the Interconnect Cable with ShieldingError!
Bookmark not defined.
Figure 7-12 Interconnect Cable Installation to Subscriber Unit -- Bottom ViewError!
Bookmark not defined.
Figure 7-13 Interconnect Cable Connections to Indoor Junction BoxError! Bookmark not
defined.
Figure 7-14 Ground Connections for Subscriber Unit................. Error! Bookmark not defined.
Figure 7-15 Mounting Pole with Ground Lug.............................. Error! Bookmark not defined.
Figure 7-16 Indoor Junction Box Ground Connection................. Error! Bookmark not defined.
Figure 8-1 Indoor Junction Box (Wall Plate Enclosure).............. Error! Bookmark not defined.
Figure 8-2 Indoor Junction Box Inside........................................ Error! Bookmark not defined.
Figure 8-3 ATM Cross-Over Cable.............................................. Error! Bookmark not defined.
Figure 8-4 DB-9 To RJ-45 Converter .......................................... Error! Bookmark not defined.
Figure 9-1 Security Screen........................................................... Error! Bookmark not defined.
Figure 9-2 RSSI Sample Web Page ............................................. Error! Bookmark not defined.
Figure 10-1 Typical SU Antenna Pattern..................................... Error! Bookmark not defined.
Figure 10-2 Typical AP Antenna Pattern...................................... Error! Bookmark not defined.
Figure 10-3 Typical EX Antenna Pattern...................................... Error! Bookmark not defined.
Figure 10-4 Powering SU through Junction Box ......................... Error! Bookmark not defined.
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 xiii
LIST OF TABLES
Table 1-1 Supported AB-Access SU Configurations..................................................................1-5
Table 1-2 Supported AB-Access AP Configurations..................................................................1-5
Table 2-1 Required Tools and Extra Equipment..........................................................................2-2
Table 2-2 Packing List ...............................................................................................................2-3
Table 4-1 Required Tools and Equipment ..................................................................................4-1
Table 4-2 Required Cables..........................................................................................................4-3
Table 4-3 Base Station Access Panel Description.......................................................................4-4
Table 5-1 Required Tools and Equipment ..................................................................................5-2
Table 5-2 AP Components ..........................................................................................................5-2
Table 5-3 Cable Legend for Interconnect Cable.......................................................................5-10
Table 6-1 Required Tools and Equipment ..................................................................................6-1
Table 6-2 EX Components..........................................................................................................6-2
Table 6-3 Cable Legend for Interconnect Cable.......................................................................6-10
Table 7-1 Required Tools And Equipment .................................. Error! Bookmark not defined.
Table 7-2 Required Tools and Equipment ................................... Error! Bookmark not defined.
Table 7-3 Required Tools and Equipment .................................. Error! Bookmark not defined.
Table 7-4 Required Tools and Equipment ................................... Error! Bookmark not defined.
Table 7-5 Required Tools and Equipment ................................... Error! Bookmark not defined.
Table 7-6 Required Tools and Equipment ................................... Error! Bookmark not defined.
Table 7-7 Cable Legend for Interconnect Cable........................... Error! Bookmark not defined.
Table 7-8 Required Tools and Equipment ................................... Error! Bookmark not defined.
Table 8-1 Cable Legend - Junction Box Interconnect Cable ....... Error! Bookmark not defined.
Table 9-1 RSSI Link Validity ...................................................... Error! Bookmark not defined.
Table 10-1 Subscriber Unit Antenna Specifications.................... Error! Bookmark not defined.
Table 10-2 Access Point Antenna Specifications......................... Error! Bookmark not defined.
Table 10-3 AB-Access Extender Antenna Specifications............ Error! Bookmark not defined.
Table 10-4 Modem Specifications................................................ Error! Bookmark not defined.
Table 10-5 Environmental Specifications.................................... Error! Bookmark not defined.
Table 10-6 SU, EX and AP Power Consumption......................... Error! Bookmark not defined.
Table 10-7 SU Weight and Size................................................... Error! Bookmark not defined.
Table 10-8 Outdoor Cable Specifications.................................... Error! Bookmark not defined.
Table 10-9 RJ-45 Plug Specifications.......................................... Error! Bookmark not defined.
AB-ACCESS SYSTEM LIST OF TABLES
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 1-1
1 AB-Access Product Overview
1.1 AB-Access System
The Adaptive Broadband AB-Access System is a broadband, fixed, wireless access network for
Internet, data, video, and voice applications. AB-Access can enhance or replace existing
networks, wired or wireless, or be used to develop new networks. The AB-Access System offers:
• Point-to-Multipoint (PMP) Wireless Access Network
• Point-to-Point (PTP) Wireless Access Network [AB-Access Extender]
• End-to-End Connectivity
• Spectrum Efficiency per Offered Load
• Powerful, Flexible Elements.
1.2 AB-Access Network
The AB-Access network consists of wireless 25 Mbps cells similar in topology to the cellular
networks of today. AB-Access networks are designed for rapid and easy deployment, and
constructed from a number of Base Stations deployed in a conventional cellular pattern.
Deployment can vary from a number of small island sites to complete coverage of a chosen
geographical area. AB-Access Extender allows these cell sites to be linked together with high-
speed, long range, point-to-point connections.
1.3 System Components
The AB-Access System is comprised of the following five major components:
• Subscriber Unit (SU) – Located at customer premises and provides either ATM or
standard IP over Ethernet connectivity.
• Access Point (AP) - The Access Point is the cornerstone component of the Base Station.
The AP is the interface between the Service Provider’s terrestrial network and the
wireless fabric. Each AP has the capability to provide network service at the Physical,
Data Link, and Network Layers of the OSI reference model.
• AB-Access Extender (EX) - The AB-Access Extender is the inter-Base Station linking
component. The EX is the interface between the Service Provider’s terrestrial network
and the wireless PMP fabric. Each EX has the capability to provide network service at
SECTION 1 AB-Access Product Overview
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 1-2
the Physical, Data Link, and Network Layers of the OSI reference model. Each EX can
provide ATM or Ethernet backhaul.
• Anchor Switch (AS) - An ATM (or Ethernet) Anchor Switch in each Base Station is
used to multiplex the traffic from all APs onto a Backhaul port.
• Control Server (CS) - The Control Server is a reliable server running the Linux OS. It
provides a number of functions including: configuration, authentication, set-up of
management PVCs, and support of the Element Management System (EMS).
• Element Management System (EMS) – A GUI based application suite that allows
administrators to configure, control, and monitor all components of the system.
1.3.1 AB-Access System Architecture
Figures 1-1 and 1-2 show an AB-Access System’s typical deployment and network architecture.
Figure 1-1 AB-Access Typical Deployment
ATM
Element
Management
Server
4400
WIN NT 4.0
Ethernet
SU
Typically 6 Access
Points per Base Station
Up to 16 (254) Subscriber
Units per Access Point
Router
ISP Router
SU
Base Station
ControlServer
2450Linux
Li
ATM Switch
ATM25
DS3 /
OC3
EthernetATM25
AP AP AP
SU - Subscriber U
n
AP - Access Point
CS - Control Serv
e
BS - Base Station
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 1-3
Figure 1-2 AB-Access Typical Network Architecture
TBD: Add AB-Access Extender to this diagram
1.3.2 Base Station Function
The Base Station enables wireless communications between the Subscriber Units and the Wide
Area Network (WAN). Base Station elements include:
• Access Point
• AB-Access Extender
• Access Panel (same function as Junction Box)
• Anchor Switch
• Control Server
• Termination Point and Lightning Arrestor
• 48 VDC Power Supply
• Uninterruptible Power Supply (UPS) (optional).
1.3.3 Subscriber Unit Function
The Subscriber Unit is an integrated device that mounts externally at the customer site. This
device provides either ATM or standard IP over Ethernet, via 25 Mbps ATM, wireless
communications with the Base Station. Subscriber Unit elements include:
• Antenna
• Radio/Transceiver
• Modem
• MAC (Media Access Controller)
• Network Interface
• Internal Junction Box
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 1-4
• Cabling.
1.3.4 EMS Function
The central Element Management System (EMS), which system administrators access via a
GUI-based application suite (the AB-NetAccess client software), is run on a Pentium class
computer under Windows NT. The EMS allows the user to configure, control, and monitor all
components of the AB-Access System. EMS software elements include:
• SQL Database
• Java GUI Interface
• CORBA Object Infrastructure.
1.3.5 System Configuration Selection
Before installing a new unit or upgrading a unit, the network manager must know what
configuration option to use. This is important for both static and dynamic installations. The
upgrade process will place a unit in a certain state. The state of this unit will be very important
depending upon whether the unit is already being used in production or about to be put into use.
Units in production will need to be upgraded and placed back into production using the
configuration currently in place. New units will require the proper configuration in order to
come online fast and efficiently. This whole process relies on the fact that the units are
programmed properly.
Units operating in static mode will want to retain this mode. Selecting the wrong configuration
may result in a static unit being placed in a dynamic registration mode, making it potentially
unmanageable remotely. Similarly, upgrading a unit running in a routed topology to a bridge
topology will have a significant impact on functionality.
Contained in each system software release is a file that lists the possible configuration options.
The file is called “configurations” and looks similar to Tables 1-1 and 1-2. This file is split into
two tables, one for the AP and one for the SU configurations. These tables are used to
determine which configuration the unit will be programmed in after upgrade.
For the purposes of network and software configuration, the AB-Access Extender units appear as
static point-to-point SU units. They support Ethernet or ATM wired interfaces. CLIP, RFC1483
and native ATM are supported static configuration for these units. An AB-Access Extender
point-to-point link consists of two Extender units, a Head End Unit (“AP”) and an Upstream
Subscriber Unit (“SU”).
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 1-5
Table 1-1 Supported AB-Access SU Configurations
============================================
Configuration Protocol AP role System Mode Interface
------------------------------------------------------------------------------------------
1 CLIP terminated static Ethernet
2 CLIP terminated interactive Ethernet
2 RFC1483 terminated interactive Ethernet
2 RFC1483 switched interactive Ethernet
4 PPP switched interactive Ethernet
3 CLIP terminated installation Ethernet
3 RFC1483 terminated installation Ethernet
3 RFC1483 switched installation Ethernet
5 PPP switched installation Ethernet
Table 1-2 Supported AB-Access AP Configurations
============================================
Configuration Protocol AP Role System Mode Interface
------------------------------------------------------------------------------------------
1 CLIP terminated static ATM
2 CLIP terminated interactive ATM
3 RFC1483 terminated interactive Ethernet
2 RFC1483 switched interactive ATM
2 PPP switched interactive ATM
4 CLIP terminated static Ethernet
The first column in the Tables above refers to a configuration number. This number will be used
as a parameter to the upgrade process. The second column identifies the protocol or network
topology. Routed topologies will use the CLIP protocol, bridged will use the RFC1483 protocol,
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 1-6
and PPP topologies will use the PPP protocol. The column titled “AP Role” is used to specify
whether the AP will terminate PVCs from the SU or switch them through to another termination
point. This is only pertinent to the AP upgrade. The fourth column, “System Mode”, refers to
how the unit will act in the network. A unit in static mode will not try to register with the
Element Management System but will instead use the configuration files found in the Flash file
system. A unit in interactive mode will automatically try to register with EMS (dynamically) via
the AP with the strongest RF signal it can detect. Installation mode, used for SUs only, places
the SU is a mode which will ultimately allow it to register dynamically, but upon first boot, the
unit requires manual intervention to complete its RF alignment. The last column, “Interface”
defines the type of terrestrial interface the unit will use after reboot. This is important to note
since improper configuration selection will change the terrestrial interface type. This may make
the unit appear unreachable after reboot.
With every release, be sure to carefully look over the configuration option file, as new options
are occasionally added. To reset a unit to factory defaults, an AP should be upgraded to
configuration #4 and an SU to configuration #1(reference Tables 1-1 and 1-2).
For more information about configuring your AB-Access System, reference the U-NII
Configuration and User’s Guide.
Following are instructions for setting up Subscriber Units, Base Stations, AB-Access Extender
and Access Points. A Glossary of definitions and acronyms is at the end of this manual.
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 2-1
2 Getting Started
2.1 Skills Required
The AB-Access U-NII Product Installation procedures require some construction-related
experience using both power and hand tools. Answer the following questions to determine
whether you have the skills attempt the installation.
• Are you comfortable working at heights?
(The installation may require you to climb a ladder and work at heights depending on
where you need to install your outdoor transceiver. Keep in mind, you will also carry
tools and equipment with you to the installation site.)
• Have you ever installed an RJ-45 connector to an Ethernet cable?
(This is required if you are not using a standard length cable interconnect cable kit
between the outdoor transceiver and the indoor junction box.)
• Have you run telephone cable, wired a telephone jack, or connected telephone wire
connections to a punch down block?
• Have you ever installed expansion shields into brick or masonry walls?
(This requires drilling holes in masonry using masonry drill bits.)
• Have you ever wired an electrical outlet?
Although you won’t wire an outlet, you will be required to run ground wires and
clamp them to an earth grounding rod or a cold water pipe.
If you can perform all the above tasks, then you should be able to install the AB-Access System.
If you are unsure of your ability to perform these tasks, contact a more qualified installer, via
your local AB-Access System provider.
2.2 Information Needed From Your Service Provider
Your service provider should have supplied you with the following information. Please contact
your service provider before commencing installation, if you do not have all of this information:
• Locations of any local Access Points, which you should be able to connect to.
• The IP address of your Subscriber Unit.
• IP address and subnet mask, which you need to configure a Test PC. This is so you
can check to see if your SU is working, align your outdoor transceiver correctly, and
confirm that you can connect to your service provider.
• Any required static configuration for AB-Access Extender units e.g. IP addresses,
channels to be used etc.
SECTION 2 Getting Started
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 2-2
2.3 Required Tools and Equipment
This section lists all the extra tools and equipment mentioned in this guide that you will need to
perform the installation. None of the items listed in Table 2-1 are supplied with the kit, so make
sure you gather everything you need before you start. Use the table below to check exactly what
you will need (this will depend on where you are going to install the outdoor transceiver).
Table 2-1 Required Tools and Extra Equipment
TBD: add tool requirement for AB-Access Extender
Tools Required Extra Equipment Required
Compass ¼ inch grounding rod
Area map with an accurate direction
legend showing magnetic north Grounding clamp
Phillips-head screwdriver Grounding wire
Flat-head screwdriver Roll of UTP CAT 5 cable
Hammer or mallet #6 wood screws
Power drill Cable clip
1/8 inch drill bit Anchor sleeves
¼ inch masonry drill bit RJ-45 connectors (plastic bodied)
3/16 inch hex (Allen) wrench 1 inch copper tape
Bubble level or plumb line Ethernet Hub (10BaseT)
Adjustable wrench
Wire snake (if routing cable through
interior walls) Recommend a 19” rack to hold the
monitor, Element Management
System, Anchor Switch, and
Control Server.
Crimping tool (must be specifically
matched for the RJ-45 connector used)
Wire stripper
Small wire cutters
Punch down tool
2.4 Unpacking the Equipment
Table 2-2 lists all the standard parts that are supplied in your AB-Access Subscriber Unit
Installation Package. Please take the time to unpack the package and check its contents against
this list.
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 2-3
Figure 2-1 Outdoor Subscriber Unit Components
Table 2-2 Packing List
Item Quantity Notes
Outdoor Subscriber Unit 1 See item 1 in Figure 2-1
Mounting pole 1 See item 2 in Figure 2-1
Pole clamp 1 See item 3 in Figure 2-1
M6 washer 2 See item 4 in Figure 2-1
M3 x M10 machine thread screws 2 See item 5 in Figure 2-1
CAT-5 interconnect cable 1
Power supply 1
Power cord 1
Indoor junction box 1
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 2-4
2.5 Performing A Site Survey
This section explains how to select the best location for mounting the outdoor transceiver. The
steps you will perform are:
1. Determine which Access Points you can communicate with.
2. Determine the direction of available Access Points from the house or building.
3. Select an Access Point with an unobstructed Line of Sight (LOS).
Attention! It is very important that you choose a CLEAR
LINE OF SIGHT for the placement of your Access Point Units
and Subscriber Units.
2.5.1 What You Need
• Compass (or protractor).
• Area map with an accurate direction legend showing magnetic north.
• Access Point locations – these should be provided by your service provider.
2.5.2 Access Point Locations
If you are installing the unit without the aid of a qualified installer, you need to determine the
general direction of any Access Points from your house or building. You may be able to ‘see’
several APs, depending on your coverage area.
Attention! The following method uses a compass to find the bearing of any APs
from your site. An alternative method is to use a protractor to measure
the angle between North and a line to the AP from your site. This tells
you the compass bearing to use when aligning your outdoor transceiver.
1. On your map, mark the location of your house or building
2. Mark the locations of any Access Points – these should have been supplied by your
service provider:
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 2-5
Figure 2-2 Access Point Locations
3. Place the compass on the map on or near the magnetic north indicator.
4. Turn the compass so that the magnetic north indicator needle aligns with the N or
North indicator on the compass body.
5. Rotate the map, keeping the compass stationary, so the map’s North Indicator aligns
with the North Indicator of the compass (see Figure 2-3).
Move the compass over your location on the map and read off the bearing to the AP.
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 2-6
Figure 2-3 Aligning the Compass and Map
6. Write down the directions (compass bearings) of your Access Points. For example, in
Figure 2-3, Access Point A is located northwest of the building and Access Point B is
located between north and northeast. (If you can be more accurate than this, you will
get better reception when you install your outdoor transceiver.)
2.5.3 Selecting An Access Point
In order for your AB-Access System to work correctly, you MUST
establish a clear line of sight to one or more of the Access Points
recommended by your AB-Access System provider.
1. Using the compass bearings you wrote down in the previous section, walk around
your building to find a suitable line of sight path to mount your outdoor transceiver –
see Figure 2-4.
Attention! A clear line of sight means a path unobstructed by trees,
dense foliage, or other buildings.
If necessary, move to an upstairs window or rooftop location to better view the surrounding area
for possible blockages in the path. Also, be sure to consider seasonal changes. A location that is
unobstructed in the winter may be obstructed by foliage in the spring, summer, and autumn.
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 2-7
Figure 2-4 Selecting an Access Point
You should mount your outdoor Subscriber Unit as high as possible on your building, and align
it to the compass reading you have just taken. For example, the previous Figure 2-4 shows the
path to Access Point A obstructed by a cluster of trees. However, there are two possible
mounting locations for the outdoor Subscriber Unit giving a clear line of sight to Access Point B.
Attention! Your outdoor transceiver has a beam width of approximately 20 degrees.
You will need to be fairly accurate when aligning your transceiver to
the compass bearing you wrote down earlier (the more accurate your
compass readings, the better).
2. If you do come up with two or more suitable locations for the outdoor Subscriber
Unit, choose the one that is easiest for you to reach, when it comes to installing!
2.5.4 AB-Access Extender Locations
In order for your AB-Access Extender link to work correctly, you
MUST establish a clear line of sight between the Extender AP and
Extender SU.
Attention! A clear line of sight means a path unobstructed by trees,
dense foliage, or other buildings.
Attention! Your outdoor transceiver has a beam width of approximately 10 degrees.
You will need to be fairly accurate when aligning your transceiver to
the compass bearing you wrote down earlier (the more accurate your
compass readings, the better).
TBD: Additional instructions for AB-Access Extender
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 3-1
3 Base Station Installation
3.1 System Overview
This section briefly describes the AB-Access hardware and software system components that
comprise a Base Station.
Figure 3-1 Base Station Overview
SECTION 3 Base Station Installation
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 3-2
3.2 Access Points
Figure 3-2 Outdoor Access Point and Mounting Pole
A Base Station can have up to six Access Points. Each AP consists of an outdoor transceiver –
the antenna and associated electronics that transmit and receive broadband wireless signals to
and from Subscriber Units.
3.3 AB-Access Extender Units
A Base Station may have a number of AB-Access Extender units. Each EX consists of an
outdoor transceiver – the antenna and associated electronics that transmit and receive broadband
wireless signals to and from the EX at the other end of the backhaul link.
3.4 Anchor Switch
Figure 3-3 Anchor Switch Front Panel
This is typically an Access NGI WAN Access Switch, model VSW 200E, from FVC.COM.
The Anchor Switch has the following connections:
• Typically, six or 12 ATM25 ports:
Port 101 – first
one on the left
connects the
switch to an
ATM25 card on
the Control
Server
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 3-3
- Port 101 – connects the switch to an ATM25 card on the Control Server using an
ATM cross-over cable.
- The other ATM25 ports connect to each AP via the indoor junction box or
access panel, using ATM cross-over cable.
• Switch configuration ports:
- Console Port – Connects to the COM2 port on the Control Server. This is the usual
method for monitoring and configuring the switch. Standard serial port settings are 8,n,1
no flow control.
- Ethernet Port – Optionally, this can also be used to access the switch remotely.
You will need to give the switch an IP address, and then configure it via a machine
with an Ethernet card.
Please see the V-Switch User’s Guide (supplied with the switch) for detailed information on
configuring the switch.
• (Optional) Backhaul connection – This can be via:
- OC3
- DS3
- Multiple T1s.
- AB-Access Extender
3.5 Control Server
Figure 3-4 Dell 2450 Control Server Rear Panel
Shown in Figure 3-4 is the rear of a Dell PowerEdge 2450 Control Server. It comes pre-installed
with the necessary hardware to get a Base Station up and running. It provides an interface
Embedded Ethernet
NIC Interface
ATM25 port
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 3-4
between the anchor switch and the network management software. The ports on the rear panel
are as follows:
• ATM25 port – Connects to port 101 on the anchor switch.
• COM2 port – Connects to the Console port on the anchor switch. Used for monitoring and
configuring the switch.
Attention! This is a DB-9 connector. First, plug the DB-9 to RJ-45 adapter (supplied with
FVC switch) into this port, then plug a straight through patch cable from the switch into
the adapter. It is important to note that the user must use the FVC supplied serial adapter,
as other adapters may not operate correctly!
Please see the V-Switch User’s Guide (supplied with the switch) for detailed information on
configuring the switch.
• Mouse port
• Keyboard port
• Monitor port
• Power connector – There may be one or three of these, depending on your model Control
Server.
3.6 Access Panel
Figure 3-5 Access Panel
The Access Panel provides an interface between the Anchor Switch (AS), a 48V power supply,
and the APs. It includes:
• Rack-mounted unit that can handle up to six APs
• Connects to a redundant 48V DC power supply
• RJ-45 connectors to take interconnect cables from APs
• RJ-45 connectors to take ATM cross-over cables to the AS
• Grounding points
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 3-5
• LEDs to indicate AP status
• Separate on/off switches for each AP / AB-Access Extender.
3.7 A Note On Cabling
Attention! Most of the cabling used in the AB-Access System is CAT5. You will need to be
aware of the following limits on CAT5 cable lengths:
• The interconnect cable from the indoor junction box to an outdoor transceiver must be less
than 60 meters. This is due to DC resistance loss over the distance of the cable run.
• The combined length of ATM cross-over cable (from the junction box to the anchor switch)
and the interconnect cable must be less than 100 meters.
3.8 Software Consideration
As an installer, you need to know how to use a serial console to:
• Configure the Permanent Virtual Circuits (PVCs) on the AS.
• Check the status of communications between the AS and CS.
• Check the backhaul connection.
You will use a Command Line Interface (CLI) to perform any necessary configuration. For
additional information, please see the U-NII Configuration and User’s Guide.
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 4-1
4 Server and Switch Installation
4.1 Before You Start
This part of the manual is aimed at experienced network installers. It explains how to install and
configure a Control Server(CS) and Anchor Switch (AS), and how to get an AB-Access Base
Station up-and-running.
It does not tell you how to manage an AB-Access network. This section lists the information
you will need to know before you can install a Base Station.
4.1.1 Information Required
Before you perform the installation, you will need to know which outdoor transceivers are
connected to which port on the indoor junction box (the Access Point (AP) installer should have
made a note of this).
4.1.2 Extra Equipment Required
Before you perform the installation, you will need the following equipment shown in Table 4-1:
Table 4-1 Required Tools and Equipment
Tools Required Extra Equipment Required
Crimping tool (must be specifically matched
for the RJ-45 connector used) RJ-45 connectors
Wire stripper Roll of CAT-5 cable
Small wire cutters Monitor and cables
4.1.3 Optional Equipment
In case of power outages, an Uninterruptible Power Supply (UPS) is optional equipment that is
available and highly recommended for purchase, but it is not covered in this guide.
4.2 Unpacking The Equipment
Carefully unpack the equipment and check the items against the following lists. You should
have the following items (you may also have purchased a monitor, but as this is optional and it is
not included below).
SECTION 4 Server and Switch Installation
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 4-2
4.2.1 Anchor Switch
The Anchor Switch is an Access NGI WAN Access Switch, model VSW 200E, from
FVC>COM. The box should contain:
• Anchor Switch
• V-Switch User’s Guide
• Power cord
• Serial port adapter.
4.2.2 Control Server
The Control Server is a Dell PowerEdge 2450. The box should contain:
• Control Server.
• Mouse.
• Keyboard
• Software installation CD-ROMs (note that all necessary software has been preinstalled)
• Two power cords
• Keys for accessing drive bays and internal upgrade options (see below for key locations).
• Manuals, including the Dell 1 x 8 Backplane Option leaflet.
4.2.2.1 Key Locations
The keys supplied with the Control Server are located as follows:
• 4300 – Behind the “4300” label on the front panel; press the label to open the hidden
compartment.
• 4350 – On a hanger on the rear panel
• 2450 – On a hanger on the rear panel.
4.3 Installing The Equipment
This section explains how to connect up the anchor switch, Control Server and outdoor
transceivers.
4.3.1 Position The Equipment
After unpacking all the equipment, position the anchor switch and Control Server so as to
minimize the distances between them, the indoor junction box, and your power outlets. You may
want to rack mount the anchor switch and Control Server. Please see the V-Switch User’s Guide.
4.3.2 Making Up Connecting Cables
The following Table 4-2 shows the various types and lengths of cable.
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 4-3
Table 4-2 Required Cables
Cable Run Cable Type No. Required Connectors
AS port 101 to
CS ATM port CAT5 1 RJ-45
AS Console port to
CS COM
(via DB-9 to RJ-45
adapter)
CAT5 1 RJ-45
AS ports 102, 103 etc.
to indoor junction box ATM
Cross-over Same as number of
transceivers RJ-45 – see below for
pinout
4.3.2.1 ATM Cross-Over Cable
The pin connections for making up an ATM cross-over cable are as follows:
Figure 4-1 ATM Cross-Over Cable
4.3.3 Connecting The Equipment
To connect the equipment, proceed as follows:
1. Connect from port 101 on the anchor switch to the ATM port on the rear panel of the Control
Server. Use a standard CAT5 cable with an RJ-45 connector on each end.
2. Connect from port 102 on the anchor switch to the appropriate port on the access panel. Use
an ATM cross-over cable with an RJ-45 connector on each end.
3. Repeat step 2, using ports 103, 104, 201, 202, 203 and 204, until you have connected to all
the ‘live’ ports on the access panel.
Pin
1
2
3
4
5
6
7
8
Pin
1
2
3
4
5
6
7
8
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 4-4
4. Insert the DB-9 to RJ-45 adapter into the COM2 port on the Control Server. Connect from
the Console port on the anchor switch to the DB-9 to RJ-45 adapter on the COM2 port of the
Control Server.
5. Connect the mouse and keyboard to the Control Server.
6. Connect your monitor’s signal cable to the monitor port on the Control Server.
7. Connect the power cords for the Control Server, anchor switch, indoor junction box and
monitor to AC wall outlets, but do not switch on.
4.4 Base Station Access Panel Installation
The following steps cover installing the indoor Access Panel installation. Table 4-3 gives a
description of the Access Panel and Figure 4-2 shows a photo of it. As designed, these Access
Panels exactly duplicate the circuitry of the existing wall boxes. Installation follows the same
directions. However, no punch down of the STP cable is needed on the radio side of the panel.
Straight through CAT5 STP cables are used to connect the panel to the radio.
The patch panel is designed to replace six wall boxes in a Base Station. The Artesyn power
supplies are to be replaced by power supplies such as Kepco’s (part #PS-RM0101-1000953) rack
mounted power supply operating at 48 V - 3.6 A DC.
Table 4-3 Base Station Access Panel Description
Name Description Model # Revision # CLEI code
Base Station
Access Panel
Access Panel
Rack Mount
6 AP/EX Interfaces WB-05001 v1.00 NA
Figure 4-2 Access Panel Ports
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 4-5
4.4.1 Access Panel Installation Steps
1. At the Access Panel, be sure all power switches are set to OFF.
2 Determine ports to be used on the Access Panel, and set jumpers on rear of panel to desired
setting (either Ethernet or ATM). Reference the following Figure 4-3.

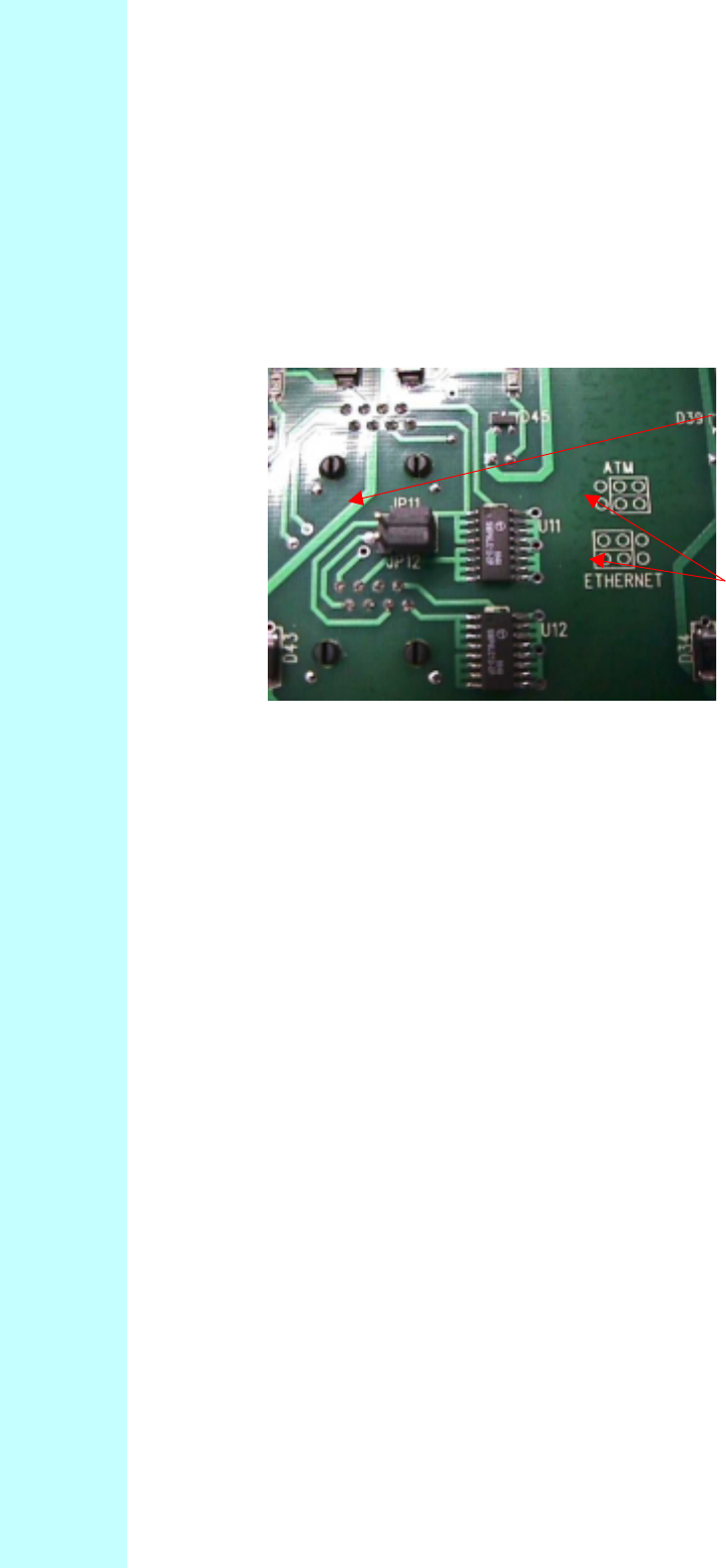

Figure 4-3 Access Panel Jumpers
3. Position Access Panel
4. Plug in power supply and turn on.
5. Adjust to +48VDC and turn off.
6. Obtain red, black, and green 18 gauge wire. Measure and cut enough of each
color to connect the Access Panel to the power supply.
7. Using wire strippers, strip approximately 1/4" from one end of all three leads.
8. Insert the red lead into the +48V connection and tighten with precision flat tip screwdriver.
8. Insert black lead into the -48V connection and tighten with precision flat tip screwdriver.
9. Insert the green lead into the ground connection and tighten with precision flat tip
screwdriver.
Reference the following Figure 4-4.
Jum
p
ers
Jumper
Configuration
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 4-6

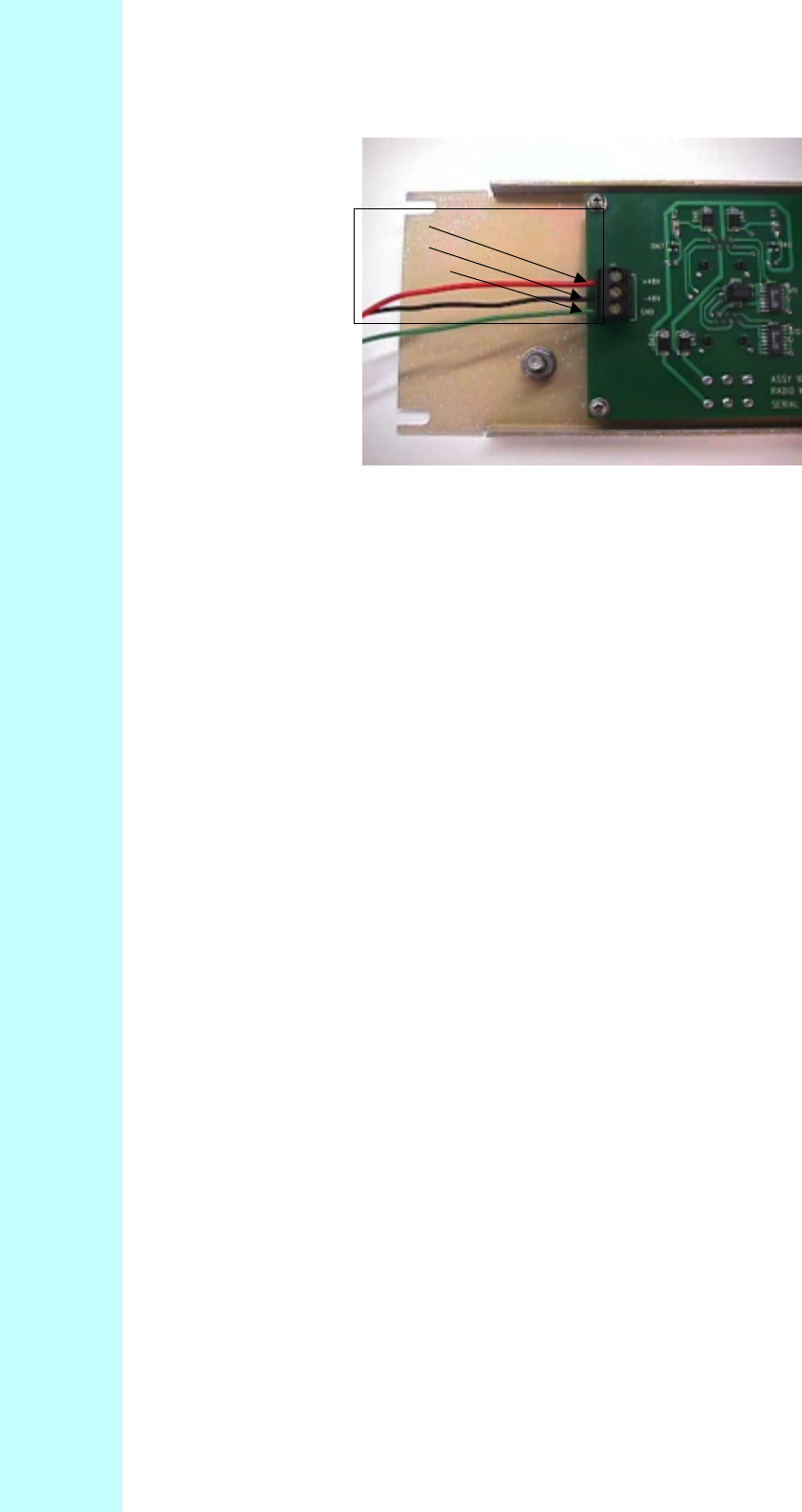

Figure 4-4 Access Panel Power Connection Wires
11. Using wire strippers, strip approximately 1/2" off the other end of all three leads.
12. Connect the red lead to the +48V on power supply.
13. Connect the black lead to the -48V on power supply.
14. Connect the green lead to ground on power supply.
4.4.2 Powering On The Equipment
Power on the equipment as follows:
1. Power on the anchor switch. (It will go through its startup procedure, which can take up to
three minutes.)
2. Power on the monitor.
3. Power on the Control Server.
4. When the server has finished its startup procedure, you will see a login prompt.
5. Enter the user login (root) and the system password (letmein) and press Enter. (Note text is
all lower-case.)
6. Turn ON the power supply.
7. If any of the six-transceiver power switches are OFF, turn them ON.
8. For each live transceiver, check that the yellow LED on the junction box is ON.
+ 48V
- 48 V
GROUND
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 5-1
5 Access Point Installation
5.1 Before You Start
This section lists the information you need on-hand before you can install a Base Station.
5.2 Information Required
Before you perform the installation, a site survey should have been performed by the service
provider. From this, you will need to know:
• Number of APs to install
• Where the outdoor transceivers will be mounted (antenna mast, pole or building)
• Heights at which the outdoor transceivers will be mounted.
• Transceiver directional information (azimuth and elevation).
You will probably be installing six APs on a mast or pole, giving 360 degree coverage in 60
degree sectors, as shown in Figure 5-1.
Figure 5-1 Diagram of Six Access Points for 360 degree Coverage
IMPORTANT – Be sure to record for future reference the MAC address
found on the AP unit BEFORE you install it.
SECTION 5 Access Point Installation
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 5-2
5.2.1 Equipment Required
Table 5-1 lists the tools and equipment you will need to install Access Points.
Table 5-1 Required Tools and Equipment
Tools Required Equipment Required
Compass and protractor ¼ inch grounding rod
Area map Grounding clamp
Phillips-head screwdriver Grounding wire
Flat-head screwdriver CAT5 cable
Hammer or mallet #6 wood screws
Power drill Cable clips
1/8 inch drill bit Anchor sleeves
¼ inch masonry drill bit RJ-45 connectors (plastic
bodied)
3/16 inch hex (Allen) wrench
or 10 mm
Bubble level or plumb line
Adjustable wrench
Wire snake (if routing cable
through interior walls)
Crimping tool (must be
specifically matched for the
RJ-45 connector used)
Wire stripper
Small wire cutters
Punch down tool
5.3 Access Points
Table 5-2 lists the main components of an Access Point.
Table 5-2 AP Components
Item Quantity Notes
Outdoor transceiver 1 See item 1 in Figure 5-2
Mounting pole 1 See item 2 in Figure 5-2
Pole clamp 1 See item 3 in Figure 5-2
M6 washer 2 See item 4 in Figure 5-2
M3 x M10 machine thread screws 2 See item 5 in Figure 5-2
Grounding lug 2 See item 6 in Figure 5-2
Indoor junction box 1 6-way rack-mounted unit
Power supply and cord 1
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 5-3
Figure 5-2 Outdoor Access Point Components
5.4 Indoor Patch Panel
Figure 5-3 shows the Base Station Access Panel used as an indoor patch panel.
Figure 5-3 Access Panel used as Patch Panel
5.5 Installing The Equipment
This section explains how to install an AP transceiver onto a variety of surfaces, connect them to
the indoor junction box, and ground the system. The most likely scenario is to install six
transceivers on a single tower or mast 60 degrees apart.
AP OUT
AP IN
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 5-4
5.5.1 Overview
Following are the installation steps you will perform:
1. Install the mounting poles.
2. Mount the outdoor transceivers.
3. Mount the access panel.
4. Ground the outdoor transceivers and access panel
5. Connect the interconnect cables.
5.5.2 Installing The Mounting Poles
First install the mounting poles, on which you will mount the outdoor transceivers.
Bear in mind the direction in which the transceivers will point.
Attention! The mounting pole must be mounted in a vertical position. Failure to do
so may result in improper alignment of the outdoor transceiver.
If you need to tilt the transceiver down to avoid self-interference in a
cellular-style deployment, you should use an (optional) tilt bracket.
Warning! The mounting pole must be grounded. See Grounding The System in
Section 5.6.3.
5.5.3 Installing On An Antenna Mast
1. Position the mounting pole on the antenna mast.
2. Insert the U-bolts around the mast and through the holes in the mounting pole. Install a
washer and nut to each side of the threaded U-bolt and hand tighten. Repeat this step for the
second U-bolt.
3. Tighten nuts equally until mounting pole is secure and cannot rotate.
Figure 5-4 Mounting Pole Installed on Pole or Antenna Mast
Typical 2 ½ inch
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 5-5
5.5.4 Installing On Brick Or Masonry
1. Place the mounting plate against the wall. Use a level or plumb line to set the mounting pole
perpendicular to the ground.
2. Mark the hole locations.
3. Set the pole aside.
4. Drill ¼ inch holes at the marked locations. Drill the holes approximately ½ inch deep.
5. Insert the expansion shields into the drilled holes and tap them home.
6. Align the mounting pole with the drilled holes and fix with the lag bolts.
Figure 5-5 Mounting Pole Installation
5.5.5 Installing On A Wall With Wood Siding
1. Place the mounting plate against the wall.
2. Using a level, be sure that the mounting pole is perpendicular to the ground. You may need
to use spacers, as shown in Figure 5-6.
3. Mark the hole locations for the drilled hole locations. Remove the mounting pole and set
aside.
4. Drill 1/8-inch holes in the places marked.
5. Use #10 or #12 wood screws to secure the mounting pole to the wall and tighten.
Figure 5-6 Mounting Pole on Clapboard Siding
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 5-6
5.6 Mounting The Outdoor Access Points
Now that you have installed the mounting pole, you are ready to install the Access Points onto
the mounting poles. Reference Figures 5-7 through 5-10.
Figure 5-7 Mounting Parts for an Outdoor Access Point
1. Place the outdoor Access Point on the mounting pole.
2. Align the pole clamp with the mounting holes.
3. Insert the mounting screws and hand tighten.
4. Rotate the outdoor Access Point so it is pointing in the correct direction.
5. Tighten the mounting screws.
Figure 5-8 Access Point Rear View
Serial
Number
Pole Brace
MAC ADdress
(underside)
Hex Bolts (2)
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 5-7
Figure 5-9 Tilt Bracket
Figure 5-10 Access Point with Mounted Tilt Bracket
5.6.1 Installing the Access Panel
You will probably install the Access Panel in a rack, along with the anchor switch and other
associated equipment. However, keep in mind that the access panel should be:
• Located where you can easily connect to a power supply.
• Close to the anchor switch.
• Accessible for service and troubleshooting.
• Protected from rain and extremes of temperature (it is designed for indoor use).
5.6.2 Installing The Interconnect Cables
For each interconnect cable, you will need to perform the following steps.
5.6.2.1 Route The Cables
1. Select where the cable will enter the building from the outside.
2. Determine the length of cable required. Allow three extra feet on each end to allow for strain
relief, as well as any bends and turns.
Side Hex
Bolts
Tilt Bracket
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 5-8
3. Route the cable.
5.6.2.2 Install the Interconnect Cables (Transceiver End)
1. Remove the grommet and clamping plate from the outdoor transceiver by removing the two
screws.
Figure 5-11 Grommet Location - Underside of Access Point
NOTE: The Grommet is made of a special conductive material used to complete
the ground between the Access Point and Access Panel.
2. Insert the cable end through the grommet clamping plate (Figure 5-11)
3. Insert the cable end through the grommet. The tapered end of the grommet should be
opposite the cable end.
4. Strip 1 inch of insulation off the cable end. Leave 3/8 inch of shielding showing and trim the
wire ends flat ½ inch from there.
5. Using a piece of 1 inch squared tinned copper foil, wrap the foil around the shield/braid and
sheath with the left edge aligned with the edge of the braid, as shown in the following
Figures 5-12 and 5-13.
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 5-9
Figure 5-12 Outdoor Transceiver End of the Interconnect Cable with Cable Preparation
Figure 5-13 Outdoor Transceiver End of the Interconnect Cable with Shielding
6. Separate the twisted pair wires and align by color code in the order listed in the following
Table 5-3.
Grommet
Grommet
clamping
plate
Note direction
of taper
Insert wire
into channels
1/2"
3/8"
Shielding
Pin 1
Tab on
underside
1" square tinned copper foil - wrap the copper foil around the
shield/braid and sheath with the left
edge aligned with the edge of the braid.
Grommet is
conductive
and used to
complete
the ground
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 5-10
Table 5-3 Cable Legend for Interconnect Cable
Pin Color Code
1 White / Orange
2 Orange
3 White / Green
4Blue
5 White / Blue
6 Green
7 White / Brown
8Brown
7. Using pin 1 as a reference, insert the individual wires into the channels of the RJ-45
connector. Each wire should penetrate the channels until flush with the connector end.
The copper foil tape should extend past the casing of the RJ-45 connector by approximately
½ inch.
8. When all wires are inserted into the channels in their correct order, use the crimping tool to
Permanently crimp the wires to the connector. Insert the RJ-45 connector into the receptacle
located underneath the outdoor AP. Make sure that the connector tab engages the slot in the
receptacle.
9. Slide the grommet up the cable and press it into the bottom of the outdoor AP.
10. Slide the grommet clamp up the cable and align the holes with the mounting holes on the
bottom of the outdoor transceiver.
11. Insert the two screws in the mounting holes and tighten until the grommet has a slight bulge.
Be sure to tighten both screws equally so that the grommet is seated correctly.
12. Secure the interconnect cable to the mounting pole with the cable clip as shown in
Figure 5-14.
Attention! Carefully read the instructions for the crimping tool you are using. Use the
correct crimping tool for the RJ-45 connector you are using. Incorrect
installation of the RJ-45 connector may result in a bad connection between the
outdoor transceiver and the indoor junction box.
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 5-11
Figure 5-14 Interconnect Cable Installation to Outdoor Access Point - Bottom View
5.6.2.3 Installing The Interconnect Cables to Access Panel
Attention! Always Disconnect Power from wall box BEFORE inserting RJ-45 connector
into transceiver. This prevents arcing damage from occurring.
1. Install an RJ-45 connector to the junction box end of the cable, following the previous steps 6
through 12.
2. Plug the RJ-45 into one of the upper ports in the Access Panel junction box.
Figure 5-15 Access Panel showing Connections to Access Point
RJ-45 to
Access Point
Transceiver
GND
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 5-12
5.6.2.4 Mark the Access Point Cables
Attention! Step 1 is important, and will enable the network installer to configure the
system easily.
1. Mark the cable with a permanent label and make a note so that the network installer knows
which outdoor AP transceiver is connected to which port on the Access Panel junction box.
5.6.3 Grounding The System
The AB-Access System must be properly grounded in order to protect it and the structure it is
installed on from lightning damage. This requires:
1. Grounding all the outdoor transceivers as shown in Figure 5-14.
2. Grounding the Access Panel to the rack.
5.6.3.1 Grounding the Outdoor Access Points
1. Place the grounding rod so as to allow for the shortest possible path from the grounding
cable to the outdoor Access Points.
2. Drive the grounding rod into the ground at least eight inches from the ground surface.
3. Attach a grounding clamp to the grounding rod. You will use this clamp to attach grounding
wires for both the outdoor transceiver and indoor junction box, reference Figure 5-16.
Figure 5-16 Ground Connections to Access Point Transceiver
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 5-13
Attention! The grounding wire should be long enough to reach from the mounting pole
to the grounding rod with 3 to 6 extra feet allowed for strain relief.
4. Connect a ground lug to one end of the grounding wire.
5. Remove one of the lower mounting screws of the mounting pole. Insert a screw through the
grounding lug terminal and re-install it to the mounting pole.
6. Attach the grounding wire to the clamp on the grounding rod, reference Figure 5-17.
If necessary, use wire staples to secure the grounding wire to the outside wall.
Figure 5-17 Mounting Pole with Ground Lug
7. Install a grounding wire from the junction box to the grounding rod.
Ground lug
with #10 awg
copper wire
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 6-1
6 AB-Access Extender Installation
6.1 Before You Start
This section lists the information you need on-hand before you can install a Base Station.
6.2 Information Required
Before you perform the installation, a site survey should have been performed by the service
provider. From this, you will need to know:
• Number of EXs to install
• Where the outdoor transceivers will be mounted (antenna mast, pole or building)
• Heights at which the outdoor transceivers will be mounted.
• Transceiver directional information (azimuth and elevation).
IMPORTANT – Be sure to record for future reference the MAC address
found on the EX unit BEFORE you install it.
6.2.1 Equipment Required
Table 6-1 lists the tools and equipment you will need to install AB-Access Extender units.
Table 6-1 Required Tools and Equipment
Tools Required Equipment Required
Compass and protractor ¼ inch grounding rod
Area map Grounding clamp
Phillips-head screwdriver Grounding wire
Flat-head screwdriver CAT5 cable
Hammer or mallet #6 wood screws
Power drill Cable clips
1/8 inch drill bit Anchor sleeves
¼ inch masonry drill bit RJ-45 connectors (plastic
bodied)
3/16 inch hex (Allen) wrench
SECTION 6 AB-Access Extender Installation
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 6-2
or 10 mm
Bubble level or plumb line
Adjustable wrench
Wire snake (if routing cable
through interior walls)
Crimping tool (must be
specifically matched for the
RJ-45 connector used)
Wire stripper
Small wire cutters
Punch down tool
TBD: Update this section for AB-Access Extender
6.3 AB-Access Extender
Table 6-2 lists the main components of an AB-Access Extender.
Table 6-2 EX Components
Item Quantity Notes
Outdoor transceiver 1 See item 1 in Figure 6-2
Mounting pole 1 See item 2 in Figure 6-2
Pole clamp 1 See item 3 in Figure 6-2
M6 washer 2 See item 4 in Figure 6-2
M3 x M10 machine thread screws 2 See item 5 in Figure 6-2
Grounding lug 2 See item 6 in Figure 6-2
Indoor junction box 1 6-way rack-mounted unit
Power supply and cord 1
TBD: Update this section for AB-Access Extender
TBD: Update this section for AB-Access Extender – need image of Extender
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 6-3
Figure 6-1 Outdoor AB-Access Extender Components
6.4 Indoor Patch Panel
Figure 6-2 shows the Base Station Access Panel used as an indoor patch panel.
Figure 6-2 Access Panel used as Patch Panel
6.5 Installing The Equipment
This section explains how to install an EX transceiver onto a variety of surfaces, connect them to
the indoor junction box, and ground the system.
6.5.1 Overview
Following are the installation steps you will perform:
6. Install the mounting poles.
7. Mount the outdoor transceivers.
8. Mount the access panel.
9. Ground the outdoor transceivers and access panel
10. Connect the interconnect cables.
6.5.2 Installing The Mounting Poles
First install the mounting poles, on which you will mount the outdoor transceivers.
Bear in mind the direction in which the transceivers will point.
Attention! The mounting pole must be mounted in a vertical position. Failure to do so
may result in improper alignment of the outdoor transceiver. If you need to tilt the
transceiver down to avoid self-interference, you should use an (optional) tilt bracket.
AP/EX OUT
AP/EX
IN
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 6-4
Warning! The mounting pole must be grounded. See Grounding The System in
Section 6.6.3.
6.5.3 Installing On An Antenna Mast
TBD: Update this section for AB-Access Extender
4. Position the mounting pole on the antenna mast.
5. Insert the U-bolts around the mast and through the holes in the mounting pole. Install a
washer and nut to each side of the threaded U-bolt and hand tighten. Repeat this step for the
second U-bolt.
6. Tighten nuts equally until mounting pole is secure and cannot rotate.
Figure 6-3 Mounting Pole Installed on Pole or Antenna Mast
6.5.4 Installing On Brick Or Masonry
7. Place the mounting plate against the wall. Use a level or plumb line to set the mounting pole
perpendicular to the ground.
8. Mark the hole locations.
9. Set the pole aside.
10. Drill ¼ inch holes at the marked locations. Drill the holes approximately ½ inch deep.
11. Insert the expansion shields into the drilled holes and tap them home.
12. Align the mounting pole with the drilled holes and fix with the lag bolts.
Typical 2 ½ inch
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 6-5
Figure 6-4 Mounting Pole Installation
6.5.5 Installing On A Wall With Wood Siding
6. Place the mounting plate against the wall.
7. Using a level, be sure that the mounting pole is perpendicular to the ground. You may need
to use spacers, as shown in Figure 6-6.
8. Mark the hole locations for the drilled hole locations. Remove the mounting pole and set
aside.
9. Drill 1/8-inch holes in the places marked.
10. Use #10 or #12 wood screws to secure the mounting pole to the wall and tighten.
Figure 6-5 Mounting Pole on Clapboard Siding
6.6 Mounting The Outdoor AB-Access Extender
Now that you have installed the mounting pole, you are ready to install the AB-Access Extender
onto the mounting poles. Reference Figures 6-7 through 6-10.
TBD: Update this section for AB-Access Extender – image of extender on mounting
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 6-6
Figure 6-6 Mounting Parts for an Outdoor AB-Access Extender
6. Place the outdoor AB-Access Extender on the mounting pole.
7. Align the pole clamp with the mounting holes.
8. Insert the mounting screws and hand tighten.
9. Rotate the outdoor AB-Access Extender so it is pointing in the correct direction.
10. Tighten the mounting screws.
TBD: Update this section for AB-Access Extender – photo of rear of Extender
Figure 6-7 AB-Access Extender Rear View
Figure 6-8 Tilt Bracket
TBD: Update this section for AB-Access Extender – insert photo of correct tilt bracket for
Extender
Figure 6-9 AB-Access Extender with Mounted Tilt Bracket
Side Hex
Bolts
Tilt Bracket
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 6-7
TBD: Update this section for AB-Access Extender – insert photo of correct tilt bracket connected
to Extender
6.6.1 Installing the Access Panel
You will probably install the Access Panel in a rack, along with the anchor switch and other
associated equipment. However, keep in mind that the access panel should be:
• Located where you can easily connect to a power supply.
• Close to the anchor switch.
• Accessible for service and troubleshooting.
• Protected from rain and extremes of temperature (it is designed for indoor use).
6.6.2 Installing The Interconnect Cables
For each interconnect cable, you will need to perform the following steps.
6.6.2.1 Route The Cables
4. Select where the cable will enter the building from the outside.
5. Determine the length of cable required. Allow three extra feet on each end to allow for strain
relief, as well as any bends and turns.
6. Route the cable.
6.6.2.2 Install the Interconnect Cables (Transceiver End)
3. Remove the grommet and clamping plate from the outdoor transceiver by removing the two
screws.
Figure 6-10 Grommet Location - Underside of AB-Access Extender
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 6-8
TBD: Update this section for AB-Access Extender – insert graphic of underside of Extender
showing cable routing
NOTE: The Grommet is made of a special conductive material used to complete
the ground between the AB-Access Extender and Access Panel.
4. Insert the cable end through the grommet clamping plate (Figure 6-11)
5. Insert the cable end through the grommet. The tapered end of the grommet should be
opposite the cable end.
6. Strip 1 inch of insulation off the cable end. Leave 3/8 inch of shielding showing and trim the
wire ends flat ½ inch from there.
7. Using a piece of 1 inch squared tinned copper foil, wrap the foil around the shield/braid and
sheath with the left edge aligned with the edge of the braid, as shown in the following
Figures 6-12 and 6-13.
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 6-9
Figure 6-11 Outdoor Transceiver End of the Interconnect Cable with Cable Preparation
Figure 6-12 Outdoor Transceiver End of the Interconnect Cable with Shielding
6. Separate the twisted pair wires and align by color code in the order listed in the following
Table 6-3.
Grommet
Grommet
clamping
plate
Note direction
of taper
Insert wire
into channels
1/2"
3/8"
Shielding
Pin 1
Tab on
underside
1" square tinned copper foil - wrap the copper foil around the
shield/braid and sheath with the left
edge aligned with the edge of the braid.
Grommet is
conductive
and used to
complete
the ground
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 6-10
Table 6-3 Cable Legend for Interconnect Cable
Pin Color Code
1 White / Orange
2 Orange
3 White / Green
4Blue
5 White / Blue
6 Green
7 White / Brown
8Brown
7. Using pin 1 as a reference, insert the individual wires into the channels of the RJ-45
connector. Each wire should penetrate the channels until flush with the connector end.
The copper foil tape should extend past the casing of the RJ-45 connector by approximately
½ inch.
8. When all wires are inserted into the channels in their correct order, use the crimping tool to
Permanently crimp the wires to the connector. Insert the RJ-45 connector into the receptacle
located underneath the outdoor EX. Make sure that the connector tab engages the slot in the
receptacle.
13. Slide the grommet up the cable and press it into the bottom of the outdoor EX.
14. Slide the grommet clamp up the cable and align the holes with the mounting holes on the
bottom of the outdoor transceiver.
15. Insert the two screws in the mounting holes and tighten until the grommet has a slight bulge.
Be sure to tighten both screws equally so that the grommet is seated correctly.
16. Secure the interconnect cable to the mounting pole with the cable clip as shown in
Figure 6-14.
Attention! Carefully read the instructions for the crimping tool you are using. Use the
correct crimping tool for the RJ-45 connector you are using. Incorrect
installation of the RJ-45 connector may result in a bad connection between the
outdoor transceiver and the indoor junction box.
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 6-11
Figure 6-13 Interconnect Cable Installation to Outdoor AB-Access Extender - Bottom
View
TBD: Update this section for AB-Access Extender – insert graphic for AB-Access Extender
bottom view with cable routing
6.6.2.3 Installing The Interconnect Cables to Access Panel
Attention! Always Disconnect Power from wall box BEFORE inserting RJ-45 connector
into transceiver. This prevents arcing damage from occurring.
3. Install an RJ-45 connector to the junction box end of the cable, following the previous steps 6
through 12.
4. Plug the RJ-45 into one of the upper ports in the Access Panel junction box.
Figure 6-14 Access Panel showing Connections to AP/EX
RJ-45 to
AP/EX
Transceiver
GND
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 6-12
6.6.2.4 Mark the AB-Access Extender Cables
Attention! Step 1 is important, and will enable the network installer to configure the
system easily.
2. Mark the cable with a permanent label and make a note so that the network installer knows
which outdoor EX transceiver is connected to which port on the Access Panel junction box.
6.6.3 Grounding The System
The AB-Access System must be properly grounded in order to protect it and the structure it is
installed on from lightning damage. This requires:
8. Grounding all the outdoor transceivers as shown in Figure 6-14.
9. Grounding the Access Panel to the rack.
6.6.3.1 Grounding the Outdoor AB-Access Extender
8. Place the grounding rod so as to allow for the shortest possible path from the grounding
cable to the outdoor AB-Access Extender.
9. Drive the grounding rod into the ground at least eight inches from the ground surface.
10. Attach a grounding clamp to the grounding rod. You will use this clamp to attach grounding
wires for both the outdoor transceiver and indoor junction box, reference Figure 6-16.
Figure 6-15 Ground Connections to AB-Access Extender Transceiver
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 6-13
Attention! The grounding wire should be long enough to reach from the mounting pole
to the grounding rod with 3 to 6 extra feet allowed for strain relief.
11. Connect a ground lug to one end of the grounding wire.
12. Remove one of the lower mounting screws of the mounting pole. Insert a screw through the
grounding lug terminal and re-install it to the mounting pole.
13. Attach the grounding wire to the clamp on the grounding rod, reference Figure 6-17.
If necessary, use wire staples to secure the grounding wire to the outside wall.
Figure 6-16 Mounting Pole with Ground Lug
Install a grounding wire from the junction box to the grounding rod.
Ground lug
with #10 awg
copper wire
Company Proprietary
Adaptive Broadband U-NII Product Installation Manual 07/04/2001 6-1
