Azlan Logistics Limited CS-1800P PAIR60W ACTIVE BLUETOOTH CEILING SPEAKERS Users manual

Users manual

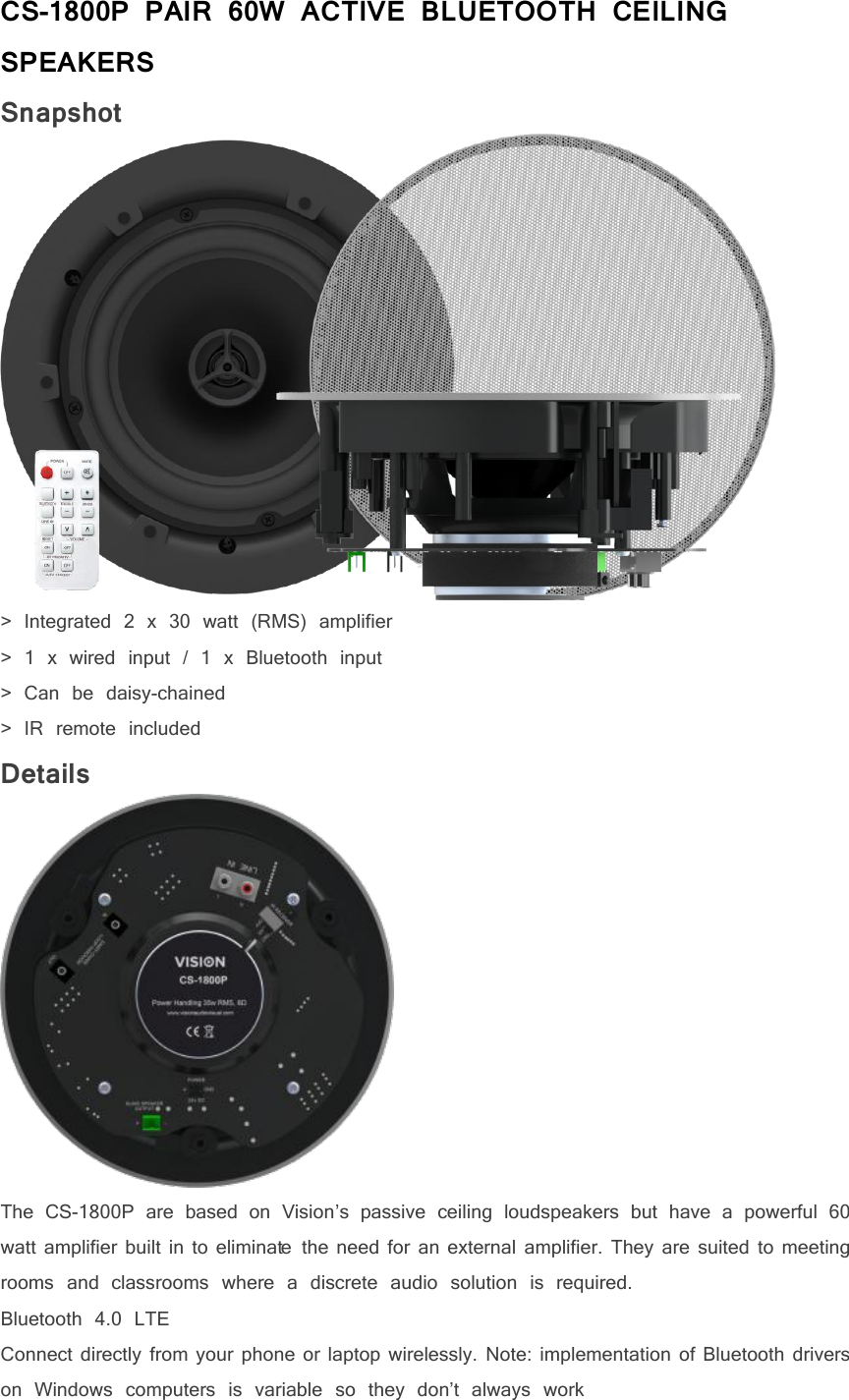

CS-1800P PAIR 60W ACTIVE BLUETOOTH CEILINGSPEAKERSSnapshot> Integrated 2 x 30 watt (RMS) amplifier> 1 x wired input / 1 x Bluetooth input> Can be daisy-chained> IR remote includedDetailsThe CS-1800P are based on Vision’s passive ceiling loudspeakers but have a powerful 60watt amplifier built in to eliminate the need for an external amplifier. They are suited to meetingrooms and classrooms where a discrete audio solution is required.Bluetooth 4.0 LTEConnect directly from your phone or laptop wirelessly. Note: implementation of Bluetooth driverson Windows computers is variable so they don’t always work

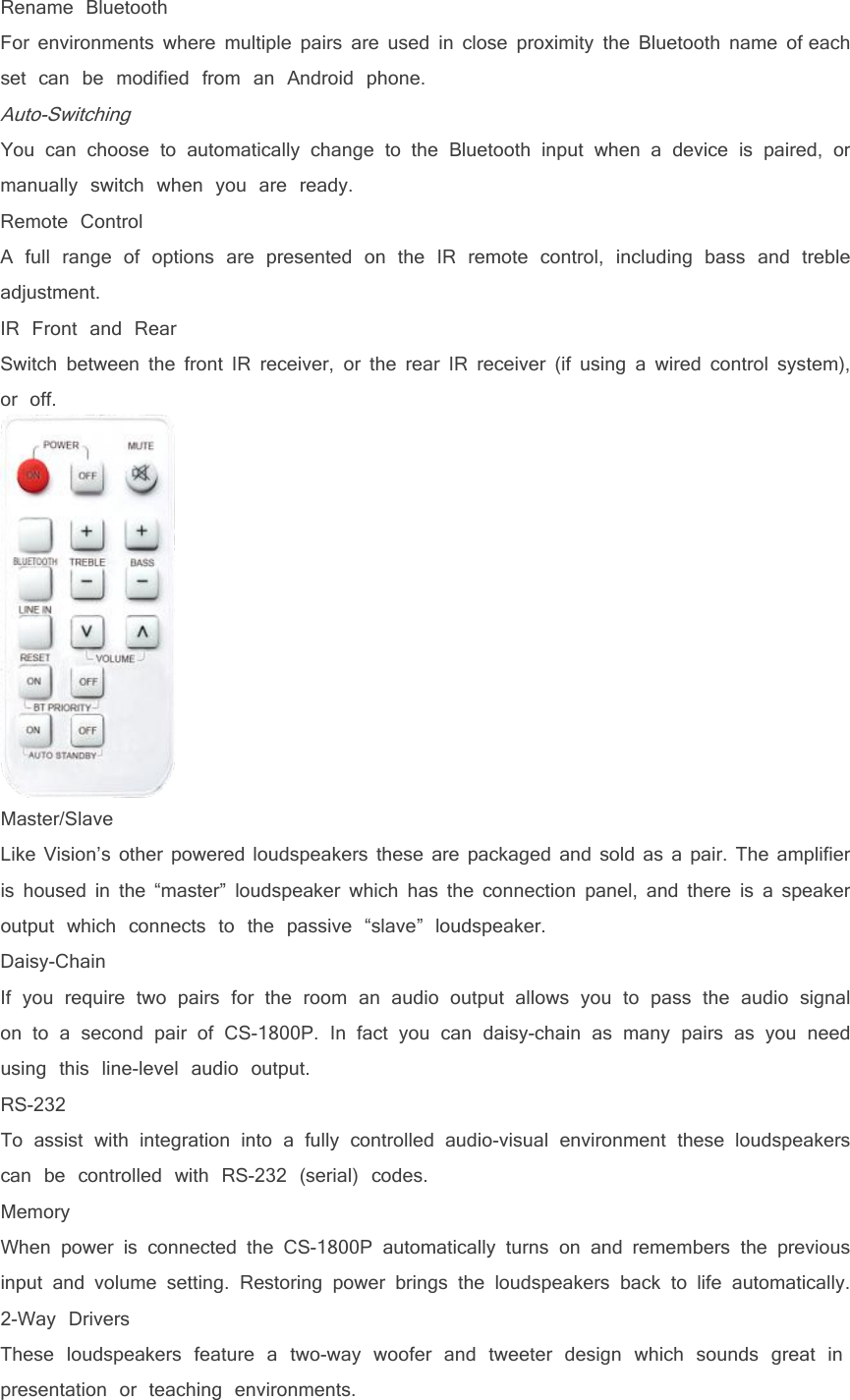

Rename BluetoothFor environments where multiple pairs are used in close proximity the Bluetooth name of eachset can be modified from an Android phone.Auto-SwitchingYou can choose to automatically change to the Bluetooth input when a device is paired, ormanually switch when you are ready.Remote ControlA full range of options are presented on the IR remote control, including bass and trebleadjustment.IR Front and RearSwitch between the front IR receiver, or the rear IR receiver (if using a wired control system),or off.Master/SlaveLike Vision’s other powered loudspeakers these are packaged and sold as a pair. The amplifieris housed in the “master” loudspeaker which has the connection panel, and there is a speakeroutput which connects to the passive “slave” loudspeaker.Daisy-ChainIf you require two pairs for the room an audio output allows you to pass the audio signalon to a second pair of CS-1800P. In fact you can daisy-chain as many pairs as you needusing this line-level audio output.RS-232To assist with integration into a fully controlled audio-visual environment these loudspeakerscan be controlled with RS-232 (serial) codes.MemoryWhen power is connected the CS-1800P automatically turns on and remembers the previousinput and volume setting. Restoring power brings the loudspeakers back to life automatically.2-Way DriversThese loudspeakers feature a two-way woofer and tweeter design which sounds great inpresentation or teaching environments.

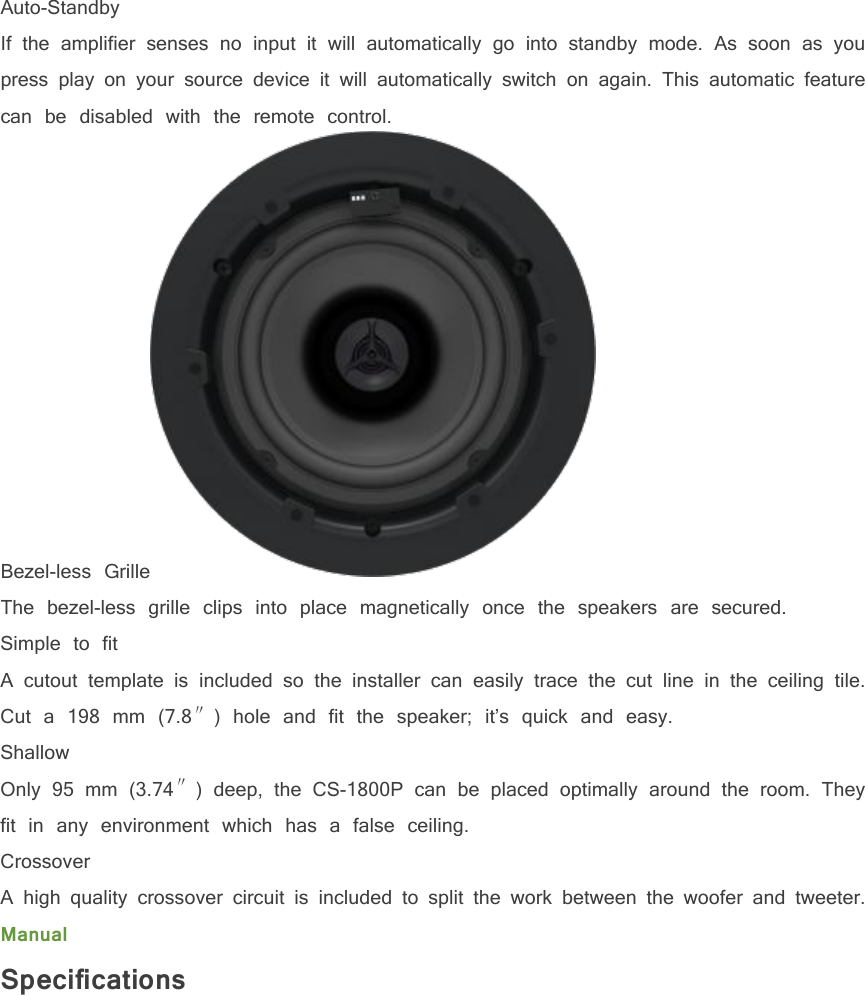

Auto-StandbyIf the amplifier senses no input it will automatically go into standby mode. As soon as youpress play on your source device it will automatically switch on again. This automatic featurecan be disabled with the remote control.Bezel-less GrilleThe bezel-less grille clips into place magnetically once the speakers are secured.Simple to fitA cutout template is included so the installer can easily trace the cut line in the ceiling tile.Cut a 198 mm (7.8″) hole and fit the speaker; it’s quick and easy.ShallowOnly 95 mm (3.74″) deep, the CS-1800P can be placed optimally around the room. Theyfit in any environment which has a false ceiling.CrossoverA high quality crossover circuit is included to split the work between the woofer and tweeter.ManualSpecifications

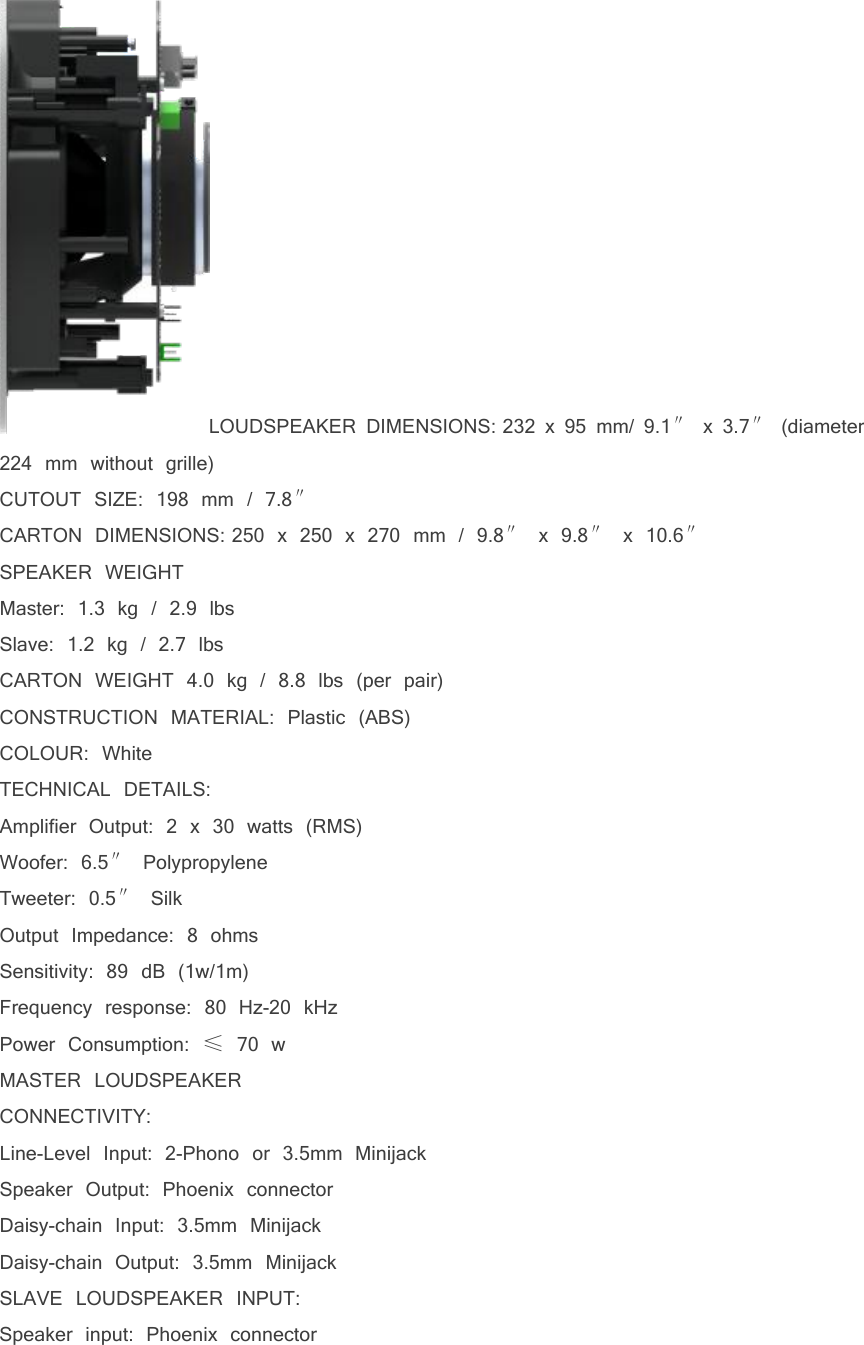

LOUDSPEAKER DIMENSIONS: 232 x 95 mm/ 9.1″x 3.7″(diameter224 mm without grille)CUTOUT SIZE: 198 mm / 7.8″CARTON DIMENSIONS: 250 x 250 x 270 mm / 9.8″x 9.8″x 10.6″SPEAKER WEIGHTMaster: 1.3 kg / 2.9 lbsSlave: 1.2 kg / 2.7 lbsCARTON WEIGHT 4.0 kg / 8.8 lbs (per pair)CONSTRUCTION MATERIAL: Plastic (ABS)COLOUR: WhiteTECHNICAL DETAILS:Amplifier Output: 2 x 30 watts (RMS)Woofer: 6.5″PolypropyleneTweeter: 0.5″SilkOutput Impedance: 8 ohmsSensitivity: 89 dB (1w/1m)Frequency response: 80 Hz-20 kHzPower Consumption: ≤70 wMASTER LOUDSPEAKERCONNECTIVITY:Line-Level Input: 2-Phono or 3.5mm MinijackSpeaker Output: Phoenix connectorDaisy-chain Input: 3.5mm MinijackDaisy-chain Output: 3.5mm MinijackSLAVE LOUDSPEAKER INPUT:Speaker input: Phoenix connector

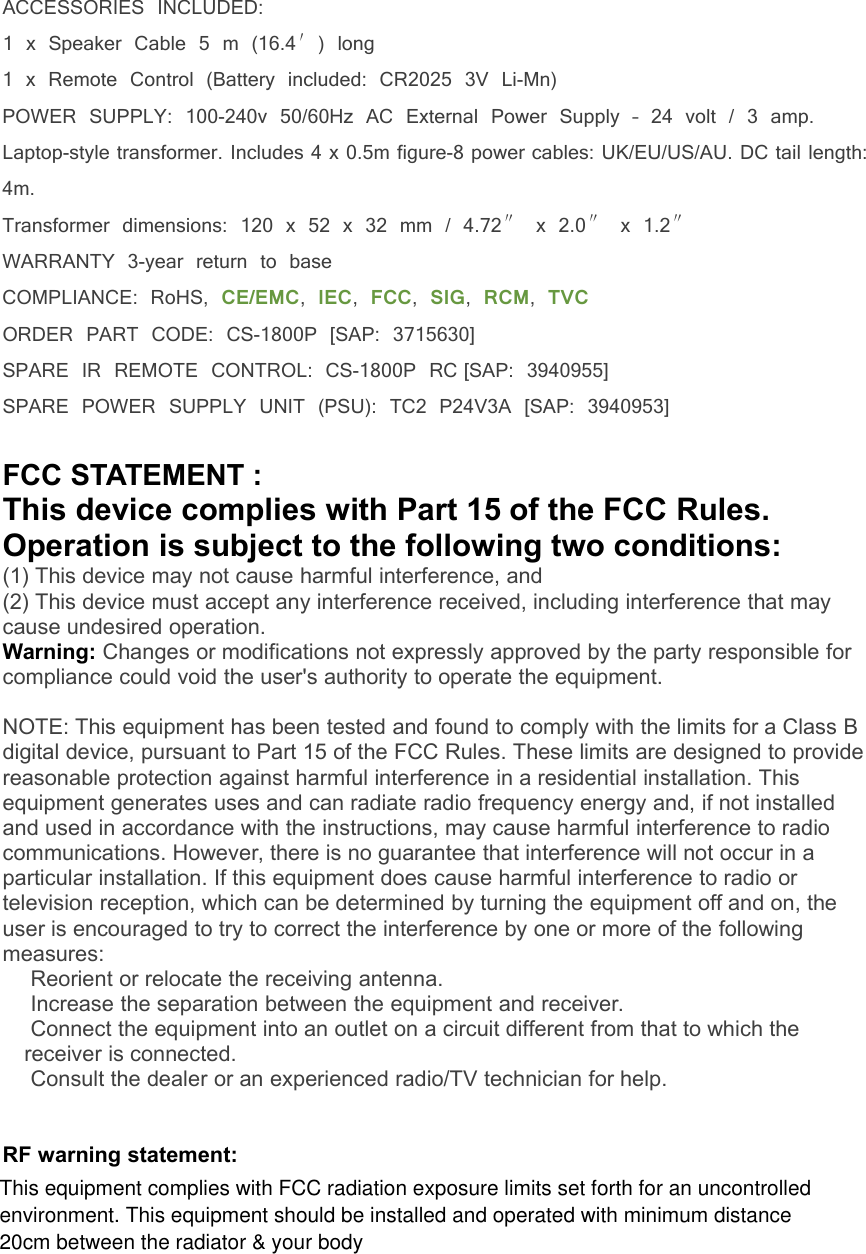

ACCESSORIES INCLUDED:1 x Speaker Cable 5 m (16.4′) long1 x Remote Control (Battery included: CR2025 3V Li-Mn)POWER SUPPLY: 100-240v 50/60Hz AC External Power Supply – 24 volt / 3 amp.Laptop-style transformer. Includes 4 x 0.5m figure-8 power cables: UK/EU/US/AU. DC tail length:4m.Transformer dimensions: 120 x 52 x 32 mm / 4.72″x 2.0″x 1.2″WARRANTY 3-year return to baseCOMPLIANCE: RoHS, CE/EMC,IEC,FCC,SIG,RCM,TVCORDER PART CODE: CS-1800P [SAP: 3715630]SPARE IR REMOTE CONTROL: CS-1800P RC [SAP: 3940955]SPARE POWER SUPPLY UNIT (PSU): TC2 P24V3A [SAP: 3940953]FCC STATEMENT :This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that maycause undesired operation.Warning: Changes or modifications not expressly approved by the party responsible forcompliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to Part 15 of the FCC Rules. These limits are designed to providereasonable protection against harmful interference in a residential installation. Thisequipment generates uses and can radiate radio frequency energy and, if not installedand used in accordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off and on, theuser is encouraged to try to correct the interference by one or more of the followingmeasures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.Consult the dealer or an experienced radio/TV technician for help.RF warning statement:This equipment complies with FCC radiation exposure limits set forth for an uncontrolledenvironment. This equipment should be installed and operated with minimum distance20cm between the radiator & your body
