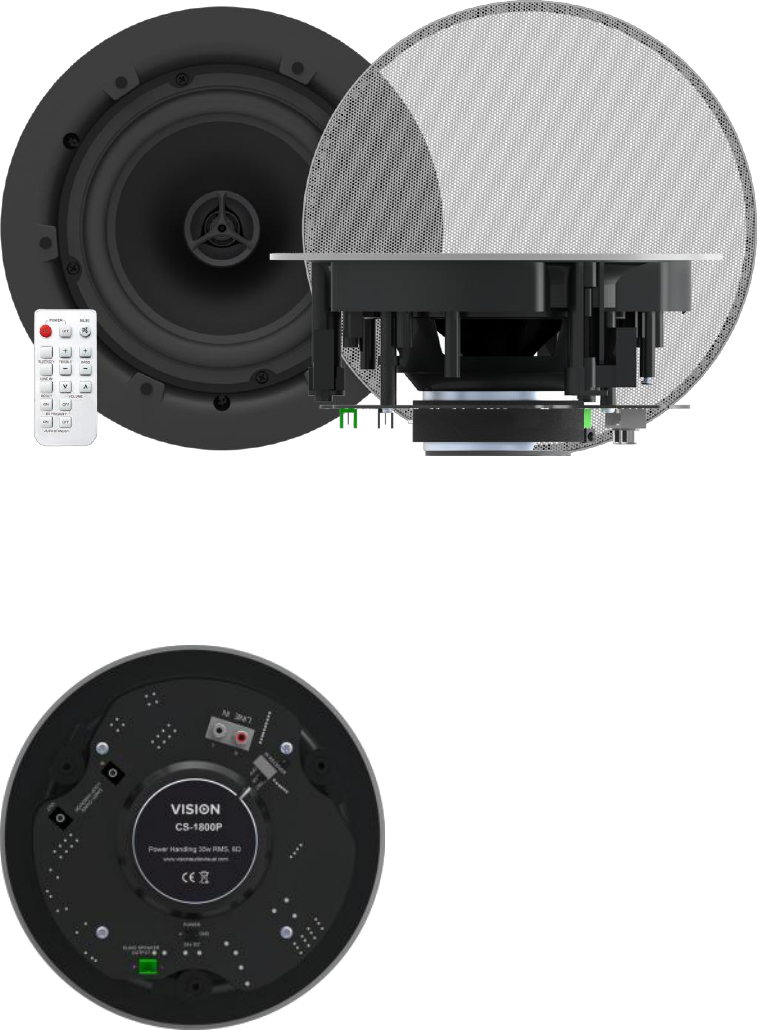

CS-1800P PAIR 60W ACTIVE BLUETOOTH CEILING
SPEAKERS
Snapshot
> Integrated 2 x 30 watt (RMS) amplifier
> 1 x wired input / 1 x Bluetooth input
> Can be daisy-chained
> IR remote included
Details
The CS-1800P are based on Vision’s passive ceiling loudspeakers but have a powerful 60
watt amplifier built in to eliminate the need for an external amplifier. They are suited to meeting
rooms and classrooms where a discrete audio solution is required.
Bluetooth 4.0 LTE
Connect directly from your phone or laptop wirelessly. Note: implementation of Bluetooth drivers
on Windows computers is variable so they don’t always work
Rename Bluetooth
For environments where multiple pairs are used in close proximity the Bluetooth name of each
set can be modified from an Android phone.
Auto-Switching
You can choose to automatically change to the Bluetooth input when a device is paired, or
manually switch when you are ready.
Remote Control
A full range of options are presented on the IR remote control, including bass and treble
adjustment.
IR Front and Rear
Switch between the front IR receiver, or the rear IR receiver (if using a wired control system),
or off.
Master/Slave
Like Vision’s other powered loudspeakers these are packaged and sold as a pair. The amplifier
is housed in the “master” loudspeaker which has the connection panel, and there is a speaker
output which connects to the passive “slave” loudspeaker.
Daisy-Chain
If you require two pairs for the room an audio output allows you to pass the audio signal
on to a second pair of CS-1800P. In fact you can daisy-chain as many pairs as you need
using this line-level audio output.
RS-232
To assist with integration into a fully controlled audio-visual environment these loudspeakers
can be controlled with RS-232 (serial) codes.
Memory
When power is connected the CS-1800P automatically turns on and remembers the previous
input and volume setting. Restoring power brings the loudspeakers back to life automatically.

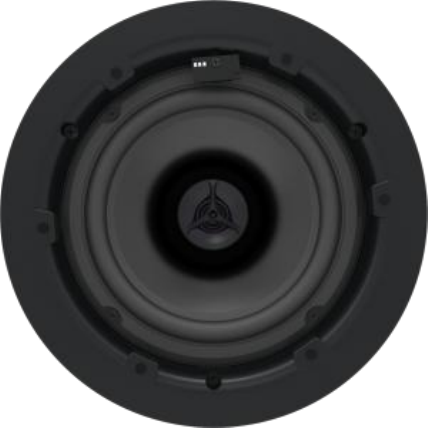

2-Way Drivers
These loudspeakers feature a two-way woofer and tweeter design which sounds great in
presentation or teaching environments.
Auto-Standby
If the amplifier senses no input it will automatically go into standby mode. As soon as you
press play on your source device it will automatically switch on again. This automatic feature
can be disabled with the remote control.
Bezel-less Grille
The bezel-less grille clips into place magnetically once the speakers are secured.
Simple to fit
A cutout template is included so the installer can easily trace the cut line in the ceiling tile.
Cut a 198 mm (7.8″) hole and fit the speaker; it’s quick and easy.

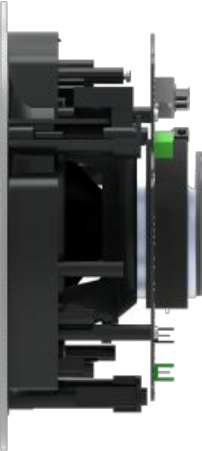

Shallow
Only 95 mm (3.74″) deep, the CS-1800P can be placed optimally around the room. They
fit in any environment which has a false ceiling.
Crossover
A high quality crossover circuit is included to split the work between the woofer and tweeter.
Manual
Specifications
LOUDSPEAKER DIMENSIONS: 232 x 95 mm/ 9.1″x 3.7″(diameter
224 mm without grille)
CUTOUT SIZE: 198 mm / 7.8″
CARTON DIMENSIONS: 250 x 250 x 270 mm / 9.8″x 9.8″x 10.6″
SPEAKER WEIGHT
Master: 1.3 kg / 2.9 lbs
Slave: 1.2 kg / 2.7 lbs
CARTON WEIGHT 4.0 kg / 8.8 lbs (per pair)
CONSTRUCTION MATERIAL: Plastic (ABS)
COLOUR: White
TECHNICAL DETAILS:
Amplifier Output: 2 x 30 watts (RMS)
Woofer: 6.5″Polypropylene
Tweeter: 0.5″Silk
Output Impedance: 8 ohms
Sensitivity: 89 dB (1w/1m)
Frequency response: 80 Hz-20 kHz
Power Consumption: ≤70 w
MASTER LOUDSPEAKER
CONNECTIVITY:
Line-Level Input: 2-Phono or 3.5mm Minijack
Speaker Output: Phoenix connector
Daisy-chain Input: 3.5mm Minijack
Daisy-chain Output: 3.5mm Minijack
SLAVE LOUDSPEAKER INPUT:
Speaker input: Phoenix connector
ACCESSORIES INCLUDED:
1 x Speaker Cable 5 m (16.4′) long
1 x Remote Control (Battery included: CR2025 3V Li-Mn)
POWER SUPPLY: 100-240v 50/60Hz AC External Power Supply – 24 volt / 3 amp.
Laptop-style transformer. Includes 4 x 0.5m figure-8 power cables: UK/EU/US/AU. DC tail length:
4m.
Transformer dimensions: 120 x 52 x 32 mm / 4.72″x 2.0″x 1.2″
WARRANTY 3-year return to base
COMPLIANCE: RoHS, CE/EMC,IEC,FCC,SIG,RCM,TVC
ORDER PART CODE: CS-1800P [SAP: 3715630]
SPARE IR REMOTE CONTROL: CS-1800P RC [SAP: 3940955]
SPARE POWER SUPPLY UNIT (PSU): TC2 P24V3A [SAP: 3940953]
