Aztech Technologies DSL1000EWL ADSL2/2+ 4-Ports 802.11b/g User Manual DSL1000EW L v1 0 Aztech Retail
Aztech Technologies Pte Ltd. ADSL2/2+ 4-Ports 802.11b/g DSL1000EW L v1 0 Aztech Retail
Users Manual
DSL1000EW(L)
ADSL2/2+ 4-Ports 802.11b/g
User Manual
Page 2
of 73
© Copyright 2009 All rights reserved.
No part of this document may be reproduced, republished, or retransmitted in any form or by any means whatsoever,
whether electronically or mechanically, including, but not limited to, by way of photocopying, recording, information
recording, or through retrieval systems without the express written permission. We reserve the right to revise this document
at any time without the obligation to notify any person and/or entity. All other company or product names mentioned are
used for identification purposes only and may be trademarks of their respective owners.
LIMITATION OF LIABILITY AND DAMAGES
THE PRODUCT AND THE SOFTWARES WITHIN ARE PROVIDED "AS IS," BASIS. THE MANUFACTURER AND
MANUFACTURER’S RESELLERS (COLLECTIVELY REFERRED TO AS “THE SELLERS”) DISCLAIM ALL WARRANTIES,
EXPRESS, IMPLIED OR STATUTORY, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF NON-
INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ANY WARRANTIES ARISING
FROM COURSE OF DEALING, COURSE OF PERFORMANCE, OR USAGE OF TRADE. IN NO EVENT WILL THE
SELLERS BE LIABLE FOR DAMAGES OR LOSS, INCLUDING BUT NOT LIMITED TO DIRECT, INDIRECT, SPECIAL
WILLFUL, PUNITIVE, INCIDENTAL, EXEMPLARY, OR CONSEQUENTIAL, DAMAGES, DAMAGES FOR LOSS OF
BUSINESS PROFITS, OR DAMAGES FOR LOSS OF BUSINESS OF ANY CUSTOMER OR ANY THIRD PARTY ARISING
OUT OF THE USE OR THE INABILITY TO USE THE PRODUCT OR THE SOFTWARES, INCLUDING BUT NOT LIMITED
TO THOSE RESULTING FROM DEFECTS IN THE PRODUCT OR SOFTWARE OR DOCUMENTATION, OR LOSS OR
INACCURACY OF DATA OF ANY KIND, WHETHER BASED ON CONTRACT, TORT OR ANY OTHER LEGAL THEORY,
EVEN IF THE PARTIES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE ENTIRE RISK AS TO
THE RESULTS AND PERFORMANCE OF THE PRODUCT OR ITS SOFTWARE IS ASSUMED BY CUSTOMER.
BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABLITY FOR DAMAGES, THE
ABOVE LIMITATION MAY NOT APPLY TO THE PARTIES. IN NO EVENT WILL THE SELLERS’ TOTAL CUMULATIVE
LIABILITY OF EACH AND EVERY KIND IN RELATION TO THE PRODUCT OR ITS SOFTWARE EXCEED THE AMOUNT
PAID BY CUSTOMER FOR THE PRODUCT.
User Manual
Page 3
of 73
Contents
About the Router .......................................................................................................................................................................6
Main Features...................................................................................................................................................... 7
Requirements....................................................................................................................................................10
Package Contents...........................................................................................................................................10
Device Design.................................................................................................................................................... 11
Getting Started.........................................................................................................................................................................13
Planning Your Network.................................................................................................................................14
Remove or Disable Conflicts ....................................................................................................................15
Internet Sharing, Proxy, and Security Applications ................................................................ 15
Configuring TCP/IP Settings.................................................................................................... 16
Configuring Internet Properties................................................................................................ 16
Removing Temporary Internet Files........................................................................................ 17
Setup the Device..............................................................................................................................................18
Connecting to the Internet ....................................................................................................................... 19
Connecting Via Quick Setup3
....................................................................................................3
19
Connecting Wireless Devices ................................................................................................................20
About the Web User Interface.........................................................................................................................................21
Accessing the Web User Interface .......................................................................................................21
Menus.....................................................................................................................................................................21
Device Info3
............................................................................................................................... 21
Quick Setup3
............................................................................................................................. 21
Advanced Setup3
....................................................................................................................... 21
Wireless3
.................................................................................................................................... 21
Diagnostics3
............................................................................................................................... 21
Management............................................................................................................................ 21
Device Info.................................................................................................................................................................................22
Summary .............................................................................................................................................................22
WAN.........................................................................................................................................................................22
Statistics .............................................................................................................................................................23
LAN ........................................................................................................................................... 23
User Manual
Page 4
of 73
WAN.......................................................................................................................................... 23
ATM .......................................................................................................................................... 23
ADSL......................................................................................................................................... 24
Route......................................................................................................................................................................25
ARP ..........................................................................................................................................................................25
DHCP.......................................................................................................................................................................26
Quick Setup ................................................................................................................................................................................27
Advanced Setup......................................................................................................................................................................28
ATM Interface....................................................................................................................................................28
WAN.........................................................................................................................................................................29
LAN...........................................................................................................................................................................34
NAT...........................................................................................................................................................................35
Virtual Servers.......................................................................................................................... 35
Port Triggering.......................................................................................................................... 36
DMZ Host.................................................................................................................................. 37
Security................................................................................................................................................................38
IP Filtering ................................................................................................................................ 38
Parental Control...............................................................................................................................................41
Quality of Service ...........................................................................................................................................42
Queue Config ........................................................................................................................... 43
QoS Classification.................................................................................................................... 44
Routing .................................................................................................................................................................45
Default Gateway....................................................................................................................... 45
Static Route.............................................................................................................................. 45
RIP ............................................................................................................................................ 46
DNS...........................................................................................................................................................................47
DNS Server .............................................................................................................................. 47
Dynamic DNS........................................................................................................................... 48
DSL............................................................................................................................................................................51
DNS Proxy Configuration .............................................................................................................................51
Interface Grouping........................................................................................................................................52
LAN Ports ..............................................................................................................................................................53
IPSec ......................................................................................................................................................................53
Certificate...........................................................................................................................................................55
User Manual
Page 5
of 73
Local ......................................................................................................................................... 55
Trusted CA ............................................................................................................................... 57
Wireless......................................................................................................................................................................................58
Basic ......................................................................................................................................................................58
Security................................................................................................................................................................59
MAC Filter ............................................................................................................................................................60
Wireless Bridge .............................................................................................................................................. 61
Advanced.............................................................................................................................................................62
Station Info.........................................................................................................................................................63
Diagnostics...............................................................................................................................................................................64
Management ............................................................................................................................................................................65
Settings................................................................................................................................................................65
Backup...................................................................................................................................... 65
Update ...................................................................................................................................... 65
Restore Default ........................................................................................................................ 66
System Log .........................................................................................................................................................66
TR-069 Client .................................................................................................................................................... 67
Internet Time .................................................................................................................................................... 67
Access Control.................................................................................................................................................68
Services.................................................................................................................................... 68
IP Addresses............................................................................................................................ 69
Passwords ................................................................................................................................ 70
Update Software............................................................................................................................................... 71
Reboot.................................................................................................................................................................... 71
FCC Notice .................................................................................................................................................................................. 73
User Manual
Page 6
of 73
About the Router
Your router offers an easy way of integrating your computer and other network devices into a single
network. Here are some of the benefits you can obtain from using the router in your home or office:
Integrated Modem Feature Your router is an ideal solution for high speed Internet
connectivity. It is capable of handling the fastest data transfer speed from your Internet provider
and sharing this within your local network devices.
Top Notch Security Your router utilizes built-in firewall security to block service attacks. For
added flexibility, it can be modified to allow specific applications to pass through while blocking
intrusive threats at the same time.
Intuitive User Interface Applying changes on the router settings can be done easily using a
Web browser. The router uses a simplified user interface that allows you to apply the
configurations you want for the various features of the router.
Your router will serve as the central figure in establishing your local area network (LAN) by using a
combination of hardware and software. The hardware includes the cables, wireless access points, and
Ethernet ports that create the path to connect your devices. The software part includes the applications
that manage the flow of information in these devices.
You can complete the basic installation and Internet connection within 8 minutes. Some more time is
needed if you intend to utilize more advanced functions but it can be worth it. Advanced features like
port forwarding will help you create your own web server to store your Web site, Dynamic DNS allows
you to access your network from the Internet, and remote access enables you to configure your router
settings from different locations.
Once installation is complete, it will be much more easier for you to enjoy voice communication, high
speed Internet, and data/audio/video sharing within your network.
User Manual
Page 7
of 73
Main Features
ADSL Support
ANSI T1.413 issue 2, ITU-T G.992.1 (G.dmt) and G.992.2 (G.lite) compliant
G.992.3 (ADSL2), G.992.5 (ADSL2+), RE-ADSL Ready
ATM Layer with Traffic shaping QoS Support (UBR, CBR, VBR-rt, VBR-nrt)
AAL ATM Attributes - AAL5
Multiple PVC up to 8 support
Spectral compatibility with POTS
F4 & F5 OAM Loopback/Send and Receive
Annex A, Annex B, Annex M Support
TR048 and TR067 compliant
PVC support VPI=8, VCI=35
Encapsulation Support
RFC2684 Bridge and Routed LLC and VC Mux support
RFC2364 PPPoA Client support
RFC2516 PPPoE Client support
RFC2225/RFC1577 Classical IP Support
Transparent Bridge Support
PAP/CHAP/MS-CHAP for Password Authentication Support
Network Support
Static IP, Dynamic RIP v1/v2 routing support
IP/TCP/UDP/ICMP/ARP Application Support
Network Address Translation (NAT)
PVC to VLAN Mapping
Port Forwarding/Triggering
Easy setup of Port Forwarding rules for popular Games/Application
NAT Application Level Gateway for popular applications
DHCP Server/Relay/client
DNS Relay Agent
DMZ support
SIP ALG (Application Layer Gateway) support
User Manual
Page 8
of 73
Multiple Sessions IP Sec and PPTP/L2TP VPN pass through support
PPP Always on
PPP Dial on Demand with configurable timeout
Universal Plug and Play Support
DDNS (Dynamic DNS) Support
IGMP Proxy Support (IGMP v1 and v2)
SNTP Support
QoS Support (DSCP, TOS), including Diffserv, IEEE802.1p - Priority bit, IEEE802.1q - VLAN
triggering
PPP/DHCP Auto Detection (Future release)
TR-069 Compliant
WLAN Support
Wireless on Motherboard (WOMBO)
IEEE 802.11, 802.11b and 802.11g compliant
Supports 802.11b, 802.11g simultaneously
Transmit output power up to 20dBm (standard)
Conforms to Wireless Ethernet Compatibility Alliance (WECA) Wireless Fidelity (Wi-Fi
tm
)
Standard
Support seamless WLAN roaming
Frequency Band:
- 2412 MHz - 2462 MHz (North America/FCC)
- 2412 MHz - 2472 MHz (ETSI/Europe)
- 2412 MHz - 2484 MHz (Japan)
- 2457 MHz - 2472 MHz (France)
- 2457 MHz - 2462 MHz (Spain)
Support Direct Sequence Spread Spectrum (DSSS) technology
Modulation: OFDM with BPSK, QPSK, 16QAM, 64QAM, DBPSK, DQPSK, CCK
Wireless Media Access Protocol- CSMA/CA with ACK
64/128 WEP Encryption
WPA/WPA2 Support
MAC filtering Support
Dynamic Rate Scaling from 54, 48, 36, 24, 12, 11, 9, 6, 5.5, 2, 1 Mb/s
Operating Range of >300 Meters (Open Air)
WDS Support (Wireless Distribution System)
Multiple SSID Support (2)
User Manual
Page 9
of 73
Management Support
Web Based HTTP management GUI
TFTP/FTP Support for Firmware Upgrade
Web Based Firmware Upgrade (Local)
Soft Factory Reset Button via Web GUI
Diagnostic Test (DSL, OAM (ADSL), Network (ADSL), Ping Test)
TR068 - WAN Access
Telnet with CLI (Read and Write) configuration
Syslog Support
Firmware upgrade-able for future feature enhancement
Quick firmware upgrade button (depopulation option)
TR-069 Compliant
SNMP v1 and v2
SSH Support
Security Support
NAT for basic Firewall support
Packet Filtering Firewall Support
Stateful Packet Inspection Support
Protection against Denial of Service attacks
Password Authentication to Modem
URL filtering/ Parental Control (Option)
Real-Time Attack and Alert Logs (Option)
User Manual
Page 10
of 73
Requirements
Your computer must meet the following minimum requirements.
Any operating system can be used
Internet Explorer 4.0 or Netscape Navigator 3.02
233MHz processor
CD-ROM Drive
Ethernet network adapter
An active DSL Internet account
Package Contents
Package contents are listed below. For any missing items, please contact your dealer immediately.
Product contents vary for different models.
Router
Ethernet cable
Telephone cable
POTS Splitter (Optional)
12V 1A DC Power Adapter
Easy Start Guide
Resource CD
User Manual
Page 11
of 73
Device Design

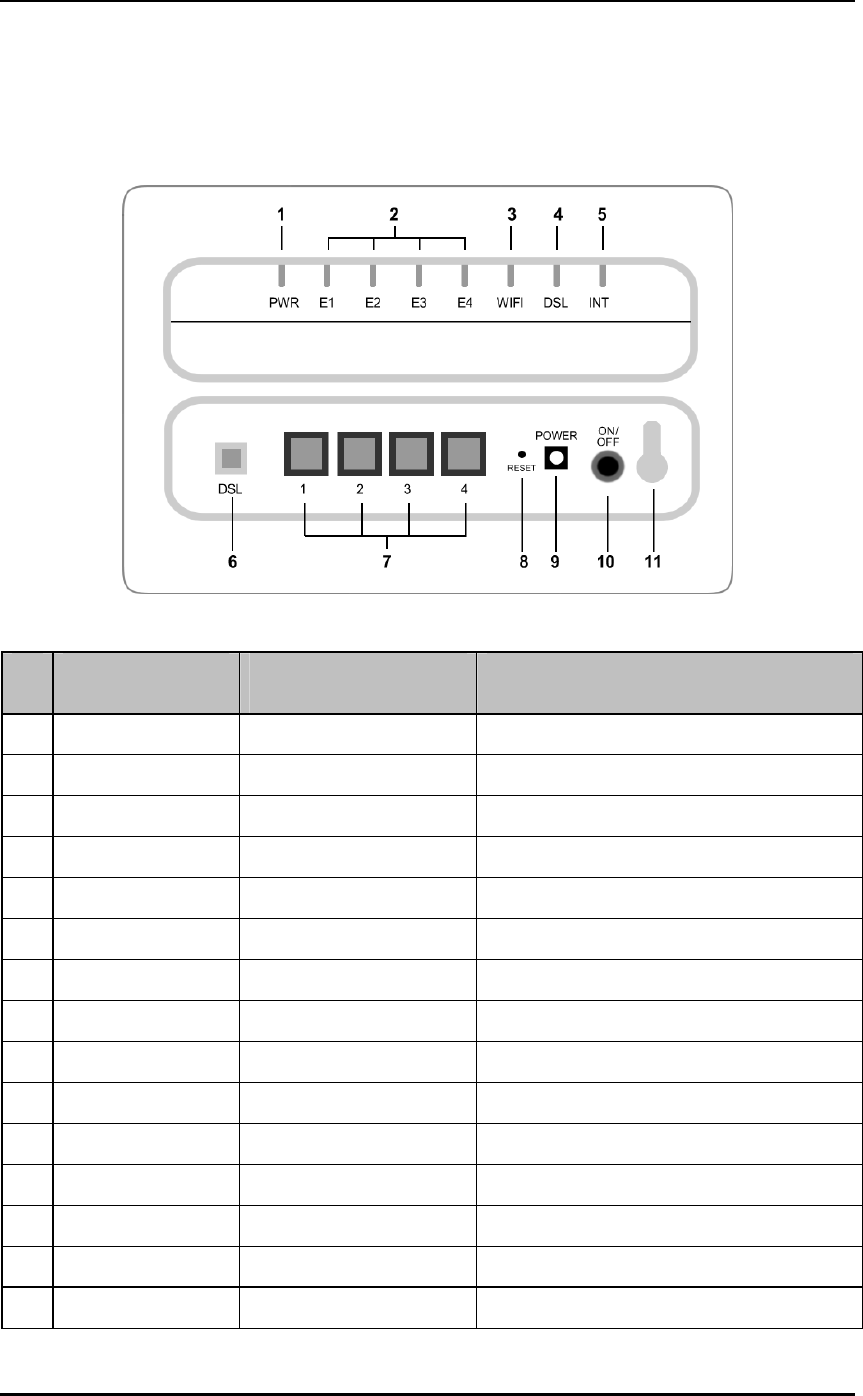

Label Action Description
1 POWER Off No power is supplied to the device
Steady green light Connected to an AC power supply
Steady red light Error on the device
2 ETHERNET 1-4 Off No Ethernet connection
Steady green light Connected to an Ethernet port
Blinking green light Transmitting/Receiving data
3 WIFI Off Access point is disabled
Steady green light Access point is enabled
Blinking green light Transmitting/Receiving data
4 DSL Off No DSL signal
Blinking green light Establishing DSL signal
Steady green light DSL signal is established
5 INTERNET Off No Internet connection
Steady green light Connected to the Internet
Blinking green light Transmitting/Receiving data
User Manual
Page 12
of 73
Steady red light Cannot establish Internet connection
6 DSL Connecting the telephone cable
7 ETHERNET 1-4 Connecting with computers/devices through Ethernet
cable
8 RESET Resetting the device. Press for 10 seconds to reset.
9 POWER (12V 1A DC) Connecting with the 12V 1A DC power adapter
10 ON/OFF Switching the device on/off
11 Antenna Sending/receiving wireless signals
User Manual
Page 13
of 73
Getting Started
Setting up the device is easy. The flowchart below provides an outline of the steps needed to complete
the installation. Brief descriptions appear beside each step. Detailed instructions are provided in the
subsequent pages.
Remove/Disable
Conflicts
Plan your Network
Ready to Use
Setup the Router
Connect to the
Internet
Web Interface
Use Quick Setup
You may need to check some setting or
disable some application before
installation.
Connect the telephone cables, Ethernet
cables, and power adaptor.
Use the Quick Start Web GUI to setup
your PPPoE connection.
User Manual
Page 14
of 73
Planning Your Network

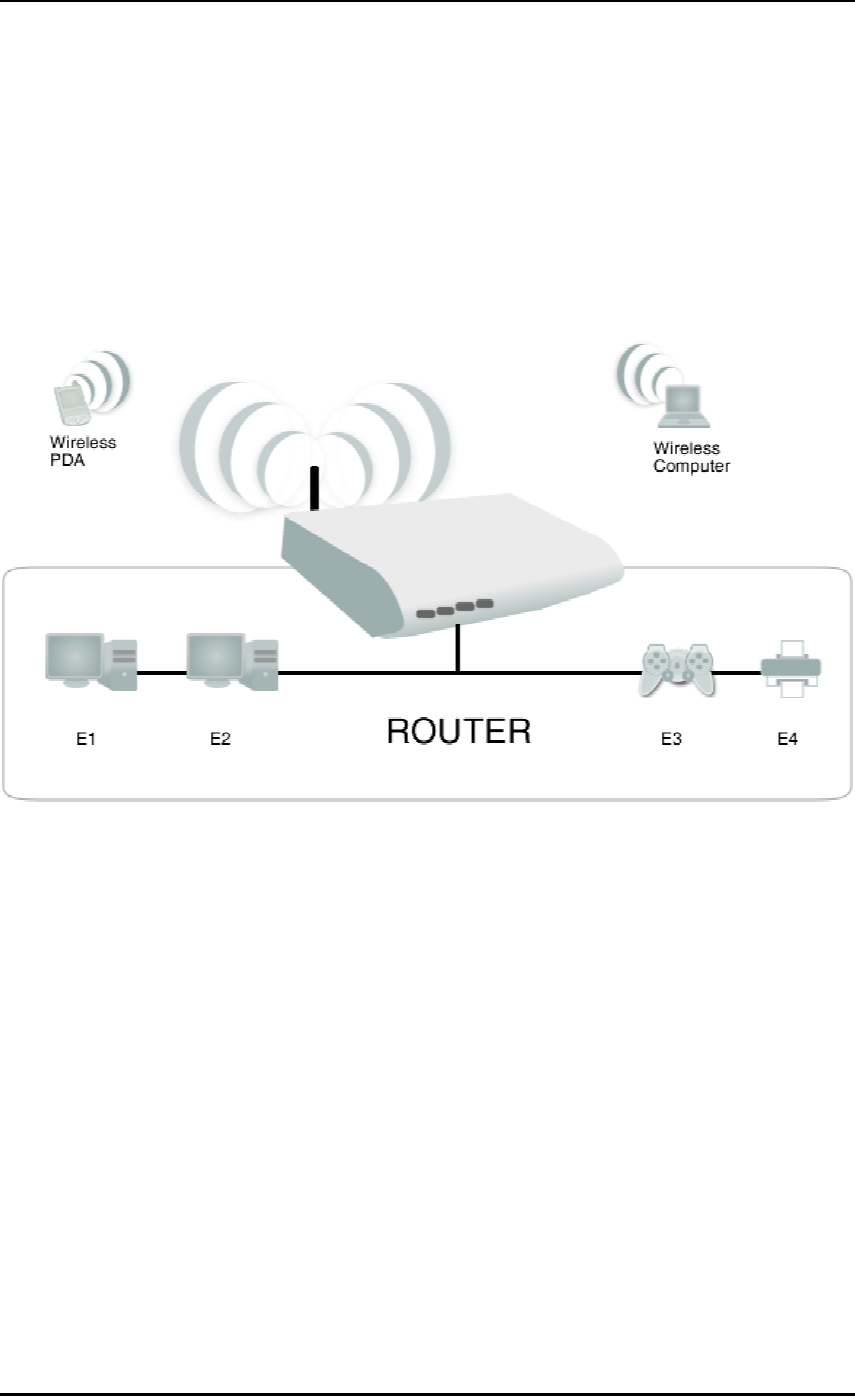

Before moving ahead to setup your network, it is a good idea to draw out a network diagram to help
identify your network devices and plan out how to connect these devices. The illustration below is an
example of a network diagram.
To create a network diagram:
For wireless devices, identify the wireless devices you want to include in the network
For wired devices, identify which router port you want to use for each device.
User Manual
Page 15
of 73
Remove or Disable Conflicts
To make sure the router installation moves on smoothly, you need to remove or disable conflicts that
may interfere the installation. Probable conflicts may include:
Internet sharing applications
Proxy software
Security software
TCP/IP settings
Internet properties
Temporary Internet files
Internet Sharing, Proxy, and Security Applications
Internet sharing, proxy software, and firewall applications may interfere with the router installation.
These should be removed or disabled before start the installation.
If you have any of the following or similar applications installed on your computer, remove or disable
them according to the manufacturer’s instructions.
Internet Sharing Applications Proxy Software Security Software
Microsoft Internet Sharing WinGate Symantec
WinProxy Zone Alarm
User Manual
Page 16
of 73
Configuring TCP/IP Settings
Check if your computer uses the default TCP/IP settings.
To check the TCP/IP properties:
1. Select Start > Run. This opens the Run dialog box.
2. Enter control ncpa.cpl and then click OK. This opens the Network Connections in your
computer.
3. Right-click LAN and then select Properties. This opens the Local Area Connection Properties
dialog box.
4. Select Internet Protocol (TCP/IP) and then click Properties. This opens the Internet Protocol
(TCP/IP) dialog box.
5. Select Obtain an IP address automatically.
6. Click OK to close the Internet Protocol (TCP/IP) dialog box.
7. Click OK to close the Local Area Connection Properties dialog box.
Configuring Internet Properties
To set the Internet Properties:
1. Select Start > Run. This opens the Run dialog box.
2. Enter control inetcpl.cpl and then click OK. This opens Internet Properties.
3. Click Connections tab.
4. In the Dial-up and Virtual Private Network settings pane, select Never dial a connection.
5. Click OK to close Internet Properties.
User Manual
Page 17
of 73
Removing Temporary Internet Files
Temporary Internet files are files from Web sites that are stored in your computer. Delete these files to
clean the cache and remove footprints left by the Web pages you visited.
To remove temporary Internet files:
1. Select Start > Run. This opens the Run dialog box.
2. Enter control and then click OK. This opens Control Panel.
3. Double-click Internet Options. This opens Internet Options.
4. In the Temporary Internet Files pane, click Delete Cookies.
5. Click Delete Files.
6. Click OK to close Internet Properties.
User Manual
Page 18
of 73
Setup the Device
When installing the router, find an area where there are enough electrical outlets for the router, the
main computer, and your other computer devices.
To setup the router:
1. Plug one end of the Ethernet cable from the router’s ETHERNET port and then plug the other
end into the Ethernet port in your computer.
2. If you have another device you need to connect through wire into the router, use another piece
of Ethernet cable. Plug one end of the Ethernet cable from the computer’s Ethernet port and
then plug the other end into an available Ethernet port in the router.
3. Plug one end of the telephone cable from the POTS Splitter’s ADSL port and then plug the
other end into the router’s DSL port.
POTS Splitter
Your phone line carries with it both phone calls and Internet signals. When you are using the
Internet, the connection produces high-pitched tones that can affect your voice calls when using the
phone. Installing a Plain Old Telephone Service (POTS) splitter separates the two signals and
eliminates the noise.
To setup a telephone on the POTS Splitter:
a. Locate the phone jack in your house.
b. Insert the POTS Splitter into the phone jack.
c. Plug one end of the telephone cable from the POTS Splitter’s TEL port and then plug the other
end into the telephone.
4. Connect the power adapter from the router’s 12V 1A DC port into the electrical outlet.
5. Press ON.
User Manual
Page 19
of 73
Connecting to the Internet
You can use the Web Interface to setup your Internet connection.
Connecting Via Quick Setup
To connect to the Internet via the Web Interface:
1. Open your browser.
2. Enter 192.168.1.1 and then press Enter.
3. Enter the User name and Password, and then click OK. The default User name and Password
is admin.
4. Select Quickstart.

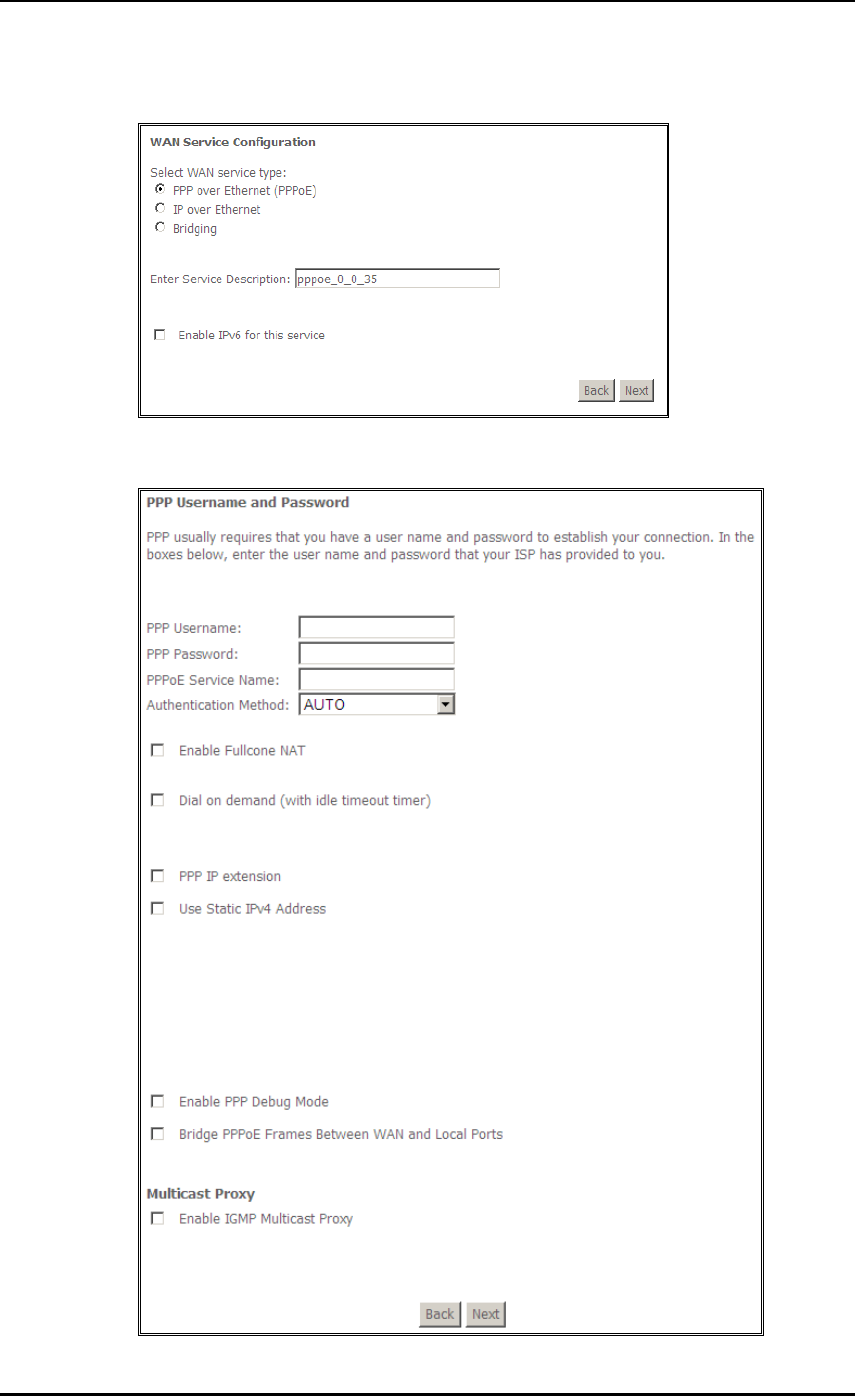

5. Enter the connection settings
a. Select a Protocol and Encapsulation Mode
b. Enter PVC Settings
c. Enter the PPP Username and Password
6. Click Save/Apply.
User Manual
Page 20
of 73
Connecting Wireless Devices
After you setup the device settings through the main computer, you can connect other devices with
wireless capabilities. Wireless devices relieve you from the task of laying out cables and allow you to
use the Internet connection from your router.
To the connect with wireless devices:
1. Turn on your wireless device.
2. Open the software you use to detect a wireless connection. This opens a window to ask for the
connection settings.
3. Enter the connection settings. These settings are defined in your router during setup. For more
details about wireless connections, please refer to Wireless Menu.
User Manual
Page 21
of 73
About the Web User Interface
The Web User Interface is used to configure the router settings.
Accessing the Web User Interface

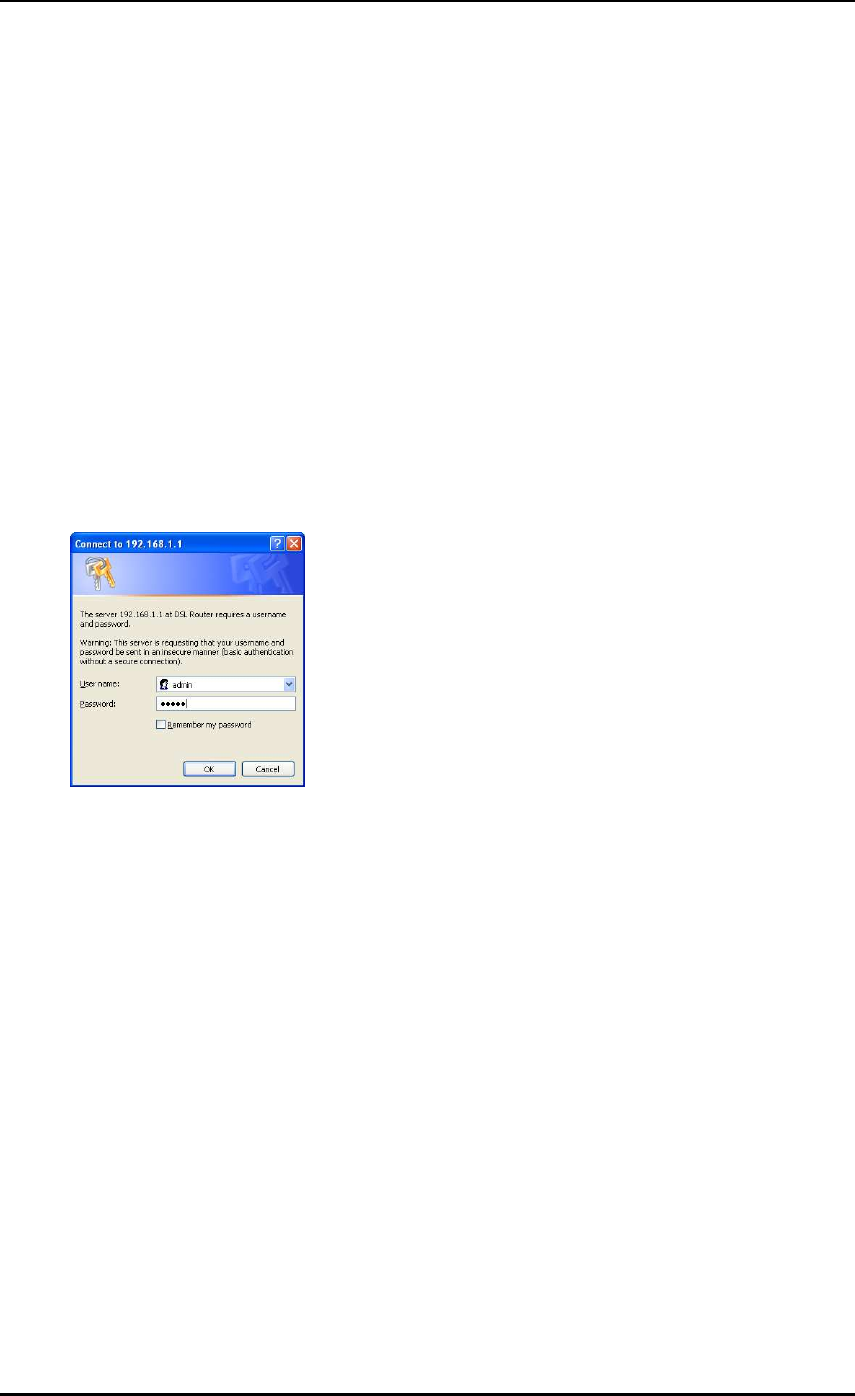

To access the Web User Interface:
1. Open your browser.
2. Enter 192.168.1.1 and then press Enter.
3. Enter the User name and Password, and then click OK.
Default Username and Password is admin.
Menus
The Web User Interface includes the following menus:
Home
Quickstart
Device Info
Advanced Setup
Wireless
Diagnostics
Management
User Manual
Page 22
of 73
Device Info
Summary
Summary provides an overview of the operating parameters used in your device.
To view Summary:
1. Select Device Info.
2. Click Summary.
WAN
WAN displays a summary of the WAN connection settings.
To view WAN:
1. Select Device Info.
2. Click WAN.
User Manual
Page 23
of 73
Statistics
Statistical information is provided and displayed by LAN, WAN, ATM, and ADSL.
LAN
LAN displays a statistical summary of the data transaction for each interface.
To view LAN statistics:
1. Select Device Info.
2. Click Statistics > LAN.
WAN
LAN displays a statistical summary of the data transaction for each connection.
To view LAN statistics:
1. Select Device Info.
2. Click Statistics > WAN.
ATM
Asynchronous Transfer Mode (ATM) displays a statistical summary of the data transaction for the ATM
interface.
To view ATM statistics:
1. Select Device Info.
2. Click Statistics > ATM.
User Manual
Page 24
of 73
ADSL
ADSL displays a statistical summary of the ADSL connection.
To view ADSL statistics:
1. Select Device Info.
2. Click Statistics > ADSL.
User Manual
Page 25
of 73
Route
Route displays the routing rules implemented in the router.
To view Route:
1. Select Device Info.
2. Click Router.
ARP
Address Resolution Protocol (ARP) displays the HW address of each IP device.
To view ARP:
1. Select Device Info.
2. Click ARP.
User Manual
Page 26
of 73
DHCP
DHSCP displays all the DHCP clients connected to the router.
To view DHCP:
1. Select Device Info.
2. Click DHCP.
User Manual
Page 27
of 73
Quick Setup
Quick Setup is used to establish an Internet connection.
To use Quick Setup:
1. Open your browser.
2. Enter 192.168.1.1 and then press Enter. This opens Connect to 192.168.1.1.
3. Enter the User name and Password, and then click OK. The default User name and Password
is admin.
4. Select Quick Setup.
5. Enter the connection settings
a. Select a Protocol
b. Select an Encapsulation Mode
c. Enter the PPP Username and Password
d. Enter PVC Settings
e. Check Enable Wireless
f. Enter an SSID
6. Click Save/Reboot.
The router will save your settings and reboot. It will connect to the Internet after the reboot.
When the connection is established, the Internet LED on the router lights or blinks green.
User Manual
Page 28
of 73
Advanced Setup
Advanced Setup provides configuration options for other router functions.

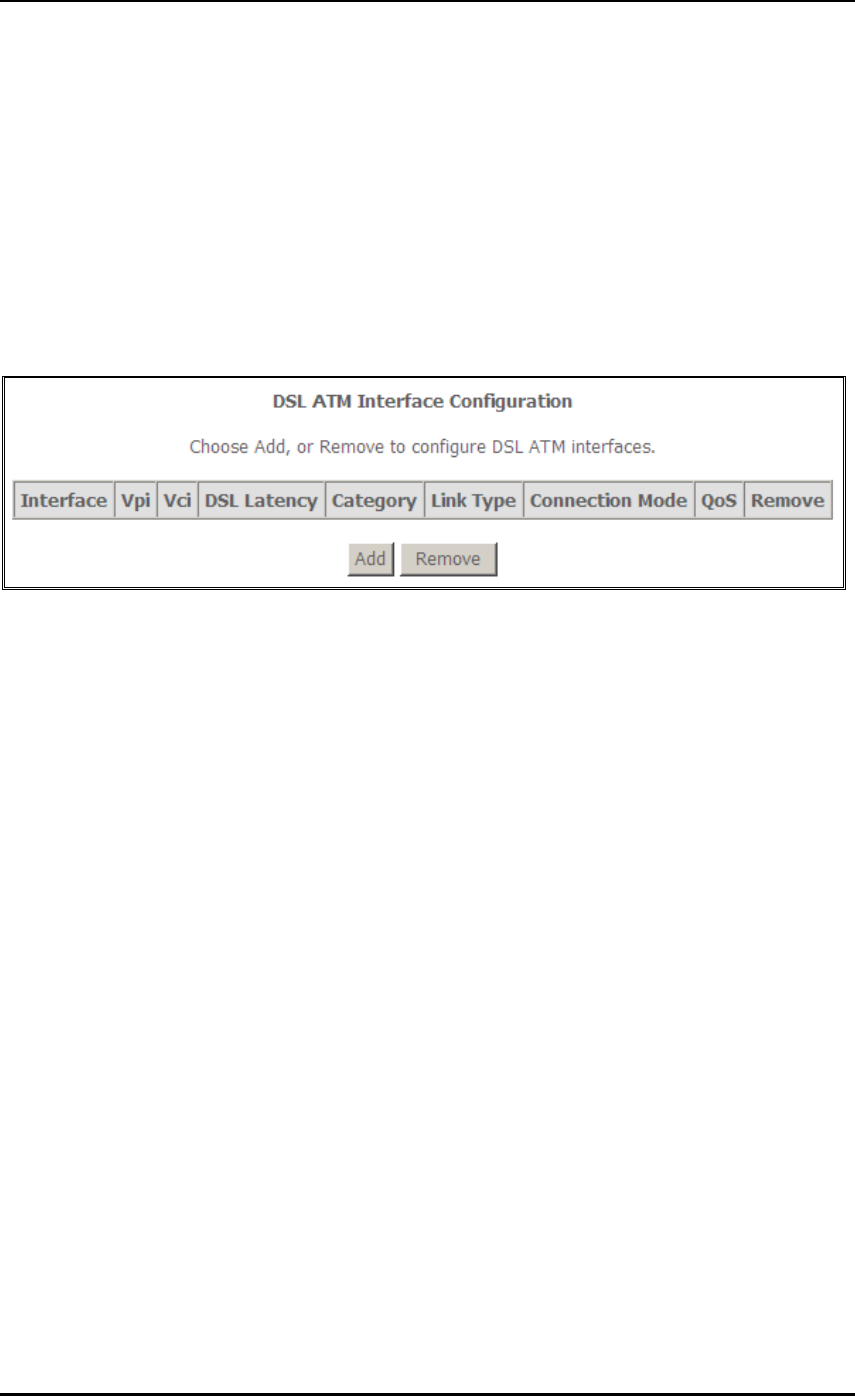

ATM Interface
ATM Interface allows you to add, edit, or remove ATM interface configurations.
To create a new ATM interface configuration:
1. Select Advanced Setup.
2. Click Layer2 Interface
3. Click ATM Interface.
4. Click Add.
5. Enter the ATM interface settings:
a. Enter the ATM PVC Configuration, QoS Setting, and then click Apply/Save.
User Manual
Page 29
of 73
WAN
WAN allows you to add, edit, or remove WAN connections.
To create a new WAN connection:
1. Select Advanced Setup.
2. Click WAN.
User Manual
Page 30
of 73
3. Click Add.
4. Enter the connection settings:

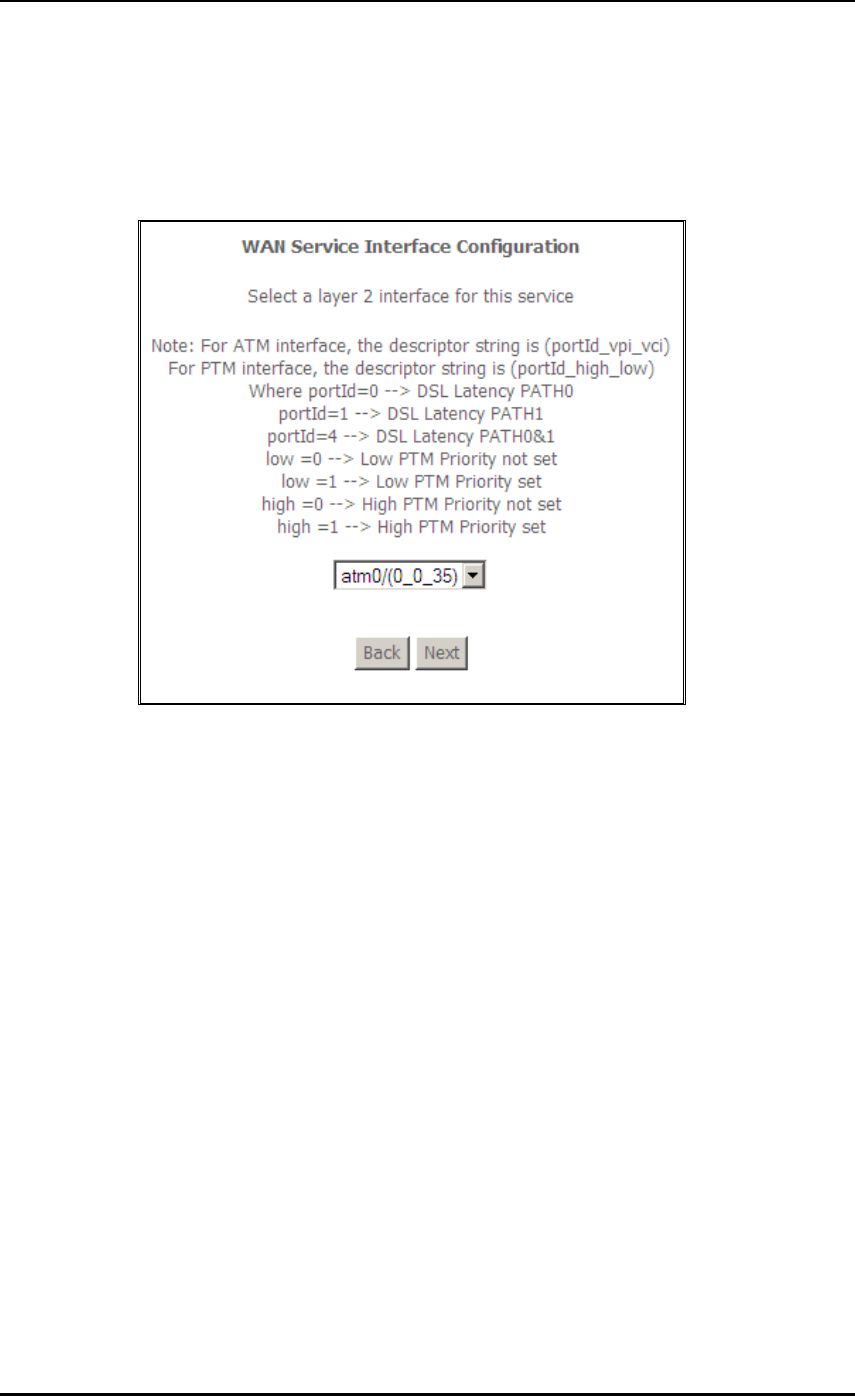

a. Choose a layer 2 interface, and then click Next.
User Manual
Page 31
of 73

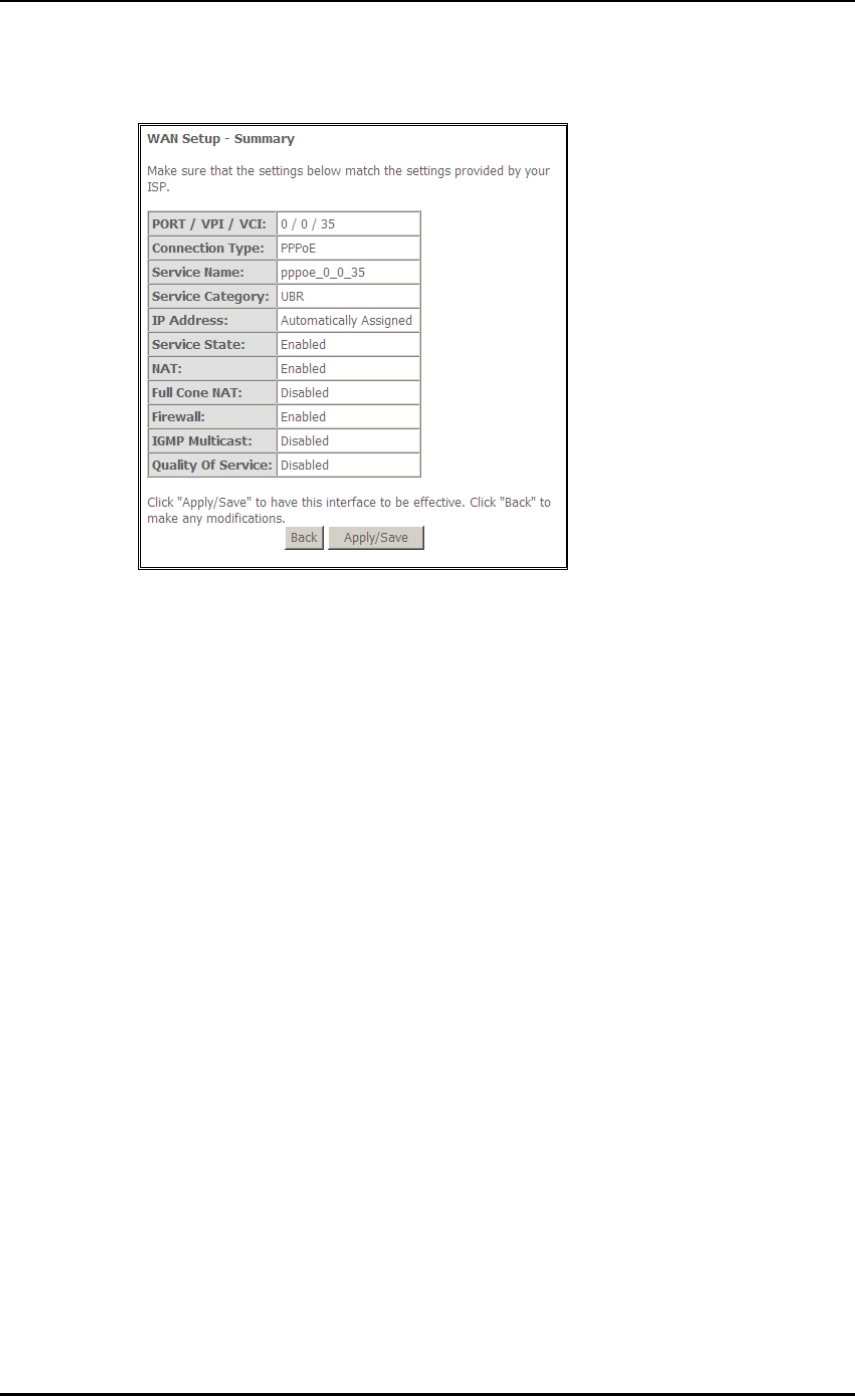

b. Select the WAN service type, and then click Next.
c. Key-in the PPP login information.
User Manual
Page 32
of 73
d. Select the wan interface as the system default gateway.
e. Configure the DSN server.
User Manual
Page 33
of 73
5. Click Apply/Save.
User Manual
Page 34
of 73

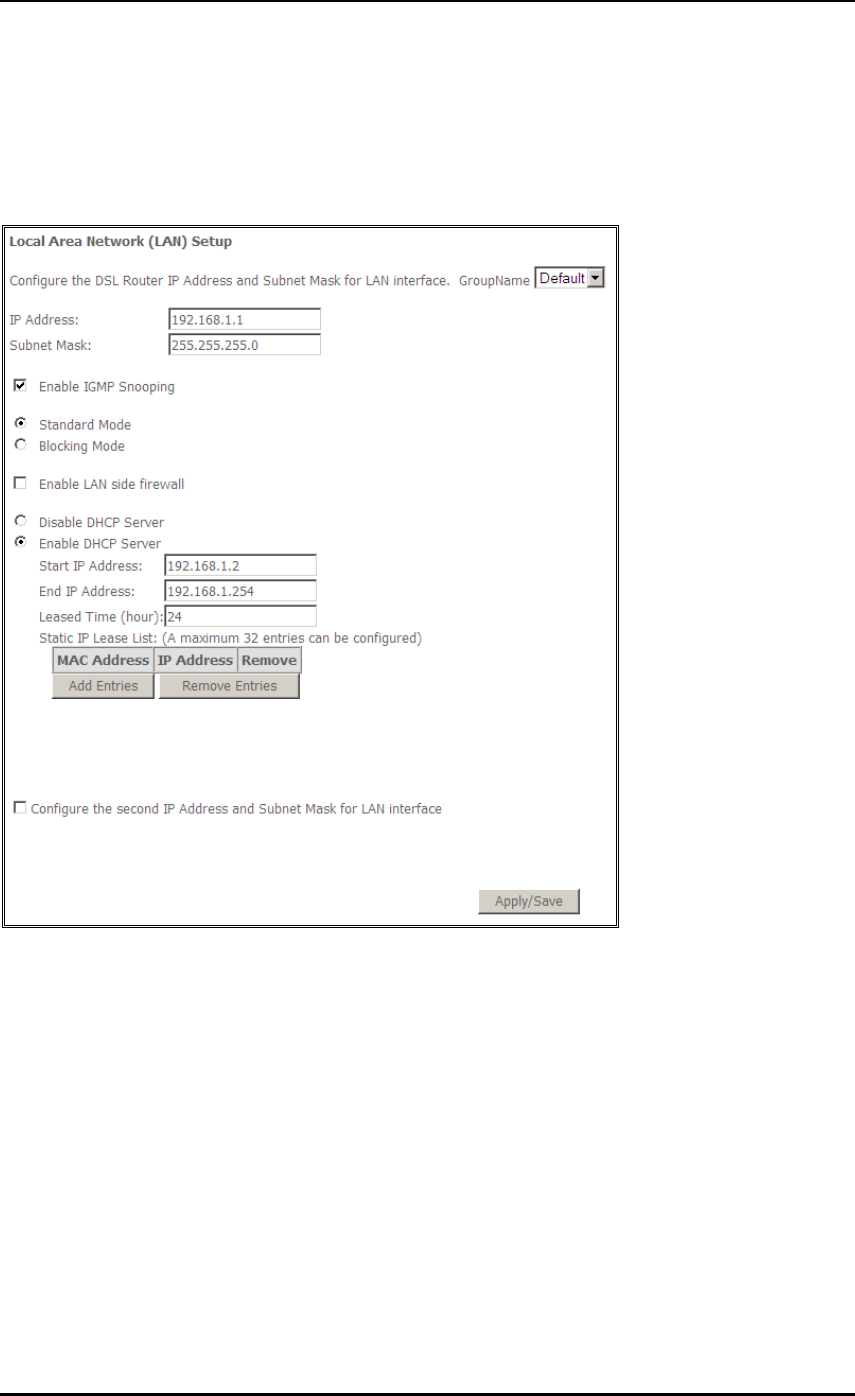

LAN
LAN allows you to modify the settings for your local network.
User Manual
Page 35
of 73
NAT
The routers NAT features include Virtual Servers, Port Triggering, and DMZ Host.

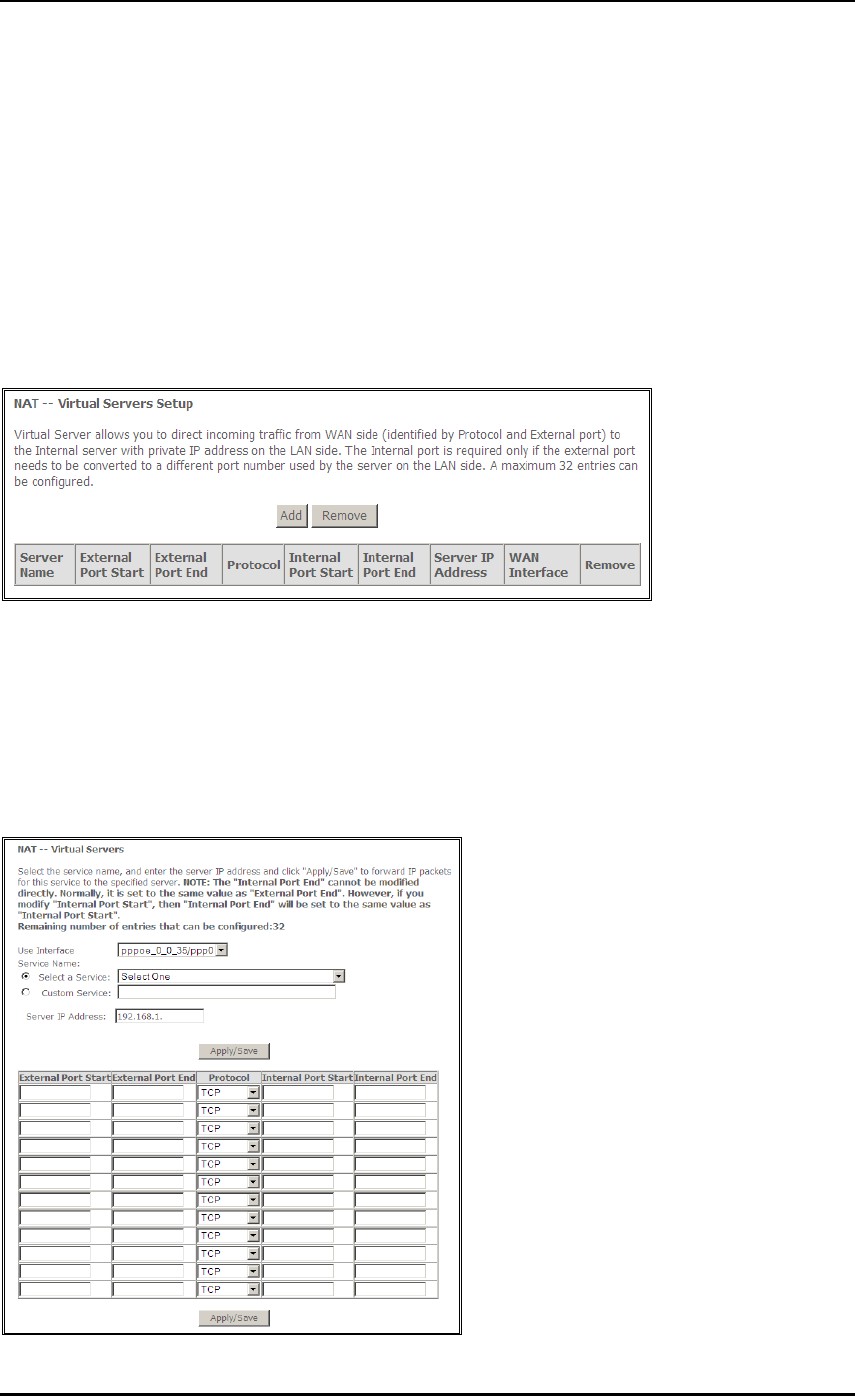

Virtual Servers
Virtual Server allows you to direct incoming traffic from the Internet to a specific computer in your local
network. A maximum 32 entries can be configured.
Click Add to create a Virtual Server.
As an example, to setup a web server on a computer using 192.168.1.88 as its IP Address, select
HTTP as Service and enter 192.168.1.88 as the Server IP Address. Otherwise if the service you want
to setup is not available from the Select a Service drop-down list, you can define your own Virtual
Server.
User Manual
Page 36
of 73
Port Triggering

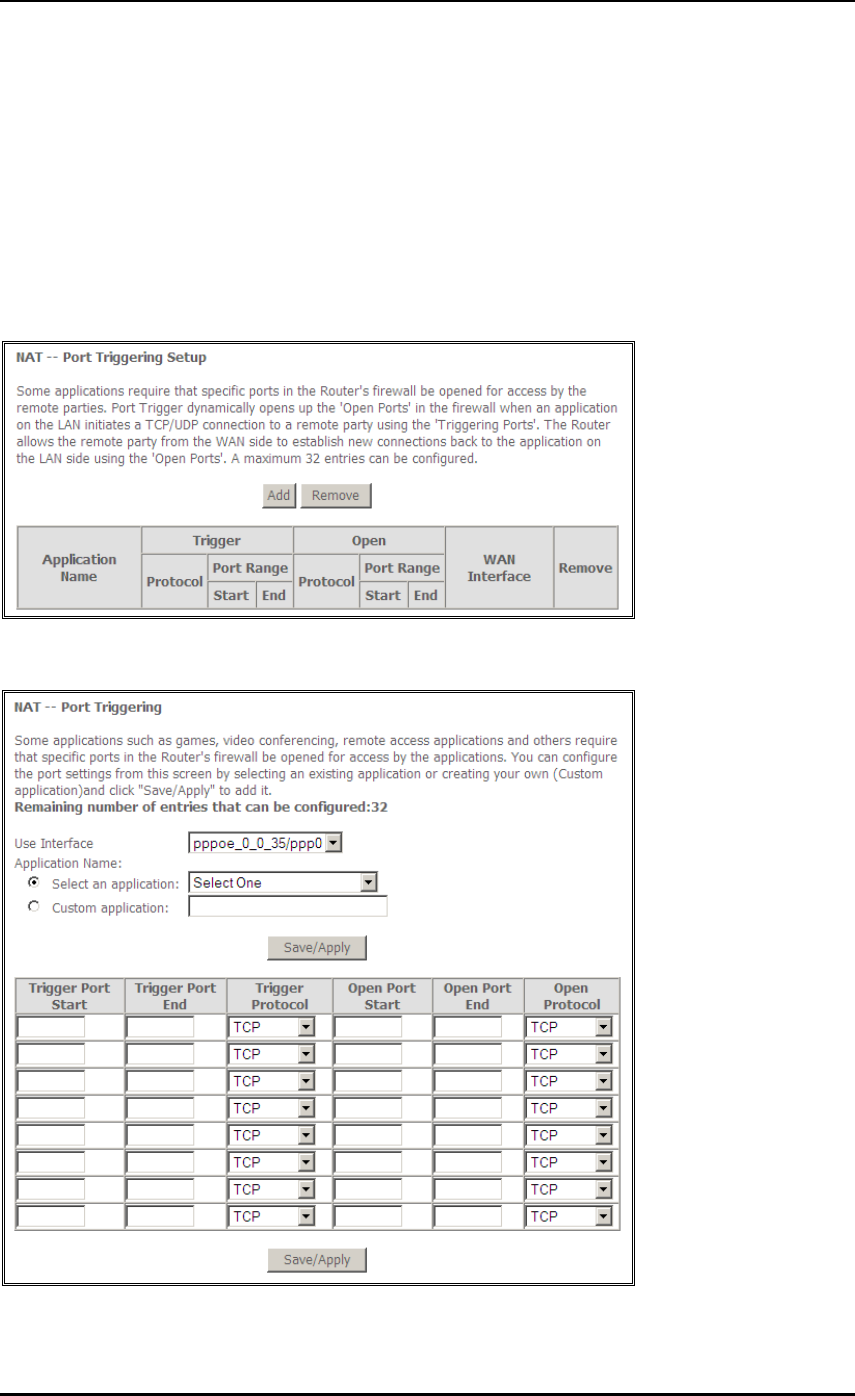

Some applications require that the specific ports in the router’s firewall be opened for access by the
remote parties. For instance, an application uses port 25 for requests and port 113 for replies. If a
computer on the LAN connects to port 25 on a remote server hosting this application, using Port
Triggering on the router, incoming connections to port 113 (from the remote server) could be redirected
to the PC which initiated the request. A maximum of 32 entries can be configured.
Click Add to setup Port Triggering.
User Manual
Page 37
of 73

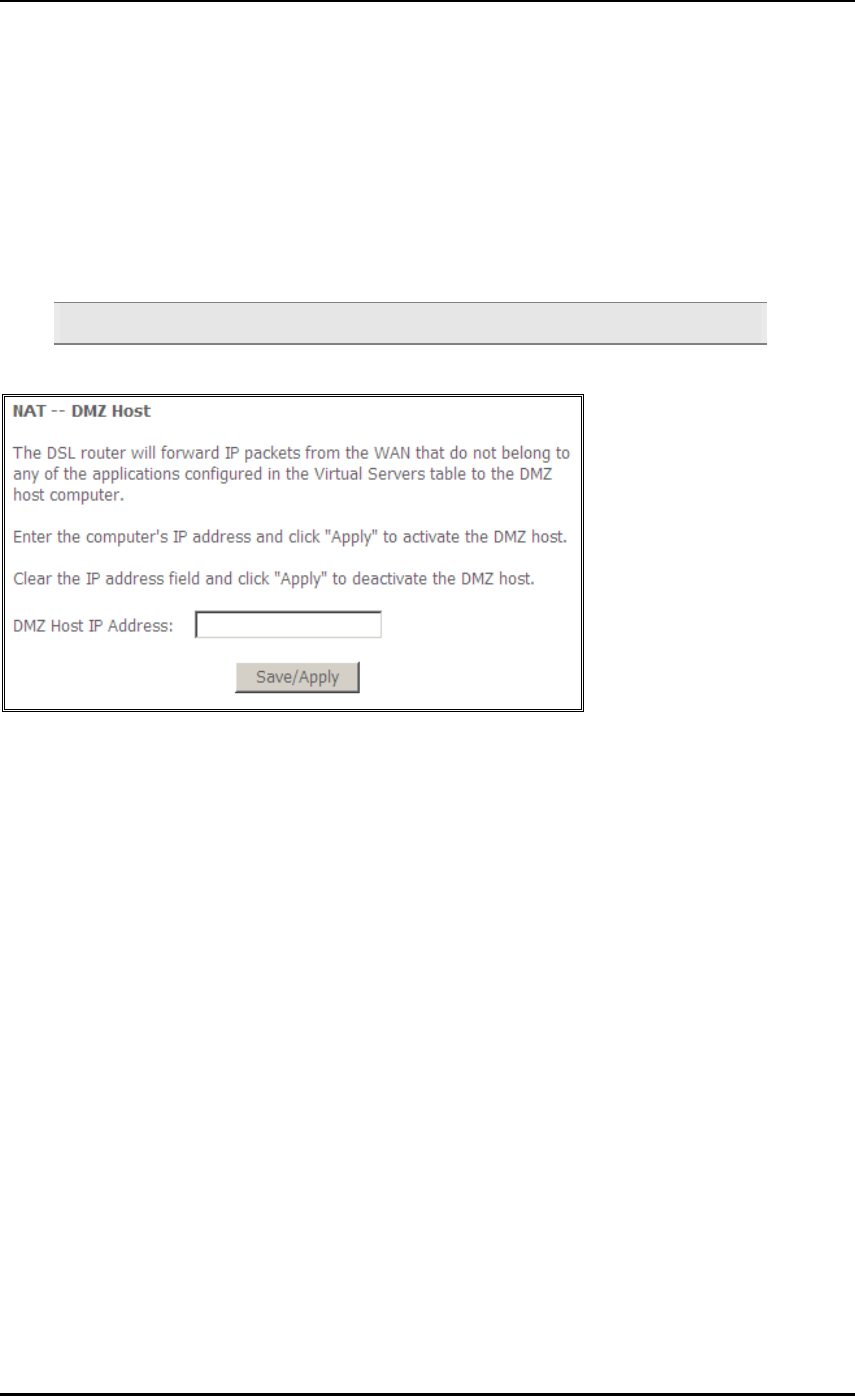

DMZ Host
If a computer is assigned as a DMZ Host, it will receive all the data from the Internet that do not belong
to the list of applications configured as a Virtual Server. Enter the LAN IP address of the PC you wish to
set as DMZ Host in the DMZ Host IP Address. If you need to disable the DMZ Host, just clear the DMZ
Host IP Address field, and then click Save/Apply.
Note: DMZ exposes your computer to the Internet and will be vulnerable to malicious attacks.
User Manual
Page 38
of 73
Security
IP Filtering
The router supports IP Filtering, which allows you to easily set up rules to control incoming and
outgoing Internet traffic. The router provides two types of IP filtering: Outgoing IP Filtering and Incoming
IP Filtering.
Outgoing IP Filtering
By default, the router allows all outgoing Internet traffic from the LAN but by setting up Outgoing IP
Filtering rules, you can block some users and/or applications from accessing the Internet.

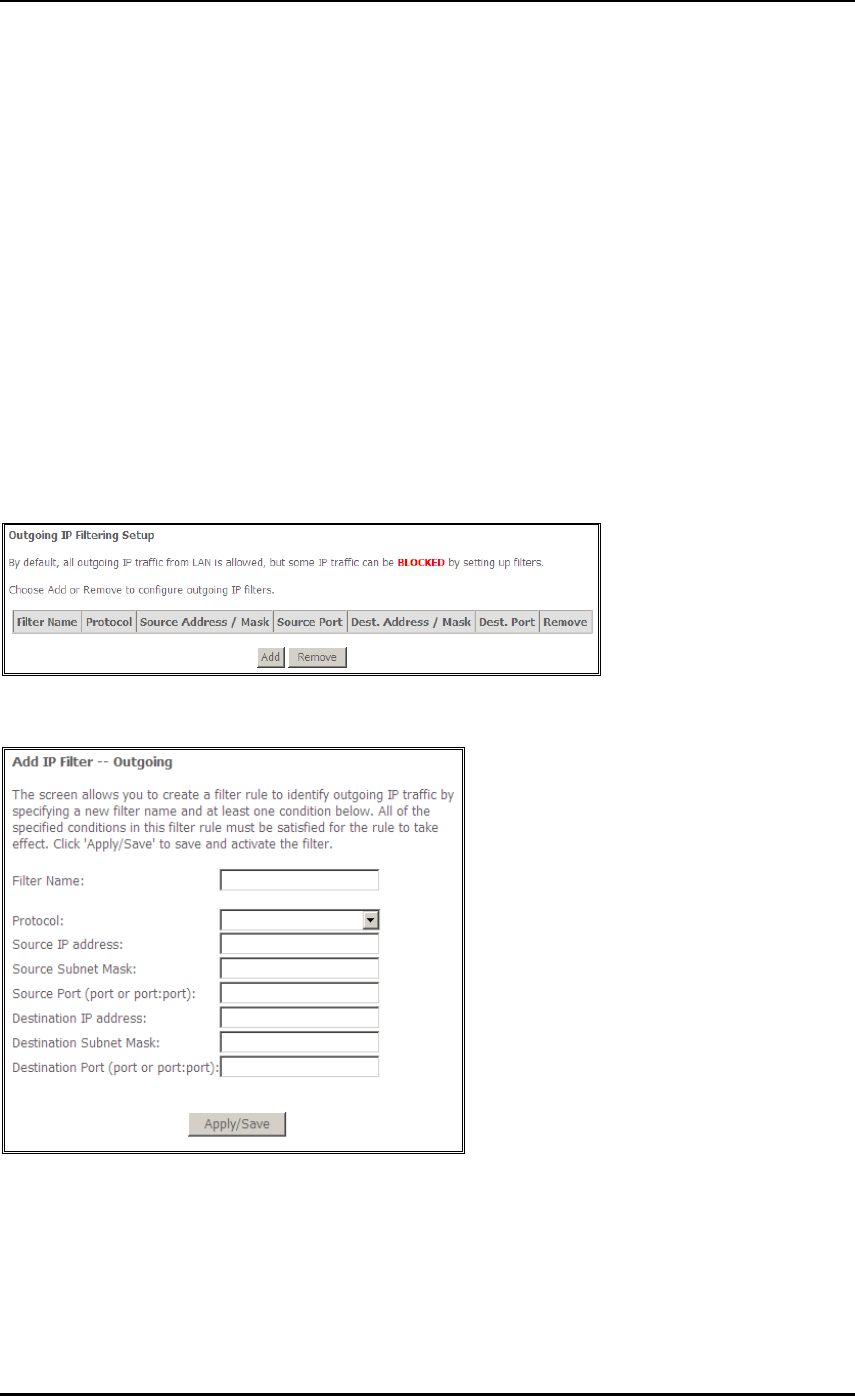

To create a new outgoing IP filter, click Add. The Add IP Filter-Outgoing page will be displayed.
Key in the following parameters:
Filter Name Key in the name of the filter rule.
Protocol Select the IP protocol to block.
Source IP Address/Subnet Mask Enter the IP address of the PC on the LAN to block.
User Manual
Page 39
of 73
Source Port Enter the port number used by the application to block.
Destination IP Address/Subnet Mask Enter the IP address of the remote server to which
connection should be blocked.
Destination Port Enter the destination port number used by the application to block.
Click Save/Apply to take effect the settings. The new rule will then be displayed in the Outgoing
IP Filtering table list.
To delete the rule, click Remove checkbox next to the selected rule, and click Remove.

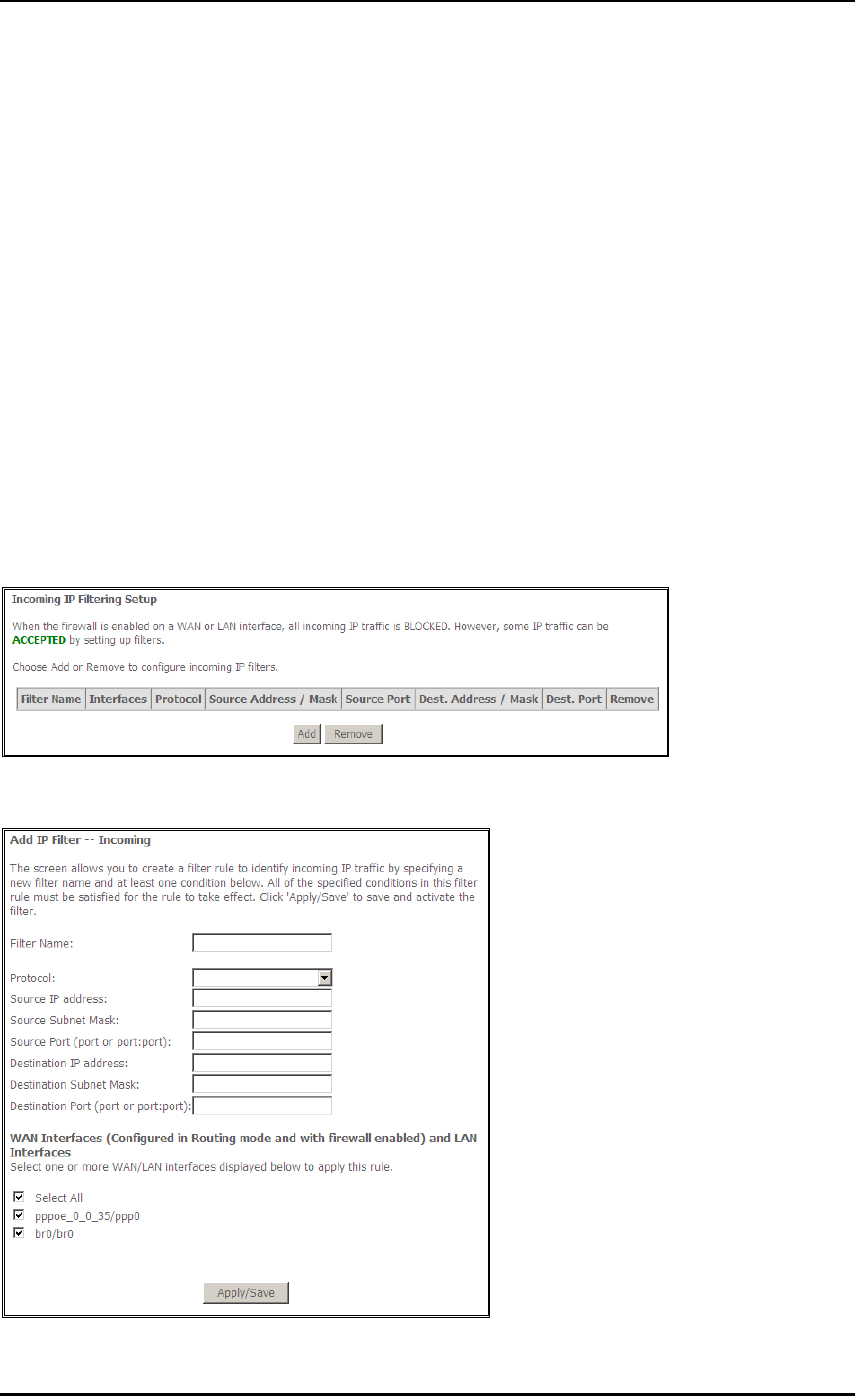

Incoming IP Filtering
By default, when NAT is enabled, all incoming IP traffic from WAN is blocked except for responses to
requests from the LAN. However, some incoming traffic from the Internet can be accepted by setting up
Incoming IP Filtering rules.
To create a new incoming IP filter, click Add. The Add IP Filter-Incoming page will be displayed.
User Manual
Page 40
of 73
Key in the following parameters:
Filter Name Key in the name of the filter rule.
Protocol Select the IP protocol to allow.
Source IP Address/Subnet Mask Enter the IP address of the remote server from which to
allow connection.
Source Port Enter the port number used by the application to allow.
Destination IP Address/Subnet Mask Enter the IP address of the PC on the LAN to which
connection is allowed.
Destination Port Enter the destination port number used by the application to allow.
Click Save/Apply to take effect the settings. The new rule will then be displayed in the Incoming
IP Filtering table list.
To delete the rule, click Remove checkbox next to the selected rule, and click Remove.
User Manual
Page 41
of 73
Parental Control
Parental Control allows you to apply router access restrictions among LAN devices within specific times
in a day. A maximum of 16 restriction rules can be created.

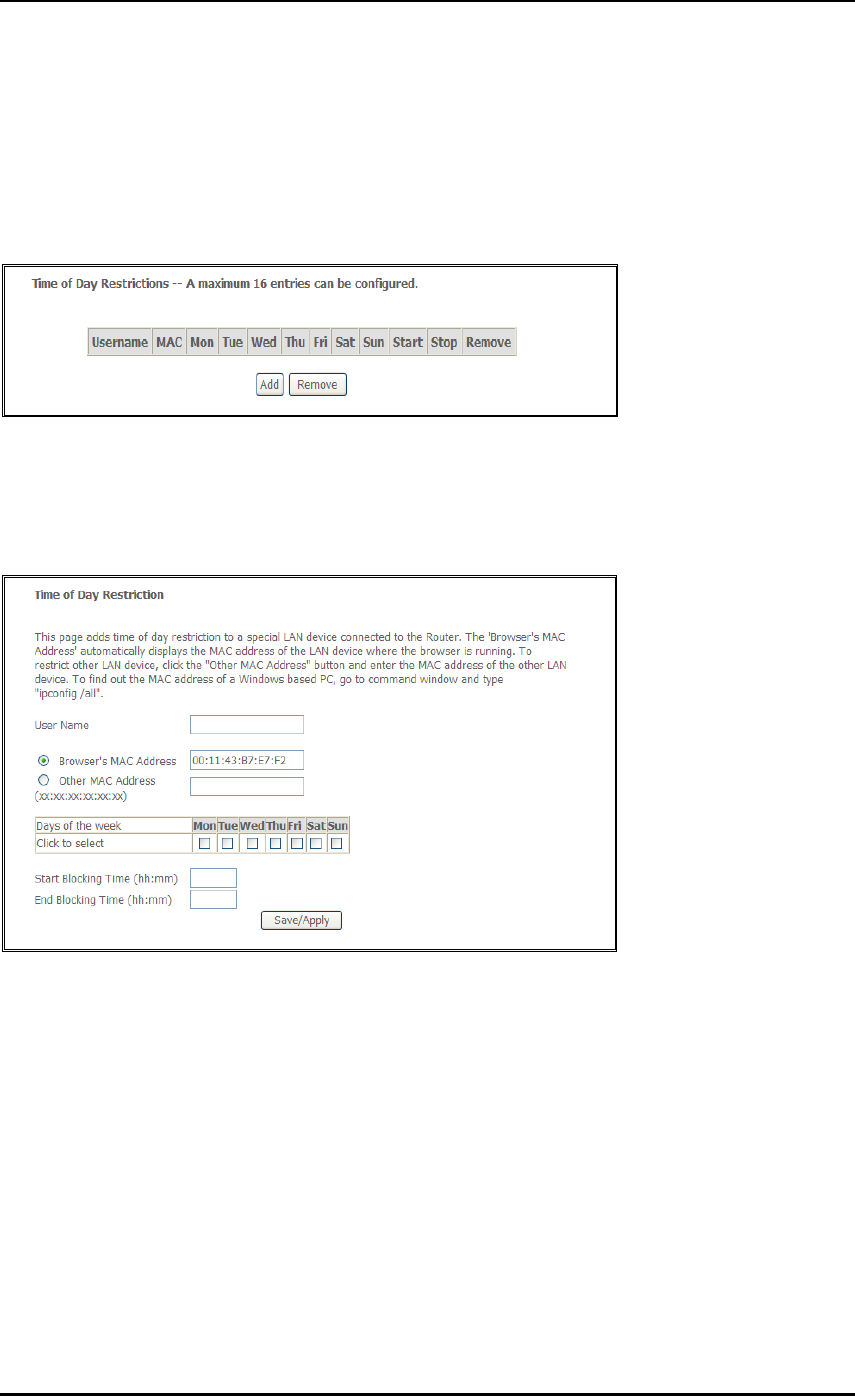

To add restrictions, click Add. This opens the Time of Day Restriction page. Click Start to enable a
restriction or click Stop to disable the rule.
To delete a restriction, click Remove checkbox next to the selected restriction, and click Remove.
Key in the following parameters:
User Name Enter a descriptive name for the restriction.
Browser’s MAC Address or Other MAC Address Enter the device MAC Address.
Days of the week Click to select the days on which to apply the restriction.
Start Blocking Time (hh:mm) Enter the time when the restriction will be enabled (00:00 to 23:59).
End Blocking Time (hh:mm) Enter the time when the restriction will be disabled (00:00 to 23:59).
User Manual
Page 42
of 73
Quality of Service
QoS gives you the capability to specify the level of quality to be provided for specific applications. By
default, QoS is not enabled.
User Manual
Page 43
of 73

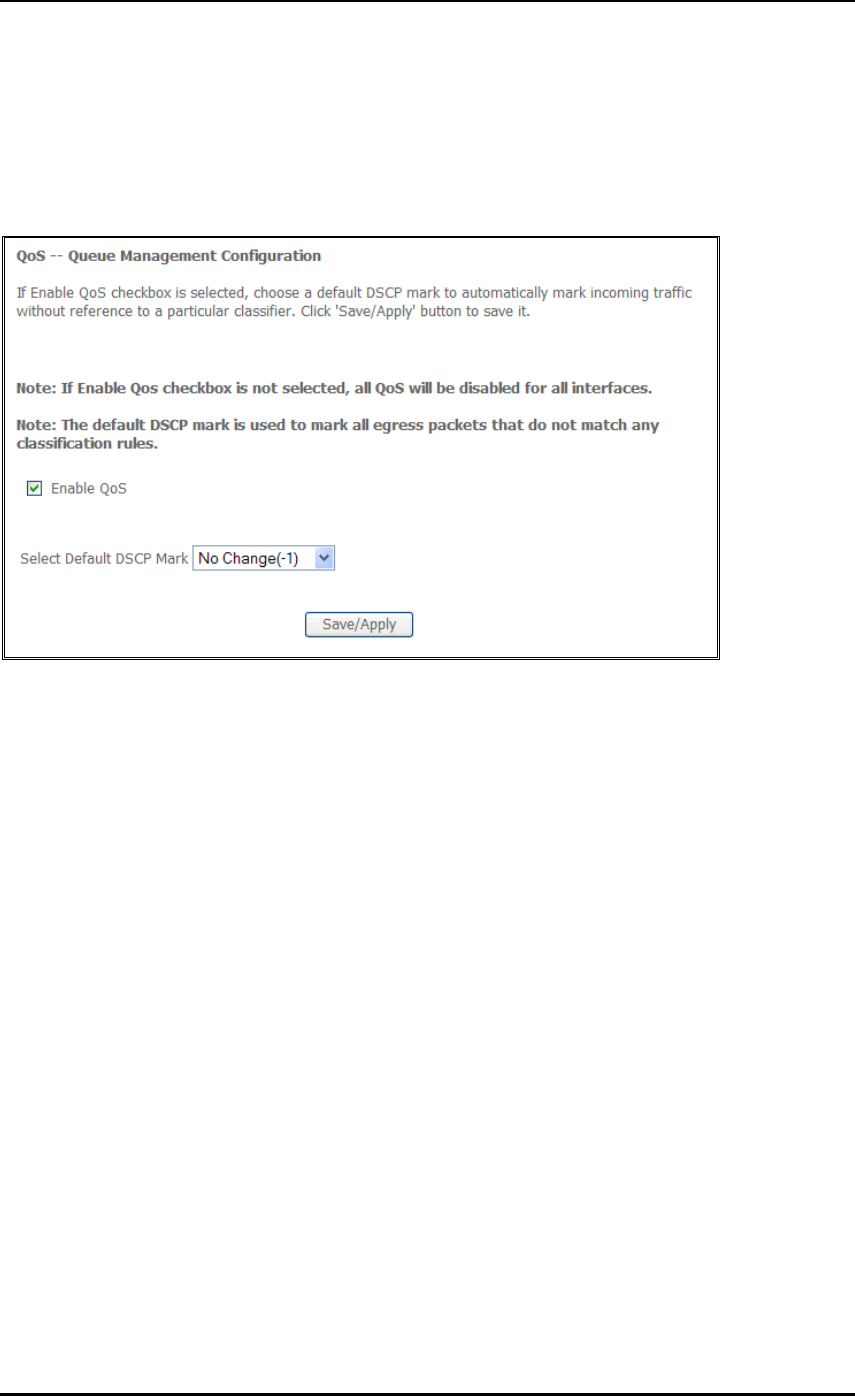

Queue Config
Click Add to create a QoS Queue Configuration.
User Manual
Page 44
of 73
QoS Classification
You can add or remove QoS Classification rules.
Click Add to create a Network Traffic Class Rule.
User Manual
Page 45
of 73
Routing

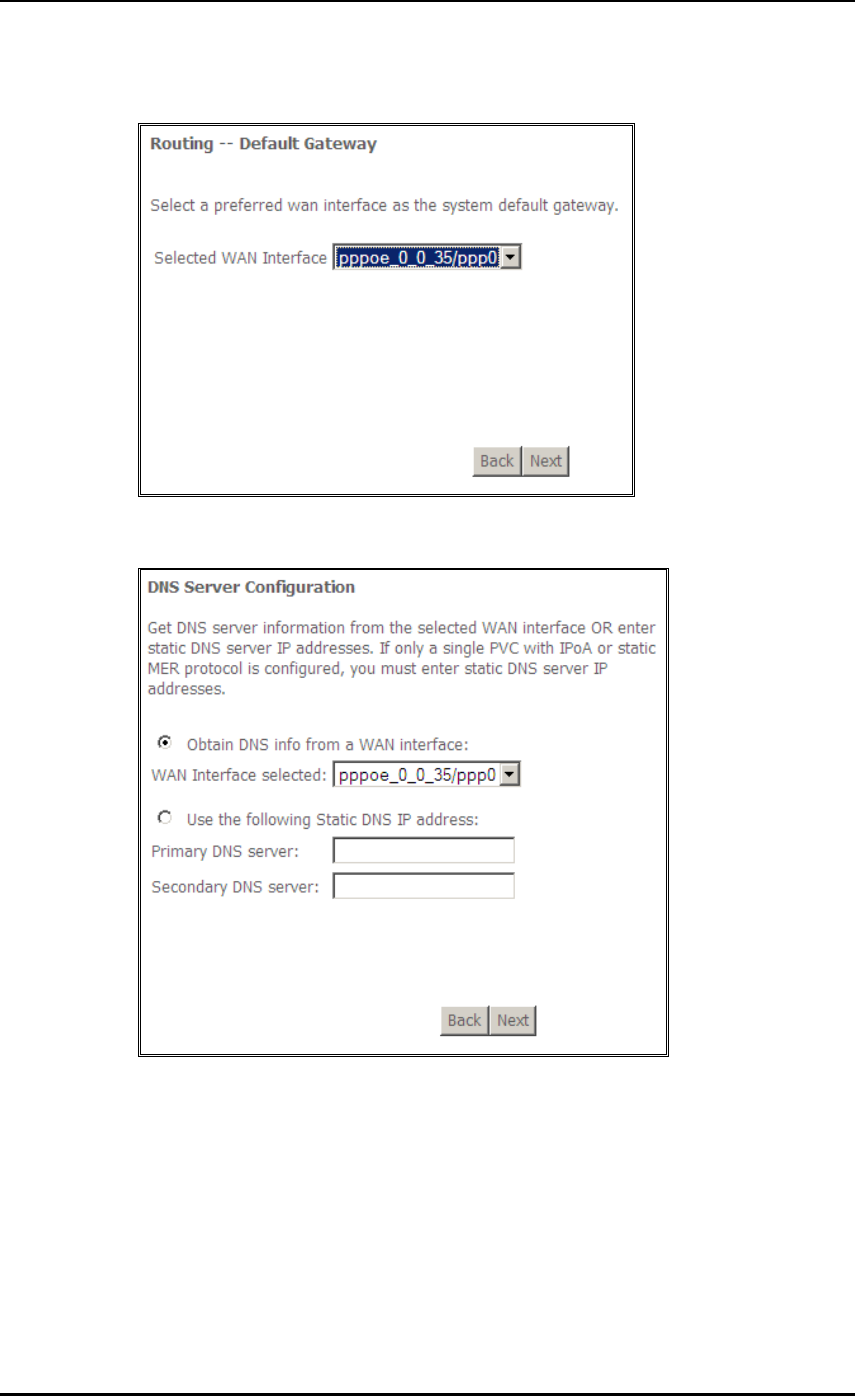

Default Gateway
The Enable Automatic Assigned Default Gateway checkbox is ticked by default. The router will accept
the first received Default Gateway assignment from one of the PPPoA, PPPoE or MER/DHCP enabled
PVC(s).
Static Route
If your LAN consists of multiple subnets and you want to manually define the data transmitting paths,
Static Route is to be used.
User Manual
Page 46
of 73
To create a new Static Route, click Add. The Routing-Static Route Add page will shows up.
The key settings for adding a new Static Route are explained:
Destination Network Address Enter the network address to which the data packets are to be
sent.
Subnet Mask Enter the subnet mask for this destination.
Use Gateway IP Address If you wish to use a specific gateway to reach the destination
network, select this checkbox and then enter the IP address of the gateway.
Use Interface If you wish to use a particular WAN interface, select the checkbox and select the
interface.
Click Save/Apply to take effect the settings.
To delete the entry from the routing table list, click its corresponding Remove button.
RIP
User Manual
Page 47
of 73
DNS

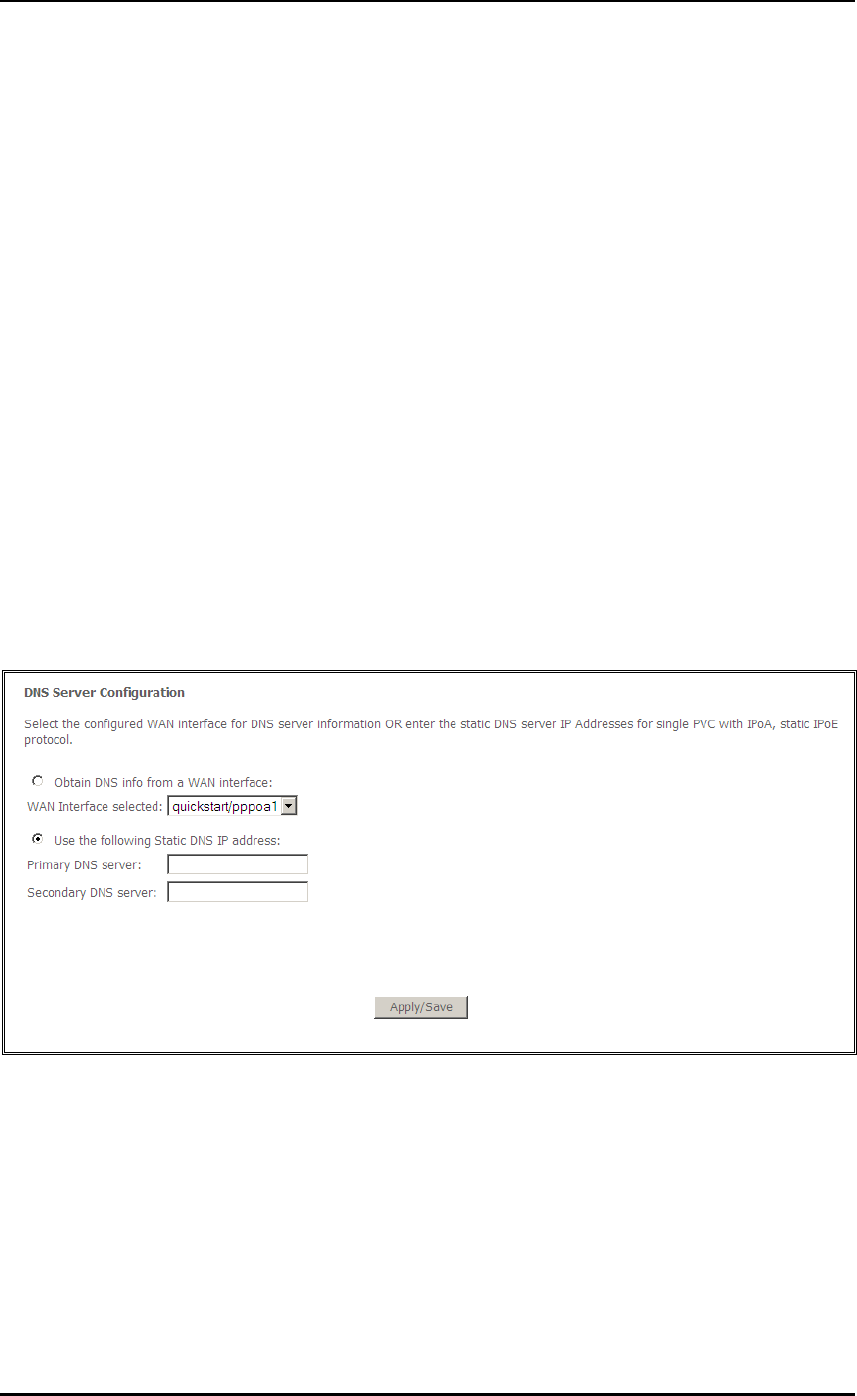

DNS Server
DNS (Domain Name System) is an Internet service that translates domain names into IP addresses.
Because domain names are alphabetic, they are easier to remember. However, the Internet is based
on IP addresses. Therefore, each time you type a domain name, a DNS service must translate the
name into the corresponding IP address. For example, the domain name www.example.com might
translate to 198.105.232.4. The DNS system consists of a network of DNS servers. If one DNS server
does not know how to translate a particular domain name, it asks another one and so on until the
correct IP address is returned.
If you select the Enable Automatic Assigned DNS checkbox, the router will receive and use the DNS
Server assigned by your ISP.
To use your preferred DNS servers, disable the Enable Automatic Assigned DNS checkbox and key in
the IP address of your Primary DSN server. Adding a Secondary DNS server is optional.
User Manual
Page 48
of 73

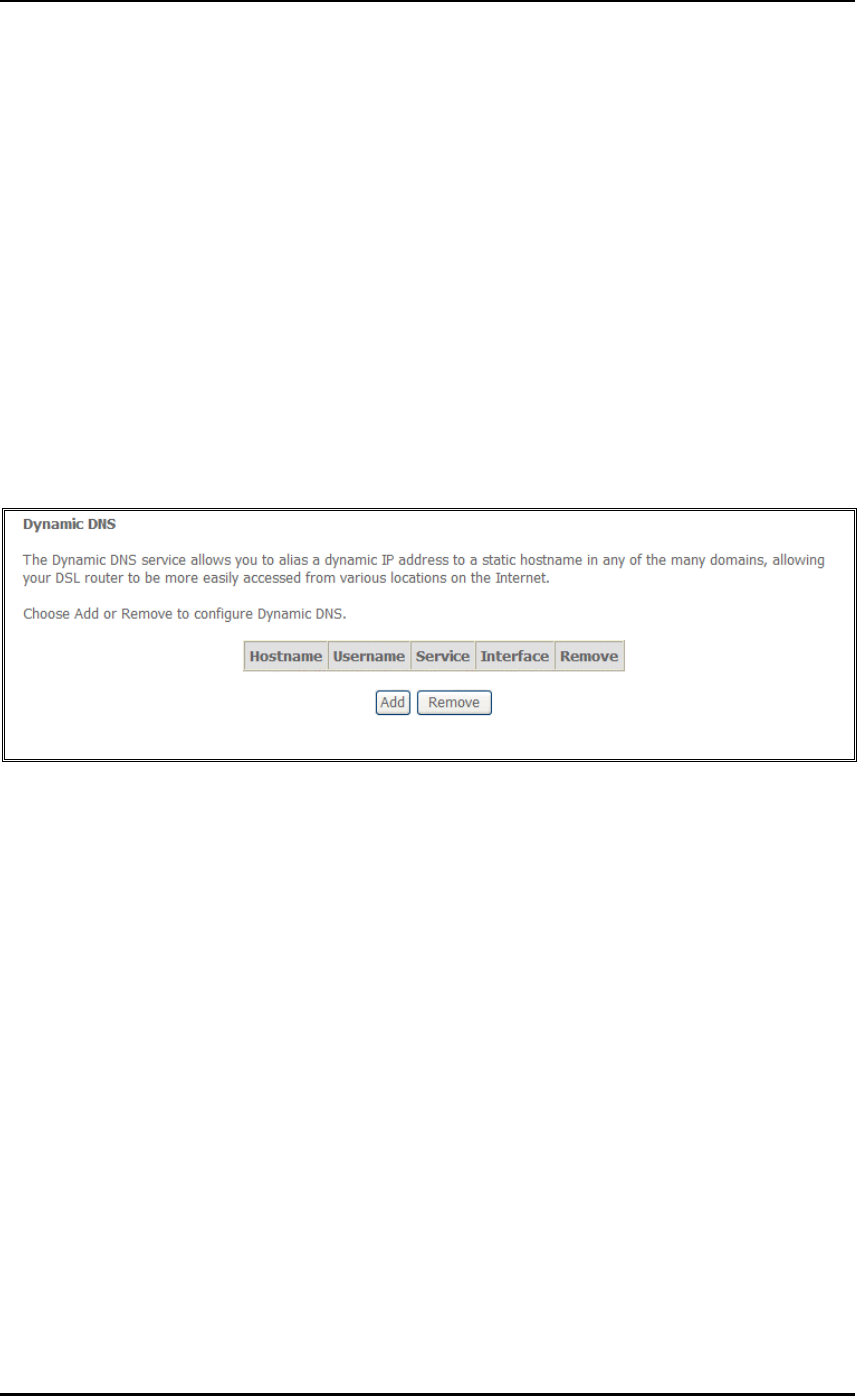

Dynamic DNS
The router offers a Dynamic Domain Name System (DDNS) feature. DDNS lets you assign a fixed host
and domain name to a dynamic Internet IP Address. It is useful when you are hosting your own
website, FTP server, or other server behind the router.
Before using this feature, you need to sign up for DDNS service providers. The router supports these
popular Dynamic DNS service providers:
www.dyndns.org
www.tzo.com
Click Add to create a Dynamic DNS setting.
User Manual
Page 49
of 73

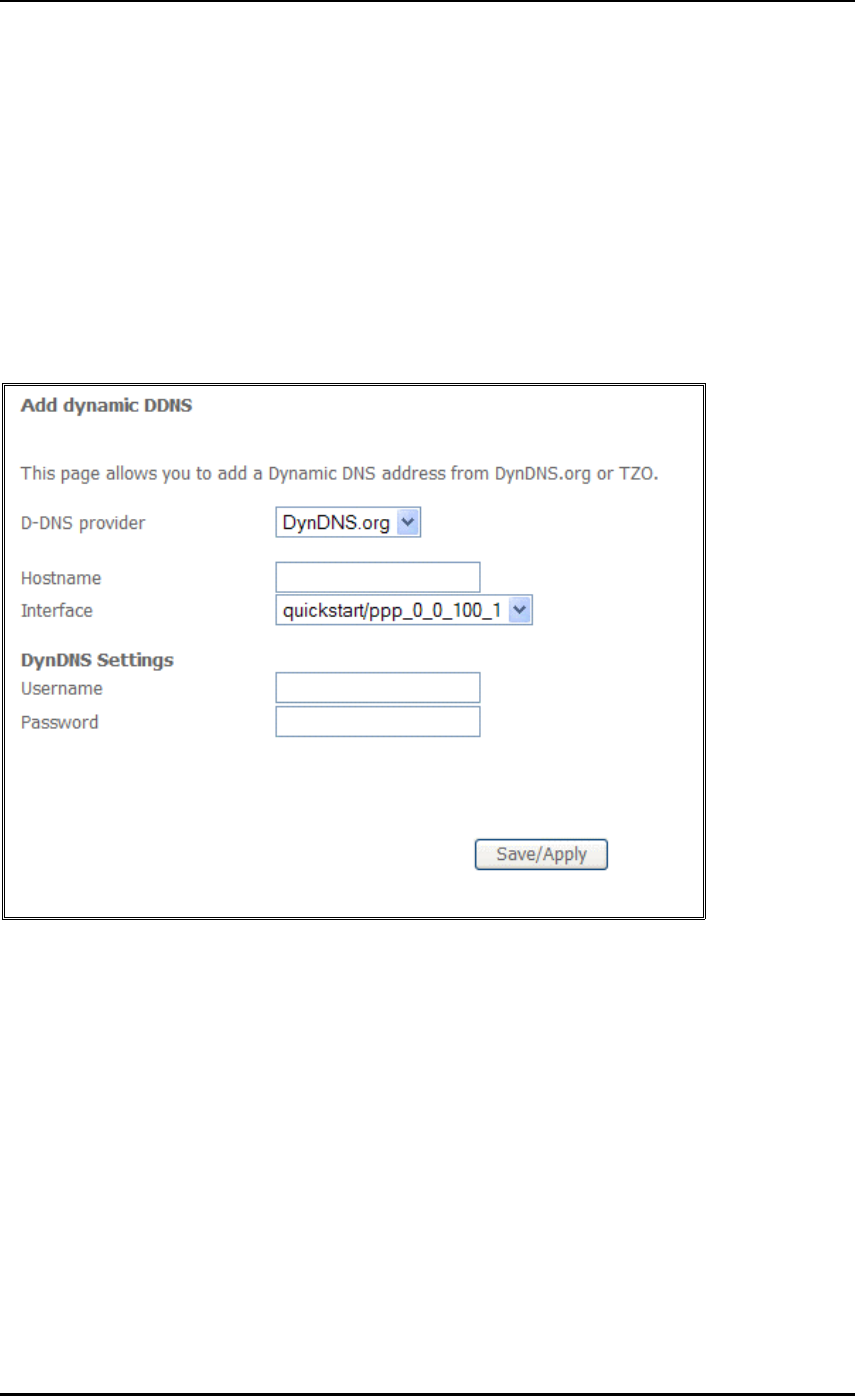

Using DynDNS.org
Key in the following parameters:
D-DNS provider Select DynDNS.org.
Hostname Enter the hostname.
Interface Select an interface.
DynDNS Settings Enter your dyndns.org Username and password.
User Manual
Page 50
of 73

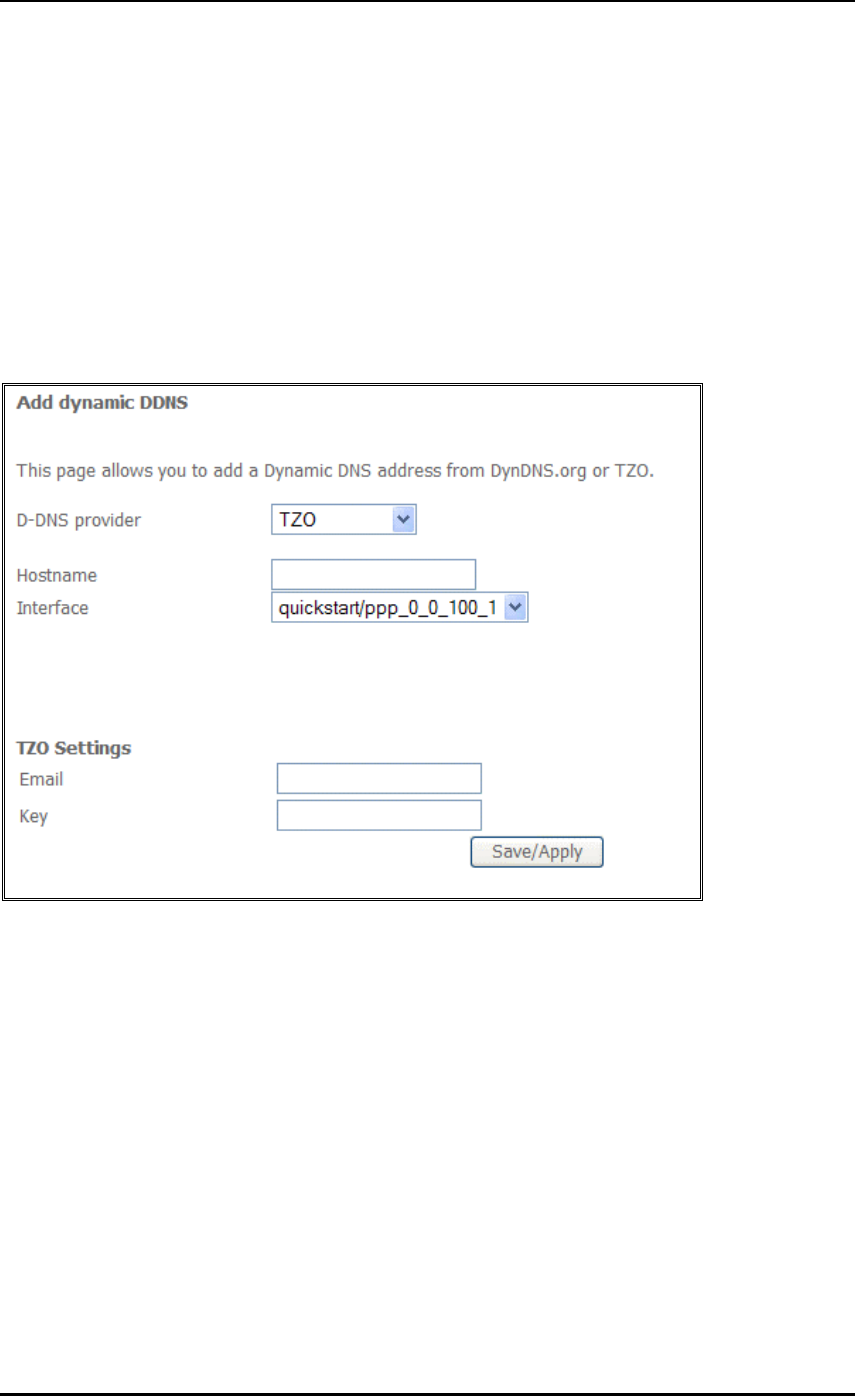

Using TZO
Key in the following parameters:
D-DNS provider Select TZO.
Hostname Enter the hostname.
Interface Select an interface.
TZO Settings Enter your TZO e-mail and key.
User Manual
Page 51
of 73
DSL

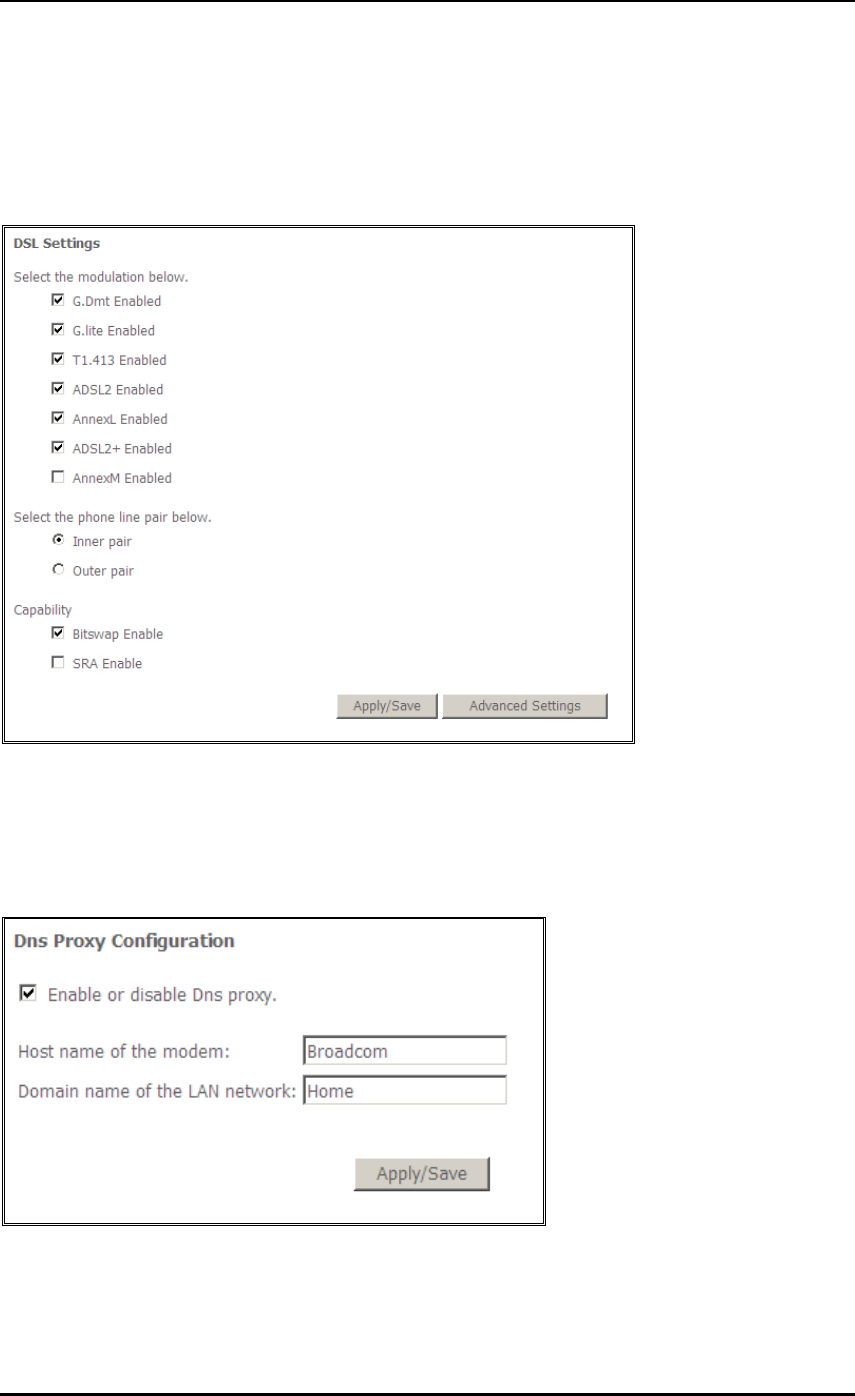

The DSL page allows you to select the modulation, the phone line pair and the capability.
DNS Proxy Configuration
The DNS Proxy Configuration page allows you to enable and specify a DNS proxy name.
User Manual
Page 52
of 73
Interface Grouping
Interface Grouping allows you to create groups composed of the various interfaces available in your
router.
Click Add to create an Interface grouping.
User Manual
Page 53
of 73
LAN Ports
LAN Ports allow you to enable/disable the virtual LAN ports feature on your router.
IPSec

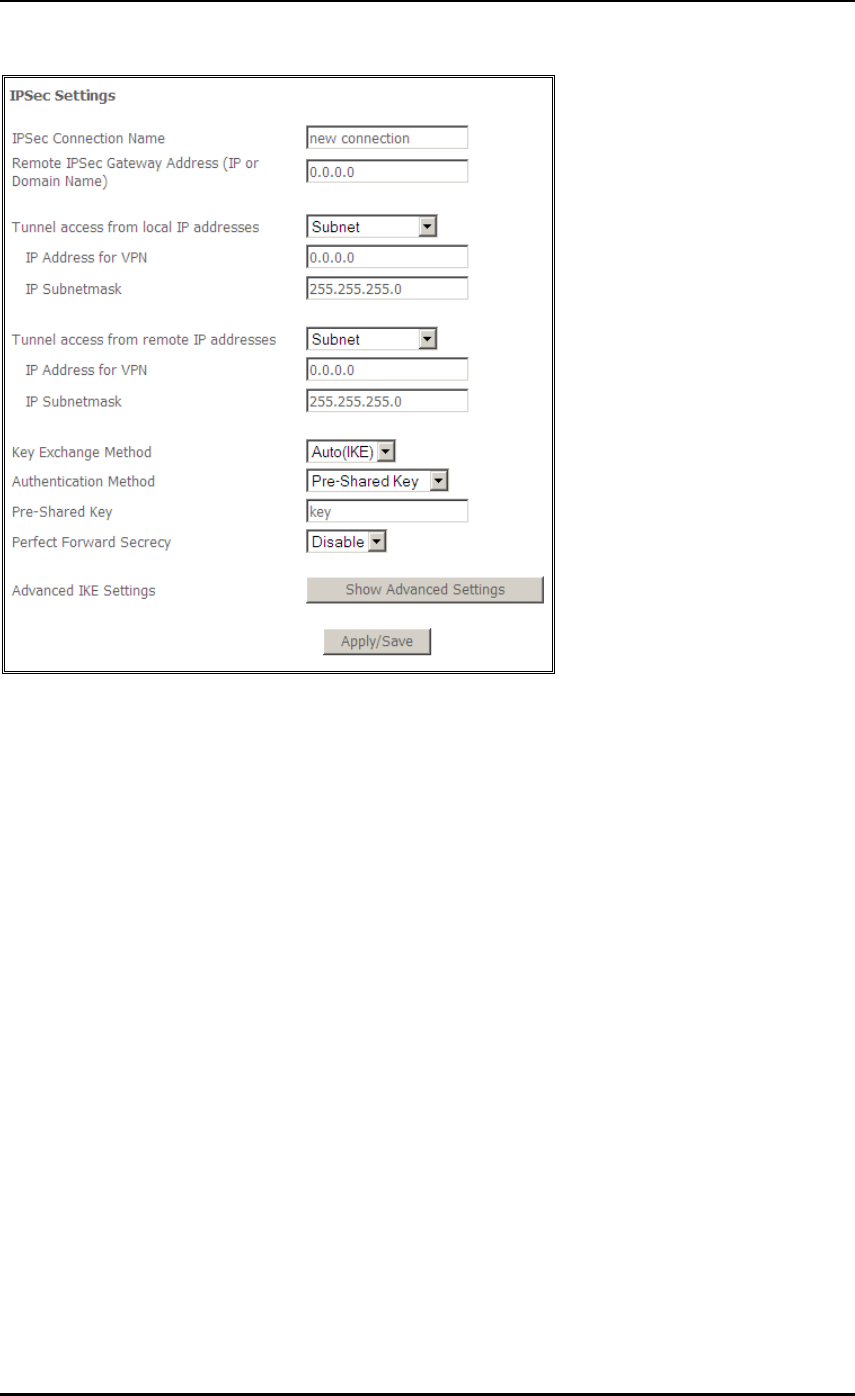

Your router supports the authentication and encryption of data packets.
Click Add New Connection to create an IPSec Setting.
User Manual
Page 54
of 73
User Manual
Page 55
of 73
Certificate
Certificates are used to verify the identity of you and your peers. You can either create or import a
Certificate Request.
Local
Create Certificate Request
User Manual
Page 56
of 73

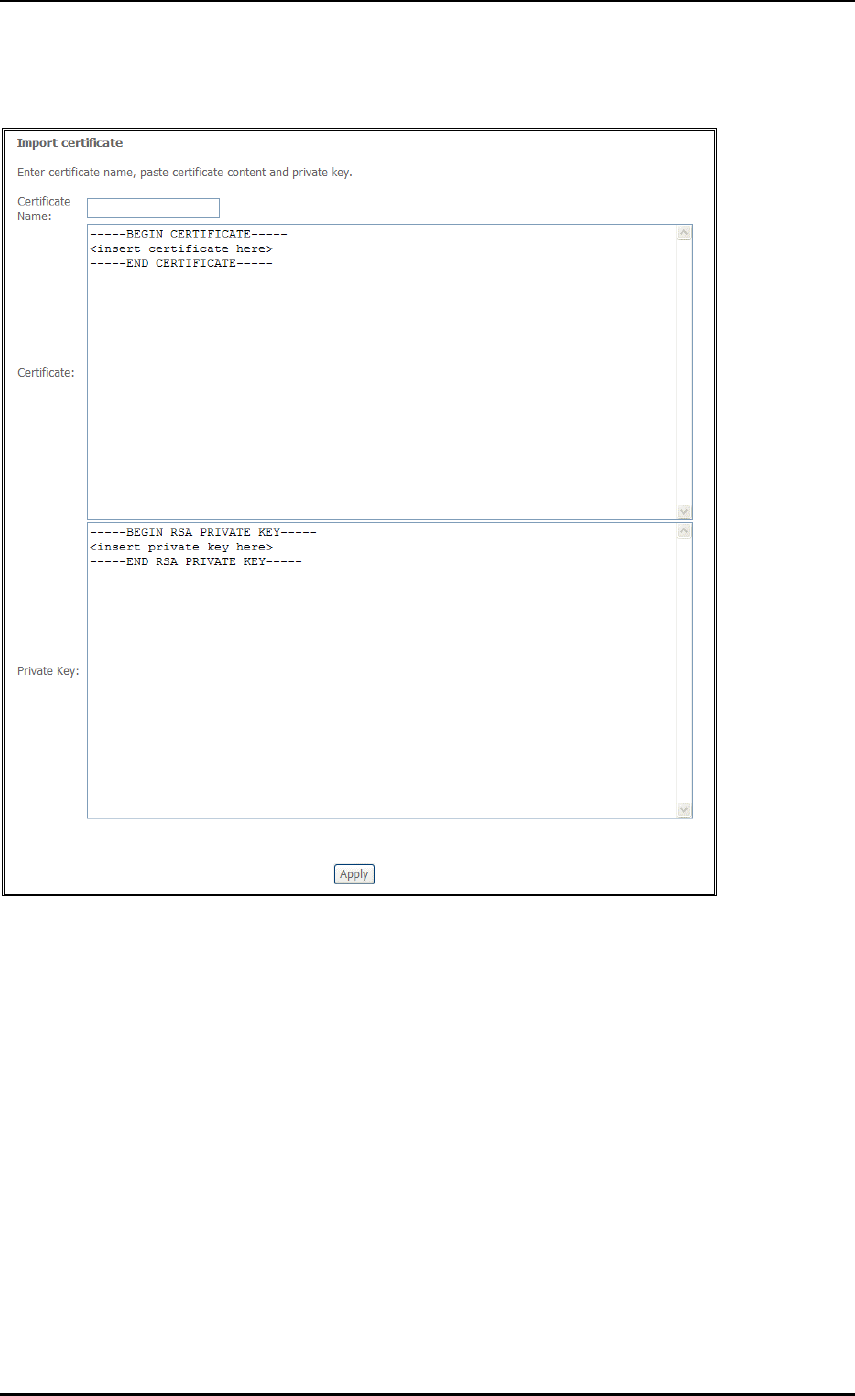

Import Certificate
User Manual
Page 57
of 73
Trusted CA
Trusted CA is used to verify the certificate of your peers.
Click Import Certificate.
User Manual
Page 58
of 73
Wireless
Basic

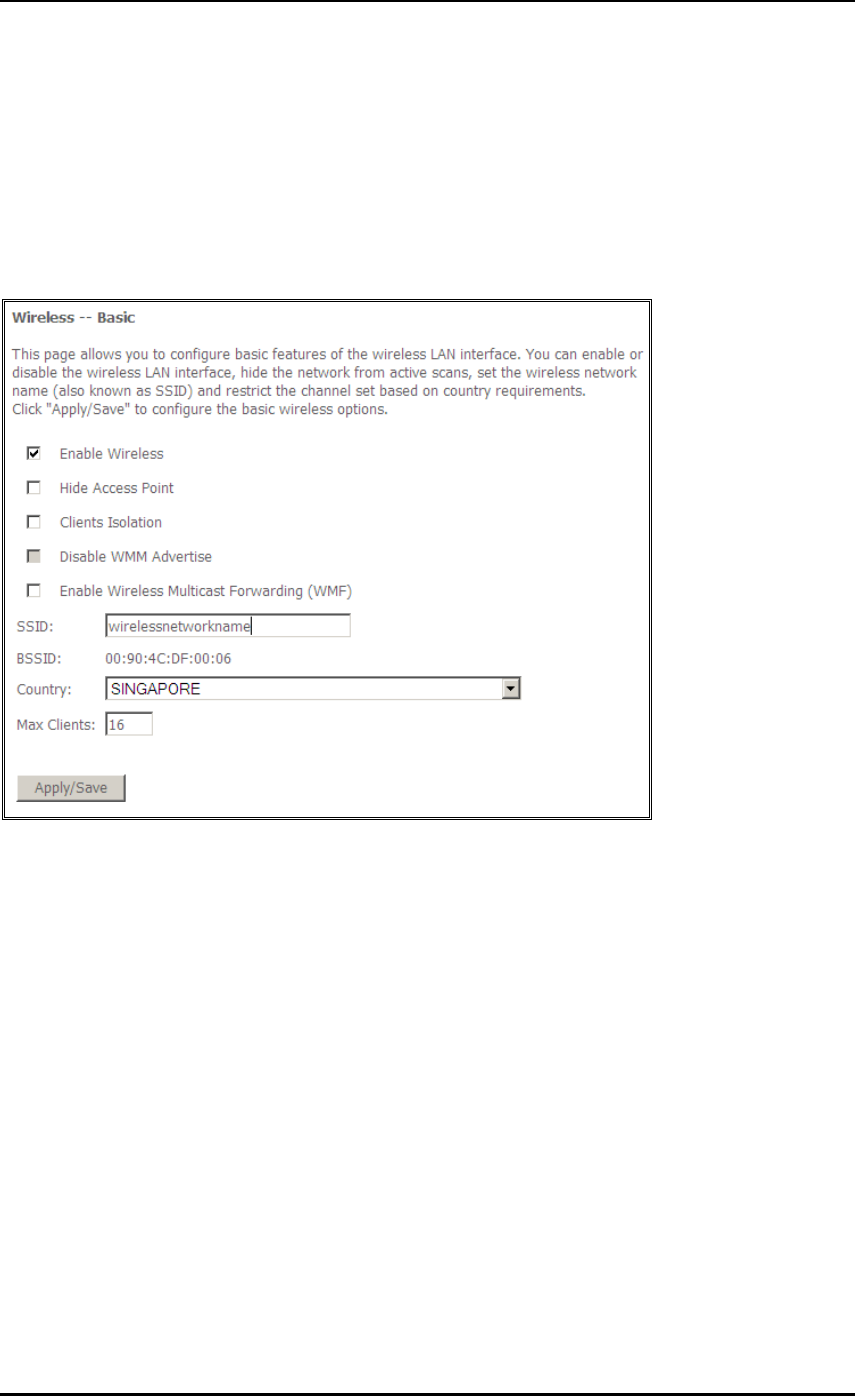

The Wireless Basic page allows you to enable the wireless network and configure its basic settings.
User Manual
Page 59
of 73
Security
The router supports all the popular wireless security protocols.
User Manual
Page 60
of 73

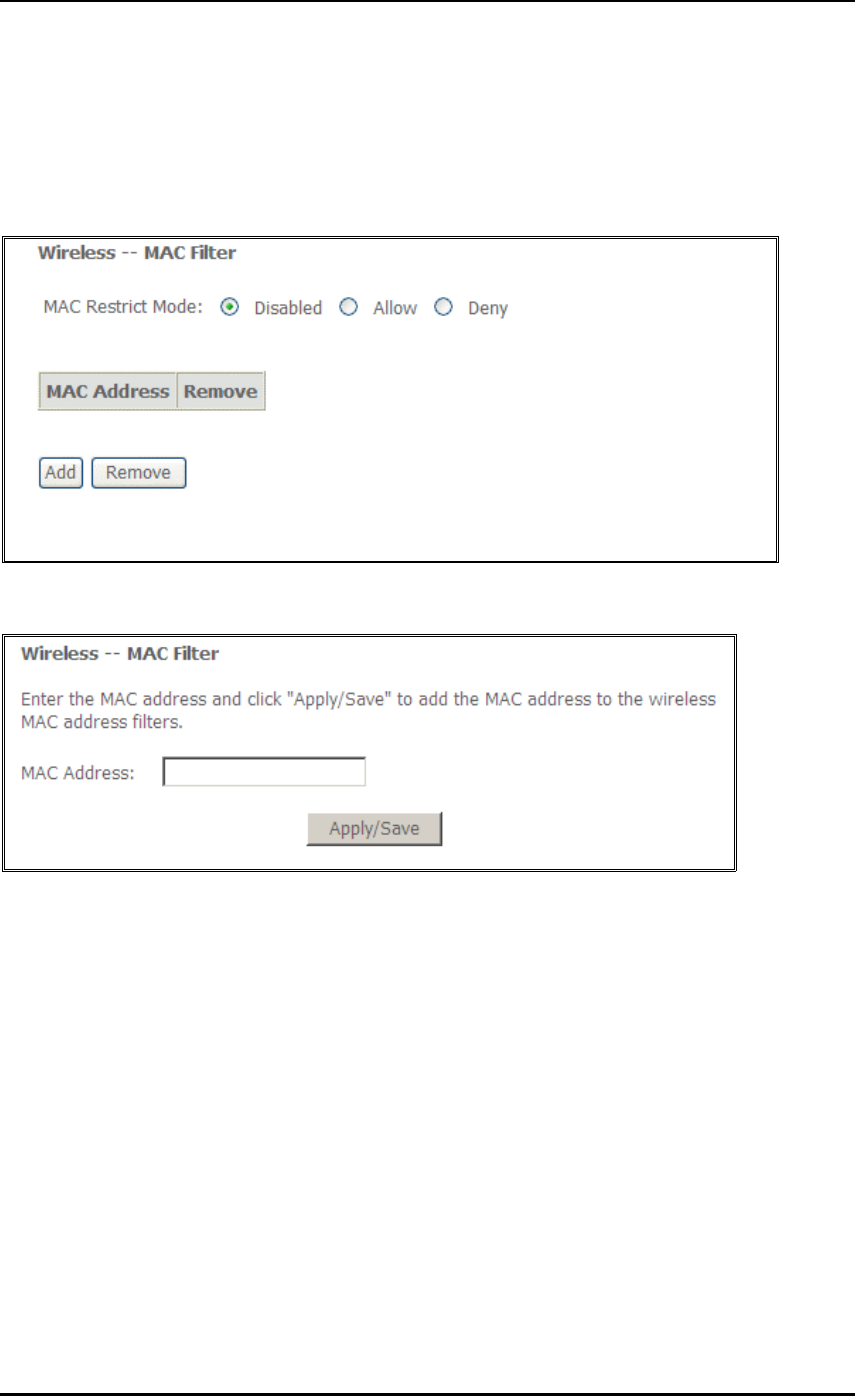

MAC Filter
MAC Filter allows you to add or remove the MAC Address of devices which will be allowed or denied
access to the wireless network.
Click Add to add a MAC Address.
User Manual
Page 61
of 73

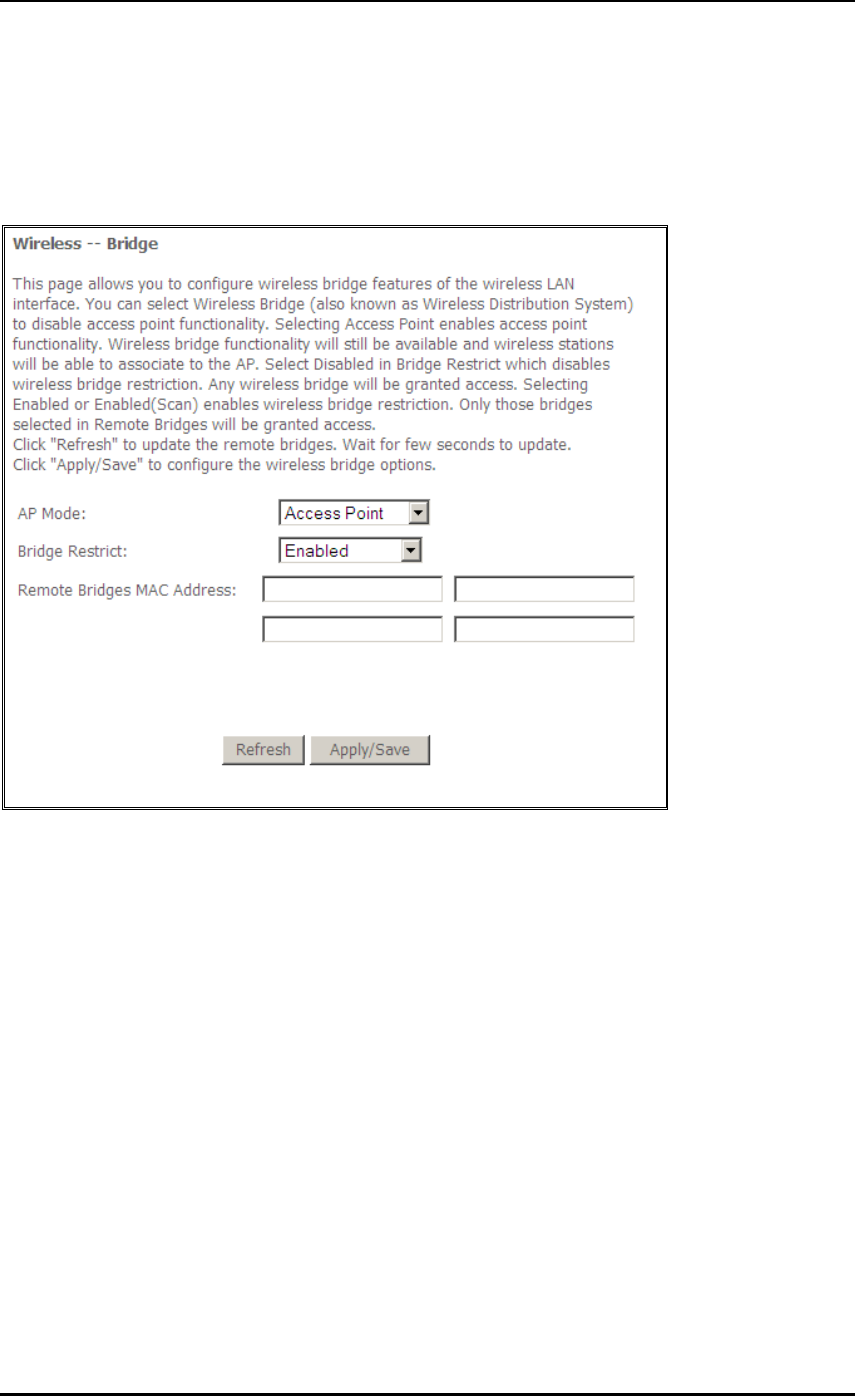

Wireless Bridge
Wireless Bridge allows you to configure the router’s access point as a bridge.
User Manual
Page 62
of 73

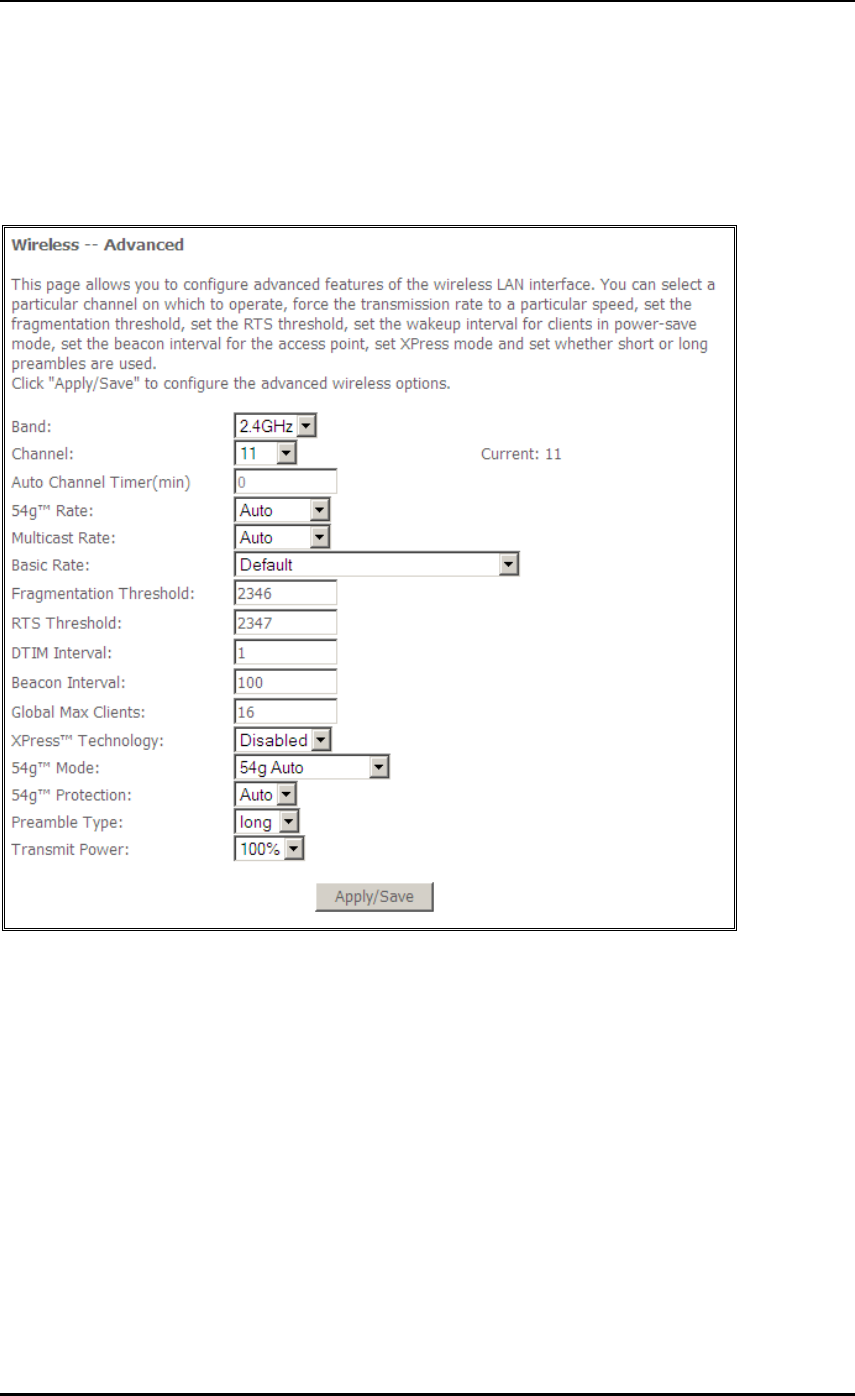

Advanced
Advanced Wireless allows you to configure detailed wireless settings.
User Manual
Page 63
of 73
Station Info

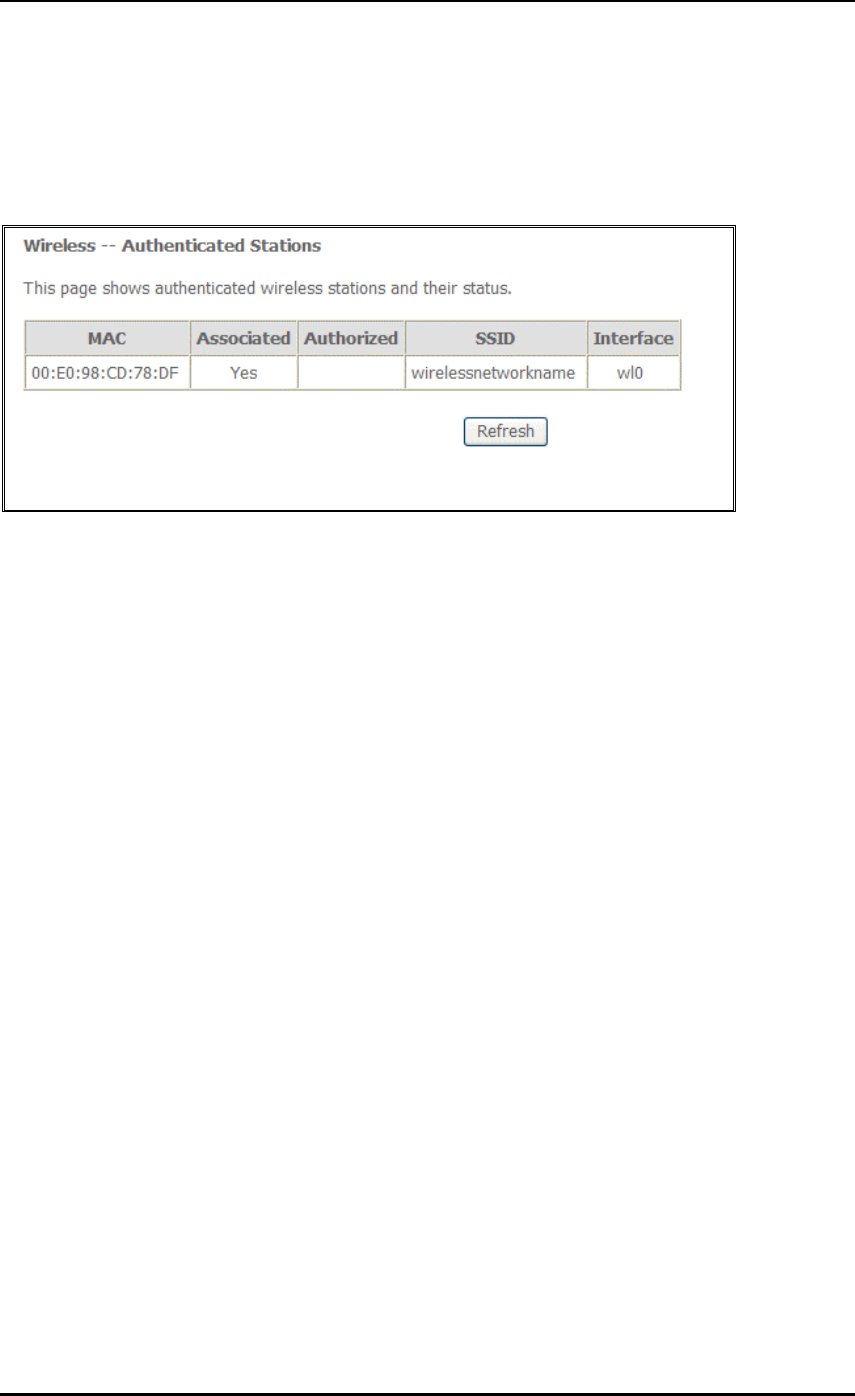

Station Info scans wireless stations and displays their status.
User Manual
Page 64
of 73
Diagnostics

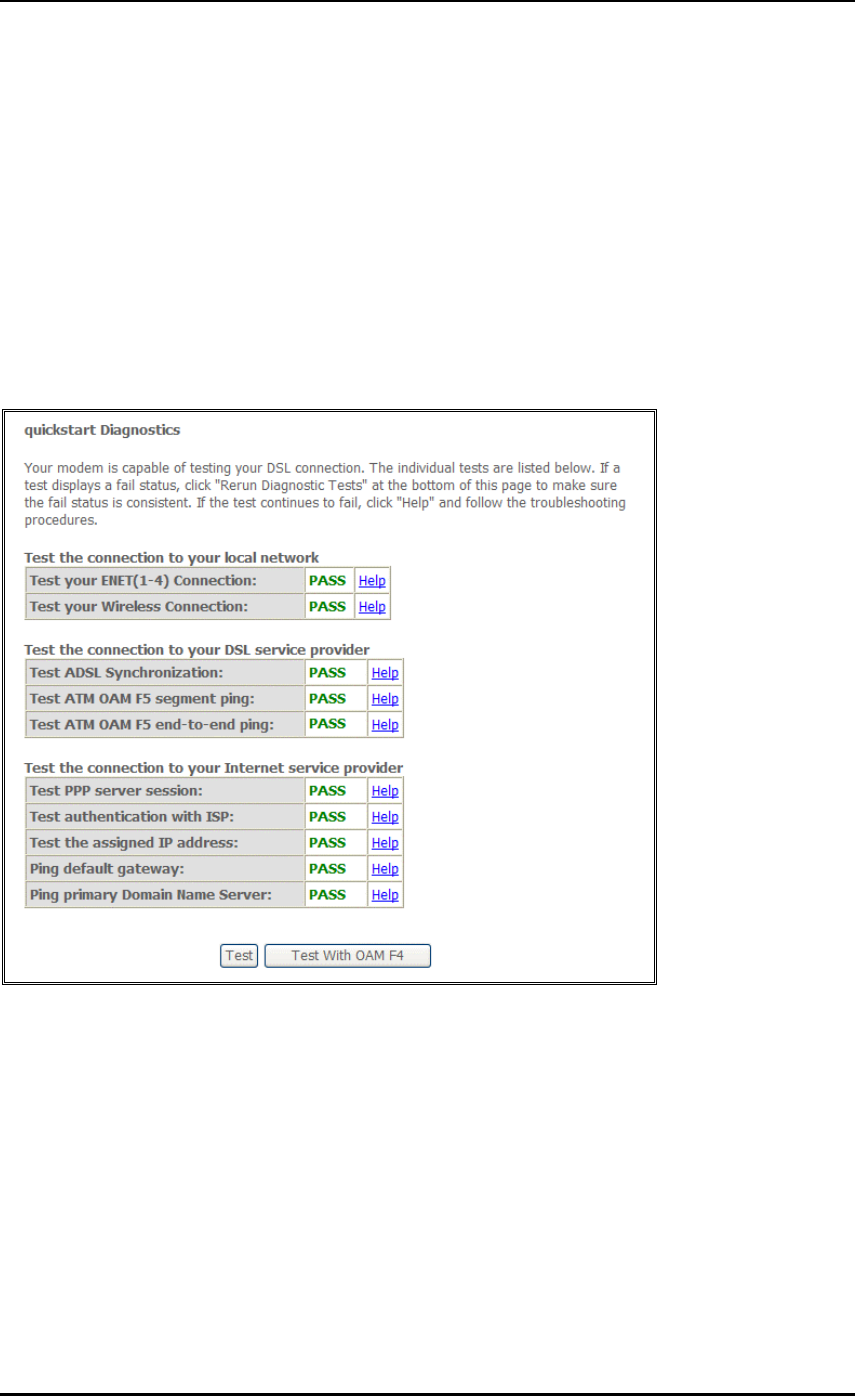

The router has a diagnostic feature to test your DSL connection. You can use the diagnostic menu to
perform the following test functions from the router.
Testing the connection to your local network
Testing the connection to your DSL service provider.
Testing the connection to your Internet service provider.
User Manual
Page 65
of 73
Management
Settings
When it comes to managing the settings that you have executed to the router, you can choose to:
Backup the settings as a configuration file stored onto your PC
Update the current settings from a previously saved configuration file
Erase the current settings and restore the default factory values
Backup
To backup the settings as a configuration file saved on your PC, click Backup Settings.
Select the folder where you want to save the file and key in the file name under which you want to save
the settings.
Update
To import a previously saved configuration file from your PC and update the settings of your router,
click Browse to locate the binary (.BIN or .IMG) upgrade file. Then click Update Settings.
User Manual
Page 66
of 73
Restore Default
To restore your router to its factory default settings, click Restore Default Settings. When prompted,
click OK.
Upon clicking OK, you will be prompted to follow the instruction as shown below.
System Log
This feature provides you a comprehensive list of log entries reporting events which you have
configured for viewing.
To view the log, click View System Log.
User Manual
Page 67
of 73

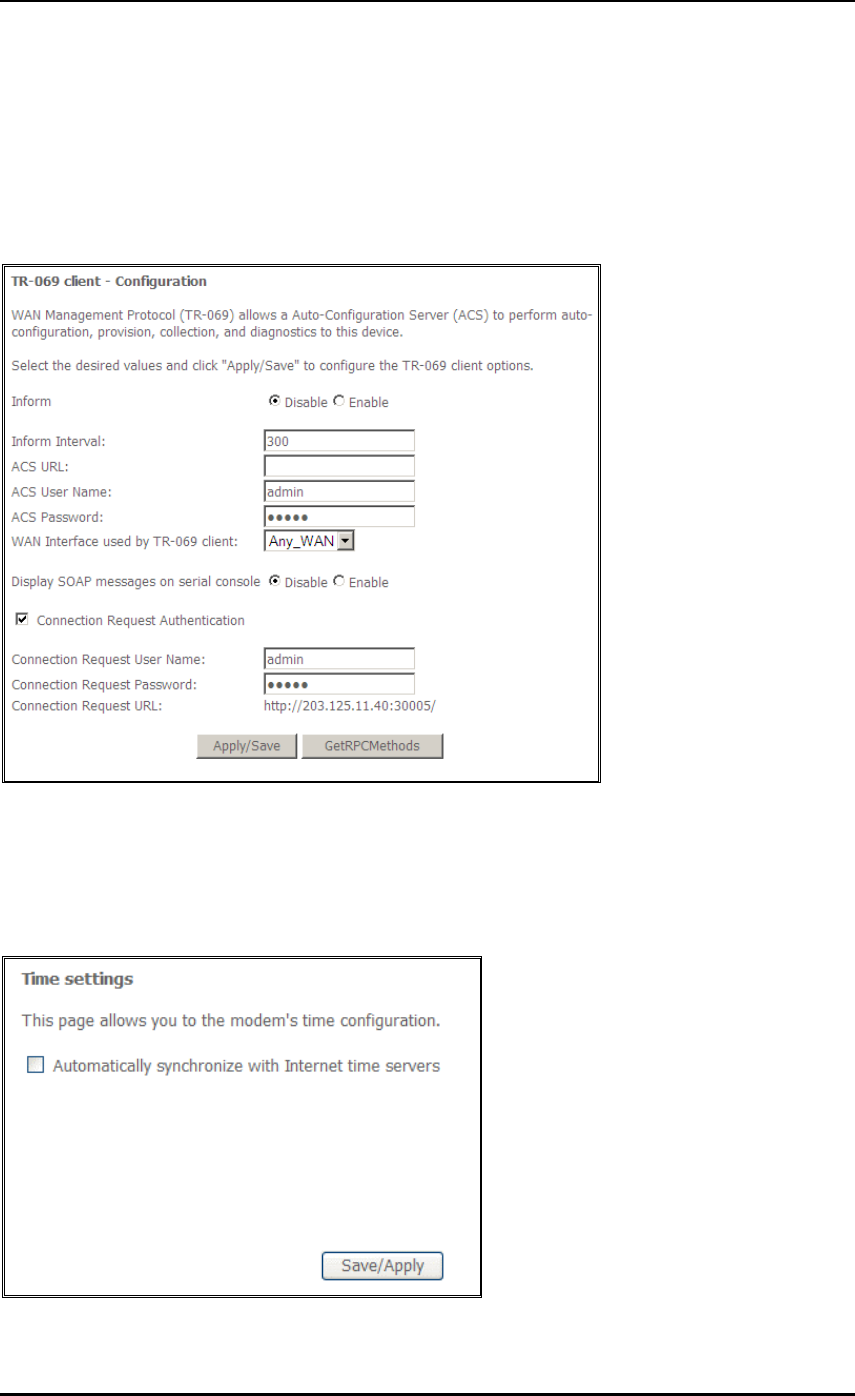

TR-069 Client
As a TR-069 capable router, the Internet service provider can remotely update the settings of the
device.
Internet Time
Enable Internet Time to automatically synchronize your time with a time server.
User Manual
Page 68
of 73
Access Control
This feature enables you manage the user access rights for remote access management based on the
Services being used, IP addresses and Passwords.

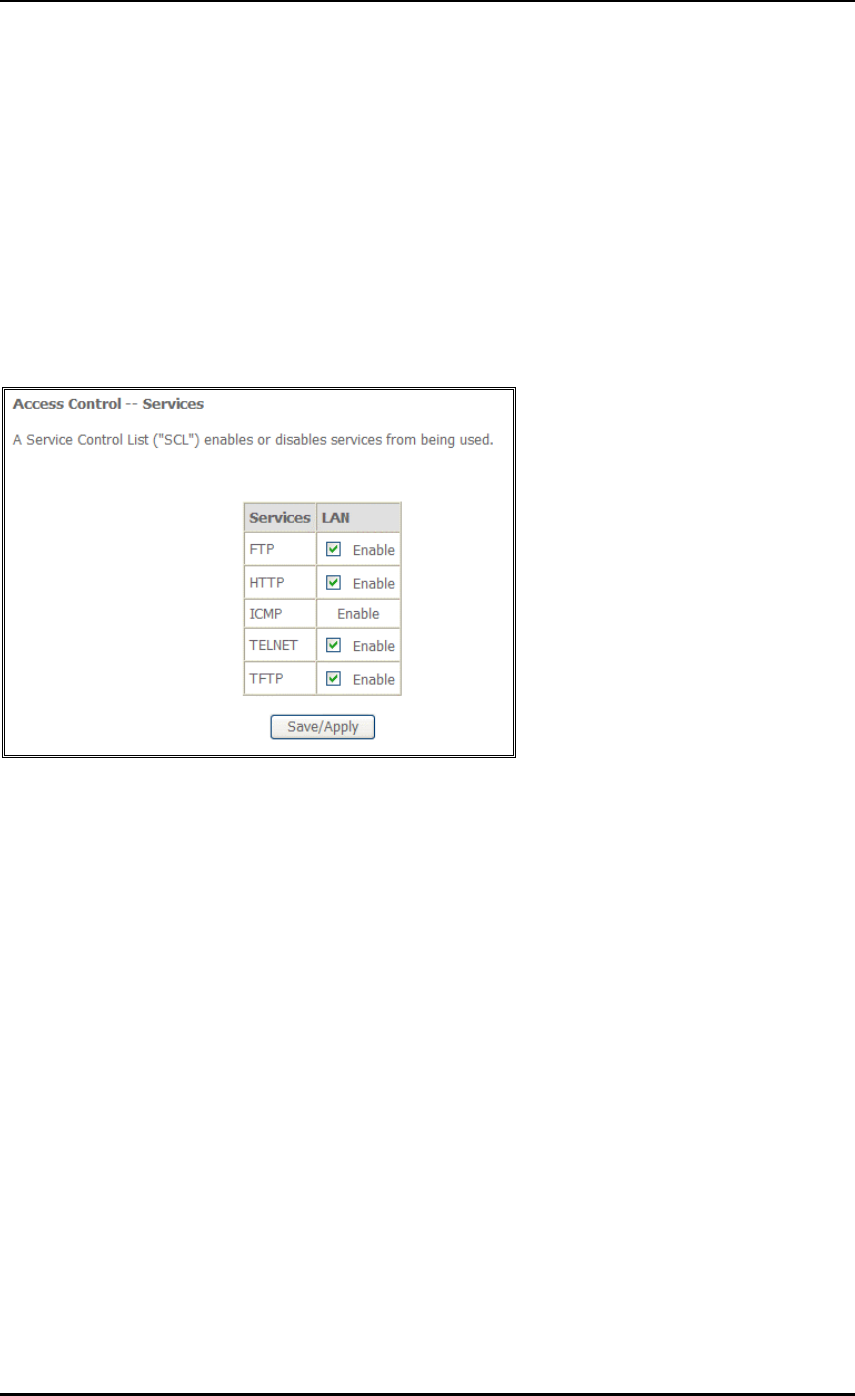

Services
Select which Services to allow and whether to allow from the LAN or the WAN.
User Manual
Page 69
of 73

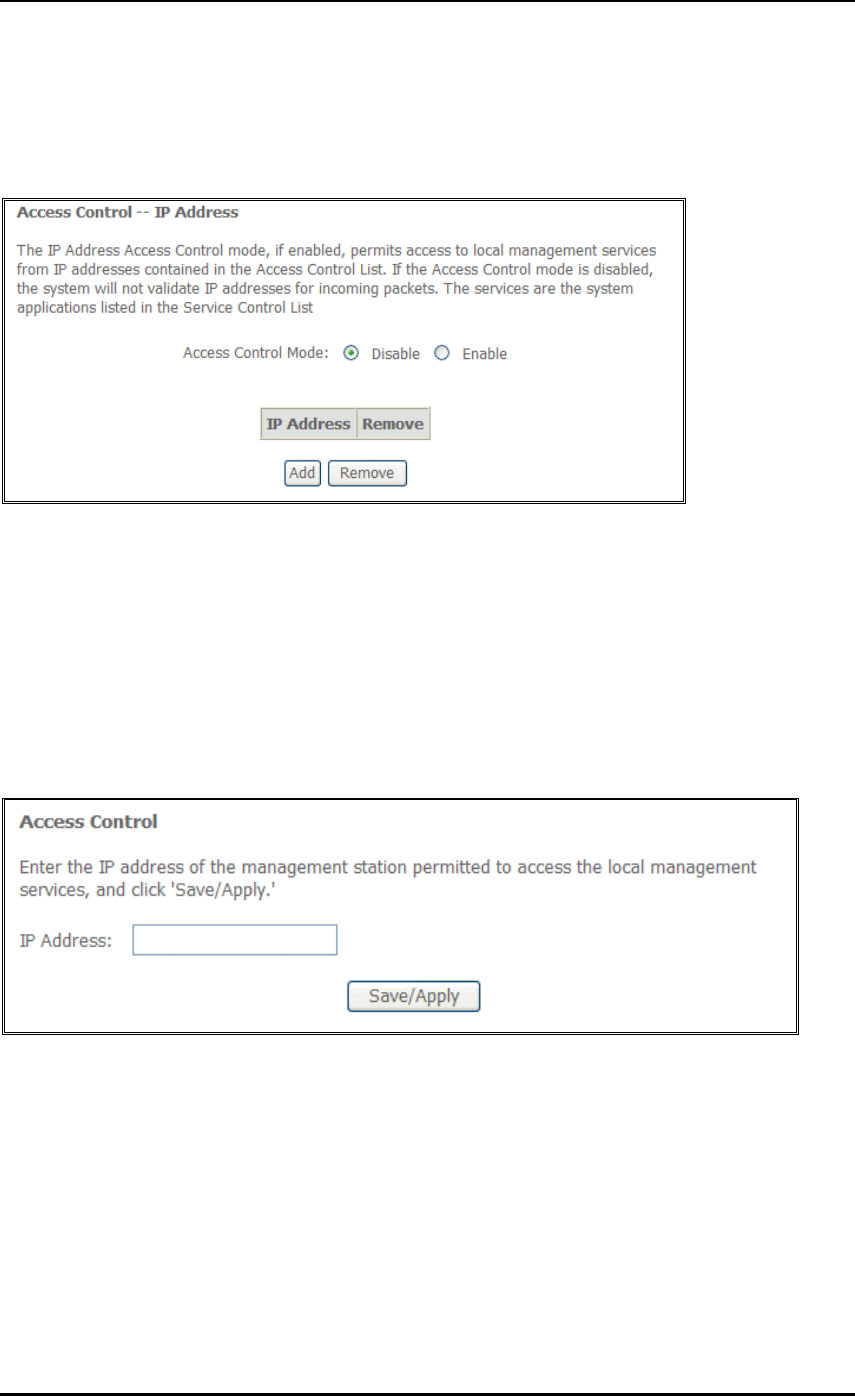

IP Addresses
The Access Control Mode is disabled by default.
To allow remote management based on an authorized IP address, select Enable and click Add.
Key in the IP address of the PC from which a user will be allowed to access the web configuration
menu.
Click Save/Apply to take effect the settings. Then the IP Address will be added into the table list.
To delete the existing IP address, tick the Remove checkbox next to the selected IP address in the
table list and click then Remove.
User Manual
Page 70
of 73

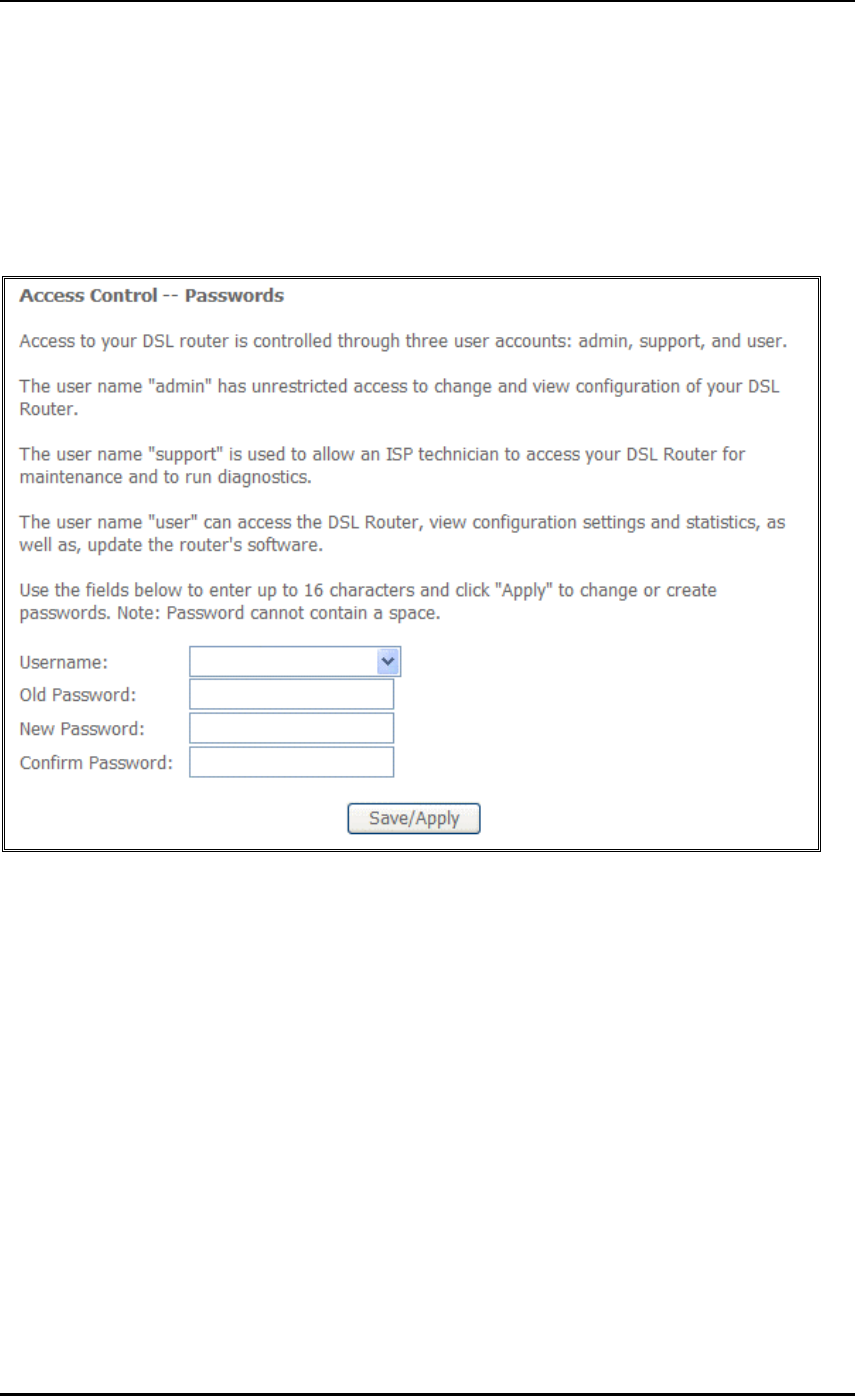

Passwords
When you configure the router through an Internet browser, the system requires you to enter your user
name and password to validate your access permission. By default, the Username is set to “admin” and
the Password to “admin”.
User Manual
Page 71
of 73
Update Software
The router’s software is stored in the FLASH memory and can be upgraded as new software is
released. Click Browse to locate the software file and then click Update Software.
Reboot
This feature allows the router to enable new network configuration to take effect or to clear problems
with the modem router’s network connection.
User Manual
Page 72
of 73
Safety Precautions
Do not open, service, or change any component.
Only qualified technical specialists are allowed to service the equipment.
Observe safety precautions to avoid electric shock
Check voltage before connecting to the power supply. Connecting to the wrong voltage will
damage the equipment.
User Manual
Page 73
of 73
FCC Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio or television technician for help.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly
approved by Aztech could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC rules.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
Exposure Information to Radio Frequency Energy
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance of 20 cm between the radiator and your body.
