B LINK ELECTRONIC BL-LW0XX Mobile Verifier 3 User Manual TX LW05 2M1
B-LINK ELECTRONIC LIMITED Mobile Verifier 3 TX LW05 2M1
Users Manual
深 圳 必 联 电 子 有 限 公 司
SHENZHEN B-LINK ELECTRONICS CO.,LTD.
IEEE 802.11 b/g/n WiFi Module
Model: BL-LWXX Series
Revision:7A
Date:2011.08.06
TEL：+86-0755-28023453
FAX:+86-0755-28029002
EMAIL:he@lefen.net
http://www.b-link.net.cn
ADD: NO 37,FuQian Rd, JuTang Community,GuanLan town BaoAn
district,ShenZhen, 518110,China
1: Introduction:
BL-LWXX Serives product is a low power, high linear output power, in line with IEEE802.11B /
G /N standard, IEEE 802.11i security protocol support, and the standard IEEE 802.11e quality
of service 150M USB wireless card, with other meet the standard of wireless devices
interconnected, supporting the latest WEP 64/128 bit data encryption, support
WPA-PSK/WPA2-PSK, WPA/WPA2 security, wireless transmission rates of up to 150M, 11G is
the product of 3 times normal, the All the smart set high gain antenna, can adapt to different
working environment, desktop or notebook computer users, and other wireless networking
devices need to achieve easy access to the wireless network.
2: Application:
Wireless Internet, network cameras, set-top box GPS, hard disk player, wireless networking
equipment and other needs
3: product Features
Project Description
Supported protocols and
standards IEEE 802.11N IEEE 802.11G, IEEE 802.11B CSMA/CA ACK
Bus Interface USB1.1 USB2.0
Frequency range 2.4-2.4835GHZ
Data modulation 14
Data modulation OFDM/DBPSK/DQPSK/CCK
Mode Infrastructure or Ad-Hoc
Transmission rate 150/54/48/36/24/18/12/9/6/5.5/2/1M
Sensitivity @PER 54/150M:-72dBm@10%PER,11M:-85dBm@8%PER
6M: -88dBm@10%PER , 1M: -90dBm@8%PER
Transmit power 54M/150M:15DBM, 11M:19DBM
Antenna gain 2dbi
LED Instructions Status Indicator
Transmission distance Indoor up to 100m, outdoor up to 300 meters (depends on the
environments
Operating System Support
WIN2000/XP/VISTA/LINUX/WINCE/WIN7
Operating voltage DC 5V +-0.2V
Environment: Operating temperature:0ºC---40ºC Work Humidity:10%---90%
Size (L*W*H) 39.4MM*15MM*3MM
Software Version VER:2.0
IC RALINK 3070

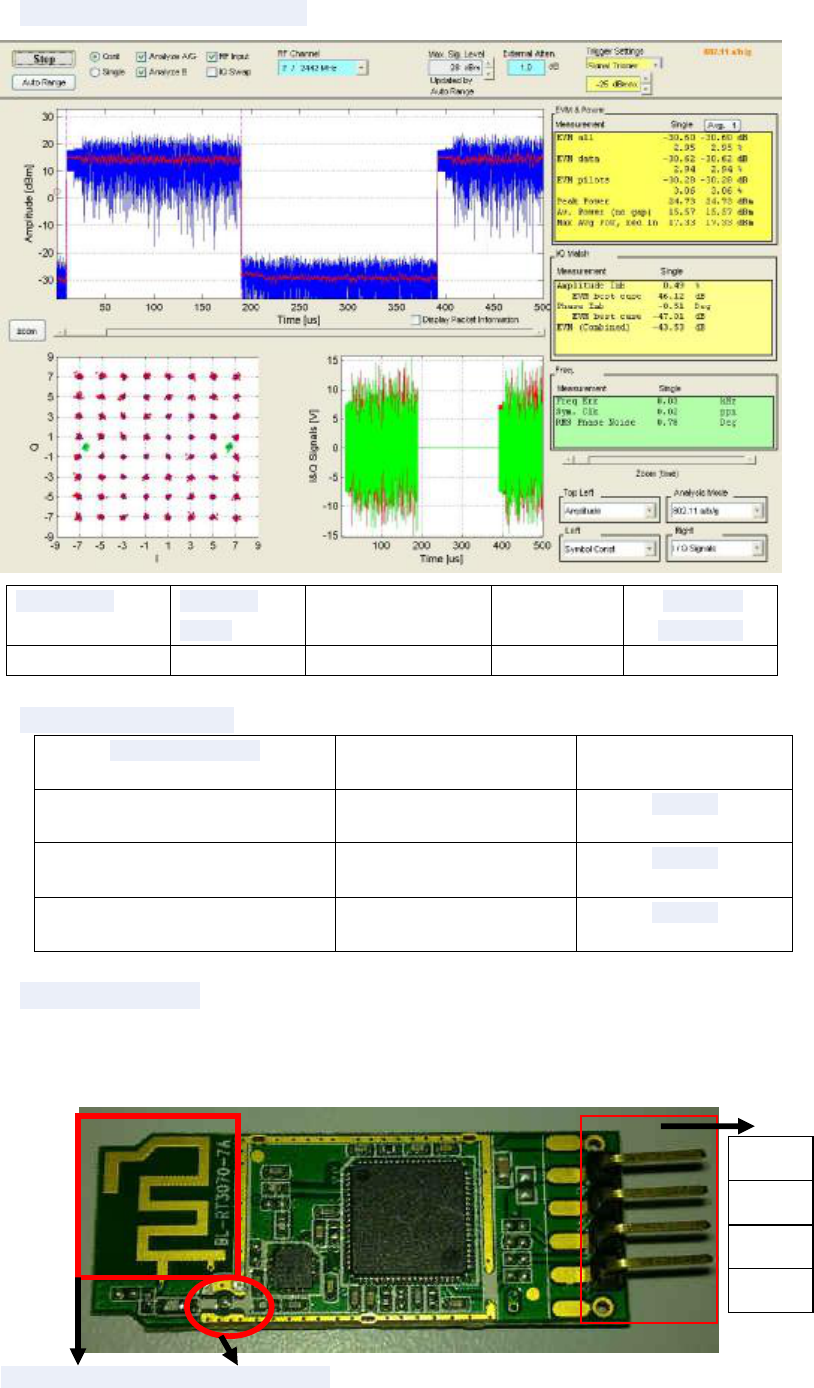

4: Description of the test parameters
Test Project Transmit
power
EVM Freq Err Receiver
Sensitivity
Test Data 15.57dbm -30.6dbm 0.03khz -72dbm
5: System Support Platform
Operating System CPU Supplier Drive
WIN2000/XP/VISTA/WIN7 X86 Platform Support
LINUX2.4/2.6 ARM, MIPSII Support
WINCE5.0/6.0 ARM ,MIPSII Support
6: Product pin definition
TOP
Built-in antenna test points
DC 5V
UDM-
UDP+
GND
Bottom

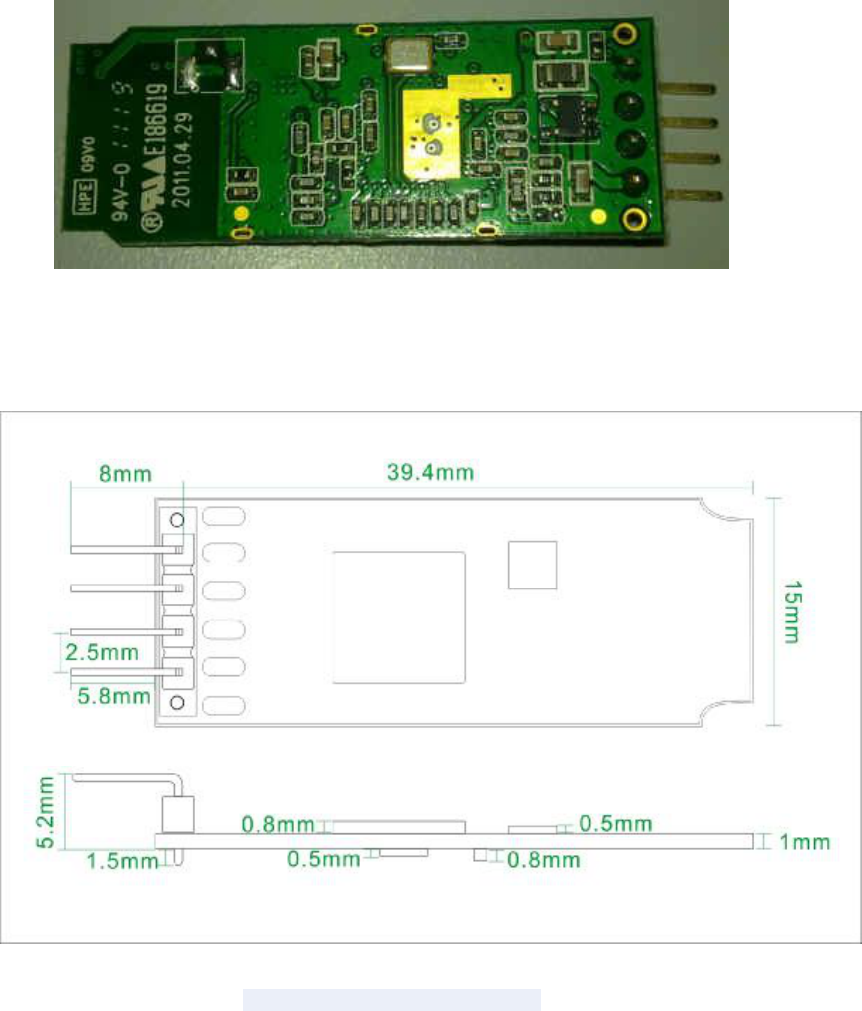

7:Product Size
All dimensional tolerances +-0.2MM
RF warning statement:
The device has been evaluated to meet general RF exposure requirement. The device can be
used in portable exposure condition without restriction.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC ID: X2NBL-LW0XX
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
