BARCO WP2KS15 Wireless Interactive Presentation Gateway User Manual

AWIND Incorporated Wireless Interactive Presentation Gateway Users Manual

Users Manual

1
wePresent
User's Manual
For WiPG-2000S (May 2015)
Version: 0.1
2
Table of Contents
1 OVERVIEW ............................................................................................................................... 5
2 PACKAGE CONTENTS ................................................................................................................... 8
3 USB TOKEN CONTENTS............................................................................................................... 8
4 PHYSICAL DETAILS ...................................................................................................................... 9
5 WHAT YOU MIGHT NEED .......................................................................................................... 10
6 QUICK INSTALLATION ................................................................................................................ 11
7 WIPG-2000S START/STANDBY PAGE .......................................................................................... 12
7.1 QUICK GUIDE .......................................................................................................................... 12

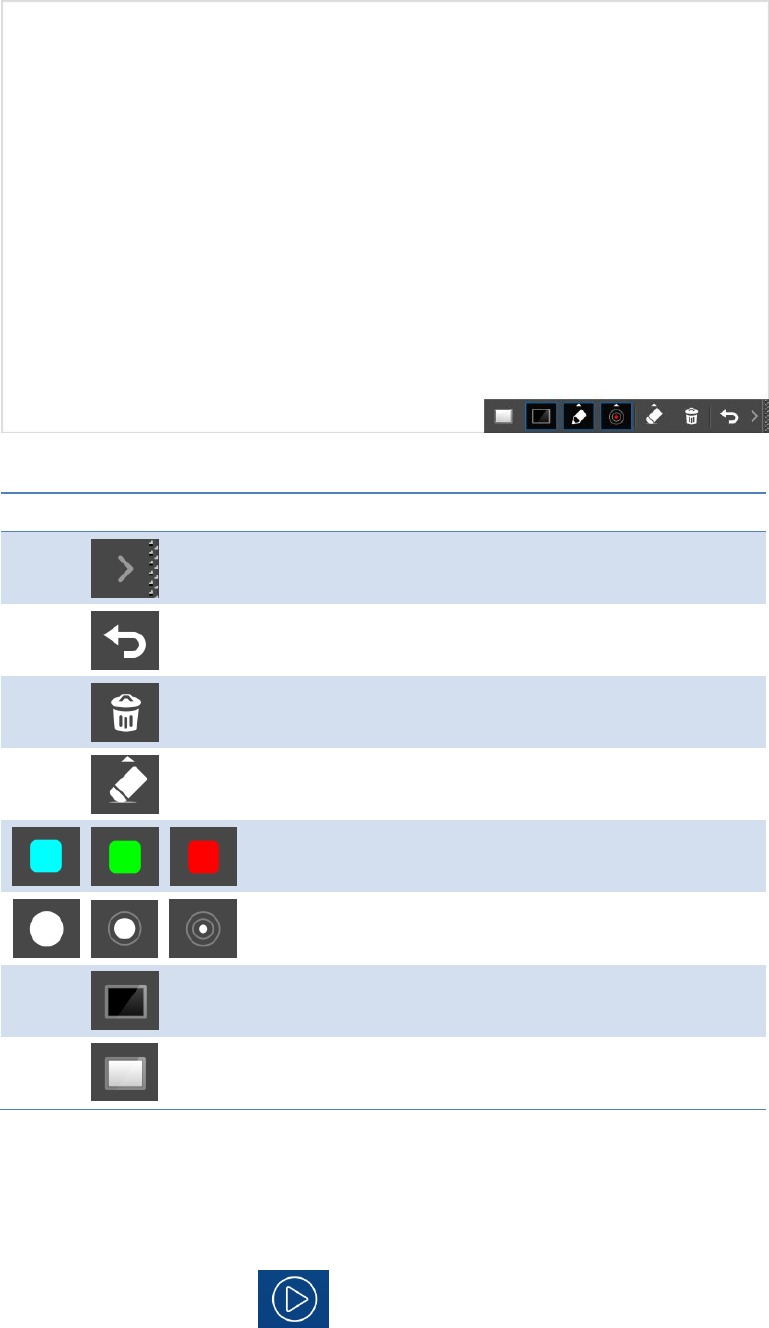

7.2 WHITEBOARD ......................................................................................................................... 12
7.3 USB PLAYER FUNCTION............................................................................................................. 13
7.4 CONFERENCE CONTROL MODE ................................................................................................... 14
7.5 SENDER LIST ........................................................................................................................... 14

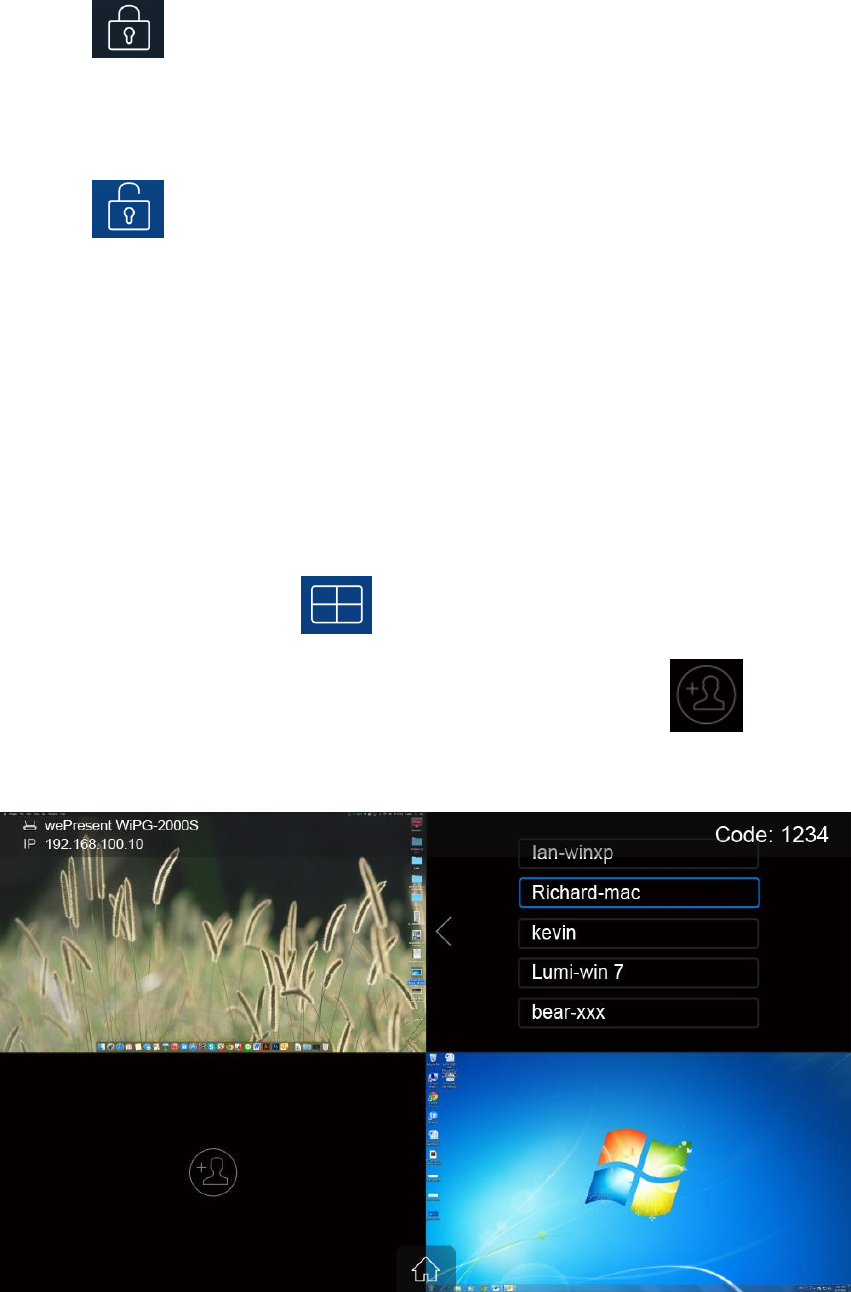

7.6 SPLIT SCREEN MODE ................................................................................................................. 14
7.7 SETUP ................................................................................................................................... 15
7.8 REMOTE TOUCH CONTROL (UMT).............................................................................................. 15

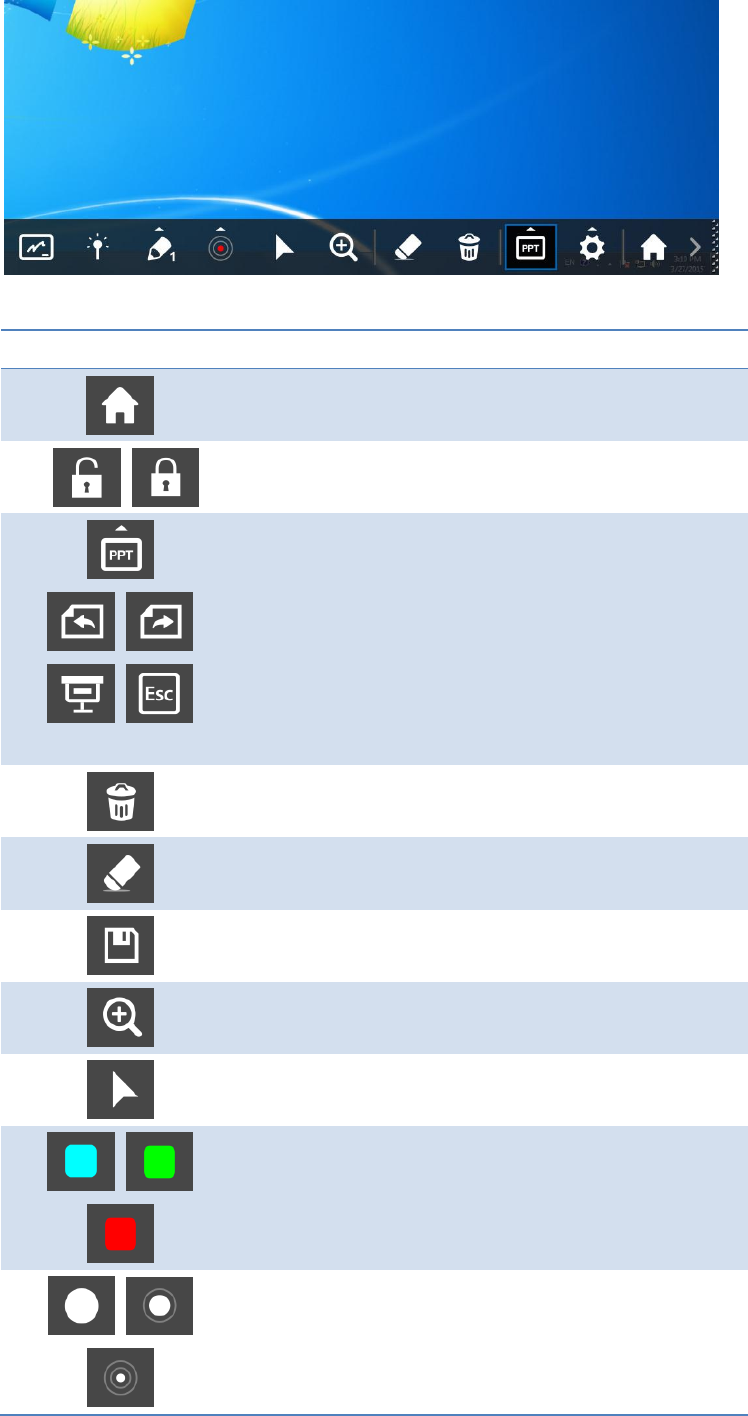

7.9 PEN MENU FUNCTION UNDER PROJECTING MODE. ........................................................................ 15
8 WEPRESENT FOR WINDOWS ...................................................................................................... 18

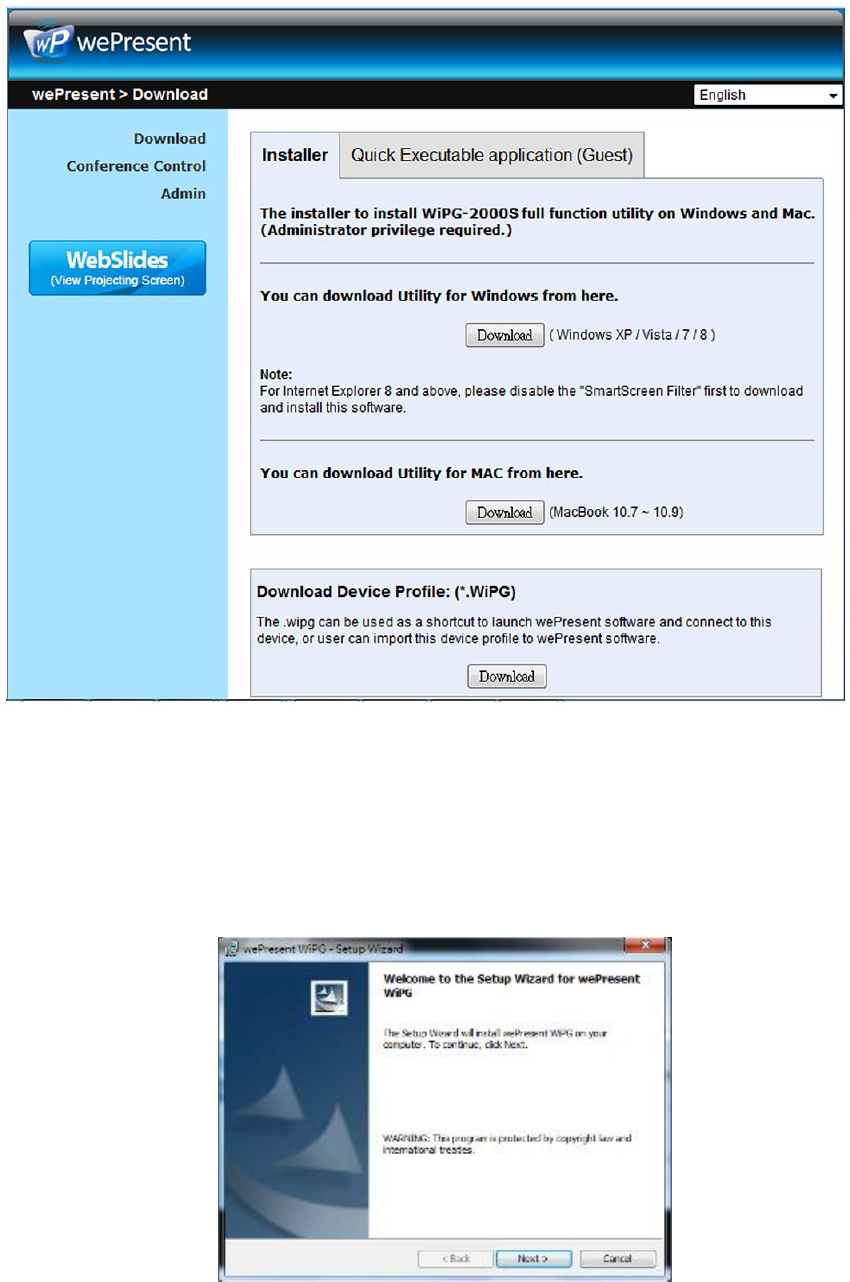

8.1 INSTALL THE APPLICATION .......................................................................................................... 18
8.2 START THE APPLICATION ............................................................................................................ 20
8.3 RECENT CONNECTION ............................................................................................................... 20

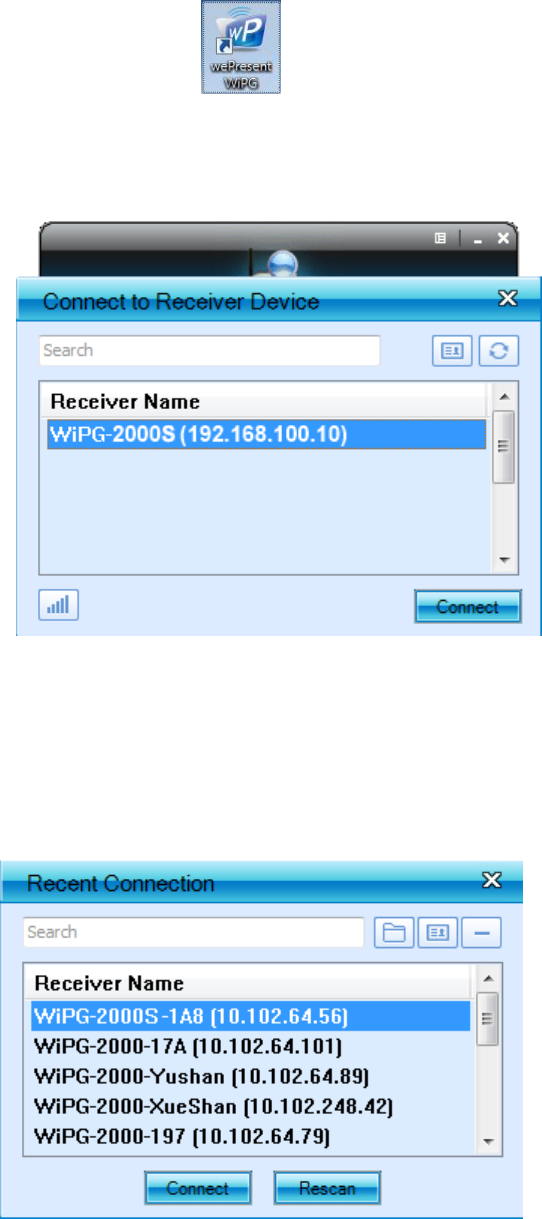

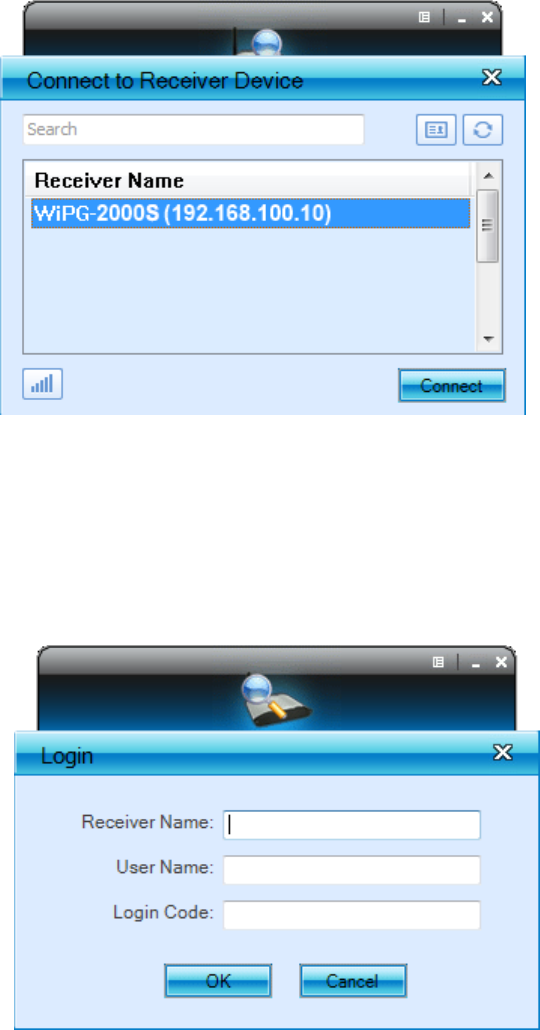

8.4 CONNECT TO RECEIVER DEVICE ................................................................................................... 21
8.5 LOGIN.................................................................................................................................... 22

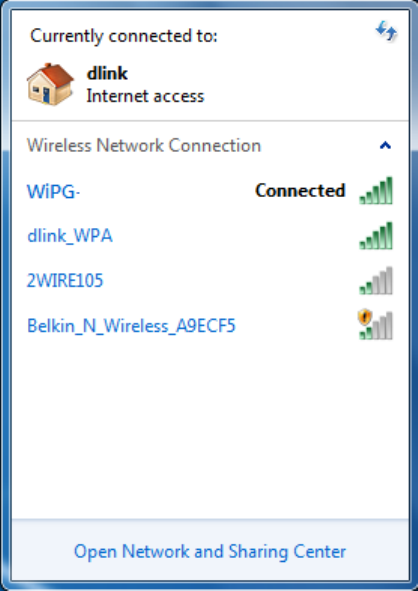

8.6 CHANGE TO ANOTHER WIFI NETWORK ........................................................................................ 22

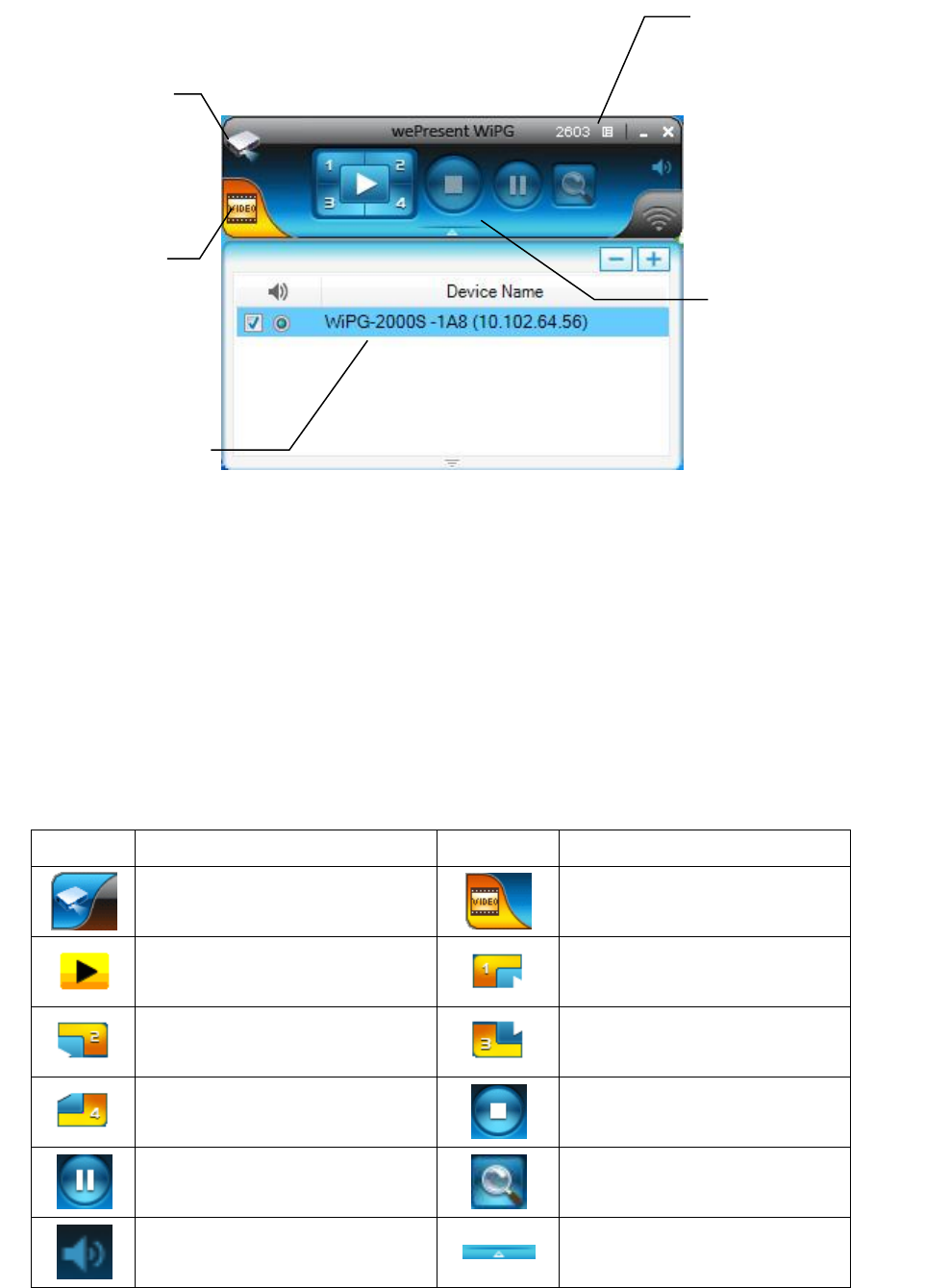

8.7 MAIN USER INTERFACE ............................................................................................................. 23
8.8 SCREEN PROJECTION ................................................................................................................ 23
8.9 CONNECTED RECEIVER LIST ........................................................................................................ 24

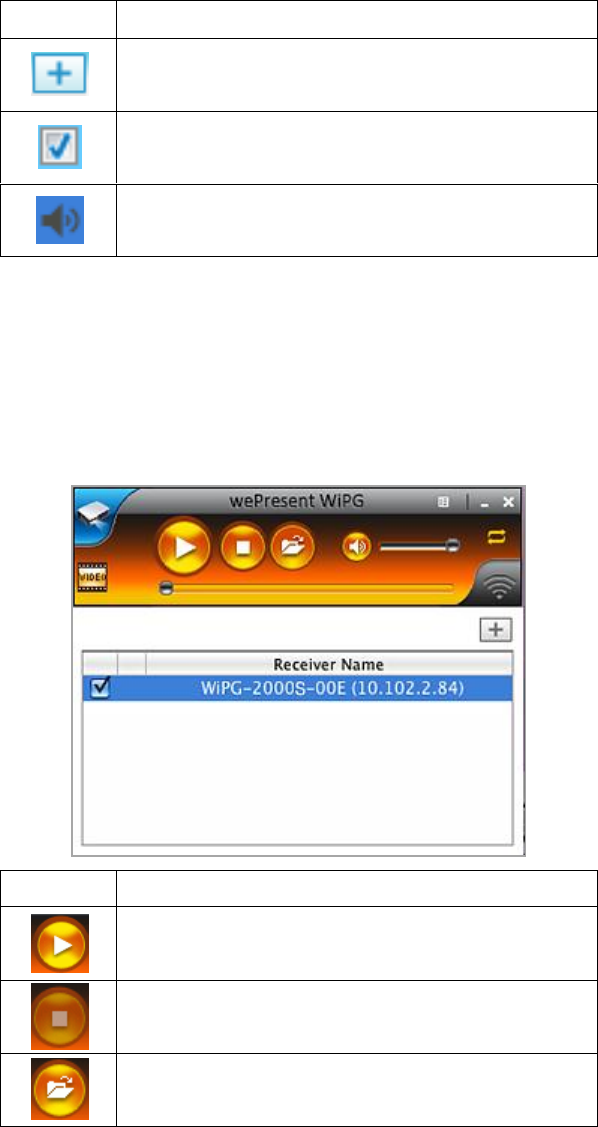

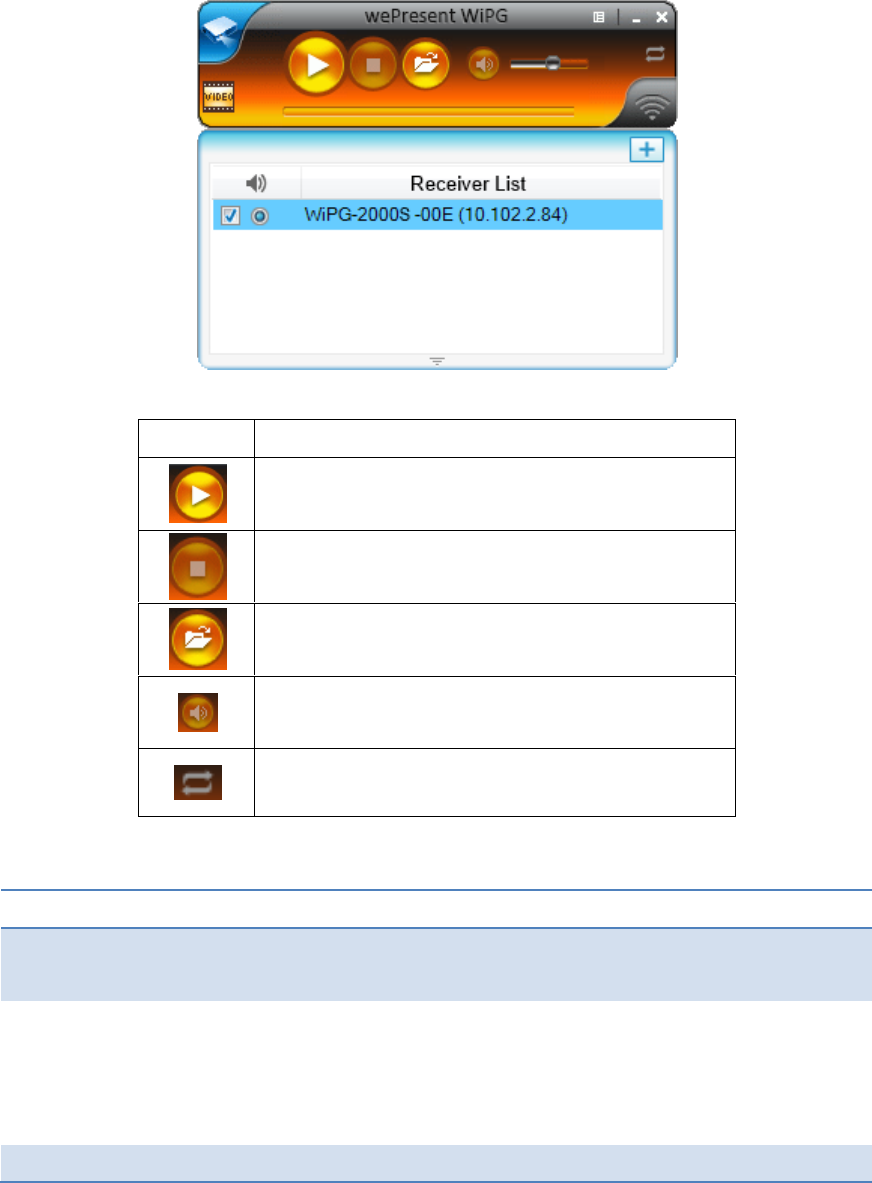

8.10 VIDEO STREAMING ................................................................................................................... 24

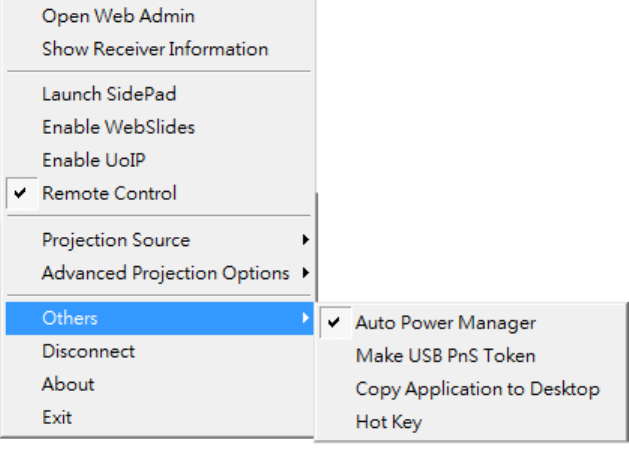

8.11 MENU ................................................................................................................................... 26
8.11.1 OPEN WEB ADMIN .................................................................................................................. 26
8.11.2 SHOW RECEIVER INFORMATION .................................................................................................. 26
8.11.3 LAUNCH SIDEPAD .................................................................................................................... 26
8.11.4 LAUNCH WEBSLIDES ................................................................................................................ 28
8.11.5 ENABLE UOIP ......................................................................................................................... 30
8.11.6 REMOTE CONTROL ................................................................................................................... 30
8.11.7 PROJECTION SOURCE ................................................................................................................ 30

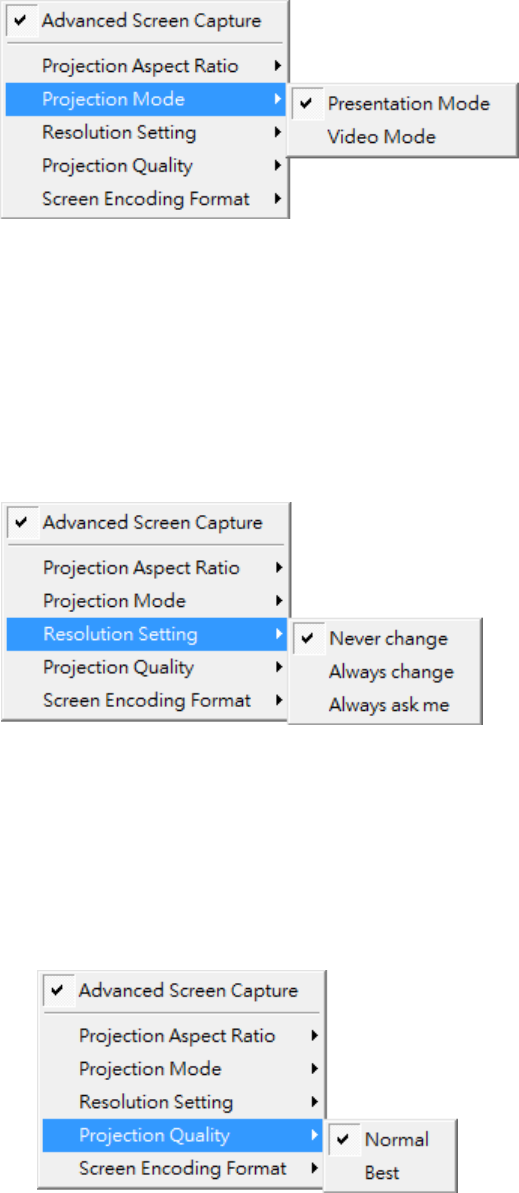

8.11.8 ADVANCED PROJECTION OPTION ................................................................................................ 31
8.11.8.1 ADVANCED SCREEN CAPTURE ..................................................................................................... 31
3
8.11.8.2 PROJECTION ASPECT RATIO ........................................................................................................ 32
8.11.8.3 SELECT PROJECTION MODE ........................................................................................................ 33
8.11.8.4 RESOLUTION SETTINGS ............................................................................................................. 33
8.11.8.5 PROJECTION QUALITY ............................................................................................................... 33
8.11.8.6 SCREEN ENCODING FORMAT ...................................................................................................... 34
8.11.9 OTHERS ................................................................................................................................. 34

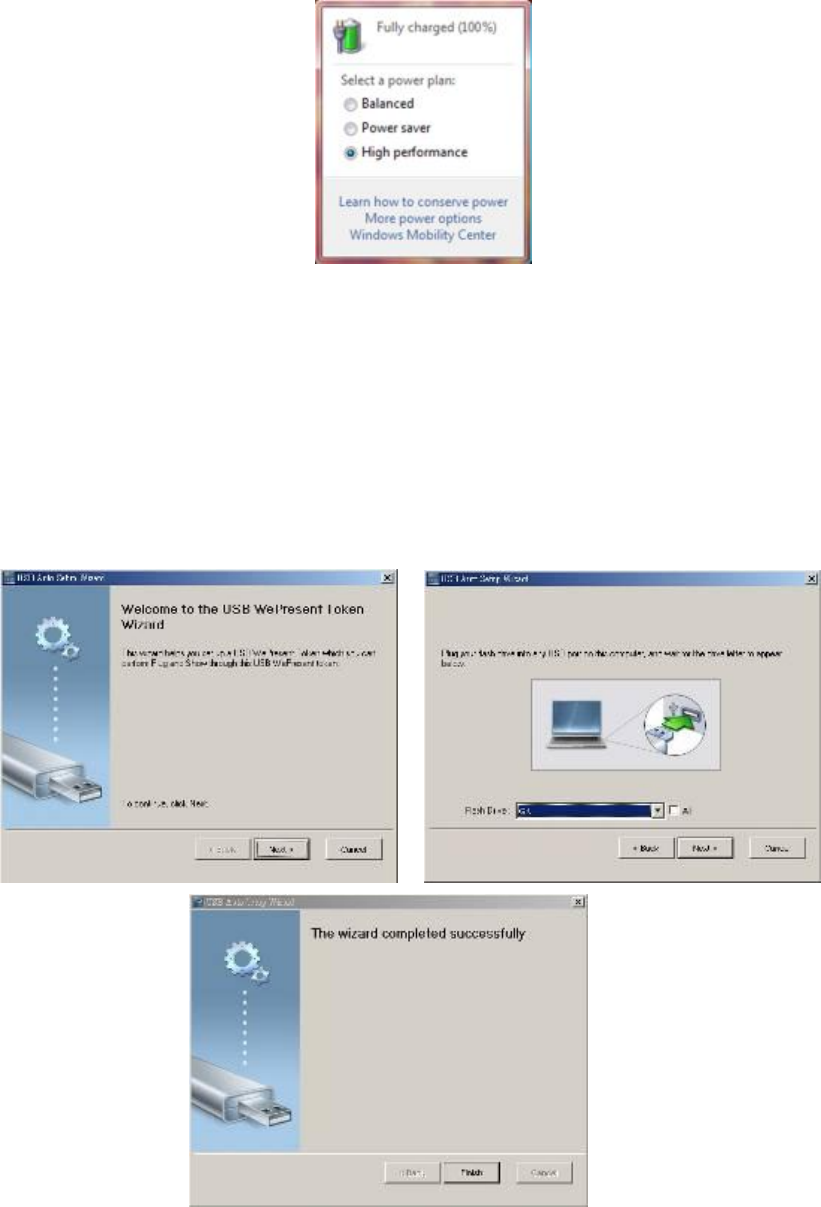

8.11.9.1 AUTO POWER MANAGER .......................................................................................................... 34
8.11.9.2 MAKE USB PNS TOKEN ............................................................................................................ 35
8.11.9.3 COPY APPLICATION TO DESKTOP .................................................................................................. 35

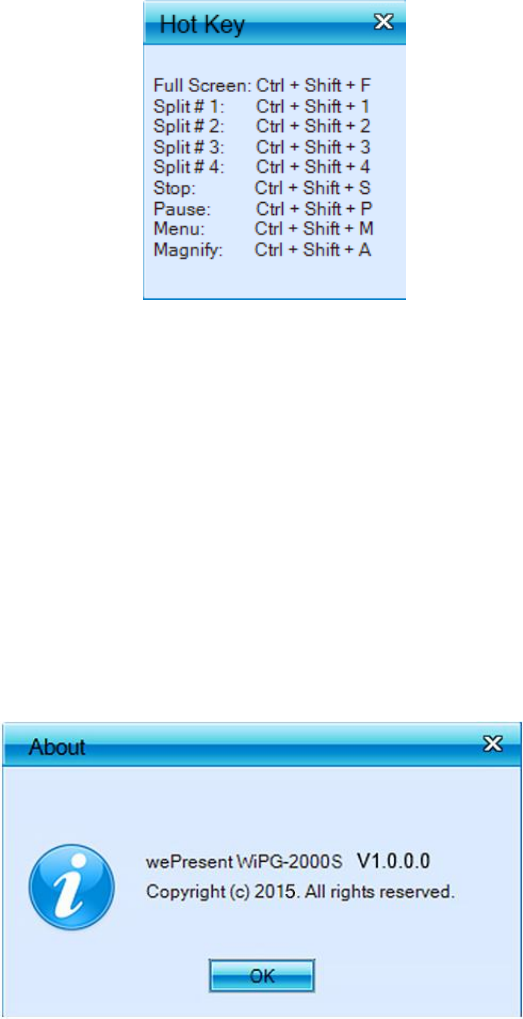

8.11.9.4 HOT KEY ................................................................................................................................ 36
8.11.10 DISCONNECT ........................................................................................................................... 36
8.11.11 ABOUT .................................................................................................................................. 36
8.11.12 EXIT. ..................................................................................................................................... 36
9 WEPRESENT FOR MAC .............................................................................................................. 37
9.1 INSTALL THE APPLICATION .......................................................................................................... 37
9.2 START THE APPLICATION ............................................................................................................ 38

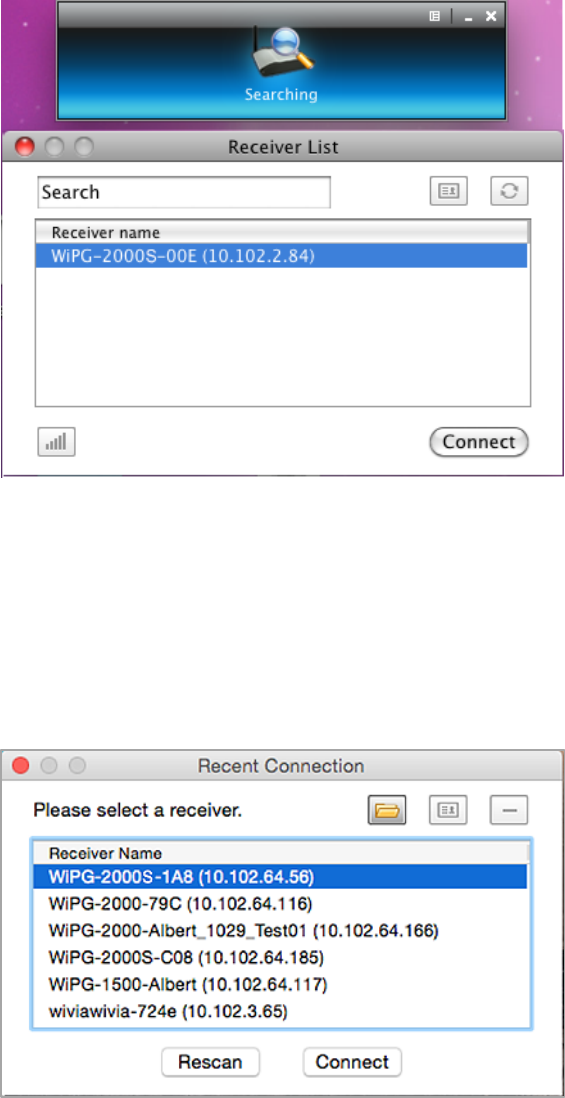

9.3 RECENT CONNECTION ............................................................................................................... 38
9.4 LOGIN.................................................................................................................................... 40
9.5 CHANGE TO ANOTHER WIFI NETWORK ........................................................................................ 40
9.6 MAIN USER INTERFACE ............................................................................................................. 41
9.7 SCREEN PROJECTION ................................................................................................................ 41
9.8 CONNECTED RECEIVER LIST ........................................................................................................ 42
9.9 VIDEO STREAMING ................................................................................................................... 42
9.10 MENU ................................................................................................................................... 43
9.10.1 WEB ADMIN ........................................................................................................................... 43
9.10.2 SHOW RECEIVER INFORMATION .................................................................................................. 44
9.10.3 LAUNCH SIDEPAD .................................................................................................................... 44
9.10.4 LAUNCH WEBSLIDES ................................................................................................................ 45
9.10.5 REMOTE DESKTOP.................................................................................................................... 47
9.10.6 SELECT PROJECTION DESKTOP .................................................................................................... 47

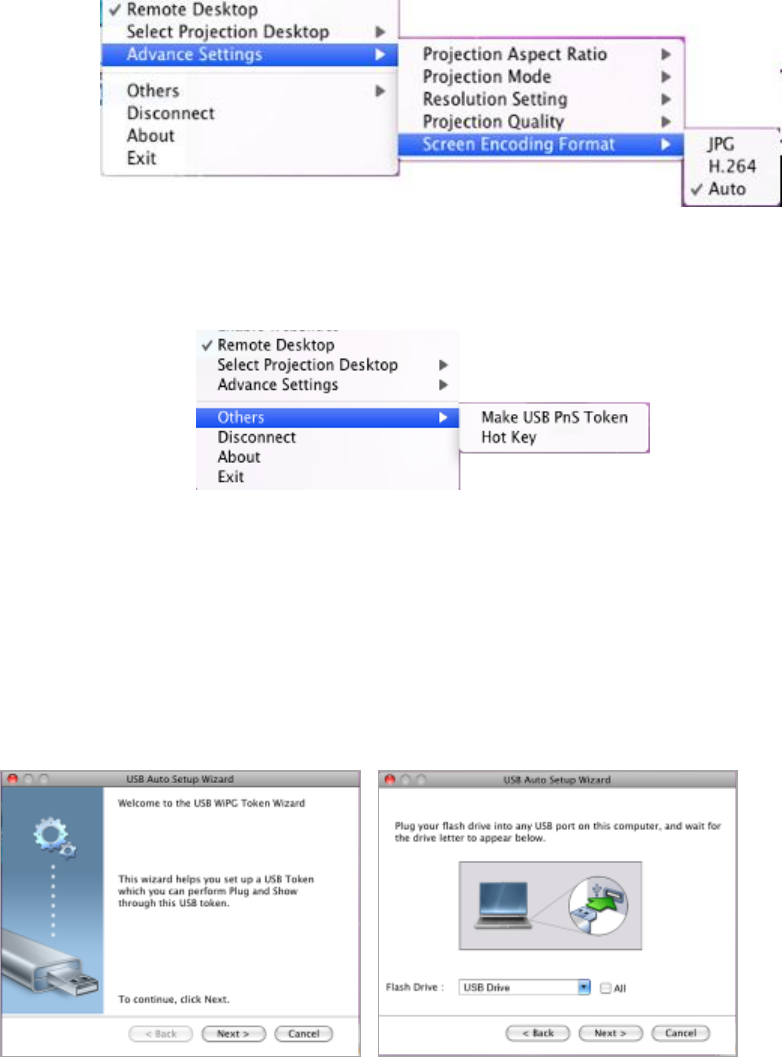

9.10.7 ADVANCED SETTINGS ................................................................................................................ 47
9.10.7.1 PROJECTION ASPECT RATIO ........................................................................................................ 47
9.10.7.2 SELECT PROJECTION MODE ........................................................................................................ 48
9.10.7.3 RESOLUTION SETTINGS ............................................................................................................. 48
9.10.7.4 PROJECTION QUALITY ............................................................................................................... 48
9.10.7.5 SCREEN ENCODING FORMAT ...................................................................................................... 49
9.10.8 OTHERS ................................................................................................................................. 49
9.10.8.1 MAKE USB PNS TOKEN ............................................................................................................ 49
9.10.8.2 HOT KEY ................................................................................................................................ 50
4
9.10.9 DISCONNECT ........................................................................................................................... 50
9.10.10 ABOUT .................................................................................................................................. 50
9.10.11 EXIT. ..................................................................................................................................... 50
10 WEB MANAGEMENT ................................................................................................................ 51
10.1 HOME PAGE ........................................................................................................................... 51
10.2 CONFERENCE CONTROL ............................................................................................................. 51

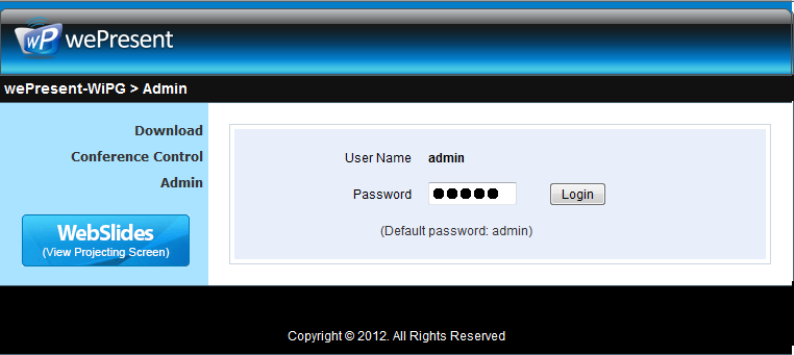

10.3 ADMIN .................................................................................................................................. 53

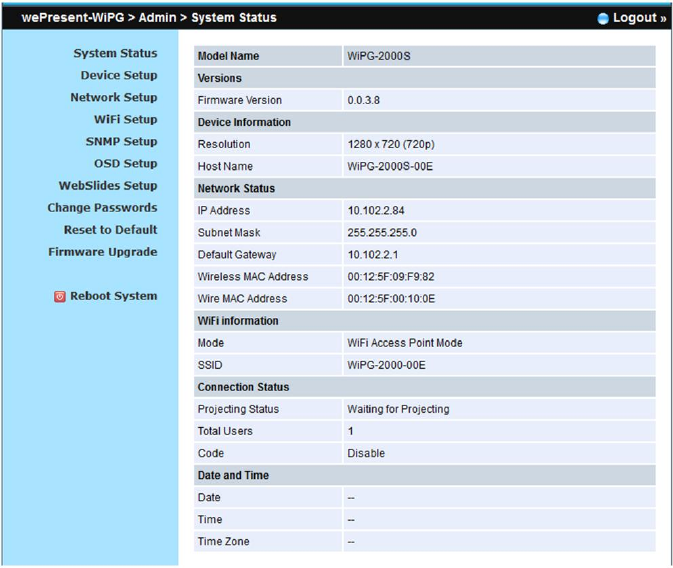

10.4 SYSTEM STATUS ....................................................................................................................... 53

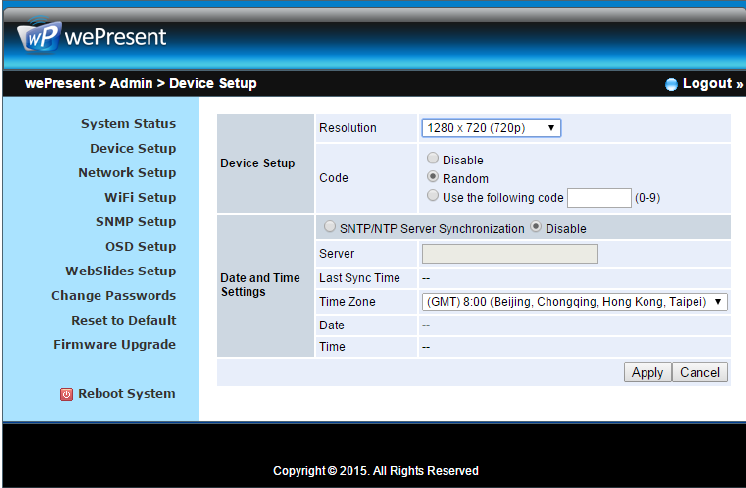

10.5 DEVICE SETUP ......................................................................................................................... 54
10.6 NETWORK SETUP ..................................................................................................................... 55
10.7 WIFI SETUP ............................................................................................................................ 57
10.8 SNMP SETUP ......................................................................................................................... 59
10.9 OSD SETUP ............................................................................................................................ 60
10.10 WEBSLIDES SETUP ................................................................................................................... 61
10.11 CHANGE PASSWORDS ............................................................................................................... 62
10.12 RESET TO DEFAULT ................................................................................................................... 63

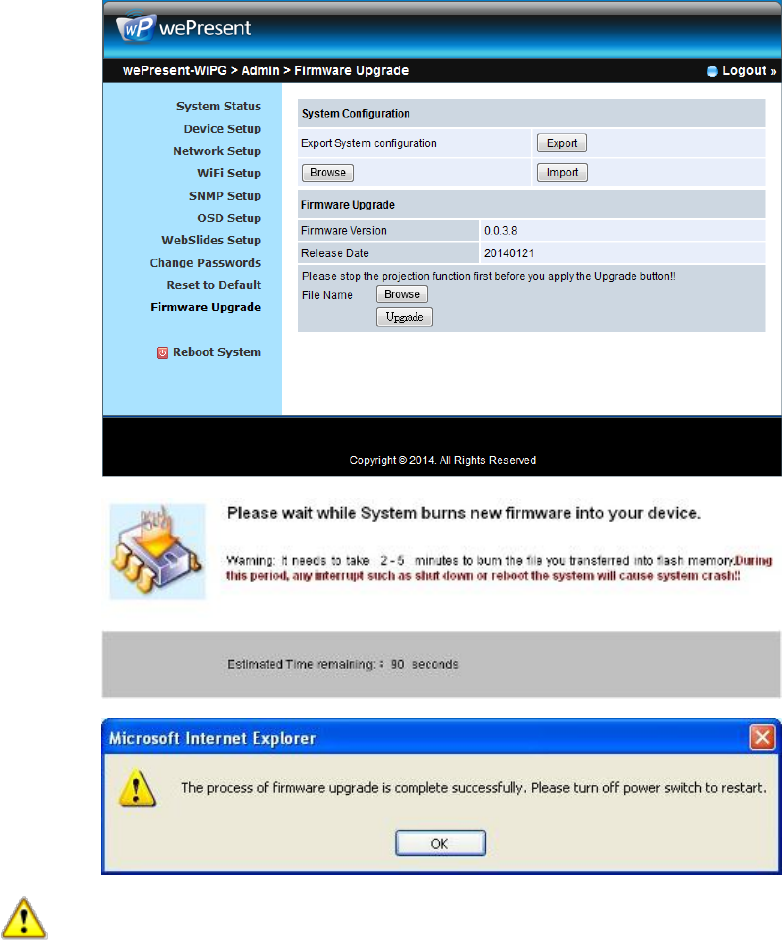

10.13 FIRMWARE UPGRADE ............................................................................................................... 63
10.14 REBOOT SYSTEM ...................................................................................................................... 64
10.15 LOGOUT ................................................................................................................................. 65
10.16 WEBSLIDES ............................................................................................................................ 66

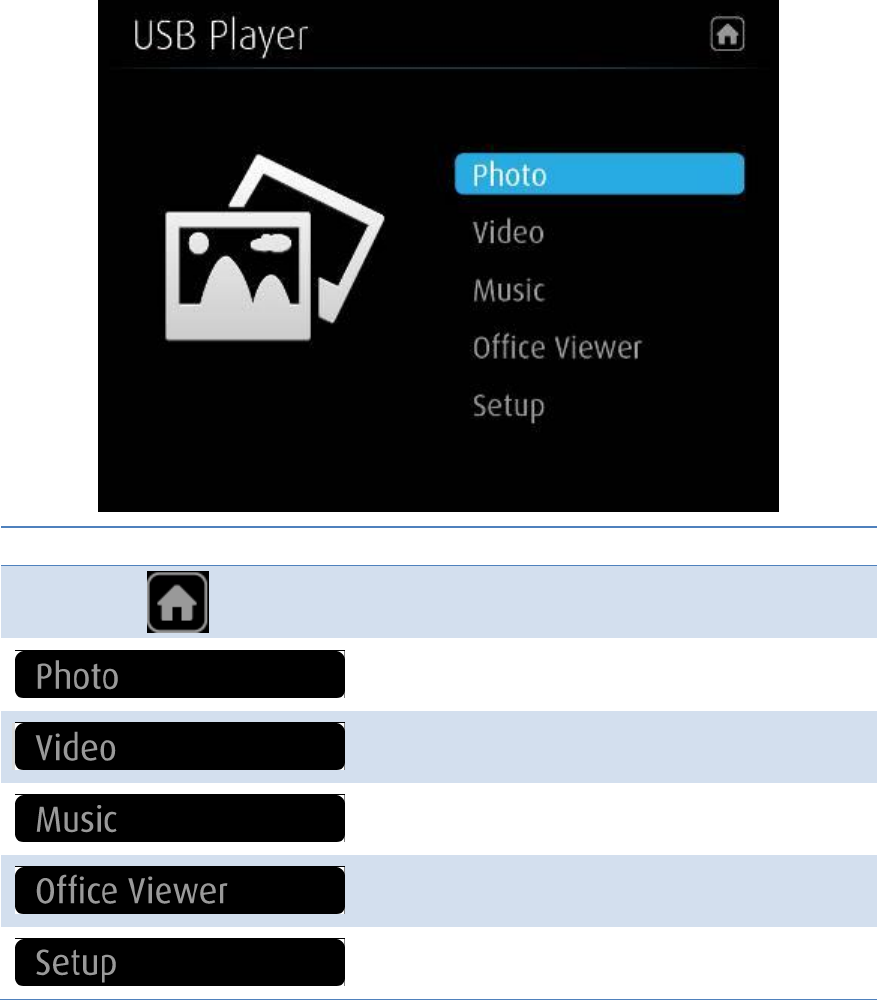

11 USB PLAYER ........................................................................................................................... 67
11.1 PHOTO VIEWER ....................................................................................................................... 68
11.2 VIDEO PLAYER ......................................................................................................................... 68
11.3 MUSIC PLAYER ........................................................................................................................ 69

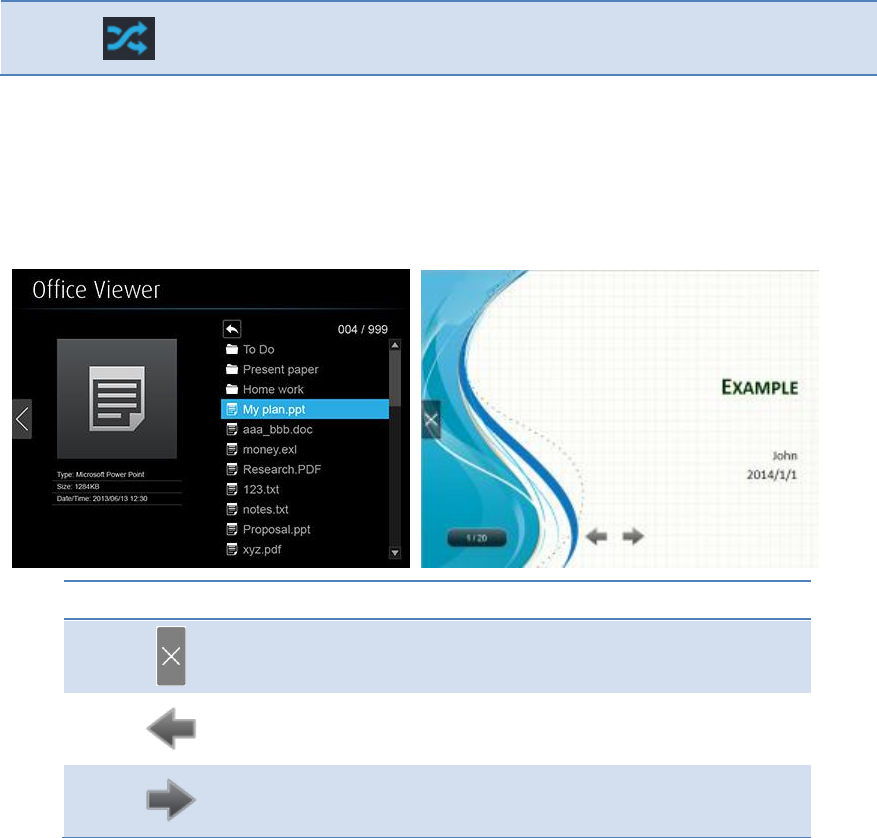

11.4 OFFICE VIEWER ....................................................................................................................... 70

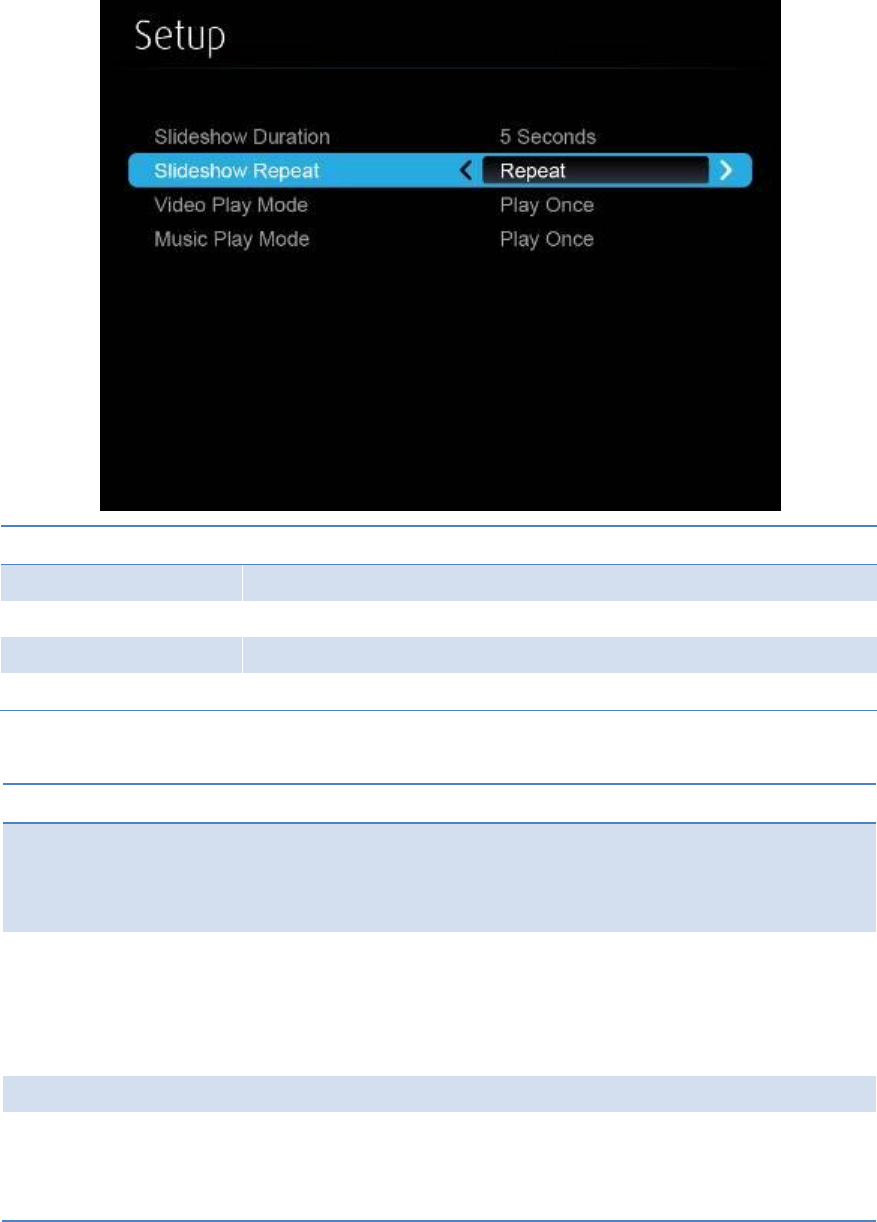

11.5 SETUP ................................................................................................................................... 71

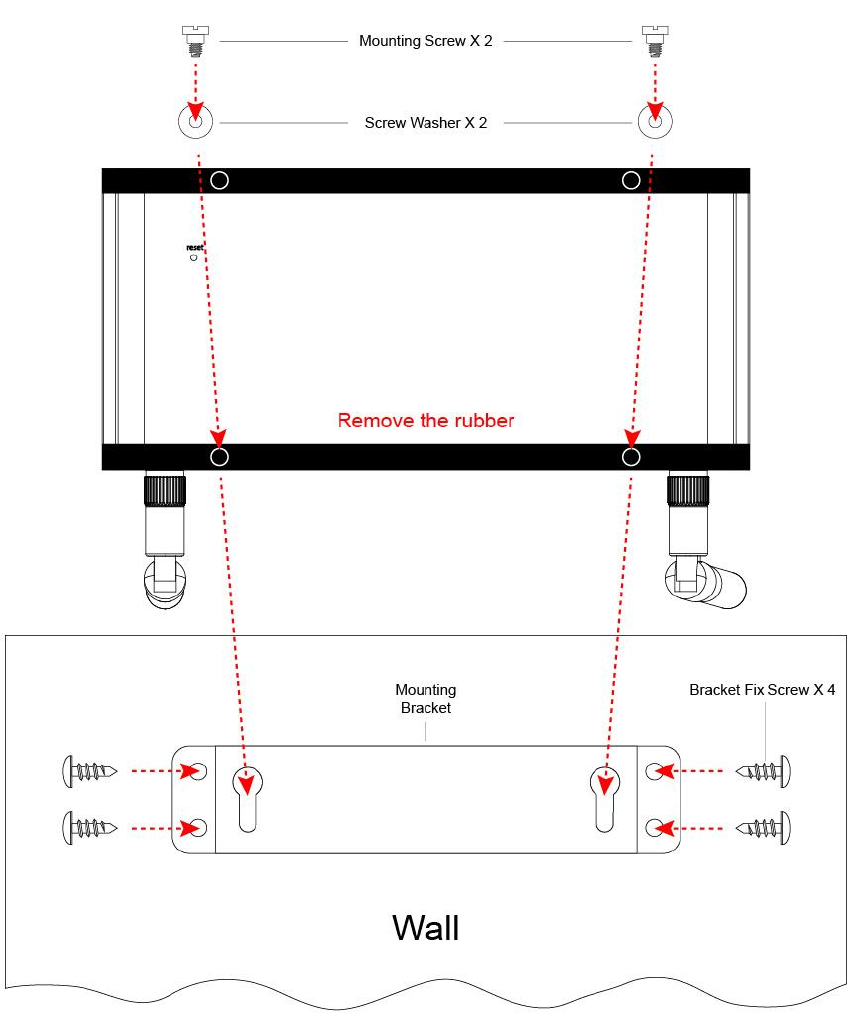

12 WALL MOUNT ........................................................................................................................ 72
13 SAFETY .................................................................................................................................. 73
5
1 Overview
WiPG-2000S is a spectacular wireless presentation device which connects
multi-platform devices (Windows/Mac/Pad/Smartphone) for engaging interactive
presentations by supporting finger-touch technology, virtual whiteboard and Win 7/8
HID compatible remote devices.

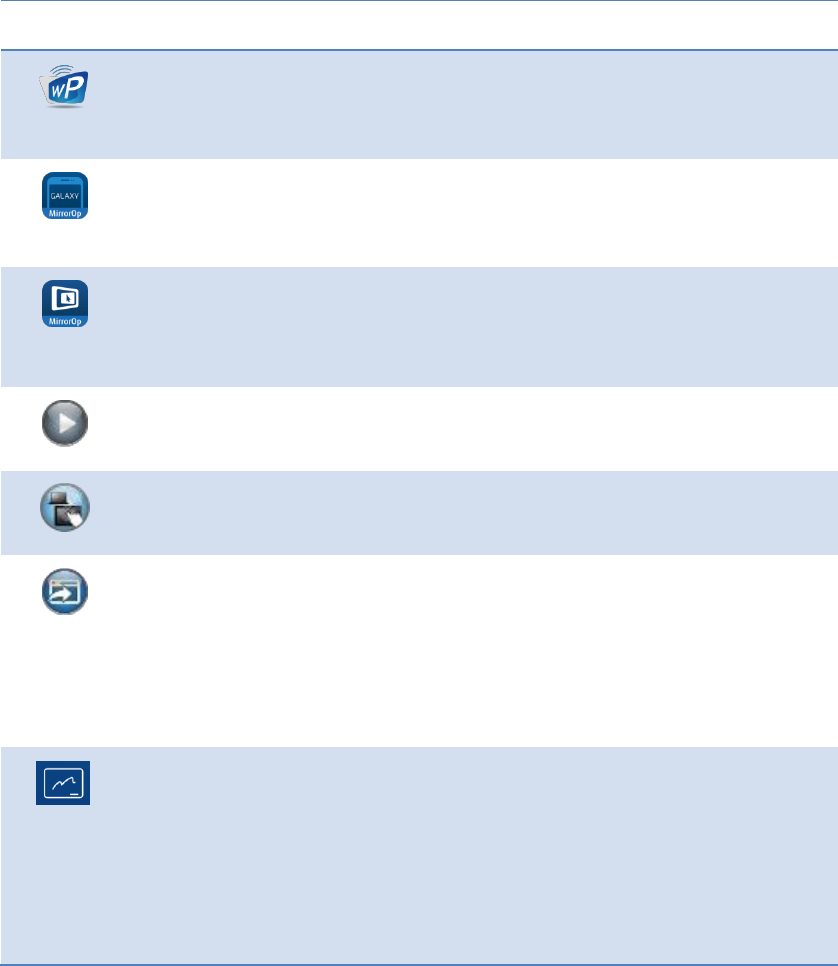

WiPG-2000S Highlight Features:
Icon
Feature
Description
wePresent for Windows
and Mac
Wireless presentation for Windows and Mac
Win: XP/Vista/7/8,
Mac: 10.7/10.8/10.9/10.10
MirrorOp for Galaxy
MirrorOp sender for Samsung Galaxy series devices
Support. Users can project any contents from their
Samsung Galaxy devices.
MirrorOp Presenter
High quality presentation and annotation via
iPhone/iPad or Android devices (Word, Excel, PPT, PDF ,
Photo , Browser, Live Camera, Screenshot)
Video Streaming
Network Video/Music streaming for Windows, Mac, iOS
and Android.

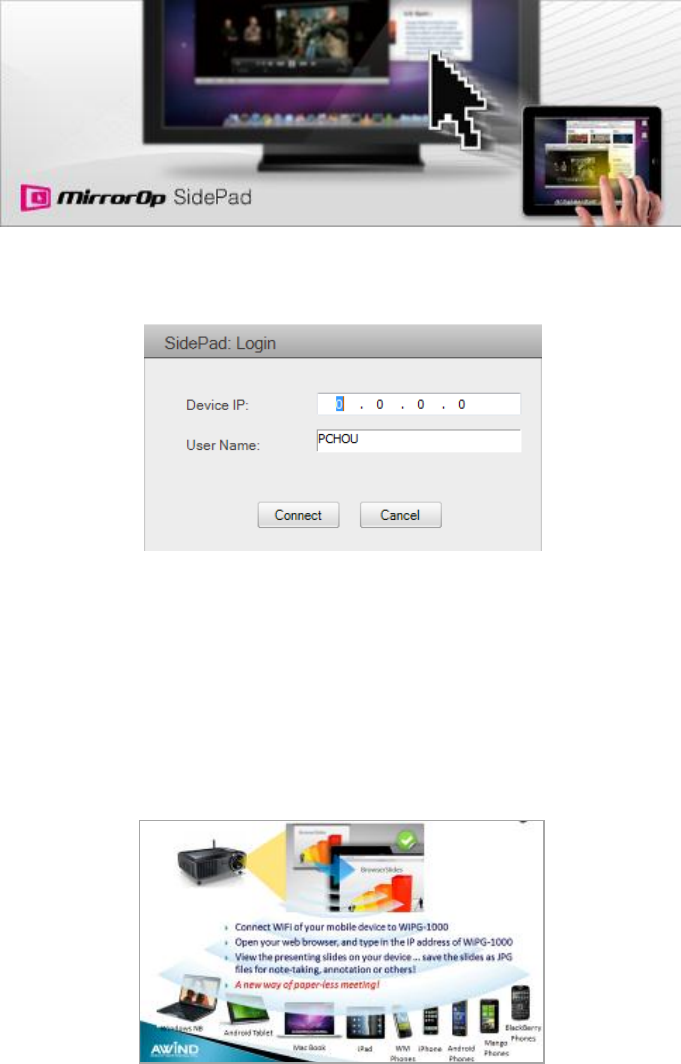

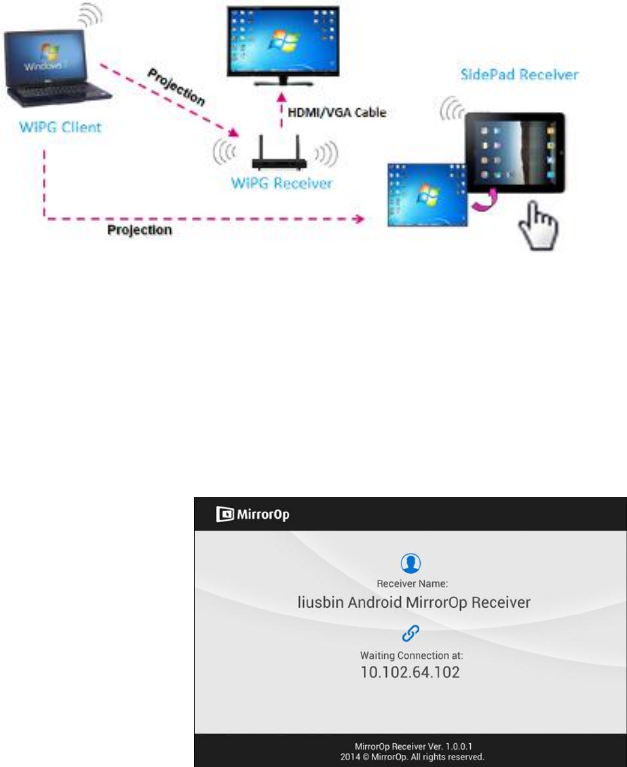

SidePad
Control the projecting screen on PC or Mac via
iPhone/iPad or Android devices
WebSlides
Broadcast slides to your devices with WiFi and web
browser
Audience can save the projecting slides for taking
notes
Webslides can be secured by password.
Whiteboard
Make free drawing on virtual
whiteboard/blackboard without any computer
connected
Make annotation on any projecting content. It
allows you to annotate on the screen during the
presentation
6
Annotating, writing and drawing can be done using
touch screen or any other USB HID device
4-to-1 projection
Project four PC/Mac screens or WiFi-Doc content to one
projector/display at once.
One to Many Projection
Project the screen to up to four receiver devices at the
same time.
Conference Control /
OSD User-List
Control projection from WiPG's web page, or use
mouse/keyboard to select a PC from the standby screen.
Conference control function can be secured by
password
Moderator can control who is projecting.
Moderator can compare 4 screens side by side.

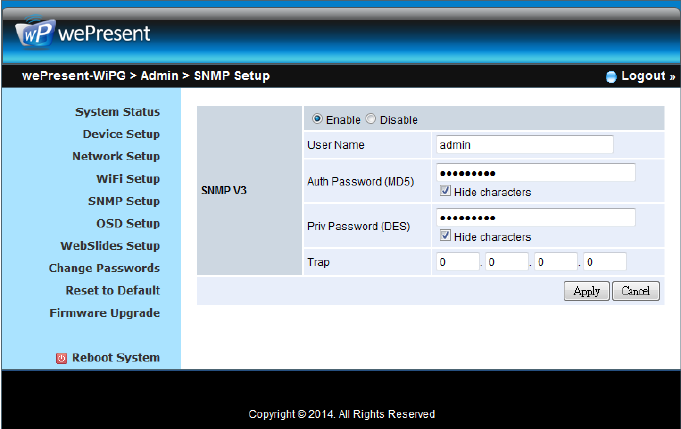

SNMP V3
Manage WiPG devices across the corporate network
through enhanced SNMP V3 protocol
UMT
Driverless remote touch control through network.
(Support standard Win 7/8 compatible USB HID touch
device)
Key Features
WiFi 802.1a/b/g/n (Selective 5G/2.4G WiFi)
Power over Ethernet
High performance screen/audio projection for Windows/Mac (Windows 7/8
and Mac 10.7/10.8/10.9/10.10)
Remote desktop control from Touch Screen or Mouse/Keyboard for
Windows/Mac
Plug&Show: launching the projection application from a USB Token without
installation. Extra USB tokens with the PlugandShow function can be easily
created in the wePresent software.
High performance 4-to-1 Quadrant Screen Projection
Support up to 64 concurrent login users
Conference Control: Mediator function through the device web page or
standby screen
Support Wireless Multi-touch control (Win7/8 standard HID compatible
device)
Support drawing feature for projecting sender screen, or drawing on
7
whiteboard without PC
Changeable Customized standby screen.
- Replace entire start screen with background image.
- SNMP V3:
manage/configure multiple WiPGs through SNMP V3 protocol
- Firmware upgrade via FTP
- Enhance the remote SNMP manageability to higher security level
Wi-Fi Enterprise encryption support
Support MSI installer for Windows software deployment and execute
application from command line
Extended desktop support for both Windows and Mac
Security design: Session Login Code, WEP/WPA/WPA-Enterprise WiFi Security,
and GateKeeper
HDMI and VGA dual video interfaces

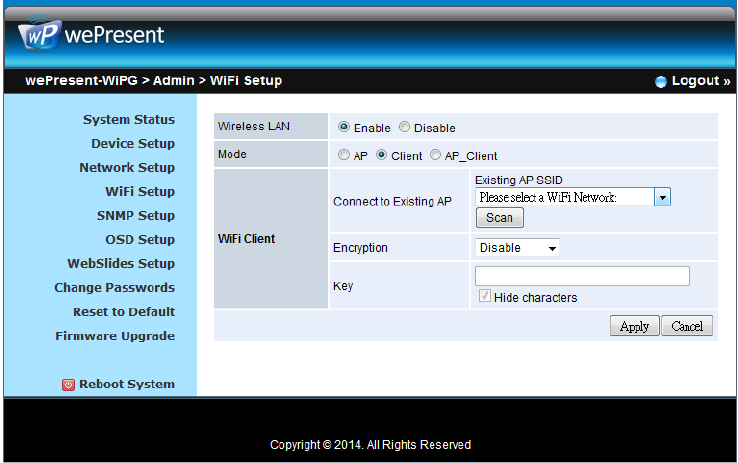

WiFi AP, Station and AP-Client mode: Make WiPG-2000S a part of your
wired or wireless network. Allowing internet access to all connected users
and presentation from network computers.
8
2 Package Contents
wePresent WiPG-2000S Box
wePresent WiPG-2000S USB Token
Power Adapter (DC +5V, 2.6A)
2 WiFi Antenna
Quick Installation Guide
Wall Mount Kit
Warranty Card
CE DoC
3 USB Token Contents
Windows Installer (WiPG-2000S Windows Installer)
MAC Installer (WiPG-2000S Mac Installer)
VAC Driver (For Windows XP Audio Projection)
VDD Driver (For Windows XP/Vista Virtual Extended Screen)
User Manual
wePresent WiPG Execution File
SVS Driver (For Mac Extended Screen)
9
4 Physical Details
Front Panel
Description
Power Button and LED
Power on/off button.
LED Indicator: System Loading(Red), Ready(Blue)
USB Port (Front)
2 USB ports for USB mouse and keyboard
Rear Panel
Antenna
USB Port (Rear)
RJ-45
VGA Connector
HDMI
Audio Jack
Power Jack
10
The USB port can support up to 5V/0.5A touch device and USB drive.
PoE Standard: IEEE 802.3at Standard 13 watts type 1 (class 0) powered device(PD)
of Power Over Ethernet(PoE).
Bottom Side
Description
Screw Hole
Screw Hole for Wall Mount Kit

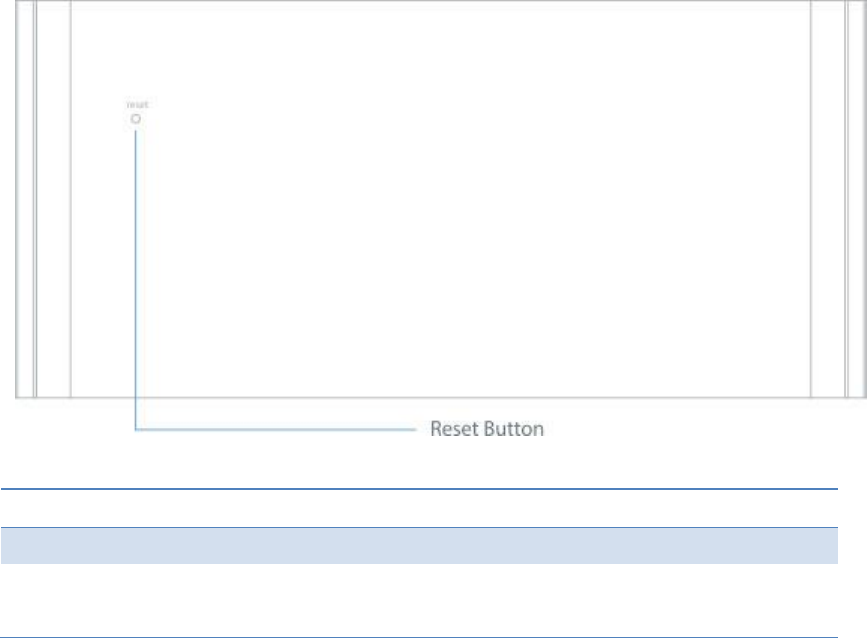

Reset Button
Press reset button and power on the device to execute
Hardware Reset.
5 What You Might Need
Projector/display with VGA/HDMI interface
Windows or Mac PC/Laptop
Apple iPhone or iPad device
Android Phone or Tablet device
Speaker (Optional, for audio projection feature)
USB Mouse and Keyboard (Optional, for remote desktop feature)
USB HID Touch Screen/IWB Device (Optional, for UMT feature)
11
6 Quick Installation

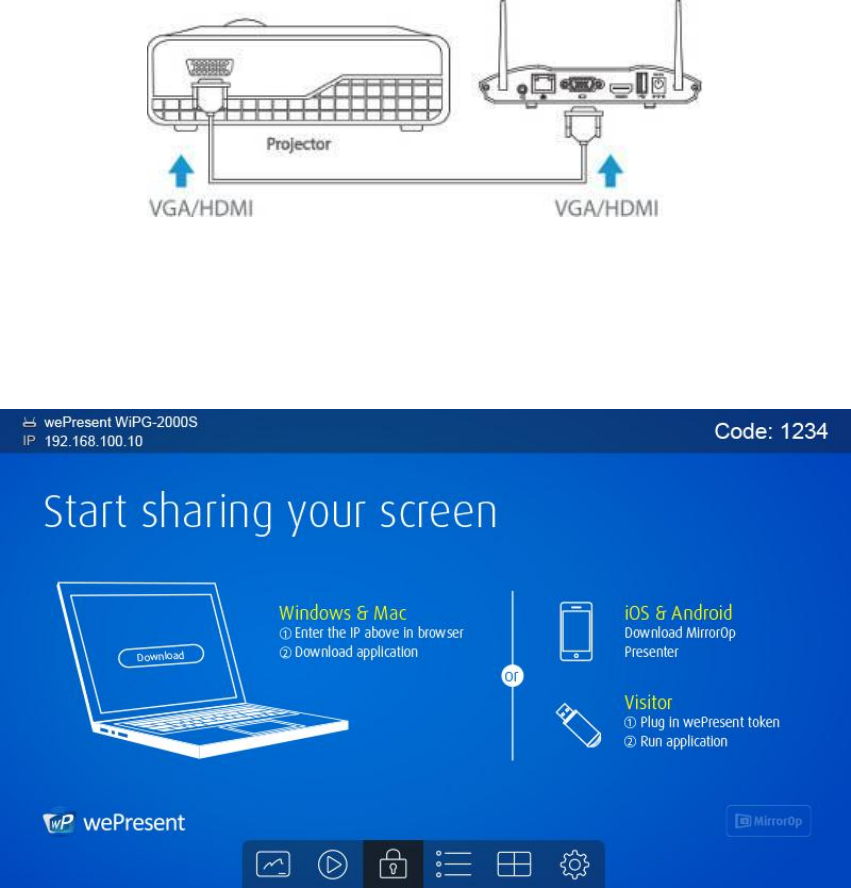

1) Connect wePresent WiPG-2000S device to Projector/display through VGA/HDMI
port and turn on projector/display power.
2) Connect the power adaptor to WiPG-2000S device and press the power button to
turn on WiPG-2000S device. System will be ready when the LED light turns to blue.
WiPG-2000S can also be powered by Ethernet Cable (Power over Ethernet).
It will show the default standby screen as below when system is ready.
3) Insert the speaker cable to WiPG-2000S audio jack for audio output
4) Insert the USB mouse or keyboard or USB touch device to WiPG-2000S front/rear
USB port for On-Screen Display (OSD) control. (Optional)
12
7 WiPG-2000S Start/Standby Page
7.1 Quick Guide
The device will show the quick guide on the screen as below, it will show the device
information on the screen and also the function icon.
7.2 Whiteboard
1) Click on the “whiteboard” button on the start page to enter “whiteboard”
function page. You can make the free drawing on device screen through Mouse,
Touch Screen or IWB device.
13
2) Pen Menu Function
Button
Description
Open/Minimize all Pen menu bar.
Home, Go back to wePresent home standby screen.
Clear all of the drawing/writing on the screen.
Erase part of drawing/writing.
Select the pen color. (Red, Green, Blue)
Select the size of the pen. (Small, Medium, Big)
Click to use the blackboard. (All the drawing/writing
will be cleared when changes to different mode)
Click to use the whiteboard. (All the drawing/writing
will be cleared when changes to different mode)

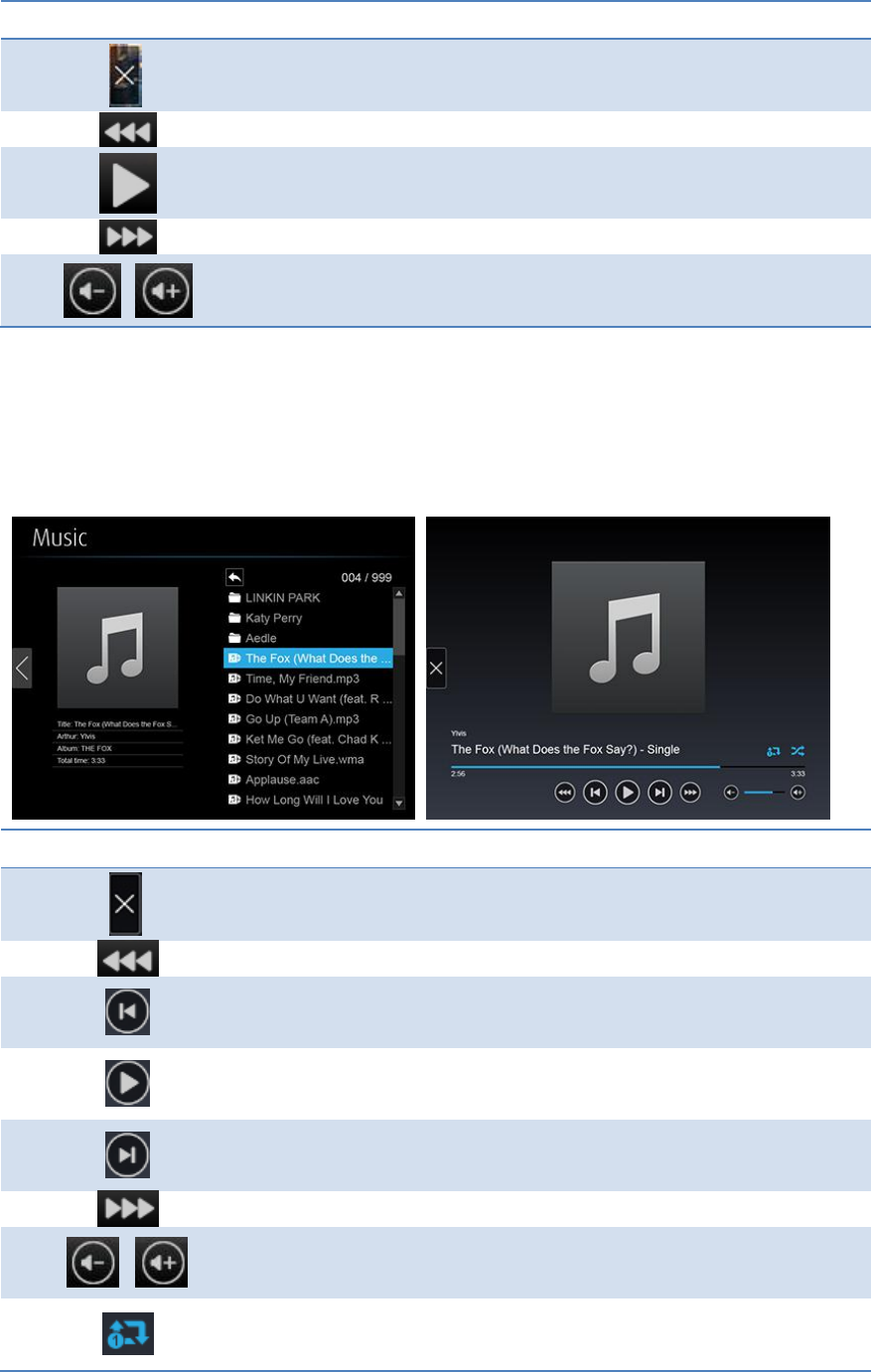

7.3 USB Player function

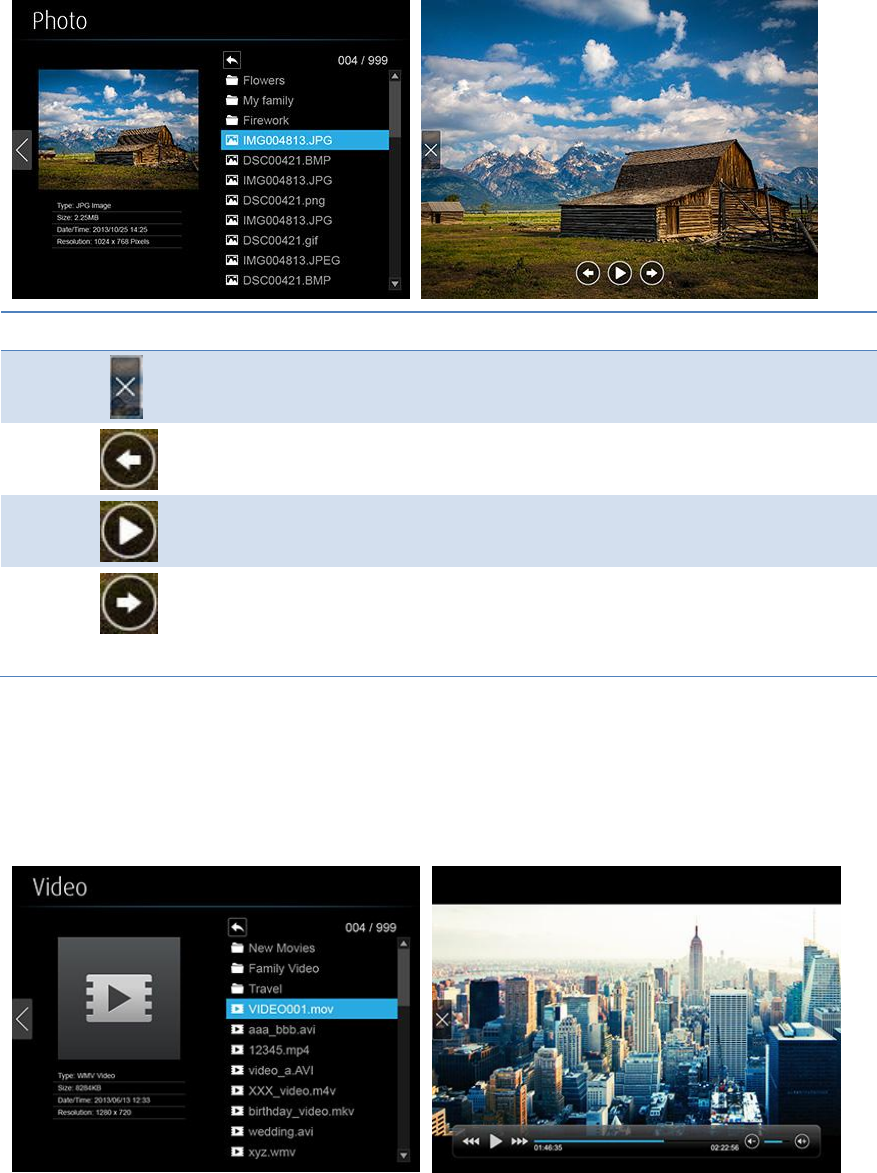

1) Click on the “USB Player” button on the start page to enter “USB Player”
function. You can playback the Photo/Music/Video/Office files from the attached
USB drive. Details please see the USB Player section.
14

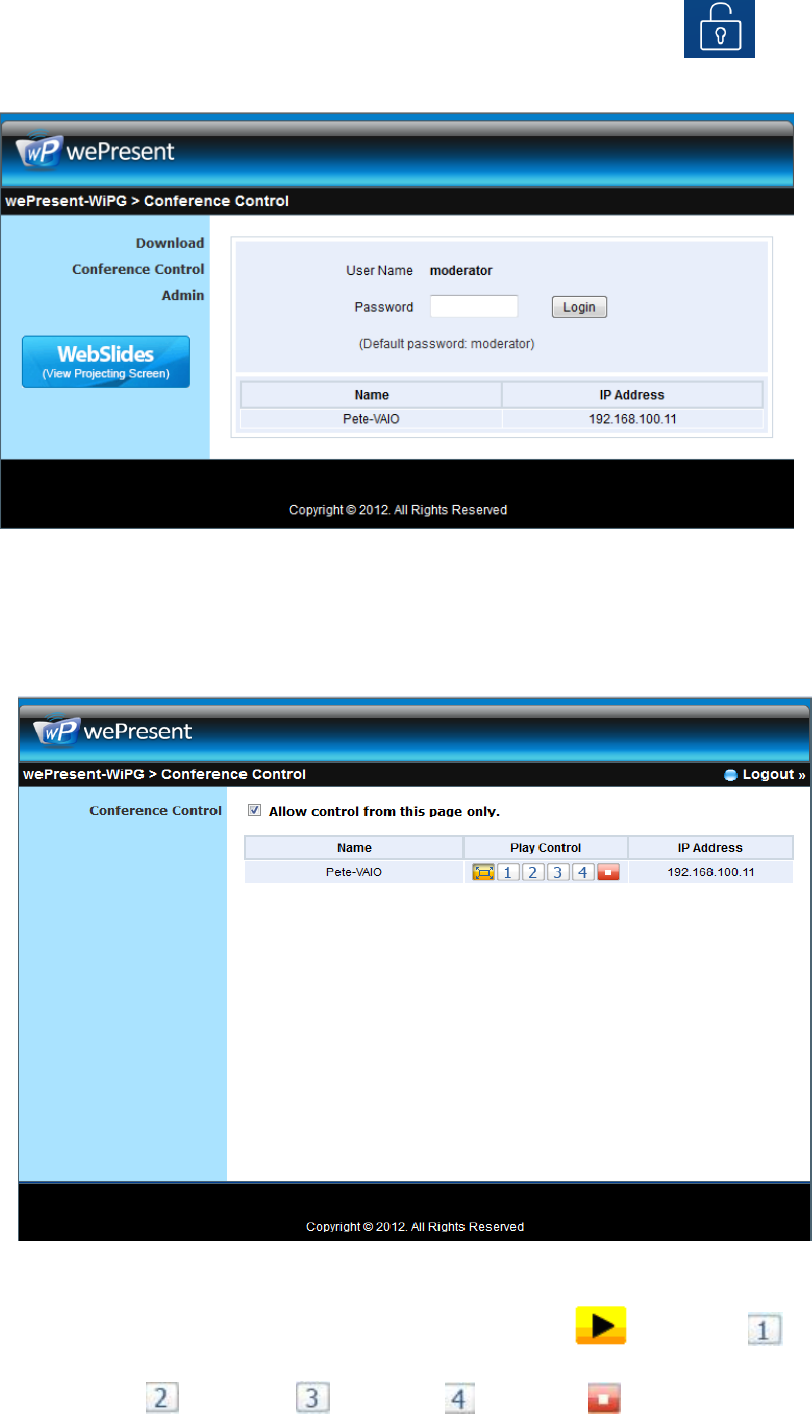

7.4 Conference Control Mode
1) Click to enable conference control mode and the sender will be blocked
when they try to overtake the screen from the sender application. The moderator
can only manage the projecting sender through web conference control page or the
OSD PC-List.
2) Click to disable conference control mode, the sender can overtake the
screen freely by pressing the button on the sender application
7.5 Sender List
Click on the “Sender-List” button to show all connected sender list, you can also
pick the sender name to display the screen/content from that sender.
7.6 Split Screen mode
1) Click on the “Split Screen” button on the start page to enter “Split Screen”
page. You can see the connected sender list and press the “add” icon to
choose them to the selected quadrant area.
15
7.7 Setup

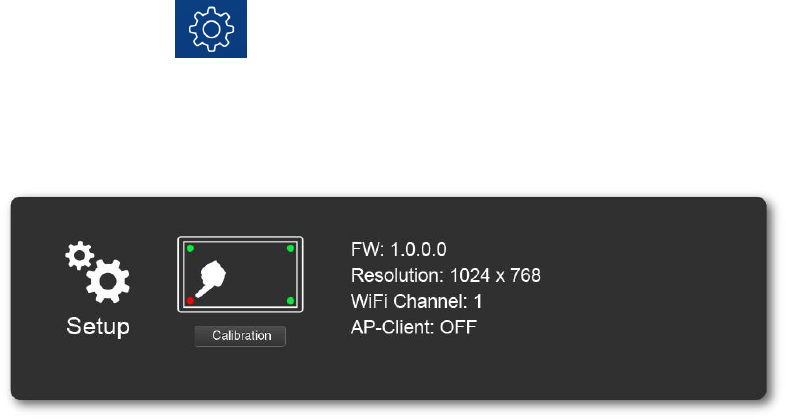

Click on Setup icon , you can find the Firmware (FW) version, resolution,
WiFi channel and AP-client status information on the screen. Meanwhile, you can
also click on the “Calibration” function to calibrate the projecting screen to an
optimization mode.
7.8 Remote Touch Control (UMT)
WiPG-2000S can support standard Win7/8 compatible HID touch device. By
connecting the HID touch screen/IWB device, users can control the standby screen,
whiteboard and the projecting screen remotely from the Touch Screen/IWB device.
Note:
1. The UMT can only support standard USB HID touch device, the supported
touch device can be found from wePresent distributor.
2. It will process the touch event and send the mouse event to sender when the
sender is Windows XP, 7 and Mac.
3. The USB port on WiPG-2000S can supply up to 5V/0.5A power, the additional
power supply is required if the attached HID device required more power.
7.9 Pen Menu Function under Projecting Mode.
1) When users are projecting through Windows, Mac, Android and iOS application,
any Win7/8 standard HID compatible device (i.e Mouse/IWB/Touch Screen) can be
used for Pen feature. Users can do free drawings/writings and annotation on the
projecting screen.
16
Item
Description
Home, Go back to wePresent home standby screen.
Enable/Disable the conference control mode.
The tool for PowerPoint presentation.
PageUp/PageDn, this button to go to previous/next
page.
SlideShow, When the user is projecting a PPT file,
press this button to enable Slide Show function.
ESC, When the user is projecting a PPT file, press this
button to quit Slide Show mode.
Clear all of the drawing/writing on the screen.
Erase part of drawing/writing.
Save current screen image to USB driver.
Enable the magnifier function.
Change to Mouse mode for remote control function.
Select the color and size for Pen mode. (Red, Green,
Blue)
Select the size of the pen. (Small, Medium, Big)
17
Change to Pen mode for drawing/writing function.
Change to Pointer Mode.
18
8 wePresent for Windows
(Do Not Support Windows Phone, Windows RT)
8.1 Install the application
1) Make sure your PC WiFi is enabled already, and connect your PC to wePresent
WiPG-2000S box through WiFi. You can find the WiFi name of your WiPG box
information on the start/standby page.
2) Launch your browser and enter the Device Host Name (SSID) or IP address in the
browser. You can find the IP address and Host Name (SSID) on the projector/display
screen. (Default Host Name (SSID) is WiPG-2000S-xxx, Default IP is
192.168.100.10)

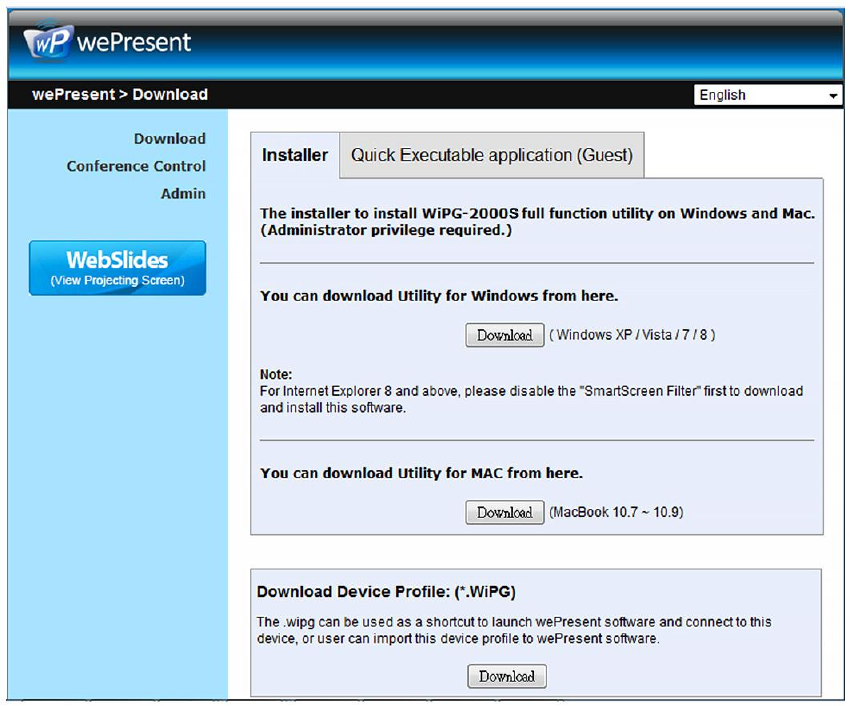

3) Download the wePresent software for “XP/Vista/Windows 7 / 8” and install on your
PC. (Ps. You can also launch the application from USB token directly.)
s
19
4) When the download is completed, follow the wePresent WiPG Setup wizard to
execute the software.
(Make sure your WiFi have connected to WiPG-2000S-xxx and your PC’s personal
firewall allows wePresent WiPG-2000S software to pass through.)
20
8.2 Start the application
1) Click wePresent WiPG-2000S icon on desktop to execute the application,
or launch the application from USB token directly. (You can find the wePresent
WiPG-2000S.exe under wePresent WiPG folder).
2) It will start to search wePresent WiPG-2000S receiver automatically.
8.3 Recent Connection
1) WiPG-2000S will memorize the successful connection profiles and open the recent
connect dialog, you can select one of the profile and press the “Connect” button to
connect this WiPG-2000S directly.
2) Click “import” to import the device profile. (The device profile can be downloaded
from receiver web page)
21
3) Chick “manual” to enter the receiver IP address manually, or click “remove” to
remove the profile from the list.
4) If you want to connect to another WiPG-2000S receiver, please press the “Rescan”
button.
8.4 Connect to Receiver Device
1) WiPG-2000S application will search and list the WiPG-2000S receiver Device. You
can select the target receiver device and press “Connect” button to connect the
selected receiver device.
2) You can press the “Refresh” button to search again.
3) If you can’t find the target receiver device from the list, you can press the “Manual”
button to enter the receiver IP address manually and connect.
4) If you want to change to another WiFi network, you can press the “WiFi” button to
list the available WiFi network.
22

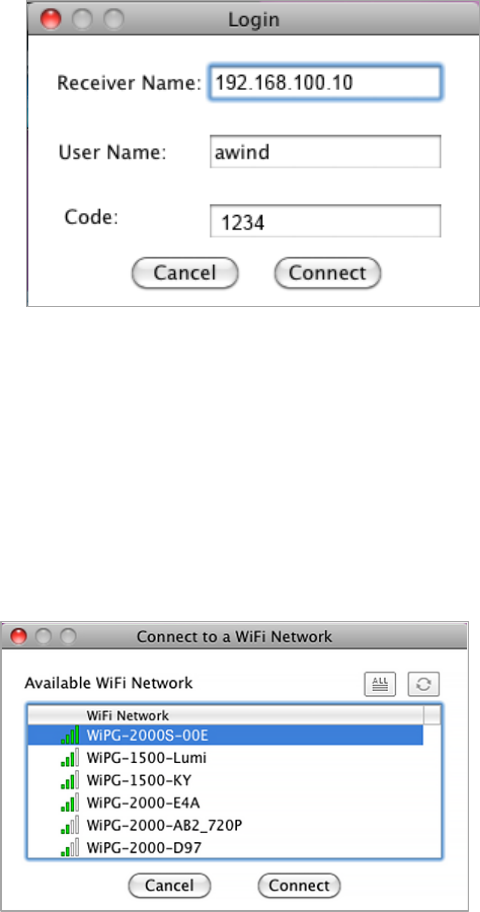

8.5 Login

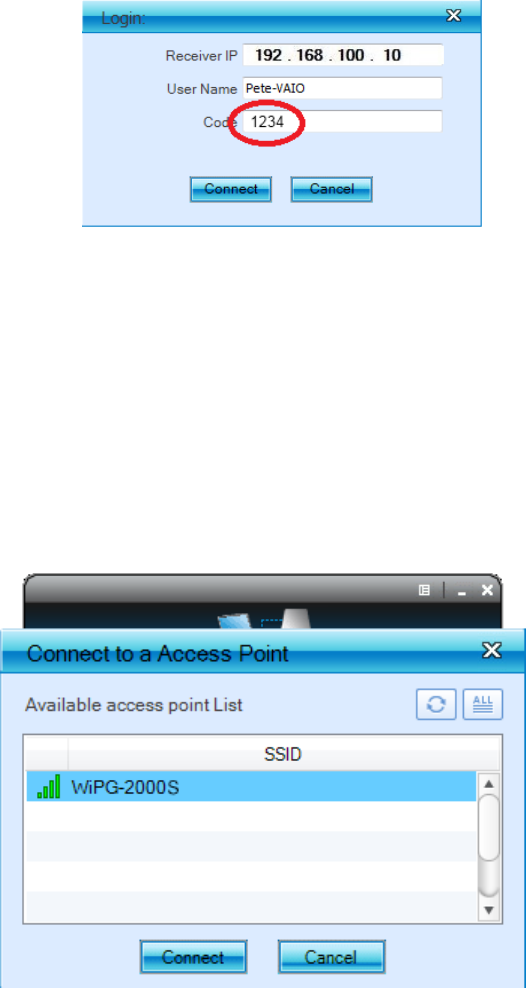

1) When connecting to a “Code” protection enabled WiPG-2000S receiver, you have
to enter the “Code” and press the “Connect” button to login the receiver.
(You can find the CODE from the OSD standby screen or right-upper corner of start
screen)
(Enter the code into the circled area)
2) If you want to connect to another receiver or cancel the login, please press the
“Cancel” button.
8.6 Change to another WiFi Network
1) If you press the “WiFi” icon, WiPG-2000S application will search the available WiFi
Network and list the WiPG-2000S WiFi Device. You can select a network and press
the “Connect” button to connect the selected WiFi Device.
2) You can press the “Refresh” button to search again or press the “All” button to list
all available WiFi Network name.
3) If you don’t like to change the WiFi Network and want to keep the connection to
current network, you can press the “Cancel” button.
23

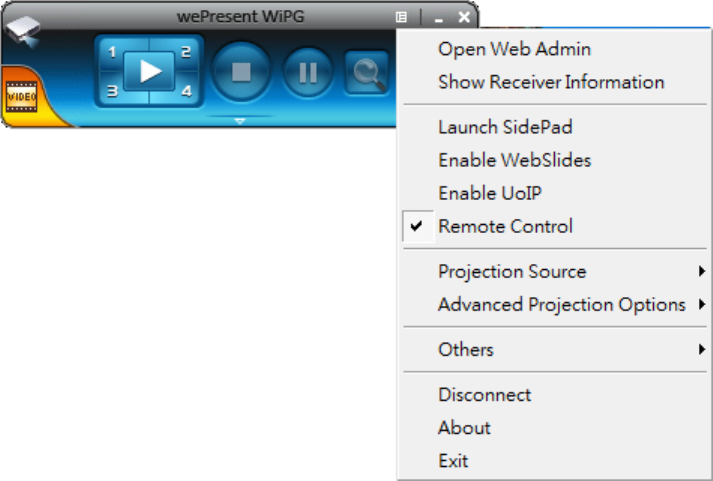

8.7 Main User Interface
8.8 Screen Projection
1) Click the “Play” button for full or “1,2,3,4” for split screen projection, you can
project the main screen on to the display immediately. Click the “Pause” button,
you can freeze you projection screen, and click the “Stop” button to stop projecting
your screen.
Button
Description
Button
Description
Presentation Function Tab
Video Function Tab
Full Screen projection (Support
audio projection)
Project to Split #1 (Support
audio projection)
Project to Split #2 (No audio
projection)
Project to Split #3(No audio
projection)
Project to Split #4(No audio
projection)
Stop projecting
Pause projecting
Magnifier function
Mute/Unmute for screen
projection
Open/Hide Connected Receiver
List
Control Area for
Screen Projection
Feature
Menu Area
Video
function
tab
Presentation
function tab
Connected
Receiver list Area
24
Note:
1. Audio Function:
For Windows XP system, if you can’t hear the audio, please installs the Audio
driver (“VAC.exe”, Virtual Audio Control Driver) on your computer first, you can
find the software from USB Token.
(Windows Vista, Win7 and Win8 is not necessary to install VAC driver)
8.9 Connected Receiver list
Press on the “arrow” button to expand the connected receiver list, and press the “add”
button to add another receiver. During standby status, you can press the “check”
button to select the multiple receivers (up to 4) to mirror your screen, and press “radio”
button to select one of the receiver to send the audio.
Button
Description
Add/Remove the receiver
Select the receiver to project your screen and
stream the video. (up to 4)
Select the receiver to send audio
(One of them)
8.10 Video Streaming
Click the “Open File” button to select the video/music files for the streaming. Click the
“Pause” or “Stop” button, you can pause or stop the streaming, and click the “Volume”
button to mute, adjust the volume level.
25
Button
Description
Play the video/Music
Stop the Video/Music
Open the Video/Music File

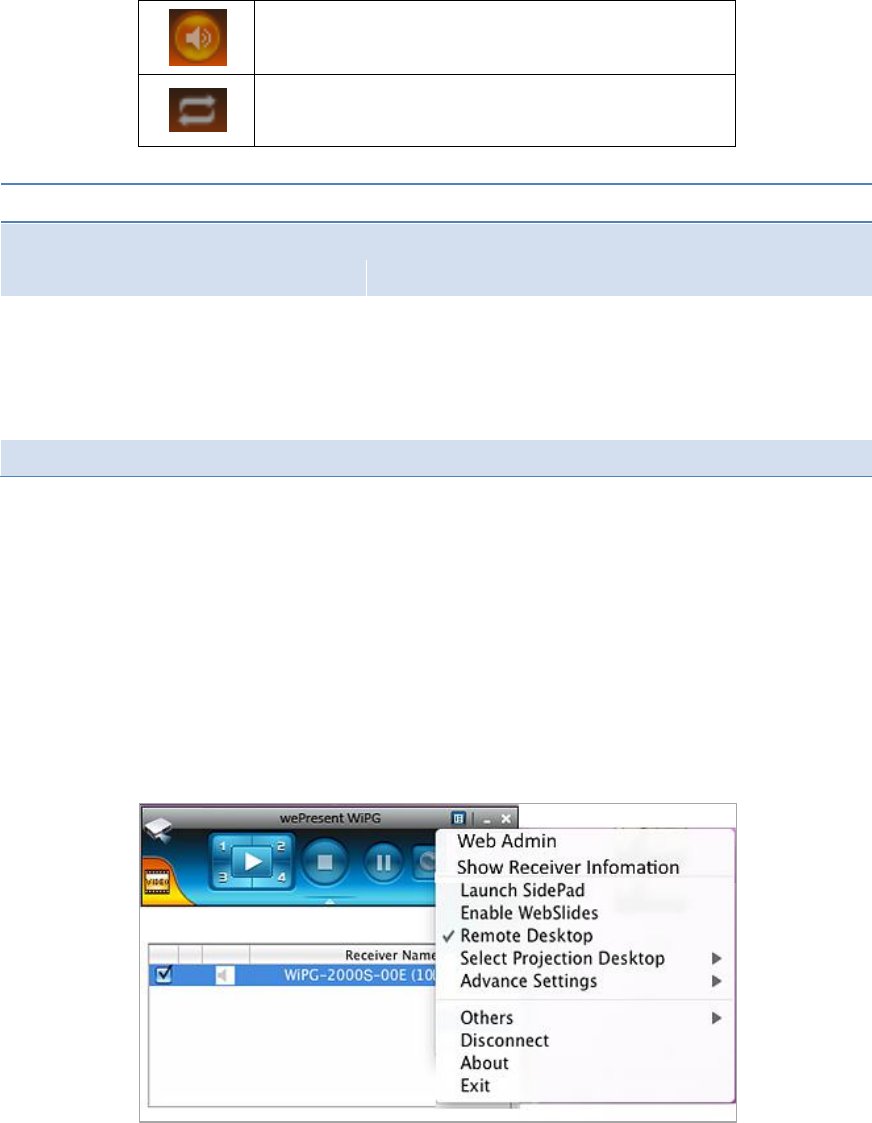

Mute/Unmute
Repeat On/Off
Note:
Item
Value
Supported File Format
MPEG-1 / MPEG-2 / MPEG-2 TS / MPEG-4 / MWV9 / MOV /
Motion JPEG / MKV / ASF / DVR-M5
Supported Video Codec
MPEG-1 / MPEG-2 / MPEG-2 TS / MPEG-4* / WMV9** /
QuickTime / Motion JPEG
* Microsoft MPEG-4 v1-3 is not supported.
** Only WMV3/WVC1 is supported.
Supported Audio Codec
LPCM / AAC / MP3 / WMA
* All formats support up to 1920x1080, 30fps, and 20Mbps.
* These file formats might include video and audio codecs which are not supported.
* Please make sure your corporate firewall allow wePresent Video streaming pass
through. (TCP Port 2869, 49152, 49153 and UDP 1900, 50000-650000)
26
8.11 Menu
1) Press “Menu” button from the main UI, you will find the menu to enable the
additional feature or to change the application options.
8.11.1 Open Web Admin
1) Click on “Open Web Admin”, it will open the browser and link to the device
administration page.
8.11.2 Show Receiver Information
2) Click on “Show Receiver Information”, it will ask the receiver device to show the
connection information on the projecting screen.
8.11.3 Launch SidePad
Introduction: SidePad is an application to allow the user to connect
Pad/Smartphone (Android and iOS), PC, and display/projector via WiPG-2000S
device. User can then control the projecting PC via Pad/Smartphone. Please refer to
the below image for more information.
27
1) SidePad Control for Android/iOS device.
Android: Download “MirrorOp Receiver” from Google Play Store.
iOS: Download “MirrorOp Receiver” from Apple Store.
Connect your Android device to WiPG-2000S device through WiFi and
Launch “MirrorOp Receiver”.
Click on “Launch SidePad” from the menu. In seconds, you shall see the PC
desktop shown on the iOS/Android Device. Now you can control the
projecting PC from your iOS/Android device.
2) If there is no Smartphone/Pad device detected after clicking on “Launch SidePad”
the below image will show up.
28
8.11.4 Launch WebSlides
1) Introduction: Webslides is an application to allow the user/presenter to broadcast
the projecting screen/slides to allow multiple login users to receive the slides
during a presentation and save the slides for note taking later.
2) Presenter: Make sure your PC/Mac is connected to WiPG-2000S box and click on
“Launch Webslides”, when the function is on, the item will be checked on the main
menu.

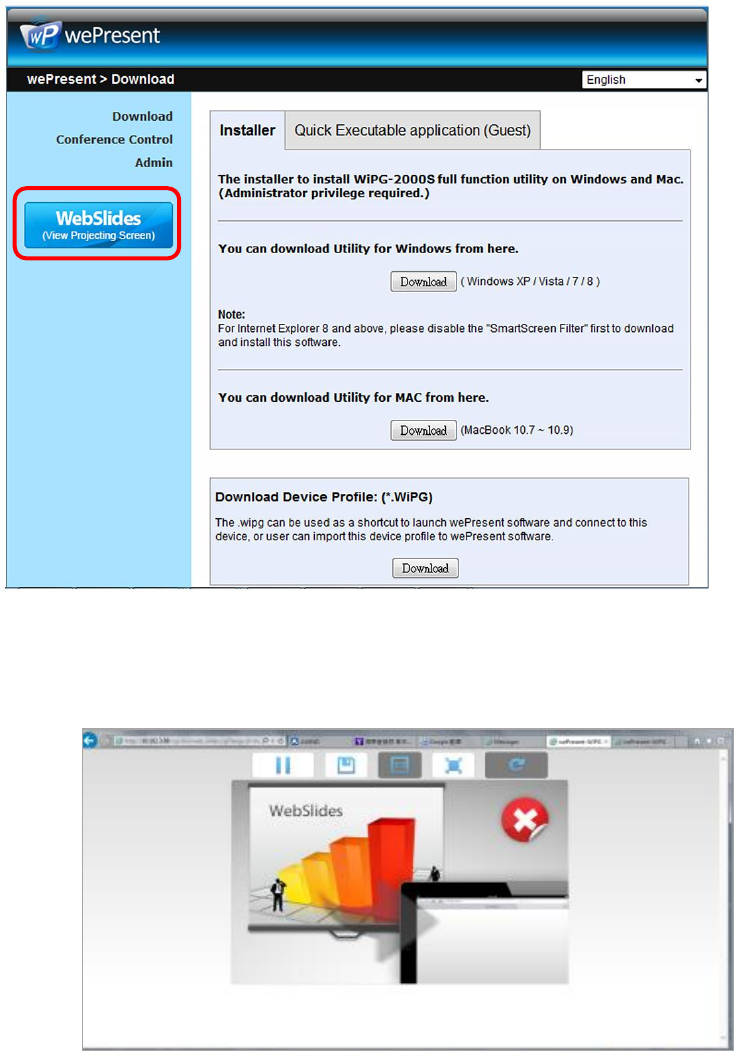

3) Audience: Users need to connect to WiPG-2000S WiFi Network as the presenter
and then launch their browser and enter WiPG-2000S IP address (The information
can be found on the projecting screen) on the URL of browser. Once the users are
connected, they will see the below image on their devices. Click on “Websildes”
button. See below:
29
4) Start to receive the presenter’s slides (Auto refresh every 30 sec). The below image
can be seen on the audience’s browser.
Users can put the mouse/finger on each button to get the “tip window” for the
function of each button.
Note:
The WiPG-2000S logged-in user is not identical to WebSlides user, and they both
consume the wireless bandwidth for device connection. If there are more than 10
users logged into WiPG-2000S, it is recommended to connect WiPG-2000S to company
network through Ethernet or bridge WiPG-2000S to a router due to wireless
bandwidth concern. User should connect WiPG-2000S via company network or router
30
in order to secure the projection performance. The WebSlides user number should not
exceed the recommended number on the web management page to prevent the
connection failure or low projection performance.
PS. Wireless Projection function and Conference Control function can support up to 64
users.
8.11.5 Enable UoIP
1) Click on “Enable UoIP”, it will try to attach the USB touch device which is attached
to wePresnent device to sender’s Windows PC.
The UoIP Driver for Windows can be found from wePresent USB Token.
8.11.6 Remote Control
1) Click on “Remote Control”, you can allow or block the remote
mouse/keyboard/touch control from WiPG-2000S receiver.
8.11.7 Projection Source
1) Click on “Select Projection Desktop”, you can select to project the main screen or
the extended screen.
Note:
1. For Windows XP system, you need to install “VDD.exe” driver first, you can
find it from USB token.
2. For Windows 7/Vista Starter edition, it can’t support extended screen.
3. For some Win7/Win8 laptop/tablet, the extended screen feature is not supported
if the display card can’t support the extended screen function. This typically can
be verified by checking whether it can enable the extended screen through
physical VGA cable, if yes, then it should work with wePresent software.
31
8.11.8 Advanced Projection Option
8.11.8.1 Advanced Screen Capture

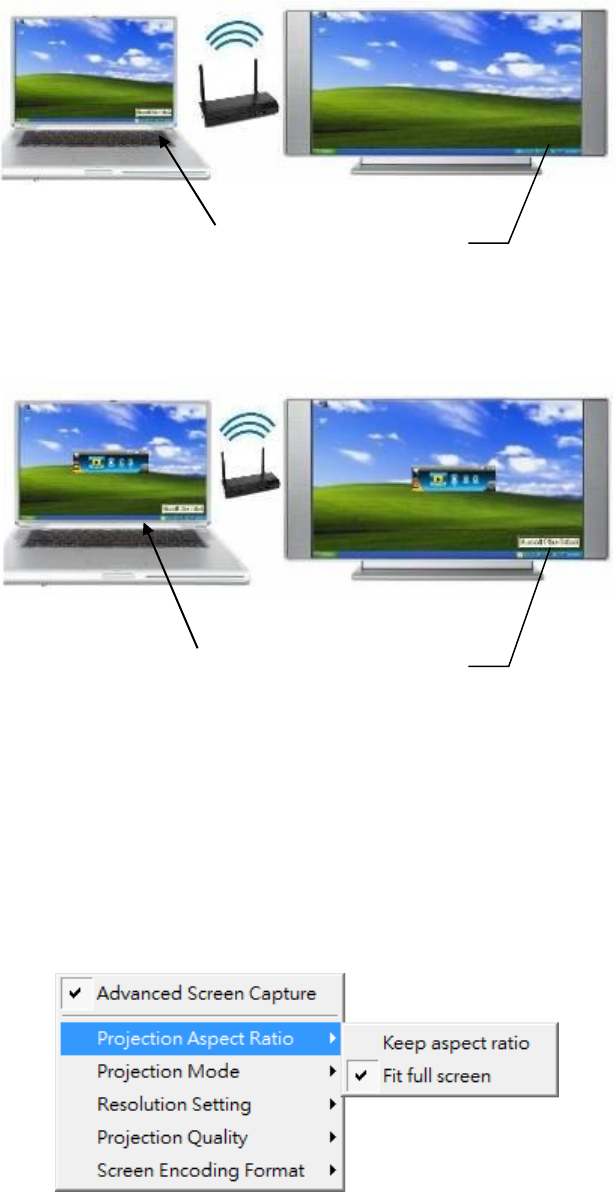

1) Click on “Advanced Screen Capture”, you will be able to see tip windows and other
layered windows (include the main UI) on the connected display.
However, the mouse cursor may blink from time to time when you are projecting
your PC screen!
32
Disable “Advanced Screen Capture”.
Enable “Advanced Screen Capture”.
8.11.8.2 Projection Aspect Ratio
1) Click on “Projection Aspect Ratio”, choose “Keep aspect ratio” to keep the original
aspect ratio if the desktop resolution is different from WiPG-2000S output
resolution, or choose “Fit full screen” to project the screen to full screen.
Tip window is shown in
projection screen.
Tip window is not shown in
projection screen.
33
8.11.8.3 Select Projection Mode
1) Click on “Select Projection Mode”, choose the Presentation mode for shortest
latency or the Video mode for auto-latency control to have better video
performance.
8.11.8.4 Resolution Settings
1) Click on “Resolution Setting”, choose “Never Change” to keep original desktop
resolution, “Always Change” to change resolution automatically according to
application’s recommendation, or “Always ask me” to prompt a resolution change
message to user.
8.11.8.5 Projection Quality
1) Click on “Projection Quality”, choose “Normal” for faster projection speed with
lower screen image quality, and “Best” for clear screen image quality but slower
projection speed.
34
8.11.8.6 Screen Encoding Format
1) Click on “Screen Encoding Format”, choose “JPG” for better image quality but
bigger network bandwidth required, and “H264” for smaller data size with
reasonable image quality, and “Auto” that the application will select the encoding
type automatically according to the receiver’s and sender’s setting and status.
8.11.9 Others
8.11.9.1 Auto Power Manager
1) To make the highest projection performance, application will turn the PC’s windows
power scheme from current settings to “highest performance”, however, you can
click on “Auto Power Manage” to enable or disable this function and restore you
power scheme immediately.
35
8.11.9.2 Make USB PnS Token
1) Click “Make USB PnS Token” to make a USB wePresent WiPG-2000S Token, you can
insert a USB and follows the wizard to make the Token. After completion, you can
plug the USB to any PC to do the projection without installing the wePresent WiPG
software onto every PC.
8.11.9.3 Copy Application to desktop
1) Click on “Copy Application to desktop”, it will copy the application to your desktop
immediately.
36
8.11.9.4 Hot Key
1) Click on “Hot Key” to display the available Hot Key definition.
8.11.10 Disconnect
1) Click on “Disconnect” to disconnect from current connected receivers.
8.11.11 About
1) Click on “About” to show system information. It includes product model name,
Application version.
8.11.12 Exit
1) Click on “Exit” to exit this application. It will stop current playing status and shut
down the application immediately.
37
9 wePresent for Mac
9.1 Install the application
1) Make sure your PC WiFi is enabled and connect your PC to wePresent WiPG-2000S
box through WiFi.
2) Launch your browser and enter the IP address on browser. You can find the IP
address and Host Name (SSID) on the projector/display screen. (Default IP is
192.168.100.10)
3) Download the “wePresent software for Mac” and install on your PC.
4) When the download is completed, follow the wePresent WiPG Setup wizard to
execute the software.
38
9.2 Start the application
1) Click on wePresent WiPG-2000S icon from Application folder to execute the
application.
2) It will start to search wePresent WiPG-2000S receiver automatically.
9.3 Recent Connection
1) WiPG-2000S will memorize the successful connection profiles and open the recent
connect dialog, you can select one of the profile and press the “Connect” button to
connect this WiPG-2000S directly.
2) Click “import” to import the device profile. (The device profile can be downloaded
from receiver web page)
39

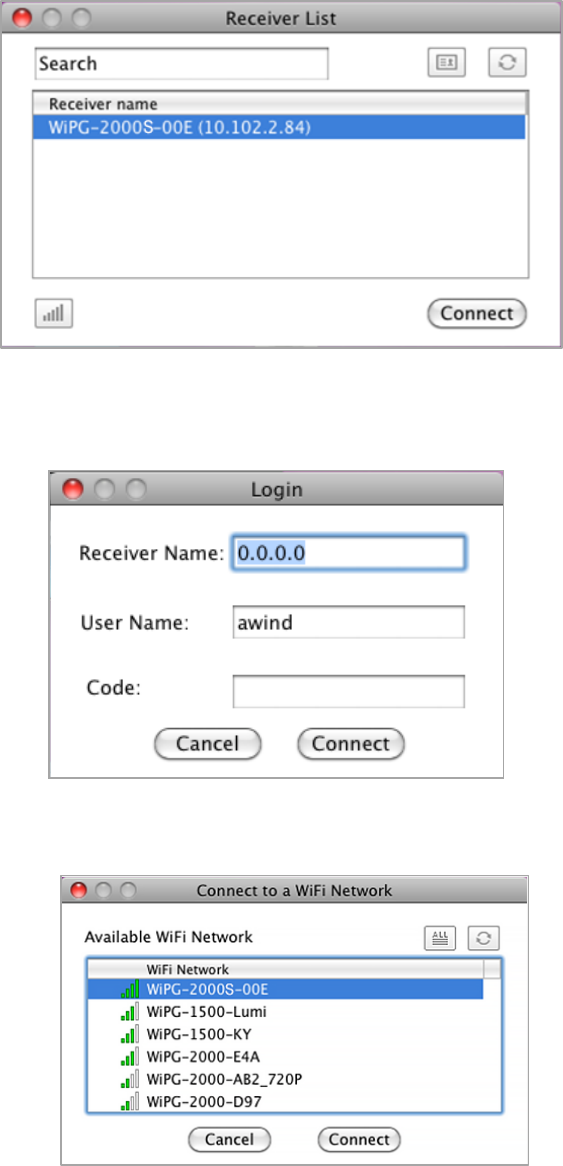

3) Chick “manual” to enter the receiver IP address manually, or click “remove” to
remove the profile from the list.
4) If you want to connect to another WiPG-2000S receiver, please press the “Rescan”
button.
5) WiPG-2000S application will search and list the WiPG-2000S receiver Device. You
can select the target receiver device and press “Connect” button to connect the
selected receiver device.
6) You can press the “Refresh” button to search again.
7) If you can’t find the target receiver device from the list, you can press the “Manual”
button to enter the receiver IP address manually and connect.
8) If you want to change to another WiFi network, you can press the “WiFi” button to
list the available WiFi network.
40
9.4 Login
1) When connecting to a “Code” protection enabled WiPG-2000S receiver, you have
to enter the “Code” and press the “Connect” button to login the receiver.
(You can find the CODE from the OSD standby screen or right-upper corner of start
screen)
2) If you want to connect to another receiver or cancel the login, please press the
“Cancel” button.
9.5 Change to another WiFi Network
1) If you press the “WiFi” icon, WiPG-2000S application will search the available WiFi
Network and list the WiPG-2000S WiFi Device. You can select a network and press
the “Connect” button to connect the selected WiFi Device.
2) You can press the “Refresh” button to search again or press the “All” button to list
all available WiFi Network name.
3) If you don’t like to change the WiFi Network and want to keep the connection to
current network, you can press the “Cancel” button.
41
9.6 Main User Interface
9.7 Screen Projection
1) Click the “Play” button for full or “1,2,3,4” for split screen projection, you can
project the main screen on to the display immediately. Click the “Pause” button,
you can freeze you projection screen, and click the “Stop” button to stop projecting
your screen.
Button
Description
Button
Description
Presentation Function Tab
Video Function Tab
Full Screen projection (Support
audio projection)
Project to Split #1 (Support
audio projection)
Project to Split #2 (No audio
projection)
Project to Split #3(No audio
projection)
Project to Split #4(No audio
projection)
Stop projecting
Pause projecting
Magnifier function
Mute/Unmute for screen
projection
Open/Hide Connected Receiver
List
Note: For audio feature, please install the SoundFlower on your computer first, you
can find the software from USB Token.
Control Area for
Screen Projection
Feature
Menu Area
Video function tab
Presentation
function
Connected
Receiver list Area
42
9.8 Connected Receiver list
Press on the “arrow” button to expand the connected receiver list, and press the “add”
button to add another receiver. During standby status, you can press the “check”
button to select the multiple receivers (up to 4) to mirror your screen, and press “radio”
button to select one of the receiver to send the audio.
Button
Description
Add another receiver.
Select the receiver to project your screen and
stream the video. (up to 4)
Select the receiver to send audio.
(One of them)
9.9 Video Streaming
Click the “Open File” button to select the video/music files for the streaming. Click the
“Pause” or “Stop” button, you can pause or stop the streaming, and click the “Volume”
button to mute, adjust the volume level.
Button
Description
Play the video/Music.
Stop the Video/Music.
Open the Video/Music File.
43
Mute/Unmute
Repeat On/Off
Note:
Item
Value
Supported File Format
MPEG-1 / MPEG-2 / MPEG-2 TS / MPEG-4 / MWV9 /
MOV / Motion JPEG / MKV / ASF / DVR-M5
Supported Video Codec
MPEG-1 / MPEG-2 / MPEG-2 TS / MPEG-4* /
WMV9** / QuickTime / Motion JPEG
* Microsoft MPEG-4 v1-3 is not supported.
** Only WMV3/WVC1 is supported.
Supported Audio Codec
LPCM / AAC / MP3 / WMA
* All formats support up to 1920x1080, 30fps, and 20Mbps.
* These file formats might include video and audio codecs which are not supported.
9.10 Menu
1) Press “Menu” button from the main UI, you will find the menu to enable the
additional feature or to change the application options.
9.10.1 Web Admin
1) Click on “Web Admin”, it will open the browser and link to the device
administration page.
44
9.10.2 Show Receiver Information
1) Click on “Show Receiver Information”, it will ask the receiver device to show the
connection information on the projecting screen.
9.10.3 Launch SidePad
1) Introduction: SidePad is an application to allow the user to connect
Pad/Smartphone (Android and iOS), PC, and display/projector via WiPG-2000S
device. User can then control the projecting PC via Pad/Smartphone. Please refer
to the below image for more information.
2) SidePad Control for Android/iOS device.
Android: Download “MirrorOp Receiver” from Google Play Store
iOS: Download “MirrorOp Receiver” from Apple Store.
Connect your Android device to WiPG-2000S device through WiFi and
Launch “MirrorOp Receiver”
Click on “Launch SidePad” from the menu. In seconds, you shall see the PC
desktop shown on the iOS/Andriod Device. Now you can control the
projecting PC from your iOS/Android device.
45
3) If there is no Smartphone/Pad device detected after clicking on “Launch SidePad”
the below image will show up.
9.10.4 Launch WebSlides
1) Introduction: Webslides is an application to allow the user/presenter to broadcast
the projecting screen/slides to allow multiple login users to receive the slides
during a presentation and save the slides for note taking later.
2) Presenter: Make sure your PC/Mac is connected to WiPG-2000S box and click on
“Launch Webslides”, when the function is on, the item will be checked on the main
menu.
3) Audience: Users need to connect to WiPG-2000S WiFi Network as the presenter
and then launch their browser and enter WiPG-2000S IP address (The information
can be found on the projecting screen) on the URL of browser. Once the users are
connected, they will see the below image on their devices. Click on “Websildes”
button. See below:
46
4) Start to receive the presenter’s slides (Auto refresh every 30 sec). The below image
can be seen on the audience’s browser.
Users can put the mouse/finger on each button to get the “tip window” for the
function of each button.
Note:
The WiPG-2000S logged-in user is not identical to WebSlides user, and they both
consume the wireless bandwidth for device connection. If there are more than 10
users logged into WiPG-2000S, it is recommended to connect WiPG-2000S to company
network through Ethernet or bridge WiPG-2000S to a router due to wireless
bandwidth concern. User should connect WiPG-2000S via company network or router
47
in order to secure the projection performance. The WebSlides user number should not
exceed the recommended number on the web management page to prevent the
connection failure or low projection performance.
PS. Wireless Projection function and Conference Control function can support up to 64
users.
9.10.5 Remote Desktop
1) Click on “Remote Desktop”, you can allow or block the remote
mouse/keyboard/touch control from WiPG-2000S receiver.

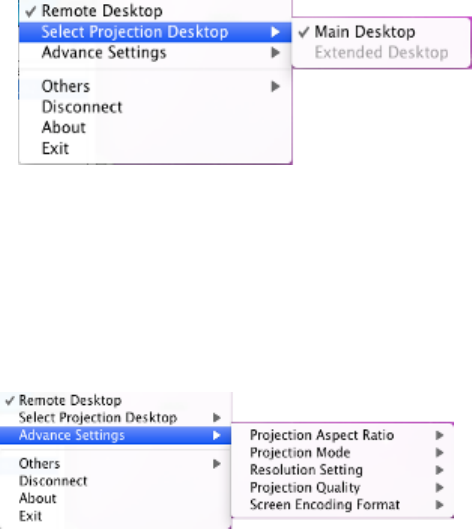

9.10.6 Select Projection Desktop
1) Click on “Select Projection Desktop”, you can select to project the main screen or
the extended screen.
Note: It can only support Mac 10.7 and 10.8. To use the extended screen, you
have to install the SVS extended screen driver which can be found from the USB
Token.
9.10.7 Advanced Settings

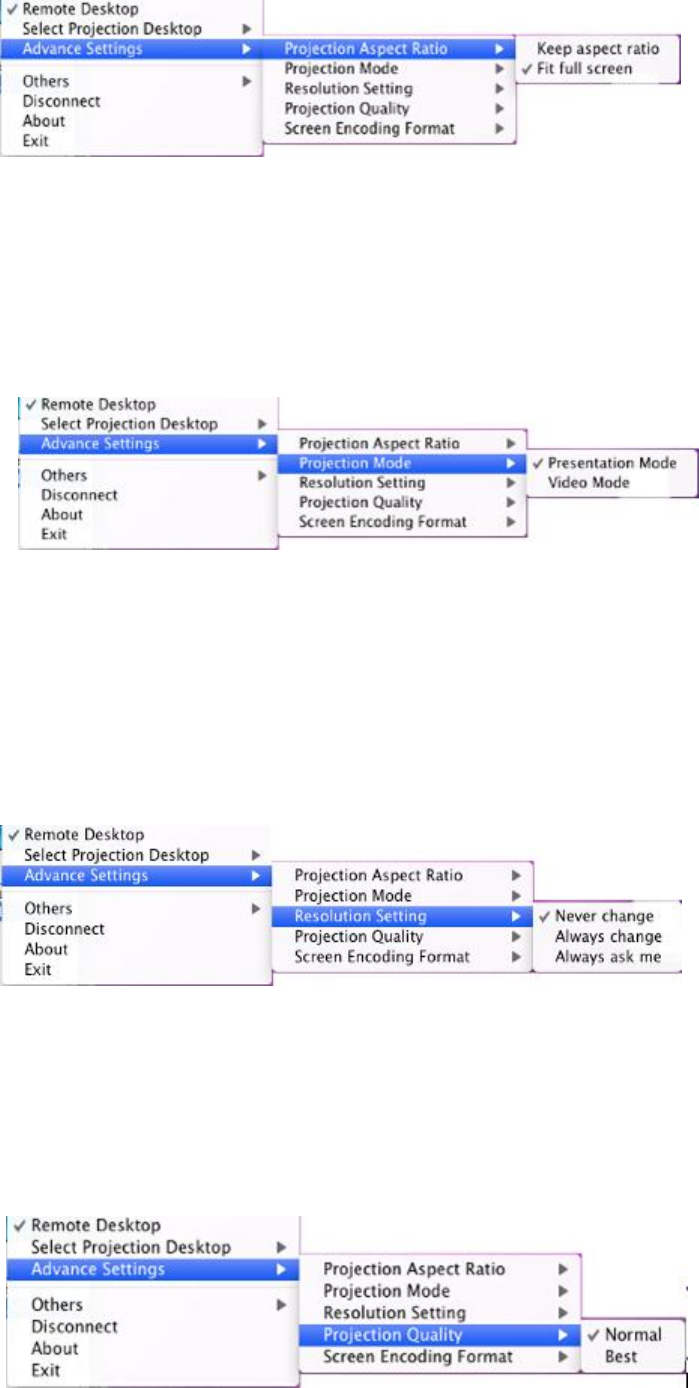

9.10.7.1 Projection Aspect Ratio
1) Click on “Projection Aspect Ratio”, choose “Keep aspect ratio” to keep the original
aspect ratio if the desktop resolution is different from WiPG-2000S output
resolution, or choose “Fit full screen” to project the screen to full screen.
48
9.10.7.2 Select Projection Mode
1) Click on “Select Projection Mode”, choose the Presentation mode for shortest
latency or the Video mode for auto-latency control to have better video
performance.
9.10.7.3 Resolution Settings
1) Click on “Resolution Setting”, choose “Never Change” to keep original desktop
resolution, “Always Change” to change resolution automatically according to
application’s recommendation, or “Always ask me” to prompt a resolution change
message to user.
9.10.7.4 Projection Quality
1) Click on “Projection Quality”, choose “Normal” for faster projection speed with
lower screen image quality, and “Best” for clear screen image quality but slower
projection speed.
49
9.10.7.5 Screen Encoding Format
1) Click on “Screen Encoding Format”, choose “JPG” for better image quality but
bigger network bandwidth required, and “H264” for smaller data size with
reasonable image quality, and “Auto” that the application will select the encoding
type automatically according to the receiver’s and sender’s setting and status.
9.10.8 Others
9.10.8.1 Make USB PnS Token
1) Click “Make USB PnS Token” to make a USB wePresent WiPG-2000S Token, you can
insert a USB and follows the wizard to make the Token. After completion, you can
plug the USB to any PC to do the projection without installing the wePresent WiPG
software onto every PC.
50

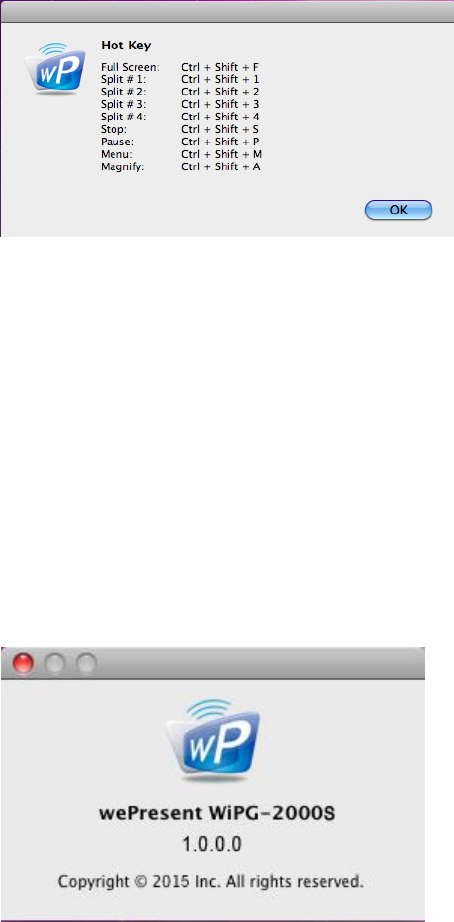

9.10.8.2 Hot Key
1) Click on “Hot Key” to display the available Hot Key definition.
9.10.9 Disconnect
1) Click on “Disconnect” to disconnect from current connected receivers.
9.10.10 About
1) Click on “About” to show system information. It includes product model name,
Application version.
9.10.11 Exit
1) Click on “Exit” to exit this application. It will stop current playing status and shut
down the application immediately.
51
10 Web Management
10.1 Home Page
1) Make sure your PC connect to wePresent WiPG-2000S box successfully.
2) Enter the receiver IP address on your browser; you can find the IP address on the
projector/display screen. (Default IP is 192.168.100.10).
3) Please select the “Win 8 / 7 / Windows Vista / XP” or “Mac Utility” and execute the
installation program.
Note: Please disable the “Smart Screen Filter” on IE browser; otherwise you
might not able to download the file.
10.2 Conference Control
1) Select “Conference Control” function, you can find the current connected user list
52
on this page. Please make sure the lock on the start page is disabled.
2) Enter password and then press [Login]. (default password: moderator)
3) After login, you can see a User List on the screen which indicates all of the users
connected to wePresent WiPG-2000S box.
4) The default setting is “allow control from this page only”. When this function is
checked, the moderator can control all the login users’ projection.
5) There are three columns, “Computer Name”, “Play Control” and “IP Address”.
a. Play Control: There are six buttons, including Play(Full) , Screen #1 ,
Screen#2 ,Screen #3 , Screen#4 and Stop .
53
b. Moderator can click on the “play” button to allow the projecting.
c. Moderator can assign which user to project on which screen by clicking on the
screen numbers.
d. Moderator can “stop” the projecting anytime.
6) Uncheck the “Allow Control from this page only”, it will disable the centralized
control and user can project the screen to WiPG-2000S freely.
7) Moderator can log out from the conference control mode by clicking on the” log
out” on the upper right corner.
10.3 Admin
1) Click on “Admin” and then enter the password to login web admin page. (Default
Password: admin)

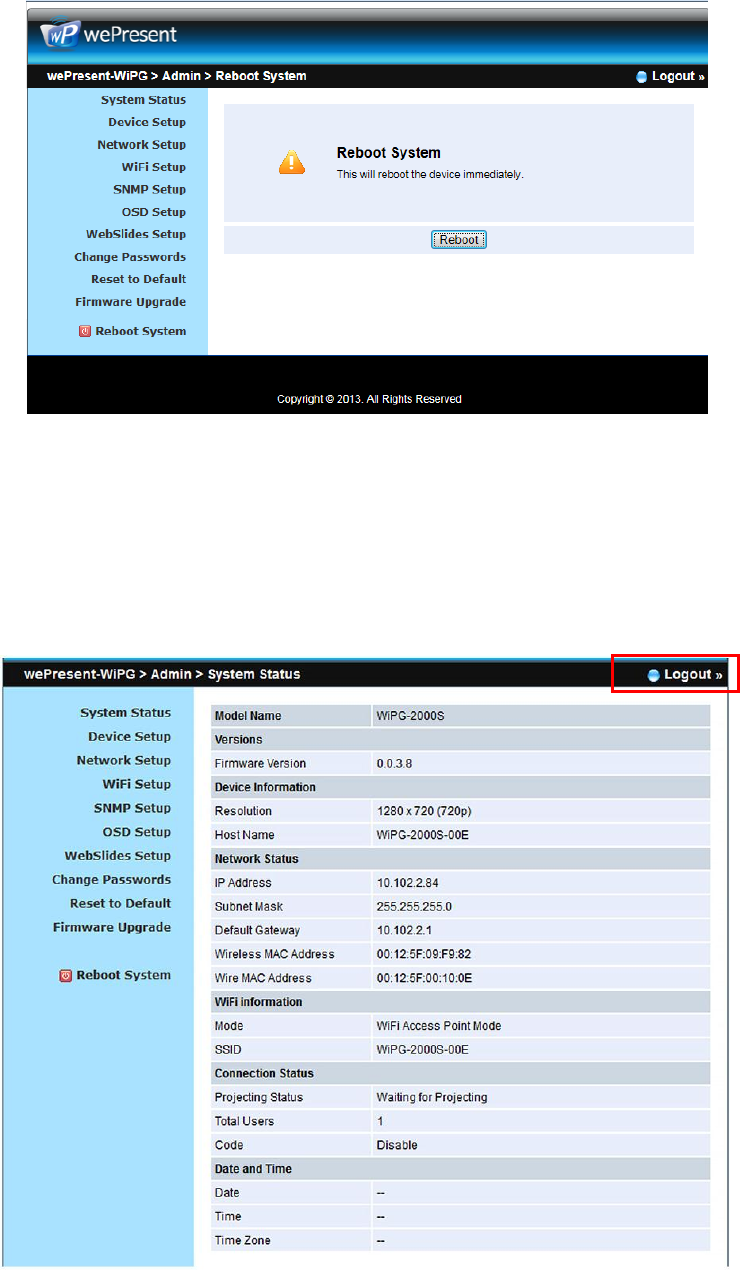

10.4 System Status
1) Click on “System Status” option, it will show current system status.
Model Name: Product model name
Versions:
Firmware version no.: Product firmware version number.
Device Information:
Resolution: Device output resolution.
Host Name: Device network hostname.
Network Status:
IP address：IP address of WiPG-2000S device.
Subnet Mask：subnet mask
Default Gateway：default gateway
54
Wireless MAC address：wireless MAC address
Wire MAC address：wire MAC address
WiFi Information:
WiFi Mode：Access Point/WiFi Station/Concurrent AP-Station Mode
SSID：Current SSID or the connected WiFi AP name.
Connection Status:
Projecting status: “Waiting for projecting” or “Projecting”
Total Users: It shows how many users login to wePresent WiPG-2000S.
Code: It will show current Code
Date and Time:
Date: Current date.
Time: Current time.
Time Zone: Current Time zone.
10.5 Device Setup
1) Click on “Device Setup” option, it will show the device setting items,
<Resolution>:
720p, 1080i, 1080p , UXGA(1600*1200), WXGA+(1440*900),
WXGA(1360*768, 1280x768, 1280x800) ,XGA(1024*768) and HDMI Auto
Detect.
<Code>: You can select “Disable”, “Random”, or “Use the following code” to
55
set a specified 4-characters Number.
2) Click on “Date and Time Settings” option, it will show the time setting items,
Choose <SNTP/NTP Server Synchronization> or <Disable> to specify the
time server or disable this feature.
<Time Zone>: Specify the time zone.

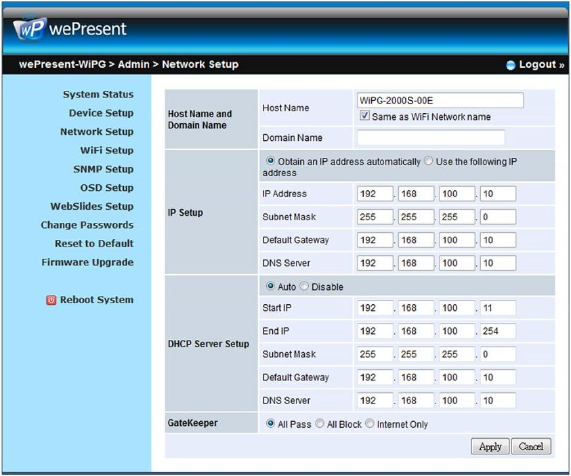

10.6 Network Setup
1) Click on “Network Setup” option, it will show the network setting items,
< Host Name and Domain Name>
Host Name: Enter the hostname of this device.
Note: You can enable the “use the same name as network name”, it will use
the same name as SSID for the device host name.
Domain Name: You can also enter the domain name of this device if there is
DNS server available.
< IP Setup>
You can select “obtain IP address automatically” or “Use the following IP
address” to enter the IP address.
The default setting is as following:
IP Address: 192.168.100.10.
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.100.10
DNS Server: 192.168.100.10
<DHCP Server Setup>
<Note: Auto-Configuration Network Setup on WiPG-2000S>
The default setting of the wePresent WiPG-2000S box as DHCP server. When the
56
wePresent WiPG-2000S box is connected to a LAN that already has a DHCP server, the
wePresent WiPG-2000S box uses an IP address assigned by the server. When the
wePresent WiPG-2000S box is connected to a LAN that does not have a DHCP server,
the wePresent WiPG-2000S box becomes the DHCP server in the network.
You can select “auto” option. WiPG-2000S will auto disable the DHCP server
setup when the existing DHCP server is detected. Or you can simply select
“Disable” option. When you choose “Auto” option, you can enter the below
information or keep it as default setting.
Start IP: 192.168.100.11
End IP: 192.168.100.254
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.100.10
DNS Server: 192.168.100.10
< Gatekeeper>
Gatekeeper is designed for ensuring the enterprise network security within
wePresent WiPG-2000S box
“All Block” can block Guest Users(through wireless) to access all office
network(LAN),
“All Pass” can allow Guest Users(through wireless) to access all office
network
“Internet Only” can block Guest Users (through wireless) from office network
(LAN) but still reserve internet connection capability.
<Apply >: Press “Apply” button after configuration, and follow the reboot instruction
when applicable.
<Cancel>: Press button to abort action.
57
10.7 WiFi Setup
Wireless LAN: The default setting is “Enable”
Mode: Specify the WiFi Access Point mode, WiFi Station mode and Concurrent
AP and Station Mode.
< Access Point Mode>
SSID: You can change the default SSID and the maximum Length is 32 bytes.
SSID Broadcast: The default value is “Enable”
Band: 5G or 2.4G
Channel: You can set a fixed channel or allow auto selection. The “Auto”
selection means after power on wePresent WiPG-2000S, it will scan all of
wireless channels and select one clear channel automatically.
Encryption: you can select “Disable” or one of WEP/WPA PSK/WPA2 PSK/ WPA
Enterprise/ WPA2 Enterprise.
Key: If Encryption is enabled, you have to enter a key according to the
encryption mode you selected. (If the length of the key entered is not
sufficient or too long, a warning message will pop up.)
Channel Bandwidth: select from 20M or Auto (20M/40M)
< Station Mode>
Connect to Existing AP: The default setting is “Disable”. If you choose “Enbale”
58
you need to enter the existing AP SSID that you want to connect. When you
select “Enable” option, the following information needs to be entered
accordingly to the existing AP setting:
Encryption: Select “Disable” or one of WEP/WPA PSK/WPA2 PSK/ WPA
Enterprise/ WPA2 Enterprise.
Key: If Encryption is enabled, you have to enter a key according to the
encryption mode you selected. (If the length of the key entered is not
sufficient or too long, a warning message will pop up.)
Note: The Encryption and Key information must be consistent to the exiting
AP configuration.
< Concurrent AP and Station Mode>
Access Point
SSID: You can change the default SSID and the maximum Length is 32 bytes.
SSID Broadcast: The default value is “Enable”
Channel: You can set a fixed channel or allow auto selection. The “Auto”
selection means after power on wePresent WiPG-2000S, it will scan all of
wireless channels and select one clear channel automatically.
Encryption: you can select “Disable” or one of WEP/WPA PSK/WPA2 PSK/ WPA
Enterprise/ WPA2 Enterprise.
Key: If Encryption is enabled, you have to enter a key according to the
encryption mode you selected. (If the length of the key entered is not
sufficient or too long, a warning message will pop up.)
Channel Bandwidth: select from 20M or Auto (20M/40M)
WiFi Station:
Connect to Existing AP: The default setting is “Disable”. If you choose “Enbale”
you need to enter the existing AP SSID that you want to connect. When you
59
select “Enable” option, the following information needs to be entered
accordingly to the existing AP setting:
Encryption: Select “Disable” or one of WEP/WPA PSK/WPA2 PSK/ WPA
Enterprise/ WPA2 Enterprise.
Key: If Encryption is enabled, you have to enter a key according to the
encryption mode you selected. (If the length of the key entered is not
sufficient or too long, a warning message will pop up.)
Note: The Encryption and Key information must be consistent to the exiting
AP configuration.
<Apply >: Press “Apply” button after configuration, and follow the reboot instruction
when applicable.
<Cancel>: Press button to abort action.
10.8 SNMP Setup
Enable or disable SNMP V3 service
User Name: configure the user name to manage this device through SNMP
Auth Password: configure the Auth password
60
Priv Password: configure the Priv password
Trap IP: configure the trap receiver IP
<Apply >: Press “Apply” button after configuration, and follow the reboot instruction
when applicable.
<Cancel>: Press button to abort action.
Note:
For more information about SNMP V3, you can find it on USB token. \User
Manual\WiPG-2000S_SNMP Instructions.pdf

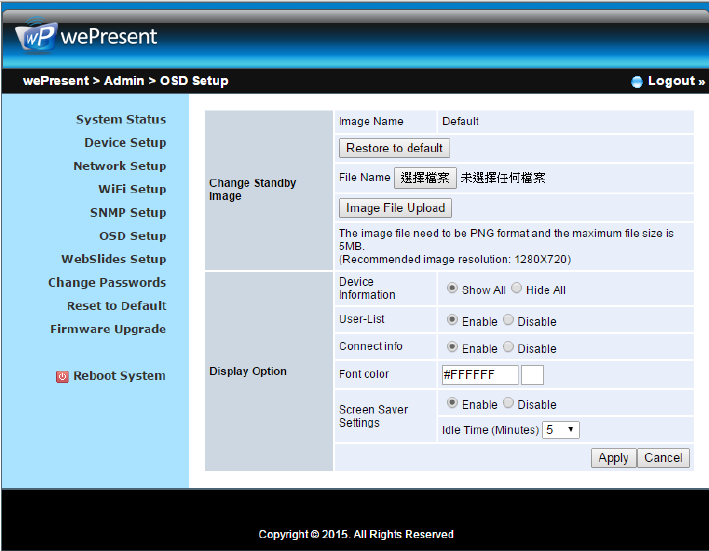

10.9 OSD Setup
1) Click on “OSD Setup” option, you can:
Change Standby Image
<Reset to default>: Restore to default Logo image.
<Image File Upload>: Enter or browse the file name and upload the
customized Image. Please refer to remark on screen when select the file.
You can also adjust the following “Display Option”
Device Information: Show or Hide the device Info.
User List: Show or hide the User List.
Connection Info: Show or hide the overlay connection info.
Font Color: Adjust the font color of system information
Screen Saver Settings: Enable or disable the screen saver and also
configure the idle time(Minutes). (default is 5 mins)
61
<Apply >: Press “Apply” button after configuration, and follow the reboot instruction
when applicable.
<Cancel>: Press button to abort action.

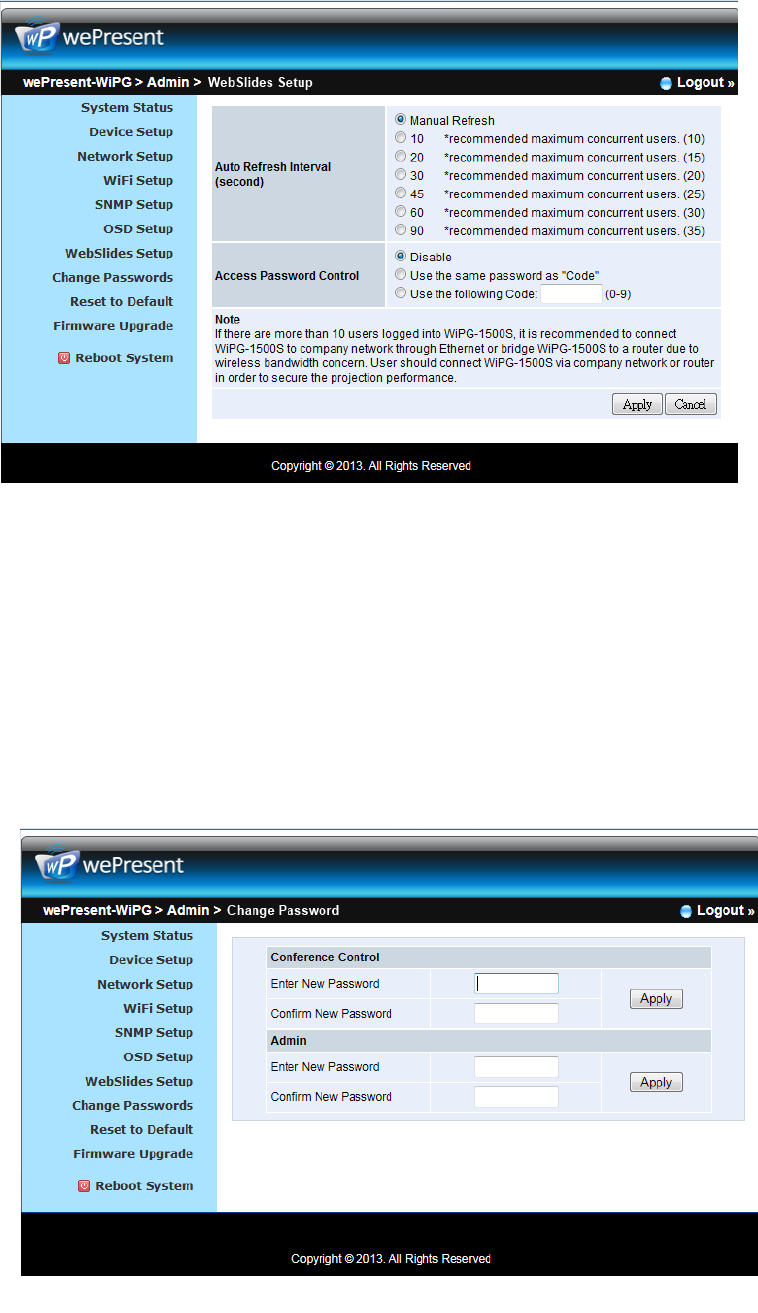

10.10 WebSlides Setup
1) Click on “WebSlides Setup” option, you can:
Adjust Auto Refresh Interval, or activate “Access Password Control”
Please pay attention on the note for information.
<Apply >: Press “Apply” button after configuration, and follow the reboot instruction
when applicable.
<Cancel>: Press button to abort action.
62
10.11 Change Passwords
1) Click on “Change Password” option, you can change the password setting for
“conference control” and “Admin”.
(Length: up to 8 characters)
<Enter New Password>
<Confirm New Password>
<Apply>: Confirm and Save modifications.
63

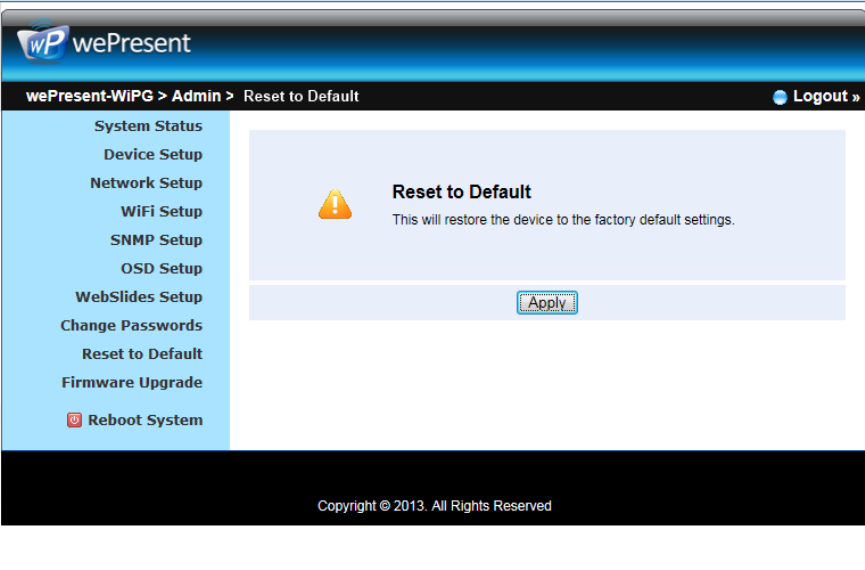

10.12 Reset to Default
1) Click on “Reset to Default” option to restore factory default settings.
<Apply>: Confirm and take action.
*** You can also restore factory default setting from WiPG-2000S box reset button.
You can find the reset button underneath the box. Please follow below procedures.
1. Press [Reset] button and Hold.
2. Turn on wePresent WiPG-2000S box.
3. Press more than 10 seconds and relief [Reset] button.
4. It will take effect to restore factory default settings.
10.13 Firmware Upgrade
1) Click on” Firmware Upgrade” option to “import/export” system configuration and
upgrade firmware.
2) System Configuration Import and Export
Export: Export the system configuration to a configuration file
Import: Import the system configuration file to WiPG-2000S
3) You can find the firmware version and release date here.
4) Firmware Upgrade
1) Firstly, you have to get latest firmware image file from your vendor.
2) Click <Browse> to specify file name you want to upgrade.
64
3) Click <Upgrade> to start.
4) A warning message shown and count down counter on the screen.
5) After a few minutes, a complete message shown on the screen.
6) Restart wePresent WiPG-2000S box to take effect.
Warning: Don’t power off wePresent WiPG-2000S while firmware upgrade in
progress, otherwise you will damage your box and have to return device to your
vendor for fixing.
10.14 Reboot System
1) Click on “Reboot System” option, you can restart the system
Click on <Reboot >button: reboot system automatically.
65
10.15 Logout
1) Click on “logout” on the up right corner, you can logout the administration
webpage and return back to the web management front page.
66
10.16 WebSlides
1) Press the “WebSlides” button to enter the WebSlides page.
2) Please refer to 8.10.5 Launch Webslides for more information.
67
11 USB Player
The USB Player can playback the files stored in the attached USB drive, it can support
photo/video/music/office files.
Button
Description
Switch to Projection mode
Enter photo viewer function
Enter video player function
Enter music player function
Enter Office Viewer function
Enter Setup Page
68
11.1 Photo Viewer
Open the folder and find the photo file to play on the local display.
Button
Description
Exit this file
Go to previous file
Start/Pause Slideshow
Go to next file
Rotate
11.2 Video Player
Open the folder and find the video file to play on the local display.
69
Button
Description
Exit this file
Fast-rewind. (2x/4x/8x)
Play/Pause
Fast-forward (2x/4x/8x)
Volume level increase/decrease
11.3 Music Player
Open the folder and find the music file to play on the local display.
Button
Description
Exit this file
Fast-rewind (2x/4x/8x)
Go to previous file
Play/Pause
Go to next file
Fast-forward (2x/4x/8x)
Volume level increase/decrease
Repeat All files/Repeat Single File
70
Shuffle
11.4 Office Viewer
Open the folder and find the document file to play on the local display.
Button
Description
Exit this file
Go to previous page
Go to next page
71
11.5 Setup
Items
Description
Slide Show Duration
5/10/20/30 seconds
Slide Show Repeat
Repeat on/off
Video Play mode
Repeat on/off
Music Play mode
Repeat single file, Repeat all files
Note:
Item:
Value
Supported File Format
MPEG-1 / MPEG-2 / MPEG-2 TS / MPEG-4 /
MWV9 / MOV / Motion JPEG / MKV / ASF /
DVR-M5
Supported Video Codec
MPEG-1 / MPEG-2 / MPEG-2 TS / MPEG-4* /
WMV9** / QuickTime / Motion JPEG
* Microsoft MPEG-4 v1-3 is not supported.
** Only WMV3/WVC1 is supported.
Supported Audio Codec
LPCM / AAC / MP3 / WMA
Supported Office File
Word, Excel, PowerPoint(up to Office 2010), Pdf.
Details:
http://www.awindinc.com/WiFi-Doc/format.html
* All formats support up to 1920x1080, 30fps, and 20Mbps.
* These file formats might include video and audio codecs which are not supported.
72
12 Wall Mount
1) Please remove the rubber from the bottom side
2) Put the mounting screw on wePresent device
3) Put the mounting bracket on the wall with the screw
73
13 Safety
FCC
Federal Communications Commission (FCC) Statement
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
15.21
You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
74
5150-5250MHz
FCC RF Radiation Exposure Statement: This device is capable of operating in 802.11an
mode. For 802.11an devices operating in the frequency range of 5.15 - 5.25 GHz, they
are restricted for indoor operations to reduce any potential harmful interference for
Mobile Satellite Services (MSS) in the US. WIFI Access Points that are capable of
allowing your device to operate in 802.11an mode (5 .15 - 5.25 GHz band) are
optimized for indoor use only. If your WIFI network is capable of operating in this mode,
please restrict your WIFI use indoors to not violate federal regulations to protect
Mobile Satellite Services.
High-power radar is allocated as the primary user of the 5.25- to 5.35-GHz and 5.65- to
5.85-GHz bands.
These radar stations can cause interference with and/or damage to this device.

Navigation menu
