MORTISE LOCKSETS
Heavy Duty Mortise Locks
40H SERIES
2
HEAVY DUTY MORTISE LOCKS
40H

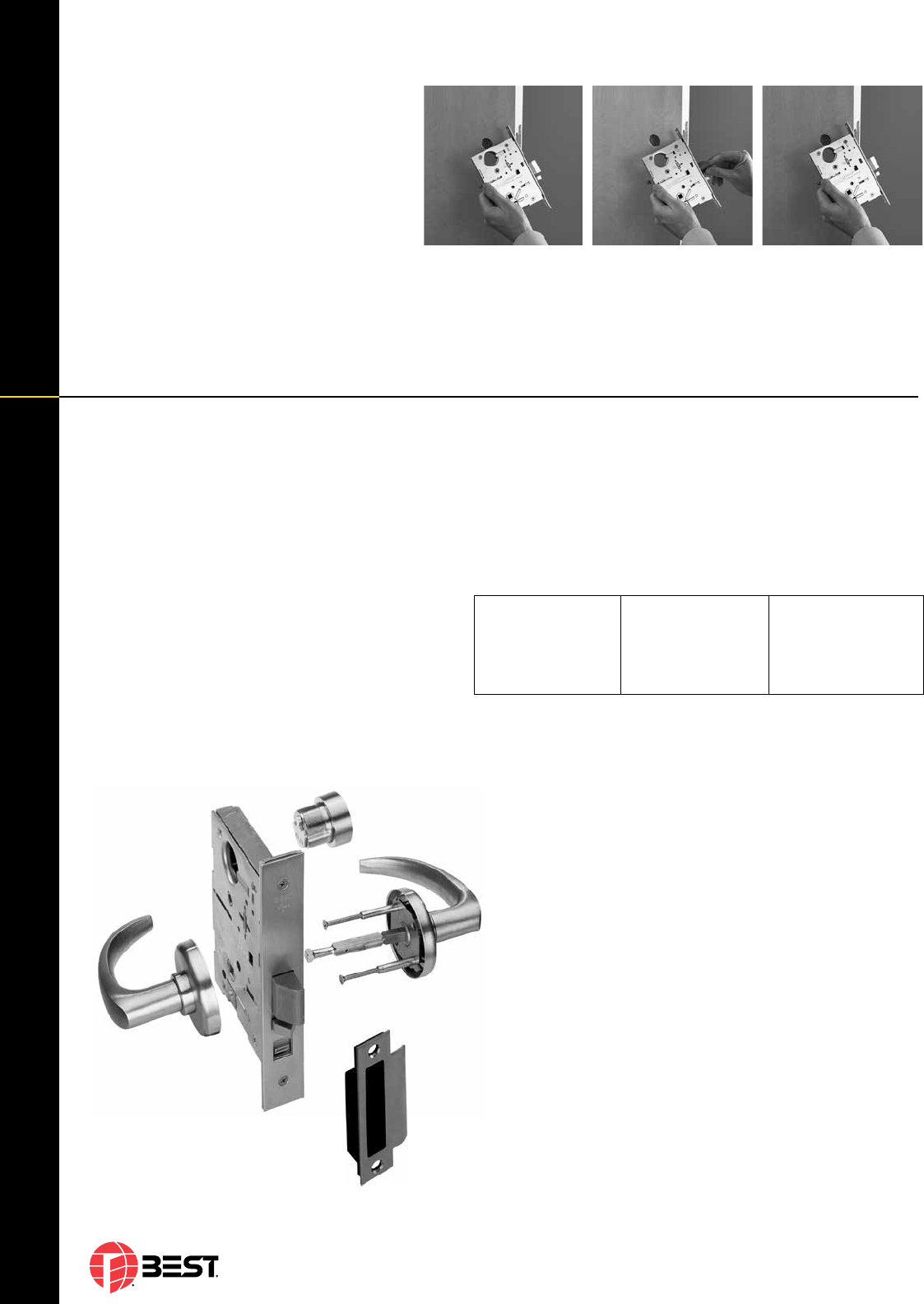

EXPLODED
6
11
13
10
FEATURES
Page
TABLE OF
CONTENTS
1. Solid one-piece stainless steel anti-friction latch provides 50% more
surface contact with strike for superior strength and security. Reversible latch
rotates 180 degrees for easy handing change without opening case.
Precision-engineered curve provides enhanced cycle life with reduced wear to
the strike.
2. Non-handed cylinder retainer.
3. Armored front completely surrounds latch and deadbolt providing increased
lateral strength. Staked assembly design allows the armored front to self-align
with the door bevel during installation.
4. Enhanced case integrity achieved through four case cover screws (one at
each corner), plus interlocking armored front and cover design at the latch.
5. Roller bearing hub mechanism provides smooth, wear resistant operation.
6. Locking toggle includes clear indication of “locked” and “unlocked” states.
7. 40H case, cover, and armored front manufactured from 0.095” cold rolled steel
for strength and durability.
8. Fusible link.
9. Four position hub toggle design determines whether each hub is always locked,
always unlocked, or locked by key for easy handing change without opening
case.
10. Lever return spring mechanism located in trim for enhanced protection against
lever droop, providing a firm, positive return of the lever to the horizontal
position.
11. Self-aligning trim mechanism for fast, easy, and accurate installation.
12. Curved lip strike and strike box assembly provides an aesthetic, non-handed
solution to complement field reversible case.
13. Solid machined cylinder rings with wavy washer provides resistance to
wrenching of cylinder. Cylinder security screw prevents removal of cylinder
without first removing interchangeable core.
14. Visual indicator shows a padlock icon open for unlocked and padlock icon
closed and painted red for locked, as well as the visual indicator thumb-turn.
15. Non-handed stainless steel auxiliary bolt for ease of changing hand. (not shown)
FEATURES .
1
40H
CUTAWAY
4
596
2
8
73
Features .............................................................................................................2
Specification .....................................................................................................3
Universal Lock Concept ............................................................................4-5
How To Order .............................................................................................. 6-7
Special Features ..............................................................................................8
Service Equipment .........................................................................................8
TABLE OF CONTENTS
Page
Hand of Door ...................................................................................................8
Mortise Sample Specification ....................................................................9
Functions .................................................................................................. 10-13
48H & 49H High Security Specification ............................................... 14
48H & 49H Function & How To Order ................................................... 14
Standard & High Security Cylinders ...................................................... 15
Strike box & strike
12
Visual Indicators
unlocked locked
14
3
ORTISE LOCKS
ADA-Americans With Disabilities Act:
45H Series - The design and operation of the BEST
®
mortise lock
meets the intent of the standard for ANSI A117.1 section 404.2.6.
Builders Hardware Manufacturers Association:
45H Series - ANSI A156.13, Series 1000, Grade 1 Operation and
Strength, Grade 2 Security. To meet Grade 1 Security, a drill resistant
core (1CD, 1CDP, 1CDF, or 1CDX) must be used with escutcheon
trims, and 1E7K4 high security cylinder must be used with sectional
trims.
47H Series - ANSI A156.13, Series 1000, Grade 1 Operational,
Strength, and Security.
Underwriters Laboratories
®
The 40H series is listed by Underwriters Laboratories for use on a
3 hour A label doors. These locks also carry the C-UL mark which
is officially accepted in all of Canada, indicating compliance with
appropriate Canadian standards and codes. The 47H series locks
conform to UL437 standard for key locks, referencing door locks.
The 1E7J4 cylinder used in the 47H series also conforms to UL437
standard for key locks, referencing high security cyl in ders, and is
listed for Canada as well as the United States.
Florida Building Code (FBC) Listed and Miami-Dade County Code
Compliance Office
See certification listing for all 40H series lock functions that are
certified for use in applications requiring a design pressure rating
as specified.
Finishes:
• 605 – bright brass, clear coated
• 606 – satin brass, clear coated
• 611 – bright bronze, clear coated
• 612 – satin bronze, clear coated
• 613* – oxidized satin bronze, oil rubbed
• 618 – bright nickel plated, clear coated (brass base material)
• 619 – satin nickel plated, clear coated (brass base material)
• 622 – flat black coated (brass base material)
• 625 – bright chromium plated (brass base material)
• 626 – satin chromium plated (brass base material)
• 629 – bright stainless steel
• 630 – satin stainless steel
• 690* – dark bronze coated (brass base material)
*613 finish is designed to wear over time, providing an “antique” appearance.
690 finish will continue as a dark brown appearance over time.
Antimicrobial Finish
• 626AM – satin chrome plated with UltraShield
™
antimicrobial protected coating
• 630AM – satin stainless steel with UltraShield™
antimicrobial protected coating
The Stanley Security Solutions UltraShield
™
finish inhibits the growth
of bacteria and other microbes on the surface of the hardware.
NOTE: Stanley’s UltraShield
™
option is recommended for use on any hardware
application where product cleanliness is a high priority. i.e;. Hospital/Healthcare,
Elderly Care, Education, Transportation, Food-Service, Hospitality.
#4 Knob: Diameter – 2
1
/
8
” ; Projection on door – 2
7
/
8
” Material
machined from solid brass or bronze.

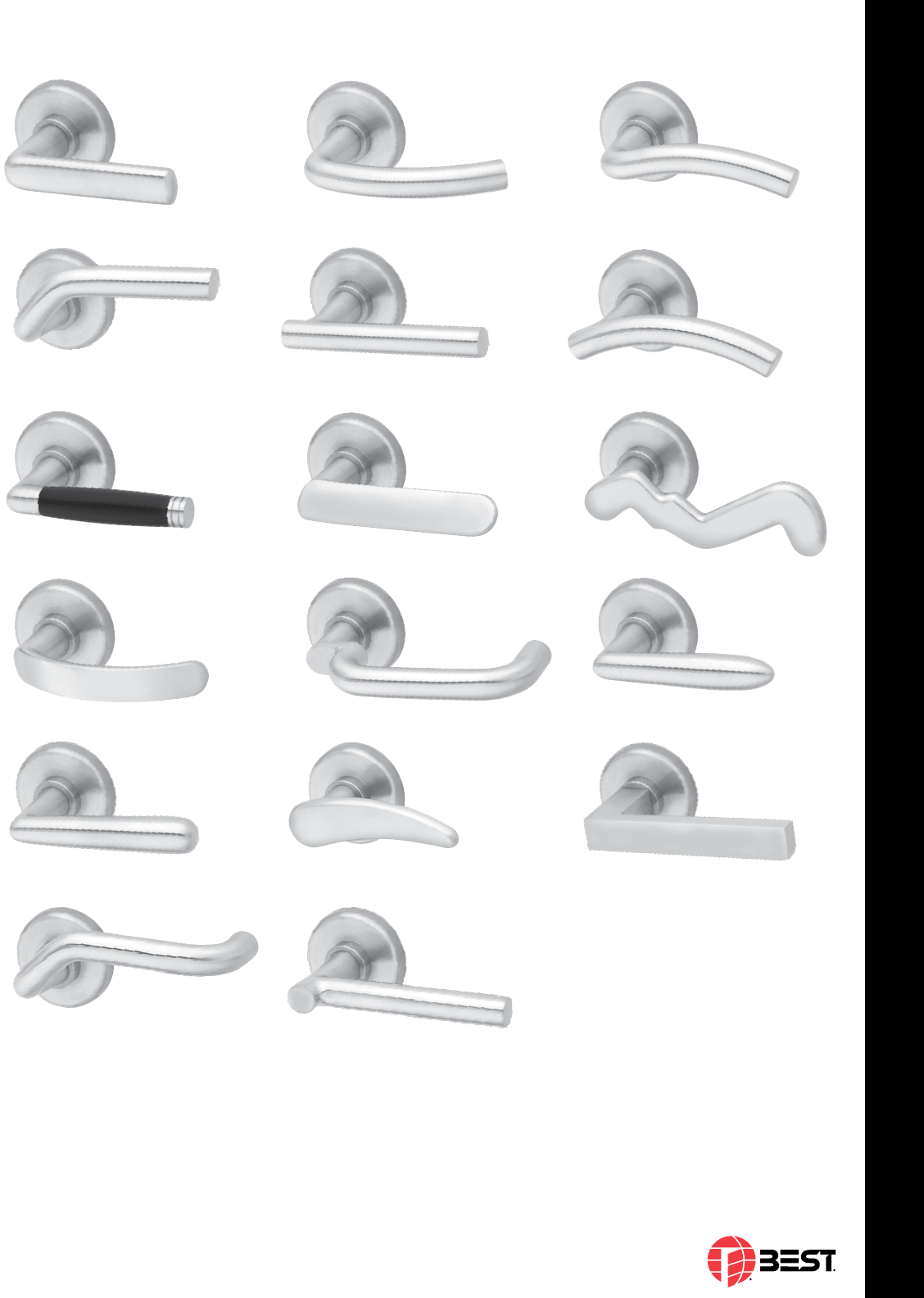

Decorative and Special Order Lever Handles: Stainless
steel base material with applied finish.
Standard Lever Handles: Brass, bronze, or stainless steel base
material for standard lever designs. Lever styles #3, #14, and #15
return to a minimum of
1
/
2
” of door surface. Lever styles #3 and #14
conform to California Titles 19 and 24. Lever styles 12, 16 and 17 do
not return. Levers project 2
15
/
16
” from door surface with H, J, R and S
trim. Levers project 3
1
/
64
” with M and N trim.
Roses: Wrought brass, bronze, or stainless steel base material.
H – Flat w/ round edge, 2
3
/
4
” diameter.
R – Contoured w/ round edge, 2
3
/
4
” diameter.
S – Flat w/ beveled edge, 3
1
/
2
” diameter.
Escutcheons: J – Wrought brass, bronze, or stainless steel base
material, 7
1
/
2
” H x 2
9
/
32
” W x
17
/
32
” T. M & N – Forged brass or bronze,
8” H x 2
1
/
8
” W x
37
/
64
” T, through bolt mounted (no exposed screws
outside). M – Standard cylinder; N – Concealed cylinder.
Vandal Trim: VT–Vandal trim is available in standard finish for H, J,
M, N, R, and S trims in either #14 or #15 levers.
NOTE: Not available in single or dummy trim functions. If compliance to California
Building Code Title 19 & 24 is required, the #14 lever design must be specified.
Visual Indicators:
VIN–Visual indication uses an unlocked padlock or locked padlock
image with red background to indicate lock state.
VIT–Visual indication uses a thumb-turn with color coded locked and
unlocked icons – red indicates door is secure and green indicates
door is unsecure.
SPECIFICATIONS
SPECIFICATIONS
U
ltra
S
hield
™
The 40H series lock has received a notice of acceptance from
Miami-Dade County and is considered Miami-Dade County
product. “WS” option must be ordered for the lock to include
a “Miami-Dade County Product Control Approved” label for
inspection purposes.
Auxiliary bolt: Stainless steel, non-handed.
Backset: 2
3
/
4
”
Case: 0.095” cold rolled steel, 5
7
/
8
” H x
7
/
8
” D x 4
1
/
16
” W. Steel is zinc
dichromate plated for corrosion protection.
Deadbolt: Stainless steel, 1” throw.
Latchbolt: Solid stainless steel,
3
/
4
” throw. Latch is oil-impregnated
for anti-friction operation. Reversible without opening case.
Strike: For complete strike package spec’s see page 5.
Door Thickness: Standard lock configuration designed for doors 1
3
/
4
” thick. Thick door configuration available for doors up to 5” thick
(specify thickness when ordering).
Faceplate: Stainless steel, brass or bronze material, 8” H x 1
1
/
4
”
W x
1
/
16
” T. Lock face automatically adjusts to proper bevel during
Description Model Single Door Double
Door
PSF w/o DeadBolt 45H and 47H +-60 +-35
PSF w/ DeadBolt 45H and 47H +-100 +-50
PSF w/ DeadBolt 48H and 49H +-50 +-50
4
HEAVY DUTY MORTISE LOCKS
FLEXIBILITY IN ORDERING
Stanley/BEST offers three ways in which to order the 40H mortise lock. YOU get to choose which method meets your needs.
Function Specific Lock
If you know exactly what you need in a mortise lock, and are confident that your needs won’t change, then order your 40H locks in the
traditional way by specifying the exact function, trim, finish, and handing. BEST
®
will build the locks to work exactly as specified, so they may
or may not have the ability to be converted to another function in the future.
Universal Lock
If you want to keep your options open, this method of ordering
the 40H is for you. BEST
®
has developed three “universal”
functions that can be configured to a variety of common
functions, all without opening the lock case. When any of the
universal functions are ordered as a complete lock, all the
necessary parts (including trim) are provided to configure
any of the functions in that group.
UNIVERSAL LOCKFLEXIBILITY IN ORDERING
UNIVERSAL LOCK DESIGN CONCEPT
Strength, Durability…and now Flexibility.
Sure, a mortise lock is one of the strongest and longest
lasting locks available. But who says it has to be the
most complex to order and install? When designing the
40H mortise lock, BEST
®
decided to focus on things
that would make the lock easier to use, while at the
same time maintaining the strength, durability, and
dependability you would expect in a BEST
®
mortise
lock.
In addition to the ability to quickly change the lock handing, the universal case design of the 40H provides the ability to reconfigure a lock
into many different functions easily and quickly, often by rearranging existing parts without disassembling the lock case. The efficiency of
the design enables over 12 of the most commonly used lock functions to be included in just 3 case configurations.
The 40H provides the ability to postpone decisions on how the lock will be configured all the way up to the point of installation, making it one
of the most flexible and user-friendly mortise locks available. This translates into value for anyone involved in the process, whether they’re
an architect, specification writer, distributor, or end-user.
Inside
Kit
Outside
Kit
Case
Only
Strike
Package
For the maximum flexibility in ordering a mortise lock, BEST
®
provides a way to order your 40H lock in four parts: Inside Trim,
Case Only, Outside Trim and Strike Packages. The kits that make
up these four parts have been carefully designed so that when all
three are combined you have everything found in a complete 40H
lock. This order method is ideal for customers wanting to stock a
variety of trim designs with a minimal number of lock cases.
FOURPART LOCK
UNR ANSI UNT ANSI UNAB ANSI
A – office
AT – office
D – storeroom
N – passage
NX – exit
R – classroom
F04
F04
F07
F01
F31
F05
L – privacy
T – dormitory
F19
F13
AB – office
TA – dormitory
TD – dormitory
F20
F12
5
ORTISE LOCKS
Strike Packages
S1 – Standard strike:
4
7
/
8
” x 1
1
/
4
” x
3
/
32
”, non-handed,
curved lip, 1
1
/
4
” lip to center strike.
Fits standard door frame ANSI A115.1,
and comes with plastic strike box.
Parts Ordering Made Easy
No more searching through service manuals or calling technical
support for the right part numbers. BEST
®
has developed a variety
of kits you can order when you only need part of a 40H mortise,
rather than the whole lock.
Case Only
A Case Only lock includes all parts normally included with a
complete lock that are not specifically associated with either
the inside or outside trim, including: lock case, face plate, strike
and strike box, fasteners (for case and strike), and installation
instructions.
Case Only mortise locks will be shipped in the standard
mortise packaging, allowing trim kits to be included at a
future date to make a complete lock.
Trim Kit
A 40H Trim Kit is simply one half of a complete trim package. An
Outside Trim Kit must always be matched up with an Inside Trim
Kit to operate with a lock. Each kit includes all the necessary parts
(including fasteners) required for installation that are associated
with just the one side of the door.
Lever Set
A lever set kit provides the inside lever assembly (with set screw)
and outside lever assembly (with spindle attached). Thick Door
and Tactile Lever options are available for this kit.
Faceplate Kit
Face Plate kit includes a finished faceplate and the appropriate
screws. Security Head screws are an option for this kit.
Replacement Spindle
As a security feature, the outside spindle on the 40H is designed
to twist off during abuse before any internal damage to the
lock occurs. The Replacement Spindle kit is a quick, easy, and
inexpensive way to replace any spindles damaged by attack or
abuse. This kit includes the inside and outside spindles, plus the
pin to attach the outside lever.
Screw Kit
Nothing’s more frustrating than spending time searching for the
part number of a single screw. With the 40H Screw Kits, you don’t
have to worry about that anymore. These kits have been designed
to provide all the necessary fasteners for one lock in a single bag.
All you need to know is the trim style and finish, and you’re set.
Security head screws are an option for this kit.
UNIVERSAL LOCK CONCEPT
FUNCTION LETTER CHART

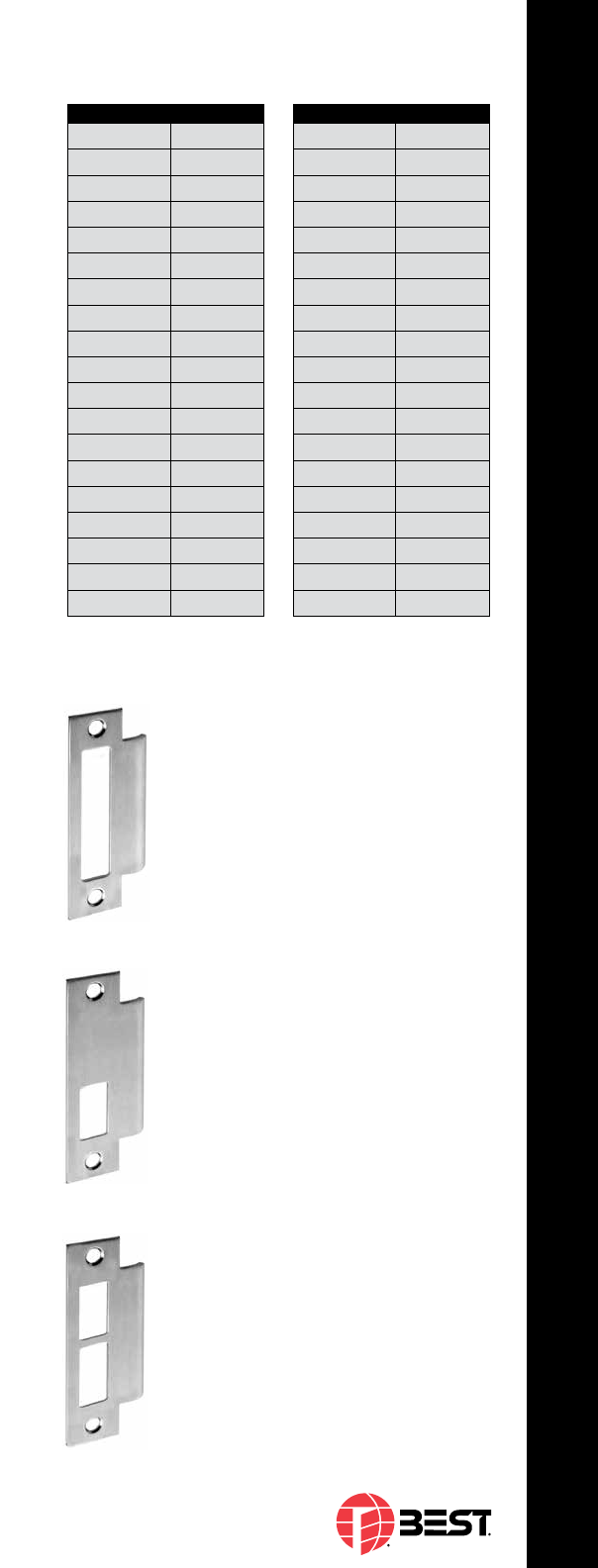

STRIKE PACKAGES
S1 – Standard strike
S5 – Latchbolt-only strike
S6 – Latchbolt/Deadbolt
ANSI 45H/47H
1DT
2DT
F04 A
F20 AB
F04 AT
F21 B
B5
B7
F08/F10 BA
BW
F09 C
CHB
F07 D
F14 G
F15 H
F15 HJ
F34 INA
F33 IND
F32 INL
ANSI 45H/47H
F19 L
F02 LB
LT
F01 N
F31 NX
F05 R
F06 RHB
F35 S
F13 T
F12 TA
TD
F30 W
F17 AD
F29 RD
F16 WD
F18 YD
UNR
UNT
UNAB
S6 – Latchbolt/Deadbolt strike:
4
7
/
8
” x 1
1
/
4
” x
3
/
32
”, handed, curved lip,
1
1
/
4
” lip to center strike. Fits standard
door frame ANSI A115.1, and comes
with wrought steel strike box.
S5 – Latchbolt-only strike:
4
7
/
8
” x 1
1
/
4
” x
3
/
32
”, handed, curved lip,
1
1
/
4
” lip to center strike. Fits standard
door frame ANSI A115.1, and comes
with wrought steel strike box.
6
HEAVY DUTY MORTISE LOCKS
HOW TO ORDER
HOW TO ORDER: 45H
45H 7 R 14 H 626 RH
Series Core
Housing
Function Code Lever
Style
Trim
Style
Finish Door
Hand
Options
45H–
standard
mortise lock
0– non
keyed or
dummy
trim
7– 7 pin
housing
accepts
all BEST
cores
A– office
D– storeroom
L– privacy
N– passage
R– classroom
T– dormitory
etc.
Standard Levers:
3– solid tube/return
12– solid tube/no return
14– curved return
15– contour/angle return
16– curved/no return
17– gull wing
Knobs:
4– round
H– 2
3
/
4
” dia.
R– 2
3
/
4
” dia.
S– 3
1
/
2
” dia.
J– wrought
M– forged
N– forged
(concealed cyl.)
618 626
630 690
Satin
606 612
613 619
Bright
605 611
622 625
629
Antimicrobial
626AM
630AM
RH
RHRB
LH
LHRB
LL– lead lined
SH– security head screws
Thick Door– (specify
thickness if other than1
3
/
4
” )
TAC– tactile lever/knob
7/8 LTC–
7
/
8
” lip-to-center
strike
VIN*– visual indicator
S1– standard strike
S5– latchbolt-only strike
S6– latchbolt/deadbolt strike
VT– vandal trim
VIT– visual indicator thumb-
turn
pages 14-17 page 3 page 8
HOW TO ORDER: 47H
* These options may not be immediately available.
47H 7 R 14 M 626 RH
Series Core
Housing
Function
Code
Lever
Style
Trim
Style
Finishes Door Hand Options
47H– lever /
knob high
security
mortise lock
7– 7 pin
housing,
must use
5C cores
and long
blade keys
A– office
D–storeroom
R–classroom
T– dormitory
etc.
Standard Levers:
3– solid tube/return
12– solid return no return
14– curved return
15– contour/angle return
16– curve/no return
17– gull wing
Knobs:
4– round
H– 2
3
/
4
” dia.
R– 2
3
/
4
” dia.
S– 3
1
/
2
” dia.
M– forged
626
630
Antimicrobial
626AM
630AM
RH
RHRB
LH
LHRB
K– non UL cylinder
LL– lead lined
Thick Door– (specify thickness if
other than 1
3
/
4
” )
TAC– tactile lever/knob
7/8 LTC–
7
/
8
” lip-to-center strike
VIN*– visual indicator
S1– standard strike
S5– latchbolt-only strike
S6– latchbolt/deadbolt strike
VT– vandal trim
pages 14-17 page 3 page 8
HOW TO ORDER: 40H TRIM KITS
* Only works with H, R, S, M and N trim.
40HTK OS2 14 H 626
Series
Backset
Function Code Lever/Knob Style Trim
Style
Finishes Options
40HTK–
trim kit
IS1– inside lever only
IS2– inside lever x thumb turn
IS3– inside lever x cylinder
IS4*– inside cylinder only
IS5– inside thumb turn only
IS6– inside lever x cylinder x VIN
OS1– outside lever only
OS2– outside lever x cylinder
OS3– outside lever x emergency plate
OS4*– outside cylinder only
OS5– outside lever x VIN
OS6– inside lever x cylinder x VIN
NOTE: VIN– visual indicator
Standard Levers:
3– solid tube/return
12– solid tube no return
14– curved return
15– contour/angle return
16– curve/no return
17RH– gull wing right
hand
17LH– gull wing left hand
Knobs:
4– round
H– 2
3
/
4
” dia.
R– 2
3
/
4
” dia.
S– 3
1
/
2
” dia.
J– wrought
M– forged
N– forged
(concealed cyl.)
605 606
611 612
613 618
619 622
625 626
629 630
690
D– double cylinder
Thick Door– (specify
thickness if other than 1
3
/
4
” )
SH– security head screws
TAC– tactile lever/knob
pages 14-17 page 3 page 8
45HCA R 626 RH
Series Function Code Finishes Door Hand Options
45HCA–
case only mortise lock
A– office
D– storeroom
R– classroom
T– dormitory etc.
605 606 611 612
613 618
619 622 625
626 629 630
690
RH
RHRB
LH
LHRB
SH– security head screws
7/8 LTC–
7
/
8
” lip-to-center
strike
pages 14-17 page 3 page 8
HOW TO ORDER: 45H CASE ONLY
7
ORTISE LOCKS
HOW TO ORDER
HOW TO ORDER: 40H STRIKE PACKAGES
40HST 1 626
Series Kit Number Finishes Options
40HST– strike
package
S1– standard strike
S5– latchbolt-only strike
S6– latchbolt/deadbolt strike
4– strike box only
605 606 611
612 613 618
619 622 625
626 629 630
690
Thick Door– (specify thickness if other
than 1
3
/
4
” )
7/8LTC–
7
/
8
” lip-to-center strike
SH– security head screws
page 4-5 page 3
HOW TO ORDER: 40H FACEPLATE KITS
40HFP 3 626
Series Kit Number Finishes Options
40HFP–
faceplate kit
0– AB
1– BW, TD, H, HJ
2– A
3– AT, D, C, INL, NX, R, W
4– N, LT
5– AD, RD, YD, WD
6– blank
7– BA, S, TA
8– B, G, IND, L,
LB, T
9– CHB, RHB
10– blank
(without logo)
605 606
611 612
613 618
619 622
625 626
629 630
690
SH– security head
screws
page 4-5 page 3
HOW TO ORDER: 40H REPLACEMENT SPINDLES
*Hook spindle is available for 1
3
/
4
” thick door only.
40HRS 3
Series Function Code Options
40HRS–
replacement
spindle kits
2– 40H split spindle (standard)
4– 40H hook spindle *
Thick Door– (specify thickness if other than 1
3
/
4
”)
page 3
HOW TO ORDER: 40H LEVER SETS
40HLS 1 626
Series Kit Number Finishes Options
40HLS–
lever set
Levers:
3– solid tube/return
12– solid tube/no return
14– curved return
15– contour/angle return
16– curve/no return
17RH– gull wing-right hand
17LH– gull wing-left hand
Knobs:
4– round
Decorative & special order levers:
pages 11-13
605 606
611 612
613 618
619 622
625 626
629 630
690
Thick Door– (specify thickness if other
than 1
3
/
4
” )
SH– security head screws
VT– vandal trim
page 3 page 3
*Complies with California Building Code Title 10 and Title 24, part 12
HOW TO ORDER: 40H VANDAL TRIM RETROFIT KIT
40HVTK 2 626
Series Lever Style Lever Style Options
40HVTK– vandal trim 14*– curved return
15– contour/angle return
605, 606, 611, 612, 613 618
619, 622, 625, 626, 629, 630, 690
Thick Door– (specify thickness
if other than 1
3
/
4
” )
page 3
HOW TO ORDER: 40H SCREW KITS
40HSK 1 626
Series Kit Number Finishes Options
40HSK– screw kits 1– H, R. S, J trim screw kit
2– M, N trim screw kit
3– special purpose fasteners screw kit
4– surface mounted trim screw kit
5– VIN trim screw kit
606
612
613
622
626
Thick Door– (specify thickness
if other than 1
3
/
4
”)
SH– security head
page 4-5 page 3
HOW TO ORDER: 40H VISUAL INDICATOR LAMINATE & THUMBTURN
40H-VIT 626
Series Finishes Options
40HVIT 605 612 613 626 Thick Door– (specify thickness if other than 1
3
/
4
”)
Part Description Part Number
Indicator Laminate
Thumb-turn Indicator Kit 86329
Thumb-turn Escutcheon Indicator Kit 86829
8
HEAVY DUTY MORTISE LOCKS

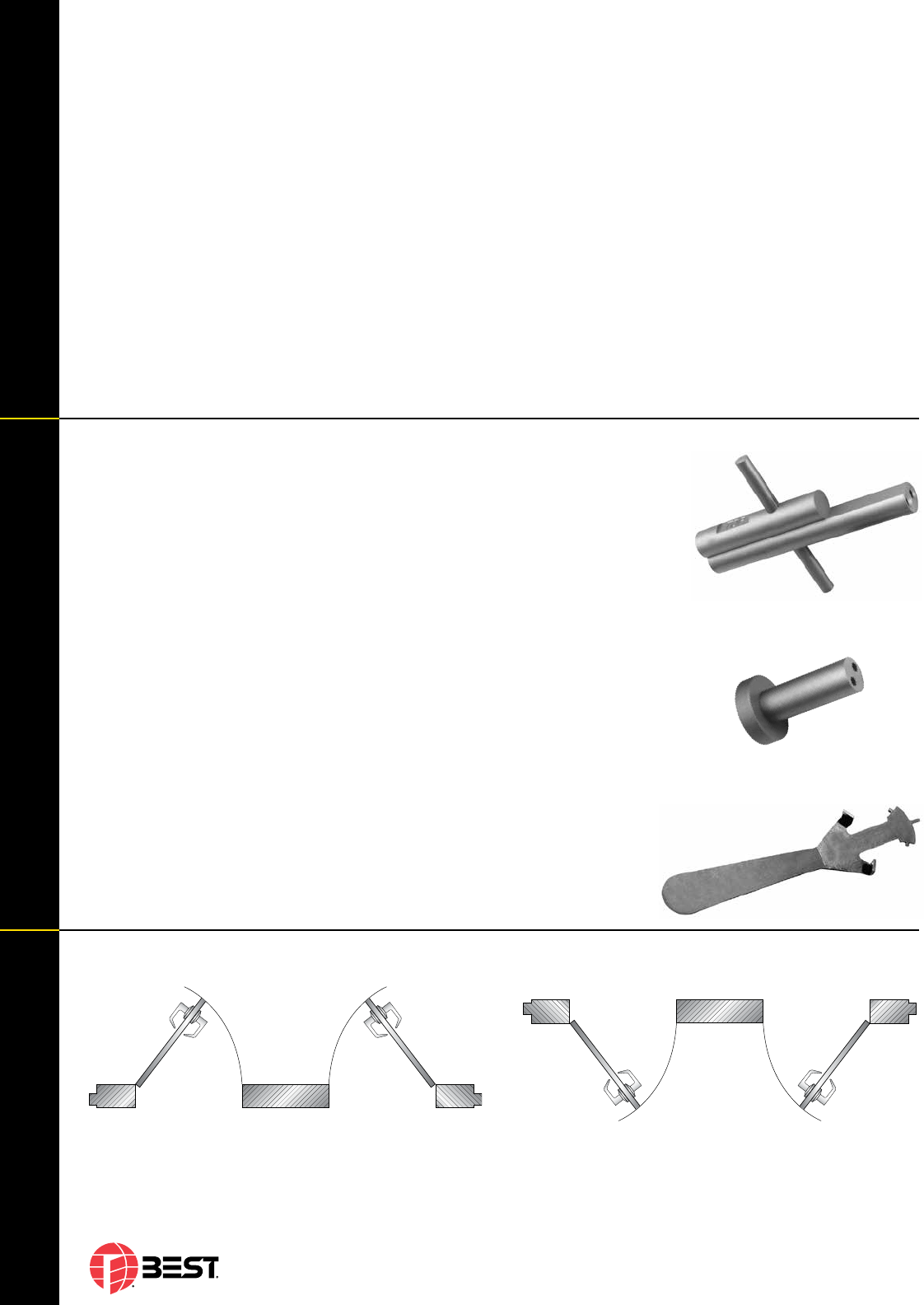

SPECIAL FEATURES
SPECIAL FEATURES
Lead Lined Feature – The 40H mortise lock can be lead lined to protect against x-rays. Since the majority of lead lined doors contain the lead
in the surface of the door, the 40H provides lead lining for the holes cut in the door when preparing the door for the trim. The cylinder hole
is lead lined.
To order: des ig nate “LL” on order pro ce dure (page 6-7)
Security Head Screws – Security head screws.
To order: des ig nate “SH” on 45H/47H in order procedure (page 6-7).
Tactile Feature Knob/Lever – This option is for use in applications where special notice is needed to warn the blind about safety or
accessibility environments. Depending on the style ordered, the knob or lever will receive either grooves or knurling as the tactile feature.
To order: des ig nate “ TL” on 45H/47H knobs/levers in order pro ce dure (page 6-7).
Visual Indicator Feature – This option adds a visual indicator for certain functions that visually reflects whether the lockset
is in the locked or unlocked state. This option is available for the following functions: TD– Dormitory, IND– Intruder, INL– Intruder,
L– Privacy, LT– Privacy, S– Storeroom. Visual indicator feature is standard on the H– Hotel function (page 2).
Vandal Trim – VT–Vandal trim is available in standard finish for H, J, M, N, R, and S trims in either #14 or #15 levers.
Note: Not available in single or dummy trim functions. If compliance to California Building Code Title 19 & 24 is required, the #14 lever design must be specified.
HAND OF DOOR
HAND OF DOOR
SERVICE EQUIPMENT
SERVICE EQUIPMENT

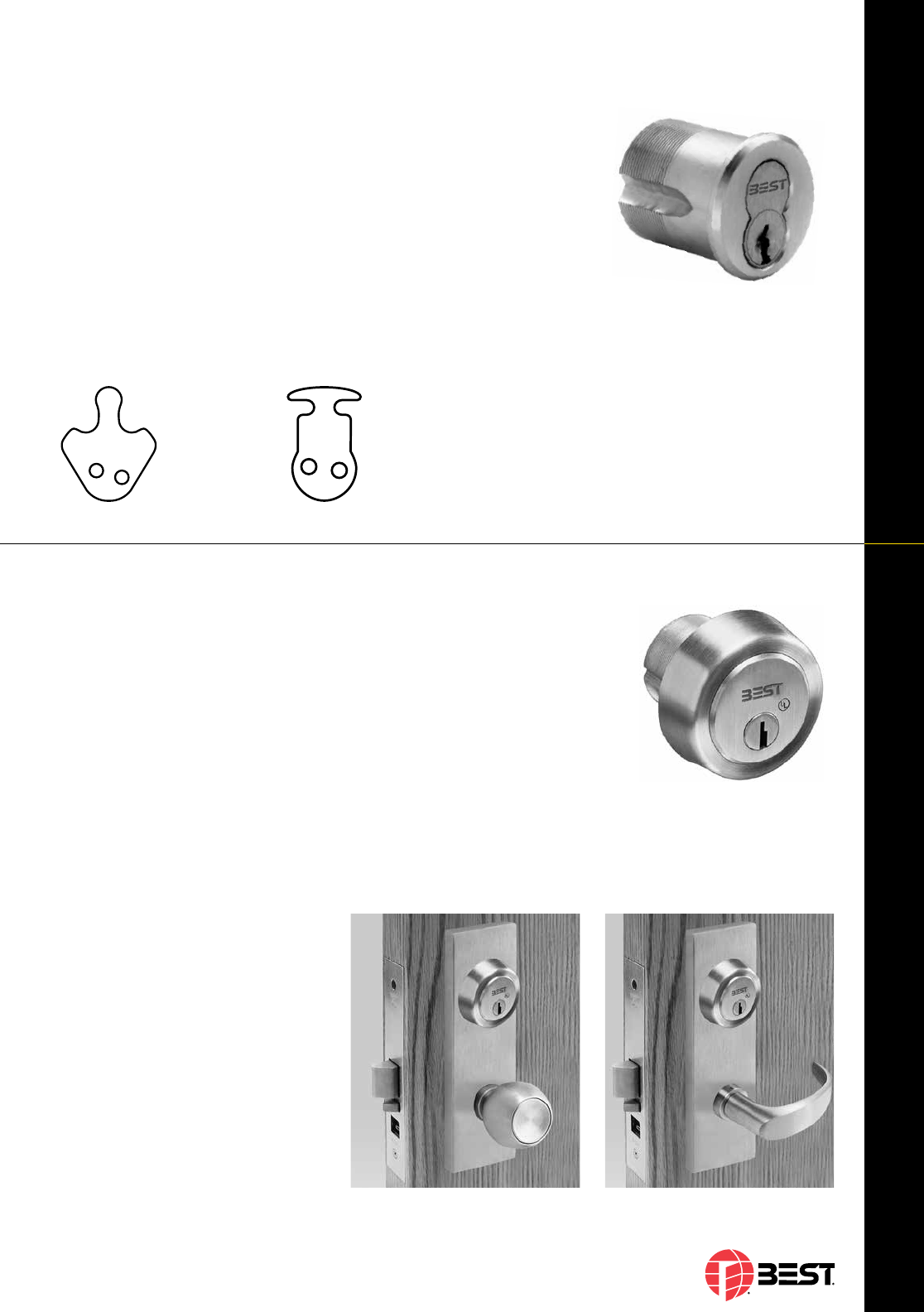

ED211 Mortise Cylinder Wrench –
The BEST mortise cylinder wrench and test handle is an essential dual-purpose tool.
It is used primarily to install or remove Stanley/BEST mortise cylinders without marring the
cylinder surface finish. The single end may be used to test the lock operation, as well as
aligning the throw pins.
To order specify: ED211 mortise cylinder wrench.
ED212 Mortise Cylinder Cam Assembly Tool –
Mortise cylinder cams are quickly changed with the use of this tool. Ap prox . length 1 3/4”.
To order specify: ED212 assembly tool.
ED221 Mortise Cylinder Thread Repair Die –
Tool for rethreading 1
5
/
32
” diameter cylinders.
To order specify: ED221 thread repair die.
ED225 Hole Tap for 1
5
/
32
” Mortise Cylinder –
Tap tool used to rethread housing threads for 1E Mortise Cylinders.
To order specify: ED225 hole tap.
KD316 Spanner Wrench (C54466) –
All “H” locksets require the use of the KD316 spanner wrench for door mounting.
This tool is include with every (10) locksets ordered.
To order specify: KD316 spanner wrench.
ED212
ED211
KD316
Left hand (LH) Right hand (RH)
OUTSIDE OUTSIDE
Left hand
re verse bevel
(LHRB)
Right hand
re verse bevel
(RHRB)
9
ORTISE LOCKS
[Best Access Systems.] - [___________.] [__________.]
1. Base Specification: Best Access Systems components as listed in Hardware Schedule per Article 3.05.
2. Locksets and latchsets of other acceptable manufacturers must conform to the requirements of Subparagraphs 3 and 4.
3. Mortise Type:
a. Locksets shall be tested and approved by BHMA for ANSI A156.13, Series 1000, Operational Grade 1, Extra-Heavy
Duty, Security Grade 2 and be UL10C
b. Locksets shall be mortise type with solid
3
/
4
inch throw one-piece radiused latchbolt made of self-lubricating stainless
steel. Deadbolt functions shall be one inch projection stainless steel construction. Both deadbolt and latchbolt to extend into lock case
with reinforcing a minimum of
3
/
8
inch when fully extended.
c. Knobs to be [_______] design.
Levers to be [_______] design.
d. Furnish locksets and latchsets with sufficient strike lip to protect door trim.
e. Provide locksets with 7 pin [BEST] interchangeable core cylinders. [All mortise cylinders shall have a concealed internal set screw for
securing the cylinder to the lockset. The internal set screw will be accessible only by removing the core from the cylinder body with a
control key]
f. All mortise locksets and latchsets must conform to ANSI A156.13, Series 1000, Operational Grade 1 [Security
Grade 2 for locksets in security areas] and be listed by UL. [High Security Option: All mortise locksets must conform to ANSI A156.13,
Series 1000, Operational Grade 1, Security Grade 1 and listed by UL, and must include inter changeable core cylinders which conform
to High Security Cylinder requirements of UL 437.]
g. Locksets must fit ANSI A115.1 door preparation.
h. Locksets and latchsets to have self-aligning through-bolted trim.
i. Locksets and latchsets must have the ability to change handing without opening case.
j. Auxiliary latch to be made of one-piece self-lubricating stainless steel.
k. Locksets must be available with tactile or knurled knobs or levers for identification of hazardous areas.
l. Lever handles must be of forged or cast brass, bronze or stainless steel construction and conform to ANSI A117.1.
Levers which contain a hollow cavity are not acceptable.
MORTISE SAMPLE SPECIFICATIONS
Subparagraphs m through r describe quality features of Best mortise locksets which may or may not be available from other lock
manufacturers. Edit accordingly.
Subparagraphs s through x describe quality features of Best mortise locksets which may or may not be available from other lock
manufacturers. Subparagraphs s, t, and u should remain as a group, and subparagraphs v, w, and x should remain as a group. Choose
either s-u or v-x, but not both groups.
MORTISE SAMPLE SPECIFICATIONS
A. Locksets and Latch sets:
m. [Spindle to be such that if forced it will twist first, then break, thus preventing forced entry.]
n. [Knobs and levers to be operated with a roller bearing spindle hub mechanism.]
o. [Permanent core face must be the same finish as the lockset finish.]
p. Cylinder retaining screw, auxiliary latch, and strike must be non-handed.]
q. [Locking toggle on face of door must clearly indicate whether mortise lock is in the “locked” or “unlocked” state.]
r. [Cover and armored front must interlock at the latch, preventing the cover from spreading or bowing while under duress.]
s. [Mortise lock to offer a complete lock (including trim) with the ability to be configured in the field to any of the following
ANSI functions: F01, F04, F05, F07, F31.]
t. [Mortise lock to offer a complete lock (including trim) with the ability to be configured in the field to any of the following
ANSI functions: F19, F13]
u. [Mortise lock to offer a complete lock (including trim) with the ability to be configured in the field to any of the following
ANSI functions: F12, F20]
v. [Mortise lock to offer a multi-function case with the ability to be configured in the field to any of the following
ANSI functions: F01, F04, F05, F07, F09, F30, F31, F32.]
w. [Mortise lock to offer a multi-function case with the ability to be configured in the field to any of the following
ANSI functions: F13, F19, F33.]
x. [Mortise lock to offer a multi-function case with the ability to be configured in the field to any of the following
ANSI functions: F12, F15, F20]
10
HEAVY DUTY MORTISE LOCKS

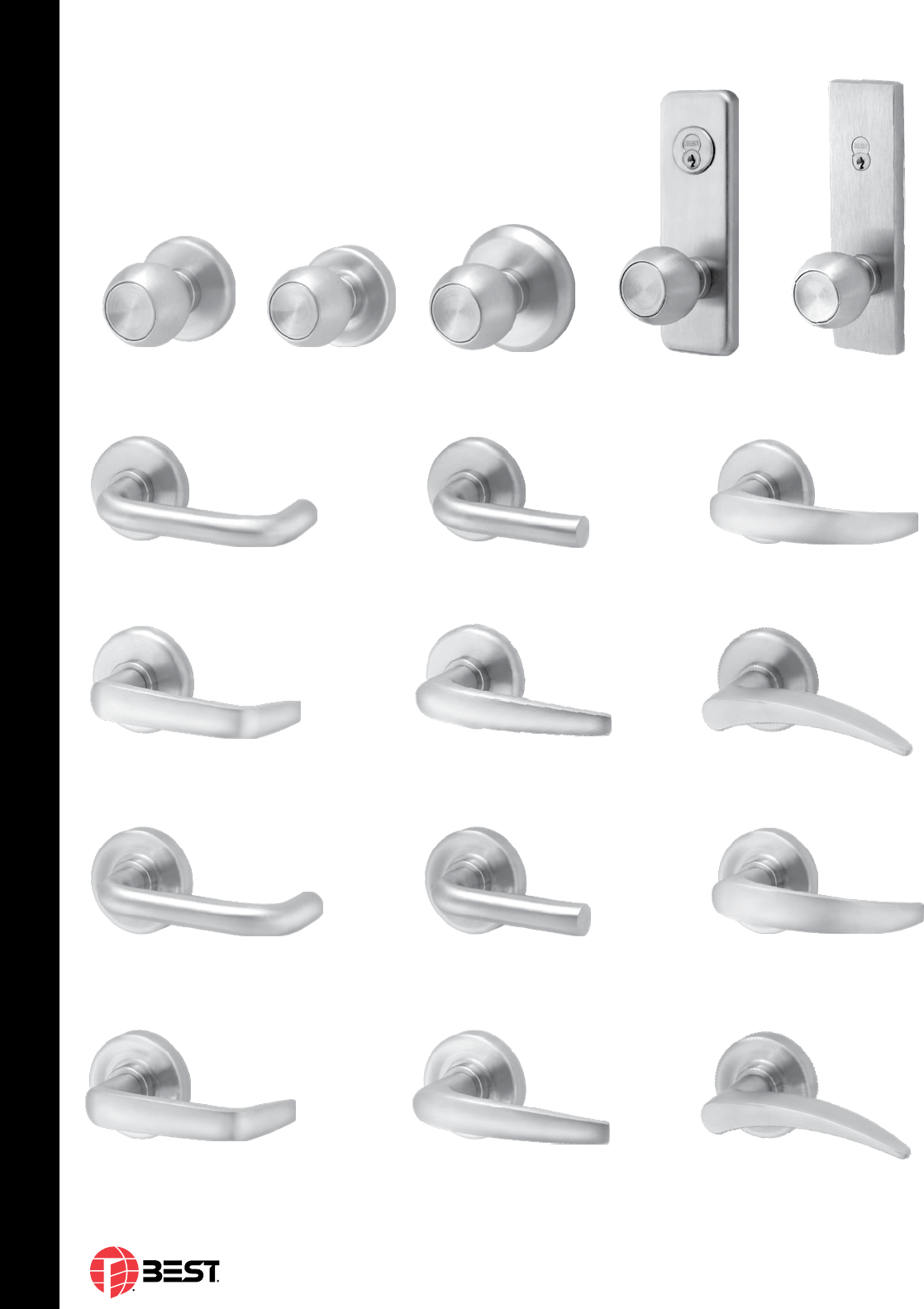

40H SERIES – STANDARD LEVERS, KNOB & TRIMS
40H SERIES STANDARD LEVERS, KNOB & TRIMS
Knob- 4
Rose - H
Knob- 4
Rose - R
Knob- 4
Rose - S
Knob- 4
Escutcheon - J
Knob- 4
Escutcheon - N
Lever- 3
Rose - H
Lever- 15
Rose - H
Lever- 3
Rose - R
Lever- 15
Rose - R
Lever- 12
Rose - H
Lever- 16
Rose - H
Lever- 12
Rose - R
Lever- 16
Rose - R
Lever- 14
Rose - H
Lever- 17
Rose - H
Lever- 14
Rose - R
Lever- 17
Rose - R
11
ORTISE LOCKS

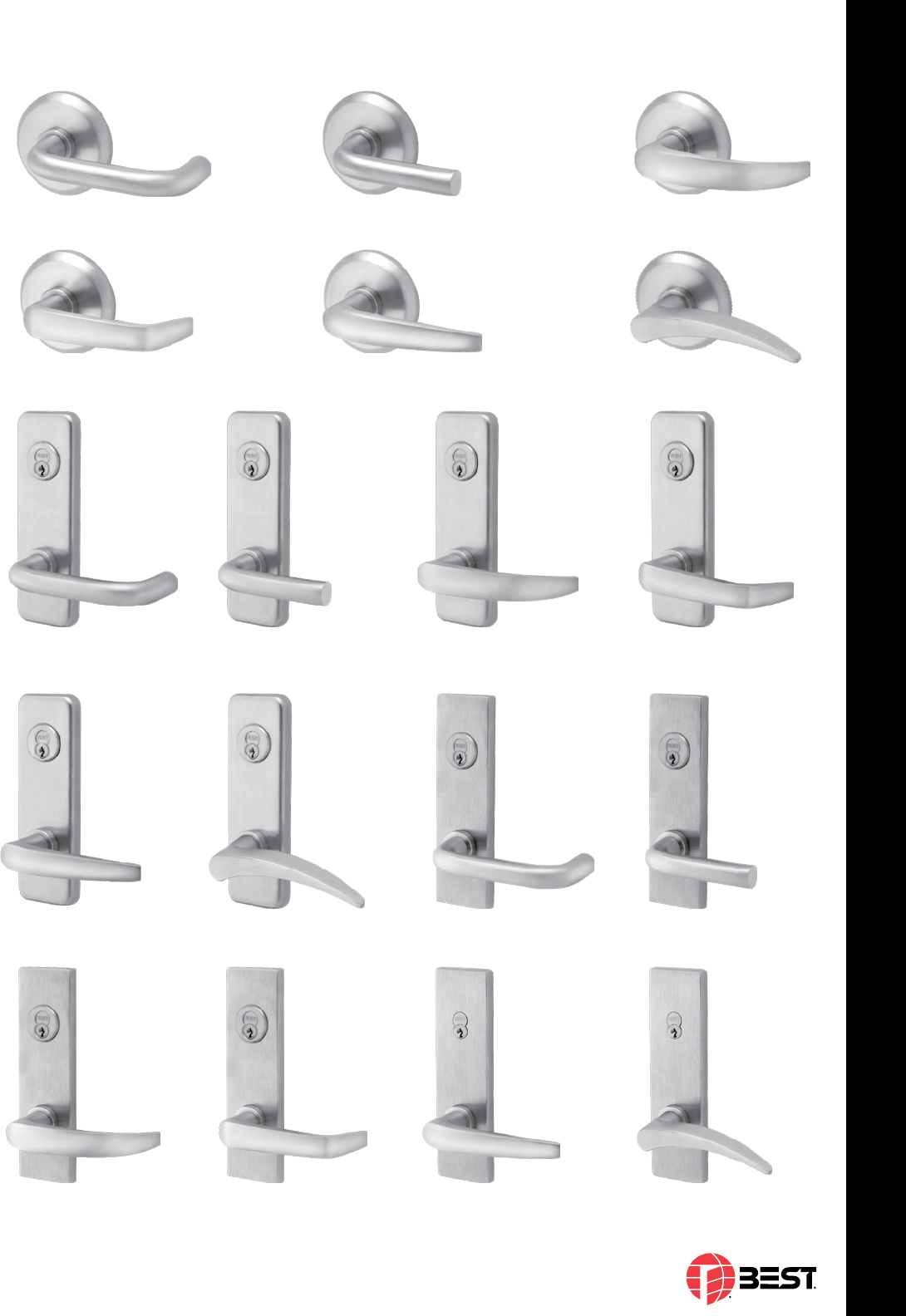

40H SERIES – STANDARD LEVERS, KNOB & TRIMS
40H SERIES STANDARD LEVERS,KNOB & TRIMS
Lever- 3
Rose - S
Lever- 15
Rose - S
Lever- 3
Escutcheon - J
Lever- 16
Escutcheon - J
Lever- 14
Escutcheon - M
Lever- 12
Escutcheon - J
Lever- 17
Escutcheon - J
Lever- 15
Escutcheon - M
Lever- 14
Escutcheon - J
Lever- 3
Escutcheon - M
Lever- 16
Escutcheon - N
Lever- 15
Escutcheon - J
Lever- 12
Escutcheon - M
Lever- 17
Escutcheon - N
Lever- 12
Rose - S
Lever- 16
Rose - S
Lever- 14
Rose - S
Lever- 17
Rose - S
12
HEAVY DUTY MORTISE LOCKS

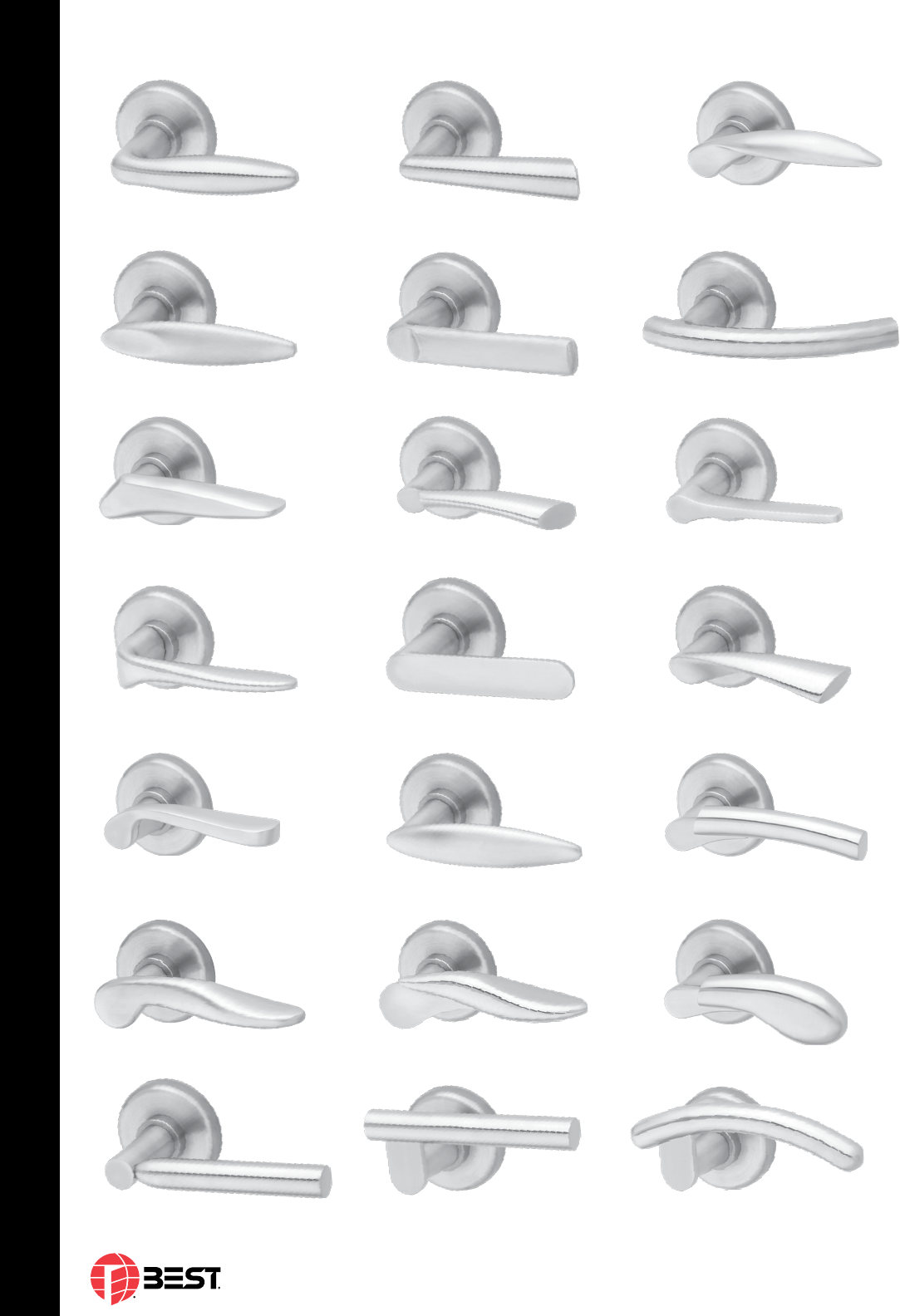

40H SERIES – DECORATIVE LEVERS
40H SERIES DECORATIVE LEVERS
# 50 # 51 # 52
# 53 # 54 # 55
# 60 # 61 # 62
# 63 # 64 # 65
# 67 # 68
# 66
# 69 # 70 # 71
# 72 # 73 # 74
13
ORTISE LOCKS
40H SERIES – DECORATIVE LEVERS
# 75 #76 # 77
# 78 # 79 # 80
# 81 # 82 # 83
# 84 #85 # 86
# 87 # 88 # 89
40H SERIES DECORATIVE LEVERS
# 91# 90
14
HEAVY DUTY MORTISE LOCKS

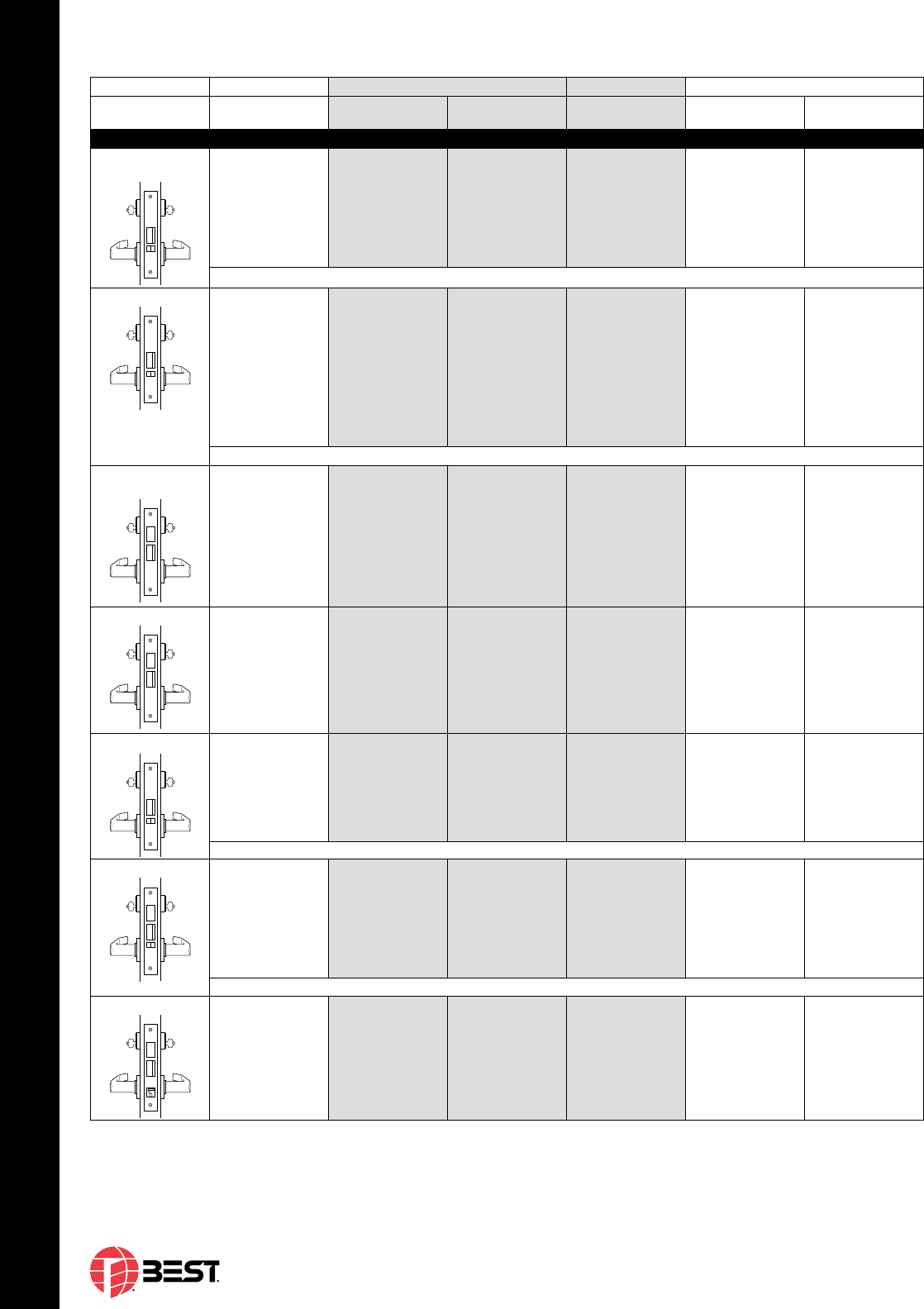

FUNCTIONS
FUNCTIONS

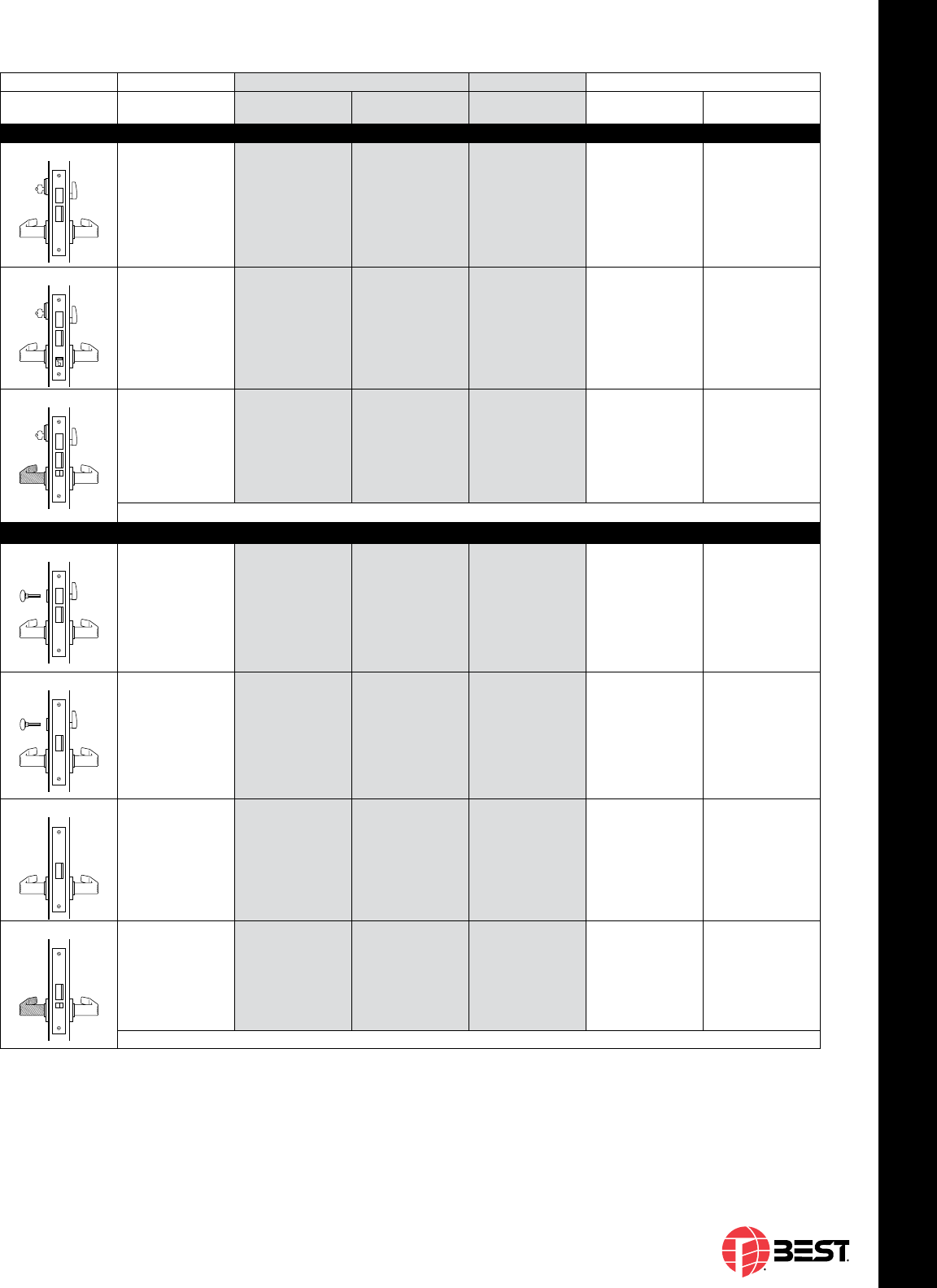

Function & Diag. Description Outside Lever or Knob Inside Knob/Lever
ANSI No. Latch operated by Deadbolt operated
by
Locked by Unlocked by Locked by Unlocked by
Single Keyed
A-Office (F04) • Rotating inside lever,
• Rotating outside
lever– only
when locking
toggle is in unlocked
position,
• Turning key in outside
cylinder.
N/A Placing locking toggle
in locked position
Placing locking
toggle in unlocked
position
Cannot be locked Always unlocked
The latchbolt is deadlocked with an auxiliary deadlatch
AB-Office (F20) • Rotating inside lever,
• Rotating outside
lever–only when
locking toggle is in
unlocked
position,
• Turning key in outside
cylinder.
• Turning key in
outside cylinder,
• Inside turn lever,
• Inside lever retracts
deadbolt and latch
simultaneously.
• Placing locking toggle
in locked position,
• Projecting dead-bolt
by key or turn lever.
Turning key in
outside cylinder
and placing locking
toggle in unlocked
position
Cannot be locked Always unlocked
The latchbolt is deadlocked with an auxiliary deadlatch
AT-Office (F04) • Rotating inside lever,
• Rotating outside lever
only when unlocked
by key or turn lever,
• Turning key in outside
cylinder.
N/A • Turning inside lever,
• Turn key in outside
cylinder.
• Turning inside turn
lever,
• Turning key in
outside cylinder.
Cannot be locked Always unlocked
The latchbolt is deadlocked with an auxiliary deadlatch
D-Storeroom (F07) • Rotating inside lever,
• Turning key in outside
cylinder.
N/A Always locked Cannot be unlocked Cannot be locked Always unlocked
The latchbolt is deadlocked with an auxiliary deadlatch
H-Hotel (F15) • Rotating inside
lever,
• Turning key in outside
cylinder.
• Turning inside turn
lever,
• Turning emergency
key in O/S cylinder.
(Rotating inside lever
retracts deadbolt and
latch simultaneously.)
Always locked Cannot be unlocked Cannot be locked Always unlocked
The latchbolt is deadlocked with an auxiliary deadlatch. Throwing deadbolt blocks out all keys except “ER” key.
HJ-Hotel (F15) • Rotating inside lever,
• Turning key in outside
cylinder.
• Turning inside turn
lever,
• Turning emergency
key in O/S cylinder.
(Rotating inside lever
retracts deadbolt and
latch simultaneously.)
Always locked Cannot be unlocked Cannot be locked Always unlocked
The latchbolt is deadlocked with an auxiliary deadlatch. Throwing deadbolt blocks out all keys except “ER” key.
R-Classroom (F05) • Rotating inside
lever,
• Rotating outside lever
only when unlocked
by key,
•Turning key in outside
cylinder.
N/A Turning key in outside
cylinder
Turning key in outside
cylinder
Cannot be locked Always unlocked
The latchbolt is deadlocked with an auxiliary deadlatch
RHB-Classroom
Holdback (F06)
• Rotating inside lever,
• Turning key in outside
cylinder,
• O/S lever except
when locked by
outside key,
• Latchbolt held
retracted by turning
O/S key while holding
up I/S lever.
N/A Turning key in outside
cylinder
Turning key in outside
cylinder
Cannot be locked Always unlocked
The latchbolt is deadlocked with an auxiliary deadlatch
15
ORTISE LOCKS

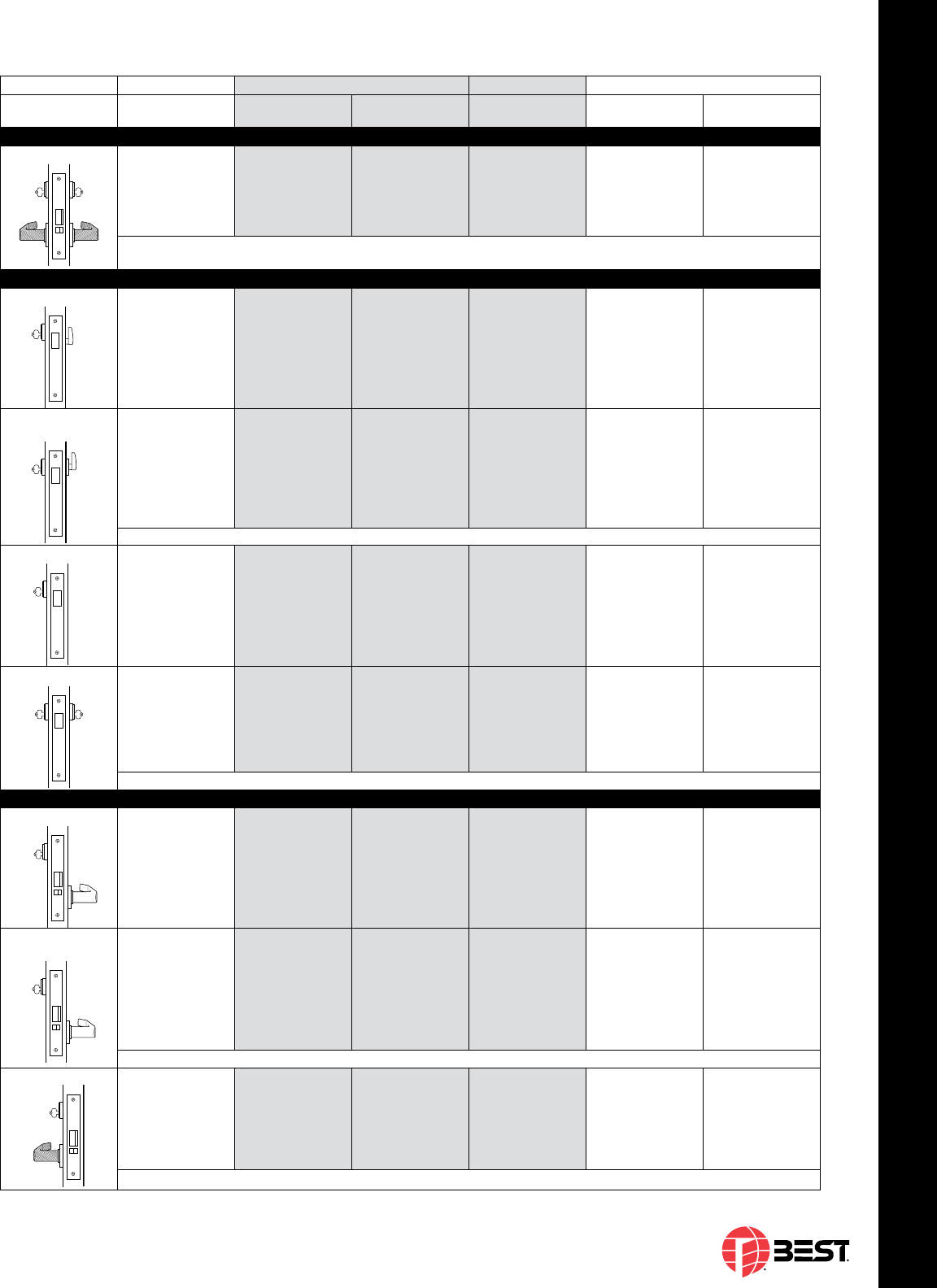

FUNCTIONS
FUNCTIONS
Function & Diag. Description Outside Lever or Knob Inside Knob/Lever
ANSI No. Latch operated by Deadbolt operated
by
Locked by Unlocked by Locked by Unlocked by
Single Keyed (continued)
T-Dormitory (F13) • Rotating inside lever,
• Rotating outside
lever—only when
deadbolt is retracted
• Turning key in out
side cylinder.
• Turning key in out-
side cylinder,
• Inside turn lever,
• Inside lever retracts
deadbolt and latch
simultaneously.
• Turning key in
outside cylinder,
• Turning inside
turn lever.
• Turning key in
outside cylinder,
• Turning inside
turn lever.
• Rotating inside lever.
Cannot be unlocked Always unlocked
TA- Dormitory (F12) • Rotating inside lever,
• Rotating O/S lever
only when locking
toggle is in unlocked
position and deadbolt
is retracted,
• Turning key in outside
cylinder.
• Turning key in
outside cylinder,
• Turning inside turn
lever. (Rotating
inside lever retracts
deadbolt and latch
simultaneously.)
• Placing locking
toggle in locked
position,
• Projecting
deadbolt by key
or turn lever.
Turning key in
outside cylinder and
placing locking toggle
in unlocked position
Cannot be locked Always unlocked
TD-Dormitory • Rotating inside
lever,
• Turning key in outside
cylinder.
• Turning inside turn
lever,
• Rotating inside lever
retracts deadbolt
and latch
simultaneously.),
• Turning key in out-
side cylinder.
Always locked Cannot be unlocked Cannot be unlocked Always unlocked
The latchbolt is deadlocked with an auxiliary deadlatch
Non-Keyed
L-Privacy (F19) • Rotating inside lever,
• Rotating outside lever
only when deadbolt is
retracted.
• Turning the
emergency key,
• Turning inside turn
lever. (Rotating
inside knob/lever
retracts deadbolt
and latch
simultaneously.)
• Turning inside
turn lever,
• Turning the
emergency key.
• Turning inside turn
lever,
• Rotating inside lever
retracts latch and
dead-bolt si mul-
taneous ly,
• Turning the
emergency key.
Cannot be locked Always unlocked
LT-Privacy • Rotating inside lever,
• Rotating outside lever
only when turn knob
is unlocked.
N/A • Turning inside
turn lever,
• Turning the
emergency key.
• Turning inside
turn lever,
• Rotating inside lever,
• Turning the
emergency key.
Cannot be locked Always unlocked
N-Passage (F01) Rotating inside or
outside lever
N/A Cannot be locked Cannot be locked Cannot be locked Cannot be locked
NX-Exit (F31) Rotating inside lever N/A Always locked Cannot be locked Cannot be locked Always unlocked
The latchbolt is deadlocked with an auxiliary deadlatch
16
HEAVY DUTY MORTISE LOCKS
FUNCTIONS
FUNCTIONS
*ATTENTION: Locksets that secure both sides of the door are controlled by building codes and the Life Safety Code®. In an emergency exit situation, failure to quickly
unlock the inside lever could be hazardous or even fatal.
Function & Diag. Description Outside Lever or Knob Inside Knob/Lever
ANSI No. Latch operated by Deadbolt operated
by
Locked by Unlocked by Locked by Unlocked by
Double Keyed
*C-Public
Entrance (F09)
• Rotating inside lever,
• Rotating outside lever
only when unlocked
by key in inside
cylinder,
• Turning key in outside
cylinder only.
N/A Turning key in inside
cylinder
Turning key in inside
cylinder
Cannot be locked Always unlocked
The latchbolt is deadlocked with an auxiliary deadlatch. When required, inside cylinder may be combinated to operate by master key only.
CHB-Holdback • Turning outside key,
• Rotating outside lever
only when unlocked
by key in inside
cylinder,
• Inside lever,
• Latchbolt held
retracted by turning
inside key while
holding up on inside
lever.
N/A Turning key in inside
cylinder
Turning key in inside
cylinder
Cannot be locked Always unlocked
The latchbolt is deadlocked with an auxiliary deadlatch.
G-Communicating
(F14)
• Latch operated from
either side only
when the deadbolt is
retracted.
Turning key in outside
or inside cylinder
Turning key in inside or
outside cylinder
Turning key in inside or
outside cylinder
Turning key in inside or
outside cylinder
Turning key in inside or
outside cylinder
IND-Intruder (F33) • Turning key in inside
or outside cylinder,
• Rotating outside lever
when deadbolt is
retracted,
• Rotating inside lever.
• Turning key in outside
or inside cylinder,
• Rotating inside
lever (Retracts the
deadbolt and latch
simultaneously).
Extending the deadbolt
by turning key
in inside or outside
cylinder
• Retracting the
deadbolt by turning
key in inside or
outside cylinder,
• Rotating inside
lever (Retracts the
deadbolt and latch
simultaneously).
Cannot be locked Always unlocked
INL-Intruder (F32) • Rotating inside lever,
• Rotating outside lever
only when unlocked
by inside or outside
key,
• Turning key in inside
or outside cylinder.
N/A Turning key in inside or
outside cylinder
Turning key in inside or
outside cylinder
Cannot be locked Always unlocked
The latchbolt is deadlocked with an auxiliary deadlatch. When required, inside cylinder may be combinated to operate by master key only.
INA-Intruder (F34) • Turning key in inside
or outside cylinder,
• Rotating outside lever
when deadbolt is
retracted,
• Rotating inside lever.
• Turning key in outside
or inside cylinder,
• Rotating inside
lever (Retracts the
deadbolt and latch
simultaneously).
Extending the
deadbolt by
turning key
in inside or outside
cylinder
• Retracting the
deadbolt by turning
key in inside or
outside cylinder,
• Rotating inside
lever (Retracts the
deadbolt and latch
simultaneously).
Cannot be locked Always unlocked
The latchbolt is deadlocked with an auxiliary deadlatch. When required, inside cylinder may be combinated to operate by master key only.
*S-Storeroom (F35) • Rotating inside lever,
• Rotating outside lever
only when locking
toggle is in unlocked
position and deadbolt
is retracted,
• Turning key in inside
or outside cylinder.
Turning key in inside or
outside cylinder
Placing locking toggle
in locked position
Turning key in outside
cylinder or inside
cylinder and placing
locking toggle in
unlocked position
Extending the deadbolt Retracting the deadbolt
17
ORTISE LOCKS
FUNCTIONS
FUNCTIONS
*ATTENTION: Locksets that secure both sides of the door are controlled by building codes and the Life Safety Code
®
. In an emergency exit situation, failure to quickly
unlock the inside lever could be hazardous or even fatal.
Function & Diag. Description Outside Lever or Knob Inside Knob/Lever
ANSI No. Latch operated by Deadbolt operated
by
Locked by Unlocked by Locked by Unlocked by
Double Keyed (continued)
*W-Storeroom (F30) Turning key in inside or
outside cylinder
N/A Always locked Cannot be unlocked Alwayslocked Cannot be unlocked
The latchbolt is deadlocked with an auxiliary deadlatch. When required, inside cylinder may be combinated to operate
by master key only.
Deadlocks
AD-Deadlock (F17) N/A • Turning key in
outside cylinder
• Turning inside turn
lever.
N/A N/A N/A N/A
RD-Classroom
Deadlock (F29)
N/A • Turning key in
outside cylinder
• Turning inside turn
lever.*
N/A N/A N/A N/A
*Function RD–the inside turn knob retracts deadbolt but will not project it. (Specify hand of door.) Only for 1 -
3
/
4
” doors.
IYD-Deadlock (F18) N/A Turning key in outside
cylinder only
N/A N/A N/A N/A
WD-Deadlock (F16) N/A Turning key in outside
or inside cylinder
N/A N/A N/A N/A
The latchbolt is deadlocked with an auxiliary deadlatch. When required, inside cylinder may be combinated to operate by master key only.
Special
XR-Classroom • Rotating inside lever,
• Turning key in outside
cylinder.
N/A N/A N/A Cannot be locked Always unlocked
*XRHB-Classroom
Holdback
• Rotating inside
lever,
•Turning key in outside
cylinder.
• Latchbolt held
retracted by turning
O/S key while holding
up I/S lever
N/A N/A N/A Cannot be locked Always unlocked
The latchbolt is deadlocked with an auxiliary deadlatch
*ZD-Storeroom Turning key in outside
cylinder
N/A Always locked Cannot be unlocked N/A N/A
The latchbolt is deadlocked with an auxiliary deadlatch
18
HEAVY DUTY MORTISE LOCKS
*ATTENTION: Locksets that secure both sides of the door are controlled by building codes and the Life Safety Code
®
. In an emer gen cy exit situation, failure to quickly retract
the deadbolt could be hazardous or even fatal.
NOTE: Specify the hand of door when ordering. The R function deadlock can only be used on 1
3
/
4
” thick doors.

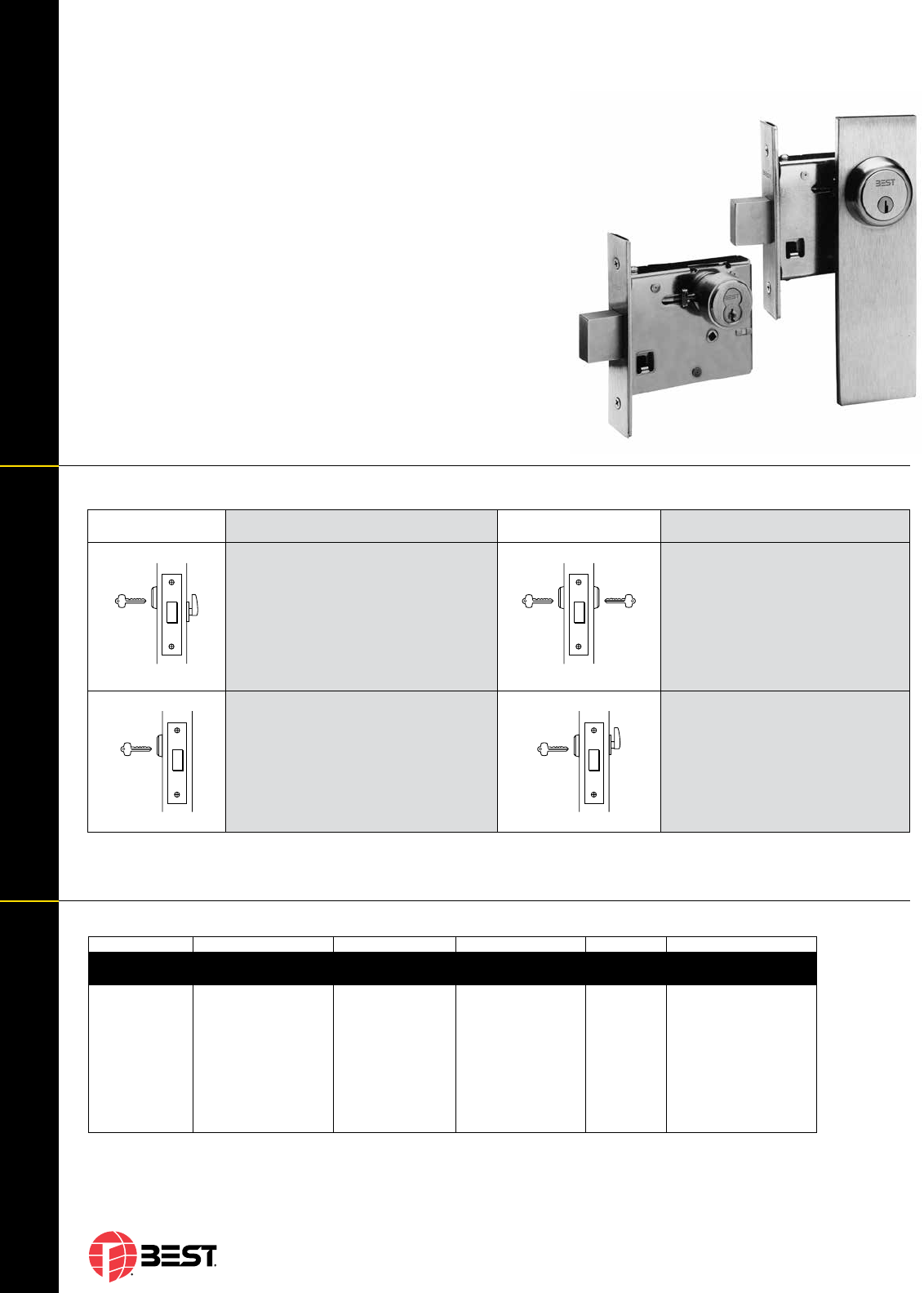

48H/49H FUNCTION CHART
48H/49H SERIESMORTISE DEAD LOCKS
48H/49H SPECIFICATIONS
48H/49H & FUNCTIONS
HOW TO ORDER
HOW TO ORDER 48H/49H SERIES
Specifications
Case: 0.095” cold rolled steel, 3
3
/
8
” x 4
3
/
16
” x 1”. Steel is zinc dichromate plated for corrosion
protection.
Faceplate: Brass or bronze material, 5
3
/
8
” x 1
3
/
16
” x
7
/
32
” .
Strike: Brass, bronze, or stainless steel base material.
48HS1: Flat strike supplied standard, 3
1
/
2
” x 1
1
/
8
” x
3
/
32
”
Fits standard door frame cut-out as specified in ANSI A115.5.
48HS2: Lipped strike supplied as option, 4
7
/
8
” x 1
1
/
4
” x
3
/
32
”.
Fits standard door frame cut-out as specified in ANSI A115.1.
Backset: 2
3
/
4
”
Door Thickness: Standard lock configuration designed for doors 1
3
/
4
” thick.
Thick door configuration available for doors up to 3” thick
(specify thickness when ordering).
NOTE: “R” function not available for thick door.
Deadbolt: Stainless steel, 1” throw
Trim:
48H: Cylinder and trim ring only.
49H: M escutcheon supplied; refer to 47H specification for dimensions.
Finishes:
48H: Available in all finishes offered for 45H.
49H: Available in 626 only.
48H
Series 49H
Series
40H 7 K S! 626
Series Core Housing Function Code Standard
Finishes
Options
48H– standard
49H– high security
0–less cylinder (48H only)
7–7-pin housing 48H
accepts all Best cores;
49H only 5C cores; 49H–
626 ONLY
K– cylinder x turn
L– cylinder only
M– double cylinder
R– classroom
cylinder x turn
S1– flat strike (default)
S2– ANSI strike
48H–
605 606
611 612
613 618
619 625
626 690
49H–
626 ONLY
48H: SH– security head
49H: K– non UL cylinder
**Must specify key mark and number of keys or designate L/C for less core.
Function & Diag.
BHMA#
Deadbolt operated by: Function & Diag.
BHMA#
Deadbolt operated by:
*K-Cylinder Deadlock • Rotating the inside thumb turn rosette,
• Turning the outside key.
*M-Cylinder Deadlock Turning the outside or inside key
EO6061
EO6071
*L-Cylinder Deadlock Turning the outside key *R-Cylinder Deadlock • Turning the outside key,
• Rotating the inside thumb turn
cylinder assembly retracts the deadbolt, but will
not project it.
EO6081 EO6091
19
ORTISE LOCKS
1E74 Cylinder Specifications
Diameter: 1
5
/
32
”. 1.150-32 (NS-2A) threaded mortise cylinder.
Length: 1
1
/
4
”
Material: Brass or bronze.
Finish: Supplied to match mortise lockset trim (see spec i fi ca tions, page 3).
Cylinder Ring: Wrench resistant ring with tension spring, machined from all brass or bronze.
Proper length automatically provided with lockset. For more ring information see cylinder catalog.
Cam: Proper cam provided for cylinder as required by designated function on order. Spe cial cams available; see cylinder catalog section.
HIGH SECURITY CYLINDER
1E7J4 High Security Cylinder
Designed for high security applications, BEST
®
offers the 47H/49H mortise locksets,
utilizing the 1E7J4 high security cylinder and special 5C in ter change able core. This
special cylinder is listed by Underwriters Lab o ra to ries as conforming to Standard UL437
for high se cu ri ty cyl in ders. The patented cylinder provides ad di tion al strength through a
hardened stainless steel alloy ring, face and keyway disc. It is available in most keyed functions
(All functions are certified to ANSI A156.13 Security Grade 1.) and is supplied only with “M” trim.
Cylinder also con forms to ANSI A156.5 Mortise Cyl in der, Grade 1A.
NOTE: 1E7J4 must be combinated at factory to comply to UL437. 1E7K4 is combinated in the field and may be or dered less core.
Standard 1E74 Mortise Cylinder
Designed for standard security applications, BEST
®
offers the 45H/48H mortise
locksets, utilizing the 1E74 mortise cyl in der and special interchangeable core.
Special cylinder vari a tions are avail able for most ap pli ca tions. Stanley/Best cyl in ders
are machined from solid brass or bronze bar stock. Ad di tion al se cu ri ty is pro vid ed by
a set screw that mounts di ag o nal ly into the cylinder wall. This set screw prevents
un au thorized re mov al of the cylinder with out use of the control key.
STANDARD MORTISE CYL IN DER
STD. MORTISE CYLINDER
HIGH SECURITY CYLINDER
47H Mortise Lock
with #14 lever
47H Mortise Lock
with #4 knob
1E7J4
High Security Cylinder
1E74
Standard Mortise Cylinder
1E7J4 Cylinder Specifications
Diameter: 1
5
/
32
”. 1.150-32 (NS-2A)
threaded mortise cylinder.
Length: 1
1
/
16
”
Materials: Brass and stainless steel.
Finish: Stainless steel base plated to match
626 finish.
Cylinder Ring: High security wrench resistant,
ma chined from stainless steel, hardened.
Proper length automatically provided with
lockset. Special door preparation re quired.
Diameter of hole 1
3
/
4
”.
Cylinder Face,
Keyway Disc: Stainless steel, hard ened.
Cam: Proper cam provided for cylinder as
required by designated function order.
NOTE: 1E7J4 requires long blade key for operation.
Standard C258 Cam
All functions except 0/S C and CHB
C293 Cam
O/S c and CHB Functions only
MORTISE LOCKSETS
www.stanleysecuritysolutions.com
Stanley Security Solutions, a business division of Stanley Black & Decker, is a provider of integrated access control and security solutions for institutional,
commercial and industrial businesses and organizations. Stanley Security Solutions delivers a comprehensive suite of security products, software and
integrated systems with a strong emphasis on service. Stanley Security Solutions is committed to extending its position as a leading comprehensive
resource for a broad and extensive array of solutions that span the entire security spectrum.
BA-0012 • 11/14© 2014 Stanley Security Solutions, Inc.
