BIXOLON CM-MS300 WIFI Module User Manual manual

BIXOLON Co.,Ltd. WIFI Module manual

manual

1
CMAX Stand-alone WLAN Module
User Manual
2
Upgrade History
Date Version Comment
2010-04-13 1.0 Initial Release
2011-04-24 1.1 Fix issue : MCU, SDRAM, PCB Artwork
3
Contents
1. General Description ……………………………………………………………………………………………...….6
1.1 Features …………………………………………………………………………………………………………………………………..6
1.2 Applications ……………………………………………………………………………………………....……..…………….………6
1.3 Product description ………………………………………………………………………………………….…………………….6
1.4 Specification ……………………………………………………………………………………….…………….…………………….7
2. Installation ……………………………………………………………………………………………………….…….8
2.1 Fundamentals of wireless LAN ……………………………………………………………………………………………….8
2.1.1 Infrastructure Mode …………………………………………………………………………………………………….9
2.1.2 Ad-hoc Mode …………………………………………………………………………………………..…………………….9
2.1.3 Basic Requisites …………………………………………………………………………………………………………...10
2.1.4 Authentication and Security ………………………….…………………………………………………………….10
2.2 Installation …………………………………………………………………………………………………………………………….11
2.2.1 Making Wireless LAN Network ………………………………………………………………………………….11
3. Configuration …………………………………………………………………………..…………………………….14
3.1 Configuration with WLAN Module Manager ……………………………………………………………………...14
3.1.1 Configuration via WLAN ………………………..…………………………………………………………………….15
3.1.2 Configuration via Serial ……………………………………………………………………………………………....15
3.1.3 Printer Search ……………………………………………………………………………………..……………………….16
3.1.4 System ………………………………………………………………………………………………………...……………….16
3.1.5 Protocol ………………………………………………………………………………………….......................................17
3.1.6 BSS Info …..……………………………………………………………………………………….....................................18
3.1.7 Network …………..…………………………………………………………………………………………………………...18
3.1.8 Authentication ……….…………………………………………………………………………………………………….19
3.1.9 Certification ……………………….….……………………………………………………………………………………..21
3.1.10 Firmware ………………….………………………………………………………………………………………………...21
3.1.11 Information ………………….…………………………………………………………………………………………....22
3.2 Web Configuration ……………………………………………………………………………………………………………....22
3.2.1 Web Connection ………………………………………………………………………………………………………...23
3.2.2 Home ……………………………….………………………………………………………………………………………….24
3.2.3 System …………………………………………………………………………………………………………………………24
3.2.4 Protocol ………………………….…………………………………………………………………………………………...26
3.2.5 Network ……………………………………………………………………………………………………………………...26
4
3.2.6 Authentication …………………………………………………………………………………………………………....26
3.2.7 Wizard ………………………………………………………………………………………………………………………...27
3.2.8 Web Site ……………………………………………………………………………………………………………………..28
3.2.9 Contact ……………………………………………………………………………………………………………………….28
3.3 TELNET ………………………………………………………………………………………………………………………………….29
3.3.1 TELNET Connection …………………………………………………………………………………………………...29
3.3.2 System ………………………………………………………………………………………………………………………..30
3.3.3 Protocol ……………………………………………………………………………………………………………………...30
3.3.4 Network ……………………………………………………………………………………………………………………...31
3.3.5 Authentication …………………………………………………………………………………………………………...32
3.3.6 Save …………………………………………………………………………………………………………………………….36
3.3.7 Exit ……………………………………………………………………………………………………………………………...36
3.4 FTP ………………………………………………………………………………………………………………………………………..36
3.4.1 FTP Connection ………………………………………………………………………………………………………….36
3.4.2 Config File list view …………………………………………………………………………………………………...37
3.4.3 Config File download ………………………………………………………………………………………………...37
3.4.4 Config File Upload ……………………………………………………………………………………………………..37
3.4.5 Config File Specification ..…………………………………………………………………………………………..38
3.5 SNMP ……………………………………………………………………………………………………………………….…………...40
3.5.1 SNMP Connection ………………………………………………………………………………………….…………..40
3.5.2 SNMP Manager operation test…………………………………………………………………………………...41
4. Hardware Block Diagram ……………………………………………………………………………….………...44
4.1 Hardware Pin Array …………………………………………………………………………………………………….………...44
5. Demo and Test …………………………………………………………………………………………….………...45
5.1 Test environment ………………………………………………………………………………………………………….……….45
5.1.1 Hardware …………………………………………………………………………………………………………………....45
5.1.2 Software ……………………………………………………………………………………………………………….……..45
5.2 Start Test ……………………………………………………………………………………………………………………………….46
5.2.1 STEP1. ……………………………………………………………………………………………………….………………...46
5.2.2 STEP2. ……………………………………………………………………………………………………….………………...46
5.2.3 STEP3. ………………………………………………………………………………………………………….……………...46
6. Configuration Tool Command List ……………………………………………………………………………..46
6.1 Configuration Tool Protocol ……………………………………………………………………………….………………...46
6.1.1 Serial Operation Specification ….……………………………………………………………….………………..46
6.1.2 WLAN Operation Protocol & Port ………………………………………………………….……………..…..47
6.2 Serial & WLAN Command ……………………………………………………………………………….…………………..47
6.2.1 Serial Operation ………………………………………………………………………………………………………....47
5
6.2.2 Wireless LAN Operation …………………………………………………………………………………………….48
6.2.3 Serial & Wireless LAN Command Format …………………………………………………………….…...49
7. Technical Support, Warranty, and Precaution ………………………………………………………….…...57
7.1 Technical Support ………………………………………………………………………………………….…………………...57
7.2 Warranty ………………………………………………………………………………………………………………………….…….57
7.2.1 Refund …………………………………………………………………………………………………………………….…..57
7.2.2 Free Repair Services …………………………………………………………………………………………………..57
7.2.3 Charged Repair Services …………………………………………………………………………………………....57
7.3 Precaution …………………………………………………………………………………………………………………………….57
7.4 USA-Federal Communications Commission (FCC)………………………………………………………….…….58
7.4.1 Labeling ………………………………………………………………………………………………………………….…..59
6
1. General Description
CMAX stand-alone WLAN Module”supports stand-alone WLAN system which embeds
MCU( Micro Controller Unit) with various configuration applications, monitoring functions and
security protocols. The stand-alone WLAN system, along with CMAX S/W package, can easily be
adapted to target systems which have RS-232 serial interface to enable wireless network
(IEEE802.11 b/g) functionality with no redesign of the system, thus making the system connected,
controlled and maintained in WLAN network.
1.1 Features
Embedded 802.11b/g Wireless Networking
Supports Serial to WLAN, Infrastructure, Ad-hoc mode
Supports network status indicator LEDs
UART/SPI Interface
Strong Security with WEP 64/128, WPA/WPA2 Personal, Enterprise
Supports DHCP Client, HTTP, HTTPS, TELNET, FTP, ARP, SNMP, IPv4, TCP, UDP Protocol
Compact design 27mm × 36mm × 4.7mm
Distance Outdoor: approx. 100m
1.2 Applications
POS Equipment
Automotive Applications
Medical Equipment
Street Furniture
Telematics
Industrial Automation
Metering Applications

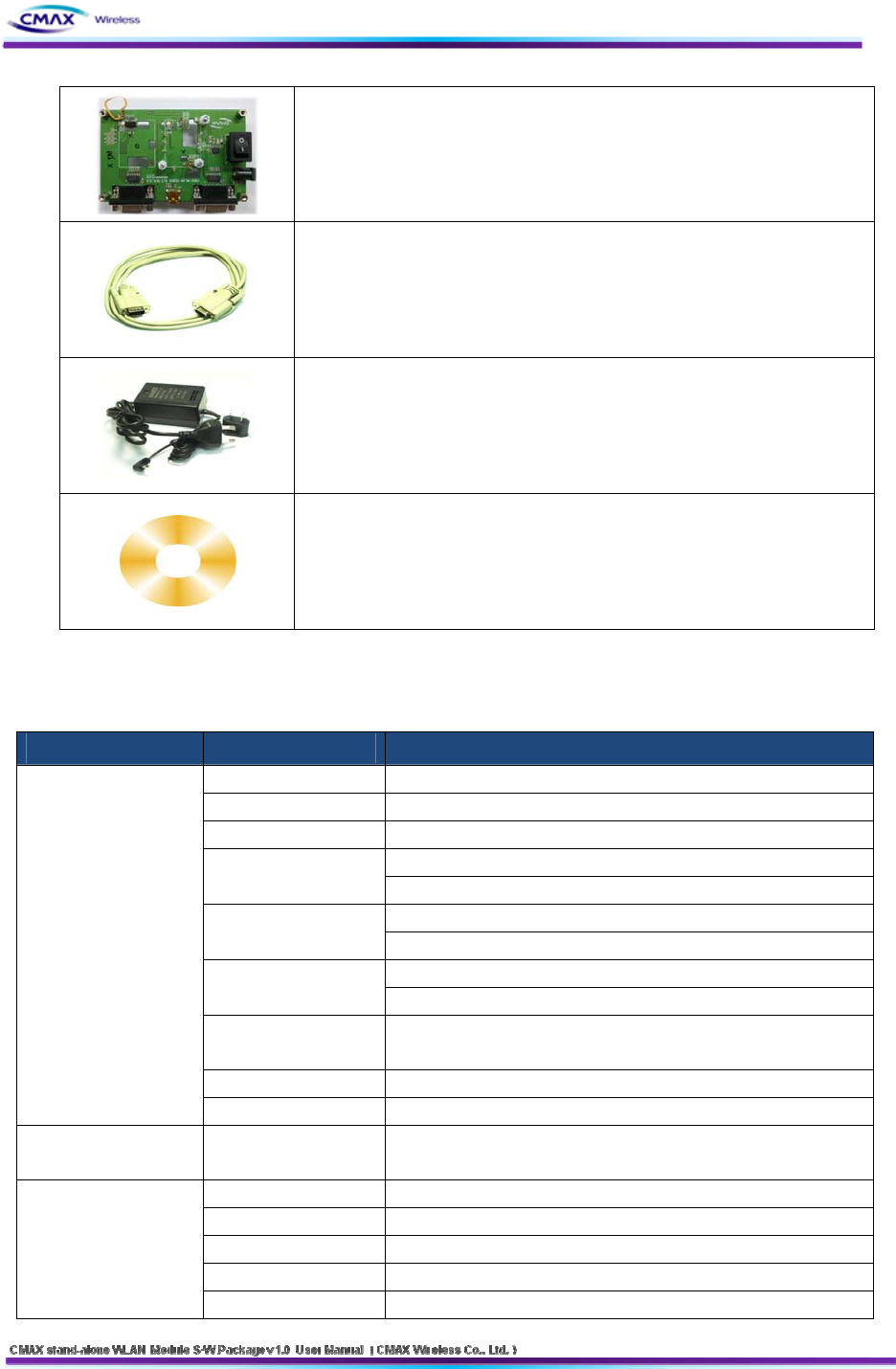

1.3 Product description
CATEGORIES IMPLEMENTATION

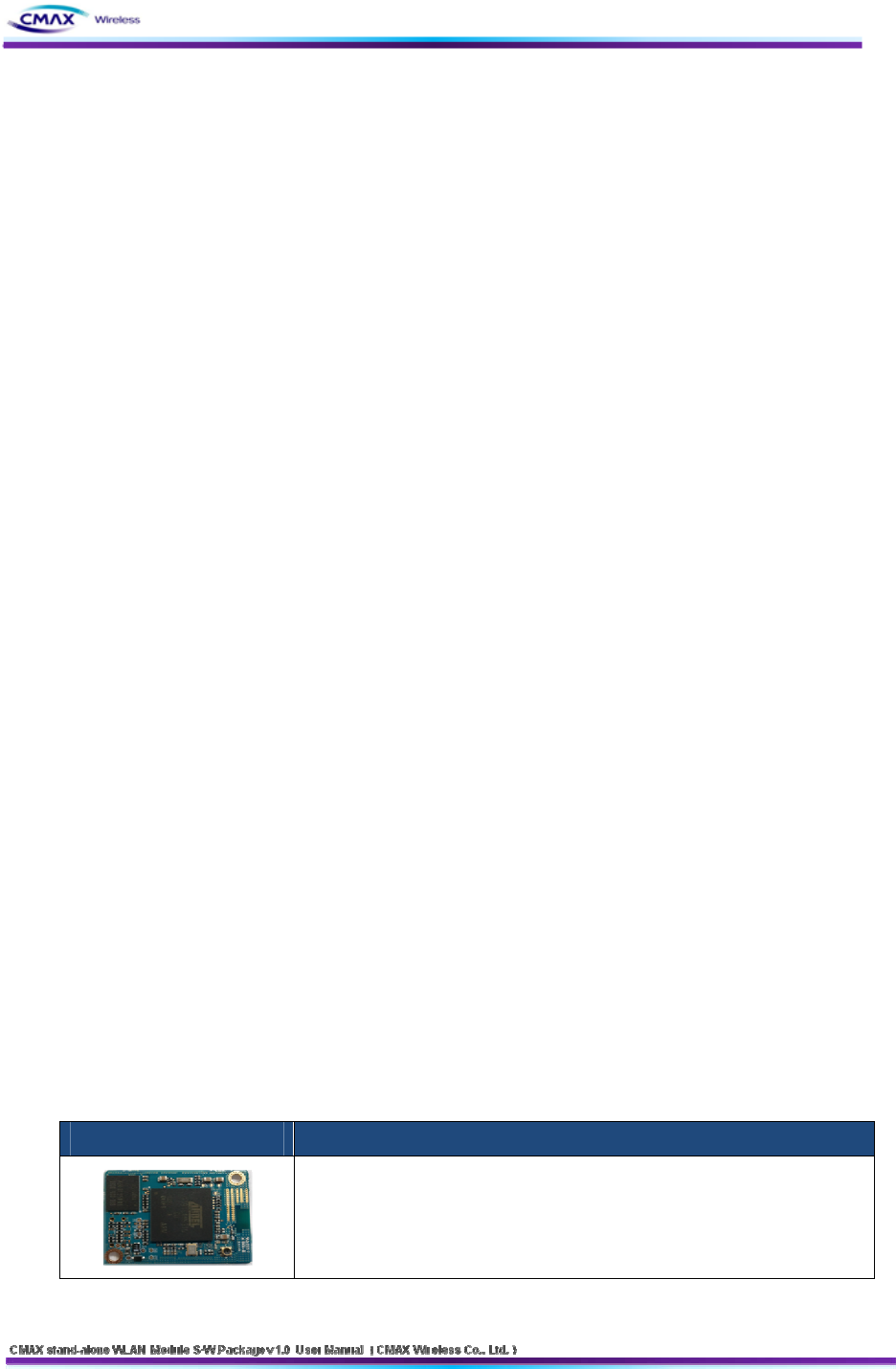

CMAX Stand-alone WLAN Module
7
Debugger board
Serial Cable
(Serial Communication Cable)
Power
(DC 5V/200mA Adapter)
CD
(User Manual and H/W, S/W Doc Package)
[Table 1.3.1] Product Description
1.4 Specifications
CATEGORIES FEATURE IMPLEMENTATION
Wireless Standard IEEE802.11b, IEEE802.11g
Frequency Range 2.412~2.462GHz
Channels 1 ~ 11 channels
802.11b: max. 18dBm (@11Mbps)
Max Transmit Power 802.11g: max. 15dBm (@54Mbps)
802.11b: min. -76dBm (@11Mbps)
Receive Sensitivity 802.11g: min. -65dBm (@54Mbps)
802.11b : 1M ~ 11 Mbps (TBD)
Data Rates 802.11g : 6M ~ 54 Mbps (TBD)
Modulation
Schemes
802.11b – BPSK, QPSK, CCK, DSSS
802.11g – BPSK, QPSK, 16-QAM, 64-QAM, OFDM
Range Up to 100m free space (Outdoor)
Wireless
Specification
Connection Modes Infrastructure and Ad-hoc (IBSS)
Antenna Modes Antenna To support one chip antenna or external one antenna via
connector
Baud Rate 115,200bps
Bits 8
Parity None
Stop bits 1
UART Interface
Flow Control CTS/RTS(hardware)
8
SPI Interface Transfer Rate 10Mbps
Open Connection
Shared Key(WEP encryption 64 and 128 bit options)
WPA-PSK, WPA2-PSK
WPA1/2 Enterprise(EAP-TLS, EAP-TTLS, PEAP, LEAP, FAST)
Security
SSL2 / SSL3 / TLS1
Network Drivers 802.11b, 802.11g
Protocol Internet DHCP Client, HTTP, HTTPS, TELNET, FTP, ARP, ICMP, SNMP,
IPv4, TCP, UDP
Power 85mA * 3.3V ( Peak 90mA * 3.3V)
Power Consumption 280.5mW (Peak 297mW)
MCU Specification 266MHz ARM9 with SRAM 32M and Flash 8M
Upgradeability Upgradeability Firmware upgradeable via UART and Wireless LAN
Operation
Temperature -5℃ ~ 55℃ (TBD)
Environmental Storage
Temperature -20℃ ~ 70℃ (TBD)
Operation: 10% to 90%, Non-Condensing
Humidity Storage: 5% to 90%, Non-Condensing
Dimensions 27mm × 36mm × 4.7mm
Physical Weight 5g
Operation Mode Infrastructure , Ad-hoc
Operating System FreeRTOS
Management WLAN Module Manager, HTTP, HTTPS, TELNET, FTP
Development Kit
Configuration Tools Development board and software tools
Command Line Interface
[Table 1.4.1] Specification
2. Installation
2.1 Fundamentals of wireless LAN
CMAX Module supports IEEE802.11b/g. The IEEE802.11b and IEEE802.11g support 11Mbps
and 54Mbps transmission rate respectively. There are two types of wireless LAN networks
infrastructure and ad-hoc.
9

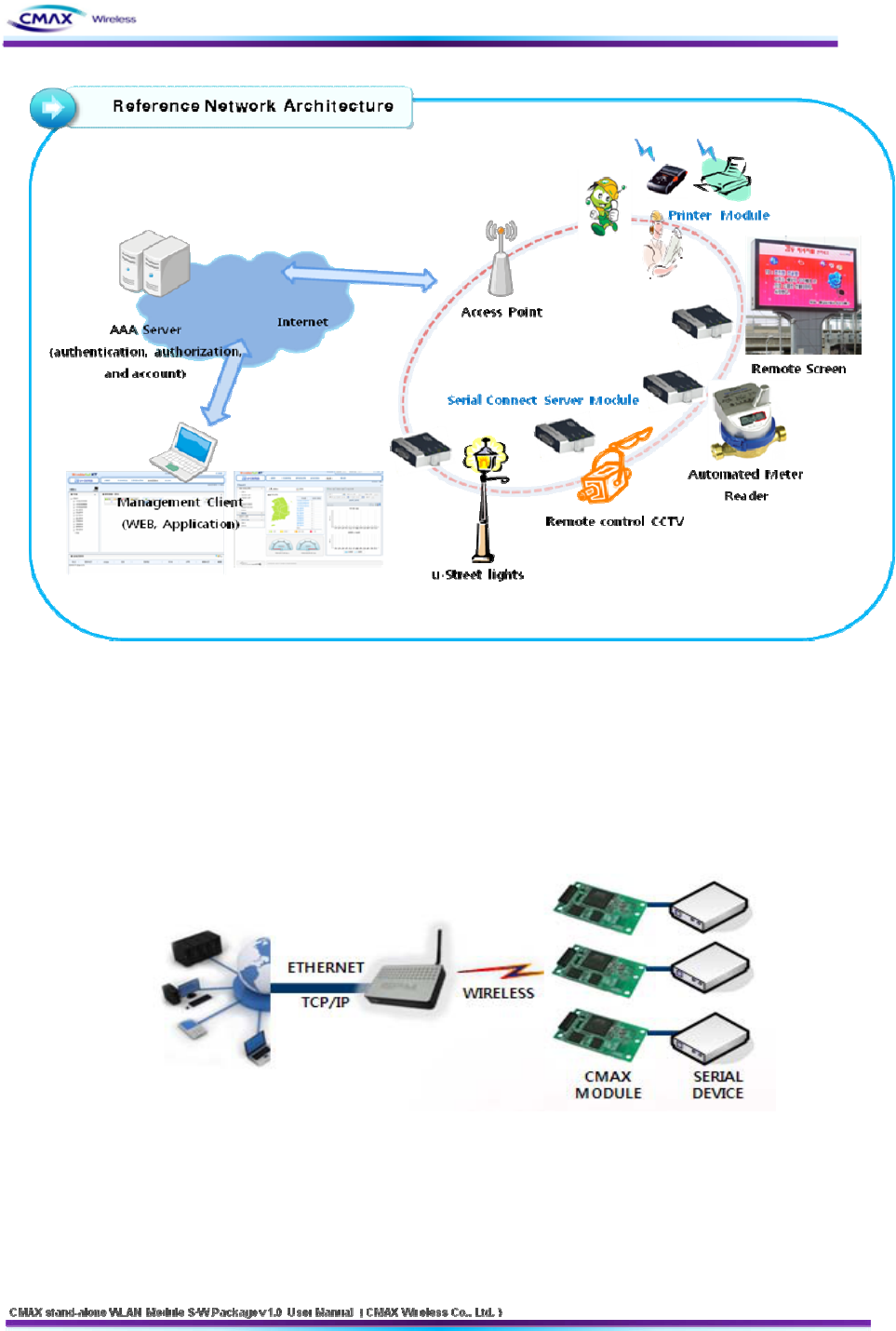

[Figure 2.1.1] Reference Network Architecture
2.1.1 Infrastructure Mode
The wireless LAN stations communicate through an Access Point (AP). So, at least one AP
is needed to make the infrastructure network. The wireless LAN station can talk to wired
network hosts because AP relays between wireless LAN stations as well as between
wireless LAN station and wired LAN (Ethernet) host.

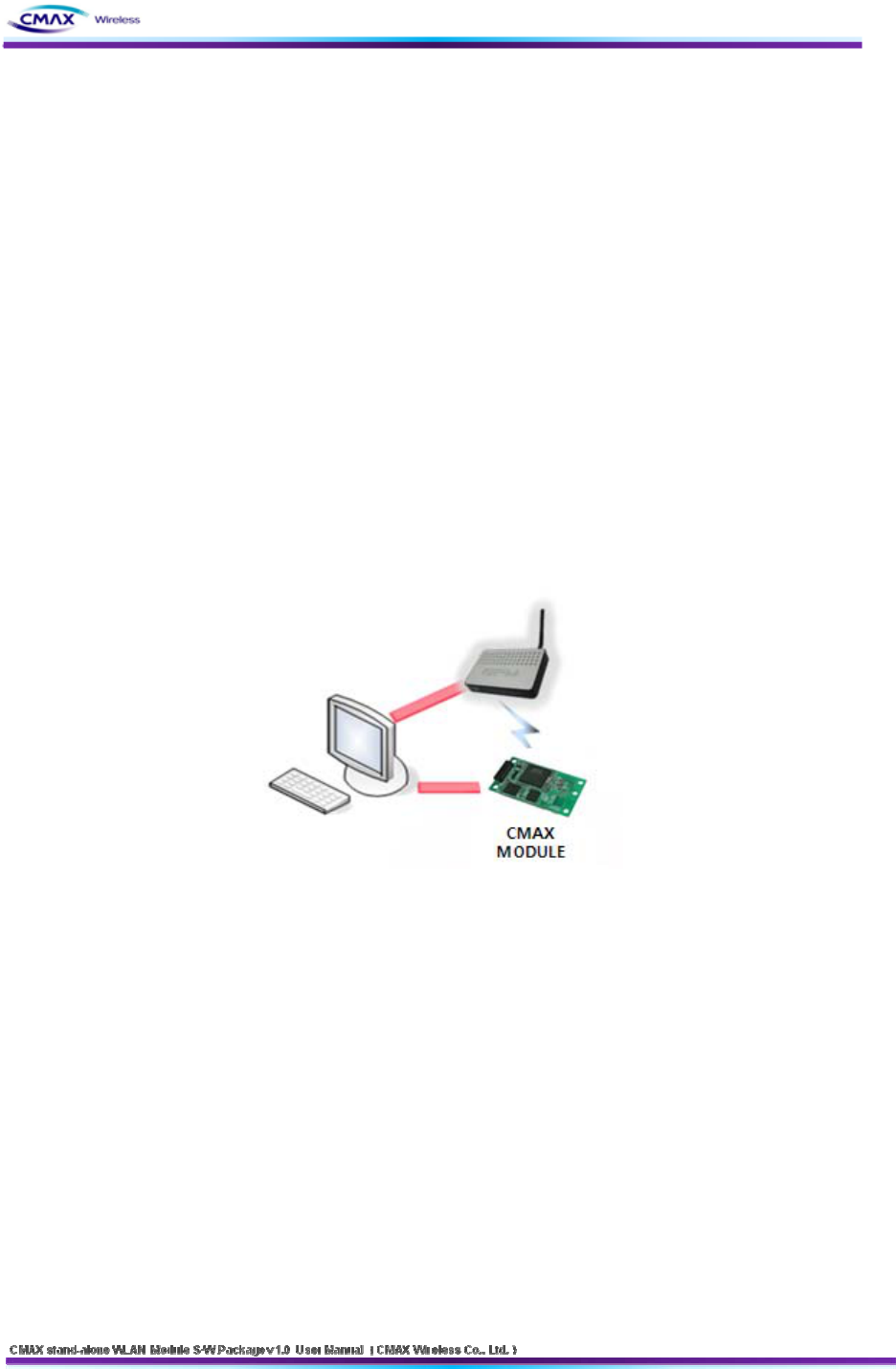

[Figure 2.1.1.1] Infrastructure
2.1.2 Ad-hoc Mode
Wireless stations communicate each other without the AP. So user can make a system
more simply. It is proper if there’s no wired LAN requirement and it is a small network.
Some people call it peer-to-peer mode.
10

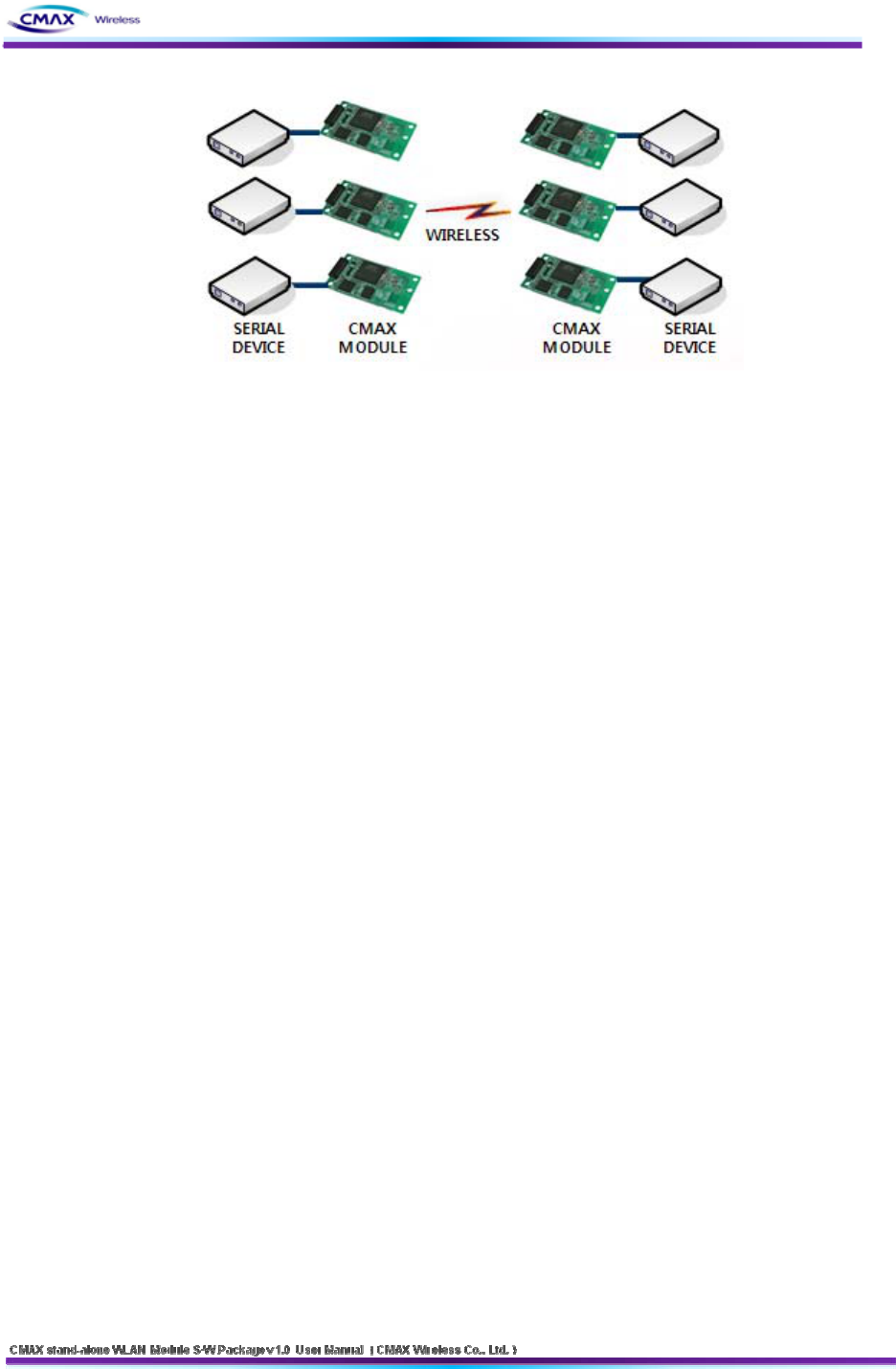

[Figure 2.1.2.1] Ad-Hoc
2.1.3 Basic Requisites
SSID
It is an identifier to identify the particular wireless LAN. So the same SSID should be
configured to all stations to communicate in the same wireless network. In case of
infrastructure mode, user has to set his station’s SSID as same as AP’s.
Channel
IEEE802.11b/g wireless LAN stations communicate through the ISM (Industrial, Scientific,
and Medical) band whose frequency is about 2.4GHz. IEEE802.11 specification divides this
band into 14 channels every 5MHz. If user installs more than one wireless LAN networks
in the same area, the channels should be apart more than 4 channels to avoid
interferences.
2.1.4 Authentication and Security
Authentication
A wireless LAN station should get authentication from the AP in the infrastructure mode.
There are the Open system and the Shared key for the authentication methods.
WEP (Wired Equivalent Privacy)
The WEP is a secure protocol for wireless LAN. There are two kinds of WEP method - 64
bits and 128 bits key.
WPA (Wi-Fi Protected Access)
WPA is a security standard for users of device equipped with Wi-Fi wireless connection.
It is an improvement on and is expected to replace the original Wi-Fi security standard,
Wired Equivalent Privacy (WEP). There are two modes about the user authentication in
WPA security. The one is Enterprise which has authentication server and the other one is
11
PSK (Pre-Shared Key) which doesn’t have any server. CMAX Module supports both
Enterprise mode and Personal mode (WPA-PSK).
WPA 2
To final security of Wireless LAN, IEEE 802.11i, a standard about Wireless LAN, has
suggested the Counter Mode with Cipher Block Changing Message Authentication Code
Protocol (CCMP) for replacing the TKIP. CCMP uses Advanced Encryption Standard (AES),
it is the WPA 2 that adopts the using the method. WPA 2 has also both Enterprise and
PSK mode. CMAX Module supports also both them.
2.2 Installation
Before testing, users should connect the CMAX Module. There are two methods for
connecting. The first method is to connect a target device with the serial port and the other
method is to connect by wireless LAN card on your PC.

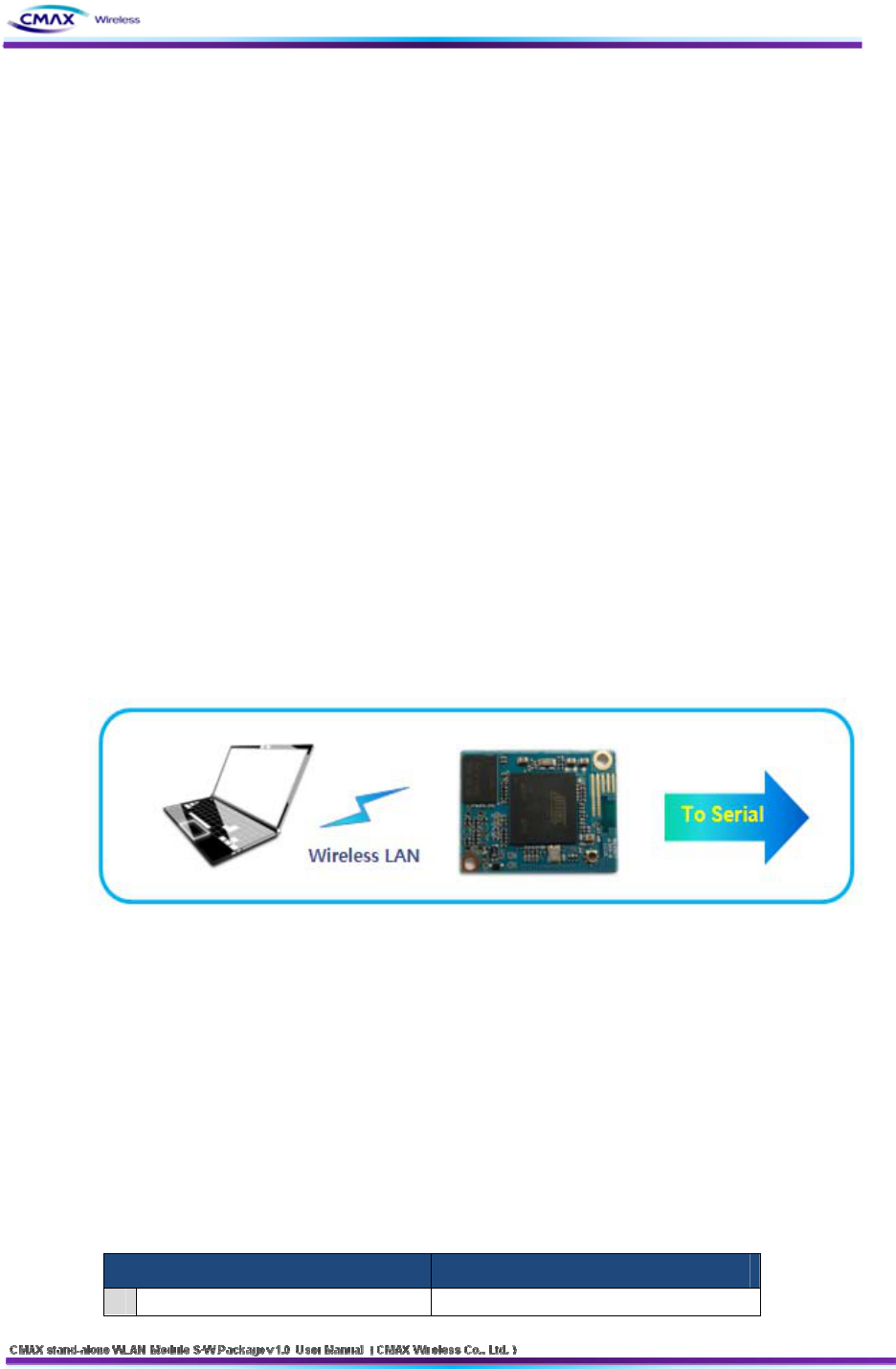

[Figure 2.2.1] Connect between CMAX Module and a PC
2.2.1 Making Wireless LAN Network
Even though you connect an AP on your network, wireless LAN network could not be
made automatically. You should configure values of items which related with wireless
network. Please follow the below steps.
Connect the CMAX Module through serial port
Start the WLAN Module Manager on your PC. Push the “Connect” button after
Selecting a COM port, User ID and User Password as the same values with the your COM
port.
12

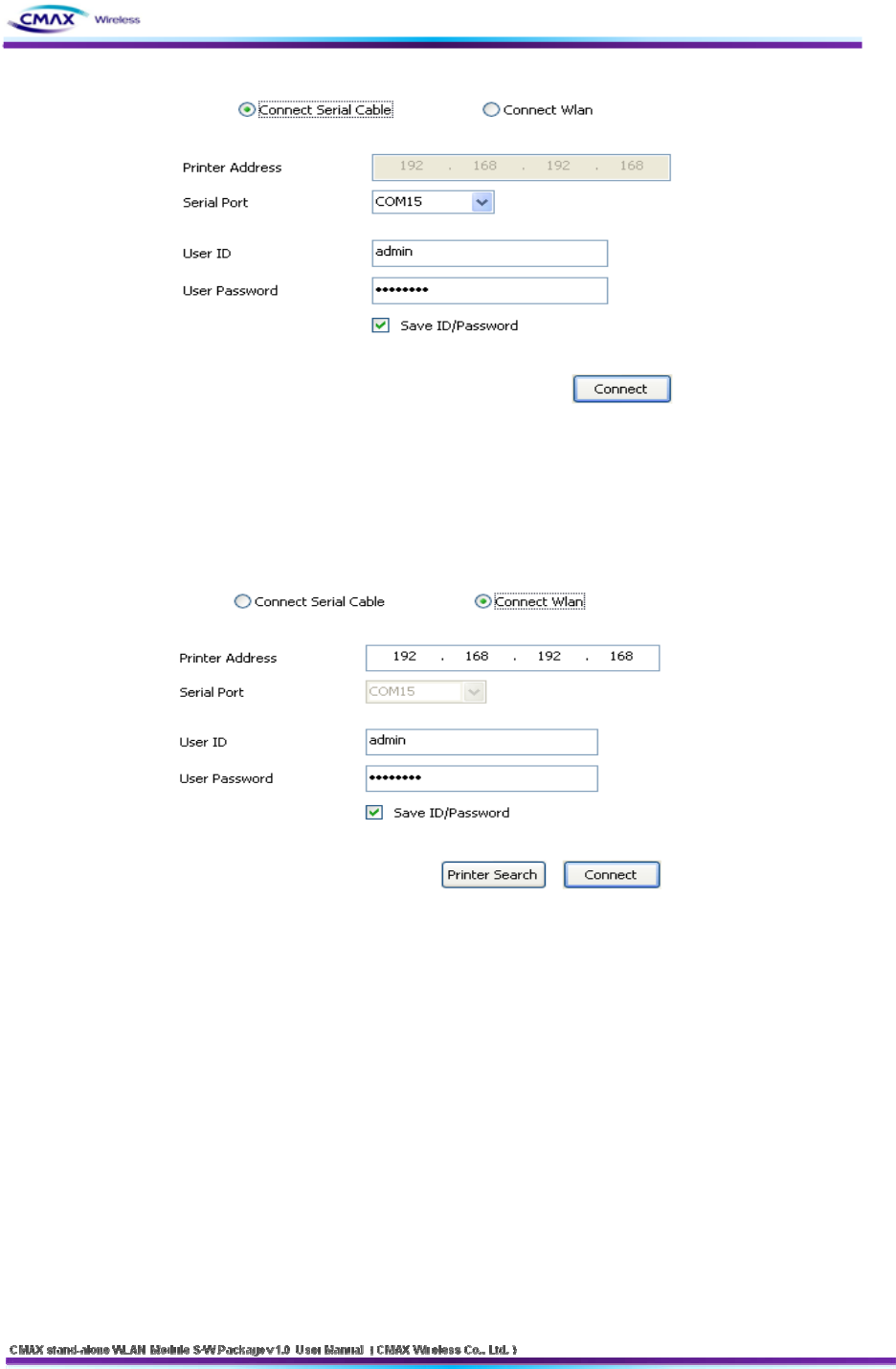

[Figure 2.2.1.1] Connect through serial port
Connect the CMAX Module through WLAN
Start the WLAN Module Manager on your PC. Click the “Connect” button after inserting
IP Address, User ID and User Password as the same values with the CMAX Module.
[Figure 2.2.1.2] Connect through WLAN
Configuring Wireless LAN Parameters
Move to the [Network] menu and setting SSID as the same values with the APs. Then,
move to the [Authenticaton] menu and setting security options. Finaly, Click the “Update”
button. Please ask the manufacturer of the AP, when you want to know about setting the
AP’s value.
13
[Figure 2.2.1.3] Configuring Wireless LAN Parameters
If you want to make an Ad-hoc network, choose the [Ad-hoc] as the value of [WLAN
Topology] and set a value of [SSID]. Then, try to connect your PC to the network.
2.2.2 Setting Network Aera
This step is for setting both CMAX Module and your PC to be located the same network.
If only they are, the TCP connection between them can be established.
Setting of the PC
Add or change the IP address of the network adapter on your PC like following.
Get into the menu of [Windows Control Panel] >> [Network Connections] >> [Properties
of the Network Adapter - with right click of your mouse]. Then, you can show the
properties of [Internet Protocol (TCP/IP). In there, press the [Advanced] button for adding
an IP Address like the below figure.
[Figure 2.2.2.1] adding / changing the IP address of users’ PC
Setting of CMAX Module
CMAX Module uses WLAN Module Manager as it’s a configuration program. WLAN
Module Manager is for MS Windows, and this is comfortable to use because it doesn’t
14
need installation. First, search your WLAN Module via network. All the values of
parameters are set the default values in the factory. To apply it to your system, proper
values should be set via WLAN Module Manager. Major parameter’s default values are
listed on below table. To implement this simple test, keep these values without any
changes.
DISTRIBUTION FUNCTION VALUE
User ID admin
System User Password password
FTP Disable
TELNET Disable
HTTP Enable / HTTPS is disable
Disable
Community Name (Read) : Public
Community Name (Write) : Private
Trap Destination IP Address : 0.0.0.0
Trap Destination Community Name : Public
Protocol
SNMP
Trap Mode : 1 (Enable), 0 (Disable)
Locality Disable
Network Mode Ad-hoc, channel 1
SSID CMAX_adhoc
IP Assignment Method Manual Allocation
IP : 192.168.192.168
Subnet : 255.255.255.0
Network
IP, Subnet, Gateway
Gateway : 192.168.192.1
Open System None
Authentication Shared key None
[Table 2.2.2.1] Default values of Major parameters
3 Configuration
3.1 Configuration with WLAN Module Manager
15

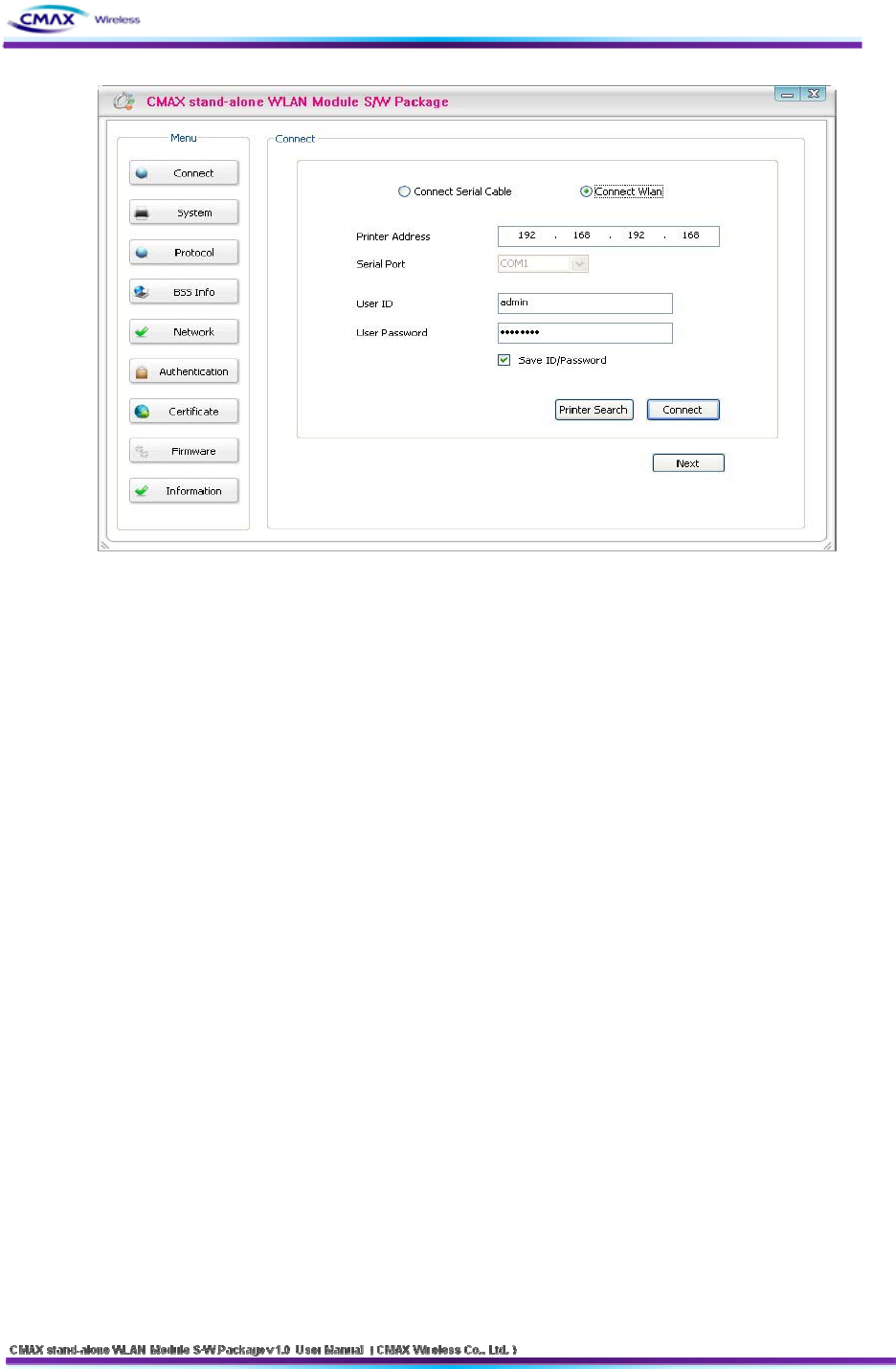

[Figure 3.1.1] initial appearance of WLAN Module
3.1.1 Configuration via WLAN
Checklists
Make sure the WLAN connection between your PC and WLAN Module Manager. If they
are the same network, [search] button can be used. If they aren’t, [IP Address] should be
inserted to use.
Procedures
1) Printer Address : Set the values of the CMAX Module’s IP Address properly
2) User ID : Set the values of the User ID
3) User Password : Set the values of the Password
4) Connect : Connect through Wireless LAN to CMAX Module
5) Next : Move to System Configuration page.
Note : If you want to save [ID/Password], it choose the checkbox.
3.1.2 Configuration via Serial
Checklists
Make sure the connection between your PC and WLAN Module Manager using RS232
direct cable. To use this, WLAN Module Manager has to be operating in the [Serial
Configuration] mode. You press the “Connect” button after Selecting a COM port, User ID
and User Password as the same values with the your COM port. Then, You can enter the
[Serial Configuration] mode.
16
Procedures
1) Serial Port : Select a COM port as the same values with the your COM port.
2) User ID : Set the User ID
3) User Password : Set the User Password
4) Connect : Connect through Serial communication to CMAX Module
5) Next : Move to the configuration page of system
Note : If you want to save [ID/Password], it choose the checkbox. After changing the
configuration, you must be rebooted CMAX Module.
3.1.3 Printer Search
: Provide information of CMAX Module in the network.

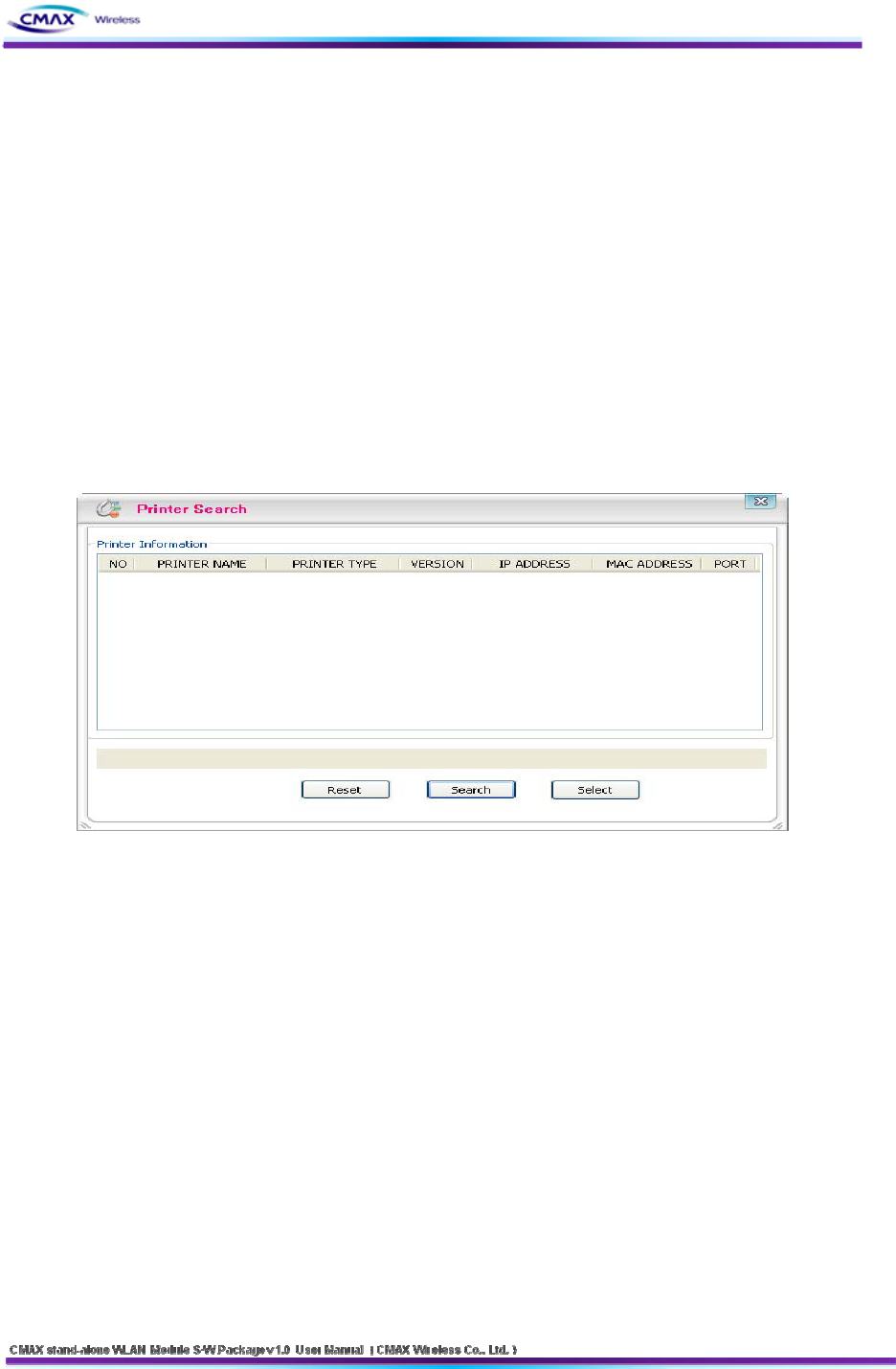

[Figure 3.1.3.1] Printer Search
Reset : Delete the printer information
Search : Search active printers in the network. If a network problem occurs, the printers
will not scan. Then, you press the [Search] button again.
Select : After selecting a printer to connect, you should press [Select] button.
3.1.4 System
: Set the Printer Name, Printer Port Num, User ID and User Password. User ID and
password will be used to set the configuration.
17

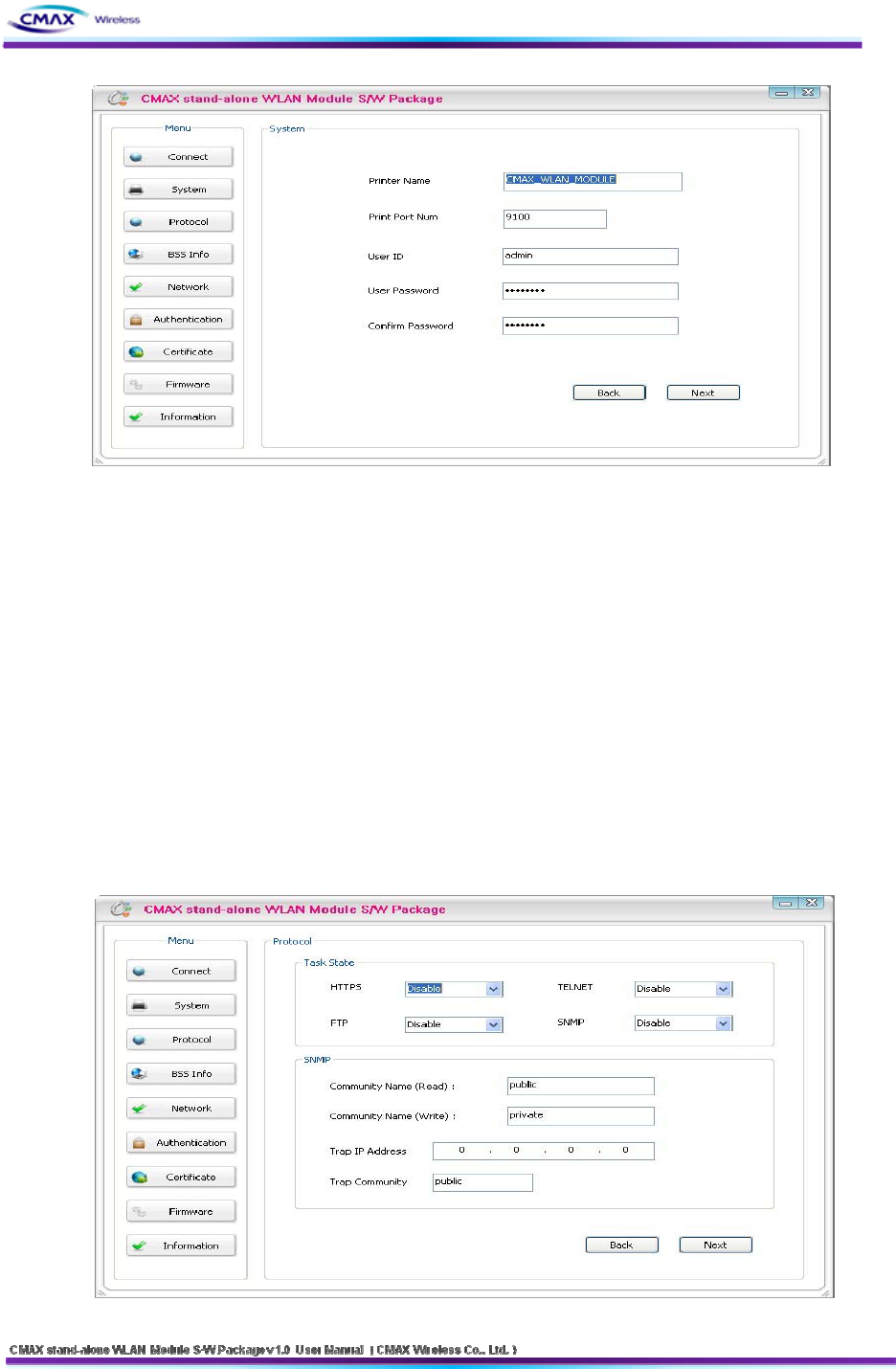

[Figure 3.1.4.1] System Setting
Printer Name : Set the [Printer Name]
Print Port Num : Set the [Print Port Num]
User ID : Set the [User ID]
User Password : Set the [User Password]
Confirm Password : Set correct values of [Confirm Password]
Next : Move to the configuration page of protocol
Back : Move to the configuration page of connection
3.1.5 Protocol
: Select to use ftp, http and snmp that is application. For a description of each feature in
the manual can be found at.

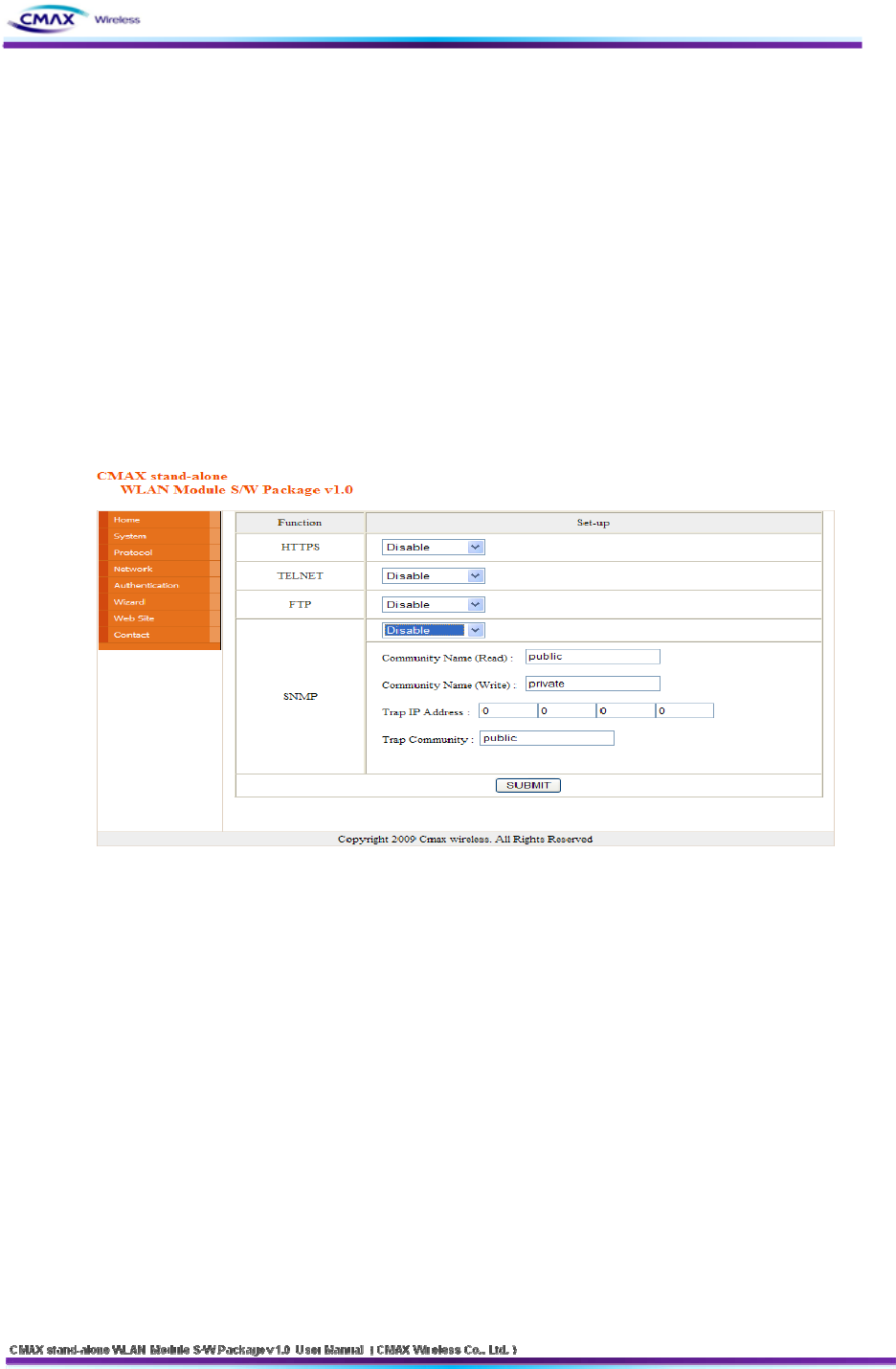

[Figure 3.1.5.1] Protocol Setting
18
Task Sta te
- Set the HTTPS, TELNET, FTP and SNMP that are applications if you use.
SNMP
- To perform SNMP sets for each item.
Next : Move to the configuration page of BSS Information
Back : Move to the configuration page of System
3.1.6 BSS Info
: After Searching on AP(Access Point), user can select to connect at the AP. Then, AP’s
SSID will be inserted automatically.

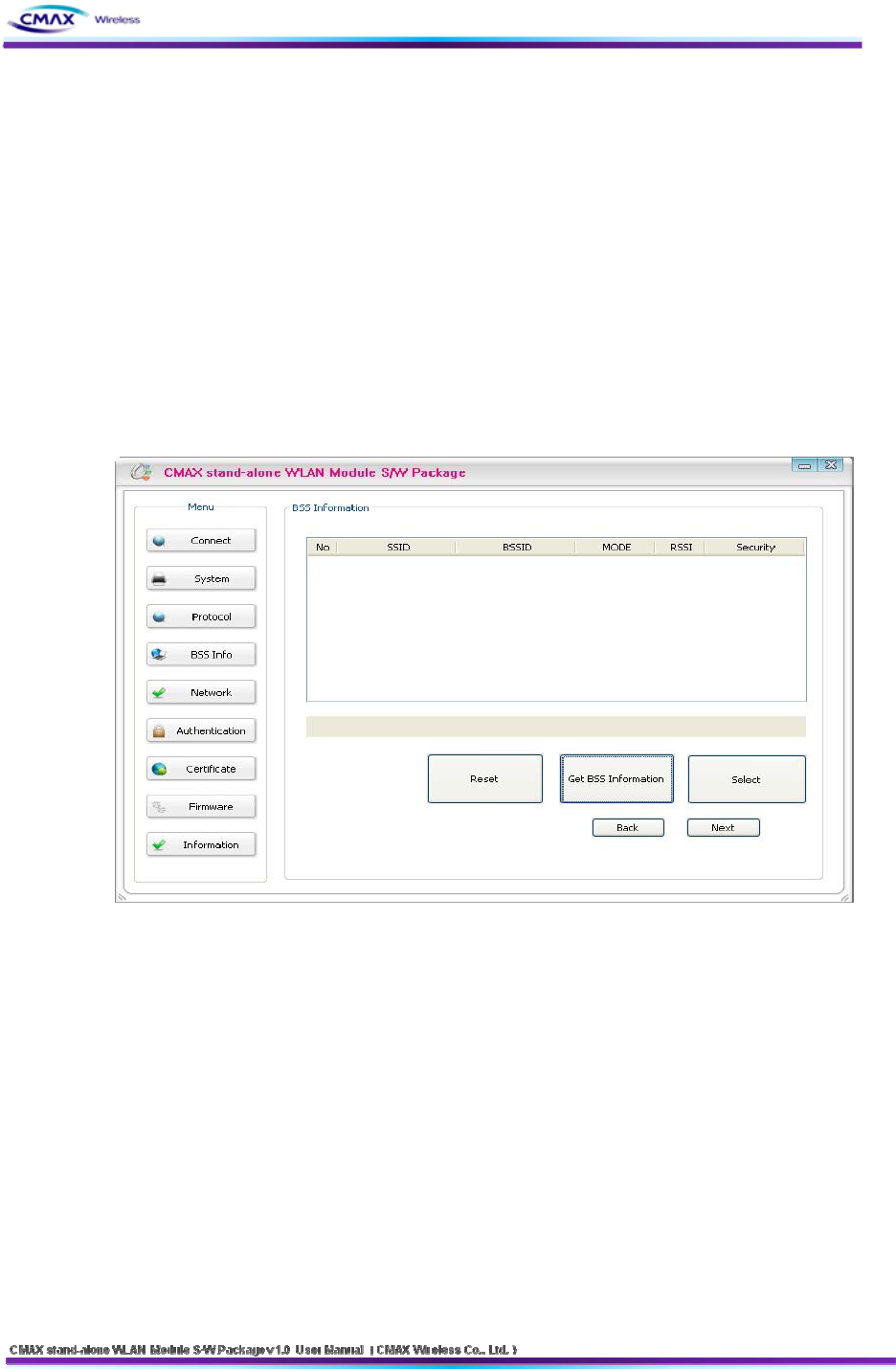

[Figure 3.1.6.1] BSS Setting
Reset : Delete current information of BSSID
Get BSS Information : Scanning information of BSSID. If the problem of network occurs,
the printers will not scan. Then, you press the [Get BSS Information] button again.
Select : Select BSS that searched.
Next : Move to the configuration page of Network
Back : Move to the configuration page of Protocol
3.1.7 Network
: Set the network parameter of CMAX Module
19

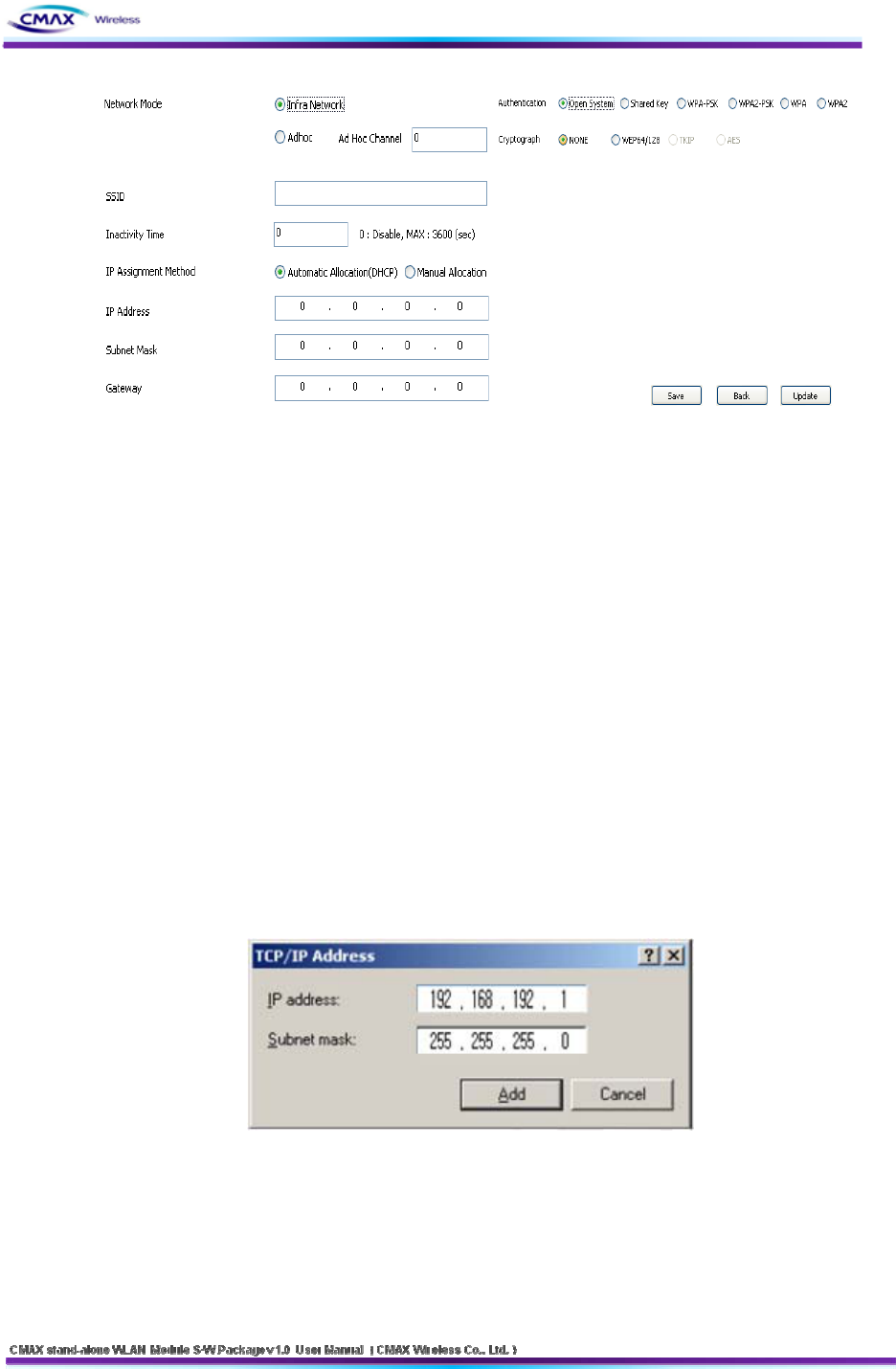

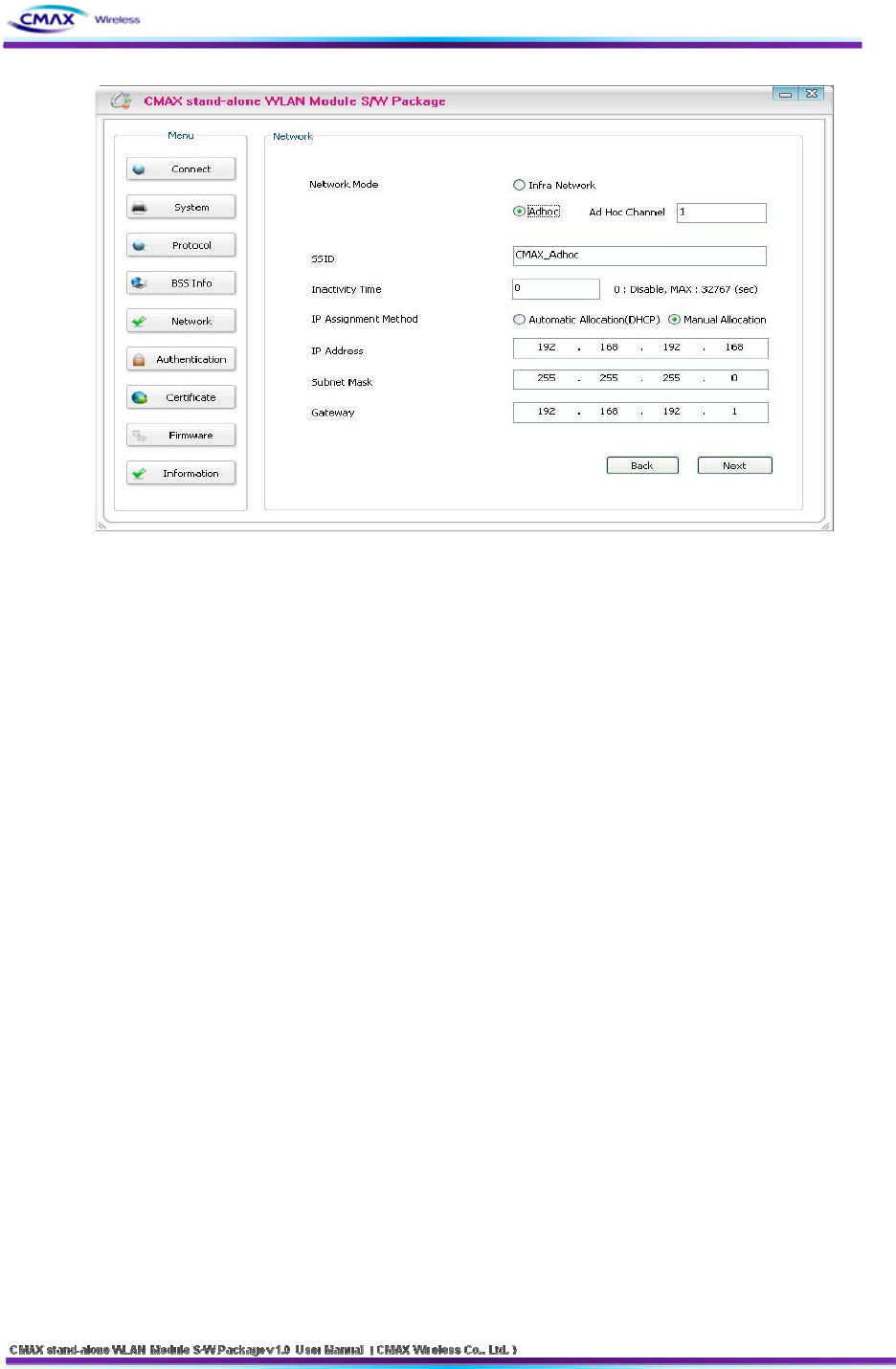

[Figure 3.1.7.1] Network Setting
Network Mode : Select the Infra Network or Adhoc mode.
Note : If adhoc mode user selects to connect a adhoc-channel (1~14).
SSID : Set the SSID that user is going to connect. SSID Can set up maximum of 32 bytes.
Inactivity Time : After connecting to the server of printer, It is time to maintain a
connection with the server. Default setting : Disable, Maximun time : 32767(sec)
IP Assignment Method : Supported Automatic Allocation(DHCP Client) or Manual
Allocation. Default setting : Manual Allocation
- Automatic Allocation(DHCP Client) : Assigns the IP Address that is assigned in the
DHCP server automatically
- Manual Allocation : Does not assign the IP address in the AP(Access Poing)’s DHCP
server. User should insert the IP Address that is such as IP Address of AP.
IP Address : Insert the [IP Address] of AP : Default IP Address : 192.168.192.168
Subnet Mask : Insert the [Subnet Mask] of AP : Default subnet Mask : 255.255.255.0
Gateway : Insert the [Gateway] of AP : Default Gateway : 192.168.192.1
Next : Move to the configuration page of Authentication
Back : Move to the configuration page of BSS Information
3.1.8 Authentication
: Set a security configuration of the CMAX Module
20

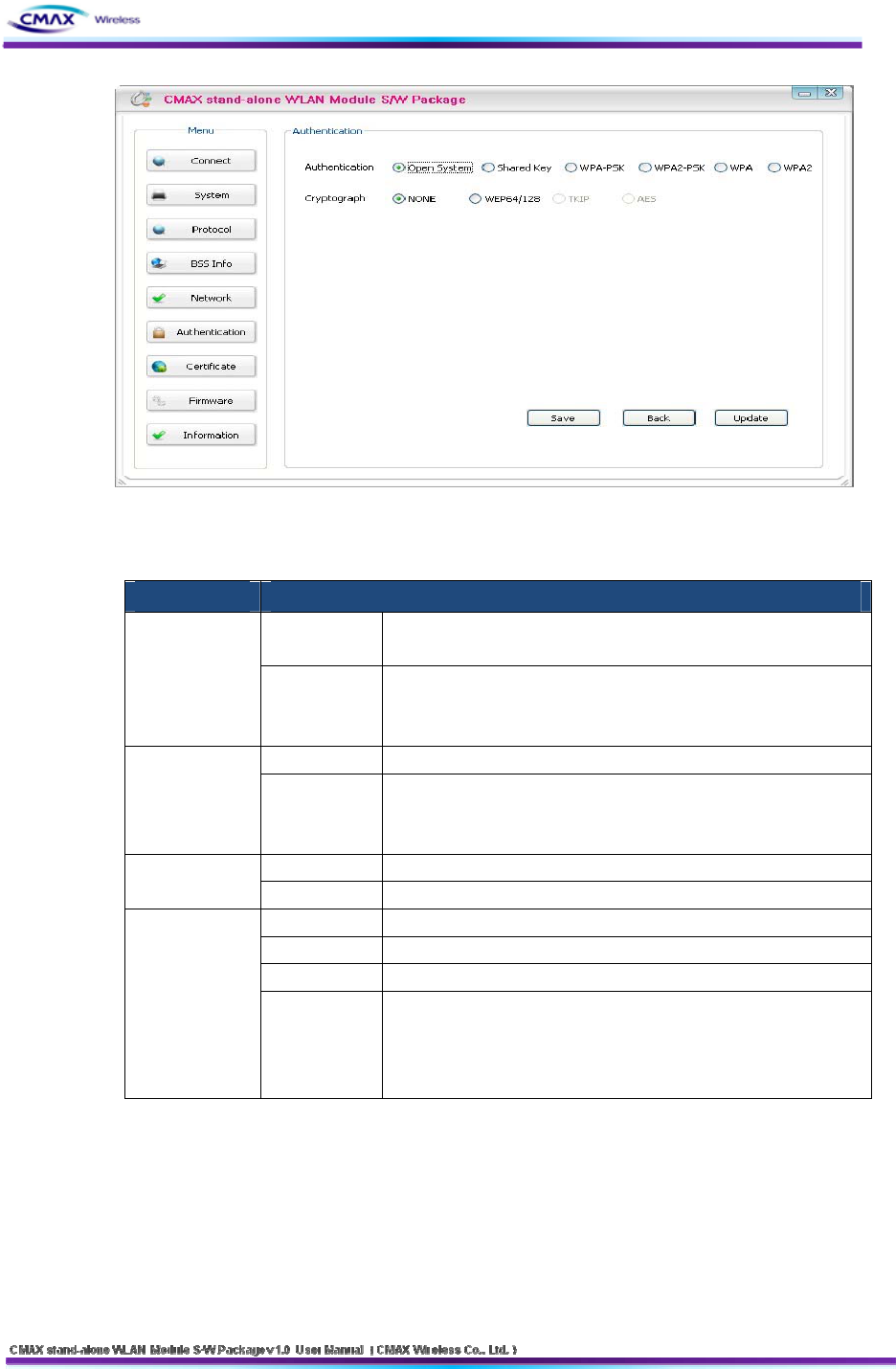

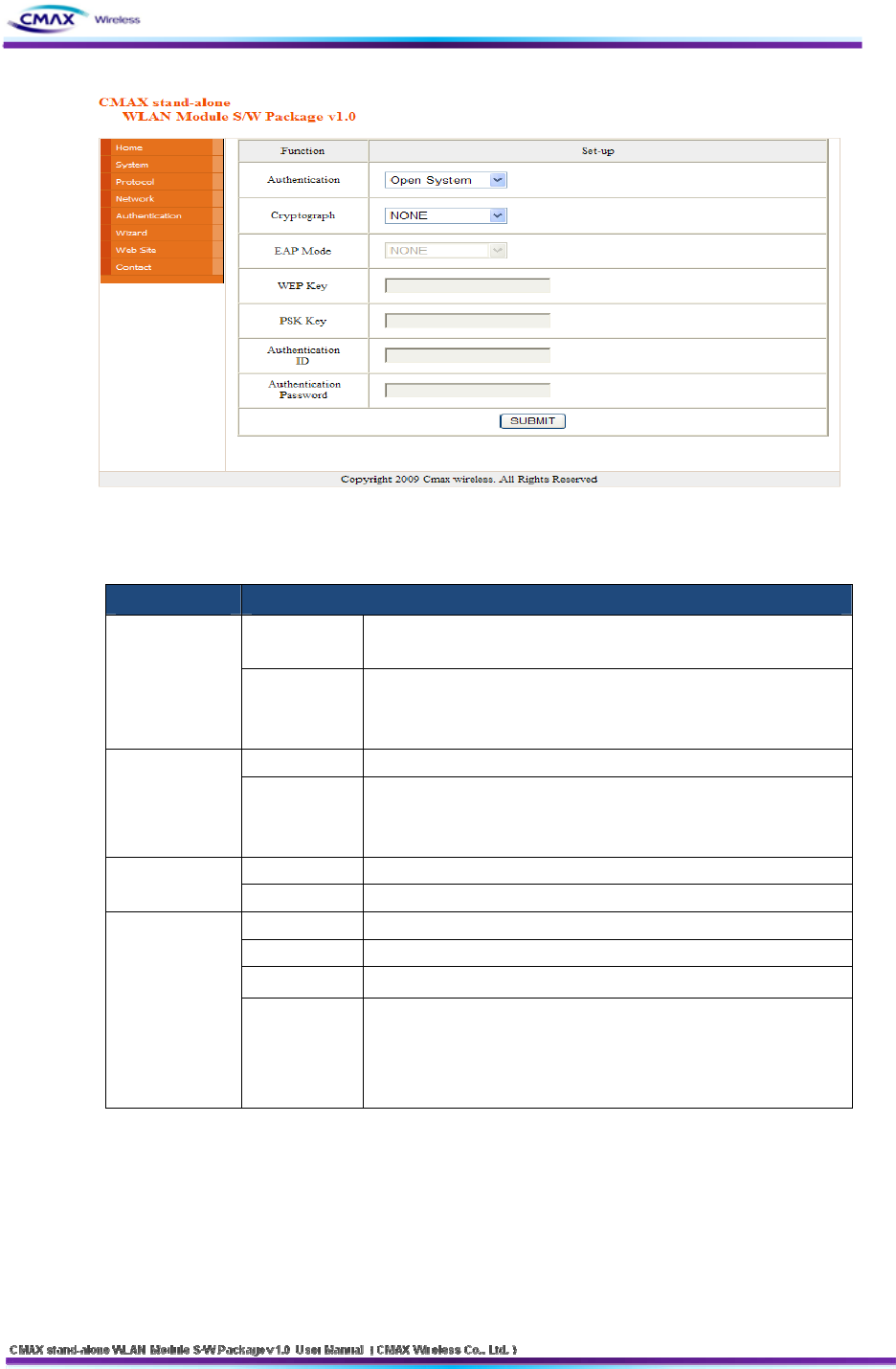

[Figure 3.1.8.1] Authentication Setting
Authentication : It is security configuration between CMAX Module and AP(Access Point)
FIELD DESCRIPTION
Cryptograph It should be select NONE or WEP64/128 as the setting of AP to
be access
Open System
WEP Key
You can input the max 26charater,. It Configure to WEPB64/18 if
you input it like the following format.
- WEP64 (5 ASCII, 10 HEX), WEP128 (13 ASCII, 26 HEX)
Cryptograph Select a WEP64/128 same AP’s configuration to be access.
Shared Key WEP Key
You can input the max 26charater,. It Configure to WEPB64/18 if
you input it like the following format.
- WEP64 (5 ASCII, 10 HEX), WEP128 (13 ASCII, 26 HEX)
Cryptograph You should same to configure a TKIP/AES with AP to be access. WPA-PSK /
WPA2-PSK PSK Key You should same to input a TKIP/AES with AP to be access.
Cryptograph You should same to configure a cryptograph with AP to be access.
EAP You should same to configure a EAP Mode with AP to be access.
ID You should Input the ID with configured certificate Server
WPA-TKIP /
WPA2-AES
Password
You should Input the Password with configured certificate Server
However, If EAP Configuration is a EAP-TLS, you should input the
private_key_password that is certificate password that generated
for CMAX module.
[Table 3.1.8.1] Security setting
Save : It is function to Save the configuration information that you have set

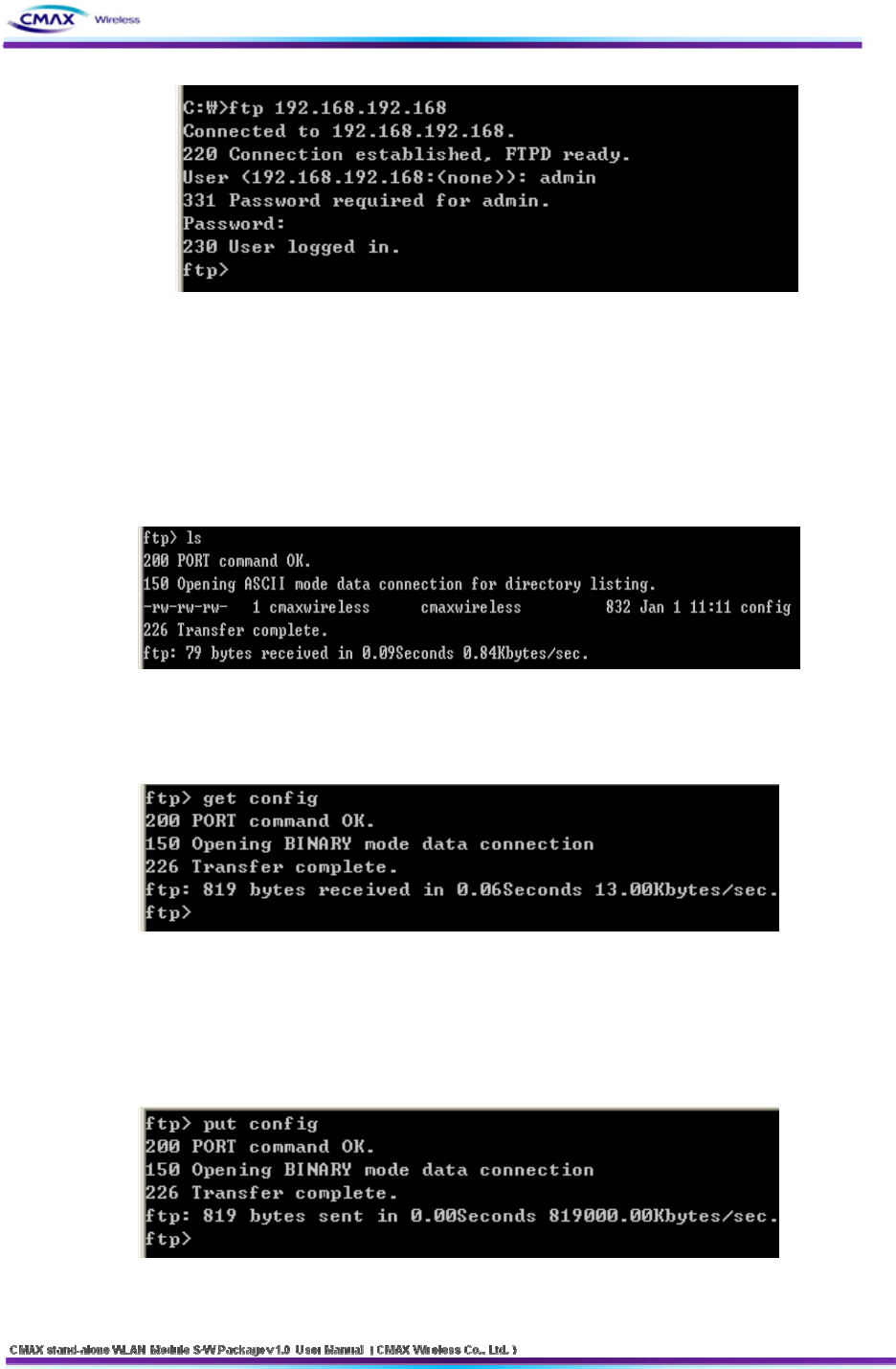

Saved file can set through uploading with FTP
Update : User will save the configuration information to CMAX Module
Back : Move to the configuration page of Network
Note : To upload a file must be named “Config” should be
21
3.1.9 Certification
: Can upload Certificates to CMAX Module for EAP-TLS certification

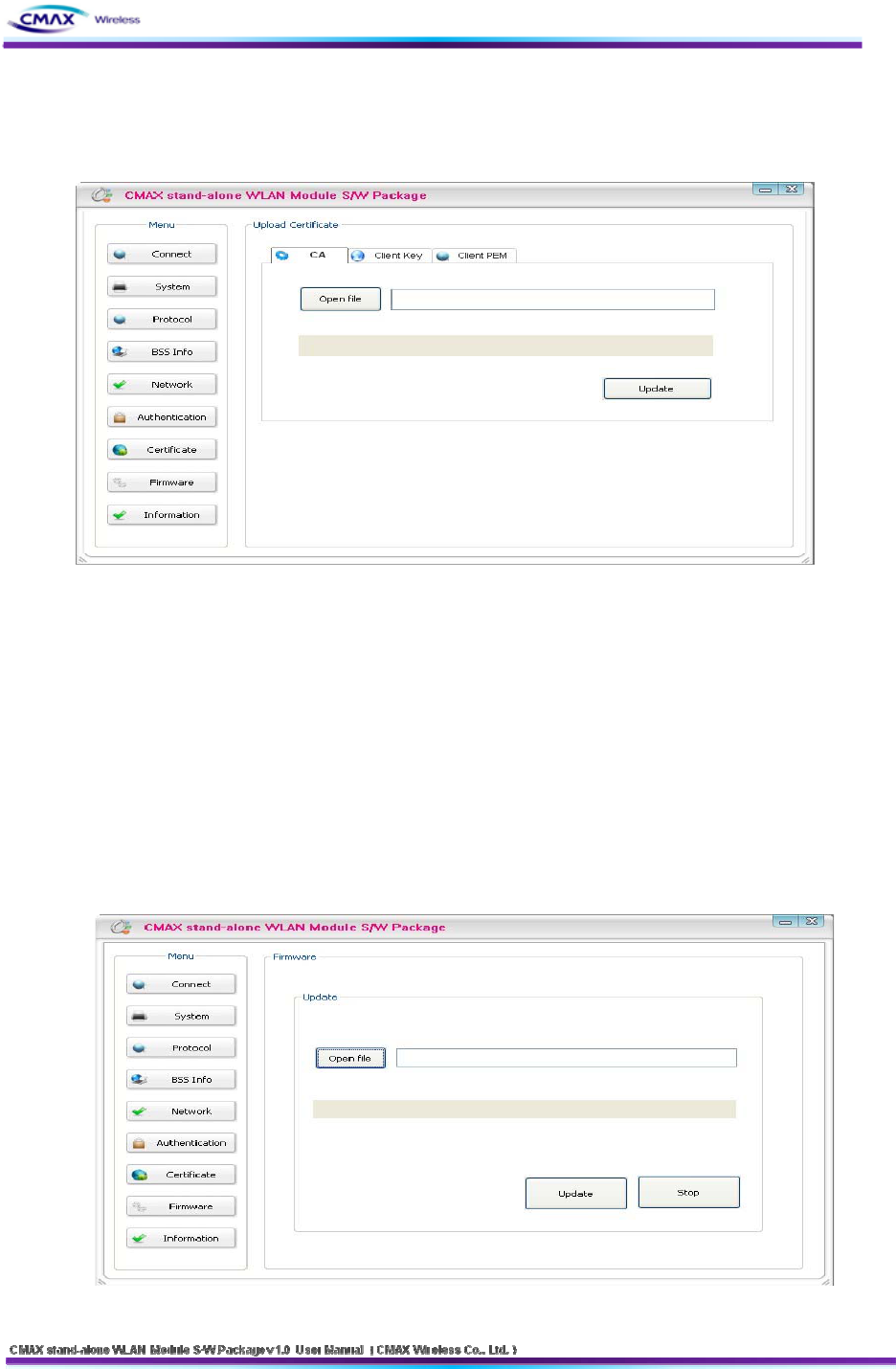

[Figure 3.1.9.1] Upload Certificate
Upload Certification
- Open file : Select the Certificate
- Update : Save the Selecting a certificate to CMAX Module
3.1.10 Firmware
: It has been supporting the firmware upgrade. If It does not connect from CMAX
Module, can not update the firmware. To stable firmware upgrade, we are not supported
doing all of the eatures. After updating the firmware, CMAX Module must be rebooted.
[Figure 3.1.10.1] Upgrade Firmware
22
Open file : Select a firmware type of [WLAN_M*.Bin]
Update : Update a firmware to CMAX Module
Stop : Stop the firmware upgraded
Note :
Emergency mode :
If an error occurs while firmware upgrade, CMAX module will be started to
the emergency mode. Emergency mode does not support the security
features. So You must update the full firmware to operate normal mode.
3.1.11 Information
: Product and firmware information is displayed

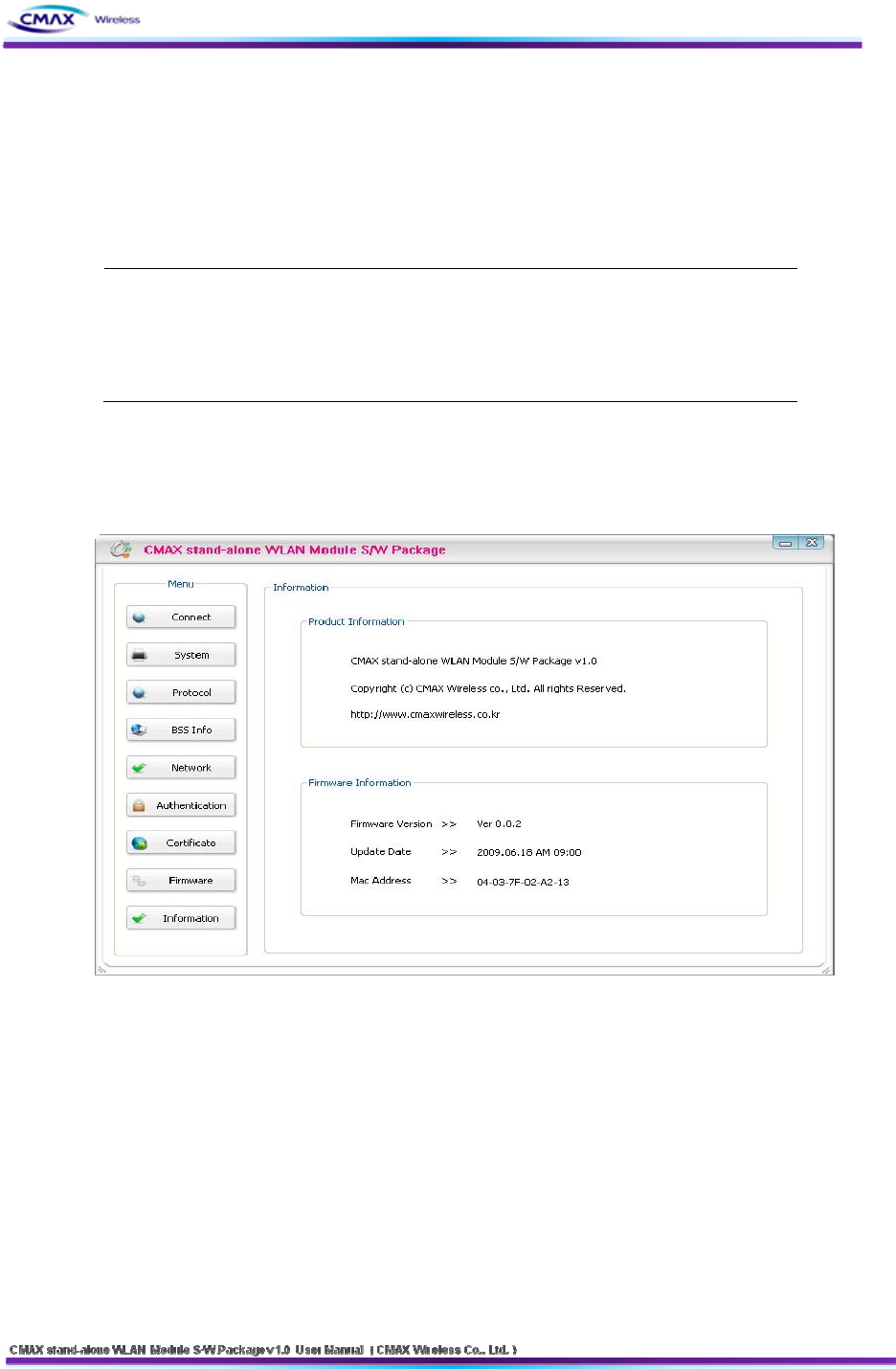

[Figure 3.1.11.1] Information
Product Information : Product name
Firmware Version : Firmware version
Update Date : Updated date
Mac Address : CMAX Module’s Mac Address
3.2 Web Configuration
Set the CMAX Modules’s configuration through web connecting
23
3.2.1 Web Connection
: CMAX Module can Set configuration using the HTTP, HTTPS protocol. HTTP and HTTPS
settings are same. Only, HTTPS secure connection is supported. Default setting is HTTP
HTTP Connection : Start internet explorer through “http://192.168.192.168
Default : ID : admin Password : password

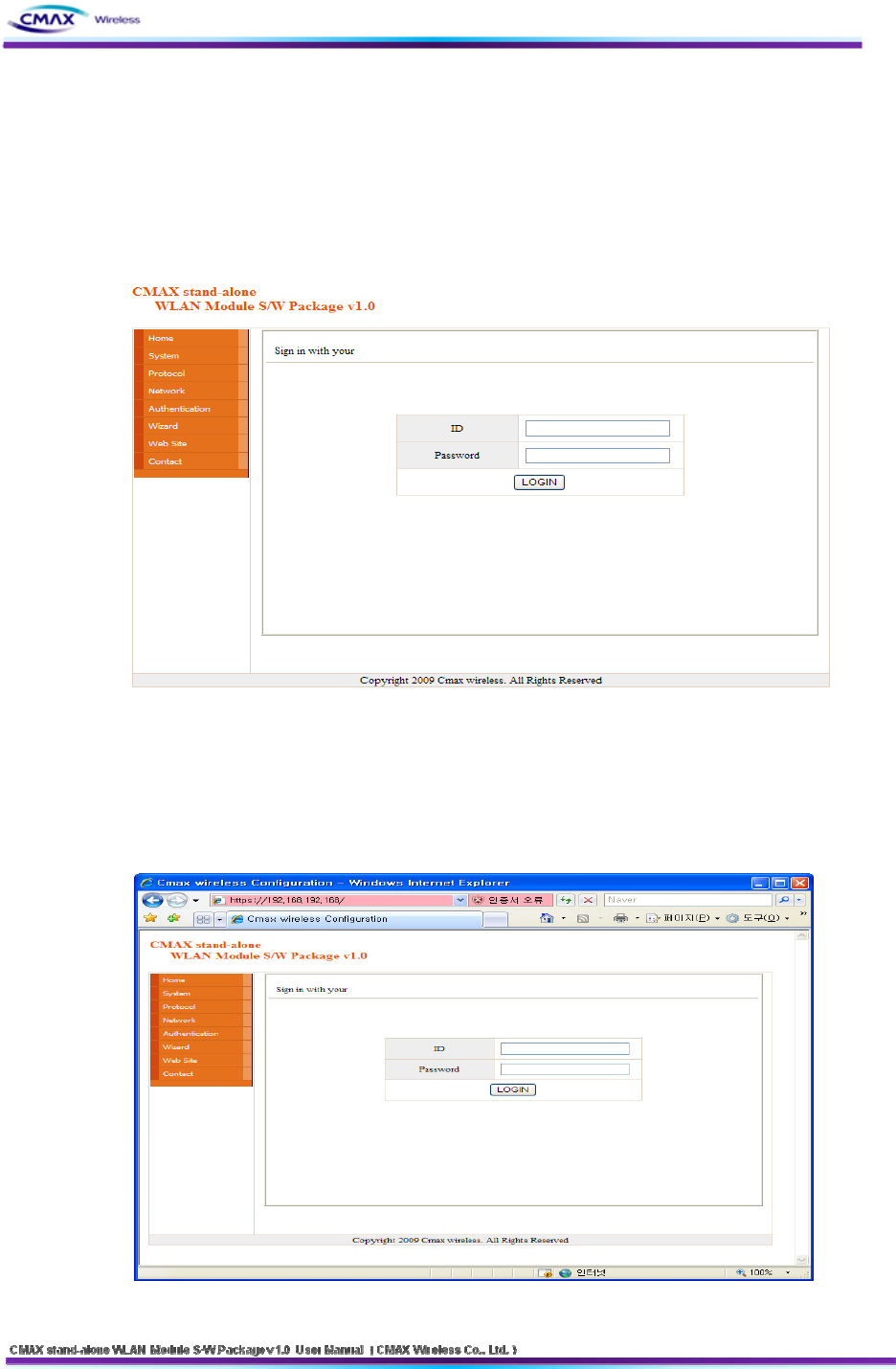

[Figure 3.2.1.1] Sign in with your
HTTPS Connection : Start internet explorer through https://192.168.192.168
Default : ID : admin Password : password
Note : When establishing a HTTP connection, to continue to ignore security warnings.
[Figure 3.2.1.2] HTTPS Sign in with your
24
Note :
Web Server Security feature
- Supported the SSL 2.0, SSL 3.0 and TLS 1.0
- For HTTPS connections, if you want to access from the computer, security
protocol should be checked.
3.2.2 Home
: Display the system, protocol and network information in the CMAX Module

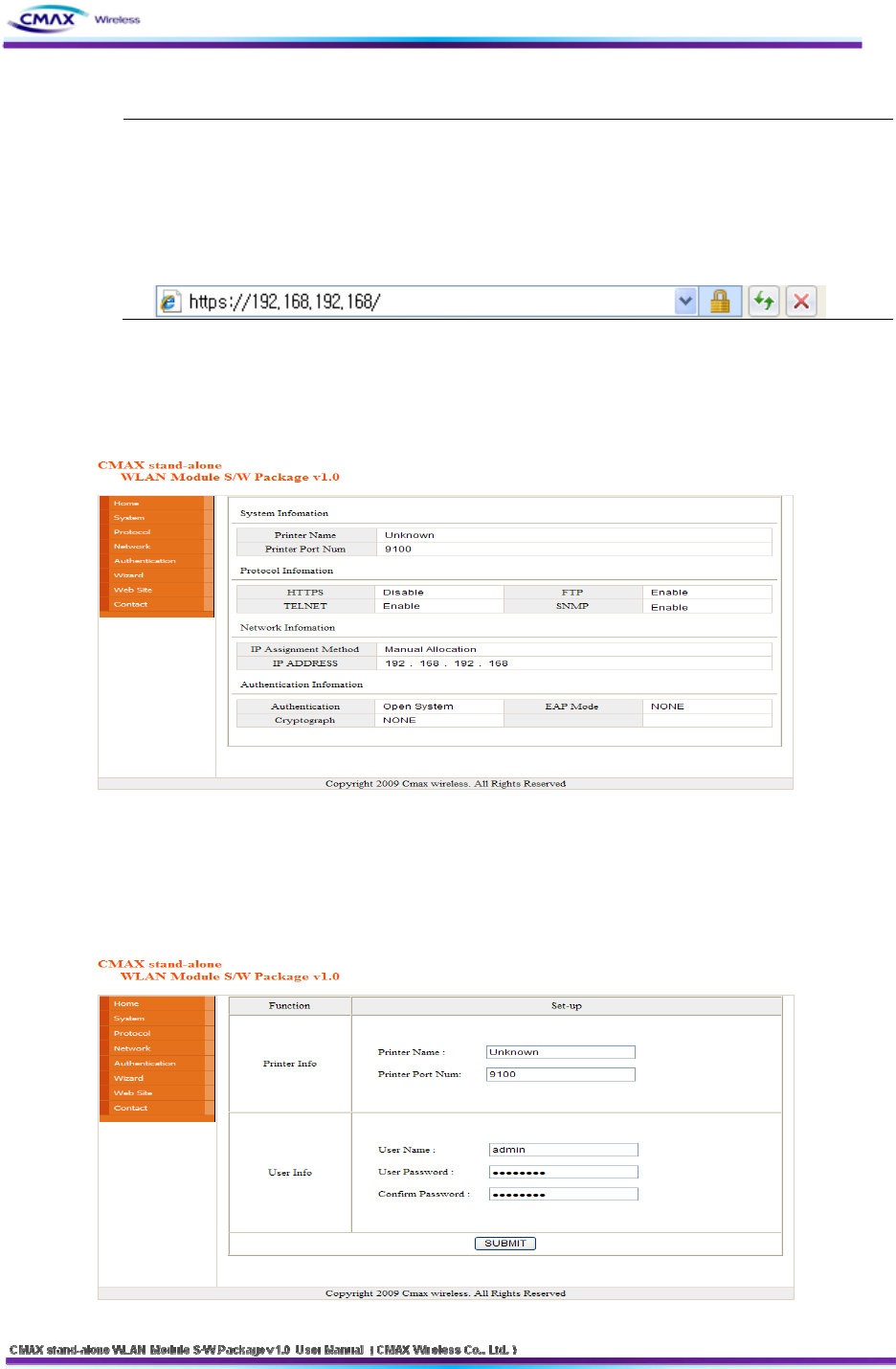

[Figure 3.2.2.1] Home
3.2.3 System
: After inserting the [Pinter Name], [Printer Port], [User Name] and [User Password], user
should press the “SUBMIT” button to set system configuration
[Figure 3.2.3.1] System Setting
25
Printer Name : Set the [Printer Name]
Print Port Num : Set the [Print Port Number]
User ID : Set the [User ID]
User Password : Set the [User Password]
Confirm Password : Set correct values of [Confirm Password]
Default : User ID : admin , User Password : password
3.2.4 Protocol
: Set the HTTPS, TELNET, FTP and SNMP that are applications if you use. Then To perform
SNMP sets for each item. After inserting, user should press the “SUBMIT” button to set
Protocol configuration
[Figure 3.2.4.1] Protocol Setting
Setup
- HTTPS (Default setting is HTTP)
- TELNET (Default setting is disable)
- FTP (Default is disable)
- SNMP (Default is disable)
SNMP
- Community Name (Read) : Read Community
Default : Public
- Community Name (Write) : Write Community
Default : Private
- Trap IP Address : Trap IP Address.
Default : 0.0.0.0
- Trap Community : Trap Community
Default : Public
26
3.2.5 Network
: After inserting the network configuration, user should press the “SUBMIT” button to set.

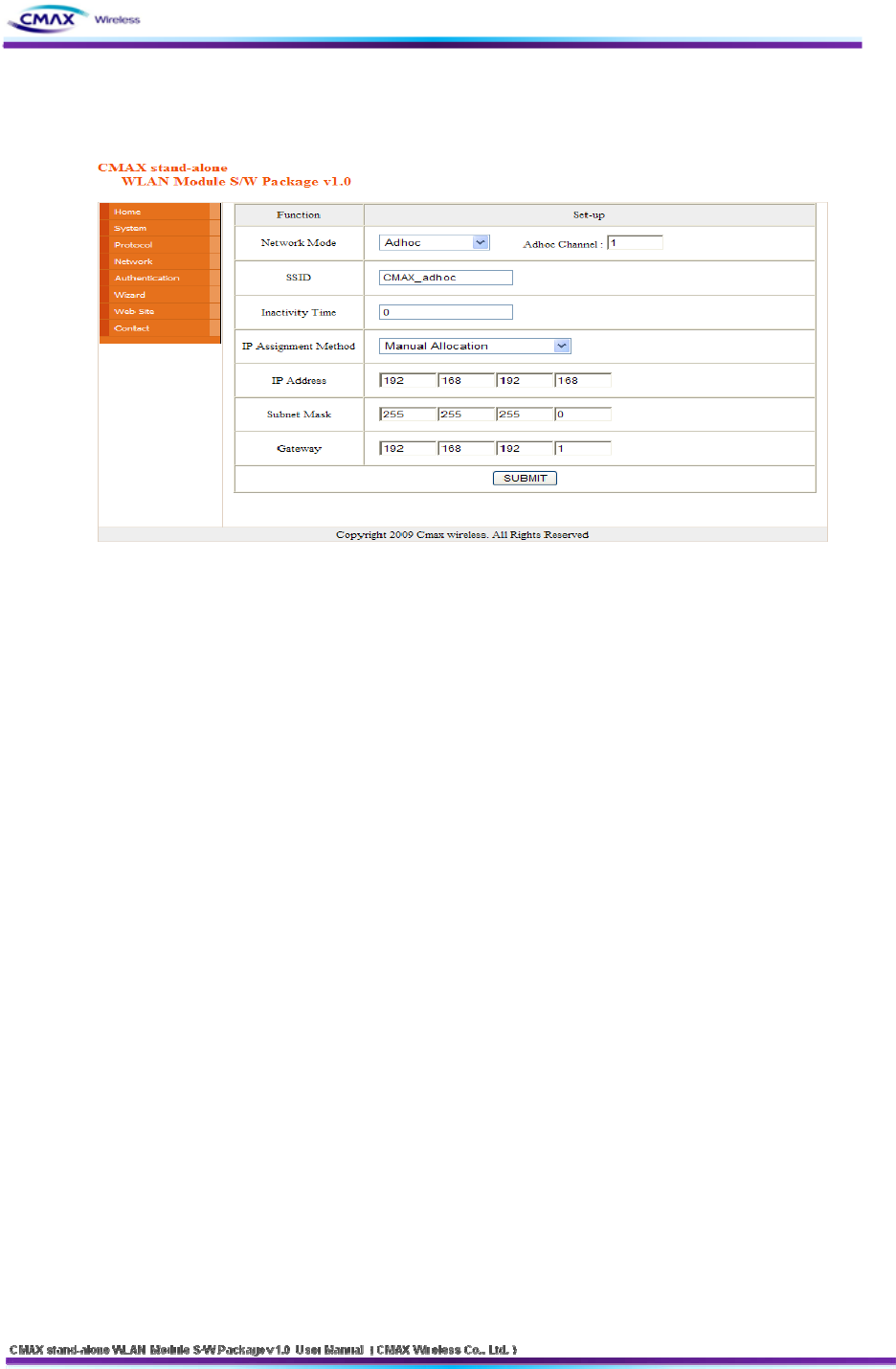

[Figure 3.2.5.1] Network Setting
Network Mode : Select the Infra Network or Adhoc mode.
Note : If adhoc mode user selects to connect a adhoc-channel (1~14).
SSID : Set the SSID that user is going to connect. SSID Can set up maximum of 32
bytes.
Inactivity Time : After connecting to the server of printer, It is time to maintain a
connection with the server. Default setting : Disable, Maximun time : 32767(sec)
IP Assignment Method : Supported Automatic Allocation(DHCP Client) or Manual
Allocation. Default setting : Manual Allocation
Automatic Allocation(DHCP Client) : Assigns the IP Address that is assigned in the DHCP
server automatically
Manual Allocation : Does not assign the IP address in the AP(Access Poing)’s DHCP server.
User should insert the IP Address that is such as IP Address of AP.
IP Address : Insert the [IP Address] of AP : Default IP Address : 192.168.192.168
Subnet Mask : Insert the [Subnet Mask] of AP : Default subnet Mask : 255.255.255.0
Gateway : Insert the [Gateway] of AP : Default Gateway : 192.168.192.1
3.2.6 Authentication
: After inserting the security features, user should press the “SUBMIT” button
to apply on the system.
27
[Figure 3.2.6.1] Authentication Setting
Authentication : It is security configuration between CMAX Module and AP(Access Point)
FIELD DESCRIPTION
Cryptograph It should be select NONE or WEP64/128 as the setting of AP to
be access
Open System
WEP Key
You can input the max 26charater,. It Configure to WEPB64/18 if
you input it like the following format.
- WEP64 (5 ASCII, 10 HEX), WEP128 (13 ASCII, 26 HEX)
Cryptograph Select a WEP64/128 same AP’s configuration to be access.
Shared Key WEP Key
You can input the max 26charater,. It Configure to WEPB64/18 if
you input it like the following format.
- WEP64 (5 ASCII, 10 HEX), WEP128 (13 ASCII, 26 HEX)
Cryptograph You should same to configure a TKIP/AES with AP to be access. WPA-PSK /
WPA2-PSK PSK Key You should same to input a TKIP/AES with AP to be access.
Cryptograph You should same to configure a cryptograph with AP to be access.
EAP You should same to configure a EAP Mode with AP to be access.
ID You should Input the ID with configured certificate Server
WPA-TKIP /
WPA2-AES
Password
You should Input the Password with configured certificate Server
However, If EAP Configuration is a EAP-TLS, you should input the
private_key_password that is certificate password that generated
for CMAX module.
[Table 3.2.6.1] Security setting
3.2.7 Wizard
: Provides that user can easily insert the configuration of system. After inserting the
configurations, user should press the NEXT” button to apply on the system.
28

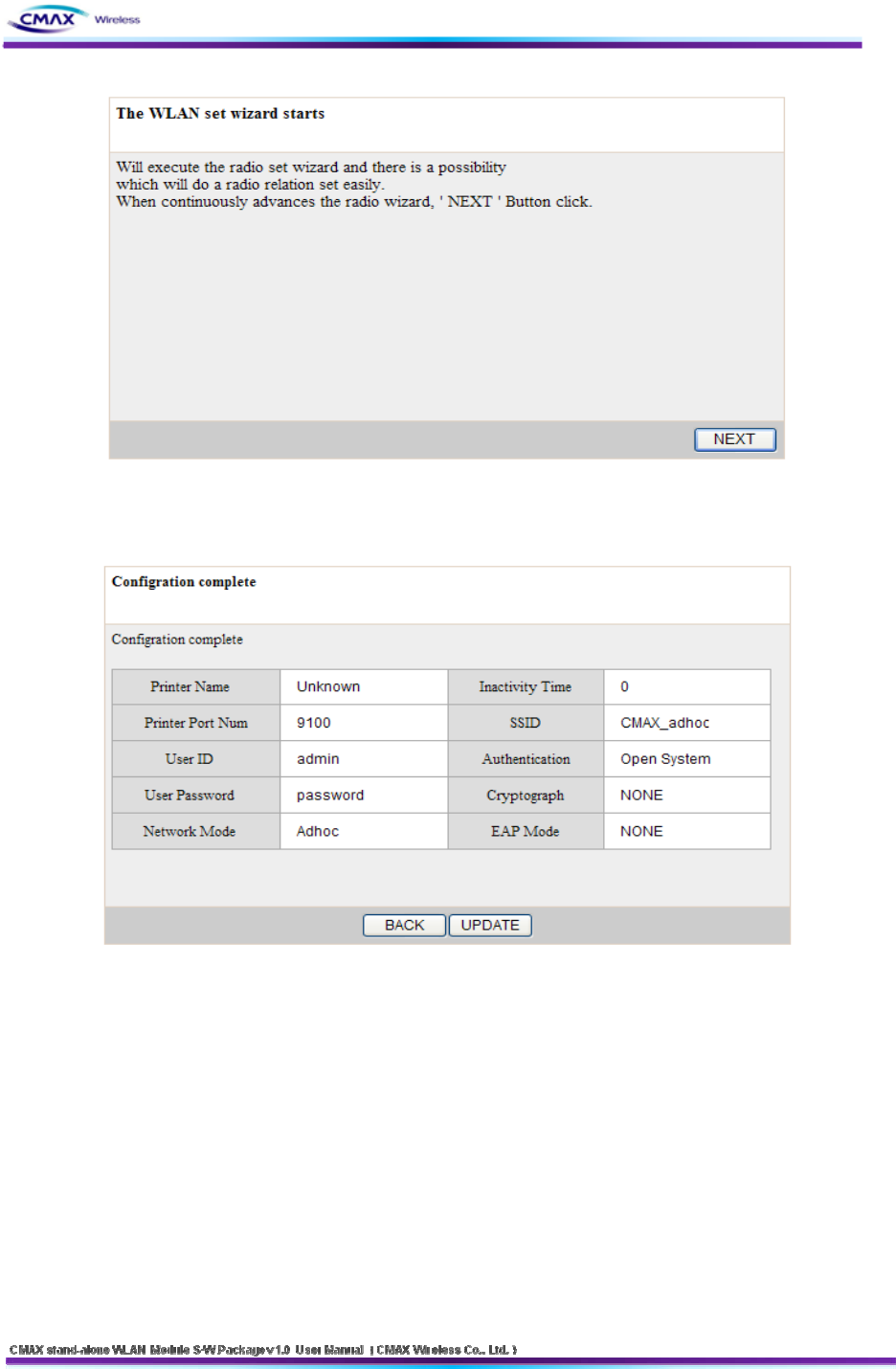

[Figure 3.2.7.1] Wizard start page
[Figure 3.2.7.2] Wizard result page
3.2.8 Web Site
: Move to the website of CMAX Wireless
3.2.9 Contact
: User will be connected Customer Service by the E-Mail.
29
3.3 TELNET
You can configure the CMAX module by TELNET
Note :
TELNET : TELNET is Text-based remote access service and based TCP/IP Protocol.
CMAX module configuration : Input the number provided on the left side of the menu and
then enter the "Enter" to enter the next entry.
Menu move example
Menu number : move to next menu.
$ : go to the previous menu.
# : Go to the main menu.
3.3.1 TELNET Connection
: Connect by Telnet Client.( Microsoft Windows xp based on the description.)
Windows command execution.
- Windows’s Beginning Run input “command”.
Input “TELNET 192.168.192.168(IP Address of CMAX module)” to command windows.
Default : IP Address : 192.168.192.168

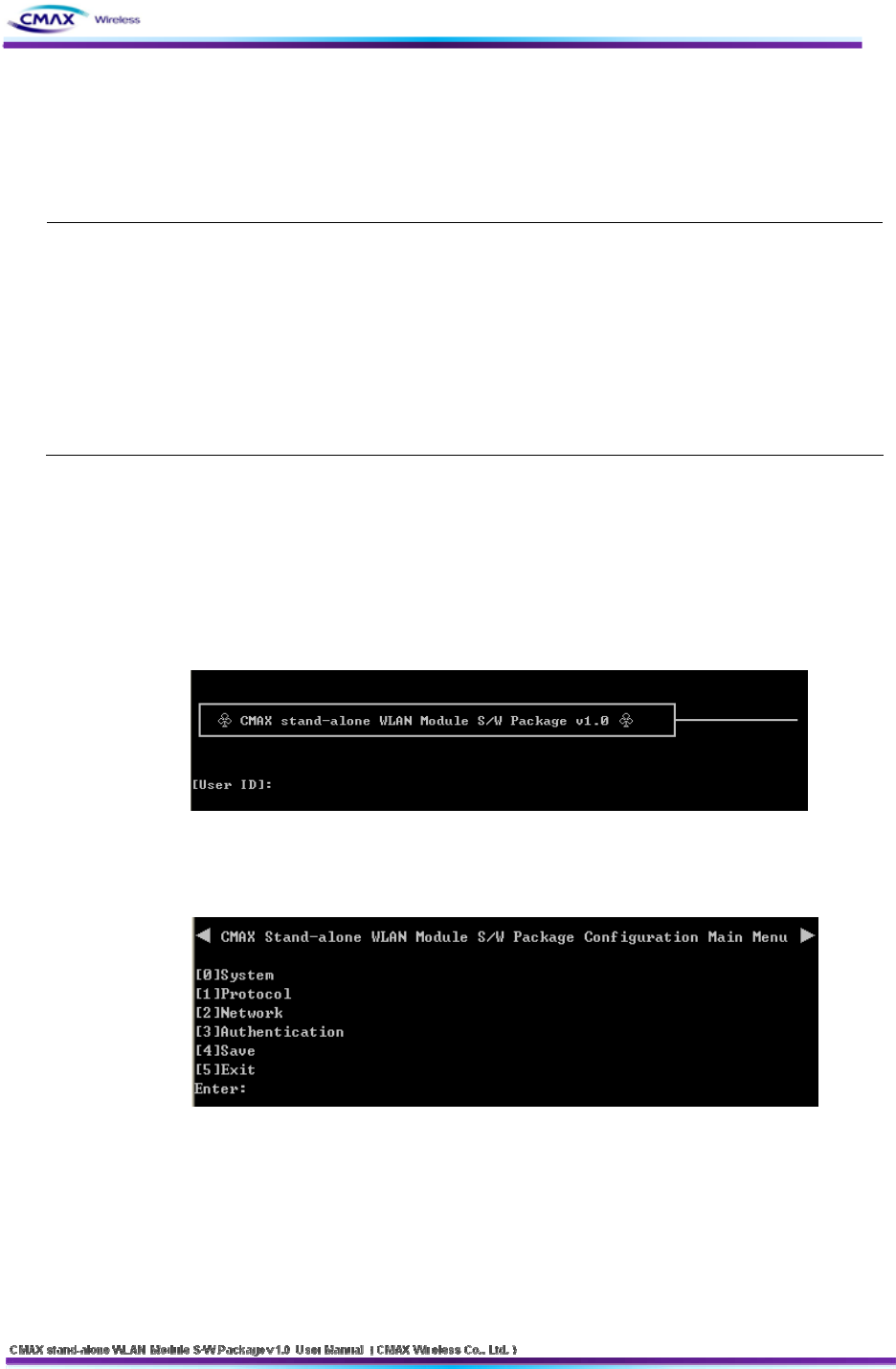

[Figure 3.3.1.1] TELNET Configuration Server Connection Screen
- Input “User ID, User Password” and then enter the “Enter”
Default : User ID : admin User Password : password
[Figure 3.3.1.2] TELNET Configuration major menu
[1] System: Configure System information.
[2] Protocol: You can select to Enable(1) or disable(0) the application of the activities.
And configure SNMP access information. (Default setting HTTP)
[2] Protocol: You can select to Enable(1) or disable(0) the application of the activities. And
configure SNMP access information. (Default setting HTTP)
Network: Configure Network parameter of CMAX module.
30
Authentication: Configure security parameter of CMAX module.
Save: You can store the configuration information that input so far to the CMAX module
Exit : Terminate TELNET connection.
3.3.2 System
: You can configure Printer Name, Print Port Number, ID and User Password. User ID and
User Password is applied to all application of CMAX module.
Select “[1]System” to “configuration main menu”.

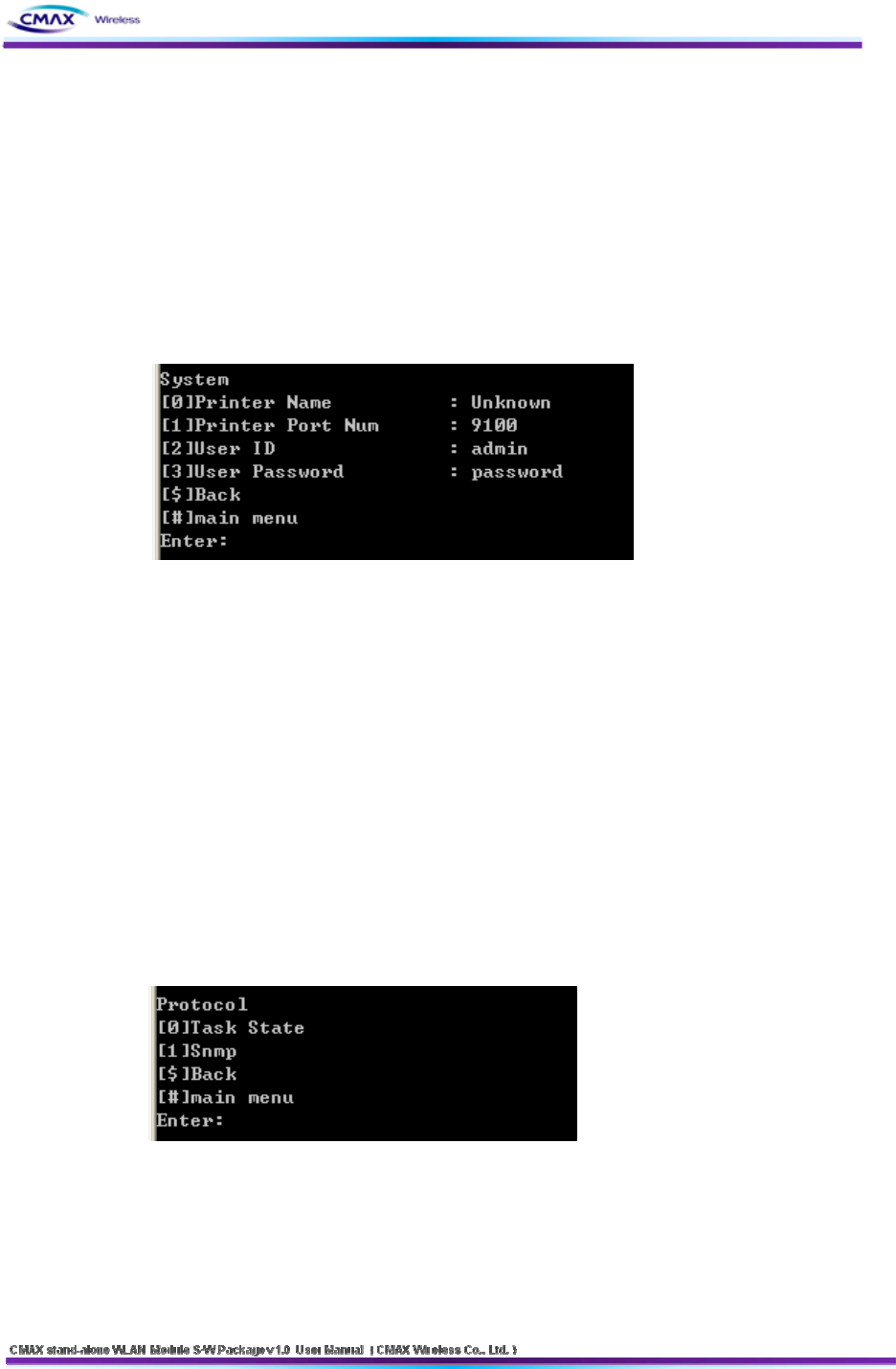

[Figure 3.3.2.1] TELNET System information menu
[0] System Name : Configure CMAX Module name
[1] TCP Server Port Num: Configure TCP Server port number.
[2] User ID: Configure user ID.
[3] User Password : Configure user password.
[$] Back: Go to the previous menu.
[#] Main Menu : Go to the main menu.
3.3.3 Protocol
: You can select to enable or disable the application(HTTP, HTTPS, TELNET, FTP, SNMP) of
the use and configure SNMP Parameter(Community, Trap IP Address, Trap Community).
Select [2]Protocol to “Configuration main menu.”
[Figure 3.3.3.1] TELNET Protocol menu
31

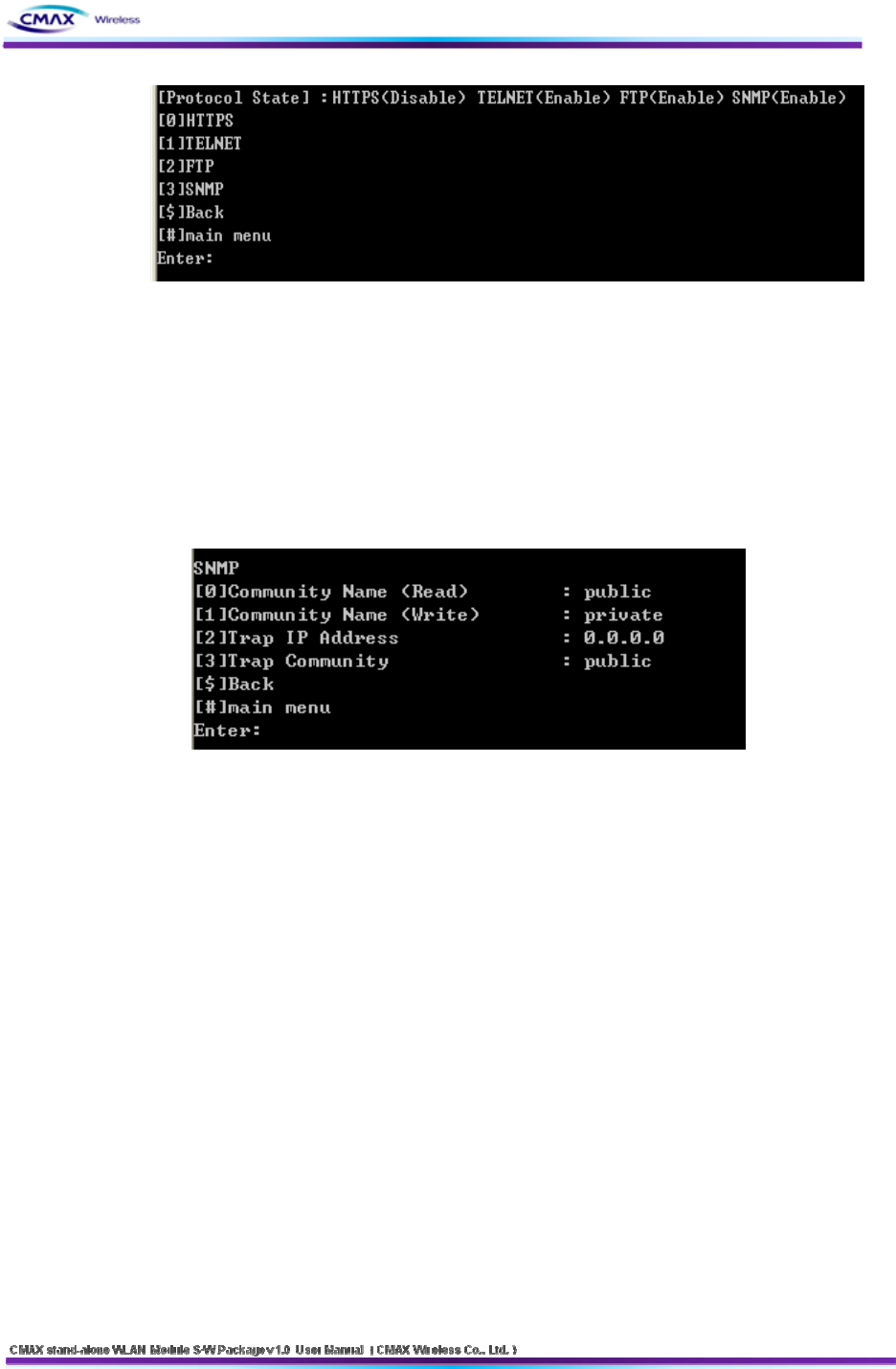

[Figure 3.3.3.2] TELNET Task State Protocol menu
Select “[0]Task State” to “Protocol menu.”
[0] HTTPS : Configure to Enable(1) or Disable(0) to HTTPS. ( default HTTP )
[1] TELNET : Configure to Enable(1)/Disable(0) to TELNET.
[2] FTP : Configure to Enable(1)/Disable(0) to FTP
[3] SNMP : Configure to Enable(1)/Disable(0) to SNMP.
[Figure 3.3.3.3] TELNET SNMP Connection Information menu
Select “[1] SNMP” to Protocol menu.
[0] Community Name (Read) :If SNMP is Enable(1) state, you can configure to
accessed community of read mode..
[1] Community Name (Write) : If SNMP is Enable(1) state, you can configure to
accessed community of write mode.
[2] Trap IP Address : If SNMP is Enable(1) state, you can configure to IP Address that
received Trap message.
[3] Trap Community : If SNMP is Enable(1) state, you can configure to Trap
community.
[$] Back: Go to the previous menu.
[#] Main Menu : Go to the main menu.
3.3.4 Network
: Configure Network parameter of CMAX module.
Select “[3] Neteork” to Configuration main menu.
32

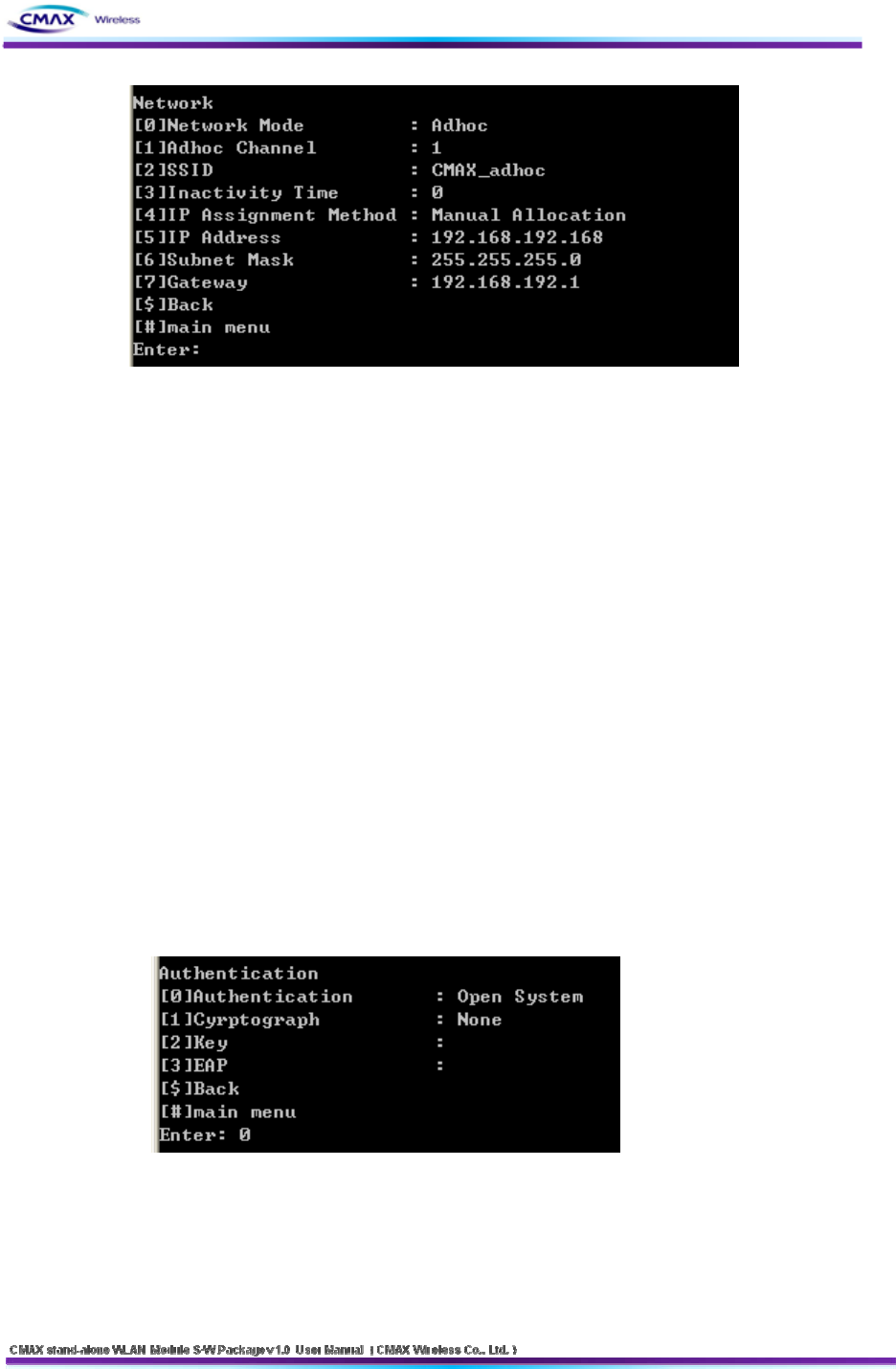

[Figure 3.3.4.1] TELNET Network menu
[0] Network Mode : Select a network mode( Infra Network(0) / Adhoc(1)).
[1] Adhoc Channel : Configure Adhoc Channel(1~14) to Connection.
[2] SSID : It should be configured the SSID same as AP's SSID to be access.
[3] Inactivity Time : It means a time limit keeping connection that without data
communication between client and server.
[4] IP Assignment Method : Select IP Assignment megthod( DHCP(0)/Manual
Alloccation(1) ).
[5] IP Address : If you selected Manual Alloccation(1), configure IP Address.
[6] Subnet Mask : If you selected Manual Alloccation(1), configure Subnet Mask.
[7] Gateway : If you selected Manual Alloccation(1), configure Gateway.
[$] Back: Go to the previous menu.
[#] Main Menu : Go to the main menu.
3.3.5 Authentication
: Configure CMAX Module Security. It should be configured the Security same as AP's
Security to be access.
Select “[4]Authentication” to “configuration main menu”.
[Figure 3.3.5.1] TELNET Security main menu
[0] Authentication : You configure a security method.. Reference [Table 3.3.5.1]
[1] Cyrptograph : Configure an encryption method according to security methods.
[2] Key : Configure a key of WEP or PSK.
[3] EAP : Configure an EAP Mode according to WPA/WPA2
33
[$] Back: Go to the previous menu.
[#] Main Menu : Go to the main menu.

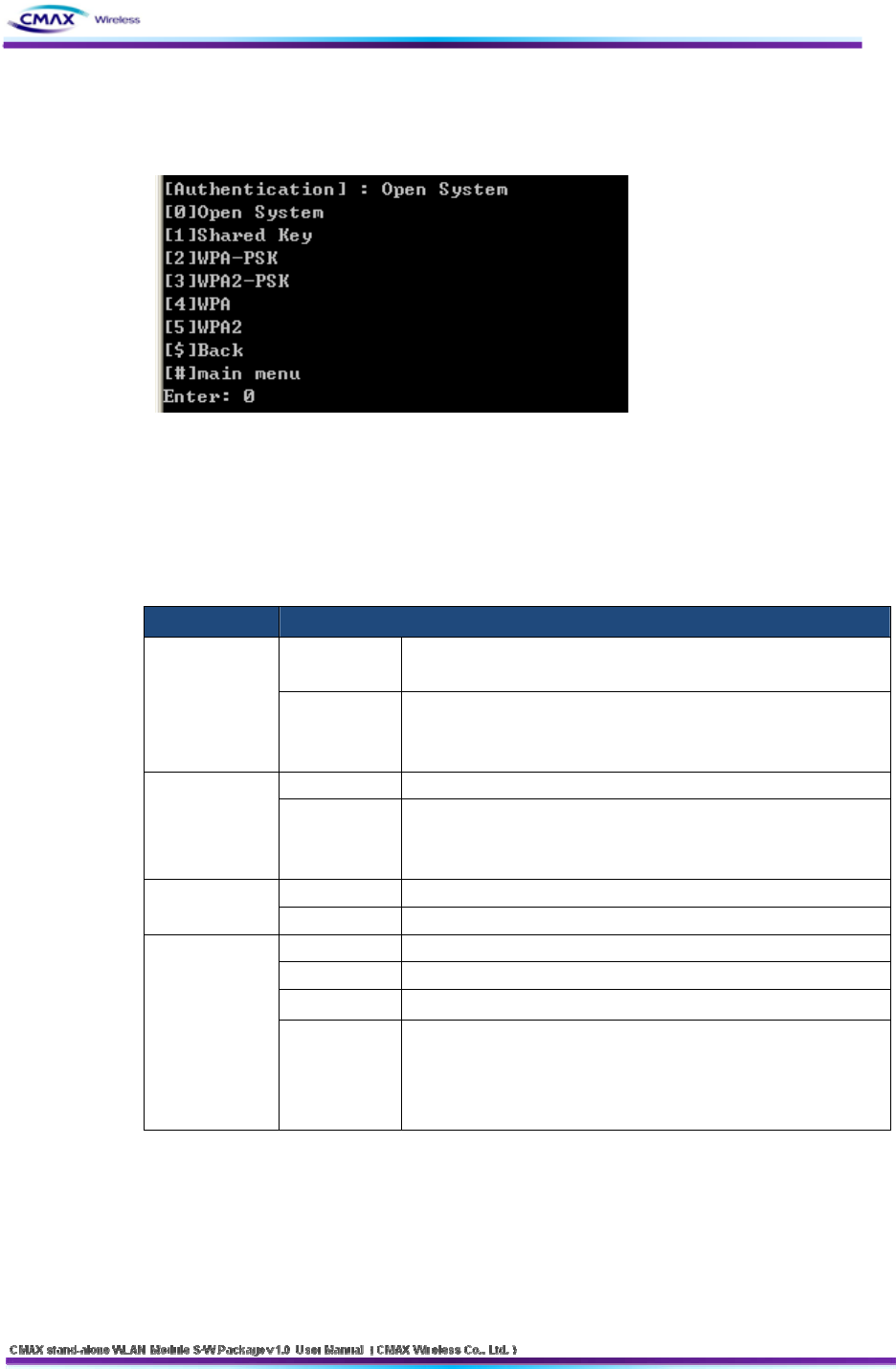

[Figure 3.3.5.2] TELNET Open System Security main menu
[0~5] Authentication : Configure a Security Mode. Reference [Table 3.3.5.1]
[$] Back: Go to the previous menu.
[#] Main Menu : Go to the main menu.
“Authentication" is a function that CMAX module does authenticate to AP through to
wireless
FIELD DESCRIPTION
Cryptograph It should be select NONE or WEP64/128 as the setting of AP to
be access
Open System
WEP Key
You can input the max 26charater,. It Configure to WEPB64/18 if
you input it like the following format.
- WEP64 (5 ASCII, 10 HEX), WEP128 (13 ASCII, 26 HEX)
Cryptograph Select a WEP64/128 same AP’s configuration to be access.
Shared Key WEP Key
You can input the max 26charater,. It Configure to WEPB64/18 if
you input it like the following format.
- WEP64 (5 ASCII, 10 HEX), WEP128 (13 ASCII, 26 HEX)
Cryptograph You should same to configure a TKIP/AES with AP to be access. WPA-PSK /
WPA2-PSK PSK Key You should same to input a TKIP/AES with AP to be access.
Cryptograph You should same to configure a cryptograph with AP to be access.
EAP You should same to configure a EAP Mode with AP to be access.
ID You should Input the ID with configured certificate Server
WPA-TKIP /
WPA2-AES
Password
You should Input the Password with configured certificate Server
However, If EAP Configuration is a EAP-TLS, you should input the
private_key_password that is certificate password that generated
for CMAX module.
[Table 3.3.5.1] Security setting
34

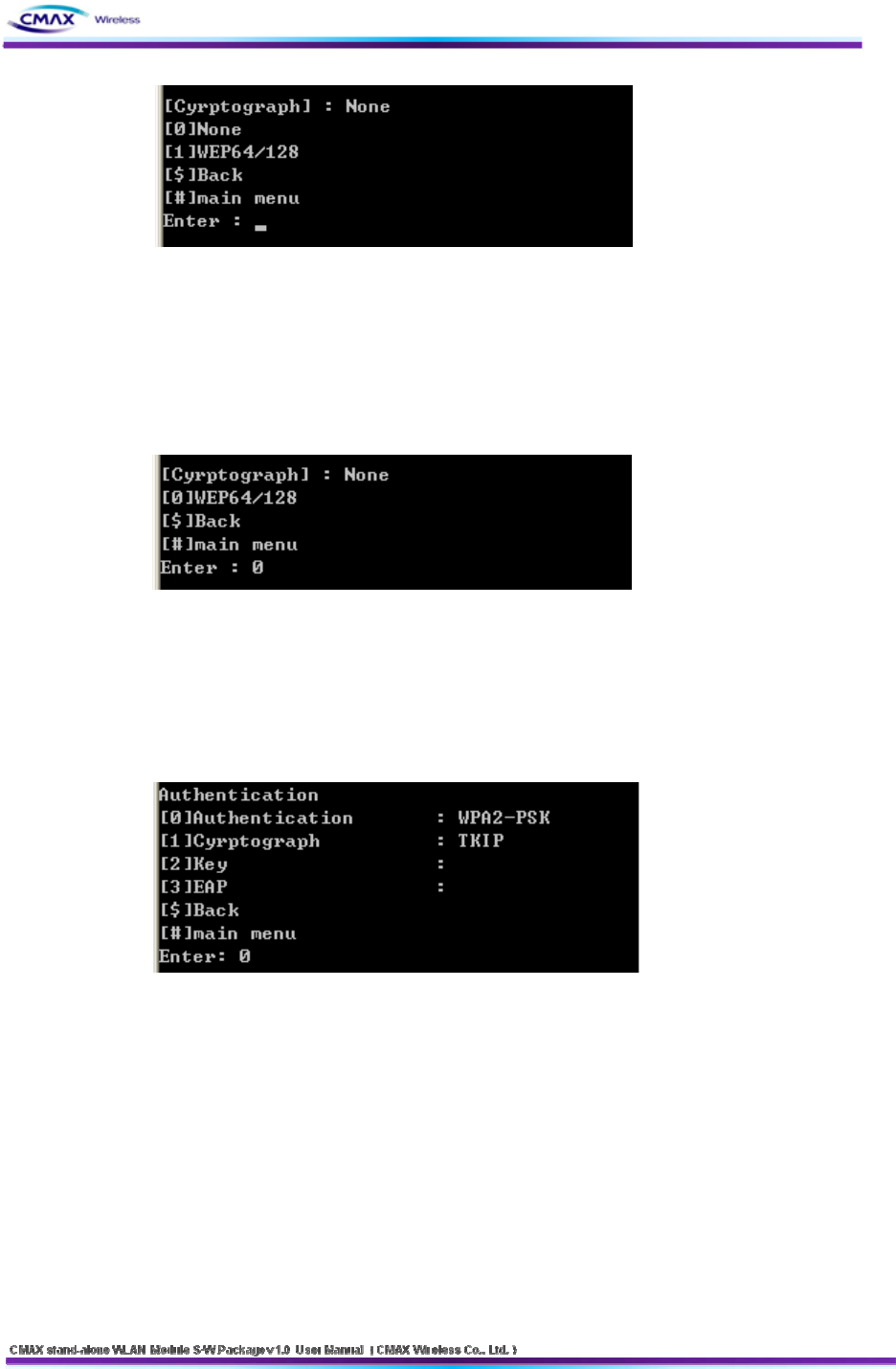

[Figure 3.3.5.3] TELNET Open System Cryptograph menu
[0] Open System : You should select ‘NONE[0] or ‘WEP64/128[1]’
[$] Back: Go to the previous menu.
[#] Main Menu : Go to the main menu.
[Figure 3.3.5.4] TELNET Shared Key Cryptograph menu
[1] Shared Key : You should select ‘WEP64’ or ‘WEP128’
[$] Back: Go to the previous menu.
[#] Main Menu : Go to the main menu.
[Figure 3.3.5.5]TELNET WPA-PSK/WPA2-PSK a detailed menu.
[0] Authentication : you should configure a authentication mode.
Reference [Table 3.3.5.1]
[1] Cyrptograph : You should configure a Cryptograph mode according to authentication
mode
[2] Key : You should a WEP key of PSK Key.
[3] EAP : You should configure a EAP Mode according to WAP/WAP2
[$] Back: Go to the previous menu.
[#] Main Menu : Go to the main menu.
35

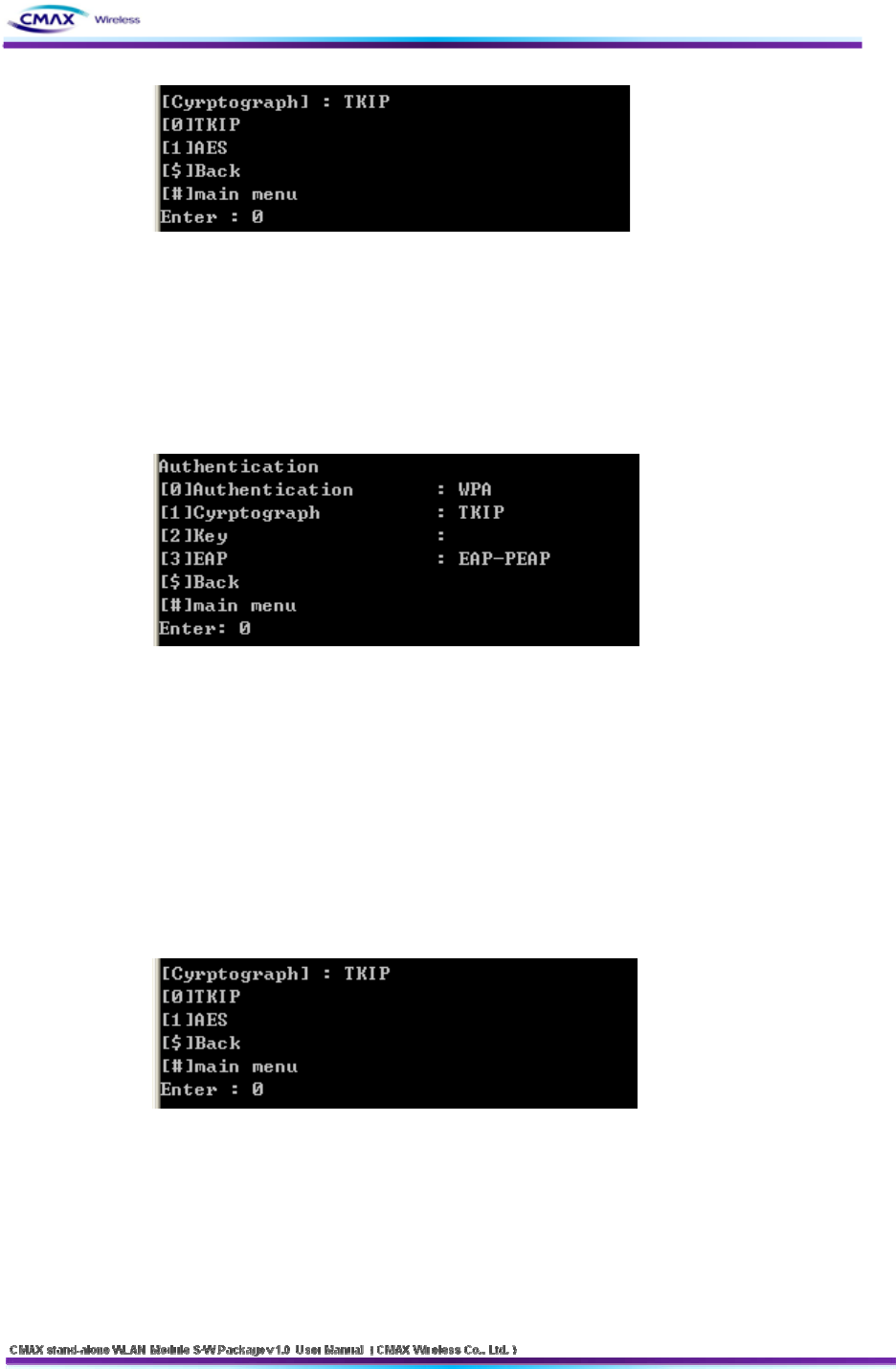

[Figure 3.3.5.6] TELNET WPA-PSK/WPA2-PSK Cryptograph menu
[2] WPA-PSK : You should select a ‘TKIP[0]’ or ‘AES[1]’
[3] WPA2-PSK : You should select a ‘TKIP[0]’ or ‘AES[1]’
[$] Back: Go to the previous menu.
[#] Main Menu : Go to the main menu.
[Figure 3.3.5.7]TELNET WPA/WPA2 a detailed menu.
[0] Authentication : You should configure a authentication method.
Reference [Table 3.3.5.1]
[1] Cyrptograph : Configure an encryption method according to security methods.
[2] Key : Configure a key of WEP or PSK.
[3] EAP : Configure an EAP Mode according to WPA/WPA2
[$] Back: Go to the previous menu.
[#] Main Menu : Go to the main menu.
[Figure 3.3.5.8 ]TELNET WPA/WPA2 Cryptograph menu
Cryptograph : It should be configured a cryptograph method with ‘TKIP[0]’ or ‘AES[1]’
[$] Back: Go to the previous menu.
[#] Main Menu : Go to the main menu.
36

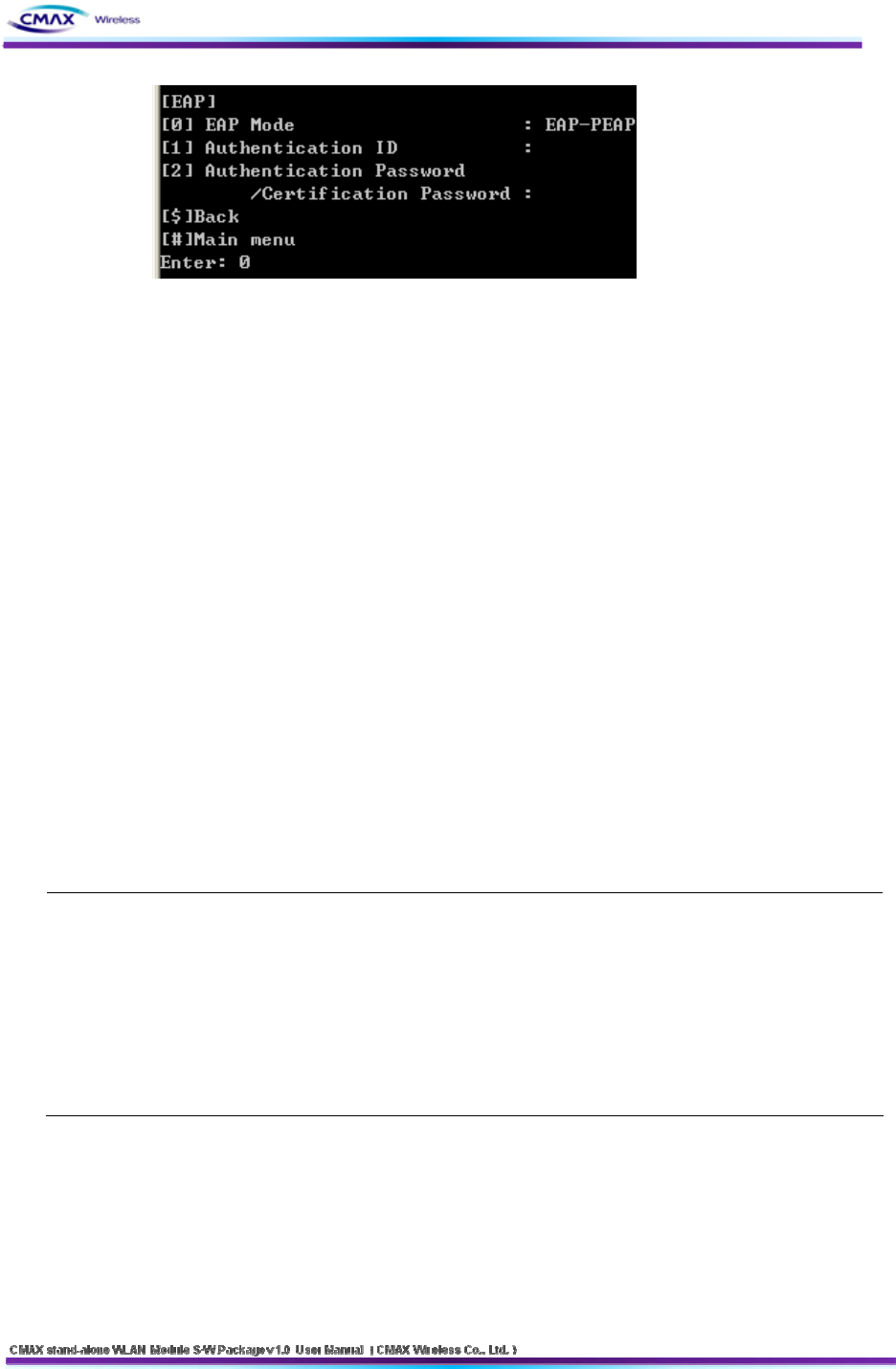

[Figure 3.3.5.9] TELNET EAP Configuration Menu.
[0] EAP Mode: It should be selected same as AP’s EAP mode
[1] EAP ID/PASSWORD: it should be configured same as AP’s EAP ID and password.
[$] Back: Go to the previous menu.
[#] Main Menu : Go to the main menu.
3.3.6 Save
: To save a changed configuration information on CMAX module, select the ‘[5]Save’ in
the configuration main menu.
3.3.7 Exit
: To terminate a TELNET connection, select the ‘[6] Exit’ in the configuration main menu.
3.4 FTP
It is function to Upload or Download 'Config file' for CMAX module configuration by FTP. If
you modify the 'Config file' and upload that, it will be changed CMAX module setup.
Note :
FTP : File Transfer Protocol (FTP) is a standard network protocol used to exchange and
manipulate files over a TCP/IP-based network(between server and client).
Supported FTP command
ls : List contents of remote directory
Get: : Receive config file
Put : Send config file
CAUTION : To Upload a file, don’t use file-extension and use “config” to filename.
3.4.1 FTP Connection
: It should be executed to Microsoft Windows xp Command line.
Execute Windows command
- Microsoft Windows xp’s beginning run input ‘command’
- It should be input command ‘FTP 192.168.192.168 (CMAX module’s IP Address)’
Default : IP Address : 192.168.192.168
37
[Figure 3.4.1.1] FTP Connection Screen
- User ID, User Password 입력 “Enter”를 칩니다.
- It should be input User ID and User password.
Default : User ID : admin User Password : password
3.4.2 Config File list view
: It should be confirmed a file as you input ‘ls’.
[Figure 3.4.2.1] FTP ‘ls’ command executed screen
3.4.3 Config File download
:It should be downloaded a file as you input ‘get config’.
[Figure 3.4.3.1] FTP ‘get config’ command screen
3.4.4 Config File Upload
: It should be uploaded a file as you input ‘put config’. you must use file name as
‘config’.
[Figure 3.4.4.1] FTP ‘put config’ command screen
38
3.4.5 Config File Specification
: Table 3.4.5.1 is downloaded file’s content from CMAX module by ‘get config’
command. To change a configuration value, input without blank in ‘bracket’([ ]).
** Caution!!!
** Do not change the order or contents of the menu.
** Only need to change the settings, please.
[1] System
1. Printer Name: [unknown]
2. Printer Port Num: [9100]
3. User ID: [admin]
4. User Password: [password]
[2] Protocol
1. Task State
1) HTTPS: [0]
2) TELNET: [0]
3) FTP: [0]
4) SNMP: [0]
2. SNMP
1) Community Name (Read): [public]
2) Community Name (Write): [private]
3) Trap IP Address: [0.0.0.0]
4) Trap Community: [public]
[3] Network
1. Network Mode
1) Infra Network(0) / Adhoc(1): [1]
2) Adhoc Channel: [1]
2. SSID: [CMAX_adhoc]
3. Inactivity Time: [0]
4. IP Assignment Method: [1]
5. IP Address: [192.168.192.168]
6. SubnetMask: [255.255.255.0]
7. Gateway: [192.168.192.1]
[4] Authentication
1. Authentication: [0]
2. Cryptograph: [0]
3. EAP Mode: [0]
4. WEP Key: []
5. PSK Key: []
6. Authentification ID: []
7. Authentification Password: []
[Table 3.4.5.1] FTP ‘config’ file’s content
39
Describes in detail how the file should be configure.
[1] System: Configure the system information.
1. Printer Name: Configure the system name.
2. Printer Port Num: Configure the TCP server port.
3. User ID:
Configure the user ID.
4. User Password: Configure the user password.
[2] Protocol: Configure the Application (HTTPS, TELNET, FTP, SNMP) as Enable(1) or Disable(0).
And configure the SNMP connect information.
1. Task State
1) HTTPS: Configure the HTTPS as Enable(1) or Disable(0).(default configuration is HTTP)
2) TELNET: Configure the TELNET as Enable(1) as Disable(0).
3) FTP: Configure the FTP as Enable(1) as Disable(0).
4) SNMP: Configure the SNMP as Enable(1) or Disable(0).
2. SNMP
1) Community Name (Read): Configure the Read mode community..
2) Community Name (Write): Configure the Write mode community.
3) Trap IP Address: If SNMP’s state is Enable(1), Configure the IP address for
Trap message received.
4) Trap Community: If SNMP’s state is Enable(1), Configure the Trap community.
[3] Network: Configure the CMAX module’s Network parameter.
1. Network Mode
1) Infra network(0) / Adhoc(1) : Select a network mode to connect
2) Adhoc Channel: If you selected Adhoc, you select channel(1~11) .
2. SSID: CMAX_adhoc: It should be input SSID as the setting of AP to be access
3. Inactivity Time: It should be configured a time limit keeping connection that without
data communication between client and server.
4. IP Assignment Method: Select DHCP(0) or Manual Alloccation(1)
5. IP Address: If you selected Manual Alloccation(1), you configure a IP Address.
6. SubnetMask: If you selected Manual Alloccation(1), you configure a Subnet Mask.
7. Gateway: If you selected Manual Alloccation(1), you configure a Gateway.
[4] Authentication: It should be configured the Security same as AP's Security to be access.
1. Authentication: Open System(0), Shared Key(1), WPA-PSK(2), WPA-PSK2(3), WPA(4),
WPA2(5)
2. Cryptograph: NONE(0), WEP64/128(1), TKIP(2), AES(3)
3. EAP Mode: EAP-PEAP(0), EAP-TTLS(1), EAP-TLS(2), EAP-LEAP(3)
4. WEP Key: It should be configure the WEB key same as AP’s WEP key.
5. PSK Key: It should be configure the PSK key same as AP’s PSK key.
40
6. Authentication ID: It should be configure the Authentication ID same as AP’s
Authentication ID.
7. Authentication Password: It should be configured the Authentication password same as
AP's Authentication password to be access.
3.5 SNMP
It is managed a network information through SNMP (supported SNMPv1).
Note :
SNMP stands for 'Simple Network Management Protocol' and it is used for network
management.
SNMP is only a protocol to transfer messages so it need the Application program to get Network
management information using SNMP. SNMP has SNMP manager and agent, as in common network
application is composed server and client model. SNMP agent is a part of SNMP module and it is
installed in managed system to collect the network or system information. SNMP manager is also part
of the SNMP module and it request the network information to SNMP agent.
3.5.1 SNMP Connection
: It should be connect a SNMP Agent through SNMP Manager. It is introduced a SNMP
operation at this manual as used SNMP-JManger-v1.0.
SNMP-JManager-v1.0 running
- Input the address(192.168.192.168 , CMAX module’s IP Address) to ‘Agent IP Address’.
Default : IP Address : 192.168.192.168
- Input the Read Community, Write Community and then click “Apply Changes” button.
Default : Read Community : public Write Community : private
41

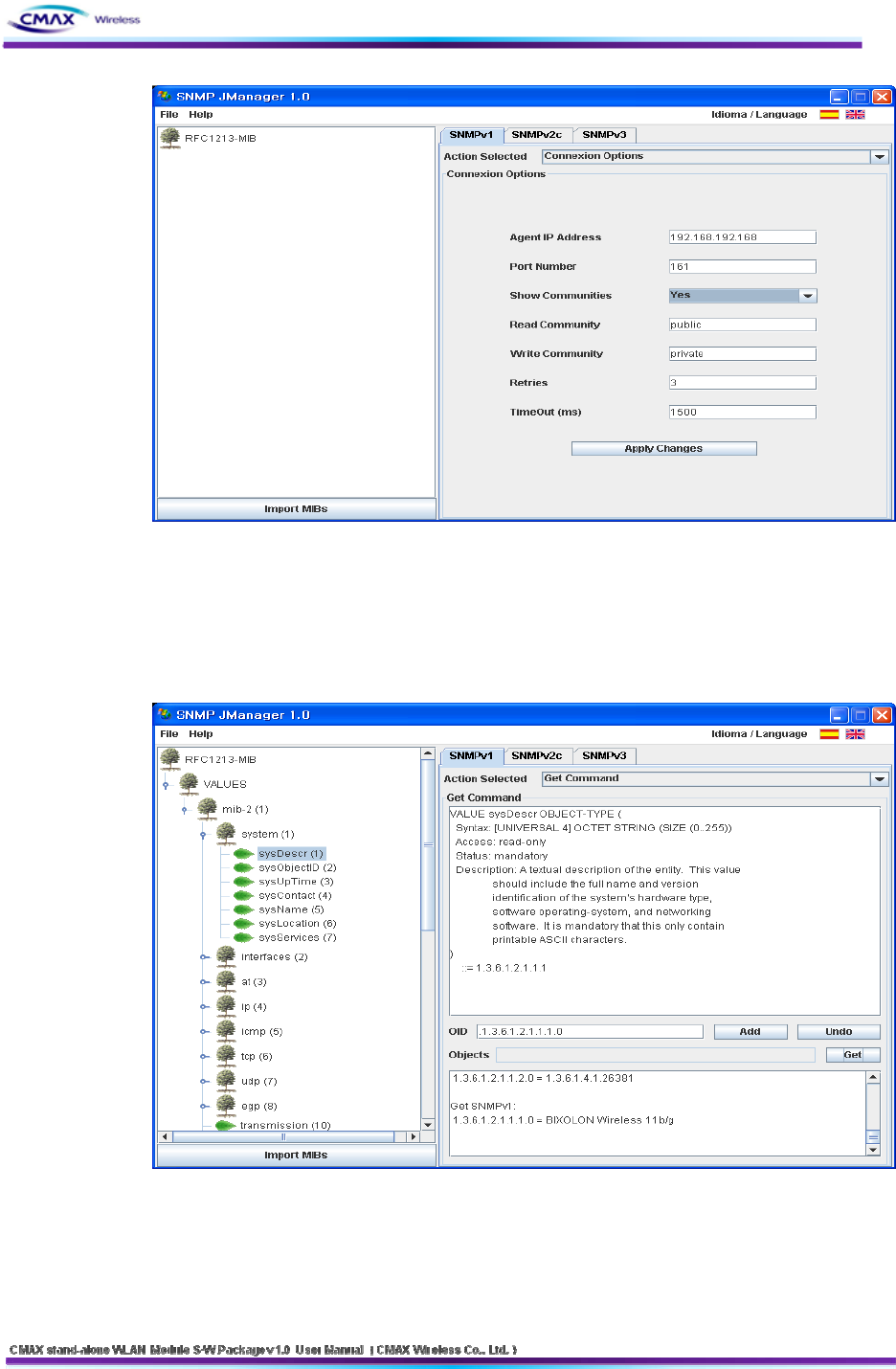

[Figure 3.5.1.1] SNMP Connection configuration screen
3.5.2 SNMP Manager operation test: it is description of basic SNMP operation.
If you selected terminal node to ‘Get Tree’, get this value(client note value).
[Figure 3.5.2.1] SNMP ‘get’ message operation screen
42
Get Next : You can bring the value at trees as selected a terminal node.

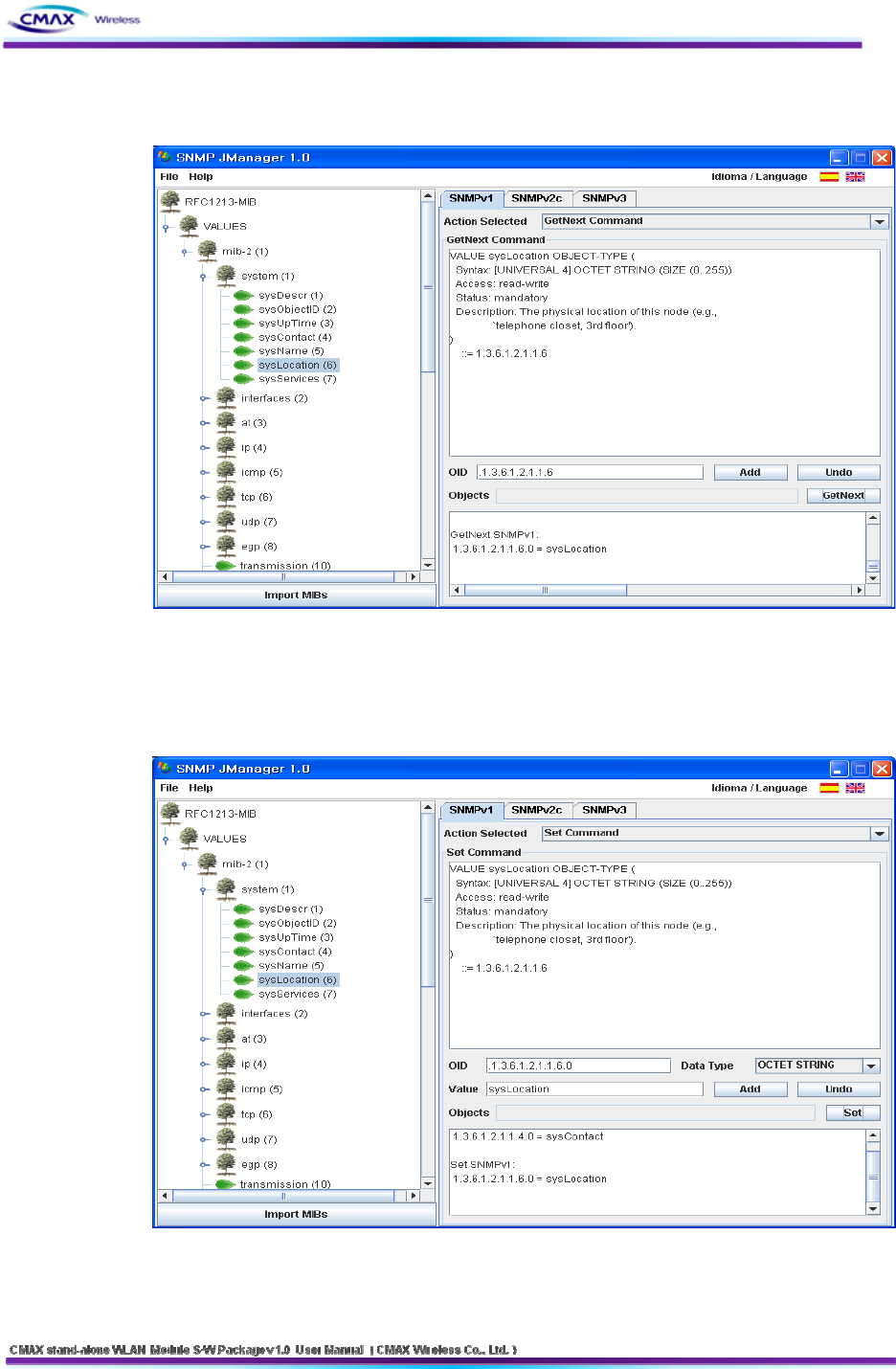

[Figure 3.5.2.2] SNMP ‘getnext’ message opration screen
You can configure the terminal node value to ‘set tree’. (You can set only the contents
had set on "Write")
[Figure 3.5.2.3] SNMP ‘set message operation screen
43

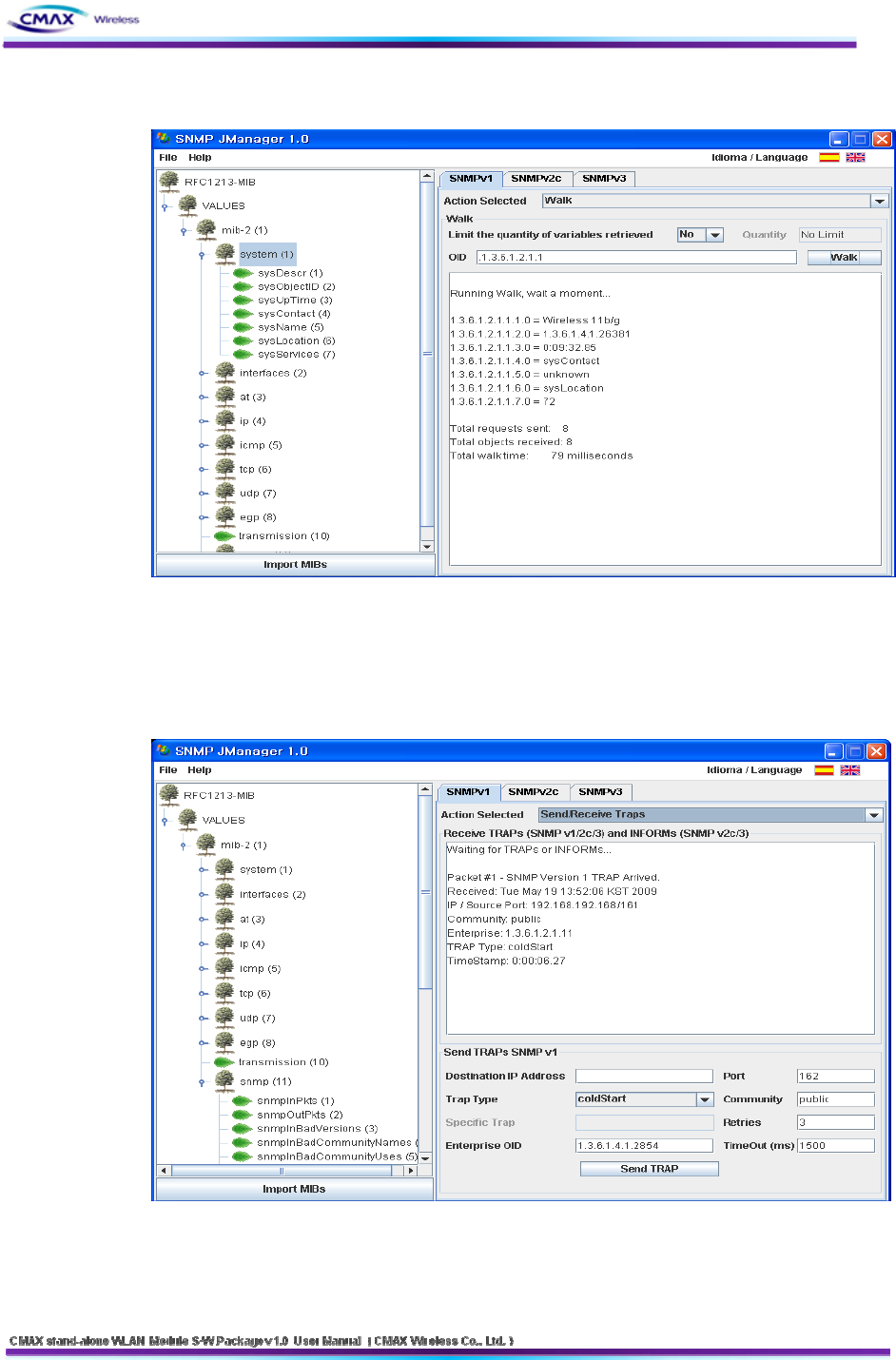

Walk: It can get the all item that terminal node of tree or terminal node of node.
[Figure 3.5.2.4] SNMP ‘walk’ message operation screen
Traps: If a specific event occurs, relevant(in the event) message is transmitted to trap address.
- ColdStart: when a terminal rebooting works, coldstart message is transmitted to trap
address.
[Figure 3.5.2.5] SNMP coldStart message received screen
- AuthenticationFailure: If ‘Read’, ‘Write’ Community is not correct, AuthenticationFailure
message is transmitted to trap address.
44

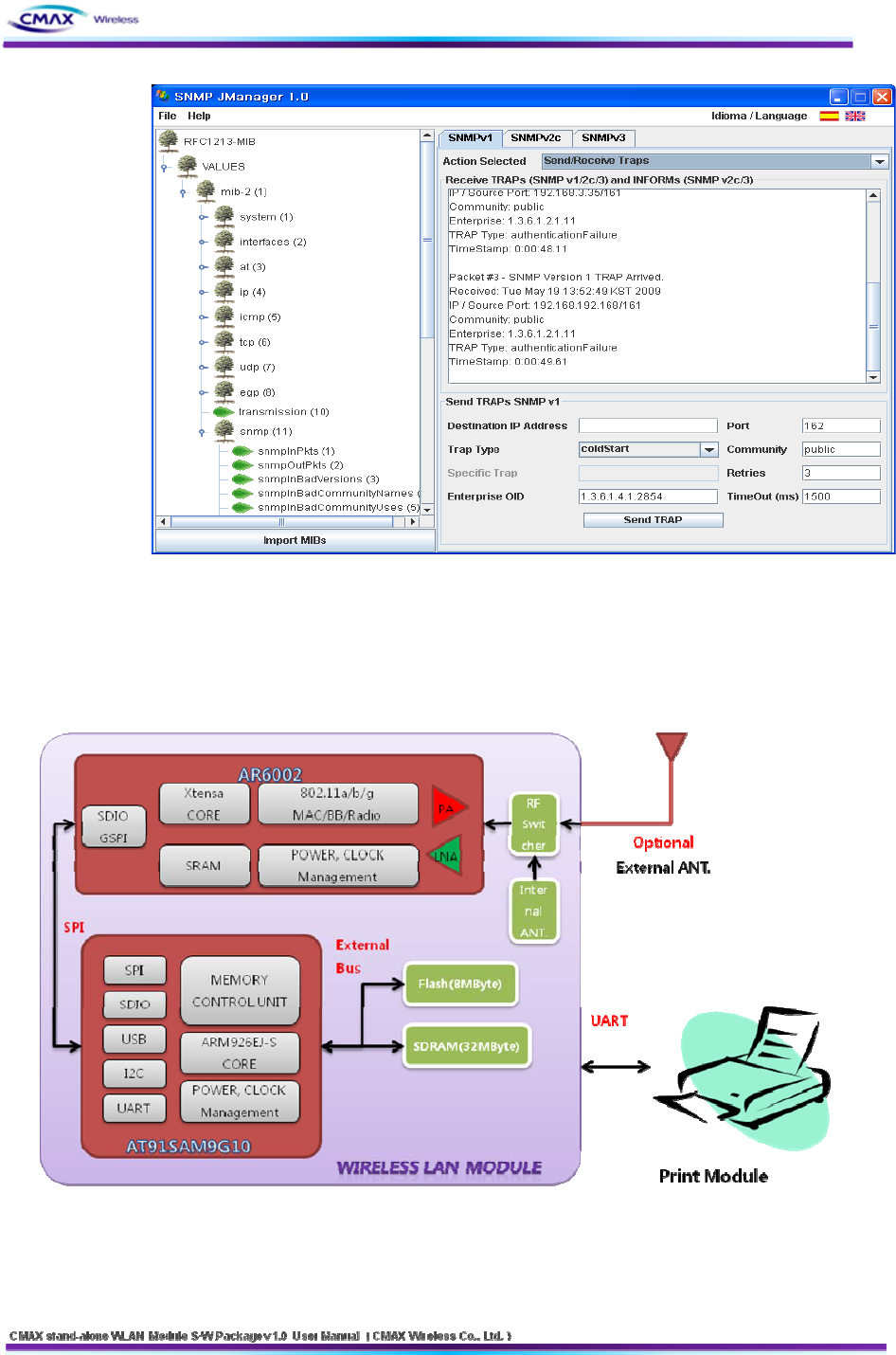

[Figure 3.5.2.6] SNMP AuthenticationFailure message received screen
4. Hardware Block Diagram
[Figure 4.1] Hardware Block Diagram
4.1 Hardware Pin Array
45
NUM NAME IN/OUT DESCRIPTION
1 VCC 3.3V Power
2 VCC 3.3V Power
3 VCC 3.3V Power
4 VCC 3.3V Power
5 WLAN_ID OUT WLAN Module ID
6 DDM IN/OUT Debug USB DDM
7 DDP IN/OUT Debug USB DDP
8 NRST IN H/W RESET
9 RXD IN UART RXD
10 EXT_WLAN_RST IN Factory Reset
11 RTS OUT UART RTS
12 TXD OUT UART TXD
13 Test Point1 IN/OUT Test Point In/Out 1
14 CTS IN UART CTS
15 LED_BLUE OUT BLUE LED Control GPIO
16 GPIO1 IN/OUT General Purpose In/Out 1
17 LED_RED OUT RED LED Control GPIO
18 DRxD IN Debug UART RXD
19 DTxD OUT Debug UART TXD
20 GND GROUND
21 GND GROUND
22 GND GROUND
23 GND GROUND
24 GND GROUND
[Table 4.1.1] Hardware Pin Arry
5. Demo and Test
This chapter explains several examples that it can be used for functional testing of CMAX module.
Test environment is as follows.
5.1 Test environment
5.1.1 Hardware
RS232 serial port with a PC
CMAX module & CMAX test board
PC's COM port and CMAX for the module's serial port to connect the serial cable is required.
5.1.2 Software
46
Configuration Tool of CMAX module
Hyper Terminal( or other Terminal program)
5.2 Start Test
5.2.1 STEP1.
It should be connect to CMAX Test board and PC’s Serial port.
It should be turn on the CMAX test board.
It should be connected the PC to CMAX module through serial interface.
It should be run a Terminal program of PC by connected Serial(ex, HyperTerminal)
5.2.2 STEP2. (Wireless Configuration to between CMAX module and PC).
It should be connected the PC to CMAX module through wireless LAN.
It should be configured the PC’s Network to next value. IP( 192.168.192.XXX),
subnet(255.255.255.0), gateway(192.168.192.1)
It should be confirmed wireless connection of CMAX module and PC by Ping response.
5.2.3 STEP3. (Data Transfer)
It should be run a Terminal program of PC by connected WLAN(ex, HyperTerminal)
It should be input a charater to HyperTerminal.
It should be confirmed a Receive Data on serial Terminal.
[Figure 5.2.3.1] Wireless LAN to Serial
6. Configuration Tool Command List
It should be explained the command for CMAX module and PC through Serial interface and
WLAN.
6.1 Configuration Tool Protocol
6.1.1 Serial Operation Specification
OPERATION SPECIFICATION
1 Configuration Data Get Baud Rate : 115200
47
Hardware Handshaking : CTS/RTS
2 Configuration Data Set Baud Rate : 115200
Hardware Handshaking : CTS/RTS
3 Firmware Upload Baud Rate : 115200
Hardware Handshaking : CTS/RTS
4 Certificate Upload Baud Rate : 115200
Hardware Handshaking : CTS/RTS
5 BSS Info Request Baud Rate : 115200
Hardware Handshaking : CTS/RTS
6 BSS Info Response Baud Rate : 115200
Hardware Handshaking : CTS/RTS
[Table 6.1.1.1] Serial Operation Specification
6.1.2 WLAN Operation Protocol & Port
OPERATION PROTOCOL & PORT
1 Configuration Data Get TCP , 3318
2 Configuration Data Set TCP , 3318
3 Firmware Upload TCP , 3318
4 Certificate Upload TCP , 3318
5 BSS Info Request TCP , 3318
6 BSS Info Response TCP , 3318
7 Printer Search Request UDP , 3337
8 Printer Search Response UDP , 9000
[Table 6.1.2.1] WLAN Operation Protocol & Port
6.2 Serial & WLAN Command
6.2.1 Serial Operation
Serial mode Configuration Tool work should need ‘Start Message’ before sending real
command.
Serial mode Configuration Tool command should change all ‘byte’ to ASCII code. And next
transmit.
Ex : Command Frame
If it changes hexadecimal code to ‘__[I_F]__[IF__GET]’. It is 0x5F, 0x5F, 0x49, 0x49, 0x5F,
0x46, 0x47, 0x5F, 0x5F, 0x5B, 0x49, 0x46, 0x5F, 0x5F, 0x5D, 0x45, 0x54, 0x47’.
It should be transmitted ASCII value that the above hexadecimal value changed
‘0x5F’ is separated ASCII ‘5’(==0x35) and ASCII’F’(==0x46). and then WLAN module send
them by serial interface.
48
ASCII _ [ I F ] G E T
HEX 0x5F 0x5B 0x49 0x46 0x47 0x5D 0x45 0x54
[Table 6.2.1.1] Serial Command ASCII, HEX
Serial Command Sequence

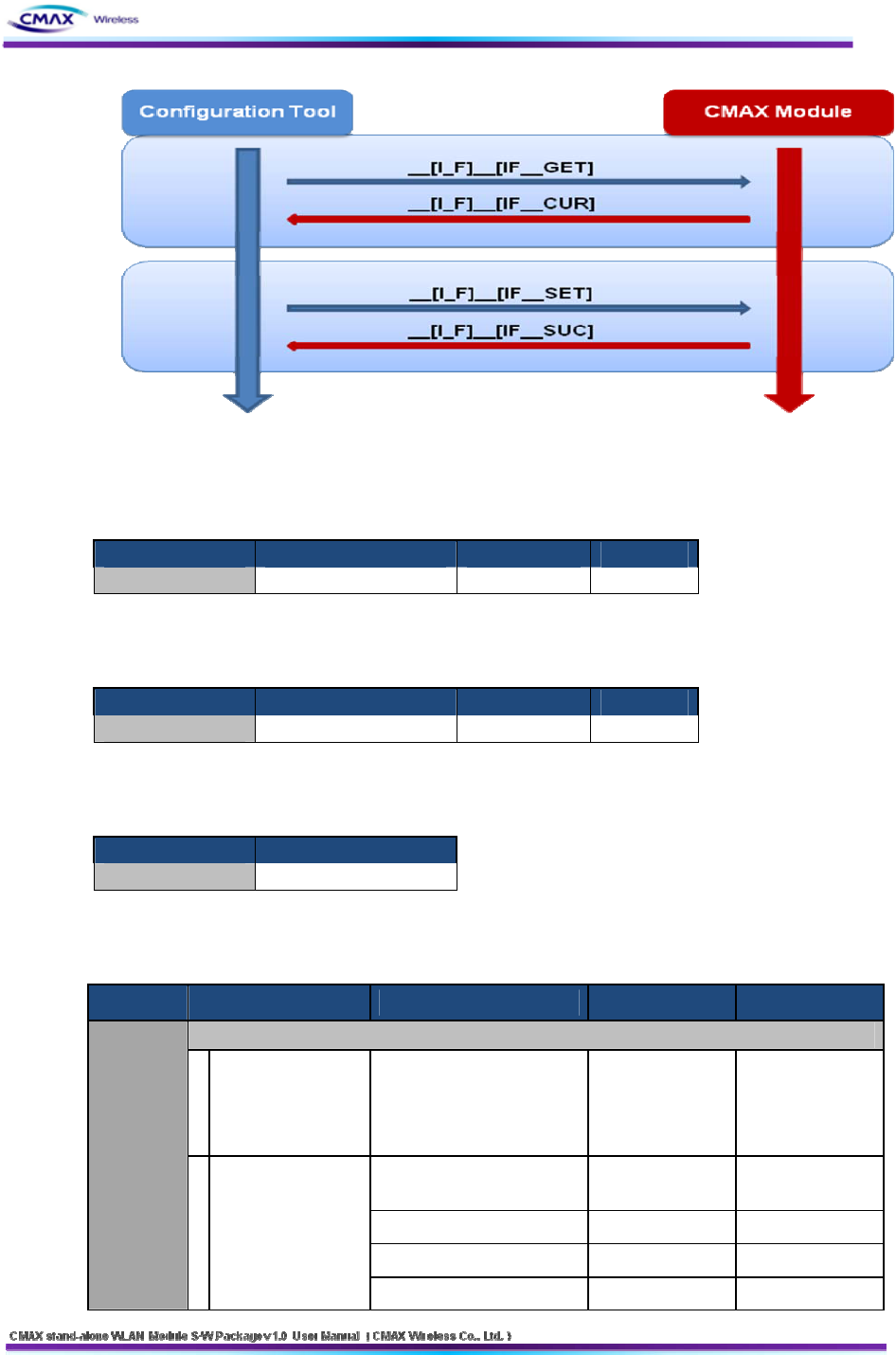

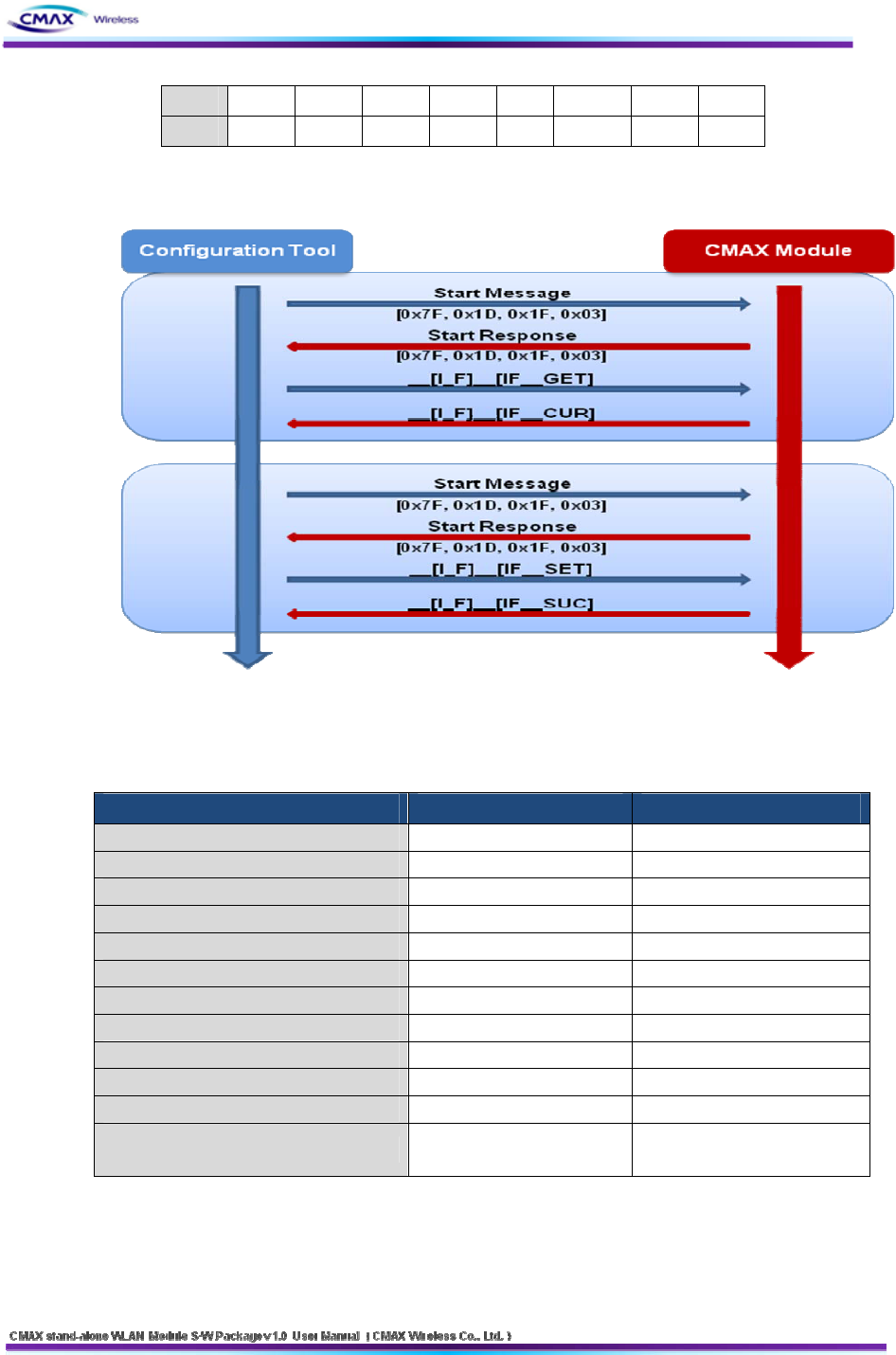

[Figure 6.2.1.1] Serial Command Sequence
Serial Start Message Format
Serial Start Message Value Direction
Configuration Start Message [0x7f, 0x1D, 0x1F, 0x03] Host Device
Configuration Start Response [0x7f, 0x03] Device Host
Firmware Update Start Message [0x80, 0x1D, 0x1F, 0x03] Host Device
Firmware Update Start Response ['S', 'T', 'R', 'T', 0x03] Device Host
CA_CER Update Start Message [0x81, 0x1D, 0x1F, 0x03] Host Device
CA_CER Update Start Response ['S', 'T', 'R', 'T', 0x03] Device Host
CL_KEY Update Start Message [0x82, 0x1D, 0x1F, 0x03] Host Device
CL_KEY Update Start Response ['S', 'T', 'R', 'T', 0x03] Device Host
CL_PEM Update Start Message [0x83, 0x1D, 0x1F, 0x03] Host Device
CL_PEM Update Start Response ['S', 'T', 'R', 'T', 0x03] Device Host
RSSI Request Message [0x85, 0x1D, 0x1F, 0x03] Device Mobile Printer
RSSI response Message [0x1D, 0x49, 0x02]
+ RSSI[2Byte] +[0x03] Mobile Printer Device
[Table 6.2.1.2] Serial Start Message Format
6.2.2 Wireless LAN Operation
Wireless LAN Command Sequence
49
[Figure 6.2.2.1] Wireless LAN Command Sequence
6.2.3 Serial & Wireless LAN Command Format
Request Frame Format
DESCRIPTOR STX (COMMAND CODE) PARAMETER ETX
Length(bytes) 18 Variable 1
[Table 6.2.3.1] Request Frame Format (Serial & WLAN)
Response Frame Format
DESCRIPTOR STX (COMMAND CODE) PARAMETER ETX
Length(bytes) 18 Variable 1
[Table 6.2.3.2] Response Frame Format (Serial & WLAN)
ETX Frame Format
SETTING FORMAT
ETX ETX = 0x03
[Table 6.2.3.3] ETX Frame Format (Serial & WLAN)
STX (Command Code) Frame Format
Function Operation Message Value Size Comment
WLAN Mode Only
1
Search Request
(Host 9000 port
Device 3337
port)
Search Request
CMD("__[I_F]__[PRT_REG]") unsigned char[18]
Search Response
CMD("__[I_F]__[REG_RSP]") unsigned char[18]
WLAN MAC unsigned char[6]
WLAN IP Address unsigned char[4]
Printer
Search
(UDP
setting)
2Search Response
(Device 3337 Port
Host 9000 Port)
WLAN SubNetMask unsigned char[4]
50
WLAN Gateway unsigned char[4]
Printer Port unsigned short[2]
baudrate unsigned char not used
Version unsigned short[2]
DHCP unsigned char
IncativityTime unsigned short[2]
https unsigned char 0 : http, 1 : https
value unsigned short[2] 0x1F 0x00 (fix)
WLAN Mode Only
Search Response
CMD("__[I_F]__[PRT_SET]") unsigned char[18]
WLAN MAC unsigned char[6]
WLAN IP Address unsigned char[4]
WLAN SubNetMask unsigned char[4]
WLAN Gateway unsigned char[4]
Printer Port unsigned short[2]
baudrate unsigned char not used
Version unsigned short[2]
DHCP unsigned char
IncativityTime unsigned short[2]
https unsigned char 0 : http, 1 : https
1
SET Request
(Host 9000 Port
Device 3337
Port)
value unsigned short[2] 0x1F 0x00 (fix)
Search Response
CMD("__[I_F]__[SET_RSP]") unsigned char[18]
WLAN MAC unsigned char[6]
WLAN IP Address unsigned char[4]
WLAN SubNetMask unsigned char[4]
WLAN Gateway unsigned char[4]
Printer Port unsigned short[2]
baudrate unsigned char not used
Version unsigned short[2]
DHCP unsigned char
IncativityTime unsigned short[2]
https unsigned char 0 : http, 1 : https
Printer
SET
(UDP
setting)
2
SET Response
(Device 3337 Port
Host 9000 Port)
Value unsigned short[2] 0x1F 0x00 (fix)
Serial & WLAN Get
Configurati 1 Configuration Get Configuration Get Value unsigned char[18]
51
CMD("__[I_F]__[IF__GET]")
Value
(Host Device) Check sum unsigned char[2]
Configuration Current Value
CMD("__[I_F]__[IF__CUR]") unsigned char[18]
SystemName unsigned char[44]
Region unsigned char Location
NetworkMode unsigned char Infra/Adhoc
IpConfigMode unsigned char Static/DHCP
IP Address unsigned char[4]
SubNetMask unsigned char[4]
Gateway unsigned char[4]
SSID unsigned char[32]
AUTH Mode unsigned char
0:Open, 1:Shared,
2:WPA1PSK,
3:WPA2PSK,
4:WPA1EAP,
5:WPA2EAP
Crypto Mode unsigned char
0:none,
2:WEP64/128,
3:TKIP, 4:AES
WEP Key_0 unsigned char[26]
WEP Key_1 unsigned char[26]
WEP Key_2 unsigned char[26]
WEP Key_3 unsigned char[26]
PSK Key unsigned char[64]
Adhocchannel unsigned char
EAP Mode unsigned char TLS, TTLS, PEAP,
LEAP, FAST
EAP ID unsigned char[32]
EAP PASSWORD unsigned char[32]
USER NAME unsigned char[32] System ID
USER PASSWORD unsigned char[32] System Password
PRINTER Port unsigned char[2]
Dummy unsigned char Channel Search
SysContact unsigned char[64]
SysLocation unsigned char[64]
ipDefaultTTL unsigned char
Dummy unsigned char powersave
on
(configurati
on start
message) 2Configuration
Current Value
(Device Host)
isWebSSL unsigned char
52
isTelnet unsigned char
isFTP unsigned char
isSNMP unsigned char
isSNMPTrap unsigned char
SNMPSetCommunity unsigned char[16]
SNMPGetCommunity unsigned char[16]
SNMPTrapCommunity unsigned char[16]
TrapIP unsigned char[4]
IncativityTime unsigned char[3]
Check sum unsigned char[2]
FAIL
CMD("__[I_F]__[___FAIL]") unsigned char[18] Fail Response
EMessage FAIL
(Host Device) Check sum unsigned char[2]
Serial & WLAN
BSS Info Request
CMD("__[I_F]__[BSS_REQ]") unsigned char[18]
1
BSS Information
Request
(Host Device) Check sum unsigned char[2]
BSS Info Response
CMD("__[I_F]__[BSS_RSP]") unsigned char[18]
SSID Type unsigned char
SSID Length unsigned char
SSID Value valiable(MAX 32)
BSSID Type unsigned char
BSSID length unsigned char
BSSID Value unsigned char[6]
NetworkMode unsigned char
RSSI unsigned char[2]
Maximum
MessageSize :
5KByte
(MAX AP : 100)
Security unsigned char
None 0, WEP64 3,
WEP128 3, WPA1
4, WPA2 8
2
BSS Information
Response
(Device Host)
Check sum unsigned char[2]
FAIL
CMD("__[I_F]__[___FAIL]") unsigned char[18]
BSS
Information
(configurati
on start
message)
EMessage FAIL
(Host Device) Check sum unsigned char[2]
Fail Response
Serial & WLAN
System Request
CMD("__[I_F]__[SYS_REQ]") unsigned char[18]
1Connect Request
(Host Device) Check sum unsigned char[2]
Get Info
2 Connect Request Search Request unsigned char[18]
53
CMD("__[I_F]__[SYS_RSP]")
Firmware version unsigned char[16]
Update date unsigned char[32]
MAC Address unsigned char[6]
(Device Host)
Check sum unsigned char[2]
Serial & WLAN
Configuration Set Value
CMD("__[I_F]__[IF__SET]") unsigned char[18]
SystemName unsigned char[44]
Region unsigned char Location
NetworkMode unsigned char Infra/Adhoc
IpConfigMode unsigned char Static/DHCP
IP Address unsigned char[4]
SubNetMask unsigned char[4]
Gateway unsigned char[4]
SSID unsigned char[32]
AUTH Mode unsigned char
0:Open, 1:Shared,
2:WPA1PSK,
3:WPA2PSK,
4:WPA1EAP,
5:WPA2EAP
Crypto Mode unsigned char
0:none,
2:WEP64/128,
3:TKIP, 4:AES
WEP Key_0 unsigned char[26]
WEP Key_1 unsigned char[26]
WEP Key_2 unsigned char[26]
WEP Key_3 unsigned char[26]
PSK Key unsigned char[64]
Adhocchannel unsigned char
EAP Mode unsigned char
EAP ID unsigned char[32]
EAP PASSWORD unsigned char[32]
USER NAME unsigned char[32]
USER PASSWORD unsigned char[32]
PRINTER Port unsigned char[2]
Dummy unsigned char Channel Search
SysContact unsigned char[64]
Set
Configurati
on
(configurati
on start
message)
1Configuration Set
Value
(Host Device)
SysLocation unsigned char[64]
54
ipDefaultTTL unsigned char
Dummy unsigned char
isWebSSL unsigned char
isTelnet unsigned char
isFTP unsigned char
isSNMP unsigned char
isSNMPTrap unsigned char
SNMPSetCommunity unsigned char[16]
SNMPGetCommunity unsigned char[16]
SNMPTrapCommunity unsigned char[16]
TrapIP unsigned char[4]
IncativityTime unsigned char[3]
Check sum unsigned char[2]
SUCCESS
CMD("__[I_F]__[IF__SUC]") unsigned char[18]
2
Message
SUCCESS(Device
Host) Check sum unsigned char[2]
FAIL
CMD("__[I_F]__[___FAIL]") unsigned char[18]
EMessage FAIL
(Host Device) Check sum unsigned char[2]
Serial & WLAN
FW Data
CMD( "__[I_F]__[FW_DATA]") unsigned char[18]
FW Data Length unsigned char[8]
FW Data valiable
1FW Data Message
(Host Device)
Check sum unsigned char[2]
SUCCESS
CMD("__[I_F]__[IF__SUC]") unsigned char[18]
2Message SUCCESS
(Device Host) Check sum unsigned char[2]
FW END
CMD("__[I_F]__[FW__END]") unsigned char[18]
3FW END Message
(Host Device) Check sum unsigned char[2]
SUCCESS
CMD("__[I_F]__[IF__SUC]") unsigned char[18]
4Message SUCCESS
(Device Host) Check sum unsigned char[2]
FAIL
CMD("__[I_F]__[___FAIL]") unsigned char[18]
Message FAIL
(Host Device) Check sum unsigned char[2]
Firmware
Upload
E
FW CANCEL
Request
FW CRC
ERROR("__[I_F]__[FW_XREQ]") unsigned char[18]
55
(Host Device) Check sum unsigned char[2]
FW CRC
ERROR("__[I_F]__[FW_XRSP]") unsigned char[18]
FW CANCEL
Response
(Device Host) Check sum unsigned char[2]
FW CRC
ERROR("__[I_F]__[CRC_ERR]") unsigned char[18]
FW CRC ERR
Message
(Host Device) Check sum unsigned char[2]
Serial Mode Only
Certificate Data
CMD("__[I_F]__[FW_CERT]") unsigned char[18]
Certificate Size unsgiend char[8]
Cerifiacate Data valiable
1
Certificate Data
Message
(Host Device)
Check sum unsigned char[2]
Max 500byte
Certificate Data END
CMD("__[I_F]__[CERTEND]") unsigned char[18]
Certificate Size unsgiend char[8]
Cerifiacate Data valiable Max 500byte
2
Certificate Data End
Message
(Host Device)
Check sum unsigned char[2]
SUCCESS
CMD("__[I_F]__[IF__SUC]") unsigned char[18]
Certificate
(CA, Client
Key, Client
PEM, FAST
PAC)
Upload
3Message SUCCESS
(Device Host) Check sum unsigned char[2]
Success Response
WLAN Mode Only
CA Data
CMD("__[I_F]__[CA_CERT]") unsigned char[18]
CA Data Size unsgiend char[8]
CA Data valiable Max 500byte
1CA Data Message
(Host Device)
Check sum unsigned char[2]
Certificate Data END
CMD("__[I_F]__[CERTEND]") unsigned char[18]
Certificate Size unsgiend char[8]
Cerifiacate Data valiable Max 500byte
2
Certificate Data End
Message
(Host Device)
Check sum unsigned char[2]
SUCCESS
CMD("__[I_F]__[IF__SUC]") unsigned char[18]
CA
Upload
3Message SUCCESS
(Device Host) Check sum unsigned char[2]
Success Response
WLAN Mode Only
Client Key Data
CMD("__[I_F]__[CK_CERT]") unsigned char[18]
Client Key Data Size unsgiend char[8]
Client Key
Upload
1Client Key Data
Message
(Host Device)
Client Key Data Data valiable Max 500byte
56
Check sum unsigned char[2]
Certificate Data END
CMD("__[I_F]__[CERTEND]") unsigned char[18]
Certificate Size unsgiend char[8]
Cerifiacate Data valiable Max 500byte
2
Certificate Data End
Message
(Host Device)
Check sum unsigned char[2]
SUCCESS
CMD("__[I_F]__[IF__SUC]") unsigned char[18]
3Message SUCCESS
(Device Host) Check sum unsigned char[2]
Success Response
WLAN Mode Only
Client PEM Data
CMD("__[I_F]__[CP_CERT]") unsigned char[18]
Client PEM Data Size unsgiend char[8]
Client PEM Data Data valiable Max 500byte
1
Client PEM Data
Message
(Host Device)
Check sum unsigned char[2]
Certificate Data END
CMD("__[I_F]__[CERTEND]") unsigned char[18]
Certificate Size unsgiend char[8]
Cerifiacate Data valiable Max 500byte
2
Certificate Data End
Message
(Host Device)
Check sum unsigned char[2]
SUCCESS
CMD("__[I_F]__[IF__SUC]") unsigned char[18]
Client PEM
Upload
3Message SUCCESS
(Device Host) Check sum unsigned char[2]
Success Response
WLAN Mode Only
FAST PAC Data
CMD("__[I_F]__[FP_CERT]") unsigned char[18]
FAST PAC Data Size unsgiend char[8]
FAST PAC Data Data valiable Max 500byte
1
FAST PAC Data
Message
(Host Device)
Check sum unsigned char[2]
Certificate Data END
CMD("__[I_F]__[CERTEND]") unsigned char[18]
Certificate Size unsgiend char[8]
Cerifiacate Data valiable Max 500byte
2
Certificate Data End
Message
(Host Device)
Check sum unsigned char[2]
SUCCESS
CMD("__[I_F]__[IF__SUC]") unsigned char[18]
FAST PAC
Upload
3Message SUCCESS
(Device Host) Check sum unsigned char[2]
Success Response
[Table 6.2.3.4] STX Command Frame Format (Serial & WLAN)
57
7. Technical Support, Warranty, and Precaution
7.1 Technical Support
If you have any question regarding operation of the product, visit the message board on
CMAX Wireless’s web site or send us an email at the following address:
 E-mail: support@cmaxwireless.com
 For more information, visit our website at http://www.cmaxwireless.co.kr
7.2 Warranty
7.2.1 Refund
Upon the customer’s request to refund the product within two weeks after purchase,
CMAX Wireless will refund the product.
7.2.2 Free Repair Services
For product failures occurring within one year after purchase, CMAX Wireless provides
free repair services or exchange the product. However, if the product failure is due to
user’s fault, repair service fees will be charged or the product will be replaced at user’s
expense.
7.2.3 Charged Repair Services
For product failures occurring after the warranty period (one year) or resulting from
user’s fault, repair service fees will be charged and the product will be replaced at user’s
expense.
7.3 Precaution
CMAX Wireless is not responsible for product failures occurring due to user’s alternation
of the product.
Specifications of the product are subject to change without prior notice for performance
improvement.
CMAX Wireless does not guarantee successful operation of the product if the product
was used under conditions deviating from the product specifications.
58
Reverse engineering of firmware and applications provided by CMAX Wireless is
prohibited.
Use of firmware and applications provided by CMAX Wireless for purposes other than
those for which they were designed is prohibited.
Do not use the product in an extremely cold or hot place or in a place where vibration is
severe.
Do not use the product in an environment in which humidity is high or a lot of oil exists.
Do not use the product where there is caustic or combustible gas.
CMAX Wireless does not guarantee normal operation of the product under the
conditions a lot of noise exists.
Do not use the product for a purpose that requires exceptional quality and reliability
relating to user’s injuries or accidents - aerospace, aviation, health care, nuclear power,
transportation, and safety purposes.
CMAX Wireless is not responsible for any accident or damage occurring while using the
product.
7.4 USA-Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy. If not installed and used in
accordance with the instructions, it may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by tuning the equipment off and on, the user is encouraged to try
and correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the distance between the equipment and the receiver.
- Connect the equipment to outlet on a circuit different from that to which the receiver is
59
connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
7.4.1 Labeling
FCC ID: U5MCM-MS300
The proposed with FCC ID label format is to be placed on the module. If FCC ID is not
visible when the module is installed into the system, “Contains FCC ID: ” shall be placed
on the outside of final host system.
Caution: Exposure to Radio Frequency Radiation.
To comply with FCC RF exposure compliance requirements, a separation distance of at
least 20 cm must be maintained between the antenna of this device and all persons.
COPYRIGHT NOTICE
Copyright CMAX Wireless co., Ltd. All rights Reserved.
For more information, visit our website at http://www.cmaxwireless.co.kr

Navigation menu
