3.1 INTRODUCTION
This section contains information concerning the operation procedures for the BK Radio DMH
APCO Project 25 digital mobile radios. To meet backwards compatibility as defined by the
APCO Project 25 standard, the DMH digital mobile radio provides users the ability to
interoperate with narrow or wide band analog channels as well as digital systems. Please
take a moment to read the information in this manual so you can get optimum performance
from your new radio.
3.1.1 FEATURES
• APCO Project 25 FDMA Common Air Interface Compatible
• True Mixed-Mode Operation
• RX – Automatically Detect Analog or Digital Signals
• TX – Optional Auto-Respond in Last-Received Mode
• APCO Project 25 Conventional Operation
• Group Calls
• Emergency Group Calls
• Unit-To-Unit Calls
• User-Programmable Call List
• Programmable Push Buttons
• Programmable Microphone Keypad Menu
• DTMF/ANI
• Transmit Time-Out Timer
• Group Scan
• Scan Delay
• Talkback Scan
• Nuisance Channel Delete
• Dual-Priority Scan with Channel Guard
• Alphanumeric Display
• Up to 400 Channels Available in 25 Groups of 16 Channels
• 2.5 kHz Interstitial Frequency Capability
3.2 FCC REQUIREMENTS
Your radio must be properly licensed by the Federal Communications Commission prior to
use. Your BK Radio dealer can assist you in meeting these requirements. Your dealer will
program each radio with your authorized frequencies, signaling codes, etc., and will be there
to meet your communications needs as your system expands.
Operation DMH Series VHF Radio
Page 3-2 BK RADIO
3.2.1 RF ENERGY EXPOSURE AWARENESS AND CONTROL INFORMATION, AND
OPERATIONAL INSTRUCTIONS FOR FCC OCCUPATIONAL USE REQUIREMENTS
BEFORE USING YOUR MOBILE 2-WAY RADIO, READ THE INFORMATION
BELOW WHICH CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR
SAFE USAGE AND RF ENERGY AWARENESS AND CONTROL
INFORMATION FOR COMPLIANCE WITH RF ENERGY EXPOSURE LIMITS
IN APPLICABLE NATIONAL AND INTERNATIONAL STANDARDS.
NOTICE: This radio is intended for use in occupational/controlled
conditions, where users have full knowledge of their exposure
and can exercise control over their exposure to meet FCC
limits. This radio device is NOT authorized for general
population, consumer, or any other use.
This 2-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to
provide communications between two or more users over a distance. It uses radio frequency
(RF) energy or radio waves to send and receive calls. RF energy is one form of
electromagnetic energy; other forms include, but are not limited to, sunlight and x-rays. RF
energy, however, should not be confused with these other forms of electromagnetic energy,
which when used improperly, can cause biological damage. Very high levels of x-rays, for
example, can damage tissues and genetic material.
Experts in science, engineering, medicine, health and industry work with organizations to
develop standards for exposure to RF energy. These standards provide recommended levels
of RF exposure for both workers and the general public. These recommended RF exposure
levels include substantial margins of protection. All 2-way radios are designed,
manufactured, and tested to ensure they meet government established RF exposure levels.
In addition, manufacturers also recommend specific operating instructions to users of 2-way
radios.
These instructions are important because they inform users about RF energy exposure and
provide simple procedures on how to control it. Please refer to the following WEBSITES for
more information on what RF energy exposure is and how to control your exposure to assure
compliance with established RF exposure limits.
http://www.fcc.gov/oet/rfsafety/rf-faqs.html
http://www.osha.gov/SLTC/radiofrequencyradiation/index.html
3.2.2 FEDERAL COMMUNICATIONS COMMISSION REGULATIONS
The FCC rules require manufacturers to comply with the FCC RF energy exposure limits for
mobile 2-way radios before they can be marketed in the U.S. When 2-way radios are used
as a consequence of employment, the FCC requires users to be fully aware of and able to
control their exposure to meet occupational requirements. Exposure awareness can be
facilitated by the use of a product label directing users to specific user awareness
information. Your BK Radio 2-way radio has an RF exposure product label. Also, your BK
Radio owner’s and service manuals include information and operating instructions required
to control your RF exposure and to satisfy compliance requirements.
Operation DMH Series VHF Radio
BK RADIO Page 3-3
3.2.3 COMPLIANCE WITH RF EXPOSURE STANDARDS
Your BK Radio 2-way radio is designed and tested to comply with a number of national and
international standards and guidelines (listed below) for human exposure to radio frequency
electromagnetic energy. This radio complies with the IEEE and ICNIRP exposure limits for
occupational/controlled RF exposure environment at operating duty factors of up to 50% talk-
50% listen and is authorized by the FCC for occupational use only. In terms of measuring RF
energy for compliance with the FCC exposure guidelines, your radio antenna radiates
measurable RF energy only while it is transmitting (during talking), not when it is receiving
(listening) or in Standby Mode.
Your BK Radio 2-way radio complies with the following RF energy exposure standards and
guidelines:
• United States Federal Communications Commission, Code of Federal Regulations; 47
CFR §§ 1.1307, 1.1310, 2.1091 and 2.1093
• American National Standards Institute (ANSI) / Institute of Electrical and Electronic
Engineers (IEEE) C95. 1-1992
• Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition
3.2.4 INDUSTRY CANADA COMPLIANCE
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de la classe B est conforme à la norme NMB-003 Canada.
3.2.4 RF EXPOSURE COMPLIANCE AND CONTROL GUIDELINES AND OPERATING
INSTRUCTIONS
To control exposure to yourself and others and to ensure compliance with the RF exposure
limits, always adhere to the following procedures.
Guidelines:
• User awareness instructions must accompany device when transferred to other
users.
• Do not use this device if the operational requirements described herein are not
met.
Operating Instructions:
• Transmit no more than the rated duty factor of 50% of the time. To transmit
(talk), push the Push-To-Talk (PTT) button. The red LED will illuminate when the
radio is transmitting. To receive calls, release the PTT button. The red LED will
extinguish when the radio stops transmitting. Transmitting 50% of the time, or less,
is important because this radio generates measurable RF energy exposure only
when transmitting (in terms of measuring for standards compliance).
• Transmit only when persons around the vehicle are at least 3 feet (90
centimeters) away from the vehicle with a properly installed antenna. This
separation distance will ensure that there is sufficient distance from a properly
Operation DMH Series VHF Radio
Page 3-4 BK RADIO

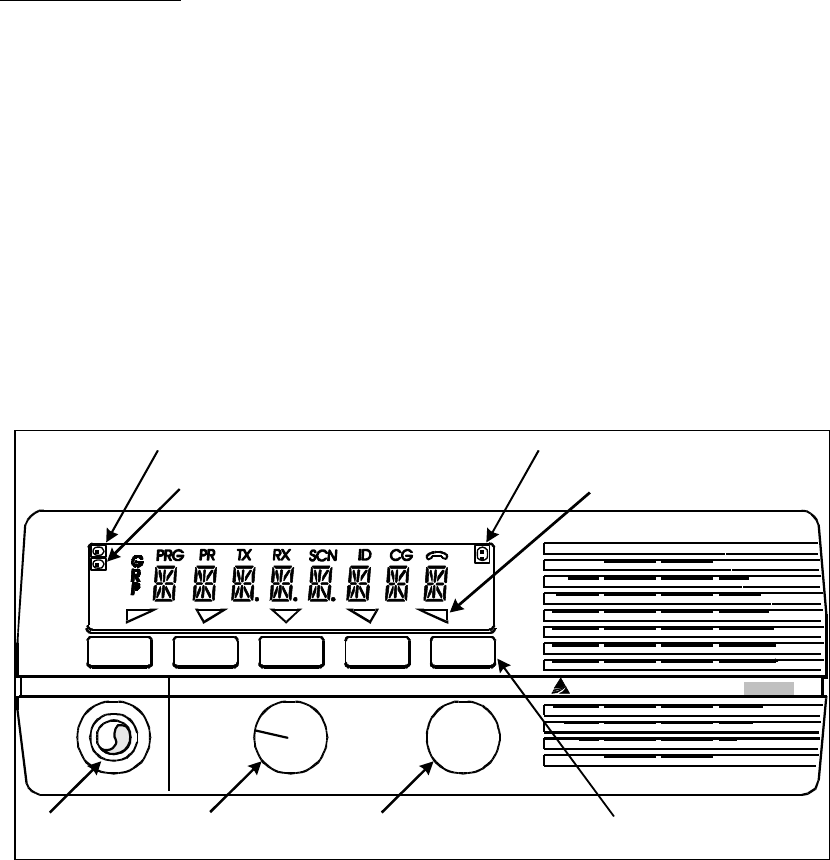

BK RADIO
SCN PRI GRP SQLMON
VOL
OFF - CH GMH
Transmit Indicator
Priority Indicator
Busy Channel Light Function Button
On/Off Indicators
Display Dimming Sensor
Function Buttons
Channel Selector
Knob
On/Off
Volume Knob
Microphone
Connector
installed (according to installation instructions) externally-mounted antenna to
satisfy the RF exposure requirements in the standards listed above.
CONTACT INFORMATION
For additional information on exposure requirements or other information, visit website
http://www.relm.com.
3.3 SAFETY PRECAUTIONS
• Do not operate the transmitter in close proximity to blasting caps.
• Do not operate the radio in an explosive atmosphere (petroleum fuels, solvents, dust,
etc.) unless your radio is an intrinsically safe model designed for such use.
• Do not operate the transmitter if a person outside the vehicle is less than three feet from
the antenna or touching the antenna.
3.4 RADIO CONTROLS
DMH
Operation DMH Series VHF Radio
BK RADIO Page 3-5
3.5 BASIC OPERATION
3.5.1 RECEIVE
Turn power on by pushing and releasing the Volume knob. The radio will beep,
indicating that it has passed its self test and is operational.
Set volume by pressing the [MON] button to hear squelch noise. Turn the Volume
knob to set a comfortable volume level. Press the [MON] button again to stop
squelch noise.
Select a channel group (if applicable) by pressing the [GRP] button and turning the
Channel Selector knob. Press the [GRP] button again to return to Channel Select
mode.
Select a channel by turning the Channel Selector knob. After reaching the highest
number, the radio wraps to Channel 1.
The display can show channel numbers (numeric mode), channel labels
(alphanumeric mode), or receive and transmit frequencies. The Display mode and
Channel Labels are programmed by the technician along with group labels (if
applicable) and channel frequencies. The display shows slightly different indications
during Channel Scan and Priority Scan operation in alphanumeric and numeric
modes.
3.5.2 TRANSMIT
Press the PTT (Push To Talk) switch on the microphone. The TX annunciator
appears on the display and the red Transmit indicator illuminates while the PTT is
pressed. Talk in a normal voice with the microphone approximately one to two inches
from your mouth. Release the PTT switch to stop transmitting.
If the TX annunciator does not appear and a tone is heard, you are on a receive-only
channel or the channel is busy (if Busy Channel Lockout is enabled). Turn the
Channel Selector knob to an authorized transmit channel or wait until the channel is
clear (if Busy Channel Lockout is installed).
If the length of your transmission exceeds the preset Time-Out Timer setting, the
transmitter automatically shuts off and a tone sounds. To continue the transmission,
release the PTT switch, and then press it again and continue talking.
3.6 CHANNEL GUARD OPERATION
Channel Guard allows one radio or group of radios to be selectively called within a
system. If the radio has been programmed with Channel Guard, use the following
receive and transmit instructions.
3.6.1 ANALOG SQUELCH CONTROL
Sub-audible signaling (CTCSS/CDCSS) is used to allow a group of radios to be
selectively called in a system. Programming the receive guard equal to zero allows
for Carrier Squelch operation, where the radio will unmute whenever a carrier is
detected.
Operation DMH Series VHF Radio
Page 3-6 BK RADIO
3.6.2 APCO PROJECT 25 SQUELCH CONTROL
Network Access Codes (NACs) provide the digital equivalent of analog sub-audible
signaling (CTCSS/CDCSS) allowing a group of radios to be selectively called within a
system.
Users in the same area (using the same NAC) can be further divided into Talk
Groups, with each group having its own Talk Group ID (TGID). Group Calls are
made by designating both the users’ NAC and TGID.
Each radio also has an individual P25 unit ID. A Unit-to-Unit call contains the
addressee’s NAC, and uses the addressee’s P25 unit ID instead of the TGID.
When operating in Digital Mode, each channel can be programmed to use either
Normal squelch or Selective squelch.
A. Normal Squelch
Normal squelch is used to mimic analog operation. Signals are only qualified
with the programmed NAC. TGIDs and P25 Unit IDs are ignored. Each digital
channel is programmed with a receive NAC and a transmit NAC. When an
incoming signal’s NAC matches the channel’s programmed receive NAC, the
radio unmutes. The default NAC is 659 ($293 hex). The digital equivalent of
carrier squelch is achieved by programming the receive NAC = 3966($F7E hex)
the radio will unmute when a digital signal with any NAC is detected. The 3966
($F7E hex) NAC is reserved for receivers and is not allowed as a transmit NAC.
B. Selective Squelch
Selective squelch is used for processing ‘Group Calls’ and ‘Unit-to-Unit Calls’.
TGIDs are assigned on a per-channel basis. Users can be separated into Talk
Groups with each group having its own TGID. Then, on channels programmed
for Selective squelch, the incoming signal’s NAC and TGID must match the
channels programmed receive NAC and TGID for the radio to unmute. The
default TGID is 1. The TGID value 65535 ($FFFF hex) is used to effect an “All
Call”. If the radio receives a signal with a matching NAC and the TGID = 65535
($FFFF hex), it will unmute. Also, if the radio’s programmed TGID is 65535
($FFFF hex), it will open on any signal with a matching NAC, ignoring the
incoming TGID. A TGID = 0 means “no one”. If the radio is programmed with the
TGID = 0, it will accept incoming group calls containing the “All Call” TGID, and
correctly addressed Unit-to-Unit calls.
3.6.3 CHANNEL GUARD RECEIVE
Turn power on by pushing and releasing the Volume knob. The radio will beep,
indicating that it has passed its self test and is operational.
Set volume by pressing the [MON] button to hear squelch noise. Turn the Volume
knob to set a comfortable volume level. Press the [MON] button again to stop
squelch noise.
Select a channel group (if applicable) by pressing the [GRP] button and turning the
Channel Selector knob. Press the [GRP] button again to return to Channel Select
mode.
Operation DMH Series VHF Radio
BK RADIO Page 3-7
Select a channel by turning the Channel Selector knob.
Press the [CG] button to disable or enable Channel Guard operation on analog
channels. An arrow on the display points to the [CG] button when Channel Guard is
disabled. When Channel Guard is enabled, a message is heard only when the
proper Channel Guard is received.
3.6.4 CHANNEL GUARD TRANSMIT
Monitor the channel, before transmitting on Channel Guard channels, by lifting the
microphone off hook or pressing the [MON] button. Listen to the channel for a few
seconds to ensure that no communications are occurring on the channel.
Press the PTT (Push To Talk) switch on the microphone. The TX annunciator
appears on the display and the red Transmit indicator illuminates while the PTT is
pressed. Talk in a normal voice with the microphone approximately one to two
inches from your mouth. Release the PTT switch to stop transmitting.
Hang up the microphone when finished. If you pressed the [MON] button to monitor
the channel, press it again after the transmission to return to Channel Guard
operation.
3.7 MIXED MODE OPERATION
The receiver and transmitter are capable of operating in analog wide-band (25 kHz
channel spacing), analog narrow-band (12.5 kHz channel spacing) and APCO
Project 25 Digital Mode.
Each channel’s Receive and Transmit Mode can be set independently as follows:
Mode RX TX
Analog Receive qualified analog
signals only Transmit analog signals only
Digital Receive qualified digital signals
only Transmit digital signals only
Mixed Automatically receive qualified
analog or digital signals Transmit analog or digital signal,
depending on the status of ‘TX
Digital’ soft switch.
Digital receptions and transmissions will be indicated by illuminating the ‘ID’
annunciator in addition to the ‘RX’ or ‘TX’ annunciator.
3.7.1 MIXED MODE TALKBACK
If Mixed Mode Talkback is enabled, transmissions initiated while hold time remains
will be in the same mode as the received signal, if the signal was received on the
Ready to Transmit (RTX) channel. Depending on programming, the RTX channel
can be the main channel, a held scan or priority channel if Talkback Scan is enabled,
or the Priority 1 channel if TX on PR1 is enabled. TX Mode on the RTX channel must
be set to MIXED.
While hold time after a reception remains, transmissions will be in the same mode as
the received signal, regardless of the status of the ‘TX Digital’ soft switch. As in
Operation DMH Series VHF Radio
Page 3-8 BK RADIO
Talkback Scan, the RTX channel and receive annunciators will be displayed for the
duration of the timer.
The talkback timer can be cleared by making the held channel invalid. For instance,
if a scan channel is being held, turn scan off.
3.8 PROGRAMMABLE PUSH BUTTONS/MICROPHONE FCN KEY
FUNCTION MENU
When the radio is installed, labels are placed on the front push buttons to indicate
their functions. An arrow on the display points to each front mounted push button that
is active. The five push buttons can be programmed with the following functions:
Standard Functions Optional Functions
MON Monitor Squelch Noise TA Repeater Talk Around GSC Group Scan
SCN Channel Scan CG Channel Guard Disable PA Public Address
PRI Priority Scan HOM Home Channel ACC Accessory 1
GRP Group Select SPK Remote Speaker ACC Accessory 2
SQL Squelch Adjust NXT Next Scan Channel ACC Accessory 3
TXD Transmit Digital Mode LPW Low Power Select
If a keypad microphone is used with the DMH radio, many of the functions above
may also be enabled/disabled with the keypad [FCN] key. Not all microphones
support these functions. Contact your dealer to determine which features are
available with your microphone and have been enabled in the radio.
• Press the [FCN] key to display the function menu.
• Press [PRI] to toggle the function on/off when the desired menu item is
displayed.
• Repeatedly press [FCN] to step through the menu.
• When the display flashes, the function is enabled.
• Press [ENT] to exit the [FCN] menu.
3.9.1 MICROPHONE KEYPAD LOCK
To lock/unlock the microphone’s keypad, press and hold the [FCN] key. When
locked, “LOCKED” will be displayed if a key is pressed and a low beep will sound.
LOCKOUT EXCEPTIONS:
1. If enabled, a long [PRI] key press will activate Emergency Mode even when the
microphone’s keypad is locked.
2. PTT unlocks the keypad during transmit for DTMF key presses.
Operation DMH Series VHF Radio
BK RADIO Page 3-9
3. The keypad will be automatically unlocked when Unit-To-Unit Mode is entered by
pressing PTT to respond to a Unit-To-Unit call, when Unit-To-Unit callback is
enabled. The keypad will be re-locked when Unit-To-Unit Mode is exited.
Push button controls are described as follows:
MON Monitor Squelch Noise
Press the [MON] button to start or stop monitoring squelch noise. This allows
you to set a comfortable volume level.
SCN Channel Scan
Press the [SCN] button to start or stop scanning channels in the scan list.
Scan operation occurs only while the radio is not transmitting. To add or
delete the current channel from the Scan List, turn Scan and Priority Scan
off, then press the [SCN] button and hold it down for 1 second or more.
PRI Priority Scan
Press the [PRI] button to start or stop priority scanning. The PR annunciator
and the flashing SCN annunciator appear on the display. To make the
current channel the fixed Priority 1 Channel, turn Scan and Priority Scan off,
then press the [PRI] button and hold it down for 1 second or more.
GRP Group Select
Press the [GRP] button to toggle between Group Select and Channel Select
Modes. This is used only if the radio has more than one channel group.
Press the [GRP] button for Group Select Mode. Turn the Channel Selector
knob to select a group. Return to Channel Select Mode by waiting 5
seconds, or by pressing the [GRP] button one time (numeric mode) or two
times (alphanumeric mode). After selecting a group in Alphanumeric Mode,
press the [GRP] button one time to display the Group Label, and a second
time to return to Channel Select Mode.
SQL Squelch Adjust
Press the [SQL] button to toggle between Squelch Adjust and Volume Adjust
Modes.
Press the [SQL] button for Squelch Adjust Mode. Turn the Volume knob to
adjust the squelch setting. Turning the knob counter-clockwise tightens the
squelch setting, allowing only stronger signals to open the squelch and be
heard. In the absence of a held channel, the receiver will be tuned to the
main channel. Guard qualification will be disabled during squelch adjustment.
Return to Volume Adjust Mode by waiting 5 seconds, or by pressing the
[SQL] button again.
Pressing the [SQL] button and holding for more than 1 second sets the
squelch to its factory preset value.
Operation DMH Series VHF Radio
Page 3-10 BK RADIO
TA Repeater Talk Around
Press the [TA] button to turn Repeater Talk Around on or off. When TA is
on, the radio transmits on the receive frequency of the selected channel,
bypassing or “talking around” the repeater. This function may be used on
any channel that is programmed to a frequency pair (repeater channel).
CG Channel Guard Disable
Press the [CG] button to disable or enable Channel Guard operation on
analog channels. An arrow on the display points to the CG button when
Channel Guard is disabled. When Channel Guard is enabled, a message is
heard only when the proper Channel Guard is received. Transmit Channel
Guard generation is unaffected. The CG button may also be used to override
Busy Channel Lockout, if Busy Channel Override is installed.
HOM Home Channel
Press the [HOM] button to go to the pre-programmed Home Channel.
To set a different Home Channel, select the desired channel using the
Channel Selector knob, press the [HOM] button, and hold it for more than 1
second until the arrow above the HOM button appears on the display. The
new channel then becomes the Home Channel.
SPK Remote Speaker
Press the [SPK] button to toggle between the built-in radio speaker and a
remotely mounted speaker.
NXT Next Scan Channel
Press the [NXT] button to select the next consecutive channel in the Scan
List (not during scan operation).
LPW Low Power Select
Press the [LPW] button to toggle between high power and low power
transmitter operation. Transmitter power settings can be programmed from
15 to 50 watts. If per-channel power is enabled, channels locked to low
power will always transmit in low power mode regardless of the state of the
LPW button.
GSC Group Scan
Press the [GSC] button to enable or disable Group Scan operation. During
Group Scan operation, the following features are disabled: Priority Scan,
User Channel Guard, and Nuisance Channel Delete.
Turn Group Scan off, then press the [GSC] button for 1 second or more to
toggle the current group on or off the Group Scan List.
Operation DMH Series VHF Radio
BK RADIO Page 3-11
PA Public Address
Press the [PA] button to turn the Public Address system on or off. When PA
is on, pressing the microphone PTT switch causes audio to be routed to the
audio amplifier without enabling the transmitter.
ACC Accessory
Press the [ACC] button to turn the installed accessory on or off. Up to three
ACC buttons may be installed for different accessories.
3.10 SCAN OPERATION
3.3.1 Receive
Scan operates only while the radio is not transmitting. The radio checks for
signals on channels in the preset scan list, as well as the channel selected by
the Channel Selector knob.
When a signal is detected, scanning stops and the message is received. The
received channel is shown in place of the transmit channel.
Once the signal ends, the radio continues to monitor the channel for the
preset scan delay time before it resumes scanning.
3.3.1.1 Basic Scan
1. Press the SCN button to enable Scan (an arrow will appear above the
button).
2. If Priority Scan is enabled, press the PRI button to turn it off.
The display indicates Scan operation by flashing the SCN annunciator
(alphanumeric mode) or by two flashing bars (numeric mode).
3.10.1 SCAN CHANNEL GUARD CHANNELS
1. Press the SCN button to enable Scan (an arrow will appear above the button).
2. If the CG button has an arrow over it, press the CG button once to turn Code
Guard Disable off.
When a signal is detected, scanning stops while the radio checks for the proper Code
Guard value. If the signal contains the proper Code Guard value, the radio receives
the message. Otherwise, the radio resumes scanning immediately.
3.10.2 NUISANCE CHANNEL DELETE
With Channel Scan on and Nuisance Channel Delete enabled, pressing and holding
the [SCN] button for more than 1 second will temporarily remove a currently active
channel from the Scan List. If the radio is equipped with a keypad microphone,
pressing the [CLR] key while Scan is on will accomplish the same thing. Not all
microphones support these functions. Contact your dealer to determine which
features are available with your microphone and have been enabled in the radio.
When the radio is powered off and back on, the pre-programmed Scan List will be
Operation DMH Series VHF Radio
Page 3-12 BK RADIO
restored.
3.10.3 TRANSMIT WITH SCAN ON
When operating in Scan mode, the radio transmits on the channel selected by the
Channel Selector knob.
1. Select a transmit channel by turning the Channel Selector knob.
2. Press and hold the PTT switch and talk in a normal voice. When the PTT switch
is released, the radio continues to monitor the selected channel for the preset
scan delay time before it resumes scanning.
3.10.4 TALKBACK SCAN
If your radio is programmed for Talkback Scan, press PTT while a channel is active
or while scan delay time remains. You will be responding on the transmit frequency of
the received channel.
Talkback Scan will not work if Priority Scan is also on and your radio is programmed
to always transmit on the Priority 1 channel.
3.10.5 CHANGE THE SCAN LIST
The radio can be programmed to enable the user to add or remove channels from the
scan list. If user changes are enabled, follow these steps to change the scan list:
1. Turn Scan and Priority Scan off.
2. Select a channel to be added or removed from the scan list by turning the
Channel Selector knob. If the channel is already on the scan list, SCN appears in
the display.
3. Press and hold the [SCN] button for more than 1 second to toggle the channel on
or off the scan list.
3.10.6 GROUP SCAN
Channels on each "Channel Scan List" in groups on the "Group Scan List" are
scanned sequentially. The selected group is always scanned when Group Scan is
enabled, even if that group is not on the Group Scan List.
When Group Scan is enabled, the following features are disabled:
• Priority Scan
• Dual Priority Scan
• User-Selected Channel Guard
• Nuisance Channel Delete
Operation DMH Series VHF Radio
BK RADIO Page 3-13
3.11 PRIORITY SCAN
Priority Scan enables the radio to receive on any channel while monitoring for a
message on the designated priority channel(s). The radio samples each priority
channel at a preset rate (.25-2.0 seconds) regardless of activity on any other
channel. Priority Scan operates only while the radio is not transmitting and can be
used in combination with scan operation.
When Priority Scan is on, the PR annunciator illuminates, and the display flashes
SCN (alphanumeric mode) or two flashing bars (numeric mode). If a message is
received on a priority channel, the Priority indicator illuminates, and the radio receiver
locks onto that channel for the duration of the transmission, unless a higher priority
channel interrupts.
Priority Scan can be used in combination with Channel Guard with:
• Priority Scan on (arrow appears above PRI button)
• The Squelch knob in the Channel Guard position (fully counterclockwise detent
position) and
• Channel Guard Disable off (no arrow above CG button)
• The Priority Channel(s) programmed with Channel Guard
If a message is received on a priority channel, the radio receiver locks on to the
priority channel and checks to see if the proper Channel Guard value is present. If
the signal contains the proper Channel Guard value, the radio receives the message.
Otherwise, the radio will re-check the channel every 4 seconds, until the activity on
the channel ceases.
3.11.1 DUAL PRIORITY SCAN
In each group, up to two of the 16 channels can be designated as priority channels.
These two, PR1 and PR2, are periodically tested for activity, even if a different
transmission is being listened to. Activity on PR2 preempts activity on any of the
non-priority channels. Receptions on PR1 have priority over any other channel in the
group, including PR2.
Either priority channel can be programmed as a fixed channel, tied to the Channel
Selector knob, or programmed OFF. If the radio is programmed to transmit on the
first priority channel, transmissions will occur on PR1 if PR1 isn’t programmed OFF,
when operating in Dual Priority Scan Mode.
If PR1 is a fixed channel, and changes to the 1st priority channel are allowed, and the
[PRI] key is not locked out, the user can move the channel selector to a new channel
and press and hold the [PRI] button for more than 1 second to choose a new PR1
channel.
Dual Priority Scan is automatically disabled when Group Scan is on.
3.11.2 OLD-STYLE BK PRIORITY SCAN
The radio can be programmed with one of three Priority Modes: A, B, or C. The table
Operation DMH Series VHF Radio
Page 3-14 BK RADIO
below shows how the priority channels and the transmit channels are selected in
each mode.
Mode A Mode B Mode C
Priority Channel Channel Knob Preset Preset
Transmit Channel Channel Knob Channel Knob Priority Channel
3.11.3 PRIORITY MODE A WITH SCAN
In Priority Mode A, the priority channel is set by the Channel Selector knob. Priority
Mode A is seldom used by itself because the radio receives and transmits only on the
knob-selected channel.
When Scan and Priority Mode A are enabled, scanning occurs until an active scan
channel is found. The radio receives the message while continuing to check the
priority (knob-selected) channel. The display shows the scan channel.
If the priority channel becomes active during this message, the Priority indicator
illuminates. The radio changes to the priority channel and holds for the duration of
the message. The display shows the priority channel.
To reply to a message on the priority channel, press the PTT switch and transmit on
the priority channel. Once activity ceases on the priority channel, the radio returns to
scan operation.
3.11.4 PRIORITY MODE B
With Priority Scan on and Channel Scan off, the radio can receive on the knob-
selected channel while sampling the priority channel. If the priority channel becomes
active, the Priority indicator lights up illuminates. The radio changes to the priority
channel and holds for the duration of the transmission
To reply to a message on the priority channel, turn the Channel Selector knob to the
priority channel, and then transmit.
3.11.4.1 PRIORITY MODE B WITH SCAN
With Priority Scan and Channel Scan on, the radio scans until it locks on to an active
channel. The radio continues to sample the priority channel while listening to the
active scan channel.
If activity occurs on the priority channel, the radio overrides the active scan channel,
changes to the priority channel, and holds for the duration of the transmission.
To reply to a message on the priority channel, turn the Channel Selector knob to the
priority channel, and then transmit. Once activity has ceased on the priority channel,
the radio returns to scan operation.
3.11.5 PRIORITY MODE C
With Priority Scan on and Channel Scan off, the radio samples the fixed priority
channel at the preset rate. If activity occurs on the priority channel, the radio switches
Operation DMH Series VHF Radio
BK RADIO Page 3-15
to the priority channel and holds for the duration of the transmission.
To reply to a message heard on the priority channel, press the PTT switch. The radio
transmits only on the priority channel when Priority Scan is on. Once activity has
ceased on the priority channel, the radio returns to the receive channel on the
Channel Selector knob.
3.11.5.1 PRIORITY MODE C WITH SCAN
With Priority Scan and Channel Scan on, the radio scans until it locks on to an active
channel. The radio continues to sample the priority channel while listening to the
active channel. If activity occurs on the priority channel, the radio overrides the active
scan channel, changes to the priority channel, and holds for the duration of the
transmission.
To reply to a message heard on the priority channel, press the PTT switch. The radio
transmits only on the priority channel when Priority Scan is on. Once activity has
ceased on the priority channel, the radio returns to scan operation.
3.11.6 CHANGE THE PRIORITY 1 CHANNEL
The fixed Priority 1 channel can be permanently set or can be changeable. If the
radio has a changeable priority channel, use the following steps to make this change.
1. Turn Scan and Priority Scan off.
2. Turn the Channel Selector knob to the channel you want to enter as the new
Priority 1 channel.
3. Press and hold the [PRI] button for more than 1 second. A short beep sounds
and PR appears in the display, indicating that the displayed channel is now the
priority channel.
NOTE: If the radio is programmed for Dual Priority operation, only Priority 1
channel can be changed with the [PRI] button.
NOTE: A channel can be the priority channel even if it is on the Scan List. Due
to multiple sampling of the same channel, however, maximum
performance occurs when the priority channel is not on the Scan List.
3.12 UNIT-TO-UNIT CALL
P25 Unit IDs allow for Unit-To-Unit calls when the radio is operating in Digital Mode.
The microphone’s [*] key must be enabled by radio programming to allow this mode
of operation. To view the radio’s ID, press and hold the [*] key while not in Unit-To-

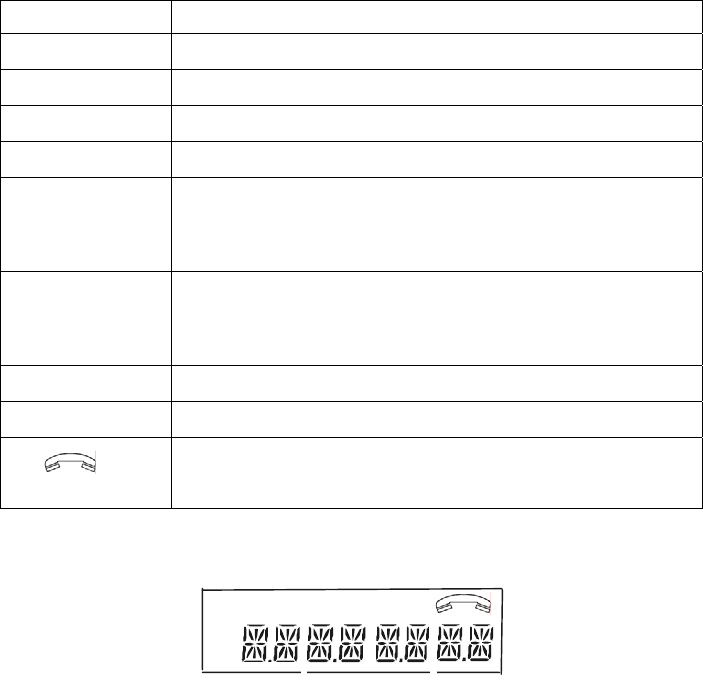

Unit Mode. (Unit-To-Unit Mode is indicated by a phone icon in the upper right corner
of the display). Channels programmed for analog only operation will not be able to
transmit or receive Unit-To-Unit calls.
3.12.1 UNIT-TO-UNIT MODE
When the radio is in Unit-To-Unit Mode, all scanning functions will be disabled. The
radio will receive and transmit on the Ready-to-Transmit (RTX) channel only.
Depending on programming, the RTX channel can be the main channel, a held scan
Operation DMH Series VHF Radio
Page 3-16 BK RADIO
or priority channel if Talkback Scan is enabled, or the Priority 1 channel if TX on PR1
is enabled. To alert the user that the radio is in Unit-To-Unit Mode, a beep will
periodically sound until the unit is returned to normal Operating Mode.
If the RTX channel’s Digital Squelch Mode is set to ‘selective’, the radio will accept
group calls, correctly addressed Unit-To-Unit calls, and if RX Mode is set to mixed,
analog signals.
When a correctly addressed Unit-To-Unit call is received, the radio will beep twice. If
the calling unit’s ID matches one of the Call List IDs, the associated label will be
displayed along with the RX and phone icon. Otherwise, the numeric ID will be
displayed along with the RX, ID, and phone icon.
If the calling unit is not the same unit displayed before the call was received, the
calling unit’s ID will be displayed for the duration of the reception. The previously
displayed ID will remain the default transmit ID, but the interrupting ID will be
captured as ‘last active’. To speak to the interrupting caller, press [*] to make the last
active ID the new default transmit ID.
When a group call (or, if allowed, an analog signal) is received, the radio will display
the RTX channel’s label for the duration of the reception.
If the RTX channel’s Digital Squelch Mode is set to ‘normal’, the radio performs as
when the Squelch Mode is ‘selective’, except all individual calls will be received when
the incoming NAC matches the channel’s programmed receive NAC, not just
individual calls addressed to the unit. Individual calls not addressed to the unit will be
indistinguishable from group calls. Only the channel label will be displayed, not the
ID of the calling unit.
If Unit-To-Unit Mode is entered when the RTX channel is programmed for analog-
only transmissions, pressing PTT will cause the radio to beep until PTT is released.
The user must select a channel capable of digital transmissions before placing
a Unit-To-Unit call. If the RTX channel is programmed for Mixed Mode transmit,
transmissions will be made as digital Unit-To-Unit calls while the radio is in Unit-To-
Unit Mode, regardless of the position of the ‘TX Digital’ switch.
3.12.2 INITIATING A UNIT-TO-UNIT CALL
To initiate a Unit-To-Unit call, press the microphone’s [*] key to enter Unit-To-Unit
Mode. The label of the last active (called or received) ID will appear on the display.
If the last active ID was a Call List ID, its label will be displayed along with the phone
icon, otherwise the numeric ID will be displayed along with the phone and ID icon. If
a label is displayed, press and hold [#] to view the corresponding numeric ID.
To place a call to the displayed unit, press PTT. To choose another unit, use the
keypad to enter the desired call list entry (0 - 9), or press [PRI] repeatedly to cycle
through all call list entries, or press [#] to manually key in a new ID (up to 7 digits).
To re-select the ‘last active’ ID, press the [*] key. Once the new unit ID is selected or
entered, press PTT to place the call.
To exit Unit-To-Unit Mode, press and hold the [*] key.
3.12.3 RECEIVING A UNIT-TO-UNIT CALL
When a Unit-To-Unit call is received while the radio is in normal Operating Mode, the
Operation DMH Series VHF Radio
BK RADIO Page 3-17
radio will beep twice. The display will show the ID of the calling unit. If the ID
matches one of the Call List IDs, the associated label will be displayed along with the
RX and phone icons. Otherwise the numeric ID will be displayed along with the RX,
phone, and ID icons. The calling unit’s ID will be displayed for the duration of the
reception, and once the signal goes away, for a programmed hold time. When the
hold time expires, the display will return to the normal Operating Mode display, but the
phone icon will flash until the [*] key is pressed, putting the radio in Unit-To-Unit
Mode, displaying the last active ID.
3.12.4 UNIT-TO-UNIT CALLBACK
If Unit-To-Unit callback is enabled, and a Unit-To-Unit call is received on the Ready-
to-Transmit (RTX) channel, the user may press PTT before the hold time expires,
causing the radio to enter Unit-To-Unit Mode and transmit using the received ID as
the destination ID. If the callback timer expires before PTT is pressed, the radio will
return to normal Operating Mode, but the phone icon will flash until the [*] key is
pressed, bringing up the last active ID.
To exit Unit-To-Unit Mode, press and hold the [*] key.
The callback timer can be cleared by making the held channel invalid. For instance,
if a scan channel is being held, turn scan off.
3.12.5 PROGRAMMING UNIT-TO-UNIT CALL LIST
Press [*] to bring up the last active ID. If the last active ID was a Call List ID, the ID’s
label will be displayed along with the phone icon. Otherwise, the ID number will be
displayed along with the phone and ID icon.
Press a number key (0 – 9) to go directly to the desired Call List ID, or press [PRI]
repeatedly to cycle to the label of the ID to be re-programmed. Press and hold the
[FCN] key to enter ID Programming Mode (PRG icon will be illuminated). As in
keypad Programming Mode, normal radio function will be disabled until ID
Programming Mode is exited.
3.12.6 PROGRAMMING A LABEL
Press the [CLR] key. The display becomes blank.
Press number keys to enter 0-9 in positions 1-7. The digits start in position 7, then
move left.
1. Press the [#] key to toggle a decimal on or off to the right of the character in
position 7. The decimal moves left with the number in position 7 as new numbers
are entered.
2. Use the following steps to enter a number in position 8 or characters in positions
1-8:
a. Press the [PRI] key repeatedly to cycle through characters 0-9, A-Z, -, *, $, /,
+, %, \, |, _, <, >, h, blank, then back to the start again.
If you pass the desired character, press the [PRI] key repeatedly until you
return to the start and reach that character again.
Operation DMH Series VHF Radio
Page 3-18 BK RADIO
b. Press the [FCN] key to shift the display left by one position, leaving position
8 blank.
c. Press the [PRI] key repeatedly to enter the next character, or press the
[FCN] key a second time to enter a blank space.
d. To abandon changes, press the [CLR] key, restoring the original label.
e. Press the [ENT] key to store changes.
3.12.7 PROGRAMMING A NUMERIC ID
Press [ENT] to display the numeric ID. Press [CLR] enter the new ID (up to 7 digits).
Press [ENT] to store the new ID. Select a new ID to be programmed, or press and
hold [ENT] to exit Programming Mode (the PRG annunciator will be extinguished).
3.13 EMERGENCY CALL
Note: Emergency operation only applies to channels programmed for
Digital or Mixed Mode transmissions. If the channel is programmed for
Mixed Mode transmissions, the ‘TX Digital’ switch must be ON.
To place an emergency group call, press and hold the emergency button until the
radio beeps and the display flashes. On some models, the emergency button may
be the microphone’s [PRI] key. All scanning and priority scanning functions will be
disabled. If the radio is in Unit-To-Unit Mode, that mode will be exited and the radio
will be placed in Emergency Mode. Each subsequent press of PTT will cause the
radio to transmit on the knob-selected channel with the emergency bit set, indicating
an emergency condition. If the Channel Selector is changed, the Emergency Mode
will follow to the newly selected channel. Cycle power to return the radio to normal
operation.
On channels programmed for analog transmissions, and channels programmed for
Mixed Mode transmissions with the ‘TX Digital’ switch OFF, pressing PTT in
Emergency Mode will result in a normal analog transmission.
Operation DMH Series VHF Radio
BK RADIO Page 3-19
3.14 USER SELECTED CHANNEL GUARD
User Selected Channel Guard is only available on radios equipped with a keypad
microphone. Not all microphones support this function. Contact your dealer to
determine which features are available with your microphone and have been enabled
in the radio.
When the radio is being programmed with transmit and receive frequencies for each
channel, a receive Channel Guard value and a transmit Channel Guard value can
also be assigned to each channel. If User Channel Guard Selection is enabled, the
Channel Guard values for any channel can be copied to another channel in the
radio. On channels programmed for Analog operation only, the CTCSS or CDCSS
guard values will be copied. On channels programmed for Digital operation only,
NAC’s only will be copied unless the radio is programmed to also copy the Talk
Group ID (TGID), Mode (Digital, Analog or Mixed) and Squelch setting (Normal or
Selective). On Mixed Mode channels, Analog or Digital values will be copied as
needed.
For example, to use the Channel Guard values of Channel 9 with the frequencies of
Channel 5:
1. Turn Scan and Priority Scan OFF.
2. Turn the Channel Selector knob to Channel 5.
3. Press the [9] key on the microphone keypad. The display shows CG.
The radio will now operate on the frequencies of Channel 5 with Channel 9
Channel Guard values. The display shows the Channel Guard channel (9), and
then the selected channel (5).
4. Press the microphone’s [#] key to display the Channel Guard channel briefly.
The display shows the group number, followed by the Channel Guard channel,
and then the selected channel.
5. Press the [0] key to reset all values to the original programming, or press
different number keys (1-16) to select a different set of Channel Guard Values.
NOTE: During Scan or Priority Scan, the receiver does not use the user-selected
Channel Guard values. However, user-selected Channel Guard values
are used by the transmitter in Scan Mode.
3.15 OTHER OPERATIONAL FEATURES
The BK Radio D Series radio is based on a microprocessor core that allows extra
features and operational characteristics to be programmed into the radio. Your dealer
can help define the best operational settings for your system and program them into
the radio.
3.15.1 SCAN DELAY
Scan delay lets the radio receive a response to a transmission before scanning the
other channels for activity. If you find that your scanner is restarting before message
replies are received, you can ask your dealer to increase the scan delay time (0-7.5
seconds).
Operation DMH Series VHF Radio
Page 3-20 BK RADIO
This timer is also used to allow for Talkback Scan, Mixed Mode Talkback, and Unit-
To-Unit Callback.
3.15.2 HI/LO POWER
Each channel in the radio can be individually programmed to always transmit in low-
power mode, regardless of the position of the radio's LPW button (or microphone
keypad [FCN] menu setting). If the programming for the channel allows high-power
transmissions, the power level can be selected with the LPW button or the keypad
[FCN] menu.
3.15.3 DTMF ENCODING (Analog Mode Only)
Radios with keypad-equipped microphones can be programmed to enable DTMF
(Dual Tone Multiple Frequency) encoding. To send DTMF tones (similar to the tones
used by a standard push-button telephone):
1. Press and hold the PTT switch.
2. Press any of the keys on the microphone’s keypad.
You will hear a sidetone.
The FCN, PRI, ENT, and CLR keys respond as DTMF tones A, B, C, and D,
respectively.
3.15.4 ANI ENCODING (Analog Mode Only)
ANI encoding (Automatic Number Identification), if enabled, transmits a sequence of
DTMF tones each time you press the PTT switch. You will hear a sidetone. Your
dealer can program the ANI number to be sent.
If DTMF and ANI are both enabled, the ANI tone sequence is transmitted only after
the microphone’s [ENT] key is pressed while the PTT switch is activated. You will
hear a sidetone.
3.15.5 TIME-OUT TIMER
The transmit Time-Out Timer limits the duration of calls and guards against
accidentally locking on the transmitter and tying up the radio system. Your dealer can
program the duration of the Time-Out Timer (15-225 seconds, or disabled).
3.15.6 BUSY CHANNEL
If the radio has been programmed for Busy Channel operation, it will operate in one
of the following three Modes:
• Busy Channel Indication
• Busy Channel Lockout
• Busy Channel Lockout with Override
Operation DMH Series VHF Radio
BK RADIO Page 3-21
3.15.6.1 BUSY CHANNEL INDICATION
The yellow Busy Channel Indicator glows if there is carrier activity on the selected
channel. If the selected channel is a Channel Guard channel and the proper Channel
Guard value is not detected, the Busy Channel Indicator remains on for the duration
of the carrier activity and no message is heard. During Scan and Priority Scan
operation, the Busy Channel Indicator glows when activity is detected on any channel
on the Scan List.
When scanning or priority scanning Channel Guard channels with the Squelch knob
in the Channel Guard position and activity has been detected, the Busy Channel
Indicator glows for the time period necessary to determine if the proper Channel
Guard value has been received. This will cause the Busy Channel Indicator to flash
at various rates.
3.15.6.2 BUSY CHANNEL LOCKOUT
The Busy Channel Lockout feature applies only to those channels programmed with
a receive Channel Guard value. When carrier activity is detected on the channel
selected, the radio checks the receive Channel Guard value. If the proper Channel
Guard value is present, the radio can transmit on that channel even if the CG button
is off.
If the radio detects an incorrect value or carrier activity only, the transmitter is
disabled. If an attempt is made to transmit, an alert tone will be generated and the
display will show the word BUSY until the channel becomes available or the PTT
switch is released, whether the Squelch knob is in or out of the Channel Guard
detent.
Channels not programmed with a receive Channel Guard value can be used to
transmit regardless of carrier activity.
3.15.6.3 BUSY CHANNEL LOCKOUT WITH OVERRIDE
This mode operates in the same manner as Busy Channel Lockout except that the
user can override and transmit by pressing the CG button to disable receive Channel
Guard (an arrow will appear over the button). The transmitter is locked out only if the
CG button is off (no arrow above the CG button).
Operation DMH Series VHF Radio
Page 3-22 BK RADIO
R
X
SCN
T
X
PRG ID CG
P
R
G
A
LPHANUMERIC DISPLA
Y
.
.
3.16 ALPHANUMERIC DISPLAY FEATURES
The Alphanumeric Display can be programmed to operate in Numeric Mode,
displaying channel numbers instead of labels.
Display annunciators indicate the following information:
ALPHANUMERIC INDICATION
PR -Priority Channel
PRG -Programming Mode (includes PR)
TX -Transmit
RX -Receive
SCN -Scan List Channel
-Flashing SCN indicates scanning in progress, and
RX SCN indicates receiving on a scanned channel.
ID -Digital reception/transmission - ‘It’s Digital’
-Programming Mode - Automatic Numeric Identification
(ANI)
CG -User Channel Guard Active
GRP -Group Label
-Individual Call
-Flashing phone icon indicates missed call.
FIGURE 3-1 Liquid Crystal Display
Operation DMH Series VHF Radio
BK RADIO Page 3-23
DMH Series mobile radios can be programmed with the following features:
3.16.2 CHANNEL LABELS
You can program the radio with a label for each of the 25 channel groups and a label
for each of the 16 channels within each group.
To display the channel number associated with a channel label:
1. Press the microphone’s [#] key to display the group number.
2. Press the [#] key again to display the channel number.
3. Press and hold the [#] key to display the channel label.
4. Press the [ENT] key or wait for about 5 seconds to revert to normal radio
operation.
Each label can include up to eight characters, with decimal points available between
characters. Characters can include A-Z, 0-9, -, *, $, /, +, %, \, |, _, <, >, h, or a blank
space.
3.16.3 GROUP LABELS
The display can show group labels in addition to group numbers.
To display a group label, turn scanning functions off, then:
1. Press the microphone’s [#] key to display the group number.
2. Press and hold the [#] key to display the group label.
3. Press the [ENT] key or wait for about 5 seconds to revert to normal radio
operation.
Operation DMH Series VHF Radio
Page 3-24 BK RADIO
3.17 DEFINITIONS AND ACRONYMS
ANI Automatic Numeric Identification
CG Channel Guard
CLR Clear
Cloning The process of copying data from one radio, called
“master,” to other radios, called “slaves” or “clones.”
Channel Guard A subaudible tone, a code (analog) or a Network Access
Code (digital) for selective calling and receiving.
Detent The click/hesitation you feel as you turn a knob from one
position to another.
DTMF Dual Tone Multiple Frequency
DTMF Tones Tones that sound like those used by a standard push-
button telephone.
ENT Enter
FCN Function
GRP Group Label
ID Digital reception/transmission – ‘It’s Digital.”
Individual
Personality The information programmed with a PC on both a global
and by-channel basis that tells the radio exactly how to
operate.
LCD Liquid Crystal Display
Mixed Mode Allows Analog and Digital operation on the same
channel
NAC Network Access Code for digital channel.
PR Priority Channel
PRG Program
PRI Priority
PTT Push To Talk
RTA Repeater Talk Around
RTX Channel Ready to Transmit Channel
RX Receive
SCN Scan
SQ Squelch
Squelch A control that eliminates background noise.
Talkback Scan When scanning, if a signal is present, the scan will stop
and you will hear the signal. If you then push the PTT
switch to talk back to the person, you are in Talkback
Scan Mode.
TGID Talk Group ID
Time-Out Timer A feature that limits the duration of calls.
TX Transmit
