User manual
1
BM-300
Before use, always read ‘warning and safety information’ thoroughly and
always obey them.
Please note that this manual may be different according to the
conditions such as the software version or mobile phone business
partner, and changed without notice.
The configuration and color of the manual may differ from the actual.
2
PIDION is protected by copyright laws registered worldwide by Bluebirdsoft Inc., a global
brand which presents the reliable, representative, and high tech images, as a leading brand
of future mobile fields.
This manual is protected by copyright laws.
This manual has been prepared sincerely by BluebirdSoft Inc., but may be different to the real due to edit error,
information omission, and etc. But in no event shall we be liable for any problems occurred due to this.
The program provided with this product is copyrighted and its reproduction, deletion, movement, and etc. is
prohibited without the permission of the manufacturer.
Some function of this product may lead to some problems in the operation according to the available
conditions, usable program, peripheral equipments, and etc.
This wireless equipment has the possibility of radio interference and no service permitted in connection with
human health and security.
Registered Trademark
User’s Instruction
This equipment has been tested and found to comply with the limits for a Class B
digital device. It can be used in any other places besides in a residential installation,
provided with reasonable protection against harmful interference.
Class B
(A home information and
communication equipment)
User’s Instruction
Type
3
• Do not use PDA at PDA restricted area and Potentially Explosive Area.
• If PDA or battery contacted to the water, do not heat or dry the battery in an oven or micro wave.
• If PDA or battery contacted to the water or liquid, the phone’s label color changes.
(This time, it can’t be repaired free of charge and be attention to use the PDA.)
• All batteries can cause property damages, injury, or burns if a conductive material such as jewelry, keys or beaded chains touches
exposed terminals. To protect against such unwanted touch, exercise care in handling any charged battery.
• In particular when placing the battery in very hot or cold area for long, it can cause the reduction of capacity or life.
• Use only the designated and supplied batteries and adapters. They can’t be used for other purposes, excepts for our company’s
terminal.
• If not used the battery for long, always store the charged battery at a room temperature.
• Though charged sufficiently, the battery life changes due to its own feature.
• Do not use any other type of battery in your equipment. Otherwise, it can cause the reduction of life in battery or PDA itself as well
as the risk of explosion.
• Do not watch DMB during driving (bicycles, automobiles, auto bicycles, and etc.), walking, climbing the mountain, and etc.
• If DMB receiving antenna touches exposed conductive areas such as power receptacle and etc., it can cause an electric shock.
• If touched with antenna, it can cause human injury. Keep the child away from the antenna.
• If a failure occurred, never revise, disassemble, or repair the product. Please contact the service center of our company.
• If you are allergic to exposed paints, stop using the PDA and consult a doctor.
• Do not apply the PDA with paint or dyes. Otherwise, it can cause damage in the appearance or screen or abnormal operation of
the product.
• Make sure to protect DMB antenna, headphone, or earphone not caught or tight by other materials.
• If used for long at hot/high humidity environments, it can cause a fault.
• There can be Not serviceable area. Always check for terrestrial DMB reception area.
• Terrestrial DMB broadcasting may be deteriorated in picture quality irrespective of reception.
• With poor reception of broadcasting, point up the antenna and then change the direction to find the optimum conditions.
• If you folded the antenna in a different direction, it can cause a breakdown.
• If touched PDA with sharp objects such as pins, nails, ball pens, and etc. instead of the stylus, the screen may get scratched.
• Avoid vibration and shock. If not used, turn off the power and store it at a safe place.
• Connect the adapter firmly. If smoke, smell, noise, and etc. occurred in the product, immediately power off the product and
disconnect the adapter. In thunder or lightning, always disconnect the adapter.
• This wireless equipment has the possibility of radio wave interference so no service permitted in connection with human safety.
Safety Information For your safety, please read the guidelines below carefully before you use the product .
4

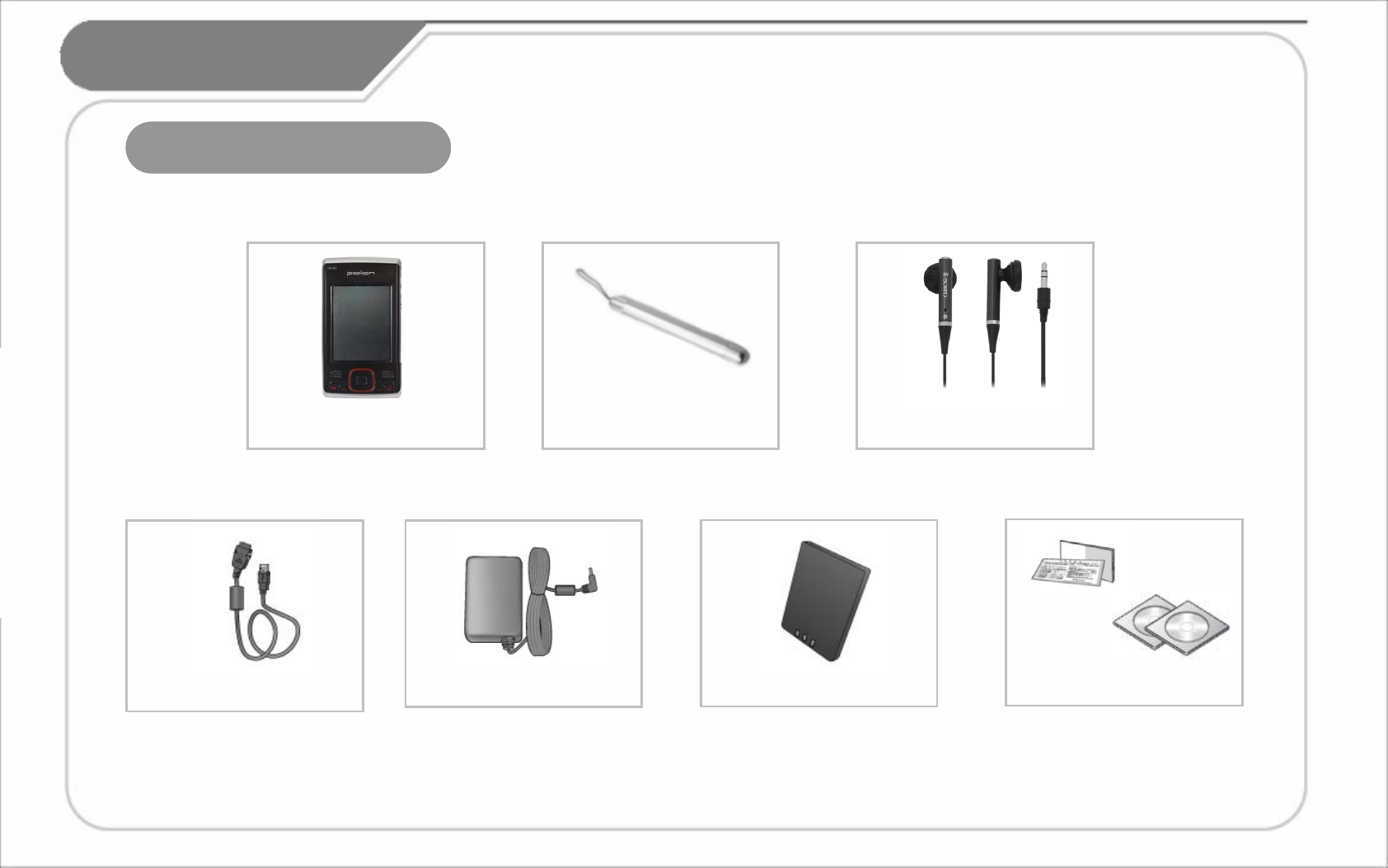

Product Components
[Body] [Stylus] [Ear phone]
[USB cable] [Adapter] [Standard
Battery]
[User’s Manual, CD]

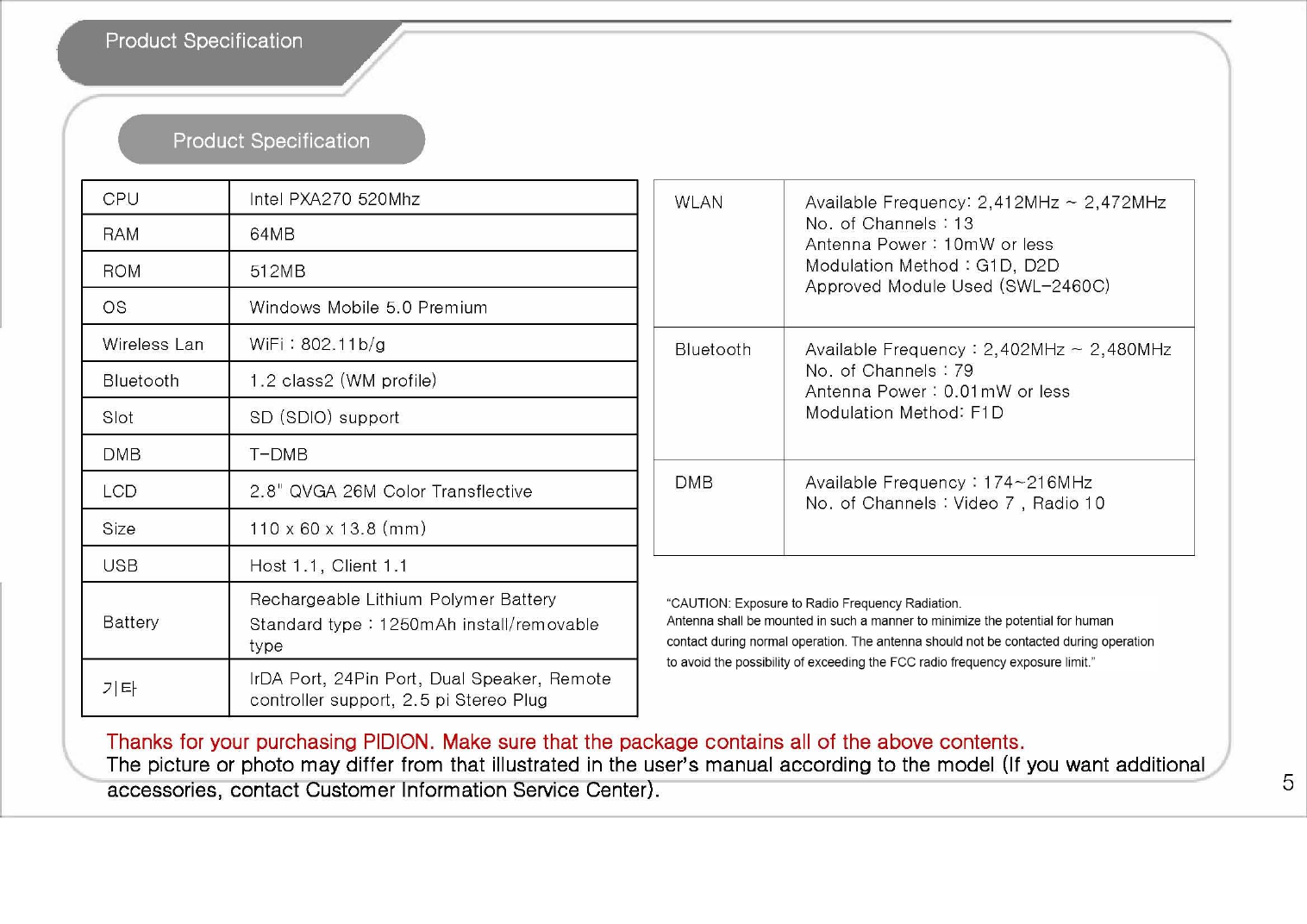

Product Information
Thanks for your purchasing PIDION. Make sure that the package contains all of the above contents.
The picture or photo may differ from that illustrated in the user’s manual according to the model (If you want
additional accessories, contact Customer Information Service Center).
6
Each Part Name and Button
Product Information
[Wireless Indicator
LED]
[Battery Indicator
LED]
[Job] [Received
Letter Box]
[Omni-
directional
Function Key]
[Calend
ar]
[Media Player]
[Speaker]
[Speaker]
[IrDA Port]
[24 pin terminal]
[DMB Antenna] [SD Card Slot]
[2.5 pi Earphone
Jack]
[Hand strap]
[Power
Button]
[DMB
Button]
[HOLD]
[Battery Cover]
[Reset
Button]
[LCD]
7
Product Information
[Mic]
[HOLD]
[3.5 pi earphone jack]
[Send
Button]
[Previous Button]
[M
Button]
[Next Button]
[Play/Stop Button]
If you have no remote controller provided with the shipment of product, it may be impossible to operate. Always use only the remote
controller provided with the product.
If installed or removed at the body by force, it can cause a failure to the equipment.
[Vol. +- Button]
Using Remote Controller
Hold
Volume DOWN
Volume UP
Media player operation
Next music of media
player
Play/pause of media
player
Previous music of media
player
Short – Memo
Long – Vocal recording
General Control
Hold
Vol. -
Vol. +
M
Next channel Next
Screen Toggle Play/Pau
se
Previous channel Previous
Short – Memo
Long – Vocal
recording
Send
DMB Control Button
Name
Used for listening to the
music, watching video or
DMB, and etc. Vocal
recording enabled through
microphone and hands free
through Internet Telephone.
Operable only in the approved
program. HOLD button
separated from the that of
body. HOLD function enabled
only in the Remote Controller.
8
Product Information
Battery Installation and Removing
[Battery
Installation]
[Removing the
Battery]
1. If pushing the center of
battery cover slightly, the
cover removes.
2. Using the stylus,
remove the battery from
the right groove.
1. Slip the battery into the
battery compartment top
edge first.
2. Insert the Battery Cover.
Always charge the battery only using the supplied adapter.
It can be charged with 24 pin(The Standard specified by the Ministry of Information and Communication) charger for general mobile
phones. (It may be discharged gradually after full charging due to the nature of the standard charger).
SD Memory Card
• Frequent insertion/removal of
memory or excessive force can
cause a failure on the equipment.
• If removed the card and turned off
the power while using the memory
card, it can cause a data loss or
mis-operation of memory card and
PDA.
• Always backup the important data
at PC. Otherwise, the manufacturer
assumes no liability for data loss.
• If the memory card removed well,
do not remove the card forcedly and
contact the AS center. If necessary,
you can replace it with the applicable
product or refund it.
Battery
Installation Grip
Insertion Area
After the metal
terminal of memory
faced toward the
bottom of rear, push
to the end. If slightly
pressed the end of
memory visible at SD
Slot, it removes.
9
Product Information
Conditions by Battery Charging and LED Color < Battery
Precautions >
Normal :
12hours
Watching DMB : 4
hours
Max. Usable Time
2 hours
When charged with
adaptor
2 and a half hours When charged with PC
• Battery is consumables and its usable time may
be reduced over times.
• Battery can cause a heat according to the
conditions.
• If battery’s life reduced more than the half of the
first use, please change with new battery.
(Guaranteed period; 6 months).
• Battery’s life may differ according to the
brightness of LCD, temperature, used time of
battery, and etc.
• Bluetooth, if remained for long at the area where
no wireless internet available, its usable time may
be reduced rapidly due to enormous consumption
of battery.
(Bluetooth, always set the function to off if not
used wireless internet)
• After a completion of charging, you can leave
the battery installed at the charger. It can’t cause
damage to the product.
• If the lamp not illuminated at the body while
charging, it can be occurred due to misconnection
of cables. Remove and then reconnect the cable.
• If disconnected the battery while using, it can
cause the initialization of PDA and a data loss.
• With a low battery, it may cause hard reset.
If the product not fully charged, a warning message appears with a beep.
The charging time of user’s manual varies according to the conditions. Besides, new batteries are shipped with partly charged. Always use the fully
charged battery.
< LED while battery charging >
< Charging and Usable Time >
< Wireless Indicator LED >
Green Orange Charging Lamp
Charging
Completed
While Charging
Orange Blue Blue Wireless
lamp
DMB Bluetooth Wireless
10
Basic
Information
1. Press the power button of PDA.
2. Window mobile logo screen appears on the LCD.
3. Perform stylus point setup and setting as guided in
PDA.
4. After a completion of setup, Today screen appears.
Startup Using the Stylus
As the stylus to be attached at the hand strip or
case, it can be used to run the program on the
touch screen or enter the data directly.
Tab
Touch the screen once with the stylus to open
items or select options.
Drag
Hold the stylus on the screen and drag across the
screen to select text and images. Drag in a list to
select multiple items.
The same function as in field select on the desktop.
Tab and Hold
Tap and hold the stylus on an item to see a list of
actions available for that item. If tap and hold the
item, a pop-up menu appears. The same function
as in the Right Click of mouse on the desktop.
In Point Setup, press a cross-hair object exactly, or it appears repeatedly.
It can cause a scratch or a failure on the LCD screen.
Do not use sharp objects such as pin, nail, and etc. instead of the stylus with soft tip.
11
Basic
Information
Using the HOLD Key
HOLD Key at the side of right.
Lock : If pressed down the Hold key,
the product is set to the lock
position.
Unlock : If pressed up the Hold key,
the product is set to the unlock
position.
• If the Hold key set to the lock
position, all buttons remain disabled
including LCD touch screen.
• If impossible to operate the
product, check for Hold.
• The operation of remote controller
is separated from Hold of the body.
(The remote controller has its own
Hold key)
• For detailed description for Remote
Controller Hold, see ‘Using the Remote
Controller’.
Soft Reset
Requirements : As the same in
the rebooting of computer, it
can be performed when a
smooth memory return disabled
due to the extended use of
program for long, when a
conflict occurred among
programs due to unexpected
errors, or when not operated.
How to use : Press the Reset
Button at the rear of body using
the stylus.
Differences before and after the
rest : A soft reset loses all files
not saved, execution memory
initializes, and opened program
closes.
12
Basic Information
Input Method
[ Keyboard ]
1. Press the input field using the
stylus.
2. Keyboard appears at the bottom
of screen.
3. If Writing Recognition appears,
press the arrow area at the bottom
of screen.
4. Press the keyboard in the
Conversion Menu to change into
virtual keyboard.
Click Hangle, Number, or English if
necessary to write the letter.
Shift, Ctrl key are used as in the
general keyboard.
Hanja Input Method
First write Hangle and then press the
Hanja key. And the applicable Hanja
appears. If selected the Hanja to be
entered, Hangle changes into Hanja.
Symbol Input Method
Press a vowel of Hangle and then
Hanja Key, and Symbol Select
screen appears. Press and select the
symbol to be entered, and a
consonant changes into a symbol.
[ Entering Typed
Text ]
1. Press ‘Entering Typed Text’ using
the stylus.
2. ‘Letter Recognizer’ appears at the
bottom of screen.
3. If a keyboard appears, press the
arrow object at the bottom of screen.
4. In Conversion Menu, press
‘Entering Typed Text’ .
In ‘Entering Typed Text’ column,
write Hangle, English, Hanja, and etc.
to make it recognized and entered
automatically.
Clearly write in the orders of an initial,
neutral, and final letter.
Too slow writing or big gaps between
words (vowels and consonants) may
cause a hasty letter recognition
before writing completed.
Exactly complete the start and end
of words such as ‘ㅁ’ and ‘ㅇ’.
Write a final consonant exactly.
If scribbled words, it may be mixed
with other words due to poor
recognition.
[ Keyboard ] [ Entering Typed
Text ]
13
Connection between
PC and PDA
Connection the ActiveSync
ActiveSync 4.1 Hangle version. If you used another version, the manual may be varied in the content and description.
If you missed bundle CD, you can download the update version from Microsoft Website.
Insert the companion CD into the CD-ROM driver in your computer and install the
ActiveSync program.
Run the EXE file and proceed to finish installation as guided in the description .
After a completion of normal installation, prepare to connect with PDA and PC.
When a cable not connected properly, it can cause an error. If the connection
terminal not tightened firmly or ActiveSync stopped and restarted automatically,
disconnect and then reconnect a cable.
When connecting with PC, if PDA set to ON, PC automatically detects to run the
ActiveSync.
If set to OFF, PDA only charges and doesn’t run the Active Sync.
If set to OFF, power ON the product while charging to run the ActiveSync for
synchronization.
If installed the ActiveSync at the desktop and then connected PDA to the desktop,
you can perform data synchronization including your favorites, contacts, schedules,
works, Inbox, and etc. You can copy and paste the file and be helped to install
new programs.
After the first synchronization of PDA or if connected with the existing PC or another
PC, you are asked whether you wish to setup a partnership or a guest partnership.
• Standard Partnership : It allows you to copy and move files between PC and PDA
as well as data synchronization of your favorites, contacts, schedules, works, Inbox,
and etc. application data from PC.
• Guest Partnership : It allows you to only copy and move files but not synchronize
application data.
14
DMB
1. Power Off and On
You can watch and hear terrestrial DMB and radio.
How to run
1. Click DMB FUNCTION Key under POWER button at the
right side of PDA.
2. Click START -> PROGRAM -> DMB Player Icon
3. With Manual Navigator
Click Device -> DMB -> Program -> DMB Player Icon
How to exit
As in Close of general program.
(Program Exit button at the upper right)
Watch DMB with the antenna pointed up for broadcasting reception.
While not watching DMB, put the antenna into the body of DMB
phone.
Never watching DMB while driving and walking. It can be dangerous.
Excessive force on the antenna can cause a breakdown of it.
15
DMB
Avoid watching DMB while driving and walking. It can be dangerous.
If excessive forces applied at the antenna, it can cause a breakdown.
2. Screen
Control Menu Area
DLS and DMB Information Display Area
(Channel , Reception rate, power)
Upper Display Area
Program Title Bar
[ Vertical Mode ] [Horizontal Mode ]
16
DMB
3. How to Use the Program
Never watching DMB while driving and walking. It can be dangerous.
Excessive force on the antenna can cause a breakdown of it.
Volume Control
Changed to Mute irrespective of the
volume.
Radio Channel Enabled
TV Channel Enabled
Full Screen View
View Capture into JPEG.
DMB option setup
LCD power off
Volume control
Channel change
Description name Icon
Left/Right
Button
Volume Bar
Mute Button
Redio Mode
TV Mode
Full Screen
Capture
Setup
Toggle
Up/Down
Button
17
DMB
Never watching DMB while driving and walking. It can be dangerous.
Excessive force on the antenna can cause a breakdown of it.
4. Screen Capture
Size : 320 x 240
Extension Name : JPEG
File Name : Capture Date Time Save File
Attribute
Into DMB -> Capture Folder Folder to be
saved
Press the Capture Icon. Capture
Method
Description Name
18
DMB

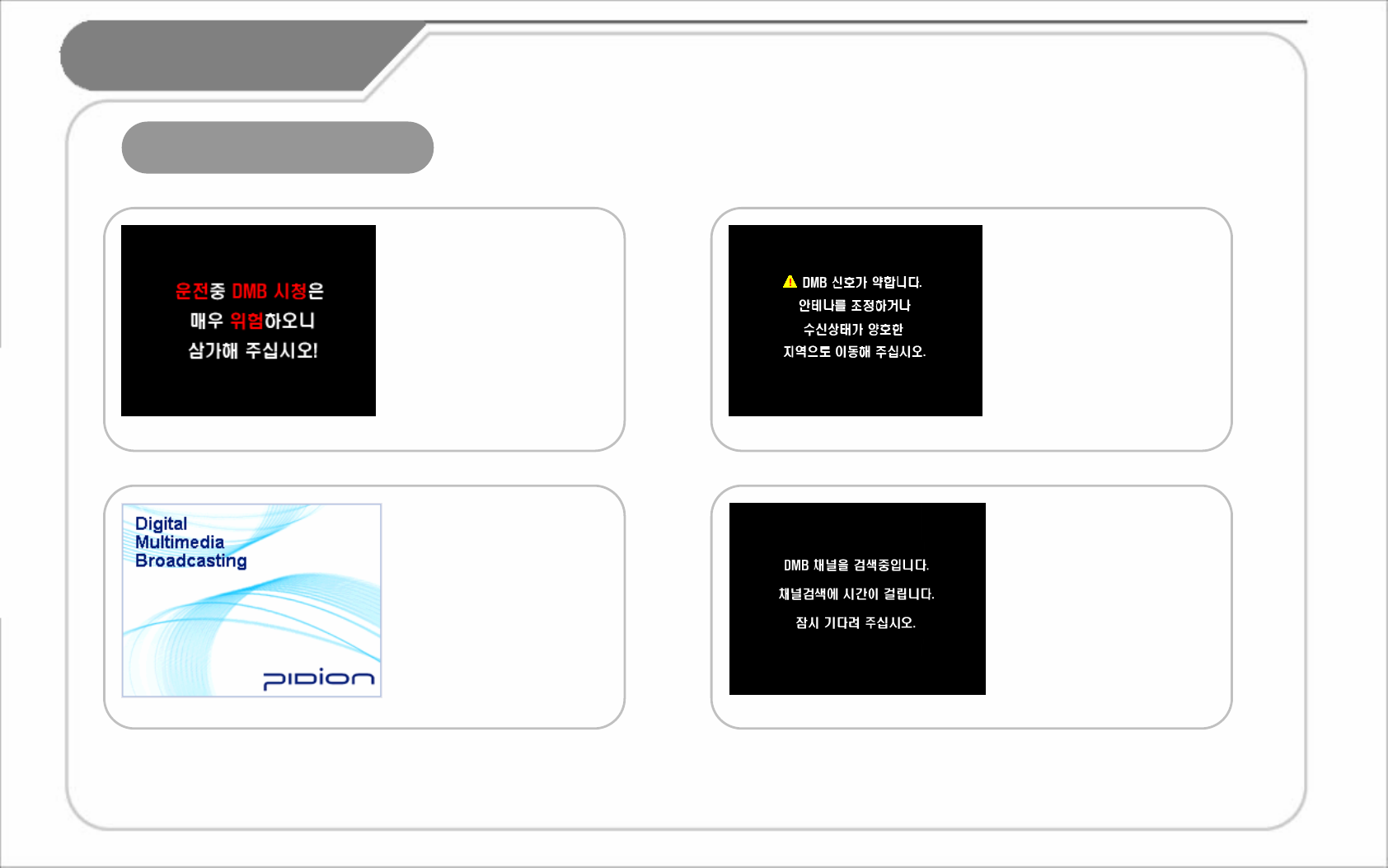

5. Message Screen
If the network signal is too weak at your current location, it may take much time in searching the channel.
In a basement or near a tall building, it may cause poor reception of DMB.
No saved channel.
“Searching DMB
Channel”
automatically.
Caution; poor
signal or no signal
of DMB.
While listening to
Radio.
Warning Message
to prevent watch
DMB while driving.
19
DMB
6. Configuration
If the network signal is too weak at your current location, it may take much time in searching the channel.
In a basement or near a tall building, it may cause poor reception of DMB.
Lists TV / Radio Channel
respectively and displays the
Searched Results.
If clicked the Channel, you can
see it.
DMB TV/
Channel List
If used the item, CPU
automatically changes to
Turbo Mode only when
watching DMB.
CPU Mode
Auto Change
Allows to add TV/Radio
channel enable to be received
at the present region through
AUTO CHANNEL SEARCHING.
Only through AUTO
SEARCHING.
DMB TV/Radio
Channel
Searching
In Full Screen Mode,
determine Left Hand-centered
or Right Hand-centered.
Full Screen
Mode
Description Name Screen
20
Settings

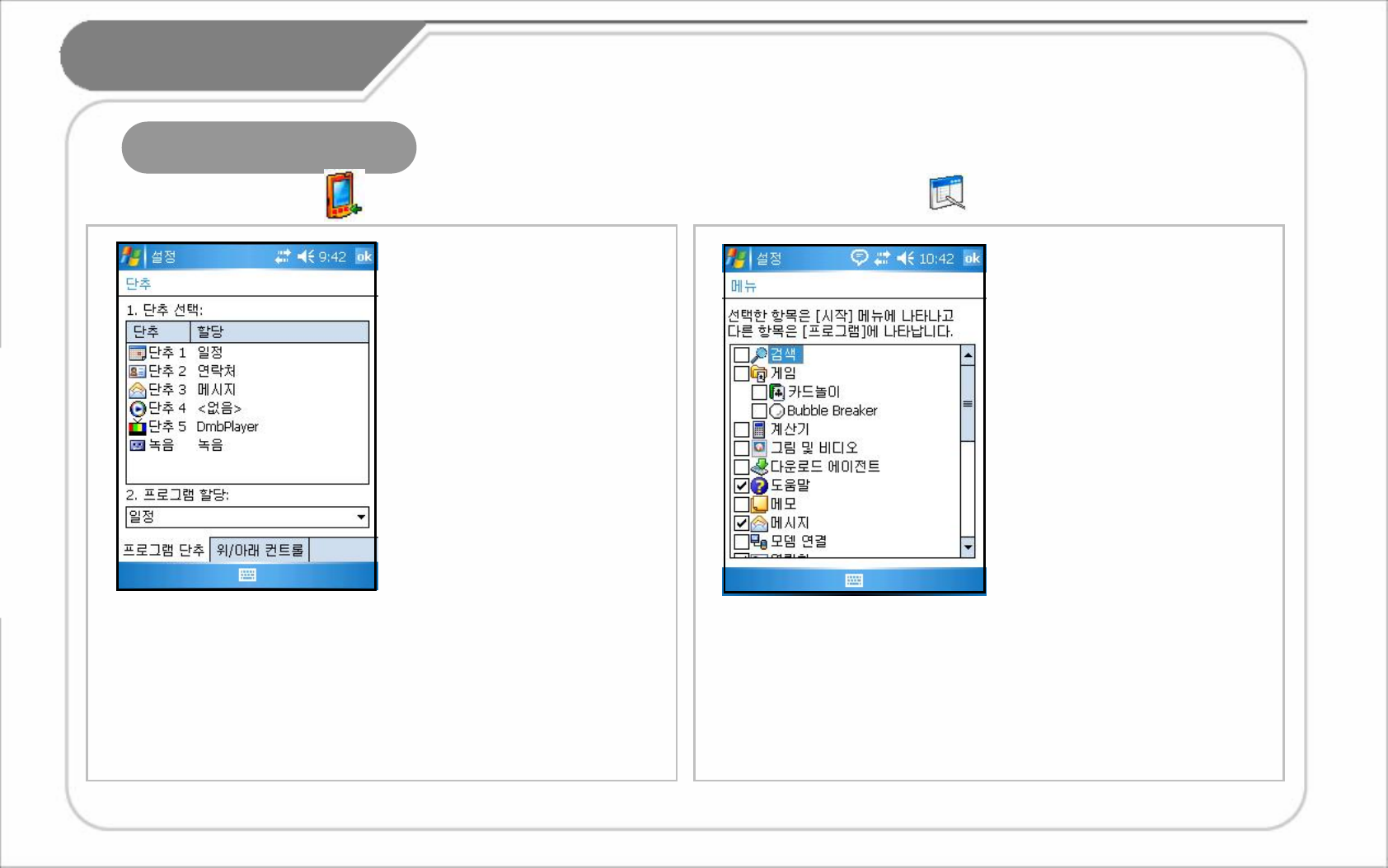

1. Personal Settings
[Button]
How to change Short Key Allocation Program: Select
the button and then the program you want to allocate
in the Program Allocation. If you selected the
necessary program, press OK.
Available Program : You can setup all the programs to
be installed as well as basic programs.
[Menu]
All available programs appears in checklists. Check
off the items you want to appear in the Title Bar Start
Menu. If not checked, it appears in the Program
Window. You may only have 7 items selected at any
time.
Used to change 4
Short keys below PDA.
Tab : Start-> Settings
->
Personal -> Button
Icon
Used to setup which
program appear in
Title Bar Start Menu.
Tab : Start-> Settings
->
Personal -> Menu
Icon
21
Settings
1. Personal Settings
[Today]
Indication Type Tab :
If copied the skin file(*.TSK) into My Documents
besides 2 skins, basically provided, it appears in
Background Screen Setup List.
Select the desired skin from Background Screen
Setup List and then press OK.
Item Tab :
As appeared in the list, it appears in Today screen.
After selecting from the list, you can change the
order using Up and Down keys.
Allows you to select and
draw up the background
skin and screen to the
style you want.
Tab : Start-> Settings -
>
Personal -> Today
Icon
Used to select the
Program Information to
be appeared in Today.
Tab : Start-> Settings -
>
Personal -> Today
Icon
22
Settings
2. System Settings
[Memory]
Storage Card Tab :
You can know the used
conditions (used memory,
available memory) of SD
memory card, inserted into
PDA.
Running Program Tab :
Displays running program lists
and allows you to stop or
pause.
Main Memory Tab :
You can know the current state
(used memory, available
memory) of PDA Memory.
23
Settings
2. System Settings
[Screen]
How to realign the screen :
1. Select the direction of realignment to Vertical or Horizontal
(Right Hand, Left Hand).
2. Press OK to realign the screen.
Use “Screen Alignment” to re-align the stylus point accurately.
Text Size Settings :
Allows you to control the text size into 5 stages.
Lists the programs to be
installed by an individual or
the organization as well as
OS-provided basic
programs.
[Removing
Programs]
Removing Program :
1. Select the program you wish to remove in the List.
2. Then, press “Remove” button, and it will be
removed automatically.
24
Settings
3. Connections Settings
[Bluetooth]
Allows you to
communicate with
Bluetooth devices.
Tab : Start-> Settings
->
Connections ->
Bluetooth
Pairing Methods are device dependent. Please refer to ‘Bluetooth Product Manual
Turn On Bluetooth : If checked off or not, it indicates
Used/Not Used. In not use, always do not check this
box. (To prevent a battery loss).
Settings enable to be searched from the other
devices : Check off this box to make BM-300
discoverable to other devices.
Bluetooth Settings
1. Press “New Partnership…
“ to scan the surrounding
Bluetooth devices.
2. Select the device to be
connected and then press
“Next” button.
3. Enter the ‘passkey’ for
the device and press “Next”
button.
(Passkey is device dependent.
Please refer to ‘Bluetooth
Product Manual’).
4. Tab a device name to be
connected and then press
“Finish”.
5. The model name and
icon appear and allow you
to use them.
Make the surrounding
Bluetooth devices to
perform pairing.
25
설정
3. 연결 환경
[Network Card]
Wi-Fi를 통한 무선 인터넷
을 설정하고 사용하실 수 있
습니다.
Tab : Start -> Settings->
Connections ->
Network Card
Wireless Internet Settings
1. If turned on Wi-Fi item of Wireless Manager, it
detects the surrounding AP and shows up in the
List.
2. Select the AP from Wireless Network Lists and
press “Connect”.
If no AP information, enter it manually.
1. In Wireless Network Lists window, click “Add
New”.
2. Enter the AP Name at “Network Name” in the
Wireless Network Attributes”
And, check off the AP Settings.
3. Press “OK” button.
4. You returns to the initial screen and the AP
name you entered shows up in the screen.
5. Press “OK” button.
6. Press “Connect” to connect with Wireless LAN.
Wireless Internet Settings allow you to setup the
Network Card Settings enable to be connected at the
surrounding AP.
26
Settings
3. Connections Settings
[Wireless Manager]
Course : Start -> Settings -> Connections -> Wireless
Manager
Use “All” button to turn ON/OFF two functions at a time. Use
“Wi-Fi” and “Bluetooth” buttons enable to turn ON/OFF
respectively.
If turned on “Wi-Fi” or “Bluetooth”, it enables to perform
detailed settings active. Though OFF, you can perform
settings using Menu Button at the bottom of screen.
[USB-PC Connection]
If unchecked “Advanced Network Function Used”
box, the synchronization is disabled between PC.
If Active Sync performed the synchronization
improperly after normal booting of PC, ensure where
the checkbox checked off properly.
Allows you to set the
communication
settings between PC.
Tab : Start ->
Settings->
Connections ->
USB-PC
27
Appendix
1. Q / A
Q : PDA sinks under the water. How can I do?
A : First, remove the battery from PDA and make it dry. If not operated after drying for a certain period, please contact our
C/S center. It may require to replace the main board or other parts.
Q : cannot turn on PDA.
A : After charging for a certain period, recheck it.
If not turn on after fully charged, please contact our C/S center.
Q : cannot charge PDA.
A : Check if PDA and PC or adapter connected properly. If the problem still persists, please contact our C/S center.
Q : Poor reception of DMB.
A : At the area where the network signal is too weak at your current location, you may not watch DMB properly.
Please control the antenna or move another place.
Q : Can’t find DMB channel.
A : Check if you are too far away from a base station for DMB.
Some area can’t receive DMB.
Q : PDA generates a heat.
A : It may generate a heat according to the used conditions.
Q : Battery life decreases.
A : Battery life varies depending on the conditions and environments where you use it.
28
Appendix
2. Customer Service Center
[Before A/S]
If you encounter problems or errors when using the product, please call 1588-1380.
[ Bluebird Soft Customer Service
Center]
Before A/S, you must backup your files and
data from your equipment.
In A/S center, we will not backup the data
separately.
Therefore, we will not be liable for any data
loss/deletion.
Tel. No. : 1588-1380
Fax. : 548-0870
E-Mail : bluebird@bluebird.co.kr
Office Hours
Weekdays : A.M. 9 : 00 ~ P.M. 6:00
Saturdays : A.M. 9 : 00 ~ P.M. 2:00
Sundays and Holidays off.
A/S Reception Method
We make it a rule to receive A/S off by mail, home-delivery, or visit.
If you purchased the product by third-party company, not by the manufacturer, you must do the user registration at our
company before A/S.
For the user registration, contact Bluebird soft Inc., Call Center(1588-1380).
When sending to A/S center, please enclosure a bill or a receipt.
If you sent along with the customer name, address, phone number, and symptoms, it can be treated more rapidly.
You can ask A/S to the company you purchased or our company’s Customer Service Center.
Please do not damage the label which attached to the product by intention.
Due to damaged label, the customer can be in a disadvantageous position.
When sending the product to Bluebird for A/S, you must put it in a protective container.
The damaged product during transportation is not guaranteed by our company.
It is recommended to use the container and protective cover, provided with the product.
Transport it in safe. Bluebird shall have no liability for missed equipment during transportation.
29
Fixed Amount Depreciation plus 10%
additional charges (The Max. price – the
price purchased)
Refund When impossible to replace
When impossible to repair within 1 month
Fixed Amount Depreciation and then
replace
Replace or refund.
When we missed the product asked to be repaired
by the customer.
Un-
repairable
When a failure occurred 5 times due to several defects.
A charged repair Replace or refund.
When a failure occurred 4 times due to the same defects.
A charged repair Repair for free
When a failure occurred 3 times due to the same defects.
Repairable
Refund Replacement Impossible within 1 month.
Replace or refund. Required the important repair within 1 month after being replaced.
Replace or repair for free
Required the important repair within 1 month after purchasing.
Replace or refund. Required the important repair within 10 days after purchasing.
After the guaranteed Period Within the guaranteed Period
Compensation
Customer Loss Type
[ Charged or Free A/S Regulations]
According to the Regulations on the Customer Claims Compensation. Parts maintenance period : 3 years
Replace with the same product. If impossible to replace with the same product, replace with the equivalent. But, if the customer didn’t want the equivalent, refund it.
Refund based on the price as written in a receipt when you purchased the product.
If the price of a bill higher than ordinary price, refund based on ordinary price in that it might include other additional charges.
3. A/S Description
Appendix
30
Appendix
Charged Service
1. When requesting the service, if it is not a failure , it may require extra subscription.
- Service due to poor use of the customer.
- Lost password,
- Used the program which may have an adverse impact on the system (over clock, system setting forced change, personal
development).
2. A failure due to the customer’s mistake.
- Due to the Customer’s misuse or neglect (drop, flooding, shock, damage, excessive operation).
- Alterations or repair carried out by unauthorized persons.
- Due to the customer’s mistake or accidental damage
- Due to the Parts or accessories, not honest goods.
3. Other causes
- A failure by an act of God (Fire, damage from sea wind, flood damage, abnormal power).
- consumables’ life exhausted (battery, antenna, each sorts of attachments).
4. First Charged Service and then Settlement
- For a charged service, if the same failure occurred in normal conditions within 2 months(60 days), it shall be repaired for free.
For the followings, it is not returnable or refundable.
If you removed the sealing from the supplied product with sealing package,
If the product lost or damaged due to the customer’s misuse or a natural disaster.
If you lost other accessories (CD, diskette, manual, connection cables, and etc.) of the product
If a failure occurred in the product after 10 days from the day of purchase, you can replace it one-to-one or request A/S. But not
returnable and refundable.
3. A/S Description
31
Quality Warranty
1 year from the date of
purchase
Warranty Period Place of
purchase
Manufacturing No. Date of
purchase
BM-300 Model Name PDA Product Name
Thank for your purchasing our product.
If you have no purchase receipt and warranty card due to missing, calculate the warranty period to the date after
3 months from the date of manufacture (manufacture no., Examined Certificate).
For accessories including batteries, you can receive the A/S only if corresponded to the sales record of A/S
Center.
If not corresponded to the record due to the customer’s mistake, they can be repaired or replaced with charged.
< Product Warranty>
1. Bluebirdsoft Inc. (referred as Bluebird hereinafter) guarantees the product according to the regulations on the
Customer’s Damage Compensation as follows.
2. Within the warranty period, Bluebird shall repair or replace the defect only upon presentation of reasonable
evidence and only if the warranty covered.
3. If impossible to repair or replace the fault, though within the limits and period of warranty, Bluebird shall refund
the purchase money within the specified period after notification of the fault.
4. Bluebird has no liability to repair, replace or refund the fault until the customer returned the fault product to the
A/S center. The fault product shall be replace with the equivalent new one based on its capacity.
5. The warranty is available in all countries where the product is officially distributed by Bluebird.
(Contracts on the additional warranty service such as a on-site service.).
6. The product of Bluebird can contain regenerated parts, components, or materials, equivalent with new products
in capacity.
7. For software products, the warranty is valid only if not running the programming command. This warranty is not
valid for the software product while operating (e.g. the product will not stop or make an error while operating).
FCC RF Radiation Exposure Statement: The equipment complies with FCC RF
radiation exposure limits set forth for an uncontrolled environment. This device
and its antenna(s) must not be co-located or operating in conjunction with any
other antenna or transmitter. This device is limited for handheld operation only.
