BNCOM BHF-100 BLUETOOTH HANDS-FREE CAR KIT User Manual H Users manual
BNCOM Co.,Ltd BLUETOOTH HANDS-FREE CAR KIT H Users manual
BNCOM >
Users Manual
Order Number : GETEC-C1-10-008 FCC Part 15 subpart C
Test Report Number : GETEC-E3-10-002 Page 1 / 1
EUT Type: Bluetooth Hands-free car kit
FCC ID.: XX5-BHF-100
APPENDIX H
: USER’S MANUAL
5
Actual use
Making a call
1. Making a call
After entering the telephone number, press the MFB(Multi Function Button)
briey.
2. Last number redial
Press and hold the MFB for 1 second to activate last number redial.
(Some handset will show the list of calls.)
3. Voice dialing
Briey press the MFB to activated 'voice command'.
Tip Your handset must support the ‘voice dial’ function.
Answering a call
Briey press the MFB(Multi Function Button) to answer an incoming call.
Ending a call
Briey press the MFB(Multi Function Button) or handset end key.
7

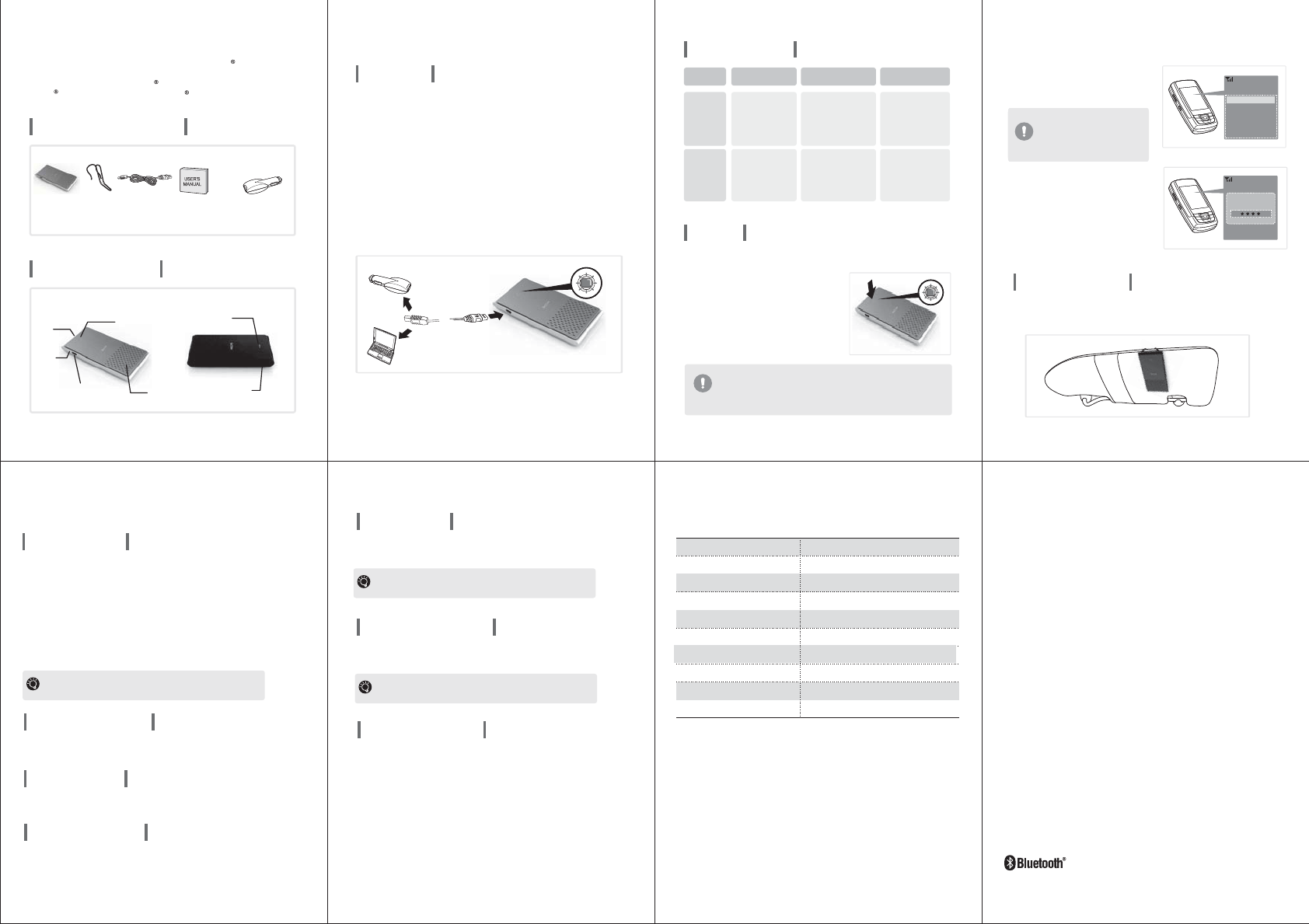

<Specication and Features>
Before using the BHF-100
The BHF-100 is a wireless hands-free Car Kit using Bluetooth technology.
This Product can be used as audio accessory for devices supporting either
the headset and hands-free Bluetooth proles.
Bluetooth is a trademark owned by Bluetooth SIG, Inc. and is used by
the manufacturer under its lincense term.
BnCOM
BHF-100
User
manual
Included in package
Parts description
MIC
Volume Button
Charging
Port
Speaker
Multi Function
Button (MFB)
1
USB Charging
Cable
Cigar Jack
USB Adapter
Sun visor
Clip
Reset
LED indicator
[Optional item]
Power on / o
Action Tone / Voice LED indication
Power on
Power o
Press and hold the
MFB for 3 seconds.
Press and hold the
MFB for 3 seconds.
You will hear melody
as the power is
turned on.
Blue LED blinks
5 times.
Red LED is on for
2 seconds and then
turns o.
1. While the power is turned o, press and hold the MFB(Multi Function Button)
for 6 seconds.
2. You will hear the melody indicating that
the power is on.
After that, you will hear the short beep.
3. When pariring mode, The Blue LED
indicator blinking rapidly.
Pairing
3
You will hear melody
as the power is
turned o.
NOTE
In order for all the functions of the BHF-100 to be available,
pair the BHF-100 in the handsfree mode. Paired in headset
mode some functions are restricted.
4. Using your handset, nd the ‘Bluetooth menu’ and ‘search for’ or
‘add’ new device.
Search Device
Input Password
Search Device
BHF-100
5. Select ‘BHF-100’ from the list
of devices and pair it with your
handset.
The method of pairing or
screen indication may be
dierent depending on the
handset model.
6. When asked for the Pass/PIN
code during the pairing
procedure, please enter ‘0000’
4
7. If pairing was successful.
The Blue LED indicator blinks 2 times
every 5 seconds.
NOTE
Installing in car
To install the BHF-100 in your car, rst place the metal visor clip onto
the back of the BHF-100, then secure Alpine DCS-BT1 to the sun visor
in your car as shown below.
Volume control
While on a call briey press the MFB(Multi Function Button) for transferring
the audio to the headset.
Transferring a call
6
Briey press the volume + or volume - button to adjust the speaker volume.
Answer a second call without hanging up the rst call by pressing
the MFB(Multi Function Button) for 1 second.
Call waiting
Tip This function is not available in the headset mode.
Tip Pressing too long may cause turning o the headset.
Using the BHF-100
Charging
The BHF-100 is powered by a built-in rechargeable battery pack.
You must charge the battery fully before using the BHF-100 for the rst time.
Mini USB 5pin
connector
Red
[Low battery indication]
When the battery is nearly depleted in either active or stand by mode,
① BHF-100 will make a beep sound three times every 30 seconds and
② the Red LED light will ash twice every 4 seconds.
2
[Optional item]
PC USB Port
4. When charging is complete, the Red LED lihgt will turn o.
It takes about 3hours to charge a fully depleted battery of BHF-100.
1. Plug the Mini USB 5pin connector of the charging cable into the charging
port located on the side of BHF-100.
3. While charging the Red LED light will turn on.
2. Charge BHF-100 through;
① Personal computer USB port
You can charge BHF-100 directly from your PC or MAC by plugging the
USB end of the charging cable into a USB port in your personal computer.
② Cigar jack USB adapter (An optional item)
Plug the cigar jack of the adapter into a car outlet.
Headset / Handsfree
2.402 ~ 2.480 MHz
Up to 33 feet (10meters)
3.7V / Li-Ion rechargeable battery
-10°C ~ 50°C
Up to 15 hours
Up to 800 hours
< 3 hours
Version 2.1
Supported Bluetooth Proles
Frequency range
Operating Range
115mm(L) x 56mm(W) x 11mm(D) / 70g Dimensions & Weight
Operating Temperature
Battery type
Talk time
Standby time
Charging time
Bluetooth specication
<Declaration of Conrmation>
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Changes or modi cations not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
To comply with FCC RF exposure requirements, the device and the antenna
for this device must be installed to ensure a minimum separation distance of
20 cm or more from a person’s body. Other operating con gurations should
be avoided.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
FCC ID : XX5-BHF-100
Products with CE marking comply with the R&TTE Directive (99/5/EC), the EMC
Directive(89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the
Commission of the European Community.
Auto Reconnect
When the BHF-100 and your handset are separated by a distance of
33 feet(10meters) or more, the BHF-100 will operate in “stand-by” mode.
at the moment when the distance between BHF-100 and the mobile phone
is above the operation range(33feets). 1. CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
2. Batteries shall not be exposed to excessive heat such as sunshine,
re or the like.
Safty
8
European Union Notice
CE0197
FCC ID : XX5-BHF-100
