BNCOM BHS-100 Bluetooth Stereo Headset User Manual EMISSION TEST REPORT

BNCOM Co.,Ltd Bluetooth Stereo Headset EMISSION TEST REPORT

Users Manual

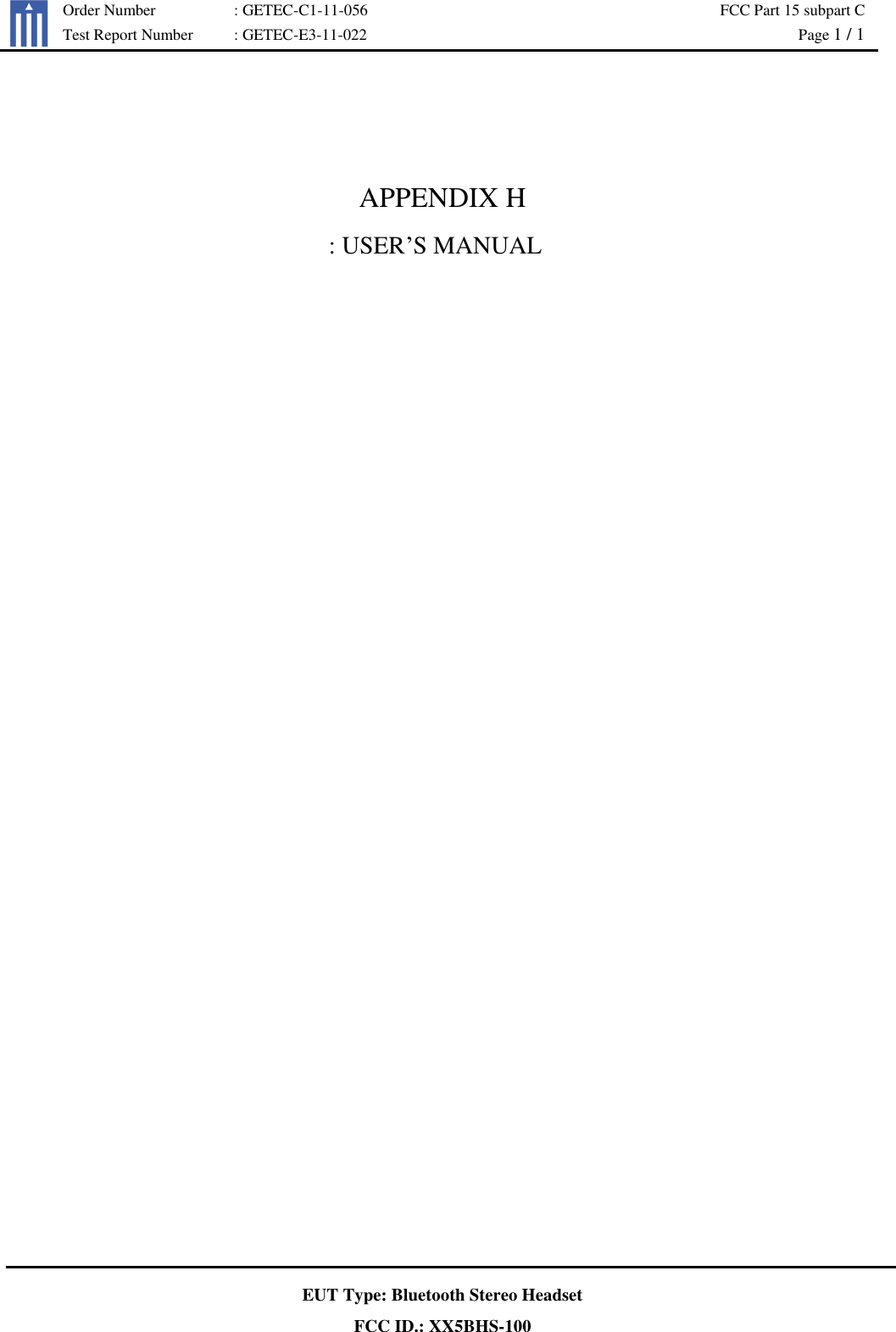

Order Number : GETEC-C1-11-056 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-022 Page 1 / 1 EUT Type: Bluetooth Stereo Headset FCC ID.: XX5BHS-100 APPENDIX H : USER’S MANUAL

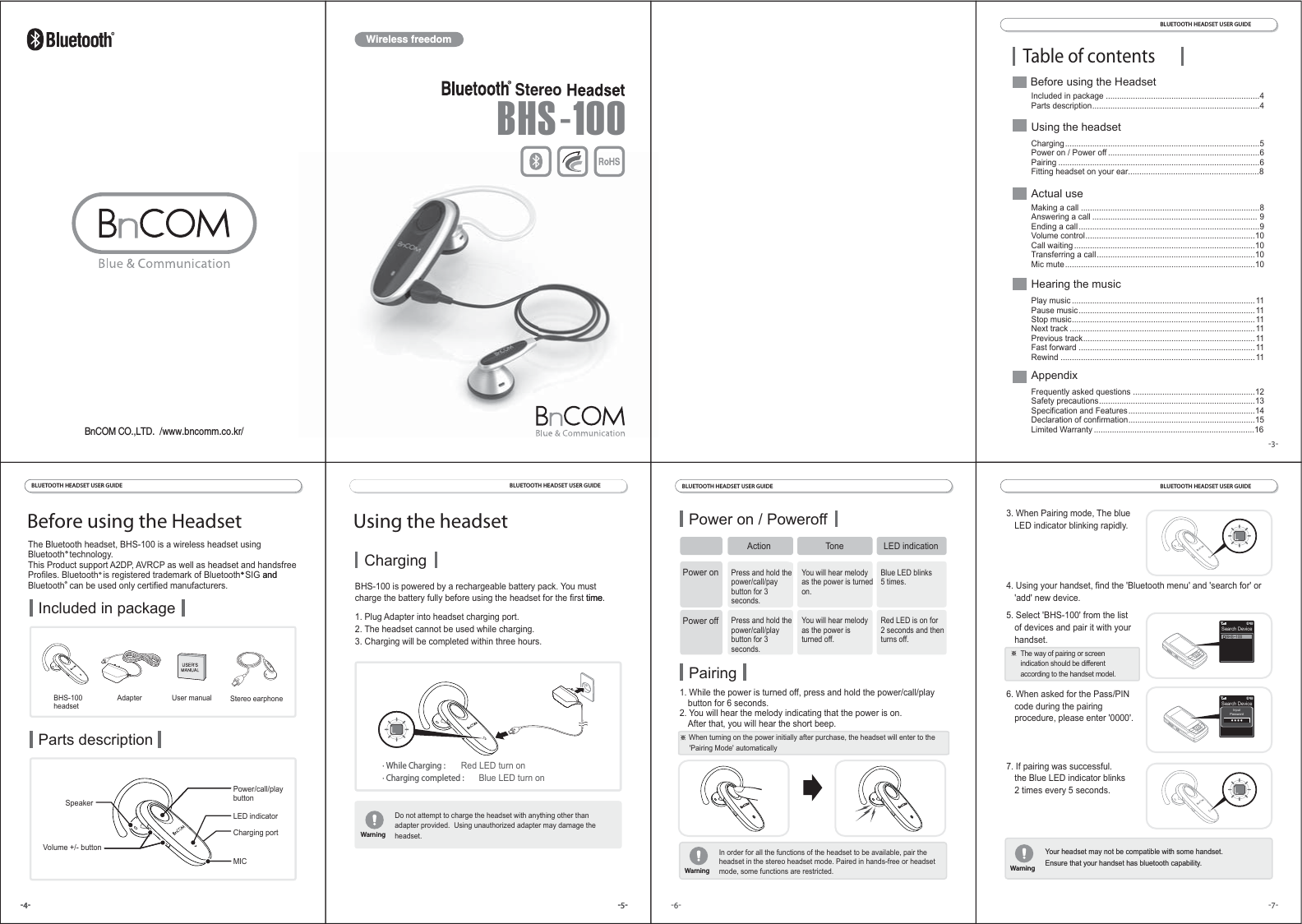

Wireless freedom-3-BLUETOOTH HEADSET USER GUIDE Table of contentsIncluded in package ....................................................................4Parts description..........................................................................4 Play music .................................................................................11Pause music..............................................................................11Stop music.................................................................................11Next track ..................................................................................11Previous track............................................................................11Fast forward ..............................................................................11Rewind ......................................................................................11Frequently asked questions ......................................................12Safety precautions.....................................................................13Specification and Features........................................................14Declaration of confirmation........................................................15Limited Warranty .......................................................................16 Making a call ...............................................................................8Answering a call ......................................................................... 9Ending a call................................................................................9Volume control...........................................................................10Call waiting ................................................................................10Transferring a call......................................................................10Mic mute....................................................................................10Charging......................................................................................5 Power on / Power off ...................................................................6Pairing .........................................................................................6Fitting headset on your ear..........................................................8-5--4-Using the headset Before using the HeadsetChargingBHS-100 is powered by a rechargeable battery pack. You mustcharge the battery fully before using the headset for the first time.1. Plug Adapter into headset charging port.2. The headset cannot be used while charging.3. Charging will be completed within three hours.Do not attempt to charge the headset with anything other thanadapter provided. Using unauthorized adapter may damage theheadset.WarningWarning· While Charging : Red LED turn on· Charging completed : Blue LED turn onThe Bluetooth headset, BHS-100 is a wireless headset usingBluetooth technology.This Product support A2DP, AVRCP as well as headset and handsfreeProfiles. Bluetooth is registered trademark of Bluetooth SIG andBluetooth can be used only certified manufacturers.Included in packageParts descriptionBHS-100headsetAdapter User manual Stereo earphoneCharging portPower/call/playbuttonLED indicatorMICVolume +/- buttonSpeakerBLUETOOTH HEADSET USER GUIDE BLUETOOTH HEADSET USER GUIDE -5--4- time.Do not attempt to charge the headset with anything other thanadapter provided. Using unauthorized adapter may damage theheadset.WarningWarningandBefore using the HeadsetUsing the headset Actual useHearing the musicAppendixWarningWarningBLUETOOTH HEADSET USER GUIDE BLUETOOTH HEADSET USER GUIDE -7--6-Power on / Poweroff Press and hold thepower/call/paybutton for 3seconds.You will hear melodyas the power is turnedon.Blue LED blinks5 times.Press and hold thepower/call/playbutton for 3seconds.You will hear melodyas the power isturned off.Red LED is on for 2 seconds and thenturns off.Pairing1. While the power is turned off, press and hold the power/call/play button for 6 seconds.2. You will hear the melody indicating that the power is on. After that, you will hear the short beep. When turning on the power initially after purchase, the headset will enter to the 'Pairing Mode' automaticallyIn order for all the functions of the headset to be available, pair theheadset in the stereo headset mode. Paired in hands-free or headsetmode, some functions are restricted.WarningWarningYour headset may not be compatible with some handset.Ensure that your handset has bluetooth capability.Your headset may not be compatible with some handset.Ensure that your handset has bluetooth capability.3. When Pairing mode, The blue LED indicator blinking rapidly.4. Using your handset, find the 'Bluetooth menu' and 'search for' or 'add' new device.5. Select 'BHS-100' from the list of devices and pair it with your handset.6. When asked for the Pass/PIN code during the pairing procedure, please enter '0000'.7. If pairing was successful. the Blue LED indicator blinks 2 times every 5 seconds. The way of pairing or screen indication should be different according to the handset model.WarningWarningSearch DeviceInputPasswordActionPower onTone LED indicationPower offStereoBHS-100BnCOM CO.,LTD. /www.bncomm.co.kr/Search DeviceBHS-100

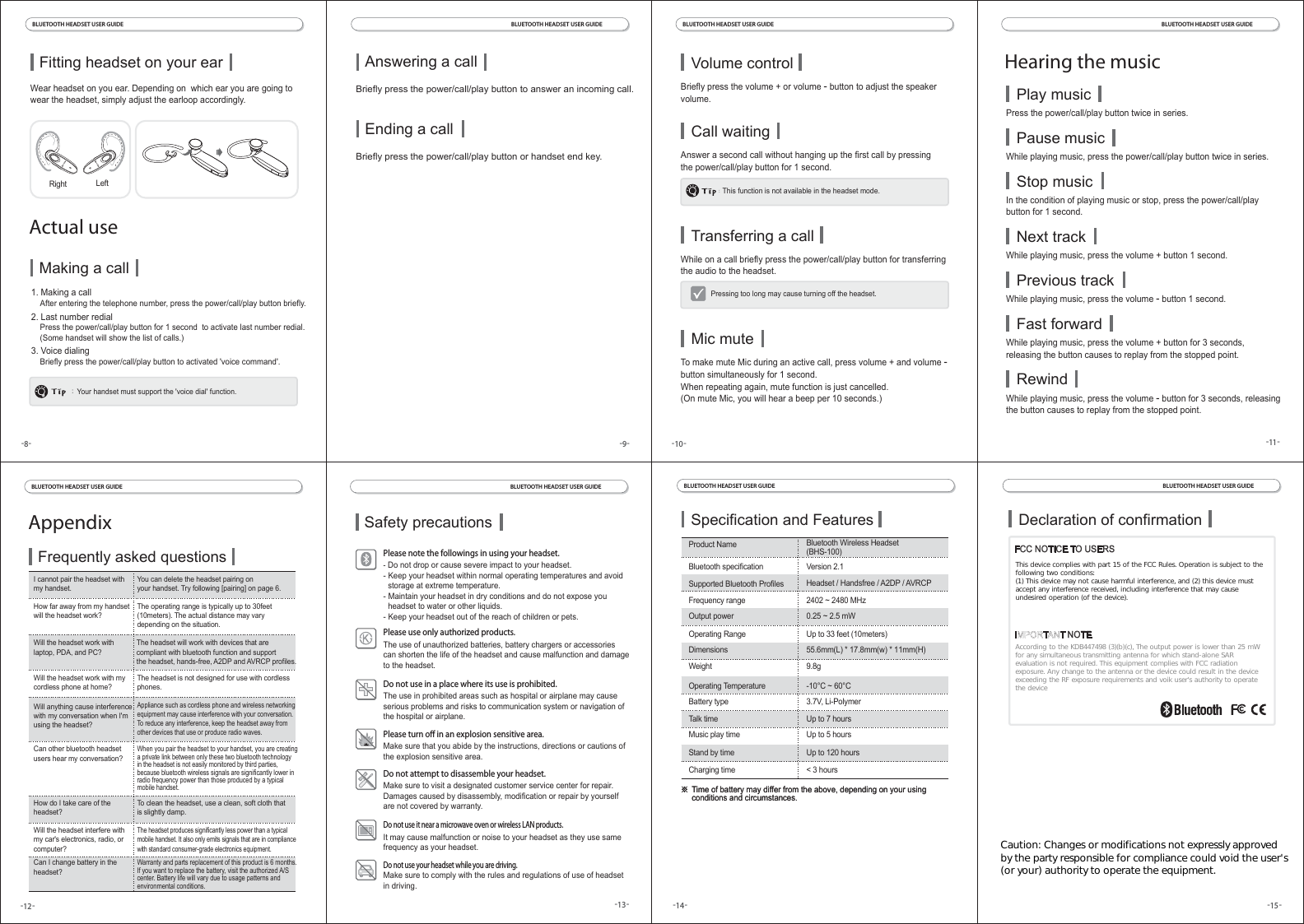

BLUETOOTH HEADSET USER GUIDE -9-Briefly press the power/call/play button to answer an incoming call.Your handset must support the 'voice dial' function.BLUETOOTH HEADSET USER GUIDE -8-1. Making a call After entering the telephone number, press the power/call/play button briefly.2. Last number redial Press the power/call/play button for 1 second to activate last number redial. (Some handset will show the list of calls.)3. Voice dialing Briefly press the power/call/play button to activated 'voice command'.Making a callAnswering a callBriefly press the power/call/play button or handset end key.Ending a callWear headset on you ear. Depending on which ear you are going towear the headset, simply adjust the earloop accordingly.Right LeftActual useFitting headset on your earBLUETOOTH HEADSET USER GUIDE -10-BLUETOOTH HEADSET USER GUIDE -11 -Briefly press the volume + or volume - button to adjust the speakervolume.Volume controlPressing too long may cause turning off the headset.While on a call briefly press the power/call/play button for transferringthe audio to the headset.Transferring a callPress the power/call/play button twice in series.Play musicWhile playing music, press the power/call/play button twice in series.Pause musicIn the condition of playing music or stop, press the power/call/playbutton for 1 second.Stop musicWhile playing music, press the volume + button 1 second.Next trackWhile playing music, press the volume - button 1 second.Previous trackWhile playing music, press the volume + button for 3 seconds,releasing the button causes to replay from the stopped point.Fast forwardWhile playing music, press the volume - button for 3 seconds, releasingthe button causes to replay from the stopped point.RewindTo make mute Mic during an active call, press volume + and volume -button simultaneously for 1 second.When repeating again, mute function is just cancelled.(On mute Mic, you will hear a beep per 10 seconds.)Mic muteHearing the musicAnswer a second call without hanging up the first call by pressingthe power/call/play button for 1 second.Call waitingThis function is not available in the headset mode.- Do not drop or cause severe impact to your headset.- Keep your headset within normal operating temperatures and avoid storage at extreme temperature.- Maintain your headset in dry conditions and do not expose you headset to water or other liquids.- Keep your headset out of the reach of children or pets.The use of unauthorized batteries, battery chargers or accessoriescan shorten the life of the headset and cause malfunction and damageto the headset.The use in prohibited areas such as hospital or airplane may causeserious problems and risks to communication system or navigation ofthe hospital or airplane.Make sure that you abide by the instructions, directions or cautions ofthe explosion sensitive area.Make sure to visit a designated customer service center for repair.Damages caused by disassembly, modification or repair by yourselfare not covered by warranty.It may cause malfunction or noise to your headset as they use samefrequency as your headset.Make sure to comply with the rules and regulations of use of headsetin driving.BLUETOOTH HEADSET USER GUIDE -12-BLUETOOTH HEADSET USER GUIDE -13-How far away from my handsetwill the headset work?The operating range is typically up to 30feet(10meters). The actual distance may varydepending on the situation.Will the headset work withlaptop, PDA, and PC?The headset will work with devices that arecompliant with bluetooth function and supportthe headset, hands-free, A2DP and AVRCP profiles.How do I take care of theheadset?To clean the headset, use a clean, soft cloth thatis slightly damp.Will the headset work with mycordless phone at home?The headset is not designed for use with cordlessphones.Will anything cause interferencewith my conversation when I'musing the headset?Appliance such as cordless phone and wireless networkingequipment may cause interference with your conversation.To reduce any interference, keep the headset away fromother devices that use or produce radio waves.Can other bluetooth headsetusers hear my conversation?When you pair the headset to your handset, you are creatinga private link between only these two bluetooth technologyin the headset is not easily monitored by third parties,because bluetooth wireless signals are significantly lower inradio frequency power than those produced by a typicalmobile handset.Will the headset interfere withmy car's electronics, radio, orcomputer?The headset produces significantly less power than a typicalmobile handset. It also only emits signals that are in compliancewith standard consumer-grade electronics equipment.Can I change battery in theheadset?Warranty and parts replacement of this product is 6 months.If you want to replace the battery, visit the authorized A/Scenter. Battery life will vary due to usage patterns andenvironmental conditions.I cannot pair the headset withmy handset.You can delete the headset pairing onyour handset. Try following [pairing] on page 6.AppendixFrequently asked questionsSafety precautionsBLUETOOTH HEADSET USER GUIDE Version 2.1 Headset / Handsfree / A2DP / AVRCP2402 ~ 2480 MHz0.25 ~ 2.5 mW9.8g Up to 33 feet (10meters) 3.7V, Li-Polymer-10°C ~ 60°CUp to 7 hoursUp to 5 hoursUp to 120 hours< 3 hoursBluetooth Wireless Headset(BHS-100)-14-Product NameBluetooth specificationSupported Bluetooth ProfilesOutput powerFrequency rangeOperating RangeWeight55.6mm(L) * 17.8mm(w) * 11mm(H) DimensionsOperating TemperatureBattery typeTalk timeStand by timeMusic play timeCharging time Time of battery may differ from the above, depending on your using conditions and circumstances. Time of battery may differ from the above, depending on your using conditions and circumstances.Specification and FeaturesFCC NOTICE TO USERSNOTETo comply with the FCC RF exposure compliance requirements, nochange to the antenna or the device is permitted. Any change to theantenna or the device could result in the device exceeding the RFexposure requirements and voik user's authority to operate the device.Declaration of confirmationBLUETOOTH HEADSET USER GUIDE -15-Please note the followings in using your headset.Please use only authorized products.Do not use in a place where its use is prohibited.Please turn o in an explosion sensitive area.Do not attempt to disassemble your headset.Do not use it near a microwave oven or wireless LAN products.Do not use your headset while you are driving. According to the KDB447498 (3)(b)(c), The output power is lower than 25 mW for any simultaneous transmitting antenna for which stand-alone SAR evaluation is not required. This equipment complies with FCC radiation exposure. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and voik user's authority to operate the device Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's (or your) authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation (of the device).
