Assembly Manual

FOR THE BOWFLEX ULTIMATE

Includes Instructions for

Assembling

Bowflex Ultimate

Machines

®

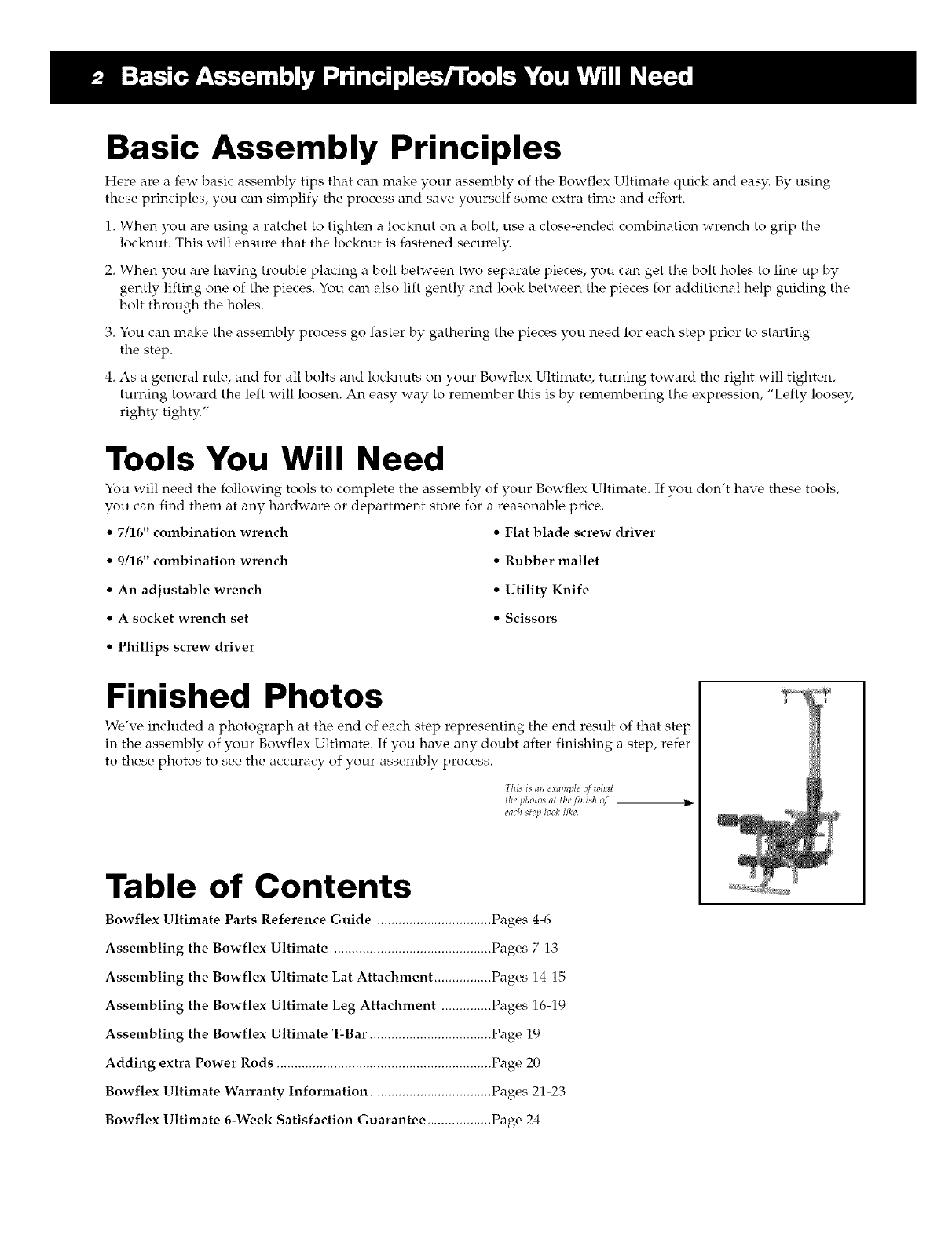

Basic Assembly Principles

Here are a few basic assembly tips that can make your assembly of the Bowflex Ultimate quick and easy. By using

these principles, you can simplify the process and save yourself some extra time and effort.

1. When you are using a ratchet to tighten a locknut on a bolt, use a close-ended combination wrench to grip the

locknut. This will ensure that the locknut is fastened securely.

2. When you are having trouble placing a bolt between two separate pieces, you can get the bolt holes to line up by

gently lifting one of the pieces. You can also lift gently and look between the pieces for additional help guiding the

bolt through the holes.

3. You can make the assembly process go faster by gathering the pieces you need for each step prior to starting

the step.

4. As a general rule, and for all bolts and locknuts on your Bowflex Ultimate, turning toward the right will tighten,

turning toward the left will loosen. An easy way to remember this is by remembering the expression, "Lefty loosey,

righty tighty."

Tools You Will Need

You will need the following tools to complete the assembly of your Bowflex Ultimate. If you don't have these tools,

you can find them at any hardware or department store for a reasonable price.

•7/16" combination wrench

• 9/16" combination wrench

•An adjustable wrench

•A socket wrench set

•Phillips screw driver

• Flat blade screw driver

•Rubber mallet

• Utility Knife

• Scissors

Finished Photos

We've included a photograph at the end of each step reF resenting the end result of that step

in the assembly of your Bowflex Ultimate. If you have any doubt after finishing a step, refer

to these photos to see the accuracy of your assembly process.

This is m_exa,_ple of wh_t

the photos at fhe fisdsh qf

each step look like

Table of Contents

Bowflex Ultimate Parts Reference Guide ................................ Pages 4-6

Assembling the Bowflex Ultimate ............................................ Pages 7-13

Assembling the Bowflex Ultimate Lat Attachment ................ Pages 14-15

Assembling the Bowflex Ultimate Leg Attachment .............. Pages 16-19

Assembling the Bowflex Ultimate T-Bar .................................. Page 19

Adding extra Power Rods ............................................................ Page 20

Bowflex Ultimate Warranty Information .................................. Pages 21-23

Bowflex Ultimate 6-Week Satisfaction Guarantee .................. Page 24

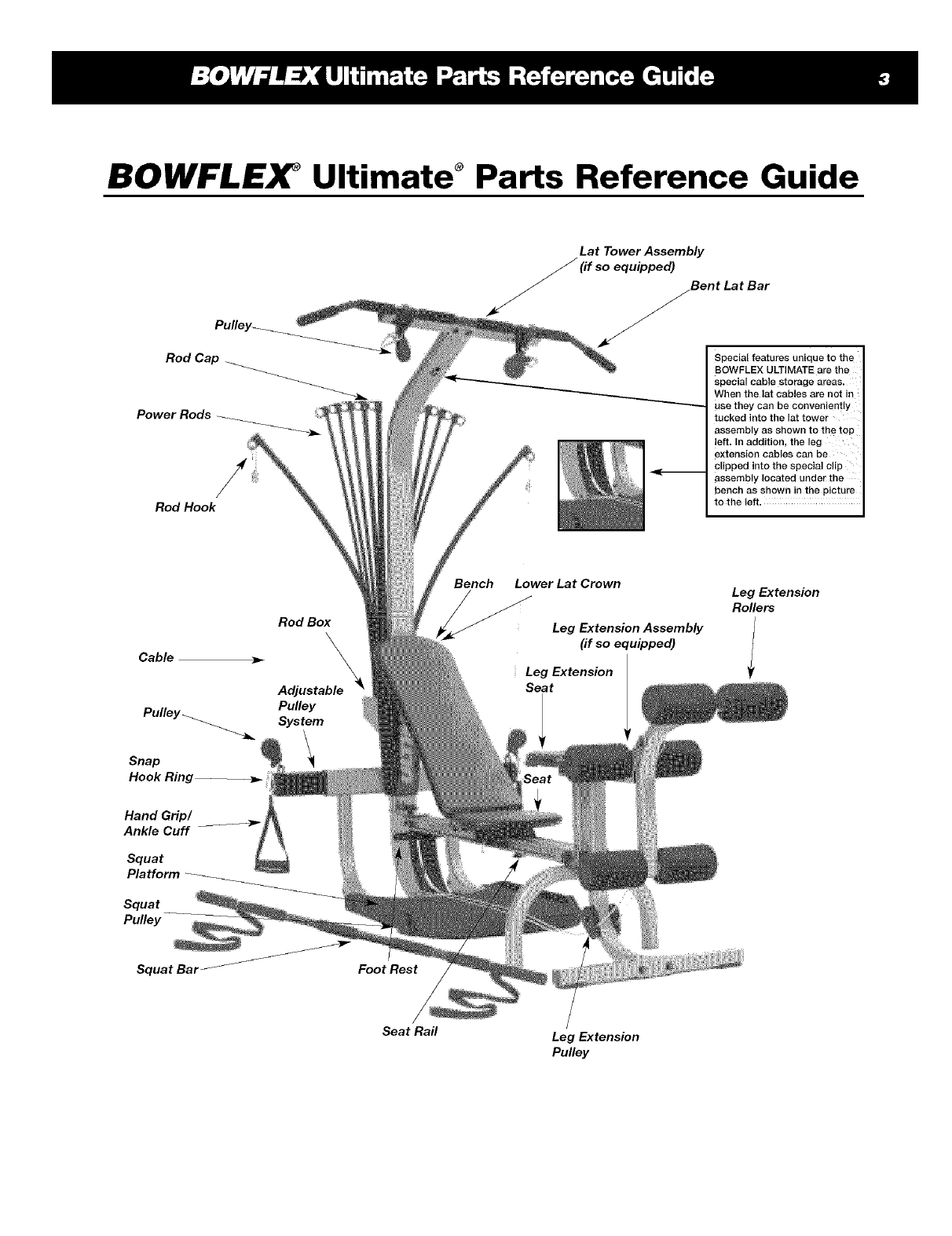

BOWFLEX Ultimate °Parts Reference Guide

Rod Cap

Power Rods

Rod Hook

Cable >

Pul_y_

Snap

Hook Ring_

Rod Box

\

Adjustable

Pulley

System

Hand Gripl_

Ankle Cuff

Squat

Platform

Squat

Pufley

Squat Bar _Foot Rest

Bench

Lat Tower Assembly

/_Bent Lat Bar

Special features unique to the

BOWFLEX ULTIMATE are the

special cable storage areas.

When the lat cables are not in

use they can be conveniently

tucked into the lat tower

assembly as shown to the top

left. In addition, the leg

extension cables can be

_._ clipped intothe special clip

assemblylocated underthe

benchas shown in thepicture

to the left.

Lower Lat Crown

Leg Extension Assembly

(if so equipped)

Leg Extension

Seat

Leg Extension

Rollers

Seat Raft Leg Extension

Pulley

Base Unit Assembly

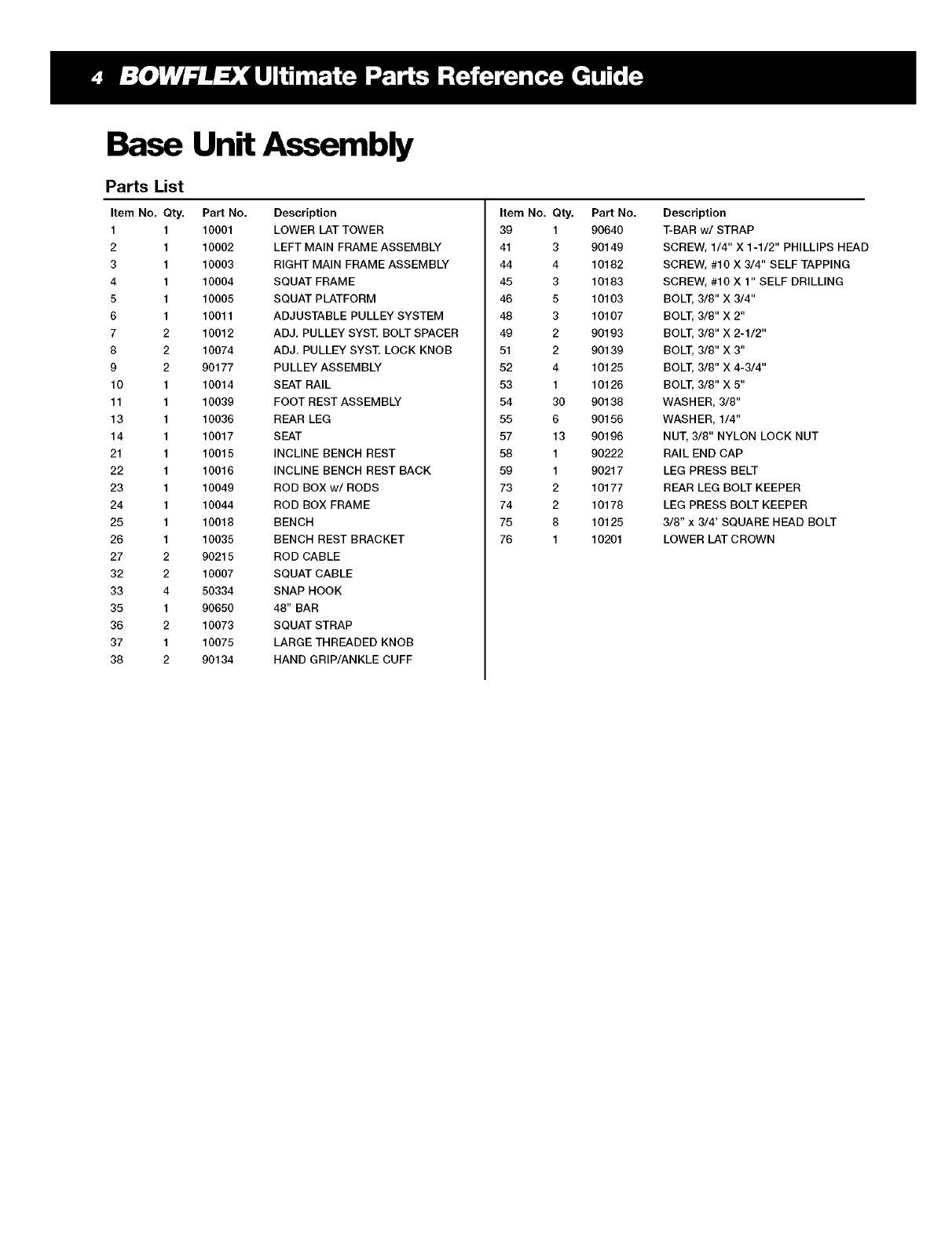

Parts List

Item No. Qty. Part No. Description

1 1 10001 LOWER I_AT TOWER

2 1 10002 LEFT MAIN FRAME ASSEMBLY

3 1 10003 RIGHT MAIN FRAME ASSEMBLY

4 1 10004 SQUAT FRAME

5 1 10005 SQUAT PLATFORM

6 1 10011 ADJUSTABLE PULLEY SYSTEM

7 2 10012 ADJ, PULLEY SYST. BOLT SPACER

8 2 10074 ADJ, PULLEY SYST. LOCK KNOB

9 2 90177 PULLEY ASSEMBLY

10 1 10014 SEAT RAIL

11 1 10039 FOOT REST ASSEMBLY

13 1 10036 REAR LEG

14 1 10017 SEAT

21 1 10015 INCLINE BENCH REST

22 1 10016 INCLINE BENCH REST BACK

23 1 10049 ROD BOX w/RODS

24 1 10044 ROD BOX FRAME

25 1 10019 BENCH

26 1 10035 BENCH REST BRACKET

27 2 90215 ROD CABLE

32 2 10007 SQUAT CABLE

33 4 50334 SNAP HOOK

35 1 90650 48" BAR

36 2 10073 SQUAT STRAP

37 1 10075 LARGE THREADED KNOB

38 2 90134 HAND GRIP/ANKLE CUFF

Item No. Qty. Part No.

39 1 90640

41 390149

44 4 10182

45 3 10183

46 5 10103

48 3 10107

49 2 90193

51 2 90139

52 4 10125

53 1 10126

54 30 90138

55 6 90156

57 13 90196

58 1 90222

59 1 90217

73 2 10177

74 2 10178

75 8 10125

76 1 10201

Description

T-BAR w/STRAP

SCREW, 1/4" X 1-1/2" PHILLIPS HEAD

SCREW, #10 X 3/4" SELF TAPPING

SCREW, #10 X 1" SELF DRILLING

BOLT, 3/8" X3/4"

BOLT, 3/8" X 2"

BOLT, 3/8" X 2-1/2"

BOLT, 3/8" X3"

BOLT, 3/8" X 4-3/4"

BOLT, 3/8" X 5"

WASHER, 3/8"

WASHER, 1/4"

NUT, 3/8" NYLON LOCK NUT

RAIL END CAP

LEG PRESS BELT

REAR LEG BOLT KEEPER

LEG PRESS BOLT KEEPER

3/8" x 3/4' SQUARE HEAD BOLT

LOWER LAT CROWN

Item #: 1

110001

Des_

Ttem #: 7

Qty.: 2

Dart #: 10012

Descr: Adjustable

Pulley System

Ttem #: 14

Qty.: 1

Dart #: 10017

Descr: Seat

ttem #: 26

Oty.: 1

Dart #: 10035

Descr: Bench Rest

Bracket

Ttem #: 37

Qty.: 1

Dart #: 10075

Descr: Large

Threaded

Knob

Item #: 74

Qty.: 2

Part#: 10178

Descr: Leg Press

Bolt Keeper

Item #: 2

Qty.: 1

Part #: 10002

Oescr: Left Main

Frame

Assembly

Item #: 8

Qty.: 2

Part #: 10074

Descr: Adjustable

Pulley System

Lock Knob

Q

Item #: 21

Qty.: 1

Part #: 10015

Descr: Incline Bench

Rest

Item #: 27

Qty.: 2

Part #: 90215

Descr: Rod

Cable

Length: 43"

Item #: 38

Qty.: 2

Part #: 90134

Descr: Hand Grip/

Ankle Cuff

Item #: 76

Qty.: 1

Part #: 10201

Descr: Lower Lat

Crown

Item #: 3

Qty.: 1

Part #: 10003

Descr: Right Main

Frame

Item #: 9

Qty.: 2

Part #: 90177

Descr: Pulley

Assembly

Item #: 22

Qty.: 1

Part #: 10016

Descr: Incline Bench

Rest Back

Item #: 32

Qty.: 2

Part #: 10007

Descr: Squat

Cable

Length: 35"

Item #: 39

Qty.: 1

Part #: 90640

Descr: T-Bar

Item #: 4

Qty.: 1

Part #: 10004

Descr: Squat Frame

Item #: 10

Qty.: 1

Part #: 10014

Descr: Seat Raft

/

Item #: 23

Qty.: 1=[

Part #: 10049

Descr: Rod Box

w/Rods

Item #: 33

Qty.: 4

Part #: 50334

Descr: Snap Hook

Item#:58

Qty.: 1

Part_90222

Descr: Raft End Cap

Item #: 5

Qty.: 1

Part #: 10005

Descr: Squat

Platform

Item #: 11

Qty.: 1

Part #: 10039

Descr: Foot Rest

Item #: 24

Qty.: 1

Part #: 10044

Descr: Rod Box

Frame

Item #: 35

Qty.: 1

Part #: 90650

Item #: 59

Qty.: 1

Part #: 90217

Descr: Leg Press

Belt

Item #: 6

Qty.: 1

Part #: 10011

Descr: Adjustable

Pulley

Item #: 13

Qty.: 1

Part #: 10036

Descr: Rear Bench

Leg

%

Item #: 25

Item #: 36

Qty.: 2

Part #: 10073

Descr: Squat Strap

Item #: 73

Qty.: 2

Part #: 10177

Descr: Rear Leg Bolt

Keeper

02003 The N3utilus Group, hie ,V31/couvel: WA 98684 All rights reserved

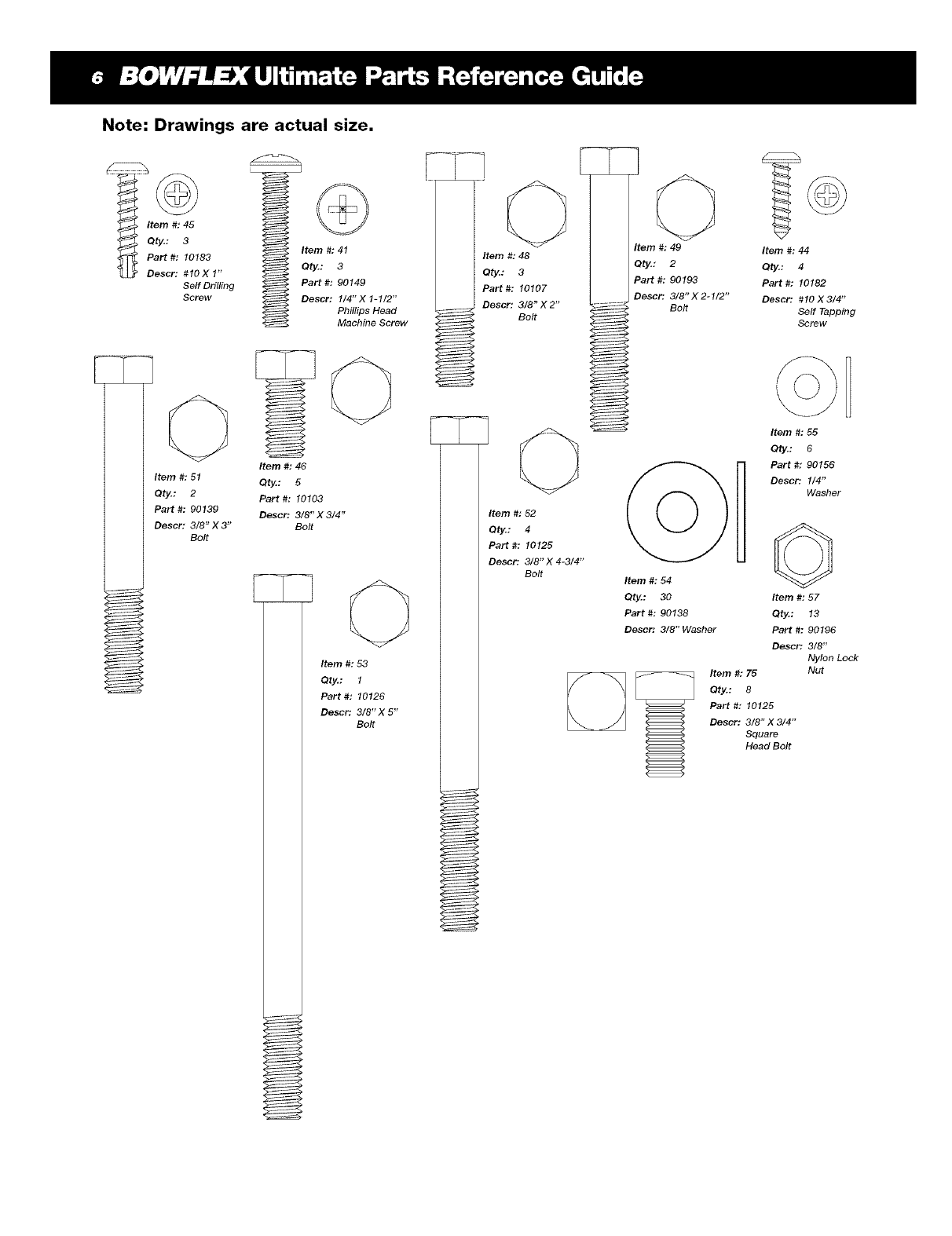

Note: Drawings are actual size.

Serf Drilling

Screw

item #: 51

Qty.: 2

Part #: 90139

Descr: 3/8ol;X3"

Item #: 41

Qty.: 3

Part #: 90149

Descr: 1/4"X 1-1/2"

Phillips Head

Machine Screw

Item #: 46

Qty.: 5

Part #: 10103

Descr: 3/8" X 3/4"

Bolt

Item #: 53

Qty.: 1

Part #: 10126

Descr: 3/8" X 5"

Bolt

It_om #: 48

Item #: 52

Qty.: 4

Part #: 10125

Descr: 3/8" X 4-3/4"

Bolt

Item #: 49

_ltty.: 2

PaP rt #: 90193

escr: 3/8'lt' X 2-1/2"

Item #: 54

Qty.: 30

Part #: 90138

Descr: 3/8" Washer

Item #: 44

Qty.: 4

Part #: 10182

Descr: #10 X3/4"

Self Tapping

Screw

Item #: 55

Qty.: 6

Part #: 90156

Descr: 1/4"

Washer

Item #: 57

Qty.: 13

Part #: 90196

Descr: 3/8"

Nylon Lock

Item #: 75 Nut

Qty.: 8

Part #: 10125

Descr: 3/8" X3/4"

Square

Head Bolt

Step 1: LOWER MAIN FRAME ASSEMBLY

Locate the following for this step:

• Lower lat tower (Item #1)

• Left main frame (Item #2)

• Right main frame (Item #3)

• Two (2) 3/8X3" bolts (Item #51)

• Four (4) 3/8" washers (Item #54)

• Two (2) 3/8" nylon lock nuts (Item #51)

[] Place the left main frame (Item #2) into the

saddle bracket of the lower lat tower (Item #1)

as shown in Figure A.

[] Insert a 3/8"X3" bolt (Item #51) with a

washer on it through the appropriate holes,

place a 3/8" washer (Item #54) and then a 3/8"

nylon lock nut (Item #57) on the bolt, hand

tighten at this time.

[] Place the mating right hand side of the main

frame (Item #3) next to the left side of the

frame in the lower lat tower saddle bracket

(Item #t) and repeat step above.

Note: Hand tighten all bolts at this stage.

Figure A

I Components for this step

are in Box 2 & Box 4

Step 2: ADJUSTABLE PULLEY SYSTEM

Locate the following for this step:

•Adjustable Pulley System (Item #6) (_)

• Two (2) Adjustable Pulley System bolt spacers /

(Item #7, twist tied to Adjustable Pulley System) ]

•Two (2) 3/8"X2-1/2" bolts (Item #49)

•Two (2) 3/8"X3/4" bolts (Item #46)

•Four (4) 3/8" washers (Item #54)

• Two (2) Adjustable Pulley System lock knobs (Item #8) _4k_3r_ _

[] Remove twist ties from bolt spacers and slide Adjustable

Pulley System (Item #6) into main frame uprights as shown

in Figure B. _ .&

Note: The side with two large holes faces away from the machine. ®

[] Insert both 3/8"X2-1/2" bolts (Item #49) with 3/8" washers

(Item #54) into chest slide spacers and hand tighten into the back

of lower lat tower (Item #1) (NOTE: DO NOT OVERTIGHTEN)

Note: Inserting the top bolt first will help you align the parts.

[] Hand tighten the 3/8"X3/4" bolts (Item #46) with 3/8" washers

(Item #54) into the uprights of the main frame (Items #2&3).

Figure B

[] Make sure all the holes are properly aligned and screw the two

spring-loaded locking knob assemblies (Item #8) into the back side

of the Adjustable Pulley System as shown in figure B. Tighten the locking

knobs to the Adjustable Pulley System with an adjustable wrench.

Components

for this step

are in Box 4

Note: Do not unwrap the two pulley assemblies that are attached

to the Adjustable Pulley System at this time.

[] Securely tighten all bolts that have been placed on the unit up to this stage.

Unit appears like this

following this assembly step

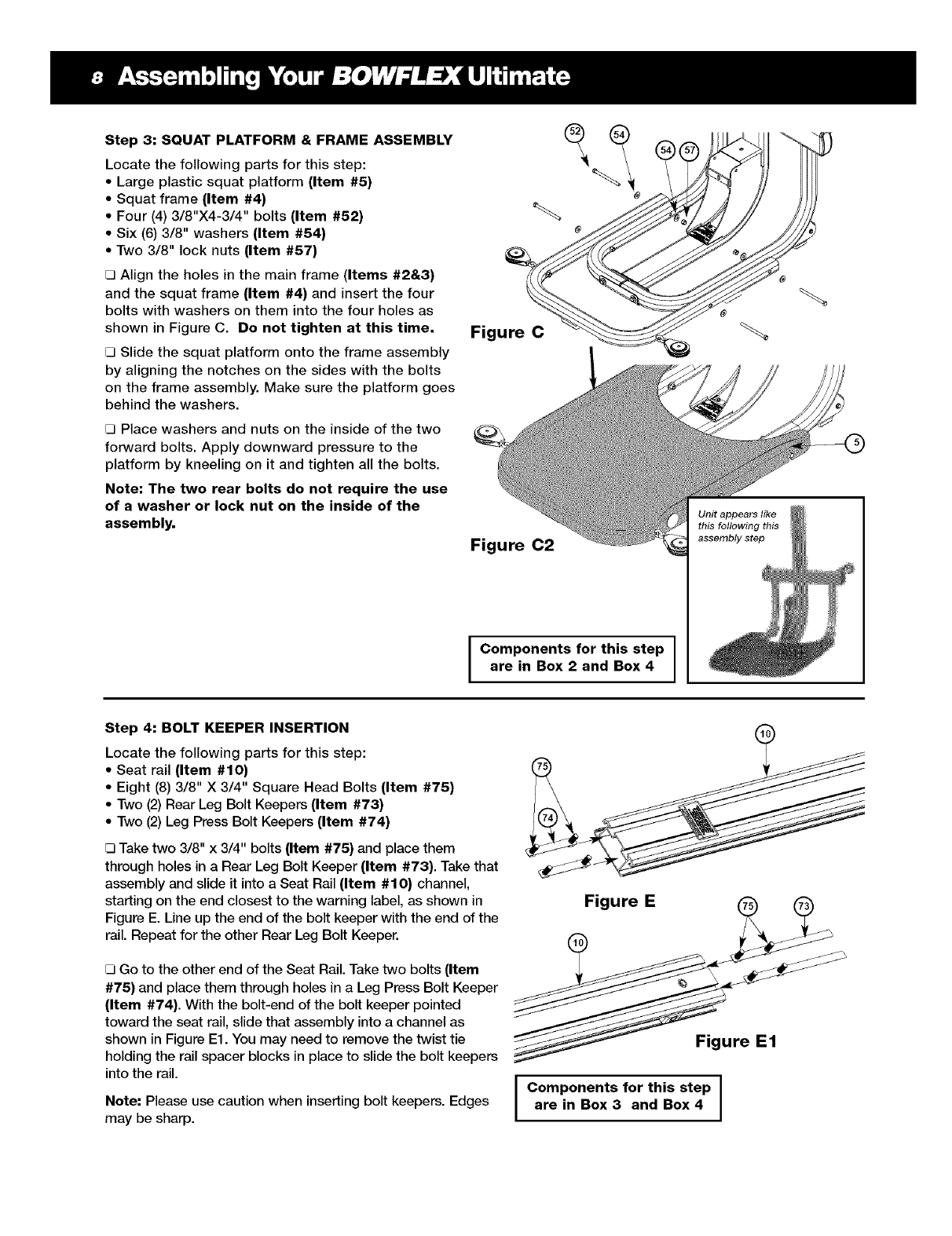

Step 3: SQUAT PLATFORM & FRAME ASSEMBLY

Locate the following parts for this step:

• Large plastic squat platform (Item #5)

• Squat frame (Item #4)

• Four (4) 3/8"X4-3/4" bolts (Item #52)

• Six (6) 3/8" washers (Item #54)

• Two 3/8" lock nuts (Item #57)

[] Align the holes in the main frame (Items #2&3)

and the squat frame (Item #4) and insert the four

bolts with washers on them into the four holes as

shown in Figure C. De not tighten at this time.

[] Slide the squat platform onto the frame assembly

by aligning the notches on the sides with the bolts

on the frame assembly. Make sure the platform goes

behind the washers.

[] Place washers and nuts on the inside of the two

forward bolts. Apply downward pressure to the

platform by kneeling on it and tighten all the bolts.

Note: The two rear bolts do not require the use

of a washer or lock nut on the inside of the

assembly.

Figure C

Figure C2

Components for this step

are in Box 2 and Box 4

Step 4: BOLT KEEPER INSERTION

Locate the following parts for this step:

• Seat rail (Item #10)

•Eight (8) 3/8" X 3/4" Square Head Bolts (Item #75)

•Two (2) Rear Leg Bolt Keepers (Item #73)

•Two (2) Leg Press Bolt Keepers (Item #74)

[] Take two 3/8" x 3/4" bolts (Item #75) and place them

through holes in a Rear Leg Bolt Keeper (Item #73), Take that

assembly and slide it into a Seat Rail (Item #10) channel,

starting on the end closest to the warning label, as shown in

Figure E. Line up the end of the bolt keeper with the end of the

rail. Repeat for the other Rear Leg Bolt Keeper.

[] Go to the other end of the Seat Rail. Take two bolts (Item

#75) and place them through holes in a Leg Press Bolt Keeper

(Item #74). With the bolt-end of the bolt keeper pointed

toward the seat rail, slide that assembly into a channel as

shown in Figure El. You may need to remove the twist tie

holding the rail spacer blocks in place to slide the bolt keepers

into the rail.

Note: Please use caution when inserting bolt keepers. Edges

may be sharp.

Figure E

Figure E1

Components for this step I

are in Box3 and Box4 I

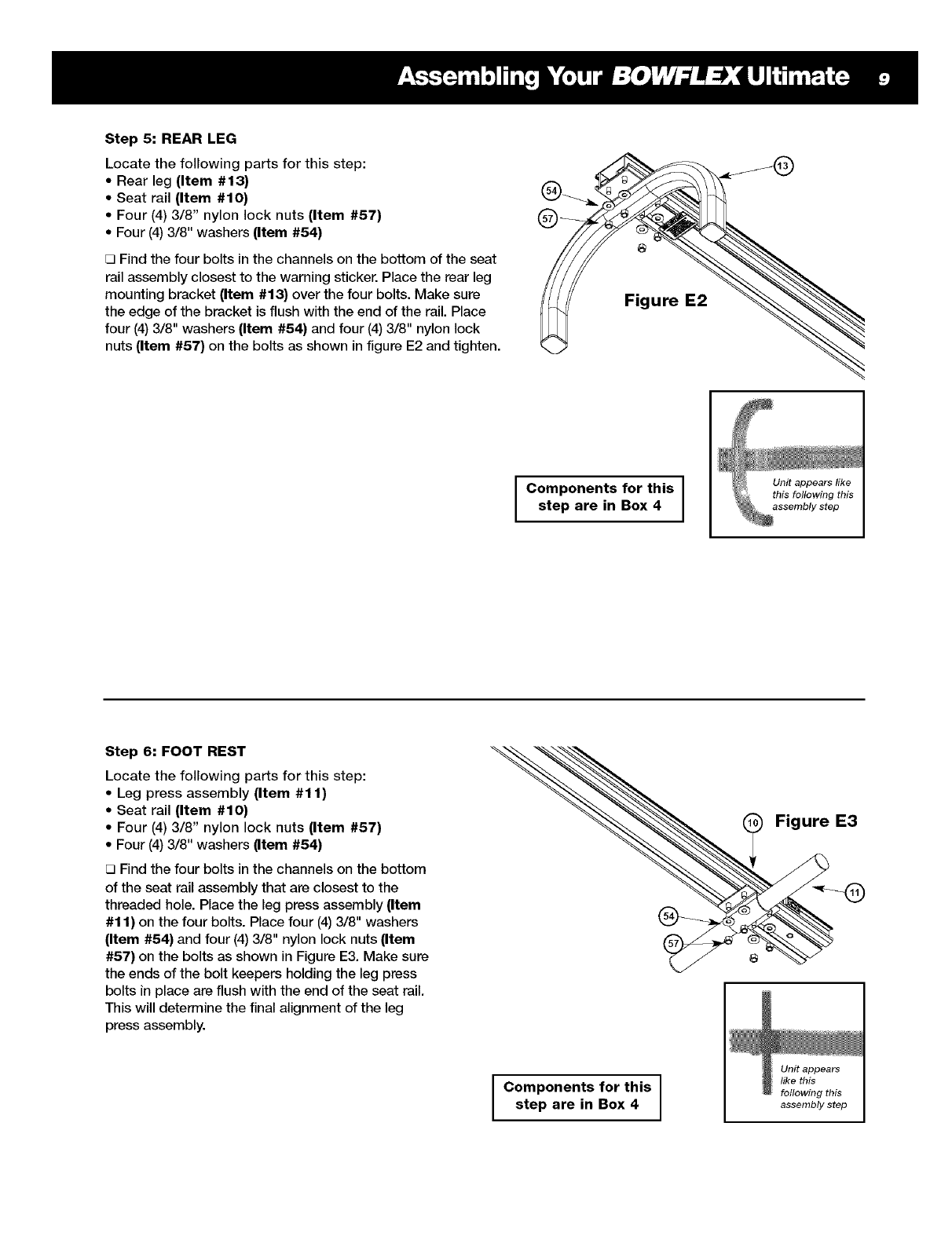

Step 5: REAR LEG

Locate the following parts for this step:

•Rear leg (Item #13)

•Seat rail (Item #10)

•Four (4) 3/8" nylon lock nuts (Item #57)

•Four (4) 3/8" washers (Item #54)

[] Find the four bolts in the channels on the bottom of the seat

rail assembly closest to the warning sticker. Place the rear leg

mounting bracket (Item #13) over the four bolts. Make sure

the edge of the bracket is flush with the end of the rail. Place

four (4) 3/8" washers (Item #54) and four (4) 3/8" nylon lock

nuts (Item #57) on the bolts as shown in figure E2 and tighten.

Figure E2

Components for this

step are in Box 4

Unit appears like

this following this

assembly step

Step 6: FOOT REST

Locate the following parts for this step:

• Leg press assembly (Item #11)

• Seat rail (Item #10)

• Four (4) 3/8" nylon lock nuts (Item #57)

• Four (4) 3/8" washers (Item #54)

[] Find the four bolts in the channels on the bottom

of the seat rail assembly that are closest to the

threaded hole. Place the leg press assembly (Item

#11) on the four bolts. Place four (4) 3/8" washers

(Item #54) and four (4) 3/8" nylon lock nuts (Item

#57) on the bolts as shown in Figure E3. Make sure

the ends of the bolt keepers holding the leg press

bolts in place are flush with the end of the seat rail.

This will determine the final alignment of the leg

press assembly.

I Components for this

step are in Box 4

Figure E3

assembly step

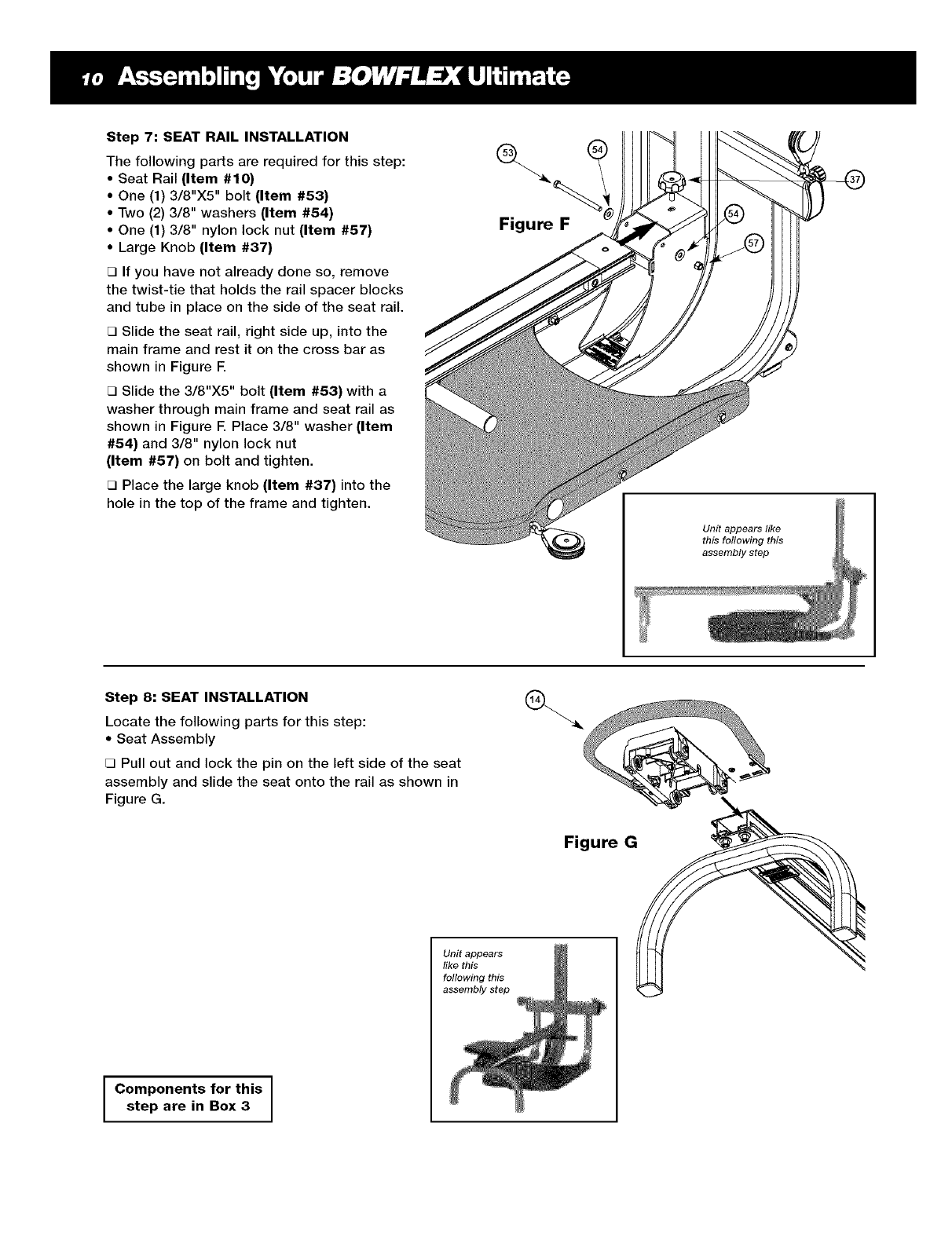

Step 7: SEAT RAIL INSTALLATION

The following parts are required for this step:

• Seat Rail {Item #10)

• One (1) 3/8"X5" bolt {Item #53)

• Two (2) 3/8" washers {Item #54)

• One (1) 3/8" nylon lock nut {Item #57)

• Large Knob {Item #37)

[] If you have not already done so, remove

the twist-tie that holds the rail spacer blocks

and tube in place on the side of the seat rail.

[] Slide the seat rail, right side up, into the

main frame and rest it on the cross bar as

shown in Figure F.

[] Slide the 3/8"X5" bolt {Item #53) with a

washer through main frame and seat rail as

shown in Figure F. Place 3/8" washer {Item

#54) and 3/8" nylon lock nut

(Item #57) on bolt and tighten.

[] Place the large knob (Item #37) into the

hole in the top of the frame and tighten.

Figure F

Step 8: SEAT INSTALLATION

Locate the following parts for this step:

•Seat Assembly

[] Pull out and lock the pin on the left side of the seat

assembly and slide the seat onto the rail as shown in

Figure G.

Figure G

Components for this I

step are in Box 3 I

Unit appears

like this

following this

assembly step

Step 9: RAIL END CAP INSTALLATION

Locate the following parts for this step:

• Rail End Cap (Item #58)

•Two (2) #10X3/4" self tapping screw (Item #44)

[] Place the end cap (Item #58) on the end of the rail with arrow

inside end cap facing up.

[] Secure the end cap to the end of the rail using two (2)

#10X3/4" self tapping screws (Item #44) shown in Figure H.

®

i Components for this

step are in Box 4

If your unit came with a lat attachment, skip now I

to lat instructions: Step 1 Page 14. I

Unit appears like

this following this

assembly step

Step 10: INCLINE BENCH REST INSTALLATION

i i

Locate the following parts for this step:

• Incline bench rest (Item #21)

• Incline bench rest back (Item #22)

• Three (3) 3/8"X2" bolts (Item #48)

• Three (3) 3/8" washers (Item #54)

• Two (2) #10X3/4" self tapping screws

(Item #44)

[] Match up the oval bosses on the

incline seat rest (Item #21) with the oval

cutouts in the lower lat tower (Item #t)

as shown in Figure K.

[] Place the incline bench rest back (Item

#22) on the rear of the lower lat tower

(Item #1) and match up the three holes

for the 3/8" bolts as shown in Figure K.

Note: Make sure the textured, non-

machined side of the incline rest back

faces outward away from the machine,

[] Slide the three (3) 3/8"X2" bolts (Item #48) into

the three holes in the incline bench rest back (Item

#22) through the lower lat tower (Item #1) and into

the incline seat rest (Item #21) as shown in Figure

K. Securely tighten these three bolts.

[] Screw the two (2) #10X3/4" (Item #44) screws

into the incline bench rest back (Item #22) as

shown in Figure K.

optional lat tower

Figure K

Components for this I

step are in Box 4 I

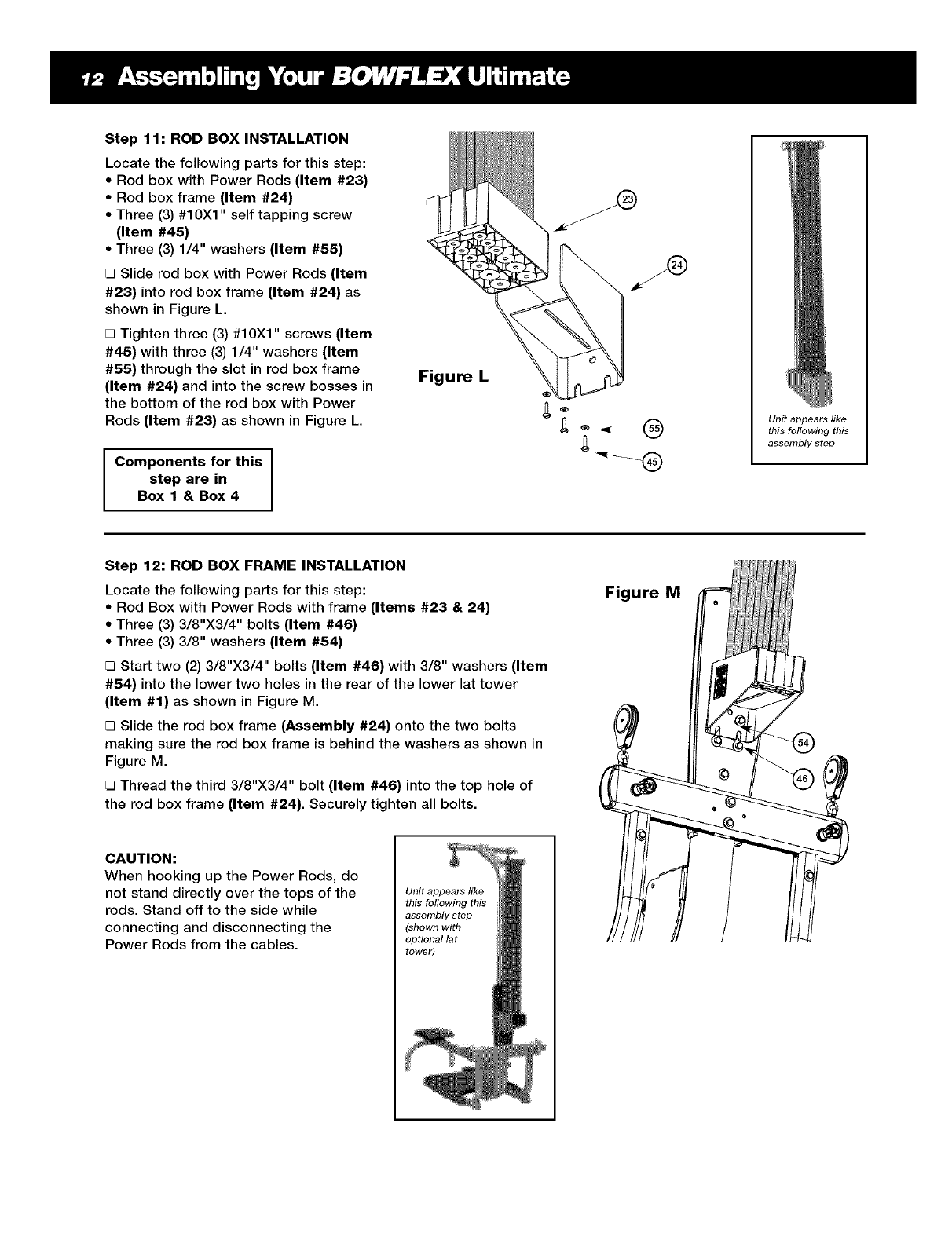

Step 11: ROD BOX INSTALLATION

Locate the following parts for this step:

• Rod box with Power Rods {Item #23)

• Rod box frame {Item #24)

• Three (3) #10Xl" self tapping screw

(Item #45)

•Three (3) 1/4" washers (Item #55)

[] Slide rod box with Power Rods (Item

#23) into rod box frame (Item #24) as

shown in Figure L.

[] Tighten three (3) #10Xl" screws {Item

#45) with three (3) 1/4" washers {Item

#55) through the slot in rod box frame

(Item #24) and into the screw bosses in

the bottom of the rod box with Power

Rods {Item #23) as shown in Figure L.

Components for this I

step are in I

Box 1 & Box 4

Figure L

Unit appears like

this following this

assembly step

Step 12: ROD BOX FRAME INSTALLATION

Locate the following parts for this step:

• Rod Box with Power Rods with frame {Items #23 & 24)

• Three (3) 3/8"X3/4" bolts {Item #46)

• Three (3) 3/8" washers {Item #54)

[] Start two (2) 3/8"X3/4" bolts {Item #46) with 3/8" washers {Item

#54) into the lower two holes in the rear of the lower lat tower

{Item #1) as shown in Figure M.

[] Slide the rod box frame (Assembly #24) onto the two bolts

making sure the rod box frame is behind the washers as shown in

Figure M.

[] Thread the third 3/8"X3/4" bolt {Item #46) into the top hole of

the rod box frame (Item #24). Securely tighten all bolts.

CAUTION:

When hooking up the Power Rods, do

not stand directly over the tops of the

rods. Stand off to the side while

connecting and disconnecting the

Power Rods from the cables.

Unit appears like

this following this

assembly step

(shown with

optional lat

tower)

Figure M

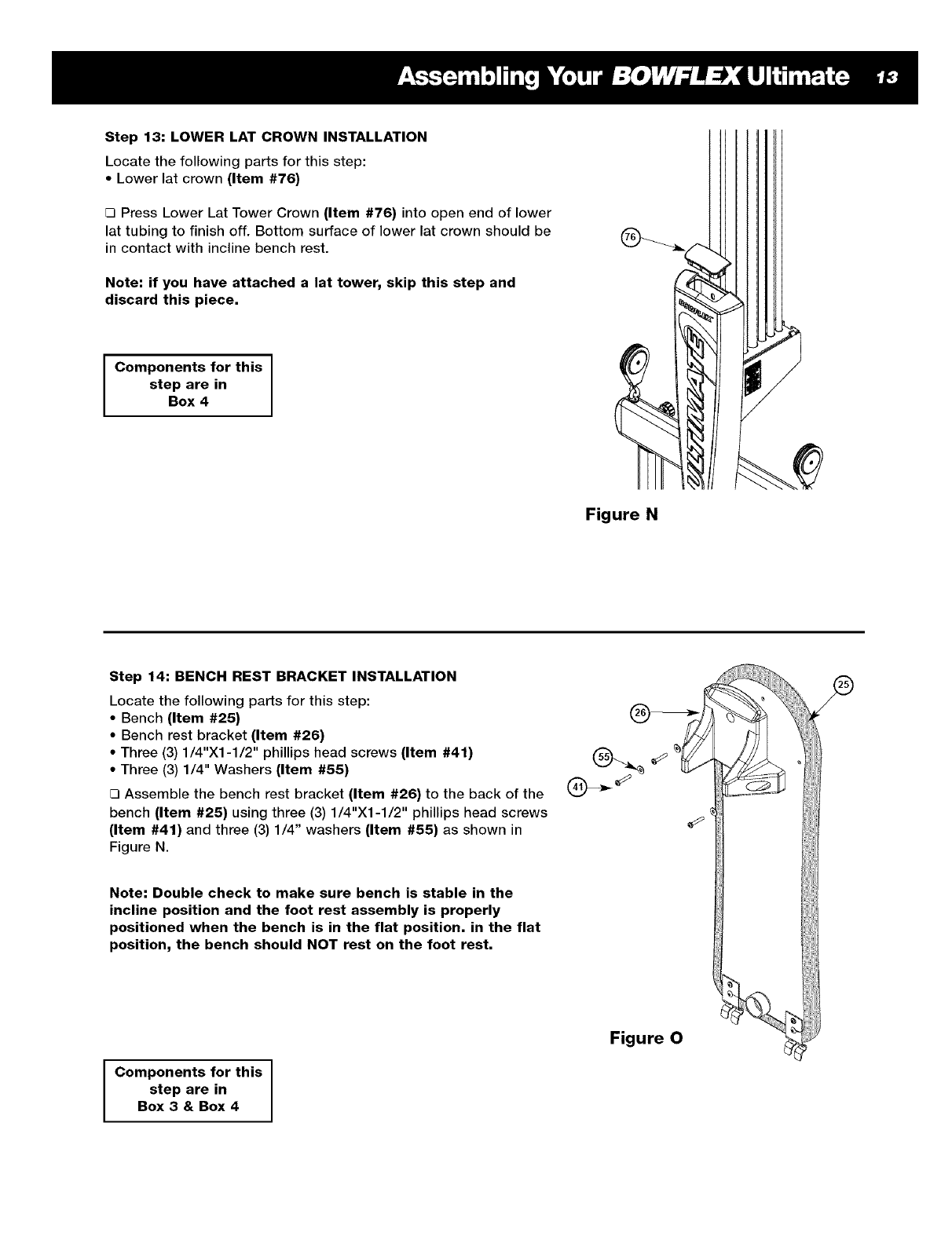

Step 13: LOWER LAT CROWN INSTALLATION

Locate the following parts for this step:

• Lower lat crown (Item #76)

[] Press Lower Lat Tower Crown (Item #76) into open end of lower

lat tubing to finish off. Bottom surface of lower lat crown should be

in contact with incline bench rest.

Note: if you have attached alat tower, skip this step and

discard this piece.

Components for this I

step are in I

Box 4

Figure N

Step 14: BENCH REST BRACKET INSTALLATION

Locate the following parts for this step:

• Bench (Item #25)

• Bench rest bracket (Item #26)

• Three (3) 1/4"X1-1/2" phillips head screws (Item #41)

• Three (3) 1/4" Washers (Item #55)

[] Assemble the bench rest bracket (Item #26) to the back of the

bench (Item #25) using three (3) 1/4"X1-1/2" phillips head screws

(Item #41) and three (3) 1/4" washers (Item #55) as shown in

Figure N.

Note: Double check to make sure bench is stable in the

incline position and the foot rest assembly is properly

positioned when the bench is in the flat position, in the flat

position, the bench should NOT rest on the foot rest.

Components for this I

step are in I

Box 3 & Box 4

Figure 0

Lat Assembly

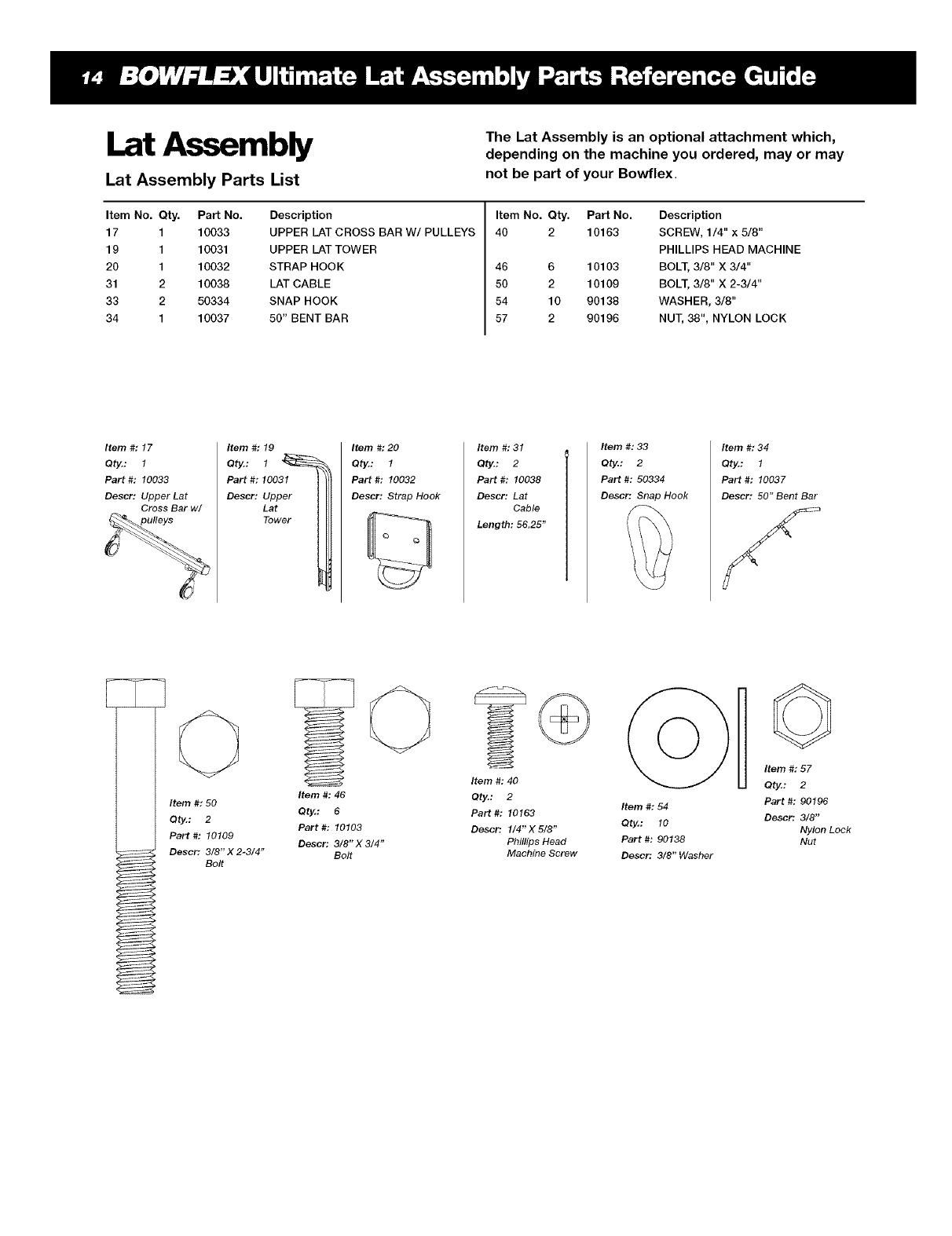

Lat Assembly Parts List

The Lat Assembly is an optional attachment which,

depending on the machine you ordered, may or may

not be part of your Bowflex.

Item No. Qty. Part No.

17 1 10033

19 1 10031

20 1 10032

31 2 10038

33 2 50334

34 1 10037

Description

UPPER LAT CROSS BAR W/PULLEYS

UPPER LAT TOWER

STRAP HOOK

LAT CABLE

SNAP HOOK

50" BENT BAR

Item No. Qty. Part No. Description

40 2 10163 SCREW, 1/4" x 5/8"

PHILLIPS HEAD MACHINE

46 6 10103 BOLT, 3/8" X 3/4"

50 2 10109 BOLT, 3/8" X 2-3/4"

54 10 90138 WASHER, 3/8"

57 2 90196 NUT, 38", NYLON LOCK

Item #: 17

Qty.: 1

Part #: 10033

Descr: Upper Lat

Cross Bar w/

pulleys

Item #: 19

oty.: 1

Part #: 10031

Descr: Upper

Lat

Tower

Item #: 20

Qty.: 1

Part #: 10032

Descr: Strap Hook

Item #: 31

Qty.: 2

Part #: 10038

Descr: Lat

Cable

Length: 56.25"

Item #: 33

Qty.: 2

Part #: 50334

Descr: Snap Hook

Item #: 34

Qty.: 1

Part #: 10037

Descr: 50" Bent Bar

Item #: 50

Qty.: 2

Part #: 10109

Descr: 3/8"X2-3/4"

Bolt

Item #: 46

Qty.: 8

Part #: 10103

Descr: 3/8" X 3/4"

Bolt

Item #: 40

Qty.: 2

Part #: 10163

Descr: 1/4"X5/8"

Phillips Head

Machine Screw

Item #: 54

Qty.: 10

Part #: 90138

Descr: 3/8" Washer

Item #: 57

Qty.: 2

Part #: 90196

Descr: 3/8"

Nylon Lock

Nut

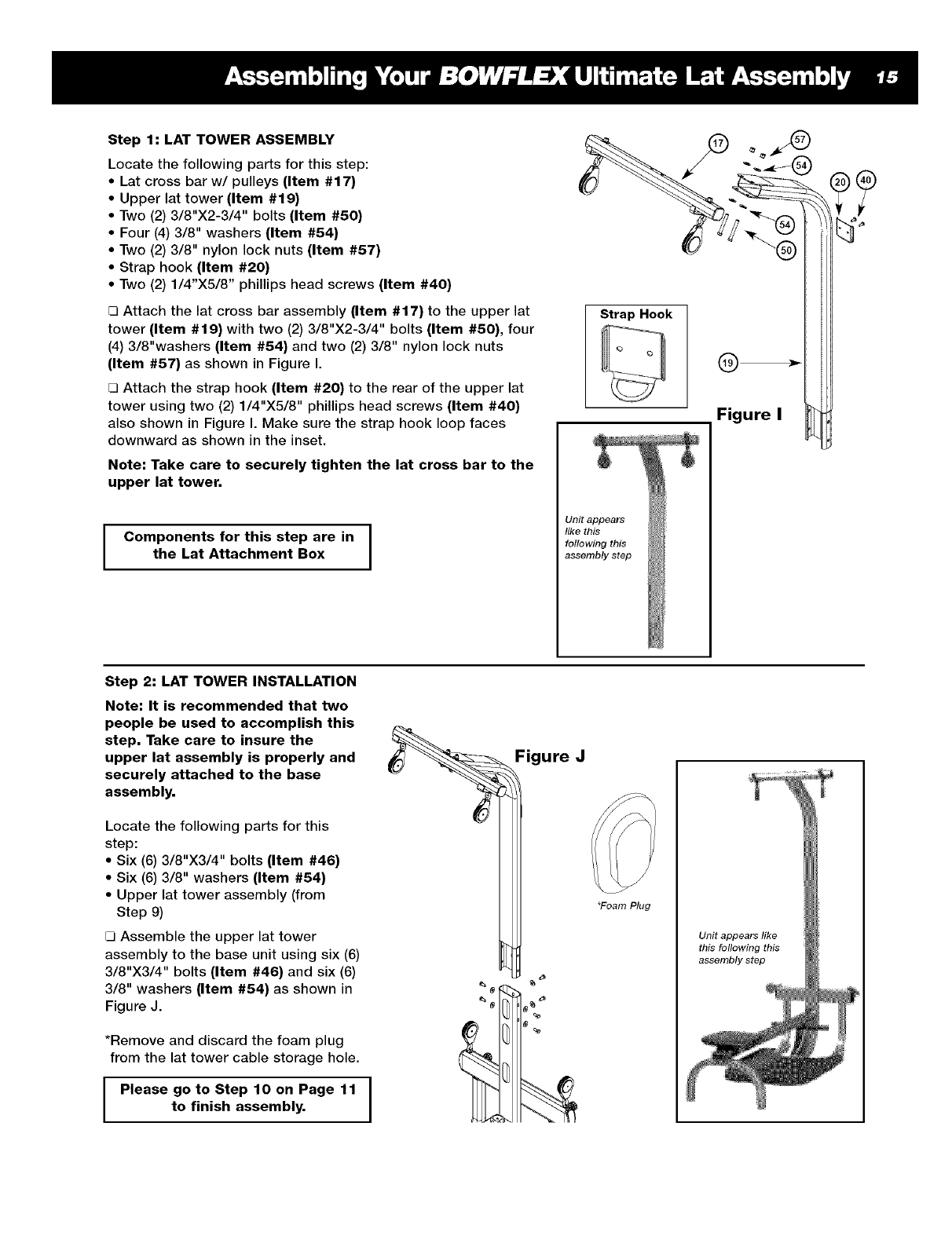

Step 1: LAT TOWER ASSEMBLY

Locate the following parts for this step:

• Lat cross bar w/pulleys (Item #17)

• Upper lat tower (Item #19)

• Two (2) 3/8"X2-3/4" bolts (Item #50)

• Four (4) 3/8" washers (Item #54)

• Two (2) 3/8" nylon lock nuts (Item #51)

• Strap hook (Item #20)

• Two (2) 1/4"X5/8" phillips head screws (Item #40)

[] Attach the lat cross bar assembly (Item #17) to the upper lat

tower (Item #19) with two (2) 3/8"X2-3/4" bolts (Item #50), four

(4) 3/8"washers (Item #54) and two (2) 3/8" nylon lock nuts

(Item #57) as shown in Figure I.

[] Attach the strap hook (Item #20) to the rear of the upper lat

tower using two (2) 1/4"X5/8" phillips head screws (Item #40)

also shown in Figure I. Make sure the strap hook loop faces

downward as shown in the inset.

Note: Take care to securely tighten the lat cross bar to the

upper lat tower.

Components for this step are in I

the Lat Attachment Box I

Strap Hook

Unit appears

like this

following this

assembly step

_

Figure I

Step 2: LAT TOWER INSTALLATION

Note: It is recommended that two

people be used to accomplish this

step. Take care to insure the

upper lat assembly is properly and

securely attached to the base

assembly.

Locate the following parts for this

step:

• Six (6) 3/8"X3/4" bolts (Item #46)

• Six (6) 3/8" washers (Item #54)

• Upper lat tower assembly (from

Step 9)

[] Assemble the upper lat tower

assembly to the base unit using six (6)

3/8"X3/4" bolts (Item #46) and six (6)

3/8" washers (Item #54) as shown in

Figure J.

*Remove and discard the foam plug

from the lat tower cable storage hole.

Please go to Step 10 on Page 11

to finish assembly.

Figure J

q_

"Foam Plug

Unit appears like

this foflowing this

assembly step

Leg Assembly

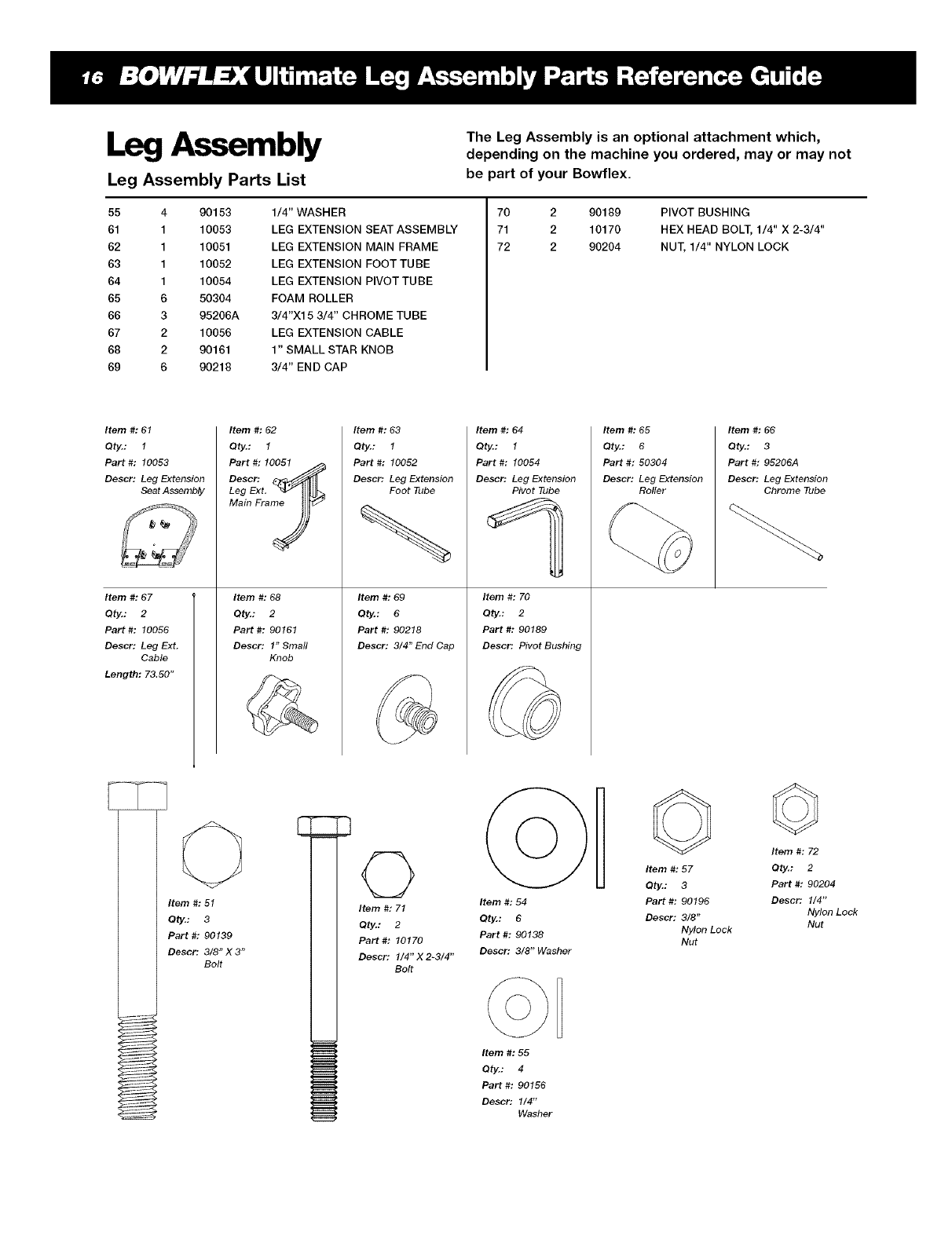

Leg Assembly Parts List

The Leg Assembly is an optional attachment which,

depending on the machine you ordered, may or may not

be part of your Bowflex.

55 4 90153

61 1 10053

62 1 10051

63 1 10052

64 1 10054

65 6 50304

66 3 95206A

67 2 10056

68 2 90161

69 6 90218

1/4" WASHER

LEG EXTENSION SEAT ASSEMBLY

LEG EXTENSION MAIN FRAME

LEG EXTENSION FOOT TUBE

LEG EXTENSION PIVOT TUBE

FOAM ROLLER

3/4"X15 3/4" CHROME TUBE

LEG EXTENSION CABLE

1" SMALL STAR KNOB

3/4" END CAP

70 2 90189 PIVOT BUSHING

71 2 10170 HEX HEAD BOLT, 1/4" X 2-3/4"

72 2 90204 NUT, 1/4" NYLON LOCK

Item #: 61

Qty.: 1

Part #: 10053

Descr: Leg Extension

Seat Assembly

Item #: 67

Qty.: 2

Part #: 10056

Descr: Leg Ext.

Cable

Length: 73.50"

Item #: 62

Qty.: 1

Part #: 10051

Descr: J

Leg Ext.

Main Fra

Item #: 68

Qty.: 2

Part #: 90161

Descr: 1" Smafl

Knob

Item #: 63

Qty.: 1

Part #: 10052

Descr: Leg Extension

Foot Tube

Item #: 69

Qty.: 6

Part #: 90218

Descr: 3/4" End Cap

Item #: 64

Qty.: 1

Part #: 10054

Descr: Leg Extension

Pivot Tube

Item #: 70

Qty.: 2

Part #: 90189

Descr: Pivot Rushing

Item #: 65

Qty.: 6

Part #: 50304

Descr: Leg Extension

Roller

Item #: 66

Qty.: 3

Part #: 95206A

Descr: Leg Extension

Chrome Tube

Item #: 51

Qty.: 3

Part #: 90139

Descr: 3/8" X 3"

Bolt

©

Item #: 71

Qty.: 2

Part #: 10170

Descr: 1/4"X2-3/4"

Bolt

Item #: 54

Qty.: 6

Part #: 90138

Descr: 3/8" Washer

Item #: 55

Qty.: 4

Part #: 90156

Descr: 1/4"

Washer

Item #: 57

Qty.: 3

Part #: 90196

Descr: 3/8"

Nylon Lock

Nut

Item #: 72

Qty.: 2

Part #: 90204

Descr: 1/4"

Nylon Lock

Nut

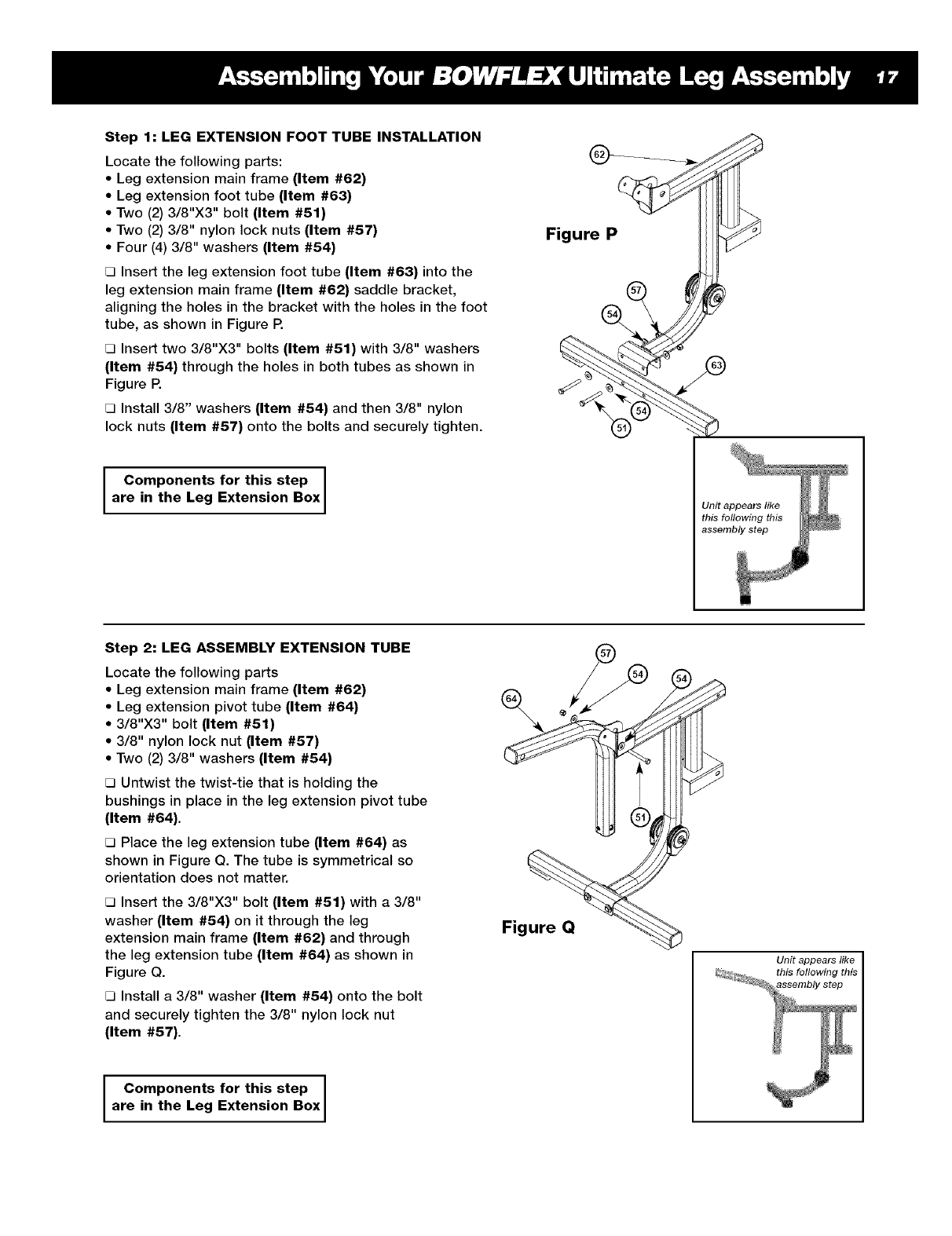

Step 1: LEG EXTENSION FOOT TUBE INSTALLATION

Locate the following parts:

• Leg extension main frame (Item #62)

• Leg extension foot tube (Item #63)

• Two (2) 3/8"X3" bolt (Item #51)

• Two (2) 3/8" nylon lock nuts (Item #57)

• Four (4) 3/8" washers (Item #54)

[] Insert the leg extension foot tube (Item #63) into the

leg extension main frame (Item #62) saddle bracket,

aligning the holes in the bracket with the holes in the foot

tube, as shown in Figure P.

[] Insert two 3/8"X3" bolts (Item #51) with 3/8" washers

(Item #54) through the holes in both tubes as shown in

Figure P.

[] Install 3/8" washers (Item #54) and then 3/8" nylon

lock nuts (Item #57) onto the bolts and securely tighten.

Figure P

Components for this step

are in the Leg Extens on Box Unit appears like

this following this

assembly step

Step 2: LEG ASSEMBLY EXTENSION TUBE

Locate the following parts

• Leg extension main frame (Item #62)

• Leg extension pivot tube (Item #64)

• 3/8"X3" bolt (Item #51)

• 3/8" nylon lock nut (Item #57)

• Two (2) 3/8" washers (Item #54)

[] Untwist the twist-tie that is holding the

bushings in place in the leg extension pivot tube

(Item #64).

[] Place the leg extension tube (Item #64) as

shown in Figure Q. The tube is symmetrical so

orientation does not matter.

[] Insert the 3/8"X3" bolt (Item #51) with a 3/8"

washer (Item #54) on it through the leg

extension main frame (Item #62) and through

the leg extension tube (Item #64) as shown in

Figure Q.

[] Install a 3/8" washer (Item #54) onto the bolt

and securely tighten the 3/8" nylon lock nut

(Item #57).

Components for this step

are in the Leg Extens on Box

%

Figure Q

Unit appears like

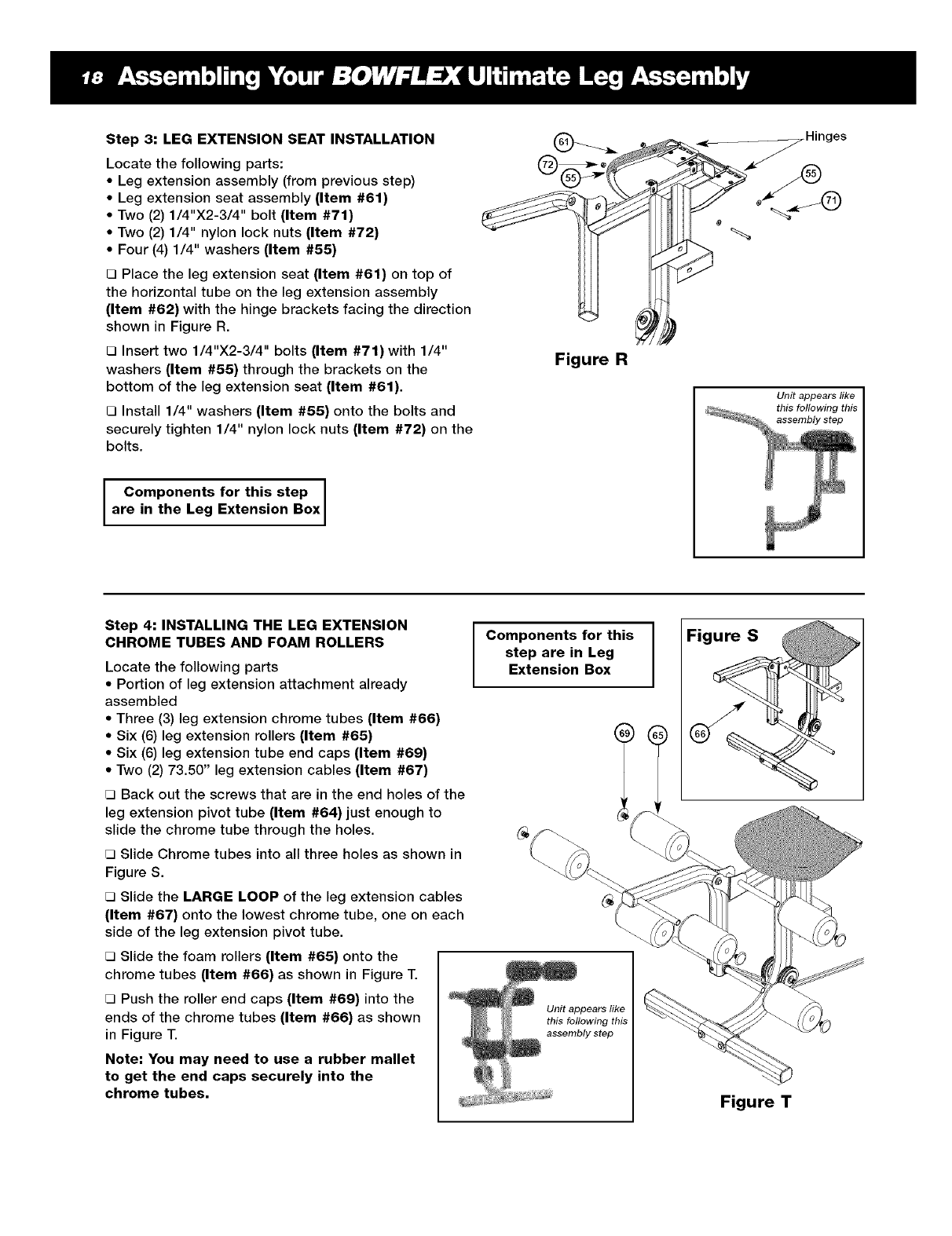

Step 3: LEG EXTENSION SEAT INSTALLATION

Locate the following parts:

• Leg extension assembly (from previous step)

• Leg extension seat assembly {Item #61)

• Two (2) 1/4"X2-3/4" bolt {Item #71)

• Two (2) 1/4" nylon lock nuts {Item #72)

• Four (4) 1/4" washers {Item #55)

[] Place the leg extension seat {Item #61) on top of

the horizontal tube on the leg extension assembly

{Item #62) with the hinge brackets facing the direction

shown in Figure R.

[] Insert two 1/4"X2-3/4" bolts {Item #71) with 1/4"

washers {Item #55) through the brackets on the

bottom of the leg extension seat {Item #61).

[] Install 1/4" washers {Item #55) onto the bolts and

securely tighten 1/4" nylon lock nuts {Item #72) on the

bolts.

Components for this step

are in the Leg Extens on Box

Figure R

__ _Hinges

#

Unit appears like

this following this

assembly step

Step 4: INSTALLING THE LEG EXTENSION

CHROME TUBES AND FOAM ROLLERS

Locate the following parts

• Portion of leg extension attachment already

assembled

• Three (3) leg extension chrome tubes {Item #66)

• Six (6) leg extension rollers {Item #65)

• Six (6) leg extension tube end caps {Item #69)

• Two (2) 73.50" leg extension cables {Item #67)

[] Back out the screws that are in the end holes of the

leg extension pivot tube {Item #64) just enough to

slide the chrome tube through the holes.

[] Slide Chrome tubes into all three holes as shown in

Figure S.

[] Slide the LARGE LOOP of the leg extension cables

(Item #67) onto the lowest chrome tube, one on each

side of the leg extension pivot tube.

[] Slide the foam rollers (Item #65) onto the

chrome tubes (Item #66) as shown in Figure T.

[] Push the roller end caps (Item #69) into the

ends of the chrome tubes (Item #66) as shown

in Figure T.

Note: You may need to use a rubber mallet

to get the end caps securely into the

chrome tubes.

Components for this

step are in Leg

Extension Box

®

_Unit appears like

this following this

assembly step

Figure S

Figure T

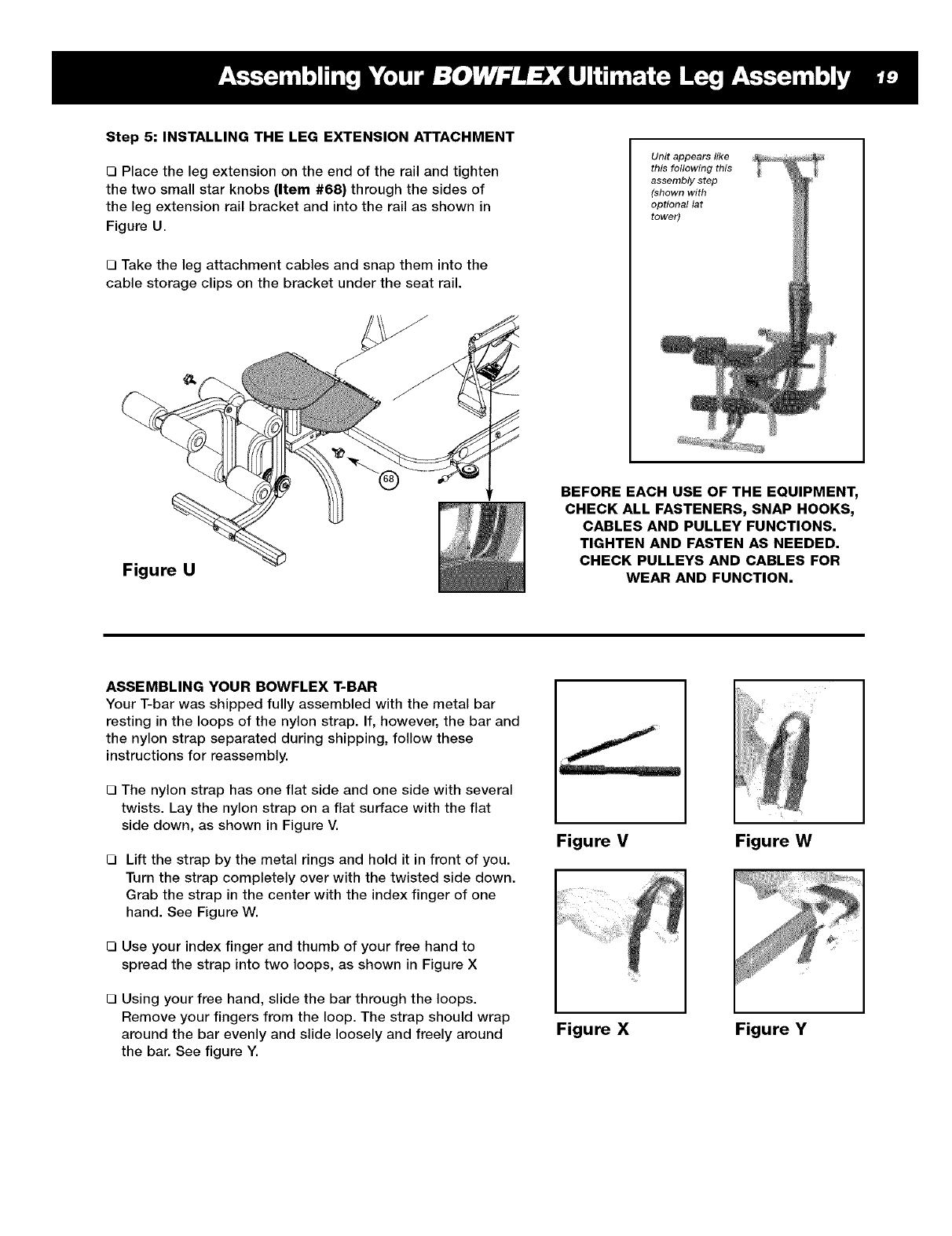

Step 5: INSTALLING THE LEG EXTENSION ATTACHMENT

[] Place the leg extension on the end of the rail and tighten

the two small star knobs (Item #68) through the sides of

the leg extension rail bracket and into the rail as shown in

Figure U.

[] Take the leg attachment cables and snap them into the

cable storage clips on the bracket under the seat rail.

Unit appears like

this following this

assembly step

(shown with

optional/at

tower)

!

Figure U

BEFORE EACH USE OF THE EQUIPMENT,

CHECK ALL FASTENERS, SNAP HOOKS,

CABLES AND PULLEY FUNCTIONS.

TIGHTEN AND FASTEN AS NEEDED.

CHECK PULLEYS AND CABLES FOR

WEAR AND FUNCTION.

ASSEMBLING YOUR BOWFLEX T-BAR

Your T-bar was shipped fully assembled with the metal bar

resting in the loops of the nylon strap. If, however, the bar and

the nylon strap separated during shipping, follow these

instructions for reassembly.

[] The nylon strap has one flat side and one side with several

twists. Lay the nylon strap on a flat surface with the flat

side down, as shown in Figure V.

Lift the strap by the metal rings and hold it in front of you.

Turn the strap completely over with the twisted side down.

Grab the strap in the center with the index finger of one

hand. See Figure W.

[] Use your index finger and thumb of your free hand to

spread the strap into two loops, as shown in Figure X

[] Using your free hand, slide the bar through the loops.

Remove your fingers from the loop. The strap should wrap

around the bar evenly and slide loosely and freely around

the bar. See figure Y.

Figure XFigure Y

Figure V Figure W

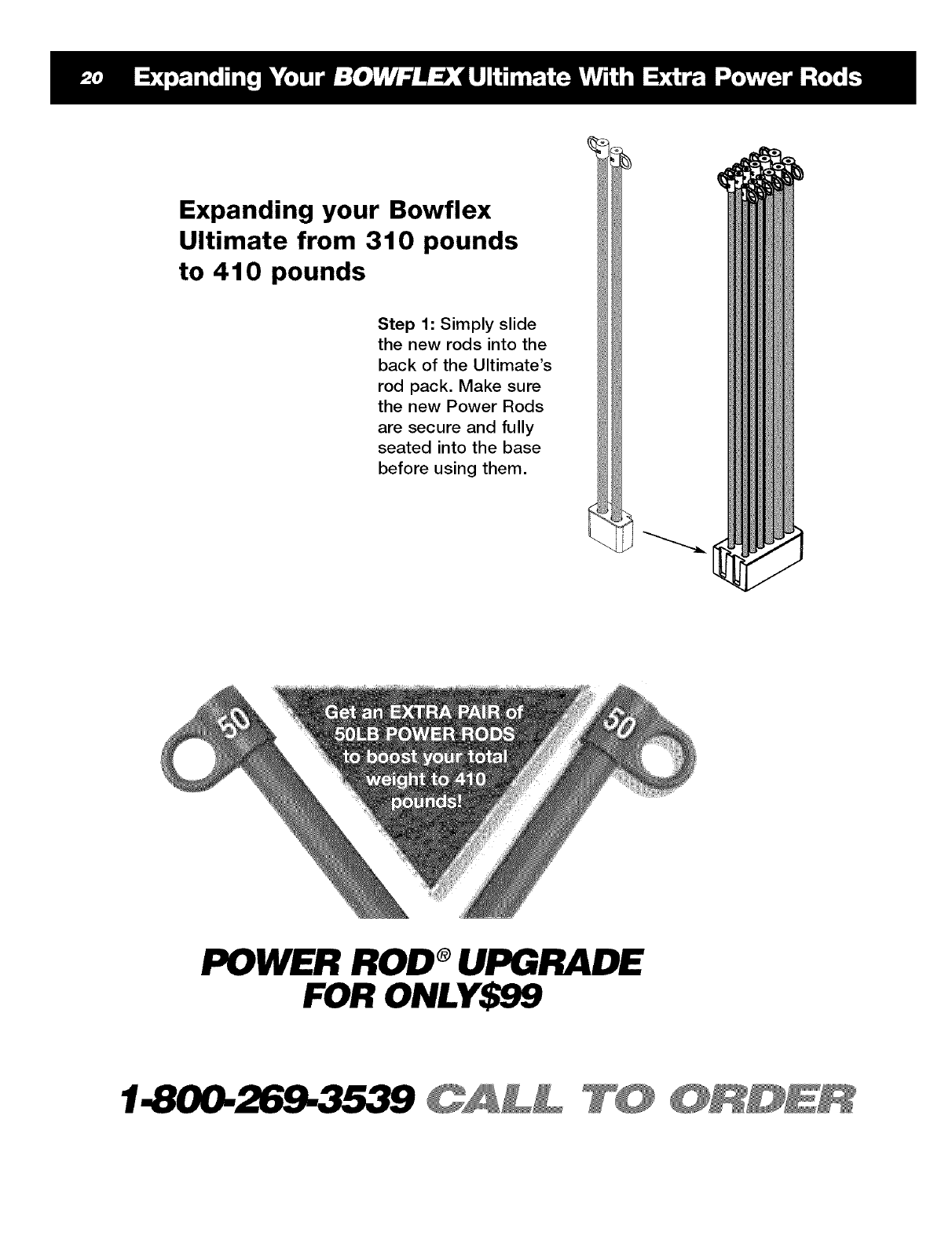

Expanding your Bowflex

Ultimate from 310 pounds

to 410 pounds

Step 1: Simply slide

the new rods into the

back of the Ultimate's

rod pack. Make sure

the new Power Rods

are secure and fully

seated into the base

before using them.

POWER ROD _UPGRADE

FOR ONLY$99

1-800.269-3539

t

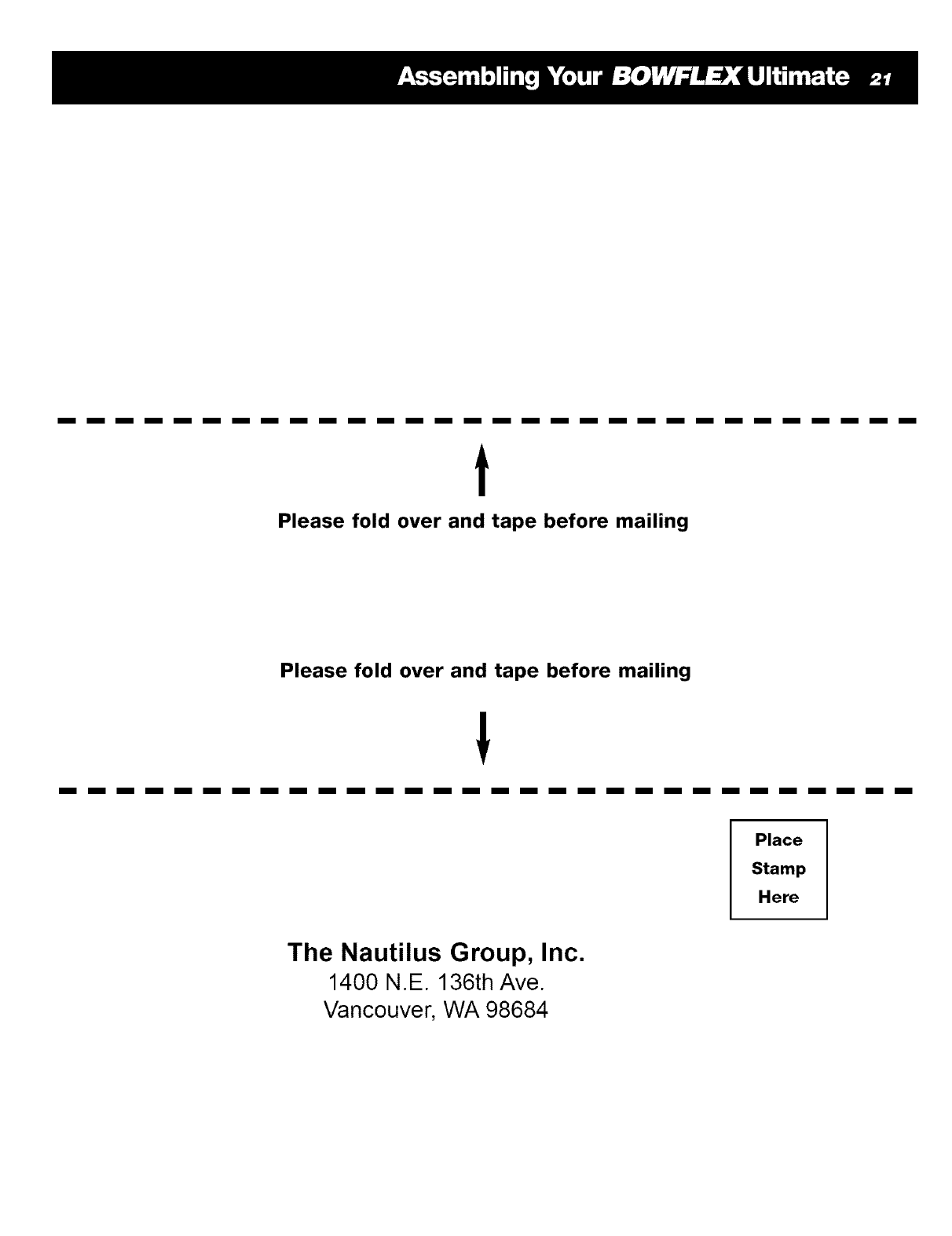

Please fold over and tape before mailing

Please fold over and tape before mailing

!

The Nautilus Group, Inc.

1400 N.E. 136th Ave.

Vancouver, WA 98684

Place

Stamp

Here

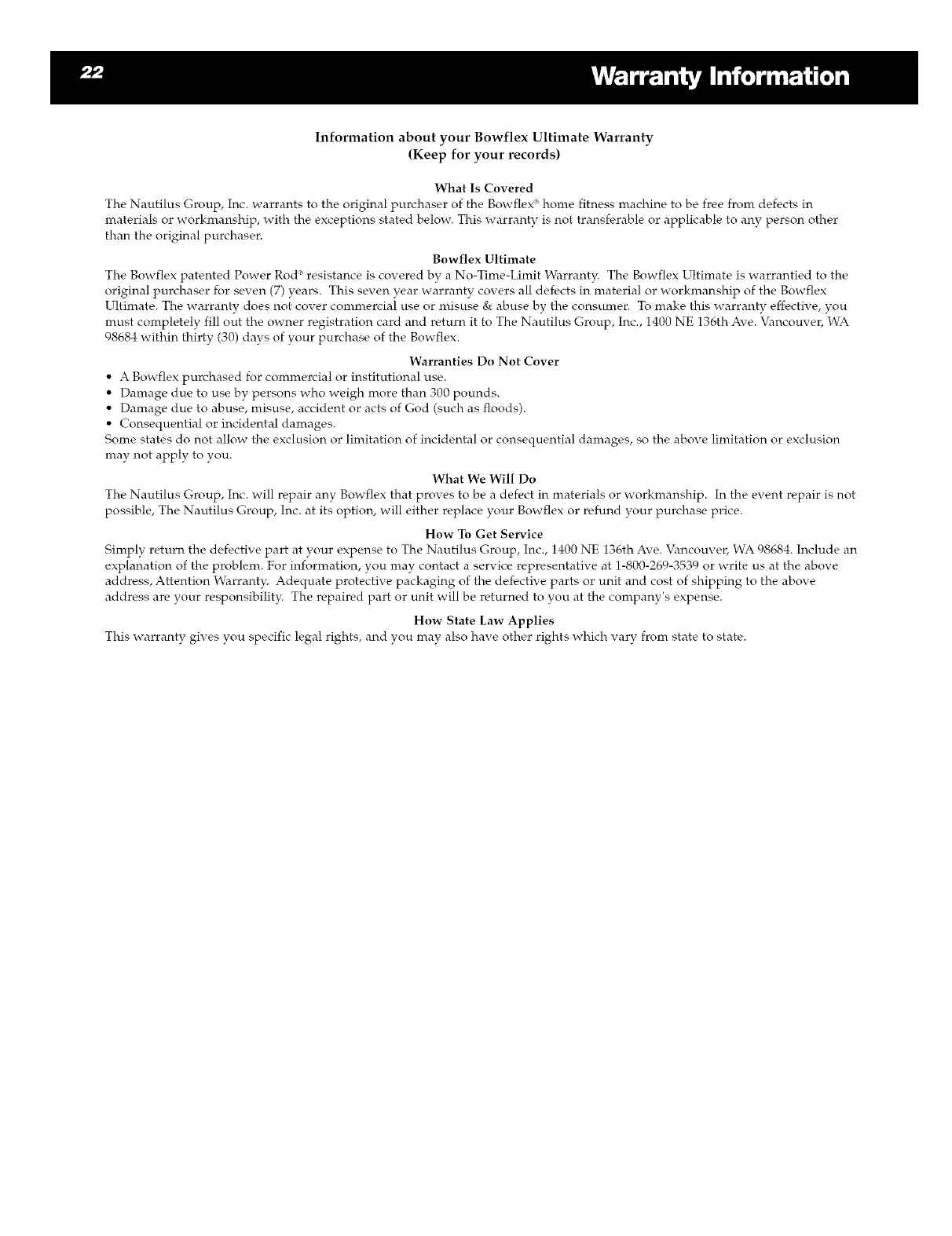

Information about your Bowflex Ultimate Warranty

(Keep for your records)

What Is Covered

The Nautilus Group, Inc. warrants to the original purchaser of the Bowflex _ home fitness machine to be free from defects in

materials or workmanship, with the exceptions stated below. This warranty is not transferable or applicable to any person other

than the original purchaser.

Bowflex Ultimate

The Bowflex patented Power Rod: resistance is covered by a No-Time-Limit Warrant)a The Bowflex Ultimate is warrantied to the

original purchaser for seven (7) years. This seven year warranty covers all defects in material or workmanship of the Bowflex

Ultimate. The warranty does not cover commercial use or misuse & abuse by the consumer. To make this warranty effective, you

must completely fill out the owner registration card and return it to The Nautilus Group, Inc., 1400 NE 136th Ave. Vancouver, WA

98684 within thirty (30) days of your purchase of the Bowflex.

Warranties Do Not Cover

• A Bowflex pun'hased for commercial or institutional use.

• Damage due to use by persons who weigh more than 300 pounds.

• Damage due to abuse, misuse, accident or acts of God (such as floods).

• Consequential or incidental damages.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion

may not apply to you.

What We Will Do

The Nautilus Group, Inc. will repair any Bowflex that proves to be a defect in materials or workmanship. In the event repair is not

possible, The Nautilus Group, Inc. at its option, will either replace your Bowflex or refund your purchase price.

How To Get Service

Simply return the defective part at your expense to The Nautilus Group, Inc., 1400 NE 136th Ave. Vancouver, WA 98684. Include an

explanation of the problem. For information, you may contact a service representative at 1-800-269-3539 or write us at the above

address, Attention Warrant)a Adequate protective packaging of the defective parts or unit and cost of shipping to the above

address are your responsibilit)a The repaired part or unit will be returned to you at the company's expense.

How State Law Applies

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

BOWFLEX

6 WEEK SATISFACTION

GUARANTEE

We want you to know that Bowflex is a superior product. Your satisfaction is guaranteed. If for

some reason you are not 100% satisfied with your Bowflex, please follow the instructions below

in order to return your merchandise and receive a refund of the purchase price, less shipping

and handling.

Call our Customer Service Department at (800) 607-3539 for a Return Authorization

Number. Return authorization will be granted if:

1) You purchased your Bowflex Machine directly from The Nautilus Group, Inc.

2) If you are calling within 6 weeks of delivery date of merchandise. Returns should be

shipped to The Nautilus Group, Inc., 1400 N.E. 136th Ave., Vancouver, WA 98684.

All returned merchandise must be properly packaged in the original boxes and in good

condition. Please note: You are responsible for return shipping and any damage or

loss to merchandise which occurs during return shipment to The Nautilus Group, Inc,

We highly recommend that insure your shipment.

3. Please mark all boxes clearly with:

Return Authorization Number

Name

Address

Phone Number

Boxes without this information clearly marked on the outside may be refused.

4. Please make copies of your original invoice and put one in each box of merchandise.

Merchandise must be received by The Nautilus Group, Inc. within two weeks of the date you

were issued your Return Authorization Number.

Refunds may be denied or delayed if these are not completely followed.

This Bowflex Satisfaction Guarantee applies only to merchandise purchased by consumers, directly

from The Nautilus Group, Inc. This guarantee does not apply to sales made by dealers or distributors.

The Nautilus Group, Inc.

1400 N.E. 136th Ave. Vancouver, WA 98684

Bowflex and the Bowflex Logo istered trademarks of Nautilus, Inc., a NYSEqisted company

© 2003 The Nautilus Group, tnc. WA98684

PN 10204AA (0503)
