BRAGI B1000H The Dash Headset User Manual

BRAGI GMBH The Dash Headset

Contents

User manual

aa
BRAGI
high
full
medium
low
high
full
medium
low
high
full
medium
low
high
full
medium
low
high
full
medium
low
high
full
medium
low
high
full
medium
low
high
full
medium
low
BRAGI
With The PerfectFit you should feel The Dash
completely closing off your ear canal while it sits
snugly in your ear.
Achieving The PerfectFit may require some adjust-
ment. To adjust you can use one hand to lift up in
your ear and adjust with the other. By doing this
you should be able to press the upper part of The
Dash into a locked position as shown in the dia-
gram above.
To activate The Dash connect The
Charger including The Dash to your
computer via the USB Cable.
The Dash is activated when the
LightGuide flashes blue. You may
now safely eject and disconnect
at any time.
Download the Bragi App on
bragi.com
Register your Dash through the
bragi app to get full support.
Before you get started
Activate the Dash
To charge the battery, connect The Charger to
your Computer or another power source via USB
The Charger fully charges The Dash up to 5 times
while on-the-go.
Place The Dash in The
Charger and make sure
it sits on the MagSnap.
Shake The Dash
And you will see the current
battery status of your Dash.
Check out the LED on the side of The Charger to see the
current battery status. The Dash needs to be placed in
The Charger or The Charger needs to be connected to a
power source.
Take The Right Dash, tilt it slightly forward and
insert the speaker tip into your ear canal.
Adjust to a PerfectFit by rotating The Dash back-
wards until it feels comfortable and secure in your
ear.
Bragi App
Download it
Customize
Download the free Bragi App now
to personalize and set up your Dash
bragi.com/app
The Dash is already fitted with XS
FitSleeves. Try different sizes to
find your PerfectFit.
The PerfectFit is important to ma-
ximise performance of The Dash
and accuracy the DataHub.
How to check the battery
The Dash & Charger
How to insert
The Dash
How to wear
The PerfectFit
How to change
The FitSleeves
Download from
Windows Phone Store
L
M
S
XS
How to charge
The Dash & Charger
A
5 sec
Tap
2x Tap
Right Dash
Listen & Communicate
Left Dash
Track
Activity feedback
-
Next song
Play / Pause music
Audio Transparency On/Off Volume Up / Down
Tap
Hold
Start / End activity
Next activity
Select playlist
Next playlist
Pairing mode Activity Data Pairing mode Audio
Activity Menu Start / Exit Playlist Menu Start / Exit
Tap Answer a call
End a call
Hold
Swipe
2x Tap Activate standalone mode
Only R Dash inserted
5 sec.
Touch Control
Experience the full capabilities of
The Dash & reveal all of it‘s exciting
features.
Touch and hold The Right Dash for
5 seconds to enter pairing mode.
Select The Dash in your Bluetooth
settings and connect.
connection visible for max. 2 minutes
Bragi GmbH, Munich, Germany, Earth
Copyright ©2015 Bragi GmbH. All rights reserved. BRAGI, The Dash, and the B logo are
trademarks of Bragi GmbH in the U.S. or one or more other countries. The absence of a
product or service name or logo from this list does not constitute a waiver of Bragi GmbH
trademark or other intellectual property rights concerning that name or logo.
Patents pending.
Quick Start Guide
The Dash
bragi.com/support
The Dash
The Charger &
The Slide
FitSleeves
XS / S / M / L
USB to
Micro USB Cable
How to connect
Bluetooth & The Dash
Manual & Registration
Reveal all features
How to interact
Basic gestures
What’s inside the box?
The Dash
v 1.0, 201603, V2B QSM English
Model B1000, B1000H, B1000C, B1000L, B1000R

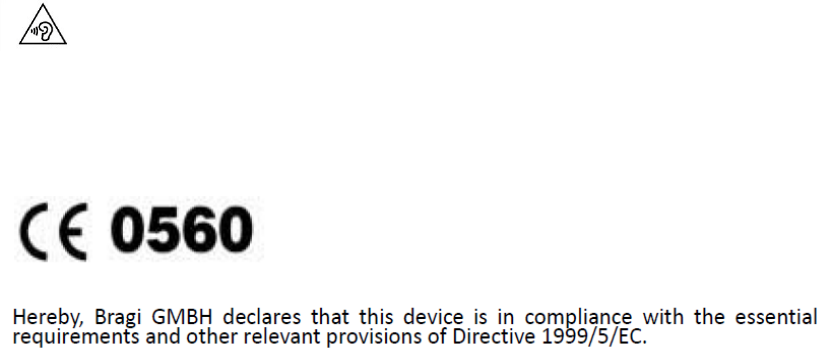

CE statement
Do not use the product in the environment at too high or too low temperature,
never expose the product under strong sunshine or too wet environment.
The suitable temperature for the product and accessories is 0-50.
CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
Excessive sound pressure from earphones and headphones can cause hearing loss.
The device has been evaluated to meet general RF exposure requirement, The device
can be used in portable exposure condition without restriction
FCC statements:
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV interference caused
by unauthorized modifications or changes to this equipment. Such modifications or
changes could void the users authority to operate the equipment.
FCC RF exposure:
The device has been evaluated to meet general RF exposure requirement, The device
can be used in portable exposure condition without restriction
IC statement:
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Should be translated to:
Cet appareil est conforme avec Industrie Canada RSS exemptes de licence standard(s).
Son fonctionnement est soumis aux deux conditions suivantes:
(1) cet appareil ne peut pas provoquer d'interférences, et
(2) cet appareil doit accepter toute interférence, y compris celles pouvant causer un
mauvais fonctionnement de l'appareil.
IC RF exposure:
The SAR limit of Canada is 1.6 W/kg averaged over one gram of tissue. Device
types B1000H has also been tested against this SAR limit.
The highest SAR value reported under this standard during product certification for
use when properly worn on the body is 0.074W/kg and for head is 0.017W/kg.
