BRAVEN LC B4 Bluetooth Speaker User Manual DDDD13 ENGv1
BRAVEN LC Bluetooth Speaker DDDD13 ENGv1
Manual.pdf
BRAVEN 440 OWNER’S GUIDE
2Full manual and troubleshooting: braven.com/manuals
GET TO KNOW YOUR BRAVEN
BATTERY INDICATOR LIGHTS
POWER SWITCH
BATTERY CHECK BUTTON
VOLUME DOWN /
SKIP BACK (press and hold)
POWER / PAIRING STATUS LIGHT
PAIRING / ANSWER-END CALL /
PAUSE-RESUME MUSIC
BRAVEN CHARGING PORT
VOLUME UP /
SKIP TRACK (press and hold)
EXTERNAL USB
CHARGING PORT
RESET BUTTON
3.5 MM AUDIO-IN JACK
20% - 40% - 60% - 80% - 100%
3
ENG
TURN ON & BLUETOOTH PAIRING
1. Press the Power button for 2-3
seconds to turn on your BRAVEN.
Press the same button again for
2-3 seconds to turn your
BRAVEN off.
2. Activate Bluetooth® on the phone
or device you are pairing with (see
your device’s instruction manual
for information on activating its
Bluetooth® settings).
3. Press and hold the Play Button on
your BRAVEN until you hear the
BRAVEN pairing sound.
4. Go to your phone or device’s
Bluetooth® settings and select
“BRAVEN 440” from the list.
5. If asked for a passcode enter “0000”
Your BRAVEN will remember the last 8 devices it has
paired with.
NOTE: If your BRAVEN does not have an active
Bluetooth® connection and is left on, it will
shut itself off after 30 minutes. To restart your
BRAVEN you will need to press and hold the
power button for 2-3 seconds.
4Full manual and troubleshooting: braven.com/manuals
CHARGING YOUR BRAVEN
• Before using your BRAVEN for the first
time, charge the unit until all 5 Battery
Capacity lights are solid (not flashing),
indicating a full charge (typically 2 to 3
hours).
• To charge your BRAVEN, plug the
included USB-to-Micro-USB cable
into a wall power adapter (not
included) or into a powered USB port
on a computer. Plug the Micro-USB
connector end of the cable into the
BRAVEN charging port.
Your BRAVEN is designed to charge USB devices that
draw from 0.3A - 1A (most cell phones & mp3 players
– tablets and other 2A devices cannot be charged by
your 440) using the full-sized USB port located behind
the cap. To use external charging:
1. Turn your BRAVEN on.
2. Plug the USB power cable that came with your
phone, mp3 player, or other mobile device into
the USB port on your BRAVEN.
3. Plug the other end of the cable into your mobile
device, and it will immediately begin charging.
CHARGING EXTERNAL DEVICES
5
ENG
SPEAKERPHONE
• Press the Answer-End button on your
BRAVEN to answer the call over the speaker.
Press the Answer-End button again to end
the call.
• The 440 is IPX5 Water Resistant. BRAVEN
440 speakers are not intended to be
submerged in water, but are resistant to
rainfall and water splashing.
• IMPORTANT - To ensure your BRAVEN
440 speaker is prepared for use in a wet
environment, remove all cable connections
and tightly close the rear water cap. If the
water cap is not properly closed, the 440 will
not be water resistant.
WATER RESISTANT FEATURES
6Full manual and troubleshooting: braven.com/manuals
WARNINGS, CAUTIONS & LEGAL INFORMATION
To reduce the risk of re or electric shock, do not expose the BRAVEN to rain or moisture while charging. The BRAVEN should not be exposed to dripping
or splashing, and objects lled with liquids, such as vases, should not be placed on or near it while being charged or charging other devices. As with any
electronic products, use care not to spill liquids into any part of the product. Liquids can cause a failure and/or a re hazard. The power supply must be used
indoors only. Make no modications to the product or accessories. Unauthorized alterations may compromise safety, regulatory compliance, and system
performance, and will void the warranty. Do not place any ame sources, such as lighted candles, on or near the BRAVEN. The BRAVEN contains small parts
that may be a choking hazard and is not suitable for children under age 3. Do not continue charging the battery if it does not reach full charge within the
specied charging time. Overcharging may cause the battery to become hot, rupture, or ignite. If you see any heat deformation or leakage, properly dispose
of the battery. Do not attempt to charge the battery in temperatures outside the range of 32°-104°F (0°-40°C). If the battery begins to leak, do not allow the
liquid to come in contact with your skin or eyes. If contact has been made, wash the affected area with plenty of water and seek medical attention immediately.
Do not expose the product or battery to excessive heat, including direct sunlight or re and storage or use inside cars in hot weather, where it can be exposed
to temperatures in excess of 115°F (60°C). Doing so may cause the battery and power supply to generate heat, rupture, or ignite. Using the product in this
manner also may result in a loss of performance and a shortened life expectancy. Extended exposure to direct sunlight may damage the external appearance
and material qualities. Do not step on, throw, or drop batteries or the power supply or device, or expose them to a strong shock. Do not pierce, crush, dent,
or deform the batteries or power supply in any way. If either becomes deformed, properly dispose of it. Do not short-circuit batteries. Do not attempt to service
the BRAVEN yourself. Opening or removing covers may expose you to dangerous voltages or other hazards and will void the manufacturer’s warranty. To
prevent risk of re or electric shock, avoid overloading wall outlets, extension cords, or integral convenience receptacles. Your Bluetooth device (mobile phone,
music player, tablet, laptop, etc.) must support the A2DP Bluetooth prole in order to work wirelessly with your new BRAVEN speaker. The A2DP prole is
supported by most recent mobile products with built-in Bluetooth capability. Please refer to your device’s user manual for details and instruction regarding the

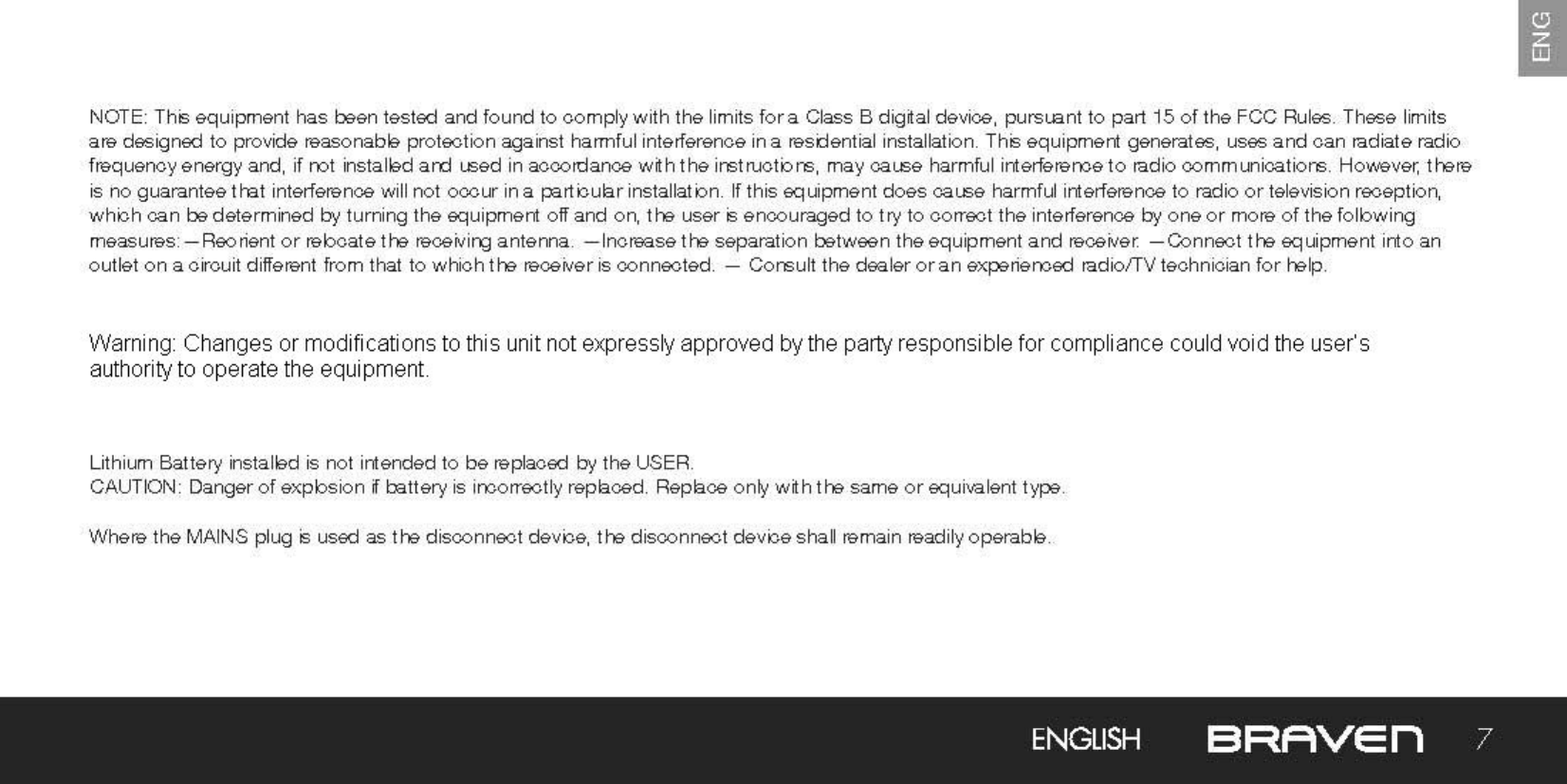

Bluetooth proles it supports. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
IC WARNINGS CAUTIONS
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device. Under Industry Canada regulations, this
radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the
transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (e.i.r.p) is not more than that necessary for
successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne
d'un type et d'un gain maximal (ou inf érieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les
risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de
sorte que la puissance isotrope rayonn ée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à I’établissement
d'une communication satisfaisante.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autoriée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre fonctionnement.
TUTORIALS: www.braven.com/tutorials
PHONE: 1-877-9 BRAVEN (1-877-927-2836)
SUPPORT: www.braven.com/support
EMAIL: support@braven.com
ONLINE: www.braven.com
MANUAL: www.braven.com/manuals
WARRANTY: www.braven.com/support/warranty
