BRIGHT DRAGON TECHNOLOGY SP-02 Bluetooth Speaker User Manual

BRIGHT DRAGON TECHNOLOGY LIMITED Bluetooth Speaker

User Manual

1User’s manualSP-02Bluetooth Stereo SpeakerSPECIFICATIONSModel no SP-02 Ver. Bluetooth V.3.0+EDRBluetooth Profiles HSP,HFP,A2DP,AVRCP Effective Range 10MetersMusic Time 6Hours Talk Time 9HoursStandby Time Up to 250 Hours Iuput DC : 5V/500maCharge Time 4~5Hours Dimensions 142*35*63mm

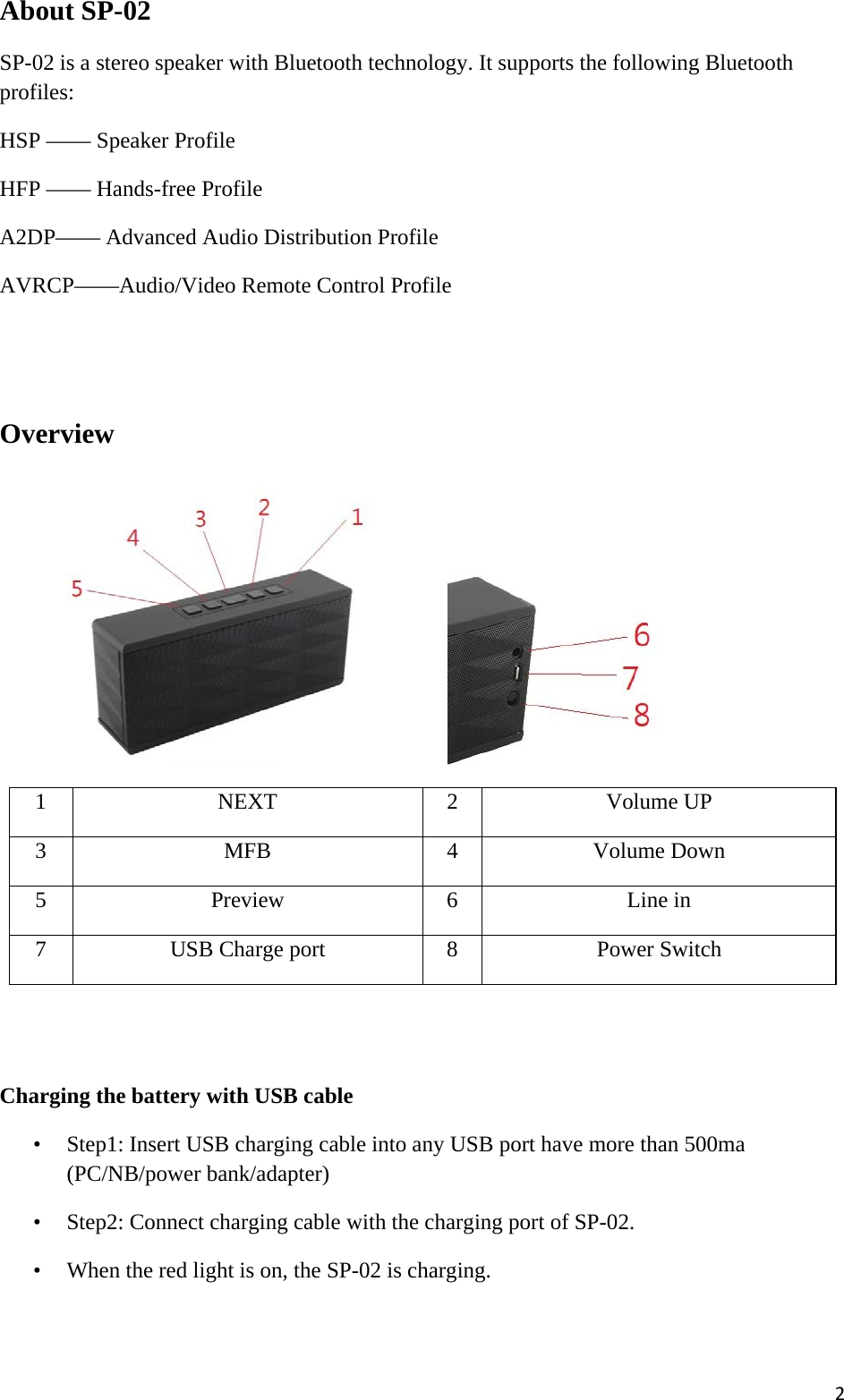

2About SP-02SP-02 is a stereo speaker with Bluetooth technology. It supports the following Bluetoothprofiles:HSP —— Speaker ProfileHFP —— Hands-free ProfileA2DP—— Advanced Audio Distribution ProfileAVRCP——Audio/Video Remote Control ProfileOverview1 NEXT 2 Volume UP3 MFB 4 Volume Down5 Preview 6 Line in7 USB Charge port 8 Power SwitchCharging the battery with USB cable• Step1: Insert USB charging cable into any USB port have more than 500ma(PC/NB/power bank/adapter)• Step2: Connect charging cable with the charging port of SP-02.• When the red light is on, the SP-02 is charging.
3• When the blue light is on, the SP-02 battery is charged fully.• It takes about 4~5 hours to full charge the battery.Warning:• The battery is rechargeable.• First time charging : Before use SP-02, please charge the battery fullyHow to useA Switching on / off SpeakerWhen turn on power switch, the SP-02 will into the standby mode. Wait the deviceconnect with SP-02.When turn off power switch, the SP-02will into power off status.B Pairing the SP-02 with Bluetooth devicesA) How to enter pairing modeBe sure SP-02 in “power on” and “Standby” status first. Press and hold the MFB for 3seconds, till Red and blue Led blink alternately, or you hear the indication “Do Do” twicecome out. And then release the MFB. The unit will become pairing mode.B) Pairing the speaker with Bluetooth mobile phonePlease make sure your mobile phone has Bluetooth function that can be used.Specific pairing procedures were not the same with different mobile phone. Please refer toyour mobile phone manual for further information. Steps as follows:a) Please keep the SP-02 and mobile phone in the range of 1 meter when pairing.b) Start the Bluetooth function of mobile phone and search the Bluetooth devices.c) Wait the SP-02 enter into pairing mode (Please refer to “how to enter into pairingmode”).After got the SP-02 is on the list, select “SP-02”in the Bluetooth device list.
4a) Almost all mobile no need enter pass word but some version Bluetooth maybe need it,if need it the password is”0000”, and press the key of” Yes” or “confirmed”.b) After successful pairing, select “SP-02” in the Bluetooth device list, and press“connect”.c) After successful connecting, the blue LED of the SP-02 will quickly blinks twice orthree times every 4 seconds.Making calls with the speakerFunction Status of SP-02 OperationRedial lastnumber Standby mode Short press MFB twice quicklyVolume up ConversationmodeShort press or hold + key.When the volume is adjusted to max, you will hear anindication tone.VolumedownConversationmodeShort press or hold – key.When the volume is adjusted to min, you will hear anindication tone.Answercalling Ringing Short press MFBReject calling Ringing Short press MFB twice quicklyNotes:• For some mobile phones, when you press the key of accepting on the phone, theconversation will be sent to the mobile phone. At this time, you can switch the call tospeaker by using the conversation switch button or through operating on the mobilephone. Please refer to the instruction of your mobile phone for further informationPlaying musicWhen the SP-02 connects with the mobile phone or other Bluetooth which supports A2DP,you can enjoy music through SP-02 wirelessly.

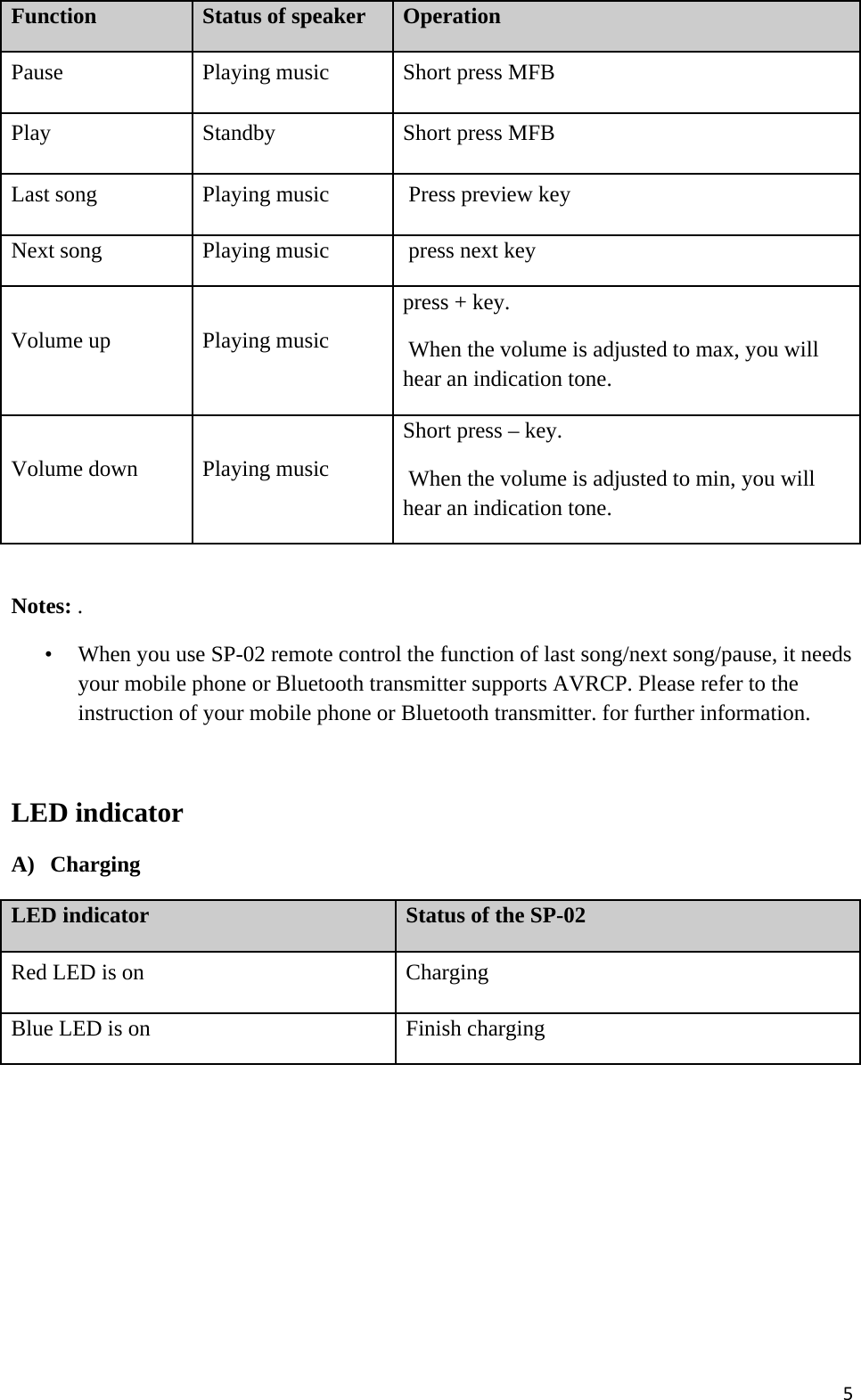

5Function Status of speaker OperationPause Playing music Short press MFBPlay Standby Short press MFBLast song Playing music Press preview keyNext song Playing music press next keyVolume up Playing musicpress + key.When the volume is adjusted to max, you willhear an indication tone.Volume down Playing musicShort press – key.When the volume is adjusted to min, you willhear an indication tone.Notes: .• When you use SP-02 remote control the function of last song/next song/pause, it needsyour mobile phone or Bluetooth transmitter supports AVRCP. Please refer to theinstruction of your mobile phone or Bluetooth transmitter. for further information.LED indicatorA) ChargingLED indicator Status of the SP-02Red LED is on ChargingBlue LED is on Finish charging

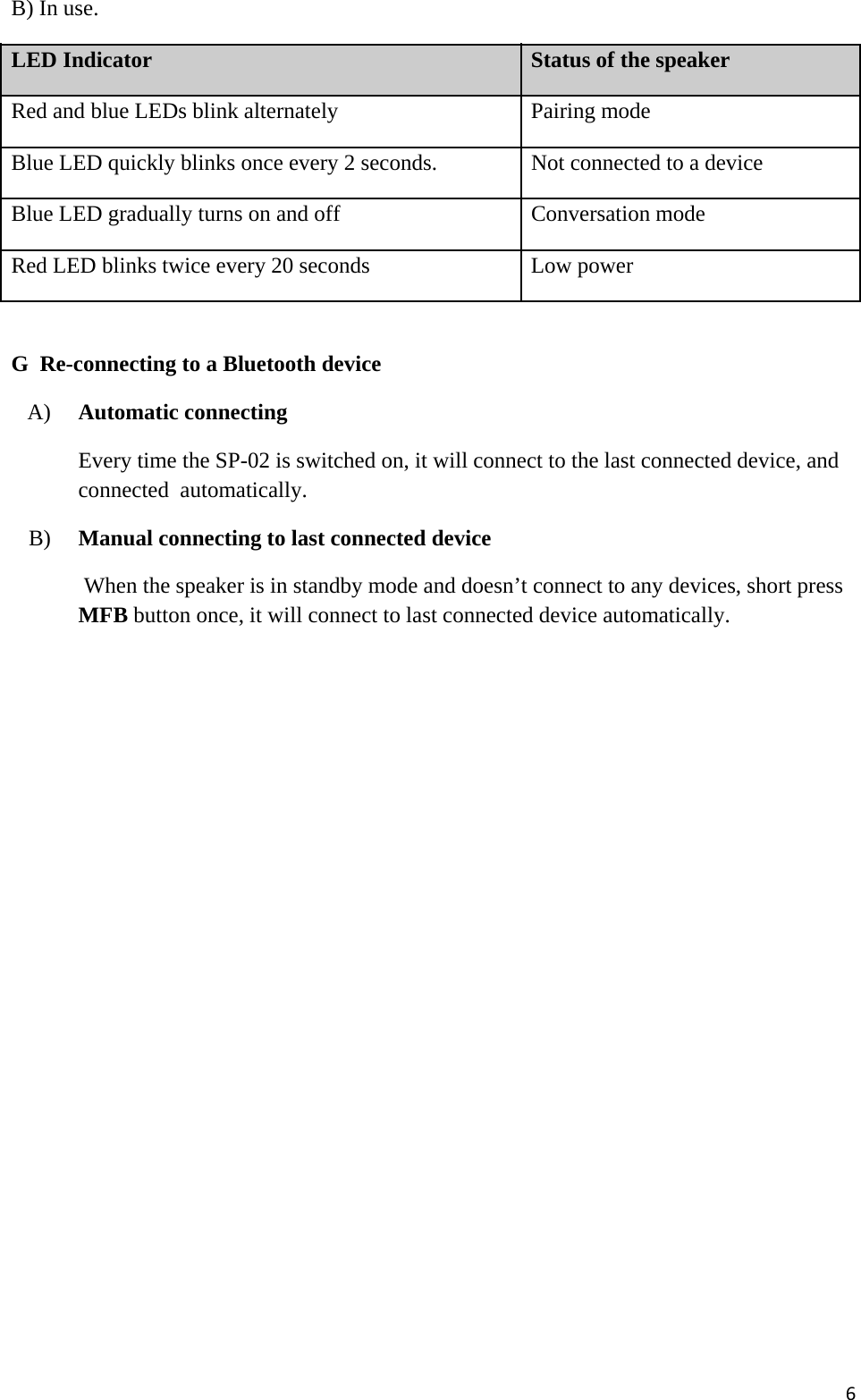

6B) In use.LED Indicator Status of the speakerRed and blue LEDs blink alternately Pairing modeBlue LED quickly blinks once every 2 seconds. Not connected to a deviceBlue LED gradually turns on and off Conversation modeRed LED blinks twice every 20 seconds Low powerG Re-connecting to a Bluetooth deviceA) Automatic connectingEvery time the SP-02 is switched on, it will connect to the last connected device, andconnected automatically.B) Manual connecting to last connected deviceWhen the speaker is in standby mode and doesn’t connect to any devices, short pressMFB button once, it will connect to last connected device automatically.
7This device complies with Part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1) this device may not cause harmful interference, and (2) this device must acceptany interference received, including interference that may cause undesired operation.changes or modifications not expressly approved by the party responsible for compliancecould void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to Part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection against harmful interference in aresidential installation. This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the followingmeasures:‐‐ Reorient or relocate the receiving antenna.‐‐ Increase the separation between the equipment and receiver.‐‐ Connect the equipment into an outlet on a circuit differentfrom that to which the receiver is connected.‐‐ Consult the dealer or an experienced radio/TV technician for help.
