Installation Instructions
NOTE: Read the entire instruction manual before starting the
installation.
SAFETY CONSIDERATIONS
Improper installation, adjustment, alteration, service,
maintenance, or use can cause explosion, fire, electrical shock, or
other conditions which may cause death, personal injury, or
property damage. Consult a qualified installer, service agency, or
your distributor or branch for information or assistance. The
qualified installer or agency must use factory-authorized kits or
accessories when modifying this product. Refer to the individual
instructions packaged with the kits or accessories when installing.
Follow all safety codes. Wear safety glasses, protective clothing,
and work gloves. Have a fire extinguisher available. Read these
instructions thoroughly and follow all warnings or cautions
include in literature and attached to the unit. Consult local
building codes, the current editions of the National Fuel Gas
Code (NFGC) NFPA 54/ANSI Z223.1 and the National
Electrical Code (NEC) NFPA 70.
In Canada, refer to the current editions of the National Standards
of Canada CAN/CSA-BI49.1 and .2 Natural Gas and Propane
Installation Codes, and Canadian Electrical Code CSA C22.1
Recognize safety information. This is the safety-alert symbol Z_
When you see this symbol on the unit and in instructions or
manuals, be alert to the potential for personal injury.
Understand the signal words DANGER, WARNING, and
CAUTION. These words are used with the safety-alert symbol.
DANGER identifies the most serious hazards which will result in
severe personal injury or death. WARNING signifies hazards
which could result in personal injury or death. CAUTION is
used to identify unsafe practices which may result in minor
personal injury or product and property damage. NOTE is used
to highlight suggestions which will result in enhanced
installation, reliability, or operation.
FIRE, EXPLOSION AND ELECTRICAL SHOCK
HAZARD
Failure to follow this warning could result in personal
injury, death and/or property damage.
Before installing or servicing system, always turn off main
electrical and gas supplies to unit and tag with appropriate
lockout. There may be more than one disconnect switch.
CUT HAZARD
Failure to follow this caution may result in personal iniury.
Sheet metal parts may have sharp edges or burrs. Use care
and wear appropriate protective clothing, safety glasses and
gloves when handling parts and servicing furnaces.
UNIT DAMAGE HAZARD
Failure to follow this caution may result in improper and
dangerous operation.
Label all wires prior to disconnection when servicing
controls.
INTRODUCTION
This instruction covers installation of the Primary Cell Inlet Panel
Kit Part No. 320720-751, -753, -754, -755, -756, -757, -758,
-760 and -761 in 40-in. (1016 mm) tall, condensing gas
furnaces. See Table 1 for kit usage.
NOTE: A releasing agent such as PAM cooking spray or
equivalent (must not contain corn or canola oil, halogenated
hydrocarbons nor aromatic contents to prevent inadequate seal)
and RTV sealant (G.E. 162, G.E. 6702, or Dow-Corning 738)
are needed before starting installation. DO NOT substitute any
other type of RTV sealant. G.E. 162 (P771-9003) is available
through RCD in 3-oz tubes.
DESCRIPTION AND USAGE
Use this Primary Cell Inlet Panel Kit when replacement of a
factory-installed primary cell inlet panel is required.
This Primary Cell Inlet Panel Kit contains the following items:
Primary Cell Inlet Panel 1
Burner Box Gasket 1
Cell Mounting Screw No. 8D X 3/8-in.(10 mm) 25 max
Installation Instructions 1
g

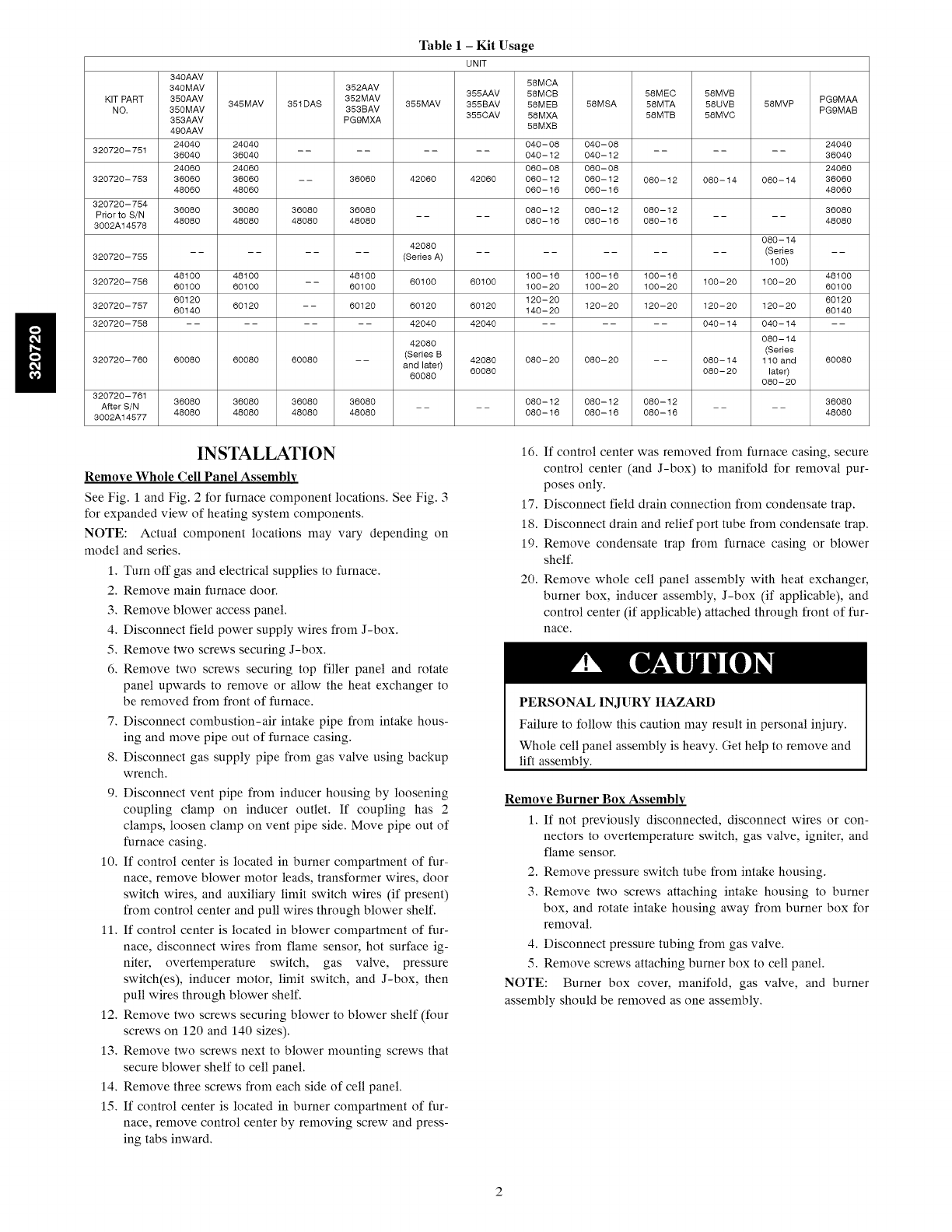

Table I -Kit Usage
UNIT
340AAV
340MAV 352AAV 58MCA
355AAV 58MCB 58MEC 58MVB
KIT PART 350AAV 352MAr PGgMAA
345MAV 351DAS 355MAV 355BAV 58MEB 58MSA 58MTA 58UVB 58MVP
NO. 350MAV 353BAV PGgMAB
355CAV 58MXA 58MTB 58MVC
353AAV PGgMXA
490AAV 58MXB
24040 24040 040 - 08 040 - 08 24040
320720-751 ..............
36040 36040 040-12 040-12 36040
24060 24060 060 - 08 060 - 08 24060
320720- 753 36060 36060 - - 36060 42060 42060 060-12 060-12 060-12 060-14 060-14 36060
48060 48060 060 - 16 060 - 16 48060
320720-754
Prior to S/N 36080 36080 36080 36080 .... 080-12 080-12 080-12 .... 36080
3002A14578 48080 48080 48080 48080 080-16 080-16 080-16 48080
42080 080-14
.................. (Series - -
320720 - 755 (Series A) 100)
48100 48100 48100 100-16 100-16 100-16 48100
320720-756 -- 60100 60100 100-20 100-20
60100 60100 60100 100-20 100-20 100-20 60100
60120 120-20 60120
320720-757 60120 -- 60120 60120 60120 120-20 120-20 120-20 120-20
60140 140-20 60140
320720- 758 ........ 42040 42040 ...... 040-14 040-14 - -
42080 080-14
(Series
320720 - 760 60080 60080 60080 _ _ (Series B 42080 080 - 20 080 - 20 - - 080 - 14 110 and 60080
and later) 60080 080-20 later)
60080 080-20
320720-761
After S/N 36080 36080 36080 36080 .... 080-12 080-12 080-12 .... 36080
3002A14577 48080 48080 48080 48080 080-16 080-16 080-16 48080
INSTALLATION
Remove Whole Cell Panel Assembly

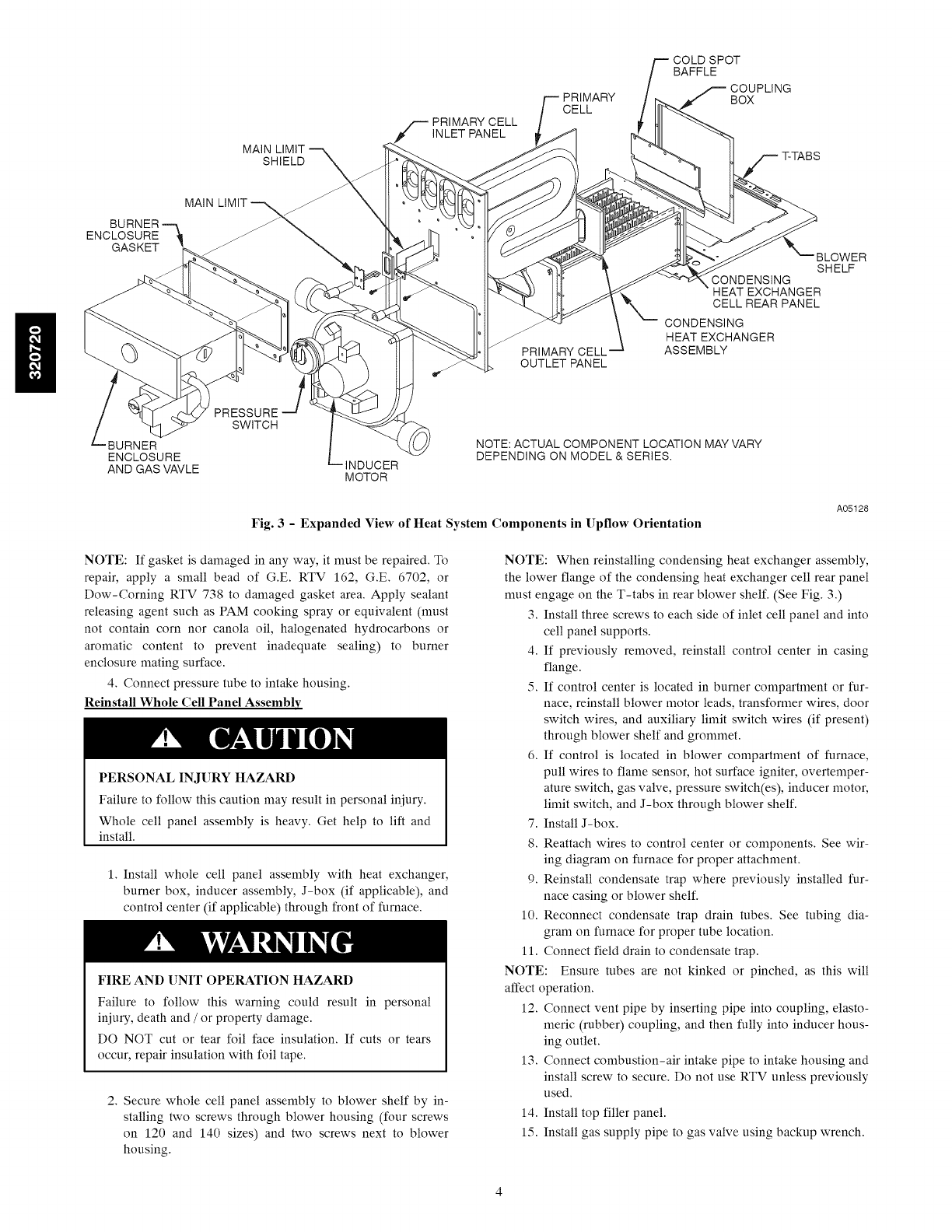

See Fig. I and Fig. 2 for furnace component locations. See Fig. 3
for expanded view of heating system components.
NOTE: Actual component locations may vary depending on
model and series.
1. Turn off gas and electrical supplies to furnace.
2. Remove main furnace door.
3. Remove blower access panel.
4. Disconnect field power supply wires from J-box.
5. Remove two screws securing J-box.
6. Remove two screws securing top filler panel and rotate
panel upwards to remove or allow the heat exchanger to
be removed from front of furnace.
7. Disconnect combustion-air intake pipe from intake hous-
ing and move pipe out of furnace casing.
8. Disconnect gas supply pipe from gas valve using backup
wrench.
9. Disconnect vent pipe from inducer housing by loosening
coupling clamp on inducer outlet. If coupling has 2
clamps, loosen clamp on vent pipe side. Move pipe out of
furnace casing.
10. If control center is located in burner compartment of fur-
nace, remove blower motor leads, transformer wires, door
switch wires, and auxiliary limit switch wires (if present)
from control center and pull wires through blower shelf.
11. If control center is located in blower compartment of fur-
nace, disconnect wires from flame sensor, hot surface ig-
niter, overtemperature switch, gas valve, pressure
switch(es), inducer motor, limit switch, and J-box, then
pull wires through blower shelf.
12. Remove two screws securing blower to blower shelf (four
screws on 120 and 140 sizes).
13. Remove two screws next to blower mounting screws that
secure blower shelf to cell panel.
14. Remove three screws from each side of cell panel.
15. If control center is located in burner compartment of fur-
nace, remove control center by removing screw and press-
ing tabs inward.
16. If control center was removed from furnace casing, secure
control center (and J-box) to manifold for removal pur-
poses only.
17. Disconnect field drain connection from condensate trap.
18. Disconnect drain and relief port tube from condensate trap.
19. Remove condensate trap from furnace casing or blower
shelf.
20. Remove whole cell panel assembly with heat exchanger,
burner box, inducer assembly, J-box (if applicable), and
control center (if applicable) attached through front of fur-
nace.
PERSONAL INJURY HAZARD
Failure to follow this caution may result in personal iniury.
Whole cell panel assembly is heavy. Get help to remove and
lift assembly.
Remove Burner Box Assembly
1. If not previously disconnected, disconnect wires or con-
nectors to overtemperature switch, gas valve, igniter, and
flame sensor.
2. Remove pressure switch tube from intake housing.
3. Remove two screws attaching intake housing to burner
box, and rotate intake housing away from burner box for
removal.
4. Disconnect pressure tubing from gas valve.
5. Remove screws attaching burner box to cell panel.
NOTE: Burner box cover, manifold, gas valve, and burner
assembly should be removed as one assembly.
COMBUSTION-AIR
INTAKE
CONNECTION
GAS VALVE
AUXILIARY
JUNCTION BOX
VENT OUTLET
CONDENSING
HEAT
EXCHANGER
(BEHIND CELL
INLET PANEL)
PRESSURE -
SWITCHES
INDUCER MOTOR
CONDENSATE '
TRAP
MOTOR AND --
BLOWER
ASSEMBLY
AIR FILTER AND --
RETAINER
BURNER
ENCLOSURE
PRIMARY HEAT
EXCHANGER
(BEHIND CELL
INLET PANEL)
'CAP AND
CLAMP
(UNUSED
DRAIN
CONNECTION)
VENT OUTLET
CONTROL
CENTER
"BLOWER
ACCESS PANEL
SAFETY
INTERLOCK
SWITCH
A01026

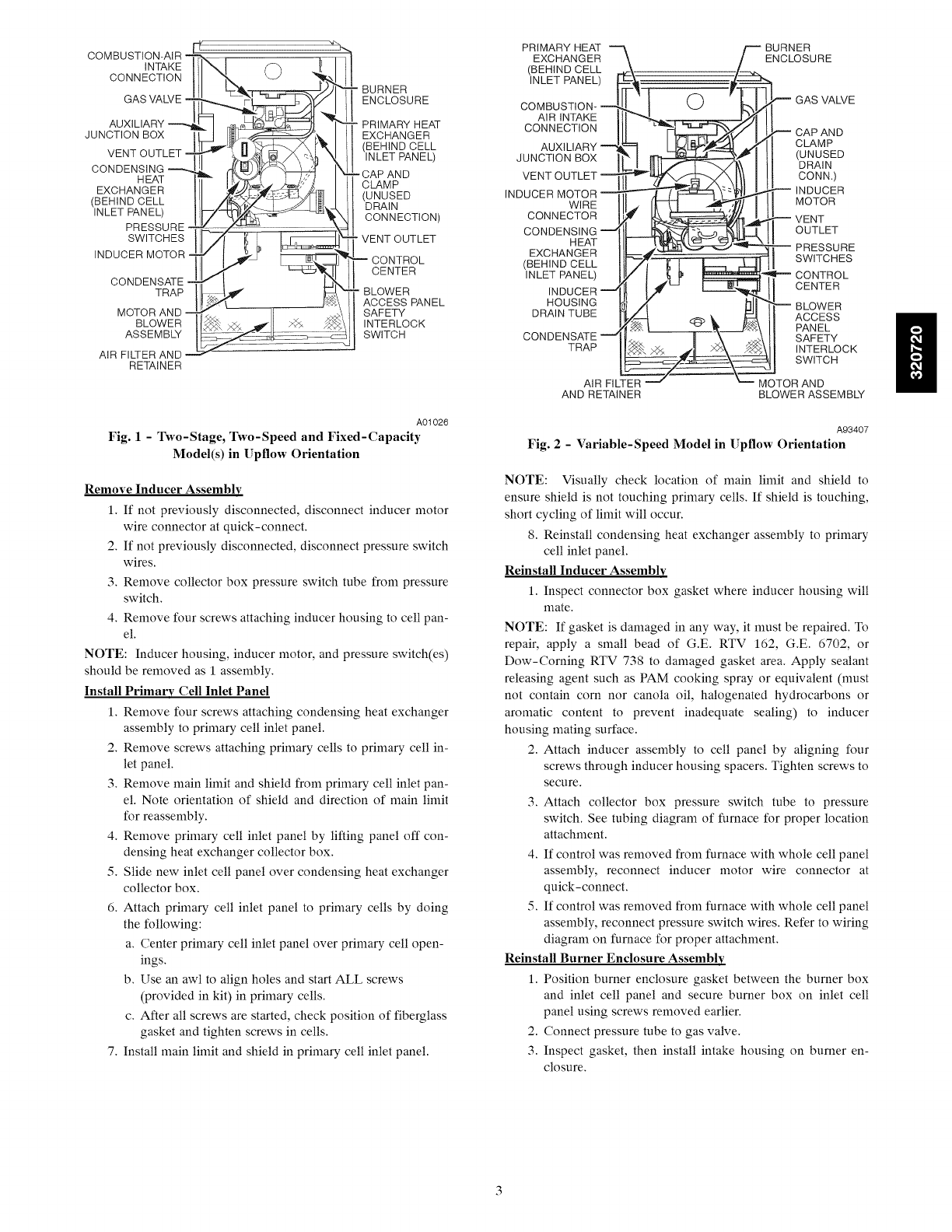

Fig. 1 - Two-Stage, Two-Speed and Fixed-Capacity
Model(s) in Upflow Orientation
Remove Inducer Assembly
1. If not previously disconnected, disconnect inducer motor
wire connector at quick-connect.
2. If not previously disconnected, disconnect pressure switch
wires.
3. Remove collector box pressure switch tube from pressure
switch.
4. Remove four screws attaching inducer housing to cell pan-
el.
NOTE: Inducer housing, inducer motor, and pressure switch(es)
should be removed as 1 assembly.
Install Primary Cell Inlet Panel
1. Remove four screws attaching condensing heat exchanger
assembly to primary cell inlet panel.
2. Remove screws attaching primary cells to primary cell in-
let panel.
3. Remove main limit and shield from primary cell inlet pan-
el. Note orientation of shield and direction of main limit
for reassembly.
4. Remove primary cell inlet panel by lifting panel off con-
densing heat exchanger collector box.
5. Slide new inlet cell panel over condensing heat exchanger
collector box.
6. Attach primary cell inlet panel to primary cells by doing
the following:
a. Center primary cell inlet panel over primary cell open-
ings.
b. Use an awl to align holes and start ALL screws
(provided in kit) in primary cells.
c. After all screws are started, check position of fiberglass
gasket and tighten screws in cells.
7. Install main limit and shield in primary cell inlet panel.
PRIMARY HEAT -- -- BURNER
EXCHANGER _ ENCLOSURE
(BEHIND CELL -_ J:x_
INLET PANEL) .:_ _:
-_ .... (-.) F" .-_A_ GAS VALVE
COMBUSTION-
AIRINTAKE _ _ _X_'II_II
CONNECT,ON __ /11
AOX,L,A -- id#--O A OA
AND
JUNCTION BOX '1 __, (U USED
Itl ft_/3 I II DRAIN
VENT OUTLET -- _l _--_ I I II CONN.)
.__..- :,P-'r',_=_-_ \::,_ I '.h_-_ INDUCER
INDUCERMOTOR-- I!_ \-'_ ..._.,_
CONDENSING-- 4,tl OUTLET
HEAT -- PRESSURE
EXCHANnER __ ._"_ _ I
(BEHIND C_LL _---__l SWITCHES
INLET PANEL) !I _ l) EEEEEE_ ,._ --" CONTROL
,NDUCER-- tl CENTER
HOUS,NG Z ........
DRAIN TUBE /A q_ NI I /_C_EVV_
__ __U_\ II PANEL
CONDENSATE _, _'\--,_\ 11 SAFETY
TRAP x3_ A(0 _ INTERLOCK
sw, o
AIR FILTE_ "_--- MOTOR AND
AND RETAINER SLOWER ASSEMBLY
A93407
Fig. 2 -Variable-Speed Model in Upflow Orientation
NOTE: Visually check location of main limit and shield to
ensure shield is not touching primary cells. If shield is touching,
short cycling of limit will occur.
8. Reinstall condensing heat exchanger assembly to primary
cell inlet panel.
Reinstall Inducer Assembly
1. Inspect connector box gasket where inducer housing will
mate.
NOTE: If gasket is damaged in any way, it nmst be repaired. To
repair, apply a small bead of G.E. RTV 162, G.E. 6702, or
Dow-Corning RTV 738 to damaged gasket area. Apply sealant
releasing agent such as PAM cooking spray or equivalent (nmst
not contain corn nor canola oil, halogenated hydrocarbons or
aromatic content to prevent inadequate sealing) to inducer
housing mating surface.
2. Attach inducer assembly to cell panel by aligning four
screws through inducer housing spacers. Tighten screws to
secure.
3. Attach collector box pressure switch tube to pressure
switch. See tubing diagram of furnace for proper location
attachment.
4. If control was removed from furnace with whole cell panel
assembly, reconnect inducer motor wire connector at
quick-connect.
5. If control was removed from furnace with whole cell panel
assembly, reconnect pressure switch wires. Refer to wiring
diagram on furnace for proper attachment.
Reinstall Burner Enclosure Assembly
1. Position burner enclosure gasket between the burner box
and inlet cell panel and secure burner box on inlet cell
panel using screws removed earlier.
2. Connect pressure tube to gas valve.
3. Inspect gasket, then install intake housing on burner en-
closure.
!!
MAIN LIMIT
SHIELD
F RIMARY CELL
INLET PANEL
PRIMARY
CELL
COLD SPOT
BAFFLE
COUPLING
BOX
g
BURNER
ENCLOSURE
GASKET MAIN LIMI
PRIMARY CELL
OUTLET PANEL
BLOWER
SHELF
CONDENSING
HEAT EXCHANGER
CELL REAR PANEL
CONDENSING
HEAT EXCHANGER
ASSEMBLY
BURNER
ENCLOSURE
AND GASVAVLE
SWITCH
INDUCER
MOTOR
NOTE: ACTUAL COMPONENT LOCATION MAY VARY
DEPENDING ON MODEL & SERIES.
Fig. 3- Expanded View of Heat System Components in Upflow Orientation
A05128
NOTE: If gasket is damaged in any way, it must be repaired. To
repair, apply a small bead of G.E. RTV 162, (i.E. 6702, or
Dow-Corning RTV 738 to damaged gasket area. Apply sealant
releasing agent such as PAM cooking spray or equivalent (must
not contain corn nor canola oil, halogenated hydrocarbons or
aromatic content to prevent inadequate sealing) to burner
enclosure mating surface.
4. Connect pressure tube to intake housing.
Reinstall Whole Cell Panel Assembly
PERSONAL INJURY HAZARD
Failure to follow this caution may result in personal injury.
Whole cell panel assembly is heavy. Get help to lift and
install.
1. Install whole cell panel assembly with heat exchanger,
burner box, inducer assembly, J-box (if applicable), and
control center (if applicable) through front of furnace.
FIRE AND []NIT OPERATION HAZARD
Failure to follow this warning could result in personal
iniury, death and /or property damage.
DO NOT cut or tear foil face insulation. If cuts or tears
occur, repair insulation with foil tape.
2. Secure whole cell panel assembly to blower shelf by in-
stalling two screws through blower housing (four screws
on 120 and 140 sizes) and two screws next to blower
housing.
NOTE: When reinstalling condensing heat exchanger assembly,
the lower flange of the condensing heat exchanger cell rear panel
must engage on the T-tabs in rear blower shelf. (See Fig. 3.)
3. Install three screws to each side of inlet cell panel and into
cell panel supports.
4. If previously removed, reinstall control center in casing
flange.
5. If control center is located in burner compartment or fur-
nace, reinstall blower motor leads, transformer wires, door
switch wires, and auxiliary limit switch wires (if present)
through blower shelf and grommet.
6. If control is located in blower compartment of furnace,
pull wires to flame sensor, hot surface igniter, overtemper-
ature switch, gas valve, pressure switch(es), inducer motor,
limit switch, and J-box through blower shelf.
7. Install J-box.
8. Reattach wires to control center or components. See wir-
ing diagram on furnace for proper attachment.
9. Reinstall condensate trap where previously installed fur-
nace casing or blower shelf.
10. Reconnect condensate trap drain tubes. See tubing dia-
gram on furnace for proper tube location.
11. Connect field drain to condensate trap.
NOTE: Ensure tubes are not kinked or pinched, as this will
affect operation.
12. Connect vent pipe by inserting pipe into coupling, elasto-
meric (rubber) coupling, and then fully into inducer hous-
ing outlet.
13. Connect combustion-air intake pipe to intake housing and
install screw to secure. Do not use RTV unless previously
used.
14. Install top filler panel.
15. Install gas supply pipe to gas valve using backup wrench.

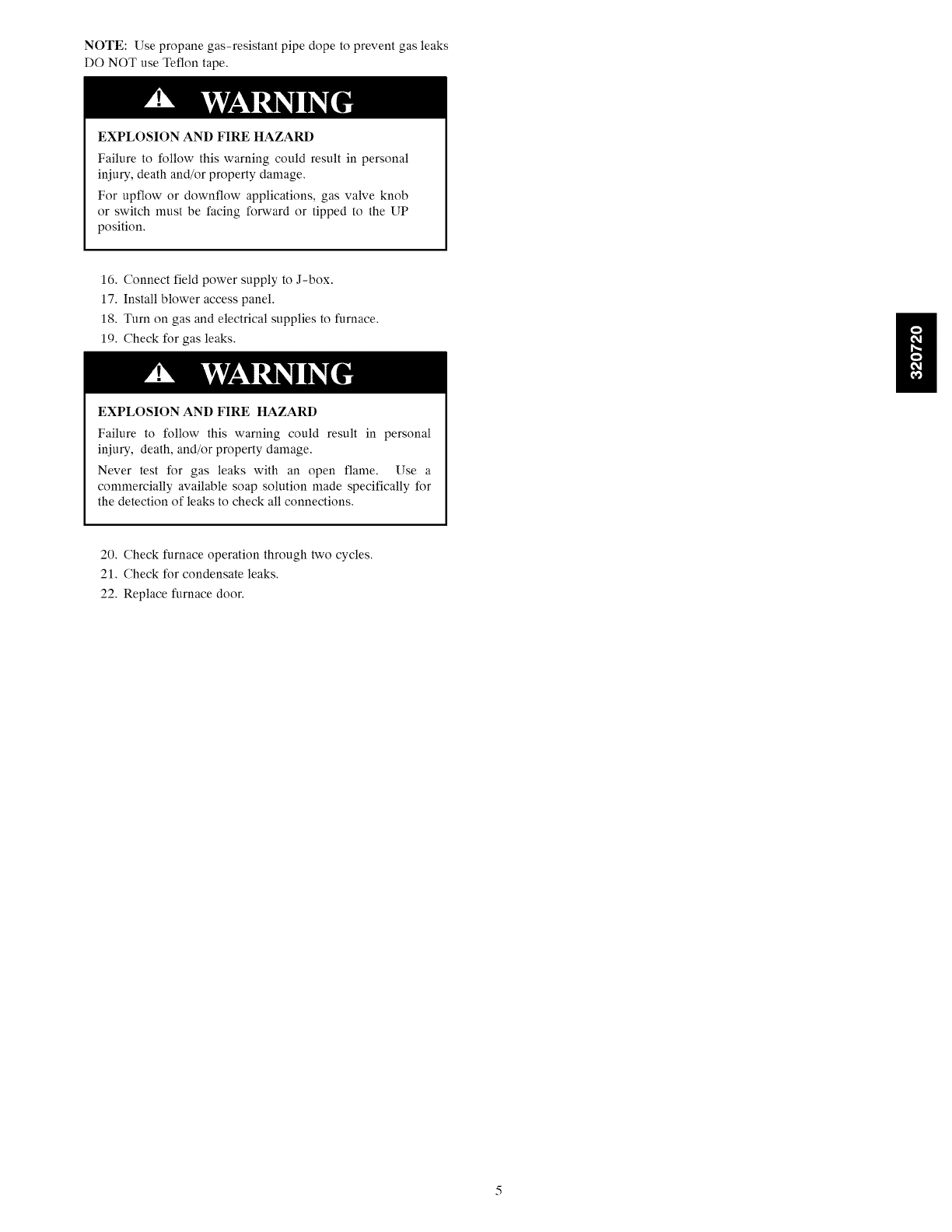

NOTE:Usepropanegas-resistantpipedopetopreventgasleaks
DONOTuseTeflontape.
EXPLOSIONANDFIREHAZARD
Failuretofollowthiswarningcouldresultinpersonal
injury,deathand/orpropertydamage.
Forupflowordownflowapplications,gasvalveknob
orswitchmustbefacingforwardortippedtotheUP
position.
16.ConnectfieldpowersupplytoJ-box.
17.Installbloweraccesspanel.
18.Turnongasandelectricalsuppliestofurnace.
19.Checkforgasleaks.
EXPLOSIONANDFIREHAZARD
Failureto followthiswarningcouldresultin personal
injury,death,and/orpropertydamage.
Nevertestforgasleakswithanopenflame.Usea
commerciallyavailablesoapsolutionmadespecificallyfor
thedetectionofleakstocheckallconnections.
20.Checkfurnaceoperationthroughtwocycles.
21.Checkforcondensateleaks.
22.Replacefurnacedoor.
!!

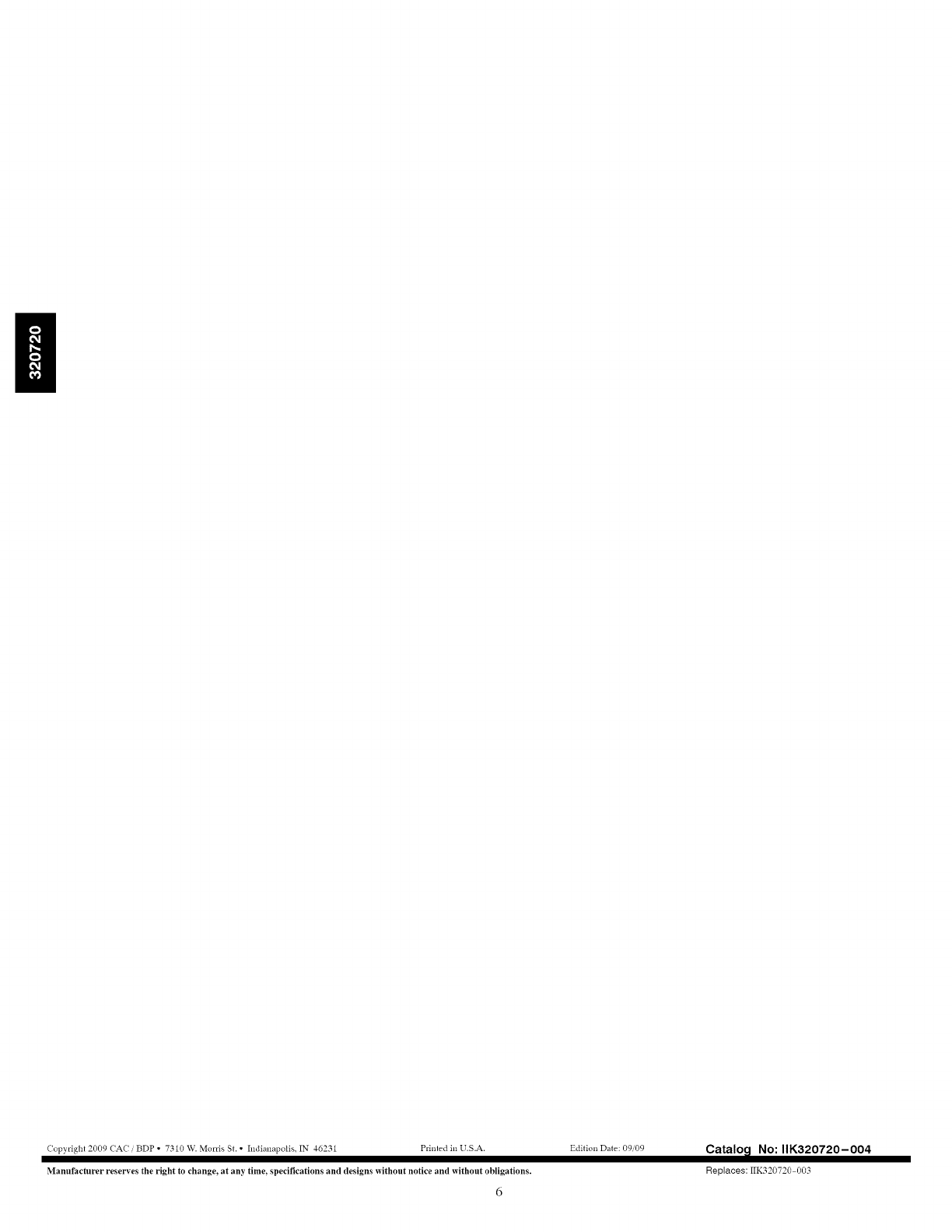

Copyright 2009 CA( _BDP * 7310 W. Morris St. * Indianapolis, IN 46231 Printed in U.S.A.
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
6
Edition Date: 09_09 Catalo_l No: IIK320720-004
Replaces: IIK320720 003

Navigation menu
