IVT BlueSoleil™

User Manual

Version: 1.4

This document describes how to use IVT BlueSoleil噡.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Contents

1 BlueSoleil™ Introduction............................................................................ 1

1.1 Profiles ....................................................................................................1

1.2 New features in BlueSoleil 1.4 .....................................................................2

1.3 Features in BlueSoleil 1.2 ...........................................................................2

2 BlueSoleil™ Basic Operations ..................................................................... 4

2.1 Start BlueSoleil™ ......................................................................................4

2.2 Exit BlueSoleil™ ........................................................................................4

2.3 BlueSoleil™ Main Window ...........................................................................5

2.4 Service Window.........................................................................................8

2.5 What You Need To Do Before Build A Connection ......................................... 10

2.6 Start Or Stop A Bluetooth Service Connection.............................................. 14

3 Bluetooth Security.................................................................................... 16

3.1 Introduction ........................................................................................... 16

3.2 BlueSoleil Security Configuration ............................................................... 17

4 Personal Area Networking........................................................................ 22

4.1 Introduction ........................................................................................... 22

4.2 Communication Between Two Computers.................................................... 23

4.3 Access LAN Through PAN-NAP ................................................................... 29

4.4 Access LAN Through IVT BlueSoleil™.......................................................... 33

4.5 Access Internet through IVT BlueSoleil™..................................................... 35

4.6 PAN Configuration ................................................................................... 36

5 Dial-Up Networking.................................................................................. 38

5.1 Introduction ........................................................................................... 38

5.2 Connect to a Dial-up Gateway from a Computer........................................... 38

5.3 Settings for Dial-up Networking Profile (client side) in Windows98/Me............. 41

6 Bluetooth Serial Port ................................................................................ 46

6.1 Introduction ........................................................................................... 46

6.2 Connect Two Computers........................................................................... 46

6.3 Use SPP to Print a Document..................................................................... 48

6.4 Use a cellphone to control a computer ........................................................ 48

6.5 SPP Configuration.................................................................................... 50

7 Bluetooth File Transfer............................................................................. 52

7.1 Introduction ........................................................................................... 52

7.2 Transfer files to/from a Computer .............................................................. 52

7.3 FTP Configuration .................................................................................... 55

8 LAN Access............................................................................................... 56

8.1 Introduction ........................................................................................... 56

8.2 Access a Local Area Network (LAN) ............................................................ 56

8.3 Access a LAN via a LAN Access Point .......................................................... 60

8.4 Settings for LAN Access Profile (client side) in Windows98/Me........................ 61

8.5 Usage of LAN Access Profile (server side) in Windows98/Me........................... 65

9 Object Push.............................................................................................. 70

9.1 Introduction ........................................................................................... 70

9.2 Transfer Objects from a Computer to a Bluetooth Cellular Phone .................... 70

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

9.3 Transfer Objects from a Bluetooth Cellular Phone to a Computer .................... 74

9.4 Transfer Objects between Two Computers................................................... 75

9.5 Configure OPP Service.............................................................................. 76

9.6 Using OPP in Microsoft Outlook .................................................................. 77

10 Synchronization..................................................................................... 80

10.1 Introduction......................................................................................... 80

10.2 Exchange PIM Data with a Cellular Phone ................................................. 80

10.3 Set up SYNC Connection between Two Computers ..................................... 81

10.4 Synchronization Configuration ................................................................ 83

10.5 Using Synchronization in Outlook ............................................................ 84

11 Hardcopy Cable Replacement ................................................................ 87

11.1 Introduction......................................................................................... 87

11.2 Print a Document Using a Bluetooth Printer .............................................. 87

12 Human Interface Device ........................................................................ 89

12.1 Introduction......................................................................................... 89

12.2 Connect a Computer to a Bluetooth Mouse ............................................... 89

12.3 Connect a Computer to a Bluetooth Keyboard ........................................... 91

13 FAX........................................................................................................ 94

13.1 Introduction......................................................................................... 94

13.2 Connect to a FAX Gateway from a Computer ............................................ 94

13.3 Using FAX software on a bluetooth computer ............................................ 94

14 Headset ................................................................................................. 96

14.1 Introduction......................................................................................... 96

14.2 Create an audio connection between computer and Headset ....................... 96

14.3 Using Headset Profile in BlueSoleil........................................................... 98

15 Advanced Audio Distribution ............................................................... 100

15.1 Introduction....................................................................................... 100

15.2 Play music between computer and AV Headphone wirelessly ..................... 100

15.3 Play music between two computers wirelessly......................................... 103

16 Basic Imaging ..................................................................................... 107

16.1 Introduction....................................................................................... 107

16.2 Push an image from a digital still camera. .............................................. 107

16.3 Control a digital still camera remotely.................................................... 108

17 Connection Shortcut ............................................................................ 110

17.1 Introduction....................................................................................... 110

17.2 How to use Connection Shortcut ........................................................... 110

18 Bluetooth Glossary .............................................................................. 113

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

1 BlueSoleil噡 Introduction

BlueSoleil噡 is a Windows-based Bluetooth Wireless software suite from IVT

Corporation. It is fully compliant to the latest Bluetooth SIG specifications.

BlueSoleil噡 incorporates Bluetooth and computer technologies to enable users to

wirelessly access computing devices, form networks, and exchange information.

1.1 Profiles

BlueSoleil噡 V1.4 includes ten Bluetooth profiles. The following table indicates

which of these profiles is available for client and server devices.

Profile Description Client Server

PAN Personal Area Networking ¥¥

SPP Serial Port ¥¥

DUN Dial-Up Networking ¥

LAP LAN Access ¥¥

FTP File Transfer ¥¥

HID Human Interface Device ¥

HCRP Hardcopy Cable Replacement ¥

OPP Object Push ¥¥

SYNC Synchronization ¥¥

AG Audio Gateway ¥¥

AV Audio Source

Audio Sink

¥¥

BIP Basic Imaging ¥¥

BlueSoleil噡 supports more than ten Bluetooth chip-sets and HCI interfaces

including USB, UART, PCMCIA and Compact Flash.

IVT BlueSoleil噡 supports:

i Windows 2000/XP

i Windows 98SE/Me

This manual describes how to use BlueSoleil噡:

i How to start and exit BlueSoleil噡.

i How to navigate the Main Window and Service Window.

i How to use the Bluetooth profiles.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

1.2 New features in BlueSoleil 1.4

BlueSoleil version 1.4 is ready now with even more exciting new features,

multimedia profiles are added into BlueSoleil.

They include:

i Headset

With this feature, users can use Bluetooth Headset to listen to music, to record

sound or to chat with others. Headset increases the user’s mobility.

i Audio/Video

With this feature, users can listen to stereo music with any media player

wirelessly between Bluetooth enabled computers or Bluetooth enabled

computer and Bluetooth Stereo headphone.

i Basic Image

With this feature, users can push an image from a digital still camera to a

computer, or control a digital still camera remotely from a computer.

1.3 Features in BlueSoleil 1.2

BlueSoleil version 1.2.0 is ready with exciting new features, aiming at making

Bluetooth more easy to use for end user. Less steps is required to setup wireless

connections. User can even do not care what is Bluetooth. Anyway, Bluetooth is

just a kind of connecting method. So, please just have fun from all these new

functions.

They include:

i Seamless Integration with Windows

This is an important improvement to make it more easy to use Bluetooth.

Generally, users do not care about what is Bluetooth and how can they connect

to a Bluetooth device. From users' point of view, they just want to print a

document, open a serial port, dial-up to Internet and send a FAX etc. To make

this, BlueSoleil automatically setup Bluetooth connections for users. There is no

need to setup connection before using Bluetooth anymore.

i Integration with MS Outlook for Object Push and Synchronization

With this feature, contact cards and email messages can be sent or

synchronized from Outlook directly via Bluetooth. Received cards and other

information items will be imported to Outlook automatically.

i Shortcut on Windows Desktop

Windows shortcut is introduced here to let user to be able to setup Bluetooth

connection when they want by just double- clicking them. It makes Bluetooth

connection extremely simple.

i Security 2

With this feature, users can manage local Bluetooth services in a flexible way.

Authentication, encryption and authorization can be configured based on every

service. Users can set which remote device can access local services and which

not.

i FAX

FAX enable users to send a FAX from PC side via Bluetooth cellular phone or

Bluetooth FAX machine wirelessly.

i Network Address Translation, Network Access Point, and DHCP server

in PAN

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

With these functions, users can setup ad-hoc Personal Area Network quickly

and share the Internet accessing among computer.

i More Bluetooth Serial Ports

More Bluetooth Serial Ports are supported, with 4 Bluetooth Serial Ports for

out-going connections and 2 Bluetooth Serial Ports for incoming connections.

i Mobile HID

With this feature, users can make cellular phones like Ericsson T39 or T68 to

work like a mouse and keyboard. Users can remotely control their PC to show

Power Point etc.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

2 BlueSoleil™ Basic Operations

2.1 Start BlueSoleil™

After installing BlueSoleil™, there are two ways to start the program:

1. A BlueSoleil™ shortcut icon on the Windows desktop.

2. An IVT BlueSoleil噡program group entry in the Windows’ Start | Programs menu.

Double-click the BlueSoleil噡shortcut icon on the desktop or click the BlueSoleil™

menu item on the Start | Programs | IVT BlueSoleil噡menu to start the

BlueSoleil™ software.

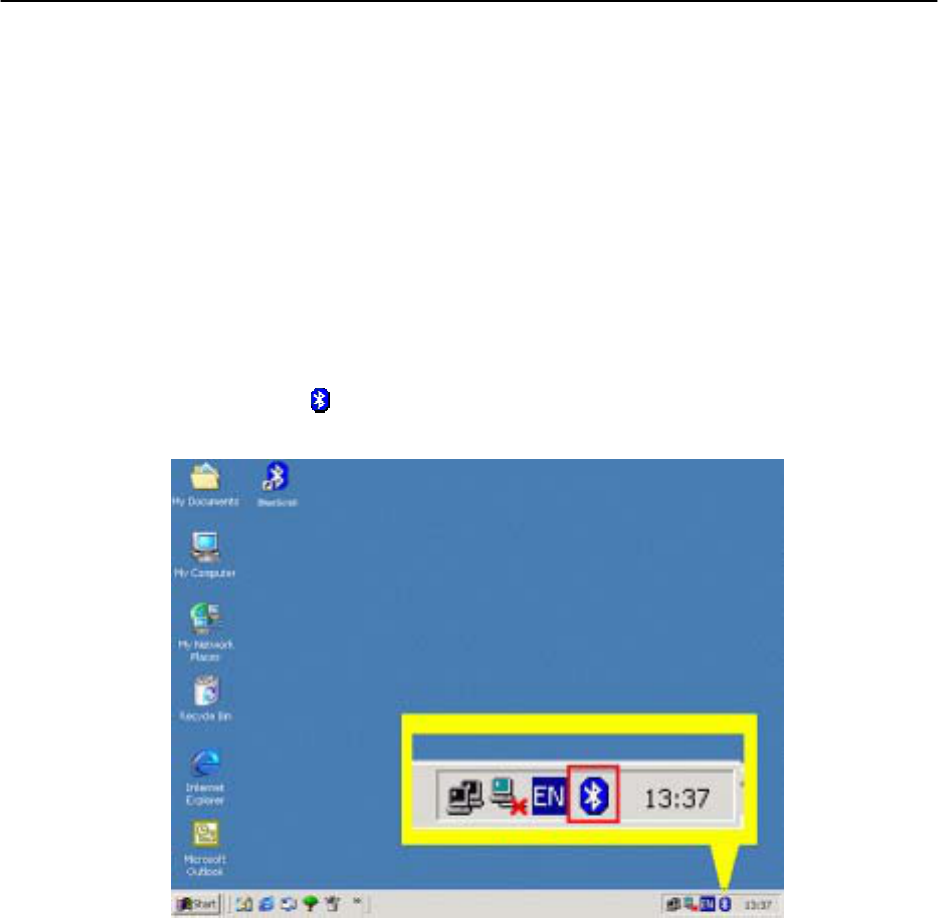

The BlueSoleil™ icon will be displayed at the bottom right corner of the

Windows desktop (Figure 2.1).

Figure 2.1: BlueSoleil™ icon

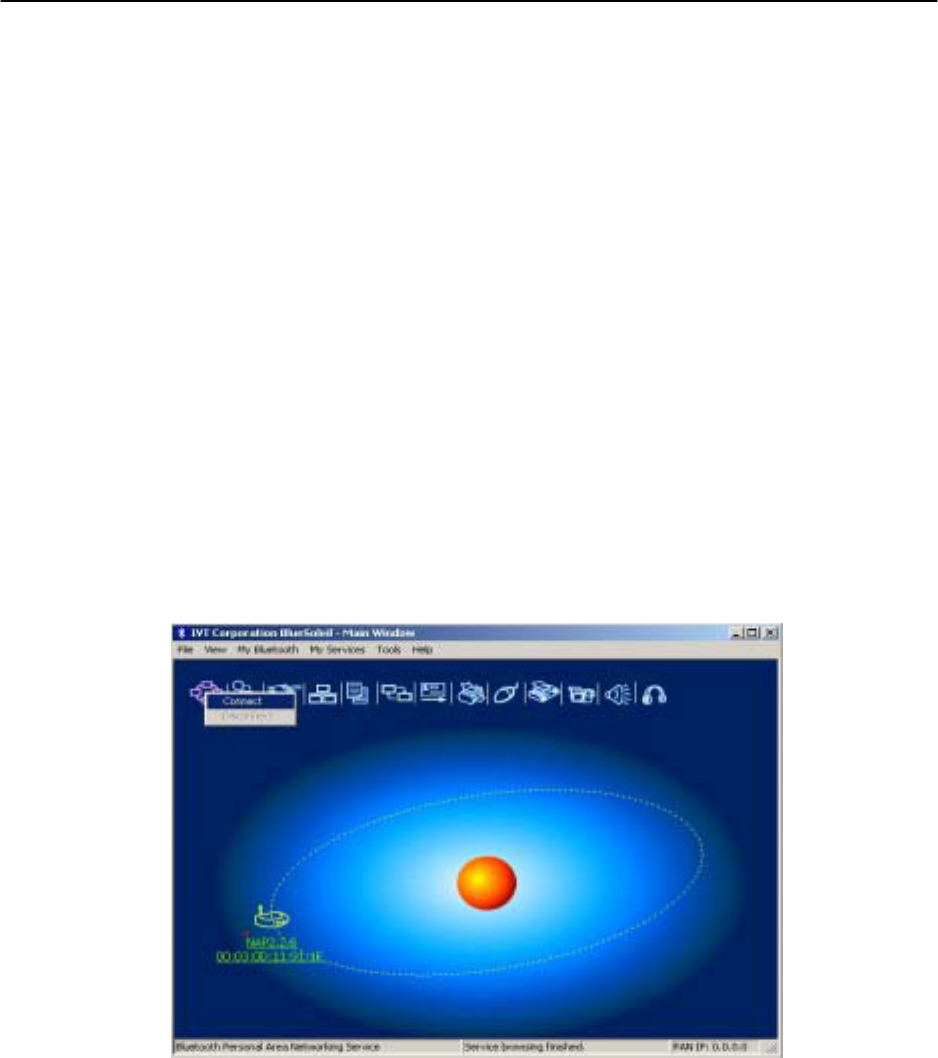

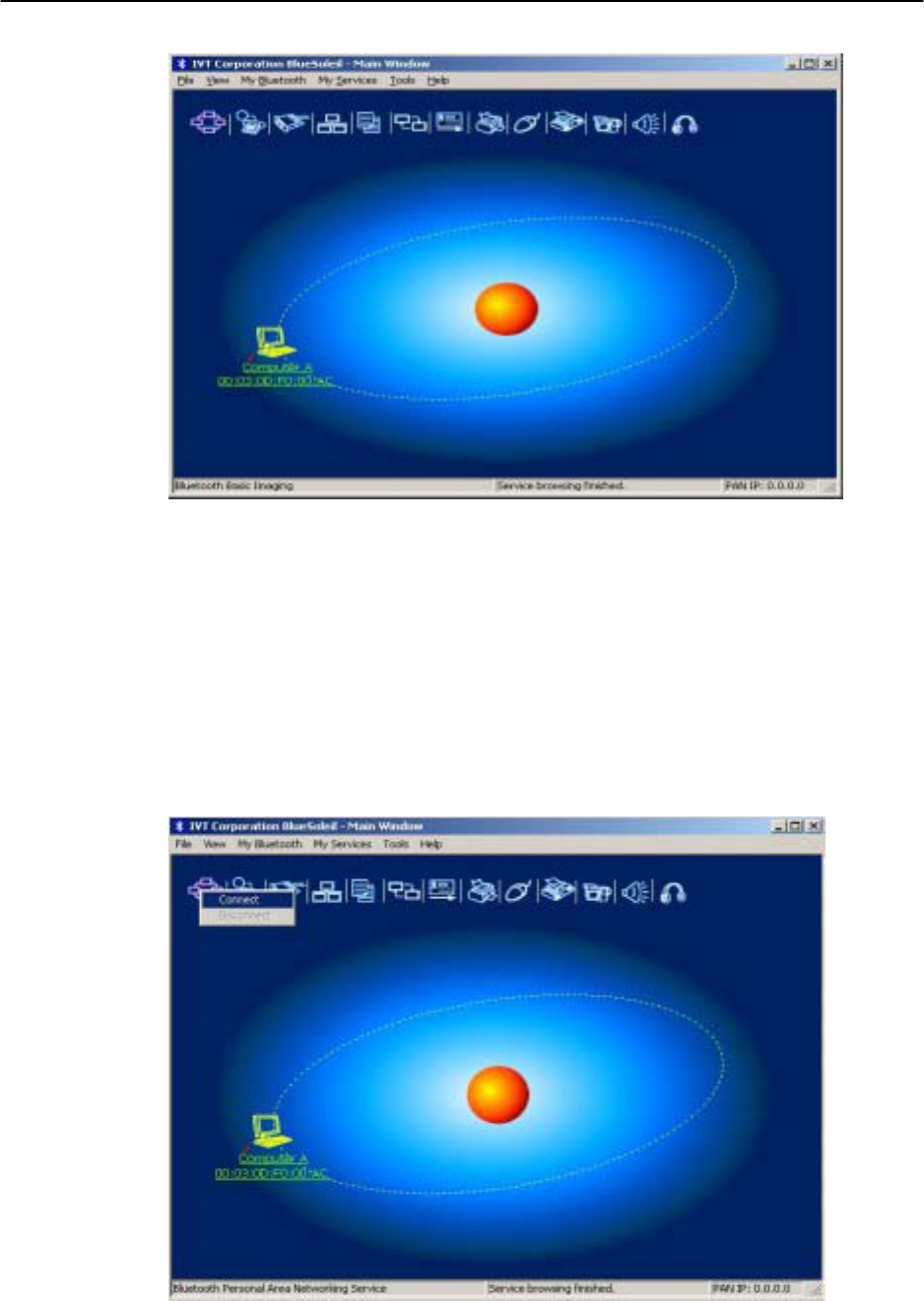

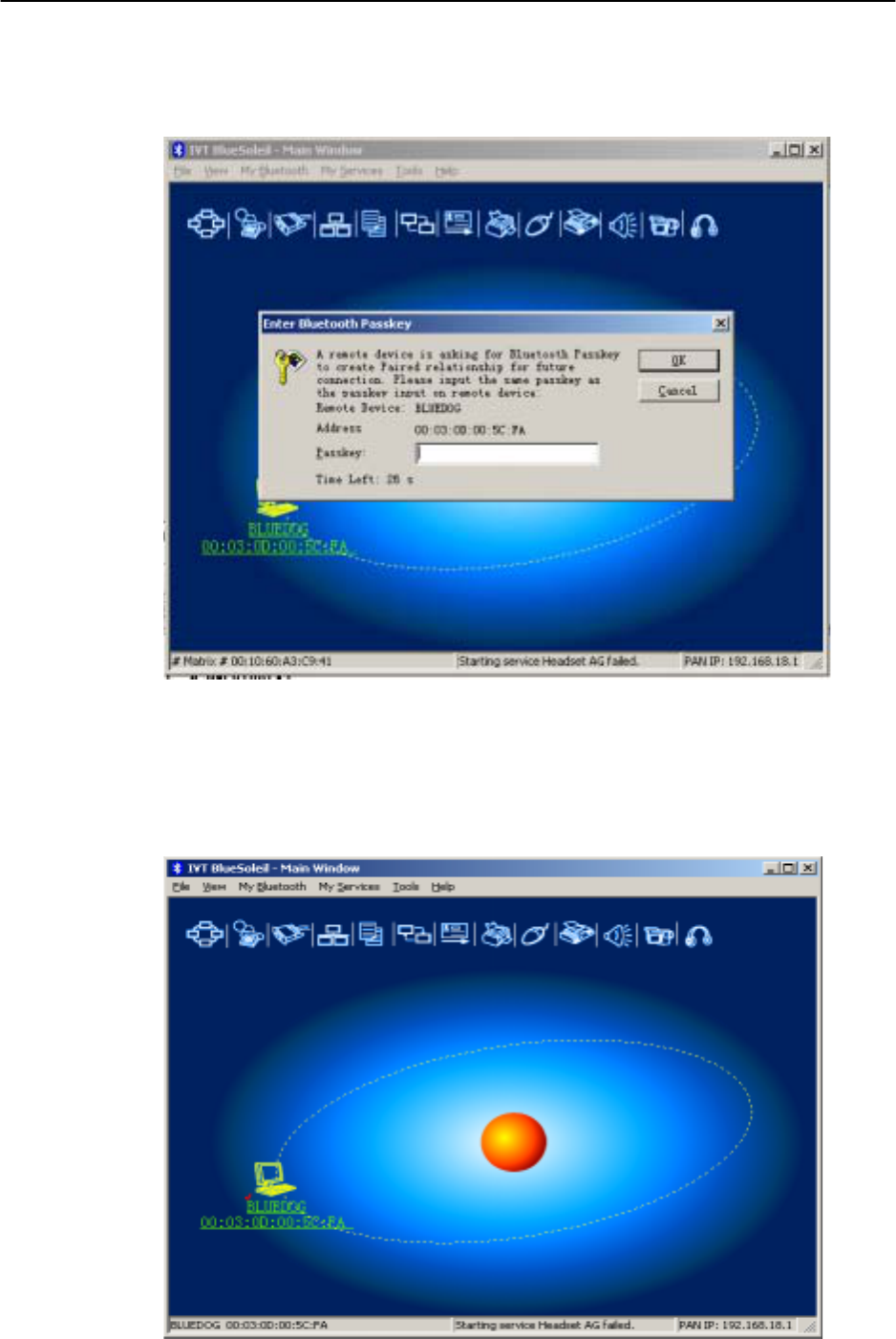

The BlueSoleil噡 Main Window pops up as shown in Figure 2.2.

2.2 Exit BlueSoleil噡

To exit BlueSoleil噡, right-click the BlueSoleil™ icon at the bottom right corner of the

Windows task bar and select Exit on the pop-up menu.

Note: Selecting the Close button at the top right corner of the BlueSoleil™ window

only hides the BlueSoleil™ window.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

2.3 BlueSoleil™ Main Window

The BlueSoleil™ Main Window displays all surrounding Bluetooth devices. From

the BlueSoleil™ Main Window users can search for surrounding Bluetooth devices

and can execute connect/ disconnect functions.

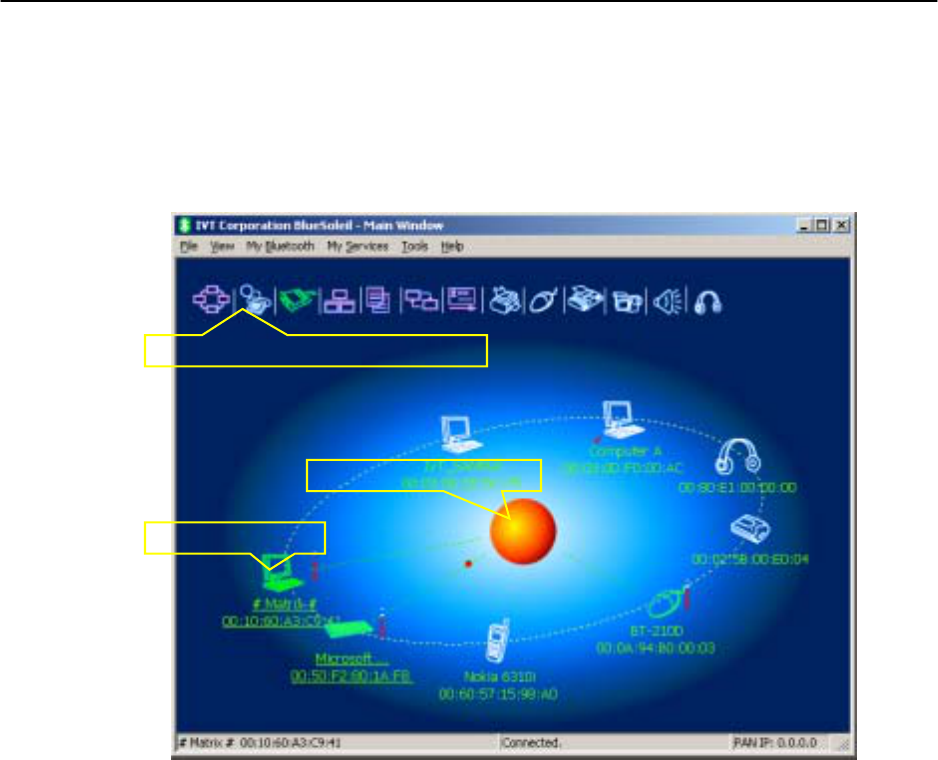

Figure 2.2: BlueSoleil™ Main Window

The main elements in the BlueSoleil™ Main Window are:

i My Device Icon

i Remote Bluetooth Device Icons

i Bluetooth Service Icons

2.3.1 My Device Icon

This icon represents the client computer. It is called the ‘My Device icon’ or ‘center

ball’ in this document.

Functions:

i Hover the mouse over the My Device icon to display the client Bluetooth device

name and address.

i Double-click to start/ stop searching for surrounding Bluetooth devices.

i Drag scrollbar on the right of main window to find other Bluetooth devices if

there are more than seven devices.

i Right-click to display the pop-up menu with related operations.

Remote Device

Local Device Icon

Remote Device Serivce Icon

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

2.3.2 Remote Bluetooth Device Icons

The icons in the table below represent the remote Bluetooth devices.

Device Type Icon

Headset

Keyboard

LAN Access Point

Laptop

Mobile

Modem

Mouse

Personal Computer

PDA

Printer

Scanner

Unknown device

The following colors are used to indicate the status of the remote Bluetooth device:

i White (Idle)

This is the normal status of the device.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

i Yellow (Selected)

The device has been selected by the user.

i Green (Connected)

The device has been connected.

Functions:

i Single-click to select.

i Double-click to get the services remote Bluetooth device supports.

i Right-click to display the pop-up menu with related operations.

2.3.3 Bluetooth Service Icons

The Bluetooth Service Icons represent the Bluetooth services supported by the

remote device.

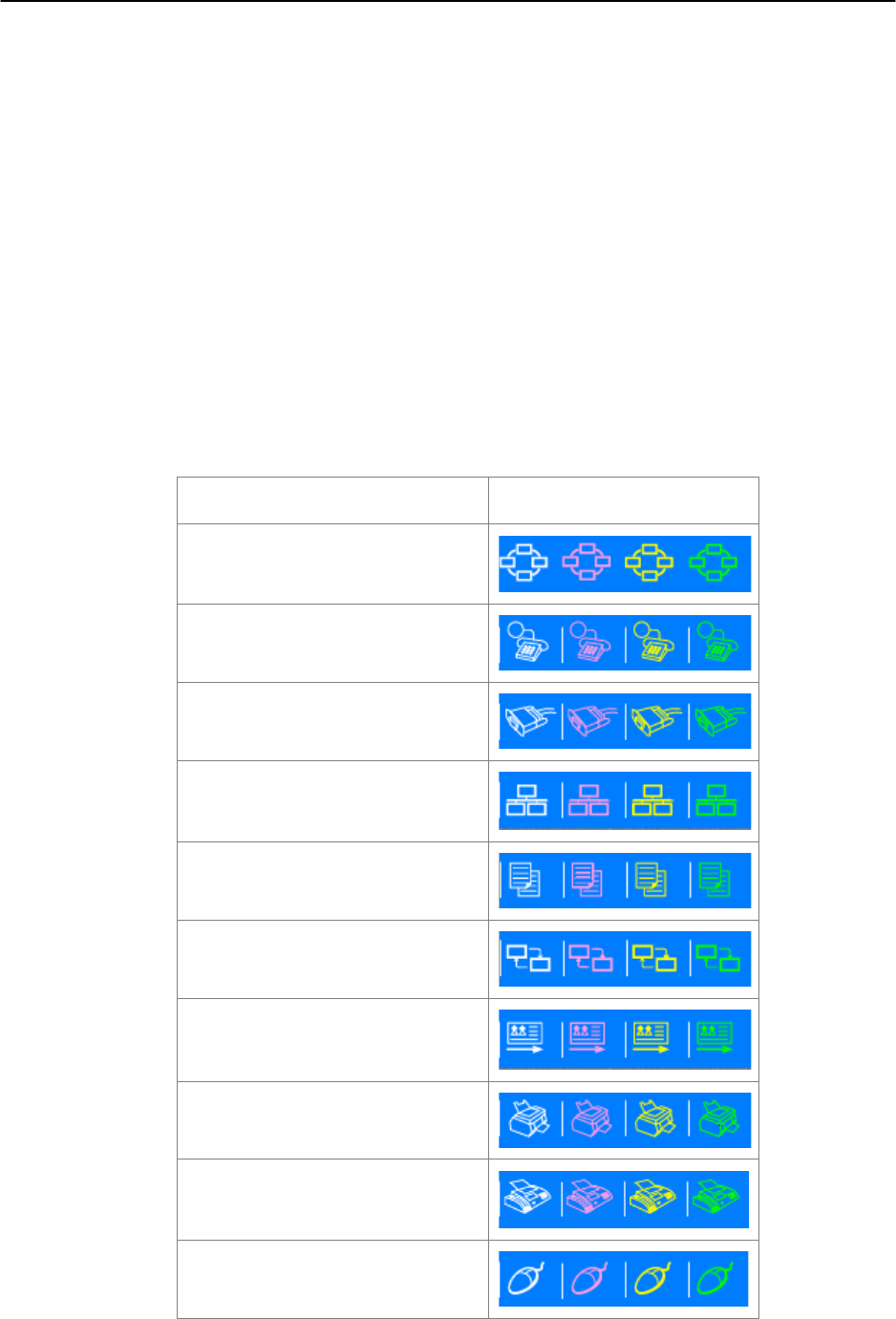

Bluetooth Service Icon

Personal Area Networking

Dial-up Networking

Serial Port

LAN Access

File Transfer

Information Synchronization

Object Push

Printer

Fax

Human Interface Device

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

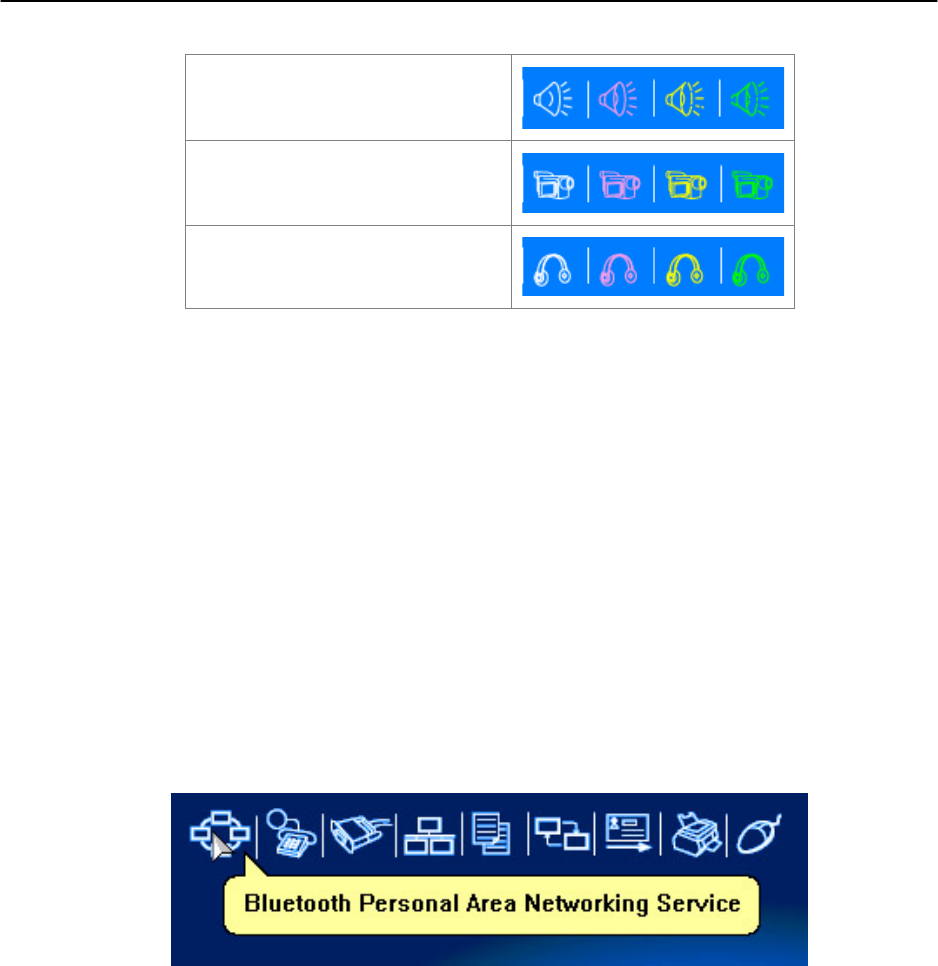

AV Headphone

Basic Image

Headset Audio Gateway

The following colors are used to indicate the status of the Bluetooth service:

i White (Idle)

This is the normal status.

i Pink (Available)

The Bluetooth service is available for the selected device.

i Yellow (Selected)

The service icon has been selected by the user.

i Green (Connected)

The service is connected.

Functions:

i Hover the mouse over the icon to display the service name.

i Single-click to select the service.

i Double-click to connect.

i Click to display the pop-up menu with related operations.

Figure 2.3: Bluetooth PAN Service Icon

2.4 Service Window

Select menu View | Service Window and the Service Window appears.

This window displays the Bluetooth services the ‘my Bluetooth device’ provides to

remote Bluetooth devices. These services are called ‘my Bluetooth services’.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

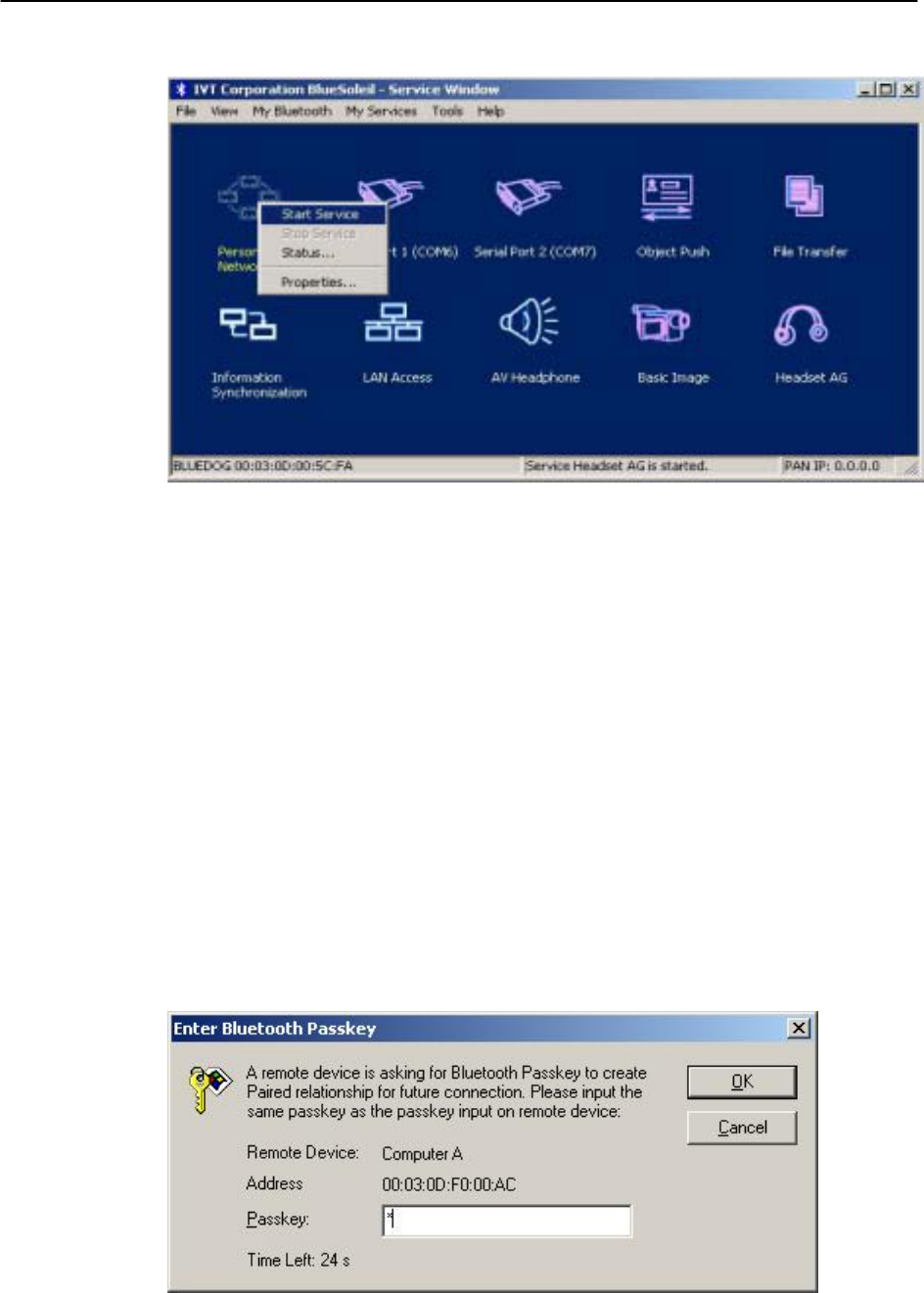

Figure 2.4: BlueSoleil™ Service Window

Main Elements:

i My Service Icons

2.4.1 My Service Icons

These icons represent ‘my Bluetooth services’.

My Bluetooth Service Icon

Personal Area Networking

Serial Port

LAN Access

Object Push

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

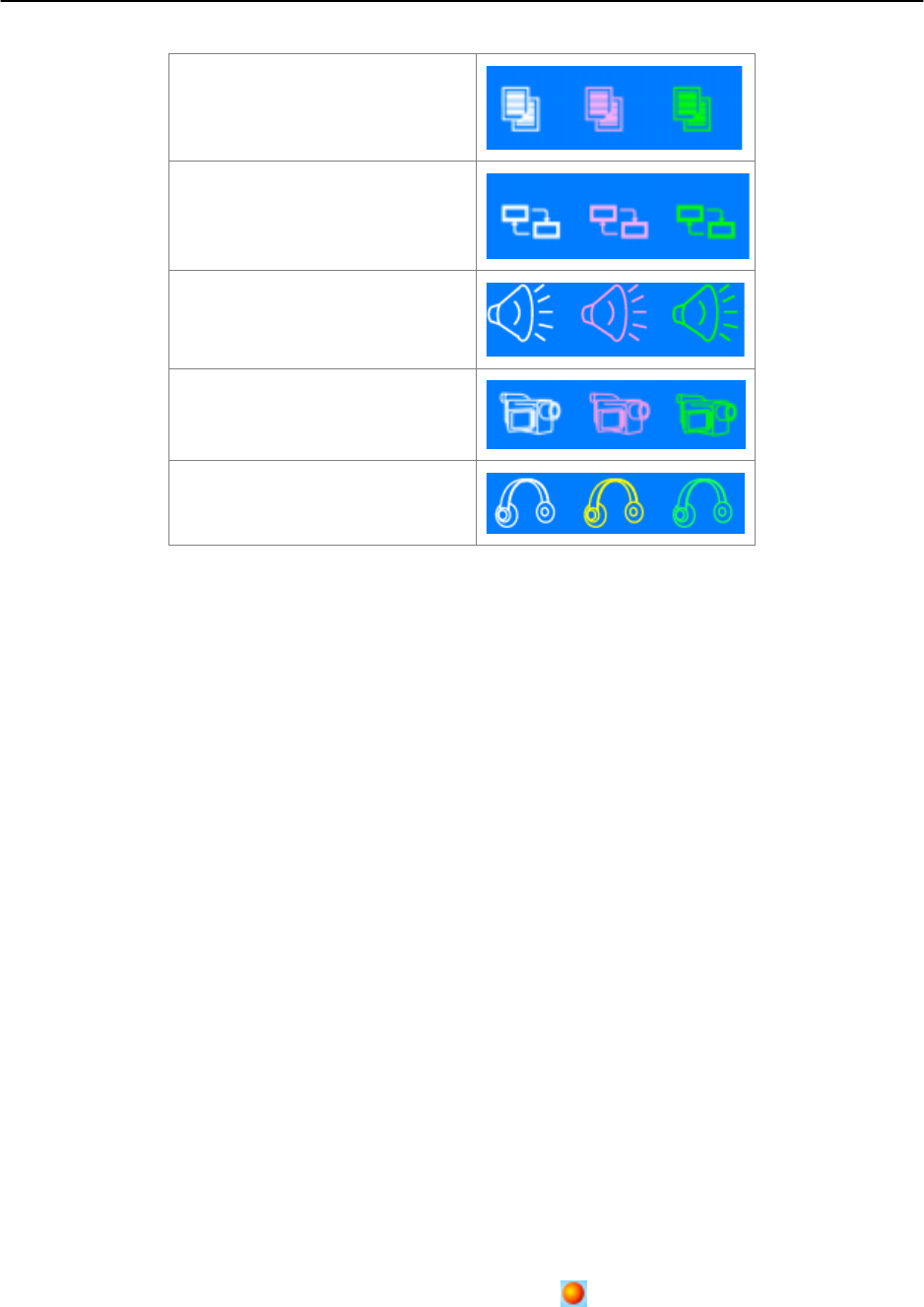

File Transfer

Information Synchronization

AV Headphone

Basic Image

Headset AG

The following colors indicate the status of the Bluetooth service:

i White (Idle)

Normal status.

i Pink (Started)

My Bluetooth service is started.

i Green (Connected)

A remote device has connected to my Bluetooth service.

2.4.2 Start/Stop a Bluetooth Service

Select a service icon in service window, and double-click to start/stop a service or

select right popup menu to send command.

2.4.3 View the Property of a Service

Right-click to display the pop-up menu with related operations in service window.

2.5 What You Need To Do Before Build A Connection

3. Inquiring Bluetooth Devices in the vicinity

4. Pairing your desktop or laptop with the associated device

2.5.1 Inquiring Bluetooth Devices

Method 1: Enquire Device

To start to set up a Bluetooth connection, you have to find the remote device you

want to connect first. You can choose one of the following methods to find the

remote device.

You may double click My Bluetooth Device icon or from MY Bluetooth Menu

-> Bluetooth Device Inquiry (Figure 2.5) to find other Bluetooth devices in

range. Bluetooth devices within the radio range will be added to the orbit. The

inquiry procedure will search up to 7 devices each time. After it finds the devices or

it has been 25 seconds since the beginning of the inquiry, it will continue to refresh

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

the names of the found devices. Double clicking the local device or double

clicking one of the remote devices (to start to search profiles it supports) will stop

the inquiry procedure.

Figure 2.5 Inquiry Menu

Method 2: Add Device from History List

If there are more than 7 devices to find within the radio range, you can add the

device you have used to the orbit from the history device list. Click Tools Menu

and select Add Device from History. The History dialog box will be pop-up

(Figure 2.6).

Figure 2.6 History Dialog

Select the device from the list and click Add, the selected device will be added to

the end of the orbit. The shortcut key to open the History dialog box is Ctrl+H.

Method 3: Add a New Device by Inputting Device Address

If you are going to connect a device that you have never used, which is not in the

history list and which you cannot find, you can add it directly by inputting its

Bluetooth device address. Click Tools Menu and select Add New Device. The

Add Bluetooth Neighbor Device Manually dialog box pops up.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

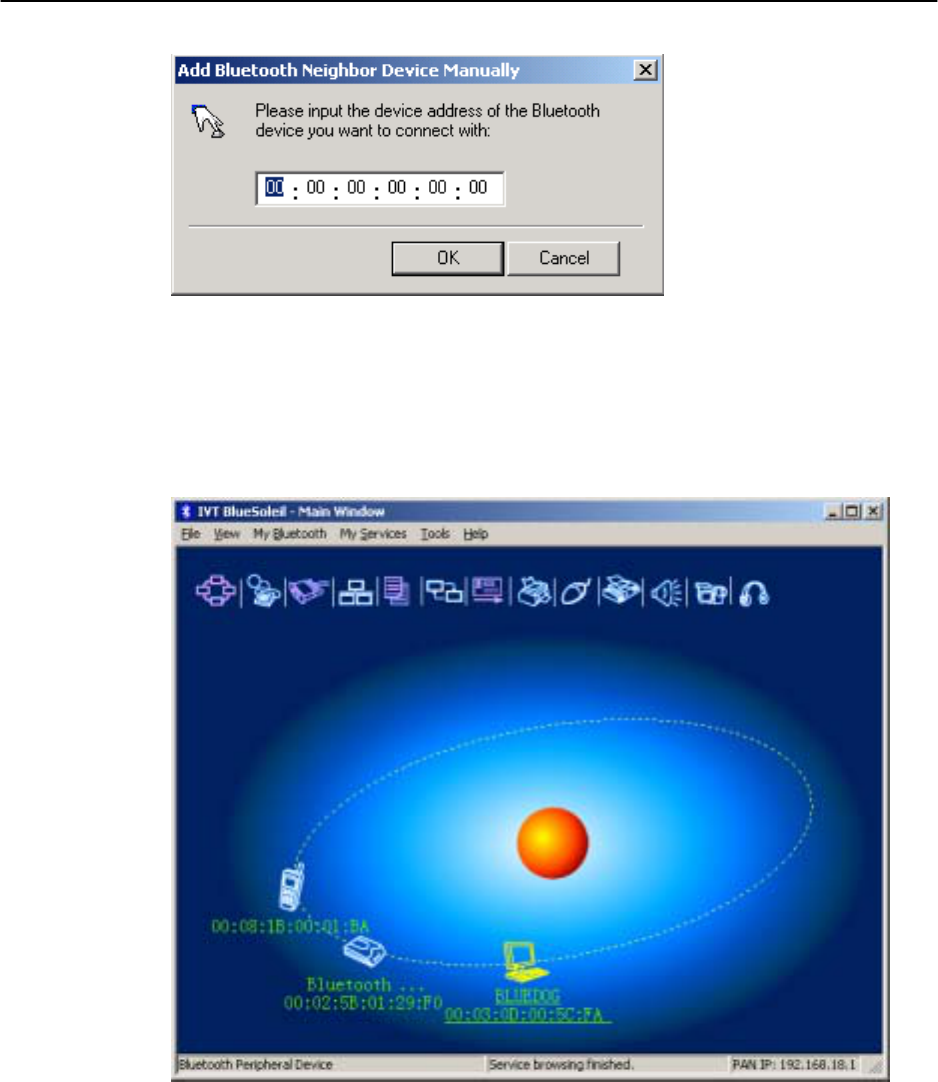

Figure 2.7 Add Bluetooth Neighbour Device Manually dialog

Input the device address and click OK, and then the device will be added to the end

of the orbit. However, the device type will be unknown. The shortcut key to open

Add Bluetooth Neighbor Device Manually dialog box is Ctrl+N.

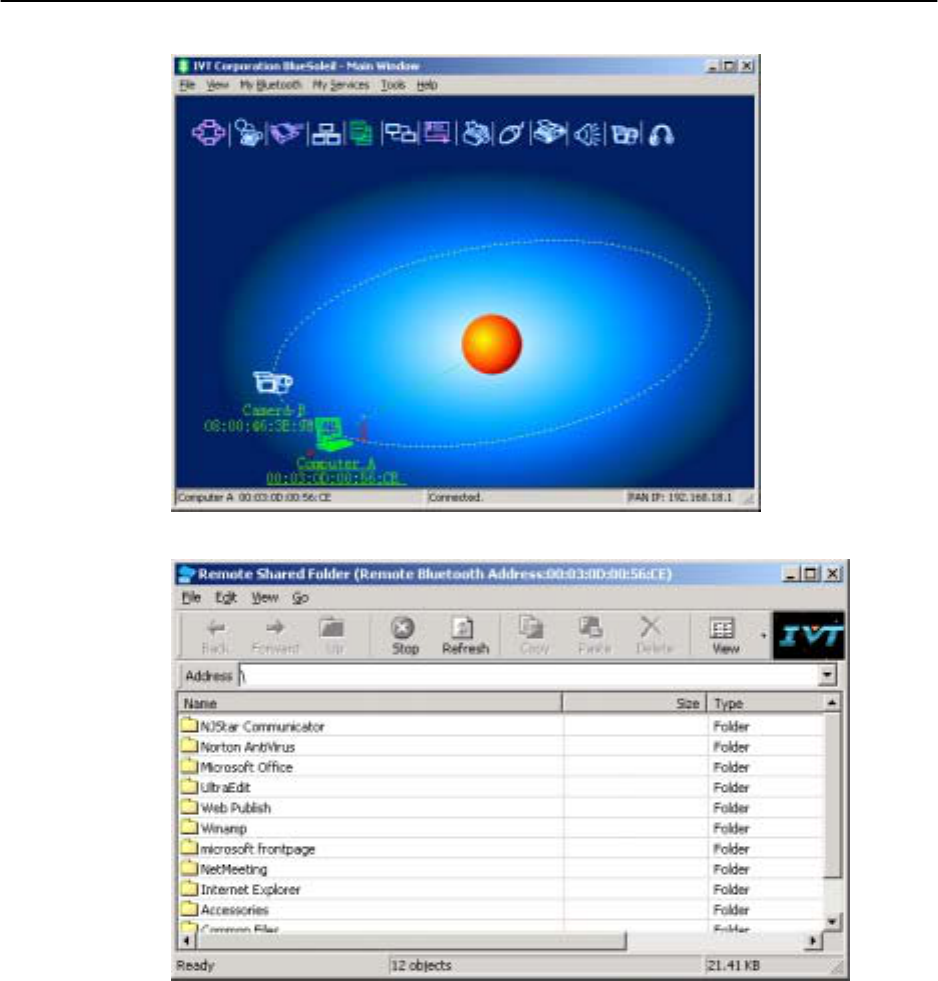

The remote devices found will be added to the orbit. Refer to the following window

(Figure 2.8).

Figure 2.8 Devices can be add into the main window

2.5.2 Pairing your desktop or laptop with a Bluetooth Device

Bluetooth passkey may be asked if security level of either side of the connection is

set to High and they are not paired devices. You can initiate the pairing from your

own desktop or laptop or accept a request for pairing from the other device. Pairing

allows you to avoid entering access information each time a connection is setup.

Paired devices share a unique Link Key, which they exchange each time they

connect.

Pairing Procedures

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Double click the remote Bluetooth device you want to connect and you will be asked

to enter the Bluetooth Passkey. Please type the Bluetooth Passkey in the Passkey

field (Figure 2.9).

Figure 2.9 Input Passkey

Meanwhile, there will be a Bluetooth Passkey dialog box prompted on the remote

laptop or desktop equipped with the Bluetooth device to ask you to enter passkey.

The Bluetooth passkey should be the same between paired devices. If the pairing

process succeeds, there will be a red check on the paired Bluetooth device icon

(Figure 2.10).

Figure 2.10 Device have been paired

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

2.6 Start Or Stop A Bluetooth Service Connection

After you have finished the pairing process, it means that you have built the

connection between the client side and remote side. You may start to use the

Bluetooth services the associated Bluetooth device provides.

You can refer to 4.2 Communication Between Two Computers as a more

detailed example.

2.6.1 Search Bluetooth Service

You can double click the associated Bluetooth device icon or right-click on the icon

and select Refresh Services to find the service it provides. After service searching

finishes, the services the remote device supports and the corresponding service

icons on the top of the main window will change to be pink color.

2.6.2 Start A Remote Bluetooth Service Connection

You may right-click on the connected Bluetooth device, select Connect and

highlight the service you want to use (Figure 2.11).

Double click the pink profile icon (the service icon) you want to connect on the top

of the Main Window.

Figure 2.11 Connect to the remote service

Connection will be setup. After connection is OK, the remote device and the service

icon will turn green.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

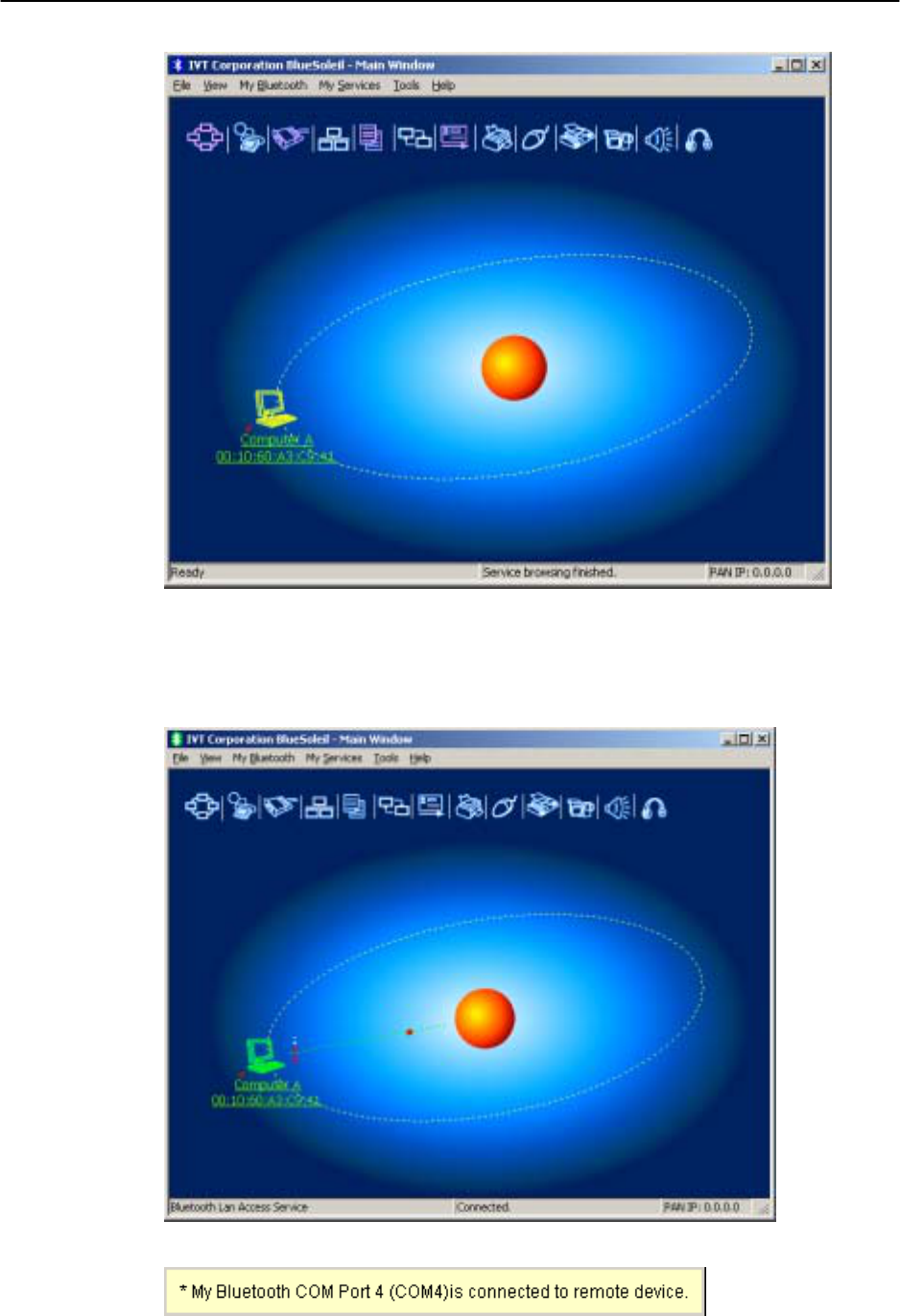

Figure 2.12 The connection has been established

2.6.3 Stop A Bluetooth Service Connection

There are two ways to stop the service:

i Select a started service and right click the service. On the popup menu, select

Stop Service. The service icon turns white. The service is stopped.

i Select a started service. Select My Services menu and highlight Stop Service.

The service icon turns white. The service is stopped.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

3 Bluetooth Security

3.1 Introduction

Bluetooth introduces security features to protect users from unauthorized access of

local data and encrypt data in the air. Three levels of security is defined in

Bluetooth:

i Low (no security): Local device will not initiate any security procedure.

i Medium (service-level enforced security): Local device does not initiate

security procedures before user access local Bluetooth services. This mode

allows different and flexible access policies for Bluetooth applications,

especially running applications with different security requirements in parallel.

i High(device level enforced security): Local device initiates security procedures

as long as the remote Bluetooth device set-up link, for example, browsing local

services etc.

Following table shows the security when Bluetooth client device access another

Bluetooth device that provides services.

Server in

Security Low

Server in

Security Medium

Server in

Security High

Client in

Security

Low

No security. Can browse

services.

Accessing service

depends on the

settings of local

services.

High. Security is

enforced at link

level before setup

connection.

Client in

Security

Medium

No security. Can browse

services.

Accessing service

depends on the

settings of local

services.

High. Security is

enforced at link

level before setup

connection.

Client in

Security

High

High. Security is

enforced at link

level before setup

connection.

High. Security is

enforced at link

level before setup

connection.

High. Security is

enforced at link

level before setup

connection.

When security is enforced at device level or a local service requires, an

Authentication procedure is required. Both of Bluetooth client and server side

need enter a Bluetooth passkey to confirm the client user's identity.

To avoid entering Bluetooth passkey every time, two Bluetooth devices can be set

up paring relationship, that is to save the relationship after Authentication. After

Authentication, the Bluetooth link can be encrypted if necessary.

Authorization is used in Security Medium (service-level enforced security), to set

which devices can use the local service and which cannot. The following are some

concept of bluetooth security:

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

i Authentication

Authentication is used to verify identity; it requires a passkey or link key from

the remote device. When an Authentication procedure is initiated by either local

device or remote device, a dialog is shown to ask for entering Bluetooth

Passkey. Only when passkeys from both sides are identical, can

authentication succeed.

i Authorization

Bluetooth authorization is the procedure to decide whether you are going to

allow some other Bluetooth devices to use Bluetooth services on your Bluetooth

devices. This procedure takes function in Bluetooth security Medium and

applies to Bluetooth services only.

i Encryption

When a Bluetooth link is encrypted, data are encrypted into unreadable data

using a secret key or password before they are sent in the air. Data are

decrypted after they reach the remote device using the same key or password

that was used to encrypt it.

i Pairing Devices

Pairing allows you to avoid entering access information each time a connection

is setup. Paired devices share a unique Link Key, which they exchange each

time they connect.

3.2 BlueSoleil Security Configuration

The BlueSoleil security configuration involves the policy setting of the local device's

security, it comprises the following items:

i General Property Page

i Devices Property Page

i Services Property Page

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

3.2.1 General Property Page

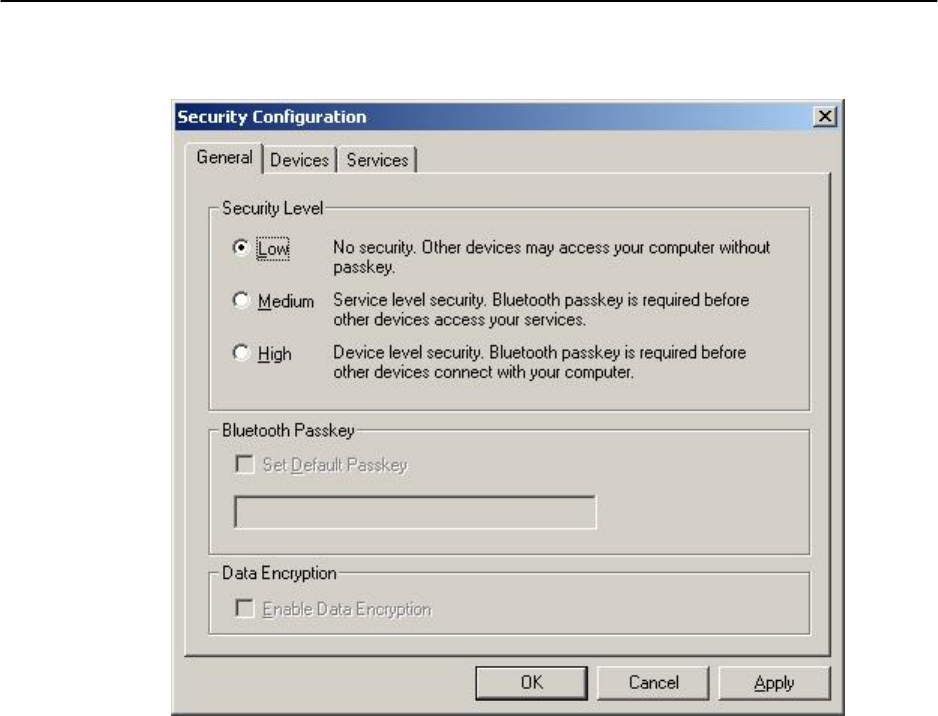

Figure 3.1: Security Configuration Dialog

Security Level

i Low

When Low is checked, normally other devices may access your device freely,

which means that they don't need to input the Bluetooth passkey. However, if

the other device set its own security level to High, you are also required to input

the passkey.

i Medium

The medium level is service level security. You can assign access right for

specified service to different devices. For more detail, to see Services Property

Page.

i High

When other devices connect to your device or your device connects with other

devices, you are required to input a Bluetooth passkey. If your device has been

paired with the other device before connecting, you can connect with the other

device directly. (A link key has been created and stored for the paired

relationship. Link key is used instead of Bluetooth passkey here.)

Bluetooth Passkey

i Set Default Passkey

If you check Set Default Passkey, you needn't input passkey manually.

BlueSoleil will use the passkey inputted in the edit box below to connect with

other devices.

Data Encrypt

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

i Enable Data Encryption

If the item is checked, the transmitted data will be encrypted into an

unreadable format.

3.2.2 Devices Property Page

Figure 3.2: Devices Property Page

when you establish connection with a paired device, you needn't input a passkey

again. A link key has been created and stored for the paired relationship.

How to pair with another device

i Automatically

If a passkey is required before connection, devices will pair automatically the

first time they connect (a passkey must be successfully exchanged).

i Manually

In the main window of BlueSoleil, right click a device, select Pair Device from

the popup menu, and then input a same passkey on both side.

How to unpair with another device

Manually

1. Click Remove Pairing button in this page.

2. In the main window of BlueSoleil, right click a paired device, select Unpair from

the popup menu.

Authorization for paired devices

Only when the Security Level is set as Medium in General Property Page, the

Authorization button is enabled. Select a device in Paired Devices list, then click

Authorization button to show an authorization dialog.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Figure 3.3: Authorization Dialog

The services shown in Service Name list are those need Authentication. Configure

in Services Property Page. If a service name is checked, the device will be a trusted

device for the service.

3.2.3 Services Property Page

Only when the Security Level is set as Medium in General Property Page, the

property page is enabled.

Figure 3.4: Services Property Page

Authentication

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

i Checked

If you check the Authentication box after a service name, when a not paired

device access the service, a passkey is required.

i Not Checked

The security level of the service will be Low. Any device may access the service

freely.

Encryption

If check Encryption after a service name, the transmitted data for the service will

be encrypted into an unreadable format.

Authorization for services

Select a service which need Authentication, then the Authorization button is

enabled. Click Authorization button to show an authorization dialog for the

specified service.

Figure 3.5: Authorization for Services

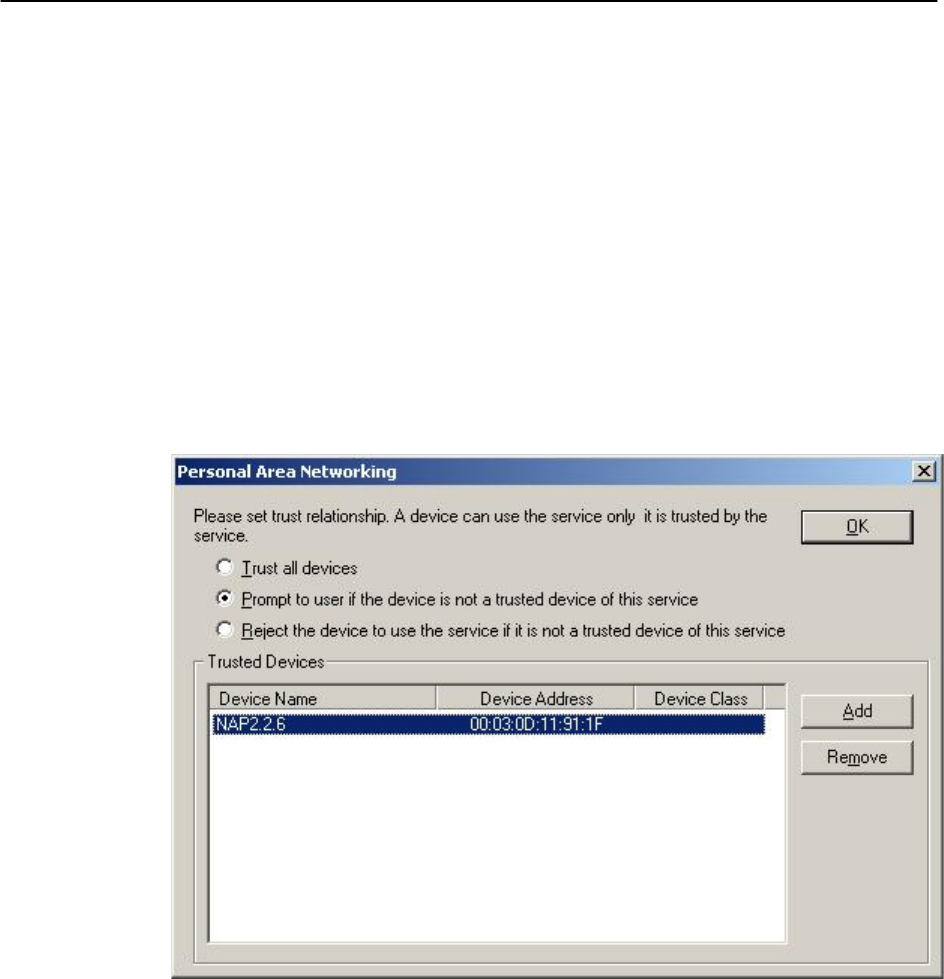

Trusted Devices

The devices are trusted by the specified service. Click Add button to add devices

into Trusted Devices list. Only a paired and trusted device can use the service

freely.

i Trust all devices

Set all devices trusted.

i Prompt to user if the device is not a trusted device of this service

If a device attempting to access the service is not a trusted device, a prompt

dialog will popup on the server side to inquire user if accepting the connection.

i Reject the device to use the service if it is not a trusted device of this

service

If a device attempting to access the service is not a trusted device, the device

will be rejected to established connection directly.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

4 Personal Area Networking

4.1 Introduction

The Bluetooth Personal Area Networking (PAN) is a Bluetooth application, which

enables devices to form an ad-hoc network or to access a remote network through

a network access point.

The PAN application can be used in the following scenarios:

i Two or more computers (or PDAs) can be connected to form a Group Ad-hoc

Network (GN) and can visit each other using Windows Network Places or any

application based on TCP/IP. (Figure 4.1)

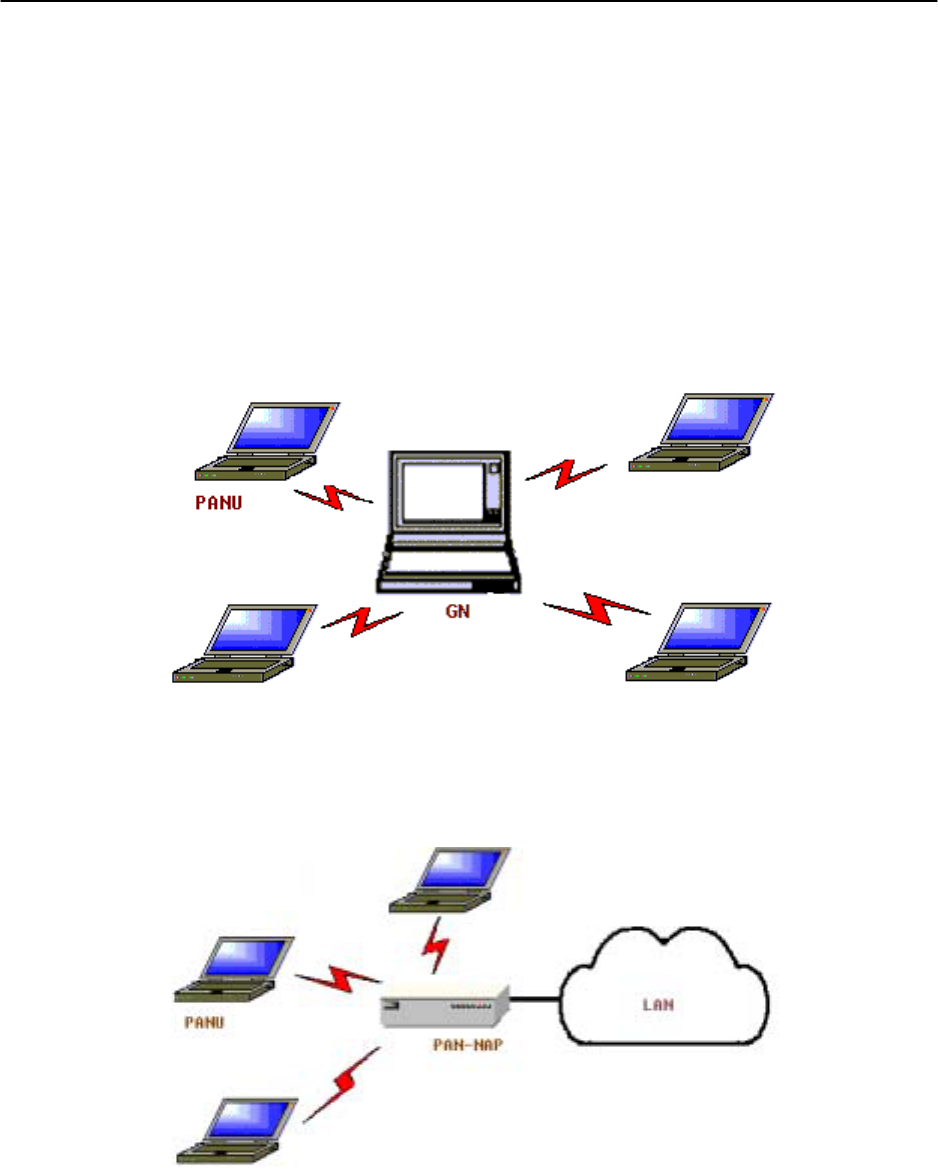

Figure 4.1: Group Ad-hoc Network

i Two or more computers (or PDAs) can access a Local Area Network through a

Network Access Point (NAP) bridge. (Figure 4.2) After the computers or PDAs

connect to the PAN-NAP, they become members of the LAN and can

communicate with other computers in the LAN directly.

Figure 4.2: Access LAN through PAN-NAP

i Two or more computers (or PDAs) can access a Local Area Network through

BlueSoleil™. ˄Figure 4.3˅ After the PANUs connect to the BlueSoleil NAP, they

become members of the LAN and can communicate with other computers in the

LAN directly.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

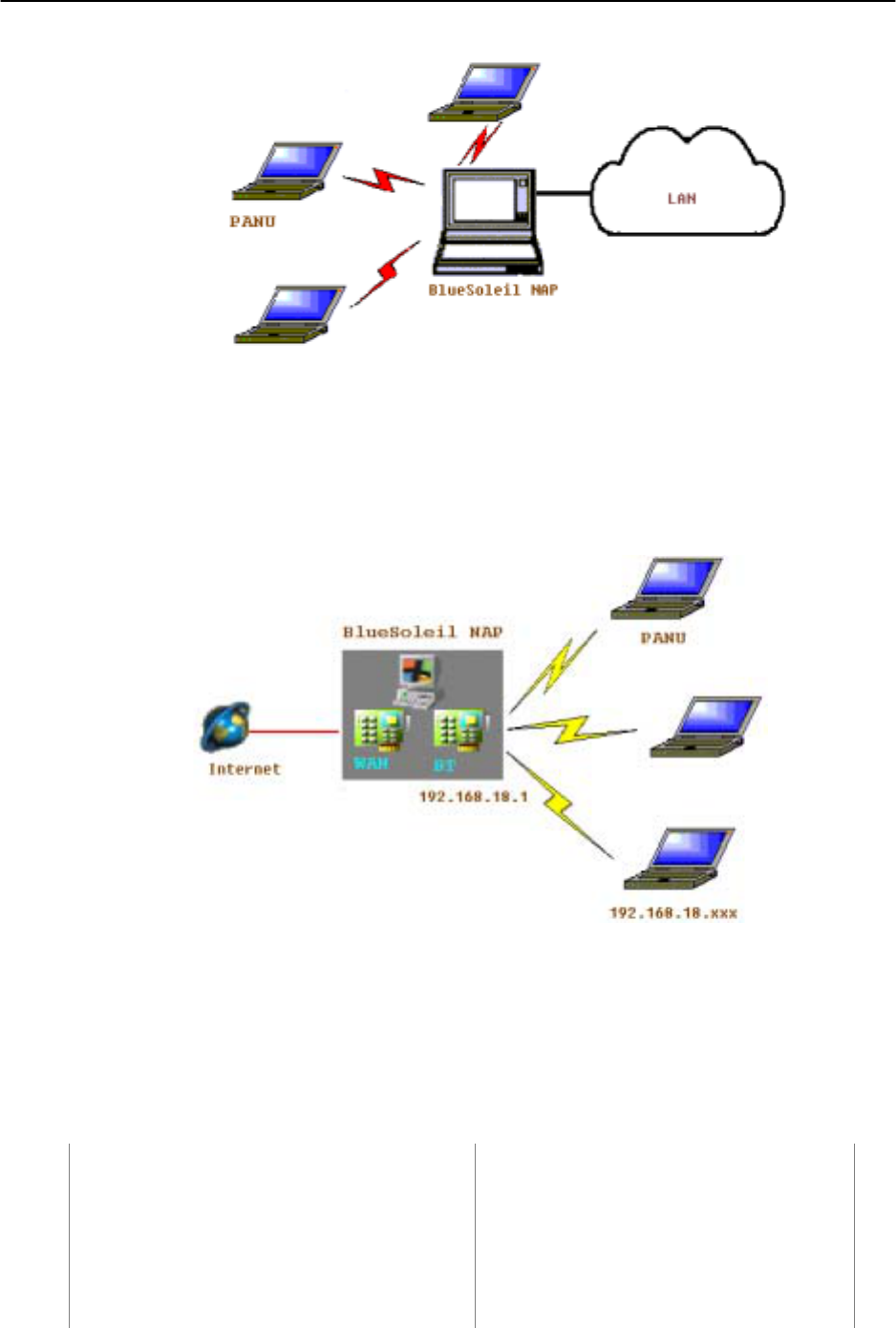

Figure 4.3: Access LAN through BlueSoleil NAP

i Two or more computers (or PDAs) can access the Internet through BlueSoleil™.

(Figure 4.4) In this scenario, there are two network adapters for the BlueSoleil

NAP: the WAN adapter is connected to the Internet and the BT network adapter

is used for Bluetooth connections from the PANUs. The BlueSoleil NAP acts as a

TCP/IP gateway, and the PANUs can access the Internet through the BlueSoleil

NAP.

Figure 4.4: Access Internet through BlueSoleil NAP

Each of these scenarios is now covered in more detail.

4.2 Communication Between Two Computers

This section outlines the steps involved in connecting two computers, Computer A

and Computer B.

Computer A: Computer B:

Desktop Notebook/ Laptop

A Bluetooth Device A Bluetooth Device

IVT BlueSoleil™ IVT BlueSoleil™

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Step 1: Insert Bluetooth Devices in both computers and start BlueSoleil™ in

both computers.

Step 2: Set device name of each computer to anything you want. Here they

are named Computer A and Computer B.

i In the BlueSoleil™ Main Window of Computer A, click My

Bluetooth | Property…. Enter ‘Computer A’ in the device name

field in the My Bluetooth Device window.

i Repeat for Computer B.

Step 3: Set the Security Level.

i Click My Bluetooth| Security, the Security Configuration panel

pops up.

i On the Security Configuration panel, select High in Security

Level.

i Note: If you check the Fixed Passkey and input a Bluetooth

passkey, this passkey will be used as the default passkey. The

other computer will then have to provide the same passkey during

the connection procedure if it wants to connect to this computer.

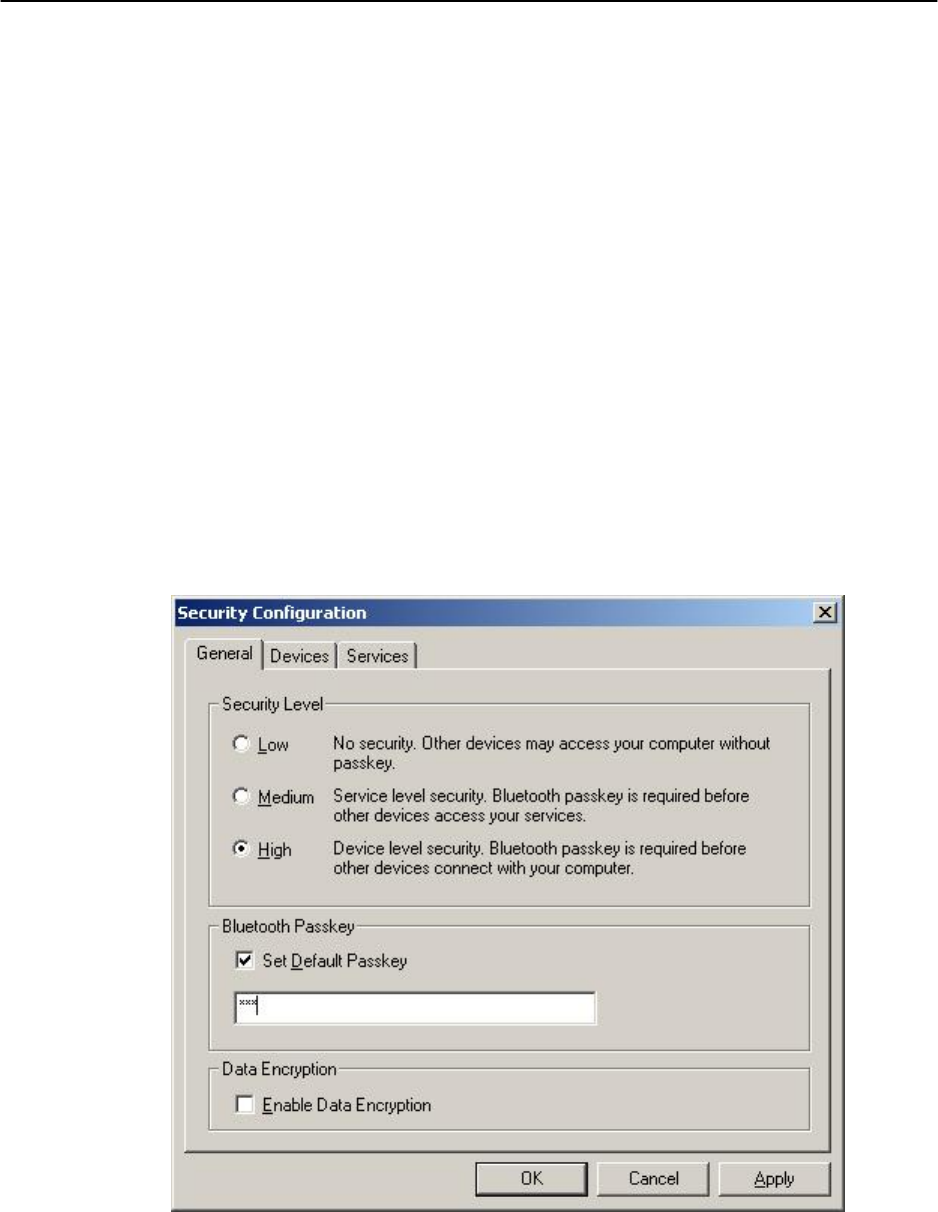

Figure 4.5: Security Configuration

Step 4: Start the PAN service on Computer A.

i In the BlueSoleil噡 Main Window, click View | Service Window.

i In the Service Window, right-click the Personal Area Networking

icon. Choose Properties to configure my PAN service as Set up

Bluetooth Personal Area Network. (Figure 4.6) If the item of

Enable DHCP Server is checked, a DHCP server will be started

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

on the GN side. (Notes: To use DHCP, the BT Network Adapter on

the client side must be set to obtain an IP address automatically.

The IP address is in the form of 192.168.18.xxx.)

i Click Apply or OK button to save the configuration.

i Right-click the Personal Area Networking icon again, then choose

Start Service. (Figure 4.7)

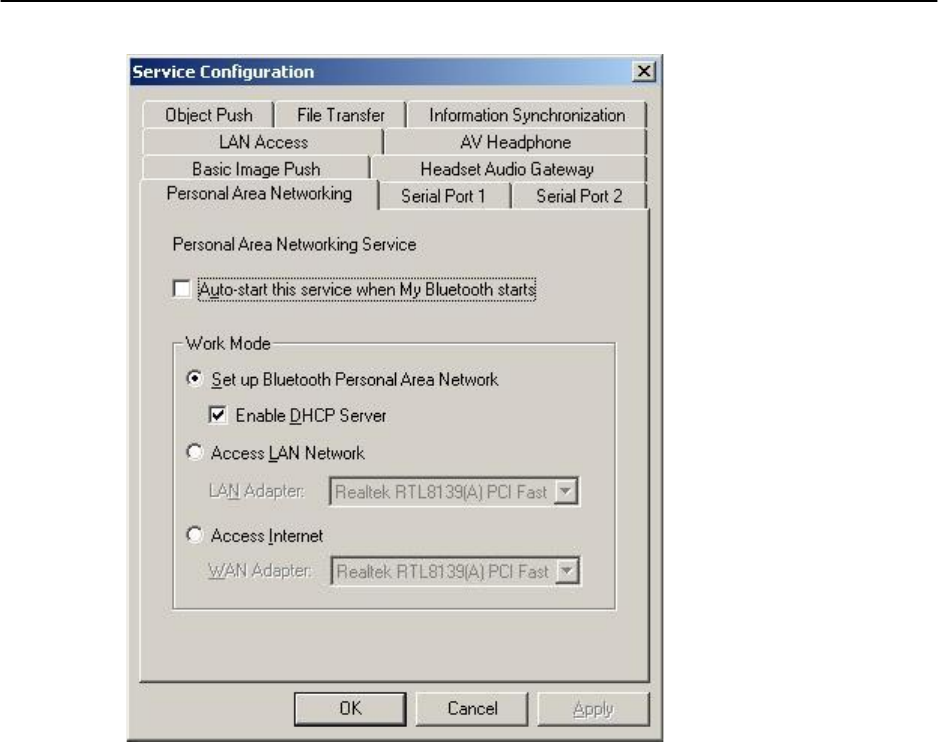

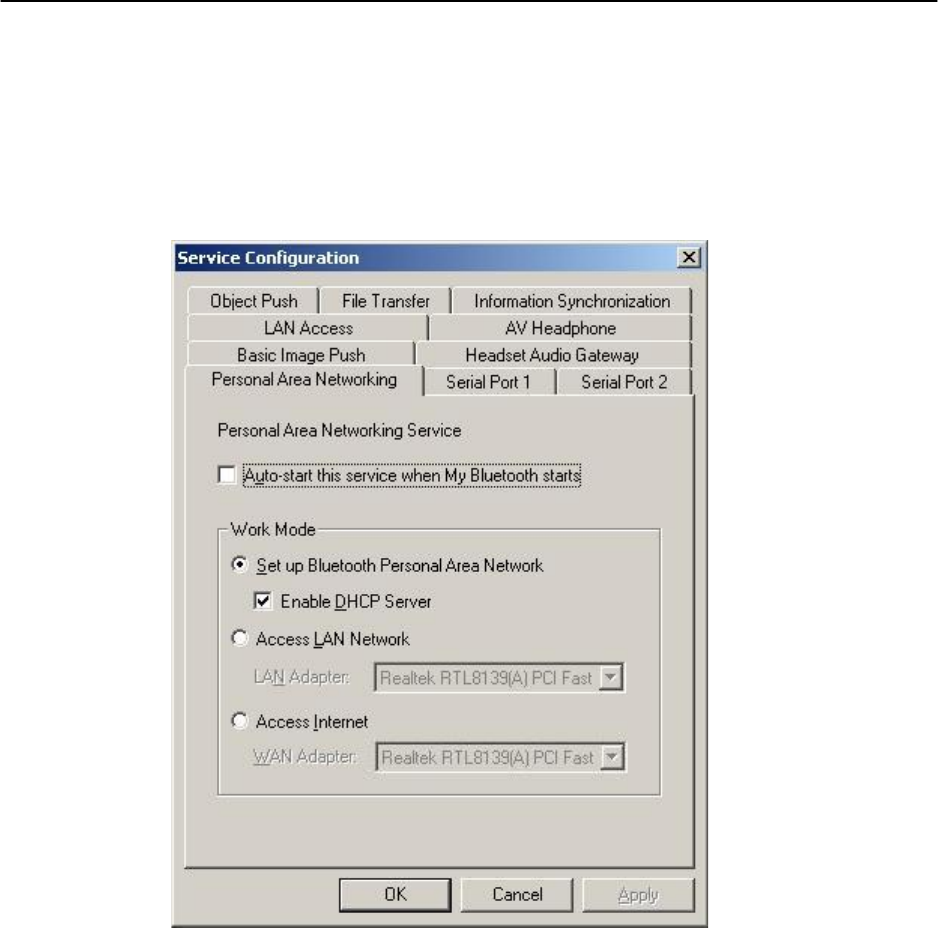

Figure 4.6: Set up Bluetooth Personal Area Network Configuration

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Figure 4.7: Start PAN Service on Computer A

Step 5: Search for Computer A on Computer B.

i Double-click the My Device Icon (center ball). The surrounding

discovered Bluetooth devices appear.

i Check to see if Computer A appears. If it does not appear,

double-click the My Device Icon again. Repeat the operation until

you find Computer A.

Step 6: Find the PAN service on Computer A.

i Double-click the Computer A device icon on Computer B.

i Enter the Bluetooth passkey (if security is set to High on either

side) to start the authenticating process. The Enter Bluetooth

Passkey window pops up on Computer A. Input any characters or

numbers, e.g. “12”. The Enter Bluetooth Passkey window pops

up on Computer B. Input exactly the same characters or numbers

as you input for Computer A, e.g. “12”. (Figure 4.8)

i Once authentication is complete, the PAN service is found.

Figure 4.8: Input passkey

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Figure 4.9: PAN service is found

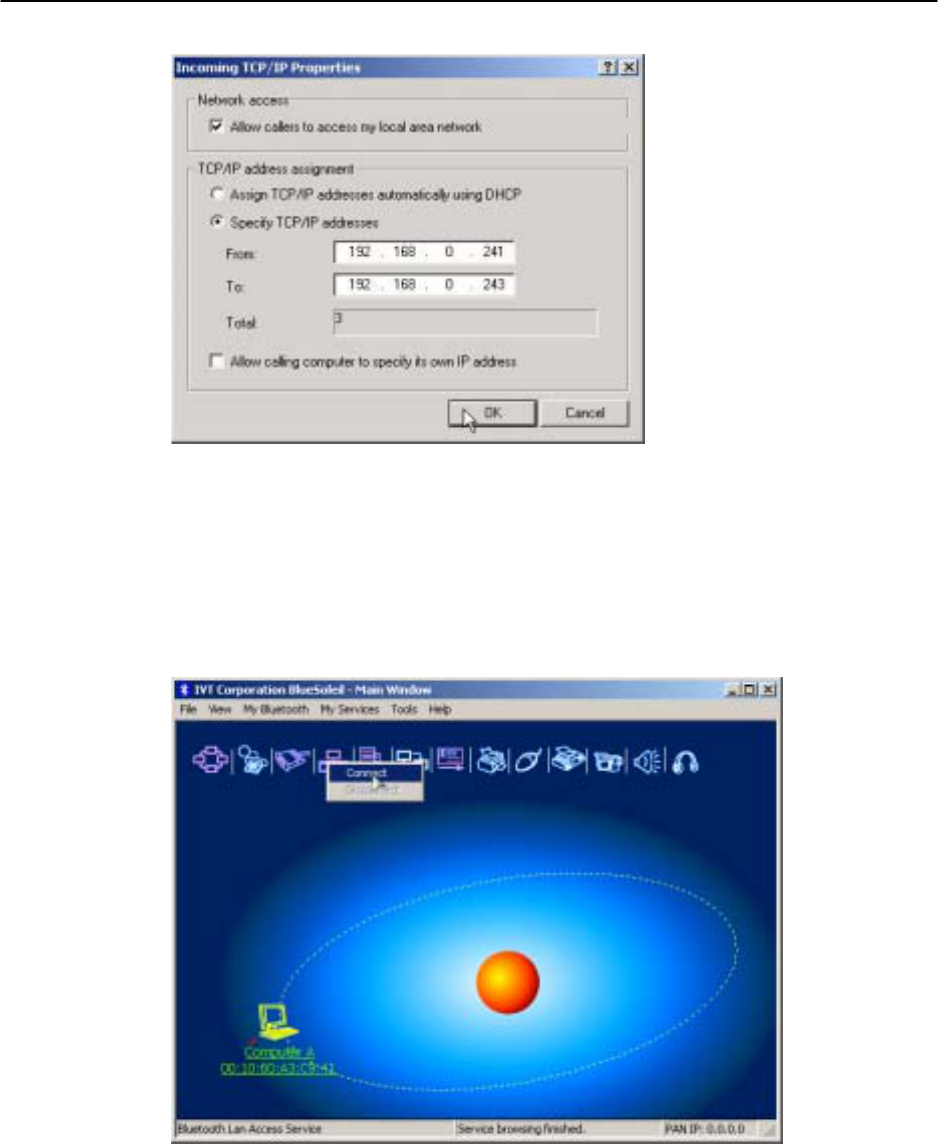

Step 7: Connect to Computer A.

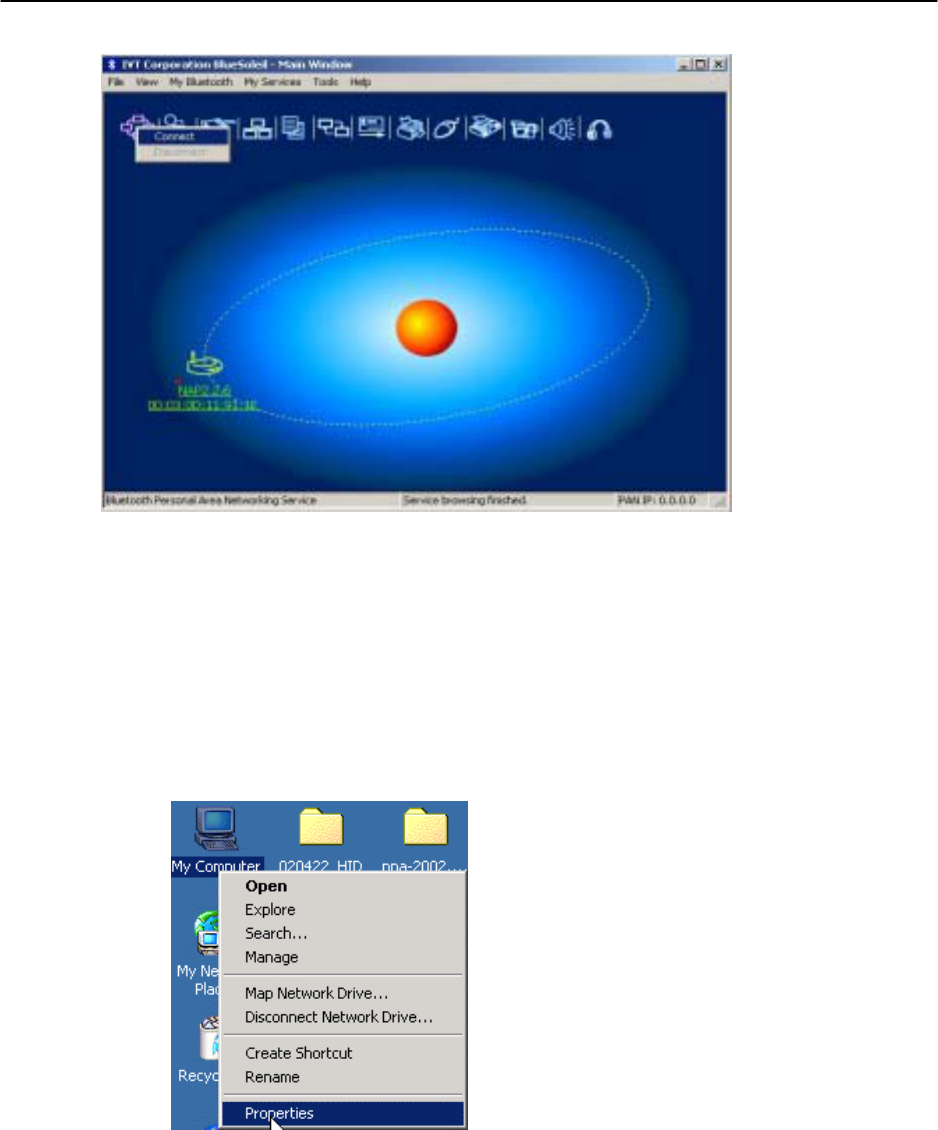

i Right-click the PAN service icon; select Connect on the pop-up

menu. (Figure 4.10)

i The connection is established successfully ( Figure 4.11).

Wait until the valid IP address is shown on the bottom right status

bar on both Computer A and Computer B. If you enable the DHCP

server on the server side, the IP address appears as

“192.168.18.xxx”. If not, the IP address appears as

“169.254.xxx.xxx”.

Figure 4.10: Connect to PAN Service

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Figure 4.11: Connection is established successfully.

Step 8: Computer A and Computer B are now connected. On Computer B, go

to Windows | My Network Places to find Computer A and copy

files. Figure 4.12 shows where to input Computer A’s name. In Figure

4.12, Computer A is named ‘mike’.

Figure 4.12: Find Computer A in My Network Places

Step 9: To disconnect the PAN connection, disconnect from either Computer A

or from Computer B.

i On Computer B, right-click on the PAN service icon and choose

Disconnect. (Figure 4.13)

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

i On Computer A, right-click on the PAN service icon in service

window and choose Stop Service.

Figure 4.13: Disconnect the PAN service from Computer B

Advanced Usage:

i Computer A is now the center node. Other computers, for example, Computers

C, D and E, can connect to Computer A with BlueSoleil™ following the same

steps as those for Computer B. Computer A supports up to 7 connections at the

same time.

i Computer A, B, C, D and E can access each other using the Windows Network

Places. This forms a Bluetooth ad-hoc networking environment.

Note: It takes about 1 minute before an IP address can be obtained on the client

side (Computer B) unless you select to enable the DHCP server on the server side

(Computer A).

4.3 Access LAN Through PAN-NAP

This section outlines the steps involved in accessing a Local Area Network (LAN)

through a PAN-NAP.

Computer A: Ethernet PAN-NAP B:

Notebook/Laptop Ethernet PAN-NAP

A Bluetooth Device

Windows 2000

IVT BlueSoleil™

Step 1: Plug the LAN cable into the PAN-NAP (Ethernet PAN-NAP B) and power

it on

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

it on.

Step 2: Insert a Bluetooth Device into the computer.

Step 3: Start BlueSoleil™ in the computer.

Step 4: Connect Computer A to Ethernet PAN-NAP B

1. Go to Computer A, double click My Device Icon until you find the

device Ethernet PAN-NAP B.

2. Find the PAN service on Ethernet PAN-NAP B by double clicking the

Ethernet PAN Bridge B device icon. Enter the Bluetooth passkey (if

security is set to High on either side) to start authentication. The

Enter Bluetooth Passkey window pops up on Computer A. Input

the same passkey as the one on the Ethernet PAN-NAP B. (Figure

4.8)

3. Right-click the PAN service icon, and then choose Connect.

(Figure 4.15)

i Note: The passkey is provided by the PAN-NAP provider and the

default value is usually "root". It can be modified by the software

associated with the PAN-NAP. For more details please refer to the

user documentation provided by the PAN-NAP provider.

Figure 4.15: Choose Connect

i The connection is established successfully (Figure 4.16). Wait

until the valid IP address appears in the bottom right status bar on

Computer A.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Figure 4.16: Successful connection to PAN-NAP

Step 5: IP address configuration of the BT Network Adapter on Computer A.

i Right-click on My Network Places and select Properties.

(Figure 4.17)

i Right-click the Local Access Connection 2 on the Network and

Dial-up Connections window, and select Properties. (Figure

4.18)

Figure 4.17: Right-click on My Network Places

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Figure 4.18: Network and Dial-up Connections

i On the Local Area Connection 2 Properties window, select the

Internet Protocol (TCP/IP) item and click on Properties. (Figure

4.9)

i Set the IP address to be in the same subnet as the other

computers in the LAN. (Figure 4.20).

Figure 4.19: Find Internet Protocol (TCP/IP)

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

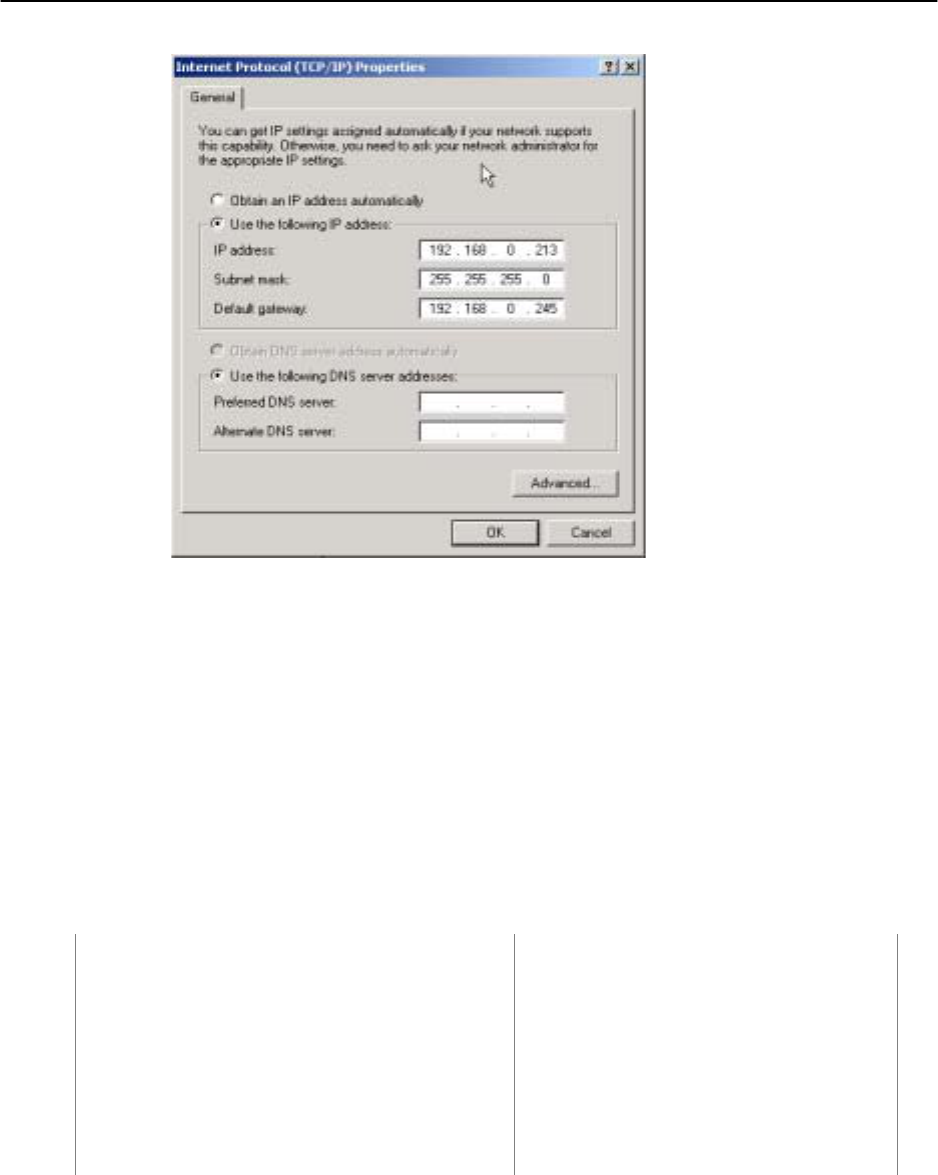

Figure 4.20: Set the IP address

Note: When Computer A connects to Ethernet PAN-NAP B it accesses the LAN as if

it is attached to the LAN directly. The network properties of Computer A must be

the same as the computers in the LAN, that is, Computer A and the computers in

the LAN must be in the same subnet and have the same subnet mask. For example,

if the computers in the LAN use DHCP for IP addressing, then Computer A needs to

be configured to use DHCP. If the IP address is configured manually on the

computers in the LAN, then Computer A also needs to be configured manually.

4.4 Access LAN Through IVT BlueSoleil™

This section outlines the steps involved in accessing a Local Area Network (LAN)

through IVT BlueSoleil™.

Computer A: Computer B:

Desktop Notebook/Laptop

A Bluetooth Device A Bluetooth Device

IVT BlueSoleil™ IVT BlueSoleil™

Network Adapter connecting to the LAN

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Step 1: i Start IVT BlueSoleil™ on both Computer A and Computer B.

Please

i refer to “Section 3.2:Communication Between Two Computers”,

and complete Steps 1 to 4.

Step 2: Start the PAN service on Computer A.

i In the BlueSoleil噡 Main Window, click View | Service Window.

i In the Service Window, right-click the Personal Area Networking

icon. Choose Properties to configure my PAN service as Access

LAN Network and select a physical adapter, through which

Computer A connects to a LAN, as the LAN Adapter (Figure

4.21).

i Click Apply or OK button to save the configuration.

i Right-click the Personal Area Networking icon again, and choose

Start Service.

Step 3: On Computer B, make sure that the BT adapter has the same

configuration with computers in the LAN. (Refer to Step 6 in “Section

3.3: Access LAN Through PAN”.)

Step 4: Setup connection between Computer A and Computer B. Please refer

to “Section 3.2:Communication Between Two Computers”, and

complete Steps 6 to 8.

Step 5: i Computer B can now access the LAN.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

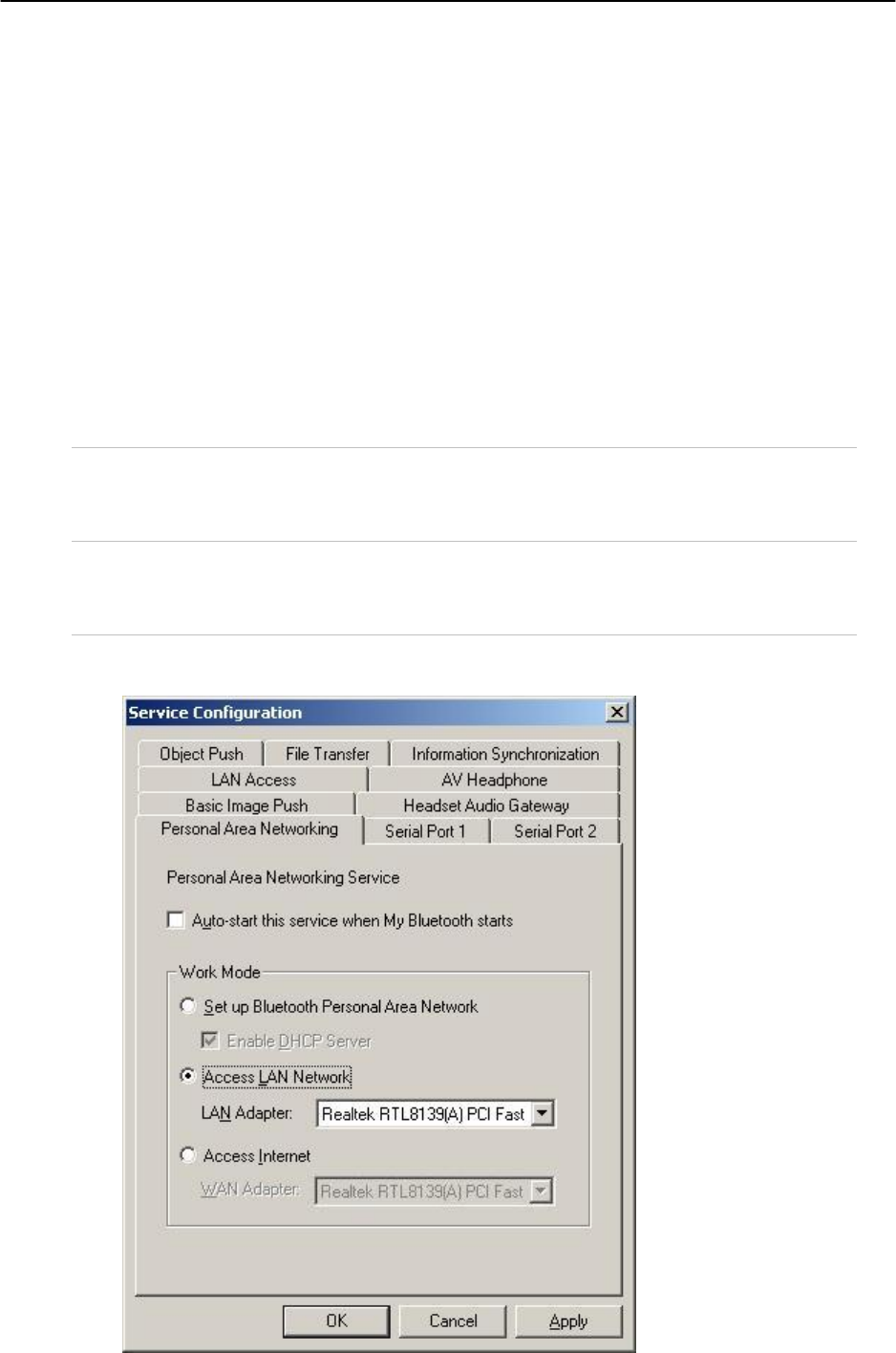

Figure 4.21: Access Outside LAN Network Configuration

4.5 Access Internet through IVT BlueSoleil™

The following sections outline how to enable Computer B to access the Internet

through Computer A.

Computer A: Computer B:

Desktop Notebook/ Laptop

A Bluetooth Device A Bluetooth Device

Windows 2000 Windows 2000

IVT BlueSoleil™ IVT BlueSoleil™

Network Adapter connecting to the

Internet

Step 1: i Make sure Computer A can access Internet. Start IVT BlueSoleil™

on both Computer A and Computer B. Please refer to “Section

3.2:Communication Between Two Computers”, and complete

Steps 1 to 4.

Step 2: Start the PAN service on Computer A.

1. In the BlueSoleil噡 Main Window, click View | Service Window.

2. In the Service Window, right-click the Personal Area Networking

icon. Choose Properties to configure my PAN service as Access

Internet and select a local physical adapter as the WAN Adapter

(Figure 4.22), through which Computer A can access Internet. It

automatically enables NAT (Network Address Translation, please

refer to Windows Help Topic) function and a DHCP server.

(Notes: The BT Network Adapter on the client side must be set

to obtain an IP address automatically. The IP address is in the

form of 192.168.18.xxx.)

3. Click Apply or OK button to save the configuration.

4. Right-click the Personal Area Networking icon again, and choose

Start Service.

Step 3: Setup connection between Computer A and Computer B. Please refer

to “Section 3.2:Communication Between Two Computers”, and

complete Steps 6 to 8.

Step 4: i After Computer B gets an IP address as “192.168.18.xxx”,

Computer B can now access the Internet through Computer A.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Figure 4.22: Access Outside WAN Network Configuration

Advanced Usage:

i Computer A is now the center node of the network. Other computers with

BlueSoleil™ installed, for example, Computers C, D and E, can connect to

Computer A following the same steps as those for Computer B and access the

Internet through Computer A. Computer A supports up to 7 connections at the

same time.

i Computers A, B, C, D and E can access each other using the Windows My

Network Places and form a Bluetooth ad-hoc networking. Computers B, C, D

and E can then access the Internet through Computer A.

Note:

i Computer B also can share a dial-up connection of Computer A, in this case,

please set up a dial-up connection for Computer A at first. While working with

a dial-up connection, if the dial-up connection is destroyed for some reason,

please restart the service after the dial-up connection established again.

i The Internet Connection Sharing (ICS) of Windows (refer to Windows

Help Topic) can also be used on computer A for computer B to access the

Internet. In this situation, the PAN service configuration must be set as

Bluetooth Group Ad-hoc Network without DHCP Server enabled.

4.6 PAN Configuration

4.6.1 My PAN Service

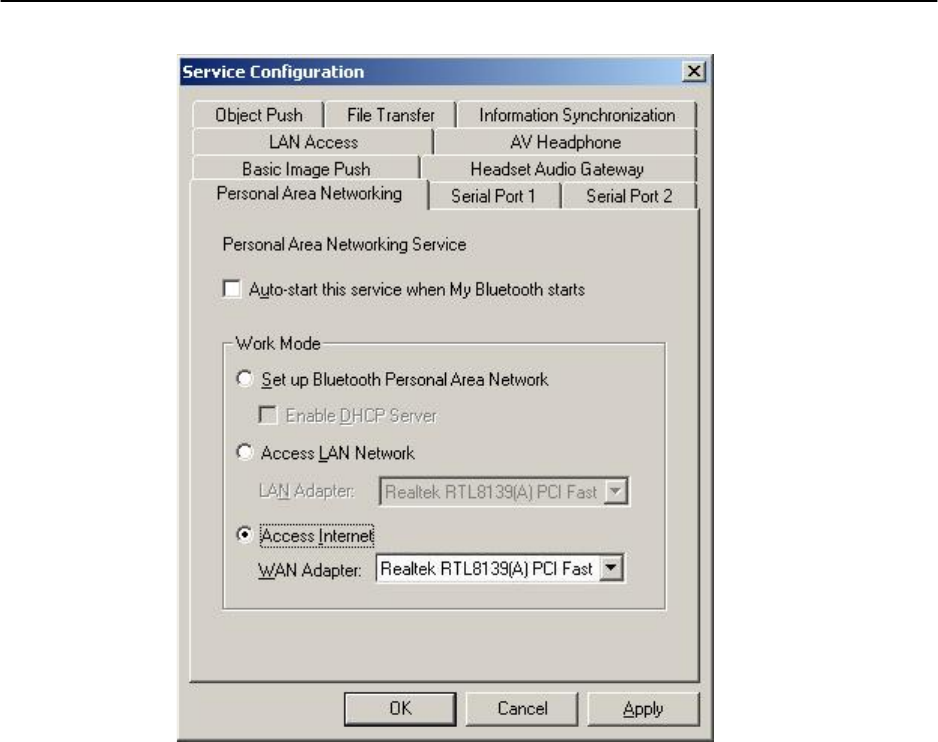

In the BlueSoleil™ Service Window, right-click the Personal Area Networking icon.

On the pop-up menu, select Properties to configure my PAN service.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Figure 4.23: Service Configuration

Setting Items:

i Auto start this service when my Bluetooth starts

Check this option to automatically start my PAN service the every time

BlueSoleil™ is started.

Work Mode

i Set up Bluetooth Personal Area Network

Choose this item to run in the GN mode. Check Enable DHCP Server, and a

DHCP server will be started on the server side, so other devices will obtain an IP

address (192.168.18.xxx) from the DHCP server after they connected to the

GN. (Refer to Figure 4.1)

i Access LAN Network

Choose this item to run in the NAP mode, and other devices can access outside

LAN network after they connected to the NAP. (Refer to Figure 4.3)

i Access Internet

Choose this item to run in the NAP mode, and other devices can access outside

WAN network (e.g. Internet) after they connected to the NAP. (Refer to Figure

4.4)

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

5 Dial-Up Networking

5.1 Introduction

The Bluetooth Dial-up Networking (DUN) service allows a Bluetooth-enabled client

to access the Internet wirelessly through a modem on another Bluetooth device or

a cellular phone. The other Bluetooth device or the cellular phone is called the

gateway (server) as it provides access to the public network.

The DUN profile can be used in the following scenario:

i A Bluetooth computer accesses the Internet through a Bluetooth cellular phone

or Bluetooth modem.

5.2 Connect to a Dial-up Gateway from a Computer

This section outlines the steps involved in a computer (client) accessing the

Internet through a Bluetooth cellular phone.

Computer A: Bluetooth Cellular Phone:

Notebook/ Laptop Ericsson T39 cellular phone

A Bluetooth Device

Windows XP

IVT BlueSoleil™

Step 1: Insert the Bluetooth Device in the computer and start BlueSoleil™ in

the computer.

Step 2: Set the Ericsson T39 to be discoverable so that Computer A can find

the T39.

1. Press the Menu button on the T39 and scroll until you reach the

Extras menu option, select Extras and scroll until you find

Bluetooth. Select this option and scroll until you see

Discoverable. Press the Yes button to confirm the selection.

2. The T39 will now enable itself to receive connection requests from

other devices.

Step 3: Add Computer A to the paired device list in the T39.

1. Press the Menu button on the T39 and scroll until you reach the

Extras menu option, select Extras and scroll until you find

Bluetooth. Select this option and scroll until you see Discover.

Press the Yes button to confirm the selection.

2. The T39 will now start searching devices. Once the T39 finds

“ComputerA” on the screen, select it by pressing the Yes button.

The Add to paired? message appears on the screen. Press Yes to

confirm you want to initialize pairing.

3. The T39 will ask for the Bluetooth passkey. You can input any

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

number, for example, “1”.

4. On the BlueSoleil噡 side, the Enter Bluetooth Passkey window

pops up requesting the Bluetooth passkey. Input the same

Bluetooth passkey you have input in the T39 and click OK.

5. Once the pairing process is successfully complete, the T39 device

icon is displayed in the Main Window of Computer A. At the

meanwhile, the following dialog pops up asking you whether

Create a Shortcut on the windows desktop. If you choose

yes, a shortcut icon called DUN will occur on the desktop,

otherwise the icon will not occur.

i This is the icon on the desktop:

Step 5: Connect to phone DUN service:

i Search for Bluetooth devices in Computer A until you find the T39.

i In the Main Window of Computer A, double click the T39 device to

find its DUN service. If found, the DUN service icon in the Main

Window will turn pink.

i In the Main Window of Computer A, double click the DUN service

icon to connect to the DUN service on the T39.

i Once the two computers are connected, the Bluetooth Dial-up

Networking (DUN) service icon in the Main Window will turn from

pink to green.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Figure 5.1: Connect BlueSoleil™ DUN Connection

Step 6: Dial to Internet

1. The Connect BlueSoleil™ DUN Connection window appears

(Figure 5.1).

2. Input a valid username, password and the Internet Service

Provider’s (ISP’s) phone number, then click the Dial button.

3. If the dial-up is successful, a small icon appears on the bottom

right hand of the Windows taskbar, indicating that the dial up

connection is successfully established.

4. If the dial-up fails, the Bluetooth connection between the two

computers will be disconnected. In this case, to reconnect to the

T39’s DUN service, repeat Steps 5 above.

Step 7: Once the dial-up connection is established, users can browse web

sites or access other Internet services from Computer A.

Step 8: There are three methods to disconnect the dial-up connection:

i Method 1. Double-click the dial-up connection icon on the

bottom right of the Windows taskbar. The BlueSoleil™

DUN Connection Status window appears. Click the

Disconnect button to disconnect the dial-up connection

(Figure 5.2).

i Method 2. Right-click the Bluetooth Dial-up

Networking icon in the Main Window, and then click the

Disconnect menu item on the pop-up menu.

i Method 3. Right-click the T39 device in the Main Window

and select Disconnect | Bluetooth Dial-Up

Networking.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

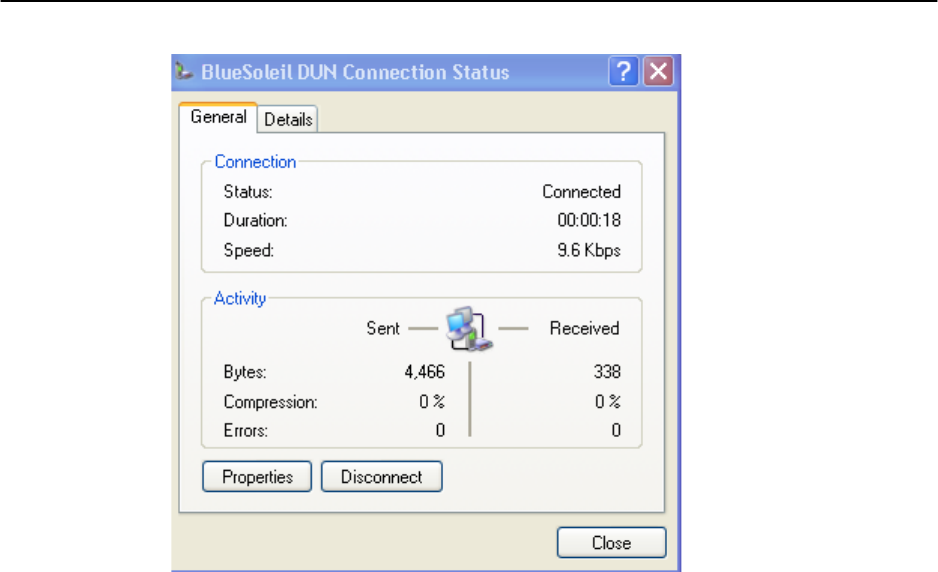

Figure 5.2: BlueSoleil噡 DUN Connection Status window

5.3 Settings for Dial-up Networking Profile (client side)

in Windows98/Me

Before using the Dial-up Networking (DUN) profile in Windows98/Me, ensure a

Dial-up Adapter is already installed on the client computer.

5.3.1 Check if a Dial-up Adapter is installed

Step 1: Select the Control Panel from the Start |Settings menu.

Step 2: Double-click the Network icon. (Figure 5.3)

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Figure 5.3: Windows Control Panel

Step 3: Check if a Dial-up Adapter appears in the Network Component list.

(Figure 5.4)

Step 4: If a Dial-up Adapter is not found, then click Add to install one.

Figure 5.4: Install Dial-up Adapter

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Step 5: Select Adapter from the Network Component list and click Add.

(Figure 5.5 and Figure 5.6)

Figure 5.5: Network Component list

Figure 5.6: Select Adapter as the Network Component Type

Step 6: Select Microsoft from the Manufacturers list on the left-hand side

and select Dial-up Adapter in the Network Adapter list on the right

hand side. (Figure 5.7 and Figure 5.8)

Figure 5.7: Select Network Adapters (1)

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Figure 5.8: Select Network Adapters (2)

Step 7: Click OK to return to the Network property sheet. (Figure 5.9)

Figure 5.9: Network property sheet

Step 8: Click OK to close the Network property sheet. A message box pops

up, click Yes to restart the computer. (Figure 5.10).

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Figure 5.10: Restart computer

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

6 Bluetooth Serial Port

6.1 Introduction

The Bluetooth Serial Port (SPP) provides a virtual serial port via Bluetooth as an

alternative to a hardwired serial cable between a computer and device. Any

program that uses a standard serial port can use the Bluetooth serial port without

any change.

IVT BlueSoleil™ provides three Serial Port services, you can connect with three

remote devices and be connected with three remote devices at the same time

through serial ports.

The SPP profile can be used in the following scenarios:

i Connecting two computers through a Bluetooth serial port.

i Using SPP to print a document.

i Using a cellphone to control a computer through a Bluetooth serial port.

i Connecting a computer to any other device that supports SPP through a

Bluetooth serial port.

6.2 Connect Two Computers

This section outlines the steps involved in connecting two computers, Computer A

and Computer B using the Bluetooth Serial Port application.

Computer A: Computer B:

Notebook/ Laptop Desktop

A Bluetooth Device A Bluetooth Device

Windows 2000 Windows 2000

IVT BlueSoleil™ IVT BlueSoleil™

Step 1: Insert the Bluetooth Devices into each computer.

Step 2: Start BlueSoleil™ in each computer.

Step 3: i Start the SPP service on Computer A.

Step 4: Connect Computer B to Computer A.

1. On Computer B double click the ‘My Device icon’ until you find the

device, Computer A.

2. Double-click the Computer A device to find its SPP service (Figure

6.1). The Bluetooth Serial Port service icon turns pink.

3. Right-click the Bluetooth Serial Port service icon and select

Connect.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Figure 6.1: Double-click the Computer A device icon

i The connection is established successfully as shown in Figure 6.2.

And the serial port number is shown on the right bottom status bar

on Computer B. (Figure 6.3)

Figure 6.2: The connection is established successfully

Figure 6.3: The serial port number is shown

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Note: You can initiate three connections between the two computers through three

serial ports. And at the same time, you can also be connected with three remote

devices if you provide three SPP services.

6.3 Use SPP to Print a Document

This section outlines the steps involved in connecting a computer to a Bluetooth

Printer Adapter using SPP.

Computer A: Bluetooth Printer Adapter B:

Notebook/Laptop Printer

A Bluetooth Device Bluetooth Printer Adapter

Windows 2000

IVT BlueSoleil™

Step 1: Insert the Bluetooth Device into the computer.

Step 2: Start BlueSoleil™ in the computer.

Step 3: Connect Computer A to the Bluetooth Printer Adapter B using SPP.

1. Go to Computer A; double click the My Device icon’ until you find

the device Bluetooth Printer Adapter B.

2. Double-click the Bluetooth Printer Adapter B device to find it’s SPP

service.

3. Double-click the SPP service icon to start connecting SPP.

Step 4: Change the printer settings to use the connected Bluetooth serial

port.

Step 5: i Print a document.

6.4 Use a cellphone to control a computer

This section outlines the steps involved in connecting a computer to a Bluetooth

Cellphone using SPP.

Computer A: Bluetooth Cellphone B:

Notebook/Laptop Ericsson T39 or T68

A Bluetooth Device

Windows 2000

IVT BlueSoleil™

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Step 1: Insert the Bluetooth Device into the computer.

Step 2: Start BlueSoleil™ in the computer.

Step 3: Connect Computer A to the Bluetooth Cellphone B using SPP.

1. Go to Computer A; double click the My Device icon’ until you find

the device Bluetooth Cellphone B.

2. Double-click the Bluetooth Cellphone B device to pair with it. If

pairing is finished successfully, then find it’s SPP service.

3. Double-click the SPP service icon to start connecting SPP.

4. The connected serial port number is shown on the right bottom

status bar on Computer A. (Figure 6.4)

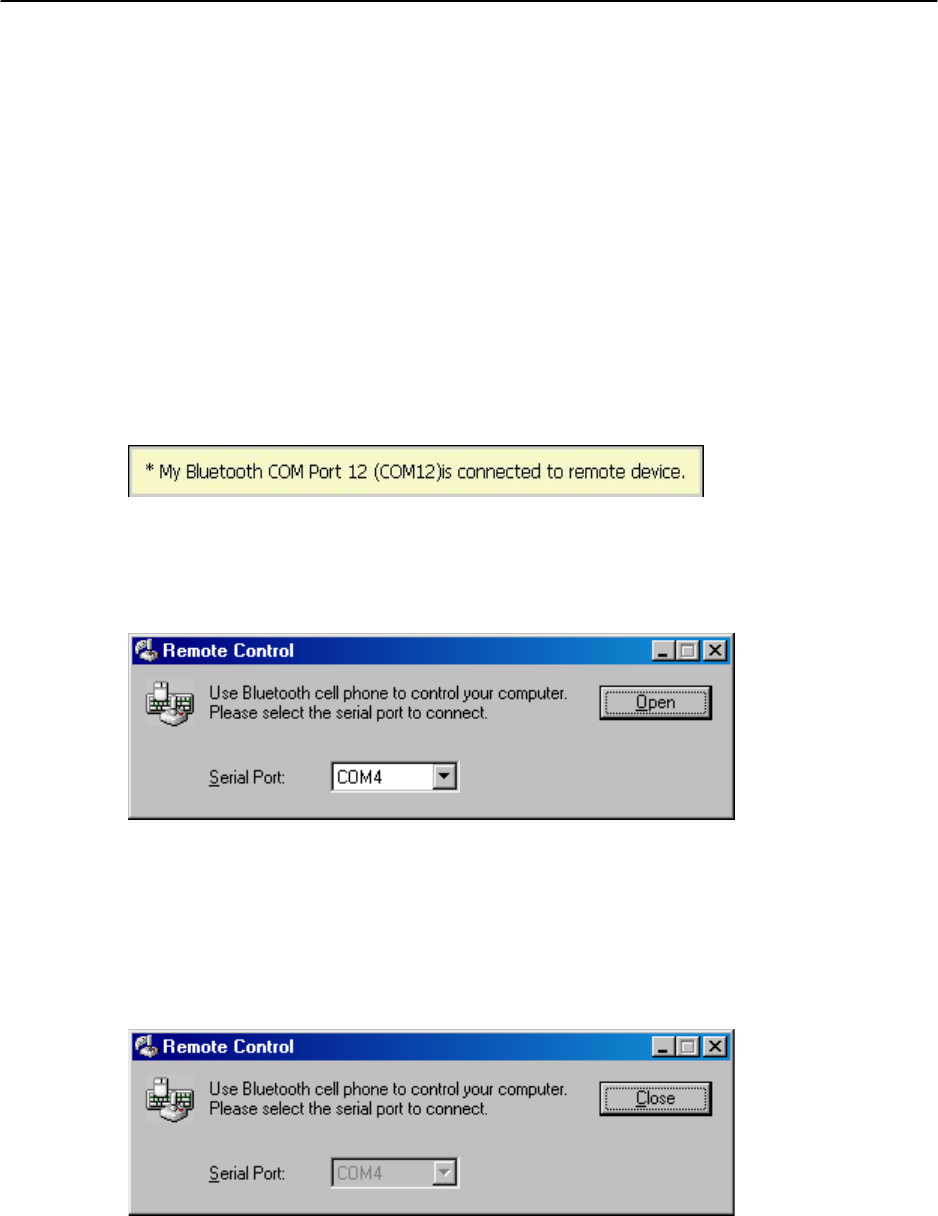

Figure 6.4: The serial port number is shown

Step 4: Select Start|Program|IVT Corporation|Control PC to open

Mobile HID program. (Figure 6.5)

Figure 6.5: Mobile HID Program Dialog

Step 7: From the Serial Port list in the “Remote Control” window, select the

serial port number that has been established connection. Then click

Open button to enable Cellphone B controlling computer A. The Open

button becomes to Close button automatically. (Figure 6.6)

Figure 6.6: Click button to start controlling computer

Step 8: A new menu will be added into the accessories menu in Cellphone B.

Enter menus by the path: accessories -> Mobile HID -> Control PC ->

Controlling. When Controlling window is shown, you can control

Computer A by all keys in Cellphone B.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Step 9: If you want to disable Cellphone B controlling computer A,click Close

button. The Close button becomes to Open button automatically. Or

press down the No key in Cellphone B to exit Controlling window.

The function of cellphone key map:

Keys in cellphone Function definition

Up,Down,Left,Right

direction key

mouse move

(no UP,Down in T39)

Key Yes Mouse left button

Press down direction

key (T68)

Mouse right button

Key c (T39) Mouse right button

Volume Up Page Up

Volume Down Page Down

Key 1 Home

Key 2 Arrow Up

Key 3 End

Key 4 Arrow Left

Key 5 Arrow Down

Key 6 Arrow Right

Key 7 Start menu

Key 8 Key Enter

Key 9 Key F5

Key 0 Show desktop

Key * Key Ctrl

Key # Key Alt

6.5 SPP Configuration

6.5.1 My SPP Service

In the BlueSoleil™ Service Window, right-click the Serial Port 1 or Serial Port 2

icon. On the pop-up menu, select Properties to configure the Serial Port1 and

Serial Port 2.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

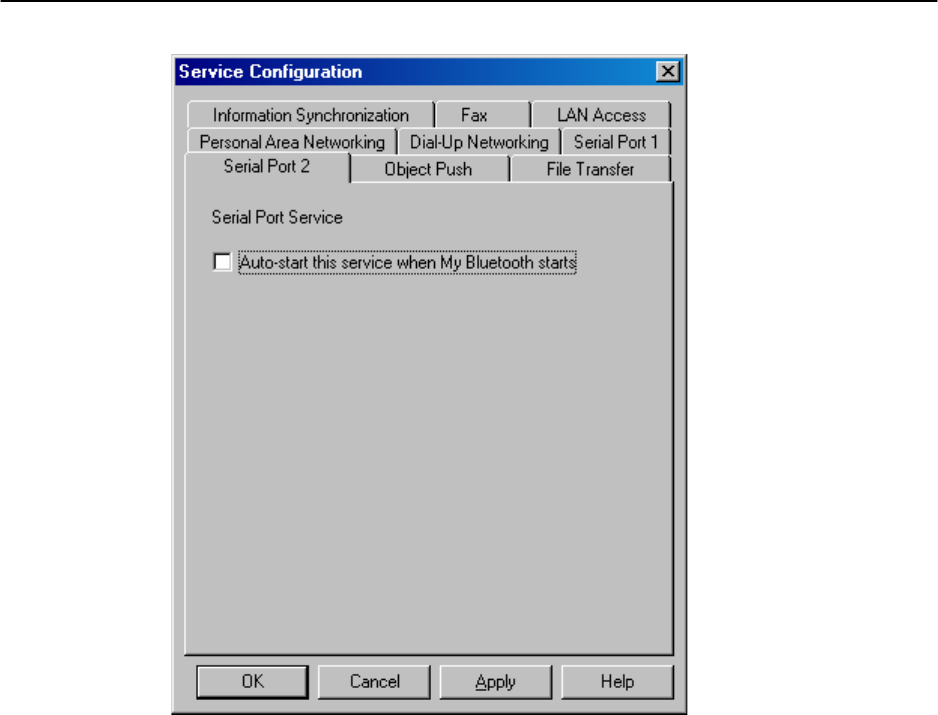

Figure 6.9: SPP Service Configuration.

Setting Items:

i Auto start this service when my Bluetooth starts

Check this option to automatically start my Bluetooth SPP service #(1,2) every

time BlueSoleil™ is started. (Figure 6.9)

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

7 Bluetooth File Transfer

7.1 Introduction

The File Transfer profile (FTP) supports the file transfer usage model, which offers

the ability to transfer files from one Bluetooth device to the other.

The FTP profile can be used in the following scenarios:

i A computer can transfer files to/from another computer.

7.2 Transfer files to/from a Computer

This section outlines the steps in transferring files between Computer A and

Computer B.

Computer A (Server) Computer B (Client)

IVT BlueSoleil™ IVT BlueSoleil™

A Bluetooth Device A Bluetooth Device

Note: BlueSoleil™ can inter-operate with other Bluetooth devices which support

FTP profile.

Step 1: Insert the Bluetooth Devices into each computer.

Step 2: Start BlueSoleil™ in each computer.

Step 3: Make sure File Transfer service is started on Computer A. Refer to

Section 7.3 for service configurations.

Step 4: Search for Computer A on Computer B, and connect to its FTP service

(Figure 7.1). The remote folder is displayed in a Windows Explorer

style window (Figure 7.2).

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Figure 7.1: The connection is successfully established

Figure 7.2: The remote folder is displayed

Step 5: Copy files and directories.

i From Computer B to Computer A – upload

Select files\ directories on Computer B and drag files into the

Remote Shared Folder. (Figure 7.3)

i From Computer A to Computer B – download

Select files\ directories from the Remote Shared Folder and drag

files into the desktop or a folder on Computer B. (Figure 7.4)

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

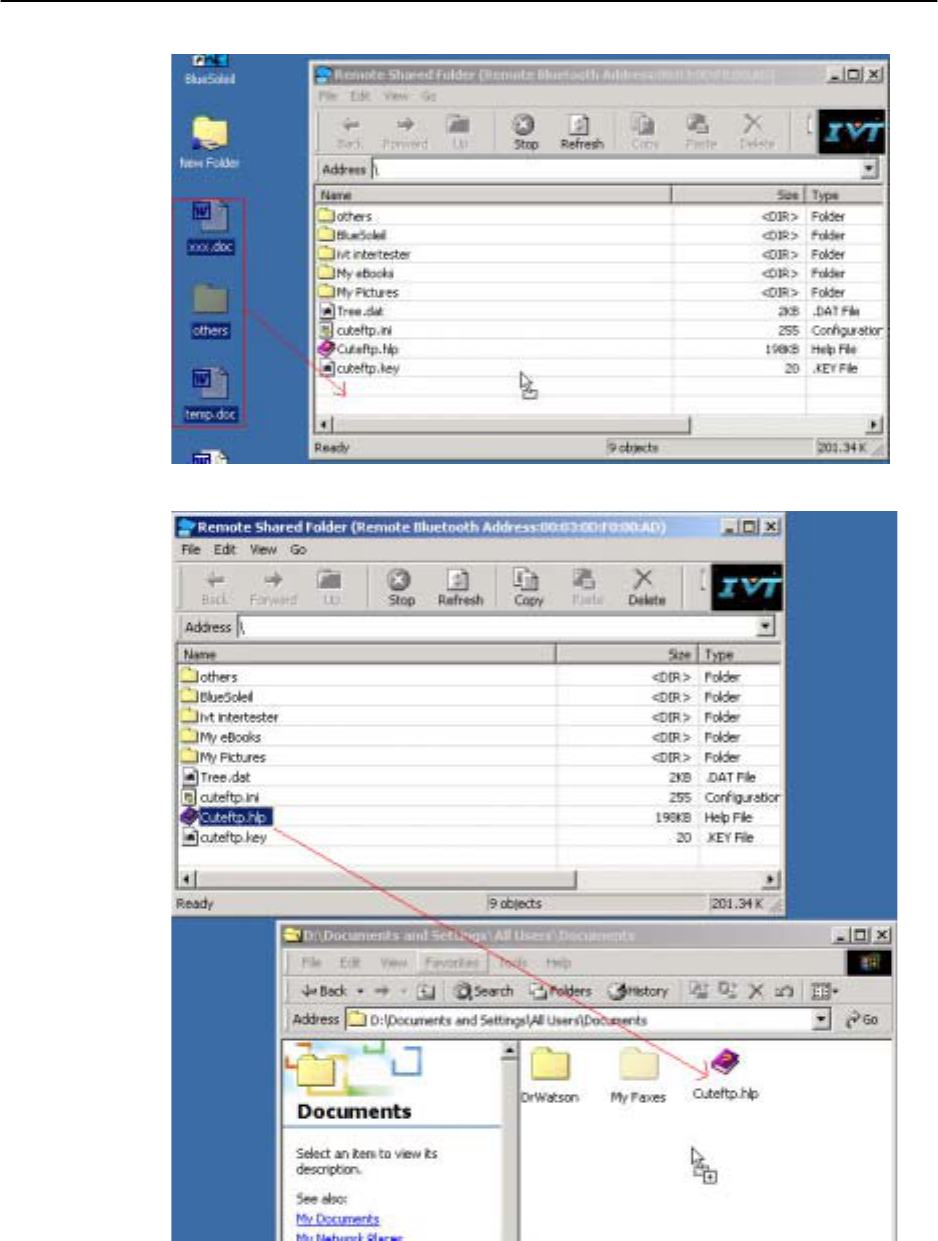

Figure 7.3: Upload files to Computer A

Figure 7.4: Download files from Computer A

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

7.3 FTP Configuration

In the BlueSoleil™ Service Window, right-click the File Transfer icon. On the pop-up

menu, select Properties to configure the ‘my FTP service’ (Figure 7.5).

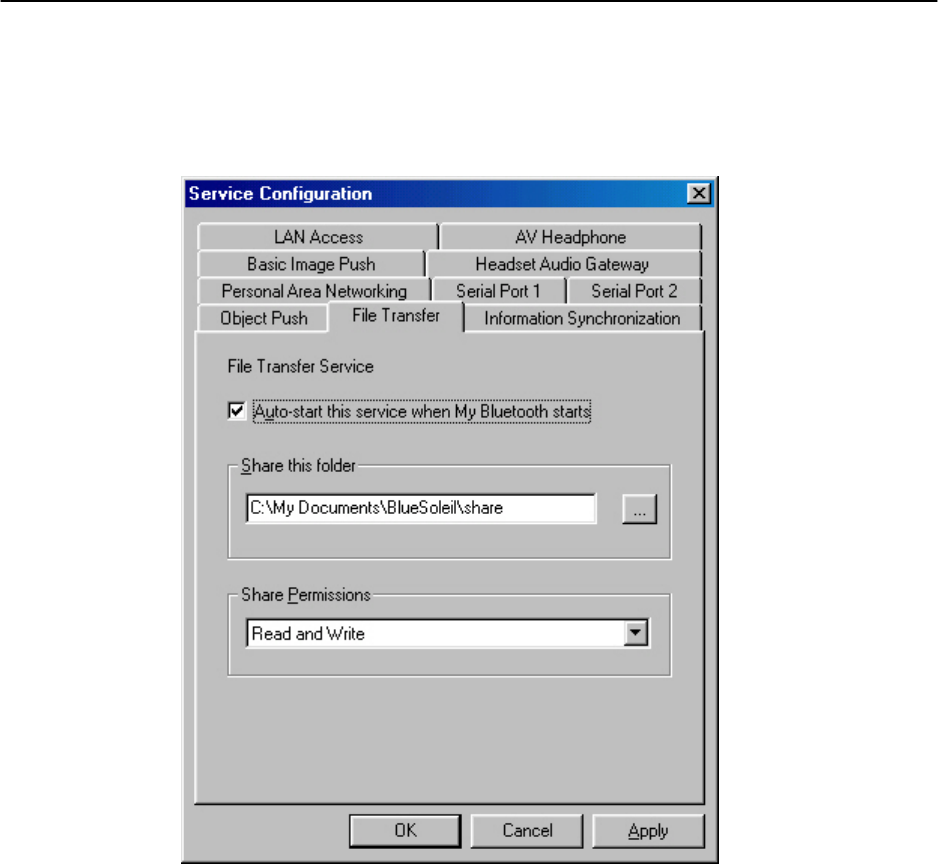

Figure 7.5: Configure FTP service

Setting Items:

i Auto starts this service when my Bluetooth starts

Check this box to automatically start the File Transfer service every time

BlueSoleil™ is started.

i Root Directory

This sets the root directory that you want to share with other computers using

Bluetooth.

i Access Permissions

This sets the access permission remote computers have to the shared root

directory.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

8 LAN Access

8.1 Introduction

The Bluetooth LAN Access Profile (LAP) allows Bluetooth-enabled devices to access

the services of a LAN using Point-to-Point Protocol. In this usage model, multiple

data terminals use a LAN access point as a wireless connection to a Local Area

Network (LAN). Once connected, data terminals operate as if they are connected to

the LAN via dial-up networking and can access all the services provided by the LAN.

The LAN application can be used in the following scenarios:

i A computer (or PDA) accesses a Local Area Network via a LAP Server.

i A computer (or PDA) accesses a Local Area Network via a LAN access point.

Note: Before using the LAN Access Profile in Windows98/Me, ensure that a

Dial-up Adapter and Windows’s component direct cable are already installed on the

computer. (See “Section 8.4: Settings for LAN Access Profile (client side) in

Windows98/Me”). Moreover, every operating system should have an installation of

NetBEUI protocol; otherwise, it cannot use computer name to visit other computer.

8.2 Access a Local Area Network (LAN)

This section outlines the steps involved in connecting to a Local Area Network using

the LAP application.

Computer A: Computer B:

Notebook/ Laptop Desktop

A Bluetooth Device A Bluetooth Device

Windows 2000 Windows 2000

IVT BlueSoleil™ IVT BlueSoleil™

Step 1: Insert Bluetooth Devices into both computers.

Step 2: Start BlueSoleil™ in both computers.

Step 3: i Start the LAP service on Computer A.

Step 4: Make incoming connection on Computer A

i Right-click on My Network Places; select Properties. (Figure

8.1)

i On the Network and Dial-up Connections panel, right-click the

Incoming Connection icon, and then select Properties on the

pop up menu. (Figure 8.2)

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Figure 8.1: Right-click My Network Places

Figure 8.2: Select Properties on the pop up menu

i Click Networking on the Incoming Connections Properties

pop-up window. (Figure 8.3)

i Choose Internet Protocol (TCP/IP) and click Properties.

(Figure 8.4)

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

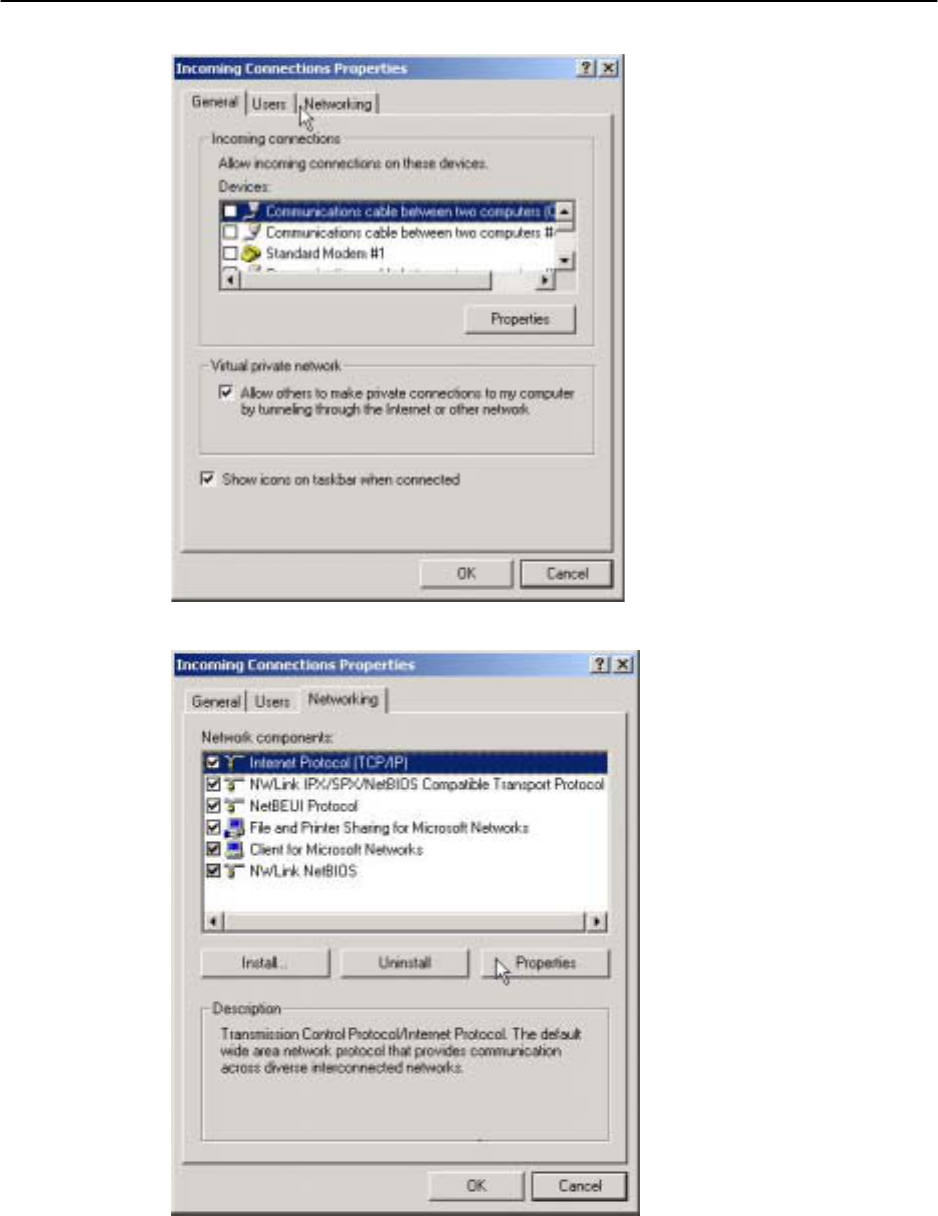

Figure 8.3: Incoming Connections Properties

Figure 8.4: Choose Internet Protocol (TCP/IP)

i Select Specify TCP/IP addresses, and input the two IP

addresses. The subnet mask of the two IP addresses should be the

same as the subnet of the LAN Computer A belongs to. (Figure

8.5)

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Figure 8.5: Input the IP addresses

Step 5: Connect to Computer A.

1. Search for Computer A on Computer B.

2. Find the LAP service of Computer A.

3. Right-click the LAP service icon; select Connect on the pop-up

menu. (Figure 8.6)

Figure 8.6: Select Connect

i The Connect BlueSoleil™ LAP Connection window pops up.

Input a username and password. (Figure 8.7)

i The connection is then established.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

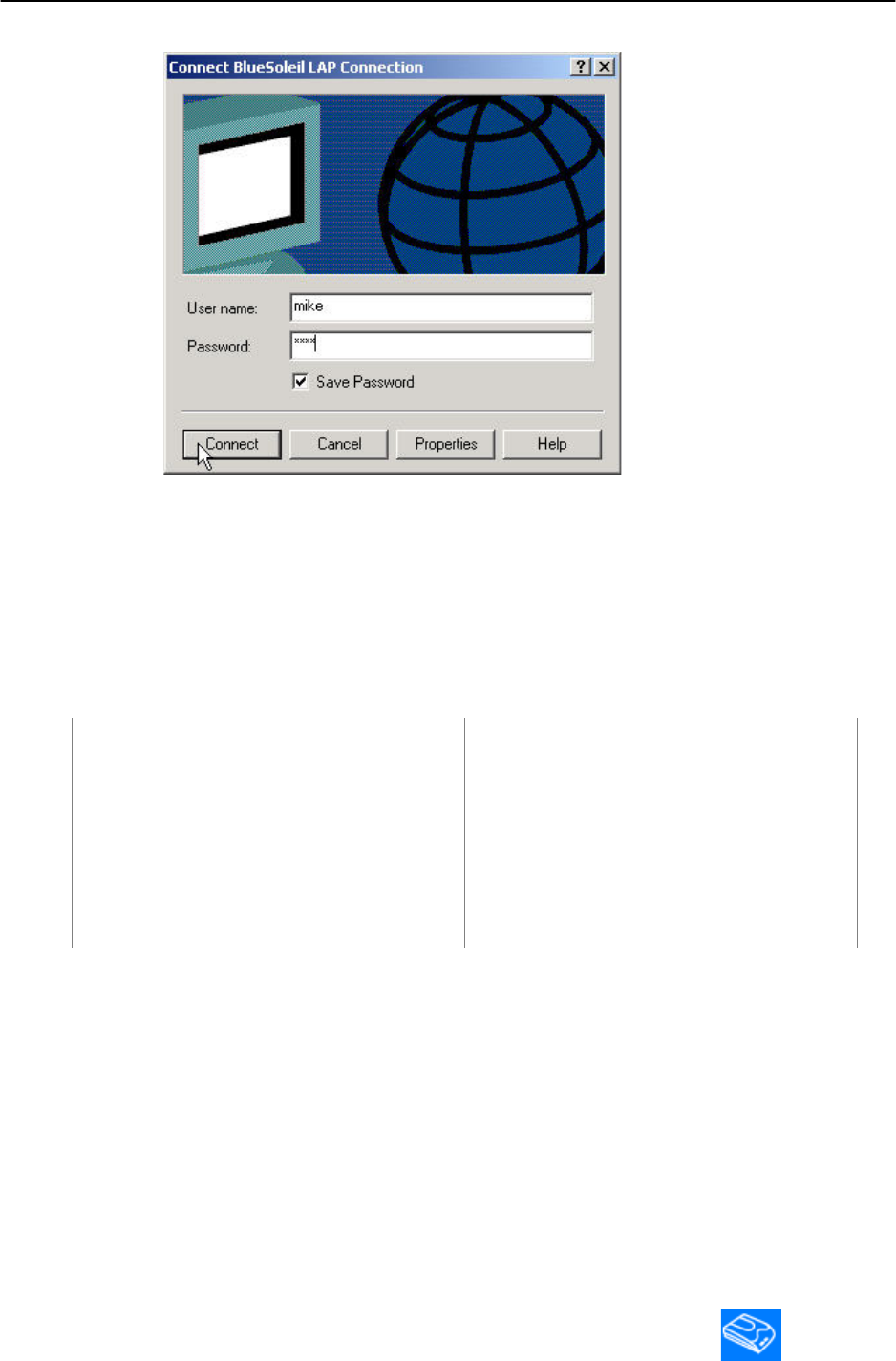

Figure 8.7: Input Username and Password

Step 6: Computer B can now access the LAN via Computer A.

8.3 Access a LAN via a LAN Access Point

This section outlines the steps involved in accessing a LAN through a LAN access

point.

LAN Access Point A: Computer B

Bluetooth access point Notebook/Laptop

A Bluetooth Device

Windows 2000

IVT BlueSoleil™

Step 1: Connect LAN access point to the Local Area Network.

i Set the LAN access point’s name to anything you want. Here it is

named LAN Access Point A.

i Set LAN Access Point A’s IP address to be in the same range as the

other computers in the LAN.

Step 2: Insert the Bluetooth Device into the computer.

Step 3: Start BlueSoleil™ in the computer.

Step 4: Connect to the LAN Access Point A.

1. Find the LAP service of LAN Access Point A

2. Double-click on the LAN Access Point A device icon on

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

Computer B.

3. Right-click the LAP service icon; select Connect on the pop-up

menu.

i The Connect BlueSoleil™ LAP Connection window pops up.

Input username and password. (Figure 8.8)

i The connection is now established. (Figure 8.9)

Figure 8.8: Input username and password

Figure 8.9: Successful connection to the LAN Access Point

Step 5: Access other computers in the LAN.

i Now Computer B can access the LAN via LAN Access Point A.

8.4 Settings for LAN Access Profile (client side) in

Windows98/Me

Before using the LAN Access Profile in Windows98/Me, ensure that a Dial-up

Adapter and Windows’s component direct cable connection are installed on the

client computer.

IVT BlueSoleil™ User Manual

All specifications are preliminary and subject to change without notice.

See “Section 5.3.1: Check if a Dial-up Adapter is installed”, to check if a Dial up

Adapter is installed in your computer.

8.4.1 Check if a Windows Component Direct Cable Connection is

installed

Step 1: Select Control Panel from the Start | Settings menu,

Step 2: Double-click the Add/Remove Programs icon. (Figure 8.10)

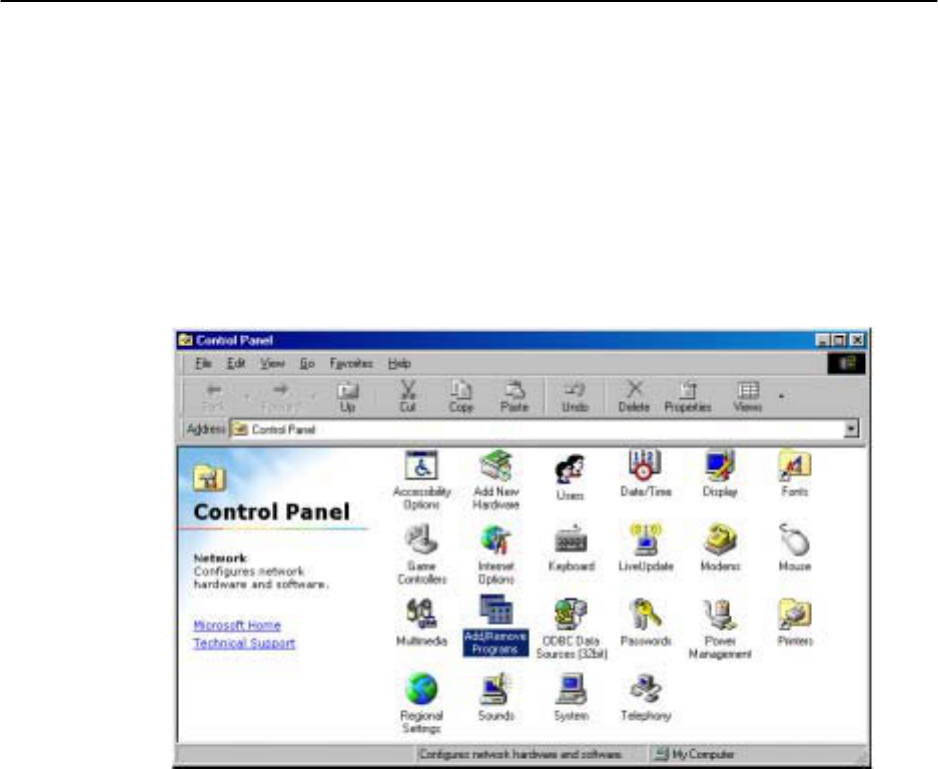

Figure 8.10: Double-click the Add/Remove Programs icon

Step 3: Select the Windows Setup tab in the Add/Remove Programs

Properties window. (Figure 8.11)

BT Links BT-20 Bluetooth USB Dongle User Manual BT 20S UserMan 1

BT-Links Company Limited Bluetooth USB Dongle BT 20S UserMan 1

Contents

Users Manual 1 of 2

Navigation menu

Namespaces

Views

Navigation
