User Manual
Programming Electronic Limit Roller Shade Motors
One Channel Remote

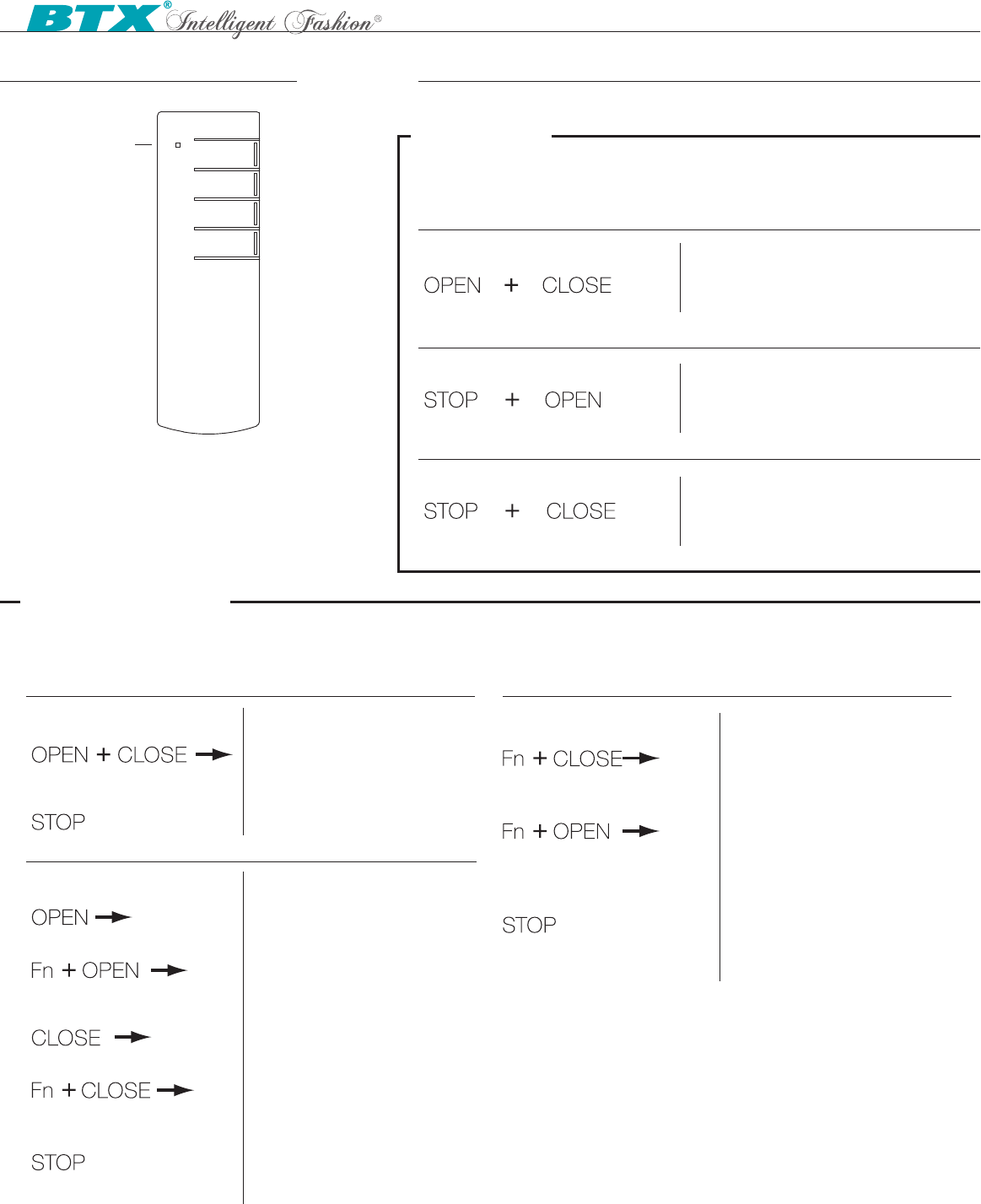

Handsender Layout
INPUT INDICATOR
(LED)
Reverse Motor Direction
Motor must be in Programming Mode
Hold Open and Close. Wait for motor to
jog, then...
- The handsender will give a slow blink.
- After 3-5 seconds, the motor will jog.
- The handsender will give a fast blink.
- After 3-5 seconds, the motor will jog.
- Travel direction is now reversed.
continue with other programming options or
hold Stop to save and exit.
For the following commands, the motor must be placed into either “Pairing Mode” or
“Programming Mode”.
To Enter Pairing Mode, disconnect power to the motor for 3-5 seconds, then reconnect. Alternate
method: If handsender is already Paired, then hold STOP for approximately 5 seconds. Note that the
motor will stay in Pairing Mode for 2 minutes. The motor will time out on it’s own, and you do not
need to save and exit from Pairing Mode.
Pair Handsender to Motor / Learn Channel
Instructions
Motor must be in Pairing Mode
Hold Open and Close.
Motor must be in Pairing Mode
Hold Stop and Open.
- The handsender will give a slow blink.
- After 3-5 seconds, the motor will jog.
- Motor will no longer respond to this channel.
Delete Channel from Motor
- The handsender will give a slow blink.
- After 3-5 seconds, the motor will jog.
- Motor will no longer respond to any channel.
Delete All Channels
Motor must be in Pairing Mode
Hold Stop and Close.
- The handsender will give a slow blink.
- After 3-5 seconds, the motor will jog.
- Motor will now work on this channel.
Expected Response:
- The handsender will give a fast blink.
- After 3-5 seconds, the motor will jog.
- Limits are now set.
- Motor has left programming mode.
continue with other programming options
or hold Stop to save and exit.
Motor must be in Programming Mode
Hold Open to move shade to desired open
position, then...
- Shade will move to desired open
position.
hold Fn and OPEN to set upper limit, then... - The handsender will give a slow blink.
- After 3-5 seconds, the motor will jog.
- Upper limit is now set.
- The handsender will give a slow blink.
- After 3-5 seconds, the motor will jog.
- Lower limit is now set.
hold Close to move shade to desired close
position, then... - Shade will move to desired close position.
hold Fn and CLOSE to set lower limit, then...
Set Limits
Expected Response: Touch Control On/Off (Tumo Drapery Motor Only)
- The handsender will give a fast blink.
- After 3-5 seconds, the motor will jog.
- Settings are saved
- Motor has left programming mode.
continue with other programming options
or hold Stop to save and exit.
Motor must be in Programming Mode
Hold Fn and CLOSE to turn Touch Control off
or...
Hold Fn and OPEN to turn Touch Control on,
then...
- The handsender will give a slow blink.
- After 3-5 seconds, the motor will jog.
- Touch Control is now ON.
- The handsender will give a slow blink.
- After 3-5 seconds, the motor will jog.
- Touch Control is now OFF.
Expected Response:
© 2017 BTX Intelligent Fashion, LLC.
Programming - 490.2076 - 012317
www.btxinc.com | 800-422-8839
Pairing Mode
Programming Mode
To enter Programming Mode, press and hold FN+STOP for approximately 5 seconds (until motor jogs). Note that all of these settings can be
made without exiting from Programming Mode after each change (they can all be done in the same session). Programming mode lasts for 2
minutes. If you do not exit and save before the 2 minutes has expired, the motor will exit programming mode and cancel all changes.
OPEN
STOP
CLOSE
Fn
§ 15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
§ 15.21 Information to user.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
§ 15.105 Information to the user.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC ID: UGP-4902077
FCC Caution
