04600264 0 User Manual HTML Version

Users Manual

User Manual

High Speed Wireless

Broadband Router

WHR-G54S

www.buffalotech.com

Rev A

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 05

Installation / Setup . . . . . . . . . . . . . . . . . . . . . . 10

Internal Antennas. . . . . . . . . . . . . . . . . . . . . . 12

Standard Settings . . . . . . . . . . . . . . . . . . . . . . . 13

AOSS . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Advanced Setup . . . . . . . . . . . . . . . . . . . . . . . . 25

LAN Settings . . . . . . . . . . . . . . . . . . . . . . . . 25

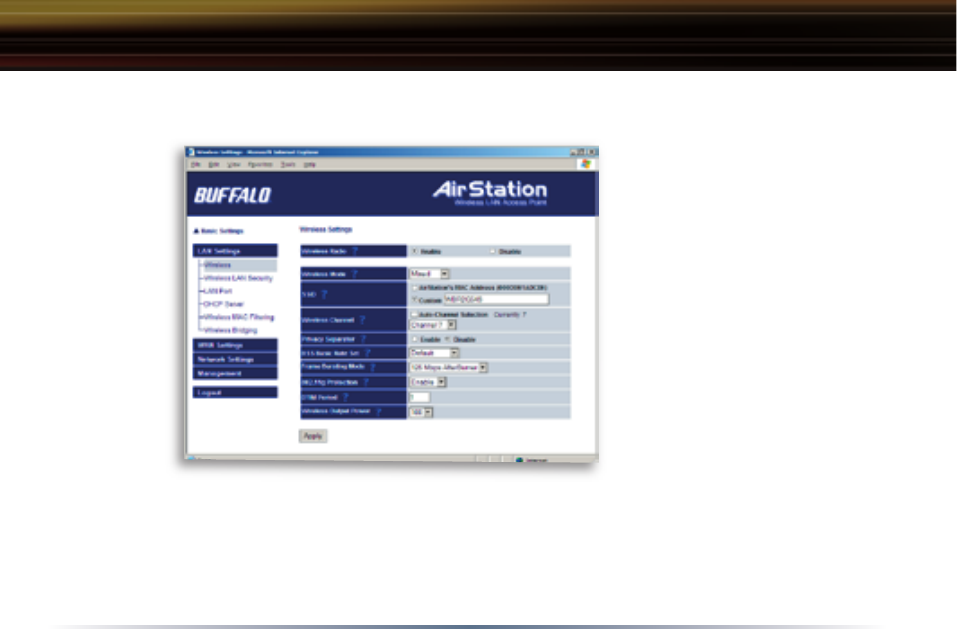

Wireless Settings . . . . . . . . . . . . . . . . . . 25

Wireless LAN Security . . . . . . . . . . . . . . 27

LAN Port . . . . . . . . . . . . . . . . . . . . . . . . 30

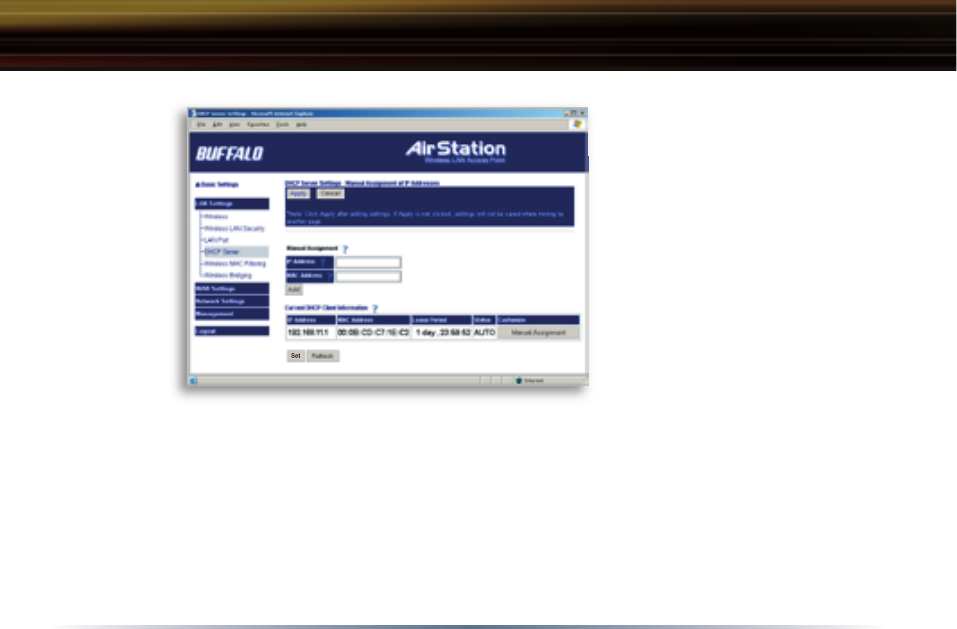

DHCP Server . . . . . . . . . . . . . . . . . . . . . 31

Wireless MAC Filter . . . . . . . . . . . . . 34

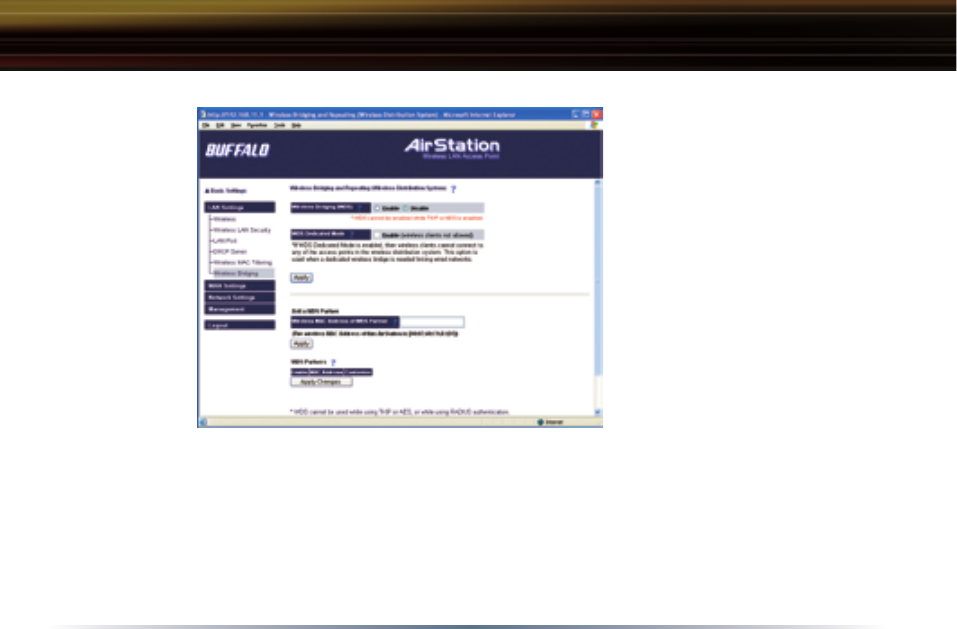

Wireless Bridge (WDS) . . . . . . . . . . . . . 36

WAN Settings . . . . . . . . . . . . . . . . . . . . . . . 38

WAN Port . . . . . . . . . . . . . . . . . . . . . . . . 38

WAN Network . . . . . . . . . . . . . . . . . . . . . 41

Table of Contents

Network Settings. . . . . . . . . . . . . . . . . . . . . 42

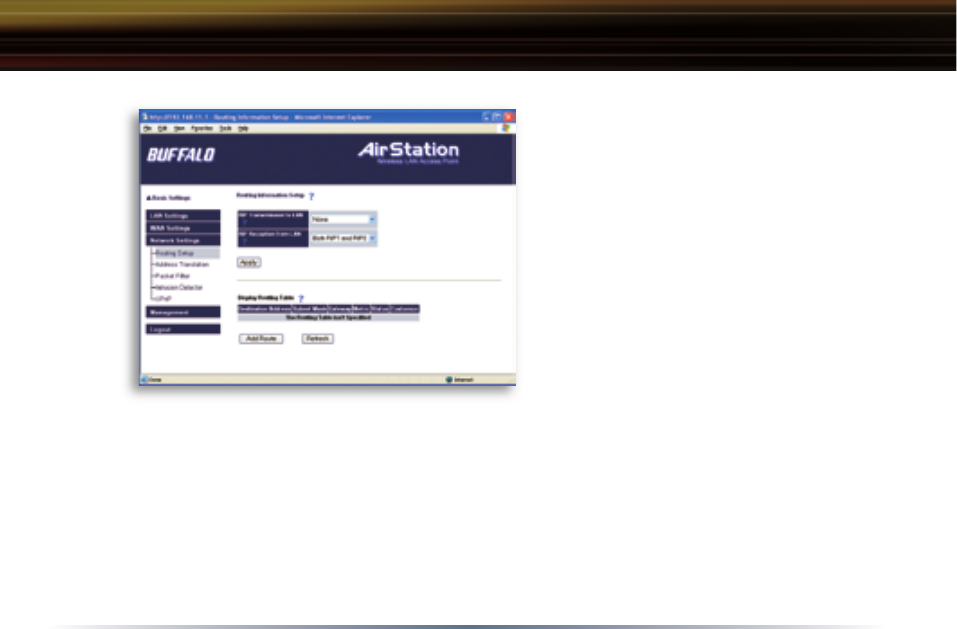

Router Setup . . . . . . . . . . . . . . . . . . . . 42

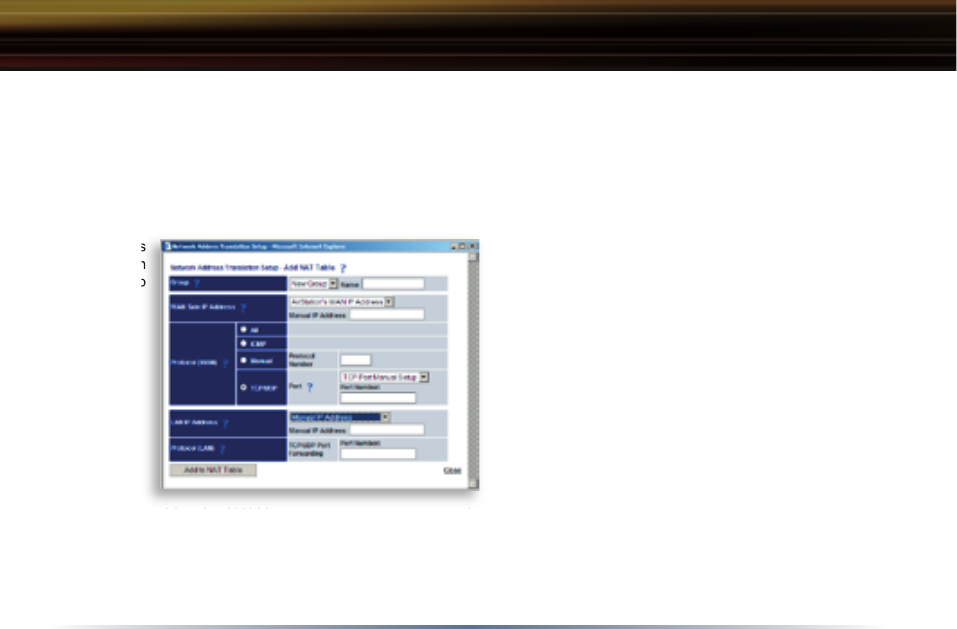

Address Translation . . . . . . . . . . . . . . . . 44

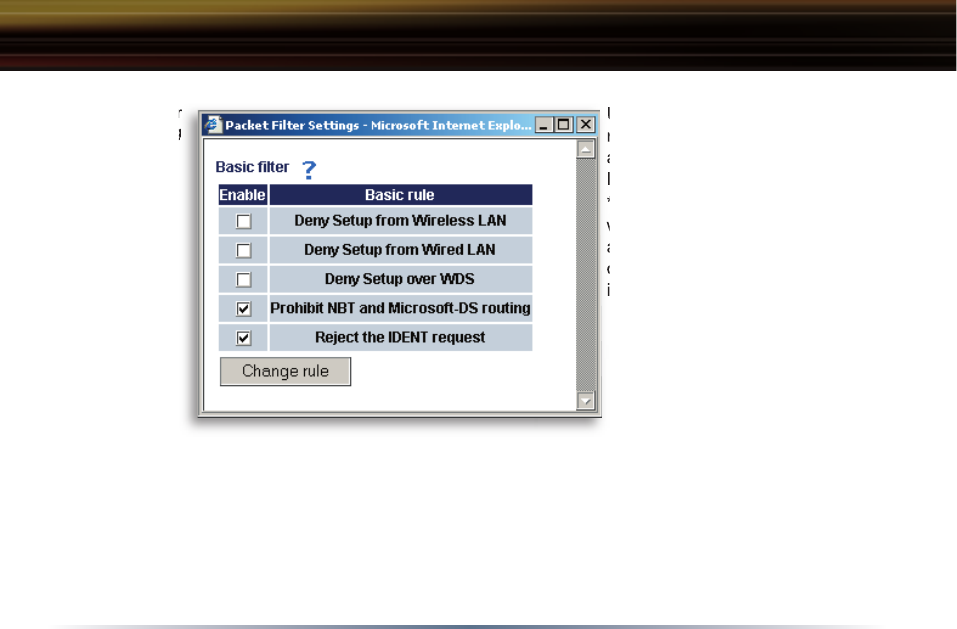

Packet Filter . . . . . . . . . . . . . . . . . . . . . . 47

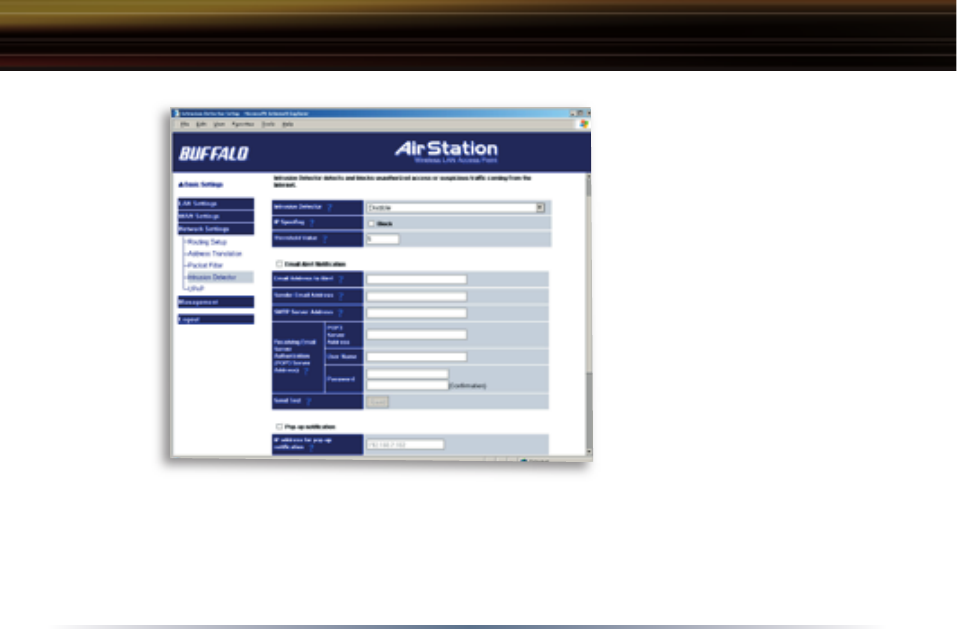

Intrusion Detector . . . . . . . . . . . . . . . . . 52

UPnP . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Management . . . . . . . . . . . . . . . . . . . . . . . . 55

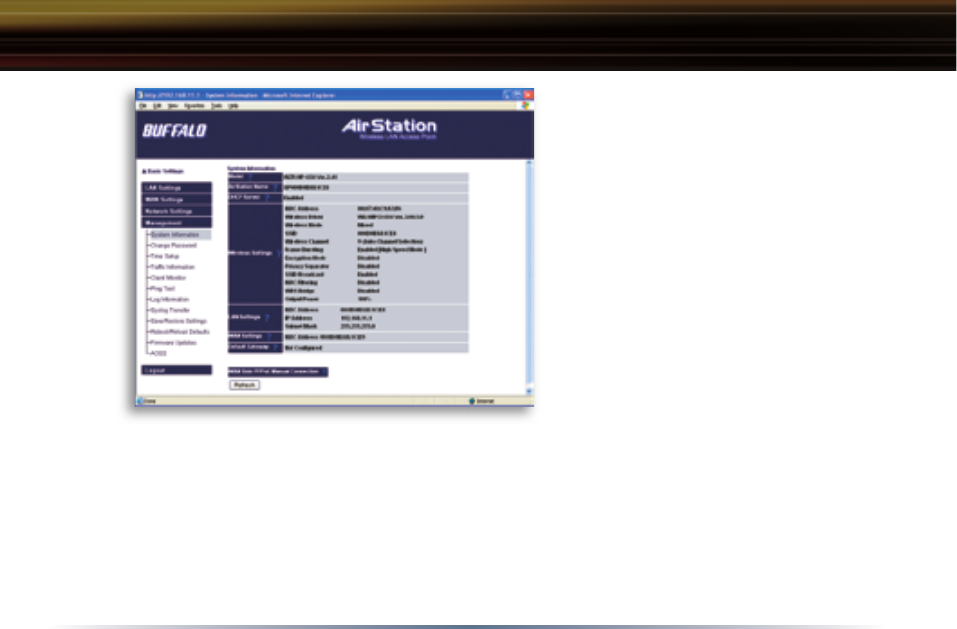

System Information . . . . . . . . . . . . . . . . 55

Change Password . . . . . . . . . . . . . . . . . 56

Time Setup . . . . . . . . . . . . . . . . . . . . . . 57

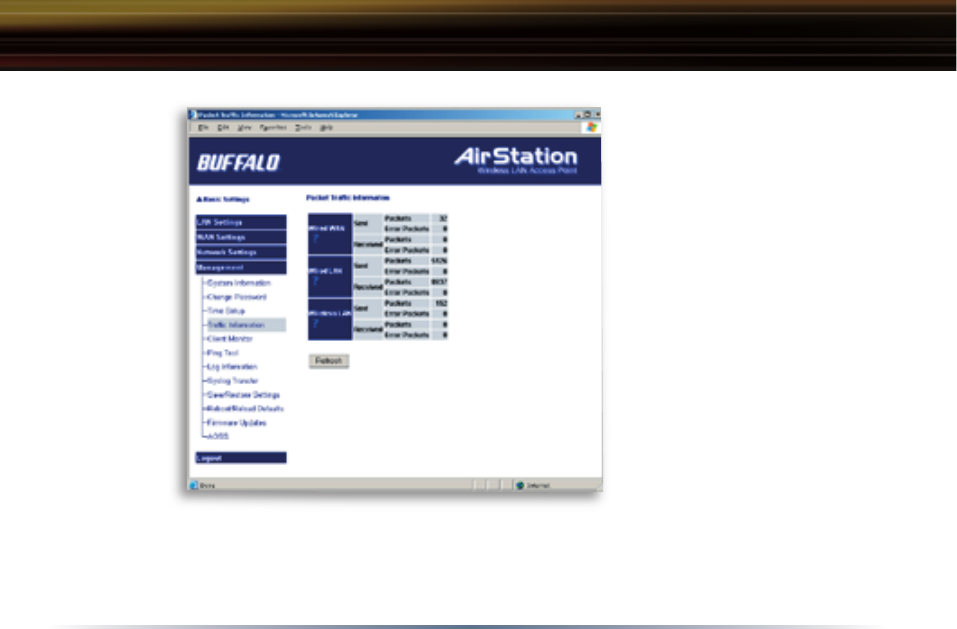

Packet Trafﬁc Information . . . . . . . . . . . . . . . . . 58

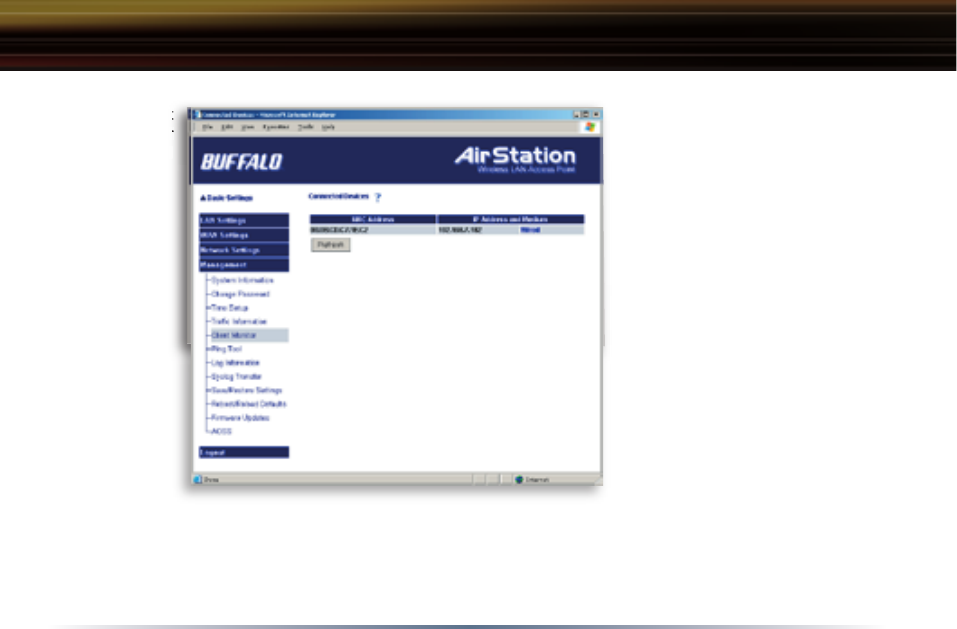

Client Monitor . . . . . . . . . . . . . . . . . . . . 59

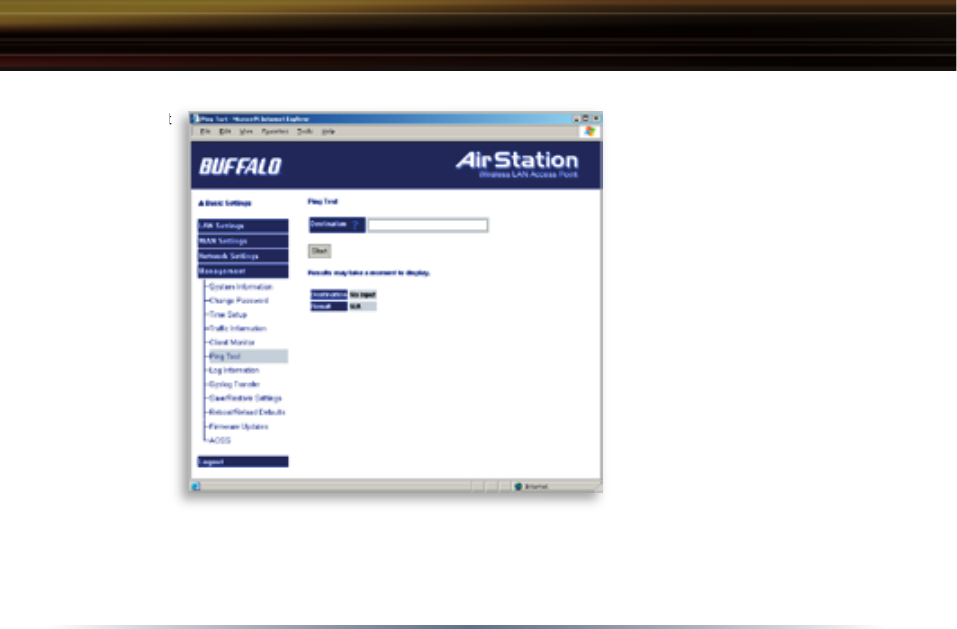

Ping Test . . . . . . . . . . . . . . . . . . . . . . . . 60

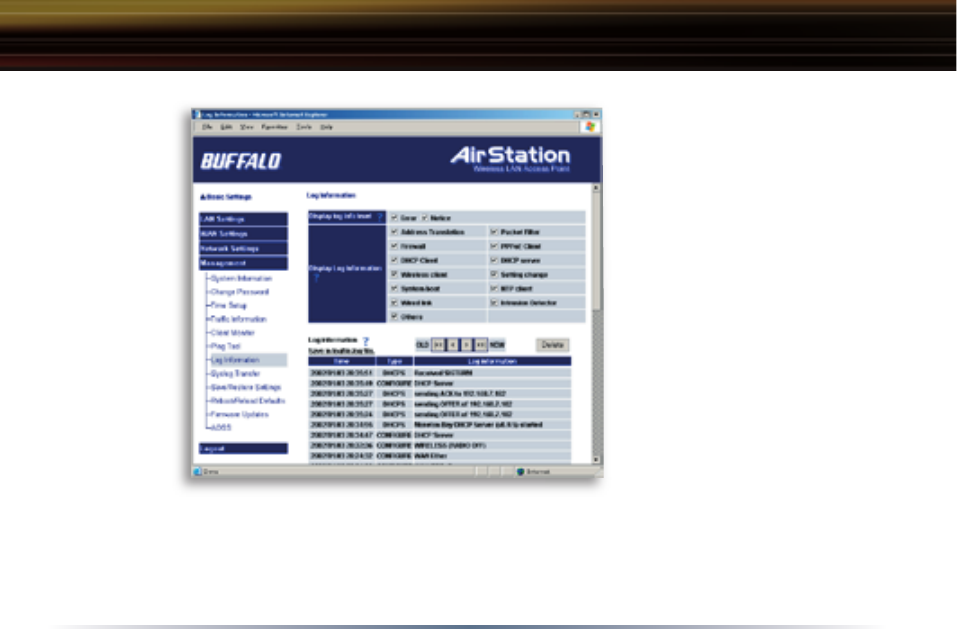

Log Information . . . . . . . . . . . . . . . . . . . 61

Table of Contents

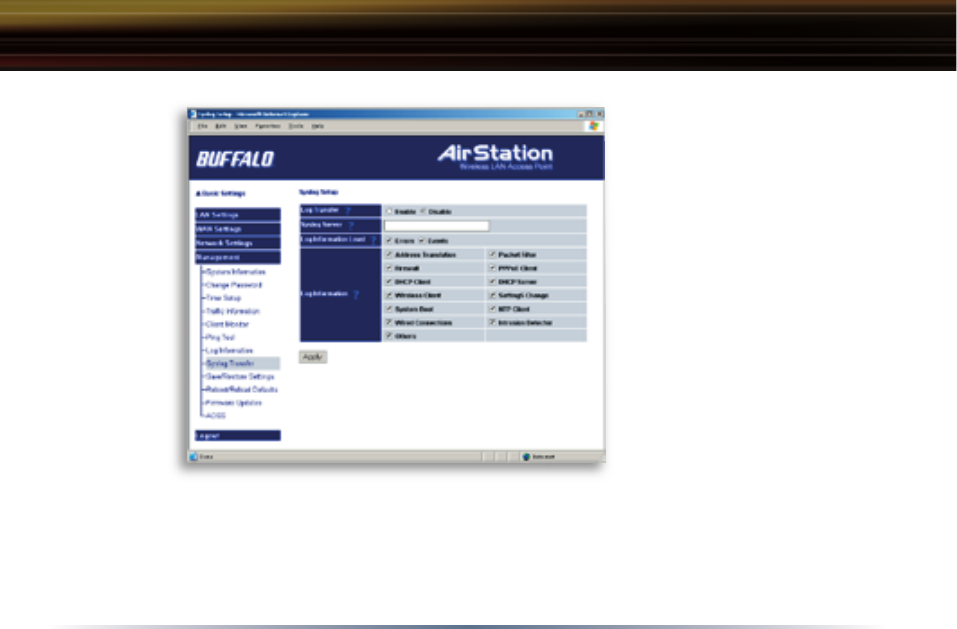

Syslog Transfer . . . . . . . . . . . . . . . . . . . 62

Save/Restore Settings . . . . . . . . . . . . . . 63

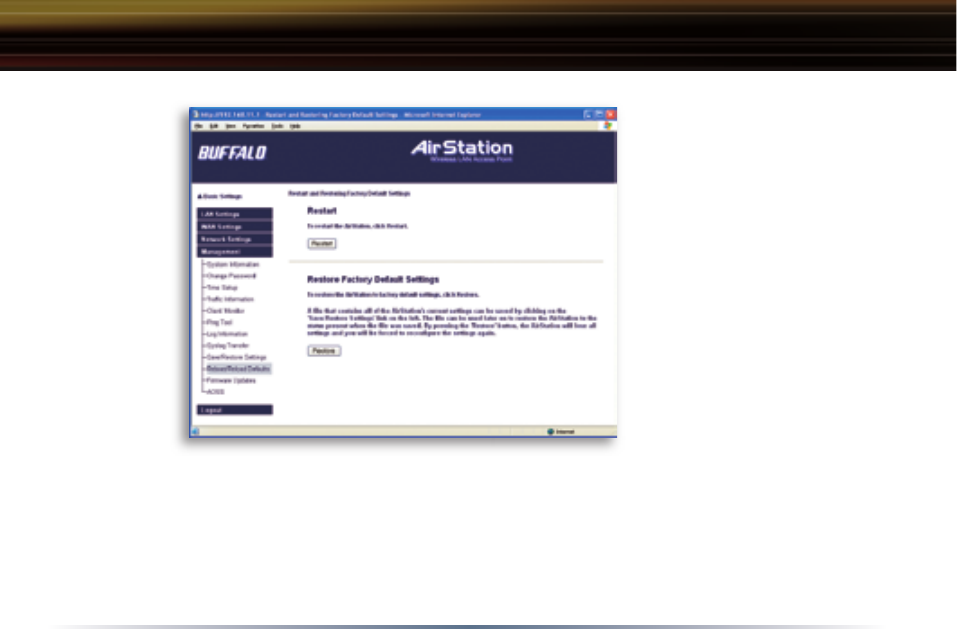

Reboot/Reload Settings . . . . . . . . . . . . . 64

Firmware Update . . . . . . . . . . . . . . . . . 65

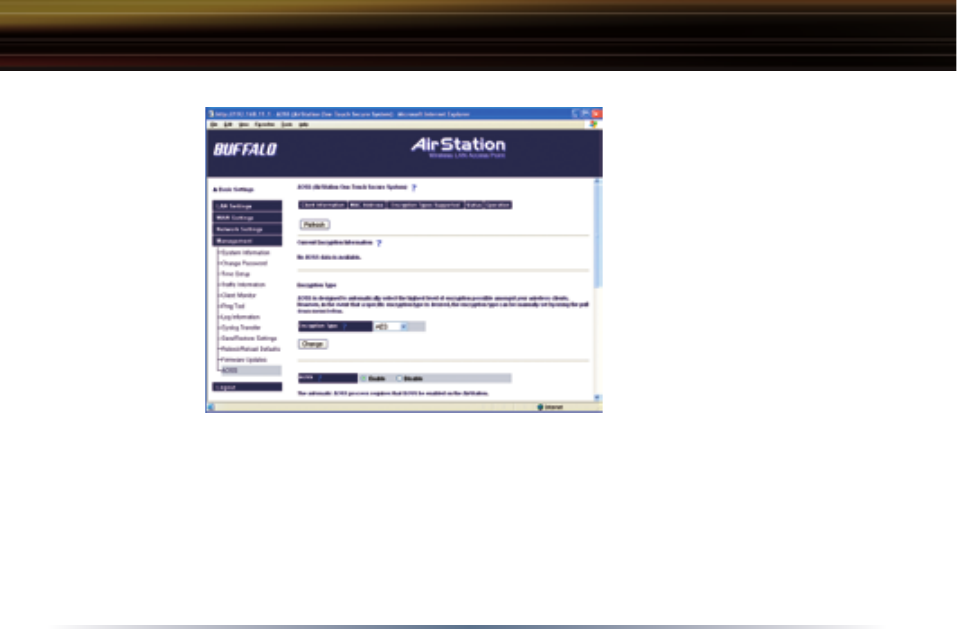

AOSS . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

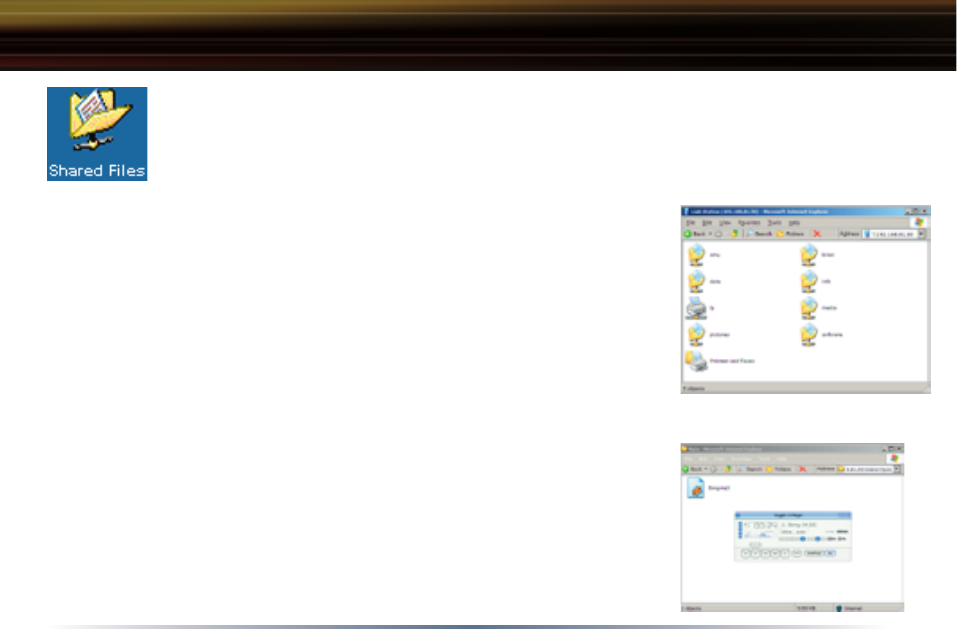

File & Printer Sharing / Audio/Video Playback . . 68

Speciﬁcations . . . . . . . . . . . . . . . . . . . . . . . . . 69

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . 72

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

FCC/CE Information . . . . . . . . . . . . . . . . . . . . . . . . 86

Warranty Information. . . . . . . . . . . . . . . . . . . . . 91

Contact Information . . . . . . . . . . . . . . . . . . . . . 92

AirStation High Speed Mode Wireless Cable/DSL Router (WHR-G54S)

This manual introduces you to the AirStation Cable/DSL Router, and will help you connect to your

network quickly.

The WHR-G54S router, is a wireless 4-port router network device that complies with the 2.4GHz

IEEE 802.11g standard speciﬁcation on wireless LANs. It also supports High Speed Mode technol-

ogy. The WHR-G54S supports enhanced built-in NAT/SPI ﬁrewall functions and is used as a multi-

functional router/link between wired and wireless LAN computers.

Summary of the AirStation WHR-G54S features:

• Wi-Fi™ (Wireless Fidelity) certiﬁed by the Wi-Fi Alliance as an 802.11b/g device. The AirStation

will communicate with other IEEE 802.11b/g/Wi-Fi compliant wireless LAN products.

• Supports High Speed Mode

• Auto-Channel Selection

• Support for Wi-Fi Protected Access™ (WPA), TKIP, AES, and WEP.

• DHCP client/server function.

• Auto roaming, supports seamless roaming over multiple channels.

• Packet Filtering for eliminating unwanted communications.

• SOHO/SMB routing and ﬁrewall functions provide a safer private networking environment, includ-

ing support for MS NetMeeting and MSN-Messenger.

• Additional SPI Firewall Functions - DMZ, intrusion detection and notiﬁcation

• Syslog transmits some or all system activities to a central Syslog server.

Introduction

• Extended range WDS (Wireless Distribution System).

• Auto Media Dependent Interface/Crossover (MDI/X) port, allows connection by standard and

crossover CAT5 cables.

• Supports Universal Plug and Play (UPnP).

• Buffalo’s AOSS System for easy, secure wireless client conﬁguration.

• Enhanced security features:

- SPI Firewall and DMZ zone functions to prevent unknown intruders.

- Intrusion Detector Firewall (NAT) with a pop-up or email alert warning unwanted attacks.

- Dynamic packet ﬁltering.

- WPA, TKIP, AES, and WEP.

- Packet monitoring and ﬁltering by MAC address, IP address and port.

- PPPoE support

- WDS support

• Buffalo’s easy web interface conﬁguration

• Broadband router static and dynamic routing methods between WAN and LAN based on updated

routing tables. An economical way to bridge multiple networks.

• Buffalo’s AOSS System for easy, secure wireless client conﬁguration.

Introduction

Home Networking 1

Buffalo AirStation wireless access points enable sharing broadband by simply connecting the

AirStation to a DSL or Cable modem to:

• Share ﬁles and printers

• Access and share the Internet

• Share media ﬁles

System Requirements

• Broadband (High-Speed) Internet connection or

existing Local area connection

• Any Wi-Fi (wireless) compatible computer with a

Web Browser Internet Explorer or Netscape 4.5

or later.

AirStation WHR-G54S Package Contents

The AirStation WHR-G54S package consists of the following items.

1. WHR-G54S Base Station and antenna

2. AC adapter and Power cable

3. CAT5 LAN cable

4. Utility CD with Manual

5. Quick Setup Guides

6. Warranty Statement

7. Base Plate

Introduction

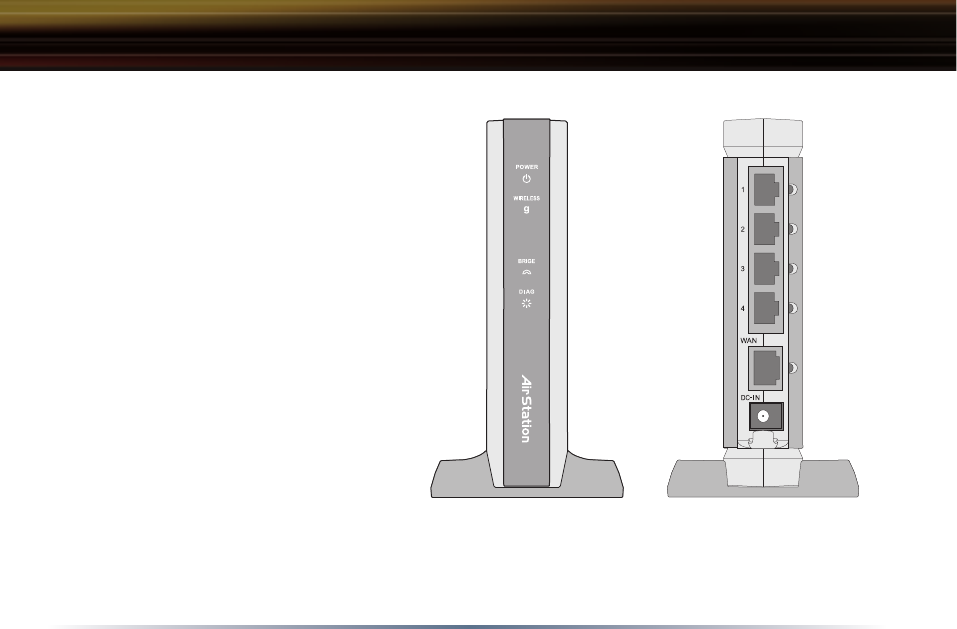

Product Views

Power - Lit when the device is powered on.

Wireless - Lit when the wireless radio is on.

Flashes when wireless trafﬁc is present.

Bridge - Lit when the Bridge mode is

running. Off when the Router mode is

running.

WAN - Lit when connection to Cable/DSL

modem is present. Flashes when internet

trafﬁc is present.

Diag - Flashes red when performing

diagnostic functions.

AOSS - Flashes when in AOSS mode, solid

when AOSS encryption has been set.

Ethernet - 1, 2, 3, or 4 lit when ethernet

clients are connected. Flashes when

ethernet trafﬁc is present.

Introduction

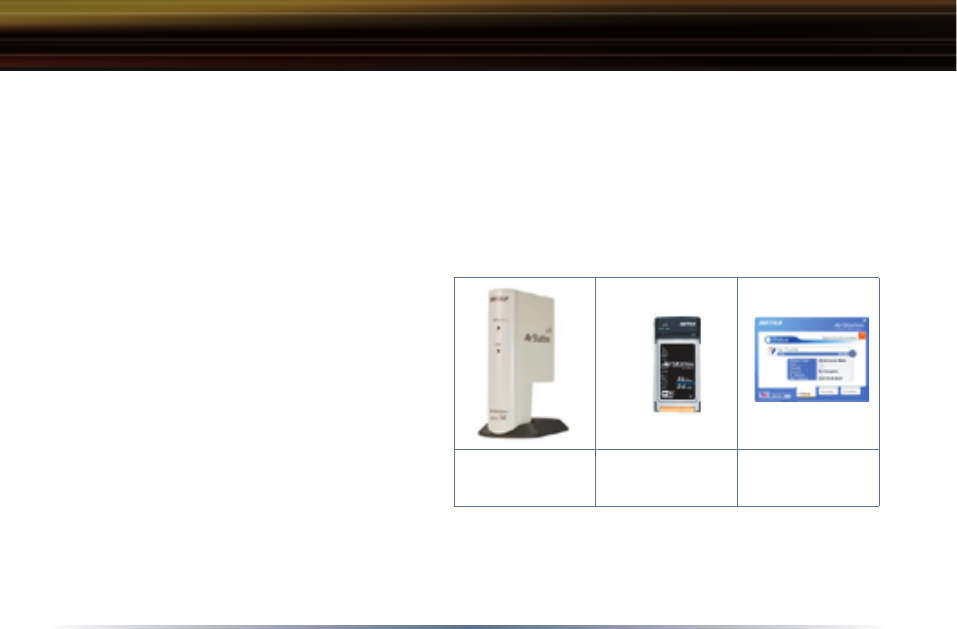

About the AirStation CD

The AirStation does not require any software to be installed on your computer for conﬁguration. The

AirStation CD contains product documentation and Buffalo’s Client Manager which provides AOSS

functionality for any Buffalo client card or any Intel Centrino notebook.

It is the policy of Buffalo Technology to improve products as new technology, components, software

and ﬁrmware become available.

Please consult the AirStation wireless website (http://www.buffalotech.com) to download and install

the latest ﬁrmware for your product.

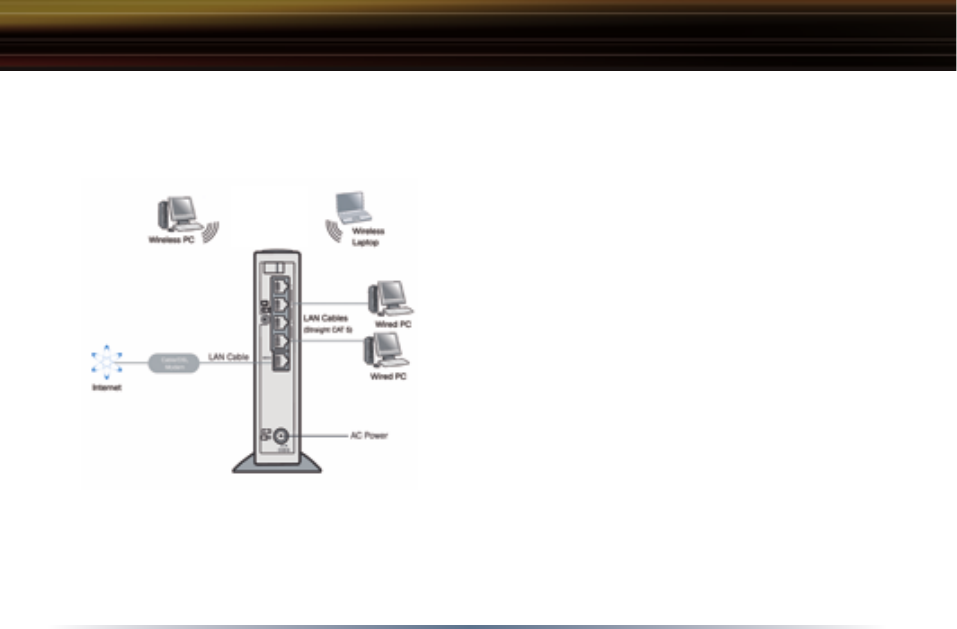

Follow these simple steps to connect the AirStation to your Broadband Internet connection allowing

you to combine and share wired and wireless computers and printers with the high-speed internet

connection.

Introduction

1. Power down the Cable or DSL modem and the computer which will be used to conﬁgure the

AirStation router.

2. Plug the Cable or DSL’s LAN Ethernet cable into the AirStation’s WAN port. Initially, you may

need to unplug this cable from your computer, hub

or other router.

3. Plug the provided Ethernet cable into a LAN

port on the AirStation and plug the other end into

your computer Ethernet adapter’s (NIC) port. If

you plan to initially conﬁgure the AirStation via a

wireless connection, (not recommended), you may

skip this step.

4. Power on your cable or DSL modem, wait one

full minute, Power on the AirStation router, wait an-

other full minute and then power on the computer

which will be used to conﬁgure the AirStation. If

the red DIAG light on the AirStation is lit or ﬂashing

after several minutes of being powered on, please

consult Buffalo Technical Support.

Installation / Setup

Introduction

Conﬁguring the AirStation using a standard web browser requires basic wireless conﬁguration

knowledge. Setup includes manual wireless conﬁguration and basic administrative management.

Setup Preparation

Make note of the AirStation’s wired MAC address (found on the underside of the WHR-G54S). It

is also recommended you record any other broadband ISP information such as global IP address,

subnet mask address, default gateway address, DNS server address and PPPoE parameters.

Setup Overview

Buffalo recommends using a wired connection, meaning your computer is physically connected to

the AirStation with a CAT5 straight cable plugged into one of the four LAN ports This type of setup

will eliminate possible setup problems due to any issues with the wireless adapter on the computer

being used to conﬁgure the AirStation.

A Web browser version 4.5 or later can be used to conﬁgure the AirStation.

Advanced settings for security, ﬁltering and other features will be explained in later sections.

Installation / Setup

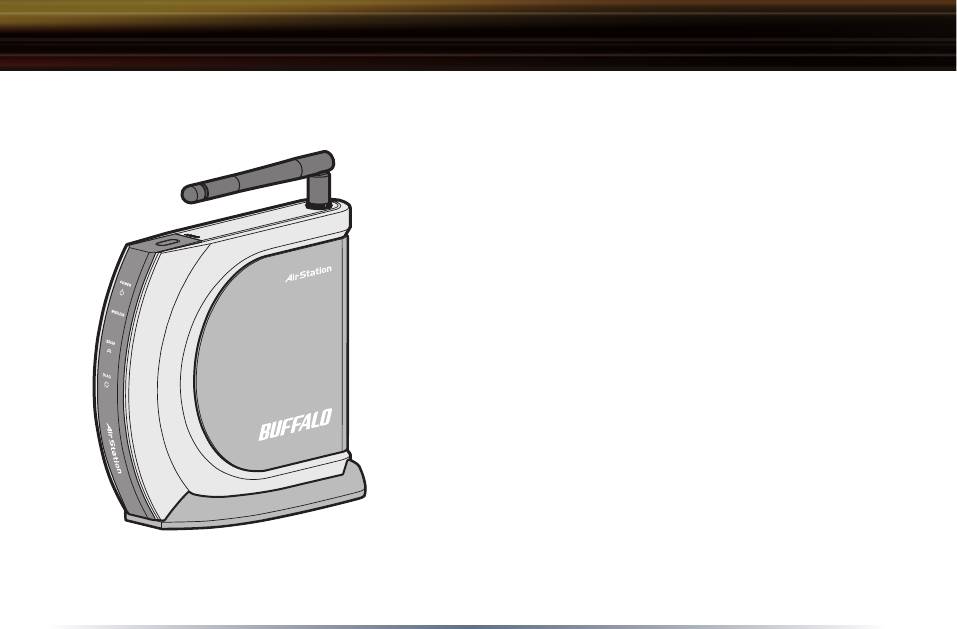

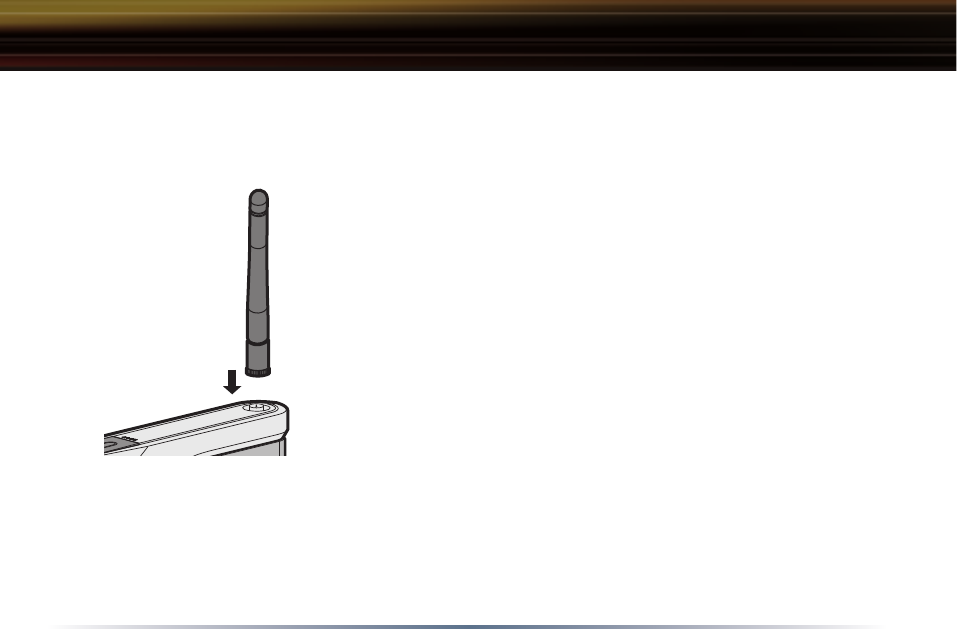

The WHR-G54S has one hoip antennas. This setup is ideal be-

cause it allows for proper antenna polarization with both desktop

and notebook style wireless adapter antennas.

Internal Antennas

Open the Setup Screen

• Connect the WHR-G54S according to the wiring instructions in Section 2.

• The WHR-G54S has a default LAN IP address of 192.168.11.1 and Subnet Mask of

255.255.255.0.

■ Note: The computer used to conﬁ gure

the AirStation should be set to obtain an

IP address automatically using a DHCP

server. The Quick Setup Guide enclosed

with the product contains detailed instruc-

tions on how to conﬁ gure your computer

for initial conﬁ guration.

On the computer used to conﬁ gure the

AirStation, launch a Web Browser 4.5 or

later.

- Enter 192.168.11.1 into the URL ﬁ eld.

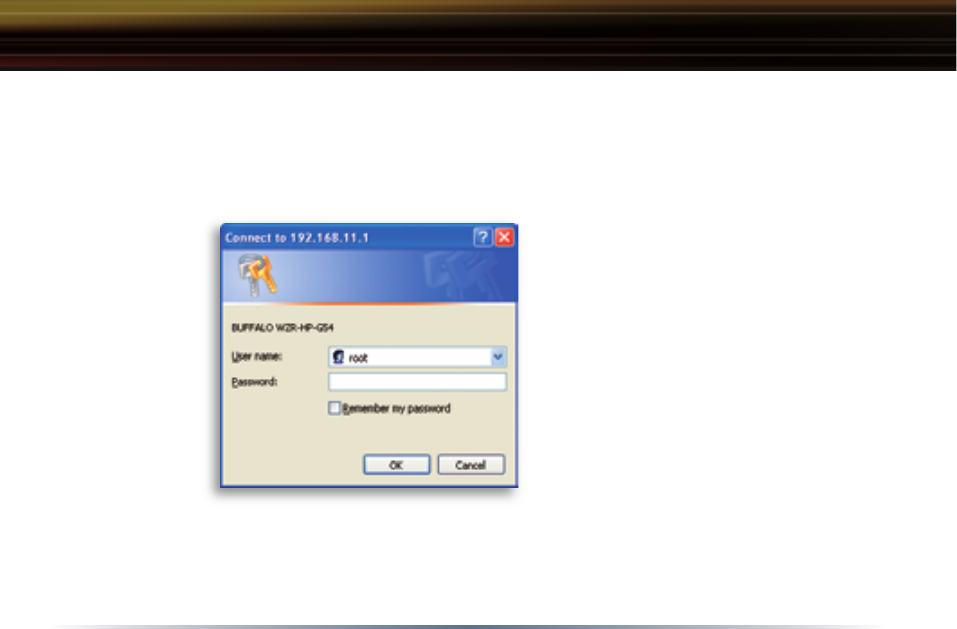

- A window will open prompting you to

enter a User ID and Password.

Enter “root” as the User ID and leave the password ﬁ eld blank.

■ Note: These are the factory default settings

Initial

Settings

Standard Settings

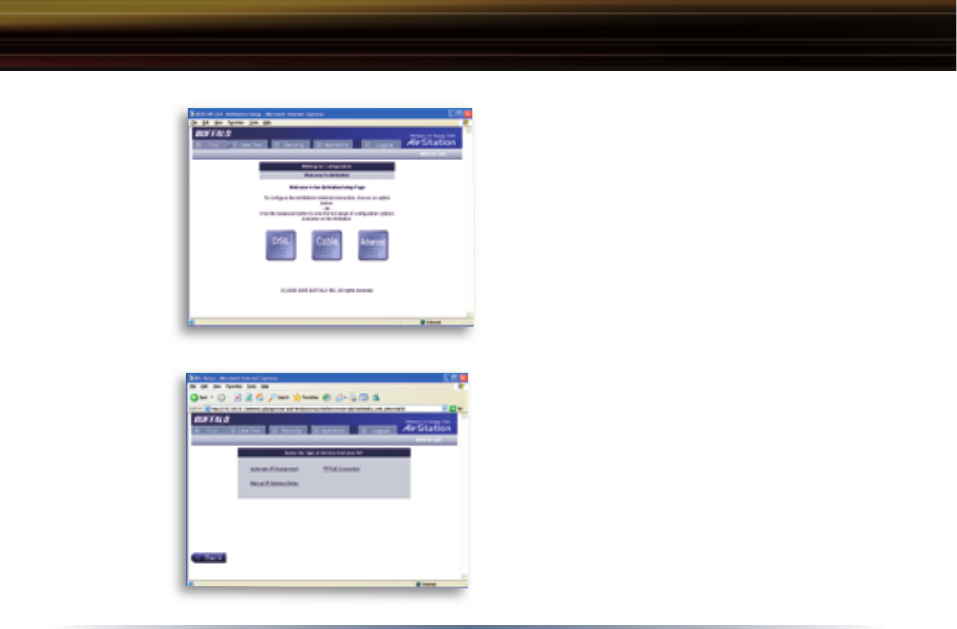

Enter ISP information

• Click the appropriate button to select the type

of broadband access. (Users more experienced

in networking may choose to select the Ad-

vanced button and skip to Section 4.)

• For supplementary tools, use the tabs along

the top of the screen.

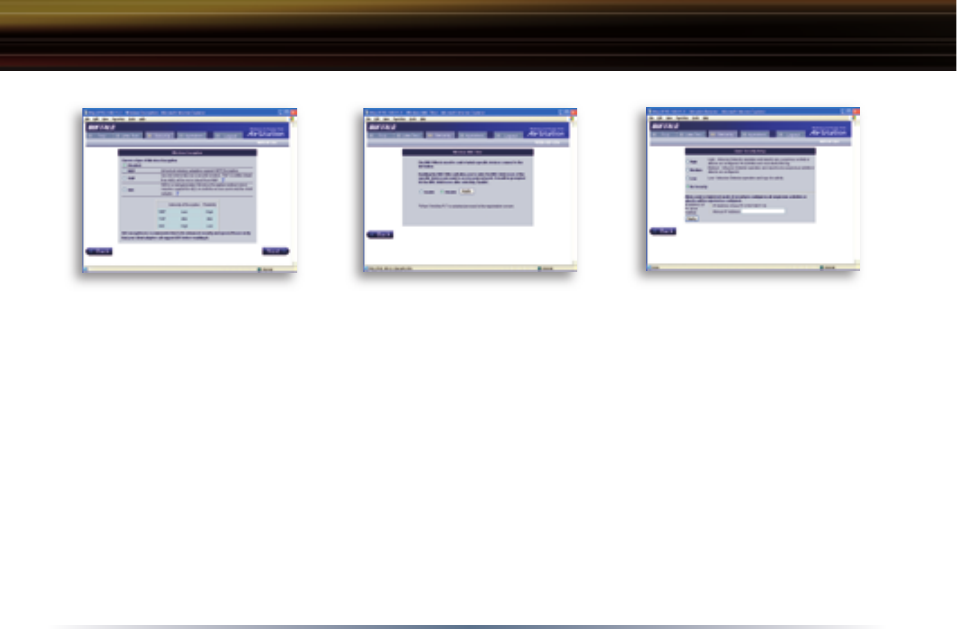

DSL Button

Select the appropriate connection method.

Automatic IP Assignment by ISP

- The DHCP server of the ISP assigns an IP ad-

dress automatically.

Initial

Settings

Screen

Initial DSL

button

Screen

Standard Settings

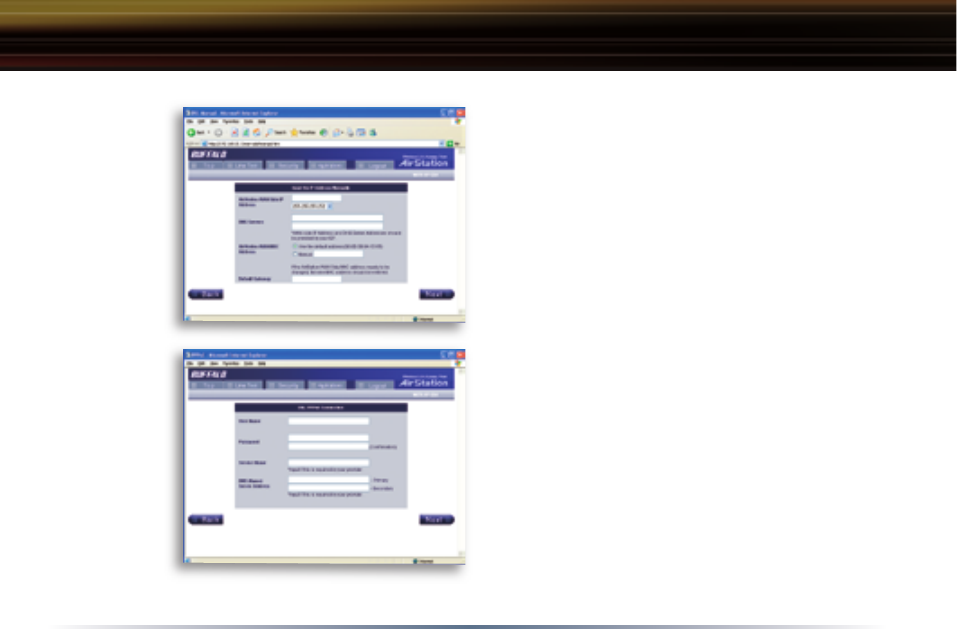

Manual IP Address Setup

- Enter the IP Address given by the ISP.

- Use ‘Enter IP Address Manually’ if the ISP

requires use of a static IP address.

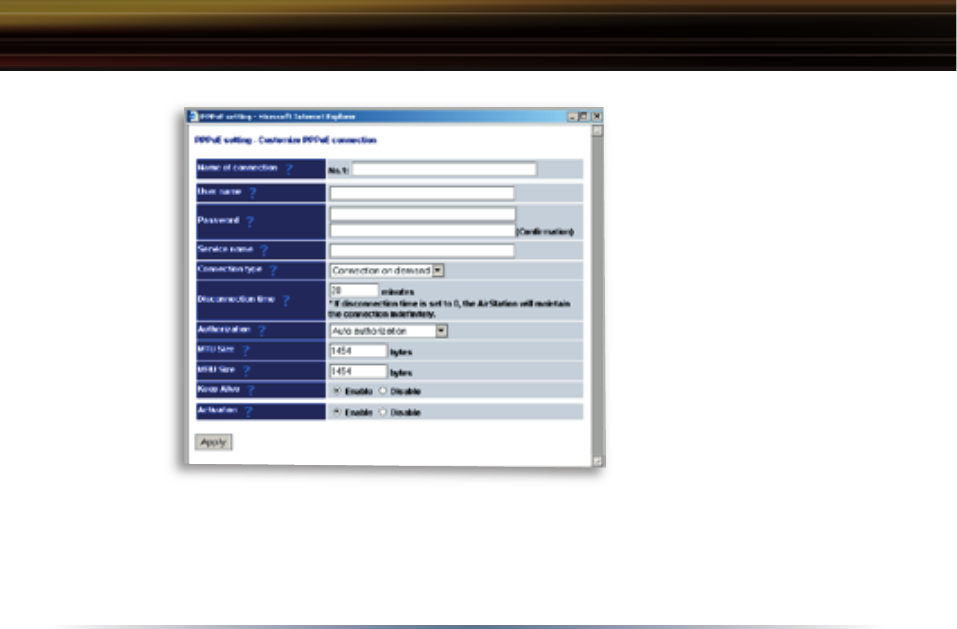

PPPoE Connection

- Enter the PPPoE information provided by the

ISP.

Manual DSL

IP Settings

Screen

DSL PPPoE

Settings

Screen

Standard Settings

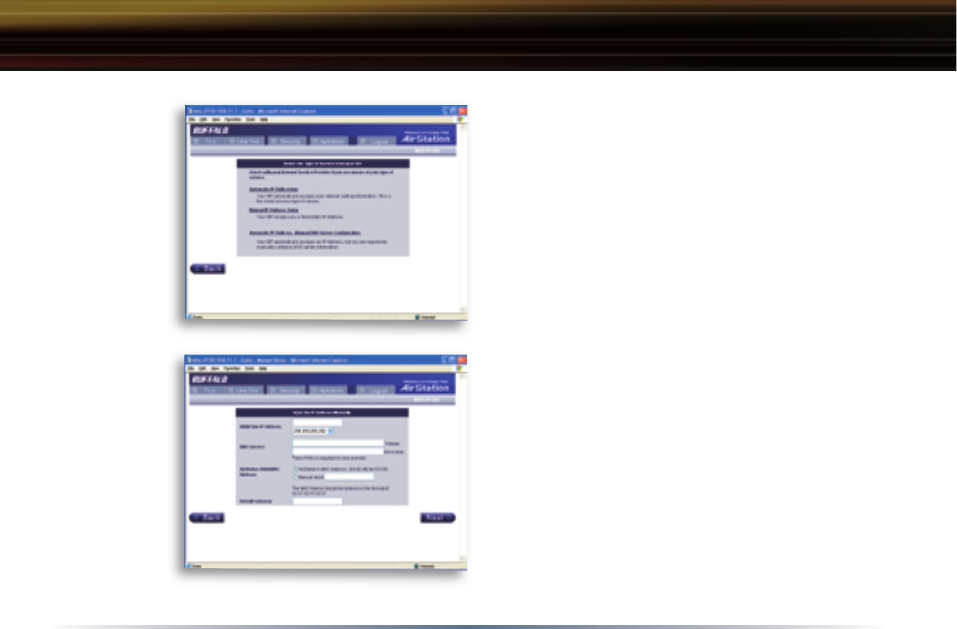

Cable Button

Select the appropriate connection method.

Automatic IP Addressing

- Select ‘Automatic IP Assignment by ISP’ if

your ISP’s DHCP server assigns an IP address

automatically.

Manual IP Address Setup

- Select ‘Enter IP Address Manually’ if the ISP

requires use of a static IP address.

Initial CATV

Settings

Screen

Manual IP

Address

Settings

Standard Settings

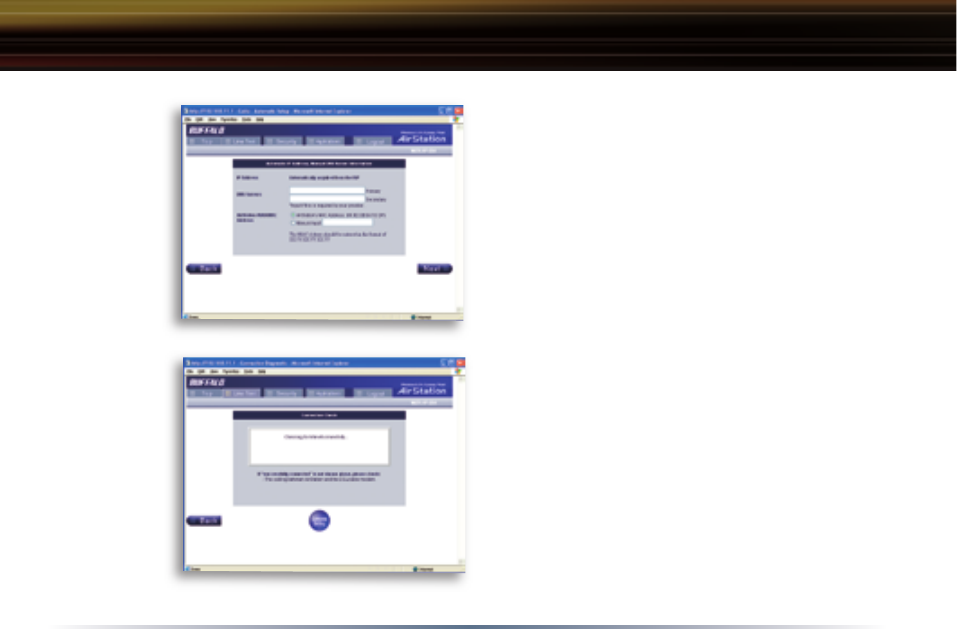

Automatic IP Address - Manual DNS

Server Conﬁ guration

Select ‘IP address is acquired automatically

but DNS server address is entered manually’ if

the ISP’s DHCP server supplies an IP address

but not DNS server addresses.

Line Test

Tests the connection to the Internet.

Auto IP/

Manual DNS

Settings

Line

Test Tab

Standard Settings

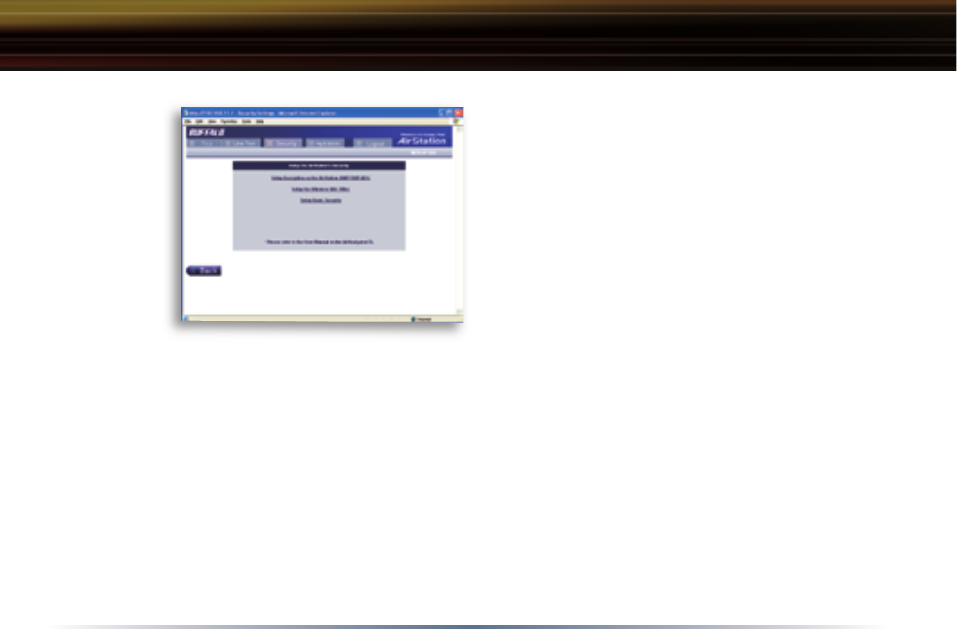

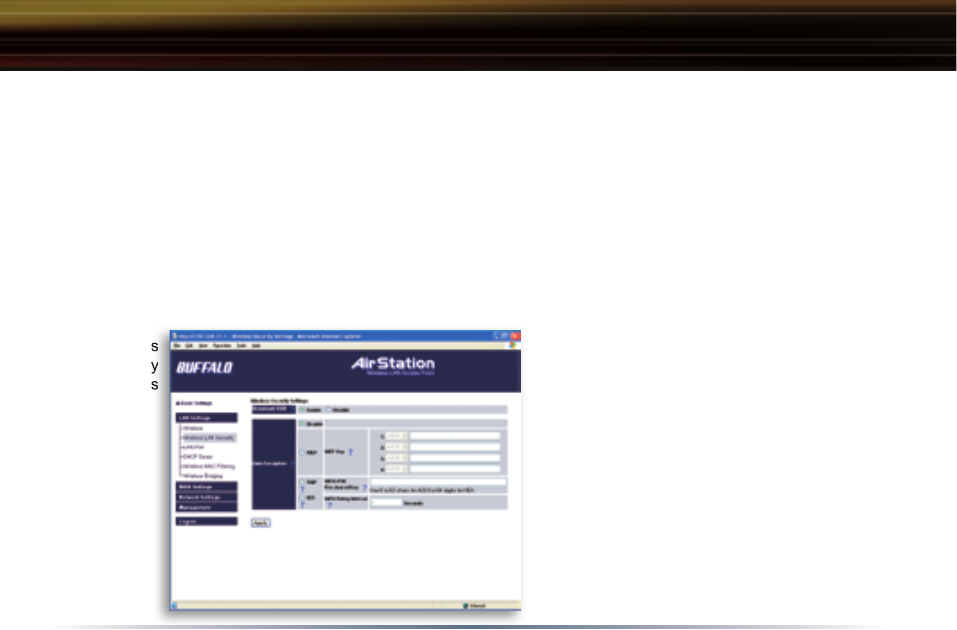

Security

The Security Tab offers three Simple Security

Settings. Follow the in struc tions in each screen

to enter Encryption Keys, MAC Address Filter-

ing and the degree of ﬁ rewall security for the

AirStation.

Security Tab

Standard Settings

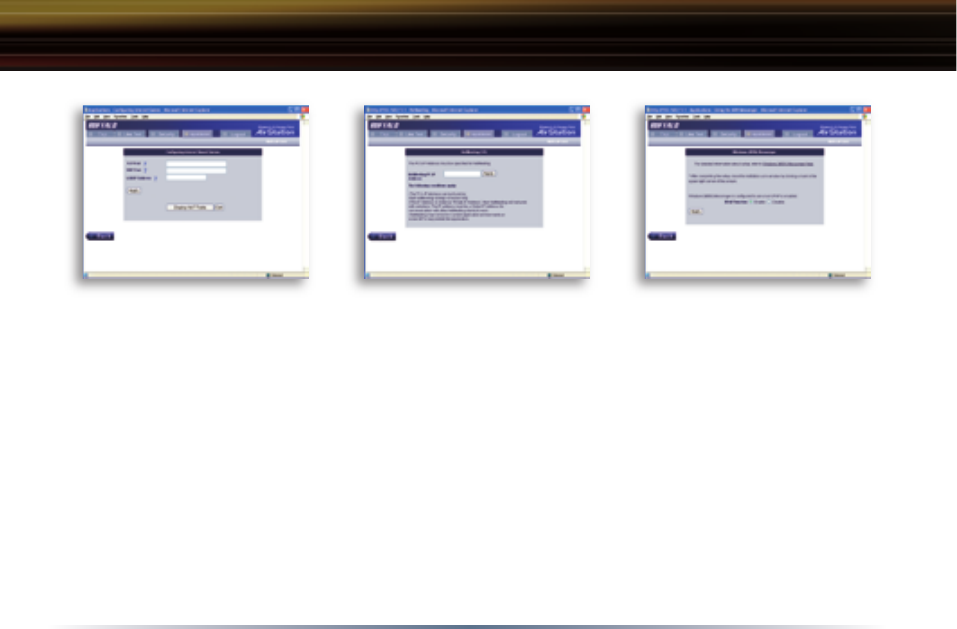

Setup Encryption on the

AirStation(WEP/TKIP/AES).

- Select the desired encryption

scheme from the choices. After

it has been selected, press the

‘Next’ button. You will then be

prompted to enter the appropriate

key(s) for that method of encryp-

tion.

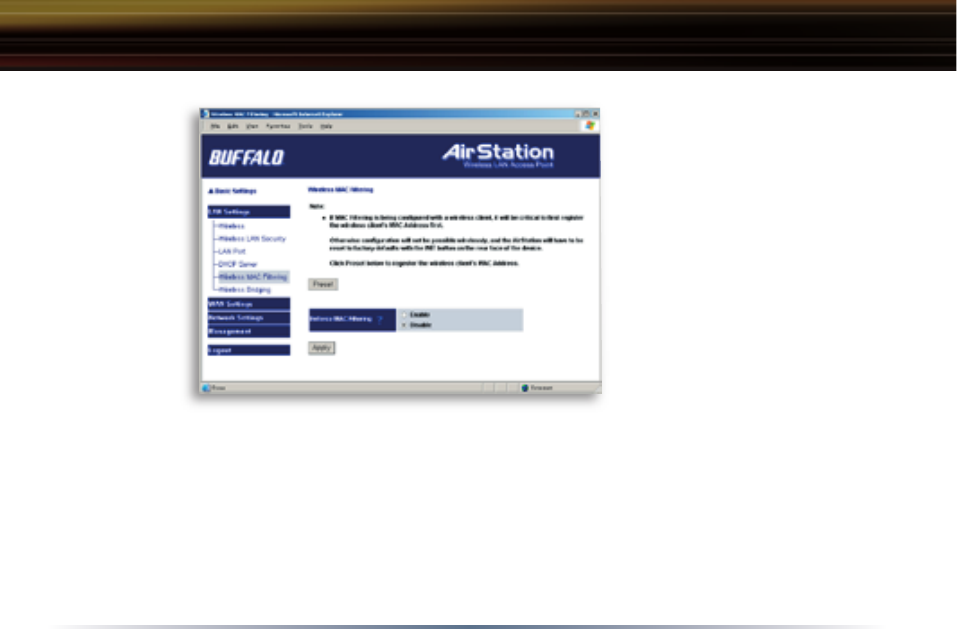

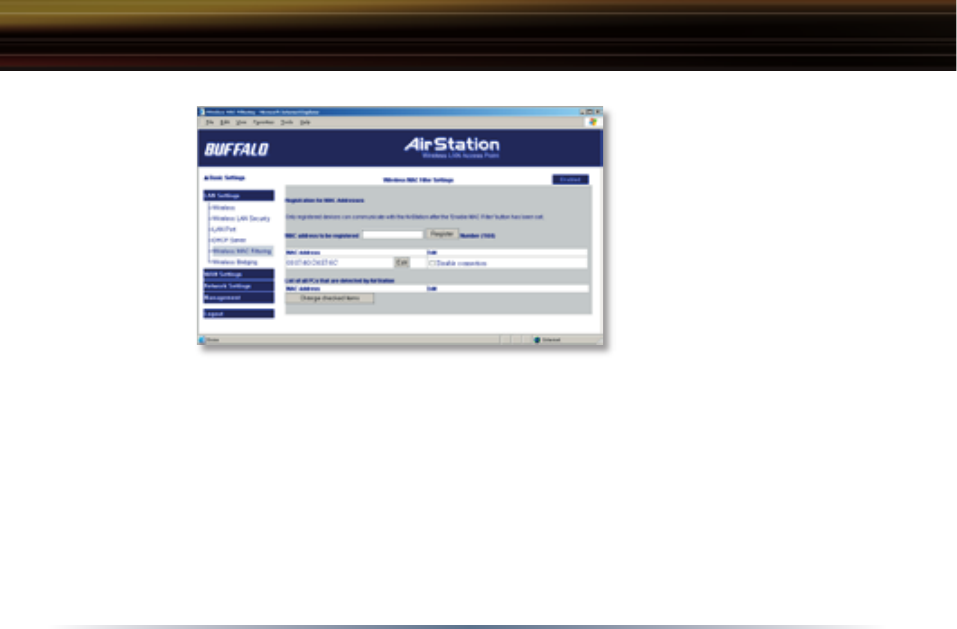

Setup the Wireless MAC Filter.

- Select ‘Enable’ to use MAC ﬁ lter-

ing. See ‘Page 34’ for more infor-

mation on MAC Address Filtering.

Setup Basic Security.

- See ‘Page 52’ for more information

on Intrusion Detector.

Standard Settings

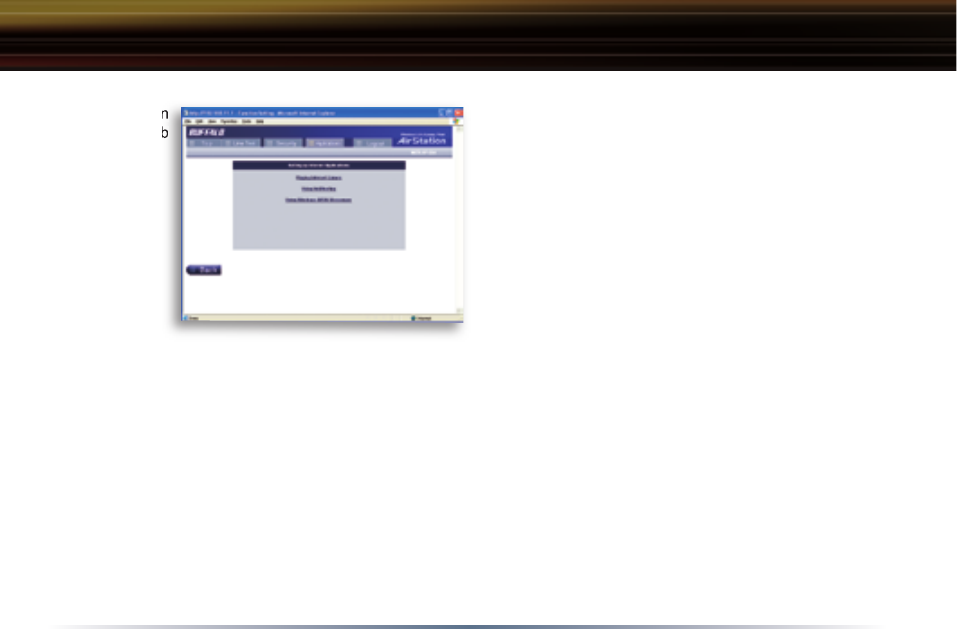

Applications

The Application Tab offers setup for special ap-

plications such as games, MS NetMeeting and

MSN Messenger. Then follow the on-screen

menus to conﬁ gure the AirStation for the applica-

tion.

Ap pli ca tion

Tab

Ap pli ca tion

Tab

Standard Settings

Playing Internet Games

-Enter the ports(refer to Game

documentation) the game runs

on, and enter the Local IP Ad-

dress of the PC that plays the

game.

Using Netmeeting

-Enter the IP Address of the PC

that will use Netmeeting.

Using Windows (MSN)Messenger

-Refer to the on-screen help for

information about Messenger.

Standard Settings

Although your AirStation will function ﬁ ne using only the Standard Settings, you may wish to

explore more advanced options. The Advanced Settings section explains each function in the

Advanced settings area.

Click the Top tab and click the Advanced button to enter the Advanced settings area.

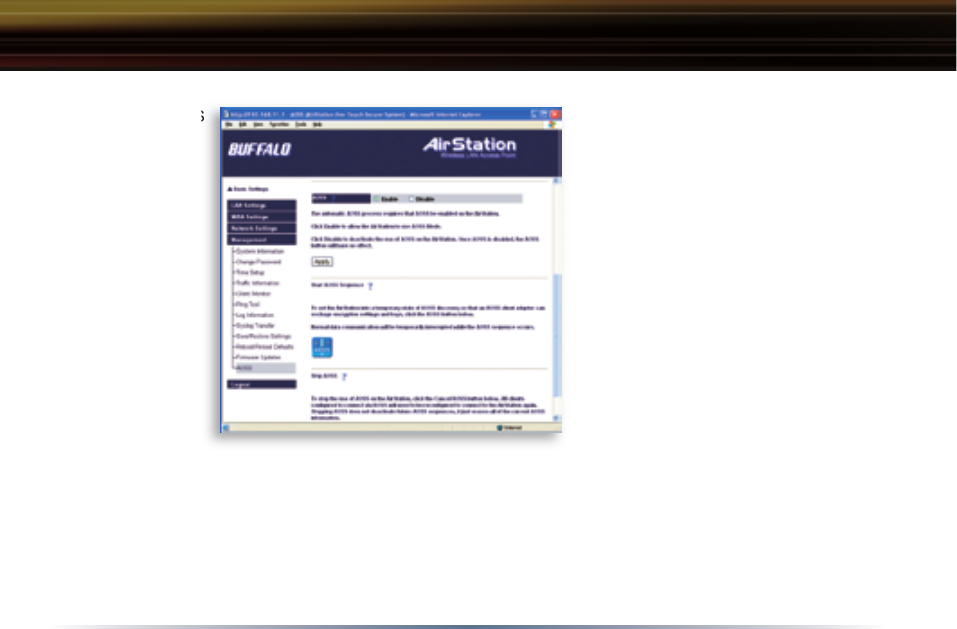

AOSS

AOSS (AirStation One-Touch Secure System) is a simple, one-touch setup for connecting wireless

clients to an access point while setting up the most secure possible connection. Users no longer

need to worry about choosing the proper security protocols, IP addresses, or SSID's. The

intelligence of AOSS determines the most optimal connection and conﬁgures itself in seconds.

■ NOTE: AOSS automatically creates a secure connection between your AOSS Access Point and

client. You must have an AOSS enabled wireless client device to use the AOSS features of your

AOSS Access Point/Router. Intel Centrino supports AOSS by installing Buffalo's Client Manager

software.

◗ Conﬁgure your WHR-G54S’ internet con-

nection by referring to the instructions in

the WHR-G54S’ Quick Setup Guide.

◗ Once the WHR-G54S has been conﬁg-

ured, follow the directions to install your

wireless client device and its drivers if

necessary. Certain wireless client adapt-

ers require client software to conﬁgure

them. If your device has a Client Man-

ager, then install it as well.

■ NOTE: If the wireless client adapter is

installed on a PC, then the AOSS client manager will need to be installed as well. If your wireless

client adapter is a standalone device that does not require a PC, then just power up the device.

Standalone Devices: Ethernet Converters and Access Point Bridges

Client Manager Devices: CardBus, USB, and PCI Adapters.

Standalone

AOSS Device

Client Manager

Device

Client Manager

Software

◗ Now that the WHR-G54S and wireless client adapter are

installed, you can use AOSS to conﬁgure them.

◗ To begin the conﬁguration, press the AOSS button on the

top of the WHR-G54S for 3-5 seconds. The orange AOSS

light will begin to ﬂash rapidly when the AOSS mode has

been enabled. You can stop pressing the button at this

point.

■ NOTE: AOSS mode will stay active for a period of two

minutes. This is the time-slot required to initiate AOSS on

the wireless client adapter.

◗ Refer to your wireless client adapter's AOSS supplement

to initiate the wireless client adapter's AOSS mode.

◗ Once the client adapter has ﬁnished communicating

with the AOSS router, the orange light will stop ﬂashing

and become solid. This indicates that the AOSS process

has completed and the devices are now using AOSS. It

typically takes 15-60 seconds for the entire AOSS process

to complete. Please refer to your wireless client adapter's

supplement for the remainder of the setup.

AOSS

Additional AOSS Information:

◗ Only one AOSS wireless client adapter can be conﬁgured to the AOSS router at a time. Thus,

the button will need to be repressed for each additional AOSS wireless client adapter that will be

connected.

◗ It is not necessary to AOSS client devices that have already been conﬁgured via AOSS, unless

signiﬁcant changes have been made to the wireless network.

◗ Do not attempt to conﬁgure two separate AOSS networks at the same time, as it may cause

undesired conﬁgurations.

◗ If an undesired client has connected via AOSS, it can be disconnected from within the WHR-

G54S’ advanced conﬁguration menus.

AOSS

LAN Settings

Set up LAN connections.

Wireless Settings

Wireless Mode - Enable or

disable wireless LAN computer

communication.

SSID - Allows administrator to

alter the SSID of the AirStation.

To communicate with a speciﬁ c

AP only, the AP’s SSID must

be entered in the client comput-

er. The client computer looks

for the speciﬁ c AP (or SSID) for

wireless communication. Use

up to 32 al pha nu mer ic charac-

ters for the SSID (case sensitive). By default the SSID is the LAN Mac address of the AirStation.

■ Note: Roaming - When multiple AirStations have an identical SSID, WEP key (if WEP is used),

(and channel in WDS mode) , client computers may Roam between the AirStations.

Wireless Channel - Select the channel used for wireless communication. There are 11 overlap-

ping channels. Channels 1, 6 and 11 are non-overlapping. The ‘Auto-Channel’ option is recom-

mended, as it constantly assesses the best available channel for the AirStation to operate on.

Advanced Settings

Wireless

Settings

If there are multiple APs in close proximity using the same channel, there may be interference. In this

case, change to a non-overlapping channel.

Privacy Separator - Enable or disable communication between wireless clients. If you choose to use this

feature, every wireless client that is associated to the AirStation will not be able to communicate with any

other wireless clients.

■ Note: If this function is used, wired clients can still communicate with wireless clients.

BSS (Basic Service Set) Basic Rate Set - The transmission data rates offered by the AirStation. It is

recommended to use the ‘Default’ selection to accomidate 802.11 and 802.11b rate sets. It is NOT recom-

mended to use the ‘All’ selection, as some devices may not understand all of the rate sets offered by the

AirStation.

Frame Bursting Mode - This function increases 802.11g communication throughput by transferring pack-

ets more efﬁciently. The following conditions affect this function:

• The wireless LAN client adapter must support Frame Bursting (and it must be enabled). If the wireless

LAN client adapter does not support Frame Bursting, or Frame Bursting is not enabled, then it will

operate at non-Frame Bursting speeds.

High Speed Mode - This function further increases 802.11g communication. The following conditions af-

fect this function:

• The wireless LAN client adapter must support High Speed Mode (and it must be enabled). If the wire-

less LAN client adapter does not support High Speed Mode, or it is not enabled, then it will operate at

regular 802.11g speeds.

It is recommended to leave High Speed Mode enabled as it can only help throughput, not hurt it.

Advanced Settings

802.11g Protection - This enables protection mechanisms for when 802.11b clients join the net-

work. It enables CTS (Clear-to-Send)

DTIM Period - An access point transmits beacon signals to nearby clients at a preset interval. This

parameter sets the beacon transmission interval time (1-255 seconds). Se lec tion of a larger num-

ber may conserve energy for the client computer (when client power management is enabled), but

may delay wireless communication. The default value of 1 is recommended.

Wireless Output Power - Conﬁ gure output power of the AirStation. Decrease wireless output

power to shrink the wireless communication range. The default setting of 100% is recommended

unless decreased range is desired

Wireless LAN Security

Broadcast SSID - Enable or Dis-

able the SSID (SSID) from being

broadcasted. If denied, the AirStation

will not be found unless the speciﬁ c

AirStation’s SSID is entered in the

client computer manually.

Data Encryption - Disable to have no

encryption of the wireless data. This

will make accessing the AirStation

and the network very easy. It is im-

Advanced Settings

Wireless

Security

Settings

Wireless

Security

Settings

portant to note, that without encryption it is easy for strangers to connect to your network, especially

if the AirStation is broadcasting its SSID.

Select the type of data encryption:

• Disabled - Disable data encryption.

- WEP - Uses WEP encryption. Encryption key should be entered.

- TKIP - Uses TKIP (Temporal Key Integrity Protocol) for data encryption.

The encryption key is renewed every “Re-key interval” when “TKIP” is selected.

WEP - When the WEP (Wired Equivalent Protection) encryption standard is implemented into a

wireless network, a WEP key is used between the client and access point to successfully encrypt,

transmit and decrypt data. For this reason, the same WEP key must be used for communication

between the client and the AirStation.

An access point and client may both carry multiple WEP keys. It is necessary for not only the WEP

keys to match, but also the WEP key’s order. If a wireless client cannot support multiple WEP keys,

the AirStations must be conﬁgured to transmit key number 1 for a connection to take place.

Examples of WEP key:

64-bit ASCII: 5 digits of alphanumeric characters, “ab34Y”

128-bit ASCII: 13 digits of alphanumeric characters, “123456abcdef7”

■ Note: ASCII WEP keys are case sensitive.

64-bit HEX: 10 digits, using characters 0-9 and a-f, “00234ABCDE”

Advanced Settings

128-bit HEX: 26 digits, using characters 0-9 and a-f, “20123456789abcdeabcdeabcde”

TKIP - TKIP (Temporal Key Integrity Protocol) is a WEP expanded encryption technique. TKIP has

greatly improved WEP’s weaknesses by rotating secret keys between every packet. TKIP uses

WPA-PSK (pre-Shared Key).

Characteristics:

- The Initialization Vector is expanded from 24-bits to 48-bits.

- The Initialization Vector is randomized.

- Uses a different RC4 key for every packet.

AES - AES further improves TKIP by using AES (Advanced Encryption Standard) encryption

method. Due to its hardware co-processor, AES uses the toughest encryption without sacriﬁcing

throughput like WEP and TKIP.

TKIP & AES require an 8 to 63 character passphrase in ASCII or 64 digits hexadecimal key.

Example 1: [ airstation -WPA-PSK ]

Example 2: [0123456789abcdef0123456789abcdef0123456789abcdef0123456789abcdef]

WPA Rekey Interval - When TKIP is selected, the encryption key is renewed at this interval. This

interval is in seconds; the range of acceptable values is 0-3600.

If 0 is entered, the key is never renewed.

■ Note: The lower the rekey interval, the more often a rekey occurs. Setting a low rekey interval

may affect performance negatively.

Advanced Settings

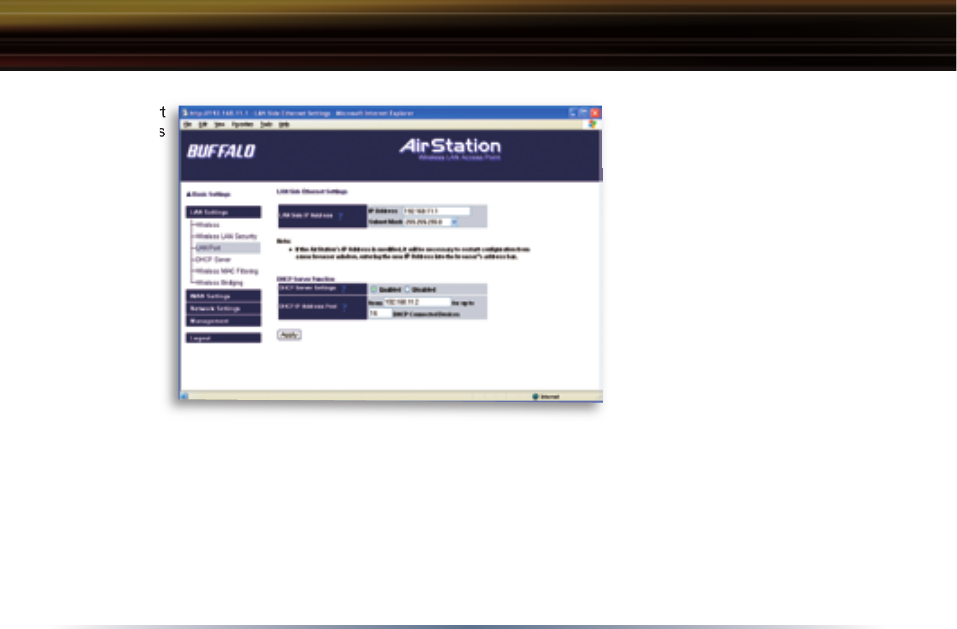

LAN Port

Set the LAN side Ethernet

settings.

LAN Side IP Address - Allows

ad min is tra tor to specify a static

IP and Subnet Mask for the

LAN side of the AirStation.

■ Note: If the AirStation’s IP

address is changed, the con-

ﬁ guring computer’s IP must be

changed to the same range to

continue conﬁ guration. If the

LAN IP is changed, restart the

AirStation. (Section 4.4.10). If

the IP address is changed, then the DHCP scope must be changed to match.

DHCP Server Function - Allows administrator to enable/disable the DHCP server function for the

AirStation LAN side. Select Use to enable and Do not use to disable the function. Once Use is

selected, the assigned IP address range can be speciﬁ ed. Enter the starting LAN IP address and

total number of computers the DHCP server can accomidate.

■ Note: If there is another DHCP server on the network, one either must be disabled or the IP

range must be changed to avoid conﬂ icts derived from overlapping DHCP scopes.

LAN Port

Settings

LAN Port

Settings

Advanced Settings

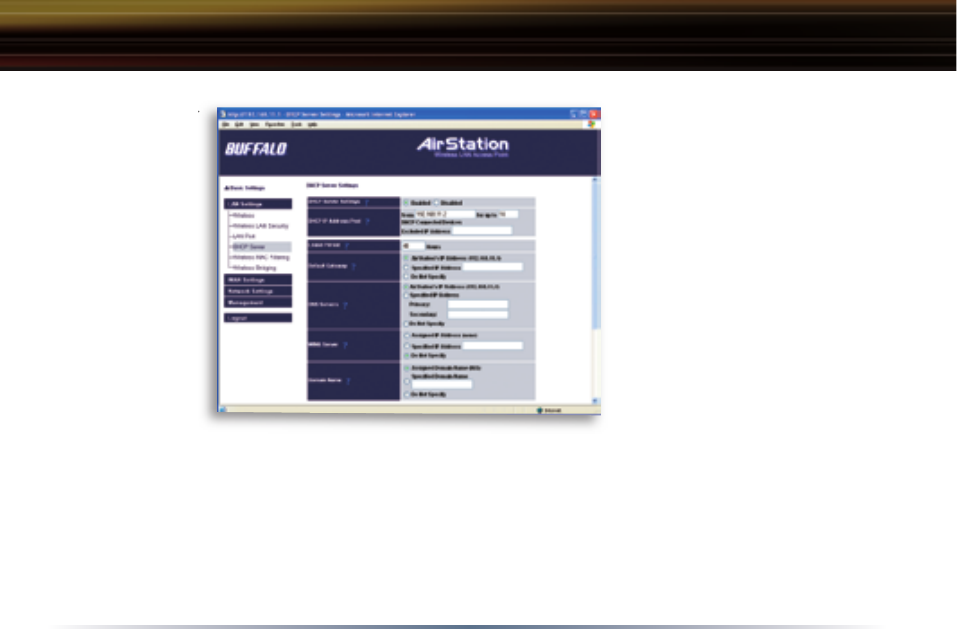

DHCP Server

Allows a more advanced

conﬁ guration of the DHCP

server functions.

DHCP Server Settings -

Allows ad min is tra tor to enable/

disable the DHCP server

function for the AirStation LAN

side. Select Use to enable

or Do not use to disable this

function.

If the DHCP service is enabled,

wireless and wired clients may

receive IP addresses and other

network information from the

AirStation. If the DHCP server is turned off, all client PC’s must have unique, static IP addresses

and valid network settings manually entered. Check with your LAN administrator for static IP

information.

DHCP IP Address Pool - Sets the beginning address and range of addresses to be assigned by

the AirStation’s DHCP server function. Select up to 253 consecutive addresses (nodes). The IPs

to be excluded from the range spec i ﬁ ca tion should be entered in the speciﬁ ed ﬁ eld.

DHCP Server

Settings

DHCP Server

Settings

Advanced Settings

Lease Period - Speciﬁes the time in hours (1-999) an assigned IP address is valid. If the client

computer does not request a renewal of IP address before the lease period expires, the AirStation

can issue the IP to another client computer.

Default Gateway - Allows administrator to use the Default Gateway address (the AirStation’s IP

address), assign a speciﬁc Gateway address, or block clients from Gateway notiﬁcation.

DNS Server - Allows administrator to use the default DNS address (the AirStation’s IP address),

assign speciﬁc DNS addresses, or block clients from DNS address notiﬁcation.

WINS Server - Allows administrator to use a WINS address. Select auto assignment of the IP ad-

dress, enter a speciﬁc WINS IP address, or block clients from the WINS address notiﬁcation.

Domain Name - Allows administrator to use an assigned domain name, assign a speciﬁc domain

name, or block clients from domain name notiﬁcation. Domain names will be sent to LAN comput-

ers when an IP address is assigned. Enter a maximum of 64 alphanumeric characters.

Advanced Settings

Manual As sign ment - Allows

administrator to add additional

leased IP addresses tied to a

speciﬁ c MAC address. When a

speciﬁ c MAC address connects

to the AP, the IP address speci-

ﬁ ed will be given to that client.

Display/Delete lease informa-

tion - List of IP addresses, MAC

addresses, lease periods and

status is displayed.

Manual IP

and MAC

Address

Assignment

Settings

Advanced Settings

Wireless MAC Filter

Enforce MAC Filtering - Select

Enable to restrict wireless

connections to the registered

adapters in the list. Select

Disable to disable MAC

address ﬁ ltering.

Press the Apply button to enter

the MAC Address registration

menus. This is where MAC

Addresses can be assigned

and deleted.

Wireless MAC

Filter

Advanced Settings

Registration for MAC Ad-

dresses - MAC access

restriction set up in LAN. Input

the MAC addresses that are

allowed to communicate with

the AirStation.

MAC address list - Displays a

table list of all MAC addresses

allowed to communicate with

the AirStation.

Advanced Settings

Allowable PC’s

MAC Address

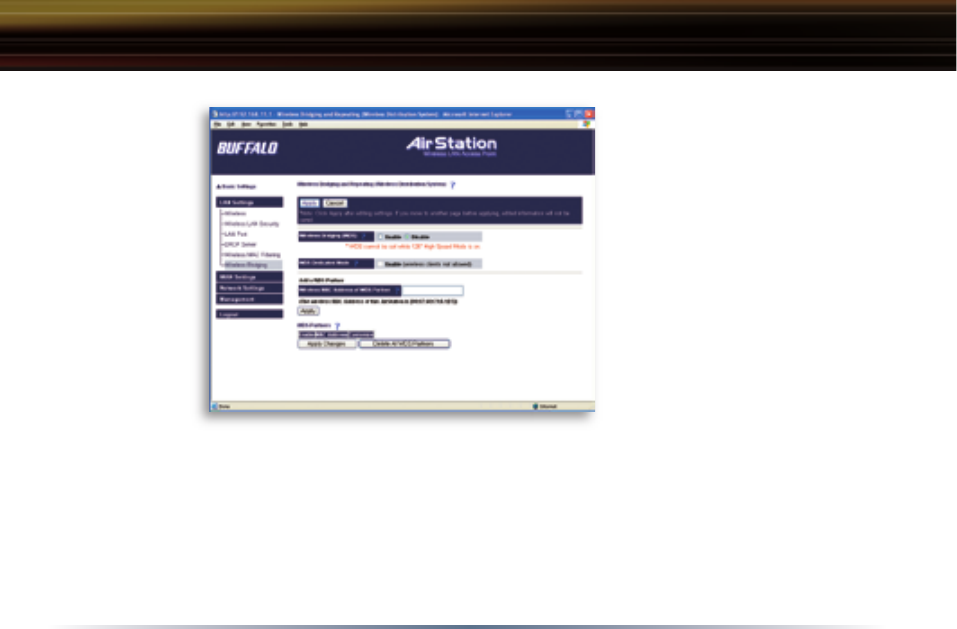

Wireless Bridge (WDS)

The Wireless Distribution

System supports peer-to-peer

AP communication.

Wireless Bridging (WDS)-

Select Enable to allow Bridge

(WDS) mode between AirSta-

tions or Disable to block com-

munication between AirSta-

tions.

Wireless Bridge (WDS) Dedi-

cated Mode - Select Enable to

restrict wireless computer com-

munication with the AirStation.

In dedicated mode wireless

clients CANNOT connect to

WDS AirStations.

■ Note: All AirStations must support WDS and be on the same channel. Do not use ‘Auto-Channel’

when using WDS. For roaming support, use the same SSID on all devices.

Add a WDS Partner: Allows administrator to input the wireless MAC address of AirStations for

Bridge (WDS) communication. The wireless MAC address is found in the Management section =>

System Information, labeled Wireless MAC Address.

Advanced Settings

Wireless

Bridge (WDS)

Settings

To enable WDS, set the Wire-

less Bridge (WDS) function to

Enable.

Enter the Wireless MAC

address of the AirStation to

communicate with in the form

of two characters separated by

a colon and click Add.

MAC Address Ex:

00:00:00:00:00:00

Up to six AirStation MAC ad-

dresses may be registered.

Click Apply under Wireless

Bridge (WDS) settings when

the wireless Mac addresses

AirStation are entered.

Repeat this process on every other AirStation used in Bridge (WDS) mode.

Wireless

Bridge (WDS)

Settings

Advanced Settings

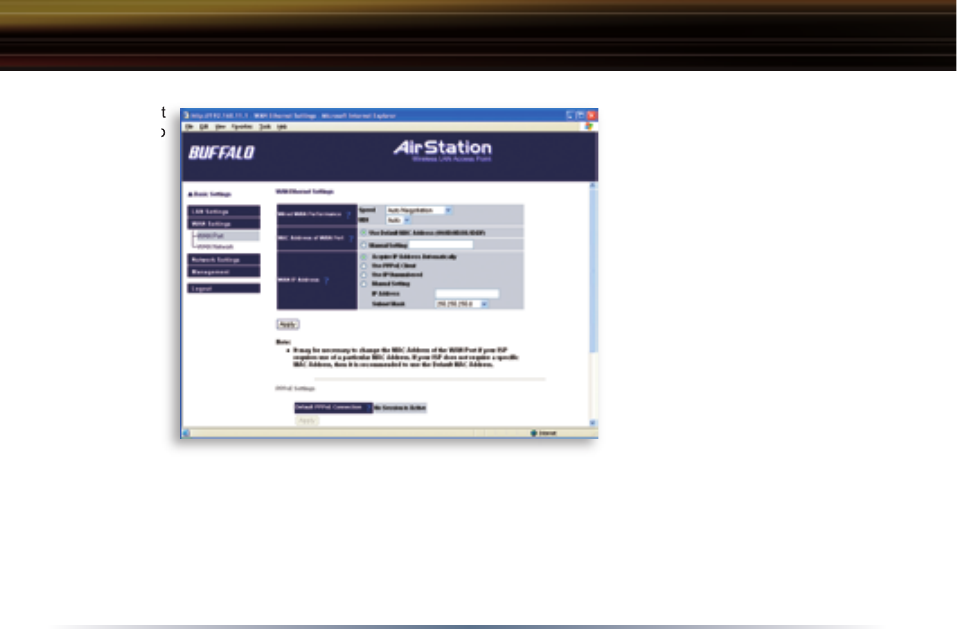

WAN Settings

WAN Port

Wired WAN Performance

- Select port speed and type of

duplex connecting to the WAN

port. If unknown, select Auto

negotiation.

MAC Address of WAN Port

- Set the AirStation MAC ad-

dress to be used for WAN

com mu ni ca tion. Some ISP’s

may require you to set the MAC

Address of WAN to be the same

MAC address of your cable or

DSL modem.

WAN IP Address - Allows ad-

ministrator to select DHCP server, PPPoE, or manual setting for the WAN port of the AirStation.

Auto IP assignment from DHCP server - acquire the IP address automatically from the DHCP server.

Use PPPoE client - If selected, the in for ma tion listed below must be entered.

Manual setting - Enter the appropriate IP address and subnet mask.

Advanced Settings

WAN port

Setup

WAN port

Setup

PPPoE Setting (for enabling PPPoE Client function) - Allows administrator to use PPPoE as

speciﬁed by the ISP.

The following parameters should be entered for PPPoE Settings:

Name of Connection - Enter the name of your connection.

User Name - Enter the user name (up to 64 alphanumeric characters) for PPPoE authorization.

Password - Enter the password provided by your ISP (up to 64 alphanumeric characters). Reenter

the password in the Conﬁrmation box.

Service Name - Enter the PPPoE service name (up to 64 alphanumeric characters). If your ISP

doesn’t require a service name, then leave it blank.

Connection Type - Select from:

- Continuous Connection - connects immediately after setting and never

disconnects.

- Connect on Demand - Reconnects when the disconnect time elapses.

- Manual - Disables Automatic Connection. Connects to the Internet using the connect button on

the initial settings page.

The Enter New Connection button will not appear until Use PPPoE Client is set.

Disconnection Time - Specify the number of minutes (0-1440) before automatic disconnect is

performed. If “0” is entered, the disconnect function is disabled. If Continuous Connection is

selected, the timer is disabled.

Advanced Settings

Authorization - Authorization

method for accessing the ISP’s

PPPoE server. If unknown,

select Auto authorization.

MTU (Maximum Transmit

Unit) Size - Maximum Transmit

Unit (578-1492) when using

PPPoE.

MRU (Maximum Receive

Unit) Size - Maximum Receive

Unit (578-1492) when using

PPPoE.

Keep Alive - Enables the

PPPoE client to send a Link

Control Protocol (LCP) echo

request to the PPPoE server

once per minute. If there is no reply within six minutes, the client disconnects. Set to Disable if

frequent disconnection occurs.

Activation - Enable/disable registered connection settings. If disabled, the connection is not per-

mitted.

PPPoE

Settings

Screen

Advanced Settings

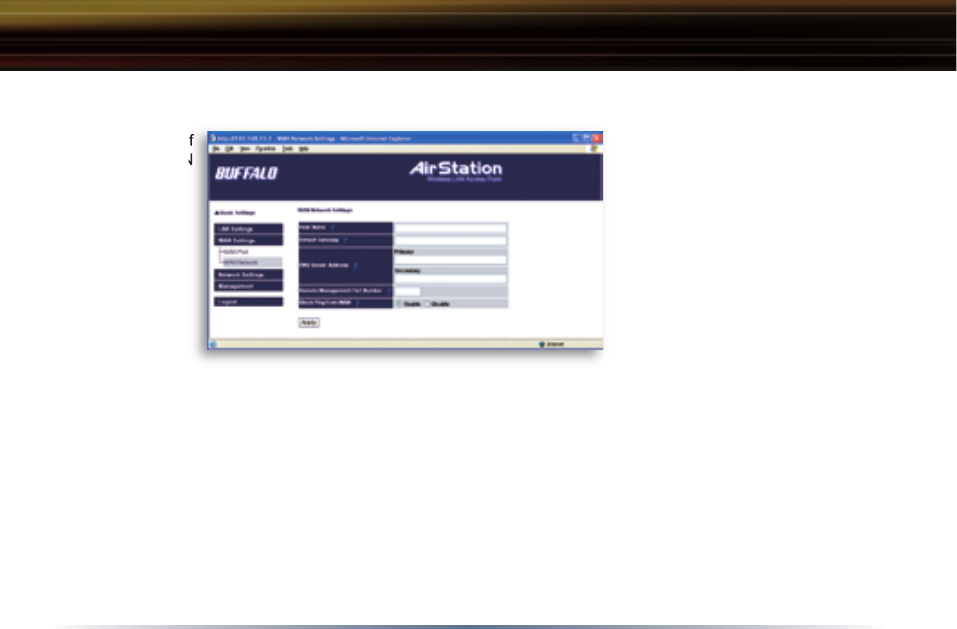

WAN Network

WAN side (Internet)

parameters. These settings

are generally not required if

your ISP is providing DHCP

services. In this case these

ﬁ elds can be left blank if

desired.

Host Name - Enter the host

name as desired.

Default Gateway - A default

gateway IP should be assigned

to the AirStation. If unknown, leave blank. If Auto IP as sign ment from DHCP Server is selected

in the WAN Port section, a gateway IP is assigned automatically, provided the DHCP server is set

to provide one.

DNS Server Address - Enter the primary and secondary DNS address(es) of the server to be used

by the AirStation for DNS resolution.

Remote Management Port Number - Set a speciﬁ c port number when remote setup of the

AirStation is planned. Using port 80 allows the AirStation to be accessed from the internet by con-

necting to http://xxx.xxx.xxx.xxx (where xxx.xxx.xxx.xxx is your WAN IP address). You will need to

conﬁ gure the NAT (Adress Translation Settings) to forward PORT 80 back to the AirStation.

Block Ping from WAN - Allows a PING test from the WAN/Internet. Select Disable or Enable.

Network of

WAN

Network of

WAN

Advanced Settings

Network Settings

Routing Setup

RIP transmission to WAN - Allows RIP

transmission or None (no RIP) to WAN

RIP reception from WAN - Allows RIP

reception or None (no RIP) from WAN

RIP transmission to LAN - Allows RIP

transmission or None (no RIP) to LAN

RIP reception from LAN - Allows RIP

reception or None (no RIP) from LAN

RIP transmission to WAN - Allows RIP

transmission or None (no RIP) to WAN

Display Routing Table - Allows

administrator to view and delete routing

information.

Routing

Setup

Advanced Settings

Click Add Route to Add a

Routing Table Entry

•Destination address - Net-

work IP address and subnet

mask.

• Gateway - Address through

which the packet passes be-

fore it reaches the des ti na tion

address.

• Metric - Number of routers

(1-15) to be passed before the packet reaches its destination.

Add Routing

Table Entry

Advanced Settings

Address Translation

Address Translation - Select

Enable or Disable. Address

Translation must be enabled

for client computers to con-

nect to the Internet. Selecting

Enable enables the following

functions:

• IP Masquerade - When the

LAN computer connects to the

WAN side, the IP address of

LAN computer is dynamically

translated to become the WAN

IP address of the AirStation.

Multiple LAN computers can

share one WAN IP address to

access the Internet.

• Static IP address translation -When the WAN requests connection to the LAN, the WAN IP

address of the AirStation is translated into the IP address of the LAN computer.

Log Output - Set ‘Log Output’ to log discarded packets. Otherwise, a dropped packed is not

logged.

IPSec PassThrough - Enables the AirStation’s ability to pass IPSec VPN data.

Address

Translation

Setup

Address

Translation

Setup

Advanced Settings

IP Address of DMZ - Allows administrator to set the DMZ (De-Militarized Zone) address. Incoming

packets containing no recognizable destination port information will be re di rect ed to the DMZ’s IP

address.

Display/Delete NAT Table - Allows ad min is tra tor to delete NAT tables.

Add NAT Table

Group - Specify a group (up to 16 characters)

that the NAT rule belongs. Groups are simply

used to visually organize the NAT table for the

administrator. It is recommended to name the

group after the protocol that is being setup

(e.g. Group Name FTP when setting up ad-

dress translation for FTP)

Click New Group to create new group or

select an existing group to add a NAT rule to it.

WAN Side IP Address - Select AirStation’s

WAN Side IP Address or Manual IP Ad-

dress. For Manual setting, enter the IP ad-

dress used by the WAN computer to connect to the local computer.

AirStation’s IP Address of WAN should be used unless you have multiple WAN side IP

addresses.

Advanced Settings

Address

Translation

Setup

dress used by the WAN computer to connect to the local computer.

Address

Translation

Setup

Some network applications (online games or streaming software) require adding Address Transla-

tion tables; consult the software’s documentation for port information).

Protocol (WAN):

• All - Selects all IP protocols.

• ICMP - Network Diagnostic Protocol (1).

• Manual - Specify the protocol number (0-65535).

• TCP/UDP - Enter port number for TCP or UDP protocols. If both TCP and UDP are required,

then separate entries are required.

LAN IP Address - Select Manual IP Address and enter the destination IP address of the LAN

computer; or select AirStation’s LAN IP Address.

Protocol (LAN) - Enter the destination port number. If left blank, the packets are transferred to

the same port number as the source port number. Typically the destination port should be left the

same as the source port.

• Click Add to NAT table. This will add the information to the NAT table. Once you have gone

through this process for every desired translation, you will need to press the Apply button on the

top of the screen to start the translating.

Advanced Settings

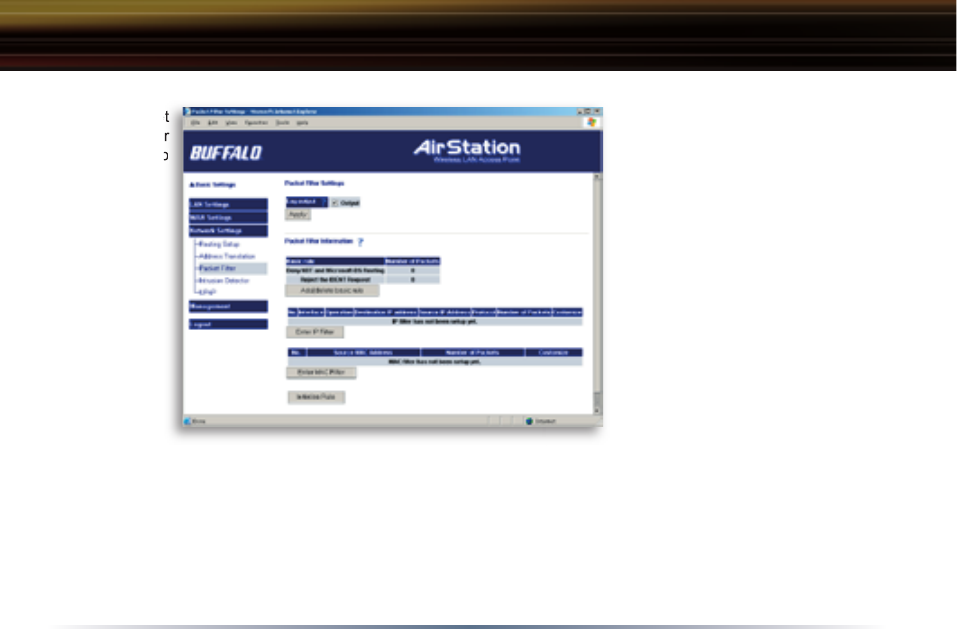

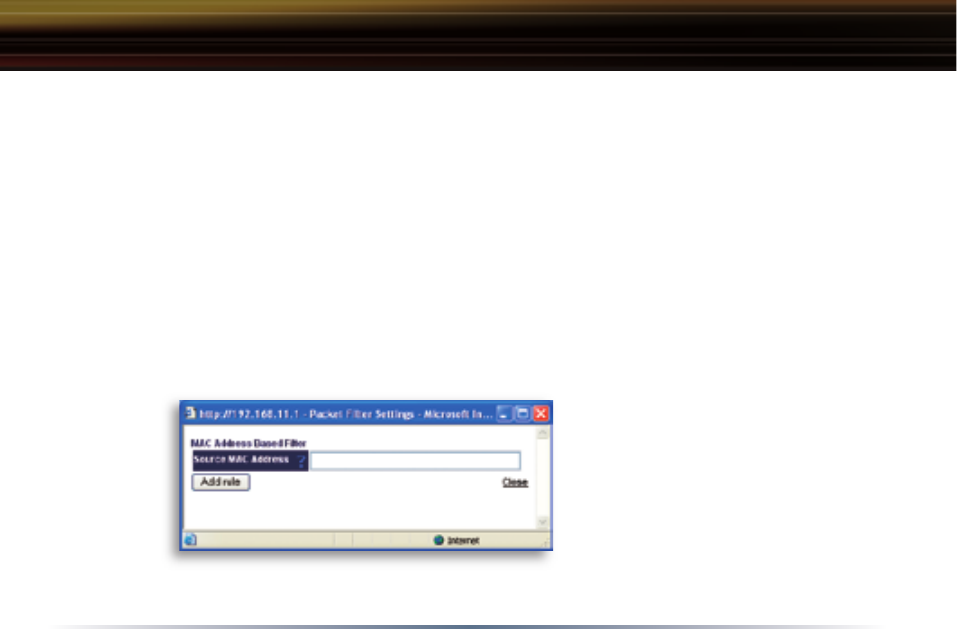

Packet Filter

Log Output - Select Output to

activate the packet ﬁ lter log.

Packet Filter Information

Basic Rule - Click add/delete

basic rules. Place a check

mark next to the basic rule to

enable:

• Deny setup from wireless

LAN - Prohibits administration

from a wireless computer.

• Deny setup from wired LAN

- Prohibits administration from

a wired computer.

• Deny setup via wireless bridge access point - Prohibits a personal computer connected to

another AirStation in a wireless bridge.

• Prohibit NBT and Microsoft-DS routing - Prevent unexpected external access via Microsoft

network sharing. This prohibits computers on the internet from accessing shared resources on

Windows machines. It is recommended to leave this ﬁ lter activated.

• Reject the IDENT request - The AirStation sends reject packets if it receives an IDENT request.

Packet

Filter

Setup

Packet

Filter

Setup

Advanced Settings

Use this ﬁ lter when the commu-

nication speed goes down using

a network application like E-mail,

FTP and WEB.

* If IDENT requests are for-

warded to a LAN side client by

address translation setting (DMZ

or TCP port :113 ), this basic rule

is ignored.

Basic Filter

Setting

Use this ﬁ lter when the commu-

nication speed goes down using

a network application like E-mail,

FTP and WEB.

* If IDENT requests are for-

warded to a LAN side client by

address translation setting (DMZ

or TCP port :113 ), this basic rule

is ignored.

Basic Filter

Setting

Advanced Settings

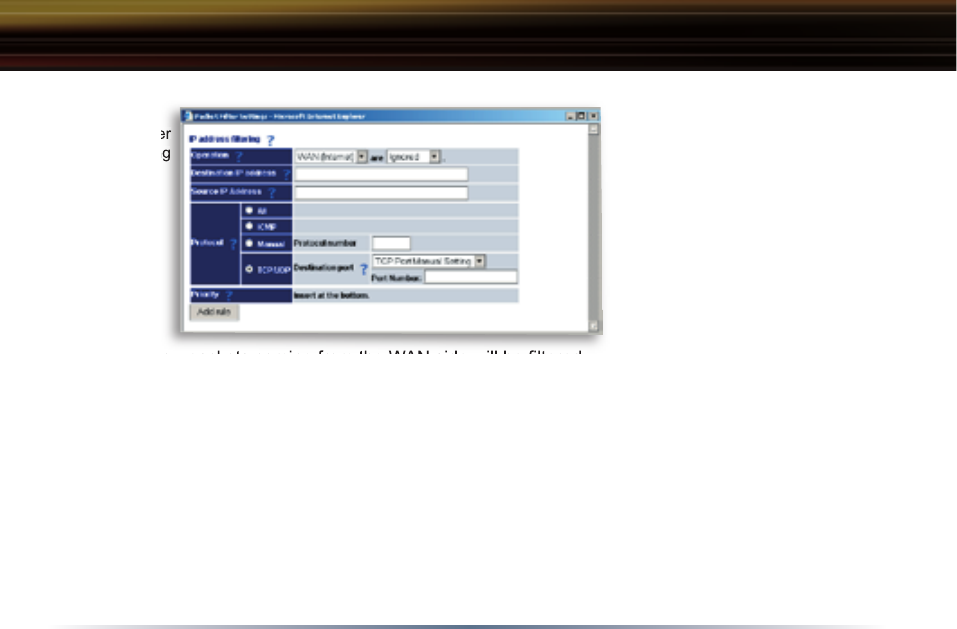

IP Filter Settings - Limits the

type of packets allowed to pass

between the WAN and LAN.

The maximum number of rules

is 32.

• Operation - Packets from

WAN (or LAN), select ignored,

rejected, or accepted. Select

the operation to be performed

on the packets.

Packets from:

• WAN side - packets coming from the WAN side will be ﬁ ltered.

• LAN side - packets from the LAN side will be ﬁ ltered.

Are :

• Ignored - Stop the packet and do not route it.

• Rejected - Return the rejected packet to the point of origin.

• Accepted - Pass the packet through.

• Destination IP Address - The IP address to be ﬁ ltered.

• Source IP Address - The IP address designated for ﬁ ltering. If all IP addresses must be ﬁ ltered,

leave this box blank.

Warning: If administrator selects packet from LAN is Ignored or Rejected, the ad min is tra tor will

IP Filter

setting

• WAN side - packets coming from the WAN side will be ﬁ ltered.

IP Filter

setting

Advanced Settings

no longer have access to the AirStation conﬁ guration screens. This function prohibits setup from

a wireless or wired computer. The AirStation can be returned to the factory default settings by

holding down the INIT button on the back of the unit for ﬁ ve seconds or until the red DIAG light

becomes solid.

Protocol - Mark and select a speciﬁ c protocol. Select from all protocols, ICMP, arbitrary protocol

number and TCP/UDP protocol number.

• All - Selects all IP protocols.

• ICMP - Network Diagnostic Protocol (1).

• Manual - Enter protocol number (0-65535).

• TCP/UDP Destination Port - Select TCP or UDP, then enter port number.

Priority - Specify the priority of an item. The smaller the number, the higher the priority.

MAC Filter - Click Enter MAC ﬁ lter to

enter MAC address.

Source MAC address -The MAC

address of the source of the packets

that will be ﬁ ltered may be set. Click

Add rule when complete.

Advanced Settings

Add MAC

Filter

setting

■ Note: If conﬁguring from a wireless computer, add your MAC address to the list of authorized

wireless LAN PCs. The MAC address must be in two-digit groups separated by colons.

Example: 00:40:26:00:11:22

Click Apply when settings are complete.

Advanced Settings

Intrusion Detector

The Intrusion Detector watch guards

and prevents unauthorized access

from the WAN (Internet)

This function also records information

on unauthorized access attempts

Intrusion Detector - Select Do not

use, Use or Use (Apply Packet ﬁ lter

setting for Intrusion Detector set-

ting).

IP Spooﬁ ng - Check Block to prevent

IP spooﬁ ng.

Threshold Value - Enter the number

(1-999) of suspect packets before the

notiﬁ cation occurs.

Notify by email

• Email Alert Notiﬁ cation - Enter des ti na tion email address

• Sender email address - Enter the email address that will send the email. This is the name

that will appear as the sender when the email is read. This email can be made up (e.g.

DETECTOR@AIRSTATION

Intrusion

Detector

Setup

Advanced Settings

• Sender email server address - Enter the SMTP Server address.

• Receiving email server authorization - Enter the POP3 Server address, User name and Password.

This is only required if your SMTP server requires POP veriﬁcation before it allows email to be sent.

Consult your ISP or mail server support for more information.

• Send test - Click Send to test notiﬁcation; this will also save and commit the entries.

Pop-up notiﬁcation - Pop-up window alert of unwanted activity. Client Manager must be installed and

running on a client machine to use this feature.

• Destination IP address - Enter the IP address to be notiﬁed. The LAN computer with this IP address

must have Buffalo’s Client Manager software installed and running for the veriﬁcation to occur. If the

machine is off the veriﬁcation will not be received, and the AirStation will NOT resend information.

Intrusion Detector information - displays log activity detected by the Intrusion Detector service.

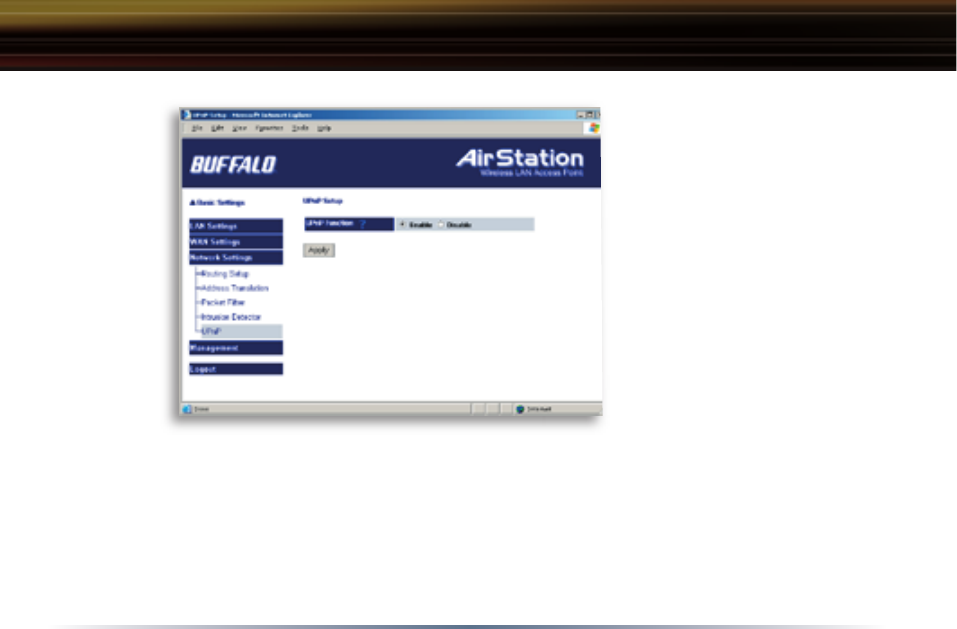

UPnP

Select Enable to enable

UPnP (Universal Plug and

Play). When a computer with

UPnP support connects to the

AirStation, that computer auto-

matically receives conﬁ guration

information from the AirStation.

Advanced Settings

UPnP

Setting

Management - System Information

System information of the AirStation is

obtained here.

• Model - Displays model and ﬁ rmware

version

• AirStation Name - Displays AirStation

host name

• DHCP Server - Displays On or Off

• Wireless Settings - Displays the

wireless LAN settings such as wireless

MAC address and wireless ﬁ rmware. The

wireless MAC address is required for

setting up WDS with other access points.

This is the best place to determine the

wireless MAC address. If High Speed

mode is enabled, then the [AfterBurner] color will be red or grey. When it is red, High Speed mode

is running. When it is grey, High Speed mode is enabled but not running due to a client being

connected at 54 Mbps or another access point running on the same channel.

• LAN Settings - Displays the AirStation LAN settings .

• WAN Settings - Displays the AirStation WAN settings and PPTP client settings if available.

• Default Gateway - Displays the default gateway settings.

• WAN side IP address auto acquisition - This is the method to acquire the IP address from the

WAN (Internet) side DHCP server. Press Release to release current DHCP WAN information. Press

Advanced Settings

System

Information

Renew to obtain WAN information from the DHCP server. NOTE: If a manual IP is assigned to the

WAN port, this feature is not displayed.

Change Password

AirStation name - When us-

ing multiple AirStations, select a

unique name to make it easier to

identify each AirStation through

the AirStation Manager utility. This

utility is seldomly used, thus, the

AirStation name value has little

value.

Administrator Name - “root”, can-

not be changed

Administrator Password -

Allows the administrator to enter

an administrator password to re-

strict access to the setting screens.

Advanced Settings

Name and

Password

Setup

Name and

Password

Setup

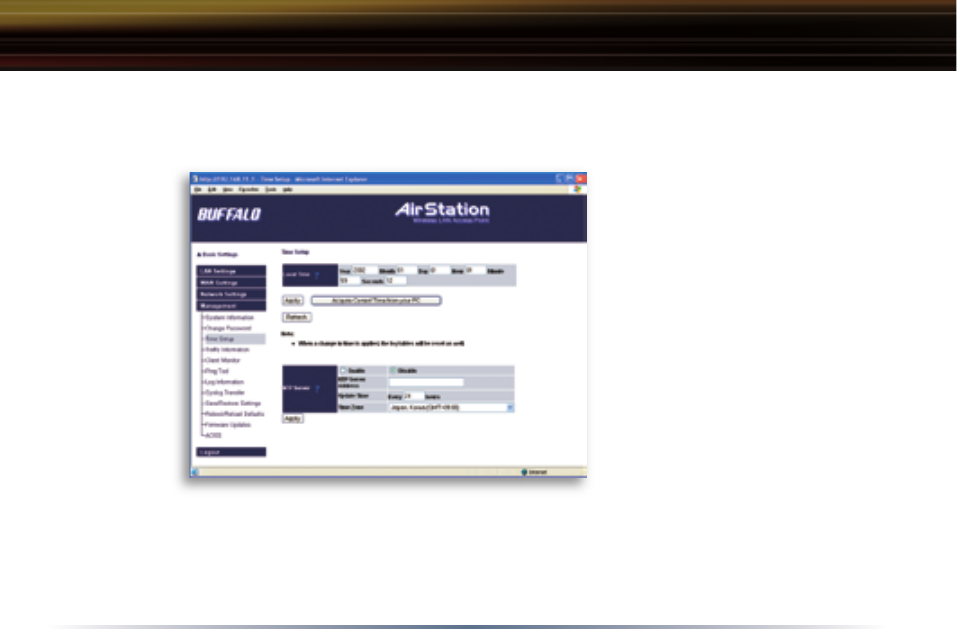

Time setup

Time setup - Enter the current date and time, and click Set.

NTP - Network Time Protocol.

Select Use or Do not use.

■ Note: If NTP is used, time is set

au to mat i cal ly.

NTP Server Address - Enter the

NTP Server Address

Update Time - Enter the time

interval (in hours) for the time

check frequency

Time Zone - Select local time

zone

Click Apply.

Advanced Settings

Time Setup

Screen

Packet Trafﬁ c

Information

Displays number of packets

sent and received for:

Wired WAN

Wired LAN

Wireless LAN

Click Refresh to start update

the transfer packet log.

Advanced Settings

Packet Traf-

ﬁ c Informa-

tion

Client Monitor

Displays the wired and wireless

clients (computers) that are

accessing the AirStation.

• MAC address - Shows the

client’s MAC address.

• IP Address and Medium -

Shows the IP address that is

assigned to the client from the

DHCP server.

The network medium is

indicated as wireless or wired

depending on how the client is

accessing the AirStation.

■ Note: The Client Monitor

only shows clients that have

received an IP address from

the AirStation’s DHCP server.

Clients that have static IP

addresses will not appear in

the Client Monitor.

Advanced Settings

Client

Monitor

Screen

Client

Monitor

Screen

PING Test

Performs a PING test from the

AirStation to a LAN or WAN

address.

Enter the target IP address and

click OK (e.g. 192.168.11.2

- OR- www.buffalotech.com)

If the test results in an error,

then verify you correctly

inputted the address and

check your connections.

Advanced Settings

PING Test

Log Information

Display log info level - Select

Error and/or Notify to spec-

ify the types of reports to be

logged by the AirStation.

Display log info - Select the

speciﬁ c reports to be logged.

Log information - Displays

recorded logs.

Advanced Settings

Log

Information

Screen

Syslog Transfer

Select Enable or Disable

to enable or disable the

AirStation’s ability to transmit

information to a Syslog server.

• Syslog Server - Enter the IP

address of the Syslog server.

• Log Information Level

- Select Error and/or Notice to

specify the types of reports to

be sent to the Syslog server.

• Log Information - Select the

speciﬁ c reports to be sent to

the Syslog server.

■ Note:

A server on the net-

work running a Syslog service

is required for this.

Advanced Settings

Syslog

Transmitting

Screen

Save/Restore Settings

Save current settings - Click

Save to open the ﬁ le saving

dialog and save the current

AirStation settings to a ﬁ le.

Restored saved settings

- Restores settings from a ﬁ le

that has been saved. Click

Choose ﬁ le to select the saved

ﬁ le and click Restore.

■ Note:

If the setting ﬁ le is

saved by a newer ﬁ rmware than

the current one, the AirStation

can’t restore the settings.

Advanced Settings

Save/

Restore

Settings

Screen

Save/

Restore

Settings

Screen

Reboot/Reload Defaults

Click Restart to reboot

AirStation

Click Restore to reset the

AirStation to default factory

settings.

■ Note:

Resetting to default

factory settings will erase

all settings and passwords

previously entered. The

AirStation will return to the

condition it was in when ﬁ rst

purchased.

Advanced Settings

Initialization/

Reboot

Firmware Update

Firmware File Name

- Click Browse to browse

to the path and ﬁ lename

for the new ﬁ rmware. Click

Firmware Update to load

ﬁ rmware to the AirStation.

■ Note: Firmware update

does not erase current

user settings. It does

however delete all of the

service information from

the Network Service List;

you will need to perform a

new service search after

you update the ﬁ rmware.

Please visit the Buffalo Technology Web Page to download the latest ﬁ rmwares free of charge.

http://www.buffalotech.com

Advanced Settings

Firmware

Update

Firmware

Update

AOSS

Client Table - Displays the

clients connected via AOSS. The

‘Disconnect’ button disconnects

the client from the AOSS router

by using MAC Address ﬁltering.

Once disconnected, the client will

still appear in the client list but

will appear as disconnected. The

client can then be re-enabled by

pressing the ‘Re-Enable’ but-

ton. A separate table exists for

connected Ethernet Converters.

The ‘Refresh’ button updates the

tables.

Encryption type - This forces AOSS to use a speciﬁed type of encryption. It is recommended to

not change this setting. If the setting is changed then every client that connects must have support

for that encryption type.

Advanced Settings

AOSS

AOSS - Click Enable to allow the

AirStation to use AOSS function. Click

Disable to shut off the AOSS system.

Clicking Disable will disable the AOSS

button on the AirStation.

Start AOSS - Click AOSS icon to

begin the AOSS sequence. This starts

the AOSS process just like pressing

the AOSS button.

Stop AOSS Process- Click AOSS

icon to stop AOSS operation. Stop-

ping the AOSS function will turn off

AOSS and return the router to non-

AOSS function.

Advanced Settings

AOSS

File & Printer Sharing - Audio/Video Playback

After clicking on the Shared Files icon you will see the available shared ﬁles

and printers.

Printing: To print you can right click on a shared printer and press the ‘Con-

nect’ button to install it as a printer on your computer. You can also drag a

document, image, or text ﬁle directly over the printer share and it will connect

to the printer and print it. Thus, you can drag a Microsoft Word Document

over the shared printer and it will print out on the printer in the remote loca-

tion.

Files: To access ﬁles, double click on the ﬁle or folder icon just like you

would on your local machine. Files can be moved, copied, and renamed

normally as well.

Audio/Video Playback*: To play audio or video ﬁles through shared ﬁles

just double click on the audio or video ﬁle you would like to play or select

multiple ﬁles and create a playlist.

* Streaming audio or video over the internet requires an internet connection sufﬁcient enough to

move the necessary amount of data. For instance, to stream a 128kbps MP3, a 150k or greater

internet connection would need to be present on the remote and local side. Video often requires a

faster internet connection. Most broadband DSL/Cable connections will have no problem stream-

ing audio and most video ﬁles.

The Shared Files icon on the Network Service List gives you access to a PC or network

device’s shared ﬁles and printers. For Windows PC’s, File and Printer sharing must be

setup properly before this service will work. On Network Storage Centers like Buffalo’s

LinkStation, the Shared Files icon should work with little to no conﬁguration. Please consult

your Windows documentation to learn more about setting up File and Printer Sharing.

NOTE: It may take a few moments for

the Shared Files folder to open after you

click on the icon.

Additional Information

For more information, please consult:

• The AirStation website at:

http://www.buffalotech.com - for frequently asked questions (FAQ’s) and Software Updates.

WHR-G54S BASE STATION SPECIFICATIONS

Physical Speciﬁcations

W1.10 x H5.28 x D5.67 in. (28 x 134 x 144 mm)

Weight 0.6 lb. (270g)

Temperature & Humidity

Operation 0˚ to 40˚ C

Maximum humidity 85%

Transit/Storage 0˚ to 40˚ C maximum humidity 85% (no condensation)

Power Characteristics

Power Supply 100-240 V AC Universal, 50/60 Hz

Power Consumption About 3.4 W (Max)

Speciﬁcations

Regulatory Information

Wireless communication is often subject to local radio regulations. Although AirStation wireless

networking products have been designed for operation in the license-free 2.4 GHz band, local radio

regulations may impose limitations on the use of wireless communication equipment.

Networking Characteristics

Compatibility

• IEEE802.11g/b Standard for Wireless LANs (High Speed Mode also Available)

• Wi-Fi (Wireless Fidelity) certiﬁed by the Wi-Fi Alliance.

Host Operating System

Microsoft Windows® 98SE/ME/NT4.0/2000/XP, Unix, Linux and MacOS

Media Access Protocol

Wired - CSMD/CD (Collision Detection)

Wireless - CSMD/CA (Collision Avoidance) with Acknowledgment (ACK)

Radio Characteristics

RF Frequency Band 2.4 GHz (2,412-2,462 MHz)

11 selectable channels (3 non-overlapping)

Speciﬁcations

Modulation Technique Direct Sequence Spread Spectrum

• ODFM for High Transmit Rate

• DQPSK for Standard Transmit Rate

• DBPSK for Low Transmit Rate

Spreading 11-chip Barker Sequence

Nominal Output Power 19.05 dBm (CCK) / 16.05dBm (OFDM)

Transmit Rate / Range

802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b : 1, 2, 5.5, 11 Mbps

AirStation IEEE 802.11 Channel Sets

The range of the wireless signal is related to the Transmit Rate of the wireless communication.

Communications at a lower Transmit range may travel longer distances.

Center Channel ID FCC

1 2412 2 2417 3 2422 4 2427 5 2432 6 2437 7 2442 8 2447 9 2452 10 2457 11 2462

11 default channel

Speciﬁcations

Common Problems:

• Out of range, client cannot connect to the AirStation.

• Conﬁguration mismatch, client cannot connect to the AirStation.

• Absence or conﬂict with the Client Driver.

• Conﬂict of another device with the AirStation hardware.

(1) LED Activity

Monitoring LED activity helps identify problems.

• Power LED should be GREEN,

• Wireless LED should be GREEN if the line is active. If is it blinking GREEN, wireless communica-

tion is active.

DIAG LED Activity

Unplug the power for three seconds. Plug the power back in to monitor the DIAG LEDs during start-up.

If any symptoms match section the table below, contact to your local agency described on the “Contact

Information” section on the bottom pages of this manual.

DIAG LED Activity Table

Troubleshooting

DIAG LED Display Status Descryiption

Red ﬂash, 1 time RAM Error Failed to read/write internal memory

Red ﬂash, 2 times Flash ROM Error Failed to read/write Flash memory

Red ﬂash, 3 times Wired LAN Error Wired LAN Controller is failed

Red ﬂash, 4 times Wireless LAN Error Wireless LAN Controller is failed

Red ﬂash, 5 times IP Address Conﬁguration

Error

Not communicating because the WAN port and the LAN port

have a same network address. Change LAN IP address setting

of the WHR-G54S.

Red ﬂash, 9 times Other Errors

Continuous ﬂash Updating Firmware

Saving Conﬁguration

(2) LEDs Work But Client PC Cannot Connect to Network

If the LEDs indicate that the network is working properly (Power LED is on, Transmit/Receive LED

blinks), check the TCP/IP settings of the network.

Changing Client TCP/IP Settings in Windows

Consult the LAN Administrator for TCP/IP settings.

To add or change the TCP/IP Settings:

1. On the Windows task bar click Start.

2. Select Settings, then Control Panel.

3. Double-click on the Network icon to view the Network Properties.

Troubleshooting

4. From the list of installed components, verify the TCP/IP => wireless LAN adapter protocol is

installed.

• If the wireless adapter protocol is not yet installed, click the Add button and select the TCP/IP

protocol from the list. Refer to Windows Help for more information.

• If the wireless adapter protocol is installed, select the protocol and click the Properties button.

Verify the parameters match the settings provided by your LAN Administrator. Make changes

if necessary, and click OK.

5. When or if prompted, restart your computer.

(3) Other Problems

Please refer to our Technical Support (refer to Pages 92-94) for further reference materials.

Troubleshooting

Troubleshooting WDS (Step-by-Step Instructions)

The most common issue with WDS installations is using the wrong MAC address. The proper MAC Ad-

dress for the access points is the ‘Wireless MAC Address’. The best place to document this is under the

‘System Information’ section of the conﬁguration web page. For proper setup, please continue reading

this document.

Problem:

Communication problems with WDS (wireless bridging/repeating).

Cause:

WDS is a very complex bridging system, and it is not part of the 802.11b or 802.11g standard.

Restrictions:

Please verify that the following conditions are met (if just one condition is not satisﬁed, then WDS can-

not be used on the wireless network):

1. All wireless access points in the wireless bridge need to be from the same vendor (e.g. all Buffalo

access points).

(At time of publication, the Apple Airport Extreme WILL work in WDS with Buffalo G54 access points.)

2. No single access point can communicate with more then six other access points in the wireless

bridge.Good Practices:proper location.

Troubleshooting

The following is a list of good practices with WDS:

1. Start the wireless bridge system with only two access points and then add more access points.

2. Setup all access points in the wireless bridge in close proximity before they are deployed to their

proper location.

3. Only one access point in the wireless bridge should be serving DHCP and routing services unless a

routed wired network exists.

Proper Setup:

Please follow the following steps to properly setup WDS.

1. It is recommended that all access points in the bridge are reset to their factory default settings. This

is done by holding the INIT button on the rear of the access point down for 5-10 seconds.

2. Login to the ﬁrst access point in the wireless bridge (this should be the DHCP server enabled ac-

cess point if there is not already a routed wired network).

3. Click on the ‘Advanced’ button.

4. The wireless settings page will appear. Select the proper settings for the wireless network. Record

all settings on a piece of paper. All settings except for the SSID need to be identical amongst all ac-

cess points in the bridge.

(If roaming is desired, then make sure the SSID settings need to be identical as well). Press the ‘Set’

button if any changes are made.

(If the IP address was changed, then reconnecting to the access point for conﬁguration will require ac-

cessing it via its new IP address in a web browser (e.g. http://NEW_IP_ADDRESS).

Troubleshooting

5. Click on the ‘LAN port’ link on the left.

6. Check that the ‘LAN side IP address’ values are correct for your network, or leave them as default.

Record the ‘LAN side IP address’. Press the ‘Set’ button if any settings on this page have been set.

7. Click on the ‘Management’ link on the left.

8. The System Information page will appear. In the Wireless section of the table record the MAC ad-

dress (including the :’s). Please make sure the MAC address is recorded from the Wireless section

and not the other sections.

9. Logout of the access point by clicking on the ‘Logout’ link on the left. Close the browser window.

10. Login to the second access point in the wireless bridge.

11. Click on the ‘Advanced’ button.

12. The wireless settings page will appear. Select the proper settings for the wireless network. Refer to

the settings recorded from the ﬁrst access point. All settings except for the SSID need to be identical

amongst all access points in the bridge.

(If roaming is desired, then make sure the SSID settings need to be identical as well).

13. Click on the ‘LAN port’ link on the left.

14. Make sure that the ‘LAN side IP address’ ‘IP address’ setting is different then the ﬁrst access point.

The IP addresses cannot be the same, but they should be on the same network. It is recommended

that the IP address of the second access point is one higher then that of the ﬁrst access point. Thus,

if access point one’s address is 1.1.1.1, then access point two’s address should be 1.1.1.2. If there is

a ‘DHCP server function’ setting on this page, then make sure to set it to ‘Do not use’ or to ‘Disabled’.

Press the ‘Set’ button when ﬁnished.

Troubleshooting

15. Click on the ‘Wireless bridge (WDS)’ link on the left.

16. Enable the WDS function and press the ‘Set’ button.

17. Enter the Wireless MAC Address of the ﬁrst access point (which was recorded on Step 8) into the

ﬁeld that say ‘MAC Address of AirStation(Wireless)’ (include the :’s). Press the ‘Add’ button.

18. The Wireless MAC address inputted on the step above will appear in the ‘Connected AirStation’

table. Please check that the checkbox under enable is checked, and then press the ‘Enable marked

item’ button.

19. At the top of the page, press the ‘Apply’ button.

20. Once the router has rebooted, click on the ‘Management’ tab on the left.

21. The System Information page will appear. In the Wireless section of the table record the MAC ad-

dress (including the :’s). Please make sure the MAC address is recorded from the Wireless section

and not the other sections.

22. Logout of the access point by clicking on the ‘Logout’ link on the left. Close the browser window.

23. Login to access point one again.

24. Click on the ‘Advanced’ button.

25. Click on the ‘Wireless bridge (WDS)’ link on the left.

26. Enable the WDS function and press the ‘Set’ button.

27. Enter the Wireless MAC Address of the ﬁrst access point (which was recorded on Step 21) into the

ﬁeld that say ‘MAC Address of AirStation(Wireless)’ (include the :’s). Press the ‘Add’ button.

Troubleshooting

29. At the top of the page, press the ‘Apply’ button.

30. Once the router has rebooted, click on the ‘Management’ tab on the left.

31. Click on the ‘PING test’ link on the left.

32. In the ‘Destination’ ﬁeld enter the IP address of the second access point and press the ‘OK’ button.

a. If the ‘Result’ section of the table reports information like, “1st: 64 bytes from IP_ADDRESS” then

the WDS bridge is effectively working.

b. If the ‘Result’ section of the table reports “Destination Host Unreachable”, then an error has oc-

curred during the setup.

WDS is a complicated bridging system with a lot of variables. If there are still problems with WDS con-

ﬁguration on the network, then please contact your local agency described in Quick Setup Guide.

Troubleshooting

10BaseT or 100BaseTx: 802.3 based Ether-

net network that uses UTP (Unshielded twisted

pair) cable and a star topology. 10 is 10 Mbps

and 100 is 100 Mbps.

802.1x: The standard for wireless LAN authenti-

cation used between an AP and a client. 802.1x

with EAP will initiate key handling.

Ad-Hoc Network: The wireless network based

on a peer-to-peer communications session.

Also referred to as AdHoc.

Bandwidth: The transmission capacity of a

computer or a communication channel, stated in

Megabits per second (Mbps).

BSS (Basic Service Set): An 802.11 network-

ing framework that includes an Access Point.

Bus Mastering: A system in which the speci-

ﬁed Input/Output device (e.g. NIC Card) can

perform tasks without the intervention of the

CPU.

Client: A PC or workstation on a network.

Cross-Over Wiring: A UTP cable that has its

transmit and receive pair crossed to allow com-

munications between two devices.

DCE (Data Communications Equipment):

Hardware used for communication with a Data

Terminal Equipment (DTE) device.

Default Gateway: The IP Address of either the

nearest router or server for the LAN.

Default Parameter: Parameter set by the

manufacturer.

Destination Address: The address portion of

a packet that identiﬁes the intended recipient

station.

DHCP (Dynamic Host Conﬁguration Pro-

tocol): Based on BOOTP, it uses a pool of IP

addresses, which it assigns to each device con-

nected to it, and retrieves the address when the

device becomes dormant for a period of time.

DNS (Domain Name System): System used

to map readable machine names into IP ad-

dresses

Glossary

Driver: Software that interfaces a computer

with a speciﬁc hardware device.

DSSS (Direct Sequence Spread Spectrum):

Method of spreading a wireless signal into wide

frequency bandwidth.

DTE (Data Terminal Equipment): Device that

con10BaseT or 100BaseTx: 802.3 based

Ethernet network that uses UTP (Unshielded

twisted pair) cable and a star topology. 10 is 10

Mbps and 100 is 100 Mbps.

Dynamic IP Address: An IP address that is

automatically assigned to a client station in a

TCP/IP network, typically by a DHCP server.

ESS (Extended Service Set): A set of two

or more BSSs that form a single sub-network.

SSID is user identiﬁcation used in the ESS LAN

conﬁguration.

Ethernet: The most widely used architecture

for Local Area Networks (LANs). It is a shared-

media network architecture. The IEEE 802.3

standard details its functionality.

Ethernet cable: A wire similar to telephone

cable that carries signals between Ethernet

devices.

File and Print Sharing: A Microsoft application

that allows computers on a network to share

ﬁles and printers.

Firmware: Programming inserted into pro-

grammable read-only memory, thus becoming a

permanent part of a computing device.

Frame: A ﬁxed block of data, transmitted as a

single entity. Also referred to as packet.

Full-Duplex: To transmit on the same channel

in both directions simultaneously.

Half-duplex: To transmit on the same channel

in both directions, one direction at a time.

Hub: A device which allows connection of com-

puters and other devices to form a LAN.

IEEE (Institute of Electrical and Electronics

Engineers): The professional organization

which promotes development of electronics

technology.

Glossary

IP (Internet Protocol) Address: A unique 32-

binary-digit number that identiﬁes each sender

or receiver of information sent in packets.

Infrastructure: A wireless network or other

small network in which the wireless network

devices are made a part of the network through

the Access Point.

ISP (Internet Service Provider): A company

that provides access to the Internet and other

related services.

IV (Initialization Vector): The header section

of an encrypted message packet.

LAN (Local Area Network): A group of com-

puters and peripheral devices connected to

share resources.

LED (Light Emitting Diode): The lights on

a hardware device representing the activity

through the ports.

MAC (Medium Access Control) Address:

A unique number that distinguishes network

cards.

Mbps (Mega Bits Per Second): A measure-

ment of millions of bits per second.

MDI/X (Media Dependent Interface/Cross-

over): Port on a network hub or switch that

crosses the incoming transmit lines with the

outgoing receive lines.

MHz (MegaHertz): One million cycles per

second.

NAT (Network Address Translation): An inter-

net standard that enables a LAN to use one set

of IP addresses for internal trafﬁc and a second

set for external trafﬁc.

NIC (Network Interface Card): An expansion

card connected to a computer so the computer

can be connected to a network.

Packet: A block of data that is transferred as a

single unit, also called a frame or a block.

Packet Filtering: Discarding unwanted net-

work trafﬁc based on its originating address or

its type.

Glossary

mation between computers.

RADIUS (Remote Authentication Dial In User

Service): A server that issues authentication key to

clients.

RAM (Random Access Memory): Non-permanent

memory.

Repeater Hub: A device that collects, strengthens

and transmits information to all connected devices,

allowing the network to be extended to accommo-

date additional workstations.

RC4: The encryption algorithm that is used in WEP.

RJ-45 connector: An 8-pin connector used be-

tween a twisted pair cable and a data transmission

device.

ROM (Read Only Memory): Permanent memory.

Router: Device that can connect individual LANs

and remote sites to a server.

Roaming: The ability to use a wireless device while

moving from one access point to another without

losing the connection.

PCI (Peripheral Component Interconnect): A

bus that is connected directly to the CPU.

PCMCIA (Personal Computer Memory Card

International Association) Card: Remov-

able module that adds features to a portable

computer.

Ping (Packet Internet Groper): An Internet

utility used to determine whether a particular IP

address is online.

Plug and Play: Hardware that, once in-

stalled (“plugged in”), can immediately be

used (“played”), as opposed to hardware that

requires manual conﬁguration.

PoE (Power over Ethernet): A mechanism

to send DC power to a device using a CAT5

Ethernet cable.

PPPoE (Point-to-Point Protocol over Ether-

net): A speciﬁcation for connecting users on an

Ethernet line to the Internet through a common

broadband medium.

Protocol: A standard way of exchanging infor-

Glossary

Script: A macro or batch ﬁle containing instruc-

tions and used by a computer to perform a task.

Server: Any computer that makes ﬁles or

peripheral devices available to users of the

network and has a resident Network OS.

SMTP (Simple Mail Transfer Protocol): The

protocol used to deﬁne and deliver electronic

mail (E-mail) from one location to another.

SNMP (Simple Network Management Proto-

col: An application layer protocol that outlines

the formal structure for communication among

network devices.

Static IP Address: A permanent IP address is

assigned to a node in a TCP/IP network. Also

known as global IP.

STP (Shielded Twisted Pair): Twisted Pair

cable wrapped in a metal sheath to provide ex-

tra protection from external interfering signals.

Subnet Mask: An eight-byte address divided

into 4 parts separated by periods.

TCP/IP (Transmission Control Protocol/In-

ternet Protocol: Protocol used by computers

when communicating across the Internet or

Intranet.

TKIP (Temporal Key Integrity Protocol): An

encryption method replacing WEP. TKIP uses

random IV and frequent key exchanges.

Topology: The shape of a LAN (Local Area

Network) or other communications system.

Twisted Pair: Cable that comprises 2 or more

pair of insulated wires twisted together.

UDP (User Datagram Protocol): A com-

munication method (protocol) that offers a

limited amount of service when messages are

exchanged between computers in a network.

UDP is used as an alternative to TCP/IP.

Uplink: Link to the next level up in a communi-

cation hierarchy.

UTP (Unshielded Twisted Pair) cable: Two or

more unshielded wires twisted together to form

a cable.

Glossary

WAN (Wide Area Network): A networking sys-

tem covering a wide geographical area.

WEP (Wired Equivalent Privacy): An encryp-

tion method based on 64 or 128-bit algorithm.

Web Browser: A software program that allows

viewing of web pages.

Wi-Fi (Wireless Fidelity): An organization that

tests and assures interoperability among WLAN

devices.

Wire Speed: The maximum speed at which a

given packet can be transferred using Ethernet

and Fast Ethernet standard speciﬁcations.

WLAN (Wireless LAN): A LAN topology using

wireless devices.

VPN (Virtual Private Network): A security

method to connect remote LAN users to a cor-

porate LAN system.

Glossary

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio

or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-

nected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, (example - use only shielded interface cables when

connecting to computer or peripheral devices). Any changes or modifications not expressly approved

by the party responsible for compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

FCC / CE Information

IMPORTANT NOTE:
