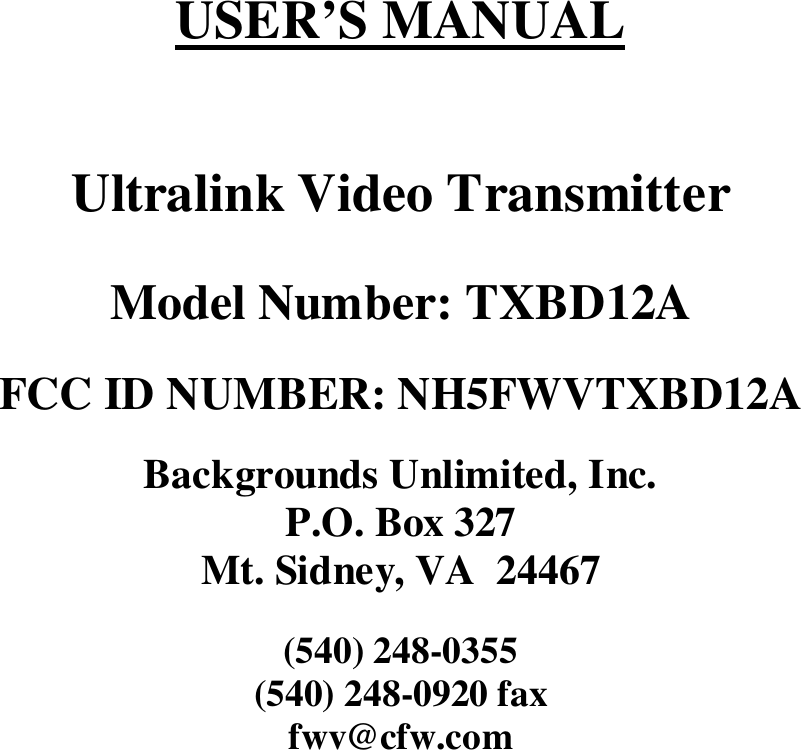

USER’S MANUALUltralink Video TransmitterModel Number: TXBD12AFCC ID NUMBER: NH5FWVTXBD12ABackgrounds Unlimited, Inc.P.O. Box 327Mt. Sidney, VA  24467(540) 248-0355(540) 248-0920 faxfwv@cfw.com

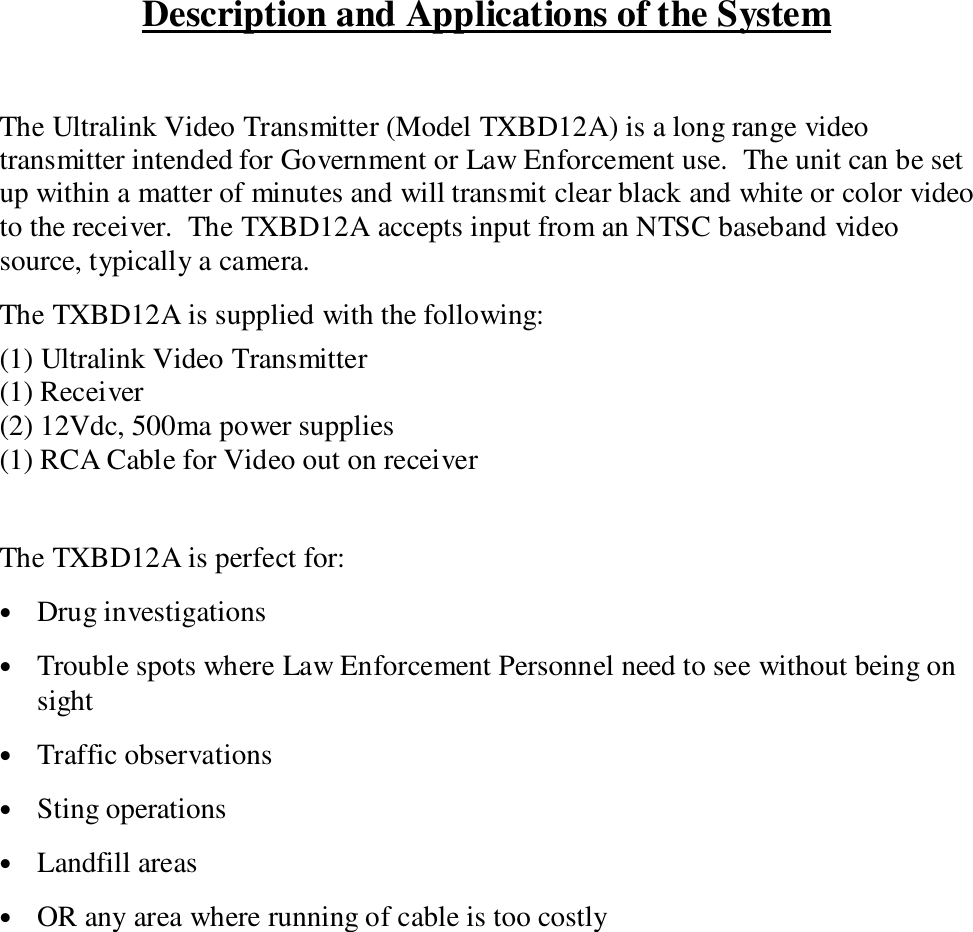

Description and Applications of the SystemThe Ultralink Video Transmitter (Model TXBD12A) is a long range videotransmitter intended for Government or Law Enforcement use.  The unit can be setup within a matter of minutes and will transmit clear black and white or color videoto the receiver.  The TXBD12A accepts input from an NTSC baseband videosource, typically a camera.The TXBD12A is supplied with the following:(1) Ultralink Video Transmitter(1) Receiver(2) 12Vdc, 500ma power supplies(1) RCA Cable for Video out on receiverThe TXBD12A is perfect for:• Drug investigations• Trouble spots where Law Enforcement Personnel need to see without being onsight• Traffic observations• Sting operations• Landfill areas• OR any area where running of cable is too costly
Deployment of the System1)  Using the provided 12Vdc power supply, connect the 12Vdc Positive lead tothe Power input pad of the board.2)  Next connect the 12Vdc Negative lead toground.3)  If you are using a 12Vdc camera, you mayconnect the camera's power lead to the 12VdcPositive lead and ground.  Also connect the Video +to the Video pad (see figure 1).4)  For best range, direct the antenna in the generaldirection of your receiver.     figure 1Viewing the Video1) After setting up the video transmitter, connect the receiver to the secondprovided 12Vdc power supply.2) Orient the directional antenna towards the transmitter.3) From the Video Out on the receiver, connect to any video input for recording orviewing.

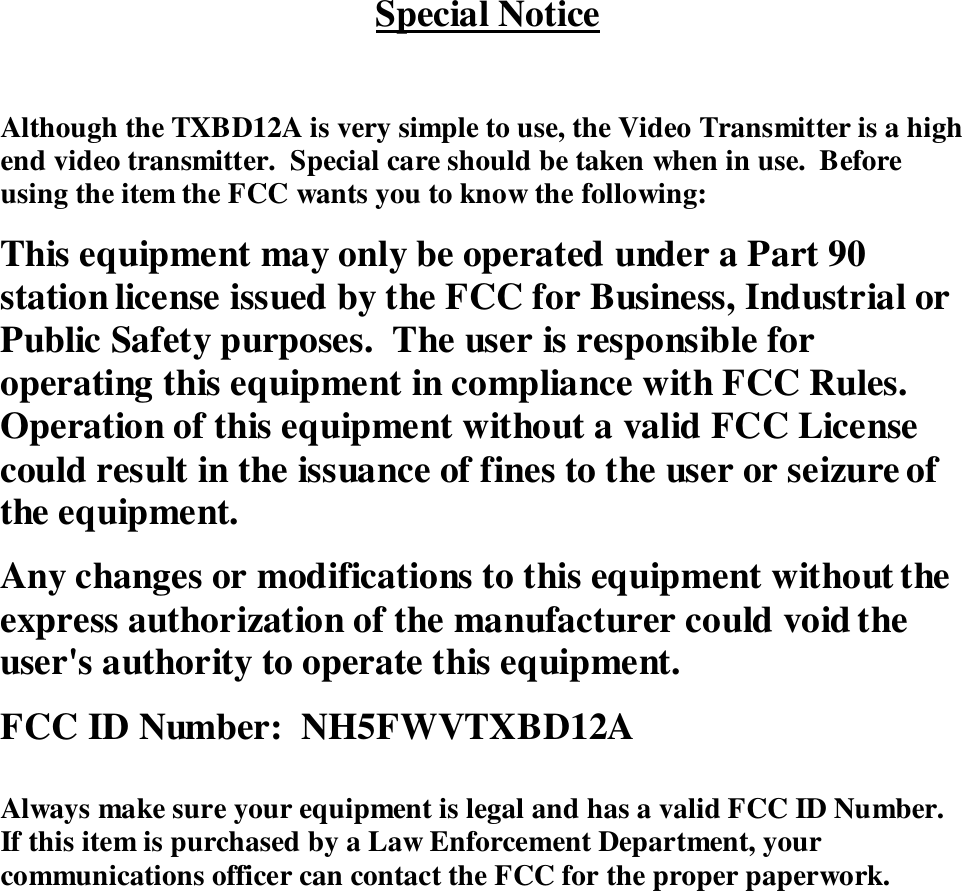

Special NoticeAlthough the TXBD12A is very simple to use, the Video Transmitter is a highend video transmitter.  Special care should be taken when in use.  Beforeusing the item the FCC wants you to know the following:This equipment may only be operated under a Part 90station license issued by the FCC for Business, Industrial orPublic Safety purposes.  The user is responsible foroperating this equipment in compliance with FCC Rules.Operation of this equipment without a valid FCC Licensecould result in the issuance of fines to the user or seizure ofthe equipment.Any changes or modifications to this equipment without theexpress authorization of the manufacturer could void theuser's authority to operate this equipment.FCC ID Number:  NH5FWVTXBD12AAlways make sure your equipment is legal and has a valid FCC ID Number.If this item is purchased by a Law Enforcement Department, yourcommunications officer can contact the FCC for the proper paperwork.
