Nova-243 Outdoor LTE TDD Base Station
Installation Guide
Nova-243 Outdoor LTE TDD Base Station Installation Guide
About This Document
This document is a guidance of Nova-243 hardware installation for installation
personnel, including the preparation of installation tools and supporting materials,
the demands for installation environment, installation procedure, cable connection
and power on.
Accomplish the installation of the device according to this guide, the installation
personnel can avoid potential damage to the device during the installation procedure,
which makes sure the subsequent good running of the device.
This document suit for the models of BRU35xx series base station.
Copyright Notice
Baicells copyrights this specification. No part of this specification may be reproduced in
any form or means, without the prior written consent of Baicells.
Disclaimer
This specification is preliminary and is subject to change at any time without notice.
Baicells assumes no responsibility for any errors contained herein. For more information,
please consult our technical engineers.
Disposal of Electronic and Electrical Waste
Pursuant to the WEEE EU Directive, electronic and electrical waste must not
be disposed of with unsorted waste. Please contact your local recycling
authority for disposal of this product.
Exclamation Mark
According to Article 10 (10) of Directive 2014/53/EU, the packaging shows that this radio
equipment will be subject to some restrictions when placed on the market
Nova-243 Outdoor LTE TDD Base Station Installation Guide
Revision Record
Date
Version
Description
10 Aug, 2016
01
Initial Released.
16 Jan, 2018
02
Optimize descriptions and fix some bugs.
4 Apr, 2018
03
Fix bugs.
Contact Us
Baicells Technologies Co., Ltd.
Address: 3F, Bldg A, No.1 Kai Tuo Rd., Haidian Dist., Beijing, PR China, 100085
E-mail: support_cn@baicells.com/support_na@baicells.com
Tel: 400-612-0167
Fax: +86-10-62607100
Website: http://www.baicells.com/
Nova-243 Outdoor LTE TDD Base Station Installation Guide
Table of Contents
1. Product Overview ......................................................................................................... 1
Introduction ........................................................................................................... 1 1.1
Features ................................................................................................................. 1 1.2
Appearance ............................................................................................................ 2 1.3
Technical Specification ........................................................................................... 3 1.4
1.4.1 Hardware Specification ................................................................................... 3
1.4.2 Software Specification ..................................................................................... 4
1.4.3 Environment Specification ............................................................................... 5
2. Installation Preparation .............................................................................................. 6
Supporting Materials ............................................................................................ 6 2.1
Installation Tools .................................................................................................. 6 2.2
Installation Environment ........................................................................................ 7 2.3
2.3.1 Locational Requirements ................................................................................. 7
2.3.2 Environmental Requirements .......................................................................... 7
2.3.3 Power Requirements ....................................................................................... 7
Personnel Requirements......................................................................................... 7 2.4
Against Lightening and Grounding Protection ......................................................... 8 2.5
Weatherproof Protection ....................................................................................... 8 2.6
3. Install the Base Station .............................................................................................. 9
Unpacking ............................................................................................................. 9 3.1
Installation Procedure .......................................................................................... 9 3.2
Install GPS Antenna ................................................................................................ 9 3.3
Install on Pole ....................................................................................................... 10 3.4
Install on Wall ....................................................................................................... 12 3.5
Connect Cable ...................................................................................................... 13 3.6
3.6.1 Requirement for Cable Laying ....................................................................... 13
3.6.2 Connect GPS Antenna ................................................................................... 14
Nova-243 Outdoor LTE TDD Base Station Installation Guide
3.6.3 Connect RF Cable .......................................................................................... 14
3.6.4 Connect Ethernet Cable................................................................................. 14
3.6.5 Connect Power Connector ............................................................................. 14
3.6.6 Connect Ground Cable .................................................................................. 16
Install Antenna Feeder System.............................................................................. 17 3.7
3.7.1 Install Omnidirectional Antennas................................................................... 17
3.7.2 Install Directional Antennas ........................................................................... 18
4. Power On ................................................................................................................... 20
Additional Information............................................................................... 21 Appendix A
A.1 Antenna Information ............................................................................................ 21
A.2 Regulatory Compliance ........................................................................................ 21
Nova-243 Outdoor LTE TDD Base Station Installation Guide
List of Figures
Figure 1-1 Nova-243 Appearance ................................................................................ 2
Figure 1-2 Nova-243 Interfaces and Indicators ............................................................ 2

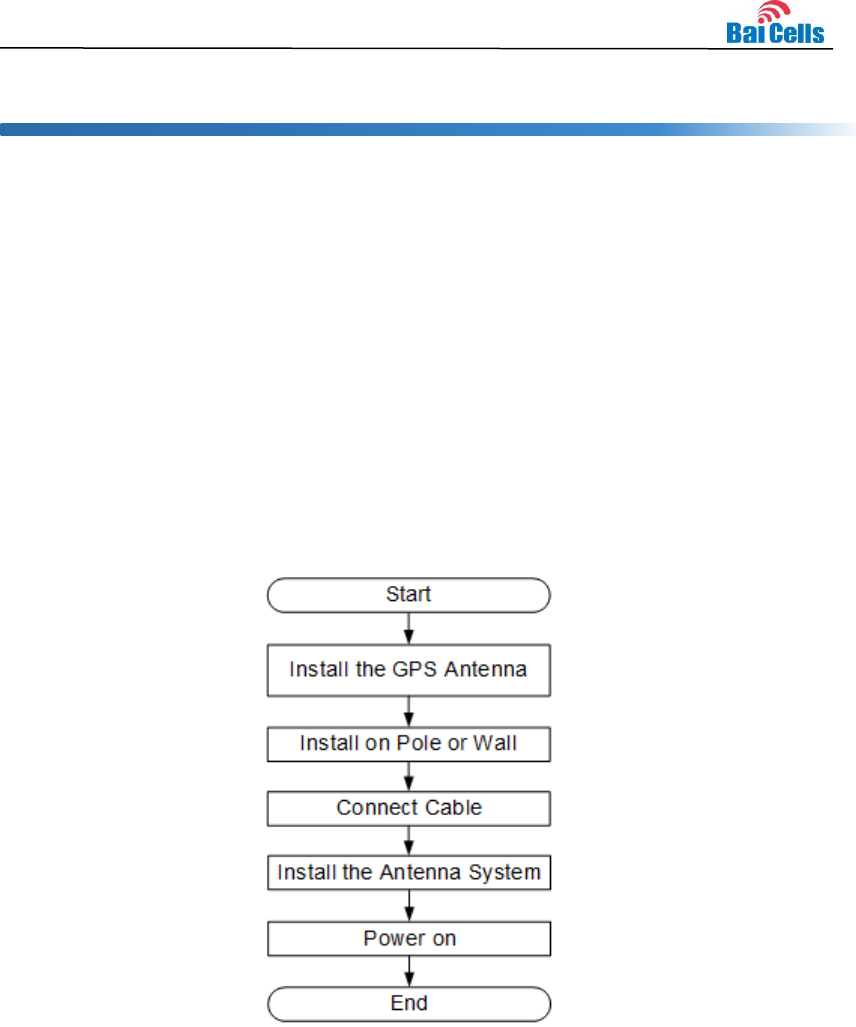

Figure 3-1 Installation Procedure of Nova-243 ............................................................ 9

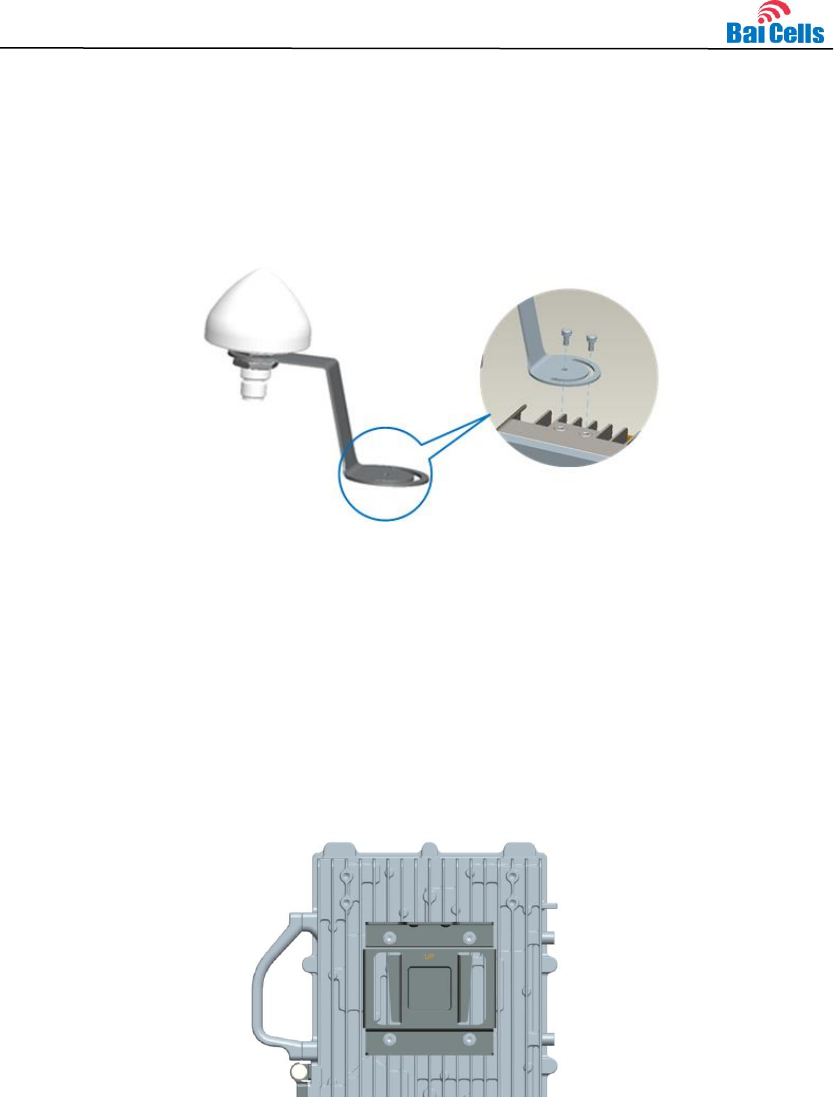

Figure 3-2 Install the GPS Antenna ............................................................................ 10

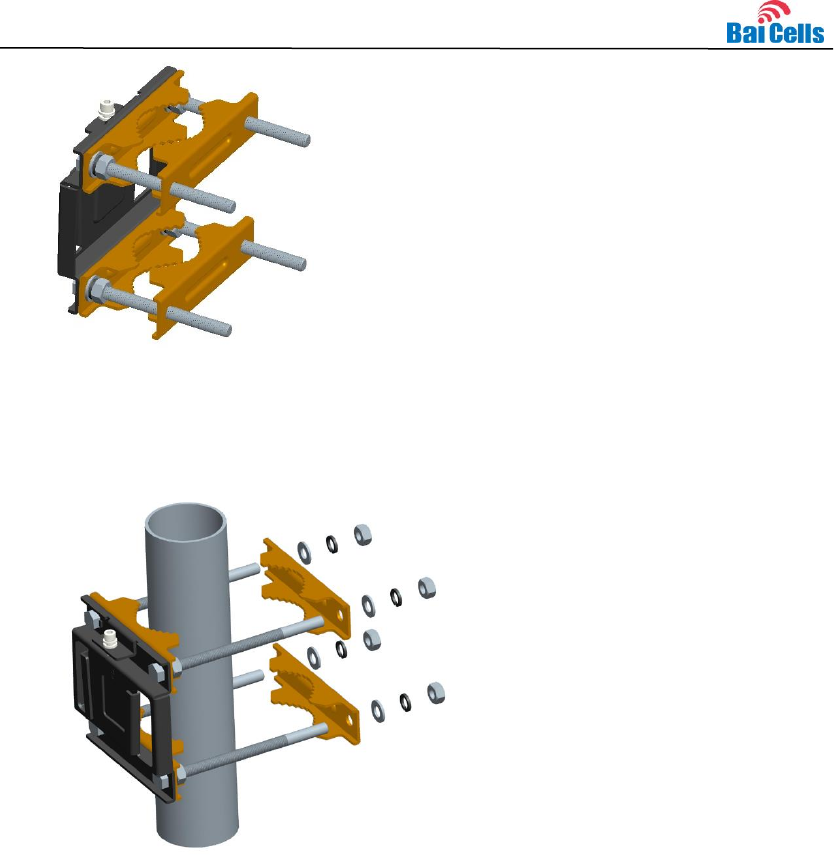

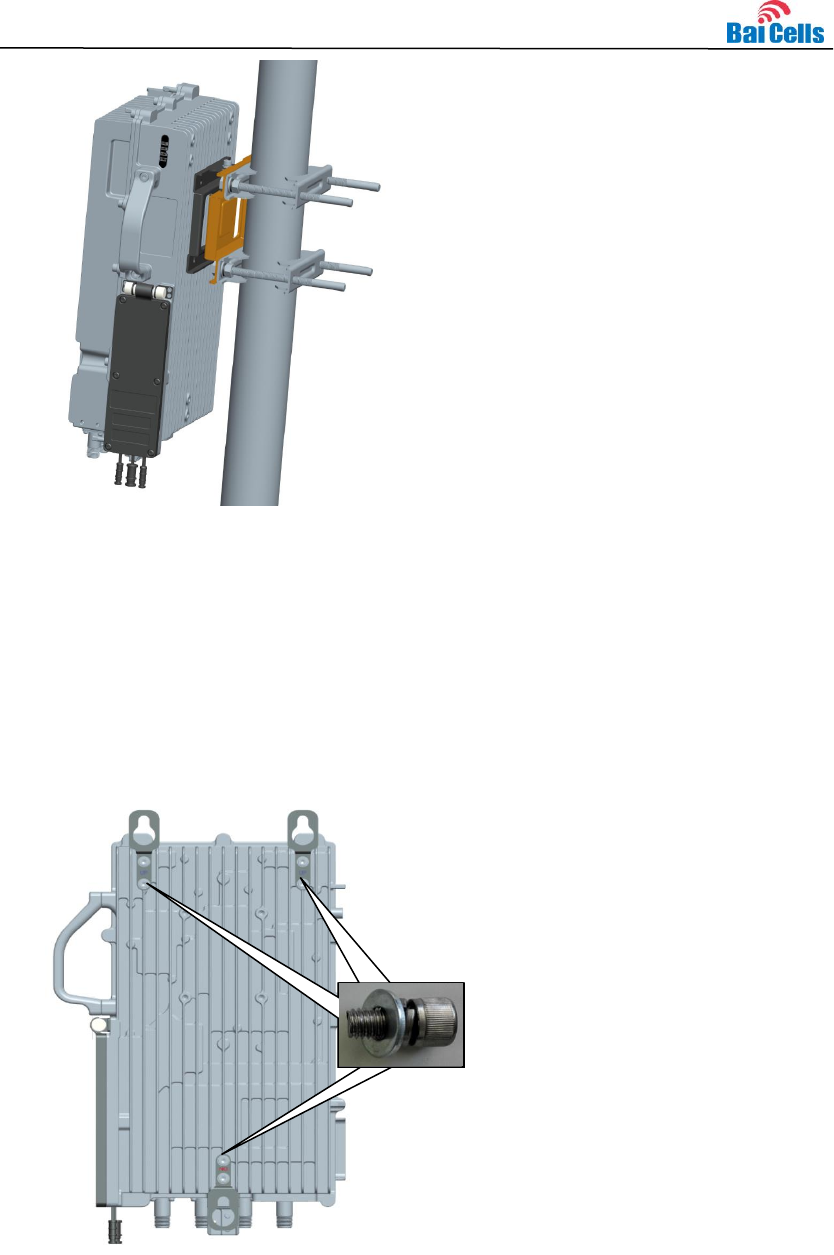

Figure 3-3 Pre-assembled bracket ............................................................................. 10

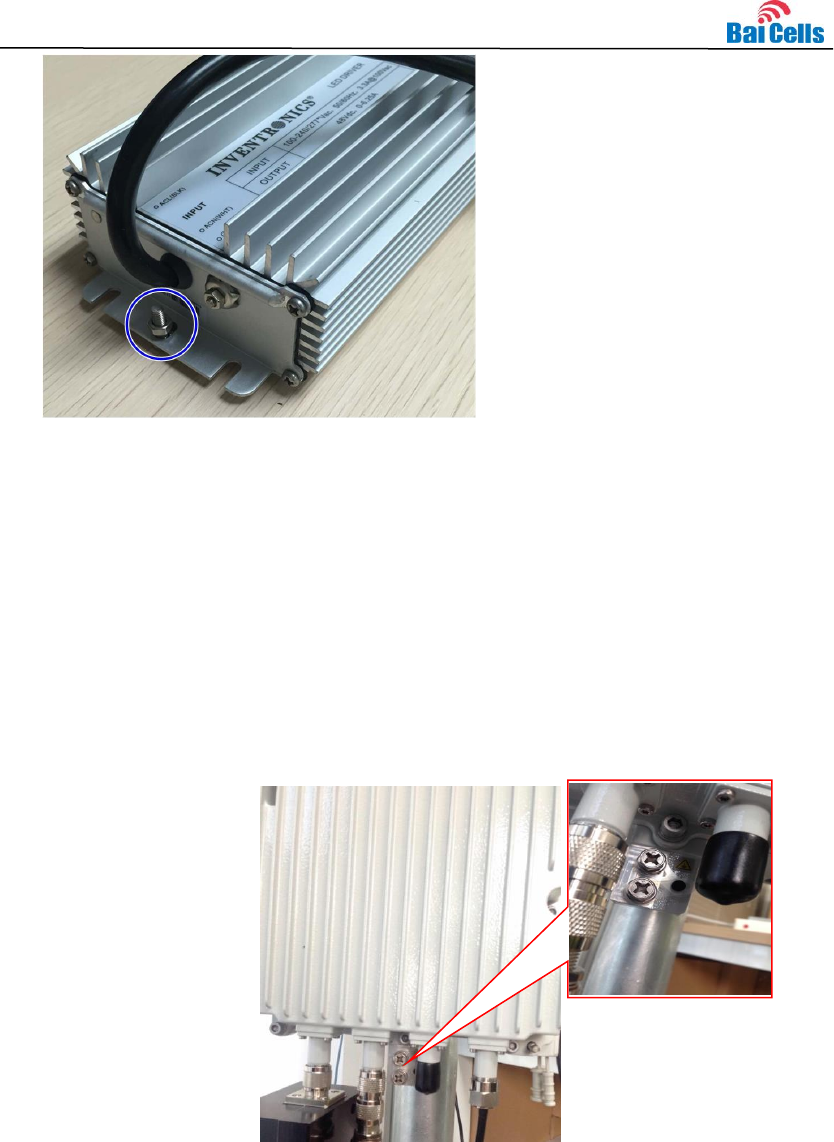

Figure 3-4 Location of Grounding Screws ................................................................. 16
Figure 3-5 Omnidirectional Antenna Installation (1) ................................................... 17
Figure 3-6 Omnidirectional Antenna Installation (2) ................................................... 18
Figure 3-7 Assembling Procedure of Directional Antennas ....................................... 18

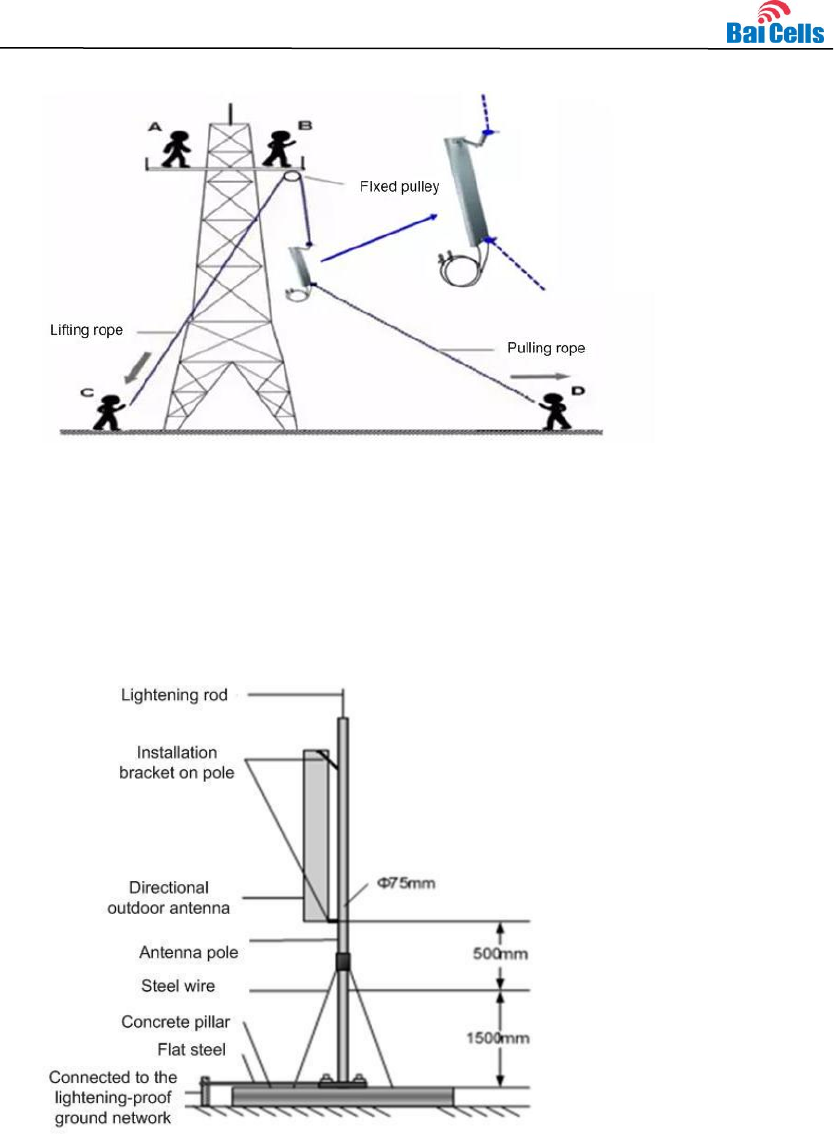

Figure 3-8 Transportation the Antennas in the Height ............................................... 19
Figure 3-9 Directional Antenna Installation ................................................................ 19
Figure 4-1 LED Indicators .......................................................................................... 20
List of Tables
Table 1-1 Nova-243 Interface Description .................................................................... 3
Table 1-2 Nova-243 Interface Indicators ...................................................................... 3
Table 2-1 Support Materials ......................................................................................... 6
Table 2-2 Environmental Requirements of the Base Station ....................................... 7
Table 4-1 Nova-243 Indicator Description .................................................................. 20
Nova-243 Outdoor LTE TDD Base Station Installation Guide
1
1. Product Overview
Introduction 1.1
Baicells Nova-243 is high performance outdoor micro base station based on LTE TDD
technology, which is developed by Baicells. The Nova-243 supports wired backhaul
connections to backbone networks, and provides LTE access to user terminals,
implemented voice and data service transmissions.
The Nova-243 makes use of the current transmission resources to reduce the
operators investment, and implement the low-cost construction of LTE networks,
providing high-speed broadband access for subscribers.
The Nova-243 can be widely used by telecom operators, broadband operators,
enterprises, government, police security, and so on.
Features 1.2
Adopt the integration design of baseband and RF.
Based on 3GPP international standard LTE-TDD technology; provide high speed data
service; support peak rate of DL: 110Mbit/s, UL: 14Mbit/s with 20MHz spectrum.
Support flexible uplink and downlink time slot ratio: 1(2:2), 2(1:3), and high speed
data transmission.
Support 5MHz/10MHz/15MHz/20MHz operation bandwidth.
Support copper (RJ-45) and optical port backhaul, flexible to deploy.
Security services to provide timely protection against potential security risks and
illegal intrusion.
Support simple and convenient local and remote web management.
Integration as required, easy to installation and deployment, accurate
coverage and improved network capacity.
Support network management functions, which includes the management, monitoring
and maintenance.
Nova-243 Outdoor LTE TDD Base Station Installation Guide
2
Appearance 1.3

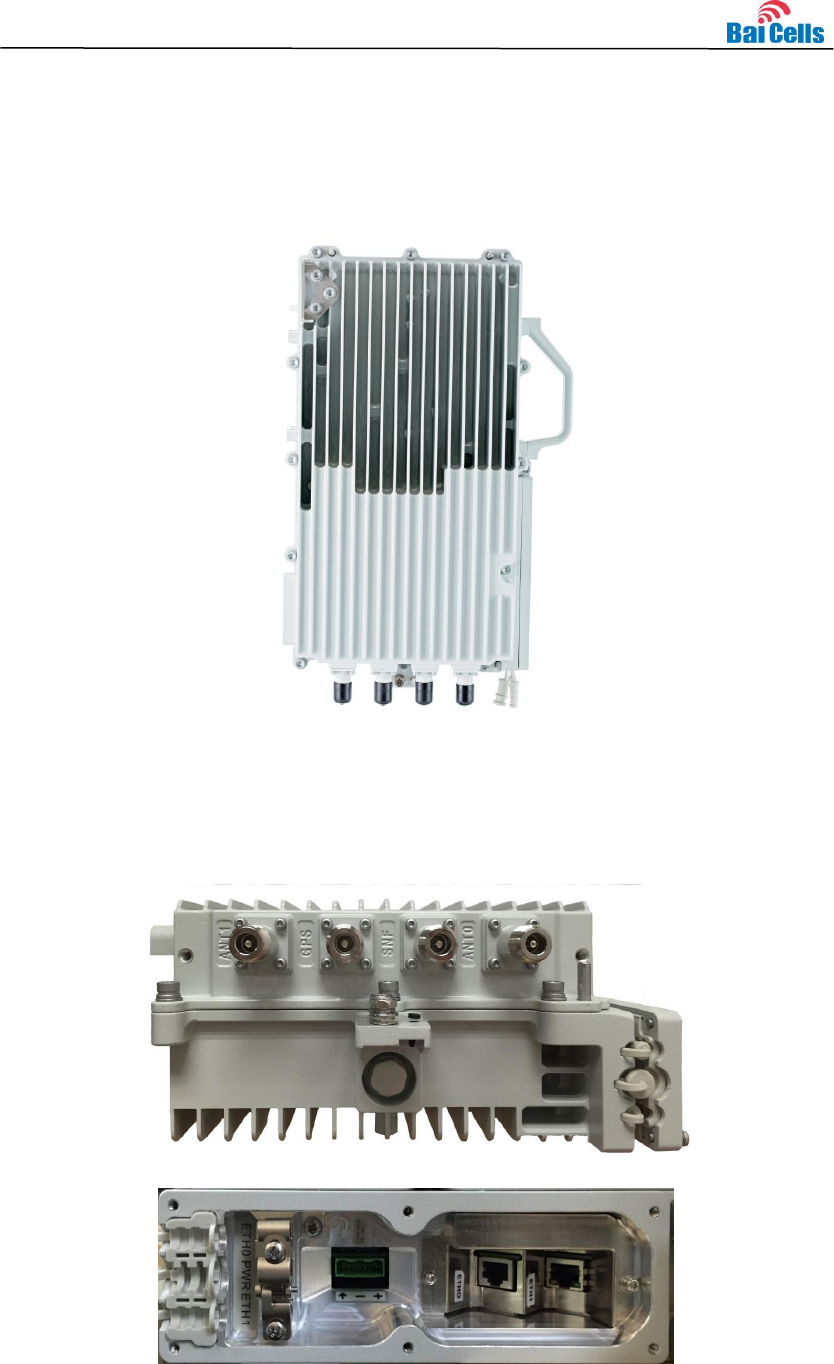

The Nova-243 base station appearance is shown in Figure 1-1.
Figure 1-1 Nova-243 Appearance
The Nova-243 interfaces and indicators are shown in Figure 1-2.
Figure 1-2 Nova-243 Interfaces and Indicators
Nova-243 Outdoor LTE TDD Base Station Installation Guide
3
The Nova-243 interfaces are described in Table 1-1.
Table 1-1 Nova-243 Interface Description
Interface Name
ETH0
ETH1
SNF
ANT0
ANT1
GPS
PWR
The Nova-243 interface indicators are described in Table 1-2.
Table 1-2 Nova-243 Interface Indicators
Identity
Color
Status
Description
RUN
Green
Fast flash: 0.125s
on,0.125s off
The board is loading.
Slow flash: 1s on,1s off
The board is normal.
OFF
No power input or board fault
ALM
Red
Steady On
Hardware alarm, e.g. VSWR alarm
OFF
No alarm
ACT
Green
Steady On
The cell has been activated.
OFF
The cell has not been activated.
VSWR
Red
OFF
The standing wave is normal.
Steady On
The standing wave is large than
normal.
Technical Specification 1.4
1.4.1 Hardware Specification
Item
Description
LTE Mode
LTE TDD
LTE Bands
BRU3501: 3650MHz~3700MHz for FCC application
3550MHz~3700MHz for IC application
BRU3508: 2300MHz~2370MHz
BRU3509: 2300MHz~2320MHz
Nova-243 Outdoor LTE TDD Base Station Installation Guide
4
Item
Description
BRU3510: 2496MHz~2690MHz / 2570MHz~2620MHz
BRU3511: 3400MHz~3600MHz
BRU3516: 2575MHz~2640MHz
BRU3524: 2300MHz~2400MHz
BRU3527: 3439.5MHz~3539.5MHz
BRU3528: 2570MHz~2620MHz
Channel Bandwidth*
5/10/15/20 MHz
MAX Output Power
40dBm/Ant
Receive Sensitivity
-101 dBm @band42/48
-102 dBm @band38/40/41
Synchronization
GPS, 1588 V2
Backhaul
1 RJ-45 Ethernet interface (1 GE)
MIMO
DL 2 x 2
Dimension
440mm (H) x 240mm (W) x 140mm (D)
Installation Type
Pole, wall
Antenna
External high gain antenna
Overall Power
< 160 W
Power
48V DC, AC adaptor (multi-national standards)
Weight
About 12 kg
Note:
The test method of receiving sensitivity is proposed by the 3GPP TS 36.104, which is based on 5MHz
bandwidth, FRC A1-3 in Annex A.1 (QPSKR=1/325RB) standard.
1.4.2 Software Specification
Item
Description
LTE Standard
3GPP Release 9
Maximum Throughput
20 MHz:
SA1: DL 80 Mbps, UL 28 Mbps
SA2: DL 110 Mbps, UL 14 Mbps
10MHz:
SA1: DL 40 Mbps, UL 14 Mbps
SA2: DL 55 Mbps, UL 7 Mbps
Business Capacity
96 concurrent users
Qos Control
3GPP standard QCI
Modulation Mode
UL: QPSK, 16QAM, 64QAM
DL: QPSK, 16QAM, 64QAM
Voice Solution
CSFB, VoLTE, eSRVCC
Traffic Offload
LIPA (Local IP Access)
Nova-243 Outdoor LTE TDD Base Station Installation Guide
5
Item
Description
SIPTO (Selected IP Traffic Offload)
SON
Automatic setup
ANR (Automatic Neighbor Relation)
PCI confliction detection
Spectrum Scanning
Supported
UL Interference
Detection
Supported
RAN Sharing
Supported
Network Management
Interface
TR069
MTBF
≥ 150000 hours
MTTR
≤ 1 hour
Maintenance
Support remote/local maintenance, based on SSH
protocol
Support remote maintenance
Support online status management
Support performance statistics
Support failure management
Support configuration management
Support local or remote software upgrading and loading
Support log
Support connectivity diagnosis
Support automatic start and configuration
Support alarm reporting
Support KPI Recording
Support user information tracing
Support signaling trace
1.4.3 Environment Specification
Item
Description
Operating Temperature
-40°C to 5C
Storage Temperature
-45°C to 7C
Humidity
5% to 95%
Atmospheric Pressure
70kPa to 106kPa
Ingress Protection Rating
IP66
Power interface Lightning Protection
Differential mode: ±10 KA
Common mode: ±20 KA
Nova-243 Outdoor LTE TDD Base Station Installation Guide
6
2. Installation Preparation
Supporting Materials 2.1
Prepare the following support materials accordingly, as given in Table 2-1.
Table 2-1 Support Materials
Item
Description
Power cable
< AWG16 e.g. AWG14
Shorter than 100m
Power plug
The power plug connecting to the electricity supply.
Antenna RF cable
50 ohm feeder
Ethernet cable
Outdoor CAT6
Shorter than 100m
Antenna
Omnidirectional, or directional antenna
Ground cable
16mm² yellow-green wire
Installation Tools 2.2
The following tools are needed during the installation.
Level bar
Marking pen
Knife
Vise
Wrench
Percussion drill and
some drill heads
hammer
Cross
screwdriver
Cable vise
Tape measure
5mm L-shape allen
wrench
Ladder
Nova-243 Outdoor LTE TDD Base Station Installation Guide
7
Installation Environment 2.3
2.3.1 Locational Requirements
Environments with high-temperatures, harmful gases, unstable voltages, volatile
vibrations, loud noises, flames, explosives, and electromagnetic interference (large radar
stations, transmitting stations, transformer substations) are not suitable for the operation
of Nova-243, and thus should be avoided.
Places prone to have impounded water, soaking, leakage, or condensation, should also
be avoided.
Factors like climate, hydrology, geology, earthquake, electric power, and transportation
should be taken into consideration in the construction process so that a proper location
can be chosen to meet the communication engineering environmental requirements, as
well as the technical requirements of network planning and communication equipment.
2.3.2 Environmental Requirements
Table 2-2 gives the base station’s environmental requirements on temperature, humidity,
and voltage.
Table 2-2 Environmental Requirements of the Base Station
Item
Range
Typical value
Temperature
-40°C to 55°C
25°C
Relative humidity (no condensation)
0% to 100%
5% to 95%
Safety voltage
42 V to 58 V
48 V
2.3.3 Power Requirements
Nova-243 TDD base station adopts -48V DC power supply. For the safety and reliability of
device, we have the following suggestions.
Remote DC power supply, in general, AC power supply is 100V ~ 270V, the distance
of AC power supply to the device is less than 30 meters.
If the static exceeds a certain range, it will lead to great damage to the circuit and the
whole device.
Personnel Requirements 2.4
The installation personnel must master the basic safe operation knowledge, through the
Nova-243 Outdoor LTE TDD Base Station Installation Guide
8
training, and having the corresponding qualifications.
Against Lightening and Grounding Protection 2.5
CAUTION:
It is unlikely to happen but since the LTE base station is very sophisticated
equipment so we would recommend you to test it on the ground to make sure
everything is functioning before install on the tower.
The operator must prepare external against lightning protector to protect the GPS,
external antenna and RJ-45 port.
Grounding Notes:
The ground wire adopts yellow-green wire that is no smaller than 16 mm².
Grounding principle: as near as possible.
The base station connects to the reliable outdoor grounding point (earth) through
one ground screw.
The connection of the grounding points and the ground bar need to be tight and
reliable. Rustproofing the terminals is required. This can be done with rust preventing
paint, anti-oxidation coatings, grease, etc.

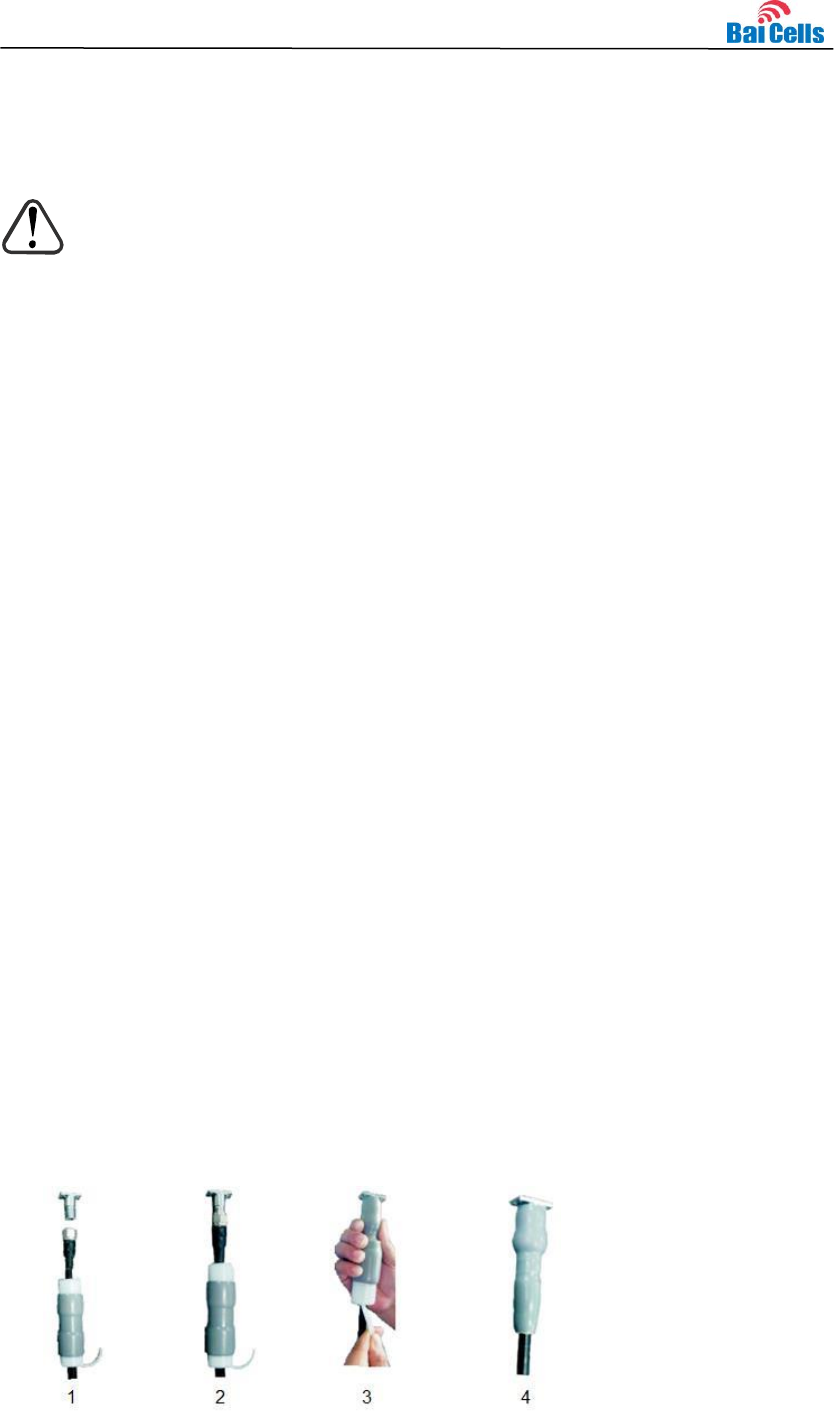

Weatherproof Protection 2.6
The Nova-243 adopts cold shrink tube for weatherproof protection. Before installing
the cold shrink tube, clean up the interface first. The weatherproof protection steps
are as follows:
1. Insert cable into cold shrink tube.
2. Tighten the connector.
3. Push the cold shrink tube to the top joint and pull out the strip.
4. Check whether the cold shrink tube tight connect with the connection.
Nova-243 Outdoor LTE TDD Base Station Installation Guide
9
3. Install the Base Station
Unpacking 3.1
Before opening the box, make sure the package is in good condition, undamaged and
not wet. During the unpacking, avoid potential damaging impacts from hits or excessive
force.
Once unpacked, check whether the quantity are consistent with the packing list.
Installation Procedure 3.2
The installation procedure of Nova-243 is given in Figure 3-1.
Figure 3-1 Installation Procedure of Nova-243
Install GPS Antenna 3.3
Installation requirements on the GPS antenna:
No major blocking from buildings in the vicinity. Keep the rooftop buildings a
distance away from the GPS. Make sure the space atop within 90 degrees (at least
45 degrees) is not blocked by any buildings.
Avoid installing the GPS in the vicinity of any other transmitting and receiving
devices. Avoid interference from other transmitting antennas to the GPS antennas.
Should be installed within 45 degrees to the lightning rod.
Nova-243 Outdoor LTE TDD Base Station Installation Guide
10
The GPS cable should be as shorter as possible to reduce the influence to signal
strength.
The GPS has been assembled before packing, the only installation step is to fix the GPS
mounting bracket on the base station using the M4 x 14 screws, as shown in Figure 3-2.
Figure 3-2 Install the GPS Antenna
Install on Pole 3.4
Required diameter of the pole: 30mm ~ 100mm and suggest the installation height
higher than 120cm.
The mount bracket has been assembled before packing, as shown in Figure 3-3. The
installation personnel only need to fix the assembled base station on the pole.
Figure 3-3 Pre-assembled bracket
1. Take down the two outer omegas.
Nova-243 Outdoor LTE TDD Base Station Installation Guide
11
2. Make sure the base station’s installation height, fit the thread rod of the assembled
bracket to the pole, and then pass the two omegas through the threaded rods, and
fasten the four flat gaskets, four spring gaskets, and four nuts.
3. Mount the base station vertically on the bracket and tighten M6 screw on the top of
bracket using cross screwdriver to complete the installation.
Nova-243 Outdoor LTE TDD Base Station Installation Guide
12
Install on Wall 3.5
The wall must bear four times of the base station’s weight.
1. Take apart the assembled bracket.
2. Install three mounting hooks on the base station with M6 x 16 screws.

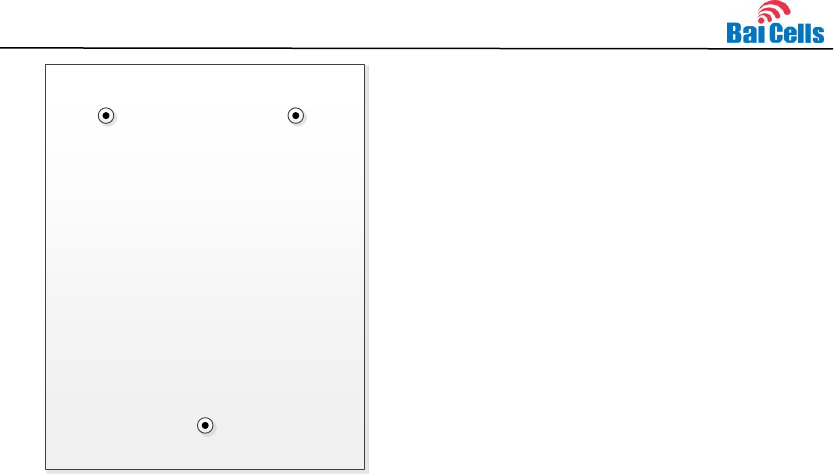

3. Fit the base station with hooks on the wall, and mark the drilling locations.
Nova-243 Outdoor LTE TDD Base Station Installation Guide
13
4. Drill three 12mm diameter holes in the wall on the marked locations, and
insert the expansion pipes.
5. Fix base station to the wall with M8 x 80 expansion bolts.
Connect Cable 3.6
3.6.1 Requirement for Cable Laying
General requirements:
Bending radius requirement of feeder cable: 7/8> 250mm, 4/5” > 380mm.
Bending radius requirement of jumper cable: 1/4> 35mm1/2” (super soft) > 50mm
1/2 (ordinary)>127mm.
Bending radius requirement of power cable and grounding cable: > tripled of the
diameter of cable.
Binding the cables according the type of the cable, the intertwining and crossing is
forbidden.
The label should be paste after the cable laying.
Grounding laying requirement:
The grounding cable must connect to the grounding point.
The grounding cable must be separate with the signal cables, remaining a certain
distance to avoid the interruption of signal.
Nova-243 Outdoor LTE TDD Base Station Installation Guide
14
3.6.2 Connect GPS Antenna
1. Insert GPS jumper into cold shrink tube.
2. Connect one end of the GPS jumper to the GPS antenna.
3. Push the cold shrink tube to the top joint and pull out the strip.
4. Connect the other end of the GPS jumper to GPS interface of the base station,
which also need weatherproof protection.
3.6.3 Connect RF Cable
1. Open the dust cap of ANT0 and ANT1 interface.
2. Insert RF cables into cold shrink tube.
3. Connect one end of the two RF cables to ANT0 and ANT1 interface of the base
station and tighten them with wrench.
4. Push the cold shrink tube to the top joint and pull out the strip.
5. Connect the other end of the RF cables to the external antenna, which also need
weatherproof protection.
3.6.4 Connect Ethernet Cable
1. Connect the Ethernet cable to ETH0 interface in the wiring cavity.
2. Lay Ethernet cable along the wire groove, and stretch out the wiring cavity from
ETH0 hole.
3.6.5 Connect Power Connector
Because it is not sure that the distance between the installation site and the power
supply device, the two ends of power adapter are bare terminal end. The operators need
to make power cable according to the actual conditions on installation site, and assemble
power plug and power terminal on two ends of power adapter.
Strip 12mm insulating layer with wire stripper, which is used for connection to connector.
It is recommended that the power cord length is kept below 100m (330 feet).
The connection steps of power cable is as follows.
1. Assemble power plug.
The power plug will be installed on the end of input direction. Refer to the
identification on power plug, connect live wire, neutral wire, and ground wire to
Nova-243 Outdoor LTE TDD Base Station Installation Guide
15
corresponding terminals separately, and tighten screws.

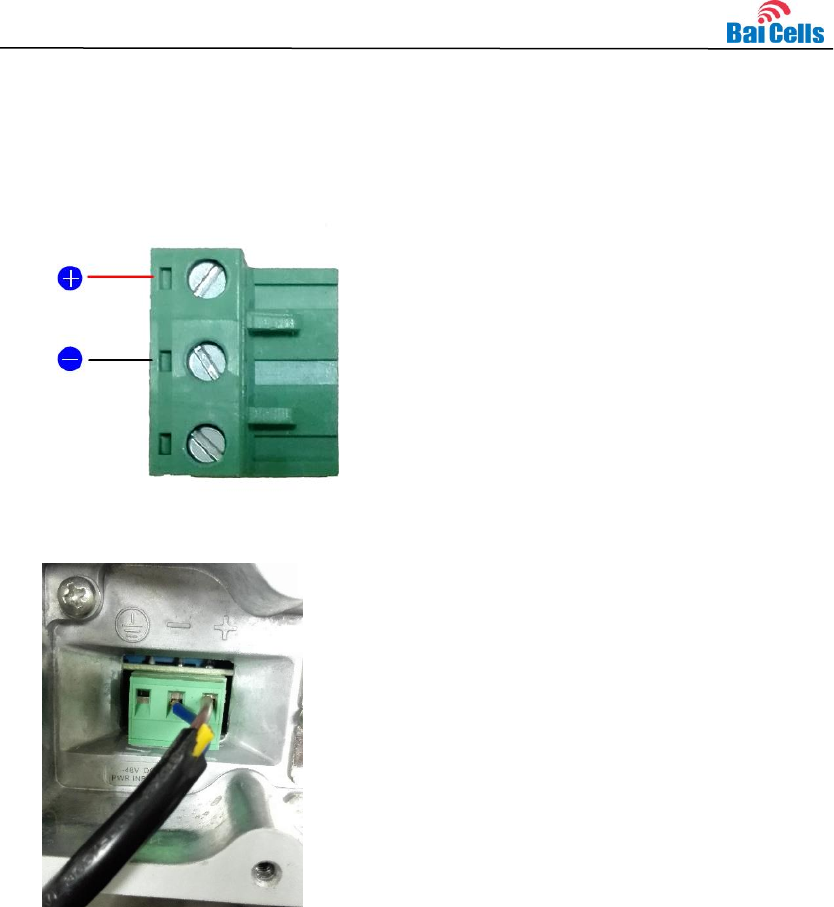

2. Assemble power terminal.
The power terminal will be installed on the end of output direction. Refer to the
following figure to connect live wire and neutral wire.
3. Connect the power cable to PWR interface in the wiring cavity.
4. The power cable lays along the lint slot, and stretch out the wiring cavity from PWR
hole.
5. The input of the power adaptor connects to the outlet.
If the outlet is indoors, place the power adaptor indoors.
If the outlet is outdoors, place the power adaptor in a water proof box.
6. Connect the grounding point of AC adaptor to the grounding point on installation
site.
Nova-243 Outdoor LTE TDD Base Station Installation Guide
16
7. After the cable connection is complete in the wiring cavity, tighten the screws on the
cover to close the wiring cavity using M4 cross screwdriver.
3.6.6 Connect Ground Cable
Make the grounding cable according the actual situation of the installation site.
The Nova-243 provides two grounding screws, which is located on the bottom of the
base station, as shown in Figure 3-4.
Figure 3-4 Location of Grounding Screws
1. Unscrew one grounding screw, connect one end of the grounding cable to the
grounding screw, and fasten it again.
2. The other end of the ground cable needs to connect to a good grounding point.
The connection point can be done with rust preventing paint, anti-oxidation coatings,
grease, etc.
Nova-243 Outdoor LTE TDD Base Station Installation Guide
17
Install Antenna Feeder System 3.7
There are two kinds of outdoor antennas, omnidirectional outdoor antennas and
directional outdoor antennas, whose installation will be introduced in the following,
respectively.
3.7.1 Install Omnidirectional Antennas
One should pay attention to the followings while installing the omnidirectional outdoor
antenna:
The diameter of the pole for omnidirectional outdoor antennas is required to be
35mm ~ 50mm. A typical case is to use the 50mm-diameter round-steel-made pole
(with details depending on the specific antenna type).
Make sure that the top of pole and the clamp beneath the antenna are at the same
level, after installing the omnidirectional outdoor antenna on the pole.
Make sure that the antenna is high enough to meet the coverage requirement, and
that the antenna top falls within the 45 degrees safety angle towards the lightening

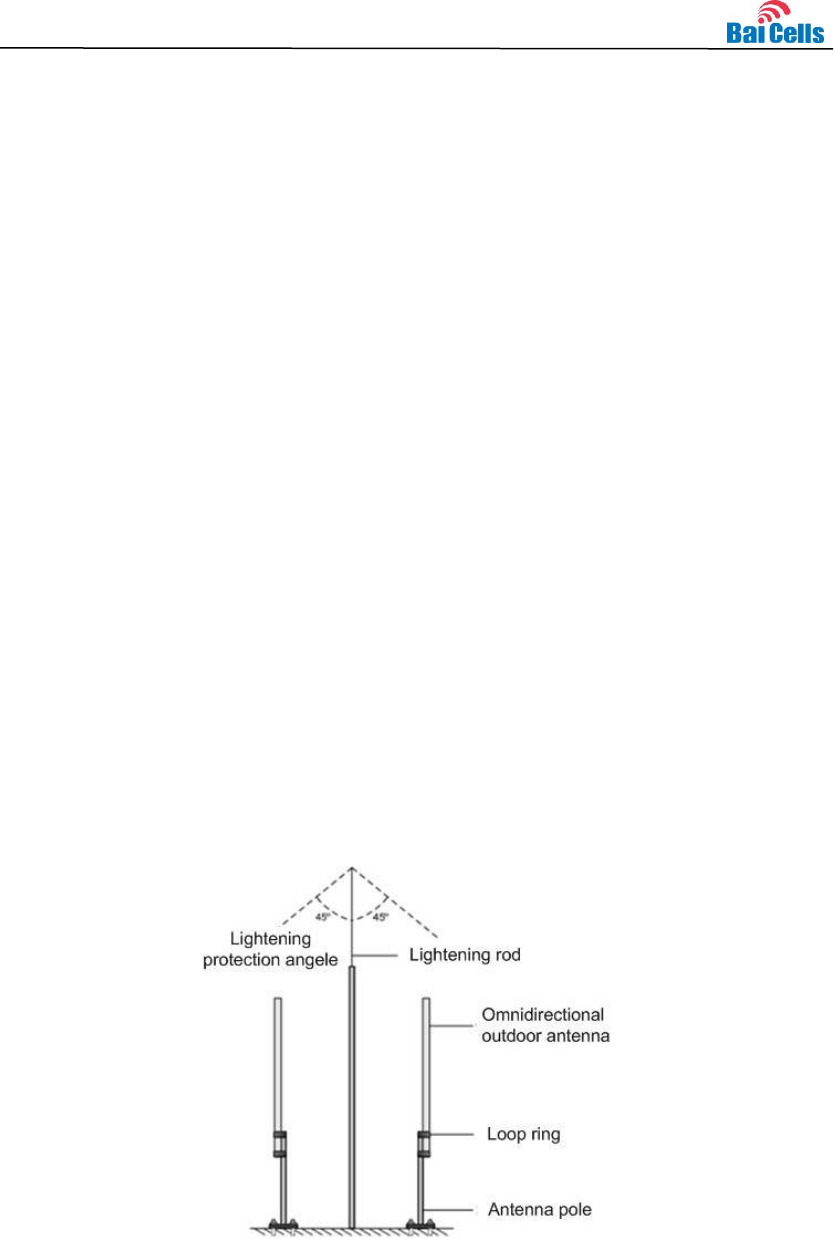

rod, as shown in Figure 3-5. In principle, no lightening rod can be welded to pole (no
metal object is allowed within 1m of the horizontal direction of the omnidirectional
antennas), when installing the omnidirectional antennas. Instead, an independent
lightening rod should be settled between the two poles, where the lightening rod
must be high enough to keep all antennas under its protection cover.
Figure 3-5 Omnidirectional Antenna Installation (1)
In case is impossible to install an independent lightning rod due to environmental
limitations, the installation method shown in Figure 3-6can be used. Be aware that the
pole supporting the lightening rod should be kept at least 1m away from the
omnidirectional outdoor antennas.
Nova-243 Outdoor LTE TDD Base Station Installation Guide
18
Figure 3-6 Omnidirectional Antenna Installation (2)
3.7.2 Install Directional Antennas
1. First, assemble the antennas, as shown in Figure 3-7.
Figure 3-7 Assembling Procedure of Directional Antennas
2. To install it on the iron tower, use a pulley to transport the antenna assembled to the
platform on the iron tower, as shown in Figure 3-8. Following the safety rules when
working at these heights.
Nova-243 Outdoor LTE TDD Base Station Installation Guide
19
Figure 3-8 Transportation the Antennas in the Height
3. Fix the pole vertically to the ground or concrete pillars on the rooftop using
expansion screws, and fasten it with steel wires. Then, mount the directional
outdoor antenna onto the pole using the installation rack, as shown in Figure 3-9.
Figure 3-9 Directional Antenna Installation
4. When the base station has been installed in a proper position, connect all the cables
and wires.
5. Run tests, then seal and weatherproof all the connections after the testing has
successfully completed. Refer to 2.6 Weatherproof Protection.
Nova-243 Outdoor LTE TDD Base Station Installation Guide
20
4. Power On
Power on the Nova-243, and the indicators will light up, as shown in Figure 4-1.
Figure 4-1 LED Indicators
The explanation of the indicator signal is given in Table 4-1.
Table 4-1 Nova-243 Indicator Description
Identity
Color
Status
Description
RUN
Green
Fast flash: 0.125s
on,0.125s off
The board is loading.
Slow flash: 1s on,1s off
The board is normal.
OFF
No power input or board fault
ALM
Red
Steady On
Hardware alarm, e.g. VSWR alarm
OFF
No alarm
ACT
Green
Steady On
The transmitting channel works
normally
OFF
The transmitting channel works
abnormally
VSWR
Red
OFF
The standing wave is normal.
Steady On
The standing wave is large than
normal.
Nova-243 Outdoor LTE TDD Base Station Installation Guide
21
Additional Information Appendix A
Only apply to model BRU3510.
A.1 Antenna Information
Following are the list of antennas certified for use. Customers can choose according to
use environment of different antenna.
The antenna list is given as follows.
Antenna Type
Manufacturer
Model Number
Antenna
Max
Gain(dBi)
External Planar
Antenna Dual Pole
Baicells Technologies
Co., Ltd
ANT-2G17-R-65-
EDT0
17
External Planar
Antenna Dual Pole
Baicells Technologies
Co., Ltd
ANT-2G15-R-65-
EDT0
15
External Planar
Antenna Dual Pole
Baicells Technologies
Co., Ltd
ANT-2G13-R-65-
EDT0
13
External
Omnidirectional
Antenna Single Pole
Baicells Technologies
Co., Ltd
ANT-2G12-R-65-
EDT0
10
External
Omnidirectional
Antenna Single Pole
Baicells Technologies
Co., Ltd
ANT-2G10-R-65-
EDT0
8
External
Omnidirectional
Antenna Single Pole
Baicells Technologies
Co., Ltd
ANT-2G8-R-65-E
DT0
6
External
Omnidirectional
Antenna Single Pole
Baicells Technologies
Co., Ltd
ANT-2G0-R-65-E
DT0
0
A.2 Regulatory Compliance
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Nova-243 Outdoor LTE TDD Base Station Installation Guide
22
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
30cm between the radiator & your body.
ISEDC Compliance
This device complies with Innovation, Science, and Economic Development
Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) This device may not cause in
terference, and (2) This device must accept any interference, including interference t
hat may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d' Innovation, Science etveloppement
économique Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions
suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
Nova-243 Outdoor LTE TDD Base Station Installation Guide
23
même si le brouillage est susceptible d'en compromettre le fonctionnement.
The antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 4.5m from all persons and must not be collocated or operating in
conjunction with any other antenna or transmitter, End-Users must be provided with
transmitter operation conditions for satisfying RF exposure compliance.

Navigation menu
