EP3011 Quick Installation Guide
1
1. Product Overview
1.1 Interface

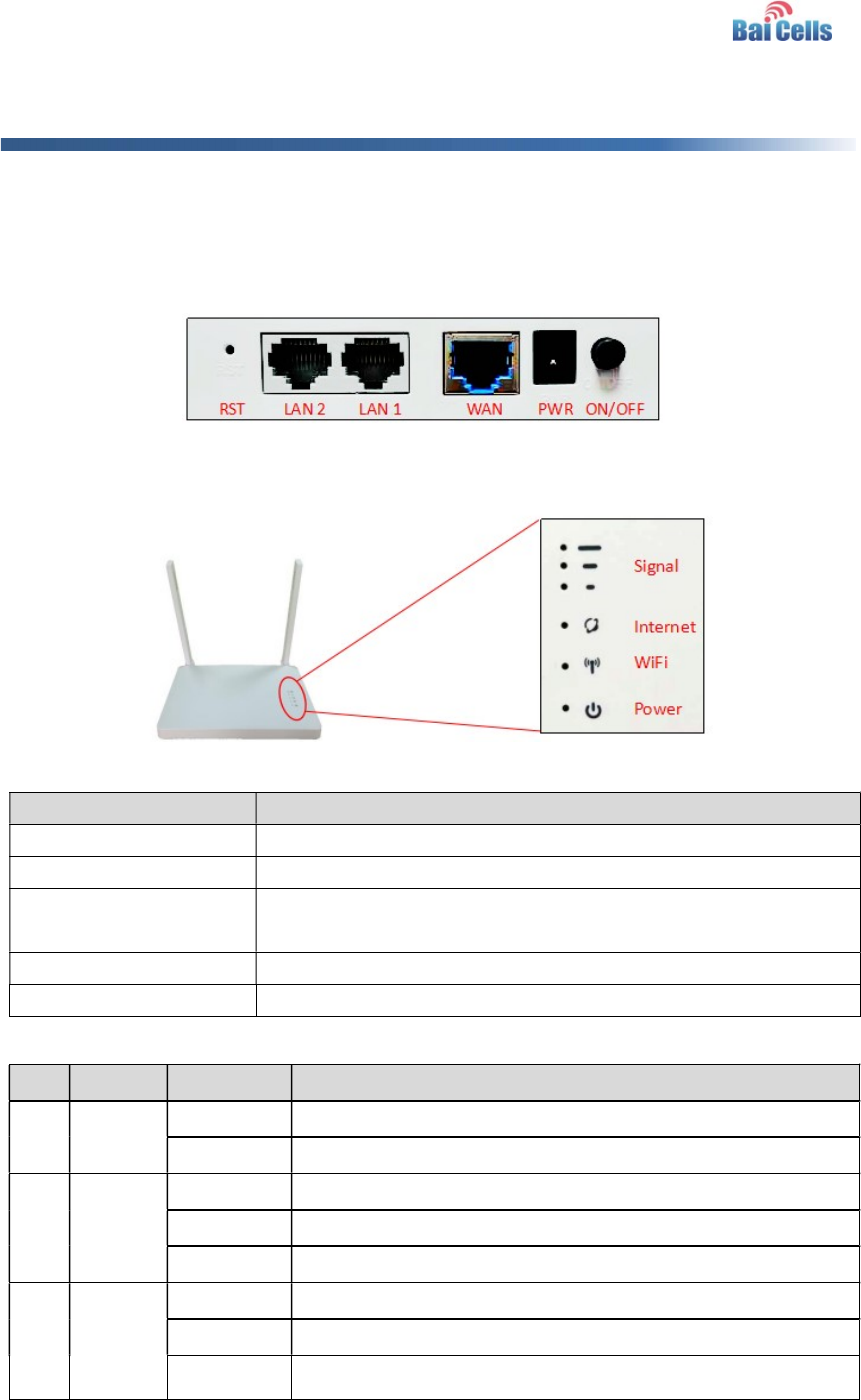

(1) Interfaces
(2) LEDs
Interface & Button Description
SW Power On/Off
POWER 24VDC, 1A
WAN 1 RJ45, WAN 10/100/1000 auto-sensing, auto-MDX, 24V
0.5A PoE
RST Long press over 10 seconds to restore factory settings
LAN 2 RJ45, LAN 10/100 auto-sensing, auto-MDX
No.
Name
Status
Description
1 Power
Steady On
Power On
OFF
No Power
Supply
2 WLAN
Steady On
Wi
-
Fi enabled
OFF
Wi
-
Fi disabled
Blinking
Wi
-
Fi is starting
3
LTE
(if
connect
to LTE
ODU)
Steady On
LTE is connected
OFF
LTE is disconnected
Blinking LTE is starting
No.
Name
Status
Description
4
Signal (if
connect
to LTE
ODU)
Steady On
The
more the lights on, the stronger the signal
OFF
No signal or weak signal
Blinking
Only the first LED on the left is
blinking Scanning the LTE network
The two LEDs on the left are
blinking
Attaching to the LTE
network
Three LEDs blinking
Attached successfully
2. Specifications
Item Description
Standard IEEE 802.11b/g/n/ac(WA) or 802.11bgn(WN)
Channel Bandwidth 20MHz, 40MHz or 20MHz, 40MHz, 80MHz
Frequency 2.4GHz, 5GHz or 2.4G only
TXRX 2T2R
MIMO 2×2
Peak Rate
802.11b: 11Mbps
802.11g: 54Mbps
802.11n: 300Mbps
802.11ac: 866Mbps
Modulate DSSS/CCK, OFDM
Sensitivity
-64 dBm@65Mbit/s, typical for 802.11n/ac
-65 dBm@54Mbit/s, typical for 802.11g
-76 dBm@11Mbit/s, typical for 802.11b
Antenna Type Internal omni-antenna
Antenna Gain 5dBi
3. Installation Guide
3.1 Support Materials

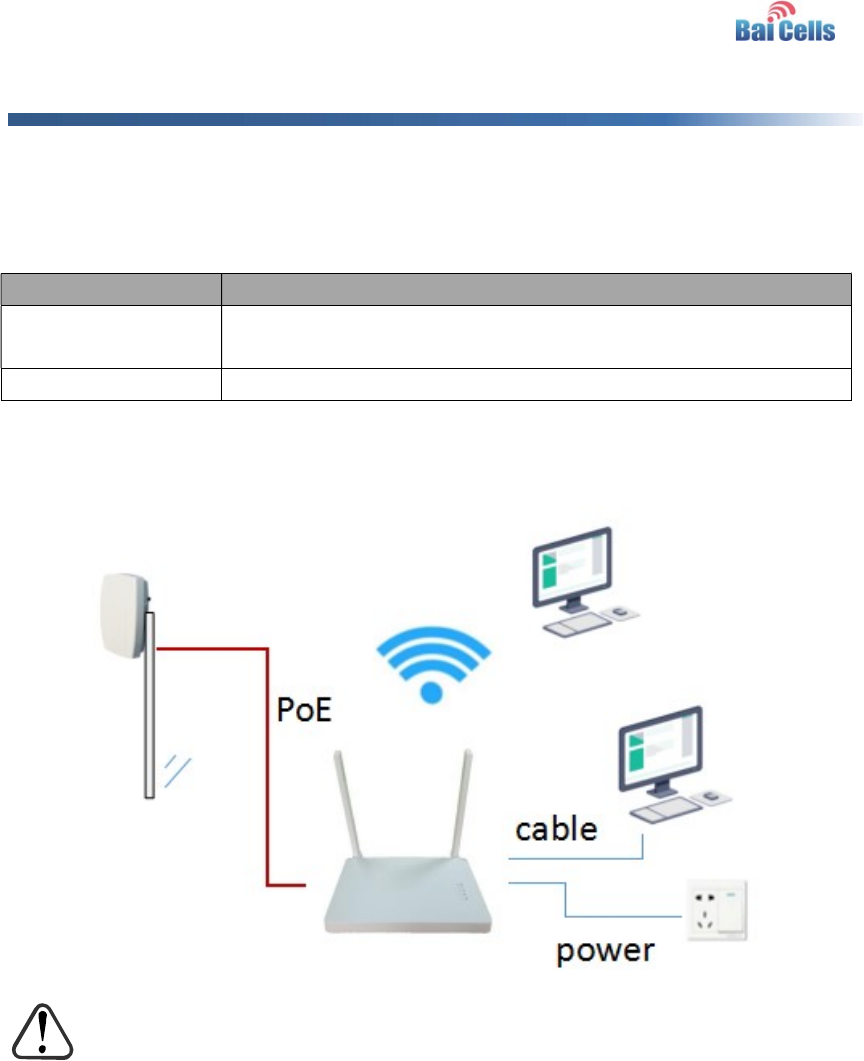

Before installation, prepare the following support materials:
Item Description
Ethernet cable Outdoor Shield CAT5E
Shorter than 330 feet
Ground wire 16mm² yellow-green wire
3.2 Installation
CAUTION:
NO OTHER DEVICES ARE ALLOWED TO BE CONNECT WITH IDU’s WAN PORT EXCEPT BAICELLS’
OUD PRODUCTS (EG7035E/L and EG7010A/C)
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
4. Configuration Guide
4.1 Log in
The EP3011 manages, configures, and maintains the device by web management page. The steps
to log in are as follows:
1. In the address column of browser, type in http://192.168.150.1, then press “Enter”,

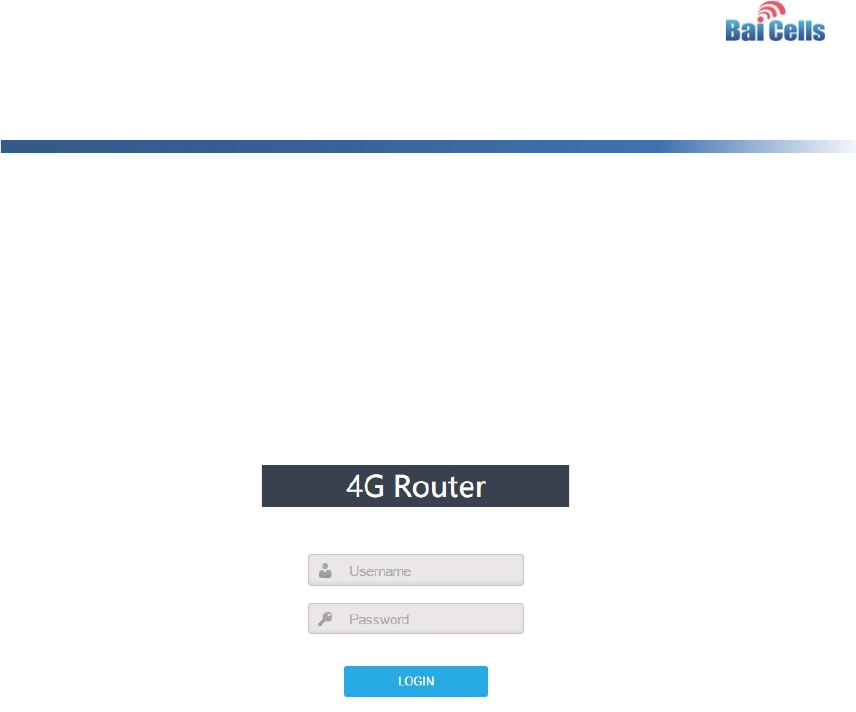

login in page is shown in Figure 4-1.
Figure 4-1 Login Page
2. Enter the user name and password, click "LOGIN". After password authentication,
you can log on to the web management page.
The default user name and password is admin.
For security, it is recommended that you open the firewall, and keep your login password, WLAN
FTP passwords and password well.
4.2 View Status

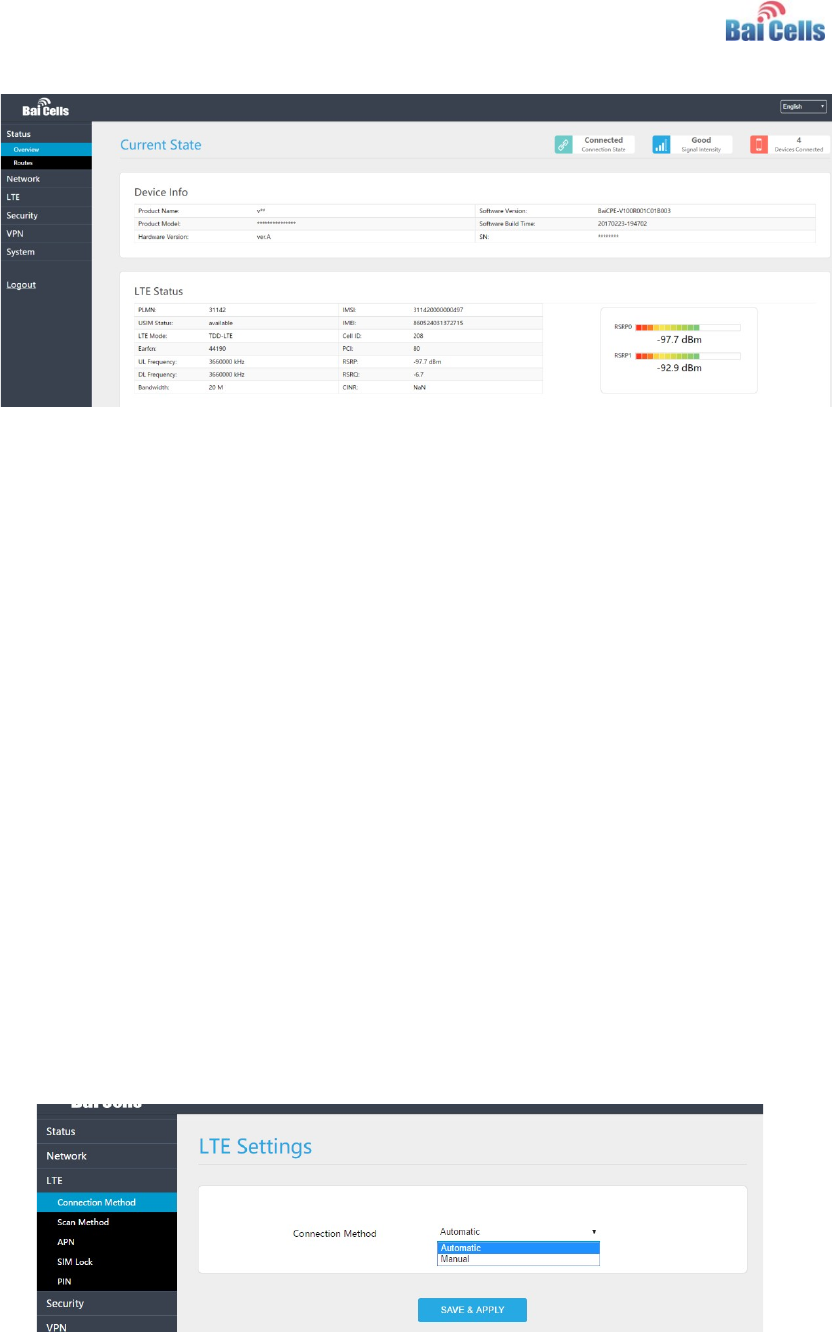

In the overview area, you can view the device information and LTE status, such as Product name,
Software version, PLMN, IMSI, RSRP, RSRQ, CINR, SINR, Tx Power, Cell ID, PCI, and so on, as shown
in Figure 4-2.
Figure 4-2 View Status
4.3 Basic Configuration
4.3.1 LTE Setting
To set the LTE Network, perform the following steps:
1. Choose LTE.
2. In the LTE Setting area, configure the LTE network.
4.3.2 Set Connection Method
To set the LTE network connection method, perform the following steps:
1. Choose “LTE>connection Method”, enter the setting connection method page, as
shown in Figure 4-3.
Figure 4-3 Set Connection Method
2. In the connection Method area, set the connection method
3. There are two methods to connect the LTE network, it is needed to choose a method
between Auto and Manual, if you want to auto connect to the LET network you should
choose the Auto, otherwise you should choose Manual.
4. Click “SAVE & APPLY”.
