Baicells Technologies PBS11004 LTE-TDD Base Station User Manual pBS11004 Base Station Installation Guide
Baicells Technologies Co., Ltd. LTE-TDD Base Station pBS11004 Base Station Installation Guide
Users Manual
01
All rights reserved © Baicells Technologies Co., Ltd.
pBS11004 Base Station Installation Guide
pBS11004 Base Station Installation Guide
About This Document
This document is a guidance of pBS11004 hardware installation for installation
personnel, which includes the preparation of installation tools and supporting
materials before installation, the demands of installation environment, installation of
base station, connection of cable and power on.
Accomplish the installation of the device according to this guide, the installation
personnel can avoid potential damage to the device during the installation
procedure, which makes sure the subsequent good running of the device.
Copyright Notice
Baicells copyrights this specification. No part of this specification may be reproduced in
any form or means, without the prior written consent of Baicells.
Disclaimer
This specification is preliminary and is subject to change at any time without notice.
Baicells assumes no responsibility for any errors contained herein. For more information,
please consult our technical engineers.
Disposal of Electronic and Electrical Waste
Pursuant to the WEEE EU Directive, electronic and electrical waste must not
be disposed of with unsorted waste. Please contact your local recycling
authority for disposal of this product.
Revision Record
Date
Version
Description
20 July, 2017
01
Initial Released.
Contact Us
Baicells Technologies Co., Ltd.North America
Address: 555 Republic Drive, Suite 200 Plano, TX 75074
E-mail: support_na@baicells.com
Phone: +1-972-800-1157
Website: http://www.baicells.com/
pBS11004 Base Station Installation Guide
Contents
1. Product Overview ......................................................................................................... 1
Introduction ............................................................................................................... 1 1.1
Features ...................................................................................................................... 1 1.2
Appearance ................................................................................................................ 2 1.3
Technical Specification ............................................................................................... 3 1.4
1.4.1 Hardware Specification....................................................................................... 3
1.4.2 Software Specification ........................................................................................ 4
1.4.3 Environment Specification .................................................................................. 4
2. Out-of-Box Audit ......................................................................................................... 5
3. Installation Preparation .............................................................................................. 6
Support Materials ..................................................................................................... 6 3.1
Installation Tools ...................................................................................................... 6 3.2
Installation Environment ............................................................................................ 7 3.3
3.3.1 Locational Requirements .................................................................................... 7
3.3.2 Environmental Requirements ............................................................................. 7
Personnel Requirements ............................................................................................ 7 3.4
Grounding Protection ................................................................................................. 7 3.5
Regulatory Compliance .............................................................................................. 8 3.6
4. Base Station Installation ............................................................................................. 10
Install on Pole ........................................................................................................... 10 4.1
Install on Wall ........................................................................................................... 11 4.2
Connect Cable .......................................................................................................... 11
4.3
4.3.1 Connect Ethernet Cable .................................................................................... 11
4.3.2 Connect Ground Cable ...................................................................................... 12
5. Power On ................................................................................................................... 13
pBS11004 Base Station Installation Guide
1
1. Product Overview
Introduction 1.1
Baicells pBS11004 is a high performance outdoor 2496MHz-2690MHz micro base
station based on TD-LTE technology, which is developed by Baicells. The pBS11004
supports wired backhaul connections to backbone networks, and provides LTE access to
user terminals, implemented voice and data service transmissions.
The pBS11004 makes use of the current transmission resources to reduce the
operator’s investment, implement the low-cost construction of LTE networks and
enhance indoor coverage, thereby providing high-speed broadband access for
users in assembly occupations.
The pBS11004 can be widely used by telecom operators, broadband operators,
enterprises, and so on.
Features 1.2
Adopt the integration design of baseband and RF, flexible to deploy.
Based on 3GPP international standard TD-LTE technology; provide high speed data
service; support a maximum transfer rate of DL: 110Mbit/s, UL: 20Mbit/s.
Support flexible uplink and downlink time slot ratio: 1(2:2), 2(1:3), and high speed
data transmission.
Support 10MHz/20MHz operation bandwidth.
Support internal antenna and GPS.
Support PoE+ power supply, only one Ethernet cable realize data transmission and
power supply.
Security services to provide timely protection against potential security risks and
illegal intrusion.
Support simple and convenient local and remote web management.
Integration as required, easy to installation and deployment, accurate
coverage and improved network capacity.
Support network management functions, which includes the management,
monitoring and maintenance.
pBS11004 Base Station Installation Guide
2
Appearance 1.3

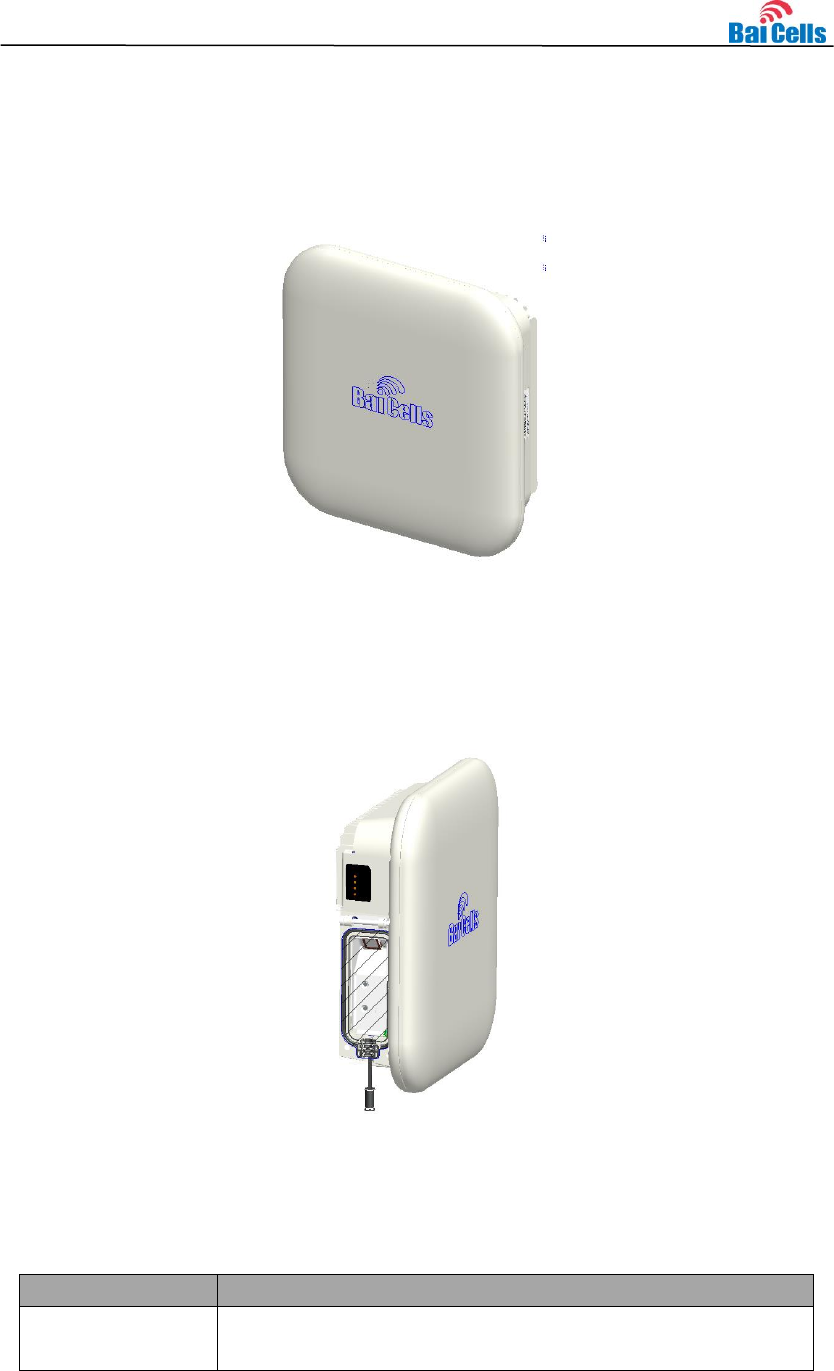

The pBS11004 base station appearance is shown in Figure 1-1.
Figure 1-1 pBS11004 Appearance
The pBS11004 interfaces and indicators are shown in Figure 1-2.
Figure 1-2 pBS11004 Interfaces and Indicators
The pBS11004 interfaces are described in Table 1-1.
Table 1-1 pBS11004 Interface Description
Interface Name
Description
ETH/POE+
RJ-45 interface, used for data configuration or data
backhaul, and PoE+ power supply.
pBS11004 Base Station Installation Guide
3

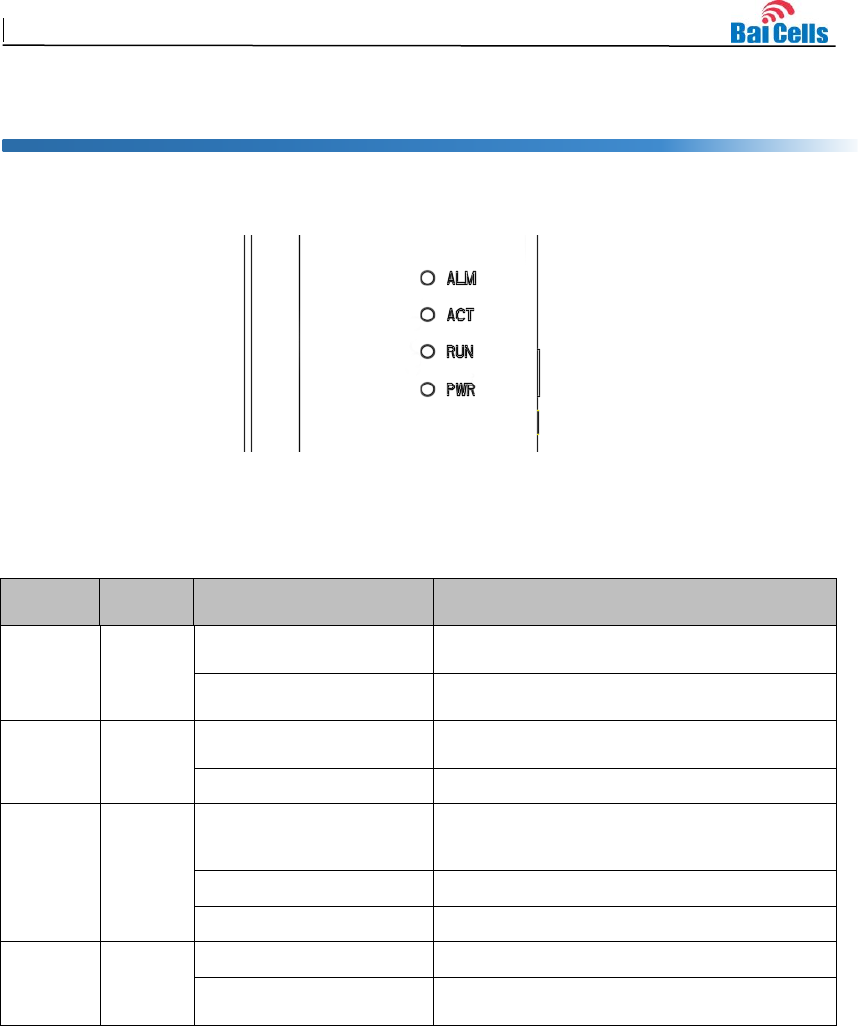

The pBS11004 interface indicators are described in Table 1-2.
Table 1-2 pBS11004 Interface Indicators
Identity
Color
Status
Description
PWR
Green
Steady On
Power On
OFF
No Power Supply
ACT
Green
Steady On
The cell is activated.
OFF
The cell is not activeated.
RUN
Green
Fast flash: 0.125s
on,0.125s off
The board is loading.
Slow flash: 1s on,1s
off
The board is normal.
OFF
No power input or board fault
ALM
Red
Steady On
Hardware alarm, e.g. VSWR alarm
OFF
No alarm
Technical Specification 1.4
1.4.1 Hardware Specification
Item
Description
LTE Mode
LTE TDD
LTE Frequency
2496MHz-2690MHz
Channel Bandwidth
10 MHz, 20 MHz
Output Power
24 dBm±2dB
Receiving sensitivity
-101 dBm
Synchronization
Mode
GPS synchronization
Backhaul Mode
RJ-45 Ethernet backhaul
MIMO
2*2MIMO
Dimension
248mm (L) * 248mm (W) * 80mm (H)
Installation Method
Pole mounted, wall mounted
Antenna
Internal high gain antenna(9 dBi)
Overall Power
< 20 W
Weight
About 2.0kg
Note:
The test method of receiving sensitivity is proposed by the 3GPP TS 36.104, which is based on 5MHz
bandwidth, FRC A1-3 in Annex A.1 (QPSK，R=1/3，25RB) standard.
pBS11004 Base Station Installation Guide
4
1.4.2 Software Specification
Item
Description
LTE Standard
LTE TDD 3GPP Release 9
Maximum
Throughput
20MHz: DL 110Mbps, UL 20Mbps
10MHz: DL 55Mbps, UL 9Mbps
Business
Capacity
32 concurrent users (support software upgrading the users to
96)
Modulation Mode
QPSK, 16QAM, 64QAM
Traffic Offload
Support LIPA/SIPTO, which is Local IP Access and Selected
IP Traffic Offload for short
SON
Self-organizing network: support plug and play, automatic start,
optimization and configuration
RAN Sharing
Support
Network
Management
Interface
Support TR069 interface protocol
Northbound
Interface
Support Web service, Socket, FTP and other interface modes
MTBF
≥ 50000 hours
MTTR
≤ 1 hour
Maintenance
Support remote/local maintenance, based on SSH protocol
Support remote maintenance
Support online status management
Support performance statistics
Support failure management
Support configuration management
Support local or remote software upgrading and loading
Support log
Support connectivity diagnosis
Support automatic start and configuration
Support alarm reporting
1.4.3 Environment Specification
Item
Description
Operating Temperature
-40°C ~ 55°C
Humidity
5% ~ 95%
Atmospheric Pressure
70kPa ~ 106kPa
IP Protection Grade
IP65
pBS11004 Base Station Installation Guide
5
2. Out-of-Box Audit
Before opening the box, make sure the package is in good condition, undamaged and
not wet. During the unpacking, avoid potential damaging impacts from hits or excessive
force. Once unpacked, check the contents to see if they are consistent with that in the
shipping list shown in Table 2-1.
Table 2-1 Shipping List
No.
Item
Quantity
Description
1
pBS11004 base station
1
Check whether the base station’s tag
is consistent with the requirement
2
Base station mounting
bracket
1
Fixed with base station
3
Integrated bracket for on
pole or on wall
1
Used for fix on pole or on wall
4
U shape clamp
1
Used for fix on pole
5
Omega
Used for fix on pole
6
Screw package
1
M6*12 combined screw * 8
M8 hex nut * 2
7
PoE power adaptor
1
-
8
Power cable
1
The length is 1m.
9
Ground terminal
1
Used for making ground cable.
10
Warranty
1
-
11
Certification
1
-
12
User guide
1
-
Note:
During the unpacking, if the outer package is damaged or wet, stop unpacking and find the cause.
Report the issue to the vendor. For any shortage or damage that is identified, report the local vendor
within 10 days.
pBS11004 Base Station Installation Guide
6
3. Installation Preparation
Support Materials 3.1
Prepare the following support materials accordingly, as given in Table 3-1.
Table 3-1 Support Materials for Installing Base Station
Item
Description
Ethernet cable
Outdoor CAT6
Shorter than 100m (330 feet)
Ground cable
16mm² yellow-green wire

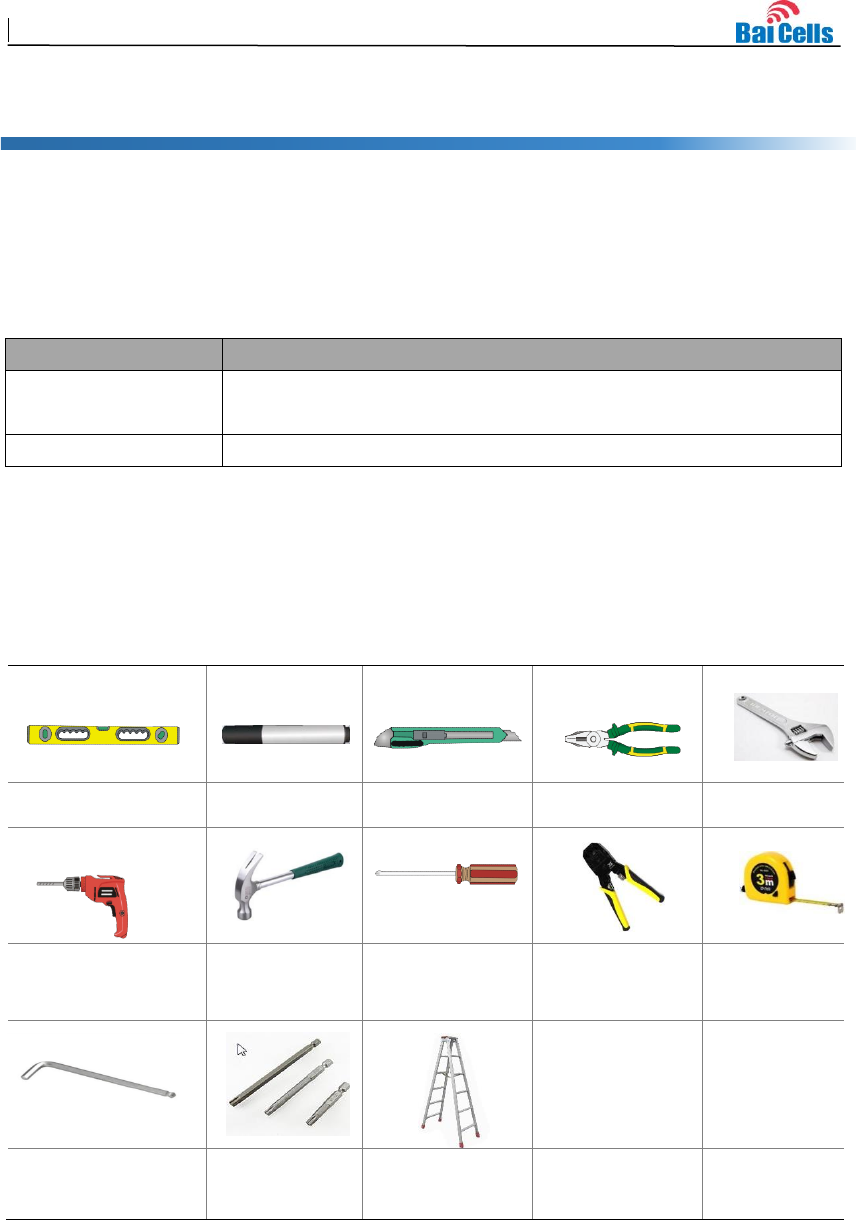

Installation Tools 3.2
The following tools are needed during the installation.
Level bar
Marking pen
Knife
Vise
Wrench
Percussion drill and
some drill heads
hammer
Cross screw
driver
Cable vice
Tape measure
5mm L-shape allen
wrench
T7 screwdriver
head
Ladder
pBS11004 Base Station Installation Guide
7
Installation Environment 3.3
3.3.1 Locational Requirements
Environments with high-temperatures, harmful gases, unstable voltages, volatile
vibrations, loud noises, flames, explosives, and electromagnetic interference (large radar
stations, transmitting stations, transformer substations) are not suitable for the operation
of pBS11004, and thus should be avoided.
Places prone to have impounded water, soaking, leakage, or condensation, should also
be avoided.
Factors like climate, hydrology, geology, earthquake, electric power, and transportation
should be taken into consideration in the construction process so that a proper location
can be chosen to meet the communication engineering environmental requirements, as
well as the technical requirements of network planning and communication equipment.
3.3.2 Environmental Requirements
Table 3-2 gives the base station’s environmental requirements with regards to
temperature, humidity, and voltage.
Table 3-2 Environmental Requirements of the Base Station
Item
Range
Humidity
-40°C ～ 55°C
Relative humidity (no condensation)
5% ~ 95%
Personnel Requirements 3.4
The installation personnel must master the basic safe operation knowledge, through the
training, and having the corresponding qualifications.
Grounding Protection 3.5
CAUTION:
It is unlikely to happen but since the LTE eNodeB is very sophisticated equipment
so we would recommend you to test it on the ground to make sure everything is
functioning before install on the tower.
Grounding Notes:
pBS11004 Base Station Installation Guide
8
The ground wire adopts yellow-green wire that is no smaller than 16 mm².
Grounding principle: as near as possible.
The eNodeB connects to the reliable outdoor grounding point (earth) through one
ground screw.
The connection of the grounding points and the ground bar need to be tight and
reliable. Rustproofing the terminals is required. This can be done with rust
preventing paint, anti-oxidation coatings, grease, and so on.
Regulatory Compliance 3.6
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Warning
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 30 cm between the radiator & your body.
ISEDC Compliance
This device complies with Innovation, Science, and Economic Development
Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) This device may not
pBS11004 Base Station Installation Guide
9
cause interference, and (2) This device must accept any interference, including i
nterference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d' Innovation, Science et
Développement
économique Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions
suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
The antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 30 cm from all persons and must not be collocated or
operating in conjunction with any other antenna or transmitter, End-Users must
be provided with transmitter operation conditions for satisfying RF exposure
compliance.
pBS11004 Base Station Installation Guide
10
4. Base Station Installation

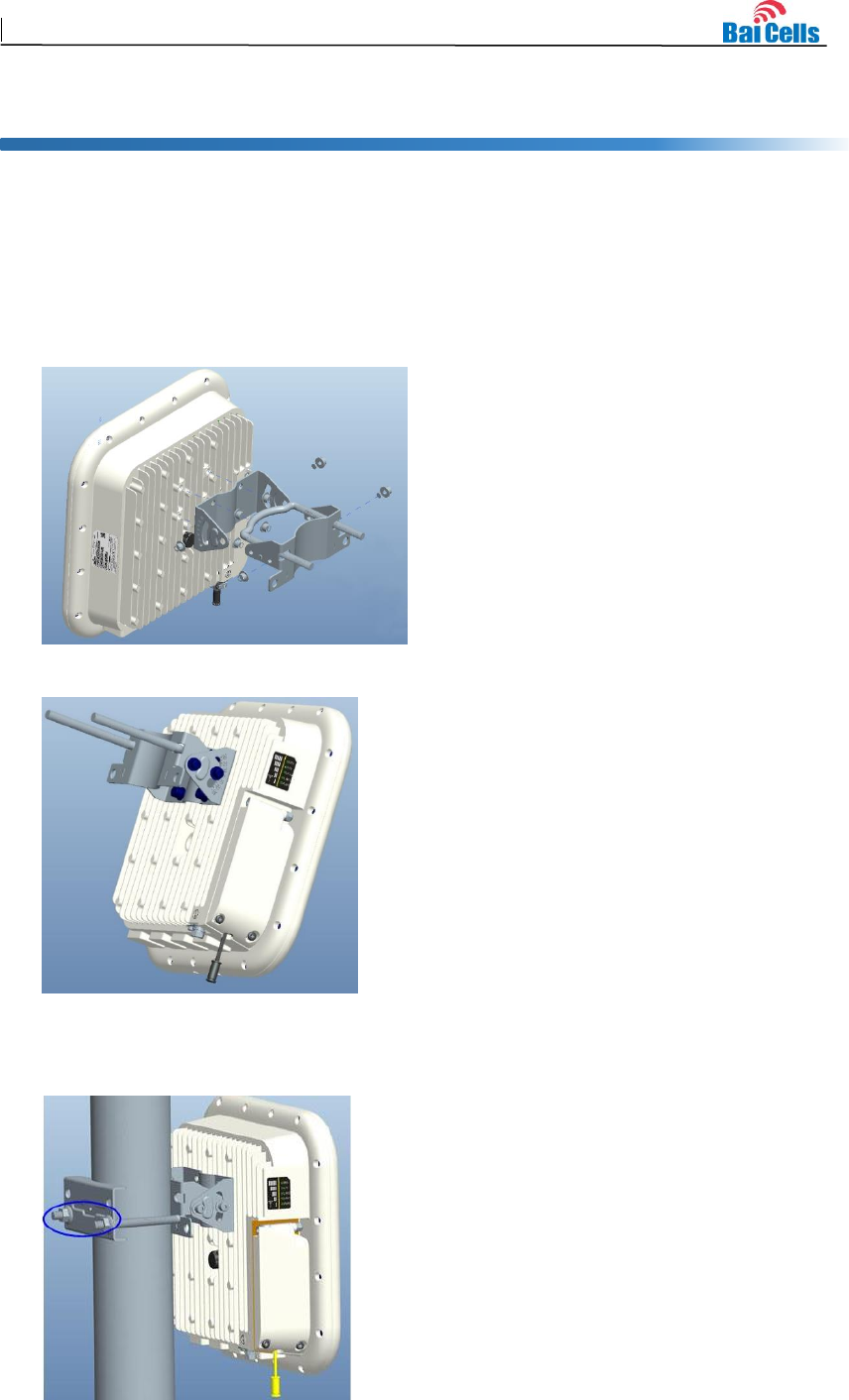

Install on Pole 4.1
Required diameter of the pole: 40mm ~ 100mm.
1. As the following figure, assemble the bracket for pole installation, and fasten
screws.
2. Mounting bracket installs is complete as shown in the following figure.
3. Fit the base station assembled bracket to the pole, pass the omega through the
threaded rods, and then fasten the two nuts.
pBS11004 Base Station Installation Guide
11
4. Adjust base station to proper angle and fasten the screws.

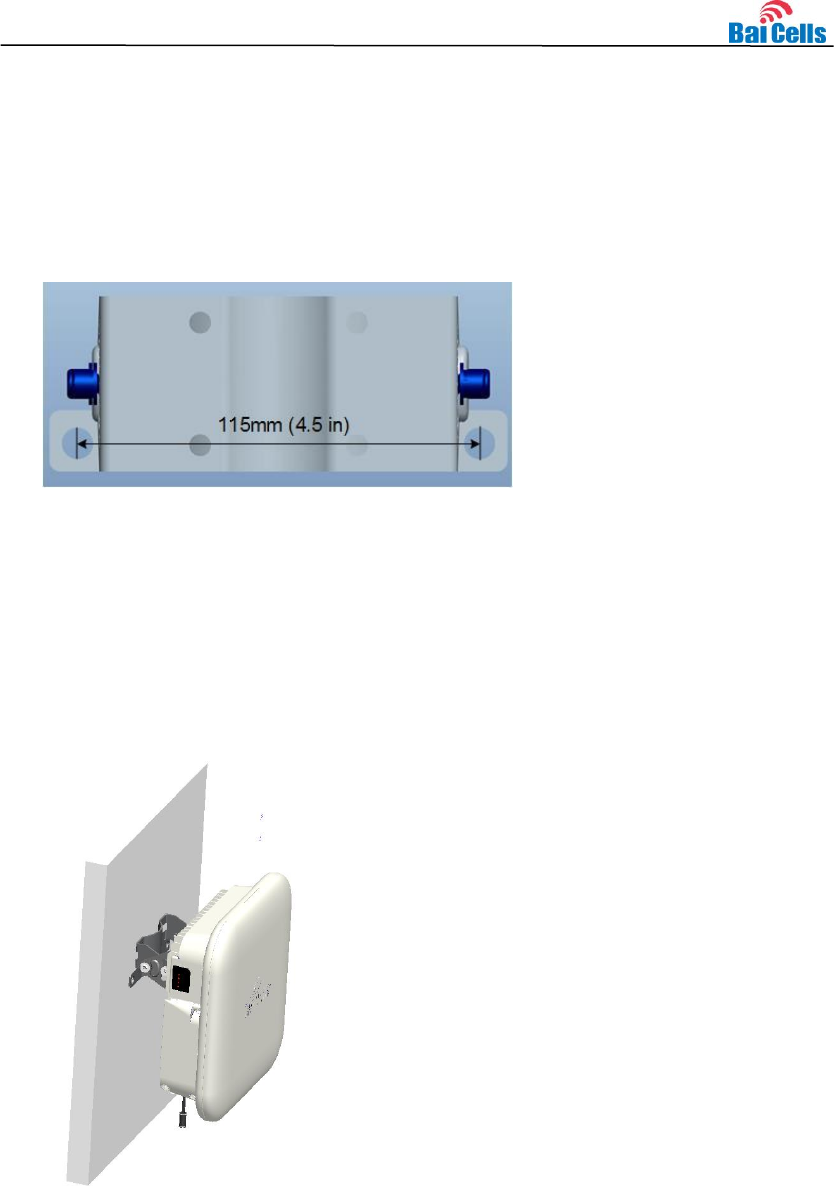

Install on Wall 4.2
The wall must bear four times of the base station weight.
1. Fit the base station on the wall, and mark the drilling locations.
2. Drill four 12mm diameter and 80mm depth holes in the wall by following the
marked locations.
3. Check the up/down direction of the installation rack, and then fix the base
station to the wall using M8*80 expansion screws.
4. When install on wall, the U shape clamp is not needed.
5. Fix the base station on the bracket and adjust to proper angle.
Connect Cable 4.3
4.3.1 Connect Ethernet Cable
1. Unscrew three screws on the cover of wiring cavity using M4 cross screwdriver and
pBS11004 Base Station Installation Guide
12
open the wiring cavity.
2. Connect the Ethernet cable to ETH interface in the wiring cavity.
3. Lay Ethernet cable along the wire groove, and stretch out the wiring cavity from ETH
hole.
4. The other end of the Ethernet cable connects to the PoE power adaptor.

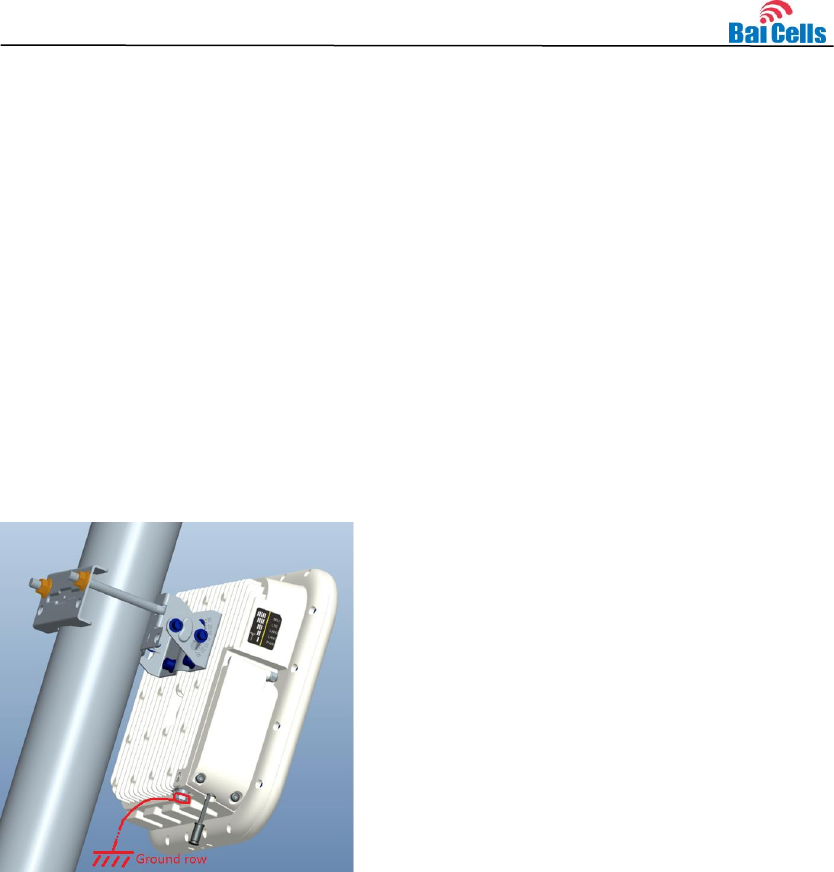

4.3.2 Connect Ground Cable
Make the grounding cable according the actual situation of the installation site.
The grounding screws of pBS11004 located on the bottom of the base station, as shown
in Figure 4-1.
Figure 4-1 Location of Grounding Screws
1. Unscrew the grounding screw, connect one end of the grounding cable to the
grounding screw, and fasten it again.
2. The other end of the ground cable needs to connect to a good grounding point.
pBS11004 Base Station Installation Guide
13
5. Power On
Power on the pBS11004, and the indicators will light up, as shown in Figure 5-1.
Figure 5-1 LED Indicators
The explanation of the indicator signal is given in Table 5-1.
Table 5-1 pBS11004 Indicator Description
Identity
Color
Status
Description
PWR
Green
Steady On
Power On
OFF
No Power Supply
ACT
Green
Steady On
The cell is activated.
OFF
The cell is not activated.
RUN
Green
Fast flash: 0.125s
on,0.125s off
The board is loading.
Slow flash: 1s on,1s off
The board is normal.
OFF
No power input or board fault
ALM
Red
Steady On
Hardware alarm, e.g. VSWR alarm
OFF
No alarm
