Outdoor LTE-FDD Base Station Specification
1
Introduction

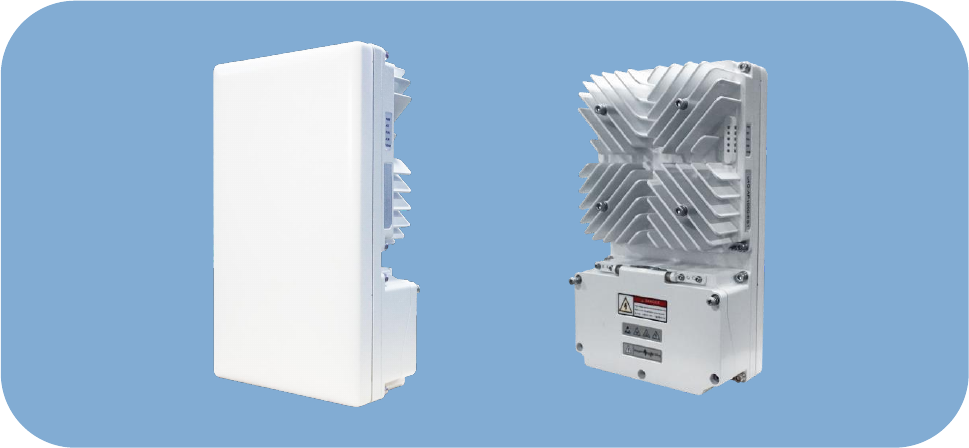

The Baicells Spectra is outdoor LTE-FDD base station that works on unlicensed band of
5.8GHz. Since it works in standalone mode, it doesn’t require any licensed band to build a
network. With 2*320mw output power (2x2 MIMO with 320mw output each channel) and
embedded antenna, Spectra is compact, light, ultimately easy to install and maintain, and
has excellent performance. It can be used to build a network completely based on
unlicensed band or as additional capacity for network based on licensed bands, which can
help operators to extend and improve their business, without the huge cost of buying
license.
With the advantage of LTE technology, Spectra enjoys much higher receiving sensitivity and
better QoS control, if compared to WiFi based technology. And also Spectra support
continuous networking thanks to LTE technology with GPS synchronization.
With high capacity and easy deployment, the LTE-U eNB can help mobile operators to

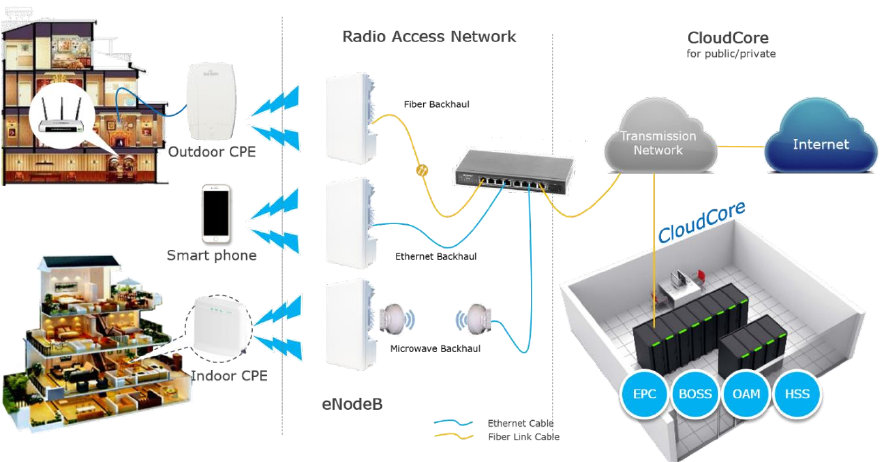

provide better coverage and higher capacity with minimal effort. The typical topology of
LTE-U deployment is as follows.
2
Highlights
Easy Deployment
Super slim and beautiful design, suitable for private and public deployments.
Any IP based backhaul can be used, including public transmission.
Support GPS synchronization.
Low power consumption, can be integrated with solar power conveniently.
Plug-and-Play with SON capabilities.
Internal high gain directional antenna and GPS antenna.
Better Performance
Peak rate 150Mbps@ Downlink, 50Mbps@Uplink with 20MHz spectrum.
Maximum 32 concurrent users.
Support eGW (optional) for S1 aggregation to reduce signaling load of MME.
Support local traffic offload and charging in cooperation with eGW.
Support 10MHz/20MHz operation bandwidth
Easy Management
3
Efficient remote configuring, monitoring, and maintaining operations with Baicells network
management system (NMS) BaiOMC.
Highly secured with equipment certification against potential intrusion risk.
Smooth Evolution
Abundant features achievable with software upgrade.
Smooth evolution to C-RAN architecture, which support centralized scheduling for better
networking performance, with Baicells’ central network unit (CNU).
Hardware Specifications
Item
Description
LTE Mode
FDD
Frequency Bands
DL:5725-5825MHz
UL:5150-5250MHz
Channel Bandwidth
10MHz, 20 MHz
MAX Output Power
25 dBm /Ant
Receive Sensitivity
-102 dBm/Ant
Synchronization
GPS
Backhaul
1 Optical (SFP) and 1 RJ-45 Ethernet interface (1 GE)
MIMO
DL: 2 x 2
Dimensions
120mm (L) x 93mm (W) x 37.5mm (H)
Installation Type
Pole, wall
Antenna
14dBi, internal directional antenna
Horizontal beam width 45°, vertical beam width 12°
Polarization mode: ±45°
Power Consumption
< 65W
4
Power Supply
48V DC 1.5A (maximum)
PoE+ power supply
Weight
Less than 4.0kg
Software Specifications
Item
Description
LTE Standard
3GPP Release 9
Peak Rate
20MHz: DL: 150Mbps, UL: 50Mbps
User Capacity
32 concurrent users
QoS Control
3GPP standard QCI
Modulation
UL: QPSK, 16QAM
DL: QPSK, 16QAM, 64QAM
Traffic Offload
LIPA (Local IP Access)
SIPTO (Selected IP Traffic Offload)
SON
Automatic setup
ANR (Automatic Neighbor Relation)
PCI confliction detection
Spectrum Scanning
Supported
UL Interference Detection
Supported
RAN Sharing
Supported
Network Management Interface
TR069
MTBF
≥ 150000 hours
MTTR
≤ 1 hour
Maintenance
Remote/local maintenance
Online status management
5
Performance statistics
Fault management
Local or remote software upgrade
Logging
Connectivity diagnosis
Automatic start and configuration
Alarm reporting
KPI Recording
User information tracing
Signaling trace
Environmental Specifications
Item
Description
Operating Temperature
-40°C to 55°C
Storage Temperature
-45°C to 70°C
Humidity
5% to 95%
Atmospheric Pressure
70 kPa to 106 kPa
Ingress Protection Rating
IP65
Power interface Lightning
Protection
Differential mode: ±10 KA
Common mode: ±20 KA
6
Model List
Filter Range
Models
Description
UL/DL:
5150MHz~5825 MHz
u4G-AP1000
u4G-AP1000(FDD Outdoor Micro cell, Unlicensed
frequency, DL:5725-5825MHz/UL:5150-5250MHz,
2T2R, 25dBm,48V DC, PoE+, America standards )
Regulatory Compliance
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
Warning
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 60 cm between the radiator
& your body.
ISEDC Compliance
This device complies with Innovation, Science, and Economic Development
Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired opera
tion of the device.
7
Le présent appareil est conforme aux CNR d' Innovation, Science et Développement
économique Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions
suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
The antenna(s) used for this transmitter must be installed to provide a separation distance of at least
60 cm from all persons and must not be collocated or operating in conjunction with any other antenna
or transmitter, End-Users must be provided with transmitter operation conditions for satisfying RF
exposure compliance.
