User Manual

BF-IDU02

RFID-Reader

Company Addresses

Europe, Germany, Headquarter

Balluff GmbH

Schurwaldstraße 9

D-73765 Neuhausen, Germany

Argentina

Balluff Argentina S.R.L.

Echeverría 1050, 1st UF 2

1604 Buenos Aires - Florida Oeste

Australia

Balluff Pty Ltd.

18 Malvern Street

Bayswater, 3153 Victoria

Brasil

Balluff Controles Elétricos Ltda.

Rua Francisco Foga, 25 ,Distrito Industrial

CEP 13280.000 – Vinhedo – SP

Canada

Balluff Canada Inc.

2840 Argentia Road, Unit 2 Mississauga,

Ontario L5N 8G4

China

Balluff (Shanghai) Trading Co. Ltd.

No.800 Chengshan Rd, 8F, Building A, Yunding International Commercial Plaza

200125, Pudong, Shanghai

Japan

Balluff Co., Ltd.

Aqua Hakusan Bldg. 9F 1-13-7 Hakusan, Bunkyo-ku,

Tokyo 113-0001

Mexico

Balluff de México S.A. de C.V.

Anillo Vial II Fray Junipero Serra No. 4416; Colonia La Vista Residencial

CP 76232 Delegación Epigmenio González, Querétaro

USA

Balluff Inc.

8125 Holton Drive, Florence

Kentucky 41042-0937

BF-IDU02

RFID-Reader

Operating Guide

Purpose of the Device

The BF-IDU02 device is intended to read and write "EPC Global Class 1 Gen2" compliant data

carriers (so called tags) via country dependent UHF radio frequencies.

Check that you have the right device variant

This UHF system consists of a radio frequency unit and an integrated antenna according to

specifications and may only be operated within the specified countries subject to all applicable

national legal regulations and standards.

Check that the type label contains the correct type approval symbol for your country.

► When using the UHF system in the European Community, the provisions in ETSI standard 302 208

apply.

► When using the UHF system in the USA, the directives of the FCC, Part 15 B and 15 C, apply.

► When using the UHF system in Canada, the directives of the IC, RSS-210 apply.

► When using the UHF system in Mexico, the directives of the SCT, NOM-121-SCT1-2009 apply.

► When using the UHF system in Argentina, the directives of Resolución SC 729/80 and SC 784/87

apply.

► When using the UHF system in Brazil, the directives of the ANATEL, 506/2008 and 442/2006 apply.

► When using the UHF system in China, the directives of the RFID National Standard and GB 9254

apply.

► When using the UHF system in Japan, the directives of "Radio Law" and ARIB T106 apply.

► When using the UHF system in Australia, the directives of the Radiocommunications Class License

2000 (Item 32A) apply.

BF-IDU02

RFID-Reader

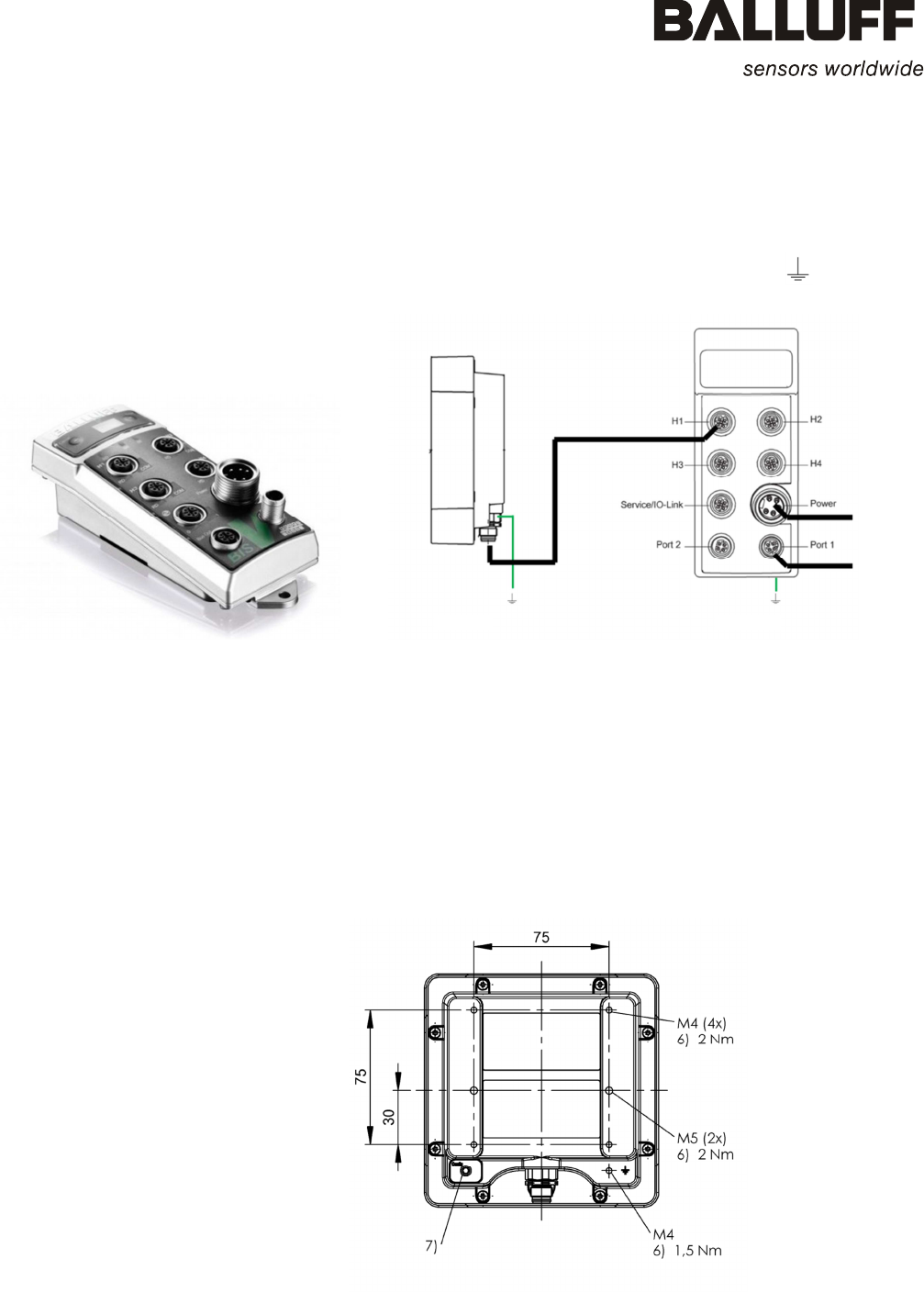

Connecting the Device

The device has to be connected to one of the head connectors "H1" .. "H4" of a Balluff BIS V

control unit via standard 4-wire cable with M12 industry connectors. The control unit delivers

power supply and controls the device over this connection.

Make an additional ground connection to the Functional Ground terminal (Symbol ) either

directly or using an RC combination to ground.

The control unit itself needs to be connected to a power supply and the customer's PLC unit.

See the BIS V manual for details.

Mounting

Before operating, the device has to be fixed mounted with at least 2 screws of M4 or M5 size in

mounting holes at back side (see image).

The BF-IDU02 device may be mounted in any direction, the operating direction of the integrated

antenna is towards the front containing the "BIS VU Identification Systems" label.

Optional mounting plates are available for installing the device.

The antennas of the identification system BIS U transmit ultra-high frequency electromagnetic

waves. People should not remain within close range of the UHF antenna for long periods

(several hours). When selecting the installation position for the BF-IDU02 device, make sure

that the minimum distance between the UHF antenna and the workplace is 25 cm.

IDU02

BIS V

6xxx

BF-IDU02

RFID-Reader

Setup and Operation

The BF-IDU02 device will operate when the BIS V control unit receives read or write commands

from the connected PLC. See the manual of BIS V control units for how to send commands to

the control unit.

The transmission power may be set up with Service Software e.g. "Balluff UHF Manager" up to

the specified maximum to control the read and write range of the device.

Status Indicators

The device will show its status using the 4 LEDs at the corners of the housing. In normal

operation state the meaning of these lights are as follows:

►

Green light "Power" indicates that the device is connected to the control unit and ready to

operate.

►

Red light "Status" (permanent) indicates that the device's temperature is outside limits,

probably because the ambient temperature is too high or the device is defective.

►

Red light "Status" (flashing) indicates that the devices settings are not initialized correctly.

Please contact Service.

►

Blue light "RF active" indicates that the device has turned radio frequency transmission on

and tries to scan for tags or write or read data over the air.

►

Orange light "Tag present" indicates that at least one UHF EPC Global tag could be found by

the device. The light will stay on for at least 3 seconds after a successful scan.

Electrical Data

Operating voltage Vs 19.2…28.8 V DC

Current draw (at 24 V DC) ≤ 200 mA

ETSI-Version:

Operating Frequency 865.0 .. 868.0 MHz

Maximum Transmit Power 25 dBm (320 mW) ERP

FCC/IC-Version (also Argentina, Mexico):

Operating Frequency 902 .. 928 MHz

Maximum Transmit Power 27 dBm (0,5 W) EIRP

Brazil Version:

Operating Frequency 915 .. 928 MHz

Maximum Transmit Power 27 dBm (0,5 W) EIRP

China Version:

Operating Frequency 920.5 .. 924.5 MHz

Maximum Transmit Power 25 dBm (320 mW) ERP

Japan Version:

Operating Frequency 916.7 .. 920.5 MHz

Maximum Transmit Power 27 dBm (0,5 W) EIRP

Australia Version:

Operating Frequency 920 .. 926 MHz

Maximum Transmit Power 27 dBm (0,5 W) EIRP

Maximum Read Range 1000 mm

Antenna Beam Opening Angle 90° (horizontal/vertical )

Antenna Polarization Circular LH

Mechanical Data

Housing material Metal / ABS / PC

FEDERALCOMMUNICATIONSCOMMISSIONINTERFERENCESTATEMENT

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuantto

part15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmful

interferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequency

energyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferenceto

radiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticular

installation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbe

determinedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferenceby

oneormoreofthefollowingmeasures:

‐Reorientorrelocatethereceivingantenna.

‐Increasetheseparationbetweentheequipmentandreceiver.

‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.

‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



CAUTION:

Anychangesormodificationsnotexpresslyapprovedbythegranteeofthisdevicecouldvoidtheuser's

authoritytooperatetheequipment.



ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)

thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,

includinginterferencethatmaycauseundesiredoperation.



RFexposurewarning

  

Thisequipmentmustbeinstalledandoperatedinaccordancewithprovidedinstructionsandthe

antenna(s)usedforthistransmittermustbeinstalledtoprovideaseparationdistanceofatleast20cm

fromallpersonsandmustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaor

transmitter.End‐usersandinstallersmustbeprovidewithantennainstallationinstructionsandtransmitter

operatingconditionsforsatisfyingRFexposurecompliance.







Canada,IndustryCanada(IC)Notices

ThisdevicecomplieswithCanadalicence‐exemptRSSstandard(s).

Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseinterference,and

(2)thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesired

operationofthedevice.



Canada,avisd'IndustryCanada(IC)

LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradioexempts

delicence.L'exploitationestautoriséeauxdeuxconditionssuivantes:(1)l'appareilnedoitpas

produiredebrouillage,et(2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectrique

subi,mêmesilebrouillageestsusceptibled'encompromettrelefonctionnement.



RadioFrequency(RF)ExposureInformation

TheradiatedoutputpoweroftheWirelessDeviceisbelowtheIndustryCanada(IC)radiofrequency

exposurelimits.TheWirelessDeviceshouldbeusedinsuchamannersuchthatthepotentialfor

humancontactduringnormaloperationisminimized.



ThisdevicehasalsobeenevaluatedandshowncompliantwiththeICRFExposurelimitsundermobile

exposureconditions.(antennasaregreaterthan20cmfromaperson'sbody).



Informationsconcernantl'expositionauxfréquencesradio(RF)

Lapuissancedesortieémiseparl’appareildesansfilestinférieureàlalimited'expositionaux

fréquencesradiod'IndustryCanada(IC).Utilisezl’appareildesansfildefaçonàminimiserlescontacts

humainslorsdufonctionnementnormal.



Ce périphérique a également été évalué et démontré conforme aux limites d'exposition aux RF d'IC

dans des conditions d'exposition à des appareils mobiles (antennes sont supérieures à 20 cm à partir

du corps d'une personne).
