BandRich 30SK58 LTE M2M & Vehicle Mount Router User Manual BandLuxe FieldPerfect

BandRich Inc. LTE M2M & Vehicle Mount Router BandLuxe FieldPerfect

User Manual

User
Manual
BandLuxe
K530 Series
LTE M2M & Vehicle
Mount Router
1
Table of Contents
Package Contents .......................................................................... 2
Features .................................................................................................................. 2
Hardware Overview ................................................................................................. 3
Connection ...................................................................................... 5
Appendix B: Specifications ........................................................... 6
Federal Communications Commission .................................................................... 8
Package Contents
2
Package Contents
Thank you for your purchase of this LTE M2M & Vehicle Mount Router.
This product is designed to access the Internet via 4G technology and
share the bandwidth through a Wi-Fi network. It is easy to configure and
operate even for non-technical users. This manual contains instructions
for installing and configuring the product. Read the manual carefully
before you use the product, so that you can fully exploit the product
functions.

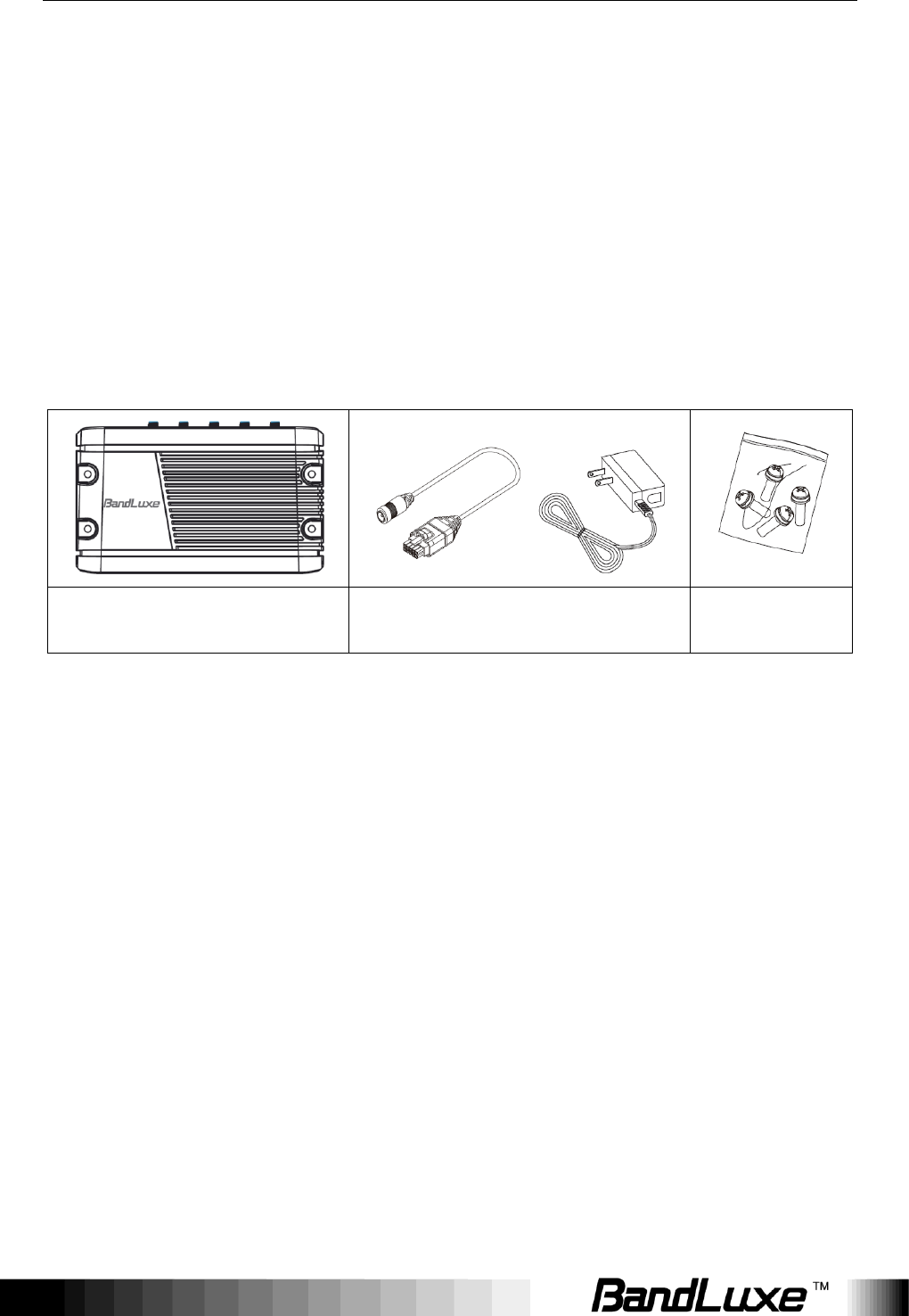

Package Contents
K530 series LTE M2M &
Vehicle Mount Router
Power Adaptor
AC cord Cable
MOUNT_ACC
ESSORY (M4)
Features
LTE Cat3 and 3GPP Rel0 compatible with HSPA+ or EVDO
fallacksupport.
High performance module and router platform targeted for m2m
and mission critical applications.
IP64 and MIL 810 ruggedized design for extreme environments.
Operation temp: -20~70°C (-4~158°F), 12V or 24V DC, accepting
9~32V voltage swing.
5 SMA antenna ports- 2x LTE/HSPA+/EVDO, 2x WiFi, 1xGPS
(support 3.3V DC active antenna).
802.11 b/g/n 2x2 MIMO wireless networking.
6 x LEDs status indication, 2x Ethernet ports, 1x USB port.
IPSec VPN client and VPN pass-through modes.
Composite GPS and Glonass for quicker positioning fix and better
accuracy.
Package Contents
3

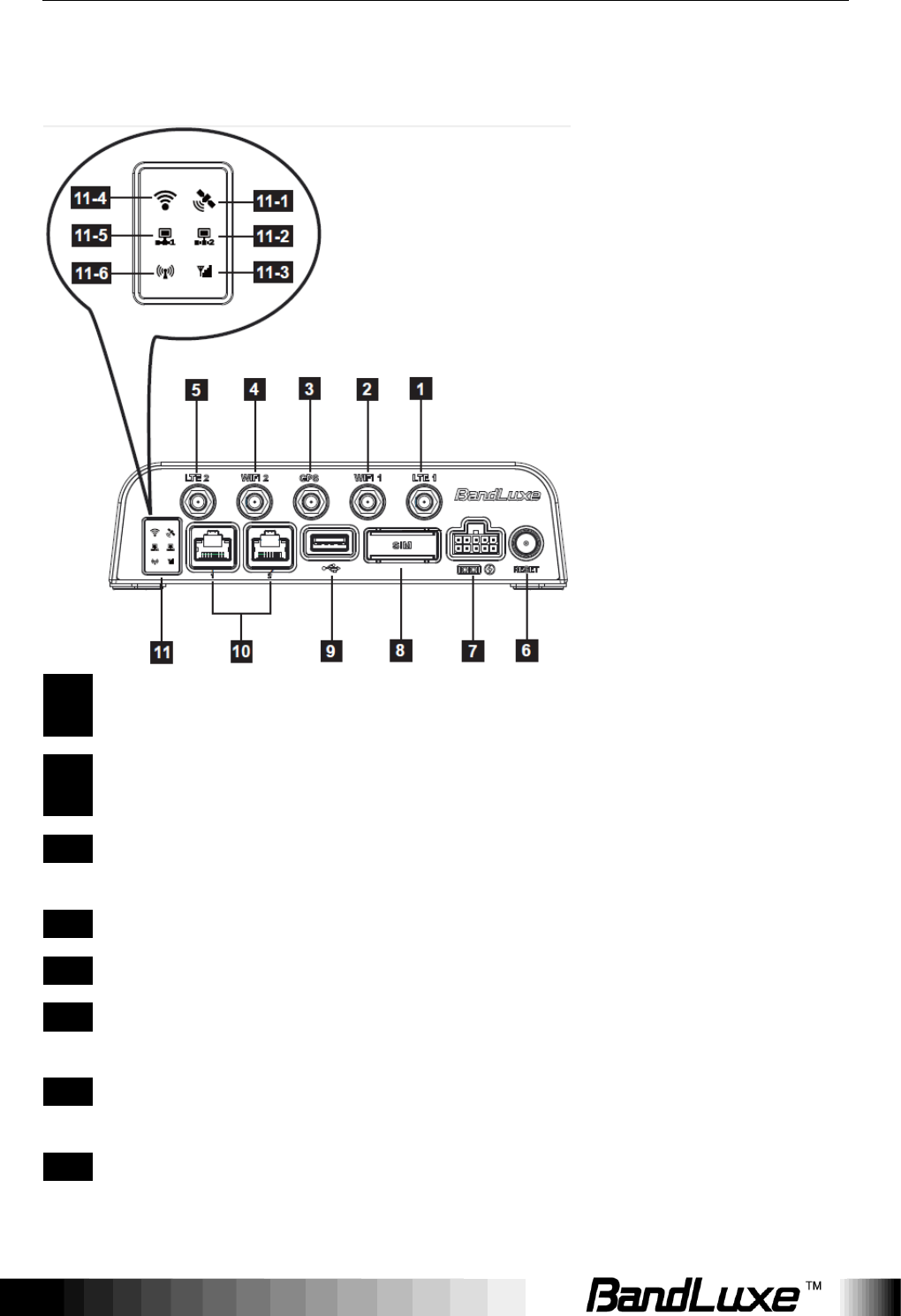

Hardware Overview
4G External
Antenna Ports
Connect 4G External Antennas.
WiFi External
Antenna Ports
Connect WiFi External Antennas
GPS External
Antenna Port
This connects a GPS antenna to the device.
Reset Switch
Restore to factory default settings.
Power Port
This connects power to the device.
SIM Card Slot
Embedded SIM as default, also 1 x SIM
(SIM/USIM) slot for external plug in for back up.
USB Port
Connect a Windows PC to it to monitor and
configure the device.
RJ-45 Ports
This RJ-45 connector connects a standard
Ethernet cable to the device.
Package Contents
4
11
LED indicators
These show the device’s operating status.
11-1
GPS LED
(Blue) GPS on
11-2
LAN1 LED
(Blue) LAN port 1 transmiting.
11-3
Signal Strength
LED
(Blue) Good
(Green) Normal
(Red) Bad
11-4
WiFi LED
(Blue) WiFi on
11-5
LAN2 LED
(Blue) LAN port 2 transmiting.
11-6
Network Status
LED
(Blue) LTE connection
(Green) 3G connection
(Red) Error
Connection
5
Connection

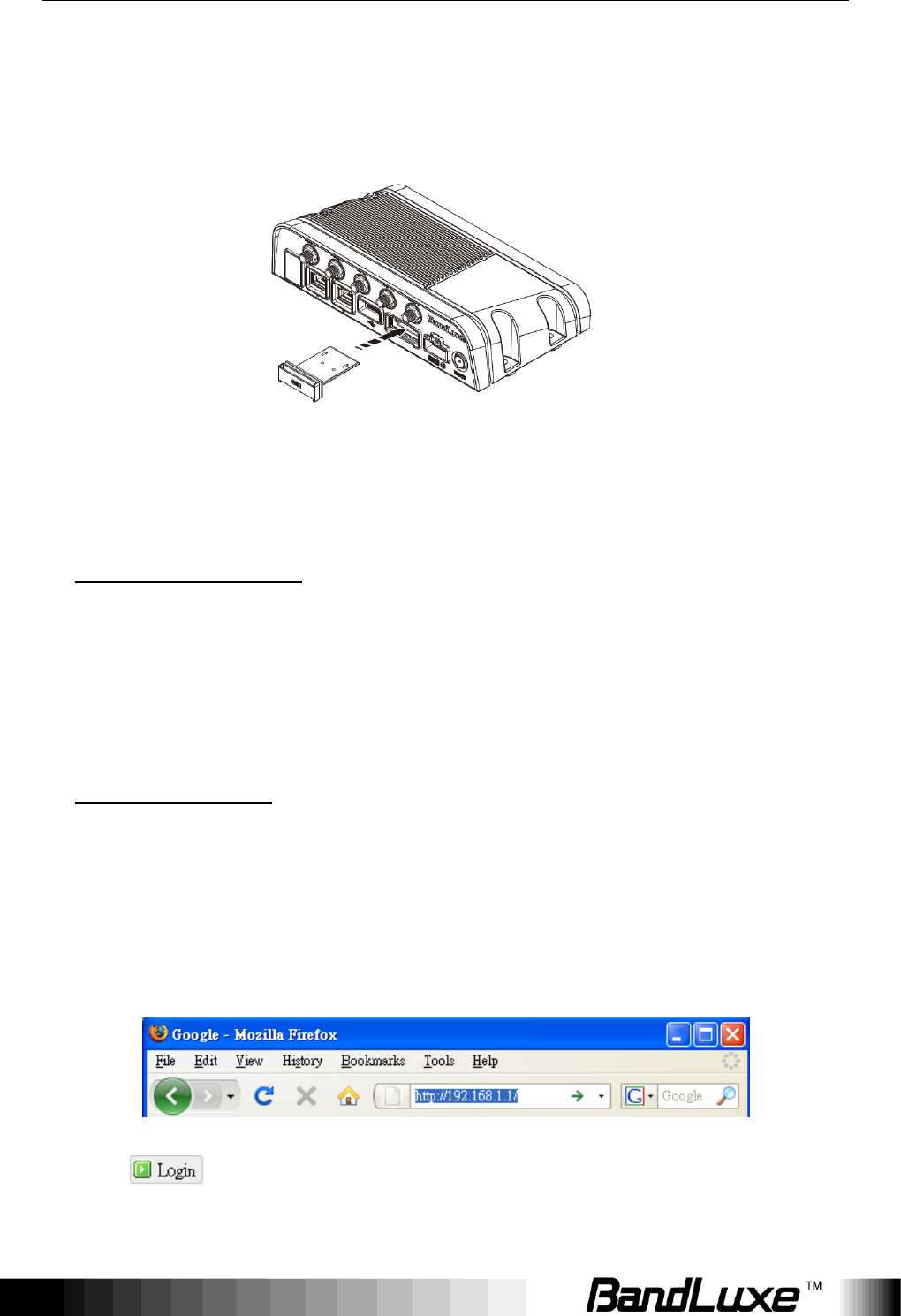

1. Insert your SIM card into the slot on the router, making sure the SIM
card orientation matches the SIM card slot, as shown in the picture.
2. Connect the power adaptor to the router and connect it to an outlet.
3. One of the following two methods can be chosen to link your PC with
the Router.
Wireless Connection(for Windows)
To connect your PC to the Router via WiFi, in Microsoft Windows, go to
Control Panel > Network Connections. Right click on Wireless
Network Connection and choose View Available Wireless
Networks. Select default SSID [BR_LTE_xxxx] and enter default
password (Last 8 digits of IMEI). Click Connect. The “xxxx”
corresponds with the last 4 digits of MAC address.
Wired Connection
To connect your PC to the Router via an Ethernet cable, connect one
end of the cable to one of the four LAN ports on the Router, and
another end of the cable to an Ethernet port on your computer.
4. The router uses a web-based configuration utility. To access the
configuration utility, open a browser and enter the IP address
(http://192.168.1.1) for the Router in your browser’s address bar.
Enter the router Username (admin) and Password (admin), and then
click .
Appendix B: Specifications
6
Appendix B: Specifications
Note: Specifications are subject to change without notice.
WLAN
802.11 b/g/n (2x2 MIMO)
Cellular Modem
Embedded, 3GPP Rel 9, LTE FDD&TDD/eHRPD/EVDO/CDMA
Dimension (LxWxH, mm)
160 x 94 x 44
Weight (g)
474
Interface
Reset Button
Yes
RJ45 Ports
2 x RJ-45, 10/100 LAN ports
DC Power Jack
12V or 24V, accepting 9~32 V voltage swing
SIM Slot
Embedded SIM as default, also 1 x SIM slot for external plug in for back up
USB Port
1 x USB port, for USB client device plug in only. K530S serve as USB host.
Connectivity and Data Speed
4G LTE Band
Band 25, Band 26, Band 41
LTE Data Rate
FDD Downlink up to 100Mbps, Uplink up to 50Mbps
TDD Downlink up to 68Mbps, Uplink up to 17Mbps (in configuration 3)
LTE Bandwidth
Up to 20 MHz
3G EVDO/CDMA Band
BC0, BC1, BC10
WLAN
802.11 b/g/n, 2x2 MIMO
Antenna
Cellular embedded main antenna
No
Cellular embedded diversity antenna
No
Cellular external main antenna port
Yes SMA type
Cellular external diversity antenna port
Yes SMA type
WiFi antenna
No Embedded
WiFi external antenna port
2 x SMA ports
GPS antenna port
Yes SMA type, supporting 3.3V DC Active Antenna
Router Features
Routing
Static Routing, Dynamic Routing (RIP, BGP, OSPF)
Security
Multiple VPN pass-through (IPSec, PPTP, L2TP), Stateless and SPI Firewall
NAT-NAPT
Single Port Forwarding, Port Range Forwarding, Port Range Triggering, Port
Filtering, IP Filtering, DMZ, UPnP, Multicast Pass-Through
VPN
IPSec, SSL
DNS
DNS Agent, DDNS
Other features
IPv4 and IPv6, TCP, UDP, ICMP, ARP, DHCP Server/Client, HTTP/HTTPs, NTP,
ALGs
Wireless LAN
802.11b data rate
1/2/5.5/11 Mbps
802.11g data rate
Up to 54 Mbps
802.11n data rate
Up to 300 Mbps
Security Types
WPA/WPA2 AES/TKIP Encription, WPA/WPA2 PSK, WPA/WPA2 Enterprise,
None/64/128 bits WEP Encryption, open system authentication.
Device Unique
Default Encryption Key
Such unique key is linked to IMEI address of the device
Channel Selection
Auto or Manual
Appendix B: Specifications
7
Other features
SSID broadcast disable, Dual SSID, Access control (MAC filtering), WLAN
on/off software switch.
Status Indication
6x LED Display
#1 cellular technology (Blue: LTE, Green: EVDO/CDMA, Red: SIM error or
service failure)
#2 signal strength (tri-color)
#3 LAN 1
#4 LAN 2
#5 GPS
#6 WiFi
Software Features
Web GUI
Yes,
Browser supported: IE, Firefox, Safari, Chrome
Web GUI Language Support
English
Connection Status in Web GUI
Network name, Signal strength, Roaming indication, Radio
technology, Connection status, Connection time, Connection
Statistics.
Connection management
Connection on demand, Connection when available, Auto APN
matching with USIM, APN database update through browser-based
GUI, APN profile, PIN management, Preferred radio NW type
selection
System protection
Password protected administrator and user access authority
(provisioning, configuration, authentication).
GNSS
Supports GPS and Glonass composite location data for remote
server and local access
Support FW version upgrade
Yes
Device Management
TR-069, OMA-DM, Remote GUI Log-in
Environment
Operation Temperature
-20oC to 70oC (-4oF to 158oF)
Storage Temperature
-40oC to 85oC (-40oF to 1850F)
Operating Humidity
10% to 85% Non-Condensing
Storage Humidity
5% to 90% Non-Condensing
Certitification & Conformance
RoHS, IP64, MIL 810-G, FCC, Sprint Certification
Appendix B: Specifications
8
Appendix C: Important Safety
Information and Glossary
Federal Communications Commission
NOTE: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to pro-vide reasonable protection against
harmful interference when the equipment is operate din a commercial
environment. This equipment generates, uses, and can radiate
radiofrequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
FCC Caution: Any changes or modifications not expressly approved
by the party responsible for compliance could void the user's authority
to operate this equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed
and operated with minimum distance 20cm between the radiator &
your body.
Note: The country code selection is for non-US model only and is not
available to all US model. Per FCC regulation, all WiFi product
marketed in US must fixed to US operation channels only.
